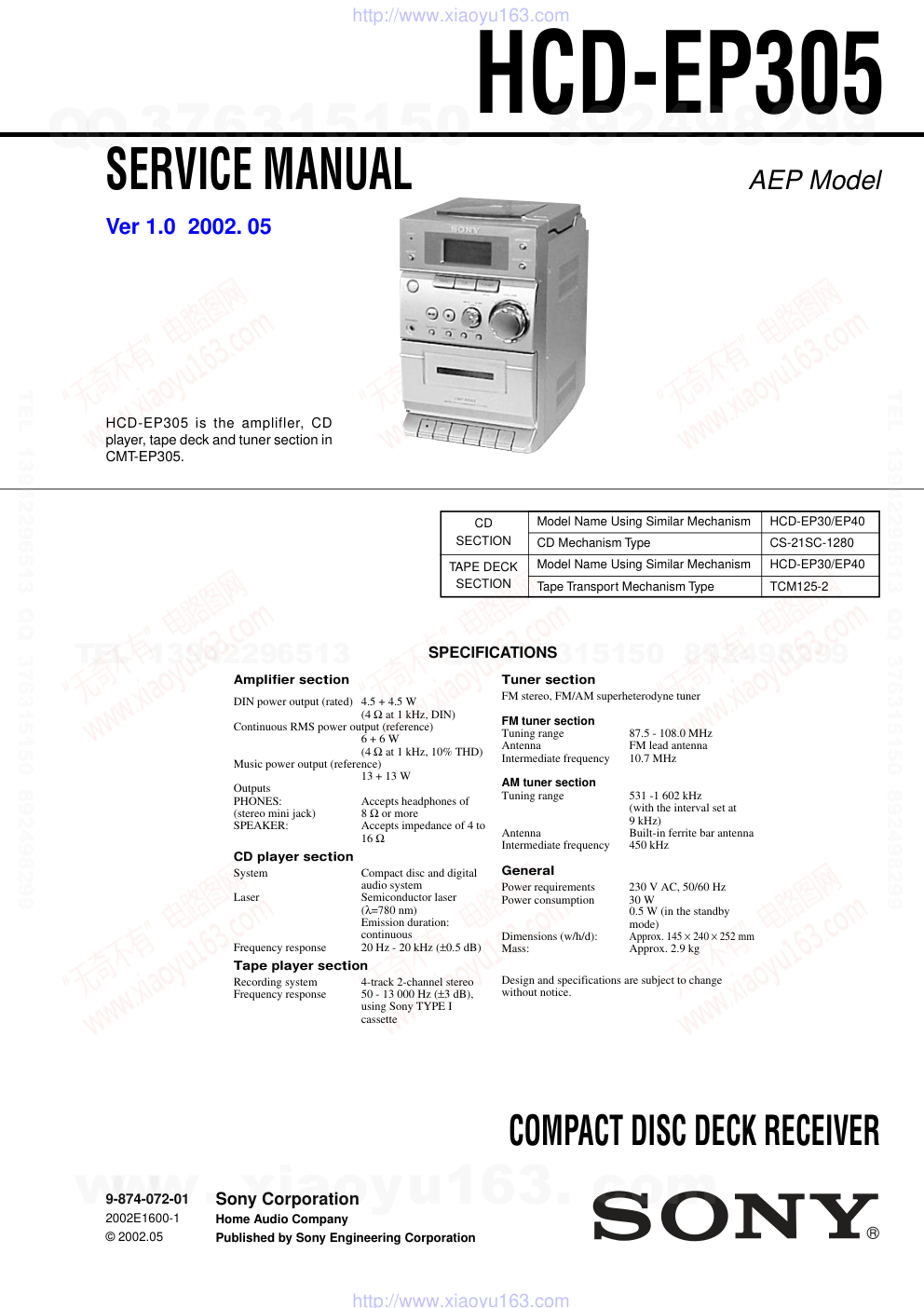

HCD-EP305 AEP Model SERVICE MANUAL COMPACT DISC DECK RECEIVER Sony Corporation Home Audio Company Published by Sony Engineering Corporation 9-874-072-01 2002E1600-1 © 2002.05 HCD-EP305 is the amplifler, CD player, tape deck and tuner section in CMT-EP305. SPECIFICATIONS Ver 1.0 2002. 05 CD Model Name Using Similar Mechanism HCD-EP30/EP40 SECTION CD Mechanism Type CS-21SC-1280 TAPE DECK Model Name Using Similar Mechanism HCD-EP30/EP40 SECTION Tape Transport Mechanism Type TCM125-2 Amplifier section DIN power output (rated) 4.5 + 4.5 W (4 Ω at 1 kHz, DIN) Continuous RMS power output (reference) 6 + 6 W (4 Ω at 1 kHz, 10% THD) Music power output (reference) 13 + 13 W Outputs PHONES: Accepts headphones of (stereo mini jack) 8 Ω or more SPEAKER: Accepts impedance of 4 to 16 Ω CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ=780 nm) Emission duration: continuous Frequency response 20 Hz - 20 kHz (±0.5 dB) Tape player section Recording system 4-track 2-channel stereo Frequency response 50 - 13 000 Hz (±3 dB), using Sony TYPE I cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 - 108.0 MHz Antenna FM lead antenna Intermediate frequency 10.7 MHz AM tuner section Tuning range 531 -1 602 kHz (with the interval set at 9 kHz) Antenna Built-in ferrite bar antenna Intermediate frequency 450 kHz General Power requirements 230 V AC, 50/60 Hz Power consumption 30 W 0.5 W (in the standby mode) Dimensions (w/h/d): Approx. 145 × 240 × 252 mm Mass: Approx. 2.9 kg Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. The following caution label is located inside the unit. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. HCD-EP305 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. TABLE OF CONTENTS 1. SERVICING NOTES ······················································ 3 2. GENERAL ·········································································· 4 3. DISASSEMBLY ································································ 6 3-1. Front Panel Section ...................................................... 6 3-2. MAIN Board ................................................................ 7 3-3. Tape Mechanism Deck (TCM125-2) ........................... 7 3-4. POWER Board, Power Transformer ............................ 8 3-5. DISPLAY Board, HEADPHONE Board ..................... 8 3-6. CD Cabinet Section...................................................... 9 3-7. CD Mechanism Deck (CS-21SC-1280) ....................... 9 3-8. Cassette Lid ................................................................ 10 4. MECHANICAL ADJUSTMENTS ····························· 11 5. ELECTR ICAL ADJUSTMENTS ······························ 11 6. DIAGRAMS ······································································ 15 6-1. Circuit Boards Location ............................................. 15 6-2. Block Diagrams.......................................................... 16 6-3. Printed Wiring Board MAIN Section........................ 19 6-4. Schematic Diagram MIAN Section (1/2).................. 20 6-5. Schematic Diagram MIAN Section (2/2).................. 21 6-6. Printed Wiring Board CASSETTE Section............... 22 6-7. Schematic Diagram CASSETTE Section ................. 22 6-8. Printed Wiring Board DISPLAY Section .................. 23 6-9. Schematic Diagram DISPLAY Section..................... 24 6-10. Printed Wiring Board POWER Section .................... 25 6-11. Schematic Diagram POWER Section ....................... 26 6-12. IC Pin Function Description ...................................... 29 7. EXPLODED VIEWS ······················································ 30 7-1. Cabinet Section .......................................................... 30 7-2. Front Panel Section -1 ................................................ 31 7-3. Front Panel Section -2 ................................................ 32 7-4. CD Cabinet Section.................................................... 33 8. ELECTRICAL PARTS LIST ······································· 34 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-EP305 SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK 1. Press the ?/1 button to the power ON with no disc inserted and press the CD button. 2. Open the lid for CD. 3. Turn on SW600 as following figure. 4. Confirm the laser diode emission while observing the objecting lens. When there is no emission, Auto Power Control circuit or Optical Pick-up is broken. Objective lens moves up and down five times for the focus search. SW600 CASSETTE board MAIN board HEADPHONE board at least 30 mm heatsink TO PREVENT ‘TAPE OSCILLATION SOUND AT VOLUME’ MAXIMUM SETTING (W/O TAPE) Headphone wire dressing: a.) Draw the wire from Main board to Headphone board along the bottom side of heatsink. b.) The wire must be kept away from the top side of Cassette board at least 30 mm. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-EP305 SECTION 2 GENERAL This section is extracted from instruction manual. Main unit R – Z Remote sensor q; REPEAT (8) SHUFFLE (8) TAPE (12) TIMER indicator (15) TUNER (10, 11, 13) TUNER MEM (10) TUNING +/– (10, 11) VOLUME control ALPHABETICAL ORDER A – P Cassette compartment qd (12) CD 4 (8, 9, 13) Display Window 5 8, 9, 10) ENTER/PGM 8, 9, 10, 14) MEGA BASS (14) MUSIC MENU 9 (14) PHONES jack PRESET +/– (10, 11) BUTTON DESCRIPTIONS @/1(power) (6) CD .m /M> (go back/go forward) (8, 9) u (play/pause) (8, 9) Z PUSH OPEN/CLOSE (8) x (stop) (8) TAPE M (fast forward) (12) X (pause) (12, 13) N (play) (12) z (recording) (13) m (rewind) (12) xZ (stop/eject) (12, 13) w; 8 ws qs 2 wa 3 1 6 w; wd qa wh wd wf 7 wg qh qf qk ql qj qg www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-EP305 Setting the clock 1 Turn on the system. 2 Press CLOCK/TIMER/SLEEP SET on the remote. 3 Press CLOCK/TIMER + or – on the remote repeatedly to set the clock. 4 Press TUNER MEM/ENTER/PGM on the remote. The clock starts working. To adjust the clock Perform from step 2. Note The clock settings are canceled when you disconnect the power cord or if a power failure occurs. Remote control ALPHABETICAL ORDER A – P CD/REMAIN (7, 8, 9, 13, 15, 16) CLOCK/TIMER + (7, 14, 15) CLOCK/TIMER – (7, 14, 15) CLOCK/TIMER/SLEEP SET (7, 14, 15) MEGA BASS (14) MUSIC MENU (14) MUTING (14) PRESET +/– (10, 11) R – Z REPEAT (8) SHUFFLE (8) TAPE (12) TIMER ON/OFF (15) TUNER/BAND (10, 11, 13) TUNER MEM/ENTER/PGM (7, 9, 10, 14, 15) TUNING + (10, 11) TUNING – (10, 11) VOL (volume) +/– BUTTON DESCRIPTIONS m (rewind) M (fast forward) qg (8) . (go back) > (go forward) qg (8, 9) u (play/pause) qh (8, 9) @/1 (power) 3 (6) x (stop) qj (8, 9, 12) ql 8 qd 1 qs qa q; qf 6 5 qk 2 4 8 qd 9 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-EP305 SECTION 3 DISASSEMBLY • The equipment can be removed using the following procedure. CD CABINET SECTION DISPLAY BOARD, HEADPHONE BOARD FRONT PANEL SECTION TAPE MECHANISM DECK (TCM125-2) CD MECHANISM DECK (CS-21SC-1280) CASSETTE LID MAIN BOARD POWER BOARD, POWER TRANSFORMER SET 3-1. Front Panel Section 8 connector (CN203) 5 two screws (+K3 × 5) 3 two screws (+BTP2.6 × 10) 1 screw (+BVTP3 × 10) 4 two screws (+BVTP3 × 10) 5 two screws (+K3 × 5) 5 two screws (+K3 × 5) 9 connector (CN402) 0 connector (SW600) qa front panel section 7 2 antenna cover cabinet 6 claw Note : Follow the disassembly procedure in the numerical order given. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-EP305 3-2. MAIN Board 6 connector (CN202) 5 connector (CN201) 4 connector (CN302) 3 connector (CN301) 2 connector (CN101) 1 connector (CN204) 0 MAIN board 8 claw 7 screw (+BTP2.6 × 8) 9 3-3. Tape Mechanism Deck (TCM125-2) 4 CASSETTE board 3 1 connector (CN701) 2 two screws (+BTP2.6 × 6) 6 two screws (+BVTP3 × 10) 6 two screws (+BVTP3 × 10) 7 tape mechanism deck 5 Open the cassette lid. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-EP305 3-4. POWER Board, Power Transformer 9 screw (+BTP2.6 × 8) 3 screw (+BVTP3 × 10) 1 screw (+BVTP3 × 10) 4 four screws (+BVTP3 × 12) 6 power transformer 5 POWER board q; power pwb mounting bkt 2 AC cord holder 7 Remove four solderings. 8 Remove four solderings. rear cabinet assy 3-5. DISPLAY Board, HEADPHONE Board 3 screw (+PTPWH2.6 × 10) 5 HEADPHONE board 4 reteiner board 2 DISPLAY board 1 seven screws (+BTP2.6 × 10) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-EP305 3-6. CD Cabinet Section 1 two screws (+BTP2.6 × 8) 2 CD cabinet section 3-7. CD Mechanism Deck (CS-21SC-1280) 1 two screws (BVTP3 × 10) 4 CD cover housing 8 vibration proof rubber (pink) 8 vibration proof rubber (pink) 6 four fiber washers 5 four pulley screws 8 vibration proof rubber (orange) 8 vibration proof rubber (orange) 9 CD mechanism deck (CS-21SC-1280) 6 3 7 two spring clamps 7 two spring clamps 2 Remove the connector. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-EP305 3-8. Cassette Lid 1 Push stop/eject key. 4 cassette lid 3 claw 3 claw 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-EP305 SECTION 4 MECHANICAL ADJUSTMENTS SECTION 5 ELECTRICAL ADJUSTMENTS PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened swab : record/playback head pinch roller erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. (Do not bring the head magnetizer close to the erase head.) 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement Tape Tension Measurement Mode Torque Meter Meter Reading FWD CQ-403A more than 100 g (more than 3.53 oz) PRECAUTION 1. Setting MEGA BASS switch : OFF TAPE DECK SECTION 0 dB=0.775 V Test tape Mode Torque Meter Meter Reading 2.95 – 6.86 mN•m FWD CQ-102C (30 – 70 g•cm) (0.42 – 0.97 oz•inch) 0.15 – 5.39 mN•m FWD CQ-102C (1.5 – 5.5 g•cm) Back Tension (0.021 – 0.076 oz•inch) more than 5.89 mN•m FF CQ-201B (more than 60 g•cm) (more than 0.83 oz•inch) more than 5.89 mN•m REW CQ-201B (more than 60 g•cm) (more than 0.83 oz•inch) Type Signal Used for WS-48A 3 kHz, 0 dB Tape Speed Adjustment P-4-A063 6.3 kHz, –10 dB Head Azimuth Adjustment Record/Playback Head Azimuth Adjustment Procedure: 1. Mode: Playback level meter test tape P-4-A063 (6.3 kHz, –10 dB) set HEADPHONE board PHONES jack (JK401) 32 Ω + – 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the parts adjusted. Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak test tape P-4-A063 (6.3 kHz, –10 dB) L-CH R-CH HEADPHONE board PHONES jack (JK401) oscilloscope V H + + – – screen pattern in phase good wrong 45 ° 90 ° 135 ° 180 ° 32 Ω 32 Ω set www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-EP305 Tape Speed Adjustment Setting: Function: TAPE Procedure: 1. Playback WS-48A (tape center) in the FWD state. 2. Adjsut the volume in CAPSTAN/REEL motor (M201) so that the frequency counter reading becomes 3,000 Hz. Specified Value: 2,910 to 3,090 Hz 3. Confirm that the frequency at the beginning and that at the end of tape winding are between 2,955 to 3,045 Hz. Adjustment Location: frequency counter test tape WS-48A (3 kHz, 0 dB) set HEADPHONE board PHONES jack (JK401) – + 32 Ω CAPSTAN/REEL motor (M201) Tape Speed Adjustment Adjustment Location: Record/Playback Head. Note: Refer to “3-8. Cassette Lid” (see page 11) adjustment screw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-EP305 TUNER SECTION 0 dB=1 µV [AM] Setting: Function : TUNER Band switch : AM [FM] Setting: Function : TUNER Band switch : FM • Repeat the procedures in each adjustment several times, and the frequency coverage and tracking adjustments should be finally done by the trimmer capacitors. AM RF signal generator 30% amplitude modulation by 400 Hz signal Output level: as low as possible Put the lead-wire antenna close to the set. + – level meter set 32 Ω HEADPHONE board PHONES jack (JK401) FM RF signal generator 22.5 kHz frequency deviation by 400 Hz signal Output level: as low as possible + – level meter set 32 Ω 0.01 µF MAIN board FM ANT HEADPHONE board PHONES jack (JK401) digital voltmeter 100 kΩ MAIN board TP10 (FM VT) TP11 (AM VT) AM FREQUENCY COVERAGE ADJUSTMENT Adjustment Part Frequency Display Reading on Digital Voltmeter Confirmation 531 kHz 1.5 ± 0.2 V T102 1,602 kHz 7.3 ± 0.3 V AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L110 603 kHz TC102 1,404 kHz FM FREQUENCY COVERAGE ADJUSTMENT Adjustment Part Frequency Display Reading on Digital Voltmeter L104 87.6 MHz 2.1 ± 0.2 V Confirmation 108 MHz 7.0 ± 0.4 V FM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L103 89.9 MHz TC101 105.9 MHz Adjustment Location: MAIN board (See page 14) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-EP305 Adjustment Location and Connecting Points – MAIN BOARD (Component Side) – L104 FM Frequency Coverage Adjustment T102 AM Frequency Coverage Adjustment AM Tracking { L110 Adjustment TC102 FM Tracking TC101 Adjustment { L103 – MAIN BOARD (Conductor Side) – TP10 (FM VT) TP11 (AM VT) IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 HCD-EP305 Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. p: pF. 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • 2 : nonflammable resistor. • C : panel designation. Note on Printed Wiring Board: • W : indicates side identified with part number. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Indication of transistor • A : B+ Line. • H : adjustment for repair. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. no mark : FM < > : CD (STOP) • Circled numbers refer to waveforms. • Signal path. F : FM f : AM E : PB (TAPE) a : REC (TAPE) J : CD PLAY • Waveforms – MAIN Board – – CASSETTE Board – – DISPLAY Board – 1 IC102 ws (XOUT) 3.4 Vp-p 139 ns 1 V/DIV, 40 ns/DIV 2 Q705 (Collector) (RECORD mode) 2 V/DIV, 4 µs/DIV 3 IC601 tl (X2) 1 V/DIV, 100 ns/DIV 6.0 Vp-p 12.4 µs 5.2 Vp-p 167 ns B These are omitted. C E SECTION 6 DIAGRAMS 6-1. Circuit Boards Location MAIN board LED board HEADPHONE board CASSETTE board DISPLAY board POWER board Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 HCD-EP305 6-2. Block Diagrams Tuner/Tape Deck Section : FM : AM • Signal Path • R-CH is omitted due to same as L-CH. : PB(TAPE) : REC(TAPE) 9 13 12 11 1 3 10 5 15 7 7 16 18 19 20 15 8 11 12 6 4 5 3 7 2 4 3 1 22 Q101 FM OSC BUFFER Q102 BAND SWITCH Q703 MUTING CONTROL SWITCH Q704 MUTING CONTROL SWITCH Q702 MUTING Q104 AMP Q601 BUFFER BPF ANT1 AMRF IN AM OSC 24 FMRF IN 22 FMRF OUT FM OSC 20 QUAD AM OSC BUFFER FM ANT L110 AM ANT D105 T102 AM OSC L103 FM RF D103 D104 L104 FM OSC F101 10.7MHz T103 X101 10.7MHz PD LRFIN LPFOUT FMIN AMIN BO1 IO1 IFIN DO DI CL CE IC102 FM/AM PLL X102 7.2MHz XIN XOUT AM MIX FM MIX FM DET SD AM/FM IF BUFFER AM IF 16 17 L R IC101 AM/FM IF AMP, MIX, MPX, DET, OSC REC BIAS OSC Q706 SW701 (3/6) REC PB R-CH L R T701 REC BIAS ERASE HEAD REC/PB HEAD AMP ALC CONT ALC IN1 IN1 OUT1 M 41 36 37 47 38 60 (CAPSTAN/REEL) STEREO 45 SYNCRO TUNER SD ST PLLDI PLLCE PLLCL PLLDI PLLCE PLLCL STOUT SIG SIG ST PLLDI PLLCE PLLCL STOUT AMP SECTION B AMP SECTION C AMP SECTION D DISPLAY SECTION E AMP SECTION A IC701 ALC REC/PB AMP IC601 (1/3) SYSTEM CONTROLLER R-CH TUNER L-CH PL RL DC_12V (MAGNET) COTR S201 (PLAY) + TC102 TC101 FM FREQUENCY COVERAGE AM FREQUENCY COVERAGE AM TRACKING FM TRACKING F102 PLLDO SELECT M201 SW701 (4/6) PB REC SW701 (6/6) PB REC SW701 (5/6) REC PB w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 HCD-EP305 AMP Section • Signal Path • R-ch is omitted due to same as L-ch. : FM : CD : PB(TAPE) : REC(TAPE) IC203 FUNCTION SELECT SWITCH, ELECTRONIC VOLUME Q301,302 MUTING Q314 MUTING CONTROL SWITCH Q201 REC AMP Q206 MEGA BASS R-CH R-CH R-CH RL LTCOM LTOUT LVRIN LVROUT L3 CD CD L CD L CD R CDDAT CDCLK CDRS TUNER L-CH PL L4 TUNER L2 TAPE DI CE 46 52 BASS BOOST MUTE 1 10 9 11 15 16 2 12 11 5 3 3 4 40 DATA 34 CD-RESET 42 CD CLOCK 61 CD DATA D332 D333 + + + + – + – SPEAKER (IMPEDANCE USE 4Ω) L R PHONES SPK301 JK401 IC601 (2/3) SYSTEM CONTROLLER D A B C CL 14 39 CLOCK 48 CE TAPE SECTION TUNER SECTION TAPE SECTION TAPE SECTION H DISPLAY SECTION CD BLOCK 30 TAPE COTR DATA CLOCK IC301 POWER AMP w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 HCD-EP305 Display/Power Section LD621 LIQUID CRYSTAL DISPLAY COM0 ı COM3 KEY R0 ı KEY R3 Q1 ı Q7 X AMP SECTION H X TUNER SECTION E S0 ı S31 44 REMOTE X602 6MHz 58 X1 59 X2 31 CD IC601 (3/3) SYSTEM CONTROLLER, LIQUID CRYSTAL DISPLAY DRIVER 29 TUNER 51 PSW 32 TIMER STATUS 35 SURROUND 68 CPU RESET 6V CD 8V Q116 B+ SWITCH Q602 SWITCH TUNER +9V D317 D307 D310 D308 D311 Q308, 309 +8V REGULATOR Q313 +9V REGULATOR Q312 +6V REGULATOR ZD401 +6V REGULATOR 9V D401 – 404 RECT D411 – 414 RECT Q401,402 POWER ON/OFF RELAY DRIVE Q310,311 REGULATOR CONTROL SWITCH TR402 POWER TRANSFORMER (SUB) D405 – 408 RECT RL401 AC IN TR401 POWER TRANSFORMER (MAIN) REM601 REMOTE CONTROL RECEIVER 1 53 SW601 - 615, 621, 622 KEY MATRIX DPSW2/SLEND IC301 (POWER AMP) IC603 RESET SIGNAL GENERATOR D611 - 615 2 3 4 - 7, 14 -12 IC602 KEY CONTROL DATA CLOCK SW600 Z PUSH OPEN/CLOSE D607 D608 D619 TIMER 64-67 21-24 69-80, 1 -20 DC_15V DC_12V D1 - D3 (LCD BACK LIGHT) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 19 HCD-EP305 6-3. Printed Wiring Board MAIN Section • See page 15 for Circuit Boards Location. IC203 IC101 IC102 IC301 L110 AM FERRITE-ROD ANTENNA A K A K MAIN BOARD E E E A K TP10 (FMVT) TP11(AMVT) 1 2 3 A A K K E FM ANT ANT1 E E SPEAKER (IMPEDANCE USE 4 ¶ ) SPK301 + – + – L R A A K K A K A K A A A A K K A K A A K K K A A A K K K A K A A K K K S201 M201 (PLAY) (CAPSTAN/REEL) M 2 1 3 4 B CASSETTE BOARD (Page 22) C DISPLAY BOARD (Page 23) D DISPLAY BOARD (Page 23) A DISPLAY BOARD (Page 23) E E E E E CD BLOCK * * SUPPLIED AS THE ASSEMBLED BLOCK E E E E E HEADPHONE BOARD JK401 PHONES 3 4 5 6 1 2 1 5 E POWER BOARD CN402 (Page 25) D309 A B C D E F G H I 1 2 3 4 5 6 7 8 9 10 11 Ref. No. Location D101 C-5 D102 C-5 D103 B-8 D104 C-9 D105 B-6 D306 G-7 D307 H-9 D308 G-8 D310 H-9 D311 I-9 D312 G-7 D314 G-7 D316 G-7 D317 H-9 D331 D-6 D332 D-6 D333 E-7 D334 F-7 D335 G-7 IC101 B-10 IC102 D-9 IC203 E-5 IC301 G-5 Q101 D-10 Q102 C-10 Q104 B-11 Q116 E-11 Q201 D-4 Q202 E-4 Q205 F-5 Q206 D-4 Q301 F-6 Q302 F-6 Q308 H-8 Q309 H-8 Q310 H-8 Q311 H-8 Q312 G-7 Q313 I-8 Q314 G-7 ZD302 H-7 ZD304 I-6 ZD305 G-7 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 HCD-EP305 6-4. Schematic Diagram MIAN Section (1/2) IC B/D IC B/D DSIPLAY BOARD A (Page 24) MAIN BOARD (2/2) 1 (Page 21) 0 6.4 6.4 6.4 0.7 1.2 1.2 1.2 0 4.5 5.8 0.6 1 0.6 0 5.8 2.8 2.1 0.9 1.2 1.3 6.6 6.4 0 2.3 0 4.7 1 1 1.5 2.3 9.7 9.7 8.9 0 5.1 5 5.3 0.1 0.1 2.3 0 3.7 6.4 6.4 1.3 1.3 1 FM LEAD ANTENNA ANT1 FM ANT C134 0.001 C104 0.001 C107 0.001 C114 0.01 C111 0.001 Q101 2SC1923-O FM OSC BUFFER R104 1.2k R136 6.8k R168 6.8k C119 1u 50V C108 4.7u 50V D105 SVC348T C135 390p C131 0.047 C130 10u 50V R135 4.7k Q104 2SC945TP AMP C127 0.047 C161 0.1 L110 AM-FERRITE-ROD ANTENNA B P F C113 0.01 C120 1u 50V C156 47u 16V C126 0.01 C112 0.001 C147 0.01 C148 2.2u 50V R147 2.2k C151 0.1 C163 100u 16V Q116 2SA733TP-P B+ SWITCH X102 7.2MHz C114 0.022 R145 4.7K R118 3.3k X101 10.7MHz F101 10.7MHz R148 5.6k C145 100p C146 0.001 C117 0.0068 C129 4.7u 50V C118 0.0068 Q102 2SC945TP BAND SWITCH C112 0.22u/ 50V C123 0.47u/ 50V C124 1u/ 50V R112 3.3k C105 0.001 C157 0.1 TP10 (FM VT) IC101 AM/FM IF AMP, MIX, MPX, DET, OSC IC102 FM/AM PLL C116 0.022 C162 0.022 TP11 (AM VT) MAIN BOARD (1/2) L103, TC101 FM TRACKING L104 FM FREQUENCY COVERAGE T102 L110, TC102 AM TRACKING AM FREQUENCY COVERAGE 33p 33p • See page 15 for Waveforms. • See page 27 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 HCD-EP305 6-5. Schematic Diagram MIAN Section (2/2) CASSETTE BOARD B (Page 22) MAIN BOARD (1/2) 1 (Page 20) IC B/D DISPLAY BOARD C (Page 24) DISPLAY BOARD D (Page 24) POWER BOARD CN402 E (Page 26) 5.3 2 1.4 2 1.7 9.7 10.3 15.3 0.7 0 8.6 <0> 15.4 <15> 15.2 <0> 0 <0.7> 0 <0.7> 0 0 9.1 0.6 0.6 17.7 0 0.7 0.6 0 0.7 0 9 16.9 16.9 9 17.3 0.6 <0> 15.4 <9.3> 0 <9.3> 0.9 <9.3> 6.1 5.5 2.1 1.4 2.1 4.7 8.1 0 0 3.8 4 4 4 4 4 4 4 4 0.7 0 4 4 4 4 4 4 4 4 3.8 0 4 0.1 0 SPK301 C306 0.15 C343 10 50V C341 10 50V D311 1N4148 D310 1N4148 C317 0.022 Q309 2SA733TP Q308 KTD2058Y Q313 SC1383 C327 0.022 D317 1N4148 D307 1N4148 D308 1N4148 D309 1N4148 Q311 2SC945TP-QP Q310 2SC945TP-QP Q310, 311 REGULATOR CONTROL SWITCH Q308, 309 +8V REGULATOR Q313 +9V REGULATOR Q312 +6V REGULATOR Q312 2SD1616-L C201 0.1 C329 0.9 C323 0.022 R323 4.7k ZD302 MTZJ-T-72-9.1B ZD304 MTZN-T-72-10B ZD305 MTZJ-T-72-6.2B 1 6 C305 0.15 JK401 1 5 PHONES IC203 FUNCTION SELECT SWITCH, ELECTRONIC VOLUME HEADPHONE BOARD C250 10u 50V C240 0.0022 R242 3.3k D333 1N4148 R265 2.7k R264 2.7k R267 10k R266 10k C249 0.0022 * CD BLOCK * SUPPLIED AS THE ASSEMBLED BLOCK R243 3.3k D306 1N4148 D314 1N4148 Q301 2SC3623-LK Q206 2SC945TP MEGA BASS R303 4.7k C246 0.001 R240 8.2k R250 10k R248 2.2k R234 6.8k C248 0.1 50V C242 4.7u 50V C230 0.0082 C226 0.0033 C220 0.027 C216 0.0082 C222 0.0088 C206 0.1 Q201 2SC945TP Q202 2SC945TP R211 3.9k R210 3.9k C204 1u 50V Q201,202 REC AMP C203 1u 50V C210 0.1 C208 0.1 C205 0.1 C225 0.0033 C229 0.0082 C241 4.7u 50V C209 0.1 C207 0.1 R215 5.6k R219 8.2k C215 0.0082 C219 0.027 C221 0.0082 C214 2.2u 50V C214 2.2u 50V C212 2.2 50V D316 1N4148 D312 1N4148 C315 10 50V C301 0.001 C342 10 50V R343 10K Q302 2SD1616-L C302 0.001 Q314 2SC945 TP-QP Q314 MUTING CONTROL SWITCH R220 8.2K R216 8.2k C211 2.2u 50V C245 0.001 R245 6.8K R239 8.2k R304 4.7k R247 2.2k R249 10k Q205 2SC945TP MEGA RASS C247 0.1 50V C213 2.2u 50V + – + – BIAS CIRCUIT, HEAT OPERATION PROTECTION CIRCUIT IC301 POWER AMP R L SPEAKER (IMPEDANCE USE 4 ¶) MAIN BOARD (2/2) C251 4700p Q301,302 MUTING 0.1 EXCEPT AEP,UK • See page 28 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 22 HCD-EP305 6-6. Printed Wiring Board CASSETTE Section • See page 15 for Circuit Boards Location. 6-7. Schematic Diagram CASSETTE Section 0 1.2 1.4 4.1 0 0 8.1 0 0 4.1 1.4 1.2 0 0.6 0 0.6 0 0 0 0 3.6 9.7 9.7 9.3 No mark:FM 2 R-CH (REC/PB) L-CH (REC/PB) (ERASE) HRPE701 (REC/PB ERASE HEAD) CN701 4P 0.0018 15k 15k 0.0018 SW701 (4/6) (REC/PB) REC R PB SW701 (2/6) (REC/PB) REC r PB SW701 (3/6) (REC/PB) REC t PB 0.0027 0.022 + 50V 0.022 0.0068 Q706 REC BIAS OSC SW701 (6/6) (REC/PB) REC T PB Q704 2SC945 MUTING CONTROL SWITCH 25V + + + 50V 5.6k 1.2k 0.1 SW701 (1/6) (REC/PB) REC R PB 0.1 50V + + 0.022 50V + + 0.1 50V + + 0.1 5.6k 1.2k IN1 NF1 PC1 OUT1 GND IN2 NF2 PC2 OUT2 VCC ALC IN1 ALC CONST ALC IN2 RF SW701 (5/6) (REC/PB) REC r PB 50V + IC701 ALC, REC/PB AMP Q701, 702 MUTING 50V 50V 82k 2SC945 2SC945 2SC945 82k + + CASSETTE BOARD 0.0015 0.0015 330 2SD1616-L 50V 100k 1N4148TP 1N4148TP 4.7k (Page 21) Q703 2SC945 MUTING CONTROL SWITCH MAIN BOARD (2/2) CN201 B IC B/D IC701 CASSETTE BOARD B MAIN BOARD CN201 (Page 19) 1 2 3 4 5 6 E E E E E K A A K SW701 (REC/PB) REC PB HPRE701 REC/PB ERASE HEAD A B C 1 2 3 4 5 Ref. No. Location D701 B-4 D702 B-4 IC701 B-3 Q701 A-4 Q702 B-4 Q703 B-4 Q704 A-2 Q706 C-2 • Semiconductor Location • See page 15 for Waveforms. • See page 28 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 23 HCD-EP305 6-8. Printed Wiring Board DISPLAY Section • See page 15 for Circuit Boards Location. IC601 IC603 REM601 IC602 DISPLAY BOARD LED BOARD LIQUID CRYSTAL DISPLAY C MAIN BOARD CN302 (Page 19) 37 1 MEGA BASS MUSIC MENU + – VOLUME VOLUME D MAIN BOARD CN204 (Page 19) K A + – TUNING TUNING + – PRESET SHUFFLE REPEAT TIMER TAPE CD TUNER TUNER MEM E E K A K K A A K A 1 80 61 60 41 40 21 20 A A K K A K A K A A K K A K A K A K 9 8 1 16 I 1 3 MAIN BOARD CN101 A (Page 19) LCD BACK LIGHT EXCEPT AEP,UK A B C D E 1 2 3 4 5 6 Ref. No. Location D601 C-5 D602 C-4 D607 B-3 D608 B-3 D609 C-2 D610 C-2 D611 C-1 D612 C-3 D613 C-3 D614 C-3 D615 C-3 D616 C-5 D617 D-3 D619 A-6 D647 C-4 IC601 A-4 IC602 C-2 IC603 A-2 Q601 B-5 Q602 C-5 REM601 B-2 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 24 HCD-EP305 6-9. Schematic Diagram DISPLAY Section 2.3 2.3 2.3 2.3 2.3 2.3 2.3 5.3 2.3 2.3 5.2 5.2 5.2 5.2 0.9<4.6> 5.2 4.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 2.3 3.1 4.7 5.3 4.7 5.2 1.6 <9.7>0.1 <4.7>4.3 3.9 <0>1.4 0 0.6 0.6 0 4.6 <4.6>4.3 5.4 <0.1>5.3 0 5.3 0 3 2.5 4.7 4.7 4.7 0 4.7 4.7 0 <4.5>0 0 0 <5.1>.2.6 5.2 <1.9>5.2 4.7 5.3 5.3 5.3 5.3 5.3 5.3 5.3 4.7 5.3 5.4 5.3 5.3 5.4 5.4 5.2 5.2 0.1 MAIN BOARD (1/2) CN101 A (Page 20) 1N4148 1N4148 1N4148 1N4148 1.8k SC945 SC945TR 1.8k Q603,604 SWITCH SEL2215S-CD 2.7k TIMER 1N4148 Q601,602 BUFFER 0.1 0.1 0.1 18p 20p 6MHz 0.1 0.022 PST529D O G I 10 16V 1N4148 1N4148 1N4148 1N4148 TC4094BF 1N4148 1N4148 1N4148 0.1 22 10V 0.1 1N4148 MAIN BOARD (2/2) CN204 D MAIN BOARD (2/2) CN302 C (Page 21) (Page 21) DISPLAY BOARD I/ TAPE TUNER CD MUSIC MENU MEGA BASS TUNER MEM PRESET + PRESET - VOLUME - VOLUME + TUNING + REPEAT SHUFFLE TUNING - LED BOARD COM0 S31 S30 S29 S28 S27 S26 S25 S24 S23 S22 S21 S20 S19 S18 S17 S16 S15 S14 S13 S12 COM1 COM2 COM3 BIAS VLC0 VLC1 VLC2 TUNER TAPE CD TIMER STATUS VSS CD RESET SURROUND PLL CL PLL DI TUNER SD CLOCK DATA S11 S10 S9 S8 S7 S6 S5 S4 S3 S2 S1 IC601 UPD753016AGC S0 CPU RESET KEY R3 KEY R2 KEY R1 KEY R0 12/24H SELECT NC CD DATA PLLDO SELECT X2 X1 IC XT2 XT1 VDD DPSW2/SLEND BASS BOOST PSW RDS DATA SHRST CE PLLCE MUTE SYNCRO REMOTE RDS CLOCK CD CLOCK STEREO IC601 SYSTEM CONTROLLER LIQUID CRYSTAL DISPLAY DRIVER LIQUID CRYSTAL DISPLAY LD621 IC603 RESET SIGNAL GENERATOR IC602 KEY CONTROL (LCD BACK LIGHT) REM601 REMOTE CONTROL RECEIVER REM601 3 • See page 15 for Waveforms. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 25 HCD-EP305 6-10. Printed Wiring Board POWER Section POWER BOARD MAIN BOARD E (Page 19) AC IN TR401 POWER TRANSFORMER E E K A K A A B C D E F 1 2 3 4 5 Ref. No. Location D401 F-4 D402 F-3 D403 F-4 D404 F-4 D405 F-2 D406 F-3 D407 F-2 D408 F-3 D409 D-3 D411 D-4 D412 D-4 D413 D-4 D414 D-4 Q401 D-1 Q402 D-2 ZD401 E-2 • Semiconductor Location • See page 15 for Circuit Boards Location. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 26 HCD-EP305 6-11. Schematic Diagram POWER Section 0.6 0 0.8 1.6 No mark:FM MAIN BOARD (2/2) E CN402 6P C407 100 25V C405 100 25V C401 100 10V R406 390 3W + C404 0.01u C402 0.01u C408 0.01u C406 0.01u TR401 POWER TRANSFORMER MTZJ-6.8B + + + Q401, 402 POWER ON/OFF RELAY DRIVE Q402 2SA733 C411 0.1 Q401 2SC3330 TR402 POWER TRANSFORMER 2.2k C410 680p 250V 82 1/4W 120V RL401 AC IN POWER BOARD 2.2k (Page 21) 510 100k w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 HCD-EP305 • IC Block Diagrams IC101 LA1823 – MAIN Board – 24 23 FM RF 1 AM RF GND2 2 VCC2 REG 3 AM MIX AM OSC OSC BUFFER 4 22 21 VCC1 20 FM OSC PHASE COMP FM MIX DECODER 5 6 19 GND1 7 MUTE 8 18 17 16 9 15 PILOT DET 14 FM DET 13 10 FM S-METER 11 12 ST ST SW FF VCO FF FF TRIG AM IF AM DET AGC FM IF SD IF BUFFER FMRF IN RF GND FMRF OUT VCC2 FM OSC DET OUT MUTE R L AM/FM MO/ST FM DET AMRF IN REG AM OSC VCC1 FM MIX GND FM BUFFER AM OSC BUFFER AM MIX QUAD AMIF SD IC102 LC72131 PHASE DETECTOR CHARGE PUMP SWALLOW COUNTER 1/16, 1/17 4BITS 12BITS PROGRAMMABLE DRIVER UNIVERSAL COUNTER REFERENCE DIVIDER POWER ON RESET 1/2 CCB INTERFACE 1 3 4 5 6 7 8 9 10 18 17 16 15 13 12 11 19 20 21 22 XOUT VSS AOUT AIN PD VDD FMIN AMIN 14 NC XIN DO CL DI CE 2 NC IFIN IO1 BO4 BO3 BO2 BO1 IO2 UNLOCK DETECTOR DATA SHIFT REGISTER LATCH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 HCD-EP305 – CASSETTE Board – IC203 LC75392 IC701 AN7312 + – 3 6 9 12 15 2 5 8 11 14 1 4 7 10 13 28 25 22 19 16 29 26 23 20 17 30 27 24 21 18 + – + – + – LATCH DECODER CONTROL SHIFT REGISTER – + LVROUT LVRIN LTOUT LTCOM LT4 LT3 LT2 LT1 L4 L3 L2 L1 VDD CL DI RVROUT RVRIN RTOUT RTCOM RT4 RT3 RT2 RT1 R4 R3 R2 R1 VREF VSS CE RIPPLE FILTER ALC 14 13 12 1 2 3 11 10 9 AMP. CH2 AMP. CH1 8 4 5 6 7 VCC RF ALC IN2 OUT2 PC2 NF2 IN2 GND ALC CONST ALC IN1 OUT1 PC1 NF1 IN1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 HCD-EP305 6-12. IC Pin Function Description • IC601 µPD753016AGC-F37-3B9 System Controller, Liquid Crystal Display Driver (DISPLAY Board) I/O O O O I O O O O — O O O O I O O I I I I I O O O O I O O I — I O — I O I I/O — I I I O Description Segment drive signal output to the liquid crystal display (LD621) Common drive signal output to the liquid crystal display (LD621) Bias output for the liquid crystal display drive Input terminal for doubler circuit capacitor connection to develop liquid crystal display drive voltage Power on/off control signal output for the tuner section “L ”:power on Audio line muting on/off control signal output “L ”:muting on Power on/off control signal output for the CD section “L ”:power on LED drive signal output of the TIMER indicator (D619)“L ”:LED on Ground terminal Reset signal output to the CD section “L ”:reset Not used (pull up) PLL serial data transfer clock signal output to the FM/AM PLL (IC102) PLL serial data output to the FM/AM PLL (IC102) FM and AM signal meter voltage detection input from the LA1823 (IC101) Serial data transfer clock signal output to the LC75392 (IC203) Serial data output to the LC75392 (IC203) FM stereo detection signal input from the LA1823 (IC101)“L ”:stereo Serial data transfer clock signal input from the CD section Serial data transfer clock signal input from the RDS decoder (IC604) (not used) Remote control signal input from the remote control receiver (RM601) Recording on detection signal input Audio line muting on/off control signal output “H ”:muting on PLL chip enable signal output to the FM/AM PLL (IC102)“H ” active Chip enable signal output to the LC75392 (IC203)“H ” active Not used (open) Serial data input from the RDS decoder (IC604) (not used) System power on/off control signal out “H ”:power on Mega bass on/off selection signal output “H ”:mega bass on CD lid open/close detection switch (SW600)input terminal “L ”:CD lid is closed Power supply terminal Power failure detection input terminal “L ”:power failure,“H ”:power on Not used (open) Internal connection terminal (connected to power supply) Main system clock input terminal (6 MHz) Main system clock output terminal (6 MHz) PLL serial data input from the FM/AM PLL (IC102) Two-way data bus with the CD section Not used (open) Not used (fixed at “H ”) Key return signal input from the key matrix “L ” input when key pressing System reset signal input from the reset signal generator (IC603)“L ”:reset For several hundreds msec.after the power supply rises,“L ” is input,then it changes to “H ” Segment drive signal output to the liquid crystal display (LD621) Pin Name S12 to S31 COM0 to COM3 BIAS VLC0 to VLC2 TUNER TAPE CD TIMER STATUS VSS CD-RESET SURROUND PLL CL PLL DI TUNER SD CLOCK DATA STEREO CD CLOCK RDS CLOCK REMOTE SYNCRO MUTE PLLCE CE SHRST RDS DATA PSW BASS BOOST DPSW2/SLEND VDD XT1 XT2 IC X1 X2 PLLDO SELECT CD DATA NC 12/24H SELECT KEY R0 to KEY R4 CPU RESET S0 to S11 Pin No. 1 to 20 21 to 24 25 26 to 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 to 67 68 69 to 80 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. 30 HCD-EP305 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 7-1. Cabinet Section Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 12 5 1 2 11 9 8 7 6 #1 #1 #4 #2 #2 #2 #2 #3 #5 Front panel section TR401 F401 F402 CD cabinet section #3 #3 #1 3 1 3-451-162-00 WASHER 2 4-235-952-01 AC CORD HOLDER 3 1-500-712-11 CORE, FERRITE 5 A-4676-971-A MAIN BOARD, COMPLETE 06 1-555-750-00 CORD, POWER 7 4-235-974-01 CAB, ANTENNA COVER 8 1-823-170-11 CORD (WITH CONNECTOR) (FM ANT) 9 4-235-972-01 REAR CABINET 11 4-240-251-01 POWER PWB MOUNT ING BKT. 12 A-4676-975-A POWER BOARD, COMPLETE 0F401 1-533-470-11 FUSE, GLASS TUBE (DIA. 5) T3.15AL/250V 0F402 1-533-468-11 FUSE, GLASS TUBE (DIA. 5) T2AL/250V 0TR401 1-437-816-11 TRANSFORMER, POWER #1 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S #2 7-685-647-14 SCREW +BVTP 3X10 TYPE2 SLIT #3 7-682-246-04 SCREW +K 3X5 #4 7-685-535-14 SCREW +BTP 2.6X10 TYPE2 N-S #5 7-685-648-14 SCREW +BVTP 3X12 TYPE2 SLIT #12 7-685-646-14 SCREW +BVTP 3X8 TYPE2 SLIT SECTION 7 EXPLODED VIEWS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 HCD-EP305 7-2. Front Panel Section -1 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 67 68 69 70 71 72 54 55 56 57 58 59 60 61 62 65 78 73 75 76 74 66 51 52 53 #1 #13 #2 #1 #10 #6 not supplied not supplied 77 79 (including M201) 51 4-240-260-01 VOLUME SWING KNOB 52 4-240-256-01 VOLUME SWING SHAFT 53 4-240-245-01 VOLUME DECORATION RING 54 4-240-241-01 DISPLAY WINDOW 55 4-236-899-01 DAMPER 56 4-240-240-01 CASS LID WINDOW 57 4-243-126-01 CASS LID 58 4-240-246-01 CASS LID BKT. 59 4-235-981-01 CASS LID SPRING 60 4-240-247-01 MAIN PWB MOUNT ING BKT.A 61 4-240-249-01 CASS PWB MOUNT ING BKT.A 62 A-4676-974-A CASSETTE BOARD, COMPLETE 65 4-240-259-01 VOLUME SWING LEVER 66 4-235-989-01 VOLUME KNOB SPRING 67 4-240-262-01 CASS KEY (PAUSE) 68 4-240-263-01 CASS KEY (STOP/EJECT) 69 4-240-264-01 CASS KEY (FF) 70 4-240-265-01 CASS KEY (REW) 71 4-240-266-01 CASS KEY (PLAY) 72 4-240-267-01 CASS KEY (REC) 73 4-240-261-01 TUNING SWING KNOB 74 4-240-257-01 TUNING SWING SHAFT 75 4-240-276-01 TUNING KNOB SPRING 76 4-240-258-01 TUNING SWING LEVER 77 7-623-508-01 LUG, 3 78 4-240-250-01 CASS PWB MOUNT ING BKT.A 79 A-4676-962-A CASSETTE DECK BLOCK ASSY #1 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S #2 7-685-647-14 SCREW +BVTP 3X10 TYPE2 SLIT #6 7-685-504-19 SCREW +BTP 2X6 TYPE2 N-S #10 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S #13 7-685-854-04 SCREW +BVTT 2X8 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 HCD-EP305 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 7-3. Front Panel Section -2 115 102 115 115 114 116 120 119 117 113 108 103 111 124 121 123 122 101 #4 #4 #4 #4 #4 #11 not supplied not supplied LD621 101 4-235-995-01 RUBBER FOOT 102 4-240-273-01 FRONT PANEL 103 A-4676-973-A HEADPHONE BOARD, COMPLETE 108 4-240-270-01 PLAY/STOP KNOB 111 A-4676-972-A DISPLY BOARD, COMPLETE 113 4-240-269-01 BASS/MENU KNOB 114 4-240-271-01 PRESET UP/DOWN KNOB 115 4-235-994-01 PANEL FIXING PLATE 116 4-240-268-01 DISPLAY/POWER KNOB 117 4-240-272-01 FUNCTION KNOB 119 4-240-277-01 LCD DIFFUSE SHEET 120 4-240-243-01 LCD LIGHT GUIDE 121 4-240-254-01 LCD BACKLITE HOLDER 122 4-240-252-01 REMOTE SENSOR HOLDER 123 4-240-253-01 TIMER LED HOLDER 124 4-240-248-01 MAIN PWB MOUNT ING BKT.B LD621 1-804-496-11 DISPLAY PANEL, LIQUID CRYSTAL #4 7-685-535-14 SCREW +BTP 2.6X10 TYPE2 N-S #11 7-685-135-19 SCREW (+ PTPWH) (2.6X10) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 HCD-EP305 7-4. CD Cabinet Section Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 151 152 152 153 167 167 154 154 154 154 169 156 157 164 158 159 160 161 162 165 166 163 #7 #2 #9 #8 #6 #6 SW600 168 151 4-240-255-01 CD COVER HOUSING 152 4-236-280-01 RUBBER, VIBRATION PROOF (PINK) 153 4-235-991-01 PULLEY SCREW * 154 3-509-138-00 CLAMP, SPRING 156 4-235-948-01 DISC HOLDER BKT 157 1-471-144-11 MAGNET 158 4-240-275-01 CD LID 159 4-243-125-01 CD LID WINDOW 160 4-235-970-01 NSX1 PUSH ROD 161 4-235-990-01 CD EJECT SPRING 162 4-235-982-01 CD LID SPRING 163 4-236-899-01 DAMPER 164 4-240-244-01 CD TRAY 165 4-235-949-01 PU COVER 166 1-796-189-11 MECH, CD 167 4-236-281-01 RUBBER, VIBRATION PROOF (ORG) 168 4-235-971-01 PLASTIC COVER 169 4-236-860-01 METAL COVER SW600 1-692-960-21 SWITCH, PUSH (1 KEY) #2 7-685-647-14 SCREW +BVTP 3X10 TYPE2 SLIT #6 7-685-504-19 SCREW +BTP 2X6 TYPE2 N-S #7 7-623-916-21 FIBER WASHER 3.3,SMALL #8 7-685-233-19 SCREW +KTP 2.6X6 TYPE2NON-SLIT #9 7-624-106-04 STOP RING 3.0, TYPE -E www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 HCD-EP305 NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable When indicating parts by reference number, please include the board name. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • CAPACITORS: uF: µF • COILS uH: µH CASSETTE Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks A-4676-974-A CASSETTE BOARD, COMPLETE ************************* 7-623-508-01 LUG, 3 < CAPACITOR > C701 1-130-473-00 MYLAR 0.0015uF 5% 50V C702 1-130-473-00 MYLAR 0.0015uF 5% 50V C703 1-130-495-00 MYLAR 0.1uF 5% 50V C704 1-130-495-00 MYLAR 0.1uF 5% 50V C705 1-162-286-31 CERAMIC 220PF 10% 50V C706 1-162-286-31 CERAMIC 220PF 10% 50V C707 1-104-665-11 ELECT 100uF 20.00% 10V C708 1-104-665-11 ELECT 100uF 20.00% 10V C709 1-164-159-11 CERAMIC 0.1uF 50V C710 1-164-159-11 CERAMIC 0.1uF 50V C711 1-126-964-11 ELECT 10uF 20.00% 50V C712 1-126-964-11 ELECT 10uF 20.00% 50V C713 1-126-960-11 ELECT 1uF 20.00% 50V C714 1-126-960-11 ELECT 1uF 20.00% 50V C715 1-126-956-91 ELECT 0.1uF 20.00% 50V C716 1-126-956-91 ELECT 0.1uF 20.00% 50V C717 1-130-474-00 MYLAR 0.0018uF 5% 50V C718 1-130-474-00 MYLAR 0.0018uF 5% 50V C719 1-126-964-11 ELECT 10uF 20.00% 50V C720 1-126-947-11 ELECT 47uF 20.00% 10V C721 1-126-935-11 ELECT 470uF 20.00% 10V C722 1-161-494-00 CERAMIC 0.022uF 25V C723 1-128-551-11 ELECT 22uF 20.00% 25V C725 1-130-476-00 MYLAR 0.0027uF 5% 50V C727 1-161-494-00 CERAMIC 0.022uF 25V C728 1-126-964-11 ELECT 10uF 20.00% 50V C729 1-130-487-00 MYLAR 0.022uF 5% 50V C730 1-130-481-00 MYLAR 0.0068uF 5% 50V C731 1-162-282-31 CERAMIC 100PF 10% 50V C732 1-162-282-31 CERAMIC 100PF 10% 50V C733 1-162-294-31 CERAMIC 0.001uF 10% 50V < CONNECTOR > * CN701 1-695-645-11 PLUG (CONNECTOR) 4P < DIODE > D701 8-719-991-33 DIODE 1N4148TP D702 8-719-991-33 DIODE 1N4148TP < IC > IC701 6-700-579-01 IC AN7312 < TRANSISTOR > Q701 8-729-194-57 TRANSISTOR 2SC945TP-QP Q702 8-729-194-57 TRANSISTOR 2SC945TP-QP Q703 8-729-194-57 TRANSISTOR 2SC945TP-QP Q704 8-729-194-57 TRANSISTOR 2SC945TP-QP Q706 8-729-116-82 TRANSISTOR 2SD1616-L < RESISTOR > R701 1-249-393-11 CARBON 10 5% 1/4W F R702 1-249-393-11 CARBON 10 5% 1/4W F R703 1-249-434-11 CARBON 27K 5% 1/4W R704 1-249-434-11 CARBON 27K 5% 1/4W R705 1-249-434-11 CARBON 27K 5% 1/4W R706 1-249-434-11 CARBON 27K 5% 1/4W R707 1-249-418-11 CARBON 1.2K 5% 1/4W F R708 1-249-418-11 CARBON 1.2K 5% 1/4W F R709 1-249-413-11 CARBON 470 5% 1/4W F R710 1-249-413-11 CARBON 470 5% 1/4W F R711 1-249-440-11 CARBON 82K 5% 1/4W R712 1-249-440-11 CARBON 82K 5% 1/4W R713 1-249-431-11 CARBON 15K 5% 1/4W R714 1-249-431-11 CARBON 15K 5% 1/4W R715 1-249-429-11 CARBON 10K 5% 1/4W R716 1-249-429-11 CARBON 10K 5% 1/4W R719 1-249-426-11 CARBON 5.6K 5% 1/4W R720 1-249-426-11 CARBON 5.6K 5% 1/4W R721 1-249-429-11 CARBON 10K 5% 1/4W R722 1-249-429-11 CARBON 10K 5% 1/4W R723 1-247-893-11 CARBON 390K 5% 1/4W R724 1-249-441-11 CARBON 100K 5% 1/4W R725 1-249-411-11 CARBON 330 5% 1/4W R726 1-249-437-11 CARBON 47K 5% 1/4W R727 1-249-430-11 CARBON 12K 5% 1/4W R728 1-249-437-11 CARBON 47K 5% 1/4W R729 1-249-437-11 CARBON 47K 5% 1/4W R730 1-249-437-11 CARBON 47K 5% 1/4W R731 1-249-425-11 CARBON 4.7K 5% 1/4W F R732 1-249-412-11 CARBON 390 5% 1/4W F R735 1-249-435-11 CARBON 33K 5% 1/4W R736 1-249-396-11 CARBON 18 5% 1/4W F < SWITCH > SW701 1-786-225-11 SWITCH, PUSH (1 KEY) (REC/PB) SECTION 8 ELECTRICAL PARTS LIST www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 35 HCD-EP305 < COIL > T701 1-424-875-11 COIL (OSC) ************************************************************** A-4676-972-A DISPLAY BOARD, COMPLETE ************************ 4-240-243-01 LCD LIGHT GUIDE 4-240-252-01 REMOTE SENSOR HOLDER 4-240-253-01 TIMER LED HOLDER 4-240-254-01 LCD BACKLITE HOLDER 4-240-277-01 LCD DIFFUSE SHEET 7-685-534-14 SCREW +BTP 2.6X8 TYPE2 N-S < CAPACITOR > C602 1-126-514-11 ELECT 22uF 20.00% 10V C604 1-126-916-11 ELECT 1000uF 20.00% 6.3V C605 1-126-916-11 ELECT 1000uF 20.00% 6.3V C606 1-126-382-11 ELECT 100uF 20.00% 10V C613 1-162-206-31 CERAMIC 20PF 5% 50V C614 1-162-205-31 CERAMIC 18PF 5% 50V C619 1-164-159-11 CERAMIC 0.1uF 50V C620 1-164-159-11 CERAMIC 0.1uF 50V C621 1-126-382-11 ELECT 100uF 20.00% 10V C639 1-164-159-11 CERAMIC 0.1uF 50V C652 1-126-791-11 ELECT 10uF 20.00% 16V C654 1-161-494-00 CERAMIC 0.022uF 25V C664 1-164-159-11 CERAMIC 0.1uF 50V C665 1-164-159-11 CERAMIC 0.1uF 50V C666 1-164-159-11 CERAMIC 0.1uF 50V C667 1-164-159-11 CERAMIC 0.1uF 50V < DIODE > D601 8-719-991-33 DIODE 1N4148TP D602 8-719-991-33 DIODE 1N4148TP D607 8-719-991-33 DIODE 1N4148TP D608 8-719-991-33 DIODE 1N4148TP D609 8-719-991-33 DIODE 1N4148TP D610 8-719-991-33 DIODE 1N4148TP D611 8-719-991-33 DIODE 1N4148TP D612 8-719-991-33 DIODE 1N4148TP D613 8-719-991-33 DIODE 1N4148TP D614 8-719-991-33 DIODE 1N4148TP D615 8-719-991-33 DIODE 1N4148TP D617 8-719-991-33 DIODE 1N4148TP D619 8-719-062-11 DIODE SEL2215S-CD (TIMER) D647 8-719-991-33 DIODE 1N4148TP < IC > IC601 6-800-412-01 IC uPD753016AGC-F37 IC602 8-759-009-22 IC TC4094BF IC603 8-759-971-11 IC PST529D < COIL > L601 1-410-521-11 INDUCTOR 100uH L602 1-410-509-11 INDUCTOR 10uH < LIQUID CRYSTAL DISPLAY > LD621 1-804-496-11 DISPLAY PANEL, LIQUID CRYSTAL < TRANSISTOR > Q601 8-729-194-57 TRANSISTOR 2SC945TP-QP Q602 8-729-194-57 TRANSISTOR 2SC945TP-QP < RESISTOR > R600 1-249-437-11 CARBON 47K 5% 1/4W R601 1-249-429-11 CARBON 10K 5% 1/4W R602 1-249-437-11 CARBON 47K 5% 1/4W R603 1-249-420-11 CARBON 1.8K 5% 1/4W F R604 1-249-420-11 CARBON 1.8K 5% 1/4W F R605 1-249-429-11 CARBON 10K 5% 1/4W R606 1-247-807-31 CARBON 100 5% 1/4W R607 1-249-437-11 CARBON 47K 5% 1/4W R608 1-249-437-11 CARBON 47K 5% 1/4W R609 1-249-437-11 CARBON 47K 5% 1/4W R610 1-249-429-11 CARBON 10K 5% 1/4W R611 1-249-429-11 CARBON 10K 5% 1/4W R612 1-249-429-11 CARBON 10K 5% 1/4W R613 1-249-429-11 CARBON 10K 5% 1/4W R614 1-249-422-11 CARBON 2.7K 5% 1/4W F R615 1-249-429-11 CARBON 10K 5% 1/4W R616 1-249-437-11 CARBON 47K 5% 1/4W R618 1-249-433-11 CARBON 22K 5% 1/4W R620 1-249-433-11 CARBON 22K 5% 1/4W R621 1-249-429-11 CARBON 10K 5% 1/4W R623 1-249-417-11 CARBON 1K 5% 1/4W F R625 1-249-417-11 CARBON 1K 5% 1/4W F R627 1-249-437-11 CARBON 47K 5% 1/4W R628 1-249-417-11 CARBON 1K 5% 1/4W F R629 1-249-417-11 CARBON 1K 5% 1/4W F R631 1-249-437-11 CARBON 47K 5% 1/4W R632 1-249-437-11 CARBON 47K 5% 1/4W R633 1-249-437-11 CARBON 47K 5% 1/4W R634 1-249-437-11 CARBON 47K 5% 1/4W R636 1-249-437-11 CARBON 47K 5% 1/4W R638 1-249-437-11 CARBON 47K 5% 1/4W R639 1-249-417-11 CARBON 1K 5% 1/4W F R640 1-249-417-11 CARBON 1K 5% 1/4W F R641 1-249-437-11 CARBON 47K 5% 1/4W R642 1-249-433-11 CARBON 22K 5% 1/4W R643 1-249-433-11 CARBON 22K 5% 1/4W R644 1-249-433-11 CARBON 22K 5% 1/4W R645 1-249-437-11 CARBON 47K 5% 1/4W R646 1-249-437-11 CARBON 47K 5% 1/4W R647 1-249-437-11 CARBON 47K 5% 1/4W R657 1-249-409-11 CARBON 220 5% 1/4W F R658 1-249-437-11 CARBON 47K 5% 1/4W R664 1-249-417-11 CARBON 1K 5% 1/4W F R665 1-249-429-11 CARBON 10K 5% 1/4W R667 1-249-437-11 CARBON 47K 5% 1/4W R669 1-249-437-11 CARBON 47K 5% 1/4W CASSETTE DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 36 HCD-EP305 < IC > REM601 6-600-092-01 RPM7138-V4 < SWITCH > SW601 1-570-472-11 SWITCH, KEY BOARD (?/1) SW602 1-570-472-11 SWITCH, KEY BOARD (REPEAT) SW603 1-570-472-11 SWITCH, KEY BOARD (SHUFFLE) SW604 1-570-472-11 SWITCH, KEY BOARD (TUNER MEM) SW605 1-570-472-11 SWITCH, KEY BOARD (PRESET -) SW606 1-570-472-11 SWITCH, KEY BOARD (PRESET +) SW607 1-554-088-00 SWITCH, KEY BOARD (M > TUNING +) SW608 1-570-472-11 SWITCH, KEY BOARD (x) SW609 1-554-088-00 SWITCH, KEY BOARD (. m TUNING -) SW610 1-570-472-11 SWITCH, KEY BOARD (u) SW611 1-570-472-11 SWITCH, KEY BOARD (CD) SW612 1-570-472-11 SWITCH, KEY BOARD (TAPE) SW613 1-570-472-11 SWITCH, KEY BOARD (TUNER) SW614 1-570-472-11 SWITCH, KEY BOARD (MUSIC MENU) SW615 1-570-472-11 SWITCH, KEY BOARD (MEGA BASS) SW621 1-554-088-00 SWITCH, KEY BOARD (VOLUME -) SW622 1-554-088-00 SWITCH, KEY BOARD (VOLUME +) < VIBRATOR > X602 1-795-398-11 VIBRATOR, CRYSTAL 6MHz ************************************************************** A-4676-973-A HEADPHONE BOARD, COMPLETE *************************** < JACK > JK401 1-815-813-11 JACK (LARGE TYPE) (PHONES) < RESISTOR > R501 1-249-407-11 CARBON 150 5% 1/4W F R502 1-249-407-11 CARBON 150 5% 1/4W F ************************************************************** LED BOARD, COMPLETE (included DISPLAY BOARD, COMPLETE) ************************************** < DIODE > D1 8-719-329-10 DIODE SEL2910D (LCD BACK LIGHT) D2 8-719-329-10 DIODE SEL2910D (LCD BACK LIGHT) D3 8-719-329-10 DIODE SEL2910D (LCD BACK LIGHT) ************************************************************** A-4676-971-A MAIN BOARD, COMPLETE ********************* 1-424-881-11 AM BAR ANT 4-235-969-01 BAR HOLDER 7-682-549-09 SCREW +B 3X10 < TERMINAL > ANT101 1-694-848-11 TERMINAL BOARD (ANT FM) (FM ANT) < CAPACITOR > C102 1-162-282-31 CERAMIC 100PF 10% 50V C104 1-162-294-31 CERAMIC 0.001uF 10% 50V C105 1-162-294-31 CERAMIC 0.001uF 10% 50V C107 1-130-471-00 MYLAR 0.001uF 5% 50V C108 1-126-963-11 ELECT 4.7uF 20.00% 50V C109 1-102-936-00 CERAMIC 3.0PF +-0.25PF 50V C110 1-162-203-31 CERAMIC 15PF 5.00% 50V C111 1-162-294-31 CERAMIC 0.001uF 10% 50V C112 1-162-294-31 CERAMIC 0.001uF 10% 50V C113 1-130-483-00 MYLAR 0.01uF 5% 50V C114 1-130-483-00 MYLAR 0.01uF 5% 50V C116 1-161-494-00 CERAMIC 0.022uF 25V C117 1-130-481-00 MYLAR 0.0068uF 5% 50V C118 1-130-481-00 MYLAR 0.0068uF 5% 50V C119 1-126-960-11 ELECT 1uF 20.00% 50V C120 1-126-960-11 ELECT 1uF 20.00% 50V C121 1-162-290-31 CERAMIC 470PF 10% 50V C122 1-126-957-11 ELECT 0.22uF 20.00% 50V C123 1-126-959-11 ELECT 0.47uF 20.00% 50V C124 1-126-960-11 ELECT 1uF 20.00% 50V C126 1-162-306-11 CERAMIC 0.01uF 30.00% 16V C127 1-127-884-11 CERAMIC 0.047uF 10% 50V C128 1-126-935-11 ELECT 470uF 20.00% 10V C129 1-126-963-11 ELECT 4.7uF 20.00% 50V C130 1-126-964-11 ELECT 10uF 20.00% 50V C131 1-127-884-11 CERAMIC 0.047uF 10% 50V C132 1-102-518-11 CERAMIC 33PF 5.00% 50V C133 1-128-815-11 CERAMIC 330PF 5% 50V C134 1-162-294-31 CERAMIC 0.001uF 10% 50V C135 1-110-342-11 MYLAR 390PF 5.00% 50V C136 1-162-199-31 CERAMIC 10PF 5% 50V C140 1-127-884-11 CERAMIC 0.047uF 10% 50V C144 1-161-494-00 CERAMIC 0.022uF 25V C145 1-162-282-31 CERAMIC 100PF 10% 50V C146 1-162-294-31 CERAMIC 0.001uF 10% 50V C147 1-162-306-11 CERAMIC 0.01uF 30.00% 16V C148 1-126-961-11 ELECT 2.2uF 20.00% 50V C150 1-126-935-11 ELECT 470uF 20.00% 10V C151 1-127-888-11 CERAMIC 0.1uF 10% 50V C152 1-127-888-11 CERAMIC 0.1uF 10% 50V C153 1-162-206-31 CERAMIC 20PF 5% 50V C154 1-102-518-11 CERAMIC 33PF 5.00% 50V C155 1-102-518-11 CERAMIC 33PF 5.00% 50V C156 1-126-947-11 ELECT 47uF 20.00% 16V C157 1-127-888-11 CERAMIC 0.1uF 10% 50V C161 1-127-888-11 CERAMIC 0.1uF 10% 50V C162 1-161-494-00 CERAMIC 0.022uF 25V C163 1-126-933-11 ELECT 100uF 20.00% 16V C167 1-162-290-31 CERAMIC 470PF 10% 50V C181 1-102-962-00 CERAMIC 30PF 5.00% 50V C190 1-102-962-00 CERAMIC 30PF 5.00% 50V C201 1-127-888-11 CERAMIC 0.1uF 10% 50V C202 1-126-935-11 ELECT 470uF 20.00% 10V C203 1-126-960-11 ELECT 1uF 20.00% 50V C204 1-126-960-11 ELECT 1uF 20.00% 50V C205 1-127-888-11 CERAMIC 0.1uF 10% 50V DISPLAY HEADPHONE LED MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 37 HCD-EP305 C206 1-127-888-11 CERAMIC 0.1uF 10% 50V C207 1-127-888-11 CERAMIC 0.1uF 10% 50V C208 1-127-888-11 CERAMIC 0.1uF 10% 50V C209 1-127-888-11 CERAMIC 0.1uF 10% 50V C210 1-127-888-11 CERAMIC 0.1uF 10% 50V C211 1-126-961-11 ELECT 2.2uF 20.00% 50V C212 1-126-961-11 ELECT 2.2uF 20.00% 50V C213 1-126-961-11 ELECT 2.2uF 20.00% 50V C214 1-126-961-11 ELECT 2.2uF 20.00% 50V C215 1-136-293-11 MYLAR 0.0082uF 5.00% 50V C216 1-136-293-11 MYLAR 0.0082uF 5.00% 50V C219 1-130-488-00 MYLAR 0.027uF 5% 50V C220 1-130-488-00 MYLAR 0.027uF 5% 50V C221 1-136-293-11 MYLAR 0.0082uF 5.00% 50V C222 1-136-293-11 MYLAR 0.0082uF 5.00% 50V C225 1-130-477-00 MYLAR 0.0033uF 5% 50V C226 1-130-477-00 MYLAR 0.0033uF 5% 50V C227 1-162-285-31 CERAMIC 180PF 10% 50V C228 1-162-285-31 CERAMIC 180PF 10% 50V C229 1-136-293-11 MYLAR 0.0082uF 5.00% 50V C230 1-136-293-11 MYLAR 0.0082uF 5.00% 50V C231 1-162-199-31 CERAMIC 10PF 5% 50V C232 1-162-199-31 CERAMIC 10PF 5% 50V C238 1-126-935-11 ELECT 470uF 20.00% 10V C239 1-126-935-11 ELECT 470uF 20.00% 10V C240 1-162-302-11 CERAMIC 0.0022uF 30.00% 16V C241 1-126-963-11 ELECT 4.7uF 20.00% 50V C242 1-126-963-11 ELECT 4.7uF 20.00% 50V C245 1-162-294-31 CERAMIC 0.001uF 10% 50V C246 1-162-294-31 CERAMIC 0.001uF 10% 50V C247 1-126-956-91 ELECT 0.1uF 20.00% 50V C248 1-126-956-91 ELECT 0.1uF 20.00% 50V C249 1-162-302-11 CERAMIC 0.0022uF 30.00% 16V C250 1-126-964-11 ELECT 10uF 20.00% 50V C251 1-127-872-11 CERAMIC 4700PF 10% 50V C301 1-130-471-00 MYLAR 0.001uF 5% 50V C302 1-130-471-00 MYLAR 0.001uF 5% 50V C303 1-126-947-11 ELECT 47uF 20.00% 16V C304 1-126-947-11 ELECT 47uF 20.00% 16V C305 1-130-497-00 MYLAR 0.15uF 5% 50V C306 1-130-497-00 MYLAR 0.15uF 5% 50V C307 1-104-665-11 ELECT 100uF 20.00% 25V C308 1-104-665-11 ELECT 100uF 20.00% 25V C309 1-126-767-11 ELECT 1000uF 20.00% 16V C310 1-126-767-11 ELECT 1000uF 20.00% 16V C311 1-127-888-11 CERAMIC 0.1uF 10% 50V C313 1-126-941-11 ELECT 470uF 20.00% 25V C314 1-104-666-11 ELECT 220uF 20.00% 25V C315 1-126-964-11 ELECT 10uF 20.00% 50V C317 1-161-494-00 CERAMIC 0.022uF 25V C320 1-126-961-11 ELECT 2.2uF 20.00% 50V C321 1-126-961-11 ELECT 2.2uF 20.00% 50V C322 1-126-933-11 ELECT 100uF 20.00% 16V C323 1-161-494-00 CERAMIC 0.022uF 25V C325 1-126-964-11 ELECT 10uF 20.00% 50V C326 1-126-933-11 ELECT 100uF 20.00% 16V C327 1-161-494-00 CERAMIC 0.022uF 25V C328 1-126-947-11 ELECT 47uF 20.00% 16V C329 1-127-888-11 CERAMIC 0.1uF 10% 50V C330 1-126-960-11 ELECT 1uF 20.00% 50V C331 1-126-933-11 ELECT 100uF 20.00% 16V C341 1-126-964-11 ELECT 10uF 20.00% 50V C342 1-126-964-11 ELECT 10uF 20.00% 50V C343 1-126-964-11 ELECT 10uF 20.00% 50V C391 1-126-942-61 ELECT 1000uF 20.00% 25V C409 1-126-944-11 ELECT 3300uF 20.00% 25V < CONNECTOR > * CN101 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P * CN201 1-564-710-11 PIN, CONNECTOR (SMALL TYPE) 8P * CN202 1-695-645-11 PLUG (CONNECTOR) 4P * CN203 1-564-711-11 PIN, CONNECTOR (SMALL TYPE) 9P * CN204 1-564-710-11 PIN, CONNECTOR (SMALL TYPE) 8P * CN301 1-565-731-11 PLUG, CONNECTOR (2.5MM) 5P * CN302 1-564-711-11 PIN, CONNECTOR (SMALL TYPE) 9P < DIODE > D101 8-719-991-33 DIODE 1N4148TP D102 8-719-991-33 DIODE 1N4148TP D103 8-719-070-77 DIODE SVC201SPA-M1-AC D104 8-719-070-77 DIODE SVC201SPA-M1-AC D105 8-719-085-35 DIODE SVC348T D306 8-719-991-33 DIODE 1N4148TP D307 8-719-991-33 DIODE 1N4148TP D308 8-719-991-33 DIODE 1N4148TP D309 8-719-991-33 DIODE 1N4148TP D310 8-719-991-33 DIODE 1N4148TP D311 8-719-991-33 DIODE 1N4148TP D312 8-719-991-33 DIODE 1N4148TP D314 8-719-991-33 DIODE 1N4148TP D316 8-719-991-33 DIODE 1N4148TP D317 8-719-991-33 DIODE 1N4148TP D331 8-719-991-33 DIODE 1N4148TP D332 8-719-991-33 DIODE 1N4148TP D333 8-719-991-33 DIODE 1N4148TP D334 8-719-991-33 DIODE 1N4148TP < FILTER > F101 1-760-393-11 FILTER, CERAMIC F102 1-795-397-11 FILTER, CERAMIC F103 1-234-704-11 FILTER, BAND PASS (FM) < IC > IC101 6-700-580-01 IC LA1823 IC102 8-759-584-70 IC LC72131 IC203 8-759-473-59 IC LC75392 IC301 8-759-246-03 IC TA8229K < COIL > L101 1-414-142-11 INDUCTOR 1uH L103 1-424-880-11 COIL (FM) L104 1-424-879-11 COIL (FM) L106 1-410-750-11 INDUCTOR 0.47uH L110 1-424-878-11 COIL (ANT) L143 1-414-142-11 INDUCTOR 1uH MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 38 HCD-EP305 L301 1-410-525-11 INDUCTOR 220uH < TRANSISTOR > Q101 8-729-231-82 TRANSISTOR 2SC1923-O Q102 8-729-194-57 TRANSISTOR 2SC945TP-QP Q104 8-729-194-57 TRANSISTOR 2SC945TP-QP Q116 8-729-119-76 TRANSISTOR 2SA733TP-P Q201 8-729-194-57 TRANSISTOR 2SC945TP-QP Q202 8-729-194-57 TRANSISTOR 2SC945TP-QP Q205 8-729-194-57 TRANSISTOR 2SC945TP-QP Q206 8-729-194-57 TRANSISTOR 2SC945TP-QP Q301 8-729-107-78 TRANSISTOR 2SC3623-LK Q302 8-729-107-78 TRANSISTOR 2SC3623-LK Q308 8-729-037-08 TRANSISTOR KTD2058Y Q309 8-729-119-76 TRANSISTOR 2SA733TP-P Q310 8-729-194-57 TRANSISTOR 2SC945TP-QP Q311 8-729-194-57 TRANSISTOR 2SC945TP-QP Q312 8-729-116-82 TRANSISTOR 2SD1616-L Q313 8-729-438-33 TRANSISTOR 2SC1383-R Q314 8-729-194-57 TRANSISTOR 2SC945TP-QP < RESISTOR > R101 1-249-393-11 CARBON 10 5% 1/4W F R102 1-249-435-11 CARBON 33K 5% 1/4W R103 1-249-435-11 CARBON 33K 5% 1/4W R104 1-249-418-11 CARBON 1.2K 5% 1/4W F R105 1-247-883-00 CARBON 150K 5% 1/4W R107 1-249-421-11 CARBON 2.2K 5% 1/4W F R108 1-249-417-11 CARBON 1K 5% 1/4W F R109 1-249-417-11 CARBON 1K 5% 1/4W F R112 1-247-843-11 CARBON 3.3K 5% 1/4W R115 1-249-437-11 CARBON 47K 5% 1/4W R116 1-249-437-11 CARBON 47K 5% 1/4W R117 1-249-441-11 CARBON 100K 5% 1/4W R118 1-247-843-11 CARBON 3.3K 5% 1/4W R120 1-249-429-11 CARBON 10K 5% 1/4W R121 1-247-883-00 CARBON 150K 5% 1/4W R123 1-247-903-00 CARBON 1M 5% 1/4W R124 1-249-429-11 CARBON 10K 5% 1/4W R126 1-249-402-11 CARBON 56 5% 1/4W F R131 1-249-441-11 CARBON 100K 5% 1/4W R134 1-249-437-11 CARBON 47K 5% 1/4W R135 1-249-425-11 CARBON 4.7K 5% 1/4W F R136 1-249-427-11 CARBON 6.8K 5% 1/4W F R139 1-249-410-11 CARBON 270 5% 1/4W F R144 1-249-437-11 CARBON 47K 5% 1/4W R145 1-249-425-11 CARBON 4.7K 5% 1/4W F R146 1-249-417-11 CARBON 1K 5% 1/4W F R147 1-249-421-11 CARBON 2.2K 5% 1/4W F R148 1-249-426-11 CARBON 5.6K 5% 1/4W R150 1-249-417-11 CARBON 1K 5% 1/4W F R151 1-249-415-11 CARBON 680 5% 1/4W F R152 1-249-437-11 CARBON 47K 5% 1/4W R155 1-249-441-11 CARBON 100K 5% 1/4W R157 1-249-440-11 CARBON 82K 5% 1/4W R158 1-249-429-11 CARBON 10K 5% 1/4W R160 1-249-428-11 CARBON 8.2K 5% 1/4W F R166 1-249-437-11 CARBON 47K 5% 1/4W R168 1-249-427-11 CARBON 6.8K 5% 1/4W F R169 1-249-415-11 CARBON 680 5% 1/4W F R201 1-249-409-11 CARBON 220 5% 1/4W F R202 1-249-429-11 CARBON 10K 5% 1/4W R203 1-249-441-11 CARBON 100K 5% 1/4W R204 1-249-441-11 CARBON 100K 5% 1/4W R205 1-249-417-11 CARBON 1K 5% 1/4W F R206 1-249-417-11 CARBON 1K 5% 1/4W F R208 1-249-417-11 CARBON 1K 5% 1/4W F R209 1-249-435-11 CARBON 33K 5% 1/4W R210 1-249-424-11 CARBON 3.9K 5% 1/4W F R211 1-249-424-11 CARBON 3.9K 5% 1/4W F R212 1-249-435-11 CARBON 33K 5% 1/4W R213 1-249-434-11 CARBON 27K 5% 1/4W R214 1-249-434-11 CARBON 27K 5% 1/4W R215 1-249-426-11 CARBON 5.6K 5% 1/4W R216 1-249-426-11 CARBON 5.6K 5% 1/4W R219 1-249-428-11 CARBON 8.2K 5% 1/4W F R220 1-249-428-11 CARBON 8.2K 5% 1/4W F R223 1-249-429-11 CARBON 10K 5% 1/4W R224 1-249-429-11 CARBON 10K 5% 1/4W R225 1-249-434-11 CARBON 27K 5% 1/4W R226 1-249-434-11 CARBON 27K 5% 1/4W R227 1-249-434-11 CARBON 27K 5% 1/4W R228 1-249-434-11 CARBON 27K 5% 1/4W R229 1-249-433-11 CARBON 22K 5% 1/4W R230 1-249-433-11 CARBON 22K 5% 1/4W R231 1-249-440-11 CARBON 82K 5% 1/4W R232 1-249-440-11 CARBON 82K 5% 1/4W R233 1-249-437-11 CARBON 47K 5% 1/4W R234 1-249-427-11 CARBON 6.8K 5% 1/4W F R239 1-249-428-11 CARBON 8.2K 5% 1/4W F R240 1-249-428-11 CARBON 8.2K 5% 1/4W F R241 1-249-393-11 CARBON 10 5% 1/4W F R242 1-247-843-11 CARBON 3.3K 5% 1/4W R243 1-247-843-11 CARBON 3.3K 5% 1/4W R245 1-249-427-11 CARBON 6.8K 5% 1/4W F R246 1-249-437-11 CARBON 47K 5% 1/4W R247 1-249-421-11 CARBON 2.2K 5% 1/4W F R248 1-249-421-11 CARBON 2.2K 5% 1/4W F R249 1-249-429-11 CARBON 10K 5% 1/4W R250 1-249-429-11 CARBON 10K 5% 1/4W R251 1-249-437-11 CARBON 47K 5% 1/4W R252 1-249-437-11 CARBON 47K 5% 1/4W R253 1-249-441-11 CARBON 100K 5% 1/4W R254 1-249-429-11 CARBON 10K 5% 1/4W R255 1-249-429-11 CARBON 10K 5% 1/4W R256 1-249-429-11 CARBON 10K 5% 1/4W R257 1-249-417-11 CARBON 1K 5% 1/4W F R258 1-249-429-11 CARBON 10K 5% 1/4W R264 1-249-422-11 CARBON 2.7K 5% 1/4W F R265 1-249-422-11 CARBON 2.7K 5% 1/4W F R266 1-249-429-11 CARBON 10K 5% 1/4W R267 1-249-429-11 CARBON 10K 5% 1/4W R268 1-249-429-11 CARBON 10K 5% 1/4W R269 1-249-417-11 CARBON 1K 5% 1/4W F R301 1-249-437-11 CARBON 47K 5% 1/4W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 39 HCD-EP305 R302 1-249-437-11 CARBON 47K 5% 1/4W R303 1-249-425-11 CARBON 4.7K 5% 1/4W F R304 1-249-425-11 CARBON 4.7K 5% 1/4W F R306 1-249-426-11 CARBON 5.6K 5% 1/4W R308 1-249-410-11 CARBON 270 5% 1/4W F R309 1-249-410-11 CARBON 270 5% 1/4W F R310 1-249-385-11 CARBON 2.2 5% 1/6W F R311 1-249-385-11 CARBON 2.2 5% 1/6W F R312 1-249-398-11 CARBON 27 5% 1/4W F R318 1-249-399-11 CARBON 33 5% 1/4W F R320 1-249-437-11 CARBON 47K 5% 1/4W R321 1-249-413-11 CARBON 470 5% 1/4W F R322 1-249-441-11 CARBON 100K 5% 1/4W R323 1-249-425-11 CARBON 4.7K 5% 1/4W F R324 1-249-441-11 CARBON 100K 5% 1/4W R325 1-249-441-11 CARBON 100K 5% 1/4W R327 1-249-416-11 CARBON 820 5% 1/4W F R328 1-249-429-11 CARBON 10K 5% 1/4W R329 1-249-409-11 CARBON 220 5% 1/4W F R330 1-249-409-11 CARBON 220 5% 1/4W F R331 1-249-429-11 CARBON 10K 5% 1/4W R333 1-260-064-11 CARBON 1 5% 1/2W R334 1-249-437-11 CARBON 47K 5% 1/4W R341 1-249-429-11 CARBON 10K 5% 1/4W R342 1-249-429-11 CARBON 10K 5% 1/4W R343 1-249-429-11 CARBON 10K 5% 1/4W R344 1-249-421-11 CARBON 2.2K 5% 1/4W F < TERMINAL > SPK301 1-537-238-11 TERMINAL BOARD (SPEAKER) < COIL > T102 1-424-877-11 COIL (AM OSC) T103 1-424-876-11 COIL (AM) < TRIMMER > TC101 1-141-304-21 CAP, TRIMMER 10PF TC102 1-141-227-00 CAP, TRIMMER 20PF < DISCRIMINATOR/VIBRATOR > X101 1-795-396-11 DISCRIMINATOR, CERAMIC 10.7MHz X102 1-577-126-11 VIBRATOR, CRYSTAL 7.2MHz < DIODE > ZD302 8-719-929-15 DIODE MTZJ-T-72-9.1B ZD304 8-719-110-17 DIODE MTZN-T-72-10B ZD305 8-719-109-97 DIODE MTZJ-T-72-6.8B ************************************************************** A-4676-975-A POWER BOARD, COMPLETE *********************** 1-533-217-31 HOLDER, FUSE < CAPACITOR > C401 1-104-665-11 ELECT 100uF 20.00% 10V C402 1-102-129-00 CERAMIC 10000PF 10% 50V C403 1-126-935-11 ELECT 470uF 20.00% 16V C404 1-102-129-00 CERAMIC 10000PF 10% 50V C405 1-104-665-11 ELECT 100uF 20.00% 25V C406 1-102-129-00 CERAMIC 10000PF 10% 50V C407 1-104-665-11 ELECT 100uF 20.00% 25V C408 1-102-129-00 CERAMIC 10000PF 10% 50V C409 1-126-960-11 ELECT 1uF 20.00% 50V 0C410 1-117-698-11 CERAMIC 680PF 10.00% 250V C411 1-127-888-21 CERAMIC 0.1uF 10% 50V < CONNECTOR > * CN402 1-573-457-11 PLUG, CONNECTOR 6P < DIODE > D401 8-719-077-63 DIODE 1N5402 D402 8-719-077-63 DIODE 1N5402 D403 8-719-077-63 DIODE 1N5402 D404 8-719-077-63 DIODE 1N5402 D405 8-719-200-02 DIODE 1N4001 D406 8-719-200-02 DIODE 1N4001 D407 8-719-200-02 DIODE 1N4001 D408 8-719-200-02 DIODE 1N4001 D409 8-719-991-33 DIODE 1N4148TP D411 8-719-200-02 DIODE 1N4001 D412 8-719-200-02 DIODE 1N4001 D413 8-719-200-02 DIODE 1N4001 D414 8-719-200-02 DIODE 1N4001 < FUSE > 0F401 1-533-470-11 FUSE, GLASS TUBE (DIA. 5) T3.15AL/250V 0F402 1-533-468-11 FUSE, GLASS TUBE (DIA. 5) T2AL/250V < TRANSISTOR > Q401 8-729-820-24 TRANSISTOR 2SC3330-T-TP Q402 8-729-119-76 TRANSISTOR 2SA733TP-P < RESISTOR > R401 1-249-442-11 CARBON 510 5% 1/4W R402 1-249-421-11 CARBON 2.2K 5% 1/4W F R403 1-249-441-11 CARBON 100K 5% 1/4W R404 1-249-404-00 CARBON 82 5% 1/4W F R405 1-249-441-11 CARBON 100K 5% 1/4W 0R406 1-216-478-11 METAL OXIDE 390 5% 3W < RELAY > 0RL401 1-755-446-11 RELAY 120V < TRANSFORMER > 0TR402 1-437-815-11 TRANSFORMER, POWER < DIODE > ZD401 8-719-109-97 DIODE MTZJ-T-72-6.8B ************************************************************** MAIN POWER The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 HCD-EP305 MISCELLANEOUS ************* 3 1-500-712-11 CORE, FERRITE 06 1-555-750-00 CORD, POWER 8 1-823-170-11 CORD (WITH CONNECTOR) (FM ANT) 157 1-471-144-11 MAGNET 166 1-796-189-11 MECH, CD SW600 1-692-960-21 SWITCH, PUSH (1 KEY) (OPEN/CLOSE) 0TR401 1-437-816-11 TRANSFORMER, POWER The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 HCD-EP305 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EP305 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2002.05 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
