索尼SONY HCD-EH10音响图纸

分类：电子电工日期：2023-04-08 点击：0

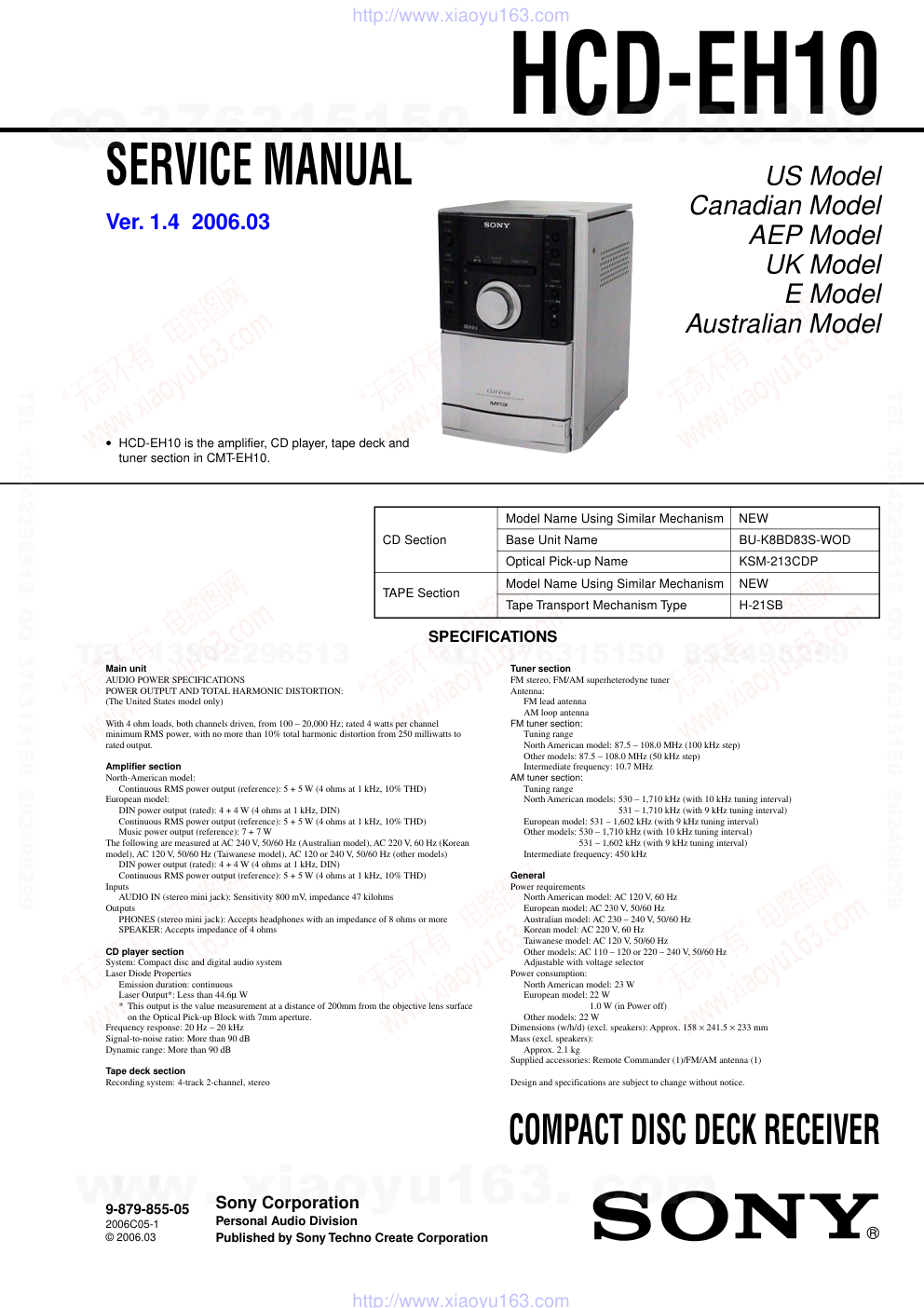

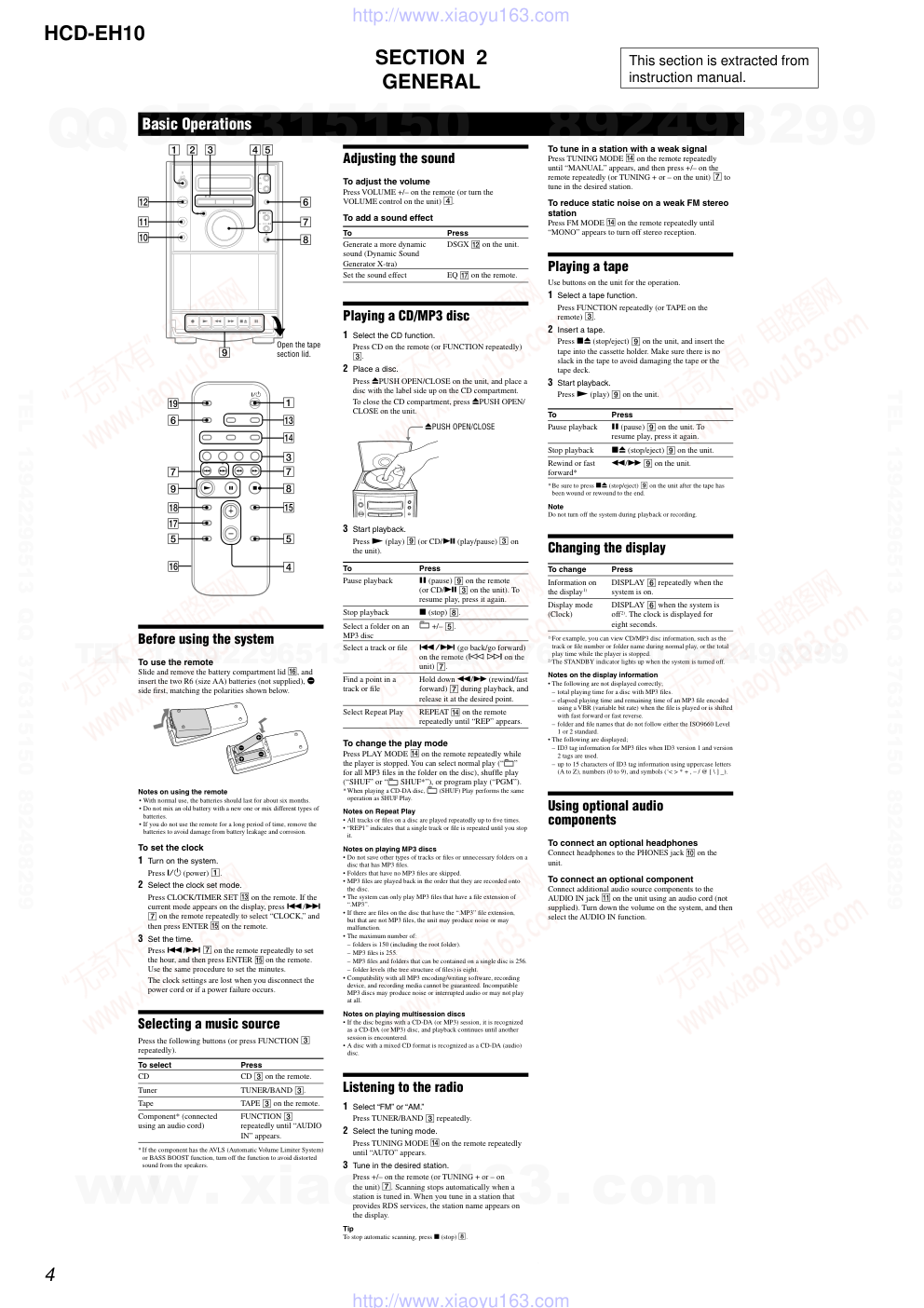

SERVICE MANUAL COMPACT DISC DECK RECEIVER HCD-EH10 Ver. 1.4 2006.03 SPECIFICATIONS 9-879-855-05 2006C05-1 © 2006.03 Sony Corporation Personal Audio Division Published by Sony Techno Create Corporation US Model Canadian Model AEP Model UK Model E Model Australian Model • HCD-EH10 is the amplifier, CD player, tape deck and tuner section in CMT-EH10. Model Name Using Similar Mechanism NEW CD Section Base Unit Name BU-K8BD83S-WOD Optical Pick-up Name KSM-213CDP TAPE Section Model Name Using Similar Mechanism NEW Tape Transport Mechanism Type H-21SB Main unit AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: (The United States model only) With 4 ohm loads, both channels driven, from 100 – 20,000 Hz; rated 4 watts per channel minimum RMS power, with no more than 10% total harmonic distortion from 250 milliwatts to rated output. Amplifier section North-American model: Continuous RMS power output (reference): 5 + 5 W (4 ohms at 1 kHz, 10% THD) European model: DIN power output (rated): 4 + 4 W (4 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 5 + 5 W (4 ohms at 1 kHz, 10% THD) Music power output (reference): 7 + 7 W The following are measured at AC 240 V, 50/60 Hz (Australian model), AC 220 V, 60 Hz (Korean model), AC 120 V, 50/60 Hz (Taiwanese model), AC 120 or 240 V, 50/60 Hz (other models) DIN power output (rated): 4 + 4 W (4 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 5 + 5 W (4 ohms at 1 kHz, 10% THD) Inputs AUDIO IN (stereo mini jack): Sensitivity 800 mV, impedance 47 kilohms Outputs PHONES (stereo mini jack): Accepts headphones with an impedance of 8 ohms or more SPEAKER: Accepts impedance of 4 ohms CD player section System: Compact disc and digital audio system Laser Diode Properties Emission duration: continuous Laser Output*: Less than 44.6µ W * This output is the value measurement at a distance of 200mm from the objective lens surface on the Optical Pick-up Block with 7mm aperture. Frequency response: 20 Hz – 20 kHz Signal-to-noise ratio: More than 90 dB Dynamic range: More than 90 dB Tape deck section Recording system: 4-track 2-channel, stereo Tuner section FM stereo, FM/AM superheterodyne tuner Antenna: FM lead antenna AM loop antenna FM tuner section: Tuning range North American model: 87.5 – 108.0 MHz (100 kHz step) Other models: 87.5 – 108.0 MHz (50 kHz step) Intermediate frequency: 10.7 MHz AM tuner section: Tuning range North American models: 530 – 1,710 kHz (with 10 kHz tuning interval) 531 – 1,710 kHz (with 9 kHz tuning interval) European model: 531 – 1,602 kHz (with 9 kHz tuning interval) Other models: 530 – 1,710 kHz (with 10 kHz tuning interval) 531 – 1,602 kHz (with 9 kHz tuning interval) Intermediate frequency: 450 kHz General Power requirements North American model: AC 120 V, 60 Hz European model: AC 230 V, 50/60 Hz Australian model: AC 230 – 240 V, 50/60 Hz Korean model: AC 220 V, 60 Hz Taiwanese model: AC 120 V, 50/60 Hz Other models: AC 110 – 120 or 220 – 240 V, 50/60 Hz Adjustable with voltage selector Power consumption: North American model: 23 W European model: 22 W 1.0 W (in Power off) Other models: 22 W Dimensions (w/h/d) (excl. speakers): Approx. 158 × 241.5 × 233 mm Mass (excl. speakers): Approx. 2.1 kg Supplied accessories: Remote Commander (1)/FM/AM antenna (1) Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-EH10 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 4 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 6 3-2. Rear Cabinet Section ....................................................... 6 3-3. Front Cabinet Section, Top Cabinet Section and MAIN Board.................................................................... 7 3-4. Mechanical Deck (H-21SB) ............................................ 7 3-5. Base Unit Section (BU-K8BD83S-WOD) ...................... 8 3-6. Optical Pick-up Block (KSM-213CDP) .......................... 8 4. TEST MODE .............................................................. 9 5. MECHANICAL ADJUSTMENTS ....................... 10 6. ELECTRICAL ADJUSTMENTS ......................... 10 7. DIAGRAMS 7-1. Block Diagram – CD SERVO Section – ......................... 14 7-2. Block Diagram – TUNER Section – ............................... 15 7-3. Block Diagram – MAIN Section – .................................. 16 7-4. Printed Wiring Board – CD Board – ............................... 18 7-5. Schematic Diagram – CD Board – .................................. 19 7-6. Printed Wiring Boards – MAIN Section – ...................... 20 7-7. Schematic Diagram – MAIN Section (1/3) ..................... 21 7-8. Schematic Diagram – MAIN Section (2/3) ..................... 22 7-9. Schematic Diagram – MAIN Section (3/3) ..................... 23 7-10. Printed Wiring Board – PANEL Board – ........................ 24 7-11. Schematic Diagram – PANEL Board – ........................... 25 8. EXPLODED VIEWS 8-1. Overall Section ................................................................ 34 8-2. Front Cabinet Section ...................................................... 35 8-3. Top Cabinet Section ........................................................ 36 8-4. Base Unit Section (BU-K8BD83S-WOD) ...................... 37 9. ELECTRICAL PARTS LIST ................................ 38 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. The following caution label is located inside the unit. CLASS 1 LASER PRODUCT LUOKAN 1 LASER LAITE KLASS 1 LASER APPARAT This appliance is classified as a CLASS 1 LASER product. This label is located on the rear exterior. TABLE OF CONTENTS Ver. 1.4 SAFETY CHECK-OUT After correcting the original service problem, perform the following safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. Refer to SUPPLEMENT-1 for the MAIN section of printed wiring boards and schematic diagrams of US, Canadian, Singapore, Taiwan, Korean and Australian models. When repairing the set of AEP, UK, East European and Russian, refer to either of original service manual/SUPPLEMENT-1 according to the set. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-EH10 SECTION 1 SERVICING NOTES UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 ˚C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 ˚C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Fig.1 Method to push the SW750 SW750 The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK During normal operation of the equipment, emission of the laser diode is prohibited unless the upper lid is closed while turning ON the SW750. (push switch type) The following checking method for the laser diode is operable. • Method Emission of the laser diode is visually checked. 1. Open the upper lid. 2. Push the SW750 as shown in Fig.1. Note: Do not push the detection lever strongly, or it may be bent or damaged. 3. Press the CD u button. 4. Check the object lens for confirming normal emission of the laser diode. If not emitting, there is a trouble in the automatic power control circuit or the optical pick-up. In this operation, the object lens will move up and down 2 times along with inward motion for the focus search. Ver. 1.4 • MODEL IDENTIFICATION Power Voltage Indication – Rear Cabinet – MODEL POWER VOLTAGE INDICATION US, Canadian models AC 120 V, 60 Hz AEP, UK, East European, AC 230 V, 50/60 Hz Russian models Singapore model AC 110 – 120 or 220 – 240 V, 50/60 Hz Australian model AC 230 – 240 V, 50/60 Hz Korean model AC 220 V, 60 Hz Taiwan model AC 120 V, 50/60 Hz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-EH10 SECTION 2 GENERAL This section is extracted from instruction manual. �� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-EH10 �� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 6 Note: Follow the disassembly procedure in the numerical order given. 3-2. REAR CABINET SECTION • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW SECTION 3 DISASSEMBLY 3-2. REAR CABINET SECTION (Page 6) 3-3. FRONT CABINET SECTION, TOP CABINET SECTION AND MAIN BOARD (Page 7) 3-5. BASE UNIT SECTION (BU-K8BD83S-WOD) (Page 8) 3-6. OPTICAL PICK-UP BLOCK (KSM-213CDP) (Page 8) 3-4. MECHANICAL DECK (H-21SB) (Page 7) SET 2 screw (KTP3 × 8) 3 2 screw (KTP3 × 8) 1 two screws (BVTP3 × 10) 1 two screws (BVTP3 × 10) 1 two screws (BVTP3 × 10) 4 connector (W002) 5 rear cabinet section www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 7 3-3. FRONT CABINET SECTION, TOP CABINET SECTION AND MAIN BOARD 3-4. MECHANICAL DECK (H-21SB) 8 two screws (B2.6) 9 top cabinet section q; MAIN board 4 claw slide switch (REC/PB) (SW501) REC lever Note: Adjust so that the space of slide switch (REC/PB) (SW501) REC lever becames 2.3 ± 0.4mm. 4 claw claw claw 5 front cabinet section 6 flexible flat (23 core) cable (FFC151) (CNS104) 1 flexible flat (25 core) cable (FFC701) (US, Canadian, Singapore, Taiwan, Korean and Australian models) (CNS111), flexible flat (27 core) cable (FFC702) (AEP, UK, East European and Russian models) (CNS112) 3 lead wire (PIN101) 7 lead wire (PIN102) 2 connector (SW750) 2 two connectors (CNP501, CNP502) 2.3 ± 0.4mm 3 two screws (BVTP2.6 × 8) 5 two screws (BVTP2.6 × 8) 8 cable holder 6 7 two screws 9 mechanical deck (H-21SB) 5 screw (BVTP2.6 × 8) 1 screw 2 REC lever 4 PWB holder www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 8 3-5. BASE UNIT SECTION (BU-K8BD83S-WOD) 3-6. OPTICAL PICK-UP BLOCK (KSM-213CDP) 2 two screws (PWH B2.6) 4 vibration proof rubber (red) 8 base unit sction (BU-K8BD83S-WOD) 7 CD cover 6 two claws 6 two claws 4 vibration proof rubber (red) 5 vibration proof rubber (green) 5 vibration proof rubber (green) 3 2 two screws (PWH B2.6) 1 flexible flat (23 core) cable (FFC151) (CN102) 2 Remove four solders. 1 flexible flat (16 core) cable (CN301) 3 CD board 4 optical pick-up block (KSM-213CDP) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-EH10 SECTION 4 TEST MODE COLD RESET * The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. Press the I/1 button to turn the power on. 2. While pressing the x button, press the I/1 and [DSGX] buttons. 3. The message “RESET” is displayed and the set is reset. PANEL TEST * All segments of liquid crystal display are tested, and the version and released date of the micro computer are displayed. Procedure: 1. Press the I/1 button to turn the power on. 2. While pressing the [DSGX] button, press the [DISPLAY] and x buttons. Then all segments of liquid crystal display are turned on. 3. Press the [FUNCTION] button, the version and released date of the micro computer are displayed. example of display: 4. Press the [TUNER/BAND] button, the model name and distination are displayed. example of display: 5. To exit from this mode, perform the step 2. TUNER STEP CHANGE-OVER * Either the 9 kHz step or 10 kHz step can be selected for the AM channel step. Procedure: 1. Set the FUNCTION to AM, and press the I/1 button to turn the power off. 2. Press the [DISPLAY] button. 3. While pressing the [TUNING +] button, press the I/1 button. 4. The message “9K STEP” or “10K STEP” is displayed on the liquid crystal display, and thus the channel step is changed over. 0629 V008 Version of micro computer (In this case, version 008) released date of micro computer (In this case, released of June 29) JE CE2 distination (In this case, European model) model name (In this case, HCD-LFXX) CD POWER MANEGE * This mode is for switch the CD power supply on/off. Even if this state pulls out AC plug, it is held. Procedure: 1. Press the I/1 button to turn the power on. 2. Set the FUNCTION to CD. 3. Press the I/1 button again to turn the power off (standby). 4. Press the [DISPLAY] button. 5. While pressing the x button, press the I/1 button. 6. If turns power on and display “CD POWER”, then display “ON” or “OFF”. 5 REPEAT OFF MODE * Number of repeat for CD playback is 5 times when the repeat mode is “REPEAT”. This mode is used to enables CD to repeat playback for limitless times. Procedure: 1. Press the I/1 button to turn the power on. 2. Press the [FUNCTION] button to select “CD”. 3. Press three buttons of [DSGX], CD u and [DISPLAY] simultaneously. 4. When the 5 repeat off mode is activated, “NO LIMIT” is displayed on the liquid crystal display. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-EH10 SECTION 5 MECHANICAL ADJUSTMENTS SECTION 6 ELECTRICAL ADJUSTMENTS • Precaution 1. Clean the following parts with a denatured-alcohol-moistened swab : record/playback head pinch roller erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. (Do not bring the head magnetizer close to the erase head.) 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, appiy suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. • Torque Measurement Mode Torque Meter Meter Reading 2.0 – 8.0 mN⋅m FWD CQ-102AS (20 – 80 g⋅cm) (0.28 – 1.12 oz⋅inch) FWD 0.15 – 0.6 mN⋅m Back Tension CQ-102C (1.5 – 6.0 g⋅cm) (0.021 – 0.083 oz⋅inch) 5.0 – 17.7 mN⋅m FF CQ-201AS (50 – 177 g⋅cm) (0.7 – 2.48 oz⋅inch) 5.0 – 17.7 mN⋅m REW CQ-201B (50 – 177 g⋅cm) (0.7 – 2.48 oz⋅inch) • Tape Tension Measurement Mode Tension Meter Meter Reading FWD CQ-403A more than 80 g (more than 2.82 oz) TUNER SECTION 0 dB=1 µV [AM (MW/LW)] Setting: Function : TUNER BAND button : AM [FM] Setting: Function : RADIO RADIO BAND button: FM • Repeat the procedures in each adjustment several times, and the tracking adjustments should be finally done by the trimmer capacitors. • Remove FM antenna in FM adjustment. AM VT VOLTAGE ADJUSTMENT Adjustment Part Frequency Display Reading on Digital Voltmeter L852 531 kHz 1.5 ± 0.1 V Confirmation 1602 kHz 7.2 ± 0.5 V AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L851 531 kHz FM VT VOLTAGE ADJUSTMENT Adjustment Part Frequency Display Reading on Digital Voltmeter L805 87.5 MHz 1.75 ± 0.1 V Confirmation 108 MHz 6.2 ± 0.5 V AM RF signal generator 30% amplitude modulation by 400 Hz signal 60 cm set loop antenna A loop antenna B FM RF signal generator 1 kHz frequency deviation by FM 75 kHz signal Output level: as low as possible + – level meter MAIN board JW148 (GND) MAIN board JW403 (TUNER OUT L-ch) set MAIN board CNP802 pin 2 MAIN board CNP802 pin 1 digital voltmeter JW821 (VT) JW805 (GND) 10 kΩ MAIN board Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-EH10 Adjustment Location: FM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L804 98 MHz FM DETECTOR ADJUSTMENT Setting: Function: TUNER BAND button: FM 1. Tune the set to 98 MHz. 2. Adjust L806 so that modulation distortion may become the best in the vicinity of the maximum value where the tuner out level becomes -156Bs or more. set MAIN board JW403 (TUNER OUT L-ch) MAIN board JW148 (GND) Carrier frequency : 98 MHz Modulation : deviation by FM 75 kHZ Output level : 60 dB FM RF Signal generator L851 AM Tracking Adjustment L805 FM VT Voltage Adjustment L804 FM Tracking Adjustment L806 FM Detector Adjustment L852 AM VT Voltage Adjustment – MAIN Board (Component Side) – JW403 (TUNER OUT L-ch) JW402 (TUNER OUT R-ch) JW148 (GND) JW821 (VT) CNP802 JW805 (GND) – MAIN Board (Conductor Side) – 3 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-EH10 0 dB=0.775 V DECK SECTION 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. • Test Tape Tape Signal Used for P-4-A063 6.3 kHz, -10 dB Azimuth Adjustment RECORD/PLAYBACK HEAD AZIMUTH ADJUSTMENT Note: Remove the sheet (azimuth) before this adjustment. After the end of adjustment, try to paste sheet (azimuth) peeled off to be the same position. Adjust the tape mechanism deck detaching it from the set when there is no hole for the azimuth adjustment in the set. Procedure: 1. Mode: Playback 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the pats adjusted. Adjustment Location: Record/Playback/Erase Head – When there is a hole for the azimuth adjustment – – When there is no hole for the azimuth adjustment – set test tape P-4-A063 (6.3 kHz, –10 dB) oscilloscope V H waveform of oscilloscope in phase 45° 90° 135° 180° good wrong MAIN board PHONES jack (J102) Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak set MAIN board PHONES jack (J102) + – level meter test tape P-4-A063 (6.3 kHz, –10 dB) mechanical deck (H-21SB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 13 13 HCD-EH10 CD SECTION Note: 1. CD Block is basically constructed to operate without adjustment. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10 MW impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. 5. Check the focus bias check when optical pick-up block is replaced. FOCUS BIAS CHECK Procedure : 1. Connect oscilloscope to TP (RFACI) and TP (VC) on the CD board. 2. Press the I/1 button to turn the power ON. 3. Set disc (YEDS-18) on the tray and press the CD u button to playback. 4. Confirm that oscilloscope waveform is as shown in the figure below. (eye pattern) A good eye pattern means that the diamond shape (◊) in the center of the waveform can be clearly distinguished. Checking Location: + – CD board TP (RFACI) TP (VC) oscilloscope (DC range) VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 0.9 ± 0.4 Vp-p TP (VC) TP (RFACI) IC201 – CD Board (Conductor Side) – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 14 14 HCD-EH10 SECTION 7 DIAGRAMS 7-1. BLOCK DIAGRAM – CD SERVO Section – OPTICAL PICK-UP BLOCK (KSM-213CDP) CH2OUTF CH2FIN FOCUS/TRACKING COIL DRIVER, SLED/SPINDLE MOTOR DRIVER IC402 12 6 CH2OUTR 11 CH1OUTR 13 CH1OUTF 14 CH3OUTF 17 CH3OUTR 18 SL– SL+ TRK– TRK+ FCS– FCS+ 2-AXIS DEVICE PD LD B A D C F E M402 (SLED) M CH4OUTF 16 CH4OUTR 15 CH2RIN 7 CH1RIN 5 CH1FIN 4 CH3FIN 23 CH3RIN 22 OPIN+ 2 CH4IN 24 OPOUT 27 FFDR 45 PD 67 F 51 E 50 D 60 C 59 B 58 A 57 LD 66 FRDR 46 TRDR 44 TFDR 43 SFDR 41 SRDR 42 MDP 38 SP– SP+ M401 (SPINDLE) M CD DSP IC201 SYSTEM CONTROLLER IC701 (1/3) XTAI 109 XTAO 108 SSTP 39 X201 16.9344MHz S201 (LIMIT) CD D +3.3V CD RFACO AOUT1 112 AOUT2 117 70 RFACI 71 XRST 8 MUTE 20 XTACN 7 ACK-MP3 15 SO2 50 A AUTOMATIC POWER CONTROL Q321 P76 34 P25 2 OCU0 11 IREQ-MP3 10 REQ-MP3 14 XLAT-MP3 13 CLK2 90 SC3 6 IC1 10 OCU1 12 SC2 49 DATA2 12 SCOR 26 AN7 43 SO3 5 SI3 7 SENS 20 XLAT 16 CLOK 11 DATA 89 SO0 31 SC0 30 TMCK 8 SI0 29 R-CH • SIGNAL PATH : CD PLAY • R-ch is omitted due to same as L-ch. AMP-STBY B (Page 16) (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 15 15 HCD-EH10 7-2. BLOCK DIAGRAM – TUNER Section – FM MIX AMP Q803 FM/AM TUNER, FM/AM PLL IC801 RDS DECODER IC861 36 FMRF-IN 8 FMIF-IN 22 MPX-IN 1 AMRF-IN 31 AM-OSC 33 SI1 56 V1 55 V0 57 V2 39 AN3 SYSTEM CONTROLLER IC701 (2/3) +4V REGULATOR Q862 VM +9V RDS +4V X801 75kHz 20 19 XIN XOUT 16 DI 17 CL 15 CE 18 DO 25 AGC 1 CNP802 ANTENNA FM/AM 3 BAND-PASS FILTER BPF801 AM TRACKING L851 AM-RF AM VT VOLTAGE L852 AM-LO D851 CF801 7 AMIF-IN L803 AM-IFT 34 FMRF-OUT FM TRACKING L804 FM-RF 32 FM-OSC FM VT VOLTAGE L805 FM-LO VM +9V 11 FM-DET FM DETECTOR L806 FM-DET 3 FM-MIX 30 BO2 29 BO1 23 FMDET-OUT 12 L-OUT 13 R-OUT R-CH TUNER 5 AM-MIX 24 AMDET-OUT CF802 CF803 10 TEST 4 FIN DET AMP Q861 27 TIN2 2 D0 45 INT3 16 CL X861 4.332MHz 14 13 XIN XOUT C • SIGNAL PATH : AM • R-ch is omitted due to same as L-ch. : FM (US, Canadian, Singapore) (AEP, UK, East European, Russian) (AEP, UK, East European, Russian) (Page 16) Ver. 1.3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 16 16 HCD-EH10 7-3. BLOCK DIAGRAM – MAIN Section – R-CH + INPUT SELECT, ELECTRICAL VOLUME IC401 28 REC1O 18 OUT1 13 SD 23 C1 21 B1 2 PB1P 19 A1 R-CH CD A TUNER • SIGNAL PATH : CD PLAY : TAPE PLAY : REC • R-ch is omitted due to same as L-ch. : TUNER J105 AUDIO IN : AUX IN J102 PHONES SPEAKER + – – + R L J101 BIAS OSC L501 OSC Q507 HR501 (REC/PB) TAPE MECHANISM DECK L-CH SW501-1 SW501 (REC/PB) PB r REC R-CH R-CH POWER AMP IC301 4 P27 IC0 9 SYSTEM CONTROLLER IC701 (3/3) + (AC IN) F001 F002 POWER TRANSFORMER PT005 SYS +3.3V D702 D191, 192 D112, 114 D372 AMP B+ +4V REGULATOR Q701 – 703 RECT D107 – 110 B+ SWITCH Q351, 352 AC DETECT Q371, 372 AC DETECT Q121, 122 VOLTAGE DETECT Q705, 706 +1.8V REGULATOR IC202 CD +1.8V RECT D111, 113 VSTBY +9V REGULATOR Q101 – 103 VM +9V +3.3V REGULATOR Q192 +3.3V REGULATOR Q191 CD D +3.3V CD A +3.3V VM +7V +5V REGULATOR Q802 TUNER +5V +3.1V REGULATOR Q801 TUNER +3.1V AC DETECT Q193 1 P24 42 AN6 36 AN0 54 RSTX REMOTE CONTROL RECEIVER IC703 LED DRIVE Q707 LED701 (LCD BACK LIGHT) LED0 17 SC1 46 LED702 X701 32.768kHz 14 13 X1A X0A 92 93 X702 4.19MHz X1 X0 LCD702 LIQUID CRYSTAL DISPLAY 48 SI2 28 PPG1 ROTARY ENCODER SW700 VOLUME STANDBY SW701 – 705, SW711 – 716 (FRONT PANEL KEYS) SW750 (CD LID OPEN/CLOSE DETECT) AN1, AN2, AN5 37, 38, 41 COM0 – COM1 59 – 62 SEG0 – SEG31 63, 64, 67 – 89, 94 – 100 RESET SWITCH Q704 C AMP-STBY B SW501-2 40 AN4 DC DETECT Q123 (Singapore) (EXCEPT Singapore) VOLTAGE SELECTOR S901 (Singapore) (EXCEPT Singapore) (Page 14) (Page 15) (Page 14) Ver. 1.3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 17 17 HCD-EH10 • Note for Printed Wiring Boards and Schematic Diagrams • Indication of transistor C B These are omitted. E Q Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. B These are omitted. C E Q • Waveforms – CD Board – – MAIN Board – – PANEL Board – 3 IC201 u; (RFACO) (CD PLAY mode) 200 mV/DIV, 500 ns/DIV 0.5 to 1.3 Vp-p 22.8 µs 3.3 Vp-p 1 IC201 1 (LRCK) (CD PLAY mode) 1 V/DIV, 10 µs/DIV 2 IC201 5 (BCK) (CD PLAY mode) 1 V/DIV, 200 ns/DIV 472 ns 3.3 Vp-p 4 IC201 C101 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C102 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C103 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C104 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C105 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C107 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C108 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C109 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C110 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C111 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C112 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C113 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C201 1-128-995-21 ELECT CHIP 100uF 20% 10V C202 1-164-360-11 CERAMIC CHIP 0.1uF 16V C203 1-128-995-21 ELECT CHIP 100uF 20% 10V C204 1-164-360-11 CERAMIC CHIP 0.1uF 16V C205 1-164-360-11 CERAMIC CHIP 0.1uF 16V C206 1-164-360-11 CERAMIC CHIP 0.1uF 16V C207 1-128-995-21 ELECT CHIP 100uF 20% 10V C208 1-164-360-11 CERAMIC CHIP 0.1uF 16V C210 1-164-360-11 CERAMIC CHIP 0.1uF 16V C213 1-164-360-11 CERAMIC CHIP 0.1uF 16V C214 1-164-360-11 CERAMIC CHIP 0.1uF 16V C215 1-164-360-11 CERAMIC CHIP 0.1uF 16V C217 1-164-360-11 CERAMIC CHIP 0.1uF 16V C218 1-164-360-11 CERAMIC CHIP 0.1uF 16V C219 1-164-360-11 CERAMIC CHIP 0.1uF 16V C220 1-164-360-11 CERAMIC CHIP 0.1uF 16V C221 1-164-360-11 CERAMIC CHIP 0.1uF 16V C222 1-164-360-11 CERAMIC CHIP 0.1uF 16V C223 1-164-360-11 CERAMIC CHIP 0.1uF 16V C224 1-164-360-11 CERAMIC CHIP 0.1uF 16V C226 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C227 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C230 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C232 1-164-360-11 CERAMIC CHIP 0.1uF 16V C251 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C252 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C253 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C254 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C256 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C257 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C258 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C260 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C261 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C264 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C265 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C266 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C267 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C268 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C271 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C272 1-164-360-11 CERAMIC CHIP 0.1uF 16V C273 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C274 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C275 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C276 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C277 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C291 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C292 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C301 1-164-360-11 CERAMIC CHIP 0.1uF 16V C303 1-137-710-11 CERAMIC CHIP 10uF 20% 6.3V C304 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C321 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C322 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C323 1-128-995-21 ELECT CHIP 100uF 20% 10V C401 1-128-394-11 ELECT CHIP 220uF 20% 10V C404 1-164-360-11 CERAMIC CHIP 0.1uF 16V C405 1-164-360-11 CERAMIC CHIP 0.1uF 16V C406 1-164-360-11 CERAMIC CHIP 0.1uF 16V C424 1-164-360-11 CERAMIC CHIP 0.1uF 16V C451 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V < CONNECTOR > CN301 1-770-425-51 CONNECTOR, FFC/FPC 16P < IC > IC201 8-753-246-30 IC CXD3014A-201R IC202 6-708-736-01 IC BD18KA5FP-E2 IC402 6-705-808-01 IC BA5947FM-E2 < TRANSISTOR > Q321 6-551-120-01 TRANSISTOR 2SA2119K Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. • Abbreviation AUS : Australian model CND : Canadian model Ver. 1.4 EE : East European model KR : Korean model RU : Russian model SP : Singapore model TW : Taiwan model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 39 HCD-EH10 CD < RESISTOR/FERRITE BEAD > R101 1-216-809-11 METAL CHIP 100 5% 1/10W R102 1-216-809-11 METAL CHIP 100 5% 1/10W R103 1-216-809-11 METAL CHIP 100 5% 1/10W R104 1-216-809-11 METAL CHIP 100 5% 1/10W R105 1-216-809-11 METAL CHIP 100 5% 1/10W R107 1-216-809-11 METAL CHIP 100 5% 1/10W R108 1-216-809-11 METAL CHIP 100 5% 1/10W R109 1-216-809-11 METAL CHIP 100 5% 1/10W R110 1-216-809-11 METAL CHIP 100 5% 1/10W R111 1-216-809-11 METAL CHIP 100 5% 1/10W R112 1-216-809-11 METAL CHIP 100 5% 1/10W R113 1-216-809-11 METAL CHIP 100 5% 1/10W R201 1-216-295-00 SHORT CHIP 0 R202 1-216-295-00 SHORT CHIP 0 R203 1-500-445-21 FERRITE, EMI (SMD) (2012) R207 1-216-295-00 SHORT CHIP 0 R250 1-216-857-11 METAL CHIP 1M 5% 1/10W R252 1-216-833-11 METAL CHIP 10K 5% 1/10W R253 1-216-821-11 METAL CHIP 1K 5% 1/10W R254 1-216-833-11 METAL CHIP 10K 5% 1/10W R255 1-216-821-11 METAL CHIP 1K 5% 1/10W R256 1-216-837-11 METAL CHIP 22K 5% 1/10W R257 1-216-845-11 METAL CHIP 100K 5% 1/10W R258 1-216-849-11 METAL CHIP 220K 5% 1/10W R260 1-216-864-11 SHORT CHIP 0 R265 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R266 1-216-821-11 METAL CHIP 1K 5% 1/10W R267 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R268 1-216-833-11 METAL CHIP 10K 5% 1/10W R270 1-216-821-11 METAL CHIP 1K 5% 1/10W R271 1-216-857-11 METAL CHIP 1M 5% 1/10W R275 1-216-809-11 METAL CHIP 100 5% 1/10W R276 1-216-841-11 METAL CHIP 47K 5% 1/10W R277 1-216-809-11 METAL CHIP 100 5% 1/10W R278 1-216-809-11 METAL CHIP 100 5% 1/10W R280 1-216-864-11 SHORT CHIP 0 R291 1-216-809-11 METAL CHIP 100 5% 1/10W R292 1-216-809-11 METAL CHIP 100 5% 1/10W R321 1-216-789-11 METAL CHIP 2.2 5% 1/10W R322 1-216-789-11 METAL CHIP 2.2 5% 1/10W R323 1-216-864-11 SHORT CHIP 0 R324 1-216-845-11 METAL CHIP 100K 5% 1/10W R401 1-216-295-00 SHORT CHIP 0 R421 1-216-864-11 SHORT CHIP 0 R423 1-216-833-11 METAL CHIP 10K 5% 1/10W R451 1-216-837-11 METAL CHIP 22K 5% 1/10W R452 1-216-833-11 METAL CHIP 10K 5% 1/10W < VIBRATOR > X201 1-795-101-21 VIBRATOR, CERAMIC (16.9344MHz) ************************************************************ A-1138-536-A MAIN BOARD, COMPLETE ******************** 3-254-142-01 SCREW (B3), (+) BV TAPPING < BAND PASS FILTER > BPF801 1-236-711-41 FILTER, BAND PASS < CAPACITOR > C101 1-126-944-11 ELECT 3300uF 20% 25V C105 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C109 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C110 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C111 1-164-156-11 CERAMIC CHIP 0.1uF 25V C112 1-126-943-11 ELECT 2200uF 20% 25V C114 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C115 1-164-156-11 CERAMIC CHIP 0.1uF 25V C118 1-126-933-11 ELECT 100uF 20% 16V C121 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C122 1-126-934-11 ELECT 220uF 20% 16V C141 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C142 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C155 1-164-156-11 CERAMIC CHIP 0.1uF 25V C156 1-164-156-11 CERAMIC CHIP 0.1uF 25V C181 1-164-156-11 CERAMIC CHIP 0.1uF 25V C182 1-164-156-11 CERAMIC CHIP 0.1uF 25V C183 1-164-156-11 CERAMIC CHIP 0.1uF 25V C184 1-164-156-11 CERAMIC CHIP 0.1uF 25V C191 1-126-934-11 ELECT 220uF 20% 16V C192 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C193 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C194 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C196 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C301 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C302 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C303 1-126-963-11 ELECT 4.7uF 20% 50V C304 1-126-933-11 ELECT 100uF 20% 16V C305 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C306 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C307 1-126-767-11 ELECT 1000uF 20% 16V C308 1-126-767-11 ELECT 1000uF 20% 16V C309 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C310 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C311 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C312 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C315 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C371 1-164-156-11 CERAMIC CHIP 0.1uF 25V C381 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C382 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C401 1-126-956-11 ELECT 0.1uF 20% 50V C402 1-126-933-11 ELECT 100uF 20% 16V C403 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C404 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C405 1-126-956-11 ELECT 0.1uF 20% 50V C406 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C407 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C408 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C409 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C410 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C412 1-126-933-11 ELECT 100uF 20% 16V C413 1-126-933-11 ELECT 100uF 20% 16V MAIN Ver. 1.3 Refer to the SUPPLEMENT-1 for the MAIN board of the except AEP, UK, East European and Russian models. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 40 HCD-EH10 C415 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C416 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C421 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C431 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C432 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C433 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C434 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C437 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C438 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C501 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C502 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C503 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C504 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C505 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C506 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C507 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C508 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C509 1-126-966-11 ELECT 33uF 20% 50V C510 1-126-966-11 ELECT 33uF 20% 50V C511 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C512 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C513 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C514 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C515 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C518 1-164-156-11 CERAMIC CHIP 0.1uF 25V C519 1-164-156-11 CERAMIC CHIP 0.1uF 25V C522 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C523 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C524 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C525 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C526 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C527 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C528 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C529 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C531 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C532 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C533 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C534 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C535 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C543 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C544 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C561 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C562 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C564 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C565 1-115-156-11 CERAMIC CHIP 1uF 10V C567 1-130-479-00 MYLAR 0.0047uF 5% 50V C800 1-164-156-11 CERAMIC CHIP 0.1uF 25V C801 1-126-933-11 ELECT 100uF 20% 16V C802 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C803 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C804 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C806 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C807 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C809 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C810 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C811 1-164-156-11 CERAMIC CHIP 0.1uF 25V C812 1-164-156-11 CERAMIC CHIP 0.1uF 25V C813 1-126-934-11 ELECT 220uF 20% 16V C814 1-164-156-11 CERAMIC CHIP 0.1uF 25V C815 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C816 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C817 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C818 1-216-864-11 SHORT CHIP 0 C819 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C820 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C821 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C822 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C823 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C824 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C825 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C826 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C827 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C828 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C829 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C830 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C831 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C832 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C833 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C834 1-126-934-11 ELECT 220uF 20% 16V C835 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C836 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C838 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C839 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C840 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C841 1-126-965-11 ELECT 22uF 20% 50V C847 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C848 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C851 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C852 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C853 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C854 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C855 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C856 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C861 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C862 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C863 1-126-965-11 ELECT 22uF 20% 50V C864 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C865 1-126-965-11 ELECT 22uF 20% 50V C866 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C867 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C868 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C869 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C873 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V < FILTER > CF801 1-795-426-11 FILTER, CERAMIC CF802 1-579-554-21 FILTER, CERAMIC CF803 1-781-962-21 FILTER, CERAMIC < CONNECTOR > CNP501 1-815-445-11 PIN, CONNECTOR (PWB) 4P CNP502 1-815-444-11 PIN, CONNECTOR (PWB) 3P * CNP802 1-506-680-11 PLUG, CONNECTOR (2.5mm) 3P CNS104 1-779-291-11 CONNECTOR, FFC (LIF (NON-ZIF)) 23P CNS112 1-779-295-11 CONNECTOR, FFC (LIF (NON-ZIF)) 27P MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 41 HCD-EH10 MAIN < DIODE > D106 8-719-056-85 DIODE UDZ-TE-17-8.2B D107 8-719-046-07 DIODE 2A02M D108 8-719-046-07 DIODE 2A02M D109 8-719-046-07 DIODE 2A02M D110 8-719-046-07 DIODE 2A02M D111 6-500-522-01 DIODE 10EDB40-TA1B2 D113 6-500-522-01 DIODE 10EDB40-TA1B2 D131 6-500-334-01 DIODE MC2836-T112-1 D191 6-500-522-01 DIODE 10EDB40-TA1B2 D192 6-500-522-01 DIODE 10EDB40-TA1B2 D193 8-719-083-58 DIODE UDZSTE-173.9B D371 6-500-335-01 DIODE MC2838-T112-1 D372 6-500-335-01 DIODE MC2838-T112-1 D802 6-501-369-01 DIODE SV230-TB-E D803 6-501-369-01 DIODE SV230-TB-E D812 8-719-062-51 DIODE 1PS226-115 D813 8-719-062-51 DIODE 1PS226-115 D815 8-719-062-51 DIODE 1PS226-115 D851 6-501-142-01 DIODE SVC347A-TL-E < IC > IC301 6-706-641-01 IC LA4631-E IC401 6-702-895-01 IC BD3881FV IC801 6-708-840-01 IC LV23003VA IC861 6-708-918-01 IC PT2579SN < JACK > J101 1-780-314-11 TERMINAL BOARD (SPEAKERS) J102 1-815-629-11 JACK (PHONES) J105 1-566-822-51 JACK (AUDIO IN) < JUMPER RESISTOR > JR106 1-216-864-11 SHORT CHIP 0 JR401 1-216-864-11 SHORT CHIP 0 JR402 1-216-864-11 SHORT CHIP 0 JR403 1-216-864-11 SHORT CHIP 0 JR404 1-216-864-11 SHORT CHIP 0 JR801 1-216-864-11 SHORT CHIP 0 JR802 1-216-864-11 SHORT CHIP 0 JR803 1-216-864-11 SHORT CHIP 0 JR861 1-216-864-11 SHORT CHIP 0 < COIL > L103 1-469-152-11 FERRITE, EMI (SMD) (2012) L104 1-469-152-11 FERRITE, EMI (SMD) (2012) L501 1-456-094-11 TRANSFORMER, BIAS OSCILLATION L803 1-433-741-11 TRANSFORMER, IF L804 1-457-163-11 COIL, AIR-CORE L805 1-457-162-11 COIL, AIR-CORE L806 1-457-168-11 COIL, DET L851 1-457-161-11 COIL, AM ANTENNA L852 1-456-596-11 COIL, MW OSC < CONNECTOR > * PIN101 1-564-187-00 PIN, CONNECTOR * PIN102 1-564-187-00 PIN, CONNECTOR < TRANSISTOR > Q101 8-729-141-83 TRANSISTOR 2SB1094-LK Q102 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q103 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q121 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q122 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q123 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q191 8-729-036-86 TRANSISTOR KTC3203Y-AT Q192 8-729-036-86 TRANSISTOR KTC3203Y-AT Q193 8-729-600-22 TRANSISTOR 2SA1235-F Q351 6-550-843-01 FET 2SJ599-Z-E2-AZ Q352 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q371 8-729-600-22 TRANSISTOR 2SA1235-F Q372 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q507 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q801 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q802 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q803 6-550-304-01 TRANSISTOR 2SC5477-T122-1 Q861 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q862 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R101 1-216-833-11 METAL CHIP 10K 5% 1/10W R102 1-216-809-11 METAL CHIP 100 5% 1/10W R103 1-216-841-11 METAL CHIP 47K 5% 1/10W R104 1-216-845-11 METAL CHIP 100K 5% 1/10W R105 1-216-845-11 METAL CHIP 100K 5% 1/10W R106 1-216-837-11 METAL CHIP 22K 5% 1/10W R107 1-216-817-11 METAL CHIP 470 5% 1/10W R108 1-216-809-11 METAL CHIP 100 5% 1/10W R109 1-216-817-11 METAL CHIP 470 5% 1/10W R110 1-216-845-11 METAL CHIP 100K 5% 1/10W R111 1-216-853-11 METAL CHIP 470K 5% 1/10W R112 1-216-853-11 METAL CHIP 470K 5% 1/10W R115 1-249-409-11 CARBON 220 5% 1/4W R116 1-249-409-11 CARBON 220 5% 1/4W R117 1-249-409-11 CARBON 220 5% 1/4W R118 1-249-409-11 CARBON 220 5% 1/4W R119 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R120 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R121 1-216-849-11 METAL CHIP 220K 5% 1/10W R123 1-216-853-11 METAL CHIP 470K 5% 1/10W R124 1-216-809-11 METAL CHIP 100 5% 1/10W R125 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R126 1-216-841-11 METAL CHIP 47K 5% 1/10W R127 1-216-841-11 METAL CHIP 47K 5% 1/10W R128 1-216-813-11 METAL CHIP 220 5% 1/10W R129 1-216-817-11 METAL CHIP 470 5% 1/10W R130 1-216-813-11 METAL CHIP 220 5% 1/10W R134 1-216-817-11 METAL CHIP 470 5% 1/10W R135 1-216-817-11 METAL CHIP 470 5% 1/10W R136 1-216-817-11 METAL CHIP 470 5% 1/10W R137 1-216-817-11 METAL CHIP 470 5% 1/10W R138 1-216-817-11 METAL CHIP 470 5% 1/10W R139 1-216-817-11 METAL CHIP 470 5% 1/10W R140 1-216-817-11 METAL CHIP 470 5% 1/10W R144 1-216-817-11 METAL CHIP 470 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 42 HCD-EH10 MAIN R145 1-216-817-11 METAL CHIP 470 5% 1/10W R146 1-216-817-11 METAL CHIP 470 5% 1/10W R147 1-216-817-11 METAL CHIP 470 5% 1/10W R148 1-216-817-11 METAL CHIP 470 5% 1/10W R149 1-216-817-11 METAL CHIP 470 5% 1/10W R150 1-216-817-11 METAL CHIP 470 5% 1/10W R151 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R152 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R175 1-216-841-11 METAL CHIP 47K 5% 1/10W R176 1-216-841-11 METAL CHIP 47K 5% 1/10W R181 1-216-797-11 METAL CHIP 10 5% 1/10W R182 1-216-797-11 METAL CHIP 10 5% 1/10W R185 1-247-807-31 CARBON 100 5% 1/4W R186 1-247-807-31 CARBON 100 5% 1/4W R187 1-247-807-31 CARBON 100 5% 1/4W R188 1-216-837-11 METAL CHIP 22K 5% 1/10W R189 1-216-837-11 METAL CHIP 22K 5% 1/10W R191 1-216-821-11 METAL CHIP 1K 5% 1/10W R192 1-216-845-11 METAL CHIP 100K 5% 1/10W R193 1-216-845-11 METAL CHIP 100K 5% 1/10W R195 1-216-809-11 METAL CHIP 100 5% 1/10W R196 1-216-809-11 METAL CHIP 100 5% 1/10W R197 1-247-807-31 CARBON 100 5% 1/4W R198 1-247-807-31 CARBON 100 5% 1/4W R199 1-247-807-31 CARBON 100 5% 1/4W R301 1-216-837-11 METAL CHIP 22K 5% 1/10W R302 1-216-837-11 METAL CHIP 22K 5% 1/10W R303 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R304 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R305 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R306 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R307 1-216-837-11 METAL CHIP 22K 5% 1/10W R308 1-216-837-11 METAL CHIP 22K 5% 1/10W R339 1-216-809-11 METAL CHIP 100 5% 1/10W R340 1-216-809-11 METAL CHIP 100 5% 1/10W R351 1-216-833-11 METAL CHIP 10K 5% 1/10W R352 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R353 1-216-833-11 METAL CHIP 10K 5% 1/10W R354 1-216-833-11 METAL CHIP 10K 5% 1/10W R355 1-216-833-11 METAL CHIP 10K 5% 1/10W R356 1-216-837-11 METAL CHIP 22K 5% 1/10W R365 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R371 1-218-446-11 METAL CHIP 1 5% 1/10W R372 1-218-446-11 METAL CHIP 1 5% 1/10W R373 1-218-446-11 METAL CHIP 1 5% 1/10W R374 1-218-446-11 METAL CHIP 1 5% 1/10W R375 1-218-446-11 METAL CHIP 1 5% 1/10W R376 1-218-446-11 METAL CHIP 1 5% 1/10W R377 1-218-446-11 METAL CHIP 1 5% 1/10W R378 1-218-446-11 METAL CHIP 1 5% 1/10W R379 1-218-446-11 METAL CHIP 1 5% 1/10W R380 1-218-446-11 METAL CHIP 1 5% 1/10W R381 1-216-833-11 METAL CHIP 10K 5% 1/10W R382 1-216-833-11 METAL CHIP 10K 5% 1/10W R383 1-216-833-11 METAL CHIP 10K 5% 1/10W R384 1-216-821-11 METAL CHIP 1K 5% 1/10W R402 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-821-11 METAL CHIP 1K 5% 1/10W R404 1-216-813-11 METAL CHIP 220 5% 1/10W R405 1-216-864-11 SHORT CHIP 0 R406 1-216-821-11 METAL CHIP 1K 5% 1/10W R410 1-216-845-11 METAL CHIP 100K 5% 1/10W R411 1-216-821-11 METAL CHIP 1K 5% 1/10W R412 1-216-813-11 METAL CHIP 220 5% 1/10W R419 1-216-839-11 METAL CHIP 33K 5% 1/10W R420 1-216-839-11 METAL CHIP 33K 5% 1/10W R423 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R424 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R425 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R426 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R427 1-216-845-11 METAL CHIP 100K 5% 1/10W R428 1-216-845-11 METAL CHIP 100K 5% 1/10W R429 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R430 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R433 1-216-837-11 METAL CHIP 22K 5% 1/10W R434 1-216-837-11 METAL CHIP 22K 5% 1/10W R439 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R440 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R441 1-216-841-11 METAL CHIP 47K 5% 1/10W R442 1-216-841-11 METAL CHIP 47K 5% 1/10W R501 1-216-809-11 METAL CHIP 100 5% 1/10W R502 1-216-809-11 METAL CHIP 100 5% 1/10W R503 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R504 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R505 1-216-833-11 METAL CHIP 10K 5% 1/10W R506 1-216-833-11 METAL CHIP 10K 5% 1/10W R507 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R508 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R509 1-216-853-11 METAL CHIP 470K 5% 1/10W R510 1-216-853-11 METAL CHIP 470K 5% 1/10W R511 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R512 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R513 1-216-809-11 METAL CHIP 100 5% 1/10W R514 1-216-809-11 METAL CHIP 100 5% 1/10W R515 1-216-805-11 METAL CHIP 47 5% 1/10W R516 1-216-805-11 METAL CHIP 47 5% 1/10W R517 1-216-845-11 METAL CHIP 100K 5% 1/10W R518 1-216-845-11 METAL CHIP 100K 5% 1/10W R519 1-216-841-11 METAL CHIP 47K 5% 1/10W R520 1-216-841-11 METAL CHIP 47K 5% 1/10W R521 1-216-837-11 METAL CHIP 22K 5% 1/10W R522 1-216-837-11 METAL CHIP 22K 5% 1/10W R523 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R524 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R525 1-216-833-11 METAL CHIP 10K 5% 1/10W R526 1-216-833-11 METAL CHIP 10K 5% 1/10W R527 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R528 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R529 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R530 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R531 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R532 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R533 1-216-833-11 METAL CHIP 10K 5% 1/10W R534 1-216-833-11 METAL CHIP 10K 5% 1/10W R535 1-216-813-11 METAL CHIP 220 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 43 HCD-EH10 MAIN R536 1-216-813-11 METAL CHIP 220 5% 1/10W R541 1-216-837-11 METAL CHIP 22K 5% 1/10W R542 1-216-833-11 METAL CHIP 10K 5% 1/10W R543 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R544 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R545 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R560 1-216-821-11 METAL CHIP 1K 5% 1/10W R561 1-216-837-11 METAL CHIP 22K 5% 1/10W R564 1-216-793-11 METAL CHIP 4.7 5% 1/10W R565 1-216-793-11 METAL CHIP 4.7 5% 1/10W R801 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R802 1-216-797-11 METAL CHIP 10 5% 1/10W R803 1-216-797-11 METAL CHIP 10 5% 1/10W R804 1-216-864-11 SHORT CHIP 0 R805 1-216-845-11 METAL CHIP 100K 5% 1/10W R806 1-216-864-11 SHORT CHIP 0 R807 1-216-845-11 METAL CHIP 100K 5% 1/10W R808 1-216-833-11 METAL CHIP 10K 5% 1/10W R809 1-216-821-11 METAL CHIP 1K 5% 1/10W R810 1-216-857-11 METAL CHIP 1M 5% 1/10W R811 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R812 1-216-817-11 METAL CHIP 470 5% 1/10W R813 1-216-833-11 METAL CHIP 10K 5% 1/10W R814 1-216-809-11 METAL CHIP 100 5% 1/10W R815 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R816 1-216-833-11 METAL CHIP 10K 5% 1/10W R817 1-216-833-11 METAL CHIP 10K 5% 1/10W R818 1-216-841-11 METAL CHIP 47K 5% 1/10W R819 1-216-841-11 METAL CHIP 47K 5% 1/10W R820 1-216-833-11 METAL CHIP 10K 5% 1/10W R821 1-216-813-11 METAL CHIP 220 5% 1/10W R822 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R823 1-216-809-11 METAL CHIP 100 5% 1/10W R824 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R825 1-216-817-11 METAL CHIP 470 5% 1/10W R826 1-216-809-11 METAL CHIP 100 5% 1/10W R827 1-216-809-11 METAL CHIP 100 5% 1/10W R828 1-216-801-11 METAL CHIP 22 5% 1/10W R829 1-216-845-11 METAL CHIP 100K 5% 1/10W R830 1-216-841-11 METAL CHIP 47K 5% 1/10W R831 1-216-813-11 METAL CHIP 220 5% 1/10W R833 1-216-833-11 METAL CHIP 10K 5% 1/10W R834 1-216-837-11 METAL CHIP 22K 5% 1/10W R835 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R836 1-216-833-11 METAL CHIP 10K 5% 1/10W R837 1-216-821-11 METAL CHIP 1K 5% 1/10W R838 1-216-821-11 METAL CHIP 1K 5% 1/10W R839 1-216-809-11 METAL CHIP 100 5% 1/10W R840 1-216-837-11 METAL CHIP 22K 5% 1/10W R841 1-216-809-11 METAL CHIP 100 5% 1/10W R842 1-216-841-11 METAL CHIP 47K 5% 1/10W R843 1-216-853-11 METAL CHIP 470K 5% 1/10W R844 1-216-797-11 METAL CHIP 10 5% 1/10W R845 1-216-801-11 METAL CHIP 22 5% 1/10W R846 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R847 1-216-801-11 METAL CHIP 22 5% 1/10W R848 1-216-821-11 METAL CHIP 1K 5% 1/10W R849 1-216-837-11 METAL CHIP 22K 5% 1/10W R850 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R851 1-216-837-11 METAL CHIP 22K 5% 1/10W R853 1-216-845-11 METAL CHIP 100K 5% 1/10W R856 1-216-837-11 METAL CHIP 22K 5% 1/10W R857 1-216-837-11 METAL CHIP 22K 5% 1/10W R859 1-216-821-11 METAL CHIP 1K 5% 1/10W R860 1-216-821-11 METAL CHIP 1K 5% 1/10W R861 1-216-833-11 METAL CHIP 10K 5% 1/10W R862 1-216-817-11 METAL CHIP 470 5% 1/10W R863 1-216-837-11 METAL CHIP 22K 5% 1/10W R864 1-216-833-11 METAL CHIP 10K 5% 1/10W R865 1-216-833-11 METAL CHIP 10K 5% 1/10W R866 1-216-833-11 METAL CHIP 10K 5% 1/10W R867 1-216-833-11 METAL CHIP 10K 5% 1/10W R868 1-216-833-11 METAL CHIP 10K 5% 1/10W R869 1-216-833-11 METAL CHIP 10K 5% 1/10W R870 1-216-853-11 METAL CHIP 470K 5% 1/10W R871 1-216-849-11 METAL CHIP 220K 5% 1/10W R872 1-216-813-11 METAL CHIP 220 5% 1/10W R873 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R874 1-216-845-11 METAL CHIP 100K 5% 1/10W R875 1-216-845-11 METAL CHIP 100K 5% 1/10W R876 1-216-841-11 METAL CHIP 47K 5% 1/10W < SWITCH > SW501 1-762-369-11 SWITCH, SLIDE (REC/PB) < VIBRATOR > X801 1-795-926-11 VIBRATOR, CRYSTAL (75kHz) X861 1-579-900-21 VIBRATOR, CRYSTAL (4.332MHz) ************************************************************ A-1138-541-A PANEL BOARD, COMPLETE (AEP, UK, EE, RU) A-1158-525-A PANEL BOARD, COMPLETE (US, CND) A-1158-532-A PANEL BOARD, COMPLETE (SP, TW, KR, AUS) ********************** 2-636-531-01 HOLDER, LCD 2-636-532-01 ILLUMINATOR, LCD 2-636-545-01 SHEET, LCD < CAPACITOR > C701 1-164-156-11 CERAMIC CHIP 0.1uF 25V C702 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C703 1-126-382-11 ELECT 100uF 20% 16V C704 1-119-941-11 ELECT 470uF 20% 6.3V C705 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C706 1-164-156-11 CERAMIC CHIP 0.1uF 25V C707 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C708 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C709 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C710 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C711 1-164-156-11 CERAMIC CHIP 0.1uF 25V C712 1-164-156-11 CERAMIC CHIP 0.1uF 25V C713 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C714 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C715 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C716 1-164-156-11 CERAMIC CHIP 0.1uF 25V PANEL Ver. 1.4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 44 HCD-EH10 C717 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C718 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C719 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C720 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C722 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C724 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C731 1-164-156-11 CERAMIC CHIP 0.1uF 25V C732 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C733 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C734 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C735 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C736 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (AEP, UK, EE, RU) C740 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (AEP, UK, EE, RU) C741 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C742 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C743 1-162-960-11 CERAMIC CHIP 220PF 10% 50V < CONNECTOR > CNS701 1-779-295-11 CONNECTOR, FFC (LIF (NON-ZIF)) 27P (AEP, UK, EE, RU) CNS702 1-779-293-11 CONNECTOR, FFC (LIF (NON-ZIF)) (US, CND, SP, TW, KR, AUS) < DIODE > D701 6-501-163-01 DIODE UDZW-TE17-3.6B D702 6-500-334-01 DIODE MC2836-T112-1 < IC > IC701 6-806-137-01 IC MB90802-107 IC703 6-600-446-01 IC RPM7240-H18 < RESISTOR > JR701 1-216-864-11 SHORT CHIP 0 JR702 1-216-864-11 SHORT CHIP 0 JR703 1-216-864-11 SHORT CHIP 0 JR704 1-216-864-11 SHORT CHIP 0 JR705 1-216-864-11 SHORT CHIP 0 JR706 1-216-864-11 SHORT CHIP 0 JR707 1-216-864-11 SHORT CHIP 0 JR708 1-216-864-11 SHORT CHIP 0 JR709 1-216-864-11 SHORT CHIP 0 JR710 1-216-864-11 SHORT CHIP 0 JR713 1-216-864-11 SHORT CHIP 0 JR714 1-216-864-11 SHORT CHIP 0 JR715 1-216-817-11 METAL CHIP 470 5% 1/10W JR716 1-216-864-11 SHORT CHIP 0 JR718 1-216-864-11 SHORT CHIP 0 JR721 1-216-864-11 SHORT CHIP 0 L701 1-216-864-11 SHORT CHIP 0 L702 1-216-864-11 SHORT CHIP 0 < LIQUID CRYSTAL DISPLAY > LCD702 1-805-941-12 DISPLAY PANEL, LIQUID CRYSTAL < LED > LED701 6-501-139-01 LED SELU2B10A-SLF62 (LCD BACK LIGHT) LED702 8-719-060-44 LED SLR-342VRT32 (STANDBY) < TRANSISTOR > Q701 8-729-600-22 TRANSISTOR 2SA1235-F Q702 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q703 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q704 1-801-806-11 TRANSISTOR DTC144EKA Q705 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q706 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q707 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R701 1-216-821-11 METAL CHIP 1K 5% 1/10W R702 1-216-809-11 METAL CHIP 100 5% 1/10W R703 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R704 1-216-821-11 METAL CHIP 1K 5% 1/10W R705 1-216-821-11 METAL CHIP 1K 5% 1/10W R706 1-216-821-11 METAL CHIP 1K 5% 1/10W R707 1-216-821-11 METAL CHIP 1K 5% 1/10W R708 1-216-821-11 METAL CHIP 1K 5% 1/10W R709 1-216-821-11 METAL CHIP 1K 5% 1/10W R710 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R711 1-216-837-11 METAL CHIP 22K 5% 1/10W R712 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R713 1-216-833-11 METAL CHIP 10K 5% 1/10W R714 1-216-833-11 METAL CHIP 10K 5% 1/10W R715 1-216-821-11 METAL CHIP 1K 5% 1/10W R716 1-216-821-11 METAL CHIP 1K 5% 1/10W R717 1-216-821-11 METAL CHIP 1K 5% 1/10W R718 1-216-821-11 METAL CHIP 1K 5% 1/10W R719 1-216-821-11 METAL CHIP 1K 5% 1/10W R721 1-216-817-11 METAL CHIP 470 5% 1/10W R722 1-216-849-11 METAL CHIP 220K 5% 1/10W R723 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R724 1-216-821-11 METAL CHIP 1K 5% 1/10W (AEP, UK, EE, RU) R725 1-216-833-11 METAL CHIP 10K 5% 1/10W R726 1-216-845-11 METAL CHIP 100K 5% 1/10W R727 1-216-864-11 SHORT CHIP 0 R728 1-216-833-11 METAL CHIP 10K 5% 1/10W R730 1-216-833-11 METAL CHIP 10K 5% 1/10W R731 1-216-833-11 METAL CHIP 10K 5% 1/10W R732 1-216-841-11 METAL CHIP 47K 5% 1/10W R733 1-216-841-11 METAL CHIP 47K 5% 1/10W R734 1-216-821-11 METAL CHIP 1K 5% 1/10W R735 1-216-821-11 METAL CHIP 1K 5% 1/10W R736 1-216-864-11 SHORT CHIP 0 R738 1-216-833-11 METAL CHIP 10K 5% 1/10W R739 1-216-833-11 METAL CHIP 10K 5% 1/10W R742 1-216-821-11 METAL CHIP 1K 5% 1/10W R743 1-216-821-11 METAL CHIP 1K 5% 1/10W R744 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R745 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R746 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R747 1-216-821-11 METAL CHIP 1K 5% 1/10W (AEP, UK, EE, RU) R748 1-216-841-11 METAL CHIP 47K 5% 1/10W R749 1-216-821-11 METAL CHIP 1K 5% 1/10W PANEL Ver. 1.4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 45 HCD-EH10 R750 1-216-821-11 METAL CHIP 1K 5% 1/10W R751 1-216-845-11 METAL CHIP 100K 5% 1/10W R753 1-216-809-11 METAL CHIP 100 5% 1/10W R754 1-216-833-11 METAL CHIP 10K 5% 1/10W R755 1-216-864-11 SHORT CHIP 0 R756 1-216-821-11 METAL CHIP 1K 5% 1/10W R757 1-216-845-11 METAL CHIP 100K 5% 1/10W R758 1-216-821-11 METAL CHIP 1K 5% 1/10W R759 1-216-809-11 METAL CHIP 100 5% 1/10W R760 1-216-845-11 METAL CHIP 100K 5% 1/10W R761 1-216-841-11 METAL CHIP 47K 5% 1/10W R762 1-216-833-11 METAL CHIP 10K 5% 1/10W R763 1-216-837-11 METAL CHIP 22K 5% 1/10W R764 1-216-837-11 METAL CHIP 22K 5% 1/10W R765 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R766 1-216-797-11 METAL CHIP 10 5% 1/10W R767 1-216-849-11 METAL CHIP 220K 5% 1/10W R768 1-216-833-11 METAL CHIP 10K 5% 1/10W R770 1-216-841-11 METAL CHIP 47K 5% 1/10W R771 1-216-821-11 METAL CHIP 1K 5% 1/10W R772 1-216-821-11 METAL CHIP 1K 5% 1/10W R775 1-216-805-11 METAL CHIP 47 5% 1/10W R776 1-216-821-11 METAL CHIP 1K 5% 1/10W R777 1-216-817-11 METAL CHIP 470 5% 1/10W R778 1-216-821-11 METAL CHIP 1K 5% 1/10W R779 1-216-821-11 METAL CHIP 1K 5% 1/10W R781 1-216-833-11 METAL CHIP 10K 5% 1/10W (US, CND) R781 1-216-845-11 METAL CHIP 100K 5% 1/10W (EXCEPT US, CND) R782 1-216-833-11 METAL CHIP 10K 5% 1/10W (SP, TW, KR, AUS) R782 1-216-864-11 SHORT CHIP 0 (AEP, UK, EE, RU) R783 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP, UK, EE, RU) R783 1-216-837-11 METAL CHIP 22K 5% 1/10W (SP, TW, KR, AUS) R784 1-216-845-11 METAL CHIP 100K 5% 1/10W R785 1-216-833-11 METAL CHIP 10K 5% 1/10W R787 1-216-841-11 METAL CHIP 47K 5% 1/10W < SWITCH > SW700 1-478-642-11 ENCODER, ROTARY (VOLUME) SW701 1-762-875-21 SWITCH, KEYBOARD (I/1) SW702 1-762-875-21 SWITCH, KEYBOARD (DSGX) SW703 1-762-875-21 SWITCH, KEYBOARD ( –) SW704 1-762-875-21 SWITCH, KEYBOARD ( +) SW705 1-762-875-21 SWITCH, KEYBOARD (DISPLAY) SW711 1-762-875-21 SWITCH, KEYBOARD (x) SW712 1-762-875-21 SWITCH, KEYBOARD (TUNING –, m l) SW713 1-762-875-21 SWITCH, KEYBOARD (TUNING +, M L) SW714 1-762-875-21 SWITCH, KEYBOARD (FUNCTION) SW715 1-762-875-21 SWITCH, KEYBOARD (TUNER, BAND) SW716 1-762-875-21 SWITCH, KEYBOARD (CD u) < VIBRATOR > X701 1-760-252-12 VIBRATOR, CRYSTAL (32.768kHz) X702 1-795-054-51 VIBRATOR, CERAMIC (4.19MHz) ************************************************************ A-1138-529-A PT-AC BOARD, COMPLETE ********************* 1-533-233-31 FUSE HOLDER < CONNECTOR > W002 1-819-131-11 PIN, CONNECTOR 3P ************************************************************ MISCELLANEOUS ************** 04 1-769-079-51 CORD, POWER (KR) 04 1-775-790-81 CORD, POWER (AUS) 04 1-790-757-51 CORD, POWER (US, CND) 04 1-827-597-81 CORD, POWER (TW) 04 1-830-891-11 CORD, POWER (UK) 04 1-831-370-11 CORD, POWER (AEP, EE, RU, SP) 70 1-797-374-11 DECK, MECHANICAL (H-21SB) 102 1-452-899-11 MAGNET 0151 8-820-126-01 OPTICAL PICK-UP BLOCK (KSM-213CDP/C2NP) (Including sled motor (M402), spindle motor (M401)) 152 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE) 0F001 1-532-275-33 FUSE (T0.16AL/250V) (AEP, UK, EE, RU, KR, AUS) 0F001 1-532-467-33 FUSE (T0.315AL/250V) (US, CND, SP, TW) 0F002 1-532-275-33 FUSE (T0.16AL/250V) (SP) FFC151 1-832-627-21 CABLE, FLEXIBLE FLAT (23 CORE) FFC701 1-832-634-21 CABLE, FLEXIBLE FLAT (25 CORE) (US, CND, SP, TW, KR, AUS) FFC702 1-832-644-21 CABLE, FLEXIBLE FLAT (27 CORE) (AEP, UK, EE, RU) 0PT005 1-443-829-11 TRANSFORMER, POWER (AEP, UK, EE, RU) 0PT005 1-443-856-11 TRANSFORMER, POWER (US, CND) 0PT005 1-443-857-11 TRANSFORMER, POWER (KR) 0PT005 1-443-858-11 TRANSFORMER, POWER (SP, TW, AUS) S201 1-771-853-11 SWITCH, DETECTION (LIMIT) SW750 1-692-960-11 SWITCH, PUSH (1 KEY) (CD LID OPEN/CLOSE DETECT) ************************************************************* ACCESSORIES ************ 0 1-569-008-22 ADAPTOR, CONVERSION 2P (SP) 0 1-770-019-61 ADAPTOR, CONVERSION PLUG (UK) PT-AC PANEL Ver. 1.4 Refer to the SUPPLEMENT-1 for the PT-AC board of the except AEP, UK, East European and Russian models. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 HCD-EH10 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SERVICE MANUAL HCD-EH10 Subject: Change of MAIN and PT-AC boards (Suffix-13) US Model Canadian Model AEP Model UK Model E Model Australian Model 9-879-855-81 Ver. 1.4 2006.03 1. NEW/FORMER DESCRIPTION In this set, MAIN and PT-AC boards have been changed in the midway of production. Printed wiring boards and schematic diagrams of new type, and changed parts list are described in this supplement-1. Refer to original service manual for other information. – MAIN Board (Component Side) – – PT-AC Board (Component Side) – Former : 1-868-227-11, -12 New : 1-868-227-13 Former : 1-868-228-11, -12 New : 1-868-228-13 SUPPLEMENT-1 File this supplement with the service manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-EH10 • Note for Printed Wiring Boards and Schematic Diagrams C B These are omitted. E Q Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Indication of transistor B These are omitted. C E Q 2. DIAGRAMS Ver. 1.4 Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. • A : B+ Line. • H : Adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : FM [ ] : AM { } : REC • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : FM f : AM J : CD PLAY E : TAPE PLAY j : REC i : AUX IN • Abbreviation AUS : Australian model CND : Canadian model EE : East European model KR : Korean model RU : Russian model SP : Singapore model TW : Taiwan model Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 3 3 HCD-EH10 2-1. PRINTED WIRING BOARDS – MAIN Section – : Uses unleaded solder. JW807 JW808 JW809 JW811 JW812 JW814 JW815 JW816 JW817 JW818 JW822 JW824 JW829 JW823 JW825 JW813 HT101 JW832 JW834 JW835 JW108 JW109 JW110 JW113 JW116 JW118 JW119 JW120 JW124 JW125 JW126 JW127 JW128 JW130 JW135 JW136 JW139 JW147 JW403 JW410 JW412 JW142 JW150 JW151 JW104 JW103 JW101 JW105 JW155 JW102 JW840 JW123 JW112 JW111 JW115 JW114 JW122 JW121 JW836 JW137 JW131 JW408 JW134 JW411 JW415 JW414 JW401 JW407 JW406 JW402 JW129 JW148 JW405 JW404 JW106 JW154 JW153 JW138 JW830 JW143 JW158 JW159 JW160 JW161 JW416 JW417 JW162 JW165 JW810 JW833 JW140 JW163 JW164 JW819 JW144 JW156 JW146 JW157 JW821 JW117 JW409 JW132 JW418 JW831 JW141 JW145 JW413 JW149 JW167 JW168 PIN101 X801 L851 Q101 SW501 C308 C307 JW805 C304 C303 Q191 C191 JW803 C865 C841 X861 C863 C101 C801 C834 L805 L804 L806 C401 C510 L852 BPF801 C813 CNP802 CNS104 CNP501 CNP502 C413 C402 C412 C405 J105 C509 L501 IC301 J102 C567 JW166 JW182 J101 D107 D108 D109 D110 C118 JW181 C113 CF803 L803 Q192 C122 CN102 JW152 JW107 R199 R198 R197 R187 R186 R185 R118 R116 R117 R115 D192 D191 D113 D111 PIN102 JW804 JW802 JW806 C805 R184 JR404 JR403 R843 JR401 JR402 JR861 R188 C382 C381 R384 R383 D371 D372 Q372 Q371 R381 R382 R375 R374 R376 R377 R378 R379 R380 R371 R372 R355 R356 Q351 C543 C115 R824 JR802 R176 R861 Q861 R189 C864 R869 R870 R871 C306 JR801 Q121 C155 R847 R810 R814 C873 C194 R121 R181 C421 R365 C182 C184 C181 C183 R123 C371 R823 C866 C807 C840 R406 Q862 C814 R840 JR803 R541 R536 C403 R144 R140 R137 R147 C544 R182 R135 R191 R196 D193 R195 C192 C193 R139 R149 C409 R522 R425 R424 C142 C141 R120 R119 L103 R873 R430 R531 R429 R440 R442 C433 C437 C434 C438 C565 IC401 L104 R866 R868 C862 R862 R865 R864 C867 C861 R839 R812 R419 R811 R441 R439 R420 R405 Q803 C838 R830 R829 R403 R404 R410 R411 R842 R412 C515 R402 R427 R856 R827 R428 R846 C415 C416 R848 C528 R834 IC801 C527 R857 C523 R533 C526 R835 C816 R433 R192 R813 C817 R863 C822 C821 R816 R833 C305 C868 C869 R859 R434 R828 R860 R836 C804 R528 R532 R804 C508 C111 R523 R805 C806 C803 R817 R530 C505 R152 R803 R502 R175 C809 R527 R808 C506 C507 C819 R807 C529 R806 C855 R529 C504 C503 C856 R518 C854 R831 R853 R851 C851 R151 C853 C852 R517 D851 R867 R872 C522 R516 R515 R514 R513 R534 R524 R521 R525 R526 C836 C810 C811 R821 R512 C827 C826 R820 R819 R837 C835 C828 Q801 R838 R809 R825 R826 Q802 C825 C824 C823 C839 R845 R844 R841 C847 C830 C848 C829 Q193 R822 C833 C832 C831 C812 R802 R818 R801 C802 C815 R815 C301 C315 C302 R339 R304 R308 R301 R303 R305 R340 R306 R511 C524 R510 R509 R508 R507 C432 R506 R505 R423 C525 R426 C410 C501 R543 R565 R535 R544 R112 C431 R504 R503 R501 R193 C561 Q507 C564 R545 R110 C562 R564 C404 C196 R561 C407 C408 C406 C512 C511 C502 C514 C513 R520 R519 R560 R874 R849 R875 R130 R131 D812 C156 R542 IC861 Q122 Q102 Q103 D106 C109 C110 R101 R102 R103 R104 R105 R106 R107 R109 C114 R108 R124 R125 C121 C818 R128 R129 R126 R127 R111 D131 R145 R148 R134 R138 R136 R146 D803 D802 R150 D813 C800 C105 Q123 C518 C519 R373 Q352 R351 R352 R353 R876 C820 D815 R850 R354 C531 C532 CF801 CF802 F001 W008 T001 T002 W002 JW002 JW003 S002 WH005 WH006 WH007 T005 T006 F002 E E E E E E E B C E E E E E E E E E 1 8 16 9 1 14 28 15 S G D E MAIN BOARD 1-868-227- 13 (13) K A/K A K A/K A ANTENNA FM/AM E K A A K A A A/K K A K A A (VT) (GND) (TUNER OUT R-ch) (TUNER OUT L-ch) (GND) L R SPEAKER + – + – K K A K A A K A A 1 3 1 4 (REC/PB) REC PB 1 2 S501 A CD BOARD CN102 C CD BOARD D PANEL BOARD B PANEL BOARD CNS701 (AEP, UK, EE, RU) CNS702 (US, CND, SP, TW, KR, AUS) 1 2 23 22 1 2 2726 1 3 AUDIO IN CF801 – 803 (L-CH) (R-CH) TAPE MECHANISM DECK HRP501 (REC/PB) A B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 11 12 PHONES 13 C311 C309 R307 C534 C312 C310 R302 C535 C533 R519 JW169 JW170 JW133 1-868-228- 13 (13) PT-AC BOARD 1 3 (CHASSIS) (AC IN) NOT REPLACEABLE: BUILT IN TRANSFORMER ∗ ∗ PT005 POWER TRANSFORMER 220 – 240V r 110 – 120V VOLTAGE SELECTOR AC-SW BOARD 1-868-595- 13 (13) RED WHT BLK RED WHT BLK W006 W007 W005 (EXCEPT SP, TW) CNS111 25P (US, CND, SP, TW, KR, AUS) CNS112 27P (AEP, UK, EE, RU) C195 (US, CND, SP, TW, AUS) (AEP, UK, EE, RU) (US, CND, SP, TW, KR, AUS) JW837 (US, CND, SP, TW, KR, AUS) (US, CND) (SP) (AUS) (TW) (KR) CF802 (AEP, UK, EE, RU) (AEP, UK, EE, RU) JR105 JR104 C843 (US, CND, SP, TW, KR, AUS) (AEP, UK, EE, RU, KR) (AEP, UK, EE, RU, KR) (AEP, UK, EE, RU, KR) EXCEPT US, CND (AEP, UK, EE, RU) (US, CND) D114 D112 (EXCEPT SP) (EXCEPT SP) (SP) (SP) (SP) JW137 JR106 JR102 JR101 JR103 (TW) • Semiconductor Location Ref. No. Location D106 I-3 D107 H-3 D108 H-3 D109 H-4 D110 H-4 D111 H-3 D113 H-3 D131 G-4 D191 B-8 D192 B-8 D193 C-9 D371 I-5 D372 H-5 D802 C-4 D803 D-4 D812 C-2 D813 C-2 D815 E-5 D851 D-4 IC301 J-5 IC401 F-6 IC801 D-3 IC861 B-5 Q101 J-3 Q102 I-3 Q103 I-3 Q121 H-4 Q122 H-4 Q123 F-3 Q191 B-8 Q192 B-8 Q193 B-9 Q351 J-4 Q352 I-4 Q371 I-5 Q372 I-4 Q507 I-6 Q801 E-2 Q802 E-2 Q803 C-2 Q861 B-6 Q862 B-6 Ver. 1.4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 4 4 HCD-EH10 2-2. SCHEMATIC DIAGRAM – MAIN Section (1/3) – PIN101 PIN102 R196 R102 D110 D109 R195 R123 R121 R124 R125 R101 R107 Q103 R103 R105 R109 Q101 R108 Q102 R104 R110 D106 R130 R128 D113 D108 R126 R127 R106 R140 R144 R145 R146 R147 R148 R149 R150 R139 R138 R137 R136 R135 R134 CNS104 D192 D191 R188 R192 R197 R185 R198 R186 R199 R187 R191 D193 R193 R545 R542 R541 R543 R544 R152 CNP502 W8 C109 C110 C114 C115 C121 C155 C156 C118 C122 C191 C192 C193 C194 C196 JW107 L104 R189 R151 R175 R176 CNP501 J105 Q122 Q121 Q123 Q191 Q192 Q193 JW166 D107 CN102 W002 JW002 JW003 PT005 C535 R131 R129 C101 C113 C105 JW137 JW137 D131 D111 D114 IN4002 D112 IN4002 JW169 JW170 C195 F001 F2 W006 W005 W007 WH006 WH005 WH007 S202 HRP501 100 100 2A02M 2A02M 100 470k 220k 100 4.7k 10k 470 2SC3052F 47k 100k 470 2SB1274R 100 2SC3052F 100k 100k UDZW-TE17-8.2B 220 220 10EDB40 2A02M 47k 47k 22k 470 470 470 470 470 470 470 470 470 470 470 470 470 470 23P 10EDB40 10EDB40 22k 100k 100 100 100 100 100 100 1k UDZW-TE17-3.9B 100k 4.7k 10k 22k 4.7k 4.7k 4.7k 3P 0.01 0.22 0.1 0.1 0.47 0.1 0.1 100 16V 220 10V 220 10V 0.1 0.1 0.1 0.1 22k 4.7k 47k 47k 4P 2SC3052F 2SC3052F 2SC3052F KTC3203 KTC3203 2SA1235F 2A02M 3P 3P 0.1 220 220 3300 35V 2200 35V 0.1 ∗ ∗ C105 0.1 (AEP,UK,EE,RU) 0.47 (KR) 2.2 MC2836 10EDB40 0.1 T160mL 250V A1 A2 A3 A7 A8 A9 A10 A11 A12 A13 A6 A4 A5 A19 A18 A17 A14 A15 A16 TU-CE TU-CLK TU-DI TU-DO TU-ANSD RDS-DO RDS-CLK TUCE TUDO TUDI TUAS TUCK RDSC RDSD SCOR XRST MIRQ CCLK MDAT MLAT MREQ MACK CLAT SENS XTSN DRMT MCLK CCMD RDSC RDSD TUCE TUDI TUCK TUAS TUDO CCLK CCMD MCLK MDAT DRMT CLAT MREQ MLAT MACK SCOR SENS MIRQ XTCN FUSD XRST O-TU-CE O-POWER I-P-MONI VSTBY I-TP_STATE I-TU_ANSD O-FUNC-SD O-TU-CK I-RDS-SC I-RDS-SD U-GND O-TU_DI I-TU-DO O-CD-CLK O-CD-XLAT O-CLK-MP3 I-CD-SENS I-CD-SCOR I-REQ-MP3 O-CD-XTACN I-ACK-MP3 O-REQ-MP3 O-XLAT-MP3 O-AMP-ON/XRST O-CD-CMD SCOR SENS CLK XRST XTACN D-OUT L-OUT R-OUT DVDD(3.3V) AVDD(3.3V) AGND DGND MGND IREQ-MP3 REQ-MP3 ACK-MP3 VM(7V) XLAT-MP3 XLAT DATA DATA-MP3 CLK-MP3 I/O-DATA-MP3 O-DR-MUTE DR-MUTE (CHASSIS) (1/3) DECK TAPE MECHANISM R-CH L-CH (REC/PB) AUDIO IN AC DETECT AC DETECT DC DETECT Q101-103 +9V REGULATOR (REC/PB) REC PB +3.3V REGUALTOR +3.3V REGUALTOR AC DETECT (AC IN) POWER TRANSFORMER ∗NOT REPLACEABLE: BUILT IN TRANSFORMER SW501 -1 -2 (AEP,UK,EE,RU,KR) CNS111 25P(US,CND,SP,TW,KR,AUS) CNS112 27P(AEP,UK,EE,RU) (AEP,UK,EE,RU) (EXCEPT US,CND) (US,CND) AEP,UK, EE,RU US,CND,SP, TW,KR,AUS (SP) EXCEPT SP (US,CND,SP,TW,AUS) T315mAL 250V(US,CND,SP,TW) T160mAL 250V(AEP,UK,EE,RU,KR,AUS) SP,TW EXCEPT VOLTAGE SELECTOR 220-240V 110-120V (SP) (TW) (Page 5) (Page 5) (Page 5) (Page 6) (Page 22) (Page 5) Ver. 1.4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 5 5 HCD-EH10 2-3. SCHEMATIC DIAGRAM – MAIN Section (2/3) – R529 R530 R116 R118 R120 R119 R115 R356 R352 R384 R353 Q352 R351 R354 D371 R383 R355 R371 R372 R373 R374 R375 R376 R377 R378 R379 R380 R301 R302 R182 R181 R404 R403 R402 R428 R427 R424 R425 C401 R308 22k R307 22k R441 R442 R434 R433 R429 R430 R439 R440 R405 R426 R423 R526 R524 R523 R525 R522 R521 R565 R564 R561 R560 R535 R536 R528 R527 R531 R533 R534 R532 R518 R516 R514 R506 R504 R520 R512 R502 R501 R519 R517 R509 R511 R507 R515 R513 R505 R503 R508 R510 R406 Q507 C565 C564 C562 C561 C544 C543 C529 C528 C527 C525 C524 C534 0.1 C523 C522 C519 C518 C514 C513 C512 C511 C509 C413 C412 C402 C533 0.1 C508 C507 C506 C505 C504 C503 C502 C501 C438 C437 C434 C433 C432 C431 C416 C415 C410 C409 C408 C407 C406 C404 C403 C382 C306 C305 C301 C184 C183 C182 C181 C531 C532 C421 C515 R410 R411 R412 IC401 C405 C567 L501 C526 R340 R339 C315 C302 R303 R305 R306 R304 Q351 IC301 R365 C303 C307 C308 C141 C111 L103 R117 C371 Q372 Q371 C381 R382 JW181 JW182 R112 C142 D372 R111 C304 C510 R381 J102 J101 R420 R419 C310 C309 C311 C312 2.2k 2.2k 220 220 2.2k 2.2k 220 22k 2.2k 1k 10k 2SC3052F 10k 10k MC2838 10k 10k 1 1 1 1 1 1 1 1 1 1 47k 47k 10 10 220 1k 100 100k 100k 4.7k 4.7k 0.1 50V 47k 47k 22k 22k 4.7k 4.7k 4.7k 4.7k 0 4.7k 4.7k 10k 4.7k 4.7k 10k 22k 22k 4.7 4.7 22k 1k 220 220 4.7k 4.7k 4.7k 10k 10k 4.7k 100k 47 100 10k 4.7k 47k 2.2M 100 100 47k 100k 470k 2.2M 2.2k 47 100 10k 4.7k 2.2k 470k 1k 2SC3052F 1 0.01 2200p 2200p 1000p 1000p 100p 1000p 1000p 0.01 0.01 0.01 100p 0.1 0.1 1000p 1000p 470p 470p 33 16V 100 16V 100 16V 100 16V 0.01 0.01 0.047 0.047 470p 470p 47p 47p 470p 470p 470p 470p 0.22 0.22 0.1 0.1 0.1 0.1 4700p 4700p 0.22 0.22 0.1 0.01 0.1 0.1 2200p 0.1 0.1 0.1 0.1 1000p 1000p 0.1 10p 100k 1k 220 BD3881FV 0.1 50V 4700p 0.01 100 100 1000p 1000p 2.2k 4.7k 4.7k 2.2k 2SJ599-Z-E2 LA4631-E 2.2k 4.7 50V 1000 16V 1000 16V 0.01 0.1 220 0.1 2SC3052F 2SA1235F 1000p 10k 470k 0.01 MC2838 470k 100 16V 33 16V 10k 33k 33k 1000p 1000p 470p 470p A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 A16 A17 A18 A19 EMC-GND VM9V TU-L TU-GND TU-R FUSD S (2/3) INPUT SELECT, ELECTRICAL VOLUME BIAS OSC OSC POWER AMP Q371,372 AC DETECT Q351,352 B+ SWITCH PHONES L R SPEAKER (Page 4) (Page 4) (Page 4) (Page 4) (Page 6) (Page 4) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 6 6 HCD-EH10 2-4. SCHEMATIC DIAGRAM – MAIN Section (3/3) – R813 R846 R801 R817 R849 R816 R863 R839 R814 R830 R841 C801 R835 R834 R844 R845 R847 R820 R819 R805 R808 R818 R815 X801 R850 R812 R809 R807 R806 R851 R853 D851 L852 R836 R833 CF802 D812 CF803 R842 R829 R827 R857 C802 C803 C807 C811 C812 C814 C815 C816 C820 C821 C823 C824 C826 C825 C835 C836 C838 C839 C851 C852 C853 C854 C855 C856 C869 C868 R862 R865 C861 C862 C864 C865 C867 R874 R873 R872 R871 R870 R868 R867 R864 R861 R837 R826 JR861 IC861 X861 Q862 R876 R875 R856 C866 C863 R869 R866 Q861 Q802 Q801 C840 C809 C819 R802 C817 L804 L805 C806 D815 R811 C822 C827 C828 JW805 R838 JW402 JW403 JW821 L851 BPF801 C818 IC801 L803 C810 JR802 C873 R823 R821 R831 Q803 JR803 R825 R824 R840 CF801 R810 C813 R804 C804 R803 JR801 CNP802 C841 R848 R822 C829 C830 JW148 C800 C833 C831 C832 D803 D802 D813 C834 C843 R859 R860 L806 C848 C847 R828 CF802 10k 2.2k 2.2k 10k 22k 10k 22k 100 100 47k 100 100 16V 4.7k 22k 10 22 22 10k 47k 100k 10k 47k 4.7k 75KHz 2.2k 470 1k 100k 0 22k 100k SVC347A 10k 10k 1PS226 47k 100k 100 22k 0.1 0.01 2200p 0.1 0.1 0.1 100p 0.22 1000p 0.047 18p 18p 100p 1 0.22 0.22 0.1 0.1 0.047 10p 0.022 10p 470p 5p 47p 68p 470 10k 0.1 0.1 470p 22 50V 470p 100k 2.2k 220 220k 470k 10k 10k 10k 10k 1k 100 0 PT2579SN 4.332MHz 2SC3052F 47k 100k 22k 470p 22 50V 10k 10k 2SC3052F 2SC3052F 2SC3052F 0.47 0.1 1000p 10 0.1 1000p 1PS226 4.7k 470p 100p 100p 1k 0 LV23003VA 0.22 0 2p 100 220 220 2SC5477 0 470 2.2k 22k 1M 220 10V 0 0.1 10 3P 22 50V 1k 2.2k 0.01 0.01 0.1 0.47 0.47 0.47 SVC230 SVC230 1PS226 220 10V 220p 1000P RDS-CLK RDS-DO TU-ANSD TU-DO TU-CLK TU-DI TU-CE VM9V TU-L TU-GND TU-R EMC-GND ∗ ∗ ∗ ∗ ∗ REG FM-MIX GND1 AM-MIX VCC1 AMIF-IN FMIF-IN P-DET P-COMP FM-DET L-OUT R-OUT VSS CE DI CL DO GND2 FMRF-OUT VCC2 FM-OSC AM-OSC BO2 BO1 LP-OUT LP-IN PD AGC AMDET-OUT FMDET-OUT MPX-IN VDD XOUT XIN FM RF-IN AM RF-IN RDS DECODER +4V REGULATOR DET AMP +5V REGULATOR +3.1V REGULATOR (GND) (TUNER OUT L-ch) (TUNER OUT R-ch) (GND) FM DET (VT) AM-LO AM-RF (3/3) FM-LO FM-RF FM/AM ANTENNA FM/AM TUNER, FM/AM PLL AM-IFT FM MIX AMP (AEP,UK,EE,RU) (US,CND,SP,TW,KR,AUS) ∗R859,860 22k(US,CND,SP,TW,KR,AUS) 1k(AEP,UK,EE,RU) ∗C847,848 2200p(EXCEPT US,CND) 4700p(US,CND) ∗R828 22(AEP,UK,EE,RU) 47(US,CND,SP,TW,KR,AUS) (AEP,UK,EE,RU) (US,CND,SP,TW,KR,AUS) (Page 5) (Page 4) Ver. 1.4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-EH10 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-1158-542-A AC-SW BOARD, COMPLETE (SP) ********************** 1-533-233-31 FUSE HOLDER < SWITCH > 0S002 1-786-920-11 SWITCH, VOLTAGE SELECTION (VOLTAGE SELECTOR) ************************************************************ A-1138-536-A MAIN BOARD, COMPLETE (AEP, UK, EE, RU) A-1158-524-A MAIN BOARD, COMPLETE (US, CND) A-1158-531-A MAIN BOARD, COMPLETE (KR) A-1158-537-A MAIN BOARD, COMPLETE (AUS) A-1158-540-A MAIN BOARD, COMPLETE (SP) A-1169-746-A MAIN BOARD, COMPLETE (TW) ********************* 7-685-646-79 SCREW +BVTT 3X8 TYPE2 N-S (US, CND, AEP, UK, EE) 7-685-647-79 SCREW +BVTT 3X10 TYPE2 N-S (SP, TW, KR, AUS) < BAND PASS FILTER > BPF801 1-236-711-41 FILTER, BAND PASS < CAPACITOR > C101 1-128-549-11 ELECT 3300uF 20% 35V C105 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V (AEP, UK, EE, RU) C105 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V (KR) C109 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C110 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C111 1-164-156-11 CERAMIC CHIP 0.1uF 25V C113 1-126-953-11 ELECT 2200uF 20% 35V C114 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C115 1-164-156-11 CERAMIC CHIP 0.1uF 25V C118 1-126-933-11 ELECT 100uF 20% 16V C121 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C122 1-126-934-11 ELECT 220uF 20% 16V C141 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C142 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C155 1-165-621-11 CERAMIC CHIP 0.1uF 50V C156 1-165-621-11 CERAMIC CHIP 0.1uF 50V C181 1-164-156-11 CERAMIC CHIP 0.1uF 25V 3. ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA... : µA... uPA... : µPA... uPB... : µPB... uPC... : µPC... uPD... : µPD... • CAPACITORS uF: µF • COILS uH: µH MAIN C182 1-164-156-11 CERAMIC CHIP 0.1uF 25V C183 1-164-156-11 CERAMIC CHIP 0.1uF 25V C184 1-164-156-11 CERAMIC CHIP 0.1uF 25V C191 1-126-934-11 ELECT 220uF 20% 16V C192 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C193 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C194 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C195 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V (US, CND, SP, TW, AUS) C196 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C301 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C302 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C303 1-126-963-11 ELECT 4.7uF 20% 50V C304 1-126-933-11 ELECT 100uF 20% 16V C305 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C306 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C307 1-126-767-11 ELECT 1000uF 20% 16V C308 1-126-767-11 ELECT 1000uF 20% 16V C309 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C310 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C311 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C312 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C315 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C371 1-164-156-11 CERAMIC CHIP 0.1uF 25V C381 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C382 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C401 1-126-956-11 ELECT 0.1uF 20% 50V C402 1-126-933-11 ELECT 100uF 20% 16V C403 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C404 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C405 1-126-956-11 ELECT 0.1uF 20% 50V C406 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C407 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C408 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C409 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C410 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C412 1-126-933-11 ELECT 100uF 20% 16V C413 1-126-933-11 ELECT 100uF 20% 16V C415 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C416 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C421 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C431 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C432 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C433 1-162-962-11 CERAMIC CHIP 470PF 10% 50V AC-SW Ver. 1.4 Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. • Abbreviation AUS : Australian model CND : Canadian model EE : East European model KR : Korean model RU : Russian model SP : Singapore model TW : Taiwan model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 8 HCD-EH10 MAIN C434 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C437 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C438 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C501 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C502 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C503 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C504 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C505 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C506 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C507 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C508 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C509 1-126-966-11 ELECT 33uF 20% 50V C510 1-126-966-11 ELECT 33uF 20% 50V C511 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C512 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C513 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C514 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C515 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C518 1-164-156-11 CERAMIC CHIP 0.1uF 25V C519 1-164-156-11 CERAMIC CHIP 0.1uF 25V C522 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C523 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C524 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C525 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C526 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C527 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C528 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C529 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C531 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C532 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C533 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C534 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C535 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C543 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C544 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C561 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C562 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C564 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C565 1-115-156-11 CERAMIC CHIP 1uF 10V C567 1-130-479-00 MYLAR 0.0047uF 5% 50V C800 1-164-156-11 CERAMIC CHIP 0.1uF 25V C801 1-126-933-11 ELECT 100uF 20% 16V C802 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C803 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C804 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C806 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C807 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C809 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C810 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C811 1-164-156-11 CERAMIC CHIP 0.1uF 25V C812 1-164-156-11 CERAMIC CHIP 0.1uF 25V C813 1-126-934-11 ELECT 220uF 20% 16V C814 1-164-156-11 CERAMIC CHIP 0.1uF 25V C815 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C816 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C817 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C818 1-216-864-11 SHORT CHIP 0 C819 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C820 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C821 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C822 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C823 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C824 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C825 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C826 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C827 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C828 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C829 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C830 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C831 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C832 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C833 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C834 1-126-934-11 ELECT 220uF 20% 16V C835 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C836 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C838 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C839 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V- C840 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C841 1-126-965-11 ELECT 22uF 20% 50V C843 1-162-960-11 CERAMIC CHIP 220PF 10% 50V (US, CND, SP, TW, KR, AUS) C847 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V (EXCEPT US, CND) C847 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V (US, CND) C848 1-162-966-11 CERAMIC CHIP 0.0022uF 10%50V (EXCEPT US, CND) C848 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V (US, CND) C851 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C852 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C853 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C854 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C855 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C856 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C861 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V (AEP, UK, EE, RU) C862 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V (AEP, UK, EE, RU) C863 1-126-965-11 ELECT 22uF 20% 50V (AEP, UK, EE, RU) C864 1-162-962-11 CERAMIC CHIP 470PF 10% 50V (AEP, UK, EE, RU) C865 1-126-965-11 ELECT 22uF 20% 50V (AEP, UK, EE, RU) C866 1-162-962-11 CERAMIC CHIP 470PF 10% 50V (AEP, UK, EE, RU) C867 1-162-962-11 CERAMIC CHIP 470PF 10% 50V (AEP, UK, EE, RU) C868 1-162-925-11 CERAMIC CHIP 68PF 5% 50V (AEP, UK, EE, RU) C869 1-162-923-11 CERAMIC CHIP 47PF 5% 50V (AEP, UK, EE, RU) C873 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V Ver. 1.4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 9 HCD-EH10 MAIN < FILTER/CAPACITOR > CF801 1-795-426-11 FILTER, CERAMIC CF802 1-128-821-51 SERAMIC 1000PF 5% 50V (US, CND, SP, TW, KR, AUS) CF802 1-579-554-21 FILTER, CERAMIC (AEP, UK, EE, RU) CF803 1-781-962-21 FILTER, CERAMIC < CONNECTOR > CNP501 1-815-445-11 PIN, CONNECTOR (PWB) 4P CNP502 1-815-444-11 PIN, CONNECTOR (PWB) 3P * CNP802 1-506-680-11 PLUG, CONNECTOR (2.5mm) 3P CNS104 1-779-291-11 CONNECTOR, FFC (LIF (NON-ZIF)) 23P CNS111 1-779-293-11 CONNECTOR, FFC (LIF (NON-ZIF)) 25P (US, CND, SP, TW, KR, AUS) CNS112 1-779-295-11 CONNECTOR, FFC (LIF (NON-ZIF)) 27P (AEP, UK, EE, RU) < DIODE > D106 6-501-172-01 DIODE UDZW-TE17-8.2B D107 8-719-046-07 DIODE 2A02M D108 8-719-046-07 DIODE 2A02M D109 8-719-046-07 DIODE 2A02M D110 8-719-046-07 DIODE 2A02M D111 6-500-522-01 DIODE 10EDB40-TA1B2 D112 8-719-904-02 DIODE 1N4002 (SP) D113 6-500-522-01 DIODE 10EDB40-TA1B2 D114 8-719-904-02 DIODE 1N4002 (SP) D131 6-500-334-01 DIODE MC2836-T112-1 D191 6-500-522-01 DIODE 10EDB40-TA1B2 D192 6-500-522-01 DIODE 10EDB40-TA1B2 D193 6-501-164-01 DIODE UDZW-TE17-3.9B D371 6-500-335-01 DIODE MC2838-T112-1 D372 6-500-335-01 DIODE MC2838-T112-1 D802 6-501-369-01 DIODE SV230-TB-E D803 6-501-369-01 DIODE SV230-TB-E D812 8-719-062-51 DIODE 1PS226-115 D813 8-719-062-51 DIODE 1PS226-115 D815 8-719-062-51 DIODE 1PS226-115 D851 6-501-142-01 DIODE SVC347A-TL-E < IC > IC301 6-706-641-01 IC LA4631-E IC401 6-702-895-01 IC BD3881FV IC801 6-708-840-01 IC LV23003VA IC861 6-708-918-01 IC PT2579SN (AEP, UK, EE, RU) < JACK > J101 1-780-314-11 TERMINAL BOARD (SPEAKERS) J102 1-815-629-11 JACK (PHONES) J105 1-566-822-51 JACK (AUDIO IN) < JUMPER RESISTOR > JR101 1-216-864-11 SHORT CHIP 0 (KR) JR102 1-216-864-11 SHORT CHIP 0 (TW) JR103 1-216-864-11 SHORT CHIP 0 (AUS) JR104 1-216-864-11 SHORT CHIP 0 (SP) JR105 1-216-864-11 SHORT CHIP 0 (US, CND) JR106 1-216-864-11 SHORT CHIP 0 (AEP, UK, EE, RU) JR401 1-216-864-11 SHORT CHIP 0 JR402 1-216-864-11 SHORT CHIP 0 JR403 1-216-864-11 SHORT CHIP 0 JR404 1-216-864-11 SHORT CHIP 0 JR801 1-216-864-11 SHORT CHIP 0 JR802 1-216-864-11 SHORT CHIP 0 JR803 1-216-864-11 SHORT CHIP 0 JR861 1-216-864-11 SHORT CHIP 0 (AEP, UK, EE, RU) < RESISTOR > JN137 1-249-385-11 CARBON 2.2 5% 1/4W (US,CND) < COIL > L103 1-469-152-11 FERRITE, EMI (SMD) (2012) L104 1-469-152-11 FERRITE, EMI (SMD) (2012) L501 1-456-094-11 TRANSFORMER, BIAS OSCILLATION L803 1-433-741-11 TRANSFORMER, IF L804 1-457-163-11 COIL, AIR-CORE L805 1-457-162-11 COIL, AIR-CORE L806 1-457-168-11 COIL, DET L851 1-457-161-11 COIL, AM ANTENNA L852 1-456-596-11 COIL, MW OSC < CONNECTOR > * PIN101 1-564-187-00 PIN, CONNECTOR (AEP, UK, EE, RU, KR) * PIN102 1-564-187-00 PIN, CONNECTOR (AEP, UK, EE, RU, KR) < TRANSISTOR > Q101 8-729-141-83 TRANSISTOR 2SB1094-LK Q102 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q103 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q121 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q122 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q123 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q191 8-729-036-86 TRANSISTOR KTC3203Y-AT Q192 8-729-036-86 TRANSISTOR KTC3203Y-AT Q193 8-729-600-22 TRANSISTOR 2SA1235-F Q351 6-550-843-01 FET 2SJ599-Z-E2-AZ Q352 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q371 8-729-600-22 TRANSISTOR 2SA1235-F Q372 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q507 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q801 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q802 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q803 6-550-304-01 TRANSISTOR 2SC5477-T122-1 Q861 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q862 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R101 1-216-833-11 METAL CHIP 10K 5% 1/10W R102 1-216-809-11 METAL CHIP 100 5% 1/10W R103 1-216-841-11 METAL CHIP 47K 5% 1/10W R104 1-216-845-11 METAL CHIP 100K 5% 1/10W R105 1-216-845-11 METAL CHIP 100K 5% 1/10W R106 1-216-837-11 METAL CHIP 22K 5% 1/10W Ver. 1.4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 10 HCD-EH10 MAIN R107 1-216-817-11 METAL CHIP 470 5% 1/10W R108 1-216-809-11 METAL CHIP 100 5% 1/10W R109 1-216-817-11 METAL CHIP 470 5% 1/10W R110 1-216-845-11 METAL CHIP 100K 5% 1/10W R111 1-216-853-11 METAL CHIP 470K 5% 1/10W R112 1-216-853-11 METAL CHIP 470K 5% 1/10W R115 1-249-409-11 CARBON 220 5% 1/4W R116 1-249-409-11 CARBON 220 5% 1/4W R117 1-249-409-11 CARBON 220 5% 1/4W R118 1-249-409-11 CARBON 220 5% 1/4W R119 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R120 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R121 1-216-849-11 METAL CHIP 220K 5% 1/10W R123 1-216-853-11 METAL CHIP 470K 5% 1/10W R124 1-216-809-11 METAL CHIP 100 5% 1/10W R125 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R126 1-216-841-11 METAL CHIP 47K 5% 1/10W R127 1-216-841-11 METAL CHIP 47K 5% 1/10W R128 1-216-813-11 METAL CHIP 220 5% 1/10W R129 1-216-813-11 METAL CHIP 220 5% 1/10W R130 1-216-813-11 METAL CHIP 220 5% 1/10W R131 1-216-813-11 METAL CHIP 220 5% 1/10W R134 1-216-817-11 METAL CHIP 470 5% 1/10W R135 1-216-817-11 METAL CHIP 470 5% 1/10W R136 1-216-817-11 METAL CHIP 470 5% 1/10W R137 1-216-817-11 METAL CHIP 470 5% 1/10W R138 1-216-817-11 METAL CHIP 470 5% 1/10W R139 1-216-817-11 METAL CHIP 470 5% 1/10W R140 1-216-817-11 METAL CHIP 470 5% 1/10W R144 1-216-817-11 METAL CHIP 470 5% 1/10W R145 1-216-817-11 METAL CHIP 470 5% 1/10W R146 1-216-817-11 METAL CHIP 470 5% 1/10W R147 1-216-817-11 METAL CHIP 470 5% 1/10W R148 1-216-817-11 METAL CHIP 470 5% 1/10W R149 1-216-817-11 METAL CHIP 470 5% 1/10W R150 1-216-817-11 METAL CHIP 470 5% 1/10W R151 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R152 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R175 1-216-841-11 METAL CHIP 47K 5% 1/10W R176 1-216-841-11 METAL CHIP 47K 5% 1/10W R181 1-216-797-11 METAL CHIP 10 5% 1/10W R182 1-216-797-11 METAL CHIP 10 5% 1/10W R185 1-247-807-31 CARBON 100 5% 1/4W R186 1-247-807-31 CARBON 100 5% 1/4W R187 1-247-807-31 CARBON 100 5% 1/4W R188 1-216-837-11 METAL CHIP 22K 5% 1/10W R189 1-216-837-11 METAL CHIP 22K 5% 1/10W R191 1-216-821-11 METAL CHIP 1K 5% 1/10W R192 1-216-845-11 METAL CHIP 100K 5% 1/10W R193 1-216-845-11 METAL CHIP 100K 5% 1/10W R195 1-216-809-11 METAL CHIP 100 5% 1/10W R196 1-216-809-11 METAL CHIP 100 5% 1/10W R197 1-247-807-31 CARBON 100 5% 1/4W R198 1-247-807-31 CARBON 100 5% 1/4W R199 1-247-807-31 CARBON 100 5% 1/4W R301 1-216-837-11 METAL CHIP 22K 5% 1/10W R302 1-216-837-11 METAL CHIP 22K 5% 1/10W R303 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R304 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R305 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R306 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R307 1-216-837-11 METAL CHIP 22K 5% 1/10W R308 1-216-837-11 METAL CHIP 22K 5% 1/10W R339 1-216-809-11 METAL CHIP 100 5% 1/10W R340 1-216-809-11 METAL CHIP 100 5% 1/10W R351 1-216-833-11 METAL CHIP 10K 5% 1/10W R352 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R353 1-216-833-11 METAL CHIP 10K 5% 1/10W R354 1-216-833-11 METAL CHIP 10K 5% 1/10W R355 1-216-833-11 METAL CHIP 10K 5% 1/10W R356 1-216-837-11 METAL CHIP 22K 5% 1/10W R365 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R371 1-218-446-11 METAL CHIP 1 5% 1/10W R372 1-218-446-11 METAL CHIP 1 5% 1/10W R373 1-218-446-11 METAL CHIP 1 5% 1/10W R374 1-218-446-11 METAL CHIP 1 5% 1/10W R375 1-218-446-11 METAL CHIP 1 5% 1/10W R376 1-218-446-11 METAL CHIP 1 5% 1/10W R377 1-218-446-11 METAL CHIP 1 5% 1/10W R378 1-218-446-11 METAL CHIP 1 5% 1/10W R379 1-218-446-11 METAL CHIP 1 5% 1/10W R380 1-218-446-11 METAL CHIP 1 5% 1/10W R381 1-216-833-11 METAL CHIP 10K 5% 1/10W R382 1-216-833-11 METAL CHIP 10K 5% 1/10W R383 1-216-833-11 METAL CHIP 10K 5% 1/10W R384 1-216-821-11 METAL CHIP 1K 5% 1/10W R402 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-821-11 METAL CHIP 1K 5% 1/10W R404 1-216-813-11 METAL CHIP 220 5% 1/10W R405 1-216-864-11 SHORT CHIP 0 R406 1-216-821-11 METAL CHIP 1K 5% 1/10W R410 1-216-845-11 METAL CHIP 100K 5% 1/10W R411 1-216-821-11 METAL CHIP 1K 5% 1/10W R412 1-216-813-11 METAL CHIP 220 5% 1/10W R419 1-216-839-11 METAL CHIP 33K 5% 1/10W R420 1-216-839-11 METAL CHIP 33K 5% 1/10W R423 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R424 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R425 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R426 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R427 1-216-845-11 METAL CHIP 100K 5% 1/10W R428 1-216-845-11 METAL CHIP 100K 5% 1/10W R429 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R430 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R433 1-216-837-11 METAL CHIP 22K 5% 1/10W R434 1-216-837-11 METAL CHIP 22K 5% 1/10W R439 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R440 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R441 1-216-841-11 METAL CHIP 47K 5% 1/10W R442 1-216-841-11 METAL CHIP 47K 5% 1/10W R501 1-216-809-11 METAL CHIP 100 5% 1/10W R502 1-216-809-11 METAL CHIP 100 5% 1/10W R503 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R504 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R505 1-216-833-11 METAL CHIP 10K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 11 HCD-EH10 MAIN R506 1-216-833-11 METAL CHIP 10K 5% 1/10W R507 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R508 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R509 1-216-853-11 METAL CHIP 470K 5% 1/10W R510 1-216-853-11 METAL CHIP 470K 5% 1/10W R511 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R512 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R513 1-216-809-11 METAL CHIP 100 5% 1/10W R514 1-216-809-11 METAL CHIP 100 5% 1/10W R515 1-216-805-11 METAL CHIP 47 5% 1/10W R516 1-216-805-11 METAL CHIP 47 5% 1/10W R517 1-216-845-11 METAL CHIP 100K 5% 1/10W R518 1-216-845-11 METAL CHIP 100K 5% 1/10W R519 1-216-841-11 METAL CHIP 47K 5% 1/10W R520 1-216-841-11 METAL CHIP 47K 5% 1/10W R521 1-216-837-11 METAL CHIP 22K 5% 1/10W R522 1-216-837-11 METAL CHIP 22K 5% 1/10W R523 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R524 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R525 1-216-833-11 METAL CHIP 10K 5% 1/10W R526 1-216-833-11 METAL CHIP 10K 5% 1/10W R527 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R528 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R529 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R530 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R531 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R532 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R533 1-216-833-11 METAL CHIP 10K 5% 1/10W R534 1-216-833-11 METAL CHIP 10K 5% 1/10W R535 1-216-813-11 METAL CHIP 220 5% 1/10W R536 1-216-813-11 METAL CHIP 220 5% 1/10W R541 1-216-837-11 METAL CHIP 22K 5% 1/10W R542 1-216-833-11 METAL CHIP 10K 5% 1/10W R543 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R544 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R545 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R560 1-216-821-11 METAL CHIP 1K 5% 1/10W R561 1-216-837-11 METAL CHIP 22K 5% 1/10W R564 1-216-793-11 METAL CHIP 4.7 5% 1/10W R565 1-216-793-11 METAL CHIP 4.7 5% 1/10W R801 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R802 1-216-797-11 METAL CHIP 10 5% 1/10W R803 1-216-797-11 METAL CHIP 10 5% 1/10W R804 1-216-864-11 SHORT CHIP 0 R805 1-216-845-11 METAL CHIP 100K 5% 1/10W R806 1-216-864-11 SHORT CHIP 0 R807 1-216-845-11 METAL CHIP 100K 5% 1/10W R808 1-216-833-11 METAL CHIP 10K 5% 1/10W R809 1-216-821-11 METAL CHIP 1K 5% 1/10W R810 1-216-857-11 METAL CHIP 1M 5% 1/10W R811 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R812 1-216-817-11 METAL CHIP 470 5% 1/10W R813 1-216-833-11 METAL CHIP 10K 5% 1/10W R814 1-216-809-11 METAL CHIP 100 5% 1/10W R815 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R816 1-216-833-11 METAL CHIP 10K 5% 1/10W R817 1-216-833-11 METAL CHIP 10K 5% 1/10W R818 1-216-841-11 METAL CHIP 47K 5% 1/10W R819 1-216-841-11 METAL CHIP 47K 5% 1/10W R820 1-216-833-11 METAL CHIP 10K 5% 1/10W R821 1-216-813-11 METAL CHIP 220 5% 1/10W R822 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R823 1-216-809-11 METAL CHIP 100 5% 1/10W R824 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R825 1-216-817-11 METAL CHIP 470 5% 1/10W R826 1-216-809-11 METAL CHIP 100 5% 1/10W R827 1-216-809-11 METAL CHIP 100 5% 1/10W R828 1-216-801-11 METAL CHIP 22 5% 1/10W (AEP, UK, EE, RU) R828 1-216-805-11 METAL CHIP 47 5% 1/10W (US, CND, SP, TW, KR, AUS) R829 1-216-845-11 METAL CHIP 100K 5% 1/10W R830 1-216-841-11 METAL CHIP 47K 5% 1/10W R831 1-216-813-11 METAL CHIP 220 5% 1/10W R833 1-216-833-11 METAL CHIP 10K 5% 1/10W R834 1-216-837-11 METAL CHIP 22K 5% 1/10W R835 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R836 1-216-833-11 METAL CHIP 10K 5% 1/10W R837 1-216-821-11 METAL CHIP 1K 5% 1/10W R838 1-216-821-11 METAL CHIP 1K 5% 1/10W R839 1-216-809-11 METAL CHIP 100 5% 1/10W R840 1-216-837-11 METAL CHIP 22K 5% 1/10W R841 1-216-809-11 METAL CHIP 100 5% 1/10W R842 1-216-841-11 METAL CHIP 47K 5% 1/10W R843 1-216-853-11 METAL CHIP 470K 5% 1/10W R844 1-216-797-11 METAL CHIP 10 5% 1/10W R845 1-216-801-11 METAL CHIP 22 5% 1/10W R846 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R847 1-216-801-11 METAL CHIP 22 5% 1/10W R848 1-216-821-11 METAL CHIP 1K 5% 1/10W R849 1-216-837-11 METAL CHIP 22K 5% 1/10W R850 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R851 1-216-837-11 METAL CHIP 22K 5% 1/10W R853 1-216-845-11 METAL CHIP 100K 5% 1/10W R856 1-216-837-11 METAL CHIP 22K 5% 1/10W (AEP, UK, EE, RU) R857 1-216-837-11 METAL CHIP 22K 5% 1/10W (AEP, UK, EE, RU) R859 1-216-821-11 METAL CHIP 1K 5% 1/10W (AEP, UK, EE, RU) R859 1-216-837-11 METAL CHIP 22K 5% 1/10W (US, CND, SP, TW, KR, AUS) R860 1-216-821-11 METAL CHIP 1K 5% 1/10W (AEP, UK, EE, RU) R860 1-216-837-11 METAL CHIP 22K 5% 1/10W (US, CND, SP, TW, KR, AUS) R861 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP, UK, EE, RU) R862 1-216-817-11 METAL CHIP 470 5% 1/10W (AEP, UK, EE, RU) R863 1-216-837-11 METAL CHIP 22K 5% 1/10W R864 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP, UK, EE, RU) R865 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP, UK, EE, RU) R866 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP, UK, EE, RU) Ver. 1.4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 12 HCD-EH10 R867 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP, UK, EE, RU) R868 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP, UK, EE, RU) R869 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP, UK, EE, RU) R870 1-216-853-11 METAL CHIP 470K 5% 1/10W (AEP, UK, EE, RU) R871 1-216-849-11 METAL CHIP 220K 5% 1/10W (AEP, UK, EE, RU) R872 1-216-813-11 METAL CHIP 220 5% 1/10W (AEP, UK, EE, RU) R873 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (AEP, UK, EE, RU) R874 1-216-845-11 METAL CHIP 100K 5% 1/10W (AEP, UK, EE, RU) R875 1-216-845-11 METAL CHIP 100K 5% 1/10W (AEP, UK, EE, RU) R876 1-216-841-11 METAL CHIP 47K 5% 1/10W (AEP, UK, EE, RU) < SWITCH > SW501 1-762-369-11 SWITCH, SLIDE (REC/PB) < VIBRATOR > X801 1-767-388-21 VIBRATOR, CRYSTAL (75kHz) (US, CND, SP, TW, KR, AUS) X801 1-795-926-11 VIBRATOR, CRYSTAL (75kHz) (AEP, UK, EE, RU) X861 1-579-900-21 VIBRATOR, CRYSTAL (4.332MHz) (AEP, UK, EE, RU) ************************************************************ A-1138-529-A PT-AC BOARD, COMPLETE (EXCEPT SP, TW) A-1158-541-A PT-AC BOARD, COMPLETE (SP) A-1169-744-A PT-AC BOARD, COMPLETE (TW) ********************* 1-533-233-31 FUSE HOLDER < CONNECTOR > W002 1-819-131-11 PIN, CONNECTOR 3P ************************************************************ MISCELLANEOUS ************** 0PT005 1-443-829-11 TRANSFORMER, POWER (AEP, UK, EE, RU) 0PT005 1-443-856-11 TRANSFORMER, POWER (US, CND) 0PT005 1-443-857-11 TRANSFORMER, POWER (KR) 0PT005 1-443-858-11 TRANSFORMER, POWER (SP, TW, AUS) MAIN PT-AC Ver. 1.4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SERVICE MANUAL Ver. 1.4 2006.03 9-879-855-82 HCD-EH10 US Model Canadian Model AEP Model UK Model E Model Australian Model Subject: Change of CD board (Suffix-12) 1. NEW/FORMER DESCRIPTION In this set, CD board has changed in the midway of production. Printed wiring board and schematic diagram of new type, and changed parts list are described in this supplement-2. Refer to original service manual for other information. SUPPLEMENT-2 File this supplement with the service manual. – CD Board (Component Side) – Former : 1-868-067-11 New : 1-868-067-12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-EH10 Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Indication of transistor • Note for Printed Wiring Board and Schematic Diagram C B These are omitted. E Q 2. DIAGRAMS Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • A : B+ Line. • Voltages are dc with respect to ground under no-signal conditions. no mark : CD PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. J : CD PLAY Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. • Abbreviation EE : East European model KR : Korean model RU : Russian model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 3 3 HCD-EH10 2-1. PRINTED WIRING BOARD – CD Board – R256 C257 R260 C206 C205 C322 R323 R322 R321 R324 C223 C321 C268 C267 R271 R203 C226 R201 C227 C110 C108 C102 C203 C204 C101 C274 C202 R207 C215 R202 C201 R423 R421 C424 C276 C210 Q321 C207 C266 C275 C323 C277 C406 R401 C401 C219 R276 C271 C272 C104 C105 C107 C109 C232 C220 X201 IC203 C403 R257 C258 C260 C261 R258 C304 C208 R101 R265 R266 R267 C264 C265 R278 C111 C214 R270 C221 C292 C291 R292 R291 IC201 C217 C218 C224 R451 R102 R103 R104 R105 R107 R108 R109 R110 R111 C451 IC402 C256 C251 C252 C254 C253 R254 R255 R252 R253 CN301 C213 C222 C405 R113 C404 R452 C112 R275 R277 C103 R112 C301 C303 C273 R268 C113 CN102 C230 R250 R280 M401 M402 S201 E 1-868-067- 12 (12) CD BOARD (COMPONENT SIDE) 1 3 5 4 1-868-067- 12 (12) CD BOARD (CONDUCTOR SIDE) M M 1 1 7 14 28 22 8 21 15 30 90 91 120 60 31 61 (SPINDLE) (LIMIT) (SLED) TP (RFACI) TP (VC) OPTICAL PICK-UP BLOCK (KSM-213CDP) A B C D E F 1 2 3 4 5 6 7 8 9 10 MAIN BOARD CNS104 MAIN BOARD PIN101 (AEP, UK, EE, RU, KR) : Uses unleaded solder. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EH10 4 4 HCD-EH10 2-2. SCHEMATIC DIAGRAM – CD Board – C208 C205 R324 R101 R292 C110 R451 R102 R103 R104 R105 R107 R108 R109 R110 R111 R255 R253 C406 C301 R254 R252 R250 R268 R322 R321 C264 CN301 C222 C213 R291 C201 C219 R112 R113 C203 C108 C102 C101 C103 C105 C111 C104 C109 C107 C113 C112 R275 R277 R276 C271 C221 C273 C261 C260 R265 R266 R267 R258 C258 R260 C256 C207 C254 C253 C252 C251 C232 C206 C224 R278 C272 C204 C218 C291 C292 C217 C202 R401 C303 C322 C321 R323 R452 R421 C404 R207 C226 C265 C210 R256 C257 C323 Q321 C424 R423 C405 M402 M401 IC402 S201 TP C230 TP C220 C451 TP2 TP1 TP4 TP3 C274 R257 C304 IC201 R280 C401 R202 C268 C215 C276 C277 R201 CN102 C266 C267 R203 C275 C214 X201 R270 R271 C223 IC203 C227 0.1 0.1 100k 100 100 220p 22k 100 100 100 100 100 100 100 100 100 1k 1k 0.1 0.1 10k 10k 1M 10k 2.2 2.2 1000p 16P 0.1 0.1 100 100 10V 0.1 100 100 100 10V 220p 22p 22p 22p 22p 220p 220p 220p 220p 22p 22p 100 100 47k 0.1 0.1 470p 0.01 0.47 4.7k 1k 4.7k 220k 220p 0 0.1 100 10V 4700p 470p 4700p 470p 0.1 0.1 0.1 100 0.1 0.1 0.1 470p 470p 0.1 0.1 0 10 1 1000p 0 10k 0 0.1 0 1 0.1 0.1 22k 0.1 100 10V 2SA2119K 0.1 10k 0.1 BA5947FM 100p 0.1 0.047 0.1 100k 1 CXD3014A-201R 0 220 10V 0 10p 0.1 1 1 0 23P 10p 5p 5p 0.1 16.9344MHz 1k 1M 0.1 BH18LB1WG-TR 1 FRDR FFDR TRDR TFDR FRDR FFDR TRDR TFDR SP- SP+ SL- SL+ SP+ SP- SL+ SL- OPIN- OPIN+ CH1FIN CH1RIN CH2FIN CH2RIN GND CNF4 POWVCC CH2OUTR CH2OUTF CH1OUTR CH1PUTF CH4OUTR CH4OUTF CH3OUTF CH3OUTR POWVCC MUTE GND CH3RIN CH3FIN CH4IN CH4CAPA OPOUT PREVCC VREF GAIN-SW MIRR DFCT FOK VSS LOCK MDP SSTP IOVSS1 SFDR SRDR TFDR TRDR FFDR FRDR IOVDD1 AVDD0 AVSS0 E F TEI TEO FEI FEO VC A B C D AVDD4 RFDCO PDSENS AC_SUM EG_IN LD PD RFC AVSS4 RFACO RFACI AVDD3 BIAS ASYI ASYO VPCO VCTL AVSS3 CLTV FILO FILI PCO BCKI LRCKI LRCK VSS PCMD BCK VDD IOVDD2 DOUT TEST IOVSS2 XVSS XTAO XTAI XVDD AVDD1 AOUT1 VREFL AVSS1 AVSS2 VREFR AOUT2 AVDD2 IOVDD0 IOVSS0 XTACN XRST VSS VDD SENS WFCK XUGF XPCK GFS C2PO SCOR VDD COUT PCMDI CLOK SVSS SVDD SVSS SVDD VSS SVDD VDD VSS TEST1 SVSS SVSS SVDD JTAGTCK JTAGTDI JTAGTDO JTAGTMS TRST VDD TES1 PLLVDD PLLVSS ACK-MP3 REQ-MP3 IREQ-MP3 SSTB-MP3 XLAT-MP3 XLAT CLK2 DATA DATA2 T+ VC GND LD PD F+ T- F- VCC SCOR SENS CLK XRST D-OUT DVDD(3.3V) AVDD(3.3V) E D A B C F VR IREQ-MP3 REQ-MP3 ACK-MP3 XLAT-MP3 XLAT DATA DATA-MP3 CLK-MP3 GND (LIMIT) AUTOMATIC POWER CONTROL CD DSP FOCUS/TRUCKING COIL DRIVER, SLED/SPINDLE MOTOR DRIVER OPTICAL PICK-UP BLOCK (SPINDLE) (SLED) (VC) (RFACI) +1.8V REGULATOR M-MUTE D-GND L-CH A-GND R-CH M-GND M+7V XTCN KSM-213CDP VIN STBY NC VOUT (AEP,UK,EE,RU, KR) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-EH10 3. ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA... : µA... uPA... : µPA... uPB... : µPB... uPC... : µPC... uPD... : µPD... • CAPACITORS uF: µF • COILS uH: µH CD When indicating parts by reference number, please include the board. A-1134-279-A CD BOARD, COMPLETE ******************* < CAPACITOR > C101 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C102 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C103 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C104 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C105 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C107 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C108 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C109 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C110 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C111 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C112 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C113 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C201 1-128-995-21 ELECT CHIP 100uF 20% 10V C202 1-164-360-11 CERAMIC CHIP 0.1uF 16V C203 1-128-995-21 ELECT CHIP 100uF 20% 10V C204 1-164-360-11 CERAMIC CHIP 0.1uF 16V C205 1-164-360-11 CERAMIC CHIP 0.1uF 16V C206 1-164-360-11 CERAMIC CHIP 0.1uF 16V C207 1-128-995-21 ELECT CHIP 100uF 20% 10V C208 1-164-360-11 CERAMIC CHIP 0.1uF 16V C210 1-164-360-11 CERAMIC CHIP 0.1uF 16V C213 1-164-360-11 CERAMIC CHIP 0.1uF 16V C214 1-164-360-11 CERAMIC CHIP 0.1uF 16V C215 1-164-360-11 CERAMIC CHIP 0.1uF 16V C217 1-164-360-11 CERAMIC CHIP 0.1uF 16V C218 1-164-360-11 CERAMIC CHIP 0.1uF 16V C219 1-164-360-11 CERAMIC CHIP 0.1uF 16V C220 1-164-360-11 CERAMIC CHIP 0.1uF 16V C221 1-164-360-11 CERAMIC CHIP 0.1uF 16V C222 1-164-360-11 CERAMIC CHIP 0.1uF 16V C223 1-164-360-11 CERAMIC CHIP 0.1uF 16V C224 1-164-360-11 CERAMIC CHIP 0.1uF 16V C226 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C227 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C230 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C232 1-164-360-11 CERAMIC CHIP 0.1uF 16V C251 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C252 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C253 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C254 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C256 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C257 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C258 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C260 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C261 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C264 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C265 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C266 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C267 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C268 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C271 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C272 1-164-360-11 CERAMIC CHIP 0.1uF 16V C273 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C274 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C275 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C276 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C277 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C291 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C292 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C301 1-164-360-11 CERAMIC CHIP 0.1uF 16V C303 1-137-710-11 CERAMIC CHIP 10uF 20% 6.3V C304 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C321 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C322 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C323 1-128-995-21 ELECT CHIP 100uF 20% 10V C401 1-128-394-11 ELECT CHIP 220uF 20% 10V C404 1-164-360-11 CERAMIC CHIP 0.1uF 16V C405 1-164-360-11 CERAMIC CHIP 0.1uF 16V C406 1-164-360-11 CERAMIC CHIP 0.1uF 16V C424 1-164-360-11 CERAMIC CHIP 0.1uF 16V C451 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V < CONNECTOR > CN102 1-770-706-21 CONNECTOR, FFC/FPC 23P CN301 1-770-425-51 CONNECTOR, FFC/FPC 16P < IC > IC201 8-753-246-30 IC CXD3014A-201R IC203 6-709-050-01 IC BH18LB1WG-TR IC402 6-705-808-01 IC BA5947FM-E2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 6 HCD-EH10 < TRANSISTOR > Q321 6-551-120-01 TRANSISTOR 2SA2119K < RESISTOR/FERRITE BEAD > R101 1-216-809-11 METAL CHIP 100 5% 1/10W R102 1-216-809-11 METAL CHIP 100 5% 1/10W R103 1-216-809-11 METAL CHIP 100 5% 1/10W R104 1-216-809-11 METAL CHIP 100 5% 1/10W R105 1-216-809-11 METAL CHIP 100 5% 1/10W R107 1-216-809-11 METAL CHIP 100 5% 1/10W R108 1-216-809-11 METAL CHIP 100 5% 1/10W R109 1-216-809-11 METAL CHIP 100 5% 1/10W R110 1-216-809-11 METAL CHIP 100 5% 1/10W R111 1-216-809-11 METAL CHIP 100 5% 1/10W R112 1-216-809-11 METAL CHIP 100 5% 1/10W R113 1-216-809-11 METAL CHIP 100 5% 1/10W R201 1-216-295-00 SHORT CHIP 0 R202 1-216-295-00 SHORT CHIP 0 R203 1-500-445-21 FERRITE, EMI (SMD) (2012) R207 1-216-295-00 SHORT CHIP 0 R250 1-216-857-11 METAL CHIP 1M 5% 1/10W R252 1-216-833-11 METAL CHIP 10K 5% 1/10W R253 1-216-821-11 METAL CHIP 1K 5% 1/10W R254 1-216-833-11 METAL CHIP 10K 5% 1/10W R255 1-216-821-11 METAL CHIP 1K 5% 1/10W R256 1-216-837-11 METAL CHIP 22K 5% 1/10W R257 1-216-845-11 METAL CHIP 100K 5% 1/10W R258 1-216-849-11 METAL CHIP 220K 5% 1/10W R260 1-216-864-11 SHORT CHIP 0 R265 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R266 1-216-821-11 METAL CHIP 1K 5% 1/10W R267 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R268 1-216-833-11 METAL CHIP 10K 5% 1/10W R270 1-216-821-11 METAL CHIP 1K 5% 1/10W R271 1-216-857-11 METAL CHIP 1M 5% 1/10W R275 1-216-809-11 METAL CHIP 100 5% 1/10W R276 1-216-841-11 METAL CHIP 47K 5% 1/10W R277 1-216-809-11 METAL CHIP 100 5% 1/10W R278 1-216-809-11 METAL CHIP 100 5% 1/10W R280 1-216-864-11 SHORT CHIP 0 R291 1-216-809-11 METAL CHIP 100 5% 1/10W R292 1-216-809-11 METAL CHIP 100 5% 1/10W R321 1-216-789-11 METAL CHIP 2.2 5% 1/10W R322 1-216-789-11 METAL CHIP 2.2 5% 1/10W R323 1-216-864-11 SHORT CHIP 0 R324 1-216-845-11 METAL CHIP 100K 5% 1/10W R401 1-216-295-00 SHORT CHIP 0 R421 1-216-864-11 SHORT CHIP 0 R423 1-216-833-11 METAL CHIP 10K 5% 1/10W R451 1-216-837-11 METAL CHIP 22K 5% 1/10W R452 1-216-833-11 METAL CHIP 10K 5% 1/10W < VIBRATOR > X201 1-795-101-21 VIBRATOR, CERAMIC (16.9344MHz) CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-EH10 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-EH10 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2005.09 New 1.1 2005.11 Correction of Torque and Tape Tension Measurements Addition of Ref. No. 76, 77 on EXPLODED VIEWS (ECN-ECB33898/ENG-05012) 1.2 2005.12 Change of MAIN, PT-AC and PANEL boards (suffix-12) Change of PANEL board (suffix-13) Change of MAIN and PT-AC boards (suffix-13) (SUPPLEMENT-1) (ECN-ECB27448/ECB33087) 1.3 2006.01 Addition of US, Canadian and Singapore models 1.4 2006.03 Addition of Taiwan, Korean and Australian models Change of CD board (Suffix-12) (SUPPLEMENT-2) (ECN-ECB42207) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
