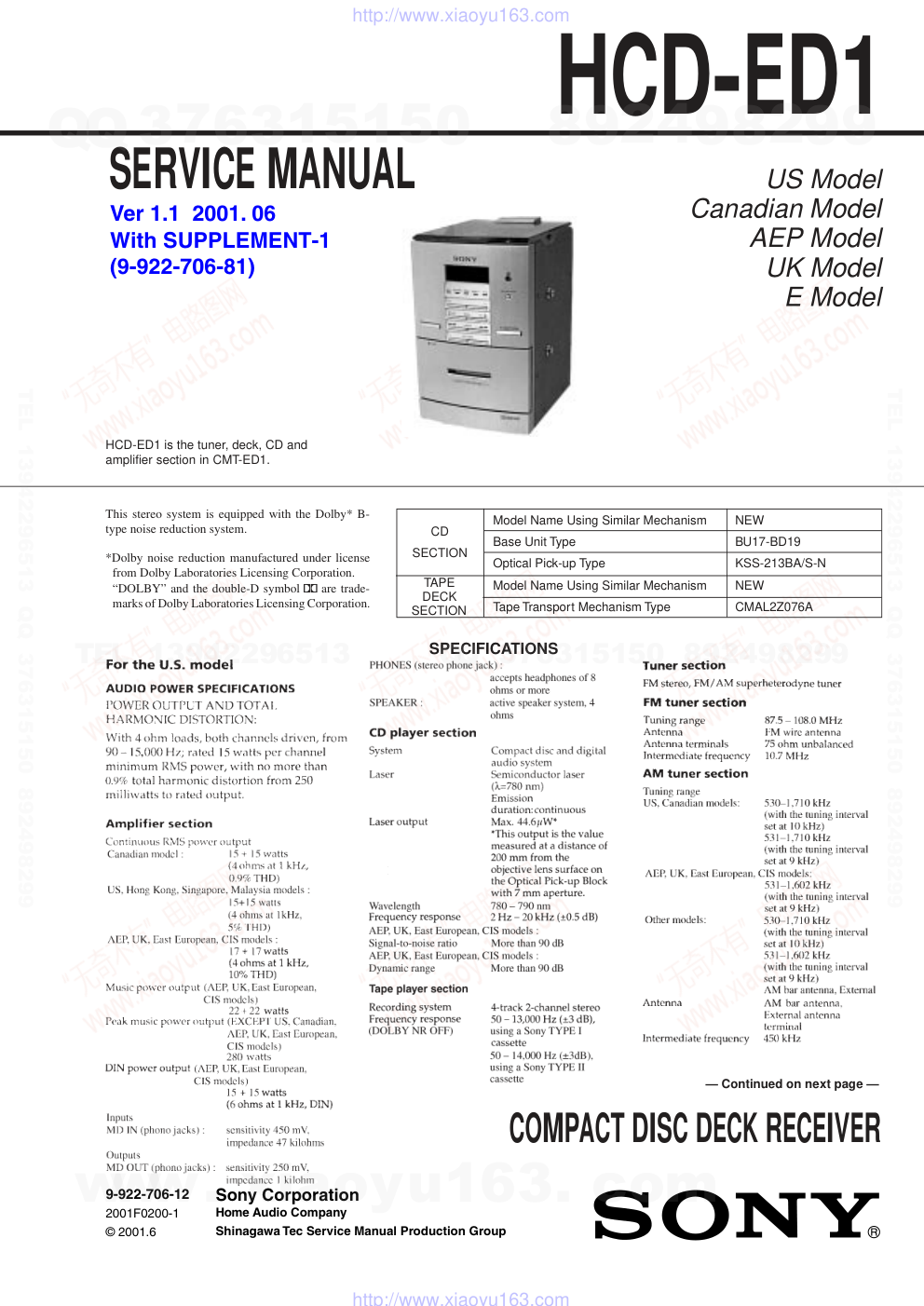

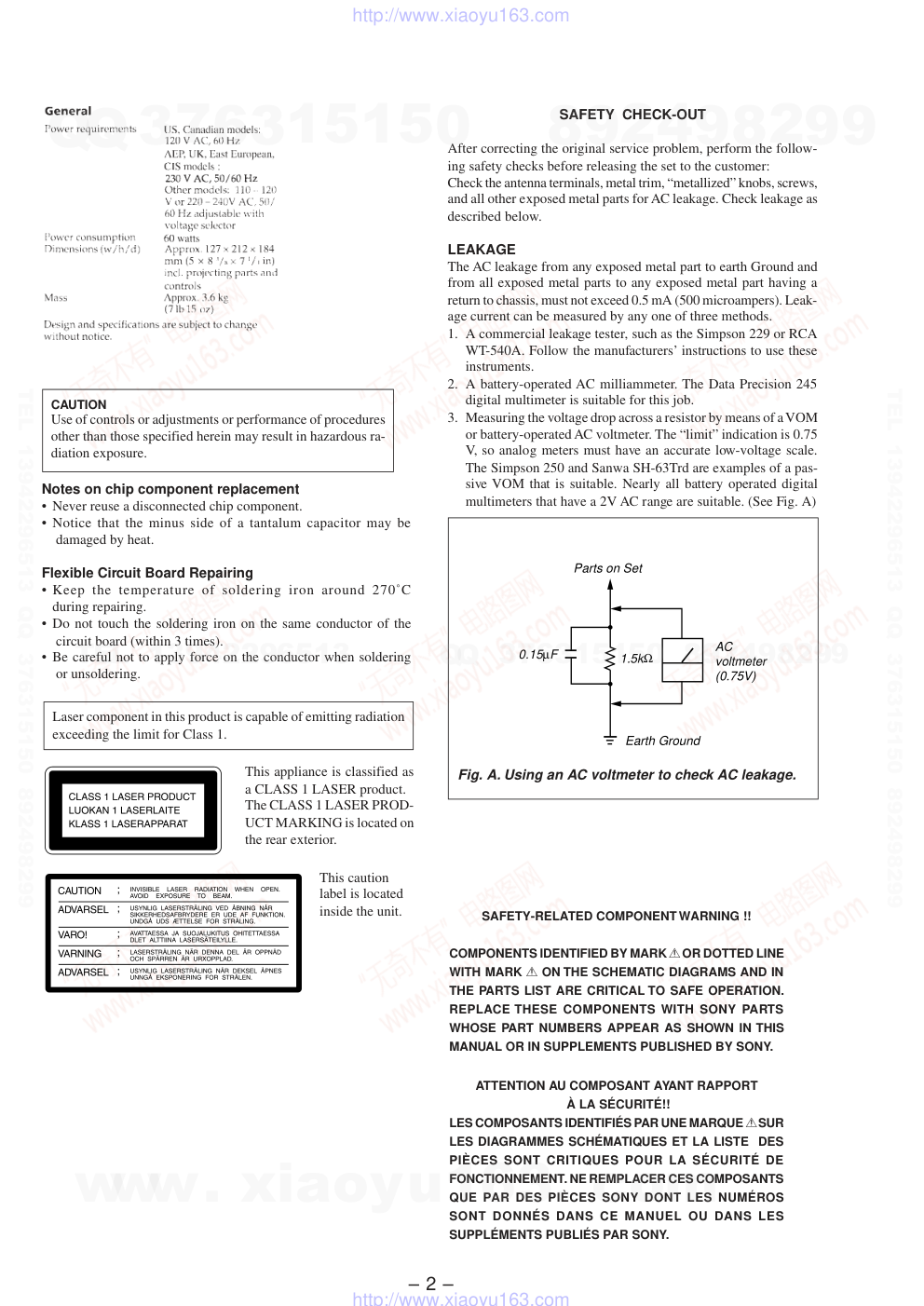

– 1 – Model Name Using Similar Mechanism NEW Base Unit Type BU17-BD19 Optical Pick-up Type KSS-213BA/S-N Model Name Using Similar Mechanism NEW Tape Transport Mechanism Type CMAL2Z076A SERVICE MANUAL COMPACT DISC DECK RECEIVER HCD-ED1 is the tuner, deck, CD and amplifier section in CMT-ED1. US Model Canadian Model AEP Model UK Model E Model — Continued on next page — This stereo system is equipped with the Dolby* B- type noise reduction system. *Dolby noise reduction manufactured under license from Dolby Laboratories Licensing Corporation. “DOLBY” and the double-D symbol a are trade- marks of Dolby Laboratories Licensing Corporation. CD SECTION TAPE DECK SECTION SPECIFICATIONS Ver 1.1 2001. 06 With SUPPLEMENT-1 (9-922-706-81) 9-922-706-12 2001F0200-1 © 2001.6 Sony Corporation Home Audio Company Shinagawa Tec Service Manual Production Group www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth Ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leak- age current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a pas- sive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. SAFETY-RELATED COMPONENT WARNING !! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PROD- UCT MARKING is located on the rear exterior. This caution label is located inside the unit. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. AC voltmeter (0.75V) 1.5kΩ 0.15µF Parts on Set Earth Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – TABLE OF CONTENTS 1. GENERAL .......................................................................... 4 2. DISASSEMBLY 2-1. CD Door, CD Base and Base Unit ........................................ 6 2-2. Rear Panel ........................................................................... 6 2-3. Bottom Cover and Front Panel Block ................................... 7 2-4. Door Cover Assy and Mechanical Deck (Cassette) .............. 7 3. MECHANICAL ADJUSTMENTS ............................... 8 4. ELECTRICAL ADJUSTMENTS ................................. 8 5. DIAGRAMS 5-1. Circuit Boards Location ...................................................... 13 5-2. IC Pin Function ................................................................... 14 5-3. Schematic Diagram — CD Section — ............................... 16 5-4. Printed Wiring Board — CD Section — ............................. 19 5-5. Schematic Diagram — Input/Output Section — ................ 21 5-6. Printed Wiring Board — Input/Output Section — .............. 23 5-7. Printed Wiring Board — Deck Section — .......................... 25 5-8. Schematic Diagram — Deck Section — ............................ 27 5-9. Schematic Diagram — Display Section — ........................ 30 5-10. Printed Wiring Board — Display Section — ................... 33 5-11. Schematic Diagram — Power Section — ........................ 36 5-12. Printed Wiring Board — Power Section — ..................... 39 5-13. IC Block Diagrams ........................................................... 41 6. EXPLODED VIEWS 6-1. CD Section ......................................................................... 45 6-2. Rear Panl Section ................................................................ 46 6-3. Front Panel Section ............................................................. 47 6-4. Mechanism Deck Section (Cassette) .................................. 48 6-5. Base Unit Section (BU17-BD19)........................................ 49 7. ELECTRICAL PARTS LIST ........................................ 50 SERVICING NOTE NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve from more than 30 cm away from the objective lens. MODEL IDENTIFICATION — AC POWER SUPPLY CODE — AEP, East European, CIS model (Without voltage selector) Singapore, Malaysia, Hong Kong model (With voltage selector) UK model US, Canadian model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SECTION 1 GENERAL 1 20 19 18 17 16 15 14 13 12 2 3 4 5 6 7 8 9 10 11 1 9 8 7 6 5 2 3 4 AEP,UK, East European ,CIS model US,Canadian, Singapore,Malaysia, Hong Kong model Location of Parts and Controls FRONT PANEL REAR PANEL 1 AM ANTENNA 2 MD IN jacks 3 MD OUT jacks 4 SPEAKER jacks 5 VOLTAGE SELECT OR s witc h (Malaysia, Singapore , Hong K ong models onl y) 6 FM ANTENNA terminal 7 PHONES jack 8 AM ANTENNA terminals 9 OPTICAL terminal 1 Displa y windo w 2 DBFB lamp 3 CD SYNC lamp 4 REC lamp 5 ª button 6 BAND FM ∏ button 7 POWER b utton 8 TUNING ≠ º – b utton 9 § button (Push open) 10 VOLUME – b utton 11 DECK Lid 12 VOLUME + b utton 13 TUNING ‚± + button 14 FUNCTON button 15 BAND AM π button 16 · button 17 SOUND MODE b utton 18 WIDE lamp 19 Remote sensor 20 NEAR F. lamp www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – This section is extracted from instruction manual. REMOTE 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 1 DISPLAY button 2 DBFB b utton 3 CD b utton 4 TUNER/BAND button 5 TAPE œ button 6 DIR MODE button 7 CD REPEA T button 8 b uttons 9 ON/OFF b utton 10 b uttons 11 VOL (+/–) b utton 12 STEREO/MONO b utton 13 TUNING/PLAY MODE b utton 14 DOLBY NR b utton 15 r REC b utton 16 (re wind/fast f orwar d) b uttons 17 AMS* b uttons 18 (stop) b utton 19 (pause) b utton 20 POWER s witch *AMS=Auto Music Sensor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – SECTION 2 DISASSEMBLY Note: Follo w the disassemb ly pr ocedure in the n umerical or der given. 2-1. CD DOOR, CD BASE AND BASE UNIT !∞ Two springs (compression) 1 Open the CD door. 2 Bar rubber 3 Hinge pin 4 Hinge spring 9 Three screws (K3x8) 8 Two hook screws !º Three screws (K3x8) !ª Base unit !• Two springs (compression) !¶ Two washers !§ Two screws (TPG P2x8) !™ Wire (Flat type) !£ Two screws (TPG P2x8) !¢ Two washers !¡ CD base 7 Three screws (K3x8) 5 Two hook screws 6 Three screws (K3x8) 2-2. REAR PANEL 6 Side bracket 7 Rear panel 1 Two screws (BVTP 3x10) 5 Side bracket 2 Screw (BVTP 3x8) 3 Two screws (BVTP 3x8) 4 Three screws (BVTP 3x8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – 2-3. BOTTOM COVER AND FRONT PANEL BLOCK 2-4. DOOR COVER ASSY AND MECHANICAL DECK (CASSETTE) 1 Two screws (BVTP 3x8) 2 Two screws (BVTP 3x8) 3 Bottom cover 4 Two claws 5 Front panel block 4 Four screws (BVTP 3x10) 5 Mechanical deck (cassette) 1 Open the Door cover ASSY. (Push the A portion.) 2 Door cover assy 3 Door spring A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – SECTION 3 MECHANICAL ADJUSTMENTS PRECAUTION 1. Clean the following parts with a denatured alcohol-moistened swab : record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagne- tizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power sup- ply voltage unless otherwise noted. Torque Measurement Torque Torque meter FWD Meter reading FWD back tension REV CQ-102C CQ-102C CQ-102RC CQ-102RC CQ-201B CQ-403A CQ-403R 28 to 71g • cm (0.39 – 0.99 oz • inch) 1 to 7g • cm (0.01 – 0.10 oz • inch) 1 to 7g • cm (0.01 – 0.10 oz • inch) 28 to 71g • cm (0.39 – 0.99 oz • inch) DECK SECTION 0 dB=0.775V 1. Demagnetize the record/playback head with a head damagnetizer. (Do not bring the head demagnetizer close to the erase head.) 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjusted. 4. The adjustments should be performed with the rated power sup- ply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjust- ment.) 6. The adjustments should be performed for both L-CH and R-ch. 7. Switches and controls should be set as follows unless otherwise specified. SECTION 4 ELECTRICAL ADJUSTMENTS Tape P-4-A100 WS-48B P-4-L300 Signal 10 kHz, –10 dB 3 kHz, 0 dB 315 Hz, 0 dB Used for Azimuth Adjustment Tape Speed Adjustment Level Adjustment Record/Playback Head Azimuth Adjustment Procedure : 1. Mode : Playback REV back tension FF/REW FWD tension REV tension 100g or more (3.53 oz or more) 100g or more (3.53 oz or more) 56 to 122g • cm (0.78 – 1.69 oz • inch) + – set MD OUT (JK301) level meter test tape P-4-A100 (10kHz, –10dB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1 dB of peak. 4. After the adjustments, apply suitable locking compound to the parts adjusted. Adjustment Location : Tape Speed Adjustment Procedure : Mode : Playback 3. Mode : Playback 1. Insert the WS-48B into the deck, and playback. 2. Adjust the VR770/RELAY board so that the frequency counter reading becomes 3000 ± 90 Hz. Adjustment Location : RELAY board Sample Value of Wow and flutter W.RMS (JIS) less than 0.3% (test tape: WS-48B) Playback Level Adjustment Procedure : Mode : Playback oscilloscope MD OUT (JK301) set MD OUT (JK301) test tape P-4-A100 (10kHz, –10dB) L R Waveform of oscilloscope good wrong in phase 45 ° 90 ° 135 ° 180 ° L-CH peak R-CH peak screw position output level within 1dB L-CH peak R-CH peak screw position within 1dB + – MD OUT (JK301) set frequency counter test tape WS-48B (3kHz, 0dB) FWD side REV side Adjustment screw level meter MD OUT (JK301) set test tape P-4-L300 (315Hz, 0dB) Deck is VR703 (L-CH) and VR704 (R-CH) so that adjustment within the following adjustment level. Adjustment level : Playback level: 301.5 to 338.3 mV (–8.2 to –7.2 dB) level dif- ference between the channels: within ±0.5 dB Adjustment Location : TAPE PREAMP board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – 2. Mode : Playback 2. Mode: Playback Confirm playback the signal recorded in step 1 become adjustment level as follows. If these levels do not adjustment level, adjustment the VR701 (L- CH) and VR702 (R-CH) on the TAPE PREAMP board to repeat steps 1 and 2. Adjustment level : Playback output of 10kHz level diffrence against 315Hz reference should be ±0.5 dB. Adjustment Location : TAPE PREAMP board Record Level Adjustment Procedure : 1. Mode: Record Confirm playback the signal recorded in step 1 become adjustment level as follows. If these levels do not adjustment level, adjustment the VR705 (L- CH) and VR706 (R-CH) on the TAPE PREAMP board to repeat steps 1 and 2. Adjustment level : Playback level : 47.2 to 53.0 mV (–24.3 to –23.3 dB) Adjustment Location : TAPE PREAMP board Adjustment Location [RELAY BOARD] (Component Side) Record Bias Adjustment Procedure : 1. Mode : Record level meter MD OUT (JK301) set recorded position AF OSC attenuator 600Ω set MD IN (JK301) 1) 315Hz 2) 10kHz blank tape CS-123 50 mV (–23.8 dB) } AF OSC attenuator 600Ω set MD IN (JK301) 315Hz 50 mV (–23.8 dB) blank tape CS-123 VR770 level meter MD OUT (JK301) set recorded position VR704 VR703 VR706 VR705 VR701 VR702 IC703 1 21 22 42 [TAPE PREAMP BOARD] (Component Side) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – Procedure: 1. Connect oscilloscope to test point TP (RF). 2. Turned Power switch on. 3. Put disc (YEDS-18) in and playback. 4. Adjust RV101 so that the waveform is clear. (Clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform.) 5. After adjustment, check the RF signal level. • RF signal VOLT/DIV: 200 mV TIME/DIV: 500 nS S Curve Check Procedure : 1. Connect oscilloscope to test point TP (FEO). 2. Connect between test point TP (FOK) and Ground by lead wire. 3. Turn Power switch on. 4. Put disc (YEDS-18) in and turned Power switch on again and actuate the focus search. (actuate the focus search when disc table is moving in and out.) 5. Check the oscilloscope waveform (S-curve) is symmetrical be- tween A and B. And confirm peak to peak level within 2.4 ± 0.7 Vp-p. S-curve waveform 6. After check, remove the lead wire connected in step 2. Note: • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the bright- ness to obtain best waveform. RF Level Check Procedure : 1. Connect oscilloscope to test point TP (RF) on BD board. 2. Turned Power switch on. 3. Put disc (YEDS-18) in and playback. 4. Confirm that oscilloscope waveform is clear and check RF sig- nal level is correct or not. Note: Clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. RF signal waveform CD SECTION Note: 1. CD Block is basically designed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with lens cleaning liquid when the signal level is low than specified value with the fol- lowing checks. 5. Adjust the focus bias adjustment when optical block is replaced. Focus Bias Adjustment – + oscilloscope BD board TP (RF) TP (VC) level : 1.3 ± 0.3 Vp-p – + oscilloscope BD board TP (FEO) TP (VC) symmetry A B within 2.4 ± 0.7 Vp-p – + oscilloscope BD board TP (RF) TP (VC) level : 1.3 ± 0.3 Vp-p VOLT/DIV : 200 mV TIME/DIV : 500 nS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 12 – Procedure : 1. Connect oscilloscpe to test point TP (TE) on BD board. 2. Turn Power switch on. 3. Put disc (YEDS-18) in to play the number five track. 4. Press the “P (Pause)” button. (Becomes the 1 track jump mode) 5. Confirm that the oscilloscope waveform is symmetrical on the top and bottom in relation to 0Vdc, and check this level. 1 track jump waveform E-F Balance (1 Track Jump) Check (Without remote commander) Specified level: • x 100 = less than ± 7% • A + B = 300 ± 100 mVp-p 6. Remove the lead wire connected in step 1. Focus/Tracking Gain Adjustment (RV102, RV103) This gain has a margin, so even if it is slightly off. There is no problem. Therfore, do not perform this adjustment. Please note that it should be fixed to mechanical center position when you moved and do not know original position. A – B 2 (A + B) Adjustment Location: [BD BOARD] — Component Side — – + oscilloscope BD board TP (TE) TP (VC) A B 0V LEVEL : 300 ± 100 mVp-p RF RV101 RV103 TEO VC FEO RV102 TEI FEI FOK IC101 IC104 GND PCK IC102 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – SECTION 5 DIAGRAMS 5-1. CIRCUIT BOARDS LOCATION FUN/SURROUND board VOL/POWER board TAPE PREAMP board BD board CD DOOR SW board RELAY board CONTROL BLK ASSY THIS BLOCK IS SUPPLIED AS THE ASSEMBLED BLOCK DISPLAY board FM/AM TUNER THIS BLOCK IS SUPPLIED AS THE ASSEMBLED BLOCK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 14 – 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 GND XOUT XIN RESET TUNED STEREO TEST POWDEC REMOTE PLL CE PLL CLK PLL DATAI PLL DATAO SERVO CK SUB Q DATA MUTE D CDPOWER CLOSESW FSW SENSE MLAT XLAT XRST SCOR PLAYSW MTRSNS TAPEIN MOTOR SOL AMS PLYMUTE REC/PB DOLBYNR RECMUTE BIAS REC LED CD SYNC WIDE KEYIO 1 KEYIO 2 BANDAREA N.C LOUDSEL N.C FRECSW RRECSW AREF AGND GND — O I I I I I I I O O I O O I O O O I O I O O O I I I I O O I O O O O O O O O I I — — I — I I I I — Ground 8 MHz Oscillator output 8 MHz Oscillator input CPU reset input Station detector input Stereo signal input Test pin (Connected to ground) Power down detect input Remote signal input Chip enable output Clock output Data input Data output Servo clock output Servo subq data & status input Servo command data output Digital mute control output CD power supply output Top loading close switch input Servo focus down output Servo status SENSE input D/A MLAT output Servo command latch output Servo chip reset output Servo SUBQ sync input Tape play switch input Tape motor reel sense input Tape in switch input Tape control output Tape control output Tape music search input Tape play back mute signal output Tape control output Tape control output Tape recording mute signal output Tape control output Record LED output CD SYNC LED output Wide LED output AD key input (16 keys) AD key input (16 keys) Band area option (Not used) Not used Loudness initial select input Not used Tape forward record switch input Tape reverse record switch input A/D convert refrence input (+5V) A/D convert Input ground input Ground Pin No. Pin Name I/O Function 5-2. IC PIN FUNCTION • IC201 MASTER CONTROL (TC9613) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 15 – VDD NARROW NORMAL LOUD DBFB VOL CLK VOL DATA VOL STB FUNC A FUNC B MDMUTE POWER MUTE A SEG27-SEG0 COM3 COM2 COM1 COM0 VLC N.C N.C N.C VDD 51 52 53 54 55 56 57 58 59 60 61 62 63 64-91 92 93 94 95 96 97 98 99 100 — O O O — O O O O O O O O O O O O O O — — — — +5V power supply Narrow LED output Normal LED output Loudness on/off control output Not used (Connected to ground) Volume control clock output Volume control data output Volume control strobe output TAPE/TUNER control signal output (00: TAPE/01: TUNER) CD/MD control signal output (10: CD/11: MD) MD/REC ON mute output System power output Audio mute control output LCD segment output LCD common 3 output LCD common 2 output LCD common 1 output LCD common 0 output LCD drive power supply output Not used (Connected to ground) Not used (Connected to ground) Not used (Connected to ground) +5V power supply Pin No. Pin Name I/O Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 41 – – 42 – 5-13. IC BLOCK DIAGRAMS CD SECTION IC101 CXA1782BQ 1 2 3 4 7 8 9 10 11 12 13 14 28 27 26 24 22 21 20 19 18 17 DRIVE BUFFER DRIVE BUFFER LEVEL SHIFT LEVEL SHIFT THERMAL SHUT DOWN REGULATOR DRIVER MUTE LEVEL SHIFT DRIVE BUFFER DRIVE BUFFER DRIVE BUFFER DRIVE BUFFER LEVEL SHIFT DRIVE BUFFER DRIVE BUFFER 15 16 23 25 5 6 OUT1A OUT1B IN1A IN1B TR-B REG 0 XRST GND IN2A IN2B OUT2A OUT2B GND OP-OUT GND OUT4A OUT4B IN4A IN4B VC VCC VCC VCC VCC IN3B IN3A OUT3B OUT3A OP+ OP– IC102 BA6397FP 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 51 50 49 48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 52 53 54 55 56 57 58 59 60 61 62 63 64 19 FOK MON MDP MDS LOCK TEST FILO FILI PCO VSS AVSS CLTV AVDD RF BIAS ASYI ASYO ASYE WDCK DATA XRST SENS MUTE SQCK SQSO EXCK SBSO SCOR VSS WFCK EMPH DOUT C4M FSTT XTSL XTAO XTAI MNTO SERVO AUTO SEQUENCER CPU INTERFACE DIGITAL CLV SUB CODE PROCESSOR EFM DEMODULATOR DIGITAL PLL ASYMMETRY CORRECTOR D/A INTERFACE ERROR CORRECTOR 16K RAM DIGITAL OUT CLOCK GENERATOR LRCK PCMD BCLK GTOP XUGF XPCK VDD GFS RFCK CZPO XROF MNT3 MNT1 XLON SPOD SPOC SPOB SPOA CLKO VDD XLTO DATO CNIN SEIN CLOK XLAT 3 5 14 4 5 3 6 IC103 CXD2507AQ 36 PHD2 PHD1 PHD 33 LD 32 RF M 31 RF O 30 RF I 29 CP 28 CB 27 CC1 26 CC2 25 FOK 24 SENS 23 C. OUT 22 XRST 21 DATA 20 XLT 19 CLK 18 VCC 17 ISET 16 SL 0 15 SL M 14 SL P 13 12 TA O TA M 11 FSET 10 TG2 9 TGU 8 SRCH 7 FE M 6 FE O 5 FLB 4 FGD 3 FDFCT 2 FEI 1 FEO 48 VC 47 TDFCT 46 TZC 45 ATSC 44 TEI 43 LPFI 42 TEO 41 VEE 40 EI 39 E 38 F 37 FE BIAS + + – + + – + – + – + – + – + – + + + – + – + – + – + – + – + – + – – + + – – + + – + – + – + – + – APC – – – – LEVELS FOK MIRR DFCT RF IV AMP2 RF IV AMP1 FE AMP F IV AMP E IV AMP TE AMP FZC COMP BAL1 BAL2 BAL3 TOG1 TOG2 TOG3 TTL IIL IIL TTL TTL IIL • IIL DATA RESISTOR • INPUT SHIFT RESISTOR • ADDRESS DECODER • OUTPUT DECODER HPF COMP LPF COMP TZC COMP DFCT DFCT TM1 FS4 ATSC • WINDOW COMP • FCS PHASE COMPENSATION • TRACKING • PHASE COMPENSATION • ISET FS1 FS2 TM4 TM5 TM6 TM3 TM7 TG2 • F SET TG1 TM2 + – TOG1-3 FS1-4 TG1-2 TM1-7 PS1-4 BAL1-3 35 34 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 43 – IC104 PCM1710U-B 1 2 3 4 5 6 7 8 9 10 11 12 13 14 27 26 25 24 23 22 21 20 19 18 17 16 15 28 INPUT INTERFACE DIGITAL FILTER NOISE SHAPER 5-LEVEL DAC RIGHT LOW-PASS FILTER RIGHT 3-STAGE AMP RIGHT LOW-PASS FILTER LEFT 3-STAGE AMP LEFT 5-LEVEL DAC LEFT MODE CONTROL TIMING CONTROL LRCIN DIN BCKIN CLKO XTI XTO DGND VDD VCC2R GND2R EXT1R EXT2R VOUTR GND1 ML/DSD MC/DM2 MD/DM1 MUTE MODE CKSL DGND VDD VCC2L VCC1 GND2L EXT1L EXT2L VOUTL DECK SECTION IC701 BA3126N 1 REC SW1 2 3 PB SW1 GND 4 CONT 5 GND 6 VCC 7 PB SW2 8 GND 9 REC SW2 14 15 16 13 12 11 10 9 0 2 COMMON 3 1 INHIBIT VEE VSS VDD 2 1 COMMON 3 0 SEL.A SEL.B DECODER 1 2 3 4 5 6 7 8 INPUT/OUTPUT SECTION IC301 MC14052BCP POWER SECTION IC461 TC9260P 1 VSS VDD OUT DATA OUT IN LD1 LD2 AGND CS CK 2 3 4 5 6 7 8 DATA DECODER, STB GENERATOR INPUT REGISTER L-CH L-CH VOLUME R-CH VOLUME LATCH R-CH LATCH 16 9 15 IN 14 LD1 13 LD2 12 AGND 11 STB 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 44 – IC351 TA2041F VCC 24 23 22 21 20 19 VCC VCC 18 17 SWITCH 16 VCC 15 VCC VCC VCC SW VCC VCC 14 13 SWITCH VCC a b c a b c 1 VCC 2 3 4 VCC 6 5 7 8 9 10 BIAS VCC 11 12 IN2 LF IN2 LF1 PS1 PS2 LF2 SW C MIX LEVEL OUT2 SWA SWB VCC IN1 LF IN1 HF1 LF3 LF4 PS3 PS4 LF5 OUT1 VREF GND EXT IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 45 – SECTION 6 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and pack- ing materials are given in the last of this parts list. • Abbreviation CND : Canadian model EE : East European model HK : Hong Kong model SP : Singapore model MY : Malaysia model The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. 6-1. CD SECTION 1 2 4 5 17 6 18 7 18 8 9 10 10 12 13 12 15 11 11 14 16 4 3 Base unit #2 #4 #3 #3 #2 #1 #3 #5 #5 #5 #2 #2 #3 1 4-997-375-01 GLASS DOOR W/PRINGING 2 4-997-373-01 HINGE PLATE 3 4-997-355-01 DOOR HINGE 4 4-997-365-01 HINGE PIN 5 4-997-370-01 BAR RUBBER 6 4-997-356-01 HINGE SPRING 7 4-997-349-01 CD BASE 8 4-997-367-01 PUSH BUTTON 9 4-997-369-01 CUSHION 10 4-997-345-01 HOOK SCREW Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 11 4-948-503-01 SPRING (BU), COMPRESSION 12 4-997-372-01 WASHER 13 1-783-091-11 WIRE (FLAT TYPE) * 14 4-997-350-01 BACK COVER (US,CND,MY,SP,HK) * 14 4-997-350-11 BACK COVER (AEP,UK,EE,CIS) 15 4-997-353-01 PICK UP COVER * 16 A-4407-244-A CD DOOR SW BOARD, COMPLETE 17 4-977-376-01 STOP SPRING 18 4-977-371-01 STOPPER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 46 – 6-2. REAR PANEL SECTION 54 (US,CND) 54 (UK) 63 (HK) 54 (EXCEPT US,CND,UK) 51 52 53 64 66 65 55 62 62 62 62 56 57 58 59 60 61 61 51 not supplied not supplied #6 #7 #6 #6 #7 #7 #7 #7 #8 #7 #7 #7 #8 T501 S501 (MY, SP,HK) FRONT PANEL #13 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 58 A-4407-239-A VOL/POWER BOARD, COMPLETE (AEP,UK,EE,CIS) * 58 A-4407-240-A VOL/POWER BOARD, COMPLETE (US,CND) * 58 A-4407-241-A VOL/POWER BOARD, COMPLETE (MY,SP,HK) * 59 4-997-364-01 BOTTOM BOARD 60 4-997-352-01 BOTTOM COVER 61 4-997-366-01 RUBBER FOOT * 62 4-997-378-01 PC BOARD BRACKET !63 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK) 64 X-4949-451-1 AM ANT SUB ASSY 65 1-501-659-11 ANTENNA (FM) (US,CND,MY,SP,HK) 66 1-501-985-11 LEAD, ANTENNA (AEP,UK,EE,CIS) !S501 1-771-308-11 SELECTOR, POWER (MY,SP,HK) !T501 1-431-697-21 TRANSFORMER, POWER (AEP,UK,EE,CIS) !T501 1-431-697-31 TRANSFORMER, POWER (US,CND) !T501 1-431-697-41 TRANSFORMER, POWER (MY,SP,HK) * 51 4-997-363-01 SIDE BRACKET 52 1-693-400-21 FM/AM TUNER (AEP,UK,EE,CIS) 52 1-693-400-31 FM/AM TUNER (US,CND) 52 1-693-400-41 FM/AM TUNER (MY,SP,HK) * 53 4-997-368-11 REAR PANEL (AEP) * 53 4-997-368-21 REAR PANEL (UK) * 53 4-997-368-31 REAR PANEL (EE,CIS) * 53 4-997-368-41 REAR PANEL (US,CND) * 53 4-997-368-51 REAR PANEL (MY,SP) * 53 4-997-368-61 REAR PANEL (HK) !54 1-551-478-00 CORD, POWER (POLAR.SPT-2)(US,CND) !54 1-555-750-00 CORD, POWER (AEP,EE,CIS,MY,SP,HK) !54 1-751-535-11 CORD, POWER (UK) 55 4-997-358-01 AC CORD BUSHING * 56 A-4407-243-A TAPE PREAMP BOARD, COMPLETE * 57 A-4407-242-A FUN/SURROUND BOARD, COMPLETE Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 47 – 6-3. FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 108 X-4949-449-1 FRONT PANEL SUB ASSY 109 4-997-362-01 DOOR LATCH 110 1-759-548-11 DECK, MECHANICAL 111 4-997-357-01 GEAR HOLDER 112 4-997-381-01 LCD HOLDER 113 4-997-382-01 LIGHT BAR 114 4-997-383-01 DISPLAY FILTER 115 4-997-374-01 SOLDER LUG Z201 1-803-020-11 DISPLAY PANEL, LIQUID CRYSTAL 101 4-997-351-01 DOOR COVER 102 4-997-354-01 DOOR SPRING 103 X-4949-450-1 CASS DOOR SUB ASSY 104 1-773-009-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK,EE,CIS) 104 1-751-688-11 WIRE (FLAT TYPE) (13 CORE) (US,CND,MY,SP,HK) * 105 A-4407-247-A DISPLAY BOARD, COMPLETE (AEP,UK,EE,CIS) * 105 A-4407-248-A DISPLAY BOARD, COMPLETE (US,CND) * 105 A-4407-249-A DISPLAY BOARD, COMPLETE (MY,SP,HK) * 106 A-4407-245-A RELAY BOARD, COMPLETE 107 4-997-361-01 GEAR DAMPER 101 102 103 108 109 110 115 111 107 104 105 112 113 114 106 #7 #5 Z201 #6 #6 #9 #7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 48 – 6-4. MECHANISM DECK SECTION (CASSETTE) 151 156 157 152 M901 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied #11 #11 #12 not supplied not supplied not supplied not supplied not supplied not supplied not supplied 153 159 155 158 A 154 (including ) A Ref. No. Part No. Description Remark 151 1-759-548-11 DECK, MECHANICAL 152 X-4949-565-1 CONTROL BLK ASSY 153 X-4949-566-1 CLUTCH BLK ASSY 154 X-4949-563-1 PLA TE HD BLK ASSY 155 4-997-983-01 BEL T MAIN 156 X-4949-568-1 ROLLER PINCH BLK R ASSY 157 X-4949-569-1 ROLLER PINCH BLK L ASSY 158 4-997-984-01 F/R BEL T 159 X-4949-567-1 CLUTCH BLK2 ASSY M901 X-4949-564-1 MTR MAIN BLK ASSY (CAPST AN/REEL) Ver 1.1 2001.06 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 49 – 6-5. BASE UNIT SECTION (BU17-BD19) 201 202 203 204 206 207 208 205 204 #10 M101 M102 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark !201 8-848-387-01 OPTICAL PICK-UP KSS-213BA/S-N 202 1-769-069-11 WIRE (FLAT TYPE) (16 CORE) 203 4-917-567-01 GEAR (M) 204 4-951-940-01 INSULATOR (BU) 205 4-917-565-01 SHAFT, SLED 206 4-917-564-01 GEAR (P), FLATNESS * 207 A-4673-402-B BD BOARD, COMPLETE 208 4-951-620-01 SCREW (2.6X8), +BVTP M101 X-4950-066-1 MOTOR ASSY (SPINDLE) M102 X-4917-504-1 MOTOR ASSY (SLED) Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Ver 1.1 2001.06 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 50 – • SEMICONDUCTORS In each case, u: µ , for example: uA...: µ A..., uPA...: µ PA..., uPB...: µ PB..., uPC...: µ PC..., uPD...: µ PD... • CAPACITORS uF : µ F • COILS uH : µ H • Abbreviation CND : Canadian model EE : East European model HK : Hong Kong model SP : Singapore model MY : Malaysia model • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • RESISTORS All resistors are in ohms METAL: Metal-film resistor METAL OXIDE: Metal Oxide-film resistor F : nonflammable SECTION 7 ELECTRICAL PARTS LIST Note: Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark BD C146 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C147 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C148 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C149 1-164-346-11 CERAMIC CHIP 1uF 16V C153 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C154 1-163-235-11 CERAMIC CHIP 22PF 5% 50V < CONNECTOR > CNU101 1-770-014-11 CONNECTOR, FFC/FPC 16P CNU102 1-770-013-11 CONNECTOR, FFC/FPC 19P < IC > IC101 8-752-074-34 IC CXA1782CQ IC102 8-759-291-06 IC BA6397FP IC103 8-752-372-94 IC CXD2507AQ IC104 8-759-185-29 IC PCM1710U-B < MOTOR > M101 X-4917-523-4 MOTOR ASSY (SPINDLE) M102 X-4917-504-1 MOTOR ASSY (SLED) < TRANSISTOR > Q101 8-729-010-08 TRANSISTOR MSB710-R Q102 8-729-424-08 TRANSISTOR UN2111 Q103 8-729-421-22 TRANSISTOR UN2211 < RESISTOR > R102 1-216-001-00 METAL CHIP 10 5% 1/10W R103 1-216-049-91 METAL GLAZE 1K 5% 1/10W R104 1-216-097-91 METAL GLAZE 100K 5% 1/10W R105 1-216-093-00 METAL CHIP 68K 5% 1/10W R106 1-216-093-00 METAL CHIP 68K 5% 1/10W R107 1-216-093-00 METAL CHIP 68K 5% 1/10W R108 1-216-093-00 METAL CHIP 68K 5% 1/10W R109 1-216-097-91 METAL GLAZE 100K 5% 1/10W R112 1-216-083-00 METAL CHIP 27K 5% 1/10W R113 1-216-083-00 METAL CHIP 27K 5% 1/10W R114 1-216-101-00 METAL CHIP 150K 5% 1/10W R115 1-216-101-00 METAL CHIP 150K 5% 1/10W R116 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R117 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R118 1-216-049-91 METAL GLAZE 1K 5% 1/10W R119 1-216-089-91 METAL GLAZE 47K 5% 1/10W R120 1-216-089-91 METAL GLAZE 47K 5% 1/10W R121 1-216-114-00 METAL GLAZE 510K 5% 1/10W * A-4673-402-B BD BOARD, COMPLETE ****************** < CAPACITOR > C101 1-126-607-11 ELECT CHIP 47uF 20% 4V C102 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C103 1-164-346-11 CERAMIC CHIP 1uF 16V C105 1-163-038-91 CERAMIC CHIP 0.1uF 25V C106 1-164-695-11 CERAMIC CHIP 0.0022uF 5% 50V C107 1-164-695-11 CERAMIC CHIP 0.0022uF 5% 50V C108 1-164-232-11 CERAMIC CHIP 0.01uF 50V C109 1-164-232-11 CERAMIC CHIP 0.01uF 50V C110 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V C111 1-163-038-91 CERAMIC CHIP 0.1uF 25V C112 1-163-038-91 CERAMIC CHIP 0.1uF 25V C113 1-164-695-11 CERAMIC CHIP 0.0022uF 5% 50V C114 1-164-005-11 CERAMIC CHIP 0.47uF 25V C115 1-126-607-11 ELECT CHIP 47uF 20% 4V C116 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V C117 1-164-005-11 CERAMIC CHIP 0.47uF 25V C118 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C119 1-163-038-91 CERAMIC CHIP 0.1uF 25V C120 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C121 1-163-038-91 CERAMIC CHIP 0.1uF 25V C122 1-164-232-11 CERAMIC CHIP 0.01uF 50V C123 1-163-038-91 CERAMIC CHIP 0.1uF 25V C124 1-126-607-11 ELECT CHIP 47uF 20% 4V C125 1-164-232-11 CERAMIC CHIP 0.01uF 50V C126 1-163-038-91 CERAMIC CHIP 0.1uF 25V C127 1-164-695-11 CERAMIC CHIP 0.0022uF 5% 50V C128 1-163-135-00 CERAMIC CHIP 560PF 5% 50V C129 1-163-038-91 CERAMIC CHIP 0.1uF 25V C130 1-164-336-11 CERAMIC CHIP 0.33uF 25V C131 1-163-038-91 CERAMIC CHIP 0.1uF 25V C132 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C133 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V C134 1-164-346-11 CERAMIC CHIP 1uF 16V C135 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C136 1-164-005-11 CERAMIC CHIP 0.47uF 25V C137 1-164-232-11 CERAMIC CHIP 0.01uF 50V C139 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C140 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C141 1-163-038-91 CERAMIC CHIP 0.1uF 25V C142 1-163-038-91 CERAMIC CHIP 0.1uF 25V C145 1-135-201-11 TANTALUM CHIP 10uF 20% 4V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 51 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R122 1-216-097-91 METAL GLAZE 100K 5% 1/10W R123 1-216-099-00 METAL CHIP 120K 5% 1/10W R124 1-216-091-00 METAL CHIP 56K 5% 1/10W R125 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R126 1-216-063-91 METAL GLAZE 3.9K 5% 1/10W R127 1-216-089-91 METAL GLAZE 47K 5% 1/10W R128 1-216-105-91 METAL GLAZE 220K 5% 1/10W R129 1-216-049-91 METAL GLAZE 1K 5% 1/10W R130 1-216-079-00 METAL CHIP 18K 5% 1/10W R131 1-216-079-00 METAL CHIP 18K 5% 1/10W R132 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R133 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R134 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R135 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R136 1-216-073-00 METAL CHIP 10K 5% 1/10W R137 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R138 1-216-049-91 METAL GLAZE 1K 5% 1/10W R139 1-216-033-00 METAL CHIP 220 5% 1/10W R140 1-216-081-00 METAL CHIP 22K 5% 1/10W R141 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R142 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R143 1-216-121-91 METAL GLAZE 1M 5% 1/10W R144 1-216-073-00 METAL CHIP 10K 5% 1/10W R145 1-216-097-91 METAL GLAZE 100K 5% 1/10W R146 1-216-097-91 METAL GLAZE 100K 5% 1/10W R147 1-216-049-91 METAL GLAZE 1K 5% 1/10W R148 1-216-049-91 METAL GLAZE 1K 5% 1/10W R149 1-216-049-91 METAL GLAZE 1K 5% 1/10W R150 1-216-037-00 METAL CHIP 330 5% 1/10W R151 1-216-037-00 METAL CHIP 330 5% 1/10W R152 1-216-037-00 METAL CHIP 330 5% 1/10W R153 1-216-082-00 METAL GLAZE 24K 5% 1/10W R154 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R156 1-216-085-00 METAL CHIP 33K 5% 1/10W R157 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R158 1-216-001-00 METAL CHIP 10 5% 1/10W < VARIABLE RESISTOR > RV101 1-241-396-11 RES, ADJ, METAL GLAZE 22K RV102 1-241-396-11 RES, ADJ, METAL GLAZE 22K RV103 1-241-396-11 RES, ADJ, METAL GLAZE 22K < SWITCH > S101 1-572-085-11 SWITCH, LEAF (LIMIT) < VIBRATOR > X101 1-579-280-11 VIBRATOR, CRYSTAL (16.9344MHz) ************************************************************** * A-4407-244-A CD DOOR SW BOARD, COMPLETE *************************** < SWITCH > S211 1-771-298-11 SWITCH, PUSH (CD DOOR) ************************************************************** * A-4407-247-A DISPLAY BOARD, COMPLETE (AEP,UK,EE,CIS) ************************************* * A-4407-248-A DISPLAY BOARD, COMPLETE (US,CND) ********************************* * A-4407-249-A DISPLAY BOARD, COMPLETE (MY,SP,HK) *********************************** 4-997-381-01 LCD HOLDER 4-997-382-01 LIGHT BAR 4-997-383-01 DISPLAY FILTER < CAPACITOR > C200 1-126-514-11 ELECT 22uF 20% 16V C201 1-102-962-00 CERAMIC 30PF 5% 50V C202 1-102-953-00 CERAMIC 18PF 5% 50V C203 1-136-165-00 FILM 0.1uF 5% 50V C204 1-136-165-00 FILM 0.1uF 5% 50V C205 1-126-916-11 ELECT 1000uF 20% 6.3V C206 1-136-165-00 FILM 0.1uF 5% 50V C207 1-136-165-00 FILM 0.1uF 5% 50V C208 1-136-165-00 FILM 0.1uF 5% 50V C209 1-136-165-00 FILM 0.1uF 5% 50V C212 1-136-165-00 FILM 0.1uF 5% 50V C213 1-126-177-11 ELECT 100uF 20% 10V C220 1-136-165-00 FILM 0.1uF 5% 50V C230 1-102-934-00 CERAMIC 1.0PF +-0.25PF 50V C232 1-126-177-11 ELECT 100uF 20% 10V < CONNECTOR > * CN1 1-568-858-11 SOCKET, CONNECTOR 15P (AEP,UK,EE,CIS) * CN1 1-784-568-11 CONNECTOR, FFC 13P (US,CND,SP,MY,HK) < DIODE > D201 8-719-920-76 DIODE 1S2076 D202 8-719-920-76 DIODE 1S2076 D203 8-719-920-76 DIODE 1S2076 D210 8-719-920-76 DIODE 1S2076 D211 8-719-920-76 DIODE 1S2076 D212 8-719-920-76 DIODE 1S2076 < IC > IC201 8-759-497-90 IC TC9613 IC202 8-749-014-39 IC PIC-21041TH2 IC203 8-759-165-80 IC PST600C-T < COIL > L201 1-410-521-11 INDUCTOR 100uH DISPLAY CD DOOR SW BD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 52 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < DIODE > LD201 8-719-989-30 DIODE EL204HD (WIDE) LD202 8-719-989-30 DIODE EL204HD (NEAR F) LD203 8-719-989-30 DIODE EL204HD (DBFB) LD204 8-719-989-30 DIODE EL204HD (CD SYNC) LD205 8-719-989-30 DIODE EL204HD (REC) < CONNECTOR > M201 1-784-348-11 CONNECTOR 12P M202 1-784-347-11 CONNECTOR 10P M203 1-784-349-11 CONNECTOR 25P < LAMP > PL201 1-517-743-11 LAMP < TRANSISTOR > Q201 8-729-119-78 TRANSISTOR 2SC2785-HFE Q204 8-729-900-63 TRANSISTOR DTA124ES Q205 8-729-900-63 TRANSISTOR DTA124ES Q206 8-729-900-63 TRANSISTOR DTA124ES Q207 8-729-900-63 TRANSISTOR DTA124ES Q208 8-729-900-63 TRANSISTOR DTA124ES < RESISTOR > R200 1-249-429-11 CARBON 10K 5% 1/4W R201 1-249-435-11 CARBON 33K 5% 1/4W R202 1-249-424-11 CARBON 3.9K 5% 1/4W F R203 1-249-429-11 CARBON 10K 5% 1/4W R204 1-249-437-11 CARBON 47K 5% 1/4W R205 1-249-429-11 CARBON 10K 5% 1/4W R208 1-249-437-11 CARBON 47K 5% 1/4W R209 1-249-429-11 CARBON 10K 5% 1/4W R210 1-249-429-11 CARBON 10K 5% 1/4W R222 1-249-429-11 CARBON 10K 5% 1/4W R223 1-249-429-11 CARBON 10K 5% 1/4W R225 1-249-429-11 CARBON 10K 5% 1/4W R226 1-249-429-11 CARBON 10K 5% 1/4W R227 1-249-429-11 CARBON 10K 5% 1/4W R229 1-249-429-11 CARBON 10K 5% 1/4W R230 1-249-429-11 CARBON 10K 5% 1/4W R239 1-249-425-11 CARBON 4.7K 5% 1/4W F R240 1-249-425-11 CARBON 4.7K 5% 1/4W F R246 1-249-429-11 CARBON 10K 5% 1/4W R247 1-249-429-11 CARBON 10K 5% 1/4W R248 1-249-429-11 CARBON 10K 5% 1/4W R250 1-247-807-31 CARBON 100 5% 1/4W R253 1-249-425-11 CARBON 4.7K 5% 1/4W F (US,CND,AEP,UK,EE,CIS) R254 1-249-420-11 CARBON 1.8K 5% 1/4W F (US,CND) R254 1-249-418-11 CARBON 1.2K 5% 1/4W F (AEP,UK,EE,CIS) R255 1-249-413-11 CARBON 470 5% 1/4W F R256 1-249-412-11 CARBON 390 5% 1/4W F R257 1-249-412-11 CARBON 390 5% 1/4W F R258 1-249-414-11 CARBON 560 5% 1/4W F R259 1-249-415-11 CARBON 680 5% 1/4W F R260 1-247-828-11 CARBON 750 5% 1/4W R261 1-249-416-11 CARBON 820 5% 1/4W F R262 1-249-418-11 CARBON 1.2K 5% 1/4W F (US,CND) R263 1-249-419-11 CARBON 1.5K 5% 1/4W F R264 1-247-838-00 CARBON 2K 5% 1/4W R270 1-249-393-11 CARBON 10 5% 1/4W F R278 1-249-413-11 CARBON 470 5% 1/4W F R279 1-249-413-11 CARBON 470 5% 1/4W F R280 1-249-413-11 CARBON 470 5% 1/4W F R281 1-249-413-11 CARBON 470 5% 1/4W F R282 1-249-413-11 CARBON 470 5% 1/4W F R290 1-249-429-11 CARBON 10K 5% 1/4W < SWITCH > S200 1-571-760-11 SWITCH, KEY BOARD (POWER) S201 1-571-760-11 SWITCH, KEY BOARD (VOLUME +) S202 1-571-760-11 SWITCH, KEY BOARD (VOLUME –) S203 1-571-760-11 SWITCH, KEY BOARD (TUNING +/) +) S204 1-571-760-11 SWITCH, KEY BOARD (TUNING = 0/–) S205 1-571-760-11 SWITCH, KEY BOARD (BAND P/FM) S206 1-571-760-11 SWITCH, KEY BOARD (BAND AM/p) S207 1-571-760-11 SWITCH, KEY BOARD (PLAY ª TC) S208 1-571-760-11 SWITCH, KEY BOARD (PLAY CD/TC ·) S209 1-571-760-11 SWITCH, KEY BOARD (FUNCTION) S210 1-571-760-11 SWITCH, KEY BOARD (SOUND MODE) < VIBRATOR > X201 1-767-791-11 VIBRATOR, CRYSTAL (8MHz) < LIQUID CRYSTAL DISPLAY > Z201 1-803-020-11 DISPLAY PANEL, LIQUID CRYSTAL ************************************************************** * A-4407-242-A FUN/SURROUND BOARD, COMPLETE ***************************** * 4-997-378-01 PC BOARD BRACKET 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S < CAPACITOR > C307 1-102-074-00 CERAMIC 0.001uF 10% 50V C308 1-102-074-00 CERAMIC 0.001uF 10% 50V C309 1-124-907-11 ELECT 10uF 20% 50V C310 1-126-963-11 ELECT 4.7uF 20% 50V C311 1-161-772-11 CERAMIC 0.1uF 10% 25V C312 1-161-772-11 CERAMIC 0.1uF 10% 25V C313 1-126-963-11 ELECT 4.7uF 20% 50V C314 1-126-963-11 ELECT 4.7uF 20% 50V C315 1-124-907-11 ELECT 10uF 20% 50V C316 1-124-907-11 ELECT 10uF 20% 50V C317 1-124-443-00 ELECT 100uF 20% 10V C318 1-124-443-00 ELECT 100uF 20% 10V C319 1-102-114-00 CERAMIC 470PF 10% 50V C320 1-102-114-00 CERAMIC 470PF 10% 50V C351 1-137-378-11 FILM 0.22uF 5% 50V C352 1-137-378-11 FILM 0.22uF 5% 50V DISPLAY FUN/SURROUND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 53 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C353 1-137-378-11 FILM 0.22uF 5% 50V C354 1-137-378-11 FILM 0.22uF 5% 50V C355 1-137-371-11 FILM 0.015uF 5% 50V C356 1-137-365-11 FILM 0.0015uF 5% 50V C357 1-130-489-00 MYLAR 0.033uF 5% 50V C358 1-137-367-11 FILM 0.0033uF 5% 50V C359 1-130-481-00 MYLAR 0.0068uF 5% 50V C360 1-137-367-11 FILM 0.0033uF 5% 50V C361 1-130-481-00 MYLAR 0.0068uF 5% 50V C362 1-137-365-11 FILM 0.0015uF 5% 50V C363 1-137-365-11 FILM 0.0015uF 5% 50V C365 1-124-907-11 ELECT 10uF 20% 50V C366 1-124-907-11 ELECT 10uF 20% 50V C367 1-104-664-11 ELECT 47uF 20% 16V C368 1-124-443-00 ELECT 100uF 20% 10V C369 1-124-907-11 ELECT 10uF 20% 50V C370 1-124-907-11 ELECT 10uF 20% 50V C398 1-161-772-11 CERAMIC 0.1uF 10% 25V < DIODE > D351 8-719-920-76 DIODE 1S2076 D352 8-719-920-76 DIODE 1S2076 D353 8-719-920-76 DIODE 1S2076 < IC > IC301 8-759-000-48 IC MC14052BCP IC302 8-759-505-55 IC NJM4558L IC351 8-759-497-89 IC TA-2041F < JACK > JK301 1-784-362-11 JACK, PIN 4P (MD IN/OUT) < CONNECTOR > M301 1-573-834-11 CONNECTOR, BOARD TO BOARD 20P < TRANSISTOR > Q301 8-729-231-55 TRANSISTOR 2SC2878-AB Q302 8-729-231-55 TRANSISTOR 2SC2878-AB Q303 8-729-201-53 TRANSISTOR 2SA1015-GR < RESISTOR > R301 1-249-417-11 CARBON 1K 5% 1/4W F R302 1-249-417-11 CARBON 1K 5% 1/4W F R303 1-249-417-11 CARBON 1K 5% 1/4W F R304 1-249-417-11 CARBON 1K 5% 1/4W F R305 1-249-417-11 CARBON 1K 5% 1/4W F R306 1-249-417-11 CARBON 1K 5% 1/4W F R307 1-249-425-11 CARBON 4.7K 5% 1/4W F R308 1-249-425-11 CARBON 4.7K 5% 1/4W F R309 1-249-421-11 CARBON 2.2K 5% 1/4W F R310 1-249-421-11 CARBON 2.2K 5% 1/4W F R311 1-249-441-11 CARBON 100K 5% 1/4W R312 1-249-441-11 CARBON 100K 5% 1/4W R313 1-249-441-11 CARBON 100K 5% 1/4W R314 1-249-441-11 CARBON 100K 5% 1/4W R315 1-249-441-11 CARBON 100K 5% 1/4W R316 1-249-441-11 CARBON 100K 5% 1/4W R317 1-249-425-11 CARBON 4.7K 5% 1/4W F R318 1-249-425-11 CARBON 4.7K 5% 1/4W F R319 1-249-441-11 CARBON 100K 5% 1/4W R320 1-249-441-11 CARBON 100K 5% 1/4W R321 1-247-903-00 CARBON 1M 5% 1/4W R322 1-247-903-00 CARBON 1M 5% 1/4W R323 1-249-417-11 CARBON 1K 5% 1/4W F R324 1-249-417-11 CARBON 1K 5% 1/4W F R329 1-247-815-91 CARBON 220 5% 1/4W R330 1-247-815-91 CARBON 220 5% 1/4W R335 1-249-425-11 CARBON 4.7K 5% 1/4W F R336 1-249-425-11 CARBON 4.7K 5% 1/4W F R337 1-249-417-11 CARBON 1K 5% 1/4W F R338 1-249-417-11 CARBON 1K 5% 1/4W F R339 1-249-441-11 CARBON 100K 5% 1/4W R340 1-249-441-11 CARBON 100K 5% 1/4W R341 1-249-437-11 CARBON 47K 5% 1/4W R342 1-249-437-11 CARBON 47K 5% 1/4W R343 1-249-425-11 CARBON 4.7K 5% 1/4W F R344 1-249-425-11 CARBON 4.7K 5% 1/4W F R345 1-249-437-11 CARBON 47K 5% 1/4W R346 1-249-437-11 CARBON 47K 5% 1/4W R347 1-249-425-11 CARBON 4.7K 5% 1/4W F R348 1-249-421-11 CARBON 2.2K 5% 1/4W F R351 1-249-430-11 CARBON 12K 5% 1/4W R352 1-249-430-11 CARBON 12K 5% 1/4W R353 1-249-431-11 CARBON 15K 5% 1/4W R354 1-249-431-11 CARBON 15K 5% 1/4W R355 1-249-429-11 CARBON 10K 5% 1/4W R356 1-249-432-11 CARBON 18K 5% 1/4W R357 1-249-425-11 CARBON 4.7K 5% 1/4W F R358 1-249-425-11 CARBON 4.7K 5% 1/4W F R359 1-249-437-11 CARBON 47K 5% 1/4W R360 1-249-437-11 CARBON 47K 5% 1/4W R361 1-249-417-11 CARBON 1K 5% 1/4W F R362 1-249-417-11 CARBON 1K 5% 1/4W F R363 1-249-429-11 CARBON 10K 5% 1/4W R364 1-249-429-11 CARBON 10K 5% 1/4W R367 1-249-417-11 CARBON 1K 5% 1/4W F R368 1-249-417-11 CARBON 1K 5% 1/4W F R369 1-249-421-11 CARBON 2.2K 5% 1/4W F R370 1-249-421-11 CARBON 2.2K 5% 1/4W F !R551 1-202-725-00 SOLID 3.3M 10% 1/2W (US,CND) ************************************************************** * A-4407-245-A RELAY BOARD, COMPLETE ********************** < CAPACITOR > C210 1-161-051-00 CERAMIC 0.01uF 10% 50V C211 1-126-941-11 ELECT 470uF 20% 16V C214 1-124-472-11 ELECT 470uF 20% 10V C215 1-102-106-00 CERAMIC 100PF 10% 50V C216 1-102-106-00 CERAMIC 100PF 10% 50V C217 1-161-051-00 CERAMIC 0.01uF 10% 50V C218 1-124-472-11 ELECT 470uF 20% 10V Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. FUN/SURROUND RELAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 54 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C229 1-102-074-00 CERAMIC 0.001uF 10% 50V C235 1-126-233-11 ELECT 22uF 20% 50V C236 1-126-233-11 ELECT 22uF 20% 50V C241 1-102-125-00 CERAMIC 4700PF 10% 50V C242 1-102-125-00 CERAMIC 4700PF 10% 50V C245 1-161-772-11 CERAMIC 0.1uF 10% 25V C246 1-126-942-61 ELECT 1000uF 20% 16V C789 1-161-051-00 CERAMIC 0.01uF 10% 50V C797 1-161-051-00 CERAMIC 0.01uF 10% 50V C799 1-161-051-00 CERAMIC 0.01uF 10% 50V < CONNECTOR > CNU102 1-770-067-11 CONNECTOR, FFC/FPC 19P < DIODE > D200 8-719-911-55 DIODE U05G D206 8-719-911-55 DIODE U05G D207 8-719-911-55 DIODE U05G D208 8-719-920-76 DIODE 1S2076 D209 8-719-920-76 DIODE 1S2076 D770 8-719-911-55 DIODE U05G D771 8-719-911-55 DIODE U05G < COIL > L203 1-408-096-00 INDUCTOR 470uH < CONNECTOR > * M704 1-564-715-11 PIN, CONNECTOR (SMALL TYPE)13P < TRANSISTOR > Q202 8-729-029-86 TRANSISTOR DTC124ESA Q203 8-729-200-36 TRANSISTOR 2SA966-Y Q213 8-729-029-86 TRANSISTOR DTC124ESA Q214 8-729-029-86 TRANSISTOR DTC124ESA Q215 8-729-029-86 TRANSISTOR DTC124ESA Q770 8-729-200-36 TRANSISTOR 2SA966-Y Q771 8-729-200-36 TRANSISTOR 2SA966-Y Q772 8-729-029-86 TRANSISTOR DTC124ESA Q773 8-729-029-86 TRANSISTOR DTC124ESA < RESISTOR > R206 1-249-430-11 CARBON 12K 5% 1/4W R207 1-249-418-11 CARBON 1.2K 5% 1/4W F R213 1-247-807-31 CARBON 100 5% 1/4W R214 1-247-807-31 CARBON 100 5% 1/4W R215 1-247-807-31 CARBON 100 5% 1/4W R217 1-247-807-31 CARBON 100 5% 1/4W R218 1-247-807-31 CARBON 100 5% 1/4W R219 1-247-807-31 CARBON 100 5% 1/4W R220 1-247-807-31 CARBON 100 5% 1/4W R221 1-247-807-31 CARBON 100 5% 1/4W R224 1-247-843-11 CARBON 3.3K 5% 1/4W R231 1-249-429-11 CARBON 10K 5% 1/4W R232 1-249-439-11 CARBON 68K 5% 1/4W R233 1-249-429-11 CARBON 10K 5% 1/4W R234 1-249-429-11 CARBON 10K 5% 1/4W R235 1-249-429-11 CARBON 10K 5% 1/4W R236 1-249-429-11 CARBON 10K 5% 1/4W !R237 1-212-966-00 FUSIBLE 22 5% 1/2W F R245 1-249-429-11 CARBON 10K 5% 1/4W R265 1-249-429-11 CARBON 10K 5% 1/4W R266 1-249-429-11 CARBON 10K 5% 1/4W R267 1-249-429-11 CARBON 10K 5% 1/4W R268 1-249-429-11 CARBON 10K 5% 1/4W R271 1-249-429-11 CARBON 10K 5% 1/4W R288 1-249-429-11 CARBON 10K 5% 1/4W R289 1-249-429-11 CARBON 10K 5% 1/4W R291 1-249-429-11 CARBON 10K 5% 1/4W R295 1-249-415-11 CARBON 680 5% 1/4W F R296 1-249-415-11 CARBON 680 5% 1/4W F R298 1-249-435-11 CARBON 33K 5% 1/4W R299 1-249-435-11 CARBON 33K 5% 1/4W R771 1-249-425-11 CARBON 4.7K 5% 1/4W F R772 1-249-434-11 CARBON 27K 5% 1/4W R773 1-247-856-00 CARBON 11K 5% 1/4W R774 1-249-430-11 CARBON 12K 5% 1/4W R775 1-249-430-11 CARBON 12K 5% 1/4W R776 1-249-418-11 CARBON 1.2K 5% 1/4W F R777 1-249-418-11 CARBON 1.2K 5% 1/4W F < VARIABLE RESISTOR > VR770 1-230-497-11 RES, ADJ, CARBON 22K < CONNECTOR > * W103 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P W201 1-784-351-11 CONNECTOR 12P W202 1-784-350-11 CONNECTOR 10P W203 1-784-352-11 CONNECTOR 25P W301 1-573-852-11 CONNECTOR, BOARD TO BOARD 20P W703 1-766-718-11 CONNECTOR, BOARD TO BOARD 17P W901 1-766-718-11 CONNECTOR, BOARD TO BOARD 17P ************************************************************** * A-4407-243-A TAPE PREAMP BOARD, COMPLETE **************************** * 4-997-378-01 PC BOARD BRACKET 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S < CAPACITOR > C483 1-161-051-00 CERAMIC 0.01uF 10% 50V C484 1-161-051-00 CERAMIC 0.01uF 10% 50V C700 1-161-051-00 CERAMIC 0.01uF 10% 50V C703 1-102-113-00 CERAMIC 390PF 10% 50V C704 1-102-113-00 CERAMIC 390PF 10% 50V C705 1-104-666-11 ELECT 220uF 20% 10V C706 1-104-666-11 ELECT 220uF 20% 10V C707 1-102-106-00 CERAMIC 100PF 10% 50V C708 1-102-106-00 CERAMIC 100PF 10% 50V C709 1-137-372-11 FILM 0.022uF 5% 50V C710 1-137-372-11 FILM 0.022uF 5% 50V C711 1-124-907-11 ELECT 10uF 20% 50V C712 1-124-907-11 ELECT 10uF 20% 50V Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. TAPE PREAMP RELAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 55 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C713 1-124-443-00 ELECT 100uF 20% 10V C714 1-104-665-11 ELECT 100uF 20% 16V C715 1-124-443-00 ELECT 100uF 20% 10V C716 1-137-399-11 FILM 0.1uF 5% 50V C717 1-124-907-11 ELECT 10uF 20% 50V C719 1-161-051-00 CERAMIC 0.01uF 10% 50V C720 1-161-051-00 CERAMIC 0.01uF 10% 50V C721 1-102-981-00 CERAMIC 300PF 5% 50V C722 1-102-981-00 CERAMIC 300PF 5% 50V C723 1-102-112-00 CERAMIC 330PF 10% 50V C724 1-102-112-00 CERAMIC 330PF 10% 50V C725 1-102-112-00 CERAMIC 330PF 10% 50V C726 1-102-112-00 CERAMIC 330PF 10% 50V C727 1-104-993-91 FILM 0.01uF 5% 200V C728 1-124-907-11 ELECT 10uF 20% 50V C729 1-137-371-11 FILM 0.015uF 5% 50V C730 1-137-367-11 FILM 0.0033uF 5% 50V C731 1-137-367-11 FILM 0.0033uF 5% 50V C732 1-137-367-11 FILM 0.0033uF 5% 50V C741 1-124-907-11 ELECT 10uF 20% 50V C742 1-124-907-11 ELECT 10uF 20% 50V C743 1-137-368-11 FILM 0.0047uF 5% 50V C744 1-137-368-11 FILM 0.0047uF 5% 50V C745 1-102-125-00 CERAMIC 4700PF 10% 50V C746 1-102-125-00 CERAMIC 4700PF 10% 50V C747 1-137-399-11 FILM 0.1uF 5% 50V C748 1-137-399-11 FILM 0.1uF 5% 50V C749 1-124-907-11 ELECT 10uF 20% 50V C750 1-124-907-11 ELECT 10uF 20% 50V C751 1-124-903-11 ELECT 1uF 20% 50V C752 1-124-903-11 ELECT 1uF 20% 50V C753 1-124-907-11 ELECT 10uF 20% 50V C754 1-124-907-11 ELECT 10uF 20% 50V C756 1-161-051-00 CERAMIC 0.01uF 10% 50V C758 1-126-962-11 ELECT 3.3uF 20% 50V C761 1-124-443-00 ELECT 100uF 20% 10V C762 1-124-443-00 ELECT 100uF 20% 10V C798 1-161-772-11 CERAMIC 0.1uF 10% 25V C799 1-102-074-00 CERAMIC 0.001uF 10% 50V C801 1-124-907-11 ELECT 10uF 20% 50V C802 1-161-772-11 CERAMIC 0.1uF 10% 25V < IC > IC701 8-759-508-69 IC BA3126N IC702 8-759-261-93 IC NJM4580LD IC703 8-759-363-21 IC HA12203NT JK800 8-749-923-04 IC TOTX178 (OPTICAL) < JACK > JK900 1-784-361-11 JACK (SMALL TYPE)(2) < COIL > L701 1-410-774-11 INDUCTOR 8.2mH L702 1-410-774-11 INDUCTOR 8.2mH L703 1-431-707-11 TRANSFORMER, BIAS OSCILLATION L704 1-410-521-11 INDUCTOR 100uH < CONNECTOR > * M701 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P * M703 1-766-720-21 CONNECTOR, BOARD TO BOARD 17P < TRANSISTOR > Q702 8-729-194-57 TRANSISTOR 2SC945-P Q704 8-729-194-57 TRANSISTOR 2SC945-P Q705 8-729-194-57 TRANSISTOR 2SC945-P Q706 8-729-141-83 TRANSISTOR 2SB1094-LK Q707 8-729-194-57 TRANSISTOR 2SC945-P < RESISTOR > R485 1-249-395-11 CARBON 15 5% 1/4W F R486 1-249-395-11 CARBON 15 5% 1/4W F R701 1-247-807-31 CARBON 100 5% 1/4W R702 1-247-807-31 CARBON 100 5% 1/4W R703 1-247-889-00 CARBON 270K 5% 1/4W R704 1-247-889-00 CARBON 270K 5% 1/4W R705 1-249-404-00 CARBON 82 5% 1/4W F R706 1-249-404-00 CARBON 82 5% 1/4W F R707 1-247-863-91 CARBON 22K 5% 1/4W R708 1-247-863-91 CARBON 22K 5% 1/4W R709 1-247-882-11 CARBON 130K 5% 1/4W R710 1-247-882-11 CARBON 130K 5% 1/4W R711 1-247-850-11 CARBON 6.2K 5% 1/4W R712 1-247-850-11 CARBON 6.2K 5% 1/4W R713 1-247-815-91 CARBON 220 5% 1/4W R714 1-247-815-91 CARBON 220 5% 1/4W R715 1-249-437-11 CARBON 47K 5% 1/4W R716 1-247-815-91 CARBON 220 5% 1/4W R717 1-249-430-11 CARBON 12K 5% 1/4W R718 1-249-430-11 CARBON 12K 5% 1/4W R719 1-249-389-11 CARBON 4.7 5% 1/4W F R720 1-249-389-11 CARBON 4.7 5% 1/4W F R721 1-247-863-91 CARBON 22K 5% 1/4W R722 1-247-863-91 CARBON 22K 5% 1/4W R723 1-249-381-11 CARBON 1 5% 1/4W F R724 1-247-863-91 CARBON 22K 5% 1/4W R725 1-249-429-11 CARBON 10K 5% 1/4W R741 1-249-435-11 CARBON 33K 5% 1/4W R742 1-247-863-91 CARBON 22K 5% 1/4W R743 1-249-417-11 CARBON 1K 5% 1/4W F R744 1-249-417-11 CARBON 1K 5% 1/4W F R745 1-249-426-11 CARBON 5.6K 5% 1/4W R746 1-249-426-11 CARBON 5.6K 5% 1/4W R749 1-249-441-11 CARBON 100K 5% 1/4W R750 1-247-891-00 CARBON 330K 5% 1/4W R751 1-249-429-11 CARBON 10K 5% 1/4W R752 1-249-434-11 CARBON 27K 5% 1/4W R753 1-249-429-11 CARBON 10K 5% 1/4W R754 1-249-426-11 CARBON 5.6K 5% 1/4W R757 1-249-429-11 CARBON 10K 5% 1/4W R758 1-247-840-00 CARBON 2.4K 5% 1/4W R759 1-249-432-11 CARBON 18K 5% 1/4W R760 1-247-840-00 CARBON 2.4K 5% 1/4W R761 1-247-866-11 CARBON 30K 5% 1/4W R762 1-247-866-11 CARBON 30K 5% 1/4W TAPE PREAMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 56 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R763 1-249-437-11 CARBON 47K 5% 1/4W R765 1-249-437-11 CARBON 47K 5% 1/4W R766 1-249-437-11 CARBON 47K 5% 1/4W < VARIABLE RESISTOR > VR701 1-230-499-11 RES, ADJ, CARBON 100K VR702 1-230-499-11 RES, ADJ, CARBON 100K VR703 1-230-497-11 RES, ADJ, CARBON 22K VR704 1-230-497-11 RES, ADJ, CARBON 22K VR705 1-230-495-11 RES, ADJ, CARBON 2K VR706 1-230-495-11 RES, ADJ, CARBON 2K ************************************************************** * A-4407-239-A VOL/POWER BOARD, COMPLETE ************************** (AEP,UK,EE,CIS) * A-4407-240-A VOL/POWER BOARD, COMPLETE (US,CND) *********************************** * A-4407-241-A VOL/POWER BOARD, COMPLETE (MY,SP,HK) ************************************* 1-533-293-11 FUSE HOLDER * 4-997-378-01 PC BOARD BRACKET 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S < CAPACITOR > C403 1-136-173-00 FILM 0.47uF 5% 50V C404 1-136-173-00 FILM 0.47uF 5% 50V C461 1-126-960-11 ELECT 1uF 20% 50V C462 1-126-960-11 ELECT 1uF 20% 50V C463 1-137-364-11 FILM 0.001uF 5% 50V C464 1-137-364-11 FILM 0.001uF 5% 50V C465 1-137-378-11 FILM 0.22uF 5% 50V C466 1-137-378-11 FILM 0.22uF 5% 50V C469 1-126-933-11 ELECT 100uF 20% 16V C470 1-126-925-11 ELECT 470uF 20% 10V C471 1-162-851-11 CERAMIC 0.1uF 10% 16V C475 1-126-964-11 ELECT 10uF 20% 50V C476 1-126-964-11 ELECT 10uF 20% 50V C477 1-137-399-11 FILM 0.1uF 5% 50V C478 1-137-399-11 FILM 0.1uF 5% 50V C479 1-126-948-11 ELECT 100uF 20% 35V C480 1-126-948-11 ELECT 100uF 20% 35V C481 1-102-106-00 CERAMIC 100PF 10% 50V C482 1-102-106-00 CERAMIC 100PF 10% 50V C483A 1-124-443-00 ELECT 100uF 20% 10V C485 1-102-106-00 CERAMIC 100PF 10% 50V C486 1-102-106-00 CERAMIC 100PF 10% 50V C488 1-126-924-11 ELECT 330uF 20% 10V C489 1-161-063-00 CERAMIC 0.1uF 10% 50V C490 1-126-963-11 ELECT 4.7uF 20% 50V C491 1-126-963-11 ELECT 4.7uF 20% 50V C502 1-102-129-00 CERAMIC 0.01uF 10% 50V C503 1-102-129-00 CERAMIC 0.01uF 10% 50V C508 1-126-964-11 ELECT 10uF 20% 50V C509 1-126-947-11 ELECT 47uF 20% 35V C510 1-126-943-11 ELECT 2200uF 20% 25V C511 1-126-951-11 ELECT 470uF 20% 35V C512 1-126-924-11 ELECT 330uF 20% 10V C513 1-126-924-11 ELECT 330uF 20% 10V C514 1-126-933-11 ELECT 100uF 20% 16V C515 1-126-933-11 ELECT 100uF 20% 16V C516 1-162-851-11 CERAMIC 0.1uF 10% 16V C517 1-162-851-11 CERAMIC 0.1uF 10% 16V C518 1-162-851-11 CERAMIC 0.1uF 10% 16V C519 1-126-923-11 ELECT 220uF 20% 10V C520 1-126-923-11 ELECT 220uF 20% 10V C521 1-162-851-11 CERAMIC 0.1uF 10% 16V C522 1-126-924-11 ELECT 330uF 20% 10V C523 1-126-924-11 ELECT 330uF 20% 10V C525 1-126-924-11 ELECT 330uF 20% 10V C526 1-126-924-11 ELECT 330uF 20% 10V C527 1-162-851-11 CERAMIC 0.1uF 10% 16V C528 1-126-924-11 ELECT 330uF 20% 10V C529 1-126-933-11 ELECT 100uF 20% 16V C530 1-162-851-11 CERAMIC 0.1uF 10% 16V C531 1-162-851-11 CERAMIC 0.1uF 10% 16V C532 1-126-933-11 ELECT 100uF 20% 16V C999 1-161-772-11 CERAMIC 0.1uF 10% 25V < DIODE > D401 8-719-920-76 DIODE 1S2076 D402 8-719-920-76 DIODE 1S2076 D487 8-719-200-02 DIODE 10E2 D502 8-719-067-67 DIODE W02G D503 8-719-001-64 DIODE UZL-12L2 D504 8-719-910-25 DIODE HZ12B2L D506 8-719-001-85 DIODE UZL-12H3 D507 8-719-001-76 DIODE UZL-12M3 D508 8-719-001-42 DIODE UZL-11M1 D509 8-719-935-81 DIODE UZL-7L2 D510 8-719-200-02 DIODE 10E2 D511 8-719-920-76 DIODE 1S2076 < FUSE > !F501 1-532-350-11 FUSE, TIME-LAG (T4AL 250V) (AEP,UK,EE,CIS,MY,SP,HK) !F501 1-532-746-11 FUSE, GLASS TUBE (4A 125V)(US,CND) !F502 1-532-259-11 FUSE, TIME-LAG (T1.6AL 250V) (AEP,UK,EE,CIS,MY,SP,HK) !F502 1-532-742-11 FUSE, GLASS TUBE (1.6A 125V)(US,CND) !F503 1-532-259-11 FUSE, TIME-LAG (T1.6AL 250V) (AEP,UK,EE,CIS,MY,SP,HK) !F503 1-532-742-11 FUSE, GLASS TUBE (1.6A 125V)(US,CND) !F504 1-532-350-11 FUSE, TIME-LAG (T4AL 250V) (AEP,UK,EE,CIS,MY,SP,HK) !F504 1-532-746-11 FUSE, GLASS TUBE (4A 125V)(US,CND) < IC > IC461 8-759-497-88 IC TC9260P IC472 8-759-261-93 IC NJM4580LD IC501 8-759-701-57 IC NJM78M06FA Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. TAPE PREAMP VOL/POWER Ver 1.1 2001.06 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 57 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < JACK > JK901 1-784-353-11 JACK (DIN)(SPEAKER L) JK902 1-784-353-11 JACK (DIN)(SPEAKER R) < CONNECTOR > M501 1-564-234-11 PLUG, CONNECTOR (PIN CONTACT)8P * M901 1-766-720-21 CONNECTOR, BOARD TO BOARD 17P M902 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P < TRANSISTOR > Q486 8-729-201-53 TRANSISTOR 2SA1015-GR Q487 8-729-231-55 TRANSISTOR 2SC2878-AB Q488 8-729-231-55 TRANSISTOR 2SC2878-AB Q501 8-729-281-53 TRANSISTOR 2SC1815-GR Q502 8-729-201-53 TRANSISTOR 2SA1015-GR Q503 8-729-201-53 TRANSISTOR 2SA1015-GR Q504 8-729-209-15 TRANSISTOR 2SD2012 Q505 4-997-377-01 ISOLATION FILM Q505 8-729-017-51 TRANSISTOR 2SB632K-E Q506 8-729-281-53 TRANSISTOR 2SC1815-GR Q507 4-997-377-01 ISOLATION FILM Q507 8-729-188-23 TRANSISTOR 2SD882-P Q508 4-997-377-01 ISOLATION FILM Q508 8-729-188-23 TRANSISTOR 2SD882-P Q509 4-997-377-01 ISOLATION FILM Q509 8-729-188-23 TRANSISTOR 2SD882-P Q510 8-729-017-51 TRANSISTOR 2SB632K-E Q511 8-729-201-53 TRANSISTOR 2SA1015-GR Q512 8-729-265-52 TRANSISTOR 2SC2655 < RESISTOR > R457 1-247-863-91 CARBON 22K 5% 1/4W R458 1-247-863-91 CARBON 22K 5% 1/4W R461 1-249-429-11 CARBON 10K 5% 1/4W R462 1-249-429-11 CARBON 10K 5% 1/4W R463 1-247-895-91 CARBON 470K 5% 1/4W R464 1-247-895-91 CARBON 470K 5% 1/4W R465 1-249-425-11 CARBON 4.7K 5% 1/4W F R466 1-247-815-91 CARBON 220 5% 1/4W R467 1-249-429-11 CARBON 10K 5% 1/4W R468 1-249-429-11 CARBON 10K 5% 1/4W R469 1-249-429-11 CARBON 10K 5% 1/4W R470 1-249-425-11 CARBON 4.7K 5% 1/4W F R471 1-249-417-11 CARBON 1K 5% 1/4W F R472 1-249-417-11 CARBON 1K 5% 1/4W F R477 1-249-441-11 CARBON 100K 5% 1/4W R478 1-249-441-11 CARBON 100K 5% 1/4W R479 1-249-426-11 CARBON 5.6K 5% 1/4W R480 1-249-426-11 CARBON 5.6K 5% 1/4W R481 1-249-430-11 CARBON 12K 5% 1/4W R482 1-249-430-11 CARBON 12K 5% 1/4W R483 1-249-417-11 CARBON 1K 5% 1/4W F R484 1-249-417-11 CARBON 1K 5% 1/4W F R485A 1-249-429-11 CARBON 10K 5% 1/4W R486A 1-249-429-11 CARBON 10K 5% 1/4W R491 1-247-843-11 CARBON 3.3K 5% 1/4W R492 1-247-843-11 CARBON 3.3K 5% 1/4W R493 1-249-437-11 CARBON 47K 5% 1/4W R494 1-249-437-11 CARBON 47K 5% 1/4W R495 1-249-425-11 CARBON 4.7K 5% 1/4W F R496 1-249-425-11 CARBON 4.7K 5% 1/4W F R497 1-249-441-11 CARBON 100K 5% 1/4W R498 1-249-441-11 CARBON 100K 5% 1/4W R499 1-247-895-91 CARBON 470K 5% 1/4W !R501 1-213-044-51 FUSIBLE 2.2 5% 1W F !R502 1-212-946-11 FUSIBLE 3.3 5% 1/2W F R503 1-249-429-11 CARBON 10K 5% 1/4W R504 1-249-421-11 CARBON 2.2K 5% 1/4W F R505 1-247-863-91 CARBON 22K 5% 1/4W R506 1-249-429-11 CARBON 10K 5% 1/4W R507 1-249-437-11 CARBON 47K 5% 1/4W R508 1-249-437-11 CARBON 47K 5% 1/4W R509 1-247-807-31 CARBON 100 5% 1/4W !R510 1-215-869-11 METAL OXIDE 1K 5% 1W F R511 1-247-863-91 CARBON 22K 5% 1/4W R512 1-249-431-11 CARBON 15K 5% 1/4W !R514 1-212-853-00 FUSIBLE 6.8 5% 1/4W F !R515 1-213-048-00 FUSIBLE 3.3 5% 1W F R516 1-249-413-11 CARBON 470 5% 1/4W F !R517 1-213-064-51 FUSIBLE 15 5% 1W F R518 1-249-413-11 CARBON 470 5% 1/4W F !R519 1-212-946-11 FUSIBLE 3.3 5% 1/2W F R520 1-249-413-11 CARBON 470 5% 1/4W F R521 1-249-413-11 CARBON 470 5% 1/4W F R524 1-249-381-11 CARBON 1 5% 1/4W F R525 1-247-887-00 CARBON 220K 5% 1/4W R526 1-249-441-11 CARBON 100K 5% 1/4W R527 1-249-441-11 CARBON 100K 5% 1/4W R528 1-249-425-11 CARBON 4.7K 5% 1/4W F R529 1-249-437-11 CARBON 47K 5% 1/4W < RELAY > RL501 1-755-242-11 RELAY ************************************************************** MISCELLANEOUS ************* 13 1-783-091-11 WIRE (FLAT TYPE) 52 1-693-400-21 FM/AM TUNER (AEP,UK,EE,CIS) 52 1-693-400-31 FM/AM TUNER (US,CND) 52 1-693-400-41 FM/AM TUNER (MY,SP,HK) !54 1-551-478-00 CORD, POWER (POLAR.SPT-2)(US,CND) !54 1-555-750-00 CORD, POWER (AEP,EE,CIS,MY,SP,HK) !54 1-751-535-11 CORD, POWER (UK) !63 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK) 65 1-501-659-11 ANTTENA (FM) (US,CND,MY,SP,HK) 66 1-501-985-11 LEAD, ANTTENA (AEP,UK,EE,CIS) 104 1-773-009-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK,EE,CIS) 104 1-751-688-11 WIRE (FLAT TYPE) (13 CORE) (US,CND,MY,SP,HK) 110 1-759-548-11 DECK, MECHANICAL 151 1-759-548-11 DECK, MECHANICAL !201 8-848-387-01 OPTICAL PICK-UP KSS-213BA/S-N VOL/POWER Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 58 – Ref. No. Part No. Description Remark 202 1-769-069-11 WIRE (FLAT TYPE) (16 CORE) M101 X-4917-523-4 MOTOR ASSY (SPINDLE) M102 X-4917-504-1 MOTOR ASSY (SLED) M901 X-4949-564-1 MTR MAIN BLK ASSY (CAPSTAN/REEL) !S501 1-771-308-11 SELECTOR, POWER (MY,SP,HK) !T501 1-431-697-21 TRANSFORMER, POWER (AEP,UK,EE,CIS) !T501 1-431-697-31 TRANSFORMER, POWER (US,CND) !T501 1-431-697-41 TRANSFORMER, POWER (MY,SP,HK) Z201 1-803-020-11 DISPLAY PANEL, LIQUID CRYSTAL ************************************************************** ************* HARDWARE LIST ************* * #1 7-683-254-08 SET-SCT, HEX. 5X5 FLAT POINT #2 7-682-248-09 SCREW +K 3X8 #3 7-685-105-19 TPG +P 2X8, TYPE 2, NON-SLIT #4 7-685-134-19 SCREW +BTP 2.6X8 TYPE2 N-S #5 7-685-131-19 SCREW +BTP 2.6X4 TYPE2 N-S #6 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #7 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #8 7-685-880-09 SCREW +BVTT 4X6 (S) * #9 7-627-000-02 SCREW,PRECISION+P M1.7X10 TYPE1 #10 7-621-255-15 SCREW +P 2X3 #11 7-627-553-88 SCREW,PRECISION+P 2X7 #12 7-627-554-28 SCREW,PRECISION+P M2X5 TYPE1 #13 7-682-546-09 SCREW +B 3X5 Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. HCD-ED1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 1 – US Model Canadian Model AEP Model UK Model E Model SERVICE MANUAL HCD-ED1 SUPPLEMENT-1 File this supplement with the service manual. • CHANGES OF LAMP (ENG-98003) DIFFERENCE TABLE : Indicates changed portion. Ref. No. Part No. Description Remark *** EXPLODED VIEWS *** FORMER TYPE (use lamp) Page 47 Ref. No. Part No. Description Remark *** EXPLODED VIEWS *** *116 1-670-517-11 LED BOARD NEW TYPE (use LED) 52 *** ELECTRICAL PARTS LIST *** *** DISPLAY BOARD *** PL201 1-517-743-11 LAMP *** ELECTRICAL PARTS LIST *** *** DISPLAY BOARD *** • The lamp on the DISPLAY board was changed to a type which use LED from following serial numbers. MODEL : Serial numbers US, CND Model : 8107801 onward AEP Model : 5155844 onward : 4107801 onward UK Model : 6107951 onward EE, CIS Model : 7104797 onward MY, SP Model : 3153682 onward HK Model : 3105301 onward • Abbreviation CND : Canadian model EE : East European model MY : Malaysia model SP : Singapore model HK : Hong Kong model Sony Corporation Home A&V Products Company 9-922-706-81 (SP) 98D091686-1 Printed in Japan © 1998. 4 Published by General Engineering Dept. (Shibaura) 104 105 112 116 113 114 106 #7 Z201 #7 1998. 04 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – Ref. No. Part No. Description Remark *** LED BOARD *** FORMER TYPE (use lamp) Page – Ref. No. Part No. Description Remark *** LED BOARD *** * 1-670-517-11 LED BOARD D1 8-719-064-63 DIODE SELU5823A-TP15 D2 8-719-064-63 DIODE SELU5823A-TP15 R1 1-247-807-11 CARBON 100 5% 1/4W R2 1-249-404-00 CARBON 82 5% 1/4W NEW TYPE (use LED) SCHEMATIC DIAGRAM -DISPLAY SECTION- Page 31 Location: D-E, 9-10 PRINTED WIRING BOARD -DISPLAY SECTION- Page 33 Location: C-E, 1-3 Note: Pattern of the rear side is not mentioned. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MEMO – 3 – HCD-ED1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.1 1.0 2001.06 Correction of clectrical parts list (D509). (SFD-01007) PDF registration. (including : 9-922-706-91) 1998.04 SUPPLEMENT-1 HCD-ED1 1997.06 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
