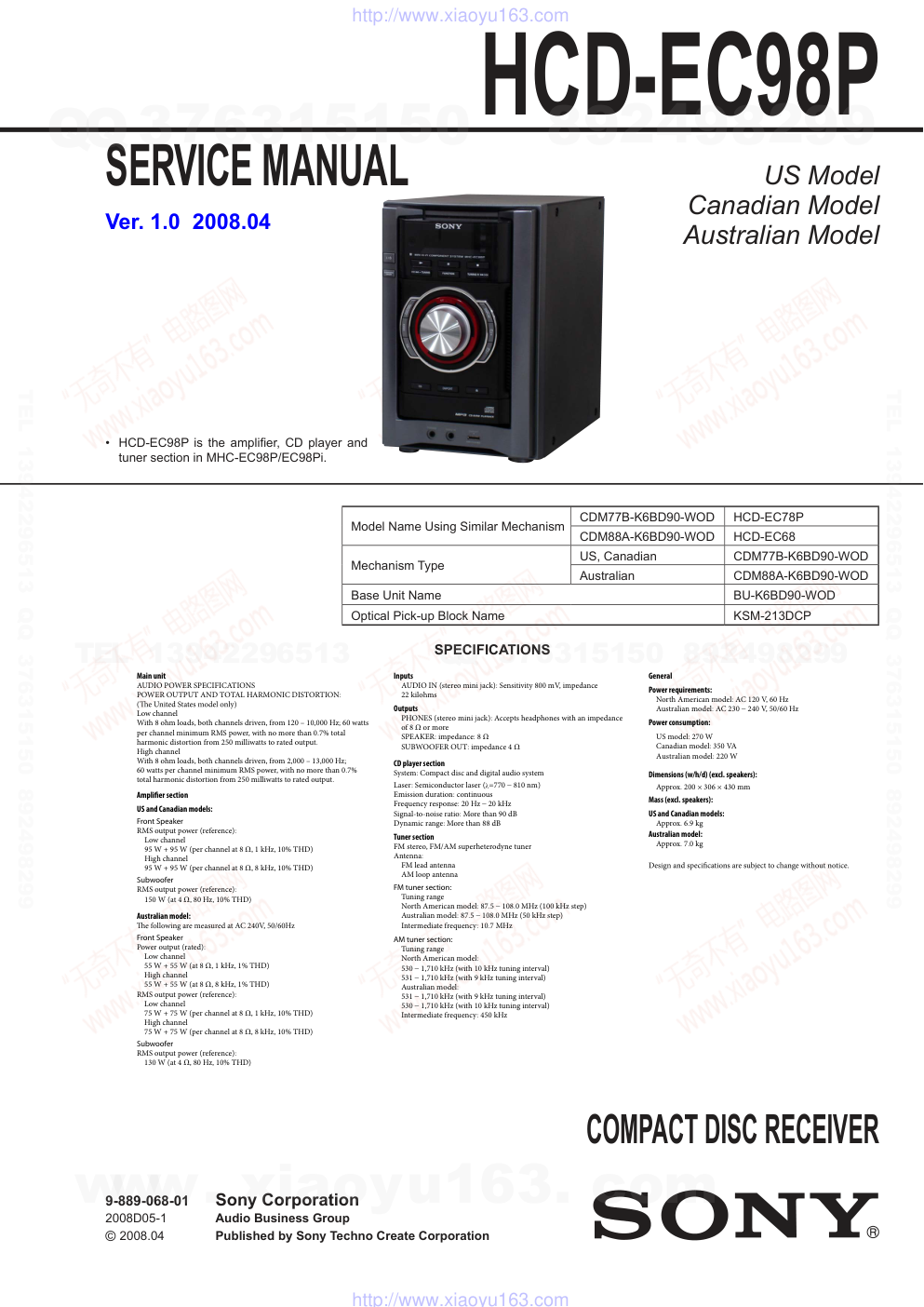

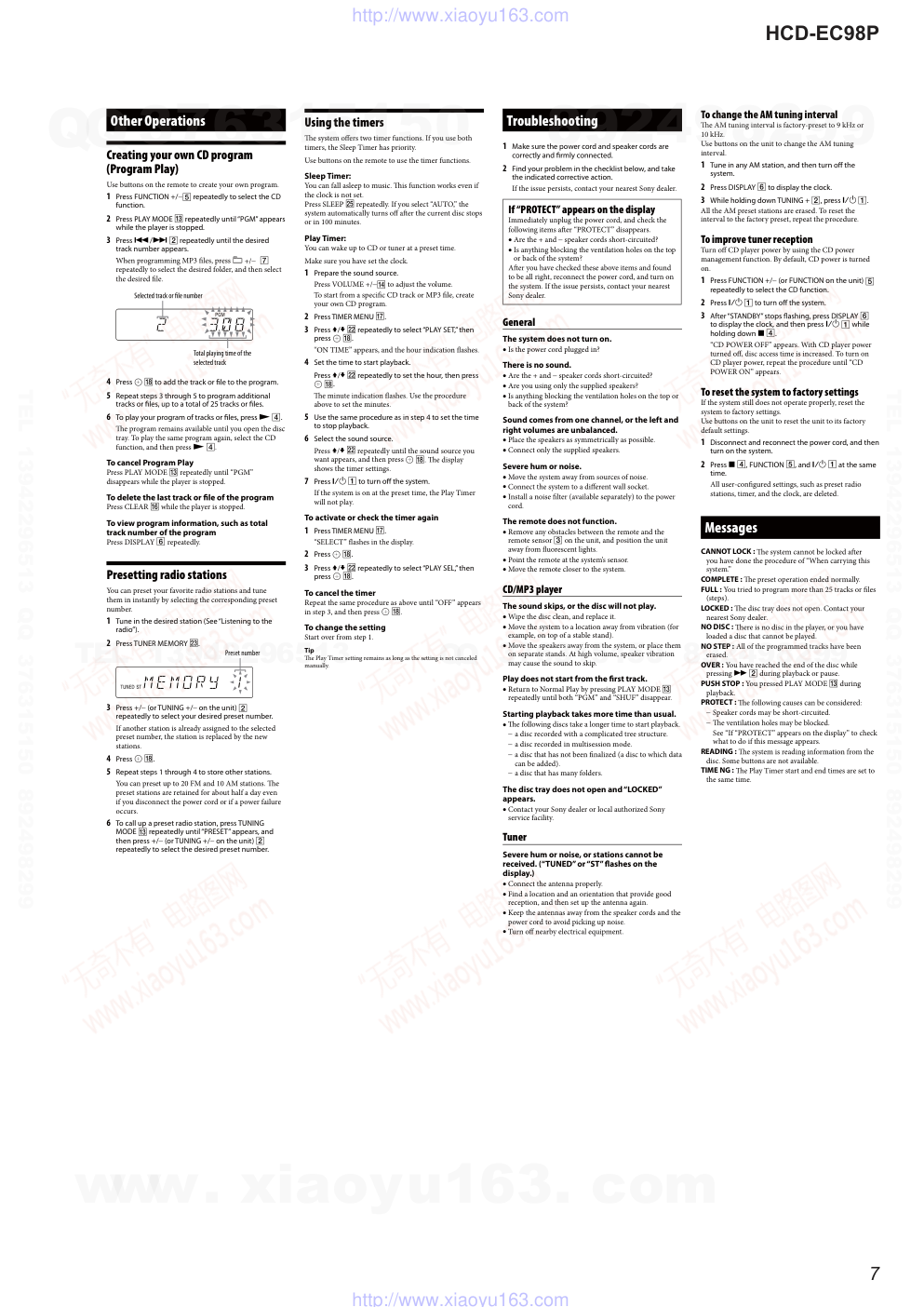

SERVICE MANUAL Sony Corporation Audio Business Group Published by Sony Techno Create Corporation HCD-EC98P SPECIFICATIONS COMPACT DISC RECEIVER 9-889-068-01 2008D05-1 © 2008.04 US Model Canadian Model Australian Model Ver. 1.0 2008.04 • HCD-EC98P is the amplifi er, CD player and tuner section in MHC-EC98P/EC98Pi. Model Name Using Similar Mechanism CDM77B-K6BD90-WOD HCD-EC78P CDM88A-K6BD90-WOD HCD-EC68 Mechanism Type US, Canadian CDM77B-K6BD90-WOD Australian CDM88A-K6BD90-WOD Base Unit Name BU-K6BD90-WOD Optical Pick-up Block Name KSM-213DCP Main unit AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: Low channel With 8 ohm loads, both channels driven, from 120 – 10,000 Hz; 60 watts per channel minimum RMS power, with no more than 0.7% total harmonic distortion from 250 milliwatts to rated output. High channel With 8 ohm loads, both channels driven, from 2,000 – 13,000 Hz; 60 watts per channel minimum RMS power, with no more than 0.7% total harmonic distortion from 250 milliwatts to rated output. section US and Canadian models: Front Speaker RMS output power (reference): Low channel 95 W + 95 W (per channel at 8 Ω, 1 kHz, 10% THD) High channel 95 W + 95 W (per channel at 8 Ω, 8 kHz, 10% THD) Subwoofer RMS output power (reference): 150 W (at 4 Ω, 80 Hz, 10% THD) Inputs AUDIO IN (stereo mini jack): Sensitivity 800 mV, impedance 22 kilohms Outputs PHONES (stereo mini jack): Accepts headphones with an impedance of 8 Ω or more SPEAKER: impedance: 8 Ω SUBWOOFER OUT: impedance 4 Ω CD player section System: Compact disc and digital audio system Laser: Semiconductor laser (λ=770 − 810 nm) Emission duration: continuous Frequency response: 20 Hz − 20 kHz Signal-to-noise ratio: More than 90 dB Dynamic range: More than 88 dB Tuner section FM stereo, FM/AM superheterodyne tuner Antenna: FM lead antenna AM loop antenna FM tuner section: Tuning range North American model: 87.5 − 108.0 MHz (100 kHz step) Australian model: 87.5 − 108.0 MHz (50 kHz step) Intermediate frequency: 10.7 MHz AM tuner section: Tuning range North American model: 530 − 1,710 kHz (with 10 kHz tuning interval) 531 − 1,710 kHz (with 9 kHz tuning interval) Australian model: 531 − 1,710 kHz (with 9 kHz tuning interval) 530 − 1,710 kHz (with 10 kHz tuning interval) Intermediate frequency: 450 kHz General Power requirements: North American model: AC 120 V, 60 Hz Australian model: AC 230 − 240 V, 50/60 Hz Power consumption: US model: 270 W Canadian model: 350 VA Australian model: 220 W Dimensions (w/h/d) (excl. speakers): Approx. 200 × 306 × 430 mm Mass (excl. speakers): US and Canadian models: Approx. 6.9 kg Australian model: Approx. 7.0 kg Australian model: Front Speaker Power output (rated): Low channel 55 W + 55 W (at 8 Ω, 1 kHz, 1% THD) High channel 55 W + 55 W (at 8 Ω, 8 kHz, 1% THD) RMS output power (reference): Low channel 75 W + 75 W (per channel at 8 Ω, 1 kHz, 10% THD) High channel 75 W + 75 W (per channel at 8 Ω, 8 kHz, 10% THD) Subwoofer RMS output power (reference): 130 W (at 4 Ω, 80 Hz, 10% THD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 2 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270 °C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. This appliance is classified as a CLASS 1 LASER product. This marking is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specifi ed herein may result in hazardous radiation exposure. SAFETY-RELATED COMPONET WARNING! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONC- TIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DON- NÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 μF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 3 1. SERVICING NOTES ............................................. 3 2. GENERAL .................................................................. 6 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 10 3-2. Side Panel (L)/(R) ........................................................... 11 3-3. Panel (Top) ...................................................................... 11 3-4. MAIN Board ................................................................... 12 3-5. Front Panel Block (Australian model) ............................ 12 3-6. Front Panel Block (US and Canadian models) ............... 13 3-7. Back Panel Block ............................................................ 13 3-8. 3 CD Mechanism Block (Australian model) .................. 14 3-9. Base Unit (Australian model) ......................................... 14 3-10. 1 CD Mechanism Block (US and Canadian models) ..... 15 3-11. Base Unit (US and Canadian models) ............................ 15 3-12. Belt (US and Canadian models) ...................................... 16 3-13. Belt (Australian model) .................................................. 16 3-14. OP Base Assy (KSM-213D) ........................................... 17 4. TEST MODE ............................................................ 18 5. ELECTRICAL ADJUSTMENTS ........................ 22 6. DIAGRAMS 6-1. Block Diagram - CD SERVO, TUNER Section - ........... 25 6-2. Block Diagram - MAIN Section - ................................... 26 6-3. Printed Wiring Board - CD Board - ................................ 28 6-4. Schematic Diagram - CD Board - ................................... 29 6-5. Printed Wiring Boards - MAIN Section - ....................... 30 6-6. Schematic Diagram - MAIN Section (1/3) - ................... 31 6-7. Schematic Diagram - MAIN Section (2/3) - ................... 32 6-8. Schematic Diagram - MAIN Section (3/3) - ................... 33 6-9. Printed Wiring Board - HI AMP Board - ........................ 34 6-10. Schematic Diagram - HI AMP Board - ........................... 34 6-11. Printed Wiring Board - LOW AMP Board - ................... 35 6-12. Schematic Diagram - LOW AMP Board - ...................... 35 6-13. Printed Wiring Board - PANEL Board - ......................... 36 6-14. Schematic Diagram - PANEL Board - ............................ 37 6-15. Printed Wiring Boards - KEY Section - .......................... 38 6-16. Schematic Diagram - KEY Section - .............................. 38 6-17. Printed Wiring Board - PT Board - ................................. 39 6-18. Schematic Diagram - PT Board - .................................... 39 6-19. Printed Wiring Board - MOTOR Board (US and Canadian models) - .............. 40 6-20. Schematic Diagram - MOTOR Board (US and Canadian models) - .............. 40 7. EXPLODED VIEWS 7-1. Panel Section ................................................................... 47 7-2. Front Panel Section ......................................................... 48 7-3. Chassis Section ............................................................... 49 7-4. Main Section ................................................................... 50 7-5. 3 CD Mechanism Section (Australian model) (CDM88A-K6BD90-WOD) ........................................... 51 7-6. 1 CD Mechanism Section (US and Canadian models) (CDM77B-K6BD90-WOD) ........................................... 52 8. ELECTRICAL PARTS LIST .............................. 53 TABLE OF CONTENTS SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostat- ic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The fl exible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc refl ective surface by the objective lens in the optical pickup block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to fl ow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. RELEASING THE DISC TRAY LOCK The disc tray lock function for the antitheft of an demonstration disc in the store is equipped. Releasing Procedure: 1. Press [?/1] button to turn the power on. 2. Press the [FUNCTION] button to select CD function. 3. While pressing the [x] button, press the [Z] button for more 5 seconds). 4. The message “UNLOCKED” is displayed and the disc tray is unlocked. Note: When “LOCKED” is displayed, the slot lock is not released by turning power on/off with the [?/1] button. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 4 HOW TO REMOVE THE KNOB (VOL) HOW TO OPEN THE TRAY WHEN POWER SWITCH TURN OFF � Turn a gear by a driver till a lever falls down to the position of the figure. lever gear (Australian) (US, Canadian) � Pull the tray by the hand. � Slide the boss by a driver. boss � knob (VOL) hole � Push the knob (VOL) by the flat head driver. front panel block (back view) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 5 CAPACITOR DISCHARGE FOR ELECTRIC SHOCK PREVENTION MAIN board MAIN board C626 C622 In checking the MAIN board, make a capacitor discharge of C622 and C626 for electric shock prevention. 800 Ω/2W 800 Ω/2W Model Power Voltage Indication US and Canadian models AC 120 V, 60 Hz Australian model AC 230 - 240 V, 50/60 Hz MODEL IDENTIFICATION – Back Panel – POWER VOLTAGE INDICATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 6 SECTION 2 GENERAL This section is extracted from instruction manual. US and Canadian models: Basic Operations Adjusting the sound To adjust the volume Press VOLUME +/− (or turn the VOLUME control on the unit) . To Press Generate a more dynamic sound (Dynamic Sound Generator X-tra) DSGX  on the unit. EQ . To turn on the subwoofer Press SUBWOOFER ON/OFF  on the unit until linked to the front speakers. Playing a CD/MP3 disc 1 Select the CD function. Press FUNCTION +/− (or FUNCTION on the unit)  repeatedly. 2 Place a disc. Press  (open/close)  on the unit, and place a disc with the label side up on the disc tray. To close the disc tray, press  (open/close)  on the unit. this may damage the unit. 3 Start playback. Press  (play) . To Press Pause playback  (pause) . To resume play, press the button again. Stop playback  (stop) . Select a folder on an MP3 disc +/− (select folder) . / (go back/go forward) (or / on the unit) . Find a point in a Hold down / (rewind/fast forward)  during playback, and release the button at the desired point. Select Repeat Play REPEAT  repeatedly until “REP” or “REP1” appears. To change the play mode Press PLAY MODE  repeatedly while the player is stopped. You can select normal play (no display or “ (“SHUF” or “ play (“PGM”). * When playing a CD-DA disc, (SHUF) Play performs the same operation as normal (SHUF) Play. Notes on Repeat Play • • it. Notes on playing MP3 discs • • • the disc. • “.MP3”. • malfunction. • folders is 150 (including the root folder). − − − • device, and recording media cannot be guaranteed. Incompatible MP3 discs may produce noise or interrupted audio or may not play at all. Notes on playing multisession discs • If the disc begins with a CD-DA (or MP3) session, it is recognized as a CD-DA (or MP3) disc, and playback continues until another session is encountered. • A disc with a mixed CD format is recognized as a CD-DA (audio) disc. Listening to the radio 1 Select“TUNER FM” or“TUNER AM.” Press FUNCTION +/− (or FUNCTION on the unit)  repeatedly. 2 Select the tuning mode. Press TUNING MODE  repeatedly until “AUTO” appears. 3 Tune in the desired station. Press +/− (or TUNING +/− on the unit) . Scanning stops automatically when a station is tuned in, and then “TUNED” and “ST” (for stereo programs) appear. To stop automatic scanning Press  (stop) . To tune in a station with a weak signal If “TUNED” does not appear and the scanning does not stop, press TUNING MODE  repeatedly until “MANUAL” appears, and then press +/− (or TUNING +/− on the unit)  repeatedly to tune in the desired station. To reduce static noise on a weak FM stereo station Press FM MODE  repeatedly until “MONO” appears Changing the display To Press Change information on the display* DISPLAY � repeatedly when the system is turned on. Change Display mode (See below.) DISPLAY � repeatedly when the * For example, you can view CD/MP3 disc information, such as; ”) during normal play. artist name (“ ”) during normal play. album or folder name (“ ”) during normal play. total playing time while the player is stopped. Display mode Power Saving Mode1) to operate. Clock2) 1)You cannot set the clock in Power Saving Mode. 2) eight seconds. Notes on the display information • Characters that cannot be displayed appear as “_”. • − total playing time for an MP3 disc. − • − bit rate). − 1, Level 2 or Joliet in the expansion format. • − total playing time for a CD-DA disc during normal play. − remaining playing time for a track. − version 2 tags are used (ID3 version 2 tag information display has priority when both ID3 version 1 and version 2 tags are used for a − up to 15 characters of ID3 tag information using uppercase letters (A to Z), numbers (0 to 9), and symbols (‘< > * + , – / @ [ \ ] _).                     remote, but the same operations can also be performed using the buttons on the unit having the same or similar names. Before using the system To use the remote Slide and remove the battery compartment lid , and insert the two R6 (size AA) batteries (supplied),  side Notes on using the remote • With normal use, the batteries should last for about six months. • batteries. • If you do not use the remote for a long period of time, remove the batteries to avoid damage from battery leakage and corrosion. • Batteries installed devices shall not be exposed to excessive heat such To set the clock 1 Turn on the system. Press  (on/standby)  to turn on the system. 2 Select the clock set mode. Press TIMER MENU  /  repeatedly to select “CLOCK,” and then press (enter) . 3 Set the time. Press /  repeatedly to set the hour, then press (enter)  Use the same procedure to set the minutes. Note power failure occurs. Using optional audio components To connect an optional headphones Connect headphones to the PHONES jack  on the unit. To connect an optional component Connect additional audio source components to the AUDIO IN jack  on the unit using an analog audio cord (not supplied). Turn down the volume on the system, and then select the AUDIO IN function. To connect a DIGITAL MEDIA PORT adaptor Connect the DIGITAL MEDIA PORT adaptor to the DMPORT  on the unit. You need to connect the DIGITAL MEDIA PORT adaptor to an optional audio device (portable audio player, etc.). Notes on DIGITAL MEDIA PORT adaptor • Available DIGITAL MEDIA PORT adaptors vary in each area. • Do not connect an adaptor other than the DIGITAL MEDIA PORT adaptor. • Do not connect or disconnect the DIGITAL MEDIA PORT adaptor to/from the DMPORT  while the system is on. • When using a DIGITAL MEDIA PORT adaptor that has video output function, connect the adaptor directly to the TV. • For details about the DIGITAL MEDIA PORT adaptor, refer to the operating instructions supplied with your DIGITAL MEDIA PORT adaptor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 7 Creating your own CD program (Program Play) Use buttons on the remote to create your own program. 1 Press FUNCTION +/− repeatedly to select the CD function. 2 Press PLAY MODE  repeatedly until“PGM” appears while the player is stopped. 3 Press /  repeatedly until the desired track number appears. +/−  repeatedly to select the desired folder, and then select Total playing time of the selected track 4 Press  5 Repeat steps 3 through 5 to program additional 6  . tray. To play the same program again, select the CD function, and then press  . To cancel Program Play Press PLAY MODE  repeatedly until “PGM” disappears while the player is stopped. Press CLEAR  while the player is stopped. To view program information, such as total track number of the program Press DISPLAY  repeatedly. Presetting radio stations You can preset your favorite radio stations and tune them in instantly by selecting the corresponding preset number. 1 Tune in the desired station (See“Listening to the radio”). 2 Press TUNER MEMORY . Preset number 3 Press +/− (or TUNING +/− on the unit)  repeatedly to select your desired preset number. If another station is already assigned to the selected preset number, the station is replaced by the new stations. 4 Press . 5 Repeat steps 1 through 4 to store other stations. preset stations are retained for about half a day even if you disconnect the power cord or if a power failure occurs. 6 To call up a preset radio station, press TUNING MODE  repeatedly until“PRESET” appears, and then press +/− (or TUNING +/− on the unit)  repeatedly to select the desired preset number. Other Operations Using the timers timers, the Sleep Timer has priority. Use buttons on the remote to use the timer functions. Sleep Timer: the clock is not set. Press SLEEP �� repeatedly. If you select “AUTO,” the or in 100 minutes. Play Timer: You can wake up to CD or tuner at a preset time. Make sure you have set the clock. 1 Prepare the sound source. Press VOLUME +/− to adjust the volume. your own CD program. 2 Press TIMER MENU . 3 Press / �� repeatedly to select“PLAY SET,” then press . 4 Set the time to start playback. Press / �� repeatedly to set the hour, then press . above to set the minutes. 5 Use the same procedure as in step 4 to set the time to stop playback. 6 Select the sound source. Press / �� repeatedly until the sound source you want appears, and then press  shows the timer settings. 7 Press   If the system is on at the preset time, the Play Timer will not play. To activate or check the timer again 1 Press TIMER MENU . 2 Press . 3 Press /  repeatedly to select“PLAY SEL,” then press . To cancel the timer Repeat the same procedure as above until “OFF” appears in step 3, and then press . To change the setting Start over from step 1. Tip manually. Troubleshooting 1 Make sure the power cord and speaker cords are 2 Find your problem in the checklist below, and take the indicated corrective action. If the issue persists, contact your nearest Sony dealer. If“PROTECT” appears on the display Immediately unplug the power cord, and check the • Are the + and − speaker cords short-circuited? • Is anything blocking the ventilation holes on the top or back of the system? to be all right, reconnect the power cord, and turn on the system. If the issue persists, contact your nearest Sony dealer. General The system does not turn on. • Is the power cord plugged in? There is no sound. • Are the + and − speaker cords short-circuited? • Are you using only the supplied speakers? • Is anything blocking the ventilation holes on the top or back of the system? Sound comes from one channel, or the left and right volumes are unbalanced. • Place the speakers as symmetrically as possible. • Connect only the supplied speakers. Severe hum or noise. • Move the system away from sources of noise. • • cord. The remote does not function. • Remove any obstacles between the remote and the remote sensor  on the unit, and position the unit • Point the remote at the system’s sensor. • Move the remote closer to the system. CD/MP3 player The sound skips, or the disc will not play. • Wipe the disc clean, and replace it. • Move the system to a location away from vibration (for example, on top of a stable stand). • Move the speakers away from the system, or place them on separate stands. At high volume, speaker vibration may cause the sound to skip. • Return to Normal Play by pressing PLAY MODE  repeatedly until both “PGM” and “SHUF” disappear. Starting playback takes more time than usual. • − a disc recorded with a complicated tree structure. − a disc recorded in multisession mode. − can be added). − a disc that has many folders. The disc tray does not open and“LOCKED” appears. • Contact your Sony dealer or local authorized Sony service facility. Tuner Severe hum or noise, or stations cannot be display.) • Connect the antenna properly. • Find a location and an orientation that provide good reception, and then set up the antenna again. • Keep the antennas away from the speaker cords and the power cord to avoid picking up noise. • To change the AM tuning interval 10 kHz. Use buttons on the unit to change the AM tuning interval. 1 system. 2 Press DISPLAY  to display the clock. 3 While holding down TUNING + , press  . All the AM preset stations are erased. To reset the interval to the factory preset, repeat the procedure. To improve tuner reception management function. By default, CD power is turned on. 1 Press FUNCTION +/− (or FUNCTION on the unit)  repeatedly to select the CD function. 2 Press   3  to display the clock, and then press   while holding down  . “CD POWER OFF” appears. With CD player power CD player power, repeat the procedure until “CD POWER ON” appears. To reset the system to factory settings If the system still does not operate properly, reset the system to factory settings. Use buttons on the unit to reset the unit to its factory default settings. 1 Disconnect and reconnect the power cord, and then turn on the system. 2 Press  , FUNCTION , and   at the same time. stations, timer, and the clock, are deleted. Messages CANNOT LOCK : you have done the procedure of “When carrying this system.” COMPLETE : FULL : (steps). LOCKED : nearest Sony dealer. NO DISC : loaded a disc that cannot be played. NO STEP : All of the programmed tracks have been erased. OVER : You have reached the end of the disc while pressing   during playback or pause. PUSH STOP : You pressed PLAY MODE  during playback. PROTECT : − Speaker cords may be short-circuited. − See “If “PROTECT” appears on the display” to check what to do if this message appears. READING : disc. Some buttons are not available. TIME NG : the same time. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 8 Australian model: Basic Operations Adjusting the sound To adjust the volume Press VOLUME +/− (or turn the VOLUME control on the unit) . To Press Generate a more dynamic sound (Dynamic Sound Generator X-tra) DSGX  on the unit. EQ . To turn on the subwoofer Press SUBWOOFER ON/OFF  on the unit until linked to the front speakers. Playing a CD/MP3 disc 1 Select the CD function. Press FUNCTION +/− (or FUNCTION on the unit)  repeatedly. 2 Place a disc. Press  (open/close)  on the unit, and place a disc with the label side up on the disc tray. To place shown below. To close the disc tray, press  (open/close)  on the unit. this may damage the unit. 3 Select a disc. If the discs are currently stopped, press DISC SKIP . To change discs while in other functions, press DISC1 − 3  on the unit. 4 Start playback. Press  (play) . To exchange other discs during playback, press EX-CHANGE  on the unit. To Press Pause playback  (pause) . To resume play, press the button again. Stop playback  (stop) . Select a folder on an MP3 disc +/− (select folder) . / (go back/go forward) (or / on the unit) . Find a point in a Hold down / (rewind/fast forward)  during playback, and release the button at the desired point. Select Repeat Play REPEAT  repeatedly until “REP” or “REP1” appears. To change the play mode Press PLAY MODE  repeatedly while the player is stopped. You can select normal play (no display for all discs or “1 DISC” for a disc or “ or “ (“PGM”). * When playing a CD-DA disc, (SHUF) Play performs the same operation as 1 DISC (SHUF) Play. Notes on Repeat Play • • time. • it. Notes on playing MP3 discs • • • the disc. • “.MP3”. • malfunction. • − folders is 150 (including the root folder). − − − • device, and recording media cannot be guaranteed. Incompatible MP3 discs may produce noise or interrupted audio or may not play at all. Notes on playing multisession discs • If the disc begins with a CD-DA (or MP3) session, it is recognized as a CD-DA (or MP3) disc, and playback continues until another session is encountered. • A disc with a mixed CD format is recognized as a CD-DA (audio) disc. Listening to the radio 1 Select“TUNER FM” or“TUNER AM.” Press FUNCTION +/− (or FUNCTION on the unit)  repeatedly. 2 Select the tuning mode. Press TUNING MODE  repeatedly until “AUTO” appears. 3 Tune in the desired station. Press +/− (or TUNING +/− on the unit) . Scanning stops automatically when a station is tuned in, and then “TUNED” and “ST” (for stereo programs) appear. To stop automatic scanning Press  (stop) . To tune in a station with a weak signal If “TUNED” does not appear and the scanning does not stop, press TUNING MODE  repeatedly until “MANUAL” appears, and then press +/− (or TUNING +/− on the unit)  repeatedly to tune in the desired station. To reduce static noise on a weak FM stereo station Press FM MODE  repeatedly until “MONO” appears Changing the display To Press Change information on the display* DISPLAY � repeatedly when the system is turned on. Change Display mode (See below.) DISPLAY � repeatedly when the * For example, you can view CD/MP3 disc information, such as; − − ”) during normal play. − artist name (“ ”) during normal play. − album or folder name (“ ”) during normal play. − total playing time while the player is stopped. Display mode Power Saving Mode1) to operate. Clock2) 1)You cannot set the clock in Power Saving Mode. 2) eight seconds. Notes on the display information Characters that cannot be displayed appear as “_”. • − total playing time for an MP3 disc. − • − bit rate). − 1, Level 2 or Joliet in the expansion format. • − total playing time for a CD-DA disc when the play mode is “1 DISC”. − remaining playing time for a track. − version 2 tags are used (ID3 version 2 tag information display has priority when both ID3 version 1 and version 2 tags are used for a − up to 15 characters of ID3 tag information using uppercase letters (A to Z), numbers (0 to 9), and symbols (‘< > * + , – / @ [ \ ] _). remote, but the same operations can also be performed using the buttons on the unit having the same or similar names. Before using the system To use the remote Slide and remove the battery compartment lid , and insert the two R6 (size AA) batteries (supplied),  side Notes on using the remote • With normal use, the batteries should last for about six months. • batteries. • If you do not use the remote for a long period of time, remove the batteries to avoid damage from battery leakage and corrosion. • Batteries installed devices shall not be exposed to excessive heat such To set the clock 1 Turn on the system. Press  (on/standby)  to turn on the system. 2 Select the clock set mode. Press TIMER MENU  /  repeatedly to select “CLOCK,” and then press (enter) . 3 Set the time. Press /  repeatedly to set the hour, then press (enter)  Use the same procedure to set the minutes. Note power failure occurs. Using optional audio components To connect an optional headphones Connect headphones to the PHONES jack  on the unit. To connect an optional component Connect additional audio source components to the AUDIO IN jack  on the unit using an analog audio cord (not supplied). Turn down the volume on the system, and then select the AUDIO IN function. To connect a DIGITAL MEDIA PORT adaptor Connect the DIGITAL MEDIA PORT adaptor to the DMPORT  on the unit. You need to connect the DIGITAL MEDIA PORT adaptor to an optional audio device (portable audio player, etc.). Notes on DIGITAL MEDIA PORT adaptor • Available DIGITAL MEDIA PORT adaptors vary in each area. • Do not connect an adaptor other than the DIGITAL MEDIA PORT adaptor. • Do not connect or disconnect the DIGITAL MEDIA PORT adaptor to/from the DMPORT  while the system is on. • When using a DIGITAL MEDIA PORT adaptor that has video output function, connect the adaptor directly to the TV. • For details about the DIGITAL MEDIA PORT adaptor, refer to the operating instructions supplied with your DIGITAL MEDIA PORT adaptor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 9 Creating your own CD program (Program Play) Use buttons on the remote to create your own program. 1 Press FUNCTION +/− (or FUNCTION on the unit)  repeatedly to select the CD function. 2 Press PLAY MODE  repeatedly until“PGM” appears while the player is stopped. 3 Press DISC SKIP  to select a disc. 4 Press / (or / on the unit)  repeatedly until the desired track number appears. +/−  repeatedly to select the desired folder, and then select Total playing time of the selected track 5 Press  6 Repeat steps 3 through 5 to program additional 7  . tray. To play the same program again, select the CD function, and then press  . To cancel Program Play Press PLAY MODE  repeatedly until “PGM” disappears while the player is stopped. Press CLEAR  while the player is stopped. To view program information, such as total track number of the program Press DISPLAY  repeatedly. Presetting radio stations You can preset your favorite radio stations and tune them in instantly by selecting the corresponding preset number. 1 Tune in the desired station (See“Listening to the radio”). 2 Press TUNER MEMORY . Preset number 3 Press +/− (or TUNING +/− on the unit)  repeatedly to select your desired preset number. If another station is already assigned to the selected preset number, the station is replaced by the new stations. 4 Press . 5 Repeat steps 1 through 4 to store other stations. preset stations are retained for about half a day even if you disconnect the power cord or if a power failure occurs. 6 To call up a preset radio station, press TUNING MODE  repeatedly until“PRESET” appears, and then press +/− (or TUNING +/− on the unit)  repeatedly to select the desired preset number. Other Operations Using the timers timers, the Sleep Timer has priority. Use buttons on the remote to use the timer functions. Sleep Timer: the clock is not set. Press SLEEP �� repeatedly. If you select “AUTO,” the or in 100 minutes. Play Timer: You can wake up to CD or tuner at a preset time. Make sure you have set the clock. 1 Prepare the sound source. Press VOLUME +/− (or turn VOLUME on the unit)  to adjust the volume. your own CD program. 2 Press TIMER MENU . 3 Press / �� repeatedly to select“PLAY SET,” then press . 4 Set the time to start playback. Press / �� repeatedly to set the hour, then press . above to set the minutes. 5 Use the same procedure as in step 4 to set the time to stop playback. 6 Select the sound source. Press / �� repeatedly until the sound source you want appears, and then press  shows the timer settings. 7 Press   If the system is on at the preset time, the Play Timer will not play. To activate or check the timer again 1 Press TIMER MENU ��. 2 Press . 3 Press / �� repeatedly to select“PLAY SEL,” and then press . To cancel the timer Repeat the same procedure as above until “OFF” appears in step 3, and then press . To change the setting Start over from step 1. Tip manually. Troubleshooting 1 Make sure the power cord and speaker cords are 2 Find your problem in the checklist below, and take the indicated corrective action. If the issue persists, contact your nearest Sony dealer. If“PROTECT” appears on the display Immediately unplug the power cord, and check the • Are the + and − speaker cords short-circuited? • Is anything blocking the ventilation holes on the top or back of the system? to be all right, reconnect the power cord, and turn on the system. If the issue persists, contact your nearest Sony dealer. General The system does not turn on. • Is the power cord plugged in? There is no sound. • Are the + and − speaker cords short-circuited? • Are you using only the supplied speakers? • Is anything blocking the ventilation holes on the top or back of the system? Sound comes from one channel, or the left and right volumes are unbalanced. • Place the speakers as symmetrically as possible. • Connect only the supplied speakers. Severe hum or noise. • Move the system away from sources of noise. • • cord. The remote does not function. • Remove any obstacles between the remote and the remote sensor  on the unit, and position the unit • Point the remote at the system’s sensor. • Move the remote closer to the system. CD/MP3 player The sound skips, or the disc will not play. • Wipe the disc clean, and replace it. • Move the system to a location away from vibration (for example, on top of a stable stand). • Move the speakers away from the system, or place them on separate stands. At high volume, speaker vibration may cause the sound to skip. • Return to Normal Play by pressing PLAY MODE  repeatedly until both “PGM” and “SHUF” disappear. Starting playback takes more time than usual. • − a disc recorded with a complicated tree structure. − a disc recorded in multisession mode. − can be added). − a disc that has many folders. The disc tray does not open and“LOCKED” appears. • Contact your Sony dealer or local authorized Sony service facility. Tuner Severe hum or noise, or stations cannot be display.) • Connect the antenna properly. • Find a location and an orientation that provide good reception, and then set up the antenna again. • Keep the antennas away from the speaker cords and the power cord to avoid picking up noise. • To change the AM tuning interval 10 kHz. Use buttons on the unit to change the AM tuning interval. 1 system. 2 Press DISPLAY  to display the clock. 3 While holding down TUNING + , press  . All the AM preset stations are erased. To reset the interval to the factory preset, repeat the procedure. To improve tuner reception management function. By default, CD power is turned on. 1 Press FUNCTION +/− (or FUNCTION on the unit)  repeatedly to select the CD function. 2 Press   3  to display the clock, and then press   while holding down  . “CD POWER OFF” appears. With CD player power CD player power, repeat the procedure until “CD POWER ON” appears. To reset the system to factory settings If the system still does not operate properly, reset the system to factory settings. Use buttons on the unit to reset the unit to its factory default settings. 1 Disconnect and reconnect the power cord, and then turn on the system. 2 Press  , FUNCTION , and   at the same time. stations, timer, and the clock, are deleted. Messages CANNOT LOCK : you have done the procedure of “When carrying this system.” COMPLETE : FULL : (steps). LOCKED : nearest Sony dealer. NO DISC : loaded a disc that cannot be played. NO STEP : All of the programmed tracks have been erased. OVER : You have reached the end of the disc while pressing   during playback or pause. PUSH STOP : You pressed PLAY MODE  during playback. PROTECT : − Speaker cords may be short-circuited. − See “If “PROTECT” appears on the display” to check what to do if this message appears. READING : disc. Some buttons are not available. TIME NG : the same time. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 10 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 3-2. SIDE PANEL (L)/(R) (Page 11) 3-3. PANEL (TOP) (Page 11) 3-5. FRONT PANEL BLOCK (Australian model) (Page 12) (Australian model) 3-6. FRONT PANEL BLOCK (US and Canadian models) (Page 13) (US and Canadian models) 3-10. 1 CD MECHANISM BLOCK (US and Canadian models) (Page 15) 3-11. BASE UNIT (US and Canadian models) (Page 15) 3-12. BELT (US and Canadian models) (Page 16) 3-13. BELT (Australian model) (Page 16) 3-14. OP BASE ASSY (KSM-213D) (Page 17) 3-4. MAIN BOARD (Page 12) 3-7. BACK PANEL BLOCK (Page 13) 3-8. 3 CD MECHANISM BLOCK (Australian model) (Page 14) 3-14. OP BASE ASSY (KSM-213D) (Page 17) 3-9. BASE UNIT (Australian model) (Page 14) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 11 Note: Follow the disassembly procedure in the numerical order shown below. 3-2. SIDE PANEL (L)/(R) 3-3. PANEL (TOP) � two screws (BVTP3 × 10) � two screws (BVTP3 × 10) � four screws (case3 TP) � side panel (L) � side panel (R) � four screws (case3 TP) � panel (top) � two claws � � two screws (BVTP3 × 10) � two screws (BVTP3 × 10) � screw (KTP3 × 10) � screw (KTP3 × 10) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 12 �� five screws (BVTP3 × 10) � fan connector (CN601) � connector (CN633) � flexible flat cable (7 core) (CN643) � flexible flat cable (5 core) (CN602) � connector (CN151) �� MAIN board �� two screws (BVTP3 × 6) �� screw (BVTP3 × 10) � flexible flat cable (31 core) (CN803) � flexible flat cable (9 core) (CN605) � flexible flat cable (11 core) (CN609) � connector (CN654) � flexible flat cable (21 core) (CN608) �� fan connector (CN701) (US, Canadian) 3-4. MAIN BOARD � two screws (BVTP3 × 10) � flexible flat cable (9 core) (CN605) � flexible flat cable (11 core) (CN609) � Turn a gear by a driver till a lever falls down to the position of the figure. � pull the tray by hand. lever gear � flexible flat cable (31 core) (CN803) � flexible flat cable (13 core) (CN302) � door (CD) � front panel block 3-5. FRONT PANEL BLOCK (Australian model) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 13 3-6. FRONT PANEL BLOCK (US and Canadian models) � two screws (BVTP3 × 10) � flexible flat cable (9 core) (CN605) � flexible flat cable (5 core) (CN001) � flexible flat cable (11 core) (CN609) � Slide the boss by a driver. � pull the tray by hand. � flexible flat cable (31 core) (CN803) � door (1 CD-G) � front panel block boss bottom side 3-7. BACK PANEL BLOCK � four screws (BVTP3 × 10) � two screws (BVTP3 × 10) � screw (BVTP3 × 10) � connector (power cord) (CN053) � fan connector (CN601) � back panel block � Cut the clamp. � five screws (BVTP3 × 10) Note: Please do not forget fixation by clamping when you install the power cord. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 14 3-8. 3 CD MECHANISM BLOCK (Australian model) 3-9. BASE UNIT (Australian model) � four screws (BVTP3 × 10) � two tapes � flexible flat cable (21 core) (MAIN board: CN608/ CD board: CN201) � flexible flat cable (13 core) � 3 CD mechanism block � � cover (DLM3) � two screws (BVWH) Note: When installing the CD mechanism section, install two tapes for prevention of noise. � insulator � insulator � base unit � insulator � insulator � two springs (insulator) � two screws (PTPWHM2.6) � two screws (PTPWHM2.6) � – Bottom view – � two springs (insulator) � two polyethylene washers CD mechanical (DLM3A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 15 3-10. 1 CD MECHANISM BLOCK (US and Canadian models) 3-11. BASE UNIT (US and Canadian models) � three screws (BVTP3 × 10) � flexible flat cable (21 core) (CN201) � flexible flat cable (5 core) (CN001) � 1 CD mechanism block � two screws (BVTP4 × 12) � PT block � two screws (BVTP4 × 12) � connector (power cord) (CN053) � insulator � insulator � base unit � insulator � insulator � two springs (insulator) � two floating screws � two floating screws � floating screw � loading (BK) assy – Bottom view – � two springs (insulator) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 16 3-12. BELT (US and Canadian models) 3-13. BELT (Australian model) � belt � claw � claw � � tray (AU) belt position of belt � four screws � cover � two belts (DLM3A) belt belt position of belt www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 17 3-14. OP BASE ASSY (KSM-213D) � op base assy (KSM-213D) � flexible flat cable (16 core) (CN301) � CD board � Remove four solders. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 18 SECTION 4 TEST MODE COLD RESET The cold reset clears all data including preset data stored in the memory to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. In the standby status, press the [?/1] button to turn the power on. 2. Press three buttons of [x], [FUNCTION] and at last [?/1] si- multaneously. 3. When “RESET” appears, the set enters standby status. PANEL TEST MODE Enter The Panel Test Mode Procedure: 1. In the standby status, press the [?/1] button to turn the power on. 2. Press three buttons of [DISPLAY], [x], and [FUNCTION] si- multaneously. 3. When the panel test mode is activated, LEDs and segments of the liquid crystal display are all turned on. Version Check Procedure: 1. In the panel test mode (all LEDs and segments of the liquid crystal display are turned on), press the [FUNCTION] button. 2. On the liquid crystal display, date and version are displayed “xxxxxxxx”. For example, “1114V102”. 3. From this status, press the [X] button, and the destination and model name are displayed. For example, “CE2” and “ESLO–”. 4. To release from this mode, press three buttons of [DISPLAY], [x], and [FUNCTION] simultaneously. Key Test Mode Procedure: 1. In the panel test mode (all LEDs and segments of the liquid crystal display are turned on), press the [DISPLAY] button. 2. The message “KEY0 0 0”displayed. Whenever any buttons are pressed and the [VOLUME] dial is turned, the value is changed. 3. To release from this mode, press three buttons of [DISPLAY], [x], and [FUNCTION] simultaneously. CD REPEAT 5 LIMIT CANCEL MODE Number of repeats for CD playback is 5 times when the repeat mode is “REPEAT”. This mode enables CD to repeat playback for limitless times. Procedure: 1. Press the [?/1] button to turn the power on. 2. Press the [FUNCTION] button to select CD function. 3. Press three buttons of [DISPLAY], [x], and [l m – TUN- ING] simultaneously. 4. It enters the CD repeat 5 limit cancel mode and displays “NO LIMIT” 5. To release this mode, press the [?/1] button to turn the power off. CD SHIP MODE This mode can run the CD sled motor optionally. Use this mode, for instance, when cleaning the optical pick-up. Procedure: 1. Press the [?/1] button to turn the power on. 2. Confi rm there is no disc in all trays. 3. Press the [FUNCTION] button to select CD function. 4. Press two buttons of [N] and [?/1] simultaneously. 5. Set to the CD ship mode. (chucking on) 6. After blink “STANDBY”, “LOCK” is displayed, disconnect the AC plug. CD TRAY LOCK This mode is for the antitheft of CD disc in shop. (not for trans- port) Procedure: 1. Press the [?/1] button to turn the power on. 2. Press the [FUNCTION] button to select CD function. 3. Insert a disc. 4. While pressing the [x] button, press the [Z] button for more 5 seconds. 5. The message “LOCKED” is displayed and the disc tray is locked. (Even if exiting from this mode, the disc tray is still locked) 6. If press the [Z] button to eject the disc, the message “LOCKED” is displayed and can not eject the disc. 7. To release this lock, while pressing the [x] button, press the [Z] button for 5 seconds again. 8. The message “UNLOCKED” is displayed and the disc tray is unlocked. CD POWER MANAGE This mode is for switch the CD power supply on/off. Even if this state pulls out AC plug, it is held. Procedure: 1. Press the [?/1] button to turn the power on. 2. Press the [FUNCTION] button to select CD function. 3. Press the [?/1] button again to turn the power off (standby). 4. After pressing the [DISPLAY] button, while pressing the [x] button, press the [?/1] button. 5. It turns power on and display “CD POWER”, then display “ON” or “OFF”. CHANGE-OVER THE AM TUNING INTERVAL The AM tuning interval can be changed over 9 kHz or 10 kHz. Procedure: 1. Press the [?/1] button to turn the power on. 2. Press the [TUNER/BAND] button to select TUNER (AM) function. 3. Press the [?/1] button again to turn the power off (standby). 4. After pressing the [DISPLAY] button, while pressing the [TUNING + M L] button, press the [?/1] button. 5. It turns power on and display “9k STEP” or “10k STEP”, and thus the tuning interval is changed over. CD SHIP AND COLD RESET Procedure: 1. Press the [?/1] button to turn the power on. 2. Confi rm there is no disc in all trays. 3. Press the [FUNCTION] button to select CD function. 4. Press three buttons of [PLAY MODE/TUNING MODE], [l m – TUNING] and [?/1] simultaneously. 5. After blink “STANDBY”, “RESET” is displayed, disconnect the AC plug. COMMON TEST MODE Procedure: 1. Press the [?/1] button to turn the power on. 2. Press three buttons of [PLAY MODE/TUNING MODE], [TUNING + M L], and [DISPLAY] simultaneously. 3. It enters the common test mode and displays “COMMON”. 4. Each time the [VOLUME] dial is turned, “VOL MIN”, “VOL 16”, and “VOL MAX” are displayed. 5. To release from this mode, press three buttons of [PLAY MODE/TUNING MODE], [TUNING + M L], and [DIS- PLAY] simultaneously. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 19 [CD SERVO TEST MODE] This mode can check the servo system operations of the optical pick-up system (= optical unit + CD board). Note1: Do not enter the [CD SERVO TEST MODE] while any other test mode is in progress. Note2: Do not enter any other test mode while the [CD SERVO TEST MODE] is in progress. How to Enter the CD Servo Test Mode Procedure: 1. Press the [?/1] button to turn the power on. 2. Press the [FUNCTION] button to select CD function. 3. Press three buttons of [N], [l m – TUNING] and [DIS- PLAY] simultaneously. 4. It enters the CD servo test mode and displays “BDT S CU”. How to Exit from the CD Servo Test Mode Procedure: 1. Press three buttons of [N], [l m – TUNING] and [DIS- PLAY] simultaneously. 2. It releases from the CD Servo Test Mode and returns to the ordinary CD function. Key Operation: [ +], [ –]: Use these keys to move between the fi ve modes contained in the CD Servo Test Mode, that are the S-Curve Mode, the RAM Read Mode, the RAM Write Mode, the Command Out Mode and the Error Rate Mode as described below. Also, use these keys to move between the menus within the respective fi ve modes. When [ +] is pressed, the screen ad- vances to the next menu or to the next mode. When [ –] is pressed, the screen returns back to the previous menu or to the previous mode. Use these keys also to increase or decrease the numeric value when changing the numeric value. Pressing [ +] increases the value and pressing [ –] decreases the value. [DSGX] , [EQ]: Use these keys to move between the different layers of the hierarchy of the CD Servo Test Mode shown below. Press [DSGX] to move down to the lower layer, and press [EQ] to move up to the higher lay- er. [TUNING + M L], [l m – TUNING]: Use these keys to move the cursor to the right digit or to the left digit in the six-digit number, when changing the numeric value. Press [TUNING + M L] to move the cursor to the right, and press [l m – TUNING] to return the cursor to the left. [FUNCTION]: Use this key to execute Command Out in the Com- mand Out Mode. CD Servo Test Mode Tree: S Curve Mode LD ON (BDT S CU) (LD ON) RAM Read Mode Disc Type value indication (BDTRAM R) (DISCTYPE) (AL: 0000, RW: 0001) Gain Index value indication (GAININDX) (0001) RFO GAIN value indication (RFO_GAIN) (0009) FEO GAIN value indication (FEO_GAIN) (0005) SBAD GAIN value indication (SBAD_GAI) (0007) TEO GAIN value indication (TEO_GAIN) (000A) Disc Size value indication (DISCSIZE) (0000: Non disc, 0001: 8cm, 0002: 12cm) Op ABRAKE Error value indication (OPABRKER) (0000) SBBT Data value indication (SBBT DAT) (006C) FEOOCD value indication (FEOOCD) (0440) RAM Write Mode SPG Mask value edit (BDTRAM W) (00 SPG) (Non mask:00, Mask:01) Fix RF Gain value edit (00 FIX) (Non Fix:00, AL Fix:01, RW Fix:02) TMAX ON value edit (00 TMA) Driver Mute OFF value edit (00 D_M) (Normal:00, Forced OFF:01) Command Out Mode COMOUT6X value edit command out (BDT COMO) (COMOUT6X) (000000) (OK) READ2X value edit command out (READ2X) (60) (50) REG READ value edit command out (REG_READ) (00) (0000) FEBC? command out (FEBC?) (00) FGADD? command out (FGADD?) (10) TEBC? command out (TEBC?) (00) TGADD? command out (TGADD?) (00) RFGC? command out (RFGC?) (00) FEOF? command out (FEOF?) (FFC0) TEOF? command out (TEOF?) (FFC0) TEIOCD1? command out (TEIOCD1?) (FE80) TEIOCD2? command out (TEIOCD2?) (FF40) TEIOCD3? command out (TEIOCD3?) (FFC0) TEOOCD? command out (TEOOCD?) (FD00) FEOOCD? command out (FEOOCD?) (F780) MONITOR value edit command out (MONITOR) (570A00) (OK) Error Rate Mode Error rate indication (BDT ERR) (00000000) Higher layer Lower layer of menu hierarchy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 20 CD SERVICE MODE This mode can move the SLED of the optical pick-up, and also can turn the optical pick-up laser power on and off. Procedure: 1. Press the [?/1] button to turn the power on. 2. Press three buttons of [N], [TUNING + M L], and DIS- PLAY simultaneously. 3. Press the [FUNCTION] button to select CD function. 4. It enters the CD service mode and displays “SERVICE”. 5. To exit from this mode, press three buttons of [N], [TUNING + M L] and DISPLAY simultaneously. Key Operation: [TUNING + M L], [l m – TUNING]: Use these keys to move the SLED. When [TUN- ING + M L] is pressed in this mode, the SLED moves to outer circumference and the message “SLED OUT” is displayed. When [l m – TUNING] is pressed in this mode, the SLED moves to inner circumference and the message “SLED IN” is displayed. [DISPLAY]: Use this key to turn the optical pick-up laser power on and off. When the laser power is turned on, the message “LD ON” is displayed. When the laser power is turned off, the message “LD OFF” is dis- played. CD ERROR CODE The past errors of the CD mechanism (CDM) are displayed as the CDM Errors, and those of the optical pick-up system (= optical unit + CD board) are displayed as the BD Errors as shown below. Procedure: 1. Press the [?/1] button to turn the power on. 2. Press the [FUNCTION] button to select CD function. 3. Press three buttons of [TUNING + M L], [x] and [DIS- PLAY] simultaneously. 4. Then, the CDM error code is displayed as “M0xxxxxx” (x means hexadecimal number) on the liquid crystal display as shown below. 5. Every pressing of the [TUNING + M L] button in this mode increments the number after “M” starting from “M0” up to “M9”, and then returns to “M0”. Every pressing of the [l m – TUNING] button in this mode decrements the number after “M”. The smaller the error code number is, the newer the error content is. 6. When the [PLAY MODE/TUNING MODE] button is pressed then, the BD error code is displayed as “D0xxxxxx” (x means hexadecimal number) on the liquid crystal display as shown below. In the same way as the CDM error code, use of the [TUNING + M L] and the [l m – TUNING] but- tons in this mode enables tracing of the error history. 7. To release from this mode, press the [?/1] button to turn the power off. Contents of “CDM Errors” Error display example M 0 FF 11 42 1 2 3 4 1 It indicates the error history number 0 to 9: The error code number 0 indicates the newest error. 2 It indicates whether the CDM error occurs in the normal opera- tions or during the initialization operation. FF : The error has occurred in the normal opera- tions. Other than FF : The error has occurred during the initialization operation. 3 It indicates the processing during which the trouble has oc- curred. 01: The disc EJECT processing is in progress. 02: The disc INSERTION-WAITING processing is in prog- ress. 03: Processing of the disc INSERTION-REQUEST for the up- per CD tray is in progress. 04: Processing of the disc EJECTION-REQUEST for the up- per CD tray is in progress. 05: The disc pulling-in operation is in progress. 06: The disc chucking processing is in progress. 07: The disc re-chucking processing is in progress. 08: The disc chucking-release completion operation is in prog- ress. 4 It indicates the operation during which the trouble has oc- curred. 00 : Waiting for the operation. 10 to 13 : The disc EJECT operation is in progress. 20 : The disc pulling-in operation is in progress. 30 : The disc chucking-release operation is in progress. 40 to 43 : The disc EJECT operation due to error is in prog- ress. Contents of “BD Errors” Error display example D 0 02 09 01 1 2 3 4 1 It indicates the error history number 0 to 9: The error code number 0 indicates the newest error. 2 It indicates the error content 01: The focus servo cannot lock-in. 02: GFS is no good (NG). 03: The startup time exceeds the specifi ed period of time (time over) 04: The focus servo is unlocked continuously. 05: Q code cannot be obtained within the specifi ed period of time. 06: The tracking servo cannot lock-in. 07: Blank disc www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 21 3 It indicates the on-going processing of optical pick-up system (= optical unit + BD board) when the trouble has occurred. 01: The CD SHIP mode processing is in progress. 02: The POWER OFF processing is in progress. 03: The INITIALIZE processing is in progress. 04: The optical pick-up system (= optical unit + BD board) is in the stop state. 05: The STOP operation is in progress. 06: The startup processing is in progress. 07: The TOC read-in processing is in progress. 08: The SEARCH operation is in progress. 09: The PLAY operation is in progress. 0A: The PAUSE operation is in progress. 0B: The PLAY – MANUAL SEARCH operation is in prog- ress. 0C: The PAUSE – MANUAL SEARCH operation is in prog- ress. 4 It indicates the operation that is being processed when the trou- ble has occurred. It indicates the step number of each processing specifi ed by 3. Because the numbers of steps are different in each processing, this number is different in each processing. CD FACTORY MODE Note1: Do not enter the [CD FACTORY MODE] while any other test- mode is in progress. Note2: Do not enter any other test mode while the [CD FACTORY MODE] is in progress. Procedure: 1. Press the [?/1] button to turn the power on. 2. Press the [FUNCTION] button to select CD function 3. Press three buttons of [N], [FUNCTION], and [DISPLAY] simultaneously. 4. It enters the CD factory mode and displays the following mes- sage. –X1ON S character mode setting Tracking servo setting RF gain setting Key Operation: [DISPLAY]: The display changes in the following order when- ever the button is pressed. (Initial display) fcsAG ** (**: Focus AGC value) trkAG ** (**: Track AGC value) RF-AG ** (**: RF AGC value) [DSGX]: RF gain setting changes whenever the button is pressed. “–”: No gain fi xation. “AL”: Fix to the gain for AL disc. “RW”: Fix to the gain for RW disc. [EQ]: Tracking servo setting changes whenever the but- ton is pressed. “ON”: Tracking servo ON. “OFF”: Tracking servo OFF. [FUNCTION]: S character mode setting changes whenever the but- ton is pressed. “ ”: S character mode OFF. “S”: S character mode ON. 5. To release from this mode, press the [?/1] button to turn the power off. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 22 SECTION 5 ELECTRICAL ADJUSTMENTS CD SECTION Note: 1. CD Block is basically constructed to operate without adjustment. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10 MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specifi ed value with the following checks. 5. Check the focus bias check when optical pick-up block is replaced. FOCUS BIAS CHECK + – CD board oscilloscope (DC range) TP121 (RFI) TP124 (VC) Procedure : 1. Connect the oscilloscope to TP121 (RFI) and TP124 (VC) on the CD board. 2. Press the [?/1] button to turn the power ON, and press the [Z] button to open the CD disc tray. 3. Set disc (YEDS-18) on the trey and press the [N] button to playback. 4. Confi rm that oscilloscope waveform is as shown in the fi gure below. (eye pattern) A good eye pattern means that the diamond shape (◊) in the center of the waveform can be clearly distinguished. VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 1.2 ± 0.3 Vp-p Checking Location: TP124 (VC) – CD Board (Conductor Side) – TP121 (RFI) IC101 [AM] Setting: FUNCTION: AM AM RF signal generator 30% amplitude modulation by 400 Hz signal Output level: 54 dBuV 60 cm set loop antenna A loop antenna B + – level meter 32 Ω JACK board PHONES jack (J492) MAIN board ANTENNA CN801 pin �� [FM] Setting: FUNCTION: FM FM RF signal generator 75kHz frequency deviation by 1K Hz signal Output level: as low as possible (8dBuV) + – level meter set 32 Ω 0.01 F JACK board PHONES jack (J492) MAIN board ANTENNA CN801 pin � MAIN board ANTENNA CN801 pin � digital voltmeter 100 kΩ MAIN board IC801 pin �� (TUNER VT) • Repeat the procedures in each adjustment several times. TUNER SECTION 0 dB = 1 μV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 23 AM FREQUENCY COVERAGE ADJUSTMENT Adjustment Part Frequency Display Reading on Digital Voltmeter L801 530 kHz 1.5 ± 0.1 V Confi rmation 1,710 kHz 8 ± 0.5 V AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L805 530 kHz FM FREQUENCY COVERAGE ADJUSTMENT Adjustment Part Frequency Display Reading on Digital Voltmeter L803 87.5 kHz 1.75 ± 0.1 V Confi rmation 108 kHz 6.2 ± 0.5 V FM TRACKING ADJUSTMENT Adjust for a minimum reading on level meter L804 98 MHz Adjustment Location: MAIN board (See page 24) FM DETECTOR ADJUSTMENT Setting: FUNCTION: FM FM RF signal generator Carrier frequency: 98MHz Modulation: deviation by FM 75 kHz Output level: 60 dBuV + – level meter MAIN board JW801 (TUNER-GND) MAIN board IC801 pin �� (TUNER OUT L-ch) set MAIN board ANTENNA CN801 pin � MAIN board ANTENNA CN801 pin � 1. Turn the set to 98 MHz. 2. Adjust L802 so that modulation distortion may become the best in the vicinity of the maximum value where the tuner out level becomes –15dBuV or more. FM AUTO STOP CHECK generator SET + 75 Ω Procedure : 1. Turn the power on. 2. Input the following signal from Signal Generator to FM an- tenna input directly. * Carrier Freq : A = 87.5 MHz, B = 98 MHz, C = 108 MHz Deviation : 75 kHz Modulation : 1 kHz ANT input : 35 dBu (EMF) Note: Please use 75 ohm “coaxial cable” to connect SG and the set. You cannot use video cable for checking. Please use SG whose output impedance is 75 ohm. 3. Set to FM tuner function and scan the input FM signal with automatic scanning. 4. Confi rm that input Frequency of A, B and C detected and auto- matic scanning stops. The stop of automatic scanning means “The station signal is re- ceived in good condition”. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 24 Adjustment Location and Connecting Points: IC801 CN801 ANTENNA 36 1 3 1 19 18 IC801 pin �� (TUNER VT) IC801 pin �� (TUNER OUT L-ch) – MAIN Board (Conductor Side) – L802 FM Detector Adjustment – MAIN Board (Component Side) – L803 FM Frequency Coverage Adjustment L801 FM Frequency Coverage Adjustment L805 AM Tracking Adjustment JW801 (TUNER-GND) L804 AM Tracking Adjustment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 25 25 6-1. BLOCK DIAGRAM - CD SERVO, TUNER Section - SECTION 6 DIAGRAMS OPTICAL PICK-UP BLOCK (KSM-213DCP) B C D E A F SP+ SP- LD PD VC AUTOMATIC POWER CONTROL Q301 FOCUS/TRACKING COIL DRIVE, SLED/SPINDLE MOTOR DRIVE IC401 CD-MP3 PROCESSOR IC101 VO1+ 2 VO1- 1 IN1 3 SL+ SL- VO2- 12 VO2+ 11 IN2’ 9 T+ T- VO3+ 18 VO3- 17 IN3’ 20 F+ F- CD MECHANISM DECK M1- M2+ M2- M1+ VO4+ 26 VO4- 27 IN4’ 24 MUTE 7 97 FPi1 (B) 94 FNi2 (C) 96 FPi2 (D) 100 TNi (E) 95 FNi1 (A) 98 TPi (F) 91 LDo MDi 84 VRo 13 DMo 92 12 FMo 10 TRo 9 FOo XO XI X102 16.9344MHz S201 (LIMIT) 24 23 IO0 (/HSO) 20 LO CD-L 30 RO R-CH 27 BUS0 38 BUS1 39 I/O-CD-BUS0 17 I/O-CD-BUS1 18 BUS2 (SO) 40 BUS3 (SI) 41 BUCK (CLK) 42 XCCE 43 PIO0 48 I/O-CD-BUS2 19 I/O-CD-BUS3 20 O-CD-BUCK 25 O-CD-CCE 26 XRST 37 O-CD-RST 27 O-DR-MUTE 23 I-REQ 24 SBSY 54 O-3CD-M1+/O-CDM-M1+ 8 O-3CD-M1-/O-CDM-M1- 10 O-3CD-M2+/NC 11 O-3CD-M2-/NC 12 O-CD-SBSY 43 B A M MOTOR DRIVER IC303 S001 DISC TRAY OPEN/CLOSE DETECT CLOSE OPEN M001 (LOADING) (US, Canadian) (Australian) MOTOR DRIVE Q311 - 318 SW3 SW2 I-CHACK SW1 I-3CD-SW1/O-CDM-OPEN 7 I-3CD-SW3/O-CDM-CLOSE 5 I-3CD-SW2/NC 6 I-3CD-CHACK 21 I-STOCK I-OPEN I-CLOSE I-3CD-STOCK 22 I-1CD-CLOSE_OPEN/NC 48 AM/FM-DET, OSC, MIX, PLL, IF AMP IC801 36 FM RF-IN 8 FM IF-IN 22 MPX-IN 1 AM RF-IN 31 AM-OSC 33 I-TU-DO 56 O-TU-CLK 55 O-TU-CE 57 O-TU-DI 39 I-TU-ANSD X801 75kHz 20 19 XIN XOUT 16 DI 17 CL 15 CE 18 DO 25 AGC 3 CN801 ANTENNA FM/AM 1 BAND-PASS FILTER FL803 AM TRACKING L805 AM FREQUENCY COVERAGE L801 D801 7 AM IF-IN T801 AM IF 34 FM RF-OUT FM TRACKING L804 32 FM-OSC FM FREQUENCY COVERAGE L803 +9V 11 FM-DET FM DETECTOR L802 3 FM-MIX 23 FM DET-OUT 12 L-OUT 13 R-OUT R-CH TUNER-L 5 AM-MIX 24 AM DET-OUT CF801 • SIGNAL PATH : AM : CD PLAY • R-ch is omitted due to same as L-ch. : FM SYSTEM CONTROLLER IC301 (1/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 26 26 6-2. BLOCK DIAGRAM - MAIN Section - SYSTEM CONTROLLER IC301 (2/2) INPUT SELECTOR, ELECTRICAL VOLUME IC602 4 19 TUNER-L OUT-L 9 SEL-L 12 VOL-L TUNER-L 31 O-USB-RXD/O-DMP-RXD 45 I-DMP-DET/O-USB-RST 29 I-USB-TXD/I-DMP-TXD 2 TC/DMP-L A 6 CD-L 8 AUDIO-L CD-L B M601 (FAN) I-RST 54 I-USB-DO/I-DMP-5V-DET 30 I-HOLD 42 49 I/O-I2C-DATA 50 I/O-I2C-CLK 26 SDATA 25 SCLK 3 O-POWER • SIGNAL PATH : CD PLAY • R-ch is omitted due to same as L-ch. : FM : DMPORT : AUDIO IN FAN MOTOR DRIVE Q601, 602 PROTECT DETECT Q603 34 O-USB-DI/5V-ON/O-TP-REC-MUTE 4 O-CD-ON RELAY DRIVE Q619 PROTECT DETECT Q611, 612 PROTECT DETECT Q605, 606 OVER LOAD DETECT Q101 - 103 D103 OVER LOAD DETECT Q151, 152 POWER AMP IC101 +1.5V REGULATOR IC201 CD +1.5V +9V REGULATOR IC601 +9V +5V REGULATOR IC701 DMPORT +5V RELAY B+ +3.3V REGULATOR Q622, 624 VOLTAGE DETECT Q305, 306 VOLTAGE DETECT Q761, 762 +4V REGULATOR Q302 - 304 D631 +9V CD +3.3V +3V REGULATOR Q801 TUNER +3V +5V REGULATOR Q802 TUNER +5V SYSTEM +3.3V D152 D601 R-CH D303 D055 D617 D628 D602, 606 M M701 (FAN) M DC DETECT Q618 STANDBY SWITCH Q608 J492 RY602 R-CH PHONES J491 AUDIO IN CN901 DMPORT SPEAKER LOW FREQ. IMPEDANCE: USE 8Ω SPEAKER HIGH FREQ. IMPEDANCE: USE 8Ω + – – + R L TB602 SUBWOOFER IMPEDANCE: USE 4Ω + – TB603 R-CH + – – + R L TB601 R-CH R-CH 2 O-AMP-ON 40 O-USB-SEL1_2/O-SW-ON/I-TP-STATE RY701 RY601 (AUS) (US, CND) (US, CND) RY001 PT005 SUB POWER TRANSFORMER PT006 MAIN POWER TRANSFORMER VSTBY +VH -VH (AC IN) RECT D051, 052 RECT D607 - 610, D623 - 626 RECT D611, 612, D633, 634 I-P-MONI 36 RELAY DRIVE Q604 PRE DRIVE Q700 - 703 SUBWOOFER SWITCH Q705 RELAY DRIVE Q704 5 7 6 11 13 L+ L- 12 14 R+ R- R-CH R-CH TXD RXD DET LINE AMP IC770 • Abbreviation AUS : Australian model CND : Canadian model X302 6MHz X1 X0 92 93 X301 32.768kHz X1A X0A 14 13 I-RMC 9 REMOTE CONTROL RECEIVER IC302 LED DRIVE Q301 LED301 O-LED-STBY 28 LCD301 LIQUID CRYSTAL DISPLAY ROTARY ENCODER S301 VOLUME SW301 - 308, SW309, 310 SW311 - 319 (FRONT PANEL KEYS) I-KEY1, I-KEY2, I-KEY-WAKEUP/VOL 37, 38, 41 COM0 - COM1 59 - 62 SEG0 - SEG32 63, 64, 67 - 89, 94 - 100, 1 I/� STANDBY PROTECT DETECT Q607 POWER AMP IC152 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 27 27 For Schematic Diagrams. Note: • All capacitors are in μF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specifi ed. • f : internal component. • 2 : nonfl ammable resistor. • C : panel designation. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) • A : B+ Line. • B : B– Line. • C : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. – CD Board – no mark : CD PLAY – Other Boards – no mark : TUNER (FM/AM) • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM f : AM J : CD PLAY i : AUDIO IN g : DMPORT • Abbreviation AUS : Australian model CND : Canadian model For Printed Wiring Boards. Note: • X : Parts extracted from the component side. • Y : Parts extracted from the conductor side. • W : indicated side identifi ed with part number. • f : Internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Indication of transistor. C B These are omitted. E Q • Circuit Boards Location KEY POWER board PANEL board MAIN board HI AMP board LOW AMP board PT board REG board JACK board DMP board KEY CD board CD board MOTOR board B These are omitted. C E Q Caution: Parts face side: (Conductor Side) Pattern face side: (Component Side) Parts on the parts face side seen from the pattern face are indicated. Parts on the pattern face side seen from the parts face are indicated. Note: The components identi- fi ed by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specifi ed. Note: Les composants identifi és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le nu- méro spécifi é. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 28 28 R150 R149 R148 R108 R154 R153 C148 C110 C109 C301 C303 C302 C104 R110 C116 C404 R203 R204 R205 R206 R207 R208 R209 R210 R219 R223 R222 R147 R221 R218 R146 R145 C150 R113 C403 R202 C151 C108 C105 C147 C146 C145 C152 C118 C117 C144 C101 C125 CN201 C143 C120 R144 R157 C142 C141 C140 C100 C107 R408 R156 C124 C127 C126 CN301 R101 C119 C102 R415 R414 C103 R405 C113 R102 R402 R105 R106 C132 C138 C137 R135 R134 R136 R130 R128 R129 R143 R139 C136 R120 R114 C153 C112 R125 R126 C149 C139 R127 R118 R140 R151 C122 C123 R220 R104 S201 R155 C128 C106 C201 R304 R302 C309 C205 C207 C307 R303 C133 R111 R112 C115 R211 Q301 R301 C204 C202 C206 C306 R212 C401 C130 X102 C405 IC201 IC401 IC101 R201 R142 CD BOARD (COMPONENT SIDE) CD BOARD (CONDUCTOR SIDE) 3 1 4 5 1 7 8 14 28 22 21 15 TP124 (VC) TP121 (RFI) 1 25 26 50 51 75 76 100 1 21 M MAIN BOARD CN608 16 1 1-872-135- 11 (11) 1-872-135- 11 (11) OPTICAL PICK-UP BLOCK (KSM-213DCP) A B C D E F 1 2 3 4 5 6 7 8 9 E (LIMIT) M401 (SPINDLE) M402 (SLED) M M 6-3. PRINTED WIRING BOARD - CD Board - • See page 27 for Circuit Boards Location. (Page 30) • : Uses unleaded solder. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 29 29 R108 R154 R153 C201 R304 R201 R110 R303 R203 R204 R205 R206 R207 R208 R209 R210 R219 R223 R222 R221 R218 R112 R202 R211 Q301 R301 C202 R157 TP121 (RFI) TP124 (VC) R156 CN301 R101 C401 R415 R102 R128 R129 R143 R142 R139 R114 R140 R151 R220 R150 R212 IC101 R105 R106 R125 R126 R127 IC201 X102 C301 C307 C309 C100 C138 C153 C151 C204 C130 C128 C113 C127 C126 C103 C102 C120 C118 C117 C101 C124 C125 R145 R146 R147 R148 R149 C149 C105 C143 C146 C145 C148 C104 C405 C404 C403 C205 C116 C133 CN201 C110 R113 R111 C115 R155 C109 C132 R104 C123 C122 C139 C150 R136 R135 R134 C112 C108 R120 R118 C136 C107 R130 R144 C144 C147 C140 C137 C141 C142 C106 R302 C306 C303 C302 R405 R402 R408 R414 C207 C152 C206 IC401 0 1M 1M 100 10V 2.2 0 10k 2.2 100 100 100 100 100 100 100 100 100k 100k 100k 100k 100k 100 0 100 2SA2119K 100k 100 10V 100 100 16P 220 220 10V 47k 10k 470k 1k 47k 22k 47k 10k 0 0 100k 0 TK63115SCL-G@GT 0.1 1 0.001 0.1 470p 0.1 470p 0.1 0.1 0.0022 0.1 0.1 0.1 0.01 0.01 0.022 C119 0.022 0.1 0.0047 0.0047 0 0 0 0 0 22p 0.1 0.01 470p 0.01 47p 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 10k 100 22 6.3V 47 0.1 0.1 0 470p 470p 0.01 0.001 22k 470k 1M 0.1 0.1 47p 0.1 4.7k 22k 0.1 0.1 0.01 0.01 0.0022 0.1 100 10V 0 100 10V 10 10 10k 2.2k 2.2k 4.7k 1 470p 1 BA5826SFP-E2 SP- SP+ SL+ SL- 100 1M 1k 0 0 0 16.9344MHz TC94A70FG-006 (D, HZ 5p 5p 21P 0 100k IC101 CD-MP3 PROCESSOR IC401 FOCUS/TRACKING COIL DRIVE, SLED/SPINDLE MOTOR DRIVE IC201 +1.5V REGULATOR SP- SP+ SL+ SL- M401 (SPINDLE) M402 (SLED) AUTOMATIC POWER CONTROL S201 (LIMIT) (BX5BT/CBX1) IC B/D M MAIN BOARD (3/3) CN608 2 1 IC B/D OPTICAL PICK-UP BLOCK (KSM-213DCP) M M 6-4. SCHEMATIC DIAGRAM - CD Board - • See page 40 for waveforms. • See page 40 for IC Block Diagrams. • See page 43 for IC Pin Function Description. (Page 33) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 30 30 IC602 IC801 1 18 11 1 TP902 TP903 TP904 TP905 TP906 TP907 TP908 TP909 TP910 TP911 TP912 TP913 R904 R905 R906 R907 R908 CN901 CN902 A901 1 3 4 5 1 2 2 1 30 31 1 2 8 9 20 21 1 2 11 10 1 2 B E 1 5 2 1 6 7 1 9 1 10 1 3 1 3 4 5 2 1 1 3 E B W609 JW760 JW761 JW762 JW763 JW764 JW765 JW766 JW767 JW768 JW769 JW770 JW771 JW773 JW774 JW775 JW777 JW779 JW780 JW781 CN601 JW782 CN602 JW783 JW784 JW785 CN605 JW786 JW787 JW788 CN608 CN609 CN803 R634 R635 R636 R638 C601 C602 R641 R642 C802 CN632 C613 C614 R658 X801 C620 C621 C622 CN643 C623 R662 C626 C627 C628 C822 C823 C630 C631 C632 CN653 CN654 C636 R674 R675 C833 C641 RY601 RY602 C644 C646 JW601 JW602 JW603 JW604 JW605 JW606 JW607 JW608 JW609 JW801 C661 JW802 JW803 C663 JW610 JW804 C664 JW611 C665 JW612 JW613 C667 D607 D608 JW615 C669 D609 JW616 JW617 JW618 JW619 D610 C671 D611 C672 D612 C673 JW620 JW621 ET601 C675 D615 ET602 JW622 C676 JW623 JW624 JW625 D619 L701 JW626 L702 JW627 JW628 JW629 D620 D623 JW630 D624 JW631 D625 JW632 D626 JW633 JW634 C688 JW635 JW636 JW637 JW638 JW639 T801 D633 D634 JW640 JW641 JW647 JW649 JW650 JW651 JW652 JW653 JW654 JW655 JW656 JW657 JW658 JW659 JW660 JW661 JW662 JW663 JW664 JW665 JW666 JW667 JW668 JW669 JW670 JW672 JW673 JW674 JW675 JW676 JW677 JW678 JW679 JW680 JW681 JW682 JW683 JW684 JW685 JW686 JW687 R717 R718 JW689 R719 CN701 JW690 JW691 R723 R724 R725 R726 JW697 JW699 C705 C706 C707 C709 R746 R747 R748 C710 C711 C712 C714 R764R765 R767 RY701 JW700 JW701 JW702 JW703 JW704 JW705 Q601 JW706 JW708 JW709 C760 D701 C761 C762 JW710 JW711 JW712 JW713 JW715 JW716 JW717 JW718 JW719 L601 : : L602 L603 L604 C771 C772 C773 JW720 C774 JW721 C775 JW722 C776 JW723 JW724 L801 JW725 L802 JW726 L803 L804 JW728 Q624 L805 JW729 IC701 JW730 JW731 JW732 JW733 JW734 JW735 JW736 JW737 JW738 FL801 JW739 FL803 JW740 JW741 JW742 JW743 JW744 JW750 JW751 JW752 36 18 1 19 B E B E E B E B E B E B E B E B E B E B E B E B E B E B E B E B E B E 1 4 5 8 1 14 15 28 B E B E B E G D S R601 R603 R604 R605 R606 R607 R608 R609 R801 R802 R803 R804 R610 R805 R611 R806 R612 R807 R613 R808 R614 R809 R615 R616 R617 R618 R619 R810 R811 R812 R813 R814 R620 R815 R621 R816 R622 R817 R623 R818 R624 R819 R625 R626 R627 R628 R629 R820 R821 R822 R823 R824 R630 R825 R631 R826 R632 R827 R633 R829 R637 IC770 D791 R639 R830 R831 R832 C603 R640 C604 C605 R836 C606 R837 R643 C607 R838 R644 C608 R839 R645 C609 R646 R647 R648 R649 C803 R840 C804 C610 C805 R841 C611 R842 C806 C612 C807 R843 R844 C808 R650 R845 C809 R651 C615 R846 R652 C616 R847 C617 C618 R655 C619 R656 R657 C810 C811 R659 C814 C815 C816 C817 R660 C819 R663 C629 R666 R667 C820 C821 R669 C824 C826 C827 C633 C828 R670 C634 C829 R672 R673 C637 C638 C639 R676 R677 C830 R678 C831 C832 C834 C640 C835 C836 C642 C837 C838 R681 C645 C647 R684 C648 R685 C649 R686 R687 C840 C841 R689 C843 C844 C650 C845 C846 C652 C847 C848 R690 C654 R691 C655 R692 C656 R693 C657 C658 C659 R696 R697 C850 C660 D601 C662 D602 D603 Q700 D604 D605 Q701 C666 D606 Q702 Q703 Q704 JR601 Q705 JR602 JR603 JR604 JR605 D801 JR606 D802 JR607 D803 JR608 D804 JR609 D805 D806 C674 D614 D617 JR610 D618 JR611 C679 JR612 JR613 JR614 JR615 JR616 JR617 JR618 C680 C681 D621 C682 D622 C683 C684 C685 C686 C687 D628 C689 C690 D631 C691 C692 C693 C694 C695 C696 C699 R700 Q761 R701 Q762 R702 R704 R706 R707 R708 R709 R710 R711 R712 R713 R714 R715 R716 R720 R721 R722 R727 R728 R729 R730 R731 R732 R733 R734 R735 R736 R737 R738 R739 C700 C701 C702 C703 C704 R740 R741 R742 R744 R745 R749 C713 R750 R751 R752 R753 R754 R755 R756 R757 R758 R759 R761 R762 R763 R766 R768 R769 R770 R771 R772 R773 R774 R775 R776 R777 R778 R779 R780 R781 R782 R783 R784 R785 R786 R787 R788 R789 R790 R791 R792 Q602 Q603 Q604 Q605 Q606 Q607 Q608 D702 D703 C764 Q801 Q802 Q611 Q612 Q618 Q619 Q622 C785 C786 C787 C788 C789 C791 CF801 TB601 TB602 TB603 MAIN BOARD C JACK BOARD M CD BOARD CN201 1-875-502- 11, 12 (11, 12) 1-875-517- 11, 12 (11, 12) 11, 12 (11, 12) DMP BOARD (COMPONENT SIDE) 1-875-502- DMP BOARD (CONDUCTOR SIDE) DMPORT CN801 L R L R SUB WOOFER IMPEDANCE : USE 4 (AUS) (US, CND) L PANEL BOARD CN301 E BOARD HI AMP CN151 F HI AMP BOARD CN152 H LOW AMP BOARD CN103 RY601, 602, 701 (US, CND) (US, CND) (US, CND) M601 (FAN) M 1 3 M701 (FAN) M 1 3 (US, CND) ANTENNA FM/AM J PT BOARD CN051 G LOW AMP BOARD CN105 D REG BOARD W610 (CHASSIS) (CHASSIS) A B C D E F G H I 1 2 3 4 5 6 7 8 9 10 11 6-5. PRINTED WIRING BOARDS - MAIN Section - • : Uses unleaded solder. • See page 27 for Circuit Boards Location. (Page 35) Ref. No. Location • Semiconductor Location D601 F-2 D602 E-6 D603 E-4 D604 G-3 D605 E-5 D606 E-6 D607 G-6 D608 F-5 D609 H-5 D610 F-5 D611 H-6 D612 H-6 D614 B-6 D615 E-7 D617 D-7 D618 E-6 D619 E-7 D620 F-7 D621 D-5 D622 D-5 D623 G-6 D624 F-5 D625 G-5 D626 F-5 D628 D-7 D631 E-7 D633 H-6 D634 H-6 D701 G-7 D702 F-4 D703 D-5 D791 E-5 D801 B-4 D802 B-4 D803 B-4 D804 B-3 D805 B-2 D806 B-2 IC602 C-7 IC701 F-7 IC770 G-8 IC801 C-4 Q601 D-4 Q602 D-5 Q603 D-5 Q604 G-4 Q605 E-6 Q606 E-6 Q607 E-5 Q608 B-6 Q611 D-6 Q612 D-6 Q618 D-7 Q619 H-6 Q622 E-7 Q624 E-7 Q700 D-6 Q701 C-7 Q702 C-6 Q703 C-6 Q704 F-4 Q705 G-4 Q761 G-7 Q762 G-7 Q801 B-5 Q802 B-5 (Page 34) (Page 39) (Page 36) (Page 28) (Page 35) (Page 38) (Page 38) (Page 34) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 31 31 CN105 BOARD AMP LOWG LOW BOARD AMP CN103 H E CN151 HI AMP BOARD BOARD F HI AMP CN152 (2/3) 1 MAIN BOARD MAIN2 (3/3) BOARD 0 8.8 0 8.8 0.4 16.6 16.7 16.7 0 0 3.2 7.3 3.9 0.8 0.7 8.8 0 8.8 0 8.9 0.7 0.1 0.7 0.5 2.5 8.3 1.8 8.3 8.3 2.7 4.1 3.5 3.3 10.8 2.9 2.3 2SC3052F-T1-LF Q604 R648 47k R649 2.2k L602 1uH L601 1uH 1uH L603 1uH L604 R606 10 10 R615 10 R612 10 R611 10 R647 R608 10 0.1 C607 0.1 C617 0.1 C608 0.1 C618 R631 10 C605 0.1 C616 0.1 R607 10 C615 0.1 C604 0.1 R634 68 R636 68 R635 68 MC2838-T112-1 D601 4.7k R610 4.7k R609 1 2 3 3P CN601 2SC3052F-T1-LF Q602 2SC3052F-T1-LF Q603 2SC3052F-T1-LF Q608 R667 47k 10V 47 C630 1k R666 25V 47 C601 10V 100 C620 TP601 TP602 TP609 TP612 TP613 TP614 TP615 TP617 TP618 TP619 TP621 TP622 TP623 TP624 TP625 TP626 4.7 R723 R724 R725 R602 XX Q601 R710 33k R711 33k R712 680 R630 47k 50V 4.7 C614 50V 10 C613 R626 10k 2.2k R627 ∗ ∗ ∗ ∗ R726 JW750 1k R644 100k R639 100k R640 R633 100k R632 100k R629 4.7k R601 470 R650 4.7k R651 4.7k R727 4.7k R728 4.7k 47 R674 47 R675 C700 1000p MAZ8082GMLS0 D622 MAZ8043GMLS0 D621 2SC3052F-T1-LF Q611 100k R669 10k R670 10k R628 4.7k R637 0.01 C619 4700p C629 2SC3052F-T1-LF Q701 2SC3052F-T1-LF Q702 2SC3052F-T1-LF Q703 50V 10 C705 50V 1 C707 0.22 C709 0.22 C710 0.1 C711 0.047 C712 100k R713 47k R714 3.3k R721 47k R730 100k R733 1k R734 0 R735 10k R736 10k R737 1k R738 100 R739 1.5k R740 TP681 TP691 100k R659 10 R744 10 R745 1uH L702 0.1 C701 0.1 C702 68 R746 68 R747 68 R748 2SC3052F-T1-LF Q704 2SC3052F-T1-LF Q705 4.7k R755 4.7k R756 1k R758 10k R672 ISA1235AC1TP-1EF Q612 47k R757 1 2 3 4 5 6 7 8 9 9P CN653 1 2 3 4 5 5P CN602 1 2 3 4 5 6 7 7P CN643 R603 4.7 10k R643 2.2k R645 TP693 2W 470 R658 2W 470 R662 D604 MA2J1110GLS0 MA2J1110GLS0 D702 MA2J1110GLS0 D703 D603 MA2J1110GLS0 MA2J1110GLS0 D614 MA2J1110GLS0 D605 1 2 3 4 5 5P CN632 4.7 R764 4.7 R765 JW751 JW752 1 2 3 3P CN701 R766 10k R656 4.7 100k R604 25V 22 C602 25V 22 C688 100k R657 2SC3052F-T1-LF Q607 TP603 RY602 RY701 RY601 C609 4700p C610 4700p C603 4700p C606 4700p 68 R638 68 R641 68 R642 16V 100 C672 100k R789 100k R790 R605 56 56 R655 16V 470 C706 S 2SK2158-T2B Q700 1 2 3 4 5 6 7 8 AMP-STBY HP-L OUT-R HP-R O-POWER SW-ON OUT-L OUT-R SP-RELAY SW-IN OUT-L AMP-STBY SW-IN AMP-STBY AMP-L AMP-R AMP-L AMP-R M601 M M (FAN) - R USE 8 + L TB601 - + HIGH FREQ. SPEAKER IMPEDANCE: + - + - - TB602 L + R TB603 MAIN BOARD (1/3) (FAN) M701 (US, CND) Q611, 612 PROTECT DETECT SUBWOOFER SWITCH RELAY DRIVE RELAY DRIVE Q700-703 PRE DRIVE Q603, 607 PROTECT DETECT Q601, 602 FAN MOTOR DRIVE (US, CND) (AUS) KTA1273 (US, CND) ∗Q601 KTA1266 (AUS) 4.7k (AUS) ∗R627 2.2k (US, CND) 15 (AUS) 4.7 (US, CND) ∗R724-726 STANDBY SWITCH 7 11 D B 6 9 10 F 5 3 G 1 12 C E H 8 J 4 13 A 2 I 14 LOW FREQ. IMPEDANCE: SPEAKER USE 8 SUBWOOFER IMPEDANCE: USE 4 PA-GND OUT-R +VH -VH OUT-L +VH OUT-SW OUT-SW -VH SW-IN SW-A-GND IN-R A-GND IN-L AMP-ON PROTECT VDD+ GND VDD+ IN-R A-GND IN-L AMP-ON PROTECT PA-GND OUT-R +VH -VH OUT-L VDD+ GND VDD+ C699 1000p (Page 35) (Page 35) (Page 34) 6-6. SCHEMATIC DIAGRAM - MAIN Section (1/3) - (Page 34) (Page 33) (Page 32) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 32 32 IC B/D BOARD D REG W610 C BOARD JACK (3/3) 3 MAIN BOARD PT BOARD CN051 J MAIN1 (1/3) BOARD 8.6 4.3 4.3 4.3 4.3 4.3 4.3 4.7 0 0.7 0.4 4.7 0 0 5.1 5 3.2 0 8.8 8.8 0 18 5.1 1 3.2 100V C621 0.1 100V C623 0.1 1N5402-F46 D607 1N5402-F46 D608 1N5402-F46 D610 1N5402-F46 D609 25V 2200 C627 25V 1000 C628 2SC3052F-T1-LF Q606 2SC3052F-T1-LF Q605 R646 100 R652 100 R614 10k R613 10k 0.022 C642 56k R686 10k R677 10k R676 10k R691 TP627 TP628 TP629 TP630 TP631 TP632 TP633 TP634 TP635 R622 33k R617 10k R623 10k R624 10k R618 10k R625 33k R616 15k R619 15k 2.2k R690 27k R689 R620 4.7k R621 4.7k C611 0.22 C612 0.22 MC2838-T112-1 D617 47k R678 1 C695 1 C696 100k R729 100uH L701 16V 470 C761 25V 100 C760 4.7k R761 33k R762 1k R763 50V 1 C771 50V 1 C772 50V 1 C773 50V 1 C774 10V 47 C775 25V 22 C776 4.7k R779 4.7k R780 TP706 TP712 TP713 TP714 TP715 1 C786 1 C787 50V 3.3 C641 33k R781 56k R782 ISA1235AC1TP-1EF Q618 1N5402-F46 D623 1N5402-F46 D624 1N5402-F46 D625 1N5402-F46 D626 1 2 3 4 5 6 7 8 9 10 10P CN654 1 2 3 4 5 6 7 8 9 10 11 11P CN609 PGND VBUS(5V) VBUS(5V) DMP-RXD DMP-TXD DMP-DET DGND L+ L- R+ R- 1 2 3 4 5 6 7 8 9 CN605 9P AUDIO-L A-GND AUDIO-R HP-GND HP-L HP-R AMP-ON SP-RELAY GND 8 7 6 5 4 3 2 1 NJM4558V-TE2 IC770 V- V+ 1k R693 4.7k R692 R673 0 C622 ∗ ∗ C626 MA2J1110GLS0 D628 E ET601 MC2836 D606 100k R783 100k R784 100k R785 100k R786 22k R771 22k R772 22k R773 22k R774 22k R776 22k R775 22k R777 22k R778 ISA1235AC1TP-1EF Q761 10V 100 C762 RT1N141C-TP-1 Q762 R767 2W 0.47 47 R769 47 R759 2A02M D611 2A02M D612 1k R663 10V 47 C714 RK36LF-A4 D701 10k R768 1 2 3 4 5 BD9701CP-V5 IC701 VCC OUT GND INV STBY R770 0 1 2 3 3P W609 IN GND OUT JW788 22k R687 4.7k R685 MA2J1110GLS0 D631 100k R791 220k R792 MA2J1110GLS0 D791 2A02M D633 2A02M D634 C791 0.01 4 3 2 5 6 1 11 10 9 12 AUDIO-R AMP-ON DMP-TXD DMP-RXD SP-RELAY AMP-ON SP-RELAY DMP-DET/USB-RST DMP-R AUDIO-L DMP-L I-P-MONI O-POWER CD-AVR DMP-5V-DET HP-L HP-R 5V-ON/TP-REC-MUTE - + + - LINE AMP IC770 +5V REGULATOR IC701 (CHASSIS) (2/3) MAIN BOARD DC DETECT (US, CND) (US, CND) Q605, 606 PROTECT DETECT ∗C622, 626 3300 50V (AUS) 3300 63V (US, CND) Q761, 762 VOLTAGE DETECT 7 11 D B 16 6 9 17 10 F 5 15 3 G 1 12 C E 8 4 13 A 14 2 RELAY ON/OFF V STBY AC DETECT VH(AC) VH(AC) VL(AC) GND VL(AC) VH(AC) VH(AC) MC2838-T112-1 D602 50V 4.7 C632 2SC3052F-T1-LF Q619 RELAY DRIVE 16V 100 C631 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 18P CN901 PGND VBUS(5V) NC VBUS(5V) RXD TXD DET DGND WM DET NC L- R- L+ R+ WM AX WM TX VIDEO VGND TP902 TP903 TP904 TP905 TP906 TP907 TP908 TP909 TP910 TP911 TP912 TP913 0 R906 0 R905 0 R904 1 2 3 4 5 6 7 8 9 10 11 11P CN902 PGND VBUS(5V) VBUS(5V) DMP-RXD DMP-TXD DMP-DET DGND L+ L- R+ R- 0 R908 0 R907 DMP BOARD DMPORT (Page 38) 6-7. SCHEMATIC DIAGRAM - MAIN Section (2/3) - • See page 40 for IC Block Diagrams. (Page 39) (Page 33) (Page 31) (Page 38) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 33 33 IC B/D PANEL BOARD L CN301 CD BOARD M CN201 IC B/D MAIN3 (2/3) BOARD 2 21 BOARD MAIN (1/3) FM DETECTOR AM TRACKING COVERAGE FM FREQUENCY FM TRACKING AM FREQUENCY COVERAGE 0.9 4.7 4.7 4.7 4.8 4.2 3 1.8 1.8 1.6 0 1.7 2.2 2.9 1.4 1.2 2.2 2.2 2.4 4.8 4.8 2.2 2.2 3.7 3.6 0 2.3 2.3 0 0 0 2.9 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.6 3.3 3.3 7.4 8.8 6.9 2.9 4.8 5.5 3.4 7.2 3.2 3.8 3.8 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 21P CN608 AVDD R-OUT DAC-GND L-OUT A-GND RST BUS0 BUS1 BUS2 BUS3 BUCK CCE REQ SBSY D-GND D-OUT DVDD VM7V M-GND M-MUTE USB-RST 1N4002B D619 1N4002B D620 10V 220 C669 100 R722 1k R716 2SC3052F-T1-LF Q622 22k R720 10V 470 C673 16V 100 C667 100 R715 50V 1 C663 50V 1 C664 220 R707 220 R706 50V 10 C661 50V 1 C676 50V 1 C675 1 C658 1 C656 C654 1 C652 1 1 C650 1 C648 2200p C647 1k R697 2200p C657 1k R709 50V 1 C644 50V 1 C636 50V 1 C646 50V 1 C665 TP637 TP639 TP641 TP642 TP643 TP644 TP645 TP646 TP647 TP648 TP649 TP651 TP652 TP654 TP655 TP656 TP657 TP658 TP659 TP660 TP661 TP662 TP663 TP664 TP665 TP666 TP667 TP668 TP669 TP670 4.7k R700 4.7k R704 10k R696 10k R708 C649 220p 0.1 C679 0.1 C691 0.1 C693 0.1 C694 2200p C683 2200p C690 470p C689 0.01 C692 2200p C680 2200p C682 2200p C681 100 R732 100 R731 MAZ8039GHLS0 D618 0.047 C638 0.047 C637 0.047 C634 0.047 C633 22k R684 22k R681 0.022 C674 5.6k R751 5.6k R753 TP701 TP702 TP703 R701 10k R702 10k 1k R741 1k R742 4.7k R749 4.7k R750 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 31P CN803 16V C671 100 C838 1000p C827 0.047 C820 5p C814 ∗ 22 R804 TP688 R841 10k 10V 220 C833 R809 100 R824 470 R831 2.2k R810 4.7k C822 22 50V TP684 R811 100k R823 10k JW802 R844 2.2k R845 0 R838 22k 22 R808 R830 3.3k C815 ∗ R802 22 C837 10p C824 1 C845 0.22 R819 33k C817 0.01 R837 100k C803 1 C847 0.1 R816 1k C835 0.047 R829 4.7k 6 2 1 3 4 AM IF T801 R820 4.7k 31 32 33 34 35 36 1 2 3 4 5 6 30 29 28 27 26 8 7 9 10 11 21 22 23 24 25 12 13 14 15 20 19 16 17 18 LV23003VA IC801 AM RF-IN REG FM-MIX GND1 AM-MIX VCC1 AM IF-IN FM IF-IN P-DET P-COMP FM-DET L-OUT R-OUT VSS CE DI CL DO XIN XOUT VDD MPX-IN FM DET-OUT AM DET-OU AGC PD LP-IN LP-OUT BO1 BO2 AM-OSC FM-OSC VCC2 FM RF-OUT GND FM RF-IN R827 100k R840 0 C819 470p R812 47k R821 4.7k C841 1000p C823 220 10V R805 470k 16V 100 C802 C830 2p TP687 1 6 2 3 4 5 L805 C831 0.47 R813 470k CF G I O FL801 TP690 1 2 3 4 6 L801 C816 0.01 L803 C832 0.47 R842 0 TP686 L804 C848 0.1 R817 47k R826 1k R836 6.8k C844 0.1 SV230-TB-E D804 C808 18p C828 100p 2SC3052F-T1-LF Q801 R814 22k R807 22k R815 10k R806 47k R825 4.7k R832 1M C840 0.1 JW801 C826 1000p BPF G I O FL803 C829 0.47 R839 10 C804 18p CF801 C806 470p R846 10 1 3 4 6 2 L802 TP689 TP683 TP685 C836 0.022 R818 10k R843 100k JW804 C805 0.47 SV230-TB-E D803 2SC3052F-T1-LF Q802 C846 0.01 C843 0.1 R801 100 C807 1 R803 2.2k JW803 C821 2200p C834 10p R822 100 R847 0 1 2 3 3P CN801 AM GND FM X801 75MHz SVC347A-TL-E D801 R660 0 68 R717 68 R718 68 R719 KTC3203Y-AT Q624 C645 1000p C655 220p C666 1000p 10p C659 10p C660 E ET602 1000p C662 0.1 C850 470p C713 C809 1000p C810 1000p C811 1000p 28 27 26 25 24 23 22 7 6 5 4 3 2 1 21 20 16 17 18 19 13 12 11 10 8 9 15 14 BD3499FV-E2 IC602 TC/DMP-R TC/DMP-L TUNER-R TUNER-L CD-R CD-L AUDIO-R AUDIO-L SEL-L SEL-R VOL-R VOL-L TRE-L TRE-R BASSB-L BASSA-L BASSA-R BASSB-R OUT-L SB-L SURR SB-R OUT-R VCC SCLK SDATA GND FIL 2200p C640 2200p C639 R788 15k R787 15k 470p C704 0.068 C684 0.068 C686 0.068 C685 0.068 C687 5.6k R752 5.6k R754 2200p C703 0.015 C789 0.015 C788 1PS226-115 D802 1PS226-115 D805 1PS226-115 D806 7 9 10 11 8 12 O-CD-SBSY O-CD-CCE I/O-BUS3 I/O-BUS1 O-CD-REQ CD-R CD-L AUDIO-L AUDIO-R CD-R CD-L TUNER-R TUNER-L I/O-BUS2 I/O-BUS0 TUNER-R I2C-CLK AMP-L AMP-R DMP-L DMP-R O-CD-M-MUTE O-CD-BUCK TU-CE TU-DI TU-CLK TU-ANSD TU-DO I2C-DATA I2C-CLK 5V-ON/TP-REC-MUTE O-POWER O-CD-M-MUTE AMP-ON O-CD-SBSY O-CD-REQ O-CD-CCE O-CD-BUCK I/O-BUS3 I/O-BUS2 I/O-BUS1 I/O-BUS0 I-P-MONI O-CD-ON DMP-TXD DMP-RXD TU-CLK TU-ANSD SW-ON O-CD-ON DMP-DET/USB-RST DMP-5V-DET CD-AVR O-CD-RST O-CD-RST DMP-DET/USB-RST DMP-DET/USB-RST TU-CE TU-DI I2C-DATA TU-DO TUNER-L MIX, PLL, IF AMP IC801 AM/FM-DET, OSC, ELECTRICAL VOLUME IC602 INPUT SELECTOR, FM/AM ANTENNA (CHASSIS) MAIN BOARD (3/3) REGULATOR CONTROL +3.3V REGULATOR 0.01 (US, CND) 4700p (AUS) ∗C814, 815 +5V REGULATOR +3V REGULATOR 7 11 D B 6 9 10 F 5 L K 3 G 1 12 C E H 8 J 4 13 A 14 2 I NC O-DMP-RXD I-DMP-5V-DET I-DMP-TXD M-GND V-STBY D-GND O-CD-ON I-P-MONI O-CD-RST I/O-BUS0 I/O-BUS1 I/O-BUS2 I/O-BUS3 O-CD-BUCK O-CD-CCE O-CD-REQ O-CD-SBSY O-AMP-ON O-CD-M-MUTE I-DMP-DET/O-USB-RST O-POWER 5V-ON/O-TP-REC-MUTE I/O-I2C-CLK SW-ON/I-TP-STATE I/O-I2C-DATA I-TU-DO I-TU-ANSD O-TU-CLK O-TU-DI O-TU-CE 1N4002B D615 6-8. SCHEMATIC DIAGRAM - MAIN Section (3/3) - (Page 31) • See page 40 for waveforms. • See page 40 for IC Block Diagrams. (Page 37) (Page 29) (Page 32) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 34 34 IC152 B E B E Q151 Q152 R151 R152 R153 R154 R155 R156 R159 R160 R161 R162 R163 R164 R171 R172 R173 R175 R176 R177 R178 R181 R182 R183 R184 R185 R186 C153 C154 C155 C156 R195 C159 R196 C160 C161 C162 C166 C173 C174 C175 C176 C178 D151 D152 JR151 15 1 1 6 4 5 1 2 CN151 CN152 R179 R180 C151 C152 C157 C158 C169 C170 JW151 JW152 JW153 JW154 JW155 JW156 JW157 HI AMP BOARD E MAIN BOARD CN632 F MAIN BOARD CN602 1-875-524- 11, 12 (11, 12) A B 1 2 3 4 MAIN BOARD (1/3) CN602 F MAINE CN632 (1/3) BOARD 0 0 0 0 2 0 0 35.2 0 0 0 0 36.7 -36.8 -35.2 0 0 0 0 C166 4700p 50V C151 1 50V C152 1 R175 220 R177 220 R178 220 R176 220 2W R179 0.22 2W R180 0.22 R185 2.2k R186 2.2k 2SA2026 Q152 MC2838-T112-1 D151 1 9 8 7 6 5 4 3 2 15 14 13 12 11 10 IC152 STK433-090-E -PRE -VCC +VCC LO+ LO- RO+ RO- +PRE SUB GND LI+ LI- ST-BY RI- RI+ C156 100p C155 100p C159 3p C160 3p C170 R173 1k R164 47k R163 47k R155 47k R156 47k R151 220 R152 220 C153 470p C154 470p C178 0.1 R159 1k R160 1k C161 0.01 C162 0.01 0.1 C174 0.1 C173 R172 100 R181 1.2k R182 1.2k R183 22k R184 22k TP151 TP152 TP153 TP154 TP155 TP156 TP157 TP158 TP159 TP160 R162 470 R161 470 1 2 3 4 5 5P CN152 MA2J1110GLS0 D152 1 2 3 4 5 6 6P CN151 50V C158 1 50V C157 1 0 R171 470 R196 470 R195 C175 0.1 C176 0.1 R153 22k R154 22k Q151,152 OVER LOAD DETECT POWER AMP IC152 HI AMP BOARD 7 D B 6 9 10 5 3 1 C E 8 A 2 PA-GND OUT-R +VH -VH OUT-L NC 2SA2026 Q151 C169 PROTECT AMP-ON IN-L A-GND IN-R ∗ ∗ ∗ C169,170 100 50V (AUS) 100 63V (US,CND) 6-9. PRINTED WIRING BOARD - HI AMP Board - (Page 30) • : Uses unleaded solder. • See page 27 for Circuit Boards Location. 6-10. SCHEMATIC DIAGRAM - HI AMP Board - (Page 31) (Page 31) (Page 30) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 35 35 IC101 1 19 2 1 6 7 1 9 CN103 CN105 R129 R130 R137 R138 C101 C102 C107 C108 C111 C114 C119 C120 JW101 JW102 JW103 JW104 JW105 JW106 JW107 JW108 JW109 JW110 JW111 JW112 B E B E B E Q101 Q102 Q103 R101 R102 R103 R104 R105 R106 R107 R108 R109 R110 R111 R112 R113 R114 R115 R116 R117 R118 R119 R120 R121 R122 R123 R125 R126 R127 R128 R131 R132 R133 R134 R135 R136 R139 C103 R140 C104 R141 C105 R142 C106 R143 R144 R145 C109 R146 C110 C112 C113 C115 C116 C123 C124 C125 C126 C127 C128 D101 D102 D103 JR101 JR102 LOW AMP BOARD G MAIN BOARD CN653 H MAIN BOARD CN643 1-875-524- 11, 12 (11, 12) A B 1 2 3 4 BOARD (1/3) CN653 G MAIN MAINH CN643 (1/3) BOARD 0 35.2 0 0 0 -35.2 2 0 -36.8 0 0 0 36.7 0 0 0 0 0 0 0 0 0 0 0 0 0 C116 4700p 50V 1 C101 50V 1 C102 220 R125 220 R127 220 R128 220 R126 2W 0.22 R129 2W 0.22 R130 2.2k R135 2.2k R136 2SA2026 Q101 2SA2026 Q102 MC2838-T112-1 D101 C106 100p C105 100p 3p C109 3p C110 C120 C119 ∗ ∗ ∗ 1k R123 47k R114 47k R113 47k R107 47k R108 25V 47 C108 25V 47 C107 470p C103 470p C104 0.1 C128 1k R109 1k R110 0.1 C124 0.1 C123 C119,120 100 50V (AUS) 100 63V (US,CND) C113 100p 2SA2026 Q103 2.2k R141 470p C112 47k R121 50V 1 C111 25V 47 C114 3p C115 1k R119 47k R118 0 R101 0 R102 0 R115 22k R140 22k R133 22k R134 1.2k R132 1.2k R131 R122 100 1 2 3 4 5 6 7 8 9 9P CN105 TP101 TP102 TP103 TP104 TP105 TP106 TP107 TP108 TP109 TP110 TP111 TP112 TP113 470 R120 470 R112 470 R111 1 2 3 4 5 6 7 7P CN103 PROTECT AMP-ON IN-L A-GND IN-R SW-A-GND SW-IN MA2J1110GLS0 D102 MA2J1110GLS0 D103 0 R143 2W 0.47 R137 2W 0.47 R138 220 R104 220 R103 22k R106 R105 22k 22k R117 220 R116 0 R144 1.5k R139 1.5k R142 1 6 5 4 3 2 11 10 9 8 7 12 16 15 14 13 19 18 17 IC101 STK433-330-E -PRE -VCC +VCC LO+ LO- RO+ RO- +PRE SUB GND LI+ LI- ST-BY RI- RI+ SWI+ SWI- SWO+ SWO- 470 R145 470 R146 C126 0.1 C125 0.1 C127 0.1 LOW AMP BOARD POWER AMP IC101 OVER LOAD DETECT Q101-103 7 D B 6 9 10 5 3 1 C E 8 4 A 2 PA-GND OUT-R +VH -VH OUT-L +VH OUT-SW OUT-SW -VH (Page 31) (Page 30) 6-11. PRINTED WIRING BOARD - LOW AMP Board - • : Uses unleaded solder. • See page 27 for Circuit Boards Location. 6-12. SCHEMATIC DIAGRAM - LOW AMP Board - (Page 30) (Page 31) Ref. No. Location • Semiconductor Location D101 A-2 D102 B-4 D103 A-4 IC101 B-3 Q101 A-2 Q102 B-2 Q103 B-4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 36 36 IC301 IC302 IC303 51 50 31 1 100 30 80 81 B E B E B E B E B E B E B E B E B E B E B E B E B E R400 R401 R402 R405 R406 B E B E B E R412 R413 R414 R415 R416 R417 R418 R419 R420 R421 R422 R424 R426 R428 R429 R433 R434 R435 R441 R442 R443 R444 R445 R446 R447 R448 Q301 Q303 Q304 Q305 Q306 Q307 Q308 Q310 Q311 Q312 Q313 Q314 Q315 Q316 Q317 Q318 FB301 R301 R302 R303 R304 R305 R306 R307 R308 R309 R310 R311 R312 R313 R314 R315 R316 R317 R318 R319 R320 R321 R322 R323 R324 R325 R326 R327 R328 R329 R330 R331 R332 R333 R334 R335 R336 R337 R338 R339 C301 R340 C304 R341 R342 R343 R344 C308 R345 R346 R347 R348 R349 C310 C311 C312 C313 R350 C314 R351 C315 R352 C316 R353 C317 R354 R355 C319 R356 R357 R358 R359 C320 C321 R360 R361 R362 R363 R364 C328 R365 R366 R367 R368 R369 C330 C332 C333 R370 R371 R372 R373 R374 C338 R375 R376 R377 R378 R379 C340 C341 C342 R380 C344 R381 C345 R382 C346 R383 C347 R384 C348 R385 R386 R387 R389 C351 C353 C354 R390 C355 R391 C356 R392 R396 D301 D302 D303 D304 D305 D307 JR301 JR302 JR303 JR304 JR305 JR307 JR308 JR309 JR310 JR311 JR313 JR315 B E E B 1 37 30 31 1 2 1 2 12 13 9 1 3 2 1 4 5 1 1 2 JW370 JW371 JW372 JW373 JW374 JW375 JW376 JW377 JW378 JW379 JW380 JW381 JW382 JW383 JW384 JW385 JW386 JW387 JW388 JW389 JW390 JW391 JW392 JW393 JW394 JW395 JW396 JW397 JW398 JW399 JW400 JW401 JW402 JW403 JW404 JW405 JW406 Q302 Q309 SW303 SW304 SW305 W301 SW311 SW312 SW313 SW314 SW315 SW316 SW318 SW319 CN301 CN302 CN303 CN305 CN311 C302 C303 C305 C306 C309 X301 X302 S301 S301 C343 C352 JW301 JW302 JW303 C357 JW304 JW305 JW306 JW307 JW308 JW309 JW310 JW311 D306 JW312 JW313 JW314 JW315 JW316 JW317 JW318 JW319 JW320 JW321 JW322 JW323 JW324 JW325 JW326 JW328 JW329 JW330 JW331 JW332 JW333 JW334 JW335 JW336 JW337 JW338 JW339 JW340 JW341 JW342 JW343 JW344 JW345 JW346 JW347 JW348 JW349 JW350 JW351 JW352 JW353 JW354 JW355 JW356 JW357 JW358 JW359 JW360 JW361 JW362 JW363 JW364 JW365 JW366 JW367 JW368 JW369 LCD301 SW317 PANEL BOARD STANDBY LED301 � 1 3 B KEY POWER BOARD W401 L MAIN BOARD CN803 � –TUNING ��� LIQUID CRYSTAL DISPLAY (AUS) � FUNCTION EQ DSGX PLAY MODE/ TUNING MODE VOLUME ROTARY ENCODER 1 3 (CHASSIS) CD MECHANISM DECK Q MOTOR BOARD CN001 – + DISPLAY SW303 - 305, SW311 - 319 (US, CND) (AUS) (US, CND) ��� TUNING + A B C D E F G 1 2 3 4 5 6 1-875-519- 11, 12 (11, 12) A KEY CD BOARD (Page 40) (Page 30) (Page 38) Ref. No. Location • Semiconductor Location D301 D-4 D302 D-2 D303 D-3 D304 C-4 D305 E-5 D306 E-2 D307 E-3 IC301 B-3 IC302 B-5 IC303 E-2 LED301 B-1 Q301 B-1 Q302 D-4 Q303 D-4 Q304 D-3 Q305 D-2 Q306 D-2 Q307 E-5 Q308 F-5 Q309 E-5 Q310 E-5 Q311 F-5 Q312 G-5 Q313 F-4 Q314 F-4 Q315 F-5 Q316 F-5 Q317 F-4 Q318 F-4 6-13. PRINTED WIRING BOARD - PANEL Board - • : Uses unleaded solder. • See page 27 for Circuit Boards Location. (Page 38) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 37 37 B A 31 32 CN803 MAIN (3/3) BOARD L BOARD MOTOR CN001 Q POWER KEY BOARD W401 W403 KEY CD BOARD IC B/D 3 4.5 4.5 7.5 7.5 0 0 0.1 0.7 3.9 8.1 7.5 5.7 4.5 3.9 0 0.7 3.3 0 3.1 0 4.9 8.1 7.7 4.9 5.1 7.1 7.1 0 5.1 0 0 0 4.8 4.8 4.9 4.9 4.8 4.8 4.8 0 4.8 0 4.9 4.8 4.8 4.9 4.8 4.8 4.8 4.8 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.1 1.3 3.1 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 3.1 1.3 1.3 1.3 1.3 1.3 1.3 2.6 0 0 0 3.1 0 3.1 3.1 3.3 3.3 1 3 3.3 0 3.3 3.3 0 0.9 3.3 3.3 1.5 3 2.9 3.3 3.1 2.8 1.3 3.1 3.1 0 0 3.3 0 0 0 3.1 0 0 1.4 1 3.1 0 0 0 0 0 0 3.3 0 3.1 3.1 3.1 3.1 3.3 3.3 3.1 3.1 2SC3052F-T1-LF Q304 2SC3052F-T1-LF Q303 R332 10k C301 0.1 2SC3052F-T1-LF Q305 Q306 RT1N441C-TP-1 R337 220 R338 2.2 R339 2.2 R340 4.7k R342 220k C308 0.1 R343 470k Q308 RT1N441C Q310 2SC3052 C309 50V 22 R346 47k R347 470 R354 47k R348 47k R349 470 R350 47k R351 470 R352 47k R353 470 R358 47k R361 47k R357 47k R362 22k R364 22k R363 22k R367 22k R365 22k C320 22p C321 0.1 R327 100 R326 100 R325 10 Q301 2SC3052F-T1-LF R328 10k R381 10k C313 0.22 R380 470 R384 10k R383 10k R402 100k C338 1000p 100 R301 R302 100 R303 100 R304 100 R305 100 R306 100 R307 100 R308 100 R309 100 R310 100 R311 470 R312 100 R313 100 R314 100 R315 100 R316 100 R317 100 R318 100 R319 100 R320 100 R321 100 R322 100 R323 100 C310 0.1 C311 0.1 C312 0.1 C330 0.1 1L0341Y23E0CA602 LED301 Q309 KTA1273 R341 33k Q317 2SC3440 Q315 2SC3440 Q318 2SC3440 Q316 2SC3440 Q313 2SA1365 Q311 2SA1365 Q314 2SA1365 Q312 2SA1365 KTA1271Y-AT Q302 R334 10k R331 100k C302 10 50V C341 0.1 R345 4.7k R344 2.7k R324 100 R333 100k R336 10k C305 10 50V C303 10 50V C317 1000p R369 1k R370 1k R371 1k R372 1k R374 1k R385 1k R386 1k R387 1k 27k R419 100k R420 C332 0.01 R390 10k R392 10k R389 ∗ R391 (AUS) 1k TP301 TP302 TP303 TP304 TP305 TP306 TP307 TP308 TP309 TP310 TP311 TP312 TP313 TP314 TP315 TP316 TP317 TP318 TP319 TP320 TP321 TP322 TP323 TP324 TP325 TP326 TP327 TP328 TP329 TP330 TP331 TP333 TP334 TP335 TP336 TP337 TP38 TP339 TP340 TP341 TP343 R329 2.2k 1 2 3 4 5 6 7 8 9 10 11 12 13 13P CN302 R330 680 R421 10k 50V C343 22 C314 0.047 C315 0.047 C316 0.047 C328 0.047 MAZ8043GMLS0 D301 R414 2.2k R376 10k R377 10k R379 68k TP344 TP345 TP346 R382 10k 4.7k R422 C344 0.047 R335 22k TP348 47k R424 TP350 R368 10k R426 100k R366 10k R428 47k 1.2k R405 1.5k R406 C345 0.047 R375 0 R373 0 1.2k R412 1.5k R413 R415 2.7k R416 3.9k R417 6.8k R418 15k 0.047 C346 Q307 ISA1235 C304 0.1 R360 1k R359 1k R356 1k R355 1k C306 6.3V 470 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 31P CN301 R400 1k R401 1k R433 470 R434 470 R435 470 C347 470p C348 470p 1 2 9 8 7 6 5 4 3 BA6956AN IC303 VREF OUT2 RNF OUT1 VM VCC FIN GND RIN C351 0.1 C352 50V 10 C353 0.1 R378 33k 1N4002B D306 R444 4.7k R445 4.7k R441 39k R442 22k R443 10k MC2836 D303 1 7 8 9 10 11 12 5 6 14 19 18 17 13 16 20 15 23 24 27 21 28 26 25 22 31 33 35 30 32 36 34 29 2 3 4 37 LCD301 4.7k R446 4.7k R447 10k R448 10k R429 1 3 2 MA2J1110GLS0 D305 MA2J1110GLS0 D302 MA2J1110GLS0 D304 FB301 C342 1000p 4700p C354 4700p C355 C356 0.1 32.768kHz X301 C319 18p R396 330k S301 2 3 1 50V C357 22 MA2J1110GLS0 D307 6MHz X302 1 2 3 4 5 5P CN311 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 MB90F831PF-G-SPE1 IC301 SEG32 O-AMP-ON O-POWER O-CD-ON I-3CD-SW3/O-CDM-CLOSE I-3CD-SW2/NC I-3CD-SW1/O-CDM-OPEN O-3CD-M1+/O-CDM-M1+ I-RMC O-3CD-M1-/O-CDM-M1- O-3CD-M2+/NC O-3CD-M2-/NC XOA X1A VCC VSS I/O-CD-BUS0 I/O-CD-BUS1 I/O-CD-BUS2 I/O-CD-BUS3 I-3CD-CHACK I-3CD-STOCK O-DR-MUTE I-REQ O-CD-BUCK O-CD-CCE O-CD-RST O-LED-STBY I-USB-TXD/I-DMP-TXD I-USB-DO/I-DMP-5V-DET O-USB-RXD/O-DMP-RXD AVCC I-TU-DO O-USB-DI/5V-ON/O-TP-REC-MUTE AVSS I-P-MONI I-KEY1 I-KEY2 I-TU-ANSD O-USB-SEL1_2/O-SW-ON/I-TP-STATE I-KEY-WAKE-UP/VOL I-HOLD O-CD-SBSY GND I-DMP-DET/O-USB-RST I-MODEL I-SUFFIX I-1CD-CLOSE_OPEN/NC I/O-I2C-DATA I/O-I2C-CLK MD2 MD1 MD0 I-RST O-TU-CE O-TU-CLK O-TU-DI VLCD COM0 COM1 CMO2 CMO3 SEG0 SEG1 VCC VSS SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 VCC VSS X1 X0 SEG25 SEG26 SEG27 SEG28 SEG29 SEG30 SEG31 C340 0.1 1 2 CN303 2P 1 2 3 3P CN305 SEG30 SEG29 SEG28 SEG27 SEG26 SEG25 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 I-SW2 I-CHACK I-SW1/CDM-OPEN I-SW3/CDM-CLOSE COM0 COM1 COM2 COM3 SEG0 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 SEG25 SEG26 SEG27 SEG28 SEG29 SEG30 SEG31 M2+ M1- SEG31 I-HOLD O-AMP-ON 5V-ON/O-TP-REC-MUTE O-M1+/CDM-M+ O-M1-/CDM-M- O-M2+ O-M2- LED-STBY O-CD-BUCK O-CD-CCE M2- M2+ M1- M1+ O-DR-MUTE SEG32 SEG32 SEG7 SEG6 SEG5 SEG4 SEG3 SEG2 SEG1 SEG0 COM3 COM2 COM1 COM0 O-TU-DI O-TU-CLK O-CD-SBSY I-MODEL I-SUFIX I-KEY-WAKE-UP/VOL I-CLOSE/OPEN O-M1-/CDM-M- O-M1+/CDM-M+ I-CLOSE/OPEN I-STOCK I-KEY1 O-POWER I-KEY2 LED-STBY I-DMP-5V-DET I-RST O-TU-CE I-RST SEG16 SEG17 SEG20 SEG21 SEG22 SEG23 SEG24 SEG18 SEG19 I-SW3/CDM-CLOSE I-SW2 I-SW1/CDM-OPEN I-RMC O-CD-ON I-REQ O-CD-RST I-STOCK I-CHACK I/O-BUS3 I/O-BUS2 I/O-BUS1 I/O-BUS0 I-DMP-TXD O-DMP-RXD I-TU-DO I-P-MONI I-KEY1 I-KEY2 I-TU-ANSD O-SW-ON/I-TP-STATE I-KEY-WAKE-UP/VOL I-HOLD I/O-I2C-CLK I/O-I2C-DATA I-MODEL O-M2- O-M2+ O-M1-/CDM-M- O-M1+/CDM-M+ M2- I-RMC O-SW-ON/I-TP-STATE I/O-I2C-DATA I-TU-DO I-TU-ANSD O-TU-CE I/O-I2C-CLK 5V-ON/O-TP-REC-MUTE O-POWER I-DMP-DET/USB-RST O-DR-MUTE O-AMP-ON O-CD-SBSY I-REQ O-CD-ON I-P-MONI O-CD-RST I/O-BUS0 I/O-BUS1 O-CD-CCE O-CD-BUCK I/O-BUS3 I/O-BUS2 I-DMP-TXD I-DMP-5V-DET O-DMP-RXD M1+ I-DMP-DET/USB-RST I-SUFIX LIQUID CRYSTAL DISPLAY (CHASSIS) W301 IC301 SYSTEM CONTROLLER IC303 MOTOR DRIVE DISPLAY ROTARY ENCODER SW319 VOLUME - TUNING SW305 SW303 TUNING + SW304 FUNCTION SW316 SW311 TUNING MODE PLAY MODE/ SW315 SW314 EQ SW318 - SW313 DSGX SW317 SW312 + MECHANISM DECK CD PANEL BOARD O-TU-DI O-TU-CLK / STANDBY Q307-310 REGULATOR MOTOR DRIVE Q311-318 +4V REGULATOR Q302-304 LED DRIVE VOLTAGE DETECT Q305,306 ∗R389 8.2k (AUS) 2.2k (US, CND) (AUS) (US, CND) 7 11 D B 16 6 9 17 10 F 5 15 L K 3 G 1 18 12 C M E H 8 J 4 13 A 14 2 I VCC OUT GND NJL24H400B IC302 IC302 REMOTE CONTROL RECEIVER M2- M2+ M1- M1+ SW-COM SW3 SW1 I-CHACK SW2 I-CLOSE I-STOCK I-OPEN NC O-TU-CE O-TU-DI O-TU-CLK I-TU-ANSD I-TU-DO I/O-I2C-DATA O-SW-ON/I-TP-STATE I/0-I2C-CLK 5V-ON/O-TP-REC-MUTE O-POWER I-DMP-DET/O-USB-RST O-CD-M-MUTE O-AMP-ON O-CD-SBSY O-CD-REQ O-CD-CCE O-CD-BUCK I/O-BUS3 I/O-BUS2 I/O-BUS1 I/O-BUS0 O-CD-RST I-P-MONI O-CD-ON D-GND V-STBY M-GND I-DMP-TXD I-DMP-5V-DET O-DMP-RXD NC M+ M- DGND CLOSE SW OPEN SW KEY-1 GND KEY-0 GND KEY-SW-ON (Page 33) 6-14. SCHEMATIC DIAGRAM - PANEL Board - • See page 40 for waveforms. • See page 40 for IC Block Diagrams. • See page 43 for IC Pin Function Description. (Page 40) (Page 38) (Page 38) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 38 38 R407 R408 R409 R410 R411 TP415 TP416 1 2 SW308 SW309 SW310 SW306 SW306 SW307 SW308 1 3 SW301 SW302 W401 IC601 C698 1 3 1 3 JW614 W610 JW491 R491 R492 C491 C495 C496 KEY CD BOARD 1-875-521- 11, 12 (11, 12) A PANEL BOARD CN303 DISC SKIP/ EX-CHANGE DISC 1 CD DISC 2 DMPORT DISC 3 (US, CND) � � SW301, 302, SW306 - 310 (US, CND) (US, CND) (AUS) KEY POWER BOARD STANDBY SUBWOOFER ON/OFF JACK BOARD J491 J492 AUDIO IN PHONES 9 1 C MAIN BOARD CN605 1-875-520- 11, 12 (11, 12) B PANEL BOARD CN305 REG BOARD 1-875-518- 11, 12 (11, 12) D MAIN BOARD W609 A B C D E F G 1 2 3 4 5 6 A CN303 BOARD PANEL BOARD PANEL B CN305 (2/3) C CN605 BOARD MAIN MAIND W609 BOARD (2/3) 8.9 17.1 R407 2.2k TP415 TP416 R408 2.7k R409 3.9k R410 6.8k R411 15k 2P W403 1 KEY-1 2 GND SW308 DISC 3 DISC 2 SW307 DISC 1 SW306 KEY CD BOARD DISC SKIP/ EX-CHANGE SW310 SW309 CD DMPORT (AUS) (US, CND) D B 6 F 5 3 G 1 C E H 4 A 2 I TP409 TP410 TP411 SW302 1 2 3 3P W401 KEY-0 GND KEY-SW-ON / STANDBY SW301 KEY POWER BOARD ON/OFF SUBWOOFER J491 C491 0.1 C495 1000p C496 1000p TP491 TP492 TP493 TP494 TP495 TP496 TP497 TP498 J492 R491 22k R492 22k 1 2 3 4 5 6 7 8 9 9P CN496 JACK BOARD AUDIO IN PHONES 0.1 C698 I O G 1 2 3 3P W610 IN GND OUT REG BOARD 1 2 3 IC601 TA7809S +9V REGULATOR IC601 AUDIO-L A-GND AUDIO-R HP-GND HP-L HP-R AMP-ON SP-RELAY GND (Page 37) (Page 32) 6-16. SCHEMATIC DIAGRAM - KEY Section - (Page 37) (Page 32) 6-15. PRINTED WIRING BOARDS - KEY Section - • : Uses unleaded solder. • See page 27 for Circuit Boards Location. (Page 36) (Page 30) (Page 36) (Page 30) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 39 39 1 10 1 3 PT005 PT006 CN051 CN053 RY001 JW052 W001 C051 C052 D051 D052 D055 PT BOARD SUB POWER TRANSFORMER MAIN POWER TRANSFORMER NOT REPLACEABLE: BUILT IN TRANSFORMER ∗ ∗ (CHASSIS) J MAIN BOARD CN654 (AC IN) 1-875-523- 11, 12 (11, 12) A B C D E F 1 2 3 4 5 BOARD J CN654 MAIN (2/3) C051 0.1 MC2836 D051 RY001 1 3 3P CN053 1 2 3 4 5 6 7 8 9 10 10P CN051 RELAY ON/OFF V STBY AC DETECT VH(AC) VH(AC) VL(AC) GND VL(AC) VH(AC) VH(AC) 1 3 4 5 6 7 8 9 2 C052 0.1 PT006 1 10 11 12 13 9 5 6 W001 (CHASSIS) PT BOARD (AC IN) MAIN POWER TRANSFORMER ∗ BUILD IN TRANSFORMER ∗NOT REPLACEABLE: 7 D B 6 5 3 1 C 4 A 2 LIVE NEUTRAL PT005 SUB POWER TRANSFORMER MC2838-T112-1 D052 MC2838-T112-1 D055 (Page 32) 6-17. PRINTED WIRING BOARD - PT Board - • : Uses unleaded solder. • See page 27 for Circuit Boards Location. (Page 30) 6-18. SCHEMATIC DIAGRAM - PT Board - w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P HCD-EC98P 40 40 M001 CN001 S001 5P OPEN SW CLOSE SW OPEN CLOSE (LOADING) DGND CLOSE OPEN CD TRAY OPEN/CLOSE DETECT PANEL BOARD CN311 Q CN001 S001 A B 1 2 3 4 5 6 7 1-866-548- 21 (21) MOTOR BOARD Q PANEL BOARD CN311 DISC TRAY OPEN/CLOSE DETECT OPEN ��CLOSE M M001 (LOADING) (Page 37) 6-19. PRINTED WIRING BOARD - MOTOR Board (US, Canadian models) - 6-20. SCHEMATIC DIAGRAM - MOTOR Board (US and Canadian models) - • : Uses unleaded solder. • See page 27 for Circuit Boards Location. • Waveforms – CD Board – � IC101 �� (XO) (CD play mode) 1 V/DIV, 20 ns/DIV 59.1 ns 3.3 Vp-p � IC101 �� (RFi) (CD play mode) 200 mV/DIV, 500 ns/DIV 0.5 to 1.3 Vp-p �� IC801 �� (XIN) 500 mV/DIV, 5 μs/DIV 13.3 μs 1 Vp-p �� IC301 �� (X1) 1 V/DIV, 50 ns/DIV 166 ns 3 Vp-p �� IC301 �� (X1A) 1 V/DIV, 10 μs/DIV 30.5 μs 3 Vp-p – MAIN Board – – PANEL Board – (Page 36) • IC Block Diagrams – CD Board – IC201 TK63115SCL-G@GT IC401 BA5826SFP-E2 1 2 3 4 5 6 7 8 9 10 11 12 13 14 28 27 26 24 23 22 21 20 19 18 17 16 15 25 LEVEL SHIFT LEVEL SHIFT THERMAL SHUT-DOWN REGULATOR BIAS TRAP LEVEL SHIFT MUTE LEVEL SHIFT D.BUFF D.BUFF D.BUFF GND IN4 IN4' BIAS VCC VCC IN3' IN3 VO3(+) VO3(–) VO4(–) VO4(+) RESETt OPIN VO1(–) REGB VO1(+) IN1 RESET REGOUT MUTE GND IN2' IN2 VO2(+) VO2(–) GND OPOUT D.BUFF D.BUFF D.BUFF D.BUFF D.BUFF REGULATOR VCC VCC THERMAL & OVER CURRENT PROTECTION VOLTAGE REFERENCE ON/OFF CONTROL VIN 1 GND 2 VCONT 3 NC 4 VOUT 5 + – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 41 – MAIN Board – IC602 BD3499FV-E2 1 A1 18 BCB1 17 BCA1 16 BCA2 20 SB2 19 OUT2 22 SB1 21 SR 24 VCC 23 OUT1 26 SDA 25 SCL 28 FIL 27 GND 15 BCB2 2 A2 3 B1 5 C1 6 C2 4 B2 11 VOL1 12 VOL2 13 TC2 14 TC1 7 D1 8 D2 9 SEL2 10 SEL1 INPUT SELECTOR TREBLE/ BASS INVERTER VOLUME INPUT GAIN SURROUND PC BUS LOGIC IC701 BD9701CP-V5 VCC 1 OUT 2 GND 3 INV 4 STBY 5 REGULATOR STANDBY VOLTAGE REFERENCE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 42 IC801 LV23003VA 1 AM RF-IN 3 FM-MIX 2 REG 6 VCC1 4 GND1 AM RF AM MIX AM DET AM IF FM DET FM IF SD FF VCO FF FF ST TRIG STSW FM MIX FM OSC AM OSC OSC BUFFER FM S-METER DECODER PHASE COMPARATOR MUTE PROGRAMMABLE DIVIDER REFERENCE DIVIDER UNLOCK DETECTOR SWALLOW COUNTER POWER ON RESET DATA SHIFT REGISTER LATCH PHASE DETECTOR CHARGE PUMP UNIVERSAL COUNTER 5 AM-MIX 7 AMIF-IN 8 FMIF-IN 9 P-DET 10 P-COMP 11 FM-DET 12 L-OUT 13 R-OUT 14 VSS FM RF 36 FM RF-IN 35 GND2 34 FMRF-OUT 33 VCC2 30 BO2 29 BO1 32 FM-OSC 31 AM-OSC 28 LP-OUT 27 LP-IN 23 FMDET-OUT 15 CE 16 DI 17 CL 18 DO 22 MPX-IN 19 XIN 20 XOUT 21 VDD 26 PD 25 AGC 24 AMDET-OUT LOW-PASS FILTER AGC IF BUFFER PIROT DET CCB I/F 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN – PANEL Board – IC303 BA6956AN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 43 • IC Pin Function Description CD BOARD IC101 TC94A70FG-006 (D, HZ (CD-MP3 PROCESSOR) Pin No. Pin Name I/O Description 1 AVSS3 - Ground terminal 2 RFZi I RF ripple zero crossing signal input terminal 3 RFRP O RF ripple signal output terminal 4 SBAD/RFDC O Sub beam addition signal or RF peak detection signal output terminal Not used 5 FEi O Focus error signal output terminal Not used 6 TEi O Tracking error signal output terminal 7 TEZi I Tracking error zero crossing signal input terminal 8 AVDD3 - Power supply terminal (+3.3 V) 9 FOo O Focus coil drive signal output terminal 10 TRo O Tracking coil drive signal output terminal 11 VREF I Reference voltage (+1.65V) input terminal 12 FMo O Sled motor drive signal output terminal 13 DMo O Spindle motor drive signal output terminal 14 VSSP3 - Ground terminal 15 VCOi I VCO control voltage input terminal 16 VDDP3 - Power supply terminal (+3.3 V) 17 VDD1 - Power supply terminal (+1.5 V) 18 VSS - Ground terminal 19 FGiN I FG signal input terminal Not used 20 IO0 (/HSO) I Disc inner position detection signal input terminal 21 IO1 (/UHSO) O Not used 22 XVSS3 - Ground terminal 23 XI I System clock input terminal (16.9344 MHz) 24 XO O System clock output terminal (16.9344 MHz) 25 XVDD3 - Power supply terminal (+3.3 V) 26 DVSS3 - Ground terminal 27 RO O Audio data (R-ch) output to the input selector 28 DVDD3 - Power supply terminal (+3.3 V) 29 DVR O Reference voltage (+1.65V) output terminal 30 LO O Audio data (L-ch) output to the input selector 31 DVSS3 - Ground terminal 32 VDDT3 - Power supply terminal (+3.3 V) 33 VSS1 - Ground terminal 34 VDD1 - Power supply terminal (+1.5 V) 35 VDDM1 - Power supply terminal (+1.5 V) 36 SRAMSTB I S-RAM standby mode control signal input terminal Fixed at "L" in this set 37 XRST I Reset signal input from the system controller "L": reset 38, 39 BUS0, BUS1 I Serial data input from the system controller 40 BUS2 (SO) I Serial data input from the system controller 41 BUS3 (SI) I Serial data input from the system controller 42 BUCK (CLK) I Serial data transfer clock signal input from the system controller 43 XCCE I Chip enable signal input from the system controller 44 TEST I Setting terminal for test mode Normally fi xed at "L" 45 IRQ I Interrupt request signal input terminal Not used 46 AoUT3 (PO4) O Request signal output terminal Not used 47 AoUT2 (PO5) O Audio data output terminal Not used 48 PIO0 O Request signal output to the system controller 49, 50 PIO1, PIO2 O Not used 51 PIO3 I Gate signal input terminal Not used 52 VSS1 - Ground terminal 53 VDDT3 - Power supply terminal (+3.3 V) 54 SBSY O Subcode block sync signal output to the system controller 55 SBOK/FOK O Not used 56 IPF O Not used 57 SFSY/LOCK O Not used 58 ZDET O Zero detection signal output terminal Not used 59 GPIN I Not used 60 MS I Microcomputer interface mode selection signal input terminal Fixed at "H" in this set www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 44 Pin No. Pin Name I/O Description 61 DOUT (PO6) O Digital audio data output terminal Not used 62 AOUT (PO7) O Audio data output terminal Not used 63 BCK (PO8) O Bit clock signal output terminal Not used 64 LRCK (PO9) O L/R sampling clock signal output terminal Not used 65 AIN (PI4) I Digital audio data input terminal Not used 66 BCKi (PI5) I Bit clock signal input terminal Not used 67 LRCKi (PI6) I L/R sampling clock signal input terminal Not used 68 VDD1 - Power supply terminal (+1.5 V) 69 VSS - Ground terminal 70 AWRC - Not used 71 PVDD3 - Power supply terminal (+3.3 V) 72 PDO O Phase error margin signal between EFM signal and PLCK signal output terminal 73 TMAXS O TMAX detection signal output terminal Not used 74 TMAX O TMAX detection signal output terminal 75 LPFN I Inverted signal input from the operation amplifi er for PLL loop fi lter 76 LPFo O Signal output from the operation amplifi er for PLL loop fi lter 77 PVREF I Reference voltage (+1.65V) input terminal 78 VCOF O VCO fi lter output terminal 79 PVSS3 - Ground terminal 80 SLCo O EFM slice level output terminal 81 RFi I RF signal input terminal 82 RFRPi I RF ripple signal input terminal 83 RFEQo O EFM slice level output terminal 84 VRo O Reference voltage (+1.65V) output terminal 85 RESiN O External resistor connection terminal 86 VMDiR O Reference voltage (+1.65V) output terminal for automatic power control circuit 87 TESTR O Low-pass fi lter terminal for RFEQO offset correction 88 AGCi I RF signal amplitude adjustment amplifi cation input terminal 89 RFo O RF signal generation amplifi cation output terminal 90 RVDD3 - Power supply terminal (+3.3 V) 91 LDo O Laser diode on/off control signal output to the automatic power control circuit "H": laser diode on 92 MDi I Light amount monitor input from the laser diode of optical pick-up block 93 RVSS3 - Ground terminal 94 FNi2 (C) I Main beam (C) input from the optical pick-up block 95 FNi1 (A) I Main beam (A) input from the optical pick-up block 96 FPi2 (D) I Main beam (D) input from the optical pick-up block 97 FPi1 (B) I Main beam (B) input from the optical pick-up block 98 TPi (F) I Sub beam (F) input from the optical pick-up block 99 TNPC O External capacitor connection terminal 100 TNi (E) I Sub beam (E) input from the optical pick-up block www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 45 PANEL BOARD IC301 MB90F831PF-G-SPE1 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 SEG32 O Segment drive signal output to the liquid crystal display 2 O-AMP-ON O Relay drive signal output terminal (for speaker) 3 O-POWER O Main power on/off control signal output terminal "H": on 4 O-CD-ON O CD power on/off control signal output terminal "H": on 5 to 7 I-3CD-SW3/O-CDM- CLOSE, I-3CD-SW2/ NC, I-3CD-SW1/ O-CDM-OPEN I Detection switch input terminal 8 O-3CD-M1+/ O-CDM-M1+ O Motor drive signal output terminal 9 I-RMC I Remote control signal input from the remote control receiver 10 O-3CD-M1-/ O-CDM-M1- O Motor drive signal output terminal 11, 12 O-3CD-M2+/NC, O-3CD-M2-/NC O Motor drive signal output terminal 13 X0A I Sub system clock input terminal (32.768 kHz) 14 X1A O Sub system clock output terminal (32.768 kHz) 15 VCC - Power supply terminal (+3.1V) 16 VSS - Ground terminal 17 to 20 I/O-CD-BUS0 to I/O-CD-BUS3 O Serial data output to the CD-MP3 processor 21 I-3CD-CHACK I Disc chucking detection switch input from the CD mechanism deck (Australian model) 22 I-3CD-STOCK I Disc stocking detection switch input from the CD mechanism deck (Australian model) 23 O-DR-MUTE O Muting signal output to the motor/coil driver 24 I-REQ I Request signal input from the CD-MP3 processor 25 O-CD-BUCK O Serial data transfer clock signal output to the CD-MP3 processor 26 O-CD-CCE O Chip enable signal output to the CD-MP3 processor 27 O-CD-RST O System reset signal output to the CD-MP3 processor "L": reset 28 O-LED-STBY O LED drive signal output terminal for STANDBY indicater 29 I-USB-TXD/I-DMP-TXD I Serial data input from the DMPORT connector 30 I-USB-DO/ I-DMP-5V-DET I Power voltage detection signal input terminal 31 O-USB-RXD/ O-DMP-RXD O Serial data output to the DMPORT connector 32 AVCC - Power supply terminal (+3.1V) 33 I-TU-DO I Serial data input from the AM/FM DET 34 O-USB-DI/5V-ON/ O-TP-REC-MUTE O Power on/off control signal output terminal 35 AVSS - Ground terminal 36 I-P-MONI I Power monitor signal input terminal 37, 38 I-KEY1, I-KEY2 I Front panel key input terminal (A/D input) 39 I-TU-ANSD I Power monitor signal input terminal 40 O-USB-SEL1_2/O-SW- ON/I-TP-STATE O Subwoofer on/off control signal output terminal 41 I-KEY-WAKE-UP/VOL I System wake up signal input terminal 42 I-HOLD I Hold signal input terminal 43 O-CD-SBSY I Subcode block sync signal input from the CD-MP3 processor 44 GND - Ground terminal 45 I-DMP-DET/ O-USB-RST I DMPORT connector detection signal input terminal 46 I-MODEL I Model setting terminal 47 I-SUFFIX I Suffi x setting terminal 48 I-1CD-CLOSE_OPEN/ NC I CD table open/close detection signal input terminal (Australian model) 49 I/O-I2C-DATA I/O Two-way serial data bus with the electrical volume 50 I/O-I2C-CLK O Serial data transfer clock signal output to the electrical volume 51 to 53 MD2 to MD0 - Not used 54 I-RST I Reset signal input from the voltage detect "L": reset For several hundreds msec. after the power supply rises, "L" is input, then it changes to "H" 55 O-TU-CE O Chip enable signal output to the FM/AM DET 56 O-TU-CLK O Serial data transfer clock signal output to the FM/AM DET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P 46 Pin No. Pin Name I/O Description 57 O-TU-DI O Serial data output to the FM/AM DET 58 VLCD - Terminal for doubler circuit capacitor connection to develop liquid crystal display drive volt- age 59 to 62 COM0, COM1, CMO2, CMO3 O Common drive signal output to the liquid crystal display 63, 64 SEG0, SEG1 O Segment drive signal output to the liquid crystal display 65 VCC - Power supply terminal (+3.1V) 66 VSS - Ground terminal 67 to 89 SEG2 to SEG24 O Segment drive signal output to the liquid crystal display 90 VCC - Power supply terminal (+3.1V) 91 VSS - Ground terminal 92 X1 I Main system clock output terminal (6 MHz) 93 X0 O Main system clock input terminal (6 MHz) 94 to 100 SEG25 to SEG31 O Segment drive signal output to the liquid crystal display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 HCD-EC98P SECTION 7 EXPLODED VIEWS 1 3-276-203-01 DOOR (CD) (AUS) 1 3-298-721-01 DOOR (1CD-G) (US, CND) 2 3-363-099-32 SCREW (CASE 3 TP2) 3 2-890-831-01 PANEL (L), SIDE (US, CND) 3 2-890-831-11 PANEL (L), SIDE (AUS) 4 2-890-830-01 PANEL (R), SIDE (US, CND) 4 2-890-830-11 PANEL (R), SIDE (AUS) 5 2-890-829-01 PANEL (TOP) (US, CND) 5 2-890-829-11 PANEL (TOP) (AUS) 6 3-254-143-11 SCREW (B3), (+) BV TAPPING #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 #5 7-685-247-14 SCREW +KTP 3X10 TYPE2 NON-SLIT Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Note: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine ser- vice. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not sup- plied. • Color Indication of Appearance Parts Ex- ample: KNOB, BALANCE (WHITE) . . . (RED) R R Parts of Color Cabinet’s Color • Abbreviation AUS : Australian model CND : Canadian model 7-1. PANEL SECTION 1 2 4 2 3 #1 #1 #5 #5 chassis section front panel section 5 6 6 6 The components identifi ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specifi ed. Les composants identifi és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifi é. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 HCD-EC98P 51 52 53 54 55 56 56 56 57 58 59 56 56 60 61 not supplied not supplied not supplied not supplied (KEY POWER board) not supplied (KEY CD board) not supplied (JACK HOLD board) not supplied (JACK board) DMP board 64 63 56 62 51 3-276-202-01 KNOB (VOL) 52 3-276-204-01 RING (VOL) (US, CND) 52 3-276-204-21 RING (VOL) (AUS) 53 3-276-201-01 PLATE, ORNAMENTAL (AUS) 53 3-452-117-01 PLATE, ORNAMENTAL (1CD-G) (US, CND) 54 3-276-198-01 WINDOW 55 A-1418-866-A PANEL ASSY, FRONT (AUS) 55 A-1418-867-A PANEL ASSY, FRONT (US, CND) 56 3-087-053-01 +BVTP2.6 (3CR) 57 1-835-338-21 CABLE, FLEXIBLE FLAT (31 CORE) 58 3-297-298-01 SHEET (RM) 59 A-1379-636-A PANEL BOARD, COMPLETE (US, CND) 59 A-1426-098-A PANEL BOARD, COMPLETE (AUS) 60 1-831-774-21 CABLE, FLEXIBLE FLAT (9 CORE) 61 4-225-252-01 CUSHION (FOOT) 62 1-835-336-21 CABLE, FLEXIBLE FLAT (11 CORE) 63 A-1379-815-A DMP BOARD, COMPLETE 64 3-276-209-01 BRACKET (DMPORT) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-2. FRONT PANEL SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 HCD-EC98P 101 109 102 102 104 106 107 #1 #1 #1 #1 #2 #2 main section not supplied not supplied not supplied (US, CND) (AUS) 3 CD mechanism section not supplied (AC HOLD board) M601 108 107 105 105 105 105 105 1 CD mechanism section � � 101 1-832-838-21 CABLE, FLEXIBLE FLAT (13 CORE) (AUS) 102 4-225-252-01 CUSHION (FOOT) 104 3-701-748-00 CLAMP 105 3-254-143-11 SCREW (B3), (+) BV TAPPING 0 106 1-834-967-21 CORD, POWER (AUS) 0 106 1-834-978-11 CORD, POWER (US, CND) 107 1-834-181-21 CABLE, FLEXIBLE FLAT (21 CORE) (AUS) 107 1-835-334-21 CABLE, FLEXIBLE FLAT (21 CORE) (US, CND) 108 1-832-666-21 CABLE, FLEXIBLE FLAT (5 CORE) (US, CND) 109 3-229-336-11 SCREW, +BVWH TAPPING (AUS) M601 1-787-400-11 D.C. FAN #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 #2 7-685-661-14 SCREW +BVTP 4X12 TYPE2 N-S Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-3. CHASSIS SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 HCD-EC98P 151 A-1379-632-A MAIN BOARD, COMPLETE (US, CND) 151 A-1379-663-A MAIN BOARD, COMPLETE (AUS) 152 1-835-335-21 CABLE, FLEXIBLE FLAT (7 CORE) 153 1-835-276-21 CABLE, FLEXIBLE FLAT (5 CORE) 154 3-905-609-31 SCREW (TRANSISTOR) 155 3-701-748-00 CLAMP (US, CND) M701 1-787-400-11 D.C. FAN (US, CND) 0 PT006 1-445-347-11 TRANSFORMER, POWER (US, CND) 0 PT006 1-445-349-11 TRANSFORMER, POWER (AUS) #1 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 #3 7-685-880-09 SCREW +BVTT 4X6 (S) #4 7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-4. MAIN SECTION 151 152 154 155 154 153 not supplied not supplied #4 #4 #1 #1 #1 #1 M701 (US, CND) (AUS) #1 #1 #1 #1 #1 #1 PT006 #3 #1 not supplied not supplied not supplied not supplied (PT board) not supplied (HI AMP board) not supplied (LOW AMP board) not supplied (HOLD board) not supplied (REG board) not supplied (HOLD (PT) board) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-EC98P 201 1-797-193-12 MECHANICAL, CD (DLM3A) 202 2-632-062-11 BELT (DLM3A) 203 4-227-045-31 SPRING (INSULATOR), COIL 204 4-227-549-31 INSULATOR 205 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 0 206 A-4735-357-A BASE ASSY, OP (KSM-213D) 207 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE) 208 A-1217-914-A CD BOARD, COMPLETE 209 2-584-656-01 WASHER, POLYETHYLENE S201 1-771-853-11 SWITCH, DETECTION (LIMIT) 7-5. 3 CD MECHANISM SECTION (Australian model) (CDM88A-K6BD90-WOD) 206 (including sled motor (M402), spindle motor (M401)) 207 208 S201 sled motor (M402) spindle motor (M401) 203 203 204 204 204 204 202 202 205 209 201 not supplied not supplied 205 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 HCD-EC98P 251 A-1242-967-A LOADING (BK) ASSY 252 3-080-478-01 BELT 253 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING 254 4-227-045-41 SPRING (INSULATOR) 255 4-229-005-41 INSULATOR 0 256 A-4735-357-A BASE ASSY, OP (KSM-213D) 257 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE) 258 A-1217-914-A CD BOARD, COMPLETE S201 1-771-853-11 SWITCH, DETECTION (LIMIT) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-6. 1 CD MECHANISM SECTION (US and Canadian models) (CDM77B-K6BD90-WOD) not supplied not supplied not supplied (MOTOR board) 251 252 255 254 253 253 255 254 255 255 S201 sled motor (M402) 257 256 (including sled motor (M402), spindle motor (M401)) spindle motor (M401) 258 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-EC98P SECTION 8 ELECTRICAL PARTS LIST A-1217-914-A CD BOARD, COMPLETE ******************* < CAPACITOR > C100 1-164-360-11 CERAMIC CHIP 0.1uF 16V C101 1-164-360-11 CERAMIC CHIP 0.1uF 16V C102 1-164-360-11 CERAMIC CHIP 0.1uF 16V C103 1-164-360-11 CERAMIC CHIP 0.1uF 16V C104 1-164-360-11 CERAMIC CHIP 0.1uF 16V C105 1-164-360-11 CERAMIC CHIP 0.1uF 16V C106 1-128-995-21 ELECT CHIP 100uF 20% 10V C107 1-164-360-11 CERAMIC CHIP 0.1uF 16V C108 1-164-360-11 CERAMIC CHIP 0.1uF 16V C109 1-164-360-11 CERAMIC CHIP 0.1uF 16V C110 1-164-360-11 CERAMIC CHIP 0.1uF 16V C112 1-164-360-11 CERAMIC CHIP 0.1uF 16V C113 1-164-360-11 CERAMIC CHIP 0.1uF 16V C115 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C116 1-164-360-11 CERAMIC CHIP 0.1uF 16V C117 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C118 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C119 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C120 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C122 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C123 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C124 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C125 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C127 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C128 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C130 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C132 1-164-360-11 CERAMIC CHIP 0.1uF 16V C133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C136 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C137 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C138 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C139 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C140 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C141 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C142 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C143 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C144 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C145 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C146 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C147 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C148 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C149 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C150 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C151 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C152 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C153 1-164-360-11 CERAMIC CHIP 0.1uF 16V C201 1-128-995-21 ELECT CHIP 100uF 20% 10V C202 1-128-995-21 ELECT CHIP 100uF 20% 10V C204 1-164-360-11 CERAMIC CHIP 0.1uF 16V C205 1-164-360-11 CERAMIC CHIP 0.1uF 16V C206 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C207 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C301 1-164-360-11 CERAMIC CHIP 0.1uF 16V C302 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V C303 1-137-710-91 CERAMIC CHIP 10uF 20% 6.3V C306 1-128-995-21 ELECT CHIP 100uF 20% 10V C307 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C309 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C401 1-128-394-11 ELECT CHIP 220uF 20% 10V C403 1-164-360-11 CERAMIC CHIP 0.1uF 16V C404 1-164-360-11 CERAMIC CHIP 0.1uF 16V C405 1-164-360-11 CERAMIC CHIP 0.1uF 16V < CONNECTOR > CN201 1-784-833-51 CONNECTOR, FFC (LIF (NON-ZIF)) 21P CN301 1-770-425-51 CONNECTOR, FFC/FPC 16P < IC > IC101 6-712-622-01 IC TC94A70FG-006 (D, HZ IC201 6-710-808-01 IC TK63115SCL-G@GT IC401 6-710-637-01 IC BA5826SFP-E2 < TRANSISTOR > Q301 6-551-120-01 TRANSISTOR 2SA2119K < RESISTOR > R101 1-216-813-11 METAL CHIP 220 5% 1/10W R102 1-216-833-11 METAL CHIP 10K 5% 1/10W R104 1-216-295-91 SHORT CHIP 0 R105 1-216-857-11 METAL CHIP 1M 5% 1/10W R106 1-216-821-11 METAL CHIP 1K 5% 1/10W R108 1-216-864-11 SHORT CHIP 0 R110 1-216-833-11 METAL CHIP 10K 5% 1/10W R111 1-216-809-11 METAL CHIP 100 5% 1/10W R112 1-216-809-11 METAL CHIP 100 5% 1/10W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CD Note: • Due to standardization, replacements in the parts list may be different from the parts specifi ed in the diagrams or the com- ponents used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine ser- vice. Some delay should be anticipated when ordering these items. • CAPACITORS uF: μF • COILS uH: μH • RESISTORS All resistors are in ohms. METAL: Metal-fi lm resistor. METAL OXIDE: Metal oxide-fi lm resistor. F: nonfl ammable • SEMICONDUCTORS In each case, u: μ, for example: uA. . : μA. . , uPA. . , μPA. . , uPB. . : μPB. . , uPC. . , μPC. . , uPD. . : μPD. . • Abbreviation AUS : Australian model CND : Canadian model When indicating parts by reference num- ber, please include the board name. The components identifi ed by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specifi ed. Les composants identifi és par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifi é. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-EC98P 54 R113 1-216-833-11 METAL CHIP 10K 5% 1/10W R114 1-216-833-11 METAL CHIP 10K 5% 1/10W R118 1-216-845-11 METAL CHIP 100K 5% 1/10W R120 1-216-864-11 SHORT CHIP 0 R125 1-216-864-11 SHORT CHIP 0 R126 1-216-864-11 SHORT CHIP 0 R127 1-216-864-11 SHORT CHIP 0 R128 1-216-853-11 METAL CHIP 470K 5% 1/10W R129 1-216-821-11 METAL CHIP 1K 5% 1/10W R130 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R134 1-216-857-11 METAL CHIP 1M 5% 1/10W R135 1-216-853-11 METAL CHIP 470K 5% 1/10W R136 1-216-837-11 METAL CHIP 22K 5% 1/10W R139 1-216-841-11 METAL CHIP 47K 5% 1/10W R140 1-216-864-11 SHORT CHIP 0 R142 1-216-837-11 METAL CHIP 22K 5% 1/10W R143 1-216-841-11 METAL CHIP 47K 5% 1/10W R144 1-216-837-11 METAL CHIP 22K 5% 1/10W R145 1-216-864-11 SHORT CHIP 0 R146 1-216-864-11 SHORT CHIP 0 R147 1-216-864-11 SHORT CHIP 0 R148 1-216-864-11 SHORT CHIP 0 R149 1-216-864-11 SHORT CHIP 0 R150 1-216-864-11 SHORT CHIP 0 R151 1-216-864-11 SHORT CHIP 0 R153 1-216-857-11 METAL CHIP 1M 5% 1/10W R154 1-216-857-11 METAL CHIP 1M 5% 1/10W R155 1-216-805-11 METAL CHIP 47 5% 1/10W R156 1-216-809-11 METAL CHIP 100 5% 1/10W R157 1-216-809-11 METAL CHIP 100 5% 1/10W R201 1-216-295-91 SHORT CHIP 0 R202 1-216-295-91 SHORT CHIP 0 R203 1-216-809-11 METAL CHIP 100 5% 1/10W R204 1-216-809-11 METAL CHIP 100 5% 1/10W R205 1-216-809-11 METAL CHIP 100 5% 1/10W R206 1-216-809-11 METAL CHIP 100 5% 1/10W R207 1-216-809-11 METAL CHIP 100 5% 1/10W R208 1-216-809-11 METAL CHIP 100 5% 1/10W R209 1-216-809-11 METAL CHIP 100 5% 1/10W R210 1-216-809-11 METAL CHIP 100 5% 1/10W R211 1-216-809-11 METAL CHIP 100 5% 1/10W R212 1-216-809-11 METAL CHIP 100 5% 1/10W R218 1-216-845-11 METAL CHIP 100K 5% 1/10W R219 1-216-845-11 METAL CHIP 100K 5% 1/10W R220 1-216-845-11 METAL CHIP 100K 5% 1/10W R221 1-216-845-11 METAL CHIP 100K 5% 1/10W R222 1-216-845-11 METAL CHIP 100K 5% 1/10W R223 1-216-845-11 METAL CHIP 100K 5% 1/10W R301 1-216-845-11 METAL CHIP 100K 5% 1/10W R302 1-216-864-11 SHORT CHIP 0 R303 1-216-789-11 METAL CHIP 2.2 5% 1/10W R304 1-216-789-11 METAL CHIP 2.2 5% 1/10W R402 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R405 1-216-833-11 METAL CHIP 10K 5% 1/10W R408 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R414 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R415 1-216-841-11 METAL CHIP 47K 5% 1/10W < VIBRATOR > X102 1-795-101-21 VIBRATOR, CERAMIC (16.9344MHz) ************************************************************ A-1379-815-A DMP BOARD, COMPLETE ******************** 3-276-209-01 BRACKET (DMPORT) < CONNECTOR > CN901 1-817-615-21 CONNECTOR, SQUARE TYPE (RECE) (DMPORT) CN902 1-784-863-51 CONNECTOR, FFC (LIF (NON-ZIF)) 11P < JUMPER RESISTOR > R904 1-216-864-11 SHORT CHIP 0 R905 1-216-864-11 SHORT CHIP 0 R906 1-216-864-11 SHORT CHIP 0 R907 1-216-864-11 SHORT CHIP 0 R908 1-216-864-11 SHORT CHIP 0 ************************************************************ HI AMP BOARD ************ < CAPACITOR > C151 1-126-960-11 ELECT 1uF 20% 50V C152 1-126-960-11 ELECT 1uF 20% 50V C153 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C154 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C155 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C156 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C157 1-126-960-11 ELECT 1uF 20% 50V C158 1-126-960-11 ELECT 1uF 20% 50V C159 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C160 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C166 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C169 1-126-968-11 ELECT 100uF 20% 50V (AUS) C169 1-128-576-11 ELECT 100uF 20% 63V (US, CND) C170 1-126-968-11 ELECT 100uF 20% 50V (AUS) C170 1-128-576-11 ELECT 100uF 20% 63V (US, CND) C173 1-165-621-91 CERAMIC CHIP 0.1uF 50V C174 1-165-621-91 CERAMIC CHIP 0.1uF 50V C175 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C176 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C178 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > CN151 1-819-134-11 PIN, CONNECTOR 6P CN152 1-784-766-11 CONNECTOR, FFC 5P < DIODE > D151 6-500-335-01 DIODE MC2838-T112-1 D152 6-501-817-01 DIODE MA2J1110GLS0 < IC > IC152 6-600-580-01 IC STK433-090-E CD DMP HI AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-EC98P 55 55 < JUMPER RESISTOR > JR151 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q151 6-551-270-01 TRANSISTOR 2SA2026 Q152 6-551-270-01 TRANSISTOR 2SA2026 < RESISTOR > R151 1-216-813-11 METAL CHIP 220 5% 1/10W R152 1-216-813-11 METAL CHIP 220 5% 1/10W R153 1-216-837-11 METAL CHIP 22K 5% 1/10W R154 1-216-837-11 METAL CHIP 22K 5% 1/10W R155 1-216-841-11 METAL CHIP 47K 5% 1/10W R156 1-216-841-11 METAL CHIP 47K 5% 1/10W R159 1-216-821-11 METAL CHIP 1K 5% 1/10W R160 1-216-821-11 METAL CHIP 1K 5% 1/10W R161 1-216-817-11 METAL CHIP 470 5% 1/10W R162 1-216-817-11 METAL CHIP 470 5% 1/10W R163 1-216-841-11 METAL CHIP 47K 5% 1/10W R164 1-216-841-11 METAL CHIP 47K 5% 1/10W R171 1-216-864-11 SHORT CHIP 0 R172 1-216-809-11 METAL CHIP 100 5% 1/10W R173 1-216-821-11 METAL CHIP 1K 5% 1/10W R175 1-216-813-11 METAL CHIP 220 5% 1/10W R176 1-216-813-11 METAL CHIP 220 5% 1/10W R177 1-216-813-11 METAL CHIP 220 5% 1/10W R178 1-216-813-11 METAL CHIP 220 5% 1/10W 0 R179 1-216-361-31 METAL OXIDE 0.22 5% 2W F 0 R180 1-216-361-31 METAL OXIDE 0.22 5% 2W F R181 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R182 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R183 1-216-837-11 METAL CHIP 22K 5% 1/10W R184 1-216-837-11 METAL CHIP 22K 5% 1/10W R185 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R186 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R195 1-216-817-11 METAL CHIP 470 5% 1/10W R196 1-216-817-11 METAL CHIP 470 5% 1/10W ************************************************************ JACK BOARD *********** < CAPACITOR > C491 1-164-156-11 CERAMIC CHIP 0.1uF 25V C495 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C496 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < JACK > J491 1-566-822-51 JACK (AUDIO IN) J492 1-815-629-21 JACK (PHONES) < RESISTOR > R491 1-216-837-11 METAL CHIP 22K 5% 1/10W R492 1-216-837-11 METAL CHIP 22K 5% 1/10W ************************************************************ KEY CD BOARD ************* < RESISTOR > R407 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R408 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R409 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R410 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W (AUS) R411 1-216-835-11 METAL CHIP 15K 5% 1/10W (AUS) < SWITCH > SW306 1-771-410-21 SWITCH, TACTILE (CD) (US, CND) SW306 1-771-410-21 SWITCH, TACTILE (DISC 1) (AUS) SW307 1-771-410-21 SWITCH, TACTILE (DMPORT) (US, CND) SW307 1-771-410-21 SWITCH, TACTILE (DISC 2) (AUS) SW308 1-771-410-21 SWITCH, TACTILE (Z) (US, CND) SW308 1-771-410-21 SWITCH, TACTILE (DISC 3) (AUS) SW309 1-771-410-21 SWITCH, TACTILE (Z) (AUS) SW310 1-771-410-21 SWITCH, TACTILE (DISC SKIP/EX-CHANGE) (AUS) ************************************************************ KEY POWER BOARD ***************** < SWITCH > SW301 1-771-410-21 SWITCH, TACTILE (I/1, STANDBY) SW302 1-771-410-21 SWITCH, TACTILE (SUBWOOFER ON/OFF) < CABLE HOLDER > W401 1-824-027-21 HOLDER, CABLE 3P ************************************************************ LOW AMP BOARD ************** < CAPACITOR > C101 1-126-960-11 ELECT 1uF 20% 50V C102 1-126-960-11 ELECT 1uF 20% 50V C103 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C104 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C105 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C106 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C107 1-126-947-11 ELECT 47uF 20% 35V C108 1-126-947-11 ELECT 47uF 20% 35V C109 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C110 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C111 1-126-960-11 ELECT 1uF 20% 50V C112 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C113 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C114 1-126-947-11 ELECT 47uF 20% 35V C115 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C116 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C119 1-126-968-11 ELECT 100uF 20% 50V (AUS) C119 1-128-576-11 ELECT 100uF 20% 63V (US, CND) C120 1-126-968-11 ELECT 100uF 20% 50V (AUS) C120 1-128-576-11 ELECT 100uF 20% 63V (US, CND) C123 1-165-621-91 CERAMIC CHIP 0.1uF 50V LOW AMP KEY POWER KEY CD JACK HI AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-EC98P 56 MAIN LOW AMP C124 1-165-621-91 CERAMIC CHIP 0.1uF 50V C125 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C126 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C127 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C128 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > CN103 1-568-826-11 CONNECTOR, FFC 5P CN105 1-820-827-11 HOLDER, CABLE 9P < DIODE > D101 6-500-335-01 DIODE MC2838-T112-1 D102 6-501-817-01 DIODE MA2J1110GLS0 D103 6-501-817-01 DIODE MA2J1110GLS0 < IC > IC101 6-712-141-01 IC STK433-330-E < JUMPER RESISTOR > JR101 1-216-864-11 SHORT CHIP 0 JR102 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q101 6-551-270-01 TRANSISTOR 2SA2026 Q102 6-551-270-01 TRANSISTOR 2SA2026 Q103 6-551-270-01 TRANSISTOR 2SA2026 < RESISTOR > R101 1-216-864-11 SHORT CHIP 0 R102 1-216-864-11 SHORT CHIP 0 R103 1-216-813-11 METAL CHIP 220 5% 1/10W R104 1-216-813-11 METAL CHIP 220 5% 1/10W R105 1-216-837-11 METAL CHIP 22K 5% 1/10W R106 1-216-837-11 METAL CHIP 22K 5% 1/10W R107 1-216-841-11 METAL CHIP 47K 5% 1/10W R108 1-216-841-11 METAL CHIP 47K 5% 1/10W R109 1-216-821-11 METAL CHIP 1K 5% 1/10W R110 1-216-821-11 METAL CHIP 1K 5% 1/10W R111 1-216-817-11 METAL CHIP 470 5% 1/10W R112 1-216-817-11 METAL CHIP 470 5% 1/10W R113 1-216-841-11 METAL CHIP 47K 5% 1/10W R114 1-216-841-11 METAL CHIP 47K 5% 1/10W R115 1-216-864-11 SHORT CHIP 0 R116 1-216-813-11 METAL CHIP 220 5% 1/10W R117 1-216-837-11 METAL CHIP 22K 5% 1/10W R118 1-216-841-11 METAL CHIP 47K 5% 1/10W R119 1-216-821-11 METAL CHIP 1K 5% 1/10W R120 1-216-817-11 METAL CHIP 470 5% 1/10W R121 1-216-841-11 METAL CHIP 47K 5% 1/10W R122 1-216-809-11 METAL CHIP 100 5% 1/10W R123 1-216-821-11 METAL CHIP 1K 5% 1/10W R125 1-216-813-11 METAL CHIP 220 5% 1/10W R126 1-216-813-11 METAL CHIP 220 5% 1/10W R127 1-216-813-11 METAL CHIP 220 5% 1/10W R128 1-216-813-11 METAL CHIP 220 5% 1/10W 0 R129 1-216-361-31 METAL OXIDE 0.22 5% 2W F 0 R130 1-216-361-31 METAL OXIDE 0.22 5% 2W F R131 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R132 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R133 1-216-837-11 METAL CHIP 22K 5% 1/10W R134 1-216-837-11 METAL CHIP 22K 5% 1/10W R135 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R136 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0 R137 1-216-365-61 METAL OXIDE 0.47 5% 2W F 0 R138 1-216-365-61 METAL OXIDE 0.47 5% 2W F R139 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R140 1-216-837-11 METAL CHIP 22K 5% 1/10W R141 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R142 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R143 1-216-864-11 SHORT CHIP 0 R144 1-216-864-11 SHORT CHIP 0 R145 1-216-817-11 METAL CHIP 470 5% 1/10W R146 1-216-817-11 METAL CHIP 470 5% 1/10W ************************************************************ A-1379-632-A MAIN BOARD, COMPLETE (US, CND) A-1379-663-A MAIN BOARD, COMPLETE (AUS) ********************* 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S < CAPACITOR > C601 1-126-947-11 ELECT 47uF 20% 35V C602 1-104-662-91 ELECT 22uF 20% 25V C603 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C604 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C605 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C606 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C607 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C608 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C609 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C610 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C611 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C612 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C613 1-126-964-11 ELECT 10uF 20% 50V C614 1-126-963-11 ELECT 4.7uF 20% 50V C615 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C616 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C617 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C618 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C619 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C620 1-104-658-91 ELECT 100uF 20% 10V C621 1-137-749-11 MYLAR 0.1uF 100V C622 1-114-471-51 ELECT 3300uF 20% 63V (US, CND) C622 1-126-974-11 ELECT 3300uF 20% 50V (AUS) C623 1-137-749-11 MYLAR 0.1uF 100V C626 1-114-471-51 ELECT 3300uF 20% 63V (US, CND) C626 1-126-974-11 ELECT 3300uF 20% 50V (AUS) C627 1-126-943-11 ELECT 2200uF 20% 25V C628 1-126-942-61 ELECT 1000uF 20% 25V C629 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C630 1-126-947-11 ELECT 47uF 20% 35V C631 1-126-933-11 ELECT 100uF 20% 16V C632 1-126-963-11 ELECT 4.7uF 20% 50V C633 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C634 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C636 1-126-960-11 ELECT 1uF 20% 50V C637 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C638 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-EC98P 57 57 C639 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C640 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C641 1-126-962-11 ELECT 3.3uF 20% 50V C642 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C644 1-126-960-11 ELECT 1uF 20% 50V C645 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C646 1-126-960-11 ELECT 1uF 20% 50V C647 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C648 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C649 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C650 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C652 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C654 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C655 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C656 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C657 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C658 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C659 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C660 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C661 1-126-964-11 ELECT 10uF 20% 50V C662 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C663 1-126-960-11 ELECT 1uF 20% 50V C664 1-126-960-11 ELECT 1uF 20% 50V C665 1-126-960-11 ELECT 1uF 20% 50V C666 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C667 1-126-933-11 ELECT 100uF 20% 16V C669 1-126-923-91 ELECT 220uF 20% 10V C671 1-126-933-11 ELECT 100uF 20% 16V C672 1-126-933-11 ELECT 100uF 20% 16V C673 1-126-925-91 ELECT 470uF 20% 10V C674 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C675 1-126-960-11 ELECT 1uF 20% 50V C676 1-126-960-11 ELECT 1uF 20% 50V C679 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C680 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C681 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C682 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C683 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C684 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C685 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C686 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C687 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C688 1-104-662-91 ELECT 22uF 20% 25V (US, CND) C689 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C690 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C691 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C692 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C693 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C694 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C695 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C696 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C699 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C700 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C701 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C702 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C703 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C704 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C705 1-126-964-11 ELECT 10uF 20% 50V C706 1-126-935-11 ELECT 470uF 20% 16V C707 1-126-960-11 ELECT 1uF 20% 50V C709 1-137-190-91 FILM 0.22uF 5% 50V C710 1-137-190-91 FILM 0.22uF 5% 50V C711 1-136-497-81 FILM 0.1uF 5% 50V C712 1-136-161-00 FILM 0.047uF 5% 50V C713 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C714 1-126-947-11 ELECT 47uF 20% 35V C760 1-104-665-11 ELECT 100uF 20% 25V C761 1-126-935-11 ELECT 470uF 20% 16V C762 1-104-658-91 ELECT 100uF 20% 10V C771 1-126-960-11 ELECT 1uF 20% 50V C772 1-126-960-11 ELECT 1uF 20% 50V C773 1-126-960-11 ELECT 1uF 20% 50V C774 1-126-960-11 ELECT 1uF 20% 50V C775 1-126-947-11 ELECT 47uF 20% 35V C776 1-104-662-91 ELECT 22uF 20% 25V C786 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C787 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C788 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C789 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C791 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C802 1-126-933-11 ELECT 100uF 20% 16V C803 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C804 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C805 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C806 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C807 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C808 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C809 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C810 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C811 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C814 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V (AUS) C814 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (US, CND) C815 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V (AUS) C815 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (US, CND) C816 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C817 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C819 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C820 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C821 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C822 1-126-965-91 ELECT 22uF 20% 50V C823 1-126-923-91 ELECT 220uF 20% 10V C824 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C826 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C827 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C828 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C829 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C830 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V C831 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C832 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C833 1-126-923-91 ELECT 220uF 20% 10V C834 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C835 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C836 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C837 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C838 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C840 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C841 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C843 1-164-156-11 CERAMIC CHIP 0.1uF 25V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-EC98P 58 C844 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C845 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C846 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C847 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C848 1-164-156-11 CERAMIC CHIP 0.1uF 25V C850 1-164-156-11 CERAMIC CHIP 0.1uF 25V < FILTER > CF801 1-781-962-21 FILTER, CERAMIC < CONNECTOR > CN601 1-819-131-11 PIN, CONNECTOR 3P CN602 1-784-766-11 CONNECTOR, FFC 5P CN605 1-784-770-11 CONNECTOR, FFC 9P CN608 1-779-289-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P CN609 1-779-279-11 CONNECTOR, FFC (LIF (NON-ZIF)) 11P CN632 1-824-030-21 HOLDER, CABLE 5P CN643 1-568-826-11 CONNECTOR, FFC 7P CN653 1-819-137-11 PIN, CONNECTOR 9P CN654 1-819-138-11 PIN, CONNECTOR 10P CN701 1-819-131-11 PIN, CONNECTOR 3P (US, CND) * CN801 1-506-680-11 PLUG, CONNECTOR (2.5mm) 3P (ANTENNA FM/AM) CN803 1-784-792-11 CONNECTOR, FFC 31P < DIODE > D601 6-500-335-01 DIODE MC2838-T112-1 D602 6-500-335-01 DIODE MC2838-T112-1 D603 6-501-817-01 DIODE MA2J1110GLS0 D604 6-501-817-01 DIODE MA2J1110GLS0 D605 6-501-817-01 DIODE MA2J1110GLS0 D606 6-500-334-01 DIODE MC2836-T112-1 D607 6-501-046-01 DIODE 1N5402-F46 D608 6-501-046-01 DIODE 1N5402-F46 D609 6-501-046-01 DIODE 1N5402-F46 D610 6-501-046-01 DIODE 1N5402-F46 D611 8-719-046-07 DIODE 2A02M D612 8-719-046-07 DIODE 2A02M D614 6-501-817-01 DIODE MA2J1110GLS0 D615 8-719-063-79 DIODE 1N4002B D617 6-500-335-01 DIODE MC2838-T112-1 D618 6-501-719-01 DIODE MAZ8039GHLS0 D619 8-719-063-79 DIODE 1N4002B D620 8-719-063-79 DIODE 1N4002B D621 6-501-722-01 DIODE MAZ8043GMLS0 D622 6-501-752-01 DIODE MAZ8082GMLS0 D623 6-501-046-01 DIODE 1N5402-F46 D624 6-501-046-01 DIODE 1N5402-F46 D625 6-501-046-01 DIODE 1N5402-F46 D626 6-501-046-01 DIODE 1N5402-F46 D628 6-501-817-01 DIODE MA2J1110GLS0 D631 6-501-817-01 DIODE MA2J1110GLS0 D633 8-719-046-07 DIODE 2A02M (US, CND) D634 8-719-046-07 DIODE 2A02M (US, CND) D701 8-719-079-47 DIODE RK36LF-A4 D702 6-501-817-01 DIODE MA2J1110GLS0 D703 6-501-817-01 DIODE MA2J1110GLS0 D791 6-501-817-01 DIODE MA2J1110GLS0 D801 6-501-142-01 DIODE SVC347A-TL-E D802 8-719-062-51 DIODE 1PS226-115 D803 6-501-369-01 DIODE SVC230-TB-E D804 6-501-369-01 DIODE SVC230-TB-E D805 8-719-062-51 DIODE 1PS226-115 D806 8-719-062-51 DIODE 1PS226-115 < GROUND TERMINAL > ET601 1-537-771-21 TERMINAL BOARD, GROUND ET602 1-537-771-21 TERMINAL BOARD, GROUND < FILTER > FL801 1-760-393-11 FILTER, CERAMIC FL803 1-236-711-21 FILTER, BAND PASS < IC > IC602 6-712-055-01 IC BD3499FV-E2 IC701 6-712-088-01 IC BD9701CP-V5 IC770 8-759-278-58 IC NJM4558V-TE2 IC801 6-708-840-01 IC LV23003VA < JUMPER RESISTOR > JR601 1-216-864-11 SHORT CHIP 0 JR602 1-216-864-11 SHORT CHIP 0 JR603 1-216-864-11 SHORT CHIP 0 JR604 1-216-864-11 SHORT CHIP 0 JR605 1-216-864-11 SHORT CHIP 0 JR606 1-216-864-11 SHORT CHIP 0 JR607 1-216-864-11 SHORT CHIP 0 JR608 1-216-864-11 SHORT CHIP 0 JR609 1-216-864-11 SHORT CHIP 0 JR610 1-216-864-11 SHORT CHIP 0 JR611 1-216-864-11 SHORT CHIP 0 JR612 1-216-864-11 SHORT CHIP 0 JR613 1-216-864-11 SHORT CHIP 0 JR614 1-216-864-11 SHORT CHIP 0 JR615 1-216-864-11 SHORT CHIP 0 JR616 1-216-864-11 SHORT CHIP 0 JR617 1-216-864-11 SHORT CHIP 0 JR618 1-216-864-11 SHORT CHIP 0 < COIL > L601 1-456-107-11 COIL, AIR-CORE L602 1-456-107-11 COIL, AIR-CORE L603 1-456-107-11 COIL, AIR-CORE L604 1-456-107-11 COIL, AIR-CORE L701 1-456-467-11 INDUCTOR 100uH L702 1-456-107-11 COIL, AIR-CORE L801 1-456-596-11 COIL, MW OSC L802 1-457-168-11 COIL, DET L803 1-457-162-22 COIL, AIR-CORE L804 1-457-163-22 COIL, AIR-CORE L805 1-457-161-11 COIL, AM ANTENNA < TRANSISTOR > Q601 8-729-037-03 TRANSISTOR KTA1266GR-AT (AUS) Q601 8-729-040-76 TRANSISTOR KTA1273-Y-AT (US, CND) Q602 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q603 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q604 8-729-120-28 TRANSISTOR 2SC1623-L5L6 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-EC98P 59 59 Q605 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q606 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q607 8-729-120-28 TRANSISTOR 2SC1623-L5L6 (US, CND) Q608 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q611 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q612 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q618 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q619 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q622 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q624 8-729-036-86 TRANSISTOR KTC3203Y-AT Q700 8-729-045-62 TRANSISTOR 2SK2158-T2B Q701 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q702 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q703 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q704 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q705 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q761 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF Q762 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q801 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q802 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R601 1-216-817-11 METAL CHIP 470 5% 1/10W R603 1-216-793-11 METAL CHIP 4.7 5% 1/10W R604 1-216-845-11 METAL CHIP 100K 5% 1/10W R605 1-216-806-11 METAL CHIP 56 5% 1/10W R606 1-216-797-11 METAL CHIP 10 5% 1/10W R607 1-216-797-11 METAL CHIP 10 5% 1/10W R608 1-216-797-11 METAL CHIP 10 5% 1/10W R609 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R610 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R611 1-216-797-11 METAL CHIP 10 5% 1/10W R612 1-216-797-11 METAL CHIP 10 5% 1/10W R613 1-216-833-11 METAL CHIP 10K 5% 1/10W R614 1-216-833-11 METAL CHIP 10K 5% 1/10W R615 1-216-797-11 METAL CHIP 10 5% 1/10W R616 1-216-835-11 METAL CHIP 15K 5% 1/10W R617 1-216-833-11 METAL CHIP 10K 5% 1/10W R618 1-216-833-11 METAL CHIP 10K 5% 1/10W R619 1-216-835-11 METAL CHIP 15K 5% 1/10W R620 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R621 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R622 1-216-839-11 METAL CHIP 33K 5% 1/10W R623 1-216-833-11 METAL CHIP 10K 5% 1/10W R624 1-216-833-11 METAL CHIP 10K 5% 1/10W R625 1-216-839-11 METAL CHIP 33K 5% 1/10W R626 1-216-833-11 METAL CHIP 10K 5% 1/10W R627 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (US, CND) R627 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (AUS) R628 1-216-833-11 METAL CHIP 10K 5% 1/10W R629 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R630 1-216-841-11 METAL CHIP 47K 5% 1/10W R631 1-216-797-11 METAL CHIP 10 5% 1/10W R632 1-216-845-11 METAL CHIP 100K 5% 1/10W R633 1-216-845-11 METAL CHIP 100K 5% 1/10W R634 1-249-403-11 CARBON 68 5% 1/4W R635 1-249-403-11 CARBON 68 5% 1/4W R636 1-249-403-11 CARBON 68 5% 1/4W R637 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R638 1-249-403-11 CARBON 68 5% 1/4W R639 1-216-845-11 METAL CHIP 100K 5% 1/10W R640 1-216-845-11 METAL CHIP 100K 5% 1/10W R641 1-249-403-11 CARBON 68 5% 1/4W R642 1-249-403-11 CARBON 68 5% 1/4W R643 1-216-833-11 METAL CHIP 10K 5% 1/10W R644 1-216-821-11 METAL CHIP 1K 5% 1/10W R645 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R646 1-216-809-11 METAL CHIP 100 5% 1/10W R647 1-216-797-11 METAL CHIP 10 5% 1/10W R648 1-216-841-11 METAL CHIP 47K 5% 1/10W R649 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R650 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R651 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R652 1-216-809-11 METAL CHIP 100 5% 1/10W R655 1-216-806-11 METAL CHIP 56 5% 1/10W (US, CND) R656 1-216-793-11 METAL CHIP 4.7 5% 1/10W (US, CND) R657 1-216-845-11 METAL CHIP 100K 5% 1/10W (US, CND) 0 R658 1-215-890-51 METAL OXIDE 470 5% 2W F R659 1-216-845-11 METAL CHIP 100K 5% 1/10W R660 1-216-864-11 SHORT CHIP 0 0 R662 1-215-890-51 METAL OXIDE 470 5% 2W F R663 1-216-821-11 METAL CHIP 1K 5% 1/10W R666 1-216-821-11 METAL CHIP 1K 5% 1/10W R667 1-216-841-11 METAL CHIP 47K 5% 1/10W R669 1-216-845-11 METAL CHIP 100K 5% 1/10W R670 1-216-833-11 METAL CHIP 10K 5% 1/10W R672 1-216-833-11 METAL CHIP 10K 5% 1/10W R673 1-216-864-11 SHORT CHIP 0 R674 1-249-401-11 CARBON 47 5% 1/4W R675 1-249-401-11 CARBON 47 5% 1/4W R676 1-216-833-11 METAL CHIP 10K 5% 1/10W R677 1-216-833-11 METAL CHIP 10K 5% 1/10W R678 1-216-841-11 METAL CHIP 47K 5% 1/10W R681 1-216-837-11 METAL CHIP 22K 5% 1/10W R684 1-216-837-11 METAL CHIP 22K 5% 1/10W R685 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R686 1-216-842-11 METAL CHIP 56K 5% 1/10W R687 1-216-837-11 METAL CHIP 22K 5% 1/10W R689 1-216-838-11 METAL CHIP 27K 5% 1/10W R690 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R691 1-216-833-11 METAL CHIP 10K 5% 1/10W R692 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R693 1-216-821-11 METAL CHIP 1K 5% 1/10W R696 1-216-833-11 METAL CHIP 10K 5% 1/10W R697 1-216-821-11 METAL CHIP 1K 5% 1/10W R700 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R701 1-216-833-11 METAL CHIP 10K 5% 1/10W R702 1-216-833-11 METAL CHIP 10K 5% 1/10W R704 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R706 1-216-813-11 METAL CHIP 220 5% 1/10W R707 1-216-813-11 METAL CHIP 220 5% 1/10W R708 1-216-833-11 METAL CHIP 10K 5% 1/10W R709 1-216-821-11 METAL CHIP 1K 5% 1/10W R710 1-216-839-11 METAL CHIP 33K 5% 1/10W R711 1-216-839-11 METAL CHIP 33K 5% 1/10W R712 1-216-819-11 METAL CHIP 680 5% 1/10W R713 1-216-845-11 METAL CHIP 100K 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-EC98P 60 MAIN R714 1-216-841-11 METAL CHIP 47K 5% 1/10W R715 1-216-809-11 METAL CHIP 100 5% 1/10W R716 1-216-821-11 METAL CHIP 1K 5% 1/10W R717 1-249-403-11 CARBON 68 5% 1/4W R718 1-249-403-11 CARBON 68 5% 1/4W R719 1-249-403-11 CARBON 68 5% 1/4W R720 1-216-837-11 METAL CHIP 22K 5% 1/10W R721 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R722 1-216-809-11 METAL CHIP 100 5% 1/10W R723 1-249-389-11 CARBON 4.7 5% 1/4W (US, CND) R724 1-249-389-11 CARBON 4.7 5% 1/4W (US, CND) R724 1-249-395-11 CARBON 15 5% 1/4W (AUS) R725 1-249-389-11 CARBON 4.7 5% 1/4W (US, CND) R725 1-249-395-11 CARBON 15 5% 1/4W (AUS) R726 1-249-389-11 CARBON 4.7 5% 1/4W (US, CND) R726 1-249-395-11 CARBON 15 5% 1/4W (AUS) R727 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R728 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R729 1-216-845-11 METAL CHIP 100K 5% 1/10W R730 1-216-841-11 METAL CHIP 47K 5% 1/10W R731 1-216-809-11 METAL CHIP 100 5% 1/10W R732 1-216-809-11 METAL CHIP 100 5% 1/10W R733 1-216-845-11 METAL CHIP 100K 5% 1/10W R734 1-216-821-11 METAL CHIP 1K 5% 1/10W R735 1-216-864-11 SHORT CHIP 0 R736 1-216-833-11 METAL CHIP 10K 5% 1/10W R737 1-216-833-11 METAL CHIP 10K 5% 1/10W R738 1-216-821-11 METAL CHIP 1K 5% 1/10W R739 1-216-809-11 METAL CHIP 100 5% 1/10W R740 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R741 1-216-821-11 METAL CHIP 1K 5% 1/10W R742 1-216-821-11 METAL CHIP 1K 5% 1/10W R744 1-216-797-11 METAL CHIP 10 5% 1/10W R745 1-216-797-11 METAL CHIP 10 5% 1/10W R746 1-249-403-11 CARBON 68 5% 1/4W R747 1-249-403-11 CARBON 68 5% 1/4W R748 1-249-403-11 CARBON 68 5% 1/4W R749 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R750 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R751 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R752 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R753 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R754 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R755 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R756 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R757 1-216-841-11 METAL CHIP 47K 5% 1/10W R758 1-216-821-11 METAL CHIP 1K 5% 1/10W R759 1-216-805-11 METAL CHIP 47 5% 1/10W R761 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R762 1-216-839-11 METAL CHIP 33K 5% 1/10W R763 1-216-821-11 METAL CHIP 1K 5% 1/10W R764 1-249-389-11 CARBON 4.7 5% 1/4W (US, CND) R765 1-249-389-11 CARBON 4.7 5% 1/4W (US, CND) R766 1-216-833-11 METAL CHIP 10K 5% 1/10W 0 R767 1-216-365-61 METAL OXIDE 0.47 5% 2W F R768 1-216-833-11 METAL CHIP 10K 5% 1/10W R769 1-216-805-11 METAL CHIP 47 5% 1/10W R770 1-216-864-11 SHORT CHIP 0 R771 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R772 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R773 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R774 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R775 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R776 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R777 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R778 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R779 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R780 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R781 1-216-839-11 METAL CHIP 33K 5% 1/10W R782 1-216-842-11 METAL CHIP 56K 5% 1/10W R783 1-216-845-11 METAL CHIP 100K 5% 1/10W R784 1-216-845-11 METAL CHIP 100K 5% 1/10W R785 1-216-845-11 METAL CHIP 100K 5% 1/10W R786 1-216-845-11 METAL CHIP 100K 5% 1/10W R787 1-216-835-11 METAL CHIP 15K 5% 1/10W R788 1-216-835-11 METAL CHIP 15K 5% 1/10W R789 1-216-845-11 METAL CHIP 100K 5% 1/10W R790 1-216-845-11 METAL CHIP 100K 5% 1/10W R791 1-216-845-11 METAL CHIP 100K 5% 1/10W R792 1-216-849-11 METAL CHIP 220K 5% 1/10W R801 1-216-809-11 METAL CHIP 100 5% 1/10W R802 1-216-801-11 METAL CHIP 22 5% 1/10W R803 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R804 1-216-801-11 METAL CHIP 22 5% 1/10W R805 1-216-853-11 METAL CHIP 470K 5% 1/10W R806 1-216-841-11 METAL CHIP 47K 5% 1/10W R807 1-216-837-11 METAL CHIP 22K 5% 1/10W R808 1-216-801-11 METAL CHIP 22 5% 1/10W R809 1-216-809-11 METAL CHIP 100 5% 1/10W R810 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R811 1-216-845-11 METAL CHIP 100K 5% 1/10W R812 1-216-841-11 METAL CHIP 47K 5% 1/10W R813 1-216-853-11 METAL CHIP 470K 5% 1/10W R814 1-216-837-11 METAL CHIP 22K 5% 1/10W R815 1-216-833-11 METAL CHIP 10K 5% 1/10W R816 1-216-821-11 METAL CHIP 1K 5% 1/10W R817 1-216-841-11 METAL CHIP 47K 5% 1/10W R818 1-216-833-11 METAL CHIP 10K 5% 1/10W R819 1-216-839-11 METAL CHIP 33K 5% 1/10W R820 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R821 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R822 1-216-809-11 METAL CHIP 100 5% 1/10W R823 1-216-833-11 METAL CHIP 10K 5% 1/10W R824 1-216-817-11 METAL CHIP 470 5% 1/10W R825 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R826 1-216-821-11 METAL CHIP 1K 5% 1/10W R827 1-216-845-11 METAL CHIP 100K 5% 1/10W R829 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R830 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R831 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R832 1-216-857-11 METAL CHIP 1M 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-EC98P 61 61 R836 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R837 1-216-845-11 METAL CHIP 100K 5% 1/10W R838 1-216-837-11 METAL CHIP 22K 5% 1/10W R839 1-216-797-11 METAL CHIP 10 5% 1/10W R840 1-216-864-11 SHORT CHIP 0 R841 1-216-833-11 METAL CHIP 10K 5% 1/10W R842 1-216-864-11 SHORT CHIP 0 R843 1-216-845-11 METAL CHIP 100K 5% 1/10W R844 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R845 1-216-864-11 SHORT CHIP 0 R846 1-216-797-11 METAL CHIP 10 5% 1/10W R847 1-216-864-11 SHORT CHIP 0 < RELAY > RY601 1-755-307-21 RELAY RY602 1-755-307-21 RELAY RY701 1-755-307-21 RELAY < TRANSFORMER > T801 1-433-741-11 TRANSFORMER, IF < TERMINAL > TB601 1-780-381-11 TERMINAL BOARD, PUSH (ANTENNA) 4P (SPEAKER HIGH FREQ. IMPEDANCE USE 8Ω) TB602 1-536-708-81 TERMINAL BOARD, PUSH (4P) (SPEAKER LOW FREQ. IMPEDANCE USE 8Ω) TB603 1-780-600-11 TERMINAL BOARD (SPEAKER) 1P (SUBWOOFER IMPEDANCE: USE 4Ω) < VIBRATOR > X801 1-813-917-11 VIBRATOR, CRYSTAL (75MHz) ************************************************************ MOTOR BOARD (US, CND) ************* < CONNECTOR > CN001 1-779-542-21 CONNECTOR, FFC (LIF (NON-ZIF)) 5P < SWITCH > S001 1-786-514-21 SWITCH, LEVER (SLIDE) (DISC TRAY OPEN/CLOSE DETECT) ************************************************************ A-1379-636-A PANEL BOARD, COMPLETE (US, CND) A-1426-098-A PANEL BOARD, COMPLETE (AUS) ********************** 2-649-178-01 PLATE, LIGHT GUIDE 2-649-179-01 SHEET (LCD) 2-665-175-01 SHEET (REFLECTOR) < CAPACITOR > C301 1-164-156-11 CERAMIC CHIP 0.1uF 25V C302 1-126-964-11 ELECT 10uF 20% 50V C303 1-126-964-11 ELECT 10uF 20% 50V C304 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V C305 1-126-964-11 ELECT 10uF 20% 50V C306 1-104-655-91 ELECT 470uF 20% 6.3V C308 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V (AUS) C309 1-126-965-91 ELECT 22uF 20% 50V (AUS) C310 1-164-156-11 CERAMIC CHIP 0.1uF 25V (AUS) C311 1-164-156-11 CERAMIC CHIP 0.1uF 25V (AUS) C312 1-164-156-11 CERAMIC CHIP 0.1uF 25V (AUS) C313 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C314 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C315 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C316 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C317 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C319 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C320 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C321 1-164-156-11 CERAMIC CHIP 0.1uF 25V C328 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C330 1-164-156-11 CERAMIC CHIP 0.1uF 25V C332 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C338 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C340 1-164-156-11 CERAMIC CHIP 0.1uF 25V C341 1-164-156-11 CERAMIC CHIP 0.1uF 25V C342 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C343 1-126-965-91 ELECT 22uF 20% 50V (AUS) C344 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V (AUS) C345 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V (AUS) C346 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C347 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C348 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C351 1-164-156-11 CERAMIC CHIP 0.1uF 25V (US, CND) C352 1-126-964-11 ELECT 10uF 20% 50V (US, CND) C353 1-164-156-11 CERAMIC CHIP 0.1uF 25V (US, CND) C354 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C355 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C356 1-164-156-11 CERAMIC CHIP 0.1uF 25V C357 1-126-965-91 ELECT 22uF 20% 50V (US, CND) < CONNECTOR > CN301 1-784-753-11 CONNECTOR, FFC 31P CN302 1-784-735-11 CONNECTOR, FFC 13P (AUS) CN303 1-815-550-11 PIN, CONNECTOR (PWB) 2P CN305 1-815-444-11 PIN, CONNECTOR (PWB) 3P CN311 1-779-273-11 CONNECTOR, FFC (LIF (NON-ZIF)) 5P (US, CND) < DIODE > D301 6-501-722-01 DIODE MAZ8043GMLS0 D302 6-501-817-01 DIODE MA2J1110GLS0 D303 6-500-334-01 DIODE MC2836-T112-1 D304 6-501-817-01 DIODE MA2J1110GLS0 D305 6-501-817-01 DIODE MA2J1110GLS0 (AUS) D306 8-719-063-79 DIODE 1N4002B (US, CND) D307 6-501-817-01 DIODE MA2J1110GLS0 (US, CND) < FERRITE BEAD > FB301 1-500-329-21 INDUCTOR, FERRITE BEAD < IC > IC301 A-1551-183-A IC MB90F831PF-G-SPE1 (for SERVICE) (AUS) IC301 A-1551-185-A IC MB90F831PF-G-SPE1 (for SERVICE) (US, CND) IC302 6-711-556-01 IC NJL24H400B-SA IC303 8-759-598-69 IC BA6956AN (US, CND) PANEL MAIN MOTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-EC98P 62 < JUMPER RESISTOR > JR301 1-216-864-11 SHORT CHIP 0 JR302 1-216-864-11 SHORT CHIP 0 JR303 1-216-864-11 SHORT CHIP 0 JR304 1-216-864-11 SHORT CHIP 0 JR305 1-216-864-11 SHORT CHIP 0 JR307 1-216-864-11 SHORT CHIP 0 JR308 1-216-864-11 SHORT CHIP 0 JR309 1-216-864-11 SHORT CHIP 0 JR310 1-216-864-11 SHORT CHIP 0 JR311 1-216-864-11 SHORT CHIP 0 JR313 1-216-864-11 SHORT CHIP 0 JR315 1-216-864-11 SHORT CHIP 0 < LIQUID CRYSTAL DISPLAY > LCD301 1-802-584-11 DISPLAY PANEL, LIQUID < LED > LED301 6-501-479-01 LED 1L0341Y23E0CA602 (I/1, STANDBY) < TRANSISTOR > Q301 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q302 8-729-037-13 TRANSISTOR KTA1271Y Q303 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q304 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q305 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q306 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q307 6-551-696-01 TRANSISTOR ISA1235AC1TP-1EF (AUS) Q308 8-729-038-28 TRANSISTOR RT1N441C-TP-1 (AUS) Q309 8-729-040-76 TRANSISTOR KTA1273-Y-AT (AUS) Q310 8-729-120-28 TRANSISTOR 2SC1623-L5L6 (AUS) Q311 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF (AUS) Q312 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF (AUS) Q313 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF (AUS) Q314 8-729-024-43 TRANSISTOR 2SA1365-T112-1EF (AUS) Q315 8-729-047-62 TRANSISTOR 2SC3440-T12-1F (AUS) Q316 8-729-047-62 TRANSISTOR 2SC3440-T12-1F (AUS) Q317 8-729-047-62 TRANSISTOR 2SC3440-T12-1F (AUS) Q318 8-729-047-62 TRANSISTOR 2SC3440-T12-1F (AUS) < RESISTOR > R301 1-216-809-11 METAL CHIP 100 5% 1/10W R302 1-216-809-11 METAL CHIP 100 5% 1/10W R303 1-216-809-11 METAL CHIP 100 5% 1/10W R304 1-216-809-11 METAL CHIP 100 5% 1/10W R305 1-216-809-11 METAL CHIP 100 5% 1/10W R306 1-216-809-11 METAL CHIP 100 5% 1/10W R307 1-216-809-11 METAL CHIP 100 5% 1/10W R308 1-216-809-11 METAL CHIP 100 5% 1/10W R309 1-216-809-11 METAL CHIP 100 5% 1/10W R310 1-216-809-11 METAL CHIP 100 5% 1/10W R311 1-216-817-11 METAL CHIP 470 5% 1/10W R312 1-216-809-11 METAL CHIP 100 5% 1/10W R313 1-216-809-11 METAL CHIP 100 5% 1/10W R314 1-216-809-11 METAL CHIP 100 5% 1/10W R315 1-216-809-11 METAL CHIP 100 5% 1/10W R316 1-216-809-11 METAL CHIP 100 5% 1/10W R317 1-216-809-11 METAL CHIP 100 5% 1/10W R318 1-216-809-11 METAL CHIP 100 5% 1/10W R319 1-216-809-11 METAL CHIP 100 5% 1/10W R320 1-216-809-11 METAL CHIP 100 5% 1/10W R321 1-216-809-11 METAL CHIP 100 5% 1/10W R322 1-216-809-11 METAL CHIP 100 5% 1/10W R323 1-216-809-11 METAL CHIP 100 5% 1/10W R324 1-216-809-11 METAL CHIP 100 5% 1/10W R325 1-216-797-11 METAL CHIP 10 5% 1/10W R326 1-216-809-11 METAL CHIP 100 5% 1/10W R327 1-216-809-11 METAL CHIP 100 5% 1/10W R328 1-216-833-11 METAL CHIP 10K 5% 1/10W R329 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R330 1-216-819-11 METAL CHIP 680 5% 1/10W R331 1-216-845-11 METAL CHIP 100K 5% 1/10W R332 1-216-833-11 METAL CHIP 10K 5% 1/10W R333 1-216-845-11 METAL CHIP 100K 5% 1/10W R334 1-216-833-11 METAL CHIP 10K 5% 1/10W R335 1-216-837-11 METAL CHIP 22K 5% 1/10W R336 1-216-833-11 METAL CHIP 10K 5% 1/10W R337 1-216-813-11 METAL CHIP 220 5% 1/10W R338 1-216-789-11 METAL CHIP 2.2 5% 1/10W (AUS) R339 1-216-789-11 METAL CHIP 2.2 5% 1/10W (AUS) R340 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (AUS) R341 1-216-839-11 METAL CHIP 33K 5% 1/10W (AUS) R342 1-216-849-11 METAL CHIP 220K 5% 1/10W (AUS) R343 1-216-853-11 METAL CHIP 470K 5% 1/10W (AUS) R344 1-216-826-11 METAL CHIP 2.7K 5% 1/10W (AUS) R345 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (AUS) R346 1-216-841-11 METAL CHIP 47K 5% 1/10W (AUS) R347 1-216-817-11 METAL CHIP 470 5% 1/10W (AUS) R348 1-216-841-11 METAL CHIP 47K 5% 1/10W (AUS) R349 1-216-817-11 METAL CHIP 470 5% 1/10W (AUS) R350 1-216-841-11 METAL CHIP 47K 5% 1/10W (AUS) R351 1-216-817-11 METAL CHIP 470 5% 1/10W (AUS) R352 1-216-841-11 METAL CHIP 47K 5% 1/10W (AUS) R353 1-216-817-11 METAL CHIP 470 5% 1/10W (AUS) R354 1-216-841-11 METAL CHIP 47K 5% 1/10W (AUS) R355 1-216-821-11 METAL CHIP 1K 5% 1/10W (AUS) R356 1-216-821-11 METAL CHIP 1K 5% 1/10W (AUS) R357 1-216-841-11 METAL CHIP 47K 5% 1/10W (AUS) R358 1-216-841-11 METAL CHIP 47K 5% 1/10W (AUS) R359 1-216-821-11 METAL CHIP 1K 5% 1/10W (AUS) PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-EC98P 63 63 R360 1-216-821-11 METAL CHIP 1K 5% 1/10W (AUS) R361 1-216-841-11 METAL CHIP 47K 5% 1/10W (AUS) R362 1-216-837-11 METAL CHIP 22K 5% 1/10W R363 1-216-837-11 METAL CHIP 22K 5% 1/10W R364 1-216-837-11 METAL CHIP 22K 5% 1/10W (AUS) R365 1-216-837-11 METAL CHIP 22K 5% 1/10W (AUS) R366 1-216-833-11 METAL CHIP 10K 5% 1/10W (AUS) R367 1-216-837-11 METAL CHIP 22K 5% 1/10W (AUS) R368 1-216-833-11 METAL CHIP 10K 5% 1/10W (AUS) R369 1-216-821-11 METAL CHIP 1K 5% 1/10W R370 1-216-821-11 METAL CHIP 1K 5% 1/10W R371 1-216-821-11 METAL CHIP 1K 5% 1/10W (AUS) R372 1-216-821-11 METAL CHIP 1K 5% 1/10W (AUS) R373 1-216-864-11 SHORT CHIP 0 (AUS) R374 1-216-821-11 METAL CHIP 1K 5% 1/10W (AUS) R375 1-216-864-11 SHORT CHIP 0 (AUS) R376 1-216-833-11 METAL CHIP 10K 5% 1/10W R377 1-216-833-11 METAL CHIP 10K 5% 1/10W R378 1-216-839-11 METAL CHIP 33K 5% 1/10W R379 1-216-843-11 METAL CHIP 68K 5% 1/10W R380 1-216-817-11 METAL CHIP 470 5% 1/10W R381 1-216-833-11 METAL CHIP 10K 5% 1/10W R382 1-216-833-11 METAL CHIP 10K 5% 1/10W R383 1-216-833-11 METAL CHIP 10K 5% 1/10W R384 1-216-833-11 METAL CHIP 10K 5% 1/10W R385 1-216-821-11 METAL CHIP 1K 5% 1/10W R386 1-216-821-11 METAL CHIP 1K 5% 1/10W R387 1-216-821-11 METAL CHIP 1K 5% 1/10W R389 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (US, CND) R389 1-216-832-11 METAL CHIP 8.2K 5% 1/10W (AUS) R390 1-216-833-11 METAL CHIP 10K 5% 1/10W R391 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (AUS) R392 1-216-833-11 METAL CHIP 10K 5% 1/10W R396 1-216-851-11 METAL CHIP 330K 5% 1/10W R400 1-216-821-11 METAL CHIP 1K 5% 1/10W R401 1-216-821-11 METAL CHIP 1K 5% 1/10W R402 1-216-845-11 METAL CHIP 100K 5% 1/10W R405 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R406 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R412 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R413 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R414 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R415 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R416 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R417 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R418 1-216-835-11 METAL CHIP 15K 5% 1/10W R419 1-216-838-11 METAL CHIP 27K 5% 1/10W R420 1-216-845-11 METAL CHIP 100K 5% 1/10W R421 1-216-833-11 METAL CHIP 10K 5% 1/10W (AUS) R422 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R424 1-216-841-11 METAL CHIP 47K 5% 1/10W R426 1-216-845-11 METAL CHIP 100K 5% 1/10W (AUS) R428 1-216-841-11 METAL CHIP 47K 5% 1/10W (AUS) R429 1-216-833-11 METAL CHIP 10K 5% 1/10W R433 1-216-817-11 METAL CHIP 470 5% 1/10W R434 1-216-817-11 METAL CHIP 470 5% 1/10W R435 1-216-817-11 METAL CHIP 470 5% 1/10W R441 1-216-840-11 METAL CHIP 39K 5% 1/10W (US, CND) R442 1-216-837-11 METAL CHIP 22K 5% 1/10W (US, CND) R443 1-216-833-11 METAL CHIP 10K 5% 1/10W (US, CND) R444 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (US, CND) R445 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (US, CND) R446 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R447 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R448 1-216-833-11 METAL CHIP 10K 5% 1/10W < ROTARY ENCODER > S301 1-786-417-11 ENCODER, ROTARY (VOLUME) < SWITCH > SW303 1-771-410-21 SWITCH, TACTILE (l m − TUNING) SW304 1-771-410-21 SWITCH, TACTILE (FUNCTION) SW305 1-771-410-21 SWITCH, TACTILE (TUNING + M L) SW311 1-771-410-21 SWITCH, TACTILE (N) SW312 1-771-410-21 SWITCH, TACTILE (X) SW313 1-771-410-21 SWITCH, TACTILE (x) SW314 1-771-410-21 SWITCH, TACTILE (FOLDER +) SW315 1-771-410-21 SWITCH, TACTILE (FOLDER −) SW316 1-771-410-21 SWITCH, TACTILE (EQ) SW317 1-771-410-21 SWITCH, TACTILE (DSGX) SW318 1-771-410-21 SWITCH, TACTILE (PLAY MODE/TUNING MODE) SW319 1-771-410-21 SWITCH, TACTILE (DISPLAY) < VIBRATOR > X301 1-814-067-11 OSCILLATOR, CRYSTAL (32.768kHz) X302 1-813-548-21 VIBRATOR, CERAMIC (6MHz) ************************************************************ PT BOARD ********* < CAPACITOR > C051 1-165-621-91 CERAMIC CHIP 0.1uF 50V C052 1-100-597-91 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > CN051 1-820-973-11 HOLDER, CABLE 10P 0 CN053 1-793-660-11 PIN, CONNECTOR (PC BOARD) 3P < DIODE > D051 6-500-334-01 DIODE MC2836-T112-1 PANEL PT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HCD-EC98P 64 D052 6-500-335-01 DIODE MC2838-T112-1 D055 6-500-335-01 DIODE MC2838-T112-1 < RELAY > 0 RY001 1-755-334-11 RELAY, AC POWER < TRANSFORMER > 0 PT005 1-443-846-11 TRANSFORMER, POWER (US, CND) 0 PT005 1-445-105-11 TRANSFORMER, POWER (AUS) ************************************************************ REG BOARD ********** < CAPACITOR > C698 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V < IC > IC601 8-759-231-56 IC TA7809S < CABLE HOLDER > W610 1-824-027-21 HOLDER, CABLE 3P ************************************************************ MISCELLANEOUS ************** 57 1-835-338-21 CABLE, FLEXIBLE FLAT (31 CORE) 60 1-831-774-21 CABLE, FLEXIBLE FLAT (9 CORE) 62 1-835-336-21 CABLE, FLEXIBLE FLAT (11 CORE) 101 1-832-838-21 CABLE, FLEXIBLE FLAT (13 CORE) (AUS) 0 106 1-834-967-21 CORD, POWER (AUS) 0 106 1-834-978-11 CORD, POWER (US, CND) 107 1-834-181-21 CABLE, FLEXIBLE FLAT (21 CORE) (AUS) 107 1-835-334-21 CABLE, FLEXIBLE FLAT (21 CORE) (US, CND) 108 1-832-666-21 CABLE, FLEXIBLE FLAT (5 CORE) (US, CND) 152 1-835-335-21 CABLE, FLEXIBLE FLAT (7 CORE) 153 1-835-276-21 CABLE, FLEXIBLE FLAT (5 CORE) 201 1-797-193-12 MECHANICAL, CD (DLM3A) 0 206 A-4735-357-A BASE ASSY, OP (KSM-213D) 207 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE) 251 A-1242-967-A LOADING (BK) ASSY 0 256 A-4735-357-A BASE ASSY, OP (KSM-213D) 257 1-832-404-21 CABLE, FLEXIBLE FLAT (16 CORE) M601 1-787-400-11 D.C. FAN M701 1-787-400-11 D.C. FAN (US, CND) 0 PT006 1-445-347-11 TRANSFORMER, POWER (US, CND) 0 PT006 1-445-349-11 TRANSFORMER, POWER (AUS) S201 1-771-853-11 SWITCH, DETECTION (LIMIT) PT REG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MEMO HCD-EC98P 65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-EC98P REVISION HISTORY Checking the version allows you to jump to the revised page. Also, clicking the version at the top of the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2008.04 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
