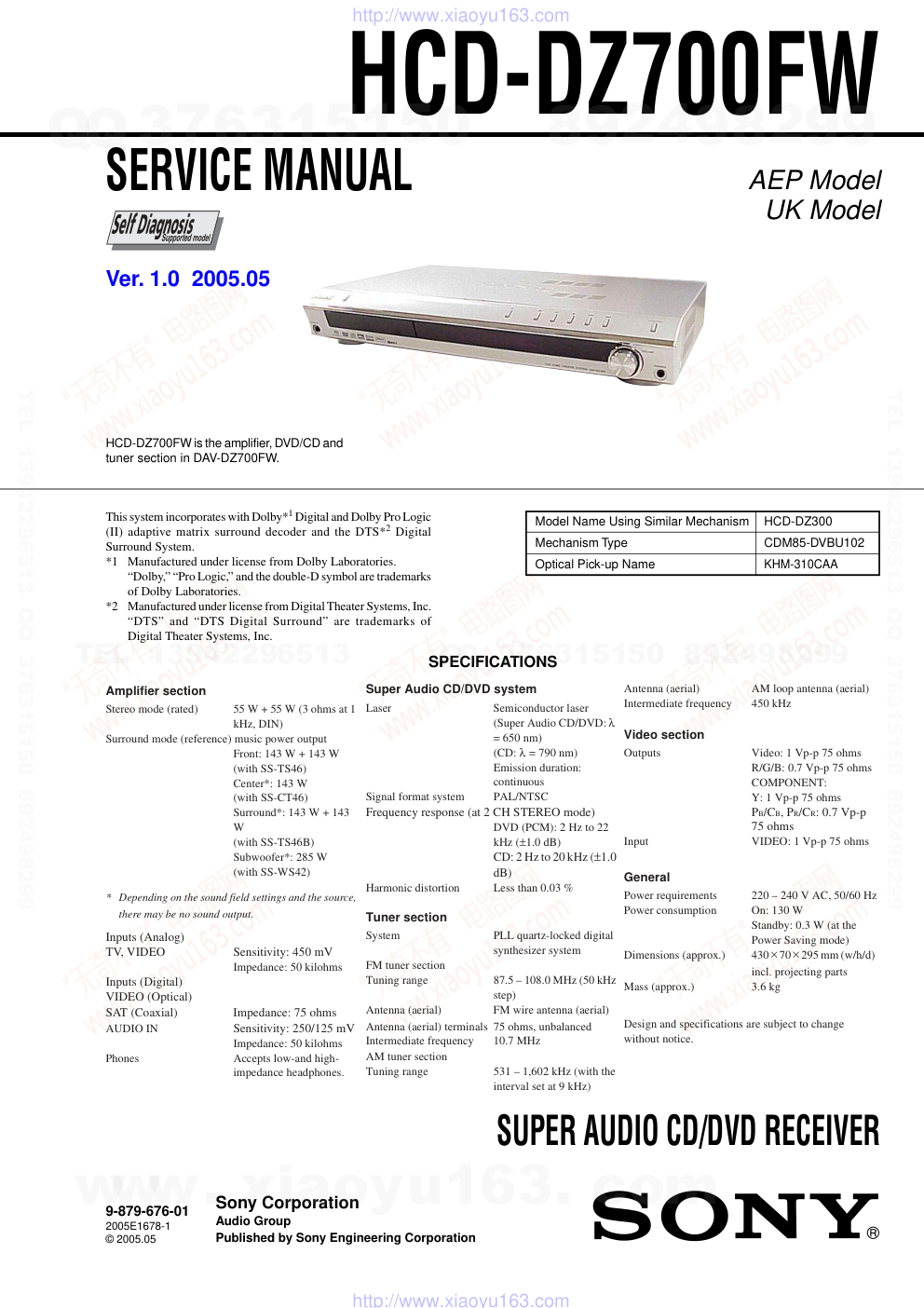

SERVICE MANUAL
Sony Corporation
Audio Group
Published by Sony Engineering Corporation
AEP Model
UK Model
SUPER AUDIO CD/DVD RECEIVER
9-879-676-01
2005E1678-1
© 2005.05
Ver. 1.0 2005.05
HCD-DZ700FW
HCD-DZ700FW is the amplifier, DVD/CD and
tuner section in DAV-DZ700FW.
SPECIFICATIONS
Model Name Using Similar Mechanism
HCD-DZ300
Mechanism Type
CDM85-DVBU102
Optical Pick-up Name
KHM-310CAA
This system incorporates with Dolby*1 Digital and Dolby Pro Logic
(II) adaptive matrix surround decoder and the DTS*2 Digital
Surround System.
*1 Manufactured under license from Dolby Laboratories.
“Dolby,” “Pro Logic,” and the double-D symbol are trademarks
of Dolby Laboratories.
*2 Manufactured under license from Digital Theater Systems, Inc.
“DTS” and “DTS Digital Surround” are trademarks of
Digital Theater Systems, Inc.
Amplifier section
Stereo mode (rated)
55 W + 55 W (3 ohms at 1
kHz, DIN)
Surround mode (reference) music power output
Front: 143 W + 143 W
(with SS-TS46)
Center*: 143 W
(with SS-CT46)
Surround*: 143 W + 143
W
(with SS-TS46B)
Subwoofer*: 285 W
(with SS-WS42)
* Depending on the sound field settings and the source,
there may be no sound output.
Inputs (Analog)
TV, VIDEO
Sensitivity: 450 mV
Impedance: 50 kilohms
Inputs (Digital)
VIDEO (Optical)
SAT (Coaxial)
Impedance: 75 ohms
AUDIO IN
Sensitivity: 250/125 mV
Impedance: 50 kilohms
Phones
Accepts low-and high-
impedance headphones.
Super Audio CD/DVD system
Laser
Semiconductor laser
(Super Audio CD/DVD:
= 650 nm)
(CD: = 790 nm)
Emission duration:
continuous
Signal format system
PAL/NTSC
Frequency response (at 2 CH STEREO mode)
DVD (PCM): 2 Hz to 22
kHz (±1.0 dB)
CD: 2 Hz to 20 kHz (±1.0
dB)
Harmonic distortion
Less than 0.03 %
Tuner section
System
PLL quartz-locked digital
synthesizer system
FM tuner section
Tuning range
87.5 – 108.0 MHz (50 kHz
step)
Antenna (aerial)
FM wire antenna (aerial)
λ
λ
Antenna (aerial) terminals 75 ohms, unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
531 – 1,602 kHz (with the
interval set at 9 kHz)
Antenna (aerial)
AM loop antenna (aerial)
Intermediate frequency
450 kHz
Video section
Outputs
Video: 1 Vp-p 75 ohms
R/G/B: 0.7 Vp-p 75 ohms
COMPONENT:
Y: 1 Vp-p 75 ohms
PB/CB, PR/CR: 0.7 Vp-p
75 ohms
Input
VIDEO: 1 Vp-p 75 ohms
General
Power requirements
220 – 240 V AC, 50/60 Hz
Power consumption
On: 130 W
Standby: 0.3 W (at the
Power Saving mode)
Dimensions (approx.)
430 70 295 mm (w/h/d)
×
×
incl. projecting parts
Mass (approx.)
3.6 kg
Design and specifications are subject to change
without notice.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
2
HCD-DZ700FW

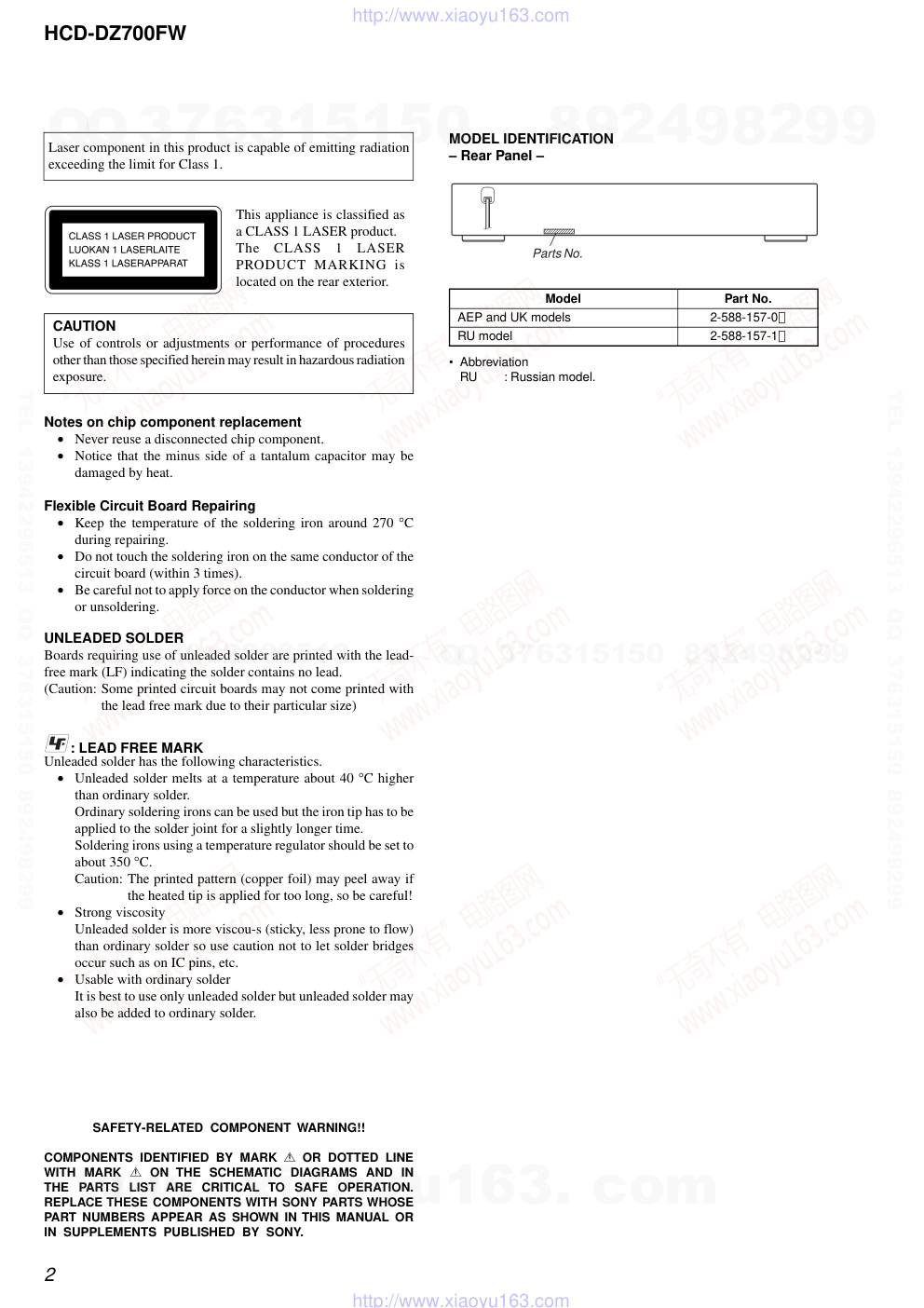

MODEL IDENTIFICATION
– Rear Panel –
Model
Part No.
AEP and UK models
2-588-157-0[]
RU model
2-588-157-1[]
• Abbreviation
RU
: Russian model.
CAUTION
Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.
UNLEADED SOLDER
Boards requiring use of unleaded solder are printed with the lead-
free mark (LF) indicating the solder contains no lead.
(Caution: Some printed circuit boards may not come printed with
the lead free mark due to their particular size)
: LEAD FREE MARK
Unleaded solder has the following characteristics.
•
Unleaded solder melts at a temperature about 40 °C higher
than ordinary solder.
Ordinary soldering irons can be used but the iron tip has to be
applied to the solder joint for a slightly longer time.
Soldering irons using a temperature regulator should be set to
about 350 °C.
Caution: The printed pattern (copper foil) may peel away if
the heated tip is applied for too long, so be careful!
•
Strong viscosity
Unleaded solder is more viscou-s (sticky, less prone to flow)
than ordinary solder so use caution not to let solder bridges
occur such as on IC pins, etc.
•
Usable with ordinary solder
It is best to use only unleaded solder but unleaded solder may
also be added to ordinary solder.
Notes on chip component replacement
•
Never reuse a disconnected chip component.
•
Notice that the minus side of a tantalum capacitor may be
damaged by heat.
Flexible Circuit Board Repairing
•
Keep the temperature of the soldering iron around 270 °C
during repairing.
•
Do not touch the soldering iron on the same conductor of the
circuit board (within 3 times).
•
Be careful not to apply force on the conductor when soldering
or unsoldering.
SAFETY-RELATED COMPONENT WARNING!!
COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE
WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN
THE PARTS LIST ARE CRITICAL TO SAFE OPERATION.
REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE
PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR
IN SUPPLEMENTS PUBLISHED BY SONY.
Laser component in this product is capable of emitting radiation
exceeding the limit for Class 1.
This appliance is classified as
a CLASS 1 LASER product.
The CLASS 1 LASER
PRODUCT MARKING is
located on the rear exterior.
Parts No.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
3
HCD-DZ700FW

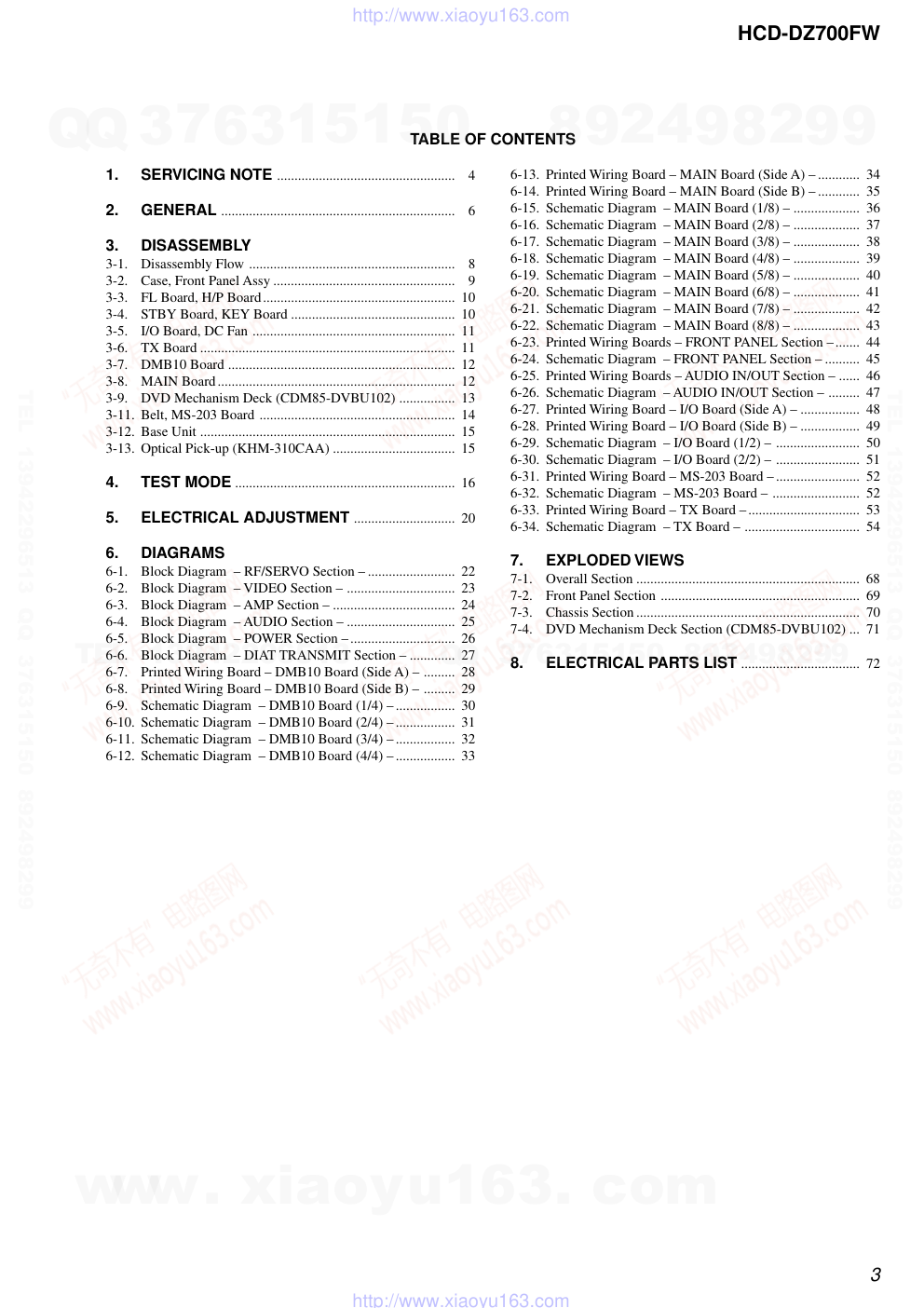

TABLE OF CONTENTS
1.
SERVICING NOTE ...................................................
4
2.

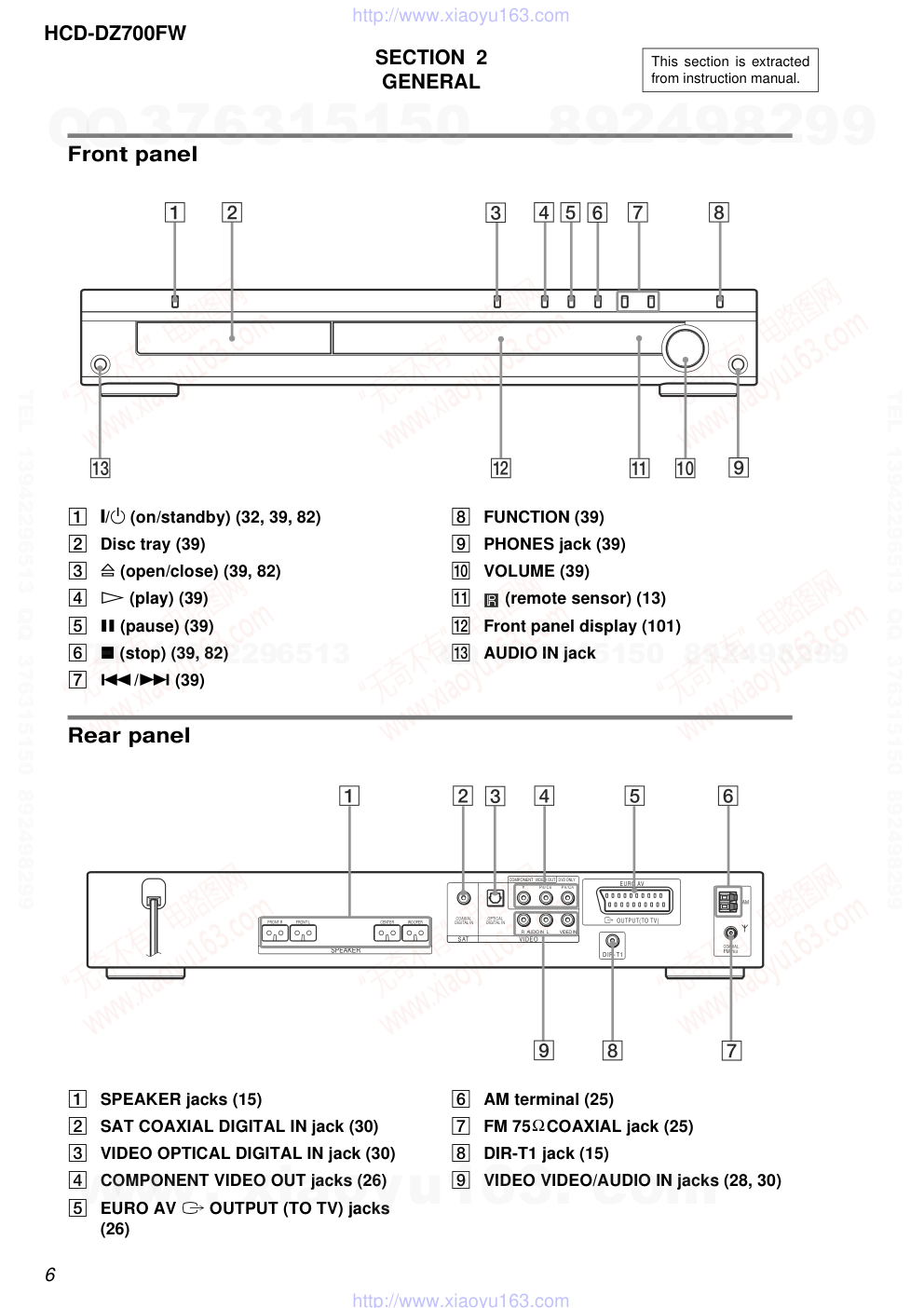

GENERAL ...................................................................
6
3.
DISASSEMBLY
3-1.

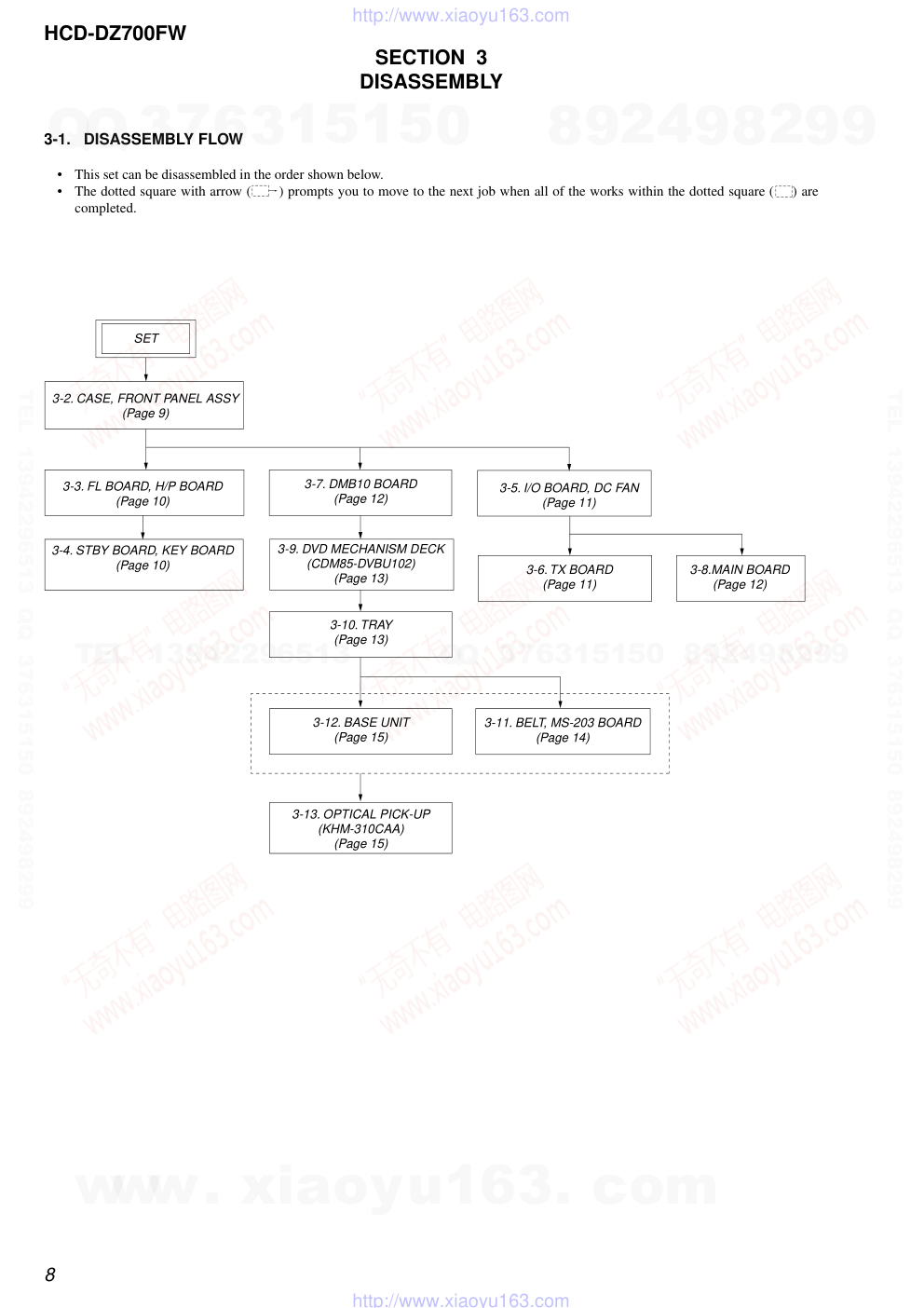

Disassembly Flow ...........................................................
8
3-2.

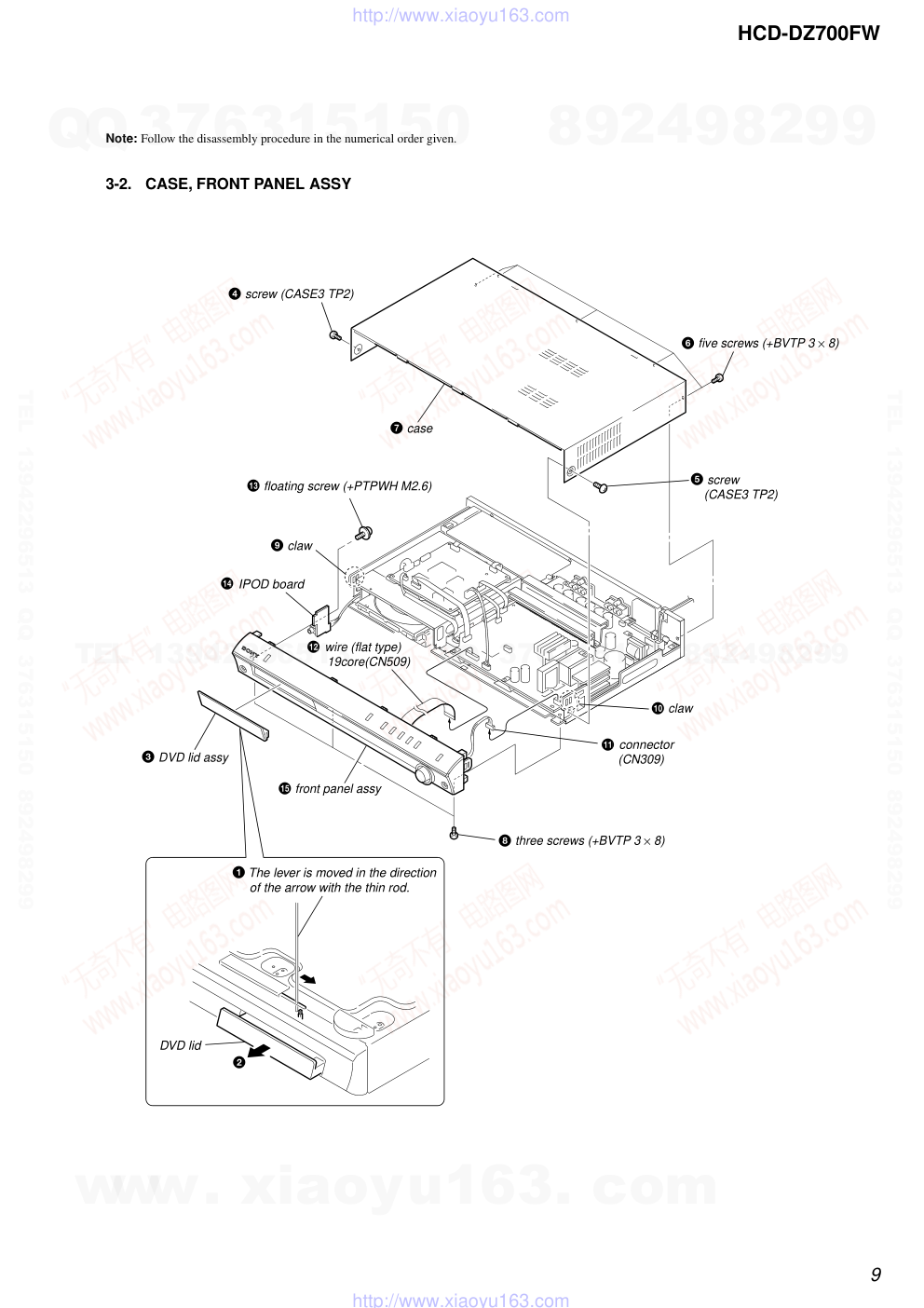

Case, Front Panel Assy ....................................................
9
3-3.

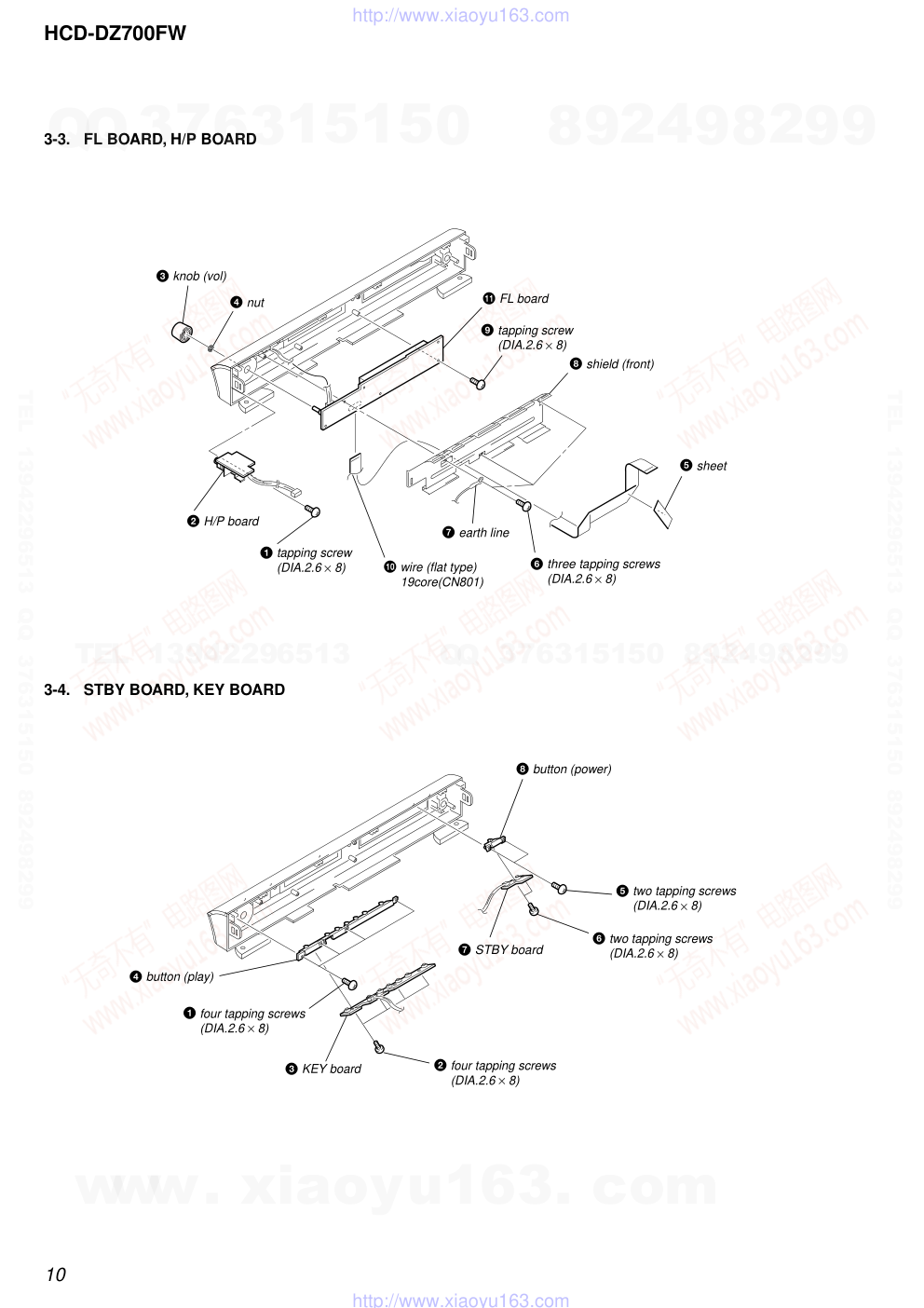

FL Board, H/P Board....................................................... 10
3-4.
STBY Board, KEY Board ............................................... 10
3-5.
I/O Board, DC Fan .......................................................... 11
3-6.
TX Board ......................................................................... 11
3-7.
DMB10 Board ................................................................. 12
3-8.
MAIN Board.................................................................... 12
3-9.
DVD Mechanism Deck (CDM85-DVBU102) ................ 13
3-11. Belt, MS-203 Board ........................................................ 14
3-12. Base Unit ......................................................................... 15
3-13. Optical Pick-up (KHM-310CAA) ................................... 15
4.
TEST MODE ............................................................... 16
5.
ELECTRICAL ADJUSTMENT ............................. 20
6.
DIAGRAMS
6-1.
Block Diagram – RF/SERVO Section – ......................... 22
6-2.
Block Diagram – VIDEO Section – ............................... 23
6-3.
Block Diagram – AMP Section – ................................... 24
6-4.
Block Diagram – AUDIO Section – ............................... 25
6-5.
Block Diagram – POWER Section –.............................. 26
6-6.
Block Diagram – DIAT TRANSMIT Section – ............. 27
6-7.
Printed Wiring Board – DMB10 Board (Side A) – ......... 28
6-8.
Printed Wiring Board – DMB10 Board (Side B) – ......... 29
6-9.
Schematic Diagram – DMB10 Board (1/4) – ................. 30
6-10. Schematic Diagram – DMB10 Board (2/4) – ................. 31
6-11. Schematic Diagram – DMB10 Board (3/4) – ................. 32
6-12. Schematic Diagram – DMB10 Board (4/4) – ................. 33
6-13. Printed Wiring Board – MAIN Board (Side A) – ............ 34
6-14. Printed Wiring Board – MAIN Board (Side B) – ............ 35
6-15. Schematic Diagram – MAIN Board (1/8) – ................... 36
6-16. Schematic Diagram – MAIN Board (2/8) – ................... 37
6-17. Schematic Diagram – MAIN Board (3/8) – ................... 38
6-18. Schematic Diagram – MAIN Board (4/8) – ................... 39
6-19. Schematic Diagram – MAIN Board (5/8) – ................... 40
6-20. Schematic Diagram – MAIN Board (6/8) – ................... 41
6-21. Schematic Diagram – MAIN Board (7/8) – ................... 42
6-22. Schematic Diagram – MAIN Board (8/8) – ................... 43
6-23. Printed Wiring Boards – FRONT PANEL Section –....... 44
6-24. Schematic Diagram – FRONT PANEL Section – .......... 45
6-25. Printed Wiring Boards – AUDIO IN/OUT Section – ...... 46
6-26. Schematic Diagram – AUDIO IN/OUT Section – ......... 47
6-27. Printed Wiring Board – I/O Board (Side A) – ................. 48
6-28. Printed Wiring Board – I/O Board (Side B) – ................. 49
6-29. Schematic Diagram – I/O Board (1/2) – ........................ 50
6-30. Schematic Diagram – I/O Board (2/2) – ........................ 51
6-31. Printed Wiring Board – MS-203 Board – ........................ 52
6-32. Schematic Diagram – MS-203 Board – ......................... 52
6-33. Printed Wiring Board – TX Board –................................ 53
6-34. Schematic Diagram – TX Board – ................................. 54
7.
EXPLODED VIEWS
7-1.
Overall Section ................................................................ 68
7-2.
Front Panel Section ......................................................... 69
7-3.
Chassis Section ................................................................ 70
7-4.
DVD Mechanism Deck Section (CDM85-DVBU102) ... 71
8.
ELECTRICAL PARTS LIST .................................. 72
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
4
HCD-DZ700FW

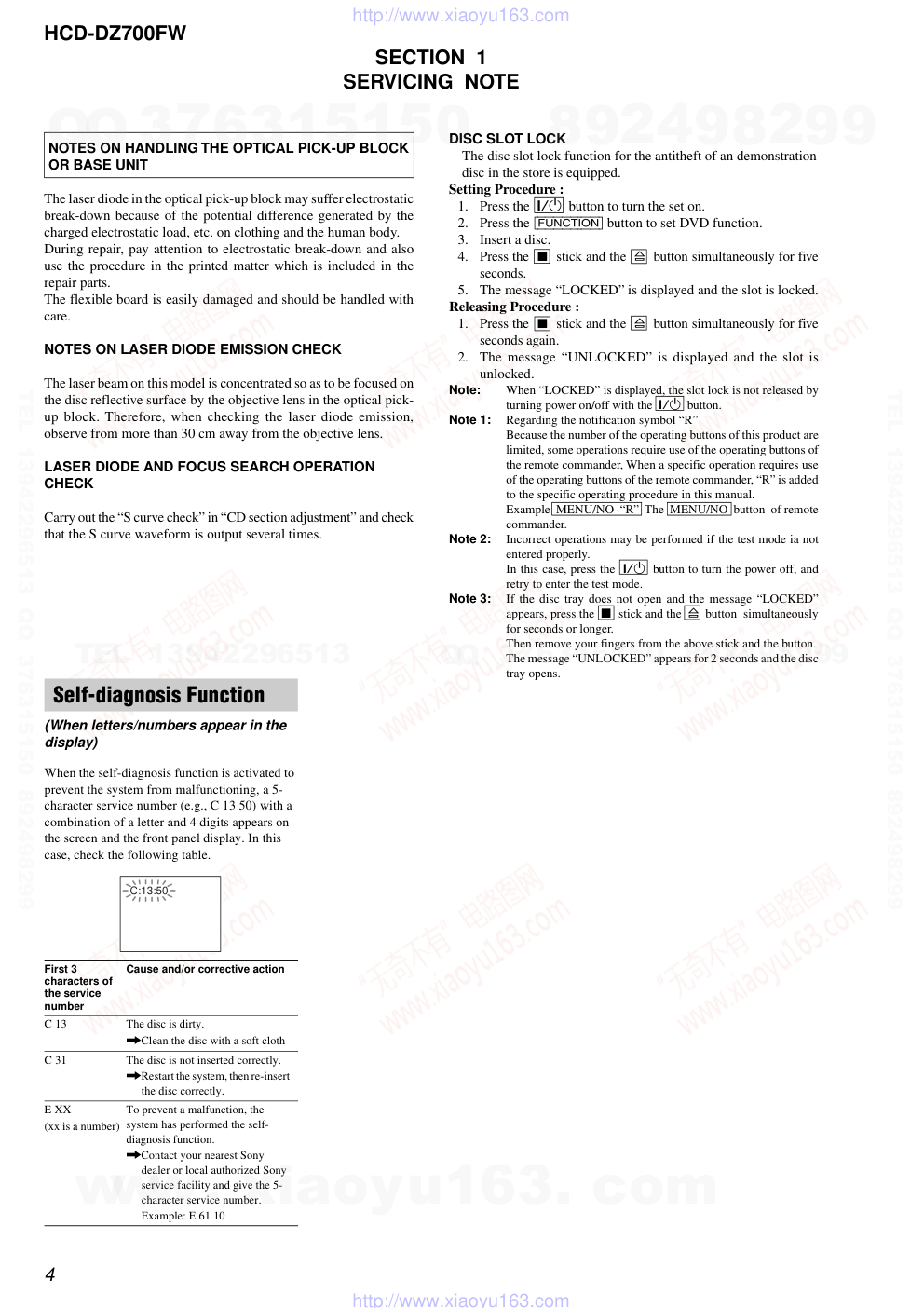

SECTION 1
SERVICING NOTE
NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK
OR BASE UNIT
The laser diode in the optical pick-up block may suffer electrostatic
break-down because of the potential difference generated by the
charged electrostatic load, etc. on clothing and the human body.
During repair, pay attention to electrostatic break-down and also
use the procedure in the printed matter which is included in the
repair parts.
The flexible board is easily damaged and should be handled with
care.
NOTES ON LASER DIODE EMISSION CHECK
The laser beam on this model is concentrated so as to be focused on
the disc reflective surface by the objective lens in the optical pick-
up block. Therefore, when checking the laser diode emission,
observe from more than 30 cm away from the objective lens.
LASER DIODE AND FOCUS SEARCH OPERATION
CHECK
Carry out the “S curve check” in “CD section adjustment” and check
that the S curve waveform is output several times.
DISC SLOT LOCK
The disc slot lock function for the antitheft of an demonstration
disc in the store is equipped.
Setting Procedure :
1.
Press the ?/1 button to turn the set on.
2.
Press the [FUNCTION] button to set DVD function.
3.
Insert a disc.
4.
Press the x stick and the A button simultaneously for five
seconds.
5.
The message “LOCKED” is displayed and the slot is locked.
Releasing Procedure :
1.
Press the x stick and the A button simultaneously for five
seconds again.
2.
The message “UNLOCKED” is displayed and the slot is
unlocked.
Note:
When “LOCKED” is displayed, the slot lock is not released by
turning power on/off with the ?/1 button.
Note 1:
Regarding the notification symbol “R”
Because the number of the operating buttons of this product are
limited, some operations require use of the operating buttons of
the remote commander, When a specific operation requires use
of the operating buttons of the remote commander, “R” is added
to the specific operating procedure in this manual.
Example MENU/NO “R” The MENU/NO button of remote
commander.
Note 2:
Incorrect operations may be performed if the test mode ia not
entered properly.
In this case, press the ?/1 button to turn the power off, and
retry to enter the test mode.
Note 3:
If the disc tray does not open and the message “LOCKED”
appears, press the x stick and the A button simultaneously
for seconds or longer.
Then remove your fingers from the above stick and the button.
The message “UNLOCKED” appears for 2 seconds and the disc
tray opens.
When the self-diagnosis function is activated to
prevent the system from malfunctioning, a 5-
character service number (e.g., C 13 50) with a
combination of a letter and 4 digits appears on
the screen and the front panel display. In this
case, check the following table.
Self-diagnosis Function
(When letters/numbers appear in the
display)
First 3
characters of
the service
number
Cause and/or corrective action
C 13
The disc is dirty.
,Clean the disc with a soft cloth
C 31
The disc is not inserted correctly.
,Restart the system, then re-insert
the disc correctly.
E XX
(xx is a number)
To prevent a malfunction, the
system has performed the self-
diagnosis function.
,Contact your nearest Sony
dealer or local authorized Sony
service facility and give the 5-
character service number.
Example: E 61 10
C:13:50
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
5
HCD-DZ700FW

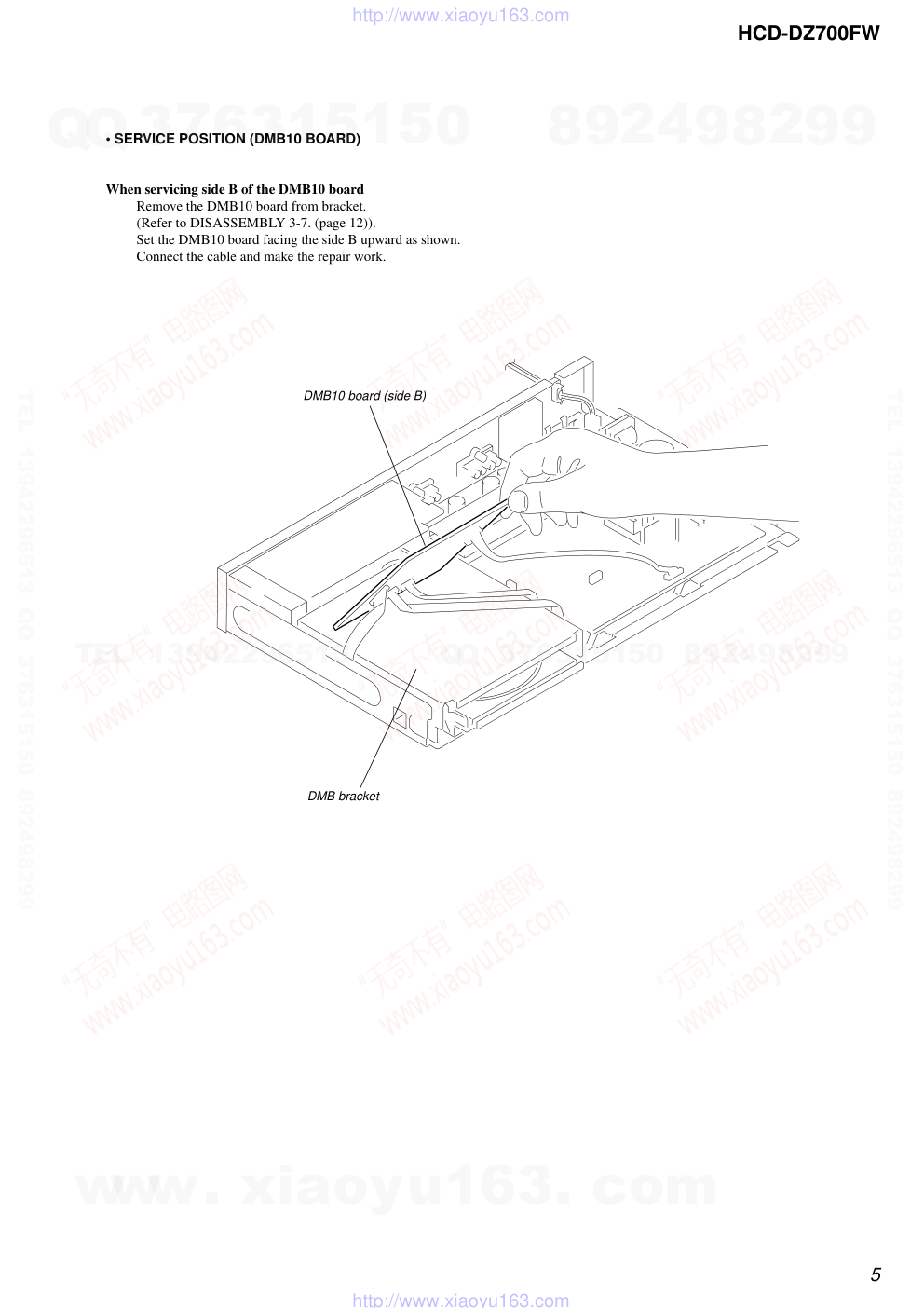

• SERVICE POSITION (DMB10 BOARD)
When servicing side B of the DMB10 board
Remove the DMB10 board from bracket.
(Refer to DISASSEMBLY 3-7. (page 12)).
Set the DMB10 board facing the side B upward as shown.
Connect the cable and make the repair work.
DMB10 board (side B)
DMB bracket
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
6
HCD-DZ700FW
SECTION 2
GENERAL
This section is extracted
from instruction manual.
Front panel
A "/1 (on/standby) (32, 39, 82)
B Disc tray (39)
C A (open/close) (39, 82)
D H (play) (39)
E X (pause) (39)
F x (stop) (39, 82)
G ./> (39)
H FUNCTION (39)
I PHONES jack (39)
J VOLUME (39)
K
(remote sensor) (13)
L Front panel display (101)
M AUDIO IN jack
Rear panel
A SPEAKER jacks (15)
B SAT COAXIAL DIGITAL IN jack (30)
C VIDEO OPTICAL DIGITAL IN jack (30)
D COMPONENT VIDEO OUT jacks (26)
E EURO AV T OUTPUT (TO TV) jacks
(26)
F AM terminal (25)
G FM 75 COAXIAL jack (25)
H DIR-T1 jack (15)
I VIDEO VIDEO/AUDIO IN jacks (28, 30)
SPEAKER
COAXIAL
FM 75
Y
R AUDIO IN
VIDEO IN
L
PB/CB
PR/CR
DVD ONLY
SAT
VIDEO
DIR-T1
COMPONENT VIDEO OUT
EURO AV
OUTPUT(TO TV)
AM
FRONT R
FRONT L
CENTER
WOOFER
DIGITAL IN
OPTICAL
DIGITAL IN
COAXIAL
Ω
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
7
HCD-DZ700FW

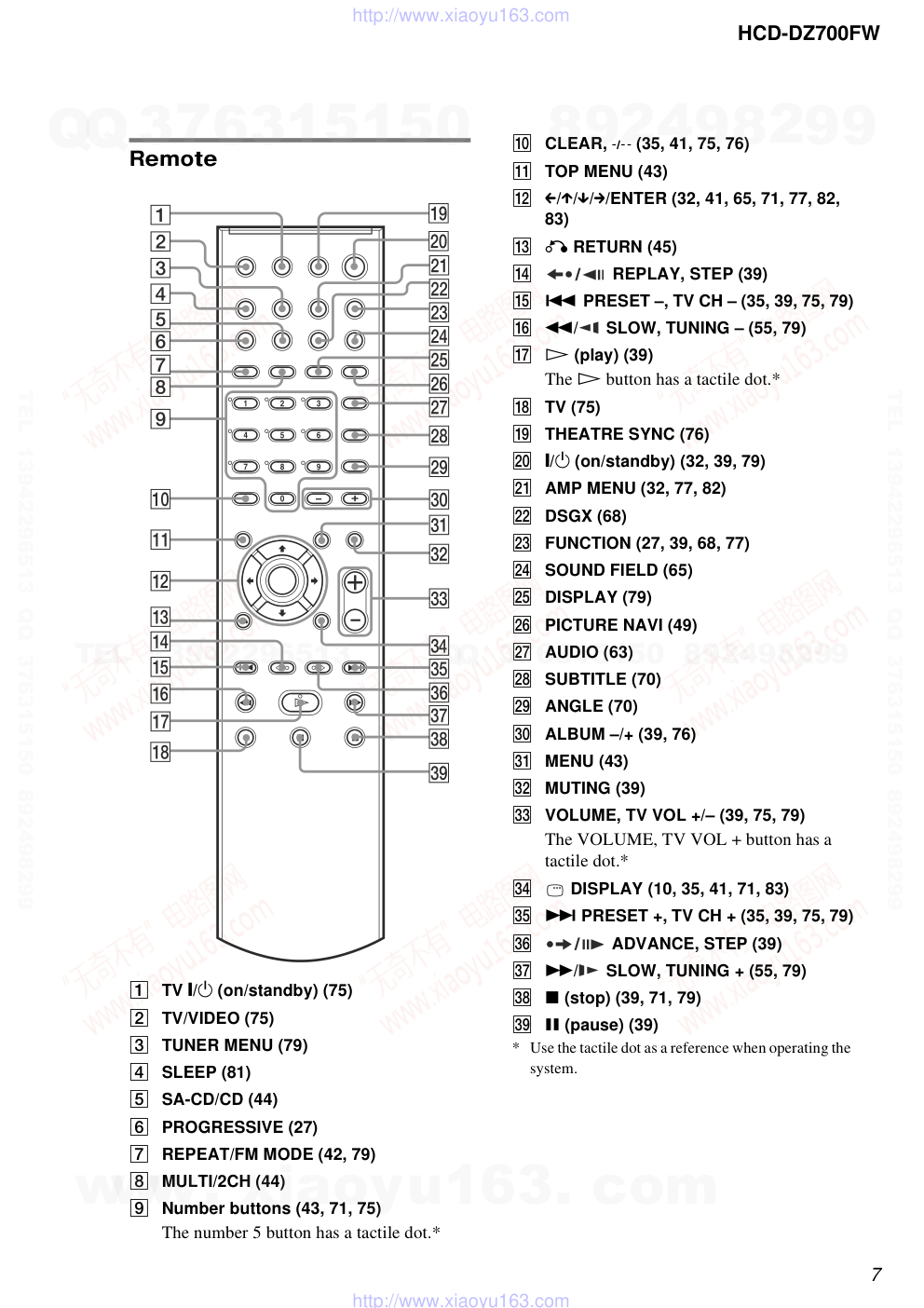

Remote
A TV [/1 (on/standby) (75)
B TV/VIDEO (75)
C TUNER MENU (79)
D SLEEP (81)
E SA-CD/CD (44)
F PROGRESSIVE (27)
G REPEAT/FM MODE (42, 79)
H MULTI/2CH (44)
I Number buttons (43, 71, 75)
The number 5 button has a tactile dot.*
J CLEAR, - (35, 41, 75, 76)
K TOP MENU (43)
L C/X/x/c/ENTER (32, 41, 65, 71, 77, 82,
83)
M O RETURN (45)
N
REPLAY, STEP (39)
O . PRESET –, TV CH – (35, 39, 75, 79)
P m/
SLOW, TUNING – (55, 79)
Q H (play) (39)
The H button has a tactile dot.*
R TV (75)
S THEATRE SYNC (76)
T "/1 (on/standby) (32, 39, 79)
U AMP MENU (32, 77, 82)
V DSGX (68)
W FUNCTION (27, 39, 68, 77)
X SOUND FIELD (65)
Y DISPLAY (79)
Z PICTURE NAVI (49)
wj AUDIO (63)
wk SUBTITLE (70)
wl ANGLE (70)
e; ALBUM –/+ (39, 76)
ea MENU (43)
es MUTING (39)
ed VOLUME, TV VOL +/– (39, 75, 79)
The VOLUME, TV VOL + button has a
tactile dot.*
ef
DISPLAY (10, 35, 41, 71, 83)
eg > PRESET +, TV CH + (35, 39, 75, 79)
eh
ADVANCE, STEP (39)
ej M/
SLOW, TUNING + (55, 79)
ek x (stop) (39, 71, 79)
el X (pause) (39)
* Use the tactile dot as a reference when operating the
system.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
8
HCD-DZ700FW
SECTION 3
DISASSEMBLY
3-1.
DISASSEMBLY FLOW
•
This set can be disassembled in the order shown below.
•
The dotted square with arrow (
) prompts you to move to the next job when all of the works within the dotted square (
) are
completed.
3-3. FL BOARD, H/P BOARD
(Page 10)
3-4. STBY BOARD, KEY BOARD
(Page 10)
3-9. DVD MECHANISM DECK
(CDM85-DVBU102)
(Page 13)
3-10. TRAY
(Page 13)
3-11. BELT, MS-203 BOARD
(Page 14)
3-12. BASE UNIT
(Page 15)
3-13. OPTICAL PICK-UP
(KHM-310CAA)
(Page 15)
3-5. I/O BOARD, DC FAN
(Page 11)
3-8.MAIN BOARD
(Page 12)
3-7. DMB10 BOARD
(Page 12)
3-6. TX BOARD
(Page 11)
3-2. CASE, FRONT PANEL ASSY
(Page 9)
SET
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
9
HCD-DZ700FW
3-2.
CASE, FRONT PANEL ASSY
Note: Follow the disassembly procedure in the numerical order given.
DVD lid
1 The lever is moved in the direction
of the arrow with the thin rod.
2
3 DVD lid assy
4 screw (CASE3 TP2)
5 screw
(CASE3 TP2)
6 five screws (+BVTP 3 × 8)
qd floating screw (+PTPWH M2.6)
7 case
qg front panel assy
8 three screws (+BVTP 3 × 8)
qs wire (flat type)
19core(CN509)
qa connector
(CN309)
qf IPOD board
0 claw
9 claw
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
10
HCD-DZ700FW
3-4.
STBY BOARD, KEY BOARD
3-3.
FL BOARD, H/P BOARD
2 H/P board
8 shield (front)
qa FL board
3 knob (vol)
4 nut
1 tapping screw
(DIA.2.6 × 8)
9 tapping screw
(DIA.2.6 × 8)
6 three tapping screws
(DIA.2.6 × 8)
5 sheet
q; wire (flat type)
19core(CN801)
7 earth line
7 STBY board
2 four tapping screws
(DIA.2.6 × 8)
6 two tapping screws
(DIA.2.6 × 8)
5 two tapping screws
(DIA.2.6 × 8)
1 four tapping screws
(DIA.2.6 × 8)
4 button (play)
8 button (power)
3 KEY board
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
11
HCD-DZ700FW
3-5.
I/O BOARD, DC FAN
3-6.
TX BOARD
2 connector
(CN300)
1 connector
(CN901)
8 DC fan
qd tuner
qa I/O board
back panel
3 wire (flat type)
13core(CN201)
0 wire (flat type)
11core or 9core (CN101)
6 wire (flat type)
23core(CN601)
0 two screws
(+BVTP 3 × 8)
9 four screws (+BVTP 3 × 8)
4 six screws (+BVTP 3 × 8)
qs two screws (+BVTP 3 × 8)
7 two screws (BVTT 4 × 8)
5 connector
(CN602)
4 TX board
2 wire (flat type)
13core(CN801)
3 connector
(CN802)
1 four screws (+BV 3)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
12
HCD-DZ700FW
3-8.
MAIN BOARD
3-7.
DMB10 BOARD
3 connector
(CN201)
7 connector
(CN401)
4 wire (flat type)
24core(CN101)
6 wire (flat type)
11core(CN4501)
1 wire (flat type)
11core(CN106)
2 wire (flat type)
7core(CN202)
8 two screws (+BV 3)
9 coating clip
0 two screws (+BV 3)
5 wire (flat type)
13core(CN301)
qa DMB10 board
qs MAIN board
3 heat sink (AMP)
4 wire (flat type)
11core(CN505)
5 wire (flat type)
11core(CN512)
6 wire (flat type)
23core(CN507)
7 wire (flat type)
11core(CN504)
qa four screws (+BV 3)
1 two screws (+BV 3)
0 five screws (+BV 3)
2 screw (BVTP 3 × 12)
8 connector
(CN902)
9 connector
(CN401)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
13
HCD-DZ700FW
3-9.
DVD MECHANISM DECK (CDM85-DVBU102)
2 dmb bracket
1 three screws (+BV 3)
5 DVD mechanism deck
(CDM85-DVBU102)
3 three screws (+BV 3)
4 wire (flat type)
5 core
4
2
3 two claws
5 tray
1 Move the Chuck cam
in the direction of the arrow.
bottom side
3-10. TRAY
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
14
HCD-DZ700FW
3-11. BELT, MS-203 BOARD
1 two claws
5 three claws
7 MS-203 board
6 DC motor
3 belt
2 chuck cam
4 screw
(M 1.7 × 2.5)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
15
HCD-DZ700FW
3-12. BASE UNIT
1 two claws
3 two claws
2 chuck cam
4 base unit
3-13. OPTICAL PICK-UP (KHM-310CAA)
1 two claws
bu holder
2 loading base
4 two insulators
5 two insulators
3 four insulator screws
6 optical pick-up
(KHM-310CAA)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
16
HCD-DZ700FW
SECTION 4
TEST MODE
Note 1:
Regarding the notification symbol “R”
Because the number of the operating buttons of this product
are limited, some operations require use of the operating
buttons of the remote commander, When a specific operation
requires use of the operating buttons of the remote
commander, “R” is added to the specific operating procedure
in this manual. Example MENU/NO “R” The MENU/NO
button of remote commander.
Note 2:
Incorrect operations may be performed if the test mode is
not entered properly.
In this case, press the ?/1 button to turn the power off, and
retry to enter the test mode.
3. Disc Tray Lock
The disc tray lock function for the antitheft of an demonstration
disc in the store is equipped.
Setting Procedure :
1.
Press the ?/1 button to turn the set on.
2.
Press the FUNCTION button to set DVD function.
3.
Insert a disc.
4.
Press the x button and the A button simultaneously for five
seconds.
5.
The message “LOCKED” is displayed and the tray is locked.
Releasing Procedure :
1.
Press the x button and the A button simultaneously for five
seconds. again.
2.
The message “UNLOCKED” is displayed and the tray is
unlocked.
Note:
When “LOCKED” is displayed, the slot lock is not released by
turning power on/off with the ?/1 button.
4. DVD Ship Mode
•
Use this mode when returning the set to the customer after
repair.
Procedure:
1.
Press the ?/1 button to turn the set on.
2.
Press the FUNCTION button to set the function “DVD”.
3.
Press three buttons x , and ?/1 simultaneously.
4.
After a message “MECHA LOCK” is displayed on the
fluorescent indicator tube, pull out the AC plug.
5.
To exit from this mode, press the ?/1 button to turn the set
on.
5. DVD Debug In Mode
Procedure:
1.
Press the ?/1 button to turn the set on.
2.
Press the FUNCTION button to set the function “DVD”.
3.
Press the three buttons . , A and > simultaneously.
4.
To exit from this mode, press the ?/1 button to turn the set
on.
6. AM Step Change
•
A step of AM channels can be changed over between 9 kHz
and 10 kHz.
Procedure:
1.
Press ?/1 button to turn the set ON.
2.
Select the function “TUNER”, and press FUNCTION button
to select the BAND “AM”.
3.
Press ?/1 button to turn the set OFF.
4.
Press > and ?/1 buttons simultaneously, and the display
of fluorescent indicator tube changes to “AM 9 k STEP” or
“AM 10 k STEP”, and thus the channel step is changed over.
1. Cold Reset
•
The cold reset clears all data including preset data stored in
the RAM to initial conditions. Execute this mode when
returning the set to the customers.
Procedure:
1.
Press the ?/1 button to turn the power on.
2.
Press three buttons x , A and ?/1 simultaneously.
3.
When this button is operated, display as “COLD RESET” for
a while and all of the settings are reset.
2. Panel Test Mode
•
This mode is used to check the software version, LCD, LED
and keyboard.
2-1. DVD LED Test Mode
Procedure:
1.
Press the ?/1 button to turn on the power.
2.
Press three bottons X , . and A simultaneously.
3.
When the display LED test mode is activated, all segments
are turned on.
4.
To exit from this mode, pull out the AC plug.
2-2. Version Test Mode
Procedure:
1.
When the panal test mode is activated, press the . button
and the message “DS6W***” is displayed, the version test
mode is activated.
2.
Whenever press the . button, the version is displayed in
order of CC2, MC, SYS, UI, DVD, TA, TM and DS6W.
3.
Press the > button and the date of the softwafe production
is displayed.
4.
Press the > button again and the version is displayed.
5.
To exit from this mode, pull out the AC plug.
2-3. Key Test Mode
Procedure:
1.
When the panel test mode is activated, press the H button,
to select the key test mode.
2.
To enter the KEY test mode, the fluorecent indicator displays
“K0 VO”. Each time a button is pressed, “KEY” value
increases. However, once a button is pressed, it is no longer
taken into account. When all keys are pressed correctly, “K8
VO” is displayed.
3.
To exit from this mode, pull out the AC plug.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
17
HCD-DZ700FW
DVD SECTION
4-1. GENERAL DESCRIPTION
The Mirror Time and IOP measurement allows you to make
diagnosis and adjustment simply by using the remote commander
and monitor TV. The instructions, diagnosis results, etc. are given
on the on screen display (OSD).
The Mirror Time and IOP measurement is required is such events
where servicing a DVD-Player includes changing the Base Unit
(BU). For each new BU to be used with a certain MV-044 board,
Mirror Time and IOP measurement need to be carried out.
4-2. STARTING TEST MODE
Press three buttons x , A and VOLUME + simultaneously
with the DVD player in standby mode.
The Test Mode starts, then the menu shown below will be
displayed on the TV screen.
The menu above is the Remocon Diagnosis Menu screen which
consists of six main function. At the bottom of the menu screen,
the model name and IF-con version. To enter Mirror Time
Adjustment menu, press button 2 “R” on the remote commander
to enter Drive Manual Operation menu. To exit from the Test Mode,
press the power button on the remote commander.
4-3. DRIVE MANUAL OPERATION
The Drive Manual Operation menu consists of five main
function. By pressing 2 “R” button on the remote commander in
the Remocon Diagnosis Menu, the screen will appear as below.
Remocon Diagnosis Menu
0. External Chip Check
1. Servo Parameter Check
2. Drive Manual Operation
3. Emergency History
4. Version Information
5. Video Level Adjustment
Model Name : DS6W_XX
IF-con
: V
Syscon
: Ver.
er. xx.xx (xxxx)
x.xxx
Drive Manual Operation
1. Servo Control
2. Track/Layer Jump
3. Manual Adjustment
4. Tray Aging Mode
5. MIRR time Adjust
0. Return to Top Menu
4-4. MIRROR TIME ADJUSTMENT
To enter Mirror Time Adjustment, press 5 “R” button on the remote
commander. The screen will appear as below.
There are five main commands in the Mirr time Adjust menu as
shown in the figure above. The functions of each command are
described in the following page.
1. CD MIRR time Check
This command checks the Mirror time value for CD disc.
2. DVD MIRR time Check
This command checks the Mirror time value for DVD disc.
3. Threshold
This command displays the threshold value between CD and DVD
mirror time.
4. Save to EEPROM
This command saves an adjusted mirror time value to the EEPROM.
5. Default set MIRR time
This command will set CD and DVD mirror time to firmware default
value.
[Open] / [Close]
Pressing the A button controls the tray for disc change
during mirror time adjustment.
[0] Return to previous menu
Press 0 “R” button to return to previous menu.
4-4-1. EXECUTING MIRROR TIME ADJUSTMENT
In order to execute mirror time adjustment, the following standard
procedures must be followed.
(1) In standby mode, press three buttons x , A and
VOLUME + simultaneously.
(2) Select “2. Drive Manual Operation”.
MIRR time Adjust Menu
1. CD MIRR time Check:
2. DVD MIRR time Check:
3. Threshold:
4. Save to EEPROM
5. Default set MIRR time
[Open] Tray open [Close] Tray close
[0] Return to previous menu
Remocon Diagnosis Menu
0. External Chip Check
1. Servo Parameter Check
2. Drive Manual Operation
3. Emergency History Check
4. Version information
5. Video Level Adjustment
Model
: DS6W_xx
IF-con
: Ver. xx.xx (xxxx)
Syscon
: Ver. x.xxx
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
18
HCD-DZ700FW
(3) Select “5. MIRR time Adjust”.
(4) Select “5. Default set MIRR time”.
(5) Select “3. Threshold”.
(6) Confirm the number. If it is 7D, go to next step. If it is any
other value, return to step 4.
(7) Push A button to eject tray.
(8) Insert Test Disc HLX-504 into tray.
(9) Push A button to close tray.
(10) Push “2. DVD MIRR time Check”.
(11) Wait for HEX number to display.
(12) Confirm the number, if XX is 28 ~ 70, proceed with next
step. If no, return to 8.
(13) Push “4. Save to EEPROM”.
Drive Manual Operation
1. Servo Control
2. Track/Layer Jump
3. Manual Adjustment
4. Mecha test mode
5. MIRR time Adjust
0. Return to Top Menu
MIRR time Adjust Menu
1. CD MIRR time Check:
2. DVD MIRR time Check:
3. Threshold:
4. Save to EEPROM:
5. Default set MIRR time:
[Open] Tray open [Close] Tray close
[0] Return to previous menu
MIRR time Adjust Menu
1. CD MIRR time Check:
2. DVD MIRR time Check:
3. Threshold: 7D
4. Save to EEPROM:
5. Default set MIRR time:
[Open] Tray open [Close] Tray close
[0] Return to previous menu
MIRR time Adjust Menu
1. CD MIRR time Check:
2. DVD MIRR time Check: xx xx
3. Thereshold:
4. Save to EEPROM:
5. Default set MIRR time:
[Open] tray open [close] Tray close
[0] Return to previous menu
(14) Confirm the same values are displayed. If it is not same,
return to step 7.
(15) Push A button to eject tray.
(16) Take out HLX-504 and insert Test Disc YEDS-18 into
tray.
(17) Push A button to close tray.
(18) Push “1. CD MIRR time check”.
(19) Wait for HEX number to display.
(20) Confirm the number, if YY is 5A ~ E8, proceed with next
step. If no, return to 15.
(21) Push “4. Save to EEPROM”.
(22) Confirm the same values are displayed. If it is not the
same, return to step 15.
(23) Push A button to eject tray.
(24) Remove Test Disc YEDS-18 from tray.
(25) Push A button to close tray.
(26) Press 0 “R” button to the Drive Manual Operation menu.
(27) Press 0 “R” button to return to the Remocon Diagnosis
Menu.
(28) Press the ?/1 button to switch OFF set.
MIRR time Adjust Menu
1. CD MIRR time Check:
2. DVD MIRR time Check: XX XX
3. Threshold:
4. Save to EEPROM:
5. Default set MIRR time:
[Open] Tray open [close] Tray close
[0] Return to previous menu
MIRR time Adjust Menu
1. CD MIRR time Check: yy YY
2. DVD MIRR time Check: XX XX
3. Threshold:
4. Save to EEPROM:
5. Default set MIRR time:
[Open] Tray open [close] Tray close
[0] Return to previous menu
MIRR time Adjust Menu
1. CD MIRR time check: YY YY
2. DVD MIRR time check: XX XX
3. Threshold:
4. Save to EEPROM:
5. Default set MIRR time:
[Open] Tray open [close] Tray close
[0] Return to previous menu
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
19
HCD-DZ700FW
4-5. EXECUTING IOP MEASUREMENT
In order to execute mirror time adjustment, the following standard
procedures must be followed.
(1) In standby mode, press three buttons x , A and
VOLUME + simultaneously.
(2) Select “2. Drive Manual Operation” by pressing the 2 “R”
button on the remote commander. The screen will appear as
below.
(3) Select “3. Manual Adjustment” by pressing the 3 “R” button
on the remote commander. The screen will appear as below.
(4) Select Iop by pressing 6 “R” button on the remote commander.
Remocon Diagnosis Menu
0. External Chip Check
1. Servo Parameter Check
2. Drive Manual Operation
3. Emergency History Check
4. Version information
5. Video Level Adjustment
Model
: DS6W XX
IF-con Ver
: XX.XX (XXXX)
Syscon Ver
: X.XX
Drive Manual Operation
1. Servo Control
2. Track/Layer Jump
3. Manual Adjustment
4. Tray Aging Mode
5. MIRR time adjust
0. Return to top Menu
Manual Adjust
1. Track Balance Adjust:
2. Track Gain Adjust:
3. Focus Balance Adjust:
4. Focus Gain Adjust:
5. Eg boost Adjust:
6. Iop:
7. TRV. Level:
8. S curve(FE) Level:
9. RFL(PI) Level:
0. MIRR Time:
o O Change Value
[RETURN] Return to previous menu
(5) Wait until a hexadecimal number appear.
(6) Convert each data from hexadecimal to decimal using
conversion table.
(7) Substract between these two values.
(8) If the remainder is smaller than 93 (decimal), then it is
OK. However if the value is higher than 93, then the BU
is defective and need to be change.
(9) Press RETURN “R” button to return back to previous menu.
(10) Press 0 “R” button to return to Top Menu and power OFF
the DVD Player.
Manual Adjust
1. Track Balance Adjust:
2. Track Gain Adjust:
3. Focus Balance Adjust:
4. Focus Gain Adjust:
5. Eq Boost Adjust:
6. Iop. 5B:
7. TRV. Level:
8. S curve(FE) Level:
9. RFL(PI) Level:
0. MIRR Time:
Change Value
[0] Return to previous menu
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
20
HCD-DZ700FW
DIAT SIGNAL RF LEVEL ADJUSTMENT
This adjustment is performed in order to adjust the transmission
distance of RF signal for DIAT communication.
Connection:
Procedure:
1.
Connect the oscilloscope to TP815 and GND on the TX board.
2.
Connect DIR-T1 to DIR-T1 jack (J801).
3.
Adjust RV801 on the TX board so that the center of waveform
becomes 1.0 Vp-p.
4.
Confirm trigger is locked.
5.
Adjust RV801 on the TX board so that the center of waveform
becomes 2.2 to 2.4 Vp-p.
RF Signal Reference Waveform
SECTION 5
ELECTRICAL ADJUSTMENT
VOLT/DIV : 500 mV
TIME/DIV : 500 ns
level : 2.2 to 2.4 Vp-p
TP815
TX board
oscilloscope
Adjustment Location:
– TX Board (SIDE A) –
TP815
RV801
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
21
21
HCD-DZ700FW
HCD-DZ700FW
• Circuit Boards Location
H/P board
FL board
KEY board
STBY board
IPOD board
MS-203 board
TUNER UNIT
DMB10 board
I/O board
MAIN board
TX board
SECTION 6
DIAGRAMS
For Schematic Diagrams.
Note:
• All capacitors are in µF unless otherwise noted. (p: pF)
50 WV or less are not indicated except for electrolytics and
tantalums.
• All resistors are in Ω and 1/4 W or less unless otherwise
specified.
•
f
: internal component.
• C : panel designation.
THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS.
(In addition to this, the necessary note is printed in each block.)
• A : B+ Line.
• B : B– Line.
• Voltages and waveforms are dc with respect to ground un-
der no-signal (detuned) conditions.
• Voltages and waveforms are dc with respect to ground in
service mode.
• Waveforms are taken with a oscilloscope.
Voltage variations may be noted due to normal production
tolerances.
*
: Impossible to measure
no mark : DVD STOP
• Voltages are taken with VOM (Input impedance 10 MΩ).
• Circled numbers refer to waveforms.
• Signal path.
F
: AUDIO
J
: CD PLAY
c
: DVD PLAY
I
: SACD PLAY
d
: TUNER
L
: VIDEO
E
: Y
r
: COMPONENT VIDEO
q
: R, G, B
f
: AUDIO IN
h
: DIGITAL IN (OPTICAL IN)
i : DIGITAL IN (COAXIAL IN)
• Abbreviation
RU
: Russian model.
For Printed Wiring Boards.
Note:
• X : parts extracted from the component side.
• a
: Through hole.
•
: Pattern from the side which enables seeing.
(The other layers' patterns are not indicated.)
• Indication of transistor.
Caution:
Pattern face side: Parts on the pattern face side seen from
(SIDE A) the pattern face are indicated.
Parts face side: Parts on the parts face side seen from
(SIDE B) the parts face are indicated.
Note: The components identified by mark 0 or dotted
line with mark 0 are critical for safety.
Replace only with part number specified.
✩ IC103 is a written in and settled EEPROM. Supply with
a single article has not been carried out. In case you
exchange by DMB10 board, please put on IC103
currently used with the model again.
C
B
These are omitted.
E
Q
C E
B
These are omitted
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
22
22
HCD-DZ700FW
HCD-DZ700FW
6-1.
BLOCK DIAGRAM – RF/SERVO SECTION –
: CD PLAY
: DVD PLAY
: SACD PLAY
• Signal Path
DETECTOR
6
2
3
4
5
11
10
19
18
252
253
DVDRFIP
DVDA
DVDB
DVDC
DVDD
TPI
TNI
MD
MC
D
C
LD01
MD12
LD02
MSW
MD11
OSP
OSN
IC102 (1/3)
CD/DVD RF AMP,
FOCUS/TRACKING ERROR AMP
DVD SYSTEM PROCESSOR
DIGITAL SERVO PROCESSOR
OPTICAL PICK-UP
BLOCK
(KHM-310CAA)
2AXIS
DEVICE
FOCUS/
TRACKING
COIL
23
20
LI M SW
176
22
21
36
48
43
15
37
1
Q102 (2/2)
AUTOMATIC POWER
CONTROL (FOR DVD)
Q101, Q103
VOLUME CONTROL
Q102 (1/2)
AUTOMATIC POWER
CONTROL (FOR CD)
LASER
DIODE
(FOR CD)
LASER
DIODE
(FOR DVD)
FOCUS COIL
DRIVE
42
41
BUFFER
35
3
34
4
TRACKING COIL
DRIVE
32
31
38
42
39
37
41
30
47
SLED MOTOR
DRIVE
IC201
FOCUS/TRACKING COIL DRIVER,
SPINDLE, SLED MOTOR DRIVER
27
28
SPINDLE MOTOR
DRIVE
M
(SPINDLE)
47
46
FMO
TROPENPWN
FOO
DND
TRO
V REFO
SPFG
40 IOPMON
FOO
RF
A
B
C
D
F
E
CD LD
PD
WR650
VR780
DVD LD
FCS+
FCS–
TRK+
+3.3V
VCC
TRK–
SP+
SP–
SL+
SL–
D
C
B
A
V1P4
V1P4
9
NB
B
8
NA
A
32
30
29
SLED MOTOR
DRIVE
M
(SLED)
187
BUFFER
19
20
22
21
40
45
IC509 (1/4)
SYSTEM
CONTROLLER
99
IFCK
DVD_SCO/CLK1
33
100
XIFCS
DVD_XIFCS
39
51
MAMUTE
MAMUTE
25
110
PRST
MTK_XRST
43
98
IFSDO
DVD_SOD/RXD1
32
101
IFSDI
177
OCSW
105
IFBSY
CKSW
DVD_IFBUSY/RST1
34
DVD_SID/TXD1
31
TRO
FMO
FOO
DMO
TRO
10
13
16
17
FMO
DMO
185 REV
186 FWD
184 MUTE123
183 MUTE
181 TSDM
22
24
25
179
CKSW1
OCSW1
S001(CHUK/TRAY DETECT)
M (LOADING)
LDM+
LDM-
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
23
23
HCD-DZ700FW
HCD-DZ700FW
6-2.
BLOCK DIAGRAM – VIDEO SECTION –
• Signal Path
: VIDEO
: Y
: COMPONENT VIDEO
: AUDIO
: R, G, B
IC102(2/3)
DVD SYSTEM PROCESSOR
169
RGB
203
YUV6
198
YUY3
200
YUY4
202
YUY5
171
WODE
IC103
EEPROM
6
5
SCL
SPA
IC201
VIDEO AMP, 75Ω DRIVER
J203
13 CBIN
11 CYIN
6
CVBSIN
21
5
CBOUT
MUTE1
15
2
CRIN
SI
24
CYOUT
30
VOUT
18
CROUT
CBOUT
CYOUT
VOUT
CROUT
AV SEL0
AV SEL1
AV SEL2
14
MUTE2
CE
WE
OE
IC101
FLASH ROM
125-123, 121, 120, 118,
117, 115, 135, 133-128, 126
146, 147, 149-151,
158-160, 162, 164-166
22-26,
29-35
HIGHA0-7
IOA0-7, IOA18-IOA20
A16, A17
AB0 – AB7
A1-A20
DATA & ADDRESS BUS
DATA & ADDRESS BUS
81-84,86-88,91
53-61, 67-72, 74-76,
78, 89, 92, 93
HD0 – HD7
A0 – A21
HD0 – HD7
A0
26
45
CE
WE
28
OE
11
A0 – A19
DQ15/A-1
77
IOCS
IOWA
79
IOUE
66
DQ0 – DQ7
RCLK
CE
WE
OE
IC104
SDRAM
38
DRCLK
RD0 – RD15
RA0 – RA11
RA0 – RA11
RD0 – RD15
142
RCS
19
RCS
138
RWE
16
RWE
140
MRAS
18
RAS
139
CAS
17
CAS
MDQM0
15
DQM0
MDQM1
39
DQM1
CLE
37
DRCLE
102
SCL
103
SDA
143
BA0
20
BS0
BA1
21
BS1
COMPONENT
VIDEO OUT
Y
PB/CB
PR/CR
AV SEL0-2
B
AMP
SECTION
(Page 24)
29,31,33,35,38,40,42,44
25-16, 9-1, 48
145
156
113 137 157
2,4,5,7,8,10,11,13,42,44,45,47,48,50,51,53
Q207-209
MUTE
CONTROL
SAT
VIDEO IN
J203(1/2)
IC203
SELECTOR
5
IN3
3
IN2
7
4
OUT
SW2
SW1
AV SEL0
AV SEL1
D203
D202
2
IC202
VIDEO AMP, 75ohm DRIVER
13 CBIN
11 CYIN
21
CBOUTB
15 CRIN
24
CYOUT
18
CROUTB
14
MUTE2
Q201-203
BLANKOUT
SWITCH
CBOUT
CYOUT
CROUT
CROUT
CYOUT
VOUT
L
R
CBOUT
11
15
7
19
8
16
6
2
J202
R/C OUT
G OUT
B OUT
V/Y OUT
BLANK
OUT
FUNCTION
SW
A(L) IN
A(R) IN
EURO AV
OUTPUT
(TO TV)
RGB SEL
Q204-206
FUNCTION
SWITCH
DVD SEL
DVD SEL
L, R
WIDE
C
AMP
SECTION
(Page 24)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
24
24
HCD-DZ700FW
HCD-DZ700FW
6-3.
BLOCK DIAGRAM – AMP SECTION –
: AUDIO
: AUDIO IN
: TUNER
: DIGITAL IN(OPTICAL IN)
• Signal Path
• R-CH is omitted due to same as L-CH.
: DIGITAL IN(COAXIAL IN)
IC505
DIGITAL AUDIO
INTERFACE
14
BCK
15
LRCK
36
DI
35
DO
38
CL
37
CE
25
CFALAG
48
XSTATE
DIR_HDOUT
DIR_CLK
DIR_HCE
CS FLAG
DIR_RST
34
ERROR
24
AUDIO
B
AVSEL0-AVSEL2
J603
VIDEO
SECTION
(Page 23)
30 SD12
D2
D3
22 KFSIO
114 SDI3
115 SDI4
17 BCKI1
29 BCKI2
28 LRCK12
15 LRCK11
13 CKOUT
4
DIN1
5
DIN2
80 PLL_DI
77 PLL_CLK
79 PLL_CE
85 TUNED
78 PLL_DO
72 AD RST
IC506
DIGITAL AUDIO
PROCESSOR
IC509 (2/4)
SYSTEM CONTROLLER
X500
12.288MHz
Q603
J203(2/2)
Q604
22
21
XIN
XOUT
WE
CS
D0 – D15
D0 – D15
72-75
77-80
98,99
102-105
107,108
64-66
82-85
92-97
109,110
112
113 PM
5
DSP DIN/DIR DIN
65
DSP PM
70
DIR HDOUT
7
DSP DIN/DIR CLK
67
DIR HCE
69
DIR UGPI
19
LRCKO
45
17
WEO
D0-D15
A0-A15
CS0 44
6
20
BCKO
14
SCKOUT
23
SD01
24
SD02
25
SD03
HCLK
GP12
HCS
HD OUT
HACN
LRCKO
D1 - D3, SCK,
BCKO, LRCKO
BCKO
SCK
D1
D3
D2
IC603
AMP
FM/AM TUNER UNIT
IC602
AUDIO INPUT
SELECTOR
IC608
INVERTER
IC517
INVERTER
IC604
OPTICAL
IN
J602
OUT
IC501
A/D CONVERTER
12 X
X3
13
10 9
X
A
B
12
DOUT
15
SCKI
10
LRCK
14 X1
1
1
LIN
IC514
SELECTOR
LRCK0
10
1
3B
A/B
9
3Y
7
2Y
4
1Y
12
4Y
11 3A
BCKO
6
2B
5
2A
D1
MCK0
3
1B
2
1A
14 4A
13 4B
2
RIN
2
2
4
4
R-CH
DO
CK
CE
TUNED
FM ANT
GND
AM ANT
GND
L-CH
R-CH
DI
RDS-DATA
RDS-CLK
RDS-CLK
AEP, UK
TUDO
TUCLK
TCE
TUNED
TUDI
RDS-DATA
11
R-CH
R-CH
TUDI
TUCLK
TCE
TUNED
TUDO
COAXIAL
FM
75Ω
AM
AUDIO IN
11
BCK
7
PDWN
17
XSTATE
82
83
81 AV select0
AV select1
AV select2
IPOD/MICSW
AV
SEL0
AV
SEL2
91
AV SEL1
AV SEL2
AV SEL0
60
59
63
DSP XRST
38
SEL1 FS
DSP GP9
DSP BST
66
DIR RST
58
DSP ACK
6
DSP DOUT
61
DSP HCE
71
DSP SKIP
19
DIR CSFLAG
2
XRST
68 G9
56
35
36
37
34
32
BS T
59 EXLOCK
69 GP8
18 SDI1
33 HDIN
SAT
AUDIO IN
OPTICAL
DIGITAL IN
COAXIAL IN
L
R
16
DATA
DIR_ZORO
DIN
DIN
DIR_HDOUT
DIR_CLK
DIR_CLK
DIR_HCE
XSTATE
DIR_RST
CSFLAG
68
DIR RERR
DIR_RERR
DIR_RERR
18
DIR ZORO
DIR_ZERO
IC507
SD-RAM
AUDIO
SECTION
(Page 25)
A
7-10
13-16
18-21
24,25
29+32
35-38
5-1
44-42
27-24
21-19
IC102(3/3)
DVD SYSTEM PROCESSOR
ALRCK
214
ABCK
217
ASDATA0
219
ASDATA2
Y
218
ASDATA1
5
6
9
8
IC4501
BUFFER
IC4502
BUFFER
X101
27MHz
229
228
XTALI
A
XTALO
15
14
11
12
13
D1
BCK0
LRCK0
D2
D3
MCK0
7
4
2
215
ACLK
213
C
VIDEO
SECTION
(Page 23)
R-CH
15 X2
76 RDS_DATA
RDS_DATA
75 RDS_CLK
RDS_CLK
AEP, UK
R-CH
IC605
AMP
5
6
7
Q601,605
MUTE
CONTROL
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
25
25
HCD-DZ700FW
HCD-DZ700FW
6-4.
BLOCK DIAGRAM – AUDIO SECTION –
: AUDIO
• Signal Path
HP-MUTE
HP-SW
IC106
POWER DRIVER
J801
(+)
(–)
IC108
STREAM PROCESSOR
IC301
HEADPHONE
AMP
31 DATA
36 XFSIIN
30 BCK
23 SCLATCH
27 INIT
18 NSPMUTE
SOFTMUTE
21 SCDT
29 LRCK
22 SCSHIFT
25 FLAGL OVF
24 OVF FLAGR
LAT1
INIT
NSPMUTE
SCDT
OVF2
SHIFT
4
OUTR2
11
OUTL1
6
OUTR1
9
OUTL2
43
HPOUTL2
41
HPOUTR1
45
HPOUTL1
39
3
6
2
HPOUTR2
38
FS0I
Q101, 102
DC
DETECT
Q507
MUTING
CONTROL
FRONT
R
27 FL DATA
24 FL CLK
28 FL CS/STB
VFL
(+)
(–)
Q103, 104
DC
DETECT
FRONT
L
IC513
STREAM PROCESSOR
IC502
INVERTER
IC509 (3/4)
SYSTEM CONTROLLER
IC802
FL DRIVER
4
SDIN
2
RCK1
5
BCK1
23 SCLATCH
27 INIT
18 NSPMUTE
13 RST
6
LRCK1
14 MUTE
XRST
LINK
25
BCKO
23
SDOUT
56
HP SW
24
LRCKO
7
DIN
8
CLK
9
42
STB
30
F1
F2
(+)
(–)
IC110
STREAM PROCESSOR
31 DATA
36 XFSIIN
30 BCK
23 SCLATCH
27 INIT
18
19
NSPMUTE
SOFTMUTE
SCDT
29 LRCK
22
21
SCSHIFT
4
OUTR2
11
OUTL1
6
OUTR1
9
OUTL2
38
FS0I
37
FS0CKO
48
XFS0IN
48
XFS0IN
+3.3V
2
B
1
A
Q109, 110
DC
DETECT
SD
13
2
PWMBP
17
4
PWMAP
RESET
(+)
(–)
OUTB
OUTA
IC105
POWER DRIVER
SD
13
2
PWMBP
17
4
PWMAP
RESET
OUTB
OUTA
13
IC102
POWER DRIVER
SD
2
PWMBP
17
4
PWMAP
RESET
CSOD
BCKO
LRCKO
D2(SL/SR)
SDATA
SCLK
XLAT
XRST
D-GND
OUTB
OUTA
13
IC101
POWER DRIVER
SD
2
PWMBP
17
4
PWMAP
RESET
OUTB
25
26
29
30
25
26
29
30
25
26
29
30
25
26
29
30
OUTA
Q111, 112
DC
DETECT
48
DRIVE OCP
CENTER
SPEAKER
WOOFER
PHONES
D1
R
R
L
L
SCK
BCKO
LRCKO
LAT2
INIT
NSPMUTE
SOFTMUTE
SCDT
SHIFT
XSCEN
XRST
INIT
SOFTMUTE
LAT1
XRST
LAT3
SCDT
SHIFT
D2
SCK
BCKO
LRCKO
LAT3
INIT
NSPMUTE
SCDT
SHIFT
D3
SCK
BCKO
LRCKO
24 OVF FLAGR
FLAGL OVF
25
OVF
19 SOFTMUTE
19
Y
4
FL801
FLUORESCENT
INDICATOR TUBE
Q806 - 809
MUTING
Q301
PROTECT DETECT
IC305
OSC
D1 – D3, SCK,
BCKO, LRCKO
A
AMP
SECTION
(Page 24)
X450
49.152MHz
57
HP MUTE
23
DIAT_CSOD
HP-SW
HP-MUTE
1
DAMP SCDT
2
DAMP SHIFT
SG1 – SG16
51
DAMP LAT1
73
MODEO
3
XSCEN
100
M-ST/WMUTE
MODEO
XSCEN
LINK
21
XRST
53
DAMP LAT3
54
DAMP INIT
55
DAMP SOFT MUTE
47
DRIVE RST
OVF
49
OVERFLOW1
OVF2
50
OVERFLOW2
14 – 29
GR2 – GR12
GR1
G1
47 – 31
74 KEY INT
4
SIRCS–IN
IC801
REMOTE CONTROL
RECEIVER
97,95,94
KEY0 – KEY2
KEY0
S801 – S808
10 ENA
S800
VOLUME
ENCODER
11 ENB
15
13
X502
5MHz
Xin
Xout
LPF
LPF
J203
LPF
LPF
LPF
LPF
LPF
LPF
Q802
FL DRIVER
FAN
FAN
DRIVE
Q302-304
+12V
14
XFS0OUT
SOFTMUTE
OVF2
SOFTMUTE
C
C
WF
WF
VOLUME
26 MODEO
MODEO
5
1
7
J202
IC107
POWER DRIVER
13
2
29
30
25
26
SD
PWMBP
4
17
RESET
PWMAP
OUTB
OUTA
Y
DIAT TRANSMIT
SECTION
(Page 27)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
26
26
HCD-DZ700FW
HCD-DZ700FW
6-5.
BLOCK DIAGRAM – POWER SECTION –
F1
F2
VFL
TO FLUORESCENT
INDICATOR TUBE
DC/DC
CONVERTER
T801
IC511
RESET
RECT
D801,802
D804,805
OSC
Q801
12
RESET
20
AC_CUT
44
P CONT2
IC509 (4/4)
SYSTEM CONTROLLER
+5V
1
2
3
4
5
8
6
4
Q506
40
P CONT1
IC941
+12V REG
IC931
IC515
+9V REG
D943
D942
D944
D941
D922
Q921
IC921
POWER
PROTECTION
T902
TRANSFORMER (SUB)
T901
TRANSFORMER(MAIN)
PC902
COUPLER
D931
D905
PC901
PC903
D901
E4V
E 4V
RF +3.3V
+31.5V
IC901
POWER
PROTECTION
AC IN
+3.3V
+5V
COUPLER
COUPLER
REG
IC107
+3.3V REG
IC105
+3.3V REG
IC942
+5V REG
IC943
+3.3V REG
IC951
VOLTAGE
DETECT
IC106
+1.8V REG
IC303
+1.8V REG
+6V
M -8V
VOLTAGE
DETECT
Q901
VOLTAGE
CONTROLLER
Q945
MOTER DRIVE
CONTROLLER
Q943,947
VOLTAGE
DETECT
+3.3V
IC516
+5V REG
+5V
+9V
+12V
+1.8V
+1.8V
IC508
+2.5V REG
+2.5V
D
VCC
FB/OLP
STARTUP
VCC
FB/OLP
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
27
27
HCD-DZ700FW
HCD-DZ700FW
6-6.
BLOCK DIAGRAM – DIAT TRANSMIT SECTION –
Signal Path
: AUDIO
IC802
LEVEL SHIFT
IC801
+2.5V REG
IC800
REG
VCC(9V)
R835
R836
+2.5V
IC803
LEVEL SHIFT
IC804
RF MODULATOR
D/A CONVERTER
15 SWDT
64 XRST
21
DAAOUT
50 BCK
49 LRCK
DIR-T1
41 APS
48 DTIN
16 CSOD
D800
SCLK
D-GND
XLAT
SDATA
CSOD
XRST
D2(SL/SR)
BCKO
LRCKO
6
4
6
4
1
4
5
10
9
13
12
1
2
8
11
3
13 SCLK
14
6
11
XSCEN
54 C SST
57 O SCI
59 OSCO
60 XTCK4
8
5
12
10
4
13
9
Q801
BUFFER
IC805
RF AMP
J801
RV801
C842
3
4
1
X801
24.576MHz
C820
C819
+12V
AUDIO
SECTION
(Page 25)
Y
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
28
28
HCD-DZ700FW
HCD-DZ700FW
6-7.
PRINTED WIRING BOARD – DMB10 BOARD (SIDE A) –
• See page 21 for Circuit Boards Location.
:Uses unleaded solder.
• Semiconductor
Location
Ref. No.
Location
D1001
C-5
D3501
A-4
D3502
A-4
IC101
D-3
IC102
C-3
IC103
C-4
IC104
C-4
IC106
C-5
IC201
D-5
Q103
C-2
✩ IC103 is a written in and settled EEPROM. Supply with
a single article has not been carried out. In case you
exchange by DMB10 board, please put on IC103
currently used with the model again.
IC102
IC101
IC103
IC106
IC104
IC201
I
I/O
BOARD
CN201
(Page 49)
J
D
MAIN
BOARD
CN505
(Page 34)
MS-203
BOARD
CN001
(Page 52)
B
MAIN
BOARD
CNP506
(Page 35)
A
MAIN
BOARD
CN504
(Page 34)
for
TEST
E
1
5
10
11
R1111
C223
R228
R227
C226
C225
R243
CN202
6
7
R1545
OPTICAL
PICK-UP
BLOCK
(KHM-310CAA)
SPINDLE
MOTOR,
SLED
MOTOR
1
2
A
B
C
D
E
3
4
5
6
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
29
29
HCD-DZ700FW
HCD-DZ700FW
6-8.
PRINTED WIRING BOARD – DMB10 BOARD (SIDE B) –
• See page 21 for Circuit Boards Location.
• Semiconductor
Location
Ref. No.
Location
IC105
D-5
IC107
B-5
IC4501
C-3
IC4502
C-2
Q101
C-5
Q102
C-5
IC4501
IC4502
IC107
IC105
1
3
5
4
1
3
5
4
S
S
E
E
1
3
4
5
R1555
R308
R222
R238
R236
R239
R2505
R237
1
2
A
B
C
D
E
3
4
5
6
:Uses unleaded solder.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
30
30
HCD-DZ700FW
HCD-DZ700FW
6-9.
SCHEMATIC DIAGRAM – DMB10 BOARD (1/4) –
MAIN
BOARD
(2/8)
CNP506
(Page 37)
(Page 31)
(Page 31)
(Page 33)
(Page 31, 32, 33)
(Page 31, 32, 33)
MAIN
BOARD
(2/8)
CN504
(Page 37)
JL4601
C402
C403
JL4602
JL4603 JL4604
JL4605 JL4606
JL4607 JL4608
JL4609 JL4610
FL401
FL402
FB401
FB402
FB403
FB404
FB405
FB406
FL403
CN401
JL4511
JL4510
JL4509
JL4508
JL4507
JL4506
JL4505
JL4504
JL4503
JL4502
JL4501
R4501
R4512
R4513
R4518
R4520
IC4502
FL4501
IC4501
C4504
R4502
D3501
D3502
CN4501
C4501
C4502
R4511
R4510
R4516
R4515
R4514
47
16V
47
6.3V
0UH
EMI
0UH
0UH
0UH
0UH
0UH
0UH
0UH
5P
0
0UH
0
0
0
SN74AHC1GU
04DCKR
0UH
SN74LVC541
APWR
0.01
0
1SS355TE-17
1SS355TE-17
11P
10
0.01
100
47
100
100
100
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
31
31
HCD-DZ700FW
HCD-DZ700FW
6-10. SCHEMATIC DIAGRAM – DMB10 BOARD (2/4) –
• See page 63 for IC Pin Function Description.
• See page 55 for Waveforms.
72
73
74
2
3
4
5
(Page 33)
(Page 30, 32, 33)
(Page 33)
(Page 33)
(Page 32)
(Page 33)
(Page 33)
(Page 33)
(Page 33)
(Page 32)
(Page 32)
(Page 33)
(Page 33)
(Page 33)
(Page 30, 32, 33)
I/O
BOARD
(2/2)
CN201
(Page 51)
(Page 30)
(Page 30)
(Page 32)
(Page33)
TROPENPWN
FWD
REV
CKSW
OCSW
R109
R123
R126
R144
R152
R196
CL101
JL129
JL128
JL160
CL104
JL135
CL105
CL110
CL109
CL108
CL106
CL107
CL112
CL113
JL139
JL140
JL141
JL142
JL143
JL144
JL145
JL146
JL147
JL148
JL149
JL150
JL151
JL152
JL153
JL154
JL155
JL156
JL157
JL158
JL159
CL114
CL115
CL116
CL117
CL118
ICT109
ICT112
ICT113
ICT114
ICT115
ICT117
ICT118
ICT116
ICT121
ICT123
ICT124
ICT126
ICT127
ICT128
ICT129
ICT130
ICT134
ICT136
ICT138
JL101
JL102
JL130
JL167
JL127
JL132
JL133
JL103
JL104
JL105
JL106
ICT133
JL113
JL136
JL171
JL161
JL162
JL168
JL169
JL170
JL163
JL164
JL172
JL173
JL165
JL166
CL120
ICT125
ICT1501
R1530
R1531
CL1501
C105
C112
C119
C129
C150
C177
IC102
R1542
R1553
R1120
R308
R1121
R1122
R1123
R1124
R1125
FL101
FL105
FL106
JL4701
JL4713
JL4712
JL4711
JL4710
JL4709
JL4708
JL4707
JL4706
JL4705
JL4704
JL4703
JL4702
R4701
R4702
R4703
R4704
R4705
R4706
CN301
C142
C147
C148
R141
C151
R142
C154
C138
C133
R1543
R136
C132
C130
C137
C135
R1168
X101
C159
R189
R190
R192
R195
R197
R1102
R160
R153
R151
C156
R1547
R1549
R1551
R1550
R155
R1548
C149
C152
C153
C139
C140
C141
C143
C145
C146
R138
C127
C128
R133
R134
R135
C196
C126
C125
C120
C121
C122
C123
C124
C193
C195
C192
IC107
C114
C117
C118
C163
C161
C101
Q101
Q103
R124
R113
R112
C113
C106
Q102
R117
R116
R121
R120
R111
R108
R118
R115
R110
R1129
R114
R101
R107
C131
C136
C144
C155
C162
C164
RB113
RB112
R1557
R161
R164
C160
C158
R1101
R1105
R1103
C170
R1104
C171
C172
R1554
R1107
R1108
R1109
C173
C174
C175
C176
RB108
RB107
RB103
RB104
RB111
R143
R1540
C116
C115
CN101
R1504
0
0
0
0
0
0
0
0
47
6.3V
47
6.3V
10
16V
10
16V
10 16V
47
6.3V
CXD9804R
0UH
0UH
0UH
0.1
0.047
0.047
750k
0.001
100k
0.1
0.001
0.1
15k
0.1
0.1
0.1
0.033
470
27MHz
0.01
47
47
47
0.01
4.7k
4.7k
4.7k
4.7k
47
4.7k
0.1
12p
12p
22p
0.1
0.1
0.1
1
0.1
100k
0.01
0.0015
3.3k
3.3k
3.3k
0.0047
0.1
0.1
1
1
1
1
1
0.22
0.22
0.01
TK11133CSCL-G
0.1
10 16V
10 16V
0.01
0.01
0.01
UM6K1N-TN
RT1N241C-TP-1
47k
22
22
0.01
0.01
QST8TR
47k
1k
22
22
100
1M
22
22
47k
100k
100k
100
10k
2.2
0.01
0.01
0.01
0.01
0.01
22
22
100
100
100
0.01
0.01
10k
10k
0.01
10k
0.01
0.01
4.7k
0
10k
0
0.01
0.01
0.01
0.01
22
22
0
0
0
4.7k
0.1
0.1
24P
0
0
0
0UH
0UH
0UH
0UH
0UH
0UH
0
0
0
0
0
0
0
13P
10k
150
150
150
150
150
150
2.2k
100
R1555 4.7K
R1111
100
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
32
32
HCD-DZ700FW
HCD-DZ700FW
6-11. SCHEMATIC DIAGRAM – DMB10 BOARD (3/4) –
✩ IC103 is a written in and settled EEPROM. Supply with
a single article has not been carried out. In case you
exchange by DMB10 board, please put on IC103
currently used with the model again.
71
MAIN
BOARD
(2/8)
CN505
(Page 37)
(Page 31)
(Page 30, 31, 33)
(Page 31)
(Page 30, 31, 33)
(Page 31)
(Page 31)
(Page 33)
OCSW1
R187
R1133
R1134
JL107
JL108
JL109
JL110
JL111
JL112
JL138
JL114
JL115
JL116
JL117
JL118
JL119
JL120
JL121
JL122
JL123
ICT108
ICT110
ICT111
ICT107
ICT101
ICT102
ICT104
ICT106
ICT105
ICT103
ICT137
CN105
IC104
FL104
FL107
FL108
C190
C187
C178
R104
FB115
FB114
FB113
FB112
FB111
RB106
RB105
C180
C179
C181
C191
R169
C184
C182
C188
IC106
D1001
C189
R191
R193
C167
IC103
R1150
R1546
R1151
R1152
C108
C109
R1110
C102
R106
R105
IC105
CN106
IC101
R1502
0
0
0
6P
HY57V64162
0HGTP-HDR
0UH
0UH
0UH
47 6.3V
47
4V
47
4V
0
0UH
0UH
0UH
0UH
0UH
47
47
0.1
0.1
0.1
0.1
10k
0.01
0.22
0.22
PQ018EN01ZPH
RB501V-40TE-17
0.33
1k
1k
0.01
BR24L64F-WE2
3.3k
3.3k
3.3k
3.3k
0.001
0.001
2.7k
0.01
10k
10k
TK11133CSCL-G
11P
MBM29DL32TF70-0ED1-0501CE
0
R1545 0
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
33
33
HCD-DZ700FW
HCD-DZ700FW
6-12. SCHEMATIC DIAGRAM – DMB10 BOARD (4/4) –
73
72
74
71
J
MS-203
BOARD
CN001
(Page 31)
(Page 30, 31, 32)
(Page 31)
(Page 31)
(Page 31)
(Page 31)
(Page 31)
(Page 30)
(Page 30, 31, 32)
(Page 31)
(Page 31)
(Page 32)
(Page 31)
(Page 31)
(Page 31)
(Page 52)
TROPENPWM
FWD
REV
CKSW
OCSW
OCSW1
OCSW1
CKSW1
GND
LDM-
LDM+
SPINDLE
MOTOR,
SLED
MOTOR
CL202
CL203
CL204
CL205
CL206
CL207
CL208
CL210
CL211
CL212
ICT207
JL201
JL202
JL203
JL204
JL205
JL206
JL207
JL208
JL209
ICT204
ICT203
JL210
JL211
CL209
CL201
C217
C218
C220
CN201
R247
R246
R204
R207
C203
R205
R210
C208
R216
R213
R206
R209
C206
R215
R212
R208
C205
R214
R220
C233
C209
R221
R223
R225
C211
R226
C214
C212
R230
R231
R232
R234
C215
R233
C219
C224
C221
C222
R219
R224
C210
C213
IC201
47
16V
10
16V
10
16V
6P
CN202
5P
1k
R237
1k
R236
1k
R2505
0
R243 100
4.7k
1.2k
2.7k
0.01
10k
47k
0.01
12k
6.8k
10k
33k
220p
12k
10k
33k
220p
15k
10k
0.0047
0.033
56k
100k
100k
0.033
56k
0.001
0.01
82k
15k
18k
10k
0.01
33k
0.01
0.01
0.1
0.1
27k
R222
33k
R227 0
R228 0
10k
0.01
0.01
FAN8036L
R238
4.7k
R239
4.7k
C225 0.001
C226 0.001
C223
0.1
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
34
34
HCD-DZ700FW
HCD-DZ700FW
6-13. PRINTED WIRING BOARD – MAIN BOARD (SIDE A) –
• See page 21 for Circuit Boards Location.
DMB10
BOARD
CN4501
(Page 28)
A
TX
BOARD
CN801
(Page 53)
V
I/O BOARD
CN601
(Page 49)
F
DMB10
BOARD
CN106
(Page 28)
for PROGRAM WRITER
D
E
E
1
3
4
1
20
15
14
1
28
10
11
5
1
3
4
5
E
E
IC106
IC105
IC110
IC505
IC514
IC501
IC513
IC517
IC506
IC507
IC509
IC511
IC502
IC107
IC102
IC108
IC305
IC301
IC303
IC101
14
4
5
3
1
C119
RU
C110
R138
L946
C516
R740
R642
R643
R644
R648
R647
R646
R645
R793
R639
R656
CN512
11
1
10
2
1
2
A
B
C
D
E
G
H
F
3
4
5
6
7
9
8
• Semiconductor
Location
Ref. No.
Location
D503
H-4
D914
F-8
D915
F-8
D923
H-8
D925
H-8
D932
D-7
IC101
D-6
IC102
D-5
IC105
D-3
IC106
D-2
IC107
D-2
IC108
E-5
IC110
E-3
IC301
E-6
IC303
D-6
IC305
E-5
IC501
F-3
IC502
H-4
IC505
G-3
IC506
G-4
IC507
F-5
IC509
H-3
IC511
H-4
IC513
E-3
IC514
F-3
IC517
F-4
Q506
H-4
Q507
G-3
Q943
D-7
Q947
D-7
:Uses unleaded solder.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
35
35
HCD-DZ700FW
HCD-DZ700FW
6-14. PRINTED WIRING BOARD – MAIN BOARD (SIDE B) –
• See page 21 for Circuit Boards Location.
IC943
IC951
IC921
IC901
PC901
IC942
IC941
IC508
IC931
IC516
IC515
PC902
PC903
(CHASSIS)
(CHASSIS)
1
3
E
E
1
2
(CHASSIS)
FAN
AC
IN
E
E
E
E
E
1
2
4
5
E
MAIN TRANSFORMER
SUB TRANSFORMER
1
8
E
1
5
1
3
1
5
5
1
5
1
(CHASSIS)
H/P BOARD
CNP803
(Page 46)
H
(CHASSIS)
1
3
1
5
E
DMB10
BOARD
CN401
(Page 28)
B
TX
BOARD
CN802
(Page 53)
W
FL BOARD
CN801
(Page 44)
E
19
18
1
2
(CHASSIS)
14
1
3
(CHASSIS)
(CHASSIS)
E
E
E
E
E
E
+
–
CENTER
SPEAKER
+
–
WOOFER
+
–
+
–
FRONT R
FRONT L
C108
L107
C109
D926
R920
C958
C967
C968
CN902
C960
R921
R929
RU
C965
R930
C966
R924
R479
R478
R700
Q111
Q112
R468 R469
R738
R737
R735
R736
R535
R536
C576
R640
L501
R630
R584
FB512
1
2
A
B
C
D
E
G
H
F
3
4
5
6
7
9
8
C120
• Semiconductor
Location
Ref. No.
Location
D101
D-4
D102
D-5
D105
D-7
D106
D-7
D107
D-8
D201
D-5
D202
D-5
D205
D-7
D206
D-8
D207
D-9
D303
B-9
D304
B-9
D504
H-7
D505
H-6
D506
H-6
D509
F-7
D510
F-7
D901
D-2
D905
G-2
D906
G-2
D907
G-1
D908
G-2
D909
D-2
D910
H-2
D913
G-2
D921
H-3
D922
H-2
D924
H-2
D926
H-2
D931
G-4
D941
H-4
D942
H-4
D943
H-4
D944
H-4
D945
H-5
IC508
G-5
IC515
H-5
IC516
H-5
IC901
F-1
IC921
H-3
IC931
E-4
IC941
G-5
IC942
G-5
IC943
G-4
IC951
H-4
PC901
E-3
PC902
H-3
PC903
D-3
Q101
B-4
Q102
B-5
Q103
B-5
Q104
B-5
Q109
B-7
Q110
B-7
Q111
B-8
Q112
B-8
Q301
C-9
Q302
B-4
Q303
B-4
Q304
B-4
Q901
G-2
Q921
H-2
Q945
H-5
:Uses unleaded solder.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
36
36
HCD-DZ700FW
HCD-DZ700FW
6-15. SCHEMATIC DIAGRAM – MAIN BOARD (1/8) –
• See page 60 for IC Pin Function Description.
• See page 55 for Waveform.
71
MAIN BOARD
(8/8)
(Page 43)
82
MAIN BOARD
(2/8)
(Page 37)
70
MAIN BOARD
(8/8)
(Page 43)
75
MAIN
BOARD
(8/8)
(Page 43)
74
MAIN
BOARD
(8/8)
(Page 43)
72
MAIN
BOARD
(8/8)
(Page 43)
MAIN
BOARD
(2/8)
(Page 37)
MAIN
BOARD
(2/8)
(Page 37)
I/O
BOARD
(1/2)
CN601
(Page 50)
6
(Page 45)
( 1 / 8 )
BMB-D1
DSP_SKIP
DSP_DO
DSP_DIN
DSP_BST
DSP_GP9
DSP_PM
DSP_ACK
DSP_XRST
DSP_HCE
DSP/DIR_CLK
DIR_RST
DIR_ZERO
DIR_RERR
DIR_XSTAE
DIR_CSFLAG
DIR_DO
AD_RST
DIR_HCE
SEL1FS
DMB-D2
MCK0
LRCK0
BCK0
D2
DMB-D3
DMB-BCK
DMB-LRCK
DMB-MCK
SPDIF1
LIN
RIN
D1
D2
D3
BCKO
LRCKO
MCKO
SPDIF
COAX-IN
R691 100
OPT-IN
D3.3V
D-GND
A5V
A-GND
MODE0
AD_RST
SKIP
HDOUT
DIR_XSTAE
ERR
DIR_HCE
DIR_RST
DSP_PM
DSP_BST
DSP_HCE
DSP_XRST
GP9
ACK
R792
1.5K:RU
4.7K:AEP,UK
R596
47K:RU
no mount: AEP,UK
D_CLK
XRST
DSP_D0
DIN
LINK
SCDT
SHIFT
XSCEN
DSP_DO
SKIP
DIN
DSP_BST
GP9
DSP_PM
ACK
DSP_XRST
DSP_HCE
D_CLK
DIR_RST
DIR_ZERO
ERR
DIR_XSTAE
CSFLAG
HDOUT
DIR_HCE
AD_RST
SEL1FS
DIR_ZERO
CSFLAG
AEP,UK
RU
R717
TP583
CN509
TP577
TP625
TP511
TP510
TP509
TP550
TP570
TP631
TP632
TP630
TP512
TP792
TP793
TP508
TP560
TP507
TP501
TP817
TP593
TP594
TP595
TP596
TP597
TP598
TP599
TP600
TP601
TP624
TP603
TP545
TP546
TP547
TP548
TP592
TP591
TP590
TP589
TP588
TP587
TP586
TP585
TP584
TP582
TP581
TP580
TP502
TP513
TP514
R608
R628
R756
R730
R741
SEL1FS
C799
C875
C762
TP515
Q507
C856
R791
TP576
TP578
CN507
R514
R726
R728
CN510
R611
R748
R749
R750
R713
R729
R616
R790
R614
C798
R612
R718
R721
R624
X502
C580
R789
C572
C571
C570
R702
C716
R719
R705
C712
R709
R746
R743
R727
R725
100
100
100
R723
R724
R731
R595
R591
R594
R590
R589
R588
R587
R586
R585
R706
R707
R601
R620
C608
R775
R765
R764
R763
R762
R761
R760
R774
R577
R596 *
*
*
15K
*
R792
1k
R755
IC509
M30622MGP-
A12FPU0
EB905
10k
19P
FFC-S-1.0
100
1k
1k
4.7k
47k
0.1
0.01
0.1
RT1P141C
-TP-1
0.1
100
23P
FFC-S-1.0
1k
1k
R550 0
1k
9P
FFC-S-1.0
10k
1k
1k
1k
0
4.7k
10k
100
10k
0.1
10k
10k
10k
10k
5MHz
1000 6.3V
100
0.1
0.1
0.1
10k
R793
47K
0.1
10k
10k
0.1
10k
47k
10k
4.7k
4.7k
100
100
100
100
1k
100
100
100
100
100
100
100
100
100p
47k
100
100
100
100
100
100
1k
TERMINAL BOARD
GROUND
XSCEN
V-CONTROL
CE
R535
1K
R536
1K
R630
100
R584 100
R639
100
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
37
37
HCD-DZ700FW
HCD-DZ700FW
6-16. SCHEMATIC DIAGRAM – MAIN BOARD (2/8) –
MAIN
BOARD
(1/8)
(Page 36)
(Page 30)
(Page 32)
(Page 30)
MAIN
BOARD
(3/8)
(Page 38)
MAIN
BOARD
(7/8)
(Page 42)
MAIN
BOARD
(1/8)
(Page 36)
MAIN
BOARD
(8/8)
(Page 43)
81
(Page 36)
(Page 54)
3.3
3.3
3.3
0
0
3.3
0
0
0
3.3
0
0
0
0
3.3
0
0
0
( 2 / 8 )
R3.3V
INVERTER
STREAM PROCESSOR
Q506
C583
IC515
C582
TP575
TP574
TP573
TP572
TP571
TP567
TP565
TP564
TP563
TP562
TP561
TP551
TP568
R678
R657
R662
R659
R673
R609
TP566
TP569
TP542
TP829
TP552
TP553
TP554
TP555
TP556
TP557
TP558
TP830
TP831
TP832
R739
CN505
TP559
IC516
CNP506
R636
R637
SPDIF
R638
R629
TP517
TP518
TP538
R606
R607
R615
D504
D506
D505
C596
C587
C589
IC511
CN504
C597
C595
C598
C601
C602
D503
C548
C547
C603
C525
R704
R703
R693
R694
R695
R697
R701
R502
R692
R675
2SC2412K-T
-146-QR
0.22
10V
IC TA7809LS
100 10V
0
47k
47k
100k
10k
0
47k
11P
FFC-S-1.0
IC TA7805LS
5P
PIN-S-2.0
BOARD IN
0
0
100
0
680
680
470
1SS355TE-17
1SS355TE-17
1SS355TE-17
47 16V
0.22
10V
0.1
IC PST3629NR
11P
FFC-S-1.0
0.33
0.1
0.33
47 16V
0.1
1SS355TE-17
0
47p
100 10V
0.1
1k
1k
100
100
100
100
100
R696 100
0
100
100
R722
47k
TP634
TP640
TP635
TP636
TP637
TP638
TP318
TP317
TP315
R640
R646
R648
IC513
R645
C576
R642
R644
R740
IC502
C516
R700
CN512
R647
R643
R735
R736
R737
R738
0
100
100
SRC4182
100
0.1
100
100
100
SN74AHC1G08
DCKR
0.1
100
11P
100
100
100
100
100
100
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
38
38
HCD-DZ700FW
HCD-DZ700FW
6-17. SCHEMATIC DIAGRAM – MAIN BOARD (3/8) –
• See page 56 for IC Block Diagram.
73
MAIN
BOARD
(2/8)
(Page 37)
MAIN
BOARD
(8/8)
(Page 43)
MAIN
BOARD
(8/8)
(Page 43)
MAIN
BOARD
(5/8)
(Page 40)
MAIN
BOARD
(4/8)
(Page 39)
( 3 / 8 )
C335
IC110
R310
R311
R312
R313
R314
R315
R329
R381
C327
R328
C328
R326
C402
C120
47
10v
+
C403
C404
C405
TP305
TP329
TP331
TP368
R353
R356
TP334
EB907
R309
R308
R306
R305
R304
R303
R302
R351
R300
C406
C326
C325
C323
R380
C324
C321
C320
C322
R379
R382
R345
R347
R317
R316
R319
100
47
16V
CXD9843AR
100
100
100
0
100
0
R138
0
560
0.1
25V F
0
0.1
25V F
0
100p
50V CH
100p
50V CH
100p
50V CH
0.001
50V B
100
33
TERMINAL BOARD
EB910
TERMINAL
BOARD
100
100
100
100
100
100
100
100
100
0.0047
50V B
0.1
25V F
0.1
25V F
0.1
25V F
560
0.1
25V F
0.1
25V
F
0.1
25V
F
0.1
25V
F
560
560
10k
10k
470
470
10k
R469
0
R468
0
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
39
39
HCD-DZ700FW
HCD-DZ700FW
6-18. SCHEMATIC DIAGRAM – MAIN BOARD (4/8) –
• See page 56 for IC Block Diagrams.
MAIN
BOARD
(3/8)
(Page 38)
MAIN
BOARD
(6/8)
(Page 41)
MAIN
BOARD
(5/8)
(Page 40)
MAIN
BOARD
(7/8)
(Page 42)
80
( 4 / 8 )
EB908
R135
R175
L105
L115
R165
R155
R145
L135
L125
R136
R176
L106
L116
R166
R156
R146
L136
L126
C385
Q301
R137
R177
R167
R157
R147
L137
L127
C377
C372
R116
R117
R118
R119
C145
C185
C155
C115
C105
C225
C215
C195
C146
C186
C156
C116
C106
C226
C216
Q111
Q112
Q109
Q110
D206
D106
D105
D205
C137
C117
C107
C197
C227
C217
D207
D107
R383
IC105
IC106
IC107
C199
C200
R245
R246
R247
TP388
TP389
TP390
TP372
TP373
TP374
TP375
EB908
C147
C218
R195
R205
R196
R206
R226
R216
C136
C272
C176
C271
C166
C135
C209
C165
C210
C175
R365
R410
C289
C255
R215
C290
C292
C266
C291
C256
C265
R225
R430
R431
R197
C167
C273
C274
C177
R207
C157
C187
R128
R120
R384
R480
C267
C294
R217
R227
C257
C293
R453
R484
R452
R483
R451
R482
R450
R481
C268
R366
R411
C396
R409
C395
J202
R395
R139
D304
D303
C196
R412
C269
C279
C280
0
0
0
0
0
0
0
0
0
0
2.2
16V
F
2SC3052EF-T1-LEF
0
0
0
0
0
10
50V
1 50V
22k
22k
22k
22k
0.1
25V F
0.033
50V B
0.033
50V B
1 16V F
1 16V F
1
50V
1
50V
2200
35V
0.1
25V F
0.033
50V B
0.033
50V B
1 16V F
1 16V F
1
50V
1
50V
2SA1235TP-1EF
2SA1235TP-1EF
2SA1235TP-1EF
2SA1235TP-1EF
P6SMB39AT3
P6SMB39AT3
P6SMB39AT3
P6SMB39AT3
0.1
25V F
1 16V F
1 16V F
2200
35V
1
50V
1
50V
P6SMB39AT3
P6SMB39AT3
560
CXD9775M
CXD9775M
CXD9775M
0.1
25V F
0.1
25V F
100
100
100
TERMINAL BOARD
0.1
25V F
0.1
25V F
3.3
3.3
3.3
3.3
2.7
2.7
0.1
25V
0.22
50V
0.22
50V
0.22
50V
0.22
50V
0.1
25V
0.22
50V
0.22
50V
0.22
50V
0.22
50V
100k
100k
0.0022
50V
0.0022
50V
2.7
0.0022
50V
0.0022
50V
0.0022
50V
0.0022
50V
0.0022
50V
0.0022
50V
2.7
10k
100k
3.3
0.22
50V
0.22
50V
0.22
50V
0.22
50V
3.3
0.033
50V
0.033
50V
22k
22k
560
0
0.0022
50V
0.0022
50V
2.7
2.7
0.0022
50V
0.0022
50V
10k
10k
10k
10k
10k
10k
10k
10k
0.01
50V
100k
100k
10
10V
100k
2.2
16V
TERMINAL BOARD
100k
0
1SS355TE-17
1SS355TE-17
2200
35V
100k
0.01
50V
0.001 50V
0.001 50V
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
40
40
HCD-DZ700FW
HCD-DZ700FW
6-19. SCHEMATIC DIAGRAM – MAIN BOARD (5/8) –
• See page 56 for IC Block Diagram.
• See page 55 for Waveform.
MAIN
BOARD
(7/8)
(Page 42)
MAIN
BOARD
(6/8)
(Page 41)
MAIN
BOARD
(4/8)
(Page 39)
MAIN
BOARD
(3/8)
(Page 38)
(Page 47)
7
( 5 / 8 )
C359
C358
IC301
C361
IC305
C380
FB301
R393
CN309
C329
L303
47u
IC108
C374
C371
C375
CN300
C307
C108
FB302
Q303
L301
R342
R343
C353
C354
C363
C360
C351
C381
L302
TP325
C306
C305
C304
C303
C302
C301
C309
C308
R320
C310
R323
R325
R321
C368
TP320
TP321
TP322
TP324
TP392
TP327
TP330
C248
TP396
TP362
TP363
TP366
TP364
TP341
R355
R358
Q302
Q304
TP332
R372
R373
R374
TP337
TP336
R427
R429
R428
R424
R426
C436
R340
R334
R335
R330
R331
R338
R350
R339
R349
R332
R333
C352
R337
R336
C357
R341
R400
R394
R396
C383
C382
R322
R348
R346
R371
C362
C356
C384
IC303
X450
470
10V
470
10V
RC4580IDR
47
25V
SN74AHC1GU04DCKR
220
10V
0UH
22
5P
47
16V
CXD9843AR
0.01
25V
B
0.001
50V
B
100
16V
2P
0.1
16V
100
0
2SC3243-TP-E
0
0
100p
50V
CH
100p
50V
CH
0.1
25V
F
0.1
25V
F
100p
50V
CH
0.01
25V
B
0.1
25V
F
0.1
25V
F
0.1
25V
F
0.1
25V
F
0.1
25V
F
0.1
25V
F
0.1
25V F
0.1
25V
F
0
0.1
25V F
0
0
0
1
10V
47
16V
100
33
2SC3052EF-T1-LEF
2SC3052EF-T1-LEF
560
560
560
1/10W
10k
1.2k
2.2k
1.5k
10k
100p
50V
33k
22k
22k
22k
22k
22k
2.2k
22k
2.2k
22k
22k
100p
50V
22k
22k
100p
50V
33k
100k
1M
100
10p
50V
0.001
50V
10k
470
470
560
100
10V
100p
50V
5p
50V
TK11118CSCL-G
49.152MHz
L107
10uH
C109
0.1
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
41
41
HCD-DZ700FW
HCD-DZ700FW
6-20. SCHEMATIC DIAGRAM – MAIN BOARD (6/8) –
• See page 56 for IC Block Diagrams.
MAIN
BOARD
(5/8)
(Page 40)
MAIN
BOARD
(7/8)
(Page 42)
MAIN
BOARD
(4/8)
(Page 39)
( 6 / 8 )
R131
R171
L101
L111
R161
R151
R141
L131
L121
R132
R172
L102
L112
R162
R152
R142
L132
L122
R108
R111
C275
C276
C277
C278
R109
R110
C181
C131
C221
C211
C191
C132
C222
C212
C192
C366
Q102
Q101
Q104
Q103
D202
D102
D101
D201
C188
IC101
IC102
R241
R242
TP385
TP384
EB906
J203
TP383
TP382
TP381
TP380
EB911
R473
R474
R475
R472
C182
C172
C204
R202
C152
C203
C162
R192
C112
C142
C189
C202
C171
R201
C151
C201
C161
R191
C141
C111
C367
C350
C119
100P
C284
C262
R222
R212
C252
C283
R211
C251
C281
R221
C282
C261
C391
R361
R401
R402
R403
C392
R362
R404
R456
R487
R457
R488
R489
R458
R490
R459
C102
C101
0
0
0
0
0
0
0
0
0
0
22k
22k
0.01
50V
0.01
50V
0.01
50V
0.01
50V
22k
22k
0.033
50V B
0.1
25V
F
1
50V
1
50V
2200
35V
0.1
25V
F
1
50V
1
50V
2200
35V
220
16V
2SA1235TP-1EF
2SA1235TP-1EF
2SA1235TP-1EF
2SA1235TP-1EF
P6SMB39AT3
P6SMB39AT3
P6SMB39AT3
P6SMB39AT3
0.1
25V F
CXD9775M
CXD9775M
100
100
TERMINAL BOARD
TERMINAL BOARD
0
0
0
R478
0
R479
0
0
0.033
50V
0.22
50V
0.22
50V
3.3
0.033
50V
0.22
50V
0.22
50V
3.3
1 16V F
0.1
25V
0.1
25V
0.22
50V
0.22
50V
3.3
0.033
50V
0.22
50V
0.22
50V
3.3
0.1
25V
1 16V
0.1
25V
0.1
50V
0.0022
50V
0.0022
50V
2.7
2.7
0.0022
50V
0.0022
50V
2.7
0.0022
50V
0.0022
50V
2.7
0.0022
50V
0.0022
50V
2.2
16V
C110
0.001
100k
100k
100k
100k
2.2
16V
100k
100k
10k
10k
10k
10k
10k
10k
10k
10k
1 16V F
1 16V F
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
42
42
HCD-DZ700FW
HCD-DZ700FW
6-21. SCHEMATIC DIAGRAM – MAIN BOARD (7/8) –
MAIN
BOARD
(2/8)
(Page 37)
MAIN BOARD
(5/8)
(Page 40)
TX BOARD
CN802
(Page 54)
MAIN BOARD
(6/8)
(Page 41)
MAIN BOARD
(4/8)
(Page 39)
80
W
1
2
3
1
2
3
( 7 / 8 )
C958
0.1
25V
C905
0.0033
400V
C908
C909
R914
0.1
5W
C931
10000P 630V
C932
C933
F901
6A/250V
C911
C910
R912
0.22
2W
C912
100P
250V
C907
0.001
R903
100K
CN901
TH901
D901
C938
680P
250V
C924
C923
C922
C947
C944 2200 16V
C967 0.1 25V
C960 0.1 25V
C968 0.1 25V
Q943
R921
C921
R904
100K
R908
EB903
CN902
2P
EB904
C935
C936
EB901
EB902
C949
C940
C953
C939
FB905
C928
C942
C948
Q947
IC921
R918
VDR901
C906
680P
1.5KV
C952
C963
0.001
250V
FH901
FH902
R965
C913
C964
0.001
250V
JW904
JW903
C943
PC901
LF901
D931
PC903
IC901
STR-F6168-LF1352
D910
PC902
C941
C903
330
400V
L941
L942
L951
C901
C902
L945
TP903
TP904
TP905
TP907
TP906
TP911
TP913
TP908
TP914
TP915
R936
IC943
IC942
IC941
C945
IC931
D921
D922
IC951
C946
C954
C951
C955
TP909
TP910
TP912
TP916
TP918
TP901
TP902
R933
R955
C918
C920
D913
FB902
D908
1SS355TE-17
D906
1SS355TE
-17
D907
1SS355TE-17
D909
1SS355TE-17
D914
1SS355TE
-17
D915
R919
R910
R909
R906
R907
R911
C925
47P
2KV
D925
Q921
D924
D942
D943
R925
R926
R923
R922
R939
R932
R931
D932
D945
R951
R952
R953
Q945
R935
R905
R934
R937
R940
R938
R949
R948
R956
R957
R958
Q901
D905
C937
C934
R943
R946
R941
D923
R927
1 1W
C929
D944
L948
L947
R954
D941
L931
10.8uH
T902
T901
47
35V
220p
50V
2200 35V
2200 35V
0.0047
50V
22
50V
2P
D5SBA60F01
2.2
50V
0.0047
50V
22
100V
100
10V
RT1N441C-TP-1
100k
2W
R929
2.2
1/2W
3300p
500V
3.3k
1/2W
0.1
50V
0.1
50V
100
10V
3300
10V
0.001
2kV
0.1
50V
0.45UH
220p 250V
470
25V
470
10V
RT1N441C-TP-1
STR-V153
0
VARISTOR
TNR14SE471K490
0.047
50V
HOLDER
FUSE
HOLDER
FUSE
0
100p
250V
100
16V
IC TLP421F
YG906C2R
IC TLP421F
1SS355TE-17
IC TLP421F
1000
25V
0.22
275V
0.22
C965
220P
C966 220P
275V
470k
SI-3033KM-TL
SI-3050KM-TL
SI-3120KM-TL
470
16V
TA76431AS
(TPE6)
ERA22-08TP3
D1NL20U-TR2
TA76L431S
1000
16V
0.1
25V
0.1
25V
0.1
25V
4.7k
470
0.01
250V
250V
0.01
SARS03
0.45UH
UDZSTE
-1710B
18k
2.2k
100k
3.3k
10k
220
UDZSTE-175.1B
D926
UDZSTE-1724B
2SD1616A
-TP-LK
UDZSTE-1724B
RK36LF
-B3
RK36LF
-B3
10
680k
4.7k
4.7
3.3k
0.5%
33k
0.5%
8.2k
0.5%
UDZSTE-175.1B
UDZSTE-1720B
220
0.5%
2.2k
0.5%
3.9k
0.5%
RSR025N03TL
1k
10
1k
10k
10k
1k
1k
10k
1k
47k
1k
2SB1116A
TP-LK
D1NL20U-TR2
0.047
50V
2200 35V
0
150
0
UDZSTE-1710B
0.1
50V
EK19LF-F7
22k
D1NL20U-TR2
SUB
TRANSFORMER
MAIN
TRANSFORMER
R920
1k
R901
1M
R930 0
R924 0
L946
10uH
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
43
43
HCD-DZ700FW
HCD-DZ700FW
6-22. SCHEMATIC DIAGRAM – MAIN BOARD (8/8) –
(2 / 8)
(Page 37)
(Page 36)
81
8
(Page 36)
(Page 36)
(Page 38)
(Page 36)
(Page 36)
(Page 38)
TP516
C505
C536
C533
C534
C530
C535
C538
C511
C575
C552
C555
C559
C540
C549
C554
C556
C557
C560
C562
C563
C568
C542
R504
R505
R506
R507
R510
R511
R515
R518
R520
R522
R529
R537
R540
R541
R542
R545
R546
R547
R548
R549
R552
R553
R554
R560
R561
R563
R564
R565
R567
R568
R572
R573
R575
R578
R581
R582
R583
R598
R599
R600
R602
R627
R532
R551
R559
R526
R557
R555
R531
R569
RB502
RB503
RB506
RB507
L501
L502
X501
D509
D510
C569
R530
R533
R534
R538
C531
C532
IC517
C506
C561
R650
IC501
IC514
IC507
IC506
IC508
C546
R558
C545
R556
C539
C543
R516
R517
R519
C541
R544
R512
C528
C504
C524
L504
C512
C514
C513
C565
R660
R521
R603
L503
X500
IC505
R527
R528
R543
R574
R597
TP606
R580
C577
RB501
RB504
C551
C527
R566
FB509
R525
RB505
C558
FB512
C564
C567
FB511
R604
R605
R508
C526
C518
C517
C529
C544
0.1
0.1
12p
12p
0.1
0.1
0.01
0.001
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.01
0.1
220
10V
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
1k
1k
1k
3.3k
4.7k
5.6k
1M
1M
100
100
100
100
13.9MHz
1SS355TE-17
1SS355TE-17
0.33
100
100
100
0
22p
12p
SN74AHC1GU04DCKR
0.01
0.01
0
PCM1803DBR
SN74LV157APWR
IS61LV6416-10TLT
CXD9862R
NJM2885DL1-18
0.01
33k
0.1
100
0.1
0.01
100
100
100
0.01
100
100
0.1
0.01
0.1
0
0.01
0.1
0.1
0.01
0
10k
100
0
12.288MHz
LC89056W-E
100
100
100
100
100
10k
330p
100
100
0.01
0.01
10k
0UH
100
100
0.01
0
10
50V
220
10V
0
470
470
100
47 10V
10 50V
10 50V
10
50V
10 50V
• See page 57 for IC Block Diagrams.
• See page 55 for Waveform.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
44
44
HCD-DZ700FW
HCD-DZ700FW
6-23. PRINTED WIRING BOARDS – FRONT PANEL SECTION –
• Semiconductor
Location
Ref. No.
Location
D801
C-8
D802
C-8
D803
C-8
D804
C-8
D805
C-8
IC801
C-3
IC802
C-6
Q801
C-8
Q802
D-5
• See page 21 for Circuit Boards Location.
IC801
IC802
VOLUME
MAIN
BOARD
CN509
(Page 35)
E
18
2
E
2 3 5
1
4
1
2
FL801(FLUORESCENT INDICATOR TUBE)
FUNCTION
4
1
1
50
1
3
(11)
11
(11)
11
(11)
11
1
2
A
B
C
D
3
4
5
6
7
8
:Uses unleaded solder.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
45
45
HCD-DZ700FW
HCD-DZ700FW
6-24. SCHEMATIC DIAGRAM – FRONT PANEL SECTION –
(1/8)
(Page 36)
R857
R819
C809
R802
Q801
C814
R812
L801
C803
C804
C805
R854
S801
S802
S803
S804
S805
S806
S808
TP820
TP821
TP823
TP824
TP825
TP826
TP831
TP832
TP834
TP835
TP836
TP837
S807
R805
L802
Q802
R817
R800
R853
R851
R855
R856
R852
FL801
TP801
TP802
TP805
TP807
TP808
TP809
TP812
TP813
TP814
TP815
TP816
TP817
TP818
TP819
D802
D803
CNP806
S800
IC801
R811
R814
R815
R816
R810
C806
C807
C808
IC802
PT6315
R820
R813
R822
R821
R804
R801
C802
D805
D804
D801
T801
DC-DC CONVERTER
CN801
CNP801
CN805
FB806
C801
C800
C811
C820
C819
CNP802
CN804
C824
C826
C825
C823
C822
C821
C818
C817
C816
C815
C813
C812
C810
2.2k
2.2k
47
10
50V
100
CPH5504-TL-E
10
50V
100k
100
10V
0.01
50V
0.1
16V
SW. KEY
SW. KEY
SW. KEY
SW. KEY
SW. KEY
SW. KEY
SW. KEY
SW. KEY
0
2SC3052EF-T1-LEF
1k
1k
2.2k
1k
1k
2.2k
4.7k
1SS355TE-17
UDZSTE-176.2B
1P WIRE
CHASSIS
ROTARY ENCODER
NJL23H400A
82k
100
100
100
0
100p
50V
100p
50V
100p
50V
100k
100k
0
0
3.9k
33k
47
50V
1SS355TE-17
1SS355TE-17
1SS355TE-17
19P
2P
4P
0UH
0.022
50V
0.0047
50V
0.01
25V
0.01
25V
0.01
25V
4P
2P
0.01
50V
220p
50V
220p
50V
220p
50V
220p
50V
220p
50V
220p
50V
220p
50V
220p
50V
220p
50V
220p
50V
220p
50V
0.1
16V
• See page 58 for IC Block Diagram.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
46
46
HCD-DZ700FW
HCD-DZ700FW
6-25. PRINTED WIRING BOARDS – AUDIO IN/OUT SECTION – • See page 21 for Circuit Boards Location.
IC605
E
E
E
E
5
1
MAIN
BOARD
CN309
(Page 35)
H
PHONES
J801
I/O
BOARD
CN602
(Page 49)
G
AUDIO IN
1
2
A
B
C
D
3
4
5
6
(13)
13
(13)
13
• Semiconductor
Location
Ref. No.
Location
D821
B-2
D822
B-2
IC605
B-5
Q806
B-2
Q807
B-2
Q808
B-3
Q809
B-2
:Uses unleaded solder.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
47
47
HCD-DZ700FW
HCD-DZ700FW
6-26. SCHEMATIC DIAGRAM – AUDIO IN/OUT SECTION –
L813
L811
FB813
L812
L814
C881
TP875
TP873
TP872
TP871
TP874
FB811
Q808
Q809
Q806
Q807
C882
C885
R861
R862
R864
R863
FB812
R866
R865
R867
R868
R869
R870
C637
C638
R605
R621
R665
C641
IC605
R677
R678
TP635
C646
0.001
TP636
TP637
TP638
C636
C639
C640
R666
C642
R669
R643
R642
R683
R684
C884
C883
CNP803
J801
D821
D822
FB814
J603
R667
R673
R672
R668
R670
R671
C643
CNP602
0
0
0UH
470p
0UH
2SC5938-T112-1B
2SC5938-T112-1B
2SC5938-T112-1B
2SC5938-T112-1B
470p
0.1
4.7k
4.7k
22
22
0
47
47
4.7k
4.7k
4.7k
4.7k
100p
100p
470
0
470
100
16V
MC4558CD
100k
100k
0
10
50V
10
50V
4.7k
0.1
4.7k
0
0
0
0
0.01
0.01
5P
1SS355TE-17
1SS355TE-17
0
4.7k
1k
1k
4.7k
1k
1k
100
16V
4P
(5/8)
(Page 40)
(Page 50)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
48
48
HCD-DZ700FW
HCD-DZ700FW
6-27. PRINTED WIRING BOARD – I/O BOARD (SIDE A) –
• Semiconductor
Location
Ref. No.
Location
D201
B-4
IC201
B-6
IC202
B-5
IC203
B-4
IC602
B-3
IC603
C-3
Q201
C-4
Q202
C-4
Q203
B-4
Q204
C-4
Q205
B-4
Q206
C-4
Q207
B-4
Q208
B-5
Q209
C-5
Q601
C-1
Q602
C-2
Q603
B-3
Q604
B-3
Q605
C-1
• See page 21 for Circuit Boards Location.
IC603
IC602
IC203
IC202
IC201
(13)
13
1
2
A
B
C
D
3
4
5
6
7
:Uses unleaded solder.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
49
49
HCD-DZ700FW
HCD-DZ700FW
6-28. PRINTED WIRING BOARD – I/O BOARD (SIDE B) –
• See page 21 for Circuit Boards Location.
IC604
IC608
TUNER
I
DMB10 BOARD
CN301
(Page 28)
F
MAIN BOARD
CN507
(Page 34)
G
IPOD BOARD
CNP602
(Page 46)
OPTICAL
IN
VIDEO
COXIAL IN
SAT
R
Y
L
VIDEO IN
PB/CB
PR/CR
COMPONENT
VIDEO OUT
VIDEO
AUDIO IN
EURO AV
OUTPUT
(TO TV)
1
21
2
20
(13)
13
1
2
A
B
C
D
3
4
5
6
7
• Semiconductor
Location
Ref. No.
Location
D202
C-4
D203
C-4
D206
C-3
IC604
B-5
IC608
B-6
:Uses unleaded solder.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
50
50
HCD-DZ700FW
HCD-DZ700FW
6-29. SCHEMATIC DIAGRAM – I/O BOARD (1/2) –
• See page 57 for IC Block Diagrams.
(Page 47)
(Page 36)
(1/8)
(Page 51)
OUT
GND
VCC
R
604
608
OPTICAL
COXIAL
SAT
IN
RECEIVER
OPTICAL
IN
VIDEO
VIDEO
INVERTER
L101
IC602
R615
R616
C610
L202
C607
C632
C211
C629
C630
R109
R114
C615
C619
C620
R606
R631
R632
R634
R636
R645
C203
C204
L201
R689
CN601
R614
R674
TP602
TP620
TP601
R664
R603
TP619
TP625
R675
C606
R663
TP626
TP603
TP604
TP606
TP609
TP610
TP608
TP612
R681
TP614
TP621
TP615
TP613
C604
TP611
C201
TP102
TP104
TP105
TP106
TP107
TP103
TP607
TP605
TP101
TP623
TP227
TP225
TP622
TP228
TP230
TP226
R644
R639
C102
IC603
R653
R641
R640
C617
C618
R630
R629
R647
R646
C621
C622
R652
C612
C625
R623
R627
R638
C611
C246
R637
R687
C626
R624
R628
R221
CN602
C634
C633
R650
R651
R635
R654
L602
Q603
Q604
Q605
Q601
Q602
C603
R610
R611
R682
R612
C206
R613
C103
C104
C609
C608
R620
R619 R618
R617
R685
C616
R115
R105
R117
R116
CN101
C109
R102
IC203
R609
J203
MC14052 BDR2
47k
47k
22 25V
22 25V
22 25V
10
50V
1
50V
1
50V
0
0
22
25V
22
25V
22
25V
4.7k
47k
47k
47k
47k
4.7k
100
16V
10
50V
100
23P
4.7k
10k
100k
1k
10k
0.1
100k
0
0.1
0.1
3.3k
3.3k
100
16V
MC4558CD
4P
RT1N241C
-TP-1
RT1N241C
-TP-1
RT1P141C-TP-1
2SC3052EF-
T1-LEF
2SC3052EF-
T1-LEF
100
16V
470
2.2k
0
2.2k
4.7k
22
25V
22
25V
0.1
100
16V
10k
1k
10k
1k
0
22 25V
0.1
0
NJM2235V(TE2)
470
22
25V
22
25V
220p
220p
47k
47k
47k
47k
0.001
75
0.1
1k
47k
22
25V
22
25V
47k
10k
10k
0
10k
10k
10k
10k
10k
47k
47k
220p
220p
10k
1k
0.001
6P
10
50V
J602
TP629
TP630
TP628
C601
C602
100
16V
0.1
L601
10uH
R659 100
C663
R660
IC604
TORX141L
IC608
SN74AHC1GU04DCKR
0.1
75
R676
47K
R662
470K
R661
470
C658
0.1
R657
100
C661
100
16V
L604
10uH
J
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
51
51
HCD-DZ700FW
HCD-DZ700FW
6-30. SCHEMATIC DIAGRAM – I/O BOARD (2/2) –
• See page 55 for Waveforms.
R203
R206
C215
C216
C218
C226
C225
C210
C227
C228
R230
R231
R232
R233
C209
R226
CN201
TP201
TP203
TP204
TP205
TP206
TP207
TP209
TP211
TP208
TP212
TP213
TP210
TP618
TP218
TP217
TP215
TP219
TP616
TP220
TP617
TP216
TP214
C212
J202
C202
C220
C222
R245
R243
R244
R238
R237
C239
R239
R240
R234
R235
R236
C219
C221
C233
C234
C236
L203
R220
R208
R201
R210
R212
R213
R214
R216
R211
R217
R218
R219
R225
C238
C213
C214
C231
C232
C235
R215
R202
R204
R205
IC201
IC202
Q207
Q209
Q206
Q204
D201
Q201
Q202
D206
D203
D202
Q203
Q205
Q208
0
0
1
1
1
1000
6.3V
1000
6.3V
470
10V
100
16V
100
16V
75
75
75
75
0.1
0
13P
39p
100
16V
0.1
1k
0
BH7868FS-E2
21P
100
16V
100 16V
0
0
0.001
0.001
0
0
75
75
75
0.1
0.1
1
1
1
47k
1k
220k
2.2k
2.2k
1k
330
2.2k
330
330
330
0
10k
0
0
100
16V
0
1000
6.3V
1000
6.3V
1000
6.3V
22k
1k
BH7868FS-E2
RT1N241C
-TP-1
RT1N441C
-TP-1
RT1N441C-TP-1
RT1N441C
-TP-1
1SS355TE-17
RT1N441C-TP-1
2SC3052EF
-T1-LEF
1SS355TE-17
1SS355TE-17
1SS355TE-17
RT1P141C
-TP-1
RT1P141C
-TP-1
RT1P141C
-TP-1
C249
0.001
C248
0.001
(Page 50)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
52
52
HCD-DZ700FW
HCD-DZ700FW
6-32. SCHEMATIC DIAGRAM – MS-203 BOARD –
6-31. PRINTED WIRING BOARD – MS-203 BOARD –
• See page 21 for Circuit Boards Location.
:Uses unleaded solder.
M
4 2
5
1
CN001
1-861-327-
12
S001
(CHUCK/TRAY DETECT)
M203
(LOADING)
J
DMB10
BOARD
CN202
(Page 28)
MS-203 BOARD
+
-
1
2
A
B
3
4
CNP001
M203
S001
5P
(Page 33)
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
53
53
HCD-DZ700FW
HCD-DZ700FW
6-33. PRINTED WIRING BOARD – TX BOARD –
• See page 21 for Circuit Boards Location.
:Uses unleaded solder.
IC801
IC803
IC802
IC804
IC805
IC800
V
MAIN BOARD
CN512
(Page 34)
W
MAIN BOARD
CN902
(Page 35)
DIR-T1
1
2
A
B
C
3
4
5
6
7
• Semiconductor
Location
Ref. No.
Location
D800
B-2
IC800
B-7
IC801
B-2
IC802
B-3
IC803
B-2
IC804
B-3
IC805
B-2
Q801
A-2
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
54
54
HCD-DZ700FW
HCD-DZ700FW
6-34. SCHEMATIC DIAGRAM – TX BOARD –
(Page 42)
(Page 37)
IC B/D
IC B/D
13
No mark : DVD STOP
R809
R805
R803
R810
R806
R804
RV801
R813
R818
R824
R820
R817
R814
R827
R823
R812
R815
R822
IC801
R830
R829
R811
R831
R833
R834
R838
TP806
TP805
TP804
TP807
Q801
L806
L808
L810
IC805
TP815
TP808
TP812
L809
C845
C841
C826
C821
L804
L807
TP813
TP814
TP803
TP809
TP810
TP811
L802
TP801
TP816
TP818
TP817
TP802
IC803
L805
L812
R826
EB802
EB801
D800
IC800
IC802
CN802
C863
C864
C800
C801
R835
R836
R802
C805
C806
C810
C811
C812
C824
C820
C819
C818
C817
C814
C813
R808
R807
C809
R840
R841
R839
C832
C830
R816
C833
C828
C844
C840
C838
R821
C837
C834
C816
C850
L803
C846
CN801
R844
R843
R842
C851
C808
C807
C815
R832
C865
J801
L811
C849
C860
C848
FB804
C847
C861
R837
C842
R825
C839
C836
R819
C835
C831
C823
C825
C827
C829
IC804
C822
X801
100
100
100
100
100
100
470
220
1k
470
220
1k
100
150
220
330
330
150
TK11225CMCL-G
10k
15k
1k
4.7M
10k
10k
1k
2SC2712G-TE85L
AD8057ART-REEL7
100
10V
2.2
50V
100
10V
100
10V
SN74LV125APWR
CHOKE COIL
150
EARTH PLATE
EARTH PLATE
1SS355TE-17
IC TA7809LS
SN74LV08APWR
2P
1000
16V
0.1
1000
16V
0.1
4.7k
2.7k
10k
100
16V
0.1
0.1
0.1
100
10V
0.1
12p
12p
0.1
100p
100p
100p
100
100
100p
100
100
100
0.0047
0.1
2.2k
0.1
0.1
0.1
0.1
0.1
2.7k
0.1
0.1
100p
0.1
0.01
11P
100
100
100
0.1
100p
100p
100p
10k
220p
100
16V
0.1
0.01
0UH
100
16V
0.1
33
220p
10k
0.1
0.1
1k
0.0022
100p
0.01
47p
100p
47p
CXD4016R
0.1
24.576MHz
• See page 59 for IC Block Diagrams.
• See page 55 for Waveform.
w w w
.
x i a o y u 1 6 3 .
c o m
Q Q
3 7 6 3 1 5 1 5 0
9
9
2
8
9
4
2
9
8
T E L
1 3 9 4 2 2 9 6 5 1 3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL 13942296513 QQ 376315150 892498299
TEL 13942296513 QQ 376315150 892498299
http://www.xiaoyu163.com
55
HCD-DZ700FW
• Waveforms
– DMB10 Board –
– MAIN Board –
200 ns
2.4 Vp-p
5.3 Vp-p
20.3 ns
7 IC108 rk (XFSOIN)
1 V/DIV, 10 ns/DIV
2.7 Vp-p
72.1 ns
8 IC506 9 (MCLK1)
1 V/DIV, 50 ns/DIV
6 IC509 qg (Xin)
1 V/DIV, 100 ns/DIV
– I/O Board –
9 IC201 e; (VOUTa)
1 V/DIV, 20 µs/DIV
0 IC201, IC202 wf (CYOUTa)
500 mV/DIV, 20 µs/DIV
qa IC201, IC202 wa (CbOUTa)
500 mV/DIV, 20 µs/DIV
1.7 Vp-p
H
H
1.7 Vp-p
H
qs IC201, IC202 qk (CrOUTa)
500 mV/DIV, 20 µs/DIV
1.7 Vp-p
H
3 Vp-p
1 IC102 6 (DVDRFIP)
200 mV/DIV, 100 ns/DIV
700 mVp-p
2 IC102
版权声明
1. 本站所有素材，仅限学习交流，仅展示部分内容，如需查看完整内容，请下载原文件。
2. 会员在本站下载的所有素材，只拥有使用权，著作权归原作者所有。
3. 所有素材，未经合法授权，请勿用于商业用途，会员不得以任何形式发布、传播、复制、转售该素材，否则一律封号处理。
4. 如果素材损害你的权益请联系客服QQ：77594475 处理。
