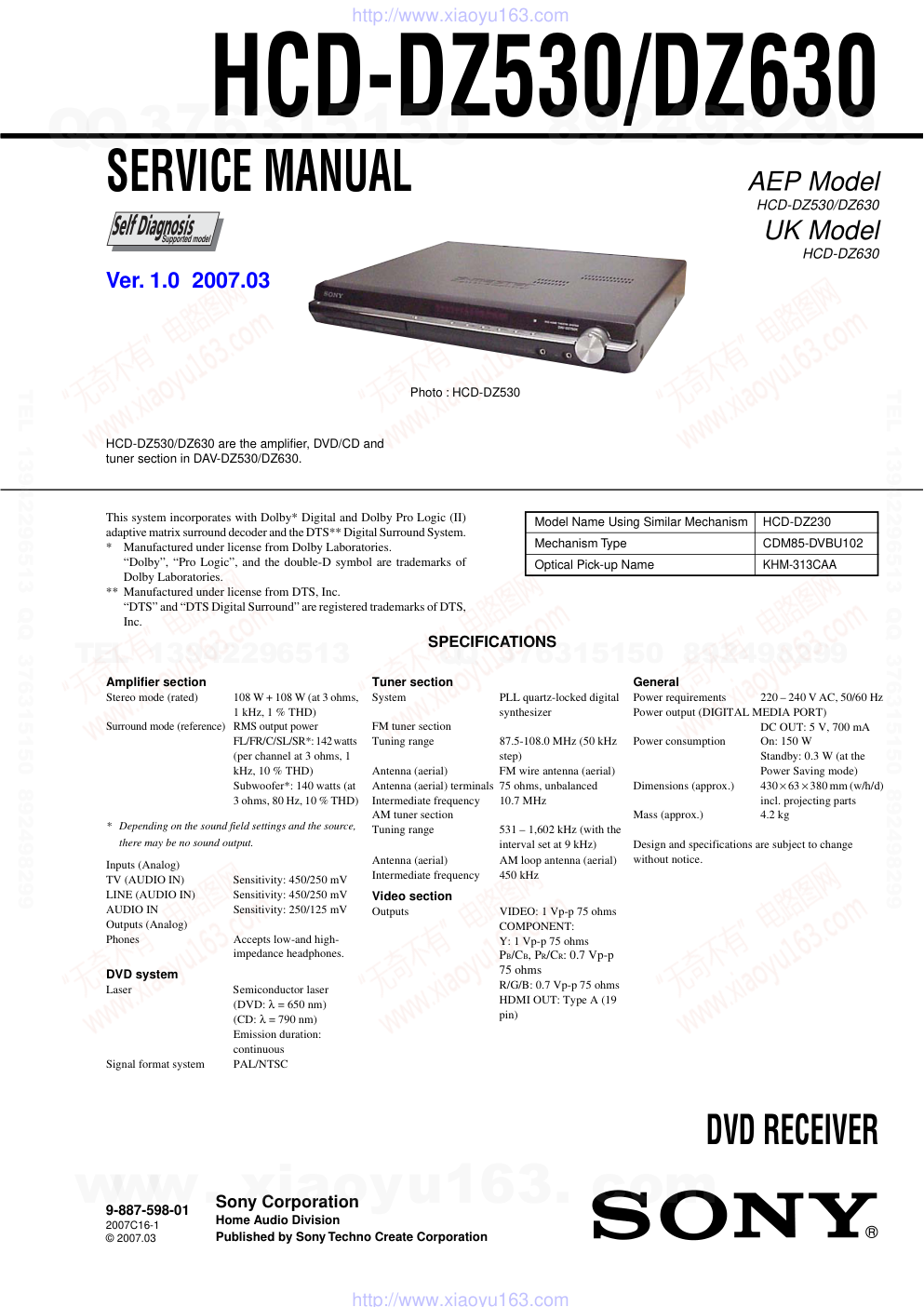

SERVICE MANUAL Sony Corporation Home Audio Division Published by Sony Techno Create Corporation AEP Model HCD-DZ530/DZ630 UK Model HCD-DZ630 DVD RECEIVER 9-887-598-01 2007C16-1 © 2007.03 Ver. 1.0 2007.03 HCD-DZ530/DZ630 HCD-DZ530/DZ630 are the amplifier, DVD/CD and tuner section in DAV-DZ530/DZ630. SPECIFICATIONS Model Name Using Similar Mechanism HCD-DZ230 Mechanism Type CDM85-DVBU102 Optical Pick-up Name KHM-313CAA This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital Surround System. * Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. ** Manufactured under license from DTS, Inc. “DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc. Photo : HCD-DZ530 Amplifier section Stereo mode (rated) 108 W + 108 W (at 3 ohms, 1 kHz, 1 % THD) Surround mode (reference) RMS output power FL/FR/C/SL/SR*: 142 watts (per channel at 3 ohms, 1 kHz, 10 % THD) Subwoofer*: 140 watts (at 3 ohms, 80 Hz, 10 % THD) * Depending on the sound field settings and the source, there may be no sound output. Inputs (Analog) TV (AUDIO IN) Sensitivity: 450/250 mV LINE (AUDIO IN) Sensitivity: 450/250 mV AUDIO IN Sensitivity: 250/125 mV Outputs (Analog) Phones Accepts low-and high- impedance headphones. DVD system Laser Semiconductor laser (DVD: λ = 650 nm) (CD: λ = 790 nm) Emission duration: continuous Signal format system PAL/NTSC Tuner section System PLL quartz-locked digital synthesizer FM tuner section Tuning range 87.5-108.0 MHz (50 kHz step) Antenna (aerial) FM wire antenna (aerial) Antenna (aerial) terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range 531 – 1,602 kHz (with the interval set at 9 kHz) Antenna (aerial) AM loop antenna (aerial) Intermediate frequency 450 kHz Video section Outputs VIDEO: 1 Vp-p 75 ohms COMPONENT: Y: 1 Vp-p 75 ohms PB/CB, PR/CR: 0.7 Vp-p 75 ohms R/G/B: 0.7 Vp-p 75 ohms HDMI OUT: Type A (19 pin) General Power requirements 220 – 240 V AC, 50/60 Hz Power output (DIGITAL MEDIA PORT) DC OUT: 5 V, 700 mA Power consumption On: 150 W Standby: 0.3 W (at the Power Saving mode) Dimensions (approx.) 430 × 63 × 380 mm (w/h/d) incl. projecting parts Mass (approx.) 4.2 kg Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-DZ530/DZ630 UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 °C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. This marking is located on the rear exterior. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. MODEL IDENTIFICATION – Rear Panel – Model Part No. DZ630 : AEP, UK models 2-889-997-5[] DZ530 : AEP model 2-889-997-6[] COAXIAL AM FM75 EURO AV OUTPUT(TO TV) (DVD ONLY) OUT FRONT R CENTER WOOFER FRONT L SUR R SUR L SPEAKER SPEAKER DMPORT LINE COMPONENT VIDEO OUT R L AUDIO IN (DVD ONLY) Y PB/CB PR/CR Parts No. Special Component Notice The components identified by mark 9 contain confidential information. Strictly follow the instructions whenever the components are repaired and/or replaced. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-DZ530/DZ630 When the self-diagnosis function is activated to prevent the system from malfunctioning, a 5- character service number (e.g., C 13 50) with a combination of a letter and 4 digits appears on the screen and the front panel display. In this case, check the following table. Self-diagnosis Function (When letters/numbers appear in the display) First 3 characters of the service number Cause and/or corrective action C 13 The disc is dirty. ,Clean the disc with a soft cloth C 31 The disc is not inserted correctly. ,Restart the system, then re-insert the disc correctly. E XX (xx is a number) To prevent a malfunction, the system has performed the self- diagnosis function. ,Contact your nearest Sony dealer or local authorized Sony service facility and give the 5- character service number. Example: E 61 10 C:13:50 When displaying the version number on the TV screen When you turn on the system, the version number [VER.X.XX] (X is a number) may appear on the TV screen. Although this is not a malfunction and for Sony service use only, normal system operation will not be possible. Turn off the system, and then turn on the system again to operate. VER.X.XX www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-DZ530/DZ630 TABLE OF CONTENTS 1. SERVICING NOTE ................................................... 5 2. GENERAL ................................................................... 9 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 12 3-2. Case (DS), Front Panel Assy ........................................... 13 3-3. FL Board.......................................................................... 14 3-4. JACK Board, P-SW Board .............................................. 15 3-5. DMPORT Board,Tuner (FM/AM) .................................. 15 3-6. IO-SCART Board ............................................................ 16 3-7. POWER Board ................................................................ 16 3-8. SPEAKER Board, D.C. Fan ............................................ 17 3-9. MAIN Board.................................................................... 18 3-10. DVD Mechanism Deck (CDM85-DVBU102) ................ 19 3-11. Tray.................................................................................. 19 3-12. Belt, MS-203 Board ........................................................ 20 3-13. Optical Pick-up (KHM-313CAA) ................................... 21 4. TEST MODE ............................................................... 22 5. ELECTRICAL ADJUSTMENT ............................. 27 6. DIAGRAMS 6-1. Block Diagram – RF Section –....................................... 30 6-2. Block Diagram – VIDEO Section – ............................... 31 6-3. Block Diagram – AUDIO Section – ............................... 32 6-4. Block Diagram – AMP Section – ................................... 33 6-5. Block Diagram – POWER Section –.............................. 34 6-6. Printed Wiring Board – MAIN Board (Side A) – ........... 35 6-7. Printed Wiring Board – MAIN Board (Side B) – ........... 36 6-8. Schematic Diagram – MAIN Board (1/9) – ................... 37 6-9. Schematic Diagram – MAIN Board (2/9) – ................... 38 6-10. Schematic Diagram – MAIN Board (3/9) – ................... 39 6-11. Schematic Diagram – MAIN Board (4/9) – ................... 40 6-12. Schematic Diagram – MAIN Board (5/9) – ................... 41 6-13. Schematic Diagram – MAIN Board (6/9) – ................... 42 6-14. Schematic Diagram – MAIN Board (7/9) – ................... 43 6-15. Schematic Diagram – MAIN Board (8/9) – ................... 44 6-16. Schematic Diagram – MAIN Board (9/9) – ................... 45 6-17. Printed Wiring Board – MS-203 Board – ....................... 46 6-18. Schematic Diagram – MS-203 Board – ......................... 46 6-19. Printed Wiring Board – IO-SCART Board –.................. 47 6-20. Schematic Diagram – IO-SCART Board – .................... 48 6-21. Printed Wiring Boards – FL, JACK Board – .................. 49 6-22. Schematic Diagram – FL Board – .................................. 50 6-23. Schematic Diagram – JACK Board – ............................. 51 6-24. Printed Wiring Board – DMPORT Board – ................... 52 6-25. Schematic Diagram – DMPORT Board – ...................... 52 6-26. Printed Wiring Boards – SPEAKER, P-SW Board – ..... 53 6-27. Schematic Diagram – SPEAKER, P-SW Board – ......... 53 6-28. Printed Wiring Board – POWER Board – ...................... 54 6-29. Schematic Diagram – POWER Board – ......................... 55 7. EXPLODED VIEWS 7-1. Overall Section ................................................................ 68 7-2. Front Panel Section ......................................................... 69 7-3. Chassis Section ................................................................ 70 7-4. DVD Mechanism Deck Section (CDM85-DVBU102) ... 71 8. ELECTRICAL PARTS LIST .................................. 72 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-DZ530/DZ630 SECTION 1 SERVICING NOTE NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. DISC TRAY LOCK The disc tray lock function for the antitheft of an demonstration disc in the store is equipped. Setting Procedure : 1. Press the ?/1 button to turn the set on. 2. Press the [FUNCTION] button to set DVD function. 3. Insert a disc. 4. Press the x button and the A button simultaneously for five seconds. 5. The message “LOCKED” is displayed and the tray is locked. Releasing Procedure : 1. Press the x button and the A button simultaneously for five seconds again. 2. The message “UNLOCKED” is displayed and the tray is unlocked. Note: When “LOCKED” is displayed, the tray lock is not released by turning power on/off with the ?/1 button. On cleaning discs, disc/lens cleaners • Do not use cleaning discs or disc/lens cleaners (including wet or spray types). These may cause the apparatus to malfunction. IMPORTANT NOTICE Caution: This system is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this. Attention when transported Use this mode when returning the set to the customer after repair. Procedure: 1. Press the ?/1 button to turn the set on. 2. Press the [FUNCTION] button to set the function “DVD”. 3. Remove all discs, and then press two buttons H and ?/1 simultaneously. 4. After a message “MECHA LOCK” is displayed on the fluorescent indicator tube, pull out the AC plug. 5. To exit from this mode, press the ?/1 button to turn the set on. Note about CDs/DVDs The system can play CD-ROMs/CD-Rs/CD-RWs recorded in the following formats: – audio CD format – VIDEO CD format – MP3 audio tracks, JPEG image files, and DivX video files* of format conforming to ISO 9660 Level 1/Level 2, or its extended format, Joliet The system can play DVD-ROMs/DVD+RWs/DVD-RWs/ DVD+Rs/DVD-Rs recorded in the following formats: – MP3 audio tracks, JPEG image files, and DivX video files* of format conforming to UDF (Universal Disc Format) * Except for United Kingdom and North American models. Example of discs that the system cannot play The system cannot play the following discs: • CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on “Note about CDs/DVDs” • CD-ROMs recorded in PHOTO CD format • Data part of CD-Extras • DVD Audios • Super Audio CD • DATA DVDs that do not contain MP3 audio tracks, JPEG image files, or DivX video files* * Except for United Kingdom and North American models. • DVD-RAMs Also, the system cannot play the following discs: • A DVD VIDEO with a different region code • A disc that has a non-standard shape (e.g., card, heart) • A disc with paper or stickers on it • A disc that has the adhesive of cellophane tape or a sticker still left on it Notes about CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/ DVD+RW In some cases, CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/ DVD+RW cannot be played on this system due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, see the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/ DATA DVDs created in Packet Write format cannot be played. Copyrights This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital Surround System. * Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. ** Manufactured under license from DTS, Inc. “DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-DZ530/DZ630 Peel off the seal and so the lever is moved in the direction of the arrow with the thin rod. How to open the disc table when power switch turns off Insert a tapering driver into the aperture of the unit bottom, and slide it in the direction of the arrow. seal disc tray Discharge the charged electricity in capacitors to prevent electric shock as follows When disassembling the machine, be sure to discharge the charged electricity in the following capacitors. Use a resistor of 800 ohms, 2 Watts for discharging the following capacitors. POWER board C903: 390 V C932, C933, C934, CN904: 30 V MAIN board CN3002: 30 V Point of capacitor discharge for C932, C933, C934: Connect to the red and black wire of CN904 Point of capacitor discharge for C903: Connect to the foot of CN903 800 Ω/2W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-DZ530/DZ630 Parts that require fixing using adhesive agent The following parts on the POWER board and on the MAIN board must be fixed by using the adhesive agent (such as Sony Bond Master) as it is specified by Safety Regulations. When any part or printed circuit board is replaced during repair work, be sure to confirm that the following capacitors and resistors are fixed by using the adhesive agent (such as Sony Bond Master) without fail. MAIN board : • C3081 and C3082 (C3081 is inclined to C3082 a little.) POWER board : • C924 and R927 (refer to below fig.) • C913 (Push down to C903 side and so fix.) • C910 and C930 (refer to below fig.) • EB905 side of C903 • EB905 side of C934 • C964 and C963 (refer to below fig.) • Space between C933 and C932 • C908 and Q901 (Don’t touch IC901.) OK:more than 3.5mm NG:less than 3.5mm OK:more than 8mm NG:less than 8mm OK:more than 8mm NG:less than 8mm Don't incline C924 to outside. POWER BOARD C910 C924 R927 C930 C964 C963 MAIN board service position Please take the above-mentioned position in the repair of MAIN board. In that case, it is necessary the following extension cable during CN304 on IO-SCART board and CN4301 on MAIN board. jig P/N: J-2501-102-A (pitch 1.00 mm/13p/length 300 mm) CN304 jig CN4301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-DZ530/DZ630 LF902 LF901 R912 R912 POWER BOARD L931 mark this side OK NG Attention of the direction at replacement Please defend and install the direction of the below fig in the following parts on the POWER board. Precaution when installing a new OP unit / Precaution before unsoldering the static electricity prevention solder bridge When installing a new OP unit, be sure to connect the flexible printed circuit board first of all before removing the static electricity prevention solder bridge by unsoldering. Remove the static electricity prevention solder bridge by unsoldering after the flexible printed circuit board has already been connected. (Do not remove nor unsolder the solder bridge as long as the OP unit is kept standalone.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-DZ530/DZ630 SECTION 2 GENERAL Front panel A "/1 (on/standby) (31) B A (open/close) (31) C Disc operation (31) D FUNCTION (31) E Front panel display (98) F (remote sensor) (8) G VOLUME control (31) H PHONES jack (31) I AUDIO IN/A.CAL MIC jack (20, 29) J Disc tray (31) Rear panel A SPEAKER jacks (14) B LINE (AUDIO IN R/L) jacks (29) C DMPORT (DIGITAL MEDIA PORT) jack (29, 66) D AM terminal (14) E COAXIAL FM 75 jack (14) F EURO AV T OUTPUT (TO TV) jack (14) G COMPONENT VIDEO OUT jacks (25) H HDMI OUT jack (25) COAXIAL AM FM75 EURO AV OUTPUT(TO TV) (DVD ONLY) OUT FRONT R CENTER WOOFER FRONT L SUR R SUR L SPEAKER SPEAKER DMPORT LINE COMPONENT VIDEO OUT R L AUDIO IN (DVD ONLY) Y PB/CB PR/CR This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-DZ530/DZ630 Front panel display About the indications in the front panel display A Lights up when the HDMI OUT jack is correctly connected to HDCP (high- bandwidth digital content protection) compliant device with HDMI or DVI (digital visual interface) input. (25) B Lights up when the time information of a title or chapter appears in the front panel display. (DVD only) (47) C Lights up when an NTSC disc is loaded. D Lights up when a station is received. (Radio only) (60) E Stereo/Monaural effect (Radio only) (61) F Lights up when the sleep timer is set. (65) G Lights up when the movie or music mode is selected. (34) H Playing status (DVD function only) I Current repeat mode (43) J Lights up when the child lock function is set to on. (67) K Lights up when the system outputs progressive signals (DVD function only). (27) L Indicates the selected [SPEAKER FORMATION]. (71) M Current surround format (Except for JPEG) N Lights up when the DYNAMIC BASS is selected. (64) O Displays system’s status such as chapter, title, or track number, time information, radio frequency, playing status, sound field, etc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-DZ530/DZ630 Remote control ANGLE 5 AUDIO 4 CLEAR ef D.TUNING wf DISC SKIP* eg DISPLAY 2 DVD MENU wh DVD TOP MENU qf DYNAMIC BASS wd ENTER wg FUNCTION ws MOVIE/MUSIC qj MUTING 7 Number buttons** qg PICTURE NAVI 6 PRESET +/– wk es SOUND FIELD qh SUBTITLE wf SYSTEM MENU wg THEATRE SYNC w; TUNING +/– 0 qs TV e; TV CH +/– wa TV INPUT qk TV VOL +/– eh VIDEO FORMAT 3 VOLUME +/–** 8 [/1 (on/standby) 1 TV [/1 (on/standby) ej C/X/x/c/ qd REPLAY/ ADVANCE 9 ./> es wk m/M qs 0 / L S OW qs 0 H (play)** ea STEP 9 x (stop) wl X (pause) qa Z (open/close) ql DISPLAY wj O RETURN ed -/-- ef * The DISC SKIP button is not available for this model. **The H, number 5, and VOLUME + buttons have tactile dots. Use the tactile dots as references when operating the system. ALPHABETICAL ORDER A – O P – Z BUTTON DESCRIPTIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-DZ530/DZ630 SECTION 3 DISASSEMBLY 3-1. DISASSEMBLY FLOW • This set can be disassembled in the order shown below. 3-3. FL BOARD (Page 14) 3-4. JACK BOARD, P-SW BOARD (Page 15) 3-10. DVD MECHANISM DECK (CDM85-DVBU102) (Page 19) 3-11. TRAY (Page 19) 3-12. BELT, MS-203 BOARD (Page 20) 3-13. OPTICAL PICK-UP (KHM-313CAA) (Page 21) 3-9. MAIN BOARD (Page 18) 3-6. IO-SCART BOARD (Page 16) 3-8. SPEAKER BOARD, D.C. FAN (Page 17) 3-7. POWER BOARD (Page 16) 3-5. DMPORT BOARD, TUNER (FM/AM) (Page 15) 3-2. CASE (DS), FRONT PANEL ASSY (Page 13) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-DZ530/DZ630 3-2. CASE (DS), FRONT PANEL ASSY Note: Follow the disassembly procedure in the numerical order given. q; wire (flat type) 21core (CN502) 2 The lever is moved in the direction of the arrow with the thin rod. 1 seal harness 3 rib 4 loading panel 5 two screws (CASE3 TP2) 8 case (DS) qj front panel assy qd four screws (+BV 3 × 6) qg two claws qh two claws 6 two screws (CASE3 TP2) 7 five screws (+BVTP 3 × 8) 9 unweaved cloth rib rib notch harness rib lead pin rib rib groove Route the harness as shown below. Route the harness as shown below. qa connector 4P(CN302) qf two screws (+BVTP 2.6 × 10) qs connector 4P (CN3001) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-DZ530/DZ630 3-3. FL BOARD front panel PRECAUTION DURING THE RETAINER (DS) INSTALLATION (2) Route the harness as shown below. (3) Route the harness as shown below. (1) Assemble seven claws securely. 4 shield plate (FR) 8 FL board 3 five screws (+BVTP 2.6 × 10) 5 two screws (+BVTP 2.6 × 10) 1 two rivets 6 wire (flat type) 13core (CN805) 7 wire (flat type) 21core (CN801) 2 retainer (DS) retainer (DS) harness rivet rivet hole retainer (DS) harness wire (flat type) groove groove retainer (DS) hole shield plate (FR) FL board JACK board CN806 CN805 wire (flat type) 13core Route the wire (flat type) 13core as shown in the figure. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-DZ530/DZ630 3-5. DMPORT BOARD,TUNER (FM/AM) 3-4. JACK BOARD, P-SW BOARD Route the harness as shown below. JACK board JACK board JACK board JACK board (NG) (OK) Route the harness as shown below. (NG) (OK) 1 knob (vol) 2 nut qa JACK board 4 button (base) 5 wire (flat type) 13core (CN806) 8 Remove the solderings. 9 harness 3 four screws (+BVTP 2.6 × 10) 6 screw (+BVTP 2.6 × 10) 7 button (base) q; P-SW board 2 wire (flat type) 11core 4 connector 3p (CN203) 5 wire (flat type) 9core (CN201) 6 screw (+BV 3 × 6) 1 two screws (+BVTT 2.6 × 6) 7 DMPORT board 3 tuner (FM/AM) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-DZ530/DZ630 3-6. IO-SCART BOARD 3-7. POWER BOARD 6 three screws (+BV 3 × 6) 9 IO-SCART board 7 wire (flat type) 9core (CN301) 2 wire (flat type) 21core (CN308) 1 wire (flat type) 13core (CN304) 3 wire (flat type) 5core (CN307) 8 wire (flat type) 11core (CN305) 4 connector 4p (CN302) 5 four screws (+BVTP 3 × 8) 1 connector 4p (CN3002) 3 connector 12p (CN906) 4 connector 3p (CN907) 2 connector 2p (CN901) 6 eight screws (+PWH 3 × 8) 5 screw (+BV 3 × 6) q; POWER board 9 cover (PWB) 8 Remove the two claws in the direction of the arrow B. 7 Remove the POWER board and the cover (PWB) in the direction of the arrow A. heatsink (AMP) harness screw lead pin Clamp the harnesses with a lead pin or a similar tool so that they do not touch this screw and the heatsink (AMP). Attach the heat radiation sheets on the chassis, and then install the POWER board. Attention at assembling POWER board. Because of Prevention of damage caused by creep of radiation sheets, outfit a power board with the set after fitting the cover (PWB) on the POWER board. radiation sheets A B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-DZ530/DZ630 3-8. SPEAKER BOARD, D.C. FAN 5 connector 2p (CN3000) 1 connector 8p (CN303) 4 SPEAKER board 3 two screws (+BV 3 × 6) 2 screw (+BVTP 3 × 8) 6 two screws (+BVTT 4 × 8) 7 D.C. fan www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-DZ530/DZ630 3-9. MAIN BOARD 2 connector 2p (CN901) 1 connector 4p (CN3002) Attaching the two radiation sheets on the IC MAIN board first, and then attach the heatsink (AMP). heatsink (AMP) radiation sheets IC on the MAIN board 5 two screws (+BV 3 × 10) 7 heatsink (AMP), HEATSINK B board, HEATSINK A board 8 two radiation sheets 6 screw (+BVTP 3 × 12) 4 INSURATOR board 3 two screws (+BV 3 × 6) w; seven screws (+BV 3 × 6) heatsink (AMP) harness harness lead pin lead pin heatsink (AMP) harness (D.C. fan) harness lead pin screw Clamp the harnesses with a lead pin or a similar tool so that they do not touch this screw and the heatsink (AMP). Clamp the harness with a lead pin or a similar tool so that they do not touch the heatsink (AMP). heatsink (AMP) q; connector 6p (CN1201) qj connector 4p (CN3001) qs connector 12p (CN906) Route the power code according to a white line on the INSURATOR board. Must not remove the power code from the part of A of the INSURATOR board. power cord INSURATOR board A lead pin lead pin lead pin 9 wire (flat type) 24core (CN1101) qa wire (flat type) 5core (CN1202) qf wire (flat type) 13core (CN4301) qd wire (flat type) 21core (CN605) qh wire (flat type) 5core (CN702) qk screw (+BVTP 3 × 8) ql screw (+B 3 × 6) wa MAIN board qg wire (flat type) 21core (CN502) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-DZ530/DZ630 3-10. DVD MECHANISM DECK (CDM85-DVBU102) 3-11. TRAY q; cover (MD) 9 three screws (+BV 3 × 6) qa three screws (+BV 3 × 6) 7 connector 6p (CN1201) 8 Remove the wire and harness. 3 Remove the wire. qd DVD mechanism deck (CDM85-DVBU102) 5 wire (flat type) 24core (CN1101) 6 wire (flat type) 5core (CN1202) qs wire (flat type) 5core 2 unweaved cloth 4 unweaved cloth 1 wire (flat type) 5core (CN307) 4 2 3 two claws 5 tray 1 Move the chuck cam in the direction of the arrow. bottom side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-DZ530/DZ630 3-12. BELT, MS-203 BOARD 1 two claws 5 three claws 7 MS-203 board 6 DC motor 3 belt 2 chuck cam 4 screw (M 1.7 × 2.5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 HCD-DZ530/DZ630 1 two claws 3 two claws 2 chuck cam 4 base unit 5 two claws 7 bu holder 8 two insulators 9 two insulators 6 four insulator screws 0 optical pick-up (KHM-313CAA) 3-13. OPTICAL PICK-UP (KHM-313CAA) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 HCD-DZ530/DZ630 SECTION 4 TEST MODE Note: Incorrect operations may be performed if the test mode is not entered properly. In this case, press the ?/1 button to turn the power off, and retry to enter the test mode. 3. Disc Tray Lock The disc tray lock function for the antitheft of an demonstration disc in the store is equipped. Setting Procedure : 1. Press the ?/1 button to turn the power on. 2. Press the FUNCTION button to set DVD function. 3. Insert a disc. 4. Press the x button and the A button simultaneously for five seconds. 5. The message “LOCKED” is displayed and the tray is locked. Releasing Procedure : 1. Press the x button and the A button simultaneously for five seconds again. 2. The message “UNLOCKED” is displayed and the tray is unlocked. Note: When “LOCKED” is displayed, the tray lock is not released by turning power on/off with the ?/1 button. 4. DVD Ship Mode Use this mode when returning the set to the customer after repair. Procedure: 1. Press the ?/1 button to turn the power on. 2. Press the FUNCTION button to set the function “DVD”. 3. Remove all discs, and then press two buttons H and ?/1 simultaneously. 4. After a message “MECHA LOCK” is displayed on the fluorescent indicator tube, pull out the AC plug. 5. To exit from this mode, press the ?/1 button to turn the set on. 5. Product Out This mode moves the optical pick-up to the position durable to vibration and clears all data including preset data stored in the RAM to initial conditions. Use this mode when returning the set to the customer after repair. Procedure: 1. Press the ?/1 button to turn the power on. 2. Press the FUNCTION button to set the function “DVD”. 3. Remove all discs, and then press three buttons > , A and ?/1 simultaneously. 4. After the “STANDBY” blinking display finishes, the message “MECHA LOCK” is displayed on the fluorescent indicator tube disconnect the AC power plug, then the ship mode is set. 6. Demo Play Out It is a mode to release the demonstration reproduct by the dedicated demonstration disc. Setting Procedure: 1. Press the ?/1 button to turn the power on. 2. Press the FUNCTION button to set the function “DVD”. 3. During playback the DEMO Disc, press the x and H buttons for five seconds simultaneously. 4. The message “DEMO OFF” is displayed, a mode to reproduct the demonstration is released. 1. Cold Reset • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customers. Procedure: 1. Press the ?/1 button to turn the power on. 2. Press three buttons x , A and ?/1 simultaneously. 3. When this button is operated, display as “COLD RESET” for a while and all of the settings are reset. 2. Panel Test Mode • This mode is used to check the software version, FL and KEY. 2-1. Display Test Mode Procedure: 1. Press the ?/1 button to turn the power on. 2. Press three buttons X , . and A simultaneously. 3. When the display test mode is activated, all segments are turned on. 4. To exit from this mode, press three buttons X , . and A simultaneously. 2-2. Version Test Mode Procedure: 1. When the display test mode is activated, press the . button and the message “DS4” (DZ530), “DS7” (DZ630) are displayed, the version test mode is activated. 2. Whenever the . button is pressed, the display changes in the following order. *1: CE2 changes depending on destination. 3. Press the > button and the date of the software production is displayed. 4. Press the > button again and the version is displayed. 5. To exit from this mode, press three buttons X , . and A simultaneously. 2-3. Key Test Mode Procedure: 1. When the display test mode is activated, press the H button, to select the key test mode. 2. To enter the KEY test mode, the fluorescent indicator displays “K0 V0”. Each time an another button is pressed, “KEY” value increases. However, once a button is pressed, it is no longer taken into account. When all keys are pressed correctly, “K8 V0” is displayed. 3. When the VOLUME control is turned in the direction of (+), “V0” is changed to “V1”, then ... “V9”. When the VOLUME control is turned in the direction of (–), “V0” is changed to “V9”, then ... “V1”. 4. To exit from this mode, press three buttons X , . and A simultaneously. “DS7” (Model name) t “CE2*1” (Destination) t MC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 HCD-DZ530/DZ630 7. Volume Test Procedure: 1. Press the ?/1 button to turn the power on. 2. Press three buttons . , H and > simultaneously. 3. The message “VOLUME MIN” is displayed. 4. When the VOLUME control is turned in the direction of (+), the message “VOLUME MAX” is displayed. 5. When the VOLUME control is turned in the direction of (–), the message “VOLUME MIN” is displayed. 6. To exit from this mode, press the ?/1 button to turn the set off, the message “COLD RESET” is displayed. Note: The segments of the frame of SPEAKER FORMATION are blinking while test mode. 8. Protection Factor (SD Detection/DC Detection) Identification Test Mode When an error is detected, the FL tube alternately displays “PROTECTOR h PUSH POWER”. r Press the ?/1 button. * Buttons other than the ?/1 button are invalid. “STANDBY” blinks three times on the FL tube. r The protection release state (POWER OFF) is established. (No FL tube display) r Press the ?/1 button. The power to the system turns on, and the normal operation is established. (Restore) During the protection state: 1. If the AC plug is connected or disconnected during the protection state, the protection state is released, and the normal operation is established. (The protection state is not maintained.) 2. The protection factor is displayed by pressing the FUNCTION , A and > buttons at the same time during the protection state (during the “PROTECTOR h PUSH POWER” display). k When SD is detected: Repeats “SD DETECT h PUSH POWER”. k When DC is detected: Repeats “DC DETECT h PUSH POWER”. PL: SD detection When the “L” output from the SD (shutdown) port on the S- MASTER POWER Driver is detected, the power system other than that of the FL tube is turned off, and the protection state is established. DC detection When the “L” output from the power/speaker error detection circuit (DC detection port) is detected for two seconds continually, the power system other than that of the FL tube is turned off, and the protection state is established. 9. Automatic Acoustic Field Calibration Microphone Test Mode Procedure: 1. Press the ?/1 button to turn the power on. 2. Press the FUNCTION button to set the function “DVD”. 3. Insert ECM-AC2 supplied as an accessory into the AUDIO IN/MIC 1/A.CAL MIC jack. 4. While pressing the X and A buttons simultaneously, turn the VOLUME control in the direction of (+) . 5. Confirm that the following are shown on the display panel. 1 The JACK inserted/non-inserted detection display and the STEREO/MONO detection display. 2 Presence of DIGITAL voice input to the microcomputer. (OK: input, NG: no input) 3 The value of the MIC input to the microcomputer. (shown “0 – 255” (Changes in real time)) 10. Digital Media Port Test 1. Connect the DMPORT CHECK JIG (P/N: J-2501-309-A) with the terminal DMPORT. 2. Press the ?/1 button to turn the power on. 3. Confirm that both LEDs of the DMPORT confirmation JIG lights. (Confirmation the power supply line.) 4. Set the FUNCTION button with “DMPORT” on this model. 5. Press the X , . buttons and turn the VOLUME control in the direction of (+) simultaneously, the DMPORT test mode is activated. 6. It is confirmed that “DMPORT OK” is displayed on this set display. (Confirmation of communication line) 7. To a pinjack of the DMPORT confirmation JIG input information relevant to audio signal (sine-wave 1.0Vrms) and composite video signal (white 100% 1.0Vp-p, color bar, etc.) 8. Confirm the output of speakers and monitor TV. (Confirmation of analog signal) 9. To exit from this mode, press the X , . buttons and turn the VOLUME control in the direction of (+). * * * * * * * * 1 2 3 Content of display Discriminant state NON Not detected ST STEREO MN MONO color pattern generator DMPORT CHECK JIG (P/N : J-2501-309-A) DMPORT board IO-SCART board SPEAKER board TV SET CN204 J203 J001 V VIDEO AUDIO AF oscillator FL speaker, FR speaker TB301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 HCD-DZ530/DZ630 (2) Select “2. Drive Manual Operation” by pressing the 2 button on the remote commander. The screen will appear as shown. (3) Select “3. Manual Adjustment” by pressing the 3 button on the remote commander. The screen will appear as shown. (4)Select “6.IOP” by pressing the 6 button on the remote commander. (5) Wait until a hexadecimal number appear. (6) Convert each data from hexadecimal to decimal using conversion table. (7) Please find the label on the rear of the BU (Base Unit). The default IOP value is written in the label. (8) Subtract between these two values. (9) If the remainder is smaller than 93 (decimal), then it is OK. However if the value is higher than 93, then the BU is defective and need to be change. (10) Press the RETURN button on the remote commander to return back to previous menu. (11) Press the 0 button on the remote commander to return to Top Menu. Drive Manual Operation 1. Servo Control 2. Track/Layer Jump 3. Manual Adjustment 4. Tray Aging Mode 5. MIRR time adjust 0. Return to Top Menu Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq Boost Adjust: 6. Iop: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: O o Change Value [RETURN] Return to previous menu Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq Boost Adjust: 6. Iop. 58: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: [RETURN] Return to previous menu O o Change Value DVD SECTION 11. General Description The IOP measurement allows you to make diagnosis and adjustment simply by using the remote commander and monitor TV. The instructions, diagnosis results, etc. are given on the on-screen display (OSD). Be sure to execute the IOP measurement when a BU (Base Unit) is replaced. 12. How To Enter Test Mode While pressing the x and A buttons simultaneously, turn VOLUME control in the direction of (+) with the DVD player in power on. The Test Mode starts, displayed “SERVICE IN” on this model display then the menu shown below will be displayed on the TV screen. * The display of the “Model Name” of the “Remocon Diagnosis Menu” change with the model and the destination. Refer to below on the model name. DZ530 : DS4 DZ630 : DS7 The menu above is the Remocon Diagnosis Menu screen which consists of five main functions. At the bottom of the menu screen, the model name and IF-con version. To exit from the Test Mode, press the ?/1 button on the remote commander. 13. Executing IOP Measurement In order to execute IOP measurement, the following standard procedures must be followed. (1) In power on, while pressing the x and A buttons simultaneously, turn the VOLUME control in the direction of (+). Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History 4. Version Information Model Name IF-con : V Syscon : Ver. er. XX.XX (XXXX) X.XXX : DS7_ XX *1 *1: Changes depending on destination Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History 4. Version information Model Name IF-con : Ver. XX.XX (XXXX) Syscon : Ver. X.XXX : DS7_ XX *1 *1: Changes depending on destination www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 HCD-DZ530/DZ630 14. Emergency History To check the emergency history, please follow the following procedure. (1) From the Top Menu of Remocon Diagnosis Menu, select “3. Emergency History Check” by pressing the 3 button on the remote commander. The following screen appears on the on- screen display. (2) You can check the total time when the laser is turned on during playback of DVD and CD from the above menu. The maximum time, which can be displayed are 999h 59min. (3) You can check the error code of latest 10 emergency history from the above menu. To view the previous or next page of emergency history, press . or > button on the remote commander. The error code consists of the following three blocks. The first block indicates the error code. The second block indicates the parameter and the third block indicates the time of error code as shown below. • Error Code *1 : Error Code *2 : Parameter of error code *3 : Time of error code The meaning of error code is as below: 01: Communication error (No reply from syscon) 02: Syscon hung up 03: Power OFF request when syscon hung up 19: Thermal shutdown 24: MoveSledHome error 25: Mechanical move error (5 Changer) 26: Mechanical move stack error 30: DC motor adjustment error 31: DPD offset adjustment error 32: TE balance adjustment error 33: TE sensor adjustment error 34: TE loop gain adjustment error 35: FE loop gain adjustment error 36: Bad jitter after adjustment 40: Focus NG 42: Focus layer jump NG Emg. History Check 01. 01 05 04 04 Laser Hours CD 999h 59min DVD 999h 59min 00 92 46 00 00 00 00 00 00 00 23 45 02. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page [O] Return to Top Menu Emg. History Check 01. 01 05 04 04 Laser Hours CD 999h 59min DVD 999h 59min 00 92 46 00 00 00 00 00 00 00 23 45 02. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page [O] Return to Top Menu *1 *2 *3 52: Open kick spindle error 51: Spindle stop error 60: Focus on error 61: Seek fail error 62: Read Q data/ID error 70: Lead in data read fail 71: TOC read time out (CD) 80: Can’t buffering 81: Unknown media type 14-1. Clear the Laser Hour Press DISPLAY button and then press CLEAR button on the remote commander. The data for both CD and DVD data are reset. Emg. History Check 01. 01 05 04 04 Laser Hours CD 0h 0min DVD 0h 0min 00 92 46 00 00 00 00 00 00 00 23 45 02. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page [O] Return to Top Menu Emg. History Check 01. 00 00 00 00 Laser Hours CD 999h 59min DVD 999h 59min 00 00 00 00 00 00 00 00 00 00 00 00 02. 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [Next] Next Page [Prev] Prev Page [O] Return to Top Menu 14-2. Clear the Emergency History Press DVD TOP MENU button and then press CLEAR button on the remote commander. The error code for all emergency history would be reset. 14-3. Clear the Initialize Setup Data Press DVD MENU button and then press CLEAR button on the remote commander. Emg. History Check Initialize setup data... Laser Hours CD 999h 59min DVD 999h 59min [Next] Next Page [Prev] Prev Page [O] Return to Top Menu www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 HCD-DZ530/DZ630 Version information [O] Return to Top Menu Firm (Main) : Ver. x.xxx Firm (Sub) : xx.xx RISC : xxxxxx 8032 : xxxxxx Audio DSP : xx.xx.xx.xx Servo DSP : xx.xx.xx.xx 14-4. Return to the Top Menu of Remocon Diagnosis Menu Press 0 button on the remote commander. • Check Version Information To check the version information, please follow the following procedure. (1) From the Top Menu of Remocon Diagnosis Menu, select “4. Version Information” by pressing the 4 button on the remote commander. The following screen appears on the on-screen display. To return to the Top Menu of Remocon Diagnosis Menu, press 0 button on the remote commander. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 HCD-DZ530/DZ630 SECTION 5 ELECTRICAL ADJUSTMENT DVD SECTION When the optical pick-up assy is replaced, perform the “Executing IOP Measurement”. Executing IOP Measurement (See page 24) [FM Tune Level Check] Procedure: 1. Turn the power on. 2. Input the following signal from Signal Generator to FM antenna input directly. * Carrier Freq: A = 87.5 MHz, B = 98 MHz, C = 108 MHz Deviation : 75 kHz Modulation : 1 kHz ANT input : 35 dBu (EMF) Note: Please use 75 ohm “coaxial cable” to connect SG and the set. You cannot use video cable for checking. Please use SG whose output impedance is 75 ohm. 3. Set to FM tuner function and tune A, B and C signals. 4. Confirm “TUNED” is lit on the display for A, B and C signals. The mark of “TUNED” means “The selected station signal is received in good condition.” TUNER SECTION generator OUT (75 Ω) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 HCD-DZ530/DZ630 SECTION 6 DIAGRAMS For Schematic Diagrams. Note: • All capacitors are in μF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) • A : B+ Line. • Voltages and waveforms are dc with respect to ground un- der no-signal (detuned) conditions. • Voltages and waveforms are dc with respect to ground in service mode. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances. no mark : DVD STOP * : Impossible to measure • Voltages are taken with VOM (Input impedance 10 MΩ). • Circled numbers refer to waveforms. • Signal path. F : AUDIO J : CD PLAY c : DVD PLAY G : DMPORT d : TUNER L : VIDEO E : Y r : COMPONENT VIDEO q : R, G, B f : AUDIO IN For Printed Wiring Boards. Note: • X : parts extracted from the component side. • a : Through hole. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Indication of transistor. Caution: Pattern face side: Parts on the pattern face side seen from (SIDE B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (SIDE A) the parts face are indicated. C B These are omitted. E Q C E B These are omitted Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 29 HCD-DZ530/DZ630 HCD-DZ530/DZ630 • Circuit Boards Location • Waveforms – MAIN Board – – IO-SCART Board – FL board JACK board P-SW board IO-SCART board DMPORT board SPEAKER board MAIN board HEATSINK B board INSURATOR board HEATSINK A board TUNER (FM/AM) POWER board MS-203 board 2 IC1101 0 (0)<3.3> 3.3(0) 3.3(0) 0 0 0 3.3 0.4 3.3 3.3 3.3 3.3 3.3 0 0 2.3 3.1 0.4 3.3 0 3.3 1.4 1.4 3.3 0 0.7 3.3 3 0 0 0 3.3 0 0 0 3.3 0 3.3 3.3 0 0 3.1 3.2 0 0 3.3 3.3 0 3.3 3.1 2.9 0 0 0 0 3.3 0 3.3 3.1 3.1 3.2 0 0 3.3 3.3 3.3 3.3 0 3.3 0 3.3 No mark : ( ) : < > : 67 66 65 64 63 62 61 57 56 54 53 52 51 50 0.01 C505 R604 100 100 R605 100 R606 100 R608 100 R607 100 R609 100 R610 100 R611 100 R612 100 R613 100 R614 R506 R532 1k R534 10k R531 10k R546 10k R559 10k 10k R527 R528 10k C504 0.01 R505 R507 ICT545 ICT543 ICT542 ICT541 ICT540 ICT533 TP614 TP607 TP610 TP609 TP605 TP608 TP611 TP613 TP504 TP606 TP603 RD/MICDATA RD/MICCLK TUNED ST_CLK ST_DO ST_CE ST_DI 5V A-GND A12V A_SEL0 A_SEL1 A_SEL2 TVSEL V_SEL0 V_SEL1 V_SEL2 CLINK_RX_IN CLINK_TX_OUT CLINK_DET A_SEL3 TP612 TP604 TP503 M_ST 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 IC501 M30622MEP-B03FPUO DAMP_SCDT/DIAT_SDATA/DIR_DIN DAMP_SHIFT/DIAT_SCLK/DIR_CLK CEC_RX_IN SIRCS_IN NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE NO USE BYTE CNVss EN_A EN_B RESET Xout Vss Xin Vcc NMI A.CAL_OUT_LEVEL AC_CUT INT0 FL_CLK/LED_CLK CEC_TX_OUT FL_D_OUT/LED_DATA NO USE MIC_GAIN CDM_OPEN_SW DC_CONT CLINK_RX_IN CLINK_TX_OUT DVD_SID DVD_SOD DVD_SCO DVD_XIFBUSY DVD XIFCS MTK RST P_CONT1 P_CONT2 WRITE EMP P_CONT3 DRIVE_RST(EN) DRIVE_OCP(DIAG) OVERFLOW1 OVERFLOW2 WRITE CE DAMP LATCH1 DAMP LATCH2 DAMP LATCH3 DAMP INIT DAMP SOFT MUTE HP_SW HP_MUTE FL_STB DC_DET Vcc MIC/A.CAL SW Vss TUNED ST_CLK ST_DO ST_CE ST_DI KEY INT RDS_CLK RDS_DATA NO USE TVSEL M_ST NO USE ASEL3 V_SEL0 V_SEL1 ASEL0 ASEL1 ASEL2 NO USE CLINK_DET MONO/ST_DET A.CAL MIC LEVEL DESTINATION MODEL KEY2 KEY1 Vss KEY0 Vref Vcc TP617 TP616 TP615 TP618 0 R601 1 2 R602 100 R603 100 R615 100 D3.3V D-GND A5V A-GND 10k R519 1k R529 0.1 C515 0 R536 5MHz X501 1 2 3 0.1 C517 10k R539 47k R556 ICT544 47k R557 2SC3052EF-T1-LEF Q503 1SS355WTE-17 D501 ICT546 100k R561 47k R562 0.22 C520 10k R563 0.01 C521 5 4 3 2 1 PST3635NR IC503 OUT VDD GND NC Cd 0.1 C523 0.22 C522 10k R558 0.1 C518 10k R540 1k R550 0.1 C519 10k R554 1k R515 1k R516 100 R509 10k R510 10k R512 0.1 C501 0.1 C502 0.1 C508 0.1 C503 0.1 C507 0.1 C506 10k R514 1k R508 100 R637 100 R638 100 R639 100 *R640 TP619 TP620 TP621 TP622 1k R552 10k R553 ICT549 R555 10k 10k R542 10k R586 1M R501 ICT591 ICT592 ICT593 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 21P CN605 R583 47k 1k R511 1k R513 TP564 TP563 ICT537 MC2836- T112-1 D505 SIRCS FL_DATA MIC_GAIN DC_CONT RDS_CLK TUNED ST_DI ST_CE ST_DO ST_CLK RDS_DATA CNVSS RESET A.CAL OUT FL_CLK IFSDI IFSDO IFSCK XIFBSY XIFCS XSYSRST EN DIAG OVF1 OVF2 LAT1 LAT2 LAT3 NS_INIT P_CONT1 P_CONT3 P_CONT2 RDS_DATA RDS_CLK HPMUTE SOFT_MUTE KEY2 SCDT SHIFT EN_A EN_B TUNED ST_CLK ST_DO ST_DI ST_CE CEC_RX_IN CEC_TX_OUT M_ST MONO/ST_DET MIC_SW1 FL_CS HP/MIC_SW2 BUP3.3V M_ST KEY1 DC-DET E3.3V A.CAL OCSW1SIG KEY0 CLINK_DET D3.3V 47k 4.7k *R506 33k : DZ530 47k : DZ630 * MAIN BOARD (3/9) IC501 SYSTEM CONTROLLER IC503 RESET SWITCH 18 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 40 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-11. SCHEMATIC DIAGRAM – MAIN BOARD (4/9) – D FL BOARD CN801 (Page 50) 4 MAIN BOARD (3/9) (Page 39) 3 MAIN BOARD (3/9) (Page 39) E POWER BOARD CN906 (Page 55) for wite jig 18 MAIN BOARD (1/9) (Page 37) (8/9) (Page 44) (9/9) (Page 45) 27 MAIN BOARD (1/9) (Page 37),(2/9) (Page 38) (8/9) (Page 44),(9/9) (Page 45) 40 MAIN BOARD (8/9) (Page 44) (9/9) (Page 45) 41 MAIN BOARD (8/9) (Page 44) 32 MAIN BOARD (1/9) (Page 37) 31 MAIN BOARD (1/9) (Page 37) (8/9) (Page 44) 42 MAIN BOARD (9/9) (Page 45) 39 MAIN BOARD (7/9) (Page 43) 38 MAIN BOARD (5/9) (Page 41),(7/9) (Page 43) 37 MAIN BOARD (7/9) (Page 43),(8/9) (Page 44) 35 MAIN BOARD (7/9) (Page 43) 36 MAIN BOARD (5/9) (Page 41) 0 0.6 0 3.3 5 5 12 5 5 9 3.3 0 5 3.3 5 No mark:DVD STOP R569 0 R568 0 R567 0 R566 0 R565 0 R564 0 ICT535 ICT536 1 2 3 4 5 6 7 8 9 9P CN503 D-GND TXD1 RTS1 3.3V CLK1 RXD1 CNVSS RESET D-GND TP526 TP525 TP524 CNVSS IFSDO IFSCK XIFBSY IFSDI RESET ICT551 ICT500 CSFLAG OVF2 OVF1 DIAG EN LAT3 LAT2 LAT1 SHIFT SCDT SOFT_MUTE NS_INIT E3.3V A12V 3.3V 16V 47 C524 0.1 C525 0.47 C529 R573 100k R572 300k R575 1k 1 2 3 4 5 NJM2887DL3(TE2) IC504 EN IN GND OUT FB 10V 100 C526 1SS355WTE-17 D502 1SS355WTE-17 D504 0.1 C531 0.1 C533 1k R576 47k R577 S RSR025N03TL Q504 TP527 TP528 TP530 TP529 TP532 TP531 TP533 TP538 TP534 TP537 TP536 TP535 FB509 FB510 FB505 0uH FB508 FB507 FB506 FB504 100 R580 1k R579 100 R578 0.1 C532 C534 0.1 16V 47 C535 16V 47 C536 0.001 C538 TP553 TP552 TP551 TP554 TP550 TP542 TP539 TP540 TP543 TP544 TP545 TP547 R581 100 R636 0 IFSCK IFSDO IFSDI XIFBSY XIFCS XSYSRST OCSW1 CEC_RX_IN CEC_TX_OUT 6.3V 1000 C528 1 3 2 4 5 6 7 8 9 10 11 12 13P CN506 P_CONT1 A-GND P_CONT2 P_CONT3 E4V 3.3V 6V D-GND 5V M+9V M-GND 12V DC-DET 10k R587 HPMUTE 0 R589 0 R590 0 R596 0 R597 0 R599 0 R598 SL501 SL502 SL503 SL504 10k R631 2SC3052EF-T1-LEF Q631 47k R632 TP635 TP636 TP637 2SC3052EF-T1-LEF Q632 E EB505 C527 1000 6.3V D-GND SW+3.3V 0 R1604 M-GND 0 R1603 0uH FB1603 SW+9V 0 R1602 10V 47 C1603 10V 47 C1602 SW+5V A.CAL OUT HPMUTE OVF2 OVF1 EN LAT3 LAT2 LAT1 SHIFT SCDT SOFT_MUTE NS_INIT P_CONT3 P_CONT2 P_CONT1 P_CONT2 E4V OCSW1SIG XIFCS CEC_TX_OUT CEC_RX_IN A12V_PCON 1 XSYSRST 6V 5V BUP3.3V DC-DET E3.3V IFSCK IFSDO IFSDI XIFBSY DIAG D3.3V 5 4 3 2 1 TK11133CSCL-G IC502 TP502 TP513 TP507 TP511 TP523 TP514 TP519 TP522 TP520 TP518 TP510 TP509 TP508 TP521 TP516 TP501 TP506 TP512 TP515 TP517 TP505 100 R517 100 R518 100 R533 100 R535 100 R530 1k R526 0.1 C510 1 C509 0.001 C511 1 C516 R547 0 R548 0 1 2 3 4 4P CN512 D-GND E3.3V I2C_CLK I2C_DATA R582 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 21P CN502 GAIN CONT A.CAL MO/ST-DET DC-CONT PLAG-DET2 PLAG-DET1 ENCODER_A ENCODER_B 3.3V E3.3V D-GND SIRCS D-GND FL_CLK FL_CS FL_DATA KEY2 KEY1 KEY0 5V D-GND ICT548 SIRCS FL_CLK FL_CS FL_DATA DC_CONT MIC_GAIN A.CAL MONO/ST_DET HP/MIC_SW2 MIC_SW1 EN_A EN_B KEY2 KEY1 KEY0 LED_LATCH 67 66 65 64 63 62 61 57 56 54 53 52 51 50 0uH FB1602 0 R1601 0 R1606 0uH FB1601 0 R1605 (CHASSIS) MAIN BOARD (4/9) IC502 +3.3V REG IC504 +5V REG 5V SW 5V SW for Soft jig PROTECT DETECT PROTECT DETECT 18 19 M www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 41 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-12. SCHEMATIC DIAGRAM – MAIN BOARD (5/9) – 5 MAIN BOARD (6/9) (Page 42) 7 MAIN BOARD (7/9) (Page 43) 38 MAIN BOARD (4/9) (Page 40) (7/9) (Page 43) 33 MAIN BOARD (2/9) (Page 38) 36 MAIN BOARD (4/9) (Page 40) No mark:DVD STOP 1.7 1.7 3.3 0 3.3 1.7 3.3 1.7 3.3 3.3 1.7 1.8 3.3 1.8 3.3 3.3 1.7 3.3 3.3 3.3 0 1.7 3.3 3.3 1.7 1.7 0 0 31.3 0 31.3 31.3 16.5 12 3.3 3.3 1.7 1 3.3 0 12 12 27 16.5 16.5 16.5 16.5 16.5 31.3 31.3 31.3 12 12 31.3 1.7 1 16.5 27 3.3 16.5 12 31.3 16.5 0 3.3 31.3 3.3 16.5 16.5 0 31.3 31.3 16.5 31.3 3.3 0 0 0.6 3.3 0 6.1 0 0.6 12 0.6 0 6.7 16.5 0 16.5 0 16.5 16.5 16.5 0 0 16.5 16.5 16.5 0.1 C3308 0.1 C3313 0.1 C3413 0.1 C3408 16V 47 C3001 16V 47 C3031 35V 100 C3412 35V 100 C3409 35V 100 C3312 35V 100 C3309 0.1 C3002 16V 100 C3000 C3416 2200 35V C3316 2200 35V 50V 1 C3551 50V 10 C3552 1 C3315 1 C3314 1 C3414 1 C3415 0.1 C3040 0.1 C3039 0.1 C3038 0.1 C3037 0.1 C3036 0.1 C3035 0.1 C3034 0.1 C3033 0.1 C3032 0.1 C3304 0.1 C3404 R3502 100 R3501 100 100 R3302 100 R3301 100 R3076 100 R3075 100 R3073 100 R3072 100 R3071 100 R3070 100 R3069 100 R3068 100 R3067 100 R3066 680 R3037 100 R3035 22 R3034 470 R3032 470 R3031 1k R3063 100 R3065 1k R3064 1.2k R3004 1.5k R3003 2.2k R3006 10k R3001 10k R3002 10k R3033 10k R3059 10k R3060 10k R3553 100k R3554 100k R3551 100k R3326 100k R3325 100k R3276 100k R3275 R3080 100k 0 R3304 0 R3404 0 R3555 0 R4002 10uH L3301 10uH L3302 10uH L3401 10uH L3402 47uH L3000 1 2 2P CN3000 DC-FAN - DC-FAN + 1SS355WTE-17 D3072 1SS355WTE-17 D3073 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 CXD9843AR IC3030 XVSS VSUBC VSSR OUTR2(-) VDDR OUTR1(+) VSSR VSSL OUTL2(-) VDDL OUTL1(+) VSSL XOVSS XFSOOUT XOVDD DVDD DVSS NSPMUTE SOFTMUTE PGMUTE SCDT SCSHIFT SCLATCH OVF FLAGR OVF FLAGL SFLAG INIT MCKSEL LRCK BCK DATA BFVDD BFVSS TEST DVDD XFSIIN FSOCKO FSOI HPOUTR2 HPVSSR HPOUTR1 HPVDDR HPOUTL2 HPVSSL HPOUTL1 HPVDDL XVDD XFSOIN 2SD1616-TP-LK Q3000 2SC3052EF-T1-LEF Q3002 2SC3052EF-T1-LEF Q3551 2SC3052EF-T1-LEF Q3001 2SA1235TP-1EF Q3301 2SA1235TP-1EF Q3251 2SA1235TP-1EF Q3252 2SA1235TP-1EF Q3302 1SS355WTE-17 D3071 JL3062 JL3060 JL3052 JL3051 JL3020 JL3019 JL3018 JL3017 JL3016 JL3015 JL3014 JL3013 JL3011 JL3010 JL3002 JL3001 TP3004 TP3311 TP3006 TP3003 TP3000 TP3410 TP3005 TP3236 TP3032 TP3001 CSFLAG NS_INIT SOFT_MUTE SCDT SHIFT LAT1 LAT2 LAT3 EN DIAG OVF1 OVF2 D-GND AMP_D1 AMP_D2 AMP_D3 AMP_BCKO AMP_LRCKO AMP_MCKO 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 8 4 1 2 3 5 6 7 9 10 11 12 13 14 15 16 17 CXD9883M IC3400 BST_A GVDD_A /DTW /SD /RESET PWM_A OC_ADJ GND GND VREG M3 M2 M1 PWM_B VDD GND GVDD_B BST_B PVDD_B PVDD_B PVDD_B GND GND GND OUT_B OUT_B OUT_B OUT_A OUT_A OUT_A GND GND GND PVDD_A PVDD_A PVDD_A 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 8 4 1 2 3 5 6 7 9 10 11 12 13 14 15 16 17 CXD9883M IC3300 BST_A GVDD_A /DTW /SD /RESET PWM_A OC_ADJ GND GND VREG M3 M2 M1 PWM_B VDD GND GVDD_B BST_B PVDD_B PVDD_B PVDD_B GND GND GND OUT_B OUT_B OUT_B OUT_A OUT_A OUT_A GND GND GND PVDD_A PVDD_A PVDD_A JL3101 JL3104 15k R3307 JL3086 JL3085 JL3096 100p C3069 0.001 C3070 100p C3067 100p C3068 0.033 C3307 0.033 C3306 0.033 C3407 0.033 C3406 0.1 C3400 0.1 C3403 0.1 C3405 0.1 C3303 0.1 C3305 0.1 C3300 0 R3044 A12V 0 R3045 0 R3046 0 R3061 0.01 C3071 TP3231 TP3230 TP3229 TP3307 TP3308 TP3309 TP3310 100k R3327 100k R3277 R3074 100 C3904 0.001 C3902 0.001 C3903 0.001 C3901 0.001 0.01 C3914 0.01 C3913 C3912 0.01 C3911 0.01 L3901 L3903 L3904 L3902 C3128 2.2 10 C3129 DC-DET TP3007 2SC3052EF-T1-LEF Q3553 C3556 2.2 10k R3558 100k R3557 4.7k R3556 22k R3552 C3553 2.2 2SC3052EF-T1-LEF Q3552 0 R3901 0 R3902 0 R3905 0 R3906 TP3305 TP3306 R3907 0 0 R3917 0 R3911 0 R3912 SL3001 R3918 0 R3919 0 TB3901 0 R3415 0 R3303 0 R3416 0 R3316 0 R3403 0 R3315 MC2837 D3551 RSA39LATE25 D4301 RSA39LATE25 D4302 RSA39LATE25 D4401 RSA39LATE25 D4402 E EB3001 E EB3004 15k R3407 INIT INIT SOFTMUTE SC_DT SCSHIFT SOLATCH2 OVFFLAGR2 SCSHIFT SC_DT SOFTMUTE OVF SOLATCH1 SOLATCH3 SOLATCH3 OVFFLAGR2 0.01 C3417 PGMUTE 0.1 C3317 (DATA3) (OpenDrain) (OpenDrain) (OpenDrain) (OpenDrain) 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 98 97 200 (CHASSIS) (CHASSIS) FAN CENTER WOOFER SPEAKER MAIN BOARD (5/9) IC3030 S-MASTER PROCESSOR IC3300 S-MASTER DIGITAL AMP IC3400 S-MASTER DIGITAL AMP 18 19 PROTECT DETECT PROTECT DETECT PROTECT DETECT DC DETECT DC DETECT FAN DRIVE FAN DRIVE FAN DRIVE DC DETECT DC DETECT • See page 56 for IC Block Diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 42 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-13. SCHEMATIC DIAGRAM – MAIN BOARD (6/9) – 5 MAIN BOARD (5/9) (Page 41) 6 MAIN BOARD (7/9) (Page 43) 3.3 3.3 1.7 1.7 1.8 1.8 3.3 0 1.7 1.7 3.3 1.7 3.3 3.3 3.3 1.7 0 1.7 0 3.3 0 3.3 1.7 3.3 3.3 3.3 3.3 1.7 1.7 3.3 16.5 3.3 31.3 3.3 16.5 12 31.3 12 16.5 31.3 31.3 12 16.5 0 1.7 1 16.5 27 31.3 31.3 16.5 0 3.3 1 31.3 3.3 31.3 16.5 0 16.5 12 31.3 31.3 12 16.5 3.3 16.5 16.5 27 31.3 12 16.5 31.3 0 1.7 16.5 0 0 16.5 16.5 16.5 16.5 16.5 16.5 0 0 16.5 No mark:DVD STOP 0.1 C3208 0.1 C3263 0.1 C3258 0.1 C3213 16V 47 C3021 35V 100 C3212 35V 100 C3259 35V 100 C3209 35V 100 C3262 C3216 2200 35V C3266 2200 35V 1 C3264 1 C3265 1 C3215 1 C3214 0.001 C3423 0.001 C3422 0.1 C3030 0.1 C3028 0.1 C3027 0.1 C3026 0.1 C3204 0.1 C3023 0.1 C3022 0.1 C3029 0.1 C3254 0.1 C3025 0.1 C3024 100 R3252 100 R3251 100 R3202 100 R3201 100 R3057 680 R3026 100 R3024 22 R3023 470 R3021 470 R3022 100k R3226 100k R3426 100k R3425 100k R3225 0 R3204 0 R3254 10uH L3202 10uH L3251 10uH L3252 10uH L3201 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 CXD9843AR IC3020 XVSS VSUBC VSSR OUTR2(-) VDDR OUTR1(+) VSSR VSSL OUTL2(-) VDDL OUTL1(+) VSSL XOVSS XFSOOUT XOVDD DVDD DVSS NSPMUTE SOFTMUTE PGMUTE SCDT SCSHIFT SCLATCH OVF FLAGR OVF FLAGL SFLAG INIT MCKSEL LRCK BCK DATA BFVDD BFVSS TEST DVDD XFSIIN FSOCKO FSOI HPOUTR2 HPVSSR HPOUTR1 HPVDDR HPOUTL2 HPVSSL HPOUTL1 HPVDDL XVDD XFSOIN 2SA1235TP-1EF Q3401 2SA1235TP-1EF Q3402 2SA1235TP-1EF Q3201 JL3056 JL3055 JL3054 JL3053 JL3032 JL3031 JL3030 JL3029 JL3028 JL3027 JL3026 JL3025 JL3024 JL3023 JL3022 JL3021 TP3301 TP3304 TP3022 TP3302 TP3250 TP3136 TP3303 TP3210 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 8 4 1 2 3 5 6 7 9 10 11 12 13 14 15 16 17 CXD9883M IC3200 BST_A GVDD_A /DTW /SD /RESET PWM_A OC_ADJ GND GND VREG M3 M2 M1 PWM_B VDD GND GVDD_B BST_B PVDD_B PVDD_B PVDD_B GND GND GND OUT_B OUT_B OUT_B OUT_A OUT_A OUT_A GND GND GND PVDD_A PVDD_A PVDD_A 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 8 4 1 2 3 5 6 7 9 10 11 12 13 14 15 16 17 CXD9883M IC3250 BST_A GVDD_A /DTW /SD /RESET PWM_A OC_ADJ GND GND VREG M3 M2 M1 PWM_B VDD GND GVDD_B BST_B PVDD_B PVDD_B PVDD_B GND GND GND OUT_B OUT_B OUT_B OUT_A OUT_A OUT_A GND GND GND PVDD_A PVDD_A PVDD_A JL3107 JL3110 15k R3257 15k R3207 0.001 C3323 0.033 C3257 0.033 C3206 0.033 C3207 0.033 C3256 0.1 C3253 0.1 C3255 0.1 C3203 0.1 C3205 0.1 C3250 0.1 C3200 2SA1235TP-1EF Q3202 0 R3042 0.001 C3322 0 R3043 TP3131 TP3130 TP3129 1 3 4 5 CN3200 4P SR + SR - SL - SL + 100k R3427 100k R3227 C3126 2.2 C3127 2.2 0 R3253 0 R3265 0 R3216 0 R3266 0 R3203 0 R3215 RSA39LATE25 D4201 RSA39LATE25 D4202 RSA39LATE25 D4251 RSA39LATE25 D4252 SC_DT PGMUTE INIT SOFTMUTE SCSHIFT SOLATCH2 0.1 C3267 0.1 C3217 (DATA2) (OpenDrain) (OpenDrain) (OpenDrain) (OpenDrain) 99 100 101 200 102 103 104 105 106 107 108 109 110 111 112 113 114 116 80 81 82 200 84 83 85 86 87 88 89 90 91 92 93 94 95 96 97 SPEAKER BOARD CN303 (Page 53) I MAIN BOARD (6/9) IC3020 S-MASTER PROCESSOR IC3250 IC3200 S-MASTER DIGITAL AMP S-MASTER DIGITAL AMP DC DETECT DC DETECT DC DETECT DC DETECT • See page 56 for IC Block Diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 43 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-14. SCHEMATIC DIAGRAM – MAIN BOARD (7/9) – 6 MAIN BOARD (6/9) (Page 42) 7 MAIN BOARD (5/9) (Page 41) H SPEAKER BOARD CN303 (Page 53) G JACK BOARD CN403 (Page 51) F POWER BOARD CN904 (Page 55) 35 MAIN BOARD (4/9) (Page 40) 37 MAIN BOARD (4/9) (Page 40) (8/9) (Page 44) 39 MAIN BOARD (4/9) (Page 40) 38 MAIN BOARD (4/9) (Page 40) (5/9) (Page 41) 5 No mark:DVD STOP 1.8 3.3 1.8 1.8 0 1.5 3.3 12 6.6 6.6 4.5 4.5 4.5 4.5 3.3 0 3.3 1.7 1.7 3.3 1.5 3.3 1.8 3.3 3.3 3.3 3.3 3.3 0 3.3 3.3 1.7 1.7 0 3.3 1.8 1.7 3.3 3.3 1.7 1.7 3.3 1.7 1.7 1.7 1.7 3.3 1.7 1.7 3.3 1.7 16.5 16.5 27 31.3 12 16.5 31.3 3.3 31.3 12 31.3 31.3 1 3.3 12 16.5 3.3 31.3 0 1.7 16.5 0 16.5 12 12 31.3 31.3 31.3 12 16.5 16.5 3.3 31.3 0 16.5 31.3 3.3 31.3 0 1.7 16.5 16.5 16.5 1 27 3.3 16.5 16.5 0 0 16.5 16.5 0 0 16.5 16.5 16.5 16.5 0.1 C3163 0.1 C3108 0.1 C3158 10V 100 C3090 16V 47 C3011 35V 100 C3159 35V 100 C3162 35V 100 C3109 35V 100 C3112 0.1 C3051 10V 220 C3056 470 10V 10V C3081 470 C3082 16V 100 C3054 16V 220 C3091 C3166 2200 35V 1 C3114 1 C3115 1 C3164 1 C3165 5p C3058 100p C3083 100p C3087 100p C3088 100p C3094 100p C3085 100p C3086 100p C3084 0.001 C3095 0.001 C3053 0.001 C3059 0.001 C3123 0.001 C3122 0.001 C3172 0.001 C3173 0.01 C3055 0.01 C3057 0.1 C3018 0.1 C3154 0.1 C3008 0.1 C3012 0.1 C3020 0.1 C3019 0.1 C3017 0.1 C3016 0.1 C3015 0.1 C3014 0.1 C3104 0.1 C3013 22 R3054 100 R3102 R3152 100 R3151 100 100 R3101 100 R3062 100 R3055 100 R3053 680 R3017 100 R3015 22 R3014 470 R3012 470 R3011 10k R3013 15k R3157 22k R3091 22k R3092 22k R3093 22k R3094 33k R3085 33k R3086 100k R3125 R3176 100k R3175 100k 100k R3126 1M R3052 0 R3104 0 R3154 1uH L3054 10uH L3051 10uH L3053 10uH L3112 10uH L3151 10uH L3152 10uH L3111 49.152MHz X3051 5 4 3 2 1 TK11118CSCL-G IC3050 CONT GND NP VOUT VIN 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 CXD9843AR IC3010 XVSS VSUBC VSSR OUTR2(-) VDDR OUTR1(+) VSSR VSSL OUTL2(-) VDDL OUTL1(+) VSSL XOVSS XFSOOUT XOVDD DVDD DVSS NSPMUTE SOFTMUTE PGMUTE SCDT SCSHIFT SCLATCH OVF FLAGR OVF FLAGL SFLAG INIT MCKSEL LRCK BCK DATA BFVDD BFVSS TEST DVDD XFSIIN FSOCKO FSOI HPOUTR2 HPVSSR HPOUTR1 HPVDDR HPOUTL2 HPVSSL HPOUTL1 HPVDDL XVDD XFSOIN RT1P141C-TP-1 Q3081 2SA1235TP-1EF Q3102 2SA1235TP-1EF Q3151 2SA1235TP-1EF Q3152 2SA1235TP-1EF Q3101 8 7 6 5 4 3 2 1 NJM4565M(TE2) IC3001 5 4 3 2 1 TC7SHU04FU(T5RSOJF) IC3051 NC IN GND OUT VCC C3113 0.1 C3116 2200 35V C3060 10p L3052 10uH JL3059 JL3058 JL3057 JL3044 JL3043 JL3042 JL3041 JL3040 JL3039 JL3038 JL3037 JL3036 JL3035 JL3034 JL3033 JL3009 JL3008 JL3004 JL3003 JL3064 TP3102 TP3103 TP3084 TP3083 TP3082 TP3054 TP3030 TP3048 TP3053 TP3015 TP3002 TP3081 TP3101 TP3024 TP3110 TP3036 TP3150 TP3026 TP3104 1 2 3 4 4P CN3001 HP-R GND HP-L H/P MUTE HPMUTE 3.3V A12V E3.3V 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 8 4 1 2 3 5 6 7 9 10 11 12 13 14 15 16 17 CXD9883M IC3150 BST_A GVDD_A /DTW /SD /RESET PWM_A OC_ADJ GND GND VREG M3 M2 M1 PWM_B VDD GND GVDD_B BST_B PVDD_B PVDD_B PVDD_B GND GND GND OUT_B OUT_B OUT_B OUT_A OUT_A OUT_A GND GND GND PVDD_A PVDD_A PVDD_A 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 8 4 1 2 3 5 6 7 9 10 11 12 13 14 15 16 17 CXD9883M IC3100 BST_A GVDD_A /DTW /SD /RESET PWM_A OC_ADJ GND GND VREG M3 M2 M1 PWM_B VDD GND GVDD_B BST_B PVDD_B PVDD_B PVDD_B GND GND GND OUT_B OUT_B OUT_B OUT_A OUT_A OUT_A GND GND GND PVDD_A PVDD_A PVDD_A 1 3 4 5 CN3100 4P FR + / FR DDTD + FR - / FR DDTD - FL - / FR DDTD - FL + / FR DDTD + R3050 0 1 C3052 FB3051 0 JL3112 JL3113 JL3114 JL3115 JL3116 JL3117 15k R3107 JL3087 0.033 C3157 0.033 C3107 0.033 C3156 0.033 C3106 0.1 C3150 0.1 C3155 0.1 C3105 0.1 C3153 0.1 C3103 0.1 C3100 0 R3041 0 R3040 TP3029 100k R3127 100k R3177 C3124 2.2 C3125 2.2 100p C3092 100p C3093 10k R3087 10k R3088 10k R3090 10k R3089 33k R3099 33k R3098 3.3k R3095 4.7k R3096 0 R3103 0 R3153 0 R3165 0 R3115 0 R3166 0 R3116 100k R3051 RSA39LATE25 D4111 RSA39LATE25 D4112 RSA39LATE25 D4151 RSA39LATE25 D4152 1 2 3 4 4P CN3002 P-GND P-GND 31.5V 31.5V E EB3003 E EB3002 SC_DT PGMUTE SCSHIFT SOLATCH1 SOFTMUTE INIT OVF 0.1 C3167 0.001 C3004 0.1 C3117 0.001 C3003 - - + + (DATA1) (OpenDrain) (OpenDrain) (OpenDrain) (OpenDrain) 99 100 101 D-GND 200 102 103 104 105 106 107 108 109 110 111 112 113 114 116 98 (CHASSIS) (CHASSIS) IC3010 S-MASTER PROCESSOR IC3001 COMPARATOR IC3150 S-MASTER DIGITAL AMP IC3100 S-MASTER DIGITAL AMP MAIN BOARD (7/9) 18 19 20 IC3050 +1.8V REG IC3051 OSC MUTE SW DC DETECT DC DETECT DC DETECT DC DETECT • See page 29 for Waveform. • See page 56 for IC Block Diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 44 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-15. SCHEMATIC DIAGRAM – MAIN BOARD (8/9) – 19 MAIN BOARD (1/9) (Page 37) 28 MAIN BOARD (1/9) (Page 37) 8 MAIN BOARD (1/9) (Page 37) MAIN BOARD (1/9) (Page 37) 22 MAIN BOARD (1/9) (Page 37) (2/9) (Page 38) 24 MAIN BOARD (1/9) (Page 37) 20 MAIN BOARD (1/9) (Page 37) 29 30 MAIN BOARD (1/9) (Page 37) 27 MAIN BOARD (1/9) (Page 37) (2/9) (Page 38) (4/9) (Page 40) (9/9) (Page 45) MAIN BOARD (4/9) (Page 40) (7/9) (Page 43) 37 MAIN BOARD (1/9) (Page 37) (4/9) (Page 40) 31 MAIN BOARD (4/9) (Page 40) (9/9) (Page 45) 40 MAIN BOARD (4/9) (Page 40) 41 MAIN BOARD (1/9) (Page 37) (4/9) (Page 40) (9/9) (Page 45) 18 26 MAIN BOARD (1/9) (Page 37) 1.8 3.3 1.3 5 1.8 3.3 3.3 5 2.8 0 3.3 2.7 3.3 0 1.6 2.7 3.3 3.3 2.8 1.3 9 5 3.3 5 3.3 3.3 3.3 3.3 5 3.3 0 0 3.3 No mark:DVD STOP 0 1.8 3.3 3.3 0 0 0 0 0 0 0 3.3 2.9 2.8 2.8 2.8 2.8 2.7 2.7 2.7 2.7 0 1.6 1.6 0 0 0 0 0 0 0 3.3 0 3.3 0 3.3 0 0 0 3.3 0 0 0 0 3.3 0 0 0 3.3 3.3 3.3 1.8 3.3 3.3 1.6 0 0 0 0 0 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 CXD9873Q IC1701 DVSS C0 C1 C2 C3 C4 C5 C6 C7 DVDD33 VCK DVSS Y0 Y1 Y2 Y3 Y4 Y5 Y6 Y7 SSCK SSO DVDD18 #PWDN #RST CLK INT DVSS A7/GPO0 A6/GPO1 TRAP2/GPO2 TRAP1/GPO3 TRAP0/GPO4 MSCK/GPO5 MSD/GPO6 TYPE/GPO7 ASDATA4/GPO8 VSYNC/GPO09 HSYNC/GPO10 HTPLG AVSS PLLC0 PLLC1 PLL_AVDD3 PLL_AVDD3 AVSS AVSS TCKN TCKP AVDD3 TX0N TX0P AVSS TX1N TX1P AVDD3 TX2N TX2P AVSS SWING DAC_AVDD3 VREF FS AVSS DAC_AVDD3 AVSS DAC_AVDD3 G AVSS B R SPDIF AD3 AD2 AD1 AD0 ACK ABCK ALRCK DVDD18 5 4 3 2 1 5 4 3 2 1 TK11118CSCL-G IC1702 TK11133CSCL-G IC1703 5 4 3 2 1 TK11150CSCL-G IC1707 SW+5V D-GND 0 R1740 0 R1734 0 R1736 0.01 C1725 0.01 C1717 0.01 C1718 0.01 C1727 0.22 C1729 0.22 C1720 0.22 C1723 0.22 C1716 0.22 C1719 SW+9V 0 R1756 1k R2705 1k R2706 0 R1753 0 R1752 0 R1751 0 R1738 0 R1731 50V 22 C1707 50V 10 C1710 0 R1728 0 R1702 0 R1703 0 R1793 0 R1714 0 R1788 0 R1791 0.1 C1702 0.1 C1706 0.1 C1709 0.1 C1704 0.1 C1701 0.1 C1714 10k RB1701 10k RB1702 100 R1701 560 R1713 SPDIF ALRCK ABCK ACLK ASDATA0 VCLK YUV0 YUV1 YUV2 YUV3 YUV4 YUV5 YUV6 YUV7 SCL SDA PWON XRST TX27M HDMI_SCL HDMI_SDA SW+3.3V 0 R1706 0 R1707 0 R1785 0 R1786 16V C1715 47 10k R1705 10k R2751 10k R1721 10k R1722 10k R1723 R1726 10k R1727 10k 100 R1712 0.01 C1703 5 4 3 2 1 TC7SZ08FU(TE85R) IC1705 4.7k R1744 47k R1742 5600p C1713 510 R1730 0.1 C1712 0.1 C1711 D1 G2 S2 D2 G1 S1 UM6K1N-TN Q1701 0 R1747 0 R1748 1.8k R1749 1.8k R1750 0 R1783 0 R1784 JL1701 CL1710 10k R1757 10k R1758 10k R1759 0.22 C1730 16V 47 C1736 CEC_TX_OUT CEC_RX_IN FB1701 FB1702 JL1001 JL1002 JL1102 R2711 10 R2716 10 R2712 10 R2717 10 R2713 10 R2718 10 R2714 10 R2715 10 R1746 0 RT1N141C-TP-1 Q9729 0 R9935 22k R9928 22k R9929 27k R9941 10k R9934 10k R9922 220 R9945 1k R9924 0.1 C9772 E3.3V 1SS355WTE-17 D9712 0 RB1711 0 RB1712 XSYSRST 100 R1704 2SC4081T106R Q9726 2SC4081T106R Q9728 2SA1576A-T106-QR Q9724 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 19P CN1701 TMDS DATA2+ TMDS DATA2 SHIELD TMDS DATA2 - TMDS DATA1 + TMDS DATA1 SHIELD TMDS DATA1 - TMDS DATA0 + TMDS DATA0 SHIELD TMDS DATA0 - TMDS CLOCK + TMDS CLOCK SHIELD TMDS CLOCK - CEC RESERVED SCL SDA DOC/CEC GND +5V POWER HPD R9920 0 1k R9918 E EB1701 FB1703 ALRCK ABCK ACLK SPDIF SPDIF ALRCK ACLK D/MIX E EB1703 (CHASSIS) (CHASSIS) HDMI OUT (DVD ONLY) MAIN BOARD (8/9) IC1701 HDMI DRIVER IC1702 +1.8V REG IC1705 AND GATE IC1707 +5V REG IC1703 +3.3V REG BUFFER CEC SWITCH CEC SWITCH CEC SWITCH CEC SWITCH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 45 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-16. SCHEMATIC DIAGRAM – MAIN BOARD (9/9) – IC B/D 12 MAIN BOARD (1/9) (Page 37) 13 MAIN BOARD (1/9) (Page 37) 18 MAIN BOARD (1/9) (Page 37) (4/9) (Page 40) (8/9) (Page 44) 14 MAIN BOARD (1/9) (Page 37) 17 MAIN BOARD (1/9) (Page 37) 9 MAIN BOARD (1/9) (Page 37) 25 MAIN BOARD (1/9) (Page 37) 10 MAIN BOARD (1/9) (Page 37) 11 MAIN BOARD (1/9) (Page 37) 16 MAIN BOARD (1/9) (Page 37) MAIN BOARD (4/9) (Page 40) (8/9) (Page 44) 40 MAIN BOARD (1/9) (Page 37) (2/9) (Page 38) (4/9) (Page 40) (8/9) (Page 44) 27 MS-203 BOARD CN001 (Page 46) R MAIN BOARD (4/9) (Page 40) 42 MAIN BOARD (1/9) (Page 37) 15 MAIN BOARD (1/9) (Page 37) 44 MAIN BOARD (1/9) (Page 37) 43 1.4 1.4 1.4 4.3 4.1 4.3 4.3 1.2 2.7 4.3 4.2 4.2 4.2 2.4 1.8 2.4 5 1.4 9 4.3 3.3 3.3 2.6 9 1.7 1.4 1.7 3.2 3.3 1.4 1.4 3.3 3.1 1.4 1.4 1.4 0 3.3 3.3 9 4.3 3.3 3.3 3.3 2.4 No mark:DVD STOP 0.01 C1212 100k R1223 4.7k R1239 16V 47 C1217 33k R1208 220p C1205 56k R1221 15k R1231 27k R1219 50V 10 C1218 100 R1243 1.2k R1204 0.033 C1211 0.01 C1203 0.001 C1226 12k R1216 0.01 C1219 1 2 3 4 5 6 6P CN1201 SP- SP+ LIMIT (GND)LIMIT SL- SL+ 15k R1214 56k R1226 0.01 C1213 0.01 C1210 1k R1237 0.0047 C1233 50V 10 C1220 33k R1209 10k R1205 10k R1206 0 R1228 18k R1232 0.001 C1225 82k R1230 0 R1227 100k R1225 0.033 C1209 0.1 C1223 1k R1236 10k R1224 0.01 C1208 1k R1247 47k R1210 33k R1222 10k R1234 0.01 C1224 10k R1212 4.7k R1238 6.8k R1213 12k R1215 4.7k R1246 1k R1220 220p C1206 0.01 C1215 0.001 C1214 2.7k R1207 JL1206 JL1205 JL1203 JL1204 JL1202 JL1201 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 FIN FIN FIN FIN IC1201 FAN8036L JL1207 JL1208 JL1209 JL1210 JL1211 JL1212 JL1213 CL1213 SPFG SW+5V TRO VREFO CKSW FMO SW+3.3V IOP OCSW DMO IOPMON OCSW1 TROPENPWM FCS- D-GND LIMITSW FWD FCS+ REV TRK+ MUTE123 FOO TRK- RF+3.3V MUTE REG01 TSD_M REG02 SW+9V M-GND 0.1 C1222 CL1201 CL1202 CL1203 CL1204 CL1205 CL1206 CL1207 CL1208 CL1209 CL1210 CL1211 CL1212 0.1 C1221 1 2 3 4 5 CN1202 5P LDM+ LDM- GND CKSW1 OCSW1 33k R1233 FCS- FCS- FCS+ TRK+ TRK- FCS+ TRK+ TRK- SL+ SP- SP+ SP- SP+ SL- SL+ SL- MAIN BOARD (9/9) IC1201 FOCUS/TRACKING DRIVER LOADING/SPINDLE/SLED MOTOR DRIVER SPINDLE MOTOR SLED MOTOR • See page 56 for IC Block Diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 46 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-17. PRINTED WIRING BOARD – MS-203 BOARD – • See page 29 for Circuit Boards Location. :Uses unleaded solder. 6-18. SCHEMATIC DIAGRAM – MS-203 BOARD – M 4 2 5 1 CN001 1-861-327- 12 S001 (CHUCK/TRAY DETECT) M203 (LOADING) R MAIN BOARD CN1202 (Page 35) MS-203 BOARD + - 1 2 A B 3 4 45 MAIN BOARD (9/9) CN1202 R CN001 M203 S001 5P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 47 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-19. PRINTED WIRING BOARD – IO-SCART BOARD – • See page 29 for Circuit Boards Location. :Uses unleaded solder. • Semiconductor Location Ref. No. Location D271 H-4 D272 J-4 D280 D-11 D281 C-11 D297 D-17 D309 L-8 IC201 F-7 IC202 E-10 IC230 F-9 IC303 I-15 IC304 F-17 IC306 L-13 IC307 L-8 Q271 H-3 Q272 I-4 Q273 I-4 Q274 I-4 Q275 I-5 Q276 I-5 Q277 H-9 Q279 I-10 Q305 J-10 Q306 J-11 Q307 K-10 Q308 K-10 IC303 IC304 IC306 IC230 IC201 IC202 IC307 C206 C203 C202 C211 C222 C224 C225 C214 C215 C216 C232 C233 C244 C245 C246 C271 J230 CN301 CN302 CN304 CN307 CN308 C304 C324 C325 C326 C327 C321 C340 C341 C349 C353 C371 C372 C345 C373 C374 C376 C384 C385 C386 C392 JW110 JW109 JW108 JW007 JW084 JW083 JW099 JW098 JW081 JW080 JW079 JW078 JW097 JW096 JW095 JW094 JW093 JW092 JW077 JW076 JW107 JW106 JW074 JW073 JW072 JW065 JW063 JW062 JW061 JW060 JW059 JW058 JW055 JW046 JW045 JW044 JW105 JW104 JW103 JW102 JW101 JW100 JW120 JW119 JW118 JW117 JW116 JW115 JW114 JW112 CN305 R400 R401 R484 R401 R286 R402 R403 R404 R393 R210 R405 R211 Q271 E R406 R212 R215 R216 R214 Q272 R407 Q273 R408 Q274 R409 Q275 Q276 Q279 R410 R411 R412 R413 R414 R415 R416 R417 R225 R420 R421 R244 R245 R246 C221 C231 C234 R271 R272 R273 C238 R274 C239 R275 R276 R277 R278 R279 C240 C208 C201 C204 C209 C210 R280 R281 R282 R285 Q305 Q306 Q307 Q277 Q308 L304 C295 C296 R308 R333 R307 R343 R342 R312 C330 R314 C311 R334 R306 R309 D271 D272 R310 R311 R316 R320 R321 R324 R332 D381 D390 R335 R336 R337 R250 R338 R341 R344 R345 R346 R347 R351 C320 R363 C328 C390 C389 R364 R365 R366 C342 C343 C354 R381 R385 C350 R392 R303 R394 R395 R396 R397 R398 R399 D309 C375 C377 C383 C387 C388 L221 L201 C391 L231 E E E E E J203 L AUDIO IN R LINE PR/CR Y COMPONENT VIDEO OUT PB/CB (DVD ONLY) L DMPORT BOARD CN201 (Page 52) K JACK BOARD CN401 (Page 49) C MAIN BOARD CN702 (Page 36) B MAIN BOARD CN605 (Page 35) A MAIN BOARD CN4301 (Page 35) 1-872-127- 11 (11) IO-SCART BOARD EURO AV T OUTPUT (TO TV) TUNER AM COAXIAL FM75Ω 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 1 A B C D E F G H I J K L M N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 48 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-20. SCHEMATIC DIAGRAM – IO-SCART BOARD – • See page 29 for Waveforms. • See page 57, 58 for IC Block Diagrams. 9 12 4.6 4.6 4.6 4.6 4.6 4.6 4.6 4.6 4.6 4.6 9 9 9 4.6 4.6 0 0 1.3 1.5 (3.3) 2.8 2.8 2.8 2.8 2.8 2.8 3.5 3.5 3.6 3.6 0 0 1.8 3.1 5 5 11.3 11.3 10.5 2.9 2.9 5 5 5 5 5 5 5 2.3 0.7 0.5 1.1 0 0 0 0 0 0 0 0 0 0 1.8 0 0.4 0.7 0.5 0.5 2.3 1.1 5 4.6 4.6 4.6 4.6 4.6 4.6 4.6 4.6 4.6 4.6 9(9)<0> 0(0) <3.2> 0(0) <3.2> 9(9) <0> 0(9) 0(9) 9(9) <9> 9(9) <0> 9(9) 3.2 (0) 0(0) 9(9) No mark:DVD STOP ( ) :DMPORT < > :FM 16V 47 C304 25V 22 C371 C376 25V 22 C372 25V 22 C374 25V 22 25V 22 C373 0.1 C387 16V 100 C349 16V 100 C384 16V 100 C392 200P C311 220P C320 220P C328 220P C342 220P C343 220P C330 0.1 C350 0.1 C383 470 R420 470 R421 4.7k R417 4.7k R416 4.7k R324 4.7k R306 3.3k R308 3.3k R309 47 k R364 R332 47k 47k 47k R366 R334 R343 47 47k 47k 47k 47k k 47k R333 47k R335 k R337 R338 47 R346 k 47 R347 47k R336 R345 R344 R342 R341 R312 47 k R365 47k R363 47k R411 47k R410 150 R402 150 R405 150 R408 150 R409 150 R412 150 R413 I O G TA7809LS IC307 1 2 3 MC14052 BDR2 IC303 Y0 Y2 Y Y3 Y1 INH VEE VS S B A X3 X0 X X1 X2 VDD 50V 1 C386 50V 1 C385 0.1 C391 100k 100k 100k 100k R407 R404 R403 R406 10uH L304 8 5 6 7 1 2 3 4 NJM4558M-TE2 IC306 C388 1 C377 C375 0.01 0.01 4.7k 4.7k R314 4.7k 4.7k 4.7k R321 4.7k R307 4.7k R310 4.7k R311 4.7k R316 25V 22 C340 25V 22 C321 25V 22 C324 25V 22 C345 25V 22 C341 1 2 3 4 5 6 7 8 9 CN301 9P A 9V L In A GND R In V GND V In RXD TXD DET MC14052 BDR 2 IC304 Y0 Y2 Y Y3 Y1 INH VEE VS S B A X3 X0 X X1 X2 VDD 16V C353 100 C354 0.1 RT1N241C-TP- 1 Q306 R393 10 k R395 1k 1 2 3 4 5 5P CN307 L In A GND R In A GND NC R385 R381 0 0 RT1N241C-TP- 1 Q308 R401 1k R397 10 k 10k R396 1k R400 RT1N241C-TP-1 Q307 INVERTER INVERTER INVERTER INVERTER RT1N241C-TP-1 Q305 10k R392 1k R394 RB501V-40TE-17 D309 CL001 CL003 CL004 CL017 CL019 CL020 16V 100 C232 50V 10 C206 3 2 1 4 5 6 MM1508XNRE IC202 SW OUT VCC IN2 GND IN1 R210 75 0 R250 1 C208 0.1 C201 22k R278 R T1N441C-TP- 1 Q271 75 R244 75 R214 75 R215 75 R225 75 R216 R279 Q277 MUTE MUTE 2SC3052EF-T1-LEF 10 C211 2SC3052EF-T1-LEF Q272 1000p C295 10k R285 L221 10uH 1 C210 10uH L231 330 330 330 330 R282 1 16V 100 C271 0.1 C231 RT1N241C-TP-1 Q279 75 R246 10uH L201 1 C209 1 C238 75 R245 1000 C246 2.2k R276 RT1N441C-TP-1 Q276 75 R211 TP221 100 16V C203 1SS355WTE-17 D272 47 k R272 1000p C296 RT1P141C-TP-1 SWITCH SWITCH SWITCH BLAKINGOUT CONTROL BLAKINGOUT CONTROL BLAKINGOUT CONTROL Q275 R280 RT1P141C-TP-1 Q273 C245 1k R286 2.2k R275 100 C222 BH7868FS-E2 1k R277 220k R273 6.3V 6.3V 6.3V 6.3V 16V 16V 1000 1000 C244 1000 C214 6.3V 1000 C225 50V 50V 10V 100 C215 100 C216 16V 100 C233 32 1 2 3 4 5 6 7 8 9 1 2 3 4 5 6 7 8 9 31 30 23 24 25 26 27 28 29 32 31 30 25 26 27 28 29 20 21 22 17 18 19 23 24 20 21 22 17 18 19 10 13 12 11 16 15 14 10 13 12 11 16 15 14 IC201 BH7868FS-E2 IC230 Vcc1 S1 S2 CIN MUTE1 CVBS IN YC MIX YI YI N BIAS CLP CYIN GND C C bIN MUTE2 C C rIN Vcc1 S1 S2 CIN MUTE1 CVBS IN YC MIX N BIAS CLP CYIN GND bIN MUTE2 rIN Vcc2 Vcc2 CrOUTb CrOUTa GND CbOUTb CbOUTa GND CYOUTb CYOUTa GND YOUTb YOUTa GND VOUTb VOUTa S-DC OUT C OUT CrOUTb CrOUTa GND CbOUTb CbOUTa GND CYOUTb CYOUTa GND YOUTb YOUTa GND VOUTb VOUTa S-DC OUT C OUT 0.1 C234 C204 1 C239 C240 2.2k R274 C224 10 10k R284 R281 1k R271 RT1N441C-TP- 1 Q274 C221 0.1 470 10V C202 0.001 C389 0.0022 C390 1SS355WTE-17 D281 1SS355WTE-17 D280 1 2 3 4 5 6 7 8 9 10 11 12 13 13P CN304 CVBS VGND C VGND Y VGND CY/ G VGND Cb/B WIDE Cr/R I/P_SEL RGB_SEL 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 A_SEL3 CLINK_DET CLINK_TX_OUT CLINK_RX_IN V_SEL2 V_SEL1 V_SEL0 TXSEL A_SEL2 A_SEL1 A_SEL0 A12V A-GND 5V ST_DI ST_CE ST_DO ST_CLK TUNED RDS-CLK RDS-DATA 21P CN308 1 2 3 4 5 6 7 8 9 10 11 11P CN305 L-CH + B 9V R-CH GND TUNED CE DI CL DO RDS_CLK RDS_DATA 23P J230 J230 1 A(R) OUT 2 A(R) IN 3 A(L) OUT 4 AUDIO GND 5 B GND 6 A(L) IN 7 B OUT 8 FUNCTION SW 9 G GND 10 NC 11 G OUT 12 NC 13 R GND 14 BLANKING GND 15 R/C OUT 16 BLANKING OUT 17 VIDEO OUT GND 18 VIDEO IN GND 19 CVBS OUT 20 CVBS IN 21 GND PULUG 22 23 R212 75 JL01 0 JL01 1 J L01 2 JL01 3 JL014 JL015 JL016 JL017 JL018 JL019 JL020 JL021 JL022 JL023 JL024 JL025 JL026 JL027 JL028 JL029 JL03 0 JL031 JL032 JL033 JL034 JL035 JL036 JL037 JL038 JL039 JL040 JR041 JL047 JL04 9 JL051 JL052 JL053 JL054 JL055 JL056 JL057 J 6 JL067 L06 J 5 L06 J 4 L06 J 3 L06 JL068 JL069 JL070 JL071 JL072 JL073 JL074 JL075 JL076 JL077 JL078 JL079 JL081 JL082 JL087 JL083 JL084 JL085 JL086 JL08 8 JL08 9 JL09 1 JL09 3 JL09 5 JL09 6 JL09 7 JL09 8 JL09 9 JL10 0 1SS355WTE-17 D271 G G J20 J203 3 5P 5 RIN1 6 7 CB 8 9 Y 10 3 CR 4 1 LIN1 2 11 12 JL30 0 R351 4.7k R320 1 2 3 4 4P CN302 IPOD(L)/MIC1 9V IPOD(R) GND JL09 0 0 R303 JW002 JW016 JW022 JW041 JW048 JW066 JW067 JW068 JW069 JW070 JW071 JW075 JW085 JW086 JW087 JW089 JW111 JW121 JW122 R415 470 R399 47K R398 47K R414 470 C393 180P CLINKDET,CLINKRX,CLINKTX A A SEL0 ASEL3 ASEL2 SEL1 ASEL2 ASEL1 ASEL0 DI CE DO CK TD RDS-CLK RDS-DATA CLINKTX CLINKDET CK DI CE RDS-DATA RDS-CLK DO TD ASEL3 CLINKRX CLINKDET CLINKTX CLINKRX + - + - R L L L R R-CH L-CH R 0.1 25V 22 C325 25V 22 C326 25V 22 C327 R-CH L-CH R-CH L-CH 1 2 3 4 5 6 7 8 9 10 11 12 13 14 A B C D E F G H I J MAIN BOARD (1/9) CN4301 (Page 37) A MAIN BOARD (2/9) CN702 (Page 38) C MAIN BOARD (3/9) CN605 (Page 39) B L DMPORT BOARD CN201 (Page 52) 6 3 5 2 4 1 IC B/D IC B/D IC B/D IC B/D K JACK BOARD CN401 (Page 51) 8 1 0 1 1 1 2 1 3 1 4 1 5 1 6 9 1 0 1 1 1 2 1 3 1 4 1 5 1 6 9 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 IC306 AMP +9V REG AM COAXIAL FM75 TUNER EURO AV OUTPUT (TO TV) R L PB/CB Y PR/CR AUDIO IN (DVD ONLY) COMPONENT VIDEO OUT LINE IO-SCART BOARD IC307 IC201 VIDEO AMP, 75Ω DRIVER IC202 SELECTOR IC303 AUDIO INPUT SELECTOR IC304 AUDIO INPUT SELECTOR IC230 VIDEO AMP, 75Ω DRIVER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 49 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-21. PRINTED WIRING BOARDS – FL, JACK BOARD – • See page 29 for Circuit Boards Location. :Uses unleaded solder. IC401 IC801 IC802 1 1 13 2 2 12 53 50 E E E FL BOARD 1-872-106- 12 (12) E E 1-872-108- 12 (12) JACK BOARD 5 2 D MAIN BOARD CN502 (Page 35) K IO-SCART BOARD CN302 (Page 47) G MAIN BOARD CN3001 (Page 36) PHONES AUDIO IN/A.CAL MIC FUNCTION > . x X H A O P-SW BOARD CN804 (Page 53) VOLUME CN801 CN805 C802 C803 C809 C814 C829 JW800 JW801 JW802 JW803 JW804 JW805 JW806 JW807 JW808 JW809 JW810 JW811 JW812 JW813 JW814 JW815 JW816 JW817 JW818 JW819 JW820 JW821 JW823 JW824 JW825 JW826 JW827 JW828 JW829 T801 L801 L802 ND001 R800 R801 R802 R804 R805 R811 R812 R813 R814 R815 R816 R819 R436 R437 R820 JL001 JL002 C800 C801 C804 C805 C811 C812 C435 C436 D801 D802 D803 D804 D805 JR801 JR802 JR807 JR808 D431 D432 TP801 TP802 TP803 TP804 TP805 TP806 TP807 TP808 TP811 TP812 TP814 TP815 TP816 TP817 TP818 TP819 TP820 TP821 TP822 TP823 Q801 TP851 TP852 TP853 TP857 TP859 TP860 TP861 TP862 TP863 CN401 CN806 C401 R452 CN809 C403 C411 C421 S800 S802 S803 S804 S805 S806 S807 S808 JW400 JW401 JW402 JW404 JW405 JW406 JW407 JW408 JW409 JW410 JW411 JW414 JW415 JW418 C471 JW422 JW427 JW428 JW429 JW430 JW431 J401 J402 CNP807 JW421 R401 R402 R403 Q470 R410 Q471 R411 R412 Q473 R413 Q474 R414 Q475 R415 R416 R420 R421 R422 R423 R424 R431 R432 R433 R434 R435 FB450 C404 C405 JL003 R444 JL004 R445 C410 C412 C413 FB460 C420 C422 C423 FB470 FB471 FB474 FB475 FB479 Q451 Q450 R851 R852 R853 R854 R855 C431 R856 C432 R857 C433 R470 R858 R451 R450 R460 R453 R463 R491 R454 R464 R462 C434 R471 R472 R478 R480 R481 R482 C450 R490 R492 C460 C849 C850 IC402 C491 C493 JR816 D470 D492 D493 D496 D497 E E E E R461 Q460 Q461 CN403 (FLUORESCENT INDICATOR TUBE) 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 1 A B C D E F G H I J K L M 20 21 22 23 24 • Semiconductor Location Ref. No. Location D470 K-13 D492 K-9 D493 K-9 D496 L-7 D497 K-7 IC401 J-8 IC402 J-6 Q450 K-4 Q451 J-3 Q460 K-4 Q461 L-3 Q470 J-12 Q471 K-14 Q473 K-13 Q474 H-7 Q475 H-7 • Semiconductor Location Ref. No. Location D431 D-7 D432 D-7 D801 B-20 D802 B-20 D803 C-21 D804 C-20 D805 C-20 IC801 C-12 IC802 E-19 Q801 C-17 – FL Board – – JACK Board – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 50 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-22. SCHEMATIC DIAGRAM – FL BOARD – • See page 59 for IC Block Diagram. N JACK BOARD CN806 (Page 51) D MAIN BOARD (4/9) CN502 (Page 40) IC B/D 0.2 5 5 0.2 3.3 3.3 -27.5 0 0 3 2.8 0 0 -20 -27.5 -27.5 -20 -22.5 -27.5 -27.5 -30 -17.6 3.3 -22.5 -27.5 -27.5 -27.5 -27.5 -27.5 -27.5 -27.8 -27.8 3.3 -27.5 -25 -20 -17.5 -30 -30 -27.3 -30.8 -27.7 -27.7 No mark:DVD STOP 0.47 C435 16V 10 C809 16V 10 C814 35V 4.7 C829 47 R819 100 R814 100 R815 100 R816 0 R800 12k R436 15k R437 82k R811 100k R820 VCC OUT GND NJL23H400A IC801 1 2 3 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 PT6315 IC802 TP801 TP802 TP803 TP804 TP805 TP806 TP807 TP808 TP811 TP812 TP814 TP815 TP816 TP817 TP818 TP819 TP820 TP821 TP822 TP823 1 2 3 4 5 6 7 8 9 10 11 12 13 13P CN805 PLUG-DET2 GAIN-CONT A.CAL PLUG-DET1 EN A MO/ST-DET EN B DC-CONT D-GND 3.3V KEY0 KEY1 KEY2 TP862 TP863 TP860 TP861 TP857 TP859 TP853 TP852 TP851 1 C436 JL001 1SS355WTE-17 D431 1SS355WTE-17 D432 JR802 0 100k R813 100k R812 0.0047 C800 0 R805 0.022 C801 100 R802 0.1 C805 0.01 C804 47uH L802 1SS355WTE-17 D801 47uH L801 1SS355WTE-17 D805 1SS355WTE-17 D804 3.9k R804 2 3 5 6 8 7 1 4 9 T801 CPH5504-TL-E Q801 1 2 3 4 5 33k R801 1SS355WTE-17 D802 UDZW-TE17-6.2B D803 35V 47 C802 16V 100 C803 0 JR807 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 21P CN801 D-GND 5V KEY0 KEY1 KEY2 FL_DATA FL_CS FL_CLK D-GND SIRCS D-GND E3.3V 3.3V EN B EN A PLUG-DET1 PLUG-DET2 DC-CONT MO/ST-DET A.CAL GAIN-CONT 0.01 C811 JR801 0 JR808 0 2 7 8 9 10 11 12 5 6 14 17 13 16 15 23 24 27 28 26 25 50 31 33 35 30 32 36 34 29 42 44 43 40 37 39 38 41 46 53 48 47 45 18 49 ND001 S10 S12 S13 S11 S14 S15 S16 S9 S8 S7 S6 S5 S4 S3 S2 S1 G2 G3 G4 G5 G6 G7 G8 G9 G11 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 G12 G11 G10 G9 G8 G7 G6 G5 G4 G3 G1 G2 G12 G10 G1 (FLUORESCENT INDICATOR TUBE) IC802 FL DRIVER IC801 REMOTE CONTROL RECEIVER FL BOARD DC/DC CONVERTER OSC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 51 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-23. SCHEMATIC DIAGRAM – JACK BOARD – O P-SW BOARD CN804 (Page 53) N FL BOARD CN805 (Page 50) K IO-SCART BOARD CN302 (Page 48) G MAIN BOARD (7/9) CN3001 (Page 43) No mark:DVD STOP 3.3 0 2.9 3.3 0 0 2.9 2.9 4.7 0 4.7 3.3 0 4.7 4.7 4.7 4.7 9 4.7 4.7 4.7 4.7 4.7 9 4.7 4.7 4.7 0 0 0 0 0.7 0.7 0.7 0.7 0.47 C431 16V 10 C411 16V 10 C421 16V 47 C401 10V 100 C403 470p C422 470p C432 470p C412 68p C433 220p C413 220p C423 C491 0.001 0.1 C404 0.1 C405 0.068 C434 470 R411 470 R421 1k R415 1k R413 1k R423 1k R424 2.2k R433 4.7k R402 10k R482 15k R414 22k R422 22k R412 22k R432 100k R410 100k R420 1M R435 0 JR816 0 R431 0 R434 3.3k R401 FB470 FB471 FB475 1SS355WTE-17 D492 1SS355WTE-17 D493 RT1N441C-TP-1 Q475 8 7 6 5 4 3 2 1 NJM4558M-TE2 IC401 8 7 6 5 4 3 2 1 NJM4558M-TE2 IC402 J401 1 2 3 4 5 6 7 J402 1 2 3 4 5 6 7 0.001 C493 C450 0.01 C460 0.01 FB450 0 FB460 0 FB479 D496 1SS355WTE-17 1SS355WTE-17 D497 TP413 TP414 Q474 RT1P140C-TP-1 R858 0 TP874 TP875 TP876 TP877 TP878 TP879 TP880 TP881 TP882 TP883 TP402 TP409 TP400 TP410 TP418 R445 0 R444 0 1 2 3 4 5 6 7 8 9 10 11 12 13 13P CN806 KEY2 KEY1 KEY0 3.3V D-GND DC-CONT EN B MO/ST-DET EN A PLUG-DET1 A.CAL GAIN-CONT PLUG-DET2 3.3k R853 S803 2.2k R854 S802 3.3k R852 S808 S807 0 R851 2.2k R857 S806 S804 S805 2.2k R856 1k R855 TP841 TP842 JL003 JL004 1 2 2P CN809 GND KEY0 1k R403 22 R416 100 R478 RT1P141C-TP-1 Q473 2.2k R471 RT1P141C-TP-1 Q471 2.2k R470 6.3V 22 C471 1SS355WTE-17 D470 680 R472 100k R481 47 R480 RT1N441C-TP-1 Q470 TP415 TP884 S800 1 2 3 4 5 0.01 C850 0.01 C849 FB474 0 R492 0 R490 1 2 3 4 4P CN401 F-AUDIO(L) 9V F-AUDIO(R) GND 2SC5938-T112-1B Q450 2SC5938-T112-1B Q451 R454 4.7k R461 22 TP422 1 2 3 4 4P CN403 HP.R GND HP.L MUTE R462 47 R452 47 TP423 2SC5938-T112-1B Q460 R464 TP420 R460 4.7k R451 22 R450 4.7k TP424 R463 R453 4.7k 4.7k 4.7k 0.001 C410 0.001 C420 TP403 TP404 0 R491 TP412 TP401 JW432 2SC5938-T112-1B Q461 + + - - + + - - VOLUME JACK BOARD PHONES AUDIO IN/A.CAL MIC IC401 AMP IC402 AMP MUTE MUTE MUTE MUTE MO/ST DETECT MO/ST DETECT MO/ST DETECT GAIN CONT GAIN CONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 52 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-24. PRINTED WIRING BOARD – DMPORT BOARD – • See page 29 for Circuit Boards Location. :Uses unleaded solder. 6-25. SCHEMATIC DIAGRAM – DMPORT BOARD – IC202 IC201 C212 R214 R221 C210 R215 C223 C220 R208 R203 R223 C211 R222 C213 C214 R220 C221 C222 R224 R225 1 CN201 CN203 CN204 L200 R227 R228 R241 R229 C229 R230 C230 R231 C231 R232 C232 C233 C234 C235 C236 R237 C237 R238 C238 R239 C239 C240 C241 R240 JL010 JL001 JL018 JL015 CL010 CL012 CL011 JL006 JL014 JL013 JL016 CL002 CL001 CL003 JL011 JL012 JL021 JL022 CL004 CL005 JL002 JL017 A002 CL007 CL008 CL006 CL009 JL003 JL019 JL004 JL007 JL027 JL026 JL025 JL024 JL023 JL029 JL028 JL031 JL030 JL005 JL009 JL008 1 9 5 1 1 1 1 3 18 4 5 8 DMPORT BOARD (SIDE A) DMPORT BOARD (SIDE B) L IO-SCART BOARD CN301 (Page 47) M POWER BOARD CN907 (Page 54) DMPORT 1 2 A B C D E F G H I J K 3 4 5 6 7 8 1-872-120- 11 (11) 1-872-120- 11 (11) IC B/D M POWER BOARD CN907 (Page 55) L IO-SCART BOARD CN301 (Page 48) 3.3 6 5 1 0 0 0 0 0 0 9 No mark:DVD STOP 1k R221 10V C220 100 0.1 C210 0.1 C212 22k R215 22k R208 22k R203 22k R214 1k R220 0.1 C222 10k R223 6.3V C223 100 1 2 3 4 5 SI-3010KM-TL IC201 EN IN GND OUT FB 0.1 C221 0.001 C214 0.1 C213 6.3V 100 C211 39k R222 0 R224 47k R225 CL001 CL002 CL003 CL004 CL005 CL006 CL007 CL008 CL009 CL010 CL011 CL012 JL001 JL002 JL003 JL004 JL005 JL006 JL007 JL008 JL009 JL010 JL011 JL012 JL013 JL014 JL015 JL016 JL017 JL018 JL019 JL021 JL022 1 2 3 4 5 6 7 8 9 CN201 9P DET A/D TXD RXD VIDEO VGND R AGND L A+9V 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 18P CN204 1 2 3 3P CN203 P-Con2 GND 6V 8 7 6 5 4 3 2 1 NJM4565M(TE2) IC202 AOUT A-IN A+IN V- B+IN B-IN BOUT V+ 22k R227 22k R228 22k R229 22k R230 100p C233 100p C234 100p C235 100p C236 0.1 C237 16V 22 C238 R231 4.7k R232 4.7k C239 6.3V 47 C240 0.1 C241 0.1 10uH L200 R237 0 R238 0 C231 1 C232 1 C229 1 C230 1 0 R239 100 R240 100 R241 JL028 JL029 JL030 JL031 + + - - PGND VBUS(5V) NC VIDEO5V RXD TXD DET DGND WM DET WM A/D (Lch)AGND (Rch)AGND Lch Rch WM RX WM TX VIDEO VGND DMPORT BOARD DMPORT IC202 BUFFER IC201 +5V REG • See page 59 for IC Block Diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 53 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-26. PRINTED WIRING BOARDS – SPEAKER, P-SW BOARD – • See page 29 for Circuit Boards Location. :Uses unleaded solder. 6-27. SCHEMATIC DIAGRAM – SPEAKER, P-SW BOARD – CN804 S801 SPEAKER BOARD 1-872-109- 12 (12) P-SW BOARD 1-872-107- 12 (12) TB301 CN303 ET301 ET302 C301 C302 C303 C304 C305 C306 C307 C308 C309 C310 C311 C312 C313 C314 JW301 C315 C316 C851 + – + – + – + – FRONT R FRONT L SPEAKER SUR R SUR L H MAIN BOARD CN3100 (Page 32) I MAIN BOARD CN3200 (Page 32) 4 5 (CHASSIS) O JACK BOARD CN809 (Page 49) I/1 (CHASSIS) 2 3 4 5 6 7 8 9 10 1 A B C D E F G H I J K H MAIN BOARD (7/9) CN3100 (Page 43) I MAIN BOARD (6/9) CN3200 (Page 42) O JACK BOARD CN809 (Page 51) E ET301 E ET302 0.01 C301 0.01 C302 0.01 C303 0.01 C304 0.01 C305 0.01 C306 0.01 C307 0.01 C308 C309 C310 C311 C312 C313 C314 C315 0.001 0.001 0.001 0.001 0.001 0.001 0.001 0.001 C316 1 2 3 4 5 6 7 8 8P CN303 FR+ FR- FL- FL+ SR+ SR- SL- SL+ TB301 1 FR+ 2 FR- 3 FL+ 4 FL- 5 SR+ 6 SR- 7 SL+ 8 SL- 9 10 TP301 TP302 S801 100p C851 1 2 2P CN804 GND P-SW SPEAKER BOARD (CHASSIS) (CHASSIS) P-SW BOARD FRONT R FRONT L SUR R SPEAKER SUR L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 54 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-28. PRINTED WIRING BOARD – POWER BOARD – • See page 29 for Circuit Boards Location. :Uses unleaded solder. • Semiconductor Location Ref. No. Location D901 G-3 D905 H-9 D906 H-9 D907 H-8 D908 H-9 D909 F-6 D910 H-9 D913 H-10 D914 G-7 D915 G-8 D921 H-11 D922 G-13 D923 G-14 D924 G-13 D925 H-12 D926 G-14 D931 C-8 D932 D-7 D941 E-13 D942 E-12 D943 E-12 D944 E-13 D945 C-12 IC901 H-8 IC921 H-12 IC931 E-5 IC941 C-13 IC942 C-11 IC943 C-10 IC951 E-14 PC901 E-5 PC902 F-13 PC903 E-6 Q901 H-9 Q921 G-13 Q943 D-6 Q945 C-12 Q947 D-6 IC943 IC942 IC941 IC951 IC921 IC931 IC901 PC903 PC901 PC902 E E 8 1 C E 1 2 4 5 1 3 1 4 1 5 1 1 3 5 1 1 12 5 K A E E E C E C S K A DMPORT BOARD CN203 (Page 52) M MAIN BOARD CN506 (Page 36) E MAIN BOARD CN3002 (Page 36) F 8 7 5 4 3 2 1 5 6 4 3 2 1 16 15 14 13 12 11 10 9 14 13 12 11 10 9 8 (CHASSIS) (CHASSIS) (CHASSIS) POWER BOARD 2 3 4 5 6 7 8 9 10 11 12 13 14 1 A B C D E F G H I 1-872-105- 12 (12) (CHASSIS) D941 D944 F901 Q901 Q921 EB902 EB903 EB904 L931 VDR901 R903 R904 R908 R914 FR901 CN906 R927 R929 C901 C902 C903 C905 TH901 C906 C908 C910 C913 C918 LF902 C920 C922 C924 C925 C930 C932 C933 C934 C938 C939 C940 C941 C942 C943 C944 C945 C946 C947 C948 C949 C953 C963 C964 D905 D913 JV921 JV922 C976 JV923 JV924 JV925 JV926 JW927 JW928 JV929 D921 HS901 D922 JV930 JV931 T901 JV932 T902 POWER TRANSFORMER (SUB) POWER TRANSFORMER (MAIN) JV933 JV934 JV935 JV936 JV937 JV938 JV939 D931 JV940 R912 FH901 FH902 JW905 JW910 JW911 JW912 JW913 JW914 JW915 JW916 JW917 JW918 JW919 JW981 JW982 JW987 CN907 JW983 JW984 JW985 JW988 JW986 JV920 JV927 JV928 D942 D943 EB905 R901 CN904 JW979 D901 HS931 CN901 D945 TP901 TP902 TP903 TP904 TP907 TP908 TP909 TP910 TP911 TP912 TP913 TP914 TP915 TP916 TP917 TP918 TP920 Q943 Q945 Q947 L941 L942 L945 L947 L948 L951 R905 R906 R907 R909 R910 R911 R919 CL001 R922 CL002 R923 CL003 R925 R926 R931 R932 R933 R934 R935 R936 R937 R938 R939 R940 R941 R942 R943 C907 R945 C909 R946 R948 R949 C911 R951 R952 R953 R954 R955 R956 R957 R958 C923 R965 C929 R966 R967 R968 R969 R971 C937 R974 C951 C952 C954 C955 C958 C960 D906 C967 D907 C968 D908 C969 D909 C970 D910 C971 D914 D915 D923 D924 D925 D926 D932 C981 L943 TP919 L944 C936 R979 R960 R962 C935 R972 TP921 LF901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 55 HCD-DZ530/DZ630 HCD-DZ530/DZ630 6-29. SCHEMATIC DIAGRAM – POWER BOARD – MAIN BOARD (7/9) CN3002 (Page 43) F DMPORT BOARD CN203 (Page 52) M MAIN BOARD (4/9) CN506 (Page 40) E 0 1.1 3.2 21.6 310 20 21.6 21.6 20.9 1.6 4 3 310 0 22.5 1.6 310 22.5 23.5 23 3 3 8.9 9 12 3.1 4 3.3 3.3 5 6 5 3.1 3.1 12 12 12 5.4 4 2.9 2 31.3 30.6 30.6 30.6 3.1 3.1 No mark:DVD STOP {170} 275V 0.22 400V 330 C902 THERMISTOR, NTC 6.0 TH901 D5SBA60F01 D901 250V 0.01 C920 250V 0.01 C918 250V 100p C930 0.1 FR901 250V 100p C913 R903 R904 SARS03 D913 1 2 3 4 5 IC901 OCP/SYNC GND D VCC FB/OLP 0.001 1.5KV C906 35V 47 C908 0.0047 C911 220p C909 220 R911 10 R905 D1NL20U-TR2 D905 18k R919 1SS355WTE-17 D906 1SS355WTE-17 D907 1SS355WTE-17 D908 3.3k R906 1SS355WTE-17 D914 2SB1116A-TP-LK Q901 10k R907 1/2W 3.3k 2W 0.33 5W 0.1 R908 1SS355WTE-17 D909 C907 2.2k R910 C910 100k R909 TLP421F(D4-GR) PC901 TLP421F(D4-GR) PC903 D931 FMX-22SL 35V 2200 C932 35V 2200 C933 5.6uH L931 35V 2200 C934 0.1 C939 3.3k R931 5.6k R965 33k R932 470k R936 4.7k R933 0.047 C937 3 1 2 TA76431AS(TPE6) IC931 3.3k R939 1k R934 1k R935 10k R937 10k R940 1k R938 RT1N441C-TP-1 Q943 RT1N441C-TP-1 Q947 1k R949 1 2 10 11 7 9 12 13 14 5 4 8 15 16 3 T902 NC NC NC 1 3 4 5 6 8 STR-V153 IC921 DRAIN S/OCP VCC GND FB/OLP START_UP R929 1/2W 2.2 2KV 47p C925 0.1 C929 4.7 R922 D1NL20U-TR2 D922 100V 22 C922 2SD1616A-TP-LK Q921 4.7k R923 10 R925 1SS355WTE-17 D910 1k R969 0.0047 C923 50V 2.2 C924 680k R926 TLP421F(D4-GR) PC902 RK36LF-B3 D943 RK36LF-B3 D942 EK19LF-F7 D941 10V 3300 C940 16V 2200 C944 0.1 C967 25V 1000 C941 10uH L941 10uH L951 10uH L942 10uH L945 10V 470 C948 10k R948 25V 470 C942 16V 100 C943 0.1 C951 220 R951 2.2k R952 22k R954 0.047 C952 3 1 2 TA76L431S(TPE6,Q) IC951 3.9k R953 470 R955 1k R956 TP901 TP902 TP903 TP904 TP911 TP907 TP908 TP910 TP914 TP918 TP912 TP913 1k R967 1k R966 2kV C953 0.001 STO2D-140 D921 16V 470 C945 10V 100 C947 0 R971 10uH L947 10uH L948 S RSR025N03TL Q945 47k R957 1k R958 16V 100 C976 EK19LF-F7 D944 0.1 C954 1k R968 16V 1000 C946 3.3k R974 TP909 TP915 TP916 TP917 VDR901 R901 1M 275V 0.22 C901 F901 1 3 3P T6.3AH/250V CN901 LIVE NUTRAL C903 R912 R914 CL001 CL002 CL003 JW928 10 C905 1 4 3 2 10mH 470P 250V 470P 250V LF901 1 3 10 11 2 9 12 13 14 5 8 4 6 T901 NC NC NC E EB902 E EB904 E EB903 1 2 3 4 5 6 7 8 9 10 11 12 CN906 12P P.CONT1 P.CONT2 P.CONT3 E+4V D+3.3V 6V D-GND D+5V M+8V M-GND 12V A-GND 17.5 JW905 17.5 100K 0.0033 400V 100K JW916 7.5 JW915 10 JW914 17.5 JW917 12.5 JW918 5.5 JW919 17.5 JW912 10 JW913 12.5 22 50V JW911 12.5 JW910 17.5 JW987 TP919 FH901 FH902 1 2 3 CN907 P-CON2 D-GND or P-GND 6V C981 0.1 10uH L943 UDZW-TE17-10B D926 UDZW-TE17-10B D923 UDZW-TE17-5.1B D925 UDZW-TE17-24B D924 UDZW-TE17-10B D915 UDZW-TE17-5.1B D932 UDZW-TE17-20B D945 17.5 JW983 17.5 JW984 17.5 JW985 12.5 JW988 17.5 JW986 L944 R927 1 1W 0.01 C936 0.01 C971 0.01 C970 0.01 C955 0.01 C969 0.01 C958 0.01 C968 0.01 C960 1 2 3 4 5 SI-3010KM-TL IC943 Vcont Vin GND Vout Sense 1 2 3 4 5 SI-3010KM-TL IC942 ENABLE INPUT GND OUTPUT SENSE 1 2 3 4 5 SI-3010KM-TL IC941 Vcont Vin GND Vout Sense 22k R946 10k R945 10k R942 10V 100 C949 C938 1.5k R960 1 2 3 4 CN904 4P 3P P-GND P-GND +31.5V +31.5V R979 0 25 JW979 33k R943 6.8k R962 50V C935 0.01 C964 C963 100k R941 10k R972 TP921 1 4 3 2 10mH LF902 IC931 IC941 IC942 IC943 IC951 IC901 IC921 470P 0.001 STR-F6168 -LF1352 PC902 PC903 PC901 (CHASSIS) (CHASSIS) (CHASSIS) (CHASSIS) E EB905 POWER BOARD VOLTAGE DETECT MOTOR DRIVE CONTROLLER PHOTO COUPLER +3.3V REG +5V REG +12V REG VOLTAGE DETECT PHOTO COUPLER PHOTO COUPLER VOLTAGE CONTROLLER POWER PROTECTION POWER PROTECTION REG POWER TRANSFORMER (SUB) POWER TRANSFORMER (MAIN) VOLTAGE DETECT VOLTAGE DETECT AC IN 18 19 20 • See page 58 for IC Block Diagram. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 56 HCD-DZ530/DZ630 HCD-DZ530/DZ630 • IC Block Diagrams – MAIN Board – 39 HPOUTR2 41 HPOUTR1 43 43 HPOUTL2 45 HPOUTL1 44 HPVSSL 40 HPVSSR 46 HPVDDL 42 HPVDDR 47 XVDD 4 OUTR2- 5 VDDR 7 VSSR 8 VSSL 1 XVSS 2 XSUBC 3 VSSR 6 OUTR1+ 9 10 OUTL2- VDDL 12 VSSL 11 OUTL1+ 48 14 XFSOOUT XFSOIN 37 FSOCKO 38 FSOI 28 MCKSEL 26 SFLAG 36 XFSIIN 35 DVDD 24 25 31 OVF FLAG L DATA 30 BCK 29 LRCK 34 TEST 33 BFVSS 32 BFVDD 27 INIT 18 NSPMUTE 17 DXSS 16 DVDD 15 XDVDD 19 SOFTMUTE 20 PGMUTE 21 SCDT 22 SCSHIFT 23 SSCLATCH OVF FLAG R S P DF1 DF2 Simpling Rate Converter Filter1 & LOW CUT Filter Gain Control Liner Interpolator PWM Clock Generator Clock Generator (Tow dementional System) (Primary System) INT/MUTE Serial Control IC3010, IC3020, IC3030 CXD9843AR OUT1 IN1- FI N (GND) FI N (GND) IN2 + IN2- OUT2 RES1 REGCTL IN3+ IN3 - OUT3 IN4+ FI N (GND) IN4- OUT4 CTL F WD REV MUTE 123 MU TE 4 TSD_M PVCC2 DO5- DO5+ PG ND2 DO4- DO4+ DO3- DO3+ REGO2 REGO1 PGND1 DO2- DO2+ DO1- FI N (GND) DO1+ PVCC1 REGVCC OPOUT2 OPIN2- OPIN2+ VREF SVCC OPOUT1 OPIN1- OPIN1+ IN1+ SGND D D REGVCC RES2 REGVCC REGVCC REGVCC PS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 MUTE123 MUTE4 PS TSD_M S W M S C + - TSD REGVCC SELECT 116 ST 117 A 1 2 3 A B Y 5 Y B GND 4 VCC 8 Y EN G Y IC3003 TC7WH157FK (TE85R) IC1201 FAN8036L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 HCD-DZ530/DZ630 – MAIN Board – IC772 PCM1808PWR Reference DeltaúSigma Modulator ×1/64 Decimation Filter with HighúPass Filter Power Supply Clock and Control Timing Antialias LPF DeltaúSigma Modulator Serial Interface Mode/ Format Control Antialias LPF BCK VINL VREF VINR AGND VCC 1 VDD DGND LRCK DOUT SCKI FMT MD1 MD0 2 3 4 5 6 7 8 9 10 13 14 11 12 – IO-SCART Board – IC303, IC304 MC14052BDR2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 HCD-DZ530/DZ630 IC901 STR-F6138-LF1352 OCP/INH 1 S/GND 2 Drain 3 Vcc 4 FB/OLP 5 + – + – + – + – + – Delay OVP TSD Delay Reg2 Reg1 Reg3 Current mirror POWER MOS FET Latch OSC Boottom Skip Logic OCP2 Logic Internal Bias OCP1 Vocp Rg3 Rg2 Rg1 OCP2 + – UVL0 ON=16V OFF=10.5V INH1 INH2 FB Vth1 + – IOLP Volp Vth2 Vocp(BSIN,OUT) – POWER Board – – IO-SCART Board – IC201, IC230 BH7868FS-E2 30 1 2 3 29 28 CV OUT VCC1 6 CV IN 5 MUTE1 7 SEL (CV/MIX) 13 PB/B IN 15 PR/R IN 14 MUTE2 16 VCC2 11 PY/G IN 12 GND 8 Y IN 10 SEL (BIAS/CLAMP) 4 C IN S1 S2 CV OUT SAG GND BIAS 6dB 75Ω 32 C OUT 75Ω 31 S-DC OUT 6MHz LPF 27 26 Y OUT Y OUT SAG 75Ω 6MHz LPF 6MHz LPF S-DC OUT S1/S2 + 25 GND 24 23 PY/G OUT PY/G OUT SAG 75Ω 12MHz LPF 22 GND 21 20 PB/B OUT PB/B OUT SAG 75Ω 12MHz LPF 19 GND 18 17 PR/R OUT PR/R OUT SAG 75Ω 12MHz LPF CLAMP 6dB CLAMP 6dB 6dB 9 BIAS BIAS BIAS 6dB BIAS 6dB CLAMP BIAS MUTE1 MUTE2 H L L H www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 HCD-DZ530/DZ630 1 2 3 4 5 4-bit latch 24-bit output latch 12-bit shift register Data selector 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 Serial interface OSC Timing generator key scan Display memory 24 bits x 12 words Key data memory (2 x 16 bits) Command decoder segment driver Grid driver Multiplexed driver 39 40 41 42 43 44 LED1 LED2 LED3 LED4 OSC DOUT DIN CLK STB KEY1 KEY2 VSS VDD SEG1/KS1 SEG2/KS2 SEG3/KS3 SEG4/KS4 SEG5/KS5 SEG6/KS6 SEG7/KS7 SEG8/KS8 SEG9/KS9 SEG10/KS10 SEG20/GRID9 SEG21/GRID8 SEG22/GRID7 SEG23/GRID6 SEG24/GRID5 GRID4 GRID3 GRID2 GRID1 VDD VSS SEG11/KS11 SEG12/KS12 SEG13/KS13 SEG14/KS14 SEG15/KS15 SEG16/KS16 VEE SEG17/GRID12 SEG18/GRID11 SEG19/GRID10 IC802 uPD16315GB-3BS – FL Board – IC201 SI-3010KM-TL – DMPORT Board – TSD REF 4 Vo 3 GND 2 Vi 1 VE 5 ADJ + – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 HCD-DZ530/DZ630 • IC Pin Function Description MAIN BOARD IC1101 CXD9889R (CD/DVD RF AMP, FOCUS/TRACKING ERR AMP, DVD SYSTEM PROCESSOR, DIGTAL SERVO PROCESSOR) Pin No. Pin Name I/O Description 1 AGND — Ground terminal 2 DVDA I AC coupled input path A 3 DVDB I AC coupled input path B 4 DVDC I AC coupled input path C 5 DVDD I AC coupled input path D 6 DVDRFIP I AC coupled DVD RF signal input RFIP 7 DVDRFIN I AC coupled DVD RF signal input RFIN (not used (Open)) 8 NA I DC coupled main-beam RF signal input A 9 NB I DC coupled main-beam RF signal input B 10 MC I DC coupled main-beam RF signal input C 11 MD I DC coupled main-beam RF signal input D 12 SA I DC coupled sub-beam RF signal input A (not used (Open)) 13 SB I DC coupled sub-beam RF signal input B (not used (Open)) 14 SC I DC coupled sub-beam RF signal input C (not used (Open)) 15 SD I DC coupled sub-beam RF signal input D (not used (Open)) 16 SDFON I CD focusing error negative input (not used (Open)) 17 SDFOP I CD focusing error positive input (not used (Open)) 18 TNI I 3 beam satellite PD signal negative input 19 TPI I 3 beam satellite PD signal positive input 20 MDI1 I Laser power monitor input 21 MDI2 I Laser power monitor input 22 LDO2 O Laser driver output 23 LDO1 O Laser driver output 24 SVDD3 — Power supply (RF+3.3V) 25 CSO O Central servo (not used (Open)) 26 RFLVL O RFRP low pass output for jig 27 SGND — Ground terminal 28 V2REFO O Reference voltage 2.8V 29 V20 O Reference voltage 2.0V 30 VREFO O Reference voltage 1.4V 31 FEO O Focus error monitor output for jig 32 TEO O Tracking error monitor output for jig 33 TEZISLV O TE Slicing Level 34 OP_OUT O Op amp output (not used (Open)) 35 OP_INN I Op amp negative input (not used (Open)) 36 OP_INP I Op amp positive input (not used (Open)) 37 DMO O Disc motor control output. PWM output 38 FMO O Feed motor control. PWM output 39 TROPENPWM O Tray PWM output/Tray open output 40 IOPMON I Iop Monitor 41 TRO O Tracking servo output 42 FOO O Focus servo output 43 VPLLVSS — Ground terminal 44 VPLLCAP — PLL External Capacitor 45 VPLLVDD3 — Power supply (+3.3V from IC1105) 46 USB_VSS — Ground terminal 47 RESERVED — USB port DPLUS pin for HS DL (not used (Open)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 HCD-DZ530/DZ630 Pin No. Pin Name I/O Description 48 RESERVED — USB port DMINUS pin for HS DL (not used (Open)) 49 USB_VDD3 — Power supply (SW+3.3V) 50 SPFG I Spindle FG input 51 MSW O DVD/CD switch (H:DVD / L:CD) 52 CKSW I CKSW input 53 OCSW I OCSW input 54 EEWP O EEPROM Write Protect control (L:Write allowed) 55 DVDD18 — Power supply (+1.8V from IC1110) 56 to 64 HA2 to 8, 18, 19 O Host address bus 2 to 8, 18, 19 output to Flash ROM (IC1102) 65 DVDD3 — Power supply (SW+3.3V) 66 XWR O Write enable output to Flash ROM (IC1102) (active Low) 67 to 75 HA16 to 9, 20 O Host address bus 15 to 9, 20 output to Flash ROM (IC1102) 76 XROMCS O Chip select output to Flash ROM (IC1102) (active Low) 77 HA1 O Host address bus 1 output to Flash ROM (IC1102) 78 XRD O Read enable output to Flash ROM (IC1102) (active Low) 79, 80 HD0,1 I/O Host data bus 0,1 input/output for Flash ROM (IC1102) 81 DVSS — Ground terminal 82 to 86 HD2 to 6 I/O Host data bus 2 to 6 input/output for Flash ROM (IC1102) 87 HA21 O Host address bus 21 output to Flash ROM (IC1102) 88 RESERVED — Not used (Open) 89 HD7 I/O Host data bus 7 input/output for Flash ROM (IC1102) 90 DVSS — Ground terminal 91, 92 HA17, 0 O Host address bus 17, 0 output to Flash ROM (IC1102) 93 DVDD18 — Power supply (+1.8V from IC1110) 94 RESERVED — Not used (Open) 95 RESERVED — Not used (Open) 96 DVDD3 — Power supply (SW+3.3V) 97 IFSDO O Ext. CPU Serial data output (H/W method) 98 IFCK O Ext. CPU Serial clock (H/W method) 99 xIFCS O Chip select for Ext.CPU (Low Active, H/W method) 100 IFSDI I Ext. CPU Serial data input (H/W method) 101 SCL O IIC clock output to E2PROM and HDMI controller 102 SDA I/O IIC data input/output for E2PROM and HDMI controller 103 HDMI_SCL O HDMI DDC line SCL 104 HDMI_SDA I/O HDMI DDC line SDA 105 RXD I RS232C RXD signal input from Jig 106 TXD O RS232C TXD signal output to Jig 107 ICE O ICE mode enable (not used (Open)) 108 xSYSRST I Reset input from system controller (IC501) (active Low) 109 RESERVED I IR control signal input (not used (Open)) 110 xTXINT I Interrupt signal from HDMI controller (not used (Fixed “H” (SW+3.3V))) 111 DQM0 O Lower byte mask output to SDRAM (IC1104) (H:Mask / L:Enable) 112 IFBSY I Ready/Busy interrupt signal input from system controller (IC501) (H:Busy / L:Ready) 113 to 117 RD7 to 3 I/O Data bus 7 to 3 input/output for SDRAM (IC1104) 118 DVDD3 — Power supply (SW+3.3V) 119 to 129 RD2 to 0, 15 to 8 I/O Data bus 2 to 0, 15 to 8 input/output for SDRAM (IC1104) 130 LIMITSW I LIMITSW signal input 131 DVDD3 — Power supply (SW+3.3V) 132 DQM1 O Upper byte mask output to SDRAM (IC1104) (H:Mask / L:Enable) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 HCD-DZ530/DZ630 Pin No. Pin Name I/O Description 133 RWE# O Write enable output to SDRAM (IC1104) 134 CAS# O Column address strobe output to SDRAM (IC1104) 135 RAS# O Row address strobe output to SDRAM (IC1104) 136 RCS# O Chip select output to SDRAM (IC1104) 137, 138 BA0, 1 O Bank address 0, 1 output to SDRAM (IC1104) 139 to 141 RA10, 0, 1 O Address bus 10, 0, 1 output to SDRAM (IC1104) 142 DVDD18 — Power supply (+1.8V from IC1110) 143, 144 RA2, 3 O Address bus 2, 3 output to SDRAM (IC1104) 145 DVDD3 — Power supply (SW+3.3V) 146 DRCLK O Clock output to SDRAM (IC1104) 147 CKE O Clock enable output to SDRAM (IC1104) 148 DVSS — Ground terminal 149 to 155 RA11, 9 to 4 O Address bus 11,9 to 4 output to SDRAM (IC1104) 156 DVDD3 — Power supply (SW+3.3V) 157 to 159 SMPTE_Y[7] to [5] O Video data output bit7 to 5 160 DVDD18 — Power supply (+1.8V from IC1110) 161 to 165 SMPTE_Y[4] to [0] O Video data output bit4 to 0 166 VCLK O 27MHz synchronous clock output for Video data 167 MIC I Karaoke microphone detect signal (H:MIC exist / L:MIC removed) (Fixed to Ground) 168 TSD_M I TSD signal input 169 MUTE O Mute output for Spindle motor 170 DVDD3 — Power supply (SW+3.3V) 171 MUTE123 O Mute output for Focus/Tracking/Sleding 172, 173 REV, FWD O Direction control signal output for Loading motor 174 DVDD18 — Power supply (+1.8V from IC1110) 175 RGB_SEL O RGB/YCbCr select output signal (H:RGB disable / L:RGB enable) 176 Fixed_low O Reserved (not used (Open)) 177 WIDE O WIDE select output for Multi connector (H:16:9 / L:4:3) 178 DVSS — Ground terminal 179 VBUS_OE O VBUS_control OE (H:ON / L:OFF) (not used (Open)) 180 xMAMUTE O Main Audio Mute signal (H:Un Mute / L:Mute) (not used (Open)) 181 VBUS_OC I VBUS_control OC (H: Non_OVER / L:OVER) (Fixed to “H” (SW+3.3V)) 182 R/Cr/Pr O Red or CR signal output 183 B/Cb/Pb O Blue or CB signal output 184 DACVSSA — Ground terminal 185 Y/G O Green or Y signal output 186 DACVDDA — Power supply (+3.3V from IC1105) 187 CVBS O Composite video signal output 188 DACVSSB — Ground terminal 189 C O Chroma signal output for S-Video 190 DACVDDB — Power supply (+3.3V from IC1105) 191 Y O Y signal output for S-Video 192 DACVSSC — Ground terminal 193 CIN O Compensation Capacitor (not used (Open)) 194 FS I Full Scale Adjustment 195 VREF I Bandgap Ref Voltage 196 DACVDDC — Power supply (+3.3V from IC1105) 197 ASDATA0 O Audio serial data 4: Down-mixed L/R 198 TRG_SW I Slot-in MECHA Triger SW detect (not used (Fixed to “H” (SW+3.3V))) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 HCD-DZ530/DZ630 Pin No. Pin Name I/O Description 199 SCORE I Calculation of SCORE (not used (Fixed to Ground)) 200 XVOICE I Detection of MIC signal (H:Voice exist / L:Voice is absence) (not used (Fixed to Ground)) 201 Fixed_Low — Not used (Open) 202 ASDATA1 O Audio serial data 1: SL/SR 203 ASDATA2 O Audio serial data 2: C/SW 204 Fixed_Low — Not used (Open) 205 Fixed_Low — Not used (Open) 206 Fixed_Low — Not used (Open) 207 Fixed_Low — Not used (Open) 208 DVDD3 — Power supply (SW+3.3V) 209 ALRCK O Audio left/right channel clock output 210 ABCK O Audio bit clock output 211 ACLK O Master clock output for Audio DAC 212 ADIN I Ex. Analog Audio data input 213 DVDD18 — Power supply (+1.8V from IC1110) 214 ASDATA4 O Audio serial data 0: FL/FR 215 MC_DATA I Mic signal Input (not used (Fixed to Ground)) 216 SPDIF O SPDIF output 217 APLLVDD3 — Power supply (+3.3V from IC1105) 218 APLLCAP I APLL External Capacitance connection 219 APLLVSS — Ground terminal 220 ADACVSS2 — Ground terminal 221 ADACVSS1 — Ground terminal 222 KMOD O Karaoke mode status output (H:Karaoke / L:Normal) (not used (Open)) 223 PWON O Power down control signal to HDMI controller 224 Rch O Audio DAC Right channel output (not used (Open)) 225 AVCM — Audio DAC Reference Voltage 226 Lch O Audio DAC Left channel output (not used (Open)) 227 DSEL O Interlace/Progressive select output signal (H:480i / L:480p) (not used (Open)) 228 xRST O Reset output signal for ADAC (Low Active) (not used (Open)) 229 ADACVDD1 — Power supply (+3.3V from IC1105) 230 ADACVDD2 — Power supply (+3.3V from IC1105) 231 RFGND18 — Ground terminal 232 RFVDD18 — Power supply (+1.8V from IC1110) 233 XTALO O 27MHz crystal output (not used (Open)) 234 XTALI I 27MHz crystal input 235 JITFO O The output terminal of RF jitter meter 236 JITFN I The input terminal of RF jitter meter 237 PLLVSS — Ground terminal 238 IDACEXLP I RF Data PLL DAC LPF 239 PLLVDD3 — Power supply (RF+3.3V) 240 LPFON O The negative output of loop filter amplifier 241 LPFIP I The positive input terminal of loop filter amplifier 242 LPFIN I The negative input terminal of loop filter amplifier 243 LPFOP O The positive output of loop filter amplifier 244 ADCVDD3 — Power supply (RF+3.3V) 245 ADCVSS — Ground terminal 246 RFVDD3 — Power supply (RF+3.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 HCD-DZ530/DZ630 Pin No. Pin Name I/O Description 247 RFRPDC O RF ripple detect output 248 RFRPAC I RF ripple detect input (through AC-coupling) 249 HRFZC I High frequency RF ripple zero crossing 250 CRTPLP O Defect level filter capacitor connecting 251 RFGND18 — Ground terminal 252 OSP O RF offset cancellation capacitor connecting 253 OSN O RF offset cancellation capacitor connecting 254 RFGC O RF AGC loop capacitor connecting for DVD-ROM 255 IREF I Current reference input 256 AVDD3 — Power supply (RF+3.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-DZ530/DZ630 MAIN BOARD IC501 M30622MEP-B02FPU0 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 DAMP_SCDT/ O DAMP processor data output DIAT_SDATA/DIR_DIN 2 DAMP_SHIFT/ O DAMP processor clock output DIAT_SCLK/DIR_CLK 3 CEC_RX_IN I CEC data input 4 SIRCS_IN I Sircs input 5 NO USE O Not used (Open) 6 NO USE O Not used (Open) 7 NO USE O Not used (Open) 8 BYTE I External data bus (Ground terminal) 9 CNVSS I Change processor mode (Pull down) 10, 11 EN_A, EN_B I Volume control for ENCODER (Pull up) 12 RESET I System reset signal input 13 XOUT O Crystal output for main clock (5MHz) 14 VSS — Ground terminal 15 XIN I Crystal input for main clock (5MHz) 16 VCC — Power supply (BUP+3.3V) 17 NMI I Not used (Fixed to “H” (+3.3V)) 18 NO USE O Not used (Open) 19 A.CAL_OUT_LEVEL O Out level detect for auto calibration 20 AC_CUT I Detect AC-CUT 21 FL_CLK/LED_CLK O FL and LED driver clock output 22 CEC_TX_OUT O CEC data output 23 NO USE I Not used (Fixed to “L”) 24 FL_D_OUT/LED_DATA O FL and LED driver data output 25 NO USE — Not used (Open) 26 MIC_GAIN O MIC gain control 27 CDM_OPEN_SW I CDM open switch input 28 DC_CONT O A.CAL MIC DC control output 29 CLINK_RX_IN I C-Link data input 30 CLINK_TX_OUT O C-Link data output 31 DVD_SID O Media Tek data out / Flash write TXD1 32 DVD_SOD I Media Tek data in / Flash write RXD1 33 DVD_SCO I Media Tek clock in / Flash write CLK1 34 DVD_XIFBUSY O Media Tek busy request / Flash write RTS1 35 NO USE O Not used (Open) 36 NO USE O Not used (Open) 37 DVD XIFCS I Media Tek chip select 38 MTK RST O Media Tek reset 39 P_CONT1 O Control for power supply 1 40 P_CONT2 O Control for power supply 2 41 P_CONT3 O Control for power supply 3 42 DRIVE_RST(EN) O DAMP driver reset 43 DRIVE_OCP(DIAG) I DAMP driver shut down 44 OVERFLOW1 I DAMP processor F/C/S over flow detect 45 OVERFLOW2 I DAMP processor SW over flow detect 46 WRITE CE I Flash write CE (not used (Fixed to “H” (+3.3V))) 47 DAMP LATCH1 O DAMP processor latch1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 HCD-DZ530/DZ630 Pin No. Pin Name I/O Description 48 DAMP LATCH2 O DAMP processor latch2 49 DAMP LATCH3 O DAMP processor latch3 50 DAMP INIT O DAMP processor reset 51 DAMP SOFT MUTE O DAMP processor soft muting 52 HP_SW I Headphone detect 53 HP_MUTE O Headphone muting 54 NO USE O Not used (Open) 55 NO USE O Not used (Open) 56 FL_STB O FL driver chip select output 57 DC_DET O Speaker DC detect output 58 NO USE O Not used (Open) 59 NO USE O Not used (Open) 60 NO USE O Not used (Open) 61 NO USE O Not used (Open) 62 VCC — Power supply (BUP+3.3V) 63 MIC/A.CAL_SW I MIC insert switch 64 VSS — Ground terminal 65 NO USE O Not used (Open) 66 NO USE O Not used (Open) 67 NO USE O Not used (Open) 68 TUNED I TUNER tuned input 69 ST_CLK O TUNER clock output 70 ST_DO I TUNER data input 71 ST_CE O TUNER chip enable 72 ST_DI O TUNER data output 73 NO USE O Not used (Open) 74 KEY INT I Wakeup from ECO mode by key input 75 RDS_CLK I RDS clock input 76 RDS-DATA I RDS data input 77 NO USE I Not used (Fixed to “H” (E3.3V)) 78 TV SEL O TV control output 79 M_ST O LINK (Multi STEREO) control output 80 NO USE O Not used (Open) 81 ASEL3 O Audio selector 3 82 V_SEL0 O Video selector 0 83 V_SEL1 O Video selector 1 84 ASEL0 O Audio selector 0 85 ASEL1 O Audio selector 1 86 ASEL2 O Audio selector 2 87 NO USE O Not used 88 NO USE O Not used (Open) 89 CLINK_DET I C-Link detect input 90 MONO/ST_DET I Front jack MONO or STEREO detect 91 A.CAL MIC LEVEL I MIC level detect for auto calibration 92 DESTINATION I Destination select input 93 MODEL I Model select input 94 KEY2 I Key input 2 input 95 KEY1 I Key input 1 input 96 VSS — Ground terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 HCD-DZ530/DZ630 Pin No. Pin Name I/O Description 97 KEY0 I Key input 0 input 98 VREF — Reference voltage (E3.3V) 99 VCC — Power supply (BUP+3.3V) 100 NO USE O Not used (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 HCD-DZ530/DZ630 SECTION 7 EXPLODED VIEWS NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-1. OVERALL SECTION 1 2-889-987-11 PANEL, LOADING 2 3-077-331-21 +BV3 (3-CR) 3 4-232-478-31 FOOT 4 A-1242-743-A IO-SCART BOARD, COMPLETE 5 1-828-307-51 WIRE (FLAT TYPE) (9 CORE) 6 A-1218-025-A DMPORT BOARD, COMPLETE 7 1-828-961-51 WIRE (FLAT TYPE) (11 CORE) 8 1-693-724-11 TUNER (FM/AM) 9 3-363-099-22 SCREW (CASE3 TP2) 10 2-889-996-31 CASE (DS) 11 3-087-053-11 +BVTP 2.6 (3CR) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-862-09 SCREW +BVTT 2.6X6 (S) Note: If the wire (flat type) was replaced, fold it some as the wire (flat type) before replacement. The components identified by mark 9 contain confidential information. Strictly follow the instructions whenever the components are repaired and/or replaced. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • The mechanical parts with no reference number in the exploded views are not supplied. b f f e e b c a c a front panel section chassis section 2 1 3 3 2 2 5 7 8 9 9 10 6 2 2 11 4 not supplied not supplied not supplied #2 #1 #1 #1 #1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 2-889-990-01 KNOB (VOL) 52 2-889-985-61 WINDOW, INDICATION (HM) (DZ630) 52 2-889-985-81 WINDOW, INDICATION (HM) (DZ530) 53 2-898-988-01 SHEET (DS WINDOW), ADHESIVE 54 2-889-984-31 PANEL, FRONT 55 2-889-992-01 FILTER, COLOR 56 2-889-989-01 BUTTON (BASE) 57 3-087-053-11 +BVTP 2.6 (3CR) 58 A-1218-017-A JACK BOARD, COMPLETE 59 1-828-325-51 WIRE (FLAT TYPE) (13 CORE) 60 A-1218-015-A FL BOARD, COMPLETE 61 1-828-374-51 WIRE (FLAT TYPE) (21 CORE) 62 3-531-576-01 RIVET 63 2-889-986-01 ORNAMENT 64 2-889-988-01 BUTTON (CAP) 7-2. FRONT PANEL SECTION Note: If the wire (flat type) was replaced, fold it some as the wire (flat type) before replacement. 57 57 60 58 52 53 51 not supplied including S800 not supplied 57 57 59 61 not supplied 62 56 55 57 54 not supplied 63 64 not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 3-077-331-21 +BV3 (3-CR) 102 1-828-292-51 WIRE (FLAT TYPE) (5 CORE) 103 1-828-369-51 WIRE (FLAT TYPE) (21 CORE) 104 1-828-327-51 WIRE (FLAT TYPE) (13 CORE) 105 3-077-331-11 +BV3 (3-CR) 106 3-100-158-11 SHEET, RADIATION 107 3-100-158-21 SHEET, RADIATION 9 108 A-1242-745-A MAIN BOARD COMPLETE (DZ630) 9 108 A-1247-772-A MAIN BOARD COMPLETE (DZ530) 109 1-787-331-11 FAN, D.C. 0110 1-751-520-31 CORD, POWER (UK) 0110 1-830-188-11 CORD, POWER (AEP) 0111 3-703-244-00 BUSHING (2104), CORD 112 2-677-839-01 +PWH 3X8 (SUMITITE) 113 A-1218-005-A POWER BOARD, COMPLETE 0F901 1-576-233-51 FUSE (H.B.C.) (T6.3AH/250V) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #3 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3 #4 7-682-547-04 SCREW +B 3X6 #5 7-685-881-09 SCREW +BVTT 4X8 (S) 7-3. CHASSIS SECTION Note: If the wire (flat type) was replaced, fold it some as the wire (flat type) before replacement. not supplied F901 not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied 101 102 101 101 101 101 101 106 108 104 DVD mechanism deck section (CDM85-DVBU102) 107 101 112 111 109 102 105 103 #1 #3 #4 #5 #1 #1 #1 110 113 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 HCD-DZ530/DZ630 7-4. DVD MECHANISM DECK SECTION (CDM85-DVBU102) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Note: If the wire (flat type) was replaced, fold it some as the wire (flat type) before replacement. not supplied not supplied not supplied not supplied not supplied not supplied not supplied 501 504 502 503 not supplied 505 505 505 505 506 507 508 506 506 506 not supplied 501 A-6071-669-A LOADING ASSY (M) 502 3-088-371-01 BELT 503 4-974-725-11 SCREW (M1.7X2.5), P 504 4-674-137-11 SCREW (PTP 2X5) 505 2-634-618-01 INSULATOR 506 3-087-599-01 INSULATOR SCREW 0507 8-820-321-05 OPTICAL PICK UP ASSY (KHM-313CAA/C2RP) 508 1-828-773-51 WIRE (FLAT TYPE) (24 CORE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 HCD-DZ530/DZ630 SECTION 8 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS uF: μF • COILS uH: μH • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • SEMICONDUCTORS In each case, u: μ, for example: uA. . : μA. ., uPA. . : μPA. ., uPB. . : μPB. ., uPC. . : μPC. ., uPD. . : μPD. . Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark When indicating parts by reference number, please include the board name. A-1218-025-A DMPORT BOARD, COMPLETE ************************ < CAPACITOR > C210 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C211 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C212 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C213 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C214 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C220 1-128-995-21 ELECT CHIP 100uF 20% 10V C221 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C222 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C223 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C229 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C230 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C231 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C232 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C233 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C234 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C235 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C236 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C237 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C238 1-126-395-11 ELECT CHIP 22uF 20% 16V C239 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C240 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C241 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > CN201 1-784-861-51 CONNECTOR, FFC (LIF (NON-ZIF)) 9P CN203 1-774-730-21 PIN, CONNECTOR (PC BOARD) 3P CN204 1-817-615-21 CONNECTOR BOARD TO BOARD 18P < IC > IC201 6-705-308-01 IC SI-3010KM-TL IC202 8-759-710-97 IC NJM4565M-D < COIL > L200 1-469-525-91 INDUCTOR 10uH < RESISTOR > R203 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R208 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R214 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R215 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R220 1-216-821-11 METAL CHIP 1K 5% 1/10W R221 1-216-821-11 METAL CHIP 1K 5% 1/10W R222 1-216-840-11 METAL CHIP 39K 5% 1/10W R223 1-216-833-11 METAL CHIP 10K 5% 1/10W R224 1-216-864-11 SHORT CHIP 0 R225 1-218-887-11 METAL CHIP 47K 0.5% 1/10W R227 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R228 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R229 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R230 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R231 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R232 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R237 1-216-864-11 SHORT CHIP 0 R238 1-216-864-11 SHORT CHIP 0 R239 1-216-864-11 SHORT CHIP 0 R240 1-216-809-11 METAL CHIP 100 5% 1/10W R241 1-216-809-11 METAL CHIP 100 5% 1/10W ************************************************************* A-1218-015-A FL BOARD, COMPLETE ****************** < CAPACITOR > C435 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C436 1-115-156-11 CERAMIC CHIP 1uF 10V C800 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C801 1-163-037-11 CERAMIC CHIP 0.022uF 10% 50V C802 1-126-947-11 ELECT 47uF 20% 35V C803 1-126-933-11 ELECT 100uF 20% 16V C804 1-162-974-11 CERAMIC CHIP 0.01uF 50V C805 1-164-360-11 CERAMIC CHIP 0.1uF 16V C809 1-126-157-11 ELECT 10uF 20% 16V C811 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C814 1-126-157-11 ELECT 10uF 20% 16V C829 1-124-259-11 ELECT 4.7uF 20% 50V < CONNECTOR > CN801 1-779-558-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P CN805 1-794-506-51 CONNECTOR, FFC/FPC 13P < DIODE > D431 6-501-193-01 DIODE 1SS355WTE-17 D432 6-501-193-01 DIODE 1SS355WTE-17 D801 6-501-193-01 DIODE 1SS355WTE-17 D802 6-501-193-01 DIODE 1SS355WTE-17 D803 6-501-169-01 DIODE UDZW-TE17-6.2B D804 6-501-193-01 DIODE 1SS355WTE-17 DMPORT FL The components identified by mark 9 contain confidential information. Strictly follow the instructions whenever the components are repaired and/or replaced. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D805 6-501-193-01 DIODE 1SS355WTE-17 < IC > IC801 6-600-349-21 IC NJL23H400A IC802 8-759-643-83 IC uPD16315GB-3BS < JUMPER RESISTOR > JR801 1-216-864-11 SHORT CHIP 0 JR802 1-216-864-11 SHORT CHIP 0 JR807 1-216-864-11 SHORT CHIP 0 JR808 1-216-864-11 SHORT CHIP 0 < COIL > L801 1-410-671-31 INDUCTOR 47uH L802 1-410-671-31 INDUCTOR 47uH < FLUORESCENT INDICATOR TUBE > ND001 1-451-590-11 VACUUM FLUORESCENT DISPLAYS < TRANSISTOR > Q801 6-550-065-01 TRANSISTOR CPH5504-TL-E < RESISTOR > R436 1-216-834-11 METAL CHIP 12K 5% 1/10W R437 1-216-835-11 METAL CHIP 15K 5% 1/10W R800 1-216-864-11 SHORT CHIP 0 R801 1-216-839-11 METAL CHIP 33K 5% 1/10W R802 1-216-809-11 METAL CHIP 100 5% 1/10W R804 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R805 1-216-295-91 SHORT CHIP 0 R811 1-216-844-11 METAL CHIP 82K 5% 1/10W R812 1-216-845-11 METAL CHIP 100K 5% 1/10W R813 1-216-845-11 METAL CHIP 100K 5% 1/10W R814 1-216-809-11 METAL CHIP 100 5% 1/10W R815 1-216-809-11 METAL CHIP 100 5% 1/10W R816 1-216-809-11 METAL CHIP 100 5% 1/10W R819 1-216-805-11 METAL CHIP 47 5% 1/10W R820 1-216-845-11 METAL CHIP 100K 5% 1/10W < TRANSFORMER > T801 1-443-645-11 TRANSFORMER, DC CONVERTER ************************************************************* A-1242-743-A IO-SCART BOARD, COMPLETE ************************ < CAPACITOR > C201 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C202 1-126-925-91 ELECT 470uF 20% 10V C203 1-126-933-11 ELECT 100uF 20% 16V C204 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C206 1-126-964-11 ELECT 10uF 20% 50V C208 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C209 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C210 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C211 1-126-964-11 ELECT 10uF 20% 50V C214 1-126-916-11 ELECT 1000uF 20% 6.3V C215 1-126-933-11 ELECT 100uF 20% 16V C216 1-126-933-11 ELECT 100uF 20% 16V C221 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C222 1-104-658-91 ELECT 100uF 20% 10V C224 1-126-964-11 ELECT 10uF 20% 50V C225 1-126-916-11 ELECT 1000uF 20% 6.3V C231 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C232 1-126-933-11 ELECT 100uF 20% 16V C233 1-126-933-11 ELECT 100uF 20% 16V C234 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C238 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C239 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C240 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C244 1-126-916-11 ELECT 1000uF 20% 6.3V C245 1-126-916-11 ELECT 1000uF 20% 6.3V C246 1-126-916-11 ELECT 1000uF 20% 6.3V C271 1-126-933-11 ELECT 100uF 20% 16V C295 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C296 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C304 1-126-947-11 ELECT 47uF 20% 35V C311 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C320 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C321 1-104-662-91 ELECT 22uF 20% 25V C324 1-104-662-91 ELECT 22uF 20% 25V C325 1-104-662-91 ELECT 22uF 20% 25V C326 1-104-662-91 ELECT 22uF 20% 25V C327 1-104-662-91 ELECT 22uF 20% 25V C328 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C330 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C340 1-104-662-91 ELECT 22uF 20% 25V C341 1-104-662-91 ELECT 22uF 20% 25V C342 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C343 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C345 1-104-662-91 ELECT 22uF 20% 25V C349 1-126-933-11 ELECT 100uF 20% 16V C350 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C353 1-126-933-11 ELECT 100uF 20% 16V C354 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C371 1-104-662-91 ELECT 22uF 20% 25V C372 1-104-662-91 ELECT 22uF 20% 25V C373 1-104-662-91 ELECT 22uF 20% 25V C374 1-104-662-91 ELECT 22uF 20% 25V C375 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C376 1-104-662-91 ELECT 22uF 20% 25V C377 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C383 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C384 1-126-933-11 ELECT 100uF 20% 16V C385 1-126-960-11 ELECT 1uF 20% 50V C386 1-126-960-11 ELECT 1uF 20% 50V C387 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C388 1-127-573-11 CERAMIC CHIP 1uF 10% 16V C389 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C390 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C391 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C392 1-126-933-11 ELECT 100uF 20% 16V C393 1-164-218-11 CERAMIC CHIP 180PF 5% 50V IO-SCART FL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < CONNECTOR > CN301 1-779-277-11 CONNECTOR, FFC (LIF (NON-ZIF)) 9P CN302 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P CN304 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P CN305 1-568-830-11 CONNECTOR, FFC 11P CN307 1-779-273-11 CONNECTOR, FFC (LIF (NON-ZIF)) 5P CN308 1-779-289-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P < DIODE > D271 6-501-193-01 DIODE 1SS355WTE-17 D272 6-501-193-01 DIODE 1SS355WTE-17 D280 6-501-193-01 DIODE 1SS355WTE-17 D281 6-501-193-01 DIODE 1SS355WTE-17 D309 8-719-058-24 DIODE RB501V-40TE-17 < IC > IC201 6-707-489-01 IC BH7868FS-E2 IC202 6-703-622-01 IC MM1508XNRE IC230 6-707-489-01 IC BH7868FS-E2 IC303 8-759-385-76 IC MC14052 BDR2 IC304 8-759-385-76 IC MC14052 BDR2 IC306 8-759-100-96 IC uPC4558G2 IC307 6-703-550-01 IC TA7809LS < JACK > J203 1-820-784-11 JACK, PIN 5P (LINE/COMPONENT VIDEO OUT) J230 1-816-044-11 CONNECTOR, SQUARE TYPE 21P (EURO AV/ T OUTPUT(TO TV)) < COIL > L201 1-469-525-91 INDUCTOR 10uH L221 1-469-525-91 INDUCTOR 10uH L231 1-469-525-91 INDUCTOR 10uH L304 1-469-525-91 INDUCTOR 10uH < TRANSISTOR > Q271 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q272 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q273 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q274 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q275 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q276 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q277 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q279 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q305 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q306 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q307 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q308 8-729-027-52 TRANSISTOR DTC124EKA-T146 < RESISTOR > R210 1-218-285-11 METAL CHIP 75 5% 1/10W R211 1-218-285-11 METAL CHIP 75 5% 1/10W R212 1-218-285-11 METAL CHIP 75 5% 1/10W R214 1-218-285-11 METAL CHIP 75 5% 1/10W R215 1-218-285-11 METAL CHIP 75 5% 1/10W R216 1-218-285-11 METAL CHIP 75 5% 1/10W R225 1-218-285-11 METAL CHIP 75 5% 1/10W R244 1-218-285-11 METAL CHIP 75 5% 1/10W R245 1-218-285-11 METAL CHIP 75 5% 1/10W R246 1-218-285-11 METAL CHIP 75 5% 1/10W R250 1-216-864-11 SHORT CHIP 0 R271 1-216-821-11 METAL CHIP 1K 5% 1/10W R272 1-216-841-11 METAL CHIP 47K 5% 1/10W R273 1-216-849-11 METAL CHIP 220K 5% 1/10W R274 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R275 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R276 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R277 1-216-821-11 METAL CHIP 1K 5% 1/10W R278 1-216-837-11 METAL CHIP 22K 5% 1/10W R279 1-216-815-11 METAL CHIP 330 5% 1/10W R280 1-216-815-11 METAL CHIP 330 5% 1/10W R281 1-216-815-11 METAL CHIP 330 5% 1/10W R282 1-216-815-11 METAL CHIP 330 5% 1/10W R284 1-216-833-11 METAL CHIP 10K 5% 1/10W R285 1-216-833-11 METAL CHIP 10K 5% 1/10W R286 1-216-821-11 METAL CHIP 1K 5% 1/10W R303 1-216-864-11 SHORT CHIP 0 R306 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R307 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R308 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R309 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R310 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R311 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R312 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R314 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R316 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R320 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R321 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R324 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R332 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R333 1-216-841-11 METAL CHIP 47K 5% 1/10W R334 1-216-841-11 METAL CHIP 47K 5% 1/10W R335 1-216-841-11 METAL CHIP 47K 5% 1/10W R336 1-216-841-11 METAL CHIP 47K 5% 1/10W R337 1-216-841-11 METAL CHIP 47K 5% 1/10W R338 1-216-841-11 METAL CHIP 47K 5% 1/10W R341 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R342 1-216-841-11 METAL CHIP 47K 5% 1/10W R343 1-216-841-11 METAL CHIP 47K 5% 1/10W R344 1-216-841-11 METAL CHIP 47K 5% 1/10W R345 1-216-841-11 METAL CHIP 47K 5% 1/10W R346 1-216-841-11 METAL CHIP 47K 5% 1/10W R347 1-216-841-11 METAL CHIP 47K 5% 1/10W R351 1-216-864-11 SHORT CHIP 0 R363 1-216-841-11 METAL CHIP 47K 5% 1/10W R364 1-216-841-11 METAL CHIP 47K 5% 1/10W R365 1-216-841-11 METAL CHIP 47K 5% 1/10W R366 1-216-841-11 METAL CHIP 47K 5% 1/10W R381 1-216-864-11 SHORT CHIP 0 R385 1-216-864-11 SHORT CHIP 0 R392 1-216-833-11 METAL CHIP 10K 5% 1/10W R393 1-216-833-11 METAL CHIP 10K 5% 1/10W R394 1-216-821-11 METAL CHIP 1K 5% 1/10W R395 1-216-821-11 METAL CHIP 1K 5% 1/10W R396 1-216-833-11 METAL CHIP 10K 5% 1/10W IO-SCART www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R397 1-216-833-11 METAL CHIP 10K 5% 1/10W R398 1-216-841-11 METAL CHIP 47K 5% 1/10W R399 1-216-841-11 METAL CHIP 47K 5% 1/10W R400 1-216-821-11 METAL CHIP 1K 5% 1/10W R401 1-216-821-11 METAL CHIP 1K 5% 1/10W R402 1-218-827-11 METAL CHIP 150 0.5% 1/10W R403 1-216-845-11 METAL CHIP 100K 5% 1/10W R404 1-216-845-11 METAL CHIP 100K 5% 1/10W R405 1-218-827-11 METAL CHIP 150 0.5% 1/10W R406 1-216-845-11 METAL CHIP 100K 5% 1/10W R407 1-216-845-11 METAL CHIP 100K 5% 1/10W R408 1-218-827-11 METAL CHIP 150 0.5% 1/10W R409 1-218-827-11 METAL CHIP 150 0.5% 1/10W R410 1-216-841-11 METAL CHIP 47K 5% 1/10W R411 1-216-841-11 METAL CHIP 47K 5% 1/10W R412 1-218-827-11 METAL CHIP 150 0.5% 1/10W R413 1-218-827-11 METAL CHIP 150 0.5% 1/10W R414 1-216-817-11 METAL CHIP 470 5% 1/10W R415 1-216-817-11 METAL CHIP 470 5% 1/10W R416 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R417 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R420 1-216-817-11 METAL CHIP 470 5% 1/10W R421 1-216-817-11 METAL CHIP 470 5% 1/10W ************************************************************* A-1218-017-A JACK BOARD, COMPLETE ********************* < CAPACITOR > C401 1-124-589-11 ELECT 47uF 20% 16V C403 1-124-584-00 ELECT 100uF 20% 10V C404 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C405 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C410 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C411 1-126-157-11 ELECT 10uF 20% 16V C412 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C413 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C420 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C421 1-126-157-11 ELECT 10uF 20% 16V C422 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C423 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C431 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C432 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C433 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C434 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C450 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C460 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C471 1-124-222-91 ELECT 22uF 20% 6.3V C491 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C493 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C849 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C850 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > CN806 1-779-550-21 CONNECTOR, FFC (LIF (NON-ZIF)) 13P < DIODE > D470 6-501-193-01 DIODE 1SS355WTE-17 D492 6-501-193-01 DIODE 1SS355WTE-17 D493 6-501-193-01 DIODE 1SS355WTE-17 D496 6-501-193-01 DIODE 1SS355WTE-17 D497 6-501-193-01 DIODE 1SS355WTE-17 < FERRITE BEAD > FB450 1-216-864-11 SHORT CHIP 0 FB460 1-216-864-11 SHORT CHIP 0 FB470 1-500-236-22 BEAD, FERRITE (CHIP) (1608) FB471 1-500-236-22 BEAD, FERRITE (CHIP) (1608) FB474 1-500-236-22 BEAD, FERRITE (CHIP) (1608) FB475 1-500-236-22 BEAD, FERRITE (CHIP) (1608) FB479 1-500-236-22 BEAD, FERRITE (CHIP) (1608) < IC > IC401 8-759-100-96 IC uPC4558G2 IC402 8-759-100-96 IC uPC4558G2 < JACK > J401 1-819-878-31 JACK (AUDIO IN/A.CAL MIC) J402 1-819-878-31 JACK (PHONES) < JUMPER RESISTOR > JR816 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q450 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q451 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q460 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q461 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q470 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q471 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q473 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q474 8-729-038-11 TRANSISTOR RT1P140C-TP-1 Q475 8-729-038-28 TRANSISTOR RT1N441C-TP-1 < RESISTOR > R401 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R402 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R403 1-216-821-11 METAL CHIP 1K 5% 1/10W R410 1-216-845-11 METAL CHIP 100K 5% 1/10W R411 1-216-817-11 METAL CHIP 470 5% 1/10W R412 1-216-837-11 METAL CHIP 22K 5% 1/10W R413 1-216-821-11 METAL CHIP 1K 5% 1/10W R414 1-216-835-11 METAL CHIP 15K 5% 1/10W R415 1-216-821-11 METAL CHIP 1K 5% 1/10W R416 1-216-801-11 METAL CHIP 22 5% 1/10W R420 1-216-845-11 METAL CHIP 100K 5% 1/10W R421 1-216-817-11 METAL CHIP 470 5% 1/10W R422 1-216-837-11 METAL CHIP 22K 5% 1/10W R423 1-216-821-11 METAL CHIP 1K 5% 1/10W R424 1-216-821-11 METAL CHIP 1K 5% 1/10W R431 1-216-864-11 SHORT CHIP 0 R432 1-216-837-11 METAL CHIP 22K 5% 1/10W R433 1-216-825-11 METAL CHIP 2.2K 5% 1/10W JACK IO-SCART www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R434 1-216-864-11 SHORT CHIP 0 R435 1-216-857-11 METAL CHIP 1M 5% 1/10W R444 1-216-864-11 SHORT CHIP 0 R445 1-216-864-11 SHORT CHIP 0 R450 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R451 1-216-801-11 METAL CHIP 22 5% 1/10W R452 1-216-805-11 METAL CHIP 47 5% 1/10W R453 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R454 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R460 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R461 1-216-801-11 METAL CHIP 22 5% 1/10W R462 1-216-805-11 METAL CHIP 47 5% 1/10W R463 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R464 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R470 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R471 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R472 1-216-819-11 METAL CHIP 680 5% 1/10W R478 1-216-809-11 METAL CHIP 100 5% 1/10W R480 1-216-805-11 METAL CHIP 47 5% 1/10W R481 1-216-845-11 METAL CHIP 100K 5% 1/10W R482 1-216-833-11 METAL CHIP 10K 5% 1/10W R490 1-216-864-11 SHORT CHIP 0 R491 1-216-864-11 SHORT CHIP 0 R492 1-216-864-11 SHORT CHIP 0 R851 1-216-864-11 SHORT CHIP 0 R852 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R853 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R854 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R855 1-216-821-11 METAL CHIP 1K 5% 1/10W R856 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R857 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R858 1-216-864-11 SHORT CHIP 0 < SWITCH > S800 1-418-725-51 ENCODER, ROTARY (12 TYPE) (VOLUME) S802 1-762-875-21 SWITCH, KEYBOARD (FUNCTION) S803 1-762-875-21 SWITCH, KEYBOARD (.) S804 1-762-875-21 SWITCH, KEYBOARD (X) S805 1-762-875-21 SWITCH, KEYBOARD (x) S806 1-762-875-21 SWITCH, KEYBOARD (>) S807 1-762-875-21 SWITCH, KEYBOARD (A) S808 1-762-875-21 SWITCH, KEYBOARD (H) ************************************************************* 9 A-1242-745-A MAIN BOARD, COMPLETE (DZ630) 9 A-1247-772-A MAIN BOARD, COMPLETE (DZ530) ********************* < CAPACITOR > C501 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C502 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C503 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C504 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C505 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C506 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C507 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C508 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C509 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C510 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C511 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C515 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C516 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C517 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C518 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C519 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C520 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C521 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C522 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C523 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C524 1-126-947-11 ELECT 47uF 20% 35V C525 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C526 1-104-658-91 ELECT 100uF 20% 10V C527 1-126-916-11 ELECT 1000uF 20% 6.3V C528 1-126-916-11 ELECT 1000uF 20% 6.3V C529 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C531 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C532 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C533 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C534 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C535 1-126-947-11 ELECT 47uF 20% 35V C536 1-126-947-11 ELECT 47uF 20% 35V C538 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C705 1-126-964-11 ELECT 10uF 20% 50V C706 1-126-964-11 ELECT 10uF 20% 50V C707 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C708 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C717 1-126-964-11 ELECT 10uF 20% 50V C718 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1102 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C1105 1-126-947-11 ELECT 47uF 20% 35V C1106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1110 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1112 1-128-994-21 ELECT CHIP 47uF 20% 10V C1113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1114 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1115 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1117 1-124-779-00 ELECT CHIP 10uF 20% 16V C1118 1-126-964-11 ELECT 10uF 20% 50V C1119 1-126-964-11 ELECT 10uF 20% 50V C1120 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1121 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1122 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1123 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1124 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1125 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1127 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1128 1-164-172-11 CERAMIC CHIP 0.0056uF 10% 25V C1130 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1131 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1135 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C1136 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V MAIN JACK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C1137 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1138 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1139 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C1140 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1144 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1145 1-124-779-00 ELECT CHIP 10uF 20% 16V C1146 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1147 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C1148 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C1149 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1150 1-124-779-00 ELECT CHIP 10uF 20% 16V C1151 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1152 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C1153 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C1154 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1155 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1156 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1157 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1158 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1163 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1164 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1169 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1170 1-124-779-00 ELECT CHIP 10uF 20% 16V C1171 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1172 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1173 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1174 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1175 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1176 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1177 1-126-947-11 ELECT 47uF 20% 35V C1179 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1180 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1181 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1182 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1183 1-128-934-91 CERAMIC CHIP 0.33uF 20% 10V C1184 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1186 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1187 1-126-947-11 ELECT 47uF 20% 35V C1190 1-104-658-91 ELECT 100uF 20% 10V C1191 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1192 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1193 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1195 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1197 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1198 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1199 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C1203 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1205 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C1206 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C1208 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1209 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C1210 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1211 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C1212 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1213 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1214 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1215 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1217 1-126-947-11 ELECT 47uF 20% 35V C1218 1-126-964-11 ELECT 10uF 20% 50V C1219 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1220 1-126-964-11 ELECT 10uF 20% 50V C1221 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1222 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1223 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1224 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1225 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1226 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1233 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C1602 1-128-994-21 ELECT CHIP 47uF 20% 10V C1603 1-128-994-21 ELECT CHIP 47uF 20% 10V C1701 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1702 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1703 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1704 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1706 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1707 1-126-965-91 ELECT 22uF 20% 50V C1709 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1710 1-126-964-11 ELECT 10uF 20% 50V C1711 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1712 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1713 1-164-172-11 CERAMIC CHIP 0.0056uF 10% 25V C1714 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1715 1-126-947-11 ELECT 47uF 20% 35V C1716 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1717 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1718 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1719 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1720 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1723 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1725 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1727 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1729 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1730 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1736 1-126-947-11 ELECT 47uF 20% 35V C2102 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2103 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2104 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2105 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2106 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2107 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2108 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2110 1-104-658-91 ELECT 100uF 20% 10V C2111 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C2114 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C2130 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3000 1-126-382-11 ELECT 100uF 20% 16V C3001 1-126-947-11 ELECT 47uF 20% 35V C3002 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C3003 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3004 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3008 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3011 1-126-947-11 ELECT 47uF 20% 35V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C3012 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3013 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3014 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3015 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3016 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3017 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3018 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3019 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3020 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3021 1-126-947-11 ELECT 47uF 20% 35V C3022 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3023 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3024 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3025 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3026 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3027 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3028 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3029 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3030 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3031 1-126-947-11 ELECT 47uF 20% 35V C3032 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3033 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3034 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3035 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3036 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3037 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3038 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3039 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3040 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3051 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C3052 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C3053 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3054 1-126-933-11 ELECT 100uF 20% 16V C3055 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3056 1-126-923-91 ELECT 220uF 20% 10V C3057 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3058 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C3059 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3060 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C3067 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3068 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3069 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3070 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3071 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3072 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3073 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3081 1-126-925-91 ELECT 470uF 20% 10V C3082 1-126-925-91 ELECT 470uF 20% 10V C3083 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3084 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3085 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3086 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3087 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3088 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3090 1-104-658-91 ELECT 100uF 20% 10V C3091 1-126-934-11 ELECT 220uF 20% 16V C3092 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3093 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3094 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3095 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3100 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3103 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3104 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3105 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3106 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3107 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3108 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3109 1-112-246-11 ELECT 100uF 20% 35V C3112 1-112-246-11 ELECT 100uF 20% 35V C3113 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3114 1-137-198-81 FILM 1uF 5% 50V C3115 1-137-198-81 FILM 1uF 5% 50V C3116 1-112-831-11 ELECT 2200uF 20% 35V C3117 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3122 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3123 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3124 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3125 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3126 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3127 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3128 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3129 1-117-370-11 CERAMIC CHIP 10uF 10V C3150 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3153 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3154 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3155 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3156 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3157 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3158 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3159 1-112-246-11 ELECT 100uF 20% 35V C3162 1-112-246-11 ELECT 100uF 20% 35V C3163 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3164 1-137-198-81 FILM 1uF 5% 50V C3165 1-137-198-81 FILM 1uF 5% 50V C3166 1-112-831-11 ELECT 2200uF 20% 35V C3167 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3172 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3173 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3200 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3203 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3204 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3205 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3206 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3207 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3208 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3209 1-112-246-11 ELECT 100uF 20% 35V C3212 1-112-246-11 ELECT 100uF 20% 35V C3213 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3214 1-137-198-81 FILM 1uF 5% 50V C3215 1-137-198-81 FILM 1uF 5% 50V C3216 1-112-831-11 ELECT 2200uF 20% 35V C3217 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3250 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3253 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3254 1-164-156-11 CERAMIC CHIP 0.1uF 25V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C3255 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3256 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3257 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3258 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3259 1-112-246-11 ELECT 100uF 20% 35V C3262 1-112-246-11 ELECT 100uF 20% 35V C3263 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3264 1-137-198-81 FILM 1uF 5% 50V C3265 1-137-198-81 FILM 1uF 5% 50V C3266 1-112-831-11 ELECT 2200uF 20% 35V C3267 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3300 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3303 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3304 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3305 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3306 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3307 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3308 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3309 1-112-246-11 ELECT 100uF 20% 35V C3312 1-112-246-11 ELECT 100uF 20% 35V C3313 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3314 1-137-198-81 FILM 1uF 5% 50V C3315 1-137-198-81 FILM 1uF 5% 50V C3316 1-112-831-11 ELECT 2200uF 20% 35V C3317 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3322 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3323 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3400 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3403 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3404 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3405 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C3406 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3407 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C3408 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3409 1-112-246-11 ELECT 100uF 20% 35V C3412 1-112-246-11 ELECT 100uF 20% 35V C3413 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3414 1-137-198-81 FILM 1uF 5% 50V C3415 1-137-198-81 FILM 1uF 5% 50V C3416 1-112-831-11 ELECT 2200uF 20% 35V C3417 1-104-329-11 CERAMIC CHIP 0.1uF 10% 50V C3422 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3423 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3551 1-126-960-11 ELECT 1uF 20% 50V C3552 1-126-964-11 ELECT 10uF 20% 50V C3553 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3556 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3901 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3902 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3903 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3904 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3911 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C3912 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C3913 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C3914 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C4501 1-117-370-11 CERAMIC CHIP 10uF 10V C4502 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C4504 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C9772 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > CN502 1-778-692-51 CONNECTOR, FFC/FPC 21P CN503 1-784-368-51 CONNECTOR, FFC/FPC 9P CN512 1-506-469-11 PIN, CONNECTOR 4P CN605 1-778-692-51 CONNECTOR, FFC/FPC 21P CN702 1-779-273-11 CONNECTOR, FFC (LIF (NON-ZIF)) 5P CN1101 1-815-763-32 CONNECTOR, FFC/FPC 24P * CN1105 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P * CN1201 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P CN1202 1-784-365-51 CONNECTOR, FFC/FPC 5P CN1701 1-820-735-11 HDMI CONNECTOR CN3000 1-564-704-41 PIN, CONNECTOR (SMALL TYPE) 2P CN3001 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P CN3002 1-785-102-11 PIN, CONNECTOR (3.96mm PITCH) 4P CN4301 1-784-372-51 CONNECTOR, FFC/FPC 13P < DIODE > D501 6-501-193-01 DIODE 1SS355WTE-17 D502 6-501-193-01 DIODE 1SS355WTE-17 D504 6-501-193-01 DIODE 1SS355WTE-17 D505 6-500-334-01 DIODE MC2836-T112-1 D701 6-501-579-01 DIODE MC2837 D3071 6-501-193-01 DIODE 1SS355WTE-17 D3072 6-501-193-01 DIODE 1SS355WTE-17 D3073 6-501-193-01 DIODE 1SS355WTE-17 D3551 6-501-579-01 DIODE MC2837 D4111 6-501-696-01 DIODE RSA39LATE25 D4112 6-501-696-01 DIODE RSA39LATE25 D4151 6-501-696-01 DIODE RSA39LATE25 D4152 6-501-696-01 DIODE RSA39LATE25 D4201 6-501-696-01 DIODE RSA39LATE25 D4202 6-501-696-01 DIODE RSA39LATE25 D4251 6-501-696-01 DIODE RSA39LATE25 D4252 6-501-696-01 DIODE RSA39LATE25 D4301 6-501-696-01 DIODE RSA39LATE25 D4302 6-501-696-01 DIODE RSA39LATE25 D4401 6-501-696-01 DIODE RSA39LATE25 D4402 6-501-696-01 DIODE RSA39LATE25 D9712 6-501-193-01 DIODE 1SS355WTE-17 < FERRITE BEAD > FB504 1-469-324-21 FERRITE, EMI (SMD) (2012) FB505 1-469-324-21 FERRITE, EMI (SMD) (2012) FB506 1-469-324-21 FERRITE, EMI (SMD) (2012) FB507 1-469-324-21 FERRITE, EMI (SMD) (2012) FB508 1-469-324-21 FERRITE, EMI (SMD) (2012) FB509 1-469-324-21 FERRITE, EMI (SMD) (2012) FB510 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1106 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1107 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1108 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1111 1-469-670-21 FERRITE, EMI (SMD) (2012) FB1112 1-469-670-21 FERRITE, EMI (SMD) (2012) FB1115 1-469-670-21 FERRITE, EMI (SMD) (2012) FB1123 1-469-324-21 FERRITE, EMI (SMD) (2012) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark FB1601 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1602 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1603 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1701 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1702 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1703 1-469-324-21 FERRITE, EMI (SMD) (2012) FB2101 1-469-324-21 FERRITE, EMI (SMD) (2012) FB2103 1-469-324-21 FERRITE, EMI (SMD) (2012) FB2120 1-469-118-21 FERRITE, EMI (SMD) (1608) FB2121 1-469-118-21 FERRITE, EMI (SMD) (1608) FB2122 1-469-118-21 FERRITE, EMI (SMD) (1608) FB2123 1-469-118-21 FERRITE, EMI (SMD) (1608) FB2124 1-469-118-21 FERRITE, EMI (SMD) (1608) FB2125 1-469-118-21 FERRITE, EMI (SMD) (1608) FB3051 1-216-295-91 SHORT CHIP 0 < FILTER > FL1111 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL4501 1-234-177-21 FILTER, CHIP EMI < IC > IC501 6-807-088-01 IC M30622MEP-B03FPU0 IC502 6-702-302-01 IC TK11133CSCL-G IC503 6-708-922-01 IC PST3635NR IC504 6-709-034-01 IC NJM2887DL3 (TE2) IC772 6-710-554-01 IC PCM1808PWR IC1101 6-710-093-01 IC CXD9889R IC1102 6-807-166-01 IC S29AL032D70TF-OHI1-0702CE IC1103 not supplied IC BR24L64F-WE2 IC1104 6-709-370-01 IC A2V64S40CTP-G75 IC1105 6-702-302-01 IC TK11133CSCL-G IC1107 6-702-302-01 IC TK11133CSCL-G IC1110 6-707-739-01 IC MM1661JTRE IC1111 6-704-100-01 IC TC7PAU04FU (TE85R) IC1201 6-704-524-01 IC FAN8036L IC1701 6-708-682-01 IC CXD9873Q IC1702 6-702-300-01 IC TK11118CSCL-G IC1703 6-702-302-01 IC TK11133CSCL-G IC1705 8-759-592-47 IC TC7SZ08FU (TE85R) IC1707 6-705-337-01 IC TK11150CSCL-G IC3001 8-759-710-97 IC NJM4565M-D IC3003 8-759-680-48 IC TC7WH157FK (TE85R) IC3010 6-707-939-01 IC CXD9843AR IC3020 6-707-939-01 IC CXD9843AR IC3030 6-707-939-01 IC CXD9843AR IC3050 6-702-300-01 IC TK11118CSCL-G IC3051 6-706-492-01 IC TC7SHU04FU (T5RSOJF) IC3100 6-708-921-01 IC CXD9883M IC3150 6-708-921-01 IC CXD9883M IC3200 6-708-921-01 IC CXD9883M IC3250 6-708-921-01 IC CXD9883M IC3300 6-708-921-01 IC CXD9883M IC3400 6-708-921-01 IC CXD9883M IC4501 8-759-573-97 IC SN74LVC541APWR < COIL > L701 1-414-754-11 INDUCTOR 10uH L3000 1-469-527-91 INDUCTOR 47uH L3051 1-414-754-11 INDUCTOR 10uH L3052 1-414-754-11 INDUCTOR 10uH L3053 1-414-754-11 INDUCTOR 10uH L3054 1-412-939-11 INDUCTOR 1uH L3111 1-456-680-11 INDUCTOR 10uH L3112 1-456-680-11 INDUCTOR 10uH L3151 1-456-680-11 INDUCTOR 10uH L3152 1-456-680-11 INDUCTOR 10uH L3201 1-456-680-11 INDUCTOR 10uH L3202 1-456-680-11 INDUCTOR 10uH L3251 1-456-680-11 INDUCTOR 10uH L3252 1-456-680-11 INDUCTOR 10uH L3301 1-456-680-11 INDUCTOR 10uH L3302 1-456-680-11 INDUCTOR 10uH L3401 1-456-680-11 INDUCTOR 10uH L3402 1-456-680-11 INDUCTOR 10uH L3901 1-457-077-11 AIR-CORE COIL L3902 1-457-078-11 AIR-CORE COIL L3903 1-457-077-11 AIR-CORE COIL L3904 1-457-078-11 AIR-CORE COIL < TRANSISTOR > Q503 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q504 6-550-718-01 TRANSISTOR RSR025N03TL Q631 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q632 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q1101 6-550-008-01 TRANSISTOR UM6K1N-TN Q1102 6-550-653-01 TRANSISTOR QST8TR Q1103 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q1701 6-550-008-01 TRANSISTOR UM6K1N-TN Q3000 8-729-142-48 TRANSISTOR 2SD1616-TP-LK Q3001 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q3002 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q3081 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q3101 8-729-600-22 TRANSISTOR 2SA1235-F Q3102 8-729-600-22 TRANSISTOR 2SA1235-F Q3151 8-729-600-22 TRANSISTOR 2SA1235-F Q3152 8-729-600-22 TRANSISTOR 2SA1235-F Q3201 8-729-600-22 TRANSISTOR 2SA1235-F Q3202 8-729-600-22 TRANSISTOR 2SA1235-F Q3251 8-729-600-22 TRANSISTOR 2SA1235-F Q3252 8-729-600-22 TRANSISTOR 2SA1235-F Q3301 8-729-600-22 TRANSISTOR 2SA1235-F Q3302 8-729-600-22 TRANSISTOR 2SA1235-F Q3401 8-729-600-22 TRANSISTOR 2SA1235-F Q3402 8-729-600-22 TRANSISTOR 2SA1235-F Q3551 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q3552 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q3553 8-729-620-07 TRANSISTOR 2SC3052EF-T1-LEF Q9724 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR Q9726 8-729-905-35 TRANSISTOR 2SC4081-R Q9728 8-729-905-35 TRANSISTOR 2SC4081-R Q9729 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R146 1-216-805-11 METAL CHIP 47 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R501 1-216-857-11 METAL CHIP 1M 5% 1/10W R505 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R506 1-216-839-11 METAL CHIP 33K 5% 1/10W (DZ530) R506 1-216-841-11 METAL CHIP 47K 5% 1/10W (DZ630) R507 1-216-841-11 METAL CHIP 47K 5% 1/10W R508 1-216-821-11 METAL CHIP 1K 5% 1/10W R509 1-216-809-11 METAL CHIP 100 5% 1/10W R510 1-216-833-11 METAL CHIP 10K 5% 1/10W R511 1-216-821-11 METAL CHIP 1K 5% 1/10W R512 1-216-833-11 METAL CHIP 10K 5% 1/10W R513 1-216-821-11 METAL CHIP 1K 5% 1/10W R514 1-216-833-11 METAL CHIP 10K 5% 1/10W R515 1-216-821-11 METAL CHIP 1K 5% 1/10W R516 1-216-821-11 METAL CHIP 1K 5% 1/10W R517 1-216-809-11 METAL CHIP 100 5% 1/10W R518 1-216-809-11 METAL CHIP 100 5% 1/10W R519 1-216-833-11 METAL CHIP 10K 5% 1/10W R526 1-216-821-11 METAL CHIP 1K 5% 1/10W R527 1-216-833-11 METAL CHIP 10K 5% 1/10W R528 1-216-833-11 METAL CHIP 10K 5% 1/10W R529 1-216-821-11 METAL CHIP 1K 5% 1/10W R530 1-216-809-11 METAL CHIP 100 5% 1/10W R531 1-216-833-11 METAL CHIP 10K 5% 1/10W R532 1-216-821-11 METAL CHIP 1K 5% 1/10W R533 1-216-809-11 METAL CHIP 100 5% 1/10W R534 1-216-833-11 METAL CHIP 10K 5% 1/10W R535 1-216-809-11 METAL CHIP 100 5% 1/10W R536 1-216-864-11 SHORT CHIP 0 R539 1-216-833-11 METAL CHIP 10K 5% 1/10W R540 1-216-833-11 METAL CHIP 10K 5% 1/10W R542 1-216-833-11 METAL CHIP 10K 5% 1/10W R546 1-216-833-11 METAL CHIP 10K 5% 1/10W R547 1-216-864-11 SHORT CHIP 0 R548 1-216-864-11 SHORT CHIP 0 R550 1-216-821-11 METAL CHIP 1K 5% 1/10W R552 1-216-821-11 METAL CHIP 1K 5% 1/10W R553 1-216-833-11 METAL CHIP 10K 5% 1/10W R554 1-216-833-11 METAL CHIP 10K 5% 1/10W R555 1-216-833-11 METAL CHIP 10K 5% 1/10W R556 1-216-841-11 METAL CHIP 47K 5% 1/10W R557 1-216-841-11 METAL CHIP 47K 5% 1/10W R558 1-216-833-11 METAL CHIP 10K 5% 1/10W R559 1-216-833-11 METAL CHIP 10K 5% 1/10W R561 1-216-845-11 METAL CHIP 100K 5% 1/10W R562 1-216-841-11 METAL CHIP 47K 5% 1/10W R563 1-216-833-11 METAL CHIP 10K 5% 1/10W R564 1-216-864-11 SHORT CHIP 0 R565 1-216-864-11 SHORT CHIP 0 R566 1-216-864-11 SHORT CHIP 0 R567 1-216-864-11 SHORT CHIP 0 R568 1-216-864-11 SHORT CHIP 0 R569 1-216-864-11 SHORT CHIP 0 R572 1-218-751-11 METAL CHIP 300K 0.5% 1/10W R573 1-216-845-11 METAL CHIP 100K 5% 1/10W R575 1-216-821-11 METAL CHIP 1K 5% 1/10W R576 1-216-821-11 METAL CHIP 1K 5% 1/10W R577 1-216-841-11 METAL CHIP 47K 5% 1/10W R578 1-216-809-11 METAL CHIP 100 5% 1/10W R579 1-216-821-11 METAL CHIP 1K 5% 1/10W R580 1-216-809-11 METAL CHIP 100 5% 1/10W R581 1-216-809-11 METAL CHIP 100 5% 1/10W R582 1-216-864-11 SHORT CHIP 0 R583 1-216-841-11 METAL CHIP 47K 5% 1/10W R586 1-216-833-11 METAL CHIP 10K 5% 1/10W R587 1-216-833-11 METAL CHIP 10K 5% 1/10W R589 1-216-295-91 SHORT CHIP 0 R590 1-216-295-91 SHORT CHIP 0 R596 1-216-295-91 SHORT CHIP 0 R597 1-216-295-91 SHORT CHIP 0 R598 1-216-296-11 SHORT CHIP 0 R599 1-216-295-91 SHORT CHIP 0 R601 1-216-864-11 SHORT CHIP 0 R602 1-216-809-11 METAL CHIP 100 5% 1/10W R603 1-216-809-11 METAL CHIP 100 5% 1/10W R604 1-216-809-11 METAL CHIP 100 5% 1/10W R605 1-216-809-11 METAL CHIP 100 5% 1/10W R606 1-216-809-11 METAL CHIP 100 5% 1/10W R607 1-216-809-11 METAL CHIP 100 5% 1/10W R608 1-216-809-11 METAL CHIP 100 5% 1/10W R609 1-216-809-11 METAL CHIP 100 5% 1/10W R610 1-216-809-11 METAL CHIP 100 5% 1/10W R611 1-216-809-11 METAL CHIP 100 5% 1/10W R612 1-216-809-11 METAL CHIP 100 5% 1/10W R613 1-216-809-11 METAL CHIP 100 5% 1/10W R614 1-216-809-11 METAL CHIP 100 5% 1/10W R615 1-216-809-11 METAL CHIP 100 5% 1/10W R631 1-216-833-11 METAL CHIP 10K 5% 1/10W R632 1-216-841-11 METAL CHIP 47K 5% 1/10W R636 1-216-864-11 SHORT CHIP 0 R637 1-216-809-11 METAL CHIP 100 5% 1/10W R638 1-216-809-11 METAL CHIP 100 5% 1/10W R639 1-216-809-11 METAL CHIP 100 5% 1/10W R640 1-216-809-11 METAL CHIP 100 5% 1/10W R641 1-216-809-11 METAL CHIP 100 5% 1/10W R642 1-216-809-11 METAL CHIP 100 5% 1/10W R691 1-216-864-11 SHORT CHIP 0 R692 1-216-864-11 SHORT CHIP 0 R693 1-216-864-11 SHORT CHIP 0 R694 1-216-864-11 SHORT CHIP 0 R695 1-216-864-11 SHORT CHIP 0 R696 1-216-864-11 SHORT CHIP 0 R701 1-216-813-11 METAL CHIP 220 5% 1/10W R702 1-216-864-11 SHORT CHIP 0 R721 1-216-864-11 SHORT CHIP 0 R770 1-216-809-11 METAL CHIP 100 5% 1/10W R775 1-216-801-11 METAL CHIP 22 5% 1/10W R776 1-216-801-11 METAL CHIP 22 5% 1/10W R777 1-216-801-11 METAL CHIP 22 5% 1/10W R778 1-216-864-11 SHORT CHIP 0 R780 1-216-805-11 METAL CHIP 47 5% 1/10W R781 1-216-805-11 METAL CHIP 47 5% 1/10W R782 1-216-801-11 METAL CHIP 22 5% 1/10W R783 1-216-801-11 METAL CHIP 22 5% 1/10W R784 1-216-801-11 METAL CHIP 22 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R785 1-216-801-11 METAL CHIP 22 5% 1/10W R786 1-216-295-91 SHORT CHIP 0 R790 1-216-864-11 SHORT CHIP 0 R1101 1-216-809-11 METAL CHIP 100 5% 1/10W R1102 1-216-295-91 SHORT CHIP 0 R1103 1-216-864-11 SHORT CHIP 0 R1105 1-216-833-11 METAL CHIP 10K 5% 1/10W R1106 1-216-833-11 METAL CHIP 10K 5% 1/10W R1107 1-216-833-11 METAL CHIP 10K 5% 1/10W R1108 1-216-857-11 METAL CHIP 1M 5% 1/10W R1109 1-216-864-11 SHORT CHIP 0 R1110 1-216-841-11 METAL CHIP 47K 5% 1/10W R1111 1-216-809-11 METAL CHIP 100 5% 1/10W R1112 1-211-977-11 METAL CHIP 22 0.5% 1/10W R1113 1-211-977-11 METAL CHIP 22 0.5% 1/10W R1114 1-216-845-11 METAL CHIP 100K 5% 1/10W R1115 1-211-977-11 METAL CHIP 22 0.5% 1/10W R1116 1-216-821-11 METAL CHIP 1K 5% 1/10W R1117 1-216-841-11 METAL CHIP 47K 5% 1/10W R1118 1-216-801-11 METAL CHIP 22 5% 1/10W R1120 1-216-801-11 METAL CHIP 22 5% 1/10W R1121 1-216-801-11 METAL CHIP 22 5% 1/10W R1123 1-216-864-11 SHORT CHIP 0 R1124 1-216-841-11 METAL CHIP 47K 5% 1/10W R1125 1-216-805-11 METAL CHIP 47 5% 1/10W R1132 1-216-845-11 METAL CHIP 100K 5% 1/10W R1133 1-216-864-11 SHORT CHIP 0 R1134 1-216-864-11 SHORT CHIP 0 R1135 1-216-833-11 METAL CHIP 10K 5% 1/10W R1136 1-216-835-11 METAL CHIP 15K 5% 1/10W R1138 1-216-809-11 METAL CHIP 100 5% 1/10W R1139 1-216-864-11 SHORT CHIP 0 R1140 1-216-833-11 METAL CHIP 10K 5% 1/10W R1141 1-216-855-11 METAL CHIP 680K 5% 1/10W R1142 1-216-845-11 METAL CHIP 100K 5% 1/10W R1145 1-216-864-11 SHORT CHIP 0 R1147 1-216-864-11 SHORT CHIP 0 R1148 1-216-864-11 SHORT CHIP 0 R1151 1-216-833-11 METAL CHIP 10K 5% 1/10W R1152 1-216-864-11 SHORT CHIP 0 R1153 1-216-864-11 SHORT CHIP 0 R1154 1-216-864-11 SHORT CHIP 0 R1155 1-216-864-11 SHORT CHIP 0 R1156 1-216-809-11 METAL CHIP 100 5% 1/10W R1159 1-216-805-11 METAL CHIP 47 5% 1/10W R1160 1-216-805-11 METAL CHIP 47 5% 1/10W R1161 1-216-801-11 METAL CHIP 22 5% 1/10W R1169 1-216-833-11 METAL CHIP 10K 5% 1/10W R1170 1-216-833-11 METAL CHIP 10K 5% 1/10W R1171 1-216-809-11 METAL CHIP 100 5% 1/10W R1175 1-216-864-11 SHORT CHIP 0 R1183 1-216-805-11 METAL CHIP 47 5% 1/10W R1184 1-216-805-11 METAL CHIP 47 5% 1/10W R1185 1-216-805-11 METAL CHIP 47 5% 1/10W R1191 1-216-821-11 METAL CHIP 1K 5% 1/10W R1193 1-216-821-11 METAL CHIP 1K 5% 1/10W R1204 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R1205 1-216-833-11 METAL CHIP 10K 5% 1/10W R1206 1-216-833-11 METAL CHIP 10K 5% 1/10W R1207 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R1208 1-216-839-11 METAL CHIP 33K 5% 1/10W R1209 1-216-839-11 METAL CHIP 33K 5% 1/10W R1210 1-216-841-11 METAL CHIP 47K 5% 1/10W R1212 1-216-833-11 METAL CHIP 10K 5% 1/10W R1213 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1214 1-216-835-11 METAL CHIP 15K 5% 1/10W R1215 1-216-834-11 METAL CHIP 12K 5% 1/10W R1216 1-216-834-11 METAL CHIP 12K 5% 1/10W R1219 1-216-838-11 METAL CHIP 27K 5% 1/10W R1220 1-216-821-11 METAL CHIP 1K 5% 1/10W R1221 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R1222 1-216-839-11 METAL CHIP 33K 5% 1/10W R1223 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R1224 1-216-833-11 METAL CHIP 10K 5% 1/10W R1225 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R1226 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R1227 1-216-864-11 SHORT CHIP 0 R1228 1-216-864-11 SHORT CHIP 0 R1230 1-218-893-11 METAL CHIP 82K 0.5% 1/10W R1231 1-218-875-11 METAL CHIP 15K 0.5% 1/10W R1232 1-218-877-11 METAL CHIP 18K 0.5% 1/10W R1233 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R1234 1-216-833-11 METAL CHIP 10K 5% 1/10W R1236 1-216-821-11 METAL CHIP 1K 5% 1/10W R1237 1-216-821-11 METAL CHIP 1K 5% 1/10W R1238 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1239 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1243 1-216-809-11 METAL CHIP 100 5% 1/10W R1246 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1247 1-216-821-11 METAL CHIP 1K 5% 1/10W R1601 1-216-295-91 SHORT CHIP 0 R1602 1-216-295-91 SHORT CHIP 0 R1603 1-216-295-91 SHORT CHIP 0 R1604 1-216-295-91 SHORT CHIP 0 R1605 1-216-296-11 SHORT CHIP 0 R1606 1-216-295-91 SHORT CHIP 0 R1701 1-216-809-11 METAL CHIP 100 5% 1/10W R1702 1-216-864-11 SHORT CHIP 0 R1703 1-216-864-11 SHORT CHIP 0 R1704 1-216-809-11 METAL CHIP 100 5% 1/10W R1705 1-216-833-11 METAL CHIP 10K 5% 1/10W R1706 1-216-864-11 SHORT CHIP 0 R1707 1-216-864-11 SHORT CHIP 0 R1712 1-216-809-11 METAL CHIP 100 5% 1/10W R1713 1-218-841-11 METAL CHIP 560 0.5% 1/10W R1714 1-216-864-11 SHORT CHIP 0 R1721 1-216-833-11 METAL CHIP 10K 5% 1/10W R1722 1-216-833-11 METAL CHIP 10K 5% 1/10W R1723 1-216-833-11 METAL CHIP 10K 5% 1/10W R1726 1-216-833-11 METAL CHIP 10K 5% 1/10W R1727 1-216-833-11 METAL CHIP 10K 5% 1/10W R1728 1-216-864-11 SHORT CHIP 0 R1730 1-218-840-11 METAL CHIP 510 0.5% 1/10W R1731 1-216-864-11 SHORT CHIP 0 R1734 1-216-864-11 SHORT CHIP 0 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R1736 1-216-864-11 SHORT CHIP 0 R1738 1-216-864-11 SHORT CHIP 0 R1740 1-216-864-11 SHORT CHIP 0 R1742 1-216-841-11 METAL CHIP 47K 5% 1/10W R1744 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1746 1-216-864-11 SHORT CHIP 0 R1747 1-216-864-11 SHORT CHIP 0 R1748 1-216-864-11 SHORT CHIP 0 R1749 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R1750 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R1751 1-216-864-11 SHORT CHIP 0 R1752 1-216-864-11 SHORT CHIP 0 R1753 1-216-864-11 SHORT CHIP 0 R1756 1-216-864-11 SHORT CHIP 0 R1757 1-216-833-11 METAL CHIP 10K 5% 1/10W R1758 1-216-833-11 METAL CHIP 10K 5% 1/10W R1759 1-216-833-11 METAL CHIP 10K 5% 1/10W R1783 1-216-864-11 SHORT CHIP 0 R1784 1-216-864-11 SHORT CHIP 0 R1785 1-216-864-11 SHORT CHIP 0 R1786 1-216-864-11 SHORT CHIP 0 R1788 1-216-864-11 SHORT CHIP 0 R1791 1-216-864-11 SHORT CHIP 0 R1793 1-216-864-11 SHORT CHIP 0 R2101 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R2104 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2107 1-216-833-11 METAL CHIP 10K 5% 1/10W R2110 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R2113 1-216-833-11 METAL CHIP 10K 5% 1/10W R2114 1-216-801-11 METAL CHIP 22 5% 1/10W R2115 1-216-864-11 SHORT CHIP 0 R2118 1-216-833-11 METAL CHIP 10K 5% 1/10W R2119 1-216-864-11 SHORT CHIP 0 R2126 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2127 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2128 1-216-833-11 METAL CHIP 10K 5% 1/10W R2129 1-216-845-11 METAL CHIP 100K 5% 1/10W R2133 1-216-864-11 SHORT CHIP 0 R2134 1-216-864-11 SHORT CHIP 0 R2135 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2150 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2151 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2152 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2161 1-216-809-11 METAL CHIP 100 5% 1/10W R2167 1-216-864-11 SHORT CHIP 0 R2168 1-216-813-11 METAL CHIP 220 5% 1/10W R2169 1-216-809-11 METAL CHIP 100 5% 1/10W R2176 1-216-864-11 SHORT CHIP 0 R2177 1-216-809-11 METAL CHIP 100 5% 1/10W R2178 1-216-821-11 METAL CHIP 1K 5% 1/10W R2179 1-216-809-11 METAL CHIP 100 5% 1/10W R2183 1-216-809-11 METAL CHIP 100 5% 1/10W R2184 1-216-809-11 METAL CHIP 100 5% 1/10W R2185 1-216-809-11 METAL CHIP 100 5% 1/10W R2186 1-216-864-11 SHORT CHIP 0 R2187 1-216-805-11 METAL CHIP 47 5% 1/10W R2191 1-216-809-11 METAL CHIP 100 5% 1/10W R2505 1-216-864-11 SHORT CHIP 0 R2705 1-216-821-11 METAL CHIP 1K 5% 1/10W R2706 1-216-821-11 METAL CHIP 1K 5% 1/10W R2711 1-208-635-11 METAL CHIP 10 0.5% 1/16W R2712 1-208-635-11 METAL CHIP 10 0.5% 1/16W R2713 1-208-635-11 METAL CHIP 10 0.5% 1/16W R2714 1-208-635-11 METAL CHIP 10 0.5% 1/16W R2715 1-208-635-11 METAL CHIP 10 0.5% 1/16W R2716 1-208-635-11 METAL CHIP 10 0.5% 1/16W R2717 1-208-635-11 METAL CHIP 10 0.5% 1/16W R2718 1-208-635-11 METAL CHIP 10 0.5% 1/16W R2751 1-216-833-11 METAL CHIP 10K 5% 1/10W R3001 1-216-833-11 METAL CHIP 10K 5% 1/10W R3002 1-216-833-11 METAL CHIP 10K 5% 1/10W R3003 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3004 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R3006 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R3011 1-216-817-11 METAL CHIP 470 5% 1/10W R3012 1-216-817-11 METAL CHIP 470 5% 1/10W R3013 1-216-833-11 METAL CHIP 10K 5% 1/10W R3014 1-216-801-11 METAL CHIP 22 5% 1/10W R3015 1-216-809-11 METAL CHIP 100 5% 1/10W R3017 1-216-819-11 METAL CHIP 680 5% 1/10W R3021 1-216-817-11 METAL CHIP 470 5% 1/10W R3022 1-216-817-11 METAL CHIP 470 5% 1/10W R3023 1-216-801-11 METAL CHIP 22 5% 1/10W R3024 1-216-809-11 METAL CHIP 100 5% 1/10W R3026 1-216-819-11 METAL CHIP 680 5% 1/10W R3031 1-216-817-11 METAL CHIP 470 5% 1/10W R3032 1-216-817-11 METAL CHIP 470 5% 1/10W R3033 1-216-833-11 METAL CHIP 10K 5% 1/10W R3034 1-216-801-11 METAL CHIP 22 5% 1/10W R3035 1-216-809-11 METAL CHIP 100 5% 1/10W R3037 1-216-819-11 METAL CHIP 680 5% 1/10W R3040 1-216-864-11 SHORT CHIP 0 R3041 1-216-864-11 SHORT CHIP 0 R3042 1-216-864-11 SHORT CHIP 0 R3043 1-216-864-11 SHORT CHIP 0 R3044 1-216-864-11 SHORT CHIP 0 R3045 1-216-864-11 SHORT CHIP 0 R3046 1-216-864-11 SHORT CHIP 0 R3050 1-216-864-11 SHORT CHIP 0 R3051 1-216-097-11 RES-CHIP 100K 5% 1/10W R3052 1-216-857-11 METAL CHIP 1M 5% 1/10W R3053 1-216-809-11 METAL CHIP 100 5% 1/10W R3054 1-216-801-11 METAL CHIP 22 5% 1/10W R3055 1-216-809-11 METAL CHIP 100 5% 1/10W R3057 1-216-809-11 METAL CHIP 100 5% 1/10W R3059 1-216-833-11 METAL CHIP 10K 5% 1/10W R3060 1-216-833-11 METAL CHIP 10K 5% 1/10W R3061 1-216-864-11 SHORT CHIP 0 R3062 1-216-809-11 METAL CHIP 100 5% 1/10W R3063 1-216-821-11 METAL CHIP 1K 5% 1/10W R3064 1-216-821-11 METAL CHIP 1K 5% 1/10W R3065 1-216-809-11 METAL CHIP 100 5% 1/10W R3066 1-216-809-11 METAL CHIP 100 5% 1/10W R3067 1-216-809-11 METAL CHIP 100 5% 1/10W R3068 1-216-809-11 METAL CHIP 100 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R3069 1-216-809-11 METAL CHIP 100 5% 1/10W R3070 1-216-809-11 METAL CHIP 100 5% 1/10W R3071 1-216-809-11 METAL CHIP 100 5% 1/10W R3072 1-216-809-11 METAL CHIP 100 5% 1/10W R3073 1-216-809-11 METAL CHIP 100 5% 1/10W R3074 1-216-809-11 METAL CHIP 100 5% 1/10W R3075 1-216-809-11 METAL CHIP 100 5% 1/10W R3076 1-216-809-11 METAL CHIP 100 5% 1/10W R3077 1-216-809-11 METAL CHIP 100 5% 1/10W R3078 1-216-809-11 METAL CHIP 100 5% 1/10W R3079 1-216-809-11 METAL CHIP 100 5% 1/10W R3080 1-216-845-11 METAL CHIP 100K 5% 1/10W R3085 1-216-839-11 METAL CHIP 33K 5% 1/10W R3086 1-216-839-11 METAL CHIP 33K 5% 1/10W R3087 1-216-833-11 METAL CHIP 10K 5% 1/10W R3088 1-216-833-11 METAL CHIP 10K 5% 1/10W R3089 1-216-833-11 METAL CHIP 10K 5% 1/10W R3090 1-216-833-11 METAL CHIP 10K 5% 1/10W R3091 1-216-837-11 METAL CHIP 22K 5% 1/10W R3092 1-216-837-11 METAL CHIP 22K 5% 1/10W R3093 1-216-837-11 METAL CHIP 22K 5% 1/10W R3094 1-216-837-11 METAL CHIP 22K 5% 1/10W R3095 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R3096 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3097 1-216-809-11 METAL CHIP 100 5% 1/10W R3098 1-216-839-11 METAL CHIP 33K 5% 1/10W R3099 1-216-839-11 METAL CHIP 33K 5% 1/10W R3101 1-216-809-11 METAL CHIP 100 5% 1/10W R3102 1-216-809-11 METAL CHIP 100 5% 1/10W R3103 1-216-864-11 SHORT CHIP 0 R3104 1-216-864-11 SHORT CHIP 0 R3107 1-216-835-11 METAL CHIP 15K 5% 1/10W R3115 1-216-864-11 SHORT CHIP 0 R3116 1-216-864-11 SHORT CHIP 0 R3125 1-216-845-11 METAL CHIP 100K 5% 1/10W R3126 1-216-845-11 METAL CHIP 100K 5% 1/10W R3127 1-216-845-11 METAL CHIP 100K 5% 1/10W R3151 1-216-809-11 METAL CHIP 100 5% 1/10W R3152 1-216-809-11 METAL CHIP 100 5% 1/10W R3153 1-216-864-11 SHORT CHIP 0 R3154 1-216-864-11 SHORT CHIP 0 R3157 1-216-835-11 METAL CHIP 15K 5% 1/10W R3165 1-216-864-11 SHORT CHIP 0 R3166 1-216-864-11 SHORT CHIP 0 R3175 1-216-845-11 METAL CHIP 100K 5% 1/10W R3176 1-216-845-11 METAL CHIP 100K 5% 1/10W R3177 1-216-845-11 METAL CHIP 100K 5% 1/10W R3201 1-216-809-11 METAL CHIP 100 5% 1/10W R3202 1-216-809-11 METAL CHIP 100 5% 1/10W R3203 1-216-864-11 SHORT CHIP 0 R3204 1-216-864-11 SHORT CHIP 0 R3207 1-216-835-11 METAL CHIP 15K 5% 1/10W R3215 1-216-864-11 SHORT CHIP 0 R3216 1-216-864-11 SHORT CHIP 0 R3225 1-216-845-11 METAL CHIP 100K 5% 1/10W R3226 1-216-845-11 METAL CHIP 100K 5% 1/10W R3227 1-216-845-11 METAL CHIP 100K 5% 1/10W R3251 1-216-809-11 METAL CHIP 100 5% 1/10W R3252 1-216-809-11 METAL CHIP 100 5% 1/10W R3253 1-216-864-11 SHORT CHIP 0 R3254 1-216-864-11 SHORT CHIP 0 R3257 1-216-835-11 METAL CHIP 15K 5% 1/10W R3265 1-216-864-11 SHORT CHIP 0 R3266 1-216-864-11 SHORT CHIP 0 R3275 1-216-845-11 METAL CHIP 100K 5% 1/10W R3276 1-216-845-11 METAL CHIP 100K 5% 1/10W R3277 1-216-845-11 METAL CHIP 100K 5% 1/10W R3301 1-216-809-11 METAL CHIP 100 5% 1/10W R3302 1-216-809-11 METAL CHIP 100 5% 1/10W R3303 1-216-864-11 SHORT CHIP 0 R3304 1-216-864-11 SHORT CHIP 0 R3307 1-216-835-11 METAL CHIP 15K 5% 1/10W R3315 1-216-864-11 SHORT CHIP 0 R3316 1-216-864-11 SHORT CHIP 0 R3325 1-216-845-11 METAL CHIP 100K 5% 1/10W R3326 1-216-845-11 METAL CHIP 100K 5% 1/10W R3327 1-216-845-11 METAL CHIP 100K 5% 1/10W R3403 1-216-864-11 SHORT CHIP 0 R3404 1-216-864-11 SHORT CHIP 0 R3407 1-216-835-11 METAL CHIP 15K 5% 1/10W R3415 1-216-864-11 SHORT CHIP 0 R3416 1-216-864-11 SHORT CHIP 0 R3425 1-216-845-11 METAL CHIP 100K 5% 1/10W R3426 1-216-845-11 METAL CHIP 100K 5% 1/10W R3427 1-216-845-11 METAL CHIP 100K 5% 1/10W R3501 1-216-809-11 METAL CHIP 100 5% 1/10W R3502 1-216-809-11 METAL CHIP 100 5% 1/10W R3551 1-216-845-11 METAL CHIP 100K 5% 1/10W R3552 1-216-837-11 METAL CHIP 22K 5% 1/10W R3553 1-216-833-11 METAL CHIP 10K 5% 1/10W R3554 1-216-845-11 METAL CHIP 100K 5% 1/10W R3555 1-216-864-11 SHORT CHIP 0 R3556 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3557 1-216-845-11 METAL CHIP 100K 5% 1/10W R3558 1-216-833-11 METAL CHIP 10K 5% 1/10W R3901 1-216-296-11 SHORT CHIP 0 R3902 1-216-296-11 SHORT CHIP 0 R3905 1-216-296-11 SHORT CHIP 0 R3906 1-216-296-11 SHORT CHIP 0 R3907 1-216-864-11 SHORT CHIP 0 R3911 1-216-864-11 SHORT CHIP 0 R3912 1-216-864-11 SHORT CHIP 0 R3913 1-216-864-11 SHORT CHIP 0 R3914 1-216-864-11 SHORT CHIP 0 R3917 1-216-864-11 SHORT CHIP 0 R3918 1-216-864-11 SHORT CHIP 0 R3919 1-216-864-11 SHORT CHIP 0 R4002 1-216-864-11 SHORT CHIP 0 R4308 1-216-864-11 SHORT CHIP 0 R4501 1-216-801-11 METAL CHIP 22 5% 1/10W R4502 1-216-801-11 METAL CHIP 22 5% 1/10W R4510 1-216-805-11 METAL CHIP 47 5% 1/10W R4511 1-216-801-11 METAL CHIP 22 5% 1/10W R4512 1-216-864-11 SHORT CHIP 0 R4514 1-216-805-11 METAL CHIP 47 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R4515 1-216-805-11 METAL CHIP 47 5% 1/10W R4516 1-216-805-11 METAL CHIP 47 5% 1/10W R4517 1-216-864-11 SHORT CHIP 0 R4519 1-216-864-11 SHORT CHIP 0 R4521 1-216-864-11 SHORT CHIP 0 R4701 1-216-864-11 SHORT CHIP 0 R4702 1-216-864-11 SHORT CHIP 0 R4703 1-216-864-11 SHORT CHIP 0 R4704 1-216-864-11 SHORT CHIP 0 R4705 1-216-864-11 SHORT CHIP 0 R4706 1-216-864-11 SHORT CHIP 0 R4718 1-216-864-11 SHORT CHIP 0 R4805 1-216-801-11 METAL CHIP 22 5% 1/10W R9918 1-216-821-11 METAL CHIP 1K 5% 1/10W R9920 1-216-864-11 SHORT CHIP 0 R9922 1-216-833-11 METAL CHIP 10K 5% 1/10W R9924 1-216-821-11 METAL CHIP 1K 5% 1/10W R9928 1-216-837-11 METAL CHIP 22K 5% 1/10W R9929 1-216-837-11 METAL CHIP 22K 5% 1/10W R9934 1-216-833-11 METAL CHIP 10K 5% 1/10W R9935 1-216-864-11 SHORT CHIP 0 R9941 1-216-838-11 METAL CHIP 27K 5% 1/10W R9945 1-216-813-11 METAL CHIP 220 5% 1/10W < NETWORK RESISTER > RB1103 1-234-371-21 RES, NETWORK 47 (1005X4) RB1104 1-234-371-21 RES, NETWORK 47 (1005X4) RB1105 1-234-371-21 RES, NETWORK 47 (1005X4) RB1106 1-234-371-21 RES, NETWORK 47 (1005X4) RB1107 1-234-371-21 RES, NETWORK 47 (1005X4) RB1108 1-234-371-21 RES, NETWORK 47 (1005X4) RB1109 1-234-400-21 CONDUCTOR, NETWORK (1005X4) RB1110 1-234-400-21 CONDUCTOR, NETWORK (1005X4) RB1111 1-234-371-21 RES, NETWORK 47 (1005X4) RB1112 1-234-400-21 CONDUCTOR, NETWORK (1005X4) RB1113 1-234-400-21 CONDUCTOR, NETWORK (1005X4) RB1114 1-234-371-21 RES, NETWORK 47 (1005X4) RB1115 1-234-371-21 RES, NETWORK 47 (1005X4) RB1116 1-234-371-21 RES, NETWORK 47 (1005X4) RB1117 1-234-371-21 RES, NETWORK 47 (1005X4) RB1701 1-234-378-21 RES, NETWORK 10K (1005X4) RB1702 1-234-378-21 RES, NETWORK 10K (1005X4) RB1711 1-234-400-21 CONDUCTOR, NETWORK (1005X4) RB1712 1-234-400-21 CONDUCTOR, NETWORK (1005X4) < TERMINAL > TB3901 1-780-453-11 TERMINAL BOARD (SPEAKER) 2P (SPEAKER CENTER/WOOFER) < VIBRATOR > X501 1-795-058-21 VIBRATOR, CERAMIC (5MHz) X1101 1-795-630-11 VIBRATOR, CRYSTAL (27MHz) X3051 1-795-660-21 QUARTZ CRYSTAL UNIT (49.152MHz) ************************************************************* MS-203 BOARD, COMPLETE *********************** < CONNECTOR > CN001 1-815-412-11 CONNECTOR, FFC/FPC 5P < SWITCH > S001 1-786-693-11 SWITCH, DETECTION (CHUCK/TRAY DETECT) ************************************************************* A-1218-005-A POWER BOARD, COMPLETE *********************** 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 < CAPACITOR > 0C901 1-165-529-11 MYLAR 0.22uF 10 275V 0C902 1-165-529-11 MYLAR 0.22uF 10 275V 0C903 1-114-346-11 ELECT (BLOCK) 330uF 20% 400V 0C905 1-112-335-91 FILM 0.0033uF 5% 400V 0C906 1-117-815-11 FILM 1000PF 3% 1.5KV 0C907 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V 0C908 1-104-962-91 ELECT 47uF 20% 35V 0C909 1-162-960-11 CERAMIC CHIP 220PF 10% 50V 0C910 1-107-907-11 ELECT 22uF 20% 50V 0C911 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V 0C913 1-117-693-11 CERAMIC 100PF 10% 250V 0C918 1-113-925-11 CERAMIC 0.01uF 20% 250V 0C920 1-113-925-11 CERAMIC 0.01uF 20% 250V 0C922 1-128-560-11 ELECT 22uF 20% 100V 0C923 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V 0C924 1-126-961-11 ELECT 2.2uF 20% 50V 0C925 1-107-974-81 CERAMIC 47PF 5% 2KV 0C929 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V 0C930 1-117-693-11 CERAMIC 100PF 10% 250V C932 1-100-924-21 ELECT 2200uF 20% 35V C933 1-100-924-21 ELECT 2200uF 20% 35V C934 1-126-953-11 ELECT 2200uF 20% 35V C935 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C936 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C937 1-100-756-91 CERAMIC CHIP 0.047uF 50V 0C938 1-117-697-51 CERAMIC 470PF 10% 250V C939 1-136-165-00 FILM 0.1uF 5% 50V C940 1-128-947-31 ELECT 3300uF 20% 10V C941 1-128-954-11 ELECT 1000uF 20% 25V C942 1-126-941-11 ELECT 470uF 20% 25V C943 1-126-933-11 ELECT 100uF 20% 16V C944 1-128-951-21 ELECT 2200uF 20% 16V C945 1-126-935-11 ELECT 470uF 20% 16V C946 1-128-950-21 ELECT 1000uF 20% 16V C947 1-104-658-91 ELECT 100uF 20% 10V C948 1-126-925-91 ELECT 470uF 20% 10V C949 1-104-658-91 ELECT 100uF 20% 10V C951 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C952 1-100-756-91 CERAMIC CHIP 0.047uF 50V C953 1-117-214-11 CERAMIC 0.001uF 10% 2KV C954 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C955 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V MAIN MS-203 POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark POWER C958 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C960 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V 0C963 1-117-697-51 CERAMIC 470PF 10% 250V 0C964 1-117-697-51 CERAMIC 470PF 10% 250V C967 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C968 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C969 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C970 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C971 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C976 1-126-933-11 ELECT 100uF 20% 16V C981 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > 0CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P * CN906 1-564-714-11 PIN, CONNECTOR (SMALL TYPE) 12P CN907 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P < DIODE > 0D901 8-719-082-57 DIODE D5SBA60F01 0D905 8-719-063-74 DIODE D1NL20U-TR2 0D906 6-501-193-01 DIODE 1SS355WTE-17 0D907 6-501-193-01 DIODE 1SS355WTE-17 0D908 6-501-193-01 DIODE 1SS355WTE-17 0D909 6-501-193-01 DIODE 1SS355WTE-17 0D910 6-501-193-01 DIODE 1SS355WTE-17 0D913 6-500-241-01 DIODE SARS03 0D914 6-501-193-01 DIODE 1SS355WTE-17 0D915 6-501-174-01 DIODE UDZW-TE17-10B 0D921 6-501-424-01 DIODE STO2D-140 0D922 8-719-063-74 DIODE D1NL20U-TR2 0D923 6-501-174-01 DIODE UDZW-TE17-10B 0D924 6-501-183-01 DIODE UDZW-TE17-24B 0D925 6-501-167-01 DIODE UDZW-TE17-5.1B 0D926 6-501-174-01 DIODE UDZW-TE17-10B D931 6-501-849-01 DIODE FMX-22SL D932 6-501-167-01 DIODE UDZW-TE17-5.1B D941 6-500-288-11 DIODE EK19LF-F7 D942 8-719-080-53 DIODE RK36LF-B3 D943 8-719-080-53 DIODE RK36LF-B3 D944 6-500-288-11 DIODE EK19LF-F7 D945 6-501-181-01 DIODE UDZW-TE17-20B < TERMINAL BOARD > EB901 1-537-770-21 TERMINAL BOARD, GROUND EB902 1-537-770-21 TERMINAL BOARD, GROUND EB903 1-537-770-21 TERMINAL BOARD, GROUND EB904 1-537-770-21 TERMINAL BOARD, GROUND EB906 1-537-770-21 TERMINAL BOARD, GROUND < FUSE HOLDER > FH901 1-533-217-41 HOLDER, FUSE FH902 1-533-217-41 HOLDER, FUSE < FUSIBLE RESISTOR > 0FR901 1-242-949-11 FUSIBLE 0.1 10% 1W < IC > 0IC901 6-707-742-01 IC STR-F6168-LF1352 0IC921 6-707-740-01 IC STR-V153 IC931 8-759-648-34 IC TA76431AS (TPE6) IC941 6-705-308-01 IC SI-3010KM-TL IC942 6-705-308-01 IC SI-3010KM-TL IC943 6-705-308-01 IC SI-3010KM-TL IC951 6-707-743-01 IC TA76L431S (TPE6, Q) < COIL > L931 1-457-438-11 INDUCTOR 5.6uH L941 1-414-398-11 INDUCTOR 10uH L942 1-414-398-11 INDUCTOR 10uH L943 1-414-398-11 INDUCTOR 10uH L944 1-414-398-11 INDUCTOR 10uH L945 1-414-398-11 INDUCTOR 10uH L947 1-414-398-11 INDUCTOR 10uH L948 1-414-398-11 INDUCTOR 10uH L951 1-414-398-11 INDUCTOR 10uH < LINE FILTER > 0LF901 1-457-054-21 COIL, LINE FILTER 0LF902 1-457-054-21 COIL, LINE FILTER < PHOTO COUPLER > 0PC901 6-600-438-01 IC TLP421F (D4-GR) 0PC902 6-600-438-01 IC TLP421F (D4-GR) 0PC903 6-600-438-01 IC TLP421F (D4-GR) < TRANSISTOR > 0Q901 8-729-141-88 TRANSISTOR 2SB1116A-TP-LK 0Q921 8-729-142-51 TRANSISTOR 2SD1616A-TP-LK Q943 8-729-038-28 TRANSISTOR RT1N441C-TP-1 Q945 6-550-718-01 TRANSISTOR RSR025N03TL Q947 8-729-038-28 TRANSISTOR RT1N441C-TP-1 < RESISTOR > 0R901 1-219-759-11 METAL 1M 5% 1/2W F 0R903 1-215-929-11 METAL OXIDE 100K 5% 3W F 0R904 1-215-929-11 METAL OXIDE 100K 5% 3W 0R905 1-216-797-11 METAL CHIP 10 5% 1/10W 0R906 1-216-827-11 METAL CHIP 3.3K 5% 1/10W 0R907 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R908 1-260-105-11 CARBON 3.3K 5% 1/2W 0R909 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R910 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R911 1-216-813-11 METAL CHIP 220 5% 1/10W 0R912 1-216-363-00 METAL OXIDE 0.33 5% 2W F 0R914 1-220-891-11 METAL 0.1 10% 5W 0R919 1-216-836-11 METAL CHIP 18K 5% 1/10W 0R922 1-216-793-11 METAL CHIP 4.7 5% 1/10W 0R923 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 0R925 1-216-797-11 METAL CHIP 10 5% 1/10W 0R926 1-216-855-11 METAL CHIP 680K 5% 1/10W 0R927 1-216-349-00 METAL OXIDE 1 5% 1W F 0R929 1-246-106-11 METAL OXIDE 2.2 5% 1/2W F R931 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 HCD-DZ530/DZ630 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R932 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R933 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R934 1-216-821-11 METAL CHIP 1K 5% 1/10W R935 1-216-821-11 METAL CHIP 1K 5% 1/10W R936 1-216-853-11 METAL CHIP 470K 5% 1/10W R937 1-216-833-11 METAL CHIP 10K 5% 1/10W R938 1-216-821-11 METAL CHIP 1K 5% 1/10W R939 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W R940 1-216-833-11 METAL CHIP 10K 5% 1/10W R941 1-216-845-11 METAL CHIP 100K 5% 1/10W R942 1-216-833-11 METAL CHIP 10K 5% 1/10W R943 1-216-839-11 METAL CHIP 33K 5% 1/10W R945 1-216-833-11 METAL CHIP 10K 5% 1/10W R946 1-216-837-11 METAL CHIP 22K 5% 1/10W R948 1-216-833-11 METAL CHIP 10K 5% 1/10W R949 1-216-821-11 METAL CHIP 1K 5% 1/10W R951 1-218-831-11 METAL CHIP 220 0.5% 1/10W R952 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R953 1-218-861-11 METAL CHIP 3.9K 0.5% 1/10W R954 1-216-837-11 METAL CHIP 22K 5% 1/10W R955 1-216-817-11 METAL CHIP 470 5% 1/10W R956 1-216-821-11 METAL CHIP 1K 5% 1/10W R957 1-216-841-11 METAL CHIP 47K 5% 1/10W R958 1-216-821-11 METAL CHIP 1K 5% 1/10W R960 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R962 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R965 1-218-865-11 METAL CHIP 5.6K 0.5% 1/10W R966 1-216-821-11 METAL CHIP 1K 5% 1/10W R967 1-216-821-11 METAL CHIP 1K 5% 1/10W R968 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R969 1-216-821-11 METAL CHIP 1K 5% 1/10W R971 1-216-864-11 SHORT CHIP 0 R972 1-216-833-11 METAL CHIP 10K 5% 1/10W R974 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R979 1-216-864-11 SHORT CHIP 0 < TRANSFORMER > 0T901 1-443-874-11 TRANSFORMER, CONVERTER 0T902 1-443-650-11 TRANSFORMER, CONVERTER < THERMISTOR > 0TH901 1-805-842-21 THERMISTOR, NTC 6.0 < VARISTOR > 0VDR901 1-805-482-11 VARISTOR ************************************************************* P-SW BOARD *********** < CAPACITOR > C851 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < SWITCH > S801 1-762-875-21 SWITCH, KEYBOARD (?/1) ************************************************************* SPEAKER BOARD ************** < CAPACITOR > C301 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C302 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C303 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C304 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C305 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C306 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C307 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C308 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C309 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C310 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C311 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C312 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C313 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C314 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C315 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C316 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > * CN303 1-564-523-11 PLUG, CONNECTOR 8P < TERMINAL > TB301 1-780-454-11 TERMINAL BOARD (SPEAKER) 4P (SPEAKER FRONT R/FRONT L/SUR R/SUR L) ************************************************************* MISCELLANEOUS ************** 5 1-828-307-51 WIRE (FLAT TYPE)(9 CORE) 7 1-828-961-51 WIRE (FLAT TYPE)(11 CORE) 8 1-693-724-11 TUNER (FM/AM) 59 1-828-325-51 WIRE (FLAT TYPE)(13 CORE) 61 1-828-374-51 WIRE (FLAT TYPE)(21 CORE) 102 1-828-292-51 WIRE (FLAT TYPE)(5 CORE) 103 1-828-369-51 WIRE (FLAT TYPE)(21 CORE) 104 1-828-327-51 WIRE (FLAT TYPE)(13 CORE) 109 1-787-331-11 FAN, D.C. 0110 1-751-520-31 CORD, POWER (UK) 0110 1-830-188-11 CORD, POWER (AEP) 0507 8-820-321-05 OPTICAL PICK UP ASSY (KHM-313CAA/C2RP) 508 1-828-773-51 WIRE (FLAT TYPE)(24 CORE) 0F901 1-576-233-51 FUSE (H.B.C.) (T6.3AH/250V) SPEAKER POWER P-SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ530/DZ630 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2007.03 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
