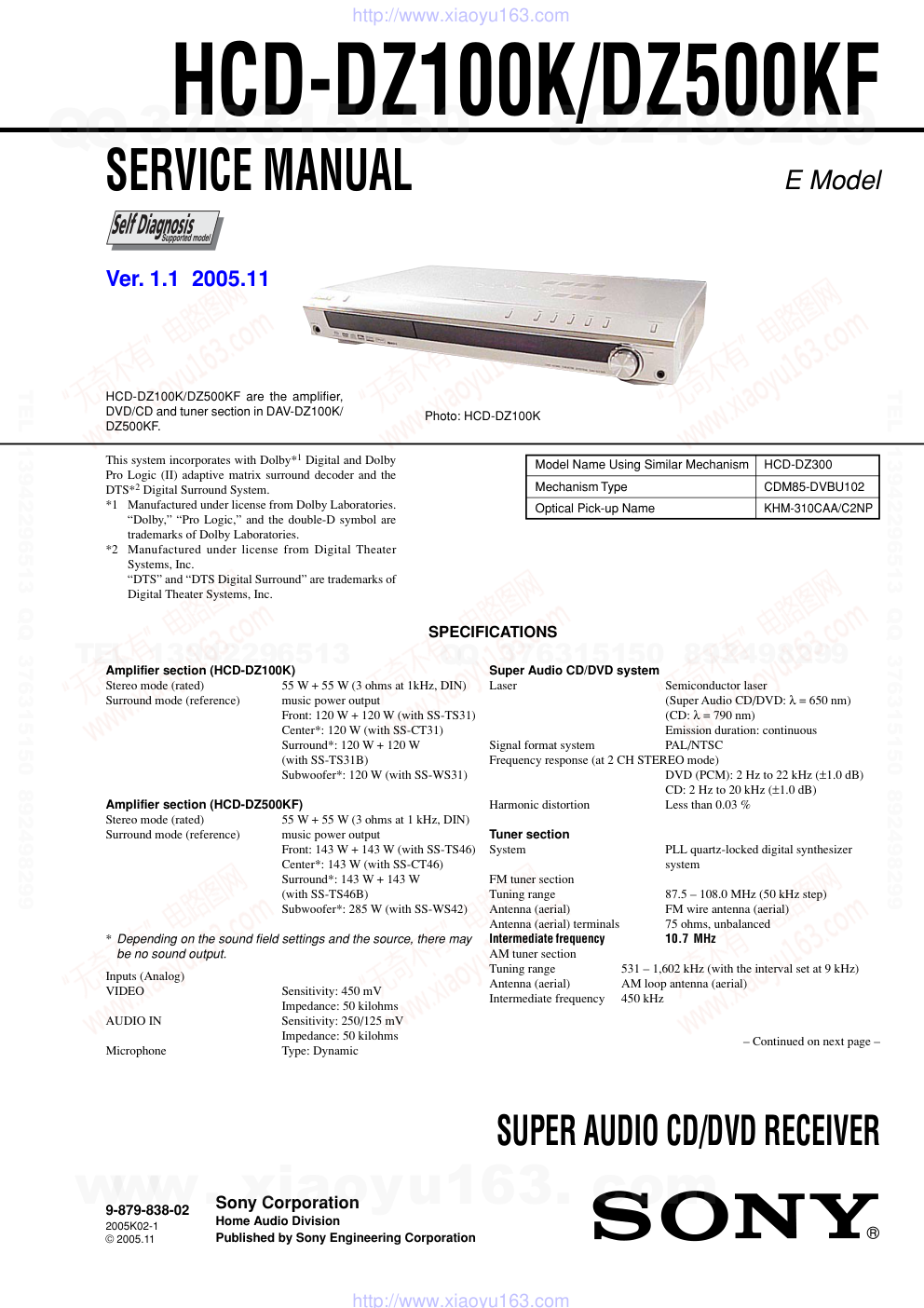

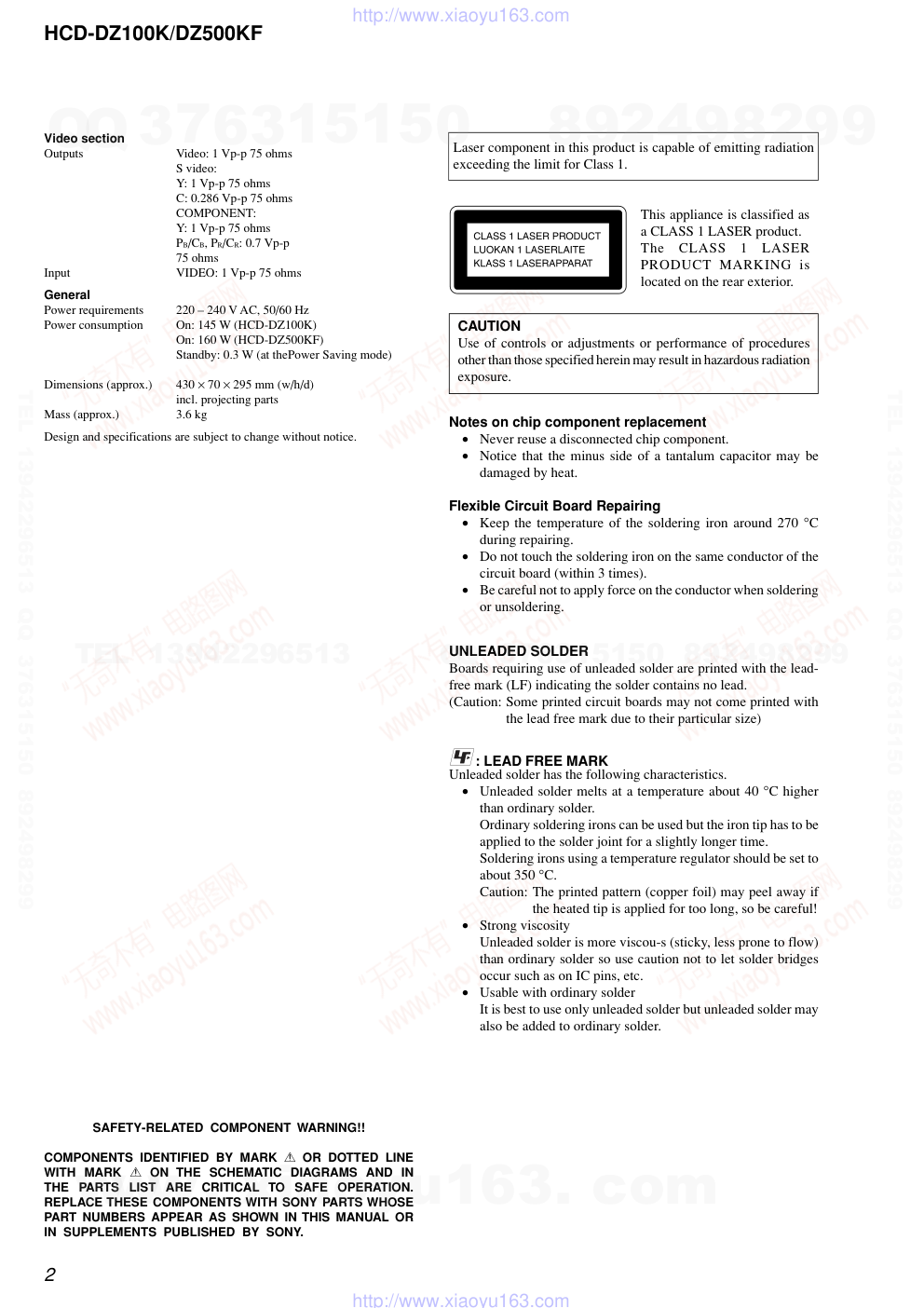

SERVICE MANUAL Sony Corporation Home Audio Division Published by Sony Engineering Corporation E Model SUPER AUDIO CD/DVD RECEIVER 9-879-838-02 2005K02-1 © 2005.11 Ver. 1.1 2005.11 HCD-DZ100K/DZ500KF HCD-DZ100K/DZ500KF are the amplifier, DVD/CD and tuner section in DAV-DZ100K/ DZ500KF. SPECIFICATIONS Model Name Using Similar Mechanism HCD-DZ300 Mechanism Type CDM85-DVBU102 Optical Pick-up Name KHM-310CAA/C2NP This system incorporates with Dolby*1 Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS*2 Digital Surround System. *1 Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are trademarks of Dolby Laboratories. *2 Manufactured under license from Digital Theater Systems, Inc. “DTS” and “DTS Digital Surround” are trademarks of Digital Theater Systems, Inc. Amplifier section (HCD-DZ100K) Stereo mode (rated) 55 W + 55 W (3 ohms at 1kHz, DIN) Surround mode (reference) music power output Front: 120 W + 120 W (with SS-TS31) Center*: 120 W (with SS-CT31) Surround*: 120 W + 120 W (with SS-TS31B) Subwoofer*: 120 W (with SS-WS31) Amplifier section (HCD-DZ500KF) Stereo mode (rated) 55 W + 55 W (3 ohms at 1 kHz, DIN) Surround mode (reference) music power output Front: 143 W + 143 W (with SS-TS46) Center*: 143 W (with SS-CT46) Surround*: 143 W + 143 W (with SS-TS46B) Subwoofer*: 285 W (with SS-WS42) * Depending on the sound field settings and the source, there may be no sound output. Inputs (Analog) VIDEO Sensitivity: 450 mV Impedance: 50 kilohms AUDIO IN Sensitivity: 250/125 mV Impedance: 50 kilohms Microphone Type: Dynamic Super Audio CD/DVD system Laser Semiconductor laser (Super Audio CD/DVD: λ = 650 nm) (CD: λ = 790 nm) Emission duration: continuous Signal format system PAL/NTSC Frequency response (at 2 CH STEREO mode) DVD (PCM): 2 Hz to 22 kHz (±1.0 dB) CD: 2 Hz to 20 kHz (±1.0 dB) Harmonic distortion Less than 0.03 % Tuner section System PLL quartz-locked digital synthesizer system FM tuner section Tuning range 87.5 – 108.0 MHz (50 kHz step) Antenna (aerial) FM wire antenna (aerial) Antenna (aerial) terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range 531 – 1,602 kHz (with the interval set at 9 kHz) Antenna (aerial) AM loop antenna (aerial) Intermediate frequency 450 kHz Photo: HCD-DZ100K – Continued on next page – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-DZ100K/DZ500KF CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 °C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Video section Outputs Video: 1 Vp-p 75 ohms S video: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms COMPONENT: Y: 1 Vp-p 75 ohms PB/CB, PR/CR: 0.7 Vp-p 75 ohms Input VIDEO: 1 Vp-p 75 ohms General Power requirements 220 – 240 V AC, 50/60 Hz Power consumption On: 145 W (HCD-DZ100K) On: 160 W (HCD-DZ500KF) Standby: 0.3 W (at thePower Saving mode) Dimensions (approx.) 430 × 70 × 295 mm (w/h/d) incl. projecting parts Mass (approx.) 3.6 kg Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-DZ100K/DZ500KF TABLE OF CONTENTS 1. SERVICING NOTE ................................................... 4 2. GENERAL ................................................................... 6 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 8 3-2. Case, Front Panel Assy .................................................... 9 3-3. FL Board .......................................................................... 10 3-4. KEY Board, STBY Board ............................................... 10 3-5. I/O Board, DC Fan .......................................................... 11 3-6. DMB10 Board ................................................................. 11 3-7. MAIN Board.................................................................... 12 3-8. DVD Mechanism Deck (CDM85-DVBU102) ................ 13 3-9. Tray.................................................................................. 13 3-10. Belt, MS-203 Board ........................................................ 14 3-11. Base Unit (DVBU-102) ................................................... 15 3-12. Optical Pick-up (KHM-310CAA/C2NP) ........................ 15 4. TEST MODE ............................................................... 16 5. DIAGRAMS ................................................................. 21 5-1. Block Diagram – RF/SERVO Section –......................... 22 – Video Section – ............................................................ 23 – DSP Section – ............................................................... 24 – Audio Section – ............................................................ 25 – Power Section – ............................................................ 26 5-2. Printed Wiring Board – DMB10 Board (Side A) – ......... 27 5-3. Printed Wiring Board – DMB10 Board (Side B) – ......... 28 5-4. Schematic Diagram – DMB10 Board (1/4) –................. 29 5-5. Schematic Diagram – DMB10 Board (2/4) –................. 30 5-6. Schematic Diagram – DMB10 Board (3/4) –................. 31 5-7. Schematic Diagram – DMB10 Board (4/4) –................. 32 5-8. Printed Wiring Board – MAIN Board (Side A) –............ 33 5-9. Printed Wiring Board – MAIN Board (Side B) –............ 34 5-10. Schematic Diagram – MAIN Board (1/9) – ................... 35 5-11. Schematic Diagram – MAIN Board (2/9) – ................... 36 5-12. Schematic Diagram – MAIN Board (3/9) – ................... 37 5-13. Schematic Diagram – MAIN Board (4/9) – ................... 38 5-14. Schematic Diagram – MAIN Board (5/9) – ................... 39 5-15. Schematic Diagram – MAIN Board (6/9) – ................... 40 5-16. Schematic Diagram – MAIN Board (7/9) – ................... 41 5-17. Schematic Diagram – MAIN Board (8/9) – ................... 42 5-18. Schematic Diagram – MAIN Board (9/9) – ................... 43 5-19. Printed Wiring Board – PANEL Section (1/2) – ............. 44 5-20. Schematic Diagram – PANEL Section (1/2) – ............... 45 5-21. Printed Wiring Board – PANEL Section (2/2) – ............. 46 5-22. Schematic Diagram – PANEL Section (2/2) – ............... 47 5-23. Printed Wiring Board – I/O Board (Side A) – ................. 48 5-24. Printed Wiring Board – I/O Board (Side B) – ................. 49 5-25. Schematic Diagram – I/O Board – ................................. 50 6. EXPLODED VIEWS 6-1. Overall Section ................................................................ 64 6-2. Front Panel Assy Section................................................. 65 6-3. Chassis Section ................................................................ 66 6-4. DVD Mechanism Deck Section ...................................... 67 7. ELECTRICAL PARTS LIST .................................. 68 Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-DZ100K/DZ500KF SECTION 1 SERVICING NOTE NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. Note: Incorrect operations may be performed if the test mode is not entered properly. In this case, press the ?/1 button to turn the power off, and retry to enter the test mode. DISC SLOT LOCK The disc slot lock function for the antitheft of an demonstration disc in the store is equipped. Setting Procedure : 1. Press the ?/1 button to turn the set on. 2. Press the [FUNCTION] button to set DVD function. 3. Insert a disc. 4. Press the x button and the A button simultaneously for five seconds. 5. The message “LOCKED” is displayed and the slot is locked. Releasing Procedure : 1. Press the x button and the A button simultaneously for five seconds again. 2. The message “UNLOCKED” is displayed and the slot is unlocked. Note: When “LOCKED” is displayed, the slot lock is not released by turning power on/off with the ?/1 button. When the self-diagnosis function is activated to prevent the system from malfunctioning, a 5- character service number (e.g., C 13 50) with a combination of a letter and 4 digits appears on the screen and the front panel display. In this case, check the following table. Self-diagnosis Function (When letters/numbers appear in the display) First 3 characters of the service number Cause and/or corrective action C 13 The disc is dirty. ,Clean the disc with a soft cloth C 31 The disc is not inserted correctly. ,Restart the system, then re-insert the disc correctly. E XX (xx is a number) To prevent a malfunction, the system has performed the self- diagnosis function. ,Contact your nearest Sony dealer or local authorized Sony service facility and give the 5- character service number. Example: E 61 10 C:13:50 Ver. 1.1 IC103 is a written in and settled EEPROM. Supply with a single article has not been carried out. In case you exchange by DMB10 board (A-1139-088-A), please put on IC103 currently used with the model again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-DZ100K/DZ500KF • SERVICE POSITION (DMB10 BOARD) When servicing side B of the DMB10 board Remove the DMB10 board from bracket. (Refer to DISASSEMBLY 3-6. (page 11)). Set the DMB10 board facing the side B upward as shown. Connect the cable and make the repair work. DMB10 board (side B) DMB bracket www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-DZ100K/DZ500KF SECTION 2 GENERAL This section is extracted from instruction manual. For more information, refer to the pages indicated in parentheses. Front panel A "/1 (on/standby) B Disc tray C A (open/close) D H (play) E X (pause) F x (stop) G ./> H FUNCTION I MIC jack J VOLUME K (remote sensor) L Front panel display M AUDIO IN jack Index to Parts and Controls Rear panel A SPEAKER jacks B VIDEO VIDEO/AUDIO IN jacks C COMPONENT VIDEO OUT jacks D MONITOR OUT (VIDEO / S VIDEO) jacks E AM terminal F FM 75 COAXIAL jack SPEAKER COAXIAL FM75 Y PB/CB PR/CR AM S VIDEO AUDIO IN VIDEO IN R L VIDEO (DVD ONLY) DVD ONLY MONITOR OUT COMPONENT VIDEO OUT VIDEO FRONT R FRONT L SURR R SURR L CENTER WOOFER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-DZ100K/DZ500KF Remote A TV B This button is not available for this model. C SOUND FIELD D ./> PRESET –/+, TV CH –/+ E H (play) The H button has a tactile dot.* F TOP MENU G C/X/x/c/ENTER C/X/x/c have tactile dots.* H O RETURN I ALBUM –/+ J ANGLE K AUDIO The AUDIO button has a tactile dot.* L SUBTITLE M Number buttons The number 5 button has a tactile dot.* N CLEAR, - O REPEAT, FM MODE P PROGRESSIVE, TUNER MENU Q TV [/1 (on/standby) R "/1 (on/standby) S THEATRE SYNC T TV/VIDEO, SLEEP U FUNCTION V m/M / SLOW, TUNING –/+ W x (stop) X X (pause) Y MUTING Z MENU wj VOLUME, TV VOL +/– The VOLUME, TV VOL + button has a tactile dot.* wk DISPLAY wl / REPLAY, ADVANCE, STEP e; DISPLAY ea DSGX es PICTURE NAVI ed KARAOKE ef ECHO Open the cover. eg KEYCON #/b The KEYCON # button has a tactile dot.* eh MIC VOL +/– ej MULTI/2CH ek SA-CD/CD el AMP MENU * Use the tactile dot as a reference when operating the system. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-DZ100K/DZ500KF SECTION 3 DISASSEMBLY 3-1. DISASSEMBLY FLOW • This set can be disassembled in the order shown below. • The dotted square with arrow ( ) prompts you to move to the next job when all of the works within the dotted square ( ) are completed. 3-3.FL BOARD, H/P BOARD (Page 10) 3-4.KEY BOARD, STBY BOARD (Page 10) 3-8.DVD MECHANISM DECK (CDM85-DVBU102) (Page 13) 3-9.TRAY (Page 13) 3-10.BELT, MS-203 BOARD (Page 14) 3-11.BASE UNIT (DVBU102) (Page 15) 3-12.OPTICAL PICK-UP (KHM-310CAA/C2NP) (Page 15) 3-5.I/O BOARD, DC FAN (Page 11) 3-7.MAIN BOARD (Page 12) 3-6.DMB10 BOARD (Page 11) 3-2.CASE, FRONT PANEL ASSY (Page 9) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-DZ100K/DZ500KF 3-2. CASE, FRONT PANEL ASSY Note: Follow the disassembly procedure in the numerical order given. DVD lid 1 The lever is moved in the direction of the arrow with the thin rod. 2 3 DVD lid assy 4 screw (CASE3 TP2) 5 screw (CASE3 TP2) 6 five screws (+BV 3) 7 case qj front panel assy 9 three screws (+BV 3) 8 wire (flat type) 19p(CN509) qa claw qs q; claw qh MIC board qg tapping screw (DIA.2.6 × 8) qd froating screw (PTPWHM 2.6) qf IPOD board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-DZ100K/DZ500KF 3-4. KEY BOARD, STBY BOARD 3-3. FL BOARD 5 shield (front) qa FL board 1 knob (vol) 2 nut 7 6 tapping screw (DIA.2.6 × 8) 4 three tapping screws (DIA.2.6 × 8) 3 two sheets 8 wire (flat type) 19p(CN801) 9 connector 4p(CN805) q; connector 2p(CN804) earth line 7 STBY board 2 four tapping screws (DIA.2.6 × 8) 6 two tapping screws (DIA.2.6 × 8) 5 two tapping screws (DIA.2.6 × 8) 1 four tapping screws (DIA.2.6 × 8) 4 button (play) 8 button (power) 3 KEY board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-DZ100K/DZ500KF 3-5. I/O BOARD, DC FAN 3-6. DMB10 BOARD 2 connector (CN300) 9 connector (CN300) 1 connector (CN901) 8 connector (CN603) qa DC fan qj back panel 6 qf tuner unit qh I/O board 3 wire (flat type) 13p(CN4802) qs wire (flat type) 11p(CN101) 7 wire (flat type) 23p(CN601) 4 three screws (+BV 3) qg three screws (+BV 3) 5 three screws (+BV 3) qd two screws (+BV 3) q; two screws (BVTT 4 × 8) 0 DMB10 board 3 connector (CN201) 7 connector (CN401) 4 wire (flat type) 24p(CN101) 5 wire (flat type) 13p(CN301) 6 wire (flat type) 11p(CN4501) 1 wire (flat type) 11p(CN106) 2 wire (flat type) 5p(CN202) 8 two screws (+BV 3) 9 two screws (+BV 3) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-DZ100K/DZ500KF 3-7. MAIN BOARD 0 MAIN board 3 heat sink (AMP) 5 wire (flat type) 11p(CN505) 6 wire (flat type) 23p(CN507) 7 wire (flat type) 11p(CN504) 4 connector (CN401) 8 four screws (+BV 3) 1 two screws (+BV 3) 9 five screws (+BV 3) 2 screw (BVTP 3 × 12) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-DZ100K/DZ500KF 3-9. TRAY 3-8. DVD MECHANISM DECK (CDM85-DVBU102) 2 DMB bracket 1 three screws (+BV 3) 6 DVD mechanism deck (CDM85-DVBU102) 3 three screws (+BV 3) 4 wire (flat type) 13p 5 connector 4 2 3 two claws 5 tray 1 Move the chuck cam in the direction of the arrow. bottom side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-DZ100K/DZ500KF 3-10. BELT, MS-203 BOARD 1 two claws 5 three claws 7 MS-203 board 6 DC motor 3 belt 2 chuck cam 4 screw (M 1.7 × 2.5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-DZ100K/DZ500KF 3-12. OPTICAL PICK-UP (KHM-310CAA/C2NP) 1 two claws BU holder 2 loading base 5 two insulators 6 two insulators 3 four insulator screws 4 CDM85-DVBU102 7 optical pick-up (KHM-310CAA/C2NP) 3-11. BASE UNIT (DVBU102) 1 two claws 3 two claws 2 chuck cam 4 base unit (DVBU102) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-DZ100K/DZ500KF SECTION 4 TEST MODE Note 1: Regarding the notification symbol “R” Because the number of the operating buttons of this product are limited, some operations require use of the operating buttons of the remote commander, When a specific operation requires use of the operating buttons of the remote commander, “R” is added to the specific operating procedure in this manual. For example, MENU/NO “R” is MENU/NO button of remote commander. Note 2: Incorrect operations may be performed if the test mode is not entered properly. In this case, press the ?/1 button to turn the power off, and retry to enter the test mode. 3. Disc Tray Lock The disc tray lock function for the antitheft of an demonstration disc in the store is equipped. Setting Procedure : 1. Press the ?/1 button to turn the set on. 2. Press the FUNCTION button to set DVD function. 3. Insert a disc. 4. Press the x button and the A button simultaneously for five seconds. 5. The message “LOCKED” is displayed and the tray is locked. Releasing Procedure : 1. Press the x button and the A button simultaneously for five seconds. again. 2. The message “UNLOCKED” is displayed and the tray is unlocked. Note: When “LOCKED” is displayed, the slot lock is not released by turning power on/off with the ?/1 button. 4. DVD Ship Mode • Use this mode when returning the set to the customer after repair. Procedure: 1. Press the ?/1 button to turn the set on. 2. Press the FUNCTION button to set the function “DVD”. 3. Press three buttons x and ?/1 simultaneously. 4. After a message “MECHA LOCK” is displayed on the fluorescent indicator tube, pull out the AC plug. 5. To exit from this mode, press the ?/1 button to turn the set on. 5. DVD Debug In Mode Procedure: 1. Press the ?/1 button to turn the set on. 2. Press the FUNCTION button to set the function “DVD”. 3. Press the three buttons . , A and > simultaneously. 4. To exit from this mode, press the ?/1 button to turn the set on. 6. AM Step Change • A step of AM channels can be changed over between 9 kHz and 10 kHz. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select the function “TUNER”, and press FUNCTION button to select the BAND “AM”. 3. Press ?/1 button to turn the set OFF. 4. Press > and ?/1 buttons simultaneously, and the display of fluorescent indicator tube changes to “AM 9 k STEP” or “AM 10 k STEP”, and thus the channel step is changed over. 1. Cold Reset • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customers. Procedure: 1. Press the ?/1 button to turn the power on. 2. Press three buttons x , A and ?/1 simultaneously. 3. When this button is operated, display as “COLD RESET” for a while and all of the settings are reset. 2. Panel Test Mode • This mode is used to check the software version, LCD, LED and keyboard. 2-1. DVD LED Test Mode Procedure: 1. Press the ?/1 button to turn on the power. 2. Press three bottons X , . and A simultaneously. 3. When the display LED test mode is activated, all segments are turned on. 4. To exit from this mode, pull out the AC plug. 2-2. Version Test Mode Note: ( ) : For DZ500KF Procedure: 1. When the panal test mode is activated, press the . button and the message “DS1K***” (‘‘DS6K***”) is displayed, the version test mode is activated. 2. Whenever press the . button, the version is displayed in order of CC2, MC, SYS, UI, DVD, TA, TM and DS1K (DS6K). 3. Press the > button and the date of the softwafe production is displayed. 4. Press the > button again and the version is displayed. 5. To exit from this mode, pull out the AC plug. 2-3. Key Test Mode Procedure: 1. When the panel test mode is activated, press the H button, to select the key test mode. 2. To enter the KEY test mode, the fluorecent indicator displays “K0 VO”. Each time a button is pressed, “KEY” value increases. However, once a button is pressed, it is no longer taken into account. When all keys are pressed correctly, “K8 VO” is displayed. 3. To exit from this mode, pull out the AC plug. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-DZ100K/DZ500KF DVD SECTION 4-1. GENERAL DESCRIPTION The Mirror Time and IOP measurement allows you to make diagnosis and adjustment simply by using the remote commander and monitor TV. The instructions, diagnosis results, etc. are given on the on screen display (OSD). The Mirror Time and IOP measurement is required is such events where servicing a DVD-Player includes changing the Base Unit (BU). For each new BU to be used with a certain DMB10 board, Mirror Time and IOP measurement need to be carried out. 4-2. STARTING TEST MODE Press three buttons x , A and VOLUME + simultaneously with the DVD player in standby mode. The Test Mode starts, then the menu shown below will be displayed on the TV screen. < > : DZ500KF The menu above is the Remocon Diagnosis Menu screen which consists of six main function. At the bottom of the menu screen, the model name and IF-con version. To enter Mirror Time Adjustment menu, press button 2 “R” on the remote commander to enter Drive Manual Operation menu. To exit from the Test Mode, press the power button on the remote commander. 4-3. DRIVE MANUAL OPERATION The Drive Manual Operation menu consists of five main function. By pressing 2 “R” button on the remote commander in the Remocon Diagnosis Menu, the screen will appear as below. Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History 4. Version Information 5. Video Level Adjustment Model Name : DS1K_XX IF-con : V Syscon : Ver. er. xx.xx (xxxx) x.xxx Drive Manual Operation 1. Servo Control 2. Track/Layer Jump 3. Manual Adjustment 4. Tray Aging Mode 5. MIRR time Adjust 0. Return to Top Menu 4-4. MIRROR TIME ADJUSTMENT To enter Mirror Time Adjustment, press 5 “R” button on the remote commander. The screen will appear as below. There are five main commands in the Mirr time Adjust menu as shown in the figure above. The functions of each command are described in the following page. 1. CD MIRR time Check This command checks the Mirror time value for CD disc. 2. DVD MIRR time Check This command checks the Mirror time value for DVD disc. 3. Threshold This command displays the threshold value between CD and DVD mirror time. 4. Save to EEPROM This command saves an adjusted mirror time value to the EEPROM. 5. Default set MIRR time This command will set CD and DVD mirror time to firmware default value. [Open] / [Close] Pressing the A button controls the tray for disc change during mirror time adjustment. [0] Return to previous menu Press 0 “R” button to return to previous menu. 4-4-1. EXECUTING MIRROR TIME ADJUSTMENT In order to execute mirror time adjustment, the following standard procedures must be followed. (1) In standby mode, press three buttons x , A and VOLUME + simultaneously. (2) Select “2. Drive Manual Operation”. < > : DZ500KF MIRR time Adjust Menu 1. CD MIRR time Check: 2. DVD MIRR time Check: 3. Threshold: 4. Save to EEPROM 5. Default set MIRR time [Open] Tray open [Close] Tray close [0] Return to previous menu Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History Check 4. Version information 5. Video Level Adjustment Model : DS1K_xx IF-con : Ver. xx.xx (xxxx) Syscon : Ver. x.xxx www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-DZ100K/DZ500KF (3) Select “5. MIRR time Adjust”. (4) Select “5. Default set MIRR time”. (5) Select “3. Threshold”. (6) Confirm the number. If it is 7D, go to next step. If it is any other value, return to step 4. (7) Push A button to eject tray. (8) Insert Test Disc HLX-504 into tray. (9) Push A button to close tray. (10) Push “2. DVD MIRR time Check”. (11) Wait for HEX number to display. (12) Confirm the number, if XX is 28 ~ 70, proceed with next step. If no, return to 8. (13) Push “4. Save to EEPROM”. Drive Manual Operation 1. Servo Control 2. Track/Layer Jump 3. Manual Adjustment 4. Mecha test mode 5. MIRR time Adjust 0. Return to Top Menu MIRR time Adjust Menu 1. CD MIRR time Check: 2. DVD MIRR time Check: 3. Threshold: 4. Save to EEPROM: 5. Default set MIRR time: [Open] Tray open [Close] Tray close [0] Return to previous menu MIRR time Adjust Menu 1. CD MIRR time Check: 2. DVD MIRR time Check: 3. Threshold: 7D 4. Save to EEPROM: 5. Default set MIRR time: [Open] Tray open [Close] Tray close [0] Return to previous menu MIRR time Adjust Menu 1. CD MIRR time Check: 2. DVD MIRR time Check: xx xx 3. Thereshold: 4. Save to EEPROM: 5. Default set MIRR time: [Open] tray open [close] Tray close [0] Return to previous menu (14) Confirm the same values are displayed. If it is not same, return to step 7. (15) Push A button to eject tray. (16) Take out HLX-504 and insert Test Disc YEDS-18 into tray. (17) Push A button to close tray. (18) Push “1. CD MIRR time check”. (19) Wait for HEX number to display. (20) Confirm the number, if YY is 5A ~ E8, proceed with next step. If no, return to 15. (21) Push “4. Save to EEPROM”. (22) Confirm the same values are displayed. If it is not the same, return to step 15. (23) Push A button to eject tray. (24) Remove Test Disc YEDS-18 from tray. (25) Push A button to close tray. (26) Press 0 “R” button to the Drive Manual Operation menu. (27) Press 0 “R” button to return to the Remocon Diagnosis Menu. (28) Press the ?/1 button to switch OFF set. MIRR time Adjust Menu 1. CD MIRR time Check: 2. DVD MIRR time Check: XX XX 3. Threshold: 4. Save to EEPROM: 5. Default set MIRR time: [Open] Tray open [close] Tray close [0] Return to previous menu MIRR time Adjust Menu 1. CD MIRR time Check: yy YY 2. DVD MIRR time Check: XX XX 3. Threshold: 4. Save to EEPROM: 5. Default set MIRR time: [Open] Tray open [close] Tray close [0] Return to previous menu MIRR time Adjust Menu 1. CD MIRR time check: YY YY 2. DVD MIRR time check: XX XX 3. Threshold: 4. Save to EEPROM: 5. Default set MIRR time: [Open] Tray open [close] Tray close [0] Return to previous menu www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-DZ100K/DZ500KF 4-5. EXECUTING IOP MEASUREMENT In order to execute mirror time adjustment, the following standard procedures must be followed. (1) In standby mode, press three buttons x , A and VOLUME + simultaneously. < > : DZ500KF (2) Select “2. Drive Manual Operation” by pressing the 2 “R” button on the remote commander. The screen will appear as below. (3) Select “3. Manual Adjustment” by pressing the 3 “R” button on the remote commander. The screen will appear as below. (4) Select Iop by pressing 6 “R” button on the remote commander. Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History Check 4. Version information 5. Video Level Adjustment Model : DS1K XX IF-con Ver : XX.XX (XXXX) Syscon Ver : X.XX Drive Manual Operation 1. Servo Control 2. Track/Layer Jump 3. Manual Adjustment 4. Tray Aging Mode 5. MIRR time adjust 0. Return to top Menu Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eg boost Adjust: 6. Iop: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: o O Change Value [RETURN] Return to previous menu (5) Wait until a hexadecimal number appear. (6) Convert each data from hexadecimal to decimal using conversion table. (7) Substract between these two values. (8) If the remainder is smaller than 93 (decimal), then it is OK. However if the value is higher than 93, then the BU is defective and need to be change. (9) Press RETURN “R” button to return back to previous menu. (10) Press 0 “R” button to return to Top Menu and power OFF the DVD Player. Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq Boost Adjust: 6. Iop. 5B: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: Change Value [0] Return to previous menu www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-DZ100K/DZ500KF Ver. 1.1 DVD SECTION [TEST DISC LIST] Use the following test disc on test mode. • CD: YEDS-18 (PART No. 3-702-101-01) or PATD-012 (PART No. 4-225-203-01) • DVD (SL) : NTSC HLX-503 (PART No. J-6090-069-A) or HLX-504 (PART No. J-6090-088-A) PAL HLX-506 (PART No. J-6090-077-A) • DVD (DL) : NTSC HLX-501 (PART No. J-6090-071-A) or HLX-505 (PART No. J-6090-089-A) PAL HLX-507 (PART No. J-6090-089-A) Note: Do not use exiting test disc for DVD. Confirmation of mirror time adjustment and IOP adjustment (Refer to page 24 of the TEST MODE) [RFMON Level Check] Connection: Procedure: 1. Connect an oscilloscope to CN105 pin 6 (RFMON) and CN105 pin 3 (GND) on the DMB10 board. 2. Turn the power on. 3. Set the test disc (DVD: HLX-503 (NTSC) or HLX-504 (PAL), CD: YEDS-18) on the tray and press H button to playback. 4. Confirm that oscilloscope waveform is clear and check RFMON signal level is correct or not. Note: A clear RFMON signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. Checking Location: DMB10 board (Side A) + – CN105 pin 6 (RFMON) CN105 pin 3 (GND) oscilloscope DMB10 board VOLT/DIV: 200 mV TIME/DIV: 500 ns RFMON signal waveform level: 0.58 to 1.23 Vp-p (DVDSL) 0.57 to 1.1 Vp-p (CD) IC102 IC101 IC104 IC201 CN105 CN106 CN105 pin 3 (GND) CN105 pin 6 (RFMON) 1 6 ELECTRICAL ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 HCD-DZ100K/DZ500KF HCD-DZ100K/DZ500KF • Circuit Boards Location MIC board FL board KEY board STBY board IPOD board MS-203 board TUNER UNIT DMB10 board I/O board MAIN board • Waveforms – DMB10 Board – 4 IC102 C101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C102 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C105 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C108 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C109 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C112 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C114 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C115 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C117 1-124-779-00 ELECT CHIP 10uF 20% 16V C118 1-124-779-00 ELECT CHIP 10uF 20% 16V C119 1-124-779-00 ELECT CHIP 10uF 20% 16V C120 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C121 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C122 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C123 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C124 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C125 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C127 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C128 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C129 1-124-779-00 ELECT CHIP 10uF 20% 16V C130 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C131 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C135 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C136 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C137 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C138 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C139 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C140 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C141 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C142 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C143 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C144 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C145 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C146 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C147 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C148 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C149 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C150 1-124-779-00 ELECT CHIP 10uF 20% 16V C151 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C152 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C153 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C154 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C155 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C156 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C158 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C159 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C163 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C164 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C167 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C170 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C171 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C172 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C173 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C174 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C175 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C176 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C177 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C178 1-126-208-21 ELECT CHIP 47uF 20% 4V C179 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C180 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C181 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C182 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C184 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C187 1-126-208-21 ELECT CHIP 47uF 20% 4V C188 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C189 1-128-934-91 CERAMIC CHIP 0.33uF 20% 10V C190 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C191 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C192 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C193 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C195 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C196 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C203 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C205 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C206 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C208 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C209 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C210 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C211 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V IC103 is a written in and settled EEPROM. Supply with a single article has not been carried out. In case you exchange by DMB10 board (A-1139-088-A), please put on IC103 currently used with the model again. Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DMB10 C212 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C213 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C214 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C215 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C217 1-126-204-11 ELECT CHIP 47uF 20% 16V C218 1-124-779-00 ELECT CHIP 10uF 20% 16V C219 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C220 1-124-779-00 ELECT CHIP 10uF 20% 16V C221 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C222 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C223 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C224 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C225 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C226 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C233 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C402 1-126-204-11 ELECT CHIP 47uF 20% 16V C403 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C4501 1-117-370-11 CERAMIC CHIP 10uF 10V C4502 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C4504 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > CN101 1-815-763-32 CONNECTOR, FFC/FPC 24P * CN105 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P CN106 1-784-370-21 CONNECTOR, FFC/FPC 11P * CN201 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P CN202 1-784-365-21 CONNECTOR, FFC/FPC 5P CN301 1-793-989-21 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 13P CN401 1-779-993-11 PIN, CONNECTOR (PWB) 5P CN4501 1-784-370-21 CONNECTOR, FFC/FPC 11P < DIODE > D1001 8-719-058-24 DIODE RB501V-40TE-17 D3501 6-501-193-01 DIODE 1SS355WTE-17 D3502 6-501-193-01 DIODE 1SS355WTE-17 < FERRITE BEAD > FB111 1-414-226-21 INDUCTOR, FERRITE BEAD FB112 1-414-226-21 INDUCTOR, FERRITE BEAD FB113 1-414-226-21 INDUCTOR, FERRITE BEAD FB114 1-414-226-21 INDUCTOR, FERRITE BEAD FB115 1-414-226-21 INDUCTOR, FERRITE BEAD FB401 1-469-324-21 FERRITE, EMI (SMD) (2012) FB402 1-469-324-21 FERRITE, EMI (SMD) (2012) FB403 1-469-324-21 FERRITE, EMI (SMD) (2012) FB404 1-469-324-21 FERRITE, EMI (SMD) (2012) FB405 1-469-324-21 FERRITE, EMI (SMD) (2012) FB406 1-469-324-21 FERRITE, EMI (SMD) (2012) < FILTER > FL101 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL104 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL105 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL106 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL107 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL108 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL401 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL402 1-233-893-21 FILTER, CHIP EMI FL403 1-234-494-21 FILTER, EMI REMOVAL (SMD) FL4501 1-234-494-21 FILTER, EMI REMOVAL (SMD) < IC > IC101 6-805-878-01 IC MX29LV320ABTC65-OED3-0503CE IC102 6-706-727-01 IC CXD9804R ✩ IC103 (Not supplied) IC BR24L64F-WE2 IC104 6-706-390-11 IC HY57V641620HGTP-HDR IC105 6-702-302-01 IC TK11133CSCL-G IC106 6-708-153-01 IC PQ018EN01ZPH IC107 6-702-302-01 IC TK11133CSCL-G IC201 6-704-524-01 IC FAN8036L IC4501 8-759-573-97 IC SN74LVC541APWR IC4502 8-759-649-50 IC SN74AHC1GU04DCKR < TRANSISTOR > Q101 6-550-008-01 TRANSISTOR UM6K1N-TN Q102 6-550-653-01 TRANSISTOR QST8TR Q103 8-729-027-52 TRANSISTOR DTC124EKA-T146 < RESISTOR > R101 1-216-809-11 METAL CHIP 100 5% 1/10W R104 1-216-864-11 SHORT CHIP 0 R105 1-216-833-11 METAL CHIP 10K 5% 1/10W R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R107 1-216-833-11 METAL CHIP 10K 5% 1/10W R108 1-216-857-11 METAL CHIP 1M 5% 1/10W R109 1-216-864-11 SHORT CHIP 0 R110 1-216-841-11 METAL CHIP 47K 5% 1/10W R111 1-216-809-11 METAL CHIP 100 5% 1/10W R112 1-211-977-11 METAL CHIP 22 0.5% 1/10W R113 1-211-977-11 METAL CHIP 22 0.5% 1/10W R114 1-216-845-11 METAL CHIP 100K 5% 1/10W R115 1-211-977-11 METAL CHIP 22 0.5% 1/10W R116 1-216-821-11 METAL CHIP 1K 5% 1/10W R117 1-216-841-11 METAL CHIP 47K 5% 1/10W R118 1-216-801-11 METAL CHIP 22 5% 1/10W R120 1-216-801-11 METAL CHIP 22 5% 1/10W R121 1-216-801-11 METAL CHIP 22 5% 1/10W R123 1-216-864-11 SHORT CHIP 0 R124 1-216-841-11 METAL CHIP 47K 5% 1/10W R126 1-216-864-11 SHORT CHIP 0 R127 1-216-809-11 METAL CHIP 100 5% 1/10W R133 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R134 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R135 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R136 1-216-835-11 METAL CHIP 15K 5% 1/10W R138 1-216-845-11 METAL CHIP 100K 5% 1/10W R141 1-218-916-11 METAL CHIP 750K 0.5% 1/10W R142 1-216-845-11 METAL CHIP 100K 5% 1/10W R143 1-216-809-11 METAL CHIP 100 5% 1/10W R144 1-216-864-11 SHORT CHIP 0 R146 1-216-805-11 METAL CHIP 47 5% 1/10W R151 1-216-805-11 METAL CHIP 47 5% 1/10W R152 1-216-864-11 SHORT CHIP 0 R153 1-216-805-11 METAL CHIP 47 5% 1/10W IC103 is a written in and settled EEPROM. Supply with a single article has not been carried out. In case you exchange by DMB10 board (A-1139-088-A), please put on IC103 currently used with the model again. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DMB10 R155 1-216-805-11 METAL CHIP 47 5% 1/10W R160 1-216-805-11 METAL CHIP 47 5% 1/10W R161 1-216-809-11 METAL CHIP 100 5% 1/10W R164 1-216-809-11 METAL CHIP 100 5% 1/10W R169 1-216-833-11 METAL CHIP 10K 5% 1/10W R187 1-216-864-11 SHORT CHIP 0 R189 1-218-827-11 METAL CHIP 150 0.5% 1/10W R190 1-218-827-11 METAL CHIP 150 0.5% 1/10W R191 1-216-821-11 METAL CHIP 1K 5% 1/10W R192 1-218-827-11 METAL CHIP 150 0.5% 1/10W R193 1-216-821-11 METAL CHIP 1K 5% 1/10W R195 1-218-827-11 METAL CHIP 150 0.5% 1/10W R196 1-216-864-11 SHORT CHIP 0 R197 1-218-827-11 METAL CHIP 150 0.5% 1/10W R204 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R205 1-216-833-11 METAL CHIP 10K 5% 1/10W R206 1-216-833-11 METAL CHIP 10K 5% 1/10W R207 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R208 1-216-839-11 METAL CHIP 33K 5% 1/10W R209 1-216-839-11 METAL CHIP 33K 5% 1/10W R210 1-216-841-11 METAL CHIP 47K 5% 1/10W R212 1-216-833-11 METAL CHIP 10K 5% 1/10W R213 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R214 1-216-835-11 METAL CHIP 15K 5% 1/10W R215 1-216-834-11 METAL CHIP 12K 5% 1/10W R216 1-216-834-11 METAL CHIP 12K 5% 1/10W R219 1-216-838-11 METAL CHIP 27K 5% 1/10W R220 1-216-833-11 METAL CHIP 10K 5% 1/10W R221 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R222 1-216-839-11 METAL CHIP 33K 5% 1/10W R223 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R224 1-216-833-11 METAL CHIP 10K 5% 1/10W R225 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R226 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R227 1-216-864-11 SHORT CHIP 0 R228 1-216-864-11 SHORT CHIP 0 R230 1-218-893-11 METAL CHIP 82K 0.5% 1/10W R231 1-218-875-11 METAL CHIP 15K 0.5% 1/10W R232 1-218-877-11 METAL CHIP 18K 0.5% 1/10W R233 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R234 1-216-833-11 METAL CHIP 10K 5% 1/10W R236 1-216-821-11 METAL CHIP 1K 5% 1/10W R237 1-216-821-11 METAL CHIP 1K 5% 1/10W R238 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R239 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R243 1-216-809-11 METAL CHIP 100 5% 1/10W R246 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R247 1-216-821-11 METAL CHIP 1K 5% 1/10W R1101 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1102 1-218-827-11 METAL CHIP 150 0.5% 1/10W R1103 1-216-833-11 METAL CHIP 10K 5% 1/10W R1104 1-216-833-11 METAL CHIP 10K 5% 1/10W R1105 1-216-833-11 METAL CHIP 10K 5% 1/10W R1107 1-216-864-11 SHORT CHIP 0 R1108 1-216-833-11 METAL CHIP 10K 5% 1/10W R1109 1-216-864-11 SHORT CHIP 0 R1110 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R1120 1-500-284-21 INDUCTOR, FERRITE BEAD R1121 1-500-284-21 INDUCTOR, FERRITE BEAD R1122 1-500-284-21 INDUCTOR, FERRITE BEAD R1123 1-500-284-21 INDUCTOR, FERRITE BEAD R1124 1-500-284-21 INDUCTOR, FERRITE BEAD R1125 1-500-284-21 INDUCTOR, FERRITE BEAD R1129 1-216-845-11 METAL CHIP 100K 5% 1/10W R1133 1-216-864-11 SHORT CHIP 0 R1134 1-216-864-11 SHORT CHIP 0 R1150 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1151 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1152 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1168 1-216-817-11 METAL CHIP 470 5% 1/10W R1502 1-216-864-11 SHORT CHIP 0 R1504 1-400-244-11 BEAD, FERRITE (CHIP) (1608) R1530 1-216-864-11 SHORT CHIP 0 R1531 1-216-864-11 SHORT CHIP 0 R1540 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1542 1-216-864-11 SHORT CHIP 0 R1543 1-216-833-11 METAL CHIP 10K 5% 1/10W R1545 1-216-864-11 SHORT CHIP 0 R1546 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1547 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1548 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1549 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1550 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1551 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1553 1-216-864-11 SHORT CHIP 0 R1554 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1557 1-216-809-11 METAL CHIP 100 5% 1/10W R2505 1-216-864-11 SHORT CHIP 0 R4501 1-216-864-11 SHORT CHIP 0 R4502 1-216-864-11 SHORT CHIP 0 R4510 1-216-805-11 METAL CHIP 47 5% 1/10W R4511 1-216-809-11 METAL CHIP 100 5% 1/10W R4512 1-400-244-11 BEAD, FERRITE (CHIP) (1608) R4513 1-216-864-11 SHORT CHIP 0 R4514 1-216-809-11 METAL CHIP 100 5% 1/10W R4515 1-216-809-11 METAL CHIP 100 5% 1/10W R4516 1-216-809-11 METAL CHIP 100 5% 1/10W R4518 1-216-864-11 SHORT CHIP 0 R4520 1-216-864-11 SHORT CHIP 0 R4701 1-216-864-11 SHORT CHIP 0 R4702 1-216-864-11 SHORT CHIP 0 R4703 1-216-864-11 SHORT CHIP 0 R4704 1-216-864-11 SHORT CHIP 0 R4705 1-216-864-11 SHORT CHIP 0 R4706 1-216-864-11 SHORT CHIP 0 < COMPOSITION CIRCUIT BLOCK > RB103 1-234-795-21 RES, NETWORK 0X4 (2010) RB104 1-234-795-21 RES, NETWORK 0X4 (2010) RB105 1-234-371-21 RES, NETWORK 47 (1005X4) RB106 1-234-371-21 RES, NETWORK 47 (1005X4) RB107 1-234-370-21 RES, NETWORK 22 (1005X4) RB108 1-234-370-21 RES, NETWORK 22 (1005X4) RB111 1-234-795-21 RES, NETWORK 0X4 (2010) RB112 1-234-370-21 RES, NETWORK 22 (1005X4) RB113 1-234-370-21 RES, NETWORK 22 (1005X4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark DMB10 FL I/O < VIBRATOR > X101 1-781-867-21 VIBRATOR, CRYSTAL (27MHz) ************************************************************* A-1088-414-A FL BOARD, COMPLETE ****************** < CAPACITOR > C800 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C801 1-163-037-11 CERAMIC CHIP 0.022uF 10% 50V C802 1-119-943-91 ELECT 47uF 20% 50V C803 1-124-584-00 ELECT 100uF 20% 10V C804 1-162-974-11 CERAMIC CHIP 0.01uF 50V C805 1-164-360-11 CERAMIC CHIP 0.1uF 16V C806 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C807 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C808 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C809 1-126-795-11 ELECT 10uF 20% 50V C810 1-164-360-11 CERAMIC CHIP 0.1uF 16V C811 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C812 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C813 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C814 1-126-795-11 ELECT 10uF 20% 50V C815 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C816 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C817 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C818 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C819 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C820 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C821 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C822 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C823 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C824 1-162-974-11 CERAMIC CHIP 0.01uF 50V C825 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C826 1-162-960-11 CERAMIC CHIP 220PF 10% 50V < CONNECTOR > CN801 1-779-556-21 CONNECTOR, FFC (LIF (NON-ZIF)) 19P * CN805 1-568-942-11 PIN, CONNECTOR 4P < DIODE > D801 6-501-193-01 DIODE 1SS355WTE-17 D802 6-501-193-01 DIODE 1SS355WTE-17 D803 8-719-069-56 DIODE UDZSTE-176.2B D804 6-501-193-01 DIODE 1SS355WTE-17 D805 6-501-193-01 DIODE 1SS355WTE-17 < FERRITE BEAD > FB806 1-414-813-11 FERRITE, EMI (SMD) (2012) < FLUORESCENT INDICATOR > FL801 1-519-792-11 INDICATOR TUBE, FLUORESCENT < IC > IC801 6-600-349-21 IC NJL23H400A ( ) IC802 8-759-643-83 IC uPD16315GB-3BS < COIL > L801 1-410-671-31 INDUCTOR 47uH L802 1-410-671-31 INDUCTOR 47uH < TRANSISTOR > Q801 6-550-065-01 TRANSISTOR CPH5504-TL-E Q802 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R800 1-216-821-11 METAL CHIP 1K 5% 1/10W R801 1-216-839-11 METAL CHIP 33K 5% 1/10W R802 1-216-809-11 METAL CHIP 100 5% 1/10W R804 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R805 1-216-295-91 SHORT CHIP 0 R810 1-216-864-11 SHORT CHIP 0 R811 1-216-844-11 METAL CHIP 82K 5% 1/10W R812 1-216-845-11 METAL CHIP 100K 5% 1/10W R813 1-216-845-11 METAL CHIP 100K 5% 1/10W R814 1-216-809-11 METAL CHIP 100 5% 1/10W R815 1-216-809-11 METAL CHIP 100 5% 1/10W R816 1-216-809-11 METAL CHIP 100 5% 1/10W R817 1-216-821-11 METAL CHIP 1K 5% 1/10W R819 1-216-805-11 METAL CHIP 47 5% 1/10W R820 1-216-845-11 METAL CHIP 100K 5% 1/10W R821 1-216-864-11 SHORT CHIP 0 R822 1-216-864-11 SHORT CHIP 0 < SWITCH > S800 1-418-632-11 ENCODER, ROTARY (VOLUME) < TRANSFORMER > T801 1-443-645-11 TRANSFORMER, DC CONVERTER ************************************************************ A-1133-108-A I/O BOARD, COMPLETE ******************* < CAPACITOR > C102 1-126-933-11 ELECT 100uF 20% 16V C103 1-104-662-91 ELECT 22uF 20% 25V C104 1-104-662-91 ELECT 22uF 20% 25V C109 1-164-156-11 CERAMIC CHIP 0.1uF 25V C201 1-164-156-11 CERAMIC CHIP 0.1uF 25V C202 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C203 1-126-933-11 ELECT 100uF 20% 16V C204 1-126-964-11 ELECT 10uF 20% 50V C205 1-126-964-11 ELECT 10uF 20% 50V C207 1-126-964-11 ELECT 10uF 20% 50V C208 1-164-156-11 CERAMIC CHIP 0.1uF 25V C209 1-164-156-11 CERAMIC CHIP 0.1uF 25V C210 1-126-925-91 ELECT 470uF 20% 10V C211 1-126-964-11 ELECT 10uF 20% 50V C212 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C213 1-126-933-11 ELECT 100uF 20% 16V C214 1-164-156-11 CERAMIC CHIP 0.1uF 25V C215 1-115-156-11 CERAMIC CHIP 1uF 10V C216 1-115-156-11 CERAMIC CHIP 1uF 10V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark I/O C217 1-126-933-11 ELECT 100uF 20% 16V C218 1-115-156-11 CERAMIC CHIP 1uF 10V C219 1-164-156-11 CERAMIC CHIP 0.1uF 25V C220 1-126-964-11 ELECT 10uF 20% 50V C221 1-164-156-11 CERAMIC CHIP 0.1uF 25V C222 1-164-156-11 CERAMIC CHIP 0.1uF 25V C223 1-164-156-11 CERAMIC CHIP 0.1uF 25V C224 1-126-916-11 ELECT 1000uF 20% 6.3V C225 1-126-916-11 ELECT 1000uF 20% 6.3V C226 1-126-916-11 ELECT 1000uF 20% 6.3V C227 1-126-933-11 ELECT 100uF 20% 16V C228 1-126-933-11 ELECT 100uF 20% 16V C231 1-164-156-11 CERAMIC CHIP 0.1uF 25V C232 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C233 1-164-156-11 CERAMIC CHIP 0.1uF 25V C242 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C603 1-104-662-91 ELECT 22uF 20% 25V C604 1-104-662-91 ELECT 22uF 20% 25V C605 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C606 1-164-156-11 CERAMIC CHIP 0.1uF 25V C607 1-104-662-91 ELECT 22uF 20% 25V C608 1-126-933-11 ELECT 100uF 20% 16V C609 1-164-156-11 CERAMIC CHIP 0.1uF 25V C610 1-104-662-91 ELECT 22uF 20% 25V C611 1-104-662-91 ELECT 22uF 20% 25V C612 1-104-662-91 ELECT 22uF 20% 25V C613 1-104-662-91 ELECT 22uF 20% 25V C615 1-126-960-11 ELECT 1uF 20% 50V C616 1-126-960-11 ELECT 1uF 20% 50V C619 1-104-662-91 ELECT 22uF 20% 25V C620 1-104-662-91 ELECT 22uF 20% 25V C622 1-104-662-91 ELECT 22uF 20% 25V C625 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C626 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C630 1-104-662-91 ELECT 22uF 20% 25V C645 1-130-491-00 MYLAR 0.047uF 5% 50V C649 1-126-933-11 ELECT 100uF 20% 16V C650 1-164-156-11 CERAMIC CHIP 0.1uF 25V C654 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C655 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C656 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C657 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C662 1-126-933-11 ELECT 100uF 20% 16V C663 1-164-156-11 CERAMIC CHIP 0.1uF 25V C664 1-124-464-11 ELECT 0.22uF 20% 50V C665 1-104-662-91 ELECT 22uF 20% 25V C666 1-164-156-11 CERAMIC CHIP 0.1uF 25V C669 1-126-933-11 ELECT 100uF 20% 16V C670 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN101 1-568-828-11 CONNECTOR, FFC 9P CN201 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P CN601 1-779-291-11 CONNECTOR, FFC (LIF (NON-ZIF)) 23P * CN602 1-568-942-11 PIN, CONNECTOR 4P CN603 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P < IC > IC201 6-705-602-01 IC MM1623BFBE IC203 8-759-696-10 IC NJM2235V (TE2) IC204 8-759-284-49 IC NJM2285V-TE2 IC601 8-759-385-76 IC MC14052 BDR2 IC602 8-759-649-89 IC MC4558CD IC606 8-759-649-89 IC MC4558CD IC607 6-706-078-01 IC M62429FP-TP < JACK > J201 1-780-211-11 TERMINAL BOARD (S TERMINAL+1P) (MONITOR OUT) J202 1-817-449-11 JACK, PIN 3P (COMPONENT VIDEO OUT) J601 1-764-592-11 JACK 3P (VIDEO) < COIL > L101 1-469-525-91 INDUCTOR 10uH L201 1-469-525-91 INDUCTOR 10uH L202 1-469-525-91 INDUCTOR 10uH L602 1-469-525-91 INDUCTOR 10uH L603 1-469-525-91 INDUCTOR 10uH < TRANSISTOR > Q601 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q602 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q603 8-729-901-00 TRANSISTOR DTC124EK Q604 8-729-901-00 TRANSISTOR DTC124EK Q605 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q606 8-729-901-00 TRANSISTOR DTC124EK Q607 8-729-901-00 TRANSISTOR DTC124EK Q608 8-729-901-00 TRANSISTOR DTC124EK Q609 8-729-901-00 TRANSISTOR DTC124EK < RESISTOR > R102 1-216-864-11 SHORT CHIP 0 R105 1-216-845-11 METAL CHIP 100K 5% 1/10W R109 1-216-864-11 SHORT CHIP 0 R114 1-216-864-11 SHORT CHIP 0 R115 1-216-845-11 METAL CHIP 100K 5% 1/10W R116 1-216-845-11 METAL CHIP 100K 5% 1/10W R117 1-216-845-11 METAL CHIP 100K 5% 1/10W R202 1-218-285-11 METAL CHIP 75 5% 1/10W R203 1-216-864-11 SHORT CHIP 0 R204 1-216-821-11 METAL CHIP 1K 5% 1/10W R205 1-216-864-11 SHORT CHIP 0 R206 1-216-864-11 SHORT CHIP 0 R207 1-216-864-11 SHORT CHIP 0 R209 1-216-864-11 SHORT CHIP 0 R226 1-216-864-11 SHORT CHIP 0 R228 1-216-833-11 METAL CHIP 10K 5% 1/10W R229 1-218-285-11 METAL CHIP 75 5% 1/10W R230 1-218-285-11 METAL CHIP 75 5% 1/10W R231 1-218-285-11 METAL CHIP 75 5% 1/10W R232 1-218-285-11 METAL CHIP 75 5% 1/10W R233 1-218-285-11 METAL CHIP 75 5% 1/10W R241 1-218-285-11 METAL CHIP 75 5% 1/10W R602 1-216-833-11 METAL CHIP 10K 5% 1/10W R606 1-216-829-11 METAL CHIP 4.7K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark IPOD I/O KEY R607 1-216-841-11 METAL CHIP 47K 5% 1/10W R608 1-216-841-11 METAL CHIP 47K 5% 1/10W R609 1-216-817-11 METAL CHIP 470 5% 1/10W R610 1-216-817-11 METAL CHIP 470 5% 1/10W R613 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R614 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R615 1-216-841-11 METAL CHIP 47K 5% 1/10W R616 1-216-841-11 METAL CHIP 47K 5% 1/10W R617 1-216-821-11 METAL CHIP 1K 5% 1/10W R618 1-216-833-11 METAL CHIP 10K 5% 1/10W R619 1-216-821-11 METAL CHIP 1K 5% 1/10W R620 1-216-833-11 METAL CHIP 10K 5% 1/10W R622 1-216-821-11 METAL CHIP 1K 5% 1/10W R623 1-216-841-11 METAL CHIP 47K 5% 1/10W R624 1-216-841-11 METAL CHIP 47K 5% 1/10W R626 1-216-841-11 METAL CHIP 47K 5% 1/10W R627 1-216-841-11 METAL CHIP 47K 5% 1/10W R628 1-216-841-11 METAL CHIP 47K 5% 1/10W R630 1-216-841-11 METAL CHIP 47K 5% 1/10W R631 1-216-841-11 METAL CHIP 47K 5% 1/10W R632 1-216-841-11 METAL CHIP 47K 5% 1/10W R633 1-216-833-11 METAL CHIP 10K 5% 1/10W R634 1-216-845-11 METAL CHIP 100K 5% 1/10W R635 1-216-841-11 METAL CHIP 47K 5% 1/10W R636 1-216-864-11 SHORT CHIP 0 R637 1-216-864-11 SHORT CHIP 0 R638 1-216-821-11 METAL CHIP 1K 5% 1/10W R639 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R641 1-216-864-11 SHORT CHIP 0 R644 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R645 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R646 1-216-833-11 METAL CHIP 10K 5% 1/10W R650 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R651 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R652 1-216-809-11 METAL CHIP 100 5% 1/10W R653 1-216-845-11 METAL CHIP 100K 5% 1/10W R654 1-216-841-11 METAL CHIP 47K 5% 1/10W R657 1-216-809-11 METAL CHIP 100 5% 1/10W R658 1-216-833-11 METAL CHIP 10K 5% 1/10W R660 1-216-809-11 METAL CHIP 100 5% 1/10W R661 1-216-833-11 METAL CHIP 10K 5% 1/10W R663 1-216-845-11 METAL CHIP 100K 5% 1/10W R664 1-216-845-11 METAL CHIP 100K 5% 1/10W R674 1-216-833-11 METAL CHIP 10K 5% 1/10W R675 1-216-833-11 METAL CHIP 10K 5% 1/10W R679 1-216-833-11 METAL CHIP 10K 5% 1/10W R688 1-216-833-11 METAL CHIP 10K 5% 1/10W R690 1-216-837-11 METAL CHIP 22K 5% 1/10W R693 1-216-864-11 SHORT CHIP 0 ************************************************************ IPOD BOARD *********** < CAPACITOR > C636 1-216-864-11 SHORT CHIP 0 C637 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C638 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C639 1-126-964-11 ELECT 10uF 20% 50V C640 1-126-964-11 ELECT 10uF 20% 50V C641 1-126-933-11 ELECT 100uF 20% 16V C642 1-164-156-11 CERAMIC CHIP 0.1uF 25V C643 1-126-933-11 ELECT 100uF 20% 16V C646 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < IC > IC605 8-759-649-89 IC MC4558CD < JACK > J603 1-566-822-51 JACK (AUDIO IN) < RESISTOR > R605 1-216-817-11 METAL CHIP 470 5% 1/10W R621 1-216-864-11 SHORT CHIP 0 R642 1-216-864-11 SHORT CHIP 0 R643 1-216-864-11 SHORT CHIP 0 R665 1-216-817-11 METAL CHIP 470 5% 1/10W R666 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R667 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R668 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R669 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R670 1-216-821-11 METAL CHIP 1K 5% 1/10W R671 1-216-821-11 METAL CHIP 1K 5% 1/10W R672 1-216-821-11 METAL CHIP 1K 5% 1/10W R673 1-216-821-11 METAL CHIP 1K 5% 1/10W R677 1-216-845-11 METAL CHIP 100K 5% 1/10W R678 1-216-845-11 METAL CHIP 100K 5% 1/10W R683 1-216-864-11 SHORT CHIP 0 R684 1-216-864-11 SHORT CHIP 0 ************************************************************ KEY BOARD ********* < RESISTOR > R851 1-216-821-11 METAL CHIP 1K 5% 1/10W R852 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R853 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R854 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R855 1-216-821-11 METAL CHIP 1K 5% 1/10W R856 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R857 1-216-825-11 METAL CHIP 2.2K 5% 1/10W < SWITCH > S802 1-762-875-21 SWITCH, KEYBOARD (B) S803 1-762-875-21 SWITCH, KEYBOARD (.) S804 1-762-875-21 SWITCH, KEYBOARD (X) S805 1-762-875-21 SWITCH, KEYBOARD (x) S806 1-762-875-21 SWITCH, KEYBOARD (>) S807 1-762-875-21 SWITCH, KEYBOARD (FUNCTION) S808 1-762-875-21 SWITCH, KEYBOARD (A) ************************************************************ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN A-1133-098-A MAIN BOARD, COMPLETE (DZ100K) A-1133-241-A MAIN BOARD, COMPLETE (DZ500KF) ********************* 1-533-313-11 FUSE HOLDER 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 < CAPACITOR > C101 1-164-346-11 CERAMIC CHIP 1uF 16V C102 1-164-346-11 CERAMIC CHIP 1uF 16V C103 1-164-346-11 CERAMIC CHIP 1uF 16V C104 1-164-346-11 CERAMIC CHIP 1uF 16V C105 1-164-346-11 CERAMIC CHIP 1uF 16V C106 1-164-346-11 CERAMIC CHIP 1uF 16V C107 1-164-346-11 CERAMIC CHIP 1uF 16V (DZ500KF) C108 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C109 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C110 1-163-205-00 CERAMIC CHIP 0.001uF 10% 50V C111 1-164-346-11 CERAMIC CHIP 1uF 16V C112 1-164-346-11 CERAMIC CHIP 1uF 16V C113 1-164-346-11 CERAMIC CHIP 1uF 16V C114 1-164-346-11 CERAMIC CHIP 1uF 16V C115 1-164-346-11 CERAMIC CHIP 1uF 16V C116 1-164-346-11 CERAMIC CHIP 1uF 16V C117 1-164-346-11 CERAMIC CHIP 1uF 16V (DZ500KF) C119 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C120 1-126-947-11 ELECT 47uF 20% 35V C131 1-164-156-11 CERAMIC CHIP 0.1uF 25V C132 1-164-156-11 CERAMIC CHIP 0.1uF 25V C133 1-164-156-11 CERAMIC CHIP 0.1uF 25V C134 1-164-156-11 CERAMIC CHIP 0.1uF 25V C135 1-164-156-11 CERAMIC CHIP 0.1uF 25V C136 1-164-156-11 CERAMIC CHIP 0.1uF 25V C137 1-164-156-11 CERAMIC CHIP 0.1uF 25V (DZ500KF) C141 1-164-156-11 CERAMIC CHIP 0.1uF 25V C142 1-164-156-11 CERAMIC CHIP 0.1uF 25V C143 1-164-156-11 CERAMIC CHIP 0.1uF 25V C144 1-164-156-11 CERAMIC CHIP 0.1uF 25V C145 1-164-156-11 CERAMIC CHIP 0.1uF 25V C146 1-164-156-11 CERAMIC CHIP 0.1uF 25V C147 1-164-156-11 CERAMIC CHIP 0.1uF 25V (DZ500KF) C151 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C152 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C153 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C154 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C155 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C156 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C157 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V (DZ500KF) C161 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C162 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C163 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C164 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C165 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C166 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C167 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V (DZ500KF) C171 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C172 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C173 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C174 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C175 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C176 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C177 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V (DZ500KF) C181 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C182 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C183 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C184 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C185 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C186 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V C187 1-115-185-11 CERAMIC CHIP 0.033uF 10% 50V (DZ500KF) C188 1-164-156-11 CERAMIC CHIP 0.1uF 25V C189 1-164-156-11 CERAMIC CHIP 0.1uF 25V C190 1-164-156-11 CERAMIC CHIP 0.1uF 25V C191 1-107-898-11 ELECT 2200uF 20% 35V C192 1-107-898-11 ELECT 2200uF 20% 35V C193 1-107-898-11 ELECT 2200uF 20% 35V C194 1-107-898-11 ELECT 2200uF 20% 35V C195 1-107-898-11 ELECT 2200uF 20% 35V C196 1-107-898-11 ELECT 2200uF 20% 35V C197 1-107-898-11 ELECT 2200uF 20% 35V (DZ500KF) C198 1-164-156-11 CERAMIC CHIP 0.1uF 25V C199 1-164-156-11 CERAMIC CHIP 0.1uF 25V C200 1-164-156-11 CERAMIC CHIP 0.1uF 25V C201 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C202 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C203 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C204 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C205 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C206 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C207 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C208 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C209 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C210 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C211 1-136-177-00 FILM 1uF 5% 50V C212 1-136-177-00 FILM 1uF 5% 50V C213 1-136-177-00 FILM 1uF 5% 50V C214 1-136-177-00 FILM 1uF 5% 50V C215 1-136-177-00 FILM 1uF 5% 50V C216 1-136-177-00 FILM 1uF 5% 50V C217 1-136-177-00 FILM 1uF 5% 50V (DZ500KF) C218 1-164-156-11 CERAMIC CHIP 0.1uF 25V (DZ500KF) C221 1-136-177-00 FILM 1uF 5% 50V C222 1-136-177-00 FILM 1uF 5% 50V C223 1-136-177-00 FILM 1uF 5% 50V C224 1-136-177-00 FILM 1uF 5% 50V C225 1-136-177-00 FILM 1uF 5% 50V C226 1-136-177-00 FILM 1uF 5% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C227 1-136-177-00 FILM 1uF 5% 50V (DZ500KF) C248 1-126-947-11 ELECT 47uF 20% 35V C251 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C252 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C253 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C254 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C255 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C256 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C257 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V (DZ500KF) C261 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C262 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C263 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C264 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C265 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C266 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C267 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V (DZ500KF) C268 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C269 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C271 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C272 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C273 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V (DZ500KF) C274 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V (DZ500KF) C275 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C276 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C277 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C278 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C279 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V (DZ500KF) C279 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V (DZ100K) C280 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V (DZ500KF) C280 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V (DZ100K) C281 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C282 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C283 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C284 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C285 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C286 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C287 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C288 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C289 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C290 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C291 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C292 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C293 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V (DZ500KF) C294 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V (DZ500KF) C296 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C297 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C298 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C299 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C301 1-164-156-11 CERAMIC CHIP 0.1uF 25V C302 1-164-156-11 CERAMIC CHIP 0.1uF 25V C303 1-164-156-11 CERAMIC CHIP 0.1uF 25V C304 1-164-156-11 CERAMIC CHIP 0.1uF 25V C305 1-164-156-11 CERAMIC CHIP 0.1uF 25V C306 1-164-156-11 CERAMIC CHIP 0.1uF 25V C307 1-126-933-11 ELECT 100uF 20% 16V C308 1-164-156-11 CERAMIC CHIP 0.1uF 25V C309 1-164-156-11 CERAMIC CHIP 0.1uF 25V C310 1-164-156-11 CERAMIC CHIP 0.1uF 25V C311 1-164-156-11 CERAMIC CHIP 0.1uF 25V C312 1-164-156-11 CERAMIC CHIP 0.1uF 25V C313 1-164-156-11 CERAMIC CHIP 0.1uF 25V C314 1-164-156-11 CERAMIC CHIP 0.1uF 25V C315 1-164-156-11 CERAMIC CHIP 0.1uF 25V C316 1-164-156-11 CERAMIC CHIP 0.1uF 25V C317 1-164-156-11 CERAMIC CHIP 0.1uF 25V C318 1-164-156-11 CERAMIC CHIP 0.1uF 25V C319 1-164-156-11 CERAMIC CHIP 0.1uF 25V C320 1-164-156-11 CERAMIC CHIP 0.1uF 25V C321 1-164-156-11 CERAMIC CHIP 0.1uF 25V C322 1-164-156-11 CERAMIC CHIP 0.1uF 25V C323 1-164-156-11 CERAMIC CHIP 0.1uF 25V C324 1-164-156-11 CERAMIC CHIP 0.1uF 25V C325 1-164-156-11 CERAMIC CHIP 0.1uF 25V C326 1-164-156-11 CERAMIC CHIP 0.1uF 25V C327 1-164-156-11 CERAMIC CHIP 0.1uF 25V C328 1-164-156-11 CERAMIC CHIP 0.1uF 25V C329 1-126-947-11 ELECT 47uF 20% 35V C332 1-126-947-11 ELECT 47uF 20% 35V C335 1-126-947-11 ELECT 47uF 20% 35V C350 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C366 1-126-934-11 ELECT 220uF 20% 16V C367 1-164-156-11 CERAMIC CHIP 0.1uF 25V C368 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C371 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C372 1-126-960-11 ELECT 1uF 20% 50V C374 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C375 1-126-933-11 ELECT 100uF 20% 16V C377 1-126-964-11 ELECT 10uF 20% 50V C380 1-126-923-91 ELECT 220uF 20% 10V C381 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C382 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C383 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C384 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C385 1-164-505-11 CERAMIC CHIP 2.2uF 16V C391 1-164-505-11 CERAMIC CHIP 2.2uF 16V C392 1-164-505-11 CERAMIC CHIP 2.2uF 16V C393 1-164-505-11 CERAMIC CHIP 2.2uF 16V C394 1-164-505-11 CERAMIC CHIP 2.2uF 16V C395 1-164-505-11 CERAMIC CHIP 2.2uF 16V C396 1-117-370-11 CERAMIC CHIP 10uF 10V C402 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C403 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C404 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C405 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C406 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C504 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C505 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C506 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C511 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C512 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C513 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C514 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C517 1-126-964-11 ELECT 10uF 20% 50V C518 1-126-964-11 ELECT 10uF 20% 50V C524 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C525 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C526 1-126-947-11 ELECT 47uF 20% 35V C527 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C528 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C529 1-126-964-11 ELECT 10uF 20% 50V C530 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C531 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C532 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C533 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C534 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C535 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C536 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C538 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C539 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C540 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C541 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C542 1-126-923-91 ELECT 220uF 20% 10V C543 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C544 1-126-964-11 ELECT 10uF 20% 50V C545 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C546 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C547 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C548 1-216-864-11 SHORT CHIP 0 C549 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C551 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C552 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C554 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C555 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C556 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C557 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C558 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C559 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C560 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C561 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C562 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C563 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C564 1-126-964-11 ELECT 10uF 20% 50V C565 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C567 1-126-923-91 ELECT 220uF 20% 10V C568 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C569 1-165-112-11 CERAMIC CHIP 0.33uF 16V C570 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C571 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C572 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C575 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C577 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C580 1-126-916-11 ELECT 1000uF 20% 6.3V C582 1-104-658-91 ELECT 100uF 20% 10V C583 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C587 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C589 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C595 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C596 1-126-947-11 ELECT 47uF 20% 35V C597 1-165-112-11 CERAMIC CHIP 0.33uF 16V C598 1-165-112-11 CERAMIC CHIP 0.33uF 16V C601 1-126-947-11 ELECT 47uF 20% 35V C602 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C603 1-104-658-91 ELECT 100uF 20% 10V C608 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C712 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C716 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C762 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C798 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C799 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C856 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C875 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V 0C901 1-165-529-11 MYLAR 0.22uF 10 275V 0C902 1-165-529-11 MYLAR 0.22uF 10 275V 0C903 1-112-333-11 ELECT (BLOCK) 330uF 20% 450V 0C905 1-112-335-91 FILM 0.0033uF 5% 400V 0C906 1-117-815-11 FILM 1000PF 3% 1.5KV 0C907 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V 0C908 1-107-909-11 ELECT 47uF 20% 50V 0C909 1-162-960-11 CERAMIC CHIP 220PF 10% 50V 0C910 1-107-907-11 ELECT 22uF 20% 50V 0C911 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V 0C912 1-117-693-11 CERAMIC 100PF 10% 250V 0C913 1-117-693-11 CERAMIC 100PF 10% 250V 0C918 1-113-925-11 CERAMIC 0.01uF 20% 250V 0C920 1-113-925-11 CERAMIC 0.01uF 20% 250V 0C921 1-165-136-11 CERAMIC 3300PF 10% 500V 0C922 1-128-560-11 ELECT 22uF 20% 100V 0C923 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V 0C924 1-124-257-00 ELECT 2.2uF 20% 50V 0C925 1-107-974-81 CERAMIC 47PF 5% 2KV 0C928 1-113-896-11 CERAMIC 220PF 10% 250V 0C929 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C932 1-100-924-21 ELECT 2200uF 20% 35V C933 1-100-924-21 ELECT 2200uF 20% 35V C934 1-107-898-11 ELECT 2200uF 20% 35V C935 1-165-319-11 CERAMIC CHIP 0.1uF 50V C936 1-165-319-11 CERAMIC CHIP 0.1uF 50V C937 1-100-756-91 CERAMIC CHIP 0.047uF 50V 0C938 1-117-698-51 CERAMIC 680PF 10% 250V C939 1-136-165-00 FILM 0.1uF 5% 50V C940 1-128-947-31 ELECT 3300uF 20% 10V C941 1-128-954-21 ELECT 1000uF 20% 25V C942 1-126-941-11 ELECT 470uF 20% 25V C943 1-126-933-11 ELECT 100uF 20% 16V C944 1-128-951-21 ELECT 2200uF 20% 16V C945 1-126-935-11 ELECT 470uF 20% 16V C946 1-128-950-21 ELECT 1000uF 20% 16V C947 1-104-658-91 ELECT 100uF 20% 10V C948 1-126-925-91 ELECT 470uF 20% 10V C949 1-165-722-31 ELECT 100uF 20% 10V C951 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C952 1-100-756-91 CERAMIC CHIP 0.047uF 50V C953 1-117-214-11 CERAMIC 0.001uF 10% 2KV C954 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C955 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C958 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C960 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V 0C963 1-117-699-11 CERAMIC 0.001uF 20% 250V 0C964 1-117-699-11 CERAMIC 0.001uF 20% 250V 0C965 1-113-896-11 CERAMIC 220PF 10% 250V 0C966 1-113-896-11 CERAMIC 220PF 10% 250V C967 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C968 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > CN300 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P CN504 1-784-370-21 CONNECTOR, FFC/FPC 11P CN505 1-784-370-21 CONNECTOR, FFC/FPC 11P CN507 1-793-991-11 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 23P CN509 1-779-287-11 CONNECTOR, FFC (LIF (NON-ZIF)) 19P CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P < DIODE > D101 6-500-260-01 DIODE P6SMB39AT3 D102 6-500-260-01 DIODE P6SMB39AT3 D103 6-500-260-01 DIODE P6SMB39AT3 D104 6-500-260-01 DIODE P6SMB39AT3 D105 6-500-260-01 DIODE P6SMB39AT3 D106 6-500-260-01 DIODE P6SMB39AT3 D107 6-500-260-01 DIODE P6SMB39AT3 (DZ500KF) D201 6-500-260-01 DIODE P6SMB39AT3 D202 6-500-260-01 DIODE P6SMB39AT3 D203 6-500-260-01 DIODE P6SMB39AT3 D204 6-500-260-01 DIODE P6SMB39AT3 D205 6-500-260-01 DIODE P6SMB39AT3 D206 6-500-260-01 DIODE P6SMB39AT3 D207 6-500-260-01 DIODE P6SMB39AT3 (DZ500KF) D303 6-501-193-01 DIODE 1SS355WTE-17 D304 6-501-193-01 DIODE 1SS355WTE-17 D503 6-501-193-01 DIODE 1SS355WTE-17 D504 6-501-193-01 DIODE 1SS355WTE-17 D505 6-501-193-01 DIODE 1SS355WTE-17 D506 6-501-193-01 DIODE 1SS355WTE-17 D509 6-501-193-01 DIODE 1SS355WTE-17 D510 6-501-193-01 DIODE 1SS355WTE-17 0D901 8-719-082-57 DIODE D5SBA60F01 0D905 8-719-063-74 DIODE D1NL20U-TR2 0D906 6-501-193-01 DIODE 1SS355WTE-17 0D907 6-501-193-01 DIODE 1SS355WTE-17 0D908 6-501-193-01 DIODE 1SS355WTE-17 0D909 6-501-193-01 DIODE 1SS355WTE-17 0D910 6-501-193-01 DIODE 1SS355WTE-17 0D913 6-500-241-01 DIODE SARS03 0D914 6-501-193-01 DIODE 1SS355WTE-17 0D915 8-719-977-28 DIODE DTZ10B 0D921 8-719-948-45 DIODE ERA22-08 0D922 8-719-063-74 DIODE D1NL20U-TR2 0D923 8-719-977-28 DIODE DTZ10B 0D924 8-719-083-69 DIODE UDZSTE-1724B 0D925 8-719-069-54 DIODE UDZSTE-175.1B 0D926 8-719-083-69 DIODE UDZSTE-1724B D931 6-500-383-01 DIODE YG906C2R D932 8-719-069-54 DIODE UDZSTE-175.1B D941 8-719-063-74 DIODE D1NL20U-TR2 D942 8-719-080-53 DIODE RK36LF-B3 D943 8-719-080-53 DIODE RK36LF-B3 D944 6-500-288-11 DIODE EK19LF-F7 D945 8-719-083-67 DIODE UDZSTE-1720B < TERMINAL BOARD > EB902 1-537-770-21 TERMINAL BOARD, GROUND EB903 1-537-770-21 TERMINAL BOARD, GROUND EB904 1-537-770-21 TERMINAL BOARD, GROUND EB905 1-537-770-21 TERMINAL BOARD, GROUND EB906 1-537-770-21 TERMINAL BOARD, GROUND EB907 1-537-770-21 TERMINAL BOARD, GROUND EB908 1-537-770-21 TERMINAL BOARD, GROUND EB910 1-537-770-21 TERMINAL BOARD, GROUND EB911 1-537-770-21 TERMINAL BOARD, GROUND < FERRITE BEAD > FB301 1-469-760-21 FERRITE, EMI (SMD) (2012) FB509 1-469-121-21 FERRITE, EMI (SMD) (1608) FB511 1-216-295-91 SHORT CHIP 0 FB512 1-216-295-91 SHORT CHIP 0 0FB905 1-410-396-41 FERRITE 0.45uH < IC > IC101 6-704-802-01 IC CXD9774M (DZ100K) IC101 6-705-695-01 IC CXD9775M (DZ500KF) IC102 6-704-802-01 IC CXD9774M (DZ100K) IC102 6-705-695-01 IC CXD9775M (DZ500KF) IC103 6-704-802-01 IC CXD9774M (DZ100K) IC103 6-705-695-01 IC CXD9775M (DZ500KF) IC104 6-704-802-01 IC CXD9774M (DZ100K) IC104 6-705-695-01 IC CXD9775M (DZ500KF) IC105 6-704-802-01 IC CXD9774M (DZ100K) IC105 6-705-695-01 IC CXD9775M (DZ500KF) IC106 6-704-802-01 IC CXD9774M (DZ100K) IC106 6-705-695-01 IC CXD9775M (DZ500KF) IC107 6-705-695-01 IC CXD9775M (DZ500KF) IC108 6-707-939-01 IC CXD9843AR IC109 6-707-939-01 IC CXD9843AR IC110 6-707-939-01 IC CXD9843AR IC303 6-702-300-01 IC TK11118CSCL-G IC305 8-759-649-50 IC SN74AHC1GU04DCKR IC501 6-707-608-01 IC PCM1803DBR IC505 8-759-825-15 IC LC89056W-E IC506 6-707-754-01 IC CXD9862R IC507 6-704-037-01 IC IC61LV6416-15TG IC508 6-707-485-01 IC NJM2885DL1-18 (TE2) IC509 6-805-684-01 IC M30622MGP-A17FPU0 IC511 6-701-680-01 IC PST3629NR IC514 8-759-549-07 IC SN74LV157APWR IC515 6-703-550-01 IC TA7809LS IC516 6-703-547-01 IC TA7805LS IC517 8-759-649-50 IC SN74AHC1GU04DCKR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN 0IC901 6-707-742-11 IC STR-F6168-LF1352 0IC921 6-707-740-01 IC STR-V153 IC931 8-759-648-34 IC TA76431AS (TPE6) IC941 6-707-746-01 IC SI-3120KM-TL IC942 6-707-745-10 IC SI-3050KM-TL IC943 6-707-744-01 IC SI-3033KM-TL IC951 6-707-743-01 IC TA76L431S (TPE6, Q) < JACK > J201 1-780-202-11 TERMINAL BOARD (SP) (4P) (SPEAKER) J202 1-780-203-11 TERMINAL BOARD (SP) (2P) (WOOFER, CENTER) < COIL > L101 1-457-078-11 AIR-CORE COIL L102 1-457-078-11 AIR-CORE COIL L103 1-457-078-11 AIR-CORE COIL L104 1-457-078-11 AIR-CORE COIL L105 1-457-078-11 AIR-CORE COIL L106 1-457-078-11 AIR-CORE COIL L107 1-414-398-11 INDUCTOR 10uH L111 1-457-077-11 AIR-CORE COIL L112 1-457-077-11 AIR-CORE COIL L113 1-457-077-11 AIR-CORE COIL L114 1-457-077-11 AIR-CORE COIL L115 1-457-077-11 AIR-CORE COIL L116 1-457-077-11 AIR-CORE COIL L121 1-456-680-11 INDUCTOR 10uH L122 1-456-680-11 INDUCTOR 10uH L123 1-456-680-11 INDUCTOR 10uH L124 1-456-680-11 INDUCTOR 10uH L125 1-456-680-11 INDUCTOR 10uH L126 1-456-680-11 INDUCTOR 10uH L127 1-456-680-11 INDUCTOR 10uH (DZ500KF) L131 1-456-680-11 INDUCTOR 10uH L132 1-456-680-11 INDUCTOR 10uH L133 1-456-680-11 INDUCTOR 10uH L134 1-456-680-11 INDUCTOR 10uH L135 1-456-680-11 INDUCTOR 10uH L136 1-456-680-11 INDUCTOR 10uH L137 1-456-680-11 INDUCTOR 10uH (DZ500KF) L301 1-414-754-11 INDUCTOR 10uH L302 1-412-939-11 INDUCTOR 1uH L303 1-216-295-91 SHORT CHIP 0 L501 1-414-754-11 INDUCTOR 10uH L502 1-414-754-11 INDUCTOR 10uH L503 1-216-295-91 SHORT CHIP 0 L504 1-216-295-91 SHORT CHIP 0 L931 1-457-058-11 INDUCTOR 10.8uH L941 1-414-398-11 INDUCTOR 10uH L942 1-414-398-11 INDUCTOR 10uH L945 1-414-398-11 INDUCTOR 10uH L947 1-414-398-11 INDUCTOR 10uH L948 1-414-398-11 INDUCTOR 10uH L951 1-414-398-11 INDUCTOR 10uH < LINE FILTER > 0LF901 1-457-079-11 LINE FILTER COIL < IC > 0PC901 6-600-438-01 IC TLP421F (D4-GR) 0PC902 6-600-438-01 IC TLP421F (D4-GR) 0PC903 6-600-438-01 IC TLP421F (D4-GR) < TRANSISTOR > Q101 8-729-600-22 TRANSISTOR 2SA1235-F Q102 8-729-600-22 TRANSISTOR 2SA1235-F Q103 8-729-600-22 TRANSISTOR 2SA1235-F Q104 8-729-600-22 TRANSISTOR 2SA1235-F Q105 8-729-600-22 TRANSISTOR 2SA1235-F Q106 8-729-600-22 TRANSISTOR 2SA1235-F Q107 8-729-600-22 TRANSISTOR 2SA1235-F Q108 8-729-600-22 TRANSISTOR 2SA1235-F Q109 8-729-600-22 TRANSISTOR 2SA1235-F Q110 8-729-600-22 TRANSISTOR 2SA1235-F Q111 8-729-600-22 TRANSISTOR 2SA1235-F Q112 8-729-600-22 TRANSISTOR 2SA1235-F Q301 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q302 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q303 6-550-702-01 TRANSISTOR 2SC3243-TP-E Q304 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q506 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q507 8-729-027-23 TRANSISTOR DTA114EKA-T146 0Q901 8-729-140-04 TRANSISTOR 2SB1116A-L 0Q921 8-729-142-51 TRANSISTOR 2SD1616A-TP-LK Q943 1-801-806-11 TR DTC144EKA Q945 6-550-718-01 TRANSISTOR RSR025N03TL Q947 1-801-806-11 TR DTC144EKA < RESISTOR > R108 1-216-837-11 METAL CHIP 22K 5% 1/10W R109 1-216-837-11 METAL CHIP 22K 5% 1/10W R110 1-216-837-11 METAL CHIP 22K 5% 1/10W R111 1-216-837-11 METAL CHIP 22K 5% 1/10W R112 1-216-837-11 METAL CHIP 22K 5% 1/10W R113 1-216-837-11 METAL CHIP 22K 5% 1/10W R114 1-216-837-11 METAL CHIP 22K 5% 1/10W R115 1-216-837-11 METAL CHIP 22K 5% 1/10W R116 1-216-837-11 METAL CHIP 22K 5% 1/10W R117 1-216-837-11 METAL CHIP 22K 5% 1/10W R118 1-216-837-11 METAL CHIP 22K 5% 1/10W R119 1-216-837-11 METAL CHIP 22K 5% 1/10W R120 1-216-837-11 METAL CHIP 22K 5% 1/10W (DZ500KF) R128 1-216-837-11 METAL CHIP 22K 5% 1/10W (DZ500KF) R131 1-216-864-11 SHORT CHIP 0 R132 1-216-864-11 SHORT CHIP 0 R133 1-216-864-11 SHORT CHIP 0 R134 1-216-864-11 SHORT CHIP 0 R135 1-216-864-11 SHORT CHIP 0 R136 1-216-864-11 SHORT CHIP 0 R137 1-216-864-11 SHORT CHIP 0 (DZ500KF) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R139 1-216-864-11 SHORT CHIP 0 R141 1-216-864-11 SHORT CHIP 0 R142 1-216-864-11 SHORT CHIP 0 R143 1-216-864-11 SHORT CHIP 0 R144 1-216-864-11 SHORT CHIP 0 R145 1-216-864-11 SHORT CHIP 0 R146 1-216-864-11 SHORT CHIP 0 R147 1-216-864-11 SHORT CHIP 0 (DZ500KF) R151 1-216-864-11 SHORT CHIP 0 R152 1-216-864-11 SHORT CHIP 0 R153 1-216-864-11 SHORT CHIP 0 R154 1-216-864-11 SHORT CHIP 0 R155 1-216-864-11 SHORT CHIP 0 R156 1-216-864-11 SHORT CHIP 0 R157 1-216-864-11 SHORT CHIP 0 (DZ500KF) R161 1-216-864-11 SHORT CHIP 0 R162 1-216-864-11 SHORT CHIP 0 R163 1-216-864-11 SHORT CHIP 0 R164 1-216-864-11 SHORT CHIP 0 R165 1-216-864-11 SHORT CHIP 0 R166 1-216-864-11 SHORT CHIP 0 R167 1-216-864-11 SHORT CHIP 0 (DZ500KF) R171 1-216-864-11 SHORT CHIP 0 R172 1-216-864-11 SHORT CHIP 0 R173 1-216-864-11 SHORT CHIP 0 R174 1-216-864-11 SHORT CHIP 0 R175 1-216-864-11 SHORT CHIP 0 R176 1-216-864-11 SHORT CHIP 0 R177 1-216-864-11 SHORT CHIP 0 (DZ500KF) R191 1-220-942-11 METAL CHIP 3.3 1% 1/4W R192 1-220-942-11 METAL CHIP 3.3 1% 1/4W R193 1-220-942-11 METAL CHIP 3.3 1% 1/4W R194 1-220-942-11 METAL CHIP 3.3 1% 1/4W R195 1-220-942-11 METAL CHIP 3.3 1% 1/4W R196 1-220-942-11 METAL CHIP 3.3 1% 1/4W R197 1-220-942-11 METAL CHIP 3.3 1% 1/4W (DZ500KF) R201 1-220-942-11 METAL CHIP 3.3 1% 1/4W R202 1-220-942-11 METAL CHIP 3.3 1% 1/4W R203 1-220-942-11 METAL CHIP 3.3 1% 1/4W R204 1-220-942-11 METAL CHIP 3.3 1% 1/4W R205 1-220-942-11 METAL CHIP 3.3 1% 1/4W R206 1-220-942-11 METAL CHIP 3.3 1% 1/4W R207 1-220-942-11 METAL CHIP 3.3 1% 1/4W (DZ500KF) R211 1-216-136-00 RES-CHIP 2.7 5% 1/8W R212 1-216-136-00 RES-CHIP 2.7 5% 1/8W R213 1-216-136-00 RES-CHIP 2.7 5% 1/8W R214 1-216-136-00 RES-CHIP 2.7 5% 1/8W R215 1-216-136-00 RES-CHIP 2.7 5% 1/8W R216 1-216-136-00 RES-CHIP 2.7 5% 1/8W R217 1-216-136-00 RES-CHIP 2.7 5% 1/8W (DZ500KF) R221 1-216-136-00 RES-CHIP 2.7 5% 1/8W R222 1-216-136-00 RES-CHIP 2.7 5% 1/8W R223 1-216-136-00 RES-CHIP 2.7 5% 1/8W R224 1-216-136-00 RES-CHIP 2.7 5% 1/8W R225 1-216-136-00 RES-CHIP 2.7 5% 1/8W R226 1-216-136-00 RES-CHIP 2.7 5% 1/8W R227 1-216-136-00 RES-CHIP 2.7 5% 1/8W (DZ500KF) R241 1-216-809-11 METAL CHIP 100 5% 1/10W R242 1-216-809-11 METAL CHIP 100 5% 1/10W R243 1-216-809-11 METAL CHIP 100 5% 1/10W R244 1-216-809-11 METAL CHIP 100 5% 1/10W R245 1-216-809-11 METAL CHIP 100 5% 1/10W R246 1-216-809-11 METAL CHIP 100 5% 1/10W R247 1-216-809-11 METAL CHIP 100 5% 1/10W (DZ500KF) R300 1-216-809-11 METAL CHIP 100 5% 1/10W R302 1-216-809-11 METAL CHIP 100 5% 1/10W R303 1-216-809-11 METAL CHIP 100 5% 1/10W R304 1-216-809-11 METAL CHIP 100 5% 1/10W R305 1-216-809-11 METAL CHIP 100 5% 1/10W R306 1-216-809-11 METAL CHIP 100 5% 1/10W R308 1-216-809-11 METAL CHIP 100 5% 1/10W R309 1-216-809-11 METAL CHIP 100 5% 1/10W R310 1-216-809-11 METAL CHIP 100 5% 1/10W R311 1-216-809-11 METAL CHIP 100 5% 1/10W R312 1-216-809-11 METAL CHIP 100 5% 1/10W R313 1-216-864-11 SHORT CHIP 0 R314 1-216-809-11 METAL CHIP 100 5% 1/10W R315 1-216-809-11 METAL CHIP 100 5% 1/10W R316 1-216-817-11 METAL CHIP 470 5% 1/10W R317 1-216-817-11 METAL CHIP 470 5% 1/10W R318 1-216-817-11 METAL CHIP 470 5% 1/10W R319 1-216-833-11 METAL CHIP 10K 5% 1/10W R320 1-216-864-11 SHORT CHIP 0 R321 1-216-864-11 SHORT CHIP 0 R322 1-216-833-11 METAL CHIP 10K 5% 1/10W R323 1-216-864-11 SHORT CHIP 0 R324 1-216-864-11 SHORT CHIP 0 R325 1-216-864-11 SHORT CHIP 0 R326 1-216-864-11 SHORT CHIP 0 R327 1-216-864-11 SHORT CHIP 0 R328 1-216-864-11 SHORT CHIP 0 R329 1-216-864-11 SHORT CHIP 0 R344 1-216-817-11 METAL CHIP 470 5% 1/10W R345 1-216-833-11 METAL CHIP 10K 5% 1/10W R346 1-216-817-11 METAL CHIP 470 5% 1/10W R347 1-216-833-11 METAL CHIP 10K 5% 1/10W R348 1-216-817-11 METAL CHIP 470 5% 1/10W R351 1-216-809-11 METAL CHIP 100 5% 1/10W R353 1-216-809-11 METAL CHIP 100 5% 1/10W R354 1-216-809-11 METAL CHIP 100 5% 1/10W R355 1-216-809-11 METAL CHIP 100 5% 1/10W R356 1-216-803-11 METAL CHIP 33 5% 1/10W R357 1-216-803-11 METAL CHIP 33 5% 1/10W R358 1-216-803-11 METAL CHIP 33 5% 1/10W R361 1-216-845-11 METAL CHIP 100K 5% 1/10W R362 1-216-845-11 METAL CHIP 100K 5% 1/10W R363 1-216-845-11 METAL CHIP 100K 5% 1/10W R364 1-216-845-11 METAL CHIP 100K 5% 1/10W R365 1-216-845-11 METAL CHIP 100K 5% 1/10W R366 1-216-845-11 METAL CHIP 100K 5% 1/10W R371 1-216-818-11 METAL CHIP 560 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R372 1-216-818-11 METAL CHIP 560 5% 1/10W R373 1-216-818-11 METAL CHIP 560 5% 1/10W R374 1-216-818-11 METAL CHIP 560 5% 1/10W R375 1-216-818-11 METAL CHIP 560 5% 1/10W R376 1-216-818-11 METAL CHIP 560 5% 1/10W R377 1-216-818-11 METAL CHIP 560 5% 1/10W R378 1-216-818-11 METAL CHIP 560 5% 1/10W R379 1-216-818-11 METAL CHIP 560 5% 1/10W R380 1-216-818-11 METAL CHIP 560 5% 1/10W R381 1-216-818-11 METAL CHIP 560 5% 1/10W R382 1-216-818-11 METAL CHIP 560 5% 1/10W R383 1-216-818-11 METAL CHIP 560 5% 1/10W (DZ500KF) R384 1-216-818-11 METAL CHIP 560 5% 1/10W (DZ500KF) R393 1-216-801-11 METAL CHIP 22 5% 1/10W R394 1-216-857-11 METAL CHIP 1M 5% 1/10W R395 1-216-845-11 METAL CHIP 100K 5% 1/10W R396 1-216-809-11 METAL CHIP 100 5% 1/10W R400 1-216-845-11 METAL CHIP 100K 5% 1/10W R401 1-216-845-11 METAL CHIP 100K 5% 1/10W R402 1-216-845-11 METAL CHIP 100K 5% 1/10W R403 1-216-845-11 METAL CHIP 100K 5% 1/10W R404 1-216-845-11 METAL CHIP 100K 5% 1/10W R405 1-216-845-11 METAL CHIP 100K 5% 1/10W R406 1-216-845-11 METAL CHIP 100K 5% 1/10W R407 1-216-845-11 METAL CHIP 100K 5% 1/10W R408 1-216-845-11 METAL CHIP 100K 5% 1/10W R409 1-216-845-11 METAL CHIP 100K 5% 1/10W R410 1-216-845-11 METAL CHIP 100K 5% 1/10W R411 1-216-845-11 METAL CHIP 100K 5% 1/10W R412 1-216-845-11 METAL CHIP 100K 5% 1/10W R424 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R426 1-216-833-11 METAL CHIP 10K 5% 1/10W R427 1-216-833-11 METAL CHIP 10K 5% 1/10W R428 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R429 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R430 1-216-833-11 METAL CHIP 10K 5% 1/10W R431 1-216-845-11 METAL CHIP 100K 5% 1/10W R450 1-216-833-11 METAL CHIP 10K 5% 1/10W R451 1-216-833-11 METAL CHIP 10K 5% 1/10W R452 1-216-833-11 METAL CHIP 10K 5% 1/10W R453 1-216-833-11 METAL CHIP 10K 5% 1/10W R456 1-216-833-11 METAL CHIP 10K 5% 1/10W R457 1-216-833-11 METAL CHIP 10K 5% 1/10W R458 1-216-833-11 METAL CHIP 10K 5% 1/10W R459 1-216-833-11 METAL CHIP 10K 5% 1/10W R460 1-216-833-11 METAL CHIP 10K 5% 1/10W R461 1-216-833-11 METAL CHIP 10K 5% 1/10W R462 1-216-833-11 METAL CHIP 10K 5% 1/10W R463 1-216-833-11 METAL CHIP 10K 5% 1/10W R464 1-216-833-11 METAL CHIP 10K 5% 1/10W R468 1-216-864-11 SHORT CHIP 0 R469 1-216-864-11 SHORT CHIP 0 R472 1-216-864-11 SHORT CHIP 0 R473 1-216-864-11 SHORT CHIP 0 R474 1-216-864-11 SHORT CHIP 0 R475 1-216-864-11 SHORT CHIP 0 R478 1-216-864-11 SHORT CHIP 0 R479 1-216-864-11 SHORT CHIP 0 R480 1-216-864-11 SHORT CHIP 0 (DZ500KF) R481 1-216-833-11 METAL CHIP 10K 5% 1/10W R482 1-216-833-11 METAL CHIP 10K 5% 1/10W R483 1-216-833-11 METAL CHIP 10K 5% 1/10W R484 1-216-833-11 METAL CHIP 10K 5% 1/10W R487 1-216-833-11 METAL CHIP 10K 5% 1/10W R488 1-216-833-11 METAL CHIP 10K 5% 1/10W R489 1-216-833-11 METAL CHIP 10K 5% 1/10W R490 1-216-833-11 METAL CHIP 10K 5% 1/10W R491 1-216-833-11 METAL CHIP 10K 5% 1/10W R492 1-216-833-11 METAL CHIP 10K 5% 1/10W R493 1-216-833-11 METAL CHIP 10K 5% 1/10W R502 1-216-864-11 SHORT CHIP 0 R504 1-216-809-11 METAL CHIP 100 5% 1/10W R505 1-216-809-11 METAL CHIP 100 5% 1/10W R506 1-216-809-11 METAL CHIP 100 5% 1/10W R507 1-216-809-11 METAL CHIP 100 5% 1/10W R508 1-216-809-11 METAL CHIP 100 5% 1/10W R510 1-216-809-11 METAL CHIP 100 5% 1/10W R511 1-216-809-11 METAL CHIP 100 5% 1/10W R512 1-216-809-11 METAL CHIP 100 5% 1/10W R514 1-216-821-11 METAL CHIP 1K 5% 1/10W R515 1-216-809-11 METAL CHIP 100 5% 1/10W R516 1-216-809-11 METAL CHIP 100 5% 1/10W R517 1-216-809-11 METAL CHIP 100 5% 1/10W R518 1-216-809-11 METAL CHIP 100 5% 1/10W R519 1-216-809-11 METAL CHIP 100 5% 1/10W R520 1-216-809-11 METAL CHIP 100 5% 1/10W R521 1-216-833-11 METAL CHIP 10K 5% 1/10W R522 1-216-809-11 METAL CHIP 100 5% 1/10W R523 1-216-833-11 METAL CHIP 10K 5% 1/10W R525 1-216-809-11 METAL CHIP 100 5% 1/10W R526 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R527 1-216-809-11 METAL CHIP 100 5% 1/10W R528 1-216-809-11 METAL CHIP 100 5% 1/10W R529 1-216-809-11 METAL CHIP 100 5% 1/10W R530 1-216-809-11 METAL CHIP 100 5% 1/10W R531 1-216-857-11 METAL CHIP 1M 5% 1/10W R532 1-216-821-11 METAL CHIP 1K 5% 1/10W R533 1-216-809-11 METAL CHIP 100 5% 1/10W R534 1-216-809-11 METAL CHIP 100 5% 1/10W R535 1-216-821-11 METAL CHIP 1K 5% 1/10W R536 1-216-821-11 METAL CHIP 1K 5% 1/10W R537 1-216-809-11 METAL CHIP 100 5% 1/10W R538 1-216-295-91 SHORT CHIP 0 R540 1-216-809-11 METAL CHIP 100 5% 1/10W R541 1-216-809-11 METAL CHIP 100 5% 1/10W R542 1-216-809-11 METAL CHIP 100 5% 1/10W R543 1-216-809-11 METAL CHIP 100 5% 1/10W R544 1-216-809-11 METAL CHIP 100 5% 1/10W R545 1-216-809-11 METAL CHIP 100 5% 1/10W R546 1-216-809-11 METAL CHIP 100 5% 1/10W R547 1-216-809-11 METAL CHIP 100 5% 1/10W R548 1-216-809-11 METAL CHIP 100 5% 1/10W R549 1-216-809-11 METAL CHIP 100 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R550 1-216-864-11 SHORT CHIP 0 R551 1-216-821-11 METAL CHIP 1K 5% 1/10W R552 1-216-809-11 METAL CHIP 100 5% 1/10W R553 1-216-809-11 METAL CHIP 100 5% 1/10W R554 1-216-809-11 METAL CHIP 100 5% 1/10W R555 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R556 1-216-809-11 METAL CHIP 100 5% 1/10W R557 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R558 1-216-839-11 METAL CHIP 33K 5% 1/10W R559 1-216-821-11 METAL CHIP 1K 5% 1/10W R560 1-216-809-11 METAL CHIP 100 5% 1/10W R561 1-216-809-11 METAL CHIP 100 5% 1/10W R563 1-216-809-11 METAL CHIP 100 5% 1/10W R564 1-216-809-11 METAL CHIP 100 5% 1/10W R565 1-216-809-11 METAL CHIP 100 5% 1/10W R566 1-216-833-11 METAL CHIP 10K 5% 1/10W R567 1-216-809-11 METAL CHIP 100 5% 1/10W R568 1-216-809-11 METAL CHIP 100 5% 1/10W R569 1-216-857-11 METAL CHIP 1M 5% 1/10W R572 1-216-809-11 METAL CHIP 100 5% 1/10W R573 1-216-809-11 METAL CHIP 100 5% 1/10W R574 1-216-809-11 METAL CHIP 100 5% 1/10W R575 1-216-809-11 METAL CHIP 100 5% 1/10W R577 1-218-867-11 METAL CHIP 6.8K 0.50% 1/10W (DZ100K) R577 1-216-841-11 METAL CHIP 47K 5% 1/10W (DZ500KF) R578 1-216-809-11 METAL CHIP 100 5% 1/10W R580 1-216-833-11 METAL CHIP 10K 5% 1/10W R581 1-216-809-11 METAL CHIP 100 5% 1/10W R582 1-216-809-11 METAL CHIP 100 5% 1/10W R583 1-216-809-11 METAL CHIP 100 5% 1/10W R584 1-216-809-11 METAL CHIP 100 5% 1/10W R585 1-216-809-11 METAL CHIP 100 5% 1/10W R586 1-216-809-11 METAL CHIP 100 5% 1/10W R587 1-216-809-11 METAL CHIP 100 5% 1/10W R588 1-216-809-11 METAL CHIP 100 5% 1/10W R589 1-216-821-11 METAL CHIP 1K 5% 1/10W R590 1-216-809-11 METAL CHIP 100 5% 1/10W R591 1-216-809-11 METAL CHIP 100 5% 1/10W R594 1-216-809-11 METAL CHIP 100 5% 1/10W R595 1-216-809-11 METAL CHIP 100 5% 1/10W R596 1-216-841-11 METAL CHIP 47K 5% 1/10W R597 1-216-809-11 METAL CHIP 100 5% 1/10W R598 1-216-809-11 METAL CHIP 100 5% 1/10W R599 1-216-809-11 METAL CHIP 100 5% 1/10W R600 1-216-809-11 METAL CHIP 100 5% 1/10W R601 1-216-809-11 METAL CHIP 100 5% 1/10W R602 1-216-809-11 METAL CHIP 100 5% 1/10W R603 1-216-809-11 METAL CHIP 100 5% 1/10W R604 1-216-817-11 METAL CHIP 470 5% 1/10W R605 1-216-817-11 METAL CHIP 470 5% 1/10W R606 1-216-819-11 METAL CHIP 680 5% 1/10W R607 1-216-819-11 METAL CHIP 680 5% 1/10W R608 1-216-809-11 METAL CHIP 100 5% 1/10W R609 1-216-864-11 SHORT CHIP 0 R611 1-216-833-11 METAL CHIP 10K 5% 1/10W R612 1-216-833-11 METAL CHIP 10K 5% 1/10W R614 1-216-833-11 METAL CHIP 10K 5% 1/10W R615 1-216-817-11 METAL CHIP 470 5% 1/10W R616 1-216-833-11 METAL CHIP 10K 5% 1/10W R620 1-216-809-11 METAL CHIP 100 5% 1/10W R627 1-216-809-11 METAL CHIP 100 5% 1/10W R628 1-216-821-11 METAL CHIP 1K 5% 1/10W R629 1-216-295-91 SHORT CHIP 0 R636 1-216-864-11 SHORT CHIP 0 R637 1-216-864-11 SHORT CHIP 0 R638 1-216-809-11 METAL CHIP 100 5% 1/10W R650 1-216-864-11 SHORT CHIP 0 R656 1-216-864-11 SHORT CHIP 0 R657 1-216-841-11 METAL CHIP 47K 5% 1/10W R659 1-216-845-11 METAL CHIP 100K 5% 1/10W R660 1-216-864-11 SHORT CHIP 0 R662 1-216-841-11 METAL CHIP 47K 5% 1/10W R673 1-216-833-11 METAL CHIP 10K 5% 1/10W R675 1-216-809-11 METAL CHIP 100 5% 1/10W R678 1-216-864-11 SHORT CHIP 0 R692 1-216-809-11 METAL CHIP 100 5% 1/10W R693 1-216-809-11 METAL CHIP 100 5% 1/10W R694 1-216-809-11 METAL CHIP 100 5% 1/10W R695 1-216-809-11 METAL CHIP 100 5% 1/10W R696 1-216-809-11 METAL CHIP 100 5% 1/10W R697 1-216-809-11 METAL CHIP 100 5% 1/10W R701 1-216-809-11 METAL CHIP 100 5% 1/10W R702 1-216-833-11 METAL CHIP 10K 5% 1/10W R703 1-216-821-11 METAL CHIP 1K 5% 1/10W R704 1-216-821-11 METAL CHIP 1K 5% 1/10W R705 1-216-833-11 METAL CHIP 10K 5% 1/10W R706 1-216-809-11 METAL CHIP 100 5% 1/10W R707 1-216-809-11 METAL CHIP 100 5% 1/10W R709 1-216-833-11 METAL CHIP 10K 5% 1/10W R713 1-216-864-11 SHORT CHIP 0 R717 1-216-833-11 METAL CHIP 10K 5% 1/10W R719 1-216-833-11 METAL CHIP 10K 5% 1/10W R722 1-216-841-11 METAL CHIP 47K 5% 1/10W R723 1-216-809-11 METAL CHIP 100 5% 1/10W R724 1-216-809-11 METAL CHIP 100 5% 1/10W R725 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R726 1-216-821-11 METAL CHIP 1K 5% 1/10W R727 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R728 1-216-821-11 METAL CHIP 1K 5% 1/10W R729 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R730 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R731 1-216-809-11 METAL CHIP 100 5% 1/10W R739 1-216-841-11 METAL CHIP 47K 5% 1/10W R741 1-216-841-11 METAL CHIP 47K 5% 1/10W R746 1-216-841-11 METAL CHIP 47K 5% 1/10W R748 1-216-821-11 METAL CHIP 1K 5% 1/10W R749 1-216-821-11 METAL CHIP 1K 5% 1/10W R750 1-216-821-11 METAL CHIP 1K 5% 1/10W R755 1-216-821-11 METAL CHIP 1K 5% 1/10W R756 1-216-821-11 METAL CHIP 1K 5% 1/10W R760 1-216-809-11 METAL CHIP 100 5% 1/10W R761 1-216-809-11 METAL CHIP 100 5% 1/10W R762 1-216-809-11 METAL CHIP 100 5% 1/10W R763 1-216-809-11 METAL CHIP 100 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN MIC R764 1-216-809-11 METAL CHIP 100 5% 1/10W R765 1-216-809-11 METAL CHIP 100 5% 1/10W R774 1-216-821-11 METAL CHIP 1K 5% 1/10W R775 1-216-841-11 METAL CHIP 47K 5% 1/10W R789 1-216-809-11 METAL CHIP 100 5% 1/10W R790 1-216-809-11 METAL CHIP 100 5% 1/10W R791 1-216-809-11 METAL CHIP 100 5% 1/10W R792 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R793 1-216-827-11 METAL CHIP 3.3K 5% 1/10W (DZ500KF) R793 1-216-841-11 METAL CHIP 47K 5% 1/10W (DZ100K) 0R901 1-219-759-11 METAL 1M 5% 1/2W 0R903 1-215-929-11 METAL OXIDE 100K 5% 3W 0R904 1-215-929-11 METAL OXIDE 100K 5% 3W 0R905 1-216-797-11 METAL CHIP 10 5% 1/10W 0R906 1-216-827-11 METAL CHIP 3.3K 5% 1/10W 0R907 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R908 1-260-105-11 CARBON 3.3K 5% 1/2W 0R909 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R910 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R911 1-216-813-11 METAL CHIP 220 5% 1/10W 0R912 1-216-363-00 METAL OXIDE 0.33 5% 2W 0R914 1-214-789-00 METAL 0.1 10% 5W 0R918 1-216-864-11 SHORT CHIP 0 0R919 1-216-836-11 METAL CHIP 18K 5% 1/10W 0R920 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R921 1-215-904-61 METAL OXIDE 100K 5% 2W 0R922 1-216-793-11 METAL CHIP 4.7 5% 1/10W 0R923 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 0R924 1-216-864-11 SHORT CHIP 0 0R925 1-216-797-11 METAL CHIP 10 5% 1/10W 0R926 1-216-855-11 METAL CHIP 680K 5% 1/10W 0R927 1-216-349-00 METAL OXIDE 1 5% 1W 0R929 1-249-478-11 CARBON 2.2 5% 1/2W 0R930 1-216-864-11 SHORT CHIP 0 R931 1-218-863-11 METAL CHIP 4.7K 0.50% 1/10W (DZ100K) R931 1-218-869-11 METAL CHIP 8.2K 0.50% 1/10W (DZ500KF) R932 1-218-883-11 METAL CHIP 33K 0.50% 1/10W R933 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R934 1-216-821-11 METAL CHIP 1K 5% 1/10W R935 1-216-821-11 METAL CHIP 1K 5% 1/10W R936 1-216-853-11 METAL CHIP 470K 5% 1/10W R937 1-216-833-11 METAL CHIP 10K 5% 1/10W R938 1-216-821-11 METAL CHIP 1K 5% 1/10W R939 1-218-859-11 METAL CHIP 3.3K 0.50% 1/10W R940 1-216-833-11 METAL CHIP 10K 5% 1/10W R941 1-216-864-11 SHORT CHIP 0 R943 1-216-864-11 SHORT CHIP 0 R946 1-216-811-11 METAL CHIP 150 5% 1/10W R948 1-216-833-11 METAL CHIP 10K 5% 1/10W R949 1-216-821-11 METAL CHIP 1K 5% 1/10W R951 1-218-831-11 METAL CHIP 220 0.50% 1/10W R952 1-218-855-11 METAL CHIP 2.2K 0.50% 1/10W R953 1-218-861-11 METAL CHIP 3.9K 0.50% 1/10W R954 1-216-837-11 METAL CHIP 22K 5% 1/10W R955 1-216-817-11 METAL CHIP 470 5% 1/10W R956 1-216-821-11 METAL CHIP 1K 5% 1/10W R957 1-216-841-11 METAL CHIP 47K 5% 1/10W R958 1-216-821-11 METAL CHIP 1K 5% 1/10W R965 1-216-864-11 SHORT CHIP 0 < COMPOSITION CIRCUIT BLOCK > RB501 1-233-576-11 RES, CHIP NETWORK 100 (3216) RB502 1-233-576-11 RES, CHIP NETWORK 100 (3216) RB503 1-233-576-11 RES, CHIP NETWORK 100 (3216) RB504 1-233-576-11 RES, CHIP NETWORK 100 (3216) RB505 1-233-576-11 RES, CHIP NETWORK 100 (3216) RB506 1-233-576-11 RES, CHIP NETWORK 100 (3216) RB507 1-233-576-11 RES, CHIP NETWORK 100 (3216) < TRANSFORMER > 0T901 1-443-651-11 TRANSFORMER, CONVERTER 0T902 1-443-650-11 TRANSFORMER, CONVERTER < THERMISTOR > 0TH901 1-805-842-21 THERMISTOR, NTC 6.0 < VARISTOR > 0VDR901 1-805-482-11 VARISTOR < VIBRATOR > X450 1-795-660-21 QUARTZ CRYSTAL UNIT (49.152MHz) X500 1-795-843-11 VIBRATOR, CRYSTAL (12.288MHz) X501 1-813-325-11 VIBRATOR, CRYSTAL (13.90MHz) X502 1-795-058-21 VIBRATOR, CERAMIC (5MHz) ************************************************************ MIC BOARD ********* < CAPACITOR > C621 1-164-156-11 CERAMIC CHIP 0.1uF 25V C632 1-125-972-91 ELECT 100uF 20% 16V C633 1-125-972-91 ELECT 100uF 20% 16V C644 1-164-156-11 CERAMIC CHIP 0.1uF 25V C653 1-124-464-11 ELECT 0.22uF 20% 50V C659 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C660 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C667 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C668 1-164-156-11 CERAMIC CHIP 0.1uF 25V C671 1-162-960-11 CERAMIC CHIP 220PF 10% 50V < CONNECTOR > CN604 1-564-721-11 PIN, CONNECTOR (SMALL TYPE) 5P < DIODE > D601 8-719-988-61 DIODE 1SS355TE-17 D602 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB601 1-469-144-21 FERRITE, EMI (SMD) (2012) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 HCD-DZ100K/DZ500KF Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < IC > IC604 8-759-649-89 IC MC4558CD < JACK > J602 1-566-891-21 JACK (MIC) < RESISTOR > R647 1-216-833-11 METAL CHIP 10K 5% 1/10W R676 1-216-833-11 METAL CHIP 10K 5% 1/10W R681 1-216-845-11 METAL CHIP 100K 5% 1/10W R682 1-216-821-11 METAL CHIP 1K 5% 1/10W R686 1-216-864-11 SHORT CHIP 0 R687 1-216-821-11 METAL CHIP 1K 5% 1/10W R689 1-216-833-11 METAL CHIP 10K 5% 1/10W R691 1-216-835-11 METAL CHIP 15K 5% 1/10W R692 1-216-821-11 METAL CHIP 1K 5% 1/10W ************************************************************ MS-203 BOARD ************ < CONNECTOR > CN001 1-815-412-11 CONNECTOR, FFC/FPC 5P CN001 1-815-412-11 CONNECTOR, FFC/FPC 5P < SWITCH > S001 1-786-693-11 SWITCH, DETECTION (CHUCKING/TRAY DETECT) ************************************************************ STBY BOARD ********** < CONNECTOR > CN804 1-506-481-11 PIN, CONNECTOR 2P < SWITCH > S801 1-762-875-21 SWITCH, KEYBOARD (`/1) ************************************************************* MISCELLANEOUS ************* 4 A-1074-643-A TUNER UNIT (DTP-005) 5 1-787-331-11 FAN, D.C. 7 1-828-952-11 WIRE (FLAT TYPE) (9 CORE) 09 1-828-528-11 CORD, POWER 57 1-828-361-11 WIRE (FLAT TYPE) (19 CORE) 105 1-830-550-11 WIRE (FLAT TYPE) (24 CORE) 106 1-830-546-11 WIRE (FLAT TYPE) (11 CORE) (80mm) 110 1-830-464-11 WIRE (FLAT TYPE) (23 CORE) 112 1-830-549-11 WIRE (FLAT TYPE) (5 CORE) 113 1-830-545-11 WIRE (FLAT TYPE) (11 CORE) (200mm) 114 1-830-548-11 WIRE (FLAT TYPE) (13 CORE) 0507 8-820-290-02 OPTICAL PICK-UP KHM-310CAA/C2RP 0F901 1-532-506-33 FUSE (T6.3AL/250V) ************************************************************ MS-203 STBY MIC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ100K/DZ500KF REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2005.08 New 1.1 2005.11 Addition of electrical adjustment. Addition of EEPROM exchange note. (SPM-05077) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
