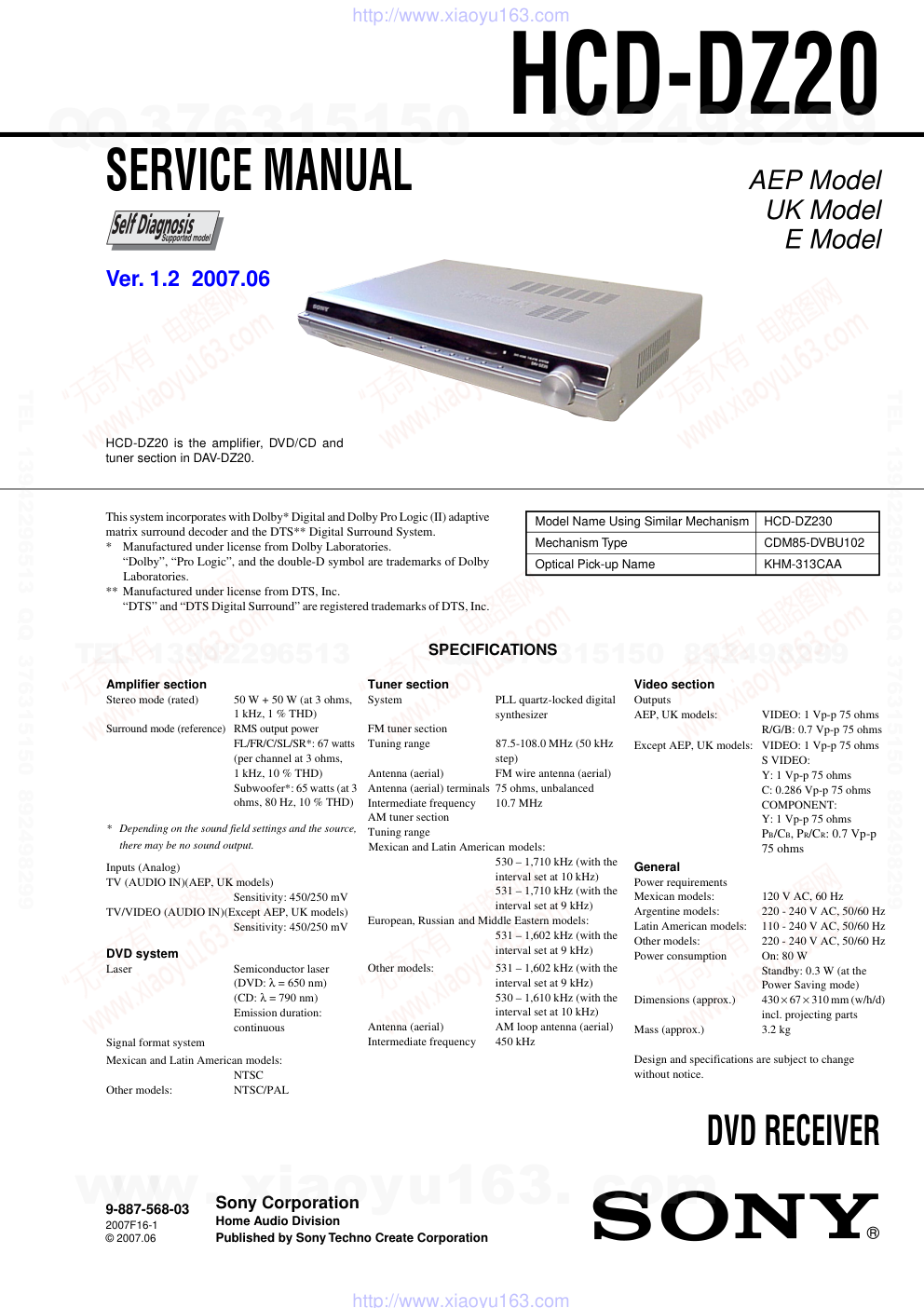

SERVICE MANUAL Sony Corporation Home Audio Division Published by Sony Techno Create Corporation AEP Model UK Model E Model DVD RECEIVER 9-887-568-03 2007F16-1 © 2007.06 Ver. 1.2 2007.06 HCD-DZ20 HCD-DZ20 is the amplifier, DVD/CD and tuner section in DAV-DZ20. SPECIFICATIONS Model Name Using Similar Mechanism HCD-DZ230 Mechanism Type CDM85-DVBU102 Optical Pick-up Name KHM-313CAA This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital Surround System. * Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. ** Manufactured under license from DTS, Inc. “DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc. Amplifier section Stereo mode (rated) 50 W + 50 W (at 3 ohms, 1 kHz, 1 % THD) Surround mode (reference) RMS output power FL/FR/C/SL/SR*: 67 watts (per channel at 3 ohms, 1 kHz, 10 % THD) Subwoofer*: 65 watts (at 3 ohms, 80 Hz, 10 % THD) * Depending on the sound field settings and the source, there may be no sound output. Inputs (Analog) TV (AUDIO IN)(AEP, UK models) Sensitivity: 450/250 mV DVD system Laser Semiconductor laser (DVD: λ = 650 nm) (CD: λ = 790 nm) Emission duration: continuous Signal format system Tuner section System PLL quartz-locked digital synthesizer FM tuner section Tuning range 87.5-108.0 MHz (50 kHz step) Antenna (aerial) FM wire antenna (aerial) Antenna (aerial) terminals 75 ohms, unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Mexican and Latin American models: 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) European, Russian and Middle Eastern models: 531 – 1,602 kHz (with the interval set at 9 kHz) TV/VIDEO (AUDIO IN)(Except AEP, UK models) Sensitivity: 450/250 mV Mexican and Latin American models: NTSC Other models: NTSC/PAL Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,610 kHz (with the interval set at 10 kHz) Antenna (aerial) AM loop antenna (aerial) Intermediate frequency 450 kHz Video section Outputs AEP, UK models: VIDEO: 1 Vp-p 75 ohms R/G/B: 0.7 Vp-p 75 ohms Dimensions (approx.) 430 × 67 × 310 mm (w/h/d) incl. projecting parts Mass (approx.) 3.2 kg Design and specifications are subject to change without notice. Except AEP, UK models: VIDEO: 1 Vp-p 75 ohms S VIDEO: Y: 1 Vp-p 75 ohms C: 0.286 Vp-p 75 ohms COMPONENT: Y: 1 Vp-p 75 ohms PB/CB, PR/CR: 0.7 Vp-p 75 ohms General Power requirements Mexican models: 120 V AC, 60 Hz Latin American models: 110 - 240 V AC, 50/60 Hz Other models: 220 - 240 V AC, 50/60 Hz Argentine models: 220 - 240 V AC, 50/60 Hz Power consumption On: 80 W Standby: 0.3 W (at the Power Saving mode) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-DZ20 UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 °C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. This appliance is classified as a CLASS 1 LASER product. This marking is located on the rear of the unit. MODEL IDENTIFICATION – Rear Panel – Model Part No. AEP, UK models 2-892-575-0[] RU model 2-892-575-1[] E32 model 2-892-575-2[] MX model 2-892-575-3[] E3 model 2-892-575-4[] E12 model 2-892-575-5[] AR model 2-892-575-6[] SP model 2-892-575-7[] TH model 3-270-984-0[] • Abbreviation AR : Argentine model E3 : 220 – 240 V AC area in E model E12 : 220 – 240 V AC area in E model E32 : 110 – 240 V AC area in E model MX : Mexican model RU : Russian model SP : Singapore model TH : Thai model Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Parts No. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Special Component Notice The components identified by mark 9 contain confidential information. Strictly follow the instructions whenever the components are repaired and/or replaced. Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-DZ20 TABLE OF CONTENTS 1. SERVICING NOTE ................................................... 4 2. GENERAL ................................................................... 8 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 11 3-2. Case ................................................................................. 12 3-3. Front Panel Assy .............................................................. 12 3-4. FL Board.......................................................................... 13 3-5. KEY Board, P-SW Board ................................................ 13 3-6. MAIN Board.................................................................... 14 3-7. Tuner (FM/AM), IO Board (AEP, UK) ........................... 15 3-8. Tuner (FM/AM), IO Board (Except AEP, UK) ............... 15 3-9. DVD Mechanism Deck (CDM85-DVBU102) ................ 16 3-10. Tray.................................................................................. 16 3-11. Belt, MS-203 Board ........................................................ 17 3-12. Optical Pick-up (KHM-313CAA) ................................... 18 4. TEST MODE ............................................................... 19 5. ELECTRICAL ADJUSTMENTS .......................... 23 6. DIAGRAMS 6-1. Block Diagram – RF Section –....................................... 26 6-2. Block Diagram – VIDEO Section – ............................... 27 6-3. Block Diagram – AUDIO Section – ............................... 28 6-4. Block Diagram – AMP Section – ................................... 29 6-5. Block Diagram – POWER Section –.............................. 30 6-6. Printed Wiring Board – MAIN Board (Side A) – ........... 31 6-7. Printed Wiring Board – MAIN Board (Side B) – ........... 32 6-8. Schematic Diagram – MAIN Board (1/8) – ................... 33 6-9. Schematic Diagram – MAIN Board (2/8) – ................... 34 6-10. Schematic Diagram – MAIN Board (3/8) – ................... 35 6-11. Schematic Diagram – MAIN Board (4/8) – ................... 36 6-12. Schematic Diagram – MAIN Board (5/8) – ................... 37 6-13. Schematic Diagram – MAIN Board (6/8) – ................... 38 6-14. Schematic Diagram – MAIN Board (7/8) – ................... 39 6-15. Schematic Diagram – MAIN Board (8/8) – ................... 40 6-16. Printed Wiring Board – MS-203 Board – ....................... 41 6-17. Schematic Diagram – MS-203 Board – ......................... 41 6-18. Printed Wiring Board – IO Board –................................ 42 6-19. Schematic Diagram – IO Board – .................................. 43 6-20. Printed Wiring Boards – KEY, FL, P-SW Board – ........ 44 6-21. Schematic Diagram – KEY, FL, P-SW Board –............. 45 7. EXPLODED VIEWS 7-1. Overall Section ................................................................ 57 7-2. Front Panel Assy .............................................................. 58 7-3. DVD Mechanism Deck Section (CDM85-DVBU102) ... 59 8. ELECTRICAL PARTS LIST .................................. 60 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-DZ20 SECTION 1 SERVICING NOTE NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH 1. Open the case and turn POWER on with no disc inserted. 2. Confirm that the following operation is performed while observing the objecting lens from the clearance of DVD mechanism deck. 1) Confirm that laser beam is spread. 2) Up and down motion of the objective lens. (2 times) On cleaning discs, disc/lens cleaners • Do not use cleaning discs or disc/lens cleaners (including wet or spray types). These may cause the apparatus to malfunction. IMPORTANT NOTICE Caution: This system is capable of holding a still video image or on-screen display image on your television screen indefinitely. If you leave the still video image or on-screen display image displayed on your TV for an extended period of time you risk permanent damage to your television screen. Projection televisions are especially susceptible to this. Attention when transported Use this mode when returning the set to the customer after repair. Procedure: 1. Press the ?/1 button to turn the set on. 2. Press the [FUNCTION] button to set the function “DVD”. 3. Remove all discs, and then press two buttons H and ?/1 simultaneously. 4. After a message “MECHA LOCK” is displayed on the fluorescent indicator tube, pull out the AC plug. 5. To exit from this mode, press the ?/1 button to turn the set on. DISC TRAY LOCK The disc tray lock function for the antitheft of an demonstration disc in the store is equipped. Setting Procedure : 1. Press the ?/1 button to turn the set on. 2. Press the [FUNCTION] button to set DVD function. 3. Insert a disc. 4. Press the x button and the A button simultaneously for five seconds. 5. The message “LOCKED” is displayed and the tray is locked. Releasing Procedure : 1. Press the x button and the A button simultaneously for five seconds again. 2. The message “UNLOCKED” is displayed and the tray is unlocked. Note : When “LOCKED” is displayed, the tray lock is not released by turning power on/off with the ?/1 button. Note about CDs/DVDs The system can play CD-ROMs/CD-Rs/CD-RWs recorded in the following formats: – audio CD format – VIDEO CD format – MP3 audio tracks, JPEG image files, and DivX video files* of format conforming to ISO 9660 Level 1/Level 2, or its extended format, Joliet The system can play DVD-ROMs/DVD+RWs/DVD-RWs/ DVD+Rs/DVD-Rs recorded in the following formats: – MP3 audio tracks, JPEG image files, and DivX video files* of format conforming to UDF (Universal Disc Format) * Except for United Kingdom model. Example of discs that the system cannot play The system cannot play the following discs: • CD-ROMs/CD-Rs/CD-RWs other than those recorded in the formats listed on “Note about CDs/DVDs” • CD-ROMs recorded in PHOTO CD format • Data part of CD-Extras • DVD Audios • Super Audio CD • DATA DVDs that do not contain MP3 audio tracks, JPEG image files, or DivX video files* * Except for United Kingdom model. • DVD-RAMs Also, the system cannot play the following discs: • A DVD VIDEO with a different region code • A disc that has a non-standard shape (e.g., card, heart) • A disc with paper or stickers on it • A disc that has the adhesive of cellophane tape or a sticker still left on it Notes about CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/ DVD+RW In some cases, CD-R/CD-RW/DVD-R/DVD-RW/DVD+R/ DVD+RW cannot be played on this system due to the recording quality or physical condition of the disc, or the characteristics of the recording device and authoring software. The disc will not play if it has not been correctly finalized. For more information, see the operating instructions for the recording device. Note that some playback functions may not work with some DVD+RWs/DVD+Rs, even if they have been correctly finalized. In this case, view the disc by normal playback. Also some DATA CDs/ DATA DVDs created in Packet Write format cannot be played. Copyrights This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited. This system incorporates with Dolby* Digital and Dolby Pro Logic (II) adaptive matrix surround decoder and the DTS** Digital Surround System. * Manufactured under license from Dolby Laboratories. “Dolby”, “Pro Logic”, and the double-D symbol are trademarks of Dolby Laboratories. ** Manufactured under license from DTS, Inc. “DTS” and “DTS Digital Surround” are registered trademarks of DTS, Inc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-DZ20 When the self-diagnosis function is activated to prevent the system from malfunctioning, a 5- character service number (e.g., C 13 50) with a combination of a letter and 4 digits appears on the TV screen or front panel display. In this case, check the following table. When displaying the version number on the TV screen When you turn on the system, the version number [VER.X.XX] (X is a number) may appear on the TV screen. Although this is not a malfunction and for Sony service use only, normal system operation will not be possible. Turn off the system, and then turn on the system again to operate. Self-diagnosis Function (When letters/numbers appear in the display) First 3 characters of the service number Cause and/or corrective action C 13 The disc is dirty. ,Clean the disc with a soft cloth. C 31 The disc is not inserted correctly. ,Restart the system, then re-insert the disc correctly. E XX (xx is a number) To prevent a malfunction, the system has performed the self- diagnosis function. ,Contact your nearest Sony dealer or local authorized Sony service facility and give the 5- character service number. Example: E 61 10 C:13:50 VER.X.XX The lever is moved in the direction of the arrow with the thin rod. DVD lid How to open the disc table when power switch turns off Insert a tapering driver into the aperture of the unit bottom, and slide it in the direction of the arrow. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-DZ20 MAIN BOARD (SIDE A) IC3250 IC3100 IC3300 IC3150 TP3053 800 Ω/2W TP3054 IC3200 IC3400 Point of discharge for TP3053 and TP3054 R912 R913 FR901 FR902 C903 T901 MAIN BOARD (SIDE B) 800 Ω/2W Point of discharge for FR902 and R913 (Mexican model) Point of discharge for FR901 and R912 (Except Mexican model) Prevention of electric shock and damage to IC When disassembling the machine, be sure to discharge the charged electricity in the below point. Use a resistor of 800 ohms, 2 Watts for discharging. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-DZ20 MAIN board service position Please take the above-mentioned position in the repair of MAIN board. In that case, it is necessary the following extension cable during CN801 on FL board and CN509 on MAIN board. CN509 extension cable jig P/N: J-2501-231-A (pitch 1.00 mm/15p/300L) Note on replacement of C803, C802, L801, and L802 Please fold in the directtion of the arrow and set up at replacement of C803, C802, L801, and L802 on FL board. L801 L802 C803 + – Precaution when installing a new OP unit / Precaution before unsoldering the static electricity prevention solder bridge When installing a new OP unit, be sure to connect the flexible printed circuit board first of all before removing the static electricity prevention solder bridge by unsoldering. Remove the static electricity prevention solder bridge by unsoldering after the flexible printed circuit board has already been connected. (Do not remove nor unsolder the solder bridge as long as the OP unit is kept standalone.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-DZ20 SECTION 2 GENERAL Front panel A "/1 (on/standby) (18) B A (open/close) (18) C Disc operation (18) D FUNCTION (18) E Front panel display (78) F (remote sensor) (8) G VOLUME control (18) H Disc tray (18) R AEP, UK MODEL EXCEPT AEP, UK MODEL ear panel A SPEAKER jacks (9) B EURO AV T OUTPUT (TO TV) jack (9) C AM terminal (9) D COAXIAL FM 75Ω jack (9) SPEAKER ANTENNA FRONT R FRONT L SUR R SUR L CENTER WOOFER EURO AV OUTPUT(TO TV) COAXIAL AM FM75 A SPEAKER jacks (9) B TV/VIDEO (AUDIO IN R/L) jacks (21) C MONITOR OUT (S VIDEO/VIDEO) jacks (18) D AM terminal (9) E COAXIAL FM 75Ω jack (9) F COMPONENT VIDEO OUT jacks (18) SPEAKER ANTENNA COMPONENT VIDEO OUT FRONT R FRONT L SUR R SUR L CENTER WOOFER TV/VIDEO MONITOR OUT COAXIAL AM FM75 R L AUDIO IN (DVD ONLY) Y PB/CB PR/CR VIDEO (DVD ONLY) S VIDEO This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-DZ20 Fr AEP, UK MODEL EXCEPT AEP, UK MODEL ont panel display About the indications in the front panel display A Lights up when the time information of a title or chapter appears in the front panel display. (DVD only) (34) B Lights up when an NTSC disc is loaded. C Lights up when a station is received. (Radio only) (47) D Stereo/Monaural effect (Radio only)(48) E Lights up when the sleep timer is set. (52) F Lights up when the movie or music mode is selected. (21) G Playing status (DVD function only) H Current repeat mode (30) I Lights up when the child lock function is set to on. (53) J Indicates the selected [SPEAKER FORMATION]. (57) K Current surround format (Except for JPEG) L Lights up when the DYNAMIC BASS is selected. (51) M Displays system’s status such as chapter, title, or track number, time information, radio frequency, playing status, sound field, etc. A Lights up when the time information of a title or chapter appears in the front panel display. (DVD only) (38) B Lights up when the color system is set to NTSC. (Asian, Australian, and Middle Eastern models only) C Lights up when a station is received. (Radio only) (51) D Stereo/Monaural effect (Radio only)(52) E Lights up when the sleep timer is set. (56) F Lights up when the movie or music mode is selected. (25) G Playing status (DVD function only) H Current repeat mode (34) I Lights up when the child lock function is set to on. (57) J Lights up when the system outputs progressive signals (DVD function only). (19) K Indicates the selected [SPEAKER FORMATION]. (61) L Current surround format (Except for JPEG) M Lights up when the DYNAMIC BASS is selected. (55) N Displays system’s status such as chapter, title, or track number, time information, radio frequency, playing status, sound field, etc. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-DZ20 Remote control ANGLE 5 (36) AUDIO 4 (31) CLEAR ef (25, 50, 60) D.TUNING wf (48) DISC SKIP* eg DISPLAY 2 (34, 49) DVD MENU wh (31, 44, 50) DVD TOP MENU qf (31) DYNAMIC BASS wd (51) ENTER wg (50) FUNCTION ws (18, 19, 26, 47, 57) MOVIE/MUSIC qj (21) MUTING 7 (18) Number buttons** qg (25, 48, 50, 54) PICTURE NAVI 6 (26, 50) PRESET +/– wk es (48) SOUND FIELD qh (22) SUBTITLE wf (37) SYSTEM MENU wg (16, 19, 50, 52, 83) THEATRE SYNC w; (51) TUNING +/– 0 qs (47) TV e; (50) TV CH +/– wa (50) TV INPUT qk (50) TV VOL +/– eh (50) VIDEO FORMAT 3 (15) VOLUME +/–** 8 (18, 48, 64) [/1 (on/standby) 1 (13, 16, 18, 26, 48) TV [/1 (on/standby) ej (50) C/X/x/c/ qd (13, 16, 19, 25, 47, 54) REPLAY/ ADVANCE 9 (18) ./> es wk (18) m/ / M qs 0 (24) SLOW qs 0 (24) H (play)** ea (18, 26, 56) STEP 9 (24) x (stop) wl (18, 26, 54) X (pause) qa (18) Z (open/close) ql (18) DISPLAY wj (15, 25, 54, 79) O RETURN ed (26) -/-- ef (50) * The DISC SKIP button is not available for this model. **The H, number 5, and VOLUME + buttons have tactile dots. Use the tactile dots as references when operating the system. ALPHABETICAL ORDER A – O P – Z BUTTON DESCRIPTIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-DZ20 SECTION 3 DISASSEMBLY 3-1. DISASSEMBLY FLOW • This set can be disassembled in the order shown below. 3-4. FL BOARD (Page 13) 3-5. KEY BOARD, P-SW BOARD (Page 13) 3-9. DVD MECHANISM DECK (CDM85-DVBU102) (Page 16) 3-10. TRAY (Page 16) 3-111. BELT, MS-203 BOARD (Page 17) 3-12. OPTICAL PICK-UP (KHM-313CAA) (Page 18) 3-6. MAIN BOARD (Page 14) 3-7. TUNER (FM/AM), IO BOARD (AEP, UK) (Page 15) 3-8. TUNER (FM/AM), IO BOARD (EXCEPT AEP, UK) (Page 15) 3-3. FRONT PANEL ASSY (Page 12) 3-2. CASE (Page 12) SET Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-DZ20 3-2. CASE 4 case 1 screw (CASE3 TP2) 2 screw (CASE3 TP2) 3 five screws (+BVTP 3 × 8) 6 two claws 1 The lever is moved in the direction of the arrow with the thin rod. 2 3 loading panel 7 front panel assy 5 three screws (+BV 3 × 6) 4 wire (flat type) 15core (CN509) 3-3. FRONT PANEL ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-DZ20 3-5. KEY BOARD, P-SW BOARD 3-4. FL BOARD 4 shield (front) 8 FL board 3 three screws (+BVTP 2.6 × 10) 1 screw (+BVTP 2.6 × 10) 2 clamp clamp 5 two screws (+BVTP 2.6 × 10) 7 wire (flat type) 15core (CN801) 6 connector 6p (CN805) Route the wire (flat type) as shown below. 1 knob (vol) 2 nut q; KEY board 4 button (AIO) 7 Remove the soldering. 8 harness 3 four screws (+BVTP 2.6 × 10) 5 screw (+BVTP 2.6 × 10) 6 button (AIO) 9 P-SW board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-DZ20 Attaching the two radiation sheets on the IC MAIN board first, and then attach the heatsink (AMP). 1 two screws (+BV 3 × 10) 3 heatsink (AMP) qd fourteen screws (+BV 3 × 6) qs three screws (+BVTP 3 × 8) qf MAIN board 4 two radiation sheets 2 screw (+BVTP 3 × 12) radiation sheets heatsink (AMP) IC on the MAIN board q; wire (flat type) 15core (CN509) 8 wire (flat type) 5core (CN1202) 9 connector 6p (CN1201) qa connector 2p (CN901) 7 wire (flat type) 24core (CN1101) 6 wire (flat type) 13core (CN1301) 5 wire (flat type) 17core (CN507) (AEP, UK) wire (flat type) 15core (CN508) (EXCEPT AEP, UK) 3-6. MAIN BOARD Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-DZ20 3-7. TUNER (FM/AM), IO BOARD (AEP, UK) 3-8. TUNER (FM/AM), IO BOARD (EXCEPT AEP, UK) 2 two screws (+BVTT 2.6 × 6) 8 IO board 3 tuner (FM/AM) 7 two screws (+BVTP 3 × 8) 6 wire (flat type) 11core (CN101) 1 wire (flat type) 11core 5 wire (flat type) 13core (CN201) 4 wire (flat type) 17core (CN601) 2 two screws (+BVTT 2.6 × 6) 8 IO board 3 tuner (FM/AM) 7 three screws (+BVTP 3 × 8) 6 wire (flat type) 9core (CN102) 1 wire (flat type) 9core 5 wire (flat type) 13core (CN201) 4 wire (flat type) 15core (CN602) Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-DZ20 3-10. TRAY 3-9. DVD MECHANISM DECK (CDM85-DVBU102) 7 three screws (+BV 3 × 6) 1 The lever is moved in the direction of the arrow with the thin rod. 2 3 loading panel 4 connector 6p (CN1201) 5 wire (flat type) 24core (CN1101) 8 Remove the DVD mechanism deck (CDM85-DVBU102) in the direction of the arrow. 6 wire (flat type) 5core 4 2 3 two claws 5 tray 1 Move the chuck cam in the direction of the arrow. bottom side www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-DZ20 3-11. BELT, MS-203 BOARD 1 two claws 5 three claws 7 MS-203 board 6 DC motor 3 belt 2 chuck cam 4 screw (M 1.7 × 2.5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-DZ20 3-12. OPTICAL PICK-UP (KHM-313CAA) 1 two claws 3 two claws 2 chuck cam 4 base unit 5 two claws 7 bu holder 8 two insulators 9 two insulators 6 four insulator screws 0 optical pick-up (KHM-313CAA) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-DZ20 SECTION 4 TEST MODE Note: Incorrect operations may be performed if the test mode is not entered properly. In this case, press the ?/1 button to turn the power off, and retry to enter the test mode. 3. Disc Tray Lock The disc tray lock function for the antitheft of an demonstration disc in the store is equipped. Setting Procedure : 1. Press the ?/1 button to turn the set on. 2. Press the FUNCTION button to set DVD function. 3. Insert a disc. 4. Press the x button and the A button simultaneously for five seconds. 5. The message “LOCKED” is displayed and the tray is locked. Releasing Procedure : 1. Press the x button and the A button simultaneously for five seconds again. 2. The message “UNLOCKED” is displayed and the tray is unlocked. Note: When “LOCKED” is displayed, the tray lock is not released by turning power on/off with the ?/1 button. 4. DVD Ship Mode Use this mode when returning the set to the customer after repair. Procedure: 1. Press the ?/1 button to turn the set on. 2. Press the FUNCTION button to set the function “DVD”. 3. Remove all discs, and then press two buttons H and ?/1 simultaneously. 4. After a message “MECHA LOCK” is displayed on the fluorescent indicator tube, pull out the AC plug. 5. To exit from this mode, press the ?/1 button to turn the set on. 5. AM Step Change (Except AEP, UK) • A step of AM channels can be changed over between 9 kHz and 10 kHz. Procedure: 1. Press the ?/1 button to turn the set ON. 2. Select the function “TUNER”, and press FUNCTION button to select the BAND “AM”. 3. Press the ?/1 button to turn the set OFF. 4. Press two buttons > and ?/1 simultaneously, and the display of fluorescent indicator tube changes to “AM 9k STEP” or “AM 10k STEP”, and thus the channel step is changed over. 6. Product Out This mode moves the optical pick-up to the position durable to vibration and clears all data including preset data stored in the RAM to initial conditions. Use this mode when returning the set to the customer after repair. Procedure: 1. Press the ?/1 button to turn the power on. 2. Press the FUNCTION button to set the function “DVD”. 3. Remove all discs, and then press three buttons > , A and ?/1 simultaneously. 4. After the “STANDBY” blinking display finishes, the message “MECHA LOCK” is displayed on the fluorescent indicator tube disconnect the AC power plug, then the ship mode is set. 1. Cold Reset • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customers. Procedure: 1. Press the ?/1 button to turn the power on. 2. Press three buttons x , A and ?/1 simultaneously. 3. When this button is operated, display as “COLD RESET” for a while and all of the settings are reset. 2. Panel Test Mode • This mode is used to check the software version, FL, LED and KEY. 2-1. Display Test Mode Procedure: 1. Press the ?/1 button to turn the power on. 2. Press three buttons X , . and A simultaneously. 3. When the display test mode is activated, all segments are turned on. 4. To exit from this mode, press three buttons X , . and A simultaneously. 2-2. Version Test Mode Procedure: 1. When the display test mode is activated, press the . button and the message “AS1” is displayed, the version test mode is activated. 2. Whenever the . button is pressed, the display changes in the following order. *1: CE2 changes depending on destination. 3. Press the > button and the date of the software production is displayed. 4. Press the > button again and the version is displayed. 5. To exit from this mode, press three buttons X , . and A simultaneously. 2-3. Key Test Mode Procedure: 1. When the display test mode is activated, press the H button, to select the key test mode. 2. To enter the KEY test mode, the fluorescent indicator displays “K0 V0”. Each time an another button is pressed, “KEY” value increases. However, once a button is pressed, it is no longer taken into account. When all keys are pressed correctly, “K8 V0” is displayed. 3. When the VOLUME control is turned in the direction of (+), “V0” is changed to “V1”, then ... “V9”. When the VOLUME control is turned in the direction of (–), “V0” is changed to “V9”, then ... “V1”. 4. To exit from this mode, press three buttons X , . and A simultaneously. “AS1” (Model name) t “CE2*1” (Destination) t MC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-DZ20 (2) Select “2. Drive Manual Operation” by pressing the 2 button on the remote commander. The screen will appear as shown. (3) Select “3. Manual Adjustment” by pressing the 3 button on the remote commander. The screen will appear as shown. (4)Select “6.IOP” by pressing the 6 button on the remote commander. (5) Wait until a hexadecimal number appear. (6) Convert each data from hexadecimal to decimal using conversion table. (7) Please find the label on the rear of the BU (Base Unit). The default IOP value is written in the label. (8) Subtract between these two values. (9) If the remainder is smaller than 93 (decimal), then it is OK. However if the value is higher than 93, then the BU is defective and need to be change. (10) Press the RETURN button on the remote commander to return back to previous menu. (11) Press the 0 button on the remote commander to return to Top Menu. Drive Manual Operation 1. Servo Control 2. Track/Layer Jump 3. Manual Adjustment 4. Tray Aging Mode 5. MIRR time Adjust 0. Return to Top Menu Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq Boost Adjust: 6. Iop: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: O o Change Value [RETURN] Return to previous menu Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq Boost Adjust: 6. Iop. 5B: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: [RETURN] Return to previous menu O o Change Value DVD SECTION 7-1. GENERAL DESCRIPTION The IOP measurement allows you to make diagnosis and adjustment simply by using the remote commander and monitor TV. The instructions, diagnosis results, etc. are given on the on-screen display (OSD). Be sure to execute the IOP measurement when a BU (Base Unit) is replaced. 7-2. HOW TO ENTER TEST MODE While pressing the x and A buttons simultaneously, turn VOLUME control in the direction of (+) with the DVD player in power on. The Test Mode starts, displayed “SERVICE IN” on this model display then the menu shown below will be displayed on the TV screen. The menu above is the Remocon Diagnosis Menu screen which consists of five main functions. At the bottom of the menu screen, the model name and IF-con version. To exit from the Test Mode, press the power button on the remote commander. 7-3. EXECUTING IOP MEASUREMENT In order to execute IOP measurement, the following standard procedures must be followed. (1) In power on, while pressing the x and A buttons simultaneously, turn the VOLUME control in the direction of (+). Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History 4. Version Information Model Name IF-con : V Syscon : Ver. er. XX.XX (XXXX) X.XXX : AS1_ XX *1 *1: Changes depending on destination Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History 4. Version information Model Name IF-con : Ver. XX.XX (XXXX) Syscon : Ver. X.XXX : AS1_ XX *1 *1: Changes depending on destination www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 HCD-DZ20 7-4. EMERGENCY HISTORY To check the emergency history, please follow the following procedure. (1) From the Top Menu of Remocon Diagnosis Menu, select “3. Emergency History Check” by pressing the 3 button on the remote commander. The following screen appears on the on- screen display. (2) You can check the total time when the laser is turned on during playback of DVD and CD from the above menu. The maximum time, which can be displayed are 999h 59min. (3) You can check the error code of latest 10 emergency history from the above menu. To view the previous or next page of emergency history, press . or > button on the remote commander. The error code consists of the following three blocks. The first block indicates the error code. The second block indicates the parameter and the third block indicates the time of error code as shown below. • Error Code *1 : Error Code *2 : Parameter of error code *3 : Time of error code The meaning of error code is as below: 01: Communication error (No reply from syscon) 02: Syscon hung up 03: Power OFF request when syscon hung up 19: Thermal shutdown 24: MoveSledHome error 25: Mechanical move error (5 Changer) 26: Mechanical move stack error 30: DC motor adjustment error 31: DPD offset adjustment error 32: TE balance adjustment error 33: TE sensor adjustment error 34: TE loop gain adjustment error 35: FE loop gain adjustment error 36: Bad jitter after adjustment 40: Focus NG 42: Focus layer jump NG Emg. History Check 01. 01 05 04 04 Laser Hours CD 999h 59min DVD 999h 59min 00 92 46 00 00 00 00 00 00 00 23 45 02. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page [O] Return to Top Menu Emg. History Check 01. 01 05 04 04 Laser Hours CD 999h 59min DVD 999h 59min 00 92 46 00 00 00 00 00 00 00 23 45 02. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page [O] Return to Top Menu *1 *2 *3 52: Open kick spindle error 51: Spindle stop error 60: Focus on error 61: Seek fail error 62: Read Q data/ID error 70: Lead in data read fail 71: TOC read time out (CD) 80: Can’t buffering 81: Unknown media type 7-4-1. Clear the Laser Hour Press DISPLAY button and then press CLEAR button on the remote commander. The data for both CD and DVD data are reset. Emg. History Check 01. 01 05 04 04 Laser Hours CD 0h 0min DVD 0h 0min 00 92 46 00 00 00 00 00 00 00 23 45 02. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next] Next Page [Prev] Prev Page [O] Return to Top Menu Emg. History Check 01. 00 00 00 00 Laser Hours CD 999h 59min DVD 999h 59min 00 00 00 00 00 00 00 00 00 00 00 00 02. 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [Next] Next Page [Prev] Prev Page [O] Return to Top Menu 7-4-2. Clear the Emergency History Press DVD TOP MENU button and then press CLEAR button on the remote commander. The error code for all emergency history would be reset. 7-4-3. Clear the Initialize Setup Data Press DVD MENU button and then press CLEAR button on the remote commander. Emg. History Check initialize setup data... Laser Hours CD 999h 59min DVD 999h 59min [Next] Next Page [Prev] Prev Page [O] Return to Top Menu www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 HCD-DZ20 Version information [O] Return to Top Menu Firm (Main) : Ver. xxxxx Firm (Sub) : xxxxx RISC : xxxxx 8032 : xxxxx Audio DSP : xxxxx Servo DSP : xxxxx 7-4-4. Return to the Top Menu of Remocon Diagnosis Menu Press 0 button on the remote commander. • Check Version Information To check the version information, please follow the following procedure. (1) From the Top Menu of Remocon Diagnosis Menu, select “4. Version Information” by pressing the 4 button on the remote commander. The following screen appears on the on-screen display. To return to the Top Menu of Remocon Diagnosis Menu, press 0 button on the remote commander. 8. DEMO PLAY OUT It is a mode to release the demonstration reproduct by the dedicated demonstration disc. Setting Procedure: 1. Press the ?/1 button to turn the set on. 2. Press the FUNCTION button to set the function “DVD”. 3. During playback the DEMO Disc, press the x and H buttons for five seconds simultaneously. 4. The message “DEMO OFF” is displayed, a mode to reproduct the demonstration is released. 9. VOLUME TEST Procedure: 1. Press the ?/1 button to turn the set on. 2. Press three buttons . , H and > simultaneously. 3. The message “VOLUME MIN” is displayed. 4. When the VOLUME control is turned in the direction of (+), the message “VOLUME MAX” is displayed. 5. When the VOLUME control is turned in the direction of (–), the message “VOLUME MIN” is displayed. 6. To exit from this mode, press the ?/1 button to turn the set off, the message “COLD RESET” is displayed. Note: The segments of the frame of SPEAKER FORMATION are blinking while test mode. 10. PROTECTION FACTOR (SD DETECTION/ DC DETECTION) IDENTIFICATION TEST MODE When an error is detected, the FL tube alternately displays “PROTECTOR h PUSH POWER”. r Press the ?/1 button. * Buttons other than the ?/1 button are invalid. “STANDBY” blinks three times on the FL tube. r The protection release state (POWER OFF) is established. (No FL tube display) r Press the ?/1 button. The power to the system turns on, and the normal operation is established. (Restore) During the protection state: 1. If the AC plug is connected or disconnected during the protection state, the protection state is released, and the normal operation is established. (The protection state is not maintained.) 2. The protection factor is displayed by pressing the FUNCTION , A and > buttons at the same time during the protection state (during the “PROTECTOR h PUSH POWER” display). k When SD is detected: Repeats “SD DETECT h PUSH POWER”. k When DC is detected: Repeats “DC DETECT h PUSH POWER”. PL: SD detection When the “L” output from the SD (shutdown) port on the S- MASTER POWER Driver is detected, the power system other than that of the FL tube is turned off, and the protection state is established. DC detection When the “L” output from the power/speaker error detection circuit (DC detection port) is detected for two seconds continually, the power system other than that of the FL tube is turned off, and the protection state is established. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 HCD-DZ20 SECTION 5 ELECTRICAL ADJUSTMENT DVD SECTION When the optical pick-up assy is replaced, perform the “EXECUTING IOP MEASUREMENT”. EXECUTING IOP MEASUREMENT (See page 20) [FM Tune Level Check] Procedure: 1. Turn the power on. 2. Input the following signal from Signal Generator to FM antenna input directly. * Carrier Freq: A = 87.5 MHz, B = 98 MHz, C = 108 MHz Deviation : 75 kHz Modulation : 1 kHz ANT input : 35 dBu (EMF) Note: Please use 75 ohm “coaxial cable” to connect SG and the set. You cannot use video cable for checking. Please use SG whose output impedance is 75 ohm. 3. Set to FM tuner function and tune A, B and C signals. 4. Confirm “TUNED” is lit on the display for A, B and C signals. The mark of “TUNED” means “The selected station signal is received in good condition.” TUNER SECTION generator OUT (75 Ω) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 HCD-DZ20 SECTION 6 DIAGRAMS For Schematic Diagrams. Note: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) • A : B+ Line. • Voltages and waveforms are dc with respect to ground un- der no-signal (detuned) conditions. • Voltages and waveforms are dc with respect to ground in service mode. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances. no mark : DVD STOP * : Impossible to measure • Voltages are taken with VOM (Input impedance 10 MΩ). • Circled numbers refer to waveforms. • Signal path. F : AUDIO d : TUNER L : VIDEO E : Y a : CHROMA r : COMPONENT VIDEO q : R, G, B f : AUDIO IN (TV/VIDEO) J : CD PLAY c : DVD PLAY • Abbreviation AR : Argentine model E3 : 220 – 240 V AC area in E model E12 : 220 – 240 V AC area in E model E32 : 110 – 240 V AC area in E model MX : Mexican model RU : Russian model SP : Singapore model TH : Thai model For Printed Wiring Boards. Note: • X : parts extracted from the component side. • a : Through hole. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Indication of transistor. Caution: Parts face side: Parts on the parts face side seen from (SIDE A) the parts face are indicated. Pattern face side: Parts on the pattern face side seen from (SIDE B) the pattern face are indicated. C B These are omitted. E Q C E B These are omitted Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 25 HCD-DZ20 HCD-DZ20 • Circuit Boards Location • Waveforms – MAIN Board – – IO Board – 200 ns 2.7 Vp-p 4.8 Vp-p 20.3 ns 5 IC3010 rk (XFSOIN) 1 V/DIV, 10 ns/DIV 4 IC501 qg (XIN) 1 V/DIV, 100 ns/DIV 2 IC1101 . x X H A I/1 FUNCTION VOLUME 1 2 A B C D E F 3 4 5 6 7 8 9 10 11 12 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 45 HCD-DZ20 HCD-DZ20 6-21. SCHEMATIC DIAGRAM – KEY, FL, P-SW BOARD – • See page 48 for IC Block Diagram. IC B/D D MAIN BOARD (3/8) CN509 (Page 35) 3.4 3.4 -25.4 -25.4 -25.4 -25.4 -25.4 -25.4 1.8 0.2 3.0 2.8 0 0 -21.0 -23.0 -21.0 -14.7 -27.2 -25.2 -25.2 -16.8 -23.1 3.3 -14.7 -25.5 -25.6 -25.4 3.3 3.3 -18.9 -27.3 -27.3 -27.3 -18.9 -23.1 -27.9 -25.4 -25.4 -25.4 -25.4 -25.5 0 4.7 4.7 0 No mark : DVD STOP VCC OUT GND 1 2 3 9 8 7 6 5 4 3 2 1 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 35 33 34 35 36 37 38 39 40 41 42 43 44 TP807 TP808 TP811 TP812 TP814 TP815 TP816 TP817 TP818 TP819 TP820 TP821 TP822 TP823 2 3 5 6 8 7 1 4 9 1 2 3 4 5 D-GND 5V KEY0 KEY1 KEY2 FL_DATA FL_CS FL_CLK D-GND SIRCS D-GND E3.3V 3.3V ENB ENA 2 7 9 8 10 11 12 5 6 14 17 13 16 15 23 24 27 28 26 25 50 31 33 35 30 32 36 34 29 42 44 43 40 37 39 38 41 46 53 48 47 45 18 49 1 2 3 4 5 6 ENA ENB D-GND KEY0 KEY1 KEY2 S1 S2 S3 S4 S5 S6 S7 S8 S9 S10 S11 S12 S13 S14 S15 S16 G12 G11 G10 G9 G8 G7 G6 G5 S10 S12 S31 S11 S14 S15 S16 S9 S8 S7 S6 S5 S4 S3 S2 SA G2 G3 G4 G5 G6 G7 G8 G9 G10 G11 G12 G1 G2 G3 G4 G1 IC801 REMOTE CONTROL RECEIVER IC802 FL DRIVER 6 5 4 3 2 1 12 11 10 9 8 7 15 14 13 GND P-SW 2 1 P-SW BOARD 1 2 3 4 5 ENA ENB D-GND KEY0 KEY1 KEY2 1 2 GND KEY0 6 5 4 3 2 1 (CHASSIS) FL BOARD KEY BOARD S800 VOLUME S806 16V C809 16V 0 C814 35V 4.7 C829 47 R819 100 R814 100 R815 100 R816 0 R800 1k R817 82k R811 100k R820 NJL23H400A IC801 PT6315 IC802 2SC3052EF-T1-LEF FL DRIVER Q802 TP862 TP863 TP861 TP857 TP859 TP853 TP852 TP851 100k R813 100k R812 0.0047 C800 0 R805 0.022 C801 100 R802 0.1 C805 47uH L802 1SS355WTE-17 D801 47uH L801 1SS355WTE-17 D805 1SS355WTE-17 D804 3.9K R804 T801 DC-DC CONVERTER CPH5504-TL-E OSC Q801 33k R801 1SS355WTE-17 D802 UDZW-TE17-6.2B D803 35V C802 16V 100 C803 0.01 C811 15P CN801 ND001 (FLUORESCENT INDICATOR TUBE) 6P CN805 100p C851 CN804 S801 2P TP874 TP875 TP879 TP881 3.3k R853 S803 2.2k R854 S802 3.3k R852 S808 S807 0 R851 2.2K R857 S804 S805 2.2k R856 1k R855 TP841 TP842 0.01 C850 0.01 C849 C854 100p C853 100p C852 100p CN806 6P CN809 2P CNP807 47 0.01 C804 10 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 46 HCD-DZ20 HCD-DZ20 • IC Block Diagrams – MAIN Board – 39 HPOUTR2 41 HPOUTR1 43 HPOUTL2 45 HPOUTL1 44 HPVSSL 40 HPVSSR 46 HPVDDL 42 HPVDDR 47 XVDD 4 OUTR2- 5 VDDR 7 VSSR 8 VSSL 1 XVSS 2 XSUBC 3 VSSR 6 OUTR1+ 9 10 OUTL2- VDDL 12 VSSL 11 OUTL1+ 48 14 XFSOOUT XFSOIN 37 FSOCKO 38 FSOI 28 MCKSEL 26 SFLAG 36 XFSIIN 35 DVDD 24 25 31 OVF FLAG L DATA 30 BCK 29 LRCK 34 TEST 33 BFVSS 32 BFVDD 27 INIT 18 NSPMUTE 17 DXSS 16 DVDD 15 XDVDD 19 SOFTMUTE 20 PGMUTE 21 SCDT 22 SCSHIFT 23 SSCLATCH OVF FLAG R S P DF1 DF2 Simpling Rate Converter Filter1 & LOW CUT Filter Gain Control Liner Interpolator PWM Clock Generator Clock Generator (Tow dementional System) (Primary System) INT/MUTE Serial Control IC3010, IC3020, IC3030 CXD9843AR IC3003 TC7WH157FK IC2200 PCM1808PWR Reference DeltaúSigma Modulator ×1/64 Decimation Filter with HighúPass Filter Power Supply Clock and Control Timing Antialias LPF DeltaúSigma Modulator Serial Interface Mode/ Format Control Antialias LPF BCK VINL VREF VINR AGND VCC 1 VDD DGND LRCK DOUT SCKI FMT MD1 MD0 2 3 4 5 6 7 8 9 10 13 14 11 12 SELECT 116 ST 117 A 1 2 3 A B Y 5 Y B GND 4 VCC 8 Y EN G Y w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 HCD-DZ20 IC901 STR-F6138-LF1352 OCP/INH 1 S/GND 2 Drain 3 Vcc 4 FB/OLP 5 + – + – + – + – + – Delay OVP TSD Delay Reg2 Reg1 Reg3 Current mirror POWER MOS FET Latch OSC Boottom Skip Logic OCP2 Logic Internal Bias OCP1 Vocp Rg3 Rg2 Rg1 OCP2 + – UVL0 ON=16V OFF=10.5V INH1 INH2 FB Vth1 + – IOLP Volp Vth2 Vocp(BSIN,OUT) – MAIN Board – – IO Board – IC602 MC14052BDR2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 HCD-DZ20 1 2 3 4 5 4-bit latch 24-bit output latch 12-bit shift register Data selector 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 Serial interface OSC Timing generator key scan Display memory 24 bits x 12 words Key data memory (2 x 16 bits) Command decoder segment driver Grid driver Multiplexed driver 39 40 41 42 43 44 LED1 LED2 LED3 LED4 OSC DOUT DIN CLK STB KEY1 KEY2 VSS VDD SEG1/KS1 SEG2/KS2 SEG3/KS3 SEG4/KS4 SEG5/KS5 SEG6/KS6 SEG7/KS7 SEG8/KS8 SEG9/KS9 SEG10/KS10 SEG20/GRID9 SEG21/GRID8 SEG22/GRID7 SEG23/GRID6 SEG24/GRID5 GRID4 GRID3 GRID2 GRID1 VDD VSS SEG11/KS11 SEG12/KS12 SEG13/KS13 SEG14/KS14 SEG15/KS15 SEG16/KS16 VEE SEG17/GRID12 SEG18/GRID11 SEG19/GRID10 IC802 uPD16315GB-3BS – FL Board – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 HCD-DZ20 • IC Pin Function Description MAIN BOARD IC1101 CXD9849R (CD/DVD RF AMP, FOCUS/TRACKING ERROR AMP, DVD SYSTEM PROCESSOR, DIGITAL SERVO PROCESSOR) Pin No. Pin Name I/O Description 1 AGND — Ground terminal 2 DVDA I AC coupled input path A 3 DVDB I AC coupled input path B 4 DVDC I AC coupled input path C 5 DVDD I AC coupled input path D 6 DVDRFIP I AC coupled DVD RF signal input RFIP 7 DVDRFIN I AC coupled DVD RF signal input RFIN (not used (Open)) 8 NA I DC coupled main-beam RF signal input A 9 NB I DC coupled main-beam RF signal input B 10 MC I DC coupled main-beam RF signal input C 11 MD I DC coupled main-beam RF signal input D 12 SA I DC coupled sub-beam RF signal input A (not used (Open)) 13 SB I DC coupled sub-beam RF signal input B (not used (Open)) 14 SC I DC coupled sub-beam RF signal input C (not used (Open)) 15 SD I DC coupled sub-beam RF signal input D (not used (Open)) 16 CDFON I CD focusing error negative input (not used (Open)) 17 CDFOP I CD focusing error positive input (not used (Open)) 18 TNI I 3 beam satellite PD signal negative input 19 TPI I 3 beam satellite PD signal positive input 20 MDI1 I Laser power PD monitor input 21 MDI2 I Laser power PD monitor input 22 LDO2 O Laser drive output (for DVD) 23 LDO1 O Laser drive output (for CD) 24 SVDD3 — Power Supply (+3.3V) 25 CSD O Central servo, Positive main beam summing output (not used (Open)) 26 RFLVL O RFRP low pass, or Positive main beam summing output (not used (Open)) 27 SGND — Ground terminal 28 V2REFO O Reference voltage 2.8V 29 V2O O Reference voltage 2.0V 30 VREFO O Reference voltage 1.4V 31 FEO O Focus error monitor output (not used (Open)) 32 TEO O Tracking error monitor output (not used (Open)) 33 TEZISLY O TE Slicing Level (not used) 34 OPOUT O Op amp output (not used (Open)) 35 OPIN I Op amp negative input (not used (Open)) 36 OPIN I Op amp positive input (not used (Open)) 37 DMO O Disk motor control output. PWM output 38 FMO O Feed motor control. PWM output 39 TROPENPWM O Tray PWM output/Tray open output. 40 IOPMON O IOP monitor input 41 TRO O Tracking servo output 42 FOO O Focus servo output 43 DVSS — Ground terminal 44 NC I USB port DPLUS analog pin (not used (Open)) 45 NC I USB port DMINUS analog pin (not used (Open)) 46 DVDD3 — Power Supply (+3.3V) 47 SPFG I Spindle motor HALL sensor input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 HCD-DZ20 Pin No. Pin Name I/O Description 48 DSEL — Not used 49 WIDE O SI signal output to VIDEO AMP (IC201) 50 MSW O DVD/CD select signal output 51 MAMUTE O MAMUTE signal output to System Controller (not used (Open)) 52 DVDD18 — Power Supply (+1.8V) 53 to 58 IOA 2 to 7 O Address bus 2 to 7 output to PROM (IC1102) 59 HIGHA0 O Address bus 8 output to PROM (IC1102) 60, 61 IOA18, 19 O Address bus 18, 19 output to PROM (IC1102) 62 DVSS — Ground terminal 63 APLLCAP I APLL External Capacitance connection 64 APLLVSS — Ground terminal 65 VDD3 — Power Supply (+3.3V) 66 I OWR O WE signal output to PROM (IC1102) 67 A16 O Address bus 16 output to PROM (IC1102) 68 to 72 HIGHA 7 to 3 O Address bus 15 to 11 output to PROM (IC1102) 73 DVDD3 — Power Supply (+3.3V) 74, 75 HIGHA 2, 1 O Address bus 10, 9 output to PROM (IC1102) 76 IOA20 O Address bus 20 output to PROM (IC1102) 77 IOCS O CE signal output to PROM (IC1102) 78 IOA1 O Address bus 1 output to PROM (IC1102) 79 IOOE O OE signal output to PROM (IC1102) 80 DVDD3 — Power Supply (+3.3V) 81 to 84 AD 0 to 3 I Data bus 0 to 3 input from PROM (IC1102) 85 DVSS — Ground terminal 86 to 88 AD 4 to 6 I Data bus 4 to 6 input from PROM (IC1102) 89 IOA21 O Address bus 21 output to PROM (IC1102) 90 ALE O Address latch enable (not used (Open)) 91 AD7 I Data bus 7 input from PROM (IC1102) 92 A17 O Address bus 17 output to PROM (IC1102) 93 IOA0 O Address bus 0 output to PROM (IC1102) 94 DVSS — Ground terminal 95 UWA I System Controller write strobe (not used (Open)) 96 URD I System Controller read strobe (not used (Open)) 97 DVDD18 — Power Supply (+1.8V) 98 IFSDO O DVD SDO signal output to System Controller (IC501) 99 IFCK O DVD SCO signal output to System Controller (IC501) 100 XIFCS O DVD XIFCS signal output to System Controller (IC501) 101 IFSDI I DVD SDI signal input from System Controller (IC501) 102 SCL O SCL signal output to EEPROM (IC1103) 103 SDA I/O SDA signal output/input to/from EEPROM (IC1103) 104 TRG-SW O TRG-SW signal output (not used (Open)) 105 IFBSY I DVD IF-BUSY signal input from System Controller (IC501) 106 RXD I RD232 RXD clock (not used) 107 TXD I RD232 TXD data (not used) 108 DVDD3 — Power Supply (+3.3V) 109 ICE I ICE mode enable (not used (Open)) 110 PRST I MTRST signal input from System Controller (IC501) 111 IR I IR control signal input (not used (Open)) 112 INT0 I External interrupt0 (not used (Open)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-DZ20 Pin No. Pin Name I/O Description 113 DQMO O DQM0 signal output to SD-RAM (IC1104) 114 MREQ O DQM signal output (not used (Open)) 115 RD7 I/O Data bus 7 from SD-RAM (IC1104) 116 DVSS — Ground terminal 117, 118 RD 6, 5 I/O Data bus 6, 5 from SD-RAM (IC1104) 119 DVSS — Ground terminal 120, 121 RD 4, 3 I/O Data bus 4, 3 from SD-RAM (IC1104) 122 DVDD18 — Power Supply (+1.8V) 123 to 125 RD 2 to 0 I/O Data bus 2 to 0 from SD-RAM (IC1104) 126 RD15 I/O Data bus 15 from SD-RAM (IC1104) 127 DVDD3 — Power Supply (+3.3V) 128 to 133 RD 14 to 9 I/O Data bus 14 to 9 from SD-RAM (IC1104) 134 DVSS — Ground terminal 135 RD8 I/O Data bus 8 from SD-RAM (IC1104) 136 GPI0 — Not used (Open) 137 DQM1 O DQM1 signal output to SD-RAM (IC1104) 138 RWE O WE signal output to SD-RAM (IC1104) 139 CAS O CAS signal output to SD-RAM (IC1104) 140 RAS O RAS signal output to SD-RAM (IC1104) 141 DVDD3 — Power Supply (+3.3V) 142 RCS O RCS signal output to SD-RAM (IC1104) 143 BA0 O BA0 signal output to SD-RAM (IC1104) 144 DVSS — Ground terminal 145 BA1 O BA1 signal output to SD-RAM (IC1104) 146 RA10 O Address bus 10 output to SD-RAM (IC1104) 147 RA0 O Address bus 0 output to SD-RAM (IC1104) 148 DVSS — Ground terminal 149 to 151 RA 1 to 3 O Address bus 1 to 3 output to SD-RAM (IC1104) 152 DVDD18 — Power Supply (+1.8V) 153 NC I Reference voltage (not used (Open)) 154 NC I Dram clock (not used (Open)) 155 DVDD3 — Power Supply (+3.3V) 156 RCLK O CLK signal output to SD-RAM (IC1104) 157 CKE O CKE signal output to SD-RAM (IC1104) 158 to 160 RA 11 to 8 O Address bus 11 to 8 output to SD-RAM (IC1104) 161 DVSS — Ground terminal 162 RA7 O Address bus 7 output to SD-RAM (IC1104) 163 DVSS — Ground terminal 164 to 166 RA 6 to 4 O Address bus 6 to 4 output to SD-RAM (IC1104) 167 DVDD3 — Power Supply (+3.3V) 168 DISC/X — Not used (Open) 169 RGB O RGB control signal output 170 TSD_M — TSDM signal output to Motor driver (IC1201) 171 NC O Not used (Open) 172 NC — Not used (Open) 173 DVDD18 — Power Supply (+1.8V) 174 FWD O FWD signal output to Motor driver (IC1201) 175 NC — Not used (Open) 176 LIMSW I LIMITSW signal input from Optical pick-up www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 HCD-DZ20 Pin No. Pin Name I/O Description 177 OCSW I OCSW signal input 178 REW O REW signal output to Motor driver (IC1201) 179 CKSW I CKSW signal input 180 NC — Not used (Open) 181 NC — Not used (Open) 182 DVDD3 — Power Supply (+3.3V) 183 NC — Not used (Open) 184 NC — Not used (Open) 185 NC — Not used (Open) 186 NC — Not used (Open) 187 NC — Not used (Open) 188 NC — Not used (Open) 189 DAVCC — Power Supply (+3.3V) 190 VREF I Not used (Open) 191 FS O Full scale adjustment (Not used (Fixed to “L”)) 192 YUV0 — Not used (Open) 193 DAVSS — Ground terminal 194 YUV1 O Y signal output to VIDEO AMP (IC201) 195 DAVDD — Power Supply (+3.3V) 196 YUV2 O CHROMA signal output to VIDEO AMP (IC201) 197 DAVSS — Ground terminal 198 YUV3 O VIDEO signal output to VIDEO AMP (IC201) 199 DAVDD — Power Supply (+3.3V) 200 YUV4 O Y/G signal output to VIDEO AMP (IC201) 201 DAVSS — Ground terminal 202 YUV5 O CB/B signal output to VIDEO AMP (IC201) 203 YUV6 O CR/R signal output to VIDEO AMP (IC201) 204 DVDD3 — Power Supply (+3.3V) 205 MIC/VSYNC — Not used (Fixed to “L”) 206 VOICE/YUV7 — Not used (Fixed to “H:+3V Line”) 207 KRMOD/HSYNC — Not used (Open) 208 SMSCK — Not used (Open) 209 SPDATA/SMSDI I Audio data of SPDIF input 210 MUTE O MUTE signal output to Motor driver (IC1201) 211 MUTE123 O MUTE signal output to Motor driver (IC1201) 212 DVDD3 — Power Supply (+3.3V) 213 ALRCK I Audio left/right channel clock 214 ABCK I Audio bit clock 215 ACLK O Audio DAC master clock 216 DVSS — Ground terminal 217 ASDATA0 O Audio serial data0 218 ASDATA1 O Audio serial data1 219 ASDATA2 O Audio serial data2 220 XRST — Not used (Fixed to “L”) 221 DVDD18 — Power Supply (+1.8V) 222 ASDATA4 O Audio serial data (not used (Fixed to “L”)) 223 DVSS — Ground terminal 224 DWIDE — Not used (Fixed to “L”) 225 SDPIF — SPDIF output (not used (Open)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-DZ20 Pin No. Pin Name I/O Description 226 RFGND18 — Ground terminal 227 RFVDD18 — Power Supply (+1.8V) 228 XTALO O Oscillator output signal 229 XTALI I Oscillator input signal 230 JITFO O RF jitter meter output 231 JITFN I Negative input of operation amplifier for RF jitter meter 232 PLLVSS — Ground terminal 233 IDAC — Not used 234 PLLVDD3 — Power Supply (+3.3V) 235 LPFON O Negative output of loop filter amplifier 236 LPFIP I Positive input of loop filter amplifier 237 LPFIN I Negative input of loop filter amplifier 238 LPFOP O Positive output of loop filter amplifier 239 VDD3 I Power Supply (+3.3V) 240 NC I SACD-Common mode Reference (not used (Open)) 241 VSS — Ground terminal 242 NC I SACD-TOP Reference (not used (Open)) 243 NC I SACD-Bottom Reference (not used (Open)) 244 RFVDD3 — Power Supply (+3.3V) 245 RFRPDC I RFRP signal input 246 RFRPAC I RFRP signal input 247 HRFZC I High frequency RF ripple zero crossing 248 CRTPLP O Defect level filter capacitor connecting 249 RFGND — Ground terminal 250 NC O EQ offset loop capacitance (not used (Open)) 251 NC O EQ offset loop capacitance (not used (Open)) 252 OSP O RF offset cancellation capacitor connecting 253 OSN I RF offset cancellation capacitor connecting 254 RFGC O RF offset loop capacitor connecting for DVD-ROM 255 IREF I Current reference input 256 AVDD3 — Power Supply (+3.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-DZ20 MAIN BOARD IC501 M30622MEP-B20FPU0 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 DAMP_SCDT O Digital amp (IC3010, 3020, 3030) data output 2 DAMP_SHIFT O Digital amp (IC3010, 3020, 3030) data output 3 NO USE O Not used (Open) 4 SIRCS_IN I Sircs input 5 NO USE O Not used (Open) 6 NO USE O Not used (Open) 7 NO USE O Not used (Open) 8 BYTE I External data bus (Fixed to “L”) 9 CNVSS I Change processor mode (not used) 10 EN_A I Volume signal (A) input from ENCODER 11 EN_B I Volume signal (B) input from ENCODER 12 RESET I System reset signal input 13 XOUT O Crystal output for main clock (5MHz) 14 VSS — Ground terminal 15 XIN I Crystal input for main clock (5MHz) 16 VCC — Power supply (+3.3V) 17 NMI I Fixed to “H:+3.3V Line” 18 NO USE O Not used (Open) 19 A.CAL_OUT_LEVEL I OUT level detect for auto calibration (not used (Fixed to “L”)) 20 AC_CUT I Detect AC-CUT (primary power off) 21 FL_CLK/LED_CLK O FL driver (IC802) clock output 22 NO USE O Not used (Open) 23 NO USE O Not used (Open) 24 FL_D_OUT/LED_DATA O FL driver (IC802) data output 25 NO USE O Not used (Open) 26 MIC_GAIN O MIC gain control output (not used (Open)) 27 CDM_OPEN_SW I CDM open switch input 28 DC_CONT O A.CAL MIC DC Control (not used (Open)) 29 CLINK_RX_IN I C-Link data input (not used) 30 CLINK_TX_OUT O C-Link data output (not used) 31 DVD_SID O SID data output to DVD RF (IC1101) 32 DVD_SOD I SOD data input from DVD RF (IC1101) 33 DVD_SCO I Clock signal input from DVD RF (IC1101) 34 DVD_XIFBUSY O IFBUSY signal output to DVD RF (IC1101) 35 NO USE O Not used (Open) 36 NO USE O Not used (Open) 37 DVDXIFCS I DVD RF (IC1101) chip select signal input 38 MTKRST O DVD RF (IC1101) reset signal output 39 P_CONT1 O Power supply control signal 1 output 40 P_CONT2 O Power supply control signal 2 output 41 P_CONT3 O Power supply control signal 3 output 42 DRIVE_RST (EN) O Power driver (IC3100, 3150, 3200, 3250, 3300, 3400) reset signal output 43 DRIVE_OCP (DIAG) I Power driver (IC3100, 3150, 3200, 3250, 3300, 3400) shut down signal input 44 OVERFLOW1 I Over flow detect input from digital amp F/C/S (IC3010, 3020, 3030) 45 OVERFLOW2 I Over flow detect input from digital amp SW (IC3030) 46 WRITE CE I Flash Write CE (not used (Fixed to “H:+3.3V Line”)) 47 DAMP_LATCH1 O Digital amp (IC3010) chip select1 signal output 48 DAMP_LATCH2 O Digital amp (IC3020) chip select1 signal output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 HCD-DZ20 Pin No. Pin Name I/O Description 49 DAMP_LATCH3 O Digital amp (IC3030) chip select1 signal output 50 DAMP_INIT O Digital amp (IC3010, 3020, 3030) reset signal output 51 DAMP_SOFT_MUTE O Digital amp (IC3010, 3020, 3030) soft muting output 52 HP_SW I Headphone detect input (not used (Fixed to “L”)) 53 HP_MUTE O Headphone muting (not used) 54 NO USE O Not used 55 NO USE O Not used 56 FL_STB O FL driver (IC802) chip select signal output 57 DC_DETECT I Speaker DC detect input 58 NO USE O Not used (Open) 59 NO USE O Not used (Open) 60 NO USE O Not used (Open) 61 NO USE O Not used (Open) 62 VCC — Power supply (+3.3V) 63 MIC/A.CAL_SW I MIC insert switch input (not used (Fixed to “L”)) 64 VSS — Ground terminal 65 NO USE O Not used (Open) 66 NO USE O Not used (Open) 67 NO USE O Not used (Open) 68 TUNED I Tuner pack tuned input 69 ST_CLK O Tuner clock output 70 ST_DO I Tuner data input 71 ST_CE O Tuner chip enable output 72 ST_DI O Tuner data output 73 NO USE O Not used (Open) 74 KEY_INT I Wakeup from ECO mode by key input 75 RDS_CLK/NO USE I Tuner RDS clock input (AEP, UK only) O Not used (Open) (Except AEP, UK) 76 RDS_DATA/NO USE I Tuner RDS data input (AEP, UK only) O Not used (Open) (Except AEP, UK) 77 NO USE O Not used (Open) 78 TVSEL O TV control signal output 79 M_ST O LINK(Multi STEREO) control signal output 80 NO USE O Not used (Open) 81 ASEL3 O Audio selector 3 signal output (not used (Open)) 82 VSEL0 O Video selector 0 signal output 83 VSEL1 O Video selector 1 signal output (not used (Open)) 84 ASEL0 O Audio selector 0 signal output (not used (Open)) 85 ASEL1 O Audio selector 1 signal output 86 ASEL2 O Audio selector 2 signal output (not used (Open)) 87 VSEL2 O Video selector 2 signal output (not used (Open)) 88 VSEL3 O Video selector 3 signal output (not used (Open)) 89 NO USE O Not used (Open) 90 MONO/ST_DET I Front Jack MONO or STEREO detect input (not used (Fixed to “L”)) 91 A.CALMICLEVEL I MIC level detect for auto calibration (not used (Fixed to “L”)) 92 DESTINATION I Destination select input 93 MODEL I Model select input 94 KEY2 I Key input 2 95 KEY1 I Key input 1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 HCD-DZ20 Pin No. Pin Name I/O Description 96 AVSS — Ground terminal 97 KEY0 I Key input 0 98 VREF — Reference Voltage (+3.3V) 99 VCC — Power supply (+3.3V) 100 NO USE O Not used (Open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 HCD-DZ20 SECTION 7 EXPLODED VIEWS NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-1. OVERALL SECTION 1 2-889-987-01 PANEL, LOADING 2 3-077-331-21 +BV3 (3-CR) 3 4-232-478-31 FOOT 4 1-828-286-51 WIRE (FLAT TYPE) (5 CORE) 5 1-828-350-51 WIRE (FLAT TYPE)(17 CORE) (AEP, UK) 5 1-828-340-51 WIRE (FLAT TYPE)(15 CORE) (EXCEPT AEP, UK) 6 A-1220-177-A IO BOARD, COMPLETE (AEP, UK) 6 A-1220-207-A IO BOARD, COMPLETE (RU) 6 A-1251-054-A IO BOARD, COMPLETE (EXCEPT AEP, UK, RU) 7 1-828-333-51 WIRE (FLAT TYPE)(13 CORE) 8 3-363-099-51 SCREW (CASE 3 TP2) 9 2-892-574-11 CASE (AEP, UK, E32, MX, AR) 9 2-892-574-21 CASE (E3, E12, RU, SP, TH) 10 3-077-331-11 +BV3 (3-CR) 011 1-751-520-31 CORD, POWER (UK) 011 1-777-071-83 CORD, POWER (AEP, E32, E3, E12, RU, SP) 011 1-827-226-31 CORD, POWER (MX) 011 1-829-387-11 CORD, POWER (AR) 011 1-834-288-11 CORD, POWER (TH) 012 3-703-244-00 BUSHING (2104), CORD (EXCEPT MX, TH) 0* 12 3-703-571-12 BUSHING (S) (4516), CORD (MX) 012 4-916-783-01 BUSHING, CORD (TH) 9 13 A-1244-319-A MAIN BOARD, COMPLETE (AEP) 9 13 A-1244-320-A MAIN BOARD, COMPLETE (UK) 9 13 A-1244-321-A MAIN BOARD, COMPLETE (RU) 13 A-1244-322-A MAIN BOARD, COMPLETE (E12) 13 A-1244-323-A MAIN BOARD, COMPLETE (E3) 13 A-1244-324-A MAIN BOARD, COMPLETE (E32) 13 A-1244-325-A MAIN BOARD, COMPLETE (MX) 13 A-1244-326-A MAIN BOARD, COMPLETE (AR) 13 A-1258-746-A MAIN BOARD, COMPLETE (SP, TH) 14 1-693-724-11 TUNER (FM/AM) (AEP, UK) 14 1-693-725-11 TUNER (FM/AM) (RU) 14 1-693-726-11 TUNER (FM/AM) (EXCEPT AEP, UK, RU, TH) 14 1-693-727-11 TUNER (FM/AM) (TH) 15 1-828-954-51 WIRE (FLAT TYPE)(9 CORE) (EXCEPT AEP, UK) 15 1-828-964-51 WIRE (FLAT TYPE)(11 CORE) (AEP, UK) 16 3-100-158-01 SHEET, RADIATION 0F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5)(8A/125V) (MX) 0F901 1-576-233-51 FUSE (H.B.C.) (T6.3AH/250V) (EXCEPT MX, E32) 0F901 1-576-300-51 FUSE, H.B.C. (T8AH/250V) (E32) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 IT-3 #3 7-685-862-09 SCREW +BVTT 2.6X6 (S) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Abbreviation AR : Argentine model E3 : 220 – 240 V AC area in E model E12 : 220 – 240 V AC area in E model E32 : 110 – 240 V AC area in E model MX : Mexican model RU : Russian model SP : Singapore model TH : Thai model a front panel assy 2 1 3 not supplied not supplied not supplied not supplied not supplied #1 #1 #1 a b 8 8 9 #1 #3 #2 2 2 2 14 13 15 2 2 4 6 5 7 10 16 F901 12 11 b not supplied not supplied not supplied 6 b #1 #1 #1 b #3 DVD mechanism deck section (CDM85-DVBU102) AEP, UK AEP, UK EXCEPT AEP, UK EXCEPT AEP, UK Note: If the wire (flat type) was replaced, fold it some as the wire (flat type) before replacement. The components identified by mark 9 contain confidential information. Strictly follow the instructions whenever the components are repaired and/or replaced. Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 HCD-DZ20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 2-889-990-11 KNOB (VOL) 52 2-889-982-41 WINDOW, INDICATION (INJ) 53 2-898-988-01 SHEET (DS WINDOW), ADHESIVE 54 2-892-571-01 PANEL, FRONT (AEP) 54 2-892-571-11 PANEL, FRONT (UK) 54 2-892-571-21 PANEL, FRONT (EXCEPT AEP, UK) 55 2-889-983-01 BUTTON (AIO) 56 3-087-053-11 +BVTP2.6 (3CR) 57 A-1220-174-A FL BOARD, COMPLETE 58 1-828-341-51 WIRE (FLAT TYPE)(15 CORE) 7-2. FRONT PANEL ASSY Note: If the wire (flat type) was replaced, fold it some as the wire (flat type) before replacement. 56 56 57 55 52 53 51 not supplied not supplied not supplied not supplied including S800 54 not supplied not supplied 56 56 56 58 not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 HCD-DZ20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-3. DVD MECHANISM DECK SECTION (CDM85-DVBU102) Note: If the wire (flat type) was replaced, fold it some as the wire (flat type) before replacement. not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied 501 504 502 503 505 505 505 505 506 507 508 506 506 506 501 A-6071-669-A LOADING ASSY (M) 502 3-088-371-01 BELT 503 4-974-725-11 SCREW (M1.7X2.5), P 504 4-674-137-11 SCREW (PTP2X5) 505 2-634-618-01 INSULATOR 506 3-087-599-01 INSULATOR SCREW 0507 8-820-321-05 OPTICAL PICK UP ASSY (KHM-313CAA/C2RP) 508 1-828-771-51 WIRE (FLAT TYPE)(24 CORE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 HCD-DZ20 SECTION 8 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS uF: µF • COILS uH: µH • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. ., uPA. . : µPA. ., uPB. . : µPB. ., uPC. . : µPC. ., uPD. . : µPD. . • Abbreviation AR : Argentine model E3 : 220 – 240 V AC area in E model E12 : 220 – 240 V AC area in E model E32 : 110 – 240 V AC area in E model Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark FL A-1220-174-A FL BOARD, COMPLETE ****************** < CAPACITOR > C800 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C801 1-163-037-11 CERAMIC CHIP 0.022uF 10% 50V C802 1-126-947-11 ELECT 47uF 20% 35V C803 1-126-933-11 ELECT 100uF 20% 16V C804 1-162-974-11 CERAMIC CHIP 0.01uF 50V C805 1-164-360-11 CERAMIC CHIP 0.1uF 16V C809 1-126-157-11 ELECT 10uF 20% 16V C811 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C814 1-126-157-11 ELECT 10uF 20% 16V C829 1-124-259-11 ELECT 4.7uF 20% 50V < CONNECTOR > CN801 1-779-552-21 CONNECTOR, FFC (LIF (NON-ZIF)) 15P CN805 1-564-722-11 PIN, CONNECTOR (SMALL TYPE) 6P < DIODE > D801 6-501-193-01 DIODE 1SS355WTE-17 D802 6-501-193-01 DIODE 1SS355WTE-17 D803 6-501-169-01 DIODE UDZW-TE17-6.2B D804 6-501-193-01 DIODE 1SS355WTE-17 D805 6-501-193-01 DIODE 1SS355WTE-17 < IC > IC801 6-600-349-21 IC NJL23H400A IC802 8-759-643-83 IC uPD16315GB-3BS < COIL > L801 1-410-671-31 INDUCTOR 47uH L802 1-410-671-31 INDUCTOR 47uH < FLUORESCENT INDICATOR TUBE > ND001 1-451-590-11 VACUUM FLUORESCENT DISPLAYS < TRANSISTOR > Q801 6-550-065-01 TRANSISTOR CPH5504-TL-E Q802 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R800 1-216-864-11 SHORT CHIP 0 R801 1-216-839-11 METAL CHIP 33K 5% 1/10W R802 1-216-809-11 METAL CHIP 100 5% 1/10W R804 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R805 1-216-295-91 SHORT CHIP 0 R811 1-216-844-11 METAL CHIP 82K 5% 1/10W R812 1-216-845-11 METAL CHIP 100K 5% 1/10W R813 1-216-845-11 METAL CHIP 100K 5% 1/10W R814 1-216-809-11 METAL CHIP 100 5% 1/10W R815 1-216-809-11 METAL CHIP 100 5% 1/10W R816 1-216-809-11 METAL CHIP 100 5% 1/10W R817 1-216-821-11 METAL CHIP 1K 5% 1/10W R819 1-216-805-11 METAL CHIP 47 5% 1/10W R820 1-216-845-11 METAL CHIP 100K 5% 1/10W < TRANSFORMER > T801 1-443-645-11 TRANSFORMER, DC CONVERTER ************************************************************* A-1220-177-A IO BOARD, COMPLETE (AEP, UK) A-1220-207-A IO BOARD, COMPLETE (RU) A-1251-054-A IO BOARD, COMPLETE (EXCEPT AEP, UK, RU) ****************** < CAPACITOR > C201 1-126-964-11 ELECT 10uF 20% 50V C202 1-115-156-11 CERAMIC CHIP 1uF 10V C203 1-115-156-11 CERAMIC CHIP 1uF 10V C204 1-115-156-11 CERAMIC CHIP 1uF 10V C205 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (AEP, UK) C207 1-126-964-11 ELECT 10uF 20% 50V (EXCEPT AEP, UK) C208 1-164-156-11 CERAMIC CHIP 0.1uF 25V (EXCEPT AEP, UK) C209 1-164-156-11 CERAMIC CHIP 0.1uF 25V C210 1-126-925-91 ELECT 470uF 20% 10V C211 1-126-933-11 ELECT 100uF 20% 16V (AEP, UK) C213 1-126-933-11 ELECT 100uF 20% 16V C214 1-164-156-11 CERAMIC CHIP 0.1uF 25V C223 1-164-156-11 CERAMIC CHIP 0.1uF 25V (EXCEPT AEP, UK) C224 1-126-916-11 ELECT 1000uF 20% 6.3V (EXCEPT AEP, UK) C225 1-126-916-11 ELECT 1000uF 20% 6.3V C226 1-126-916-11 ELECT 1000uF 20% 6.3V C227 1-126-916-11 ELECT 1000uF 20% 6.3V (AEP, UK) IO MX : Mexican model RU : Russian model SP : Singapore model TH : Thai model Ver. 1.2 When indicating parts by reference number, please include the board name. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. The components identified by mark 9 contain confidential information. Strictly follow the instructions whenever the components are repaired and/or replaced. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 HCD-DZ20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C227 1-126-933-11 ELECT 100uF 20% 16V (EXCEPT AEP, UK) C228 1-126-916-11 ELECT 1000uF 20% 6.3V (AEP, UK) C228 1-126-933-11 ELECT 100uF 20% 16V (EXCEPT AEP, UK) C294 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (AEP, UK) C500 1-162-960-11 CERAMIC CHIP 220PF 10% 50V (AEP, UK) C501 1-104-662-91 ELECT 22uF 20% 25V (AEP, UK) C550 1-162-960-11 CERAMIC CHIP 220PF 10% 50V (AEP, UK) C551 1-104-662-91 ELECT 22uF 20% 25V (AEP, UK) C600 1-162-960-11 CERAMIC CHIP 220PF 10% 50V (EXCEPT AEP, UK) C601 1-104-662-91 ELECT 22uF 20% 25V (EXCEPT AEP, UK) C602 1-104-662-91 ELECT 22uF 20% 25V C605 1-126-960-11 ELECT 1uF 20% 50V C621 1-164-156-11 CERAMIC CHIP 0.1uF 25V C622 1-104-662-91 ELECT 22uF 20% 25V C624 1-164-156-11 CERAMIC CHIP 0.1uF 25V C625 1-126-933-11 ELECT 100uF 20% 16V C630 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (EXCEPT AEP, UK) C650 1-162-960-11 CERAMIC CHIP 220PF 10% 50V (EXCEPT AEP, UK) C651 1-104-662-91 ELECT 22uF 20% 25V (EXCEPT AEP, UK) C652 1-104-662-91 ELECT 22uF 20% 25V C655 1-126-960-11 ELECT 1uF 20% 50V C700 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V (AEP, UK, RU) C701 1-104-662-91 ELECT 22uF 20% 25V C720 1-164-156-11 CERAMIC CHIP 0.1uF 25V C721 1-126-933-11 ELECT 100uF 20% 16V C750 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V (AEP, UK, RU) C751 1-104-662-91 ELECT 22uF 20% 25V < CONNECTOR > CN101 1-568-830-11 CONNECTOR, FFC 11P (AEP, UK) CN102 1-568-828-11 CONNECTOR, FFC 9P (EXCEPT AEP, UK) CN201 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P CN601 1-779-285-11 CONNECTOR, FFC (LIF (NON-ZIF)) 17P (AEP, UK) CN602 1-779-283-11 CONNECTOR, FFC (LIF (NON-ZIF)) 15P (EXCEPT AEP, UK) < DIODE > D200 6-501-193-01 DIODE 1SS355WTE-17 (AEP, UK) D201 6-501-193-01 DIODE 1SS355WTE-17 (AEP, UK) D601 6-501-193-01 DIODE 1SS355WTE-17 (EXCEPT AEP, UK) D602 6-501-193-01 DIODE 1SS355WTE-17 (EXCEPT AEP, UK) < IC > IC201 6-710-470-01 IC MM1758AFBE IC602 8-759-385-76 IC MC14052 BDR2 IC603 8-759-100-96 IC uPC4558G2 < JACK > J200 1-778-940-11 JACK 2P (TV/VCR)(EXCEPT AEP, UK) J201 1-694-920-11 TERMINAL BOARD (S TERMINAL+1P) (MONITOR OUT) (EXCEPT AEP, UK) J202 1-817-601-11 JACK, PIN 3P (EXCEPT AEP, UK) (COMPONENT VIDEO) J203 1-816-044-11 CONNECTOR, SQUARE TYPE 21P (EURO AV T OUTPUT) (AEP, UK) < COIL > L201 1-469-525-91 INDUCTOR 10uH L701 1-469-525-91 INDUCTOR 10uH < TRANSISTOR > Q203 1-801-806-11 TR DTC144EKA (AEP, UK) Q204 1-801-806-11 TR DTC144EKA (AEP, UK) Q205 8-729-027-23 TRANSISTOR DTA114EKA-T146 (AEP, UK) Q206 1-801-806-11 TR DTC144EKA (AEP, UK) Q207 8-729-027-23 TRANSISTOR DTA114EKA-T146 (AEP, UK) Q208 8-729-120-28 TRANSISTOR 2SC1623-L5L6 (AEP, UK) Q210 1-801-806-11 TR DTC144EKA (AEP, UK) Q603 8-729-027-52 TRANSISTOR DTC124EKA-T146 < RESISTOR > R200 1-216-864-11 SHORT CHIP 0 (AEP, UK) R201 1-216-864-11 SHORT CHIP 0 (EXCEPT AEP, UK) R202 1-216-821-11 METAL CHIP 1K 5% 1/10W (AEP, UK) R204 1-216-821-11 METAL CHIP 1K 5% 1/10W R205 1-216-864-11 SHORT CHIP 0 (EXCEPT AEP, UK) R206 1-216-864-11 SHORT CHIP 0 (AEP, UK) R207 1-216-864-11 SHORT CHIP 0 (AEP, UK) R212 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP, UK) R212 1-216-864-11 SHORT CHIP 0 (EXCEPT AEP, UK) R228 1-216-833-11 METAL CHIP 10K 5% 1/10W (EXCEPT AEP, UK) R229 1-247-804-11 CARBON 75 5% 1/4W (EXCEPT AEP, UK) R230 1-247-804-11 CARBON 75 5% 1/4W R231 1-247-804-11 CARBON 75 5% 1/4W R232 1-247-804-11 CARBON 75 5% 1/4W R233 1-247-804-11 CARBON 75 5% 1/4W R240 1-216-815-11 METAL CHIP 330 5% 1/10W (AEP, UK) R241 1-247-804-11 CARBON 75 5% 1/4W (EXCEPT AEP, UK) R242 1-216-815-11 METAL CHIP 330 5% 1/10W (AEP, UK) R243 1-216-815-11 METAL CHIP 330 5% 1/10W (AEP, UK) R244 1-216-815-11 METAL CHIP 330 5% 1/10W (AEP, UK) R246 1-216-837-11 METAL CHIP 22K 5% 1/10W (AEP, UK) R247 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (AEP, UK) IO Ver. 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 HCD-DZ20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R249 1-216-821-11 METAL CHIP 1K 5% 1/10W (AEP, UK) R250 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (AEP, UK) R252 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (AEP, UK) R261 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP, UK) R263 1-216-833-11 METAL CHIP 10K 5% 1/10W (EXCEPT AEP, UK) R264 1-216-849-11 METAL CHIP 220K 5% 1/10W (AEP, UK) R265 1-216-841-11 METAL CHIP 47K 5% 1/10W (AEP, UK) R270 1-218-827-11 METAL CHIP 150 0.5% 1/10W R271 1-218-827-11 METAL CHIP 150 0.5% 1/10W R272 1-218-827-11 METAL CHIP 150 0.5% 1/10W R273 1-218-827-11 METAL CHIP 150 0.5% 1/10W R274 1-218-827-11 METAL CHIP 150 0.5% 1/10W R275 1-218-827-11 METAL CHIP 150 0.5% 1/10W R289 1-216-821-11 METAL CHIP 1K 5% 1/10W (AEP, UK) R290 1-216-864-11 SHORT CHIP 0 (AEP, UK) R291 1-216-864-11 SHORT CHIP 0 (RU) R292 1-216-864-11 SHORT CHIP 0 (EXCEPT AEP, UK, RU) R500 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (AEP, UK) R501 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (AEP, UK) R502 1-216-837-11 METAL CHIP 22K 5% 1/10W R503 1-216-837-11 METAL CHIP 22K 5% 1/10W R550 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (AEP, UK) R551 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (AEP, UK) R552 1-216-837-11 METAL CHIP 22K 5% 1/10W R553 1-216-837-11 METAL CHIP 22K 5% 1/10W R600 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (EXCEPT AEP, UK) R601 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (EXCEPT AEP, UK) R604 1-216-841-11 METAL CHIP 47K 5% 1/10W R606 1-216-809-11 METAL CHIP 100 5% 1/10W R613 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R614 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R617 1-216-821-11 METAL CHIP 1K 5% 1/10W R620 1-216-833-11 METAL CHIP 10K 5% 1/10W R650 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (EXCEPT AEP, UK) R651 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (EXCEPT AEP, UK) R654 1-216-841-11 METAL CHIP 47K 5% 1/10W R656 1-216-809-11 METAL CHIP 100 5% 1/10W R700 1-216-864-11 SHORT CHIP 0 R701 1-216-845-11 METAL CHIP 100K 5% 1/10W R702 1-216-845-11 METAL CHIP 100K 5% 1/10W R750 1-216-864-11 SHORT CHIP 0 R751 1-216-845-11 METAL CHIP 100K 5% 1/10W R752 1-216-845-11 METAL CHIP 100K 5% 1/10W ************************************************************* KEY BOARD ********* < CAPACITOR > C849 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C850 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C852 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C853 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C854 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < RESISTOR > R851 1-216-864-11 SHORT CHIP 0 R852 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R853 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R854 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R855 1-216-821-11 METAL CHIP 1K 5% 1/10W R856 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R857 1-216-825-11 METAL CHIP 2.2K 5% 1/10W < SWITCH > S800 1-418-725-51 ENCODER, ROTARY (12 TYPE) (VOLUME) S802 1-762-875-21 SWITCH, KEYBOARD (FUNCTION) S803 1-762-875-21 SWITCH, KEYBOARD (.) S804 1-762-875-21 SWITCH, KEYBOARD (X) S805 1-762-875-21 SWITCH, KEYBOARD (x) S806 1-762-875-21 SWITCH, KEYBOARD (>) S807 1-762-875-21 SWITCH, KEYBOARD (A) S808 1-762-875-21 SWITCH, KEYBOARD (H) ************************************************************* 9 A-1244-319-A MAIN BOARD, COMPLETE (AEP) 9 A-1244-320-A MAIN BOARD, COMPLETE (UK) 9 A-1244-321-A MAIN BOARD, COMPLETE (RU) A-1244-322-A MAIN BOARD, COMPLETE (E12) A-1244-323-A MAIN BOARD, COMPLETE (E3) A-1244-324-A MAIN BOARD, COMPLETE (E32) A-1244-325-A MAIN BOARD, COMPLETE (MX) A-1244-326-A MAIN BOARD, COMPLETE (AR) A-1258-746-A MAIN BOARD, COMPLETE (SP, TH) ********************* 7-685-647-79 SCREW +BVTP 3X10 TYPE2 IT-3 < CAPACITOR > C501 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C502 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C503 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C504 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C511 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C512 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C513 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C517 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C521 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C525 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C570 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C571 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C572 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C580 1-126-916-11 ELECT 1000uF 20% 6.3V C582 1-104-658-91 ELECT 100uF 20% 10V C583 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C584 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C587 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C589 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C591 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V KEY IO MAIN Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 HCD-DZ20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C592 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C595 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C596 1-126-947-11 ELECT 47uF 20% 35V C597 1-127-573-11 CERAMIC CHIP 1uF 10% 16V C598 1-127-573-11 CERAMIC CHIP 1uF 10% 16V C599 1-126-947-11 ELECT 47uF 20% 35V 0C901 1-165-529-11 MYLAR 0.22uF 10 275V 0C902 1-165-529-11 MYLAR 0.22uF 10 275V 0C903 1-114-344-11 ELECT (BLOCK) 1000uF 20% 250V (MX) 0C903 1-114-346-11 ELECT (BLOCK) 330uF 20% 400V (AEP, UK) 0C903 1-114-347-11 ELECT (BLOCK) 330uF 20% 450V (AR, E3, E12, E32, RU, SP, TH) 0C905 1-112-334-91 FILM 0.01uF 5% 400V (MX) 0C905 1-112-335-91 FILM 0.0033uF 5% 400V (EXCEPT MX) 0C906 1-117-815-11 FILM 1000PF 3% 1.5KV (EXCEPT MX) 0C906 1-117-828-11 FILM 3300PF 3% 1.5KV (MX) 0C907 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V 0C908 1-104-962-91 ELECT 47uF 20% 50V 0C909 1-162-960-11 CERAMIC CHIP 220PF 10% 50V 0C910 1-107-906-11 ELECT 10uF 20% 50V (MX) 0C910 1-107-907-11 ELECT 22uF 20% 50V (EXCEPT MX, E32) 0C910 1-107-909-11 ELECT 47uF 20% 50V (E32) 0C911 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V 0C912 1-117-693-11 CERAMIC 100PF 10% 250V 0C913 1-117-693-11 CERAMIC 100PF 10% 250V 0C918 1-113-925-11 CERAMIC 0.01uF 20% 250V 0C920 1-113-925-11 CERAMIC 0.01uF 20% 250V 0C922 1-128-560-11 ELECT 22uF 20% 100V 0C923 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V 0C924 1-126-961-11 ELECT 2.2uF 20% 50V 0C925 1-107-974-81 CERAMIC 47PF 5% 2KV 0C928 1-117-697-51 CERAMIC 470PF 10% 250V C929 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C932 1-128-955-21 ELECT 2200uF 20% 25V C934 1-126-943-11 ELECT 2200uF 20% 25V C936 1-165-319-11 CERAMIC CHIP 0.1uF 50V C937 1-100-756-91 CERAMIC CHIP 0.047uF 50V 0C938 1-117-697-51 CERAMIC 470PF 10% 250V C939 1-136-165-00 FILM 0.1uF 5% 50V C940 1-128-946-31 ELECT 2200uF 20% 10V C941 1-128-953-31 ELECT 470uF 20% 25V C942 1-104-665-11 ELECT 100uF 20% 25V C943 1-126-933-11 ELECT 100uF 20% 16V C944 1-128-950-21 ELECT 1000uF 20% 16V C945 1-126-933-11 ELECT 100uF 20% 16V C946 1-128-950-21 ELECT 1000uF 20% 16V C947 1-104-658-91 ELECT 100uF 20% 10V C948 1-104-658-91 ELECT 100uF 20% 10V C949 1-104-658-91 ELECT 100uF 20% 10V C952 1-100-756-91 CERAMIC CHIP 0.047uF 50V 0C963 1-117-697-51 CERAMIC 470PF 10% 250V (EXCEPT MX) 0C963 1-117-700-51 CERAMIC 0.0022uF 20% 250V (MX) 0C964 1-117-697-51 CERAMIC 470PF 10% 250V (EXCEPT MX) 0C964 1-117-700-51 CERAMIC 0.0022uF 20% 250V (MX) C976 1-126-933-11 ELECT 100uF 20% 16V C1101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1102 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1105 1-126-947-11 ELECT 47uF 20% 35V C1106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1109 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1110 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1112 1-126-947-11 ELECT 47uF 20% 35V C1113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1114 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1115 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1117 1-126-964-11 ELECT 10uF 20% 50V C1118 1-126-964-11 ELECT 10uF 20% 50V C1119 1-126-964-11 ELECT 10uF 20% 50V C1120 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C1121 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C1122 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C1123 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C1124 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C1125 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1127 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1128 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1130 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1131 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C1132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1135 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C1136 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1137 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1138 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1139 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C1140 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1144 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1146 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1147 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C1148 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C1149 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1150 1-126-964-11 ELECT 10uF 20% 50V C1151 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C1152 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C1153 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C1154 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1155 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1156 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1158 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1159 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V MAIN Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 HCD-DZ20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C1162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1163 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1164 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1167 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1170 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1171 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1172 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1173 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1174 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1175 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1176 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1177 1-126-947-11 ELECT 47uF 20% 35V C1179 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1180 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1181 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1182 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1184 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1186 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1187 1-126-947-11 ELECT 47uF 20% 35V C1188 1-128-934-91 CERAMIC CHIP 0.33uF 20% 10V C1190 1-126-947-11 ELECT 47uF 20% 35V C1191 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1192 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1193 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1195 1-127-715-91 CERAMIC CHIP 0.22uF 10% 16V C1197 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1199 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C1203 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1205 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C1206 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C1208 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1209 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C1210 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1211 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C1212 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1213 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1214 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1215 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1217 1-126-786-11 ELECT 47uF 20% 16V C1218 1-126-964-11 ELECT 10uF 20% 50V C1219 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1220 1-126-964-11 ELECT 10uF 20% 50V C1221 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1222 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1223 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C1224 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1225 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1226 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1228 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C2200 1-126-964-11 ELECT 10uF 20% 50V C2204 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2207 1-126-947-11 ELECT 47uF 20% 35V C2208 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C2209 1-126-964-11 ELECT 10uF 20% 50V C2211 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3011 1-126-947-11 ELECT 47uF 20% 35V C3012 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3013 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3014 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3015 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3016 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3017 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3019 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3020 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3022 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3023 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3024 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3025 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3026 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3027 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3029 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3030 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3032 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3033 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3034 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3035 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3036 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3037 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3039 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3040 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3051 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C3052 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C3053 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3054 1-126-947-11 ELECT 47uF 20% 35V C3055 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3056 1-126-923-91 ELECT 220uF 20% 10V C3057 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3058 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C3059 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3060 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C3071 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3072 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3073 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3091 1-126-934-11 ELECT 220uF 20% 16V C3101 1-164-346-11 CERAMIC CHIP 1uF 16V C3102 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3103 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3104 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3105 1-164-346-11 CERAMIC CHIP 1uF 16V C3106 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C3107 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3108 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3109 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3110 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3111 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C3114 1-136-177-00 FILM 1uF 5% 50V C3115 1-136-177-00 FILM 1uF 5% 50V C3116 1-126-942-61 ELECT 1000uF 20% 25V C3121 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3122 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3123 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3151 1-164-346-11 CERAMIC CHIP 1uF 16V C3152 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3153 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3154 1-164-156-11 CERAMIC CHIP 0.1uF 25V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-DZ20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C3155 1-164-346-11 CERAMIC CHIP 1uF 16V C3156 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C3157 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3158 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3159 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3160 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3161 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C3164 1-136-177-00 FILM 1uF 5% 50V C3165 1-136-177-00 FILM 1uF 5% 50V C3166 1-126-942-61 ELECT 1000uF 20% 25V C3171 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3172 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3173 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3201 1-164-346-11 CERAMIC CHIP 1uF 16V C3202 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3203 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3204 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3205 1-164-346-11 CERAMIC CHIP 1uF 16V C3206 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C3207 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3208 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3209 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3210 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3211 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C3214 1-136-177-00 FILM 1uF 5% 50V C3215 1-136-177-00 FILM 1uF 5% 50V C3216 1-126-942-61 ELECT 1000uF 20% 25V C3221 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3222 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3223 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3251 1-164-346-11 CERAMIC CHIP 1uF 16V C3252 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3253 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3254 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3255 1-164-346-11 CERAMIC CHIP 1uF 16V C3256 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C3257 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3258 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3259 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3260 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3261 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C3264 1-136-177-00 FILM 1uF 5% 50V C3265 1-136-177-00 FILM 1uF 5% 50V C3266 1-126-942-61 ELECT 1000uF 20% 25V C3271 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3272 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3273 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3301 1-164-346-11 CERAMIC CHIP 1uF 16V C3302 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3303 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3304 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3305 1-164-346-11 CERAMIC CHIP 1uF 16V C3306 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C3307 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3308 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3309 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3310 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3311 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C3314 1-136-177-00 FILM 1uF 5% 50V C3315 1-136-177-00 FILM 1uF 5% 50V C3316 1-126-942-61 ELECT 1000uF 20% 25V C3321 1-164-505-11 CERAMIC CHIP 2.2uF 16V C3322 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3323 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3401 1-164-346-11 CERAMIC CHIP 1uF 16V C3402 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3403 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3404 1-164-156-11 CERAMIC CHIP 0.1uF 25V C3405 1-164-346-11 CERAMIC CHIP 1uF 16V C3406 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C3407 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3408 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3409 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3410 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C3411 1-100-436-91 CERAMIC CHIP 0.033uF 10% 25V C3414 1-136-177-00 FILM 1uF 5% 50V C3415 1-136-177-00 FILM 1uF 5% 50V C3416 1-126-943-11 ELECT 2200uF 20% 25V C3421 1-117-370-11 CERAMIC CHIP 10uF 10V C3422 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3423 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3555 1-163-038-91 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN507 1-784-376-51 CONNECTOR, FFC/FPC 17P (AEP, UK) CN508 1-784-374-51 CONNECTOR, FFC/FPC 15P (EXCEPT AEP, UK) CN509 1-779-283-11 CONNECTOR, FFC (LIF (NON-ZIF)) 15P 0CN901 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P CN1101 1-815-763-32 CONNECTOR, FFC/FPC 24P * CN1105 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P * CN1201 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P CN1202 1-784-365-51 CONNECTOR, FFC/FPC 5P CN1301 1-784-372-51 CONNECTOR, FFC/FPC 13P < DIODE > D501 6-501-193-01 DIODE 1SS355WTE-17 D502 6-501-193-01 DIODE 1SS355WTE-17 D503 6-501-193-01 DIODE 1SS355WTE-17 D504 6-501-193-01 DIODE 1SS355WTE-17 D505 6-501-193-01 DIODE 1SS355WTE-17 0D901 8-719-082-57 DIODE D5SBA60F01 0D905 8-719-063-74 DIODE D1NL20U-TR2 0D906 6-501-193-01 DIODE 1SS355WTE-17 0D907 6-501-193-01 DIODE 1SS355WTE-17 0D908 6-501-193-01 DIODE 1SS355WTE-17 0D909 6-501-193-01 DIODE 1SS355WTE-17 0D910 6-501-193-01 DIODE 1SS355WTE-17 0D913 6-500-241-01 DIODE SARS03 0D914 6-501-193-01 DIODE 1SS355WTE-17 0D915 6-501-174-01 DIODE UDZW-TE17-10B 0D921 6-501-424-01 DIODE STO2D-140 0D922 8-719-063-74 DIODE D1NL20U-TR2 0D923 6-501-174-01 DIODE UDZW-TE17-10B 0D924 6-501-183-01 DIODE UDZW-TE17-24B 0D925 6-501-167-01 DIODE UDZW-TE17-5.1B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 HCD-DZ20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN 0D926 6-501-174-01 DIODE UDZW-TE17-10B D931 6-501-849-01 DIODE FMX-22SL D932 6-501-167-01 DIODE UDZW-TE17-5.1B D941 6-500-288-11 DIODE EK19LF-F7 D942 8-719-080-53 DIODE RK36LF-B3 D943 8-719-080-53 DIODE RK36LF-B3 D944 6-500-288-11 DIODE EK19LF-F7 D945 6-501-181-01 DIODE UDZW-TE17-20B < FERRITE BEAD > FB1105 1-469-670-21 FERRITE, EMI (SMD) (2012) FB1106 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1107 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1108 1-469-324-21 FERRITE, EMI (SMD) (2012) FB1111 1-469-670-21 FERRITE, EMI (SMD) (2012) < FUSE HOLDER > FH901 1-533-217-41 HOLDER, FUSE FH902 1-533-217-41 HOLDER, FUSE < FUSIBLE RESISTOR > 0FR901 1-242-949-11 FUSIBLE 0.1 10% 1W 0FR902 1-242-949-11 FUSIBLE 0.1 10% 1W (MX) < IC > IC501 6-807-417-01 IC M30622MEP-B20FPU0 IC502 6-702-302-01 IC TK11133CSCL-G IC511 6-708-922-01 IC PST3635NR IC515 6-703-550-01 IC TA7809LS IC516 6-703-547-01 IC TA7805LS 0IC901 6-707-741-01 IC STR-F6138-LF1352 (MX) 0IC901 6-707-742-01 IC STR-F6168-LF1352 (EXCEPT MX) 0IC921 6-707-740-01 IC STR-V153 IC931 8-759-648-34 IC TA76431AS (TPE6) IC941 6-707-746-01 IC SI-3120KM-TL IC942 6-707-745-10 IC SI-3050KM-TL IC943 6-705-308-01 IC SI-3010KM-TL IC951 6-707-743-01 IC TA76L431S (TPE6, Q) IC1101 6-707-535-01 IC CXD9849R IC1102 6-807-171-01 IC S29AL032D70TF-OBA2-0701UC (E32, MX, AR) IC1102 6-807-172-01 IC S29AL032D70TF-OBA2-0701CE (AEP, UK, E3, E12, RU) IC1102 6-807-432-01 IC S29AL032D70TF-OBA2-0701GA (SP) IC1102 6-807-748-01 IC MX29LV320CBTC70-OBA2-0701GA (TH) IC1103 not supplied IC BR24L64F-WE2 IC1104 6-709-370-01 IC A2V64S40CTP-G75 IC1105 6-702-302-01 IC TK11133CSCL-G IC1107 6-702-302-01 IC TK11133CSCL-G IC1109 6-707-485-01 IC NJM2885DL1-18 (TE2) IC1201 6-704-524-01 IC FAN8036L IC2200 6-710-554-01 IC PCM1808PWR IC3003 8-759-680-48 IC TC7WH157FK (TE85R) IC3010 6-707-939-01 IC CXD9843AR IC3020 6-707-939-01 IC CXD9843AR IC3030 6-707-939-01 IC CXD9843AR IC3050 6-702-300-01 IC TK11118CSCL-G IC3051 6-706-492-01 IC TC7SHU04FU (T5RSOJF) IC3100 6-704-802-01 IC CXD9774M IC3150 6-704-802-01 IC CXD9774M IC3200 6-704-802-01 IC CXD9774M IC3250 6-704-802-01 IC CXD9774M IC3300 6-704-802-01 IC CXD9774M IC3400 6-704-802-01 IC CXD9774M < JUMPER RESISTOR > JC501 1-216-864-11 SHORT CHIP 0 JC511 1-216-864-11 SHORT CHIP 0 (SP, TH) JC512 1-216-864-11 SHORT CHIP 0 (E12) JC513 1-216-864-11 SHORT CHIP 0 (E3) JC515 1-216-864-11 SHORT CHIP 0 (UK) JC519 1-216-864-11 SHORT CHIP 0 (E32) JC520 1-216-864-11 SHORT CHIP 0 (AR) JC522 1-216-864-11 SHORT CHIP 0 (RU) JC523 1-216-864-11 SHORT CHIP 0 (AEP) JC524 1-216-864-11 SHORT CHIP 0 (MX) < COIL > L941 1-414-398-11 INDUCTOR 10uH L942 1-414-398-11 INDUCTOR 10uH L945 1-414-398-11 INDUCTOR 10uH L947 1-414-398-11 INDUCTOR 10uH L948 1-414-398-11 INDUCTOR 10uH L951 1-414-398-11 INDUCTOR 10uH L2200 1-414-754-11 INDUCTOR 10uH L3001 1-457-078-11 AIR-CORE COIL L3002 1-457-078-11 AIR-CORE COIL L3003 1-457-078-11 AIR-CORE COIL L3004 1-457-078-11 AIR-CORE COIL L3005 1-457-078-11 AIR-CORE COIL L3006 1-457-078-11 AIR-CORE COIL L3011 1-457-077-11 AIR-CORE COIL L3012 1-457-077-11 AIR-CORE COIL L3013 1-457-077-11 AIR-CORE COIL L3014 1-457-077-11 AIR-CORE COIL L3015 1-457-077-11 AIR-CORE COIL L3016 1-457-077-11 AIR-CORE COIL L3051 1-414-754-11 INDUCTOR 10uH L3052 1-414-754-11 INDUCTOR 10uH L3053 1-414-754-11 INDUCTOR 10uH L3054 1-412-939-11 INDUCTOR 1uH L3111 1-456-680-11 INDUCTOR 10uH L3112 1-456-680-11 INDUCTOR 10uH L3151 1-456-680-11 INDUCTOR 10uH L3152 1-456-680-11 INDUCTOR 10uH L3201 1-456-680-11 INDUCTOR 10uH L3202 1-456-680-11 INDUCTOR 10uH L3251 1-456-680-11 INDUCTOR 10uH L3252 1-456-680-11 INDUCTOR 10uH L3301 1-456-680-11 INDUCTOR 10uH L3302 1-456-680-11 INDUCTOR 10uH L3401 1-456-680-11 INDUCTOR 10uH L3402 1-456-680-11 INDUCTOR 10uH < LINE FILTER > 0LF901 1-457-054-21 COIL, LINE FILTER 0LF902 1-457-054-21 COIL, LINE FILTER (EXCEPT MX) < PHOTO COUPLER > 0PC901 6-600-438-01 IC TLP421F (D4-GR) 0PC902 6-600-438-01 IC TLP421F (D4-GR) 0PC903 6-600-438-01 IC TLP421F (D4-GR) Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 HCD-DZ20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN < TRANSISTOR > Q502 6-550-363-01 TRANSISTOR 2SB1690KT146 Q503 1-801-806-11 TR DTC144EKA Q506 8-729-120-28 TRANSISTOR 2SC1623-L5L6 0Q901 8-729-141-88 TRANSISTOR 2SB1116A-TP-LK 0Q921 8-729-142-51 TRANSISTOR 2SD1616A-TP-LK Q943 1-801-806-11 TR DTC144EKA Q945 6-550-718-01 TRANSISTOR RSR025N03TL Q947 1-801-806-11 TR DTC144EKA Q1101 6-550-008-01 TRANSISTOR UM6K1N-TN Q1102 6-550-653-01 TRANSISTOR QST8TR Q1103 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q3101 8-729-600-22 TRANSISTOR 2SA1235-F Q3102 8-729-600-22 TRANSISTOR 2SA1235-F Q3151 8-729-600-22 TRANSISTOR 2SA1235-F Q3152 8-729-600-22 TRANSISTOR 2SA1235-F Q3201 8-729-600-22 TRANSISTOR 2SA1235-F Q3202 8-729-600-22 TRANSISTOR 2SA1235-F Q3251 8-729-600-22 TRANSISTOR 2SA1235-F Q3252 8-729-600-22 TRANSISTOR 2SA1235-F Q3301 8-729-600-22 TRANSISTOR 2SA1235-F Q3302 8-729-600-22 TRANSISTOR 2SA1235-F Q3401 8-729-600-22 TRANSISTOR 2SA1235-F Q3402 8-729-600-22 TRANSISTOR 2SA1235-F Q3551 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R502 1-216-821-11 METAL CHIP 1K 5% 1/10W R503 1-216-833-11 METAL CHIP 10K 5% 1/10W R504 1-216-833-11 METAL CHIP 10K 5% 1/10W R505 1-216-833-11 METAL CHIP 10K 5% 1/10W R506 1-216-817-11 METAL CHIP 470 5% 1/10W R507 1-216-841-11 METAL CHIP 47K 5% 1/10W R509 1-216-821-11 METAL CHIP 1K 5% 1/10W R510 1-216-833-11 METAL CHIP 10K 5% 1/10W R511 1-216-823-11 METAL CHIP 1.5K 5% 1/10W (RU) R511 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (AEP) R511 1-216-833-11 METAL CHIP 10K 5% 1/10W (MX, E32) R511 1-216-841-11 METAL CHIP 47K 5% 1/10W (UK, E3, E12) R511 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W (AR) R512 1-216-821-11 METAL CHIP 1K 5% 1/10W (SP, TH) R512 1-216-823-11 METAL CHIP 1.5K 5% 1/10W (UK) R512 1-216-833-11 METAL CHIP 10K 5% 1/10W (E3) R512 1-216-841-11 METAL CHIP 47K 5% 1/10W (E32, MX, AR, RU) R512 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W (E12) R513 1-216-833-11 METAL CHIP 10K 5% 1/10W R515 1-216-833-11 METAL CHIP 10K 5% 1/10W R516 1-216-821-11 METAL CHIP 1K 5% 1/10W R517 1-216-833-11 METAL CHIP 10K 5% 1/10W R518 1-216-833-11 METAL CHIP 10K 5% 1/10W R519 1-216-833-11 METAL CHIP 10K 5% 1/10W R520 1-216-833-11 METAL CHIP 10K 5% 1/10W R521 1-216-833-11 METAL CHIP 10K 5% 1/10W R522 1-216-833-11 METAL CHIP 10K 5% 1/10W R523 1-216-833-11 METAL CHIP 10K 5% 1/10W R524 1-216-833-11 METAL CHIP 10K 5% 1/10W R525 1-216-833-11 METAL CHIP 10K 5% 1/10W R526 1-216-857-11 METAL CHIP 1M 5% 1/10W R527 1-216-809-11 METAL CHIP 100 5% 1/10W R528 1-216-833-11 METAL CHIP 10K 5% 1/10W R529 1-216-809-11 METAL CHIP 100 5% 1/10W R530 1-216-833-11 METAL CHIP 10K 5% 1/10W R531 1-216-809-11 METAL CHIP 100 5% 1/10W R532 1-216-833-11 METAL CHIP 10K 5% 1/10W R533 1-216-833-11 METAL CHIP 10K 5% 1/10W R535 1-216-821-11 METAL CHIP 1K 5% 1/10W (AEP, UK) R536 1-216-821-11 METAL CHIP 1K 5% 1/10W (AEP, UK) R551 1-216-821-11 METAL CHIP 1K 5% 1/10W R552 1-216-809-11 METAL CHIP 100 5% 1/10W R553 1-216-809-11 METAL CHIP 100 5% 1/10W R554 1-216-809-11 METAL CHIP 100 5% 1/10W R563 1-216-809-11 METAL CHIP 100 5% 1/10W R564 1-216-809-11 METAL CHIP 100 5% 1/10W R565 1-216-809-11 METAL CHIP 100 5% 1/10W R571 1-216-833-11 METAL CHIP 10K 5% 1/10W R572 1-216-841-11 METAL CHIP 47K 5% 1/10W R573 1-216-845-11 METAL CHIP 100K 5% 1/10W R574 1-216-841-11 METAL CHIP 47K 5% 1/10W R575 1-216-841-11 METAL CHIP 47K 5% 1/10W R586 1-216-809-11 METAL CHIP 100 5% 1/10W R587 1-216-809-11 METAL CHIP 100 5% 1/10W R588 1-216-809-11 METAL CHIP 100 5% 1/10W R590 1-216-809-11 METAL CHIP 100 5% 1/10W R591 1-216-809-11 METAL CHIP 100 5% 1/10W R594 1-216-809-11 METAL CHIP 100 5% 1/10W R595 1-216-809-11 METAL CHIP 100 5% 1/10W R596 1-216-817-11 METAL CHIP 470 5% 1/10W R597 1-216-809-11 METAL CHIP 100 5% 1/10W 0R901 1-219-759-11 METAL 1M 5% 1/2W 0R903 1-215-926-00 METAL OXIDE 33K 5% 3W (MX) 0R903 1-215-929-11 METAL OXIDE 100K 5% 3W (EXCEPT MX) 0R904 1-215-926-00 METAL OXIDE 33K 5% 3W (MX) 0R904 1-215-929-11 METAL OXIDE 100K 5% 3W (EXCEPT MX) 0R905 1-216-797-11 METAL CHIP 10 5% 1/10W 0R906 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R907 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R908 1-260-105-11 CARBON 3.3K 5% 1/2W 0R909 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R910 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R911 1-216-813-11 METAL CHIP 220 5% 1/10W 0R912 1-216-361-61 METAL OXIDE 0.22 5% 2W (MX) 0R912 1-216-363-00 METAL OXIDE 0.33 5% 2W (EXCEPT MX) 0R913 1-216-361-61 METAL OXIDE 0.22 5% 2W (MX) 0R914 1-220-891-11 METAL 0.1 10% 5W (EXCEPT MX) 0R914 1-243-669-11 METAL 0.05 5% 5W (MX) Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 HCD-DZ20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN 0R919 1-216-836-11 METAL CHIP 18K 5% 1/10W 0R922 1-216-793-11 METAL CHIP 4.7 5% 1/10W 0R923 1-216-829-11 METAL CHIP 4.7K 5% 1/10W 0R925 1-216-797-11 METAL CHIP 10 5% 1/10W 0R926 1-216-855-11 METAL CHIP 680K 5% 1/10W 0R927 1-216-348-00 METAL OXIDE 0.82 5% 1W (MX) 0R927 1-216-349-00 METAL OXIDE 1 5% 1W (EXCEPT MX) R929 1-246-106-11 METAL OXIDE 2.2 5% 1/2W R931 1-218-863-11 METAL CHIP 4.7K 0.5% 1/10W R932 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R933 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R934 1-216-821-11 METAL CHIP 1K 5% 1/10W R935 1-216-821-11 METAL CHIP 1K 5% 1/10W R936 1-216-853-11 METAL CHIP 470K 5% 1/10W R937 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R938 1-216-821-11 METAL CHIP 1K 5% 1/10W R939 1-218-859-11 METAL CHIP 3.3K 0.5% 1/10W R940 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R941 1-216-864-11 SHORT CHIP 0 R943 1-216-864-11 SHORT CHIP 0 R946 1-218-725-11 METAL CHIP 24K 0.5% 1/10W R948 1-216-833-11 METAL CHIP 10K 5% 1/10W R949 1-216-821-11 METAL CHIP 1K 5% 1/10W R951 1-218-831-11 METAL CHIP 220 0.5% 1/10W R952 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R953 1-218-861-11 METAL CHIP 3.9K 0.5% 1/10W R954 1-216-837-11 METAL CHIP 22K 5% 1/10W R955 1-216-817-11 METAL CHIP 470 5% 1/10W R956 1-216-821-11 METAL CHIP 1K 5% 1/10W R958 1-216-821-11 METAL CHIP 1K 5% 1/10W R965 1-216-864-11 SHORT CHIP 0 R966 1-216-821-11 METAL CHIP 1K 5% 1/10W R967 1-216-821-11 METAL CHIP 1K 5% 1/10W R968 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R969 1-216-821-11 METAL CHIP 1K 5% 1/10W R970 1-216-864-11 SHORT CHIP 0 R974 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1101 1-216-809-11 METAL CHIP 100 5% 1/10W R1102 1-216-295-91 SHORT CHIP 0 R1103 1-216-809-11 METAL CHIP 100 5% 1/10W R1105 1-216-833-11 METAL CHIP 10K 5% 1/10W R1106 1-216-833-11 METAL CHIP 10K 5% 1/10W R1107 1-216-833-11 METAL CHIP 10K 5% 1/10W R1108 1-216-857-11 METAL CHIP 1M 5% 1/10W R1109 1-216-864-11 SHORT CHIP 0 R1110 1-216-841-11 METAL CHIP 47K 5% 1/10W R1111 1-216-809-11 METAL CHIP 100 5% 1/10W R1112 1-211-977-11 METAL CHIP 22 0.5% 1/10W R1113 1-211-977-11 METAL CHIP 22 0.5% 1/10W R1114 1-216-845-11 METAL CHIP 100K 5% 1/10W R1115 1-211-977-11 METAL CHIP 22 0.5% 1/10W R1116 1-216-821-11 METAL CHIP 1K 5% 1/10W R1117 1-216-841-11 METAL CHIP 47K 5% 1/10W R1118 1-216-801-11 METAL CHIP 22 5% 1/10W R1120 1-216-801-11 METAL CHIP 22 5% 1/10W R1121 1-216-801-11 METAL CHIP 22 5% 1/10W R1123 1-216-864-11 SHORT CHIP 0 R1124 1-216-841-11 METAL CHIP 47K 5% 1/10W R1126 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1132 1-216-845-11 METAL CHIP 100K 5% 1/10W R1136 1-216-835-11 METAL CHIP 15K 5% 1/10W R1141 1-218-916-11 METAL CHIP 750K 0.5% 1/10W R1142 1-216-845-11 METAL CHIP 100K 5% 1/10W R1145 1-216-864-11 SHORT CHIP 0 R1147 1-216-864-11 SHORT CHIP 0 R1148 1-216-864-11 SHORT CHIP 0 R1151 1-216-833-11 METAL CHIP 10K 5% 1/10W R1152 1-216-864-11 SHORT CHIP 0 R1153 1-216-864-11 SHORT CHIP 0 R1154 1-216-809-11 METAL CHIP 100 5% 1/10W R1155 1-216-809-11 METAL CHIP 100 5% 1/10W R1156 1-216-809-11 METAL CHIP 100 5% 1/10W R1160 1-216-864-11 SHORT CHIP 0 R1161 1-216-809-11 METAL CHIP 100 5% 1/10W R1164 1-216-864-11 SHORT CHIP 0 R1168 1-216-833-11 METAL CHIP 10K 5% 1/10W R1171 1-216-864-11 SHORT CHIP 0 R1180 1-216-805-11 METAL CHIP 47 5% 1/10W R1181 1-216-805-11 METAL CHIP 47 5% 1/10W R1182 1-216-809-11 METAL CHIP 100 5% 1/10W R1183 1-216-821-11 METAL CHIP 1K 5% 1/10W R1184 1-216-821-11 METAL CHIP 1K 5% 1/10W R1191 1-216-821-11 METAL CHIP 1K 5% 1/10W R1193 1-216-821-11 METAL CHIP 1K 5% 1/10W R1204 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R1205 1-216-833-11 METAL CHIP 10K 5% 1/10W R1206 1-216-833-11 METAL CHIP 10K 5% 1/10W R1207 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R1208 1-216-839-11 METAL CHIP 33K 5% 1/10W R1209 1-216-839-11 METAL CHIP 33K 5% 1/10W R1210 1-216-841-11 METAL CHIP 47K 5% 1/10W R1212 1-216-833-11 METAL CHIP 10K 5% 1/10W R1213 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1214 1-216-835-11 METAL CHIP 15K 5% 1/10W R1215 1-216-834-11 METAL CHIP 12K 5% 1/10W R1216 1-216-834-11 METAL CHIP 12K 5% 1/10W R1219 1-216-838-11 METAL CHIP 27K 5% 1/10W R1220 1-216-833-11 METAL CHIP 10K 5% 1/10W R1221 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R1222 1-216-839-11 METAL CHIP 33K 5% 1/10W R1223 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R1224 1-216-833-11 METAL CHIP 10K 5% 1/10W R1225 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R1226 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R1227 1-216-864-11 SHORT CHIP 0 R1228 1-216-864-11 SHORT CHIP 0 R1230 1-218-893-11 METAL CHIP 82K 0.5% 1/10W R1231 1-218-875-11 METAL CHIP 15K 0.5% 1/10W R1232 1-218-877-11 METAL CHIP 18K 0.5% 1/10W R1233 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R1234 1-216-833-11 METAL CHIP 10K 5% 1/10W R1236 1-216-821-11 METAL CHIP 1K 5% 1/10W R1237 1-216-821-11 METAL CHIP 1K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 HCD-DZ20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R1238 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1239 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1243 1-216-809-11 METAL CHIP 100 5% 1/10W R1246 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1247 1-216-821-11 METAL CHIP 1K 5% 1/10W R2101 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2103 1-216-833-11 METAL CHIP 10K 5% 1/10W R2104 1-216-833-11 METAL CHIP 10K 5% 1/10W R2105 1-216-833-11 METAL CHIP 10K 5% 1/10W R2109 1-216-864-11 SHORT CHIP 0 R2110 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R2111 1-216-821-11 METAL CHIP 1K 5% 1/10W (AEP, UK) R2114 1-216-809-11 METAL CHIP 100 5% 1/10W R2115 1-216-809-11 METAL CHIP 100 5% 1/10W R2126 1-216-833-11 METAL CHIP 10K 5% 1/10W R2129 1-216-845-11 METAL CHIP 100K 5% 1/10W R2149 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2150 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2151 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2152 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2161 1-216-864-11 SHORT CHIP 0 R2168 1-216-819-11 METAL CHIP 680 5% 1/10W R2176 1-216-864-11 SHORT CHIP 0 R2202 1-216-809-11 METAL CHIP 100 5% 1/10W R2203 1-216-809-11 METAL CHIP 100 5% 1/10W R2211 1-216-809-11 METAL CHIP 100 5% 1/10W R2212 1-216-809-11 METAL CHIP 100 5% 1/10W R2213 1-216-809-11 METAL CHIP 100 5% 1/10W R2214 1-216-809-11 METAL CHIP 100 5% 1/10W R2546 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R2547 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2548 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2549 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2550 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2551 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2553 1-216-864-11 SHORT CHIP 0 R2554 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2555 1-216-833-11 METAL CHIP 10K 5% 1/10W (AEP, UK) R3011 1-216-817-11 METAL CHIP 470 5% 1/10W R3012 1-216-817-11 METAL CHIP 470 5% 1/10W R3013 1-216-833-11 METAL CHIP 10K 5% 1/10W R3014 1-216-809-11 METAL CHIP 100 5% 1/10W R3015 1-216-809-11 METAL CHIP 100 5% 1/10W R3017 1-216-809-11 METAL CHIP 100 5% 1/10W R3021 1-216-817-11 METAL CHIP 470 5% 1/10W R3022 1-216-817-11 METAL CHIP 470 5% 1/10W R3023 1-216-809-11 METAL CHIP 100 5% 1/10W R3024 1-216-809-11 METAL CHIP 100 5% 1/10W R3026 1-216-809-11 METAL CHIP 100 5% 1/10W R3031 1-216-817-11 METAL CHIP 470 5% 1/10W R3032 1-216-817-11 METAL CHIP 470 5% 1/10W R3033 1-216-833-11 METAL CHIP 10K 5% 1/10W R3034 1-216-809-11 METAL CHIP 100 5% 1/10W R3035 1-216-809-11 METAL CHIP 100 5% 1/10W R3037 1-216-809-11 METAL CHIP 100 5% 1/10W R3050 1-216-841-11 METAL CHIP 47K 5% 1/10W R3052 1-216-857-11 METAL CHIP 1M 5% 1/10W R3053 1-216-809-11 METAL CHIP 100 5% 1/10W R3054 1-216-801-11 METAL CHIP 22 5% 1/10W R3055 1-216-809-11 METAL CHIP 100 5% 1/10W R3057 1-216-809-11 METAL CHIP 100 5% 1/10W R3059 1-216-833-11 METAL CHIP 10K 5% 1/10W R3060 1-216-833-11 METAL CHIP 10K 5% 1/10W R3062 1-216-809-11 METAL CHIP 100 5% 1/10W R3063 1-216-821-11 METAL CHIP 1K 5% 1/10W R3064 1-216-821-11 METAL CHIP 1K 5% 1/10W R3065 1-216-821-11 METAL CHIP 1K 5% 1/10W R3066 1-216-809-11 METAL CHIP 100 5% 1/10W R3067 1-216-821-11 METAL CHIP 1K 5% 1/10W R3068 1-216-821-11 METAL CHIP 1K 5% 1/10W R3069 1-216-821-11 METAL CHIP 1K 5% 1/10W R3070 1-216-809-11 METAL CHIP 100 5% 1/10W R3071 1-216-809-11 METAL CHIP 100 5% 1/10W R3072 1-216-809-11 METAL CHIP 100 5% 1/10W R3073 1-216-821-11 METAL CHIP 1K 5% 1/10W R3075 1-216-809-11 METAL CHIP 100 5% 1/10W R3076 1-216-809-11 METAL CHIP 100 5% 1/10W R3077 1-216-809-11 METAL CHIP 100 5% 1/10W R3078 1-216-809-11 METAL CHIP 100 5% 1/10W R3079 1-216-809-11 METAL CHIP 100 5% 1/10W R3081 1-216-864-11 SHORT CHIP 0 R3082 1-216-864-11 SHORT CHIP 0 R3083 1-216-864-11 SHORT CHIP 0 R3093 1-216-864-11 SHORT CHIP 0 R3094 1-216-864-11 SHORT CHIP 0 R3095 1-216-864-11 SHORT CHIP 0 R3097 1-216-809-11 METAL CHIP 100 5% 1/10W R3101 1-216-809-11 METAL CHIP 100 5% 1/10W R3102 1-216-809-11 METAL CHIP 100 5% 1/10W R3104 1-216-864-11 SHORT CHIP 0 R3107 1-216-821-11 METAL CHIP 1K 5% 1/10W R3109 1-216-864-11 SHORT CHIP 0 R3111 1-220-942-11 METAL CHIP 3.3 1% 1/4W R3112 1-220-942-11 METAL CHIP 3.3 1% 1/4W R3121 1-216-833-11 METAL CHIP 10K 5% 1/10W R3122 1-216-833-11 METAL CHIP 10K 5% 1/10W R3123 1-216-833-11 METAL CHIP 10K 5% 1/10W R3124 1-216-833-11 METAL CHIP 10K 5% 1/10W R3125 1-216-845-11 METAL CHIP 100K 5% 1/10W R3126 1-216-845-11 METAL CHIP 100K 5% 1/10W R3127 1-216-845-11 METAL CHIP 100K 5% 1/10W R3151 1-216-809-11 METAL CHIP 100 5% 1/10W R3152 1-216-809-11 METAL CHIP 100 5% 1/10W R3154 1-216-864-11 SHORT CHIP 0 R3157 1-216-821-11 METAL CHIP 1K 5% 1/10W R3159 1-216-864-11 SHORT CHIP 0 R3161 1-220-942-11 METAL CHIP 3.3 1% 1/4W R3162 1-220-942-11 METAL CHIP 3.3 1% 1/4W R3171 1-216-833-11 METAL CHIP 10K 5% 1/10W R3172 1-216-833-11 METAL CHIP 10K 5% 1/10W R3173 1-216-833-11 METAL CHIP 10K 5% 1/10W R3174 1-216-833-11 METAL CHIP 10K 5% 1/10W R3175 1-216-845-11 METAL CHIP 100K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 HCD-DZ20 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MS-203 MAIN R3176 1-216-845-11 METAL CHIP 100K 5% 1/10W R3177 1-216-845-11 METAL CHIP 100K 5% 1/10W R3201 1-216-809-11 METAL CHIP 100 5% 1/10W R3202 1-216-809-11 METAL CHIP 100 5% 1/10W R3204 1-216-864-11 SHORT CHIP 0 R3207 1-216-821-11 METAL CHIP 1K 5% 1/10W R3209 1-216-864-11 SHORT CHIP 0 R3211 1-220-942-11 METAL CHIP 3.3 1% 1/4W R3212 1-220-942-11 METAL CHIP 3.3 1% 1/4W R3221 1-216-833-11 METAL CHIP 10K 5% 1/10W R3222 1-216-833-11 METAL CHIP 10K 5% 1/10W R3223 1-216-833-11 METAL CHIP 10K 5% 1/10W R3224 1-216-833-11 METAL CHIP 10K 5% 1/10W R3225 1-216-845-11 METAL CHIP 100K 5% 1/10W R3226 1-216-845-11 METAL CHIP 100K 5% 1/10W R3227 1-216-845-11 METAL CHIP 100K 5% 1/10W R3251 1-216-809-11 METAL CHIP 100 5% 1/10W R3252 1-216-809-11 METAL CHIP 100 5% 1/10W R3254 1-216-864-11 SHORT CHIP 0 R3257 1-216-821-11 METAL CHIP 1K 5% 1/10W R3259 1-216-864-11 SHORT CHIP 0 R3261 1-220-942-11 METAL CHIP 3.3 1% 1/4W R3262 1-220-942-11 METAL CHIP 3.3 1% 1/4W R3271 1-216-833-11 METAL CHIP 10K 5% 1/10W R3272 1-216-833-11 METAL CHIP 10K 5% 1/10W R3273 1-216-833-11 METAL CHIP 10K 5% 1/10W R3274 1-216-833-11 METAL CHIP 10K 5% 1/10W R3275 1-216-845-11 METAL CHIP 100K 5% 1/10W R3276 1-216-845-11 METAL CHIP 100K 5% 1/10W R3277 1-216-845-11 METAL CHIP 100K 5% 1/10W R3301 1-216-809-11 METAL CHIP 100 5% 1/10W R3302 1-216-809-11 METAL CHIP 100 5% 1/10W R3304 1-216-864-11 SHORT CHIP 0 R3307 1-216-821-11 METAL CHIP 1K 5% 1/10W R3309 1-216-864-11 SHORT CHIP 0 R3311 1-220-942-11 METAL CHIP 3.3 1% 1/4W R3312 1-220-942-11 METAL CHIP 3.3 1% 1/4W R3321 1-216-833-11 METAL CHIP 10K 5% 1/10W R3322 1-216-833-11 METAL CHIP 10K 5% 1/10W R3323 1-216-833-11 METAL CHIP 10K 5% 1/10W R3324 1-216-833-11 METAL CHIP 10K 5% 1/10W R3325 1-216-845-11 METAL CHIP 100K 5% 1/10W R3326 1-216-845-11 METAL CHIP 100K 5% 1/10W R3327 1-216-845-11 METAL CHIP 100K 5% 1/10W R3401 1-216-809-11 METAL CHIP 100 5% 1/10W R3402 1-216-809-11 METAL CHIP 100 5% 1/10W R3404 1-216-864-11 SHORT CHIP 0 R3407 1-216-821-11 METAL CHIP 1K 5% 1/10W R3409 1-216-864-11 SHORT CHIP 0 R3411 1-220-942-11 METAL CHIP 3.3 1% 1/4W R3412 1-220-942-11 METAL CHIP 3.3 1% 1/4W R3421 1-216-833-11 METAL CHIP 10K 5% 1/10W R3422 1-216-833-11 METAL CHIP 10K 5% 1/10W R3423 1-216-833-11 METAL CHIP 10K 5% 1/10W R3424 1-216-833-11 METAL CHIP 10K 5% 1/10W R3425 1-216-845-11 METAL CHIP 100K 5% 1/10W R3426 1-216-845-11 METAL CHIP 100K 5% 1/10W R3427 1-216-845-11 METAL CHIP 100K 5% 1/10W R3554 1-216-845-11 METAL CHIP 100K 5% 1/10W < NETWORK RESISTOR > RB501 1-233-576-11 RES, CHIP NETWORK 100 (3216) RB1103 1-234-372-11 RES, NETWORK 100 (1005X4) RB1104 1-234-372-11 RES, NETWORK 100 (1005X4) RB1105 1-234-372-11 RES, NETWORK 100 (1005X4) RB1106 1-234-372-11 RES, NETWORK 100 (1005X4) RB1107 1-234-372-11 RES, NETWORK 100 (1005X4) RB1108 1-234-372-11 RES, NETWORK 100 (1005X4) RB1111 1-234-372-11 RES, NETWORK 100 (1005X4) RB1112 1-234-371-21 RES, NETWORK 47 (1005X4) RB1113 1-234-371-21 RES, NETWORK 47 (1005X4) RB1114 1-234-372-11 RES, NETWORK 100 (1005X4) RB1115 1-234-372-11 RES, NETWORK 100 (1005X4) < TRANSFORMER > 0T901 1-443-649-11 TRANSFORMER, CONVERTER (MX) 0T901 1-443-874-11 TRANSFORMER, CONVERTER (EXCEPT MX) 0T902 1-443-650-11 TRANSFORMER, CONVERTER < TERMINAL > TB3001 1-780-202-11 TERMINAL BOARD (SP) (4P) (SPEAKER/SUR R, SUR L, FRONT L, FRONT R) TB3002 1-780-203-11 TERMINAL BOARD (SP) (2P) (SPEAKER/WOOFER, CENTER) < THERMISTOR > 0TH901 1-805-841-21 THERMISTOR, NTC 3.0 (MX, E32) 0TH901 1-805-842-21 THERMISTOR, NTC 6.0 (EXCEPT MX, E32) < VARISTOR > 0VDR901 1-805-482-11 VARISTOR < VIBRATOR > X502 1-795-058-21 VIBRATOR, CERAMIC (5MHz) X1102 1-813-539-11 QUARTZ CRYSTAL UNIT (27MHz) X3051 1-795-660-21 QUARTZ CRYSTAL UNIT (49.1MHz) ************************************************************* MS-203 BOARD ************* < CONNECTOR > CN001 1-815-412-11 CONNECTOR, FFC/FPC 5P < SWITCH > S001 1-786-693-11 SWITCH, DETECTION (CHUCK / TRAY DETECT) ************************************************************* P-SW BOARD *********** < CAPACITOR > C851 1-162-927-11 CERAMIC CHIP 100PF 5% 50V P-SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 HCD-DZ20 Ref. No. Part No. Description Remark < SWITCH > S801 1-762-875-21 SWITCH, KEYBOARD (?/1) ************************************************************* MISCELLANEOUS ************** 4 1-828-286-51 WIRE (FLAT TYPE) (5 CORE) 5 1-828-350-51 WIRE (FLAT TYPE)(17 CORE) (AEP, UK) 5 1-828-340-51 WIRE (FLAT TYPE)(15 CORE) (EXCEPT AEP, UK) 7 1-828-333-51 WIRE (FLAT TYPE)(13 CORE) 011 1-751-520-31 CORD, POWER (UK) 011 1-777-071-83 CORD, POWER (AEP, E32, E3, E12, RU, SP) 011 1-827-226-31 CORD, POWER (MX) 011 1-829-387-11 CORD, POWER (AR) 011 1-834-288-11 CORD, POWER (TH) 14 1-693-724-11 TUNER (FM/AM) (AEP, UK) 14 1-693-725-11 TUNER (FM/AM) (RU) 14 1-693-726-11 TUNER (FM/AM) (EXCEPT AEP, UK, RU, TH) 14 1-693-727-11 TUNER (FM/AM) (TH) 15 1-828-954-51 WIRE (FLAT TYPE)(9 CORE) (EXCEPT AEP, UK) 15 1-828-964-51 WIRE (FLAT TYPE)(11 CORE) (AEP, UK) 58 1-828-341-51 WIRE (FLAT TYPE)(15 CORE) 0507 8-820-321-05 OPTICAL PICK UP ASSY (KHM-313CAA/C2RP) 508 1-828-771-51 WIRE (FLAT TYPE)(24 CORE) 0F901 1-533-311-12 FUSE, GLASS CYLINDRICAL (DIA.5)(8A/125V) (MX) 0F901 1-576-233-51 FUSE (H.B.C.) (T6.3AH/250V) (EXCEPT MX, E32) 0F901 1-576-300-51 FUSE, H.B.C. (T8AH/250V) (E32) P-SW Ver. 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DZ20 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the top of the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2007.02 New 1.1 2007.04 Addition of E3 (220 – 240 V AC area in E model), E12 (220 – 240 V AC area in E model), Singapore model and Russian model 1.2 2007.06 Addition of Thai model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
