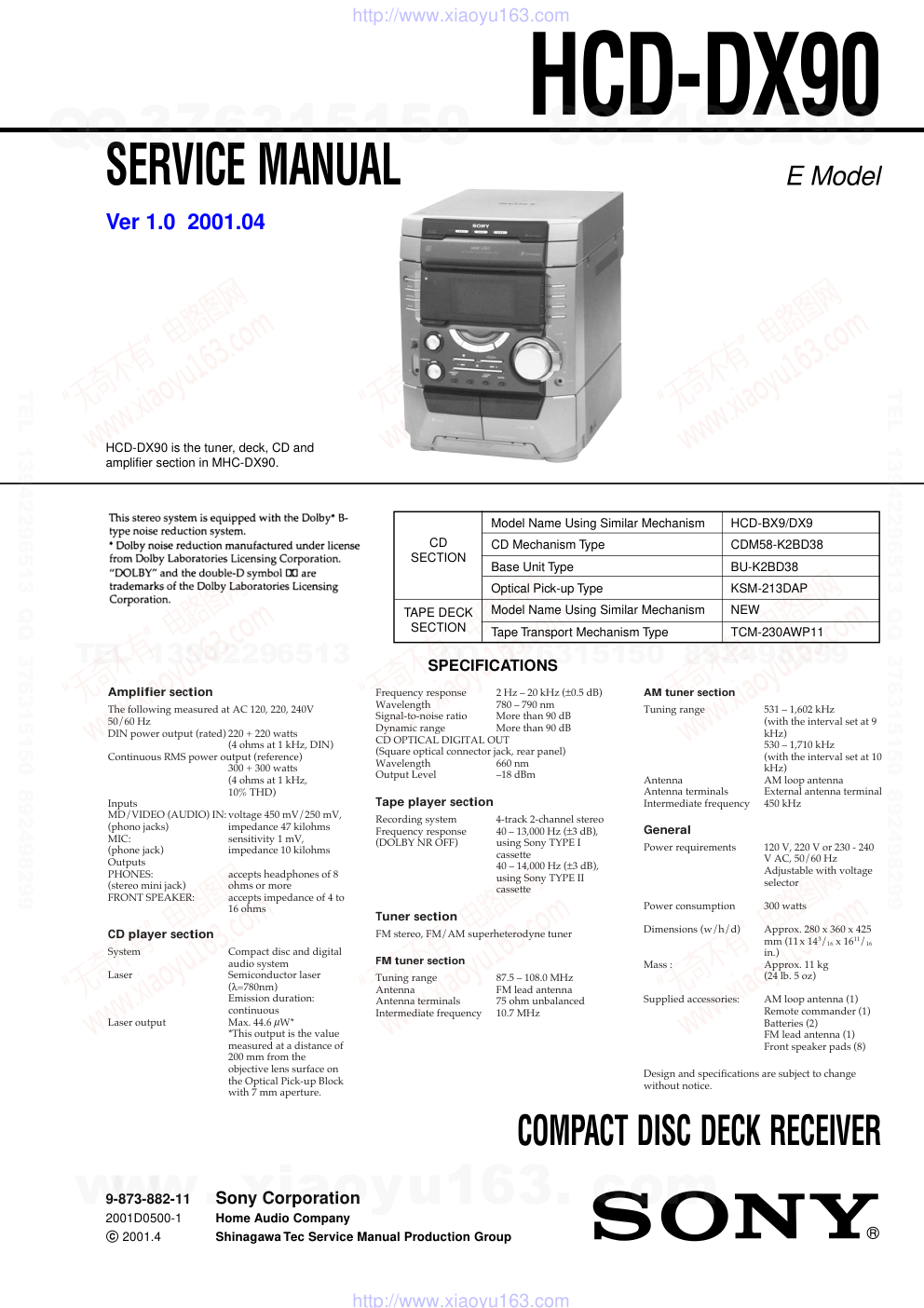

SERVICE MANUAL COMPACT DISC DECK RECEIVER E Model SPECIFICATIONS HCD-DX90 Ver 1.0 2001.04 9-873-882-11 Sony Corporation 2001D0500-1 Home Audio Company C 2001.4 Shinagawa Tec Service Manual Production Group HCD-DX90 is the tuner, deck, CD and amplifier section in MHC-DX90. Model Name Using Similar Mechanism HCD-BX9/DX9 CD Mechanism Type CDM58-K2BD38 Base Unit Type BU-K2BD38 Optical Pick-up Type KSM-213DAP Model Name Using Similar Mechanism NEW Tape Transport Mechanism Type TCM-230AWP11 CD SECTION TAPE DECK SECTION Inputs MD/VIDEO (AUDIO) IN: voltage 450 mV/250 mV, (phono jacks) impedance 47 kilohms MIC: sensitivity 1 mV, (phone jack) impedance 10 kilohms Outputs PHONES: accepts headphones of 8 (stereo mini jack) ohms or more FRONT SPEAKER: accepts impedance of 4 to 16 ohms CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ=780nm) Emission duration: continuous Laser output Max. 44.6 µW* *This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Frequency response 2 Hz – 20 kHz (±0.5 dB) Wavelength 780 – 790 nm Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB CD OPTICAL DIGITAL OUT (Square optical connector jack, rear panel) Wavelength 660 nm Output Level –18 dBm Tape player section Recording system 4-track 2-channel stereo Frequency response 40 – 13,000 Hz (±3 dB), (DOLBY NR OFF) using Sony TYPE I cassette 40 – 14,000 Hz (±3 dB), using Sony TYPE II cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz Amplifier section The following measured at AC 120, 220, 240V 50/60 Hz DIN power output (rated) 220 + 220 watts (4 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 300 + 300 watts (4 ohms at 1 kHz, 10% THD) General Power requirements 120 V, 220 V or 230 - 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption 300 watts Dimensions (w/h/d) Approx. 280 x 360 x 425 mm (11 x 143/16 x 1611/16 in.) Mass : Approx. 11 kg (24 lb. 5 oz) Supplied accessories: AM loop antenna (1) Remote commander (1) Batteries (2) FM lead antenna (1) Front speaker pads (8) Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-DX90 This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. TABLE OF CONTENTS 1. SERVICE NOTE ······························································· 3 2. GENERAL ·········································································· 4 3. DISASSEMBLY 3-1. Disassembly Flow ······························································ 6 3-2. Upper Case (Top) ······························································· 7 3-3. Loading Panel Assy ···························································· 7 3-4. Front Panel Section, CD Mechanism Deck (CDM58-K2BD38) ························· 8 3-5. Tape Mechanism Deck (TCM-230AWP11) ······················· 8 3-6. Panel Board ········································································ 9 3-7. Trans Board ········································································ 9 3-8. MAIN Board, AMP Board ··············································· 10 3-9. Leaf SW Board, Head (A) Board, Head (B) Board·········· 10 3-10. Base Unit (BU-K2BD38) ················································· 11 3-11. Driver Board, Motor Board, Sensor Board ······················ 11 4. TEST MODE ···································································· 12 5. MECHANICAL ADJUSTMENTS ····························· 16 6. ELECTRICAL ADJUSTMENTS ······························· 16 7. DIAGRAMS 7-1. Circuit Boards Location ··················································· 21 7-2. Block Diagrams ································································ 22 7-3. Printed Wiring Board – BD Section – ······························ 24 7-4. Schematic Diagram – BD Section – ································· 25 7-5. Printed Wiring Board – Main Section – ··························· 26 7-6. Schematic Diagram – Main (1/3) Section – ····················· 27 7-7. Schematic Diagram – Main (2/3) Section – ····················· 28 7-8. Schematic Diagram – Main (3/3) Section – ····················· 29 7-9. Printed Wiring Board – Power AMP Section – ················ 30 7-10. Schematic Diagram – Power AMP Section – ··················· 31 7-11. Printed Wiring Board – Panel Section – ··························· 32 7-12. Schematic Diagram – Panel Section – ····························· 33 7-13. Printed Wiring Board – Leaf SW Section – ···················· 34 7-14. Schematic Diagram – Leaf SW Section – ························ 35 7-15. Printed Wiring Board – Driver Section – ························· 36 7-16. Schematic Diagram – Driver Section – ···························· 37 7-17. Printed Wiring Board – Trans Section – ··························· 38 7-18. Schematic Diagram – Trans Section – ····························· 39 7-19. IC Pin Function Description ············································· 40 7-20. IC Block Diagrams ··························································· 42 8. EXPLODED VIEWS 8-1. Main Section····································································· 45 8-2. Panel Section ···································································· 46 8-3. Main Board Section ·························································· 47 8-4. CD Mechanism Deck Section (CDM58-K2BD38) ·········· 48 8-5. Base Unit Section (BU-K2BD38) ···································· 49 8-6. Tape Mechanism Deck Section-1 (TCM-230PWR11)····· 50 8-7. Tape Mechanism Deck Section-2 (TCM-230PWR11)····· 51 9. ELECTRICAL PARTS LIST ······································· 52 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-DX90 SECTION 1 SERVICE NOTE 1 Cut the thirteen melted-connection points with a cutting plier. 2 panel board Screw hole Attach the panel board with eleven screws (+BVTP 2.6 × 8 ) after the board is removed once. Do not tighten the screws excessively. Note for installing the panel board Hot melt www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-DX90 SECTION 2 GENERAL 1 DISC SKIP EX-CHANGE button 2 DISC 1 button and indicator 3 DISC 2 button and indicator 4 DISC 3 button and indicator 5 Z OPEN/CLOSE button 6 EDIT, TUNER MOMERY button 7 PLAY MODE, STEREO/MONO button 8 REPEAT, DOLBY NR button 9 DIRECTION knob q; SURROUND button qa VOLUME knob qs PHONES jack qd ENTER button qf REC PAUSE/START button and indicator qg CD SYNC HI-DUB button qh LOOP button qj MIC jack qk MIC LEVEL knob ql V-GROOVE button and indicator w; CURSOR button and indicator wa GROOVE button ws EQ EDIT button wd SPECTRUM button wf DISPLAY button wg ?/1 button and indicator wh TUNER/BAND button wj MD (VIDEO) button wk gG button wl > + button e; X button ea – . button es x button ed TAPE A/B button ef CD button eg Function indicator eh m/M knob 1 2 3 4 5 6 7 8 qa qs qd qf qg qh w; ws ed ef wh wj eh wk wl e; ea 9 q; wa ql wd wf wg es qk qj eg LOCATION OF CONTROLS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-DX90 7 1 Press CLOCK/TIMER SET. The hour indication flashes. 2 Press . or > repeatedly to set the hour. 3 Press ENTER. The minute indication flashes. 4 Press . or > repeatedly to set the minute. 5 Press ENTER. The clock starts working. Tip If you’ve made a mistake, start over from step 1. To change the time The previous explanation shows you how to set the time while the power is off. To change the time while the power is on, do the following: 1 Press CLOCK/TIMER SET. 2 Press . or > repeatedly to select SET CLOCK. 3 Press ENTER. 4 Perform steps 2 through 5 above. Note The clock settings are canceled when you disconnect the power cord or if a power failure occurs. Step 2: Setting the time You must set the time before using the timer functions. The clock is on a 24-hour system for the European model and a 12-hour system for other models. The 24-hour system model is used for illustration purposes. 0 ) = + œ P p ( P p 1 3,5 2,4 This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 6 • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW SECTION 3 DISASSEMBLY 3-2. UPPER CASE (TOP) (page 7) 3-3. LOADING PANEL ASSY (page 7) 3-4. FRONT PANEL SECTION, CD MECHANISM DECK (CDM58-K2BD38) (page 8) 3-5. TAPE MECHANISM DECK (TCM-230AWP11) (page 8) 3-6. PANEL BOARD (page 9) 3-7. TRANS BOARD (page 9) 3-8. MAIN BOARD, AMP BOARD (page 10) 3-9. LEAF SW BOARD, HEAD (A) BOARD, HEAD (B) BOARD (page 10) 3-10. BASE UNIT (BU-K2BD38) (page 11) 3-11. DRIVER BOARD, MOTOR BOARD, SENSOR BOARD (page 11) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 7 side panel (R) 0 claw 4 qa 8 qs upper case (top) side panel (L) 5 two screws (case 3 TP2) 7 two screws (+BVTP 3 × 10) 1 two screws (case 3 TP2) 9 two screws (+BVTP 3 × 10) 3 two screws (+BVTP 3 × 10) 6 screw (case 3 TP2) 2 screw (case 3 TP2) Note: Follow the disassembly procedure in the numerical order given. 3-2. UPPER CASE (TOP) 3-3. LOADING PANEL ASSY 2 pull-out the disc tray. 1 Turn the pulley to the direction of arrow. pulley 4 loading panel assy Front panel side CD mechanism deck (CDM58) 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 8 3-4. FRONT PANEL SECTION, CD MECHANISM DECK (CDM58-K2BD38) 3-5. TAPE MECHANISM DECK (TCM-230AWP11) 7 qa qs CD mechanism deck (CDM58) 8 front panel section 3 connector (CN2) 9 connector (CN201) 0 connector (CN202) 2 connector (CN1) Connector (CN601) 1 flat type wire (CN304) 6 three screws (+BVTT 3 × 6) 5 screw (+BVTP 3 × 10) 4 screw (+BVTP 3 × 10) 6 tape mechanism deck (TCM-230AWP11) 5 four screws (+BVTP 2.6 × 8) 1 screw (+BVTP 2.6 × 8) 2 bracket assy (heart cam R) 4 bracket assy (heart cam L) 3 screw (+BVTP 2.6 × 8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 9 3-6. PANEL BOARD 3-7. TRANS BOARD qs Cut the thirteen melted-connection points with a cutting plier. Note: When attching the panel board, refer to "Service Note" on page 3. qf panel board qa CD Switch board 1 vol knob 8 5 FR knob 4 bracket (FR) qd five claws 0 three claws 9 two screws (+BVTP 2.6 × 8) 3 two bosses & four pins 6 spring 2 two screws (+BVTP 2.6 × 8) 7 knob(MIC) 8 two screws (+BVTT 4 × 8) 2 five screws (+BVTP 3 × 10) 1 two screws (+BVTP 3 × 10) 4 back panel 7 two screws (+BVTT 4 × 8) 0 trans board 9 power transformer (T971) 5 connector (CN975) 6 connector (CN977) 3 connector (CN891) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 10 3-8. MAIN BOARD, AMP BOARD 3-9. LEAF SW BOARD, HEAD (A) BOARD, HEAD (B) BOARD 5 three screws (+BVTP 3 × 8) 7 two screws (+BVTP 3 × 8) 8 heat sink 4 two screws (+BVTP 3 × 16) 1 two screws (+BVTP 3 × 8) 3 MAIN board 2 connector(CN502) 2 connector (CN503) 6 POWER AMP board 7 screw (+PS 2.6 × 5) 5 screw (+PS 2.6 × 5) 4 leaf SW board 2 1 five claws 6 head (A) board 8 head (B) board 3 Remove the four solderings. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 11 3-10. BASE UNIT (BU-K2BD38) 3-11. DRIVER BOARD, MOTOR BOARD, SENSOR BOARD base unit (BU-K2BD38) 7 2 two screws (+PTPWH 2.6), floating 8 two insulators 9 two insulators 4 two screws (+PTPWH 2.6) 5 stopper (BU) 6 two springs (insulator), coil 1 flat type wire (CN101) 3 two springs (insulator), coil 4 three screws (+BVTP 2.6 × 8) 9 screw (+PTPWH 2.6 × 8) q; tray 2 screw (+BVTP 2.6 × 8) qa screw (+BVTP 2.6 × 8) 7 flat type wire (CN721) 6 MOTOR board qs SENSOR board 8 connector(CN722) 3 DRIVER board 1 connector (CN701) 5 Remove the two solderings of motor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-DX90 SECTION 4 TEST MODE [MC Cold Reset] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. Press three buttons x , ENTER , and ?/1 simulta-neously. 2. The fluorescent indicator tube displays “COLD RESET” and the set is reset. [CD Ship Mode] • This mode moves the pickup to the position durable to vibra- tion. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn the set ON. 2. Press CD button and ?/1 button simultaneously. 3. After the "STANDBY" display blinks six times, a message “LOCK” is displayed on the fluorescent indicator tube, and the CD ship mode is set. [MC Hot Reset] • This mode resets the set with the preset data kept stored in the memory. The hot reset mode functions same as if the power cord is plugged in and out. Procedure: 1. Press three buttons x , ENTER , and DISC 1 simultaneously. 2. The fluorescent indicator tube becomes blank instantaneously, and the set is reset. [CD Service Mode] • This mode can run the CD sled motor freely. Use this mode, for instance, when cleaning the pickup. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select the function “CD”. 3. Press three buttons x , ENTER , and Z OPEN/CLOSE si- multaneously. 4. The CD service mode is selected. 5. With the CD in stop status, turn the shuttle knob clockwise to move the pickup to outside track, or turn the shuttle knob counter-clockwise to inside track. 6. To exit from this mode, perform as follows: 1) Move the pickup to the most inside track. 2) Press three buttons in the same manner as step 2. Note: • Always move the pickup to most inside track when exiting from this mode. Otherwise, a disc will not be unloaded. • Do not run the sled motor excessively, otherwise the gear can be chipped. [VACS ON/OFF Mode] • This mode is used to switch ON and OFF the VACS (Variable Attenuation Control System). Procedure: Press the ENTER and SPECTRUM buttons simultaneously. The message “VACS OFF” or “VACS ON” appears. [Change-over of MW Tuner Step between 9 kHz and 10 kHz] • A step of MW channels can be changed over between 9 kHz and 10 kHz. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select the function “TUNER”, and press TUNER/BAND button to select the BAND “MW”. 3. Press ?/1 button to turn the set OFF. 4. Press ENTER and ?/1 buttons simultaneously, and the display of fluorescent indicator tube changes to “MW 9 k STEP” or “MW 10 k STEP”, and thus the channel step is changed over. [GC Test Mode] • This mode is used to check the software version, FL tube, LED, keyboard and VACS. Procedure: 1. Press three buttons x , ENTER , and DISC 2 simultaneously. 2. LEDs and fluorescent indicator tube are all turned on. 3. When you want to enter the software version display mode, press DISC 1 . The model number and destination are displayed. 4. Each time DISC 1 is pressed, the display changes starting from MC version, GC version, VC version, CD version, CM version, ST version, TC version, TA version, TM version and BR version in this order, and returns to the model number and destination display. 5. When DISC 3 is pressed while the version numbers are being displayed except model number and destination, year, month and day of the software creation appear. When DISC 3 is pressed again, the display returns to the software version display. When DISC 1 is pressed while year, month and day of the software creation are being displayed, the year, month and day of creation of the software versions are displayed in the same order of version display. 6. Press DISC 2 button, and the key check mode is activated. 7. In the key check mode, the fluorescent indicator tube displays “KEY0 VOL0”. Each time a button is pressed, “KEY” value increases. However, once a button is pressed, it is no longer taken into account. “VOL” value increases like 1, 2, 3 ... if rotating VOLUME knob in “+” direction, or it decreases like 0, 9, 8 ... if rotating in “–” direction. 8. Also when DISC 3 is pressed after lighting of all LEDs and FL tubes, value of VACS appears. 9. To exit from this mode, press three buttons in the same manner as step 1, or disconnect the power cord. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-DX90 [MC Test Mode] • This mode is used to check operations of the respective sections of Amplifier, Tuner, CD and Tape. Procedure: 1. Press the ?/1 button to turn on the set. 2. Press the three buttons of x , ENTER and DISC 3 simultaneously. 3. A message “TEST MODE” appears on the FL display tube. 4 When v (CURSOR UP) button is pressed, GEQ increases to its maximum and a message “GEQ ALL MA” appears. 5. When V (CURSOR DOWN) button is pressed, GEQ decreases to its minimum and a message “GEQ ALL M1” appears. 6. When b (CURSOR LEFT) or B (CURSOR RIGHT) button is pressed, GEQ is set to flat and a message “GEQ FLAT” appears. 7. When the VOLUME control knob is turned clockwise even slightly, the sound volume increases to its maximum and a message “VOLUME MAX” appears for two seconds, then the display returns to the original display. 8. When the VOLUME control knob is turned counter-clockwise even slightly, the sound volume decreases to its minimum and a message “VOLUME MIN” appears for two seconds, then the display returns to the original display. 9. In the test mode, the default-preset channel is called even when the TUNER is selected and an attempt is made to call the preset channel that has been stored in memory, by operating the Shuttle knob. (It means that the memory is cleared.) 10. When CD is selected and the EDIT button is pressed, the disc that is being chucked at this moment becomes the default setting. It means that the default disc only is accessed when any other discs are selected even though the display indication changes accordingly. At the same time, the DISC SKIP EX- CHANGE and Z OPEN/CLOSE cannot be accepted. (It means that the tray motor and the turntable motor are disabled of their operation.) 11. When a tape is inserted in Deck B and recording is started, the input source function selects VIDEO automatically. 12. When x button is pressed to stop recording, the Tape (Deck) B is selected and tape is rewound using the Shuttle knob, tape is rewound, tape is stops at around the record-starting position and playback of the recorded portion of the tape is started. If PAUSE is inserted even once during recording, tape is rewound to the position around the PAUSE position and is played back. 13. When the CD SYNC HI-DUB Button is press during playback of Deck B, either normal speed or high speed can be selected by this button. 14. Select the desired loop by pressing the PLAY MODE button. Insert a test tape AMS-110A or AMS-RO to Deck A. 15. Press the SPECTRUM button to enter the AMS test mode. 16. After a tape is rewound first, the FF AMS is checked, and the mechanism is shut off after detecting the AMS signal twice. 17. Then the REW AMS is checked and the mechanism is shut off after detecting the AMS signal twice. 18. When the check is complete, a message of either OK or NG appears. 19. When you want to exit this mode, press the ?/1 button twice. The cold reset is enforced at the same time. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-DX90 [Aging Mode] This mode can be used for operation check of CD section and tape deck section. • If an error occurred: The aging operation stops and display status. • If no error occurs: The aging operation continues repeatedly. 1. Operating method of Aging Mode Turn on the main power and select “CD” of the function. 1) Set a disc in DISC1 tray. Select ALL DISC CONTINUE, and REPEAT OFF. 2) Load the tapes recording use into the decks A and B respectively. 3) Press three buttons x , ENTER , and DISC SKIP/EX-CHANGE simultaneously. 4) Aging operations of CD and tape are started at the same time. 5) To exit the aging mode, perform [MC Cold Reset]. 3. Aging Mode in CD section 1) Display state • No error occurs Note: [*][*][*][*] : Number of aging operations Error display E ** s ## $$ %% 1 2 3 4 5 • When the buttons x , ENTER and DISC 1 are pressed simultaneously, number of time of the mechanism error and the NO DISC error can be checked. Display: EMC**EDC** **: Number of times of error (Maximum three times) EMC: Mechanism error EDC: NO DISC error • When aging operation is complete, be sure to perform the MC Cold Reset to reset the error history. D: No disc error 01: FOCUS ERROR 02: GFS ERROR 03: SETUP ERROR 01: NO DISC judgment without chucking retry 02: NO DISC judgment after chucking retry Status at the time of NO DISC judgment (High order digits only) 1: STOP 2: SETUP 3: TOC READ 4: ACCESS 5: PLAY BACK 6: PAUSE 7: MANUAL SEARCH (PLAY) 8: MANUAL SEARCH (PAUSE) AGING[*][*][*][*] 1 ** 2 s 3 ## 4 $$ 5 %% M: Mechanism error Don’t care High order digits only D: Stopped during closing due to problems other than mechanism. E: Stopped during opening due to problems other than mechanism. C: Stopped during chucking due to problems other than mechanism. F: Stopped during EX-opening due to problems other than mechanism. Emergency related errors (High order digits only) 1: Stopped during chuck-up 2: Stopped during chuck-down 3: Time out by EX-OPEN 5: Time out by EX-CLOSE The error No. 00 indicates the newest error. As the error No. increases, it means the older error. When you want to retrieve the error history, press the PLAY MODE button in the case of mechanism error. Or press the REPEAT button in the case of NO DISC error. Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-DX90 2) Operation during aging mode In the aging mode, the program is executed in the following sequence. (1) The disc tray opens and closes. (2) The mechanism accesses DISC 2 and makes an attempt to read TOC. However, since there are no discs, a message “CD2 NO DISC” appears. (3) The mechanism accesses DISC 3 and a message “CD3 NO DISC” appears. (4) The disc tray turns to select a disc1. (5) A disc is chucked. (6) TOC of disc is read. (7) The pickup accesses to the track 1, and playing 2 seconds. (8) The pickup accesses to the last track, and playing 2 seconds. (9) Every time when an aging operation of step 1 to step 8 is complete, the display “AGING[*][*][*][*]” value increases as the number of aging operations is counted up. (10) Returns to step 1. 3. Aging Mode in Tape Deck section 1) Display state • No error occurs Display action now • Error occurred Display action last time 2) Operation during aging mode In the aging mode, the program is executed in the following sequence. (1) Rewind is executed up to the top of tape A and B. (2) A tape on FWD side is played for 2 minutes. (3) FF is executed up to either made for 20 second or the end of tape. (4) A tape is reversed, and the tape on REV side is played for 2 minutes. (5) Rewind is executed up to the top of tape. (6) Returns to step 2, and repeat steps from 2 to 5. [Function Change Mode] * elect either VIDEO or MD of the external FUNCTION input. Procedure: 1. Turn on the power. 2. Press the two buttons ENTER and ?/1 at the same time. The main power is turned on and the other function of the previous function is selected and displayed. “MD” or “VIDEO”. NO. Display action Action contents Final timing 1 TAPE A AG-1 Rewind the TAPE A, B The top of tape 2 TAPE A AG-2 FWD play the TAPE A 2 minutes playing 3 TAPE A AG-3 F.F. the TAPE A 20 second FF or the end of tape 4 TAPE A AG-4 REV play the TAPE A 2 minutes playing 5 TAPE A AG-5 Rewind the TAPE A The top of tape 6 TAPE B AG-2 FWD play the TAPE B 2 minutes playing 7 TAPE B AG-3 F.F. the TAPE B 20 second FF or the end of tape 8 TAPE B AG-4 REV play the TAPE B 2 minutes playing 9 TAPE B AG-5 Rewind the TAPE B The top of tape www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-DX90 SECTION 5 MECHANICAL ADJUSTMENTS SECTION 6 ELECTRICAL ADJUSTMENTS 0 dB=0.775 V DECK SECTION 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjust. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. • Test Tape Record/Playback Head Azimuth Adjustment Tape Signal Used for P-4-A100 10 kHz, –10 dB Azimuth Adjustment WS-48B 3 kHz, 0 dB Tape Speed Adjustment P-4-L300 315 Hz, 0 dB Level Adjustment DECK A DECK B Note: Perform this adjustments for both decks Procedure: 1. Mode: Playback Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement set main board CN301 Pin 3 (L-CH) Pin 1 (R-CH) main board CN301 Pin 2 (GND) + – level meter test tape P-4-A100 (10 kHz, –10 dB) 3.06 N • m to 6.96 N • m 31 to 71 g • cm (0.43 – 0.98 oz • inch) 0.19 N • m to 0.58 N • m 2 to 6 g • cm (0.02 – 0.08 oz • inch) 3.06 N • m to 6.96 N • m 31 to 71 g • cm (0.43 – 0.98 oz • inch) 0.19 N • m to 0.58 N • m 2 to 6 g • cm (0.02 – 0.08 oz • inch) 6.96 N • m to 14.02 N • m 71 to 143 g • cm (0.98 – 1.99 oz • inch) 9.80 N • m 100 g or more (3.53 oz or more) 9.80 N • m 100 g or more (3.53 oz or more) Mode Torque meter CQ-102C CQ-102C CQ-102RC CQ-102RC CQ-201B CQ-403A CQ-403R Meter reading FWD FWD back tension REV REV back tension FF/REW FWD tension REV tension www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-DX90 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the pats adjusted. Adjustment Location: Playback Head (Deck A). Record/Playback/Erase Head (Deck B). Tape Speed Adjustment DECK B Note: Start the Tape Speed adjustment as below after setting to the test mode. In the test mode, the tape speed is high during pressing the CD SYNC HI-DUB button. Procedure: 1. Turn the power switch on. 2. Press the x button, ENTER button and DISC 3 button simultaneously. (The “TEST MODE” on the fluorescent indicator tube display while in the test mode.) To exit from the test mode, press the ?/1 button. Mode: Playback 1. Insert the WS-48B into the deck B. 2. Press the gG button on the deck B. 3. Press the CD SYNC HI-DUB button in playback mode. Then at HIGH speed mode. 4. Adjust RV1001 on the LEAF SW board do that frequency counter reads 6,000 ± 30 Hz. 5. Press the CD SYNC HI-DUB button. Then back to NORMAL speed mode. 6. Adjust RV1002 on the LEAF SW board so that frequency counter reads 3,000 ± 15 Hz. Adjustment Location: LEAF SW board Playback level Adjustment DECK A DECK B Procedure: Mode: Playback Deck A is RV302 (L-CH) and RV352 (R-CH), Deck B is RV303 (L-CH) and RV353 (R-CH) so that adjustment within adjustment level as follows. Adjustment Level: CN301 PB level: 301.5 to 338.3 mV (–8.2 to –7.2 dB) level difference between the channels: within ±0.5 dB Adjustment Location: MAIN board Sample Volue of Wow and Flutter: 0.3% or less W. RMS (WS-48B) Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak MAIN board CN301 set test tape P-4-A100 (10 kHz, –10 dB) pin 1 oscilloscope L-CH R-CH V H waveform of oscilloscope in phase 45° 90° 135° 180° good wrong pin 2 pin 3 L R + – set test tape WS-48B (3 kHz, 0 dB) main board CN301 (Pin 3 : L-CH) (Pin 1 : R-CH) frequency counter + – set test tape P-4-L300 (315 Hz, 0 dB) main board CN301 (Pin 3 : L-CH) (Pin 1 : R-CH) level meter forward reverse www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-DX90 4. Mode: Record 5. Mode: Playback 6. Confirm playback the signal recorded in step 3 become adjustable level as follows. If these levels do not adjustable level, adjustment the RV301 (L-CH) and RV351 (R-CH) on the MAIN board to repeat steps 4 and 5. Adjustable level: CN301 PB level: 47.2 to 53.0 mV (–24.3 to –23.3 dB) Adjustment Location: MAIN board [MAIN BOARD] (Component Side) [LEAF SW BOARD] (Component Side) REC Bias Adjustment DECK B Procedure: INTRODUCTION When set to the test mode performed in Tape Speed Adjustment, when the tape is rewound after recording, the “REC memory mode” which rewinds only the recorded portion and playback is set. This “REC memory mode” is convenient for performing this adjustment. During recording, the input signal FUNCTION will automatically switch to VIDEO. (If do not operation of stopped from recording complete, and rotette of shuttle knob then rewind to recording start position.) 1. Press MD/VIDEO button to select VIDEO. (This step is not necessary if the above test mode has already been set.) 2. Insert a tape into deck B. 3. After press REC PAUSE/START button, press REC PAUSE/ START button, then recording start. 4. Mode: Record 5. Mode: Playback 6. Confirm playback the signal recorded in step 3 become adjustable level as follows. If these levels do not adjustable level, adjustment the RV304 (L-CH) and RV354 (R-CH) on the AUDIO board to repeat steps 4 and 5. Adjustable level: Playback output of 315 Hz to playback output of 10 kHz: ±1.0 dB Adjustment Location: MAIN board REC Level Adjustment DECK B Procedure: INTRODUCTION When set to the test mode performed in Tape Speed Adjustment, when the tape is rewound after recording, the “REC memory mode” which rewinds only the recorded portion and playback is set. This “REC memory mode” is convenient for performing this adjustment. During recording, the input signal FUNCTION will automatically switch to VIDEO. (If do not operation of stopped from recording complete, and rotate of shuttle knob then rewind to recording start position.) 1. Press MD/VIDEO button to select VIDEO. (This step is not necessary if the above test mode has already been set.) 2. Insert a tape into deck B. 3. After press REC PAUSE/START button, press REC PAUSE/ START button, then recording start. attenuator set MD/VIDEO (AUDIO) IN 1) 315 Hz 2) 10 kHz 50 mV (–23.8 dB)    600 Ω blank tape CN-123 AF OSC + – set recorded portion CN301 (Pin 3 : L-CH) (Pin 1 : R-CH) level meter set MD/VIDEO (AUDIO) IN 315 Hz, 50 mV (–23.8 dB) blank tape CS-123 600 Ω attenuator AF OSC + – set recorded portion CN301 (Pin 3 : L-CH) (Pin 1 : R-CH) level meter TAPE SPEED RV1002 RV1001 (NORMAL) (HIGH) CN1001           T601 RV611 RV351 RV354 RV304 RV303 RV352 RV302 RV353 RV301 CN301 CN304 CN302 CN303 1 3 REC LEVEL (L) (B) PB LEVEL (L) (B) PB LEVEL (R) (A) PB LEVEL (L) (A) PB LEVEL (R) (B) REC LEVEL (R) (A) REC LEVEL (L) (A) REC LEVEL (R) (B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-DX90 FM Tuned Level Adjustment Procedure: 1. Supply a 28 dB 98 MHz signal from the ANTENNA terminal. 2. Tune the set to 98 MHz. 3. Adjust RV611 to the point (moment) when the TUNED indicator will change from going off to going on. Adjustment Location: MAIN board Null Adjustment Procedure: 1. Supply a 60 dB 98 MHz signal from the ANTENNA terminal. 2. Tune the set to 98 MHz. 3. Measure voltage between pin 21 of IC 601. Adjust T601 ubtil the voltage becomes 0 V. Adjustment Location: MAIN board Adjustment Location [MAIN BOARD] Component side FM RF SSG 75 Ω coaxial Carrier frequency : 98 MHz Modulation : AUDIO 1 kHz, 75 kHz deviation (100%) Output level : 28 dB (at 75 W open) FM ANTENNA terminal (TM601) set FM RF SSG 75 Ω coaxial Carrier frequency : 98 MHz Modulation : AUDIO 1 kHz, 75 kHz deviation (100%) Output level : 60 dB (at 75 W open) FM ANTENNA terminal (TM601) set CD SECTION Note : 1. CD Block is basically designed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. S-Curve Check Procedure : 1. Connect oscilloscope to TP (FEO). 2. Connect between TP (FEI) and TP (VC) by lead wire. 3. Connect between TP (AGCCON) and TP (GND) by lead wire. 4. Turn Power switch on. 5. Load a disc (YEDS-18) and actuate the focus search. (In consequence of open and close the disc tray, actuate the focus search) 6. Confirm that the oscilloscope waveform (S-curve) is symmetrical between A and B. And confirm peak to peak level within 4 ±1 Vp-p. 7. After check, remove the lead wire connected in step 2 and 3. Note : • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the brightness to obtain best waveform. RF Level Check Procedure : 1. Connect oscilloscope to TP (RF). 2. Connect between TP (AGCCON) and TP (GND) by lead wire. 3. Turned Power switch on. 4. Load a disc (YEDS-18) and playback. 5. Confirm that oscilloscope waveform is clear and check RF signal level is correct or not. 6. After check, remove the lead wire connected in step 2. BD board Oscilloscope TP(FEO) TP(VC) symmetry S-curve waveform within 4 ±1Vp-p A B TP(RF) TP(VC) BD board oscilloscope T601 RV611 RV351 RV354 RV304 RV303 RV352 RV302 RV353 RV301 CN301 CN304 CN302 CN303 1 3 NULL FM TUNED LEVEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-DX90 Note: Clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. RF signal waveform E-F Balance (1 Track jump) Check Procedure: 1. Connect oscilloscope to TP (TEO) and TP (VC) board. 2. Turned Power switch on. 3. Load a disc (YEDS-18) and playback the number five track. 4. Press the gG button. (Becomes the 1 track jump mode.) 5. Confirm that the level B and A (DC voltage) on the oscilloscope waveform. 1 track jump waveform Specification level: x 100=less than ±22% 6. After check, remove the lead wire connected in step 1. RF PLL Free-run Frequency Procedure : 1. Connect frequency counter to test point (XPCK) with lead wire. 2. Turned Power switch on. 3. Put the disc (YEDS-18) in to play the number five track. Confirm that reading on frequency counter is 4.3218MHz. VOLT/DIV : 200mV TIME/DIV : 500ns level : 1.45 ± 0.3Vp-p oscilloscope BD board TP (TEO) TP (VC) + – 0V Center of waveform B Symmetry A (DC voltage) level=1.3±0.6Vp-p A B + – frequency counter BD board TP (XPCK) TP (XPCK) TP (TEO) TP (FEO) TP (FEI) TP (RF) TP (VC) TP (DGND) TP (AGCCON) 1 12 24 1 20 21 40 60 80 41 61 IC101 IC103 Adjustment Location: [BD BOARD] (Conductor Side) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 21 21 SECTION 7 DIAGRAMS 7-1. CIRCUIT BOARDS LOCATION Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. Note on Printed Wiring Boards: • X : parts extracted from the component side. • : Pattern from the side which enables seeing. • Indication of transistor. • A : B+ Line. • B : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM f : AM E : PB (DECK A) d : PB (DECK B) G : REC (DECK B) J : CD c : digital out THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) B These are omitted. C E Q • WAVEFORMS C B These are omitted. E Q 1 IC101 yj CD PLAY MODE 6.4Vp-p 16.9344MHz 1.2Vp-p 2 IC101 ta CD PLAY MODE 3 IC101 ra CD PLAY MODE 4 IC101 el CD PLAY MODE 400nsec/div approx 200mVp-p approx 170mVp-p 1 IC401 qa STOP MODE 3.0Vp-p 32.768kHz 3.4Vp-p 2 IC401 qd STOP MODE 3 T301 4 TAPE B REC MODE 16MHz 120Vp-p 80.7kHz 1 IC601 oa STOP MODE 4.8Vp-p 12.5MHz – BD BOARD – – MAIN BOARD – – PANEL BOARD – Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. PANEL Board LEAF SW Board HEAD (A) Board HEAD (B) Board TRANS Board CD SWITCH Board BD Board DRIVER Board MOTOR Board SENSOR Board MAIN Board POWER AMP Board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 22 22 7-2. BLOCK DIAGRAMS – TUNER/CD SECTION – : FM : CD • Signal Path • RCH is omitted : DIGITAL OUT FM 75Ω G AM TM601 ANT IN 1 7 IF OUT 8 OSC OUT 5 VT R601 +B A+12V Q602 FM 10 FM OSC 15 VT1 IN 18 VT1 17 PD1 19 PLL IC651 12 FM/AM IF 7 FM 14 AM OSC 2 VCO STOP 8 IF REQ 6 DO 4 DI 5 CL 3 CE XIN 1 XOUT 24 X651 4.5MHz RF IF AMP Q602 CF601 CF602 DO DI CL CE 1 13 3 4 5 12 2 14 15 11 6 7 9 RB641 19 AM MIX OUT IF OUT 9 AM/IF 12 AM OSC 24 VCO STOP 13 IF REQ MUTE 8 AM RF IN 20 AM OSC 22 V REG 23 FM IF 1 AM/FM IF MPX IC601 11 L OUT 10 R OUT BUFFER Q611 LPF601 LPF 18 AM IF IN IFT601 16 FM/AM DET R-CH A 6 TUNED 17 STEREO 3 FM SD ADJ RV611 RDS DATA 21 RDS INT 20 ST MUTE 22 ST CE 25 ST CLK 28 ST DOUT 26 ST DIN 27 STEREO 23 TUNED 24 MASTER CONTROL IC401(1/2) DO CL CE DI DI OPTICAL PICK-UP BLOCK (KSM-213DAP) A B C D E F LD VC +5V GND PD VR LD DRIVE FOCUS COIL TRACKING COIL Q101 RF AMP IC103 VC 12 A 5 B 6 C 7 D 8 E 11 F 10 LD 3 PD 4 IC102 MOTOR/COIL DRIVE CH1RO 13 CH1FO 14 CH2RO 11 CH2FO 12 CH3RO 18 CH3FO 17 M M102 SLED CH4RO 16 CH4FO 15 M M101 SPINDLE F+ F- T+ T- 3 CH1RI 2 CH1FI 6 CH2RI 5 CH2FI 23 CH3RI 24 CH3FI 25 CH4INS 20 MUTE MDP 26 SFDR 28 SRDR 29 TRDR 31 TFDR 30 FRDR 33 FFDR 32 DIGITAL SIGNAL PROC. D/A CONV. IC101 DIGITAL SERVO 60 D OUT RFAC 51 17 RFI 16 RFO 14 FE 13 TE 22 LD ON 21 HOLD SW RFDC 43 FE 39 TE 41 SE 40 XLON 14 72 L OUT DIGITAL OUT OPTICAL CD DIGITAL OUT IC201 75 R OUT 5 DATA B R-CH L OUT L-CH 7 CLOK 6 XLAT 2 SQCK 9 SCLK 20 SCOR 1 SQSO 27 SSTP 66 XTAI 67 XTAO 3 XRST S101 LIMIT IN X101 16.9344MHz CD DATA 33 CD CLK 37 XLT 42 SQ CLK 33 SCOR 19 SQ DATA 32 XRST 43 HOLD 41 TBL ADDRESS SENSOR 49 T SENS IC711 48 BU UP/DOWN SW 46 OPEN SW 47 CLOSE SW 44 MTR CNT2 OPEN/CLOSE S701 BU UP/ DOWN S711 45 MTR CNT1 MOTOR DRIVE 9 7 4 2 M IC701 TURN M721 (Page 23) (Page 23) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 23 23 – MAIN SECTION – RESET : FM : CD • Signal Path • RCH is omitted : PB (DECK A) : PB (DECK B) : REC (DECK B) REC BIAS BIAS TRAP R-CH R-CH R CH BIAS OSC Q302,303 RV304 Q301 TA+12V C332,L301 ERASE HEAD REC/PB HEAD PB EQ AMP IC304 RV303 IC302 REC/PB SWITCH REC EQ BIAS SW DOLBY B NORM CROM REC(L) LEVEL RV301 40 1 2 3 4 48 46 A B 70 120 PB REC DOL PAS PB REC 36 33 32 38 39 43 BIAS ON/OFF 20 B NORM/CROM/METAL ALC ON/OFF 15 RM ON/OFF 22 NR ON/OFF 23 REC /PB/PASS 24 LM ON/OFF 25 MS OUT 26 A B MD/VIDEO (AUDIO) R-CH L-CH LOUT L-CH J101 L R R-CH PB HEAD DECK-B DECK-A PB EQ AMP IC303 RV302 SWITCH Q304,305 17 A120/70 PB A/B 16 NORM/HIGH 18 DECK PROC. IC301 INPUT SELECT TONE/VOL CONT IC101 IN2A 40 IN2C 38 IN2D 37 INVOL OUT2 35 IN2B 39 24 VOL OUT2 DATA 21 CLOCK 22 R-CH 1 REF DBFB SWITCH Q503 DBFB CONT Q101,102 5 6 7 IC102 MUTE Q103 MUTE CONT Q504,505 POWER AMP IC501 15 12 11 MUTE Q581 MUTE CONT Q503,504 MUTE Q862 MUTE CONT Q861 D841 OVER LOAD DETECTOR Q551 OVER HEAT DETECTOR Q506,506 +B D502 PROTECT DETECTOR Q821,822 PROTECT CONT Q823 PROTECT SWITCH Q828,829 RELAY DRIVE Q824,825 RY801 J631 PHONES R CH R CH FAN FAN DRIVE Q891,892 L R TM801 SPEAKER 91 B SHUT 90 A SHUT 69 B PLAY 68 A PLAY 93 B HALF 67 A HALF 77 PB A/B A TRIG DRIVE CAP MOTOR DRIVE Q396,397 Q393,394 B TRIG DRIVE Q391,392 CAP MOTOR SPEED CONT Q395 A TRIG 57 B TRIG 58 CAP M H/L 59 CAP M CONT 60 TC BLOCK A120/70 B120/70 A HALF B HALF A PLAY B PLAY A SHUT B SHUT A TRG M+ B TRG M+ CAP M H/L CAP M+ 19 79 TC RELAY IC401(2/2) MASTER CONTROL 76 EQ H/N 78 ALC 75 BIAS 74 REC MUTE 73 NR ON/OFF 72 R/PB PAS 71 TC MUTE 70 AMS IN 4 DATA 5 CLK 83 DBFB ON/OFF DC BIAS Q141 +6V A+12V 84 LINE MUTE 100 STK MUTE 87 RELAY H 82 PROTECT 30 IIC DATA 10 XC IN 11 XC OUT 15 X IN 13 X OUT 32.768kHz X401 16MHz X402 BPF 0 BPF 5 P1 P35 G1 G17 FLOURESCENT INDICATOR TUBE DISPLAY CONTROL IC601 F1 F2 LED DRIVER Q606-614 D611-615 D617,618 11 FUCTION KEY SIRCS IC603 97 I2C DATA 98 I2CCLOCK VOL A 1 VOL B 2 SIRCS 100 S601 VOLUME X601 12.5MHz +5.6V REG Q615 FL601 IC602 50 52 85 . 49 33 20 25 ALL BAND 26 HEADPHONE 3 S617,618 S623-628,630-636 10 10 5 PLAY1-3 EXIST1-3 LED DRIVER Q630-635 D630-632 11 GROOVE LED 12 FILE LED 13 BASS SHIFT LED 14 FUNCTION LED 15 REC/PAUSE LED 16 SURROUND LED LED DRIVER Q621-626 LED DRIVER Q604 28 POWER LED POWER D601 LED DRIVER 27 TIMER LED TIMER SELECT D602 Q605 17 12 SPEANA BPF 6 5 4 3 +7V KEY0 17 FUCTION KEY S611-616 S619-621,626,629 KEY1 18 FUCTION KEY S637-646 KEY2 19 96 WAKE UP 92 RESET 89 XIN 90 XOUT MIC J721 MIC VOL RV722 IC722 IC722 29 IIC CLK 18 WAKE UP 7 AC CUT T971 AC IN F973 S951 F971 F972 F974 F975 -V REG +5V REG Q941 D541 -B +B -B POWER AMP D901-904 F1 F2 1 3 +12V REG 1 3 +9V REG 1 3 +7V REG 1 3 CD POWER SWITCH +5V REG 1 3 IC911 Q911,912 IC951 IC921 IC961 IC931 CD D+5V CD A+5V RDS D+5V UNSW AUDIO +5V A+12V TC A+12V MIC A+12V ST A+12V TC M+9V CD M+7V LED +7V D906-909 D952 D953 D511 STBY RELAY 81 85 CD POWER RESET 12 Q501 IC501 T301 D822 IC104 (Page 22) (Page 22) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 24 24 CN201 23 (23) (KSM-213DAP) TP (AGCCON) TP (XPCK) TP (FEI) TP (GND) TP (RF) TP (FEO) TP (TEO) TP (VC) A B C D E F 1 2 3 4 5 6 7-3. PRINTED WIRING BOARD – BD SECTION – • See page 21 for Circuit Boards Location. • Semiconductor Location Ref. No. Location IC101 C-2 IC102 D-4 IC103 B-3 Q101 A-4 (Page 26) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 25 25 7-4. SCHEMATIC DIAGRAM – BD SECTION – • See page 21 for Wavefoms. • See page 42 for IC Block Diagrams. OPTICAL PICK-UP BLOCK (KSM-213DAP) MAIN BOARD (3/3) CN201 TP (XPCK) TP (VC) TP (RFO) TP (FEO) TP (TEO) TP (AGCCON) TP (FE1) (Page 29) • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : CD STOP The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 26 26 IC951 G-7 IC961 H-7 Q101 D-7 Q102 D-6 Q103 I-8 Q141 D-5 Q151 D-7 Q152 D-6 Q153 I-8 Q301 I-5 Q302 I-5 Q303 I-5 Q304 H-5 Q305 H-6 Q391 E-2 Q392 D-2 Q393 E-3 Q394 D-2 Q395 E-3 Q396 E-3 Q397 D-2 Q501 B-5 Q503 D-4 Q504 D-4 Q505 D-4 Q601 C-10 Q602 A-11 Q611 D-10 Q612 D-10 Q821 H-11 Q822 H-11 Q823 G-11 Q824 H-11 Q825 G-11 Q828 G-11 Q829 G-11 Q861 I-9 Q862 H-11 Q863 H-10 Q891 G-11 Q892 G-11 Q911 D-9 Q912 D-9 D501 B-5 D502 B-5 D503 B-5 D504 B-4 D505 B-5 D506 B-5 D511 D-2 D601 C-10 D641 D-12 D651 C-9 D801 I-11 D822 G-11 D824 F-10 D841 H-11 D861 I-9 D891 I-12 D892 I-12 D901 H-10 D902 I-9 D903 H-10 D904 H-9 D906 I-10 D907 I-10 D908 I-10 D909 I-10 D910 J-7 D911 I-7 D952 G-7 D953 G-7 IC101 E-8 IC102 D-6 IC104 C-7 IC201 B-12 IC301 G-5 IC302 H-4 IC303 F-3 IC304 H-3 IC401 C-3 IC501 B-5 IC601 C-11 IC651 B-10 IC911 C-8 IC921 H-8 IC931 H-6 A PANEL BOARD CN601 H LEAF SW BOARD CN1001 I HEAD (A) BOARD CN1 81 80 51 50 31 30 1 100 1 E 3 K DRIVER BOARD CN701 E BD BOARD CN101 4 1 1 E E 3 5 8 4 1 5 8 E E E E E E E E E E E E E E E 1 3 (FOR ADJUSTMENT) 4 5 8 1 4 1 1 8 1 1 9 3 5 8 J HEAD (B) BOARD CN2 E E E E 6 4 1 3 3 1 3 1 3 1 3 1 21 1 22 42 8 5 4 1 1 1 1 3 5 4 1 3 5 4 3 5 4 3 E E E 7 6 5 1 1 2 3 4 A K K A 2 3 4 8 1 12 13 4 5 14 11 10 15 6 7 9 2 2 3 3 3 1 1 E E E E E E E E E E E E E 4 6 3 5 1 2 1 13 1 13 POWER AMP BOARD CN503 B POWER AMP BOARD CN502 C 1-676-194- (CHASSIS) 26 R (+) L (+) R (–) L (–) SPEAKER TM801 MD/VIDEO (AUDIO) FM 75Ω COAXIAL M M961 (FAN) AM ANTENNA CD DIGITAL OUT OPTICAL TM601 MAIN BOARD A B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 11 12 13 E 7-5. PRINTED WIRING BOARD – MAIN SECTION – • See page 21 for Circuit Boards Location. Ref. No. Location Ref. No. Location • Semiconductor Location (Page 32) (Page 34) (Page 34) (Page 34) (Page 30) (Page 30) (Page 36) (Page 24) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 27 27 7-6. SCHEMATIC DIAGRAM – MAIN (1/3) SECTION – • See page 43 for IC Block Diagrams. RV611 FM TUNED LEVEL T601 NULL 330 470 470 220p MAIN BOARD (3/3) 100p (Page 29) • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM ( ) : AM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 28 28 7-7. SCHEMATIC DIAGRAM – MAIN (2/3) SECTION – • See page 21 for Wavefoms. • See page 44 for IC Block Diagrams. • See page 34 for Printed Wiring Board of Head Boards. RV304 REC BIAS (L-CH) RV354 REC BIAS (R-CH) RV353 PLAYBACK LEVEL (DECK B R-CH) RV303 PLAYBACK LEVEL (DECK B L-CH) RV352 PLAYBACK LEVEL (DECK A R-CH) RV302 PLAYBACK LEVEL (DECK A L-CH) RV351 REC LEVEL (R-CH) RV301 REC LEVEL (L-CH) N 4.7k 4.7k C395 0.1 C354 0.1 C304 0.1 2 . 2 2 . 2 22k 100 100 100 470 470 470 100 100 100 100 100 100 100 100 100 1 2 3 TAPE MECHANISM DECK BLOCK (2/3) (TCM-230PWR11) TAPE MECHANISM DECK BLOCK (3/3) (TCM-230PWR11) ERASE 5.6k MAIN BOARD (3/3) 12K 12K 4.7K 8.2K 4.7k 1.2k 18k 18k 8.2k 4.7k LEAF SW BOARD CN1001 MAIN BOARD (3/3) 47k 22k MAIN BOARD (3/3) MAIN BOARD (3/3) MAIN BOARD (3/3) (Page 29) (Page 29) (Page 29) (Page 29) (Page 29) (Page 35) • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : CD STOP ( ) : REC < > : TAPE PB The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 29 29 BD BOARD CN101 DRIVER BOARD CN701 POWER AMP BOARD CN503 POWER AMP BOARD CN502 TA7807S M5F7809L 25V 10V JR908 JR909 32 33 C212 1000P 3.3k C824 4.7k D824 1SS355 R830 4.7k R901 100 25V 10V MAIN BOARD (2/3) MAIN BOARD (2/3) MAIN BOARD (2/3) MAIN BOARD (2/3) MAIN BOARD (2/3) PANEL BOARD CN601 MAIN BOARD (1/3) 47k Q891, 892 FAN DRIVE M961 7-8. SCHEMATIC DIAGRAM – MAIN (3/3) SECTION – (Page 28) (Page 28) (Page 37) (Page 25) (Page 27) (Page 31) (Page 31) (Page 28) (Page 33) • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : CD STOP ( ) : REC < > : TAPE PB (Page 28) (Page 28) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 30 30 POWER AMP BOARD E B C 4 3 2 1 L TRANS BOARD CN977 G TRANS BOARD CN978 1 2 3 1 1 2 3 4 E E (CHASSIS) E E E E 1-676-807- 11 (13) E E 13 1 13 1 1 7 B MAIN BOARD CN902 M TRANS BOARD CN977 C MAIN BOARD CN901 A B C D E F G 1 2 3 4 5 6 7 7-9. PRINTED WIRING BOARD – POWER AMP SECTION – • See page 21 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D501 C-5 D502 A-5 D503 F-5 D504 F-5 D541 C-2 D543 E-2 D551 C-5 D581 E-5 D941 B-2 D979 B-2 IC501 E-7 Q501 B-5 Q503 F-2 Q504 F-1 Q505 G-5 Q506 G-5 Q551 B-6 Q581 F-5 Q831 G-5 Q941 B-2 (Page 38) (Page 38) (Page 38) (Page 26) (Page 26) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 31 31 MAIN BOARD (3/3) CN902 MAIN BOARD (3/3) CN901 TRANS BOARD CN978 TRANS BOARD CN977 TRANS BOARD CN977 470 470 RBV-602 NO505 VH VH GND VL VL 0.001 0.001 STK-412-040 STK-412-040 1.5k MTZJ-T-77-15B 0.22 0.22 82k 82k 1.5k MTZJ-T-77-15B 0.22 0.22 82k Q831 2SC1785 OVER HEAT DETECT R531 220 R532 560k R533 47k 2SB1375 1 2 4 3 1 2 4 3 CN504 2P 7-10. SCHEMATIC DIAGRAM – POWER AMP SECTION – The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. (Page 29) (Page 29) (Page 39) (Page 39) (Page 39) • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : CD STOP w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 32 32 (CURSOR) (CURSOR) Z OPEN/CLOSE E E DISC 3 D632, S645 DISC 2 D631, S644 DISC 1 D630, S643 E E E E 1 9 DISC SKIP/ EX-CHANGE 1-676-190- 21 (21) PANEL BOARD CD SW BOARD EDIT TUNER MEMORY PLAY MODE STREO/MONO REPEAT DOLBY NR 30 29 1 2 FL601 FLUORESCENT INDICATOR TUBE A MAIN BOARD CN401 E E E TIMER SURROUND SURROUND MD (VIDEO) TUNER/BAND TAPE A/B MIC LEVEL GROOVE GROOVE DISPLAY I/1 I/1 SPECTRUM EQ EDIT LOOP V-GROOVE MIC CD VOLUME ENTER PHONES m M g G > + – . DIRECTION 3 1 ROTARY ENCODER 7 4 1 6 2 5 3 9 1 10 18 D615 (FUNCTION) X x b B V v E E REC PAUSE/ START CD SYNC HI-DUB D617, S616 E D614, S613 1-676-189- 21 (21) 7 4 6 1 5 2 3 4 1 5 8 E E E E E E E E E E E E E 3 1 1 9 A B C D E F G H I 1 2 3 4 5 6 7 8 9 10 7-11. PRINTED WIRING BOARD – PANEL SECTION – • See page 21 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D601 C-10 D602 D-3 D603 E-3 D611 D-9 D612 G-9 D613 F-9 D614 H-9 D615 F-6 D617 I-5 D618 D-3 D630 A-8 D631 A-7 D632 A-6 IC601 D-6 IC602 G-4 IC603 C-9 IC722 H-9 Q604 E-10 Q605 C-3 Q606 E-9 Q607 E-9 Q608 D-9 Q609 D-9 Q610 D-9 Q611 D-9 Q612 D-9 Q613 D-8 Q614 D-8 Q615 E-3 Q621 C-9 Q622 F-9 Q623 H-8 Q624 F-7 Q625 H-5 Q626 D-3 Q630 A-8 Q631 A-8 Q632 A-5 Q633 A-9 Q634 A-9 Q635 A-4 Q721 H-8 (Page 26) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 33 33 7-12. SCHEMATIC DIAGRAM – PANEL SECTION – • See page 21 for Wavefoms. • See page 43 for IC Block Diagrams. MAIN BOARD (3/3) CN401 0 0 0 0 0 0 7.0 R746 1k MTZJ-T-77-5.6C C617 0.001 220 270 180 7.2 7 0 22K MIC LEVEL 10k 100 10V 100 10V : /1 180 REC PAUSE/START REC PAUSE/START V v JW B b PLAY MODE STERO/MONO REPEAT DOLBY NR 270k 270k PHONES 1 7 EDIT TUNER MEMORY : /1 33 50V 33 1 7 (Page 29) • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : CD STOP w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 34 34 CN303 TAPE MECHANISM DECK BLOCK (2/3) (TCM-230PWR11) TAPE MECHANISM DECK BLOCK (3/3) (TCM-230PWR11) (ERASE HEAD) (REC/PB HEAD) CN304 S1001, 1002 S1003 – 1006, S1008,1009 M M901 (CAPSTAN) TAPE MECHANISM DECK BLOCK (1/3) (TCM-230PWR11) PM1001 PLUNGER (DECK-A) PM1002 PLUNGER (DECK-B) A B C D 1 2 3 4 5 6 CN302 7-13. PRINTED WIRING BOARD – LEAF SW SECTION – • See page 21 for Circuit Boards Location. • See page 28 for Schematic Diagram of Head Board. • Semiconductor Location Ref. No. Location D1001 B-2 D1002 B-5 IC1001 B-1 IC1002 B-5 Q1001 B-2 (Page 26) (Page 26) (Page 26) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 35 35 7-14. SCHEMATIC DIAGRAM – LEAF SW SECTION – TAPE SPEED (NORMAL) PM1002 (DECK-B) PM1001 (DECK-A) TAPE MECHANISM DECK BLOCK (1/3) (TCM-230PWR11) TAPE SPEED (HIGH) (DECK-A) (DECK-B) MAIN BOARD (2/3) CN304 (Page 28) • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : PB (DECK-A) ( ) : PB (DECK-B) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 36 36 14 (14) 14 (14) CN202 14 (14) A B C D E F 1 2 3 4 5 7-15. PRINTED WIRING BOARD – DRIVER SECTION – • Semiconductor Location Ref. No. Location D701 E-1 IC701 E-1 IC711 B-4 (Page 26) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 37 37 7-16. SCHEMATIC DIAGRAM – DRIVER SECTION – C712 0.1 TABLE ADDRESS SENS (UP/DOWN) OPEN r CLOSE MAIN BOARD (3/3) CN202 (Page 29) • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : CD (STOP) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 38 38 G CN978 3 1 9 3 2 1 ( ) F973 F972 S951 NO506 NO501 NO504 7-17. PRINTED WIRING BOARD – TRANS SECTION – • See page 21 for Circuit Boards Location. (Page 30) (Page 30) (Page 30) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 39 39 7-18. SCHEMATIC DIAGRAM – TRANS SECTION – The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. CN978 3P VH VH GND G F973 T4A 250V F972 T4A 250V NO504 NO501 NO506 CN977 9P S951 (Page 31) (Page 31) (Page 31) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 40 40 7-19. IC PIN FUNCTION DESCRIPTION • MAIN BOARD IC401 M30622MAA-A25FP (MASTER CONTROL) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 I/O O O O O O I I — — I O I O — I — I I I I I O I I O O I O O O — I I I O I O I I I O O O I O I I I I I Description Not used. Not used. Not used. Data signal output for IC101 (M61504FP) Clock signal output for IC101 (M61504FP) Not used. AC CUT ON (L) / OFF (H) CHECK Connected to ground. Connected to ground. SUB CLOCK input. (32.768kHz) SUB CLOCK output. (32.768kHz) System reset input. MAIN SYSTEM CLOCK output. (16MHz) Vss MAIN SYSTEM CLOCK input. (16MHz) Power supply. (+5V) PULL UP (EVER +5V) WAKE UP signal input. (L) CD Q-data request signal input. RDS interrupt signal input. RDS data signal input. Tuner mute signal output. STEREO detect signal input. L=ON, H=OF TUNED detect signal input. L=ON, H=OFF TUNER chip enable output. TUNER data output. TUNER data input. TUNER clock signal output. IIC SCL output. IIC SDA output. Not used. Subcode Q data input. (CD data) Subcode Q data input. (CD clock) Not used. CD data input. Not used. CD clock input. Not used. Clock check signal input. BD condition signal input. MODE signal input. CD latch signal output. CD reset signal output. Loading motor control signal input. Loading motor control signal output. Tray open detect signal input. Tray close detect signal input. Pick-up up/down detect signal input. CD table detect signal input. Not used. Pin Name SURROUND 1 SURROUND 2 SURROUND 3 498-DATA 498-CLK N.C AC-CUT GND GND XC IN XC OUT RESET X-OUT VSS X-IN VCC NMI WAKE_UP SCOR RDS-INT RDS-DATA ST-MUTE STEREO TUNED ST-CE ST-DOUT ST-DIN ST-CLK IIC_CLK IIC_DATA TXDI SQ-DATA SQ-CLK RST1 CD-DATA N.C CD-CLK N.C CLOCK-OUT SENS HOLD XLT XRST LOAD-IN LOAD-OUT OPEN CLOSE UP/DOWN SW T-SENS TEST MODE Pin No. 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 I/O I I I I I I O O O O I — I — I I I I I I O I O O O O O O O I O I I O O O O O O O O O O O I — I — — O Description Not used. Not used. Not used. Not used. Not used. Not used. A deck trigger control signal output.H=ON, L-OFF B deck trigger control signal output.H=ON, L-OFF Capstan motor High/Low speed control signal output. Capstan motor REV/FWD/STOP control signal output.H=REV, L=FWD/STOP Not used. POWER SUPPLY (+5V) Not used. Ground. Not used. Not used. A deck half detect signal input. A deck play detect signal input. B deck play detect signal input. AMS signal input. L=ON,H=OFF Tape deck line mute ON/OFF signal output. H=ON, L=OFF REC/PB/PASS select signal input. DOLBY NR ON/OFF signal output. H=ON, L=OFF REC mute ON/OFF signal output. L=ON, H=OFF BIAS ON/OFF signal output.H=ON, L=OFF EQ High/Normal select signal output. H=High, L=Normal Playback deckA/B select signal output. H=deckB, L=deckA ALC ON/OFF signal output. L=ON, H=OFF Tape deck relay ON/OFF signal output. H=ON, L=OFF Not used. STANDBY relay control signal output. Speaker protect signal input. L=ON, H=OFF Not used. Line mute signal output. L=ON, H=OFF CD-POWER ON/OFF signal output. H=ON, L=OFF Not used. Speaker terminal relay control signal output. H=ON, L=OFF POWER ON/OFF signal output. H=ON, L=OFF Not used. A deck reel pulse detect signal output. B deck reel pulse detect signal output. Not used. B deck half detect signal input. KEY (for jig) / CD adjust. MODEL input. Analog ground. Version select signal input. Analog Reference Voltage Analog Power Supply Power amplifier mute ON/OFF signal output. H=ON, L=OFF Pin Name N.C N.C N.C N.C N.C N.C A TRIG B TRIG CAPM-H/L CAPM-CONT N.C VCC N.C VSS N.C N.C A HALF A PLAY B PLAY AMS-IN TC-MUTE R/PB/PAS NR-ON/OFF REC-MUTE BAIS EQ-H/N PB-A/B ALC TC-RELAY N.C STBY-RELAY PROTECT DBFB-ON/OFF LINE-MUTE CD-POWER F-SHIFT RELAY-H POWER N.C A SHUT B SHUT SOFT-TEST B HALF KEY/CD ADJ MODEL-IN AVSS SPEC-IN VREF AVCC STK-MUTE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 HCD-DX90 Pin No. 1 2 3 4 5 6 7 8 9-10 11 12-14 15 16 17-19 20 21-25 26 27 28 29 30 31 32 33-49 50 51 52-85 86 87 88 89 90 91 92 93-94 95 96 97 98 99 100 I/O I I I I O O O O O O O O O I I I I O O — — — — O O — O I — — I — O I I I O O O I I Description VOLUME A signal input. VOLUME B signal input. Head phone detect signal input. H=ON, L=OFF Not used. TUNER LED driver output.(high active) CD LED driver output.(high active) TAPE A/B LED driver output.(high active) MD/VIDEO LED driver output.(high active) Not used. GROOVE LED driver output.(high active) Not used. REC/PAUSE LED driver output.(high active) SURROUND LED driver output.(high active) KEY input. (AD) BPF input. (AD) BPF input. (AD) BPF input. (AD) TIMER SEL LED driver output. STANDBY LED output. Ground. Ground. Analog reference voltage. Power supply (+5V) FL grid signal output. FL segment signal output. Power supply (+5V) FL segment signal output. Not used. –30V driving power for FL. Power supply (+5V) 12.5MHz (Xin) Ground. 12.5MHz (Xout) RESET (low active) Not used. Connected to ground. WAKE UP signal output for master controller. (PULL UP) IIC SDA IIC SCL Not used. Remote commander input. (input capture) Pin Name VOLUME A VOLUME B HEADPHONE N.C TUNER CD TAPE A/B MD/VIDEO N.C GROOVE N.C REC/PAUSE SURROUND KEY0-2 Super Low Freq (BPF 0) BPF1-5 ALL BAND TIMER STANDBY VSS VASS AVREF VDD G17-1 P1 VDD VFT P2-35 N.C VKK VDD Xin VSS Xout RESET N.C TEST WAKE UP I2C data I2C clk N.C SIRCS • PANEL BOARD IC601 TMP88CP77F-1A22 (DISPLAY CONTROL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 HCD-DX90 7-20. IC BLOCK DIAGRAMS IC101 CXD2587Q (BD BOARD) TE RFDC CE IGEN AVSS0 ADIO AVDD0 CLTV FILO AVSS3 VSS AVDD3 DOUT VDD PCO FILI ASYO ASYI RFAC BIAS SSTP DFCT MIRR MDP LOCK FOK SFDR VSS TEST FRDR FE VC COUT SE XTSL TES1 SRDR TFDR FFDR TRDR 2 1 70 71 68 69 66 67 64 65 62 61 63 73 74 72 75 76 77 78 79 80 4 XRST 3 SQCK SQSO 5 9 8 7 6 56 60 53 54 55 59 57 58 51 52 48 49 50 47 44 45 46 43 41 42 XLAT CLOK SENS SYSM DATA XUGF XPCK GFS C2PO WFCK 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 32 33 30 31 36 37 34 35 39 40 38 28 27 29 SPOA ATSK SCLK VDD SCOR SPOB XLON XTAI XVDD EMPH AVDD1 AOUT1 AIN1 XTAO XVSS AIN2 AOUT2 AVDD2 RMUT LOUT2 LOUT1 BCK LRCK PCMD LMUT AVSS1 AVSS2 CPU INTERFACE SERVO AUTO SEQUENCER SERIAL IN INTERFACE OVER SAMPLING DIGITAL FILTER 3rd ORDER NOISE SHAPER PWM PWM EFM DEMODULATOR TIMING LOGIC DIGITAL OUT D/A INTERFACE DIGITAL PLL ASYMMETRY CORRECTION CLOCK GENERATOR MIRR, DFCT, FOK DETECTOR DIGITAL CLV SUBCODE PROCESSOR SERVO INTERFACE SERVO DSP FOCUS SERVO TRACKING SERVO SLED SERVO PWM GENERATOR FOCUS PWM GENERATOR TRACKING PWM GENERATOR SLED PWM GENERATOR 16K RAM ERROR CORRECTOR INTERNAL BUS A/D CONVERTER OPERATIONAL AMPLIFIER ANALOG SWITCH IC102 BA5974FP (BD BOARD) LEVEL SHIFT INTERFACE INTERFACE INTERFACE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 20 21 22 23 24 25 26 27 28 19 18 17 16 15 F R R F F R R F R R F F MUTE THERMAL SHUTDOWN VREFOUT VREFIN POWVCC CH1FIN CH1RIN CH2FIN CH2RIN CH2OUTR CH2OUTF CH1OUTR CH1OUTF CAPAIN1 CAPAIN2 GND PRFVCC MUTE POWVCC CH4SIN' CH4SIN CH4BIN CH3FIN CH3RIN CH3OUTR CH3OUTF CH4OUTR CH4OUTF CAPAIN3 GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 HCD-DX90 IC103 CXA2568M (BD BOARD) 11 12 10 VC VC VC VC VC VC VC VCC VCC RF SUMMING AMP RF_EQ_AMP ERROR AMP FOCUS TRACKING ERROR AMP VC BUFFER VCC VCC VC VC VC VC VEE VEE VEE VEE VEE VREF 13 14 15 6 5 1 2 3 4 7 8 9 16 19 20 21 22 23 24 18 17 HOLD LD PD A B C D VEE F E VC AGCVTH AGCCONT VCC LC/PD LD_ON HOLD_SW RF_BOT RFTC RF_1 RFO RFE FE TE (50%/30% OFF) APC PD AMP APC LD AMP IC602 BA3830F (PANEL BOARD) 2 3 14 1 f04 13 f05 12 f06 11 REC LEVEL 10 VCC 15 f03 5 REC NF 6 REC IN 7 RESET C 8 BIAS C 9 GND1 4 16 f02 17 f01 18 RESET R02 P01 LINE NF LINE IN REFFERENCE CURRENT BPF DET BPF DET BPF DET BPF DET DET RESET Bias REFFERENCE CURRENT DET DET BPF BPF IC701 BA6956AN (DRIVER BOARD) 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 HCD-DX90 IC302 µPC1330H (MAIN BOARD) 1 2 3 4 5 6 7 8 9 INVERTER COMPARATER SW R1 GND SW P1 CONT GND VCC SW P2 GND SW R2 IC651 LC72130 (MAIN BOARD) 1 2 3 4 5 6 7 8 XIN B03 CE IFIN AOUT2 AIN1 AIN2 D1 CL B04 D0 B01 I01 B02 XOUT PD1 VSS PD2 FMIN AMIN AOUT1 VDD I02 B05 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 PHASE DETECTOR CHARGE PUMP SWALLOW COUNTER 1/16.1/17 4bits SWALLOW COUNTER 1/16.1/17 4bits POWER ON RESET 1/2 C B I / F REFERENCE DIVIDER REFERENCE DIVIDER C B I / F 2 DATA SHIFT REGISTER LATCH IC601 BA1450 (MAIN BOARD) 1 2 3 4 5 6 7 8 9 10 11 12 16 17 18 19 20 21 22 23 24 15 14 13 AM OSC AM MIX AM IF FM IF FM DET AM DET SD DET AGC LED DRIVER COMP SD SW VCO PD 1/2 DECODER VREG 1/2 FM IN FM DET TUNED STEREO IF OUT R OUT L OUT AM/FM FM/AM DET OUT AM MPX IN FM MPX IN IN REQ MUTE FM SD ADJ VCC GND AM OSC OUT AM OSC VCO STOP AM RF IN AM IF IN AM AGC AM MIX OUT FM BAND WIDTH V . REG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 HCD-DX90 SECTION 8 EXPLODED VIEWS CD mechanism deck (CDM58-K2BD38) #5 #3 #3 #3 #3 #3 #3 #3 #2 #2 4 3 10 5 1 1 2 2 6 Front panel section Chassis section M961 9 8 7 8-1. MAIN SECTION 1 3-363-099-01 SCREW (CASE 3 TP2) 2 3-363-099-41 SCREW (CASE 3 TP2) 3 4-225-038-32 SIDE PANEL (L) 4 A-4735-149-A LOADING PANEL ASSY 5 4-225-039-82 SIDE PANEL (R) 6 4-224-550-01 UPPER CASE (TOP) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 7 1-757-045-11 CABLE, FLAT (19 CORE) 8 4-225-041-51 BACK PANEL 9 4-225-252-01 CUSHION (FOOT) 10 3-831-441-11 CUSHION, SARANET M961 1-763-072-11 FAN, D.C. NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. • Abbreviation E2 : 120 V AC Area in E model E51 : Chiliean and Peruvian model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 HCD-DX90 8-2. PANEL SECTION 51 52 53 56 69 58 57 70 67 59 59 63 64 66 54 55 * 67 67 67 67 61 60 60 62 * For service only (Be sure to refer to "Service note" on page 4.) Tape mechanism deck (TCM-230AWP11) 68 67 71 not supplied not supplied not supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 X-4953-732-1 TC HOLDER (L) ASSY 52 X-4953-733-1 TC HOLDER (R) ASSY 53 4-225-032-01 VOL KNOB 54 A-4428-077-A CD SWITCH BOARD, COMPLETE 55 4-962-708-71 EMBLEM (4-A), SONY 56 4-225-033-01 FR KNOB 57 X-4953-730-1 FRONT PANEL ASSY 58 4-224-562-01 BRACKET (HEART CAM L) 59 4-224-803-01 SPRING (PUSH), COMPRESSION 60 4-224-104-11 DAMPER 61 4-224-560-01 CAM(L), HEART 62 4-224-559-01 CAM(R), HEART 63 4-224-561-01 BRACKET (HEART CAM R) 64 4-225-053-01 SPRING R 66 A-4476-248-A PANEL BOARD, COMPLETE 67 4-951-620-01 SCREW (2.6X8), +BVTP 68 4-224-578-11 KNOB(MIC) 69 4-225-052-01 SPRING L 70 4-225-252-01 CUSHION (FOOT) 71 1-773-045-11 WIRE (FLAT TYPE) (17 CORE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 HCD-DX90 8-3. MAIN BOARD SECTION #8 #2 #4 #6 #2 #6 103 107 106 102 105 not supplied not supplied T971 108 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 102 A-4473-087-A MAIN BOARD, COMPLETE * 103 4-988-533-01 HOLDER, PWB 105 1-676-808-11 TRANS BOARD 106 3-703-244-00 BUSHING (FBS001), CORD (E51) 106 4-966-266-01 BUSHING (S) (FBS002), CORD (E2) 107 A-2007-890-A POWER AMP BOARD, COMPLETE 0108 1-777-071-51 CORD, POWER 0T971 1-435-323-11 POWER TRANSFORMER The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 HCD-DX90 8-4. CD MECHANISM DECK SECTION (CDM58-K2BD38) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 201 4-933-134-11 SCREW (+PTPWH M2.6X8) 202 4-221-679-01 CAM(RELAY) 203 4-221-675-01 TABLE 204 4-221-686-01 LEVER (CHANGE) 205 4-221-676-01 TRAY 206 4-933-134-51 SCREW (+PTPWH 2.6X8) 207 1-675-910-14 MOTOR BOARD 208 4-951-620-01 SCREW (2.6X8), +BVTP 209 1-791-983-12 WIRE (FLAT TYPE) (8 CORE) 210 1-675-911-14 SENSOR BOARD 211 1-675-912-14 DRIVER BOARD 212 X-4952-608-1 CAM(U/D) ASSY 213 4-221-681-01 LEVER (EX) 214 4-221-682-01 LEVER (LIFTER) 215 4-221-688-01 PULLEY (B), CHUCKING 216 1-471-035-11 MAGNET ASSY 217 X-4952-019-1 PULLEY (A) ASSY, CHUCKING 218 X-4951-889-1 HOLDER (BU) ASSY 219 4-222-097-01 SCREW, STEP 220 4-227-045-01 SPRING (INSULATOR), COIL 221 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 222 4-222-095-01 BELT 223 4-221-678-01 CAM(CONTROL) 224 4-221-683-01 GEAR (U) 225 4-221-685-01 PULLEY (S) 226 4-229-807-11 CUSHION (SLIDE) 227 4-227-549-11 INSULATOR 228 4-231-151-01 STOPPER (BU) M721 A-4672-826-A MOTOR ASSY (LOADING) BU-K2BD38 not supplied 201 202 203 204 223 219 222 225 224 224 M721 205 206 207 209 208 226 208 208 210 211 212 213 201 214 221 215 216 218 227 227 220 227 221 208 228 217 221 220 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 HCD-DX90 0251 A-4735-080-A BASE ASSY, OP (KSM-213DAP) 252 1-792-024-11 WIRE (FLAT TYPE) (16 CORE) 253 A-4724-934-A BD BOARD, COMPLETE 254 4-951-620-01 SCREW (2.6X8), +BVTP Ref. No. Part No. Description Remarks 8-5. BASE UNIT SECTION (BU-K2BD38) 252 254 253 251 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 HCD-DX90 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 8-6. TAPE MECHANISM DECK SECTION-1 (TCM-230PWR11) 701 701 702 702 703 703 705 705 704 714 706 706 704 HRPE901 HP901 Note: Two different types of tape mechanism are used depending on models. They maintain compatibility as an entire mechanism even though there are some different parts are used. 710 708 707 707 709 713 PM901 #7 PM902 713 701 3-016-574-01 SPRING (HEAD), TENSION 702 X-3374-156-5 PINCH LEVER (REV) ASSY 703 X-3374-155-5 PINCH LEVER (FWD) ASSY 704 3-017-366-01 BASE (PINCH LEVER REV) 705 3-017-365-01 BASE (PINCH LEVER FWD) 706 3-016-567-02 SPRING (CASSETTE), LEAF 707 4-227-872-01 SCREW (+PTT 2X4), GROUND POINT 708 A-2007-839-A HEAD (A) BOARD, COMPLETE 709 A-2007-840-A HEAD (B) BOARD, COMPLETE 710 A-2007-838-A LEAF SW BOARD, COMPLETE 713 3-016-566-01 SLIDER, REVERSE 714 3-703-454-21 SCREW (1.7X6), TAPPING HP901 A-2004-765-A BASE (A) ASSY, HEAD HRP901 A-2004-766-A BASE (B) ASSY, HEAD PM901 1-454-887-21 SOLENOID, PLUNGER PM902 1-454-887-21 SOLENOID, PLUNGER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-DX90 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 8-7. TAPE MECHANISM DECK SECTION-2 (TCM-230PWR11) 751 751 752 755 753 754 757 758 760 760 759 759 766 767 765 761 757 763 M901 #1 #1 #1 #9 756 764 762 758 751 3-041-946-01 BELT (CAPSTAN B) 752 4-227-239-01 BELT (CAPSTAN C) 753 X-3378-249-1 FLYWHEEL (B-FWD) ASSY 754 X-3378-250-1 FLYWHEEL (B-REV) ASSY 755 X-3378-247-1 FLYWHEEL (A-FWD) ASSY 756 X-3378-248-1 FLYWHEEL (A-REV) ASSY 757 3-041-947-01 BELT (FR) 758 3-359-464-01 WASHER (CAPSTAN) 759 3-359-464-11 WASHER (CAPSTAN) 760 3-041-499-02 SCREW (CAM), STEP 761 X-4952-881-1 CHASSIS ASSY, MAIN 762 4-227-456-11 WASHER (PULLEY) 763 3-019-208-01 WASHER, STOPPER 764 3-040-580-02 PULLEY (TENSION) 765 4-228-450-01 SPRING (REVERSE SLIDER), TORSION 766 A-2004-752-A BLOCK (A) ASSY, MECHANICAL 767 A-2004-753-A BLOCK (B) ASSY, MECHANICAL M901 X-3378-246-1 MOTOR ASSY (CAPSTAN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 HCD-DX90 BD SECTION 9 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-4724-934-A BD BOARD, COMPLETE ******************* < CAPACITOR > C101 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C102 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C103 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C104 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C108 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C109 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C110 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C111 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C112 1-107-682-11 CERAMIC CHIP 1uF 10% 16V C114 1-163-038-00 CERAMIC CHIP 0.1uF 25V C115 1-104-665-11 ELECT 100uF 20% 10V C116 1-104-665-11 ELECT 100uF 20% 10V C117 1-104-665-11 ELECT 100uF 20% 10V C118 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C119 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C121 1-163-038-00 CERAMIC CHIP 0.1uF 25V C122 1-104-665-11 ELECT 100uF 20% 10V C123 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C124 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C125 1-163-038-00 CERAMIC CHIP 0.1uF 25V C126 1-163-038-00 CERAMIC CHIP 0.1uF 25V C127 1-104-665-11 ELECT 100uF 20% 10V C129 1-163-031-11 CERAMIC CHIP 0.01uF 50V C130 1-164-346-11 CERAMIC CHIP 1uF 16V C131 1-126-964-11 ELECT 10uF 20% 50V C133 1-164-346-11 CERAMIC CHIP 1uF 16V C140 1-164-346-11 CERAMIC CHIP 1uF 16V C141 1-164-346-11 CERAMIC CHIP 1uF 16V C143 1-163-038-00 CERAMIC CHIP 0.1uF 25V C145 1-163-038-00 CERAMIC CHIP 0.1uF 25V C153 1-163-038-00 CERAMIC CHIP 0.1uF 25V C159 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C162 1-104-665-11 ELECT 100uF 20% 10V C163 1-104-665-11 ELECT 100uF 20% 10V C165 1-163-038-00 CERAMIC CHIP 0.1uF 25V C167 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C168 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C171 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C172 1-163-123-00 CERAMIC CHIP 180PF 5% 50V C181 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. C182 1-163-123-00 CERAMIC CHIP 180PF 5% 50V < CONNECTOR > CN101 1-784-741-11 CONNECTOR, FFC 19P CN102 1-793-907-11 CONNECTOR, FFC/FPC 16P < FERRITE BEAD > FB101 1-500-445-21 FERRITE 0uH FB103 1-500-445-21 FERRITE 0uH < IC > IC101 8-752-386-85 IC CXD2587Q IC102 8-759-549-28 IC BA5974FP-E2 IC103 8-752-085-51 IC CXA2568M-T6 < TRANSISTOR > Q101 8-729-049-31 TRANSISTOR 2SB710A-RTX < RESISTOR > R101 1-216-077-00 RES-CHIP 15K 5% 1/10W R102 1-216-097-11 RES-CHIP 100K 5% 1/10W R103 1-216-077-00 RES-CHIP 15K 5% 1/10W R104 1-216-085-00 RES-CHIP 33K 5% 1/10W R105 1-216-073-00 RES-CHIP 10K 5% 1/10W R106 1-216-049-11 RES-CHIP 1K 5% 1/10W R107 1-216-073-00 RES-CHIP 10K 5% 1/10W R108 1-216-061-00 RES-CHIP 3.3K 5% 1/10W R109 1-216-121-11 RES-CHIP 1M 5% 1/10W R110 1-216-025-11 RES-CHIP 100 5% 1/10W R111 1-216-121-11 RES-CHIP 1M 5% 1/10W R113 1-216-121-11 RES-CHIP 1M 5% 1/10W R114 1-216-073-00 RES-CHIP 10K 5% 1/10W R116 1-216-001-00 METAL CHIP 10 5% 1/10W R117 1-216-049-11 RES-CHIP 1K 5% 1/10W R118 1-216-025-11 RES-CHIP 100 5% 1/10W R119 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R123 1-216-073-00 RES-CHIP 10K 5% 1/10W R124 1-216-097-11 RES-CHIP 100K 5% 1/10W R131 1-216-033-00 METAL CHIP 220 5% 1/10W R143 1-216-103-00 METAL CHIP 180K 5% 1/10W R144 1-216-103-00 METAL CHIP 180K 5% 1/10W R147 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R148 1-216-001-00 METAL CHIP 10 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 53 HCD-DX90 BD CD SWITCH DRIVER HEAD (A) HEAD (B) LEAF SW R149 1-216-001-00 METAL CHIP 10 5% 1/10W R158 1-216-111-00 METAL CHIP 390K 5% 1/10W R159 1-216-101-00 METAL CHIP 150K 5% 1/10W R162 1-216-101-00 METAL CHIP 150K 5% 1/10W R171 1-216-078-00 RES-CHIP 16K 5% 1/10W R172 1-216-073-00 RES-CHIP 10K 5% 1/10W R173 1-216-077-00 RES-CHIP 15K 5% 1/10W R181 1-216-078-00 RES-CHIP 16K 5% 1/10W R182 1-216-073-00 RES-CHIP 10K 5% 1/10W R183 1-216-077-00 RES-CHIP 15K 5% 1/10W < NETWORK RESISTOR > RN101 1-233-576-11 RES, CHIP NETWORK 100 < SWITCH > S101 1-771-853-11 SWITCH, DETECTION (LIMIT IN) < VIBRATOR > X101 1-579-280-11 VIBRATOR, CRYSTAL (16.9344MHz) ************************************************************** A-4428-077-A CD SWITCH BOARD, COMPLETE ************************** < DIODE > D630 8-719-056-13 LED SML79423C-TP15 (DISC 1) D631 8-719-056-13 LED SML79423C-TP15 (DISC 2) D632 8-719-056-13 LED SML79423C-TP15 (DISC 3) < TRANSISTOR > Q630 8-729-422-57 TRANSISTOR BN1A4M-TP Q631 8-729-422-57 TRANSISTOR BN1A4M-TP Q632 8-729-422-57 TRANSISTOR BN1A4M-TP Q633 8-729-422-57 TRANSISTOR BN1A4M-TP Q634 8-729-422-57 TRANSISTOR BN1A4M-TP Q635 8-729-422-57 TRANSISTOR BN1A4M-TP < RESISTOR > R685 1-249-417-11 CARBON 1K 5% 1/4W F R686 1-249-418-11 CARBON 1.2K 5% 1/4W F R687 1-249-420-11 CARBON 1.8K 5% 1/4W F R688 1-249-422-11 CARBON 2.7K 5% 1/4W F R689 1-247-843-11 CARBON 3.3K 5% 1/4W R750 1-249-406-11 CARBON 120 5% 1/4W F R751 1-249-406-11 CARBON 120 5% 1/4W F R752 1-249-406-11 CARBON 120 5% 1/4W F R753 1-249-406-11 CARBON 120 5% 1/4W F R754 1-249-406-11 CARBON 120 5% 1/4W F R755 1-249-406-11 CARBON 120 5% 1/4W F < SWITCH > S642 1-762-875-21 SWITCH, KEYBOARD (DISC SKIP/EX-CHANGE) S643 1-762-875-21 SWITCH, KEYBOARD (DISC 1) S644 1-762-875-21 SWITCH, KEYBOARD (DISC 2) S645 1-762-875-21 SWITCH, KEYBOARD (DISC 3) S646 1-762-875-21 SWITCH, KEYBOARD (Z OPEN/CLOSE) ************************************************************** 1-675-912-14 DRIVER BOARD ************* < CAPACITOR > C702 1-126-964-51 ELECT 10uF 20% 50V < CONNECTOR > CN701 1-785-336-11 PIN, CONNECTOR (LIGHT ANGLE) 10P CN702 1-785-550-11 CONNECTOR, FFC/FPC 8P < DIODE > D701 8-719-109-66 DIODE MTZJ-T-77-3.3B < IC > IC701 8-759-598-69 IC BA6956AN < RESISTOR > R701 1-249-411-11 CARBON 330 5% 1/4W R702 1-249-401-11 CARBON 47 5% 1/4W F ************************************************************** A-2007-839-A HEAD (A) BOARD, COMPLETE ************************ < CONNECTOR > * CN1 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P ************************************************************** A-2007-840-A HEAD (B) BOARD, COMPLETE ************************ CN2 1-564-722-11 PIN, CONNECTOR (SMALL TYPE) 6P ************************************************************** A-2007-838-A LEAF SW BOARD, COMPLETE ************************ < CAPACITOR > C1001 1-107-716-11 ELECT 33uF 20% 10V < CONNECTOR > CN1001 1-568-860-21 SOCKET, CONNECTOR 17P < DIODE > D1001 8-719-911-19 DIODE 1SS133T-72 D1002 8-719-911-19 DIODE 1SS133T-72 < IC > IC1001 8-749-016-76 IC RPI-321 IC1002 8-749-016-76 IC RPI-321 < TRANSISTOR > Q1001 8-729-029-56 TRANSISTOR DTA144ESA-TP < RESISTOR > R907 1-247-879-11 CARBON 100K 5% 1/4W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 54 HCD-DX90 LEAF SW MAIN R1001 1-249-409-11 CARBON 220 5% 1/4W F R1002 1-249-409-11 CARBON 220 5% 1/4W F R1003 1-249-414-11 CARBON 560 5% 1/4W F R1004 1-247-834-11 CARBON 1.3K 5% 1/4W R1005 1-247-818-11 CARBON 300 5% 1/4W R1006 1-247-864-11 CARBON 24K 5% 1/4W R1007 1-247-780-00 CARBON 7.5 5% 1/4W R1008 1-249-417-11 CARBON 1K 5% 1/4W F < VARIABLE RESISTOR > RV1001 1-241-785-11 RES, ADJ, CARBON 10K RV1002 1-241-785-11 RES, ADJ, CARBON 10K < SWITCH > S1001 1-570-953-11 SWITCH, PUSH (1 KEY) (DECK A PLAY) S1002 1-570-953-11 SWITCH, PUSH (1 KEY) (DECK B PLAY) S1003 1-771-333-11 SWITCH, LEAF (DECK A HALF) S1004 1-771-536-12 SWITCH, LEAF (DECK A 120/70) S1005 1-771-536-12 SWITCH, LEAF (DECK A REC) S1006 1-771-333-11 SWITCH, LEAF (DECK B HALF) S1008 1-771-536-12 SWITCH, LEAF (DECK B 120/70) S1009 1-771-536-12 SWITCH, LEAF (DECK B REC) ************************************************************** A-4473-087-A MAIN BOARD, COMPLETE ********************* 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S < CAPACITOR > C101 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C102 1-126-961-11 ELECT 2.2uF 20% 50V C103 1-126-964-11 ELECT 10uF 20% 50V C104 1-126-964-11 ELECT 10uF 20% 50V C105 1-126-964-11 ELECT 10uF 20% 50V C106 1-136-161-00 FILM 0.047uF 5% 50V C107 1-136-495-11 FILM 0.068uF 5% 50V C108 1-136-495-11 FILM 0.068uF 5% 50V C109 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C110 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C111 1-163-018-00 CERAMIC CHIP 0.0056uF 5% 50V C112 1-126-961-11 ELECT 2.2uF 20% 50V C113 1-126-957-11 ELECT 0.22uF 20% 50V C115 1-136-169-00 FILM 0.22uF 5% 50V C116 1-136-169-00 FILM 0.22uF 5% 50V C117 1-126-964-11 ELECT 10uF 20% 50V C118 1-126-961-11 ELECT 2.2uF 20% 50V C121 1-126-964-11 ELECT 10uF 20% 50V C122 1-126-964-11 ELECT 10uF 20% 50V C123 1-126-964-11 ELECT 10uF 20% 50V C124 1-163-038-00 CERAMIC CHIP 0.1uF 25V C125 1-126-964-11 ELECT 10uF 20% 50V C131 1-136-169-00 FILM 0.22uF 5% 50V C132 1-126-964-11 ELECT 10uF 20% 50V C133 1-126-935-11 ELECT 470uF 20% 10V C134 1-163-038-00 CERAMIC CHIP 0.1uF 25V C135 1-126-964-11 ELECT 10uF 20% 50V C140 1-163-038-00 CERAMIC CHIP 0.1uF 25V C142 1-163-038-00 CERAMIC CHIP 0.1uF 25V C144 1-126-964-11 ELECT 10uF 20% 50V C146 1-126-935-11 ELECT 470uF 20% 10V C151 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C152 1-126-961-11 ELECT 2.2uF 20% 50V C153 1-126-964-11 ELECT 10uF 20% 50V C154 1-126-964-11 ELECT 10uF 20% 50V C155 1-126-964-11 ELECT 10uF 20% 50V C156 1-136-161-00 FILM 0.047uF 5% 50V C157 1-136-495-11 FILM 0.068uF 5% 50V C158 1-136-495-11 FILM 0.068uF 5% 50V C159 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C160 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C161 1-163-018-00 CERAMIC CHIP 0.0056uF 5% 50V C162 1-126-961-11 ELECT 2.2uF 20% 50V C165 1-136-169-00 FILM 0.22uF 5% 50V C166 1-136-169-00 FILM 0.22uF 5% 50V C167 1-126-964-11 ELECT 10uF 20% 50V C171 1-126-964-11 ELECT 10uF 20% 50V C172 1-126-964-11 ELECT 10uF 20% 50V C175 1-126-964-11 ELECT 10uF 20% 50V C199 1-163-038-00 CERAMIC CHIP 0.1uF 25V C201 1-104-665-11 ELECT 100uF 20% 10V C202 1-126-935-11 ELECT 470uF 20% 10V C203 1-163-033-00 CERAMIC CHIP 0.022uF 50V C204 1-126-961-11 ELECT 2.2uF 20% 50V C205 1-163-033-00 CERAMIC CHIP 0.022uF 50V C206 1-126-961-11 ELECT 2.2uF 20% 50V C207 1-126-916-11 ELECT 1000uF 20% 6.3V C208 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C209 1-126-935-11 ELECT 470uF 20% 10V C212 1-163-009-91 CERAMIC CHIP 0.001uF 10% 50V C301 1-126-960-11 ELECT 1uF 20% 50V C302 1-130-479-00 MYLAR 0.0047uF 5% 50V C303 1-136-165-00 FILM 0.1uF 5% 50V C304 1-136-165-00 FILM 0.1uF 5% 50V C305 1-126-964-11 ELECT 10uF 20% 50V C306 1-126-960-11 ELECT 1uF 20% 50V C307 1-126-959-11 ELECT 0.47uF 20% 50V C308 1-126-964-11 ELECT 10uF 20% 50V C309 1-137-194-11 FILM 0.47uF 5% 50V C310 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C311 1-126-964-11 ELECT 10uF 20% 50V C312 1-126-959-11 ELECT 0.47uF 20% 50V C313 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C314 1-126-964-11 ELECT 10uF 20% 50V C315 1-126-963-11 ELECT 4.7uF 20% 50V C316 1-126-933-11 ELECT 100uF 20% 16V C317 1-104-665-11 ELECT 100uF 20% 10V C318 1-126-964-11 ELECT 10uF 20% 50V C319 1-126-961-11 ELECT 2.2uF 20% 50V C320 1-126-961-11 ELECT 2.2uF 20% 50V C321 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C322 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C323 1-136-157-00 FILM 0.022uF 5% 50V C324 1-126-964-11 ELECT 10uF 20% 50V C325 1-126-965-11 ELECT 22uF 20% 50V C326 1-163-131-00 CERAMIC CHIP 390PF 5% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 55 HCD-DX90 C327 1-104-665-11 ELECT 100uF 20% 10V C328 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C329 1-130-483-00 MYLAR 0.01uF 5% 50V C330 1-126-964-11 ELECT 10uF 20% 50V C331 1-126-965-11 ELECT 22uF 20% 50V C332 1-137-427-11 MYLAR 120PF 5% 50V C333 1-163-003-11 CERAMIC CHIP 330PF 10% 50V C334 1-163-103-00 CERAMIC CHIP 27PF 5% 50V C335 1-137-150-11 MYLAR 0.01uF 5% 100V C336 1-126-961-11 ELECT 2.2uF 20% 50V C337 1-136-155-00 FILM 0.015uF 5% 50V C338 1-130-481-00 MYLAR 0.0068uF 5% 50V C339 1-130-481-00 MYLAR 0.0068uF 5% 50V C340 1-136-156-00 FILM 0.018uF 5% 50V C341 1-126-960-11 ELECT 1uF 20% 50V C342 1-104-660-11 ELECT 47uF 20% 16V C351 1-126-960-11 ELECT 1uF 20% 50V C352 1-130-479-00 MYLAR 0.0047uF 5% 50V C353 1-136-165-00 FILM 0.1uF 5% 50V C354 1-136-165-00 FILM 0.1uF 5% 50V C355 1-126-964-11 ELECT 10uF 20% 50V C356 1-126-960-11 ELECT 1uF 20% 50V C357 1-126-959-11 ELECT 0.47uF 20% 50V C358 1-126-964-11 ELECT 10uF 20% 50V C359 1-137-194-11 FILM 0.47uF 5% 50V C360 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C362 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C363 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C368 1-126-964-11 ELECT 10uF 20% 50V C369 1-126-961-11 ELECT 2.2uF 20% 50V C370 1-126-961-11 ELECT 2.2uF 20% 50V C371 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C372 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C373 1-136-157-00 FILM 0.022uF 5% 50V C374 1-126-964-11 ELECT 10uF 20% 50V C375 1-126-965-11 ELECT 22uF 20% 50V C376 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C377 1-104-665-11 ELECT 100uF 20% 10V C378 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C379 1-130-483-00 MYLAR 0.01uF 5% 50V C380 1-126-964-11 ELECT 10uF 20% 50V C381 1-126-965-11 ELECT 22uF 20% 50V C382 1-137-427-11 MYLAR 120PF 5% 50V C383 1-163-003-11 CERAMIC CHIP 330PF 10% 50V C384 1-163-103-00 CERAMIC CHIP 27PF 5% 50V C385 1-126-964-11 ELECT 10uF 20% 50V C395 1-163-038-00 CERAMIC CHIP 0.1uF 25V C410 1-163-233-11 CERAMIC CHIP 18PF 5% 50V C411 1-163-231-11 CERAMIC CHIP 15PF 5% 50V C414 1-163-038-00 CERAMIC CHIP 0.1uF 25V C416 1-126-916-11 ELECT 1000uF 20% 6.3V C462 1-104-665-11 ELECT 100uF 20% 10V C464 1-163-031-11 CERAMIC CHIP 0.01uF 50V C497 1-126-964-11 ELECT 10uF 20% 50V C498 1-163-038-00 CERAMIC CHIP 0.1uF 25V C501 1-136-165-00 FILM 0.1uF 5% 50V C502 1-136-165-00 FILM 0.1uF 5% 50V C503 1-126-964-11 ELECT 10uF 20% 50V C504 1-109-953-11 ELECT 2.2uF 20% 50V C505 1-163-038-00 CERAMIC CHIP 0.1uF 25V C601 1-163-031-11 CERAMIC CHIP 0.01uF 50V C602 1-163-031-11 CERAMIC CHIP 0.01uF 50V C603 1-104-660-11 ELECT 47uF 20% 16V C604 1-163-031-11 CERAMIC CHIP 0.01uF 50V C605 1-163-031-11 CERAMIC CHIP 0.01uF 50V C607 1-216-295-11 SHORT 0 C611 1-104-660-11 ELECT 47uF 20% 16V C612 1-163-031-11 CERAMIC CHIP 0.01uF 50V C613 1-126-960-11 ELECT 1uF 20% 50V C614 1-163-031-11 CERAMIC CHIP 0.01uF 50V C615 1-163-031-11 CERAMIC CHIP 0.01uF 50V C616 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C617 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C618 1-126-957-11 ELECT 0.22uF 20% 50V C619 1-163-075-00 CERAMIC CHIP 0.047uF 50V C620 1-126-962-11 ELECT 3.3uF 20% 50V C621 1-126-962-11 ELECT 3.3uF 20% 50V C622 1-104-660-11 ELECT 47uF 20% 16V C623 1-126-964-11 ELECT 10uF 20% 50V C624 1-126-960-11 ELECT 1uF 20% 50V C625 1-163-125-00 CERAMIC CHIP 220PF 5% 50V C626 1-104-760-11 CERAMIC CHIP 0.047uF 10% 50V C628 1-163-117-00 CERAMIC CHIP 100PF 5% 50V C629 1-126-965-11 ELECT 22uF 20% 50V C630 1-126-964-11 ELECT 10uF 20% 50V C631 1-163-031-11 CERAMIC CHIP 0.01uF 50V C632 1-126-933-11 ELECT 100uF 20% 16V C633 1-163-031-11 CERAMIC CHIP 0.01uF 50V C634 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V C635 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V C636 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C637 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C641 1-163-031-11 CERAMIC CHIP 0.01uF 50V C644 1-163-087-00 CERAMIC CHIP 4PF 50V C645 1-163-031-11 CERAMIC CHIP 0.01uF 50V C651 1-163-239-11 CERAMIC CHIP 33PF 5% 50V C652 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C653 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C655 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C656 1-163-031-11 CERAMIC CHIP 0.01uF 50V C657 1-104-660-11 ELECT 47uF 20% 16V C658 1-126-961-11 ELECT 2.2uF 20% 50V C659 1-163-031-11 CERAMIC CHIP 0.01uF 50V C660 1-104-660-11 ELECT 47uF 20% 16V C661 1-163-031-11 CERAMIC CHIP 0.01uF 50V C662 1-126-959-11 ELECT 0.47uF 20% 50V C663 1-163-031-11 CERAMIC CHIP 0.01uF 50V C669 1-163-031-11 CERAMIC CHIP 0.01uF 50V C803 1-163-031-11 CERAMIC CHIP 0.01uF 50V C821 1-104-665-11 ELECT 100uF 20% 10V C822 1-126-961-11 ELECT 2.2uF 20% 50V C824 1-126-960-11 ELECT 1uF 20% 50V C841 1-126-959-11 ELECT 0.47uF 20% 50V C853 1-163-031-11 CERAMIC CHIP 0.01uF 50V C861 1-107-717-11 ELECT 47uF 20% 50V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 56 HCD-DX90 C862 1-107-721-11 ELECT 4.7uF 20% 100V C863 1-107-721-11 ELECT 4.7uF 20% 100V C891 1-126-964-11 ELECT 10uF 20% 50V C892 1-163-038-00 CERAMIC CHIP 0.1uF 25V C901 1-126-944-11 ELECT 3300uF 20% 25V C902 1-136-165-00 FILM 0.1uF 5% 50V C903 1-136-165-00 FILM 0.1uF 5% 50V C905 1-136-165-00 FILM 0.1uF 5% 50V C906 1-136-165-00 FILM 0.1uF 5% 50V C907 1-128-548-11 ELECT 4700uF 20% 25V C908 1-126-942-61 ELECT 1000uF 20% 25V C909 1-126-952-11 ELECT 1000uF 20% 35V C911 1-126-960-11 ELECT 1uF 20% 50V C912 1-126-916-11 ELECT 1000uF 20% 6.3V C921 1-126-960-11 ELECT 1uF 20% 50V C922 1-126-933-11 ELECT 100uF 20% 16V C925 1-104-665-11 ELECT 100uF 20% 10V C931 1-126-964-11 ELECT 10uF 20% 50V C932 1-126-935-11 ELECT 470uF 20% 10V C951 1-126-960-11 ELECT 1uF 20% 50V C961 1-126-960-11 ELECT 1uF 20% 50V C962 1-126-926-11 ELECT 1000uF 20% 10V < FILTER > CF601 1-760-023-11 FILTER, CERAMIC CF602 1-760-023-11 FILTER, CERAMIC < CONNECTOR > * CN201 1-569-913-11 S0CKET, CONNECTOR 19P CN202 1-785-336-11 PIN, CONNECTOR (LIGHT ANGLE) 10P * CN301 1-568-449-11 HOUSING, CONNECTOR (PC BOARD) 3P * CN304 1-569-934-11 SOCKET, CONNECTOR 17P CN401 1-793-766-11 CONNECTOR, BOARD TO BOARD 30P CN891 1-564-506-11 PLUG, CONNECTOR 3P CN901 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P CN902 1-778-982-21 CONNECTOR, BOARD TO BOARD 13P < DIODE > D501 8-719-988-61 DIODE 1SS355TE-17 D502 8-719-988-61 DIODE 1SS355TE-17 D503 8-719-988-61 DIODE 1SS355TE-17 D504 8-719-988-61 DIODE 1SS355TE-17 D505 8-719-988-61 DIODE 1SS355TE-17 D506 8-719-988-61 DIODE 1SS355TE-17 D511 8-719-988-61 DIODE 1SS355TE-17 D601 8-719-056-83 DIODE UDZ-TE-17-6.8B D641 8-719-914-42 DIODE DA204K-T-146 D651 8-719-988-61 DIODE 1SS355TE-17 D801 8-719-988-61 DIODE 1SS355TE-17 D822 8-719-988-61 DIODE 1SS355TE-17 D824 8-719-988-61 DIODE 1SS355TE-17 D841 8-719-988-61 DIODE 1SS355TE-17 D861 8-719-988-61 DIODE 1SS355TE-17 D891 8-719-988-61 DIODE 1SS355TE-17 D892 8-719-988-61 DIODE 1SS355TE-17 D901 8-719-200-82 DIODE 11ES2-TB5 D902 8-719-200-82 DIODE 11ES2-TB5 D903 8-719-200-82 DIODE 11ES2-TB5 D904 8-719-200-82 DIODE 11ES2-TB5 D906 8-719-200-82 DIODE 11ES2-TB5 D907 8-719-200-82 DIODE 11ES2-TB5 D908 8-719-200-82 DIODE 11ES2-TB5 D909 8-719-200-82 DIODE 11ES2-TB5 D910 8-719-200-82 DIODE 11ES2-TB5 D911 8-719-200-82 DIODE 11ES2-TB5 D952 8-719-988-61 DIODE 1SS355TE-17 D953 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB201 1-216-295-11 SHORT 0 FB202 1-216-295-11 SHORT 0 FB203 1-216-295-11 SHORT 0 FB204 1-216-295-11 SHORT 0 FB416 1-216-295-11 SHORT 0 FB462 1-216-295-11 SHORT 0 FB499 1-216-295-11 SHORT 0 < FRONT END > FE601 1-693-477-12 FRONT END (3 GANGS) < IC > IC101 8-759-652-04 IC M61504FP-TP IC102 8-759-099-06 IC M5218AFP-TE1 IC104 8-759-099-06 IC M5218AFP-TE1 IC201 8-749-923-04 IC TOTX178A IC301 8-759-652-02 IC HA12226F IC302 8-759-143-54 IC uPC1330HA IC303 8-759-656-83 IC NJM4580MD-TE IC304 8-759-656-83 IC NJM4580MD-TE IC401 8-759-695-14 IC M30622MAA-A60FP IC501 8-759-635-63 IC M51943BSL-TP IC601 8-759-652-00 IC BA1450 IC651 8-759-288-54 IC LC72130 IC911 8-759-039-69 IC uPC7805AHF IC921 8-759-088-08 IC uPC7812AHF IC931 8-759-071-48 IC TA7807S IC951 8-759-158-62 IC TA78057S IC961 8-759-701-59 IC M5F7809L < IFT > IFT601 1-435-295-12 TRANSFORMER, IF < JACK > J101 1-793-987-11 JACK, PIN 2P (MD/VIDEO (AUDIO)) < JUMPER RESISTOR > JR1 1-216-296-11 SHORT 0 JR2 1-216-296-11 SHORT 0 JR3 1-216-296-11 SHORT 0 JR4 1-216-296-11 SHORT 0 JR5 1-216-295-11 SHORT 0 JR6 1-216-296-11 SHORT 0 JR7 1-216-296-11 SHORT 0 JR8 1-216-295-11 SHORT 0 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 57 HCD-DX90 JR13 1-216-296-11 SHORT 0 JR14 1-216-296-11 SHORT 0 JR15 1-216-296-11 SHORT 0 JR17 1-216-296-11 SHORT 0 JR18 1-216-295-11 SHORT 0 JR19 1-216-296-11 SHORT 0 JR23 1-216-296-11 SHORT 0 JR25 1-216-296-11 SHORT 0 JR26 1-216-296-11 SHORT 0 JR27 1-216-296-11 SHORT 0 JR31 1-216-295-11 SHORT 0 JR32 1-216-296-11 SHORT 0 JR33 1-216-296-11 SHORT 0 JR34 1-216-295-11 SHORT 0 JR36 1-216-295-11 SHORT 0 JR37 1-216-296-11 SHORT 0 JR38 1-216-296-11 SHORT 0 JR42 1-216-295-11 SHORT 0 JR44 1-216-296-11 SHORT 0 JR51 1-216-296-11 SHORT 0 JR52 1-216-296-11 SHORT 0 JR54 1-216-295-11 SHORT 0 JR140 1-216-296-11 SHORT 0 JR601 1-216-296-11 SHORT 0 JR602 1-216-295-11 SHORT 0 JR603 1-216-296-11 SHORT 0 JR604 1-216-296-11 SHORT 0 JR605 1-216-296-11 SHORT 0 JR606 1-216-296-11 SHORT 0 JR607 1-216-295-11 SHORT 0 JR608 1-216-296-11 SHORT 0 JR609 1-216-295-11 SHORT 0 JR611 1-216-296-11 SHORT 0 JR615 1-216-295-11 SHORT 0 JR616 1-216-295-11 SHORT 0 JR619 1-216-295-11 SHORT 0 JR634 1-216-295-11 SHORT 0 JR640 1-216-295-11 SHORT 0 JR642 1-216-295-11 SHORT 0 JR908 1-216-295-11 SHORT 0 JR909 1-216-295-11 SHORT 0 JR922 1-216-097-11 RES-CHIP 100K 5% 1/10W < COIL > L201 1-414-189-31 INDUCTOR 100uH L301 1-410-780-11 INDUCTOR 27mH L302 1-414-193-41 INDUCTOR 220uH L303 1-414-193-41 INDUCTOR 220uH L351 1-410-780-11 INDUCTOR 27mH L642 1-216-296-11 SHORT 0 < FILTER > LPF601 1-234-458-21 FILTER, LOW PASS LPF602 1-234-458-21 FILTER, LOW PASS < TRANSISTOR > Q101 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q102 8-729-144-85 TRANSISTOR 2SK1133-T1B Q103 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q141 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q151 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q152 8-729-144-85 TRANSISTOR 2SK1133-T1B Q153 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q301 8-729-801-93 TRANSISTOR 2SD1387-34-TP Q302 8-729-142-46 TRANSISTOR 2SC2001TP-LK Q303 8-729-142-46 TRANSISTOR 2SC2001TP-LK Q304 8-729-113-69 TRANSISTOR FN1F4M-T1M32 Q305 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q391 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q392 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q393 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q394 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q395 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q396 8-729-116-57 TRANSISTOR 2SB1068TP-K Q397 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q501 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q503 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q504 8-729-113-69 TRANSISTOR FN1F4M-T1M32 Q505 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q601 8-729-053-95 TRANSISTOR 2SC2715-OY-TE85L Q602 8-729-422-57 TRANSISTOR BN1A4M-TP Q611 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q612 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q821 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q822 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q823 8-729-216-22 TRANSISTOR 2SA812-T1-M5M6 Q824 8-729-113-13 TRANSISTOR FA1A4M-T1L33 Q825 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q828 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q829 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q861 8-729-113-69 TRANSISTOR FN1F4M-T1M32 Q862 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q863 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q891 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q892 8-729-620-05 TRANSISTOR 2SC2603TP-EF Q911 8-729-141-83 TRANSISTOR 2SB1375 Q912 8-729-113-13 TRANSISTOR FA1A4M-T1L33 < RESISTOR > R101 1-216-049-11 RES-CHIP 1K 5% 1/10W R103 1-216-073-00 RES-CHIP 10K 5% 1/10W R104 1-216-073-00 RES-CHIP 10K 5% 1/10W R105 1-216-097-11 RES-CHIP 100K 5% 1/10W R107 1-216-105-00 RES-CHIP 220K 5% 1/10W R108 1-216-097-11 RES-CHIP 100K 5% 1/10W R109 1-216-073-00 RES-CHIP 10K 5% 1/10W R110 1-216-045-00 METAL CHIP 680 5% 1/10W R111 1-216-073-00 RES-CHIP 10K 5% 1/10W R112 1-216-089-11 RES-CHIP 47K 5% 1/10W R113 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R114 1-216-097-11 RES-CHIP 100K 5% 1/10W R115 1-216-073-00 RES-CHIP 10K 5% 1/10W R116 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R121 1-216-224-11 RES-CHIP 12K 5% 1/8W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 58 HCD-DX90 R122 1-216-073-00 RES-CHIP 10K 5% 1/10W R123 1-216-073-00 RES-CHIP 10K 5% 1/10W R124 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R125 1-216-073-00 RES-CHIP 10K 5% 1/10W R132 1-216-049-11 RES-CHIP 1K 5% 1/10W R133 1-216-049-11 RES-CHIP 1K 5% 1/10W R134 1-216-049-11 RES-CHIP 1K 5% 1/10W R141 1-216-049-11 RES-CHIP 1K 5% 1/10W R142 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R143 1-216-089-11 RES-CHIP 47K 5% 1/10W R144 1-216-295-11 SHORT 0 R145 1-216-041-00 METAL CHIP 470 5% 1/10W R146 1-216-041-00 METAL CHIP 470 5% 1/10W R147 1-216-041-00 METAL CHIP 470 5% 1/10W R151 1-216-049-11 RES-CHIP 1K 5% 1/10W R153 1-216-073-00 RES-CHIP 10K 5% 1/10W R154 1-216-073-00 RES-CHIP 10K 5% 1/10W R155 1-216-097-11 RES-CHIP 100K 5% 1/10W R157 1-216-105-00 RES-CHIP 220K 5% 1/10W R158 1-216-097-11 RES-CHIP 100K 5% 1/10W R159 1-216-073-00 RES-CHIP 10K 5% 1/10W R160 1-216-045-00 METAL CHIP 680 5% 1/10W R161 1-216-222-00 RES-CHIP 10K 5% 1/8W R162 1-216-089-11 RES-CHIP 47K 5% 1/10W R163 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R164 1-216-097-11 RES-CHIP 100K 5% 1/10W R165 1-216-073-00 RES-CHIP 10K 5% 1/10W R166 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R171 1-216-075-00 METAL CHIP 12K 5% 1/10W R172 1-216-073-00 RES-CHIP 10K 5% 1/10W R173 1-216-073-00 RES-CHIP 10K 5% 1/10W R175 1-216-073-00 RES-CHIP 10K 5% 1/10W R201 1-216-025-11 RES-CHIP 100 5% 1/10W R202 1-216-085-00 RES-CHIP 33K 5% 1/10W R203 1-216-025-11 RES-CHIP 100 5% 1/10W R204 1-216-085-00 RES-CHIP 33K 5% 1/10W R301 1-216-079-00 METAL CHIP 18K 5% 1/10W R302 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R303 1-216-025-11 RES-CHIP 100 5% 1/10W R304 1-216-025-11 RES-CHIP 100 5% 1/10W R305 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R306 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R307 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R308 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R309 1-216-081-00 METAL CHIP 22K 5% 1/10W R311 1-216-121-11 RES-CHIP 1M 5% 1/10W R312 1-216-102-00 RES-CHIP 160K 5% 1/10W R313 1-216-097-11 RES-CHIP 100K 5% 1/10W R315 1-216-073-00 RES-CHIP 10K 5% 1/10W R316 1-216-234-00 RES-CHIP 33K 5% 1/8W R317 1-216-222-00 RES-CHIP 10K 5% 1/8W R318 1-216-073-00 RES-CHIP 10K 5% 1/10W R319 1-216-111-00 METAL CHIP 390K 5% 1/10W R320 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R321 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R331 1-216-099-00 METAL CHIP 120K 5% 1/10W R332 1-216-025-11 RES-CHIP 100 5% 1/10W R333 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R334 1-216-100-00 RES-CHIP 130K 5% 1/10W R335 1-216-033-00 METAL CHIP 220 5% 1/10W R336 1-216-099-00 METAL CHIP 120K 5% 1/10W R337 1-216-033-00 METAL CHIP 220 5% 1/10W R338 1-216-081-00 METAL CHIP 22K 5% 1/10W R339 1-216-075-00 METAL CHIP 12K 5% 1/10W R340 1-216-107-00 METAL CHIP 270K 5% 1/10W R341 1-216-033-00 METAL CHIP 220 5% 1/10W R342 1-216-075-00 METAL CHIP 12K 5% 1/10W 0R343 1-219-787-17 FUSIBLE 5.6 5% 1/4W 0R344 1-219-787-17 FUSIBLE 5.6 5% 1/4W R345 1-216-079-00 METAL CHIP 18K 5% 1/10W R346 1-216-079-00 METAL CHIP 18K 5% 1/10W R347 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R351 1-216-079-00 METAL CHIP 18K 5% 1/10W R352 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R353 1-216-025-11 RES-CHIP 100 5% 1/10W R354 1-216-025-11 RES-CHIP 100 5% 1/10W R355 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R356 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R357 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R358 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R359 1-216-085-00 RES-CHIP 33K 5% 1/10W R360 1-216-045-00 METAL CHIP 680 5% 1/10W R361 1-216-049-11 RES-CHIP 1K 5% 1/10W R363 1-216-049-11 RES-CHIP 1K 5% 1/10W R364 1-216-045-00 METAL CHIP 680 5% 1/10W R366 1-216-061-00 RES-CHIP 3.3K 5% 1/10W R367 1-216-089-11 RES-CHIP 47K 5% 1/10W R368 1-216-061-00 RES-CHIP 3.3K 5% 1/10W R369 1-216-061-00 RES-CHIP 3.3K 5% 1/10W R371 1-216-238-00 RES-CHIP 47K 5% 1/8W R372 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R373 1-216-049-11 RES-CHIP 1K 5% 1/10W R374 1-216-089-11 RES-CHIP 47K 5% 1/10W R375 1-216-094-00 RES-CHIP 75K 5% 1/10W R376 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R377 1-216-089-11 RES-CHIP 47K 5% 1/10W R378 1-216-094-00 RES-CHIP 75K 5% 1/10W R381 1-216-099-00 METAL CHIP 120K 5% 1/10W R382 1-216-025-11 RES-CHIP 100 5% 1/10W R383 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R384 1-216-100-00 RES-CHIP 130K 5% 1/10W R385 1-216-296-11 SHORT 0 R386 1-216-099-00 METAL CHIP 120K 5% 1/10W R387 1-216-033-00 METAL CHIP 220 5% 1/10W R388 1-216-081-00 METAL CHIP 22K 5% 1/10W R389 1-216-075-00 METAL CHIP 12K 5% 1/10W R390 1-216-107-00 METAL CHIP 270K 5% 1/10W R391 1-216-296-11 SHORT 0 R392 1-216-075-00 METAL CHIP 12K 5% 1/10W R393 1-216-081-00 METAL CHIP 22K 5% 1/10W R394 1-216-033-00 METAL CHIP 220 5% 1/10W R396 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R407 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R409 1-216-295-11 SHORT 0 R411 1-216-109-00 METAL CHIP 330K 5% 1/10W The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 59 HCD-DX90 R413 1-216-295-11 SHORT 0 R417 1-216-073-00 RES-CHIP 10K 5% 1/10W R418 1-216-025-11 RES-CHIP 100 5% 1/10W R419 1-216-025-11 RES-CHIP 100 5% 1/10W R429 1-216-025-11 RES-CHIP 100 5% 1/10W R430 1-216-025-11 RES-CHIP 100 5% 1/10W R432 1-216-025-11 RES-CHIP 100 5% 1/10W R433 1-216-025-11 RES-CHIP 100 5% 1/10W R435 1-216-041-00 METAL CHIP 470 5% 1/10W R437 1-216-041-00 METAL CHIP 470 5% 1/10W R440 1-216-041-00 METAL CHIP 470 5% 1/10W R441 1-216-025-11 RES-CHIP 100 5% 1/10W R442 1-216-025-11 RES-CHIP 100 5% 1/10W R443 1-216-025-11 RES-CHIP 100 5% 1/10W R444 1-216-025-11 RES-CHIP 100 5% 1/10W R445 1-216-025-11 RES-CHIP 100 5% 1/10W R446 1-216-025-11 RES-CHIP 100 5% 1/10W R447 1-216-025-11 RES-CHIP 100 5% 1/10W R448 1-216-025-11 RES-CHIP 100 5% 1/10W R449 1-216-025-11 RES-CHIP 100 5% 1/10W R467 1-216-025-11 RES-CHIP 100 5% 1/10W R468 1-216-025-11 RES-CHIP 100 5% 1/10W R469 1-216-025-11 RES-CHIP 100 5% 1/10W R483 1-216-073-00 RES-CHIP 10K 5% 1/10W R484 1-216-073-00 RES-CHIP 10K 5% 1/10W R490 1-216-174-00 RES-CHIP 100 5% 1/8W R491 1-216-174-00 RES-CHIP 100 5% 1/8W R493 1-216-174-00 RES-CHIP 100 5% 1/8W R494 1-216-295-11 SHORT 0 R495 1-216-081-00 METAL CHIP 22K 5% 1/10W R496 1-216-089-11 RES-CHIP 47K 5% 1/10W R497 1-216-081-00 METAL CHIP 22K 5% 1/10W R498 1-216-089-11 RES-CHIP 47K 5% 1/10W R499 1-216-025-11 RES-CHIP 100 5% 1/10W R501 1-216-073-00 RES-CHIP 10K 5% 1/10W R502 1-216-089-11 RES-CHIP 47K 5% 1/10W R503 1-216-089-11 RES-CHIP 47K 5% 1/10W R504 1-216-025-11 RES-CHIP 100 5% 1/10W R505 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R506 1-216-041-00 METAL CHIP 470 5% 1/10W R508 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R509 1-216-081-00 METAL CHIP 22K 5% 1/10W R510 1-216-097-11 RES-CHIP 100K 5% 1/10W R511 1-216-174-00 RES-CHIP 100 5% 1/8W R523 1-216-073-00 RES-CHIP 10K 5% 1/10W R524 1-216-073-00 RES-CHIP 10K 5% 1/10W R546 1-216-073-00 RES-CHIP 10K 5% 1/10W R547 1-216-073-00 RES-CHIP 10K 5% 1/10W R548 1-216-073-00 RES-CHIP 10K 5% 1/10W R566 1-216-073-00 RES-CHIP 10K 5% 1/10W R601 1-216-295-11 SHORT 0 R602 1-216-029-00 METAL CHIP 150 5% 1/10W R603 1-216-037-00 METAL CHIP 330 5% 1/10W R604 1-216-017-00 RES-CHIP 47 5% 1/10W R605 1-216-045-00 METAL CHIP 680 5% 1/10W R606 1-216-037-00 METAL CHIP 330 5% 1/10W R607 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R608 1-216-017-00 RES-CHIP 47 5% 1/10W R610 1-216-045-00 METAL CHIP 680 5% 1/10W R611 1-216-182-00 RES-CHIP 220 5% 1/8W R612 1-216-214-00 RES-CHIP 4.7K 5% 1/8W R613 1-216-206-00 RES-CHIP 2.2K 5% 1/8W R614 1-216-041-00 METAL CHIP 470 5% 1/10W R615 1-216-049-11 RES-CHIP 1K 5% 1/10W R616 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R617 1-216-041-00 METAL CHIP 470 5% 1/10W R618 1-216-049-11 RES-CHIP 1K 5% 1/10W R619 1-216-025-11 RES-CHIP 100 5% 1/10W R620 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R621 1-216-075-00 METAL CHIP 12K 5% 1/10W R622 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R623 1-216-073-00 RES-CHIP 10K 5% 1/10W R624 1-216-073-00 RES-CHIP 10K 5% 1/10W R625 1-216-073-00 RES-CHIP 10K 5% 1/10W R641 1-216-097-11 RES-CHIP 100K 5% 1/10W R642 1-216-073-00 RES-CHIP 10K 5% 1/10W R655 1-216-073-00 RES-CHIP 10K 5% 1/10W R656 1-216-222-00 RES-CHIP 10K 5% 1/8W R658 1-216-174-00 RES-CHIP 100 5% 1/8W R659 1-216-061-00 RES-CHIP 3.3K 5% 1/10W R660 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R661 1-216-025-11 RES-CHIP 100 5% 1/10W R662 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R663 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R664 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R665 1-216-025-11 RES-CHIP 100 5% 1/10W R666 1-216-073-00 RES-CHIP 10K 5% 1/10W R667 1-216-222-00 RES-CHIP 10K 5% 1/8W R668 1-216-049-11 RES-CHIP 1K 5% 1/10W R669 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R804 1-216-089-11 RES-CHIP 47K 5% 1/10W R821 1-216-238-00 RES-CHIP 47K 5% 1/8W R822 1-216-240-00 RES-CHIP 56K 5% 1/8W R823 1-216-222-00 RES-CHIP 10K 5% 1/8W R824 1-216-089-11 RES-CHIP 47K 5% 1/10W R825 1-216-061-00 RES-CHIP 3.3K 5% 1/10W R826 1-216-085-00 RES-CHIP 33K 5% 1/10W R827 1-216-081-00 METAL CHIP 22K 5% 1/10W R829 1-216-230-00 RES-CHIP 22K 5% 1/8W R830 1-216-214-00 RES-CHIP 4.7K 5% 1/8W R831 1-216-214-00 RES-CHIP 4.7K 5% 1/8W R841 1-216-081-00 METAL CHIP 22K 5% 1/10W R842 1-216-081-00 METAL CHIP 22K 5% 1/10W R843 1-216-214-00 RES-CHIP 4.7K 5% 1/8W R844 1-216-097-11 RES-CHIP 100K 5% 1/10W R845 1-216-121-11 RES-CHIP 1M 5% 1/10W R854 1-216-089-11 RES-CHIP 47K 5% 1/10W R861 1-216-049-11 RES-CHIP 1K 5% 1/10W R862 1-216-073-00 RES-CHIP 10K 5% 1/10W R863 1-216-089-11 RES-CHIP 47K 5% 1/10W R864 1-216-049-11 RES-CHIP 1K 5% 1/10W R865 1-216-049-11 RES-CHIP 1K 5% 1/10W R866 1-216-019-00 METAL CHIP 56 5% 1/10W R868 1-215-891-11 METAL OXIDE 680 5% 2W R869 1-215-891-11 METAL OXIDE 680 5% 2W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 60 HCD-DX90 R891 1-216-222-00 RES-CHIP 10K 5% 1/8W R892 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R893 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R895 1-216-295-11 SHORT 0 R901 1-249-405-11 CARBON 100 5% 1/4W F R911 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R912 1-216-206-00 RES-CHIP 2.2K 5% 1/8W R914 1-216-206-00 RES-CHIP 2.2K 5% 1/8W R966 1-216-019-00 METAL CHIP 56 5% 1/10W < COMPOSITION CIRCUIT BLOCK > RB641 1-234-457-11 ENCAPSULATED COMPONENT < VARIABLE RESISTOR > RV301 1-241-764-11 RES, ADJ, CARBON 10K RV302 1-241-762-11 RES, ADJ, CARBON 2.2K RV303 1-241-762-11 RES, ADJ, CARBON 2.2K RV304 1-241-768-11 RES, ADJ, CARBON 220K RV351 1-241-764-11 RES, ADJ, CARBON 10K RV352 1-241-762-11 RES, ADJ, CARBON 2.2K RV353 1-241-762-11 RES, ADJ, CARBON 2.2K RV354 1-241-768-11 RES, ADJ, CARBON 220K RV611 1-241-765-11 RES, ADJ, CARBON 22K < RELAY > RY801 1-755-372-11 RELAY < TRANSFORMER > T301 1-423-980-11 TRANSFORMER, BIAS OSCILLATION T601 1-435-195-31 TRANSFORMER, DISCRIMINATOR < TERMINAL > TM601 1-694-555-12 TERMINAL BOARD (4P) (ANTENNA) TM801 1-694-635-12 TERMINAL BOARD (4P) (SPEAKER) < VIBRATOR > X401 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) X402 1-781-107-21 VIBRATOR, CERAMIC (16MHz) X651 1-760-549-31 VIBRATOR, CRYSTAL (4.5MHz) ************************************************************** 1-675-910-14 MOTOR BOARD ************* < CAPACITOR > C721 1-162-306-11 CERAMIC 0.01uF 30% 16V < CONNECTOR > CN721 1-770-516-31 CONNECTOR, FFC 8P CN722 1-785-330-11 PIN, CONNECTOR (LIGHT ANGLE) 4P < SWITCH > S701 1-771-822-11 SWITCH, LEVER (SLIDE) (OPEN/CLOSE) ************************************************************** A-4476-248-A PANEL BOARD, COMPLETE ********************** 4-224-584-12 HOLDER (FL) < CAPACITOR > C601 1-124-589-11 ELECT 47uF 20% 16V C602 1-126-163-11 ELECT 4.7uF 20% 50V C603 1-162-306-11 CERAMIC 0.01uF 30% 16V C604 1-162-294-31 CERAMIC 0.001uF 10% 50V C605 1-162-306-11 CERAMIC 0.01uF 30% 16V C606 1-162-294-31 CERAMIC 0.001uF 10% 50V C607 1-104-664-11 ELECT 47uF 20% 10V C608 1-162-306-11 CERAMIC 0.01uF 30% 16V C609 1-162-306-11 CERAMIC 0.01uF 30% 16V C612 1-162-303-11 CERAMIC 0.0033uF 30% 16V C615 1-126-163-11 ELECT 4.7uF 20% 50V C616 1-162-306-11 CERAMIC 0.01uF 30% 16V C617 1-162-294-31 CERAMIC 0.001uF 10% 50V C620 1-126-933-11 ELECT 100uF 20% 16V C621 1-104-660-11 ELECT 47uF 20% 16V C651 1-164-159-21 CERAMIC 0.1uF 50V C652 1-126-966-11 ELECT 33uF 20% 50V C653 1-126-966-11 ELECT 33uF 20% 50V C654 1-164-159-21 CERAMIC 0.1uF 50V C655 1-162-282-31 CERAMIC 100PF 10% 50V C656 1-162-282-31 CERAMIC 100PF 10% 50V C657 1-162-282-31 CERAMIC 100PF 10% 50V C658 1-162-282-31 CERAMIC 100PF 10% 50V C659 1-162-282-31 CERAMIC 100PF 10% 50V C660 1-162-282-31 CERAMIC 100PF 10% 50V C661 1-162-282-31 CERAMIC 100PF 10% 50V C662 1-162-282-31 CERAMIC 100PF 10% 50V C663 1-162-282-31 CERAMIC 100PF 10% 50V C664 1-162-282-31 CERAMIC 100PF 10% 50V C665 1-162-282-31 CERAMIC 100PF 10% 50V C666 1-162-282-31 CERAMIC 100PF 10% 50V C667 1-162-282-31 CERAMIC 100PF 10% 50V C668 1-162-282-31 CERAMIC 100PF 10% 50V C669 1-162-282-31 CERAMIC 100PF 10% 50V C670 1-162-282-31 CERAMIC 100PF 10% 50V C671 1-162-282-31 CERAMIC 100PF 10% 50V C717 1-104-665-11 ELECT 100uF 20% 10V C718 1-104-665-11 ELECT 100uF 20% 10V C719 1-126-961-11 ELECT 2.2uF 20% 50V C736 1-126-964-11 ELECT 10uF 20% 50V C737 1-126-964-11 ELECT 10uF 20% 50V C738 1-126-961-11 ELECT 2.2uF 20% 50V C739 1-162-215-31 CERAMIC 47PF 5% 50V C740 1-162-282-31 CERAMIC 100PF 10% 50V C741 1-124-463-00 ELECT 0.1uF 20% 50V C742 1-162-215-31 CERAMIC 47PF 5% 50V C743 1-162-290-31 CERAMIC 470PF 10% 50V C744 1-162-294-31 CERAMIC 0.001uF 10% 50V C745 1-126-961-11 ELECT 2.2uF 20% 50V C746 1-162-306-11 CERAMIC 0.01uF 30% 16V C749 1-162-306-11 CERAMIC 0.01uF 30% 16V C750 1-162-282-31 CERAMIC 100PF 10% 50V MAIN MOTOR PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 61 HCD-DX90 C751 1-162-282-31 CERAMIC 100PF 10% 50V C752 1-162-282-31 CERAMIC 100PF 10% 50V C753 1-162-282-31 CERAMIC 100PF 10% 50V C754 1-162-282-31 CERAMIC 100PF 10% 50V C755 1-162-282-31 CERAMIC 100PF 10% 50V C756 1-162-282-31 CERAMIC 100PF 10% 50V C757 1-162-282-31 CERAMIC 100PF 10% 50V C758 1-162-282-31 CERAMIC 100PF 10% 50V C759 1-162-282-31 CERAMIC 100PF 10% 50V C760 1-162-282-31 CERAMIC 100PF 10% 50V C761 1-162-282-31 CERAMIC 100PF 10% 50V C762 1-162-282-31 CERAMIC 100PF 10% 50V C763 1-162-282-31 CERAMIC 100PF 10% 50V C764 1-162-282-31 CERAMIC 100PF 10% 50V C765 1-162-282-31 CERAMIC 100PF 10% 50V C766 1-162-282-31 CERAMIC 100PF 10% 50V C767 1-162-282-31 CERAMIC 100PF 10% 50V C768 1-162-282-31 CERAMIC 100PF 10% 50V C769 1-162-282-31 CERAMIC 100PF 10% 50V C770 1-162-282-31 CERAMIC 100PF 10% 50V C771 1-162-282-31 CERAMIC 100PF 10% 50V C772 1-162-282-31 CERAMIC 100PF 10% 50V C773 1-162-282-31 CERAMIC 100PF 10% 50V C774 1-162-282-31 CERAMIC 100PF 10% 50V C775 1-162-282-31 CERAMIC 100PF 10% 50V C776 1-162-282-31 CERAMIC 100PF 10% 50V C777 1-162-282-31 CERAMIC 100PF 10% 50V C778 1-162-282-31 CERAMIC 100PF 10% 50V C779 1-162-282-31 CERAMIC 100PF 10% 50V C780 1-162-282-31 CERAMIC 100PF 10% 50V C781 1-162-282-31 CERAMIC 100PF 10% 50V C782 1-162-282-31 CERAMIC 100PF 10% 50V C783 1-162-282-31 CERAMIC 100PF 10% 50V C784 1-162-282-31 CERAMIC 100PF 10% 50V < CONNECTOR > CN601 1-793-767-11 CONNECTOR, BOARD TO BOARD 30P < DIODE > D601 8-719-057-30 LED HLMF-K205-2UL (I/1) D602 8-719-063-93 LED SLR325VC-N-T32 (TIMER) D603 8-719-109-89 DIODE MTZJ-T-77-5.6C D611 8-719-071-41 LED SELS5923C-TP15 (GROOVE) D612 8-719-071-41 LED SELS5923C-TP15 (CURSOR) D613 8-719-071-41 LED SELS5923C-TP15 (CURSOR) D614 8-719-071-41 LED SELS5923C-TP15 (V-GROOVE) D615 8-719-072-82 LED SELU5E20C-STP15 (FUNCTION) D617 8-719-063-93 LED SLR325VC-N-T32 (REC PAUSE/START) D618 8-719-071-41 LED SELS5923C-TP15 (SURROUND) < FERRITE BEAD > FB601 1-412-473-21 INDUCTOR 0uH < FILTER > FL601 1-517-928-11 INDICATOR TUBE, FLUORESCENT < IC > IC601 8-759-652-49 IC TMP88CP77AF-1A83 IC602 8-759-570-21 IC BA3830F-E2 IC603 8-759-648-23 IC RPM6940-H4 IC722 8-759-634-51 IC M5218AP < JACK > J631 1-785-569-11 JACK (SMALL TYPE) (PHONES) J721 1-785-569-11 JACK (SMALL TYPE) (MIC) < COIL > L601 1-410-509-11 INDUCTOR 10uH < TRANSISTOR > Q604 8-729-900-80 TRANSISTOR BA1A4M-TP Q605 8-729-900-80 TRANSISTOR BA1A4M-TP Q606 8-729-900-74 TRANSISTOR BA1L3Z-TP Q607 8-729-900-74 TRANSISTOR BA1L3Z-TP Q608 8-729-900-74 TRANSISTOR BA1L3Z-TP Q609 8-729-900-74 TRANSISTOR BA1L3Z-TP Q610 8-729-900-74 TRANSISTOR BA1L3Z-TP Q611 8-729-900-74 TRANSISTOR BA1L3Z-TP Q612 8-729-900-74 TRANSISTOR BA1L3Z-TP Q613 8-729-900-74 TRANSISTOR BA1L3Z-TP Q614 8-729-900-74 TRANSISTOR BA1L3Z-TP Q615 8-729-111-29 TRANSISTOR 2SD1616A-TP-LK Q621 8-729-900-80 TRANSISTOR BA1A4M-TP Q622 8-729-900-80 TRANSISTOR BA1A4M-TP Q623 8-729-900-80 TRANSISTOR BA1A4M-TP Q624 8-729-900-80 TRANSISTOR BA1A4M-TP Q625 8-729-900-80 TRANSISTOR BA1A4M-TP Q626 8-729-900-80 TRANSISTOR BA1A4M-TP Q721 8-729-119-79 TRANSISTOR 2SC2785TP-FEK < RESISTOR > R603 1-249-429-11 CARBON 10K 5% 1/4W R604 1-247-807-31 CARBON 100 5% 1/4W R605 1-247-903-00 CARBON 1M 5% 1/4W R606 1-247-807-31 CARBON 100 5% 1/4W R607 1-249-429-11 CARBON 10K 5% 1/4W R608 1-247-807-31 CARBON 100 5% 1/4W R609 1-249-429-11 CARBON 10K 5% 1/4W R610 1-247-807-31 CARBON 100 5% 1/4W R611 1-249-429-11 CARBON 10K 5% 1/4W R612 1-249-401-11 CARBON 47 5% 1/4W F R613 1-247-889-00 CARBON 270K 5% 1/4W R614 1-247-889-00 CARBON 270K 5% 1/4W R615 1-249-441-11 CARBON 100K 5% 1/4W R616 1-249-440-11 CARBON 82K 5% 1/4W R617 1-249-429-11 CARBON 10K 5% 1/4W R618 1-249-441-11 CARBON 100K 5% 1/4W R619 1-249-441-11 CARBON 100K 5% 1/4W R620 1-249-437-11 CARBON 47K 5% 1/4W R621 1-249-440-11 CARBON 82K 5% 1/4W R622 1-249-429-11 CARBON 10K 5% 1/4W R623 1-249-431-11 CARBON 15K 5% 1/4W R625 1-249-435-11 CARBON 33K 5% 1/4W PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 62 HCD-DX90 R633 1-249-411-11 CARBON 330 5% 1/4W R634 1-249-407-11 CARBON 150 5% 1/4W F R635 1-249-401-11 CARBON 47 5% 1/4W F R636 1-249-441-11 CARBON 100K 5% 1/4W R637 1-249-441-11 CARBON 100K 5% 1/4W R638 1-249-441-11 CARBON 100K 5% 1/4W R639 1-249-441-11 CARBON 100K 5% 1/4W R640 1-249-441-11 CARBON 100K 5% 1/4W R641 1-249-441-11 CARBON 100K 5% 1/4W R642 1-249-441-11 CARBON 100K 5% 1/4W R643 1-249-441-11 CARBON 100K 5% 1/4W R644 1-249-441-11 CARBON 100K 5% 1/4W R651 1-249-429-11 CARBON 10K 5% 1/4W R652 1-249-410-11 CARBON 270 5% 1/4W F R653 1-249-411-11 CARBON 330 5% 1/4W R654 1-249-413-11 CARBON 470 5% 1/4W F R655 1-249-415-11 CARBON 680 5% 1/4W F R656 1-249-417-11 CARBON 1K 5% 1/4W F R657 1-249-418-11 CARBON 1.2K 5% 1/4W F R658 1-249-418-11 CARBON 1.2K 5% 1/4W F R659 1-249-417-11 CARBON 1K 5% 1/4W F R660 1-249-420-11 CARBON 1.8K 5% 1/4W F R661 1-247-843-11 CARBON 3.3K 5% 1/4W R662 1-249-425-11 CARBON 4.7K 5% 1/4W F R664 1-249-429-11 CARBON 10K 5% 1/4W R665 1-249-410-11 CARBON 270 5% 1/4W F R666 1-249-411-11 CARBON 330 5% 1/4W R667 1-249-413-11 CARBON 470 5% 1/4W F R668 1-249-414-11 CARBON 560 5% 1/4W F R669 1-249-414-11 CARBON 560 5% 1/4W F R670 1-249-415-11 CARBON 680 5% 1/4W F R671 1-249-422-11 CARBON 2.7K 5% 1/4W F R672 1-249-420-11 CARBON 1.8K 5% 1/4W F R673 1-249-422-11 CARBON 2.7K 5% 1/4W F R674 1-247-843-11 CARBON 3.3K 5% 1/4W R675 1-249-425-11 CARBON 4.7K 5% 1/4W F R676 1-249-427-11 CARBON 6.8K 5% 1/4W F R677 1-249-429-11 CARBON 10K 5% 1/4W R678 1-249-432-11 CARBON 18K 5% 1/4W R679 1-249-429-11 CARBON 10K 5% 1/4W R680 1-249-410-11 CARBON 270 5% 1/4W F R681 1-249-411-11 CARBON 330 5% 1/4W R682 1-249-413-11 CARBON 470 5% 1/4W F R683 1-249-414-11 CARBON 560 5% 1/4W F R684 1-249-415-11 CARBON 680 5% 1/4W F R693 1-249-429-11 CARBON 10K 5% 1/4W R694 1-249-429-11 CARBON 10K 5% 1/4W R695 1-249-429-11 CARBON 10K 5% 1/4W R696 1-249-429-11 CARBON 10K 5% 1/4W R701 1-249-410-11 CARBON 270 5% 1/4W F R702 1-249-408-11 CARBON 180 5% 1/4W F R703 1-249-409-11 CARBON 220 5% 1/4W F R704 1-249-408-11 CARBON 180 5% 1/4W F R705 1-249-410-11 CARBON 270 5% 1/4W F R706 1-249-410-11 CARBON 270 5% 1/4W F R721 1-249-429-11 CARBON 10K 5% 1/4W R722 1-249-430-11 CARBON 12K 5% 1/4W R734 1-247-807-31 CARBON 100 5% 1/4W R735 1-247-885-00 CARBON 180K 5% 1/4W R736 1-249-429-11 CARBON 10K 5% 1/4W R737 1-249-433-11 CARBON 22K 5% 1/4W R738 1-249-417-11 CARBON 1K 5% 1/4W F R739 1-249-441-11 CARBON 100K 5% 1/4W R740 1-249-417-11 CARBON 1K 5% 1/4W F R741 1-249-429-11 CARBON 10K 5% 1/4W R744 1-249-441-11 CARBON 100K 5% 1/4W R745 1-247-807-31 CARBON 100 5% 1/4W R746 1-249-417-11 CARBON 1K 5% 1/4W F < VARIABLE RESISTOR > RV722 1-225-739-11 RES, VAR CARBON 50K (MIC LEVEL) < SWITCH > S601 1-418-725-11 ENCODER, ROTARY (12 TYPE) (VOLUME) S611 1-762-875-21 SWITCH, KEYBOARD (v) S612 1-762-875-21 SWITCH, KEYBOARD (V) S613 1-762-875-21 SWITCH, KEYBOARD (V-GROOVE) S614 1-762-875-21 SWITCH, KEYBOARD (LOOP) S615 1-762-875-21 SWITCH, KEYBOARD (CD SYNC/HI-DUB) S616 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START) S617 1-762-875-21 SWITCH, KEYBOARD (ENTER) S618 1-762-875-21 SWITCH, KEYBOARD (M) S619 1-762-875-21 SWITCH, KEYBOARD (> +) S620 1-762-875-21 SWITCH, KEYBOARD (X) S621 1-762-875-21 SWITCH, KEYBOARD (- .) S623 1-762-875-21 SWITCH, KEYBOARD (b) S624 1-762-875-21 SWITCH, KEYBOARD (B) S625 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B) S626 1-762-875-21 SWITCH, KEYBOARD (x) S627 1-762-875-21 SWITCH, KEYBOARD (CD) S628 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) S629 1-762-875-21 SWITCH, KEYBOARD (g G) S630 1-762-875-21 SWITCH, KEYBOARD (MD (VIDEO)) S631 1-762-875-21 SWITCH, KEYBOARD (m) S632 1-762-875-21 SWITCH, KEYBOARD (SURROUND) S633 1-762-875-21 SWITCH, KEYBOARD (DIRECTION) S634 1-762-875-21 SWITCH, KEYBOARD (REPEAT/DOLBY NR) S635 1-762-875-21 SWITCH, KEYBOARD (PLAY MODE/STEREO MONO) S636 1-762-875-21 SWITCH, KEYBOARD (EDIT/TUNER MEMORY) S637 1-762-875-21 SWITCH, KEYBOARD (I/1) S638 1-762-875-21 SWITCH, KEYBOARD (GROOVE) S639 1-762-875-21 SWITCH, KEYBOARD (EQ EDIT) S640 1-762-875-21 SWITCH, KEYBOARD (SPECTRUM) S641 1-762-875-21 SWITCH, KEYBOARD (DISPLAY) < VIBRATOR > X601 1-579-352-11 VIBRATOR, CERAMIC (12.5MHz) ************************************************************** A-2007-890-A POWER AMP BOARD, COMPLETE *************************** < CAPACITOR > C501 1-126-963-11 ELECT 4.7uF 20% 50V PANEL POWER AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 63 HCD-DX90 C502 1-162-294-31 CERAMIC 0.001uF 10% 50V C503 1-162-286-31 CERAMIC 220PF 10% 50V C504 1-104-665-11 ELECT 100uF 20% 10V C507 1-136-495-11 FILM 0.068uF 5% 50V C508 1-136-495-11 FILM 0.068uF 5% 50V C509 1-128-560-11 ELECT 22uF 20% 100V C512 1-162-306-11 CERAMIC 0.01uF 30% 16V C541 1-136-165-00 FILM 0.1uF 5% 50V C542 1-135-516-11 ELECT 3300uF 20% 63V C544 1-130-777-00 MYLAR 0.1uF 10% 100V C545 1-130-777-00 MYLAR 0.1uF 10% 100V C546 1-127-815-11 ELECT 3300uF 20% 100V C551 1-126-963-11 ELECT 4.7uF 20% 50V C552 1-162-294-31 CERAMIC 0.001uF 10% 50V C553 1-162-286-31 CERAMIC 220PF 10% 50V C554 1-104-665-11 ELECT 100uF 20% 10V C557 1-136-495-11 FILM 0.068uF 5% 50V C558 1-136-495-11 FILM 0.068uF 5% 50V C559 1-128-560-11 ELECT 22uF 20% 100V C591 1-136-165-00 FILM 0.1uF 5% 50V C592 1-135-516-11 ELECT 3300uF 20% 63V C596 1-127-815-11 ELECT 3300uF 20% 100V C942 1-126-964-11 ELECT 10uF 20% 50V C943 1-126-968-11 ELECT 100uF 20% 50V C980 1-164-159-21 CERAMIC 0.1uF 50V < CONNECTOR > CN502 1-778-981-11 CONNECTOR, BOARD TO BOARD 13P CN503 1-778-981-11 CONNECTOR, BOARD TO BOARD 13P CN504 1-568-951-11 PIN, CONNECTOR 2P < DIODE > D501 8-719-991-33 DIODE 1SS133T-77 D502 8-719-991-33 DIODE 1SS133T-77 D503 8-719-110-41 DIODE MTZJ-T-77-15B D504 8-719-110-41 DIODE MTZJ-T-77-15B D541 8-719-302-38 DIODE RBV-602-01 D543 8-719-302-38 DIODE RBV-602-01 D551 8-719-991-33 DIODE 1SS133T-77 D581 8-719-991-33 DIODE 1SS133T-77 D941 8-719-110-90 DIODE MTZJ-T-77-39D D979 8-719-110-31 DIODE MTZJ-T-77-12B < EARTH TERMINAL > * EP501 1-537-738-21 TERMINAL, EARTH < IC > IC501 8-749-017-05 IC STK412-040 < TRANSISTOR > Q501 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q503 8-729-140-82 TRANSISTOR 2SA988TP-PAFAEA Q504 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q505 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q506 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q551 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q581 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q831 8-729-119-79 TRANSISTOR 2SC2785TP-FEK Q941 8-729-141-83 TRANSISTOR 2SB1375 < RESISTOR > R501 1-249-417-11 CARBON 1K 5% 1/4W F R502 1-249-438-11 CARBON 56K 5% 1/4W R503 1-249-413-11 CARBON 470 5% 1/4W F R504 1-249-438-11 CARBON 56K 5% 1/4W R505 1-249-417-11 CARBON 1K 5% 1/4W F R506 1-249-431-11 CARBON 15K 5% 1/4W R507 1-249-440-11 CARBON 82K 5% 1/4W 0R508 1-220-893-11 METAL 0.22 10% 5W R509 1-260-076-11 CARBON 10 5% 1/2W 0R510 1-220-893-11 METAL 0.22 10% 5W 0R511 1-212-881-11 FUSIBLE 100 5% 1/4W 0R512 1-202-972-61 FUSIBLE 1 5% 1/4W R513 1-249-435-11 CARBON 33K 5% 1/4W R514 1-249-421-11 CARBON 2.2K 5% 1/4W F R515 1-249-433-11 CARBON 22K 5% 1/4W R516 1-249-429-11 CARBON 10K 5% 1/4W R517 1-249-421-11 CARBON 2.2K 5% 1/4W F R518 1-249-435-11 CARBON 33K 5% 1/4W R519 1-249-439-11 CARBON 68K 5% 1/4W R520 1-215-870-11 METAL OXIDE 1.5K 5% 1W R521 1-249-441-11 CARBON 100K 5% 1/4W R522 1-249-441-11 CARBON 100K 5% 1/4W R523 1-249-440-11 CARBON 82K 5% 1/4W R524 1-215-870-11 METAL OXIDE 1.5K 5% 1W R531 1-249-409-11 CARBON 220 5% 1/4W F R532 1-247-897-11 CARBON 560K 5% 1/4W R533 1-249-437-11 CARBON 47K 5% 1/4W R541 1-249-441-11 CARBON 100K 5% 1/4W R542 1-249-441-11 CARBON 100K 5% 1/4W R551 1-249-417-11 CARBON 1K 5% 1/4W F R552 1-249-438-11 CARBON 56K 5% 1/4W R553 1-249-413-11 CARBON 470 5% 1/4W F R554 1-249-438-11 CARBON 56K 5% 1/4W R555 1-249-417-11 CARBON 1K 5% 1/4W F R556 1-249-431-11 CARBON 15K 5% 1/4W R557 1-249-440-11 CARBON 82K 5% 1/4W 0R558 1-220-893-11 METAL 0.22 10% 5W R559 1-260-076-11 CARBON 10 5% 1/2W 0R560 1-220-893-11 METAL 0.22 10% 5W 0R561 1-212-881-11 FUSIBLE 100 5% 1/4W R581 1-249-435-11 CARBON 33K 5% 1/4W R582 1-249-435-11 CARBON 33K 5% 1/4W R591 1-249-441-11 CARBON 100K 5% 1/4W R592 1-249-441-11 CARBON 100K 5% 1/4W R941 1-216-478-11 METAL OXIDE 390 5% 3W R942 1-249-429-11 CARBON 10K 5% 1/4W R943 1-249-417-11 CARBON 1K 5% 1/4W F R944 1-249-393-11 CARBON 10 5% 1/4W F R980 1-249-429-11 CARBON 10K 5% 1/4W ************************************************************** The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. POWER AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 64 HCD-DX90 1-675-911-14 SENSOR BOARD ************** < CAPACITOR > C712 1-164-159-21 CERAMIC 0.1uF 50V < IC > IC711 8-749-016-76 IC RPI-321 < RESISTOR > R711 1-247-876-11 CARBON 75K 5% 1/4W R712 1-249-409-11 CARBON 220 5% 1/4W F R713 1-249-429-11 CARBON 10K 5% 1/4W < SWITCH > S711 1-771-821-11 SWITCH, PUSH (1 KEY) (UP/DOWN) ************************************************************** 1-676-808-11 TRANS BOARD ************* 1-533-293-31 FUSE HOLDER < CONNECTOR > CN975 1-564-321-00 PIN, CONNECTOR 2P CN977 1-564-524-11 PLUG, CONNECTOR 9P CN978 1-564-214-11 PIN, CONNECTOR (B3PS-VH) 3P < FUSE > 0F971 1-532-506-31 FUSE T6.3AL/250V 0F972 1-532-504-31 FUSE T4AL/250V 0F973 1-532-504-31 FUSE T4AL/250V 0F974 1-532-506-31 FUSE T6.3AL/250V 0F975 1-532-506-31 FUSE T6.3AL/250V < RESISTOR > 0R951 1-219-120-11 FUSIBLE 0.15 5% 1/4W 0R952 1-219-120-11 FUSIBLE 0.15 5% 1/4W 0R953 1-219-120-11 FUSIBLE 0.15 5% 1/4W < SWITCH > 0S951 1-771-291-11 SWITCH, POWER (VOLTAGE SELECTOR) < TRANSFORMER > 0T971 1-435-323-11 POWER TRANSFORMER ************************************************************** MISCELLANEOUS *************** 7 1-757-045-11 CABLE, FLAT (19 CORE) 71 1-773-045-11 WIRE (FLAT TYPE) (17 CORE) 0108 1-777-071-51 CORD, POWER 0109 1-569-008-21 ADAPTOR, CONVERSION 209 1-791-983-12 WIRE (FLAT TYPE) (8 CORE) 216 1-471-035-11 MAGNET ASSY 0251 A-4735-080-A BASE ASSY, OP (KSM-213DAP) 252 1-792-024-11 WIRE (FLAT TYPE) (16 CORE) HP901 A-2004-765-A BASE (A) ASSY, HEAD HRP901 A-2004-766-A BASE (B) ASSY, HEAD M721 A-4672-826-A MOTOR ASSY (LOADING) M901 X-3378-246-1 MOTOR ASSY (CAPSTAN) M961 1-763-072-11 FAN, D.C. PM901 1-454-887-21 SOLENOID, PLUNGER PM902 1-454-887-21 SOLENOID, PLUNGER ************************************************************** ************** HARDWARE LIST ************** #1 7-628-254-05 SCREW +PS 2.6X5 #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #4 7-685-650-79 SCREW +BVTP 3X16 TYPE2 N-S #5 7-685-648-79 SCREW +BVTP 3X12 TYPE2 N-S #6 7-685-881-09 SCREW +BVTT 4X8 (S) #7 7-685-781-01 SCREW +PTT 2X4 #8 7-685-872-09 SCREW +BVTT 3X8 (S) #9 7-623-921-01 WASHER 1.7, NYLON ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 0 1-569-008-21 ADAPTOR, CONVERSION The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. SENSOR TRANS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-DX90 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DX90 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2001.04 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
