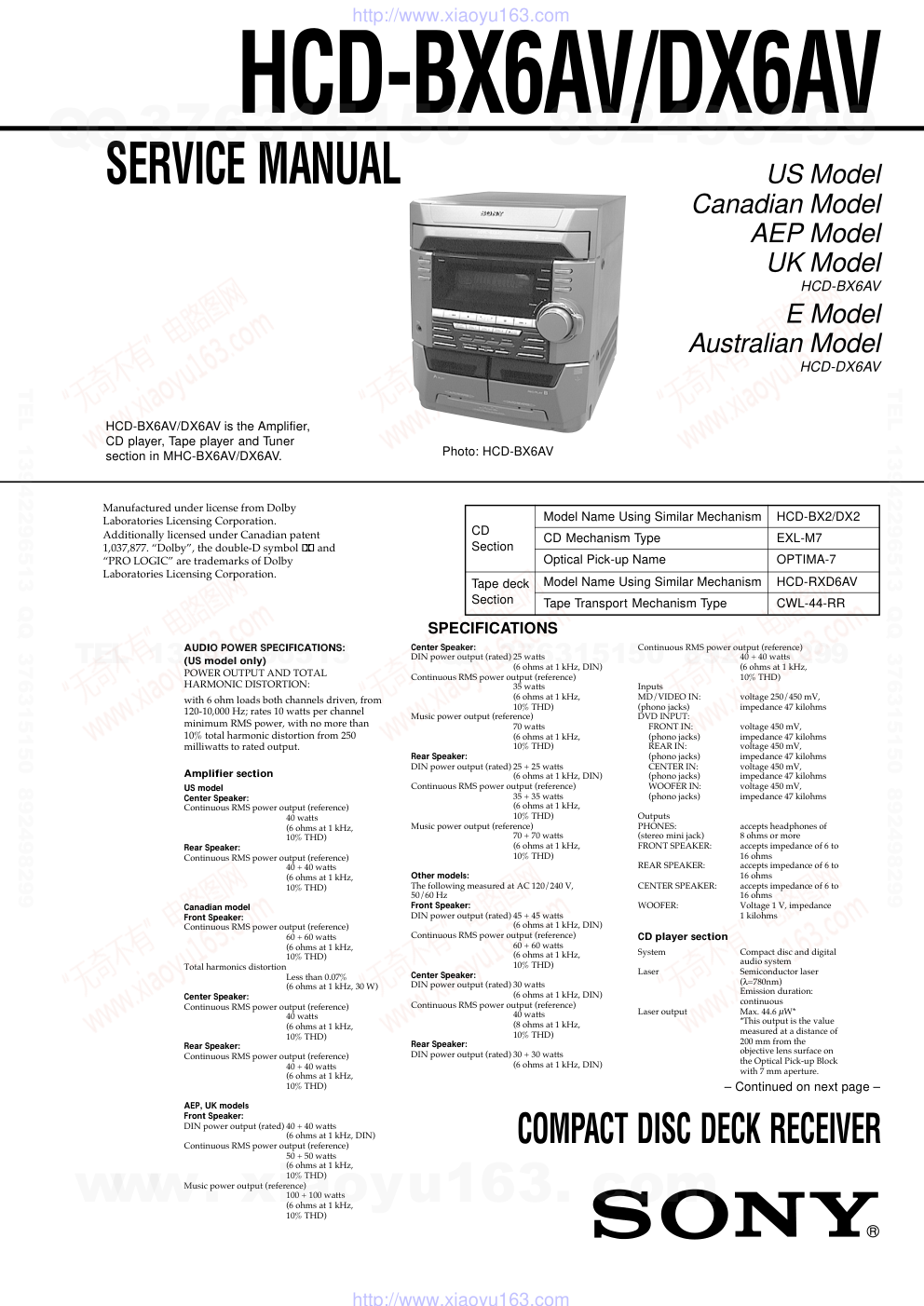

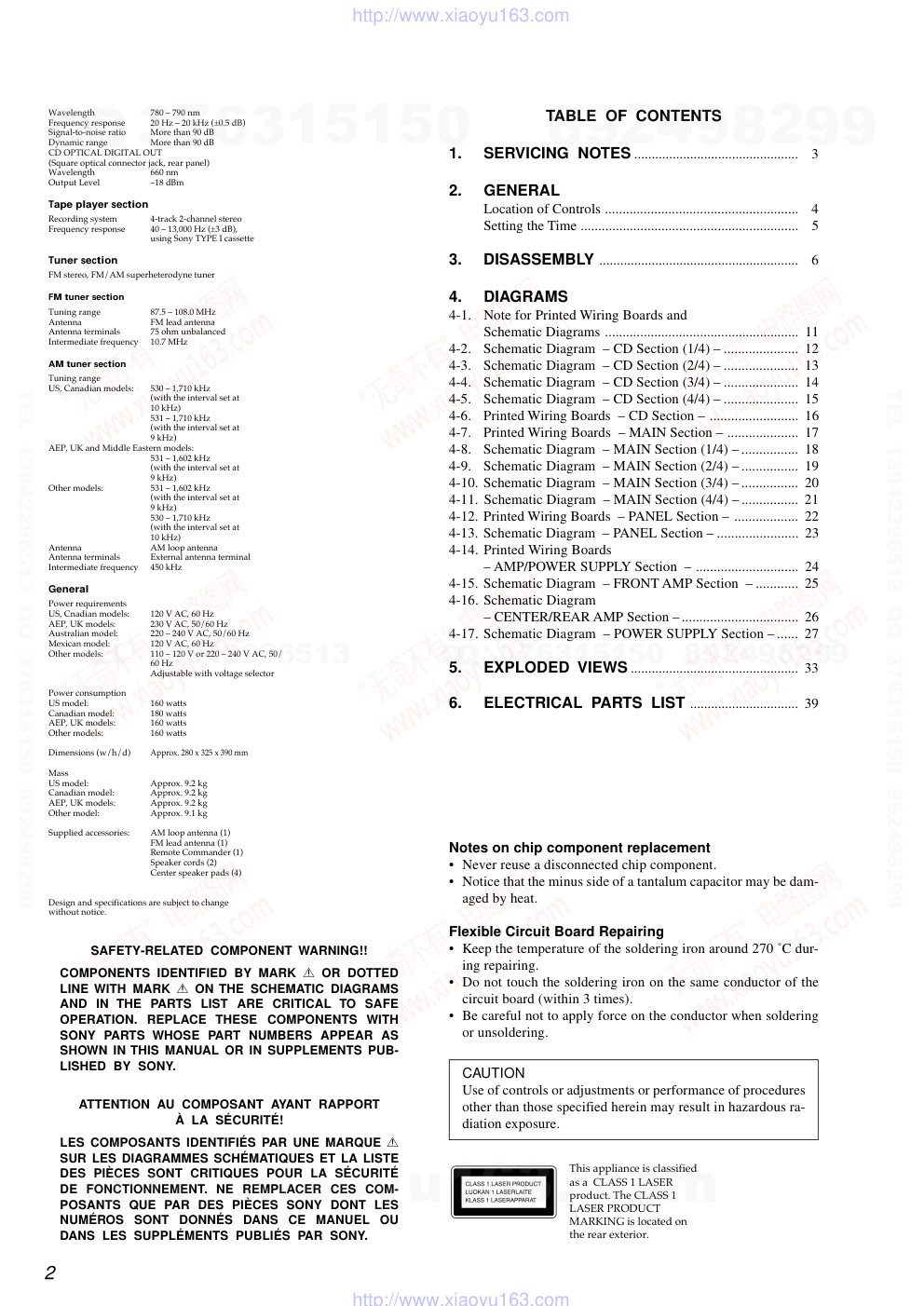

SERVICE MANUAL COMPACT DISC DECK RECEIVER US Model Canadian Model AEP Model UK Model HCD-BX6AV E Model Australian Model HCD-DX6AV SPECIFICATIONS HCD-BX6AV/DX6AV Photo: HCD-BX6AV HCD-BX6AV/DX6AV is the Amplifier, CD player, Tape player and Tuner section in MHC-BX6AV/DX6AV. Model Name Using Similar Mechanism HCD-BX2/DX2 CD Mechanism Type EXL-M7 Optical Pick-up Name OPTIMA-7 Model Name Using Similar Mechanism HCD-RXD6AV Tape Transport Mechanism Type CWL-44-RR CD Section Tape deck Section – Continued on next page – AUDIO POWER SPECIFICATIONS: (US model only) POWER OUTPUT AND TOTAL HARMONIC DISTORTION: with 6 ohm loads both channels driven, from 120-10,000 Hz; rates 10 watts per channel minimum RMS power, with no more than 10% total harmonic distortion from 250 milliwatts to rated output. Amplifier section US model Center Speaker: Continuous RMS power output (reference) 40 watts (6 ohms at 1 kHz, 10% THD) Rear Speaker: Continuous RMS power output (reference) 40 + 40 watts (6 ohms at 1 kHz, 10% THD) Canadian model Front Speaker: Continuous RMS power output (reference) 60 + 60 watts (6 ohms at 1 kHz, 10% THD) Total harmonics distortion Less than 0.07% (6 ohms at 1 kHz, 30 W) Center Speaker: Continuous RMS power output (reference) 40 watts (6 ohms at 1 kHz, 10% THD) Rear Speaker: Continuous RMS power output (reference) 40 + 40 watts (6 ohms at 1 kHz, 10% THD) AEP, UK models Front Speaker: DIN power output (rated) 40 + 40 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 50 + 50 watts (6 ohms at 1 kHz, 10% THD) Music power output (reference) 100 + 100 watts (6 ohms at 1 kHz, 10% THD) Center Speaker: DIN power output (rated) 25 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 35 watts (6 ohms at 1 kHz, 10% THD) Music power output (reference) 70 watts (6 ohms at 1 kHz, 10% THD) Rear Speaker: DIN power output (rated) 25 + 25 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 35 + 35 watts (6 ohms at 1 kHz, 10% THD) Music power output (reference) 70 + 70 watts (6 ohms at 1 kHz, 10% THD) Other models: The following measured at AC 120/240 V, 50/60 Hz Front Speaker: DIN power output (rated) 45 + 45 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 60 + 60 watts (6 ohms at 1 kHz, 10% THD) Center Speaker: DIN power output (rated) 30 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 40 watts (8 ohms at 1 kHz, 10% THD) Rear Speaker: DIN power output (rated) 30 + 30 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) 40 + 40 watts (6 ohms at 1 kHz, 10% THD) Inputs MD/VIDEO IN: voltage 250/450 mV, (phono jacks) impedance 47 kilohms DVD INPUT: FRONT IN: voltage 450 mV, (phono jacks) impedance 47 kilohms REAR IN: voltage 450 mV, (phono jacks) impedance 47 kilohms CENTER IN: voltage 450 mV, (phono jacks) impedance 47 kilohms WOOFER IN: voltage 450 mV, (phono jacks) impedance 47 kilohms Outputs PHONES: accepts headphones of (stereo mini jack) 8 ohms or more FRONT SPEAKER: accepts impedance of 6 to 16 ohms REAR SPEAKER: accepts impedance of 6 to 16 ohms CENTER SPEAKER: accepts impedance of 6 to 16 ohms WOOFER: Voltage 1 V, impedance 1 kilohms CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ=780nm) Emission duration: continuous Laser output Max. 44.6 µW* *This output is the value measured at a distance of 200 mm from the objective lens surface on the Optical Pick-up Block with 7 mm aperture. Manufactured under license from Dolby Laboratories Licensing Corporation. Additionally licensed under Canadian patent 1,037,877. “Dolby”, the double-D symbol ; and “PRO LOGIC” are trademarks of Dolby Laboratories Licensing Corporation. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Wavelength 780 – 790 nm Frequency response 20 Hz – 20 kHz (±0.5 dB) Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB CD OPTICAL DIGITAL OUT (Square optical connector jack, rear panel) Wavelength 660 nm Output Level –18 dBm Tape player section Recording system 4-track 2-channel stereo Frequency response 40 – 13,000 Hz (±3 dB), using Sony TYPE I cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz Antenna FM lead antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range US, Canadian models: 530 – 1,710 kHz (with the interval set at 10 kHz) 531 – 1,710 kHz (with the interval set at 9 kHz) AEP, UK and Middle Eastern models: 531 – 1,602 kHz (with the interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the interval set at 9 kHz) 530 – 1,710 kHz (with the interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements US, Cnadian models: 120 V AC, 60 Hz AEP, UK models: 230 V AC, 50/60 Hz Australian model: 220 – 240 V AC, 50/60 Hz Mexican model: 120 V AC, 60 Hz Other models: 110 – 120 V or 220 – 240 V AC, 50/ 60 Hz Adjustable with voltage selector Power consumption US model: 160 watts Canadian model: 180 watts AEP, UK models: 160 watts Other models: 160 watts Dimensions (w/h/d) Approx. 280 x 325 x 390 mm Mass US model: Approx. 9.2 kg Canadian model: Approx. 9.2 kg AEP, UK models: Approx. 9.2 kg Other model: Approx. 9.1 kg Supplied accessories: AM loop antenna (1) FM lead antenna (1) Remote Commander (1) Speaker cords (2) Center speaker pads (4) Design and specifications are subject to change without notice. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL Location of Controls ....................................................... 4 Setting the Time .............................................................. 5 3. DISASSEMBLY ......................................................... 6 4. DIAGRAMS 4-1. Note for Printed Wiring Boards and Schematic Diagrams ....................................................... 11 4-2. Schematic Diagram – CD Section (1/4) – ..................... 12 4-3. Schematic Diagram – CD Section (2/4) – ..................... 13 4-4. Schematic Diagram – CD Section (3/4) – ..................... 14 4-5. Schematic Diagram – CD Section (4/4) – ..................... 15 4-6. Printed Wiring Boards – CD Section – ......................... 16 4-7. Printed Wiring Boards – MAIN Section – .................... 17 4-8. Schematic Diagram – MAIN Section (1/4) – ................ 18 4-9. Schematic Diagram – MAIN Section (2/4) – ................ 19 4-10. Schematic Diagram – MAIN Section (3/4) – ................ 20 4-11. Schematic Diagram – MAIN Section (4/4) – ................ 21 4-12. Printed Wiring Boards – PANEL Section – .................. 22 4-13. Schematic Diagram – PANEL Section – ....................... 23 4-14. Printed Wiring Boards – AMP/POWER SUPPLY Section – ............................. 24 4-15. Schematic Diagram – FRONT AMP Section – ............ 25 4-16. Schematic Diagram – CENTER/REAR AMP Section –................................. 26 4-17. Schematic Diagram – POWER SUPPLY Section – ...... 27 5. EXPLODED VIEWS ................................................ 33 6. ELECTRICAL PARTS LIST ............................... 39 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. • MODEL IDENTIFICATION – Rear Panel – NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT Model Power Voltage Indication US model AC: 120 V - 60 Hz 160 W Canadian model AC: 120 V - 60 Hz 180 W AEP, UK models AC: 230 V - 50/60 Hz 160 W Australian model AC: 220 – 240 V - 50/60 Hz 160 W Mexican model AC: 120 V - 50/60 Hz 160 W Other models AC: 110 – 120 V/220 – 240 V - 50/60 Hz 160 W Power Voltage Indication SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indica- tion is 0.75 V, so analog meters must have an accurate low- voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex- amples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suit- able. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground The following caution label is located inside the unit. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 SECTION 2 GENERAL • LOCATION OF CONTROLS – Front View – – Rear View – 1 TIMER indicator 2 I/1 button and indicator 3 DISPLAY button 4 SPECTRUM button 5 GROOVE button and indicator 6 FILE SELECT button 7 PHONES jack 8 ENTER button 9 –, . button 0 DISC SKIP EX-CHANGE button qa x button qs DISC 1 button qd h H button and indicator qf DISC 2 button qg DISC 3 button qh X button qj Z OPEN/CLOSE button qk >, + button 1 FM ANTENNA jack or terminals 2 AM ANTENNA terminals 3 WOOFER OUT jack 4 MD/VIDEO IN jacks 5 DVD INPUT jacks 6 CENTER SPEAKER terminals 7 REAR SPEAKER terminals 8 FRONT SPEAKER terminals 9 CD DIGITAL OUT (OPTICAL) connector 0 VOLTAGE SELECTOR switch (E model) 1 2 3 4 5 6 7 8 9 ql w; wa wf wh ws wg wd qg qd 0 qf qj qs qh qk qa wl es wk e; ea ed wj 9 0 1 3 8 7 6 5 4 2 ql PLAY MODE, DIRECTION button (US, Canadian, E, Australian models) PLAY MODE, PTY/DIRECTION button (AEP, UK models) w; REPEAT, STEREO/MONO button wa EDIT, TUNER MEMORY button ws VOLUME knob wd j J button wf REC button and indicator wg REC PAUSE button and indicator wh CD SYNC button wj MD (VIDEO) button and indicator wk DOLBY PRO LOGIC button and indicator wl TAPE A/B button and indicator e; DVD 5.1CH button and indicator ea CD button and indicator es DSP button and indicator ed TUNER/BAND button and indicator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 9 1 Press CLOCK/TIMER SET. The hour indication flashes. Step 3: Setting the time You must set the time before using the timer functions. The clock uses a 24-hour system on the European model, and a 12-hour system on other models. The 12-hour system is used for illustration purposes. 1 3,5 2,4 2 Press . or > repeatedly to set the hour. 3 Press ENTER. The minute indication flashes. 4 Press . or > repeatedly to set the minute. 5 Press ENTER. The clock starts working. Tip If you make a mistake, start over from step 1. To change the time The previous explanation shows how to set the time while the power is off. To change the time while the power is on, do the following: 1 Press CLOCK/TIMER SET. 2 Press . or > repeatedly to select SET CLOCK. 3 Press ENTER. 4 Perform steps 2 through 5 above. Notes • The clock settings are canceled when you disconnect the power cord or if a power failure occurs. • For MHC-BX6AV, you cannot set the time in the Power Saving Mode (see page 12). This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 CD DOOR CD ASS’Y Note: Follow the disassembly procedure in the numerical order given. SECTION 3 DISASSEMBLY 1 Pull out the CD tray. 4 Push the CD tray. 2 five claws 3 CD door 4 four claws 6 wire (flat type) (22core) (CN705) 1 screw (M3 ×12) 1 screw (M3 ×12) 2 two screws (BVTP3 × 12) 3 8 CD ass'y 7 harness (6core) (CN304) 5 connector (CN703) CD TRAY (page 9) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 FRONT PANEL SECTION MAIN BOARD 1 connector (CN301) 1 connector (CN502) 3 ten screws (BVTP3 × 10) 1 two connectors (CN302, 305) 4 screw (M3 × 12) 2 three screws (BVTP3 × 12) 5 front panel section 4 screw (M3 × 12) 4 connector (CN101) 6 main PC holder (L) 5 two claws 3 two screws (BVTP3 × 12) 3 two screws (BVTP3 × 12) 7 two claws 1 two connectors 8 main PC holder (R) 9 MAIN board 2 harness (5core) (CN303) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 FRONT BOARD AND CENTER/REAR BOARD SECTION, DC FAN (M505) 8 four screws (3 × 30) 3 four screws (BVTP3 × 10) 3 eight screws (BVTP3 × 10) 5 three screws (BVTP3 × 6) 5 three screws (BVTP3 × 6) qs FRONT board and CENTER/REAR board section 7 connector (CN505) 9 holder 4 6 rear cover 2 three screws (PTPWH4 × 10) 1 connector (CN501) 9 holder qa DC fan (M505) 0 main chassis holder MECH DECK (CWL-44-RR) 1 six screws (BVTP3 ×8) 2 harness 3 mech deck (CWL-44-RR) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 CD TRAY 1 two screws (KTP3 × 8) 2 top cabinet 1 two screws (KTP3 × 8) 4 screw (BTP3 × 10) 6 screw (BTP3 × 10) 7 bracket 5 bracket 8 CD tray 3 wire (flat type) (5core) (CN06) DECORD BOARD 4 three screws (BTP2.6 × 6) 6 DECORD board 1 wire (flat type) (5core) (CN706) 2 wire (flat type) (15core) (CN701) 3 connector (CN707) 5 connector (CN702) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 BASE UNIT CASSETTE LID 2 flange screw 3 UD-gear 4 screw (PTPWH3 × 8) 5 UD-cam 8 spring 7 spring 6 spring 1 two screws (PTPWH3 × 10) 9 base unit cassette door (Note: Four claws are used.) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 11 SECTION 4 DIAGRAMS 4-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS Note on Printed Wiring Board: • Y : parts extracted from the conductor side. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. U: µF, pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • If a numeric value of capacitor is a decimal function, the preceding zero may be omitted. (For example, .1 expresses 0.1) • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 2 : nonflammable resistor. • C : panel designation. • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM f : AM E : TAPE PLAY (DECK A) d : TAPE PLAY (DECK B) G : TAPE REC J : CD PLAY (ANALOG OUT) c : CD PLAY (DIGITAL OUT) • Abbreviation CND : Canadian model Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. • Circuit Boards Location SW C board SW D board SW B board DECORD board MOTOR board SW A board MAIN board PANEL board H/P board BACK UP board PHOTO SOCKET board FRONT board CENTER/REAR board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 12 HCD-BX6AV/DX6AV B+ B+ B+ B+ B+ B+ DECORD BOARD (1/4) CN701 15P Q701 AUTOMATIC POWER CONTROL C701 47 16V 05 10 9 8 7 6 OPTICAL PICK-UP BLOCK (OPTIMA-7) 0 IC701 RF AMP, FOCUS/TRACKING ERROR AMP C737 .01U 100V 100V 100V 0.1 100V 0.1 100V 100V 100V 100V 100V 50V 0.033 100V 100V 100V C704 0.033 100V 2 1 1 A 2 3 4 5 6 7 8 9 10 11 12 13 14 B C D E F G H I J K 15 16 DECORD BOARD (2/4) DECORD BOARD (3/4) 100V 5 2.4 4.8 2.5 5 2.5 4.8 2.6 1.8 1.8 2.5 1.2 2.8 4.3 1.6 0.1 2.5 0 0 5 5 0 5 5 5 4.9 1.3 2.5 2.5 2.5 2.5 2.5 1.8 2.5 2.4 2.3 2.5 1.9 1.9 2.6 2.6 2.3 2.4 2.2 2.5 2.5 2.5 2.5 2.5 0.8 2.4 2.7 2 3 1 4-2. SCHEMATIC DIAGRAM – CD Section (1/4) – • See page 28 for Waveforms. • See page 29 for IC Block Diagram. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : CD PLAY The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. (Page 13) (Page 14) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 HCD-BX6AV/DX6AV B+ B+ B+ B+ B+ B+ B+ B+ SW D BOARD SW C BOARD MOTOR BOARD (2/4) S01 CN18 2P CN06_ 5P CN706 5P CN18 2P CN19 2P CN19 2P CN16_ 3P CN05_ 5P CN707 7P CN16 3P 05 IC704 DISC TRAY SLIDE/ DISC TRAY TURN MOTOR CONTROL Q712 REGULATOR CONTROL SWITCH Q704 REGULATOR CN704 6P CN705 22P D706 UDZ-5.6B2S A 1 4 B SW A BOARD SW B BOARD DECORD BOARD OPTICAL PICK-UP UP/DOWN DETECT S02 OPEN/CLOSE DETECT M103 DISC TABLE TURN M104 DISC TRAY SLIDE S04 TURN TABLE OPERATION DETECT C01 S03 TURN TABLE POSITION DETECT 12K 12K 12K 35V 0.022 1 A 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 B C D E F G H I J K L M 50 DECORD BOARD (1/4) 3 DECORD BOARD (3/4) DECORD BOARD (4/4) MAIN BOARD (3/4) CN304 +7.5V PIC DOWN 1 CLOK DISC COUNT PANEL BOARD CN605 0 0 0 0 5.7 5.7 4.3 0 0 0 0 8 4.9 0 5 0 0.6 0 • Voltages are dc with respect to ground under no-signal conditions. no mark : CD PLAY 4-3. SCHEMATIC DIAGRAM – CD Section (2/4) – (Page 23) (Page 20) (Page 15) (Page 12) (Page 14)w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 HCD-BX6AV/DX6AV B+ B+ B+ B+ B+ B+ B+ B+ DECORD BOARD (3/4) CN702 6P CN703_ 3P 3 2 1 CN703 3P CN702_ 6P M101 (SPINDLE) M102 (SLED) S05 (LIMIT) PH701 OPTICAL TRANSCEIVER CD DIGITAL OUT (OPTICAL) PH701 TOTX178 05 IC703 FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED/ DISC TABLE SLIDE/ DISC TRAY TURN MOTOR DRIVE 2 5 3 PHOTO SOCKET BOARD 100V 100V 100V C740C 0.0047 C740D 0.0047 C740B 0.0047 C740A 0.0047 18K 18K 1 A 2 3 4 5 6 7 8 9 10 11 12 13 14 B C D E F G H I J K DECORD BOARD (1/4) DECORD BOARD (2/4) DECORD BOARD (4/4) 2.6 4.9 2.8 2.8 2.8 2.8 2.5 2.5 8 2.5 4 0 0 2.8 2.8 2.8 2.8 2.8 2.5 2.5 8 8 0 0 2.8 2.8 2.8 4-4. SCHEMATIC DIAGRAM – CD Section (3/4) – • See page 29 for IC Block Diagram. • Voltages are dc with respect to ground under no-signal conditions. no mark : CD PLAY (Page 13) (Page 15) (Page 12) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 HCD-BX6AV/DX6AV B+ B+ B+ B+ B+ B+ B+ B+ B+ (4/4) 05 IC702 DIGITAL SIGNAL PROCESSOR, CLV SERVO, D/A CONVERTER 4 5 DECORD BOARD 0.022 0.022 1 A 2 3 4 5 6 7 8 9 10 11 12 13 14 15 15 16 B C D E F G H I J C780 DECORD BOARD (2/4) DECORD BOARD (3/4) 4.8 2.5 2.6 2.5 2.6 2.5 2.5 0 2.6 2.6 0 0 4.9 4.9 2.1 2.1 2.2 4.9 2.1 2.8 2.2 2.2 2.2 4.9 5 4.9 0 4.9 2.6 4.9 2.5 0.8 2.4 4.9 4.8 5 0 0 0 0 0.1 0.1 0.1 5 5 5 0.1 7 2 6 4 5 4-5. SCHEMATIC DIAGRAM – CD Section (4/4) – • See page 28 for Waveforms. • See page 29 for IC Block Diagram. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : CD PLAY (Page 13) (Page 14) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 HCD-BX6AV/DX6AV 1 2 5 4 E C B 1 6 B C E 1 6 E C B B A 1 7 1 2 21 22 M104 (DISC TRAY SLIDE) PH701 CD DIGITAL OUT (OPTICAL) PANEL BOARD CN605 M 1 3 CN703 1 3 1 3 1 2 15 14 OPTICAL PICK-UP BLOCK (OPTIMA-7) 1-678-510- (11) 11 05 DECORD BOARD C740C 5 1 2 4 1 2 1 2 2 1 CN19 CN18 C01 CN06 M_ M103 (DISC TABLE TURN) 1 2 CN19 S03 CN18 S04 TURN TABLE OPERATION DETECT TURN TABLE POSITION DETECT 1 3 5 1 CN05 CN16 S01 OPTICAL PICK-UP UP/DOWN DETECT OPEN/CLOSE DETECT 1 3 S02 CN16 MOTOR BOARD SW B BOARD SW A BOARD 1-674-792- 1-674-789- (11) 11 (11) 11 SW D BOARD SW C BOARD 1-674-791- 1-674-790- (11) 11 (11) 11 1-674-788- (11) 11 PHOTO SOCKET BOARD 1 A 2 3 4 5 6 7 8 9 10 11 12 B C D E F G H I CD MECHANISM BLOCK CN705 R788 MAIN BOARD CN304 D421 J-13 D422 J-12 D423 J-10 IC102 C-11 IC103 A-11 IC201 I-6 IC301 E-6 IC302 C-5 IC303 E-3 IC304 D-13 IC305 E-4 IC306 H-8 IC307 E-11 Q101 B-12 Q103 B-13 Q104 D-13 Q109 B-8 Q110 B-8 Q201 I-4 Q202 I-4 Q203 I-4 Q204 I-4 Q205 I-4 Q206 I-4 Q207 I-4 Q208 H-4 Q209 H-4 Q210 G-6 Q211 G-5 Ref. No. Location Ref. No. Location D001 G-14 D002 G-14 D101 B-14 D102 A-14 D103 C-14 D104 C-14 D106 C-12 D107 D-13 D201 H-4 D202 H-4 D203 H-4 D204 H-4 D205 I-7 D303 E-8 D305 D-9 D306 D-8 D307 E-11 D308 E-11 D309 C-6 D402 F-13 D403 H-13 D405 J-9 D407 J-8 D409 G-9 D410 G-9 D411 H-11 D412 I-11 D417 E-9 D418 G-3 D419 I-3 D420 J-13 • Semiconductor Location 4-6. PRINTED WIRING BOARDS – CD Section – • See page 11 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D703 G-7 D706 F-6 IC701 H-9 IC702 E-10 IC703 I-6 IC704 F-7 PH701 D-11 Q701 I-8 Q704 F-6 Q712 F-6 Q213 I-7 Q214 I-7 Q251 J-5 Q252 J-8 Q253 I-8 Q303 E-13 Q304 E-13 Q305 D-9 Q308 G-4 Q309 G-4 Q312 F-3 Q313 F-4 Q316 D-8 Q317 D-7 Q319 D-9 Q320 D-8 Q321 D-14 Q401 I-9 Q403 I-8 Q405 I-8 Q406 H-9 Q411 E-10 Q412 J-9 Q413 J-9 Q414 J-9 Q415 I-9 Q416 J-9 Q419 J-3 Q420 J-3 Ref. No. Location (Page 17) (Page 22) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 HCD-BX6AV/DX6AV 6 5 3 4 2 1 5 1 C D (AEP, UK) PANEL BOARD CN102 PANEL BOARD CN101 1 2 2 1 1 1 8 8 5 1 PHONES JK403 ECB ECB ECB ECB ECB ECB ECB ECB ECB ECB ECB ECB ECB CN201 ECB ECB BCE BCE BCE BCE BCE BCE BCE BCE BCE BCE 1 2 R251 1 1 3 5 1 12 13 24 G S D G S D 1 8 1 6 1 1 1 12 6 8 4 3 2 1 5 6 4 4 3 3 2 2 1 1 5 6 5 6 + + – – R JK401 L FRONT SPEAKER (IMPEDANCE USE 6-16Ω) + + – – + – R CENTER WOOFER WOOFER OUT FM 75Ω 75Ω REAR DVD INPUT L REAR SPEAKER (IMPEDANCE USE 6-16Ω) HRPE201 (REC/PB/ERASE) DECORD BOARD CN704 CENTER/REAR BOARD CN302 FRONT BOARD CN301 CENTER/REAR BOARD CN305 HP201 (PB) CENTER SPEAKER (IMPEDANCE USE 6-16Ω) BACK UP BOARD CN502 R L FRONT R L MD/VIDEO IN R L FM (AEP, UK) AM 9 1 1 1 2 3 4 2 3 4 D002 BCE BCE JK301 JK402 JK303 ANTENNA JK101 BCE (EXCEPT AEP, UK) 8 5 4 1 1 3 1 3 ECB 2 1 17 15 12 13 14 16 19 18 6 4 1 2 3 5 8 7 9 10 11 1 3 4 5 2 1 3 6 5 2 4 8 1 8 1 D S C BCE BCE BCE BCE BCE ECB ECB (AEP, UK) B E F G H MAIN BOARD H/P BOARD 29 30 A B C D E F 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 G H I J K TP1 FOR ADJUSTMENT 05 R130 C356A C355A 4-7. PRINTED WIRING BOARDS – MAIN Section – • See page 11 for Circuit Boards Location. (Page 22) (Page 22) (Page 16) (Page 24) (Page 24) (Page 24) (Page 24) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 HCD-BX6AV/DX6AV 4-8. SCHEMATIC DIAGRAM – MAIN Section (1/4) – • See page 28 for Waveform. • See page 29 for IC Block Diagram. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM ( ) : AM (Page 19) (Page 20) (Page 23) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 19 HCD-BX6AV/DX6AV 4-9. SCHEMATIC DIAGRAM – MAIN Section (2/4) – • See page 28 for Waveforms. • See page 29 for IC Block Diagram. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM [ ] : TAPE PLAY (DECK A) < > : TAPE PLAY (DECK B) 〈〈 〉〉 : TAPE REC (Page 18) (Page 20) (Page 21) (Page 23) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 HCD-BX6AV/DX6AV 4-10. SCHEMATIC DIAGRAM – MAIN Section (3/4) – • Voltages are dc with respect to ground under no-signal (detuned) conditions. no mark : FM (Page 13) (Page 18) (Page 19) (Page 21) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 HCD-BX6AV/DX6AV 4-11. SCHEMATIC DIAGRAM – MAIN Section (4/4) – • Voltages are dc with respect to ground under no-signal (detuned) conditions. no mark : FM The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. (Page 20) (Page 25) (Page 26) (Page 26) (Page 19) (Page 27) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 22 HCD-BX6AV/DX6AV 4-12. PRINTED WIRING BOARDS – PANEL Section – • See page 11 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D601 D-9 D602 D-9 D603 B-2 D604 B-3 D608 B-6 D609 B-6 D610 B-6 D611 B-7 D612 B-7 D613 B-7 D614 B-7 D615 B-7 D616 B-7 D618 F-2 D619 F-2 D620 F-2 D621 G-2 D622 G-3 D623 F-3 D624 F-3 D625 F-11 D626 F-11 D627 E-11 D628 F-2 D629 F-2 D630 F-2 IC601 C-5 IC602 E-11 IC603 F-10 IC901 F-7 LED901 B-10 LED902 B-11 LED903 F-6 LED904 F-7 LED905 F-6 LED906 F-8 LED907 F-9 LED908 F-5 LED909 F-5 LED910 G-8 LED911 G-7 LED912 G-6 LED913 E-7 LED914 E-7 Q601 B-2 Q602 C-2 Q603 C-9 Q604 D-9 Q608 E-11 Q609 F-11 Q610 E-12 Q611 F-12 Q612 F-11 Q613 F-12 Q901 C-10 Q902 C-12 RM601 A-11 1 1 3 1 2 15 16 3 TIMER DISPLAY SPECTRUM ECB ECB 2 30 1 29 ECB ECB I/1 LED902, S917 1 10 20 30 40 49 FLD601 2 DECORD BOARD CN705 1 21 22 A + + ECB ECB PLAY MODE DIRECTION (EXCEPT AEP, UK) S906 PLAY MODE PTY/DIRECTION S905 REPEAT STEREO/MONO S904 MAIN BOARD CN101A EDIT TUNER MEMORY (AEP, UK) C 1 2 VOLUME j VR602 H h D TAPE MECHANISM BLOCK ECB ECB ECB ECB ECB ECB J DISC SKIP EX-CHANGE S903 REC LED908, S932 REC PAUSE LED909, S931 CD SYNC S933 > + S902 Z OPEN/CLOSE S918 TUNER/BAND LED905, S923 DSP LED912, S934 X S907 DISC 3 S919 CD LED903, S924 DVD 5.1CH LED911, S935 h H S908 DISC 2 S920 TAPE A/B LED904, S925 x S909 DISC 1 S921 – . S910 S922 MAIN BOARD CN101 MD (VIDEO) LED906, S926 GROOVE S911 FILE SELECT S912 ENTER S913 DOLBY PRO LOGIC LED910, S936 PANEL BOARD 10 18 9 1 R635 SENSOR BOARD A B C D E F 1 2 3 4 5 6 7 8 9 10 11 12 G 05 (Page 17) (Page 16) (Page 17) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 23 HCD-BX6AV/DX6AV 4-13. SCHEMATIC DIAGRAM – PANEL Section – • See page 28 for Waveform. • See page 29 for IC Block Diagrams. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM [ ] : TAPE PLAY (DECK A) < > : TAPE PLAY (DECK B) 〈〈 〉〉 : TAPE REC ∗ : Impossible to measure (Page 19) (Page 18) (Page 13) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 24 HCD-BX6AV/DX6AV 4-14. PRINTED WIRING BOARDS – AMP/POWER SUPPLY Section – • See page 11 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D001 D-11 D003 C-11 D004 E-12 D501 J-7 D502 J-7 D503 J-7 D504 J-8 D505 I-8 D506 H-7 D507 H-6 D508 I-6 D509 I-6 D511 H-7 D512 B-4 D513 B-4 D514 D-2 D516 B-1 D517 C-3 D518 B-1 D519 B-3 D520 E-4 D521 B-2 D525 A-2 D526 B-2 D527 K-7 D528 K-7 D529 H-8 D581 I-6 D599 H-8 IC501 F-4 IC502 F-6 Q001 C-12 Q002 D-12 Q501 G-6 Q502 G-6 Q503 J-5 Q504 J-5 Q505 D-2 Q507 D-2 Q508 D-2 Q509 B-1 Q510 B-2 Q511 C-4 Q512 B-4 Q513 C-7 Q514 C-8 Q515 C-2 Q516 D-4 Q517 D-2 Q518 C-2 Q519 C-2 Q520 B-2 Q521 I-2 Q522 I-2 Q523 H-5 Q581 J-6 1 7 BCE (CHASSIS) MAIN BOARD CN301 BCE BCE BCE BCE BCE ECB ECB ECB ECB ECB ECB ECB ECB DSG 1 12 CN505 1 2 M M505 (FAN) 1 7 1 7 + FRONT BOARD F 1 10 15 1 7 1 7 19 10 1 9 1 9 1 9 1 9 1 BCE BCE ECB ECB ECB ECB 6 1 1 8 B C E E C B 1 7 1 3 + (CHASSIS) MAIN BOARD CN305 G MAIN BOARD CN302 E CENTER/REAR BOARD 1 7 1 9 MAIN BOARD CN502 ECB BCE 1 2 3 4 TOO1 POWER TRANSFORMER AC IN H BACK UP BOARD A B C D E F 1 2 3 4 5 6 7 8 9 10 11 12 13 G H I J K (US, CND) M 05 IC502 (Page 17) (Page 17) (Page 17) (Page 17) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 25 HCD-BX6AV/DX6AV • Voltages are dc with respect to ground under no-signal (detuned) conditions. no mark : FM 4-15. SCHEMATIC DIAGRAM – FRONT AMP Section – The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. (Page 26) (Page 21) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 26 HCD-BX6AV/DX6AV • Voltages are dc with respect to ground under no-signal (detuned) conditions. no mark : FM The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 4-16. SCHEMATIC DIAGRAM – CENTER/REAR AMP Section – (Page 27) (Page 27) (Page 21) (Page 21) (Page 25) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 HCD-BX6AV/DX6AV 4-17. SCHEMATIC DIAGRAM – POWER SUPPLY Section – • Voltages are dc with respect to ground under no-signal (detuned) conditions. no mark : FM The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. (Page 21) (Page 26) (Page 26) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 • Waveforms – DECORD Board – 1 IC701 1 (FEO) (CD Play Mode) 2 IC701 ed (RF O), IC702 eg (RF) (CD Play Mode) 3 IC701 rg (TEO) (CD Play Mode) 4 IC702 wa (MDP) (CD Play Mode) 5 IC702 ef (LRCK) (CD Play Mode) 6 IC702 rd (BCK) (CD Play Mode) 7 IC702 u; (XTAI) – PANEL Board – 1 IC601 el (X’TAL) – MAIN Board – 1 IC103 1 (XIN) 2 Q251 (Base) (Tape Rec Mode) 3 Q251 (Collector) (Tape Rec Mode) Approx. 200 mVp-p 1.1 Vp-p 2.6 Vp-p 7.6 µs 6.6 Vp-p 22.7 µs 6.4 Vp-p 354 ns 4.3 Vp-p 16.9344 MHz 3.7 Vp-p 10 MHz 2.4 Vp-p 7.2 MHz 2.3 Vp-p 11.4 µs Approx. 100 mVp-p 13.6 Vp-p 11.4 µs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 • IC Block Diagrams – DECORD Board – IC701 CXA1992BR FZC VC TDFCT TZC ATSC TEI LPFI TEO VEE EI E F FE BIAS SL P SL M SL O ISET VCC XRST DATA XLT CLK LOCK SENS2 SENS1 C. OUT VCC DFCTO IFB1 – IFB6 BAL1 – BAL4 TOG1 – TOG4 FS1 – FS4 TG1 – TG2 TM1 – TM7 PS1 – PS4 TGH TGL BALH BALL ATSC DFCT TM1 TG1 FS2 IFB1 – IFB6 VCC VEE VCC VEE VEE PD 2 I-V AMP FOK CC2 CC1 CB CP RF O RF I RFTC PD2 PD1 PD LD RF M TA O TA M FSET TG2 TGU SRCH FEO FEI FDFCT FGD FLB FE O FE M TZC FZC FOL FOH MIRR LDON LPCL LPC TGFL DFCT1 CC1 1 2 3 4 5 6 7 8 9 10 26 25 24 23 22 21 20 19 18 17 16 15 14 40 41 42 43 44 45 46 47 48 49 50 51 52 39 PD 1 I-V AMP 38 PD AMP 37 LD AMP LASER POWER CONTROL FOCUS BIAS WINDOW COMPARATOR FOCUS ERROR AMP F I-V AMP E I-V AMP TGFL TRACKING GAIN WINDOW COMPARATOR E-F BALANCE WINDOW COMPARATOR ATSC WINDOW COMPARATOR TZC COMPARATOR TRACKING PHASE COMPENSATION CENTER VOLTAGE GENERATOR FZC COMPARATOR FOCUS PHASE COMPENSATION CHARGE UP FSET ISET IIC DATA REGISTER, INPUT SHIFT REGISTER, ADDRESS DECODER, SENSE SELECTOR, OUTPUT DECODER TTL ↓ IIL IIL ↓ TTL IIL ↓ TTL RF SUMMING AMP FOCUS OK COMPARATOR PEAK/BOTTOM HOLD PEAK/BOTTOM HOLD DEFECT AMP MIRR COMPARATOR 36 34 31 30 29 28 27 35 33 32 BAL1 – BAL4 TM6 TM2 VCC VEE TM5 11 12 13 TG2 TM4 VCC VEE TM3 FS1 VCC VEE TOG1 – TOG4 TM7 FS4 DFCT + – + – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 IC702 CXD2589Q PWM PWM 1 2 3 4 5 6 12 13 14 15 16 17 19 20 34 27 24 23 25 21 61 63 64 66 67 68 69 70 71 72 73 74 75 77 78 79 80 OSC 62 65 76 7 8 9 10 11 18 22 28 26 33 32 31 30 29 36 35 40 39 38 37 45 44 43 42 41 50 49 48 47 46 55 54 53 52 51 59 58 57 56 60 EFM DEMODULATOR ERROR CORRECTOR 16k RAM D/A INTERFACE CLOCK GENERATOR SERVO AUTO SEQUENCER CPU INTERFACE DIGITAL OUT SUB CODE PROCESSOR 3rd-ORDER NOISE SHAPER OVER SAMPLING DIGITAL FILTER SERIAL-IN INTERFACE DIGITAL CLV OSC DIGITAL PLL ASYMMETRY CORRECTOR LRCKI LRCK ASYO ASYI BIAS RF AVDD CLTV AVSS FILI FILO PCO V16M VCTL VCKI VPCO1 TES1 TES0 PWMI MDP VDD SYSM AVSS AVDD XTAI XVDD AVSS LOUT1 AIN1 AOUT1 XTAO XVSS AVSS LOUT2 AIN2 AOUT2 AVDD AVSS XRST VDD VSS EXCK SBSO SCOR WFCK ENPHI EMPH DOUT C4M XTSL C2PO GFS XPCK XUGF VDD VSS BCKI BCK PCMDI PCMD VSS LMUTE RMUTE SQCK SQSO SENS DATA XLAT CLOK SEIN CNIN DATO XLTO CLKO SPOA SPOB XLON FOK VDD VSS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT MUTE T.S.D BIAS BIAS BIAS VCC 100 BIAS BIAS VCC VCC DETECTION DF REG-OUT CURRENT 100 100 10K 10K D D D D D D D D D D D D 100 OUT1– OUT1+ OUT2– OUT2+ IN2 IN1 VCC VCC REG-I REG-B REG OUT IN3-R IN3-F OUT3+ OUT3– GND OUT4– OUT5– OUT4+ OUT5+ IN 5 IN 4 VCC BIAS IN GND GND MUTE IN IN6-R IN6-F OUT6+ OUT6– GND 13.3K 13.3K 13.3K IC703 BA5936S – MAIN Board – IC201 TA8189N CH2/A CH2/B NF VCC CG NF ALC METAL OUT PRE OUT TAPE A /TAPE B REC OUT REC IN CH1/A CH1/B NF GND1 M/H NF CH2 CH2 ALC M/N CH1 GND GND CH1 + – + – + – + – A/B GND METAL OUT PRE OUT MIX OUT REC OUT REC IN IREF VREF2 VREF1 24 23 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 IC101A BU1923F (AEP, UK models) ANALOG DIGITAL RCLK NC XO XI VSS2 T2 VDD2 T1 QUAL RDAT VREF MUX VDD1 VSS1 VSS3 CMP 1 4 3 6 5 8 7 2 14 15 16 13 12 11 10 9 CLOCK PLL 57kHz RDS/ARI COMPARATOR 8th SWITCHED CAPACITOR FILTER ANTI-ALIASING FILTER BIPHASE DECODER PLL 1187.5Hz DEFFERENTIAL DECODER TEST – PANEL Board – IC603 TC74HC165AP 1 2 3 4 5 6 7 8 9 10 16 15 14 13 12 11 CK E F G H QH D C B A SERIAL IN CLOCK INHIBIT SHIFT/ LOAD GND QH VCC OUTPUT QH SERIAL INPUT A B C D CLOCK INHIBIT SHIFT/ LOAD CLOCK E F G H OUTPUT QH PARALLEL INPUTS PARALLEL INPUTS IC901 BU2092 1 2 3 4 5 6 7 8 9 10 16 15 14 13 12 11 CONTROL CIRCUIT 12 BIT SHIFT REGISTER 12 BIT STORAGE REGISTER OUTPUT BUFFER (OPEN DRAIN) 17 18 VDD OE Q11 Q10 Q9 Q8 Q7 Q6 Q5 Q4 Q3 Q2 Q1 Q0 LCK CLOCK DATA VSS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 (1) TOP CABINET SECTION SECTION 5 EXPLODED VIEWS Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 3-703-136-21 SCREW (M3X12) 2 4-229-459-01 EMBLEM 3 4-230-489-01 DOOR, CD 4 4-230-501-01 HOLDER (R), MAIN PC BOARD 5 4-229-451-01 HOLDER (A), EJECT 6 4-229-473-01 PLATE, CD DOOR 7 4-230-502-01 HOLDER (L), MAIN PC BOARD 8 4-229-452-01 CABINET, TOP 9 A-4475-116-A MAIN BOARD, COMPLETE (US, CND) Front panel section #1 #1 #2 #18 #5 #5 #6 #6 #6 5 4 7 9 5 1 8 1 2 6 3 • Abbreviation CND : Canadian model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 (2) FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 4-229-457-01 WINDOW (R), CASSETTE 52 4-229-464-01 SPRING (B), EJECT 53 4-229-460-01 HOLDER (R), CASSETTE 54 4-220-622-01 DAMPER (GRY), GEAR 55 4-229-477-01 KNOB (A), VOLUME 56 1-792-850-11 WIRE (FLAT TYPE) (16 CORE) 57 4-230-493-01 HOLDER, VOL 58 4-229-478-01 KNOB (B), VOLUME (m M) 59 4-229-496-01 JOG, SPRING 60 4-229-458-01 WINDOW (L), CASSETTE 61 4-229-463-01 SPRING (A), EJECT 62 4-229-461-01 HOLDER (L), CASSETTE 63 4-230-495-01 PANEL, FRONT 64 4-229-474-01 BUTTON, POWER (I/1. DISPLAY. SPECTRUM) 65 A-4475-119-A H/P BOARD, COMPLETE 66 4-229-479-01 BUTTON, CD FUNCTION (GROOVE. FILE SELECT. ENTER. REC. REC PAUSE. CD SYNC) 67 4-230-496-01 BUTTON, FUNCTION (- .. x. h H. X. > +. DISC SKIP EX-CHANGE. DISC 1. DISC 2. DISC 3. Z OPEN/CLOSE) 68 A-4424-891-A PANEL BOARD, COMPLETE 69 1-769-273-11 WIRE (FLAT TYPE) (22 CORE) 70 4-230-500-01 RUBBER, FOOT 71 4-229-475-01 BUTTON, PLAY MODE (PLAY MODE. REPEAT. EDIT) 72 1-772-164-11 DECK, MECH (CWL-44-RR) 73 4-229-494-01 SPRING (L), PUSHING 74 4-229-492-01 SPRING (R), PUSHING 75 4-229-476-01 LENS (POWER) 76 4-229-481-01 LENS (TIME) 77 4-230-490-01 WINDOW, DISPLAY 78 4-230-491-01 DOOR (L), CASSETTE 79 4-229-455-01 DOOR (R), CASSETTE 51 79 55 60 78 61 52 53 70 62 63 64 75 65 66 67 68 56 69 71 72 74 73 76 77 57 59 58 not supplied supplied with VR602 #5 #5 #5 #17 #17 #13 54 54 #6 #6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 (3) BOTTOM CABINET SECTION The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 4-230-507-01 FOOT (B) 102 A-4475-115-A BACK UP BOARD, COMPLETE (US, CND) 103 4-230-504-01 CABINET, BOTTOM 104 A-4473-612-A PHOTO SOCKET BOARD, COMPLETE 105 A-4475-113-A FRONT BOARD, COMPLETE 106 4-230-508-01 SCREW (3X30) 107 4-230-505-01 COVER, REAR 108 A-4475-114-A CENTER/REAR BOARD, COMPLETE (US, CND) 109 4-230-494-01 HOLDER, MAIN CHASSIS 110 4-229-497-01 WASHER, AC CORD 0111 1-783-531-51 CORD, POWER (US, CND) M505 1-763-410-11 FAN, DC 0T001 1-435-714-11 TRANSFORMER, POWER (US, CND) #16 #23 #23 #17 #16 T001 #4 #4 #22 #22 not supplied #16 #16 #18 #18 #17 #18 #3 #5 #21 #4 #3 #17 M505 not supplied not supplied not supplied #4 105 104 106 106 103 101 101 US, CND 110 109 107 108 111 102 not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 (4) CD MECHANISM DECK SECTION-1 (EXL-M7) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 201 1-674-792-11 MOTOR BOARD 202 4-229-502-01 PLATE (A), CHANGER 203 4-229-503-01 BASE, CHANGER 204 4-221-895-01 SHEET, BLIND 205 4-221-896-01 LEVER, SENSOR SW 206 4-992-182-01 SPRING, SENSOR (SW) LEVER 207 4-992-170-01 BELT, LOADING 208 4-992-171-01 PULLEY, GEAR 209 4-221-894-01 GEAR, TR 210 4-229-504-01 GEAR, TR LOCK 211 4-221-893-01 GEAR (C), RELAY 212 4-992-187-01 CUSHION 213 4-992-186-01 CUSHION, SW LEVER 214 4-992-173-01 GEAR (B), RELAY 215 4-992-183-01 SCREW, RELAY GEAR (B) 216 4-992-174-01 GEAR, CHANGE 217 4-992-184-01 WASHER, CHANGE GEAR 218 4-229-505-01 SPRING, CHANGE GEAR 219 4-992-185-01 WASHER, CHANGE PLATE 220 4-992-172-01 GEAR (A), RELAY 221 4-221-902-01 PLATE, T/T 223 1-674-789-11 SW B BOARD 224 1-674-788-11 SW A BOARD 225 4-229-499-01 GUIDE, RAIL 226 4-229-529-01 TABLE, TURN 227 4-229-500-01 PROTECTOR, TURN TABLE M103 X-4948-765-1 MOTOR ASSY (DISC TABLE TURN) 203 223 204 209 225 225 217 215 219 214 221 211 202 218 216 220 207 210 213 212 208 206 205 201 224 227 212 226 #9 #14 #19 #11 #19 #19 #15 M103 #15 #11 #11 #12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 (5) CD MECHANISM DECK SECTION-2 (EXL-M7) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 251 1-769-856-11 WIRE (FLAT TYPE) (5 CORE) 252 4-221-897-01 CAM, UD 253 4-992-191-01 UD-GEAR 254 4-992-195-01 MAGNET 255 1-775-133-11 WIRE (FLAT TYPE) (15 CORE) 256 4-992-197-01 BELT, LOADING GEAR 257 4-992-198-01 PULLEY (B), GEAR 258 4-992-199-01 GEAR, SLIDE 259 4-992-200-01 ROLLER 261 4-992-192-01 SPRING, BRAKE CAM 262 4-992-193-01 LEVER, SW 263 1-674-791-11 SW D BOARD 264 1-674-790-11 SW C BOARD 265 4-229-512-01 SCREW, FLANGE 266 4-229-509-01 HOLDER, MAGNET 267 4-229-511-01 WASHER, POLYETHYLENE 268 A-4473-611-A DECORD BOARD, COMPLETE 269 4-221-900-01 COVER, MAGNET 270 4-221-903-01 SPRING, MECHANICAL BASE 271 4-229-510-01 CHASSIS, MAIN M104 X-4948-766-1 MOTOR ASSY (A) (DISC TRAY SLIDE) 259 264 263 257 267 256 258 262 261 254 269 266 252 253 265 251 270 268 255 271 259 #15 #15 #9 #20 #10 #11 #13 not supplied #13 #3 Base unit block #8 M104 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 (6) CD MECHANISM DECK SECTION-3 (EXL-M7) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 301 4-229-508-01 BASE, KSM MECHANICAL 302 4-992-165-01 DAMPER (GREEN) 303 4-992-166-01 DAMPER (RED) 304 4-992-167-01 SPRING, MECHANICAL BASE 0305 1-772-651-11 OPTICAL PICK-UP ASSY 306 3-319-501-51 SCREW (+ PTPWH) (2.6X16) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 302 303 305 306 306 306 306 302 303 304 304 301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 SECTION 6 ELECTRICAL PARTS LIST BACK UP CENTER/REAR Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-4475-115-A BACK UP BOARD, COMPLETE (US, CND) ************************ * 1-533-213-31 HOLDER, FUSE < CAPACITOR > C002 1-104-665-11 ELECT 100uF 20% 10V C003 1-161-494-00 CERAMIC 0.022uF 25V C004 1-104-665-11 ELECT 100uF 20% 10V C005 1-126-943-11 ELECT 2200uF 20% 25V C006 1-161-494-00 CERAMIC 0.022uF 25V C007 1-161-494-00 CERAMIC 0.022uF 25V 0C001A 1-113-924-11 CERAMIC 0.0047uF 20% 250V < CONNECTOR > * CN001 1-564-510-11 PLUG, CONNECTOR 7P < DIODE > D001 8-719-067-67 DIODE W02G D003 8-719-911-19 DIODE 1SS133T-72 D004 8-719-010-44 DIODE UZ-6.2BS < FUSE > 0F001 1-576-193-11 FUSE (6.3A/125V) 0F002 1-576-193-11 FUSE (6.3A/125V) 0F003 1-576-193-11 FUSE (6.3A/125V) 0F004 1-576-193-11 FUSE (6.3A/125V) < TRANSISTOR > Q001 8-729-194-57 TRANSISTOR 2SC945TP-P Q002 8-729-142-46 TRANSISTOR 2SC2001-L < RESISTOR > 0R001 1-219-238-11 SOLID 4.7M 20% 1/2W F (US, CND) R002 1-247-847-11 CARBON 4.7K 5% 1/4W R003 1-247-688-11 CARBON 10 5% 1/4W R004 1-249-417-11 CARBON 1K 5% 1/4W < RELAY > 0RL001 1-515-999-11 RELAY, POWER < TRANSFORMER > 0T002 1-435-612-11 TRANSFORMER, POWER ************************************************************** A-4475-114-A CENTER/REAR BOARD, COMPLETE (US, CND) **************************** * 1-533-213-31 HOLDER, FUSE 7-685-645-79 SCREW +BVTP 3X6 TYPE2 SLIT 7-685-646-79 SCREW +BVTP 3X8 TYPE2 SLIT 7-685-649-79 SCREW +BVTP 3X14 TYPE2 SLIT < CAPACITOR > C501 1-161-494-00 CERAMIC 0.022uF 25V C502 1-161-494-00 CERAMIC 0.022uF 25V C503 1-126-943-11 ELECT 2200uF 20% 25V C504 1-126-934-11 ELECT 220uF 20% 16V C505 1-161-494-00 CERAMIC 0.022uF 25V C506 1-161-494-00 CERAMIC 0.022uF 25V C507 1-126-935-11 ELECT 470uF 20% 16V C508 1-104-665-11 ELECT 100uF 20% 10V C509 1-161-494-00 CERAMIC 0.022uF 25V C510 1-161-494-00 CERAMIC 0.022uF 25V C511 1-126-925-11 ELECT 470uF 20% 10V C512 1-161-494-00 CERAMIC 0.022uF 25V C513 1-161-494-00 CERAMIC 0.022uF 25V C514 1-126-961-11 ELECT 2.2uF 20% 50V C515 1-162-302-11 CERAMIC 0.0022uF 20% 16V C516 1-162-302-11 CERAMIC 0.0022uF 20% 16V C517 1-109-953-11 ELECT 2.2uF 20% 50V C518 1-109-953-11 ELECT 2.2uF 20% 50V C519 1-162-193-31 CERAMIC 3.3PF 10% 50V C520 1-162-193-31 CERAMIC 3.3PF 10% 50V C521 1-137-399-11 MYLAR 0.1uF 5% 100V C522 1-137-399-11 MYLAR 0.1uF 5% 100V C523 1-126-966-11 ELECT 33uF 20% 16V C524 1-126-966-11 ELECT 33uF 20% 16V C528 1-126-964-11 ELECT 10uF 20% 50V C529 1-126-964-11 ELECT 10uF 20% 50V C530 1-107-714-11 ELECT 10uF 20% 50V C531 1-107-714-11 ELECT 10uF 20% 50V C582 1-137-399-11 MYLAR 0.1uF 5% 100V C583 1-162-193-31 CERAMIC 3.3PF 10% 50V C584 1-126-966-11 ELECT 33uF 20% 16V NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. • Abbreviation CND : Canadian model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CENTER/REAR DECORD C585 1-109-953-11 ELECT 2.2uF 20% 50V C586 1-162-302-11 CERAMIC 0.0022uF 20% 16V C590 1-107-713-11 ELECT 4.7uF 20% 50V C593 1-162-286-31 CERAMIC 220PF 10% 50V C594 1-162-286-31 CERAMIC 220PF 10% 50V C595 1-162-286-31 CERAMIC 220PF 10% 50V C599 1-128-551-11 ELECT 22uF 20% 25V < CONNECTOR > * CN501 1-564-506-11 PLUG, CONNECTOR 3P < DIODE > D501 8-719-031-85 DIODE 1N4002L D502 8-719-031-85 DIODE 1N4002L D503 8-719-031-85 DIODE 1N4002L D504 8-719-031-85 DIODE 1N4002L D505 8-719-031-85 DIODE 1N4002L D506 8-719-010-76 DIODE UZ-13BS D507 8-719-110-08 DIODE UZ-8.2BS D508 8-719-911-19 DIODE 1SS133T-72 D509 8-719-911-19 DIODE 1SS133T-72 D511 8-719-911-19 DIODE 1SS133T-72 D527 8-719-911-19 DIODE 1SS133T-72 D528 8-719-911-19 DIODE 1SS133T-72 D529 8-719-911-19 DIODE 1SS133T-72 D581 8-719-911-19 DIODE 1SS133T-72 D599 8-719-911-19 DIODE 1SS133T-72 < FUSE > 0F501 1-576-104-11 FUSE (2A/250V) (US, CND) < IC > IC501 8-749-018-11 IC STK402-270 < TRANSISTOR > Q501 8-729-822-89 TRANSISTOR 2SD1667-R Q502 8-729-188-23 TRANSISTOR 2SD882-P Q503 8-729-184-53 TRANSISTOR 2SC1841-EA Q504 8-729-184-53 TRANSISTOR 2SC1841-EA Q521 8-729-231-55 TRANSISTOR 2SC2878-A Q522 8-729-231-55 TRANSISTOR 2SC2878-A Q523 8-729-231-55 TRANSISTOR 2SC2878-A Q581 8-729-184-53 TRANSISTOR 2SC1841-EA < RESISTOR > R501 1-247-708-11 CARBON 470 5% 1/4W R502 1-246-461-15 CARBON 330 5% 1/4W R503 1-247-855-11 CARBON 10K 5% 1/4W R504 1-247-863-11 CARBON 22K 5% 1/4W R505 1-247-863-11 CARBON 22K 5% 1/4W R506 1-249-438-11 CARBON 56K 5% 1/4W R507 1-249-438-11 CARBON 56K 5% 1/4W R508 1-249-420-11 CARBON 1.8K 5% 1/4W R509 1-249-420-11 CARBON 1.8K 5% 1/4W R510 1-249-438-11 CARBON 56K 5% 1/4W R511 1-249-438-11 CARBON 56K 5% 1/4W R512 1-249-455-11 CARBON 4.7 5% 1/4W R513 1-249-455-11 CARBON 4.7 5% 1/4W R514 1-249-464-11 CARBON 39K 5% 1/4W R515 1-247-726-11 CARBON 33K 5% 1/4W R516 1-247-713-11 CARBON 1K 5% 1/4W R517 1-247-713-11 CARBON 1K 5% 1/4W R518 1-249-431-11 CARBON 15K 5% 1/4W R519 1-249-431-11 CARBON 15K 5% 1/4W 0R520 1-220-755-11 METAL 0.22 10% 2W F 0R521 1-220-755-11 METAL 0.22 10% 2W F R522 1-247-863-11 CARBON 22K 5% 1/4W R523 1-247-879-11 CARBON 100K 5% 1/4W R524 1-247-871-11 CARBON 47K 5% 1/4W R534 1-247-855-11 CARBON 10K 5% 1/4W R535 1-249-459-11 CARBON 12K 5% 1/4W R536 1-249-459-11 CARBON 12K 5% 1/4W 0R581 1-220-755-11 METAL 0.22 10% 2W F R582 1-247-726-11 CARBON 33K 5% 1/4W R583 1-247-713-11 CARBON 1K 5% 1/4W R584 1-249-431-11 CARBON 15K 5% 1/4W R585 1-249-455-11 CARBON 4.7 5% 1/4W R586 1-249-438-11 CARBON 56K 5% 1/4W R587 1-249-420-11 CARBON 1.8K 5% 1/4W R588 1-249-438-11 CARBON 56K 5% 1/4W R590 1-247-871-11 CARBON 47K 5% 1/4W R593 1-247-871-11 CARBON 47K 5% 1/4W R594 1-247-839-11 CARBON 2.2K 5% 1/4W R595 1-247-839-11 CARBON 2.2K 5% 1/4W R598 1-247-855-11 CARBON 10K 5% 1/4W R599 1-247-863-11 CARBON 22K 5% 1/4W R514A 1-247-879-11 CARBON 100K 5% 1/4W R515A 1-247-879-11 CARBON 100K 5% 1/4W 0R520A 1-220-755-11 METAL 0.22 10% 2W F 0R521A 1-220-755-11 METAL 0.22 10% 2W F 0R581A 1-220-755-11 METAL 0.22 10% 2W F R582A 1-249-469-11 CARBON 100K 5% 1/4W R591A 1-247-839-11 CARBON 2.2K 5% 1/4W R592A 1-247-871-11 CARBON 47K 5% 1/4W ************************************************************** A-4473-611-A DECORD BOARD, COMPLETE *********************** < CAPACITOR > C701 1-104-664-11 ELECT 47uF 20% 16V C702 1-137-352-11 MYLAR 0.033uF 5% 100V C703 1-137-150-11 MYLAR 0.01uF 5% 100V C704 1-137-352-11 MYLAR 0.033uF 5% 100V C705 1-137-150-11 MYLAR 0.01uF 5% 100V C706 1-128-551-11 ELECT 22uF 20% 25V C707 1-162-209-31 CERAMIC 27PF 5% 50V C708 1-164-159-11 CERAMIC 0.1uF 50V C711 1-162-600-11 CERAMIC 0.0047uF 10% 16V C712 1-162-306-11 CERAMIC 0.01uF 20% 16V C713 1-136-291-11 MYLAR 0.0068uF 5% 100V C714 1-137-397-11 MYLAR 0.047uF 5% 100V C715 1-161-494-00 CERAMIC 0.022uF 25V C716 1-137-399-11 MYLAR 0.1uF 5% 100V C717 1-104-665-11 ELECT 100uF 20% 10V The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C718 1-104-665-11 ELECT 100uF 20% 10V C719 1-137-399-11 MYLAR 0.1uF 5% 100V C720 1-137-389-11 MYLAR 0.0022uF 5% 100V C721 1-137-399-11 MYLAR 0.1uF 5% 100V C722 1-137-399-11 MYLAR 0.1uF 5% 100V C723 1-137-399-11 MYLAR 0.1uF 5% 100V C724 1-107-713-11 ELECT 4.7uF 20% 50V C725 1-137-352-11 MYLAR 0.033uF 5% 100V C726 1-130-486-00 MYLAR 0.018uF 10% 50V C727 1-162-199-31 CERAMIC 10PF 5% 50V C728 1-137-398-11 MYLAR 0.068uF 5% 100V C729 1-126-962-11 ELECT 3.3uF 20% 50V C730 1-162-215-31 CERAMIC 47PF 5% 50V C731 1-164-159-11 CERAMIC 0.1uF 50V C732 1-161-494-00 CERAMIC 0.022uF 25V C733 1-104-665-11 ELECT 100uF 20% 10V C734 1-164-159-11 CERAMIC 0.1uF 50V C736 1-162-294-31 CERAMIC 0.001uF 10% 50V C737 1-162-306-11 CERAMIC 0.01uF 20% 16V C740 1-126-925-11 ELECT 470uF 20% 10V C742 1-161-494-00 CERAMIC 0.022uF 25V C743 1-126-927-11 ELECT 2200uF 20% 10V C745 1-162-306-11 CERAMIC 0.01uF 20% 16V C746 1-107-713-11 ELECT 4.7uF 20% 35V C751 1-162-306-11 CERAMIC 0.01uF 20% 16V C753 1-161-494-00 CERAMIC 0.022uF 25V C754 1-104-665-11 ELECT 100uF 20% 10V C755 1-104-665-11 ELECT 100uF 20% 10V C756 1-107-357-11 MYLAR 0.47uF 5% 100V C757 1-162-306-11 CERAMIC 0.01uF 20% 16V C759 1-162-290-31 CERAMIC 470PF 10% 50V C760 1-162-286-31 CERAMIC 220PF 10% 50V C761 1-130-781-00 MYLAR 0.22uF 5% 100V C762 1-137-150-11 MYLAR 0.01uF 5% 100V C763 1-161-494-00 CERAMIC 0.022uF 25V C765 1-162-294-31 CERAMIC 0.001uF 10% 50V C766 1-162-294-31 CERAMIC 0.001uF 10% 50V C767 1-162-294-31 CERAMIC 0.001uF 10% 50V C768 1-162-294-31 CERAMIC 0.001uF 10% 50V C769 1-162-294-31 CERAMIC 0.001uF 10% 50V C770 1-164-159-11 CERAMIC 0.1uF 50V C771 1-161-494-00 CERAMIC 0.022uF 25V C772 1-161-494-00 CERAMIC 0.022uF 25V C773 1-102-516-11 CERAMIC 27PF 5% 50V C774 1-102-516-11 CERAMIC 27PF 5% 50V C777 1-162-294-31 CERAMIC 0.001uF 10% 50V C778 1-162-294-31 CERAMIC 0.001uF 10% 50V C779 1-162-282-31 CERAMIC 100PF 10% 50V C780 1-162-294-31 CERAMIC 0.001uF 10% 50V C781 1-162-284-31 CERAMIC 150PF 10% 50V C782 1-162-284-31 CERAMIC 150PF 10% 50V C783 1-162-292-31 CERAMIC 680PF 10% 50V C784 1-162-292-31 CERAMIC 680PF 10% 50V C785 1-126-963-11 ELECT 4.7uF 20% 50V C786 1-126-963-11 ELECT 4.7uF 20% 50V C787 1-162-294-31 CERAMIC 0.001uF 10% 50V C788 1-162-294-31 CERAMIC 0.001uF 10% 50V C789 1-164-159-11 CERAMIC 0.1uF 50V C790 1-126-926-11 ELECT 1000uF 20% 10V C791 1-164-159-11 CERAMIC 0.1uF 50V C792 1-162-286-31 CERAMIC 220PF 10% 50V C793 1-162-294-31 CERAMIC 0.001uF 10% 50V C794 1-162-294-31 CERAMIC 0.001uF 10% 50V C795 1-164-159-11 CERAMIC 0.1uF 50V C797 1-164-159-11 CERAMIC 0.1uF 50V C798 1-126-963-11 ELECT 4.7uF 20% 50V C799 1-161-494-00 CERAMIC 0.022uF 25V C726A 1-164-206-41 CERAMIC 0.047uF 99% 50V C727A 1-164-159-11 CERAMIC 0.1uF 50V C740A 1-162-600-11 CERAMIC 0.0047uF 10% 16V C740B 1-162-600-11 CERAMIC 0.0047uF 10% 16V C740C 1-162-600-11 CERAMIC 0.0047uF 10% 16V C740D 1-162-600-11 CERAMIC 0.0047uF 10% 16V C751A 1-164-159-11 CERAMIC 0.1uF 50V C771A 1-161-494-00 CERAMIC 0.022uF 25V C777A 1-161-494-00 CERAMIC 0.022uF 25V C789A 1-164-159-11 CERAMIC 0.1uF 50V C790A 1-161-494-00 CERAMIC 0.022uF 25V C799A 1-104-665-11 ELECT 100uF 20% 10V C799B 1-104-665-11 ELECT 100uF 20% 10V < CONNECTOR > CN701 1-774-757-11 CONNECTOR, FFC/FPC 15P * CN705 1-568-822-11 SOCKET, CONNECTOR 22P * CN706 1-568-824-11 SOCKET, CONNECTOR 5P * CN707 1-564-709-11 PIN, CONNECTOR (SMALL TYPE) 7P < DIODE > D703 8-719-991-33 DIODE 1SS133T-77 D706 8-719-010-40 DIODE UZ-5.6BS < IC > IC701 8-752-082-14 IC CXA1992BR IC702 8-752-384-13 IC CXD2589Q IC703 8-759-579-80 IC BA5936S IC704 8-759-234-75 IC TC74HC4094AP < COIL > L704 1-410-526-11 INDUCTOR 10uH L705 1-410-526-11 INDUCTOR 10uH < TRANSISTOR > Q701 8-729-195-23 TRANSISTOR 2SA952-L Q704 8-729-142-46 TRANSISTOR 2SC2001-L Q712 8-729-194-57 TRANSISTOR 2SC945TP-P < RESISTOR > R701 1-249-397-11 CARBON 22 5% 1/4W R704 1-247-854-11 CARBON 9.1K 5% 1/4W R705 1-247-849-11 CARBON 5.6K 5% 1/4W R706 1-249-428-11 CARBON 8.2K 5% 1/4W R707 1-247-903-00 CARBON 1M 5% 1/4W R709 1-247-806-11 CARBON 91 5% 1/4W R710 1-247-881-00 CARBON 120K 5% 1/4W R711 1-247-883-00 CARBON 150K 5% 1/4W R719 1-247-883-00 CARBON 150K 5% 1/4W DECORD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R720 1-247-891-00 CARBON 330K 5% 1/4W R721 1-247-885-00 CARBON 180K 5% 1/4W R722 1-247-807-11 CARBON 100 5% 1/4W R723 1-247-855-11 CARBON 10K 5% 1/4W R724 1-249-428-11 CARBON 8.2K 5% 1/4W R725 1-247-899-11 CARBON 680K 5% 1/4W R726 1-247-883-00 CARBON 150K 5% 1/4W R727 1-247-896-11 CARBON 510K 5% 1/4W R728 1-249-459-11 CARBON 12K 5% 1/4W R729 1-249-439-11 CARBON 68K 5% 1/4W R730 1-247-871-11 CARBON 47K 5% 1/4W R731 1-249-417-11 CARBON 1K 5% 1/4W R732 1-247-883-00 CARBON 150K 5% 1/4W R733 1-249-430-11 CARBON 12K 5% 1/4W R734 1-247-883-00 CARBON 150K 5% 1/4W R735 1-247-879-11 CARBON 100K 5% 1/4W R736 1-249-459-11 CARBON 12K 5% 1/4W R737 1-249-417-11 CARBON 1K 5% 1/4W R739 1-249-459-11 CARBON 12K 5% 1/4W R740 1-249-432-11 CARBON 18K 5% 1/4W R741 1-249-432-11 CARBON 18K 5% 1/4W R743 1-249-430-11 CARBON 12K 5% 1/4W R744 1-249-461-11 CARBON 18K 5% 1/4W R745 1-249-461-11 CARBON 18K 5% 1/4W R746 1-249-461-11 CARBON 18K 5% 1/4W R747 1-249-432-11 CARBON 18K 5% 1/4W R748 1-247-847-11 CARBON 4.7K 5% 1/4W R753 1-247-847-11 CARBON 4.7K 5% 1/4W R755 1-247-871-11 CARBON 47K 5% 1/4W R756 1-249-417-11 CARBON 1K 5% 1/4W R758 1-247-871-11 CARBON 47K 5% 1/4W R759 1-247-843-11 CARBON 3.3K 5% 1/4W R760 1-249-417-11 CARBON 1K 5% 1/4W R761 1-247-855-11 CARBON 10K 5% 1/4W R762 1-247-903-00 CARBON 1M 5% 1/4W R763 1-247-881-00 CARBON 120K 5% 1/4W R764 1-247-855-11 CARBON 10K 5% 1/4W R765 1-247-871-11 CARBON 47K 5% 1/4W R766 1-249-417-11 CARBON 1K 5% 1/4W R767 1-249-417-11 CARBON 1K 5% 1/4W R771 1-249-417-11 CARBON 1K 5% 1/4W R773 1-249-442-11 CARBON 510 5% 1/4W R774 1-247-903-00 CARBON 1M 5% 1/4W R775 1-247-864-11 CARBON 24K 5% 1/4W R781 1-249-430-11 CARBON 12K 5% 1/4W R782 1-249-430-11 CARBON 12K 5% 1/4W R783 1-249-430-11 CARBON 12K 5% 1/4W R784 1-249-430-11 CARBON 12K 5% 1/4W R785 1-249-430-11 CARBON 12K 5% 1/4W R786 1-249-430-11 CARBON 12K 5% 1/4W R787 1-247-717-11 CARBON 2.2K 5% 1/4W R788 1-247-717-11 CARBON 2.2K 5% 1/4W R789 1-247-847-11 CARBON 4.7K 5% 1/4W R790 1-247-847-11 CARBON 4.7K 5% 1/4W R795 1-247-713-11 CARBON 1K 5% 1/4W R796 1-247-713-11 CARBON 1K 5% 1/4W R797 1-247-713-11 CARBON 1K 5% 1/4W R799 1-249-411-11 CARBON 330 5% 1/4W R726A 1-247-871-11 CARBON 47K 5% 1/4W R729A 1-249-434-11 CARBON 27K 5% 1/4W R748A 1-247-847-11 CARBON 4.7K 5% 1/4W R766A 1-249-417-11 CARBON 1K 5% 1/4W R767A 1-249-417-11 CARBON 1K 5% 1/4W R768A 1-249-417-11 CARBON 1K 5% 1/4W R780A 1-249-417-11 CARBON 1K 5% 1/4W R795A 1-247-855-11 CARBON 10K 5% 1/4W R796A 1-247-855-11 CARBON 10K 5% 1/4W < VIBRATOR > XTL01 1-567-908-11 VIBRATOR, CRYSTAL (16.9344MHz) ************************************************************** A-4475-113-A FRONT BOARD, COMPLETE ********************** 4-230-508-01 SCREW (3X30) 7-685-645-79 SCREW +BVTP 3X6 TYPE2 SLIT 7-685-646-79 SCREW +BVTP 3X8 TYPE2 SLIT 7-685-649-79 SCREW +BVTP 3X14 TYPE2 SLIT < CAPACITOR > C539 1-162-302-11 CERAMIC 0.0022uF 20% 16V C540 1-162-302-11 CERAMIC 0.0022uF 20% 16V C541 1-109-953-11 ELECT 2.2uF 20% 50V C542 1-109-953-11 ELECT 2.2uF 20% 50V C543 1-162-193-31 CERAMIC 3.3PF 10% 50V C544 1-162-193-31 CERAMIC 3.3PF 10% 50V C545 1-126-966-11 ELECT 33uF 20% 16V C546 1-126-966-11 ELECT 33uF 20% 16V C547 1-137-399-11 MYLAR 0.1uF 5% 100V C548 1-137-399-11 MYLAR 0.1uF 5% 100V C551 1-104-664-11 ELECT 47uF 20% 16V C552 1-126-767-11 ELECT 1000uF 20% 16V C556 1-126-961-11 ELECT 2.2uF 20% 50V C557 1-107-714-11 ELECT 10uF 20% 50V C558 1-126-933-11 ELECT 100uF 20% 16V C559 1-126-964-11 ELECT 10uF 20% 50V C560 1-126-964-11 ELECT 10uF 20% 50V C561 1-107-714-11 ELECT 10uF 20% 50V C562 1-107-714-11 ELECT 10uF 20% 50V C591 1-162-286-31 CERAMIC 220PF 10% 50V C592 1-162-286-31 CERAMIC 220PF 10% 50V C596 1-126-933-11 ELECT 100uF 20% 16V < CONNECTOR > * CN505 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P < DIODE > D512 8-719-911-19 DIODE 1SS133T-72 D513 8-719-911-19 DIODE 1SS133T-72 D514 8-719-911-19 DIODE 1SS133T-72 D516 8-719-911-19 DIODE 1SS133T-72 D517 8-719-911-19 DIODE 1SS133T-72 D518 8-719-911-19 DIODE 1SS133T-72 D519 8-719-911-19 DIODE 1SS133T-72 DECORD FRONT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D520 8-719-110-22 DIODE UZ-11BS D521 8-719-911-19 DIODE 1SS133T-72 D525 8-719-911-19 DIODE 1SS133T-72 D526 8-719-911-19 DIODE 1SS133T-72 < IC > IC502 8-749-016-94 IC STK402-090S < MOTOR > M505 1-763-410-11 FAN, DC < TRANSISTOR > Q505 8-729-194-57 TRANSISTOR 2SC945TP-P Q507 8-729-993-43 TRANSISTOR 2SA934R Q508 8-729-142-46 TRANSISTOR 2SC2001-L Q509 8-729-048-99 TRANSISTOR 2SK2541-T Q510 8-729-029-86 FET DTC124ES Q511 8-729-184-53 TRANSISTOR 2SC1841-EA Q512 8-729-184-53 TRANSISTOR 2SC1841-EA Q513 8-729-231-55 TRANSISTOR 2SC2878-A Q514 8-729-231-55 TRANSISTOR 2SC2878-A Q515 8-729-119-76 TRANSISTOR 2SA733-P Q516 8-729-103-63 TRANSISTOR 2SA953-KA Q517 8-729-194-57 TRANSISTOR 2SC945TP-P Q518 8-729-194-57 TRANSISTOR 2SC945TP-P Q519 8-729-194-57 TRANSISTOR 2SC945TP-P Q520 8-729-194-57 TRANSISTOR 2SC945TP-P < RESISTOR > R525 1-249-465-11 CARBON 47K 5% 1/4W R526 1-249-465-11 CARBON 47K 5% 1/4W R527 1-247-871-11 CARBON 47K 5% 1/4W R528 1-247-879-11 CARBON 100K 5% 1/4W R529 1-247-903-00 CARBON 1M 5% 1/4W R530 1-249-417-11 CARBON 1K 5% 1/4W R537 1-249-417-11 CARBON 1K 5% 1/4W R538 1-249-417-11 CARBON 1K 5% 1/4W R539 1-247-855-11 CARBON 10K 5% 1/4W R540 1-247-855-11 CARBON 10K 5% 1/4W R541 1-249-438-11 CARBON 56K 5% 1/4W R542 1-249-438-11 CARBON 56K 5% 1/4W R543 1-247-716-11 CARBON 1.8K 5% 1/4W R544 1-247-716-11 CARBON 1.8K 5% 1/4W R545 1-249-438-11 CARBON 56K 5% 1/4W R546 1-249-438-11 CARBON 56K 5% 1/4W 0R547 1-260-300-11 CARBON 4.7 5% 1/2W F 0R548 1-260-300-11 CARBON 4.7 5% 1/2W F 0R549 1-247-739-11 CARBON 100 5% 1/2W F 0R550 1-247-739-11 CARBON 100 5% 1/2W F R551 1-249-438-11 CARBON 56K 5% 1/4W R552 1-247-871-11 CARBON 47K 5% 1/4W R553 1-247-713-11 CARBON 1K 5% 1/4W R554 1-247-713-11 CARBON 1K 5% 1/4W R555 1-249-431-11 CARBON 15K 5% 1/4W R556 1-249-431-11 CARBON 15K 5% 1/4W 0R557 1-220-890-11 METAL 0.22 10% 3W F 0R558 1-220-890-11 METAL 0.22 10% 3W F R559 1-247-855-11 CARBON 10K 5% 1/4W R560 1-247-871-11 CARBON 47K 5% 1/4W R561 1-249-417-11 CARBON 1K 5% 1/4W R562 1-247-867-11 CARBON 33K 5% 1/4W R563 1-247-863-11 CARBON 22K 5% 1/4W R566 1-247-863-11 CARBON 22K 5% 1/4W R567 1-247-847-11 CARBON 4.7K 5% 1/4W R568 1-247-847-11 CARBON 4.7K 5% 1/4W R569 1-247-855-11 CARBON 10K 5% 1/4W R571 1-249-417-11 CARBON 1K 5% 1/4W R573 1-247-855-11 CARBON 10K 5% 1/4W R574 1-247-855-11 CARBON 10K 5% 1/4W R575 1-247-855-11 CARBON 10K 5% 1/4W R576 1-247-854-11 CARBON 9.1K 5% 1/4W 0R577 1-247-758-11 CARBON 3.3K 5% 1/2W F R578 1-247-879-11 CARBON 100K 5% 1/4W R580 1-247-847-11 CARBON 4.7K 5% 1/4W R591 1-247-879-11 CARBON 100K 5% 1/4W 0R592 1-247-727-11 CARBON 10 5% 1/2W F R551A 1-247-879-11 CARBON 100K 5% 1/4W R552A 1-247-879-11 CARBON 100K 5% 1/4W 0R557A 1-220-890-11 METAL 0.22 10% 3W F 0R558A 1-220-890-11 METAL 0.22 10% 3W F R560A 1-247-839-11 CARBON 2.2K 5% 1/4W < THERMISTOR > TH501 1-803-779-11 THERMISTOR ************************************************************** A-4475-119-A H/P BOARD, COMPLETE ******************** < JACK > JK403 1-569-612-11 JACK, MINIATURE (PHONES) ************************************************************** A-4475-116-A MAIN BOARD, COMPLETE (US, CND) ********************* < CAPACITOR > C101 1-162-282-31 CERAMIC 100PF 10% 50V C102 1-161-494-00 CERAMIC 0.022uF 25V C103 1-126-959-11 ELECT 0.47uF 20% 50V C104 1-161-494-00 CERAMIC 0.022uF 25V C105 1-162-286-31 CERAMIC 220PF 10% 50V C106 1-161-494-00 CERAMIC 0.022uF 25V C107 1-161-494-00 CERAMIC 0.022uF 25V C109 1-126-964-11 ELECT 10uF 20% 50V C111 1-164-159-11 CERAMIC 0.1uF 50V C113 1-162-286-31 CERAMIC 220PF 10% 50V C114 1-164-159-11 CERAMIC 0.1uF 50V C117 1-162-199-31 CERAMIC 10PF 5% 50V C118 1-126-933-11 ELECT 100uF 20% 16V C120 1-161-494-00 CERAMIC 0.022uF 25V C121 1-162-215-31 CERAMIC 47PF 5% 50V C122 1-126-960-11 ELECT 1uF 20% 50V C123 1-126-959-11 ELECT 0.47uF 20% 50V C124 1-162-206-31 CERAMIC 20PF 5% 50V The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le neméro spécifié. FRONT H/P MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C125 1-126-960-11 ELECT 1uF 20% 50V C126 1-161-494-00 CERAMIC 0.022uF 25V C127 1-126-964-11 ELECT 10uF 20% 50V C128 1-161-494-00 CERAMIC 0.022uF 25V C129 1-126-964-11 ELECT 10uF 20% 50V C130 1-137-352-11 MYLAR 0.033uF 5% 100V C131 1-137-352-11 MYLAR 0.033uF 5% 100V C132 1-162-600-11 CERAMIC 0.0047uF 20% 16V C133 1-162-600-11 CERAMIC 0.0047uF 20% 16V C134 1-126-962-11 ELECT 3.3uF 20% 50V C135 1-162-290-31 CERAMIC 470PF 10% 50V C136 1-128-551-11 ELECT 22uF 20% 25V C137 1-126-963-11 ELECT 4.7uF 20% 50V C138 1-164-159-11 CERAMIC 0.1uF 50V C139 1-161-494-00 CERAMIC 0.022uF 25V C140 1-126-933-11 ELECT 100uF 20% 16V C141 1-161-494-00 CERAMIC 0.022uF 25V C142 1-126-933-11 ELECT 100uF 20% 16V C143 1-137-401-11 MYLAR 0.22uF 5% 100V C144 1-137-150-11 MYLAR 0.01uF 5% 100V C146 1-162-294-31 CERAMIC 0.001uF 10% 50V C147 1-162-306-11 CERAMIC 0.01uF 30% 16V C148 1-161-494-00 CERAMIC 0.022uF 25V C149 1-162-294-31 CERAMIC 0.001uF 10% 50V C150 1-164-159-11 CERAMIC 0.1uF 50V C151 1-126-959-11 ELECT 0.47uF 20% 50V C152 1-126-959-11 ELECT 0.47uF 20% 50V C153 1-162-600-11 CERAMIC 0.0047uF 20% 16V C154 1-164-159-11 CERAMIC 0.1uF 50V C155 1-162-294-31 CERAMIC 0.001uF 10% 50V C156 1-102-951-00 CERAMIC 15PF 5% 50V C157 1-102-951-00 CERAMIC 15PF 5% 50V C158 1-104-664-11 ELECT 47uF 20% 10V C160 1-126-963-11 ELECT 4.7uF 20% 50V C161 1-126-963-11 ELECT 4.7uF 20% 50V C163 1-161-494-00 CERAMIC 0.022uF 25V C165 1-161-494-00 CERAMIC 0.022uF 25V C166 1-164-159-11 CERAMIC 0.1uF 50V C167 1-162-286-31 CERAMIC 220PF 10% 50V C197 1-164-206-41 CERAMIC 0.047uF 99% 50V C198 1-161-494-00 CERAMIC 0.022uF 25V C199 1-161-494-00 CERAMIC 0.022uF 25V C201 1-162-292-31 CERAMIC 680PF 10% 50V C202 1-162-292-31 CERAMIC 680PF 10% 50V C203 1-162-292-31 CERAMIC 680PF 10% 50V C204 1-162-292-31 CERAMIC 680PF 10% 50V C205 1-162-286-31 CERAMIC 220PF 10% 50V C206 1-162-286-31 CERAMIC 220PF 10% 50V C207 1-162-286-31 CERAMIC 220PF 10% 50V C208 1-162-286-31 CERAMIC 220PF 10% 50V C209 1-104-664-11 ELECT 47uF 20% 16V C210 1-104-664-11 ELECT 47uF 20% 16V C211 1-137-462-11 MYLAR 0.018uF 5% 100V C212 1-137-462-11 MYLAR 0.018uF 5% 100V C213 1-126-960-11 ELECT 1uF 20% 50V C214 1-126-960-11 ELECT 1uF 20% 50V C215 1-162-303-11 CERAMIC 0.0033uF 20% 16V C216 1-162-303-11 CERAMIC 0.0033uF 20% 16V C217 1-104-664-11 ELECT 47uF 20% 16V C218 1-126-940-11 ELECT 330uF 20% 16V C219 1-126-962-11 ELECT 3.3uF 20% 50V C221 1-126-962-11 ELECT 3.3uF 20% 50V C222 1-126-962-11 ELECT 3.3uF 20% 50V C223 1-162-290-31 CERAMIC 470PF 10% 50V C224 1-162-290-31 CERAMIC 470PF 10% 50V C225 1-162-301-11 CERAMIC 0.0015uF 30% 16V C226 1-162-301-11 CERAMIC 0.0015uF 30% 16V C227 1-162-286-31 CERAMIC 220PF 10% 50V C228 1-162-286-31 CERAMIC 220PF 10% 50V C229 1-126-933-11 ELECT 100uF 20% 16V C230 1-126-933-11 ELECT 100uF 20% 16V C231 1-126-958-11 ELECT 0.33uF 20% 50V C232 1-126-958-11 ELECT 0.33uF 20% 50V C233 1-137-397-11 MYLAR 0.047uF 5% 100V C234 1-137-397-11 MYLAR 0.047uF 5% 100V C235 1-126-960-11 ELECT 1uF 20% 50V C236 1-126-933-11 ELECT 100uF 20% 16V C237 1-161-494-00 CERAMIC 0.022uF 25V C238 1-126-961-11 ELECT 2.2uF 20% 50V C251 1-130-487-00 MYLAR 0.022uF 5% 50V C252 1-137-350-11 MYLAR 0.015uF 5% 100V C253 1-137-150-11 MYLAR 0.01uF 5% 100V C254 1-136-356-11 MYLAR 470PF 5% 100V C255 1-104-664-11 ELECT 47uF 20% 16V C256 1-126-960-11 ELECT 1uF 20% 50V C257 1-126-956-11 ELECT 0.1uF 20% 50V C265 1-162-306-11 CERAMIC 0.01uF 30% 16V C271 1-126-963-11 ELECT 4.7uF 20% 50V C300 1-164-159-11 CERAMIC 0.1uF 50V C301 1-126-959-11 ELECT 0.47uF 20% 50V C302 1-126-959-11 ELECT 0.47uF 20% 50V C303 1-126-959-11 ELECT 0.47uF 20% 50V C304 1-126-959-11 ELECT 0.47uF 20% 50V C305 1-126-949-11 ELECT 220uF 20% 35V C306 1-126-964-11 ELECT 10uF 20% 50V C307 1-162-286-31 CERAMIC 220PF 10% 50V C308 1-162-286-31 CERAMIC 220PF 10% 50V C309 1-162-286-31 CERAMIC 220PF 10% 50V C310 1-126-959-11 ELECT 0.47uF 20% 50V C311 1-126-964-11 ELECT 10uF 20% 50V C312 1-137-399-11 MYLAR 0.1uF 5% 100V C313 1-137-398-11 MYLAR 0.068uF 5% 100V C314 1-137-398-11 MYLAR 0.068uF 5% 100V C315 1-136-291-11 MYLAR 0.0068uF 5% 100V C316 1-136-291-11 MYLAR 0.0068uF 5% 100V C317 1-137-459-11 MYLAR 0.0056uF 5% 100V C318 1-126-961-11 ELECT 2.2uF 20% 50V C319 1-126-933-11 ELECT 100uF 20% 16V C322 1-126-960-11 ELECT 1uF 20% 50V C323 1-126-960-11 ELECT 1uF 20% 50V C324 1-126-960-11 ELECT 1uF 20% 50V C325 1-162-199-31 CERAMIC 10PF 5% 50V C326 1-162-199-31 CERAMIC 10PF 5% 50V C327 1-126-963-11 ELECT 4.7uF 20% 50V C328 1-126-963-11 ELECT 4.7uF 20% 50V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C330 1-126-960-11 ELECT 1uF 20% 50V C331 1-126-961-11 ELECT 2.2uF 20% 50V C332 1-126-961-11 ELECT 2.2uF 20% 50V C334 1-126-933-11 ELECT 100uF 20% 16V C335 1-126-959-11 ELECT 0.47uF 20% 50V C336 1-126-959-11 ELECT 0.47uF 20% 50V C339 1-126-963-11 ELECT 4.7uF 20% 50V C340 1-126-963-11 ELECT 4.7uF 20% 50V C341 1-137-399-11 MYLAR 0.1uF 5% 100V C342 1-137-399-11 MYLAR 0.1uF 5% 100V C343 1-137-399-11 MYLAR 0.1uF 5% 100V C344 1-137-399-11 MYLAR 0.1uF 5% 100V C345 1-162-294-31 CERAMIC 0.001uF 10% 50V C346 1-162-294-31 CERAMIC 0.001uF 10% 50V C347 1-162-286-31 CERAMIC 220PF 10% 50V C348 1-162-286-31 CERAMIC 220PF 10% 50V C349 1-161-494-00 CERAMIC 0.022uF 25V C350 1-161-494-00 CERAMIC 0.022uF 25V C351 1-126-960-11 ELECT 1uF 20% 50V C352 1-126-960-11 ELECT 1uF 20% 50V C353 1-126-964-11 ELECT 10uF 20% 50V C354 1-126-964-11 ELECT 10uF 20% 50V C355 1-126-933-11 ELECT 100uF 20% 16V C356 1-126-964-11 ELECT 10uF 20% 50V C357 1-126-964-11 ELECT 10uF 20% 50V C358 1-126-960-11 ELECT 1uF 20% 50V C359 1-126-964-11 ELECT 10uF 20% 50V C360 1-126-964-11 ELECT 10uF 20% 50V C361 1-126-964-11 ELECT 10uF 20% 50V C362 1-126-964-11 ELECT 10uF 20% 50V C363 1-126-964-11 ELECT 10uF 20% 50V C364 1-126-960-11 ELECT 1uF 20% 50V C365 1-137-399-11 MYLAR 0.1uF 5% 100V C366 1-137-399-11 MYLAR 0.1uF 5% 100V C367 1-126-960-11 ELECT 1uF 20% 50V C368 1-126-960-11 ELECT 1uF 20% 50V C369 1-126-960-11 ELECT 1uF 20% 50V C370 1-137-399-11 MYLAR 0.1uF 5% 100V C371 1-164-159-11 CERAMIC 0.1uF 50V C372 1-162-286-31 CERAMIC 220PF 10% 50V C373 1-162-286-31 CERAMIC 220PF 10% 50V C374 1-162-286-31 CERAMIC 220PF 10% 50V C375 1-109-889-11 ELECT 1uF 20% 50V C377 1-137-381-11 MYLAR 0.0001uF 5% 100V C378 1-137-399-11 MYLAR 0.1uF 5% 100V C379 1-137-401-11 MYLAR 0.22uF 5% 100V C380 1-137-401-11 MYLAR 0.22uF 5% 100V C381 1-137-399-11 MYLAR 0.1uF 5% 100V C382 1-136-356-11 MYLAR 470PF 5% 100V C383 1-137-381-11 MYLAR 0.0001uF 5% 100V C384 1-126-960-11 ELECT 1uF 20% 50V C385 1-137-459-11 MYLAR 0.0056uF 5% 100V C386 1-137-397-11 MYLAR 0.047uF 5% 100V C387 1-107-357-11 MYLAR 0.47uF 5% 100V C388 1-137-401-11 MYLAR 0.22uF 5% 100V C389 1-137-401-11 MYLAR 0.22uF 5% 100V C390 1-126-963-11 ELECT 4.7uF 20% 50V C391 1-126-963-11 ELECT 4.7uF 20% 50V C392 1-137-401-11 MYLAR 0.22uF 5% 100V C393 1-137-401-11 MYLAR 0.22uF 5% 100V C394 1-137-399-11 MYLAR 0.1uF 5% 100V C395 1-137-397-11 MYLAR 0.047uF 5% 100V C396 1-137-397-11 MYLAR 0.047uF 5% 100V C397 1-137-399-11 MYLAR 0.1uF 5% 100V C398 1-137-399-11 MYLAR 0.1uF 5% 100V C399 1-137-351-11 MYLAR 0.022uF 5% 100V C402 1-126-974-11 ELECT 3300uF 20% 50V C403 1-126-974-11 ELECT 3300uF 20% 50V C404 1-119-940-11 ELECT 4700uF 20% 50V C405 1-119-940-11 ELECT 4700uF 20% 50V C406 1-161-494-00 CERAMIC 0.022uF 25V C407 1-161-494-00 CERAMIC 0.022uF 25V C412 1-126-967-11 ELECT 47uF 20% 50V C413 1-101-004-00 CERAMIC 0.01uF 50V C414 1-101-004-00 CERAMIC 0.01uF 50V C415 1-101-004-00 CERAMIC 0.01uF 50V C416 1-101-004-00 CERAMIC 0.01uF 50V C417 1-126-968-11 ELECT 100uF 20% 50V C418 1-161-494-00 CERAMIC 0.022uF 25V C419 1-161-494-00 CERAMIC 0.022uF 25V C420 1-128-553-11 ELECT 220uF 20% 63V C421 1-126-968-11 ELECT 100uF 20% 50V C422 1-126-949-11 ELECT 220uF 20% 35V C423 1-161-494-00 CERAMIC 0.022uF 25V C424 1-104-658-11 ELECT 100uF 20% 10V C425 1-126-933-11 ELECT 100uF 20% 16V C426 1-161-494-00 CERAMIC 0.022uF 25V C431 1-161-494-00 CERAMIC 0.022uF 25V C432 1-126-933-11 ELECT 100uF 20% 16V C433 1-126-933-11 ELECT 100uF 20% 16V C434 1-161-494-00 CERAMIC 0.022uF 25V C440 1-126-933-11 ELECT 100uF 20% 16V C442 1-164-159-11 CERAMIC 0.1uF 50V C453 1-162-302-11 CERAMIC 0.0022uF 30% 16V C453 1-164-159-11 CERAMIC 0.1uF 50V C454 1-162-302-11 CERAMIC 0.0022uF 30% 16V C460 1-126-959-11 ELECT 0.47uF 20% 50V C117A 1-162-196-31 CERAMIC 5.6PF 10% 50V C120A 1-164-206-41 CERAMIC 0.047uF 99% 50V C121A 1-104-664-11 ELECT 47uF 20% 16V C235A 1-162-215-31 CERAMIC 47PF 5% 50V C236A 1-162-215-31 CERAMIC 47PF 5% 50V C300A 1-161-494-00 CERAMIC 0.022uF 25V C301A 1-126-964-11 ELECT 10uF 20% 50V C301B 1-126-964-11 ELECT 10uF 20% 50V C305A 1-164-159-11 CERAMIC 0.1uF 50V C306A 1-126-964-11 ELECT 10uF 20% 50V C308A 1-162-286-31 CERAMIC 220PF 10% 50V C309A 1-126-959-11 ELECT 0.47uF 20% 50V C3100 1-137-351-11 MYLAR 0.022uF 5% 100V C3101 1-137-399-11 MYLAR 0.1uF 5% 100V C3102 1-130-469-00 MYLAR 680PF 5% 50V C3103 1-137-150-11 MYLAR 0.01uF 5% 100V C3104 1-130-469-00 MYLAR 680PF 5% 50V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C3105 1-137-150-11 MYLAR 0.01uF 5% 100V C3106 1-137-150-11 MYLAR 0.01uF 5% 100V C3107 1-137-150-11 MYLAR 0.01uF 5% 100V C3108 1-104-664-11 ELECT 47uF 20% 16V C3109 1-136-291-11 MYLAR 0.0068uF 5% 100V C3110 1-107-713-11 ELECT 4.7uF 20% 50V C3111 1-126-933-11 ELECT 100uF 20% 16V C3112 1-126-949-11 ELECT 220uF 20% 35V C3113 1-126-964-11 ELECT 10uF 20% 50V C3114 1-162-286-31 CERAMIC 220PF 10% 50V C3115 1-126-964-11 ELECT 10uF 20% 50V C3116 1-126-964-11 ELECT 10uF 20% 50V C3117 1-162-286-31 CERAMIC 220PF 10% 50V C3118 1-162-286-31 CERAMIC 220PF 10% 50V C3119 1-161-494-00 CERAMIC 0.022uF 25V C311A 1-126-964-11 ELECT 10uF 20% 50V C311B 1-162-286-31 CERAMIC 220PF 10% 50V C311C 1-162-286-31 CERAMIC 220PF 10% 50V C3120 1-161-494-00 CERAMIC 0.022uF 25V C3121 1-126-960-11 ELECT 1uF 20% 50V C3122 1-126-960-11 ELECT 1uF 20% 50V C3123 1-126-960-11 ELECT 1uF 20% 50V C3124 1-161-494-00 CERAMIC 0.022uF 25V C3125 1-161-494-00 CERAMIC 0.022uF 25V C3126 1-162-286-31 CERAMIC 220PF 10% 50V C3127 1-126-961-11 ELECT 2.2uF 20% 50V C3129 1-164-159-11 CERAMIC 0.1uF 50V C312A 1-137-399-11 MYLAR 0.1uF 5% 100V C313A 1-137-398-11 MYLAR 0.068uF 5% 100V C314A 1-137-398-11 MYLAR 0.068uF 5% 100V C315A 1-136-291-11 MYLAR 0.0068uF 5% 100V C316A 1-136-291-11 MYLAR 0.0068uF 5% 100V C317A 1-137-459-11 MYLAR 0.0056uF 5% 100V C318A 1-126-961-11 ELECT 2.2uF 20% 50V C319A 1-164-159-11 CERAMIC 0.1uF 50V C322A 1-126-960-11 ELECT 1uF 20% 50V C330A 1-126-960-11 ELECT 1uF 20% 50V C334A 1-126-964-11 ELECT 10uF 20% 50V C347A 1-162-286-31 CERAMIC 220PF 10% 50V C348A 1-162-286-31 CERAMIC 220PF 10% 50V C355A 1-162-290-31 CERAMIC 470PF 10% 50V C356A 1-162-290-31 CERAMIC 470PF 10% 50V C367A 1-126-964-11 ELECT 10uF 20% 50V C381A 1-162-286-31 CERAMIC 220PF 10% 50V C382A 1-162-286-31 CERAMIC 220PF 10% 50V C383A 1-126-960-11 ELECT 1uF 20% 50V C422A 1-126-767-11 ELECT 1000uF 20% 16V C442A 1-109-953-11 ELECT 2.2uF 20% 50V C453A 1-164-159-11 CERAMIC 0.1uF 50V < FILTER > CF101 1-567-390-11 FILTER, CERAMIC (10.7MHz) CF102 1-579-568-11 FILTER, CERAMIC (10.7MHz) CF103 1-527-996-11 FILTER, CERAMIC (450kHz) CF104 1-579-856-11 DISCRIMINATOR, CERAMIC (10.7MHz) < CONNECTOR > CN101 1-793-766-11 CONNECTOR, BOARD TO BOARD 30P * CN301 1-564-515-11 PLUG, CONNECTOR 12P * CN302 1-564-511-11 PLUG, CONNECTOR 8P * CN305 1-564-509-11 PLUG, CONNECTOR 6P * CN502 1-564-512-11 PLUG, CONNECTOR 9P < DIODE > D001 8-719-911-19 DIODE 1SS133T-72 D002 8-719-911-19 DIODE 1SS133T-72 D101 8-719-911-19 DIODE 1SS133T-72 D102 8-719-911-19 DIODE 1SS133T-72 D103 8-719-911-19 DIODE 1SS133T-72 D104 8-719-911-19 DIODE 1SS133T-72 D106 8-719-911-19 DIODE 1SS133T-72 D107 8-719-010-40 DIODE UZ-5.6BS D201 8-719-911-19 DIODE 1SS133T-72 D202 8-719-911-19 DIODE 1SS133T-72 D203 8-719-911-19 DIODE 1SS133T-72 D204 8-719-911-19 DIODE 1SS133T-72 D205 8-719-911-19 DIODE 1SS133T-72 D303 8-719-010-60 DIODE UZ-9.1BS D305 8-719-911-19 DIODE 1SS133T-72 D306 8-719-911-19 DIODE 1SS133T-72 D307 8-719-010-44 DIODE UZ-6.2BS D308 8-719-010-44 DIODE UZ-6.2BS D309 8-719-911-19 DIODE 1SS133T-72 D402 8-719-074-96 DIODE GBU4D D403 8-719-027-23 DIODE GBU6D D405 8-719-010-44 DIODE UZ-6.2BS D407 8-719-921-82 DIODE UZ-12BS D409 8-719-012-32 DIODE UZ-27BS D410 8-719-010-31 DIODE UZ-4.7BS D411 8-719-031-85 DIODE 1N4002L D412 8-719-031-85 DIODE 1N4002L D417 8-719-911-19 DIODE 1SS133T-72 D418 8-719-911-19 DIODE 1SS133T-72 D419 8-719-911-19 DIODE 1SS133T-72 D420 8-719-911-19 DIODE 1SS133T-72 D421 8-719-911-19 DIODE 1SS133T-72 D422 8-719-911-19 DIODE 1SS133T-72 D423 8-719-911-19 DIODE 1SS133T-72 < FRONT END > FE101 1-693-469-11 FRONT END < IC > IC102 8-759-663-31 IC LA1833N IC103 8-759-590-13 IC LC72131D IC201 8-759-242-58 IC TA8189N IC301 8-759-686-85 IC M62498AFP IC302 8-759-571-51 IC M62464FP IC303 8-759-505-55 IC NJM4558L IC304 8-759-505-55 IC NJM4558L IC305 8-759-505-55 IC NJM4558L IC306 8-759-505-55 IC NJM4558L IC307 8-759-505-55 IC NJM4558L < TERMINAL/JACK > JK101 1-694-092-21 TERMINAL BOARD (ANTENNA) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark JK301 1-793-612-11 JACK, PIN 8P (MD/VIDEO IN, DVD INPUT: FRONT, REAR, CENTER, WOOFER) JK303 1-793-582-11 JACK, PIN 1P (WOOFER OUT) JK401 1-694-604-11 TERMINAL, SPEAKER (4P) (FRONT SPEAKER) JK402 1-694-605-11 TERMINAL, SPEAKER (6P) (REAR/CENTER SPEAKER) < COIL > L102 1-410-330-11 INDUCTOR 22uH L103 1-410-330-11 INDUCTOR 22uH L106 1-410-517-11 INDUCTOR 47uH L113 1-410-330-11 INDUCTOR 22uH L201 1-419-645-11 COIL, BIAS OSCILLATION L406 1-408-096-00 INDUCTOR 470uH < TRANSISTOR > Q101 8-729-672-42 TRANSISTOR 2SC1675-L Q103 8-729-207-35 FET 2SJ105-Y Q104 8-729-041-83 FET 2SK544E Q109 8-729-194-57 TRANSISTOR 2SC945TP-P Q110 8-729-194-57 TRANSISTOR 2SC945TP-P Q201 8-729-194-57 TRANSISTOR 2SC945TP-P Q202 8-729-194-57 TRANSISTOR 2SC945TP-P Q203 8-729-194-57 TRANSISTOR 2SC945TP-P Q204 8-729-194-57 TRANSISTOR 2SC945TP-P Q205 8-729-194-57 TRANSISTOR 2SC945TP-P Q206 8-729-194-57 TRANSISTOR 2SC945TP-P Q207 8-729-119-76 TRANSISTOR 2SA733-P Q208 8-729-119-76 TRANSISTOR 2SA733-P Q209 8-729-194-57 TRANSISTOR 2SC945TP-P Q210 8-729-194-57 TRANSISTOR 2SC945TP-P Q211 8-729-194-57 TRANSISTOR 2SC945TP-P Q213 8-729-194-57 TRANSISTOR 2SC945TP-P Q214 8-729-194-57 TRANSISTOR 2SC945TP-P Q251 8-729-142-46 TRANSISTOR 2SC2001-L Q252 8-729-119-76 TRANSISTOR 2SA733-P Q253 8-729-194-57 TRANSISTOR 2SC945TP-P Q303 8-729-194-57 TRANSISTOR 2SC945TP-P Q304 8-729-194-57 TRANSISTOR 2SC945TP-P Q305 8-729-194-57 TRANSISTOR 2SC945TP-P Q308 8-729-194-57 TRANSISTOR 2SC945TP-P Q309 8-729-194-57 TRANSISTOR 2SC945TP-P Q312 8-729-207-35 FET 2SJ105-Y Q313 8-729-207-35 FET 2SJ105-Y Q316 8-729-194-57 TRANSISTOR 2SC945TP-P Q317 8-729-194-57 TRANSISTOR 2SC945TP-P Q319 8-729-231-55 TRANSISTOR 2SC2878-A Q320 8-729-194-57 TRANSISTOR 2SC945TP-P Q321 8-729-231-55 TRANSISTOR 2SC2878-A Q401 8-729-188-23 TRANSISTOR 2SD882-P Q403 8-729-232-32 TRANSISTOR 2SA965-O/Y (TPE6) Q405 8-729-140-96 TRANSISTOR 2SC2060-R Q406 8-729-232-32 TRANSISTOR 2SA965-O/Y TPE6) Q411 8-729-207-35 FET 2SJ105-Y Q412 8-729-119-76 TRANSISTOR 2SA733-P Q413 8-729-194-57 TRANSISTOR 2SC945TP-P Q414 8-729-029-72 FET DTC114YS Q415 8-729-029-72 FET DTC114YS Q416 8-729-029-72 FET DTC114YS Q419 8-729-231-55 TRANSISTOR 2SC2878-A Q420 8-729-231-55 TRANSISTOR 2SC2878-A < RESISTOR > R101 1-247-855-11 CARBON 10K 5% 1/4W R103 1-247-835-11 CARBON 1.5K 5% 1/4W R105 1-249-417-11 CARBON 1K 5% 1/4W R106 1-247-839-11 CARBON 2.2K 5% 1/4W R107 1-249-427-11 CARBON 6.8K 5% 1/4W R108 1-247-863-11 CARBON 22K 5% 1/4W R109 1-247-871-11 CARBON 47K 5% 1/4W R112 1-247-807-11 CARBON 100 5% 1/4W R113 1-247-843-11 CARBON 3.3K 5% 1/4W R114 1-249-417-11 CARBON 1K 5% 1/4W R115 1-249-417-11 CARBON 1K 5% 1/4W R116 1-247-692-11 CARBON 22 5% 1/4W R117 1-247-847-11 CARBON 4.7K 5% 1/4W R118 1-249-405-11 CARBON 100 5% 1/4W R119 1-247-807-11 CARBON 100 5% 1/4W R120 1-247-843-11 CARBON 3.3K 5% 1/4W R121 1-247-855-11 CARBON 10K 5% 1/4W R122 1-249-432-11 CARBON 18K 5% 1/4W R123 1-247-724-11 CARBON 8.2K 5% 1/4W R124 1-247-843-11 CARBON 3.3K 5% 1/4W R125 1-249-409-11 CARBON 220 5% 1/4W R126 1-247-843-11 CARBON 3.3K 5% 1/4W R127 1-247-843-11 CARBON 3.3K 5% 1/4W R128 1-247-847-11 CARBON 4.7K 5% 1/4W R129 1-247-847-11 CARBON 4.7K 5% 1/4W R130 1-249-459-11 CARBON 12K 5% 1/4W R131 1-247-713-11 CARBON 1K 5% 1/4W R132 1-247-855-11 CARBON 10K 5% 1/4W R133 1-247-849-11 CARBON 5.6K 5% 1/4W R134 1-247-855-11 CARBON 10K 5% 1/4W R135 1-249-417-11 CARBON 1K 5% 1/4W R136 1-247-879-11 CARBON 100K 5% 1/4W R137 1-247-855-11 CARBON 10K 5% 1/4W R138 1-247-807-11 CARBON 100 5% 1/4W R139 1-247-725-11 CARBON 10K 5% 1/4W R140 1-247-855-11 CARBON 10K 5% 1/4W R141 1-247-839-11 CARBON 2.2K 5% 1/4W R142 1-247-839-11 CARBON 2.2K 5% 1/4W R143 1-247-839-11 CARBON 2.2K 5% 1/4W R146 1-249-417-11 CARBON 1K 5% 1/4W R148 1-247-855-11 CARBON 10K 5% 1/4W R149 1-247-855-11 CARBON 10K 5% 1/4W R150 1-247-843-11 CARBON 3.3K 5% 1/4W R199 1-249-411-11 CARBON 330 5% 1/4W R201 1-249-393-11 CARBON 10 5% 1/4W R202 1-249-393-11 CARBON 10 5% 1/4W R203 1-249-393-11 CARBON 10 5% 1/4W R204 1-249-393-11 CARBON 10 5% 1/4W R205 1-249-400-11 CARBON 39 5% 1/4W R206 1-249-400-11 CARBON 39 5% 1/4W R207 1-249-428-11 CARBON 8.2K 5% 1/4W R208 1-249-428-11 CARBON 8.2K 5% 1/4W R209 1-247-889-00 CARBON 270K 5% 1/4W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R210 1-247-889-00 CARBON 270K 5% 1/4W R211 1-247-891-00 CARBON 330K 5% 1/4W R212 1-247-891-00 CARBON 330K 5% 1/4W R213 1-247-847-11 CARBON 4.7K 5% 1/4W R214 1-247-847-11 CARBON 4.7K 5% 1/4W R215 1-247-891-00 CARBON 330K 5% 1/4W R216 1-247-891-00 CARBON 330K 5% 1/4W R217 1-247-855-11 CARBON 10K 5% 1/4W R218 1-247-885-00 CARBON 180K 5% 1/4W R219 1-247-871-11 CARBON 47K 5% 1/4W R220 1-247-863-11 CARBON 22K 5% 1/4W R221 1-247-855-11 CARBON 10K 5% 1/4W R222 1-247-704-11 CARBON 220 5% 1/4W R223 1-247-885-00 CARBON 180K 5% 1/4W R224 1-247-885-00 CARBON 180K 5% 1/4W R225 1-247-863-11 CARBON 22K 5% 1/4W R226 1-247-863-11 CARBON 22K 5% 1/4W R227 1-247-881-00 CARBON 120K 5% 1/4W R228 1-247-881-00 CARBON 120K 5% 1/4W R229 1-249-420-11 CARBON 1.8K 5% 1/4W R230 1-249-420-11 CARBON 1.8K 5% 1/4W R231 1-249-422-11 CARBON 2.7K 5% 1/4W R232 1-249-422-11 CARBON 2.7K 5% 1/4W R233 1-247-863-11 CARBON 22K 5% 1/4W R234 1-247-863-11 CARBON 22K 5% 1/4W R235 1-247-847-11 CARBON 4.7K 5% 1/4W R236 1-247-847-11 CARBON 4.7K 5% 1/4W R237 1-247-855-11 CARBON 10K 5% 1/4W R238 1-247-899-11 CARBON 680K 5% 1/4W R239 1-249-381-11 CARBON 1 5% 1/4W R240 1-247-855-11 CARBON 10K 5% 1/4W R241 1-247-847-11 CARBON 4.7K 5% 1/4W R242 1-247-847-11 CARBON 4.7K 5% 1/4W R243 1-249-430-11 CARBON 12K 5% 1/4W R244 1-247-839-11 CARBON 2.2K 5% 1/4W R245 1-247-839-11 CARBON 2.2K 5% 1/4W R246 1-249-434-11 CARBON 27K 5% 1/4W R247 1-247-855-11 CARBON 10K 5% 1/4W R248 1-247-847-11 CARBON 4.7K 5% 1/4W R249 1-247-899-11 CARBON 680K 5% 1/4W R250 1-247-885-00 CARBON 180K 5% 1/4W R251 1-249-434-11 CARBON 27K 5% 1/4W R253 1-247-710-11 CARBON 560 5% 1/4W R254 1-247-855-11 CARBON 10K 5% 1/4W R255 1-247-847-11 CARBON 4.7K 5% 1/4W R256 1-247-855-11 CARBON 10K 5% 1/4W R257 1-249-412-11 CARBON 390 5% 1/4W R258 1-247-704-11 CARBON 220 5% 1/4W R261 1-249-412-11 CARBON 390 5% 1/4W R262 1-247-879-11 CARBON 100K 5% 1/4W R263 1-247-855-11 CARBON 10K 5% 1/4W R264 1-247-855-11 CARBON 10K 5% 1/4W R271 1-247-807-11 CARBON 100 5% 1/4W R301 1-249-417-11 CARBON 1K 5% 1/4W R302 1-249-417-11 CARBON 1K 5% 1/4W R303 1-249-418-11 CARBON 1.2K 5% 1/4W R304 1-249-418-11 CARBON 1.2K 5% 1/4W R305 1-247-839-11 CARBON 2.2K 5% 1/4W R306 1-247-839-11 CARBON 2.2K 5% 1/4W R307 1-249-417-11 CARBON 1K 5% 1/4W R308 1-249-417-11 CARBON 1K 5% 1/4W R315 1-247-839-11 CARBON 2.2K 5% 1/4W R316 1-249-417-11 CARBON 1K 5% 1/4W R317 1-247-839-11 CARBON 2.2K 5% 1/4W R318 1-249-417-11 CARBON 1K 5% 1/4W R319 1-247-839-11 CARBON 2.2K 5% 1/4W R320 1-249-417-11 CARBON 1K 5% 1/4W R321 1-247-863-11 CARBON 22K 5% 1/4W R322 1-247-843-11 CARBON 3.3K 5% 1/4W R324 1-247-717-11 CARBON 2.2K 5% 1/4W R325 1-247-717-11 CARBON 2.2K 5% 1/4W R329 1-247-855-11 CARBON 10K 5% 1/4W R330 1-247-855-11 CARBON 10K 5% 1/4W R331 1-247-903-00 CARBON 1M 5% 1/4W R332 1-247-903-00 CARBON 1M 5% 1/4W R334 1-247-855-11 CARBON 10K 5% 1/4W R335 1-249-413-11 CARBON 470 5% 1/4W R336 1-247-883-00 CARBON 150K 5% 1/4W R337 1-247-883-00 CARBON 150K 5% 1/4W R338 1-247-876-11 CARBON 75K 5% 1/4W R339 1-247-871-11 CARBON 47K 5% 1/4W R340 1-247-876-11 CARBON 75K 5% 1/4W R341 1-247-871-11 CARBON 47K 5% 1/4W R342 1-247-879-11 CARBON 100K 5% 1/4W R343 1-247-879-11 CARBON 100K 5% 1/4W R344 1-249-403-11 CARBON 68 5% 1/4W R345 1-247-903-00 CARBON 1M 5% 1/4W R346 1-247-903-00 CARBON 1M 5% 1/4W R347 1-247-847-11 CARBON 4.7K 5% 1/4W R348 1-247-847-11 CARBON 4.7K 5% 1/4W R349 1-247-839-11 CARBON 2.2K 5% 1/4W R350 1-247-839-11 CARBON 2.2K 5% 1/4W R355 1-247-867-11 CARBON 33K 5% 1/4W R356 1-247-867-11 CARBON 33K 5% 1/4W R357 1-247-901-11 CARBON 820K 5% 1/4W R358 1-247-879-11 CARBON 100K 5% 1/4W R362 1-247-704-11 CARBON 220 5% 1/4W R363 1-247-879-11 CARBON 100K 5% 1/4W R365 1-249-417-11 CARBON 1K 5% 1/4W R367 1-247-847-11 CARBON 4.7K 5% 1/4W R369 1-249-434-11 CARBON 27K 5% 1/4W R370 1-249-434-11 CARBON 27K 5% 1/4W R373 1-247-847-11 CARBON 4.7K 5% 1/4W R375 1-247-891-00 CARBON 330K 5% 1/4W R376 1-247-891-00 CARBON 330K 5% 1/4W R379 1-247-839-11 CARBON 2.2K 5% 1/4W R380 1-247-839-11 CARBON 2.2K 5% 1/4W R381 1-249-417-11 CARBON 1K 5% 1/4W R382 1-249-417-11 CARBON 1K 5% 1/4W R387 1-247-879-11 CARBON 100K 5% 1/4W R388 1-247-879-11 CARBON 100K 5% 1/4W R389 1-249-427-11 CARBON 6.8K 5% 1/4W R390 1-249-427-11 CARBON 6.8K 5% 1/4W R391 1-247-855-11 CARBON 10K 5% 1/4W R392 1-247-855-11 CARBON 10K 5% 1/4W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R395 1-249-417-11 CARBON 1K 5% 1/4W R396 1-249-417-11 CARBON 1K 5% 1/4W R397 1-249-417-11 CARBON 1K 5% 1/4W R398 1-247-713-11 CARBON 1K 5% 1/4W R399 1-247-717-11 CARBON 2.2K 5% 1/4W R401 1-249-405-11 CARBON 100 5% 1/4W R402 1-249-405-11 CARBON 100 5% 1/4W R403 1-247-827-11 CARBON 680 5% 1/4W 0R405 1-215-863-11 METAL OXIDE 100 5% 1W F R406 1-247-717-11 CARBON 2.2K 5% 1/4W R408 1-249-417-11 CARBON 1K 5% 1/4W 0R409 1-215-865-11 METAL OXIDE 220 5% 1W F R410 1-247-717-11 CARBON 2.2K 5% 1/4W 0R412 1-215-886-11 METAL OXIDE 100 5% 2W F R416 1-247-895-00 CARBON 470K 5% 1/4W R424 1-249-417-11 CARBON 1K 5% 1/4W R425 1-249-417-11 CARBON 1K 5% 1/4W R426 1-247-721-11 CARBON 4.7K 5% 1/4W R427 1-247-855-11 CARBON 10K 5% 1/4W R440 1-247-708-11 CARBON 470 5% 1/4W R441 1-247-708-11 CARBON 470 5% 1/4W R442 1-249-422-11 CARBON 2.7K 5% 1/4W R443 1-249-422-11 CARBON 2.7K 5% 1/4W R444 1-247-688-11 CARBON 10 5% 1/4W R470 1-247-879-11 CARBON 100K 5% 1/4W R471 1-247-903-00 CARBON 1M 5% 1/4W R472 1-249-417-11 CARBON 1K 5% 1/4W R473 1-247-863-11 CARBON 22K 5% 1/4W R474 1-247-863-11 CARBON 22K 5% 1/4W R476 1-247-889-00 CARBON 270K 5% 1/4W R122A 1-249-427-11 CARBON 6.8K 5% 1/4W R205A 1-249-409-11 CARBON 220 5% 1/4W R206A 1-249-409-11 CARBON 220 5% 1/4W R231A 1-247-843-11 CARBON 3.3K 5% 1/4W R232A 1-247-843-11 CARBON 3.3K 5% 1/4W R240A 1-247-855-11 CARBON 10K 5% 1/4W R300A 1-247-903-00 CARBON 1M 5% 1/4W R300B 1-247-903-00 CARBON 1M 5% 1/4W R301A 1-247-847-11 CARBON 4.7K 5% 1/4W R301B 1-247-847-11 CARBON 4.7K 5% 1/4W R302A 1-249-417-11 CARBON 1K 5% 1/4W R302B 1-249-417-11 CARBON 1K 5% 1/4W R304A 1-249-430-11 CARBON 12K 5% 1/4W R309A 1-249-430-11 CARBON 12K 5% 1/4W R3100 1-247-717-11 CARBON 2.2K 5% 1/4W R3101 1-247-717-11 CARBON 2.2K 5% 1/4W R3102 1-247-891-00 CARBON 330K 5% 1/4W R3103 1-249-417-11 CARBON 1K 5% 1/4W R3104 1-247-879-11 CARBON 100K 5% 1/4W R3105 1-249-427-11 CARBON 6.8K 5% 1/4W R3106 1-247-855-11 CARBON 10K 5% 1/4W R3108 1-249-417-11 CARBON 1K 5% 1/4W R3109 1-249-417-11 CARBON 1K 5% 1/4W R310A 1-247-839-11 CARBON 2.2K 5% 1/4W R3110 1-247-879-11 CARBON 100K 5% 1/4W R3111 1-247-879-11 CARBON 100K 5% 1/4W R3112 1-249-427-11 CARBON 6.8K 5% 1/4W R3113 1-249-427-11 CARBON 6.8K 5% 1/4W R3114 1-247-855-11 CARBON 10K 5% 1/4W R3115 1-247-855-11 CARBON 10K 5% 1/4W R3118 1-249-417-11 CARBON 1K 5% 1/4W R3119 1-249-417-11 CARBON 1K 5% 1/4W R3120 1-249-417-11 CARBON 1K 5% 1/4W R3121 1-247-871-11 CARBON 47K 5% 1/4W R3122 1-247-839-11 CARBON 2.2K 5% 1/4W R3123 1-247-855-11 CARBON 10K 5% 1/4W R3124 1-249-417-11 CARBON 1K 5% 1/4W R3125 1-247-879-11 CARBON 100K 5% 1/4W R3128 1-247-855-11 CARBON 10K 5% 1/4W R3129 1-247-855-11 CARBON 10K 5% 1/4W R3136 1-247-879-11 CARBON 100K 5% 1/4W R3137 1-247-855-11 CARBON 10K 5% 1/4W R3138 1-247-839-11 CARBON 2.2K 5% 1/4W R3139 1-247-871-11 CARBON 47K 5% 1/4W R3140 1-247-863-11 CARBON 22K 5% 1/4W R3141 1-247-855-11 CARBON 10K 5% 1/4W R329A 1-247-855-11 CARBON 10K 5% 1/4W R330A 1-247-855-11 CARBON 10K 5% 1/4W R331A 1-247-847-11 CARBON 4.7K 5% 1/4W R334A 1-247-855-11 CARBON 10K 5% 1/4W R357A 1-247-883-00 CARBON 150K 5% 1/4W R358A 1-247-835-11 CARBON 1.5K 5% 1/4W R363A 1-247-835-11 CARBON 1.5K 5% 1/4W R376A 1-247-883-00 CARBON 150K 5% 1/4W R381A 1-247-839-11 CARBON 2.2K 5% 1/4W R382A 1-247-855-11 CARBON 10K 5% 1/4W R399A 1-247-717-11 CARBON 2.2K 5% 1/4W 0R403A 1-215-857-11 METAL OXIDE 10 5% 1W F 0R412A 1-215-892-11 METAL OXIDE 1K 5% 2W F 0R412B 1-216-458-11 METAL OXIDE 1.8K 5% 2W F R427A 1-247-855-11 CARBON 10K 5% 1/4W R476A 1-247-835-11 CARBON 1.5K 5% 1/4W R3121A 1-247-871-11 CARBON 47K 5% 1/4W < RF BLOCK > RF101 1-476-103-11 RF BLOCK, AM < RELAY > RL401 1-755-170-11 RELAY (12V) RL402 1-755-170-11 RELAY (12V) RL403 1-755-170-11 RELAY (12V) < VARIABLE RESISTOR > SFR101 1-241-765-11 RES, ADJ, CARBON 22K < TRANSFORMER > T102 1-429-554-11 TRANSFORMER, AM IFT < VIBRATOR > X101 1-579-585-11 VIBRATOR, CRYSTAL (7.2MHz) ************************************************************** The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1-674-792-11 MOTOR BOARD ************* < CAPACITOR > C01 1-124-259-11 ELECT 4.7uF 20% 50V < CONNECTOR > * CN06 1-568-824-11 SOCKET, CONNECTOR 5P ************************************************************** A-4424-891-A PANEL BOARD, COMPLETE ********************** (including SENSOR BOARD) < CAPACITOR > C601 1-126-916-11 ELECT 1000uF 20% 6.3V C602 1-161-494-00 CERAMIC 0.022uF 25V C603 1-164-159-11 CERAMIC 0.1uF 50V C604 1-119-774-11 ELECT 100uF 20% 16V C605 1-124-589-11 ELECT 47uF 20% 16V C606 1-164-159-11 CERAMIC 0.1uF 50V C608 1-124-254-00 ELECT 0.68uF 20% 50V C609 1-164-159-11 CERAMIC 0.1uF 50V C610 1-126-964-11 ELECT 10uF 20% 50V C611 1-161-494-00 CERAMIC 0.022uF 25V C612 1-126-160-11 ELECT 1uF 20% 50V C613 1-102-960-00 CERAMIC 24PF 5% 50V C614 1-102-960-00 CERAMIC 24PF 5% 50V C615 1-126-964-11 ELECT 10uF 20% 50V C616 1-164-206-41 CERAMIC 0.047uF 99% 50V C617 1-162-286-31 CERAMIC 220PF 10% 50V C618 1-162-286-31 CERAMIC 220PF 10% 50V C621 1-126-934-11 ELECT 220uF 20% 16V C622 1-162-286-31 CERAMIC 220PF 10% 50V C623 1-162-286-31 CERAMIC 220PF 10% 50V C624 1-162-286-31 CERAMIC 220PF 10% 50V C625 1-162-286-31 CERAMIC 220PF 10% 50V C626 1-162-286-31 CERAMIC 220PF 10% 50V C629 1-126-934-11 ELECT 220uF 20% 16V C630 1-162-286-31 CERAMIC 220PF 10% 50V C632 1-124-464-11 ELECT 0.22uF 20% 50V C633 1-130-489-11 MYLAR 0.033uF 5% 50V C634 1-126-957-11 ELECT 0.22uF 20% 50V C635 1-130-475-00 MYLAR 0.0022uF 5% 50V C636 1-126-957-11 ELECT 0.22uF 20% 50V C637 1-126-957-11 ELECT 0.22uF 20% 50V C638 1-130-483-00 MYLAR 0.01uF 5% 50V C639 1-126-959-11 ELECT 0.47uF 20% 50V C640 1-126-957-11 ELECT 0.22uF 20% 50V C641 1-136-161-00 MYLAR 0.047uF 10% 50V C642 1-126-957-11 ELECT 0.22uF 20% 50V C643 1-162-293-31 CERAMIC 820PF 10% 50V C644 1-126-964-11 ELECT 10uF 20% 50V C646 1-124-259-11 ELECT 4.7uF 20% 50V C901 1-126-964-11 ELECT 10uF 20% 50V C902 1-161-494-00 CERAMIC 0.022uF 25V C903 1-162-294-31 CERAMIC 0.001uF 10% 50V C904 1-162-294-31 CERAMIC 0.001uF 10% 50V C905 1-162-286-31 CERAMIC 220PF 10% 50V C906 1-162-286-31 CERAMIC 220PF 10% 50V C629A 1-104-664-11 ELECT 47uF 20% 16V C630A 1-164-159-11 CERAMIC 0.1uF 50V C699A 1-162-286-31 CERAMIC 220PF 10% 50V < CONNECTOR > CN101 1-793-767-11 CONNECTOR, BOARD TO BOARD 30P CN603 1-784-738-21 CONNECTOR, FFC 16P CN605 1-784-744-21 CONNECTOR, FFC 22P < DIODE > D601 8-719-200-02 DIODE 1N4002 D602 8-719-200-02 DIODE 1N4002 D603 8-719-911-19 DIODE 1SS133T-72 D604 8-719-911-19 DIODE 1SS133T-72 D612 8-719-911-19 DIODE 1SS133T-72 D613 8-719-911-19 DIODE 1SS133T-72 D615 8-719-911-19 DIODE 1SS133T-72 D616 8-719-911-19 DIODE 1SS133T-72 D618 8-719-911-19 DIODE 1SS133T-72 D619 8-719-911-19 DIODE 1SS133T-72 D620 8-719-911-19 DIODE 1SS133T-72 D621 8-719-911-19 DIODE 1SS133T-72 D622 8-719-911-19 DIODE 1SS133T-72 D623 8-719-911-19 DIODE 1SS133T-72 D624 8-719-911-19 DIODE 1SS133T-72 D625 8-719-911-19 DIODE 1SS133T-72 D626 8-719-911-19 DIODE 1SS133T-72 D627 8-719-911-19 DIODE 1SS133T-72 D628 8-719-911-19 DIODE 1SS133T-72 D629 8-719-911-19 DIODE 1SS133T-72 D630 8-719-911-19 DIODE 1SS133T-72 < FLUORESCENT INDICATOR TUBE > FLD601 1-517-731-21 INDICATOR TUBE, FLUORESCENT < IC > IC601 8-752-914-94 IC CXP82040-114Q IC602 8-759-234-75 IC TC74HC4094AP IC603 8-759-916-52 IC TC74HC165AP IC901 8-759-275-23 IC BU2092 < COIL > L601 1-410-517-11 INDUCTOR 47uH L602 1-410-517-11 INDUCTOR 47uH < LED > LED901 8-719-921-01 LED SEL1110R (TIMER) LED902 8-719-812-41 LED SEL2110R (I/1) LED903 8-719-317-11 LED SEL1710Y (CD) LED904 8-719-317-11 LED SEL1710Y (TAPE A/B) LED905 8-719-317-11 LED SEL1710Y (TUNER/BAND) LED906 8-719-317-11 LED SEL1710Y (MD (VIDEO)) LED907 8-719-317-11 LED SEL1710Y (GROOVE) LED908 8-719-921-01 LED SEL1110R (REC) LED909 8-719-317-11 LED SEL1710Y (REC PAUSE) MOTOR PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark LED910 8-719-317-11 LED SEL1710Y (DOLBY PRO LOGIC) LED911 8-719-317-11 LED SEL1710Y (DVD 5.1CH) LED912 8-719-317-11 LED SEL1710Y (DSP) LED913 8-719-312-70 LED SEL1410G (H) LED914 8-719-312-70 LED SEL1410G (h) < TRANSISTOR > Q601 8-729-194-57 TRANSISTOR 2SC945TP-P Q602 8-729-194-57 TRANSISTOR 2SC945TP-P Q603 8-729-194-57 TRANSISTOR 2SC945TP-P Q604 8-729-105-47 TRANSISTOR 2SC733 Q608 8-729-194-57 TRANSISTOR 2SC945TP-P Q609 8-729-194-57 TRANSISTOR 2SC945TP-P Q610 8-729-194-57 TRANSISTOR 2SC945TP-P Q611 8-729-993-43 TRANSISTOR 2SA934R Q612 8-729-993-43 TRANSISTOR 2SA934R Q613 8-729-993-43 TRANSISTOR 2SA934R Q901 8-729-194-57 TRANSISTOR 2SC945TP-P Q902 8-729-194-57 TRANSISTOR 2SC945TP-P < RESISTOR > R601 1-247-871-11 CARBON 47K 5% 1/4W R602 1-249-417-11 CARBON 1K 5% 1/4W R603 1-247-871-11 CARBON 47K 5% 1/4W R604 1-249-417-11 CARBON 1K 5% 1/4W R605 1-247-871-11 CARBON 47K 5% 1/4W R606 1-249-417-11 CARBON 1K 5% 1/4W R607 1-249-431-11 CARBON 15K 5% 1/4W R608 1-247-871-11 CARBON 47K 5% 1/4W R613 1-247-855-11 CARBON 10K 5% 1/4W R615 1-247-855-11 CARBON 10K 5% 1/4W R616 1-247-855-11 CARBON 10K 5% 1/4W R617 1-247-855-11 CARBON 10K 5% 1/4W R618 1-247-855-11 CARBON 10K 5% 1/4W R619 1-247-855-11 CARBON 10K 5% 1/4W R620 1-247-855-11 CARBON 10K 5% 1/4W R621 1-247-855-11 CARBON 10K 5% 1/4W R622 1-247-855-11 CARBON 10K 5% 1/4W R623 1-247-855-11 CARBON 10K 5% 1/4W R624 1-247-855-11 CARBON 10K 5% 1/4W R625 1-247-855-11 CARBON 10K 5% 1/4W R626 1-247-855-11 CARBON 10K 5% 1/4W R630 1-249-417-11 CARBON 1K 5% 1/4W R631 1-247-839-11 CARBON 2.2K 5% 1/4W R632 1-247-839-11 CARBON 2.2K 5% 1/4W R633 1-247-839-11 CARBON 2.2K 5% 1/4W R634 1-247-847-11 CARBON 4.7K 5% 1/4W R635 1-247-847-11 CARBON 4.7K 5% 1/4W R636 1-247-847-11 CARBON 4.7K 5% 1/4W R637 1-247-855-11 CARBON 10K 5% 1/4W R638 1-249-417-11 CARBON 1K 5% 1/4W R639 1-247-847-11 CARBON 4.7K 5% 1/4W R640 1-247-855-11 CARBON 10K 5% 1/4W R641 1-249-417-11 CARBON 1K 5% 1/4W R642 1-247-847-11 CARBON 4.7K 5% 1/4W R643 1-247-847-11 CARBON 4.7K 5% 1/4W R644 1-247-847-11 CARBON 4.7K 5% 1/4W R645 1-247-847-11 CARBON 4.7K 5% 1/4W R646 1-247-847-11 CARBON 4.7K 5% 1/4W R647 1-249-424-11 CARBON 3.9K 5% 1/4W R648 1-249-417-11 CARBON 1K 5% 1/4W R649 1-249-417-11 CARBON 1K 5% 1/4W R650 1-247-863-11 CARBON 22K 5% 1/4W R651 1-247-863-11 CARBON 22K 5% 1/4W R652 1-247-847-11 CARBON 4.7K 5% 1/4W R653 1-247-847-11 CARBON 4.7K 5% 1/4W R654 1-247-847-11 CARBON 4.7K 5% 1/4W R655 1-247-855-11 CARBON 10K 5% 1/4W R656 1-249-417-11 CARBON 1K 5% 1/4W R657 1-247-835-11 CARBON 1.5K 5% 1/4W R658 1-247-887-00 CARBON 220K 5% 1/4W R659 1-247-871-11 CARBON 47K 5% 1/4W R660 1-247-895-00 CARBON 470K 5% 1/4W R661 1-247-871-11 CARBON 47K 5% 1/4W R662 1-247-895-00 CARBON 470K 5% 1/4W R664 1-247-871-11 CARBON 47K 5% 1/4W R665 1-247-895-00 CARBON 470K 5% 1/4W R666 1-247-835-11 CARBON 1.5K 5% 1/4W R668 1-247-871-11 CARBON 47K 5% 1/4W R669 1-247-895-00 CARBON 470K 5% 1/4W R671 1-249-438-11 CARBON 56K 5% 1/4W R672 1-247-895-00 CARBON 470K 5% 1/4W R673 1-247-835-11 CARBON 1.5K 5% 1/4W R674 1-247-835-11 CARBON 1.5K 5% 1/4W R675 1-247-871-11 CARBON 47K 5% 1/4W R676 1-247-835-11 CARBON 1.5K 5% 1/4W R903 1-247-847-11 CARBON 4.7K 5% 1/4W R904 1-247-847-11 CARBON 4.7K 5% 1/4W R906 1-249-410-11 CARBON 270 5% 1/4W R907 1-249-410-11 CARBON 270 5% 1/4W R908 1-249-410-11 CARBON 270 5% 1/4W R909 1-249-410-11 CARBON 270 5% 1/4W R910 1-249-410-11 CARBON 270 5% 1/4W R911 1-249-417-11 CARBON 1K 5% 1/4W R912 1-249-413-11 CARBON 470 5% 1/4W R915 1-247-855-11 CARBON 10K 5% 1/4W R916 1-247-855-11 CARBON 10K 5% 1/4W R917 1-249-410-11 CARBON 270 5% 1/4W R918 1-249-410-11 CARBON 270 5% 1/4W R919 1-249-410-11 CARBON 270 5% 1/4W R920 1-249-410-11 CARBON 270 5% 1/4W R921 1-249-410-11 CARBON 270 5% 1/4W R922 1-247-827-11 CARBON 680 5% 1/4W R923 1-249-416-11 CARBON 820 5% 1/4W R924 1-249-418-11 CARBON 1.2K 5% 1/4W R925 1-247-835-11 CARBON 1.5K 5% 1/4W R926 1-247-839-11 CARBON 2.2K 5% 1/4W R927 1-247-843-11 CARBON 3.3K 5% 1/4W R928 1-247-847-11 CARBON 4.7K 5% 1/4W R929 1-249-428-11 CARBON 8.2K 5% 1/4W R930 1-249-431-11 CARBON 15K 5% 1/4W R931 1-249-434-11 CARBON 27K 5% 1/4W R932 1-247-827-11 CARBON 680 5% 1/4W R933 1-249-416-11 CARBON 820 5% 1/4W R934 1-249-418-11 CARBON 1.2K 5% 1/4W PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R935 1-247-835-11 CARBON 1.5K 5% 1/4W R936 1-247-839-11 CARBON 2.2K 5% 1/4W R937 1-247-843-11 CARBON 3.3K 5% 1/4W R938 1-247-847-11 CARBON 4.7K 5% 1/4W R939 1-249-428-11 CARBON 8.2K 5% 1/4W R940 1-249-431-11 CARBON 15K 5% 1/4W R942 1-247-827-11 CARBON 680 5% 1/4W R943 1-249-416-11 CARBON 820 5% 1/4W R944 1-249-418-11 CARBON 1.2K 5% 1/4W R945 1-247-835-11 CARBON 1.5K 5% 1/4W R946 1-247-839-11 CARBON 2.2K 5% 1/4W R947 1-247-843-11 CARBON 3.3K 5% 1/4W R948 1-247-847-11 CARBON 4.7K 5% 1/4W R949 1-249-428-11 CARBON 8.2K 5% 1/4W R950 1-249-434-11 CARBON 27K 5% 1/4W R955 1-249-408-11 CARBON 180 5% 1/4W R956 1-249-408-11 CARBON 180 5% 1/4W R606A 1-247-871-11 CARBON 47K 5% 1/4W R618A 1-247-879-11 CARBON 100K 5% 1/4W < IC > RM601 8-749-013-84 IC SPS-447-1 (REMOTE CONTROL RECEIVER) < SWITCH > S902 1-572-647-11 SWITCH, KEY BOARD (>, +) S903 1-572-647-11 SWITCH, KEY BOARD (J) S904 1-572-647-11 SWITCH, KEY BOARD (EDIT, TUNER MEMORY) S905 1-572-647-11 SWITCH, KEY BOARD (REPEAT, STEREO/MONO) S906 1-572-647-11 SWITCH, KEY BOARD (PLAY MODE, DIRECTION) (EXCEPT AEP, UK) S906 1-572-647-11 SWITCH, KEY BOARD (PLAY MODE, PTY/DIRECTION) (AEP, UK) S907 1-572-647-11 SWITCH, KEY BOARD (X) S908 1-572-647-11 SWITCH, KEY BOARD (hH) S909 1-572-647-11 SWITCH, KEY BOARD (x) S910 1-572-647-11 SWITCH, KEY BOARD (–, .) S911 1-572-647-11 SWITCH, KEY BOARD (GROOVE) S912 1-572-647-11 SWITCH, KEY BOARD (FILE SELECT) S913 1-572-647-11 SWITCH, KEY BOARD (ENTER) S914 1-572-647-11 SWITCH, KEY BOARD (SPECTRUM) S915 1-572-647-11 SWITCH, KEY BOARD (DISPLAY) S917 1-572-647-11 SWITCH, KEY BOARD (I/1) S918 1-572-647-11 SWITCH, KEY BOARD (Z OPEN/CLOSE) S919 1-572-647-11 SWITCH, KEY BOARD (DISC 3) S920 1-572-647-11 SWITCH, KEY BOARD (DISC 2) S921 1-572-647-11 SWITCH, KEY BOARD (DISC 1) S922 1-572-647-11 SWITCH, KEY BOARD (DISC-SKIP EX-CHANGE) S923 1-572-647-11 SWITCH, KEY BOARD (TUNER/BAND) S924 1-572-647-11 SWITCH, KEY BOARD (CD) S925 1-572-647-11 SWITCH, KEY BOARD (TAPE A/B) S926 1-572-647-11 SWITCH, KEY BOARD (MD (VIDEO)) S927 1-572-647-11 SWITCH, KEY BOARD (j) S931 1-572-647-11 SWITCH, KEY BOARD (REC PAUSE) S932 1-572-647-11 SWITCH, KEY BOARD (REC) S933 1-572-647-11 SWITCH, KEY BOARD (CD SYNC) S934 1-572-647-11 SWITCH, KEY BOARD (DSP) S935 1-572-647-11 SWITCH, KEY BOARD (DVD 5.1CH) S936 1-572-647-11 SWITCH, KEY BOARD (DOLBY PRO LOGIC) < VIARIABLE RESISTOR > SFR601 1-238-598-11 RES, ADJ, CARBON 2.2K < ROTARY ENCODER > VR602 1-476-137-11 ENCODER, ROTARY (VOLUME) < VIBRATOR > X601 1-567-925-11 VIBRATOR, CRYSTAL (10MHz) ************************************************************** A-4473-612-A PHOTO SOCKET BOARD, COMPLETE ***************************** < CAPACITOR > C710A 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > * CN703 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P < IC > PH701 8-749-923-04 IC TOTX178A (CD DIGITAL OUT (OPTICAL)) ************************************************************** 1-674-788-11 SW A BOARD *********** < SWITCH > S04 1-771-169-11 SWITCH (TURN TABLE OPERATION DETECT) ************************************************************** 1-674-789-11 SW B BOARD *********** S03 1-771-169-11 SWITCH (TURN TABLE POSITION DETECT) ************************************************************** 1-674-790-11 SW C BOARD *********** S02 1-571-300-31 SWITCH, ROTARY (OPEN/CLOSE DETECT) ************************************************************** 1-674-791-11 SW D BOARD *********** S01 1-571-300-31 SWITCH, ROTARY (OPTICAL PICK-UP UP/DOWN SETECT) ************************************************************** PANEL PHOTO SOCKET SW A SW B SW C SW D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. MISCELLANEOUS ************** 56 1-792-850-11 WIRE (FLAT TYPE) (16 CORE) 69 1-769-273-11 WIRE (FLAT TYPE) (22 CORE) 72 1-772-164-11 DECK, MECH (CWL-44-RR) 0111 1-783-531-51 CORD, POWER (US, CND) 251 1-769-856-11 WIRE (FLAT TYPE) (5 CORE) 255 1-775-133-11 WIRE (FLAT TYPE) (15 CORE) 0305 1-772-651-11 OPTICAL PICK-UP ASSY M103 X-4948-765-1 MOTOR ASSY (DISC TABLE TURN) M104 X-4948-766-1 MOTOR ASSY (A) (DISC TRAY SLIDE) M505 1-763-410-11 FAN, DC 0T001 1-435-714-11 TRANSFORMER, POWER (US, CND) ************************************************************ ************** HARDWARE LIST ************** #1 7-685-246-19 SCREW +KTP 3X8 TYPE2 SLIT #2 7-685-648-14 SCREW +BVTP 3X12 TYPE2 N-S #3 7-685-903-31 SCREW +PTPWH 3X10 (TYPE2) #4 7-682-904-11 SCREW +PWH 4X8 #5 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #6 7-685-648-79 SCREW +BVTP 3X12 TYPE2 TT(B) #8 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S #9 7-685-131-19 SCREW +BTP 2.6X4 TYPE2 N-S #10 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S #11 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2) #12 7-624-118-01 RING, RETAINING E-2.5 #13 7-685-903-21 SCREW +PTPWH 3X8 (TYPE2) #14 7-685-535-19 SCREW +BTP 2.6X10 TYPE2 N-S #15 7-685-547-19 SCREW +BTP 3X10 TYPE2 N-S #16 7-685-645-79 SCREW +BVTP 3X6 TYPE2 SLIT #17 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #18 7-685-647-14 SCREW +BVTP 3X10 TYPE2 N-S #19 7-685-902-11 SCREW +PWH 2.6X6 #20 7-685-132-19 SCREW +BTP 2.6X5 TYPE2 N-S #21 7-685-660-79 SCREW +PTPWH 4X10 TYPE 2 #22 7-685-661-79 SCREW +BVTP 4X12 TYPE2 N-S #23 7-685-649-79 SCREW +BVTP 3X14 TYPE2 SLIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-BX6AV/DX6AV Sony Corporation Audio Entertainment Group 9-929-250-11 2000D0585-1 Printed in Japan C 2000. 4 Published by HA Quality Assurance Dept. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
