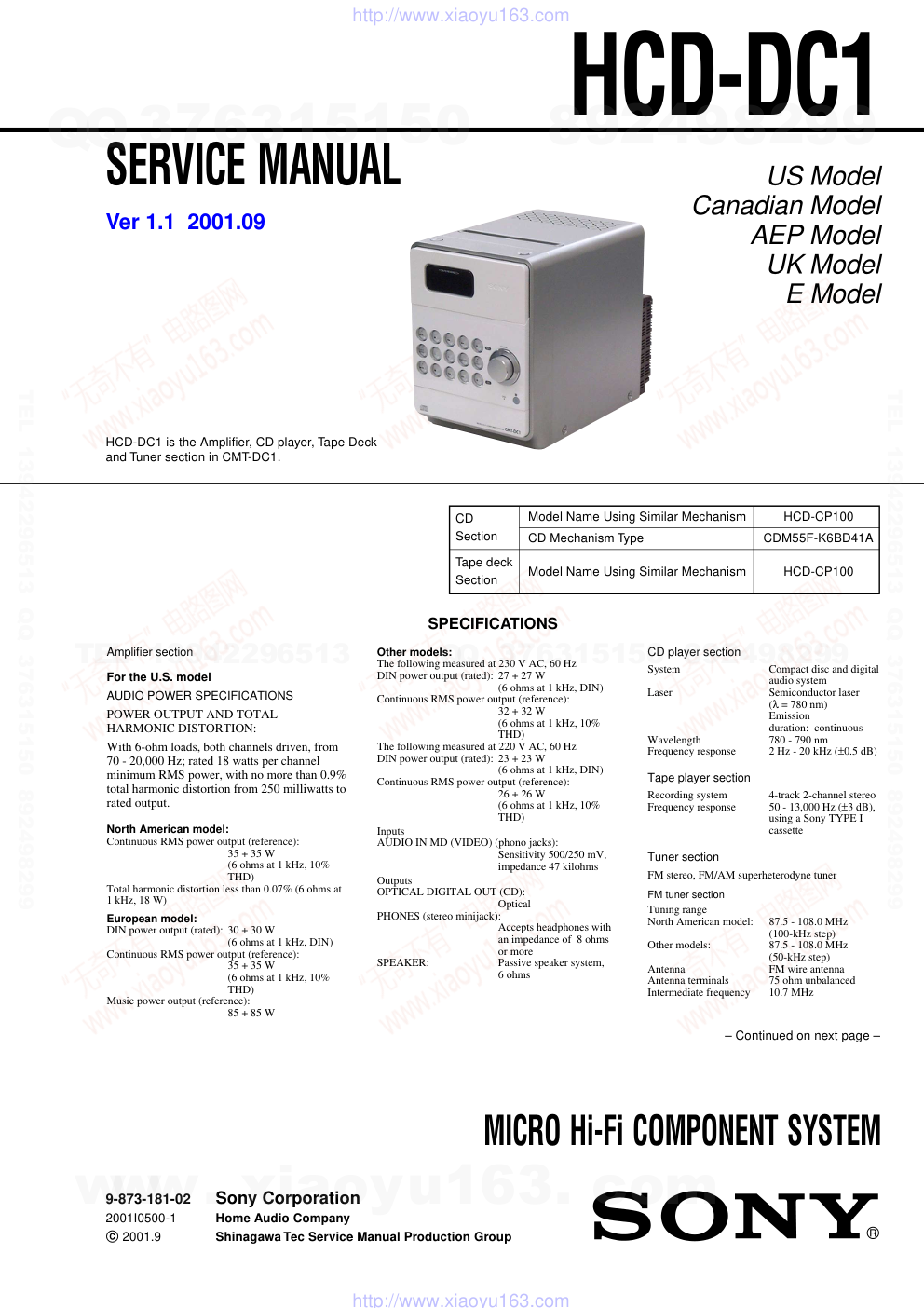

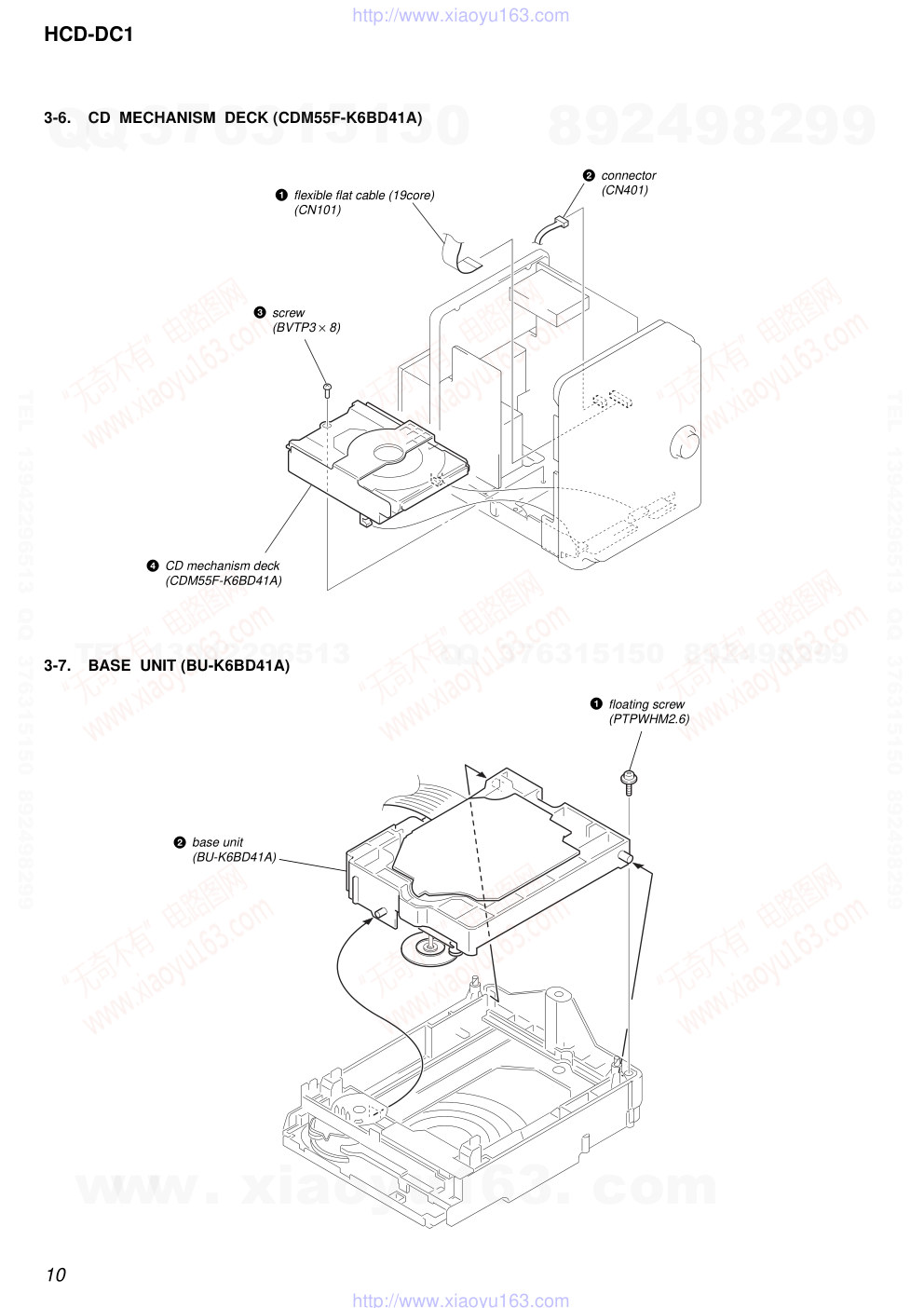

SERVICE MANUAL MICRO Hi-Fi COMPONENT SYSTEM US Model Canadian Model AEP Model UK Model E Model HCD-DC1 Ver 1.1 2001.09 9-873-181-02 Sony Corporation 2001I0500-1 Home Audio Company C 2001.9 Shinagawa Tec Service Manual Production Group SPECIFICATIONS HCD-DC1 is the Amplifier, CD player, Tape Deck and Tuner section in CMT-DC1. Model Name Using Similar Mechanism HCD-CP100 CD Mechanism Type CDM55F-K6BD41A Model Name Using Similar Mechanism HCD-CP100 CD Section Tape deck Section Amplifier section For the U.S. model AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 6-ohm loads, both channels driven, from 70 - 20,000 Hz; rated 18 watts per channel minimum RMS power, with no more than 0.9% total harmonic distortion from 250 milliwatts to rated output. North American model: Continuous RMS power output (reference): 35 + 35 W (6 ohms at 1 kHz, 10% THD) Total harmonic distortion less than 0.07% (6 ohms at 1 kHz, 18 W) European model: DIN power output (rated): 30 + 30 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 35 + 35 W (6 ohms at 1 kHz, 10% THD) Music power output (reference): 85 + 85 W Other models: The following measured at 230 V AC, 60 Hz DIN power output (rated): 27 + 27 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 32 + 32 W (6 ohms at 1 kHz, 10% THD) The following measured at 220 V AC, 60 Hz DIN power output (rated): 23 + 23 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 26 + 26 W (6 ohms at 1 kHz, 10% THD) Inputs AUDIO IN MD (VIDEO) (phono jacks): Sensitivity 500/250 mV, impedance 47 kilohms Outputs OPTICAL DIGITAL OUT (CD): Optical PHONES (stereo minijack): Accepts headphones with an impedance of 8 ohms or more SPEAKER: Passive speaker system, 6 ohms CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ = 780 nm) Emission duration: continuous Wavelength 780 - 790 nm Frequency response 2 Hz - 20 kHz (±0.5 dB) Tape player section Recording system 4-track 2-channel stereo Frequency response 50 - 13,000 Hz (±3 dB), using a Sony TYPE I cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range North American model: 87.5 - 108.0 MHz (100-kHz step) Other models: 87.5 - 108.0 MHz (50-kHz step) Antenna FM wire antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz – Continued on next page – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-DC1 TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 4 2. GENERAL Parts Identification .......................................................... 5 Setting the Time .............................................................. 5 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 7 3-2. Upper Cover Sub Assy .................................................... 8 3-3. CD Lid ............................................................................. 8 3-4. Front Panel Section ......................................................... 9 3-5. Tape Mechanism Deck .................................................... 9 3-6. CD Mechanism Deck (CDM55F-K6BD41A) ................ 10 3-7. Base Unit (BU-K6BD41A) ............................................. 10 3-8. Loading Motor Board ..................................................... 11 3-9. Cam (CDM55) ................................................................ 11 4. TEST MODE .............................................................. 12 5. ELECTRICAL ADJUSTMENTS Deck Section ................................................................... 13 CD Section ...................................................................... 14 6. DIAGRAMS 6-1. Block Diagram – CD SERVO Section – ....................... 15 6-2. Block Diagram – MAIN Section – ................................ 16 6-3. Block Diagram – DISPLAY/POWER SUPPLY Section – ...................... 17 6-4. Note for Printed Wiring Boards and Schematic Diagrams ....................................................... 18 6-5. Printed Wiring Board – CD Board – ............................. 20 6-6. Schematic Diagram – CD Board – ................................ 21 6-7. Printed Wiring Board – TC Board – .............................. 22 6-8. Schematic Diagram – TC Board – ................................. 23 6-9. Schematic Diagram – MAIN Board (1/3) – ................. 24 6-10. Schematic Diagram – MAIN (2/3)/ LOADING MOTOR/HEADPHONE Boards – ............. 25 6-11. Schematic Diagram – MAIN (3/3)/LCD Boards – ...... 26 6-12. Printed Wiring Boards – MAIN/LCD/ LOADING MOTOR/HEADPHONE Boards – .............. 27 6-13. Printed Wiring Boards – SWITCH/I/O SWITCH Boards – ................................ 28 6-14. Schematic Diagram – SWITCH/I/O SWITCH Boards – ................................ 29 6-15. Printed Wiring Board – POWER Board – ...................... 30 6-16. Schematic Diagram – POWER Board – ......................... 31 6-17. IC Pin Function Description ........................................... 32 7. EXPLODED VIEWS 7-1. Upper Cover, Tape Mech Deck Section ......................... 37 7-2. Front Panel Section ......................................................... 38 7-3. Chassis Section ............................................................... 39 7-4. CD Mechanism Deck (CDM55F-K6BD41A) ................ 40 7-5. Base Unit (BU-K6BD41A) ............................................. 41 8. ELECTRICAL PARTS LIST ............................... 42 AM tuner section Tuning range North American model: 530 - 1,710 kHz (with the tuning interval set at 10 kHz) 531 - 1,710 kHz (with the tuning interval set at 9 kHz) European model: 531 - 1,602 kHz (with the tuning interval set at 9 kHz) Other models: 530 - 1,710 kHz (with the tuning interval set at 10 kHz) 531 - 1,602 kHz (with the tuning interval set at 9 kHz) Antenna AM loop antenna, external antenna terminal Intermediate frequency 450 kHz General Power requirements North American model: 120 V AC, 60 Hz European model: 230 V AC, 50/60 Hz Mexican model: 120 V AC, 60 Hz Other models: 110 - 120 V or 220 - 240 V AC , 50/60 Hz Adjustable with voltage selector Power consumption European model: See the nameplate 0.5 W (in the standby mode) Other models: See the nameplate Dimensions (w/h/d) Approx. 191 × 253 × 346 mm incl. projecting parts and controls Mass Approx. 5.6 kg Design and specifications are subject to change without notice. Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-DC1 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. The following caution label is located inside the unit. CAUTION : INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCKS DEFEATED. AVOID EXPOSURE TO BEAM. ADVARSEL : USYNLIG LASERSTRÅLING VED ÅBNING NÅR SIKKERHEDSAFBRYDERE ER UDE AF FUNKTION. UNDGÅ UDSAETTELSE FOR STRÅLING. VORSICHT : UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG GEÖFFNET UND SICHEREITSVERRIEGELUNG ÜBERBRÜCKT. NICHT DEM STRAHL AUSSETZEN. VARO! : AVATTAESSA JA SUOJALUKITUS OHITETTAESSA OLET ALT- TIINA NÄKYMÄTTÖMÄLLE LASERSÄTEILYLLE. ÄLÄ KATSO SÄTEESEEN. VARNING : OSYNLING LASERSTRÅLING NÄR DENNA DEL ÄR ÖPPNAD OCH SPÄRREN ÄR URKOPPLAD. BETRAKTA EJ STRÅLEN. ADVERSEL : USYNLIG LASERSTRÅLING NÅR DEKSEL ÅPNES OG SIKKERHEDSLÅS BRYTES. UNNGÅ EKSPONERING FOR STRÅLEN. VIGYAZAT! : A BURKOLAT NYITÁSAKOR LÁTHATATLAN LÉZERSU- GÁRVESZÉLY! KERÜLJE A BESUGÁRZÁST! Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indica- tion is 0.75 V, so analog meters must have an accurate low- voltage scale. The Simpson 250 and Sanwa SH-63Trd are ex- amples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suit- able. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-DC1 SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT SERVICE POSTION In checking the CD block, prepare jig (extension cable J-2501- 011-B). Connect jig (extension cable J-2501-011-B) to the MAIN board (CN101) and CD board (CN101). MAIN board CD board Ver 1.1 • MODEL IDENTIFICATION – Rear Panel – Power Voltage Incdication AC: 120 V 60 Hz 75 W AC: 230 V -50/60 Hz 75 W AC: 110 – 120/ 220 – 240 V / 50/60 Hz 75 W Model US, CND, MX models AEP, UK models HK, MY, SP models • Abbreviation CND : Canadian model HK : Hong Kong model MX : Mexican model MY : Malaysia model SP : Singapore model Power Voltage Indication VOLTAGE SELECTOR Switch (HK, MY, SP models) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-DC1 Parts Identification The items are arranged in alphabetical order. Refer to the pages indicated in parentheses () for details. Main unit CD cover qa (8, 18) Shown open in the illustration above. CD SYNC 9 (13, 14) CD .m/M> qg (8, 9, 14) CD Z qf (8) CD u qj (8, 9) CD x qh (8, 9, 21) DSG indicator qd (16) FUNCTION 7 (8-10, 12-14, 18) PHONES jack qs (18) Remote sensor q; TAPE PAUSE X 5 (12-14) TAPE Y 2 (12-14) TAPE m/M 4 (12) TAPE x 3 (12-14, 21) TUNER/BAND ql (10, 21) VOLUME 8 (17) BUTTON DESCRIPTIONS @/1 (power) 1 (7, 10, 15, 17, 18) Z 6 (12) +/– qk (10, 11) 12 5 4 7 6 3 8 9 q; qs qf qd qh qg qj qk ql qa SECTION 2 GENERAL • LOCATION OF CONTROLS – Rear View – – Front View – 2 1 3 4 5 7 6 1 AM ANTENNA terminals 2 FM ANTENNA jack or terminals 3 AUDIO IN MD (VIDEO) jacks 4 CD DIGITAL OUT OPTICAL connector 5 SPEAKER terminals 6 VOLTAGE SELECTOR switch (Hong Kong, Malaysia and Singapore models) 7 AC power cord Setting the time 1 Turn on the system. 2 Press TIMER SET on the remote. If you are setting the clock for the first time, go to step 5. 3 Press ./> on the remote repeatedly until “SET CLOCK” appears in the display. 4 Press ENTER on the remote. The hour indication flashes. 5 Press ./> on the remote repeatedly to set the hour. 6 Press ENTER on the remote. The minute indication flashes. 7 Press ./> on the remote repeatedly to set the minute. 8 Press ENTER on the remote. The clock will begin operating. To reset the system clock Start over from step 1. This section is extracted from instruction manual. Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-DC1 Remote Control CD REPEAT qk (8) CD N ws (8, 9) DIR MODE ql (12-14) DISPLAY 2 (9, 11) DSG 1 (16) ENTER qd (7, 10, 15, 17) MEMORY qh (10) PLAY MODE 9 (8, 9, 14) SLEEP qf (16) STEREO/MONO qj (11) TAPE Y w; (12-14) TIMER SELECT qs (15, 17) TIMER SET qg (7, 15, 17) TUNER/BAND wa (10) TUNING MODE q; (10, 11) VOL +/– qa (17) BUTTON DESCRIPTIONS X 4 (8, 12-14) x 5 (8, 9, 12-14) ./> 6 (7-10, 15, 17) m/M 7 (8, 10-12) @/1 (power) 3 (7, 10, 15, 17) z REC 8 (13) 1 2 3 8 5 6 4 9 0 qa qs qd qj qk qh qg qf ql w; wa ws 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 7 • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW SECTION 3 DISASSEMBLY 3-2. UPPER COVER SUB ASSY (Page 8) SET 3-4. FRONT PANEL SECTION (Page 9) 3-3. CD LID (Page 8) 3-5. TAPE MECHANISM DECK (Page 9) 3-7. BASE UNIT (BU-K6BD41A) (Page 10) 3-8. LOADING MOTOR BOARD (Page 11) 3-9. CAM (CDM55) (Page 11) 3-6. CD MECHANISM DECK (CDM55F-K6BD41A) (Page 10) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 8 3-3. CD LID Note: Follow the disassembly procedure in the numerical order given. 3-2. UPPER COVER SUB ASSY 1 four screws (BTP3 × 8) 2 two case screws 2 two case screws 3 upper cover sub assy 3 CD lid 1 tray Note: Open the tray by supplying the power. 2 two claws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 9 3-4. FRONT PANEL SECTION 3-5. TAPE MECHANISM DECK 1 flexible flat (18core) cable (CN802) 1 flexible flat (18core) cable (CN301) 1 flexible flat (20core) cable (CN804) 1 flexible flat (16core) cable (CN801) 2 connector (CN501) 3 two screws (BTP3 × 8) 4 screw (KTP3 × 6) 4 screw (KTP3 × 6) 5 front panel section 4 three screws (BVTT2.6 × 5) 8 two screws (BTP3 × 8) 8 two screws (BTP3 × 8) 9 tape machanism deck 7 TC board 2 flexible flat (9core) cable (CN302) 6 connector (CNP1) 3 connector (CN303) 5 1 azimuth cap www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 10 3-6. CD MECHANISM DECK (CDM55F-K6BD41A) 3-7. BASE UNIT (BU-K6BD41A) 3 screw (BVTP3 × 8) 4 CD mechanism deck (CDM55F-K6BD41A) 2 connector (CN401) 1 flexible flat cable (19core) (CN101) 1 floating screw (PTPWHM2.6) 2 base unit (BU-K6BD41A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 11 3-8. LOADING MOTOR BOARD 3-9. CAM (CDM55) 2 belt (CDM55) B 3 Pull the tray pushing B. 4 two screws (BTP2.6 × 6) 5 LOADING MOTOR board 1 Rotate the gear(B) in the direction of arrow A. A 2 lever (SW) 1 torsion spring 6 gear (B) 3 spacer (55) 4 pulley (LDG) 5 gear (A) 7 roller 8 cam (CDM55) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 12 SECTION 4 TEST MODE Start REC pause for 3 seconds FWD REC Fast forward REV Play REC pause for 3 seconds REV REC Rewind FWD Play Shut off Shut off Shut off Shut off 1 minute 3 minutes 1 minute 3 minutes Start Open the disc tray Close the disc tray Play the last track [Cold Reset] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. Turn ON the power. 2. Press three buttons x (TAPE), x (CD), and [TUNER/BAND] simultaneously. 3. The set is reset. [Liquid Crystal Display All Lit Check Mode] Procedure: 1. Set to standby state. 2. Press three buttons of x (TAPE), x (CD), and [FUNCTION] simultaneously. 3. Liquid crystal display are all turned on. 4. To exit from this mode, press the I/1 button to turn the power OFF. [Tape Deck Aging Mode] This mode can be used for operation check of tape deck section. Procedure: 1. Set a tape in the tape deck. 2. Set to standby state. 3. Press three buttons of x (TAPE), x (CD), and [+] (TUNING) simultaneously. 4. The aging is executed in bellow sequence. 5. To exit from the aging mode, press the I/1 button to turn the power OFF. Aging mode sequence: [CD Aging Mode] This mode can be used for operation check of CD section. Procedure: 1. Load a CD disc. 2. Set to standby state. 3. Press three buttons of x (TAPE), x (CD), and [--] ( TUNING) simultaneously. 4. The aging is executed in bellow sequence. 5. To exit from the aging mode, press the I/1 button to turn the power OFF. Aging mode sequence: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 13 Note: Confirm each contents of this section first of all. If the results are not satisfied, do the adjustment. 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjust. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. • Test Tape Record/Playback Head Azimuth Adjustment Procedure: 1. Mode: Playback SECTION 5 ELECTRICAL ADJUSTMENT 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. 3. Mode: Playback 4. Repeat step 1 to 3 in playback (REV) mode. 5. After the adjustments, apply suitable locking compound to the pats adjusted. Adjustment Location: 0 dB=0.775 V DECK SECTION Tape Signal Used for P-4-A100 10 kHz, –10 dB Azimuth Adjustment set MAIN board SPEAKER terminals (SJ301) L-CH, R-CH + – level meter test tape P-4-A100 (10 kHz, –10 dB) Screw position L-CH peak within 1 dB Output level L-CH peak R-CH peak within 1 dB Screw position R-CH peak set test tape P-4-A100 (10 kHz, –10 dB) R-CH oscilloscope V H waveform of oscilloscope in phase 45° 90° 135° 180° good wrong MAIN board SPEAKER terminals (SJ301) L-CH forward reverse www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 14 IC103 TP (RF) TP (VC) CD SECTION Note: 1. CD Block is basically constructed to operate without adjustment. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10 MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. 5. Check the focus bias check when optical block is replaced. Focus Bias Check Procedure : 1. Connect oscilloscope to TP (RF) and TP (VC) on the CD board. 2. Press the I/1 button to turn the power on, and press the Z (CD) button to open the CD disc tray. 3. Put disc (YEDS-18) in and press the u (CD) button to play- back. 4. Confirm that oscilloscope waveform is as shown in the figure below. (eye pattern) A good eye pattern means that the diamond shape ( ) in the center of the waveform can be clearly distinguished. + – CD board TP (RF) TP (VC) oscilloscope (DC range) VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 1.2 ± 0.1 Vp-p s Checking Location: – CD BOARD (Conductor Side) – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 15 15 SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAM – CD SERVO Section – I-V AMP DETECTOR (TRACKING) (FOCUS) 2-AXIS DEVICE LASER DIODE A B C D F E 6 7 8 10 11 4 2 1 5 10 6 7 D+5V LD PD VCC LD PD AUTOMATIC POWER CONTROL Q101 5 RF SUMMING AMP RF EQ AMP FOCUS ERROR AMP TRACKING ERROR AMP FI-V AMP EI-V AMP APC LD AMP APC PD AMP 4 PD 16 14 13 22 21 RFO FE TE LD ON HOLD SW LD 3 ASYMMETRY CORRECTION EFM DEMODULATOR DIGITAL PLL 51 49 48 RFAC ASYI ASYO 54 56 53 55 FILO PCO CLTV FILI ERROR CORRECTOR 16k RAM INTERNAL BUS D/A INTERFACE SERIAL IN INTERFACE DIGITAL FILTER NOISE SHAPER PWM & INTEGRATOR DIGITAL OUT • SIGNAL PATH : CD PLAY (ANALOG) : CD PLAY (DIGITAL OUT) 60 70 77 D OUT AOUT1 AOUT2 AIN1 AIN2 51 51 71 76 72 75 LOUT1 LOUT2 BUFFER CD L IN R-CH SUBCODE PROCESSOR SERVO AUTO SEQUENCER CPU INTERFACE 2 5 7 6 20 8 1 14 SQCK DATA CLOK XLAT SCOR SENS SQSO XLON TO MIRR/DFCT/FOK DETECTOR IC101 (2/2) 9 27 SCLK SSTP 26 MDP S101 (LIMIT) TE FE RFDC SE 41 39 43 40 A/D CONVERTER FOCUS/TRACKING/SLED PWM GENERATOR FOCUS/TRACKING/SLED SERVO DSP MIRR/DFCT/FOK DETECTOR 23 22 24 DFCT MIRR FOK TO SERVO INTERFACE IC101 (1/2) DIGITAL SERVO PROCESSOR IC101 (2/2) 14 13 12 11 17 18 15 16 CH1OUTF CH1OUTR CH2OUTF CH2OUTR CH3OUTF CH3OUTR CH4OUTF CH4OUTR CH1FIN CH1RIN CH2 FIN CH2RIN CH3FIN CH3RIN 2 3 5 6 24 23 MOTOR DRIVE MOTOR DRIVE COIL DRIVE MOTOR DRIVE COIL DRIVE FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE IC102 M (SLED) (SPINDLE) CH4SIN 25 33 32 31 30 28 29 FRDR FFDR SFDR SRDR TRDR TFDR MUTE 20 MUTE Q803 Q804 Q806 Q802 Q808 Q807 Q805 SERVO INTERFACE DIGITAL CLV 3 XRST 67 66 XTAL XTAO X101 16.9344MHz TIMING LOGIC CLOCK GENERATOR OPTICAL TRANSCEIVER IC321 VDD OPTICAL DIGITAL OUT (CD) DATA CLK LATCH SENS SQSO SQCK XRST HOLD C SCOR A (Page 16) RF AMP FOCUS/TRACKING ERROR AMP IC103 FILTER DIGITAL SIGNAL PROCESSOR, DIGITAL FILTER, D/A CONVERTER IC101 (1/2) OPTICAL PICK-UP BLOCK (KSS-213D) M Q802 – 808 CD ON SWITCH • R-CH : R-ch is omitted due to same as L-ch. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 16 16 6-2. BLOCK DIAGRAM – MAIN Section – TU1 TUNER PACK FM75Ω FM75Ω ANENNA L R AM 1 2 4 9 Q810 8 Q809 10 Q811 7 3 Q813 Q809 – 811, 813 TUNER ON/OFF SWITCH 31 30 17 3 LINE OUT2 VOL2 OUT2 TREBLE LOGIC MIDDLE BASS INPUT SELECT SWITCH, MIX, TONE CONTROL, ELECTRICAL VOLUME IC323 4 13 14 2 DET AMP Q812 16 12 2 X803 4.332MHz RDS DECODER IC804 D806 17 14 15 88 28 5 8 19 18 25 AUDIO IN MD (VIDEO) SJ302 HRPE901 (RECORD/PLAYBACK/ERASE) R-CH (ERASE) R-CH L-CH 1 3 2 REC/PB SWITCHING IC402 REC/PB AMP, EQ AMP IC401 (REC) (PB) (SW) R-CH R-CH 4 23 24 20 R-CH R-CH ALC 16 14 REC OUT L PB L REC IN L B+ (+8V) BIAS OSC T401 REC BIAS SWITCH Q402, 403 BIAS OSC Q401 BIAS TRAP T403 CD L IN DATA CLK LATCH SENS SQSO SQCK XRST HOLD C SCOR DATA CLK SDA SCK 95 11 86 14 100 Q801 LED DRIVE Q854 A (Page 15) MUTING Q100 R-CH B+ (+8V) MUTING DRIVE Q330 4 10 9 14 + + – – SJ301 L R SPEAKER IMPEADANCE USE 6 – 16Ω R-CH R-CH J301 HEADPHONE AMP IC324 MUTING Q815, 817 MUTING DRIVE Q312, 313 MOS GAIN & LEVEL SHIFT ING STAGE MOS OUTPUT STAGE SHORT CIRCUIT PROTECTION D853 IN+ IN– STANDBY/MUTE MUTE STBY B (Page 17) REG CON D (Page 17) REC/PB C (Page 17) FM ON POWER AMP IC201 R-CH 97 22 24 93 92 X802 32.768KHz 39 4 40 X801 4.19MHz CAPSTAN/REEL MOTOR DRIVE Q601, 602 10 1 6 32 13 15 TRIGGER PLUNGER DRIVE Q603, 604 M TAPE END DETECT SENSOR (TAPE DECK BLOCK) 6 5 10 2 33 M901 (LOADING) M LOADING MOTOR DRIVE IC320 • SIGNAL PATH : TUNER : CD PLAY (ANALOG OUT) : CD PLAY (OPTICAL OUT) : TAPE (PLAY) : TAPE (RECORD) : MD OUT FM ANT ANT GND AM ANT ANT GND L-CH R-CH R-CH TUNED DI CK CE DO FM DET MIX X1 X0 RDATA RCLK R-CH B IN L A IN L 6 2 8 10 INPUT2 INPUT1 OUT2 OUT1 SYSTEM CONTROLLER IC801 (1/2) C2 A2 D2 E2 C-SQSO/ RDS-DATA RDS-IN TUNED C-DATA/TU-DATA C-CLK/TU-CLK C-LATCH/TU-CE SENS2/TU-COUNT TU-ON REC/PB C-SQCK C-XRST/FM-ON HOLD C-SCOR AU-MUTE AMP-MUTE H/P CHECK TEX TX EXTAL1 MOT-CON XTAL1 SOL-CON TAPE-END T-MODE TC-SW TRAY-OPEN TRAY-CLOSE TRAY-SW PHONES SI DISC TRAY OPEN/CLOSE DETECT • R-CH : R-ch is omitted due to same as L-ch. • Abbreviation CND: Canadian model MX : Mexican model MUTING Q414 87 REC-MUTE 96 L-MUTE R-CH R-CH LINE AMP MUTING Q407 TUNER /BAND (EXCEPT US, CND, MX) (US, CND, MX) Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 17 17 6-3. BLOCK DIAGRAM – DISPLAY/POWER SUPPLY Section – ROTARY ENCODER RV801 VOLUME RV801 JOG A JOG B 21 20 36 – 34 KEY1 – 3 S801 – 816 50 – 53 COM0 – 3 LIQUID CRYSTAL DISPLAY LCD801 54 – 85 SEG0 – 31 REMOCON 3 REMOTE CONTROL RECEIVER IC802 LED DRIVE Q855 DSG D854 CD SYNC D856 LED DRIVE Q856 CD SYNC 26 27 89 38 99 VDD RESET WP RESET SIGNAL GENERATOR IC803 +5V (ROTARY ENCODER) D812 D811 B+ SWITCH Q606, 607 Q605 B+ SWITCH Q608, 609 CASSETTE HOLDER BACK LIGHT D802 D REC/PB (Page 16) SYSTEM CONTROLLER IC801 (2/2) LED DRIVE Q853 Y D855 TC ON 98 94 CD ON LED DRIVE Q852 u D852 CD +5V REGULATOR Q306 B+ (CD +5V) +10V REGULATOR Q305 CD +8V REGULATOR IC306 B+ (CD +8V) B+ (FM +7.5V) +9V REGULATOR Q301 FM +7.5V REGULATOR Q302 B+ (+9.5V) B+ (COM +12V) 7 REG CON (Page 16) FM ON C RECT D906 – 909 RECT D902 – 905 COM +8V REGULATOR IC304 COM +12V REGULATOR Q355 B+ (COM +8V) LED B+ SWITCH Q661, 662 LED B+ (+8V) B+ (+14V) B – ( – 14V) B+ (+22.5V) B – ( – 22.5V) POWER AMP (IC101, 201) COM – 8V REGULATOR IC302 B – ( COM – 8V) REG CON C (Page 16) B D917 D310 B+ SWITCH Q608, 609 B+ SWITCH Q901 RECT D910 – 913 RELAY +5V REGULATOR IC301 WAKE UP SWITCH Q890, 891 D801 D S G D866 – 869 (LCD BACK LIGHT) 37 SIMUKE/TEST B+ (+5V) REGULATOR CONTROL SWITCH Q303, 304 REGULATOR CONTROL SWITCH Q307, 308 B+ (+5V, RELAY +5V) (TAPE) (CD) T902 MAIN TRANSFORMER RELAY DRIVE Q902 RY901 AC IN T901 SUB TRANSFORMER F905 -2 -1 VOLTAGE SELECTOR S901 220 – 240V 110 – 120V F902 F901 (HK, MY, SP) (HK, MY, SP) (EXCEPT HK, MY, SP) (HK, MY, SP) (HK, MY, SP) (AEP, UK) (EXCEPT US, CND, MX) (EXCEPT US, CND, MX) (EXCEPT US, CND, MX) (US, CND, MX) LF901 US, CND MX • Abbreviation CND: Canadian model HK : Hong Kong model MX : Mexican model MY : Malaysia model SP : Singapore model Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 18 18 6-4. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • W : indicates side identified with part number. • : Pattern from the side which enables seeing. • Indication of transistor. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. • A : B+ Line. • B : B– Line. • H : adjustment for repair. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : TUNER E : TAPE PLAY (DECK A) d : TAPE PLAY (DECK B) G : TAPE REC J : CD PLAY (ANALOG) c : CD PLAY (DIGITAL) • Abbreviation CND : Canadian model HK : Hong Kong model MX : Mexican model MY : Malaysia model SP : Singapore model Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q • Circuit Boards Location TC board LCD board I/O SWITCH board SWITCH board HEADPHONE board MAIN board TUNER UNIT • Abbreviation CND : Canadian model HK : Hong Kong model MX : Mexican model MY : Malaysia model SP : Singapore model Ver 1.1 POWER board CD board LOADING board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 19 19 5.4 Vp-p 4.19 MHz 51.2 Vp-p 12 µs 44 Vp-p 11.9 µs 6 IC101 w; (SCOR) (CD Play Mode) Approx. 200 mVp-p • Waveforms – CD Board – 1 IC103 qh (RFO) (CD Play Mode) 2 IC103 qf (FE) (CD Play Mode) 3 IC103 qd (TE) (CD Play Mode) 4 IC101 qg (WFCK) 5 IC101 qj (XPCK) 7 IC101 yh (XTAI) 2 REC/PB (REC Mode) 1.2 ±0.1 Vp-p Approx. 380 mVp-p 5.1 Vp-p 136 µs 5.9 Vp-p 230 ns 13.2 ms 5 V 3 Vp-p 16.9344 MHz – TC Board – 1 ERASE Head (REC Mode) – MAIN Board – 1 IC801 el (EXTAL1) 2 IC801 os (TX) 4 IC804 qh (RCLK) (FM Mode) 3 IC804 qd (XI) (FM Mode) 5.4 Vp-p 32.768 kHz 5 Vp-p 840 µs 2.4 Vp-p 4.332 MHz w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 20 20 (LIMIT) 28 15 1 14 E 12 13 1 24 40 60 61 80 21 20 41 TP (RF) (SPINDLE) M (SLED) M TP (VC) 1-680-693- 11 (11) A MAIN BOARD CN101 OPTICAL PICK-UP BLOCK (KSM-213D) CD BOARD A B C D 1 2 3 4 IC101 C-3 IC102 B-3 IC103 C-2 Q101 B-2 6-5. PRINTED WIRING BOARD – CD Board – • See page 18 for Circuit Boards Location. • Semiconductor Location Ref. No. Location (Page 27) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 21 21 6-6. SCHEMATIC DIAGRAM – CD Board – • See page 19 for Waveforms. • See page 33 for IC Block Diagrams. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : CD PLAY ∗ : Impossible to measure (Page 24) Ver 1.1 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 22 22 TAPE DECK BLOCK SUPPLIED WITH THE ASSEMBLED BLOCK B MAIN BOARD CN301 CASSETTE HOLDER BACK LIGHT 2 HEAD RELAY BOARD HRPE901 RECORD/PLAYBACK/ERASE L-CH R-CH ERASE 1-681-239- 13 (13) TC BOARD 8 17 A B C D E 1 2 3 4 5 C420 JW404 D401 A K (CHASSIS) (CHASSIS) (CHASSIS) 6-7. PRINTED WIRING BOARD – TC Board – • See page 18 for Circuit Boards Location. • Semiconductor Location Ref. No. Location (Page 27) D401 D-2 IC401 D-4 IC402 D-4 Q401 D-2 Q402 D-2 Q403 D-2 Q406 C-5 Q407 C-4 Q413 D-3 Q414 C-4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 23 23 6-8. SCHEMATIC DIAGRAM – TC Board – • See page 19 for Waveforms. • See page 33 for IC Block Diagram. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : PB ( ) : REC (Page 24) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 24 24 R114 R214 JR303 JR304 R213 R113 C217 C117 R320 JR115 C372 C333 C374 Q313 Q312 Q308 Q307 R314 R351 C330 C331 C365 R312 R313 R104 R204 R318 R317 R310 Q303 R311 Q304 C323 C325 C326 R304 R132 R232 C304 L303 10µH C346 Q330 C370 R202 R209 R109 R201 D321 D320 R102 R101 R350 JR215 R116 R117 R218 R118 R130 C130 R131 R231 C230 R305 C305 R230 C210 C211 C110 C111 C112 C113 C213 C212 R219 R119 R216 R217 C209 C109 CN301 CN101 C107 C207 C208 C108 C101 C102 C205 C206 C301 C105 C204 C104 C203 C103 C202 C201 R203 IC306 Q306 Q305 IC323 SJ302 C214 C114 D309 Q100 Q200 C339 IC324 Q301 Q302 C340 C360 C324 C328 C329 D307 D308 L304 0.22µH C332 D305 D306 C270 C170 R103 D322 D323 C382 IC321 C369 L307 2.2µH R110 R210 33k 33k 0 0 3.3k 3.3k 100p 100p 330k 0 470p 1000p 0.1 KRA102S KRC103S KRC103S KRA102S 470 4.7k 0.1 220 10V 220 10V 470 470 2.2k 2.2k 47k 47k 100 KRA102S 100 KRC103S 0.1 0.1 100 16V 100 47k 47k 100 16V 0.1 KRC103S 1000p 1k 4.7k 4.7k 4.7k 1SS355TE-17 1SS355TE-17 1k 4.7k 4.7k 0 3.3k 5.6k 1k 1k 470 100p 4.7k 4.7k 100p 100 100 16V 470 0.015 0.015 0.015 0.015 0.22 0.22 0.22 0.22 3.3k 3.3k 3.3k 5.6k 1500p 1500p 18P 19P 4.7 50V 4.7 50V 4.7 50V 4.7 50V 4.7 50V 4.7 50V 4.7 50V 4.7 50V 10 50V 4.7 50V 4.7 50V 4.7 50V 4.7 50V 4.7 50V 4.7 50V 4.7 50V 4.7k KIA7808API KTC2026 KTC2026 BD3861FS 2P 4.7 50V 4.7 50V MTZJ-T-77-8.2B DTC343TK-T -146 DTC343TK-T -146 470 16V NJM3414AV (TE2) KTC3205-Y-AT KTC3205-Y-AT 10 50V 470 16V 470 16V 100 16V 470 16V MTZJ-T-77-10B MTZJ-T-77-5.6B 1000 10V MTZJ-T77-10B MTZJ-T77-7.5B 4.7k 1SS355TE -17 1SS355TE -17 47P TOTX178X 100p 2.7k 2.7k A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 C1 C2 C3 C4 C5 C6 C7 C8 C1 C2 C3 C4 C5 C6 C7 C8 D1 D2 D3 D4 D5 D6 D7 D8 D1 D2 D3 D5 D6 D7 D8 C1 C2 C3 C5 C1 C2 C3 C4 C5 C6 C6 C4 D4 C9 E1 E2 E3 E4 E5 E6 E1 E2 E3 E4 E5 E6 * CD+8V P-GND A-GND XRST CLK LATCH DATA SQSO SQCK D-GND D-OUT C-SCOR SENS HOLD A+5V D+5V OPTICAL OUT DIGITAL A-GND REC/PB B+5V PLAY-SW SENSOR-OUT SOL+12V TC-SW TC BACK LIGHT TC BACK LIGHT AMP-MUTE CD-ON FM-ON SDA D-GND P-GND SCK +12V +8V AU MUTE CD-L CD-R MO+12V C9 L-OUT +8.0V REC IN-L LINE MUTE R-OUT REC IN-R REC-MUTE TC BACK LIGHT REC-MUTE REC/PB LINE MUTE B+5V MO +12V PLAY-SW SENSOR-OUT SOL+12V TC-SW MO-GND C-SCOR SENS SQSO HOLD CLK LATCH DATA SQCK XRST D+5V D-GND FM-7.5V GND CK CE DI DO TUNED FM-DET VEE VCC O G I REGULATOR CD +8V MUTING DRIVE MUTING MUTING HEADPHONE AMP Q312,313 MUTING DRIVE CD +5V REGULATOR REGULATOR +10V REGULATOR +9V REGULATOR Q303,304 CONTROL SWITCH REGULATOR CONTROL SWITCH Q307,308 INPUT SELECT SWITCH,MIX, TONE CONTROL, ELECTRICAL VOLUME L R AUDIO IN MD(VIDEO) OPTICAL DIGITAL OUT(CD) FM 75 Ω AM ANTENNA TU1 MO GND Q302 FM +7.5V REGULATOR LRCK GND VDD DIN L-CH R-CH FM-DET TUNED +B(9.5V) GND DO CK DI CE FM-7.5V THE ASSEMBLED BLOCK SUPPLIED WITH OPTICAL TRANSCEIVER * C170,270 0.022 0.033 (HK,MX,MY,SP) (US,CND,AEP,UK) FM 75 Ω (EXCEPT US,CND,MX) (US,CND,MX) (US,CND) (US,CND) (EXCEPT MX) * 6-9. SCHEMATIC DIAGRAM – MAIN Board (1/3) – • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM ( ) : CD [ ] : MD 〈〈 〉〉 : TAPE (Page 25) (Page 23) (Page 26) (Page 26) (Page 26) (Page 26) (Page 26) (Page 21) Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 25 25 CN501 IC301 R160 R260 C260 C160 C242 R243 R241 R141 R307 C142 R143 C143 C307 C306 TH1 TH2 C309 C308 C312 C313 R340 C317 C319 C320 C321 C322 D304 C315 FB302 C314 R309 CN401 R245 C245 C244 L101 C363 C364 L201 C144 C145 R144 Q818 C243 C161 C261 L202 4.7µH L102 4.7µH R308 CNP101 M901 J301 IC101 Q355 IC201 IC320 CN1 SJ301 JR307 CNP501 Q816 Q815 Q817 JR323 C240 C140 C241 C141 L305 0.47µH C310 C311 IC304 D310 D303 C318 IC302 TH2 TH1 C361 L306 FB302 C316 D311 R142 R140 R240 R242 FB303 FB304 FB301 FB304 FB303 FB305 FB305 4P KIA7805API 56 56 100 16V 100 16V 470p 100k 22k 22k 10k 470p 100k 22 50V 4.7 50V 10 50V 4700 35V 4700 35V 220 16V 1000p 100 0.1 0.1 220 16V 0.1 220 16V MTZJ-T-77-4.7C 47 16V 0.1 10 5P 4.7 0.1 0.1 1000p 1000p 0.1 0.1 4.7 DTC343TK 22 50V 0.022 0.022 4.7k 9P TDA7296 KTC2026 TDA7296 KA3082 5P 4P 0 4P DTC343TK -T-146 DTC343TK -T-146 DTC343TK -T-146 0 2.2 50V 2.2 50V 47 50V 47 50V 3300 25V 1000 25V KIA7808API 11ES2-TA1B 11ES2-TA1B 330 16V KA7908 0 0.1 MTZJ-T-77-12B 0 0 0 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 * * * * * * SBGND IN- IN+ IN+MUT CD BOOT +VS -VS STBY MUTE +PWVS OUT -PWVS SBGND IN- IN+ IN+MUT CD BOOT +VS -VS STBY MUTE +PWVS OUT -PWVS -22.5V +22.5V S2GND RELAY-ON S1-GND 14V(S2) -14V(S2) RELAY5V TRAY SW TRAY-OPEN TRAY-CLOSE BACKUP5V GND OUT1 INPUT1 INPUT2 VCC OUT2 REG-CON H/P CHECK RELAY-5V BACKUP5V D-GND (LOADING) S1 DISC TRAY OPEN/CLOSE DETECT OPEN CLOSE 1 7 PHONES O I G O G I O G I MUTING MUTING MUTING MUTING LOADING MOTOR DRIVE AMP POWER POWER AMP COM +8V REGULATOR COM REGULATOR COM REGULATOR +12V + - + - L R SPEAKER IMPEDANCE USE 6-16 Ω REGULATOR RELAY +5V -8V (CHASSIS) (CHASSIS) * (US,CND) (EXCEPT US,CND) L306 * C361 10000p 1000p (US,CND) (AEP,UK,HK,MY,SP) (US,CND) (EXCEPT US,CND) * R140,240 470 430 (EXCEPT MX) (MX) * (EXCEPT MX) (MX) R142,242 47k 33k (EXCEPT US,CND) (US,CND) (EXCEPT US,CND) (US,CND) (EXCEPT US,CND) (US,CND) 0.22µH 2.2µH • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM ( ) : CD [ ] : MD 〈〈 〉〉 : TAPE 6-10. SCHEMATIC DIAGRAM – MAIN (2/3)/LOADING MOTOR/HEADPHONE Boards – • See page 33 for IC Block Diagrams. (Page 24) (Page 26) (Page 26) (Page 31) Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 26 26 6-11. SCHEMATIC DIAGRAM – MAIN (3/3)/LCD Boards – • See page 19 for Waveforms. • See page 33 for IC Block Diagram. Q813 Q811 Q810 R877 R876 R880 R879 R878 R875 R874 R873 R872 R871 R870 R869 R868 R867 R866 R865 R864 R863 R862 R861 R860 R859 R858 R857 R856 R855 R854 R853 R852 R851 C806 R838 R840 C805 C343 C814 C800 C804 C803 L302 4.7µH D813 R846 R847 R848 R849 R850 JR300 R834 R835 R836 R837 R833 R832 R803 R802 R813 R817 R818 R819 R820 R821 R822 R824 R825 R826 R828 R611 R801 JR305 R899 R800 R629 R896 R892 R881 R882 R883 R884 R885 R886 C811 R887 R888 R626 R842 R628 D866 D868 D867 D869 CN803 CN810 CN801 C809 C808 C807 C342 C344 D808 D811 D812 R603 R606 R607 R608 D802 Q605 Q602 R610 R624 C375 R845 R613 R616 R612 R615 R614 Q808 Q806 Q807 Q803 Q802 Q804 C373 Q801 LCD801 X801 Q662 R609 Q606 Q609 D801 R602 D602 R627 R601 D601 Q805 Q809 X802 C610 C609 IC804 C600 X803 C605 C606 C604 C607 R620 R619 R623 C608 R622 R617 R618 C603 R621 D806 D805 R894 R898 R895 C812 R897 R807 R827 R843 R815 R814 R811 R812 R810 R808 R806 R805 R804 R890 R891 CN802 CN804 C813 C345 Q661 Q601 Q604 Q603 R604 R605 Q607 Q608 L301 4.7µH D807 Q891 Q890 C349 C810 Q812 IC801 C611 IC803 R841 KRC102S KRC102S KRC102S 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 4.7k 1 470 47k 1 0.1 0.01 0.01 24p 24p 1SS355TE-17 22k 10k 10k 10k 4.7k 0 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 100 1k 1k 100k 1k 0 1k 1k 47k 4.7k 470 4.7k 4.7k 4.7k 4.7k 4.7k 1k 22p 1k 1k 4.7k 4.7k 4.7k SY3318-V SY3318-V SY3318-V SY3318-V 20P 18P 16P 0.1 0.1 0.1 0.1 0.1 1SS133T-77 1SS133T-77 1SS133T-77 4.7k 47k 47k 4.7k 1SS133T-77 KRC102S KRC102S 68k 4.7k 1000p 100k 1k 1k 1k 1k 1k KRC102S KRC102S KRC102S KRC102S KRC102S KRC102S 1000p KRC102S 4.19MHz KRC102S 180 KRC102S KRC102S 1SS133T-77 2.2k 11ES2-TA1B 75 4.7k 11ES2-TA1B KRC102S KRC102S 32.768kHz 4.7 50V 560p BU1924F-E2 100p 4.332MHz 13p 13p 47 16V 0.01 1k 100k 68k 330p 1k 4.7k 470k 0.1 270 1SS133T -77 MTZJ-T-77 -4.3B 1k 1k 22 27p 1k 1k 1k 100k 1k 1k 1k 1k 1k 1k 1k 1k 1k 4.7k 1.2k 18P 20P 10 50V 100 10V KTA1273-Y -AT 2SA950-Y-TPE2 2SA950-Y-TPE2 KRC102S 4.7k 150 2SB1013-TP -34 2SB1013-TP-34 1SS133T-77 2SC2412K -T-146-R KRA102S 100 10V 0.22F 5.5V 2SC2412K -T-146R CXP83124A-050Q 100p BMR-0301H 31 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 COM 1 COM 2 COM 3 0 1 2 3 4 5 6 7 8 9 10 11 13 12 14 16 17 18 19 20 21 22 23 24 25 26 15 A1 A2 A3 A4 A5 A6 A2 A3 A6 A7 A8 A4 A1 A5 B1 B2 B3 B4 B5 B1 B2 B3 B4 B5 27 28 29 30 31 C1 C2 C3 C4 D1 D2 D1 D2 C2 E1 E2 E3 E4 E5 E6 E7 E1 E2 E3 E4 E5 E6 E7 C5 C5 C1 C2 C3 C4 0 0 A7 A8 * TRAY-OPEN TRAY-CLOSE TRAY-SW AMP-MUTE CD-ON REG-CON FM-ON D-GND HOLD REC-MUTE REC/PB PLAY-SW SENSOR-OUT +12V P-GND D-GND +8V TC-SW SQCK SENS SQSO CLK LATCH DATA XRST D+5V SDA SCK AU MUTE H/P CHECK BACKUP5V JOG-B JOG-A KEY3 KEY2 KEY1 D-GND RMC P-GND 5V CD SYNC 8V D.S.G TC-LED TU-LED CD-LED PBC-LED IN OUT RESET QUAL RDATA VREF MUX VDD1 VSS1 VSS3 CMP T2 T1 VSS2 VDD2 X1 XO NC RCLK D866-869 (LCD BACK LIGHT) LIQUID CRYSTAL DISPLAY RESET SIGNAL GENERATOR Q661,662 LED B+ SWITCH SYSTEM CONTROLLER MO +12V B+5V MO GND D-GND INVERTER B+ SWITCH B+ SWITCH SWITCH B+ Q603,604 TRIGGER PLUNGER DRIVE SWITCH Q802-808 CD ON SWITCH Q809-811,813 TUNER ON/OFF SWITCH Q890,891 WAKE UP SWITCH FM-DET TUNED GND DO CK DI CE FM-7.5V LINE MUTE TC BACK LIGHT DET AMP RDS DECODER Q601,602 CAPSTAN/REEL MOTOR DRIVE B+ SWITCH C-SCOR SOL+12V * R841 0 680 1.5k 2.7k (US,CND) (HK,MY,SP) (AEP,UK) (MX) RELAY-5V (Page 24) (Page 24) (Page 25) (Page 25) (Page 24) (Page 29) (Page 24) (Page 24) Ver 1.1 • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM ( ) : CD [ ] : MD 〈〈 〉〉 : TAPE w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 27 27 1 5 1 5 10 L R L R AUDIO IN MD (VIDEO) OPTICAL DIGITAL OUT (CD) 1 3 + – + – SPEAKER IMPEDANCE USE 6 – 16Ω G POWER BOARD CN902 (CHASSIS) (CHASSIS) 1 15 2 14 1-680-953- 22 (22) 15 JW483 JW404 14 1 2 1 5 9 E C B E C B E C B 1 5 11 TUNER PACK SUPPLIED WITH THE ASSEMBLED BLOCK TC BOARD CN301 B F CD BOARD CN101 A MAIN BOARD LCD BOARD SWITCH BOARD CN805 17 2 19 2 (AEP, UK) (AEP, UK) C375 18 M 1-681-807- 11 (11) 1-682-409- 11 (11) 1-682-412- 11 (11) S1 OPEN CLOSE S1 DISC TRAY OPEN/CLOSE DETECT 1 16 15 2 3 TU1 CN803 LCD801 LIQUID CRYSTAL DISPLAY 36 19 17 2 2 25 20 15 10 5 D866 D867 D868 D869 CN810 CNP501 C161 C261 L102 L202 FB304 FB305 FB303 FB301 LCD BACK LIGHT LCD BACK LIGHT HEADPHONE BOARD PHONES J301 A B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 11 12 13 14 C373 C364 C363 L306 L307 C346 JW484 JW485 FB302 A K K A D320 C369 D321 LOADING MOTOR BOARD M901 (LOADING) A K D323 K A D322 (EXCEPT MX) (EXCEPT MX) (US, CND) (US, CND) 6-12. PRINTED WIRING BOARDS – MAIN/LCD/LOADING MOTOR/HEADPHONE Boards – • See page 18 for Circuit Boards Location. Ref. No. Location Ref. No. Location • Semiconductor Location D303 H-8 D304 G-7 D305 C-11 D306 B-11 D307 I-9 D308 J-8 D309 G-9 D310 H-9 D311 I-11 D320 G-8 D321 G-8 D322 A-9 D323 A-9 D601 I-7 D602 I-7 D801 D-8 D802 D-7 D805 B-11 D806 D-10 D807 H-7 D808 E-10 D811 E-9 D812 H-8 D813 B-8 D866 B-1 D867 B-1 D868 B-5 D869 B-5 IC101 C-12 IC201 G-12 IC301 H-8 IC302 J-11 IC304 J-10 IC306 I-8 IC320 G-7 IC321 C-12 IC323 F-10 IC324 E-11 IC801 C-7 IC803 B-8 IC804 C-11 Q100 G-9 (Page 22) (Page 20) (Page 28) (Page 30) Ref. No. Location Ref. No. Location Q200 G-9 Q301 C-11 Q302 B-11 Q303 B-11 Q304 C-11 Q305 J-9 Q306 J-8 Q307 I-8 Q308 I-8 Q312 D-10 Q313 D-10 Q330 G-9 Q355 J-11 Q601 J-7 Q602 I-7 Q603 J-7 Q604 I-7 Q605 I-7 Q606 I-7 Q607 I-8 Q608 I-8 Q609 I-7 Q661 I-7 Q662 I-7 Q801 C-10 Q802 F-7 Q803 F-7 Q804 F-7 Q805 F-7 Q806 E-8 Q807 F-7 Q808 F-7 Q809 B-10 Q810 B-10 Q811 B-10 Q812 B-10 Q813 B-10 Q815 D-11 Q816 D-11 Q817 D-11 Q818 D-11 Q890 E-9 Q891 E-9 Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 28 28 S804 S806 S807 S808 S809 S810 S811 S812 D856, S812 S813 D853, S813 D856 S814 S815 S816 RV801 ROTARY ENCODER IC802 C615 1 2 3 CN805 D855 D854 JW601 JW602 JW603 JW604 JW605 JW606 JW607 JW608 JW612 JW611 JW609 JW610 D852 S803 S805 S802 D852, S802 D853 CN806 JW613 C612 C613 R675 R667 R668 R600 C614 L602 R659 R653 R663 R680 Q856 R662 R661 R660 R691 R654 R655 R692 Q853 R658 R699 R687 Q854 R698 R684 R656 Q852 R657 R679 Q855 MAIN BOARD CN801 (TAPE) (TAPE) (CD) (TAPE) (CD) (CD) (TAPE) (CD) (CD) (TUNING) (TUNING) (TAPE) D855, S807 CNP806 S801 1 16 15 2 L601 JW614 SWITCH BOARD I/O SWITCH BOARD F VOLUME DSG X x x + – n N M Z m M m u 1-682-411- 11 (11) CD SYNC FUNCTION TUNER /BAND S801 – 816 I/1 1-682-417- 11 (11) A B C D 1 2 3 4 5 6 7 8 6-13. PRINTED WIRING BOARDS – SWITCH/I/O SWITCH Boards – • See page 18 for Circuit Boards Location. (Page 27) D852 D-7 D853 C-7 D854 D-2 D855 B-7 D856 C-4 IC802 D-2 Ref. No. Location Ref. No. Location • Semiconductor Location Q852 D-7 Q853 B-8 Q854 C-8 Q855 D-2 Q856 C-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 29 29 6-14. SCHEMATIC DIAGRAM – SWITCH/I/O SWITCH Boards – • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM S801 CNP806 CN806 CN805 S812 S811 S810 S809 S808 R660 R661 R662 R663 R653 R654 R655 R656 S802 R657 S803 S804 S805 S806 S816 R691 S815 S814 R692 S813 R684 C613 C612 R668 R667 R680 D856 R675 R699 D855 D854 R679 R687 D853 R698 R659 R658 S807 C615 C614 R600 D852 RV801 IC802 Q853 Q852 Q854 Q855 Q856 2P 2P 16P 820 1.2k 1.8k 3.3k 3.3k 1.8k 1.2k 820 680 1.2k 820 680 22000p 22000p 100k 100k 560 SLR325VR-T31 4.7k 560 SY3318-V SLR325VR-T31 560 560 SY3318-V 560 4.7k 680 4.7 16V 0.01 4.7k SY3318-V NJL64H400A-1 DTC114EKA-T146 DTC114EKA-T146 DTC114EKA-T146 DTC114EKA-T146 DTC114EKA-T146 A1 A2 A3 A4 A5 A1 A2 A3 A4 A5 TC-LED TU-LED JOG-B JOG-A KEY3 KEY2 KEY1 D-GND RMC P-GND CD-LED CD SYNC 5V D.S.G 8V PBC-LED (CD) CD SYNC (TAPE) TUNER /BAND DSG TUNER /BAND + - VOLUME B A COM FUNCTION CD SYNC CD TAPE TUNING V O G (ROTARY ENCODER) REMOTE CONTROL RECEIVER L601 1µH L602 1µH (Page 26) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 30 30 POWER BOARD 2 (AC IN) SUB POWER TRANSFORMER MAIN POWER TRANSFORMER * *NOT REPLACEABLE: BUILT IN TRANSFORMER. 1-682-413- 11 (11) MAIN BOARD CNP101 G JW920 (HK, MY, SP) (EXCEPT MX) EXCEPT HK, MY, SP (US, CND, MX) (US, CND, MX) JW921 EXCEPT HK, MY, SP (HK, MY, SP) (EXCEPT HK, MY, SP) (US, CND) (AEP, UK) R909 VOLTAGE SELECTOR S901 110V – 120V 220V – 240V (HK, MY, SP) LF901 JW912 JW913 (US, CND, MX) (EXCEPT US, CND, MX) A B C D E F G 1 2 3 4 5 6 6-15. PRINTED WIRING BOARD – POWER Board – • See page 18 for Circuit Boards Location. • Semiconductor Location Ref. No. Location (Page 27) D902 G-5 D903 F-5 D904 G-5 D905 F-5 D906 C-5 D907 C-4 D908 C-5 D909 C-4 D910 B-3 D911 B-3 D912 B-3 D913 B-3 D915 A-4 D917 A-5 D918 C-4 Q901 A-5 Q902 B-4 Ver 1.1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 31 31 C905 C904 R902 RY901 C902 D902 D904 D903 C903 D905 C906 D906 D908 D907 C907 C916 C915 D911 D910 D912 D913 C913 C914 C910 R904 R905 D909 C908 C909 CN902 D917 T901 D915 Q901 CN901 C917 C911 C920 LF901 F902 JW921 JW908 JW923 T902 Q902 C918 F903 F904 D918 F901 F905 JW920 JW924 JW912 JW913 S901 R909 JW907 0.022 0.022 1k 0.022 1N5401 1N5401 1N5401 0.022 1N5401 0.022 2A02M 2A02M 2A02M 0.022 0.022 0.022 1SS133T-77 1SS133T-77 1SS133T-77 1SS133T-77 0.022 0.022 0.022 4.7k 47k 2A02M 0.022 0.022 9P 1SS133T-77 MTZJ-T-77-6.2B KTC3205-Y-AT 2P 220 10V 47 16V 220 16V T1.25AL 250V 2SC2785 -TP-FEK 10 10V MTZJ-T-77-6.2B T0.8AL 250V 3.3M * * S2-GND +22.5V -22.5V S1-GND RELAY ON -14V(S2) +14V(S2) RELAY 5V BACKUP5V * * NOT REPLACEABLE: BUILT IN TRANSFORMER MAIN POWER TRANSFORMER SUB POWER TRANSFORMER DRIVE RELAY (AC IN) B+ SWITCH 230V 115V COM 230V 115V COM 110-120V 220-240V VOLTAGE SELECTOR LINE FILTER F903,904 * T2AL 250V T3.15AL 125V (EXCEPT US,CND,MX) (US,CND,MX) (HK,MY,SP) (EXCEPT HK,MY,SP) (US,CND,MX) T0.8AL 250V T1.25AL 125V (AEP,UK) (HK,MY,SP) (AEP,UK) (US,CND,MX) 230V 120V HK,MY,SP EXCEPT (HK,MY,SP) HK,MY,SP EXCEPT (AEP,UK) (HK,MY,SP) (HK,MY,SP) (AEP,UK) (US,CND,MX) 230V 120V (US,CND,MX) (EXCEPT US,CND,MX) (US,CND,MX) (EXCEPT US,CND,MX) (US,CND,MX) (US,CND) (CHASSIS) 6-16. SCHEMATIC DIAGRAM – POWER Board – • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM (Page 25) Ver 1.1 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 32 32 6-17. IC PIN FUNCTION DESCRIPTION • MAIN BOARD IC801 CXP83124A-050Q (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 TAPE-END I Tape end detect sensor input terminal “H”: input when the tape end detected 2 RDS-IN I Serial data reading clock signal input from the RDS decoder (IC804) 3 REMOCON I Sircs remote control signal input from the remote control receiver (IC802) 4 MOT-CON O Capstan/reel motor on/off control signal output terminal “H”: motor on 5 C-DATA/ TU-DATA O Serial data output to the DSP/SSP (IC101) (at CD function) PLL serial data output to the PLL IC (LC72137M) (at tuner function) 6 T-MODE I Head position detect switch input terminal “L”: forward direction, “H”: reverse direction 7 REG-CON O Main system power supply on/off contorl signal output terminal “H”: power on 8 C-CLK/TU-CLK O Serial data transfer clock signal output to the DSP/SSP (IC101) (at CD function) PLL serial data transfer clock signal output to the PLL IC (LC72137M) (at tuner funcion) 9 JOG-C (BASS) I Jog dial pulse input from the rotary encoder (C phase input) Not used (fixed at “L”) 10 SOL-CON O Trigger plunger on/off control signal output terminal “H”: plunger on 11 C-SQCK O Subcode Q data reading clock signal output ti the DSP (IC110) (at CD function) 12 C-SQSO/ RDS-DATA I Subcode Q data input from the DSP (IC101) (at CD function) RDS serial data input from the RDS decoder (IC804) (at tuner function) 13 TRAY-OPEN O Motor drive siganl output to the disc tray open/close motor driver (IC320) “H”: active *1 14 HOLD O Automatic power control hold signal output to the RF Amp (IC103) 15 TRAY-CLOSE O Motor drive signal output to the disc tray open/close motor driver (IC309) “H”: active *1 16 JOG-D (BASS) I Jog dial pulse input from the rotary encoder (D phase input) Not used (fixed at “L”) 17 TUNED I Tuning detection signal input from the LA1837M (IC1) (at tuner function) 18 SENSE2/ TU-COUNT I Internal status detection monitor input from the DSP (IC101) (for MIRR, DFCT2, etc.) (at CD function) PLL count data input from the PLL IC (LC72137M) (at tuner function) 19 C-LATCH/ TU-CE O Serial data latch pulse output to the DSP (IC101) (at CD function) PLL serial chip enable signal output to the PLL IC (LC72137M) (at tuner function) 20 JOG-B I Jog dial pulse input from the rotary encoder (RV801 VOLUME) (B phase input) 21 JOG-A I Jog dial pulse input from the rotary encoder (RV801 VOLUME) (A phase input) 22 AMP-MUTE O Muting on/off control signal output to the power amplifier (IC101, 201) “H”: muting on 23 JOG-G I Jog dial pulse input from the rotary encoder (G phase input) Not used (fixed at “L”) 24 HP-CHK I Headphone jack IN/OUT check detection signal input terminal 25 TU-ON O Power supply on/off control signal output of the tuner section (FM +7.5V) LED drive signal output of the TUNER/BAND indicator (D853) “H”: tuner power on (LED on) 26 D. S. G. O LED drive signal output of the DSG (Dynamic Sound Generator) indicator (D854) “H”: LED on 27 CD-SYNC O LED drive signal output of the CD SYNC indicator (D856) “H”: LED on 28 SCK O Serial data transfer clock signal output to the BD3861FS (IC323) 29 JOG-E I Jog dial pulse input from the rotary encoder (E phase input) Not used (fixed at “L”) Pin No. Pin Name I/O Description 30 JOG-F I Jog dial pulse input from the rotary encoder (F phase input) Not used (fixed at “L”) 31 JOG-H I Jog dial pulse input from the rotary encoder (H phase input) Not used (fixed at “L”) 32 TC-SW I Half detect (side A and B) switch and cassette in detect switch input terminal (A/D input) 33 TRAY-SW I Disc tray position detect switch (S1) input terminal (A/D input) “L”: close position, “M”: open position, “H”: moving 34 KEY3 I Key input terminal (A/D input) S813 to S816 (TUNER/BAND, TUNING +/-, FUNCTION input) 35 KEY2 I Key input terminal (A/D input) S801 to S806 (I/1, CD u/x/M/m/Z keys input) 36 KEY1 I Key input terminal (A/D input) S807 to S812 (TAPE n N/x/M/m/X, CD SYNC keys input) 37 SIMUKE/TEST I Destination setting terminal (A/D input) 38 RESET I System reset signal input from the reset signal generator (IC803) “L”: reset For several hundreds msec. after the power supply rises, “L”: is input, then it changes to “H” 39 EXTAL1 O Main system clock input terminal (4.19MHz) 40 XTAL1 O Main system clock output terminal (4.19MHz) 41 VSS — Ground terminal 42 XTAL2 O Sub system clock output terminal (500kHz) Not used (open) 43 EXTAL2 I Sub system clock input terminal (500kHz) Not used (fixed at “L”) 44 AVREF I Reference voltage (+5V) input terminal (for A/D conversion) 45 AVSS — Ground terminal (for A/D conversion) 46 VL O Liquid crystal display bias on/off control signal output terminal 47 to 49 VLC3 to VLC1 — Power supply terminal for the liquid crystal display bias 50 to 53 COM0 to COM3 O Common drive signal output to the liquid crystal display (LCD801) 54 to 85 SEG0 to SEG31 O Segment drive signal output to the liquid crystal display (LCD801) 86 C-XRST/FM ON O Reset signal output to the DSP (IC101) and BA5974FP (IC102) (at CD function) FM power supply ON/OFF control signal output to the tuner section (FM +7.5V (at tuner function) 87 REC-MUTE O Recording muting on/off selection signal output to the Tape section “H”: muting on, “L”: muting of 88 SDA O Serial data output to the BD861FS (IC323) 89 VDD — Power supply terminal (+5V) 90 NC — Not used (open) 91 VSS — Ground terminal 92 TX O Sub system clock output terminal (32.768kHz) 93 TEX I Sub system clock input terminal (32.768kHz) 94 CD-ON O Power supply on/off control signal output of the CD section (+5V) LED drive signal output of the CD u indicator (D852) “H”: CD power on (LED on) 95 REC/PB O Recording/playback selection signal output to the BA3126N (IC402) “L”: playback mode, “H”: recording mode 96 L-MUTE O Line muting on/off selection signal output to the Tape section “H”: muting on, “L”: muting off 97 AU-MUTE O muting on/off control signal output terminal “H”: muting on 98 TC-ON O Power supply on/off control signal output of the cassette holder back light LED drive signal output of the TAPE n N indicator (D855) “H”: back light on (LED on) 99 WP I Wakeup control signal input terminal 100 C-SCOR I Subcode sync (S0+S1) detection signal input from DSP on the CD section (at CD function) *1 Disc tray open/close motor control AUX1 AUX2 USB CD-C TRAY-OPEN (pin qd) “L” “L” “H” “H” AUDIO_SEL2 (pin qg) “L” “H” “L” “H” Terminal Mode w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 HCD-DC1 LEVEL SHIFT INTERFACE INTERFACE INTERFACE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 20 21 22 23 24 25 26 27 28 19 18 17 16 15 F R R F F R R F R R F F MUTE THERMAL SHUTDOWN VREFOUT VREFIN POWVCC CH1FIN CH1RIN CH2FIN CH2RIN CH2OUTR CH2OUTF CH1OUTR CH1OUTF CAPAIN1 CAPAIN2 GND PRFVCC MUTE POWVCC CH4SIN' CH4SIN CH4BIN CH3FIN CH3RIN CH3OUTR CH3OUTF CH4OUTR CH4OUTF CAPAIN3 GND TE RFDC CE IGEN AVSS0 ADIO AVDD0 CLTV FILO AVSS3 VSS AVDD3 DOUT VDD PCO FILI ASYO ASYI RFAC BIAS SSTP DFCT MIRR MDP LOCK FOK SFDR VSS TEST FRDR FE VC COUT SE XTSL TES1 SRDR TFDR FFDR TRDR 2 1 70 71 68 69 66 67 64 65 62 61 63 73 74 72 75 76 77 78 79 80 4 XRST 3 SQCK SQSO 5 9 8 7 6 56 60 53 54 55 59 57 58 51 52 48 49 50 47 44 45 46 43 41 42 XLAT CLOK SENS SYSM DATA XUGF XPCK GFS C2PO WFCK 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 32 33 30 31 36 37 34 35 39 40 38 28 27 29 SPOA ATSK SCLK VDD SCOR SPOB XLON XTAI XVDD EMPH AVDD1 AOUT1 AIN1 XTAO XVSS AIN2 AOUT2 AVDD2 RMUT LOUT2 LOUT1 BCK LRCK PCMD LMUT AVSS1 AVSS2 CPU INTERFACE SERVO AUTO SEQUENCER SERIAL IN INTERFACE OVER SAMPLING DIGITAL FILTER 3rd ORDER NOISE SHAPER PWM PWM EFM DEMODULATOR TIMING LOGIC DIGITAL OUT D/A INTERFACE DIGITAL PLL ASYMMETRY CORRECTION CLOCK GENERATOR MIRR, DFCT, FOK DETECTOR DIGITAL CLV SUBCODE PROCESSOR SERVO INTERFACE SERVO DSP FOCUS SERVO TRACKING SERVO SLED SERVO PWM GENERATOR FOCUS PWM GENERATOR TRACKING PWM GENERATOR SLED PWM GENERATOR 16K RAM ERROR CORRECTOR INTERNAL BUS A/D CONVERTER OPERATIONAL AMPLIFIER ANALOG SWITCH • IC Block Diagrams – CD Board – IC101 CXD2587Q IC102 BA5974FP-E2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 HCD-DC1 APC PD AMP APC LD AMP RF SUMMING AMP RF EQ AMP FOCUS ERROR AMP TRACKING ERROR AMP VC BUFFER VCC 50µA VEE VEE VC VC VC VC VC VC VC VC VC VC VCC VEE VCC VEE VEE VC VCC LC/PD LD ON HOLD SW AGC CONT RFTC RF I RF O RFE TE FE RF BOT HOLD AGC VTH LD PD A B C D VEE F E VC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 + – + – + – + – + – + – + – VCC + – + – + – + – + – + – + – + – + – IC103 CXA2568M-T6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 HCD-DC1 CH2/A CH2/B NF VCC CG NF ALC METAL OUT PRE OUT TAPE A /TAPE B REC OUT REC IN CH1/A CH1/B NF GND1 M/H NF CH2 CH2 ALC M/N CH1 GND GND CH1 + – + – + – + – A/B GND METAL OUT PRE OUT MIX OUT REC OUT REC IN IREF VREF2 VREF1 24 23 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 THERMAL SHUTDOWN BIPOLAR TRANSCONDACTANCE INPUT STAGE STANDBY/ MUTE BOOST- STRAP MOS GAIN & LEVEL SHIFTING STAGE STBY-GND IN– IN+ IN+ MUTE NC BOOSTSTRAP +VS –VS STBY MUTE NC NC +PWVS OUT –PWVS 14 15 12 13 10 11 8 9 6 7 5 3 4 1 2 + – MOS OUTPUT STAGE SHORT CIRCUIT PROTECTION – MAIN Board – IC101, 201 TDA7296 GND OUT1 VCTL VZ1 VZ2 IN1 IN2 VCC1 VCC2 OUT2 5 6 7 8 9 10 1 2 3 4 DRIVER OUT PRE DRIVER LOGIC SWITCH TSD BIAS IC320 KA3082 – TC Board – IC401 TA8189N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 HCD-DC1 ANALOG DIGITAL RCLK NC XO XI VSS2 T2 VDD2 T1 QUAL RDAT VREF MUX VDD1 VSS1 VSS3 CMP 1 4 3 6 5 8 7 2 14 15 16 13 12 11 10 9 CLOCK PLL 57kHz RDS/ARI COMPARATOR 8th SWITCHED CAPACITOR FILTER ANTI-ALIASING FILTER BIPHASE DECODER PLL 1187.5Hz DEFFERENTIAL DECODER TEST IC804 BU1924F-E2 (AEP, UK) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 HCD-DC1 7-1. UPPER COVER, TAPE MECH DECK SECTION SECTION 7 EXPLODED VIEWS • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 #3 not supplied not supplied not supplied not supplied not supplied chassis section #1 #1 #3 #1 #3 #1 #1 #2 #2 #1 front panel section 6 2 3 4 5 6 not supplied 1 1-796-101-12 DECK, MECH (TAPE) 2 A-4726-690-A TC BOARD, COMPLETE 3 1-757-809-11 CABLE, FLEXIBLE FLAT (9 CORE) 4 1-757-806-11 CABLE, FLEXIBLE FLAT (18 CORE) 5 X-4954-042-1 COVER SUB ASSY, UPPER (SILVER) 5 X-4954-077-1 COVER SUB ASSY, UPPER (BLACK) 5 X-4954-078-1 COVER SUB ASSY, UPPER (RED) 6 4-221-580-01 SCREW, CASE Ver 1.1 Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Abbreviation CND : Canadian model HK : Hong Kong model MX : Mexican model MY : Malaysia model SP : Singapore model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 HCD-DC1 7-2. FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark not supplied not supplied not supplied not supplied not supplied #1 #4 #1 #1 #1 #7 #1 #1 54 56 57 58 59 61 60 70 55 62 63 64 64 64 66 67 68 69 51 52 53 65 not supplied supplied with RV801 51 4-236-221-01 AZIMUTH CAP (SILVER) 52 X-4954-045-1 VOLUME KNOB ASSY 53 X-4954-041-1 COVER SUB ASSY, FRONT 54 X-4954-047-1 LID SUB ASSY, CASSETTE (SILVER) 54 X-4954-093-1 LID SUB ASSY, CASSETTE (BLACK) 54 X-4954-094-1 LID SUB ASSY, CASSETTE (RED) 55 1-823-469-11 CABLE, FLEXIBLE FLAT (20 CORE) 56 1-823-470-11 CABLE, FLEXIBLE FLAT (18 CORE) 57 1-682-412-11 LCD BOARD 58 4-217-319-11 PLATE, LCD LIGHT 59 X-4954-046-1 HOLDER SUB ASSY, CASSETTE 60 4-236-228-01 SPRING, CASSETTE 61 3-351-377-11 GEAR, DAMPER 62 4-236-214-01 BUTTON, POWER (SILVER) 62 4-236-214-11 BUTTON, POWER (BLACK) 62 4-236-214-21 BUTTON, POWER (RED) 63 1-682-417-11 I/O SWITCH BOARD 64 4-931-757-31 SCREW (DIA. 2.6X8) (IT3B), TAPPING 65 A-4726-692-A SWITCH BOARD, COMPLETE (AEP, HK, MY, SP, UK) 65 A-4727-418-A SWITCH BOARD, COMPLETE (CND, MX, US) 66 1-682-409-11 HEADPHONE BOARD 67 X-4954-310-1 PANEL SUB ASSY, FRONT (SILVER) 67 X-4954-311-1 PANEL SUB ASSY, FRONT (BLACK) 67 X-4954-312-1 PANEL SUB ASSY, FRONT (RED) 68 4-232-478-01 FOOT 69 4-236-205-61 CD COVER (SILVER) 69 4-236-205-71 CD COVER (BLACK) 69 4-236-205-81 CD COVER (RED) 70 1-418-693-32 INDICATOR BLOCK, LED Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 HCD-DC1 7-3. CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark not supplied not supplied not supplied #6 #1 #1 #1 #1 #1 #1 #5 #5 #8 T902 CDM55F-K6BD41A TU1 109 107 108 106 105 104 103 101 102 110 101 4-236-203-01 LID, CD (SILVER) 101 4-236-203-11 LID, CD (BLACK) 101 4-236-203-21 LID, CD (RED) 102 1-792-411-11 CABLE, FLEXIBLE FLAT (19 CORE) 103 A-4726-695-A POWER BOARD, COMPLETE (AEP, UK) 103 A-4727-416-A POWER BOARD, COMPLETE (HK, MY, SP) 103 A-4727-421-A POWER BOARD, COMPLETE (CND, US) 103 A-4727-599-A POWER BOARD, COMPLETE (MX) 104 4-217-350-11 STOPPER, CORD 0105 1-696-169-11 CORD, POWER (AEP, HK, MY, SP UK) 0105 1-783-532-11 CORD, POWER (CND, US) 106 4-236-243-01 PANEL, BACK (for BLACK, for SILVER) (AEP, UK) 106 4-236-243-21 PANEL, BACK (for RED) (AEP, UK) 106 4-236-243-31 PANEL, BACK (for SILVER) (MY, SP, HK) 106 4-236-243-41 PANEL, BACK (for BLACK) (SP, HK) 106 4-236-243-51 PANEL, BACK (for RED) (SP) 106 4-236-243-61 PANEL, BACK (for SILVER) (CND, MX, US) 106 4-236-243-71 PANEL, BACK (for BLACK) (CND, MX, US) 106 4-236-243-81 PANEL, BACK (for RED) (CND, US) 107 A-4726-691-A MAIN BOARD, COMPLETE (AEP, UK) 107 A-4727-415-A MAIN BOARD, COMPLETE (HK, MY, SP) 107 A-4727-417-A MAIN BOARD, COMPLETE (CND, US) 107 A-4727-598-A MAIN BOARD, COMPLETE (MX) 108 1-823-226-11 CABLE, FLEXIBLE FLAT (16 CORE) 109 4-232-478-01 FOOT 110 3-831-441-99 CLOTH (6) 0T902 1-437-248-11 TRANSFORMER, POWER (AEP, UK) 0T902 1-437-249-11 TRANSFORMER, POWER (CND, MX, US) 0T902 1-437-250-11 TRANSFORMER, POWER (HK, MY, SP) TU1 A-4476-414-A TUNER PACK (TCB-022) (AEP, UK) TU1 A-4476-415-A TUNER PACK (TCB-022) (EXCEPT AEP, UK) Ver 1.1 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 HCD-DC1 7-4. CD MECHANISM DECK (CDM55F-K6BD41A) 503 502 507 504 505 506 510 508 501 509 516 517 515 512 513 511 514 M901 #11 BU-K6BD41A Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 501 4-224-894-01 TRAY 502 4-220-229-01 LEVER (SW) 503 4-220-239-01 SPRING, TORSION 504 4-221-816-01 BELT (CDM55) 505 4-220-234-01 PULLEY (LDG) 506 4-220-237-01 GEAR (A) 507 4-220-238-01 GEAR (B) 508 4-220-233-01 CAM (CDM55) 509 1-681-807-11 LOADING MOTOR BOARD 510 4-221-815-01 ROLLER 511 4-231-779-01 CHASSIS (F) 512 A-4735-081-A PULLEY (AT-55F) ASSY 513 4-232-398-01 SHEET (KH) 514 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING 515 4-925-315-31 DAMPER 516 4-227-598-01 SPACER (55) 517 A-4735-082-A MAGNET ASSY M901 A-2004-893-A MOTOR (LD) ASSY (LOADING) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 HCD-DC1 7-5. BASE UNIT (BU-K6BD41A) 551 551 551 551 552 552 552 552 553 554 555 556 556 556 556 557 558 #11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 551 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING 552 4-229-005-01 INSULATOR 0553 8-820-020-02 OPTICAL PICK-UP KSM-213D/Q-RP 554 A-4725-626-A CD BOARD, COMPLETE 555 1-757-055-11 WIRE, PARALLEL (FFC) (16 CORE) 556 4-229-004-01 SPRING, COMPRESSION 557 4-231-780-01 HOLDER (213D) 558 4-221-817-02 SHAFT (BU) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 HCD-DC1 CD SECTION 8 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-4725-626-A CD BOARD, COMPLETE ******************* < CAPACITOR > C101 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C102 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C103 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C104 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C108 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C109 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C110 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C111 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C112 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C114 1-164-360-11 CERAMIC CHIP 0.1uF 16V C115 1-126-382-11 ELECT 100uF 20% 16V C116 1-126-382-11 ELECT 100uF 20% 16V C117 1-126-382-11 ELECT 100uF 20% 16V C118 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C119 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C121 1-164-360-11 CERAMIC CHIP 0.1uF 16V C122 1-126-382-11 ELECT 100uF 20% 16V C123 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C124 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C125 1-164-360-11 CERAMIC CHIP 0.1uF 16V C126 1-164-360-11 CERAMIC CHIP 0.1uF 16V C127 1-126-382-11 ELECT 100uF 20% 16V C129 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C130 1-115-156-11 CERAMIC CHIP 1uF 10V C131 1-124-233-11 ELECT 10uF 20% 16V C133 1-115-156-11 CERAMIC CHIP 1uF 10V C140 1-115-156-11 CERAMIC CHIP 1uF 10V C141 1-115-156-11 CERAMIC CHIP 1uF 10V C143 1-164-360-11 CERAMIC CHIP 0.1uF 16V C145 1-164-360-11 CERAMIC CHIP 0.1uF 16V C146 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C147 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C148 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C153 1-164-360-11 CERAMIC CHIP 0.1uF 16V C159 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C160 1-124-257-00 ELECT 2.2uF 20% 50V C162 1-126-382-11 ELECT 100uF 20% 16V C163 1-126-382-11 ELECT 100uF 20% 16V C165 1-164-360-11 CERAMIC CHIP 0.1uF 16V C167 1-162-920-11 CERAMIC CHIP 27PF 5% 50V NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH C168 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C171 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C172 1-164-218-11 CERAMIC CHIP 180PF 0.25PF 50V C181 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C182 1-164-218-11 CERAMIC CHIP 180PF 0.25PF 50V < CONNECTOR > CN101 1-691-078-41 HOUSING, CONNECTOR 19P CN102 1-785-953-11 CONNECTOR, FFC/FPC 16P < FERRITE BEAD > FB101 1-469-144-21 FERRITE FB102 1-469-144-21 FERRITE FB103 1-469-144-21 FERRITE FB104 1-469-144-21 FERRITE < IC > IC101 8-752-386-85 IC CXD2587Q IC102 8-759-549-28 IC BA5974FP-E2 IC103 8-752-085-51 IC CXA2568M-T6 < COIL > L101 1-410-993-11 INDUCTOR CHIP 1uH < TRANSISTOR > Q101 8-729-010-08 TRANSISTOR MSB710-RT1 < RESISTOR > R101 1-216-835-11 METAL CHIP 15K 5% 1/16W R102 1-216-845-11 METAL CHIP 100K 5% 1/16W R103 1-216-835-11 METAL CHIP 15K 5% 1/16W R104 1-216-839-11 METAL CHIP 33K 5% 1/16W R105 1-216-833-11 METAL CHIP 10K 5% 1/16W R106 1-216-821-11 METAL CHIP 1K 5% 1/16W R107 1-216-833-11 METAL CHIP 10K 5% 1/16W R108 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R109 1-216-857-11 METAL CHIP 1M 5% 1/16W R110 1-216-809-11 METAL CHIP 100 5% 1/16W R111 1-216-857-11 METAL CHIP 1M 5% 1/16W R113 1-216-857-11 METAL CHIP 1M 5% 1/16W R114 1-216-833-11 METAL CHIP 10K 5% 1/16W R116 1-216-797-11 METAL CHIP 10 5% 1/16W R117 1-216-821-11 METAL CHIP 1K 5% 1/16W Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. • Abbreviation CND : Canadian model HK : Hong Kong model MX : Mexican model MY : Malaysia model SP : Singapore model Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 43 HCD-DC1 CD HEADPHONE I/O SWITCH LCD LOADING MOTOR MAIN R118 1-216-809-11 METAL CHIP 100 5% 1/16W R119 1-216-817-11 METAL CHIP 470 5% 1/16W R123 1-216-833-11 METAL CHIP 10K 5% 1/16W R124 1-216-845-11 METAL CHIP 100K 5% 1/16W R131 1-216-809-11 METAL CHIP 100 5% 1/16W R132 1-216-863-11 RES-CHIP 3.3M 5% 1/16W R143 1-216-848-11 METAL CHIP 180K 5% 1/16W R144 1-216-848-11 METAL CHIP 180K 5% 1/16W R147 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R148 1-216-797-11 METAL CHIP 10 5% 1/16W R149 1-216-797-11 METAL CHIP 10 5% 1/16W R158 1-216-852-11 METAL CHIP 390K 5% 1/16W R159 1-216-847-11 METAL CHIP 150K 5% 1/16W R160 1-216-833-11 METAL CHIP 10K 5% 1/16W R161 1-216-821-11 METAL CHIP 1K 5% 1/16W R162 1-216-847-11 METAL CHIP 150K 5% 1/16W R171 1-218-291-11 RES-CHIP 16K 5% 1/16W R172 1-216-833-11 METAL CHIP 10K 5% 1/16W R173 1-216-835-11 METAL CHIP 15K 5% 1/16W R181 1-218-291-11 RES-CHIP 16K 5% 1/16W R182 1-216-833-11 METAL CHIP 10K 5% 1/16W R183 1-216-835-11 METAL CHIP 15K 5% 1/16W < NETWORK RESISTOR > RN101 1-233-576-11 RES, CHIP NETWORK 100 < SWITCH > S101 1-771-853-11 SWITCH, DETECTION (LIMIT) < VIBRATOR > X101 1-781-947-11 VIBRATOR, CRYSTAL (16.9344MHz) ************************************************************** 1-682-409-11 HEADPHONE BOARD ***************** < CAPACITOR > C161 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C261 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V < FERRITE BEAD/RESISTOR > FB301 1-414-813-11 FERRITE FB303 1-414-813-11 FERRITE (CND, US) FB303 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT CND, US) FB304 1-414-813-11 FERRITE (CND, US) FB304 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT CND, US) FB305 1-414-813-11 FERRITE (CND, US) FB305 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT CND, US) < JACK > J301 1-794-453-11 JACK (PHONES) < COIL > L102 1-412-002-31 INDUCTOR 4.7uH L202 1-412-002-31 INDUCTOR 4.7uH ************************************************************** 1-682-417-11 I/O SWITCH BOARD **************** < SWITCH > S801 1-786-220-11 SWITCH, KEY BOARD (I/1) ************************************************************** 1-682-412-11 LCD BOARD ********** < CONNECTOR > CN803 1-785-949-11 CONNECTOR, FFC/FPC 20P CN810 1-785-950-11 CONNECTOR, FFC/FPC 18P < LED > D866 8-719-085-55 LED SY3318-V-L (LCD BACK LIGHT) D867 8-719-085-55 LED SY3318-V-L (LCD BACK LIGHT) D868 8-719-085-55 LED SY3318-V-L (LCD BACK LIGHT) D869 8-719-085-55 LED SY3318-V-L (LCD BACK LIGHT) < LIQUID CRYSTAL DISPLAY > LCD801 1-803-542-11 DISPLAY PANEL, LIQUID CRYSTAL ************************************************************** 1-681-807-11 LOADING MOTOR BOARD ********************* < CONNECTOR > * CN1 1-568-943-11 PIN, CONNECTOR 5P < SWITCH > S1 1-771-799-11 SWITCH, LEVER (SLIDE) (DISC TRAY OPEN/CLOSE DETECT) ************************************************************** A-4726-691-A MAIN BOARD, COMPLETE (AEP, UK) A-4727-415-A MAIN BOARD, COMPLETE (HK, MY, SP) A-4727-417-A MAIN BOARD, COMPLETE (CND, US) A-4727-598-A MAIN BOARD, COMPLETE (MX) ********************* 4-217-354-11 BUSHING, INSULATING 4-230-078-01 SCREW, +BV TAPPING 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S < CAPACITOR > C101 1-126-963-11 ELECT 4.7uF 20% 50V C102 1-126-963-11 ELECT 4.7uF 20% 50V C103 1-126-963-11 ELECT 4.7uF 20% 50V C104 1-126-963-11 ELECT 4.7uF 20% 50V C105 1-126-963-11 ELECT 4.7uF 20% 50V C107 1-126-963-11 ELECT 4.7uF 20% 50V C108 1-126-963-11 ELECT 4.7uF 20% 50V Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 44 HCD-DC1 C109 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C110 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C111 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C112 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C113 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C114 1-126-963-11 ELECT 4.7uF 20% 50V C117 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (EXCEPT MX) C130 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C140 1-126-961-11 ELECT 2.2uF 20% 50V C141 1-126-967-11 ELECT 47uF 20% 50V C142 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C143 1-126-965-11 ELECT 22uF 20% 50V C144 1-130-495-00 MYLAR 0.1uF 5% 50V C145 1-130-495-00 MYLAR 0.1uF 5% 50V C160 1-104-665-11 ELECT 100uF 20% 16V C170 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V (HK, MX, MY, SP) C170 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V (AEP, CND, UK, US) C201 1-126-963-11 ELECT 4.7uF 20% 50V C202 1-126-963-11 ELECT 4.7uF 20% 50V C203 1-126-963-11 ELECT 4.7uF 20% 50V C204 1-126-963-11 ELECT 4.7uF 20% 50V C205 1-126-963-11 ELECT 4.7uF 20% 50V C206 1-126-963-11 ELECT 4.7uF 20% 50V C207 1-126-963-11 ELECT 4.7uF 20% 50V C208 1-126-963-11 ELECT 4.7uF 20% 50V C209 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C210 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C211 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C212 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C213 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C214 1-126-963-11 ELECT 4.7uF 20% 50V C217 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (EXCEPT MX) C230 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C240 1-126-961-11 ELECT 2.2uF 20% 50V C241 1-126-967-11 ELECT 47uF 20% 50V C242 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C243 1-126-965-11 ELECT 22uF 20% 50V C244 1-130-495-00 MYLAR 0.1uF 5% 50V C245 1-130-495-00 MYLAR 0.1uF 5% 50V C260 1-104-665-11 ELECT 100uF 20% 16V C270 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V (HK, MX, MY, SP) C270 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V (AEP, CND, UK, US) C301 1-126-964-11 ELECT 10uF 20% 50V C304 1-104-665-11 ELECT 100uF 20% 16V C305 1-104-665-11 ELECT 100uF 20% 16V C306 1-126-964-11 ELECT 10uF 20% 50V C307 1-126-963-11 ELECT 4.7uF 20% 50V C308 1-126-955-11 ELECT 4700uF 20% 35V C309 1-126-955-11 ELECT 4700uF 20% 35V C310 1-126-944-11 ELECT 3300uF 20% 25V C311 1-126-942-61 ELECT 1000uF 20% 25V C312 1-104-666-11 ELECT 220uF 20% 16V C313 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C314 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C315 1-126-947-11 ELECT 47uF 20% 16V C316 1-164-156-11 CERAMIC CHIP 0.1uF 25V C317 1-164-156-11 CERAMIC CHIP 0.1uF 25V C318 1-104-661-91 ELECT 330uF 20% 16V C319 1-164-156-11 CERAMIC CHIP 0.1uF 25V C320 1-104-666-11 ELECT 220uF 20% 16V C321 1-164-156-11 CERAMIC CHIP 0.1uF 25V C322 1-104-666-11 ELECT 220uF 20% 16V C323 1-164-156-11 CERAMIC CHIP 0.1uF 25V C324 1-126-935-11 ELECT 470uF 20% 16V C325 1-164-156-11 CERAMIC CHIP 0.1uF 25V C326 1-104-665-11 ELECT 100uF 20% 16V C328 1-104-665-11 ELECT 100uF 20% 16V C329 1-126-935-11 ELECT 470uF 20% 16V C330 1-164-156-11 CERAMIC CHIP 0.1uF 25V C331 1-126-934-11 ELECT 220uF 20% 10V C332 1-126-926-11 ELECT 1000uF 20% 10V C333 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C339 1-126-935-11 ELECT 470uF 20% 16V C340 1-126-964-11 ELECT 10uF 20% 50V C342 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C343 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C344 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C345 1-104-665-11 ELECT 100uF 20% 10V C346 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C349 1-104-665-11 ELECT 100uF 20% 10V C360 1-126-935-11 ELECT 470uF 20% 16V C361 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (CND, US) C361 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (AEP, HK, MY, SP, UK) C363 1-162-294-31 CERAMIC 0.001uF 10% 50V C364 1-162-294-31 CERAMIC 0.001uF 10% 50V C365 1-126-934-11 ELECT 220uF 20% 10V C369 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (CND, US) C370 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C371 1-164-159-21 CERAMIC 0.1uF 50V C372 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C373 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C374 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C375 1-162-294-31 CERAMIC 0.001uF 10% 50V C382 1-162-923-11 CERAMIC CHIP 47PF 5% 50V (CND, US) C600 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C603 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V (AEP, UK) C604 1-126-947-11 ELECT 47uF 20% 16V (AEP, UK) C605 1-164-185-11 CERAMIC CHIP 13PF 5% 50V (AEP, UK) C606 1-164-185-11 CERAMIC CHIP 13PF 5% 50V (AEP, UK) C607 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (AEP, UK) C608 1-162-961-11 CERAMIC CHIP 330PF 10% 50V (AEP, UK) MAIN Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 45 HCD-DC1 C609 1-164-739-11 CERAMIC CHIP 560PF 5% 50V (AEP, UK) C610 1-126-963-11 ELECT 4.7uF 20% 50V (AEP, UK) C611 1-162-927-11 CERAMIC CHIP 100PF 5% 50V (AEP, UK) C800 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C803 1-162-975-11 CERAMIC CHIP 24PF 5% 50V C804 1-162-975-11 CERAMIC CHIP 24PF 5% 50V C805 1-115-156-11 CERAMIC CHIP 1uF 10V C806 1-115-156-11 CERAMIC CHIP 1uF 10V C807 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C808 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C809 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C810 1-115-456-21 CAPACITOR 0.22F 5.5V C811 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C812 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C813 1-126-964-11 ELECT 10uF 20% 50V C814 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > * CN101 1-569-935-11 SOCKET, CONNECTOR 19P * CN301 1-569-366-11 SOCKET, CONNECTOR 18P * CN401 1-568-954-11 PIN, CONNECTOR 5P CN501 1-506-469-11 PIN, CONNECTOR 4P * CN801 1-569-933-11 SOCKET, CONNECTOR 16P CN802 1-785-951-11 CONNECTOR, FFC/FPC (ZIF) 18P CN804 1-785-952-11 CONNECTOR, FFC/FPC (ZIF) 20P < DIODE > D303 8-719-200-82 DIODE 11ES2-TA1B D304 8-719-921-40 DIODE MTZJ-T-77-4.7C D305 8-719-110-17 DIODE MTZJ-T-77-10B D306 8-719-921-63 DIODE MTZJ-T-77-7.5B D307 8-719-110-17 DIODE MTZJ-T77-10B D308 8-719-109-89 DIODE MTZJ-T-77-5.6B D309 8-719-110-08 DIODE MTZJ-T-77-8.2B D310 8-719-200-82 DIODE 11ES2-TA1B D311 8-719-110-31 DIODE MTZJ-T-77-12B D320 8-719-988-61 DIODE 1SS355TE-17 D321 8-719-988-61 DIODE 1SS355TE-17 D322 8-719-988-61 DIODE 1SS355TE-17 D323 8-719-988-61 DIODE 1SS355TE-17 D601 8-719-200-82 DIODE 11ES2-TA1B D602 8-719-200-82 DIODE 11ES2-TA1B D801 8-719-991-33 DIODE 1SS133T-77 D802 8-719-991-33 DIODE 1SS133T-77 D805 8-719-982-11 DIODE MTZJ-T-77-4.3B (AEP, UK) D806 8-719-991-33 DIODE 1SS133T-77 (AEP, UK) D807 8-719-991-33 DIODE 1SS133T-77 D808 8-719-991-33 DIODE 1SS133T-77 D811 8-719-991-33 DIODE 1SS133T-77 D812 8-719-991-33 DIODE 1SS133T-77 D813 8-719-988-61 DIODE 1SS355TE-17 FB302 1-414-813-11 FERRITE (CND, US) FB302 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT CND, US) < IC > IC101 8-759-584-38 IC TDA7296 IC201 8-759-584-38 IC TDA7296 IC301 8-759-646-52 IC KIA7805API IC302 8-759-584-40 IC KA7908 IC304 8-759-646-54 IC KIA7808API IC306 8-759-646-54 IC KIA7808API IC320 8-759-584-65 IC KA3082 IC321 8-749-923-04 IC TOTX178X (OPTICAL DIGITAL OUT (CD)) IC323 6-700-261-01 IC BD3861FS IC324 8-759-359-49 IC NJM3414AV (TE2) IC801 8-752-925-92 IC CXP83124A-050Q IC803 8-759-652-68 IC BMR-0301H IC804 8-759-557-36 IC BU1924F-E2 (AEP, UK) < RESISTOR > JR115 1-216-864-11 METAL CHIP 0 5% 1/16W JR215 1-216-864-11 METAL CHIP 0 5% 1/16W JR300 1-216-864-11 METAL CHIP 0 5% 1/16W JR301 1-216-864-11 METAL CHIP 0 5% 1/16W JR302 1-216-864-11 METAL CHIP 0 5% 1/16W JR303 1-216-864-11 METAL CHIP 0 5% 1/16W JR304 1-216-864-11 METAL CHIP 0 5% 1/16W JR305 1-216-864-11 METAL CHIP 0 5% 1/16W JR307 1-216-864-11 METAL CHIP 0 5% 1/16W JR323 1-216-864-11 METAL CHIP 0 5% 1/16W < COIL > L101 1-420-872-00 COIL, AIR-CORE L201 1-420-872-00 COIL, AIR-CORE L301 1-410-324-11 INDUCTOR 4.7uH L302 1-412-002-31 INDUCTOR 4.7uH L303 1-410-509-11 INDUCTOR 10uH L304 1-414-137-31 INDUCTOR 0.22uH L305 1-410-750-41 INDUCTOR 0.47uH L306 1-410-985-22 INDUCTOR CHIP 0.22uH (EXCEPT CND, US) L306 1-410-997-42 INDUCTOR CHIP 2.2uH (CND, US) L307 1-414-146-31 INDUCTOR 2.2uH < TRANSISTOR > Q100 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q200 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q301 8-729-028-54 TRANSISTOR KTC3205-Y-AT Q302 8-729-028-54 TRANSISTOR KTC3205-Y-AT Q303 8-759-068-54 TRANSISTOR KRA102S Q304 8-729-038-68 TRANSISTOR KRC103S Q305 8-729-019-00 TRANSISTOR KTC2026 Q306 8-729-019-00 TRANSISTOR KTC2026 Q307 8-759-068-54 TRANSISTOR KRA102S Q308 8-729-038-68 TRANSISTOR KRC103S Q312 8-729-038-68 TRANSISTOR KRC103S Q313 8-759-068-54 TRANSISTOR KRA102S Q330 8-729-038-68 TRANSISTOR KRC103S Q355 8-729-019-00 TRANSISTOR KTC2026 Q601 8-729-202-56 TRANSISTOR 2SA950-Y-TPE2 MAIN Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 46 HCD-DC1 Q602 8-729-038-67 TRANSISTOR KRC102S Q603 8-729-038-67 TRANSISTOR KRC102S Q604 8-729-202-56 TRANSISTOR 2SA950-Y-TPE2 Q605 8-729-038-67 TRANSISTOR KRC102S Q606 8-729-038-67 TRANSISTOR KRC102S Q607 8-729-801-84 TRANSISTOR 2SB1013-TP-34 Q608 8-729-801-84 TRANSISTOR 2SB1013-TP-34 Q609 8-729-038-67 TRANSISTOR KRC102S Q661 8-729-040-76 TRANSISTOR KTA1273-Y-AT Q662 8-729-038-67 TRANSISTOR KRC102S Q801 8-729-038-67 TRANSISTOR KRC102S Q802 8-729-038-67 TRANSISTOR KRC102S Q803 8-729-038-67 TRANSISTOR KRC102S Q804 8-729-038-67 TRANSISTOR KRC102S Q805 8-729-038-67 TRANSISTOR KRC102S Q806 8-729-038-67 TRANSISTOR KRC102S Q807 8-729-038-67 TRANSISTOR KRC102S Q808 8-729-038-67 TRANSISTOR KRC102S Q809 8-729-038-67 TRANSISTOR KRC102S Q810 8-729-038-67 TRANSISTOR KRC102S Q811 8-729-038-67 TRANSISTOR KRC102S Q812 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R (AEP, UK) Q813 8-729-038-67 TRANSISTOR KRC102S Q815 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q816 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q817 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q818 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q890 8-759-068-54 TRANSISTOR KRA102S Q891 8-729-120-28 TRANSISTOR 2SC2412K-T-146-R < RESISTOR > R101 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R102 1-216-821-11 METAL CHIP 1K 5% 1/16W R103 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R104 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R109 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R110 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R113 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R114 1-216-839-11 METAL CHIP 33K 5% 1/16W R116 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R117 1-216-830-11 METAL CHIP 5.6K 5% 1/16W R118 1-216-821-11 METAL CHIP 1K 5% 1/16W R119 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R130 1-216-817-11 METAL CHIP 470 5% 1/16W R131 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R132 1-216-841-11 METAL CHIP 47K 5% 1/16W R140 1-216-817-11 METAL CHIP 470 5% 1/16W (EXCEPT MX) R140 1-218-482-11 RES-CHIP 430 5% 1/16W (MX) R141 1-216-837-11 METAL CHIP 22K 5% 1/16W R142 1-216-839-11 METAL CHIP 33K 5% 1/16W (MX) R142 1-216-841-11 METAL CHIP 47K 5% 1/16W (EXCEPT MX) R143 1-216-845-11 METAL CHIP 100K 5% 1/16W R144 1-249-389-11 CARBON 4.7 5% 1/4W R160 1-216-806-11 RES-CHIP 56 5% 1/16W R201 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R202 1-216-821-11 METAL CHIP 1K 5% 1/16W R203 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R204 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R209 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R210 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R213 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R214 1-216-839-11 METAL CHIP 33K 5% 1/16W R216 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R217 1-216-830-11 METAL CHIP 5.6K 5% 1/16W R218 1-216-821-11 METAL CHIP 1K 5% 1/16W R219 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R230 1-216-817-11 METAL CHIP 470 5% 1/16W R231 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R232 1-216-841-11 METAL CHIP 47K 5% 1/16W R240 1-216-817-11 METAL CHIP 470 5% 1/16W (EXCEPT MX) R240 1-218-482-11 RES-CHIP 430 5% 1/16W (MX) R241 1-216-837-11 METAL CHIP 22K 5% 1/16W R242 1-216-839-11 METAL CHIP 33K 5% 1/16W (MX) R242 1-216-841-11 METAL CHIP 47K 5% 1/16W (EXCEPT MX) R243 1-216-845-11 METAL CHIP 100K 5% 1/16W R245 1-249-389-11 CARBON 4.7 5% 1/4W R260 1-216-806-11 RES-CHIP 56 5% 1/16W R304 1-216-809-11 METAL CHIP 100 5% 1/16W R305 1-216-809-11 METAL CHIP 100 5% 1/16W R307 1-216-833-11 METAL CHIP 10K 5% 1/16W R308 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R309 1-216-797-11 METAL CHIP 10 5% 1/16W R310 1-216-809-11 METAL CHIP 100 5% 1/16W R311 1-216-809-11 METAL CHIP 100 5% 1/16W R312 1-249-413-11 CARBON 470 5% 1/4W R313 1-249-413-11 CARBON 470 5% 1/4W R314 1-249-413-11 CARBON 470 5% 1/4W R317 1-216-841-11 METAL CHIP 47K 5% 1/16W R318 1-216-841-11 METAL CHIP 47K 5% 1/16W R320 1-216-851-11 METAL CHIP 330K 5% 1/16W R340 1-247-807-31 CARBON 100 5% 1/4W R350 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R351 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R601 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R602 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R603 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R604 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R605 1-249-407-11 CARBON 150 5% 1/4W R606 1-216-841-11 METAL CHIP 47K 5% 1/16W R607 1-216-841-11 METAL CHIP 47K 5% 1/16W R608 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R609 1-249-408-11 CARBON 180 5% 1/4W R610 1-216-843-11 METAL CHIP 68K 5% 1/16W R611 1-216-845-11 METAL CHIP 100K 5% 1/16W R612 1-216-821-11 METAL CHIP 1K 5% 1/16W R613 1-216-821-11 METAL CHIP 1K 5% 1/16W R614 1-216-821-11 METAL CHIP 1K 5% 1/16W R615 1-216-821-11 METAL CHIP 1K 5% 1/16W MAIN Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 47 HCD-DC1 R616 1-216-821-11 METAL CHIP 1K 5% 1/16W R617 1-216-829-11 METAL CHIP 4.7K 5% 1/16W (AEP, UK) R618 1-216-853-11 METAL CHIP 470K 5% 1/16W (AEP, UK) R619 1-216-845-11 METAL CHIP 100K 5% 1/16W (AEP, UK) R620 1-216-821-11 METAL CHIP 1K 5% 1/16W (AEP, UK) R621 1-216-814-11 METAL CHIP 270 5% 1/16W (AEP, UK) R622 1-216-841-11 METAL CHIP 47K 5% 1/16W (AEP, UK) R623 1-216-843-11 METAL CHIP 68K 5% 1/16W (AEP, UK) R624 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R626 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R627 1-247-804-11 CARBON 75 5% 1/4W R628 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R629 1-216-841-11 METAL CHIP 47K 5% 1/16W R800 1-216-821-11 METAL CHIP 1K 5% 1/16W R801 1-216-821-11 METAL CHIP 1K 5% 1/16W R802 1-216-821-11 METAL CHIP 1K 5% 1/16W R803 1-216-821-11 METAL CHIP 1K 5% 1/16W R804 1-216-821-11 METAL CHIP 1K 5% 1/16W R805 1-216-821-11 METAL CHIP 1K 5% 1/16W R806 1-216-821-11 METAL CHIP 1K 5% 1/16W R807 1-216-821-11 METAL CHIP 1K 5% 1/16W R808 1-216-821-11 METAL CHIP 1K 5% 1/16W R810 1-216-821-11 METAL CHIP 1K 5% 1/16W R811 1-216-821-11 METAL CHIP 1K 5% 1/16W R812 1-216-821-11 METAL CHIP 1K 5% 1/16W R813 1-216-821-11 METAL CHIP 1K 5% 1/16W R814 1-216-821-11 METAL CHIP 1K 5% 1/16W R815 1-216-821-11 METAL CHIP 1K 5% 1/16W R817 1-216-821-11 METAL CHIP 1K 5% 1/16W R818 1-216-821-11 METAL CHIP 1K 5% 1/16W R819 1-216-821-11 METAL CHIP 1K 5% 1/16W R820 1-216-821-11 METAL CHIP 1K 5% 1/16W R821 1-216-821-11 METAL CHIP 1K 5% 1/16W R822 1-216-821-11 METAL CHIP 1K 5% 1/16W R824 1-216-821-11 METAL CHIP 1K 5% 1/16W R825 1-216-809-11 METAL CHIP 100 5% 1/16W R826 1-216-821-11 METAL CHIP 1K 5% 1/16W R827 1-216-821-11 METAL CHIP 1K 5% 1/16W R828 1-216-821-11 METAL CHIP 1K 5% 1/16W R832 1-216-821-11 METAL CHIP 1K 5% 1/16W R833 1-216-821-11 METAL CHIP 1K 5% 1/16W R834 1-216-821-11 METAL CHIP 1K 5% 1/16W R835 1-216-821-11 METAL CHIP 1K 5% 1/16W R836 1-216-821-11 METAL CHIP 1K 5% 1/16W R837 1-216-821-11 METAL CHIP 1K 5% 1/16W R838 1-216-817-11 METAL CHIP 470 5% 1/16W R840 1-216-841-11 METAL CHIP 47K 5% 1/16W R841 1-216-819-11 METAL CHIP 680 5% 1/16W (HK, MY, SP) R841 1-216-823-11 METAL CHIP 1.5K 5% 1/16W (AEP, UK) R841 1-216-864-11 METAL CHIP 0 5% 1/16W (CND, US) R841 1-216-826-11 METAL CHIP 2.7K 5% 1/16W (MX) R842 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R843 1-216-845-11 METAL CHIP 100K 5% 1/16W R845 1-216-845-11 METAL CHIP 100K 5% 1/16W R846 1-216-837-11 METAL CHIP 22K 5% 1/16W R847 1-216-833-11 METAL CHIP 10K 5% 1/16W R848 1-216-833-11 METAL CHIP 10K 5% 1/16W R849 1-216-833-11 METAL CHIP 10K 5% 1/16W R850 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R851 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R852 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R853 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R854 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R855 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R856 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R857 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R858 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R859 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R860 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R861 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R862 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R863 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R864 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R865 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R866 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R867 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R868 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R869 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R870 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R871 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R872 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R873 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R874 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R875 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R876 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R877 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R878 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R879 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R880 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R881 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R882 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R883 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R884 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R885 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R886 1-216-821-11 METAL CHIP 1K 5% 1/16W R887 1-216-821-11 METAL CHIP 1K 5% 1/16W R888 1-216-821-11 METAL CHIP 1K 5% 1/16W R890 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R891 1-216-822-11 METAL CHIP 1.2K 5% 1/16W R892 1-216-817-11 METAL CHIP 470 5% 1/16W R894 1-216-821-11 METAL CHIP 1K 5% 1/16W R895 1-216-801-11 METAL CHIP 22 5% 1/16W R896 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R897 1-216-821-11 METAL CHIP 1K 5% 1/16W R898 1-216-821-11 METAL CHIP 1K 5% 1/16W MAIN Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 48 HCD-DC1 R899 1-216-821-11 METAL CHIP 1K 5% 1/16W < TERMINAL BOARD/JACK > SJ301 1-694-820-11 TERMINAL BOARD (SPEAKER IMPEDANCE USE 6-16Ω) SJ302 1-815-045-11 JACK, PIN 2P (AUDIO IN MD (VIDEO)) < GROUND TERMINAL BOARD > TH1 1-537-770-21 TERMINAL BOARD, GROUND TH2 1-537-770-21 TERMINAL BOARD, GROUND < TUNER UNIT > TU1 A-4476-414-A TUNER PACK (AEP, UK) TU1 A-4476-415-A TUNER PACK (EXCEPT AEP, UK) < VIBRATOR > X801 1-767-184-11 VIBRATOR, CERAMIC (4.19MHz) X802 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) X803 1-579-242-41 VIBRATOR, CRYSTAL (4.332MHz) (AEP, UK) ************************************************************** A-4726-695-A POWER BOARD, COMPLETE (AEP, UK) A-4727-416-A POWER BOARD, COMPLETE (HK, MY, SP) A-4727-421-A POWER BOARD, COMPLETE (CND, US) A-4727-599-A POWER BOARD, COMPLETE (MX) *********************** < CAPACITOR > C902 1-101-005-00 CERAMIC 22000PF 50V C903 1-101-005-00 CERAMIC 22000PF 50V C904 1-101-005-00 CERAMIC 22000PF 50V C905 1-101-005-00 CERAMIC 22000PF 50V C906 1-161-494-00 CERAMIC 0.022uF 25V C907 1-161-494-00 CERAMIC 0.022uF 25V C908 1-161-494-00 CERAMIC 0.022uF 25V C909 1-161-494-00 CERAMIC 0.022uF 25V C910 1-161-494-00 CERAMIC 0.022uF 25V C911 1-126-947-11 ELECT 47uF 20% 16V C913 1-161-494-00 CERAMIC 0.022uF 25V C914 1-161-494-00 CERAMIC 0.022uF 25V C915 1-161-494-00 CERAMIC 0.022uF 25V C916 1-161-494-00 CERAMIC 0.022uF 25V C917 1-126-934-11 ELECT 220uF 20% 10V C918 1-124-261-00 ELECT 10uF 20% 50V C920 1-104-666-11 ELECT 220uF 20% 16V < CONNECTOR > CN901 1-564-321-00 PIN, CONNECTOR 2P CN902 1-766-282-11 PIN, CONNECTOR (PC BOARD) 9P < DIODE > D902 8-719-902-17 DIODE 1N5401 D903 8-719-902-17 DIODE 1N5401 D904 8-719-902-17 DIODE 1N5401 D905 8-719-902-17 DIODE 1N5401 D906 8-719-046-07 DIODE 2A02M D907 8-719-046-07 DIODE 2A02M D908 8-719-046-07 DIODE 2A02M D909 8-719-046-07 DIODE 2A02M D910 8-719-991-33 DIODE 1SS133T-77 D911 8-719-991-33 DIODE 1SS133T-77 D912 8-719-991-33 DIODE 1SS133T-77 D913 8-719-991-33 DIODE 1SS133T-77 D915 8-719-109-93 DIODE MTZJ-T-77-6.2B D917 8-719-991-33 DIODE 1SS133T-77 D918 8-719-109-93 DIODE MTZJ-T-77-6.2B < FUSE > 0F901 1-576-374-11 FUSE, GLASS TUBE (DIA. 5) T1.25AL/125V (CND, MX, US) 0F901 1-533-464-11 FUSE, GLASS TUBE (DIA. 5) T0.8AL/250V (AEP, UK) 0F902 1-533-466-11 FUSE, GLASS TUBE (DIA. 5) T1.25AL/250V (HK, MY, SP) 0F903 1-576-375-11 FUSE, GLASS TUBE (DIA. 5) T3.15AL/125V (CND, MX, US) 0F903 1-533-468-11 FUSE, GLASS TUBE (DIA. 5) T2AL/250V (EXCEPT CND, MX, US) 0F904 1-576-375-11 FUSE, GLASS TUBE (DIA. 5) T3.15AL/125V (CND, MX, US) 0F904 1-533-468-11 FUSE, GLASS TUBE (DIA. 5) T2AL/250V (EXCEPT CND, MX, US) 0F905 1-533-464-11 FUSE, GLASS TUBE (DIA. 5) T0.8AL/250V (HK, MY, SP) < FUSE HOLDER > FH901 1-533-313-11 HOLDER, FUSE (HK, MY, SP) FH902 1-533-313-11 HOLDER, FUSE (HK, MY, SP) FH903 1-533-313-11 HOLDER, FUSE (HK, MY, SP) FH904 1-533-313-11 HOLDER, FUSE (HK, MY, SP) FH905 1-533-313-11 HOLDER, FUSE FH906 1-533-313-11 HOLDER, FUSE FH907 1-533-313-11 HOLDER, FUSE FH908 1-533-313-11 HOLDER, FUSE FH909 1-533-313-11 HOLDER, FUSE (EXCEPT HK, MY, SP) FH910 1-533-313-11 HOLDER, FUSE (EXCEPT HK, MY, SP) < LINE FILTER > LF901 1-424-150-11 TRANSFORMER, LINE FILTER (CND, MX, US) < TRANSISTOR > Q901 8-729-028-54 TRANSISTOR KTC3205-Y-AT Q902 8-729-119-79 TRANSISTOR 2SC2785TP-FEK < RESISTOR > R902 1-249-417-11 CARBON 1K 5% 1/4W R904 1-249-425-11 CARBON 4.7K 5% 1/4W R905 1-249-437-11 CARBON 47K 5% 1/4W R909 1-219-237-11 SOLID 3.3M 20% 1/2W (CND, US) < RELAY > 0RY901 1-755-332-11 RELAY < SWITCH > 0S901 1-786-152-11 SWITCH, SLIDE (VOLTAGE SELECTOR) (HK, MY, SP) MAIN POWER Ver 1.1 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 49 HCD-DC1 < TRANSFORMER > 0T901 1-437-251-11 TRANSFORMER, POWER (AEP, UK) 0T901 1-437-252-11 TRANSFORMER, POWER (CND, MX, US) 0T901 1-437-253-11 TRANSFORMER, POWER (HK, MY, SP) 0T902 1-437-248-11 TRANSFORMER, POWER (AEP, UK) 0T902 1-437-249-11 TRANSFORMER, POWER (CND, MX, US) 0T902 1-437-250-11 TRANSFORMER, POWER (HK, MY, SP) ************************************************************** A-4726-692-A SWITCH BOARD, COMPLETE (EXCEPT CND, MX, US) A-4727-418-A SWITCH BOARD, COMPLETE (CND, MX, US) *********************** 1-823-226-11 CABLE, FLEXIBLE FLAT (16 CORE) < CAPACITOR > C612 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C613 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C614 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C615 1-124-259-11 ELECT 4.7uF 20% 16V < CONNECTOR > * CN805 1-565-938-11 SOCKET, CONNECTOR 16P CN806 1-568-940-11 PIN, CONNECTOR 2P < DIODE > D852 8-719-084-70 LED SY3318-V-S1-T (u (CD)) D853 8-719-084-70 LED SY3318-V-S1-T (TUNER/BAND) D854 8-719-074-42 LED SLR325VR-T31 (DSG) D855 8-719-084-70 LED SY3318-V-S1-T (Y (TAPE)) D856 8-719-074-42 LED SLR325VR-T31 (CD SYNC) < IC > IC802 8-759-827-70 IC NJL64H400A-1 (REMOTE CONTROL RECEIVER) < COIL > L601 1-410-993-11 INDUCTOR CHIP 1uH L602 1-410-993-11 INDUCTOR CHIP 1uH < TRANSISTOR > Q852 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q853 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q854 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q855 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q856 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R600 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R653 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R654 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R655 1-216-822-11 METAL CHIP 1.2K 5% 1/16W R656 1-216-820-11 METAL CHIP 820 5% 1/16W R657 1-216-819-11 METAL CHIP 680 5% 1/16W R658 1-216-819-11 METAL CHIP 680 5% 1/16W R659 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R660 1-216-820-11 METAL CHIP 820 5% 1/16W R661 1-216-822-11 METAL CHIP 1.2K 5% 1/16W R662 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R663 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R667 1-216-845-11 METAL CHIP 100K 5% 1/16W R668 1-216-845-11 METAL CHIP 100K 5% 1/16W R675 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R679 1-216-818-11 METAL CHIP 560 5% 1/16W R680 1-216-818-11 METAL CHIP 560 5% 1/16W R684 1-216-819-11 METAL CHIP 680 5% 1/16W R687 1-216-818-11 METAL CHIP 560 5% 1/16W R691 1-216-822-11 METAL CHIP 1.2K 5% 1/16W R692 1-216-820-11 METAL CHIP 820 5% 1/16W R698 1-216-818-11 METAL CHIP 560 5% 1/16W R699 1-216-818-11 METAL CHIP 560 5% 1/16W < ROTARY ENCODER > RV801 1-473-392-11 ENCODER, ROTARY (VOLUME) < SWITCH > S802 1-786-220-11 SWITCH, KEY BOARD (u) S803 1-786-220-11 SWITCH, KEY BOARD (x (CD)) S804 1-786-220-11 SWITCH, KEY BOARD (M (CD)) S805 1-786-220-11 SWITCH, KEY BOARD (m (CD)) S806 1-786-220-11 SWITCH, KEY BOARD (Z (CD)) S807 1-786-220-11 SWITCH, KEY BOARD (Y (TAPE)) S808 1-786-220-11 SWITCH, KEY BOARD (x (TAPE)) S809 1-786-220-11 SWITCH, KEY BOARD (M (TAPE)) S810 1-786-220-11 SWITCH, KEY BOARD (m (TAPE)) S811 1-786-220-11 SWITCH, KEY BOARD (X (TAPE)) S812 1-786-220-11 SWITCH, KEY BOARD (CD SYNC) S813 1-786-220-11 SWITCH, KEY BOARD (TUNER/BAND) S814 1-786-220-11 SWITCH, KEY BOARD (– (TUNING)) S815 1-786-220-11 SWITCH, KEY BOARD (+ (TUNING)) S816 1-786-220-11 SWITCH, KEY BOARD (FUNCTION) ************************************************************** A-4726-690-A TC BOARD, COMPLETE ******************* < CAPACITOR > C402 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C403 1-104-509-11 CERAMIC CHIP 0.018uF 10% 16V C404 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C405 1-126-934-11 ELECT 220uF 20% 10V C408 1-126-947-11 ELECT 47uF 20% 10V C409 1-126-963-11 ELECT 4.7uF 20% 50V C410 1-126-963-11 ELECT 4.7uF 20% 50V C412 1-126-961-11 ELECT 2.2uF 20% 50V C414 1-126-947-11 ELECT 47uF 20% 10V C415 1-126-947-11 ELECT 47uF 20% 10V C416 1-126-963-11 ELECT 4.7uF 20% 50V C417 1-126-963-11 ELECT 4.7uF 20% 50V C420 1-126-965-11 ELECT 22uF 20% 50V C422 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C423 1-126-960-11 ELECT 1uF 20% 50V C424 1-126-960-11 ELECT 1uF 20% 50V C425 1-126-934-11 ELECT 220uF 20% 16V C428 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V POWER SWITCH TC Ver 1.1 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 50 HCD-DC1 C429 1-164-730-11 CERAMIC CHIP 0.0012uF 10% 50V C430 1-164-730-11 CERAMIC CHIP 0.0012uF 10% 50V C431 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C432 1-136-967-11 MYLAR 0.012uF 5% 50V C433 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C434 1-126-947-11 ELECT 47uF 20% 10V C435 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C436 1-104-509-11 CERAMIC CHIP 0.018uF 10% 16V C437 1-126-934-11 ELECT 220uF 20% 10V C438 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C439 1-126-935-11 ELECT 470uF 20% 16V C440 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C450 1-126-965-11 ELECT 22uF 20% 50V < CONNECTOR > * CN301 1-569-366-11 SOCKET, CONNECTOR 18P CN302 1-569-927-11 SOCKET, CONNECTOR 9P * CN303 1-506-984-11 PIN, CONNECTOR (PC BOARD) 2P < DIODE > D401 8-719-975-40 DIODE RB411D-T146 < IC > IC401 8-759-242-58 IC TA8189N IC402 8-759-508-69 IC BA3126N < TRANSISTOR > Q401 8-729-212-02 TRANSISTOR KTC3203Y-AT Q402 8-729-037-02 TRANSISTOR KTA1266Y-AT Q403 8-729-038-67 TRANSISTOR KRC102S Q406 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q407 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q413 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q414 8-729-920-31 TRANSISTOR DTC343TK-T-146 < RESISTOR > R399 1-216-821-11 METAL CHIP 1K 5% 1/16W R400 1-216-833-11 METAL CHIP 10K 5% 1/16W R403 1-216-805-11 METAL CHIP 47 5% 1/16W R405 1-216-809-11 METAL CHIP 100 5% 1/16W R406 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R407 1-216-848-11 METAL CHIP 180K 5% 1/16W R408 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R409 1-216-809-11 METAL CHIP 100 5% 1/16W R410 1-216-848-11 METAL CHIP 180K 5% 1/16W R411 1-216-845-11 METAL CHIP 100K 5% 1/16W R412 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R413 1-216-848-11 METAL CHIP 180K 5% 1/16W R414 1-216-833-11 METAL CHIP 10K 5% 1/16W R415 1-216-833-11 METAL CHIP 10K 5% 1/16W R416 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R417 1-216-805-11 METAL CHIP 47 5% 1/16W R418 1-216-845-11 METAL CHIP 100K 5% 1/16W R419 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R420 1-216-848-11 METAL CHIP 180K 5% 1/16W R421 1-216-857-11 METAL CHIP 1M 5% 1/16W Ver 1.1 R422 1-216-833-11 METAL CHIP 10K 5% 1/16W R423 1-216-837-11 METAL CHIP 22K 5% 1/16W R424 1-216-841-11 METAL CHIP 47K 5% 1/16W R425 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R426 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R427 1-216-809-11 METAL CHIP 100 5% 1/16W R428 1-216-835-11 METAL CHIP 15K 5% 1/16W R429 1-216-835-11 METAL CHIP 15K 5% 1/16W R430 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R431 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R432 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R433 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R434 1-216-803-11 METAL CHIP 33 5% 1/16W R435 1-216-833-11 METAL CHIP 10K 5% 1/16W R436 1-216-797-11 METAL CHIP 10 5% 1/16W R437 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R438 1-216-841-11 METAL CHIP 47K 5% 1/16W R439 1-216-833-11 METAL CHIP 10K 5% 1/16W R440 1-218-446-11 METAL CHIP 1 5% 1/16W R441 1-216-821-11 METAL CHIP 1K 5% 1/16W R442 1-216-825-11 METAL CHIP 2.2K 5% 1/16W < BIAS OSCILLATION/COIL > T401 1-433-372-11 TRANSFORMER, BIAS OSCILLATION T402 1-419-080-11 COIL T403 1-419-080-11 COIL ************************************************************** MISCELLANEOUS ************** 1 1-796-101-12 DECK, MECH (TAPE) 3 1-757-809-11 CABLE, FLEXIBLE FLAT (9 CORE) 4 1-757-806-11 CABLE, FLEXIBLE FLAT (18 CORE) 55 1-823-469-11 CABLE, FLEXIBLE FLAT (20 CORE) 56 1-823-470-11 CABLE, FLEXIBLE FLAT (18 CORE) 70 1-418-693-32 INDICATOR BLOCK, LED 102 1-792-411-11 CABLE, FLEXIBLE FLAT (19 CORE) 0105 1-696-169-11 CORD, POWER (AEP, HK, MY, SP, UK) 0105 1-783-532-11 CORD, POWER (CND, US) 108 1-823-226-11 CABLE, FLEXIBLE FLAT (16 CORE) 0553 8-820-020-02 OPTICAL PICK-UP KSM-213D/Q-RP 555 1-757-055-11 WIRE, PARALLEL (FFC) (16CORE) M901 A-4735-143-A MOTOR (LD) ASSY (LOADING) 0T902 1-437-248-11 TRANSFORMER, POWER (AEP, UK) 0T902 1-437-249-11 TRANSFORMER, POWER (CND, US) 0T902 1-437-250-11 TRANSFORMER, POWER (HK, MY, SP) TU1 A-4476-414-A TUNER PACK (TCB-022) (AEP, UK) TU1 A-4476-415-A TUNER PACK (TCB-022) (EXCEPT AEP, UK) ************************************************************ The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. TC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 HCD-DC1 Ver 1.1 ************** HARDWARE LIST ************** #1 7-685-546-14 SCREW +BTP 3X8 TYPE2 N-S #2 7-685-245-19 SCREW +KTP 3X6 TYPE2 NON-SLIT #3 7-685-861-01 SCREW +BVTT 2.6X5 (S) #4 7-685-246-14 SCREW +KTP 3X8 TYPE2 NON-SLIT #5 7-685-659-14 SCREW +BVTP 4X8 TYPE2 N-S #6 7-685-548-19 SCREW +BTP 3X12 TYPE2 N-S #7 7-685-102-19 SCREW +P 2X4 TYPE2 NON-SLIT #8 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #11 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 0 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK, UK) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-DC1 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.1 2001.09 Addition of Destination (US, Canadian and E models) 1.0 2001.07 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
