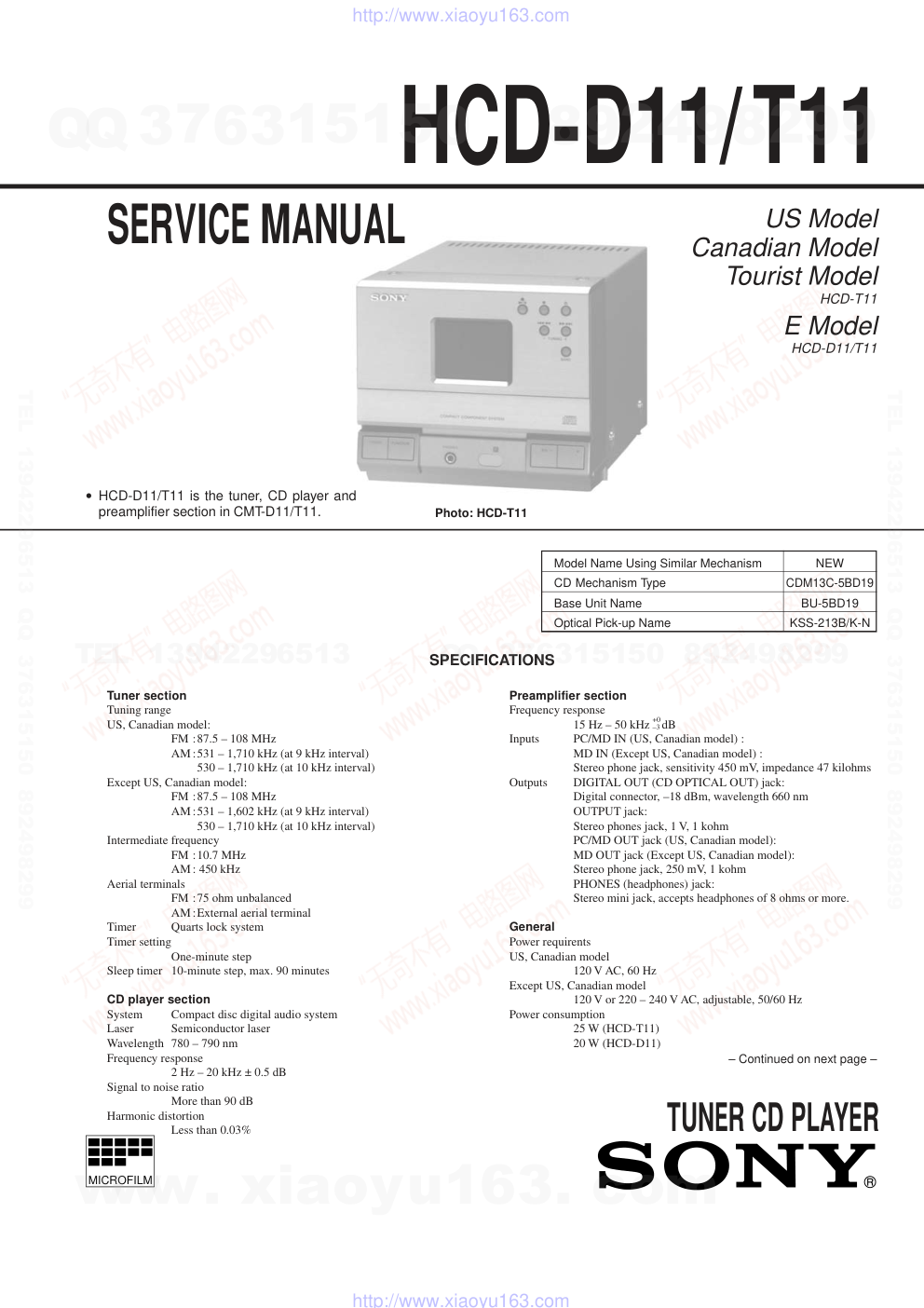

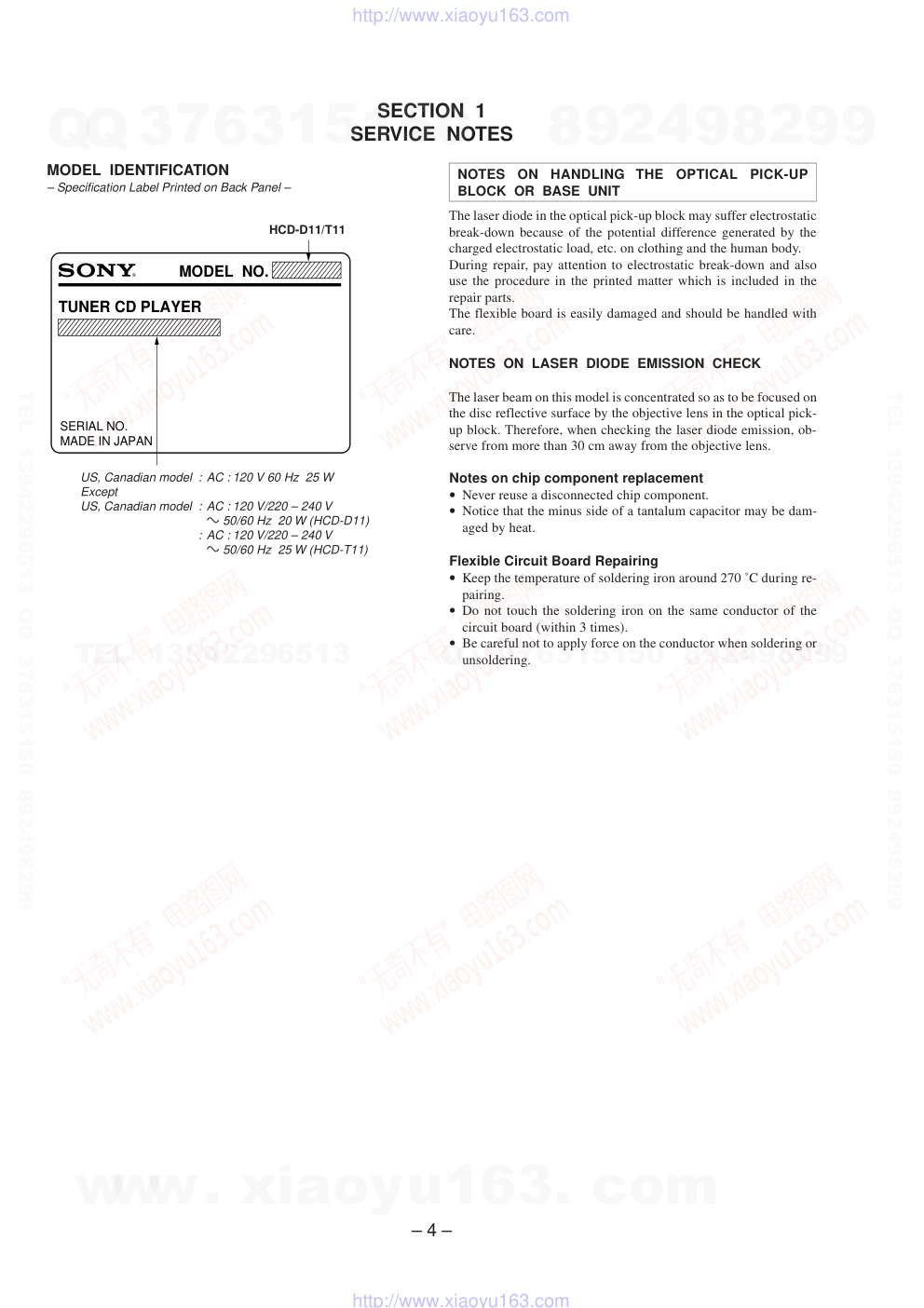

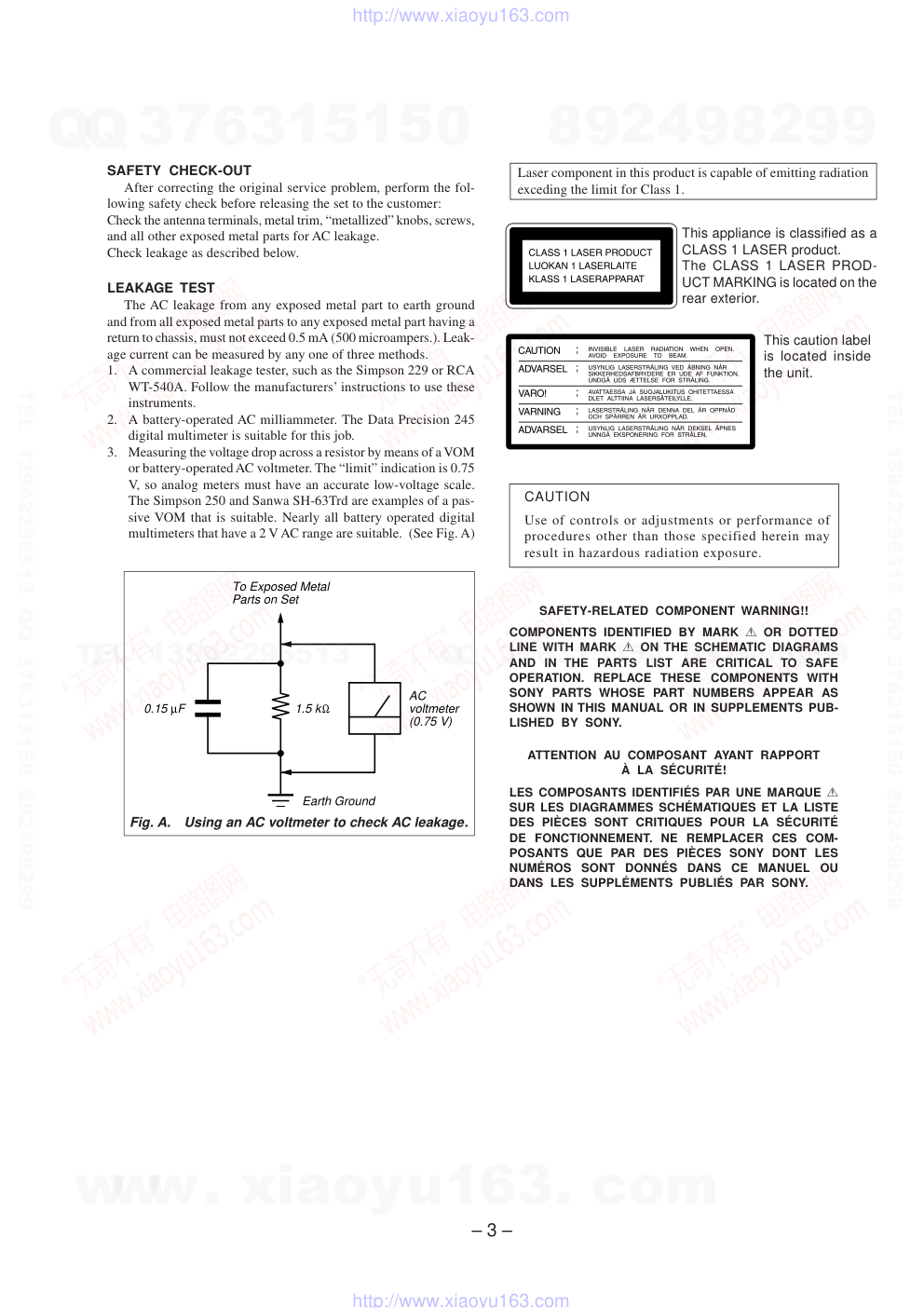

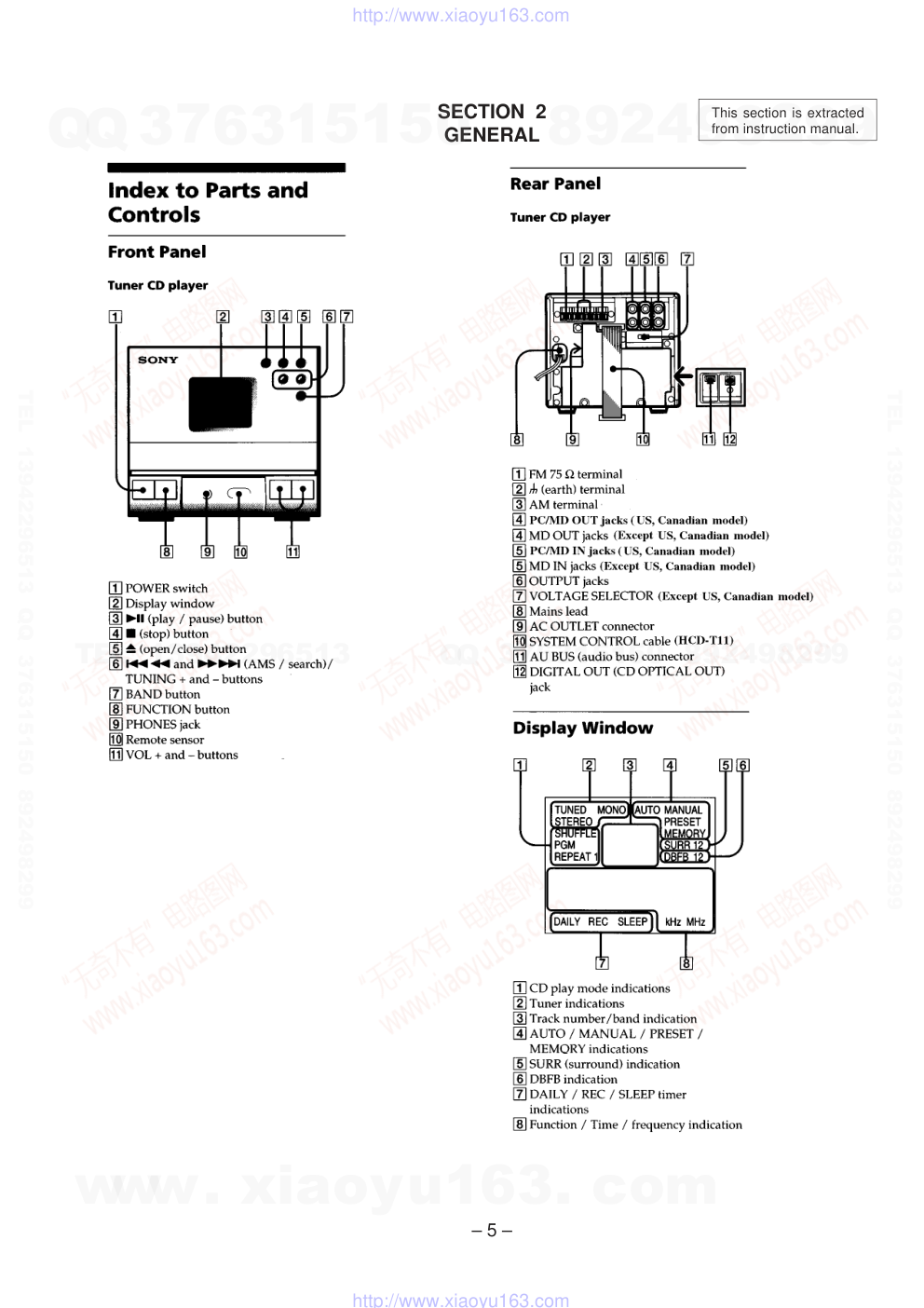

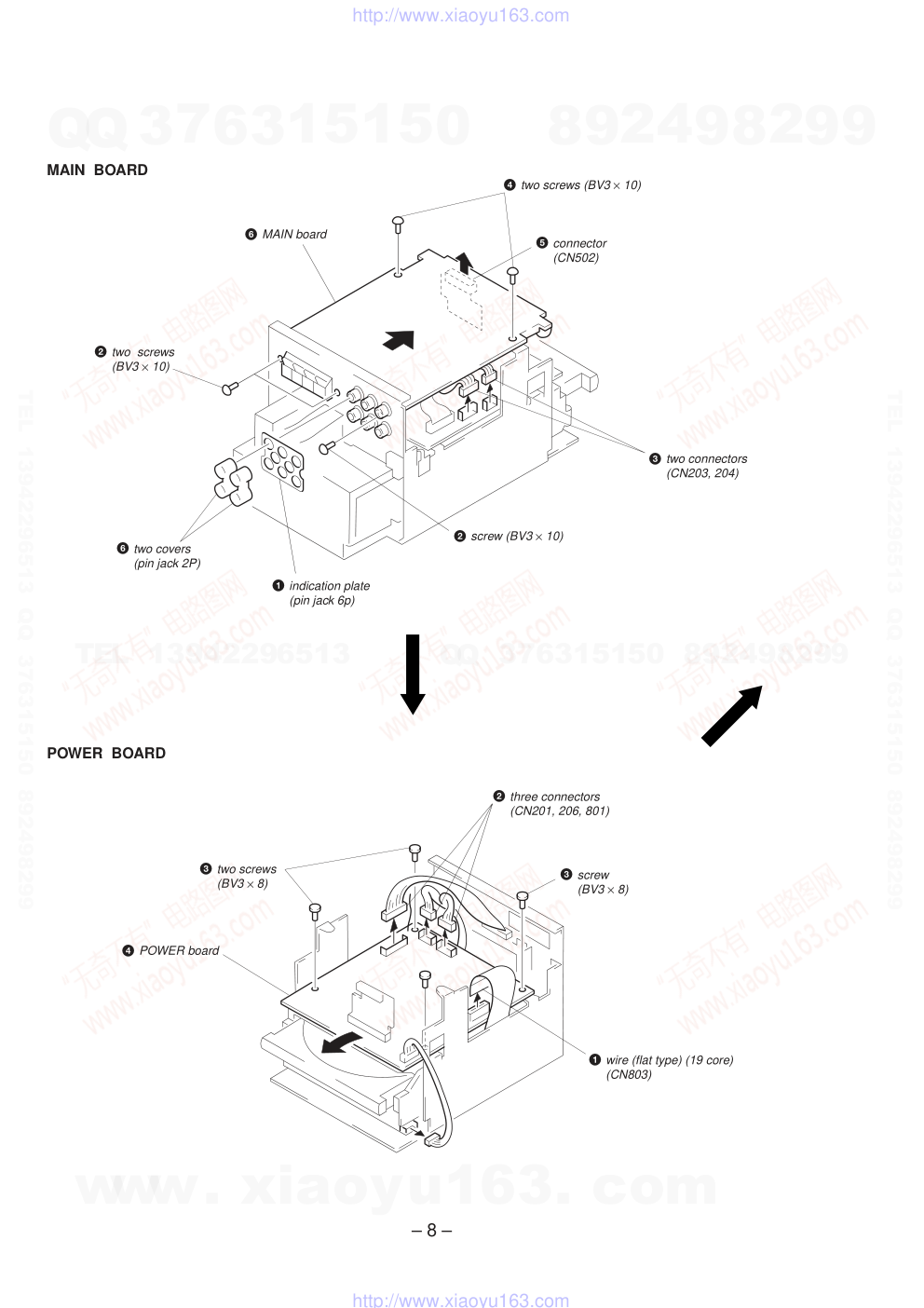

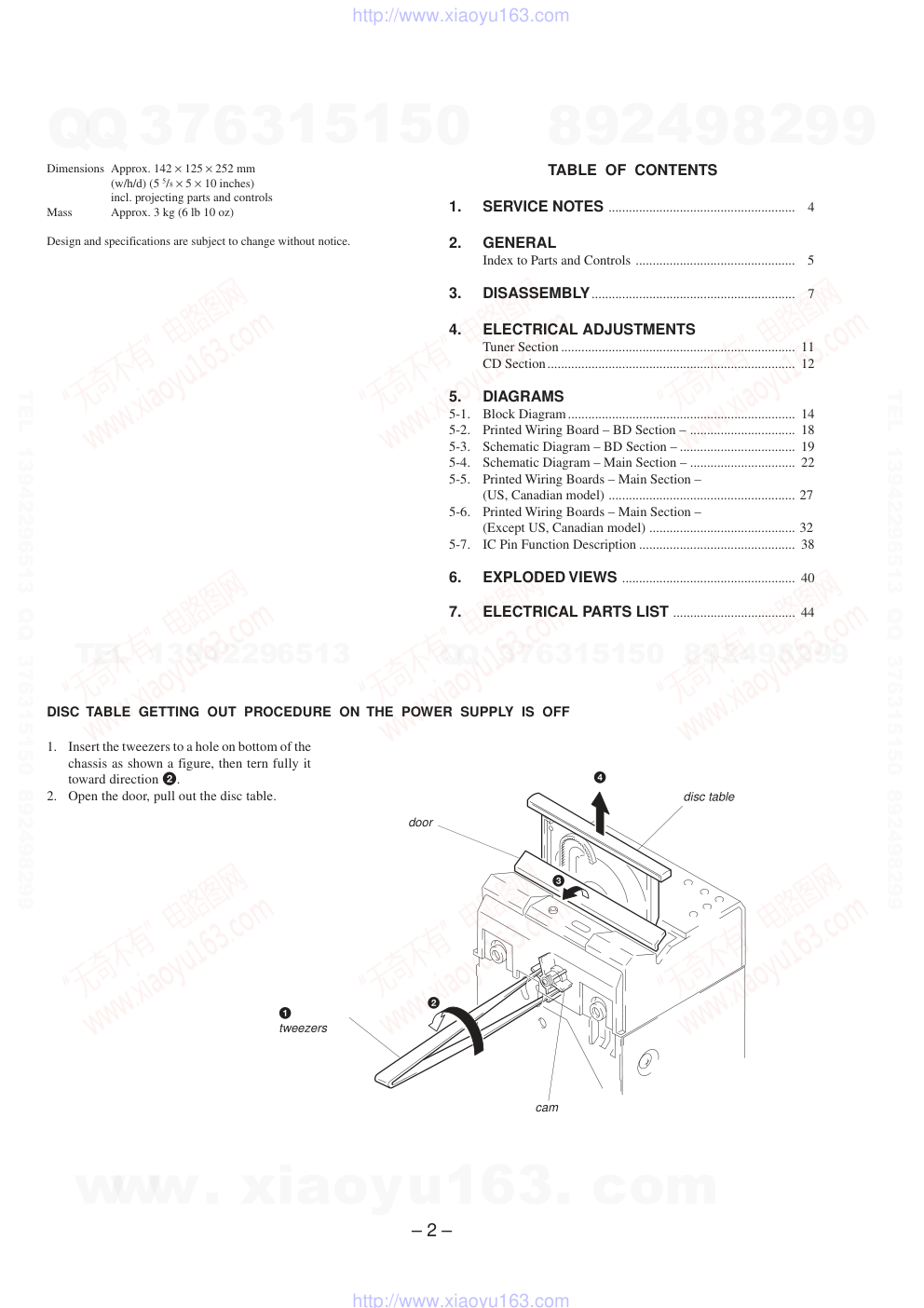

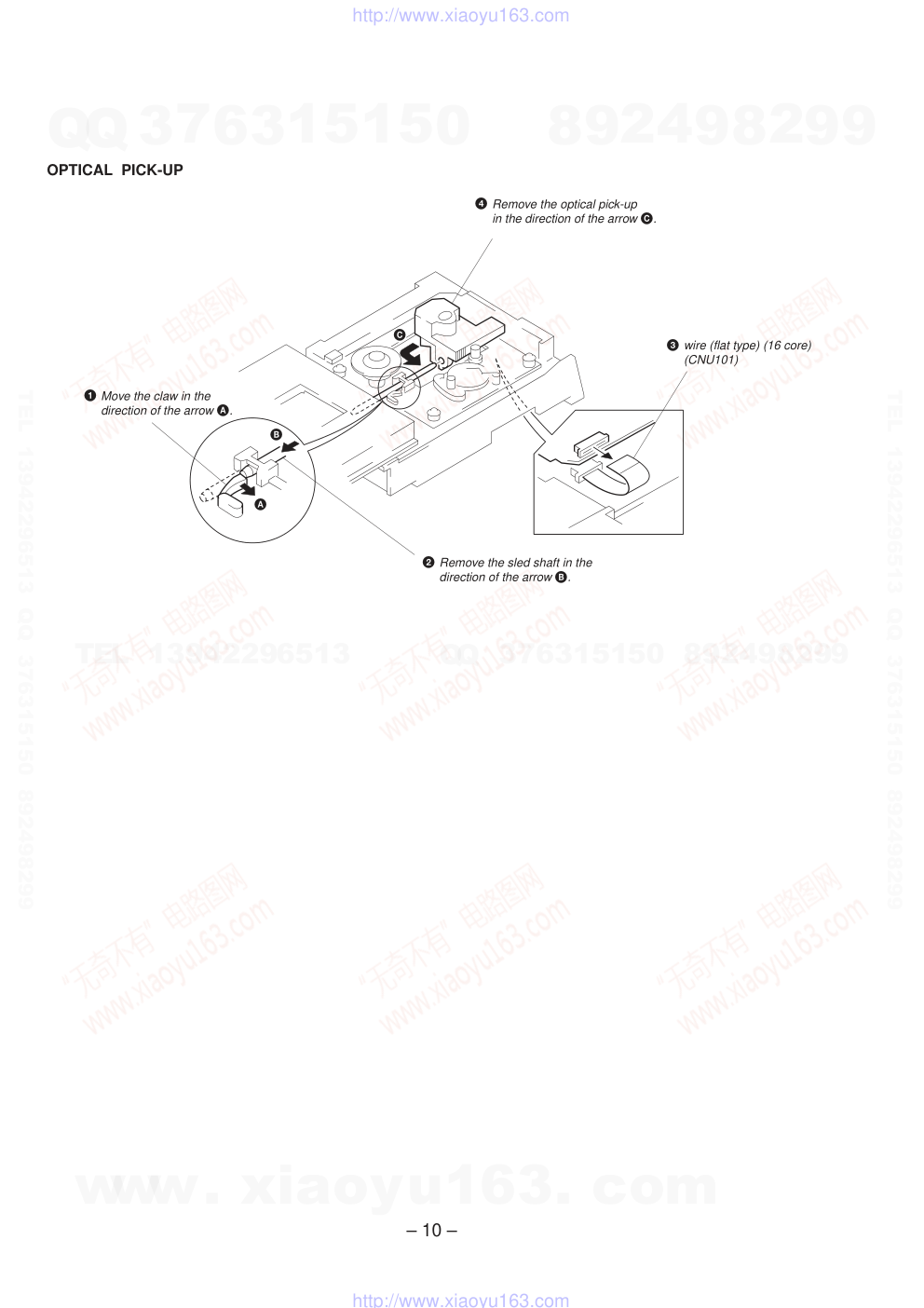

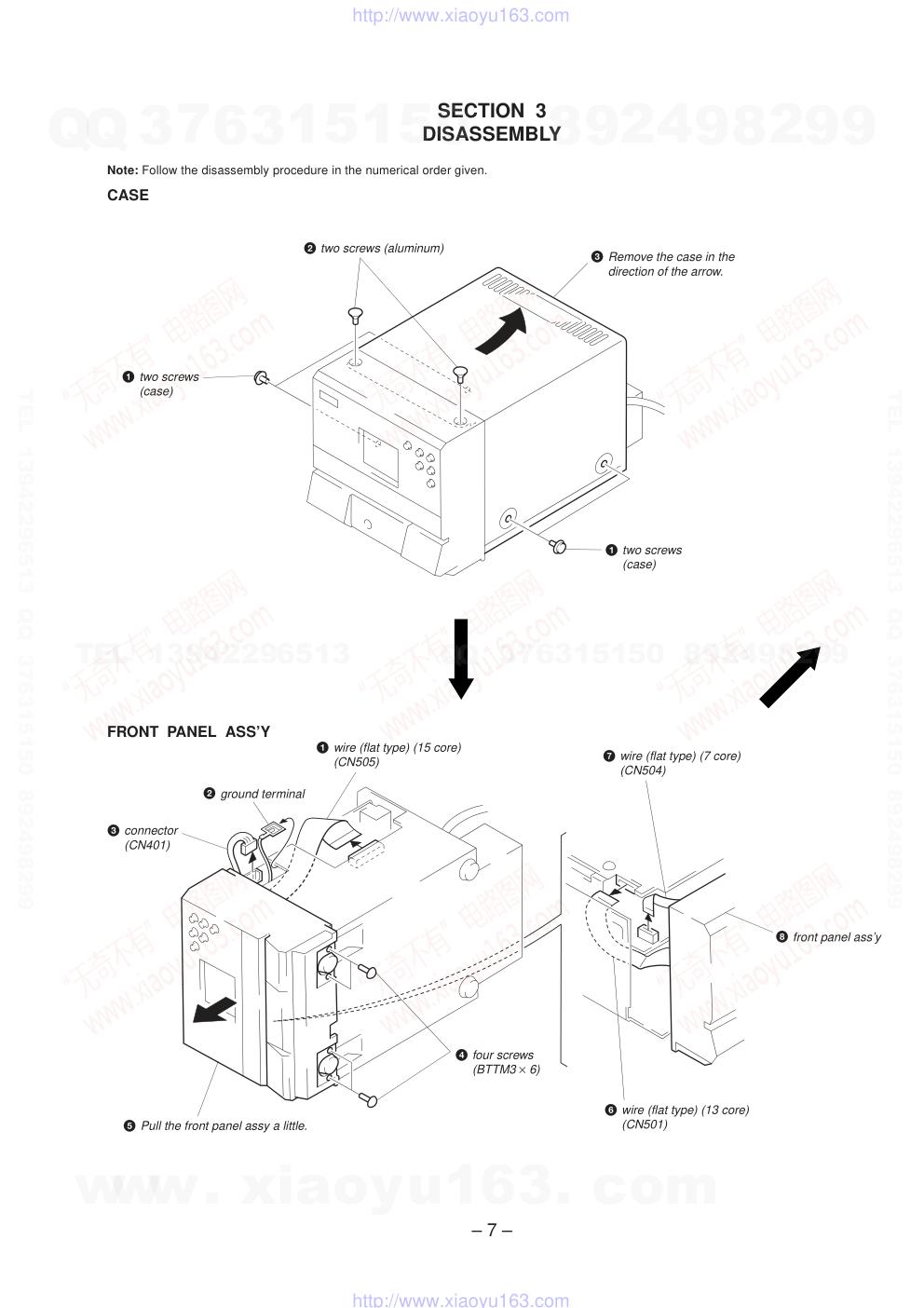

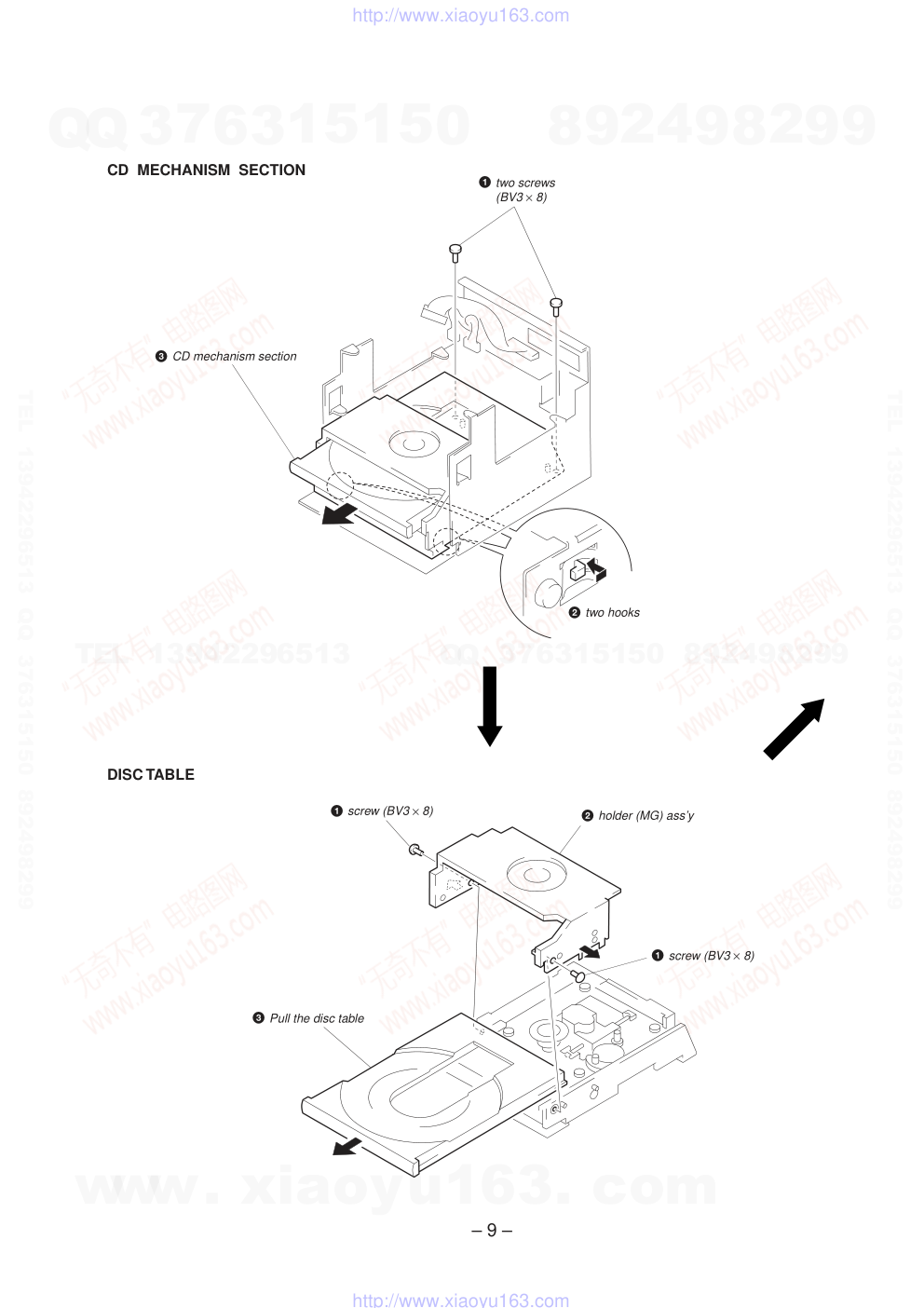

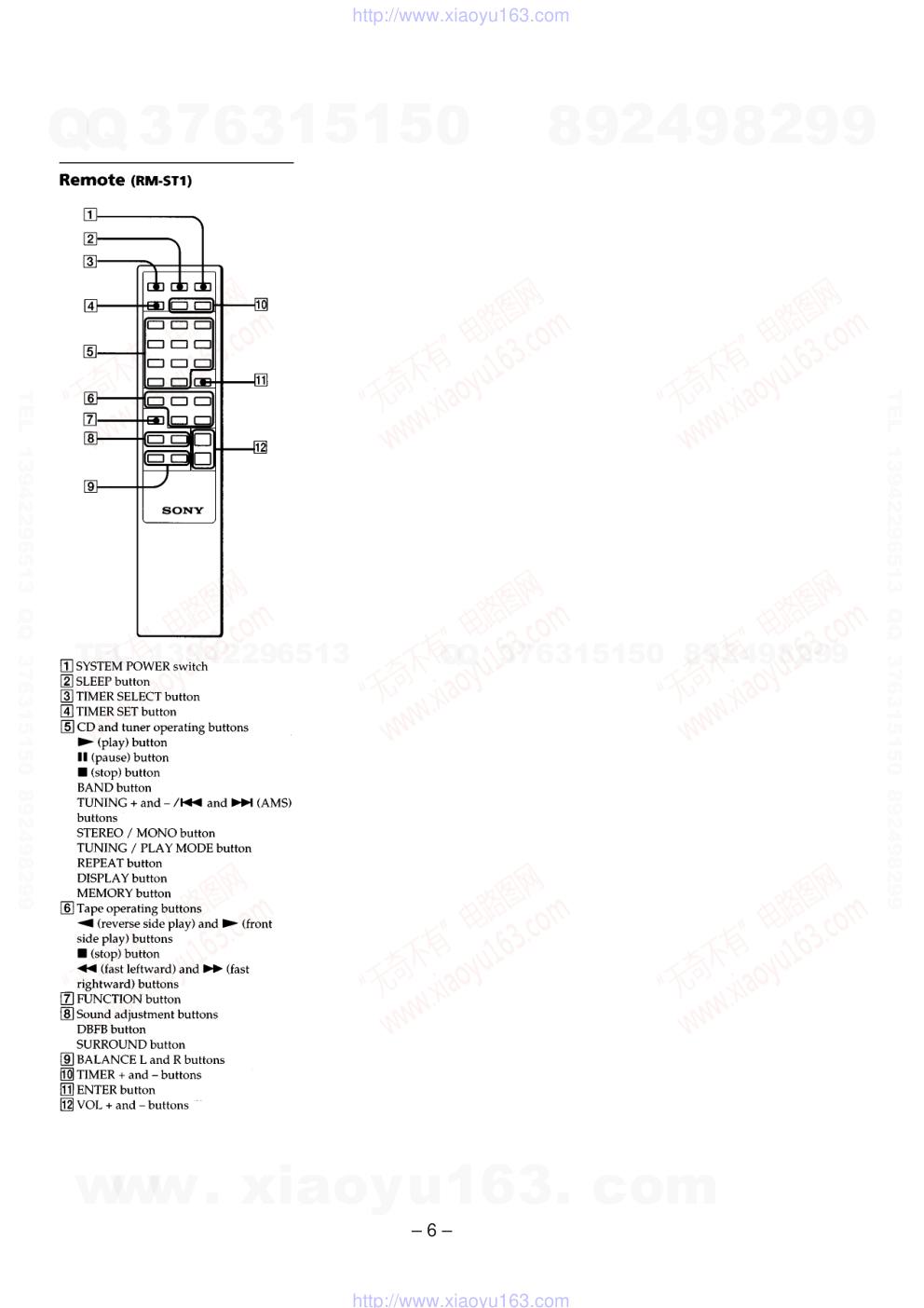

MICROFILM Model Name Using Similar Mechanism NEW CD Mechanism Type CDM13C-5BD19 Base Unit Name BU-5BD19 Optical Pick-up Name KSS-213B/K-N US Model Canadian Model Tourist Model HCD-T11 E Model HCD-D11/T11 SERVICE MANUAL TUNER CD PLAYER HCD-D11/T11 Photo: HCD-T11 • HCD-D11/T11 is the tuner, CD player and preamplifier section in CMT-D11/T11. – Continued on next page – Preamplifier section Frequency response 15 Hz – 50 kHz dB Inputs PC/MD IN (US, Canadian model) : MD IN (Except US, Canadian model) : Stereo phone jack, sensitivity 450 mV, impedance 47 kilohms Outputs DIGITAL OUT (CD OPTICAL OUT) jack: Digital connector, –18 dBm, wavelength 660 nm OUTPUT jack: Stereo phones jack, 1 V, 1 kohm PC/MD OUT jack (US, Canadian model): MD OUT jack (Except US, Canadian model): Stereo phone jack, 250 mV, 1 kohm PHONES (headphones) jack: Stereo mini jack, accepts headphones of 8 ohms or more. General Power requirents US, Canadian model 120 V AC, 60 Hz Except US, Canadian model 120 V or 220 – 240 V AC, adjustable, 50/60 Hz Power consumption 25 W (HCD-T11) 20 W (HCD-D11) +0 –3 Tuner section Tuning range US, Canadian model: FM :87.5 – 108 MHz AM :531 – 1,710 kHz (at 9 kHz interval) 530 – 1,710 kHz (at 10 kHz interval) Except US, Canadian model: FM :87.5 – 108 MHz AM :531 – 1,602 kHz (at 9 kHz interval) 530 – 1,710 kHz (at 10 kHz interval) Intermediate frequency FM :10.7 MHz AM : 450 kHz Aerial terminals FM :75 ohm unbalanced AM :External aerial terminal Timer Quarts lock system Timer setting One-minute step Sleep timer 10-minute step, max. 90 minutes CD player section System Compact disc digital audio system Laser Semiconductor laser Wavelength 780 – 790 nm Frequency response 2 Hz – 20 kHz ± 0.5 dB Signal to noise ratio More than 90 dB Harmonic distortion Less than 0.03% SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TABLE OF CONTENTS 1. SERVICE NOTES ....................................................... 4 2. GENERAL Index to Parts and Controls ............................................... 5 3. DISASSEMBLY............................................................ 7 4. ELECTRICAL ADJUSTMENTS Tuner Section ..................................................................... 11 CD Section......................................................................... 12 5. DIAGRAMS 5-1. Block Diagram................................................................... 14 5-2. Printed Wiring Board – BD Section – ............................... 18 5-3. Schematic Diagram – BD Section – .................................. 19 5-4. Schematic Diagram – Main Section – ............................... 22 5-5. Printed Wiring Boards – Main Section – (US, Canadian model) ....................................................... 27 5-6. Printed Wiring Boards – Main Section – (Except US, Canadian model) ........................................... 32 5-7. IC Pin Function Description .............................................. 38 6. EXPLODED VIEWS ................................................... 40 7. ELECTRICAL PARTS LIST .................................... 44 Dimensions Approx. 142 × 125 × 252 mm (w/h/d) (5 5/8 × 5 × 10 inches) incl. projecting parts and controls Mass Approx. 3 kg (6 lb 10 oz) Design and specifications are subject to change without notice. 1. Insert the tweezers to a hole on bottom of the chassis as shown a figure, then tern fully it toward direction 2. 2. Open the door, pull out the disc table. 1 tweezers 2 4 disc table cam 3 door DISC TABLE GETTING OUT PROCEDURE ON THE POWER SUPPLY IS OFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SAFETY CHECK-OUT After correcting the original service problem, perform the fol- lowing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers.). Leak- age current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a pas- sive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. Laser component in this product is capable of emitting radiation exceding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PROD- UCT MARKING is located on the rear exterior. This caution label is located inside the unit. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – MODEL IDENTIFICATION – Specification Label Printed on Back Panel – MODEL NO. TUNER CD PLAYER SERIAL NO. MADE IN JAPAN HCD-D11/T11 NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve from more than 30 cm away from the objective lens. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270 ˚C during re- pairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SECTION 1 SERVICE NOTES US, Canadian model : AC : 120 V 60 Hz 25 W Except US, Canadian model : AC : 120 V/220 – 240 V ⁄ 50/60 Hz 20 W (HCD-D11) : AC : 120 V/220 – 240 V ⁄ 50/60 Hz 25 W (HCD-T11) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – SECTION 2 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – Note: Follow the disassembly procedure in the numerical order given. CASE SECTION 3 DISASSEMBLY 2 two screws (aluminum) 1 two screws (case) 3 Remove the case in the direction of the arrow. 1 two screws (case) 2 ground terminal 3 connector (CN401) 5 Pull the front panel assy a little. 4 four screws (BTTM3 × 6) 7 wire (flat type) (7 core) (CN504) 8 front panel ass’y 6 wire (flat type) (13 core) (CN501) 1 wire (flat type) (15 core) (CN505) FRONT PANEL ASS’Y www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – MAIN BOARD 4 two screws (BV3 × 10) 5 connector (CN502) 3 two connectors (CN203, 204) 2 screw (BV3 × 10) 1 indication plate (pin jack 6p) 6 two covers (pin jack 2P) 2 two screws (BV3 × 10) 6 MAIN board 2 three connectors (CN201, 206, 801) 3 screw (BV3 × 8) 1 wire (flat type) (19 core) (CN803) 4 POWER board 3 two screws (BV3 × 8) POWER BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – CD MECHANISM SECTION 1 two screws (BV3 × 8) 3 CD mechanism section 2 two hooks DISC TABLE 1 screw (BV3 × 8) 2 holder (MG) ass’y 1 screw (BV3 × 8) 3 Pull the disc table www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – OPTICAL PICK-UP 4 Remove the optical pick-up in the direction of the arrow C. 3 wire (flat type) (16 core) (CNU101) C 2 Remove the sled shaft in the direction of the arrow B. B A 1 Move the claw in the direction of the arrow A. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – SECTION 4 ELECTRICAL ADJUSTMENTS As a front-end (TB101) is difficult to repair if faulty, replace it with new one. Please note, however, that the following adjustments are possible: AM Section Adjustment AM Tuned Level Adjustment Note: FM Tuned Level Adjustment Should be performed after this AM Tuned Level Adjustment. Setting: Band: AM or MW TUNER SECTION 0 dB=1 µV FM Stereo Separation Adjustment Setting: Procedure: Turn the set to 98 MHz. set FM RF SSG + – level meter J101 (OUTPUT) FM ANTENNA terminal (TM101) Carrier frequency: 98 MHz Output level: 1 mV (60 dB) Modulation: Main (1 kHz): 33.75 kHz dev. (45%) Sub (1 kHz): 33.75 kHz dev. (45%) Pilot (19 kHz): 7.5 kHz dev. (10%) 47 k Ω FM stereo VTVM VTVM signal generator connection reading (dB) output channel L-CH L-CH A B R-CH L-CH Adjust SEP (W) for minimum reading. R-CH R-CH C D L-CH R-CH Adjust SEP (W) for minimum reading. L-CH Stereo separation: A – B R-CH Stereo separation: C – D The separations of both channels should be equal. Adjustment Location: Main board (TB101) (See page 13) Procedure: 1. Set AM RF SSG output level to 76 dBµ so that the input level becomes 50 dBµ . 2. Tune the set to 999 kHz (at 9 kHz step) or 1,050 kHz (at 10 kHz step). 3. Adjust AM TUN (W) so that the TUNED light up. Adjustment Location: Main board (TB101) (See page 13) FM Section Adjustment FM Tuned Level Adjustment Setting: Band: FM AM RF SSG loop antenna set loop antenna of accessories 60 cm AM ANTENNA terminal (TM101) Carrier frequency: 999 kHz (at 9 kHz step) Modulation: 400 Hz 30% Output level: 6.3 mV (76 dB µ ) 1,050 kHz (at 10 kHz step) Procedure: 1. Supply a 17.8 µV (25 dBµ ) 98 MHz signal to the ANTENNA terminal. 2. Tune the set to 98 MHz. 3. Adjust FM TUN (W) so that the TUNED light up. Adjustment Location: Main board (TB101) (See page 13) set FM ANTENNA terminal (TM101) FM RF SSG Carrier frequency: 98 MHz Modulation: 1 kHz, 75 kHz deviation Output level: 17.8 µV (25 dB µ ) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 12 – CD SECTION Note: 1. CD Block basically constructed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use the oscilloscope with more than 10MΩ impedance. 4. Clean an object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. Focus Bias Adjustment This adjustment is to be done when the optical block is replaced. Adjustment procedure: + – BD board TP (RF) TP (VC) oscilloscope (DC range) 1. Connect oscilloscope to test point TP (VC) and TP (RF) on BD board. 2. Ground display board IC701 pin @¢ with the lead wire. 3. Turned power switch ON. (Stop mode) 4. Put disc (YEDS-18) in and press the ^ button. 5. Press the ^ button again. (Tracking servo ON) 6. Adjust RV101 so that the oscilloscope waveform is as shown in the figure below (eye pattern). A good eye pattern means that the diamond shape (≈) in the center of the waveform can be clearly distinguished. 7. Remove the lead wire connected in step2. • RF signal reference waveform (eye pattern) VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 1.3 ± 0.3Vp-p When observing the eye pattern, set the oscilloscope for AC range and raise vertical sensitivity. S-Curve Check + – BD board TP (FEO) TP (VC) oscilloscope Procedure: 1. Connect oscilloscope to test point TP (VC) and TP (FEO) on BD board. 2. Connect between test point TP (FOK) and Ground by lead wire. 3. Turned Power switch on. 4. Put disc (YEDS-18) in and turned Power switch on again and actuate the focus search. (actuate the focus search when disc table is moving in and out.) 5. Check the oscilloscope waveform (S-curve) is symmetrical be- tween A and B. And confirm peak to peak level within 2.4 ± 0.7 Vp-p. A B symmetry within 2.4 ± 0.7 Vp-p 6. After check, remove the lead wire connected in step 2. Note: • Try to measure several times to make sure that the ratio of A:B or B:A is more than 10:7. • Take sweep time as long as possible and light up the bright- ness to obtain best waveform. RF Level Check S-curve waveform + – BD board TP (RF) TP (VC) oscilloscope Procedure: 1. Connect oscilloscope to test point TP (VC) and TP (RF) on BD board. 2. Turned Power switch on. 3. Put disc (YEDS-18) in and press the ^ button. 4. Confirm that oscilloscope waveform is clear and check RF sig- nal level is correct or not. Note: Clear RF signal waveform means that the shape “≈” can be clearly distinguished at the center of the waveform. RF signal waveform E-F Balance (Traverse) Check + – BD board TP (TEO) TP (VC) oscilloscope (DC range) Procedure: 1. Ground display board IC701 pin @¢ with the lead wire. 2. Connect oscilloscope to test point TP (TEO) on BD board. 3. Turned Power switch on. 4. Put disc (YEDS-18) in and press the ^ button. 5. Confirm that the oscilloscope waveform is symmetrical on the top and bottom in relation to 0V, and check this level. VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 1.3 ± 0.3Vp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – 6. Remove the lead wire connected in step1. Focus/Tracking Gain Adjustment (RV102, RV103) This gain has a margin, so even if it is slightly off. There is no prob- lem. Therefore, do not perform, this adjustment. Please note that it should be fixed to mechanical center position when you moved and do not know original position. Adjustment Location: [BD BOARD] — Component side — FOK RF RV101 RV103 RV102 TE1 FEO TEO VC FE1 GND IC104 IC102 IC101 [MAIN BOARD] — Conductor side — 1 4 5 10 11 15 23 20 IC101 IC301 SEP (W) : FM Stereo Separation Adjustment AM TUN (W) : AM Tuned Level FM TUN (W) : FM Tuned Level Adjustment Adjustment TB101 A B 0 V specified value: level: 300 ± 100 mVp-p × 100 = less than ± 7% A-B 2 (A+B) • • A+B = 300 ± 100 mVp-p Traverse waveform www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 38 – 1 7G 2 6G 3 5G 4 4G O LCD drive 5 3G 6 2G 7 1G 8 VDD – Power supply (+5 V) 9 CD CLOCK O CD serial clock output 10 CD DATA O CD serial data output 11 SENSE I SENS input from DSP (CXD2507AQ) 12 XLT O Latch output to DSP (CXD2507AQ) 13 PRGL O Latch output to D/A converter (PCM710µ) 14 SQCLK O Sub-code Q data scanning clock output 15 – – Not used (OPEN) 16 SUB Q I Sub-code Q data serial input 17 RESET – System reset 18 BACK UP I Back up mode input terminal 19 MD/TC I MD/TC select data input terminal 20 A/D GND – A/D converter Ground terminal 21 FCS SW O Focus gain select data output 22 LOAD OUT O Loading motor (M903) load out output 23 LOAD IN O Loading motor (M903) load in output 24 ADJ I CD test mode input “L”: Test mode 25 IN/OUT SW I CD tray loading IN/OUT switch input 26 VERSION I Model select input 27 KEY IN I CD control key input 28 KEY IN I Amplifier control key input 29 A/DVDD – A/D converter power supply (connect to VDD) 30 AVREF – A/D converter refernce voltage input 31 XT1 – Sub system clock (32.768kHz) 32 XT2 – Sub system clock (32.768kHz) 33 GND – Ground 34 X1 – Main system clock (5MHz) 35 X2 – Main system clock (5MHz) 36 STD OUT O Data output to LC72130 37 STD IN I Data input from LC72130 38 ST CLK O Clock output to LC72130 39 ST CE O Latch output to LC72130 40 DATA O Data output to TC9210 (Electrical volume) and BU2092 (Serial/Parallel) 5-7. IC PIN FUNCTION DESCRIPTION DISPLAY Board IC701 µPD78044AGF-102-3B9 (System Control) Pin No. Pin Name I/O Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 39 – 41 CLOCK O Clock output to TC9210 (Electrical volume) and BU2092 (Serial/Parallel) 42 S-P LATCH O Latch output to BU2092 43 VOL LATCH O Latch output to TC9210 44 SCOR I Sub-code sync SO + SI detection input 45 SIRCS I SIRCS code input from remote commander 46 AUB OUT O Audio Bus output 47 AUB IN I Audio Bus input 48 GND – Ground 49 TUNED I FM/AM tuning identification 50 STEREO I FM stereo identification 51 MUTE O Mute output 52 VDD – Power supply (+5 V) 53 PLAY LED O PLAY LED output 54 P24 55 P22 56 P21, 23 57 P20 58 P19 59 P18 60 P17 61 P16 62 P15 O LCD drive 63 P14 64 P13 65 P12 66 P11 67 P10 68 P9 69 P8 70 P7 71 –24V – LCD drive –24 V power supply 72 P6 73 P5 74 P4 O LCD drive 75 P3 76 P2 77 P1 78 PAUSE LED O PAUSE LED output 79 9G O LCD drive 80 8G Pin No. Pin Name I/O Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 40 – NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearrance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of the electrical parts list. • Abbreviation CND : Canadian HK: Hong Kong JE : Tourist MY : Malaysia SP : Singapore (1) FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-4946-207-1 PANEL SUB ASSY, FRONT (US, CND, E, HK, SP, MY, JE) (SILVER) 1 X-4947-698-1 PANEL SUB ASSY, FRONT (HK) (GOLD) 2 3-704-366-61 SCREW (CASE) 3 4-975-343-02 PANEL (AL), FRONT (US, CND, E, HK, SP, MY, JE) (SILVER) 3 4-975-343-11 PANEL (AL), FRONT (HK) (GOLD) 4 4-975-365-01 SCREW (ALUMINUM) 5 4-975-346-01 INDICATOR (PLAY) 6 4-975-345-01 PLATE (WINDOW), INDICATION 7 1-775-731-11 WIRE (FLAT TYPE) (7 CORE) 8 4-951-620-01 SCREW (2.6X8), +BVTP 9 1-775-732-11 WIRE (FLAT TYPE) (13 CORE) 10 4-975-351-01 BUTTON (POWER) (US, CND, E, HK, SP, MY, JE) (SILVER) 10 4-975-351-11 BUTTON (POWER) (HK) (GOLD) 11 4-975-355-01 BUTTON (PLAY) (US, CND, E, HK, SP, MY, JE) (SILVER) 11 4-975-355-11 BUTTON (PLAY) (HK) (GOLD) SECTION 6 EXPLODED VIEWS The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le neméro spécifié. 12 1-775-733-11 WIRE (FLAT TYPE) (15 CORE) 13 4-942-636-21 EMBLEM (NO. 3.5), SONY (US, CND, E, HK, SP, MY, JE) (SILVER) 13 4-942-636-31 EMBLEM (NO. 3.5), SONY (HK) (GOLD) * 15 A-4378-477-A DISPLAY BOARD, COMPLETE (E) * 15 A-4378-886-A DISPLAY BOARD, COMPLETE (D11) * 15 A-4378-911-A DISPLAY BOARD, COMPLETE (T11: HK, SP, MY) * 15 A-4390-139-A DISPLAY BOARD, COMPLETE (US, CND) * 15 A-4392-535-A DISPLAY BOARD, COMPLETE (JE) 16 4-975-358-11 CASE (US, CND, E, HK, SP, MY, JE) (SILVER) 16 4-975-358-51 CASE (HK) (GOLD) 17 4-975-352-01 BUTTON (VOLUME) (US, CND, E, HK, SP, MY, JE) (SILVER) 17 4-975-352-11 BUTTON (VOLUME) (HK) (GOLD) * 18 1-657-286-11 PANEL BOARD (US, CND) * 18 1-659-288-11 PANEL BOARD (EXCEPT US, CND) 19 X-4946-431-1 DOOR ASSY (US, CND, E, HK, SP, MY, JE) (SILVER) 19 X-4947-699-1 DOOR ASSY (HK) (GOLD) 4 13 3 5 6 9 7 15 2 8 12 10 8 11 17 8 8 18 19 1 2 16 #2 #2 not supplied 8 not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 41 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 1-775-172-11 WIRE (FLAT TYPE) (19 CORE) * 52 4-975-356-01 PANEL, LOADING * 53 1-657-289-11 CONNECT BOARD (US, CND) * 53 1-659-290-11 CONNECT BOARD (EXCEPT US, CND) * 54 A-4390-992-A MAIN BOARD, COMPLETE (T11: E, HK, SP, MY) * 54 A-4390-995-A MAIN BOARD, COMPLETE (US, CND) * 54 A-4390-996-A MAIN BOARD, COMPLETE (D11) * 54 A-4392-536-A MAIN BOARD, COMPLETE (JE) 55 4-975-366-01 SHEET (TRANSFORMER) (US, CND) 55 4-979-539-01 SHEET (TRANSFORMER) (EXCEPT US, CND) 56 3-531-576-11 RIVET * 57 A-4390-993-A POWER BOARD, COMPLETE (T11: E, HK, SP, MY, JE) * 57 A-4390-994-A POWER BOARD, COMPLETE (US, CND) * 57 A-4390-997-A POWER BOARD, COMPLETE (D11) !58 1-569-008-11 ADAPTOR, CONVERSION 2P (SP, MY) !59 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK) * 60 4-975-361-11 PANEL (AU BASS), BACK * 61 4-975-359-22 PANEL (MAIN), BACK (T11: E, HK, SP, MY, JE) * 61 4-975-359-32 PANEL (MAIN), BACK (D11) * 61 4-975-359-41 PANEL (MAIN), BACK (US, CND) * 62 4-975-362-01 COVER (BACK PANEL) * 63 3-703-244-00 BUSHING (2104), CORD (HK, SP, MY) * 63 3-703-571-11 BUSHING (S) (4516), CORD (US, CND, E, JE) * 64 1-657-288-11 AU BUS BOARD (US, CND) * 64 1-659-289-11 AU BUS BOARD (EXCEPT US, CND) * 65 1-657-287-11 A.C. BOARD (US, CND) * 65 1-659-292-11 A.C. BOARD (EXCEPT US, CND) * 66 4-975-360-11 PANEL (AC OUTLET), BACK (HK, SP, MY) * 66 4-975-360-21 PANEL (AC OUTLET), BACK (E, JE) * 66 4-975-360-61 PANEL (AC OUTLET), BACK (US, CND) 67 4-965-822-01 FOOT * 68 4-977-364-01 COVER (PIN JACK 2P) 69 4-975-903-01 PLATE (PIN JACK 6P), INDICATION 70 1-775-378-11 CORD (WITH CONNECTOR) (SYSTEM CONTROL)(T11) !CNJ1 1-526-794-11 OUTLET, AC (HK, SP, MY) !CNJ1 1-526-882-00 OUTLET, AC (US, CND, E, JE) !CNP1 1-558-943-71 CORD, POWER (E, JE) !CNP1 1-558-945-21 CORD, POWER (POLAR. SPT-1) (US, CND) !CNP1 1-776-060-11 CORD, POWER (HK, SP, MY) !T1 1-429-096-11 TRANSFORMER, POWER (EXCEPT US, CND) !T1 1-429-549-11 TRANSFORMER, POWER (US, CND) (2) CHASSIS SECTION #3 T1 54 #4 53 52 CD MECHANISM SECTION 51 67 #1 not supplied 67 not supplied HK, SP, MY CNJ1 66 66 CNJ1 64 60 #4 63 61 #4 #4 #3 US, CND CNP1 E, JE CNP1 SP, MY 58 CNP1 CNP1 59 HK #4 #4 #4 #4 70 #1 #1 56 56 55 65 #3 #3 #4 57 68 69 US, CND, E, JE T11 only The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le neméro spécifié. 62 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 42 – (3) CD MECHANISM SECTION-1 (CDM13C-5BD19) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 101 1-634-461-11 LOADING BOARD 102 4-927-654-01 WASHER (LIMITER) 103 3-659-338-00 SPRING, COMPRESSION 104 4-929-764-01 SHAFT (TABLE GUIDE) 105 4-927-620-01 GEAR (P) 106 4-944-006-11 BEARING 107 4-927-628-01 GEAR (C) 108 4-927-649-01 BELT 109 4-929-724-01 PULLEY (B) 110 X-4947-265-1 ARM ASSY, SWING 111 4-944-012-01 TABLE, DISC 112 A-4604-752-A HOLDER (MG) ASSY * 113 4-917-583-21 BRACKET, YOKE * 114 X-4946-208-2 CHASSIS (MD) ASSY 115 4-933-134-01 SCREW (+PTPWH M2.6X6) 116 4-958-593-01 SPRING (BU), COMPRESSION 117 4-929-747-01 HOLDER (BU) 118 4-929-727-01 CAM (A) 119 4-929-729-01 CAM (B) M903 A-4608-362-A MOTOR (L) ASSY (LOADING) 111 #1 #1 112 not supplied #1 #6 108 109 107 105 #1 #7 104 119 118 103 102 #6 M903 101 117 116 not supplied 116 115 115 114 113 #8 106 110 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 43 – (4) CD MECHANISM SECTION-2 (BU-5BD19) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 151 4-951-620-01 SCREW (2.6X8), +BVTP 152 A-4673-402-A BD BOARD, COMPLETE 153 4-917-565-01 SHAFT, SLED 154 4-951-940-01 INSULATOR (BU) !155 8-848-367-11 OPTICAL PICK-UP KSS-213B/K-N 156 1-769-069-11 WIRE (FLAT TYPE) (16 CORE) 157 4-917-567-01 GEAR (M) 158 4-917-564-01 GEAR (P), FLATNESS M101 X-4917-523-4 BASE (OUTSART) ASSY (SPINDLE) M102 X-4917-504-1 MOTOR ASSY (SLED) 155 156 157 154 158 152 M102 M101 (including rA) rA #9 154 153 151 The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le neméro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 44 – NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH • Abbreviation CND : Canadian HK : Hong Kong JE : Tourist MY : Malaysia SP : Singapore Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SECTION 7 ELECTRICAL PARTS LIST * 1-657-287-11 A.C. BOARD (US, CND) * 1-659-292-11 A.C. BOARD (EXCEPT US, CND) ********** 1-533-293-11 FUSE HOLDER * 4-875-455-31 COVER (DIA. 20), CAPACITOR < CAPACITOR > !C1 1-113-916-11 CERAMIC 0.01uF 20% 250V !C1 1-113-925-11 CERAMIC 0.01uF 20% 250V (US, CND) C844 1-164-159-11 CERAMIC 0.1uF 50V C845 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > * CN1 1-580-230-31 PIN, CONNECTOR (PC BOARD) 2P CN2 1-564-321-00 PIN, CONNECTOR 2P CN3 1-764-344-11 PIN, CONNECTOR (PCB) (L TYPE) 7P (EXCEPT US, CND) * CN3 1-564-522-11 PLUG, CONNECTOR 7P (US, CND) < FUSE > !F1 1-532-505-51 FUSE (T5.0AL/250V) (EXCEPT US, CND) < DIODE > D813 8-719-987-63 DIODE 1N4148M < RESISTOR > R899 1-202-725-00 SOLID 3.3M 10% 1/2W (US, CND) < RELAY > !RY1 1-755-018-11 RELAY < SWITCH > !S1 1-572-675-11 SWITCH, POWER VOLTAGE CHANGE (VOLTAGE SELECTOR) (EXCEPT US, CND) < TRANSFORMER > !T1 1-429-096-11 TRANSFORMER, POWER (EXCEPT US, CND) !T1 1-429-549-11 TRANSFORMER, POWER (US,CND) ************************************************************ * 1-657-288-11 AU BUS BOARD (US, CND) * 1-659-289-11 AU BUS BOARD (EXCEPT US, CND) ************* * 1-690-880-31 LEAD (WITH CONNECTOR) < CAPACITOR > C201 1-136-165-00 FILM 0.1uF 5% 50V C202 1-126-965-11 ELECT 22uF 20% 50V < CONNECTOR > * CN202 1-565-561-11 PIN, CONNECTOR 3P (AU BUS) * CN205 1-564-508-11 PLUG, CONNECTOR 5P < FERRITE BEAD > FB201 1-412-473-21 INDUCTOR 0UH FB202 1-412-473-21 INDUCTOR 0UH < IC > IC201 8-749-921-12 IC GP1F32T (DIGITAL OUT) < COIL > L201 1-410-322-11 INDUCTOR 3.3uH < RESISTOR > R203 1-249-433-11 CARBON 22K 5% 1/4W ************************************************************ A-4673-402-A BD BOARD, COMPLETE ******************* < CAPACITOR > C101 1-126-607-11 ELECT CHIP 47uF 20% 4V C102 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C103 1-164-346-11 CERAMIC CHIP 1uF 16V C105 1-163-038-00 CERAMIC CHIP 0.1uF 25V C106 1-164-695-11 CERAMIC CHIP 0.0022uF 5% 50V The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le neméro spécifié. When indicating parts by reference number, please include the board. A.C. AU BUS BD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 45 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C107 1-164-695-11 CERAMIC CHIP 0.0022uF 5% 50V C108 1-164-232-11 CERAMIC CHIP 0.01uF 50V C109 1-164-232-11 CERAMIC CHIP 0.01uF 50V C110 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V C111 1-163-038-00 CERAMIC CHIP 0.1uF 25V C112 1-163-038-00 CERAMIC CHIP 0.1uF 25V C113 1-164-695-11 CERAMIC CHIP 0.0022uF 5% 50V C114 1-164-005-11 CERAMIC CHIP 0.47uF 25V C115 1-126-607-11 ELECT CHIP 47uF 20% 4V C116 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V C117 1-164-005-11 CERAMIC CHIP 0.47uF 25V C118 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C119 1-163-038-00 CERAMIC CHIP 0.1uF 25V C120 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C121 1-163-038-00 CERAMIC CHIP 0.1uF 25V C122 1-164-232-11 CERAMIC CHIP 0.01uF 50V C123 1-163-038-00 CERAMIC CHIP 0.1uF 25V C124 1-126-607-11 ELECT CHIP 47uF 20% 4V C125 1-164-232-11 CERAMIC CHIP 0.01uF 50V C126 1-163-038-00 CERAMIC CHIP 0.1uF 25V C127 1-164-695-11 CERAMIC CHIP 0.0022uF 5% 50V C128 1-163-135-00 CERAMIC CHIP 560PF 5% 50V C129 1-163-038-00 CERAMIC CHIP 0.1uF 25V C130 1-164-336-11 CERAMIC CHIP 0.33uF 25V C131 1-163-038-00 CERAMIC CHIP 0.1uF 25V C132 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C133 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V C134 1-164-346-11 CERAMIC CHIP 1uF 16V C135 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C136 1-164-005-11 CERAMIC CHIP 0.47uF 25V C137 1-164-232-11 CERAMIC CHIP 0.01uF 50V C139 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C140 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C141 1-163-038-00 CERAMIC CHIP 0.1uF 25V C142 1-163-038-00 CERAMIC CHIP 0.1uF 25V C145 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C146 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C147 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C148 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C149 1-164-346-11 CERAMIC CHIP 1uF 16V C153 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C154 1-163-235-11 CERAMIC CHIP 22PF 5% 50V < CONNECTOR > CNU101 1-770-014-11 CONNECTOR, FFC/FPC 16P CNU102 1-770-013-11 CONNECTOR, FFC/FPC 19P < IC > IC101 8-752-069-56 IC CXA1782BQ IC102 8-759-291-06 IC BA6397FP IC103 8-752-372-94 IC CXD2507AQ IC104 8-759-185-29 IC PCM1710U-B < TRANSISTOR > Q101 8-729-010-08 TRANSISTOR MSB710-R Q102 8-729-424-08 TRANSISTOR UN2111 Q103 8-729-421-22 TRANSISTOR UN2211 < RESISTOR > R102 1-216-001-00 METAL CHIP 10 5% 1/10W R103 1-216-049-00 METAL GLAZE 1K 5% 1/10W R104 1-216-097-00 METAL GLAZE 100K 5% 1/10W R105 1-216-093-00 METAL CHIP 68K 5% 1/10W R106 1-216-093-00 METAL CHIP 68K 5% 1/10W R107 1-216-093-00 METAL CHIP 68K 5% 1/10W R108 1-216-093-00 METAL CHIP 68K 5% 1/10W R109 1-216-097-00 METAL GLAZE 100K 5% 1/10W R112 1-216-083-00 METAL CHIP 27K 5% 1/10W R113 1-216-083-00 METAL CHIP 27K 5% 1/10W R114 1-216-101-00 METAL CHIP 150K 5% 1/10W R115 1-216-101-00 METAL CHIP 150K 5% 1/10W R116 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R117 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R118 1-216-049-00 METAL GLAZE 1K 5% 1/10W R119 1-216-089-00 METAL GLAZE 47K 5% 1/10W R120 1-216-089-00 METAL GLAZE 47K 5% 1/10W R121 1-216-114-00 METAL GLAZE 510K 5% 1/10W R122 1-216-097-00 METAL GLAZE 100K 5% 1/10W R123 1-216-099-00 METAL CHIP 120K 5% 1/10W R124 1-216-091-00 METAL CHIP 56K 5% 1/10W R125 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R126 1-216-063-00 METAL GLAZE 3.9K 5% 1/10W R127 1-216-089-00 METAL GLAZE 47K 5% 1/10W R128 1-216-105-00 METAL GLAZE 220K 5% 1/10W R129 1-216-049-00 METAL GLAZE 1K 5% 1/10W R130 1-216-079-00 METAL CHIP 18K 5% 1/10W R131 1-216-079-00 METAL CHIP 18K 5% 1/10W R132 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R133 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R134 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R135 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R136 1-216-073-00 METAL CHIP 10K 5% 1/10W R137 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R138 1-216-049-00 METAL GLAZE 1K 5% 1/10W R139 1-216-033-00 METAL CHIP 220 5% 1/10W BD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 46 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark BD R140 1-216-081-00 METAL CHIP 22K 5% 1/10W R141 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R142 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R143 1-216-121-00 METAL GLAZE 1M 5% 1/10W R144 1-216-073-00 METAL CHIP 10K 5% 1/10W R145 1-216-097-00 METAL GLAZE 100K 5% 1/10W R146 1-216-097-00 METAL GLAZE 100K 5% 1/10W R147 1-216-049-00 METAL GLAZE 1K 5% 1/10W R148 1-216-049-00 METAL GLAZE 1K 5% 1/10W R149 1-216-049-00 METAL GLAZE 1K 5% 1/10W R150 1-216-037-00 METAL CHIP 330 5% 1/10W R151 1-216-037-00 METAL CHIP 330 5% 1/10W R152 1-216-037-00 METAL CHIP 330 5% 1/10W R153 1-216-082-00 METAL GLAZE 24K 5% 1/10W R154 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R156 1-216-085-00 METAL CHIP 33K 5% 1/10W R157 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R158 1-216-001-00 METAL CHIP 10 5% 1/10W < VARIABLE RESISTOR > RV101 1-223-587-11 RES, ADJ, CARBON 22K RV102 1-223-587-11 RES, ADJ, CARBON 22K RV103 1-223-587-11 RES, ADJ, CARBON 22K < SWITCH > S101 1-572-085-11 SWITCH, LEAF (LIMIT SW) < VIBRATOR > X101 1-579-280-11 VIBRATOR, CRYSTAL (16.9344MHz) ************************************************************ * 1-657-289-11 CONNECT BOARD (US, CND) * 1-659-290-11 CONNECT BOARD (EXCEPT US, CND) ************** < CONNECTOR > CN507 1-750-189-11 CONNECTOR, BOARD TO BOARD 16P CN508 1-695-094-11 SOCKET, CONNECTOR 11P CN509 1-750-179-11 SOCKET, CONNECTOR 5P ************************************************************ * A-4378-477-A DISPLAY BOARD, COMPLETE (E) * A-4378-886-A DISPLAY BOARD, COMPLETE (D11) * A-4378-911-A DISPLAY BOARD, COMPLETE (T11:SP, MY, HK) * A-4390-139-A DISPLAY BOARD, COMPLETE (US, CND) * A-4392-535-A DISPLAY BOARD, COMPLETE (JE) ************************ 1-690-880-51 LEAD (WITH CONNECTOR) * 4-932-810-11 CUSHION (FL) * 4-975-363-01 HOLDER (FL TUBE) < CAPACITOR > C701 1-126-916-11 ELECT 1000uF 20% 6.3V C702 1-162-306-11 CERAMIC 0.01uF 30% 16V C703 1-164-159-11 CERAMIC 0.1uF 50V C704 1-164-159-11 CERAMIC 0.1uF 50V C705 1-161-494-00 CERAMIC 0.022uF 25V C706 1-124-907-11 ELECT 10uF 20% 50V C707 1-102-953-00 CERAMIC 18PF 5% 50V C708 1-102-514-11 CERAMIC 22PF 5% 50V C709 1-124-903-11 ELECT 1uF 20% 50V C710 1-124-903-11 ELECT 1uF 20% 50V C714 1-164-159-11 CERAMIC 0.1uF 50V C715 1-164-159-11 CERAMIC 0.1uF 50V C750 1-162-290-31 CERAMIC 470PF 10% 50V < CONNECTOR > * CN701 1-568-834-11 SOCKET, CONNECTOR 15P * CN702 1-568-954-11 PIN, CONNECTOR 5P * CN703 1-568-832-11 SOCKET, CONNECTOR 13P * CN704 1-568-826-11 SOCKET, CONNECTOR 7P < CONPOSITION CIRCUIT BLOCK > CP701 1-233-699-11 COMPOSITION CIRCUIT BLOCK 100K X 6 CP702 1-233-568-11 COMPOSITION CIRCUIT BLOCK 100K X 11 < DIODE > D701 8-719-200-82 DIODE 11ES2 D702 8-719-987-63 DIODE 1N4148M D703 8-719-987-63 DIODE 1N4148M D704 8-719-987-63 DIODE 1N4148M D705 8-719-052-21 LED SEL58420C-TH8C (^) D706 8-719-987-63 DIODE 1N4148M < FLUORESCENT INDICATOR TUBE> FL701 1-517-441-11 INDICATOR TUBE, FLUORESCENT < IC > IC701 8-759-436-62 IC uPD78044AGF-204-3B9 < COIL > L701 1-410-521-11 INDUCTOR 100uH < TRANSISTOR > Q701 8-729-422-73 TRANSISTOR UN4212 Q702 8-729-620-05 TRANSISTOR 2SC2603-EF CONNECT DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 47 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark LOADING MAIN < RESISTOR > R701 1-249-413-11 CARBON 470 5% 1/4W R702 1-249-413-11 CARBON 470 5% 1/4W R703 1-249-417-11 CARBON 1K 5% 1/4W R704 1-249-417-11 CARBON 1K 5% 1/4W R705 1-249-417-11 CARBON 1K 5% 1/4W R706 1-249-417-11 CARBON 1K 5% 1/4W R707 1-249-417-11 CARBON 1K 5% 1/4W R708 1-249-417-11 CARBON 1K 5% 1/4W R709 1-249-437-11 CARBON 47K 5% 1/4W (T11) R710 1-249-437-11 CARBON 47K 5% 1/4W (D11) R711 1-249-417-11 CARBON 1K 5% 1/4W R712 1-249-417-11 CARBON 1K 5% 1/4W R713 1-249-417-11 CARBON 1K 5% 1/4W R714 1-249-409-11 CARBON 220 5% 1/4W R715 1-249-437-11 CARBON 47K 5% 1/4W R716 1-249-433-11 CARBON 22K 5% 1/4W R717 1-249-413-11 CARBON 470 5% 1/4W R718 1-247-843-11 CARBON 3.3K 5% 1/4W R719 1-249-425-11 CARBON 4.7K 5% 1/4W (SP, MY, HK) R719 1-249-421-11 CARBON 2.2K 5% 1/4W (E, JE) R720 1-249-431-11 CARBON 15K 5% 1/4W (SP, MY, E, HK) R720 1-247-844-11 CARBON 3.6K 5% 1/4W (JE) R720 1-249-429-11 CNDRBON 10K 5% 1/4W (US, CND) R721 1-247-843-11 CARBON 3.3K 5% 1/4W R722 1-249-413-11 CARBON 470 5% 1/4W R723 1-249-415-11 CARBON 680 5% 1/4W R724 1-249-417-11 CARBON 1K 5% 1/4W R725 1-249-419-11 CARBON 1.5K 5% 1/4W R726 1-249-421-11 CARBON 2.2K 5% 1/4W R727 1-249-409-11 CARBON 220 5% 1/4W R728 1-249-417-11 CARBON 1K 5% 1/4W R729 1-249-417-11 CARBON 1K 5% 1/4W R730 1-249-417-11 CARBON 1K 5% 1/4W R731 1-249-409-11 CARBON 220 5% 1/4W R732 1-249-429-11 CARBON 10K 5% 1/4W R733 1-249-409-11 CARBON 220 5% 1/4W R734 1-249-417-11 CARBON 1K 5% 1/4W R735 1-249-417-11 CARBON 1K 5% 1/4W R736 1-249-417-11 CARBON 1K 5% 1/4W R737 1-249-409-11 CARBON 220 5% 1/4W R738 1-249-425-11 CARBON 4.7K 5% 1/4W R739 1-249-417-11 CARBON 1K 5% 1/4W R740 1-249-417-11 CARBON 1K 5% 1/4W R741 1-249-409-11 CARBON 220 5% 1/4W R742 1-249-437-11 CARBON 47K 5% 1/4W R743 1-247-807-31 CARBON 100 5% 1/4W R744 1-249-401-11 CARBON 47 5% 1/4W R749 1-249-421-11 CARBON 2.2K 5% 1/4W R750 1-247-891-00 CARBON 330K 5% 1/4W R751 1-249-429-11 CARBON 10K 5% 1/4W < SWITCH > S701 1-554-303-21 SWITCH, TACTILE (BAND) S702 1-554-303-21 SWITCH, TACTILE ()+ TUNING +) S703 1-554-303-21 SWITCH, TACTILE (6) S704 1-554-303-21 SWITCH, TACTILE (=0 TUNING -) S705 1-554-303-21 SWITCH, TACTILE (p) S706 1-554-303-21 SWITCH, TACTILE (^) < VIBRATOR > X701 1-579-233-11 VIBRATOR, CERAMIC (5MHz) X702 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) ************************************************************ * 1-634-461-11 LOADING BOARD ************** < CONNECTOR > * CN291 1-564-498-11 PIN, CONNECTOR 5P < SWITCH > S291 1-571-924-11 SWITCH, LEAF (LOAD OUT) S292 1-571-924-11 SWITCH, LEAF (LOAD IN) ************************************************************ * A-4390-992-A MAIN BOARD, COMPLETE (T11: SP, MY, E, HK) * A-4390-995-A MAIN BOARD, COMPLETE (US,CND) * A-4390-996-A MAIN BOARD, COMPLETE (D11) * A-4392-536-A MAIN BOARD, COMPLETE (JE) ********************** < CAPACITOR > C102 1-126-965-11 ELECT 22uF 20% 50V C104 1-124-257-00 ELECT 2.2uF 20% 50V C108 1-162-303-11 CERAMIC 0.0033uF 20% 16V C109 1-126-965-11 ELECT 22uF 20% 50V C110 1-162-306-11 CERAMIC 0.01uF 30% 16V C111 1-124-120-11 ELECT 220uF 20% 25V C112 1-162-306-11 CERAMIC 0.01uF 30% 16V C113 1-124-907-11 ELECT 10uF 20% 50V C114 1-162-306-11 CERAMIC 0.01uF 30% 16V C152 1-126-965-11 ELECT 22uF 20% 50V DISPLAY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 48 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C154 1-124-257-00 ELECT 2.2uF 20% 50V C158 1-162-303-11 CERAMIC 0.0033uF 20% 16V C159 1-126-965-11 ELECT 22uF 20% 50V C302 1-124-907-11 ELECT 10uF 20% 50V C303 1-124-465-00 ELECT 0.47uF 20% 50V C304 1-124-234-00 ELECT 22uF 20% 16V C305 1-137-370-11 FILM 0.01uF 5% 50V (EXCEPT US, CND) C305 1-164-159-11 CERAMIC 0.1uF 50V (US, CND) C306 1-126-965-11 ELECT 22uF 20% 50V C307 1-126-965-11 ELECT 22uF 20% 50V C308 1-128-197-11 ELECT 10uF 20% 50V C309 1-136-171-00 FILM 0.33uF 5% 50V C310 1-137-374-11 FILM 0.047uF 5% 50V C311 1-124-234-00 ELECT 22uF 20% 16V C312 1-126-965-11 ELECT 22uF 20% 50V (EXCEPT US, CND) C312 1-102-114-00 CERAMIC 470PF 10% 50V (US, CND) C313 1-124-465-00 ELECT 0.47uF 20% 50V C314 1-162-207-31 CERAMIC 22PF 5% 50V C350 1-162-290-31 CERAMIC 470PF 10% 50V C352 1-124-907-11 ELECT 10uF 20% 50V C353 1-124-465-00 ELECT 0.47uF 20% 50V C354 1-124-234-00 ELECT 22uF 20% 16V C355 1-137-370-11 FILM 0.01uF 5% 50V (EXCEPT US, CND) C355 1-164-159-11 CERAMIC 0.1uF 50V (US, CND) C356 1-126-965-11 ELECT 22uF 20% 50V C357 1-126-965-11 ELECT 22uF 20% 50V C358 1-128-197-11 ELECT 10uF 20% 50V C359 1-136-171-00 FILM 0.33uF 5% 50V C360 1-137-374-11 FILM 0.047uF 5% 50V C361 1-124-234-00 ELECT 22uF 20% 16V C362 1-126-965-11 ELECT 22uF 20% 50V (EXCEPT US, CND) C362 1-102-114-00 CERAMIC 470PF 10% 50V (US, CND) C363 1-124-465-00 ELECT 0.47uF 20% 50V C364 1-162-207-31 CERAMIC 22PF 5% 50V C401 1-128-197-11 ELECT 10uF 20% 50V C402 1-126-963-11 ELECT 4.7uF 20% 50V C404 1-126-049-11 ELECT 22uF 20% 50V C405 1-124-907-11 ELECT 10uF 20% 50V C406 1-126-963-11 ELECT 4.7uF 20% 50V C451 1-128-197-11 ELECT 10uF 20% 50V C452 1-126-963-11 ELECT 4.7uF 20% 50V C454 1-126-049-11 ELECT 22uF 20% 50V C455 1-124-907-11 ELECT 10uF 20% 50V C456 1-126-963-11 ELECT 4.7uF 20% 50V C501 1-162-306-11 CERAMIC 0.01uF 30% 16V C549 1-162-306-11 CERAMIC 0.01uF 30% 16V C550 1-162-294-31 CERAMIC 0.001uF 10% 50V < CONNECTOR > * CN101 1-568-934-11 PIN, CONNECTOR 7P (T11) CN102 1-506-468-11 PIN, CONNECTOR 3P * CN401 1-568-942-11 PIN, CONNECTOR 4P * CN501 1-568-856-11 SOCKET, CONNECTOR 13P CN502 1-750-198-11 CONNECTOR, BOARD TO BOARD 16P < DIODE > D101 8-719-987-63 DIODE 1N4148M D301 8-719-987-63 DIODE 1N4148M D302 8-719-987-63 DIODE 1N4148M D303 8-719-987-63 DIODE 1N4148M D304 8-719-987-63 DIODE 1N4148M D305 8-719-933-33 DIODE HZS6A1L D306 8-719-933-33 DIODE HZS6A1L < FERRITE BEAD > FB91 1-412-473-21 INDUCTOR 0UH (US, CND) FB95 1-412-473-21 INDUCTOR 0UH (US, CND) < IC > IC101 8-759-009-06 IC MC14052BF IC102 8-759-008-67 IC MC14066BF IC301 8-759-009-06 IC MC14052BF IC302 8-759-281-42 IC TC9210P IC303 8-759-009-06 IC MC14052BF IC304 8-759-634-51 IC M5218AP IC305 8-759-009-06 IC MC14052BF IC306 8-759-634-51 IC M5218AP IC401 8-759-710-59 IC NJM4580D-D IC402 8-759-710-59 IC NJM4580D-D IC501 8-759-267-27 IC BU2092F < JACK > J101 1-770-890-11 JACK, PIN 6P (MD IN/OUT , OUTPUT) (EXCEPT US, CND) J101 1-770-890-11 JACK, PIN 6P (PC/MD IN/OUT ,OUTPUT) (US, CND) < TRANSISTOR > Q101 8-729-141-30 TRANSISTOR 2SC3623A-LK Q102 8-729-422-57 TRANSISTOR UN4111 Q103 8-729-422-57 TRANSISTOR UN4111 Q105 8-729-900-80 TRANSISTOR DTC114ES Q151 8-729-141-30 TRANSISTOR 2SC3623A-LK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 49 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN Q301 8-729-141-30 TRANSISTOR 2SC3623A-LK Q302 8-729-119-76 TRANSISTOR 2SA1175-HFE Q303 8-729-620-05 TRANSISTOR 2SC2603-EF Q304 8-729-141-30 TRANSISTOR 2SC3623A-LK Q351 8-729-141-30 TRANSISTOR 2SC3623A-LK Q352 8-729-620-05 TRANSISTOR 2SC2603-EF Q354 8-729-141-30 TRANSISTOR 2SC3623A-LK < RESISTOR > R101 1-249-425-11 CARBON 4.7K 5% 1/4W R102 1-249-426-11 CARBON 5.6K 5% 1/4W R103 1-249-413-11 CARBON 470 5% 1/4W R105 1-249-417-11 CARBON 1K 5% 1/4W R106 1-249-417-11 CARBON 1K 5% 1/4W R108 1-249-427-11 CARBON 6.8K 5% 1/4W R109 1-249-433-11 CARBON 22K 5% 1/4W R110 1-249-433-11 CARBON 22K 5% 1/4W R112 1-249-417-11 CARBON 1K 5% 1/4W R113 1-249-433-11 CARBON 22K 5% 1/4W R114 1-249-425-11 CARBON 4.7K 5% 1/4W R115 1-247-895-00 CARBON 470K 5% 1/4W R116 1-247-843-11 CARBON 3.3K 5% 1/4W (T11) R117 1-249-417-11 CARBON 1K 5% 1/4W (T11) R118 1-249-417-11 CARBON 1K 5% 1/4W (T11) R119 1-249-417-11 CARBON 1K 5% 1/4W R120 1-249-425-11 CARBON 4.7K 5% 1/4W R121 1-249-421-11 CARBON 2.2K 5% 1/4W R122 1-249-429-11 CARBON 10K 5% 1/4W !R123 1-212-857-00 FUSIBLE 10 5% 1/4W F !R124 1-212-873-11 FUSIBLE 47 5% 1/4W F R151 1-249-425-11 CARBON 4.7K 5% 1/4W R152 1-249-426-11 CARBON 5.6K 5% 1/4W R153 1-249-413-11 CARBON 470 5% 1/4W R155 1-249-417-11 CARBON 1K 5% 1/4W R156 1-249-417-11 CARBON 1K 5% 1/4W R158 1-249-427-11 CARBON 6.8K 5% 1/4W R166 1-247-843-11 CARBON 3.3K 5% 1/4W (T11) R167 1-249-417-11 CARBON 1K 5% 1/4W (T11) R168 1-249-417-11 CARBON 1K 5% 1/4W (T11) R169 1-249-417-11 CARBON 1K 5% 1/4W R170 1-249-425-11 CARBON 4.7K 5% 1/4W R301 1-249-433-11 CARBON 22K 5% 1/4W R302 1-247-887-00 CARBON 220K 5% 1/4W R303 1-249-425-11 CARBON 4.7K 5% 1/4W R304 1-249-413-11 CARBON 470 5% 1/4W R305 1-249-433-11 CARBON 22K 5% 1/4W R306 1-249-425-11 CARBON 4.7K 5% 1/4W R307 1-247-895-00 CARBON 470K 5% 1/4W R308 1-249-433-11 CARBON 22K 5% 1/4W R309 1-249-433-11 CARBON 22K 5% 1/4W R310 1-247-807-31 CARBON 100 5% 1/4W R311 1-247-887-00 CARBON 220K 5% 1/4W R312 1-249-433-11 CARBON 22K 5% 1/4W R313 1-249-433-11 CARBON 22K 5% 1/4W R314 1-249-417-11 CARBON 1K 5% 1/4W R315 1-249-413-11 CARBON 470 5% 1/4W R316 1-249-432-11 CARBON 18K 5% 1/4W R317 1-249-435-11 CARBON 33K 5% 1/4W R319 1-247-887-00 CARBON 220K 5% 1/4W R320 1-249-433-11 CARBON 22K 5% 1/4W R321 1-249-433-11 CARBON 22K 5% 1/4W R322 1-249-417-11 CARBON 1K 5% 1/4W R323 1-249-429-11 CARBON 10K 5% 1/4W R324 1-249-425-11 CARBON 4.7K 5% 1/4W R325 1-249-417-11 CARBON 1K 5% 1/4W R326 1-249-412-11 CARBON 390 5% 1/4W R327 1-247-895-00 CARBON 470K 5% 1/4W R328 1-249-427-11 CARBON 6.8K 5% 1/4W R329 1-249-421-11 CARBON 2.2K 5% 1/4W R352 1-247-887-00 CARBON 220K 5% 1/4W R353 1-249-425-11 CARBON 4.7K 5% 1/4W R354 1-249-413-11 CARBON 470 5% 1/4W R361 1-247-887-00 CARBON 220K 5% 1/4W R364 1-249-417-11 CARBON 1K 5% 1/4W R365 1-249-413-11 CARBON 470 5% 1/4W R369 1-247-887-00 CARBON 220K 5% 1/4W R372 1-249-417-11 CARBON 1K 5% 1/4W R373 1-249-429-11 CARBON 10K 5% 1/4W R374 1-249-425-11 CARBON 4.7K 5% 1/4W R375 1-249-417-11 CARBON 1K 5% 1/4W R376 1-249-412-11 CARBON 390 5% 1/4W R377 1-247-895-00 CARBON 470K 5% 1/4W R378 1-249-427-11 CARBON 6.8K 5% 1/4W R379 1-249-421-11 CARBON 2.2K 5% 1/4W R401 1-249-433-11 CARBON 22K 5% 1/4W R402 1-249-417-11 CARBON 1K 5% 1/4W R403 1-249-425-11 CARBON 4.7K 5% 1/4W R404 1-249-433-11 CARBON 22K 5% 1/4W R405 1-247-887-00 CARBON 220K 5% 1/4W R407 1-249-433-11 CARBON 22K 5% 1/4W R408 1-249-417-11 CARBON 1K 5% 1/4W R409 1-249-425-11 CARBON 4.7K 5% 1/4W R410 1-249-436-11 CARBON 39K 5% 1/4W R411 1-249-403-11 CARBON 68 5% 1/4W R451 1-249-433-11 CARBON 22K 5% 1/4W R452 1-249-417-11 CARBON 1K 5% 1/4W R453 1-249-425-11 CARBON 4.7K 5% 1/4W R454 1-249-433-11 CARBON 22K 5% 1/4W The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le neméro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 50 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R455 1-247-887-00 CARBON 220K 5% 1/4W R457 1-249-433-11 CARBON 22K 5% 1/4W R458 1-249-417-11 CARBON 1K 5% 1/4W R459 1-249-425-11 CARBON 4.7K 5% 1/4W R460 1-249-436-11 CARBON 39K 5% 1/4W R461 1-249-403-11 CARBON 68 5% 1/4W R501 1-247-807-31 CARBON 100 5% 1/4W R502 1-247-807-31 CARBON 100 5% 1/4W R503 1-247-807-31 CARBON 100 5% 1/4W < TUNER UNIT > TB101 1-233-377-11 ENCAPSULATED COMPONENT (SP, MY, E, HK) TB101 1-233-376-11 ENCAPSULATED COMPONENT (JE) TB101 1-693-333-11 TUNER (FCC) (US, CND) < TERMINAL > TM101 1-537-238-21 TERMINAL BOARD (ANTENNA) ************************************************************ * 1-657-286-11 PANEL BOARD (US, CND) * 1-659-288-11 PANEL BOARD (EXCEPT US, CND) ************ < CAPACITOR > C449 1-162-303-11 CERAMIC 0.0033uF 20% 16V (US, CND) C450 1-164-159-11 CERAMIC 0.1uF 50V C499 1-162-303-11 CERAMIC 0.0033uF 20% 16V (US, CND) C711 1-164-159-11 CERAMIC 0.1uF 50V C712 1-104-396-11 ELECT 10uF 20% 16V < IC > IC702 8-749-922-36 IC GP1U50XB < JACK > J401 1-764-106-11 JACK (PHONES) < RESISTOR > R745 1-249-413-11 CARBON 470 5% 1/4W R746 1-247-843-11 CARBON 3.3K 5% 1/4W R747 1-249-415-11 CARBON 680 5% 1/4W R748 1-249-417-11 CARBON 1K 5% 1/4W < SWITCH > S707 1-554-303-21 SWITCH, TACTILE (POWER) S708 1-554-303-21 SWITCH, TACTILE (FUNCTION) S709 1-554-303-21 SWITCH, TACTILE (VOL -) S710 1-554-303-21 SWITCH, TACTILE (VOL +) ************************************************************ * A-4390-993-A POWER BOARD, COMPLETE (T11:SP, MY, E, JE, HK) * A-4390-994-A POWER BOARD, COMPLETE (US, CND) * A-4390-997-A POWER BOARD, COMPLETE (D11) *********************** 1-537-771-21 TERMINAL BOARD, GROUND * 3-309-144-21 HEAT SINK * 4-035-555-01 HEAT SINK (EXCEPT US, CND) 7-685-871-01 SCREW +BVTT 3X6 (S) < CAPACITOR > C245 1-164-159-11 CERAMIC 0.1uF 50V (T11) C246 1-164-159-11 CERAMIC 0.1uF 50V (T11) C247 1-164-159-11 CERAMIC 0.1uF 50V (T11) C248 1-162-282-31 CERAMIC 100PF 10% 50V (T11) C249 1-162-282-31 CERAMIC 100PF 10% 50V (T11) C298 1-162-282-31 CERAMIC 100PF 10% 50V (T11) C299 1-162-282-31 CERAMIC 100PF 10% 50V (T11) C548 1-164-159-11 CERAMIC 0.1uF 50V C801 1-130-491-00 MYLAR 0.047uF 5% 50V C802 1-130-491-00 MYLAR 0.047uF 5% 50V C803 1-126-029-11 ELECT 3300uF 20% 25V (EXCEPT US, CND) C803 1-124-523-11 ELECT 4700uF 20% 16V (US, CND) C804 1-126-029-11 ELECT 3300uF 20% 25V (EXCEPT US, CND) C804 1-124-563-11 ELECT 2200uF 20% 25V (US, CND) C805 1-126-024-11 ELECT 220uF 20% 16V C806 1-126-024-11 ELECT 220uF 20% 16V C807 1-126-022-11 ELECT 47uF 20% 10V C808 1-126-023-11 ELECT 100uF 20% 25V C809 1-126-023-11 ELECT 100uF 20% 25V C810 1-124-122-11 ELECT 100uF 20% 50V C811 1-124-122-11 ELECT 100uF 20% 50V C812 1-126-970-11 ELECT 330uF 20% 50V C813 1-124-913-11 ELECT 470uF 20% 50V C814 1-104-664-11 ELECT 47uF 20% 25V MAIN PANEL POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 51 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C815 1-162-306-11 CERAMIC 0.01uF 30% 16V C816 1-126-933-11 ELECT 100uF 20% 16V C817 1-162-306-11 CERAMIC 0.01uF 30% 16V C818 1-124-572-11 ELECT 100uF 20% 63V C819 1-124-910-11 ELECT 47uF 20% 50V C820 1-162-306-11 CERAMIC 0.01uF 30% 16V C821 1-124-910-11 ELECT 47uF 20% 50V C822 1-126-942-61 ELECT 1000uF 20% 25V (EXCEPT US, CND) C822 1-124-907-11 ELECT 10uF 20% 50V (US, CND) C823 1-124-463-00 ELECT 0.1uF 20% 50V C824 1-136-165-00 FILM 0.1uF 5% 50V C825 1-126-916-11 ELECT 1000uF 20% 6.3V (EXCEPT US, CND) C825 1-104-666-11 ELECT 220uF 20% 6.3V (US, CND) C826 1-136-165-00 FILM 0.1uF 5% 50V C827 1-126-942-61 ELECT 1000uF 20% 25V (EXCEPT US, CND) C827 1-124-907-11 ELECT 10uF 20% 50V (US, CND) C828 1-104-664-11 ELECT 47uF 20% 16V C829 1-126-103-11 ELECT 470uF 20% 16V C830 1-126-024-11 ELECT 220uF 20% 25V (EXCEPT US, CND) C830 1-126-059-11 ELECT 10uF 20% 50V (US, CND) C831 1-126-163-11 ELECT 4.7uF 20% 50V C832 1-110-495-11 ELECT 220uF 20% 25V C833 1-161-494-00 CERAMIC 0.022uF 25V C834 1-162-306-11 CERAMIC 0.01uF 30% 16V C835 1-136-161-00 FILM 0.047uF 5% 50V (T11) C836 1-136-161-00 FILM 0.047uF 5% 50V (T11) C837 1-164-159-11 CERAMIC 0.1uF 50V C839 1-126-925-11 ELECT 470uF 20% 10V (EXCEPT US, CND) C839 1-124-443-00 ELECT 100uF 20% 10V (US, CND) C841 1-164-159-11 CERAMIC 0.1uF 50V C842 1-164-159-11 CERAMIC 0.1uF 50V C846 1-164-159-11 CERAMIC 0.1uF 50V C847 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT US, CND) C847 1-162-600-11 CERAMIC 0.0047uF 30% 16V (US, CND) C849 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT US, CND) C849 1-162-600-11 CERAMIC 0.0047uF 30% 16V (US, CND) C850 1-164-159-11 CERAMIC 0.1uF 50V (EXCEPT US, CND) C851 1-164-159-11 CERAMIC 0.1uF 50V C894 1-162-600-11 CERAMIC 0.0047uF 30% 16V (US, CND) C895 1-102-106-00 CERAMIC 100PF 10% 50V (US, CND) < CONNECTOR > CN201 1-774-280-11 PIN, CONNECTOR 13P (SYSTEM CONTROL)(T11) * CN203 1-568-934-11 PIN, CONNECTOR 7P (T11) CN204 1-506-468-11 PIN, CONNECTOR 3P CN206 1-764-328-11 PIN, CONNECTOR (PCB) (V TYPE) 5P (EXCEPT US, CND) * CN206 1-564-508-11 PLUG, CONNECTOR 5P (US, CND) CN503 1-695-089-11 PIN, CONNECTOR (PC BOARD) 11P * CN504 1-568-826-11 SOCKET, CONNECTOR 7P CN505 1-569-932-11 SOCKET, CONNECTOR 15P CN506 1-750-180-11 PIN, CONNECTOR (PC BOARD) 5P CN801 1-764-330-11 PIN, CONNECTOR (PCB) (V TYPE) 7P (EXCEPT US, CND) CN801 1-564-510-11 PLUG, CONNECTOR 7P (US, CND) CN803 1-770-167-11 CONNECTOR, FFC/FPC 19P CP801 1-233-655-11 CIRCUIT BLOCK, COMPOSITION 100Px2 (US, CND) < DIODE > D501 8-719-000-60 DIODE UZL-6M2 D801 8-719-200-02 DIODE 10E2 D802 8-719-200-02 DIODE 10E2 D803 8-719-200-02 DIODE 10E2 D804 8-719-200-02 DIODE 10E2 D805 8-719-933-33 DIODE HZS6A1L D806 8-719-200-82 DIODE 11ES2 D807 8-719-200-82 DIODE 11ES2 D808 8-719-200-82 DIODE 11ES2 D809 8-719-200-82 DIODE 11ES2 D810 8-719-200-82 DIODE 11ES2 D811 8-719-200-82 DIODE 11ES2 D812 8-719-001-79 DIODE UZL-12H1-TP D814 8-719-200-82 DIODE 11ES2 D815 8-719-200-82 DIODE 11ES2 D816 8-719-200-82 DIODE 11ES2 D817 8-719-934-13 DIODE HZS24-1L D818 8-719-933-33 DIODE HZS6A1L D819 8-719-933-57 DIODE HZS9B2L D820 8-719-000-75 DIODE UZL-7L1 D821 8-719-010-33 DIODE UZ-4.7BSB D822 8-719-200-82 DIODE 11ES2 POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 52 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D823 8-719-987-63 DIODE 1N4148M D824 8-719-200-82 DIODE 11ES2 (EXCEPT US, CND) D825 8-719-200-82 DIODE 11ES2 (EXCEPT US, CND) D826 8-719-200-82 DIODE 11ES2 D827 8-719-200-82 DIODE 11ES2 D828 8-719-200-82 DIODE 11ES2 D829 8-719-000-60 DIODE UZL-6M2 D830 8-719-000-60 DIODE UZL-6M2 D831 8-719-000-60 DIODE UZL-6M2 < FUSE > !F801 1-532-464-51 FUSE (T2.5AL/250V) (EXCEPT US, CND) !F802 1-532-464-51 FUSE (T2.5AL/250V) (EXCEPT US, CND) !F801 1-576-105-11 FUSE (2.5A/250V) (US,CND) !F802 1-576-105-11 FUSE (2.5A/250V) (US,CND) < FERRITE BEAD > FB9 1-412-473-21 INDUCTOR 0UH (US, CND) FB14 1-412-473-21 INDUCTOR 0UH (US, CND) FB24 1-410-397-21 FERRITE BEAD INDUCTOR (US, CND) < IC > IC801 8-759-820-13 IC L78MR06 IC802 8-759-822-09 IC LB1641 < IC LINK/FUSE > !PS801 1-532-841-21 LINK, IC (1.6A 90VAC 60VPC) (EXCEPT US, CND) !PS801 1-532-778-21 FUSE, MICRO (1.6A/125V) (US, CND) !PS802 1-532-841-21 LINK, IC (1.6A 90VAC 60VPC) (EXCEPT US, CND) !PS802 1-532-778-21 FUSE, MICRO (1.6A/125V) (US, CND) < TRANSISTOR > Q502 8-729-620-05 TRANSISTOR 2SC2603-EF Q800 8-729-224-61 TRANSISTOR 2SK246-Y Q801 8-729-140-96 TRANSISTOR 2SD774-34 Q802 8-729-620-05 TRANSISTOR 2SC2603-EF Q803 8-729-119-76 TRANSISTOR 2SA1175-HFE Q804 8-729-140-97 TRANSISTOR 2SB734-34 Q805 8-729-900-80 TRANSISTOR DTC114ES Q806 8-729-209-15 TRANSISTOR 2SD2012 Q807 8-729-900-80 TRANSISTOR DTC114ES Q808 8-729-141-83 TRANSISTOR 2SB1094-LK Q809 8-729-209-15 TRANSISTOR 2SD2012 Q810 8-729-620-05 TRANSISTOR 2SC2603-EF Q812 8-729-209-15 TRANSISTOR 2SD2012 Q813 8-729-620-05 TRANSISTOR 2SC2603-EF Q814 8-729-900-80 TRANSISTOR DTC114ES Q815 8-729-801-93 TRANSISTOR 2SD1387 Q816 8-729-801-84 TRANSISTOR 2SB1013-4 Q817 8-729-900-80 TRANSISTOR DTC114ES Q818 8-729-900-80 TRANSISTOR DTC114ES < RESISTOR > R504 1-249-425-11 CARBON 4.7K 5% 1/4W R505 1-249-417-11 CARBON 1K 5% 1/4W R506 1-249-429-11 CARBON 10K 5% 1/4W R507 1-249-393-11 CARBON 10 5% 1/4W R508 1-249-415-11 CARBON 680 5% 1/4W R801 1-247-843-11 CARBON 3.3K 5% 1/4W R802 1-249-415-11 CARBON 680 5% 1/4W R803 1-249-419-11 CARBON 1.5K 5% 1/4W R804 1-249-418-11 CARBON 1.2K 5% 1/4W R805 1-249-425-11 CARBON 4.7K 5% 1/4W R806 1-249-415-11 CARBON 680 5% 1/4W R807 1-247-843-11 CARBON 3.3K 5% 1/4W R808 1-249-430-11 CARBON 12K 5% 1/4W R809 1-249-429-11 CARBON 10K 5% 1/4W R810 1-249-409-11 CARBON 220 5% 1/4W R811 1-249-420-11 CARBON 1.8K 5% 1/4W R812 1-249-429-11 CARBON 10K 5% 1/4W R813 1-249-409-11 CARBON 220 5% 1/4W R814 1-249-437-11 CARBON 47K 5% 1/4W R816 1-249-425-11 CARBON 4.7K 5% 1/4W R817 1-249-421-11 CARBON 2.2K 5% 1/4W R818 1-249-417-11 CARBON 1K 5% 1/4W R819 1-249-425-11 CARBON 4.7K 5% 1/4W R820 1-249-409-11 CARBON 220 5% 1/4W R821 1-249-425-11 CARBON 4.7K 5% 1/4W R822 1-249-421-11 CARBON 2.2K 5% 1/4W R823 1-249-421-11 CARBON 2.2K 5% 1/4W R824 1-249-409-11 CARBON 220 5% 1/4W R825 1-247-807-31 CARBON 100 5% 1/4W R826 1-247-807-31 CARBON 100 5% 1/4W !R827 1-212-865-00 FUSIBLE 22 5% 1/4W F R829 1-249-415-11 CARBON 680 5% 1/4W R830 1-249-425-11 CARBON 4.7K 5% 1/4W !R832 1-212-873-11 FUSIBLE 47 5% 1/4W F R861 1-249-389-11 CARBON 4.7 5% 1/4W (US, CND) !R891 1-219-155-11 FUSIBLE 0.27 10% 1/4W (US, CND) !R892 1-219-155-11 FUSIBLE 0.27 10% 1/4W (US, CND) ************************************************************ MISCELLANEOUS *************** 7 1-775-731-11 WIRE (FLAT TYPE) (7 CORE) 9 1-775-732-11 WIRE (FLAT TYPE) (13 CORE) POWER The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le neméro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 53 – Ref. No. Part No. Description Remark 12 1-775-733-11 WIRE (FLAT TYPE) (15 CORE) 51 1-775-172-11 WIRE (FLAT TYPE) (19 CORE) !58 1-569-008-11 ADAPTOR, CONVERSION 2P (SP, MY) !59 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (HK) 70 1-775-378-11 CORD (WITH CONNECTOR) (SYSTEM CONTROL)(T11) !155 8-848-367-11 OPTICAL PICK-UP KSS-213B/K-N 156 1-769-069-11 WIRE (FLAT TYPE) (16 CORE) !CNJ1 1-526-794-11 OUTLET, AC (HK, SP, MY) !CNJ1 1-526-882-00 OUTLET, AC (US, CND, E, JE) !CNP1 1-558-943-71 CORD, POWER (E, JE) !CNP1 1-558-945-21 CORD, POWER (POLAR. SPT-1) (US, CND) !CNP1 1-776-060-11 CORD, POWER (HK, SP, MY) M101 X-4917-523-4 BASE (OUTSART) ASSY (SPINDLE) M102 X-4917-504-1 MOTOR ASSY (SLED) M903 A-4608-362-A MOTOR (L) ASSY (LOADING) !T1 1-429-096-11 TRANSFORMER, POWER (EXCEPT US, CND) !T1 1-429-549-11 TRANSFORMER, POWER (US, CND) ************************************************************ ************** HARDWARE LIST ************** #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #2 7-682-547-09 SCREW (M3X6), S TITE, +BTT #3 7-685-870-01 SCREW +BVTT 3X5 (S) #4 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #6 7-624-105-04 STOP RING 2.3, TYPE-E #7 7-685-234-19 SCREW +KTP 2.6X8 TYPE2 NON-SLIT #8 7-621-775-10 SCREW +B 2.6X4 #9 7-621-255-15 SCREW +P 2X3 ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 4-975-903-01 PLATE(PIN JACK 6P),INDICATION * 4-977-364-01 COVER (PIN JACK 2P) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le neméro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 54 – HCD-D11/T11 Sony Corporation Home A&V Products Company 9-960-806-11 English 96K057039-1 Printed in Singapore © 1996. 11 Published by Service and Safety Engineering Dept. (Shibaura) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
