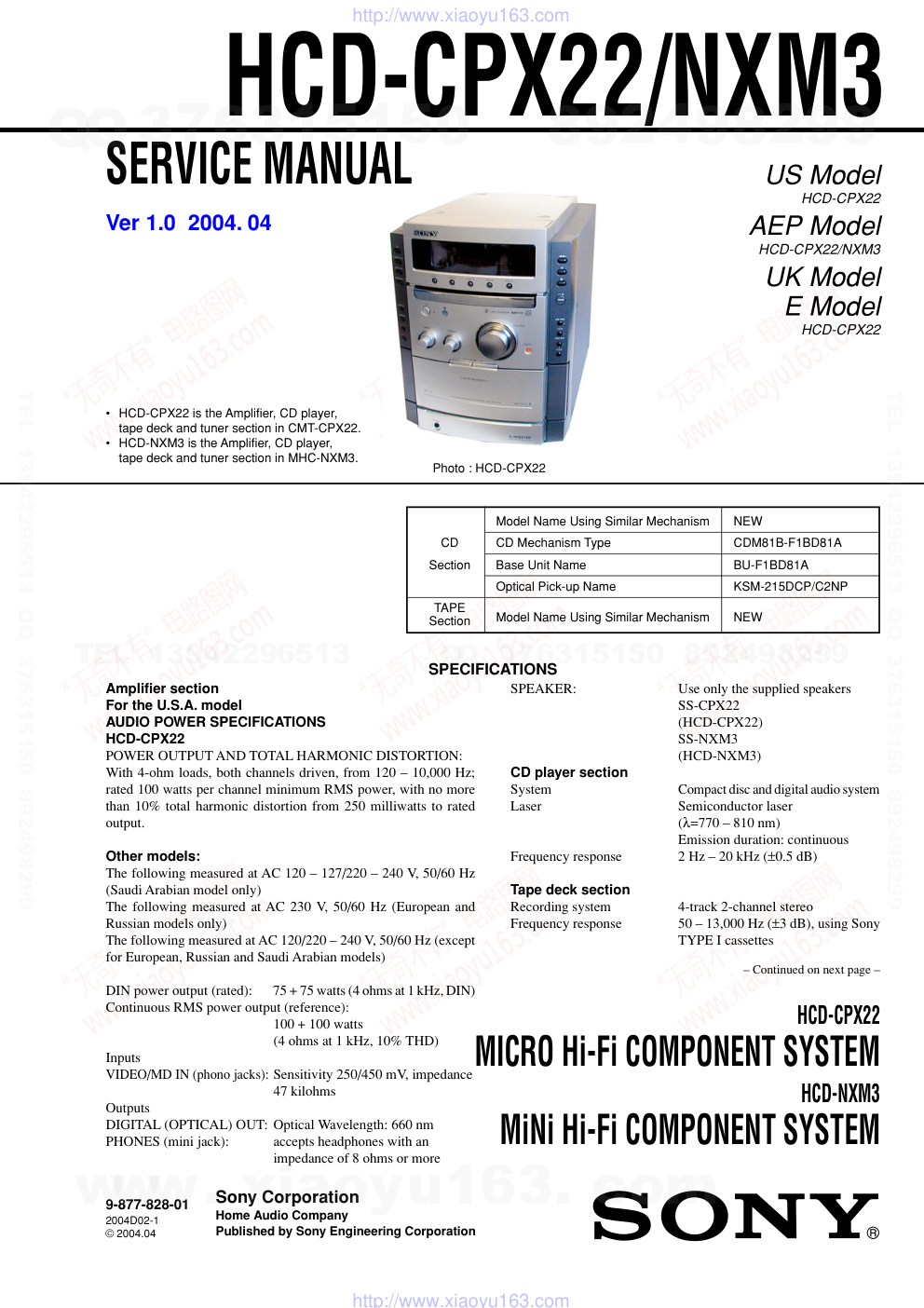

HCD-CPX22/NXM3 US Model HCD-CPX22 AEP Model HCD-CPX22/NXM3 UK Model E Model HCD-CPX22 SERVICE MANUAL HCD-CPX22 MICRO Hi-Fi COMPONENT SYSTEM HCD-NXM3 MiNi Hi-Fi COMPONENT SYSTEM Sony Corporation Home Audio Company Published by Sony Engineering Corporation 9-877-828-01 2004D02-1 © 2004.04 SPECIFICATIONS Ver 1.0 2004. 04 – Continued on next page – • HCD-CPX22 is the Amplifier, CD player, tape deck and tuner section in CMT-CPX22. • HCD-NXM3 is the Amplifier, CD player, tape deck and tuner section in MHC-NXM3. Model Name Using Similar Mechanism NEW CD CD Mechanism Type CDM81B-F1BD81A Section Base Unit Name BU-F1BD81A Optical Pick-up Name KSM-215DCP/C2NP TAPE Model Name Using Similar Mechanism NEW Section Amplifier section For the U.S.A. model AUDIO POWER SPECIFICATIONS HCD-CPX22 POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 4-ohm loads, both channels driven, from 120 – 10,000 Hz; rated 100 watts per channel minimum RMS power, with no more than 10% total harmonic distortion from 250 milliwatts to rated output. Other models: The following measured at AC 120 – 127/220 – 240 V, 50/60 Hz (Saudi Arabian model only) The following measured at AC 230 V, 50/60 Hz (European and Russian models only) The following measured at AC 120/220 – 240 V, 50/60 Hz (except for European, Russian and Saudi Arabian models) DIN power output (rated): 75 + 75 watts (4 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 100 + 100 watts (4 ohms at 1 kHz, 10% THD) Inputs VIDEO/MD IN (phono jacks): Sensitivity 250/450 mV, impedance 47 kilohms Outputs DIGITAL (OPTICAL) OUT: Optical Wavelength: 660 nm PHONES (mini jack): accepts headphones with an impedance of 8 ohms or more Photo : HCD-CPX22 SPEAKER: Use only the supplied speakers SS-CPX22 (HCD-CPX22) SS-NXM3 (HCD-NXM3) CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ=770 – 810 nm) Emission duration: continuous Frequency response 2 Hz – 20 kHz (±0.5 dB) Tape deck section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-CPX22/NXM3 Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range U.S.A. model: 87.5 – 108.0 MHz (100-kHz step) Russian model: 65.0 – 74.0 MHz (10-kHz step) (There is no stereo effect) 87.5 – 108.0 MHz (50-kHz step) Other models: 87.5 – 108.0 MHz (50-kHz step) Antenna FM lead antenna Antenna terminals 75 ohms unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range Pan-American model: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,710 kHz (with the tuning interval set at 9 kHz) European, Russian and Saudi Arabian models: 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Other models: 531 – 1,602 kHz (with the tuning interval set at 9 kHz) 530 – 1,710 kHz (with the tuning interval set at 10 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz General Power requirements U.S.A. model: 120 V AC, 60 Hz European and Russian models: 230 V AC, 50/60 Hz Saudi Arabian model: 120 – 127 V or 220 – 240 V AC, 50/60 Hz Adjustable with voltage selector Other models: 120 V, 220 – 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption U.S.A. model: 65 watts European and Russian models: 65 watts 0.3 watts (in Power Saving mode) Other models: 65 watts Dimensions (w/h/d) incl. projecting parts and controls Amplifier/Tuner/Tape/CD section: Approx. 230 x 292 x 355 mm Mass Amplifier/Tuner/Tape/CD section: Approx. 6.1 kg Supplied accessories Remote Commander (1) Size AA (R6) batteries (2) AM loop antenna (1) FM lead antenna (1) Speaker pads (8) Speaker cords Design and specifications are subject to change without notice. After correcting the original service problem, perform the following safety checks before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) SAFETY CHECK-OUT To Exposed Metal Parts on Set 0.15 µF 1.5 k Ω AC Voltmeter (0.75 V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-CPX22/NXM3 TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 4 2. GENERAL Location of Controls........................................................ 5 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 7 3-2. Case ................................................................................. 8 3-3. Main Board, Front Panel Section .................................... 8 3-4. Tape Mechanism Deck .................................................... 9 3-5. Panel Board ..................................................................... 9 3-6. Back Panel ....................................................................... 10 3-7. CD Mechanism Deck (CDM81B-F1BD81A) ................. 10 3-8. S-Master Board................................................................ 11 3-9. Tray.................................................................................. 11 3-10. M761 (LD/ST Motor), M762 (BU U/D Motor) .............. 12 3-11. Base Unit (BU-F1BD81A) .............................................. 12 3-12. BD Board......................................................................... 13 4. TEST MODE .............................................................. 14 5. MECHANICAL ADJUSTMENTS ....................... 17 6. ELECTRICAL ADJUSTMENTS Deck section .................................................................... 17 CD Section ...................................................................... 18 7. DIAGRAMS 7-1. Circuit Board Location .................................................... 21 7-2. Block Diagram – CD Servo Section –............................ 22 7-3. Block Diagram – Tuner/Tape Deck Section – ................ 23 7-4. Block Diagram – Main Section – ................................... 24 7-5. Block Diagram – S-Master Section – ............................. 25 7-6. Printed Wiring Board – BD Board – .............................. 26 7-7. Schematic Diagram – BD Board – ................................. 27 7-8. Printed Wiring Board – CD Mechanism Board –........... 28 7-9. Schematic Diagram – CD Mechanism Board – ............. 29 7-10. Printed Wiring Boards – Main Board – .......................... 30 7-11. Schematic Diagram – Main Board (1/3) – ..................... 31 7-12. Schematic Diagram – Main Board (2/3) – ..................... 32 7-13. Schematic Diagram – Main Board (3/3) – ..................... 33 7-14. Printed Wiring Boards – Panel Board – ......................... 34 7-15. Schematic Diagram – Panel Board –............................... 35 7-16. Printed Wiring Board – Disc SW, Vol, HP Board – ....... 36 7-17. Schematic Diagram – Disc SW, Vol, HP Board – .......... 37 7-18. Printed Wiring Board – S-Master Board – ..................... 38 7-19. Schematic Diagram – S-Master Board – ........................ 39 7-20. IC Block Diagram ........................................................... 40 7-21. IC Pin Function Description ............................................ 41 8. EXPLODED VIEWS 8-1. Main Section.................................................................... 47 8-2. Front Panel Section ......................................................... 48 8-3. Chassis Section ................................................................ 49 8-4. CD Mechanism Deck Section-1 (CDM81B-F1BD81A) .................................................... 50 8-5. CD Mechanism Deck Section-2 (CDM81B-F1BD81A) .................................................... 51 8-6. CD Mechanism Deck Section-3 (CDM81B-F1BD81A) .................................................... 52 9. ELECTRICAL PARTS LIST ................................ 53 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. This appliance is classified as a CLASS 1 LASER product. This label is located on the rear exterior. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-CPX22/NXM3 SECTION 1 SERVICING NOTES NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. LASER DIODE AND FOCUS SEARCH OPERATION CHECK Carry out the “S curve check” in “CD section adjustment” and check that the S curve waveform is output several times. • MODEL IDENTIFICATION – Back Panel – MODEL PART No. AEP, UK models 4-253-358-0[] RU model 4-253-358-1[] E3 model 4-253-358-2[] E51 model 4-253-358-3[] US model 4-253-358-4[] EA model 4-253-358-5[] • Abbreviation E3 : 240 V AC Area in E model E51 : Chilean and Peruvian model EA : Saudi Arabia model RU : Russian model PART No. • SERVICE POSITION FOR TAPE MECHANISM DECK Jig (J-2501-271-A) Jig (J-2501-270-A) tape mechanism deck CN302 CN301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-CPX22/NXM3 SECTION 2 GENERAL This section is extracted from instruction manual. LOCATING THE CONTROLS Main unit ALBUM +/– qa BASS control w; CD wk CD SYNC ws Deck A qj Deck B qg DIMMER wd DISC 1 – 5 3 Disc tray 9 DISPLAY wf Display window 4 DSGX qs PHONES jack qh Remote sensor 2 TAPE A/B wh TREBLE control ql TUNER/BAND wj TUNING +/– 0 VIDEO/MD wg VOLUME control qd ?/1 (power) 1 nN (play) 5 X (pause) 6 x (stop) 7 CD Z (eject) 8 .m/M> (rewind/fast forward, go back/go forward) 0 TAPE Z B(eject) qf A TAPE Z (eject) qk z START wa List of button locations and reference pages ALPHABETICAL ORDER A – O P – Z BUTTON DESCRIPTIONS 1 2 3 4 5 6 7 8 9 0 qa qs qd qf wj wk wh wg wf wd ws wa w; ql qk qj qh qg www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-CPX22/NXM3 This section is extracted from instruction manual. Remote control ALBUM – qd ALBUM + qa CD qk CLEAR qg CLOCK/TIMER SELECT 2 CLOCK/TIMER SET 3 DISC SKIP 0 DISPLAY wa ENTER 9 EQ qf FM MODE 4 FUNCTION 6 PLAY MODE w; REPEAT 4 SLEEP ws TAPE qj TUNER BAND 5 TUNER MEMORY ql TUNING MODE w; VOLUME +/– qs ?/1 (power) 1 m/M (rewind/fast forward) 7 N (play) 8 X (pause) 8 x (stop) 8 ./> (go back/go forward) qh –/+ (tuning) qh ALPHABETICAL ORDER A – E F – Z BUTTON DESCRIPTIONS 4 5 6 7 8 9 q; ws 1 qd qg qf wa w; ql qk qj qh qa qs 3 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-CPX22/NXM3 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW 3-2.CASE (Page 8) 3-3.MAIN BOARD, FRONT PANEL SECTION (Page 8) 3-12.BD BOARD (Page 13) 3-4.TAPE MECHANISM DECK (Page 9) 3-10.M761 (LD/ST MOTOR), M762 (BU U/D MOTOR) (Page 12) 3-9.TRAY (Page 11) 3-8.S-MASTER BOARD (Page 11) 3-5.PANEL BOARD (Page 9) 3-11.BASE UNIT (BU-F1BD81A) (Page 12) 3-6.BACK PANEL (Page 10) 3-7.CD MECHANISM DECK (CDM81B-F1BD81A) (Page 10) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-CPX22/NXM3 Note: Follow the disassembly procedure in the numerical order given. 3-2. CASE 3-3. MAIN BOARD, FRONT PANEL SECTION 1 three screws (CASE 3 TP2) 2 three screws (CASE 3 TP2) 3 two screws (+BVTP 3X8) 4 two screws (+BVTP 3X8) 5 screw (+BVTP 3X8) 6 7 CASE 1 two screws (+BVTP 3X8) 3 MAIN board 4 connector (CN301) 5 connector (CN302) 6 connector (CN107) 7 CN303 8 connector (CN304) 9 connector (CN105) qa CN106 0 connector (CN101) qd connector (CN401) qs CN112 qf CN204 qg CN372 qh CN371 qj CN109 qk CN110 2 two screws (+BVTP 2.6X8) ql two screws (+BVTP 3X8) w; front panel section www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-CPX22/NXM3 3-4. TAPE MECHANISM DECK 3-5. PANEL BOARD 3 two screws (+BV (B3)) 4 two screws (+BV (B3)) 5 tape mechanism deck 2 1 1 four screws (+BVTP 2.6X8) 2 screw (+BVTP 2.6X8) 3 screw (+BVTP 2.6X8) 4 bracket (main) 5 screw (+BVTP 2.6X8) 6 three screws (+BVTP 2.6X8) 7 PANEL board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-CPX22/NXM3 3-6. BACK PANEL 3-7. CD MECHANISM DECK (CDM81B-F1BD81A) 1 screw (+BVTP 3X8) 2 two screws (+BVTP 3X8) 3 two screws (+BVTP 2.6X8) 4 back panel section 1 screw (+BVTP 3X8) 2 two screws (+BVTP 3X8) 4 two screws (+BVTP 3X8) 5 screw (+BVTP 3X8) 6 screw (+BVTP 3X8) 7 screw (+BVTP 3X8) 3 bracket 8 CD mechanism deck (CDM81B-F1BD81A) 9 CN701 0 CN201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-CPX22/NXM3 3-8. S-MASTER BOARD 3-9. TRAY 1 two screws (+BTP 2.6X8) 2 two screws (+BTP 2.6X8) 3 bracket 5 tray 4 1 connector (CN701) 3 connector (CN702) 2 two screws (+BVTP 3X8) 4 two screws (+BVTP 3X8) 5 S-MASTER board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-CPX22/NXM3 3-10. M761 (LD/ST MOTOR), M762 (BU U/D MOTOR) 3-11. BASE UNIT (BU-F1BD81A) 1 two screws (+BTP 2.6X8) 2 MOTOR board 3 Remove soldering from the two points. 5 Remove soldering from the two points. 6 M762 (BU U/D MOTOR) 4 M761 (LD/ST MOTOR) 1 two floating screws (+PTPWH2.6) 2 base unit (BU-F1BD81A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-CPX22/NXM3 3-12. BD BOARD 1 floating screw (+PTPWH2.6) 2 coil spring (insulator) 3 insulator 4 floating screw (+PTPWH2.6) 5 coil spring (insulator) 6 insulator 7 floating screw (+PTPWH2.6) 8 coil spring (insulator) 9 insulator 0 floating screw (+PTPWH2.6) qa coil spring (insulator) qs insulator qd qf optical pick-up (KSM-215DCP/C2NP) qj screw (+BVTP 2.6X8) qg CN101 qh Remove the four solderings of motor. qk BD board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-CPX22/NXM3 SECTION 4 TEST MODE [Change-over of AM Tuner Step between 9 kHz and 10 kHz] • A step of AM channels can be changed over between 9 kHz and 10 kHz. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select the function “TUNER”, and press [TUNER/BAND] button to select the BAND “AM”. 3. Press ?/1 button to turn the set OFF. 4. Press x and ?/1 buttons simultaneously, and the display of fluorescent indicator tube changes to “AM 9 kHz step” or “AM 10 kHz step”, and thus the channel step is changed over. [Cold Reset] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. Press three buttons x , [DIMMER] ,and ?/1 simultaneously. [Switching MD/VIDEO Functions] Procedure: 1. Press the ?/1 button to turn the set ON. 2. Press the ?/1 button while holding the VIDEO (MD) button depressed to toggle between “MD” and “VIDEO.” The selected mode is displayed. [Error code indication] Procedure: 1. Press the ?/1 button to turn the set ON. 2. Select the “CD” function. 3. Press the x , X , and [DISPLAY] buttons simultaneously. 4. The error code is displayed. 5. Press the [TUNING +] button to display the next error code. Press the[TUNING -] button to display the previous error code. [Aging Mode] This mode can be used for operation check CD section and Tape deck section. • If an error occurred: The aging operation stops and is displayed status. • If no error occurs: The aging operation continues repeatedly 1. Aging mode in CD section Procedure: 1. Press ?/1 button on the set ON 2. Select the function “CD” 3. Press three buttons x , X , and [DISC 3] simultaneously. The “Aging in” display and aging mode is set. 4. Press [DISC 1] button, starts aging mode of all trays check. 5. Press [DISC 2] button ,starts measurement loading time. 6. To exit from the aging mode perform [Cold Reset]. 1) Error display Disc error Display Error E00D01022 Focus error (No disc) E00D02022 Sub Q error (Focus is good) E00D02023 TOC reading error E00D02014 Access error (Unable within regular time) Mechanism error Display Error E00M__E_0 Error during opening tray E00M__C_2 EX-CHANGE disc error E00M__D_0 Error during closing tray E00M__F_3 EX-OPEN error E00M__D_5 EX-CLOSE error E00M__C_2 Chuck-up error E00M__C_3 Unchucking error 2. Aging mode in Tape Deck section Procedure: 1. Load the tapes into the decks A and B respectively. 2. Press ?/1 button on the set ON 3. Select the function “TAPE A” 4. Press three buttons x , X , and [TAPE A/B] simultaneously, and aging mode is started. 5. To exit from the aging mode perform [Cold Reset]. • In the aging mode ,the program is executed in the following sequence. Step Operation Display 1 Rewind the TAPE A TAPE A AG-1 2 Rewind the TAPE B TAPE B AG-1 3 Play the TAPE A (t) (2 minute) TAPE A AG-2 4 F•F. (AMS) the TAPE A TAPE A AG-3 5 Play the TAPE A (T) (2 minute) TAPE A AG-4 6 Rewind the TAPE A TAPE A AG-5 7 Play the TAPE B (t) (2 minute) TAPE B AG-2 8 F•F.(AMS) the TAPE B TAPE B AG-3 9 Play the TAPE B (T) (2 minute) TAPE B AG-4 10 Rewind the TAPE B TAPE B AG-5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-CPX22/NXM3 [GC Test Mode] • All fluorecent segments and LEDs are tested. • Microprocessor virsion. • Keyboard check. • Display check. Procedure: 1. To enter the test mode, press the three buttons x , X and [TUNER/BAND] simultaneously. 2. All segments and LEDs (without STANDBY LED) are turned on. 3. Press the [TUNING -] button to increment the microprocessor software version. 4. Press the [TUNING +] button to change the indication for the microprocessor software version. 3. Press the b B button to set the check mode for the entries (KEY, JOG, etc.). 4. Press the X button to display the current VACS level. 7. Press the x button to enter the mode to check the display. If you press this button repeatedly, the display will change sequentially as the button is pressed. 8. Press the x , X and [TUNER/BAND] buttons simultaneously to set the standby mode. [CD Service Mode] • This mode can run the CD sled motor freely. Use this mode, for instance, when cleaning the pick-up. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select the function “CD”. 3. To enter the test mode, press three buttons x , X , and [DISC 1] simultaneously. 4. The CD service mode is selected.The message ‘‘CD SERVICE MODE’’ is displayed. 5. While holding the [TUNING -] button depressed , to move the sled to the inside. “SLED IN” is displayed. While holding the [TUNING +] button depressed, to move the sled to the outside. “SLED OUT” is displayed. 6. Press the [CD SYNC] button so that “LD ON” and “LD OFF” are displayed to switch between Laser ON/OFF. 7. To exit from this mode, perform as follows: 1) Move the pick-up to the most inside track. 2) Press ?/1 button to turn the set OFF. Note: • Always move the pick-up to most inside track when exiting from this mode. Otherwise, a disc will not be unloaded. • Do not run the sled motor excessively, otherwise the gear can be chipped. [MC Test Mode] (Amplifier SECTION) • This mode is used to test the function of the amplifier section. Procedure: 1. Press ?/1 button to turn the set ON. 2. To enter the test mode, press the three buttons x , X and z/START simultaneously. 3. Turn [VOLUME] knob to counter-clockwise, the function of the equalizer is set to “MIN”. 4. Turn [VOLUME] knob to clockwise, the function of the equalizer is set to “MAX”. 5. Whenever turn [BASS] knob to clockwise, the display switches as follows. “TONE MAX” t“TONE MIN” t“TONE FLAT” 6. To exit from this mode, press ?/1 button to turn the set OFF. [MC Test Mode] (Tape section) • This mode is used to test the functions of the Tape Procedure. Procedure: 1. Press ?/1 button to turn the set ON. 2. To enter the test mode, press the three buttons x , X and z/START simultaneously. 3. While holding the [DIMMER] button depressed, turn the ALC ON. 4. Press the z/START button to start REC (recording). 5. While recording, press the [TUNING +] button to perform automatic rewind and automatic playback (for FF version). Also, press the [TUNING -] button to perform automatic rewind and automatic playback (for FR version). 6. Select the function “TAPE A” or “TAPE B” 7. Press the [CD-SYNC] button while “TAPE A” or “TAPE B” is selected, to perform AMS check. “EDG[ ]” is displayed. A number appears inside[ ]. 8. To exit from this mode, press ?/1 button to turn the set OFF. [CD Ship Mode (LOCK) ] • This mode moves the pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Press ?/1 button to turn the set ON. 2. Select the function “CD”. 3. Press x button and [CD] button simultaneously. 4. The “STANDBY” display blinks instantaneously, and the CD ship mode is set. 5. To fluorescent indicator tube displays ‘‘LOCK’’. [CD Ship (LOCK) & COLD RESET MODE] Procedure: 1. Press ?/1 button to turn the set ON. 2. Select the function “CD”. 3. Press three buttons x , X and VIDEO (MD) simultaneously. 4. The “STANDBY” display blinks instantaneously and CD ship mode is set. 5. To fluorescent indicator tube displays “LOCK” and the set is reset. [CD power -manage function] Procedure: 1. Press ?/1 button to the set ON 2. Select the function “CD”. 3. Press ?/1 button to turn the set OFF. 4. Press x and ?/1 buttons simultaneously ,and the display of fluorescent indicator tube changes “CD POWER OFF” or “CD POWER ON”. 5. Press ?/1 button to turn the set OFF. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-CPX22/NXM3 [DISC Tray Lock] Procedure: 1. Press ?/1 button to the set ON. 2. Select the function “CD”. 3. Press x and CD Z buttons simultaneously for 5 seconds. And the displays of fluorescent indicator tube changes to “LOCKED” or “UNIOCKED”. 4. Press ?/1 button to turn the set OFF. [CD Repeat 5 Times Limit Release Mode] Procedure: 1. Press ?/1 button to turn the set ON. 2. Select the function “CD”. 3. Press three buttons x , X and [CD SYNC] simultaneously. 4. The message “LIMIT OFF” is displayed. 5. Press ?/1 button the set OFF. [AMP TEST MODE] Procedure: 1. Press ?/1 button to turn the set ON. 2. To enter the test mode, press three buttons x , X and [DSGX] simultaneously. 3. Display will changes ‘‘VACS ON’’ to ‘‘VACS OFF’’. 4. Press ?/1 button to turn the set OFF. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-CPX22/NXM3 SECTION 5 MECHANICAL ADJUSTMENTS SECTION 6 ELECTRICAL ADJUSTMENTS Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement 3.06 N • m to 6.96 N • m FWD CQ-102C 31 to 71 g • cm (0.43 – 0.98 oz • inch) FWD 0.19 N • m to 0.58 N • m back tension CQ-102C 2 to 6 g • cm (0.02 – 0.08 oz • inch) 3.06 N • m to 6.96 N • m REV CQ-102RC 31 to 71 g • cm (0.43 – 0.98 oz • inch) 0.19 N • m to 0.58 N • m REV CQ-102RC 2 to 6 g • cm back tension (0.02 – 0.08 oz • inch) 6.96 N • m to 14.02 N • m FF/REW CQ-201B 71 to 143 g • cm (0.98 – 1.99 oz • inch) 9.80 N • m FWD tension CQ-403A 100 g or more (3.53 oz or more) 9.80 N • m REV tension CQ-403R 100 g or more (3.53 oz or more) Mode Torque meter Meter reading 0 dB=0.775 V DECK SECTION 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjust. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. • Test Tape RECORD/PLAYBACK HEAD AZIMUTH ADJUST-MENT DECK A DECK B Note: Perform this adjustments for both decks Procedure: 1. Mode: Playback Tape Signal Used for P-4-A100 10 kHz, –10 dB Azimuth Adjustment set MAIN board CN304 Pin 1 (L-CH) Pin 3 (R-CH) MAIN board CN304 Pin 2 (GND) + – level meter test tape P-4-A100 (10 kHz, –10 dB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-CPX22/NXM3 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. 3. Mode: Playback 4. After the adjustments, apply suitable locking compound to the pats adjusted. Adjustment Location: Playback Head (Deck A). Record/Playback/Erase Head (Deck B). Screw position L-CH peak within 1dB Output level L-CH peak R-CH peak within 1dB Screw position R-CH peak MAIN board CN301 set test tape P-4-A100 (10 kHz, –10 dB) pin 3 oscilloscope L-CH R-CH V H waveform of oscilloscope in phase 45° 90° 135° 180° good wrong pin 2 pin 1 L R CD SECTION Note: 1. CD Block is basically designed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MW impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. S-curve Check Connection: Procedure: 1. Connect an oscilloscope to test point TPO102 (FE1) and TP 117(VC) on the CD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in and turned power switch on again and actuate the focus search. (actuate the focus search when disc table is moving in and out) 4. Check the oscilloscope waveform (S-curve) is symmetrical between A and B. And confirm peak to peak level within 2.4 ± 1 Vp-p. S-curve waveform Note: • Try to measure several times to make sure than the ratio of A : B or B : A is more than 10 : 7. • Take sweep time as long as possible and light up the brightness to obtain best waveform. Checking Location: CD board (SIDE B) (See page 20.) + – CD board TPO102 (FE1) TP117 (VC) oscilloscope A B symmetry within 2.4 ± 1 Vp-p forward reverse www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-CPX22/NXM3 RFAC Level Check Connection: Procedure: 1. Connect an oscilloscope to test point TP124 (RFAC) and TP 117(VC) on the CD board. 2. Turn the power on. 3. Put the disc (YEDS-18) in to playback the number five track. 4. Confirm that oscilloscope waveform is clear and check RFAC signal level is correct or not. Note: A clear RFAC signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. RFAC signal waveform Checking Location: CD board (SIDE B) (See page 20.) E-F Balance Check Connection: Procedure: 1. Connect an oscilloscpe to test point TPO103 (TE1) and TP117 (VC) on the CD board. 2. Turn the power on. 3. Select the function “CD”. 4. Press three buttons of [ENTER], M , and [SURRUUND MODE] simultaneously to set the CD service mode. 5. Put the disc (YEDS-18) in to playback the number five track. 6. Press the . button. The message “TRAVERSE” is displayed. (The tracking servo and the sledding servo are turned OFF) 7. Check the level B of the oscilliscope's waveform and the A (DC voltage) of the center of the Traverse waveform. Confirm the following : A/B x 100 = less than ± 22% Traverse Waveform 8. Press the . button. The message “TRAVERSE” is displayed. (The tracking servo and sledding servo are turned ON) Confirm the C (DC voltage) is almost equal to the A (DC voltage) is step 5. 9. To exit from this mode, perform as follows. 1) Move the optical pick-up to the most inside track. 2) Press three buttons of x , [CLEAR], and [DISPLAY] simultaneously. (cold reset) Notes: • Always move the optical pick-up to most inside track when exiting from this mode. Otherwise, a disc will not be unloaded. • Do not run the sled motor excessively, otherwise the gear can be chipped. Traverse Waveform Checking Location: CD board (SIDE B) (See page 20.) + – CD board TP124 (RFAC) TP117 (VC) oscilloscope VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 0.9 ± 0.4 Vp-p + – CD board TPO103 (TE1) TP117 (VC) oscilloscope 0V B level: 1.0 ± 0.5 Vp-p Center of the waveform A (DC voltage) 0V Tracking servo Sled servo ON C (DC voltage) Tracking servo Sled servo OFF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-CPX22/NXM3 Checking Location: – CD BOARD (SIDE B) – TP117 (VC) TP124 (RFAC) JPO103 (TE1) JPO102 (FE1) IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 21 21 HCD-CPX22/NXM3 • WAVEFORMS – MAIN BOARD – IC401 0 XC-IN VOL/DIV : 0.5 V AC TIME/DIV : 2.0 µsec 2 IC401 qg X-IN VOL/DIV : 0.5 V AC TIME/DIV : 50 nsec 2 IC703 6 VOL/DIV : 1 V AC TIME/DIV : 50 nsec 1 1.5Vp-p 32.768KHz 1.5Vp-p 16MHz 2Vp-p 12.288 MHz – BD BOARD – IC101 wa TEI VOL/DIV : 0.2 V AC TIME/DIV : 0.2 msec 2 IC101 wd FEI VOL/DIV : 0.1 V AC TIME/DIV : 1 msec 3 IC101 ra RFACO VOL/DIV : 0.2 V AC TIME/DIV : 0.5 µsec 1 49.152MHz 4Vp-p – S-MASTER BOARD – IC705 rk XFSOIN VOL/DIV : 2 V AC TIME/DIV : 20 nsec 1 0.15Vp-p 0.4Vp-p 0.96Vp-p SECTION 7 DIAGRAMS For schematic diagrams. Note: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark: TUNER (FM/AM) ( ): CD PLAY < >: TAPE PLAY [ ]: TAPE REC * : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : TUNER (FM/AM) E : TAPE PLAY (DECK A) d : TAPE PLAY (DECK B) G : RECORD J : CD PLAY (ANALOG OUT) c : CD PLAY (DIGITAL OUT) • Abbreviation E3 : 240V AC Area in E model E51 : Chilean and Peruvian model EA : Saudi Arabia mdoel RU : Russian model Note: The components identified by mark 0 or dotted line with mark ! are critical for safety. Replace only with part number specified. (The other layers' patterns are not indicated.) • Indication of transistor. • Abbreviation E3 : 240V AC Area in E model E51 : Chilean and Peruvian model EA : Saudi Arabia mdoel RU : Russian model Caution: Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q Note on Printed Wiring Boards: Note: • X : parts extracted from the component side. • : Pattern from the side which enables seeing. 7-1. CIRCUIT BOARD LOCATION MAIN board PANEL board DISC SW board VOL board HP board S-MASTER board switching regulator SW(2) board SW(1) board MOTOR board SENSOR board ENCODER board BD board RELAY board SP OUT board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 22 22 HCD-CPX22/NXM3 7-2. BLOCK DIAGRAM – CD SERVO SECTION – OPTICAL PICK-UP BLOCK (KSM-215DCP) LD DRIVER +1.7V +3.3V LD GND FOCUS COIL F+ F T+ T TRACKING COIL X171 16.9MHz IC251 SL/SP MOTOR DRIVER RF AMP 16 7 15 17 18 VR PD 19 20 21 22 5 30 3 24 MUTE CH2OUT-F CH1FIN CH1RIN CH2FIN CH3FIN OPIN+ CH2OUT-R CH1OUT-R CH1OUT-F CH4OUT-R CH4OUT-F CH3OUT-F CH3OUT-R M M M101 (SPINDLE) M102 (SLED) VC VCC A B C D E F DETECTOR A B E 19 F 20 LD 36 PD 37 TFDR 11 FFDR 13 SFDR 9 MPD 6 95 XTACN 100 XRST 102 DATA 104 XLAT 105 CLOCK AOUT2 AOUT1 DOUT 61 PCMDI 62 LRCKI 63 LRCK 65 PCMD IC301 DIGITAL SIGNAL PROCESSOR 21 40 SDO0 11 LRCKIA 16 SFSY/LRCKIB 19 SDIO 14 77 XTAO 78 XTAI 55 VDD VDD VDDM 26 27 C 28 D 29 107 SENS XTACN XRST DATA XLT CLOCK SENS TRDR 12 29 CH3RIN SRDR CH2RIN FRDR 66 BCK 60 BCKI BCKIA 15 SBSY/BCKIB 18 6 +3.3V 8 5 1 3 STANBY 36 PO11/BUCK/AD1 8 MIACK 7 MICK 6 MIDIO 4 MICS 5 MILP 2 RESET 115 SCOR SCOR REG MP3STB MP3REQ MIACK MICK MIDIO MILP MICS MP3RST SCOR SENS CLOCK XLT DATA XRST XTACN SCOR SENS CLOCK XLT DATA XRST XTACN DOUT ROUT LOUT A MAIN SECTION (Page 24) B TUNER/TAPE DECK SECTION (Page 23) IC751 (DISC SENSOR) Q751 ROTARY ENCODER (MD) ROTARY ENCODER (ST U/D) IC701 LD/ST MOTOR DRIVER IC711 U/DOTOR DRIVER 4 2 9 7 RIN FIN OUT1 OUT2 4 2 9 7 RIN FIN OUT1 OUT2 D MAIN SECTION (Page 24) M761 (LD/ST) M762 (U/D) S781 (SUB TRAY OUT) (SUB TRAY OUT) OPEN MAIN TRAY OPEN/IN CLOSE S731 S761 S721 SENSE SWITCH S771 M M D+3.3V LD/ST MTR NEG LD/ST MTR POS BU U/D MTR NEG BU U/D MTR POS CN701 SW3 SUB TRAY OUT SW2 SUB TRAY OUT SW4SUB TRAY OUT SW1 SUB TRAY OUT MD-E4 MD-E3 MD-E2 MD-E1 ST-E4 ST-E3 ST-E2 ST-E1 D.SEMSOR CN201 86 81 71 10 14 XRST 100 113 GFS 2 FOK 1 3 114 C2P0 IC303 Q10 IC101 • Signal path J : CD PLAY (ANALOG) c : CD PLAY (DIGITAL) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 23 23 HCD-CPX22/NXM3 7-3. BLOCK DIAGRAM – TUNER/TAPE DECK SECTION – TUNER AEP, UK AEP, UK R-CH Q25,26 Q270 R-CH L OUT R OUT CD SERVO SECTION (Page 22) D OUT RDS INT RDS DATA L OUT R OUT ST-MUTE TUNER ST-CE ST D OUT ST D IN ST CLK STEREO DECK-A DECK-B L R HP2 HP1 L R HE HRP2 HRP1 TAPE F REC B SHUT A HALF A PLAY B PLAY A HALF A PLAY B PLAY R-REC B HALF A SHUT CAPM+ A TRIG+ B TRIG+ R-CH R-CH Q303 Q314,315 Q301,302 Q311-313 Q104 Q31,22 R-CH L R VIDEO(MD) MECHANISM DECK 64 61 66 27 18 49 CN371 IC301 18 50 51 52 53 54 55 63 5 10 3 11 17 18 19 26 15 16 25 3 4 7 8 9 22 21 REC/PB SWITCH MUTE SWITCH DIGITAL OUT REC/PB SWITCH BIAS OSC Q318 T301 Q316,317 BIAS REC/PB BIAS SWITCH TC REC MUTE 12 CAP M DRIVE Q326,327 Q323,324 Q321,322 A TRIG DRIVE 90 91 86 89 87 88 67 4 68 26 69 25 65 93 97 100 92 LINE MUTE A MUTE RDS-DATA RDS-INT ST-MUTE TUNED ST-CE ST-DIN ST-CLK B HALF MAIN TRANS-OUT STBY RELAY CLK DATA INT I/O EXP CLK M16537 CLK M16537 DATA SPEC-IN VACS IN AMS IN I/O EXP LAT I/O EXP DATYA IN I/O EXP DATA OUT LATCH ADC-POWR S-MASTER ENABLE SC SHUT SCDT INTI SCLATCH P-DOWN CLK DATA D182 /RST A SHUT A TRIG B TRIG CAPM-CNT1 TC REC MUTE B SHUT ON/OFF (SWITCHING REGULATOR) D+3.3V ST-DOUT 80 81 61 60 59 58 57 56 13 14 19 8 7 6 20 21 22 23 18 17 9 L-CH R-CH R-CH Q21,22 Q1 Q27,28 Q71 J1063 PHONES P-DOWN FR-OUT FL-OUT /RST INIT SCLATCH SCSHIFT SCDT PGMUTE SOFTMUTE NSPMUTE OVF /OTW SD 63 62 71 70 68 67 66 65 7 8 11 53 51 50 48 34 35 R-CH Q341-343 Q103 Q29,30 Q140 Q33,34 SELECTOR R-CH AMS DPL-2 42 41 37 3 1 8 S2 FL CLK DATA CLK DATA EQ MD BUS TONE TRE AMS MUTE AMS BUFFER PB MUTE LED SWITCH LED SWITCH AMS-MUTE STEREO Q1026 D1021 D1001-1005 Q1001-1005 B PLAY A PLAY A HALF CLK LED 9V VCC LATCH DI 1 DO 2 MUTE IC971 I/O EXPANDER IC951 I/O EXPANDER IC401 (1/2) SYSTEM CONTROL IC101 INPUT SELECT SWITCH ELECTRICAL VOLUME IC3 BUFFER REC/PB BIAS SD SD /OTW OVF OVER TEMP PROTECT HP IN HALF PLAY AMS MUTE DISC1 DISC2 DISC3 DISC4 DISC5 LATCH CLK DI 1 DO 2 CLK LATCH NSP SOFT HP PG TA MUTE HP MUTE DATA 1 DATA 2 LATCH CLK DATA1 DATA 2 CLK LATCH NSP MUTE SOFT MUTE PG MUTE DATA 1 DATA 2 OVER FLOW MUTE SWITCH Q8 AUDIO +9V HP MUTE SWITCH B TRIG DRIVE SURR 3 IC903 REG 1 3 IC901 REG 1 3 IC902 REG 1 3 Q906 UNREG+5V SWITCHING REGULATOR UNREG+12V D+3.3V CD+3.3V AUDIO+9V M+9V LED9V REG 1 MCU I/F B C S-MASTER SECTION (Page 25) REG • R-ch is omitted due to same as L-ch. • Signal path K : TUNER (FM/AM) E : PLAYBACK (DECK A) d : PLAYBACK (DECK B) G : RECORD J : CD PLAY (ANALOG) c : CD PLAY (DIGITAL) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 24 24 HCD-CPX22/NXM3 7-4. BLOCK DIAGRAM – MAIN SECTION – 28 MP3STB CN371 IC401 (2/2) SYSTEM CONTROL IC1020 DISPLAY CONTROL/KEY CONTROL MP3REQ MIACK MICK MID10 MILP MICS HP3RST CD SERVO SECTION (Page 22) SCOR SENS CLOCK XLT DATA XRST XTACN MP3STB MP3REQ MP3 ACK MP3 CK MP3 DATA OUT MP3 LP MP3 CS RESET SCOR SENS FL-DATA FL-CLK FL-CS FL-RESET CD-CLK XLT CD-DATA XRST XTCN SIRCD AD-KEY2 AD-KEY1 JOG2-A JOG1-A VOL-A POWER KEY DISPLAY KEY XC-IN X-OUT XC-OUT X-IN 31 3 7 5 2 1 32 19 21 23 24 22 25 26 CN372 85 84 83 33 LD-ST MTR POS BU U/D MTR NEG BU U/D MTR POS SW3 SUB TRAY OUT SW3 SUB TRAY IN SW4 TRAY CLOSE SW SW1 TRAY OPEN SW ST-E1 ST-E2 ST-E3 ST-E4 MD-E1 MD-E2 MD-E3 MD-E4 D,SENSER EVER+4V EVER+4V 47 34 46 35 45 CDN-MOT-NEG-1(LD) CDN-MOT-POS-1(LD) CDN-MOT-NEG-2(U/D) CDN-MOT-POS-2(U/D) CDN-MAIN-SW-OPEN(SW2) CDN-MAIN-SW-CLOSE(SW4) CDN-SUB-SW-OPEN(SW2) CDN-SUB-SW-CLOSE(SW3) CDN-ENC-B-3(MDM4) CDN-ENC-B-2(MDM3) CDN-ENC-B-1(MDM2) CDN-ENC-B-0(MDM1) CDN-ENC-A-3(STE4) CDN-ENC-A-2(STE3) CDN-ENC-A-1(STE2) CDN-ENC-A-0(STE1) DISC SENS LED-STANDBY RESET AC-CUT 48 LD/ST MTR NEG 36 44 43 38 42 39 37 41 40 75 72 12 20 OUT SIRCS IC1050 4 1 KEY2-1 KEY2-2 S1043 S1001-1005 S1051 KEY NETWORK 94 ROTARY ENCODER ROTARY ENCODER ROTARY ENCODER TREBLE 78 JOG2-B 79 S1050 76 JOG1-B 77 S1052 S1042 70 VOL-B 71 74 95 BASS BASS X401 36.768kHz X402 16MHz VOLUME S1021-1027,1029-1031 S1032-1036 REMOTE CONTROL RECEIVER KEY NETWORK S1028 73 DISPLAY 10 11 13 15 8 7 6 82 5 51 I 15 3 • 2 • 1 • 64 I 57 56 • 55 4 54 LED SWITCH Q1041 D1050 IC391 RESET Q391 3 1 LEVEL DETECT GREID DRIVE Q1021 GRID DRIVE Q1022 55 GRID DRIVE Q1023 SDATA SCK CS RESET SEG00 I SEG35 DEG01 FL1020 FLUORESCENT INDICATOR TUBE F1 F2 DEG11 DEG12/SEG36 DEG13/SEG37 DG00 DIG14SEG38 VF1 VP D/D CON+9V Q1024 T801 D1023-1026 VF2 VP RECT BIAS OSC A D CD SERVO SECTION (Page 22) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 25 25 HCD-CPX22/NXM3 7-5. BLOCK DIAGRAM – S-MASTER SECTION – 1 22 2 7 /OTW /SD CN700 /RST L-IN R-IN R-IN P-DOWN INIT SCLATCH SCSHIFT SCDT PGMUTE SOFTMUTE MSPMUTE OVF DOUT BCK SCKI OUT B OUT B OUT A OUT A LRCK OUTL1 OUTL2 OUTR1 OUTR2 L-IN DATA BCK INIT XFSD IN SCLATCH SCSHIFT SCDT PGMUTE SOFTMUTE NSPMUTE FLAGL OVF OVF FLAGR /RST /SD /OTW BP AP LRCK XFSI IN R-IN P-DWN 23 27 21 19 20 18 24 25 48 15 TM504 IC707 DIGITAL POWER AMP IC705 DATA CONVERTER L R+ R-CH R-CH L+ L- R- 4 IC709 X702 2 1 IC710 A+5V REG 3 X701 IC703 IC701 A/D CONVERTER 13 11 9 2 30 29 26 25 17 13 4 15 6 4 11 10 31 30 29 36 PROTECT Q701 A+5V A+9V D+3.3V OVER LOAD DETECT Q702,703 SWITCHING REGULATOR R SPEAKER 7 1 6 2 1 IC706 D+3.3V REG 3 +1.8V 5 IC704 1.8V REG 4 C TUNER/TAPE SECTION (Page 23) • R-ch is omitted due to same as L-ch. • Signal path F : AUDIO w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 26 26 HCD-CPX22/NXM3 7-6. PRINTED WIRING BOARD – BD SECTION – • See page 21 for Circuit Boards Location. C10 C260 C14 C15 C16 C18 C11 R405 C316 R354 R353 R352 R351 R302 R253 C315 R191 R172 R171 R162 R313 X171 R121 R12 R11 R10 Q10 C116 C312 C184 C183 C303 C302 C305 C259 C258 C257 C255 C203 C196 C195 C201 C182 C171 C172 C308 C151 C134 C125 C314 C123 R165 R13 C17 FB301 C318 R201 C174 R173 R205 C209 C210 12 (12) 1-860-502- BD BOARD (SIDE A) E R419 R412 R411 R410 R409 R408 R407 R406 R404 R403 R402 1 R401 R305 R303 R301 R252 JPO103 (TE1) JPO102 (FE1) TP117 (VC) TP124 (RFAC) R251 R182 R181 R163 R151 R143 R142 R141 R133 R132 R131 R114 R113 R112 R111 R307 C313 C311 C310 C309 C307 C306 IC251 C252 C251 C194 C181 C320 S101 (LIMIT) IC101 C163 C162 C143 C142 C141 C133 C132 C131 C124 C111 C122 C115 C114 C113 C112 IC301 C185 C186 R306 CN101 IC303 CN201 C206 36 28 27 19 1 9 10 18 C317 R203 R161 C161 C211 C212 R204 C213 1 3 4 5 M101 SPINDLE MOTOR M102 SLED MOTOR M M BD BOARD (SIDE B) 12 (12) 1-860-502- OPTICAL PICK-UP BLOCK (KSM-215DCP) A MAIN BOARD (Page 30) 16 17 32 49 48 64 1 33 27 2 3 4 5 6 7 8 9 10 A 1 B C D E F Ref. No. Location IC101 D-8 IC251 C-6 IC301 C-8 IC303 B-8 Q10 E-4 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 27 27 HCD-CPX22/NXM3 7-7. SCHEMATIC DIAGRAM – BD BOARD – TP165 TP166 TP178 TP144 TP147 TP153 TP186 TP187 TP167 TP160 TP162 TP177 TP145 TP148 TP121 TP122 TP123 JPO004 JPO10 TP250 TP301 TP302 TP303 TP304 TP103 TP104 TP105 TP146 JPO102 JPO103 TP420 TP421 TP422 TP423 TP424 TP426 TP427 TP428 TP429 TP430 TP431 TP432 TP433 TP436 TP401 TP407 TP406 TP405 TP404 TP403 TP402 TP408 TP410 TP434 TP417 TP416 TP415 TP414 TP413 TP412 TP419 TP411 TP435 TP409 TP19 TP18 TP17 TP16 TP15 TP102 TP14 TP13 TP12 TP11 TP10 TP253 TP252 TP251 IC301 TP125 TP124 TP142 TP149 C308 C309 R303 C310 C311 R306 C312 IC303 FB301 C302 C303 C305 CN201 R205 R411 R410 R409 R408 R407 R406 R412 C213 C212 C211 C209 C203 R201 C201 C210 R162 R165 C163 R163 C196 C260 C255 C252 C257 M101 M102 IC251 R253 C258 C259 R252 R251 C251 C195 C115 R111 C116 R112 R114 R113 C111 C112 C113 C114 CN101 C15 C10 C11 Q10 C16 R13 R10 R11 C17 R12 C18 C122 R121 C123 C124 C134 C142 R143 C132 C133 R133 R132 C141 R142 R141 C143 R151 C151 C131 R131 R352 R353 R354 C161 C174 R173 C162 R171 C172 X171 C171 R172 R161 R182 R181 C185 C186 C181 C182 C184 C183 C194 R351 R302 C313 C314 C316 C315 R313 C317 R305 R301 R401 C318 R203 C320 C306 R405 R404 R419 R403 R402 R307 C307 C125 IC101 R191 R204 MIRR DFCT FOK XUGF XPCK GFS MVDD MGND LOCK WDCK COUT VC WFCK SBSO RFDCO MDP APC SP- LRCK PCMD BCK C2PO FEI TEI AGND DGND MP3GND IOP1 IOP2 SW- PCMDI FRDR FFDR TRDR TFDR MDP MP3VDD AVDD MP3STB MICS MILP MIDIO MICK MIACK MP3REQ MP3RST ROUT AVDD SCOR SENS CLK XLT DATA XRST XTCN LOUT DVDD DOUT F- T- F- F+ PD F C B A D E SL- SL+ SP+ TC94A34FG-002 RFACI RFACO EXCK 47 4V 0.1 100k 0.1 0.1 0 0.1 BH15FB1W 0.1 0.1 220 4V 27P 0 100 100 100 100 100 100 100 22p 22p 220p 0.01 100 10V 0 100 10V 0.1 47k 0.1 100 0.1 220 10V 0.1 0.1 0.1 BA5947FM (HSOP28) 10k 0.1 0.1 22k 10k 0.0068 0.1 0.1 1k 100 10V 15k 15k 1k 0.0033 470p 0.0033 470p 16P 0.1 10 10 2SB1690K 1 1 3.3 0 220 4V 100k 0.001 0.1 15k 0.1 330p 0.1 0.0015 3.3k 0.47 0.01 180k 10k 0.1 1k 4.7k 0.1 0 100 10V 100p 1M 100 100 100 0.1 0.1 0 0.1 470 27p 16.9MHz 22p 1M 100 100 100 2200p 2200p 0.1 0.1 22 6.3V 22 6.3V 0.1 100 10k 0.1 47 4V 0.0022 0.1 220 0.01 100k 100k 100 0.01 0 0 0.1 100 100 100 100 100 10k 0.1 0.1 CXD3059AR 0 0 SRDR SFDR D3.3V MDP SQSO DDC2.5V DDC2.5V DVSS DVSS D3.3V A3.3V A3.3V AVSS DOUT LOUT ROUT DVSS D3.3V AVSS A3.3V VSSX VSSP VSS A3.3V DDC A3.3V D3.3V DGND AGND E F F E D A B C MIACK MICK MIDIO MILP MICS SCOR SENS CLOCK DATA XRST XLT CLOCK SENS SCOR XRST MP3REQ DATA MP3STB XTACN XTACN MP3STB D C B A MP3RST XLT MP3REQ MIACK MICK MIDIO MILP MICS MP3RST * BOARD (Page 33) MAIN • See page 41 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 28 28 HCD-CPX22/NXM3 7-8. PRINTED WIRING BOARD – CD MECHANISM BOARD – • See page 21 for Circuit Boards Location. JW701 S761 (SUB TRAY OUT) R753 R754 R751 C702 JW713 Q751 R752 R755 JW712 JW709 JW710 JW711 JW714 IC711 R712 R711 C701 JW702 R701 R702 CN761 CN751 JW705 JW707 JW708 JW706 IC701 CN705 CN731 CN771 CN701 C703 IC751 JW703 JW704 S721 (MAIN TRAY IN/OUT) S731 (SUB TRAY N) S771 ROTARY ENCODER (MD) S781 ROTARY ENCODER (ST U/D) CN721 JW715 JW716 JW718 JW719 JW720 JW717 CN706 CN702 CN707 CN703 C762 C761 D701 D711 MOTOR BOARD SENSOR BOARD SW(2) BOARD SW(1) BOARD ENCODER BOARD RELAY BOARD 11 (11) 1-861-241- 11 (11) 1-861-242- 11 (11) 1-861-243- 11 (11) 1-861-245- 11 (11) 1-861-244- 11 (11) 1-861-240- MAIN BOARD (Page30) B M761 (LD/ST MOTOR) M762 (BU U/D MOTOR) 4 3 2 1 G 1 1 1 1 1 1 1 1 6 2 3 3 3 3 1 1 2 2 3 4 1 2 3 4 G G 9 9 20 21 1 6 2 3 4 5 6 7 A 1 B C D E F Ref. No. Location D701 D-4 D711 D-4 IC701 D-4 IC711 E-3 IC751 B-6 Q751 D-2 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 29 29 HCD-CPX22/NXM3 7-9. SCHEMATIC DIAGRAM – CD MECHANISM BOARD – M761 M762 S761 S731 CN731 CN703 IC751 CN751 CN705 R711 R712 D711 IC711 D701 C762 C761 R702 R701 C701 IC701 CN702 CN721 S721 CN701 C702 R751 R754 Q751 R753 R752 R755 CN707 CN771 S771 S781 CN706 CN761 RF500TB RF500TB (SUB TRAY OUT) (SUB TRAY IN) 2P 2P RPR-359F 3P 3P 680 100 MTZJ-T-77-4.3A BA6956AN MTZJ-T-77-4.7B 0.01 0.01 100 680 47 16V BA6956AN 3P 3P (MAIN TRAY IN/OUT) 21PIN 10 16V 91 12k 2SC2785-HFE 10k 10k 10k 5P 5P ROTARY ENCODER (MD) ROTARY ENCODER 6P 6P ST-E2 ST-E3 ST-E4 ST-E1 ST-E4 ST-E3 ST-E2 ST-E1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 30 30 HCD-CPX22/NXM3 7-10. PRINTED WIRING BOARD – MAIN BOARD – • See page 21 for Circuit Boards Location. E E E E E E E E E E E E E E E E R339 R338 R337 R340 R333 R330 R336 R332 R335 R331 R334 R18 R208 C205 C255 R206 R256 R220 R221 C223 R222 JR200 R231 R232 R298 R294 Q270 R272 R299 R270 R273 R296 R275 Q271 JR115 R325 R326 R324 Q323 C324 C323 D322 Q321 R321 R322 R323 C322 C321 D321 Q326 R327 R329 R328 JR108 Q26 R29 R28 R27 Q25 JR107 JR109 JR106 R123 Q153 R159 R161 R180 R160 Q140 R133 C351 C301 R162 C196 R129 R122 C131 R121 R132 R131 R151 C303 C353 R164 R163 C157 C160 R153C158 R154 R155 C161 IC101 R158 C123 R127 40 41 64 65 1 80 25 24 C174 C173 C110 R105 C108 C107 R104 R189 R101 C111 JR116 R188 R341 R342 Q341 R343 R345 R344 Q342 Q343 JR117 R126 R3 R1 R103 R2 Q1 JR118 JR119 R5 R6 Q2 R4 Q29 Q30 R33 R35 Q32 Q31 R36 R34 R38 R37 Q33 Q34 C146 R110 Q103 R109 Q316 R314 R315 R317 R318 R320 R316 R319 Q314 R303 R353 Q353 Q303 Q315 R113 R112 R114 R111 R352 Q352 R302 Q302 Q301 Q311 R312 Q312 Q313 R311 R313 R351 Q351 R301 R76 R80 R69 R79 R77 Q71 Q81 R87 R89 R59 R90 R86 C90 R60 R85 R88 R98 R50 R75 R78 C70 IC3 Q22 Q21 R22 R21 R23 JR261 JR120 R914 Q906 JR1 L951 C952 R959 R958 R957 JR121 IC951 R955 R954 R953 R968 JR112 JR111 R970 R956 C953 R952 C973 C972 R984 JR104 L971 R450 R449 R243 R241 Q27 Q28 E E R145 R142 R192 C191 R191 C100 J102 C141 R141 R30 R31 R32 L370 R247 R246 R451 R452 R448 C383 R387 R385 JR110 R383 R381 R379 R377 R433 R378 R384 R386 R388 R440 R439 R438 R382 R380 R434 R435 R436 R437 R441 R443 R445 EXCEPT AEP,UK R455 R442 R444 R446 31 50 100 81 30 1 1 80 R447 JR449 R453 R454 R416 R430 R429 R415 R424 R422 R421 R418 R419 JR418 R423 R425 R426 R420 R417 C416 R413 R411 R431 R432 JR105 FB373 FB372 C373 FB371 FB374 C412 JR101 R391 Q391 R393 D392 R394 C411 C410 R409 R406 JR103 R407 D391 R392 R396 R405 R403 R402 R401 R404 R395 D393 D394 JR114 JR113 R187 D181 D183 R498 R186 R499 D182 R495 R494 R456 R458 R457 R459 R460 R461 D397 D395 D396 R412 R465 C463 C475 R470 C476 R472 R474 R477 R476 R473 R471 R414 R408 R410 R493 R479 R478 R466 R467 R482 R483 R468 R469 R484 R486 JR102 R490 R489 R485 R496 R492 R497 C499 C497 IC971 D905 JR123 JR122 JR124 JR125 D904 JR126 C148 C198 R39 JR127 JR128 R347 IC401 C197 C147 R304 R354 C305 C355 R305 R355 C306 C356 C357 C307 R306 R356 R357 R307 R309 R359 C308 C358 Q104 Q154 R102 R152 R118 R168 R119 R169 R915 C35 C32 C40 C41 C368 JW171 JW172 JW103 JW102 JW106 CN109 JW108 JW129 JW130 JW125 JW158 JW166 JW165 Q324 JW110 JW274 JW109 JW113 JW114 JW116 JW118 JW119 JW120 JW121 JW476 JW159 JW160 JW236 JW150 JW149 JW174 JW173 JW151 JW143 JW140 JW141 JW142 JW131 C270 JW138 JW137 JW154 JW126 JW127 JW128 JW418 JW175 JW176 CN371 JW136 1 10 20 21 15 1 5 10 27 C382 JW133 JW132 C372 C379 JW134 JW144 JW145 JW146 JW148 Q322 JW276 Q327 JW411 JW412 JW413 JW105 JW111 JW112 C207 C257 C222 JW273 JW474 JW480 JW305 JW278 JW468 JW281 JW282 JW284 JW420 C135 C156 C134 C154 C122 C159 C133 C132 C152 C151 C166 C167 CN301 C352 C302 C121 C155 C162 C168 C165 C304 C354 C119 CN302 C117 C118 C115 C116 JW261 JW301 C314 C315 T301 C313 C311 C312 Q318 L311 Q317 JW454 C101 C102 C106 JW312 JW378 JW379 JW380 JW381 C103 C109 C112 C105 C104 JW331 C1 C124 C390 JW315 JW428 C87 C77 JW911 C75 C89 C85 C79 C94 C93 C25 C26 JW472 JW309 JW471 JW310 JW270 JW269 JW268 JW267 JW266 JW246 JW179 JW170 JW152 JW153 JW157 CN110 JW163 JW164 JW162 JW167 JW168 JW169 JW177 JW178 C183 JW317 JW260 JW190 C498 JW397 JW396 JW388 JW389 JW385 C2 JW395 JW362 JW394 JW482 JW481 JW354 JW429 C22 C21 JW382 JW384 JW490 JW904 JW500 JW903 JW375 JW374 JW365 JW373 JW371 JW376 JW349 JW322 JW323 JW351 JW347 JW346 JW348 JW377 JW8 CN304 JW475 JW421 JW297 JW422 JW423 CN106 JW467 JW318 JW319 IC391 C393 C391 C392 X402 X401 JW209 C417 D373 JW189 JW206 JW101 JW124 CN372 CN401 JW224 C384 JW192 JW191 D371 JW466 D372 JW251 JW252 C462 JW402 JW405 JW355 JW6 JW3 JW241 JW244 JW242 JW485 JW424 JW404 JW406 JW408 JW409 JW410 JW403 JW245 JW215 JW194 JW416 JW195 JW198 JW199 JW200 JW197 CN204 JW202 JW201 JW239 C27 C28 C370 C142 IC301 JW383 JW499 JW455 JW483 C192 JW229 JW230 JW231 JW232 JW233 JW234 JW235 JW426 JW435 JW243 JW9 JW7 JW425 3 2 1 1 7 3 2 1 3 2 1 CN112 JW414 JW464 C901 C902 IC901 C905 C906 IC903 C904 C903 JW436 JW489 IC902 C920 C919 JW431 JW447 JW496 JW450 JW438 JW452 CN101 JW443 JW444 JW498 JW449 C930 JW465 JW901 JW320 C900 JW497 JW902 JW453 JW445 JW493 JW161 JW442 JW900 EP901 JW463 CN303 C127 JW488 JW5 JW139 JW147 JW386 JW387 JW495 JW10 JW280 JW352 JW469 JW344 JW343 JW283 JW193 JW222 C125 C126 JW250 JW240 JW216 JW446 JW462 CN105 JW491 CN107 JW214 JW415 JW223 JW249 JW205 JW203 JW930 JW427 JW407 JW439 JW353 JW204 JW401 JW350 15P(AEP,UK) TUNER SWITCHING REG AC IN TAPE MECHANISM DECK 11P(US,E3,E51,EA,RU) 1 11 15 C271 JW298 L301 L351 D903 JW334 JW417 JW296 JW363 JW366 JW372 JW299 C375 JW399 Q82 C169 DGND IC301 DIGITAL OUT J102 VIDEO(MD) OPTICAL 3.3V DOUT 11 (11) 1-861-417- CHASSIS CHASSIS S-MASTER BOARD (Page38) S-MASTER BOARD (Page38) H HP BOARD (Page36) F VOL BOARD (Page36) D S-MASTER BOARD (Page38) G RELAY BOARD (Page28) B BD BOARD (Page26) A PANEL BOARD (Page34) E VOL BOARD (Page36) C AEP,UK 11P EXCEPT AEP,UK US,E3,E51,EA,RU 15P AEP,UK AEP,UK MAIN BOARD C196 C38 C36 C39 FB80 FB50 FB30 FB34 FB54 FB84 AEP,UK,EA,RU AEP,UK,EA,RU AEP,UK,EA,RU AEP,UK,EA,RU AEP,UK,EA,RU C37 AEP,UK,EA,RU E E E E E E E E E E E E E E E E E E E E E E E E E E E I L IN R R CH L CH PB HEAD HP901 R CH L CH HE901 ERASE HEAD HRP901 REC/PB HEAD 2 3 4 5 6 7 8 9 10 11 12 A 1 B C D E F G H J I Ref. No. Location D181 E-7 D182 D-6 D183 E-7 D321 D-11 D322 C-11 D371 B-5 D372 B-5 D373 B-6 D391 D-6 D392 C-7 D393 D-7 D394 D-7 D395 E-5 D396 E-5 D397 E-5 D903 B-10 D904 F-2 D905 G-4 IC3 I-6 IC101 G-8 IC301 B-2 IC391 C-7 IC401 D-6 IC901 F-4 IC902 F-2 IC903 F-3 IC951 E-3 IC971 D-3 Q1 H-7 Q2 I-6 Q21 I-5 Q22 I-5 Q25 E-8 Q26 E-8 Q27 B-3 Q28 B-3 Q29 I-6 Q30 I-6 • Semiconductor Location Ref. No. Location Q31 I-6 Q32 I-7 Q33 I-7 Q34 I-7 Q71 I-7 Q81 J-7 Q82 J-6 Q103 I-8 Q104 I-8 Q140 G-9 Q153 G-9 Q154 I-8 Q270 C-8 Q271 C-9 Q301 I-9 Q302 H-9 Q303 I-9 Q311 I-8 Q312 I-8 Q313 I-8 Q314 I-9 Q315 I-9 Q316 J-7 Q317 J-8 Q318 J-8 Q321 C-11 Q322 D-11 Q323 C-11 Q324 C-11 Q326 D-11 Q327 D-11 Q341 F-7 Q342 G-7 Q343 G-7 Q351 I-9 Q352 H-9 Q353 I-9 Q391 D-6 Q906 G-4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 31 31 HCD-CPX22/NXM3 7-11. SCHEMATIC DIAGRAM – MAIN BOARD (1/3) – R315 R314 R303 R353 R305 R355 R311 R313 R318 R317 R319 C313 R341 R342 R343 R345 C311 R320 R312 R130 C151 C152 C154 C156 R122 R151 R111 R153 C312 C305 C355 CN301 CN302 C133 T301 C121 C131 C155 C122 C308 C358 R102 R152 R118 R307 R357 R131 R132 C169 C303 C353 R301 R302 R351 R352 R126 R127 R241 R243 CN304 C117 R113 C147 C125 C126 C167 R163 C197 C148 R112 C118 R114 C198 R162 C168 R164 C119 C116 C146 R109 R33 R34 R35 R36 R39 R344 C390 C40 C36 C37 C38 R306 R356 L351 C307 C357 L301 C306 C356 R304 R354 C315 C314 R110 CN204 C157 C158 C160 C161 C162 R154 R155 R121 C135 R123 C132 R129 C196 R160 R180 R159 C166 R161 C107 C108 C110 C111 C112 C106 C105 R101 C104 C103 C109 R103 R105 R104 C174 R347 C124 C123 R141 C141 R142 C142 R191 C191 R192 C192 C134 R133 C165 C100 R38 R37 C159 FB84 FB54 FB34 FB30 C302 C352 C301 C351 FB80 R359 R309 R168 R246 R247 J102 R316 FB50 L311 R298 C101 R294 R119 R169 C115 C173 C102 C127 C35 C304 C354 IC101 Q103 Q301 Q351 Q302 Q352 Q311 Q312 Q313 Q314 Q315 Q303 Q353 Q153 Q140 Q104 Q154 Q317 Q316 Q318 Q32 Q34 Q30 Q341 Q342 Q343 Q31 Q29 Q33 4.7k 47k 1k 1k 4.7k 4.7k 10k 10k 47 10k 3.3k 47 10V 10k 4.7k 22k 10k 0.0068 PET 33 10k 100 10 50V 10 50V 10 50V 10 50V 15k 15k 1k 2.2k 0.01 PET 0.001 B 0.001 B 3P PH-L 8P PH-L 0.01 PET SUMIDA 1 MF 22p CH 0.1 MF 4.7 50V 0.01 B 0.01 B 47k 47k 100 10k 10k 2.2k 27k 47 16V 330p B 330p B 4.7k 4.7k 4.7k 4.7k 220 220 0 0 3P 1 50V 330k 100p CH 100 10V 100 10V 1 50V 330k 100p CH 100p CH 12k 0.01 PET 180 100p CH 12k 0.01 PET 180 47 16V 10 50V 0.0068 B 47k 100k 22k 100k 22k 0 10k 22 50V 0.1 0.1 0.1 0.1 8.2k 8.2k 27mH 330p 330p 27mH 100p 100p 15k 15k 0.0047 0.01 100V 1k 0.022 B 0.022 B 0.047 B 0.0082 B 10 50V 2.2k 10k 2.2M 1 50V 1M 0.01 PET 15k 0.0068 1k 100 47k 10 50V 1k 0.022 B 0.022 B 0.047 B 0.0082 B 10 50V 10 50V 0.1 MF 15k 10 50V 10 50V 10 50V 2.2k 10k 2.2k 100p 2.2k 100 10V 0.1 F 1k 220p B 100k 10 50V 1k 220p B 100k 10 50V 10 50V 10k 10 50V 0.1 22k 100k 10 50V 0 0 0 0 10 50V 10 50V 330p 330p 0 2.2k 2.2k 100 10k 10k 10 0 1k 10 50V 1k 10k 10k 10 50V 100p 10 50V 100 10V 0.1 10 50V 10 50V M61537FP 2SC3624A PB MUTE 2SC3624A 2SC3624A 2SC3624A 2SC3624A 2SA812 DTC114EKA DTC114EKA DTA114EKA DTC114EKA 2SC3624A 2SC3624A 2SC3624A PB MUTE 2SC3624A 2SC3624A 2SC3624A RT1P137L BIAS SWITCH DTC114EKA BIAS SWITCH 2SC2001 BIAS OSC DTA114EKA DTA114EKA DTA114EKA 2SC1623 DTC114EKA DTC114EKA DTC114EKA DTC114EKA DTC114EKA B-1 GND B-4 ST A+9V AUDIO A+4.5V CDM D+ 3.3V 53 B-7 B-6 -B B-5 GND CDM D+ 3.3V B-5 100 50 51 52 53 54 55 A5 63 18 81 80 B19 B18 B17 49 A18 FR FL DM-L DM-R * TUNER AEP,UK AEP,UK 15P 11P US,E3,E51,EA *CN204 R-CH L-CH HEAD PB HEAD REC/PB HEAD ERASE HE901 R-CH L-CH (CHASSIS) R L IN ELECTRICAL VOLUME INPUT SELECT SWITCH, REC/PB SWITCH Q301-303, Q311-315 (FOR CHECK) DECK DECK A B HP901 HRP901 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 32 32 HCD-CPX22/NXM3 7-12. SCHEMATIC DIAGRAM – MAIN BOARD (2/3) – C410 R411 R413 R409 R417 X401 R429 R430 R415 R416 R408 R410 R412 R414 R393 R395 R396 C391 C392 C393 C183 R424 R425 R426 R433 R434 R435 R436 R437 R438 R439 R440 R441 R442 R443 R444 R445 R446 R447 R448 R452 R453 R454 R455 R470 R471 R472 R473 R474 R476 R477 R478 R479 R486 R489 R490 R956 R957 R958 R959 C952 C953 R485 R484 R483 R482 X402 R187 R189 R955 R952 R493 R970 R451 R466 R467 R468 R469 R186 R188 L951 C411 R953 R954 R968 R402 R403 R405 R406 R407 R404 R401 R419 R421 R422 R423 R420 R432 R431 R459 R460 R458 R457 R456 R461 R450 R392 R391 JW3 R394 JW5 C973 C972 JW6 L971 R465 CN401 C476 C475 C463 C462 C417 C412 C416 C497 C498 C499 R497 R494 R495 R498 R499 R492 R496 JR418 R418 JR449 R449 R984 IC951 IC401 IC971 IC391 Q391 D181 D182 D183 D395 D396 D392 D393 D394 D397 D391 18p CH 330k 0 10k 10k 32.768K 100 100 10k 10k 10k 10k 10k 10k 22k 220 10k 0.1 MF 0.1 MF 10 50V 1 50V 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 0.1 F 0.1 F 100 100 100 100 16M 470k 47k 100 100 100 10k 100 10k 10k 10k 10k 0 330 0 3216 18p CH 100 100 10k 100 100 100 100 100 100 100 100 100 100 100 4.7k 100 100 100 100 100 100 100 100 100 22k 10k 4.7k 0.1 F 0.1 F 0 3216 100 4P AMP-S 0.01 0.01 0.1 100 10V 1000 6.3V 0.1 0.1 0.1 F 10 50V 0.1 F 10k 3.3k 3.3k 10 10 0 0 0 100 10k PT8300R M30622MGN-B28FP PT8300R M62703 2SC1623 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 B-1 B-2 B-3 A-MUTE C32 EVER+4V GND 53 B-5 B-7 CDM D+ 3.3V B-8 B-9 TC D+3.3V B-10 GND CDM D+ 3.3V B-5 1 2 3 5 7 19 21 22 23 24 25 26 28 32 31 73 74 77 78 79 4 94 95 86 87 88 89 90 91 100 76 65 63 57 58 50 49 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 A8 A9 A10 A11 A12 A17 A19 A20 A21 A22 A23 B7 B8 B9 56 A5 A6 A7 53 54 55 52 51 LATCH CLK DATA1 DATA2 DATA1 DATA2 LATCH CLK 70 71 72 66 67 68 69 66 67 68 69 18 59 60 61 82 83 84 85 B19 B18 B17 B22 75 93 A18 81 80 * * *R492 1K 2.2K 4.7K 0 AEP,UK E3,EA US E51 1K 4.7K 0 *R496 EA E3 AEP,UK I/O EXPANDER SYSTEM CONTROL I/O EXPANDER LEVEL DETECT (FOR CHECK) EXCEPT E3,EA RU 150 EXCEPT AEP,UK AEP,UK EXCEPT AEP,UK • See page 44 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 33 33 HCD-CPX22/NXM3 7-13. SCHEMATIC DIAGRAM – MAIN BOARD (3/3)– R1 R3 R4 R6 C1 C2 C919 C920 R914 C903 C902 C904 R22 R21 C901 CN372 R377 R378 R379 R380 R381 R382 R383 R384 R385 R386 R387 R388 C21 C22 R915 C905 C906 CN101 CN105 CN106 R76 R85 R75 R77 R87 R78 R88 R80 R79 R89 R69 R59 R60 R50 C89 C85 C75 R90 CN107 R273 R275 C270 R270 R272 R299 R296 C271 JR1 FB371 FB374 CN371 FB373 C382 C900 R323 R326 R329 R338 R339 R337 JW900 C28 C27 R31 R32 R30 C39 CN112 JW930 CN109 CN110 R86 C87 C94 R98 C93 C90 C70 JW8 JW7 C375 C372 C373 FB372 C379 C383 C384 R335 R332 R336 R330 R333 R340 R334 R331 C324 C322 R321 R322 R324 R325 R327 R328 R28 C25 R27 C26 C370 L370 C77 C79 C930 R29 JW10 R23 R2 R5 CN303 EP901 IC301 IC902 IC901 IC903 IC3 Q270 Q271 Q906 Q26 Q25 Q28 Q27 Q22 Q21 Q327 Q324 Q322 Q1 Q2 Q321 Q326 Q71 Q81 Q82 D373 D372 D371 D321 D322 Q323 D904 D905 D903 2.2k 1k 2.2k 1k 10 50V 10 50V 10 50V 10 50V 1k 10 50V 100 10V 100 10V 22k 4.7k 0.1 50V 21P 1MMFFC-S 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 4.7 50V 4.7 50V 1k 0.1 50V 100 10V 6P EH-S(2X) 3P EH-S(2X) 19P 1.25MMFFC-S 47k 10k 10k 100k 100k 1k 1k 10k 47 47 47 47 47k 47k 10 50V 10 50V 10 50V 10k 4P AMP-S 2.2k 1k 10 50V 2.2k 1k 10k 10k 10 50V 0 0 0 27P 1MMFFC-S 0 470 10V 4700 16V 1k 1k 47k 10k 47k 22k 100 10V 100 10V 22k 100k 4.7k 0.1 5P 1.25MMFFC-S 13P 1.25MMFFC-S 15P 1.25MMFFC-S 47k 470 10V 100 10V 1k 1000 10V 22p 22p 1000 6.3V 470 6.3V 0.1 0 470 6.3V 0.1 470 6.3V 47k 4.7k 47k 4.7k 47k 4.7k 47k 47k 0.0047 0.0047 2.2k 2.2k 2.2k 2.2k 2.2k 2.2k 22k 4.7 50V 4.7k 4.7 50V 100 10V 470 10V 10 50V 2200 16V 100k 100k 10k 10k 13P 1.25MMFFC-S TOTX141 TA7809S TA7809S TA78033LS NJM3414AV 2SC3624A MUTE SWITCH 2SC3624A MUTE SWITCH 2SC1623 DTA114EKA MUTE SWITCH DTC114EKA MUTE SWITCH DTA114EKA MUTE SWITCH DTC114EKA MUTE SWITCH DTA114EKA MUTE SWITCH DTC114EKA MUTE SWITCH 2SB1116 CAP M DRIVE 2SB1116 A TRIG DRIVE 2SB1116 B TRIG DRIVE 2SC3624A MUTE SWITCH 2SC3624A MUTE SWITCH DTC114EKA B TRIG DRIVE DTC114EKA CAP M DRIVE 2SC3624A MUTE SWITCH 2SC3624A MUTE SWITCH 2SD2525 REG. 10EDB40 10EDB40 10EDB40 1SS355 1SS355 DTC114EKA A TRIG DRIVE 1SS355 UDZS-TE-17-4.3B 10EDB40 B-2 B-3 A-MUTE B-4 GND ST A+9V AUDIO A+4.5V C32 CDM D+ 3.3V B-6 CDM D+ 3.3V B-8 B-9 B-5 B-10 TC D+3.3V -B EVER+4V GND B-5 3 7 5 2 1 32 19 21 24 22 25 26 FL FR 23 A8 A7 A6 B7 B8 B9 65 B22 93 56 57 58 59 60 61 28 31 A9 89 A12 90 A11 91 A10 88 87 86 71 72 74 76 77 78 79 4 94 70 A23 A22 A21 73 82 83 84 85 A17 A20 A19 95 75 34 33 48 47 40 41 39 42 38 43 37 44 36 45 35 46 DM-R DM-L TAPE MECHANISM DECK SWITCHING REGULATOR DIGITAL OUT +9V REG +9V REG +3.3V REG +3.3V REG DIGITAL OUT BUFFER (CHASSIS) AC IN w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 34 34 HCD-CPX22/NXM3 7-14. PRINTED WIRING BOARD – PANEL BOARD – • See page 21 for Circuit Boards Location. R1020 IC1020 Q1026 R1037 R1036 R1034 R1024 R1023 R1021 C1025 R1025 C1021 C1048 R1027 R1028 R1032 R1029 R1030 R1031 C1029 R1045 R1051 C1052 C1050 R1052 R1046 D1022 Q1024 Q1022 Q1023 R1041 R1042 R1102 R1101 R1043 Q1021 R1100 D1023 R1033 R1035 R1040 D1024 D1025 D1026 C1054 R1038 R1039 R1022 R1026 C1006 JW1020 JW1022 JW1032 JW1033 JW1034 JW1035 JW1037 JW1023 JW1021 JW1050 JW1039 JW1049 JW1071 JW1043 JW1040 JW1081 C1053 CN1021 T801 C1051 S1036 S1030 S1032 S1034 + – S1035 S1031 S1029 b B z START CD TAPE A/B CD SYNC TUNING ALBUM DIMMER DISPLAY TUNER/ BAND VIDEO (MD) X x CD Z M> .m D1021 S1021 S1022 S1023 S1024 S1028 S1025 S1026 S1027 C1028 C1026 JW1025 JW1048 JW1024 JW1026 JW1027 FL1020 FLOURESCENT INDICATOR TUBE JW1036 JW1045 JW1046 JW1029 JW1030 JW1031 1 5 4 1 E 3 5 10 15 20 25 30 35 40 45 50 55 56 60 JW1038 JW1047 JW1028 48 49 17 16 33 32 64 1 JW1041 JW1042 S1033 L1021 LP1001 PANEL BOARD 11 (11) 1-861-474- MAIN BOARD (Page30) E E E E 2 3 4 5 6 7 8 9 10 A 1 B C D E F G Ref. No. Location D1021 B-1 D1022 B-2 D1023 B-3 D1024 B-2 D1025 B-2 D1026 B-2 IC1020 B-6 Q1021 B-4 Q1022 B-5 Q1023 A-5 Q1024 A-2 Q1026 B-1 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 35 35 HCD-CPX22/NXM3 7-15. SCHEMATIC DIAGRAM – PANEL BOARD – R1046 R1052 C1048 L1021 Q1024 SWITCHING REGULATOR R1045 C1053 C1050 R1020 C1028 R1039 R1040 R1038 R1036 R1037 R1034 R1035 R1033 R1025 C1025 R1023 R1022 C1021 R1021 R1024 R1043 R1042 R1041 R1102 R1101 R1100 C1029 R1027 R1026 R1028 R1030 R1029 R1031 R1032 S1021 S1022 S1023 S1024 S1025 S1026 S1027 S1028 S1029 S1030 S1031 S1032 S1033 S1034 S1035 S1036 FL1020 CN1021 R1051 C1051 C1052 C1006 C1026 IC1020 Q1024(1/2) Q1024(2/2) Q1021 Q1022 Q1023 Q1026 D1022 D1023 D1025 D1024 D1026 D1021 T801 C1054 10k 100 0.1 35V 3.3k 22 50V 0.01 100 10 50V 10k 33k 4.7k 1.5k 2.2k 4.7k 10k 2.2k 10k 220p 100 100 0.001 1k 1k 100k 100k 100k 10k 10k 10k 0.1 330 220 470 1k 680 1.5k 2.2k 13P 100 220 50V 0.01 0.1 10 50V M66005 -0131AHPRBOT CPH5504-TL-E CPH5504-TL-E 2SC1623 2SC1623 2SC1623 DTC114EKA LED SWITCH RD6.2FM 1SS355 1SS355 1SS355 1SS355 SEL5423 DC-DC CONVERTER 0.0047 36 35 34 33 32 31 30 29 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 50 49 48 47 46 45 44 43 42 41 39 38 28 40 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 51 52 /START (MD) VIDEO DISPLAY TAPE A/B TUNER/BAND CD DIMMER CD SYNC /KEY CONTROL DISPLAY CONTROL DRIVE GRID Q1021-1023 LIQUID CRYSTAL DISPLAY w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 36 36 HCD-CPX22/NXM3 7-16. PRINTED WIRING BOARD – DISC SW, VOL, HP BOARD – • See page 21 for Circuit Boards Location. R1049 R1094 C1001 R1001 R1002 Q1001 C1002 R1003 R1004 R1011 Q1002 R1012 C1003 R1005 R1006 Q1003 R1013 R1014 C1004 R1007 R1008 Q1004 C1005 R1010 R1009 R1095 C1016 D1051 R1059 Q1041 R1048 R1050 R1093 R1092 R1054 R1091 R1090 Q1005 E E E E E C1008 C1007 1 10 C1009 JW1051 JW1052 JW1053 JW1002 JW1003 JW1004 W1001 NO1001 JW1076 D1001 D1002 D1003 D1005 D1004 CN1051 S1043 D1050 CN1050 S1004 S1005 DISC 5 VOLUME S1052 TREBLE S1051 BASS S1050 DISC 4 DISC 3 DISC 2 DISC 1 S1003 S1002 S1001 JW1056 JW1055 JW1054 JW1057 C1013 IC1050 S1042 JW1058 JW1059 JW1078 JW1073 JW1069 JW1077 NO1052 JW1001 DISC SW BOARD VOL BOARD 11 (11) 1-861-475- 11 (11) 1-861-476- MAIN BOARD (Page30) C MAIN BOARD (Page30) D 1 10 1 2 3 E R1088 JR1081 JR1080 C1094 C1093 C1096 EP1060 EP1061 CN1062 JW1097 JW1099 JW1075 JW1072 JW1098 JW1083 JW1070 MAIN BOARD (Page30) F CHASSIS CHASSIS J1063 PHONES FB1001 FB1002 11 (11) 1-861-477- HP BOARD 2 3 4 5 6 7 8 9 10 11 A 1 B C D E F G Ref. No. Location D1001 C-6 D1002 C-5 D1003 C-4 D1004 C-4 D1005 C-3 D1050 E-6 D1051 E-5 IC1050 E-5 Q1001 B-6 Q1002 C-5 Q1003 C-4 Q1004 C-3 Q1005 C-2 Q1041 E-6 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 37 37 HCD-CPX22/NXM3 7-17. SCHEMATIC DIAGRAM – DISC SW, VOL, HP BOARD – R1004 R1008 R1006 R1010 R1002 R1009 R1007 R1005 R1003 R1001 R1012 R1011 R1013 R1014 C1009 R1049 R1050 C1013 R1059 R1090 R1091 R1092 R1093 R1094 R1095 R1048 R1088 JR1080 C1093 C1094 FB1001 FB1002 C1008 S1050 S1051 S1052 S1042 CN1051 CN1050 S1043 JW1099 JR1081 JW1098 C1007 NO1052 NO1001 J1063 S1001 S1002 S1003 S1004 S1005 IC1050 Q1001 Q1002 Q1003 Q1004 Q1005 D1005 D1004 D1003 D1002 D1001 Q1041 D1050 D1051 CN1062 C1096 EP1061 680 680 680 680 680 680 680 680 680 680 330 220 470 680 0.1 1k 220 47 16V 47 1k 1k 1k 1k 1k 1k 2.2k 0 0 0.001 0.001 0.1 5P 15P 0 0.1 10P 10P NJM74M400A DTC114EKA LED DRIVE DTC114EKA LED DRIVE DTC114EKA LED DRIVE DTC114EKA LED DRIVE DTC114EKA LED DRIVE SEL5823A SEL5823A SEL5823A SEL5823A SEL5823A DTC114EKA SEL5223S 1SS355 4P 1000p 1 2 3 4 5 5 4 3 2 1 7 1 2 3 4 5 6 7 8 9 10 11 12 8 9 10 11 12 1 2 3 4 5 6 I/ (CHASSIS) (CHASSIS) REMOTE CONTROL RECEIVER SWITCH Q1001-1005 LED SWITCH LED w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 38 38 HCD-CPX22/NXM3 7-18. PRINTED WIRING BOARD – S-MASTER BOARD – • See page 21 for Circuit Boards Location. C710 C757 C807 R713 R752 C794 C734 IC706 R723 R766 R716 IC703 R773 L710 IC701 C732 L711 L760 Q702 C717 C718 C713 C715 R754 C758 L761 C764 C778 C716 FL703 R756 Q701 R757 Q753 C767 C768 C763 C765 R764 1 2 3 1 4 5 1 3 4 8 3 3 2 1 3 1 4 5 C714 C726 R759 R758 R731 R732 R704 R706 C709 R714 C708 R707 R708 R709 FB702 R783 FL706 R781 R782 C785 X702 IC709R779 L703 IC705 IC710 X701 R784 R785 R786 R787 R788 R789 R790 R735 R739 R741 R743 R742 C766 FL702 L701 R729 C733 FL704 C759 C806 IC707 IC708 R719 R720 R769 R770 R730 R793 R792 C737 LP701 C704 S-MASTER BOARD (SIDE A) SP OUT BOARD S-MASTER BOARD (SIDE B) 11 (11) 1-861-480- 11 (11) 1-861-480- 11 (11) 1-861-479- R721 R718 R771 Q703 R768 C775 C829 C822 CHASSIS C821 C824 C830 C825 C826 C827 C828 R761 D710 C801 R744 L712 R762 C722 C727 D705 D706 C805 R772 C723 C712 C721 R728 C706 R717 C724 L714 C772 R776 R726 R778 R777 C776 L716 D755 D756 R727 C773 C762 Q752 E C771 C756 C725 R767 C774 R722 C788 C752 R710 R711 R712 C781 C782 C750 C786 C784 C783 L705 C799 C779 C780 L715 R751 R701 R737 R736 C739 C738 D711 D712 C802 R795 R745 R746 R748 C787 R747 C745 R749 C746 IC704 R750 C797 L702 D707 D708 C800 D702 D701 C749 D709 C729 D703 D704 C795 C823 C754 R760 L713 R724 R725 R774 R775 L704 C730 C790 C741 C798 C753 C700 C747 C731 C751 C701 CN700 L708 L709 L758 L759 C803 C804 CN701 C777 C770 C769 C791 C792 C719 C728 C720 C702 CN702 EP701 EP702 C736 C735 C748 C703 MAIN BOARD (Page30) G MAIN BOARD (Page30) H CHASSIS CHASSIS CHASSIS C594 C598 C599 C592 C595 C596 C597 L SPEAKER R C591 L590 L591 R597 R596 CN510 R598 TM504 L592 L593 AEP,UK,EA,RU AEP,UK,EA,RU AEP,UK,EA,RU EXCEPT AEP,UK,EA,RU R599 EP504 R592 R593 R594 R595 JW593 JW592 JW590 JW591 EP505 LP591 LP592 E E E E SWITCHING REGURATOR (Page30) I 2 3 4 5 6 7 8 9 10 11 12 A 1 B C D E F Ref. No. Location D701 A-5 D702 B-5 D703 B-5 D704 A-5 D705 C-5 D706 C-6 D707 A-5 D708 A-5 D709 B-5 D710 B-5 D711 C-5 D712 C-5 D755 C-6 D756 C-7 • Semiconductor Location Ref. No. Location IC701 A-3 IC703 A-2 IC704 A-6 IC705 B-2 IC706 B-1 IC707 C-3 IC708 C-1 IC709 B-2 IC710 D-1 Q701 E-2 Q702 E-3 Q703 E-5 Q752 E-7 Q753 E-1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 39 39 HCD-CPX22/NXM3 7-19. SCHEMATIC DIAGRAM – S-MASTER BOARD – X701 R735 C739 R736 R737 C738 R732 R731 C737 C736 L703 FL703 R739 L702 IC703 D711 D712 C802 C735 C734 IC701 R746 R745 C733 R730 C729 C795 C732 R729 C731 D702 D701 L701 C749 C748 C730 L713 IC704 C797 C747 C746 R749 C745 R747 R748 R744 C806 R743 R741 R742 R790 C788 C787 C703 R784 R785 R786 R788 R787 R789 IC705 C704 C754 C753 L716 C825 C826 C780 C799 C779 C700 L714 R779 R750 C798 FL704 C750 IC706 L712 C805 C790 C783 L705 X702 C785 R781 R782 C784 R783 FB702 C741 C786 FL706 IC709 L715 L704 CN510 TM504 JW593 R599 L593 L592 R598 JW592 JW590 R597 L591 R596 L590 JW591 EP505 EP504 C598 C594 R592 C592 C599 R593 R594 C595 C596 C597 C591 R595 D703 D704 C752 FL702 R795 C701 R701 R751 C751 D710 D709 C801 CN700 CN701 C821 C822 EP701 R723 R716 R704 IC707 R706 C709 C781 R707 C708 R708 R709 R711 R712 R714 C710 R710 R713 C712 R717 C702 L708 C714 C715 D706 D705 L709 C716 C717 C718 C706 R722 R720 C719 C713 R719 C830 C829 L710 C720 R721 C721 C722 C723 R725 C725 C727 R718 C728 L711 C724 R724 C792 C828 C827 Q702 Q703 R778 R726 R728 R727 C726 R777 R776 C778 Q753 Q752 Q701 R792 C794 C770 C777 R768 R771 C771 C776 L761 C772 C773 R774 R775 C774 C775 R766 R773 C763 R767 L758 C764 C765 R769 D756 D755 L759 C768 C766 C767 R770 L760 C756 R772 C769 C791 IC708 R761 R764 R762 C759 R760 R759 R754 C758 R752 C757 C782 R757 R758 R756 C823 C824 EP702 C762 CN702 R793 IC710 C803 C804 C800 D707 D708 12.288M 0 10p 1M 1k 10p 100 100 0.1 4.7 50V 0UH 0 TC7WU04F-TE12L 1SS355TE-17 1SS355TE-17 0.1 10 50V 0.1 PCM1802DBR 100 100 0.1 100 0.1 0.1 0.1 1k 100 10V 1SS355TE-17 1SS355TE-17 0.1 10 50V 0.1 0 NJM2870F18 0.01 100 10V 0.1 0 0.1 100 47k 0 0.1 100 100 10k 100 0.1 0.1 100 10V 100 100 100 100 100 100 CXD9788AR 0.1 0.1 100 10V 0 0 0 0.1 0.1 0.1 100 10V 0 0 100k 100 10V 0UH 0.01 0.1 100 10V 10p 49.152M 5p 100 1M 0.001 0 0 22 50V 0.01 0UH MC74VHC1GU04 0 0 4P EH-S 2P 10 1/2W 10 1/2W 10 1/2W 10 1/2W 100000p 100000p 10 1/2W 100000p 100000p 10 1/2W 10 1/2W 100000p 100000p 100000p 100000p 10 1/2W 1SS355TE-17 1SS355TE-17 0.1 0UH 0 1 50V 0 0 1 50V 1SS355TE-17 1SS355TE-17 0.1 19P FFC-S 8P EH-S 0 0 47k 1/10W 4.7k 1/10W 0 CXD9775M 100 0.1 0.1 0 1 0 0 100 100 560 47p 100 22k 1 0 0.1 0 0.22 0.22 P6SMB39AT3 P6SMB39AT3 0 0.22 0.22 0.033 1 0 3.3 1/4W 2200 35V 0.033 3.3 1/4W 0 0 1 4.7k 1/10W 0.22 0.0022 0.0022 2.7 1/10W 0.0022 0.22 4.7k 1/10W 1 0.0022 2.7 1/10W 470 16V 0 0 2SA1602 PNP 2SA1602 PNP 100k 100k 100k 100k 2.2 100k 100k 2.2 2SA1602 PNP 2SA1602 PNP 2SC1623 PROTECT 0 1 1 1 4.7k 1/10W 4.7k 1/10W 0.22 0.22 0.0022 0.0022 2.7 1/10W 2.7 1/10W 0.0022 0.0022 4.7k 1/10W 47k 1/10W 0.033 0 0 0.22 0.22 3.3 1/4W P6SMB39AT3 P6SMB39AT3 0 0.033 0.22 0.22 3.3 1/4W 1 0 2200 35V 0.1 CXD9775M 100 0 100 0.1 100 0 560 1 22k 47p 0.1 0 0 100 0 0 1 4P EH-S 100k 0.1 50V 100 10V 0.1 1SS355TE-17 1SS355TE-17 PDWN /RST /SD /OTW PDWN /RST INIT SCLATCH SCSHIFT SCDT PGMUTE SOFTMUTE NSPMUTE OVF /OTW /SD NSPMUTE SOFTMUTE PGMUTE SCDT SCSHIFT SCLATCH INIT OVF R L SPEAKER (CHASSIS) (CHASSIS) (CHASSIS) (CHASSIS) A/D CONVERTER BUFFER +1.8V REGULATOR REGULATOR D+3.3V A+5V REGULATOR DIGITAL POWER AMP DIGITAL POWER AMP DATA CONVERTER CLOCK GEN DETECT OVER LOAD Q702,703,752,753 EXCEPT EXCEPT EXCEPT EXCEPT AEP,UK,EA,RU AEP,UK,EA,RU AEP,UK,EA,RU AEP,UK,EA,RU AEP,UK,EA,RU AEP,UK,EA,RU AEP,UK,EA,RU AEP,UK,EA,RU w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 40 40 HCD-CPX22/NXM3 7-20. IC Block Diagram – BD Board – IC251 BA5947FM – RELAY Board – IC701, 711 BA6956AN 15 16 17 18 19 20 21 22 23 24 25 26 27 36 28 29 30 31 32 33 34 35 1 2 3 4 5 6 7 8 9 10 11 12 13 14 LEVEL SHIFT F R R F R F F 19k 6.5k 50k 50k 100k 50k PIN3 10k Vref 50k 50k PIN26 (ch1, 2) POW VCC (ch3, 4) SW Pre Vcc INTER FACE INTER FACE INTER FACE R F 50k 50k POW VCC MUTE Vref POW VCC R F 10k CH1PUTF CH1OUTR CH2OUTF CH2OUTR POWVCC CNF4 GND C-M C-P VG CH2RIN CH2FIN CH1RIN CH1FIN SW OPIN+ OPIN- NC CH4OUTR CH4OUTF CH3OUTF CH3OUTR POWVCC MUTE GND GND PREGND CT CH3RIN CH3FIN CH4IN CH4CAPA OUTVREF DPOUT TREVCC NC D D D D D D D D 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN – BD Board – IC301 TC94A34FG-002 33 34 35 36 37 38 39 40 41 42 1 8 43 61 62 63 64 60 59 56 52 50 47 46 45 44 48 49 25 26 27 28 29 30 31 32 17 18 19 20 21 22 23 24 9 10 11 2 3 4 5 6 7 58 57 55 53 51 12 13 14 15 16 54 CS/RAS/ADO2 AD15/CAS/PD12 SDO3/OE WE/SDO1 PIO7/BUS3/IO7 PIO6/FI3/BUS2/IO7 PIO5/FI2/BUS1/IO5 PIO4/FI1/BUS0/IO4 Bus Switch PO11/BUCK/AD14 PO10/CCE/AD13 PO9/AD12 PO08/AD11 General In/Output Port Address Calc. 2sets Y-Pointer register C-Pointer register X-Pointer register VDDM SRMSTB VDDT AD10 AD9 ERAM 2k word CRAM 4k word CROM 4k word YRAM 4k word XRAM 4k word SRAM/ DRAM I/F SRAM I/F 1Mbit SRAM X-Bus Y-Bus PO07/AD7 PO06/AD6 PO05/AD5 AD8 VC0 Timing Generator PRAM Instruction Decoder Program Control MCU. I/F register XO • X1 • X2 Y0 • Y1 • Y2 MX MY MZ MAC A0 A1 AX AY ALU A2 A3 DIT round & limit round & limit Audio I/F LRCKIA BCKIA SDI0 LRCKO BCKO SDO0 VSS VDDT MIACK MICK MIDIO MILP MICS STANBY RESET VDDP AD4/PO04 AD3/PO03 AD2/PO02 AD1/PO01 AD0/PO00 VSS VDD CKO/PO13/AD16 VDDX XO TEST VCOI VSSX XI MIMD VSSP PIO3/IO3 PIO2/IO2 PIO1/SDI3/IO1 PIO0/SDI2/IO0 VSS CKI/CLOCK/IRQ/FIO VDD TXO SFSY/LRCKIB SBSY/BCKIB SDI1/DATA POM Sub code I/F CDP Cont I/F w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 HCD-CPX22/NXM3 7-21. IC Pin Function Descriptions • IC101 CXD3059AR (RF AMP) (BD BOARD) Pin No. Pin Name I/O Description 1 MIRR I/O Mirror signal input/output(Not used) 2 DFCT I/O Defect signal input/output (Not used) 3 FOK I/O Focus OK signal input/output (Not used) 4 VSS — Internal digital ground 5 LOCK I/O Not used 6 MDP O Spindle motor servo control output 7 SSTP I Disk innermost detection signal input 8 IOVSS1 — I/O digital ground 9 SFDR O Sled drive output 10 SFDR O Sled drive output 11 TFDR O Tracking drive output 12 TRDR O Tracking drive output 13 FFDR O Focus drive output 14 FFDR O Focus drive output 15 IOVDD1 — I/O digital power supply 16 AVDD0 — Analog power supply 17 AVSS0 — Analog ground 18 NC — Not used 19 E I E signal input 20 F I F signal input 21 TEI I Tracking error signal input 22 TEO O Tracking error signal output 23 FEI I Focus error signal input 24 FEO O Focus error signal output 25 VC I/O Center voltage output from RF amplifier block 26 A I A signal input 27 B I B signal input 28 C I C signal input 29 D I D signal input A 30 NC — Not used 31 AVDD4 — Analog power supply 32 RFDCO O RFDC signal output (Not used) 33 PDSENS I Reference voltage pin 34 AC_SUM O RFAC summing amplifier output 35 EQ_IN I Equalizer circuit input 36 LD O APC output 37 PD I APC input 38 NC — Not used 39 RFC I Equalizer cut-off frequency adjustment pin 40 AVSS4 — Analog ground 41 RFACO O RFAC signal output 42 RFACI I RFAC signal input or EFM signal input 43 AVDD3 — Analog power supply 44 BIAS I Asymmetry circuit constant current input 45 ASYI I Asymmetry comparator voltage input 46 ASYO O EFM full-swing output 47 VPCO O Not used 48 VCTL I Wide-band EFM PLL VCO2 control voltage input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 HCD-CPX22/NXM3 Pin No. Pin Name I/O Description 49 AVSS3 — Analog ground 50 CLTV I Multiplier VCO1 control voltage input 51 FILO O Master PLL (slave = digital PLL) filter output 52 FILI I Master PLL filter input 53 PCO O Master PLL charge pump output 54 AVDD5 — Analog power supply 55 DDVROUT O DC/DC converter output 56 DDVRSEN I DC/DC converter output voltage monitor input 57 AVSS5 — Analog ground 58 DDCR I DC/DC converter reset input 59 NC — Not used 60 BCKI I D/A interface bit clock input 61 PCMDI I D/A interface serial data input (2’s COMP, MSB first) 62 LRCKl I D/A interface LR clock input 63 LRCK O D/A interface LR clock output f = Fs 64 VSS — Internal digital ground 65 PCMD O D/A interface serial data output (2’s COMP, MSB first) 66 BCK O D/A interface bit clock output 67 VDD — Internal digital power supply 68 EMPH O High when the playback disc has emphasis, low it has not 69 EMPHI I High when de-emphasis is ON, low when input OFF 70 IOVDD2 — I/O digital power supply 71 DOUT O Digital Out output 72 TEST I Test pin Normally ground 73 TES1 I Test pin Normally ground 74 IOVss2 — I/O digital ground 75 NC — Not used 76 XVSS — Master clock ground 77 XTAO O Crystal oscillation circuit output 78 XTAI I Crystal oscillation circuit input 79 XVDD — Master clock power supply 80 AVDD1 — Analog power supply 81 AOUT1 O Lch analog output 82 VREFL O Lch reference voltage 83 AVSS1 — Analog ground 84 AVSS2 — Analog ground 85 VREFR O Rch reference voltage 86 AOUT2 O Rch analog output 87 AVDD2 — Analog power supply 88 NC — Not used 89 IOVDD0 — I/O digital power supply 90 RMUT O Rch “0” detection flag (Not used) 91 LMUT O Lch “0” detection flag (Not used) 92 NC — Not used 93 XTSL I Crystal selection input (Not used) 94 IOVSS0 — I/O digital ground 95 XTACN I Oscillation circuit control Self-oscillation when high, oscillation stop when low 96 SQSO O Subcode Q 80-bit and PCM peak and level data output (Not used) 97 SQCK I SQSO readout clock input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 HCD-CPX22/NXM3 Pin No. Pin Name I/O Description 98 SBSO O Subcode P to W serial output (Not used) 99 EXCK I SBSO readout clock input (Not used) 100 XRST I System reset input 101 SYSM I Mute input 102 D ATA I Serial data input from CPU 103 VSS — Internal digital ground 104 XLAT I Latch input from CPU 105 CLOCK I Serial data transfer clock input from CPU 106 VDD — Sled drive output Internal digital power supply Tracking drive output 107 SENS O SENS output to CPU 108 SCLK I SENS serial data readout clock input 109 ATSK I/O Anti-shock input/output (Not used) 110 WFCK O WFCK output (Not used) 111 XUGF O XUGF output (Not used) 112 XPCK O XPCK output (Not used) 113 GFS O GFS output (Not used) 114 C2PO O C2PO output (Not used) 115 SCOR O High output when the subcode sync, S0 or S1, is detected 116 VDD — Internal digital power supply 117 C4M O 4 2336MHz output (Not used) 118 WDCK O Word clock output f = 2Fs (Not used) 119 COUT I/O Track number count signal input/output (Not used) 120 NC — Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 HCD-CPX22/NXM3 • IC401 M30622MGN-B28FPUO (SYSTEM CONTROL) (MAIN Board) Pin No. Pin Name I/O Description 1 MP3 CS O Chip select signal to CD Digital Processor 2 MP3 LP O Latch pulse output to CD Digital Processor and Motor signal output 3 MP3 ACK I ACK input from CD Digital Processor and Motor signal input 4 SIRCS I Remote commander signal input 5 MP3 DATA OUT O Serial data output to the MP3 circuit 6 MP3 DATA IN I Serial data input from the MP3 circuit 7 MP3 CLK O Serial clock output to the MP3 circuit 8 BYTE I External data bus width select input (connected to ground) 9 CN VSS I Processor modes switch 10 Xcin I Sub clock input (32.768kHz) 11 Xcout O Sub clock output (32.768kHz) 12 RESET I System reset input 13 Xout O Main system clock output (16MHz) 14 Vss – Ground 15 Xin I Main system clock input (16MHz) 16 Vcc – Power supply 17 NMI I Non-maskable interrupt input 18 RDS-INT I Sirial data taransfer clock signal input 19 SCOR I CD Q-DATA request 20 AC-CUT I AC cut-off detection signal input 21 SENS I Internal status(SENSE) signal input from CXD3059AR 22 CD-DATA O Serial data output 23 CD-CLK O Serial data transfer clock signal output 24 XLT O Serial data latch pulse output 25 XRST O Reset signal output to the CD mechanism 26 XCTN O XCTN signal output (for Tuner noise reduction) 27 A-MUTE O Audio muting on/off control signal output 28 MP3-STANDBY O Standby signal output to the MP3 circuit 29 IIC_CLK I/O Communication data reading clock signal input or transfer clock siganal output 30 IIC_DATA I/O Communication data bus with CD mechanism and Fluorescent indicater 31 MP3 REQ I REQ signal input from MP3 circuit 32 MP3 RESET O RESET signal output to the MP3 circuit 33 CDM-MOT-POS-1 O Motor drive signal output (L/D) 34 CDM-MOT-POS-2 O Motor drive signal output (U/D) 35 CDM-MAIN-SW-CLS I Detection signal input from disc tray close detect main switch 36 CDM-SUB-SW-OPN I Detection signal input from disc tray open detect sub switch 37 CDM-ENC-A-1 I Detection signal input from the disc tray address detect rotary encoder 38 CDM-ENC-A-3 I Detection signal input from the disc tray address detect rotary encoder 39 CDM-ENC-B-1 I Detection signal input from the disc tray address detect rotary encoder 40 CDM-ENC-B-3 I Detection signal input from the disc tray address detect rotary encoder 41 CDM-ENC-B-2 I Detection signal input from the disc tray address detect rotary encoder 42 CDM-ENC-B-0 I Detection signal input from the disc tray address detect rotary encoder 43 CDM-ENC-A-2 I Detection signal input from the disc tray address detect rotary encoder 44 CDM-ENC-A-0 I Detection signal input from the disc tray address detect rotary encoder 45 CDM-SUB-SW-CLS I Detection signal input from disc tray close detect sub switch 46 CDM-MAIN-SW-OPN I Detection signal input from disc tray open detect main switch 47 CDM-MOT-NEG-2 O Motor drive signal output (U/D) 48 CDM-MOT-NEG-1 O Motor drive signal output (L/D) 49 RDS-DATA I RDS data input 50 ST-MUTE O Tuner muting control signal output to tuner unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 HCD-CPX22/NXM3 Pin No. Pin Name I/O Description 51 TUNED IN I Tuning detecton signal input from tuner unit 52 ST-CE O PLL chip enable signal output to tuner unit 53 ST-DOUT O PLL serial data output to tuner unit 54 ST-DIN I PLL serial data input from tuner unit 55 ST-CLK O PLL serial tansfer clock signal output to tuner unit 56 SM-DATA O Serial data output to the S-Master circuit 57 SM-CLK O Serial data transfer outout to the S-Master circuit 58 SM-LAT O Serial data latch pulse output to the S-Master circuit 59 SM-INT O Initial signal output to the S-Master (Power reset) 60 SM-ENB O ENABLE signal output to the S-Master 61 SM-ADC-POWR O ADC signal to the S-Master 62 VCC – Power supply 63 TC-REC-MUTE O Recording muting on/off selection signal output 64 VSS – Ground 65 STBY-RELAY O Main power on/off control signal output 66 IO-EXP:CLK O Serial data transfer output to the I/O expander circuit 67 IO-EXP:LAT O Serial data latch pulse output to the I/O expander circuit 68 IO-EXP DATA IN I Serial data input from the I/O expander circuit 69 IO-EXP DATA OUT O Serial data output to the I/O expander circuit 70 VOL-A I Jog dial pulse input from the rotary encoder (Volume) 71 VOL-B I Jog dial pulse input from the rotary encoder (Volume) 72 LED:STANDBY O Standby signal output to the LED driver 73 DISPLAY KEY I Display key input signal 74 POWER KEY I Power key input signal 75 DISC-SENS I Disc status detection signal input 76 JOG 1-A I Jog dial pulse input from the rotary encoder (Bass) 77 JOG 1-B I Jog dial pulse input from the rotary encoder (Bass) 78 JOG 2-A I Jog dial pulse input from the rotary encoder (Treble) 79 JOG 2-B I Jog dial pulse input from the rotary encoder (Treble) 80 AMP-DATA O Serial data output to the Front Amp circuit 81 AMP-CLK O Serial clock output to the Front Amp circuit 82 FL-RESET O Reset signal output to the FL indicator tubu circuit 83 FL-CS O Chip select signal output to the FL indicator tubu circuit 84 FL-CLK O Serial clock output to the FL indicator tubu circuit 85 FL-DATA O Serial data output to the FL indicator tubu circuit 86 CAMP-CNT1 O Capstan motor drive signal output 87 A TRG O Deck-A side trigger plunger drive signal output 88 B TRG O Deck-B side trigger plunger drive signal output 89 A SHUT I Shut off detection signal input from the deck-A side reel pulse detector 90 B SHUT I Shut off detection signal input from the deck-B side reel pulse detector 91 B HALF I Detection input from the deck-B half detect switch 92 SPEC-IN I Setting terminal for the version 93 MAIN-TRANS-CUT I Main transformer cut detect signal input 94 AD-KEY 2 I AD key 2 signal input 95 AD-KEY 1 I AD key 1 signal input 96 AVSS – Ground 97 VACS IN I VACS signal input 98 VREF I Reference voltage input 99 AVCC – Analog power supply 100 AMS-IN I Automatic music senser signal input www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 HCD-CPX22/NXM3 Pin No. Pin Name I/O Description 1 XVss – Ground 2 Vsubc – Ground 3 VssR – Ground 4 OUTR2 O PWM2 output for R-ch power stage. 5 VddR – Power supply(+3.3v) 6 OUTR1 O PWM1 output for R-ch power stage. 7 VssR – Ground 8 VssL – Ground 9 OUTL2 O PWM2 output for L-ch power stage. 10 VddL – Power supply(+3.3v) 11 OUTL1 O PWM1 output for R-ch power stage. 12 VssL – Ground 13 XOVss – Ground 14 XfsoOUT O Secondary master clock buffer output 15 XOVdd – Power supply(+3.3v) 16 DVdd – Power supply(power supply for digital section +1.8v) 17 DVss – Ground 18 NSPMUTEI I PWM duty50% mute and delta/sigma registor clear signal input 19 SoftMUTE I Soft mute signal input 20 PGMUTE I Mute signal input for PWM output data 21 SCDT I Serial control data input 22 SCSHIFT I Serial control shift clock input 23 SCLATCH I Serial control latch signal input 24 OVFFLAG O R-ch arithmetic section overflow detect flag output 25 OVFFLAG O L-ch arithmetic section overflow detect flag output 26 SFLAG O Anti-synchronize detect flag output 27 INIT I Initalise signal input (power reset) 28 MCKSEL I Secondary master clock select input 29 LRCK I Sampling clock input (correspond to CD/MD/DVDaudio etc) 30 BCK I Bit clock input(correspond to CD/MD/DVDaudio etc) 31 DATA I Audio data input(correspond to CD/MD/DVDaudio etc) 32 BFVdd – Power supply(+3.3v) 33 BFVss – Ground 34 TEST I Test terminal(normaly ground) 35 DVdd – Power supply(power supply for digital section +1.8v) 36 XFfsilN I Primary master clock input 37 FsoCKO O Secondary fso clock M-output 38 Fsol I Secondary fso clock input 39 HPOUTR2 O Not used 40 HPVssR – Ground 41 HPOUTR1 O Not used 42 HPVddR – Power supply(+3.3v) 43 HPOUTL2 O Not used 44 HPVddL – Ground 45 HPOUT O Not used 46 HPVddL – Power supply(+3.3v) 47 XVdd – Power supply(+3.3v) 48 XfsoIN I Secondary master clock input(1024/512fso) • IC705 CXD9788AR (DATA CONTOL) (S-MASTER Board) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 HCD-CPX22/NXM3 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 8 EXPLODED VIEWS 8-1. MAIN SECTION NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Abbreviation E3 : 240V AC Area in E model E51 : Chilean and Peruvian model EA : Saudi Arabia model RU : Russian model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. #1 #1 #1 #1 #1 not supplied 1 3 4 14 14 5 12 6 13 7 7 7 7 8 8 9 10 11 8 8 #1 #1 1 A-1052-039-A MAIN BOARD, COMPLETE (EA) 1 A-4750-856-A MAIN BOARD, COMPLETE (AEP, UK) 1 A-4750-931-A MAIN BOARD, COMPLETE (RU) 1 A-4750-933-A MAIN BOARD, COMPLETE (E3) 1 A-4750-935-A MAIN BOARD, COMPLETE (E51) 1 A-4750-937-A MAIN BOARD, COMPLETE (US) 3 1-769-984-11 WIRE (FLAT TYPE) (13 CORE) 4 1-765-332-11 WIRE (FLAT TYPE) (15 CORE) 5 1-769-869-11 WIRE (FLAT TYPE) (5 CORE) 6 1-769-939-11 WIRE (FLAT TYPE) (11 CORE) (EXCEPT AEP, UK) 6 1-773-003-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK) 7 3-363-099-22 SCREW (CASE 3 TP2) 8 4-951-620-01 SCREW (2.6X8), +BVTP 9 4-252-541-51 CASE 10 4-252-538-01 PANEL, TOP 11 1-693-603-31 TUNER (FM/AM) (E3, E51, EA) 11 1-693-604-11 TUNER (FM/AM) (AEP, UK) 11 1-693-623-31 TUNER (FM/AM) (US) 11 1-693-654-11 TUNER (FM/AM) (RU) 12 1-773-119-11 WIRE (FLAT TYPE) (19CORE) 13 1-827-488-11 WIRE (FLAT TYPE) (27CORE) 14 1-500-386-11 FILTER, CLAMP (FERRITE CORE) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 #2 7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT (B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 HCD-CPX22/NXM3 8-2. FRONT PANEL SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks not supplied not supplied not supplied not supplied #1 not supplied not supplied not supplied not supplied 51 52 53 57 57 56 57 57 57 57 57 57 57 57 58 57 57 57 59 60 61 57 57 55 55 62 63 51 4-252-535-11 KNOB (VOL) 52 4-252-536-11 KNOB (B/T) 53 X-4956-194-1 PANEL ASSY (U) (CPX22), FRONT (US) 53 X-4956-200-1 PANEL ASSY (CPX22), FRONT (AEP, UK) 53 X-4956-262-1 PANEL ASSY, FRONT (E3, E51, EA) 53 X-4956-333-1 PANEL ASSY, FRONT (RU) 55 3-970-608-01 SUMITITE (B3), +BV 56 A-4750-851-A VOL BOARD, COMPLETE 57 4-951-620-01 SCREW (2.6X8), +BVTP 58 A-4750-849-A FL COM BOARD, COMPLETE 59 1-796-880-11 DECK, MECHANISM 60 X-4956-197-1 HOLDER (A) (TC) ASSY 61 X-4956-198-1 HOLDER (B) (TC) ASSY 62 4-252-530-01 SPRING (HB) 63 4-252-529-01 SPRING (HA) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 HCD-CPX22/NXM3 8-3. CHASSIS SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 not supplied not supplied not supplied CDM81B-F1BD81A not supplied 101 102 103 104 106 105 107 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 101 A-4750-863-A S-MASTER (A) BOARD, COMPLETE 0102 1-468-813-11 REGULATOR, SWITCHING (AEP, UK, RU) 0102 1-468-819-11 REGULATOR, SWITCHING (US) 0102 1-468-821-11 REGULATOR, SWITCHING (E3, E51, EA) 0103 1-775-786-21 CORD, POWER (UK, EA) 0103 1-777-071-53 CORD, POWER (AEP, E51, RU) 0103 1-783-820-11 CORD, POWER (US) 0103 1-827-226-11 CORD, POWER (E3) * 104 3-703-244-00 BUSHING (2104), CORD (EXCEPT E3) 104 3-703-571-11 BUSHING (S) (4516), CORD (E3) 105 1-500-497-11 FILTER, CLAMP (FERRITE CORE) 106 1-469-854-11 CORE, FERRITE (US) 107 1-500-386-11 FILTER, CLAMP (FERRITE CORE) (US) #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 HCD-CPX22/NXM3 8-4. CD MECHANISM DECK SECTION-1 (CDM81B-F1BD81A) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks #5 #3 #3 #5 #5 #3 #3 153 154 151 152 155 156 157 158 159 160 161 162 163 164 165 166 167 151 4-251-849-01 LEVER (SW2) 152 4-251-991-01 SPRING (SW2), TORSION 153 4-251-860-01 LEVER (LOCK) 154 4-251-867-01 SPRING (LOCK), TORSION 155 4-251-828-01 TRAY (MAIN) 156 4-252-533-11 PANEL, LOADING 157 4-251-857-01 COVER (R) 158 4-251-830-01 SLIDER (ST) 159 4-251-858-01 COVER (L) 160 4-251-829-01 TRAY (SUB) 161 X-4955-707-2 PULLEY (A5) ASSY, CHUCKING (CPX22) 161 X-4955-707-3 PULLEY (A5) ASSY, CHUCKING (NXM3) 162 1-471-035-11 MAGNET ASSY 163 4-251-821-01 BRACKET (TOP) 164 4-231-189-01 PULLEY (B), CHUCKING 165 4-251-824-01 LIFTER 166 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING 167 4-251-822-01 JOINT (LIFTER) #3 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S #5 7-685-102-19 SCREW +P 2X4 NON-SLIT TYPE 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-CPX22/NXM3 8-5. CD MECHANISM DECK SECTION-2 (CDM81B-F1BD81A) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks #4 #4 #4 #3 #3 #3 S771 not supplied not supplied #4 #4 #4 #4 #3 not supplied M761 M762 #4 #4 #4 #4 #4 #4 201 208 208 208 211 212 213 203 203 203 204 209 214 214 210 215 205 206 207 202 201 4-251-870-01 BELT (BU) 202 4-251-869-01 BELT (MAIN TRAY) 203 4-251-841-01 GEAR (SUB TRAY 1) 204 4-251-873-01 SPRING (MODE), COMPRESSION 205 4-239-618-02 SCREW (+PWH, 2X6), STEP TAPPING 206 4-251-872-01 SPRING (LEVER), TORSION 207 4-251-868-01 BELT (SUB TRAY) 208 4-251-853-01 PULLEY (BU) 209 4-251-834-01 LEVER (MAIN TRAY) 210 4-251-852-01 GEAR (MAIN TRAY 3) 211 4-251-854-01 GEAR (BU1) 212 4-251-850-01 GEAR (MAIN TRAY 1) 213 4-251-856-01 GEAR (BU2) 214 4-251-842-01 GEAR (SUB TRAY 2) 215 4-251-851-01 GEAR (MAIN TRAY 2) M761 A-4713-174-A MOTOR (81) ASSY (LD/ST MOTOR) M762 A-4713-174-A MOTOR (81) ASSY (BU U/D MOTOR) S771 1-478-552-11 ENCODER, ROTARY #3 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S #4 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 HCD-CPX22/NXM3 8-6. CD MECHANISM DECK SECTION-3 (CDM81B-F1BD81A) not supplied not supplied not supplied BU-F1BD81A not supplied #3 #4 #4 #4 #4 #3 #3 S781 #4 #4 #4 #4 #4 #3 #3 #4 251 251 252 256 257 273 272 270 259 255 271 260 254 272 269 268 258 253 251 261 262 262 263 263 263 262 264 265 266 267 252 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 251 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING 252 4-251-873-01 SPRING (MODE), COMPRESSION 253 4-251-874-01 SPRING (SW), TENSION 254 4-251-844-01 GEAR (SS2) 255 4-251-835-01 GEAR (STOCKER 1) 256 4-251-833-01 LEVER (SUB TRAY) 257 4-251-843-01 LEVER (RELEASE) 258 4-251-831-01 LEVER (MODE) 259 4-251-862-01 SHUTTER (TRAY) 260 4-251-845-01 GEAR (SS3) 261 4-251-829-01 TRAY (SUB) 262 4-251-827-01 CAM (STOCKER) 263 4-251-836-01 GEAR (STOCKER 2) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 264 4-251-838-01 GEAR (STOCKER 3) 265 4-251-823-01 CHASSIS (CDM81) 266 A-4750-232-A RELAY MOUNTED PC BOARD 267 4-239-618-02 SCREW (+PWH, 2X6), STEP TAPPING 268 4-251-825-01 CAM (BU) 269 4-251-832-01 LEVER (STOCKER) 270 4-251-861-01 LEVER (SW) 271 4-251-839-01 GEAR (STOCKER 4) 272 4-251-840-01 GEAR (SUB TRAY) 273 4-251-847-01 GEAR (SS4) S781 1-478-551-11 ENCODER, ROTARY #3 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S #4 7-685-902-21 SCREW +PTPWH 2.6X8 (TYPE2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-CPX22/NXM3 8-7. BASE UNIT (BU-F1BD81A) 308 307 305 305 305 305 304 304 304 304 303 303 303 303 302 301 306 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 301 X-4956-102-1 HOLDER (215) ASSY 0302 8-820-244-01 OPTICAL PICK-UP (KSM-215DCP/C2NP) 303 4-227-549-11 INSULATOR 304 4-227-045-11 SPRING (INSULATOR), COIL 305 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING 306 1-827-992-11 WIRE (FLAT TYPE) (16 CORE) 307 A-4751-045-A CD (A) BOARD, COMPLETE 308 4-951-620-01 SCREW (2.6X8), +BVTP The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-CPX22/NXM3 SECTION 9 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • Abbreviation E3 : 240V AC Area in E model E51 : Chilean and Peruvian model EA : Saudi Arabia model RU : Russian model BD The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. A-4751-045-A BD BOARD, COMPLETE ***************** < CAPACITOR > C10 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C11 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C14 1-164-360-11 CERAMIC CHIP 0.1uF 16V C15 1-164-360-11 CERAMIC CHIP 0.1uF 16V C16 1-115-156-11 CERAMIC CHIP 1uF 10V C17 1-126-246-11 ELECT CHIP 220uF 20% 4V C18 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C111 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C112 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C113 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C114 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C115 1-164-360-11 CERAMIC CHIP 0.1uF 16V C116 1-128-995-21 ELECT CHIP 100uF 20% 10V C122 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C123 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C124 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C125 1-164-360-11 CERAMIC CHIP 0.1uF 16V C131 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C132 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C133 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C134 1-164-360-11 CERAMIC CHIP 0.1uF 16V C141 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C142 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C143 1-164-360-11 CERAMIC CHIP 0.1uF 16V C151 1-128-995-21 ELECT CHIP 100uF 20% 10V C161 1-164-360-11 CERAMIC CHIP 0.1uF 16V C162 1-164-360-11 CERAMIC CHIP 0.1uF 16V C163 1-164-360-11 CERAMIC CHIP 0.1uF 16V C171 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C172 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C174 1-164-360-11 CERAMIC CHIP 0.1uF 16V C181 1-164-360-11 CERAMIC CHIP 0.1uF 16V C182 1-164-360-11 CERAMIC CHIP 0.1uF 16V C183 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C184 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C185 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C186 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C194 1-164-360-11 CERAMIC CHIP 0.1uF 16V C195 1-164-360-11 CERAMIC CHIP 0.1uF 16V C196 1-164-360-11 CERAMIC CHIP 0.1uF 16V C201 1-128-995-21 ELECT CHIP 100uF 20% 10V C203 1-128-995-21 ELECT CHIP 100uF 20% 10V C209 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C210 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C211 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C212 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C213 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C251 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C252 1-164-360-11 CERAMIC CHIP 0.1uF 16V C255 1-164-360-11 CERAMIC CHIP 0.1uF 16V C257 1-164-360-11 CERAMIC CHIP 0.1uF 16V C258 1-164-360-11 CERAMIC CHIP 0.1uF 16V C259 1-164-360-11 CERAMIC CHIP 0.1uF 16V C260 1-128-394-11 ELECT CHIP 220uF 20% 10V C302 1-164-360-11 CERAMIC CHIP 0.1uF 16V C303 1-164-360-11 CERAMIC CHIP 0.1uF 16V C305 1-126-246-11 ELECT CHIP 220uF 20% 4V C306 1-164-360-11 CERAMIC CHIP 0.1uF 16V C307 1-164-360-11 CERAMIC CHIP 0.1uF 16V C308 1-126-208-21 ELECT CHIP 47uF 20% 4V C309 1-164-360-11 CERAMIC CHIP 0.1uF 16V C310 1-164-360-11 CERAMIC CHIP 0.1uF 16V C311 1-164-360-11 CERAMIC CHIP 0.1uF 16V C312 1-164-360-11 CERAMIC CHIP 0.1uF 16V C313 1-164-360-11 CERAMIC CHIP 0.1uF 16V C314 1-126-208-21 ELECT CHIP 47uF 20% 4V C315 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C316 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C317 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C318 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C320 1-216-864-11 SHORT CHIP 0 < CONNECTOR > CN101 1-770-425-11 CONNECTOR, FFC/FPC 16P CN201 1-818-350-11 CONNECTOR (FFC) 27P < FERRITE BEAD > FB301 1-500-445-21 FERRITE, EMI (SMD) (2012) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 HCD-CPX22/NXM3 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks BD < IC > IC101 8-752-425-12 IC CXD3059AR IC251 6-705-808-01 IC BA5947FM IC301 6-705-365-01 IC TC94A34FG-002 IC303 6-705-807-01 IC BH15FB1WG < TRANSISTOR > Q10 6-550-363-01 TRANSISTOR 2SB1690KT146 < RESISTOR > R10 1-216-791-11 METAL CHIP 3.3 5% 1/10W R11 1-216-864-11 SHORT CHIP 0 R12 1-216-845-11 METAL CHIP 100K 5% 1/10W R13 1-218-446-11 METAL CHIP 1 5% 1/10W R111 1-216-821-11 METAL CHIP 1K 5% 1/10W R112 1-216-835-11 METAL CHIP 15K 5% 1/10W R113 1-216-821-11 METAL CHIP 1K 5% 1/10W R114 1-216-835-11 METAL CHIP 15K 5% 1/10W R121 1-216-835-11 METAL CHIP 15K 5% 1/10W R131 1-216-857-11 METAL CHIP 1M 5% 1/10W R132 1-216-833-11 METAL CHIP 10K 5% 1/10W R133 1-216-848-11 METAL CHIP 180K 5% 1/10W R141 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R142 1-216-821-11 METAL CHIP 1K 5% 1/10W R143 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R151 1-216-864-11 SHORT CHIP 0 R161 1-216-809-11 METAL CHIP 100 5% 1/10W R162 1-216-841-11 METAL CHIP 47K 5% 1/10W R163 1-216-809-11 METAL CHIP 100 5% 1/10W R165 1-216-864-11 SHORT CHIP 0 R171 1-216-817-11 METAL CHIP 470 5% 1/10W R172 1-216-857-11 METAL CHIP 1M 5% 1/10W R173 1-216-295-91 SHORT CHIP 0 R181 1-216-809-11 METAL CHIP 100 5% 1/10W R182 1-216-809-11 METAL CHIP 100 5% 1/10W R191 1-216-864-11 SHORT CHIP 0 R201 1-500-445-21 FERRITE, EMI (SMD) (2012) R203 1-216-864-11 SHORT CHIP 0 R204 1-500-445-21 FERRITE, EMI (SMD) (2012) R205 1-216-864-11 SHORT CHIP 0 R251 1-216-833-11 METAL CHIP 10K 5% 1/10W R252 1-216-837-11 METAL CHIP 22K 5% 1/10W R253 1-216-833-11 METAL CHIP 10K 5% 1/10W R301 1-216-845-11 METAL CHIP 100K 5% 1/10W R302 1-216-833-11 METAL CHIP 10K 5% 1/10W R303 1-216-845-11 METAL CHIP 100K 5% 1/10W R305 1-216-845-11 METAL CHIP 100K 5% 1/10W R306 1-216-864-11 SHORT CHIP 0 R307 1-216-833-11 METAL CHIP 10K 5% 1/10W R313 1-216-813-11 METAL CHIP 220 5% 1/10W R351 1-216-809-11 METAL CHIP 100 5% 1/10W R352 1-216-809-11 METAL CHIP 100 5% 1/10W R353 1-216-809-11 METAL CHIP 100 5% 1/10W R354 1-216-809-11 METAL CHIP 100 5% 1/10W R401 1-216-809-11 METAL CHIP 100 5% 1/10W R402 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-809-11 METAL CHIP 100 5% 1/10W R404 1-216-809-11 METAL CHIP 100 5% 1/10W R405 1-216-809-11 METAL CHIP 100 5% 1/10W R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R408 1-216-809-11 METAL CHIP 100 5% 1/10W R409 1-216-809-11 METAL CHIP 100 5% 1/10W R410 1-216-809-11 METAL CHIP 100 5% 1/10W R411 1-216-809-11 METAL CHIP 100 5% 1/10W R412 1-216-809-11 METAL CHIP 100 5% 1/10W R419 1-216-809-11 METAL CHIP 100 5% 1/10W < SWITCH > S101 1-771-853-11 SWITCH, DETECTION (LIMIT) < VIBRATOR > X171 1-767-408-21 VIBRATOR, CRYSTAL (16.9MHz) ************************************************************ DISC SW BOARD ************* < CAPACITOR > C1009 1-164-156-11 CERAMIC CHIP 0.1uF 25V < DIODE > D1001 8-719-058-64 DIODE SEL5823A-TP15 (DISC 1) D1002 8-719-058-64 DIODE SEL5823A-TP15 (DISC 2) D1003 8-719-058-64 DIODE SEL5823A-TP15 (DISC 3) D1004 8-719-058-64 DIODE SEL5823A-TP15 (DISC 4) D1005 8-719-058-64 DIODE SEL5823A-TP15 (DISC 5) < TRANSISTOR > Q1001 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1002 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1003 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1004 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1005 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R1001 1-216-819-11 METAL CHIP 680 5% 1/10W R1002 1-216-819-11 METAL CHIP 680 5% 1/10W R1003 1-216-819-11 METAL CHIP 680 5% 1/10W R1004 1-216-819-11 METAL CHIP 680 5% 1/10W R1005 1-216-819-11 METAL CHIP 680 5% 1/10W R1006 1-216-819-11 METAL CHIP 680 5% 1/10W R1007 1-216-819-11 METAL CHIP 680 5% 1/10W R1008 1-216-819-11 METAL CHIP 680 5% 1/10W R1009 1-216-819-11 METAL CHIP 680 5% 1/10W R1010 1-216-819-11 METAL CHIP 680 5% 1/10W R1011 1-216-813-11 METAL CHIP 220 5% 1/10W R1012 1-216-815-11 METAL CHIP 330 5% 1/10W R1013 1-216-817-11 METAL CHIP 470 5% 1/10W R1014 1-216-819-11 METAL CHIP 680 5% 1/10W < SWITCH > S1001 1-762-875-21 SWITCH, KEYBOARD (DISC 1) S1002 1-762-875-21 SWITCH, KEYBOARD (DISC 2) S1003 1-762-875-21 SWITCH, KEYBOARD (DISC 3) S1004 1-762-875-21 SWITCH, KEYBOARD (DISC 4) S1005 1-762-875-21 SWITCH, KEYBOARD (DISC 5) ************************************************************ DISC SW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 HCD-CPX22/NXM3 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks HP BOARD ******** < CAPACITOR > C1093 1-162-971-11 CERAMIC CHIP 0.001uF 10% 50V C1094 1-162-971-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > CN1062 1-785-330-11 PIN, CONNECTOR (LIGHT ANGLE) 4P < FERRITE BEAD > FB1001 1-500-245-11 INDUCTOR, FERRITE BEAD FB1002 1-500-245-11 INDUCTOR, FERRITE BEAD FB1003 1-500-245-11 INDUCTOR, FERRITE BEAD FB1004 1-500-245-11 INDUCTOR, FERRITE BEAD < JACK > J1063 1-750-032-11 JACK (DIA. 3.5) (PHONES) < SHORT > JR1080 1-216-864-11 SHORT CHIP 0 JR1081 1-216-864-11 SHORT CHIP 0 < RESISTOR > R1088 1-216-864-11 SHORT CHIP 0 ************************************************************ A-1052-039-A MAIN BOARD, COMPLETE (EA) A-4750-856-A MAIN BOARD, COMPLETE (AEP, UK) A-4750-931-A MAIN BOARD, COMPLETE (RU) A-4750-933-A MAIN BOARD, COMPLETE (E3) A-4750-935-A MAIN BOARD, COMPLETE (E51) A-4750-937-A MAIN BOARD, COMPLETE (US) ******************** 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR > C1 1-126-964-11 ELECT 10uF 20% 50V C2 1-126-964-11 ELECT 10uF 20% 50V C21 1-126-963-11 ELECT 4.7uF 20% 50V C22 1-126-963-11 ELECT 4.7uF 20% 50V C25 1-126-963-11 ELECT 4.7uF 20% 50V C26 1-126-963-11 ELECT 4.7uF 20% 50V C27 1-104-658-91 ELECT 100uF 20% 10V C28 1-104-658-91 ELECT 100uF 20% 10V C35 1-164-156-11 CERAMIC CHIP 0.1uF 25V C36 1-164-156-11 CERAMIC CHIP 0.1uF 25V C37 1-164-156-11 CERAMIC CHIP 0.1uF 25V C38 1-164-156-11 CERAMIC CHIP 0.1uF 25V C39 1-164-156-11 CERAMIC CHIP 0.1uF 25V C40 1-164-156-11 CERAMIC CHIP 0.1uF 25V C70 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C75 1-126-964-11 ELECT 10uF 20% 50V C77 1-126-925-91 ELECT 470uF 20% 10V C79 1-126-964-11 ELECT 10uF 20% 50V C85 1-126-964-11 ELECT 10uF 20% 50V C87 1-126-925-91 ELECT 470uF 20% 10V C89 1-126-964-11 ELECT 10uF 20% 50V C90 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C93 1-126-926-11 ELECT 1000uF 20% 10V C94 1-104-658-91 ELECT 100uF 20% 10V C100 1-164-156-11 CERAMIC CHIP 0.1uF 25V C101 1-126-964-11 ELECT 10uF 20% 50V C102 1-126-964-11 ELECT 10uF 20% 50V C103 1-126-964-11 ELECT 10uF 20% 50V C104 1-126-964-11 ELECT 10uF 20% 50V C105 1-136-497-81 FILM 0.1uF 5% 50V C106 1-126-964-11 ELECT 10uF 20% 50V C107 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C108 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C109 1-126-964-11 ELECT 10uF 20% 50V C110 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C111 1-164-174-11 CERAMIC CHIP 0.0082uF 10% 25V C112 1-126-964-11 ELECT 10uF 20% 50V C115 1-126-964-11 ELECT 10uF 20% 50V C116 1-126-964-11 ELECT 10uF 20% 50V C117 1-126-960-11 ELECT 1uF 20% 50V C118 1-130-483-00 MYLAR 0.01uF 5% 50V C119 1-126-947-11 ELECT 47uF 20% 35V C121 1-136-177-00 FILM 1uF 5% 50V C122 1-126-963-11 ELECT 4.7uF 20% 50V C123 1-164-156-11 CERAMIC CHIP 0.1uF 25V C124 1-104-658-91 ELECT 100uF 20% 10V C125 1-104-658-91 ELECT 100uF 20% 10V C126 1-104-658-91 ELECT 100uF 20% 10V C127 1-104-658-91 ELECT 100uF 20% 10V C131 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C132 1-130-483-00 MYLAR 0.01uF 5% 50V C133 1-130-483-00 MYLAR 0.01uF 5% 50V C134 1-126-964-11 ELECT 10uF 20% 50V C135 1-126-960-11 ELECT 1uF 20% 50V C141 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C142 1-126-964-11 ELECT 10uF 20% 50V C146 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C147 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C148 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C150 1-163-077-00 CERAMIC CHIP 0.1uF 50V C151 1-126-964-11 ELECT 10uF 20% 50V C152 1-126-964-11 ELECT 10uF 20% 50V C154 1-126-964-11 ELECT 10uF 20% 50V C155 1-136-497-81 FILM 0.1uF 5% 50V C156 1-126-964-11 ELECT 10uF 20% 50V C157 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C158 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C159 1-126-964-11 ELECT 10uF 20% 50V C160 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C161 1-164-174-11 CERAMIC CHIP 0.0082uF 10% 25V C162 1-126-964-11 ELECT 10uF 20% 50V C165 1-126-964-11 ELECT 10uF 20% 50V C166 1-126-964-11 ELECT 10uF 20% 50V HP MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 HCD-CPX22/NXM3 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN C167 1-126-960-11 ELECT 1uF 20% 50V C168 1-130-483-00 MYLAR 0.01uF 5% 50V C169 1-126-947-11 ELECT 47uF 20% 35V C173 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C174 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C183 1-126-960-11 ELECT 1uF 20% 50V C191 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C192 1-126-964-11 ELECT 10uF 20% 50V C196 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C197 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C198 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C270 1-126-964-11 ELECT 10uF 20% 50V C271 1-126-964-11 ELECT 10uF 20% 50V C301 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C302 1-126-964-11 ELECT 10uF 20% 50V C303 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C304 1-126-964-11 ELECT 10uF 20% 50V C305 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C306 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C307 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C308 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C311 1-130-481-00 MYLAR 0.0068uF 5% 50V C312 1-130-483-00 MYLAR 0.01uF 5% 50V C313 1-126-947-11 ELECT 47uF 20% 35V C314 1-137-150-11 FILM 0.01uF 5% 100V C315 1-130-479-00 MYLAR 0.0047uF 5% 50V C322 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C324 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C351 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C352 1-126-964-11 ELECT 10uF 20% 50V C353 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C354 1-126-964-11 ELECT 10uF 20% 50V C355 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C356 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C357 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C358 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C370 1-104-658-91 ELECT 100uF 20% 10V C372 1-104-655-91 ELECT 470uF 20% 6.3V C373 1-164-156-11 CERAMIC CHIP 0.1uF 25V C375 1-126-916-11 ELECT 1000uF 20% 6.3V C379 1-104-655-91 ELECT 470uF 20% 6.3V C382 1-126-925-91 ELECT 470uF 20% 10V C383 1-164-156-11 CERAMIC CHIP 0.1uF 25V C384 1-104-655-91 ELECT 470uF 20% 6.3V C390 1-126-965-91 ELECT 22uF 20% 50V C391 1-136-497-81 FILM 0.1uF 5% 50V C392 1-136-497-81 FILM 0.1uF 5% 50V C393 1-126-964-11 ELECT 10uF 20% 50V C410 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C411 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C412 1-164-156-11 CERAMIC CHIP 0.1uF 25V C416 1-164-156-11 CERAMIC CHIP 0.1uF 25V C417 1-126-916-11 ELECT 1000uF 20% 6.3V C462 1-104-658-91 ELECT 100uF 20% 10V C463 1-164-156-11 CERAMIC CHIP 0.1uF 25V C475 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C476 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C497 1-164-156-11 CERAMIC CHIP 0.1uF 25V C498 1-126-964-11 ELECT 10uF 20% 50V C499 1-164-156-11 CERAMIC CHIP 0.1uF 25V C900 1-126-937-11 ELECT 4700uF 20% 16V C901 1-126-956-91 ELECT 0.1uF 20% 50V C902 1-104-658-91 ELECT 100uF 20% 10V C903 1-126-964-11 ELECT 10uF 20% 50V C904 1-104-658-91 ELECT 100uF 20% 10V C905 1-126-956-91 ELECT 0.1uF 20% 50V C906 1-104-658-91 ELECT 100uF 20% 10V C919 1-126-964-11 ELECT 10uF 20% 50V C920 1-126-964-11 ELECT 10uF 20% 50V C930 1-126-768-11 ELECT 2200uF 20% 16V C952 1-164-156-11 CERAMIC CHIP 0.1uF 25V C953 1-164-156-11 CERAMIC CHIP 0.1uF 25V C972 1-164-156-11 CERAMIC CHIP 0.1uF 25V C973 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN101 1-691-768-11 PLUG (MICRO CONNECTOR) 6P CN105 1-691-765-11 PLUG (MICRO CONNECTOR) 3P CN106 1-784-780-11 CONNECTOR, FFC 19P CN107 1-785-316-11 PIN, CONNECTOR (STRAIGHT) 4P CN109 1-784-774-11 CONNECTOR, FFC 13P CN110 1-784-776-11 CONNECTOR, FFC 15P CN112 1-784-766-11 CONNECTOR, FFC 5P CN204 1-568-830-11 CONNECTOR, FFC 11P (EXCEPT AEP, UK) CN204 1-784-776-11 CONNECTOR, FFC 15P (AEP, UK) * CN301 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P * CN302 1-564-724-11 PIN, CONNECTOR (SMALL TYPE) 8P CN303 1-784-774-11 CONNECTOR, FFC 13P * CN304 1-568-449-11 HOUSING, CONNECTOR (PC BOARD) 3P CN371 1-779-295-11 CONNECTOR, FFC (LIF (NON-ZIF)) 27P CN372 1-779-289-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P CN401 1-785-316-11 PIN, CONNECTOR (STRAIGHT) 4P < DIODE > D181 8-719-988-61 DIODE 1SS355TE-17 D182 8-719-988-61 DIODE 1SS355TE-17 D183 8-719-988-61 DIODE 1SS355TE-17 D321 8-719-988-61 DIODE 1SS355TE-17 D322 8-719-988-61 DIODE 1SS355TE-17 D371 6-500-522-31 DIODE 10EDB40-TB5 D372 6-500-522-31 DIODE 10EDB40-TB5 D373 6-500-522-31 DIODE 10EDB40-TB5 D391 8-719-988-61 DIODE 1SS355TE-17 D392 8-719-988-61 DIODE 1SS355TE-17 D393 8-719-988-61 DIODE 1SS355TE-17 D394 8-719-988-61 DIODE 1SS355TE-17 D395 8-719-988-61 DIODE 1SS355TE-17 D396 8-719-988-61 DIODE 1SS355TE-17 D397 8-719-988-61 DIODE 1SS355TE-17 D903 6-500-522-31 DIODE 10EDB40-TB5 D904 8-719-988-61 DIODE 1SS355TE-17 D905 8-719-083-58 DIODE UDZSTE-173.9B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 HCD-CPX22/NXM3 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN < EARTH TERMINAL > EP901 1-537-738-21 TERMINAL, GROUND < FERRITE BEAD > FB30 1-469-125-21 FERRITE, EMI (SMD) (1608) FB34 1-469-125-21 FERRITE, EMI (SMD) (1608) FB50 1-469-125-21 FERRITE, EMI (SMD) (1608) FB54 1-469-125-21 FERRITE, EMI (SMD) (1608) FB80 1-469-125-21 FERRITE, EMI (SMD) (1608) FB84 1-469-125-21 FERRITE, EMI (SMD) (1608) FB371 1-216-864-11 SHORT CHIP 0 FB372 1-216-864-11 SHORT CHIP 0 FB373 1-216-864-11 SHORT CHIP 0 FB374 1-216-864-11 SHORT CHIP 0 < IC > IC3 8-759-359-49 IC NJM3414AV (TE2) IC101 6-705-667-01 IC M61537FP-RF0G IC301 8-749-019-25 IC TOTX141 (DIGITAL OUT) IC391 8-759-532-64 IC M62703SL-TP IC401 6-803-926-01 IC M30622MGN-B28FPU0 IC901 8-759-701-59 IC NJM78M09FA IC902 8-759-701-59 IC NJM78M09FA IC903 6-702-771-01 IC TA78033LS IC951 6-703-679-11 IC PT8300R-TP IC971 6-703-679-11 IC PT8300R-TP < JACK > J102 1-778-940-11 JACK 2P (VIDEO(MD)) < SHORT > JR1 1-216-864-11 SHORT CHIP 0 JR101 1-216-864-11 SHORT CHIP 0 JR102 1-216-864-11 SHORT CHIP 0 JR103 1-216-296-11 SHORT CHIP 0 JR104 1-216-296-11 SHORT CHIP 0 JR105 1-216-296-11 SHORT CHIP 0 JR106 1-216-864-11 SHORT CHIP 0 JR107 1-216-296-11 SHORT CHIP 0 JR108 1-216-296-11 SHORT CHIP 0 JR109 1-216-296-11 SHORT CHIP 0 JR110 1-216-864-11 SHORT CHIP 0 JR111 1-216-296-11 SHORT CHIP 0 JR112 1-216-864-11 SHORT CHIP 0 JR113 1-216-296-11 SHORT CHIP 0 JR114 1-216-864-11 SHORT CHIP 0 JR115 1-216-296-11 SHORT CHIP 0 JR116 1-216-864-11 SHORT CHIP 0 JR117 1-216-296-11 SHORT CHIP 0 JR118 1-216-864-11 SHORT CHIP 0 JR119 1-216-864-11 SHORT CHIP 0 JR120 1-216-864-11 SHORT CHIP 0 JR121 1-216-864-11 SHORT CHIP 0 JR122 1-216-296-11 SHORT CHIP 0 JR123 1-216-864-11 SHORT CHIP 0 JR124 1-216-296-11 SHORT CHIP 0 JR125 1-216-864-11 SHORT CHIP 0 JR126 1-216-296-11 SHORT CHIP 0 JR127 1-216-296-11 SHORT CHIP 0 JR128 1-216-864-11 SHORT CHIP 0 JR203 1-216-864-11 SHORT CHIP 0 JR204 1-216-296-11 SHORT CHIP 0 JR205 1-216-296-11 SHORT CHIP 0 JR206 1-216-296-11 SHORT CHIP 0 JR261 1-216-296-11 SHORT CHIP 0 JR418 1-216-864-11 SHORT CHIP 0 (EXCEPT AEP, UK) JR449 1-216-864-11 SHORT CHIP 0 (EXCEPT AEP, UK) < COIL > L301 1-410-780-11 INDUCTOR 27mH L311 1-414-189-31 INDUCTOR 100uH L351 1-410-780-11 INDUCTOR 27mH L370 1-412-064-11 INDUCTOR 100uH L951 1-216-296-11 SHORT CHIP 0 L971 1-216-296-11 SHORT CHIP 0 < TRANSISTOR > Q1 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q2 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q21 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q22 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q25 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q26 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q27 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q28 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q29 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q30 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q31 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q32 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q33 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q34 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q71 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q81 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q82 8-729-142-48 TRANSISTOR 2SD1616-TP-LK Q103 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q104 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q140 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q153 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q154 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q270 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q271 6-550-889-01 TRANSISTOR 2SC5938-T112-1B Q301 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q302 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q303 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q311 8-729-216-22 TRANSISTOR 2SA1162-G Q312 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q313 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q314 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q315 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q316 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q317 8-729-040-20 TRANSISTOR RT1P137L-TP Q318 8-729-142-46 TRANSISTOR 2SC2001-LK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 HCD-CPX22/NXM3 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN Q321 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q322 8-729-140-04 TRANSISTOR 2SB1116A-L Q323 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q324 8-729-140-04 TRANSISTOR 2SB1116A-L Q326 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q327 8-729-140-04 TRANSISTOR 2SB1116A-L Q341 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q342 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q343 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q351 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q352 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q353 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q391 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q906 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R1 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2 1-216-833-11 METAL CHIP 10K 5% 1/10W R3 1-216-821-11 METAL CHIP 1K 5% 1/10W R4 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R5 1-216-833-11 METAL CHIP 10K 5% 1/10W R6 1-216-821-11 METAL CHIP 1K 5% 1/10W R21 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R22 1-216-837-11 METAL CHIP 22K 5% 1/10W R23 1-216-845-11 METAL CHIP 100K 5% 1/10W R27 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R28 1-216-837-11 METAL CHIP 22K 5% 1/10W R29 1-216-845-11 METAL CHIP 100K 5% 1/10W R30 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R31 1-216-837-11 METAL CHIP 22K 5% 1/10W R32 1-216-845-11 METAL CHIP 100K 5% 1/10W R33 1-216-845-11 METAL CHIP 100K 5% 1/10W R34 1-216-837-11 METAL CHIP 22K 5% 1/10W R35 1-216-845-11 METAL CHIP 100K 5% 1/10W R36 1-216-837-11 METAL CHIP 22K 5% 1/10W R37 1-216-845-11 METAL CHIP 100K 5% 1/10W R38 1-216-837-11 METAL CHIP 22K 5% 1/10W R39 1-216-864-11 SHORT CHIP 0 R50 1-216-841-11 METAL CHIP 47K 5% 1/10W R59 1-216-805-11 METAL CHIP 47 5% 1/10W R60 1-216-841-11 METAL CHIP 47K 5% 1/10W R69 1-216-805-11 METAL CHIP 47 5% 1/10W R75 1-216-833-11 METAL CHIP 10K 5% 1/10W R76 1-216-841-11 METAL CHIP 47K 5% 1/10W R77 1-216-845-11 METAL CHIP 100K 5% 1/10W R78 1-216-821-11 METAL CHIP 1K 5% 1/10W R79 1-216-805-11 METAL CHIP 47 5% 1/10W R80 1-216-833-11 METAL CHIP 10K 5% 1/10W R85 1-216-833-11 METAL CHIP 10K 5% 1/10W R86 1-216-841-11 METAL CHIP 47K 5% 1/10W R87 1-216-845-11 METAL CHIP 100K 5% 1/10W R88 1-216-821-11 METAL CHIP 1K 5% 1/10W R89 1-216-805-11 METAL CHIP 47 5% 1/10W R90 1-216-833-11 METAL CHIP 10K 5% 1/10W R98 1-216-821-11 METAL CHIP 1K 5% 1/10W R101 1-216-835-11 METAL CHIP 15K 5% 1/10W R102 1-216-841-11 METAL CHIP 47K 5% 1/10W R103 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R104 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R105 1-216-833-11 METAL CHIP 10K 5% 1/10W R109 1-216-841-11 METAL CHIP 47K 5% 1/10W R110 1-216-821-11 METAL CHIP 1K 5% 1/10W R111 1-216-821-11 METAL CHIP 1K 5% 1/10W R112 1-216-834-11 METAL CHIP 12K 5% 1/10W R113 1-216-851-11 METAL CHIP 330K 5% 1/10W R114 1-216-812-11 METAL CHIP 180 5% 1/10W R118 1-216-809-11 METAL CHIP 100 5% 1/10W R119 1-216-833-11 METAL CHIP 10K 5% 1/10W R121 1-216-861-11 METAL CHIP 2.2M 5% 1/10W R122 1-216-835-11 METAL CHIP 15K 5% 1/10W R123 1-216-857-11 METAL CHIP 1M 5% 1/10W R126 1-216-813-11 METAL CHIP 220 5% 1/10W R127 1-216-813-11 METAL CHIP 220 5% 1/10W R129 1-216-835-11 METAL CHIP 15K 5% 1/10W R130 1-216-809-11 METAL CHIP 100 5% 1/10W R131 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R132 1-216-838-11 METAL CHIP 27K 5% 1/10W R133 1-216-833-11 METAL CHIP 10K 5% 1/10W R141 1-216-821-11 METAL CHIP 1K 5% 1/10W R142 1-216-845-11 METAL CHIP 100K 5% 1/10W R151 1-216-835-11 METAL CHIP 15K 5% 1/10W R152 1-216-841-11 METAL CHIP 47K 5% 1/10W R153 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R154 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R155 1-216-833-11 METAL CHIP 10K 5% 1/10W R159 1-216-841-11 METAL CHIP 47K 5% 1/10W R160 1-216-821-11 METAL CHIP 1K 5% 1/10W R161 1-216-821-11 METAL CHIP 1K 5% 1/10W R162 1-216-834-11 METAL CHIP 12K 5% 1/10W R163 1-216-851-11 METAL CHIP 330K 5% 1/10W R164 1-216-812-11 METAL CHIP 180 5% 1/10W R168 1-216-809-11 METAL CHIP 100 5% 1/10W R169 1-216-833-11 METAL CHIP 10K 5% 1/10W R180 1-216-809-11 METAL CHIP 100 5% 1/10W R186 1-216-864-11 SHORT CHIP 0 R187 1-216-853-11 METAL CHIP 470K 5% 1/10W R188 1-216-815-11 METAL CHIP 330 5% 1/10W R189 1-216-841-11 METAL CHIP 47K 5% 1/10W R191 1-216-821-11 METAL CHIP 1K 5% 1/10W R192 1-216-845-11 METAL CHIP 100K 5% 1/10W R241 1-216-864-11 SHORT CHIP 0 R243 1-216-864-11 SHORT CHIP 0 R246 1-216-833-11 METAL CHIP 10K 5% 1/10W R247 1-216-833-11 METAL CHIP 10K 5% 1/10W R270 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R272 1-216-821-11 METAL CHIP 1K 5% 1/10W R273 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R275 1-216-821-11 METAL CHIP 1K 5% 1/10W R294 1-216-821-11 METAL CHIP 1K 5% 1/10W R296 1-216-833-11 METAL CHIP 10K 5% 1/10W R298 1-216-821-11 METAL CHIP 1K 5% 1/10W R299 1-216-833-11 METAL CHIP 10K 5% 1/10W R301 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R303 1-216-821-11 METAL CHIP 1K 5% 1/10W R304 1-216-835-11 METAL CHIP 15K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 HCD-CPX22/NXM3 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN R305 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R306 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R307 1-216-833-11 METAL CHIP 10K 5% 1/10W R309 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R311 1-216-833-11 METAL CHIP 10K 5% 1/10W R312 1-216-833-11 METAL CHIP 10K 5% 1/10W R313 1-216-833-11 METAL CHIP 10K 5% 1/10W R314 1-216-841-11 METAL CHIP 47K 5% 1/10W R315 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R316 1-216-797-11 METAL CHIP 10 5% 1/10W R317 1-216-833-11 METAL CHIP 10K 5% 1/10W R318 1-216-805-11 METAL CHIP 47 5% 1/10W R319 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R320 1-216-803-11 METAL CHIP 33 5% 1/10W R321 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R322 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R323 1-216-821-11 METAL CHIP 1K 5% 1/10W R324 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R325 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R326 1-216-821-11 METAL CHIP 1K 5% 1/10W R327 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R328 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R329 1-216-841-11 METAL CHIP 47K 5% 1/10W R330 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R331 1-216-841-11 METAL CHIP 47K 5% 1/10W R332 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R333 1-216-841-11 METAL CHIP 47K 5% 1/10W R334 1-216-841-11 METAL CHIP 47K 5% 1/10W R335 1-216-841-11 METAL CHIP 47K 5% 1/10W R336 1-216-841-11 METAL CHIP 47K 5% 1/10W R337 1-216-837-11 METAL CHIP 22K 5% 1/10W R338 1-216-833-11 METAL CHIP 10K 5% 1/10W R339 1-216-841-11 METAL CHIP 47K 5% 1/10W R340 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R341 1-216-833-11 METAL CHIP 10K 5% 1/10W R342 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R343 1-216-837-11 METAL CHIP 22K 5% 1/10W R344 1-216-833-11 METAL CHIP 10K 5% 1/10W R345 1-216-833-11 METAL CHIP 10K 5% 1/10W R347 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R351 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R352 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R353 1-216-821-11 METAL CHIP 1K 5% 1/10W R354 1-216-835-11 METAL CHIP 15K 5% 1/10W R355 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R356 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R357 1-216-833-11 METAL CHIP 10K 5% 1/10W R359 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R377 1-216-833-11 METAL CHIP 10K 5% 1/10W R378 1-216-833-11 METAL CHIP 10K 5% 1/10W R379 1-216-833-11 METAL CHIP 10K 5% 1/10W R380 1-216-833-11 METAL CHIP 10K 5% 1/10W R381 1-216-833-11 METAL CHIP 10K 5% 1/10W R382 1-216-833-11 METAL CHIP 10K 5% 1/10W R383 1-216-833-11 METAL CHIP 10K 5% 1/10W R384 1-216-833-11 METAL CHIP 10K 5% 1/10W R385 1-216-833-11 METAL CHIP 10K 5% 1/10W R386 1-216-833-11 METAL CHIP 10K 5% 1/10W R387 1-216-833-11 METAL CHIP 10K 5% 1/10W R388 1-216-833-11 METAL CHIP 10K 5% 1/10W R391 1-216-833-11 METAL CHIP 10K 5% 1/10W R392 1-216-837-11 METAL CHIP 22K 5% 1/10W R393 1-216-837-11 METAL CHIP 22K 5% 1/10W R394 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R395 1-216-813-11 METAL CHIP 220 5% 1/10W R396 1-216-833-11 METAL CHIP 10K 5% 1/10W R401 1-216-809-11 METAL CHIP 100 5% 1/10W R402 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-809-11 METAL CHIP 100 5% 1/10W R404 1-216-809-11 METAL CHIP 100 5% 1/10W R405 1-216-809-11 METAL CHIP 100 5% 1/10W R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R408 1-216-833-11 METAL CHIP 10K 5% 1/10W R409 1-216-833-11 METAL CHIP 10K 5% 1/10W R410 1-216-833-11 METAL CHIP 10K 5% 1/10W R411 1-216-851-11 METAL CHIP 330K 5% 1/10W R412 1-216-833-11 METAL CHIP 10K 5% 1/10W R413 1-216-864-11 SHORT CHIP 0 R414 1-216-833-11 METAL CHIP 10K 5% 1/10W R415 1-216-833-11 METAL CHIP 10K 5% 1/10W R416 1-216-833-11 METAL CHIP 10K 5% 1/10W R417 1-216-833-11 METAL CHIP 10K 5% 1/10W R418 1-216-809-11 METAL CHIP 100 5% 1/10W (AEP, UK) R419 1-216-809-11 METAL CHIP 100 5% 1/10W R420 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R421 1-216-809-11 METAL CHIP 100 5% 1/10W R422 1-216-809-11 METAL CHIP 100 5% 1/10W R423 1-216-809-11 METAL CHIP 100 5% 1/10W R424 1-216-809-11 METAL CHIP 100 5% 1/10W R425 1-216-809-11 METAL CHIP 100 5% 1/10W R426 1-216-809-11 METAL CHIP 100 5% 1/10W R429 1-216-809-11 METAL CHIP 100 5% 1/10W R430 1-216-809-11 METAL CHIP 100 5% 1/10W R431 1-216-809-11 METAL CHIP 100 5% 1/10W R432 1-216-809-11 METAL CHIP 100 5% 1/10W R433 1-216-809-11 METAL CHIP 100 5% 1/10W R434 1-216-809-11 METAL CHIP 100 5% 1/10W R435 1-216-809-11 METAL CHIP 100 5% 1/10W R436 1-216-809-11 METAL CHIP 100 5% 1/10W R437 1-216-809-11 METAL CHIP 100 5% 1/10W R438 1-216-809-11 METAL CHIP 100 5% 1/10W R439 1-216-809-11 METAL CHIP 100 5% 1/10W R440 1-216-809-11 METAL CHIP 100 5% 1/10W R441 1-216-809-11 METAL CHIP 100 5% 1/10W R442 1-216-809-11 METAL CHIP 100 5% 1/10W R443 1-216-809-11 METAL CHIP 100 5% 1/10W R444 1-216-809-11 METAL CHIP 100 5% 1/10W R445 1-216-809-11 METAL CHIP 100 5% 1/10W R446 1-216-809-11 METAL CHIP 100 5% 1/10W R447 1-216-809-11 METAL CHIP 100 5% 1/10W R448 1-216-809-11 METAL CHIP 100 5% 1/10W R449 1-216-809-11 METAL CHIP 100 5% 1/10W (AEP, UK) R450 1-216-809-11 METAL CHIP 100 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 HCD-CPX22/NXM3 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks MAIN R451 1-216-809-11 METAL CHIP 100 5% 1/10W R452 1-216-809-11 METAL CHIP 100 5% 1/10W R453 1-216-809-11 METAL CHIP 100 5% 1/10W R454 1-216-809-11 METAL CHIP 100 5% 1/10W R455 1-216-809-11 METAL CHIP 100 5% 1/10W R456 1-216-809-11 METAL CHIP 100 5% 1/10W R457 1-216-809-11 METAL CHIP 100 5% 1/10W R458 1-216-809-11 METAL CHIP 100 5% 1/10W R459 1-216-809-11 METAL CHIP 100 5% 1/10W R460 1-216-809-11 METAL CHIP 100 5% 1/10W R461 1-216-809-11 METAL CHIP 100 5% 1/10W R465 1-216-809-11 METAL CHIP 100 5% 1/10W R466 1-216-833-11 METAL CHIP 10K 5% 1/10W R467 1-216-833-11 METAL CHIP 10K 5% 1/10W R468 1-216-833-11 METAL CHIP 10K 5% 1/10W R469 1-216-833-11 METAL CHIP 10K 5% 1/10W R470 1-216-809-11 METAL CHIP 100 5% 1/10W R471 1-216-809-11 METAL CHIP 100 5% 1/10W R472 1-216-809-11 METAL CHIP 100 5% 1/10W R473 1-216-809-11 METAL CHIP 100 5% 1/10W R474 1-216-809-11 METAL CHIP 100 5% 1/10W R476 1-216-809-11 METAL CHIP 100 5% 1/10W R477 1-216-809-11 METAL CHIP 100 5% 1/10W R478 1-216-809-11 METAL CHIP 100 5% 1/10W R479 1-216-809-11 METAL CHIP 100 5% 1/10W R482 1-216-809-11 METAL CHIP 100 5% 1/10W R483 1-216-809-11 METAL CHIP 100 5% 1/10W R484 1-216-809-11 METAL CHIP 100 5% 1/10W R485 1-216-809-11 METAL CHIP 100 5% 1/10W R486 1-216-809-11 METAL CHIP 100 5% 1/10W R489 1-216-809-11 METAL CHIP 100 5% 1/10W R490 1-216-809-11 METAL CHIP 100 5% 1/10W R492 1-216-811-11 METAL CHIP 150 5% 1/10W (RU) R492 1-216-821-11 METAL CHIP 1K 5% 1/10W (E51) R492 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (US) R492 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (E3, EA) R492 1-216-864-11 SHORT CHIP 0 (AEP, UK) R493 1-216-809-11 METAL CHIP 100 5% 1/10W R494 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R495 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R496 1-216-821-11 METAL CHIP 1K 5% 1/10W (EA) R496 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (EXCEPT E3, EA) R496 1-216-864-11 SHORT CHIP 0 (E3) R497 1-216-833-11 METAL CHIP 10K 5% 1/10W R498 1-216-797-11 METAL CHIP 10 5% 1/10W R499 1-216-797-11 METAL CHIP 10 5% 1/10W R914 1-216-821-11 METAL CHIP 1K 5% 1/10W R915 1-216-821-11 METAL CHIP 1K 5% 1/10W R952 1-216-809-11 METAL CHIP 100 5% 1/10W R953 1-216-809-11 METAL CHIP 100 5% 1/10W R954 1-216-809-11 METAL CHIP 100 5% 1/10W R955 1-216-809-11 METAL CHIP 100 5% 1/10W R956 1-216-809-11 METAL CHIP 100 5% 1/10W R957 1-216-809-11 METAL CHIP 100 5% 1/10W R958 1-216-809-11 METAL CHIP 100 5% 1/10W R959 1-216-809-11 METAL CHIP 100 5% 1/10W R968 1-216-833-11 METAL CHIP 10K 5% 1/10W R970 1-216-833-11 METAL CHIP 10K 5% 1/10W R984 1-216-833-11 METAL CHIP 10K 5% 1/10W < TRANSFORMER > T301 1-433-372-11 TRANSFORMER, BIAS OSCILLATION < VIBRATOR > X401 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) X402 1-795-482-11 VIBRATOR, CERAMIC (16MHz) ************************************************************ MOTOR BOARD *********** < SWITCH > S761 1-786-704-11 SWITCH, LEVER (SUB TRAY OUT) ************************************************************ A-4750-849-A PANEL BOARD, COMPLETE ******************* < CAPACITOR > C1006 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1021 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1025 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C1026 1-126-964-11 ELECT 10uF 20% 50V C1028 1-126-964-11 ELECT 10uF 20% 50V C1029 1-131-992-91 CERAMIC CHIP 100000PF 35V C1048 1-131-992-91 CERAMIC CHIP 100000PF 35V C1050 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1051 1-126-969-11 ELECT 220uF 20% 50V C1052 1-162-974-11 CERAMIC CHIP 0.01uF 50V C1053 1-126-965-91 ELECT 22uF 20% 50V C1054 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V < CONNECTOR > CN1021 1-784-774-11 CONNECTOR, FFC 13P < DIODE > D1021 8-719-058-03 DIODE SEL5423E-TP15 (n N) D1022 8-719-059-18 DIODE RD6.2FM-T1 D1023 8-719-988-61 DIODE 1SS355TE-17 D1024 8-719-988-61 DIODE 1SS355TE-17 D1025 8-719-988-61 DIODE 1SS355TE-17 D1026 8-719-988-61 DIODE 1SS355TE-17 < FILTER > FL1020 1-518-979-11 INDICATOR TUBE, FLUORESCENT < IC > IC1020 6-705-745-01 IC M66005-0131AHPRB0T MOTOR PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 HCD-CPX22/NXM3 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks < COIL > L1021 1-410-671-31 INDUCTOR 47uH < TRANSISTOR > Q1021 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q1022 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q1023 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q1024 6-550-065-01 TRANSISTOR CPH5504-TL-E Q1026 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R1020 1-216-809-11 METAL CHIP 100 5% 1/10W R1021 1-216-821-11 METAL CHIP 1K 5% 1/10W R1022 1-216-809-11 METAL CHIP 100 5% 1/10W R1023 1-216-809-11 METAL CHIP 100 5% 1/10W R1024 1-216-821-11 METAL CHIP 1K 5% 1/10W R1025 1-216-833-11 METAL CHIP 10K 5% 1/10W R1026 1-216-813-11 METAL CHIP 220 5% 1/10W R1027 1-216-815-11 METAL CHIP 330 5% 1/10W R1028 1-216-817-11 METAL CHIP 470 5% 1/10W R1029 1-216-819-11 METAL CHIP 680 5% 1/10W R1030 1-216-821-11 METAL CHIP 1K 5% 1/10W R1031 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1032 1-216-864-11 SHORT CHIP 0 R1033 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1034 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1035 1-216-833-11 METAL CHIP 10K 5% 1/10W R1036 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1037 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1038 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1039 1-216-833-11 METAL CHIP 10K 5% 1/10W R1040 1-216-839-11 METAL CHIP 33K 5% 1/10W R1041 1-216-845-11 METAL CHIP 100K 5% 1/10W R1042 1-216-845-11 METAL CHIP 100K 5% 1/10W R1043 1-216-845-11 METAL CHIP 100K 5% 1/10W R1045 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1046 1-216-833-11 METAL CHIP 10K 5% 1/10W R1051 1-216-809-11 METAL CHIP 100 5% 1/10W R1052 1-216-809-11 METAL CHIP 100 5% 1/10W R1100 1-216-833-11 METAL CHIP 10K 5% 1/10W R1101 1-216-833-11 METAL CHIP 10K 5% 1/10W R1102 1-216-833-11 METAL CHIP 10K 5% 1/10W < SWITCH > S1021 1-762-875-21 SWITCH, KEYBOARD (CD) S1022 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) S1023 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B) S1024 1-762-875-21 SWITCH, KEYBOARD (VIDEO(MD)) S1025 1-762-875-21 SWITCH, KEYBOARD (DIMMER) S1026 1-762-875-21 SWITCH, KEYBOARD (CD SYNC) S1027 1-762-875-21 SWITCH, KEYBOARD (z /START) S1028 1-762-875-21 SWITCH, KEYBOARD (DISPLAY) S1029 1-762-875-21 SWITCH, KEYBOARD (n N) S1030 1-762-875-21 SWITCH, KEYBOARD (CD Z) S1031 1-762-875-21 SWITCH, KEYBOARD (X) S1032 1-762-875-21 SWITCH, KEYBOARD (B> TUNING +) S1033 1-762-875-21 SWITCH, KEYBOARD (.b TUNING -) S1034 1-762-875-21 SWITCH, KEYBOARD (ALBUM +) S1035 1-762-875-21 SWITCH, KEYBOARD (ALBUM -) S1036 1-762-875-21 SWITCH, KEYBOARD (x) < TRANSFORMER > T801 1-443-389-11 TRANSFORMER, DC-DC CONVERTER ************************************************************ A-4750-232-A RELAY BOARD, COMPLETE ********************* < CAPACITOR > C701 1-126-786-11 ELECT 47uF 20% 16V C702 1-126-791-11 ELECT 10uF 20% 35V C761 1-162-306-11 CERAMIC 0.01uF 20% 16V C762 1-162-306-11 CERAMIC 0.01uF 20% 16V < CONNECTOR > CN701 1-779-558-21 CONNECTOR, FFC (LIF (NON-ZIF)) 21P < DIODE > D701 8-719-921-40 DIODE MTZJ-4.7C D711 8-719-982-10 DIODE MTZJ-4.3A < IC > IC701 8-759-598-69 IC BA6956AN IC711 8-759-598-69 IC BA6956AN < TRANSISTOR > Q751 8-729-119-78 TRANSISTOR 2SC2785-HFE < RESISTOR > R701 1-249-415-11 CARBON 680 5% 1/4W R702 1-247-807-31 CARBON 100 5% 1/4W R711 1-249-415-11 CARBON 680 5% 1/4W R712 1-247-807-31 CARBON 100 5% 1/4W R751 1-247-806-11 CARBON 91 5% 1/4W R752 1-249-429-11 CARBON 10K 5% 1/4W R753 1-249-429-11 CARBON 10K 5% 1/4W R754 1-249-430-11 CARBON 12K 5% 1/4W R755 1-249-429-11 CARBON 10K 5% 1/4W ************************************************************ SENSOR BOARD ************ < IC > IC751 8-759-989-76 IC RPR-359F ************************************************************ A-4750-863-A S-MASTER BOARD, COMPLETE ********************** < CAPACITOR > C700 1-104-658-91 ELECT 100uF 20% 10V C701 1-126-960-11 ELECT 1uF 20% 50V RELAY PANEL SENSOR S-MASTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 HCD-CPX22/NXM3 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks C702 1-136-850-11 MYLAR 0.1uF 5% 63V C703 1-104-658-91 ELECT 100uF 20% 10V C704 1-164-156-11 CERAMIC CHIP 0.1uF 25V C706 1-164-346-11 CERAMIC CHIP 1uF 16V C708 1-164-346-11 CERAMIC CHIP 1uF 16V C709 1-164-156-11 CERAMIC CHIP 0.1uF 25V C710 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C712 1-164-346-11 CERAMIC CHIP 1uF 16V C713 1-163-078-11 CERAMIC CHIP 0.033uF 10% 25V C714 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C715 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C716 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C717 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C718 1-163-078-11 CERAMIC CHIP 0.033uF 10% 25V C719 1-100-924-21 CAP, ELECT C720 1-136-177-00 FILM 1uF 5% 50V C721 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C722 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C723 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C724 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C725 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C726 1-164-505-11 CERAMIC CHIP 2.2uF 16V C727 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C728 1-136-177-00 FILM 1uF 5% 50V C729 1-164-156-11 CERAMIC CHIP 0.1uF 25V C730 1-164-156-11 CERAMIC CHIP 0.1uF 25V C731 1-104-658-91 ELECT 100uF 20% 10V C732 1-164-156-11 CERAMIC CHIP 0.1uF 25V C733 1-164-156-11 CERAMIC CHIP 0.1uF 25V C734 1-164-156-11 CERAMIC CHIP 0.1uF 25V C735 1-126-964-11 ELECT 10uF 20% 50V C736 1-126-963-11 ELECT 4.7uF 20% 50V C737 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C738 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C739 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C741 1-126-965-91 ELECT 22uF 20% 50V C745 1-164-156-11 CERAMIC CHIP 0.1uF 25V C746 1-164-156-11 CERAMIC CHIP 0.1uF 25V C747 1-104-658-91 ELECT 100uF 20% 10V C748 1-126-964-11 ELECT 10uF 20% 50V C749 1-164-156-11 CERAMIC CHIP 0.1uF 25V C750 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C751 1-126-960-11 ELECT 1uF 20% 50V C752 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C753 1-104-658-91 ELECT 100uF 20% 10V C754 1-164-156-11 CERAMIC CHIP 0.1uF 25V C756 1-164-346-11 CERAMIC CHIP 1uF 16V C757 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C758 1-164-346-11 CERAMIC CHIP 1uF 16V C759 1-164-156-11 CERAMIC CHIP 0.1uF 25V C762 1-164-346-11 CERAMIC CHIP 1uF 16V C763 1-163-078-11 CERAMIC CHIP 0.033uF 10% 25V C764 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C765 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C766 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C767 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C768 1-163-078-11 CERAMIC CHIP 0.033uF 10% 25V C769 1-100-924-21 CAP, ELECT 2200uF 35V C770 1-136-177-00 FILM 1uF 5% 50V C771 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C772 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C773 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C774 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C775 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C776 1-125-898-91 CERAMIC CHIP 0.22uF 10% 50V C777 1-136-177-00 FILM 1uF 5% 50V C778 1-164-505-11 CERAMIC CHIP 2.2uF 16V C779 1-164-156-11 CERAMIC CHIP 0.1uF 25V C780 1-164-156-11 CERAMIC CHIP 0.1uF 25V C781 1-164-156-11 CERAMIC CHIP 0.1uF 25V C782 1-164-156-11 CERAMIC CHIP 0.1uF 25V C783 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C784 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C785 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C786 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C787 1-164-156-11 CERAMIC CHIP 0.1uF 25V C788 1-164-156-11 CERAMIC CHIP 0.1uF 25V C790 1-104-658-91 ELECT 100uF 20% 10V C791 1-136-850-11 MYLAR 0.1uF 5% 63V C792 1-126-935-11 ELECT 470uF 20% 16V C794 1-164-346-11 CERAMIC CHIP 1uF 16V C795 1-164-156-11 CERAMIC CHIP 0.1uF 25V C797 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C798 1-104-658-91 ELECT 100uF 20% 10V C799 1-164-156-11 CERAMIC CHIP 0.1uF 25V C800 1-164-156-11 CERAMIC CHIP 0.1uF 25V C801 1-164-156-11 CERAMIC CHIP 0.1uF 25V C802 1-164-156-11 CERAMIC CHIP 0.1uF 25V C803 1-126-956-91 ELECT 0.1uF 20% 50V C804 1-104-658-91 ELECT 100uF 20% 10V C805 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C806 1-164-156-11 CERAMIC CHIP 0.1uF 25V C821 1-216-864-11 SHORT CHIP 0 C822 1-216-864-11 SHORT CHIP 0 C823 1-216-864-11 SHORT CHIP 0 C824 1-216-864-11 SHORT CHIP 0 C825 1-216-864-11 SHORT CHIP 0 C826 1-216-864-11 SHORT CHIP 0 C827 1-216-864-11 SHORT CHIP 0 C828 1-216-864-11 SHORT CHIP 0 C829 1-216-864-11 SHORT CHIP 0 C830 1-216-864-11 SHORT CHIP 0 < CONNECTOR > CN700 1-784-780-11 CONNECTOR, FFC 19P * CN701 1-564-511-11 PLUG, CONNECTOR 8P CN702 1-564-507-11 PLUG, CONNECTOR 4P < DIODE > D701 8-719-988-61 DIODE 1SS355TE-17 D702 8-719-988-61 DIODE 1SS355TE-17 D703 8-719-988-61 DIODE 1SS355TE-17 D704 8-719-988-61 DIODE 1SS355TE-17 D705 6-500-260-01 DIODE P6SMB39AT3 D706 6-500-260-01 DIODE P6SMB39AT3 D707 8-719-988-61 DIODE 1SS355TE-17 S-MASTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 HCD-CPX22/NXM3 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks D708 8-719-988-61 DIODE 1SS355TE-17 D709 8-719-988-61 DIODE 1SS355TE-17 D710 8-719-988-61 DIODE 1SS355TE-17 D711 8-719-988-61 DIODE 1SS355TE-17 D712 8-719-988-61 DIODE 1SS355TE-17 D755 6-500-260-01 DIODE P6SMB39AT3 D756 6-500-260-01 DIODE P6SMB39AT3 < EARTH TERMINAL > EP701 1-537-738-21 TERMINAL, GROUND EP702 1-537-738-21 TERMINAL, GROUND < FERRITE BEAD > FB702 1-216-864-11 SHORT CHIP 0 < FILTER > FL702 1-234-177-21 FILTER, CHIP EMI FL703 1-234-177-21 FILTER, CHIP EMI FL704 1-234-177-21 FILTER, CHIP EMI FL706 1-234-177-21 FILTER, CHIP EMI < IC > IC701 6-701-834-01 IC PCM1802DBR IC703 8-759-387-77 IC TC7WU04F (TE12R) IC704 6-700-263-01 IC NJM2870F18 (TE2) IC705 6-705-979-01 IC CXD9788AR IC706 8-759-583-47 IC uPC2933T-E2 IC707 6-705-695-01 IC CXD9775M IC708 6-705-695-01 IC CXD9775M IC709 6-701-189-01 IC MC74VHC1GU04DFT1 IC710 8-759-473-95 IC uPC2905T-E1 < COIL > L701 1-412-951-11 INDUCTOR 10uH L702 1-412-951-11 INDUCTOR 10uH L703 1-412-951-11 INDUCTOR 10uH L704 1-216-295-91 SHORT CHIP 0 L705 1-412-939-11 INDUCTOR 1uH L708 1-456-813-11 COIL, AIR-CORE L709 1-456-813-11 COIL, AIR-CORE L710 1-456-680-11 COIL, CHOKE 10UF L711 1-456-680-11 COIL, CHOKE 10UF L712 1-412-951-11 INDUCTOR 10uH L713 1-216-295-91 SHORT CHIP 0 L714 1-216-295-91 SHORT CHIP 0 L715 1-216-295-91 SHORT CHIP 0 L716 1-216-295-91 SHORT CHIP 0 L758 1-456-813-11 COIL, AIR-CORE L759 1-456-813-11 COIL, AIR-CORE L760 1-456-680-11 COIL, CHOKE 10UF L761 1-456-680-11 COIL, CHOKE 10UF < TRANSISTOR > Q701 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q702 8-729-602-36 TRANSISTOR 2SA1602-F Q703 8-729-602-36 TRANSISTOR 2SA1602-F Q752 8-729-602-36 TRANSISTOR 2SA1602-F Q753 8-729-602-36 TRANSISTOR 2SA1602-F < RESISTOR > R701 1-216-864-11 SHORT CHIP 0 R704 1-216-864-11 SHORT CHIP 0 R706 1-216-809-11 METAL CHIP 100 5% 1/10W R707 1-216-864-11 SHORT CHIP 0 R708 1-216-864-11 SHORT CHIP 0 R709 1-216-864-11 SHORT CHIP 0 R710 1-216-809-11 METAL CHIP 100 5% 1/10W R711 1-216-809-11 METAL CHIP 100 5% 1/10W R712 1-216-809-11 METAL CHIP 100 5% 1/10W R713 1-216-837-11 METAL CHIP 22K 5% 1/10W R714 1-216-818-11 METAL CHIP 560 5% 1/10W R716 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R717 1-216-864-11 SHORT CHIP 0 R718 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R719 1-220-942-11 METAL CHIP 3.3 1% 1/4W R720 1-220-942-11 METAL CHIP 3.3 1% 1/4W R721 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R722 1-216-864-11 SHORT CHIP 0 R723 1-216-841-11 METAL CHIP 47K 5% 1/10W R724 1-216-302-00 RES-CHIP 2.7 5% 1/10W R725 1-216-302-00 RES-CHIP 2.7 5% 1/10W R726 1-216-845-11 METAL CHIP 100K 5% 1/10W R727 1-216-845-11 METAL CHIP 100K 5% 1/10W R728 1-216-845-11 METAL CHIP 100K 5% 1/10W R729 1-216-821-11 METAL CHIP 1K 5% 1/10W R730 1-216-809-11 METAL CHIP 100 5% 1/10W R731 1-216-809-11 METAL CHIP 100 5% 1/10W R732 1-216-809-11 METAL CHIP 100 5% 1/10W R735 1-216-864-11 SHORT CHIP 0 R736 1-216-857-11 METAL CHIP 1M 5% 1/10W R737 1-216-821-11 METAL CHIP 1K 5% 1/10W R739 1-216-864-11 SHORT CHIP 0 R741 1-216-809-11 METAL CHIP 100 5% 1/10W R742 1-216-833-11 METAL CHIP 10K 5% 1/10W R743 1-216-809-11 METAL CHIP 100 5% 1/10W R744 1-216-864-11 SHORT CHIP 0 R745 1-216-809-11 METAL CHIP 100 5% 1/10W R746 1-216-809-11 METAL CHIP 100 5% 1/10W R747 1-216-809-11 METAL CHIP 100 5% 1/10W R748 1-216-841-11 METAL CHIP 47K 5% 1/10W R749 1-216-864-11 SHORT CHIP 0 R750 1-216-845-11 METAL CHIP 100K 5% 1/10W R751 1-216-864-11 SHORT CHIP 0 R752 1-216-837-11 METAL CHIP 22K 5% 1/10W R754 1-216-818-11 METAL CHIP 560 5% 1/10W R756 1-216-809-11 METAL CHIP 100 5% 1/10W R757 1-216-864-11 SHORT CHIP 0 R758 1-216-864-11 SHORT CHIP 0 R759 1-216-864-11 SHORT CHIP 0 R760 1-216-809-11 METAL CHIP 100 5% 1/10W R761 1-216-809-11 METAL CHIP 100 5% 1/10W R762 1-216-809-11 METAL CHIP 100 5% 1/10W R764 1-216-864-11 SHORT CHIP 0 R766 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R767 1-216-864-11 SHORT CHIP 0 S-MASTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-CPX22/NXM3 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SP OUT R768 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R769 1-220-942-11 METAL CHIP 3.3 1% 1/4W R770 1-220-942-11 METAL CHIP 3.3 1% 1/4W R771 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R772 1-216-864-11 SHORT CHIP 0 R773 1-216-841-11 METAL CHIP 47K 5% 1/10W R774 1-216-302-00 RES-CHIP 2.7 5% 1/10W R775 1-216-302-00 RES-CHIP 2.7 5% 1/10W R776 1-216-845-11 METAL CHIP 100K 5% 1/10W R777 1-216-845-11 METAL CHIP 100K 5% 1/10W R778 1-216-845-11 METAL CHIP 100K 5% 1/10W R779 1-216-864-11 SHORT CHIP 0 R781 1-216-809-11 METAL CHIP 100 5% 1/10W R782 1-216-857-11 METAL CHIP 1M 5% 1/10W R783 1-216-864-11 SHORT CHIP 0 R784 1-216-809-11 METAL CHIP 100 5% 1/10W R785 1-216-809-11 METAL CHIP 100 5% 1/10W R786 1-216-809-11 METAL CHIP 100 5% 1/10W R787 1-216-809-11 METAL CHIP 100 5% 1/10W R788 1-216-809-11 METAL CHIP 100 5% 1/10W R789 1-216-809-11 METAL CHIP 100 5% 1/10W R790 1-216-809-11 METAL CHIP 100 5% 1/10W R792 1-216-864-11 SHORT CHIP 0 R793 1-216-845-11 METAL CHIP 100K 5% 1/10W R795 1-216-864-11 SHORT CHIP 0 < VIBRATOR > X701 1-795-843-11 VIBRATOR, CRYSTAL (12.288MHz) X702 1-795-660-21 QUARTZ CRYSTAL UNIT (49.152MHz) ************************************************************ SP OUT BOARD ************ < CAPACITOR > C591 1-131-992-91 CERAMIC CHIP 100000PF 35V (AEP, UK, EA, RU) C592 1-131-992-91 CERAMIC CHIP 100000PF 35V (AEP, UK, EA, RU) C594 1-131-992-91 CERAMIC CHIP 100000PF 35V (AEP, UK, EA, RU) C595 1-131-992-91 CERAMIC CHIP 100000PF 35V (AEP, UK, EA, RU) C596 1-131-992-91 CERAMIC CHIP 100000PF 35V (AEP, UK, EA, RU) C597 1-131-992-91 CERAMIC CHIP 100000PF 35V (AEP, UK, EA, RU) C598 1-131-992-91 CERAMIC CHIP 100000PF 35V (AEP, UK, EA, RU) C599 1-131-992-91 CERAMIC CHIP 100000PF 35V (AEP, UK, EA, RU) < CONNECTOR > CN510 1-564-507-11 PLUG, CONNECTOR 4P < EARTH TERMINAL > EP505 1-537-738-21 TERMINAL, GROUND < COIL > L590 1-420-872-52 COIL, AIR-CORE (AEP, UK, EA, RU) L591 1-420-872-52 COIL, AIR-CORE (AEP, UK, EA, RU) L592 1-420-872-52 COIL, AIR-CORE (AEP, UK, EA, RU) L593 1-420-872-52 COIL, AIR-CORE (AEP, UK, EA, RU) < RESISTOR > R592 1-249-625-31 CARBON 10 5% 1/2W (AEP, UK, EA, RU) R593 1-249-625-31 CARBON 10 5% 1/2W (AEP, UK, EA, RU) R594 1-249-625-31 CARBON 10 5% 1/2W (AEP, UK, EA, RU) R595 1-249-625-31 CARBON 10 5% 1/2W (AEP, UK, EA, RU) R596 1-249-625-31 CARBON 10 5% 1/2W (AEP, UK, EA, RU) R597 1-249-625-31 CARBON 10 5% 1/2W (AEP, UK, EA, RU) R598 1-249-625-31 CARBON 10 5% 1/2W (AEP, UK, EA, RU) R599 1-249-625-31 CARBON 10 5% 1/2W (AEP, UK, EA, RU) < TERMINAL > TM504 1-537-114-21 TERMINAL BOARD (SPEAKER) ************************************************************ SW (1) BOARD *********** < SWITCH > S721 1-786-084-11 SWITCH, DETECTION (MAIN TRAY IN/OUT) ************************************************************ SW (2) BOARD *********** < SWITCH > S731 1-786-382-11 SWITCH, PUSH (1 KEY) (SUB TRAY IN) ************************************************************ A-4750-851-A VOL BOARD, COMPLETE ******************* < CAPACITOR > C1007 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1008 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1013 1-126-947-11 ELECT 47uF 20% 35V < CONNECTOR > CN1050 1-784-776-11 CONNECTOR, FFC 15P CN1051 1-784-766-11 CONNECTOR, FFC 5P < DIODE > D1050 8-719-071-44 DIODE SELS5223C-TP15 (^/1) D1051 8-719-988-61 DIODE 1SS355TE-17 S-MASTER SW (1) SW (2) VOL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 HCD-GN880 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. < IC > IC1050 6-600-349-31 IC NJL24H400A < TRANSISTOR > Q1041 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R1048 1-216-864-11 SHORT CHIP 0 R1049 1-216-821-11 METAL CHIP 1K 5% 1/10W R1050 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1059 1-216-805-11 METAL CHIP 47 5% 1/10W R1090 1-216-821-11 METAL CHIP 1K 5% 1/10W R1091 1-216-821-11 METAL CHIP 1K 5% 1/10W R1092 1-216-821-11 METAL CHIP 1K 5% 1/10W R1093 1-216-821-11 METAL CHIP 1K 5% 1/10W R1094 1-216-821-11 METAL CHIP 1K 5% 1/10W R1095 1-216-821-11 METAL CHIP 1K 5% 1/10W < SWITCH > S1042 1-762-875-21 SWITCH, KEYBOARD (^/1) S1043 1-762-875-21 SWITCH, KEYBOARD (DSGX) S1050 1-786-418-11 SWITCH, ROTARY (ENCODER) (BASS) S1051 1-786-418-11 SWITCH, ROTARY (ENCODER) (TREBLE) S1052 1-418-725-51 ENCODER, ROTARY (12 TYPE) (VOLUME) ************************************************************ MISCELLANEOUS ************* 3 1-769-972-11 WIRE (FLAT TYPE) (13 CORE) 4 1-765-332-11 WIRE (FLAT TYPE) (15 CORE) 5 1-769-869-11 WIRE (FLAT TYPE) (5 CORE) 6 1-769-939-11 WIRE (FLAT TYPE) (11 CORE) (EXCEPT AEP, UK) 6 1-773-003-11 WIRE (FLAT TYPE) (15 CORE) (AEP, UK) 11 1-693-603-31 TUNER (FM/AM) (E3, E51, EA) 11 1-693-604-11 TUNER (FM/AM) (AEP, UK) 11 1-693-623-31 TUNER (FM/AM) (US) 11 1-693-654-11 TUNER (FM/AM) (RU) 59 1-796-880-11 DECK, MECHANISM 0102 1-468-813-11 REGULATOR, SWITCHING (AEP, UK, RU) 0102 1-468-819-11 REGULATOR, SWITCHING (US) 0102 1-468-821-11 REGULATOR, SWITCHING (E3, E51, EA) 0103 1-775-786-21 CORD, POWER (UK, EA) 0103 1-777-071-53 CORD, POWER (AEP, E51, RU) 0103 1-783-820-11 CORD, POWER (US) 0103 1-827-226-11 CORD, POWER (E3) 162 1-471-035-11 MAGNET ASSY 256 1-827-992-11 WIRE (FLAT TYPE) (16 CORE) 0259 8-820-244-01 OPTICAL PICK-UP (KSM-215DCP/C2NP) M761 A-4713-174-A MOTOR (81) ASSY (LD/ST MOTOR) M762 A-4713-174-A MOTOR (81) ASSY (BU U/D MOTOR) S771 1-478-552-11 ENCODER, ROTARY (MD) S781 1-478-551-11 ENCODER, ROTARY (ST U/D) Ref. No. Part No. Description Remarks VOL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 HCD-CPX22/NXM3 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX22/NXM3 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2004.04 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
