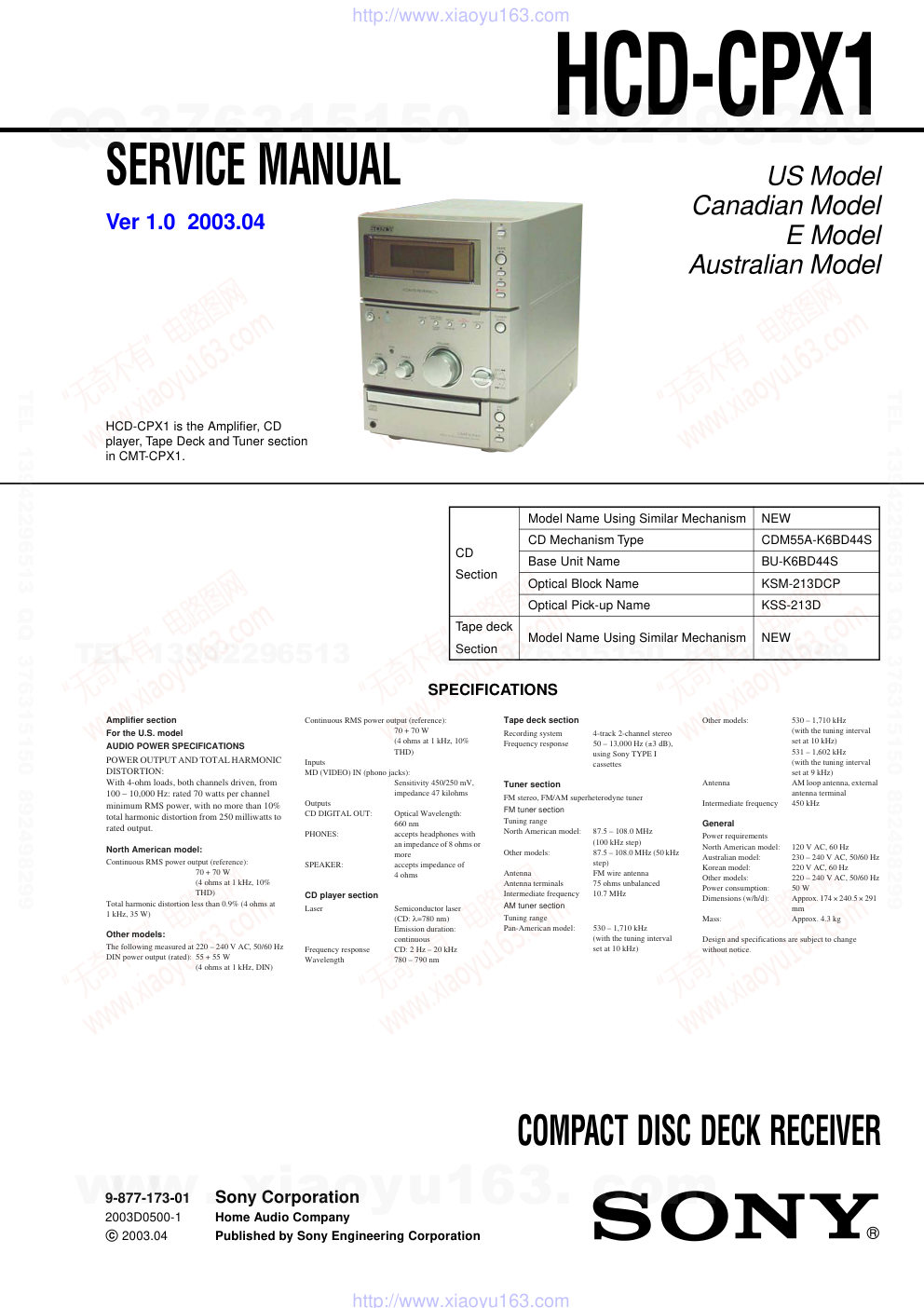

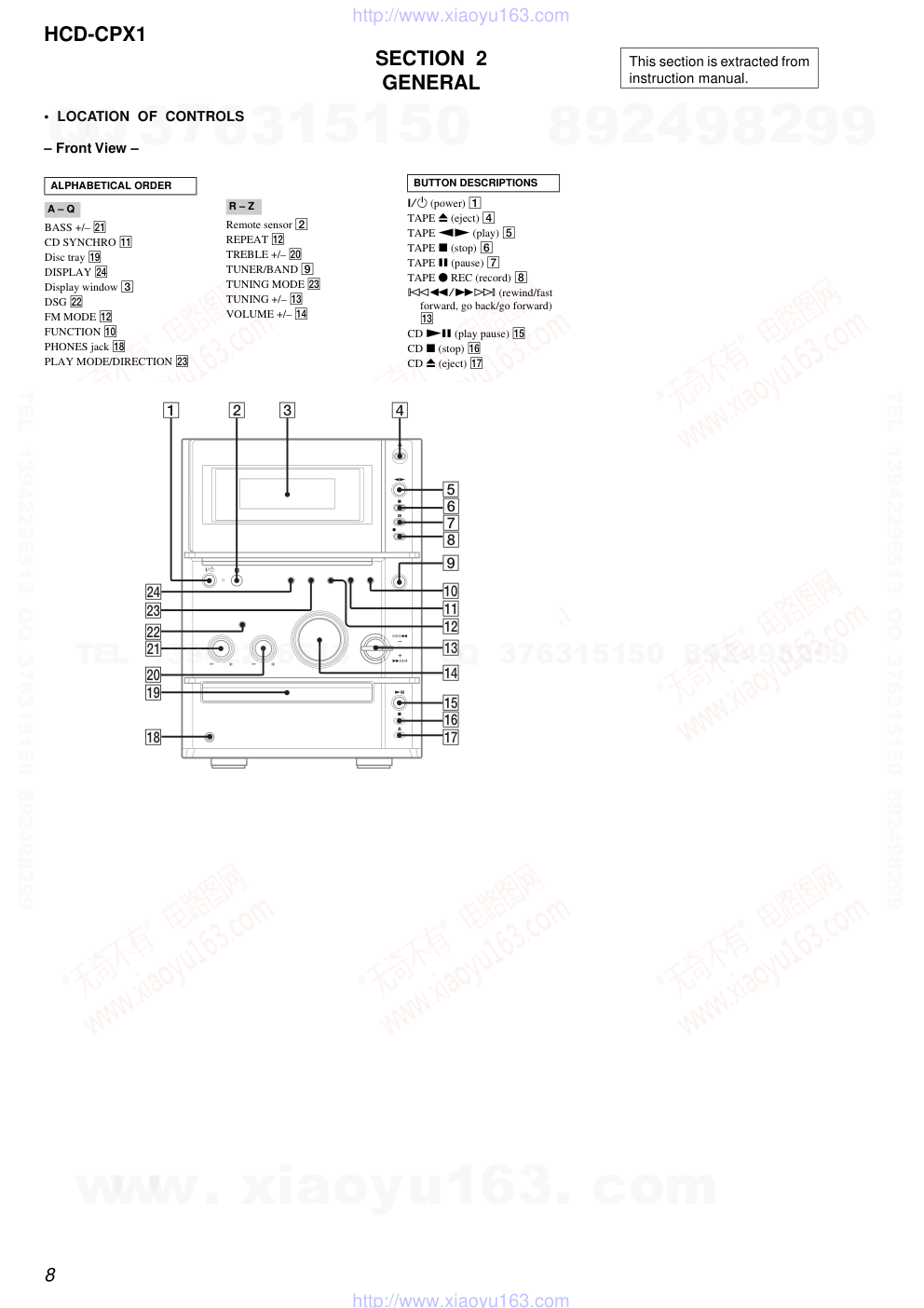

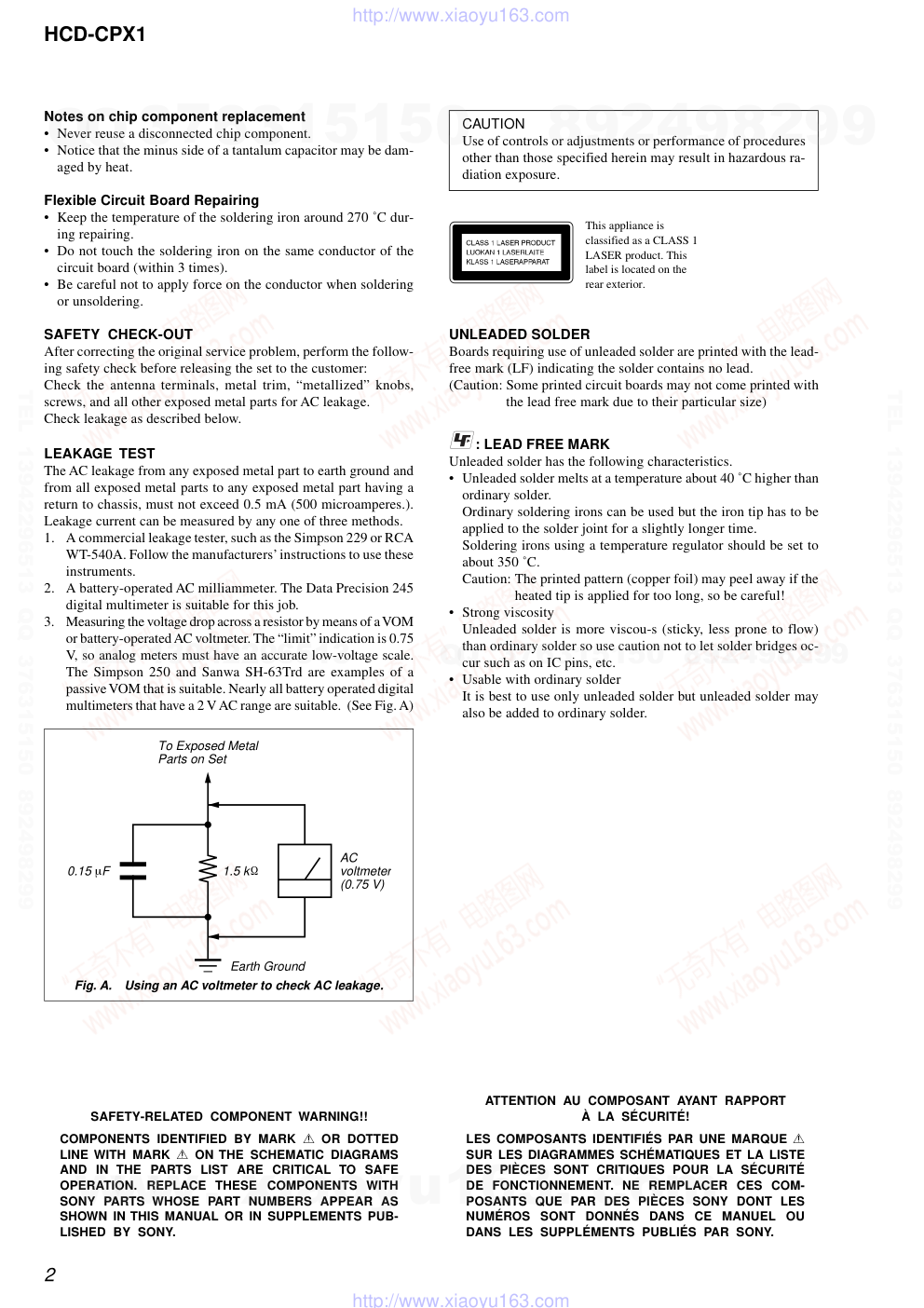

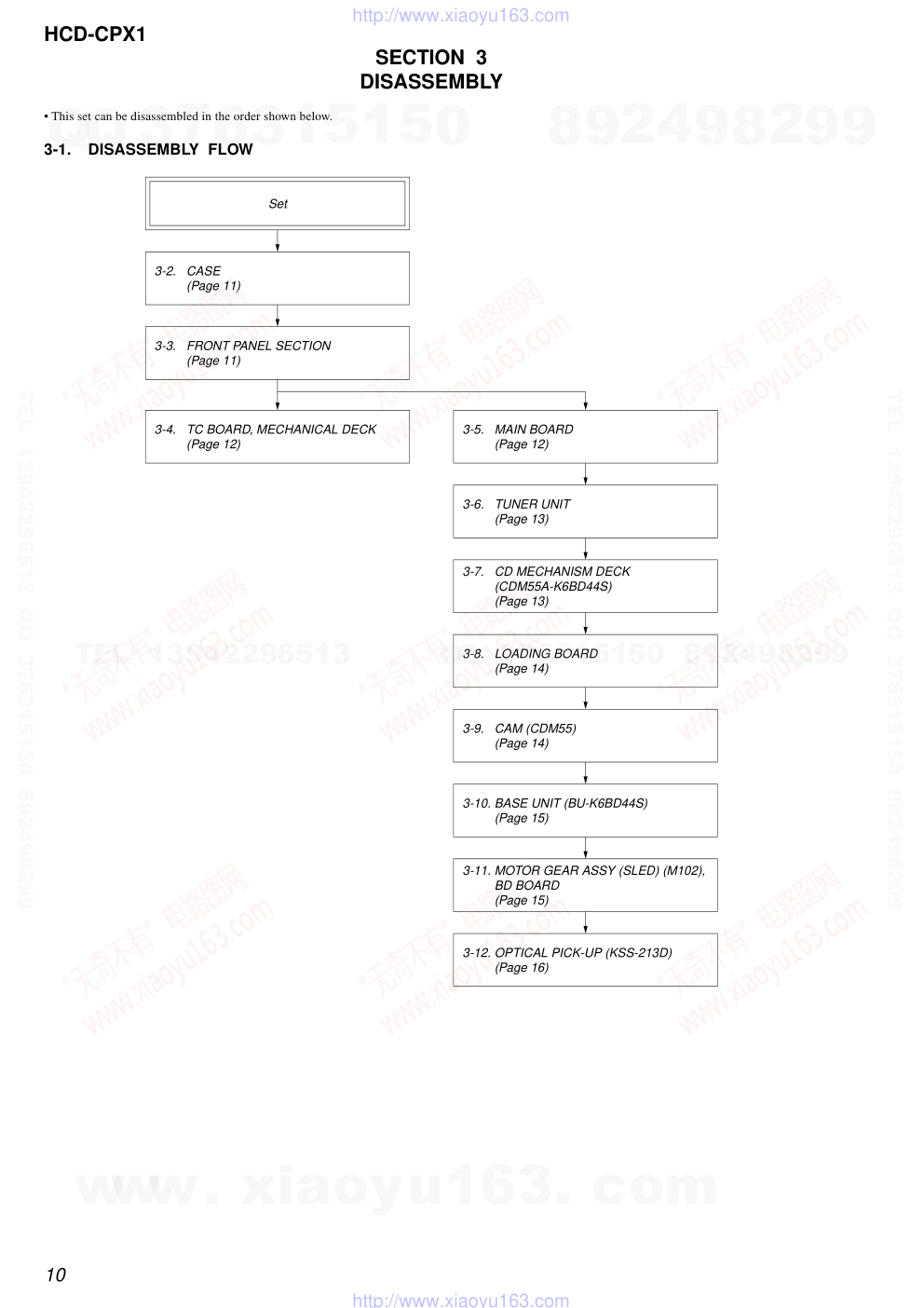

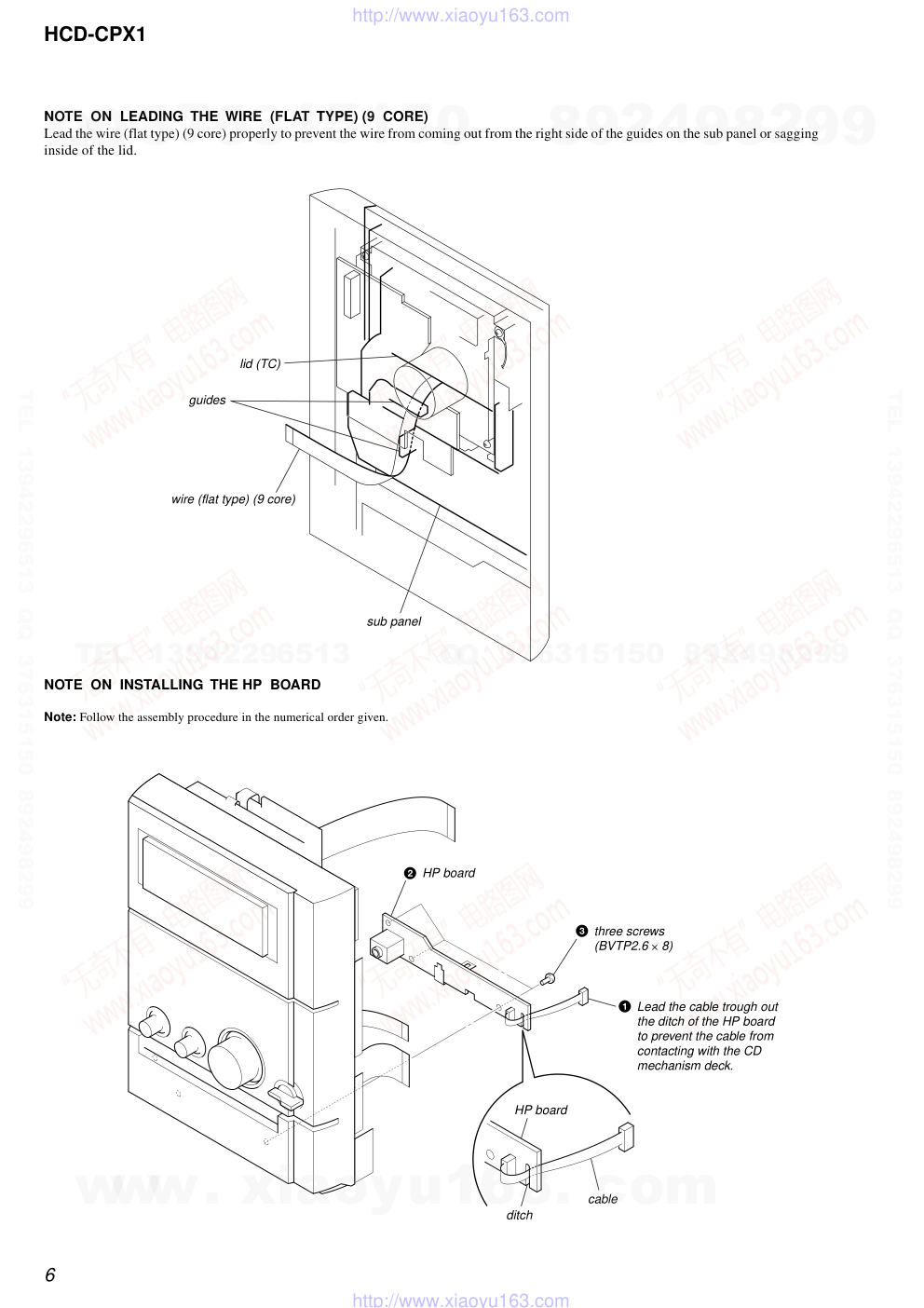

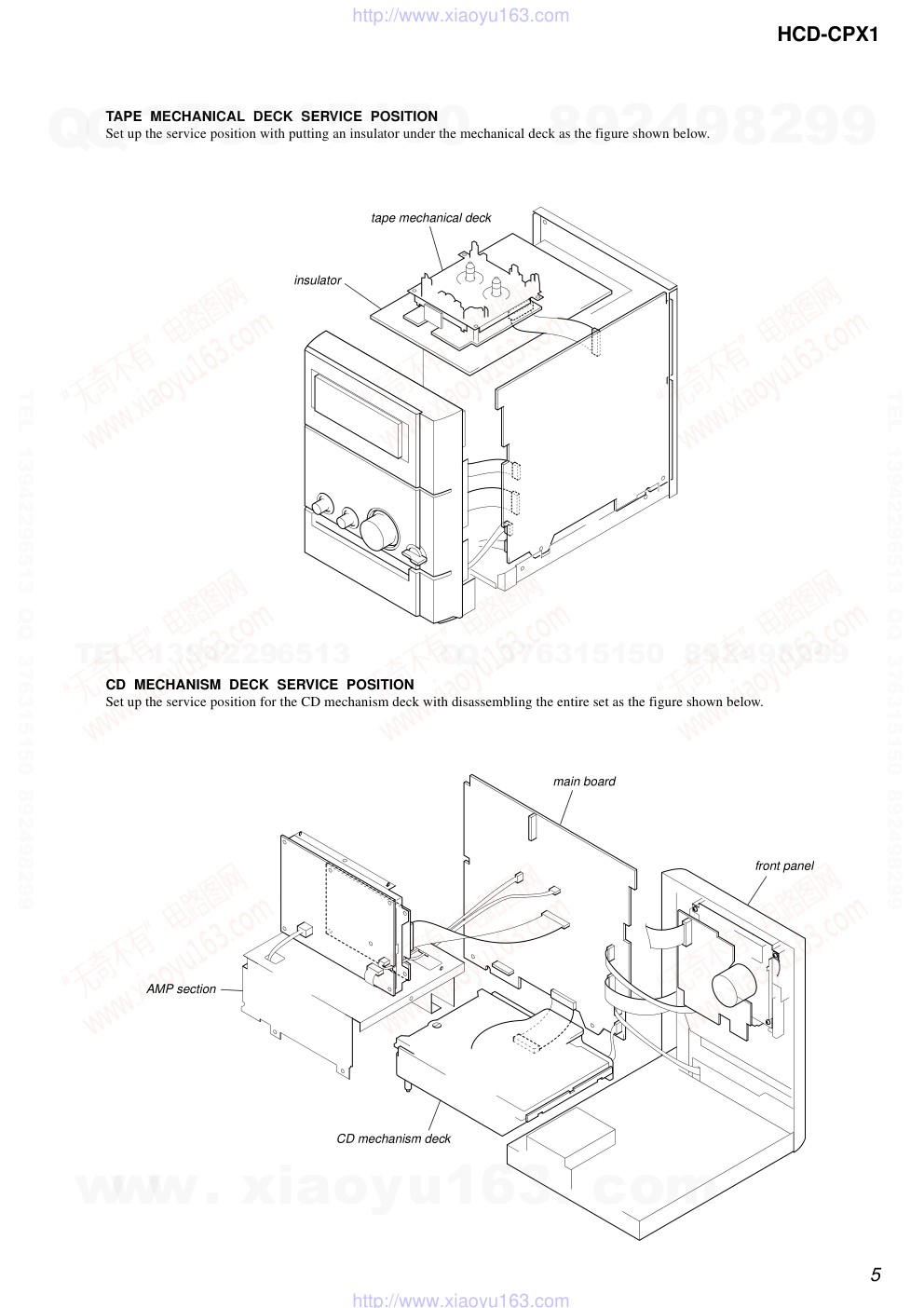

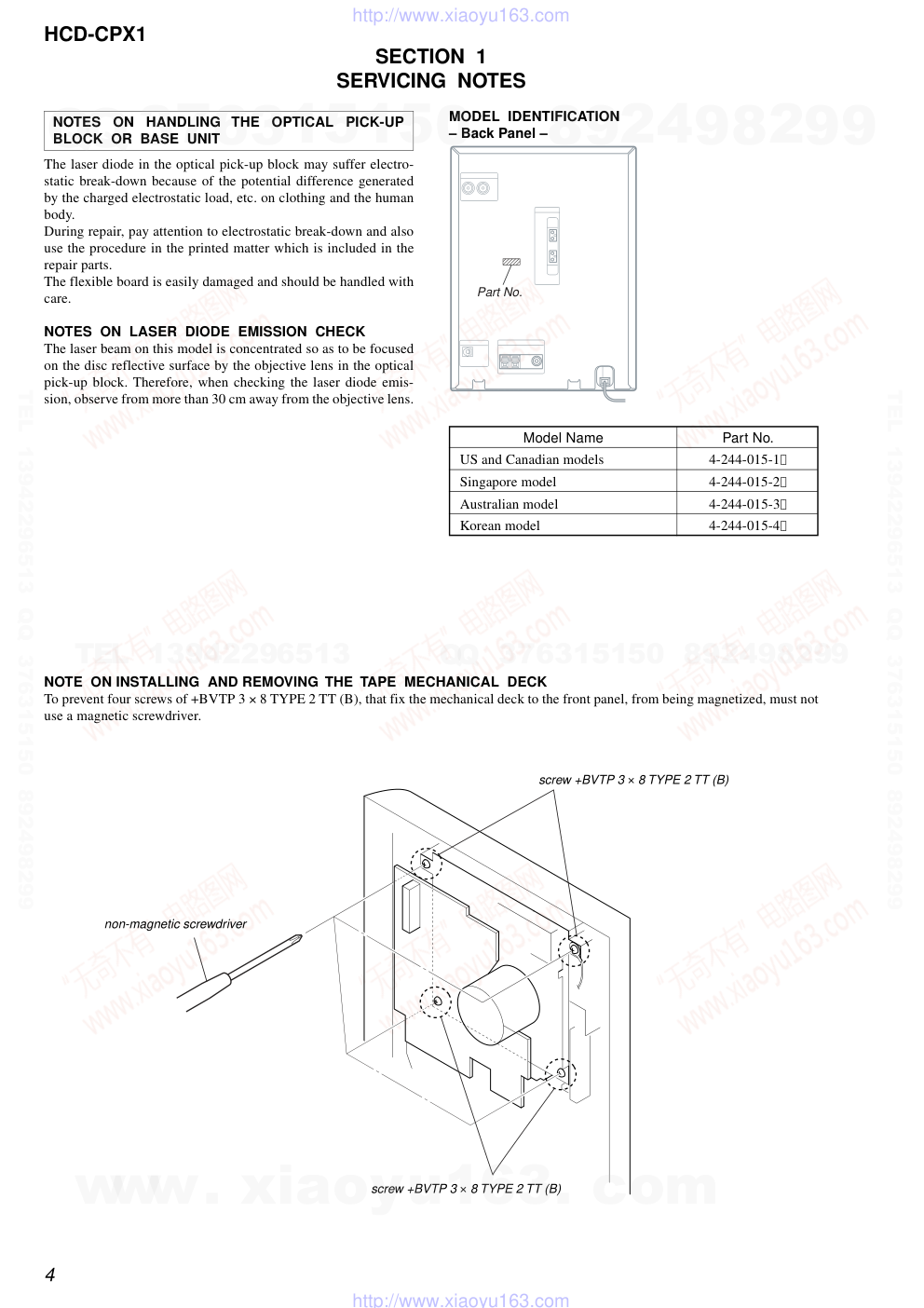

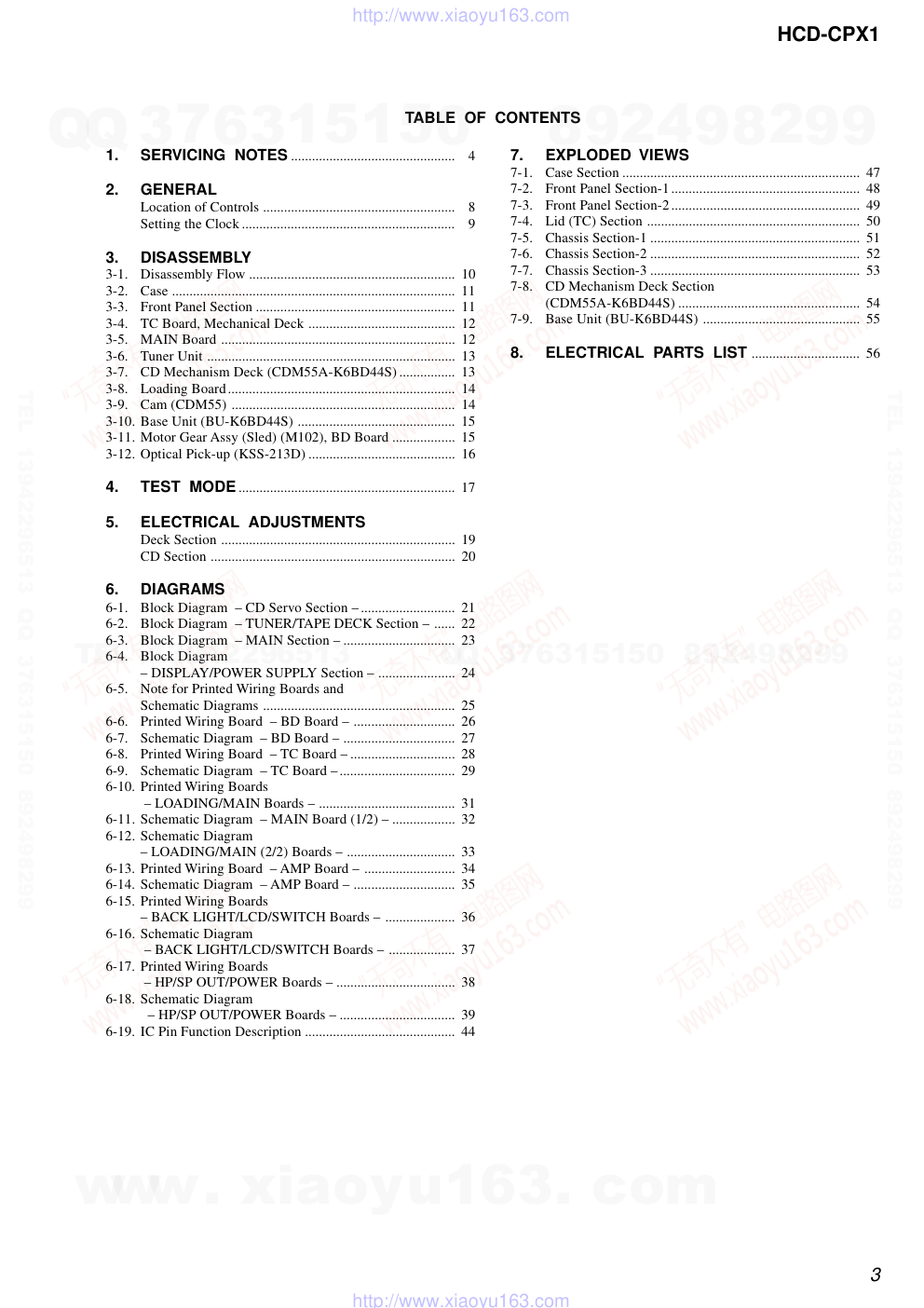

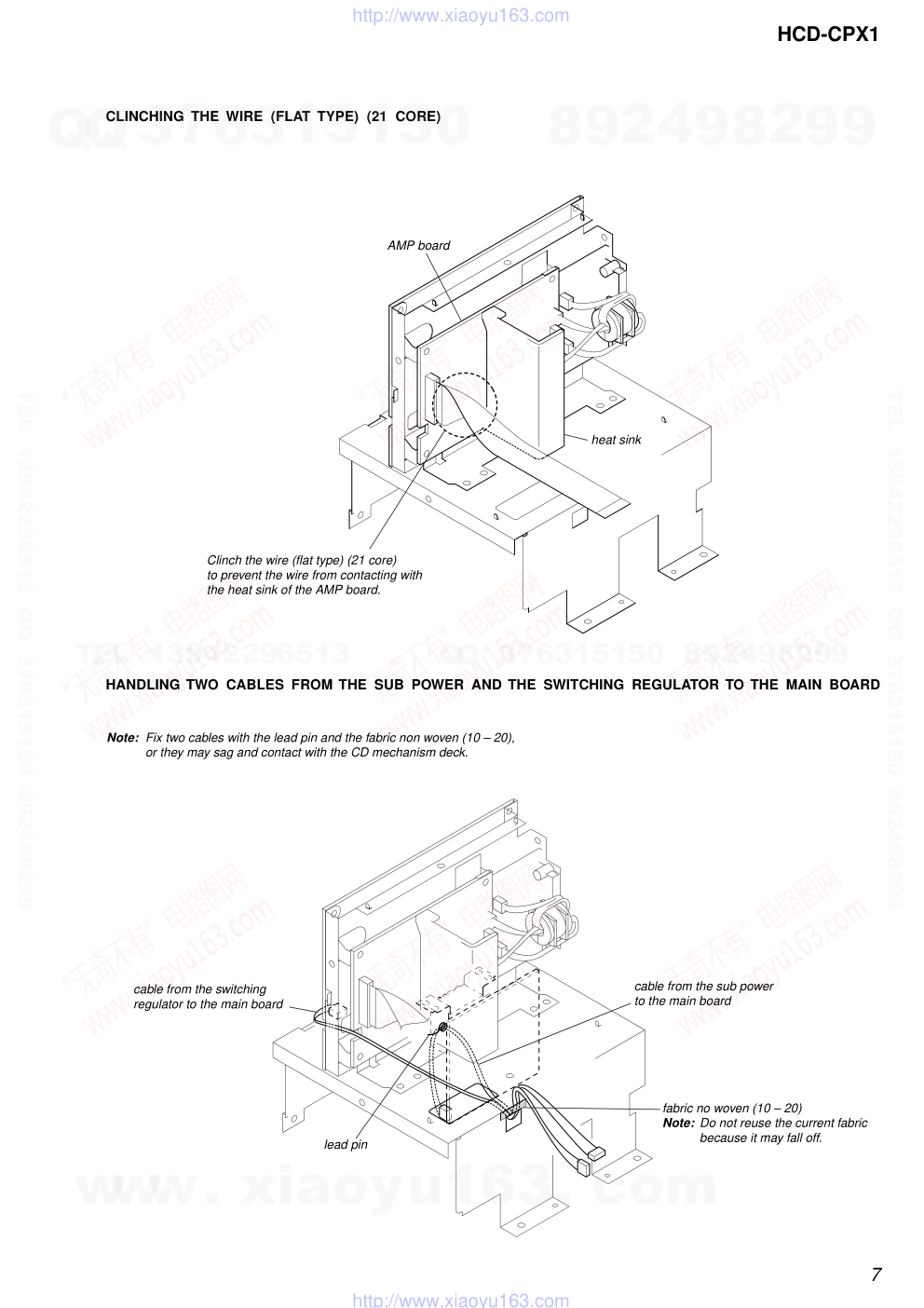

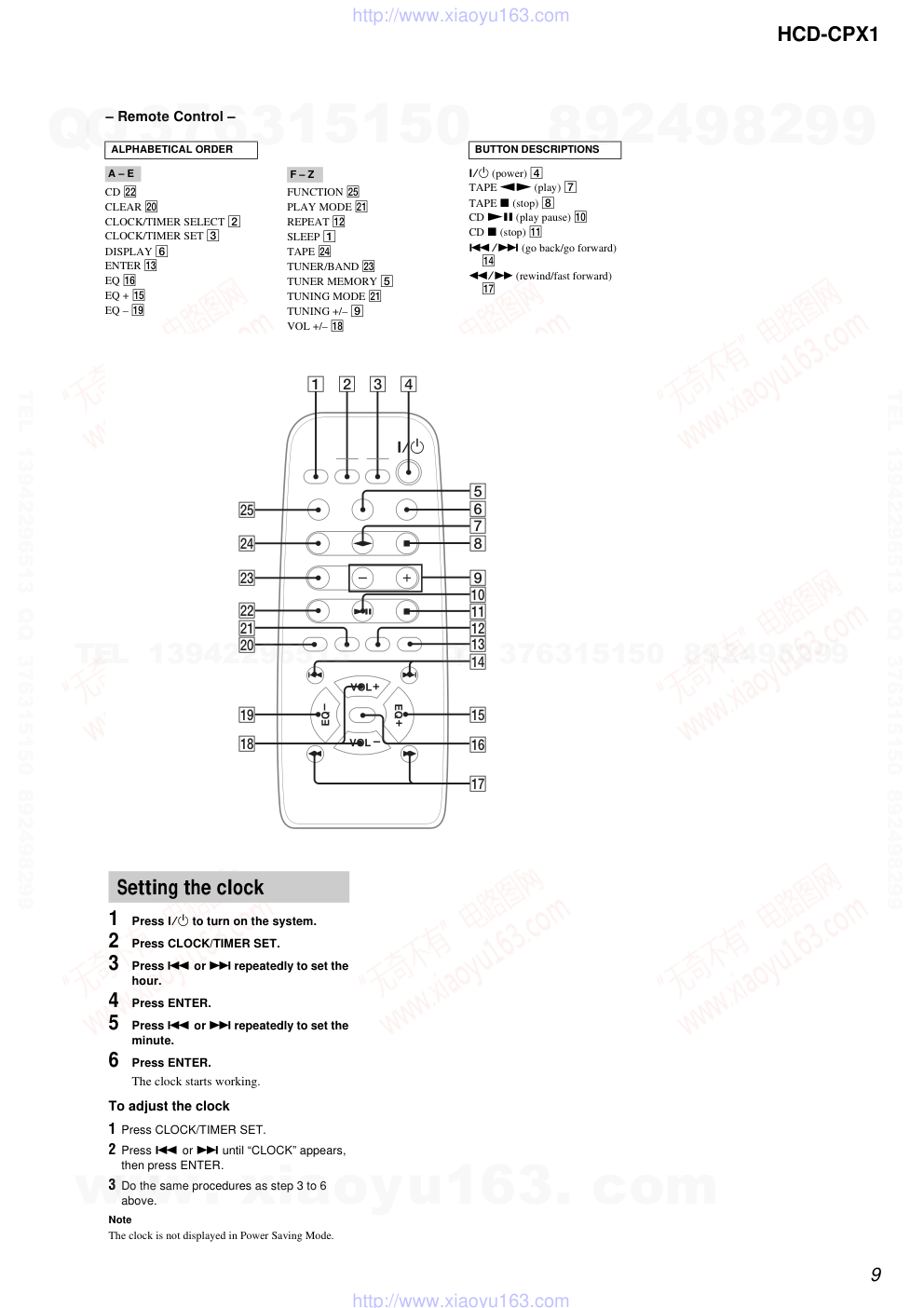

SERVICE MANUAL CD Section Tape deck Section COMPACT DISC DECK RECEIVER US Model Canadian Model E Model Australian Model SPECIFICATIONS HCD-CPX1 Ver 1.0 2003.04 HCD-CPX1 is the Amplifier, CD player, Tape Deck and Tuner section in CMT-CPX1. Model Name Using Similar Mechanism NEW CD Mechanism Type CDM55A-K6BD44S Base Unit Name BU-K6BD44S Optical Block Name KSM-213DCP Optical Pick-up Name KSS-213D Model Name Using Similar Mechanism NEW 9-877-173-01 Sony Corporation 2003D0500-1 Home Audio Company C 2003.04 Published by Sony Engineering Corporation CD player section Laser Semiconductor laser (CD: λ=780 nm) Emission duration: continuous Frequency response CD: 2 Hz – 20 kHz Wavelength 780 – 790 nm Tape deck section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range North American model: 87.5 – 108.0 MHz (100 kHz step) Other models: 87.5 – 108.0 MHz (50 kHz step) Antenna FM wire antenna Antenna terminals 75 ohms unbalanced Intermediate frequency 10.7 MHz Other models: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Antenna AM loop antenna, external antenna terminal Intermediate frequency 450 kHz AM tuner section Tuning range Pan-American model: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) General Power requirements North American model: 120 V AC, 60 Hz Australian model: 230 – 240 V AC, 50/60 Hz Korean model: 220 V AC, 60 Hz Other models: 220 – 240 V AC, 50/60 Hz Power consumption: 50 W Dimensions (w/h/d): Approx. 174 × 240.5 × 291 mm Mass: Approx. 4.3 kg Design and specifications are subject to change without notice. Amplifier section For the U.S. model AUDIO POWER SPECIFICATIONS POWER OUTPUT AND TOTAL HARMONIC DISTORTION: With 4-ohm loads, both channels driven, from 100 – 10,000 Hz: rated 70 watts per channel minimum RMS power, with no more than 10% total harmonic distortion from 250 milliwatts to rated output. North American model: Continuous RMS power output (reference): 70 + 70 W (4 ohms at 1 kHz, 10% THD) Total harmonic distortion less than 0.9% (4 ohms at 1 kHz, 35 W) Other models: The following measured at 220 – 240 V AC, 50/60 Hz DIN power output (rated): 55 + 55 W (4 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 70 + 70 W (4 ohms at 1 kHz, 10% THD) Inputs MD (VIDEO) IN (phono jacks): Sensitivity 450/250 mV, impedance 47 kilohms Outputs CD DIGITAL OUT: Optical Wavelength: 660 nm PHONES: accepts headphones with an impedance of 8 ohms or more SPEAKER: accepts impedance of 4 ohms www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-CPX1 CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. This appliance is classified as a CLASS 1 LASER product. This label is located on the rear exterior. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COM- POSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microamperes.). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a passive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2 V AC range are suitable. (See Fig. A) Fig. A. Using an AC voltmeter to check AC leakage. 1.5 kΩ 0.15 µF AC voltmeter (0.75 V) To Exposed Metal Parts on Set Earth Ground UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 ˚C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 ˚C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges oc- cur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-CPX1 TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 4 2. GENERAL Location of Controls ....................................................... 8 Setting the Clock ............................................................. 9 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 10 3-2. Case ................................................................................. 11 3-3. Front Panel Section ......................................................... 11 3-4. TC Board, Mechanical Deck .......................................... 12 3-5. MAIN Board ................................................................... 12 3-6. Tuner Unit ....................................................................... 13 3-7. CD Mechanism Deck (CDM55A-K6BD44S) ................ 13 3-8. Loading Board................................................................. 14 3-9. Cam (CDM55) ................................................................ 14 3-10. Base Unit (BU-K6BD44S) ............................................. 15 3-11. Motor Gear Assy (Sled) (M102), BD Board .................. 15 3-12. Optical Pick-up (KSS-213D) .......................................... 16 4. TEST MODE .............................................................. 17 5. ELECTRICAL ADJUSTMENTS Deck Section ................................................................... 19 CD Section ...................................................................... 20 6. DIAGRAMS 6-1. Block Diagram – CD Servo Section – ........................... 21 6-2. Block Diagram – TUNER/TAPE DECK Section – ...... 22 6-3. Block Diagram – MAIN Section – ................................ 23 6-4. Block Diagram – DISPLAY/POWER SUPPLY Section – ...................... 24 6-5. Note for Printed Wiring Boards and Schematic Diagrams ....................................................... 25 6-6. Printed Wiring Board – BD Board – ............................. 26 6-7. Schematic Diagram – BD Board – ................................ 27 6-8. Printed Wiring Board – TC Board – .............................. 28 6-9. Schematic Diagram – TC Board –................................. 29 6-10. Printed Wiring Boards – LOADING/MAIN Boards – ....................................... 31 6-11. Schematic Diagram – MAIN Board (1/2) – .................. 32 6-12. Schematic Diagram – LOADING/MAIN (2/2) Boards – ............................... 33 6-13. Printed Wiring Board – AMP Board – .......................... 34 6-14. Schematic Diagram – AMP Board – ............................. 35 6-15. Printed Wiring Boards – BACK LIGHT/LCD/SWITCH Boards – .................... 36 6-16. Schematic Diagram – BACK LIGHT/LCD/SWITCH Boards – ................... 37 6-17. Printed Wiring Boards – HP/SP OUT/POWER Boards – .................................. 38 6-18. Schematic Diagram – HP/SP OUT/POWER Boards – ................................. 39 6-19. IC Pin Function Description ........................................... 44 7. EXPLODED VIEWS 7-1. Case Section .................................................................... 47 7-2. Front Panel Section-1...................................................... 48 7-3. Front Panel Section-2...................................................... 49 7-4. Lid (TC) Section ............................................................. 50 7-5. Chassis Section-1 ............................................................ 51 7-6. Chassis Section-2 ............................................................ 52 7-7. Chassis Section-3 ............................................................ 53 7-8. CD Mechanism Deck Section (CDM55A-K6BD44S) .................................................... 54 7-9. Base Unit (BU-K6BD44S) ............................................. 55 8. ELECTRICAL PARTS LIST ............................... 56 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-CPX1 SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT NOTE ON INSTALLING AND REMOVING THE TAPE MECHANICAL DECK To prevent four screws of +BVTP 3 × 8 TYPE 2 TT (B), that fix the mechanical deck to the front panel, from being magnetized, must not use a magnetic screwdriver. screw +BVTP 3 × 8 TYPE 2 TT (B) screw +BVTP 3 × 8 TYPE 2 TT (B) non-magnetic screwdriver MODEL IDENTIFICATION – Back Panel – Part No. Model Name Part No. US and Canadian models 4-244-015-1[] Singapore model 4-244-015-2[] Australian model 4-244-015-3[] Korean model 4-244-015-4[] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-CPX1 TAPE MECHANICAL DECK SERVICE POSITION Set up the service position with putting an insulator under the mechanical deck as the figure shown below. tape mechanical deck insulator CD MECHANISM DECK SERVICE POSITION Set up the service position for the CD mechanism deck with disassembling the entire set as the figure shown below. AMP section CD mechanism deck main board front panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-CPX1 NOTE ON LEADING THE WIRE (FLAT TYPE) (9 CORE) Lead the wire (flat type) (9 core) properly to prevent the wire from coming out from the right side of the guides on the sub panel or sagging inside of the lid. NOTE ON INSTALLING THE HP BOARD Note: Follow the assembly procedure in the numerical order given. lid (TC) guides wire (flat type) (9 core) sub panel 3 three screws (BVTP2.6 × 8) 1 Lead the cable trough out the ditch of the HP board to prevent the cable from contacting with the CD mechanism deck. 2 HP board ditch cable HP board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-CPX1 CLINCHING THE WIRE (FLAT TYPE) (21 CORE) HANDLING TWO CABLES FROM THE SUB POWER AND THE SWITCHING REGULATOR TO THE MAIN BOARD heat sink AMP board Clinch the wire (flat type) (21 core) to prevent the wire from contacting with the heat sink of the AMP board. cable from the switching regulator to the main board lead pin cable from the sub power to the main board fabric no woven (10 – 20) Note: Do not reuse the current fabric because it may fall off. Note: Fix two cables with the lead pin and the fabric non woven (10 – 20), or they may sag and contact with the CD mechanism deck. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-CPX1 SECTION 2 GENERAL • LOCATION OF CONTROLS – Front View – This section is extracted from instruction manual. BASS +/– wa CD SYNCHRO qa Disc tray ql DISPLAY wf Display window 3 DSG ws FM MODE qs FUNCTION 0 PHONES jack qk PLAY MODE/DIRECTION wd Remote sensor 2 REPEAT qs TREBLE +/– w; TUNER/BAND 9 TUNING MODE wd TUNING +/– qd VOLUME +/– qf ?/1 (power) 1 TAPE Z (eject) 4 TAPE nN (play) 5 TAPE x (stop) 6 TAPE X (pause) 7 TAPE z REC (record) 8 lm/ML (rewind/fast forward, go back/go forward) qd CD NX (play pause) qg CD x (stop) qh CD Z (eject) qj ALPHABETICAL ORDER A – Q R – Z BUTTON DESCRIPTIONS 1 qa qs 0 5 6 7 8 9 qg qd qh qj 2 3 4 qf w; ql qk wa ws wd wf www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-CPX1 – Remote Control – CD ws CLEAR w; CLOCK/TIMER SELECT 2 CLOCK/TIMER SET 3 DISPLAY 6 ENTER qd EQ qh EQ + qg EQ – ql FUNCTION wg PLAY MODE wa REPEAT qs SLEEP 1 TAPE wf TUNER/BAND wd TUNER MEMORY 5 TUNING MODE wa TUNING +/– 9 VOL +/– qk ?/1 (power) 4 TAPE nN (play) 7 TAPE x (stop) 8 CD NX (play pause) 0 CD x (stop) qa ./> (go back/go forward) qf m/M (rewind/fast forward) qj ALPHABETICAL ORDER A – E F – Z BUTTON DESCRIPTIONS 2 3 6 8 5 w; wa qk 1 4 7 9 qa 0 ws wd wf wg ql qd qg qs qf qh qj 1 Press ?/1 to turn on the system. 2 Press CLOCK/TIMER SET. 3 Press . or > repeatedly to set the hour. 4 Press ENTER. 5 Press . or > repeatedly to set the minute. 6 Press ENTER. The clock starts working. To adjust the clock 1 Press CLOCK/TIMER SET. 2 Press . or > until “CLOCK” appears, then press ENTER. 3 Do the same procedures as step 3 to 6 above. Note The clock is not displayed in Power Saving Mode. Setting the clock www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 10 • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW SECTION 3 DISASSEMBLY Set 3-4. TC BOARD, MECHANICAL DECK (Page 12) 3-3. FRONT PANEL SECTION (Page 11) 3-2. CASE (Page 11) 3-7. CD MECHANISM DECK (CDM55A-K6BD44S) (Page 13) 3-6. TUNER UNIT (Page 13) 3-8. LOADING BOARD (Page 14) 3-9. CAM (CDM55) (Page 14) 3-10. BASE UNIT (BU-K6BD44S) (Page 15) 3-11. MOTOR GEAR ASSY (SLED) (M102), BD BOARD (Page 15) 3-12. OPTICAL PICK-UP (KSS-213D) (Page 16) 3-5. MAIN BOARD (Page 12) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 11 3-3. FRONT PANEL SECTION Note: Follow the disassembly procedure in the numerical order given. 3-2. CASE 1 two case screws 3 3 4 case 2 three screws (BVTP3 × 6) 1 two case screws 1 screw (BVTP3 × 6) 2 ground wire lead 6 front panel section 5 four screws (BVTP3 × 6) 4 connector (CN102) 3 wire (flat type) (19 core) (CN402) 3 wire (flat type) (9 core) (CN403) 3 wire (flat type) (19 core) (CN221) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 12 1 screw (BVTP3 × 6) 2 screw (BVTP3 × 8) 1 two screws (BVTP3 × 6) 1 three screws (BVTP3 × 6) 2 screw (BVTP3 × 8) 8 main board 4 two screws (BVTP3 × 6) 5 6 wire (flat type) (11 core) (CN211) 6 wire (flat type) (21 core) (CN202) 7 connector (CN201) 6 wire (flat type) (21 core) (CN101) 7 two connectors (CN301, CN401) 3 back panel 3-4. TC BOARD, MECHANICAL DECK 3-5. MAIN BOARD 2 wire (flat type) (8 core) (CN602) 1 wire (flat type) (19 core) (CN603) 4 three screws (PTPWH 2) 5 TC board 3 connector 8 mechanical deck 6 four screws (BVTP3 × 8) Note: Must not use a magnetic screwdriver to prevent the screws from being magnetized. 7 ground wire lead www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 13 3-6. TUNER UNIT 3-7. CD MECHANISM DECK (CDM55A-K6BD44S) 2 two screws (BVTP3 × 6) 3 bracket 5 two screws (BVTP3 × 6) 1 connector (CN990) 2 two screws (BVTP3 × 6) 6 tuner unit 4 wire (flat type) (11 core) 3 screw 4 two bosses 8 wire (flat type) (21 core) (CN1101) 7 5 6 two claws 9 CD mechanism deck (CDM55A-K6BD44S) 2 CD lid 1 two claws www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 14 3-8. LOADING BOARD 3-9. CAM (CDM55) 2 belt (CDM55) B 3 Pull the tray (CDM55D) pushing B. 4 two screws (BTP2.6 × 8) 5 loading board 1 Rotate the gear(A) in the direction of arrow A. A 2 lever (SW) 1 torsion spring 6 gear (A) 3 spacer (55) 4 pulley (LDG) 5 gear (B) 7 roller 8 cam (CDM55) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 15 3-10. BASE UNIT (BU-K6BD44S) 1 two floating screws (PTPWHM2.6) 5 two insulators 4 5 two insulators 6 base unit (BU-K6BD44S) 3 two stoppers (BU) 2 two screws (BTTP M2.6) 1 Remove two solders. 4 BD board 8 two screws (M2 × 3) 5 claw 6 gear (A) 7 gear (B) 3 wire (flat type) (16 core) (CN102) 9 motor gear assy (SLED) (M102) 1 Remove two solders. 2 3-11. MOTOR GEAR ASSY (SLED) (M102), BD BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 16 2 sled shaft 1 Slide the lever in the direction of arrow A. 3 Remove the optical pick-up (KSS-213D) in the direction of arrow B. A B 3-12. OPTICAL PICK-UP (KSS-213D) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-CPX1 [CMN (MC) TEST MODE] • This mode is used to check operations of Amplifier. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press three keys of [DSG], [REPEAT] and [DISPLAY] simultaneously. 3. When the CMN (MC) test mode is activated, “s” blinks on the liquid crystal display. 4. Turn the [BASS] knob counterclockwise, “TONE MIN” is displayed on the liquid crystal display. Turn the [BASS] knob clockwise, “TONE MAX” is displayed on the liquid crystal display. Turn the [TREBLE] knob clockwise or counterclockwise, “TONEFLAT” is displayed on the liquid crystal display. Turn the [VOLUME] knob counterclockwise, “VOL MIN” is displayed on the liquid crystal display. Turn the [VOLUME] knob clockwise, “VOL MAX” is displayed on the liquid crystal display. 5. To release this mode, press the ?/1 key. [PANEL (GC) TEST MODE] • This mode is used to check the liquid crystal display, LED, model, destination, software version and key. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press three keys of [DSG], [PLAY MODE] and [DISPLAY] simultaneously. 3. Liquid crystal display and LEDs are all turned on. 4. When you want to enter the model, destination and version display mode, press the [REPEAT] key. The model and destination are displayed alternately on the liquid crystal display. 5. Each time [REPEAT] key is pressed, the display changes starting from MD version, MC version, GC version, CD version, CDD version, CDMA version, CDMB version, BDA version, BDB version, ST version, TA version, TM version, and TC version this order, and returns to the MD version display on the liquid crystal display. 6. When [FUNCTION] key is pressed while the version numbers are being displayed except model and destination, year, month and day of the software creation display. When [FUNCTION] key is pressed again, the display returns to the software version display. When [REPEAT] key is pressed while year, month and day of the software creation are being displayed, the year, month and day of creation of the software versions are displayed on the liquid crystal display in the same order of version display. 7. Press the [PLAY MODE] key, the key check mode is activated. 8. In the key check mode, the liquid crystal display displays “K0”. Each time a key is pressed, “K” value increases. However, once a key is pressed, it is no longer taken into account. 9. To release this mode, press three keys in the same manner as step 2, or disconnect the power cord. [COLD RESET] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press three keys of ?/1 , x (CD) and x (TAPE) simultaneously. 3. The liquid crystal display becomes blank instantaneously, and the set is reset. [SHIP MODE (NO MEMORY CLEAR) ] • This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “CD”. 3. Press three keys of Z (CD), x (CD) and [DISPLAY] simultaneously. 4. After the “STANDBY” display blinks, “LOCK” is displayed on the liquid crystal display, and the ship mode is set. [SHIP MODE (MEMORY CLEAR) ] • This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “CD”. 3. Press three keys of Z (CD), CD NX and [DISPLAY] simultaneously. 4. After the “STANDBY” display blinks, “LOCK” is displayed on the liquid crystal display, and the ship mode is set. [CD TRAY LOCK MODE] • This mode is used to unable to take sample disc out of tray in the shop. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “CD”. 3. While pressing the Z (CD) key, press the x (CD) key for 5 seconds. 4. The message “LOCKED” is displayed on the liquid crystal display and the tray is locked. (Even if pressing the Z (CD) key, the message “LOCKED” is displayed on the liquid crystal display and the tray is locked) 5. To release from this mode, pressing the Z (CD) key, press the x (CD) key for 5 seconds. 6. The message “UNLOCKED” is displayed on the liquid crystal display and the tray is unlocked. [TUNER STEP CHANGE MODE] (Singapore, Korean and Australian models) • A step of AM channels can be changed over between 9 kHz and 10 kHz. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “TUNER”, and press the [BAND] key to select “AM”. 3. Press the ?/1 key to turn the power OFF. 4. Press two keys of ?/1 and M L simultaneously. 5. The message “AM 9K STEP” or “AM 10K STEP” is displayed on the liquid crystal display, and thus the channel step is changed over. [CD SERVICE MODE] • This mode can run the CD sled motor freely. Use this mode, for instance, when cleaning the optical pick-up. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “CD”. 3. Press three keys of [DSG] , [REPEAT] and x (TAPE) simul- taneously. 4. Press the M L key to move the optical pick-up to outside track, or press the l m key to inside track. 5. To release this mode, press the ?/1 key. SECTION 4 TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-CPX1 [AGING MODE] • This mode can be used for operation check of CD section and tape deck section. CD section and tape deck section work in parallel. If an error occurred: The aging operation stops only an error occurred sections and display then status. If no error occurs: The aging operation continues repeatedly. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “CD”. 3. Set disc on the tray and set tape into the deck. 4. Press the [REPEAT] key to “REPEAT” off. 5. Press three keys of [DSG], [PLAY MODE] and x (TAPE) simultaneously. 6. Aging operations of CD and tape are started at the same time. 7. To release this mode, press the ?/1 key. 1. Display at the Aging Mode Display operating state of CD section and tape deck section alternately. If an error occurred, stop display which that section. 2. CD Section The sequence during the aging mode is following as below. Display at the aging mode is the same as the normal operation. Aging mode sequence (CD section) : Start Disc chucking TOC read Play first track for 2 seconds Play last track for 2 seconds Open the disc tray Close the disc tray 3. Tape Deck Section The sequence during the aging mode is following as below. If an error occurred, stop display that step. Display at the aging mode is “TAPE AG—”. Aging mode sequence (Tape deck section) : Start Rewind the tape Shut off FWD play the tape 2 minutes Fast forward the tape Shut off or 20 seconds REV play the tape 2 minutes [CD ERROR CODE MODE] • This mode can be used for error display of CD section. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “CD”. 3. Press three keys of [DSG], [REPEAT] and X simultaneously. Note: Error code is not displayed on the liquid crystal display. [CD SERVO TEST MODE] • This mode used to ckeck operation of optical pick-up. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “CD”. 3. Press three keys of [DSG], [PLAY MODE] and X simultaneously. 4. When the CD servo test mode is activated, optical pick-up moves. [5 REPEAT OFF MODE] • Number of repeat for CD playback is 5 times when the repeat mode is “REPEAT”. This mode is used to enables CD to repeat playback for limitless times. Procedure: 1. Press the ?/1 key to turn the power on. 2. Press the [FUNCTION] key to select “CD”. 3. Press three keys of [DSG], M L and x (TAPE) simultaneously. 4. When the 5 repeat off mode is activated, “LIMIT OF” is displayed on the liquid crystal display. [CHANGE-OVER FUNCTION OF EXTERNAL INPUT] • This mode is used to enable function of external input to change over between MD and VIDEO. Procedure: 1. Set to standby state. 2. Press two keys of ?/1 and [FUNCTION] simultaneously. 3. The function of external input changes over to MD or VIDEO. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-CPX1 Note: Confirm each contents of this section first of all. If the results are not satisfied, do the adjustment. 1. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 2. The adjustments should be performed in the order given in this service manual. 3. The adjustments should be performed for both L-CH and R-CH. REC BIAS ADJUSTMENT Procedure: 1. Press the [FUNCTION] key to select “MD” or “VIDEO”. 2. Set the tape into the deck. 3. After pressing z REC key, press X (TAPE) key to start recording. 4. Mode: Record 5. Mode: Playback 6. Confirm the playback signal recorded in step 3 becomes adjustable level as follows. If these levels are out of specified values, adjust the RV653 (L- CH) and RV603 (R-CH) on the TC board to repeat steps 4 and 5. Specified values: Playback output of 315 Hz to playback output of 10 kHz: ± 2.0 dB Adjustment Location: TC board attenuator set MAIN board MD (VIDEO) IN jack (J101) L-CH, R-CH 1) 315 Hz 2) 10 kHz 34.6 mV (– 27 dB)    600 Ω blank tape CN-123 AF OSC + – set recorded portion SP OUT board SPEAKER terminals (J701) L-CH, R-CH level meter 0 dB=0.775 V DECK SECTION REC LEVEL ADJUSTMENT Procedure: 1. Press the [FUNCTION] key to select “MD” or “VIDEO”. 2. Set the tape into the deck. 3. After pressing z REC key, press X (TAPE) key to start recording. 4. Mode: Record 5. Mode: Playback 6. Confirm the play back signal recorded in step 3 becomes adjustable level as follows. If these levels are out of specified values, adjust the RV652 (L- CH) and RV602 (R-CH) on the TC board to repeat steps 4 and 5. Specified values: Playback level 30.8 to 38.8 mV (–28 to –26 dB) Adjustment Location: TC board set MAIN board MD (VIDEO) IN (J101) 315 Hz, 34.6 mV (–27 dB) blank tape CS-123 600 Ω attenuator AF OSC + – set recorded portion SP OUT board SPEAKER terminals (J701) L-CH, R-CH level meter SECTION 5 ELECTRICAL ADJUSTMENTS (R-CH) (L-CH) RV603 (R-CH) RV602 (L-CH) RV652 RV653      – TC BOARD (Component Side) – REC Level Adjustment REC Bias Adjustment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-CPX1 CD SECTION Note: 1. CD Block is basically constructed to operate without adjustment. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10 MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. 5. Check the focus bias check when optical pick -up block is replaced. FOCUS BIAS CHECK Procedure : 1. Connect oscilloscope to TP (RFAC) and TP (VC) on the BD board. 2. Press the ?/1 button to turn the power ON, and press the Z (CD) button to open the CD disc tray. 3. Set disc (YEDS-18) on the tray and press the CD NX button to playback. 4. Confirm that oscilloscope waveform is as shown in the figure below. (eye pattern) A good eye pattern means that the diamond shape ( ) in the center of the waveform can be clearly distinguished. s Checking Location: + – BD board TP (RFAC) TP (VC) oscilloscope (DC range) VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 0.9 ± 0.4 Vp-p TP (RFAC) TP (VC) – BD BOARD (Conductor Side) – IC103 IC102 IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 21 21 SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAM – CD SERVO Section – SQSO SQCK A/D CONVERTER 6 7 8 9 16 18 11 10 12 2 1 51 49 48 43 24 41 40 39 64 15 28 29 30 31 32 33 23 24 22 6 7 4 5 17 18 16 15 A+3.3V DETECTOR A B C D RFAC SUMMING AMP FOCUS ERROR AMP TRACKING ERROR AMP RFAC FE RF AMP, FOCUS/TRACKING ERROR AMP IC103 TE E F F I-V AMP E I-V AMP AUTOMATIC POWER CONTROL Q101 APC LD AMP LD LD PD LASER DIODE RFAC ASYO ASYI ASYMMETRY CORRECTION DIGITAL PLL DIGITAL SIGNAL PROCESSOR, DIGITAL FILTER, D/A CONVERTER IC101 (1/2) DATA XLAT CLOK 14 5 6 MDP 26 7 8 XLON 3 XRST DIGITAL CLV D/A INTERFACE SE TE FE RFDC FOCUS/TRACKING/SLED SERVO DSP FOCUS/TRACKING/SLED PWM GENERATOR SFDR 20 MUTE SRDR TFDR TRDR FFDR FRDR EMPH WFCK GFS MIRR/DFCT/ FOK DETECTOR SERVO AUTO SEQUENCER SERVO INTERFACE CPU INTERFACE 18 63 62 61 19 SENS 20 36 37 35 56 19 SCOR CD SQSO CD SQCLK CD XLT CD CLK CD DATA CD SENS CD SCOR 1 2 32 33 SCLK COUT 9 21 SSTP 27 FOK 22 23 MIRR DFCT TO SERVO INTERFACE M101 (SPINDLE) MOTOR DRIVE MOTOR DRIVE M M M102 (SLED) FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE IC102 2-AXIS DEVICE (TRACKING) (FOCUS) DIGITAL SERVO PROCESSOR IC101 (2/2) OPTICAL PICK-UP BLOCK (KSM-213DCP) SW PD 11 12 13 14 54 56 53 55 FILTER FILO PCO CLTV FILI EFM DEMODULATOR SERIAL IN INTERFACE DIGITAL FILTER, NOISE SHAPER PWM & INTEGRATOR BUFFER CLOCK GENERATOR TIMING LOGIC DIGITAL OUT INTERNAL BUS 16K RAM ERROR CORRECTOR SUBCODE PROCESSOR 60 60 CD XRST AIN1 AIN2 AOUT1 AOUT2 TO MIRR/DFCT/ FOK DETECTOR PCMD BCK LRCK C2PO DOUT 70 77 LOUT1 LOUT2 R-CH 72 75 71 76 A (Page 23) EQ IN 15 3 4 EQ AC SUM 17 FEI RFDC AMP 28 RFDCO 29 RFDCI 19 TE BAL COIL DRIVE COIL DRIVE 24 26 28 CD PWM3 CD PWM2 CD PWM1 PWM1 PWM3 PWM2 PWM3 PWM2 PWM1 XLAT CLOK DATA 54 CD LD-ON 78 CD MUTE CDM IN-SW 70 CDM OUT-SW 69 IN OUT S1 LOADING IN/OUT DETECT CDM LOAD-IN 68 CDM LOAD-OUT 67 9 7 RIN FIN MOTOR DRIVE 4 2 OUT1 OUT2 LOADING MOTOR DRIVER IC201 M201 (LOADING) M SYSTEM CONTROLLER (CD MECHANISM CONTROL) IC401 (1/4) • SIGNAL PATH : CD PLAY (ANALOG) : CD PLAY (DIGITAL OUT) • R-ch is omitted due to same as L-ch. OPTICAL TRANSCEIVER IC202 CD DIGITAL OUT OPTICAL CD L-CH RFAC VCA When the optical pick-up is inner position ON : MUTING Q201 MUTING CONTROL SWITCH Q203, 204 R-CH 67 66 XTAO XTAI X101 16.9344MHz A+3.3V S101 (LIMIT) D+3.3V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 22 22 6-2. BLOCK DIAGRAM – TUNER/TAPE DECK Section – REC BIAS (R) RV603 REC BIAS (L) RV653 R-CH 8 7 9 4 FM 75Ω COAXIAL FM ANT ANT GND AM ANT ANT GND ST DIN ST CLK ST CE ST MUTE TUNED STEREO L-CH R-CH ST DOUT TUNER UNIT AM R-CH 25 ST DATA IN 23 ST DATA OUT 27 ST CLK 22 ST CE 21 ST MUTE DI DO CLK CE MUTING 57 ST TUNED 34 ST STEREO TUNED STEREO L-CH R-CH ERASE R-CH HRPE901 (REC/PB/ERASE) REC/PB SWITCHING IC602 R-CH BIAS OSC T601 BIAS TRAP REC BIAS SWITCH Q639 – 641 A+9V BIAS OSC Q642, 643 39 37 AIN (R) BIN (R) 15 14 3 4 EQOUT (R) 5 PB OUT (R) TAI (R) MUTE REC/PB EQ AMP, ALC IC601 8 REC- OUT (R) REC-IN (R) ALC (R) 10 R-CH R-CH C (Page 23) PB L-CH B (Page 23) TUNER L-CH D (Page 23) REC L-CH 42 TC BIAS-ON SYSTEM CONTROLLER (CD MECHANISM CONTROL) IC401 (2/4) • SIGNAL PATH • R-ch is omitted due to same as L-ch. : TUNER (FM/AM) : TAPE PLAY : REC DO CE MUTING TUNED STEREO DI CLK MUTE ON/OFF REC MUTE ON/OFF 40 41 TC REC/MUTE TC LINE MUTE EQ ALC RV652 43 TC PB/REC 7 ANTENNA 80 TC ALC 11 ALC ON/OFF REC/PB SWITCHING Q680, 681 REC LEVEL (L) 59 CAPSTAN/REEL MOTOR DRIVE Q692, 694 58 90 38 91 TRIGGER PLUNGER DRIVE Q691, 693 M (TAPE DECK BLOCK) (CAPSTAN/REEL) TC CAPM-CONT TC TRG TC END SW TC PLAY SW TC HALF/REC/SW w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 23 23 6-3. BLOCK DIAGRAM – MAIN Section – RIPPLE FILTER Q180, 181 HEADPHONE MUTING Q182 : TAPE PLAY : REC : CD PLAY : TUNER (FM/AM) 87 88 86 50 HP DET B TUNER L-CH (Page 22) C PB L-CH (Page 22) A CD L-CH (Page 21) D REC L-CH (Page 22) MUTING Q101 J701 L R SPEAKER IMPEDANCE USE 4Ω R-CH R-CH J801 HEADPHONE AMP IC102 R-CH R-CH PHONES R-CH J101 L R MD (VIDEO) IN EQ DATA EQ CLK EQ CE 73 81 LINE MUTE MUTING CONTROL SWITCH Q121, 122 R-CH TUNER +9V, TC A+9V 85 HP MUTE MUTING CONTROL SWITCH Q184, 185 SIGNAL PATH : MD (VIDEO) IN R-CH : R-ch is omitted due to same as L-ch. R-CH P DOWN X601 12.288MHz 18 DATA 17 BCK 16 LRCK 2 OUTL1 4 OUTL2 41 OUTR1 39 OUTR2 21 XFSIIN DIGITAL AUDIO SIGNAL PROCESSOR IC600 1 LIN 2 RIN 12 DOUT 11 BCK 10 LRCK 7 PDWN 15 SCKI 45 SC DT 11 SCDT 46 SC SHIFT 12 SCSHIFT 47 SC LATCH 13 SCLATCH 48 NSP MUTE 14 NSPMUTE 49 INIT 15 INIT A/D CONVERTER IC603 CLOCK BUFFER IC604 INPUT SELECT SWITCH, ELECTRICAL VOLUME, TONE CONTROL IC101 INPUT SELECT SWITCH CD LCH TC LCH MD LCH TUNER LCH 11 12 14 13 LCH IN LCH SELO LCH OUT 30 1 EQ DATA EQ CLK 2 EQ CE CPU INTERFACE 9 10 5 VOLUME CONTROL TONE CONTROL X602 49.152MHz 36 XFSOIN 6 INA 16 INB 9 OUTA 19 OUTB POWER AMP IC650 CLOCK BUFFER IC610 R-CH R-CH R-CH 55 ENA 7 ENA 17 ENB 61 DIAG 8 DIAGA 18 DIAGB PROTECT SWITCH Q696 PROTECT DETECT Q691, 692 SYSTEM CONTROLLER (CD MECHANISM CONTROL) IC401 (3/4) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 24 24 6-4. BLOCK DIAGRAM – DISPLAY/POWER SUPPLY Section – 20 – 27, 30 – 41, 44 – 55 SEG0 – SEG31 COM0 – COM3 13, 16 – 18 97, 95, 94 KEY1 – KEY3 LED DRIVE Q801 D801 (STANDBY) 44 LED DRIVE Q805 TAPE nN D805 LED TC 89 LED DRIVE Q804 TUNER BAND D804 LED TUNER 84 LED DRIVE Q803 CD NX D803 LED CD 79 12 RESET RESET SIGNAL GENERATOR IC501 D501 82 PWR RELAY RECT D992 – 995 LED STANDBY LED DRIVE Q802 DSG D802 83 LED DSG 51 LED BL T991 SUB POWER TRANSFORMER RY991 (AC IN) S801 – 817 10 11 X402 32.768kHz 15 13 X401 16MHz XCIN XCOUT XIN XOUT POWER ON/OFF RELAY DRIVE Q991 RY990 POWER ON/OFF RELAY DRIVE Q990 20 AC CUT RESET SWITCH Q501 +28V TUNER +9V, TC A+9V A+5V, D+5V M+7V SWITCHING REGULATOR +9V REGULATOR IC304 D+6.2V +7V REGULATOR IC303 +1.8V µ-COM+3.3V LCD+3.3V +1.8V REGULATOR IC618 RDS+3.3V +4V REGULATOR IC991 A+3.3V, D+3.3V +5V REGULATOR IC302 +4V REGULATOR IC301 D304 D302 D303 D301 D403 D401 D402 D404 B+ SWITCH Q433, 434 65 CD BD-PWR 1 LCD ON B+ SWITCH Q431, 432 D806 – 808 (LCD BACK LIGHT) CD ON SWITCH Q301, 302 EVER +3.3V 53 VOL A 74 KEY WAKE UP 52 VOL B ROTARY ENCODER RV801 VOLUME 76 TRE A 77 TRE B ROTARY ENCODER RV802 TREBLE 71 BASS A 72 BASS B ROTARY ENCODER RV803 BASS D474, 475 KEY1, KEY3 4 SIRCS IN/WAKE 5 LCD DATA 7 LCD CLK 6 LCD CS REMOTE CONTROL RECEIVER IC801 10 9 11 LIQUID CRYSTAL DISPLAY LCD801 LIQUID CRYSTAL DISPLAY DRIVER IC803 SD SCK CS 3 LCD CD 100 LCD RESET 12 19 C/D RESET SYSTEM CONTROLLER (CD MECHANISM CONTROL) IC401 (4/4) TC M+11.5V (Singapore, Korean, Australian) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 25 25 Note: The components identi- fied by mark 0 or dotted line with mark 0 are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. 6-5. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • W : indicates side identified with part number. • f : internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : TUNER (FM/AM) ( ) : CD PLAY [ ] : TAPE PLAY 〈〈 〉〉 : REC ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : TUNER (FM/AM) J : CD PLAY (ANALOG) c : CD PLAY (DIGITAL OUT) E : TAPE PLAY a : REC j : MD (VIDEO) IN • Abbreviation AUS : Australian model CND : Canadian model KR : Korean model SP : Singapore model • Circuit Boards Location Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. • Indication of transistor. AMP board LCD board BACK LIGHT board SWITCH board HP board MAIN board TUNER UNIT SUB POWER board SP OUT board SWITCHING REGULATOR TC board LOADING board BD board w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 26 26 6-6. PRINTED WIRING BOARD – BD Board – • See page 25 for Circuit Boards Location. :Uses unleaded solder. JW600 JW601 JW605 JW606 JW607 JW608 JW610 JW620 JW622 JW609 JW611 JW614 JW639 JW645 JW644 JW627 JW647 JW615 JW616 JW643 JW635 JW636 JW628 JW631 JW630 JW602 JW603 JW604 JW634 JW641 JW629 JW626 JW617 JW640 JW637 JW633 JW632 JW638 JW612 JW613 JW618 JW621 JW623 JW624 JW625 JW619 JW648 JW646 C122 X101 CN102 S101 C163 C191 C198 C131 C117 C116 C192 C127 C162 C193 CN101 R151 R122 R103 C168 R131 R114 C123 R173 R162 R117 R197 R111 R172 C121 C103 C159 C172 R101 C143 R118 C133 R147 R108 FB103 R107 R144 C145 C140 R106 C124 R191 C109 C104 R183 R102 C194 C184 C112 R182 C111 R124 R181 R150 R194 IC103 C185 R159 R143 C167 C118 C182 C197 R193 C183 C125 C165 C130 R158 R171 R109 R196 FB101 RN101 C102 C108 R195 R148 C171 IC102 C150 R104 C181 C153 C101 R116 Q101 R123 C126 R120 JR101 C110 C196 R119 C114 R192 IC101 C146 1 20 21 61 60 80 40 41 BD BOARD 1-686-781- 11 (11) A MAIN BOARD CN202 M M102 (SLED) M M101 (SPINDLE) S101 (LIMIT) ON : WHEN THE OPTICAL PICK-UP IS INNER POSITION 28 22 21 15 1 7 8 14 OPTICAL PICK-UP BLOCK (KSM-213DCP) TP (VC) TP (RFAC) E (Page 31) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 27 27 6-7. SCHEMATIC DIAGRAM – BD Board – • See page 30 for Waveforms. • See page 40 for IC Block Diagrams. RFCK CN101 R118 RN101 C125 R117 C198 C121 C122 C191 R143 R144 C140 CN102 C118 R122 R148 C185 C110 C165 C183 C184 C124 C123 R124 R123 R104 R108 C108 R106 R131 C146 C116 C130 C192 C197 C131 C196 C117 IC103 C159 R159 R162 C133 R111 C194 C193 R192 R151 R114 R193 R191 R147 C150 R120 R101 R103 C101 R102 C102 R150 C103 C104 C145 IC102 C153 C143 C109 C111 R109 R197 C171 C181 R173 R183 R171 R172 C172 C182 R182 R181 C114 C163 C167 C168 R116 C162 C112 R119 C126 R196 R195 R194 C127 Q101 R158 TP TP JR101 IC101 FB101 X101 FB103 S101 M102 M101 R107 M3 M0 M1 21P 100 100 0.1 1k 100 16V 0.1 100 16V 100 16V 18k 18k 1 16P 1000p 100k 3.3 2.2 3300p 0.1 0.068 0.022 0.47 0.01 100k 10k 33k 3.3k 0.1 1k 220 0.1 100 16V 0.1 100 16V 0.1 100 16V 0.1 100 16V CXA2647N-T4 6800p 22k 4.7k 33p 120k 0.1 100 16V 33k 120k 390k 150k 33k 3.9k 0.1 15k 1k 15k 3300p 100k 0.1 10k 470p 470p 0.1 BA5947FP 0.1 0.1 1500p 100p 1M 1k 680p 680p 22k 22k 22k 22k 100p 100p 22k 22k 0.1 100 16V 27p 24p 10 100 16V 1 1.8k 0.1 DGND 2.2k 330k 68k 100 16V 2SB970 22k (RFAC) (VC) 0 CXD3017Q 0 16.9344MHz 0 10k D1 D2 D3 D4 D5 D6 D7 D8 D9 D1 D2 D3 D4 D4 D5 D6 D7 D8 D9 D9 E1 E2 E3 E4 E5 E6 E7 E8 E1 E2 E3 E4 E5 E6 E7 E8 F+ F+ T+ T+ T- T- F- FE SE VC XTSL TES1 TEST VSS FRDR FFDR TRDR TFDR SRDR SFDR SSTP MDP LOCK FOK DFCT MIRR COUT SQSO SQCK XRST SYSM DATA XLAT CLOK SENS SCLK VDD ATSK SPOA SPOB XLON WFCK XUGF XPCK GFS C2PO SCOR LRCK PCMD BCK EMPH XVDD XTAI XTAO XVSS AVDD1 AOUT1 AIN1 LOUT1 AVSS1 AVSS2 LOUT2 AIN2 AOUT2 AVDD2 RMUT LMUT DOUT VDD VSS AVDD3 PCO FILI FILO CLTV AVSS3 RFAC BIAS ASYI ASYO AVDDO IGEN AVSSO ADIO RFDC CE TE DOUT SQCK XRST DATA SENS SCOR MGND DGND SQSO VC T- T+ F+ F- LD F E AGND PWM1 PWM2 PWM3 LDON VCC D A B C GND VR PD M+7V LD PD EQ_IN AC_SUM GND A B C D E F SW DVCC DVC RFAC FE FEI TE TE_BAL CEI CE VCC RFG BST VFC RFC VC RFDCO RFDCI DC_OFST RF AMP, FOCUS/TRACKING ERROR AMP AUTOMATIC POWER CONTROL FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE DIGITAL FILTER,D/A CONVERTER DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO PROCESSOR, (LIMIT) ON:WHEN THE OPTICAL PICK-UP IS INNER POSITION. D+3.3V(SW) L-CH R-CH A+3.3V(SW) XLAT CLK (SLED) (SPINDLE) (Page 33) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 28 28 6-8. PRINTED WIRING BOARD – TC Board – • See page 25 for Circuit Boards Location. :Uses unleaded solder. JW609 JW616 JW615 JW608 JW613 JW610 JW612 JW617 JW626 JW627 JW621 JW633 JW632 JW623 JW628 JW625 JW624 JW636 JW604 JW638 JW631 NO601 JW634 JW600 JW637 JW607 JW635 JW640 CN603 Q639 C639 L641 C652 C633 C646 Q640 C656 L601 C602 C647 C643 C645 C644 L651 CN602 L640 RV602 RV652 RV603 RV653 IC602 Q643 Q693 C614 Q694 C604 Q680 C601 C642 C634 Q681 C630 JW602 C664 R643 R644 T601 Q642 C640 C632 C608 C658 C606 Q641 C635 C605 C655 C641 C651 C654 R647 R653 R607 R631 R682 R683 R659 R660 IC601 R611 R684 R661 R635 R645 R610 JR602 R602 R685 R686 R687 R688 R689 C660 R681 R690 R691 R692 R693 R694 R695 C681 R651 D681 Q692 R652 R655 R606 Q691 C610 C612 C662 C613 R640 R680 R633 R632 C657 R656 C661 R604 R646 R609 R657 R605 R601 C663 R641 R642 R654 R630 R648 C611 C607 R603 JW630 1 10 40 11 20 21 31 30 1-686-408- 11 (21) TC BOARD TAPE DECK BLOCK SUPPLIED WITH THE ASSEMBLED BLOCK E E E E E E E E E 1 9 1 8 L-CH R-CH ERASE HRPE901 (REC/PB/ERASE) B MAIN BOARD CN211 E E 1 2 3 4 5 6 7 8 A B C D E F G H I J HEAD RELAY BOARD D681 C-4 IC601 F-7 IC602 H-6 Q639 D-4 Q640 D-5 Q641 E-5 Q642 H-2 Q643 G-3 Q680 F-5 Q681 F-5 Q691 B-6 Q692 B-5 Q693 C-3 Q694 C-5 • Semiconductor Location Ref. No. Location (Page 31) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 29 29 6-9. SCHEMATIC DIAGRAM – TC Board – • See page 30 for Waveform. Q643 R687 CN602 CN603 R681 R684 R685 R686 R682 C681 R683 Q692 Q691 R695 R694 R693 R688 R689 R690 R691 R692 R602 R604 C607 R609 R611 C608 C606 C605 C604 R601 R603 C602 R631 R630 C632 R635 R633 R632 C634 C633 C651 C635 R680 C601 Q680 Q681 R606 R605 C614 R607 C664 R657 R655 R656 R610 C610 C660 L651 R646 C645 C646 C644 R645 C643 R659 C657 R654 C658 C656 R651 C654 C655 R653 C652 R652 Q642 R644 R643 R642 C639 R641 C640 Q639 C647 R640 C642 C613 C663 C641 Q640 Q693 Q694 C662 C612 RV653 RV603 D681 C630 IC601 L641 R647 R648 Q641 T601 JR602 C661 R660 L601 C611 JW630 NO601 IC602 RV602 L640 R661 RV652 2SC2001 47k 8P 19P 2.2k 3.3k 3.3k 3.3k 2.2k 0.0047 680 DTC114EKA DTC114EKA 10k 22k 47k 4.7k 4.7k 4.7k 10k 4.7k 4.7k 10k 470p 2.2k 22k 2.2 50V 1 50V 10 50V 0.1 4.7k 3.3k 0.01 22k 1M 10 50V 100 10k 1k 10 50V 10 50V 47 16V 1 50V 4.7k 47 16V DTC114ESA-TP DTA124ESA 2.2k 47k 0.01 10k 0.01 10k 47k 2.2k 8.2k 330p 330p 27mH 18k 0.0068 0.018 0.0068 18k 0.015 2.2k 470p 10k 2.2 50V 1 50V 4.7k 0.1 10 50V 3.3k 0.01 4.7k 2SC2001 5.6 5.6 2.2k 10 50V 6.8k 47 16V 2SA1175 10 50V 10k 0.01 100V 390p 390p 2.2 50V DTC114ESA-TP 2SB1116 2SB1068 27p 27p 220k 220k 1SS355TE 100 16V HA12236 22k 2.2 2SD1387-34-TP 0 120p 8.2k 27mH 120p 0 8P BA3126N 22k 22k 22k SW.R1 GND GND GND SW.P1 CONT. VCC SW.P2 SW.R2 BIAS-ON/OFF REC/PB PB-L REC-L REC-MUTE LINE-MUTE A-GND PB-R REC-R ALC END SW MGND TRGM+ M+10V PACK F REC R REC PLAY SW TC PLAY TC TRIG +3.3V MGND TC CAPM TC END-SW L-PB L-REC R-PB E-HOT R-REC GND GND GND E-HOT GND R-REC R-PB L-REC L-PB Q692,694 CAPSTAN/REEL MOTOR DRIVE Q691,693 TRIGGER PLUNGER DRIVE M+11.5V TC HALF-REC A+9V REC/PB EQ AMP,ALC Q639-641 SWITCH REC BIAS Q642,643 BIAS OSC BIAS OSC (CHASSIS) HRPE901 L-CH R-CH ERASE REC/PB SWITCHING Q680,681 REC/PB SWITCH (REC/PB/ERASE) TAPE DECK BLOCK THE ASSEMBLED BLOCK SUPPLIED WITH (Page 32) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 30 30 ws IC501 qd (X-OUT) wa IC401 qa (XCOUT) 2.2 Vp-p 30.5 µs 2 Vp-p 62.5 ns • Waveforms – BD Board – 0.9 ± 0.4 Vp-p 1 IC103 qg (RFAC) (CD play mode) 1.7 Vp-p 7.6 µs 2 IC101 wh (MDP) (CD play mode) 0.4 Vp-p 3 IC101 el (FE) (CD play mode) 0.3 Vp-p 4 IC101 ra (TE) (CD play mode) 0.8 ± 0.4 Vp-p 5 IC101 rd (RFDC) (CD play mode) 1.9 Vp-p 59.1 ns 12 Vp-p 12.8 µs qa Q642, 643 (Collector) (REC mode) 6 IC101 yj (XTAO) – TC Board – – MAIN Board – ed IC604 6 ea IC603 q; (LRCK) – AMP Board – 3.3 Vp-p 20.7 µs 3.4 Vp-p 326 ns es IC603 qa (BCK) 2 Vp-p 81.4 ns – LCD Board – ra IC803 3 (OSC2) 3.6 Vp-p 27.3 µs w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 31 31 6-10. PRINTED WIRING BOARDS – LOADING/MAIN Boards – • See page 25 for Circuit Boards Location. :Uses unleaded solder. JW103 JW104 JW106 JW119 JW120 JW122 JW124 JW125 JW126 JW128 JW135 JW136 JW139 JW147 JW148 JW150 JW152 JW153 JW154 JW155 JW156 JW157 JW158 JW161 JW163 JW164 JW165 JW167 JW168 JW169 JW170 JW171 JW172 JW173 JW182 JW183 JW184 JW185 JW186 JW187 JW189 JW201 JW213 JW217 JW227 JW228 JW229 JW240 JW241 JW242 JW243 JW244 JW245 JW246 JW247 JW248 JW251 JW252 JW253 JW254 JW255 JW256 JW258 JW259 JW260 JW261 JW262 JW264 JW266 JW268 JW269 JW270 JW271 JW272 JW273 JW274 JW275 JW279 JW288 JW289 JW290 JW298 JW316 JW317 JW318 JW319 JW332 JW333 JW335 JW336 JW337 JW338 JW339 JW340 JW341 JW344 JW345 JW346 JW347 JW348 JW349 JW350 JW351 JW352 JW354 JW355 JW356 JW357 JW358 JW359 JW360 JW361 JW362 JW363 JW364 JW366 JW368 JW369 JW295 JW294 JW263 JW267 JW371 JW174 JW176 JW304 JW226 JW224 JW225 JW223 JW222 JW221 JW220 JW219 JW218 JW276 JW277 JW278 JW280 JW321 JW320 JW265 JW230 JW231 JW232 JW215 JW214 JW211 JW209 JW190 JW191 JW192 JW193 JW206 JW205 JW233 JW234 JW235 JW236 JW237 JW238 JW239 JW293 JW292 JW291 JW296 JW342 JW328 JW329 JW330 JW343 JW325 JW324 JW177 JW105 JW353 JW132 JW121 JW140 JW133 JW212 JW162 JW159 JW315 JW323 JW322 JW285 JW286 JW282 JW287 JW109 JW111 JW175 JW134 JW138 JW302 JW303 JW305 JW306 JW307 JW308 JW309 JW310 JW311 JW312 JW313 JW373 JW374 JW376 JW379 JW250 JW249 JW380 JW381 JW382 JW383 JW384 JW385 JW314 JW200 JW199 JW377 JW144 JW145 JW160 JW299 JW300 JW301 JW166 JW372 JW113 JW114 JW118 JW15 JW16 JW17 JW112 JW370 JW146 JW365 JW367 JW257 JW194 JW195 JW137 JW207 JW204 JW129 LP101 JW386 JW387 JW388 JW389 JW390 JW391 JW392 JW393 JW394 JW395 JW396 JW397 JW398 JW399 JW400 JW406 JW407 JW408 JW409 JW410 CN202 IC101 IC202 EP101 CN401 IC201 C209 C103 C104 C105 C106 C107 C109 C158 C111 X402 C315 C131 C133 C161 C160 C110 C156 C157 C155 C153 C154 C174 C173 C124 C123 C182 C183 C121 C171 C185 C159 CN301 CN201 CN402 C301 IC303 IC304 CN102 C321 C316 C318 C181 EP201 CN403 IC302 X401 IC301 C314 C313 C312 Q301 C317 C319 CN221 C152 D303 C180 C102 C401 CN101 IC501 C108 C501 C502 C503 Q501 C431 C432 C201 C223 C251 C252 C222 C221 D304 D301 C132 IC102 R184 Q302 D302 R104 R103 R131 R172 C101 R102 R152 R151 C151 C122 R174 R123 R124 R126 R121 R171 R183 R176 R125 R181 R173 R210 Q184 Q185 Q182 Q183 R182 C172 R484 R185 Q122 Q121 Q151 R105 R154 R406 R479 R482 R483 R404 R405 C224 R413 R411 Q101 R153 R407 R155 R101 R132 R106 R133 FB121 R175 R403 R401 R157 FB103 C402 R566 R420 R501 Q201 FB203 FB202 FB102 C210 R450 R502 R451 R452 C225 R453 Q202 FB206 Q181 FB201 FB101 R180 FB204 FB205 C405 D404 R454 D403 D402 D401 R470 D501 R409 D502 C406 C407 R417 R419 D503 R421 R422 R423 R424 R425 R426 R427 R428 R429 R430 R432 R433 R434 R435 R436 R437 R448 R449 R455 R438 R440 R441 R442 R443 R444 R445 R446 R447 R456 R457 R458 R459 R460 R461 R565 R471 R472 R473 R476 R474 R477 R480 C404 R554 R555 R556 R557 R489 R490 R491 R562 R563 R564 R500 D504 R506 R505 R504 R503 R469 Q431 Q432 Q433 Q434 R201 R202 C204 C205 C203 C202 C231 R558 C226 C227 C228 C229 R253 R254 R251 R252 R553 R559 R560 R561 D474 R122 C232 R494 R495 R497 D475 R221 R222 Q204 Q203 FB122 FB123 Q180 R567 C433 IC401 R544 JWS002 CN211 R551 R541 R543 R552 JW130 JWS001 C141 1 100 50 31 30 51 80 81 MAIN BOARD 1-686-797- 21 E 1 3 3 1 SUB POWER BOARD NO992 H AMP BOARD CN601 D LCD BOARD CN802 E E E E E SWITCH BOARD CN801 F HP BOARD NO805 G 1 4 9 1 1 5 M201 (LOADING) S1 LOADING IN/OUT DETECT OUT IN 1-674-336- 12 (12) LOADING BOARD (CHASSIS) BD BOARD CN101 A TC BOARD CN603 B E E 3 1 1 3 3 1 1 3 1 2 SWITCHING REGULATOR C J101 R L MD (VIDEO) IN E E E E E E E E E E E E E E 15 16 1 30 3 1 CD DIGITAL OUT OPTICAL IC202 (CHASSIS) TUNER UNIT SUPPLIED WITH THE ASSEMBLED BLOCK FM 75Ω COAXIAL AM ANTENNA A B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 11 12 CN151 (US, CND) 10 11 D301 C-8 D302 C-8 D303 B-8 D304 F-7 D401 C-6 D402 D-6 D403 C-6 D404 C-6 D474 C-4 D475 C-4 D501 C-6 D502 C-6 D503 C-6 D504 C-6 IC101 F-10 IC102 F-8 IC201 H-3 IC202 H-11 IC301 C-9 IC302 C-9 IC303 C-10 IC304 C-10 IC401 B-5 IC501 C-6 Q101 G-10 Q121 H-10 Q122 H-10 Q151 H-11 Q180 F-9 Q181 G-8 Q182 G-8 Q183 G-8 Q184 G-8 Q185 G-7 Q201 H-8 Q202 H-9 Q203 H-9 Q204 H-10 Q301 C-8 Q302 C-8 Q431 F-4 Q432 E-4 Q433 F-4 Q434 F-4 Q501 C-6 • Semiconductor Location Ref. No. Location (Page 26) (Page 28) (Page 34) (Page 36) (Page 38) (Page 38) (Page 36) (Page 38) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 32 32 6-11. SCHEMATIC DIAGRAM – MAIN Board (1/2) – • See page 40 for IC Block Diagram. Q202 C152 C156 R151 R153 C158 C161 C103 C104 C105 C107 C106 C102 C111 R103 R133 R132 C108 C133 CN221 C132 R131 R106 R157 R155 R105 Q101 Q151 R104 Q121 Q122 R122 R172 R183 R181 C182 R182 C173 R173 R174 C174 Q185 Q184 C185 C180 R180 C319 C315 IC302 C301 C312 C316 C314 IC303 D304 C317 C313 D302 D301 D303 Q301 Q302 R185 R184 R125 R126 R176 Q183 Q182 R175 CN301 CN101 FB101 FB102 FB103 EP101 IC102 C321 C131 R154 Q203 R222 R221 Q201 Q204 R171 C171 IC101 Q180 Q181 FB123 FB122 FB121 R101 C318 C101 C151 R152 R102 C183 C181 R121 C121 C123 R123 R124 C124 J101 C172 C122 IC304 CN211 C160 C159 C157 C153 C154 C155 C110 C109 2SC3624 1 50V 1 50V 10k 3.9k 0.0027 10 50V 1 50V 1 50V 1 50V 1 50V 1 50V 1 50V 10 50V 3.9k 100 100 0.0027 100 10V 19P 0.1 100 10k 10k 10k 10k 2SC3624 2SC3624 1k DTA114EKA DTC114EKA 100k 100k 10k 2.2k 1 50V 2.7k 10 50V 4.7k 22k 220 10V DTC114EKA DTA114EKA 1 50V 220 10V 4.7k 470 10V 100 10V TA7805S 4700 16V 0.1 50V 0.1 50V 0.1 50V TA7807S 10EBD40 470 10V 470 10V 1SS355TE 10EBD40 10EBD40 RT1P137S DTC114EKA 1k 1k 47 100k 100k 2SC3624 2SC3624 47 2P 21P NJM4580MD 470 10V 100 10V 1k DTA114EKA 10k 10k 2SC3624 DTC114EKA 1k 10 50V LC75342 IC301 µPC3504AHF 2SC3624 2SC3624 0 0 0 10k 0.1 50V 220p 220p C141 1000p 8.2k 8.2k 100 10V 100 10V 1k 10 50V 10 50V 4.7k 22k 220 10V 2P 1000p 1000p 11P 0.12 0.12 1 50V 1 50V 1 50V 1 50V 0.12 0.12 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 86 87 88 47 55 61 73 45 46 48 49 78 Z5 Z1 Z2 Z3 Z4 Z5 Z1 Z2 Z3 Z4 Z6 Z6 58 59 90 91 38 42 43 40 41 80 27 25 23 22 57 34 21 MGND TC TRIG TC CAPM +3.3V TC HALF-REC TC PLAY BIAS-ON/OFF REC/PB ALC PB-R REC-R PB-L REC-L ST CLK ST DOUT ST DIN ST CE TUNED STEREO L OUT AGND R OUT ST MUTE GND +10-12V +9V A+5V AGND DGND D+3.3V INIT NSP MUTE DGND SC LATCH SC SHIFT SCDT D+5V DGND D+6.2V DGND ENA EQ DATA EQ CE VSS TEST LCH OUT L BASS2 L BASS1 L TRE LCH IN LCH SELO CD LCH TC LCH TUNER LCH MD LCH NC NC NC MD RCH TUNER RCH TC RCH CD RCH RCH SELO RCH IN R TRE R BASS1 R BASS2 RCH OUT VREF VDD EQ CLK A+9V M+11.5V (1/2) +7V REGULATOR O I G O I G +4V REGULATOR Q301,302 CD ON SWITCH O I G +4V REGULATOR O I G +5V REGULATOR Q203,204 MUTING CONTROL SWITCH MUTING MUTING INPUT SELECT SWITCH, ELECTRICAL VOLUME, TONE CONTROL MUTING CONTROL SWITCH Q121,122 MUTING MUTING RIPPLE FILTER HEADPHONE AMP VCC GND RIPPLE FILTER MUTING CONTROL SWITCH Q184,185 MUTING HEADPHONE MUTING HEADPHONE (CHASSIS) L-IN R-IN AGND P-DOWN SP-RELAY DIAGNOSTIC MD(VIDEO) L R IN FM 75Ω COAXIAL AM ANTENNA SUPPLIED WITH THE ASSEMBLED BLOCK TUNER UNIT TC END-SW LINE-MUTE REC-MUTE A-GND TA7809S BA09T (US,CND) (SP,KR,AUS) (Page 29) (Page 39) (Page 35) (Page 33) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 33 33 6-12. SCHEMATIC DIAGRAM – LOADING/MAIN (2/2) Boards – • See page 30 for Waveforms. • See page 40 for IC Block Diagram. C502 C210 R556 R555 R557 R451 R452 R453 R454 R455 R456 R457 R458 R459 R460 R461 R567 R554 R450 R449 R448 R447 R446 R445 R444 R437 R436 R435 R434 R433 R432 R559 R566 R565 R469 R470 R472 R471 R561 R474 D474 D475 R473 R479 R480 R477 R476 R491 R490 R489 R563 R564 R562 R482 R483 R484 R427 R425 R423 R422 R421 R430 R419 R428 R426 R424 R409 X402 R411 C406 C405 C407 R407 R406 R405 R404 R403 R401 C402 C401 R429 D404 D402 D403 D401 R505 D501 C503 R503 D503 D502 IC501 D504 R504 Q501 R506 C501 R502 R501 CN201 CN402 C205 C204 C203 C222 C225 C224 C221 C229 C226 CN202 EP201 R251 FB203 FB202 R252 C252 C231 C433 C228 C227 C232 CN102 CN401 Q432 Q431 C431 C432 Q434 Q433 R201 C202 R202 C201 R210 C209 C404 R495 R497 R494 R553 FB204 C251 FB201 CN403 M201 S1 IC202 JWS002 FB206 FB205 R254 R253 C223 IC201 IC401 R541 R558 R560 R417 R413 X401 R443 R442 R441 R438 R440 CN151 R552 R420 R551 R500 R544 R543 0.1 0.1 10k 10k 10k 100 100 100 100 100 100 100 100 100 100 100 10k 10k 100 100 100 100 100 100 100 100 100 100 100 100 100 10k 10k 10k 100 100 100 100 10k 1M 1SS355TE 1SS355TE 100 100 100 100 100 100 100 100 10k 10k 10k 100 100 100 100 100 100 100 100 10k 100 68k 150k 2.7k 10k 32.768KHz 330k 15p 0.1 22p 100 100 100 100 100 100 0.1 1000 6.3V 10k 1SS355TE 1SS355TE 1SS355TE 1SS355TE 4.7k 1SS355TE 0.1 47k 1SS355TE 1SS355TE M62703SL 1SS355TE 47k 2SC2785 10k 10 50V 10k 220 5P 19P 0.1 0.1 0.1 100 10V 0.1 0.1 470 6.3V 0.1 0.1 21P 1k 1k 2.2 50V 100p 0.1 0.1 0.1 100p 4P 3P DTC114EKA DTA114EKA 10 50V 10 50V DTC114EKA DTA123YKA 470 0.1 1k 100 10V 100 100 10V 0.1 10 10 10 10k 2.2 50V 9P TOTX141 0 0 100k 100k 100 10V BA6956N M30622MGN-B08FP 0 10k 10k 10k 0 16MHz 100 100 100 100 100 5P 0 4.7k 0 100 2.2k A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 1 3 4 5 6 7 19 22 21 23 24 25 26 27 28 32 33 34 35 36 37 38 40 41 42 43 44 45 46 47 48 49 52 53 54 55 56 57 60 61 67 68 69 70 71 72 76 77 79 83 84 86 87 88 89 90 91 94 95 97 100 1 100 89 84 4 44 83 94 95 97 72 71 77 76 52 53 79 69 70 73 3 6 5 7 67 68 78 58 59 80 19 33 56 32 54 37 36 35 60 28 26 24 ∗ GND OUT2 OUT1 +3.3V(EVER) SIRCS LED GND +7V LED STANDBY KEY1 KEY2 KEY3 VOL-A VOL-B BASS-A BASS-B TRE-B TRE-A HP DET HP L HP GND HP R IN SW OUT SW VREF OUT2 RNF OUT1 VM VCC FIN GND RIN PWM3 PWM2 PWM1 SENS SCOR MGND M+7V LED TUNER LED DSG LED CD OUT +5V GND D+3.3V(SW) A+3.3V(SW) SQSO +4V(EVER) GND LCD RESET LED GND BACK LIGHT +7V +3.3V(EVER) LCD CS LCD DATA LCD CLK VCC SOFT TEST VSS TC ALC TC CAPM-CONT TC TRG CD XRST CD SENS CD LD-ON CD BD-PWR CDM LOAD-IN CDM LOAD-OUT CDM IN-SW CDM OUT-SW KEY WAKE UP SP RELAY VOL A VOL B BASS A BASS B TRE A TRE B LED BL LED CD DIAG ENA AVCC VREF AVSS TC END SW TC HALF/REC/SW EQ CE KEY1 KEY2 KEY3 MODEL DEST HP MUTE LINE MUTE PWR RELAY LED TC EQ CLK EQ DATA LED TUNER LED DSG BYTE CNVSS XCIN XCOUT XOUT VSS XIN VCC NM1 ST CLK ST DATA IN ST DATA OUT ST CE ST MUTE RDS DATA RDS CLK CD SCOR CD PWM1 CD PWM2 CD PWM3 LCD DATA LCD CLK LCD ON IIC CLK IIC DATA SIRCS IN/WAKE LCD CD TC PLAY SW TC LINE MUTE TC BIAS-ON CD DATA CD CLK CD XLT CD SQSO CD SQCLK HP DET 32K OUT LED STANDBY SC LATCH NO USE SC DT SC SHIFT (2/2) LCD C/D LED TAPE D-GND DETECT (LOADING) OUT IN LOADING IN/OUT GND OUT2 OUT1 IN SW OUT SW SQCK LDON CLK XLAT DATA XRST R-CH AGND L-CH DGND DOUT (CHASSIS) SUB.GND RELAY ON TRANSCEIVER OPTICAL OPTICAL CD DIGITAL OUT LOADING MOTOR DRIVE B+ SWITCH B+ SWITCH B+ SWITCH B+ SWITCH SYSTEM CONTROLLER (CD MECHANISM CONTROL) INIT NSP MUTE PB/REC TC MUTE TC REC/ ST STEREO AC CUT RESET LCD CS LCD RESET CD MUTE P DOWN ST TUNED O I G RESET SIGNAL GENERATOR RESET SWITCH (US,CND) (US,CND) 4.7k 0 ∗ R543 (SP,KR,AUS) (Page 32) (Page 37) (Page 37) (Page 27) (Page 39) (Page 39) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 34 34 6-13. PRINTED WIRING BOARD – AMP Board – • See page 25 for Circuit Boards Location. :Uses unleaded solder. 11 (12) 11 (12) R694 X601 IC603 IC604 C636 IC610 R695 C670 R696 R607 Q694 R618 Q693 D652 D662 D672 D682 C604 C607 C612 R614 R615 R640 R641 R642 R610 R609 C633 C635 R619 R620 R605 C650 X602 C690 IC600 C622 C668 C693 Q692 Q691 R692 C692 C634 NO690 NO691 EP601 EP602 EP603 IC650 IC680 C656 C666 C676 C686 C600 C651 C661 C671 C681 L670 L650 C621 C611 C602 CN600 C652 C628 C608 C625 C632 C640 C601 C616 C649 C675 C655 C682 C672 CN601 C631 R671 R681 C674 C697 R651 R661 C623 C663 C639 C603 FB660 FB670 IC618 R693 D611 FB642 C678 D660 D671 D680 D681 C669 C699 L601 L602 L603 L604 C606 R612 R613 C614 C615 FB620 FB641 FB640 R606 R604 R601 R602 R603 R623 FB601 C610 C609 C629 FB604 C630 R653 D651 R662 C638 R652 FB605 FB606 C617 R663 C618 C619 C620 FB607 R608 C613 FB650 FB680 FB610 C648 C654 D661 D650 C673 C660 D670 C659 C683 C680 C679 C689 C698 Q696 R697 C694 D621 C637 R691 C605 C653 L621 FB662 FB663 FB653 FB652 (COMPONENT SIDE) AMP BOARD 1-686-796- 1 3 5 4 E E E E (CONDUCTOR SIDE) AMP BOARD 1-686-796- (CHASSIS) (CHASSIS) 2 1 K SP OUT BOARD CN711 5 1 L SWITCHING REGULATOR J SP OUT BOARD CN701 19 20 1 2 19 20 1 2 E 4 5 3 1 D MAIN BOARD CN101 (CHASSIS) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 A B C D E F G 17 18 19 2 1 D611 E-18 D621 F-18 D650 C-14 D651 D-15 D652 C-6 D660 A-15 D661 B-14 D662 A-6 D670 F-14 D671 G-15 D672 F-6 D680 D-14 D681 E-14 D682 E-6 Ref. No. Location Ref. No. Location • Semiconductor Location IC600 D-3 IC603 F-3 IC604 E-4 IC610 D-4 IC618 C-18 IC650 C-15 IC680 F-15 Q691 D-7 Q692 D-7 Q693 E-7 Q694 E-8 Q696 D-14 (Page 38) (Page 38) (Page 38) (Page 31) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 35 35 6-14. SCHEMATIC DIAGRAM – AMP Board – • See page 30 for Waveforms. • See page 40 for IC Block Diagrams. CN601 R606 R604 R603 R602 R601 C611 C621 R607 D611 D621 L621 C601 R605 C604 C603 C602 C606 C605 R640 R641 R642 C607 C608 L601 L602 IC604 C612 IC603 R613 R612 R614 C614 R615 X601 FB640 FB641 FB642 C623 C633 C629 C632 R623 C630 FB604 C631 IC618 C625 C628 R618 C610 C634 C635 FB653 R653 FB652 R652 C613 C690 FB601 R609 FB660 FB610 FB650 D661 D651 C651 C648 C650 C649 C654 C660 C663 C655 C653 C652 D650 D660 D652 D662 C661 IC650 IC680 L650 L670 C676 C686 C679 C689 R681 R671 R651 R661 C659 C669 C656 C666 NO691 NO690 C674 EP601 C681 FB680 FB620 FB670 IC600 R662 R663 FB662 FB663 C638 C639 C636 C640 FB606 C637 FB605 L603 C617 C616 C618 C619 L604 C620 X602 R620 R608 R619 FB607 IC610 C670 C680 C675 C673 C683 C672 C678 C668 C682 D670 D680 D672 D682 C698 C699 C600 EP603 C697 CN600 C694 R697 Q694 Q693 Q691 Q696 R694 R696 R695 C692 R692 R691 Q692 C622 C671 D671 D681 R693 C693 C615 R610 C609 21P 100 100 100 100 100 1 50V 1 50V 100 1SS355 1SS355 100 10V 1k 0.1 0.1 10 50V 0.1 0.1 100 100 100 0.1 10 50V TC7WU04F 0.1 PCM1802DBR 100 100 1M 10p 470 12.288MHz 0 0 0 100p 0.1 0.01 100 10V 100k 0.1 0 4.7 50V NJM2870F18 4.7 50V 4.7 50V 0 0.1 0.1 0.1 100 100 0 0.01 0 100 0 SFPL-62 SFPL-62 0.022 0.1 0.1 100 10V 0.01 0.01 2.2 100 50V 2.2 100 10V LI116V LI116V P6SMB36AT3 P6SMB36AT3 0.022 CXD9750L CXD9750L 1 1 0.01 0.01 0 0 0 0 0.01 0.01 1 1 2P 2P 0 0.022 0 CXD9743N 100 100 0.1 0.1 0.1 100 10V 0 0.1 0.1 22 25V 3p 3p 0.001 49.152MHz 750 0 1M 0 MC74VHC1GU04DFT1 0.01 0.01 100 50V 2.2 2.2 100 10V 0.1 0.1 100 10V LI116V LI116V P6SMB36AT3 P6SMB36AT3 0.01 0.01 3300 35V 0 5P 1 100k 2SA1602 2SA1602 2SA1602 2SA1623 100k 100k 100k 2.2 100k 100k 2SA1602 0.1 0.022 SFPL-62 SFPL-62 100k 2.2 10p 100 0.001 B1 B2 B3 B4 B5 B1 B2 B3 B4 B5 C1 C1 C2 C3 C3 C2 +28V +28V GND GND GND VBBA VBOOTA VDRVA VDDA GNDA INA ENA DIAGA OUTA SA VBBB VBOOTB VDRVB VDDB GNDB INB ENB DIAGB OUTB SB VBBA VBOOTA VDRVA VDDA GNDA INA ENA DIAGA OUTA SA VBBB VBOOTB VDRVB VDDB GNDB INB ENB DIAGB OUTB SB Lch-1 Lch-2 Rch-1 Rch-2 DIAGNOSTIC ENABLE DGND L-IN AGND R-IN AGND DGND D+3.3V P-DOWN INIT SCDT DGND DGND NSP MUTE SC SHIFT SC LATCH SP-RELAY FsoCKO Fsol SFLAG TEST2 TEST1 HPOUTR2 HPVssR HPOUTR1 HPVddR HPOUTL2 HPVssL HPOUTL1 HPVddL XVss XfsoIN XVdd Vsubc OUTR2 VssR OUTR1 VddR OUTL1 VssL VddL OUTL2 XfsoOUT XOVdd XOVss DVdd DVss MCKSEL SCDT SCSHIFT SCLATCH NSPMUTE INIT LRCK BCK DATA BFVdd BFVss XfsiIN D+6.2V D+5V A+5V VCC GND CLOCK BUFFER A/D CONVERTER +1.8V REGULATOR VIN VOUT N.B. CONT GND POWER AMP POWER AMP (CHASSIS) CLOCK BUFFER V NC G DIGITAL AUDIO SIGNAL PROCESSOR (CHASSIS) PROTECT SWITCH Q691-694 PROTECT DETECT 10µH 10µH 1µH 10µH 10µH 10µH 10µH (Page 32) (Page 39) (Page 39) (Page 39) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 36 36 6-15. PRINTED WIRING BOARDS – BACK LIGHT/LCD/SWITCH Boards – • See page 25 for Circuit Boards Location. :Uses unleaded solder. JW814 JW815 S801 D801 IC801 C811 S811 S809 S808 S812 JW816 JW813 S813 D804 S810 JW812 JW809 JW808 JW810 JW811 S807 CN801 JW807 JW806 JW805 RV801 S802 D803 S803 S805 S806 S804 S814 S817 D805 D802 RV803 JW817 S815 S816 R851 R812 R813 R814 R815 R816 R817 R818 R819 R820 R821 R825 R822 R832 R833 R834 R835 C807 C808 C809 C810 C813 C812 C814 C815 C816 Q801 Q802 Q803 Q805 Q804 R852 R853 R854 R855 R831 R824 R823 RV802 JW823 JW822 JW821 JW820 CN802 CN803 R844 R842 R845 R843 R846 R810 R805 C802 R807 R808 R809 R801 R806 C803 C804 C805 C806 R841 C801 C841 C842 IC803 D806 D808 D807 CN804 SWITCH BOARD 1-686-790- 11 (21) E (CD) (CD) CD D803, S805 TUNING + TUNING − PLAY MODE/ DIRECTION TUNING MODE REPEAT FM MODE CD SYNCHRO FUNCTION TUNER BAND D804, S813 E REC (TAPE) TAPE D805, S817 (STANDBY) E 1 3 DISPLAY DSG D802, S802 E 1 3 BASS ROTARY ENCODER TREBLE ROTARY ENCODER 1 3 VOLUME ROTARY ENCODER 1 3 1 MAIN BOARD CN402 F 1 14 15 56 28 29 43 42 LCD BOARD 1-686-791- 11 (21) MAIN BOARD CN403 E LCD801 LIQUID CRYSTAL DISPLAY BACK LIGHT BOARD 1-686-792- 11 (21) D806 – 808 (LCD BACK LIGHT) A B C D E F G H 1 2 3 4 5 6 7 E S801 – 817 36 1 D801 F-2 D802 D-2 D803 B-7 D804 F-7 D805 H-7 D806 F-2 D807 F-3 D808 F-3 IC801 F-2 IC803 H-3 Q801 E-2 Q802 D-2 Q803 B-7 Q804 E-7 Q805 F-7 • Semiconductor Location Ref. No. Location (Page 31) (Page 31) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 37 37 6-16. SCHEMATIC DIAGRAM – BACK LIGHT/LCD/SWITCH Boards – • See page 30 for Waveform. • See page 40 for IC Block Diagram. R810 C801 C805 C803 C804 C806 C841 C842 R801 C802 R806 R807 R808 R809 C814 C815 C816 C811 D801 D802 D803 D804 D805 C813 C812 C808 C807 R812 R813 R814 R815 R816 R817 R818 R819 R820 R821 R822 R823 R824 R825 R831 R832 R833 R834 R835 S802 S803 S804 S801 S806 S807 S808 S805 S809 S810 S812 S817 S813 S814 S811 S815 S816 R841 R842 R843 R844 R845 R846 LCD801 D807 D808 D806 CN802 R805 RV803 RV802 RV801 C809 C810 CN801 Q805 Q804 Q803 Q802 Q801 R854 R853 R852 R851 R855 CN803 CN804 IC801 IC803 100 0.1 100p 100p 100p 100p 0.01 0.01 470k 100p 100 100 100 100 0.01 0.01 0.01 47 10V SEL5220S SEL5921A SEL5921A SEL5921A SEL5921A 0.01 0.01 0.01 0.01 1k 2.2k 2.2k 1k 2.2k 2.2k 4.7k 10k 1k 2.2k 2.2k 4.7k 10k 22k 470 470 470 470 470 470 470 470 470 470 470 SELS6B14C SELS6B14C SELS6B14C 9P 220k 0.01 0.01 19P DTC114EKA DTC114EKA DTC114EKA DTC114EKA DTC114EKA 100 100 100 100 100 4P 4P NJL74H400A BU9728AKS SEG7 SEG6 SEG5 SEG4 SEG2 SEG1 SEG0 COM2 COM0 SEG8 SEG9 SEG12 SEG13 SEG14 SEG15 SEG16 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 SEG25 SEG26 SEG27 SEG28 SEG29 SEG30 SEG31 SEG17 SEG11 SEG3 COM3 COM1 SEG10 COM0 COM1 COM2 COM3 SEG0 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 SEG17 SEG18 SEG19 SEG20 SEG21 SEG22 SEG23 SEG24 SEG25 SEG26 SEG27 SEG28 SEG29 SEG30 SEG31 G1 G2 G3 G4 G1 G2 G3 G4 TAPE TUNER CD DSG STANDBY BASS_A BASS_B TREBLE_A TREBLE_B CD TAPE STANDBY TUNER DSG BASS_B TREBLE_B TREBLE_A VOL_B VOL_A SIRCS BASS_A VOL_A VOL_B SIRCS D806-808 (LCD BACK LIGHT) +3.3V(EVER) GND LCD RESET LCD C/D LCD CS LCD DATA LCD CLK LED GND BACK LIGHT +7V LIQUID CRYSTAL DISPLAY DRIVER ROTARY ENCODER VOLUME ROTARY ENCODER ROTARY ENCODER TREBLE BASS +7V LED GND LED TAPE +3.3V(EVER) LED TUNER D-GND SIRCS LED STANDBY LED DSG KEY3 KEY2 KEY1 TREBLE-A VOL-B VOL-A LED CD TREBLE-B BASS-A BASS-B DSG TUNING + TUNING - (CD) (CD) CD REPEAT FM MODE PLAY MODE/ DIRECTION TUNING MODE FUNCTION DISPLAY CD SYNCHRO TUNER BAND REC TAPE TAPE LED DRIVE LED DRIVE LED DRIVE LED DRIVE LED DRIVE DSG (STANDBY) TUNER BAND OUT GND 3.3V REMOTE CONTROL RECEIVER LED_GND BACK_LIGHT1 BACK_LIGHT3 BACK_LIGHT2 LED_GND BACK_LIGHT1 BACK_LIGHT3 BACK_LIGHT2 LIQUID CRYSTAL DISPLAY CD (TAPE) (Page 33) (Page 33) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 38 38 EP801 NO805 C817 C818 C820 FB801 FB802 FB803 L751 L741 L731 L721 J701 CN701 CN711 CLP703 FB709 C704 C703 C702 C701 FB708 FB707 FB706 NO991 NO992 CN990 RY991 C992 C994 D993 D992 D994 C993 D995 CLP999 RY990 C991 JW901 JW990 JW991 JW992 D991 Q991 D990 Q990 R992 R994 R993 R991 IC991 T991 HP BOARD 1-686-793- 11 (21) J801 PHONES (CHASSIS) 1 4 MAIN BOARD CN102 G SP OUT BOARD 1-686-795- 11 (21) L R SPEAKER IMPEDANCE USE 4Ω 2 1 2 1 AMP BOARD NO691 J AMP BOARD NO690 K A B C D E F 1 2 3 4 5 6 7 8 SUB POWER BOARD E E SUB POWER TRANSFORMER SWITCHING REGULATOR MAIN BOARD CN301 C AMP BOARD CN600 L 1-686-794- 11 (21) 1 2 1 2 (AC IN) 3 1 MAIN BOARD CN401 H 1 3 (SP, KR, AUS) 6-17. PRINTED WIRING BOARDS – HP/SP OUT/SUB POWER Boards – • See page 25 for Circuit Boards Location. :Uses unleaded solder. (Page 31) (Page 34) (Page 34) (Page 31) (Page 34) (Page 31) D990 F-5 D991 D-5 D992 D-4 D993 D-4 D994 D-4 D995 D-4 IC991 E-4 Q990 E-5 Q991 E-5 • Semiconductor Location Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 39 39 6-18. SCHEMATIC DIAGRAM – HP/SP OUT/SUB POWER Boards – The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. C817 C818 C820 R992 C993 C994 D993 D994 D992 D995 C992 D991 NO991 CN990 NO992 Q991 FB801 FB802 FB803 EP801 J801 FB709 FB708 FB707 FB706 C701 C702 C703 C704 L741 L751 L721 L731 CN701 CN711 J701 NO805 RY991 C991 IC991 R991 Q990 R993 R994 T991 D990 RY990 0.001 0.001 0.1 100k 2200 16V 100 10V 10EDB40 10EDB40 10EDB40 10EDB40 0.01 250V 1SS355 2P 2P 3P 2SC3624 0 0 0 0 0 0 0 470p 470p 470p 470p 2P 2P 4P 0.01 250V NJU7201L40 4.7k 2SC3624 4.7k 100k 1SS355 Lch-1 Lch-2 Rch-1 Rch-2 NEUTRAL LIVE NEUTRAL LIVE SUB.GND RELAY ON +4V REGULATOR POWER ON/OFF RELAY DRIVE G O I SUB POWER TRANSFORMER (AC IN) SWITCHING REGULATOR +4V(EVER) (CHASSIS) PHONES HP DET HP R HP GND HP L SPEAKER IMPEDANCE USE 4Ω L R POWER ON/OFF RELAY DRIVE (SP,KR,AUS) (Page 32) (Page 35) (Page 33) (Page 35) (Page 35) (Page 33) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 40 40 ROM/RW ROM/RW RF OFF AT VCC VOFST VOFST DVC VC VC VC ROM/RW VC VC 30 29 28 + – + – VC VCC DVC 27 26 25 24 ROM/RW EQ 23 22 21 20 19 RFAC VCA VCC + – DVC + – + – ROM/RW VC ROM/RW DVC + – 3 A B C D B C A A A B C D B C D D + – 1 2 APC AMP 5 6 7 8 9 4 RFAC SUMMING AMP ROM/RW DVC OR Hi-Z SLEEP, APC OFF VOFST VC ROM/RW + – 10 18 17 16 B D A C 13 14 15 12 EQ IN LD PD GND A B C D AC SUM E DVCC DVC RFAC SW DC OFST RFDCI RFDC VC RFC VFC BST RFG VCC CEI CE TE BAL TE FEI FE VC + – VC + – 11 GM F GM ROM/RW (L/H) VOFST • IC Block Diagrams – BD Board – IC101 CXD3017Q IC103 CXA2647N-T4 TE RFDC CE IGEN AVSS0 ADIO AVDD0 CLTV FILO AVSS3 VSS AVDD3 DOUT VDD PCO FILI ASYO ASYI RFAC BIAS SSTP DFCT MIRR MDP LOCK FOK SFDR VSS TEST FRDR FE VC COUT SE XTSL TES1 SRDR TFDR FFDR TRDR 2 1 70 71 68 69 66 67 64 65 62 61 63 73 74 72 75 76 77 78 79 80 4 XRST 3 SQCK SQSO 5 9 8 7 6 56 60 53 54 55 59 57 58 51 52 48 49 50 47 44 45 46 43 41 42 XLAT CLOK SENS SYSM DATA XUGF XPCK GFS C2PO WFCK 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 32 33 30 31 36 37 34 35 39 40 38 28 27 29 SPOA ATSK SCLK VDD SCOR SPOB XLON XTAI XVDD EMPH AVDD1 AOUT1 AIN1 XTAO XVSS AIN2 AOUT2 AVDD2 RMUT LOUT2 LOUT1 BCK LRCK PCMD LMUT AVSS1 AVSS2 CPU INTERFACE SERVO AUTO SEQUENCER SERIAL IN INTERFACE OVER SAMPLING DIGITAL FILTER 3rd ORDER NOISE SHAPER PWM PWM EFM DEMODULATOR TIMING LOGIC DIGITAL OUT D/A INTERFACE DIGITAL PLL ASYMMETRY CORRECTOR CLOCK GENERATOR MIRR, DFCT, FOK DETECTOR DIGITAL CLV SUBCODE PROCESSOR SERVO INTERFACE SERVO DSP FOCUS SERVO TRACKING SERVO SLED SERVO PWM GENERATOR FOCUS PWM GENERATOR TRACKING PWM GENERATOR SLED PWM GENERATOR 16K RAM ERROR CORRECTOR INTERNAL BUS A/D CONVERTER OPERATIONAL AMPLIFIER ANALOG SWITCH w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 HCD-CPX1 – MAIN Board – IC101 LC75342 30 29 1 2 CCB INTERFACE CONTROL CIRCUIT LOGIC CIRCUIT CONTROL CIRCUIT 26 + – 25 24 + – 23 22 21 20 19 18 17 + – + – 5 + – 6 7 + – 8 9 10 11 12 13 14 + – + – 3 LOUT LBASS2 LBASS1 LTRE LIN LSELO L4 L3 L2 L1 15 NC VSS 4 TEST VDD ROUT RBASS2 RBASS1 RTRE RIN RSELO R4 R3 R2 R1 16 NC CL DI CE 28 + – RVREF + – LVREF VREF 27 NC IC201 BA6956AN 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN – AMP Board – IC600 CXD9743N PWM CLOCK GENERATOR (SECONDARY) 17 18 19 20 21 BCK 16 LRCK DATA BFVDD BFVSS XFSIIN 15 INIT 14 NSPMUTE 13 SCLATCH 12 SCSHIFT 11 SCDT 10 MCKSEL 4 OUTL2 5 XOVDD 3 VSSL 8 DVDD 9 DVSS 7 XOVSS 2 OUTL1 1 VDDL CLOCK GENERATOR (PRIMARY) S g P RATE CONVERTER DF1 DF2 GAIN CONTROL LINER INTERPOLATOR (2 TIMES) ∆∑ INIT/ MUTE SERIAL CONTROL 6 XFSOOUT 22 FSOCKO 41 OUTR1 40 VSSR 39 OUTR2 38 VSUBC 42 VDDR 36 XFSOIN 35 XVSS 34 HPVDDL 33 HPOUTL1 37 XVDD 31 HPOUTL2 30 HPVDDR 29 HPOUTR1 27 HPOUTR2 28 HPVSSR 32 HPVSSL 23 FSOI 24 SFLAGO 25 TEST2 26 TEST1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 HCD-CPX1 IC618 NJM2870F18 (TE2) 5 VIN 4 VOUT 2 GND 3 NOISE BYPASS 1 CONTROL BANDGAP REFERENCE THERMAL PROTECTION IC650, 680 CXD9750L CROSS OVER DELAY FILTER THERMAL SHUT DOWN UNDER VOLTAGE LOCK–OUT HIGH SIDE LEVEL SHIFT PROTECTOR CIRCUIT PRE DRIVER LOW SIDE LEVEL SHIFT PRE DRIVER - 16 INB 15 GNDB 14 VDDB 20 SB 19 OUTB 13 VDRVB 12 VBOOTB 11 VBBB VDRVB VBBB 17 ENB 18 DIAGB CROSS OVER DELAY THERMAL SHUT DOWN UNDER VOLTAGE LOCK–OUT HIGH SIDE LEVEL SHIFT PROTECTOR CIRCUIT PRE DRIVER LOW SIDE LEVEL SHIFT PRE DRIVER 6 INA 5 GNDA 4 VDDA 10 SA 9 OUTA 3 VDRVA 2 VBOOTA 1 VBBA VDRVA VBBA 7 ENA 8 DIAGA VDRVA VDRVB VBBA VBBB VBBB + FILTER + - - VBBA + +- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 HCD-CPX1 IC603 PCM1802DBR SINGLE-END/ DIFFERENTIAL CONVERTER 5TH ORDER DELTA-SIGMA MODULATOR VINL 1 SINGLE-END/ DIFFERENTIAL CONVERTER VINR 2 VREF1 3 VREF2 4 5TH ORDER DELTA-SIGMA MODULATOR REFERENCE x16 1/64 (x1/128) DECIMATION FILTER WITH DC CUT FILTER SERIAL INTERFACE & MODE/FORMAT CONTROL MODE1 20 MODE0 19 FMT1 18 FMT0 17 DOUT 12 BCK 11 OSR 16 SCKI 15 VDD 14 DGND 13 CLOCK & TIMING CONTROL PDWN 7 BYPAS 8 VCC 5 AGND 6 FSYNC 9 LRCK 10 POWER SUPPLY – LCD Board – IC803 BU9728AKS 2 3 6 7 8 9 10 11 12 TIMING GENERATOR LCD DRIVER BIAS CIRCUIT COMMON COUNTER 4 5 SERIAL INTERFACE ADDRESS COUNTER COMMAND/DATA REGISTER COMMAND DECODER DISPLAY DATA RAM (DD RAM) LCD SEGMENT DRIVER 32BITS 55 – 44 20 – 27 OSC1 1 N.C. OSC2 V1 V2 V3 VSS VDD SCK SD CS C/D 19 RESET SEG31 ı SEG20 SEG0 ı SEG7 SEG19 ı SEG8 17 16 18 COM3 COM2 COM1 15 N.C 28 N.C 13 COM0 14 N.C 41 ı 30 LCD COMMON DRIVER 4BITS 29 N.C 42 N.C 43 N.C 56 N.C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 HCD-CPX1 6-19. IC PIN FUNCTION DESCRIPTION • MAIN BOARD IC401 M30622MGN-B08FP (SYSTEM CONTROLLER (CD MECHANISM CONTROL)) Pin No. Pin Name I/O Description 1 LCD ON O Power on/off control signal output for liquid crystal display “H”: power on 2 RDS DATA I Serial data input from the RDS decoder Not used 3 LCD CD O Signal output for discriminating between command and display data to the liquid crystal display driver “L”: display data, “H”: command 4 SIRCS IN/WAKE I Remote control signal input terminal 5 LCD DATA O Serial data output to the liquid crystal display driver 6 LCD CS O Chip select signal output to the liquid crystal display driver “L” active 7 LCD CLK O Serial data transfer clock signal output to the liquid crystal display driver 8 BYTE — Not used 9 CNVSS — Ground terminal 10 XCIN I Sub system clock input terminal (32.768 kHz) 11 XCOUT O Sub system clock output terminal (32.768 kHz) 12 RESET I System reset signal input from the reset signal generator “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 13 XOUT O Main system clock output terminal (16 MHz) 14 VSS — Ground terminal 15 XIN I Main system clock input terminal (16 MHz) 16 VCC — Power supply terminal (+3.3V) 17 NMI I Non-maskable interrupt input terminal Not used 18 RDS CLK I Serial data transfer clock signal input from the RDS decoder Not used 19 CD SCOR I Subcode sync (S0+S1) detection signal input from the digital signal processor 20 AC CUT I AC off detection signal input from the reset signal generator “L”: AC cut checked 21 ST MUTE O Tuner muting on/off control signal output to the tuner unit “H”: muting on 22 ST CE O PLL chip enable signal output to the tuner unit 23 ST DATA OUT O PLL serial data output to the tuner unit 24 CD PWM3 O RFDC PWM signal output to the RF amplifier 25 ST DATA IN I PLL serial data input from the tuner unit 26 CD PWM2 O PWM signal output to the RF amplifier 27 ST CLK O PLL serial data transfer clock signal output to the tuner unit 28 CD PWM1 O Focus servo drive PWM signal output to the RF amplifier 29 IIC CLK I/O Communication data transfer clock signal input/output terminal Not used 30 IIC DATA I/O Communication data bus terminal Not used 31 NO USE — Not used 32 CD SQSO I Subcode Q data input from the digital signal processor 33 CD SQCLK O Subcode Q data reading clock signal output to the digital signal processor 34 ST STEREO I FM stereo detection signal input from the tuner unit “L”: stereo 35 CD DATA O Serial data output to the digital signal processor 36 CD XLT O Serial data latch pulse signal output to the digital signal processor 37 CD CLK O Serial data transfer clock signal output to the digital signal processor 38 TC PLAY SW I Head position detect switch input terminal 39 32K OUT O Clock (32.768 kHz) signal output terminal Not used 40 TC LINE MUTE O Line muting on/off control signal output to the recording/playback equalizer amplifier “H”: muting on 41 TC REC/MUTE O Recording muting on/off control signal output to the recording/playback equalizer amplifier “L”: muting on 42 TC BIAS-ON O Recording bias on/off control signal output terminal “H”: bias on 43 TC PB/REC O Recording/playback selection signal output terminal “L”: playback, “H”: recording www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 HCD-CPX1 Pin No. Pin Name I/O Description 44 LED STANDBY O LED drive signal output of the standby indicator “H”: LED on 45 SC DT O Serial data output to the digital audio signal processor 46 SC SHIFT O Serial data shift clock signal output to the digital audio signal processor 47 SC LATCH O Serial data latch pulse signal output to the digital audio signal processor 48 NSP MUTE O Muting on/off control signal output to the digital audio signal processor “L”: muting on 49 INIT O Reset signal output to the digital audio signal processor “L”: reset 50 HP DET I Headphone jack connection detection signal input terminal “L”: no connected, “H”: headphone connected 51 LED BL O Power on/off control signal output for the liquid crystal display back light “H”: power on 52 VOL B I Jog dial pulse input from the rotary encoder (VOLUME) (B phase input) 53 VOL A I Jog dial pulse input from the rotary encoder (VOLUME) (A phase input) 54 CD LD-ON O CD-ROM/RW selection signal output to the RF amplifier “L”: CD-ROM, “H”: CD-RW 55 ENA O Output enable control signal output to the power amplifier 56 CD SENS I Internal status detection monitor input from the digital signal processor 57 ST TUNED I Tuning detection signal input from the tuner unit “L”: tuned 58 TC TRG O Trigger plunger on/off control signal output terminal “H”: plunger on 59 TC CAPM-CONT O Capstan/reel motor on/off control signal output terminal “H”: motor on 60 CD XRST O Reset signal output to the digital signal processor and motor/coil driver “L”: reset 61 DIAG I Protect signal input from the power amplifier and protect detect circuit 62 VCC — Power supply terminal (+3.3V) 63 SOFT TEST O Output terminal for the software test Not used 64 VSS — Ground terminal 65 CD BD-PWR O Power supply on/off control signal output for the CD section “H”: power on 66 SP RELAY O Relay drive signal output for the speaker protect Not used 67 CDM LOAD-OUT O Motor drive signal (open direction) output terminal 68 CDM LOAD-IN O Motor drive signal (close direction) output terminal 69 CDM OUT-SW I Loading in/out detect switch input terminal “L”: loading out 70 CDM IN-SW I Loading in/out detect switch input terminal “L”: loading in 71 BASS A I Jog dial pulse input from the rotary encoder (BASS) (A phase input) 72 BASS B I Jog dial pulse input from the rotary encoder (BASS) (B phase input) 73 P DOWN O Power down control signal output to the A/D converter “L”: power down 74 KEY WAKE UP I System wake up signal input by pressing any key 75 — — Not used 76 TRE A I Jog dial pulse input from the rotary encoder (TREBLE) (A phase input) 77 TRE B I Jog dial pulse input from the rotary encoder (TREBLE) (B phase input) 78 CD MUTE O CD analog signal muting on/off control signal output terminal “H”: muting on 79 LED CD O LED drive signal output of the CD NX indicator “H”: LED on 80 TC ALC O Automatic limiter control signal output to the recording/playback equalizer amplifier “H”: limiter on 81 LINE MUTE O Audio line muting on/off control signal output terminal “H”: muting on 82 PWR RELAY O Main system power supply on/off control signal output terminal “H”: power on 83 LED DSG O LED drive signal output of the DSG indicator “H”: LED on 84 LED TUNER O LED drive signal output of the TUNER BAND indicator “H”: LED on 85 HP MUTE O Headphone muting on/off control signal output terminal “H”: muting on 86 EQ CE O Chip enable signal output to the electrical volume 87 EQ DATA O Serial data output to the electrical volume 88 EQ CLK O Serial data transfer clock signal output to the electrical volume 89 LED TC O LED drive signal output of the TAPE nN indicator “H”: LED on www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 HCD-CPX1 Pin No. Pin Name I/O Description 90 TC END SW I Tape end detect switch input terminal 91 TC HALF/REC/SW I Recording-proof claw (forward/reverse) detect switch and cassette in detect switch input terminal (A/D input) 92 MODEL I Model setting terminal 93 DEST I Destination setting terminal 94, 95 KEY3, KEY2 I Front panel key input terminal (A/D input) 96 AVSS — Ground terminal (for analog system) 97 KEY1 I Front panel key input terminal (A/D input) 98 VREF I Reference voltage (+3.3V) input terminal 99 AVCC — Power supply terminal (+3.3V) (for analog system) 100 LCD RESET O Reset signal output to the liquid crystal display driver “L”: reset www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 HCD-CPX1 SECTION 7 EXPLODED VIEWS • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 3-363-099-11 SCREW (CASE 3 TP2) 2 4-233-372-02 FOOT (FELT) #1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B) 7-1. CASE SECTION 1 #1 not supplied #1 #1 front panel section -1 1 chassis section -1 2 Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Abbreviation AUS : Australian model CND : Canadian model KR : Korean model SP : Singapore model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 HCD-CPX1 7-2. FRONT PANEL SECTION-1 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 4-244-021-01 SPRING (LID TC), TORSION 52 1-796-456-31 DECK, MECHANICAL 53 A-4731-316-A TC BOARD, COMPLETE 54 1-824-192-11 WIRE (FLAT TYPE) (8 CORE) 55 1-773-110-11 WIRE (FLAT TYPE) (19 CORE) 56 3-669-480-11 + PTPWH 2 57 4-951-620-01 SCREW (2.6X8), +BVTP 58 4-244-014-01 LEVER (EJECT) 59 4-244-023-01 SPRING (EJECT), COMPRESSION 60 4-244-012-01 BUTTON (EJECT) 61 4-933-134-11 SCREW (+PTPWH M2.6X8) 62 4-244-530-01 DAMPER #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B) #2 #2 not supplied 52 53 54 55 56 57 not supplied 59 58 60 61 62 front panel section-2 51 lid (TC) section www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 HCD-CPX1 7-3. FRONT PANEL SECTION-2 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 4-240-765-11 KNOB, TUNING 102 4-240-764-11 KNOB, VOLUME 103 4-240-763-11 KNOB, BASS 104 X-4955-234-2 PANEL ASSY, FRONT (US, CND) 104 X-4955-698-2 PANEL (HB) ASSY, FRONT (SP, KR, AUS) 105 1-776-183-11 WIRE (FLAT TYPE) (19 CORE) 106 A-4731-306-A SWITCH BOARD, COMPLETE 107 4-951-620-01 SCREW (2.6X8), +BVTP 108 4-244-006-01 BAND (UPPER), DIVISION 109 4-233-372-02 FOOT (FELT) 110 4-240-771-11 SUPPORT, TUNING 111 4-240-770-11 LEVER, TUNING 112 4-240-787-01 SPRING, TUNING 107 109 not supplied (HP board) 107 107 111 110 112 105 not supplied not supplied 107 107 106 104 108 101 102 103 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 HCD-CPX1 7-4. LID (TC) SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 151 X-4955-604-1 LID (TC) (C) ASSY 152 4-236-666-01 CUSHION (LCD) 153 4-244-026-01 SHEET, DIFFUSION 154 4-244-009-01 PLATE, LIGHT GUIDE 155 1-769-916-11 WIRE (FLAT TYPE) (9 CORE) 156 1-686-791-11 LCD BOARD 157 4-951-620-01 SCREW (2.6X8), +BVTP 158 4-244-007-01 HOLDER (TC) 159 4-244-022-01 SPRING (TC), LEAF 160 4-925-161-81 EMBLEM (4-A), SONY #3 7-685-234-14 SCREW +KTP 2.6X8 TYPE2NON-SLIT not supplied (back light board) 153 154 152 160 152 not supplied #3 not supplied 151 155 156 157 158 159 159 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-CPX1 7-5. CHASSIS SECTION-1 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 201 A-4731-299-A MAIN BOARD, COMPLETE (SP, KR) 201 A-4731-302-A MAIN BOARD, COMPLETE (US, CND) 201 A-4733-555-A MAIN BOARD, COMPLETE (AUS) #1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B) #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B) not supplied #1 #1 #1 #1 #2 #2 chassis section-2 201 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 HCD-CPX1 7-6. CHASSIS SECTION-2 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 251 4-240-766-11 LID, CD 252 3-970-608-01 SUMITITE (B3), +BV 253 1-824-930-11 WIRE (FLAT TYPE) (21 CORE) 254 3-703-244-00 BUSHING (2104), CORD 0255 1-769-079-22 CORD, POWER (KR) 0255 1-777-071-83 CORD, POWER (SP) 0255 1-783-203-12 CORD, POWER (AUS) 0255 1-783-531-31 CORD, POWER (US, CND) 256 1-693-603-31 TUNER UNIT (SP, AUS) 256 1-693-605-11 TUNER UNIT (KR) 256 1-693-623-31 TUNER UNIT (US, CND) 257 1-769-937-11 WIRE (FLAT TYPE) (11 CORE) #1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B) chassis section-3 #1 #1 #1 255 254 256 257 253 not supplied not supplied CDM55A-K6BD44S 252 251 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-CPX1 7-7. CHASSIS SECTION-3 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 301 1-686-794-11 SUB POWER BOARD 0302 1-468-729-11 REGULATOR, SWITCHING (US, CND) 0302 1-468-730-11 REGULATOR, SWITCHING (SP, KR, AUS) 303 A-4731-313-A AMP BOARD, COMPLETE 304 1-500-484-21 CLAMP, SLEEVE FERRITE 305 1-773-152-11 WIRE (FLAT TYPE) (21 CORE) #1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B) 301 301 301 not supplied not supplied #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 301 302 not supplied (SP out board) 303 305 304 not supplied not supplied The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-CPX1 7-8. CD MECHANISM DECK SECTION (CDM55A-K6BD44S) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 501 4-925-315-31 DAMPER 502 4-224-894-22 TRAY (CDM55D) 503 1-674-336-12 LOADING BOARD 504 4-220-229-02 LEVER (SW) 505 4-220-239-01 SPRING, TORSION 506 4-220-233-01 CAM (CDM55) 507 4-220-238-01 GEAR (B) 508 4-227-598-01 SPACER (55) 509 4-221-816-01 BELT (CDM55) 510 4-220-234-01 PULLEY (LDG) 511 4-220-237-01 GEAR (A) 512 4-221-815-11 ROLLER 513 A-4735-082-A MAGNET ASSY 514 4-231-777-02 SHEET (KH2) 515 4-218-252-31 SCREW (+PTPWH M2.6), FLOATING 516 4-229-358-01 SHAFT (BU21) 517 4-985-672-01 SCREW (+PTPWH M2.6), FLOATING 518 4-244-962-01 HOLDER (C213) 519 4-244-959-01 SPRING (T213), COMPRESSION 520 4-227-549-11 INSULATOR 521 4-231-151-01 STOPPER (BU) 522 4-218-253-31 SCREW (M2.6), +BTTP M201 A-4735-337-A MOTOR (LD) ASSY (LOADING) #5 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S 517 518 516 519 520 521 522 519 514 520 515 519 520 515 519 520 521 522 BU-K6BD44S 505 504 507 509 510 511 512 506 502 503 508 501 513 M201 #5 not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 HCD-CPX1 7-9. BASE UNIT SECTION (BU-K6BD44S) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 551 A-4731-164-A BD BOARD, COMPLETE 552 3-713-786-51 SCREW (M2X3) 553 2-627-003-01 GEAR (B) (RP) 554 2-626-908-51 SHAFT, SLED 555 2-646-702-01 SPRING, EXTENSION 556 2-646-697-02 SHUTTER (F), LENS 0557 8-820-020-11 OPTICAL PICK-UP KSS-213D/Z-RP 558 1-792-024-11 WIRE (FLAT TYPE) (16 CORE) 559 2-625-188-02 GEAR (A) M101 X-2161-802-1 CHASSIS ASSY (DCP), T.T (SPINDLE) M102 X-2625-769-1 GEAR ASSY (MB) (RP), MOTOR (SLED) 552 553 551 M102 M101 554 555 559 557 558 556 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 HCD-CPX1 SECTION 8 ELECTRICAL PARTS LIST AMP Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-4731-313-A AMP BOARD, COMPLETE ******************** 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B) < CAPACITOR/SHORT > C600 1-128-549-11 ELECT 3300uF 20% 35V C601 1-104-665-11 ELECT 100uF 20% 10V C602 1-126-964-11 ELECT 10uF 20% 50V C603 1-164-156-11 CERAMIC CHIP 0.1uF 25V C604 1-164-156-11 CERAMIC CHIP 0.1uF 25V C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C606 1-164-156-11 CERAMIC CHIP 0.1uF 25V C607 1-164-156-11 CERAMIC CHIP 0.1uF 25V C608 1-126-964-11 ELECT 10uF 20% 50V C609 1-162-971-11 CERAMIC CHIP 0.001uF 10% 50V C610 1-164-156-11 CERAMIC CHIP 0.1uF 25V C611 1-126-960-11 ELECT 1uF 20% 50V C612 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C613 1-216-864-11 SHORT CHIP 0 C614 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C615 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C616 1-128-551-11 ELECT 22uF 20% 25V C617 1-164-156-11 CERAMIC CHIP 0.1uF 25V C618 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C619 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C620 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C621 1-126-960-11 ELECT 1uF 20% 50V C622 1-164-156-11 CERAMIC CHIP 0.1uF 25V C623 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C625 1-126-963-11 ELECT 4.7uF 20% 50V C628 1-126-963-11 ELECT 4.7uF 20% 50V C629 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C630 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C631 1-126-963-11 ELECT 4.7uF 20% 50V C632 1-104-665-11 ELECT 100uF 20% 10V C633 1-164-156-11 CERAMIC CHIP 0.1uF 25V C634 1-164-156-11 CERAMIC CHIP 0.1uF 25V C635 1-164-156-11 CERAMIC CHIP 0.1uF 25V C636 1-164-156-11 CERAMIC CHIP 0.1uF 25V C637 1-164-156-11 CERAMIC CHIP 0.1uF 25V C638 1-164-156-11 CERAMIC CHIP 0.1uF 25V C639 1-164-156-11 CERAMIC CHIP 0.1uF 25V C640 1-104-665-11 ELECT 100uF 20% 10V NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH C648 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C649 1-104-665-11 ELECT 100uF 20% 10V C650 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C651 1-137-372-11 MYLAR 0.022uF 5% 50V C652 1-104-665-11 ELECT 100uF 20% 10V C653 1-164-505-11 CERAMIC CHIP 2.2uF 16V C654 1-162-974-11 CERAMIC CHIP 0.01uF 50V C655 1-137-807-31 ELECT 100uF 20% 50V C656 1-131-704-11 FILM 1uF 5% 50V C659 1-162-974-11 CERAMIC CHIP 0.01uF 50V C660 1-162-974-11 CERAMIC CHIP 0.01uF 50V C661 1-137-372-11 MYLAR 0.022uF 5% 50V C663 1-164-505-11 CERAMIC CHIP 2.2uF 16V C666 1-131-704-11 FILM 1uF 5% 50V C668 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C669 1-162-974-11 CERAMIC CHIP 0.01uF 50V C670 1-162-974-11 CERAMIC CHIP 0.01uF 50V C671 1-137-372-11 MYLAR 0.022uF 5% 50V C672 1-104-665-11 ELECT 100uF 20% 10V C673 1-164-505-11 CERAMIC CHIP 2.2uF 16V C674 1-216-864-11 SHORT CHIP 0 C675 1-137-807-31 ELECT 100uF 20% 50V C676 1-131-704-11 FILM 1uF 5% 50V C678 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C679 1-162-974-11 CERAMIC CHIP 0.01uF 50V C680 1-162-974-11 CERAMIC CHIP 0.01uF 50V C681 1-137-372-11 MYLAR 0.022uF 5% 50V C682 1-104-665-11 ELECT 100uF 20% 10V C683 1-164-505-11 CERAMIC CHIP 2.2uF 16V C686 1-131-704-11 FILM 1uF 5% 50V C689 1-162-974-11 CERAMIC CHIP 0.01uF 50V C690 1-162-974-11 CERAMIC CHIP 0.01uF 50V C692 1-164-505-11 CERAMIC CHIP 2.2uF 16V C693 1-164-505-11 CERAMIC CHIP 2.2uF 16V C694 1-164-346-11 CERAMIC CHIP 1uF 16V C697 1-216-864-11 SHORT CHIP 0 C698 1-162-974-11 CERAMIC CHIP 0.01uF 50V C699 1-162-974-11 CERAMIC CHIP 0.01uF 50V < CONNECTOR > * CN600 1-564-508-11 PLUG, CONNECTOR 5P CN601 1-568-838-11 CONNECTOR, FFC 21P • Abbreviation AUS : Australian model CND : Canadian model KR : Korean model SP : Singapore model Les composants identifiés par une marque 0 sont critiquens pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 57 HCD-CPX1 AMP BACK LIGHT < DIODE > D611 8-719-988-61 DIODE 1SS355TE-17 D621 8-719-988-61 DIODE 1SS355TE-17 D650 6-500-131-01 DIODE LI116 D651 6-500-248-01 DIODE SFPL-62V D652 6-500-060-01 DIODE P6SMB36AT3 D660 6-500-131-01 DIODE LI116 D661 6-500-248-01 DIODE SFPL-62V D662 6-500-060-01 DIODE P6SMB36AT3 D670 6-500-131-01 DIODE LI116 D671 6-500-248-01 DIODE SFPL-62V D672 6-500-060-01 DIODE P6SMB36AT3 D680 6-500-131-01 DIODE LI116 D681 6-500-248-01 DIODE SFPL-62V D682 6-500-060-01 DIODE P6SMB36AT3 < GROUND TERMINAL > EP601 1-537-771-21 TERMINAL BOARD, GROUND EP602 1-537-771-21 TERMINAL BOARD, GROUND EP603 1-537-771-21 TERMINAL BOARD, GROUND < SHORT/FERRITE BEAD > FB601 1-216-864-11 SHORT CHIP 0 FB604 1-216-864-11 SHORT CHIP 0 FB605 1-469-324-21 FERRITE 0uH FB606 1-216-864-11 SHORT CHIP 0 FB607 1-216-864-11 SHORT CHIP 0 FB610 1-469-324-21 FERRITE 0uH FB620 1-469-324-21 FERRITE 0uH FB640 1-216-864-11 SHORT CHIP 0 FB641 1-216-864-11 SHORT CHIP 0 FB642 1-216-864-11 SHORT CHIP 0 FB650 1-469-324-21 FERRITE 0uH FB652 1-414-551-11 FERRITE 0uH FB653 1-414-551-11 FERRITE 0uH FB660 1-216-296-11 SHORT CHIP 0 FB662 1-414-551-11 FERRITE 0uH FB663 1-414-551-11 FERRITE 0uH FB670 1-216-296-11 SHORT CHIP 0 FB680 1-469-324-21 FERRITE 0uH < IC > IC600 6-703-287-01 IC CXD9743N IC603 6-701-834-01 IC PCM1802DBR IC604 8-759-387-77 IC TC7WU04F-TE12L IC610 6-701-189-01 IC MC74VHC1GU04DFT1 IC618 6-700-263-01 IC NJM2870F18 (TE2) IC650 6-703-288-01 IC CXD9750L IC680 6-703-288-01 IC CXD9750L < COIL > L601 1-469-525-11 INDUCTOR 10uH L602 1-469-525-11 INDUCTOR 10uH L603 1-469-525-11 INDUCTOR 10uH L604 1-412-939-11 INDUCTOR 1uH L621 1-469-525-11 INDUCTOR 10uH L650 1-424-777-11 INDUCTOR 10uH L670 1-424-777-11 INDUCTOR 10uH < TRANSISTOR > Q691 8-729-602-36 TRANSISTOR 2SA1602-F Q692 8-729-602-36 TRANSISTOR 2SA1602-F Q693 8-729-602-36 TRANSISTOR 2SA1602-F Q694 8-729-602-36 TRANSISTOR 2SA1602-F Q696 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R601 1-216-809-11 METAL CHIP 100 5% 1/10W R602 1-216-809-11 METAL CHIP 100 5% 1/10W R603 1-216-809-11 METAL CHIP 100 5% 1/10W R604 1-216-809-11 METAL CHIP 100 5% 1/10W R605 1-216-821-11 METAL CHIP 1K 5% 1/10W R606 1-216-809-11 METAL CHIP 100 5% 1/10W R607 1-216-809-11 METAL CHIP 100 5% 1/10W R608 1-216-864-11 SHORT CHIP 0 R609 1-216-809-11 METAL CHIP 100 5% 1/10W R610 1-216-809-11 METAL CHIP 100 5% 1/10W R612 1-216-809-11 METAL CHIP 100 5% 1/10W R613 1-216-809-11 METAL CHIP 100 5% 1/10W R614 1-216-857-11 METAL CHIP 1M 5% 1/10W R615 1-216-817-11 METAL CHIP 470 5% 1/10W R618 1-216-864-11 SHORT CHIP 0 R619 1-216-857-11 METAL CHIP 1M 5% 1/10W R620 1-218-484-11 METAL CHIP 750 5% 1/10W R623 1-216-845-11 METAL CHIP 100K 5% 1/10W R640 1-216-809-11 METAL CHIP 100 5% 1/10W R641 1-216-809-11 METAL CHIP 100 5% 1/10W R642 1-216-809-11 METAL CHIP 100 5% 1/10W R651 1-216-296-11 SHORT CHIP 0 R652 1-216-809-11 METAL CHIP 100 5% 1/10W R653 1-216-809-11 METAL CHIP 100 5% 1/10W R661 1-216-296-11 SHORT CHIP 0 R662 1-216-809-11 METAL CHIP 100 5% 1/10W R663 1-216-809-11 METAL CHIP 100 5% 1/10W R671 1-216-296-11 SHORT CHIP 0 R681 1-216-296-11 SHORT CHIP 0 R691 1-216-845-11 METAL CHIP 100K 5% 1/10W R692 1-216-845-11 METAL CHIP 100K 5% 1/10W R693 1-216-845-11 METAL CHIP 100K 5% 1/10W R694 1-216-845-11 METAL CHIP 100K 5% 1/10W R695 1-216-845-11 METAL CHIP 100K 5% 1/10W R696 1-216-845-11 METAL CHIP 100K 5% 1/10W R697 1-216-845-11 METAL CHIP 100K 5% 1/10W < VIBRATOR > X601 1-795-843-11 VIBRATOR, CRYSTAL (49.152MHz) X602 1-795-660-21 QUARTZ CRYSTAL UNIT (12.288MHz) ************************************************************** BACK LIGHT BOARD **************** < CONNECTOR > CN804 1-770-011-41 CONNECTOR, BOARD TO BOARD 4P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 58 HCD-CPX1 < LED > D806 8-719-075-50 LED SELS6B14C-TP5 (LCD BACK LIGHT) D807 8-719-075-50 LED SELS6B14C-TP5 (LCD BACK LIGHT) D808 8-719-075-50 LED SELS6B14C-TP5 (LCD BACK LIGHT) ************************************************************** A-4731-164-A BD BOARD, COMPLETE ******************* < CAPACITOR > C101 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C102 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C103 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C104 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C108 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C109 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C110 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C111 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C112 1-115-156-11 CERAMIC CHIP 1uF 10V C114 1-164-360-11 CERAMIC CHIP 0.1uF 16V C116 1-126-382-11 ELECT 100uF 20% 16V C117 1-126-382-11 ELECT 100uF 20% 16V C118 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C121 1-164-360-11 CERAMIC CHIP 0.1uF 16V C122 1-104-665-11 ELECT 100uF 20% 16V C123 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C124 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C125 1-164-360-11 CERAMIC CHIP 0.1uF 16V C126 1-164-360-11 CERAMIC CHIP 0.1uF 16V C127 1-126-382-11 ELECT 100uF 20% 16V C130 1-164-360-11 CERAMIC CHIP 0.1uF 16V C131 1-104-665-11 ELECT 100uF 20% 16V C133 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C140 1-115-156-11 CERAMIC CHIP 1uF 10V C143 1-164-360-11 CERAMIC CHIP 0.1uF 16V C145 1-164-360-11 CERAMIC CHIP 0.1uF 16V C146 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C150 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C153 1-164-360-11 CERAMIC CHIP 0.1uF 16V C159 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C162 1-126-382-11 ELECT 100uF 20% 16V C163 1-104-665-11 ELECT 100uF 20% 16V C165 1-164-360-11 CERAMIC CHIP 0.1uF 16V C167 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C168 1-162-975-11 CERAMIC CHIP 24PF 5% 50V C171 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C172 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C181 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C182 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C183 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C184 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C185 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C191 1-104-665-11 ELECT 100uF 20% 16V C192 1-126-382-11 ELECT 100uF 20% 16V C193 1-126-382-11 ELECT 100uF 20% 16V C194 1-164-360-11 CERAMIC CHIP 0.1uF 16V C196 1-164-360-11 CERAMIC CHIP 0.1uF 16V C197 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C198 1-104-665-11 ELECT 100uF 20% 16V < CONNECTOR > CN101 1-569-914-11 SOCKET, CONNECTOR 21P CN102 1-793-907-11 CONNECTOR, FFC/FPC 16P < SHORT > FB101 1-216-864-11 SHORT CHIP 0 FB103 1-216-864-11 SHORT CHIP 0 < IC > IC101 8-752-402-31 IC CXD3017Q IC102 8-759-677-90 IC BA5947FP-E2 IC103 8-752-106-21 IC CXA2647N-T4 < SHORT > JR101 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q101 8-729-046-90 TRANSISTOR 2SB970-(TX).S0 < RESISTOR > R101 1-216-821-11 METAL CHIP 1K 5% 1/10W R102 1-216-845-11 METAL CHIP 100K 5% 1/10W R103 1-216-835-11 METAL CHIP 15K 5% 1/10W R104 1-216-839-11 METAL CHIP 33K 5% 1/10W R106 1-216-821-11 METAL CHIP 1K 5% 1/10W R107 1-216-833-11 METAL CHIP 10K 5% 1/10W R108 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R109 1-216-857-11 METAL CHIP 1M 5% 1/10W R111 1-216-846-11 METAL CHIP 120K 5% 1/10W R114 1-216-852-11 METAL CHIP 390K 5% 1/10W R116 1-216-797-11 METAL CHIP 10 5% 1/10W R117 1-216-821-11 METAL CHIP 1K 5% 1/10W R118 1-216-809-11 METAL CHIP 100 5% 1/10W R119 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R120 1-216-835-11 METAL CHIP 15K 5% 1/10W R122 1-216-845-11 METAL CHIP 100K 5% 1/10W R123 1-216-833-11 METAL CHIP 10K 5% 1/10W R124 1-216-845-11 METAL CHIP 100K 5% 1/10W R131 1-216-813-11 METAL CHIP 220 5% 1/10W R143 1-216-836-11 METAL CHIP 18K 5% 1/10W R144 1-216-836-11 METAL CHIP 18K 5% 1/10W R147 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R148 1-216-791-11 METAL CHIP 3.3 5% 1/10W R150 1-216-833-11 METAL CHIP 10K 5% 1/10W R151 1-216-846-11 METAL CHIP 120K 5% 1/10W R158 1-216-837-11 METAL CHIP 22K 5% 1/10W R159 1-216-837-11 METAL CHIP 22K 5% 1/10W R162 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R171 1-216-837-11 METAL CHIP 22K 5% 1/10W R172 1-216-837-11 METAL CHIP 22K 5% 1/10W R173 1-216-837-11 METAL CHIP 22K 5% 1/10W R181 1-216-837-11 METAL CHIP 22K 5% 1/10W R182 1-216-837-11 METAL CHIP 22K 5% 1/10W R183 1-216-837-11 METAL CHIP 22K 5% 1/10W R191 1-216-839-11 METAL CHIP 33K 5% 1/10W BACK LIGHT BD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 59 HCD-CPX1 R192 1-216-839-11 METAL CHIP 33K 5% 1/10W R193 1-216-847-11 METAL CHIP 150K 5% 1/10W R194 1-216-843-11 METAL CHIP 68K 5% 1/10W R195 1-216-851-11 METAL CHIP 330K 5% 1/10W R196 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R197 1-216-821-11 METAL CHIP 1K 5% 1/10W < COMPOSITION CIRCUIT BLOCK > RN101 1-233-576-11 RES, CHIP NETWORK 100 < SWITCH > S101 1-771-853-11 SWITCH, DETECTION (LIMIT) < VIBRATOR > X101 1-579-280-11 VIBRATOR, CRYSTAL (16.9344MHz) ************************************************************** HP BOARD ********* < CAPACITOR > C817 1-162-971-11 CERAMIC CHIP 0.001uF 10% 50V C818 1-162-971-11 CERAMIC CHIP 0.001uF 10% 50V C820 1-164-156-11 CERAMIC CHIP 0.1uF 25V < SHORT > FB801 1-216-864-11 SHORT CHIP 0 FB802 1-216-864-11 SHORT CHIP 0 FB803 1-216-864-11 SHORT CHIP 0 < JACK > J801 1-815-603-11 JACK (PHONES) ************************************************************** 1-686-791-11 LCD BOARD ********** 4-244-028-01 HOLDER (LCD) < CAPACITOR > C801 1-164-156-11 CERAMIC CHIP 0.1uF 25V C802 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C803 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C804 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C805 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C806 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C841 1-162-974-11 CERAMIC CHIP 0.01uF 50V C842 1-162-974-11 CERAMIC CHIP 0.01uF 50V < CONNECTOR > CN802 1-784-731-11 CONNECTOR, FFC 9P CN803 1-770-010-21 CONNECTOR, BOARD TO BOARD 4P < IC > IC803 6-703-289-01 IC BU9728AKS < LIQUID CRYSTAL DISPLAY > LCD801 1-805-113-11 DISPLAY PANEL, LIQUID CRYSTAL < RESISTOR > R801 1-216-853-11 METAL CHIP 470K 5% 1/10W R805 1-216-849-11 METAL CHIP 220K 5% 1/10W R806 1-216-809-11 METAL CHIP 100 5% 1/10W R807 1-216-809-11 METAL CHIP 100 5% 1/10W R808 1-216-809-11 METAL CHIP 100 5% 1/10W R809 1-216-809-11 METAL CHIP 100 5% 1/10W R810 1-216-809-11 METAL CHIP 100 5% 1/10W R841 1-216-817-11 METAL CHIP 470 5% 1/10W R842 1-216-817-11 METAL CHIP 470 5% 1/10W R843 1-216-817-11 METAL CHIP 470 5% 1/10W R844 1-216-817-11 METAL CHIP 470 5% 1/10W R845 1-216-817-11 METAL CHIP 470 5% 1/10W R846 1-216-817-11 METAL CHIP 470 5% 1/10W ************************************************************** 1-674-336-12 LOADING BOARD ************** < CONNECTOR > * CN151 1-568-943-11 PIN, CONNECTOR 5P < SWITCH > S1 1-786-203-11 SWITCH, LEVER (SLIDE) (LOADING IN/OUT DETECT) ************************************************************** A-4731-299-A MAIN BOARD, COMPLETE (SP, KR) A-4731-302-A MAIN BOARD, COMPLETE (US, CND) A-4731-355-A MAIN BOARD, COMPLETE (AUS) ********************* 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B) < CAPACITOR > C101 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C102 1-126-960-11 ELECT 1uF 20% 50V C103 1-126-960-11 ELECT 1uF 20% 50V C104 1-126-960-11 ELECT 1uF 20% 50V C105 1-126-960-11 ELECT 1uF 20% 50V C106 1-126-960-11 ELECT 1uF 20% 50V C107 1-126-960-11 ELECT 1uF 20% 50V C108 1-130-476-00 MYLAR 0.0027uF 5% 50V C109 1-130-496-00 MYLAR 0.12uF 5% 50V C110 1-130-496-00 MYLAR 0.12uF 5% 50V C111 1-126-964-11 ELECT 10uF 20% 50V C121 1-126-964-11 ELECT 10uF 20% 50V C122 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C123 1-126-964-11 ELECT 10uF 20% 50V C124 1-126-934-11 ELECT 220uF 20% 10V C131 1-104-665-11 ELECT 100uF 20% 16V C132 1-164-156-11 CERAMIC CHIP 0.1uF 25V C133 1-104-665-11 ELECT 100uF 20% 10V C141 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C151 1-162-957-11 CERAMIC CHIP 220PF 5% 50V BD HP LCD LOADING MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 60 HCD-CPX1 C152 1-126-960-11 ELECT 1uF 20% 50V C153 1-126-960-11 ELECT 1uF 20% 50V C154 1-126-960-11 ELECT 1uF 20% 50V C155 1-126-960-11 ELECT 1uF 20% 50V C156 1-126-960-11 ELECT 1uF 20% 50V C157 1-126-960-11 ELECT 1uF 20% 50V C158 1-130-476-00 MYLAR 0.0027uF 5% 50V C159 1-130-496-00 MYLAR 0.12uF 5% 50V C160 1-130-496-00 MYLAR 0.12uF 5% 50V C161 1-126-964-11 ELECT 10uF 20% 50V C171 1-126-964-11 ELECT 10uF 20% 50V C172 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C173 1-126-964-11 ELECT 10uF 20% 50V C174 1-126-934-11 ELECT 220uF 20% 10V C180 1-126-934-11 ELECT 220uF 20% 10V C181 1-104-665-11 ELECT 100uF 20% 10V C182 1-126-960-11 ELECT 1uF 20% 50V C183 1-104-665-11 ELECT 100uF 20% 10V C185 1-126-960-11 ELECT 1uF 20% 50V C201 1-104-665-11 ELECT 100uF 20% 10V C202 1-164-156-11 CERAMIC CHIP 0.1uF 25V C203 1-164-156-11 CERAMIC CHIP 0.1uF 25V C204 1-164-156-11 CERAMIC CHIP 0.1uF 25V C205 1-164-156-11 CERAMIC CHIP 0.1uF 25V C209 1-104-665-11 ELECT 100uF 20% 10V C210 1-164-156-11 CERAMIC CHIP 0.1uF 25V C221 1-126-935-11 ELECT 470uF 20% 6.3V C222 1-104-665-11 ELECT 100uF 20% 10V C223 1-104-665-11 ELECT 100uF 20% 10V C224 1-164-156-11 CERAMIC CHIP 0.1uF 25V C225 1-164-156-11 CERAMIC CHIP 0.1uF 25V C226 1-164-156-11 CERAMIC CHIP 0.1uF 25V C227 1-164-156-11 CERAMIC CHIP 0.1uF 25V C228 1-164-156-11 CERAMIC CHIP 0.1uF 25V C229 1-164-156-11 CERAMIC CHIP 0.1uF 25V C231 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C232 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C251 1-126-961-11 ELECT 2.2uF 20% 50V C252 1-126-961-11 ELECT 2.2uF 20% 50V C301 1-126-937-11 ELECT 4700uF 20% 16V C312 1-126-956-11 ELECT 0.1uF 20% 50V C313 1-126-935-11 ELECT 470uF 20% 10V C314 1-126-956-11 ELECT 0.1uF 20% 50V C315 1-104-665-11 ELECT 100uF 20% 10V C316 1-126-956-11 ELECT 0.1uF 20% 50V C317 1-126-935-11 ELECT 470uF 20% 10V C318 1-126-956-11 ELECT 0.1uF 20% 50V C319 1-126-935-11 ELECT 470uF 20% 10V C321 1-126-935-11 ELECT 470uF 20% 10V C401 1-126-916-11 ELECT 1000uF 20% 6.3V C402 1-164-156-11 CERAMIC CHIP 0.1uF 25V C404 1-164-156-11 CERAMIC CHIP 0.1uF 25V C405 1-164-156-11 CERAMIC CHIP 0.1uF 25V C406 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C407 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C431 1-126-964-11 ELECT 10uF 20% 50V C432 1-126-964-11 ELECT 10uF 20% 50V C433 1-164-156-11 CERAMIC CHIP 0.1uF 25V C501 1-126-964-11 ELECT 10uF 20% 50V C502 1-130-495-00 MYLAR 0.1uF 5% 50V C503 1-130-495-00 MYLAR 0.1uF 5% 50V < CONNECTOR > CN101 1-568-838-11 CONNECTOR, FFC 21P CN102 1-785-316-11 PIN, CONNECTOR (STRAIGHT) 4P CN201 1-785-317-11 PIN, CONNECTOR (STRAIGHT) 5P CN202 1-568-864-11 CONNECTOR, FFC 21P CN211 1-568-830-11 CONNECTOR, FFC 11P CN221 1-784-780-11 CONNECTOR, FFC 19P CN301 1-564-505-11 PLUG, CONNECTOR 2P CN401 1-785-315-11 PIN, CONNECTOR (STRAIGHT) 3P CN402 1-784-780-11 CONNECTOR, FFC 19P CN403 1-568-828-11 CONNECTOR, FFC 9P < DIODE > D301 6-500-522-21 DIODE 10EDB40-TB3 D302 8-719-988-61 DIODE 1SS355TE-17 D303 6-500-522-21 DIODE 10EDB40-TB3 D304 6-500-522-21 DIODE 10EDB40-TB3 D401 8-719-988-61 DIODE 1SS355TE-17 D402 8-719-988-61 DIODE 1SS355TE-17 D403 8-719-988-61 DIODE 1SS355TE-17 D404 8-719-988-61 DIODE 1SS355TE-17 D474 8-719-988-61 DIODE 1SS355TE-17 D475 8-719-988-61 DIODE 1SS355TE-17 D501 8-719-988-61 DIODE 1SS355TE-17 D502 8-719-988-61 DIODE 1SS355TE-17 D503 8-719-988-61 DIODE 1SS355TE-17 D504 8-719-988-61 DIODE 1SS355TE-17 < GROUND TERMINAL > * EP101 1-537-738-21 TERMINAL, EARTH * EP201 1-537-738-21 TERMINAL, EARTH < FERRITE BEAD/SHORT > FB101 1-414-772-11 FERRITE 0uH FB102 1-414-772-11 FERRITE 0uH FB103 1-414-772-11 FERRITE 0uH FB121 1-216-864-11 SHORT CHIP 0 FB122 1-216-864-11 SHORT CHIP 0 FB123 1-216-864-11 SHORT CHIP 0 FB201 1-414-772-11 FERRITE 0uH FB202 1-414-772-11 FERRITE 0uH FB203 1-414-772-11 FERRITE 0uH FB204 1-414-772-11 FERRITE 0uH FB205 1-216-864-11 SHORT CHIP 0 FB206 1-216-864-11 SHORT CHIP 0 < IC > IC101 8-759-669-03 IC LC75342 IC102 8-759-656-83 IC NJM4580MD-(TE2) IC201 8-759-598-69 IC BA6956AN IC202 8-749-019-25 IC TOTX141 (CD DIGITAL OUT OPTICAL) IC301 6-701-760-01 IC uPC3504AHF IC302 8-759-231-53 IC TA7805S MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 61 HCD-CPX1 IC303 8-759-071-48 IC TA7807S IC304 8-759-394-36 IC BA09T (US, CND) IC304 8-759-701-59 IC NJM78M09FA (SP, KR, AUS) IC401 6-802-524-01 IC M30622MGN-B08FP IC501 8-759-532-64 IC M62703SL-TP < JACK > J101 1-770-272-11 JACK, PIN 2P (MD (VIDEO) IN) < TRANSISTOR > Q101 8-729-107-43 TRANSISTOR 2SC3624-L18 Q121 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q122 8-729-900-53 TRANSISTOR DTC114EK Q151 8-729-107-43 TRANSISTOR 2SC3624-L18 Q180 8-729-107-43 TRANSISTOR 2SC3624-L18 Q181 8-729-107-43 TRANSISTOR 2SC3624-L18 Q182 8-729-107-43 TRANSISTOR 2SC3624-L18 Q183 8-729-107-43 TRANSISTOR 2SC3624-L18 Q184 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q185 8-729-900-53 TRANSISTOR DTC114EK Q201 8-729-107-43 TRANSISTOR 2SC3624-L18 Q202 8-729-107-43 TRANSISTOR 2SC3624-L18 Q203 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q204 8-729-900-53 TRANSISTOR DTC114EK Q301 8-729-049-79 TRANSISTOR RT1P137S-TP Q302 8-729-900-53 TRANSISTOR DTC114EK Q431 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q432 8-729-900-53 TRANSISTOR DTC114EK Q433 8-729-027-30 TRANSISTOR DTA123YKA-T146 Q434 8-729-900-53 TRANSISTOR DTC114EK Q501 8-729-119-78 TRANSISTOR 2SC2785-HFE < RESISTOR > R101 1-216-833-11 METAL CHIP 10K 5% 1/10W R102 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R103 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R104 1-216-821-11 METAL CHIP 1K 5% 1/10W R105 1-216-833-11 METAL CHIP 10K 5% 1/10W R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R121 1-216-821-11 METAL CHIP 1K 5% 1/10W R122 1-216-845-11 METAL CHIP 100K 5% 1/10W R123 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R124 1-216-837-11 METAL CHIP 22K 5% 1/10W R125 1-216-805-11 METAL CHIP 47 5% 1/10W R126 1-216-845-11 METAL CHIP 100K 5% 1/10W R131 1-216-809-11 METAL CHIP 100 5% 1/10W R132 1-216-809-11 METAL CHIP 100 5% 1/10W R133 1-216-809-11 METAL CHIP 100 5% 1/10W R151 1-216-833-11 METAL CHIP 10K 5% 1/10W R152 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R153 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R154 1-216-821-11 METAL CHIP 1K 5% 1/10W R155 1-216-833-11 METAL CHIP 10K 5% 1/10W R157 1-216-833-11 METAL CHIP 10K 5% 1/10W R171 1-216-821-11 METAL CHIP 1K 5% 1/10W R172 1-216-845-11 METAL CHIP 100K 5% 1/10W R173 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R174 1-216-837-11 METAL CHIP 22K 5% 1/10W R175 1-216-805-11 METAL CHIP 47 5% 1/10W R176 1-216-845-11 METAL CHIP 100K 5% 1/10W R180 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R181 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R182 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R183 1-216-833-11 METAL CHIP 10K 5% 1/10W R184 1-216-821-11 METAL CHIP 1K 5% 1/10W R185 1-216-821-11 METAL CHIP 1K 5% 1/10W R201 1-216-817-11 METAL CHIP 470 5% 1/10W R202 1-216-821-11 METAL CHIP 1K 5% 1/10W R210 1-216-809-11 METAL CHIP 100 5% 1/10W R221 1-216-833-11 METAL CHIP 10K 5% 1/10W R222 1-216-833-11 METAL CHIP 10K 5% 1/10W R251 1-216-821-11 METAL CHIP 1K 5% 1/10W R252 1-216-821-11 METAL CHIP 1K 5% 1/10W R253 1-216-845-11 METAL CHIP 100K 5% 1/10W R254 1-216-845-11 METAL CHIP 100K 5% 1/10W R401 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-809-11 METAL CHIP 100 5% 1/10W R404 1-216-809-11 METAL CHIP 100 5% 1/10W R405 1-216-809-11 METAL CHIP 100 5% 1/10W R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R409 1-216-833-11 METAL CHIP 10K 5% 1/10W R411 1-216-851-11 METAL CHIP 330K 5% 1/10W R413 1-216-864-11 SHORT CHIP 0 R417 1-216-833-11 METAL CHIP 10K 5% 1/10W R419 1-216-809-11 METAL CHIP 100 5% 1/10W R420 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R421 1-216-809-11 METAL CHIP 100 5% 1/10W R422 1-216-809-11 METAL CHIP 100 5% 1/10W R423 1-216-809-11 METAL CHIP 100 5% 1/10W R424 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R425 1-216-809-11 METAL CHIP 100 5% 1/10W R426 1-216-847-11 METAL CHIP 150K 5% 1/10W R427 1-216-809-11 METAL CHIP 100 5% 1/10W R428 1-216-843-11 METAL CHIP 68K 5% 1/10W R429 1-216-833-11 METAL CHIP 10K 5% 1/10W R430 1-216-833-11 METAL CHIP 10K 5% 1/10W R432 1-216-809-11 METAL CHIP 100 5% 1/10W R433 1-216-809-11 METAL CHIP 100 5% 1/10W R434 1-216-809-11 METAL CHIP 100 5% 1/10W R435 1-216-809-11 METAL CHIP 100 5% 1/10W R436 1-216-809-11 METAL CHIP 100 5% 1/10W R437 1-216-809-11 METAL CHIP 100 5% 1/10W R438 1-216-809-11 METAL CHIP 100 5% 1/10W R440 1-216-809-11 METAL CHIP 100 5% 1/10W R441 1-216-809-11 METAL CHIP 100 5% 1/10W R442 1-216-809-11 METAL CHIP 100 5% 1/10W R443 1-216-809-11 METAL CHIP 100 5% 1/10W R444 1-216-809-11 METAL CHIP 100 5% 1/10W R445 1-216-809-11 METAL CHIP 100 5% 1/10W R446 1-216-809-11 METAL CHIP 100 5% 1/10W R447 1-216-809-11 METAL CHIP 100 5% 1/10W R448 1-216-809-11 METAL CHIP 100 5% 1/10W R449 1-216-809-11 METAL CHIP 100 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 62 HCD-CPX1 R450 1-216-809-11 METAL CHIP 100 5% 1/10W R451 1-216-809-11 METAL CHIP 100 5% 1/10W R452 1-216-809-11 METAL CHIP 100 5% 1/10W R453 1-216-809-11 METAL CHIP 100 5% 1/10W R454 1-216-809-11 METAL CHIP 100 5% 1/10W R455 1-216-809-11 METAL CHIP 100 5% 1/10W R456 1-216-809-11 METAL CHIP 100 5% 1/10W R457 1-216-809-11 METAL CHIP 100 5% 1/10W R458 1-216-809-11 METAL CHIP 100 5% 1/10W R459 1-216-809-11 METAL CHIP 100 5% 1/10W R460 1-216-809-11 METAL CHIP 100 5% 1/10W R461 1-216-809-11 METAL CHIP 100 5% 1/10W R469 1-216-809-11 METAL CHIP 100 5% 1/10W R470 1-216-809-11 METAL CHIP 100 5% 1/10W R471 1-216-809-11 METAL CHIP 100 5% 1/10W R472 1-216-809-11 METAL CHIP 100 5% 1/10W R473 1-216-809-11 METAL CHIP 100 5% 1/10W R474 1-216-857-11 METAL CHIP 1M 5% 1/10W R476 1-216-809-11 METAL CHIP 100 5% 1/10W R477 1-216-809-11 METAL CHIP 100 5% 1/10W R479 1-216-809-11 METAL CHIP 100 5% 1/10W R480 1-216-809-11 METAL CHIP 100 5% 1/10W R482 1-216-809-11 METAL CHIP 100 5% 1/10W R483 1-216-809-11 METAL CHIP 100 5% 1/10W R484 1-216-809-11 METAL CHIP 100 5% 1/10W R489 1-216-809-11 METAL CHIP 100 5% 1/10W R490 1-216-809-11 METAL CHIP 100 5% 1/10W R491 1-216-809-11 METAL CHIP 100 5% 1/10W R494 1-216-797-11 METAL CHIP 10 5% 1/10W R495 1-216-797-11 METAL CHIP 10 5% 1/10W R497 1-216-797-11 METAL CHIP 10 5% 1/10W R500 1-216-809-11 METAL CHIP 100 5% 1/10W R501 1-216-813-11 METAL CHIP 220 5% 1/10W R502 1-216-833-11 METAL CHIP 10K 5% 1/10W R503 1-216-841-11 METAL CHIP 47K 5% 1/10W R504 1-216-841-11 METAL CHIP 47K 5% 1/10W R505 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R506 1-216-833-11 METAL CHIP 10K 5% 1/10W R541 1-216-864-11 SHORT CHIP 0 R543 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (US, CND) R543 1-216-864-11 SHORT CHIP 0 (SP, KR, AUS) R544 1-216-825-11 METAL CHIP 2.2K 5% 1/10W (US, CND) R551 1-216-864-11 SHORT CHIP 0 R552 1-216-864-11 SHORT CHIP 0 R553 1-216-833-11 METAL CHIP 10K 5% 1/10W R554 1-216-833-11 METAL CHIP 10K 5% 1/10W R555 1-216-833-11 METAL CHIP 10K 5% 1/10W R556 1-216-833-11 METAL CHIP 10K 5% 1/10W R557 1-216-833-11 METAL CHIP 10K 5% 1/10W R558 1-216-833-11 METAL CHIP 10K 5% 1/10W R559 1-216-833-11 METAL CHIP 10K 5% 1/10W R560 1-216-833-11 METAL CHIP 10K 5% 1/10W R561 1-216-833-11 METAL CHIP 10K 5% 1/10W R562 1-216-833-11 METAL CHIP 10K 5% 1/10W R563 1-216-833-11 METAL CHIP 10K 5% 1/10W R564 1-216-833-11 METAL CHIP 10K 5% 1/10W R565 1-216-833-11 METAL CHIP 10K 5% 1/10W R566 1-216-833-11 METAL CHIP 10K 5% 1/10W R567 1-216-833-11 METAL CHIP 10K 5% 1/10W < VIBRATOR > X401 1-781-107-21 VIBRATOR, CERAMIC (16MHz) X402 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) ************************************************************** SP OUT BOARD ************* < CAPACITOR > C701 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C702 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C703 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C704 1-164-315-11 CERAMIC CHIP 470PF 5% 50V < CONNECTOR > CN701 1-564-505-21 PLUG, CONNECTOR 2P CN711 1-564-505-11 PLUG, CONNECTOR 2P < SHORT > FB706 1-216-296-11 SHORT CHIP 0 FB707 1-216-296-11 SHORT CHIP 0 FB708 1-216-296-11 SHORT CHIP 0 FB709 1-216-296-11 SHORT CHIP 0 < TERMINAL > J701 1-537-114-21 TERMINAL BOARD (SPEAKER) ************************************************************** 1-686-794-11 SUB POWER BOARD ***************** < CAPACITOR > 0C991 1-113-925-11 CERAMIC 0.01uF 20% 250V (SP, KR, AUS) 0C992 1-113-925-11 CERAMIC 0.01uF 20% 250V C993 1-126-768-11 ELECT 2200uF 20% 16V C994 1-104-665-11 ELECT 100uF 20% 10V < CONNECTOR > CN990 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P < DIODE > D990 8-719-988-61 DIODE 1SS355TE-17 (SP, KR, AUS) D991 8-719-988-61 DIODE 1SS355TE-17 D992 6-500-522-21 DIODE 10EDB40-TB3 D993 6-500-522-21 DIODE 10EDB40-TB3 D994 6-500-522-21 DIODE 10EDB40-TB3 D995 6-500-522-21 DIODE 10EDB40-TB3 < IC > IC991 6-703-627-01 IC NJU7201L40 (T3) MAIN SP OUT SUB POWER The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 63 HCD-CPX1 < TRANSISTOR > Q990 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 (SP, KR, AUS) Q991 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 < RESISTOR > R991 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R992 1-216-845-11 METAL CHIP 100K 5% 1/10W R993 1-216-829-11 METAL CHIP 4.7K 5% 1/10W (SP, KR, AUS) R994 1-216-845-11 METAL CHIP 100K 5% 1/10W (SP, KR, AUS) < RELAY > 0RY990 1-755-467-11 RELAY (POWER) (SP, KR, AUS) 0RY991 1-755-467-11 RELAY (POWER) < TRANSFORMER > 0T991 1-437-675-11 TRANSFORMER, POWER (US, CND) 0T991 1-437-677-11 TRANSFORMER, POWER (SP, KR, AUS) ************************************************************** A-4731-306-A SWITCH BOARD, COMPLETE *********************** < CAPACITOR > C807 1-162-974-11 CERAMIC CHIP 0.01uF 50V C808 1-162-974-11 CERAMIC CHIP 0.01uF 50V C809 1-162-974-11 CERAMIC CHIP 0.01uF 50V C810 1-162-974-11 CERAMIC CHIP 0.01uF 50V C811 1-126-947-11 ELECT 47uF 20% 10V C812 1-162-974-11 CERAMIC CHIP 0.01uF 50V C813 1-162-974-11 CERAMIC CHIP 0.01uF 50V C814 1-162-974-11 CERAMIC CHIP 0.01uF 50V C815 1-162-974-11 CERAMIC CHIP 0.01uF 50V C816 1-162-974-11 CERAMIC CHIP 0.01uF 50V < CONNECTOR > CN801 1-784-780-11 CONNECTOR, FFC 19P < LED > D801 8-719-812-44 LED TL0124 (STANDBY) D802 8-719-046-36 LED SEL5921A-TP15 (DSG) D803 8-719-046-36 LED SEL5921A-TP15 (CD NX) D804 8-719-046-36 LED SEL5921A-TP15 (TUNER BAND) D805 8-719-046-36 LED SEL5921A-TP15 (TAPE nN) < IC > IC801 8-759-826-34 IC NJL74H400A (REMOTE CONTROL RECEIVER) < TRANSISTOR > Q801 8-729-900-53 TRANSISTOR DTC114EK Q802 8-729-900-53 TRANSISTOR DTC114EK Q803 8-729-900-53 TRANSISTOR DTC114EK Q804 8-729-900-53 TRANSISTOR DTC114EK Q805 8-729-900-53 TRANSISTOR DTC114EK < RESISTOR > R812 1-216-821-11 METAL CHIP 1K 5% 1/10W R813 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R814 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R815 1-216-821-11 METAL CHIP 1K 5% 1/10W R816 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R817 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R818 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R819 1-216-833-11 METAL CHIP 10K 5% 1/10W R820 1-216-821-11 METAL CHIP 1K 5% 1/10W R821 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R822 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R823 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R824 1-216-833-11 METAL CHIP 10K 5% 1/10W R825 1-216-837-11 METAL CHIP 22K 5% 1/10W R831 1-216-817-11 METAL CHIP 470 5% 1/10W R832 1-216-817-11 METAL CHIP 470 5% 1/10W R833 1-216-817-11 METAL CHIP 470 5% 1/10W R834 1-216-817-11 METAL CHIP 470 5% 1/10W R835 1-216-817-11 METAL CHIP 470 5% 1/10W R851 1-216-809-11 METAL CHIP 100 5% 1/10W R852 1-216-809-11 METAL CHIP 100 5% 1/10W R853 1-216-809-11 METAL CHIP 100 5% 1/10W R854 1-216-809-11 METAL CHIP 100 5% 1/10W R855 1-216-809-11 METAL CHIP 100 5% 1/10W < ROTARY ENCODER > RV801 1-476-730-11 ENCODER, ROTARY (VOLUME) RV802 1-418-859-21 ENCODER, ROTARY (TREBLE) RV803 1-418-859-21 ENCODER, ROTARY (BASS) < SWITCH > S801 1-762-875-21 SWITCH, TACTILE (I/1) S802 1-762-875-21 SWITCH, TACTILE (DSG) S803 1-762-875-21 SWITCH, TACTILE (TUNING +, M L) S804 1-762-875-21 SWITCH, TACTILE (Z (CD)) S805 1-762-875-21 SWITCH, TACTILE (CD NX) S806 1-762-875-21 SWITCH, TACTILE (x (CD)) S807 1-762-875-21 SWITCH, TACTILE (TUNING –, l m) S808 1-762-875-21 SWITCH, TACTILE (REPEAT, FM MODE) S809 1-762-875-21 SWITCH, TACTILE (PLAY MODE/DIRECTION, TUNING MODE) S810 1-762-875-21 SWITCH, TACTILE (FUNCTION) S811 1-762-875-21 SWITCH, TACTILE (DISPLAY) S812 1-762-875-21 SWITCH, TACTILE (CD SYNCHRO) S813 1-762-875-21 SWITCH, TACTILE (TUNER BAND) S814 1-762-875-21 SWITCH, TACTILE (z REC) S815 1-762-875-21 SWITCH, TACTILE (X) S816 1-762-875-21 SWITCH, TACTILE (x (TAPE)) S817 1-762-875-21 SWITCH, TACTILE (TAPE nN) ************************************************************** A-4731-316-A TC BOARD, COMPLETE ******************* < CAPACITOR > C601 1-126-947-11 ELECT 47uF 20% 16V C602 1-130-483-00 MYLAR 0.01uF 5% 50V SUB POWER SWITCH TC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 64 HCD-CPX1 C604 1-130-495-00 MYLAR 0.1uF 5% 50V C605 1-126-964-11 ELECT 10uF 20% 50V C606 1-126-960-11 ELECT 1uF 20% 50V C607 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C608 1-126-961-11 ELECT 2.2uF 20% 50V C610 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C611 1-162-928-11 CERAMIC CHIP 120PF 5% 50V C612 1-162-946-11 CERAMIC CHIP 27PF 5% 50V C613 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C614 1-130-483-00 MYLAR 0.01uF 5% 50V C630 1-126-933-11 ELECT 100uF 20% 16V C632 1-126-964-11 ELECT 10uF 20% 50V C633 1-126-964-11 ELECT 10uF 20% 50V C634 1-126-964-11 ELECT 10uF 20% 50V C635 1-126-960-11 ELECT 1uF 20% 50V C639 1-126-964-11 ELECT 10uF 20% 50V C640 1-126-947-11 ELECT 47uF 20% 16V C641 1-126-961-11 ELECT 2.2uF 20% 50V C642 1-137-150-11 MYLAR 0.01uF 5% 100V C643 1-130-485-00 MYLAR 0.015uF 5% 50V C644 1-130-481-00 MYLAR 0.0068uF 5% 50V C645 1-130-481-00 MYLAR 0.0068uF 5% 50V C646 1-130-486-00 MYLAR 0.018uF 10% 50V C647 1-126-964-11 ELECT 10uF 20% 50V C651 1-126-947-11 ELECT 47uF 20% 16V C652 1-130-483-00 MYLAR 0.01uF 5% 50V C654 1-130-495-00 MYLAR 0.1uF 5% 50V C655 1-126-964-11 ELECT 10uF 20% 50V C656 1-126-960-11 ELECT 1uF 20% 50V C657 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C658 1-126-961-11 ELECT 2.2uF 20% 50V C660 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C661 1-162-928-11 CERAMIC CHIP 120PF 5% 50V C662 1-162-946-11 CERAMIC CHIP 27PF 5% 50V C663 1-164-392-11 CERAMIC CHIP 390PF 10% 50V C664 1-130-483-00 MYLAR 0.01uF 5% 50V C681 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V < CONNECTOR > CN602 1-770-516-31 CONNECTOR, FFC 8P CN603 1-784-780-11 CONNECTOR, FFC 19P < DIODE > D681 8-719-988-61 DIODE 1SS355TE-17 < IC > IC601 6-701-655-01 IC HA12236F IC602 8-759-508-69 IC BA3126N < SHORT > JR602 1-216-296-11 SHORT CHIP 0 JW630 1-216-864-11 SHORT CHIP 0 < COIL > L601 1-410-780-11 INDUCTOR 27mH L651 1-410-780-11 INDUCTOR 27mH < TRANSISTOR > Q639 8-729-119-77 TRANSISTOR 2SA1175-FEK Q640 8-729-029-66 TRANSISTOR DTC114ESA Q641 8-729-801-93 TRANSISTOR 2SD1387 Q642 8-729-142-46 TRANSISTOR 2SC2001-LK Q643 8-729-142-46 TRANSISTOR 2SC2001-LK Q680 8-729-029-66 TRANSISTOR DTC114ESA Q681 8-729-029-40 TRANSISTOR DTA124ESA Q691 8-729-900-53 TRANSISTOR DTC114EK Q692 8-729-900-53 TRANSISTOR DTC114EK Q693 8-729-140-04 TRANSISTOR 2SB1116A-L Q694 8-729-116-57 TRANSISTOR 2SB1068-K < RESISTOR > R601 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R602 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R603 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R604 1-216-833-11 METAL CHIP 10K 5% 1/10W R605 1-216-841-11 METAL CHIP 47K 5% 1/10W R606 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R607 1-216-833-11 METAL CHIP 10K 5% 1/10W R609 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R610 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R611 1-216-837-11 METAL CHIP 22K 5% 1/10W R630 1-216-857-11 METAL CHIP 1M 5% 1/10W R631 1-216-837-11 METAL CHIP 22K 5% 1/10W R632 1-216-821-11 METAL CHIP 1K 5% 1/10W R633 1-216-833-11 METAL CHIP 10K 5% 1/10W R635 1-216-809-11 METAL CHIP 100 5% 1/10W R640 1-216-833-11 METAL CHIP 10K 5% 1/10W R641 1-218-867-11 METAL CHIP 6.8K 5% 1/10W R642 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R643 1-219-787-17 FUSIBLE 5.6 5% 1/4W F 0R644 1-219-787-17 FUSIBLE 5.6 5% 1/4W F R645 1-216-836-11 METAL CHIP 18K 5% 1/10W R646 1-216-836-11 METAL CHIP 18K 5% 1/10W R647 1-216-837-11 METAL CHIP 22K 5% 1/10W R648 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R651 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R652 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R653 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R654 1-216-833-11 METAL CHIP 10K 5% 1/10W R655 1-216-841-11 METAL CHIP 47K 5% 1/10W R656 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R657 1-216-833-11 METAL CHIP 10K 5% 1/10W R659 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R660 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R661 1-216-837-11 METAL CHIP 22K 5% 1/10W R680 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R681 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R682 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R683 1-216-819-11 METAL CHIP 680 5% 1/10W R684 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R685 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R686 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R687 1-216-841-11 METAL CHIP 47K 5% 1/10W R688 1-216-829-11 METAL CHIP 4.7K 5% 1/10W TC The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 65 HCD-CPX1 R689 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R690 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R691 1-216-833-11 METAL CHIP 10K 5% 1/10W R692 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R693 1-216-841-11 METAL CHIP 47K 5% 1/10W R694 1-216-837-11 METAL CHIP 22K 5% 1/10W R695 1-216-833-11 METAL CHIP 10K 5% 1/10W < VARIABLE RESISTOR > RV602 1-241-765-11 RES, ADJ, CARBON 22K RV603 1-241-768-11 RES, ADJ, CARBON 220K RV652 1-241-765-11 RES, ADJ, CARBON 22K RV653 1-241-768-11 RES, ADJ, CARBON 220K < TRANSFORMER > T601 1-423-980-11 TRANSFORMER, BIAS OSCILLATION ************************************************************** MISCELLANEOUS ************** 52 1-796-456-31 DECK, MECHANICAL 54 1-824-192-11 WIRE (FLAT TYPE) (8 CORE) 55 1-773-110-11 WIRE (FLAT TYPE) (19 CORE) 105 1-776-183-11 WIRE (FLAT TYPE) (19 CORE) 155 1-769-916-11 WIRE (FLAT TYPE) (9 CORE) 253 1-824-930-11 WIRE (FLAT TYPE) (21 CORE) 0255 1-769-079-22 CORD, POWER (KR) 0255 1-777-071-83 CORD, POWER (SP) 0255 1-783-203-12 CORD, POWER (AUS) 0255 1-783-531-31 CORD, POWER (US, CND) 256 1-693-603-31 TUNER UNIT (SP, AUS) 256 1-693-605-11 TUNER UNIT (KR) 256 1-693-623-31 TUNER UNIT (US, CND) 257 1-769-937-11 WIRE (FLAT TYPE) (11 CORE) 0302 1-468-729-11 REGULATOR, SWITCHING (US, CND) 0302 1-468-730-11 REGULATOR, SWITCHING (SP, KR, AUS) 304 1-500-484-21 CLAMP, SLEEVE FERRITE 305 1-773-152-11 WIRE (FLAT TYPE) (21 CORE) 513 A-4735-082-A MAGNET ASSY 0557 8-820-020-11 OPTICAL PICK-UP KSS-213D/Z-RP 558 1-792-024-11 WIRE (FLAT TYPE) (16 CORE) M101 X-2161-802-1 CHASSIS ASSY (DCP), T.T (SPINDLE) M102 X-2625-769-1 GEAR ASSY (MB) (RP), MOTOR (SLED) M201 A-4735-337-A MOTOR (LD) ASSY (LOADING) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part num- ber specified. Les composants identifiés par une marque 0 sont critiques pour la sécurité. Ne les remplacer que par une pièce portant le numéro spécifié. TC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX1 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2003.04 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
