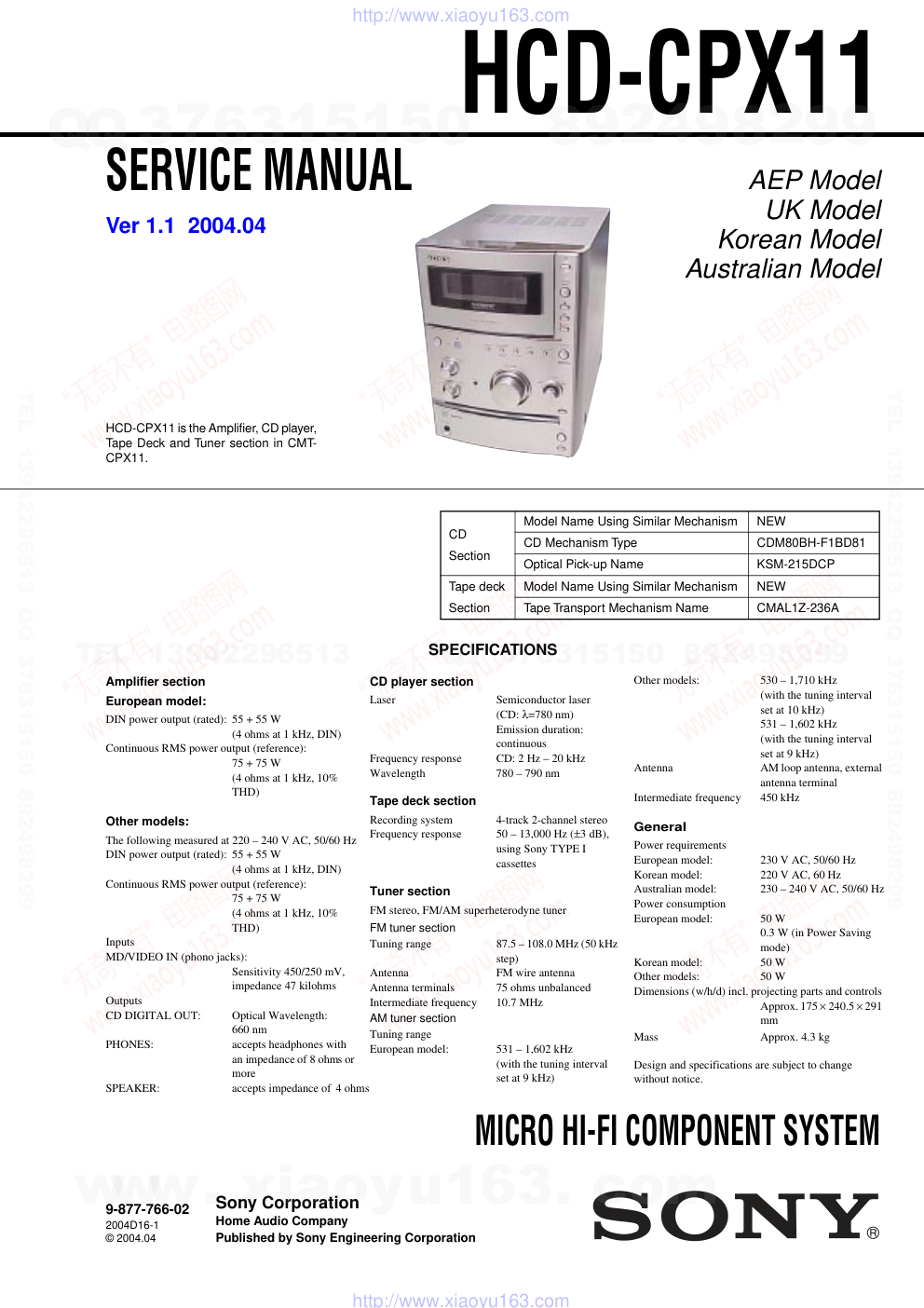

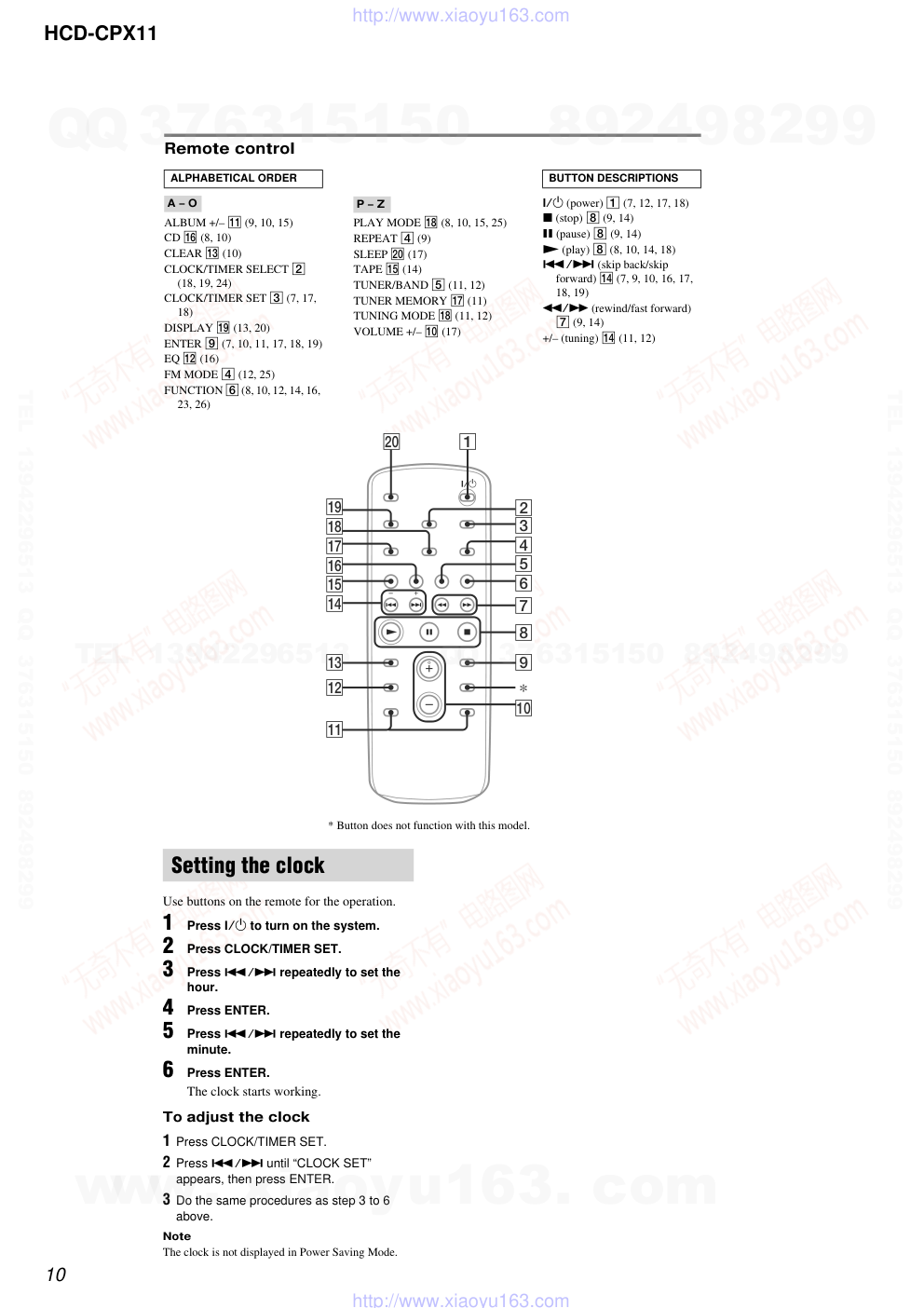

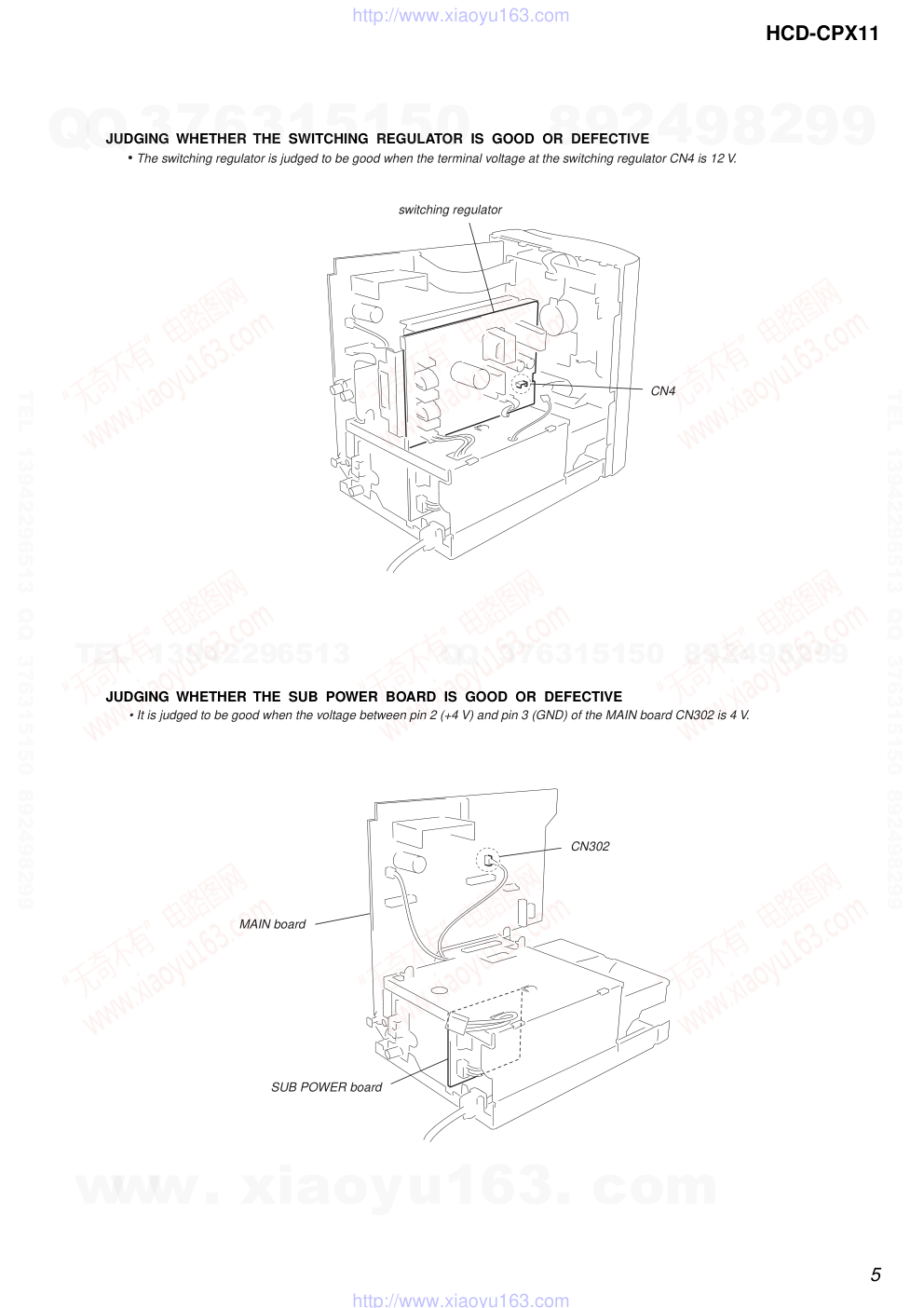

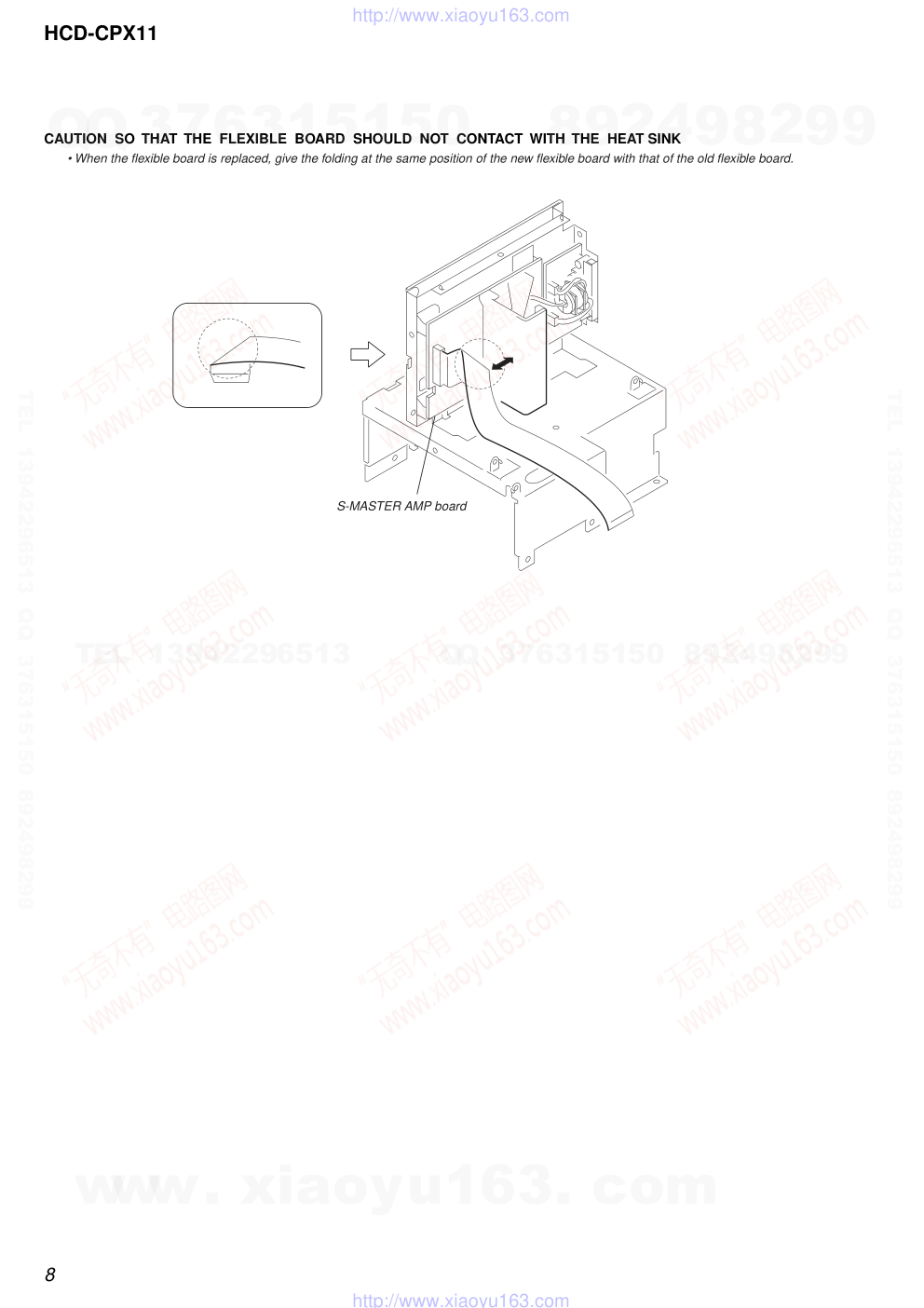

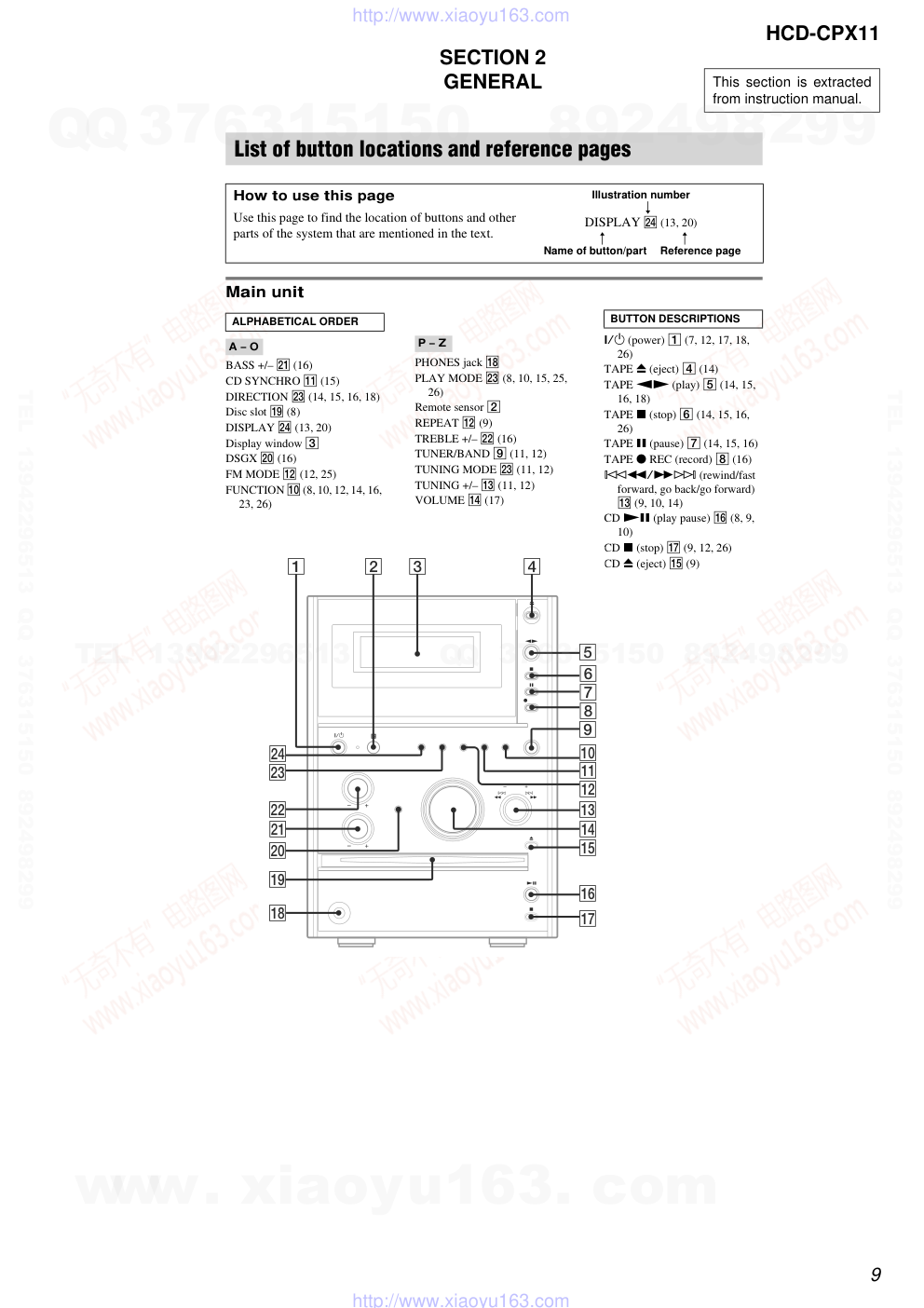

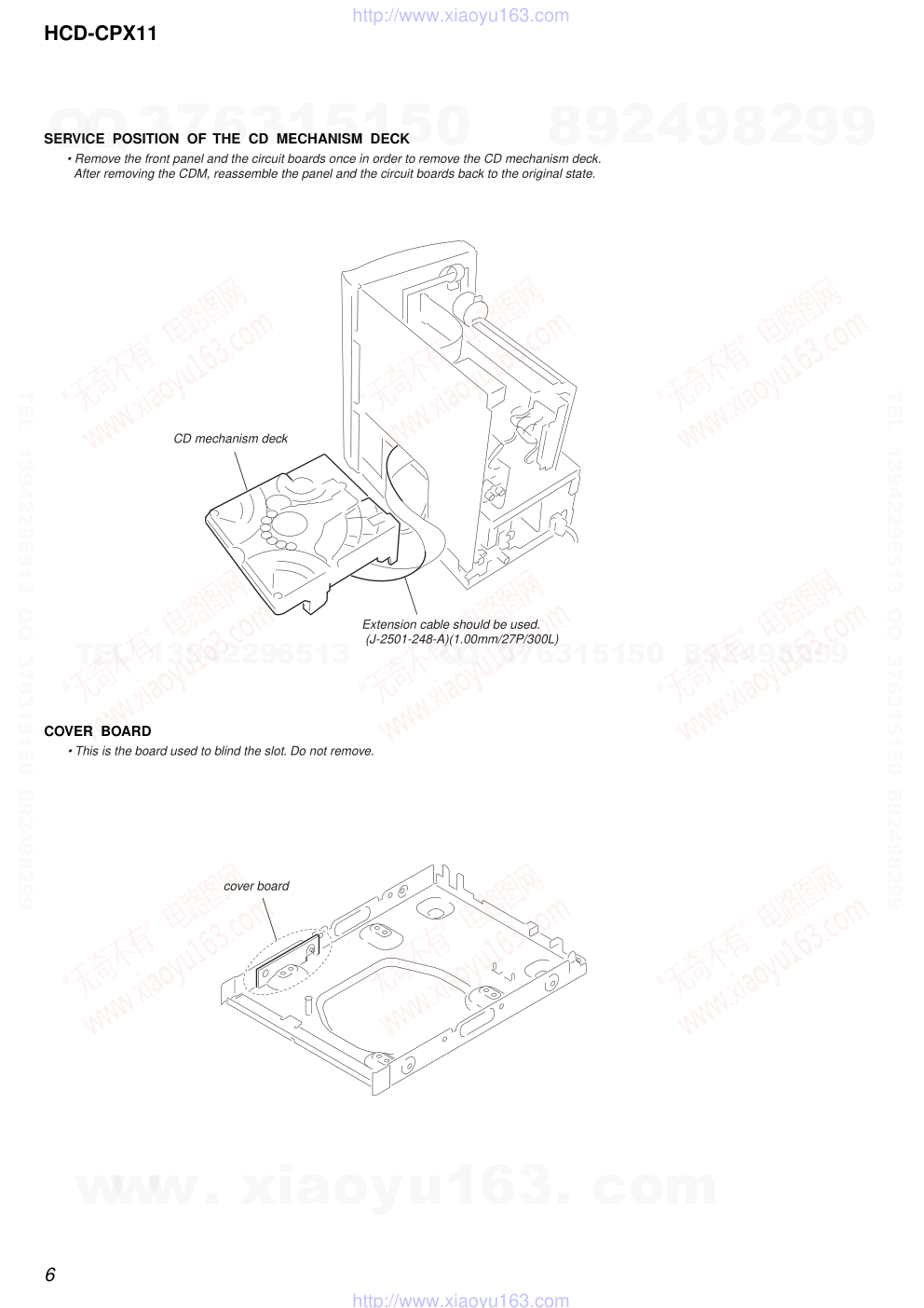

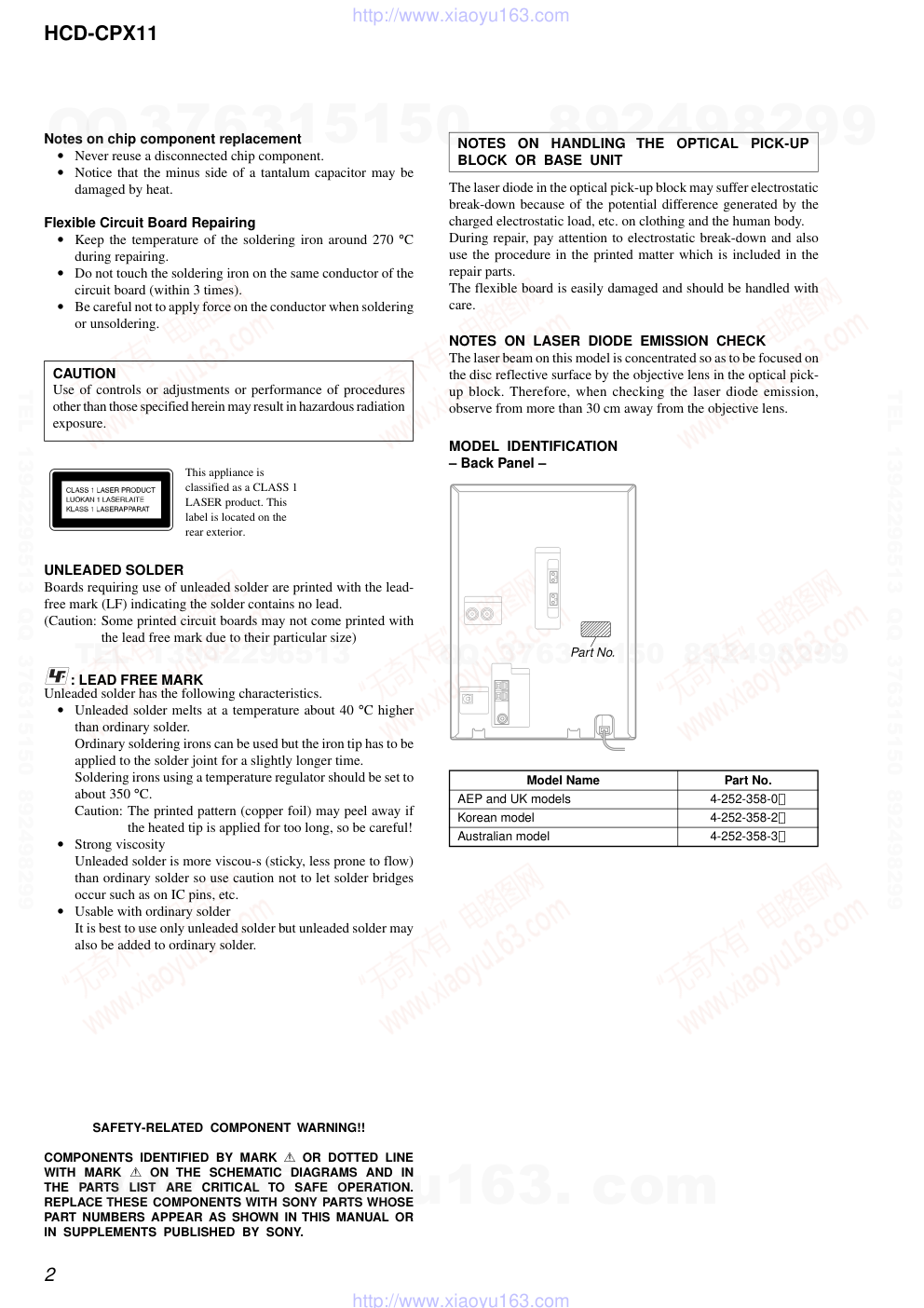

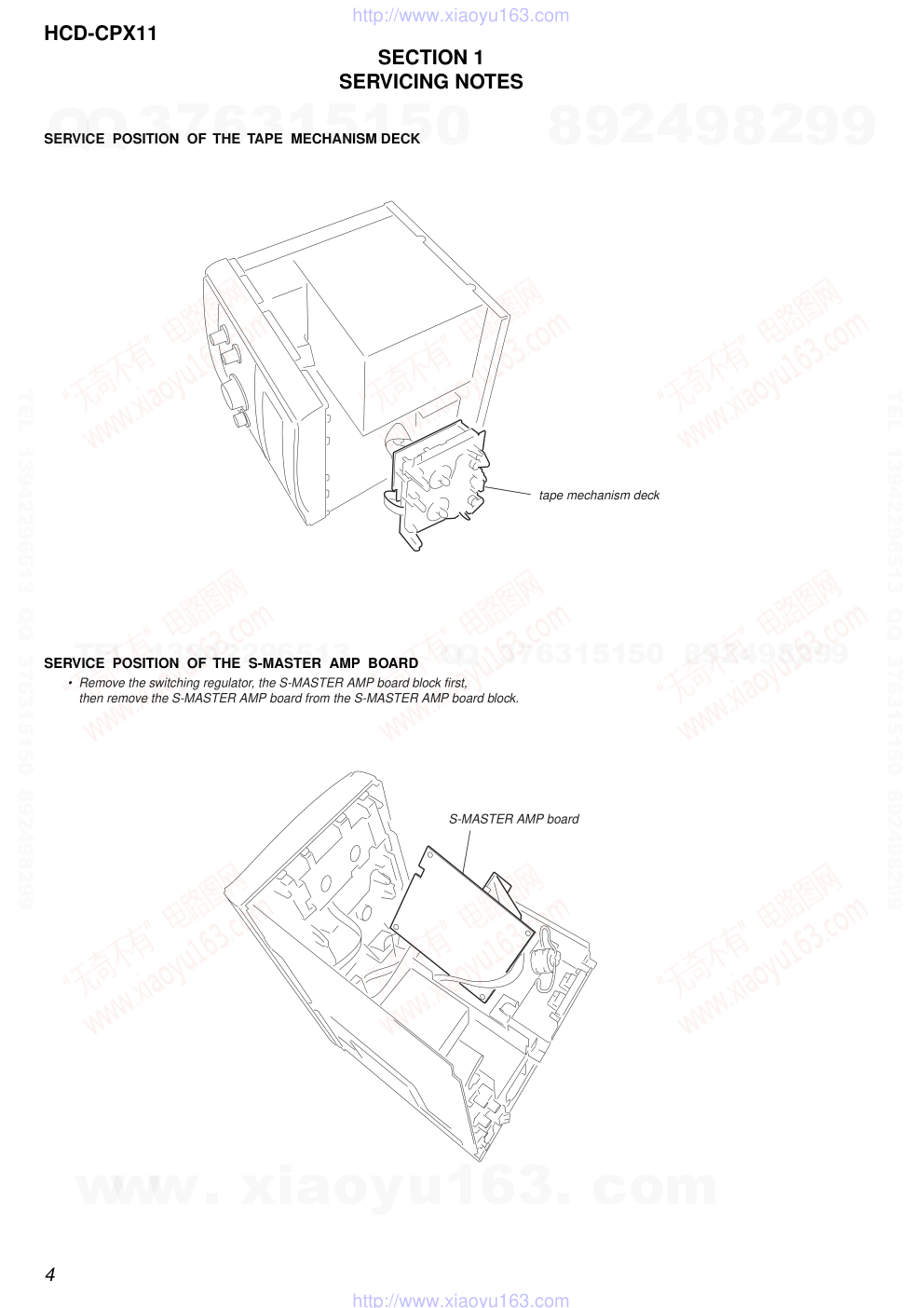

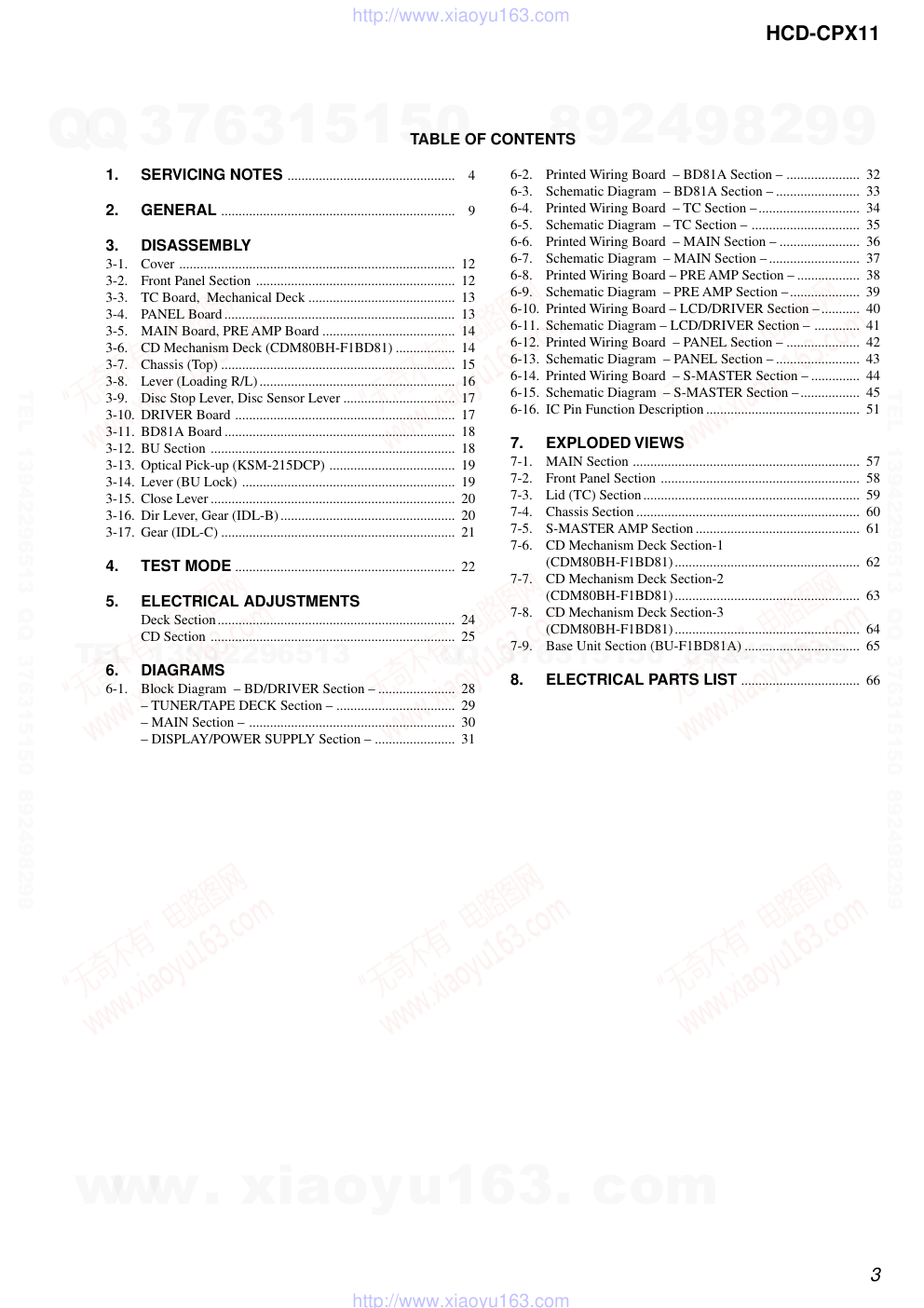

SERVICE MANUAL Sony Corporation Home Audio Company Published by Sony Engineering Corporation AEP Model UK Model Korean Model Australian Model MICRO HI-FI COMPONENT SYSTEM 9-877-766-02 2004D16-1 © 2004.04 Ver 1.1 2004.04 SPECIFICATIONS HCD-CPX11 Model Name Using Similar Mechanism NEW CD CD Mechanism Type CDM80BH-F1BD81 Section Optical Pick-up Name KSM-215DCP Tape deck Model Name Using Similar Mechanism NEW Section Tape Transport Mechanism Name CMAL1Z-236A Tape deck section Recording system 4-track 2-channel stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz (50 kHz step) Antenna FM wire antenna Antenna terminals 75 ohms unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range European model: 531 – 1,602 kHz (with the tuning interval set at 9 kHz) European model: DIN power output (rated): 55 + 55 W (4 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 75 + 75 W (4 ohms at 1 kHz, 10% THD) Other models: The following measured at 220 – 240 V AC, 50/60 Hz DIN power output (rated): 55 + 55 W (4 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 75 + 75 W (4 ohms at 1 kHz, 10% THD) Inputs MD/VIDEO IN (phono jacks): Sensitivity 450/250 mV, impedance 47 kilohms Outputs CD DIGITAL OUT: Optical Wavelength: 660 nm PHONES: accepts headphones with an impedance of 8 ohms or more SPEAKER: accepts impedance of 4 ohms CD p Amplifier section layer section Laser Semiconductor laser (CD: λ=780 nm) Emission duration: continuous Frequency response CD: 2 Hz – 20 kHz Wavelength 780 – 790 nm Other models: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Antenna AM loop antenna, external antenna terminal Intermediate frequency 450 kHz General Power requirements European model: 230 V AC, 50/60 Hz Korean model: 220 V AC, 60 Hz Australian model: 230 – 240 V AC, 50/60 Hz Power consumption European model: 50 W 0.3 W (in Power Saving mode) Korean model: 50 W Other models: 50 W Dimensions (w/h/d) incl. projecting parts and controls Approx. 175 × 240.5 × 291 mm Mass Approx. 4.3 kg Design and specifications are subject to change without notice. HCD-CPX11 is the Amplifier, CD player, Tape Deck and Tuner section in CMT- CPX11. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-CPX11 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 °C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. This appliance is classified as a CLASS 1 LASER product. This label is located on the rear exterior. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. Part No. MODEL IDENTIFICATION – Back Panel – Model Name Part No. AEP and UK models 4-252-358-0[] Korean model 4-252-358-2[] Australian model 4-252-358-3[] www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-CPX11 TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 4 2. GENERAL ................................................................... 9 3. DISASSEMBLY 3-1. Cover ............................................................................... 12 3-2. Front Panel Section ......................................................... 12 3-3. TC Board, Mechanical Deck .......................................... 13 3-4. PANEL Board .................................................................. 13 3-5. MAIN Board, PRE AMP Board ...................................... 14 3-6. CD Mechanism Deck (CDM80BH-F1BD81) ................. 14 3-7. Chassis (Top) ................................................................... 15 3-8. Lever (Loading R/L)........................................................ 16 3-9. Disc Stop Lever, Disc Sensor Lever ................................ 17 3-10. DRIVER Board ............................................................... 17 3-11. BD81A Board .................................................................. 18 3-12. BU Section ...................................................................... 18 3-13. Optical Pick-up (KSM-215DCP) .................................... 19 3-14. Lever (BU Lock) ............................................................. 19 3-15. Close Lever ...................................................................... 20 3-16. Dir Lever, Gear (IDL-B).................................................. 20 3-17. Gear (IDL-C) ................................................................... 21 4. TEST MODE ............................................................... 22 5. ELECTRICAL ADJUSTMENTS Deck Section.................................................................... 24 CD Section ...................................................................... 25 6. DIAGRAMS 6-1. Block Diagram – BD/DRIVER Section – ...................... 28 – TUNER/TAPE DECK Section – .................................. 29 – MAIN Section – ........................................................... 30 – DISPLAY/POWER SUPPLY Section – ....................... 31 6-2. Printed Wiring Board – BD81A Section – ..................... 32 6-3. Schematic Diagram – BD81A Section – ........................ 33 6-4. Printed Wiring Board – TC Section –............................. 34 6-5. Schematic Diagram – TC Section – ............................... 35 6-6. Printed Wiring Board – MAIN Section – ....................... 36 6-7. Schematic Diagram – MAIN Section –.......................... 37 6-8. Printed Wiring Board – PRE AMP Section – .................. 38 6-9. Schematic Diagram – PRE AMP Section –.................... 39 6-10. Printed Wiring Board – LCD/DRIVER Section –........... 40 6-11. Schematic Diagram – LCD/DRIVER Section – ............. 41 6-12. Printed Wiring Board – PANEL Section – ..................... 42 6-13. Schematic Diagram – PANEL Section – ........................ 43 6-14. Printed Wiring Board – S-MASTER Section – .............. 44 6-15. Schematic Diagram – S-MASTER Section –................. 45 6-16. IC Pin Function Description ............................................ 51 7. EXPLODED VIEWS 7-1. MAIN Section ................................................................. 57 7-2. Front Panel Section ......................................................... 58 7-3. Lid (TC) Section.............................................................. 59 7-4. Chassis Section ................................................................ 60 7-5. S-MASTER AMP Section ............................................... 61 7-6. CD Mechanism Deck Section-1 (CDM80BH-F1BD81)..................................................... 62 7-7. CD Mechanism Deck Section-2 (CDM80BH-F1BD81)..................................................... 63 7-8. CD Mechanism Deck Section-3 (CDM80BH-F1BD81)..................................................... 64 7-9. Base Unit Section (BU-F1BD81A) ................................. 65 8. ELECTRICAL PARTS LIST .................................. 66 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-CPX11 SECTION 1 SERVICING NOTES SERVICE POSITION OF THE TAPE MECHANISM DECK tape mechanism deck SERVICE POSITION OF THE S-MASTER AMP BOARD S-MASTER AMP board • Remove the switching regulator, the S-MASTER AMP board block first, then remove the S-MASTER AMP board from the S-MASTER AMP board block. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-CPX11 JUDGING WHETHER THE SWITCHING REGULATOR IS GOOD OR DEFECTIVE JUDGING WHETHER THE SUB POWER BOARD IS GOOD OR DEFECTIVE switching regulator CN4 • The switching regulator is judged to be good when the terminal voltage at the switching regulator CN4 is 12 V. SUB POWER board MAIN board CN302 • It is judged to be good when the voltage between pin 2 (+4 V) and pin 3 (GND) of the MAIN board CN302 is 4 V. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-CPX11 SERVICE POSITION OF THE CD MECHANISM DECK CD mechanism deck • Remove the front panel and the circuit boards once in order to remove the CD mechanism deck. After removing the CDM, reassemble the panel and the circuit boards back to the original state. Extension cable should be used. (J-2501-248-A)(1.00mm/27P/300L) COVER BOARD cover board • This is the board used to blind the slot. Do not remove. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-CPX11 FIXING THE TC CABLES PREVENTING THE SUB POWER CABLES FROM SAGGING DOWN • To prevent cables from noise, fix the cables with the lead pin so that the cables do not contact with the flexible board. lead pin TC board NG • Be careful not to contact with the CD mechanism deck. SUB POWER board SUB POWER cable www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-CPX11 CAUTION SO THAT THE FLEXIBLE BOARD SHOULD NOT CONTACT WITH THE HEAT SINK • When the flexible board is replaced, give the folding at the same position of the new flexible board with that of the old flexible board. S-MASTER AMP board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-CPX11 SECTION 2 GENERAL This section is extracted from instruction manual. Main unit BASS +/– wa (16) CD SYNCHRO qa (15) DIRECTION wd (14, 15, 16, 18) Disc slot ql (8) DISPLAY wf (13, 20) Display window 3 DSGX w; (16) FM MODE qs (12, 25) FUNCTION 0 (8, 10, 12, 14, 16, 23, 26) PHONES jack qk PLAY MODE wd (8, 10, 15, 25, 26) Remote sensor 2 REPEAT qs (9) TREBLE +/– ws (16) TUNER/BAND 9 (11, 12) TUNING MODE wd (11, 12) TUNING +/– qd (11, 12) VOLUME qf (17) ?/1 (power) 1 (7, 12, 17, 18, 26) TAPE Z (eject) 4 (14) TAPE nN (play) 5 (14, 15, 16, 18) TAPE x (stop) 6 (14, 15, 16, 26) TAPE X (pause) 7 (14, 15, 16) TAPE z REC (record) 8 (16) lm/ML (rewind/fast forward, go back/go forward) qd (9, 10, 14) CD NX (play pause) qh (8, 9, 10) CD x (stop) qj (9, 12, 26) CD Z (eject) qg (9) List of button locations and reference pages How to use this page Use this page to find the location of buttons and other parts of the system that are mentioned in the text. Illustration number r DISPLAY wf (13, 20) R R Name of button/part Reference page ALPHABETICAL ORDER A – O P – Z BUTTON DESCRIPTIONS 1 qa qs 0 5 6 7 8 9 qg qd qh qj 2 3 4 qf w; ql qk wa ws wd wf www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-CPX11 Remote control ALBUM +/– qa (9, 10, 15) CD qh (8, 10) CLEAR qd (10) CLOCK/TIMER SELECT 2 (18, 19, 24) CLOCK/TIMER SET 3 (7, 17, 18) DISPLAY ql (13, 20) ENTER 9 (7, 10, 11, 17, 18, 19) EQ qs (16) FM MODE 4 (12, 25) FUNCTION 6 (8, 10, 12, 14, 16, 23, 26) PLAY MODE qk (8, 10, 15, 25) REPEAT 4 (9) SLEEP w; (17) TAPE qg (14) TUNER/BAND 5 (11, 12) TUNER MEMORY qj (11) TUNING MODE qk (11, 12) VOLUME +/– 0 (17) ?/1 (power) 1 (7, 12, 17, 18) x (stop) 8 (9, 14) X (pause) 8 (9, 14) N (play) 8 (8, 10, 14, 18) ./> (skip back/skip forward) qf (7, 9, 10, 16, 17, 18, 19) m/M (rewind/fast forward) 7 (9, 14) +/– (tuning) qf (11, 12) ALPHABETICAL ORDER A – O P – Z BUTTON DESCRIPTIONS 4 5 6 7 8 9 w; 1 qa qd qs ql qk qj qh qg qf 0 3 2 * * Button does not function with this model. Use buttons on the remote for the operation. 1 Press ?/1 to turn on the system. 2 Press CLOCK/TIMER SET. 3 Press ./> repeatedly to set the hour. 4 Press ENTER. 5 Press ./> repeatedly to set the minute. 6 Press ENTER. The clock starts working. To adjust the clock 1 Press CLOCK/TIMER SET. 2 Press ./> until “CLOCK SET” appears, then press ENTER. 3 Do the same procedures as step 3 to 6 above. Note The clock is not displayed in Power Saving Mode. Setting the clock www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-CPX11 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. 3-5.MAIN BOARD, PRE AMP BOARD (Page 14) 3-6.CD MECHANISM DECK (CDM80BH-F1BD81) (Page 14) 3-3.TC BOARD, MECHANICAL DECK (Page 13) 3-7.CHASSIS (TOP) (Page 15) 3-1.COVER (Page 12) 3-2.FRONT PANEL SECTION (Page 12) 3-4.PANEL BOARD (Page 13) 3-10.DRIVER BOARD (Page 17) 3-12.BU SECTION (Page 18) 3-14.LEVER (BU LOCK) (Page 19) 3-15.CLOSE LEVER (Page 20) 3-16.DIR LEVER, GEAR (IDL-B) (Page 20) 3-17.GEAR (IDL-C) (Page 21) 3-11.BD81A BOARD (Page 18) 3-8.LEVER (LOADING R/L) (Page 16) 3-9.DISC STOP LEVER, DISC SENSOR LEVER (Page 17) 3-13.OPTICAL PICK-UP (KSM-215DCP) (Page 19) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-CPX11 Note: Follow the disassembly procedure in the numerical order given. 3-1. COVER 3-2. FRONT PANEL SECTION 3 three screws (+BVTP 3 × 6) 1 two case screws 2 two case screws 5 cover 4 4 2 wire (flat type) 19 core (CN603) 4 wire (flat type) 19 core (CN303) 5 wire (flat type) 9 core (CN304) 1 screw (+BVTP 3 × 6) 6 screw (+BVTP 3 × 6) 7 three screws (+BVTP 3 × 6) 8 front panel section 3 connector 4p (CN102) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-CPX11 3-3. TC BOARD, MECHANICAL DECK 3-4. PANEL BOARD 1 four screws (+BVTP 3 × 8) 3 three screws (PTPWH2) 6 mechanical deck 4 connector (6p) 5 TC board 2 wire (flat type) 8 core 6 five screws (+BVTP 2.6 × 8) 7 holder qa PANEL board q; two screws (+BVTP 2.6 × 8) 8 two screws (+BVTP 2.6 × 10) 9 cover (eject) 5 lid (TC) section 4 two dowels 3 spring (LID TC) tortion spring (LID TC) torsion 1 volume knob 2 two buss knobs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-CPX11 3-5. MAIN BOARD, PRE AMP BOARD 3-6. CD MECHANISM DECK (CDM80BH-F1BD81) 5 wire (flat type) 19 core 7 wire (flat type) 15 core (CN307) q; wire (flat type) 27 core (CN201) 8 wire (flat type) 22 core (CN309) 2 two screws (+BVTP 3 × 6) 4 two screws (+BVTP 3 × 6) 3 back panel 1 five screws (+BVTP 3 × 6) qd two screws (+BVTP 3 × 6) qf PRE AMP board qs MAIN board 6 connector 2p (CN301) qa connector 3p (CN302) 9 connector 7p (CN202) 3 screw (+BVTP 3 × 6) 2 two screws (+BVTP 3 × 6) 7 CD mechanism deck 5 S-MASTER AMP section SUB POWER board 6 four screws (+BVTP 3 × 10) 1 connector 2p (CN990) 4 screw (+BVTP 3 × 6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-CPX11 3-7. CHASSIS (TOP) 1 screw (+BVTP 2.6 × 8) 3 three screws (+BVTP 2.6 × 8) 4 two screws (+P 2 × 10) 5 chassis (top) 2 lever (CL UP2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-CPX11 3-8. LEVER (LOADING R/L) lever (loading R) Align the horizontal position. lever (loading L) Install the both levers so that they move symmetrically. 3 two hooks 5 two hooks 4 lever (loading L) 6 lever (loading R) spr-T (loading L) spr-T (loading R) 1 2 PRECAUTION DURING LEVER (LOADING R / L) INSTALLATION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-CPX11 3-9. DISC STOP LEVER, DISC SENSOR LEVER 3-10. DRIVER BOARD chassis (top) hole Install the disc stop lever so that the both holes are aligned. hole 1 gear (cap) 3 two claws 5 two hooks 6 disc stop lever disc stop lever 4 disc sensor lever PRECAUTION DURING DISC STOP LEVER INSTALLATION 2 gear (IDL L) 3 Remove soldering from the two points. 2 three screws (+BVTP 2.6 × 8) 5 DRIVER board 4 motor (pully) assy 1 belt (MOT) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-CPX11 3-11. BD81A BOARD 3-12. BU SECTION 2 Remove soldering from the four points. 1 screw (+BVTP 2.6 × 8) 6 BD81A board 4 sheet 3 wire (flat type) (16 core) (CN102) 5 wire (flat type) (16 core) 4 floating screw (+PTPWHM 2.6) 5 floating screw (+PTPWHM 2.6) 3 213 holder down spring 6 BU section 1 screw (+BVTP 2.6 × 8) 2 lever (CL UP2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-CPX11 3-13. OPTICAL PICK-UP (KSM-215DCP) 3-14. LEVER (BU LOCK) 1 two screws (+BVTP 2.6 × 8) 4 two floating screws (+PTPWHM 2.6) 5 two coil springs (insulator) 3 two coil springs (insulator) 6 two insulators 7 two insulators 8 optical pick-up 2 two stoppers (BU) 3 three hooks 2 4 lever (BU lock) 1 gear (cap) 2 gear (BU lock) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-CPX11 3-15. CLOSE LEVER 3-16. DIR LEVER, GEAR (IDL-B) 1 washer (3-1-0.4) 2 close lever spring 4 shaft disc stop 5 close lever 3 claw 3 gear puley 2 claw 9 DIR lever 5 gear (IDL-A) q; gear (IDL-B) 1 DIR spring 8 stopper 6 Loosen the screw. 7 Hold the Release lever and change the direction. 4 gear (cap) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 HCD-CPX11 3-17. GEAR (IDL-C) 6 claw 1 gear (IDL-F) 5 gear loading lever 2 two claws 4 three hooks 3 gear (IDL-D) 7 gear (IDL-C) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 HCD-CPX11 SECTION 4 TEST MODE [CMN (MC) TEST MODE] • This mode is used to check operations of Amplifier. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press three keys of [DSGX], [FUNCTION] and [TUNER/BAND] simultaneously. 3. When the CMN (MC) test mode is activated, “s” blinks on the liquid crystal display. 4. Turn the [BASS] knob counterclockwise, “TONE MIN” is displayed on the liquid crystal display. Turn the [BASS] knob clockwise, “TONE MAX” is displayed on the liquid crystal display. Turn the [TREBLE] knob clockwise or counterclockwise, “TONEFLAT” is displayed on the liquid crystal display. Turn the [VOLUME] knob counterclockwise, “VOL MIN” is displayed on the liquid crystal display. Turn the [VOLUME] knob clockwise, “VOL MAX” is displayed on the liquid crystal display. 5. To release this mode, press the ?/1 key. [PANEL (GC) TEST MODE] • This mode is used to check the liquid crystal display, LED, model, destination, software version and key. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press three keys of [DSGX], [DISPLAY] and [FUNCTION] simultaneously. 3. Liquid crystal display and LEDs are all turned on. 4. When you want to enter the model, destination and version display mode, press the [REPEAT] key. The model and destination are displayed alternately on the liquid crystal display. 5. Each time [REPEAT] key is pressed, the display changes starting from MD version, MC version, GC version, CD version, CDD version, CDMA version, CDMB version, BDA version, BDB version, ST version, TA version, TM version, and TC version this order, and returns to the MD version display on the liquid crystal display. 6. When [FUNCTION] key is pressed while the version numbers are being displayed except model and destination, year, month and day of the software creation display. When [FUNCTION] key is pressed again, the display returns to the software version display. When [REPEAT] key is pressed while year, month and day of the software creation are being displayed, the year, month and day of creation of the software versions are displayed on the liquid crystal display in the same order of version display. 7. Press the [PLAY MODE/DIRECTION] key, the key check mode is activated. 8. In the key check mode, the liquid crystal display displays “K0”. Each time a key is pressed, “K” value increases. However, once a key is pressed, it is no longer taken into account. 9. To release this mode, press three keys in the same manner as step 2, or disconnect the power cord. [COLD RESET] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press three keys of ?/1 , x (CD) and x (TAPE) simulta- neously. 3. The liquid crystal display becomes blank instantaneously, and the set is reset. [SHIP MODE (NO MEMORY CLEAR) ] • This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “CD”. 3. Press three keys of [DSGX], CD NX and [DISPLAY] simultaneously. 4. After the “STANDBY” display blinks, “LOCK” is displayed on the liquid crystal display, and the ship mode is set. [SHIP MODE (MEMORY CLEAR) ] • This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “CD”. 3. Press three keys of [DSGX], x (CD) and [DISPLAY] simulta- neously. 4. After the “STANDBY” display blinks, “LOCK” is displayed on the liquid crystal display, and the ship mode is set. [CD TRAY LOCK MODE] • This mode is used to unable to take sample disc out of tray in the shop. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “CD”. 3. While pressing the Z (CD) key, press the x (CD) key for 5 seconds. 4. The message “LOCKED” is displayed on the liquid crystal display and the tray is locked. (Even if pressing the Z (CD) key, the message “LOCKED” is displayed on the liquid crystal display and the tray is locked) 5. To release from this mode, pressing the Z (CD) key, press the x (CD) key for 5 seconds. 6. The message “UNLOCKED” is displayed on the liquid crystal display and the tray is unlocked. [TUNER STEP CHANGE MODE] (Singapore, Korean and Australian models) • A step of AM channels can be changed over between 9 kHz and 10 kHz. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “TUNER”, and press the [TUNER/BAND] key to select “AM”. 3. Press the ?/1 key to turn the power OFF. 4. Press two keys of ?/1 and M L simultaneously. 5. The message “AM 9K STEP” or “AM 10K STEP” is displayed on the liquid crystal display, and thus the channel step is changed over. [CD SERVICE MODE] • This mode can run the CD sled motor freely. Use this mode, for instance, when cleaning the optical pick-up. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “CD”. 3. Press three keys of [PLAY MODE] , [FUNCTION] and x (TAPE) simultaneously. 4. Press the M L key to move the optical pick-up to outside track, or press the l m key to inside track. 5. To release this mode, press the ?/1 key. Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 HCD-CPX11 [CD ERROR CODE MODE] • This mode can be used for error display of CD section. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “CD”. 3. Press three keys of [REPEAT], [FUNCTION] and x (TAPE) simultaneously. Note: Error code is not displayed on the liquid crystal display. [CD SERVO TEST MODE] • This mode used to ckeck operation of optical pick-up. Procedure: 1. Press the ?/1 key to turn the power ON. 2. Press the [FUNCTION] key to select “CD”. 3. Press three keys of [DSGX] , [FUNCTION] and x (TAPE) simultaneously. 4. When the CD servo test mode is activated, optical pick-up moves. [5 REPEAT OFF MODE] • Number of repeat for CD playback is 5 times when the repeat mode is “REPEAT”. This mode is used to enables CD to repeat playback for limitless times. Procedure: 1. Press the ?/1 key to turn the power on. 2. Press the [FUNCTION] key to select “CD”. 3. Press three keys of [DSGX] , [FUNCTION] and Z (CD) simultaneously. 4. When the 5 repeat off mode is activated, “LIMIT OF” is displayed on the liquid crystal display. [CHANGE-OVER FUNCTION OF EXTERNAL INPUT] • This mode is used to enable function of external input to change over between MD and VIDEO. Procedure: 1. Set to standby state. 2. Press two keys of ?/1 and [FUNCTION] simultaneously. 3. The function of external input changes over to MD or VIDEO. Ver 1.1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 HCD-CPX11 SECTION 5 ELECTRICAL ADJUSTMENTS DECK SECTION 0 dB = 0.775 V Note: Confirm each contents of this section first of all. If the results are not satisfied, do the adjustment. 1. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 2. The adjustments should be performed in the order given in this service manual. 3. The adjustments should be performed for both L-CH and R- CH. REC BIAS ADJUSTMENT Procedure: 1. Press the [FUNCTION] key to select “MD” or “VIDEO”. 2. Set the tape into the deck. 3. After pressing z REC key, press X (TAPE) key to start recording. 4. Mode: Record 5. Mode: Playback 6. Confirm the playback signal recorded in step 3 becomes adjustable level as follows. If these levels are out of specified values, adjust the RV653 (L-CH) and RV603 (R-CH) on the TC board to repeat steps 4 and 5. Specified values: Playback output of 315 Hz to playback output of 10 kHz: ± 2.0 dB Adjustment Location: TC board attenuator set MAIN board MD (VIDEO) IN jack (J101) L-CH, R-CH 1) 315 Hz 2) 10 kHz 34.6 mV (– 27 dB)    600 Ω blank tape CN-123 AF OSC + – set recorded portion SP board SPEAKER terminals (J860) L-CH, R-CH level meter (R-CH) (L-CH) RV603 RV653      – TC BOARD (Component Side) – REC Bias Adjustment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 HCD-CPX11 CD SECTION Note: 1. CD Block is basically constructed to operate without adjustment. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10 MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. 5. Check the focus bias check when optical pick -up block is replaced. FOCUS BIAS CHECK Procedure : 1. Connect oscilloscope to TP (RFAC) and TP (VC) on the BD81A board. 2. Press the ?/1 button to turn the power ON, and press the Z (CD) button to open the CD disc tray. 3. Set disc (YEDS-18) on the tray and press the CD NX button to playback. 4. Confirm that oscilloscope waveform is as shown in the figure below. (eye pattern) A good eye pattern means that the diamond shape (◊) in the center of the waveform can be clearly distinguished. Checking Location: IC251 IC101 IC301 TP (RFAC) TP (VC) – BD81A BOARD (Side B) – + – BD81A board TP (RFAC) TP (VC) oscilloscope (DC range) VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 0.9 ± 0.4 Vp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 HCD-CPX11 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 27 HCD-CPX11 SECTION 6 DIAGRAMS • Circuit Boards Location For Schematic Diagrams. Note: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground un- der no-signal (detuned) conditions. no mark: TUNER (FM) ( ): CD PLAY [ ] : TAPE PLAY 〈〈 〉〉 : REC • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances. • Circled numbers refer to waveforms. • Signal path. F : TUNER (FM/AM) J : CD PLAY (ANALOG) c : CD PLAY (DIGITAL) E : TAPE PLAY a : REC j : MD (VIDEO) IN • Abbreviation AUS : Australian model. KR : Korean model. For Printed Wiring Boards. Note: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • W : indicates side identified with part number. • f : internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) TC board PANEL board SUB PANEL board S-MASTER AMP board HP board SUB POWER board SP board PRE AMP board MAIN board BD81A board DRIVER board BACK LIGHT board SWITCHING REGULATOR LCD board Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Caution: Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. • Indication of transistor. C B These are omitted. E Q B These are omitted. C E Q B These are omitted. C E Q w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 28 HCD-CPX11 6-1. BLOCK DIAGRAM — BD/DRIVER SECTION — : CD PLAY(ANALOG) • Signal Path • R-ch is omitted due to same as L-ch. : CD PLAY(DIGITAL) OPTICAL PICK-UP BLOCK LD DRIVER Q10 R-CH +1.7V +3.3V LD GND FOCUS COIL F+ F T+ T TRACKING COIL IC251 SW101 X171 16.9MHz +3.3V SL/SP MOTOR DRIVER IC101 RF AMP 16 7 15 17 18 VR PD 19 20 21 22 5 9 3 24 MUTE CH2OUT-F CH1FIN CH1RIN CH2FIN SFDR OPIN+ CH2OUT-R CH1OUT-R CH1OUT-F CH4OUT-F CH4OUT-R CH3OUT-R CH3OUT-F M M M102 (SLED) M101 (SPINDLE) VCC VC A B C D E F DETECTOR A B E 19 F 20 LD 36 PD 37 TFDR 11 SSTP 7 FFDR 13 CH3FIN 30 MPD 6 95 XTACN 100 XRST 102 DATA 104 XLAT 105 CLOCK 86 AOUT2 81 AOUT1 71 DOUT 61 PCMD1 62 LRCK1 63 LRCK 65 PCMD DIGITAL SIGNAL IC301 PROCESSOR 21 40 SDO0 11 LRCKIA 16 SFSY/LRCK1B 19 SDIO 14 77 XTAO 78 XTAI 55 VDD VDD VDDM 26 27 C 28 D 29 107 SENS XTACN XRST DATA XLAT CLOCK SENS 113 GFS 114 C2PO 2 3 1 FOK TRDR 12 10 SRDR CH3RIN 29 CH2RIN FRDR 14 66 BCK 60 BCK1 BCKIA 15 SBSY/BCK1B 18 6 3.3V IC303 8 5 1 3 STANBY 36 PO11/BUCK/AD1 8 MIACK 7 MICK 6 MIDIO 4 MICS 5 MILP 2 RESET 23 2 24 25 3 7 5 22 1 21 19 32 37 36 35 33 28 27 26 34 60 115 SCOR SCOR REG MUTING Q342 OPTICAL TRANSEIVER IC450 MUTING CONTROL SWITCH Q340,341 CD DIGITAL OUT OPTICAL R-CH CD L-CH IC300(1/4) SYSTEM CONTROLLER MP3STB MP3REQ MIACK MP3CLK MP3 DATA OUT MILP MICS MP3RST CD SCOR CD SENS CD CLK CD XLT CD DATA CD XRST CD XTCN CDM SW2 CDM SW1 CDM-LOAD-IN CDM-LOAD-OUT CDM SW3 S702 S701 S703 CD MUTE SCOR SENS CLOCK XLT DATA XRST XTACN A MAIN Section IC701 (LC)MOTOR DRIVER 4 2 9 7 RIN FIN OUT1 OUT2 M701(LOADING) M w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 29 HCD-CPX11 — TUNER/TAPE DECK SECTION — REC BIAS (R) RV603 REC BIAS (L) RV653 R-CH 8 7 9 4 FM 75Ω COAXIAL FM ANT ANT GND AM ANT ANT GND ST DIN ST CLK ST CE ST MUTE TUNED STEREO L-CH R-CH ST DOUT TUNER UNIT AM R-CH 48 ST DATA IN 49 ST DATA OUT 47 ST CLK 50 ST CE 53 ST MUTE DI DO CLK CE MUTING 51 ST TUNED 52 ST STEREO RDS DATA RDS CLK TUNED STEREO 54 RDS DATA 18 RDS CLK L-CH R-CH ERASE R-CH HRPE901 (REC/PB/ERASE) REC/PB SWITCHING IC602 R-CH BIAS OSC T601 BIAS TRAP REC BIAS SWITCH Q639 – 641 A+9V BIAS OSC Q642, 643 39 37 AIN (R) BIN (R) 15 14 3 4 EQOUT (R) 5 PB OUT (R) TAI (R) MUTE REC/PB EQ AMP, ALC IC601 8 REC- OUT (R) REC-IN (R) ALC (R) 10 R-CH R-CH C MAIN Section MAIN Section MAIN Section PB L-CH B TUNER L-CH D REC L-CH 68 TC BIAS-ON SYSTEM CONTROLLER IC300 (2/4) • Signal Path • R-ch is omitted due to same as L-ch. : TUNER (FM/AM) : TAPE PLAY : REC DO CE MUTING TUNED STEREO RAS DATA RAS DATA RDS INT RDS INT DI CLK MUTE ON/OFF REC MUTE ON/OFF 66 65 TC REC/MUTE TC LINE MUTE EQ ALC 67 TC PB/REC 7 ANTENNA 61 TC ALC 11 ALC ON/OFF SWITCHING Q680, 681 70 CAPSTAN/REEL MOTOR DRIVE Q692, 694 71 90 69 91 TRIGGER PLUNGER DRIVE Q691, 693 M (TAPE DECK BLOCK) (CAPSTAN/REEL) TC CAPM-CONT TC TRG TC END SW TC PLAY SW TC HALF/REC/SW w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 30 HCD-CPX11 — MAIN SECTION — RIPPLE FILTER Q180, 181 HEADPHONE MUTING Q183 : TAPE PLAY : REC : CD PLAY : TUNER (FM/AM) 75 55 57 100 HP DET B TUNER L-CH C PB L-CH A CD L-CH MAIN Section D REC L-CH TUNER/TAPE DECK Section TUNER/TAPE DECK Section TUNER/TAPE DECK Section MUTING Q151 J860 L R SPEAKER IMPEDANCE USE 4Ω R-CH R-CH J801 HEADPHONE AMP IC102 R-CH PD +3.3v A+28v R-CH PHONES R-CH J101 L R MD (VIDEO) IN EQ DATA EQ CLK EQ CE 59 LINE MUTE MUTING CONTROL SWITCH Q121, 122 R-CH TUNER +9V, TC A+9V 58 HP MUTE MUTING CONTROL SWITCH Q184, 185 Signal Path : MD (VIDEO) IN R-ch is omitted due to same as L-ch. R-CH X601 12.288MHz 18 DATA 17 BCK 16 LRCK 2 OUTL1 4 OUTL2 41 OUTR1 39 OUTR2 21 XFSIIN DIGITAL AUDIO SIGNAL PROCESSOR IC600 1 LIN 2 RIN 12 DOUT 11 BCK 10 LRCK 7 PDWN 15 SCKI 42 SC DT 11 SCDT 43 SC SHIFT 12 SCSHIFT 44 SC LATCH 13 SCLATCH 45 NSP MUTE 14 NSPMUTE 46 INIT 15 INIT A/D CONVERTER IC603 CLOCK BUFFER IC604 CLOCK BUFFER IC610 INPUT SELECT SWITCH, ELECTRICAL VOLUME, TONE CONTROL IC101 INPUT SELECT SWITCH CD LCH TC LCH MD LCH TUNER LCH 11 12 14 13 LCH IN LCH SELO LCH OUT 30 1 EQ DATA EQ CLK 2 EQ CE CPU INTERFACE 9 10 5 VOLUME CONTROL TONE CONTROL X602 49.152MHz 36 XFSOIN 6 INA 16 INB 9 OUTA 19 OUTB POWER AMP IC650 R-CH R-CH R-CH 41 ENA 7 ENA VBBB 17 11 ENB 40 DIAG 8 DIAGA 18 DIAGB PROTECT SWITCH Q696 PROTECT DETECT Q691, 692 SYSTEM CONTROLLER IC300(3/4) 7 6 1 2 6 5 7 2 4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 31 HCD-CPX11 — DISPLAY/POWER SUPPLY SECTION — SEG1 – SEG36 COM1 – COM4 64-61 1-36 97 95 94 KEY1 – KEY3 LED DRIVE Q813 D813 (STANDBY) 81 LED DRIVE Q818 TAPEnN D818 LED TC 79 LED DRIVE Q816 D816 LED TUNER 80 LED DRIVE Q870 CDNX D870 LED CD 89 12 RESET RESET IC401 D401 39 PWR RELAY RECT D992 – 995 LED STANDBY LED DRIVE Q812 DSGX TUNER/BAND D812 82 LED DSG 78 LCD ON/LED BL T991 SUB POWER TRANSFORMER RY991 AC IN S801 – 817 10 11 X402 32.768kHz 15 13 X401 16MHz XCIN XCOUT XIN XOUT POWER ON/OFF RELAY DRIVE Q991 RY990 POWER ON/OFF RELAY DRIVE Q990 20 AC CUT RESET SWITCH Q401 A+28V TUNER +9V, TC A+9V A+5V, D+5V M+7V SWITCHING REGULATOR +9V REGULATOR IC201 D+6.2V +7V REGULATOR IC202 +1.8V µ-COM+3.3V PD+3.3V LCD+3.3V +1.8V REGULATOR IC618 RDS+3.3V +4V REGULATOR IC991 A+3.3V, D+3.3V +5V REGULATOR IC204 +4V REGULATOR IC203 D205 D201 D203 D202 D302 D301 D303 D304 SWITCH Q333, 334 38 CD BD-PWR SWITCH Q331, 332 D806,807 (LCD BACK LIGHT) CD ON SWITCH Q201,202 EVER +3.3V 87 VOL A 74 KEY WAKE UP 88 VOL B ROTARY ENCODER RV803 VOLUME 83 TRE A 84 TRE B ROTARY ENCODER RV804 TREBLE 85 BASS A 86 BASS B ROTARY ENCODER RV805 BASS D374, 375 4 SIRCS IN/WAKE 75 LCD DATA/EQ DATA LCD +3.3V 76 LCD SCL 77 LCD CE REMOTE CONTROL RECEIVER IC802 58 57 56 LIQUID CRYSTAL DISPLAY LCD800 LIQUID CRYSTAL DISPLAY DRIVER IC801 DATA SCL CE 63 Vcc 73 LCD MODE 72 LCD INH 59 60 MODE INH SYSTEM CONTROLLER IC300 (4/4) +12V , , w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 32 HCD-CPX11 6-2. PRINTED WIRING BOARD — BD81A SECTION — • Semiconductor Location Ref. No. Location IC101 D-7 IC251 C-6 IC301 C-7 IC303 B-7 Q10 E-4 IC251 IC101 IC301 IC303 OPTICAL PICK-UP BLOCK (KSM–215DCP) MAIN BOARD CN201 SPINDLE MOTOR SLED MOTOR (LIMIT) 4 5 1 3 1 2 A B C D E 3 4 5 6 7 8 9 E TP (RFAC) TP (VC) 1 16 17 32 33 48 49 64 12 12 12 12 1 9 10 18 19 27 28 36 • See page 27 for Circuit Boards Location. :Uses unleaded solder. (Page 36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 33 HCD-CPX11 6-3. SCHEMATIC DIAGRAM — BD81A SECTION — MAIN BOARD CN201 8 9 TP165 TP166 TP178 TP144 TP147 TP153 TP186 TP187 TP167 TP160 TP162 TP177 TP145 TP148 TP121 TP122 TP123 C305 JPO004 JPO10 TP250 TP301 TP302 TP303 TP304 TP103 TP104 TP105 TP146 R161 R163 R351 R352 R353 R354 R401 R402 R403 R404 R405 R406 R407 R408 R409 R411 R412 R419 R11 R191 R132 R251 R253 R12 R142 R143 R10 JPO102 JPO103 M101 S101 C15 C17 C115 C116 C122 C125 C132 C133 C134 C141 C142 C143 C151 C161 C181 C194 C201 C203 C252 C255 C257 C303 C306 C308 C309 C310 C311 C312 CN101 R121 R171 C171 C313 C314 C183 C184 TP420 TP421 TP422 TP423 TP424 R252 TP425 TP426 C259 TP427 TP428 TP429 TP430 TP431 TP432 R13 Q10 C16 C123 C260 R172 C124 R133 R313 TP433 TP436 C316 C10 C11 C162 C317 C315 C307 TP401 TP407 TP406 TP405 TP404 TP403 TP402 TP408 TP410 TP434 TP417 TP416 TP415 TP414 TP413 TP412 TP419 TP411 TP435 TP409 TP19 TP18 TP17 TP16 TP15 TP102 TP14 TP13 TP12 TP11 TP10 C195 C182 C174 R131 C131 C18 R301 FB301 R303 R182 R181 X171 C172 R173 R203 IC303 R302 R162 R165 C211 C210 C212 R151 R205 R410 C320 C213 CN201 C185 C186 C163 C196 C318 R306 IC251 C258 C251 C302 M102 TP253 TP252 TP251 C111 R112 R114 R111 R113 C112 C113 C114 C209 R305 IC301 R141 IC101 R307 TP125 TP124 TP142 TP149 R204 R201 MIRR DFCT FOK XUGF XPCK GFS MVDD MGND LOCK WDCK COUT VC WFCK SBSO RFDCO 220 4V MDP APC SP- LRCK PCMD BCK C2PO 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 0 0 10k 10k 10k 100k 1k 3.3k 3.3 FEI TEI SW 0.1 F 220 4V 0.1 F 100 10V 0.1 B 0.1 F 0.47 B 0.01 B 0.1 F 0.1 B 0.0015 B 0.1 F 100 10V 0.1 F 0.1 F 0.1 F 100 10V 100 10V 0.1 F 0.1 F 0.1 F 0.1 F 0.1 F 47 4V 0.1 F 0.1 F 0.1 F 0.1 F 16P 15k 0.1 F 47 4V 22 6.3V 22 6.3V AGND DGND MP3GND IOP1 IOP2 22k SW+ SW- PCMDI FRDR FFDR TRDR TFDR MDP 1 2SB1690K 1 F 0.1 B 220 10V 330p CH 180k 220 MP3VDD AVDD 0.0022 B 10 6.3 B 10 6.3 B 0.1 F 0.01 B 0.1 B 0.1 F MP3STB MICS MILP MIDIO MICK MIACK MP3REQ MP3RST ROUT AVDD SCOR SENS CLK XLT DATA XRST XTCN LOUT DVDD DOUT F- T- F- F+ PD F C B A D E 0.1 F 0.1 F 0.1 F 1M 100p CH 0.001 B 100k BLM21B272S 100k 100 100 0 0 BH15FB1WG 10k 47k 220p CH 0.1 B 22p CH 0 0 100 0 22p CH 470p CH 470p CH 0.1 0.1 0.01 B 0 0.0068 B 0.1 F SL- SL+ SP+ 0.0033 B 15k 15k 1k 1k 470p 0.0033 470p B 0.01 B 100k TC94A34FG-002 4.7k CXD3059AR 10k RFACI RFACO EXCK 0 0 470 22p CH 0.1 F 1M 16.9MHz 27p CH 0 27P BA5947FM (HSOP28) 0.1 • Refer to page 51 for IC PIN FUNCTION DESCRIPTION. (Page 37) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 34 HCD-CPX11 6-4. PRINTED WIRING BOARD — TC SECTION — • Semiconductor Location Ref. No. Location D681 B-3 IC601 D-4 IC602 E-4 Q639 C-2 Q640 C-3 Q641 C-3 Q642 E-2 Q643 D-2 Q680 D-3 Q681 D-3 Q691 B-3 Q692 B-3 Q693 B-2 Q694 B-3 IC601 IC602 MAIN BOARD CN306 E E E E E E E E E 1 1 8 9 E E 1 3 4 6 20 21 30 31 40 1 10 11 TAPE MECHANISM DECK L-CH R-CH ERASE 1 2 3 4 5 6 HRPE901 (REC/PB/ERASE) HEAD RELAY BOARD 1 2 A B C D E F G 3 4 5 6 • See page 27 for Circuit Boards Location. :Uses unleaded solder. (Page 36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 35 HCD-CPX11 6-5. SCHEMATIC DIAGRAM — TC SECTION — C641 RV603 RV653 IC602 C601 C608 C613 C630 C633 C634 C639 C640 C651 C656 C658 C663 C681 D681 JW630 L640 L641 Q639 Q641 Q642 Q643 Q691 Q692 Q693 Q694 R601 R602 R603 R604 R605 R606 R609 R630 R631 R640 R641 R645 R646 R651 R653 R654 R655 R656 R658 R659 R680 R683 R684 R685 R686 R687 R688 R689 R690 R691 R692 R693 R694 R695 R648 R647 R611 R608 C606 C605 C604 C602 C632 R661 C655 R652 C652 C654 C612 C642 C662 T601 C660 L651 C664 R657 R607 C614 C610 L601 JR602 C646 C645 C644 C661 R660 R643 C647 Q640 R642 Q681 Q680 NO601 C643 R644 R610 C611 C635 IC601 CN602 CN603 R632 R635 R633 R682 R681 C607 C657 2.2 50V 220k 220k BA3126N 47 16V 2.2 50V 390p 100 16V 10 50V 10 50V 10 50V 47 16V 47 16V 1 50V 2.2 50V 390p 0.0047 1SS355TE 0 JW JW 2SA1175 2SD1387-34-TP 2SC2001 2SC2001 DTC114EKA DTC114EKA 2SB1116 2SB1068 4.7k 4.7k 3.3k 10k 47k 2.2k 2.2k 1M 22k 10k 6.8k 18k 18k 4.7k 3.3k 10k 47k 2.2k 10k 2.2k 4.7k 680 3.3k 3.3k 3.3k 47k 4.7k 4.7k 4.7k 10k 4.7k 47k 22k 10k 2.2k 22k 22k 10k 1 50V 10 50V 0.1 0.01 10 50V 22k 10 50V 4.7k 0.01 0.1 27p 0.01 27p 330p 0.01 10k 10k 0.01 330p 0 0.018 0.0068 0.0068 120p 8.2k 5.6 1/4W 10 50V DTC114ESA-TP 2.2k DTA124ESA DTC114ESA-TP 8P 0.015 5.6 1/4W 8.2k 120p 1 50V HA12237F 8P 19P 1k 100 10k 2.2k 2.2k 470p 470p (Page 37) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 36 HCD-CPX11 6-6. PRINTED WIRING BOARD — MAIN SECTION — • Semiconductor Location Ref. No. Location D201 D-6 D202 D-7 D203 D-7 D204 D-7 D205 C-7 D301 D-5 D302 D-5 D303 D-5 D304 D-5 D350 C-9 D351 C-9 D352 B-9 D374 B-4 D375 B-4 D401 D-4 D402 E-4 D403 D-3 D404 D-3 D442 F-9 D443 F-9 IC201 B-9 IC202 B-7 IC203 B-8 IC204 B-9 IC300 C-4 IC401 D-3 IC450 I-10 Q201 F-8 Q202 F-7 Q331 F-3 Q332 F-3 Q333 E-2 Q334 E-2 Q340 E-8 Q341 E-9 Q342 F-9 Q343 F-9 Q401 D-3 IC300 IC401 IC202 IC203 IC201 IC204 IC450 DRIVER BOARD CN701 LCD BOARD CN805 PANEL BOARD CN801 BD81A BOARD CN201 S-MASTER AMP BOARD CN601 SUB POWER BOARD NO992 TC BOARD CN603 B SWITCHING REGULATOR PRE AMP BOARD CN101 CD DIGITAL OUT (OPTICAL) 1 3 (CHASSIS) KR,AUS AEP,UK TUNER UNIT E E E E E E 2 1 1 1 3 3 1 3 1 3 KR,AUS KR,AUS AUS,KR AEP,UK AEP,UK AEP,UK 3 7 E E E 1 E 27 26 1 2 (CHASSIS) 1 2 A B C D E F G H I J 3 4 5 6 7 8 9 10 11 • See page 27 for Circuit Boards Location. :Uses unleaded solder. (Page 44) (Page 34) (Page 40) (Page 40) (Page 42) (Page 32) (Page 44) (Page 44) (Page 38) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 37 HCD-CPX11 6-7. SCHEMATIC DIAGRAM — MAIN SECTION — • Refer to page 54 for IC PIN FUNCTION DESCRIPTION. R321 R322 R323 R326 R327 R328 R332 R333 R334 R335 R336 R337 R339 R340 R341 R342 R343 R344 R345 R346 R347 R348 R349 R350 R351 R352 R353 R355 R357 R361 R365 R366 R367 R368 R369 R370 R371 R372 R373 R375 R376 R377 R378 R379 R380 R381 R382 R383 R384 R385 R386 R387 R388 R389 R390 R391 R420 R442 R443 R451 R452 R405 R402 R483 R484 R485 R486 R487 R488 R494 R495 R497 R313 R301 R302 R303 R304 R305 R306 R307 R319 C331 C332 C401 R400 FB301 FB302 FB303 C228 R253 R254 R309 R317 R251 R252 R474 D301 D302 D303 D304 D401 D402 D403 D404 R401 Q343 Q401 R311 R320 C355 R403 R404 Q331 Q341 Q333 Q202 Q332 Q334 Q340 IC401 Q201 IC204 IC202 IC450 C354 C502 C503 EP301 D442 D443 R394 R395 R397 R455 R392 D202 D203 D204 D205 R440 R450 D352 D351 D350 IC203 FB201 FB203 FB205 FB207 FB214 FB216 FB225 FB227 C213 C218 C219 C221 C222 C224 C223 C316 C310 C312 R430 R429 R428 R426 R427 C301 C311 X401 X402 C364 C352 C353 C351 C268 C267 C252 C251 C234 CN201 C358 C359 CN306 CN308 CN309 C451 JW450 C229 C231 C233 C241 C240 C239 C238 C237 CN302 CN303 CN202 C450 CN304 C357 D201 Q342 IC201 CN301 CN307 R354 IC300 R393 R493 R500 R318 R418 R406 EP302 C230 C236 C235 C232 C360 D375 D374 C356 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 0 100 100 100 100 100 100 100 100 10 50V 10 50V 10 50V 100 0 0 0 100 10V 100k 100k 10k 10k 1k 1k 1M 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 1SS355 220 2SC3624 2SC2785 330k 4.7k 470 10V 47k 47k DTA114EKA DTA114EKA DTA123YKA DTC114EKA DTC114EKA DTC114EKA DTC114EKA M62703SL RT1P137S TA7805S TA7807S TOTX141 0.1 50V 0.1 0.1 EARTH 0 0 10 10 10 10EDB40 10EDB40 10EDB40 10EDB40 10k 100 10EDB40 10EDB40 10EDB40 TA7804LS 47p 100p 100p 100p 100p 100p 100p 0.1 15p 0.1 10k 10k 10k 10k 10k 1000 6.3V 22p 16MHz 32.768KHz 0.1 0.1 50V 470 10V 4700 16V 100 10V 0.1 2.2 50V 2.2 50V 100 10V 27P 0.1 50V 100 10V 19P 19P 21P 0.1 JW 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 3P 19P 7P 100 10V 9P 470 10V 1SS355 2SC3624 2P M3062CMEN- A14FPU0 10k 4.7k 100 10V 100p 100p 100 10V 470 10V 1SS355 1SS355 0.1 50V 0 0 0 100 0 100 NJM78M09F A 15P FFC-S 1.25 0 (Page 35) (Page 39) (Page 45) (Page 45) (Page 41) (Page 43) (Page 41) (Page 33) (Page 45) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 38 HCD-CPX11 6-8. PRINTED WIRING BOARD — PRE AMP SECTION — • Semiconductor Location Ref. No. Location IC101 C-4 IC102 C-7 Q101 C-5 Q121 C-5 Q122 C-5 Q151 C-5 Q180 B-6 Q181 B-7 Q182 C-7 Q183 C-7 Q184 B-7 Q185 B-8 IC101 IC102 R L IN MD(VIDEO) MAIN BOARD CN308 16 30 1 E E E E E E E E E E 15 PHONES 1 2 A B C D E F G 3 4 5 6 7 8 9 4 1 (CHASSIS) • See page 27 for Circuit Boards Location. :Uses unleaded solder. (Page 36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 39 HCD-CPX11 6-9. SCHEMATIC DIAGRAM — PRE AMP SECTION — IC102 Q181 C182 Q121 Q184 Q185 IC101 Q151 Q101 Q182 Q183 C185 Q180 C152 C131 C133 C107 C106 C105 C104 C103 C102 C174 C124 C181 C183 C171 C121 R176 R126 R175 R125 R181 R182 R183 R122 R172 R171 R121 R124 R154 R156 R155 R106 R104 R105 R102 R152 R151 R101 R103 R153 R133 R132 R131 Q122 C129 C179 C141 R173 C173 R174 C172 C122 C180 C123 R123 R180 R185 C156 C155 C154 C153 C157 C158 C159 C160 C161 C109 C110 C111 C108 C151 C101 C132 J101 C894 C891 FB894 FB891 C892 EP801 NO804 J801 CN102 CN101 FB893 R184 NJM4580MD 2SC3624 1 50V DTA114EKA DTA114EKA DTC114EKA LC75342 2SC3624 2SC3624 2SC3624 2SC3624 1 50V 2SC3624 1 50V 100 10V 100 10V 1 50V 1 50V 1 50V 1 50V 1 50V 1 50V 220 10V 220 10V 100 10V 100 10V 10 50V 10 50V 100k 100k 47 47 2.2k 2.7k 10k 100k 100k 1k 1k 22k 1k 10k 10k 10k 1k 10k 8.2k 8.2k 10k 10k 3.9k 3.9k 100 100 100 DTC114EKA 100p 100p 0.1 4.7k 10 50V 22k 10p 10p 220 10V 10 50V 4.7k 4.7k 1k 1 50V 1 50V 1 50V 1 50V 1 50V 0.0027 0.12 0.12 10 50V 0.12 0.12 10 50V 0.0027 220p 220p 0.1 0.1 0.1 0 0 0.1 4P 4P 19P 0 1k (Page 37) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 40 HCD-CPX11 6-10. PRINTED WIRING BOARD — LCD/DRIVER SECTION — IC801 IC701 MAIN BOARD CN304 MAIN BOARD CN202 D806,D807 LCD BACK LIGHT M + - M701 (LOADING) (CHUCK) (OUT) (TRIGGER) 1-688-337- 2 G DRIVER BOARD (LIQUID CRYSTAL DISPLAY) 1 2 A B C D E F 3 4 5 6 7 9 1 • See page 27 for Circuit Boards Location. :Uses unleaded solder. (Page 36) (Page 36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 41 HCD-CPX11 6-11. SCHEMATIC DIAGRAM — LCD/DRIVER SECTION — D807 R841 R842 R843 R844 R856 R860 R854 D806 CN806 CN807 R851 C860 C859 C858 C857 C856 R853 C854 R857 R858 R859 CN805 LCD800 IC701 CN701 C705 C711 M701 S703 S701 S702 R701 R702 D701 IC801 SELS6B14C 470 470 470 470 100 100 10k SELS6B14C 4P 4P 150k 100p 100p 100p 100p 100p 1k 0.1 100 100 100 9P BA6956AN 7P 0.01 10 50V 680 100 MTZJ-4.7C NJU6433F (Page 37) (Page 37) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 42 HCD-CPX11 6-12. PRINTED WIRING BOARD — PANEL SECTION — IC802 TAPE (TAPE) (TAPE) TUNER/ BAND CD SYNCHRO CD REPEAT FM MODE PLAY MODE/DIRECTION TUNING MODE REC FUNCTION DISPLAY TREBLE BASS DSGX VOLUME TUNING + - (CD) (CD) 3 1 E (STAND BY) E (CD) (TAPE) E E MAIN BOARD CN303 E 1 4 1 2 A B C D E F G 3 4 5 6 7 • Semiconductor Location Ref. No. Location D812 F-5 D813 D-6 D816 D-6 D818 B-1 D870 B-4 IC802 D-6 Q812 F-5 Q813 D-6 Q816 D-2 Q818 D-2 Q870 B-4 • See page 27 for Circuit Boards Location. :Uses unleaded solder. (Page 36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 43 HCD-CPX11 6-13. SCHEMATIC DIAGRAM — PANEL SECTION — S801 S802 S803 S804 S805 S806 S809 S810 S811 S812 S813 S814 S815 R801 R802 R803 R804 R805 R806 R807 R808 R809 R810 R811 R812 Q813 Q812 Q816 Q818 D813 D818 D816 D812 R823 R821 R822 R828 R826 R813 R814 R815 R816 RV803 R825 C817 RV805 RV807 S808 S807 IC802 CN801 CN802 S816 S817 R870 R871 R874 Q870 R876 R875 D870 NO803 C806 C805 C807 C808 C804 C803 1k 2.2k 2.2k 4.7k 1k 2.2k 1k 2.2k 2.2k 4.7k 10k 22k DTC114EKA DTC114EKA DTC114EKA DTC114EKA SEL5220S SEL5921A SEL5921A SEL5921A 470 470 470 470 470 100 100 100 100 VOL ENCODER 47 47 10V ENCODER ENCODER NJL24H400A 19P 4P 2.2k 4.7k 470 DTC114EKA 100 470 SEL5921A 4P 0.1 0.1 0.1 0.1 0.1 0.1 (Page 37) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 44 HCD-CPX11 6-14. PRINTED WIRING BOARD — S-MASTER SECTION — IC618 IC680 IC600 IC603 IC604 IC991 IC610 IC650 1 3 5 4 MAIN BOARD CN309 (CHASSIS) 1 3 4 5 2 1 20 19 2 1 20 19 E 1 2 1 1 5 2 (CHASSIS) (CHASSIS) SUB POWER TRANSFORMER AC IN 1 1 2 2 SWITCHING REGULATOR MAIN BOARD CN301 3 3 1 1 E E 1 R 2 3 4 1 1 2 2 1 2 3 4 L SPEAKER IMPEDANCE USE 4 E E E E 1 2 A B C D E F G H 3 4 5 6 7 8 9 10 11 MAIN BOARD CN302 • Semiconductor Location Ref. No. Location D611 F-2 D621 F-2 D650 H-4 D651 G-4 D652 B-4 D660 H-4 D661 H-4 D662 A-4 D670 F-4 D671 F-4 D672 D-4 D680 G-4 D681 F-4 D682 C-4 D990 D-8 D991 C-7 D992 B-7 D993 B-7 D994 B-7 D995 B-7 IC600 B-3 IC603 D-3 IC604 C-3 IC610 B-3 IC618 G-2 IC650 H-4 IC680 F-4 IC991 C-7 Q691 C-4 Q692 C-5 Q693 C-5 Q694 C-5 Q696 G-4 Q990 C-7 Q991 C-7 • See page 27 for Circuit Boards Location. :Uses unleaded solder. (Page 36) (Page 36) (Page 36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 45 HCD-CPX11 6-15. SCHEMATIC DIAGRAM — S-MASTER SECTION — FB604 FB640 FB641 FB642 FB670 C655 C675 C640 C652 C682 C672 L650 L670 D611 D621 C616 C600 C631 D650 D652 IC603 FB610 FB620 FB650 R618 TP622 TP624 TP636 TP717 TP602 TP604 TP639 TP641 TP651 TP652 TP671 TP672 TP901 TP903 TP904 TP905 TP907 TP908 TP909 TP910 TP912 TP913 TP914 TP916 TP917 TP918 TP919 TP921 TP698 TP699 FB663 FB662 FB653 C613 C674 C697 IC610 R651 R661 R671 R681 C617 C618 L603 FB605 IC600 C620 C619 L604 R620 R619 FB606 C639 C638 C637 FB652 C635 R623 C630 C629 C632 C628 R607 C605 L621 C601 C606 C621 C611 C602 C603 C622 R605 R640 C633 L602 L601 C612 R612 R613 X601 R615 R614 C615 C614 IC604 C636 C699 CN600 EP603 C679 C669 C659 C656 C666 C676 C686 C689 R691 R692 R693 R694 R696 R695 Q691 C693 Q693 Q694 Q692 C692 C694 R697 Q696 C670 C673 C680 C683 FB680 D670 C678 D671 C671 D681 C668 C681 D682 D680 C690 R610 R609 FB660 C654 C653 C649 C660 C663 C648 C651 C650 D662 C661 D660 EP601 C623 C625 C610 C609 FB601 R601 R602 R603 R604 R606 CN601 D991 IC991 TP991 TP992 TP993 TP981 TP982 Q991 CN990 C994 C993 D992 D993 D994 D995 NO991 C991 RY990 D990 C992 RY991 T991 NO992 R994 R993 R992 Q990 R991 C698 R642 R641 C607 C608 X602 R662 R663 R653 R652 IC618 IC680 IC650 NO691 NO690 C862 C852 C872 C882 L851 L861 L871 L881 LP850 CN850 L890 J860 CN870 D672 C634 R608 FB607 D651 D661 C604 1SS355 NJU7201L40 2SC3624 2P 100 10V 2200 16V 10EDB40 10EDB40 10EDB40 10EDB40 2P 0.01 250V TYCO 1SS355 0.01 250V TYCO SUB POWER TRANSFORMER 3P 100k 4.7k 100k 2SC3624 4.7k 470p 470p 470p 470p JW JW JW JW MT 2P 2P 0 0 0 0 0 100 10V 100 10V 100 10V 100 10V 100 50V 100 50V 1SS355 1SS355 22 25V 3300 35V 4.7 50V LI116V P6SMB36AT3 PCM1802DBR 0UH 0UH 0UH 0 0 0UH 0UH 0UH 0 0 MC74VHC1GU04DFT1 0 0 0 0 0.01 3p 0UH CXD9743N 0.001 3p 750 1M 0 0.01 0.01 0.01 0UH 0.01 100k 0.1 0.01 100 10V 4.7 50V 100 0.1 100 10V 0.1 1 50V 1 50V 10 50V 0.1 0.1 1k 100 0.01 0.1 100 100 12.288MHz 470 1M 10p 10p TC7WU04F 0.01 0.01 5P 0.01 0.01 0.01 1 1 1 1 0.01 100k 100k 100k 100k 100k 100k 2SA1602PNP 2.2 2SA1602PNP 2SA1602PNP 2SA1602PNP 2.2 1 100k 2SC1623NPN 0.01 2.2 0.01 2.2 0UH LI116V 0.1 SFPL-62 0.022 SFPL-62 0.1 0.022 P6SMB36AT3 LI116V 0.01 100 100 0 0.01 2.2 100 10V 0.01 2.2 0.1 0.022 0.1 P6SMB36AT3 0.022 LI116V 100p 4.7 50V 0.1 0.001 0 100 100 100 100 100 21P 0.01 100 100 0.1 10 50V 49.152MHz 100 100 100 100 NJM2870F18(TE2) CXD9750L CXD9750L 2P 2P P6SMB36AT3 0.01 0 0 SFPL-62V SFPL-62V 0.1 (Page 37) (Page 37) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 46 HCD-CPX11 0.9 ± 0.4 Vp-p 1.9 Vp-p 59.1 ns 8 IC101 ra (RFACO) (CD play mode) 1 µs/DIV 200 mV/DIV • Waveforms – BD81A Board – 9 IC101 uj (XTAO) 40 ns/DIV 1 V/DIV 12.4 Vp-p 12.2 µs 7 Q642, 643 (Collector) (REC mode) 10 µs/DIV 5 V/DIV – TC Board – 3.1 Vp-p 30.5 µs 2.7 Vp-p 62.5 ns 1 IC300 qa (XCOUT) 20 µs/DIV 1 V/DIV – MAIN Board – 2 IC300 qd (XOUT) 40 ns/DIV 1 V/DIV 5 Vp-p 20.7 µs 4.2 Vp-p 326 ns 3 Vp-p 81.3 ns 3 IC603 q; (LRCK) 10 µs/DIV 2 V/DIV – S-MASTER AMP Board – 4 IC603 qa (BCK) 100 ns/DIV 2 V/DIV 5 IC604 6 (3A) 40 ns/DIV 1 V/DIV 3.6 Vp-p 27.3 µs 6 IC801 ts (OSC2) 20 µs/DIV 2 V/DIV – LCD Board – • IC BLOCK DIAGRAMS – BD81A Board – IC301 TC94A34FG-002 33 34 35 36 37 38 39 40 41 42 1 8 43 61 62 63 64 60 59 56 52 50 47 46 45 44 48 49 25 26 27 28 29 30 31 32 17 18 19 20 21 22 23 24 9 10 11 2 3 4 5 6 7 58 57 55 53 51 12 13 14 15 16 54 RAS CAS OE WE PIO7 PIO6 PIO5 PIO4 Bus Switch BUCK CCE AD12 AD11 General In/Output Port Address Calc. 2sets Y-Pointer register C-Pointer register X-Pointer register VDDM SRMSTB VDDT AD10 AD9 ERAM 2k word CRAM 4k word CROM 4k word YRAM 4k word XRAM 4k word SRAM/ DRAM I/F SRAM I/F 1Mbit SRAM X-Bus Y-Bus AD7 AD6 AD5 AD8 VC0 Timing Generator PRAM Instruction Decoder Program Control MCU. I/F register XO • X1 • X2 Y0 • Y1 • Y2 MX MY MZ MAC A0 A1 AX AY ALU A2 A3 DIT round & limit round & limit Audio I/F LRCKIA BCKIA SDI0 LRCKO BCKO SDO0 VSS VDDT MIACK MICK MIDIO MILP MICS STANBY RESET VDDP AD4 AD3 AD2 AD1 AD0 VSS VDD CKO VDDX XO TEST VCOI VSSX XI MIMD VSSP PIO3 PIO2 PIO1 PIO0 VSS CKI VDD TXO SFSY SBSY DATA POM Sub code I/F CDP Cont I/F w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 HCD-CPX11 – PRE AMP Board – IC101 LC75342 IC251 BA5947FM 15 16 17 18 19 20 21 22 23 24 25 26 27 36 28 29 30 31 32 33 34 35 1 2 3 4 5 6 7 8 9 10 11 12 13 14 LEVEL SHIFT F R R F R F F 19k 6.5k 50k 50k 100k 50k PIN3 10k Vref 50k 50k PIN26 (ch1, 2) POW VCC (ch3, 4) SW Pre Vcc INTER FACE INTER FACE INTER FACE R F 50k 50k POW VCC MUTE Vref POW VCC R F 10k CH1PUTF CH1OUTR CH2OUTF CH2OUTR POWVCC CNF4 GND C-M C-P VG CH2RIN CH2FIN CH1RIN CH1FIN SW OPIN+ OPIN- NC CH4OUTR CH4OUTF CH3OUTF CH3OUTR POWVCC MUTE GND GND PREGND CT CH3RIN CH3FIN CH4IN CH4CAPA OUTVREF DPOUT TREVCC NC D D D D D D D D 30 29 1 2 CCB INTERFACE CONTROL CIRCUIT LOGIC CIRCUIT CONTROL CIRCUIT 26 + – 25 24 + – 23 22 21 20 19 18 17 + – + – 5 + – 6 7 + – 8 9 10 11 12 13 14 + – + – 3 LOUT LBASS2 LBASS1 LTRE LIN LSELO L4 L3 L2 L1 15 NC VSS 4 TEST VDD ROUT RBASS2 RBASS1 RTRE RIN RSELO R4 R3 R2 R1 16 NC CL DI CE 28 + – RVREF + – LVREF VREF 27 NC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 HCD-CPX11 – DRIVER Board – – S-MASTER AMP Board – IC701 BA6956AN 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN IC600 CXD9743N PWM CLOCK GENERATOR (SECONDARY) 17 18 19 20 21 BCK 16 LRCK DATA BFVDD BFVSS XFSIIN 15 INIT 14 NSPMUTE 13 SCLATCH 12 SCSHIFT 11 SCDT 10 MCKSEL 4 OUTL2 5 XOVDD 3 VSSL 8 DVDD 9 DVSS 7 XOVSS 2 OUTL1 1 VDDL CLOCK GENERATOR (PRIMARY) S g P RATE CONVERTER DF1 DF2 GAIN CONTROL LINER INTERPOLATOR (2 TIMES) ∆∑ INIT/ MUTE SERIAL CONTROL 6 XFSOOUT 22 FSOCKO 41 OUTR1 40 VSSR 39 OUTR2 38 VSUBC 42 VDDR 36 XFSOIN 35 XVSS 34 HPVDDL 33 HPOUTL1 37 XVDD 31 HPOUTL2 30 HPVDDR 29 HPOUTR1 27 HPOUTR2 28 HPVSSR 32 HPVSSL 23 FSOI 24 SFLAGO 25 TEST2 26 TEST1 5 VIN 4 VOUT 2 GND 3 NOISE BYPASS 1 CONTROL BANDGAP REFERENCE THERMAL PROTECTION IC618 NJM2870F18 (TE2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 HCD-CPX11 IC650, 680 CXD9750L CROSS OVER DELAY FILTER THERMAL SHUT DOWN UNDER VOLTAGE LOCK–OUT HIGH SIDE LEVEL SHIFT PROTECTOR CIRCUIT PRE DRIVER LOW SIDE LEVEL SHIFT PRE DRIVER - 16 INB 15 GNDB 14 VDDB 20 SB 19 OUTB 13 VDRVB 12 VBOOTB 11 VBBB VDRVB VBBB 17 ENB 18 DIAGB CROSS OVER DELAY THERMAL SHUT DOWN UNDER VOLTAGE LOCK–OUT HIGH SIDE LEVEL SHIFT PROTECTOR CIRCUIT PRE DRIVER LOW SIDE LEVEL SHIFT PRE DRIVER 6 INA 5 GNDA 4 VDDA 10 SA 9 OUTA 3 VDRVA 2 VBOOTA 1 VBBA VDRVA VBBA 7 ENA 8 DIAGA VDRVA VDRVB VBBA VBBB VBBB + FILTER + - - VBBA + +- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 HCD-CPX11 – LCD Board – SINGLE-END/ DIFFERENTIAL CONVERTER 5TH ORDER DELTA-SIGMA MODULATOR VINL 1 SINGLE-END/ DIFFERENTIAL CONVERTER VINR 2 VREF1 3 VREF2 4 5TH ORDER DELTA-SIGMA MODULATOR REFERENCE x16 1/64 (x1/128) DECIMATION FILTER WITH DC CUT FILTER SERIAL INTERFACE & MODE/FORMAT CONTROL MODE1 20 MODE0 19 FMT1 18 FMT0 17 DOUT 12 BCK 11 OSR 16 SCKI 15 VDD 14 DGND 13 CLOCK & TIMING CONTROL PDWN 7 BYPAS 8 VCC 5 AGND 6 FSYNC 9 LRCK 10 POWER SUPPLY IC603 PCM1802DBR 49 50 16 - 1 33 - 48 17 - 32 51 52 53 54 55 56 57 58 59 60 61 62 63 64 SEG1 - 16 SEG33 - 48 SEG49 SEG50 OSC1 OSC2 VDD VSS VLCD CE SCL DATA MODE INH COM4 COM3 COM2 COM1 SEG17 - 32 Latch Circuit / Segment Driver Common Driver Input Select Circuit Input Select Shift Register3 50-Bit Oscillation Circuit Dividing Circuit Input Select Shift Register4 50-Bit Input Select Shift Register2 50-Bit Input Select Shift Register1 50-Bit Decoder Shift Register Control Circuit IC801 NJU6433F www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-CPX11 6-16. IC PIN FUNCTION DESCRIPTION • BD81A BOARD IC101 CXD3059AR (RF AMP) Pin No. Pin Name I/O Description 1 MIRR I/O Mirror signal input/output (Not used) 2 DFCT I/O Defect signal input/output (Not used) 3 FOK I/O Focus OK signal input/output (Not used) 4 VSS — Internal digital ground 5 LOCK I/O GFS is sampled at 460Hz; when GFS is high , this pin outputs a high signal If GFS is low eight consecutive 6 MDP O Spindle motor servo control output 7 SSTP I Disk innermost detection signal input 8 IOVSS1 — I/O digital ground 9 SFDR O Sled drive output 10 SRDR O Sled drive output 11 TFDR O Tracking drive output 12 TRDR O Tracking drive output 13 FFDR O Focus drive output 14 FRDR O Focus drive output 15 IOVDD1 — I/O digital power supply 16 AVDD0 — Analog power supply 17 AVSS0 — Analog ground 18 NC — Not used 19 E I E signal input 20 F I F signal input 21 TEI I Tracking error signal input to DSSP block 22 TEO O Tracking error signal output from RF amplifier block 23 FEI I Focus error signal input to DSSP block 24 FEO O Focus error signal output from RF amplifier block 25 VC I/O Center voltage output from RF amplifier block 26 A I A signal input 27 B I B signal input 28 C I C signal input 29 D I D signal input 30 NC — Not used 31 AVDD4 — Analog power supply 32 RFDCO O RFDC signal output (Not used) 33 PDSENS I Reference voltage pin for PD 34 AC_SUM O RFAC summing amplifier output 35 EQ_IN I Equalizer circuit input 36 LD O APC amplifier output 37 PD I APC amplifier input 38 NC — Not used 39 RFC I Equalizer cut-off frequency adjustment pin 40 AVSS4 — Analog ground 41 RFACO O RFAC signal output 42 RFACI I RFAC signal input or EFM signal input 43 AVDD3 — Analog power supply 44 BIAS I Asymmetry circuit constant current input 45 ASYI I Asymmetry comparator voltage input 46 ASYO O EFM full-swing output (Low = VSS, High = VDD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 HCD-CPX11 Pin No. Pin Name I/O Description 47 VPCO O Wide-band EFM PLL charge pump output (Not used) 48 VCTL I Wide-band EFM PLL VCO2 control voltage input 49 AVSS3 — Analog ground 50 CLTV I Multiplier VCO1 control voltage input 51 FILO O Master PLL (slave = digital PLL) filter output 52 FILI I Master PLL filter input 53 PCO O Master PLL charge pump output 54 AVDD5 — Analog power supply 55 DDVROUT O DC/DC converter output 56 DDVRSEN I DC/DC converter output voltage monitor pin 57 AVSS5 — Analog ground 58 DDCR I DC/DC converter reset pin 59 NC — Not used 60 BCKI I D/A interface bit clock input 61 PCMDI I D/A interface serial data input (2’s COMP, MSB first) 62 LRCKl I D/A interface LR clock input 63 LRCK O D/A interface LR clock output f = Fs 64 VSS — Internal digital ground 65 PCMD O D/A interface serial data output (2’s COMP, MSB first) 66 BCK O D/A interface bit clock output 67 VDD — Internal digital power supply 68 EMPH O High when the playback disc has emphasis, low it has not 69 EMPHI I High when de-emphasis is ON, low when input OFF 70 IOVDD2 — I/O digital power supply 71 DOUT O Digital Out output 72 TEST I Test pin Normally ground 73 TES1 I Test pin Normally ground 74 IOVss2 — I/O digital ground 75 NC — Not used 76 XVSS — Master clock ground 77 XTAO O Crystal oscillation circuit output 78 XTAI I Crystal oscillation circuit input 79 XVDD — Master clock power supply 80 AVDD1 — Analog power supply 81 AOUT1 O Lch analog output 82 VREFL O Lch reference voltage 83 AVSS1 — Analog ground 84 AVSS2 — Analog ground 85 VREFR O Rch reference voltage 86 AOUT2 O Rch analog output 87 AVDD2 — Analog power supply 88 NC — Not used 89 IOVDD0 — I/O digital power supply 90 RMUT O Rch “0” detection flag (Not used) 91 LMUT O Lch “0” detection flag (Not used) 92 NC — Not used 93 XTSL I Crystal selection input (Not used) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-CPX11 Pin No. Pin Name I/O Description 94 IOVSS0 — I/O digital ground 95 XTACN I Oscillation circuit control Self-oscillation when high, oscillation stop when low 96 SQSO O Subcode Q 80-bit and PCM peak and level data output CD TEXT data output 97 SQCK I SQSO readout clock input 98 SBSO O Subcode P to W serial output 99 EXCK I SBSO readout clock input 100 XRST I System reset Reset when low 101 SYSM I Mute input Muted when high 102 D ATA I Serial data input from CPU 103 VSS — Internal digital ground 104 XLAT I Latch input from CPU The serial data is latched at the falling edge 105 CLOCK I Serial data transfer clock input from CPU 106 VDD — Internal digital power supply 107 SENS O SENS output to CPU 108 SCLK I SENS serial data readout clock input 109 ATSK I/O Anti-shock input/output (Not used) 110 WFCK O WFCK output (Not used) 111 XUGF O XUGF output (Not used) 112 XPCK O XPCK output (Not used) 113 GFS O GFS output (Not used) 114 C2PO O C2PO output (Not used) 115 SCOR O High output when the subcode sync, S0 or S1, is detected 116 VDD — Internal digital power supply 117 C4M O 4 2336MHz output (Not used) 118 WDCK O Word clock output f = 2Fs (Not used) 119 COUT I/O Track number count signal input/output (Not used) 120 NC — Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-CPX11 • MAIN BOARD IC300 M3062CMEN-A14FPU0 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 MILP O CS signal output to the digital signal processor 2 MP3 REQ I REQ output to CD digital processor signal output 3 MIACK I ACK input from CD digital processor input 4 SIRCS IN/WAKE I Remote control signal input terminal 5 MP3 DATA OUT O Serial data output to MP3 6 MP3 DATA IN I Serial data input from MP3 7 MP3 CLK O Serial data transfersignal output to MP3 8 BYTE — Not used 9 CNVSS — Ground terminal 10 XCIN I Sub system clock input terminal (32.768 kHz) 11 XCOUT O Sub system clock output terminal (32.768 kHz) System reset signal input from the reset signal generator “L”: reset 12 RESET I For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 13 XOUT O Main system clock output terminal (16 MHz) 14 VSS — Ground terminal 15 XIN I Main system clock input terminal (16 MHz) 16 VCC — Power supply terminal (+3.3V) 17 NMI I Non-maskable interrupt input terminal Not used 18 RDS CLK I Serial data transfer clock signal input from the RDS decoder Not used 19 CD SCOR I Subcode sync (S0+S1) detection signal input from the digital signal processor 20 AC CUT I AC off detection signal input from the reset signal generator “L”: AC cut checked 21 MP3 RST O RESET output to CD digital processor 22 MICS O CS output to the CD digital processor 23 MP3 STB O MP3 STB output signal 24 CDM LOAD-IN O Motor drive signal (close direction) output terminal 25 CDM LOAD-OUT O Motor drive signal (open direction) output terminal 26 CDM SW3 I Loading in/out detect switch input terminal “L”: loading in 27 CDM SW1 I Loading in/out detect switch input terminal “L”: loading in 28 CDM SW2 I Loading in/out detect switch input terminal “L”: loading in 29 IIC CLK I/O Communication data transfer clock signal input/output terminal Not used 30 IIC DATA I/O Communication data bus terminal Not used 31 NO USE — Not used 32 CD SENS I Internal status detection monitor input from the digital signal processor 33 CD XRST O Reset signal output to the digital signal processor and motor/coil driver “L”: reset 34 CD XTCN O CD XTCN signal output 35 CD DATA O Serial data output to the digital signal processor 36 CD XLT O Serial data latch pulse signal output to the digital signal processor 37 CD CLK O Serial data transfer clock signal output to the digital signal processor 38 CD BD-PWR O Power supply on/off control signal output for the CD section “H”: power on 39 PWR RELAY O Main system power supply on/off control signal output terminal “H”: power on 40 DIAG I Protect signal input from the power amplifier and protect detect circuit 41 ENA O Output enable control signal output to the power amplifier 42 SC DT O Serial data output to the digital audio signal processor 43 SC SHIFT O Serial data shift clock signal output to the digital audio signal processor 44 SC LATCH O Serial data latch pulse signal output to the digital audio signal processor www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 HCD-CPX11 Pin No. Pin Name I/O Description 45 NSP MUTE O Muting on/off control signal output to the digital audio signal processor “L”: muting on 46 INIT O Reset signal output to the digital audio signal processor “L”: reset 47 ST CLK O PLL serial data transfer clock signal output to the tuner unit 48 ST DATA IN I PLL serial data input from the tuner unit 49 ST DATA OUT O PLL serial data output to the tuner unit 50 ST CE O PLL chip enable signal output to the tuner unit 51 ST TUNED I Tuning detection signal input from the tuner unit “L”: tuned 52 ST STEREO I FM stereo detection signal input from the tuner unit “L”: stereo 53 ST MUTE O Tuner muting on/off control signal output to the tuner unit “H”: muting on 54 RDS DATA I Serial data input from the RDS decoder 55 EQ CLK O Serial data transfer clock signal output to the electrical volume 56 NO USE — Not used 57 EQ CE O Chip enable signal output to the electrical volume 58 HP MUTE O Headphone muting on/off control signal output terminal “H”: muting on 59 LINE MUTE O Audio line muting on/off control signal output terminal “H”: muting on 60 CD MUTE O CD analog signal muting on/off control signal output terminal “H”: muting on 61 TC ALC O Automatic limiter control signal output to the recording/playback equalizer amplifier “H”: limiter on 62 VCC — Power supply terminal (+3.3V) 63 SOFT TEST O Output terminal for the software test Not used 64 VSS — Ground terminal 65 TC REC/MUTE O Recording muting on/off control signal output to the recording/playback equalizer amplifier “L”: muting on 66 TC LINE MUTE O Line muting on/off control signal output to the recording/playback equalizer amplifier “H”: muting on 67 TC PB/REC O Recording/playback selection signal output terminal “L”: playback, “H”: recording 68 TC BIAS-ON O Recording bias on/off control signal output terminal “H”: bias on 69 TC PLAY SW I Head position detect switch input terminal 70 TC CAPM-CONT O Capstan/reel motor on/off control signal output terminal “H”: motor on 71 TC TRG O Trigger plunger on/off control signal output terminal “H”: plunger on 72 LCD INH O Reset signal output to the liquid crystal display driver “L”: reset 73 LCD MODE O Signal output for discriminating between command and display data to the liquid crystal display driver “L”: display data, “H”: command 74 KEY WAKE UP I System wake up signal input by pressing any key 75 LCD DATA/EQ DATA O Serial data output to the liquid crystal display driver 76 LCD SCL O Serial data transfer clock signal output to the liquid crystal display driver 77 LCD CE O Chip select signal output to the liquid crystal display driver “L” active 78 LCD ON/LCD BL O Power on/off control signal output for liquid crystal display “H”: power on 79 LED TC O LED drive signal output of the TAPE nN indicator “H”: LED on 80 LED TUNER O LED drive signal output of the TUNER BAND indicator “H”: LED on 81 LED STANDBY O LED drive signal output of the standby indicator “H”: LED on 82 LED DSG O LED drive signal output of the DSG indicator “H”: LED on 83 TRE A I Jog dial pulse input from the rotary encoder (TREBLE) (A phase input) 84 TRE B I Jog dial pulse input from the rotary encoder (TREBLE) (B phase input) 85 BASS A I Jog dial pulse input from the rotary encoder (BASS) (A phase input) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 HCD-CPX11 Pin No. Pin Name I/O Description 86 BASS B I Jog dial pulse input from the rotary encoder (BASS) (B phase input) 87 VOL A I Jog dial pulse input from the rotary encoder (VOLUME) (A phase input) 88 VOL B I Jog dial pulse input from the rotary encoder (VOLUME) (B phase input) 89 LED CD O LED drive signal output of the CD NX indicator “H”: LED on 90 TC END SW I Tape end detect switch input terminal 91 TC HALF/REC/SW I Recording-proof claw (forward/reverse) detect switch and cassette in detect switch input terminal (A/D input) 92 MODEL I Model setting terminal 93 DEST I Destination setting terminal 94, 95 KEY3, KEY2 I Front panel key input terminal (A/D input) 96 AVSS — Ground terminal (for analog system) 97 KEY1 I Front panel key input terminal (A/D input) 98 VREF I Reference voltage (+3.3V) input terminal 99 AVCC — Power supply terminal (+3.3V) (for analog system) 100 HP DET I Headphone jack connection detection signal input terminal “L”: no connected, “H”: headphone connected www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 HCD-CPX11 SECTION 7 EXPLODED VIEWS NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Abbreviation AUS : Australian model KR : Korean model Ref. No. Part No. Description Remark 1 4-235-099-11 SCREW (CASE 3 TP2) 2 4-244-016-21 COVER #1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B) 7-1. MAIN SECTION The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. #1 #1 #1 #1 1 1 front panel section chassis section 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 HCD-CPX11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 4-252-359-01 KNOB, TUNING 52 4-252-348-01 KNOB, VOLUME 53 4-252-349-01 KNOB, BASS 54 4-252-352-01 BAND (UPPER), DIVISION 55 X-4956-171-1 PANEL ASSY, FRONT (AEP, UK) 55 X-4956-181-1 PANEL ASSY, FRONT (KR, AUS) 56 4-244-021-01 SPRING (LID TC), TORSION 57 4-244-023-01 SPRING (EJECT), COMPRESSION 58 4-244-014-01 LEVER (EJECT) 59 4-951-620-01 SCREW (2.6X8), +BVTP 60 1-824-192-11 WIRE (FLAT TYPE) (8 CORE) 61 3-669-480-51 + PTPWH 2 62 A-4750-369-A TC BOARD, COMPLETE 63 1-796-456-31 DECK, MECHANICAL (CMAL1Z-236A) 64 A-4750-358-A PANEL BOARD, COMPLETE 65 4-933-134-11 SCREW (+PTPWH M2.6X8) 66 4-244-530-01 DAMPER 67 4-252-396-01 PLATE (TOP), ORNAMENT 68 4-233-372-02 FOOT (FELT) 69 1-773-120-11 WIRE (FLAT TYPE) (19 CORE) 70 4-951-620-31 SCREW (2.6), +BVTP 71 1-773-110-11 WIRE (FLAT TYPE) (19 CORE) #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B) 7-2. FRONT PANEL SECTION not supplied not supplied not supplied not supplied #2 #2 52 68 51 lid (TC) section 55 69 67 58 70 71 57 56 65 66 59 59 59 59 60 61 61 63 62 64 53 54 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 HCD-CPX11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-3. LID (TC) SECTION 101 X-4956-169-1 LID (TC) ASSY 102 1-769-912-11 WIRE (FLAT TYPE) (9 CORE) 103 1-861-335-11 LCD BOARD 104 4-951-620-01 SCREW (2.6X8), +BVTP 105 4-244-022-01 SPRING (TC), LEAF 106 4-252-353-01 HOLDER (TC) LCD800 1-805-545-11 DISPLAY PANEL, LIQUID CRYSTAL not supplied not supplied not supplied 101 104 102 105 104 103 106 LCD800 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 HCD-CPX11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-4. CHASSIS SECTION 0151 1-769-079-23 CORD, POWER (KR) 0151 1-777-071-83 CORD, POWER (AEP, UK) 0151 1-783-203-13 CORD, POWER (AUS) 152 3-703-244-00 BUSHING (2104), CORD 153 A-4750-356-A PRE AMP BOARD, COMPLETE 154 A-4750-353-A MAIN BOARD, COMPLETE (AEP, UK) 154 A-4750-940-A MAIN BOARD, COMPLETE (KR, AUS) 155 1-777-353-11 FLAT CABLE (15 CORE) (AEP, UK) 155 1-824-486-11 WIRE (FLAT TYPE) (11 CORE) (KR, AUS) 156 1-693-603-31 TUNER (FM/AM) (AUS) 156 1-693-604-11 TUNER (FM/AM) (AEP, UK) 156 1-693-605-11 TUNER (FM/AM) (KR) 157 4-233-372-02 FOOT (FELT) 158 1-773-105-11 WIRE (FLAT TYPE) (19 CORE) #1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B) #3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 TT (B) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. not supplied not supplied #3 #1 #1 #1 #1 #1 #1 #1 #1 157 156 155 152 S-MASTER AMP section CD mchanism deck section 151 153 154 158 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 HCD-CPX11 0201 1-468-730-11 REGULATOR, SWITCHING 202 A-4750-366-A S-MASTER AMP BOARD, COMPLETE 203 1-500-484-21 CLAMP, SLEEVE FERRITE 204 1-773-158-11 WIRE (FLAT TYPE) (21 CORE) #1 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B) #2 7-685-646-79 SCREW +BVTP 3X8 TYPE2 TT (B) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-5. S-MASTER AMP SECTION The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. not supplied not supplied not supplied not supplied not supplied #1 #1 #1 #1 #1 #2 #1 #1 #1 201 202 204 203 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 HCD-CPX11 401 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING 403 4-245-653-01 BELT (MOT) 404 4-245-662-02 PULLEY (GEAR) 405 4-245-646-01 GEAR (IDL-F) 406 4-245-644-01 GEAR (IDL-D) 407 4-245-645-01 GEAR (IDL-E) 408 4-246-203-01 LEVER (RELEASE) 409 4-245-630-01 LEVER (SW) 410 4-951-620-01 SCREW (2.6X8), +BVTP 411 4-245-639-01 LEVER (CL UP2) 412 1-688-337-11 DRIVER BOARD 413 1-763-967-11 MOTOR, DC M701 X-2021-530-1 MOTOR (PULLEY) ASSY (LOADING) #9 7-685-106-19 SCREW +P 2X10 TYPE2 NON-SLIT Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-6. CD MECHANISM DECK SECTION-1 (CDM80BH-F1BD81) a b a b CD mechanism deck section-2 (CDM80BH-F1BD81) 410 410 410 413 411 410 412 409 401 408 401 407 406 405 404 403 401 base unit section (BU-F1BD81A) M701 #9 CD mechanism deck section-3 (CDM80BH-F1BD81) not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 HCD-CPX11 7-7. CD MECHANISM DECK SECTION-2 (CDM80BH-F1BD81) 451 4-245-627-01 WASHER (6-2.7-0.4) 452 4-245-637-01 ROLLER, RUBBER 453 4-245-649-01 GEAR (IDL-I) 454 4-245-657-01 LEVER (LOADING-R) 455 4-245-647-01 GEAR (IDL-G) 456 4-245-648-01 GEAR (IDL-H) 457 4-245-655-01 CHASSIS (TOP) 458 4-245-631-01 SPR-T (LOADING-R) 459 4-245-650-01 GEAR (IDL-J) 460 4-245-651-01 GEAR (IDL-L) 461 4-245-640-01 GEAR (CAP) 462 1-452-925-21 MAGNET ASSY 463 4-245-638-01 LEVER (CL UP1) 464 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING 465 4-245-636-01 SPR-T CL DOWN 466 4-245-658-01 LEVER (DISC STOP) 467 4-245-659-01 LEVER (DISC SENSOR) 468 4-245-632-01 SPR-T (LOADING-L) 469 X-2021-532-1 CLAMPER 213 ASSY 470 4-245-656-01 LEVER (LOADING-L) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 451 451 452 452 453 454 457 458 459 460 461 462 453 470 464 467 469 466 463 455 465 455 456 456 468 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 HCD-CPX11 7-8. CD MECHANISM DECK SECTION-3 (CDM80BH-F1BD81) 501 4-245-643-01 GEAR (IDL-C) 502 X-4956-147-1 CHASSIS (BOTTOM) ASSY 503 4-248-722-01 SPR-E, DIR 504 4-245-642-01 GEAR (IDL-B) 505 4-245-814-01 LEVER (DIR FIRST) 506 4-245-633-01 SPR-E DIR BACK 507 4-245-660-01 LEVER (DIR) 508 4-245-641-01 GEAR (IDL-A) 509 4-245-640-01 GEAR (CAP) 510 4-245-628-01 LEVER (BU LOCK) 511 4-248-206-01 WASHER (3-1-0.4) 512 4-245-624-01 LEVER, CLOSE 513 4-245-635-01 SPR-E LEVER CLOSE 514 4-245-629-01 GEAR (BU LOCK) 515 4-245-644-01 GEAR (IDL-D) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark not supplied not supplied 501 515 502 505 503 507 508 509 504 506 511 512 513 514 509 510 not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-CPX11 7-9. BASE UNIT SECTION (BU-F1BD81A) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 551 A-4751-431-A BD81A BOARD, COMPLETE 552 4-951-620-01 SCREW (2.6X8), +BVTP 553 4-231-151-01 STOPPER (BU) 554 4-227-045-31 SPRING (INSULATOR), COIL 555 4-227-549-11 INSULATOR 0556 8-820-244-01 OPTICAL PICK-UP (KSM-215DCP/C2NP) 557 1-775-241-11 WIRE (FLAT TYPE) (27 CORE) 558 X-4956-146-1 HOLDER (BU215) ASSY 559 1-827-992-11 WIRE (FLAT TYPE)(16 CORE) 560 4-985-672-01 SCREW (+PTPWHM2.6), FLOATING The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 559 551 555 554 553 552 557 552 558 555 554 555 554 554 560 553 552 555 556 560 not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 HCD-CPX11 SECTION 8 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • CAPACITORS uF: µF • COILS uH: µH • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • Accessories are given in the last of this parts list. • Abbreviation AUS : Australian model KR : Korean model When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark BACK LIGHT BOARD **************** < CONNECTOR > CN807 1-770-011-41 CONNECTOR, BOARD TO BOARD 4P < DIODE > D806 8-719-075-50 DIODE SELS6B14C-TP5 (LCD BACK LIGHT) D807 8-719-075-50 DIODE SELS6B14C-TP5 (LCD BACK LIGHT) ************************************************************ A-4751-431-A BD81A BOARD, COMPLETE ********************** < CAPACITOR > C10 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C11 1-165-989-11 CERAMIC CHIP 10uF 10% 6.3V C14 1-164-360-11 CERAMIC CHIP 0.1uF 16V C15 1-164-360-11 CERAMIC CHIP 0.1uF 16V C16 1-115-156-11 CERAMIC CHIP 1uF 10V C17 1-126-246-11 ELECT CHIP 220uF 20% 4V C18 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C111 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C112 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C113 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C114 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C115 1-164-360-11 CERAMIC CHIP 0.1uF 16V C116 1-128-995-21 ELECT CHIP 100uF 20% 10V C122 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C123 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C124 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C125 1-164-360-11 CERAMIC CHIP 0.1uF 16V C131 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C132 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C133 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C134 1-164-360-11 CERAMIC CHIP 0.1uF 16V C141 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C142 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C143 1-164-360-11 CERAMIC CHIP 0.1uF 16V C151 1-128-995-21 ELECT CHIP 100uF 20% 10V C161 1-164-360-11 CERAMIC CHIP 0.1uF 16V C162 1-164-360-11 CERAMIC CHIP 0.1uF 16V C163 1-164-360-11 CERAMIC CHIP 0.1uF 16V C171 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C172 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C174 1-164-360-11 CERAMIC CHIP 0.1uF 16V C181 1-164-360-11 CERAMIC CHIP 0.1uF 16V C182 1-164-360-11 CERAMIC CHIP 0.1uF 16V C183 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C184 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C185 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C186 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C194 1-164-360-11 CERAMIC CHIP 0.1uF 16V C195 1-164-360-11 CERAMIC CHIP 0.1uF 16V C196 1-164-360-11 CERAMIC CHIP 0.1uF 16V C201 1-128-995-21 ELECT CHIP 100uF 20% 10V C203 1-128-995-21 ELECT CHIP 100uF 20% 10V C209 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C210 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C211 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C212 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C213 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C251 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C252 1-164-360-11 CERAMIC CHIP 0.1uF 16V C255 1-164-360-11 CERAMIC CHIP 0.1uF 16V C257 1-164-360-11 CERAMIC CHIP 0.1uF 16V C258 1-164-360-11 CERAMIC CHIP 0.1uF 16V C259 1-164-360-11 CERAMIC CHIP 0.1uF 16V C260 1-128-394-11 ELECT CHIP 220uF 20% 10V C302 1-164-360-11 CERAMIC CHIP 0.1uF 16V C303 1-164-360-11 CERAMIC CHIP 0.1uF 16V C305 1-126-246-11 ELECT CHIP 220uF 20% 4V C306 1-164-360-11 CERAMIC CHIP 0.1uF 16V C307 1-164-360-11 CERAMIC CHIP 0.1uF 16V C308 1-126-208-21 ELECT CHIP 47uF 20% 4V C309 1-164-360-11 CERAMIC CHIP 0.1uF 16V C310 1-164-360-11 CERAMIC CHIP 0.1uF 16V C311 1-164-360-11 CERAMIC CHIP 0.1uF 16V C312 1-164-360-11 CERAMIC CHIP 0.1uF 16V C313 1-164-360-11 CERAMIC CHIP 0.1uF 16V C314 1-126-208-21 ELECT CHIP 47uF 20% 4V C315 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C316 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C317 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C318 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C320 1-216-864-11 SHORT CHIP 0 BACK LIGHT The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. BD81A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 HCD-CPX11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < CONNECTOR > CN101 1-770-425-11 CONNECTOR, FFC/FPC 16P CN201 1-818-350-11 CONNECTOR (FFC) 27P < FERRITE BEAD > FB301 1-500-445-21 FERRITE, EMI (SMD) (2012) < IC > IC101 8-752-425-12 IC CXD3059AR IC251 6-705-808-01 IC BA5947FM IC301 6-705-365-01 IC TC94A34FG-002 IC303 6-705-807-01 IC BH15FB1WG < TRANSISTOR > Q10 6-550-363-01 TRANSISTOR 2SB1690KT146 < RESISTOR > R10 1-216-791-11 METAL CHIP 3.3 5% 1/10W R11 1-216-864-11 SHORT CHIP 0 R12 1-216-845-11 METAL CHIP 100K 5% 1/10W R13 1-218-446-11 METAL CHIP 1 5% 1/10W R111 1-216-821-11 METAL CHIP 1K 5% 1/10W R112 1-216-835-11 METAL CHIP 15K 5% 1/10W R113 1-216-821-11 METAL CHIP 1K 5% 1/10W R114 1-216-835-11 METAL CHIP 15K 5% 1/10W R121 1-216-835-11 METAL CHIP 15K 5% 1/10W R131 1-216-857-11 METAL CHIP 1M 5% 1/10W R132 1-216-833-11 METAL CHIP 10K 5% 1/10W R133 1-216-848-11 METAL CHIP 180K 5% 1/10W R141 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R142 1-216-821-11 METAL CHIP 1K 5% 1/10W R143 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R151 1-216-864-11 SHORT CHIP 0 R161 1-216-809-11 METAL CHIP 100 5% 1/10W R162 1-216-841-11 METAL CHIP 47K 5% 1/10W R163 1-216-809-11 METAL CHIP 100 5% 1/10W R165 1-216-864-11 SHORT CHIP 0 R171 1-216-817-11 METAL CHIP 470 5% 1/10W R172 1-216-857-11 METAL CHIP 1M 5% 1/10W R173 1-216-295-91 SHORT CHIP 0 R181 1-216-809-11 METAL CHIP 100 5% 1/10W R182 1-216-809-11 METAL CHIP 100 5% 1/10W R191 1-216-864-11 SHORT CHIP 0 R201 1-500-445-21 FERRITE, EMI (SMD) (2012) R203 1-216-864-11 SHORT CHIP 0 R204 1-500-445-21 FERRITE, EMI (SMD) (2012) R205 1-216-864-11 SHORT CHIP 0 R251 1-216-833-11 METAL CHIP 10K 5% 1/10W R252 1-216-837-11 METAL CHIP 22K 5% 1/10W R253 1-216-833-11 METAL CHIP 10K 5% 1/10W R301 1-216-845-11 METAL CHIP 100K 5% 1/10W R302 1-216-833-11 METAL CHIP 10K 5% 1/10W R303 1-216-845-11 METAL CHIP 100K 5% 1/10W R305 1-216-845-11 METAL CHIP 100K 5% 1/10W R306 1-216-864-11 SHORT CHIP 0 R307 1-216-833-11 METAL CHIP 10K 5% 1/10W R313 1-216-813-11 METAL CHIP 220 5% 1/10W R351 1-216-809-11 METAL CHIP 100 5% 1/10W R352 1-216-809-11 METAL CHIP 100 5% 1/10W R353 1-216-809-11 METAL CHIP 100 5% 1/10W R354 1-216-809-11 METAL CHIP 100 5% 1/10W R401 1-216-809-11 METAL CHIP 100 5% 1/10W R402 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-809-11 METAL CHIP 100 5% 1/10W R404 1-216-809-11 METAL CHIP 100 5% 1/10W R405 1-216-809-11 METAL CHIP 100 5% 1/10W R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R408 1-216-809-11 METAL CHIP 100 5% 1/10W R409 1-216-809-11 METAL CHIP 100 5% 1/10W R410 1-216-809-11 METAL CHIP 100 5% 1/10W R411 1-216-809-11 METAL CHIP 100 5% 1/10W R412 1-216-809-11 METAL CHIP 100 5% 1/10W R419 1-216-809-11 METAL CHIP 100 5% 1/10W < SWITCH > S101 1-771-853-11 SWITCH,DETECTION (LIMIT) < VIBRATOR > X171 1-767-408-21 VIBRATOR, CRYSTAL (16.9MHz) ************************************************************ 1-688-337-11 DRIVER BOARD ************ < CAPACITOR > C705 1-162-306-11 CERAMIC 0.01uF 20% 16V C711 1-126-964-11 ELECT 10uF 20% 50V < CONNECTOR > CN701 1-785-333-11 PIN, CONNECTOR (LIGHT ANGLE) 7P < DIODE > D701 8-719-921-40 DIODE MTZJ-4.7C < IC > IC701 8-759-598-69 IC BA6956AN < RESISTOR > R701 1-249-415-11 CARBON 680 5% 1/4W R702 1-247-807-31 CARBON 100 5% 1/4W < SWITCH > S701 1-762-951-13 SWITCH, PUSH (OUT) S702 1-762-951-13 SWITCH, PUSH (CHUCK) S703 1-762-951-13 SWITCH, PUSH (TRIGGER) ************************************************************ HP BOARD ********* < CAPACITOR > C891 1-164-156-11 CERAMIC CHIP 0.1uF 25V C892 1-164-156-11 CERAMIC CHIP 0.1uF 25V DRIVER HP BD81A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 HCD-CPX11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C894 1-164-156-11 CERAMIC CHIP 0.1uF 25V < FERRITE BEAD > FB891 1-216-864-11 SHORT CHIP 0 FB893 1-216-864-11 SHORT CHIP 0 FB894 1-216-864-11 SHORT CHIP 0 < JACK > J801 1-815-603-11 JACK (PHONES) ************************************************************ 1-861-335-11 LCD BOARD ********** < CAPACITOR > C854 1-164-156-11 CERAMIC CHIP 0.1uF 25V C856 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C857 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C858 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C859 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C860 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CN805 1-784-731-11 CONNECTOR, FFC 9P CN806 1-770-010-21 CONNECTOR, BOARD TO BOARD 4P < SHORT > JR801 1-216-296-11 SHORT CHIP 0 JR802 1-216-296-11 SHORT CHIP 0 JR803 1-216-296-11 SHORT CHIP 0 JR804 1-216-296-11 SHORT CHIP 0 JR805 1-216-296-11 SHORT CHIP 0 JR806 1-216-296-11 SHORT CHIP 0 < LIQUID CRYSTAL DISPLAY > LCD800 1-805-545-11 DISPLAY PANEL, LIQUID CRYSTAL < RESISTOR > R841 1-216-817-11 METAL CHIP 470 5% 1/10W R842 1-216-817-11 METAL CHIP 470 5% 1/10W R843 1-216-817-11 METAL CHIP 470 5% 1/10W R844 1-216-817-11 METAL CHIP 470 5% 1/10W R851 1-216-847-11 METAL CHIP 150K 5% 1/10W R853 1-216-821-11 METAL CHIP 1K 5% 1/10W R854 1-216-833-11 METAL CHIP 10K 5% 1/10W R856 1-216-809-11 METAL CHIP 100 5% 1/10W R857 1-216-809-11 METAL CHIP 100 5% 1/10W R858 1-216-809-11 METAL CHIP 100 5% 1/10W R859 1-216-809-11 METAL CHIP 100 5% 1/10W R860 1-216-809-11 METAL CHIP 100 5% 1/10W ************************************************************ A-4750-353-A MAIN BOARD, COMPLETE (AEP, UK) A-4750-940-A MAIN BOARD, COMPLETE (KR, AUS) ********************* 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B) < CAPACITOR > C213 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C218 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C219 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C221 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C222 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C223 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C224 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C228 1-104-658-91 ELECT 100uF 20% 10V C229 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C230 1-104-658-91 ELECT 100uF 20% 10V C231 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C232 1-104-658-91 ELECT 100uF 20% 10V C233 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C234 1-104-658-91 ELECT 100uF 20% 10V C235 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C236 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C237 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C238 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C239 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C240 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C241 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C251 1-126-961-11 ELECT 2.2uF 20% 50V C252 1-126-961-11 ELECT 2.2uF 20% 50V C267 1-164-156-11 CERAMIC CHIP 0.1uF 25V C268 1-104-658-91 ELECT 100uF 20% 10V C301 1-126-916-11 ELECT 1000uF 20% 6.3V C310 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C311 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C312 1-164-156-11 CERAMIC CHIP 0.1uF 25V C316 1-164-156-11 CERAMIC CHIP 0.1uF 25V C331 1-126-964-11 ELECT 10uF 20% 50V C332 1-126-964-11 ELECT 10uF 20% 50V C351 1-126-937-11 ELECT 4700uF 20% 16V C352 1-126-956-91 ELECT 0.1uF 20% 50V C353 1-126-925-91 ELECT 470uF 20% 10V C354 1-126-956-91 ELECT 0.1uF 20% 50V C355 1-126-925-91 ELECT 470uF 20% 10V C356 1-126-956-91 ELECT 0.1uF 20% 50V C357 1-126-925-91 ELECT 470uF 20% 10V C358 1-126-956-91 ELECT 0.1uF 20% 50V C359 1-104-658-91 ELECT 100uF 20% 10V C360 1-126-925-91 ELECT 470uF 20% 10V C364 1-164-156-11 CERAMIC CHIP 0.1uF 25V C401 1-126-964-11 ELECT 10uF 20% 50V C450 1-104-658-91 ELECT 100uF 20% 10V C451 1-164-156-11 CERAMIC CHIP 0.1uF 25V C502 1-130-495-00 MYLAR 0.1uF 5% 50V C503 1-130-495-00 MYLAR 0.1uF 5% 50V < CONNECTOR > CN201 1-779-295-11 CONNECTOR, FFC (LIF (NON-ZIF)) 27P CN202 1-785-319-11 PIN, CONNECTOR (STRAIGHT) 7P CN301 1-564-505-11 PLUG, CONNECTOR 2P CN302 1-785-315-11 PIN, CONNECTOR (STRAIGHT) 3P CN303 1-784-780-11 CONNECTOR, FFC 19P MAIN HP LCD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 HCD-CPX11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CN304 1-568-828-11 CONNECTOR, FFC 9P CN306 1-784-780-11 CONNECTOR, FFC 19P CN307 1-568-830-11 CONNECTOR, FFC 11P (KR, AUS) CN307 1-784-776-11 CONNECTOR, FFC 15P (AEP, UK) CN308 1-784-780-11 CONNECTOR, FFC 19P CN309 1-568-838-11 CONNECTOR, FFC 21P < DIODE > D201 8-719-988-61 DIODE 1SS355TE-17 D202 6-500-522-31 DIODE 10EDB40-TB5 D203 6-500-522-31 DIODE 10EDB40-TB5 D204 6-500-522-31 DIODE 10EDB40-TB5 D205 6-500-522-31 DIODE 10EDB40-TB5 D301 8-719-988-61 DIODE 1SS355TE-17 D302 8-719-988-61 DIODE 1SS355TE-17 D303 8-719-988-61 DIODE 1SS355TE-17 D304 8-719-988-61 DIODE 1SS355TE-17 D350 6-500-522-31 DIODE 10EDB40-TB5 D351 6-500-522-31 DIODE 10EDB40-TB5 D352 6-500-522-31 DIODE 10EDB40-TB5 D374 8-719-988-61 DIODE 1SS355TE-17 D375 8-719-988-61 DIODE 1SS355TE-17 D401 8-719-988-61 DIODE 1SS355TE-17 D402 8-719-988-61 DIODE 1SS355TE-17 D403 8-719-988-61 DIODE 1SS355TE-17 D404 8-719-988-61 DIODE 1SS355TE-17 D442 1-216-295-91 SHORT CHIP 0 D443 1-216-295-91 SHORT CHIP 0 < EARTH TERMINAL > * EP301 1-537-738-21 TERMINAL, EARTH * EP302 1-537-738-21 TERMINAL, EARTH < FERRITE BEAD > FB201 1-414-772-11 FERRITE. EMI (SMD) (2012) FB203 1-414-772-11 FERRITE. EMI (SMD) (2012) FB205 1-414-772-11 FERRITE. EMI (SMD) (2012) FB207 1-414-772-11 FERRITE. EMI (SMD) (2012) FB214 1-414-772-11 FERRITE. EMI (SMD) (2012) FB216 1-414-772-11 FERRITE. EMI (SMD) (2012) FB225 1-414-772-11 FERRITE. EMI (SMD) (2012) FB227 1-414-772-11 FERRITE. EMI (SMD) (2012) FB301 1-216-864-11 SHORT CHIP 0 FB302 1-216-864-11 SHORT CHIP 0 FB303 1-216-864-11 SHORT CHIP 0 < IC > IC201 8-759-701-59 IC NJM78M09FA IC202 8-759-071-48 IC TA7807S IC203 6-703-546-01 IC TA7804LS IC204 8-759-231-53 IC TA7805S IC300 6-804-485-01 IC M3062CMEN-A14FPU0 IC401 8-759-532-64 IC M62703SL-TP IC450 8-749-019-25 IC TOTX141 (CD DIGITAL OUT (OPTICAL)) < TRANSISTOR > Q201 8-729-049-79 TRANSISTOR RT1P137S-TP Q202 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q331 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q332 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q333 8-729-027-30 TRANSISTOR DTA123YKA-T146 Q334 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q340 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q341 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q342 8-729-107-43 TRANSISTOR 2SC3624-L18 Q343 8-729-107-43 TRANSISTOR 2SC3624-L18 Q401 8-729-119-78 TRANSISTOR 2SC2785-HFE < RESISTOR > R251 1-216-821-11 METAL CHIP 1K 5% 1/10W R252 1-216-821-11 METAL CHIP 1K 5% 1/10W R253 1-216-845-11 METAL CHIP 100K 5% 1/10W R254 1-216-845-11 METAL CHIP 100K 5% 1/10W R301 1-216-809-11 METAL CHIP 100 5% 1/10W R302 1-216-809-11 METAL CHIP 100 5% 1/10W R303 1-216-809-11 METAL CHIP 100 5% 1/10W R304 1-216-809-11 METAL CHIP 100 5% 1/10W R305 1-216-809-11 METAL CHIP 100 5% 1/10W R306 1-216-809-11 METAL CHIP 100 5% 1/10W R307 1-216-809-11 METAL CHIP 100 5% 1/10W R309 1-216-833-11 METAL CHIP 10K 5% 1/10W R311 1-216-851-11 METAL CHIP 330K 5% 1/10W R313 1-216-864-11 SHORT CHIP 0 R317 1-216-833-11 METAL CHIP 10K 5% 1/10W R318 1-216-809-11 METAL CHIP 100 5% 1/10W (AEP, UK) R319 1-216-809-11 METAL CHIP 100 5% 1/10W R320 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R321 1-216-809-11 METAL CHIP 100 5% 1/10W R322 1-216-809-11 METAL CHIP 100 5% 1/10W R323 1-216-809-11 METAL CHIP 100 5% 1/10W R326 1-216-809-11 METAL CHIP 100 5% 1/10W R327 1-216-809-11 METAL CHIP 100 5% 1/10W R328 1-216-809-11 METAL CHIP 100 5% 1/10W R332 1-216-809-11 METAL CHIP 100 5% 1/10W R333 1-216-809-11 METAL CHIP 100 5% 1/10W R334 1-216-809-11 METAL CHIP 100 5% 1/10W R335 1-216-809-11 METAL CHIP 100 5% 1/10W R336 1-216-809-11 METAL CHIP 100 5% 1/10W R337 1-216-809-11 METAL CHIP 100 5% 1/10W R339 1-216-809-11 METAL CHIP 100 5% 1/10W R340 1-216-809-11 METAL CHIP 100 5% 1/10W R341 1-216-809-11 METAL CHIP 100 5% 1/10W R342 1-216-809-11 METAL CHIP 100 5% 1/10W R343 1-216-809-11 METAL CHIP 100 5% 1/10W R344 1-216-809-11 METAL CHIP 100 5% 1/10W R345 1-216-809-11 METAL CHIP 100 5% 1/10W R346 1-216-809-11 METAL CHIP 100 5% 1/10W R347 1-216-809-11 METAL CHIP 100 5% 1/10W R348 1-216-809-11 METAL CHIP 100 5% 1/10W R349 1-216-809-11 METAL CHIP 100 5% 1/10W R350 1-216-809-11 METAL CHIP 100 5% 1/10W R351 1-216-809-11 METAL CHIP 100 5% 1/10W R352 1-216-809-11 METAL CHIP 100 5% 1/10W R353 1-216-809-11 METAL CHIP 100 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 HCD-CPX11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R354 1-216-809-11 METAL CHIP 100 5% 1/10W (AEP, UK) R355 1-216-809-11 METAL CHIP 100 5% 1/10W R357 1-216-809-11 METAL CHIP 100 5% 1/10W R361 1-216-809-11 METAL CHIP 100 5% 1/10W R365 1-216-809-11 METAL CHIP 100 5% 1/10W R366 1-216-809-11 METAL CHIP 100 5% 1/10W R367 1-216-809-11 METAL CHIP 100 5% 1/10W R368 1-216-809-11 METAL CHIP 100 5% 1/10W R369 1-216-809-11 METAL CHIP 100 5% 1/10W R370 1-216-809-11 METAL CHIP 100 5% 1/10W R371 1-216-809-11 METAL CHIP 100 5% 1/10W R372 1-216-809-11 METAL CHIP 100 5% 1/10W R373 1-216-809-11 METAL CHIP 100 5% 1/10W R375 1-216-809-11 METAL CHIP 100 5% 1/10W R376 1-216-809-11 METAL CHIP 100 5% 1/10W R377 1-216-809-11 METAL CHIP 100 5% 1/10W R378 1-216-809-11 METAL CHIP 100 5% 1/10W R379 1-216-809-11 METAL CHIP 100 5% 1/10W R380 1-216-809-11 METAL CHIP 100 5% 1/10W R381 1-216-809-11 METAL CHIP 100 5% 1/10W R382 1-216-809-11 METAL CHIP 100 5% 1/10W R383 1-216-809-11 METAL CHIP 100 5% 1/10W R384 1-216-809-11 METAL CHIP 100 5% 1/10W R385 1-216-809-11 METAL CHIP 100 5% 1/10W R386 1-216-809-11 METAL CHIP 100 5% 1/10W R387 1-216-809-11 METAL CHIP 100 5% 1/10W R388 1-216-809-11 METAL CHIP 100 5% 1/10W R389 1-216-809-11 METAL CHIP 100 5% 1/10W R390 1-216-809-11 METAL CHIP 100 5% 1/10W R391 1-216-809-11 METAL CHIP 100 5% 1/10W R392 1-216-864-11 SHORT CHIP 0 R393 1-216-864-11 SHORT CHIP 0 (KR, AUS) R394 1-216-797-11 METAL CHIP 10 5% 1/10W R395 1-216-797-11 METAL CHIP 10 5% 1/10W R397 1-216-797-11 METAL CHIP 10 5% 1/10W R400 1-216-809-11 METAL CHIP 100 5% 1/10W R401 1-216-813-11 METAL CHIP 220 5% 1/10W R402 1-216-833-11 METAL CHIP 10K 5% 1/10W R403 1-216-841-11 METAL CHIP 47K 5% 1/10W R404 1-216-841-11 METAL CHIP 47K 5% 1/10W R405 1-216-833-11 METAL CHIP 10K 5% 1/10W R406 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R418 1-216-864-11 SHORT CHIP 0 (KR, AUS) R420 1-216-833-11 METAL CHIP 10K 5% 1/10W R426 1-216-833-11 METAL CHIP 10K 5% 1/10W R427 1-216-833-11 METAL CHIP 10K 5% 1/10W R428 1-216-833-11 METAL CHIP 10K 5% 1/10W R429 1-216-833-11 METAL CHIP 10K 5% 1/10W R430 1-216-833-11 METAL CHIP 10K 5% 1/10W R440 1-216-833-11 METAL CHIP 10K 5% 1/10W R442 1-216-833-11 METAL CHIP 10K 5% 1/10W R443 1-216-833-11 METAL CHIP 10K 5% 1/10W R450 1-216-809-11 METAL CHIP 100 5% 1/10W R451 1-216-833-11 METAL CHIP 10K 5% 1/10W R452 1-216-833-11 METAL CHIP 10K 5% 1/10W R455 1-216-864-11 SHORT CHIP 0 (KR, AUS) R474 1-216-857-11 METAL CHIP 1M 5% 1/10W R483 1-216-833-11 METAL CHIP 10K 5% 1/10W R484 1-216-833-11 METAL CHIP 10K 5% 1/10W R485 1-216-833-11 METAL CHIP 10K 5% 1/10W R486 1-216-833-11 METAL CHIP 10K 5% 1/10W R487 1-216-833-11 METAL CHIP 10K 5% 1/10W R488 1-216-833-11 METAL CHIP 10K 5% 1/10W R493 1-216-864-11 SHORT CHIP 0 (AEP, UK) R494 1-216-833-11 METAL CHIP 10K 5% 1/10W R495 1-216-833-11 METAL CHIP 10K 5% 1/10W R497 1-216-833-11 METAL CHIP 10K 5% 1/10W R500 1-216-833-11 METAL CHIP 10K 5% 1/10W < VIBRATOR > X401 1-795-482-11 VIBRATOR, CERAMIC (16MHz) X402 1-760-252-12 VIBRATOR, CRYSTAL (32.768kHz) ************************************************************ A-4750-358-A PANEL BOARD, COMPLETE ********************** < CAPACITOR > C803 1-164-156-11 CERAMIC CHIP 0.1uF 25V C804 1-164-156-11 CERAMIC CHIP 0.1uF 25V C805 1-164-156-11 CERAMIC CHIP 0.1uF 25V C806 1-164-156-11 CERAMIC CHIP 0.1uF 25V C807 1-164-156-11 CERAMIC CHIP 0.1uF 25V C808 1-164-156-11 CERAMIC CHIP 0.1uF 25V C817 1-126-947-11 ELECT 47uF 20% 35V < CONNECTOR > CN801 1-784-780-11 CONNECTOR, FFC 19P CN802 1-785-330-11 PIN, CONNECTOR (LIGHT ANGLE) 4P < DIODE > D812 8-719-046-36 DIODE SEL5921A-TP15 (DSGX) D813 8-719-812-44 DIODE TLO124 (STAND BY) D816 8-719-046-36 DIODE SEL5921A-TP15 (TUNER/BAND) D818 8-719-046-36 DIODE SEL5921A-TP15 (TAPE nN) < IC > IC802 6-600-349-31 IC NJL24H400A ( ) < TRANSISTOR > Q812 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q813 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q816 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q818 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R801 1-216-821-11 METAL CHIP 1K 5% 1/10W R802 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R803 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R804 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R805 1-216-821-11 METAL CHIP 1K 5% 1/10W R806 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R807 1-216-821-11 METAL CHIP 1K 5% 1/10W R808 1-216-825-11 METAL CHIP 2.2K 5% 1/10W MAIN PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 HCD-CPX11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R809 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R810 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R811 1-216-833-11 METAL CHIP 10K 5% 1/10W R812 1-216-837-11 METAL CHIP 22K 5% 1/10W R813 1-216-809-11 METAL CHIP 100 5% 1/10W R814 1-216-809-11 METAL CHIP 100 5% 1/10W R815 1-216-809-11 METAL CHIP 100 5% 1/10W R816 1-216-809-11 METAL CHIP 100 5% 1/10W R821 1-216-817-11 METAL CHIP 470 5% 1/10W R822 1-216-817-11 METAL CHIP 470 5% 1/10W R823 1-216-817-11 METAL CHIP 470 5% 1/10W R825 1-216-805-11 METAL CHIP 47 5% 1/10W R826 1-216-817-11 METAL CHIP 470 5% 1/10W R828 1-216-817-11 METAL CHIP 470 5% 1/10W < VARIABLE RESISTOR > RV803 1-476-730-11 ENCODER, ROTARY (VOLUME) RV805 1-418-859-21 ENCODER, ROTARY (BASS) RV807 1-418-859-21 ENCODER, ROTARY (TREBLE) < SWITCH > S801 1-762-875-21 SWITCH, KEYBOARD (?/1) S802 1-762-875-21 SWITCH, KEYBOARD (DSGX) S803 1-762-875-21 SWITCH, KEYBOARD (PLAY MODE/DIRECTION/TUNING MODE) S804 1-762-875-21 SWITCH, KEYBOARD (REPEAT/FM MODE) S805 1-762-875-21 SWITCH, KEYBOARD (CD SYNCHRO) S806 1-762-875-21 SWITCH, KEYBOARD (FUNCTON) S807 1-771-574-21 SWITCH, TACTILE (TUNING + LM) S808 1-771-574-21 SWITCH, TACTILE (- TUNING lm) S809 1-762-875-21 SWITCH, KEYBOARD (DISPLAY) S810 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) S811 1-762-875-21 SWITCH, KEYBOARD ((CD) Z) S812 1-762-875-21 SWITCH, KEYBOARD (z REC) S813 1-762-875-21 SWITCH, KEYBOARD ((TAPE) X) S814 1-762-875-21 SWITCH, KEYBOARD ((TAPE) x) S815 1-762-875-21 SWITCH, KEYBOARD (TAPE nN) ************************************************************ A-4750-356-A PRE AMP BOARD, COMPLETE ************************ < CAPACITOR > C101 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C102 1-126-960-11 ELECT 1uF 20% 50V C103 1-126-960-11 ELECT 1uF 20% 50V C104 1-126-960-11 ELECT 1uF 20% 50V C105 1-126-960-11 ELECT 1uF 20% 50V C106 1-126-960-11 ELECT 1uF 20% 50V C107 1-126-960-11 ELECT 1uF 20% 50V C108 1-130-476-00 MYLAR 0.0027uF 5% 50V C109 1-130-496-00 MYLAR 0.12uF 5% 50V C110 1-130-496-00 MYLAR 0.12uF 5% 50V C111 1-126-964-11 ELECT 10uF 20% 50V C121 1-126-964-11 ELECT 10uF 20% 50V C122 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C123 1-126-964-11 ELECT 10uF 20% 50V C124 1-126-923-91 ELECT 220uF 20% 10V C129 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C131 1-104-658-91 ELECT 100uF 20% 10V C132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C133 1-104-658-91 ELECT 100uF 20% 10V C141 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C151 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C152 1-126-960-11 ELECT 1uF 20% 50V C153 1-126-960-11 ELECT 1uF 20% 50V C154 1-126-960-11 ELECT 1uF 20% 50V C155 1-126-960-11 ELECT 1uF 20% 50V C156 1-126-960-11 ELECT 1uF 20% 50V C157 1-126-960-11 ELECT 1uF 20% 50V C158 1-130-476-00 MYLAR 0.0027uF 5% 50V C159 1-130-496-00 MYLAR 0.12uF 5% 50V C160 1-130-496-00 MYLAR 0.12uF 5% 50V C161 1-126-964-11 ELECT 10uF 20% 50V C171 1-126-964-11 ELECT 10uF 20% 50V C172 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C173 1-126-964-11 ELECT 10uF 20% 50V C174 1-126-923-91 ELECT 220uF 20% 10V C179 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C180 1-126-923-91 ELECT 220uF 20% 10V C181 1-104-658-91 ELECT 100uF 20% 10V C182 1-126-960-11 ELECT 1uF 20% 50V C183 1-104-658-91 ELECT 100uF 20% 10V C185 1-126-960-11 ELECT 1uF 20% 50V < CONNECTOR > CN101 1-784-780-11 CONNECTOR, FFC 19P CN102 1-785-330-11 PIN, CONNECTOR (LIGHT ANGLE) 4P < IC > IC101 8-759-669-03 IC LC75342 IC102 8-759-656-83 IC NJM4580MD-(TE2) < JACK > J101 1-817-877-11 JACK, PIN 2P (MD (VIDEO)) < TRANSISTOR > Q101 8-729-107-43 TRANSISTOR 2SC3624-L18 Q121 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q122 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q151 8-729-107-43 TRANSISTOR 2SC3624-L18 Q180 8-729-107-43 TRANSISTOR 2SC3624-L18 Q181 8-729-107-43 TRANSISTOR 2SC3624-L18 Q182 8-729-107-43 TRANSISTOR 2SC3624-L18 Q183 8-729-107-43 TRANSISTOR 2SC3624-L18 Q184 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q185 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R101 1-216-833-11 METAL CHIP 10K 5% 1/10W R102 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R103 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R104 1-216-821-11 METAL CHIP 1K 5% 1/10W R105 1-216-833-11 METAL CHIP 10K 5% 1/10W PRE AMP PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 HCD-CPX11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R121 1-216-821-11 METAL CHIP 1K 5% 1/10W R122 1-216-845-11 METAL CHIP 100K 5% 1/10W R123 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R124 1-216-837-11 METAL CHIP 22K 5% 1/10W R125 1-216-805-11 METAL CHIP 47 5% 1/10W R126 1-216-845-11 METAL CHIP 100K 5% 1/10W R131 1-216-809-11 METAL CHIP 100 5% 1/10W R132 1-216-809-11 METAL CHIP 100 5% 1/10W R133 1-216-809-11 METAL CHIP 100 5% 1/10W R151 1-216-833-11 METAL CHIP 10K 5% 1/10W R152 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R153 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R154 1-216-821-11 METAL CHIP 1K 5% 1/10W R155 1-216-833-11 METAL CHIP 10K 5% 1/10W R156 1-216-833-11 METAL CHIP 10K 5% 1/10W R171 1-216-821-11 METAL CHIP 1K 5% 1/10W R172 1-216-845-11 METAL CHIP 100K 5% 1/10W R173 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R174 1-216-837-11 METAL CHIP 22K 5% 1/10W R175 1-216-805-11 METAL CHIP 47 5% 1/10W R176 1-216-845-11 METAL CHIP 100K 5% 1/10W R180 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R181 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R182 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R183 1-216-833-11 METAL CHIP 10K 5% 1/10W R184 1-216-821-11 METAL CHIP 1K 5% 1/10W R185 1-216-821-11 METAL CHIP 1K 5% 1/10W ************************************************************ A-4750-366-A S-MASTER AMP BOARD, COMPLETE ***************************** 7-685-645-79 SCREW +BVTP 3X6 TYPE2 TT (B) < CAPACITOR > C600 1-128-549-11 ELECT 3300uF 20% 35V C601 1-104-658-91 ELECT 100uF 20% 10V C602 1-126-964-11 ELECT 10uF 20% 50V C603 1-164-156-11 CERAMIC CHIP 0.1uF 25V C604 1-164-156-11 CERAMIC CHIP 0.1uF 25V C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C606 1-164-156-11 CERAMIC CHIP 0.1uF 25V C607 1-164-156-11 CERAMIC CHIP 0.1uF 25V C608 1-126-964-11 ELECT 10uF 20% 50V C609 1-162-971-11 CERAMIC CHIP 0.001uF 10% 50V C610 1-164-156-11 CERAMIC CHIP 0.1uF 25V C611 1-126-960-11 ELECT 1uF 20% 50V C612 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C613 1-216-864-11 SHORT CHIP 0 C614 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C615 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C616 1-104-662-91 ELECT 22uF 20% 25V C617 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C618 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C619 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C620 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C621 1-126-960-11 ELECT 1uF 20% 50V C622 1-164-156-11 CERAMIC CHIP 0.1uF 25V C623 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C625 1-126-963-11 ELECT 4.7uF 20% 50V C628 1-126-963-11 ELECT 4.7uF 20% 50V C629 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C630 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C631 1-126-963-11 ELECT 4.7uF 20% 50V C632 1-104-658-91 ELECT 100uF 20% 10V C633 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C634 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C635 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C636 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C637 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C638 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C639 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C640 1-104-658-91 ELECT 100uF 20% 10V C648 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C649 1-104-658-91 ELECT 100uF 20% 10V C650 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C651 1-137-372-11 MYLAR 0.022uF 5% 50V C652 1-104-658-91 ELECT 100uF 20% 10V C653 1-164-505-11 CERAMIC CHIP 2.2uF 16V C654 1-162-974-11 CERAMIC CHIP 0.01uF 50V C655 1-137-807-31 ELECT 100uF 20% 50V C656 1-131-704-11 FILM 1uF 5% 50V C659 1-162-974-11 CERAMIC CHIP 0.01uF 50V C660 1-162-974-11 CERAMIC CHIP 0.01uF 50V C661 1-137-372-11 MYLAR 0.022uF 5% 50V C663 1-164-505-11 CERAMIC CHIP 2.2uF 16V C666 1-131-704-11 FILM 1uF 5% 50V C668 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C669 1-162-974-11 CERAMIC CHIP 0.01uF 50V C670 1-162-974-11 CERAMIC CHIP 0.01uF 50V C671 1-137-372-11 MYLAR 0.022uF 5% 50V C672 1-104-658-91 ELECT 100uF 20% 10V C673 1-164-505-11 CERAMIC CHIP 2.2uF 16V C674 1-216-864-11 SHORT CHIP 0 C675 1-137-807-31 ELECT 100uF 20% 50V C676 1-131-704-11 FILM 1uF 5% 50V C678 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C679 1-162-974-11 CERAMIC CHIP 0.01uF 50V C680 1-162-974-11 CERAMIC CHIP 0.01uF 50V C681 1-137-372-11 MYLAR 0.022uF 5% 50V C682 1-104-658-91 ELECT 100uF 20% 10V C683 1-164-505-11 CERAMIC CHIP 2.2uF 16V C686 1-131-704-11 FILM 1uF 5% 50V C689 1-162-974-11 CERAMIC CHIP 0.01uF 50V C690 1-162-974-11 CERAMIC CHIP 0.01uF 50V C692 1-164-505-11 CERAMIC CHIP 2.2uF 16V C693 1-164-505-11 CERAMIC CHIP 2.2uF 16V C694 1-164-346-11 CERAMIC CHIP 1uF 16V C697 1-216-864-11 SHORT CHIP 0 C698 1-162-974-11 CERAMIC CHIP 0.01uF 50V C699 1-162-974-11 CERAMIC CHIP 0.01uF 50V < CONNECTOR > * CN600 1-564-508-11 PLUG, CONNECTOR 5P CN601 1-568-838-11 CONNECTOR, FFC 21P S-MASTER AMP PRE AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 HCD-CPX11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < DIODE > D611 8-719-988-61 DIODE 1SS355TE-17 D621 8-719-988-61 DIODE 1SS355TE-17 D650 6-500-131-01 DIODE LI116 D651 6-500-248-01 DIODE SFPL-62V D652 6-500-060-01 DIODE P6SMB36AT3 D660 6-500-131-01 DIODE LI116 D661 6-500-248-01 DIODE SFPL-62V D662 6-500-060-01 DIODE P6SMB36AT3 D670 6-500-131-01 DIODE LI116 D671 6-500-248-01 DIODE SFPL-62V D672 6-500-060-01 DIODE P6SMB36AT3 D680 6-500-131-01 DIODE LI116 D681 6-500-248-01 DIODE SFPL-62V D682 6-500-060-01 DIODE P6SMB36AT3 < EARTH TERMINAL > EP601 1-537-771-21 TERMINAL BOARD, GROUND EP602 1-537-771-21 TERMINAL BOARD, GROUND EP603 1-537-771-21 TERMINAL BOARD, GROUND < FERRITE BEAD > FB601 1-216-864-11 SHORT CHIP 0 FB604 1-216-864-11 SHORT CHIP 0 FB605 1-469-324-21 FERRITE, EMI (SMD) (2012) FB606 1-216-864-11 SHORT CHIP 0 FB607 1-216-864-11 SHORT CHIP 0 FB610 1-469-324-21 FERRITE, EMI (SMD) (2012) FB620 1-469-324-21 FERRITE, EMI (SMD) (2012) FB640 1-216-864-11 SHORT CHIP 0 FB641 1-216-864-11 SHORT CHIP 0 FB642 1-216-864-11 SHORT CHIP 0 FB650 1-469-324-21 FERRITE, EMI (SMD) (2012) FB652 1-414-551-11 FERRITE, EMI (SMD) (2012) FB653 1-414-551-11 FERRITE, EMI (SMD) (2012) FB660 1-216-296-11 SHORT CHIP 0 FB662 1-414-551-11 FERRITE, EMI (SMD) (2012) FB663 1-414-551-11 FERRITE, EMI (SMD) (2012) FB670 1-216-296-11 SHORT CHIP 0 FB680 1-469-324-21 FERRITE, EMI (SMD) (2012) < IC > IC600 6-703-287-01 IC CXD9743N IC603 6-701-834-01 IC PCM1802DBR IC604 8-759-387-77 IC TC7WU04F (TE12R) IC610 6-701-189-01 IC MC74VHC1GU04DFT1 IC618 6-700-263-01 IC NJM2870F18 (TE2) IC650 6-703-288-01 IC CXD9750L IC680 6-703-288-01 IC CXD9750L < COIL > L601 1-469-525-91 INDUCTOR 10uH L602 1-469-525-91 INDUCTOR 10uH L603 1-469-525-91 INDUCTOR 10uH L604 1-412-939-11 INDUCTOR 1uH L621 1-469-525-91 INDUCTOR 10uH L650 1-424-777-11 INDUCTOR 10uH L670 1-424-777-11 INDUCTOR 10uH < TRANSISTOR > Q691 8-729-602-36 TRANSISTOR 2SA1602-F Q692 8-729-602-36 TRANSISTOR 2SA1602-F Q693 8-729-602-36 TRANSISTOR 2SA1602-F Q694 8-729-602-36 TRANSISTOR 2SA1602-F Q696 8-729-120-28 TRANSISTOR 2SC1623-L5L6 < RESISTOR > R601 1-216-809-11 METAL CHIP 100 5% 1/10W R602 1-216-809-11 METAL CHIP 100 5% 1/10W R603 1-216-809-11 METAL CHIP 100 5% 1/10W R604 1-216-809-11 METAL CHIP 100 5% 1/10W R605 1-216-821-11 METAL CHIP 1K 5% 1/10W R606 1-216-809-11 METAL CHIP 100 5% 1/10W R607 1-216-809-11 METAL CHIP 100 5% 1/10W R608 1-216-864-11 SHORT CHIP 0 R609 1-216-809-11 METAL CHIP 100 5% 1/10W R610 1-216-809-11 METAL CHIP 100 5% 1/10W R612 1-216-809-11 METAL CHIP 100 5% 1/10W R613 1-216-809-11 METAL CHIP 100 5% 1/10W R614 1-216-857-11 METAL CHIP 1M 5% 1/10W R615 1-216-817-11 METAL CHIP 470 5% 1/10W R618 1-216-864-11 SHORT CHIP 0 R619 1-216-857-11 METAL CHIP 1M 5% 1/10W R620 1-218-484-11 METAL CHIP 750 5% 1/10W R623 1-216-845-11 METAL CHIP 100K 5% 1/10W R640 1-216-809-11 METAL CHIP 100 5% 1/10W R641 1-216-809-11 METAL CHIP 100 5% 1/10W R642 1-216-809-11 METAL CHIP 100 5% 1/10W R651 1-216-296-11 SHORT CHIP 0 R652 1-216-809-11 METAL CHIP 100 5% 1/10W R653 1-216-809-11 METAL CHIP 100 5% 1/10W R661 1-216-296-11 SHORT CHIP 0 R662 1-216-809-11 METAL CHIP 100 5% 1/10W R663 1-216-809-11 METAL CHIP 100 5% 1/10W R671 1-216-296-11 SHORT CHIP 0 R681 1-216-296-11 SHORT CHIP 0 R691 1-216-845-11 METAL CHIP 100K 5% 1/10W R692 1-216-845-11 METAL CHIP 100K 5% 1/10W R693 1-216-845-11 METAL CHIP 100K 5% 1/10W R694 1-216-845-11 METAL CHIP 100K 5% 1/10W R695 1-216-845-11 METAL CHIP 100K 5% 1/10W R696 1-216-845-11 METAL CHIP 100K 5% 1/10W R697 1-216-845-11 METAL CHIP 100K 5% 1/10W < VIBRATOR > X601 1-795-843-11 VIBRATOR, CRYSTAL (12.288MHz) X602 1-795-660-21 QUARTZ CRYSTAL UNIT (49.152MHz) ************************************************************ SP BOARD ********* < CAPACITOR > C852 1-164-362-11 CERAMIC CHIP 470PF 5% 50V C862 1-164-362-11 CERAMIC CHIP 470PF 5% 50V S-MASTER AMP SP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 HCD-CPX11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C872 1-164-362-11 CERAMIC CHIP 470PF 5% 50V C882 1-164-362-11 CERAMIC CHIP 470PF 5% 50V < CONNECTOR > CN850 1-564-505-21 PLUG, CONNECTOR 2P CN870 1-564-505-11 PLUG, CONNECTOR 2P < JACK > J860 1-537-114-21 TERMINAL BOARD (SPEAKER) < COIL > L890 1-410-121-11 INDUCTOR 1.5mH ************************************************************ SUB PANEL BOARD *************** < DIODE > D870 8-719-046-36 DIODE SEL5921A-TP15 (CD NX) < TRANSISTOR > Q870 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R870 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R871 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R874 1-216-817-11 METAL CHIP 470 5% 1/10W R875 1-216-817-11 METAL CHIP 470 5% 1/10W R876 1-216-809-11 METAL CHIP 100 5% 1/10W < SWITCH > S816 1-762-875-21 SWITCH, KEYBOARD (CD NX) S817 1-762-875-21 SWITCH, KEYBOARD ((CD) x) ************************************************************ SUB POWER BOARD ***************** < CAPACITOR > 0C991 1-113-925-11 CERAMIC 0.01uF 20% 250V 0C992 1-113-925-11 CERAMIC 0.01uF 20% 250V C993 1-126-768-11 ELECT 2200uF 20% 16V C994 1-104-658-91 ELECT 100uF 20% 10V < CONNECTOR > CN990 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P < DIODE > D990 8-719-988-61 DIODE 1SS355TE-17 D991 8-719-988-61 DIODE 1SS355TE-17 D992 6-500-522-31 DIODE 10EDB40-TB5 D993 6-500-522-31 DIODE 10EDB40-TB5 D994 6-500-522-31 DIODE 10EDB40-TB5 D995 6-500-522-31 DIODE 10EDB40-TB5 < IC > IC991 6-703-627-01 IC NJU7201L40 (T3) < TRANSISTOR > Q990 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q991 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 < RESISTOR > R991 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R992 1-216-845-11 METAL CHIP 100K 5% 1/10W R993 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R994 1-216-845-11 METAL CHIP 100K 5% 1/10W < RELAY > 0RY990 1-755-467-11 RELAY (POWER) 0RY991 1-755-467-11 RELAY (POWER) < TRANSFORMER > 0T991 1-437-676-11 TRANSFORMER, POWER (AEP, UK) 0T991 1-437-677-11 TRANSFORMER, POWER (KR, AUS) ************************************************************ A-4750-369-A TC BOARD, COMPLETE ****************** < CAPACITOR > C601 1-126-947-11 ELECT 47uF 20% 35V C602 1-130-483-00 MYLAR 0.01uF 5% 50V C604 1-130-495-00 MYLAR 0.1uF 5% 50V C605 1-126-964-11 ELECT 10uF 20% 50V C606 1-126-960-11 ELECT 1uF 20% 50V C607 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C608 1-126-961-11 ELECT 2.2uF 20% 50V C610 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C611 1-162-928-11 CERAMIC CHIP 120PF 5% 50V C612 1-162-946-11 CERAMIC CHIP 27PF 5% 50V C613 1-164-392-11 CERAMIC CHIP 390PF 5% 50V C614 1-130-483-00 MYLAR 0.01uF 5% 50V C630 1-126-933-11 ELECT 100uF 20% 16V C632 1-126-964-11 ELECT 10uF 20% 50V C633 1-126-964-11 ELECT 10uF 20% 50V C634 1-126-964-11 ELECT 10uF 20% 50V C635 1-126-960-11 ELECT 1uF 20% 50V C639 1-126-964-11 ELECT 10uF 20% 50V C640 1-126-947-11 ELECT 47uF 20% 35V C641 1-126-961-11 ELECT 2.2uF 20% 50V C642 1-137-150-11 FILM 0.01uF 5% 100V C643 1-130-485-00 MYLAR 0.015uF 5% 50V C644 1-130-481-00 MYLAR 0.0068uF 5% 50V C645 1-130-481-00 MYLAR 0.0068uF 5% 50V C646 1-130-486-00 MYLAR 0.018uF 5% 50V C647 1-126-964-11 ELECT 10uF 20% 50V C651 1-126-947-11 ELECT 47uF 20% 35V C652 1-130-483-00 MYLAR 0.01uF 5% 50V C654 1-130-495-00 MYLAR 0.1uF 5% 50V C655 1-126-964-11 ELECT 10uF 20% 50V C656 1-126-960-11 ELECT 1uF 20% 50V C657 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C658 1-126-961-11 ELECT 2.2uF 20% 50V C660 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C661 1-162-928-11 CERAMIC CHIP 120PF 5% 50V SP SUB PANEL SUB POWER TC The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 HCD-CPX11 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C662 1-162-946-11 CERAMIC CHIP 27PF 5% 50V C663 1-164-392-11 CERAMIC CHIP 390PF 5% 50V C664 1-130-483-00 MYLAR 0.01uF 5% 50V C681 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V < CONNECTOR > CN602 1-770-516-31 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 8P CN603 1-784-780-11 CONNECTOR, FFC 19P < DIODE > D681 8-719-988-61 DIODE 1SS355TE-17 < IC > IC601 6-702-130-01 IC HA12237F IC602 8-759-508-69 IC BA3126N < SHORT > JR602 1-216-296-11 SHORT CHIP 0 < JUMPER RESISTOR > JW630 1-216-864-11 SHORT CHIP 0 < COIL > L601 1-410-780-11 INDUCTOR 27mH L651 1-410-780-11 INDUCTOR 27mH < TRANSISTOR > Q639 8-729-119-77 TRANSISTOR 2SA1175-FEK Q640 8-729-029-66 TRANSISTOR DTC114ESA Q641 8-729-801-93 TRANSISTOR 2SD1387-3 Q642 8-729-142-46 TRANSISTOR 2SC2001-LK Q643 8-729-142-46 TRANSISTOR 2SC2001-LK Q680 8-729-029-66 TRANSISTOR DTC114ESA Q681 8-729-029-40 TRANSISTOR DTA124ESA Q691 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q692 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q693 8-729-140-04 TRANSISTOR 2SB1116A-L Q694 8-729-116-57 TRANSISTOR 2SB1068-K < RESISTOR > R601 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R602 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R603 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R604 1-216-833-11 METAL CHIP 10K 5% 1/10W R605 1-216-841-11 METAL CHIP 47K 5% 1/10W R606 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R607 1-216-833-11 METAL CHIP 10K 5% 1/10W R608 1-216-833-11 METAL CHIP 10K 5% 1/10W R609 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R610 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R611 1-216-837-11 METAL CHIP 22K 5% 1/10W R630 1-216-857-11 METAL CHIP 1M 5% 1/10W R631 1-216-837-11 METAL CHIP 22K 5% 1/10W R632 1-216-821-11 METAL CHIP 1K 5% 1/10W R633 1-216-833-11 METAL CHIP 10K 5% 1/10W R635 1-216-809-11 METAL CHIP 100 5% 1/10W R640 1-216-833-11 METAL CHIP 10K 5% 1/10W R641 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R642 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R643 1-219-787-17 FUSIBLE 5.6 5% 1/4W 0R644 1-219-787-17 FUSIBLE 5.6 5% 1/4W R645 1-216-836-11 METAL CHIP 18K 5% 1/10W R646 1-216-836-11 METAL CHIP 18K 5% 1/10W R647 1-216-837-11 METAL CHIP 22K 5% 1/10W R648 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R651 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R652 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R653 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R654 1-216-833-11 METAL CHIP 10K 5% 1/10W R655 1-216-841-11 METAL CHIP 47K 5% 1/10W R656 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R657 1-216-833-11 METAL CHIP 10K 5% 1/10W R658 1-216-833-11 METAL CHIP 10K 5% 1/10W R659 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R660 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R661 1-216-837-11 METAL CHIP 22K 5% 1/10W R680 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R681 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R682 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R683 1-216-819-11 METAL CHIP 680 5% 1/10W R684 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R685 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R686 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R687 1-216-841-11 METAL CHIP 47K 5% 1/10W R688 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R689 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R690 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R691 1-216-833-11 METAL CHIP 10K 5% 1/10W R692 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R693 1-216-841-11 METAL CHIP 47K 5% 1/10W R694 1-216-837-11 METAL CHIP 22K 5% 1/10W R695 1-216-833-11 METAL CHIP 10K 5% 1/10W < VARIABLE RESISTOR > RV603 1-241-768-11 RES, ADJ CERMET 220K RV653 1-241-768-11 RES, ADJ CERMET 220K < TRANSFORMER > T601 1-423-980-11 TRANSFORMER, BIAS OSCILLATION ************************************************************ MISCELLANEOUS *************** 60 1-824-192-11 WIRE (FLAT TYPE) (8 CORE) 63 1-796-456-31 DECK, MECHANICAL (CMAL1Z-236A) 69 1-773-120-11 WIRE (FLAT TYPE) (19 CORE) 71 1-773-110-11 WIRE (FLAT TYPE) (19 CORE) 102 1-769-912-11 WIRE (FLAT TYPE) (9 CORE) 0151 1-769-079-23 CORD, POWER (KR) 0151 1-777-071-83 CORD, POWER (AEP, UK) 0151 1-783-203-13 CORD, POWER (AUS) 155 1-777-353-11 FLAT CABLE (15 CORE) (AEP, UK) 155 1-824-486-11 WIRE (FLAT TYPE) (11 CORE) (KR, AUS) TC The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark 76 HCD-CPX11 156 1-693-603-31 TUNER (FM/AM) (AUS) 156 1-693-604-11 TUNER (FM/AM) (AEP, UK) 156 1-693-605-11 TUNER (FM/AM) (KR) 158 1-773-105-11 WIRE (FLAT TYPE) (19 CORE) 0201 1-468-730-11 REGULATOR, SWITCHING 203 1-500-484-21 CLAMP, SLEEVE FERRITE 204 1-773-158-11 WIRE (FLAT TYPE) (21 CORE) 413 1-763-967-11 MOTOR, DC 462 1-452-925-21 MAGNET ASSY 0556 8-820-244-01 OPTICAL PICK-UP (KSM-215DCP/C2NP) 557 1-775-241-11 WIRE (FLAT TYPE) (27 CORE) 559 1-827-992-11 WIRE (FLAT TYPE)(16 CORE) M701 X-2021-530-1 MOTOR (PULLEY) ASSY (LOADING) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 HCD-CPX11 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-CPX11 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2004.04 New 1.1 2004.04 Correction in test mode (ENG-04001) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
