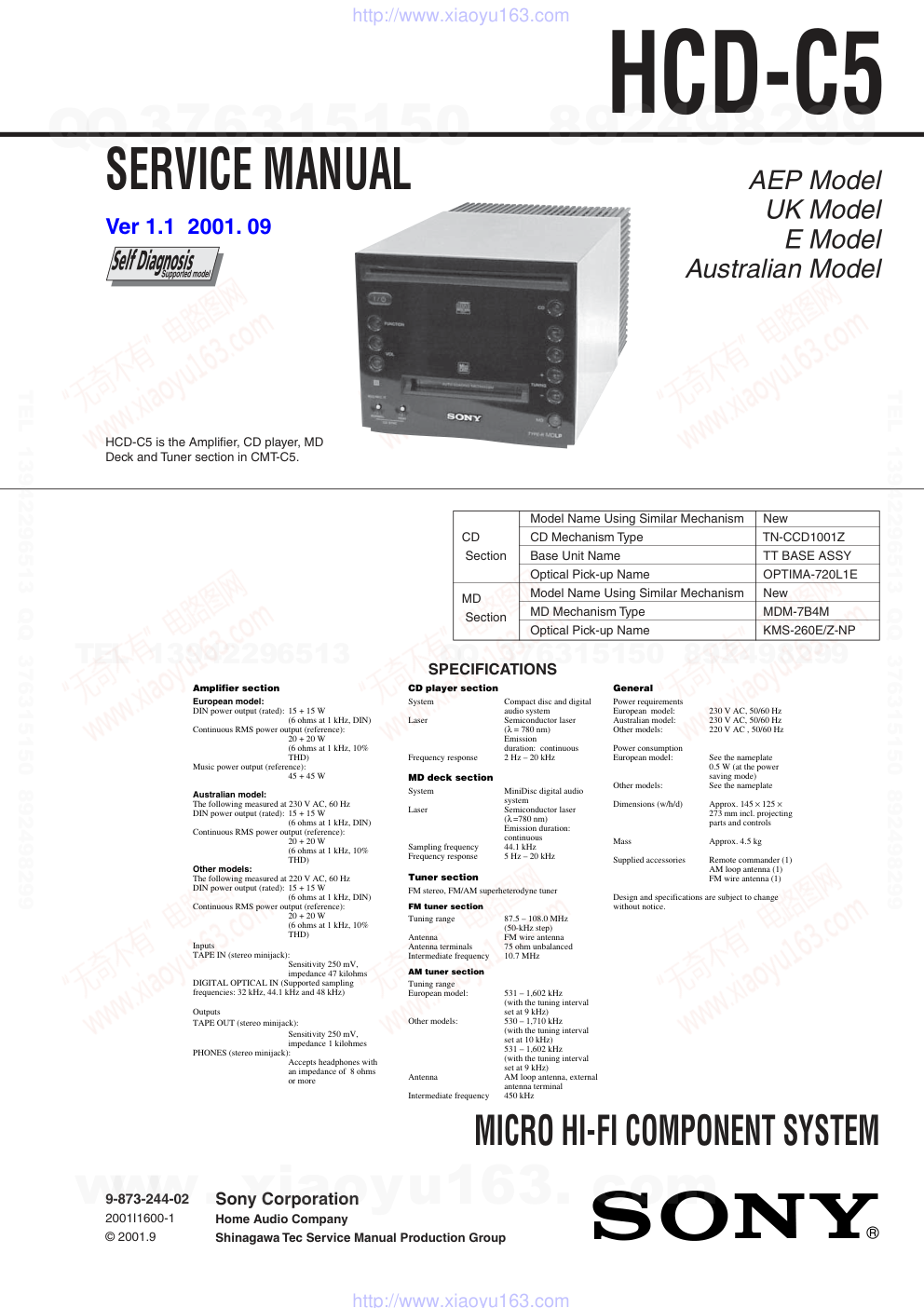

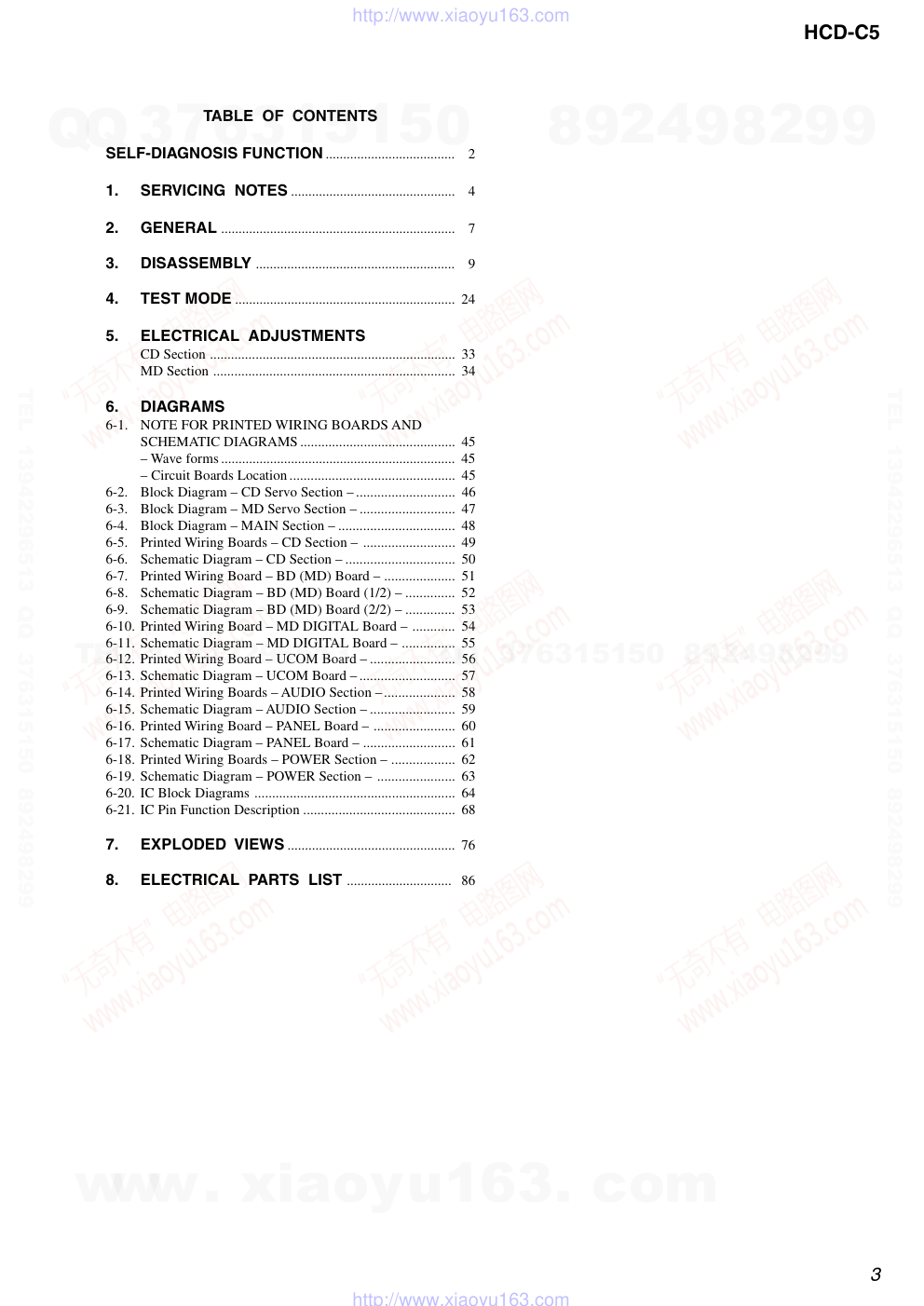

HCD-C5 AEP Model UK Model E Model Australian Model SERVICE MANUAL MICRO HI-FI COMPONENT SYSTEM Sony Corporation Home Audio Company Shinagawa Tec Service Manual Production Group 9-873-244-02 2001I1600-1 © 2001.9 SPECIFICATIONS Ver 1.1 2001. 09 HCD-C5 is the Amplifier, CD player, MD Deck and Tuner section in CMT-C5. Model Name Using Similar Mechanism New CD Mechanism Type TN-CCD1001Z Base Unit Name TT BASE ASSY Optical Pick-up Name OPTIMA-720L1E Model Name Using Similar Mechanism New MD Mechanism Type MDM-7B4M Optical Pick-up Name KMS-260E/Z-NP CD Section MD Section Amplifier section European model: DIN power output (rated): 15 + 15 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 20 + 20 W (6 ohms at 1 kHz, 10% THD) Music power output (reference): 45 + 45 W Australian model: The following measured at 230 V AC, 60 Hz DIN power output (rated): 15 + 15 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 20 + 20 W (6 ohms at 1 kHz, 10% THD) Other models: The following measured at 220 V AC, 60 Hz DIN power output (rated): 15 + 15 W (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 20 + 20 W (6 ohms at 1 kHz, 10% THD) Inputs TAPE IN (stereo minijack): Sensitivity 250 mV, impedance 47 kilohms DIGITAL OPTICAL IN (Supported sampling frequencies: 32 kHz, 44.1 kHz and 48 kHz) Outputs TAPE OUT (stereo minijack): Sensitivity 250 mV, impedance 1 kilohmes PHONES (stereo minijack): Accepts headphones with an impedance of 8 ohms or more CD player section System Compact disc and digital audio system Laser Semiconductor laser (λ = 780 nm) Emission duration: continuous Frequency response 2 Hz – 20 kHz MD deck section System MiniDisc digital audio system Laser Semiconductor laser (λ =780 nm) Emission duration: continuous Sampling frequency 44.1 kHz Frequency response 5 Hz – 20 kHz Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz (50-kHz step) Antenna FM wire antenna Antenna terminals 75 ohm unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range European model: 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Other models: 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Antenna AM loop antenna, external antenna terminal Intermediate frequency 450 kHz General Power requirements European model: 230 V AC, 50/60 Hz Australian model: 230 V AC, 50/60 Hz Other models: 220 V AC , 50/60 Hz Power consumption European model: See the nameplate 0.5 W (at the power saving mode) Other models: See the nameplate Dimensions (w/h/d) Approx. 145 × 125 × 273 mm incl. projecting parts and controls Mass Approx. 4.5 kg Supplied accessories Remote commander (1) AM loop antenna (1) FM wire antenna (1) Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-C5 SELF-DIAGNOSIS FUNCTION The self-diagnosis function consists of error codes for customers, which are displayed automatically when errors occur, and error codes, which show the error history in the test mode during servicing. For details on how to view error codes for the customer, refer to the following box in the instruction manual. For details on how to check error codes during servicing, refer to the following “Procedure for using the Self-Diagnosis Function (Error History Display Mode)”. Self-diagnosis display This system has a Self-diagnosis display function to let you know if there is a system malfunction. The display shows a code made up of 3 or 5 letters and a message alternately to show you the problem. To solve the problem refer to the following list. If any problem persists, consult your nearest Sony dealer. C11/Protected The MD is protected against erasure. cRemove the MD and slide the tab to close the slot (see page 18). C12/Cannot Copy You tried to record a CD or MD with a format that the system does not support, such as a CD-ROM. cRemove the disc and turn off the system once, then turn it on again. C13/REC Error Recording could not be performed properly. cMove the system to a stable place, and start recording over from the beginning. The MD is dirty or scratched, or the MD does not meet the standards. cReplace the MD and start recording over from the beginning. C13/Read Error The MD deck cannot read the disc information properly. cRemove the MD once, then load it again. E0101/LASER NG There is a problem with the optical pickup. cThe optical pickup may have failed. Consult your nearest Sony dealer. C14/Toc Error The MD deck cannot read the disc information properly. cReplace the MD. Erase all the recorded contents of the MD using All Erase Function (see page 29). C41/Cannot Copy The sound source is a copy of a commercially available music software, or you tried to record a CD-R (Recordable CD). cThe Serial Copy Management System prevents making a digital copy (see page 48). You cannot record a CD-R. C71/Check OPT-IN This appears momentarily because of the signal of the digital broadcast during recording. cThere is no affect on the recorded contents. No component is connected to the DIGITAL OPTICAL IN jack, or a digital component is not connected properly. cConnect a digital component to the DIGITAL OPTICAL IN jack properly using a digital connecting cable (not supplied, see page 43). The connected digital component is not turned on. cSee the operating instructions supplied with the connected component and confirm whether the component is turned on. The digital connecting cable connected to the DIGITAL OPTICAL IN jack is pulled out, or the connected digital component is turned off during digital recording. cConnect the cable, or turn on the digital component. E0001/MEMORY NG There is an error in the internal data that the system needs in order to operate. cConsult your nearest Sony dealer. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-C5 TABLE OF CONTENTS SELF-DIAGNOSIS FUNCTION ..................................... 2 1. SERVICING NOTES ............................................... 4 2. GENERAL ................................................................... 7 3. DISASSEMBLY ......................................................... 9 4. TEST MODE ............................................................... 24 5. ELECTRICAL ADJUSTMENTS CD Section ...................................................................... 33 MD Section ..................................................................... 34 6. DIAGRAMS 6-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS ............................................ 45 – Wave forms ................................................................... 45 – Circuit Boards Location ............................................... 45 6-2. Block Diagram – CD Servo Section – ............................ 46 6-3. Block Diagram – MD Servo Section – ........................... 47 6-4. Block Diagram – MAIN Section – ................................. 48 6-5. Printed Wiring Boards – CD Section – .......................... 49 6-6. Schematic Diagram – CD Section – ............................... 50 6-7. Printed Wiring Board – BD (MD) Board – .................... 51 6-8. Schematic Diagram – BD (MD) Board (1/2) – .............. 52 6-9. Schematic Diagram – BD (MD) Board (2/2) – .............. 53 6-10. Printed Wiring Board – MD DIGITAL Board – ............ 54 6-11. Schematic Diagram – MD DIGITAL Board – ............... 55 6-12. Printed Wiring Board – UCOM Board – ........................ 56 6-13. Schematic Diagram – UCOM Board – ........................... 57 6-14. Printed Wiring Boards – AUDIO Section –.................... 58 6-15. Schematic Diagram – AUDIO Section – ........................ 59 6-16. Printed Wiring Board – PANEL Board – ....................... 60 6-17. Schematic Diagram – PANEL Board – .......................... 61 6-18. Printed Wiring Boards – POWER Section – .................. 62 6-19. Schematic Diagram – POWER Section – ...................... 63 6-20. IC Block Diagrams ......................................................... 64 6-21. IC Pin Function Description ........................................... 68 7. EXPLODED VIEWS ................................................ 76 8. ELECTRICAL PARTS LIST .............................. 86 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-C5 SECTION 1 SERVICING NOTE This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the bottom exterior. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. FOR CD NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. FOR MD NOTES ON LASER DIODE EMISSION CHECK Never look into the laser diode emission from right above when checking it for adjustment. It is feared that you will lose your sight. This caution label is located inside the unit. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-C5 SERVICE POSITION OF THE CD MECHANISM DECK SERVICE POSITION OF THE MD MECHANISM DECK CD MECHANISM DECK (TN-CCD1001Z) STAND BD (CD) BOARD UCOM BOARD CN101 CN204 MD MECHANISM (MDM-7B4M) MD DIGITAL BOARD AUDIO BOARD UCOM BOARD BD (CD) BOARD BD (MD) BOARD CN102 CN102 CN201 CN701 CN103 CN702 CN703 CN601 CN101 CN201 CN204 CN203 PANEL BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-C5 JIG FOR CHECKING BD (MD) BOARD WAVEFORM The special jig (J-2501-196-A) is useful for checking the waveform of the BD (MD) board. The names of terminals and the checking items to be performed are shown as follows. I+3V : For measuring IOP (Check the deterioration of the optical pick-up laser) IOP : For measuring IOP (Check the deterioration of the optical pick-up laser) GND : Ground TE : Tracking error signal (Traverse adjustment) FE : Focus error signal VC : Reference level for checking the signal RF : RF signal (Check jitter) I+3V CN105 IOP TE VC GND FE RF I+3V IOP GND TE FE VC RF I+3V IOP GND TE FE VC RF 1 7 for 7B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-C5 SECTION 2 GENERAL 4 Parts Identification The items are arranged in alphabetical order. Refer to the pages indicated in parentheses () for details. Main unit 1 2 3 4 5 6 7 8 9 0 qa CD SYNC HIGH 7 (19, 51) CD SYNC NORMAL 8 (19) CD Z 2 (10, 51) FUNCTION qa (9, 11, 13, 14, 16, 21–37, 44) MD Z 6 (15, 18, 26) REC/REC IT 8 (20, 21, 24, 26, 44, 51) Remote sensor 9 TUNING +/– 5 (36, 37) VOL +/– q; (40) BUTTON DESCRIPTIONS @/1 (power) 1 (7, 18, 26, 27, 37, 40, 42) u 3 (9–11, 14–16, 19, 20, 25, 44) x 4 (10, 11, 15, 16, 19–21, 26, 44) . > 5 (10, 11, 13, 15, 16, 22–35) m M 5 (10, 15, 30, 32) This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-C5 Parts Identification 5 Remote control 1 2 3 4 5 6 7 qa qs qd qf qg qh qj qk ql w; wa ws wd wf wg wh wj wk 8 9 0 CD x qh (10) CD X ws (10) CD N wd (9, 11, 20) CLEAR 9 (11, 16, 28, 38) CLOCK/TIMER SELECT 6 (41, 42) CLOCK/TIMER SET 7 (8, 40, 41) CURSOR T/t wh (8, 13, 28) DBFB qf (39) DISPLAY wk (8, 12, 17, 38) ENTER/YES 8 (8, 11, 13, 14, 16, 21–36, 38, 40–42) FM MODE qj (37) FUNCTION w; (9, 11, 13, 14, 16, 19, 21–37, 44) Letter/Number buttons wj (10, 13, 15, 16, 27, 28, 37) MD x qs (15) MD X wf (15) MD N wg (14, 16, 19, 20, 25) MENU/NO q; (13, 14, 22–26, 28–36) NAME EDIT/SELECT 3 (13, 27, 28, 38) PLAY MODE qk (9, 11, 14, 16, 26, 34, 35) PRESET EQ qg (39) REPEAT qj (10, 15) SCROLL 5 (12, 14, 17, 28) SLEEP 1 (39) TIME 2 (8, 11, 12, 16, 17) TUNER BAND wa (36, 37) TUNING MODE qk (36, 37) TUNING +/– ql (36, 37) VOL +/– qd (40) BUTTON DESCRIPTIONS @/1 (power) 4 (7, 18, 26, 27, 37, 40, 42) . > qa (10, 11, 13–16, 22– 35, 40–42) –/+ qa (8, 40, 42) m M wh (10, 15, 30, 32, 42) Setting the time 1 Turn on the system. 2 Press CLOCK/TIMER SET on the remote. If you are setting the clock for the first time, go to step 5. 3 Press – or + (. or >) on the remote repeatedly until “CLOCK SET?” appears in the display. 4 Press ENTER/YES on the remote. The day indication flashes. 5 Press – or + (. or >) on the remote repeatedly to set the day, and then press ENTER/YES or CURSORt on the remote. The hour indication flashes. 6 Press – or + (. or >) on the remote to set the hour, and then press ENTER/YES or CURSORt on the remote. The minute indication flashes. 7 Press – or + (. or >) on the remote repeatedly to set the minute, and then press ENTER/YES on the remote. If you made a mistake Press TCURSOR or CURSORt on the remote until the indication you wish to change (day, hour, minute) flashes, and then change the setting. To reset the time Start over from step 1. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-C5 SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. • The dotted square with arrow ( →) prompts you to move to the next job when all of the works within the dotted square ( ) are completed. BOTTOM PLATE, CASE (Page 10) JACK BOARD, HP BOARD, REAR COVER (Page 18) OVER WRITE HEAD (Page 23) SET LOADING MOTOR (M703), SPINDLE MOTOR (M701), SLED MOTOR (M702) (Page 22) PANEL BOARD (Page 10) UCOM BOARD, AMP POWER BOARD (Page 19) AUDIO BOARD, POWER BOARD, POWER TRANSFORMER (T900) (1) (Page 20) CD MECHANISM DECK (TN-CCD1001Z), BD (CD) BOARD (Page 11) AUDIO BOARD, POWER BOARD, POWER TRANSFORMER (T900) (2) (Page 20) MD MECHANISM DECK (MDM-7B4M), MD DIGITAL BOARD (Page 21) CONNECTOR BOARD (Page 12) FEED MOTOR ASSY (M903) (Page 15) REAR DAMPER BRACKET (Page 15) SW BOARD (Page 14) FRONT BRACKET SECTION, LOADING MOTOR ASSY (M902) (Page 13) SPINDLE MOTOR ASSY (M904) (Page 18) BASE SECTION (Page 17) OPTICAL PICK-UP (OPTIMA-720L1E), SCREW GUIDE, FEED SCREW ASSY, etc. (Page 16) OPTICAL PICK-UP (OPTIMA-720L1E) (Page 16) HOLDER ASSY (Page 21) OP-SUB SECTION (Page 23) BD (MD) BOARD (Page 22) TUNER PACK, D. C. FAN (M901) (Page 19) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-C5 Note: Follow the disassembly procedure in the numerical order given. 3-1. BOTTOM PLATE, CASE 3-2. PANEL BOARD 2 three screws (+BVTT 3 x 5) 1 four screws (+BVTT 3 x 5) 5 claw 6 case 3 bottom plate A A 4 screw (+BVTT 3 x 5) 7 six screws (+B 2 x 6) 9 PANEL board 8 two claws 3 screw (+K 3 x 6) 2 screw (+K 3 x 6) 1 two screws (+BVTT 3 x 5) 4 screw (+BVTT 3 x 5) 5 ground wire 6 wire (flat type) (16 core) (CN201) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-C5 3-3. CD MECHANISM DECK (TN-CCD1001Z), BD (CD) BOARD 1 two screws (+BVTT 3 x 5) q; screw (+BVTT 2 x 5) 9 two screws (+BVTT 2.6 x 5) 6 four screws (+BVTT 3 x 5) 3 two screws (+BVTT 3 x 5) 4 screw (+BVTT 3 x 5) 2 screw (+BVTT 3 x 5) qs cushion (A) qa bracket (CD), foot (felt) qd CD mechanism deck (TN-CCD1001Z) 5 wire (flat type) (29 core) (CN204) 7 board to board connector 8 BD (CD) board CN103 CN1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-C5 3-4. CONNECTOR BOARD 5 FPC holder 6 screw (+P 2 x 2.5) 7 wire clamper 8 CONNECTOR board 4 Remove the soldering. 1 Remove solderings starting from the left LOADING (+), (–), red and black. 2 Remove solderings starting from the left green, yellow, orange, red and brown. 3 Remove solderings starting from the top left SPINDLE (+), (–), FD MOTOR (+), (–) and the LIMIT switch that has no polarity. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-C5 3-5. FRONT BRACKET SECTION, LOADING MOTOR ASSY (M902) 1 FPC holder B 2 screw (M 2 x 2.5) 4 screw (+P 2 x 3.0) 1 wire clamper 3 Move down the gear mount bracket in the direction of the arrow B. 6 screw (+P 2 x 3) 7 screw (M 2 x 4) A 8 Remove it in the direction of the arrow A from the left side when viewed from the rear of the front bracket. 5 Remove the two hang-up springs (FZ). 3 three claws 2 loading belt 4 Raise the CONNECTOR board. Note during re-assembling When re-assembling, align the positions as shown. 1 front backet section 2 Remove two solderings. 3 loading motor assy (M902) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-C5 3-6. SW BOARD 1 eleven claws 3 2 Release it from the detents. 1 Remove two solderings. 5 Remove two solderings. 9 Remove five solderings. 3 Remove two solderings. 7 Remove two solderings. 2 switch (S3) (Disc Existence, Chucking, Releasing detect) q; SW board (BRN) (RED) 4 switch (S2) (12cm Disc/12cm Disc Eject End detect) 6 switch (S1) (Disc IN/8cm Disc detect) 8 switch (S4) (8cm Disc Eject End detect) (ORG) (YEL) (GRN) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-C5 3-8. REAR DAMPER BRACKET 3-7. FEED MOTOR ASSY (M903) 2 Remove the soldering. 4 pulley gear 3 1 two screws (+P 2 x 10) 5 screw (+P 2 x 3.0) 6 FD gear bracket 7 feed motor assy (M903) 2 screw (+P 2 x 2.5) 4 screw (+P 2 x 3) 3 two screws (+P 2 x 3) 1 wire clamper 5 rear damper bracket www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-C5 3-9. OPTICAL PICK-UP (OPTIMA-720L1E), SCREW GUIDE, FEED SCREW ASSY, etc. 3-10. OPTICAL PICK-UP (OPTIMA-720L1E) 2 two screws (+P 2 x 10) 4 screw (+P 2 x 10) 3 feed motor assy (M903), FD gear bracket, etc. A 5 Slant the CONNECTOR board in the direction of the arrow A. 1 pick-up flexible board 6 optical pick-up (OPTIMA-720L1E), screw guide, feed screw assy, etc. 2 screw (+P 1.7 x 6) 6 screw (+P 1.4 x 2) 7 pulley guide spring 3 detent spring 4 pulley M 8 optical pick-up (OPTIMA-720L1E) 5 feed screw assy 1 screw guide www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-C5 3-11. BASE SECTION 5 two screws (+P2 x 5) 4 Remove solderings from the damper pins. 2 Remove the two damper pins toward inside. 3 Slant the base block in the direction of the arrow B and remove the base block from the main unit in a manner that the lock pin passes through the groove of the holder (L) as shown. 2 base section (2 Remove the base block while the mechanism is in the Loading IN state.) lock pin holder (L) 1 pick-up flexible board 2 Remove the two hang-up springs (FZ) as shown. 1 Move the holder (L) in the direction of the arrow A. A B 3 Remove the two hang-up springs (R) as shown. 1 Remove solderings. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-C5 3-13. JACK BOARD, HP BOARD, REAR COVER 3-12. SPINDLE MOTOR ASSY (M904) 4 two screws (+P 1.7 x 2.2) 5 turn table 1 clip arm spring (L) 2 clip arm spring 3 open to direction of the arrow A A 6 washer 7 spindle motor 8 spindle motor assy (M904) 3 three screws (+BV 3 x 8) 2 four screws (+BV 3 x 12) 1 screw (+BVTT 3 x 5) 8 two screws (+B 4 x 16) q; rear cover 3 JACK board 1 two screws (+BV 3 x 8) 9 two nuts (N4) 5 connector (CN109) 6 connector (CN110) 2 connector (CN107) 4 screw (+PTPWH 3 x 8) 7 HP board D.C.fan (M901) Note for re-installation-1 When installing the rear cover, be careful that the three harnesses coming from “ 2 Connector (CN107)”, “ 5 Connector (CN109)”, “ 6 Connector (CN110)”, and the harness coming from the DC fan (M901) must not contact the heat sink (IC902) and the diode (D981) and the heat sink (IC904). heat sink (IC902) POWER board diode (D981) Note for re-installation-2 When installing the rear cover, be careful that the three harnesses coming from “ 2 Connector (CN107)”, “ 5 Connector (CN109)”, “ 6 Connector (CN110)”, and the harness coming from the D.C. fan (M901) must not be pinched by the rear cover, the UCOM board, power transformer (T900) and tuner pack. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-C5 3-14. TUNER PACK, D. C. FAN (M901) 1 screw (+BV 3 x 8) 3 tuner pack (After slanted toward outside, remove it straight up toward outside.) 2 wire (flat type) (11 core or 15 core) wire (flat type) (11 core or 15 core) tuner pack 4 connector (CN105) AUDIO board CN106 5 D.C. fan (M901) D.C.fan (M901) Note for re-installation When installing the tuner pack, insert the three harnesses connected to CN105 and connected to CN106 and connected to CN108 of the AUDIO board, in between the flat cable (11 core or 15 core) and the tuner pack in the direction of the arrow so that the flat cable (11 core or 15 core) must be inserted. CN108 CN105 3-15. UCOM BOARD, AMP POWER BOARD 4 two screws (+BVTT 3 x 5) 9 UCOM board CN205 CN206 CN901 CN852 8 AMP POWER baord 1 wire (flat type) (19 core) (CN101) 2 wire (flat type) (19 core) (CN203) 7 board to board connector 6 wire (flat type) (16 core) (CN201) 5 board to board connector 3 connector (CN851) A A Note for re-installation (routing the harnesses) Be careful that the two harnesses between CN995 and CN992 of the power transformer (T900) and the POWER board must not contact the heat sink (IC902) on the POWER board and the flat cable (19 core) that is inserted to CN203 on the UCOM board. wire (flat type) (19 core) CN203 CN851 CN995 CN992 power transformer (T900) POWER baord AMP POWER board UCOM board heat sink (IC902) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-C5 3-16. AUDIO BOARD, POWER BOARD, POWER TRANSFORMER (T900) (1) 1 two screws (+BVTT 3 x 5) 3 four screws (+BVTT 3 x 5) 2 screw (+BV 3 x 8) 5 connector (CN102) 4 two screws (+BVTT 3 x 5) 6 AUDIO board, POWER boad, power transformer (T900 ), etc. CN103 8 tuner pack CN902 7 wire (flat type) (11 core) (from tuner pack) qf board to board connector qh AUDIO board 9 connector (CN105) qg POWER board 4 power transformer (T900) 5 connector (CN991) 2 connector (CN992) qs insulated plates (POWER) qd insulated plates (POWER) 2 qa nylon rivet (DIA 3.5) 1 connector (CN995) 3 clamp 6 power cord q; D.C.fan (M901) 3-17. AUDIO BOARD, POWER BOARD, POWER TRANSFORMER (T900) (2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 HCD-C5 3-18. MD MECHANISM DECK (MDM-7B4M), MD DIGITAL BOARD 7 two screws (+BVTT 3 x 5) 8 MD DIGITAL board 4 shield (MD2) qf MD mechanism deck (MDM-7B4M) 1 four screws (+BVTT 3 x 5) 9 shield (MD1) 2 two screws (+BVTT 3 x 5) 5 wire (flat type) (17 core) (CN703) qa four insulators 6 wire (flat type) (27 core) (CN702) q; four screws, step qs screw (+BTN 1.7 x 3) qd ground wire 3 ground wire Slant the shield (MD1), shield (MD2) and the MD DIGITAL board in the direction of the arrow and remove the two 2 screws (+BVTT 3 x 5). 3-19. HOLDER ASSY 1 tension spring (holder) 3 holder assy 2 hook www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 HCD-C5 3-21. LOADING MOTOR (M703), SPINDLE MOTOR (M701), SLED MOTOR (M702) 3-20. BD (MD) BOARD M702 M701 M703 S102 1 Remove two solderings. (sled) 2 Remove two solderings. (spindle) 3 Remove two solderings. (loading) 4 Remove three solderings. 5 two screws (+BP TRI 2 x 6 CZN) 8 BD (MD) board 7 connector (CN104) 6 flexible board (CN101) 7 spindle motor (M701) 5 loading motor (M703) 9 sled motor (M702) 1 lever (head) 3 torsion spring (spindle) 2 belt (loading) 4 two screws (+PWH 1.7 x 3.5) 6 three tapping screws (M1.7) 8 two screws (+PWH 1.7 x 3.5) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 HCD-C5 3-22. OVER WRITE HEAD 1 screw (+P 1.7 x 6) 2 over write hrad (HR901) 3 screw (+BP TRI 2 x 6 CZN) 5 screw (+KTP 2 x 6) 1 screw (+BP TRI 2 x 6 CZN) 8 main shaft 6 7 2 base (BU-D) 4 base (BU-A) 9 flexible board q; optical pick-up (for MD) 3-23. OP-SUB SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 HCD-C5 [Factory Preset Mode] ∗ This mode clears all data including preset data stored in the RAM to initial conditions. Excute this mode when returning the set to the customer. Procedure: 1. Press the ?/1 button to turn the power on. 2. Press the FUNCTION z button to set the CD function. (except the TUNER function) 3. Press three buttons VOL + , CD Z and MD Z simultaneously. 4. The message “COLD RESET” blinks and the present contents are reset to the default values. [Version and Destination Display Mode] ∗ The version or destination is displayed. Procedure: 1. Press the ?/1 button to turn the power on. 2. To enter the test mode, press the three buttons VOL + , x and MD Z simultaneously. 3. The model and destination are displayed. 4. Press the REC/REC IT/NORMAL and u buttons simul- taneously. 5. The version is displayed as “STR/CD V . ”. 6. Press the REC/REC IT/NORMAL and u buttons simul- taneously. 7. The version is displayed as “MD V . ”. 8. Press the REC/REC IT/NORMAL and u buttons simul- taneously, then the mode returns to step 3. 9. To exit from this mode, press the ?/1 button to turn the power off. [FL Tube Test Mode] ∗ All fluorecent segments and LEDs are tested. Procedure: 1. Press the ?/1 button to turn the power on. 2. To enter the test mode, press three buttons VOL + , x and ./m TUNING - simultaneously. 3. All segments and LEDs are turned on. 4. Press the REC/REC IT/NORMAL and u buttons simul- taneously. 5. All segments are turned off (All LEDs still lit). 6. Press the REC/REC IT/NORMAL and u buttons simul- taneously. 7. Almost half segments are turned on. (PATTERN 1) 8. Press the REC/REC IT/NORMAL and u buttons simul- taneously. 9. The segments which are turned on in step 7 are turned off, then remaining segments are turned on. (PATTERN 2) 10. Press the REC/REC IT/NORMAL and u buttons simul- taneously, the mode returms to step 3 and all segments are turned on. 11. To exit from this mode, press the ?/1 button to turn the power off. [Key Test Mode] ∗ Keyboard check. Procedure: 1. Press the ?/1 button to turn the power on. 2. To enter the test mode, press three buttons VOL + , x and >/M TUNING + simultaneously. 3. In the key test mode, the fluorecent indicator displays “KEY00”. 4. Each time a button is pressed, “KEY ” value increases. However, once a button is pressed, it is no longer taken into account. 5. To exit from this mode, press three buttons simultaneously as step 2 , or disconnect the power cord. [Amp Test Mode] Procedure: 1. Press the ?/1 button to turn the power on. 2. Press three buttons VOL - , CD Z and MD Z simulta- neously. 3. Press two buttons REC/REC IT/NORMAL and x simulta- neously. 4. The message “7 [TESTMIN]” is displayed for a few seconds. 5. Press two buttons REC/REC IT/NORMAL and x simulta- neously again. 6. Each time two buttons are depressed, the display changes as “8 [TESTMID]” , “9 [TESTMAX]”, and “10 [TESTSUR]” . 7. Press the VOL + button, the display changes “VOLUME 21” to “VOLUME MAX”. 8. Press the VOL - button, the display changes “VOLUME 21” to “VOLUME MIN”. 9. To exit from this mode, press the ?/1 button to turn the power off and cold reset is executed. [CD Test Mode] ∗ The CD system versions are displayed. Procedure: 1. Press the ?/1 button to turn the power on. 2. Press the FUNCTION z button to set the CD function. 3. Press three buttons of VOL + , x and CD SYNC HIGH simultaneusly. 4. The message “dut CD VER” is displayed. 5. Press the CD Z button and the version “CD . ” is dis- played. 6. Press the >/M TUNING + button and “CDSYS ” is displayed. 7. Each time the >/M TUNING + button is depressed , the display changes as “CDMA S”, “CDBD O”, “CDCD M”. 8. By depressing the ./m TUNING - button the versions are displayed in reverse. 9. To exit this mode, press the ?/1 button to turn the power off. SECTION 4 TEST MODE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 HCD-C5 [CD Aging Mode] Procedure: 1. Press the ?/1 button to turn the power on. 2. Press the FUNCTION z button to set the CD function, and insert a disc. 3. Press three buttons of VOL - , CD Z and >/M TUNING + simultaneusly. 4. The message “Eject” is displayed, a disc is ejected and in- serted again automatically. 5. The sequence during the CD aging mode is following as be- low. CD aging mode sequence: 6. To exit this mode , press the ?/1 button to turn the power off. [CD/MD Aging Mode] ∗ Aging of CD and MD is performed at the same time. Procedure: 1. Press the ?/1 button to turn the power on. 2. Press the FUNCTION z button to set the CD function. 3. Insert a disc (CD) and a recordable disc (MD). 4. Press three buttons of VOL + , u and MD Z simultaneusly. 5. The message “Eject” is displayed and aging started. 6. The sequence of CD aging is same as the CD aging mode, however the MD aging is repetition of changing the track after a few seconds recording. 7. The number of aging is displayed in hexadecimal. For example, AGING00000011 means the 17th rouine of aging. 8. To exit this mode, press the ?/1 button to turn the power off, or press three buttons of VOL + , CD Z and MD Z simul- taneously and cold reset is executed. CD disc eject CD disc in TOC reading Playback the first track Playback the last track Display the number of aging MD SECITON Note 1: About “R” As this unit has only a few buttons, some operations require the use of remote commander (RM-SC5BEN/provided with unit: 1-476-649-21) buttons. These operations are indicated as “R” in this manual. Example: MENU/NO “R” ...Press the MENU/NO button of the remote commander. Note 2: Incorrect operations may be performed if the MD test mode is not entered properly. In this case, press the ?/1 button to turn the power off, and retry to enter the MD test mode. 1. PRECAUTIONS FOR USE OF TEST MODE • As operations related to loading will be performed regardless of the test mode operations being performed, be sure to check that the disc is stopped before setting and removing it. Even if the MD Z button is pressed while the disc is rotating during continuous playback, continuous recording, etc., the disc will not stop rotating. Therefore, it will be ejected while rotating. Be sure to press the MD Z button after pressing the MENU/NO “R” button and the rotation of disc is stopped. 1-1. Recording laser emission mode and operating buttons • Continuous recording mode (CREC 1MODE) • Laser power check mode (LDPWR CHECK) • Laser power adjustment mode (LDPWR ADJUST) • Comparison with initial Iop value written in nonvolatile memory (Iop Compare) • Write current Iop value in read nonvolatile memory using mi- croprocessor (Iop NV Save) • Traverse (MO) check (EF MO CHECK) • Traverse (MO) adjustment (EF MO ADJUST) • When pressing the REC/REC IT button. 2. SETTING THE TEST MODE The following is the method of entering the test mode. Procedure: 1. Press the ?/1 button to turn the power on. 2. Press the FUNCTION z button to set the MD function. 3. Press three buttons of VOL - , x , and CD SYNC HIGH (MD) simulta neously. When the test mode is set, “[Check]” will be displayed. Pressing the . “R” or > “R” button between the following three groups; ··· Tt [Check] Tt [Service] Tt [Develop] Tt ···. Note: Do not use the test mode in the [Develop] group. If used, the unit may not operate normally. If the [Develop] group is set accidentally, press the MENU/NO “R” button immediately to exit the [Develop] group. 3. RELEASING THE TEST MODE Procedure 1: Press the REPEAT “R” button to display “Initial- ize”, then release the MD test mode. Procedure 2: Press two button of VOL - and MD Z to display “Intialize”, then release the MD test mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 HCD-C5 4. BASIC OPERATIONS OF THE TEST MODE All operations are performed using the . “R” , > “R” , ENTER/YES “R” and MENU/NO “R” . The functions of these buttons are as follows. 5. SELECTING THE TEST MODE There are 26 types of test modes as shown below. The groups can be switched by pressing the . “R” or > “R” button. After selecting the group to be used, press the ENTER/YES “R” button. After setting a certain group, pressing the . “R” or > “R” button switches modes shown below. Refer to “Group” in the table for details can be selected. All items used for servicing can be treated using group [Service]. So be carefully not to enter other groups by mistake. Note: Do not use the test mode in the [Develop] group. If used, the unit may not operate normally. If the [Develop] group is set accidentally, press the MENU/NO “R” button immediately to exit the [Develop] group. • For details of each adjustment mode, refer to “5. Electrical Adjustments”. For details of “Err Display”, refer to “Self-Diagnosis Function” on page 2. • If a different mode has been selected by mistake, press the MENU/NO “R” button to release that mode. • Modes with (×) in the Mark column are not used for servicing and therefore are not described in detail. If these modes are set accidentally, press the MENU/NO “R” button to release the mode immediately. Display AUTO CHECK Err Display TEMP ADJUST LDPWR ADJUST Iop Write Iop NV Save EF MO ADJUST EF CD ADJUST FBIAS ADJUST AG Set (MO) AG Set (CD) TEMP CHECK LDPWR CHECK EF MO CHECK EF CD CHECK FBIAS CHECK ScurveCHECK VERIFYMODE DETRK CHECK 0920 CHECK Iop Read Iop Compare ADJ CLEAR INFORMATION CPLAY1MODE CREC 1MODE Details Automatic self-diagnosis Error history display, clear Temperature compensation offset adjustment Laser power adjustment Iop data writing Writes current Iop value in read nonvolatile memory using microprocessor Traverse (MO) adjustment Traverse (CD) adjustment Focus bias adjustment Auto gain output level adjustment (MO) Auto gain output level adjustment (CD) Temperature compensation offset check Laser power check Traverse (MO) check Traverse (CD) check Focus bias check S-curve check Nonvolatile memory check Detrack check Most circumference check Iop data display Comparison with initial Iop value written in nonvolatile memory Initialization of nonvolatile memory for adjustment values Display of microprocessor version, etc. Continuous playback mode Continuous recording mode No. C01 C02 C03 C04 C05 C06 C07 C08 C09 C10 C11 C12 C13 C14 C15 C16 C17 C18 C19 C25 C26 C27 C28 C31 C34 C35 Mark Group Check Service Function name Function . “R” , > “R” buttons Changes parameters and modes ENTER/YES “R” button Proceeds onto the next step. Finalizes input MENU/NO “R” button Returns to previous step. Stops operations www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 HCD-C5 5-1. Operating the Continuous Playback Mode 1. Entering the continuous playback mode (1) Set the disc in the unit. (Whichever recordable discs or discs for playback only are available) (2) Press the . “R” or > “R” button to display “CPLAY1MODE” (C34). (3) Press the ENTER/YES “R” button to change the display to “CPLAY1MID”. (4) When access completes, the display changes to “C = AD = )”. Note: The numbers “ ” displayed show you error rates and ADER. 2. Changing the parts to be played back (1) Press the ENTER/YES “R” button during continuous play- back to change the display as below. When pressed another time, the parts to be played back can be moved. (2) When access completes, the display changes to “C = AD = )”. Note: The numbers “ ” displayed show you error rates and ADER. 3. Ending the continuous playback mode (1) Press the MENU/NO “R” button. The display will change to “CPLAY1MODE” (C34). (2) Press the MD Z button and take out the disc. Note: The playback start addresses for IN, MID, and OUT are as follows. IN : 40h cluster MID : 300h cluster OUT : 700h cluster “CPLAY1MID” t “CPLAY1OUT” t “CPLAY1IN” 5-2. Operating the Continuous Recording Mode (Use only when performing self-recording/palyback check) 1. Entering the continuous recording mode (1) Set a recordable disc in the unit. (2) Press the . “R” or > “R” button to display “CREC 1MODE” (C35). (3) Press the ENTER/YES “R” button to change the display to “CREC 1MID”. (4) When access completes, the display changes to “CREC 1( )” and “ REC ” is displayed. Note: The numbers “ ” displayed shows you the recording posi- tion addresses. 2. Changing the parts to be recorded (1) When the ENTER/YES “R” button is pressed during con- tinuous recording, the display changes as below. When pressed another time, the parts to be recorded can be changed. “ REC ” goes off. (2) When access completes, the display changes to “CREC 1( )” and “ REC ” is displayed. Note: The numbers “ ” displayed shows you the recording posi- tion addresses. 3. Ending the continuous recording mode (1) Press the MENU/NO “R” button. The display changes to “CREC 1MODE” (C35) and “ REC ” goes off. (2) Press the MD Z button and take out the disc. Note 1: The recording start addresses for IN, MID, and OUT are as follows. IN : 40h cluster MID : 300h cluster OUT : 700h cluster Note 2: The MENU/NO “R” button can be used to stop recording anytime. Note 3: Do not perform continuous recording for long periods of time above 5 minutes. Note 4: During continuous recording, be careful not to apply vi- bration. “CREC 1MID” t “CREC 1OUT” t “CREC 1IN” REC REC REC REC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 HCD-C5 Function u x M “R” m “R” x + >/M TUNING + VOL - + CD Z MD Z REPEAT “R” Contents Sets continuous playback when this is pressed in the STOP state. When this is pressed during continu- ous playback, playback position moves. Stops continuous playback and continuous recording The sled moves to the outer circumference only when this is pressed The sled moves to the inner circumference only when this is pressed Switches the spindle servo mode (CLV S y CLV A) Switches the displayed contents each time the button is pressed Ejects the disc Releases the test mode 7. AUTOMATIC SELF-DIAGNOSIS FUNCTION This test mode performs CREC and CPLAY automatically for mainly checking the characteristics of the optical pick-up. To perform this test mode, the laser power must first be checked. Perform AUTO CHECK after the laser power check and Iop Compare. Procedure: 1. Press the . “R” or > “R” button to display “AUTO CHECK” (C01). 2. Press the ENTER/YES “R” button. If “LDPWR ” is displayed, it means that the laser power check has not been performed. In this case, perform the laser power check and Iop Compare, and then repeat from enter the MD test mode. 3. If a disc is in the mechanical deck, it will be ejected forcibly. “DISC IN” will be displayed in this case. Load a test disc (MDW-74/GA-1) which can be recorded. 4. If a disc is loaded at step 3, the check will start automatically. 5. When “XX CHECK” is displayed, the item corresponding to XX will be performed. When “060 CHECK” completes, the disc loaded at step 3 will be ejected. “DISC IN” will be displayed. Load the check disc (TDYS-1). 6. When the disc is loaded in step 5, the check will automatically be resumed from “07 CHECK”. 7. After completing to test item 12 (“oC CHECK”), check OK or NG will be displayed. If all items are OK, “CHK ALL OK” will be displayed. If any item is NG, it will be displayed as “NG:xxxx”. When “CHK ALL OK” is displayed, it means that the optical pick-up is normal. Check the operations of other parts (spindle motor, sled motor, etc.). When displayed as “NG:xxxx”, it means that the optical pick-up is faulty. In this case, replace the optical pick-up. 8. INFORMATION Display the software version. Procedure: 1. Press the . “R” or > “R” button to display “INFORMATION” (C31). 2. Press the ENTER/YES “R” button. 3. The software version will be displayed. 4. Press the MENU/NO “R” button to end this mode. 6. FUNCTIONS OF OTHER BUTTONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 HCD-C5 IOP DATA RECORDING AND DISPLAY WHEN OPTI- CAL PICK-UP AND NON-VOLATILE MEMORY (IC195 OF BD (MD) BOARD) ARE REPLACED The IOP value labeled on the optical pick-up can be recorded in the non-volatile memory. By recording the value, it will eliminate the need to look at the value on the label of the optical pick-up. When replacing the optical pick-up or non-volatile memory (IC195 of BD (MD) board), record the IOP value on the optical pick-up according to the following procedure. Record Procedure: 1. Press the ?/1 button to turn the power on. 2. Press the FUNCTION z button to set the MD function. 3. Press three buttons of VOL - , x and CD SYNC HIGH , simultaneously to enter the MD test mode and display “[Check]”. 4. Press the . “R” or > “R” button to display “[Service]”. 5. Press the ENTER/YES “R” button to display “AUTO CHECK”, and press the > “R” button to display “Iop Write”. 6. Press the ENTER/YES “R” button. 7. The display becomes “Ref= @@@.@” (@ is an arbitrary num- ber) and the numbers which can be changed will blink. 8. Input the IOP value written on the optical pick-up. To select the number : Press the . “R” or > “R” button. To select the digit : Press two buttons of VOL - and CD Z simultaneously. 9. When the ENTER/YES “R” button is pressed, the display becomes “Measu=@@@.@” (@ is an arbitrary number). 10. As the adjustment results are recorded for the step 9 value. Leave it as it is and press the ENTER/YES “R” button. 11. “Complete!” will be displayed momentarily. The value will be recorded in the non-volatile memory and the display will become “Iop Write”. 12. Press the REPEAT “R” button, or press two buttons of VOL - and MD Z simultaneously. to complete. “Initialize” will be displayed and release the MD test mode. Display Precedure: 1. Press the ?/1 button to turn the power on. 2. Press the FUNCTION z button to set the MD function. 3. Press three buttons of VOL - , x , and CD SYNC HIGH simultaneously to enter the MD test mode and display “[Check]”. 4. Press the . “R” or > “R” button to display “[Ser- vice]”. 5. Press the ENTER/YES “R” button to display “AUTO CHECK”, and press the > “R” button to display “Iop Read”. 6. Press the ENTER/YES “R” button. 7. “@@.@/##.#” is displayed and the recorded contents are dis- played. @@.@ : Indicates the Iop value labeled on the pick-up. ##.# : Indicates the Iop value after adjustment. 8. Press the REPEAT “R” button to complete. “Initialize” will be displayed and release the MD test mode. WHEN MEMORY NG IS DISPLAYED If the nonvolatile memory data is abnormal, “E001 MEMORY NG” will be displayed so that the MD deck does not continue opera- tions. In this case, set the test mode promptly and perform the following procedure. Procedure: 1. Enter the MD test mode. 2. Normally a message for selecting the test mode will be displayed. However if the nonvolatile memory is abnormal, the following will be displayed “INIT EEP?”. 3. Press the x and MD Z buttons simultaneously. 4. Press the . “R” or > “R” button to display “MDM-7B4M”. 5. Press the ENTER/YES “R” button. If the nonvolatile memory is successfully overwritten, the normal MD test mode will be set and a message to select the MD test mode will be displayed. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 HCD-C5 CHECKS PRIOR TO PARTS REPLACEMENT AND ADJUSTMENTS IN MD Before performing repairs, perform the following checks to determine the faulty locations up to a certain extent. Details of the procedures are described in “5 Electrical Adjustments”. • 0.9 mW power Specified value : figure1 • 7.0 mW power Specified value : figure2 Iop (at 7.0mW) • Labeled on the optical pick-up Iop value ± 10mA • Unsatisfactory if displayed as “NG: XXXX” (X is an arbitrary number) • Unsatisfactory if displayed as “T=@@ (##) [NG]” (@@, ## are both arbitrary numbers) Laser power check (6-2 : See page 37) Auto check (6-4 : See page 38) Temperature compensation offset check (6-1 : See page 37) Criteria for Determination (Unsatisfactory if specified value is not satisfied) • Clean the optical pick-up • Adjust again • Replace the optical pick-up • Replace the optical pick-up • Replace the optical pick-up • Check for disconnection of the circuits around D101 (BD (MD) board) • Check the signals around IC101, IC151, CN102, CN103 (BD (MD) board) Measure if unsatisfactory Note: The criteria for determination above is intended merely to determine if satisfactory or not, and does not serve as the specified value for adjust- ments. When performing adjustments, use the specified values for adjustments. Figure1: Figure2: RETRY CAUSE DISPLAY MODE IN MD • In this test mode, the causes for retry of the unit during recording can be displayed on the fluorescent indicator tube. During playback, the “track mode” for obtaining track information will be set. This is useful for locating the faulty part of the unit. • The following will be displayed : During recording and stop : Retry cause, number of retries, and number of retry errors. During playback : Information such as type of disc played, part played, copyright. These are displayed in hexadecimal. Precedure: 1. Load a recordable disc whose contents can be erased into the unit. 2. Press the MENU/NO “R” button. When “Edit Menu” is displayed on the fluorescent indicator tube, press the . “R” or > “R” button to display “All Erase?”. 3. Press the ENTER/YES “R” button. 4. When “All Erase??” is displayed on the fluorescent indicator tube. 5. Press the ENTER/YES “R” button to display “Complete!”. 6. Press the REC/REC IT button to start recording. Then press the u button and start recording. If recording cannot be performed, press the FUNCTION z button and set a different function. 7. Press three buttons of VOL - , u and CD SYNC HIGH simultaneously to enter the retry cause display mode. 8. To check the “track mode”, press the u button to start playback. 9. To release this mode, press the ?/1 button to turn the power off. When “TOC” goes off, disconnect the power plug from the outlet. If the test mode cannot be released, refer to “Factory Preset” on page 24. SPECIFIED VALUE KMS-260B KMS-260E 6.8 to 7.2 mW 7.0 to 7.5 mW SPECIFIED VALUE KMS-260B KMS-260E 0.85 to 0.91 mW 0.90 to 0.96 mW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 HCD-C5 Reading the Retry Cause Display Reading the Display: Convert the hexadecimal display into binary display. If more than two causes, they will be added. Example When 42 is displayed: Higher bit: 4 = 0100 t b6 Lower bit : 2 = 0010 t b1 In this case, the retry cause is combined of “CLV unlock” and “ader5”. When A2 is displayed: Higher bit: A = 1010 t b7 + b5 Lower bit : 2 = 0010 t b1 The retry cause in this case is combined of “Access fault”, “IVR rec error”, and “ader5”. Hexadecimal 01 02 04 08 10 20 40 80 Hexadecimal Bit Binary Occurring conditions When track jump (shock) is detected When ADER was counted more than five times continuously When ADIP address is not continuous When DIN unlock is detected When not in focus When ABCD signal level exceeds the specified range When CLV is unlocked When access operation is not performed normally Cause of Retry shock ader5 Discontinuous address DIN unlock FCS incorrect IVR rec erraor CLV unlock Access fault Higher Bits 8 4 2 1 8 4 2 1 b7 b6 b5 b4 b3 b2 b1 b0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 Lower Bits Fig. 1 Reading the Test Mode Display (During recording and stop) RTs@@c##e** fluorescent indicator tube @@ : Cause of retry ## : Number of retries ** : Number of retry errors Fig. 2 Reading the Test Mode Display (During playback) @@ ###** $$ fluorescent indicator tube @@ : Parts No. (name of area named on TOC) ## : Cluster ** : Sector $$ : Track mode (Track information such as copyright information of each part) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 HCD-C5 Reading the Display: Convert the hexadecimal display into binary display. If more than two causes, they will be added. Example When 84 is displayed: Higher bit: 8 = 1000 t b7 Lower bit : 4 = 0100 t b2 In this case, as b2 and b7 are 1 and others are 0, it can be determined that the retry cause is combined of “Emphasis OFF”, “Monaural”, “Original”, “Copyright”, and “Write allowed”. Example When 07 is displayed: Higher bit: 0 = 0000 t All 0 Lower bit : 7 = 0111 t b0 + b1 + b2 In this case, as b0, b1, and b2 are 1 and others are 0, it can be determined that the retry cause is combined of “Emphasis ON”, “Stereo”, “Original”, “Copyright”, and “Write prohibited”. Hexadecimal t Binary Conversion Table Hexadecimal Binary Hexadecimal Binary 0 0000 8 1000 1 0001 9 1001 2 0010 A 1010 3 0011 B 1011 4 0100 C 1100 5 0101 D 1101 6 0110 E 1110 7 0111 F 1111 Hexadecimal 01 02 04 08 10 20 40 80 Hexadecimal Bit Binary When 0 Emphasis OFF Monaural This is 2-bit display. Normally 01. 01:Normal audio. Others:Invalid Audio (Normal) Original Copyright Write prohibited Higher Bit 8 4 2 1 8 4 2 1 b7 b6 b5 b4 b3 b2 b1 b0 0 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 1 0 0 0 0 0 0 0 Lower Bits When 1 Emphasis ON Stereo Invalid Digital copy No copyright Write allowed Details Reading the Retry Cause Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 HCD-C5 SECTION 5 ELECTRICAL ADJUSTMENTS CD SECTION Note 1: 1. CD Block is basically designed to operate without adjustment. There- fore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use an oscilloscope with more than 10MΩ impedance. 4. Clean the object lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. Note 2: As the laser diode in the optical pick-up (OPTIMA-720L1E) is easily damaged by static electricity, solder the laser tap of the flexible board when handling it. Before disconnecting the connector, solder first. Before connecting the connector, be careful not to remove the solder. Also take adequate measures to prevent damage by static electricity. Handle the flexible board with care as it breaks easily. RF Level Check Connection: Procedure: 1. Connect an oscilloscope to test point TP (RFAC) and TP (DVC 1.65V) on the BD (CD) board. 2. Turn the power on. 3. Put the disc (YEDS-18) in to playback the number five track. 4. Confirm that oscilloscope waveform is clear and check RF sig- nal level is correct or not. Note: A clear RF signal waveform means that the shape “◊” can be clearly distinguished at the center of the waveform. RF signal waveform Checking Location: BD (CD) board + – BD (CD) board TP (RFAC) TP (DVC 1.65V) oscilloscope (AC range) VOLT/DIV: 200 mV TIME/DIV: 500 ns level: 1.1 ±0.3 Vp-p pick-up frexible board laser tap Checking Location: – BD (CD) BOARD – TP (RFAC) TP (DVC 1.65V) IC103 IC101 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 HCD-C5 Other faults are suspected. Check the mechanism parts (spindle motor, sled motor, etc.). Start NG NG NG OK OK OK Laser Power Check 6-2. (See page 37) 6-3. (See page 37) 6-4. (See page 38) Iop Compare Auto Check Replace optical pick-up or MDM-7B4B MD SECTION Note 1:About “R” As this unit has only a few buttons, some operations require the use of remote commander (RM-SC5BEN/provided with unit: 1-476-649-11) buttons. These operations are indicated as “R” in this manual. Example: MENU/NO “R” ...Press the MENU/NO button of the remote commander. Note 2:Incorrect operations may be performed if the MD test mode is not entered properly. In this case, press the ?/1 button to turn the power off, and retry to enter the MD test mode. 1. PARTS REPLACEMENT AND ADJUSTMENT If malfunctions caused by optical pick-up such as sound skipping are suspected, follow the following check. Check before replacement www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 HCD-C5 6-4. Auto Check (See page 38) YES NO NO NO NO NO NO NO YES YES YES YES YES YES Replace IC195 Replace OP or IC195 Replace IC101, IC195, or D101 11. Iop NV SAVE (See page 41) Replace OP, IC190, or IC195 Replace OP, IC102, IC190, or IC195 Replace OP, IC101, IC151, or IC195 Replace OP After turning off and then on the power, initialize the EEPROM For details, refer to “WHEN MEMORY NG IS DIS- PLAYED” in Section 4. TEST MODE (See page 29) • Abbreviation OP: optical pick-up 7.INITIAL SETTING OF ADJUSTMENT VALUE (See page 40) 9.TEMPERATURE COMPENSATION OFFSET ADJUSTMENT (See page 40) 10. LASER POWER ADJUSTMENT (See page 40) 12.TRAVERSE ADJUSTMENT (See page 41) 13.FOCUS BIAS ADJUSTMENT (See page 43) 16.AUTO GAIN CONTROL OUTPUT LEVEL ADJUSTMENT (See page 44) 8.RECORDING AND DISPLAYING THE IOP INFORMATION (See page 40) End adjustments Start Adjustment flow www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 HCD-C5 2. PRECAUTIONS FOR CHECKING LASER DIODE EMISSION To check the emission of the laser diode during adjustments, never view directly from the top as this may lose your eye-sight. 3. PRECAUTIONS FOR USE OF OPTICAL PICK-UP (KMS-260B/260E) As the laser diode in the optical pick-up is easily damaged by static electricity, solder the laser tap of the flexible board when handling it. Before disconnecting the connector, solder first. Before connecting the connector, be careful not to remove the solder. Also take adequate measures to prevent damage by static electricity. Handle the flexible board with care as it breaks easily. Optical pick-up flexible board pick-up flexible board laser tap 4. PRECAUTIONS FOR ADJUSTMENTS 1. When replacing the following parts, perform the adjustments and checks with in the order shown in the following table. 2. Set the MD test mode when performing adjustments. After completing the adjustments, exit the MD test mode. Perform the adjustments and checks in “Group Service” of the MD test mode. 3. Perform the adjustments to be needed in the order shown. 4. Use the following tools and measuring devices. • Check Disc (TDYS-1) (Part No. : 4-963-646-01) • Test Disk (MDW-74/GA-1) (Part No. : 4-229-747-01) • Laser power meter LPM-8001 (Part No. : J-2501-046-A) or MD Laser power meter 8010S (Part No. : J-2501-145-A)*1 • Oscilloscope (Measure after performing CAL of prove.) • Digital voltmeter • Thermometer • Jig for checking BD (MD) board waveform (Part No. : J-2501-196-A) 5. When observing several signals on the oscilloscope, etc., make sure that VC and ground do not connect inside the oscilloscope. (VC and ground will become short-circuited.) 6. Using the above jig enables the waveform to be checked without the need to solder. (Refer to Servicing Notes on page 6.) 7. As the disc used will affect the adjustment results, make sure that no dusts nor fingerprints are attached to it. *1 Laser power meter When performing laser power checks and adjustment (electrical adjustment), use of the new MD laser power meter 8010S (Part No. J-2501-145-A) instead of the conventional laser power meter is convenient. It sharply reduces the time and trouble to set the laser power meter sensor onto the objective lens of optical pick-up. 7. Initial setting of adjustment value 8. Recording of Iop information 9. Temperature compensation offset adjustment 10. Laser power adjustment 11. Iop NV Save 12. Traverse adjustment 13. Focus bias adjustment 16. Auto gain control output level adjustment 6-4.AUTO CHECK Optical Pick-up IC101 IC102 IC151 IC190 IC195 D101 Parts to be replaced Adjustment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 HCD-C5 5. USING THE CONTINUOUSLY RECORDED DISC * This disc is used in focus bias adjustment and error rate check. The following describes how to create a continuous recording disc. 1. Insert a disc (blank disc) commercially available. 2. Press the . “R” or > “R” button and display “CREC 1MODE” (C35). 3. Press the ENTER/YES “R” button again to display “CREC 1 MID”. Display “CREC 1(0300)” and start to recording. 4. Complete recording within 5 minutes. 5. Press the MENU/NO “R” button and stop recording . 6. Press the MD Z button and remove the disc. The above has been how to create a continuous recorded data for the focus bias adjustment and error rate check. Note: Be careful not to apply vibration during continuous recording. 6. CHECKS PRIOR TO REPAIRS These checks are performed before replacing parts according to “approximate specifications” to determine the faulty locations. For details, refer to “Checks Prior to Parts Replacement and Adjustments in MD” (see page 30). 6-1. Temperature Compensation Offset Check When performing adjustments, set the internal temperature and room temperature to 22 to 28ºC. Procedure: 1. Press the . “R” or > “R” button to display “TEMP CHECK” (C12). 2. Press the ENTER/YES “R” button. 3. “T=@@(##) [OK]” should be displayed. If “T=@@ (##) [NG]” is displayed, it means that the results are bad. (@@ indicates the current value set, and ## indicates the value written in the non-volatile memory.) 6-2. Laser Power Check Before starting adjustment; The laser power adjustment value changes depending upon the types of the optical pick-up (KMS-260B or KMS-260E). Check the type of the optical pick-up before starting adjustment. (See the illustrations “The method of identifying the optical pick- up” on page 41) Before checking, check the Iop value of the optical pick-up. (Refer to 8. Recording and Displaying the Iop Information (see page 40)) Connection: Procedure: 1. Set the laser power meter on the objective lens of the optical pick-up. (When it cannot be set properly, press the m “R” button or M “R” button to move the optical pick-up.) Connect the digital volt meter to CN105 pin 1 (I+3V) and CN105 pin 2 (IOP). 2. Then, press the . “R” or > “R” button and display “LDPWR CHECK” (C13). 3. Press the ENTER/YES “R” button once and display “LD 0.9mW$ ”. Check that the reading of the laser power meter becomes specified value. 4. Press the ENTER/YES “R” button once more and display “ LD 7.0mW$ ”. Check that the reading the laser power meter and digital volt meter satisfy the specified value. Specified Value: Laser power meter reading : Digital voltmeter reading : Optical pick-up displayed value ± 10% 5. Press the MENU/NO “R” button and display “LDPWR CHECK” (C13) and stop the laser emission. (The MENU/NO “R” button is effective at all times to stop the laser emission.) Note: After step 4, each time the ENTER/YES “R” button is pressed, the display will be switched to “LD 0.7W$ ”and “LD 6.2mW$ ” “LD WP $ ”. Nothing needs to be performed here. Checking Location: BD (MD) board (see page 44) 6-3. Iop Compare The current Iop value at laser power 7.0 mW output and reference Iop value (set at shipment) written in the nonvolatile memory are compared, and the rate of increase/decrease will be displayed in percentage. Note: Perform this function with the optical pick-up set at room tempera- ture. Procedure: 1. Press the . “R” or > “R” button to display “Iop Compare” (C27). 2. Press the ENTER/YES “R” button and start measurements. 3. When measurements complete, the display changes to “± xx% yy”. xx is the percentage of increase/decrease, and OK or NG is displayed at yy to indicate whether the percentage of increase/ decrease is within the allowable range. 4. Press the MENU/NO “R” button to end. Optical pick-up objective lens laser power meter + – BD (MD) board digital voltmeter CN105 pin 1 (I+3V) CN105 pin 2 (IOP) KMS260B 20101 H0576 lOP = 57.6 mA in this case lOP (mA) = Digital voltmeter reading (mV)/1 (Ω) (Optical pick-up label) For details of the method for checking this value, refer to “8. Recording and Displaying the Iop Information” SPECIFIED VALUE KMS-260B KMS-260E 0.85 to 0.91 mW 0.90 to 0.96 mW KMS-260B KMS-260E 7.0 to 0.2 mW 7.25 to 0.25 mW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 HCD-C5 6-4. Auto Check This test mode performs CREC and CPLAY automatically for mainly checking the characteristics of the optical pick-up. To perform this test mode, the laser power must first be checked. Perform Auto Check after the laser power check and Iop compare. Procedure: 1. Press the . “R” or > “R” button to display “AUTO CHECK” (C01). 2. Press the ENTER/YES “R” button. If “LDPWR ” is displayed, it means that the laser power check has not been performed. In this case, perform the laser power check and Iop Compare, and then repeat from enter the MD test mode. 3. If a disc is in the mechanical deck, it will be ejected forcibly. “DISC IN” will be displayed in this case. Load a test disc (MDW- 74/GA-1) which can be recorded. 4. If a disc is loaded at step 3, the check will start automatically. 5. When “XX CHECK” is displayed, the item corresponding to XX will be performed. When “06 CHECK” completes, the disc loaded at step 3 will be ejected. “DISC IN” will be displayed. Load the check disc (TDYS-1). 6. When the disc is loaded in the step 5, the check will automatically be resumed from “07 CHECK”. 7. After completing to test item 12 (“oC CHECK”), check OK or NG will be displayed. If all items are OK, “CHK ALL OK” will be displayed. If any item is NG, it will be displayed as “NG:xxxx”. When “CHK ALL OK” is displayed, it means that the optical pick- up is normal. Check the operations of other parts (spindle motor, sled motor, etc.). When displayed as “NG:xxxx”, it means that the optical pick-up is faulty. In this case, replace the optical pick-up. 6-5. Other Checks All the following checks are performed by the Auto Check mode. They therefore need not be performed in normal operation. 6-6. Traverse Check 6-7. Focus Bias Check 6-8. C PLAY Check 6-9. Self-Recording/Playback Check 6-6. Traverse Check Note 1:Data will be erased during MO reading if a recorded disc is used in this adjustment. Note 2:If the traverse waveform is not clear, connect the oscilloscope as shown in the following figure so that it can be seen more clearly. Connection: Procedure: 1. Connect an oscilloscope to CN105 pin 4 (TE) and CN105 pin 6 (VC) on the BD (MD) board. 2. Load a disc (any available on the market). (Refer to Note 1) 3. Press the M “R” button to move the optical pick-up outside the pit. 4. Press the . “R” or > “R” button to display “EF MO CHECK”(C14). 5. Press the ENTER/YES “R” button to display “EFB = MO- R”. (Laser power READ power/Focus servo ON/tracking servo OFF/spindle (S) servo ON) 6. Observe the waveform of the oscilloscope, and check that the specified value is satisfied. Do not press the . “R” or > “R” button. (Read power traverse checking) Traverse Waveform 7. Press the ENTER/YES “R” button to display “EFB = MO- W”. 8. Observe the waveform of the oscilloscope, and check that the specified value is satisfied. Do not press the . “R” or > “R” button. (Write power traverse checking) Traverse Waveform + – oscilloscope (DC range) 10 pF 330 k Ω CN105 pin 4 (TE) CN105 pin 6 (VC) BD (MD) board A B VC Specified value : Below 10% offset value Offset value (%) = X 100 IA – BI 2 (A + B) A B VC Specified value : Below 10% offset value Offset value (%) = X 100 IA – BI 2 (A + B) + – oscilloscope (DC range) V: 0.1 V/div H: 10 ms/div BD (MD) board CN105 pin 4 (TE) CN105 pin 6 (VC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 HCD-C5 9. Press the ENTER/YES “R” button to display “EFB = MO- P”. Then, the optical pick-up moves to the pit area automatically and servo is imposed. 10. Observe the waveform of the oscilloscope, and check that the specified value is satisfied. Do not press the . “R” or > “R” button. Traverse Waveform 11. Press the ENTER/YES “R” button to display “EF MO CHECK” (C14). The disc stops rotating automatically. 12. Press the MD Z button and take out the disc. 13. Load the check disc (TDYS-1). 14. Press the . “R” or > “R” button and display “EF CD CHECK” (C15). 15. Press the ENTER/YES “R” button to display “EFB = CD”. Servo is imposed automatically. 16. Observe the waveform of the oscilloscope, and check that the specified value is satisfied. Do not press the . “R” or > “R” button. Traverse Waveform 17. Press the ENTER/YES “R” button to display “EF CD CHECK” (C15). 18. Press the MD Z button and take out the check disc (TDYS-1). Checking Location: BD (MD) board (see page 44) 6-7. Focus Bias Check Change the focus bias and check the focus tolerance amount. Procedure: 1. Load the test disc (MDW-74/GA-1). 2. Press the . “R” or > “R” button to display “CPLAY 1MODE” (C34). 3. Press the ENTER/YES “R” button to display “CPLAY 1MID”. 4. Press the MENU/NO “R” button when “C = AD = ” is displayed. 5. Press the . “R” or > “R” button to display “FBIAS CHECK” (C16). A B VC Specified value : Below 10% offset value Offset value (%) = X 100 IA – BI 2 (A + B) A B VC Specified value : Below 10% offset value Offset value (%) = X 100 IA – BI 2 (A + B) 6. Press the ENTER/YES “R” button to display “ / c = ”. The first four digits indicate the C1 error rate, the two digits after [/] indicate ADER, and the 2 digits after [c =] indicate the focus bias value. Check that the C1 error is below 20 and ADER is below 2. 7. Press the ENTER/YES “R” button to display “ / b = ”. Check that the C1 error is about 100 and ADER is below 2. 8. Press the ENTER/YES “R” button to display “ / a = ”. Check that the C1 error is about 100 and ADER is below 2. 9. Press the MENU/NO “R” button, then press the MD Z button and take out the test disc. 6-8. C PLAY Check MO Error Rate Check Procedure: 1. Load the test disc (MDW-74/GA-1). 2. Press the . “R” or > “R” button to display “CPLAY 1MODE” (C34). 3. Press the ENTER/YES “R” button to display “CPLAY 1MID”. 4. The display changes to “C = AD = ”. 5. If the C1 error rate is below 20, check that ADER is 00. 6. Press the MENU/NO “R” button to stop playback, then press the MD Z button and take out the test disc. CD Error Rate Check Procedure: 1. Load the check disc (TDYS-1). 2. Press the . “R” or > “R” button to display “CPLAY 1MODE” (C34). 3. Press the ENTER/YES “R” button to display “CPLAY 1MID”. 4. The display changes to “C = AD = )”. 5. Check that the C1 error rate is below 20. 6. Press the MENU/NO “R” button to stop playback, then press the MD Z button and take out the check disc. 6-9. Self-Recording/playback Check Prepare a continuous recording disc using the unit to be repaired and check the error rate. Procedure: 1. Load a recordable disc (blank disc). 2. Press the . “R” or > “R” button to display “CREC 1MODE” (C34). 3. Press the ENTER/YES “R” button to display “CREC 1MID”. 4. When recording starts, “ REC ” and display “CREC 1 @@@@” (@@@@ is the address). 5. About 1 minute later, press the MENU/NO “R” button to stop continuous recording. 6. Press the . “R” or > “R” button to display “CPLAY 1 MODE” (C34). 7. Press the ENTER/YES “R” button to display “CPLAY 1 MID”. 8. “C = AD = )” will be displayed. 9. Check that the C1 error becomes below 20 and the AD error below 2. 10. Press the MENU/NO “R” button to stop playback, then press the MD Z button and take out the disc. REC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 HCD-C5 7. INITIAL SETTING OF ADJUSTMENT VALUE Note: Mode which sets the adjustment results recorded in the non-volatile memory to the initial setting value. However the results of the temperature compen- sation offset adjustment will not change to the initial setting value. If initial setting is performed, perform all adjustments again excluding the temperature compensation offset adjustment. For details of the initial setting, refer to “4. Precautions for Adjustments” (See page 36) and execute the initial setting before the adjustment as re- quired. Procedure: 1. Press the . “R” or > “R” button to display “ADJ CLEAR” (C28). 2. Press the ENTER/YES “R” button. “Complete!” will be displayed momentarily and initial setting will be executed, after which “ADJ CLEAR” (C28) will be displayed. 8. RECORDING AND DISPLAYING THE IOP INFORMATION The IOP data can be recorded in the non-volatile memory. The IOP value on the optical pick-up label and the IOP value after the adjustment will be recorded. Recording these data eliminates the need to read the label on the optical pick-up. Recording Procedure: 1. Press the . “R” or > “R” button to display “Iop Write” (C05), and press the ENTER/YES “R” button. 2. The display becomes “Ref=@@@.@” (@ is an arbitrary number) and the numbers which can be changed will blink. 3. Input the IOP value on the optical pick-up label. To select the number : Press the . “R” or > “R” button. To select the digit : Press two buttons of VOL - and CD Z simultaneously. 4. When the ENTER/YES “R” button is pressed, the display becomes “Measu=@@@.@” (@ is an arbitrary number). 5. As the adjustment results are recorded for the step 4 value. Leave it as it is and press the ENTER/YES “R” button. 6. “Complete!” will be displayed momentarily. The value will be recorded in the non-volatile memory and the display will become “Iop Write” (C05). Display Procedure: 1. Press the . “R” or > “R” button to display “Iop Read”(C26) and press the ENTER/YES “R” button. 2. “@@.@/##.#” is displayed and the recorded contents are displayed. @@.@ indicates the IOP value on the optical pick-up label. ##.# indicates the IOP value after adjustment 3. To end, press the MENU/NO “R” button to display “Iop Read” (C26). 9. TEMPERATURE COMPENSATION OFFSET ADJUSTMENT Save the temperature data at that time in the non-volatile memory as 25 ˚C reference data. Note: 1. Usually, do not perform this adjustment. 2. Perform this adjustment in an ambient temperature of 22 ˚C to 28 ˚C. Per- form it immediately after the power is turned on when the internal tempera- ture of the unit is the same as the ambient temperature of 22 ˚C to 28 ˚C. 3. When D101 has been replaced, perform this adjustment after the tem- perature of this part has become the ambient temperature. Procedure: 1. Press the . “R” or > “R” button to display “TEMP ADJUST” (C03). 2. Press the ENTER/YES “R” button to select the “TEMP ADJUST” mode. 3. “TEMP = [OK]” and the current temperature data will be displayed. 4. To save the data, press the ENTER/YES “R” button. When not saving the data, press the MENU/NO “R” button. 5. When the ENTER/YES “R” button is pressed, “TEMP = SAVE” will be displayed and turned back to “TEMP ADJUST” (C03) display then. When the MENU/NO “R” button is pressed, “TEMP ADJUST” (C03) will be displayed immediately. Specified Value: The “TEMP = ” should be within “E0 - EF”, “F0 - FF”, “00 - 0F”, “10 - 1F” and “20 - 2F”. 10.LASER POWER ADJUSTMENT Before starting adjustment; The laser power adjustment value changes depending upon the types of the optical pick-up (KMS-260B or KMS-260E). Check the type of the optical pick-up before starting adjustment. (See the illustrations “The method of identifying the optical pick- up on page 41.) Check the IOP value of the optical pick-up before adjustments. (Refer to 8. Recording and Displaying the Iop Information) Connection: Procedure: 1. Insert the laser power meter probe into the disc insertion slot and set it on top of the objective lens of the optical pick-up. (When it cannot be set properly, press the m “R” button or M “R” button to move the optical pick-up) Connect the digital voltmeter to CN105 pin 1 (I+3V) and CN105pin 2 (IOP) on the BD (MD) board. 2. Press the . “R” or > “R” button to display “LDPWR ADJUST” (C04). (Laser power : For adjustment) 3. Press the ENTER/YES “R” button once to display “LD 0.9 mW $ ”. 4. Press the . “R” or > “R” button until the laser power meter reading matches with the specified value as described in the following table. Press the ENTER/YES “R” button after setting the range knob of the laser power meter, and save the adjustment results. (“LD SAVE $ ” will be displayed for a moment) 5. Then “LD 7.0 mW $ ” will be displayed. + – BD (MD) board digital voltmeter CN105 pin 1 (I+3V) CN105 pin 2 (IOP) Optical pick-up objective lens laser power meter SPECIFIED VALUE KMS-260B KMS-260E 0.85 to 0.91 mW 0.90 to 0.96 mW www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 HCD-C5 6. Press the . “R” or > “R” button so that the reading of the laser power meter becomes the specified value, press the ENTER/YES “R” button to save it. Note: Do not perform the emission with 8.4 mW more than 15 seconds continuously. 7. Then, press the . “R” or > “R” button to display “LDPWR CHECK” (C13). 8. Press the ENTER/YES “R” button once to display “LD 0.9mW$ ”. Check that the reading of the laser power meter matches with the specified value as described in the following table. 9. Press the ENTER/YES “R” button once more to display “LD 8.4mW$ ”. Check that the reading the laser power meter and digital voltmeter satisfy the specified value. Note down the digital voltmeter reading value. Specified Value: Laser power meter reading : Digital voltmeter reading : Value on the optical pick-up label ±10% 10. Press the MENU/NO “R” button to display “LDPWR CHECK” (C13) and stop the laser emission. (The MENU/NO “R” button is effective at all times to stop the laser emission) 11. Press the . “R” or > “R” button to display “Iop Write” (C05). 12. Press the ENTER/YES “R” button. When the display becomes “Ref=@@@.@” (@ is an arbitrary number), press the ENTER/YES “R” button to display “Measu=@@@.@” (@ is an arbitrary number). 13. The numbers which can be changed will blink. Input the Iop value noted down at step 9. To select the number : Press the . “R” or > “R” button. To select the digit :Press two buttons of VOL - and CD Z simultaneously. 14. When the ENTER/YES “R” button is pressed, “Complete!” will be displayed momentarily. The value will be recorded in the non- volatile memory and the display will become “Iop Write” (C05). Note: After step 9, each time the ENTER/YES “R” button is pressed, the display will be switched to “LD 0.7mW$ ”, “LD 6.2mW$ ” and “LD WP ” Nothing needs to be performed here. The method of identifying the optical pick-up (KMS-260B/260E) 11.Iop NV SAVE Write the reference values in the nonvolatile memory to perform “Iop compare”. As this involves rewriting the reference values, do not perform this procedure except when adjusting the laser power during replacement of the optical pick-up and when replacing the IC102. Otherwise the optical pick-up check may deteriorate. Note: Perform this function with the optical pick-up set at room temperature. Procedure: 1. Press the . “R” or > “R” button to display “Iop NV Save” (C06). 2. Press the ENTER/YES “R” button and display “Iop [stop]”. 3. After the display changes to “Iop =xxsave?”, press the ENTER/YES “R” button. 4. After “Complete!” is displayed momentarily, the display changes to “Iop 7.0 mW”. 5. After the display changes to “Iop=yysave?”, press the ENTER/YES “R” button. 6. When “Complete!” is displayed, it means that Iop NV saving has been completed. 12. TRAVERSE ADJUSTMENT Note 1: Data will be erased during MO reading if a recorded disc is used in this adjustment. Note 2: If the traverse waveform is not clear, connect the oscilloscope as shown in the following figure so that it can be seen more clearly. Connection: SPECIFIED VALUE KMS-260B KMS-260E 6.9 to 7.1 mW 7.2 to 7.3 mW SPECIFIED VALUE KMS-260B KMS-260E 0.85 to 0.91 mW 0.90 to 0.96 mW KMS260B 20101 H0576 lOP = 57.6 mA in this case lOP (mA) = Digital voltmeter reading (mV)/1 (Ω) (Optical pick-up label) For details of the method for checking this value, refer to “8. Recording and Displaying the Iop Information” SPECIFIED VALUE KMS-260B KMS-260E 7.0 to 0.2 mW 7.25 to 0.25 mW UV adhesive agent Optical pick-up (KMS-260B/260E) Pink : KMS-260B White : KMS-260E UV adhesive agent = + – oscilloscope (DC range) 10 pF 330 k Ω CN105 pin 4 (TE) CN105 pin 6 (VC) BD (MD) board + – oscilloscope (DC range) V: 0.1 V/div H: 10 ms/div BD (MD) board CN105 pin 4 (TE) CN105 pin 6 (VC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 HCD-C5 Procedure: 1. Connect an oscilloscope to CN105 pin 4 (TE) and CN105 pin 6 (VC) on the BD (MD) board. 2. Load a disc (any available on the market). (Refer to Note 1) 3. Press the M “R” button to move the optical pick-up outside the pit. 4. Press the . “R” or > “R” button to display “EF MO ADJUST” (C07). 5. Press the ENTER/YES “R” button to display “EFB = MO- R”. (Laser power READ power/Focus servo ON/tracking servo OFF/spindle (S) servo ON) 6. Press the . “R” or > “R” button so that the waveform of the oscilloscope becomes the specified value. (When the . “R” or > “R” button is pressed, the of “EFB= ” changes and the waveform changes) In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the specified value is satisfied as much as possible. (Read power traverse adjustment) Traverse Waveform 7. Press the ENTER/YES “R” button and save the result of adjustment to the non-volatile memory (“EFB = SAVE” will be displayed for a moment. Then “EFB = MO-W” will be displayed). 8. Press the . “R” or > “R” button so that the waveform of the oscilloscope becomes the specified value. (When the . “R” or > “R” button is pressed, the of “EFB= ” changes and the waveform changes) In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the specified value is satisfied as much as possible. (Write power traverse adjustment) Traverse Waveform 9. Press the ENTER/YES “R” button, and save the adjustment results in the non-volatile memory. (“EFB = SAVE” will be displayed for a moment) 10. “EFB = MO-P” will be displayed. The optical pick-up moves to the pit area automatically and servo is imposed. A B VC Specification A = B 11. Press the . “R” or > “R” button until the waveform of the oscilloscope moves closer to the specified value. In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the specified value is satisfied as much as possible. Traverse Waveform 12. Press the ENTER/YES “R” button, and save the adjustment results in the non-volatile memory. (“EFB = SAVE” will be displayed for a moment) Next “EF MO ADJUST” (C07) is displayed. The disc stops rotating automatically. 13. Press the MD Z button and take out the disc. 14. Load the check disc (TDYS-1). 15. Press the . “R” or > “R” button to display “EF CD ADJUST” (C08). 16. Press the ENTER/YES “R” button to display “EFB = CD”. Servo is imposed automatically. 17. Press the . “R” or > “R” button so that the waveform of the oscilloscope moves closer to the specified value. In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the specified value is satisfied as much as possible. Traverse Waveform 18. Press the ENTER/YES “R” button, display “EFB = SAVE” for a moment and save the adjustment results in the non-volatile memory. Next “EF CD ADJUST” (C08) will be displayed. 19. Press the MD Z button and take out the check disc. Adjustment Location: BD (MD) board (see page 44) A B VC Specification A = B A B VC Specification A = B A B VC Specification A = B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 HCD-C5 14. ERROR RATE CHECK 14-1. CD Error Rate Check Procedure: 1. Load the check disc (TDYS-1). 2. Press the . “R” or > “R” button and display “CPLAY 1 MODE” (C34). 3. Press the ENTER/YES “R” button and display “CPLAY 1 MID”. 4. The display changes to “C = AD = )”. 5. Check that the C1 error rate is below 20. 6. Press the MENU/NO “R” button to stop playback, then press the MD Z button and take out the check disc. 14-2. MO Error Rate Check Procedure: 1. Load the continuously-recorded disc. (Refer to “5. USING THE CONTINUOUSLY RECORDED DISC” (See page 37)) 2. Press the . “R” or > “R” button to display “CPLAY 1 MODE” (C34). 3. Press the ENTER/YES “R” button to display “CPLAY 1MID”. 4. The display changes to “C1 = AD = )”. 5. If the C1 error rate is below 20, check that ADER is 00. 6. Press the MENU/NO “R” button to stop playback, then press the MD Z button and take out the disc. 15. FOCUS BIAS CHECK Change the focus bias and check the focus tolerance amount. Procedure: 1. Load the continuously-recorded disc. (Refer to “5. USING THE CONTINUOUSLY RECORDED DISC” (See page 37)) 2. Press the . “R” or > “R” button to display “CPLAY 1 MODE” (C34). 3. Press the ENTER/YES “R” button twice to display “CPLAY 1 MID”. 4. Press the MENU/NO “R” button when “C1 = AD = )” is displayed. 5. Press the . “R” or > “R” button to display “FBIAS CHECK” (C16). 6. Press the ENTER/YES “R” button to display “ / c = ”. The first four digits indicate the C1 error rate, the two digits after “/ ” indicate ADER, and the 2 digits after “c =” indicate the focus bias value. Check that the C1 error is below 20 and ADER is below 2. 7. Press the ENTER/YES “R” button and display “ / b = ”. Check that the C1 error is about 100 and ADER is below 2. 8. Press the ENTER/YES “R” button and display “ / a = ”. Check that the C1 error is about 100 and ADER is below 2 9. Press the MENU/NO “R” button, then press the MD Z button and take out the disc. Note: If the C1 error and ADER are above other than the specified value at points a (step 8. in the above) or b (step 7. in the above), the focus bias adjustment may not have been carried out prop- erly. Adjust from the beginning again. C1 error about 220 B C A Focus bias value 13. FOCUS BIAS ADJUSTMENT Procedure: 1. Load the continuously-recorded disc. (Refer to “5. USING THE CONTINUOUSLY RECORDED DISC” (See page 37)) 2. Press the . “R” or > “R” button to display “CPLAY 1 MODE” (C34). 3. Press the ENTER/YES “R” button to display “CPLAY 1MID”. 4. Press the MENU/NO “R” button when “C = = ” is displayed. 5. Press the . “R” or > “R” button to display “FBIAS ADJUST” (C09). 6. Press the ENTER/YES “R” button to display “ / a = T”. The first four digits indicate the C1 error rate, the two digits after “/ ” indicate ADER, and the 2 digits after “a =” indicate the focus bias value. 7. Press the > “R” button and find the focus bias value at which the C1 error rate becomes about 220 (refer to Note 2). 8. Press the ENTER/YES “R” button to display “ / b = T”. 9. Press the . “R” button and find the focus bias value at which the C1 error rate becomes about 220. 10. Press the ENTER/YES “R” button to display “ / c = T”. 11. Check that the C1 error rate is below 20 and ADER is 00. Then press the ENTER/YES “R” button. 12. If the “( )” in “ - - ( )” is above 20, press the ENTER/YES “R” button. If below 20, press the MENU/NO “R” button and repeat the adjustment from step 2. 13. Press thet MD Z button and take out the disc. Note 1: The relation between the C1 error and focus bias is as shown in the following figure. Find points A and B in the following figure using the above adjustment. The focal point position C is auto- matically calculated from points A and B. Note 2: As the C1 error rate changes, perform the adjustment using the average value. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 HCD-C5 16. AUTO GAIN CONTROL OUTPUT LEVEL ADJUSTMENT Be sure to perform this adjustment when the optical pick-up is replaced. If the adjustment results becomes “Adjust NG!”, the optical pick-up may be faulty or the servo system circuits may be abnormal. 16-1. CD Auto Gain Control Output Level Adjustment Procedure: 1. Load the check disc (TDYS-1). 2. Press the . m “R” or M > “R” button to display “AG Set (CD)” (C11). 3. When the ENTER/YES “R” button is pressed, the adjustment will be performed automatically. “Complete!” will then be displayed momentarily when the value is recorded in the non-volatile memory, after which the display changes to “AG Set (CD)” (C11). 4. Press the MD Z button and take out the check disc. 16-2. MO Auto Gain Control Output Level Adjustment Procedure: 1. Load the test disc (MDW-74/GA-1). 2. Press the . “R” or > “R” button to display “AG Set (MO)” (C10). 3. When the ENTER/YES “R” button is pressed, the adjustment will be performed automatically. “Complete!” will then be displayed momentarily when the value is recorded in the non-volatile memory, after which the display changes to “AG Set (MO)” (C10). 4. Press the MD Z button and take out the test disc. Adjustment and checking Loacation: Note: It is useful to use the jig for checking the waveform. (Refer to Servicing Notes on page 6) D101 CN101 – BD (MD) BOARD (Component Side) – IC101 CN105 IC151 IC190 1 7 1. I+3V 2. IOP 3. GND 4. TE 5. FE 6. VC 7. RF – BD (MD) BOARD (Conductor Side) – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 45 HCD-C5 C B These are omitted. E Q Note on Printed Wiring Boards: • X : parts extracted from the component side. • a : Through hole. • Y : parts extracted from the conductor side. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • Indication of transistor. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • 5 : fusible resistor. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM J : CD (ANALOG) c : CD (DIGITAL) p : PB (MD) l : REC (MD) I : DIGITAL IN (OPTICAL) E : PB (TAPE) G : REC (TAPE) • Circuit Boards Location 6-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS (In addition to this, the necessary note is printed in each block) SECTION 6 DIAGRAMS • Waveforms B These are omitted. C E Q POWER board HP board AUDIO board JACK board PANEL board 1 IC101 us XTAO 2 IC101 ek (RF) 3 IC101 ef (FE) (Play mode) 7 IC501 eh XT2 5 IC151 o; (FS4) VOLT/DIV : 1V AC TIME/DIV : 20 nsec 6 IC701 qd XOUT VOLT/DIV : 1V AC TIME/DIV : 40 nsec VOLT/DIV : 1V AC TIME/DIV : 40 nsec VOLT/DIV : 1V AC TIME/DIV : 20 µsec 4 IC101 wh (TE) (Play mode) 8 IC501 ek X2 29.5 µs 4.0Vp-p 3.5Vp-p 176.4kHz 1.3Vp-p 3.2 Vp-p 100 ns 0.2Vp-p 30.5 µs 3.2Vp-p 1.6Vp-p 3.1 Vp-p 50 ns BD (CD) board AMP POWER board UCOM board SW board CONNECTOR board BD (MD) board MD DIGITAL board Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Caution: Pattern face side: Parts on the pattern face side seen from (Conductor B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component A) the parts face are indicated. • Abbreviation AUS : Australian model HK : Hong Kong model KR : Korean model Ver 1.1 2001.09 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 46 HCD-C5 6-2. BLOCK DIAGRAM – CD SERVO SECTION – • Signal Path : CD (DIGITAL) :DIGITAL IN (OPTICAL) OPTICAL PICK-UP BLOCK OPTIMA-720L1E VA 9 VB VE VF LD 1/2VCC VCC +5V GND MD VR LD DRIVE Q101 RF AMP DIGITAL OPTICAL IN IC103 VC 27 VFC 25 B 7 A 6 C 8 D 9 E 10 F 11 LD 1 PD 2 VC IC102 MOTOR/COIL DRIVER VO1(+) 14 VO1(-) 13 12 11 15 16 M M FEED MOTOR 18 17 M SPINDLE MOTOR F+ FOCUS COIL TRACKING COIL F- TR+ TR- 2 OPIN1(+) 3 OPIN1(-) 5 6 27 26 23 MDP 25 SRDR 30 SFDR 29 TRDR 32 TFDR 31 FRDR 34 FFDR 33 DIGITAL SIGNAL PROCESSOR IC101 DIGITAL SERVO, 64 D OUT RFAC 50 28 RFDCO 15 26 RFAC 16 FE 18 TE 12 SW 17 FEI 29 RFDCI RFDC 43 FE 39 TE 41 SE VCC RV101 40 4 DATA DATA 6 CLOK CLK 5 XLAT XLT 76 SQSO SQSO 7 SENS SENS 26 SSTP 19 TE_BAL 2 XRST 69 XTSL MASTER CONTROL IC501(1/2) CXD-DATA 7 8 SCLK 77 SQCK SCLK 15 SCOR SCOR 71 XTAI 72 XTAO CXD-CLK 8 CXD-XLT 11 SUBQ 15 SENSE 14 SCLK 17 SCOR 95 CTRL1 CTRL1(1-2) 18 LDON LDON 13 BDRST XRST 29 27 26 7 9 4 2 PWM1 PWM1 12 PWM2 PWM2 19 PWM3 PWM3 20 VO2(+) VO2(-) VO4(+) VO4(-) VO3(-) VO3(+) OPIN2(+) OPIN(2-) OPIN4(+) OPIN4(-) OPIN3(-) A MD SERVO SECTION (Page 47) RFC SWITCH Q102 IC221 +3.3V REG Q103,D101 SELECTOR 5 4 6 9 10 8 13 11 12 X201 33.8688MHz S5 LIMIT IN SWITCH +5V +5V +3.3V DIN, OPTO 3 1 2 8 4 6 2 3 7 10 5 1 SD+ SD- SP+ SP- IC222 OPTO SW1 30 SW2 31 SW3 32 SW4 S1 (Disc IN/8cm Disc Detect) S2 (12cm Disc/12cm Disc Eject End Detect) S3 (Disc Existence, Chacking, Releasing Detect) S4 (8cm Disc Eject End Detect) 33 IC1102 LOADING MOTOR DRIVER RIN FIN OUT1 OUT2 LODPOS LODNEG M902 (LOADING) M903 M904 DIGITAL OPTICAL INPUT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 47 HCD-C5 6-3. BLOCK DIAGRAM – MD SERVO SECTION – • Signal Path : PB (MD) : REC (MD) : CD (DIGITAL) : CD (ANALOG) F C B D A E I J J I B A C D E F DETECTOR J I A B C D E F LD PD LASER DIODE ILCC PD OPTICAL PICK-UP (KMS-260B) Q121, 122 AUTOMATIC POWER CONTROL APC PD APCREF AT AMP B.P.F. WBL ADFM ADIN ADFG ABCD AMP ABCD FE TE SE F0CNT WBL 3T EQ COMMAND SWDT SCLK XLAT RFO RF AGC & EQ AGCI EQ RF IC101 RF AMP, FOCUS/TRACKING ERROR AMP TEMP MORFO MORFI 3T WBL AUX PEAK BOTM IC141 FOCUS/TRACKING COIL DRIVER, SPINDLE/SLED MOTOR DRIVER OUT4F OUT4R M701 (SPINDLE) OUT2F OUT2R M702 (SLED) OUT1F OUT1R OUT3F OUT3R FCS+ FCS– TRK+ TRK– 2-AXIS DEVICE (TRACKING) (FOCUS) IN4R IN4F IN2F IN2R IN1F IN1R IN3F IN3R MOD SPFD SPRD APCREF SFDR SRDR FFDR FRDR TFDR TRDR PSB PWM GENERATOR FROM CPU INTERFACE IC151 (2/2) DIGITAL SERVO SIGNAL PROCESSOR RECP AUX1 ABCD FE TE SE PEAK BOTM XLRF CKRF DTRF XLAT SCLK SWDT FILI PCO CLTV FILO EFMO ADDT DADTI IC151 (1/2) TX ASYO ASYI RFI SCTX HR901 OVER WRITE HEAD ADFG F0CNT SPFD SPRD SAMPLING RATE CONVERTER DIGITAL AUDIO INTERFACE DIN0 DOUT IC151 (1/2) DIGITAL SIGNAL PROCESSOR, EFM/ACIRC ENCODER/DECODER, SHOCK PROOF MEMORY CONTROLLER, ATRAC ENCODER/DECODER INTERNAL BUS DADT XBCK LRCK FS256 OSCI OSCO DQSY SQSY XINT SENS SRDT SWDT SCLK XLAT MNT0 MNT1 MNT2 MNT3 SWDT SCLK XLAT P-DOWN SHOCK (MNT1) XBUSY (MNT2) DIG-RST SQSY DQSY LDON WRPWR MOD XINT SENS SRDT LOAD-IN LOAD-OUT RIN FIN OUT1 OUT2 VREF IC871 LOADING MOTOR DRIVER M703 (LOADING) DQ1 – DQ4 A0 – A9 D0 – D3 A00 – A09 XOE XWE XRAS XCAS OE WE RAS CAS IC153 D-RAM DIN1 IC701 MASTER CONTROLLER HF MODULE REFLECT PROTECT LOAD-LO WP VINL VINR SPDIF-LOCK DA-RESET SLICER-SEL MUTE EEP-DATA EEP-CLK EEP-WP ADPDWN XOUT XIN VOUTL VOUTR SCL SDA M+7V 65 15 13 82 OPTSEL OPTO 81 7 3 1 8 15 16 33 37 29 49 51 55 61 44 89 I2C-DAT 30 SPDIF-CUT I2C-CLK I2C-DATA I2C-CLK R-CH MD-L 29 I2C-BUSY I2C-BUSY 23 53 LIMIT-IN OUT-SW PWON MUTE SLICER-SEL RESET LOCK (LIMIT IN) (OUT) (PLAY) (REC) PLAY-SW REC-SW XBCKI LRCKI 11 9 8 4 1 2 3 48 47 46 40 33 38 37 36 32 35 34 26 28 18 17 16 20 12 30 29 5 6 7 10 Q101 LASER ON SWITCH LD/PD AMP I-V AMP I-V AMP FOCUS ERROR AMP TRACKING ERROR AMP RF AMP B.P.F. PEAK & BOTTOM 6 8 92 91 88 89 86 85 81 80 83 13 67 65 66 75 74 63 64 82 27 25 21 23 12 10 14 15 19 18 29 30 3 4 16 M M AUTOMATIC POWER CONTROL DIGITAL SERVO SIGNAL PROCESS ANALOG MUX A/D CONVERTER SERIAL/PARALLEL CONVERTER, DECODER AUTO SEQUENCER V-I CONVERTER Q131 - 134 HF MODULE SWITCH 100 60 59 62 61 53 54 57 78 79 94 93 10 12 11 14 9 8 5 6 7 1 2 3 4 43 47 16 29 27 28 26 21 20 19 23 24 22 25 17 46 44 22 3 4 23 15 68 ADIP DEMODULATOR/ DECODER SPINDLE SERVO COMPA- RATOR PLL FILTER SUBCODE PROCESSOR EFM/ACIRC ENCODER/DECODER SHOCK PROOF MEMORY CONTROLLER ATRAC ENCODER/DECODER CPU INTERFACE MONITOR CONTROL 18 57 12 52 54 56 20 25 58 32 33 50 59 48 19 31 XRST CLOCK GENERATOR 48, 49, 50, 51 1, 2, 24, 25 34 – 31, 36 – 40, 45 5, 9 – 12, 14 – 18 67 66 9 7 1 VCC 6 4 2 13 12 11 M Q871, 872 REFERENCE VOLTAGE SWITCH BCK WS SPDIF0 SPDIF1 IIS-OUT-BCK IIS-OUT-WS CLKOUT SYSCLK DATAO DOUT DADTI XBCKI LRCKI DIN IOP S101 S103 S104 S105 S102 4 3 -A LD+3.3V IC102 WAVEFORM SHAPER X720 10MHz XOUT-T XIN-T 10 11 X717 32kHz 47 45 60 76 78 79 80 21 1 13 12 7 6 5 IC195 EEPROM R-CH REC-L DIN , OPTO IC211 D/A CONVERTER IC201 A/D CONVERTER 22 VDDA (DAC) 32 18 Q211 DOUT DIN DIN MUTE DATAI XBCKI LRCKI XBCKI LRCKI LD+3V X171 90MHz IOP 3 1 +5V LD+3.3 V +3.3V REG IC190 CD SERVO SECTION (Page 46) MAIN SECTION (Page 48) MAIN SECTION (Page 48) VC VC VC 15 14 TEMPI TEMPR SWITCH Q861 SWITCH Q201,202 +B SWITCH BUP+3.3V 3 5 IC861 RESET S-RST A B C D MAIN SECTION (Page 48) PDOWN , MUTE PDOWN D101 TEMP SENSOR +3.3V 72 I2C-DATA,I2C-CLK, I2C-BUSY IC181, Q181 182 OVER WRITE HEAD DRIVE (REFLECT → PROTECT) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 48 HCD-C5 6-4. BLOCK DIAGRAM – MAIN SECTION – : FM : CD(ANALOG) • Signal Path • R-CH is omitted due to same as L-CH. : PB(MD) : REC(MD) : PB(TAPE) : REC(TAPE) TUNER PACK TC MD-L REC-L 38 IC301 SOUND PROCESSOR 35 REC 25 OUT L-CH R-CH CL DO DI CE TUNED STEREO MUTE R-CH IC501 (2/2) MASTER CONTROL IC601 FL DRIVER FL601 FLUORESCENT INDICATOR TUBE 52 PRE-MUTE 56 SPK-RELAY AC-CUT RESET 34 CD/MD 37 ST 39 LAT CLK DATA 22 21 Q341 MUTING Q331 MUTING Q101 MUTING MUTING SWITCH Q202 H/P DETECT Q232 Q991 RELAY DRIVER RESET SWITCH Q941 VOL-DATA VOL-CLK VOL-CE 64 63 PLL-CLK PLL-DI(ST UCOM) PLL-DO(UCOM ST) PLL-CE TUNED STEREO ST-MUTE 43 45 44 46 49 48 47 + – 5 IC302 HEADPHONE AMP 6 7 R-CH J103 PWR-RELAY PHONES REC-MUTE 54 91 D982-985 D851 -30V REG B+ SWITCH Q911,912 CD+5V D971-974 D981 CD+10V ST+10V T900 MAIN TRANSFORMER T901 SUB TRANSFORMER +B -B +10V REG IC901 3 1 C AC IN SYS +5V R-CH J102 J101 3 1 IC941 AC-DET D942 RESET MD SERVO SECTION (Page 47) B D PDOWN MUTE MD SERVO SECTION (Page 47) D961-964 +5V REG IC905 3 1 +5.6V REG IC907 3 2 1 MD H/M+5V CDM+5V +7V REG IC903 3 1 CD+7V PRE+7V +5V REG IC902 3 1 MDM+5V LED+5V FL -30V VF VF VF VF +4V REG IC906 RY991 3 1 MD-PWR D992 D993 D941 D926 D927 D925 POWER AMP 69 BDPWR 28 DMUTE 70 24 R-CH Q971 +5V REG IC904 3 1 Q311 D343 26 B-O 27 B-I 28 V-O DBFB SWITCH Q102 SWITCH SWITCH SWITCH Q601 SWITCH Q602 SWITCH 62 20 FAN DRIVER Q103 (D.C. FAN) BACKUP +5V/+2.7V SYS +5V A +3.3V MD D+3.3V BUP +3.3V BT921 (RECHARGEABLE) A-MUTE A-MUTE RELAY AMP-L 35 36 39 38 5 1 4 6 2 16 14 13 15 92 3 IC212 I2C BUS BUFFER +5V LX LY SX SY 2 1 6 5 4 3 X502 32.768kHz X501 20MHz 6 3 7 2 PCPON SCL SDA 57 HELP 60 KBD-CHK XT1 XT2 X1 X2 FL-DATA FL-CLK FL-CE 12 DIG0 16G DIG15 01G DIG1 ı DIG14 15G ı 02G SEG0 ı SEG34 P01 ı P35 61 FL-RST SDATA SCK CS RST I2C-CLK I2C-DATA PCLINK-INSERTED I2C-DATA, I2C-CLK, I2C-BUSY MD SERVO SECTION (Page 47) 77 FUNCTION KEY S602-605 KEY1 78 FUNCTION KEY S606-609 KEY2 79 FUNCTION KEY S610-613 KEY3 94 1 IC602 REMOTE SENSOR SIRCS 93 KEY-RM Q211 Q212 CN207 PC LINK I2C-BUSY CLK DATA SIRCS/ POWERKEY DETECT Q221-224 72 65 Q604 D601 (STANDBY) D602-610 (KEY BACK LIGHT) ON/STANDBY LED 11 ı 1 64 ı 62 • 6 ı 19 21 ı 55 59 ı 33 31 ı 24 • 5 20 3 8 2 L CN208 LED DRIVER ANTENA FM75Ω AM ı `/1 M901 TAPE IN OUT SPEAKER w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 49 HCD-C5 6-5. PRINTED WIRING BOARDS – CD SECTION – IC103 IC102 IC1102 IC101 DVC1.65V RFAC (Page 56) SW BOARD CONNECTOR BOARD 14 1 13 26 1-682-100- + M902 LOADING MOTOR + M904 SPINDLE MOTOR M903 S5 (LIMIT IN) FEED MOTOR + GRN YEL ORG RED BRN CN1 GRN S4 (8cm Disc Eject End Detect) S1 (Disc IN/8cm Disc Detect) S2 (12cm Disc/12cm Disc Eject End Detect) S3 (Disc Existence, Chacking, Releasing Detect) YEL ORG RED BRN (OPTIMA-720L1E) 1-682-099- • See page 45 for Circuit Boards Location. Ref. No. Location D101 D-2 IC101 D-3 IC102 A-2 IC103 A-4 IC1102 B-1 Q101 B-4 Q102 A-3 Q103 D-2 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 50 HCD-C5 IC B/D IC B/D IC B/D IC B/D TR- TR+ F- F+ (Page 57) (8cm Disc Eject End Detect) (12cm Disc/12cm Disc Eject End Detect) (Disc IN/8cm Disc Detect) (Disc Existence, Chacking, Releasing Detect) M N O 6-6. SCHEMATIC DIAGRAM – CD SECTION – • See page 45 for Wavefoms. • See page 64 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 51 HCD-C5 BD (MD) BOARD (SIDE A) OPTICAL PICK - UP HR901 OVER WRITE HEAD BLOCK (KMS-260E/Z-NP) E E E E 1 3 4 5 R162 R153 TO MD DIGITAL BOARD CN703 (Page 54) TO MD DIGITAL BOARD CN702 (Page 54) D C 1 3 4 E 5 S102 PROTECT REFLECT M703 M701 E E E M702 C174 C173 X171 R177 BD (MD) BOARD (SIDE B) 17 IC190 IC141 IC151 IC153 IC102 IC101 IC181 IC195 6-7. PRINTED WIRING BOARD – BD (MD) BOARD – • See page 45 for Circuit Boards Location. Ref. No. Location D181 D-3 D183 D-3 IC101 A-3 IC102 B-3 IC141 C-1 IC151 C-2 IC153 C-3 IC181 D-3 IC190 D-1 IC195 D-2 Q121 B-3 Q122 B-3 Q181 C-3 Q182 D-3 • Semiconductor Location Side B Ref. No. Location D101 A-1 Q101 B-1 Q131 B-1 Q132 B-1 Q133 B-1 Q134 B-1 • Semiconductor Location Side A w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 52 HCD-C5 IC B/D 2 3 4 (MD) (KMS-260E/Z-NP) 0 BH6519FS-E2 M701 M702 (MD) (MD) (MD) (Page 53) (Page 53) (Page 53) 6-8. SCHEMATIC DIAGRAM – BD (MD) BOARD (1/2) – • See page 45 for Wavefoms. • See page 65 for IC Block Diagrams. • See page 68 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 53 HCD-C5 5 (MD) C D MD 702 703 MD 153 4400D EFM /ACIRC EONCODER / DECODER, SHOCK PROOF MEMORY CONTROLLER, ATRAC ENCODER / DECODER , M703 (MD) (MD) (MD) (Page 55) (Page 55) (Page 52) (Page 52) (Page 52) 6-9. SCHEMATIC DIAGRAM – BD (MD) BOARD (2/2) – • See page 45 for Wavefoms. • See page 69 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 54 HCD-C5 IC701 IC871 IC861 IC201 IC211 (Page 58) (Page 51) (Page 51) (Page 56) 6-10. PRINTED WIRING BOARD – MD DIGITAL BOARD – • See page 45 for Circuit Boards Location. Ref. No. Location D211 A-3 IC201 B-1 IC211 B-2 IC701 D-2 IC861 D-5 IC871 D-5 Q201 D-7 Q202 C-7 Q211 A-2 Q861 D-5 Q871 D-3 Q872 C-3 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 55 HCD-C5 IC B/D IC B/D IC B/D IC B/D 10K 1/16W 10K 1/16W (Page 59) (Page 53) (Page 53) (2/2) (2/2) (Page 57) 6-11. SCHEMATIC DIAGRAM – MD DIGITAL BOARD – • See page 45 for Wavefoms. • See page 65, 66 for IC Block Diagrams. • See page 72 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 56 HCD-C5 6-12. PRINTED WIRING BOARD – UCOM BOARD – • See page 45 for Circuit Boards Location. Ref. No. Location • Semiconductor Location Ref. No. Location D214 B-1 D221 C-9 D222 B-9 D232 D-1 D513 B-9 D910 D-3 D923 B-3 D924 B-3 D925 D-4 D926 D-4 D927 D-4 D941 D-4 D942 D-4 D943 D-5 IC212 C-3 IC221 A-1 IC222 A-1 IC501 D-6 IC941 D-5 Q202 D-4 Q211 C-3 Q212 C-3 Q221 B-9 Q222 C-9 Q223 C-9 Q224 B-9 Q232 D-2 Q911 B-4 Q912 B-4 Q941 D-4 IC222 IC221 IC212 IC941 IC501 (Page 58) (Page 62) (Page 60) (Page 49) (Page 58) (Page 54) (Page 62) DIGITAL OPTICAL INPUT SPEAKERS 12 12 (HK,KR,AUS) (AEP,UK) Ver 1.1 2001.09 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 57 HCD-C5 IC B/D DIGITAL OPTICAL INPUT SPEAKER (Page 59) (Page 63) (Page 50) (Page 55) (Page 59) (Page 61) (Page 63) D232 ISS355 TE-17 C241 4.7 16V 470 1/16W 1000 6.3V FB537 BLM21B102S (AEP,UK) R538 10k (HK,KR,AUS) 6-13. SCHEMATIC DIAGRAM – UCOM BOARD – • See page 45 for Wavefoms. • See page 67 for IC Block Diagrams. • See page 74 for IC Pin Function Description. Ver 1.1 2001.09 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 58 HCD-C5 IC302 IC301 (Page 54) (Page 62) (Page 56) (Page 56) B 12 12 OUT IN TAPE (AEP,UK) (AEP,UK) (AEP,UK) (AEP,UK) (AEP,UK,KR) 6-14. PRINTED WIRING BOARDS – AUDIO SECTION – • See page 45 for Circuit Boards Location. Ref. No. Location • Semiconductor Location Ref. No. Location D101 B-6 D111 D-5 D301 C-4 D103 B-6 D343 B-5 D393 B-5 IC301 B-2 IC302 B-4 Q101 B-6 Q102 B-6 Q103 A-7 Q151 C-6 Q311 C-1 Q331 B-3 Q361 B-3 Q381 B-3 Ver 1.1 2001.09 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 59 HCD-C5 IC B/D TAPE OUT IN (Page 57) (Page 57) (Page 63) (Page 55) B +5V FM SIGNAL OUT RDS INT RDS DATA RDS INT RDS DATA RDS INT RDS DATA C111 10 10V D111 MTZJ-T-77-5.1B R111 330 D301 1SS355TE -17 (AEP,UK,KR) (AEP,UK) (AEP,UK) 6-15. SCHEMATIC DIAGRAM – AUDIO SECTION – • See page 64 for IC Block Diagrams. Ver 1.1 2001.09 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 60 HCD-C5 IC601 IC602 (Page 56) 6-16. PRINTED WIRING BOARD – PANEL BOARD – • See page 45 for Circuit Boards Location. Ref. No. Location D601 A-5 D602 B-5 D603 B-5 D604 C-5 D605 A-1 D606 B-1 D607 B-1 D608 C-1 D609 C-1 D610 D-1 IC601 B-3 IC602 C-5 Q601 C-3 Q602 B-3 Q604 D-3 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 61 HCD-C5 IC B/D (Page 57) 6-17. SCHEMATIC DIAGRAM – PANEL BOARD – • See page 67 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 62 HCD-C5 IC907 IC905 IC903 IC901 IC906 IC904 IC902 (Page 56) (Page 58) 12 12 B (Page 56) T900 MAIN TRANSFORMER SUB TRANSFORMER EB902 EB901 6-18. PRINTED WIRING BOARDS – POWER SECTION – • See page 45 for Circuit Boards Location. Ref. No. Location • Semiconductor Location Ref. No. Location D906 D-4 D921 E-5 D961 D-3 D962 D-3 D963 D-3 D964 D-3 D971 A-2 D972 B-2 D973 A-2 D974 B-2 D975 A-2 D976 A-1 D981 A-5 D982 A-3 D983 A-3 D984 A-2 D985 A-2 D991 C-2 D992 E-3 D993 E-2 IC901 B-2 IC902 A-3 IC903 B-4 IC904 C-4 IC905 D-4 IC906 D-4 IC907 E-5 Q971 B-2 Q991 E-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 63 HCD-C5 (Page 57) (Page 59) (Page 57) B 1.8k 1/10W T4AL/250V T4AL/250V 6-19. SCHEMATIC DIAGRAM – POWER SECTION – Ver 1.1 2001.09 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 64 HCD-C5 6-20. IC BLOCK DIAGRAMS RW/ROM RW/ROM EQ ON/OFF VOFST VOFST DVC VC VC VC RW/ROM VC DVC 30 29 28 + – + – DVC VCC DVC 27 26 25 24 RW/ROM EQ 23 22 21 20 19 RFAC VCA VCC + – DVC + – + – RW/ROM VC RW/ROM DVC + – 3 A B C D B C A A A B C D B C D D + – 1 2 APC AMP 5 6 7 8 9 4 RFAC SUMMING AMP RW/ROM APC-OFF (Hi-Z) RW/ROM (H/L) VOFST VC RW/ROM + – 10 11 GM GM 18 17 16 B D A C 13 14 15 12 EQ IN LD PD GND A B C D AC SUM E F DVCC DVC RFAC SW DC OFST RFDCI RFDCO VC RFC VFC BST RFG VCC CEI CE TE BAL TE FEI FE IC103 CXA2581N-T4 (BD (CD) BOARD) 2 3 1 5 OPIN2 + 6 OPIN2 – 7 OPOUT2 8 GND 9 STBY1 4 BIAS IN OPIN1 + OPIN1 – OPOUT1 11 12 13 14 10 PowVcc1 VO2 (–) VO2 (+) VO1 (–) VO1 (+) OPIN3 + OPIN3 – OPOUT3 GND STBY2 PreVcc OPIN4 + OPIN4 – OPOUT4 PowVcc2 VO3 (–) VO3 (+) VO4 (–) VO4 (+) Vcc STAND BY CH1 2 3 Level Shift Level Shift Level Shift Vcc STAND BY CH4 Vcc Level Shift 27 26 28 24 23 22 21 20 25 18 17 16 15 19 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 10k 20k 10k 10k 10k 10k 10k 10k 10k 10k 10k IC102 BA5982FP-E2 (BD (CD) BOARD) CE RFDC ADIO IGEN ASYO ASYI RFAC CLTV FILO FILI PCO BIAS VCTL V16M VPCO TE ASYE MD2 DOUT LRCK PCMD BCK EMPH XTSL XTAI XTAO SOUT SOCK XOLT SQSO SQCK SCSY SBSO EXCK XRST MUTE DATA XLAT CLOK SENS SCLK ATSK WFCK XUGF XPCK GFS C2PO SCOR CAM WDCK COUT MIRR SE FE VC TES1 TEST FFDR TRDR TFDR SRDR SFDR FSTO SSTP LOCK PWMI FOK FRDR MDP DFCT CLOCK GENERATOR ASYMMETRY CORRECTOR DIGITAL PLL CPU INTERFACE INTERFACE CORRECTOR PROCESSOR SUB CODE RAM 32K DEMODURATOR EFM ERROR D/A DIGITAL OUT INTERFACE SERVO INTERFACE SERVO AUTO MIRR DFCT FOK SERVO FOCUS SERVO DSP SERVO SERVO SLED TRACKING FOCUS PWM GENERATOR GENERATOR GENERATOR SLED PWM TRACKING PWM A/D CONVERTER OPAMP ANALOG SW PWM GENERATOR DIGITAL CLV SERVO BLOCK IC101 CXD3068Q (BD (CD) BOARD) 22 23 24 25 26 27 28 29 30 31 33 34 35 36 37 38 39 40 41 42 21 20 CPU INTERFACE + – + – + – + – + – + – + – + – 32 18 19 17 16 15 14 13 12 10 9 8 7 6 5 4 3 2 1 + – + – + – + – + – + – 11 BB AMP2 BB AMP1 FIN AMP2 FIN AMP1 TONE AMP2 TONE AMP1 BASS AMP2 BASS AMP1 MIX AMP2 MIX AMP1 BUFF AMP2 BUFF AMP1 MIC AMP VREF AGND AVDD A A B B BASS BOOST SW BASS BOOST SW SURROUND SW CLK DVDD AVDD OUT2 INBB2 NFBB2 FBB2 VOL IN2 TONE OUT2 FTRE2 NFBAS2 INBAS2 REC OUT2 IN2D IN2C IN2B IN2A MIC IN VREFO AGND FBAS2 DATA LATCH OUT1 DGND INBB1 NFBB1 FBB1 VOL IN1 TONE OUT1 FTRE1 NFBAS1 INBAS1 REC OUT1 IN1D IN1C IN1B IN1A SUR C SUR R VREFI FBAS1 REF AMP IC301 M62428AFP600C (AUDIO BOARD) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-C5 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 GND VG IN4R IN4F VM4 OUT4F PGND4 OUT4R VM34 OUT3R PGND3 OUT3F VM3 IN3F IN3R PSB CAPA– CAPA+ IN2R IN2F VM2 OUT2F PGND2 OUT2R VM12 OUT1R PGND1 OUT1F VM1 IN1F IN1R VDD CHARGE PUMP. OSC INTERFACE AMP INTERFACE AMP AMP INTERFACE PREDRIVE PREDRIVE PREDRIVE PREDRIVE AMP INTERFACE AMP AMP AMP VDD PSB AMP IC141 BH6519FS-E2 (BD (MD) BOARD) 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN IC1102 BA6956AN (BD (CD) BOARD) IC871 BA6956AN (MD DIGITAL BOARD) 3 2 1 15 16 VINR 4 VREF (N) 5 VREF (P) 6 SFOR 7 PWON 8 SYSCLK VREF VINL VSSA 14 FSEL 13 DATAO 12 WS 11 BCK 10 VSSD 9 VDDD VDDA + – + – ADC ( ) ADC ( ) DECIMATION FILTER DIGITAL INTERFACE DC- CANCELLATION FILTER CLOCK CONTROL IC201 µDA1360TS (MD DIGITAL BOARD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 HCD-C5 3 2 1 32 33 VSSD 4 VSSD (C) 5 L3DATA 6 L3CLOCK 7 DATAI 8 BCKI 9 WSI 10 L3MODE 11 NC VDDD (C) RESET VDDA (PLL) 31 VSSA (PLL) 27 VDDA 26 VSSA 25 VSSA (DAC) 24 VREF 23 12 TC BCKO 29 30 CLKOUT 28 NC PREEM1 MUTE 44 RTCB 43 VDDD 42 PREEM0 41 NC 40 NC 37 WSO 36 DATAO 39 TEST2 38 NC 35 SELSTATIC 34 TEST1 13 SELCHAN 14 NC 15 SPDIF0 16 SPDIF1 17 VDDA (DAC) 18 VOUT L 19 SELCLK 20 SELSPDIF 21 LOCK 22 VOUT R L3 INTERFACE IEC 958 DECODER DATA OUTPUT INTERFACE CLOCK AND TIMING CIRCUIT DATA INPUT INTERFACE AUDIO FEATURE PROCESSOR INTERPOLATOR NOISE SHAPER DAC DAC IC211 µDA1350AH (MD DIGITAL BOARD) 1 2 3 4 5 + – INTERRUPT SIGNAL GENERATING BLOCK RESET SIGNAL GENERATING BLOCK + – GND INT RESET CD VCC COM COM IC861 M62016L (MD DIGITAL BOARD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 HCD-C5 INDICATION CODE RESISTOR (8BIT x 16) DECODER (35BIT x 16) DECODER (35BIT x 16) CODE/COMMAND CONTROL CIRCUIT INDICATION CONTROL RESISTOR INDICATION CONTROLLER DIGITAL OUTPUT CIRCUIT CODE WRITE SERIAL RECEIVE CIRCUIT OUTPUT PORT (2BIT) CLOCK GENERATOR CIRCUIT RAM WRITE CODE SELECT DIG12 | DIG15 VCC2 SEG0 | SEG26 VSS XIN XOUT VCC1 RES DIG11 | DIG0 CS CLK DATA SEG35 | SEG27 P1 P0 14 15 16 17 18 19 20 21 22 23 | 31 13 1 | 12 SEGMENT OUTPUT CIRCUIT 59 | 33 60 32 VP 64 | 61 IC601 M66004M8FP-200D (PANEL BOARD) 1 2 3 4 8 7 6 5 N.C. LX SX GND Vcc LY SY N.C. Buffer Buffer IC212 BA8274F-E2 (UCOM BOARD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 HCD-C5 6-21. IC PIN FUNCTION DESCRIPTION • IC101 CXA2523AR (RF AMP, FOCUS/TRACKING ERROR AMP) (BD (MD) BOARD) I/O Pin Name Pin No. Description I I O I I — I O I I I I I O I O I I — I O I O O I I O O O O O O O I I O I I O I O I O I J VC A to F PD APC APCREF GND TEMPI TEMPR SWDT SCLK XLAT XSTBY F0CNT VREF EQADJ 3TADJ VCC WBLADJ TE CSLED SE ADFM ADIN ADAGC ADFG AUX FE ABCD BOTM PEAK RF RFAGC AGCI COMPO COMPP ADDC OPO OPN RFO MORFI MORFO 1 2 3 4 to 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 I-V converted RF signal I input from the optical pick-up block detector I-V converted RF signal J input from the optical pick-up block detector Middle point voltage (+1.65V) generation output terminal Signal input from the optical pick-up detector Light amount monitor input from the optical pick-up block laser diode Laser amplifier output terminal to the automatic power control circuit Reference voltage input for setting laser power from the CXD2662R (IC151) Ground terminal Connected to the temperature sensor Output terminal for a temperature sensor reference voltage Writing serial data input from the CXD2662R (IC151) Serial data transfer clock signal input from the CXD2662R (IC151) Serial data latch pulse signal input from the CXD2662R (IC151) Standby signal input terminal “L”: standby (fixed at “H” in this set) Center frequency control voltage input terminal of internal circuit (BPF22, BPF3T, EQ) input from the CXD2662R (IC151) Reference voltage output terminal Not used (open) Center frequency setting terminal for the internal circuit (EQ) Center frequency setting terminal for the internal circuit (BPF3T) Power supply terminal (+3.3V) Center frequency setting terminal for the internal circuit (BPF22) Tracking error signal output to the CXD2662R (IC151) Connected to the external capacitor for low-pass filter of the sled error signal Sled error signal output to the CXD2662R (IC151) FM signal output of the ADIP Receives a ADIP FM signal in AC coupling Connected to the external capacitor for ADIP AGC ADIP duplex signal (22.05 kHz ± 1 kHz) output to the CXD2662R (IC151) Auxiliary signal (I3 signal/temperature signal) output to the CXD2662R (IC151) Focus error signal output to the CXD2662R (IC151) Light amount signal (ABCD) output to the CXD2662R (IC151) Light amount signal (RF/ABCD) bottom hold output to the CXD2662R (IC151) Light amount signal (RF/ABCD) peak hold output to the CXD2662R (IC151) Playback EFM RF signal output to the CXD2662R (IC151) Connected to the external capacitor for RF auto gain control circuit Receives a RF signal in AC coupling User comparator output terminal Not used (open) User comparator input terminal Not used (fixed at “L”) Connected to the external capacitor for cutting the low band of the ADIP amplifier User operational amplifier output terminal Not used (open) User operational amplifier inversion input terminal Not used (fixed at “L”) RF signal output terminal Receives a MO RF signal in AC coupling MO RF signal output terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 HCD-C5 • IC151 CXD2662R • (DIGITAL SIGNAL PROCESSOR, EFM/ACIRC ENCODER/DECODER, SHOCK PROOF MEMORY CONTROLLER, ATRAC ENCODER/DECODER) (BD (MD) BOARD) I/O Pin Name Pin No. Description O O O O I I (S) I (S) O (3) O (3) I (S) O O I O O I O I I I O I I I I O O O O — O O O O — O O O O O MNT0 (FOK) MNT1 (SHCK) MNT2 (XBUSY) MNT3 (SLOC) SWDT SCLK XLAT SRDT SENS XRST SQSY DQSY RECP XINT TX OSCI OSCO XTSL DIN0 DIN1 DOUT DATI LRCKI XBCKI ADDT DADT LRCK XBCK FS256 DVDD A03 to A00 A10 A04 to A08 A11 DVSS XOE XCAS A09 XRAS XWE 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 to 34 35 36 to 40 41 42 43 44 45 46 47 Focus OK signal output terminal “H” is output when focus is on (“L”: NG) Not used (open) Track jump detection signal output to the MD mechanism controller (IC1001) Busy monitor signal output to the MD mechanism controller (IC1001) Spindle servo lock status monitor signal output to the MD mechanism controller (IC1001) (open) Writing serial data signal input from the MD mechanism controller (IC1001) Serial data transfer clock signal input from the MD mechanism controller (IC1001) Serial data latch pulse signal input from the MD mechanism controller (IC1001) Reading serial data signal output to the MD mechanism controller (IC1001) Internal status (SENSE) output to the MD mechanism controller (IC1001) Reset signal input from the MD mechanism controller (IC1001) “L”: reset Subcode Q sync (SCOR) output to the MD mechanism controller (IC1001) “L” is output every 13.3 msec Almost all, “H” is output Digital In U-bit CD format subcode Q sync (SCOR) output to the MD mechanism controller (IC1001) “L” is output every 13.3 msec Almost all, “H” is output Laser power selection signal input from the MD mechanism controller (IC1001) “L”: playback mode, “H”: recording mode Interrupt status output to the MD mechanism controller (IC1001) Magnetic head on/off signal output to the over write head drive (IC181) System clock signal (90.3168 MHz) input terminal System clock signal (512Fs=90.3168 MHz) output terminal Not used (open) Input terminal for the system clock frequency setting “L”: 45.1584 MHz, “H”: 90.3168 MHz (fixed at “H” in this set) Digital audio signal input terminal when recording mode Not used Digital audio signal input terminal when recording mode Digital audio signal output terminal when playback mode Recording data input from the A/D converter (IC1005) L/R sampling clock signal (44.1 kHz) input from the D/A converter (IC1006), A/D converter (IC1005) Bit clock signal (2.8224 MHz) input from the D/A converter (IC1006), A/D converter (IC1005) Recording data input terminal Not used (fixed at “L”) Playback data output terminal Not used (open) L/R sampling clock signal (44.1 kHz) output terminal Not used (open) Bit clock signal (2.8224 MHz) output terminal Not used (open) Clock signal (11.2896 MHz) output terminal Not used (open) Power supply terminal (+3.3V) (digital system) Address signal output to the D-RAM (IC152) Address signal output to the D-RAM (IC152) (open) Address signal output to the D-RAM (IC152) Address signal output to the external D-RAM Not used (open) Ground terminal (digital system) Output enable signal output to the D-RAM (IC152) “L” active Column address strobe signal output to the D-RAM (IC152) “L” active Address signal output to the D-RAM (IC152) Row address strobe signal output to the D-RAM (IC152) “L” active Write enable signal output to the D-RAM (IC152) “L” active * I (S) stands for schmitt input, I (A) for analog input, O (3) for 3-state output, and O (A) for analog output in the column I/O. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 HCD-C5 I/O Pin Name Pin No. Description I/O I/O I/O I/O I (S) O I (A) — I (A) I (A) — O (3) I (A) O (A) I (A) I (A) I (A) I (A) I (A) I (A) I (A) O (A) — I (A) I (A) — I (A) I (A) I (A) I I (S) O O O O O O O O — O O O O O O D1 D0 D2 D3 MVCI ASYO ASYI AVDD BIAS RFI AVSS PCO FILI FILO CLTV PEAK BOTM ABCD FE AUX1 VC ADIO AVDD ADRT ADRB AVSS SE TE DCHG TEST4 ADFG F0CNT XLRF CKRF DTRF APCREF TEST0 TRDR TFDR DVDD FFDR FRDR FS4 SRDR SFDR SPRD 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 Two-way data bus with the D-RAM (IC152) Digital in PLL oscillation input from the external VCO Not used (fixed at “L”) Playback EFM full-swing output terminal Playback EFM asymmetry comparator voltage input terminal Power supply terminal (+3.3V) (analog system) Playback EFM asymmetry circuit constant current input terminal Playback EFM RF signal input from the CXA2523AR (IC101) Ground terminal (analog system) Phase comparison output for master clock of the recording/playback EFM master PLL Filter input for master clock of the recording/playback master PLL Filter output for master clock of the recording/playback master PLL Internal VCO control voltage input of the recording/playback master PLL Light amount signal (RF/ABCD) peak hold input from the CXA2523AR (IC101) Light amount signal (RF/ABCD) bottom hold input from the CXA2523AR (IC101) Light amount signal (ABCD) input from the CXA2523AR (IC101) Focus error signal input from the CXA2523AR (IC101) Auxiliary signal (I3 signal/temperature signal) input from the CXA2523AR (IC101) Middle point voltage (+1.65V) input from the CXA2523AR (IC101) Monitor output of the A/D converter input signal Not used (open) Power supply terminal (+3.3V) (analog system) A/D converter operational range upper limit voltage input terminal (fixed at “H” in this set) A/D converter operational range lower limit voltage input terminal (fixed at “L” in this set) Ground terminal (analog system) Sled error signal input from the CXA2523AR (IC101) Tracking error signal input from the CXA2523AR (IC101) Connected to the +3.3V power supply nput terminal for the test Not used (fixed at “H”) ADIP duplex FM signal (22.05 kHz ± 1 kHz) input from the CXA2523AR (IC101) Filter f0 control signal output to the CXA2523AR (IC101) Serial data latch pulse signal output to the CXA2523AR (IC101) Serial data transfer clock signal output to the CXA2523AR (IC101) Writing serial data output to the CXA2523AR (IC101) Control signal output to the reference voltage generator circuit for the laser automatic power control Input terminal for the test Not used (open) Tracking servo drive PWM signal (–) output to the BH6511FS (IC141) Tracking servo drive PWM signal (+) output to the BH6511FS (IC141) Power supply terminal (+3.3V) (digital system) Focus servo drive PWM signal (+) output to the BH6511FS (IC141) Focus servo drive PWM signal (–) output to the BH6511FS (IC141) Clock signal (176.4 kHz) output terminal (X’tal system) Not used (open) Sled servo drive PWM signal (–) output to the BH6511FS (IC141) Sled servo drive PWM signal (+) output to the BH6511FS (IC141) Spindle servo drive PWM signal (–) output to the BH6511FS (IC141) * I (S) stands for schmitt input, I (A) for analog input, O (3) for 3-state output, and O (A) for analog output in the column I/O. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 HCD-C5 I/O Pin Name Pin No. Description O I (S) I I I — O SPFD FGIN TEST1 TEST2 TEST3 DVSS EFMO 94 95 96 97 98 99 100 Spindle servo drive PWM signal (+) output to the BH6511FS (IC141) Input terminal for the test (fixed at “L”) Ground terminal (digital system) EFM signal output terminal when recording mode * I (S) stands for schmitt input, I (A) for analog input, O (3) for 3-state output, and O (A) for analog output in the column I/O. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 HCD-C5 I/O Pin Name Pin No. Description — — — — — — — I I I O I O — I — I I I I — — O — I — — — I/O I/O O I O — — — — — — — — I O I O I I (FLDT) (FLCK) (LEVEL-L) (LEVEL-R) — BYTE CNVSS XIN-T XOUT-T S-RST XOUT VSS XIN VCC NMI DQSY P-DOWN SQSY (KB-CLK) (KB-DATA) I2C-BUSY (A1-OUT) XINT (BEEP) (XELT) (I2C-POWER) I2C-CLK I2C-DAT SWDT SRDT SCLK (KB-CLK-CTL) (CLIP-TX0) (CLIP-RX0) (CLIP-CLK0) (MUTE) (ADA-RESET) (ADA-LATCH) EPM (CLIP-SEL) — PROTECT EEP-CLK CE EEP-WP XBUSY(MNT2) OUT-SW 1 2 3 4 5 to 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 Not used Not used Not used Not used Not used Data bus changed signal input (Connected to ground) Processor mode selection terminal Not used Not used System reset input Main clock output (10MHz) Ground Main clock input (10MHz) Power supply Fixed at H (Pull-up) Digital in sync signal input (Record system) Power down detection signal input (L:Power down) ADIP (MO) sync signal or subcode Q (PIT) sync signal input from the CXD2662R (Playback system) Not used Not used I2C cable connect check signal output Not used Interrupt status signal input from the CXD2662R Not used Not used Not used I2C serial clock input/output I2C serial data input/output Writing data signal output to the serial bus Reading data signal input from the serial bus Clock signal output to the serial bus Not used Not used Not used Not used Not used Not used Not used Not used (Pull-down) Not used Not used Recording protection tab detection signal input from the protection detection switch (H:Protect) Clock signal output to the EEP-ROM Fixed at H (Pull-up) Write protect signal output to the EEP ROM (L:Write enable) Busy signal input from the CXD2662R Detection signal input from the loading out detection switch • IC701 M30803MG-A03FP MASTER CONTROLLER (MD DIGITAL BOARD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 HCD-C5 I/O Pin Name Pin No. Description O I O I O I O O I I I/O I — — — O O O — — I I O — O — O O I O O — — — — — I — — — I — — XLATCH PLAY-SW D-RESET REC—SW WRPWR LIMIT—IN MOD LDON SENS SHOCK(MNT1) EEP—DATA REFLECT VCC — VSS LOAD—LO LOAD—OUT LOAD—IN (MODEL0) (MODEL1) MODEL2 MODEL3 SPDIF—CUT — DAC—MUTE LINE—MUTE DA—RESET SLICER—SEL SPDIF—LOCK OPTSEL ADPDWN — TP1 TP2 TP3 TP4 IOP — AVSS — VREF AVCC — 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 to 75 76 77 78 79 80 81 82 83 to 84 85 86 87 88 89 90 to 95 96 97 98 99 100 Lacth signal output to the DSP IC Detection signal input from the playback position detection switch (L:PLAY) Digital reset signal output to the CXD2662R and the motor driver (L:Reset) Detection signal input from the recording position detection switch (L:REC) Write power ON/OFF signal output (L:OFF, H:ON) Detection signal input from the limit switch (L:Sled limit-in, H:Sled limit-out) Modulation signal output to the laser diode (L:OFF, H:ON) Laser ON/OFF control signal output (H:Laser ON) SENS signal input from the CXD2662R Track jump signal input from the CXD2662R Data signal input/output terminal with the EEP-ROM Disc reflection rate detection input from the reflect detection switch (H:Disc with low reflection rate) Power supply (+3.3V) Not used Ground Loading motor voltage control signal output (L:High voltage, H:Low voltage) Loading motor control signal output (H:Out) Loading motor control signal output (H:In) Not used Not used Model setting input terminal Model setting input terminal Power control signal output for the PLL power supply of the D/A converter Not used Muting signal output to the D/A converter Not used Reset signal output to the D/A converter (L:Active) IEC958 input select signal output to the D/A converter LOCK signal input from the D/A converter Optical input selection signal output Power control signal output to the A/D converter Not used Not used Not used Not used Not used Optical pick-up voltage (current) detect signal input Not used Ground (Analog) Not used Reference voltage input terminal Power supply (Analog) Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 HCD-C5 I/O Pin Name Pin No. Description O O I/O O I/O O O O — — O O O I I O O O O O — O O O O O O O O I I I I I I — — — I — — O O O I O O I I I FL-DATA FL-CLK SDA FL-CE SCL FL-RST CXD-DATA CXD-CLK EVDD EVSS CXD-XLT PWM1 LDON SENSE SUBQ CHECK SCLK CTRL1 PWM2 PWM3 VPP SP-MUTE 1-4 DMUTE AMUTE LODNEG LODPOS BDPWR BDRST SW1 SW2 SW3(ENC-A) SW4(ENC-B) RESET XT1 XT2 REGC X2 X1 VSS VDD CLKOUT PLL-CLK PLL-DO(µCOM-ST) PLL-DI(ST-µCOM) PLL-CE ST-MUTE STEREO TUNED RDS-DATA 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 FL tube data signal output FL tube clock signal output IIC data signal input or output FL tube enable signal output IIC clock signal input or output FL tube reset signal output Data signal output to DSP Clock signal output to DSP Power supply for I/O port Ground for I/O port Latch signal output to DSP PWM1 signal output Laser power control signal output CD SENSE signal input CD SUBQ signal input Not used (open) CD SUBQ clock signal output CTRL1 (setting double speed) signal output PWM2 signal output PWM3 signal output Not used Not used (open) Not used (open) Muting signal output to DAC Not used (open) Loading motor control signal output Loading motor control signal output CD power control signal output CD reset signal output Loading switch signal input Loading switch signal input Loading switch signal input Loading switch signal input Systen reset input Sub clock input Sub clock output Terminal for regulator clock Main system clock output Main system clock input Ground Power supply Clock output (open) Tuner clock signal output Tuner data signal output Tuner data signal input Tuner chip enable signal output Tuner muting signal output Stereo tuning signal input TUNED detect signal input RDS data signal input • IC501 µPD703032AYGF-M01-3BA MASTER CONTROL (UCOM BOARD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 HCD-C5 I/O Pin Name Pin No. Description I O O O O O I/O — — I I O O O O O I O O O O O O — — — I I I I I I I I I I I I O I I I I I I I — — — — PROTECT PRE-MUTE PWR-MUTE REC-MUTE HP-MUTE SPK-RELAY HELP BVDD BVSS KBD-CHK KBD-DATA VOL-CE VOL-CLK VOL-DATA LED FAN-ON HP-IN IO-RST PWR-RELAY MD-PWR FL-ON ON/STANDBY DIMMER AVDD AVSS AVREF KEY1 KEY2 KEY3 ADJ DEST1 DEST2 DEST3 DEST4 MODEL1 MODEL2 DEVICE1 DEVICE2 KBD-CLKO KBD-CLKI AC-CUT PCPON KEY-RM SIRCS SCOR RDS-CLK IO-DI IO-DO IO-CLK IO-CE 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 Not used (pull-up) Pre-amplifier muting signal output Not used (open) REC output muting signal output Not used (open) Speaker relay control signal output IIC busy signal input or output Power supply for bus interface Ground for bus interface PC LINK inserted detect signal input Key board data input (pull-up) Volume latch signal output to the sound processor Volume clock signal output to the sound processor Volume data signal output to the sound processor LED control signal output Not used (open) Headphone detect signal input (pull-down) Not used (open) Power relay control signal output MD power control signal output Not used (open) STANDBY LED control signal output Not used (open) Analog power supply Analog ground Analog reference voltage Key input signal from function switch Key input signal from function switch Key input signal from function switch Adjust mode input (pull-up) Destination setting input Destination setting input Destination setting input Destination setting input Model setting input Model setting input Device setting input Device setting input Keyboard clock output (pull-up) Keyboard clock input (pull-up) AC off detect signal input PC power detect signal input for PC LINK Remote control receiver or power key detect signal input Remote control receiver data signal input CD Q-data request signal input RDS clock signal input Not used (open) Not used (open) Not used (open) Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. • Abbreviation AUS : Australian model HK : Hong Kong model KR : Korean model SECTION 7 EXPLODED VIEWS 76 HCD-C5 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 1 1-757-791-11 WIRE (FLAT TYPE) (16 CORE) 2 4-233-859-01 CASE 3 4-886-865-01 CUSHION (A) 4 A-4476-934-A BD BOARD, COMPLETE 5 4-235-553-01 SPACER (A) 6 1-773-289-11 WIRE (FLAT TYPE) (29 CORE) 7-1. OVERALL SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 7 7-685-903-21 SCREW +PTPWH 3X8 (TYPE2) 8 1-681-712-11 HP BOARD 9 4-233-862-11 COVER, REAR (AEP,UK,KR) 9 4-233-862-21 COVER, REAR (AUS,HK) 10 1-681-381-11 JACK BOARD ∗ 11 4-930-336-71 FOOT (FELT) chassis section front panel section b a a b not supplied TM-CCD1001Z not supplied #1 #1 #1 #1 #1 #1 #4 #3 #5 #7 #6 #7 #8 #1 #1 #1 #2 #2 #1 1 2 3 4 11 5 6 8 7 9 10 11 c c Ver 1.1 2001.09 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 HCD-C5 7-2. FRONT PANEL SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 X-4953-691-1 PANEL ASSY (B), FRONT 52 4-942-636-01 EMBLEM (NO.3.5), SONY 53 4-233-846-01 ESCUTCHEON (MD) 54 4-233-847-01 ESCUTCHEON (CD) 55 4-233-840-01 PANEL, FRONT 56 A-4476-936-A PANEL BOARD, COMPLETE 57 4-228-323-01 SPRING (MD) 58 4-228-335-11 LID (MD) not supplied not supplied not supplied not supplied #9 #9 #9 #10 51 53 52 54 55 56 58 57 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 HCD-C5 7-3. CHASSIS SECTION-1 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 101 A-4476-947-A UCOM BOARD, COMPLETE (AEP,UK) 101 A-4727-413-A UCOM BOARD, COMPLETE (AUS, HK.KR) 102 1-681-380-11 AMP POWER BOARD 103 3-703-244-00 BUSHING (2104), CORD 0104 1-696-847-11 CORD, POWER (AUS) 0104 1-769-079-21 CORD, POWER (KR) 0104 1-777-071-21 CORD, POWER (AEP,UK,HK) 105 1-769-943-11 WIRE (FLAT TYPE) (11CORE) (AUS, HK.KR) 105 1-773-007-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK) 106 1-693-529-11 TUNER PACK (FM/AM) (AEP,UK) 106 1-693-531-11 TUNER PACK (FM/AM) (AUS,HK) 106 1-693-536-11 TUNER PACK (FM/AM) (KR) 107 A-4476-948-A POWER BOARD, COMPLETE (AEP,UK,AUS) 107 A-4727-414-A POWER BOARD, COMPLETE (HK,KR) 108 1-773-110-11 WIRE (FLAT TYPE) (19 CORE) 109 A-4476-938-A AUDIO BOARD, COMPLETE (AUS,HK,KR) 109 A-4476-949-A AUDIO BOARD, COMPLETE (AEP,UK) 110 3-701-748-00 CLAMP 111 4-812-134-31 RIVET (DIA. 3.5), NYLON 112 4-234-235-01 INSULATED PLATE (POWER) 113 4-937-971-01 CUSHION 114 4-237-035-01 INSULATED PLATE (POWER) 2 M901 1-698-997-11 FAN, D.C. 0T900 1-437-239-11 TRANSFORMER, POWER (AEP,UK,AUS) 0T900 1-437-241-11 TRANSFORMER, POWER (HK,KR) d d #1 #1 #7 #1 #1 T900 M901 101 102 103 112 111 104 105 106 107 108 109 110 113 not supplied 114 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver 1.1 2001.09 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 HCD-C5 7-4. CHASSIS SECTION-2 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 151 4-231-555-01 INSULATOR 152 4-228-643-21 SCREW (+BVTTWH M3), STEP 154 1-773-138-11 WIRE (FLAT TYPE) (19 CORE) 155 A-4725-732-A MD DIGITAL BOARD, COMPLETE 156 1-757-079-11 WIRE (FLAT TYPE) (17 CORE) 157 1-757-080-11 WIRE (FLAT TYPE) (27 CORE) 158 4-231-113-01 SCREW (1.7X3), BTN not supplied not supplied not supplied not supplied MDM-7B4M #1 #1 #1 152 151 154 158 155 156 157 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 HCD-C5 7-5. CD MECHANISM DECK SECTION (TN-CCD1001Z) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 401 4-236-062-01 PIN, DAMPER 402 4-236-087-01 SPRING (FZ), HANG UP 403 4-236-114-01 BELT, LOADING 404 4-236-088-01 SPRING (R), HANG UP 405 4-236-101-01 DAMPER (J) 406 1-682-100-11 CONNECTOR BOARD 407 4-236-105-01 HOLDER, FPC 408 1-682-101-11 PICK-UP FLEXIBLE BOARD 409 1-815-750-11 CONNECTOR M902 X-4954-023-1 MOTOR ASSY, LOADING #11 #12 #12 #14 #11 #11 #11 M902 #13 not supplied not supplied not supplied 401 402 402 401 403 404 404 405 406 407 408 409 front bracket section base section chassis section a a www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 HCD-C5 7-6. CD MECHANISM DECK SECTI – FRONT BRACKET SECTION (TN-CCD1001Z) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 451 4-236-112-01 SPRING (R), LOADING PULLEY 452 4-236-115-01 BRACKET (J), FRONT 453 4-236-111-01 SPRING (L), LOADING PULLEY 454 4-236-106-01 BRACKET, GEAR MOUNT 455 4-236-108-01 GEAR (3), LOADING 456 4-236-107-01 GEAR (2), LOADING 457 4-236-118-01 WASHER (117) 458 4-236-116-01 WASHER (113) 459 4-236-110-01 ROLLER, LOADING 460 X-4954-024-1 SHAFT ASSY, LOADING ROLLER 461 4-236-117-01 WASHER, WAVE 462 4-236-109-01 GEAR (5), LOADING #11 not supplied not supplied not supplied not supplied 451 452 453 454 455 456 457 458 458 459 460 461 462 not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 HCD-C5 7-7. CD MECHANISM DECK SECTION – BASE SECTION (TN-CCD1001Z) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 501 X-4954-022-1 SCREW ASSY, FEED 502 4-236-104-01 SPRING, PULLEY GUIDE 0503 1-758-631-11 OPTICAL PICK-UP BLOCK (OPTIMA-720L1E) 504 4-236-092-01 GUIDE, PULLEY 505 4-236-094-01 PULLEY (M) 506 4-236-095-01 SPRING, DETENT 507 4-236-101-01 DAMPER (J) 508 X-4954-025-1 BASE ASSY, TT 509 4-236-097-01 CLAMP 510 4-236-100-01 PLATE, CLAMP 511 4-236-099-01 RETAINER, 8CM STOPPER 512 4-236-102-01 SPRING (L), CLIP ARM 513 4-236-098-01 STOPPER, 8CM 514 4-236-096-01 SPRING, CLIP ARM 515 4-236-103-01 GUIDE, SCREW 516 4-236-090-01 BASE, FM 517 4-236-091-01 BRACKET, FD GEAR 518 4-236-093-01 SPRING, THRUST 519 4-236-089-01 GEAR, PULLEY S5 1-786-212-11 SWITCH (DETECTION) (LIMIT IN) M903 X-4954-020-1 MOTOR ASSY, FEED M904 X-4954-021-1 MOTOR ASSY, SPINDLE #15 #19 #17 #17 #17 #17 #16 #13 #18 #20 M903 M904 not supplied not supplied not supplied S5 501 502 503 505 506 507 507 508 509 510 511 512 514 515 516 513 504 517 518 519 e e The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 HCD-C5 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 551 4-236-085-01 ARM, SLIDE 552 4-236-086-01 SPRING, SLIDE ARM 553 4-236-073-01 ARM (R), S 554 4-236-074-01 SPRING, S ARM 555 4-236-064-01 HOLDER, S ARM 556 4-236-063-01 HOLDER, UPPER 557 4-236-113-01 ACTUATOR, SWITCH 558 1-682-099-11 SW BOARD 559 4-236-065-01 ARM (L), S 560 4-236-080-01 ARM (R), HOLDER 561 4-236-082-01 HOLDER (R) 562 4-236-084-01 SPRING, LOADING GEAR 563 4-236-083-01 GEAR (6), LOADING 564 4-236-081-01 HOLDER (L) 565 4-236-079-01 ARM (L), HOLDER 566 4-236-077-01 SPRING, TRIGGER 567 4-236-076-01 TRIGGER (Z) 568 4-236-078-01 ARM, TRIGGER 569 4-236-075-01 LEVER, TRIGGER S1 1-786-214-11 SWITCH (DETECTION) (Disc IN/8cm Disc detect) S2 1-786-213-11 SWITCH (DETECTION) (12cm Disc/12cm Disc Eject End detect) S3 1-786-213-11 SWITCH (DETECTION) (Disc Existence, Chucking, Releasing detect) S4 1-786-214-11 SWITCH (DETECTION) (8cm Disc Eject detect) 7-8. CD MECHANISM DECK SECTION – CHASSIS SECTION (TN-CCD1001Z) #11 S3 S1 S4 S2 not supplied 551 552 553 554 555 556 557 559 560 561 562 563 564 565 554 558 566 567 568 569 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 HCD-C5 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks ∗ 701 4-996-267-01 BASE (BU-D) 702 4-231-319-01 SCREW (2X6) CZN, +B (P) TRI 703 4-226-994-01 GUIDE (L) 704 A-4735-075-A HOLDER ASSY 705 X-4952-665-1 SPRING (SHT) ASSY, LEAF 706 4-227-002-01 GEAR, PULLEY 707 3-372-761-01 SCREW (M1.7), TAPPING 708 4-2270-250-1 BELT (LOADING) 710 4-229-533-01 SPRING (STOPPER), TORSION 711 4-227-012-01 SPRING (HOLDER), TENSION 713 4-226-995-01 SLIDER (EJ) 714 4-227-013-01 SPRING (EJ), TENSION 715 4-226-996-01 LIMITTER (EJ) 716 4-226-997-04 SLIDER 717 4-226-998-01 LEVER (CHG) 718 4-227-007-01 GEAR (SB) 719 4-227-006-01 GEAR (SA) 720 4-226-999-01 LEVER (HEAD) 721 A-4680-638-B PLATE (HOLDER) ASSY, RETAINER 7-9. MD MECHANISM DECK SECTION-1 (MDM-7B4M) 708 707 706 702 701 720 707 702 711 710 not supplied 713 714 715 716 719 718 717 705 703 704 not supplied #21 not supplied not supplied 721 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 HCD-C5 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 751 4-231-319-01 SCREW (2X6) CZN, +B (P) TRI 752 3-372-761-01 SCREW (M1.7), TAPPING 753 4-227-008-01 GEAR (SC) 754 4-227-009-01 GEAR (SD) 755 4-226-989-01 CHASSIS 756 4-232-270-01 SCREW (1.7X3.5), +PWH 757 4-226-993-01 RACK 758 4-227-014-01 SPRING (RACK), COMPRESSION 759 1-678-514-11 FLEXIBLE BOARD 0760 A-4672-541-A MINI DISK OPTICAL PICK-UP (KMS-260B) 761 4-988-560-01 SCREW (+P 1.7X6) 762 4-996-265-01 SHAFT, MAIN 763 4-226-992-01 BASE, SL 764 4-227-023-01 SPRING (SPINDLE), TORSION 765 4-227-004-01 GEAR (LC) 766 4-227-005-01 GEAR (LD) 767 4-226-990-01 BASE (BU-A) 768 A-4726-344-A BD (MD) BOARD, COMPLETE HR901 1-500-670-11 HEAD, OVER WRITE M701 A-4672-898-A MOTOR ASSY, SPINDLE M702 A-4735-076-A MOTOR ASSY, SLED M703 A-4735-074-A MOTOR ASSY, LOADING S102 1-771-957-11 SWITCH, PUSH (2 KEY) (REFLECT→PROTECT) 7-10. MD MECHANISM DECK SECTION-2 – (MDM-7B4M) 761 760 759 758 757 763 762 761 756 751 752 753 754 752 751 768 767 751 752 756 HR901 S102 M701 M703 M702 #22 #22 752 755 764 765 766 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 86 SECTION 8 ELECTRICAL PARTS LIST HCD-C5 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Abbreviation AUS : Australian model HK : Hong Kong model KR : Korean model 1-681-380-11 AMP POWER BOARD ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ < CAPACITOR > C851 1-136-165-00 FILM 0.1uF 5.00% 50V C852 1-136-165-00 FILM 0.1uF 5.00% 50V C853 1-128-549-11 ELECT 3300uF 20.00% 35V C854 1-128-549-11 ELECT 3300uF 20.00% 35V < CONNECTOR > CN851 1-564-506-11 PLUG, CONNECTOR 3P CN852 1-779-939-11 CONNECTOR, BOARD TO BOARD 7P < DIODE > D851 8-719-028-23 DIODE D3SBA20-4101 < FUSE > 0F851 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) T4AL/250V 0F852 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) T4AL/250V < FUSE HOLDER > FH851 1-533-293-11 FUSE HOLDER FH852 1-533-293-11 FUSE HOLDER FH853 1-533-293-11 FUSE HOLDER FH854 1-533-293-11 FUSE HOLDER < RESISTOR > R851 1-260-107-11 CARBON 4.7K 5% 1/2W ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ A-4476-938-A AUDIO BOARD, COMPLETE (AUS,HK,KR) A-4476-949-A AUDIO BOARD, COMPLETE (AEP,UK) ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ < CAPACITOR > C102 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C111 1-124-227-00 ELECT 10uF 20% 10V (AEP,UK) C121 1-164-156-00 CERAMIC CHIP 0.1 25V C152 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C301 1-124-257-00 ELECT 2.2uF 20% 50V C302 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C303 1-124-257-00 ELECT 2.2uF 20% 50V C304 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C305 1-124-257-00 ELECT 2.2uF 20% 50V C309 1-124-261-00 ELECT 10uF 20% 50V C310 1-124-261-00 ELECT 10uF 20% 50V C311 1-124-261-00 ELECT 10uF 20% 50V C312 1-136-165-00 FILM 0.1uF 5.00% 50V C313 1-124-464-11 ELECT 0.22uF 20% 50V C314 1-137-365-11 MYLAR 0.0015uF 5.00% 50V C315 1-124-261-00 ELECT 10uF 20% 50V C316 1-136-165-00 FILM 0.1uF 5.00% 50V C317 1-136-165-00 FILM 0.1uF 5.00% 50V C321 1-124-261-00 ELECT 10uF 20% 50V C322 1-124-261-00 ELECT 10uF 20% 50V C323 1-124-261-00 ELECT 10uF 20% 50V C324 1-128-057-11 ELECT 330uF 20.00% 6.3V C325 1-137-367-11 MYLAR 0.0033uF 5.00% 50V C326 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C331 1-124-257-00 ELECT 2.2uF 20% 50V C332 1-119-772-11 ELECT 47uF 20% 25V C333 1-119-772-11 ELECT 47uF 20% 25V C334 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C335 1-119-772-11 ELECT MELF 47uF 20.00% 35V C336 1-124-257-00 ELECT 2.2uF 20% 50V C344 1-124-465-00 ELECT 0.47uF 20% 50V C351 1-124-257-00 ELECT 2.2uF 20% 50V C352 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C353 1-124-257-00 ELECT 2.2uF 20% 50V C354 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C355 1-124-257-00 ELECT 2.2uF 20% 50V C359 1-124-261-00 ELECT 10uF 20% 50V C360 1-124-261-00 ELECT 10uF 20% 50V C361 1-124-261-00 ELECT 10uF 20% 50V C362 1-136-165-00 FILM 0.1uF 5.00% 50V C363 1-124-464-11 ELECT 0.22uF 20% 50V C364 1-137-365-11 MYLAR 0.0015uF 5.00% 50V C365 1-124-261-00 ELECT 10uF 20% 50V C366 1-136-165-00 FILM 0.1uF 5.00% 50V C367 1-136-165-00 FILM 0.1uF 5.00% 50V C381 1-124-257-00 ELECT 2.2uF 20% 50V C382 1-119-772-11 ELECT 47uF 20% 25V C383 1-119-772-11 ELECT 47uF 20% 25V C384 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CN101 1-784-780-11 CONNECTOR, FFC 19P ∗ CN102 1-568-936-11 PIN, CONNECTOR 9P CN103 1-778-240-11 CONNECTOR, BOARD TO BOARD 5P CN104 1-568-830-11 CONNECTOR, FFC 11P (AUS,HK,KR) CN104 1-784-776-11 CONNECTOR, FFC 15P (AEP,UK) AMP AUDIO Ver 1.1 2001.09 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 HCD-C5 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks CN105 1-564-506-11 PLUG, CONNECTOR 3P ∗ CN106 1-568-934-11 PIN, CONNECTOR 7P ∗ CN108 1-568-943-11 PIN, CONNECTOR 5P < DIODE > D101 8-719-200-82 DIODE 11ES2-TA1B D103 8-719-988-61 DIODE 1SS355TE-17 D111 8-719-923-34 DIODE MTZJ-T-77-5.1B (AEP,UK) D301 8-719-988-61 DIODE 1SS355TE-17 D343 8-719-988-61 DIODE 1SS355TE-17 D393 8-719-988-61 DIODE 1SS355TE-17 < TERMINAL > EPT102 1-537-771-21 TERMINAL BOARD, GROUND < IC > IC301 8-759-494-40 IC M62428AFP600C IC302 8-759-167-88 IC NJM4565D (AEP,UK) < CONDUCTOR > JR303 1-216-864-11 METAL CHIP 0 5% 1/16W JR304 1-216-864-11 METAL CHIP 0 5% 1/16W JR305 1-216-864-11 METAL CHIP 0 5% 1/16W JR306 1-216-864-11 METAL CHIP 0 5% 1/16W < TRANSISTOR > Q101 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q102 8-729-424-08 TRANSISTOR UN2111-TX Q103 8-729-120-28 TRANSISTOR 2SC3052EF-T1-LEF Q151 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q311 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q331 8-729-046-97 TRANSISTOR 2SD1938(F)-T(TX).SO Q361 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q381 8-729-046-97 TRANSISTOR 2SD1938(F)-T(TX).SO < RESISTOR > R102 1-216-821-11 METAL CHIP 1K 5% 1/16W R103 1-216-833-11 METAL CHIP 10K 5% 1/16W R104 1-216-821-11 METAL CHIP 1K 5% 1/16W R105 1-216-845-11 METAL CHIP 100K 5% 1/16W R111 1-247-819-11 CARBON 330 5% 1/4W (AEP,UK) R112 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R152 1-216-821-11 METAL CHIP 1K 5% 1/16W R153 1-216-833-11 METAL CHIP 10K 5% 1/16W R154 1-216-821-11 METAL CHIP 1K 5% 1/16W R155 1-216-845-11 METAL CHIP 100K 5% 1/16W R302 1-216-821-11 METAL CHIP 1K 5% 1/16W R303 1-216-845-11 METAL CHIP 100K 5% 1/16W R304 1-216-821-11 METAL CHIP 1K 5% 1/16W R309 1-216-845-11 METAL CHIP 100K 5% 1/16W R312 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R313 1-218-296-11 RES-CHIP 75K 5% 1/16W R314 1-216-839-11 METAL CHIP 33K 5% 1/16W R315 1-216-857-11 METAL CHIP 1M 5% 1/16W R316 1-249-441-11 CARBON 100K 5% 1/4W R317 1-216-837-11 METAL CHIP 22K 5% 1/16W R321 1-216-839-11 METAL CHIP 33K 5% 1/16W R322 1-216-857-11 METAL CHIP 1M 5% 1/16W R323 1-216-821-11 METAL CHIP 1K 5% 1/16W R324 1-216-821-11 METAL CHIP 1K 5% 1/16W R325 1-216-821-11 METAL CHIP 1K 5% 1/16W R326 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R327 1-249-433-11 CARBON 22K 5% 1/4W R331 1-216-821-11 METAL CHIP 1K 5% 1/16W R332 1-216-833-11 METAL CHIP 10K 5% 1/16W R333 1-216-833-11 METAL CHIP 10K 5% 1/16W R334 1-216-821-11 METAL CHIP 1K 5% 1/16W R335 1-216-835-11 METAL CHIP 15K 5% 1/16W R336 1-216-833-11 METAL CHIP 10K 5% 1/16W R338 1-216-845-11 METAL CHIP 100K 5% 1/16W 0R339 1-249-405-11 CARBON 100 5% 1/4WF R340 1-216-845-11 METAL CHIP 100K 5% 1/16W R341 1-216-845-11 METAL CHIP 100K 5% 1/16W R343 1-216-845-11 METAL CHIP 100K 5% 1/16W R344 1-247-903-00 CARBON 1M 5% 1/4W R352 1-216-821-11 METAL CHIP 1K 5% 1/16W R353 1-216-845-11 METAL CHIP 100K 5% 1/16W R354 1-216-821-11 METAL CHIP 1K 5% 1/16W R359 1-216-845-11 METAL CHIP 100K 5% 1/16W R362 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R363 1-218-296-11 RES-CHIP 75K 5% 1/16W R364 1-216-839-11 METAL CHIP 33K 5% 1/16W R365 1-216-857-11 METAL CHIP 1M 5% 1/16W R366 1-249-441-11 CARBON 100K 5% 1/4W R367 1-216-837-11 METAL CHIP 22K 5% 1/16W R381 1-216-821-11 METAL CHIP 1K 5% 1/16W R382 1-216-833-11 METAL CHIP 10K 5% 1/16W R383 1-216-833-11 METAL CHIP 10K 5% 1/16W R384 1-216-821-11 METAL CHIP 1K 5% 1/16W R385 1-216-835-11 METAL CHIP 15K 5% 1/16W R386 1-216-833-11 METAL CHIP 10K 5% 1/16W R388 1-216-845-11 METAL CHIP 100K 5% 1/16W R393 1-216-845-11 METAL CHIP 100K 5% 1/16W ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ A-4476-934-A BD (CD) BOARD, COMPLETE ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ 7-685-852-04 SCREW +BVTT 2X5 (S) < CAPACITOR > C101 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C102 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C103 1-164-315-11 CERAMIC CHIP 470PF 5.00% 50V C104 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C107 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C108 1-164-360-11 CERAMIC CHIP 0.1uF 16V C109 1-164-360-11 CERAMIC CHIP 0.1uF 16V C110 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C111 1-124-589-11 ELECT 47uF 20% 16V C112 1-124-589-11 ELECT 47uF 20% 16V AUDIO BD (CD) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver 1.1 2001.09 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 88 HCD-C5 C113 1-124-584-00 ELECT 100uF 20% 10V C114 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C115 1-124-589-11 ELECT 47uF 20% 16V C117 1-164-360-11 CERAMIC CHIP 0.1uF 16V C118 1-115-156-11 CERAMIC CHIP 1uF 10V C119 1-115-156-11 CERAMIC CHIP 1uF 10V C120 1-126-513-11 ELECT 47uF 20.00% 6.3V C154 1-164-360-11 CERAMIC CHIP 0.1uF 16V C159 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C161 1-164-360-11 CERAMIC CHIP 0.1uF 16V C162 1-162-974-11 CERAMIC CHIP 0.01uF 50V C164 1-128-499-11 ELECT 220uF 20.00% 16V C180 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C181 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C182 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C183 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C184 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C185 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C186 1-126-934-11 ELECT 220uF 20.00% 10V C187 1-164-360-11 CERAMIC CHIP 0.1uF 16V C188 1-162-974-11 CERAMIC CHIP 0.01uF 50V C191 1-165-176-11 CERAMIC CHIP 0.047uF 10.00% 16V C192 1-165-176-11 CERAMIC CHIP 0.047uF 10.00% 16V C193 1-165-176-11 CERAMIC CHIP 0.047uF 10.00% 16V C194 1-165-176-11 CERAMIC CHIP 0.047uF 10.00% 16V C201 1-126-934-11 ELECT 220uF 20.00% 10V C202 1-164-360-11 CERAMIC CHIP 0.1uF 16V C203 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C204 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C205 1-164-360-11 CERAMIC CHIP 0.1uF 16V C206 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C209 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C211 1-107-826-11 CERAMIC CHIP 0.1uF 10.00% 16V C212 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C213 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C215 1-117-863-11 CERAMIC CHIP 0.47uF 10.00% 6.3V C216 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C221 1-164-360-11 CERAMIC CHIP 0.1uF 16V C222 1-164-360-11 CERAMIC CHIP 0.1uF 16V C224 1-164-360-11 CERAMIC CHIP 0.1uF 16V C227 1-164-360-11 CERAMIC CHIP 0.1uF 16V C228 1-115-156-11 CERAMIC CHIP 1uF 10V C229 1-164-360-11 CERAMIC CHIP 0.1uF 16V C230 1-126-382-11 ELECT 100uF 20.00% 6.3V C231 1-126-934-11 ELECT 220uF 20.00% 10V C234 1-162-974-11 CERAMIC CHIP 0.01uF 50V C235 1-162-974-11 CERAMIC CHIP 0.01uF 50V C236 1-117-863-11 CERAMIC CHIP 0.47uF 10.00% 6.3V C237 1-117-863-11 CERAMIC CHIP 0.47uF 10.00% 6.3V C240 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C1109 1-164-360-11 CERAMIC CHIP 0.1uF 16V C1110 1-126-934-11 ELECT 220uF 20.00% 10V C1111 1-162-974-11 CERAMIC CHIP 0.01uF 50V < CONNECTOR > CN101 1-784-751-11 CONNECTOR, FFC 29P CN103 1-815-510-11 CONNECTOR, BOARD TO BOARD 26P < DIODE > D101 8-719-056-77 DIODE UDZ-TE-17-3.9B < FERRITE BEAD > FB101 1-500-445-21 FERRITE 0uH < IC > IC101 8-752-408-73 IC CXD3068Q IC102 8-759-536-50 IC BA5982FP-E2 IC103 8-752-089-74 IC CXA2581N-T4 IC1102 8-759-598-69 IC BA6956AN < CONDUCTOR > JR201 1-216-864-11 METAL CHIP 0 5% 1/16W < TRANSISTOR > Q101 8-729-049-31 TRANSISTOR 2SB710A-RTX Q102 8-729-015-74 TRANSISTOR UN5111-TX Q103 8-729-920-85 TRANSISTOR 2SD1664-T100-QR < RESISTOR > R102 1-216-835-11 METAL CHIP 15K 5% 1/16W R103 1-216-845-11 METAL CHIP 100K 5% 1/16W R104 1-216-835-11 METAL CHIP 15K 5% 1/16W R105 1-216-821-11 METAL CHIP 1K 5% 1/16W R109 1-216-846-11 METAL CHIP 120K 5% 1/16W R111 1-216-846-11 METAL CHIP 120K 5% 1/16W R113 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R114 1-216-845-11 METAL CHIP 100K 5% 1/16W R115 1-216-841-11 METAL CHIP 47K 5% 1/16W R116 1-216-841-11 METAL CHIP 47K 5% 1/16W R117 1-216-847-11 METAL CHIP 150K 5% 1/16W R118 1-216-835-11 METAL CHIP 15K 5% 1/16W R120 1-216-849-11 METAL CHIP 220K 5% 1/16W R122 1-216-845-11 METAL CHIP 100K 5% 1/16W R123 1-216-797-11 METAL CHIP 10 5% 1/16W R124 1-216-798-11 RES-CHIP 12 5% 1/16W R125 1-216-834-11 METAL CHIP 12K 5% 1/16W R126 1-216-834-11 METAL CHIP 12K 5% 1/16W R158 1-216-833-11 METAL CHIP 10K 5% 1/16W R159 1-216-841-11 METAL CHIP 47K 5% 1/16W R162 1-216-847-11 METAL CHIP 150K 5% 1/16W R180 1-216-845-11 METAL CHIP 100K 5% 1/16W R181 1-216-846-11 METAL CHIP 120K 5% 1/16W R182 1-216-843-11 METAL CHIP 68K 5% 1/16W R183 1-216-843-11 METAL CHIP 68K 5% 1/16W R184 1-216-849-11 METAL CHIP 220K 5% 1/16W R185 1-216-849-11 METAL CHIP 220K 5% 1/16W R186 1-216-843-11 METAL CHIP 68K 5% 1/16W R187 1-216-843-11 METAL CHIP 68K 5% 1/16W R188 1-216-849-11 METAL CHIP 220K 5% 1/16W R189 1-216-849-11 METAL CHIP 220K 5% 1/16W R190 1-216-837-11 METAL CHIP 22K 5% 1/16W R191 1-216-837-11 METAL CHIP 22K 5% 1/16W R192 1-216-837-11 METAL CHIP 22K 5% 1/16W R193 1-216-837-11 METAL CHIP 22K 5% 1/16W BD (CD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 89 HCD-C5 R196 1-216-839-11 METAL CHIP 33K 5% 1/16W R197 1-216-839-11 METAL CHIP 33K 5% 1/16W R198 1-216-839-11 METAL CHIP 33K 5% 1/16W R199 1-216-839-11 METAL CHIP 33K 5% 1/16W R201 1-216-839-11 METAL CHIP 33K 5% 1/16W R202 1-216-833-11 METAL CHIP 10K 5% 1/16W R203 1-216-845-11 METAL CHIP 100K 5% 1/16W R204 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R205 1-216-821-11 METAL CHIP 1K 5% 1/16W R206 1-216-833-11 METAL CHIP 10K 5% 1/16W R207 1-216-857-11 METAL CHIP 1M 5% 1/16W R212 1-216-813-11 METAL CHIP 220 5% 1/16W R215 1-216-864-11 METAL CHIP 0 5% 1/16W R216 1-216-813-11 METAL CHIP 220 5% 1/16W R217 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R218 1-216-821-11 METAL CHIP 1K 5% 1/16W R219 1-216-833-11 METAL CHIP 10K 5% 1/16W R220 1-216-864-11 METAL CHIP 0 5% 1/16W R221 1-216-813-11 METAL CHIP 220 5% 1/16W R226 1-216-809-11 METAL CHIP 100 5% 1/16W R227 1-216-845-11 METAL CHIP 100K 5% 1/16W R228 1-216-853-11 METAL CHIP 470K 5% 1/16W R229 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R230 1-216-789-11 METAL CHIP 2.2 5% 1/16W R231 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R302 1-216-837-11 METAL CHIP 22K 5% 1/16W R303 1-216-837-11 METAL CHIP 22K 5% 1/16W R304 1-216-837-11 METAL CHIP 22K 5% 1/16W R305 1-216-837-11 METAL CHIP 22K 5% 1/16W R1133 1-216-813-11 METAL CHIP 220 5% 1/16W R1134 1-216-821-11 METAL CHIP 1K 5% 1/16W < NETWORK > RN201 1-233-576-11 RES, CHIP NETWORK 100 RN202 1-233-576-11 RES, CHIP NETWORK 100 < VARIABLE RESISTOR > RV101 1-238-602-11 RES, ADJ, CARBON 47K < VIBRATOR > X201 1-579-834-11 VIBRATOR, CRYSTAL 33.8688MHz ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ A-4726-344-A BD (MD) BOARD, COMPLETE ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ < CAPACITOR > C101 1-135-259-11 TANTAL. CHIP 10uF 20.00% 6.3V C102 1-135-259-11 TANTAL. CHIP 10uF 20.00% 6.3V C103 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C104 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C105 1-115-416-11 CERAMIC CHIP 0.001uF 5.00% 25V C106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C107 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C108 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C109 1-164-677-11 CERAMIC CHIP 0.033uF 10.00% 16V C110 1-163-038-00 CERAMIC CHIP 0.1uF 25V C111 1-117-720-11 CERAMIC CHIP 4.7uF 10V C112 1-110-563-11 CERAMIC CHIP 0.068uF 10.00% 16V C113 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C114 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C115 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C116 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C117 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C118 1-165-176-11 CERAMIC CHIP 0.047uF 10.00% 16V C119 1-165-176-11 CERAMIC CHIP 0.047uF 10.00% 16V C120 1-164-156-11 CERAMIC CHIP 0.1uF 25V C121 1-164-156-11 CERAMIC CHIP 0.1uF 25V C125 1-117-720-11 CERAMIC CHIP 4.7uF 10V C128 1-164-156-11 CERAMIC CHIP 0.1uF 25V C131 1-117-720-11 CERAMIC CHIP 4.7uF 10V C132 1-164-156-11 CERAMIC CHIP 0.1uF 25V C133 1-164-156-11 CERAMIC CHIP 0.1uF 25V C141 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C142 1-164-156-11 CERAMIC CHIP 0.1uF 25V C143 1-164-156-11 CERAMIC CHIP 0.1uF 25V C144 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C145 1-164-156-11 CERAMIC CHIP 0.1uF 25V C151 1-117-370-11 CERAMIC CHIP 10uF 10V C152 1-164-156-11 CERAMIC CHIP 0.1uF 25V C153 1-164-156-11 CERAMIC CHIP 0.1uF 25V C154 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C155 1-164-156-11 CERAMIC CHIP 0.1uF 25V C156 1-164-156-11 CERAMIC CHIP 0.1uF 25V C157 1-164-156-11 CERAMIC CHIP 0.1uF 25V C158 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C159 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C160 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C163 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V C164 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C165 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C166 1-125-891-11 CERAMIC CHIP 0.47uF 10.00% 10V C167 1-164-245-11 CERAMIC CHIP 0.015uF 10.00% 25V C169 1-164-156-11 CERAMIC CHIP 0.1uF 25V C173 1-164-156-11 CERAMIC CHIP 0.1uF 25V C174 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C180 1-117-370-11 CERAMIC CHIP 10uF 10V C181 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C182 1-163-038-00 CERAMIC CHIP 0.1uF 25V C183 1-164-156-11 CERAMIC CHIP 0.1uF 25V C184 1-117-970-11 ELECT CHIP 22uF 20.00% 10V C185 1-131-872-11 CERAMIC CHIP 1000PF 10% 630V C191 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C192 1-164-156-11 CERAMIC CHIP 0.1uF 25V C193 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C194 1-164-156-11 CERAMIC CHIP 0.1uF 25V C195 1-164-156-11 CERAMIC CHIP 0.1uF 25V C196 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1401 1-117-720-11 CERAMIC CHIP 4.7uF 10V BD (CD) BD (MD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 90 HCD-C5 < CONNECTOR > CN101 1-766-833-21 CONNECTOR, FFC/FPC (ZIF) 21P CN102 1-784-835-21 CONNECTOR,FFC(LIF(NON-ZIF))27P CN103 1-784-869-21 CONNECTOR,FFC(LIF(NON-ZIF))17P ∗ CN104 1-580-055-21 PIN, CONNECTOR (SMD) 2P CN105 1-784-859-21 CONNECTOR, FFC(LIF(NON-ZIF))7P < DIODE > D101 8-719-988-61 DIODE 1SS355TE-17 D181 8-719-080-81 DIODE FS1J6 D183 8-719-080-81 DIODE FS1J6 < IC > IC101 8-752-080-95 IC CXA2523AR IC102 8-759-473-51 IC TLV2361CDBV IC141 8-759-836-79 IC BH6519FS-E2 IC151 8-752-404-64 IC CXD2662R IC153 8-759-671-27 IC MSM51V4400D-10TSK-FS IC181 8-759-481-17 IC MC74ACT08DTR2 IC190 8-759-677-64 IC L88M35T IC195 8-759-640-41 IC BR24C08F-E2 < CONDUCTOR > JW201 1-216-295-00 SHORT 0 JW202 1-216-295-00 SHORT 0 JW203 1-216-295-00 SHORT 0 JW903 1-216-295-00 SHORT 0 JW904 1-216-295-00 SHORT 0 < CONDUCTOR / FERRITE BEAD > L101 1-500-245-11 FERRITE 0uH L102 1-500-245-11 FERRITE 0uH L103 1-500-245-11 FERRITE 0uH L105 1-414-235-22 FERRITE 0uH L106 1-500-245-11 FERRITE 0uH L121 1-500-245-11 FERRITE 0uH L122 1-500-245-11 FERRITE 0uH L131 1-500-245-11 FERRITE 0uH L141 1-216-296-11 SHORT 0 L142 1-216-296-11 SHORT 0 L143 1-216-296-11 SHORT 0 L144 1-216-296-11 SHORT 0 L145 1-216-296-11 SHORT 0 L146 1-469-855-21 FERRITE 0uH L147 1-469-855-21 FERRITE 0uH L161 1-500-245-11 FERRITE 0uH L171 1-500-245-11 FERRITE 0uH L180 1-469-855-21 FERRITE 0uH L181 1-469-855-21 FERRITE 0uH L182 1-500-245-11 FERRITE 0uH L183 1-216-296-11 SHORT 0 L184 1-216-296-11 SHORT 0 < TRANSISTOR > Q101 8-729-403-35 TRANSISTOR UN5113-TX Q121 8-729-403-35 TRANSISTOR UN5113-TX Q122 8-729-101-07 TRANSISTOR 2SB798-T1DK Q131 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR Q132 8-729-903-10 TRANSISTOR FMW1-T-148 Q133 8-729-402-93 TRANSISTOR UN5214-TX Q134 8-729-402-93 TRANSISTOR UN5214-TX Q181 8-729-018-75 TRANSISTOR 2SJ278MYTR Q182 8-729-017-65 TRANSISTOR 2SK1764KYTR < RESISTOR > R101 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R102 1-216-853-11 METAL CHIP 470K 5% 1/16W R103 1-216-863-11 RES-CHIP 3.3M 5% 1/16W R104 1-216-853-11 METAL CHIP 470K 5% 1/16W R105 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R106 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R107 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R108 1-216-833-11 METAL CHIP 10K 5% 1/16W R109 1-216-845-11 METAL CHIP 100K 5% 1/16W R110 1-216-845-11 METAL CHIP 100K 5% 1/16W R111 1-216-833-11 METAL CHIP 10K 5% 1/16W R112 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R113 1-216-833-11 METAL CHIP 10K 5% 1/16W R114 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R115 1-216-833-11 METAL CHIP 10K 5% 1/16W R116 1-216-839-11 METAL CHIP 33K 5% 1/16W R117 1-216-837-11 METAL CHIP 22K 5% 1/16W R118 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R119 1-218-863-11 METAL CHIP 4.7K 0.5% 1/16W R120 1-218-889-11 METAL CHIP 56K 0.5% 1/16W R121 1-218-863-11 METAL CHIP 4.7K 0.5% 1/16W R122 1-218-855-11 METAL CHIP 2.2K 0.5% 1/16W R123 1-216-819-11 METAL CHIP 680 5% 1/16W R124 1-216-809-11 METAL CHIP 100 5% 1/16W R125 1-216-815-11 METAL CHIP 330 5% 1/16W R126 1-216-819-11 METAL CHIP 680 5% 1/16W R127 1-216-845-11 METAL CHIP 100K 5% 1/16W R128 1-219-724-11 METAL CHIP 1 1% 1/4W R129 1-216-298-00 METAL CHIP 2.2 5% 1/10W R130 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R131 1-216-833-11 METAL CHIP 10K 5% 1/16W R132 1-216-839-11 METAL CHIP 33K 5% 1/16W R133 1-216-821-11 METAL CHIP 1K 5% 1/16W R134 1-216-821-11 METAL CHIP 1K 5% 1/16W R135 1-216-821-11 METAL CHIP 1K 5% 1/16W R136 1-216-302-00 METAL CHIP 2.7 5% 1/10W R138 1-216-833-11 METAL CHIP 10K 5% 1/16W R150 1-216-833-11 METAL CHIP 10K 5% 1/16W R151 1-216-833-11 METAL CHIP 10K 5% 1/16W R153 1-216-833-11 METAL CHIP 10K 5% 1/16W R155 1-216-864-11 METAL CHIP 0 5% 1/16W R156 1-216-864-11 METAL CHIP 0 5% 1/16W R158 1-216-809-11 METAL CHIP 100 5% 1/16W R162 1-216-833-11 METAL CHIP 10K 5% 1/16W R167 1-216-833-11 METAL CHIP 10K 5% 1/16W R168 1-216-845-11 METAL CHIP 100K 5% 1/16W R169 1-216-855-11 METAL CHIP 680K 5% 1/16W R170 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R171 1-216-821-11 METAL CHIP 1K 5% 1/16W R173 1-216-821-11 METAL CHIP 1K 5% 1/16W R174 1-216-811-11 METAL CHIP 150 5% 1/16W R177 1-216-805-11 METAL CHIP 47 5% 1/16W R179 1-216-295-00 SHORT 0 R181 1-216-841-11 METAL CHIP 47K 5% 1/16W R182 1-216-841-11 METAL CHIP 47K 5% 1/16W BD (MD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 91 HCD-C5 R183 1-216-841-11 METAL CHIP 47K 5% 1/16W R184 1-220-942-11 METAL CHIP 3.3 1% 1/4 R185 1-220-942-11 METAL CHIP 3.3 1% 1/4 R195 1-216-833-11 METAL CHIP 10K 5% 1/16W R196 1-216-833-11 METAL CHIP 10K 5% 1/16W R197 1-216-833-11 METAL CHIP 10K 5% 1/16W R218 1-216-864-11 METAL CHIP 0 5% 1/16W < SWITCH > S101 1-762-596-21 SWITCH, PUSH (1 KEY) (LIMIT-IN) S103 1-771-956-21 SWITCH, PUSH (1 KEY) (OUT) S104 1-771-955-21 SWITCH, PUSH (1 KEY) (PLAY) S105 1-771-955-21 SWITCH, PUSH (1 KEY) (REC) < VIBRATOR > X171 1-781-569-21 OSCILLATOR, CRYSTAL 90MHz ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ 1-682-100-11 CONNECTOR BOARD ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ < CONNECTOR > CN1 1-815-750-11 CONNECTOR ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ 1-681-712-11 HP BOARD ∗∗∗∗∗∗∗∗∗ < CAPACITOR > C337 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C338 1-162-294-31 CERAMIC 0.001uF 10% 50V C339 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > ∗ CN109 1-568-954-11 PIN, CONNECTOR 5P CN110 1-506-469-11 PIN, CONNECTOR 4P < JACK > J103 1-794-702-11 JACK, HEADPHONE (PHONES) < TRANSISTOR > Q341 8-729-046-97 TRANSISTOR 2SD1938(F)-T(TX).SO Q391 8-729-046-97 TRANSISTOR 2SD1938(F)-T(TX).SO < RESISTOR > R337 1-249-407-11 CARBON 150 5% 1/4W F R342 1-249-429-11 CARBON 10K 5% 1/4W R387 1-249-407-11 CARBON 150 5% 1/4W F R392 1-216-833-11 METAL CHIP 10K 5% 1/16W ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ 1-681-381-11 JACK BOARD ∗∗∗∗∗∗∗∗∗∗∗ < CAPACITOR > C101 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C122 1-162-964-11 CERAMIC CHIP 1000PF 50V (AEP,UK,KR) C151 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > ∗ CN107 1-568-934-11 PIN, CONNECTOR 7P < JACK > J101 1-793-439-11 JACK (SMALL TYPE) (TAPE OUT) J102 1-793-439-11 JACK (SMALL TYPE) (TAPE IN) < RESISTOR > R101 1-216-845-11 METAL CHIP 100K 5% 1/16W R151 1-216-845-11 METAL CHIP 100K 5% 1/16W ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ A-4725-732-A MD DIGITAL BOARD, COMPLETE ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ < CAPACITOR > C200 1-124-584-00 ELECT 100uF 20% 10V C201 1-164-156-11 CERAMIC CHIP 0.1uF 25V C202 1-124-589-11 ELECT 47uF 20% 16V C203 1-164-156-11 CERAMIC CHIP 0.1uF 25V C204 1-124-261-00 ELECT 10uF 20% 50V C205 1-164-156-11 CERAMIC CHIP 0.1uF 25V C207 1-164-156-11 CERAMIC CHIP 0.1uF 25V C208 1-164-156-11 CERAMIC CHIP 0.1uF 25V C211 1-164-156-11 CERAMIC CHIP 0.1uF 25V C212 1-124-584-00 ELECT 100uF 20% 10V C213 1-164-156-11 CERAMIC CHIP 0.1uF 25V C214 1-124-261-00 ELECT 10uF 20% 50V C215 1-124-261-00 ELECT 10uF 20% 50V C216 1-164-156-11 CERAMIC CHIP 0.1uF 25V C217 1-164-156-11 CERAMIC CHIP 0.1uF 25V C218 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C219 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C221 1-164-156-11 CERAMIC CHIP 0.1uF 25V C222 1-124-589-11 ELECT 47uF 20% 16V C223 1-164-156-11 CERAMIC CHIP 0.1uF 25V C701 1-124-584-00 ELECT 100uF 20% 10V C702 1-164-156-11 CERAMIC CHIP 0.1uF 25V C703 1-126-245-11 ELECT 330uF 20.00% 6.3V C704 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C705 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C706 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C707 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C719 1-164-156-11 CERAMIC CHIP 0.1uF 25V C723 1-164-156-11 CERAMIC CHIP 0.1uF 25V C726 1-164-156-11 CERAMIC CHIP 0.1uF 25V C730 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C738 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C740 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C742 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C743 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C748 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C749 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C751 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C756 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C791 1-164-156-11 CERAMIC CHIP 0.1uF 25V BD (MD) CONNECTOR MD DIGITAL HP JACK Ver 1.1 2001.09 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 92 HCD-C5 C843 1-164-156-11 CERAMIC CHIP 0.1uF 25V C861 1-164-156-11 CERAMIC CHIP 0.1uF 25V C862 1-115-869-11 ELECT 0.33uF 20.00% 50V C863 1-164-156-11 CERAMIC CHIP 0.1uF 25V C864 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C871 1-124-584-00 ELECT 100uF 20% 10V C872 1-164-156-11 CERAMIC CHIP 0.1uF 25V C873 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > CN201 1-790-669-21 PIN, CONNECTOR (PC BOARD) 9P CN701 1-784-741-11 CONNECTOR, FFC 19P CN702 1-784-384-11 CONNECTOR, FFC/FPC 27P CN703 1-784-376-11 CONNECTOR, FFC/FPC 17P < DIODE > D211 8-719-104-34 DIODE 1S2835-T1 < FERRITE BEAD / CONDUCTOR > FB217 1-469-116-21 FERRITE 0UH FB701 1-469-324-21 FERRITE 0UH FB702 1-469-324-21 FERRITE 0UH FB703 1-469-324-21 FERRITE 0UH FB704 1-216-864-11 METAL CHIP 0 5% 1/16W < IC > IC201 8-759-675-78 IC UDA1360TS/N1.118 IC211 8-759-675-77 IC UDA1350AH IC701 6-800-339-01 IC M30803MG-A03FP IC861 8-759-481-02 IC M62016L IC871 8-759-598-69 IC BA6956AN < CONDUCTOR > JR210 1-216-296-11 SHORT 0 < COIL > L701 1-412-533-21 INDUCTOR 47uH < TRANSISTOR > Q201 8-729-421-22 TRANSISTOR UN2211-TX Q202 8-729-026-49 TRANSISTOR 2SA1037AK-T146-QR Q211 8-729-424-08 TRANSISTOR UN2111-TX Q861 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q871 8-729-421-22 TRANSISTOR UN2211-TX Q872 8-729-602-36 TRANSISTOR 2SA1602TP-1EF < RESISTOR > R201 1-218-272-11 RES-CHIP 5.1K 5% 1/16W R202 1-218-272-11 RES-CHIP 5.1K 5% 1/16W R211 1-216-813-11 METAL CHIP 220 5% 1/16W R213 1-216-833-11 METAL CHIP 10K 5% 1/16W R214 1-216-809-11 METAL CHIP 100 5% 1/16W R215 1-216-833-11 METAL CHIP 10K 5% 1/16W R216 1-216-833-11 METAL CHIP 10K 5% 1/16W R217 1-216-809-11 METAL CHIP 100 5% 1/16W R218 1-216-809-11 METAL CHIP 100 5% 1/16W R219 1-216-809-11 METAL CHIP 100 5% 1/16W R220 1-216-817-11 METAL CHIP 470 5% 1/16W R221 1-216-809-11 METAL CHIP 100 5% 1/16W R222 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R223 1-216-833-11 METAL CHIP 10K 5% 1/16W R701 1-216-817-11 METAL CHIP 470 5% 1/16W R702 1-216-809-11 METAL CHIP 100 5% 1/16W R717 1-216-833-11 METAL CHIP 10K 5% 1/16W R724 1-216-833-11 METAL CHIP 10K 5% 1/16W R726 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R727 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R730 1-216-833-11 METAL CHIP 10K 5% 1/16W R743 1-216-833-11 METAL CHIP 10K 5% 1/16W R749 1-216-833-11 METAL CHIP 10K 5% 1/16W R751 1-216-833-11 METAL CHIP 10K 5% 1/16W R752 1-216-833-11 METAL CHIP 10K 5% 1/16W R754 1-216-833-11 METAL CHIP 10K 5% 1/16W R767 1-216-833-11 METAL CHIP 10K 5% 1/16W R768 1-216-833-11 METAL CHIP 10K 5% 1/16W R786 1-216-833-11 METAL CHIP 10K 5% 1/16W R787 1-216-833-11 METAL CHIP 10K 5% 1/16W R815 1-216-837-11 METAL CHIP 22K 5% 1/16W R816 1-216-841-11 METAL CHIP 47K 5% 1/16W R824 1-216-809-11 METAL CHIP 100 5% 1/16W R861 1-216-849-11 METAL CHIP 220K 5% 1/16W R862 1-216-845-11 METAL CHIP 100K 5% 1/16W R863 1-216-837-11 METAL CHIP 22K 5% 1/16W R871 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R872 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R873 1-216-825-11 METAL CHIP 2.2K 5% 1/16W < VIBRATOR > X720 1-579-175-11 VIBRATOR, CERAMIC 10MHz ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ A-4476-936-A PANEL BOARD, COMPLETE ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ 4-233-850-01 HOLDER (FL) < CAPACITOR > C603 1-124-247-11 ELECT 10uF 20.00% 35V C623 1-162-306-11 CERAMIC 0.01uF 30.00% 16V C624 1-162-282-31 CERAMIC 100PF 10% 50V C626 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C635 1-124-247-11 ELECT 10uF 20.00% 35V C636 1-126-153-11 ELECT 22uF 20% 6.3V C637 1-164-156-11 CERAMIC CHIP 0.1uF 25V C640 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C641 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C642 1-162-306-11 CERAMIC 0.01uF 30.00% 16V C643 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C646 1-165-319-91 CERAMIC CHIP 0.1uF 50V C647 1-162-290-31 CERAMIC 470PF 10% 50V C648 1-162-286-31 CERAMIC 220PF 10.00% 50V C649 1-162-286-31 CERAMIC 220PF 10.00% 50V C650 1-162-286-31 CERAMIC 220PF 10.00% 50V C651 1-162-286-31 CERAMIC 220PF 10.00% 50V C652 1-162-286-31 CERAMIC 220PF 10.00% 50V C653 1-162-286-31 CERAMIC 220PF 10.00% 50V C654 1-162-286-31 CERAMIC 220PF 10.00% 50V PANEL MD DIGITAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 93 HCD-C5 C655 1-162-286-31 CERAMIC 220PF 10.00% 50V C656 1-162-286-31 CERAMIC 220PF 10.00% 50V C657 1-162-286-31 CERAMIC 220PF 10.00% 50V C658 1-162-286-31 CERAMIC 220PF 10.00% 50V C659 1-162-286-31 CERAMIC 220PF 10.00% 50V C660 1-162-286-31 CERAMIC 220PF 10.00% 50V C661 1-162-286-31 CERAMIC 220PF 10.00% 50V C662 1-162-286-31 CERAMIC 220PF 10.00% 50V C664 1-124-247-11 ELECT 10uF 20.00% 35V C665 1-124-589-11 ELECT 47uF 20% 16V < CONNECTOR > ∗ CN601 1-784-738-11 CONNECTOR, FFC 16P < DIODE > D601 8-719-300-71 DIODE SEL2210R-TP3 (?/1) D602 8-719-072-76 DIODE SEL5E23C-TP15 (FUNCTIONz) D603 8-719-072-76 DIODE SEL5E23C-TP15 (VOL +) D604 8-719-072-76 DIODE SEL5E23C-TP15 (VOL –) D605 8-719-072-76 DIODE SEL5E23C-TP15 (CDZ) D606 8-719-072-76 DIODE SEL5E23C-TP15 (u) D607 8-719-072-76 DIODE SEL5E23C-TP15 (x) D608 8-719-072-76 DIODE SEL5E23C-TP15 (>) D609 8-719-072-76 DIODE SEL5E23C-TP15 (.) D610 8-719-072-76 DIODE SEL5E23C-TP15 (MDZ) < FILTER > FL601 1-518-755-11 INDICATOR TUBE, FLUORESCENT < IC > IC601 8-759-297-23 IC M66004M8FP-200D IC602 8-759-827-69 IC NJL63H400A-1 (g) < TRANSISTOR > Q601 8-729-120-28 TRANSISTOR 2SC3052EF-T1-LEF Q602 8-729-120-28 TRANSISTOR 2SC3052EF-T1-LEF Q604 8-729-120-28 TRANSISTOR 2SC3052EF-T1-LEF < RESISTOR > R601 1-249-441-11 CARBON 100K 5% 1/4W R602 1-249-441-11 CARBON 100K 5% 1/4W R603 1-249-417-11 CARBON 1K 5% 1/4W R604 1-249-417-11 CARBON 1K 5% 1/4W R607 1-249-441-11 CARBON 100K 5% 1/4W R608 1-216-838-11 METAL CHIP 27K 5% 1/16W R609 1-216-821-11 METAL CHIP 1K 5% 1/16W R610 1-216-821-11 METAL CHIP 1K 5% 1/16W R611 1-216-821-11 METAL CHIP 1K 5% 1/16W R612 1-216-821-11 METAL CHIP 1K 5% 1/16W R614 1-216-813-11 METAL CHIP 220 5% 1/16W R615 1-216-813-11 METAL CHIP 220 5% 1/16W R616 1-216-813-11 METAL CHIP 220 5% 1/16W R617 1-216-813-11 METAL CHIP 220 5% 1/16W R618 1-216-809-11 METAL CHIP 100 5% 1/16W R619 1-216-813-11 METAL CHIP 220 5% 1/16W R620 1-216-813-11 METAL CHIP 220 5% 1/16W R621 1-216-813-11 METAL CHIP 220 5% 1/16W R622 1-216-813-11 METAL CHIP 220 5% 1/16W R623 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R624 1-249-433-11 CARBON 22K 5% 1/4W R639 1-216-797-11 METAL CHIP 10 5% 1/16W R640 1-249-413-11 CARBON 470 5% 1/4W R641 1-216-819-11 METAL CHIP 680 5% 1/16W R642 1-216-821-11 METAL CHIP 1K 5% 1/16W R643 1-216-817-11 METAL CHIP 470 5% 1/16W R644 1-216-819-11 METAL CHIP 680 5% 1/16W R645 1-216-821-11 METAL CHIP 1K 5% 1/16W R646 1-216-817-11 METAL CHIP 470 5% 1/16W R647 1-216-819-11 METAL CHIP 680 5% 1/16W R648 1-216-821-11 METAL CHIP 1K 5% 1/16W < SWITCH > S602 1-762-875-21 SWITCH, KEYBOARD (REC/REC IT/CD SYNC NORMAL) S603 1-762-875-21 SWITCH, KEYBOARD (VOL –) S604 1-762-875-21 SWITCH, KEYBOARD (VOL +) S605 1-762-875-21 SWITCH, KEYBOARD (FUNCTIONz) S606 1-762-875-21 SWITCH, KEYBOARD (?/1) S607 1-762-875-21 SWITCH, KEYBOARD (CDZ) S608 1-762-875-21 SWITCH, KEYBOARD (u) S609 1-762-875-21 SWITCH, KEYBOARD (x) S610 1-762-875-21 SWITCH, KEYBOARD (CD SYNC HIGH) S611 1-762-875-21 SWITCH, KEYBOARD (MDZ) S612 1-762-875-21 SWITCH, KEYBOARD (./m/TUNING–) S613 1-762-875-21 SWITCH, KEYBOARD (>/M/TUNING+) ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ A-4427-414-A POWER BOARD, COMPLETE (HK,KR) A-4476-948-A POWER BOARD, COMPLETE (AEP,UK,AUS) ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ < CAPACITOR > C902 1-126-767-11 ELECT 1000uF 20.00% 16V C903 1-126-964-11 ELECT 10uF 20.00% 50V C904 1-126-916-11 ELECT 1000uF 20.00% 6.3V C905 1-126-964-11 ELECT 10uF 20.00% 50V C906 1-126-926-11 ELECT 1000uF 20.00% 10V C907 1-126-964-11 ELECT 10uF 20.00% 50V C908 1-126-935-11 ELECT 470uF 20.00% 10V C909 1-126-964-11 ELECT 10uF 20.00% 50V C910 1-126-916-11 ELECT 1000uF 20.00% 6.3V C912 1-126-916-11 ELECT 1000uF 20.00% 6.3V C914 1-126-935-11 ELECT 470uF 20.00% 10V C922 1-126-933-11 ELECT 100uF 20.00% 16V C961 1-136-165-00 FILM 0.1uF 5.00% 50V C962 1-126-944-11 ELECT 3300uF 20.00% 25V C971 1-136-165-00 FILM 0.1uF 5.00% 50V C974 1-126-968-11 ELECT 100uF 20.00% 50V C975 1-126-964-11 ELECT 10uF 20.00% 50V C976 1-126-964-11 ELECT 10uF 20.00% 50V C981 1-136-165-00 FILM 0.1uF 5.00% 50V C982 1-136-165-00 FILM 0.1uF 5.00% 50V C983 1-135-933-11 ELECT 22000uF 20% 16V C984 1-128-548-11 ELECT 4700uF 20.00% 25V 0C991 1-113-925-11 CERAMIC 0.01uF 20.00% 250V C992 1-126-963-11 ELECT 4.7uF 20.00% 50V PANEL POWER Ver 1.1 2001.09 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 94 HCD-C5 < CONNECTOR > ∗ CN901 1-770-732-11 CONNECTOR, BOARD TO BOARD 15P CN902 1-778-241-11 CONNECTOR, BOARD TO BOARD 5P CN991 1-564-321-00 PIN, CONNECTOR 2P ∗ CN992 1-564-321-21 PIN, CONNECTOR 2P ∗ CN995 1-564-511-11 PLUG, CONNECTOR 8P < DIODE > D906 8-719-991-33 DIODE 1SS133T-77 D921 8-719-200-82 DIODE 11ES2-TA1B D961 8-719-200-82 DIODE 11ES2-TA1B D962 8-719-200-82 DIODE 11ES2-TA1B D963 8-719-200-82 DIODE 11ES2-TA1B D964 8-719-200-82 DIODE 11ES2-TA1B D971 8-719-200-82 DIODE 11ES2-TA1B D972 8-719-200-82 DIODE 11ES2-TA1B D973 8-719-200-82 DIODE 11ES2-TA1B D974 8-719-200-82 DIODE 11ES2-TA1B D975 8-719-982-24 DIODE MTZJ-T-77-33A D976 8-719-921-40 DIODE MTZJ-T-77-4.7A D981 8-719-028-23 DIODE D3SBA20-4101 D982 8-719-200-82 DIODE 11ES2-TA1B D983 8-719-200-82 DIODE 11ES2-TA1B D984 8-719-200-82 DIODE 11ES2-TA1B D985 8-719-200-82 DIODE 11ES2-TA1B D991 8-719-991-33 DIODE 1SS133T-77 D992 8-719-991-33 DIODE 1SS133T-77 D993 8-719-991-33 DIODE 1SS133T-77 < BRACKET > EB901 4-924-906-21 BRACKET (MT) EB902 4-924-906-21 BRACKET (MT) < IC > IC901 8-759-231-57 IC TA7810S IC902 8-759-701-75 IC NJM7805FA IC903 8-759-450-49 IC uPC2907HF IC904 8-759-701-75 IC NJM7805FA IC905 8-759-701-75 IC NJM7805FA IC906 8-759-686-72 IC uPC29L04J-T IC907 8-759-647-11 IC uPC2905HF < LINE FILTER > 0LF991 1-419-625-11 COIL, LINE FILTER < TRANSISTOR > Q971 8-729-141-83 TRANSISTOR 2SB1375 Q991 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 < RESISTOR > 0R971 1-219-153-11 FUSIBLE 10 5% 1/4W R972 1-260-103-11 CARBON 2.2K 5% 1/2W R973 1-249-429-11 CARBON 10K 5% 1/4W R974 1-249-413-11 CARBON 470 5% 1/4W R975 1-249-413-11 CARBON 470 5% 1/4W 0R981 1-219-120-81 FUSIBLE 0.15 5% 1/4W 0R982 1-240-877-11 FUSIBLE 0.15 5% 1/2W R991 1-249-429-11 CARBON 10K 5% 1/4W R992 1-216-833-11 METAL CHIP 10K 5% 1/16W R993 1-249-413-11 CARBON 470 5% 1/4W R994 1-249-413-11 CARBON 470 5% 1/4W R995 1-216-055-11 METAL CHIP 1.8K 5% 1/10W R995 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R996 1-247-791-91 CARBON 22 5% 1/4W < RELAY > 0RY991 1-755-276-11 RELAY, POWER < TRANSFORMER > 0T901 1-437-243-11 TRANSFORMER, POWER (SUB) (AEP,UK,AUS) 0T901 1-437-245-11 TRANSFORMER, POWER (SUB) (HK,KR) ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ 1-682-099-11 SW BOARD ∗∗∗∗∗∗∗∗∗ < SWITCH > S1 1-786-214-11 SWITCH (DETECTION) (Disc IN/8cm Disc Detect) S2 1-786-212-11 SWITCH (DETECTION) (12cm Disc/12cm Disc Eject End Detect) S3 1-786-213-11 SWITCH (DETECTION) (Disc Existence, Chaking, Releasing Detect) S4 1-786-214-11 SWITCH (DETECTION) (8cm Disc Eject End Detect) ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ A-4427-413-A UCOM BOARD, COMPLETE (AUS,HK,KR) A-4476-947-A UCOM BOARD, COMPLETE (AEP,UK) ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ ∗ 4-363-146-00 HEAT SINK, V.OUT 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S < LITHIUM BATTERY > BT921 1-528-938-11 BATTERY, LITHIUM ION SECONDARY < CAPACITOR > C201 1-126-176-11 ELECT 220uF 20% 10V C202 1-119-774-11 ELECT 100uF 20.00% 16V C203 1-164-159-11 CERAMIC 0.1uF 50V C204 1-104-665-11 ELECT 100uF 20.00% 10V C206 1-119-941-11 ELECT 470uF 20.00% 6.3V C208 1-164-156-11 CERAMIC CHIP 0.1uF 25V C211 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C212 1-162-294-31 CERAMIC 0.001uF 10% 50V C213 1-162-294-31 CERAMIC 0.001uF 10% 50V C216 1-126-786-11 ELECT 47uF 20.00% 16V C222 1-164-156-11 CERAMIC CHIP 0.1uF 25V C223 1-164-156-11 CERAMIC CHIP 0.1uF 25V C224 1-136-165-00 FILM 0.1uF 5.00% 50V C225 1-164-156-11 CERAMIC CHIP 0.1uF 25V C226 1-162-927-11 CERAMIC CHIP 100PF 5% 50V POWER SW UCOM The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver 1.1 2001.09 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 95 HCD-C5 C231 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C241 1-127-820-11 CERAMIC 4.7uF 16V C243 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C244 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C294 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C501 1-126-916-11 ELECT 1000uF 20.00% 6.3V C502 1-164-156-11 CERAMIC CHIP 0.1uF 25V C503 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C504 1-126-160-11 ELECT 1uF 20% 50V C505 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C506 1-164-159-11 CERAMIC 0.1uF 50V C507 1-164-156-11 CERAMIC CHIP 0.1uF 25V C509 1-164-156-11 CERAMIC CHIP 0.1uF 25V C510 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C535 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C536 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C911 1-164-159-11 CERAMIC 0.1uF 50V C941 1-126-964-11 ELECT 10uF 20.00% 50V C942 1-164-156-11 CERAMIC CHIP 0.1uF 25V C943 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > ∗ CN201 1-784-738-11 CONNECTOR, FFC 16P CN202 1-784-780-11 CONNECTOR, FFC 19P CN203 1-764-698-11 SOCKET, CONNECTOR (NON ZIF)19P CN204 1-568-844-11 CONNECTOR, FFC 29P CN205 1-766-956-11 CONNECTOR, BOARD TO BOARD 15P ∗ CN206 1-774-813-11 CONNECTOR, BOARD TO BOARD 7P CN207 1-774-136-11 CONNECTOR, ROUND TYPE 6P CN208 1-774-281-11 CONNECTOR (DIN) 8P CN209 1-774-281-11 CONNECTOR (DIN) 8P CN212 1-506-469-11 PIN, CONNECTOR 4P < DIODE > D214 8-719-988-61 DIODE 1SS355TE-17 D221 8-719-988-61 DIODE 1SS355TE-17 D222 8-719-988-61 DIODE 1SS355TE-17 D232 8-719-988-61 DIODE 1SS355TE-17 D513 8-719-988-61 DIODE 1SS355TE-17 D910 8-719-921-40 DIODE MTZJ-T-77-4.7B D923 8-719-991-33 DIODE 1SS133T-77 D924 8-719-991-33 DIODE 1SS133T-77 D925 8-719-988-61 DIODE 1SS355TE-17 D926 8-719-988-61 DIODE 1SS355TE-17 D927 8-719-988-61 DIODE 1SS355TE-17 D941 8-719-988-61 DIODE 1SS355TE-17 D942 8-719-988-61 DIODE 1SS355TE-17 D943 8-719-988-61 DIODE 1SS355TE-17 < TERMINAL > EPT101 1-537-770-21 TERMINAL BOARD, GROUND < CONDUCTOR / COIL > FB201 1-216-864-11 METAL CHIP 0 5% 1/16W FB202 1-216-864-11 METAL CHIP 0 5% 1/16W FB205 1-216-864-11 METAL CHIP 0 5% 1/16W FB211 1-412-473-21 INDUCTOR 0uH FB212 1-216-864-11 METAL CHIP 0 5% 1/16W FB213 1-216-864-11 METAL CHIP 0 5% 1/16W FB214 1-216-864-11 METAL CHIP 0 5% 1/16W FB222 1-216-864-11 METAL CHIP 0 5% 1/16W FB537 1-414-813-21 EMI FERRITE (SMD) < IC > IC212 8-759-683-99 IC BA8274F-E2 IC221 8-749-017-36 IC TORX-179 IC222 8-759-548-57 IC SN74LV00ANSR IC501 6-800-396-01 IC uPD703032AYGF-M01-3BA IC941 8-759-637-58 IC PST592C-T < CONDUCTOR > JR200 1-216-864-11 METAL CHIP 0 5% 1/16W JR203 1-216-864-11 METAL CHIP 0 5% 1/16W JR205 1-216-864-11 METAL CHIP 0 5% 1/16W JR208 1-216-864-11 METAL CHIP 0 5% 1/16W JR209 1-216-864-11 METAL CHIP 0 5% 1/16W JR210 1-216-864-11 METAL CHIP 0 5% 1/16W JR212 1-216-864-11 METAL CHIP 0 5% 1/16W JR213 1-216-864-11 METAL CHIP 0 5% 1/16W JR214 1-216-864-11 METAL CHIP 0 5% 1/16W JR215 1-216-864-11 METAL CHIP 0 5% 1/16W JR216 1-216-864-11 METAL CHIP 0 5% 1/16W JR217 1-216-864-11 METAL CHIP 0 5% 1/16W JR219 1-216-864-11 METAL CHIP 0 5% 1/16W JR225 1-216-864-11 METAL CHIP 0 5% 1/16W JR226 1-216-864-11 METAL CHIP 0 5% 1/16W JR227 1-216-864-11 METAL CHIP 0 5% 1/16W < CONDUCTOR > L551 1-216-864-11 METAL CHIP 0 5% 1/16W L552 1-216-864-11 METAL CHIP 0 5% 1/16W < TRANSISTOR > Q202 8-729-424-08 TRANSISTOR UN2111-TX Q211 8-729-025-28 TRANSISTOR 2SK1828TE85L Q212 8-729-025-28 TRANSISTOR 2SK1828TE85L Q221 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q222 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q223 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q224 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q232 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q911 8-729-421-22 TRANSISTOR UN2211-TX Q912 8-729-040-20 TRANSISTOR RT1P137L-TP Q941 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 < RESISTOR > R212 1-249-429-11 CARBON 10K 5% 1/4W R213 1-216-833-11 METAL CHIP 10K 5% 1/16W R214 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R215 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R217 1-216-833-11 METAL CHIP 10K 5% 1/16W R218 1-216-845-11 METAL CHIP 100K 5% 1/16W R219 1-249-417-11 CARBON 1K 5% 1/4W R221 1-249-413-11 CARBON 470 5% 1/4W R222 1-216-809-11 METAL CHIP 100 5% 1/16W R224 1-216-853-11 METAL CHIP 470K 5% 1/16W UCOM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 96 HCD-C5 R225 1-216-841-11 METAL CHIP 47K 5% 1/16W R226 1-216-853-11 METAL CHIP 470K 5% 1/16W R227 1-216-841-11 METAL CHIP 47K 5% 1/16W R228 1-216-841-11 METAL CHIP 47K 5% 1/16W R236 1-249-429-11 CARBON 10K 5% 1/4W R242 1-247-807-31 CARBON 100 5% 1/4W R243 1-216-821-11 METAL CHIP 1K 5% 1/16W R244 1-216-845-11 METAL CHIP 100K 5% 1/16W R245 1-216-845-11 METAL CHIP 100K 5% 1/16W R292 1-247-807-31 CARBON 100 5% 1/4W R501 1-247-807-31 CARBON 100 5% 1/4W R502 1-247-807-31 CARBON 100 5% 1/4W R503 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R504 1-247-807-31 CARBON 100 5% 1/4W R505 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R506 1-247-807-31 CARBON 100 5% 1/4W R507 1-247-807-31 CARBON 100 5% 1/4W R508 1-216-809-11 METAL CHIP 100 5% 1/16W R509 1-216-833-11 METAL CHIP 10K 5% 1/16W R510 1-216-833-11 METAL CHIP 10K 5% 1/16W R511 1-247-807-31 CARBON 100 5% 1/4W R512 1-247-887-00 CARBON 220K 5% 1/4W R513 1-247-807-31 CARBON 100 5% 1/4W R514 1-247-807-31 CARBON 100 5% 1/4W R515 1-247-807-31 CARBON 100 5% 1/4W R516 1-216-837-11 METAL CHIP 22K 5% 1/16W R517 1-247-807-31 CARBON 100 5% 1/4W R518 1-247-807-31 CARBON 100 5% 1/4W R519 1-247-887-00 CARBON 220K 5% 1/4W R520 1-249-421-11 CARBON 2.2K 5% 1/4W R521 1-216-833-11 METAL CHIP 10K 5% 1/16W R522 1-216-833-11 METAL CHIP 10K 5% 1/16W R523 1-216-833-11 METAL CHIP 10K 5% 1/16W R524 1-216-809-11 METAL CHIP 100 5% 1/16W R525 1-216-833-11 METAL CHIP 10K 5% 1/16W R526 1-247-807-31 CARBON 100 5% 1/4W R527 1-247-807-31 CARBON 100 5% 1/4W R528 1-249-429-11 CARBON 10K 5% 1/4W R529 1-247-807-31 CARBON 100 5% 1/4W R530 1-249-417-11 CARBON 1K 5% 1/4W R531 1-249-417-11 CARBON 1K 5% 1/4W R532 1-249-417-11 CARBON 1K 5% 1/4W R533 1-249-417-11 CARBON 1K 5% 1/4W R535 1-249-429-11 CARBON 10K 5% 1/4W R536 1-216-851-11 METAL CHIP 330K 5% 1/16W R538 1-249-429-11 CARBON 10K 5% 1/4W R543 1-216-809-11 METAL CHIP 100 5% 1/16W R544 1-216-809-11 METAL CHIP 100 5% 1/16W R545 1-216-821-11 METAL CHIP 1K 5% 1/16W R546 1-216-809-11 METAL CHIP 100 5% 1/16W R547 1-216-809-11 METAL CHIP 100 5% 1/16W R548 1-216-809-11 METAL CHIP 100 5% 1/16W R549 1-216-809-11 METAL CHIP 100 5% 1/16W R550 1-216-809-11 METAL CHIP 100 5% 1/16W R551 1-249-429-11 CARBON 10K 5% 1/4W R554 1-216-809-11 METAL CHIP 100 5% 1/16W R556 1-249-421-11 CARBON 2.2K 5% 1/4W R557 1-216-833-11 METAL CHIP 10K 5% 1/16W R558 1-216-833-11 METAL CHIP 10K 5% 1/16W R559 1-216-833-11 METAL CHIP 10K 5% 1/16W R560 1-249-417-11 CARBON 1K 5% 1/4W R561 1-249-417-11 CARBON 1K 5% 1/4W R562 1-216-809-11 METAL CHIP 100 5% 1/16W R563 1-216-809-11 METAL CHIP 100 5% 1/16W R564 1-216-809-11 METAL CHIP 100 5% 1/16W R565 1-216-835-11 METAL CHIP 15K 5% 1/16W R566 1-216-835-11 METAL CHIP 15K 5% 1/16W R567 1-249-429-11 CARBON 10K 5% 1/4W R568 1-216-835-11 METAL CHIP 15K 5% 1/16W R569 1-216-809-11 METAL CHIP 100 5% 1/16W R570 1-216-809-11 METAL CHIP 100 5% 1/16W R572 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R577 1-216-821-11 METAL CHIP 1K 5% 1/16W R578 1-216-821-11 METAL CHIP 1K 5% 1/16W R579 1-216-821-11 METAL CHIP 1K 5% 1/16W R580 1-216-833-11 METAL CHIP 10K 5% 1/16W R581 1-216-833-11 METAL CHIP 10K 5% 1/16W R583 1-216-833-11 METAL CHIP 10K 5% 1/16W R584 1-216-833-11 METAL CHIP 10K 5% 1/16W (AEP,UK) R585 1-216-833-11 METAL CHIP 10K 5% 1/16W R586 1-216-833-11 METAL CHIP 10K 5% 1/16W R587 1-216-833-11 METAL CHIP 10K 5% 1/16W R588 1-216-833-11 METAL CHIP 10K 5% 1/16W R590 1-249-417-11 CARBON 1K 5% 1/4W R591 1-249-437-11 CARBON 47K 5% 1/4W R592 1-216-821-11 METAL CHIP 1K 5% 1/16W R593 1-216-833-11 METAL CHIP 10K 5% 1/16W R594 1-216-821-11 METAL CHIP 1K 5% 1/16W R595 1-249-417-11 CARBON 1K 5% 1/4W R596 1-216-821-11 METAL CHIP 1K 5% 1/16W R597 1-216-809-11 METAL CHIP 100 5% 1/16W R910 1-260-103-11 CARBON 2.2K 5% 1/2W R911 1-216-864-11 METAL CHIP 0 5% 1/16W R921 1-216-813-11 METAL CHIP 220 5% 1/16W R941 1-216-817-11 METAL CHIP 470 5% 1/16W R942 1-216-833-11 METAL CHIP 10K 5% 1/16W R943 1-216-841-11 METAL CHIP 47K 5% 1/16W R946 1-216-837-11 METAL CHIP 22K 5% 1/16W R947 1-216-841-11 METAL CHIP 47K 5% 1/16W < VIBRATOR > X501 1-760-014-31 VIBRATOR, CERAMIC 20MHz X502 1-567-098-41 VIBRATOR, CRYSTAL 32.768kHz ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ MISCELLANEOUS ∗∗∗∗∗∗∗∗∗∗∗∗∗∗ 1 1-757-791-11 WIRE (FLAT TYPE) (16 CORE) 6 1-773-289-11 WIRE (FLAT TYPE) (29 CORE) 0104 1-696-847-11 CORD, POWER (AUS) 0104 1-769-079-21 CORD, POWER (KR) 0104 1-777-071-21 CORD, POWER (AEP,UK,HK) 105 1-769-943-11 WIRE (FLAT TYPE) (11CORE) (AUS,HK,KR) 105 1-773-007-11 WIRE (FLAT TYPE) (15 CORE) (AEP,UK) 106 1-693-529-11 TUNER PACK (FM/AM) (AEP,UK) 106 1-693-531-11 TUNER PACK (FM/AM) (AUS,HK) 106 1-693-536-11 TUNER PACK (FM/AM) (KR) UCOM The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver 1.1 2001.09 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 97 HCD-C5 108 1-773-110-11 WIRE (FLAT TYPE) (19 CORE) 154 1-773-138-11 WIRE (FLAT TYPE) (19 CORE) 156 1-757-079-11 WIRE (FLAT TYPE) (17 CORE) 157 1-757-080-11 WIRE (FLAT TYPE) (27 CORE) 408 1-682-101-11 PICK-UP FLEXIBLE BOARD 0503 1-758-631-11 OPTICAL PICK-UP (OPTIMA-720L1E) 759 1-678-514-11 FLEXIBLE BOARD 0760 A-4672-541-A OPTICAL PICK-UP (KMS-260B) HR901 1-500-670-11 HEAD, OVER WRITE M701 A-4672-898-A MOTOR ASSY, SPINDLE M702 A-4735-076-A MOTOR ASSY, SLED M703 A-4735-074-A MOTOR ASSY, LOADING M901 1-698-997-11 FAN, D.C. M902 X-4954-023-1 MOTOR ASSY, LOADING M903 X-4954-020-1 MOTOR ASSY, FEED M904 X-4954-021-1 MOTOR ASSY, SPINDLE S1 1-786-214-11 SWITCH (DETECTION) (Disc IN/8cm Disc detect) S2 1-786-213-11 SWITCH (DETECTION) (12cm Disc/12cm Disc Eject End detect) S3 1-786-213-11 SWITCH (DETECTION) (Disc Existence, Chucking, Releasing detect) S4 1-786-214-11 SWITCH (DETECTION) (8cm Disc Eject detect) S5 1-786-212-11 SWITCH (DETECTION) (LIMIT IN) S102 1-771-957-11 SWITCH, PUSH (2 KEY) (REFLECT→PROTECT) 0T900 1-437-239-11 TRANSFORMER, POWER (AEP,UK,AUS) 0T900 1-437-241-11 TRANSFORMER, POWER (HK,KR) ∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗∗ ∗∗∗∗∗∗∗∗∗∗∗∗∗∗ HARDWARE LIST ∗∗∗∗∗∗∗∗∗∗∗∗∗∗ #1 7-685-870-01 SCREW +BVTT 3X5 (S) #2 7-685-245-19 SCREW +KTP 3X6 TYPE2 NON-SLIT #3 7-685-852-04 SCREW +BVTT 2X5 (S) #4 7-685-861-01 SCREW +BVTT 2.6X5 (S) #5 7-685-648-79 SCREW +BVTP 3X12 TYPE2 N-S #6 7-682-565-09 SCREW +B 4X16 #7 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #8 7-684-024-04 N 4, TYPE 2 #9 7-685-104-19 SCREW +P 2X6 TYPE2 NON-SLIT #10 7-685-504-19 SCREW +BTP 2X6 TYPE2 N-S #11 7-685-101-11 SCREW +P 2X3 NON-SLIT TYPE2 #12 7-685-103-19 SCREW +P 2X5 TYPE2 NON-SLIT #13 7-627-553-38 SCREW, PRECISION +P 2X3 #14 7-627-553-28 SCREW, PRECISION +P 2X2.5 #15 7-627-553-17 PRECISION SCREW +P 2X2 TYPE 3 #16 7-627-553-78 SCREW, PRECISION +P 2X10 #17 7-627-553-68 SCREW, PRECISION +P 2X6 TYPE3 #18 7-627-552-77 SCREW, PRECISION +P 1.7X6 #19 7-627-552-88 SCREW, PRECISION +P 1.7X2.2 #20 7-627-551-18 SCREW, PRECISION +P 1.4X2 #21 7-685-850-04 SCREW +BVTT 2X3 (S) #22 7-685-204-19 SCREW +KTP 2X6 TYPE2 NON-SLIT The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver 1.1 2001.09 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.1 2001.09 Addition of Australian, Hong Kong and Korean models. 1.0 2001.07 New HCD-C5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
