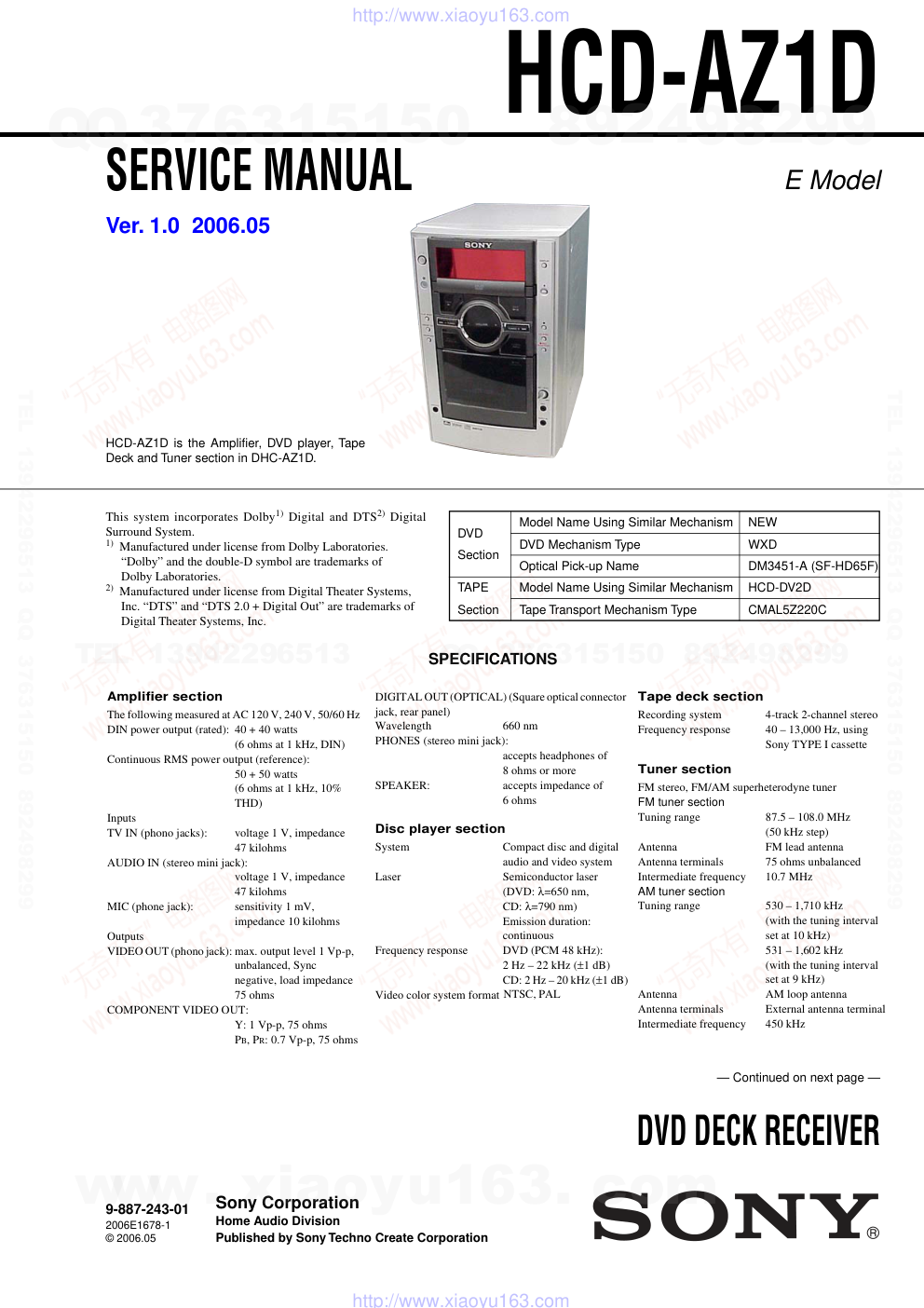

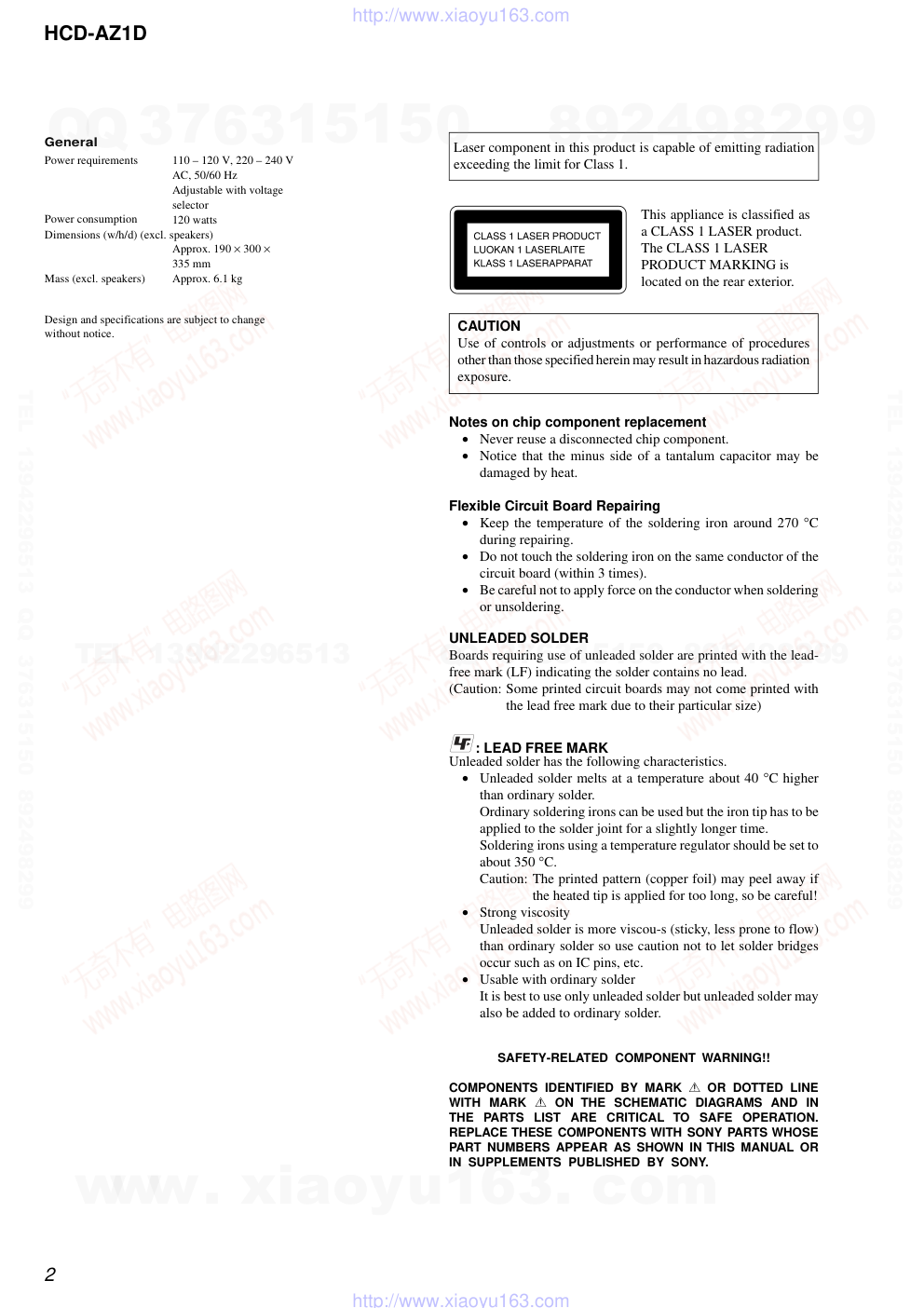

SERVICE MANUAL Sony Corporation Home Audio Division Published by Sony Techno Create Corporation E Model DVD DECK RECEIVER 9-887-243-01 2006E1678-1 © 2006.05 Ver. 1.0 2006.05 SPECIFICATIONS HCD-AZ1D HCD-AZ1D is the Amplifier, DVD player, Tape Deck and Tuner section in DHC-AZ1D. — Continued on next page — This system incorporates Dolby1) Digital and DTS2) Digital Surround System. 1) Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. 2) Manufactured under license from Digital Theater Systems, Inc. “DTS” and “DTS 2.0 + Digital Out” are trademarks of Digital Theater Systems, Inc. DVD Model Name Using Similar Mechanism NEW Section DVD Mechanism Type WXD Optical Pick-up Name DM3451-A (SF-HD65F) TAPE Model Name Using Similar Mechanism HCD-DV2D Section Tape Transport Mechanism Type CMAL5Z220C Amplifier section The following measured at AC 120 V, 240 V, 50/60 Hz DIN power output (rated): 40 + 40 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference): 50 + 50 watts (6 ohms at 1 kHz, 10% THD) Inputs TV IN (phono jacks): voltage 1 V, impedance 47 kilohms AUDIO IN (stereo mini jack): voltage 1 V, impedance 47 kilohms MIC (phone jack): sensitivity 1 mV, impedance 10 kilohms Outputs VIDEO OUT (phono jack): max. output level 1 Vp-p, unbalanced, Sync negative, load impedance 75 ohms COMPONENT VIDEO OUT: Y: 1 Vp-p, 75 ohms PB, PR: 0.7 Vp-p, 75 ohms DIGITAL OUT (OPTICAL) (Square optical connector jack, rear panel) Wavelength 660 nm PHONES (stereo mini jack): accepts headphones of 8 ohms or more SPEAKER: accepts impedance of 6 ohms Disc player section System Compact disc and digital audio and video system Laser Semiconductor laser (DVD: λ=650 nm, CD: λ=790 nm) Emission duration: continuous Frequency response DVD (PCM 48 kHz): 2 Hz – 22 kHz (±1 dB) CD: 2 Hz – 20 kHz (±1 dB) Video color system format NTSC, PAL Tape deck section Recording system 4-track 2-channel stereo Frequency response 40 – 13,000 Hz, using Sony TYPE I cassette Tuner section FM stereo, FM/AM superheterodyne tuner FM tuner section Tuning range 87.5 – 108.0 MHz (50 kHz step) Antenna FM lead antenna Antenna terminals 75 ohms unbalanced Intermediate frequency 10.7 MHz AM tuner section Tuning range 530 – 1,710 kHz (with the tuning interval set at 10 kHz) 531 – 1,602 kHz (with the tuning interval set at 9 kHz) Antenna AM loop antenna Antenna terminals External antenna terminal Intermediate frequency 450 kHz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 HCD-AZ1D CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. UNLEADED SOLDER Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40 °C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350 °C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscou-s (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 °C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Laser component in this product is capable of emitting radiation exceeding the limit for Class 1. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. General Power requirements 110 – 120 V, 220 – 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption 120 watts Dimensions (w/h/d) (excl. speakers) Approx. 190 × 300 × 335 mm Mass (excl. speakers) Approx. 6.1 kg Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-AZ1D TABLE OF CONTENTS 1. SERVICING NOTES ................................................ 4 2. GENERAL ................................................................... 7 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 10 3-2. Top Cover, DC Fan .......................................................... 11 3-3. AMP Board, AV Board, Tuner (FM/AM) ....................... 11 3-4. MPEG Board ................................................................... 12 3-5. MPEG Holder .................................................................. 12 3-6. DVD Panel Tray .............................................................. 13 3-7. DVD Loader (WXD) ....................................................... 13 3-8. Optical Pick-up DM3451-A (SF-HD65F) ....................... 14 3-9. Front Panel Section ......................................................... 14 3-10. Cassette Mechanism Deck (CMAL5Z220C) .................. 15 3-11. KEY Board ...................................................................... 15 3-12. HP Board, MIC CONTROL Board ................................. 16 3-13. MAIN Board.................................................................... 16 3-14. POWER Board ................................................................ 17 3-15. Panel Cass........................................................................ 17 4. TEST MODE ............................................................... 18 5. MECHANICAL ADJUSTMENTS......................... 19 6. ELECTRICAL ADJUSTMENTS .......................... 19 7. DIAGRAMS 7-1. Block Diagram — MPEG-1 Section — ......................... 22 7-2. Block Diagram — MPEG-2 Section — ......................... 23 7-3. Block Diagram — USB Section —................................ 24 7-4. Block Diagram — AUDIO Section — ........................... 25 7-5. Block Diagram — PANEL/POWER Section — ............ 26 7-6. Printed Wiring Board — MAIN Section — ................... 27 7-7. Schematic Diagram — MAIN Section (1/4) — ............. 28 7-8. Schematic Diagram — MAIN Section (2/4) — ............. 29 7-9. Schematic Diagram — MAIN Section (3/4) — ............. 30 7-10. Schematic Diagram — MAIN Section (4/4) — ............. 31 7-11. Printed Wiring Board — MPEG Section (Side A) — .... 32 7-12. Printed Wiring Board — MPEG Section (Side B) — .... 33 7-13. Schematic Diagram — MPEG Section (1/3) — ............ 34 7-14. Schematic Diagram — MPEG Section (2/3) — ............ 35 7-15. Schematic Diagram — MPEG Section (3/3) — ............ 36 7-16. Printed Wiring Boards — KEY Section — .................... 37 7-17. Schematic Diagram — KEY Section — ........................ 38 7-18. Schematic Diagram — MIC CONTROL Section — ..... 39 7-19. Printed Wiring Board — AV Section —......................... 40 7-20. Schematic Diagram — AV Section — ........................... 40 7-21. Printed Wiring Board — AMP Section — ..................... 41 7-22. Schematic Diagram — AMP Section — ........................ 42 7-23. Printed Wiring Board — POWER Section — ................ 43 7-24. Schematic Diagram — POWER Section — .................. 44 8. EXPLODED VIEWS 8-1. Overall Section ................................................................ 55 8-2. Front Panel Section ......................................................... 56 8-3. Chassis Section ................................................................ 57 8-4. DVD Mechanism Deck Section ...................................... 58 9. ELECTRICAL PARTS LIST .................................. 59 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-AZ1D SECTION 1 SERVICING NOTES The laser diode in the optical pick-up block may suffer electrostatic break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, observe from more than 30 cm away from the objective lens. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT MODEL IDENTIFICATION – Rear Panel – • Abbreviation E3 : 240 V AC Area in E model. SP : Singapore model. • SERVICE POSITION OF THE TAPE CASSETTE MECHANISM DECK DISC TRAY LOCK The disc tray lock function for the antitheft of an demonstration disc in the store is equipped. Procedure : 1. Press the ?/1 button to turn the set ON. 2. Press the DVD u button to select “DVD” 3. Set disc on the tray, press the x button and the Z button simultaneously for five seconds. 4. The message “LOCKED” is displayed the tray is locked. 5. To release from this mode, press the x button and the Z button simultaneously for five seconds again. 6. The message “UNLOCKED” is displayed and the tray is unlocked. Note: When “LOCKED” is displayed, the slot lock is not released by turning power on/off with the ?/1 button. Model Part No. E3 model 2-672-998-0[] SP model 2-673-001-0[] Parts No. Tape Cassette Mechanism Deck (CMAL5Z220C) MAIN board Front Panel www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-AZ1D • HOW TO OPEN THE DVD TRAY MANUALLY • SERVICE POSITION OF THE DVD MECHANISM DECK Draw out the flexible board of the DVD mechanism deck from this position. DVD mechanism deck MPEG board Insert the stiff wire in the hole. The lock is released and the DVD tray opens. hole stiff wire DVD tray www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-AZ1D • CAUTION ON HANDLING POWER CORD (SAFETY STANDARD) When you remove or replace the power cord, (1) Fix the power cord to the POWER board with a binding strap as before. (2) Check that the single-sheathed portion of the power cord does not contact the transformer even when the single-sheathed portion is pushed toward the transformer with a 200-g force. single-sheathed portion of the power cord power transformer www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 HCD-AZ1D SECTION 2 GENERAL This section is extracted from instruction manual. Main unit AUDIO IN jack qg (31, 42, 43) Cassette compartment qh (30) CD SYNC 9 (30) Disc tray 4 (13) DISPLAY 3 (36, 37, 38) Display window 2 MIC jack qf (32) MIC LEVEL qd (32) PC/TV/AUDIO IN ql (31, 40, 43) PHONES jack qj PLAY MODE ws (14, 18, 49) PRESET EQ wa (32) PROGRESSIVE w; (23) Remote sensor wg TUNER/BAND qa (27, 28, 31) TUNING + 7 (27, 29) TUNING – wd (27, 29) VOLUME +/– qk (14, 29, 30, 40, 43) ?/1 (on/standby) 1 (10, 40, 49) Z (open/close) 5 (13) DVD NX (play/pause) 6 (13, 31, 44, 49) > (go forward) 7 (14, 31) x (stop) 8 (11, 14, 23, 28, 30, 33, 44, 49) z REC PAUSE/START (record) q; (30, 33) Z PUSH OPEN/CLOSE (eject) qs (30) . (go back) wd (14, 31) TAPE N (play) wf (30) List of button locations and reference pages How to use this page Use this page to find the location of buttons and other parts of the system that are mentioned in the text. Illustration number r TUNER/BAND qa (27, 28, 31) R R Name of button/part Reference page ALPHABETICAL ORDER A – O P – Z BUTTON DESCRIPTIONS 1 2 7 8 0 qa qs qd 6 5 3 4 qg qf 9 qh qj qk ql w; wa ws wd wf wg www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 HCD-AZ1D Remote control ANGLE 5 (21) AUDIO 4 (20, 32) CLEAR ef (18, 19, 24) CLOCK/TIMER SELECT w; (35, 36) CLOCK/TIMER SET w; (12, 34, 35) DIMMER ej (36) DISPLAY qj (36, 37, 38) DVD eh (11, 12, 13, 16, 18, 23, 25, 30, 44) ENTER qs wg (12, 15, 16, 18, 19, 21, 22, 24, 27, 34, 35, 43, 49) FM MODE eg (29) FUNCTION +/– 2 (11, 12, 13, 16, 18, 23, 25, 30, 44) MENU 6 (15, 16) MUTING wh (14, 29, 30) Number buttons* qf (15, 16, 18, 19, 24, 41) PLAY MODE qg (14, 18) PRESET + wk (27, 28) PRESET – es (27, 28) PRESET EQ wf (32) REPEAT eg (17) SEARCH 3 (19) SLEEP qk (34) SUBTITLE wd (21) TAPE qh (30) THEATRE SYNC ql (41) TOP MENU qd (15) TUNER/BAND wa (27, 28) TUNER MEMORY ws (27) TUNING + 9 (27, 29) TUNING – qa (27, 29) TV e; (40) TV CH + wk (40, 41) TV CH – es (40) TV/VIDEO qk (40, 41) TV VOL +/–* 7 (40) VOLUME +/–* 7 (14, 29, 30, 34) ?/1 (on/standby) 1 (10, 34, 49) TV ?/1 1 (40) SLOW/SLOW y 8 (14) M (fast forward) 9 (14, 30) X (pause) 0 (14) m (rewind) qa (14, 30) M/m/ (forward) wk (12, 14, 31, 34) x (stop) wl (11, 14, 23, 30, 44) H (play)* ea (13, 30, 44) . (go back) es (12, 14, 31, 34) O RETURN ed (16) -/-- ef * The H, number 5 and VOLUME + (TV VOL +) buttons have tactile dots. Use the tactile dots as references when operating the system. ALPHABETICAL ORDER A – O P – Z BUTTON DESCRIPTIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-AZ1D Use buttons on the remote for the operation. 1 Press ?/1 to turn on the system. 2 Press CLOCK/TIMER SET. 3 Press . or > repeatedly to set the hour. 4 Press ENTER. 5 Press . or > repeatedly to set the minute. 6 Press ENTER. The clock starts working. To adjust the clock 1 Press CLOCK/TIMER SET. 2 Press . or > to select “CLOCK SET,” then press ENTER. 3 Do the same procedures as step 3 to 6 above. Notes • The clock settings are canceled when you disconnect the power cord or if a power failure occurs. • You cannot set the clock in Power Saving Mode (page 36). Setting the clock www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-AZ1D SECTION 3 DISASSEMBLY 3-1. DISASSEMBLY FLOW • This set can be disassembled in the order shown below. 3-2. TOP COVER, DC FAN (Page 11) SET 3-3. AMP BOARD, AV BOARD, TUNER (FM/AM) (Page 11) 3-5. MPEG HOLDER (Page 12) 3-4. MPEG BOARD (Page 12) 3-6. DVD PANEL TRAY (Page 13) 3-9. FRONT PANEL SECTION (Page 14) 3-13. MAIN BOARD (Page 16) 3-14. POWER BOARD (Page 17) 3-8. OPTICAL PICK-UP DM3451-A (SF-HD65F) (Page 14) 3-15. PANEL CASS (Page 17) 3-7. DVD LOADER (WXD) (Page 13) 3-11. KEY BOARD (Page 15) 3-12. HP BOARD, MIC CONTROL BOARD (Page 16) 3-10. CASSETTE MECHANISM DECK (CMAL5Z220C) (Page 15) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-AZ1D Note: Follow the disassembly procedure in the numerical order given. 3-2. TOP COVER, DC FAN 3 screw (screw 3 × 6) 9 screw (screw 3 × 8) qa four screws (screw 3 × 8) q; two screws (screw 3 × 8) 8 connector 3P (CN350) 6 qd DC fan qs cover heat sink b 7 top cover 1 screw (screw 3 × 6) 2 screw (screw 3 × 10) 4 screw (screw 3 × 10) 5 five screws (screw 3 × 6) a a b 1 two screws (screw 3 × 10) qf four screws (screw 3 × 10) qa screw (screw 3 × 8) 9 three screws (screw 3 × 10) 8 two screws (screw 3 × 8) 0 two screws (screw 3 × 8) qh two screws (screw 3 × 8) 2 two screws (screw 3 × 10) 7 AMP board 3 connector 10P (CN108) 4 connector 7P (CN102) 5 connector 3P (CN106) 6 connector 5P (CN101) qd wire (flat type) 16core (CN801A) qs earth wire qg AV board qk tuner w; rear panel ql two claws qj wire (flat type) 9core 3-3. AMP BOARD, AV BOARD, TUNER (FM/AM) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-AZ1D 3-5. MPEG HOLDER 3-4. MPEG BOARD 9 MPEG board 3 wire (flat type) 24core (CN7) 6 wire (flat type) 12core (CN1) 8 5 connector 9P (CN3) 2 connector 5P (CN9) 1 connector 6P (CN10) 7 two screws (screw 3 × 8) 4 wire (flat type) 16core (CN2) 1 screw (screw 3 × 8) 3 MPEG holder 6 holder 2 two hooks 4 two screws (screw 2.6 × 8) 5 two screws (screw 2.6 × 8) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-AZ1D 3-6. DVD PANEL TRAY 4 DVD panel tray 2 3 two claws stiff wire 1 3-7. DVD LOADER (WXD) 7 DVD loader (WXD) 6 two screws (screw 3 × 10) 8 two screws (screw 3 × 10) 2 two screws (screw 3 × 10) q; DVD holder 3 two dowels 4 5 two screws (screw 3 × 10) 1 screw (screw 3 × 10) 9 two rear mecha holders www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-AZ1D 3-9. FRONT PANEL SECTION 3-8. OPTICAL PICK-UP DM3451-A (SF-HD65F) 2 1 Turn round the gear in the direction of the arrow. 6 7 9 two dumpers (traverse mech) 8 holder (traverse mech) 4 two screws 5 two dumpers (traverse mech) q; wire (flat type) 24core qa optical pick-up DM3451-A (SF-HD65F) 3 belt (pulley) 1 wire (flat type) 21core (CN501) 9 screw (screw 3 × 10) qs front panel section 3 connector 8P (CN201) 2 connector 3P (CN202) 4 connector 3P (CN104) 7 screw (screw 3 × 8) 6 screw (screw 3 × 8) 8 screw (screw 3 × 8) 5 screw (screw 3 × 8) q; claw qa claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-AZ1D 3-10. CASSETTE MECHANISM DECK (CMAL5Z220C) 5 cassette mechanism deck (CMAL5Z220C) 2 four screws (screw 3 × 10) 4 cover cass deck DV2D 1 wire (flat type) 7core 3 coating clip 3-11. KEY BOARD 3 ten screws (screw 2.6 × 8) 1 four screws (screw 3 × 10) 5 wire (flat type) 21core (CN601) 4 wire (flat type) 7core (CN602) 6 KEY board 2 holder mecha front www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-AZ1D 3-12. HP BOARD, MIC CONTROL BOARD 1 two screws (screw 2.6 × 8) 3 three screws (screw 2.6 × 8) 2 HP board 5 MIC CONTROL board 4 mic knob 3-13. MAIN BOARD 3 connector 8P (CN201) 2 connector 11P (FW901) 7 wire (flat type) 21core (CN501) 5 wire (flat type) 12core (CN503) 1 two screws (screw 3 × 10) 8 MAIN board 4 connector 3P (CN202) 6 connector 3P (CN104) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-AZ1D 2 four screws (screw 4 × 8) 4 coating clip 3 coating clip 9 power transformer q; POWER board 8 Remove the solderings. 6 clamp 7 power cord 5 bushing cord 1 connector 11P (FW901) 4 panel cass, window cass 1 2 3 four claws 3-14. POWER BOARD 3-15. PANEL CASS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-AZ1D SECTION 4 TEST MODE COLD RESET • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customers. Procedure: 1. Press the ?/1 button to turn the set ON. 2. Press three buttons x , [PLAY MODE] and DVD u simul- taneously. 3. The message “COLD RESET” is displayed and the set is reset. TUNER STEP CHANGE • A step of AM channels can be changed over between 9 kHz and 10 kHz. Procedure: 1. Press the ?/1 button to turn the set ON. 2. Select the function “TUNER”, and press [TUNER/BAND] button to select the BAND “AM”. 3. Press the ?/1 button to turn the set OFF. 4. Press the x and [TUNER/BAND] buttons simultaneously, and thus the channel step is changed over. SHIP RESET Procedure: 1. Press the ?/1 button to turn the set ON. 2. Press the DVD u button to select “DVD” 3. Remove the disc. 4. The message “NO DISC” is displayed. 5. Press three buttons x , [PLAY MODE] and TAPE N si- multaneously. 6. The message “SHIP RESET” is displayed and the set is reset. The DVD function is activated. 7. To exit from this mode, press the ?/1 button and pull out the AC plug. DISC TRAY LOCK The disc tray lock function for the antitheft of an demonstration disc in the store is equipped. Procedure : 1. Press the ?/1 button to turn the set ON. 2. Press the DVD u button to select “DVD” 3. Set disc on the tray, press the x button and the Z button simultaneously for five seconds. 4. The message “LOCKED” is displayed the tray is locked. 5. To release from this mode, press the x button and the Z button simultaneously for five seconds again. 6. The message “UNLOCKED” is displayed and the tray is unlocked. Note: When “LOCKED” is displayed, the slot lock is not released by turning power on/off with the ?/1 button. PANEL TEST MODE • This mode is used to check the software version, FL, LED and KEY. Procedure: 1. Press the ?/1 button to turn the set ON. 2. Press the DVD u button to select “DVD” 3. Press three buttons x , [PRESET EQ] and TAPE N simul- taneously. 4. When the panel test mode is activated, all segments are turned on. VERSION DISPLAY • This mode is used check the model, destination, software version. Procedure: 1. Press the ?/1 button to turn the set ON. 2. Press the DVD u button to select “DVD” 3. Press three buttons x , [PRESET EQ] and [TV] simultaneous- ly, the model and destination are displayed. DVD COLOR SYSTEM CHANGE OVER • The color system can be changed over NTSC or PAL. Procedure: 1. Press the ?/1 button to turn the set ON. 2. Set the function to “DVD”. 3. Press the ?/1 button to turn the set OFF. 4. Press the x button and ?/1 button simultaneously. The set will power on automatically. 5. The message “COLOR PAL” or “COLOR NTSC” will be displayed on the fluorescent indicator tube. The color system is changed over. CD REPEAT 5 TIMES LIMIT RELEASE MODE Procedure: 1. Press the ?/1 button to turn the set ON. 2. Set the function to “DVD”. 3. Press three buttons x , Z , and DVD u simultaneously. 4. The repeat all mark blinks and then repeat 5 times limit is released. Note 1: Regarding the notification symbol “R” Because the number of the operating buttons of this product are limited, some operations require use of the operating buttons of the remote commander. When a specific operation requires use of the operating buttons of the remote commander, “R” is added to the specific operating procedure in this manual. Example MENU/NO “R” The MENU/NO button of remote commander. Note 2: Incorrect operations may be performed if the test mode is not entered properly. In this case, press the ?/1 button to turn the power off, and retry to enter the test mode. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-AZ1D SECTION 5 MECHANICAL ADJUSTMENTS 2.94 – 7.84 mN • m (31 to 71 g • cm) (0.43 – 0.98 oz • inch) 0.15 – 0.59 mN • m (2 to 6 g • cm) (0.02 – 0.08 oz • inch) 2.94 – 7.84 mN • m (30 to 79 g • cm) (0.42 – 1.11 oz • inch) 0.15 – 0.59 mN • m (2 to 6 g • cm) (0.03 – 0.08 oz • inch) 6.86 – 17.64 mN • m (71 to 143 g • cm) (0.98 – 2.49 oz • inch) 9.8 mN • m or more (100 g • cm or more) (1.4 oz • inch or more) 9.8 mN • m or more (100 g • cm or more) (1.4 oz • inch or more) CQ-102C CQ-102C CQ-102RC CQ-102RC CQ-201B CQ-403A CQ-403R Precaution 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback heads pinch rollers erase head rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagne- tizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement Mode FWD FWD back tension REV REV back tension FF/REW FWD tension REV tension Torque meter Meter reading SECTION 6 ELECTRICAL ADJUSTMENTS [Record/Playback Head Azimuth Adjustment] Procedure: 1. Mode : Playback 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1 dB of peak. test tape P-4-A100 (10kHz, –10dB) MAIN board JK102 speaker terminal level meter set + – L-CH peak R-CH peak screw position output level within 1 dB L-CH peak R-CH peak screw position within 1dB DECK SECTION 0 dB=0.775V 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjusted. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. (As a general rule, playback circuit adjustment should be completed before performing recording circuit adjustment.) 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. Signal Used for Tape P-4-A100 WS-48B 10 kHz, –10 dB 3 kHz, 0 dB Azimuth Adjustment Tape Speed Adjustment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-AZ1D 4. After the adjustments, apply suitable locking compound to the parts adjusted. Adjustment Location: Record/Playback/Erase Head 3. Mode: Playback test tape P-4-A100 (10kHz, –10dB) oscilloscope set Waveform of oscilloscope in phase 45° 90° 135° 180° good wrong MAIN board JK102 speaker terminal L R DVD SECTION [RF Level Check] Check the RF level when optical pick-up block is replaced. Connection: Procedure: 1. Connect an oscilloscope to CN7 pin 8 (V-RF) and CN7 pin wf (GND) on the MPEG board. 2. Turn the power on. 3. Set the test disc on the tray and press DVDu button to playback. 4. Observe the waveform of the oscilloscope, and check that the RF level is satisfied to specified value. [Test Disc List and Specified Value] Use the following test disc on adjustment. Note: Do not use existing test disc for DVD. Checking Location: MPEG board (Side A) + – MPEG board oscilloscope CN7 pin 8 (V-RF) CN7 pin wf (GND) [Tape Speed Check] Procedure: 1. Turn the power on. 2. Insert the WS-48B into deck. 3. Press the TAPE N button of deck. 4. Check the reading of frequency counter becomes 3000 ± 90 Hz. Sample Value of Wow and flutter W.RMS (JIS) less than 0.3% (test tape: WS-48B) TEST DISC Specified Value CD YEDS-18 (Part No.: 3-702-101-01) 0.57 to 1.1 Vp-p PATD-012 (Part No.: 4-225-203-01) DVD SL (Single Layer) NTSC :HLX-503 (Part No.: J-6090-069-A) HLX-504 (Part No.: J-6090-088-A) PAL :HLX-506 (Part No.: J-6090-077-A) 0.58 to 1.23 Vp-p DVD DL (Dual Layer) NTSC :HLX-501 (Part No.: J-6090-071-A) HLX-505 (Part No.: J-6090-089-A) PAL :HLX-507 (Part No.: J-6090-078-A) U2 IC7 IC4 IC6 24 23 1 2 CN7 Pin wf (GND) CN7 Pin 8 (V-RF) CN7 — MPEG Board (SIDE A) — Note: Refer to “ 3-15. PANEL CASS ” (see page 17) adjustment screw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 HCD-AZ1D HCD-AZ1D • Circuit Boards Location MAIN board HP board KEY board MPEG board MIC CONTROL board AV board AMP board POWER board SECTION 7 DIAGRAMS For Schematic Diagrams. Note: • All capacitors are in µF unless otherwise noted. (p: pF) 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. • A : B+ Line. • B : B– Line. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. – MPEG Section – No mark: DVD STOP – Other Section – No mark: FM ( ) : TAPE REC • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production tolerances. • Circled numbers refer to waveforms. • Signal path. F : AUDIO d : TUNER j : PB (TAPE) a : REC (TAPE) J : DVD/CD (AUDIO) I : DVD/CD (DIGITAL) : DVD (RF) h : TV IN i : AUDIO IN L : VIDEO g : CD (RF) r : COMPONENT E : Y : USB N : MIC • Abbreviation E3 : 240 V AC Area in E model SP : Singapore model For Printed Wiring Boards. Note: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • : Pattern from the side which enables seeing. • Indication of transistor. THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) Caution: Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. C B These are omitted. E Q B These are omitted. C E B These are omitted. C E Q w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 22 HCD-AZ1D HCD-AZ1D 7-1. BLOCK DIAGRAM — MPEG-1 SECTION — • Signal Path : CD(RF) : DVD(RF) U2(1/2) RF AMP FOCUS/TRACKING ERROR AMP IO32 183 IO46/PWNCO5 200 IDI04/PWNCO6 201 I04/PWNCO0 202 IO43/PWNCO2 195 IO45/PWNCO4 198 44 47 MAD0-19 RESET# 141 MWR# MCS#0 MRD# 23 MDA0-15 4-8,10,13, 15,17,28,31, 34,36,38,40, 43,45,46, 48,49 9,11,14,16 18,19,22,24 26,27,30,33 CE 26 OE 28 A0-18 RP 12 WE 11 DQ0-15 1-9, 16-25, 48 28-36, 38-45 IC6 FLASH MEMORY A 160 B 162 C 165 D 167 E 170 F 172 ICI05 186 ICI04 185 CD-MD 176 VC 173 RFP 157 DVD_LD 179 CD_LD 178 Q4,11 VR CONTROLLER (CD) Q16 +3.3VREG Q17 +1.8VREG Q10 VR CONTROLLER (DVD) Q2 POWER CONTROLLER (DVD) Q21 POWER CONTROLLER (CD) VINSL+ 4 CTKERR1 25 3 CF CERR1 CF CERR2 2 VINSL- 5 STBY +3.3V +5V +1.8V 28 VINFC 1 VINTK 26 VINLD 23 VOFC- 13 VOFC+ 14 VOTK+ 15 VOTK- 16 PLHD 10 PVCC1 9 VOSL- 12 VOSL+ 11 VOLD+ 17 VOLD- 18 V/VFFC OPN CLS 7 VOSL 6 OPEN SW TOP TCL CLOSE SW LOAD+ LOAD- SLED+ SLED- HOME SW SPIND+ SPIND- F- OPTICAL PICK-UP BLOCK DM3451-A (SF-HD65F) F+ T+ T- F- F+ T+ T- A B C D E F V-RF VR-CD VR-DVD VS LD(DVD) LD(CD) F- F+ T+ T- PANEL/POWER SECTION (Page 26) (Page 26) PANEL/POWER SECTION DVD-MD 177 IDI03 188 K 171 J 168 IC7 MOTOR DRIVER 35,37,39,42 D C w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 23 HCD-AZ1D HCD-AZ1D 7-2. BLOCK DIAGRAM — MPEG-2 SECTION — AUDIO SECTION (Page 25) B PANEL/POWER SECTION (Page 26) E : VIDEO : DVD/CD(AUDIO) • Signal Path • R-CH is omitted due to same as L-CH. : DVD/CD(DIGITAL) : COMPONENT : Y U2(2/2) VIDEO DAC ENCODER IC4 SDRAM IC14 EEPROM IC501(1/4) SYSTEM CONTROLLER 148 CVBS/C/Y SSCTXD/IO17 1 IO47/SSCCLK 207 IO16/SSCTXD DSSTB DSCK DSDA RESET# 150 CVBS/C 151 V/R/Y 144 GCLK 143 XO 153 C/B/V 110 SPDIF AB CLK ALR CLK AOUT O 116 AMCLK 118 115 113 IC103//VIDO 135 IC031 136 IDI02 137 53-57,59,60, 61,63,65,67 20-24, 27-32 RADD1-10 ADD1-10 ADD1-10 ADD1-10 SDA SCL 5 6 MRST RCS#O RCSO RCS#1 RCS1 RCS1 70 PCLK PCLK PCLK 80 73 RWE# RWE RWE 77 RCAS# RCAS RCAS 75 RRAS# RRAS RRAS 74 RDQM# RDQM RDQM A0-A10 82,84-86, 88-90,92,94,96, 98-100,102-104 2,3,5,6,8,9,11, 12,39,40,42,43, 45,46,48,49 RDAT0-15 DAT0-15 DAT0-15 DAT0-15 D0-D15 CLK WE CAS RAS LDOM UDOM 78 SCLK MCLK LRCK SDATA 2 3 1 4 AOUTL U4 AUDIO DAC 5 8 AOUTR R-CH JK801 Y1 27MHz 2 1 IC8 AMP JK804A TX 35 15 16 17 14 36 CS 18 VIDEO OUT VOUT DIGITAL OUT OPTICAL IC5 SDRAM 20-24, 27-32 19 A11 A0-A10 2,3,5,6,8,9,11, 12,39,40,42,43, 45,46,48,49 D0-D15 CS CLK WE CAS RAS LDOM UDOM 18 35 15 16 17 14 36 8 VIDEO SW 208 141 19 A11 RBA0 RBA0 RBA0 71 JK803A COMPONENT VIDEO OUT Y PB/CB PR/CR Y PB/CB PR/CR w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 24 HCD-AZ1D HCD-AZ1D 7-3. BLOCK DIAGRAM — USB SECTION — Q407 SWITCH Q408,409 SWITCH Q410 MUTE Q402 SWITCH Q403,404 SWITCH Q401,412 USB MUTE Q414 USB MUTE Q413 USB MUTE Q405 MUTE 3 2 1 4 5 6 13 14 21 8 9 6 15 1 28 64 43 58 57 12 3 2 1 4 5 6 13 12 HOST D- D+ DGND VOUTL VOUTR XT0 XT1 X401 12MHz R-CH R-CH R-CH IC401 USB I/F DA CONVERTER I1 I2 C2 C3 C1 C4 O1 O2 I1 I2 C2 C3 C1 C4 O1 O2 IC402 QUAD ANALOG SWITCH IC403 F QUAD ANALOG SWITCH U-SENS USB PS AUXTUS L R TV IN JK201 JK601 J401 AUDIO IN PC USBVCC USBBD- USBBD+ USBGND SYSTEM CONTROLLER IC501(2/4) R-CH is omitted due to same as L-CH. :USB :TV IN :AUDIO IN Signal path AUDIO SECTION (Page 25) PCON w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 25 HCD-AZ1D HCD-AZ1D 7-4. BLOCK DIAGRAM — AUDIO SECTION — PANEL/POWER SECTION (Page 26) USB SECTION (Page 24) : DVD/CD(AUDIO) • Signal Path • R-CH is omitted due to same as L-CH. : AUDIO : TUNER : TV IN : REC(TAPE) : PB(TAPE) : MIC L-CH MIC ANTENNA AM FM 75Ω COAXIAL L R SPEAKER IMPEDANCE USE 6Ω PHONES JK104 JK102 R-CH D OUT D IN CL CE SO TUCE SDAT/ROMDA 12 STE 11 RPHD 3 BIAS 4 TUCK 20 TUDI 18 TUDO 19 53 STRB 52 SCK/ROM CK 54 AMUT 59 TSOL 5 TMOT 6 TCNT 7 REPT 31 HDPN 30 IC501(3/4) SYSTEM CONTROLLER OUT-L COMT 13 TAPE-L 2 TUNER-L 23 AUX-L 19 18 REC-O-L 28 IC302 SOUND PROCESSOR SDA SCL Q105 MUTE CONT Q322 MUTE CONT Q321 MUTE CONT Q102 MUTE Q199 INVERTER Q344-Q347 OSC Q327,332 REC/PB SWITCH Q329-331 REC/PB SWITCH Q653,654 MOTOR DRIVER Q651,652 SOL DRIVER +VM Q348 T301 Q308 PROTECT SWITCH Q350-352 FAN CONT DC FAN Q303,304,354 DC PROTECT Q104,301 OVER LOAD DETECT Q319 MUTE SWITCH Q314,317 CURRENT DETECT Q353,355 FAN CURRENT DETECT 6 IC503 EPROM STBY 13 CH1_ IN CH1_ OUT+ 11 4 IC103 POWER AMP R-CH R-CH +9V(TU) MUTE +VDD INH R-CH R-CH R-CH R-CH R-CH ERASE L-CH REC/PB HEAD R-CH R-CH PACK RECF RECR HDPLY TCNT MOT SOL TUNER PACK TAPE MECHANISM DECK 5 +- MPEG-2 SECTION (Page 23) F B A CD-L 21 IC201 AMP MIC LEVEL 7 VOL-IL +- IC250(2/2) MIC AMP 5 7 4 VR250 2 1 3 JK202 IC250(1/2) MIC AMP w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 26 HCD-AZ1D HCD-AZ1D 7-5. BLOCK DIAGRAM — PANEL/POWER SECTION — REMOTE CONTROL RECEIVER IR651 D652 XT2 XT1 X501 32.768kHz X2 X1 X502 8.38MHz VFSTB VFD651 FLUORESCENT INDICATOR TUBE IC651 FL DRIVER FUNCTION KEY S667,S651-654,S657 VFCK VEDA REM I/ LED DRIVE LED Q502 1 RLY RESET SWITCH IC502 RST AVR D302 PT901 POWER TRANSFORMER(MAIN) D901-904 RELAY DRIVE AC IN D301 Q305,Q320 POWER CONTROL D324 INH MUTE D309 POWER AMP B+ -33V(VPP) POWER AMP B- PT902 (SUB) TRANSFORMER D +5V +12V(VM) +9V +5V REG IC301 +12V REG Q311,312 +9V REG Q316 D306 VF VF Q307 RY901 D907 D906 CD ON TOP TCL TOP TCL POWER -33V REG Q315 Q318 SWITCH +10V REG Q313 +VDD 37 38 40 41 56 55 45 14 62 17 16 15 60 9 8 7 63 34 36 35 IC501 (4/4) SYSTEM CONTROLLER STB 28 KEY3 CLK DIN 14-29, 31-38 SEG1-SEG24 42-39 GRID1-4 -33V(VPP) VEE VF VF 1 5 2 +5V +5V +12V(VM) REG Q504-506 FUNCTION KEY S665,S666,S656,S658,S659 27 KEY2 FUNCTION KEY S655,S660-664 26 KEY1 CLS OPN CLS C MPEG-1 SECTION (Page 22) (Page 25) (Page 22) (Page 23) D MPEG-1 SECTION OPN 50 49 DSCK DSSTB DSCK DSSTB E MPEG-2 SECTION 48 47 DSDA MRST DSDA MRST SFTY 29 FPON 23 SWITCH Q507 D501 D503 30 VDP VDD 13 VDP Q306 SWITCH A AUDIO SECTION Q309,310 SWITCH +9V REG Q196,197 SWITCH Q198 D319 - D321 +9V (TU) PCON 64 INH 44 TUON 61 LED1 LED2 1 2 D601-D604 LED DRIVE Q601 D605-D608 LED DRIVE Q602 SW901 VOLTAGE SELECTOR +6V REG IC101 +6V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 27 HCD-AZ1D HCD-AZ1D 7-6. PRINTED WIRING BOARD — MAIN SECTION — • See page 21 for Circuit Boards Location. IC301 IC503 IC401 IC402 IC403 IC302 IC501 IC502 IC201 SFTY MAIN BOARD L R IN TV JK201 + – – + L SPEAKER IMPEDANCE USE 6Ω R JK102 C MPEG BOARD CN3 (Page 33) E AMP BOARD CN106 (Page 41) H AMP BOARD CN108 (Page 41) I AMP BOARD CN102 (Page 41) (CHASSIS) A KEY BOARD CN601 (Page 37) MIC CONTROL BOARD CN250 (Page 37) HEAD (REC/PLAYBACK/ERASE) L-CH R-CH ERASE HEAD REC/PB HEAD 1 2 3 4 6 8 7 5 D POWER BOARD FW901 (Page 43) 1 2 8 9 TUNER B L for DOWN LOAD MPEG BOARD CN1 (Page 33) MIC CONTROL BOARD CN603 (Page 37) 1 1 16 17 32 33 48 49 64 2 8 7 1 11 2 12 1 9 3 1 3 1 1 10 7 1 E 1 2 E E E E E E E E 8 1 E E E 1 11 5 1 E 1 4 5 8 1 4 5 8 E E E E E E E E E E E E E E E A A A K K K E E E E E E E E E E E E E E E E E E E E E TAPE MECHANISM DECK 1 2 A B C D E G H I J 3 4 5 6 7 8 9 10 11 F 20 21 J401 PC 1 2 3 4 5 6 4 202 CN R246 C220 C221 R265 R247 R263 C260 R267 C261 R248 1 4 5 8 R264 C262 R268 R249 R266 R419 R415 C415 C436 R455 R456 R457 R458 R408 C402 C401 R409 R414 L405 L407 L408 R413 R412 R425 R421 C418 R428 C422 R429 R416 R418 JR402 R431 C421 R430 R426 R420 C417 L410 R451 L409 R440 R439 R436 R437 R441 JR401 R447 R444 R438 R435 R427 R432 R433 R422 R459 R410 R411 JR405 R417 C413 R423 R424 R442 C414 C406 R404 C403 C405 C404 C407 C437 L403 L401 R401 15 28 14 1 Q407 Q409 Q408 Q404 Q403 Q402 Q401 Q412 Q406 Q405 Q410 Q411 D405 D401 D406 C411 C232 C120 C132 C416 C438 C430 C409 C410 C419 C420 C412 R403 R445 C425 C426 1 7 14 8 R434 D404 1 7 8 14 C259 3 1 X401 L411 L412 C439 R405 R407 R406 L414 L415 CN105 K R118 R218 Q413 Q414 C440 R118A R120A FB401 R220A R218A Q 1 2 A A A Q347 E 3 1 IC101 C100 C105 • Semiconductor Location Ref. No. Location D105 G-9 D106 C-10 D107 C-10 D196 B-9 D198 B-8 D199 B-8 D301 I-5 D302 I-3 D305 G-5 D306 I-3 D307 I-2 D308 H-3 D309 J-4 D310 H-2 D312 G-9 D313 G-5 D314 G-9 D317 G-9 D318 G-2 D319 F-7 D320 F-7 D321 F-7 D323 I-7 D324 J-4 D325 H-4 D330 C-8 D401 E-7 D404 D-6 D405 C-7 D406 E-7 D501 G-5 D502 D-3 D503 C-3 D505 D-2 D507 F-5 D508 H-3 IC101 C-8 IC201 G-3 IC301 H-5 IC302 F-4 IC401 D-7 IC402 E-6 IC403 E-5 IC501 B-4 IC502 C-3 IC503 D-5 Ref. No. Location Q196 B-9 Q197 B-9 Q198 B-8 Q199 B-9 Q305 J-4 Q306 I-2 Q307 H-3 Q313 G-8 Q315 I-3 Q316 H-3 Q317 H-5 Q318 G-5 Q319 J-3 Q320 J-4 Q321 G-5 Q322 G-5 Q326 G-3 Q327 G-3 Q328 G-3 Q329 G-3 Q330 G-3 Q331 G-3 Q332 G-3 Q344 F-2 Q345 F-3 Q346 D-3 Q347 D-3 Q348 E-3 Q401 D-7 Q402 E-7 Q403 E-7 Q404 E-7 Q405 E-6 Q406 D-6 Q407 E-5 Q408 D-5 Q409 D-5 Q410 E-5 Q411 D-5 Q412 D-7 Q413 D-8 Q414 E-8 Q502 C-3 Q504 D-3 Q505 D-3 Q506 D-3 Q507 C-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 28 HCD-AZ1D HCD-AZ1D 7-7. SCHEMATIC DIAGRAM — MAIN SECTION (1/4) — • See page 45 for Waveforms. • See page 48 for IC Pin Function Description. A KEY BOARD CN601 (Page 38) B MPEG BOARD(1/3) CN1 (Page 34) 1 3 MAIN BOARD (2/4) (Page 29) MAIN BOARD (4/4) (Page 31) 8 7 3.1 10 10.7 10.7 10.7 5 5.7 11.3 10.6 0.3 4.9 4.9 5 5 5 0.3 0.7 0.6 0.2 10.3 12.4 3.8 3.4 0.6 0 0 5 5 4.2 PIN.No Voltage PIN.No Voltage 4.9 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 0 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 2.8 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 0 4.9 4.9 4.9 4.9 4,9 0 0 0 0 0 - 5 0 0 0 4.8 0 0 4.9 0 0.3 0 4.9 0.2 5.1 - 5 5 5 2.8 3.8 3.8 0.4 0 5 0 5 3.3 2.4 0 3 - 0 4.9 4.9 0 4.9 3.2 3.4 4.8 0.3 0 4.9 4.9 0 0 4.9 0 4.9 0 No mark:FM ( ):REC IC501 VOLTAGE CHART 2 1 3 4 6 5 7 8 9 10 31 32 30 13 TUNER R L IN TV ( ) for DOWNLOAD IC503 EP ROM IC502 RESET SWITCH IC501 SYSTEM CONTROLLER INVERTER +9V REG SWITCH SWITCH LED DRIVER +5V REG +5V REG +5V REG SWITCH MAIN BOARD (1/4) 9P SO _ R587 0 2.7K 1000P 1000P 1000P 1200P 1200P 1000P 0.01 0.01 B 1000P 0.01 0.01 21P CN502 8P 12P V V V V V V V V V 120K 120K R218 R118 2.2K 2.2K 270 1K 47K w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 29 HCD-AZ1D HCD-AZ1D 7-8. SCHEMATIC DIAGRAM — MAIN SECTION (2/4) — C MPEG BOARD (3/3) CN3 (Page 36) MIC CONTROL BOARD CN250 (Page 39) K 9 1 MAIN MAIN BOARD (3/4) (Page 30) 2 MAIN BOARD (4/4) (Page 31) 4 IC B/D BOARD (1/4) (Page 28) 0 0 0.6 16.5 5.1 0(-6.2) 0(-6.2) 1.9(-11.7) 0 2.2(0) 2.2(0) 1.9(-11.9) 2.2(-11) 2.1(-6.6) 1.9(-11.9) 2.1(-6.5) 2.1(-6.5) 0 0 0 0(6.1) 0(6.1) 0(0.4) 0(0.4) 0 0 0(9.6) 0(2.1) 9.8(8.9) 9.8(0) 0(6.8) 0(6.2) 9.8 0.6 0 0.6 0 4.6 -4.5 -4.5 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 0 No mark:FM ( ):REC -4.5 4.5 9 6 2 1 3 4 6 5 7 8 9 10 13 24 23 21 18 17 16 20 19 15 14 34 33 35 22 MAIN BOARD (2/4) LCH (REC/PB/ERASE) RCH ERASE TAPE MECHANISM DECK REC/PB HEAD IC302 SOUND PROCESSOR S S REC/PB SWITCH Q329~Q332, Q326,Q327 SWITCH SWITCH SWITCH Q344~Q347 BIAS OSC SWITCH IC301 +5V REG S +10V MIC AGND CN202 3P/2.0 V V F IC201 AMP IC101 +6V REG 8P 0.018 0.018 10K 10K 10 JR101 0 16 16 0.01 C107 C125 C225 3300P 3300P C 1 0 0 C 1 0 5 IC101 NJM7806FA • See page 45 for Waveform. • See page 46 for IC Block Diagram. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 30 HCD-AZ1D HCD-AZ1D 7-9. SCHEMATIC DIAGRAM — MAIN SECTION (3/4) — D POWER BOARD FW901 (Page 44) E AMP BOARD CN106 (Page 42) 5 MAIN BOARD (4/4) (Page 31) 6 MAIN BOARD (4/4) (Page 31) 7 MAIN BOARD (4/4) (Page 31) 2 MAIN BOARD (2/4) (Page 29) I AMP BOARD CN102 (Page 42) H AMP BOARD CN108 (Page 42) 0 0 3.8 0 2 0.6 0.6 0 0 11 9.8 16.3 16.5 16.6 0 16.7 10.8 8.8 -32.9 -32.4 -38.6 4.5 0 No mark:FM ( ):REC 24 23 21 18 36 21 17 16 20 19 15 14 37 22 MAIN BOARD (3/4) 11P ( ) + +-- R L SPEAKER (IMPEDANCE USE 6 ) L GND GND R MUTE SWITCH SWITCH POWER CONTROL POWER CONTROL +9V REG CURRENT DETECT -33V REG 0.01 0.01 0.1 1000P 1000P CURRENT DETECT RELAY DRIVE 4700P w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 31 HCD-AZ1D HCD-AZ1D 7-10. SCHEMATIC DIAGRAM — MAIN SECTION (4/4) — Voltage(V) Voltage(V) Voltage(V) Voltage(V) IC402 IC403 Pin No Pin No Pin No Pin No IC401 1 1 1 2 2 2 3 3 3 4 4 4 5 5 5 6 6 6 7 7 7 8 8 8 9 9 9 10 10 10 11 11 11 12 12 12 13 13 13 14 14 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 3 - - - 3.3 0 3.3 0 0 3.3 0 0 3.3 0 0 3 0 3.3 0 0 0 3.3 0 0 0 0 3.3 3.3 0 0 0 0 8.4 8.4 0 0 0 0 0 0 9.8 0 0 0 0 0 8.4 8.4 0 0 0 0 0 0 9.8 0 2 2 0 0 0 0 0 9.7 9.8 8.4 0 0 4.9 0 3.3 3.3 0 8.4 0 9.8 0 0 9.7 0 2 2 0 0 0 No mark : FM ( ):REC IC401,IC402,IC403 VOLTAGE CHART R418 C417 V 50V 50V V 470P 8 39K R431 V V L405 0 1 2 3 10V A A 10V MTZJ3.3A A A A 15K 15K 30 31 32 33 34 35 36 37 21 PC Q401,Q412 USB MUTE INVERTER INVERTER Q405,Q406 MUTE V MIC CONTROL BOARD CN603 (Page 39) MAIN BOARD(1/4) (Page 28) MAIN BOARD(2/4) (Page 29) MAIN BOARD(3/4) (Page 30) 3 4 MAIN BOARD(3/4) (Page 30) MAIN BOARD (3/4) (Page 30) 6 7 5 L IC402 IC401 IC403 QUAD ANALOG SWITCH QUAD ANALOG SWITCH USB I/F DA CONVERTER IC B/D IC B/D IC B/D A A Q408, 50V 50V MUTE MUTE SWITCH SWITCH SWITCH Q409 M N C419 + MAIN BOARD (4/4) R439 100K R444 100K R447 100K R451 100K C4370.1U C440 1000P Q413,Q414 FB401 MA01 PON Q413 Q414 DTC114YK DTC114YK R442 22K Q408 DTA114YKA R220A R120A 120K 120K R218A R118A 2.2K 2.2K JR401 0 JW JW • See page 46 for IC Block Diagram. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 32 HCD-AZ1D HCD-AZ1D 7-11. PRINTED WIRING BOARD — MPEG SECTION (SIDE A) — • See page 21 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D2 F-4 IC4 K-7 IC6 H-4 IC7 C-11 IC8 I-11 IC14 G-11 Q2 E-7 Q4 D-9 Q5 E-11 Q7 D-11 Q10 D-9 Q11 D-8 Q21 E-7 Q22 D-11 Q23 E-11 U2 H-7 U4 I-10 U2 IC7 IC14 IC8 U4 IC4 IC6 E E E E E E E E E 1 4 5 8 1 105 104 53 52 1 48 3 1 2 25 24 1 208 157 156 25 26 50 5 5 8 8 4 4 1 24 14 8 7 1 28 22 21 15 1 C150 MPEG BOARD (SIDE A) OPTICAL PICK UP BLOCK DM3451-A (SF-HD65F) 1 2 A B C D E F G H I J K 3 4 5 6 7 8 9 10 11 12 13 14 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 33 HCD-AZ1D HCD-AZ1D 7-12. PRINTED WIRING BOARD — MPEG SECTION (SIDE B) — • See page 21 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D3 J-12 D7 J-3 D10 F-12 D12 D-3 IC5 K-8 Q16 C-2 Q17 J-5 IC5 50 26 25 1 67 151 + 1 6 5 1 1 2 12 11 + + + + + + + 1 4 + + + + + E + + + + 1 9 + + + + + + + 15 16 2 1 + E MPEG BOARD (SIDE B) AV BOARD CN801A (Page 40) F MAIN BOARD CN302 (Page 27) C DVD MECHANISM DECK for Down Load MAIN BOARD CN503 (Page 27) B DVD MECHANISM DECK 1 2 A B C D E F G H I J K 3 4 5 6 7 8 9 10 11 12 13 14 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 34 HCD-AZ1D HCD-AZ1D 7-13. SCHEMATIC DIAGRAM — MPEG SECTION (1/3) — 1 5 6 3 4 2 B MAIN BOARD(1/4) CN503 (Page 28) 4 MPEG BOARD(2/3) (Page 35) 5 MPEG BOARD(2/3) (Page 35) 3 MPEG BOARD(3/3) (Page 36) 2 MPEG BOARD(3/3) (Page 36) 1 MPEG BOARD(3/3) (Page 36) 0 3.2 0 3.2 3.2 0 0 0 0 3.2 3.2 0 0 0 0 0 0 0 3.3 3.3 3.3 0 0 3.3 3.7 3.3 3.3 2.8 3.3 3.3 3.3 0 0 0 0 3.3 3.3 3.3 3.3 3.3 0 3.3 3.3 0 0 0 0.7 0.5 0.5 0.8 0.8 0.8 0 0.2 0.2 0 0 0.2 0 0 3.3 1.5 3.3 3.3.3 3.3 3.3 3.2 3.3 3.2 3.3 3.3 3.3 1.2 1.1 1.2 1.1 1.5 1.1 1.5 0 0 1.2 1.2 1.3 1.4 1.3 0.8 0.7 0.7 0.5 0.5 0.8 0.8 0.8 0 0.2 0.2 0 0 0.2 0 0 3.3 1.5 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 1.2 1.1 1.2 1.1 1.5 1.1 1.5 0 0 1.2 1.2 1.3 1.4 1.3 0.8 0.7 0 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 3.3 0 0 3.3 3.3 3.3 2 0 0 0 0 3.3 3.7 0 0 3.3 0 0 0 3.3 3.3 3.3 0 0 0 0 0 0 3.3 0 0.9 3 0 0.3 3.3 2.2 1.1 3.3 2,2 0 0 0 0 3.2 0 3.2 2.3 2.2 2.2 2.4 2.5 0 0 1.4 2.3 2.5 0.9 0 0 0 0 0 0 0 0 0 0 0 0 0.7 3.3 3.3 3.3 3.3 0.7 3.3 0 3.3 0.4 0.5 1.4 0 3.3 1.4 0.4 0 0 0.6 3.3 0.5 3.3 1.2 0.4 0.4 0 0 0 0 0.2 0.2 2.4 0 0 3.3 0 1.3 1.3 2.2 2.1 1.3 3.3 3.3 1.3 0 1.2 1.7 2.3 2 0 1.8 0 0 3.7 0 3.3 0 0 0 0 0 3.3 1.8 1.8 1.8 1.8 1.8 1.8 0 5 0 3.3 3.3 1 2 3 5 6 7 8 9 10 11 12 13 14 4 1000P 1000P FLASH MEMORY IC6 0.027 0.027 1000P 1000P 1000P 1000P 0.01 0.01 0.1 0.1 1000P 1000P 1000P 1000P 1000P 1000P 1.8K 1.8K 4.7K 4.7K 0.1 0.1 JR JR SST39VF800A 70-4C ZR36862 TQFP-208 RF AMP U2 MPEG BOARD FOCUS / TRACKING ERROR AMP VIDEO DAC ENCODER SD RAM IC4 K4S161622H K4S161622H 0.01 0.01 0.01 0.01 0.01 0.01 0.1 0.1 0.1 0.1 0.1 0.1 1000P 1000P 1000P 1000P 4.7K 4.7K 4.7K 4.7K 1000P 1000P 0.1 0.1 4.7K 4.7K 4.7K 4.7K AT24C0 SD RAM IC5 EEP ROM IC14 (1/3) for DOWN LOAD No mark : DVD STOP • See page 45 for Waveforms. • See page 50 for IC Pin Function Description. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 35 HCD-AZ1D HCD-AZ1D 7-14. SCHEMATIC DIAGRAM — MPEG SECTION (2/3) — 4 MPEG BOARD(1/3) (Page 34) 5 MPEG BOARD(1/3) (Page 34) 6 MPEG BOARD(3/3) (Page 36) 3.3 4.1 3.3 3 3.6 1.8 2.8 1.7 1.7 7.1 1.7 7.1 7.1 2.7 2.7 3.6 3.6 0 1.3 1.3 1.7 1.3 0 0 7.1 0 0 0 3.6 3.6 0 0.7 0 0.7 0 0.7 0 3.3 3.1 0 3.1 3.3 0 No mark : DVD STOP 16 15 13 14 MOTOR IC7 0.1 4.7K 0.022 0.1 855D +3.3V REG 6.8 855D +1.8V REG 0.1 0.1 0.1 1000P AM5888S 0.1 0.1 DRIVER 4.7K 3.3K 2N3904 Q4,11 VR CONTROLLER (CD) 2N3904 2.2K VR CONTROLLER (DVD) 2N3904 Q21 POWER CONTROLLER (CD) Q2 POWER CONTROLLER (DVD) MPEG BOARD (2/3) DVD MECHANISM DECK OPTICAL PICK-UP BLOCK DM3451-A (SF-HD65F) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 36 HCD-AZ1D HCD-AZ1D 7-15. SCHEMATIC DIAGRAM — MPEG SECTION (3/3) — C MAIN BOARD (2/4) CN302 (Page 29) F AV BOARD CN801A (Page 40) 6 MPEG BOARD (2/3) (Page 35) 3 MPEG BOARD (1/3) (Page 34) 2 MPEG BOARD (1/3) (Page 34) 1 MPEG BOARD (1/3) (Page 34) 0 0 1.7 2 2.3 5 0 0 5 5 5 5 5 5 8.4 0 0.7 0 0 5 0 11.3 11.3 10.6 10 0 No mark : DVD STOP 1 2 3 4 5 6 7 8 9 10 11 12 16 15 AMP IC8 AMP IC8 (1/2) 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.01 0.01 0.01 0.1 0.1 0.01 0.01 0.1 1000P 2N3904 SWITCH Q5,7,23 BLANKOUT CONTROL 1000P 1000P 0.1 0.1 IC8 (1/2) BA4558F 1000P 1000P (2/2) IC8(2/2) BA4558F 0.1 0.1 0.1 MPEG BOARD (3/3) AUDIO DAC U4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 37 HCD-AZ1D HCD-AZ1D 7-16. PRINTED WIRING BOARDS — KEY SECTION — • See page 21 for Circuit Boards Location. :Uses unleaded solder. • Semiconductor Location Ref. No. Location D601 E-3 D602 G-3 D603 E-7 D604 G-7 D605 F-4 D606 F-5 D607 F-5 D608 F-6 D651 G-6 D652 B-9 D654 F-7 D655 G-4 IC250 F-10 IC651 B-6 IR651 D-9 Q601 C-4 Q602 C-4 Q651 G-6 Q652 F-6 Q653 F-8 Q654 F-8 IC651 1 1 1 2 21 20 10 15 20 25 30 35 40 5 11 12 22 23 33 34 44 44 E E E E E E VFD651(FLUORESCENT INDICATOR TUBE) ?/1 (STANDBY) IR651 1 3 PLAY MODE VOLUME PRESET EQ PC/TV/AUDIO IN TUNER/BAND CD SYNC PROGRESSIVE TAPE N TUNING . VOLUME > TUNING u DVD REC PAUSE/START Z x DISPLAY 2 6 7 1 KEY BOARD HP BOARD MIC CONTROL BOARD PHONES MIC AUDIO IN IC250 1 1 3 4 5 8 MIC LEVEL AMP BOARD CN101 (Page 41) J 5 1 MAIN BOARD CN202 (Page 27) K MAIN BOARD CN104 (Page 27) L TAPE MECHANISM DECK MAIN BOARD CN501 (Page 27) A 1 3 1 2 A B C D E G H F 3 4 5 6 7 9 8 10 11 I w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 38 HCD-AZ1D HCD-AZ1D 7-17. SCHEMATIC DIAGRAM — KEY SECTION — • See page 47 for IC Block Diagram. 9.0 9.5 9.5 9.4 9.5 9.4 9.5 0 0 9.0 0 1.8 4.9 4.9 0.6 0.6 1.5 1.5 4.9 4.9 4.9 0 0 4.9 -26.5 -29.0 -29.0 -29.0 -29.0 -31.5 -29.0 -29.0 -26.5 -26.5 -24.0 -29.0 -29.0 -29.0 -31.5 -29.0 -32.1 -29.2 -29.2 -29.2 -29.2 -29.2 -29.2 -29.2 -29.2 -29.2 -29.2 -29.2 -29.2 4.9 4.9 4.9 No mark : FM AMP BOARD CN101 (Page 42) MAIN BOARD (1/4) CN501 (Page 28) TAPE MECHANISM DECK J A . > Z HP BOARD KEY BOARD IC651 IR651 BX B ?/1 HDPL HDPLY JR652 JR652 0 7P 50 00p (STNDBY) 4V 0.01 0.01 FB JR102 JR101 330 1/2W 330 1/2W 330 1/2W 330 1/2W 0 0 100 4700P JR651 0 21P 47 VOLUME VOLUME + - PLAY MODE + _ D601 AMBER D602 AMBER D603 AMBER D604 AMBER D605 AMBER D606 AMBER D607 AMBER D608 AMBER R603 470 R604 470 R605 470 R606 470 R609 470 R610 470 R611 470 R612 470 R608 1K R607 1K Q601 Q602 2SC2712GR 2SC2712GR D655 1N4001 Q601,Q602 LED DRIVE C166 L106 D601-D608 SLR-342VCT31 D652 SLR-342VCT31 PC/TV/AUDIO IN TUNING TUNING JR650 0 JR653 0 J REMOTE CONTROL RECEIVER FL DRIVER Q651, Q652 SOL DRIVER (FLUORESCENT INDICATOR TUBE) uPD16315GB-3BS Q653, Q654 MOTOR DRIVER REC PAUSE/START S667 DISPLAY P203 CHASSIS PROGRESSIVE JK104 IC B/D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 39 HCD-AZ1D HCD-AZ1D 7-18. SCHEMATIC DIAGRAM — MIC CONTROL SECTION — 4.8 4.8 4.8 4.8 4.8 9.8 4.8 2 JK601 1 2 3 AGND R L CN603 AUDIO IN C650 L601 L602 3P BOARD(4/4) CN104 (Page 31) JK202 C256 MIC C250 R258 R250 R251 R252 C251 C264 R273 R272 C252 R253 250 C257 C258 R259 IC250 R260 C266 R254 C253 C265 C254 R255 C255 R256 R257 C268 IC250 1 2 3 +10V MIC AGND CN250 MIC CONTROL BOARD 3P BOARD(2/4) CN202 (Page 29) (1/2) (2/2) + + 3 1 8 6 5 4 7 MIC LEVEL 0.1 100K 4.7K 4.7K 0.1 22K 0.1 1000P 1K 47K 100P 470 0.1 22K VR 10K-B 0.1 0.1 22K 10K 1000P 100P 150K 1000P BEAD (SMD) 0.01 150 4.7K 0.1 BA4558F MAIN MAIN 50V 6.3V MIC AMP MIC AMP IC250(2/2) BA4558F IC250(1/2) JR250 JR252 JR251 0 0 0 K L No mark : FM WP250B w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 40 HCD-AZ1D HCD-AZ1D 7-19. PRINTED WIRING BOARD — AV SECTION — • See page 21 for Circuit Boards Location. :Uses unleaded solder. 7-20. SCHEMATIC DIAGRAM — AV SECTION — 1 2 15 16 1 3 AV BOARD WP801A JK804A DIGITAL OUT OPTICAL VIDEO OUT JK801 Y P /C B B P /C R R COMPONENT VIDEO OUT JK803A MPEG BOARD CN2 (Page 33) F 1 2 A B C D E 3 MPEG BOARD (3/3) CN2 (Page 36) F A FB A AV BOARD A A A A A A A A A A A A A A A A A A A V V V Y P /C P /C COMPONENT VIDEO OUT DIGITAL OUT OPTICAL B B R R 0 0 0 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 41 HCD-AZ1D HCD-AZ1D 7-21. PRINTED WIRING BOARD — AMP SECTION — • See page 21 for Circuit Boards Location. :Uses unleaded solder. • Semiconductor Location Ref. No. Location D101 C-3 D102 B-2 D103 B-2 D104 B-2 D311 C-3 D350 A-1 D352 B-1 D353 C-1 D355 C-4 IC103 D-2 Q101 C-3 Q102 C-3 Q103 B-2 Q104 B-2 Q105 C-3 Q301 B-2 Q303 B-2 Q304 A-3 Q308 B-3 Q309 C-4 Q310 C-4 Q311 D-4 Q312 D-4 Q314 C-4 Q350 B-1 Q351 B-1 Q352 B-1 Q353 B-1 Q354 B-2 Q355 C-1 IC103 1 5 1 3 E E E E E E E E E E E E E E E E E E E E 10 1 1 7 1 15 MAIN BOARD CN105 (Page 27) HP BOARD CW101 (Page 37) J E MAIN BOARD CN103 (Page 27) I MAIN BOARD CN107 (Page 27) H DC FAN [AMP BOARD] 1 3 JW( ) WP102 WP103 1 2 A B C D 3 4 5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 42 HCD-AZ1D HCD-AZ1D 7-22. SCHEMATIC DIAGRAM — AMP SECTION — • See page 47 for IC Block Diagram. 0 0 2.6 0 0 0 31.6 0 0 0 0 32.9 -32.8 -31.3 -1.0 0 0 -1.0 0 0 0.7 0 0 0 0 0.7 0 1.0 4.9 0 4.9 0 0 0 -5.2 4.9 -5.2 17.2 16.8 0 0 4.9 12.9 13.0 0 0 4.5 12.3 16.7 12.9 12.3 17.2 4.9 0 12.3 0 12.3 1.0 0 0.7 0.6 12.3 6.0 1.0 No mark : FM MAIN BOARD CN107 (Page 30) MAIN BOARD CN103 (Page 30) HP BOARD CW101 (Page 38) IC103 H I J MAIN BOARD(3/4) CN105 (Page 30) E AMP BOARD -4.3V DTC323TK DTC323TK 10 6 0.01 GR GR GR GR GR GR GR GR GR GR D351 JW GL C181A 0.1 (3/4) (3/4) DC FAN POWER AMP 070 MUTE CONT OVER LOAD DETECT DC PROTECT FAN CURRENT DETECT FAN CURRENT DETECT Q350-Q352 FAN CONT DC PROTECT PROTECT SWITCH SWITCH SWITCH +12V REG +12V REG DC PROTECT Q103, Q104 OVER LOAD DETECT MUTE MUTE IC B/D w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 43 HCD-AZ1D HCD-AZ1D 7-23. PRINTED WIRING BOARD — POWER SECTION — AC IN Not replaceable: Built in transformer * * 9 PT901 POWER TRANSFORMER(MAIN) PT902 POWER TRANSFORMER(SUB) 11 1 MAIN BOARD CN301 (Page 27) D POWER BOARD 1 2 A B C D E F 3 4 5 6 7 8 9 10 11 G H 1 2 3 6 4 5 SW901 VOLTAGE SELECTOR 110 120V 220 240V 7 8 1 2 SW901 NEUTRAL LIVE • Semiconductor Location Ref. No. Location D901 C-9 D902 C-9 D903 B-9 D904 B-9 D905 A-8 D906 B-8 D907 C-9 • See page 21 for Circuit Boards Location. :Uses unleaded solder. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 44 HCD-AZ1D HCD-AZ1D 7-24. SCHEMATIC DIAGRAM — POWER SECTION — MAIN BOARD(3/4) CN301 (Page 30) FW901 D * * Not replaceable : Built in transformer POWER TRANS FORMER (MAIN) POWER TRANS FORMER (SUB) VOLTAGE SELECTOR AC IN POWER BOARD JW906 JW905 JW911 F901 T1AL/250V 3 1 4 5 6 2 1 2 3 4 5 6 7 8 9 1 2 JW907 V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 HCD-AZ1D • Waveforms – MPEG Board – – MAIN Board – 1 U2 IC103 6-705-621-01 IC STK433-070 ************************************************************* AV BOARD ********* ************************************************************* 9-885-105-25 KEY BOARD, COMPLETE (including HP BOARD) ******************** < DIODE > D601 8-719-059-98 DIODE SLR-342VC3F D602 8-719-059-98 DIODE SLR-342VC3F D603 8-719-059-98 DIODE SLR-342VC3F D604 8-719-059-98 DIODE SLR-342VC3F D605 8-719-059-98 DIODE SLR-342VC3F D606 8-719-059-98 DIODE SLR-342VC3F D607 8-719-059-98 DIODE SLR-342VC3F D608 8-719-059-98 DIODE SLR-342VC3F D652 8-719-059-98 DIODE SLR-342VC3F (STANDBY) < IC > IC651 8-759-643-83 IC uPD16315GB-3BS IR651 6-701-681-01 IC RPM7140-V4 < FLUORESCENT INDICATOR TUBE > VFD651 1-519-761-31 INDICATOR TUBE, FLUORESCENT HP BOARD ********* < JACK > JK104 9-885-077-09 HEADPHONE JACK EJ-3507P-2 (PHONES) ************************************************************* 9-885-105-26 MAIN BOARD, COMPLETE ********************* < IC > IC301 9-885-059-44 IC AP1501 IC302 6-702-895-01 IC BD3881FV IC401 9-885-105-30 IC PCM2704 IC402 9-885-105-31 IC BU4066 IC403 9-885-105-31 IC BU4066 IC502 9-885-100-91 IC BD4736G IC503 9-885-100-90 IC AT24C0 < TERMINAL BOARD > JK102 9-885-104-49 TERMINAL BOARD (SPEAKER) < JACK > JK201 9-885-059-87 JACK, PIN 4P (TV) < TRANSFORMER > T301 9-885-059-58 OSCILLATION, BIAS TRANSFORMER < VIBRATOR > X501 9-885-059-48 VIBRATOR, CRYSTAL (32.768kHz) X502 9-885-059-52 OSCILLATOR, CERAMIC (8.38MHz) ************************************************************* MIC CONTROL BOARD ****************** < JACK > JK202 9-885-077-09 HEADPHONE JACK EJ-3507P-2 (MIC) JK601 9-885-077-09 HEADPHONE JACK EJ-3507P-2 (AUDIO IN) ************************************************************* 9-885-105-69 MPEG BOARD, COMPLETE ********************* < IC > IC4 9-885-100-98 IC K4S161622H IC5 9-885-100-98 IC K4S161622H IC7 9-885-100-95 IC AM5888S IC8 8-759-909-71 IC BA4558F IC14 9-885-100-90 IC AT24C0 U2 9-885-100-96 IC ZR36862 TQFP-208 < VIBRATOR > Y1 9-885-059-78 VIBRATOR, CRYSTAL (27MHz) ************************************************************* AMP AV KEY MAIN MIC CONTROL HP The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. MPEG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark 60 HCD-AZ1D 9-885-105-27 POWER BOARD, COMPLETE *********************** < TRANSFORMER > 0PT902 9-885-059-89 TRANSFORMER, POWER < RELAY > 0RY901 9-885-059-96 RELAY, POWER 0SW901 1-786-404-11 SELECTOR, VOLTAGE (SWS-2201) (VOLTAGE SELECTOR) ************************************************************* MISCELLANEOUS ************** 4 9-885-083-69 FAN, DC 73 9-885-107-27 WIRE (FLAT TYPE)(21 CORE) 75 9-885-101-01 FFC CABLE 7PIN PITCH=1.25 76 1-796-352-81 DECK, MECHANICAL (CMAL5Z220C) 0102 1-769-744-11 CORD, POWER 103 9-885-101-06 FF-CABLE 16P P=1.25MM L=1 104 1-693-702-11 TUNER (FM/AM) (TM10SE) 105 9-885-101-08 FF-CABLE 9PINS P=1.25MM R 106 9-885-101-07 FF-CABLE 12P P=1.25MM L=1 151 9-885-101-04 MECHANISM LOADER WXD 0152 9-885-101-00 OPTICAL PICK-UP DM3451-A (SF-HD65F) 153 9-885-101-02 FF-CABLE 24PINS P=0.5MM 0F901 1-532-463-31 FUSE (T1AL/250V) 0PT901 9-885-105-28 POWER TRANSFORMER POWER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 HCD-AZ1D MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-AZ1D REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2006.05 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
