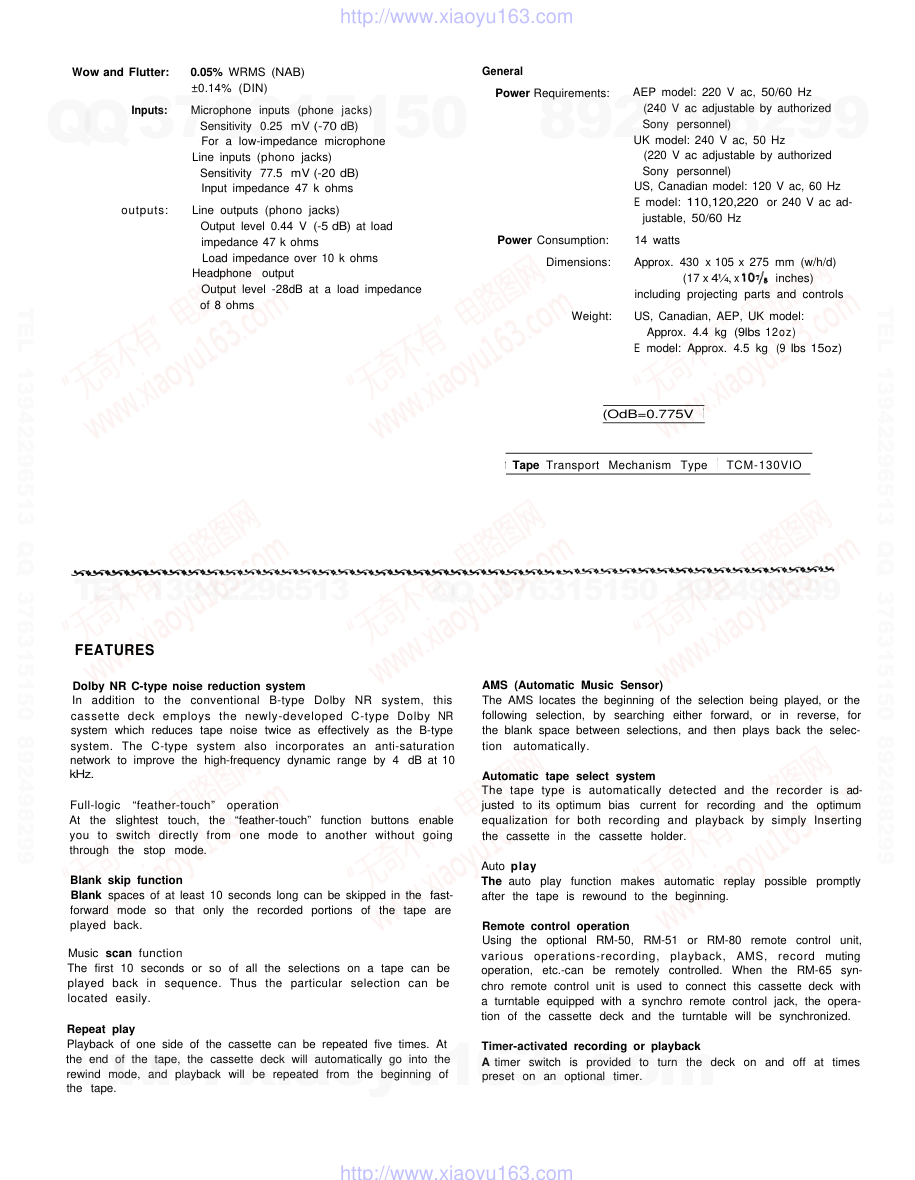

US Model Canadian Model ‘Dolby’ and the double-D symbol are the trade marks of Dolby Laboratories Licensing Corporation. Noise reduction system manufactured under license from Dolby Laboratories Licensing Corporation. SPECIFICATIONS Recording system 4-track 2-channel stereo Fast-forward and rewind time Approx. 100 sec. (with C-60 cassette) Bias frequency 105 kHz Signal-to-noise ratio (NAB, at peak level) OFF B-TYPE ON C-TYPE ON TYPE IV (Sony METALLIC) 56 dB 65 dB 71 dB TYPE III (Sony FeCr) 59 dB 66 dB 72 dB TYPE II (Sony UCX) 56 dB 63 dB 69 dB TYPE I (Sony BHF or HFX) 54 dB 61 dB 67 dB Total harmonic distortion 1.0% (with Sony METALLIC and FeCr cassettes) SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY SHADING AND MARK A O N T H E S C H E M A T I C D I A G R A M S , E X P L O D E D VIEWS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. AEP Model UK Model E Model Frequency response DOLBY NR OFF � With TYPE IV cassette (Sony METALLIC) 20 18,000 Hz 30 - 16,000 Hz (±3 dB), (DIN) 30 - 13,000 Hz (±3 dB, 0 VU recording) � With TYPE III cassette (Sony FeCr) 20 - 16,000 Hz 30 - 16,000 Hz (±3 dB), (DIN) � With TYPE II cassette (Sony UCX) 20 17,000 Hz 30 - 15,000 Hz (±3 dB), (DIN) � With TYPE I cassette (Sony BHF or HFX) 20 - 16,000 Hz Continued on page 2- ATTENTION AU COMPOSANT AYANT RAPPORT A LA SECURITE! LES COMPOSANTS IDENTIFIES PAR UNE TRAME ET U N E M A R Q U E A S U R L E S DIAGRAMMES SCHE- MATIQUES, L E S V U E S ECLATEES E T L A LISTE D E S P I E C E S S0NT CRITIQUES POUR LA SECURITE D E FONCTIONNEMENT. NE REMPLACER CES COMPO- SANTS QUE PAR DES PIECES SONY DONT LES NU- MEROS SONT DONNES DANS CE MANUEL OU OANS LES SUPPLEMENTS PUBLIES PAR SONY. STEREO CASSETTE DECK S O N Y : [MICROFILM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Wow and Flutter: 0.05% WRMS (NAB) ±0.14% (DIN) Inputs: Microphone inputs (phone jacks) Sensitivity 0.25 mV (-70 dB) For a low-impedance microphone Line inputs (phono jacks) Sensitivity 77.5 mV (-20 dB) Input impedance 47 k ohms outputs: Line outputs (phono jacks) Output level 0.44 V (-5 dB) at load impedance 47 k ohms Load impedance over 10 k ohms Headphone output Output level -28dB at a load impedance of 8 ohms General Power Requirements: AEP model: 220 V ac, 50/60 Hz (240 V ac adjustable by authorized Sony personnel) UK model: 240 V ac, 50 Hz (220 V ac adjustable by authorized Sony personnel) US, Canadian model: 120 V ac, 60 Hz E model: 110,120,220 or 240 V ac ad- justable, 50/60 Hz Power Consumption: 14 watts Dimensions: Approx. 430 x 105 x 275 mm (w/h/d) (17 x 4¼, x 107/s inches) including projecting parts and controls Weight: US, Canadian, AEP, UK model: Approx. 4.4 kg (9lbs 12oz) E model: Approx. 4.5 kg (9 Ibs 15oz) (OdB=0.775V 1 1 Tape Transport Mechanism Type 1 TCM-130VlO FEATURES Dolby NR C-type noise reduction system In addition to the conventional B-type Dolby NR system, this cassette deck employs the newly-developed C-type Dolby NR system which reduces tape noise twice as effectively as the B-type system. The C-type system also incorporates an anti-saturation network to improve the high-frequency dynamic range by 4 dB at 10 kHz. Full-logic “feather-touch” operation At the slightest touch, the “feather-touch” function buttons enable you to switch directly from one mode to another without going through the stop mode. Blank skip function Blank spaces of at least 10 seconds long can be skipped in the fast- forward mode so that only the recorded portions of the tape are played back. Music scan function The first 10 seconds or so of all the selections on a tape can be played back in sequence. Thus the particular selection can be located easily. Repeat play Playback of one side of the cassette can be repeated five times. At the end of the tape, the cassette deck will automatically go into the rewind mode, and playback will be repeated from the beginning of the tape. AMS (Automatic Music Sensor) The AMS locates the beginning of the selection being played, or the following selection, by searching either forward, or in reverse, for the blank space between selections, and then plays back the selec- tion automatically. Automatic tape select system The tape type is automatically detected and the recorder is ad- justed to its optimum bias current for recording and the optimum equalization for both recording and playback by simply Inserting the cassette in the cassette holder. Auto play The auto play function makes automatic replay possible promptly after the tape is rewound to the beginning. Remote control operation Using the optional RM-50, RM-51 or RM-80 remote control unit, various operations-recording, playback, AMS, record muting operation, etc.-can be remotely controlled. When the RM-65 syn- chro remote control unit is used to connect this cassette deck with a turntable equipped with a synchro remote control jack, the opera- tion of the cassette deck and the turntable will be synchronized. Timer-activated recording or playback A timer switch is provided to turn the deck on and off at times preset on an optional timer. www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 0 POWER switch This turns the power on or off. The peak level meters illuminate when the unit is turned on. @ REC LEVEL (recording level) controls These controls adjust the recording level. The upper slide bar is for the left channel and the lower for the right channel. @Tape COUNTER and RESET button The tape counter provides a numerical reference point while record- ing which can be used to index a recorded cassette. To reset to zero. press the RESET button. @TAPE SELECT switch and tape type indicators Generally set this switch to AUTO (n). The automatic tape select system will then operate. When using a TYPE Ill (Fe-Cr) cassette or a TYPE IV (METAL) cassette which has no METAL tape detector slots, depress this switch to set it to the TYPE Ill (IV) position (n). When Inserting a cassette, one of the tape type indicators will light up depending on the type of tape and the position of the TAPE SELECT switch. @PEAK L E V E L M E T E R S These meters show the peak input level of each channel during recording, and recorded levels in the playback mode. They follow the transient peaks of high-level inputs that are too brief to be followed by conventional VU meters so that the optimum recording level can be accurately set. 0 Function buttons It is possible to switch directly from one mode to another. The in- dicator lamps on the buttons light to show the operating mode (ex- cept the 44, H and � buttons). ) (forward) button : Press this button to play the tape back. To record, press this button while holding the 0 button down. tl (rewind) button : Press this button to rewind the tape. This button is also used for “AMS” and “Auto play”. AMS button : Press this button and the’+4 or H button for AMS function. H (fast-forward) button : Press this button to advance the tape rapidly. This button IS also used for “AMS”. w (stop) button : To stop the tape, press this button. The tape will stop automatically when it is completely wound in either direc- tion. � (record) button : Press this button together with the) button to start recording. Also press this button before adjusting the recording level. 0 (record muting) button: Press this button to eliminate un- wanted material and to insert a blank space during recording. II (pause) button : To pause for a moment during recording or playback, press this button. This button IS also used to control more precisely the start of recording and to release the record muting mode. @TIMER switch You can set the unit to record or play back at a predetermined time by connecting any commercially available timer. To record, set this timer switch to REC. To play back, set it to PLAY. 0 6 (eject) button Press this button to open the cassette holder 0 HEADPHONES jack Headphones may be inserted either to monitor the input signals to be recorded or to listen to a recording in the playback mode. @REPEAT switch Depress this switch (P ON) to repeat the playing of one side of the cassette five times. Press it again (n OFF) to cancel repeat play. @MUSIC SCAN/BLANK SKIP switches The ON/OFF switch on the left actuates and switches off the music scan and blank skip functions and the switch on the right selects either the music scan function or the blank skip function. Depress the left switch (- ON) and the right switch (P MUSIC SCAN) to scan the first 10 seconds of all the selections. Depress the left switch (a ON) and release the right switch (n BLANK SKIP) to skip blank spaces representing more than 1 0 seconds, during playback. @DOLBY NR switches The left switch turns the Dolby NR* (Noise Reduction) system on and off and the right switch selects either the B-type or C-type Dolby NR system. To record with the Dolby NR process, depress the ON/OFF switch to the ON position and choose between B-TYPE (n) and C-TYPE (=). To record without the Dolby NR process, press the ON/OFF switch again to release. When playing back, set these switches to the same position used in recording. For details about the Dolby NR system. * “Dolby” and the double-D symbol are trade marks of the Dolby Labora- tories Licensing Corporation. Noise reduction system manufactured under license from Dolby Laboratones Licensing Corporation. @I MIC jacks Any low-impedance microphone equipped with a phone plug may be used. If your microphone is equipped with a mini plug, you will need a plug adaptor. www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TROUBLE CHECKS The following trouble checks will help you correct the most com- mon problems encountered with a tape deck. Should any problem persist after you have made these checks, consult your nearest Sony service facility. Before proceeding with these trouble checks, first check these basic points : � The power cord must be firmly connected. � Amplifier connections must be firmly made. 0 Heads, capstan and pinch roller should be clean. � The amplifier controls and switches should be set correctly. The function buttons do not activate right after the POWER switch is turned on. 0 Logic-controlled function buttons operate approximately 2 seconds after the POWER switch is turned on. The 0 button and the ) button do not activate. � The cassette holder is not fully closed. The 0 button does not activate. 0 No cassette in the holder. � The tab has been removed from the cassette. The automatic shut-off mechanism activates before the end of the tape. � The tape is slack. � This situation may also be caused by a deformed cassette shell. Tape transport noise seems excessively loud in rewind or fast- forward mode. � This situation depends upon the cassette used and is not a prob- lem. Recording or playback cannot be made or there is a decrease in sound level. � Contamination or magnetic build-up on the record/playback head. � improper connection. 0 Improper setting of the amplifier controls. The AMS does not operate. � The blank space between the selections is less than four seconds long. 0 Severe noise or hum exists in the blank spaces. � A recorded selection is less than 20 seconds long. The MUSIC SCAN and BLANK SKIP functions do not operate. @The ON/OFF switch on the left of the MUSIC SCAN/BLANK SKIP switches is released (OFF). Excessive wow or flutter or drop out � Contamination of the capstan or pinch roller. incomplete erasure � Contamination of the erase head. increase of noise or erasure of high frequencies 0 Magnetic build-up on the head. Unbalanced tone in higher frequencies 0 improper setting of the DOLBY NR switches. When playing back, set the switches to the same position used in recording. 0 Improper setting of the TAPE SELECT switch. Depress the TAPE SELECT switch when using a TYPE Ill (Fe-Cr) cassette or a TYPE IV (METAL) cassette which has no METAL tape detector slots. Oscillation occurs when trying to record from microphones. � The microphone is too near the loudspeakers. Move the microphone away from the loudspeakers or reduce the amplifier volume. Hum noise � The tape deck is stacked on or under the amplifier. Separate the units. www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TC-FX45 SECTION 3 ADJUSTMENTS 3-1. MECHANICAL ADJUSTMENTS PRECAUTION 1. Clean the following parts with a denatured- 3. alcohol-moistened swab: record/playback head pinch roller 4. erase head rubber belts capstan idlers 5. 2. Demagnetize the record/playback head with a head demagnetizer. Do not use a magnetized screwdriver for the adjustments. After the adjustments, apply suitable locking compound to the parts adjusted. The adjustments should be performed with the rated power supply voltage unless otherwise noted. lead Height Adjustment 1. Prepare an adjustment cassette as shown below. C- 1 Cur out hatched tape cassette portions. 2. In playback mode and viewing from the front, adjust the head heights to eliminate tape curl and tape twist at portions of the arrow. erase head record/playback >; 3-513-237-01 (t=O.l) 3-513-237-11 (t=0.2) Shim, head height adjustment Soft Eject Adjustment Specification Set the tape (C-90) and adjust the adjustment screw so that the EJECT TIME is within the specification. fast @ slow adjustment screw Torque Measurement 1 Torque Torque meter Meter reading 28- 60gm-cm Forward CQlO2C ’ (0.38 - 0.83 oz-inch) 2.5 - 6g-cm Back Tension (0.03 - 0.07 oz-inch) Fast Forward 80 - 165 g-cm and Rewind (1.1 - 2.2 oz-inch) Pinch Roller Pressure Measurement - Playback Mode - @ Slowly return he pinch roller and read the spring scale just when the pinch roller starts rotating. (The capstan should pinch roller \ 0 tension gauge -14- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3-2. ELECTRICAL ADJUSTMENTS Capstan motor Speed Adjustment Note: The adjustment should be performed in the order given in this service manual. The adjustments should be performed for both L-CH and R-CH. Set the BIAS and EQ switches according to the tape as follows. gj cs-30 I Fe-Cr (METAL) III: Fe-Cr cs-40 AUTO Fe-Cr (METAL) IV: METAL Switches and controls should be set as follows unless otherwise specified. DOLBY NR switch: OFF TAPE switch: AUTO (I: NORM) � Standard Record: Deliver the standard input signal level to the input jack and set the REC LEVEL control to obtain the standard output signal level. Standard Input Level MIC LINE IN source impedance 300 ohm 1 O k input level 0.77 mV (-60 dB) 0.25 V (-10 dB) Standard Output Level 1 \ 1 H E A D P H O N E S 1 L I N E O U T 1 1 load impedance 1 8n I 4 7 k 1 1 output level 1 31 mV (-26 dB) 1 0.435 V (-5 dB) I - 1 5- Procedure: Mode: playback speed checker L FM-30 digital ?Ferkquencv test tape WS-48A (3 kHz, 0 dB) counter set LINE OUT Specification: 1 Speed checker I Digital frequency counter I I -0.8~+0.8% I 2975 ~ 3025 Hz I Frequency difference between the beginning and the end of the tape should be within 0.84% (25 Hz). Adjustment Location: motor Adjust the speed by using screwdriver. When turning the screw clockwise, speed is faster. www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www.xiaoyu163.com QQ376315150 9 9 2 8 9 4 2 9 8 TEL13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TC-FX45 GENERAL SECTION No2 Part No. 1 l-548-574-00 2 3-304-419-41 3 b ;3-304-423-00 4 6 ;3-307-517-00 5 3-307-533-00 6 3-307-538-51 7 3-307-563-01 8 4 ;3-312-615-31 9 3-313-213-11 10 6 ;3-315-102-00 11 3-315-105-00 12 3-315-112-11 13 3-315-113-11 14 3-315-114-11 15 3-315-117-11 16 4 ;3-315-118-00 17 3-315-119-11 18 6 ;3-315-120-00 19 3-315-121-11 20 6 ;3-315-122-00 21 3-315-124-00 22 6 ;3-315-125-32 22 6 ;3-315-125-42 22 6 ;3-315-125-52 23 ) ;3-315-127-00 24 3-315-128-00 24 3-315-129-00 24 3-315-130-00 24 3-315-131-00 25 3-315-132-00 26 d ;3-315-146-00 27 3-315-153-00 28 6 ;3-315-156-00 29 3-480-135-00 30 3-540-244-00 31 3-575-524-00 32 4 ;3-575-529-11 33 b ;3-575-538-31 34 3-575-539-00 35 3-576-731-11 36 3-701-682-00 37 3-701-690-00 38 3-703-244-00 39 3-703-249-01 Description h COUNTER, TAPE (NORMAL TYPE) BUTTON. EJECT PLATE, SIDE, LEFT GUIDE, SLIDER PLATE, ORNAMENTAL, MD KNOB, SWITCH, TIMER SHEET, VIBRATION PROOF HEAT SINK BUTTON, REC CONTROL PLATE, SLIDE KNOB (5X16), SQUARE BUTTON, STOP BUTTON, FF BUTTON, REW BUTTON, REC MUTE BRACKET, COUNTER WINDOW, METER PLATE, RELAY ESCUTCHEON, CONTROL BUTTON HINGE, CONTROL BUTTON ESCUTCHEON, METER (US,Canadian).:::pP:;;;, ,“A”:,” (AEP,G-AEP,UK) , (El,E2) . . . . . . . . ..PLATE. JACK CHASSIS, AMPLIFIER [;$,G-AEP).....LABEL, . . . . . . . . . . ..LABEL. (El,E2)) . . . . . . . ..LABEL. (US,Canadian)...LABEL, MODEL NUMBER (AEPl) MODEL NUMBER (UK) MODEL NUMBER (El,E2) MODEL NUMBER (U,CND) BUTTON, AMS HOLDER, LED CUSHION SPACER, REMOTE CONTROL BELT SPRING, TENSION COVER, POWER SWITCH PLATE, SIDE, RIGHT PLATE, BOTTOM COVER, TOP FELT (H) (US,Canadian,El,E2)...STOPPER, CORD (UK) . . ..LABEL (MADE IN JAPAN) (AEP,G-AEP,UK) ) . . ..BUSHlNG. CORD SCREW, S TIGHT, +PTTWH 3X6 GENERAL SECTION IO2 Part No. 40&;3-703-680-00 3-703-710-01 4i 42 4-812-134-00 (US).... LABEL, CAUTION, SUB, NEW UL STICKER, SONY SYMBOL (12) RIVET, NYLON, 3.5 43 44 4-864-307-00 4-875-455-01 RING (AEP,G-AEP,UK,El,EZ)...COVER (DlA.20). 45 4-889-321-01 SCREW 46 7-621-770-87 SCREW +P 2.6X5 47 7-623-508-01 LUG, 3 48 7-682-247-13 SCREW +K 3X6 49 7-682-546-09 (El,E2).... SCREW +B 3X5 50 7-682-646-01 SCREW +PS 3X5 51 7-685-104-19 52 7-685-533-21 53 7-685-550-19 54 7-685-647-79 55 7-685-871-01 56 7-685-871-09 SCREW +P 2X6 TYPE2 NON-SLIT SCREW +BTP 2.6X6 TYPE2 SLI SCREW +BTP 3X16 TYPE2 N-S SCREW +BVTP 3X10 TYPE2 SLIT SCREW +BVTT 3X6 (S) SCREW +BVTT 3X6 (S) 57 ;; 7-688-004-11 W 4, MIDDLE 9-91 l-837 -XX CUSHION (B), FILTER x-3315-105-0 PLATE ASSY, ORNAMENTAL 60 61 ; 65 X-3315-112-O BUTTON ASSY, FWD x-3315-113-o BUTTON ASSY, REC x-3315-114-o BUTTON ASSY, PAUSE x-3315-115-o WINDOW ASSY, CASSETTE J X-3315-116-O PANEL ASSY, FRONT X-3575-502-0 KNOB ASSY, POWER 66 3-703-354-11 SCREW (OS), TOP COVER, CLAW 67 7-685-546-19 SCREW +BTP 3X8 TYPE2 N-S 68 x-3315-117-1 ESCUTCHEON ASSY, METER Description CAPACITOR NOTE: CAPACITORS: Items with no part number and no des- MF:µF, PF:µµF. cription are not stocked because they are seldom required for routine service. RESISTORS Items marked " b " All resistors are in ohms. are not stocked since they are seldom required for routine . F : nonflammable service. Some delay should be antici- COILS pated when ordering these items. Due to standardization, parts with part MMH : mH, UH : µH numbers (A-AAA-AAA-XX or A-AAAA-AAA-X) SEMICONDUCTORS may be different from those used in the In each case, U : µ, for example: set. UA...: µA..., UPA...: µPA..., UPC...: UPC, UPD...: µPD... -33- www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ACCESSORY & PACKING MATERIAL MECHANISM SECTION No. Part No. 101 1-551-734-11 102 3-315-149-00 103 3-315-150-00 104 3-315-151-00 105 3-315-152-00 106 3-573-625-00 107 3-701-360-00 108 3-701-630-00 109 3-773-485-11 109 3-773-485-21 109 3-773-485-41 110 3-793-828-11 111 8-890-454-10 112 x-3701-105-0 113 3-315-155-00 Description CORD, CONNECTION (RK- 74A) CUSHION (LEFT, LOWER) CUSHION (RIGHT, LOWER) No -? N o . Part 322 3-307-360-00 323 3-307-362-00 324 3-307-363-00 CUSHION (L E F T, U P PER) 325 3-307-366-00 CUSHION (RIG H T, UPPER) 326 3-307-367-00 SHEET, POLYETHYLENE (AEP,G-AEP) . ..LABEL. TACK BAG, POLYETHYLENE 327 3-307-369-00 328 . . . . . . . . . . . . 329 4;3-307-370-00 330 3-307-371-00 (Canadian,AEP,G_AEP,UK,El,E2) . ..MANUAL. INSTRUCTION (US) . . . . . . . . ..MANUAL. INSTRUCTION (AEP,G-AEP) ) . ..MANUAL. INSTRUCTION QUESTIONNAIRE (Canadian) . ..TAPE (UCX-S) ROD ASSY, CLEANING, HEAD INDIVIDUAL CARTON MECHANISM SECTION N o2 N o . Part Description 301 ~;3-307-301-00 302 3-307-307-00 303 3-307-308-00 304 3-307-309-00 305 3-307-313-00 306 3-307-315-00 307 3-307-319-00 308 3-307-328-00 309 b ;3-307-329-00 310 3-307-330-00 311 3-307-332-00 312 3-307-333-00 313 6 ;3-307-337-00 314 6 ;3-307-338-00 315 4 ;3-307-339-00 316 6 ;3-307-344-00 317 3-307-345-00 318 4 ;3-307-346-00 319 3-307-347-00 320 3-307-348-00 321 3-307-355-00 NOTE: CAPACITORS: LEVER (RELAY), FWD SELECT LEVEK, FWD LEVER, FF RETAINER (A), THRUST PLATE, YOKE ARBOR, MOVABLE RETAINER, TAKE-UP GEAR LEVER, TAKE-UP SELECTION PLATE, FULCRUM, SELECTION LEVER PIN, FULCRUM PLATE ARBOR, FIXED ARBOR, TRIGGER LEVER, REC DETECTION LEVER, METAL DETECTION SHAFT, DETECTION LEVER LEVER, HALF RETAINER SLIDER, EJECT LEVER, DETECTION PISTON ROLLER SPRING 331 3-307-372-00 332 3-307-374-00 333 3-307-378-00 334 3-307-380-00 335 3-307-382-00 336 3-307-383-00 337 3-307-390-00 338 3-307-391-00 339 3-307-394-00 340 3-307-395-00 341 3-307-397-00 342 3-307-401-00 343 &:3-307-403-00 344 &f3-307-404-00 345 4;3-307-405-00 346 3-307-406-00 47 3-307-407-31 348 3-307-412-00 349 3-307-414-00 350 3-307-416-00 351 3-307-465-00 352 &;3-307-467-00 353 3-307-475-00 354 3-307-482-00 355 3-307-483-00 356 3-307-486-00 357 3-307-493-01 358 3-307-493-11 359 3-307-493-21 360 3-307-493-31 361 3-307-493-41 362 3-307-493-51 363 3-307-953-00 364 3-307-970-00 365 3-312-405-00 366 3-312-406-00 Items with no part number and no des- cription are not stocked because they MF:uF, PF:~I,F. are seldom required for routine service. RESISTORS Items marked " & " are not stocked since All resistors are in ohms. they are seldom required for routine . F : nonflammable service. Some delay should be antici- COILS pated when ordering these items. Due to standardization, parts with part MMH : m H , UH : uH numbers (A-AAA-MA-XX or A-AAAA-AAA-X) SEMICONDUCTORS may be different from those used in the In each case, U : p, for example: set. UA...: PA..., UPA...: uPA..., UPC...: UPC, UPD...: uPD... Description GEAR (S), REEL CAP, REEL CLAW (N), REEL BELT, FAST FORWARD BUSHING, SELECT LEVEK FELT, LIMITER BRACKET, SWITCH SPRING (LEFT) SPRING (R I G H T) SPRING, TENSION SPRING, TENSION SPRING, COMPRESSION SPRING SPRING BUSHING, LOADING SPRING SPRING RETAINER (B), THRUST RETAINER, SPRING SLIDER, PAUSE GEAR, FF CAM SLIDER, FWD RETAINER, DETECTION SWITCH PLATE, FULCRUM, CASSETTE HOLDER LEVER, EJECT HOLDER, CASSETTE GEAR, TAKE-UP REEL BRACKET, HEAD STOPPER, LOADING RETAINER, TAKE-UP RETAINER, SPRING PLATE, TENSION, BACK WASHER, LUMILER BELT (R), CAPSTAN SPRING, COMPRESSION SPACER SPACER SPACER SPACER SPACER SPACER MAGNET, REEL TABLE GEAR, FR PULLEY, DRIVING GEAR (T), PINION www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MECHANISM SECTION ELECTRICAL PARTS N o2 N o . Part 367 3-312-408-00 368 3-312-409-00 369 3-312-412-00 370 3-312-429-00 371 3-312-432-00 372 . . . . . . . . . . . . 373 3-513,237-01 374 3-513-237-11 375 3-531-541-00 376 3-539-237-00 377 3-561-827-00 378 3-570-895-02 379 . . . . . . . . . . . . 380 3-575-392-00 381 3-701-438-11 382 . . . . . . . . . . . . 383 3-701-465-00 384 3-701-466-00 385 3-701-467-00 386 4 ;3-701-822-00 387 7-621-760-05 388 J-621-770-20 389 7-621-772-00 390 . . . . . . . . . . . . 391 7-624-105-04 392 7-671-111-11 393 7-685-860-04 394 7-687-204-21 395 7-687-246-21 396 A-2142-022-A 397 x-3307-301-0 398 X-3307-302-5 399 b ;x-3307-305-O F 400 x-3307-307-0 fl 401 X-3307-308-3 402 4 ;x-3307-309-O 403~;x-3307-310-0 PLATE (RIGHT) my, SIDE 404 X-3307-312-0 LEVER ASSY, FR 405 x-3307-330-1 CHASSIS (N) ASSY, MECHANICAL 406 X-3307-338-0 407 b ;x-3307-345-O 408 .X-3307-348-0 409 x-3307-920-0 Description GEAK (B), CONVERSION BELT, DRIVING GEAR (B), CPM, FWD SPRING, COMPRESSION SPKING, TENSION PLATE PLATE SPRING, TENSION SPRING (3), COMPRESSION PLATE (A), HYSTERESIS SPRING. TENSION RING, PISTON WASHER, 2.5 SCREW, LOCK SCREW, LOCK SCREW, LOCK HOLDER, WIRE +PSW, 2.6X16 SCREW +B 2x5 SCREW +B 2X3 STOP RING 2.3, TYPE -E STEEL BALL 1.5MM SCREW +BVTT 2.6X4 (S) TOTSU PTPWH 2X6 NON-SLIT, TYPE2 SCREW, TUTSU PTPWH 3X8, TYPE2 PULLEY ASSY, FR CHASSIS (N) ASSY, HEAD FLYWHEEL (N) ASSY LEVEK ASSY, FWD LOCK PINCH ROLLER (N) ASSY MOTOR (N) ASSY PLATE (LEFT) ASSY, SIDE BEARING ASSY, CAPSTAN RETAINER ASSY, THRUST LEVER ASSY, Fi LOCK PLATE ASSY, ADJUSTMENT NOTE: Items with no part number and no des- cription are not stocked because they are seldom required for routine service. Items marked u b u are not stocked Since they are seldom required for routine service. Some delay should be antici- pated when ordering these items. Due to standardlzatlon, parts with part numbers (:,-!.Ci!,-:,.:o-XX or I^,-:,LACa-.l.?:i-X) may be different from those used In the set. Ref.No. Part No. Description 501 l-452-202-00 502 l-454-316-00 503 n .l-526-576-51 504 l-535-139-00 505 h .1-534-817-Xx 505 h .l-551-472-00 505 h .1-551-506-Xx 505 B .I-555-734-00 505 A .I-556-562-00 506 A .l-605-860-12 507 b ;l-608-169-00 508 b ;l-609-914-00 509 b ;l-609-915-00 510 b ;l-609-916-00 511 b ;l-609-917-00 512 b ;l-609-918-00 513 b ;l-609-920-00 514 b il-609-921-00 515 b :l-609-922-00 516 b fl-609-923-00 517 b ;A-2056-203-A Cl03 l-123-354-00 Cl04 l-102-106-00 Cl05 l-123-354-00 Cl06 l-102-106-00 Cl07 l-123-380-00 Cl08 l-161-271-00 Cl09 l-123-356-00 Cl10 l-161-326-00 Cl11 l-107-165-00 Cl12 l-161-321-00 Cl13 l-107-036-00 Cl14 l-130-624-00 Cl16 l-123-354-00 Cl17 l-108-571-00 Cl18 l-161-316-00 Cl19 l-124-185-00 Cl22 l-130-620-00 Cl23 l-130-622-00 Cl24 l-130-620-00 Cl25 l-130-633-00 Cl26 l-123-380-00 Cl27 l-130-633-00 Cl28 l-130-637-00 CAPACITORS: MF:l,F, PF:,I;IF. RESISTORS All reslsto-s are in ohms. . F : nonflammable COILS MMH : mti, UH : uH SEMICONDUCTORS In each case, U : U, for example: UA...: uA..., UPA...: UPA..., UPC...: ,,I UPD...: uPD... MAGNET SOLENOID, PLUNGER . ..SELECTOR. POWER VOLTAGE . ..BASE POST 19MM (1DMM PITCH) (AEP,G-AEP) . . . ..CORD. POWEH, EURO PLUG (E2) . . . . . . . . . . ..CORD. POWER [;:jCanadian) . ..CORD. POWER . . . . . . . . . . ..CORD. POWER (UK) . . . . . . . . . . ..CORD. POWER (El,E2) . ..PC BOARD, POWER PC BOARD, TAPE SELECT SWITCH PC BOARD, VOLUME PC BOARD, HEADPHONE JACK PC BOARD, TYPE IND PC BOARD, PHOTO SENSOR PC BOARD, TIMER SW PC BOARD, PIN JACK PC BORAD, REMOTE CONTROL JACK PC BOARD. CONTROL BUTTON PC BOARD; FL METER MOUNTED PC BOARD, AUDIO ELECT CERAMIC ELECT 3.3MF 1OOPF 3.3MF CERAMIC 1OOPF ELECT 1MF CEKAMIC 1OOPF ELECT CERAMIC MICA 1OMF 0.0022MF 56PF CERAMIC MICA FILM 68OPF 68PF 0.022MF ELECT MYLAR CERAMIC 3.3MF 0.0047MF 270PF ELECT FILM FILM 4.7MF O.OlMF 0.015MF FILM FILM ELECT O.OlMF 0.12MF 1MF FILM FILM 0.12MF 0.27MF 20% 10% 20% 10% 20% 5% 20% 30% 5% 10% 5% 5% 20% 5% 10% 20% 5% 5% 5% 5% 20% 5% 5% 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5oov 5ov 5oov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov .\ .' The components identified : by shading and mark bare critical for safety. Replace only with part number specified. Les composants IdentlflPs par une trame et une marquensont crltlques pour la securlt4. 'C, : : Ne .~ les remplacer que par une piece portant le numero sp&ifie. . www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref.No. Cl29 Cl30 Cl31 ELECTRICAL PARTS N o . Part Description l-130-635-00 FILM l-130-630-00 FILM l-123-380-00 ELECT 0.18MF 0.068MF 1MF Cl32 l-130-625-00 FILM 0.027MF Cl33 l-130-635-00 FILM 0.18MF Cl34 l-130-630-00 FILM 0.068MF Cl35 Cl36 Cl37 l-123-369-00 ELECT l-123-351-00 ELECT l-123-369-00 ELECT 4.7MF 0.47MF 4.7MF Cl38 Cl39 Cl40 l-123-317-00 ELECT l-124-186-00 ELECT l-108-575-00 MYLAR 22MF 1OMF 0.0068MF Cl41 Cl44 Cl46 l-130-620-00 FILM l-130-627-00 FILM l-130-630-00 FILM O.OlMF 0.039MF 0.068MF Cl47 Cl50 c150-1 l-130-630-00 FILM l-123-353-00 ELECT l-161-318-00 CERAMIC 0.068MF 2.2MF 390PF Cl51 C203 C204 C205 C206 C207 C208 c209 c210 c211 c212 C213 C214 C216 C217 C218 c219 c222 C223 C224 l-130-620-00 FILM C225 l-130-633-00 FILM C226 l-123-380-00 ELECT C227 l-130-633-00 FILM C228 l-130-637-00 FILM c229 l-130-635-00 FILM 0.18MF C230 l-130-630-00 FILM 0.068MF C231 l-123-380-00 ELECl 1MF l-123-369-00 ELECT l-123-354-00 ELECT l-102-106-00 CERAMIC 4.7MF 3.3MF 1OOPF l-123-354-00 ELECT 3.3MF l-102-106-00 CERAMIC 1OOPF l-123-380-00 ELECT 1MF l-161-271-00 CERAMIC 1OOPF l-123-356-00 ELECT 1OMF l-161-326-00 CERAMIC 0.0022MF l-107-165-00 MICA l-161-321-00 CERAMIC l-107-036-00 MICA l-130-624-00 FILM l-123-354-00 ELECT l-108-571-00 MYLAR l-161-316-00 CERAMIC l-124-185-00 ELECT l-130-620-00 FILM l-130-622-00 FILM 56PF 68OPF 68PF 0.022MF 3.3MF 0.0047MF 270PF 4.7MF O.OlMF 0.015MF O.OlMF 0.12MF 1MF 0.12MF 0.27MF 5% 5% 20% 5% 5% 5% 20% 20% 20% 20% 20% 5% 5% 5% 5% 5% :o"; 20% 20% 10% 20% 10% 20% Z% 30% 5% 10% 5% 5% 20% 5% 10% 20% 5% 5% 5% 5% 20% 5% 5% 5% 5% 20% 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 16V 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5OUV 5ov 5oov 5ov 5ov 5OV 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov ELECTRICAL PARTS Ref.No. Part No. C232 l-130-625-00 C233 l-130-635-00 C234 l-130-630-00 C235 -123-369-00 C236 -123-351-00 C237 l-123-369-00 C238 -123-317-00 c239 -124-186-00 C240 -108-575-00 C241 l-130-620-00 C244 l-130-627-00 C246 l-130-630-00 C247 l-130-630-00 C250 l-123-353-00 C250-1 l-161-318-00 ELECT 4.7MF 20% 5ov ELECT 0.47MF 20% 5ov ELECT 4.7MF 20% 5ov ELECT 22MF 20% 16V ELECT 1OMF 20% 5ov MYLAR 0.0068MF 5% 5ov FILM O.OlMF 5% 5ov FILM 0.039MF 5% 5ov FILM 0.068MF 5% 5OV FILM 0.068MF 5% 5ov ELECT 2.2MF 20% 5ov CERAMIC 390PF 10% 5ov C251 l-123-369-00 ELECT 4.7MF 20% 5ov c301 l-123-308-00 ELECT 220MF 20% 1ov C302 l-123-308-00 ELECT 220MF 20% 1ov c303 l-123-356-00 c304 l-123-369-00 c305 l-123-317-00 C306 l-129-708-00 c307 l-123-369-00 C308 l-130-287-00 c309 l-130-293-00 c310 l-130-293-00 c311 l-123-351-00 C312 l-161-330-00 c313 l-123-356-00 c314 l-123-295-00 c315 l-123-307-00 C316 l-123-305-00 c317 l-123-356-00 C318 l-123-309-00 c319 l-123-307-00 C320 l-123-337-00 C321 l-123-356-00 C322 l-123-336-00 C323 l-123-335-00 C324 L&.1-161-744-00 C324n.l-161-749-00 ELECT 1OMF 20% 25V ELECT 470MF 20% 25V ELECT 330MF 20% 25V (AEP,G-AEP,UK:;;J;;) (US,Canadian)...CAP: (:ERAMIC 1OOOOPF :ERAMIC 1OOOOPF C325 l-161-330-00 CERAMIC O.OlMF 30% 25V C326 l-123-369-00 ELECT 4.7MF 20% 5ov C336 l-102-106-00 CERAMIC 1OOPF 10% 5ov Description FILM 0.027MF 5% 5ov FILM 0.18MF 5% 5ov FILM 0.068MF 5% 5ov ELECT 1OMF 20% 5ov ELECT 4.7MF 20% 5ov ELECT 22MF 20% 16V FILM ELECT FILM zMO:3MF 0:0039MF 10% 63OV 20% 5OV 5% 1oov FILM 0.0068MF 5% 1oov FILM 0.0068MF 5% 1oov ELECT 0.47MF 20% 5ov CERAMIC O.OlMF 30% 25V ELECT 1OMF 20% 5ov ELECT 1OOMF 20% 6.3V ELECT 1OOMF 20% 1ov ELECT 33MF 20% 1ov ELECT 1OMF 20% 5ov ELECT 330MF 20% 1ov ELECT 1OOMF 20% 1ov ELECT 1OOOMF 20% 25V NOTE: Items with no part number and no des- cription are not stocked because they are seldom required for routine service. Items marked " b " are not stocked since they are seldom required for routine service. Some delay should be antici- pated when ordering these items. Due to standardization, parts with part numbers (tl-CCL-fL',;.-XX or A-AAAA-MA-X) may be different from those used in the set. CAPACITORS: MF:.,F, PF:ubF. RESISTORS All resistors are in ohms. . F : nonflammable COILS . . “‘,‘.:i”,:..: :. ‘.‘. . . .’ ..\. ‘:.’ . . . . .:: :, . . . . ..:t:.: The components identified .. :;:; by shading and mdrknare ‘. ” : critical for safety. . : ‘~‘1 Replace only with part ..>,' number specified. ..i MMH : mH, UH : ,H ,,i?:i Les composants Identifies par !,'c une trame et une marquensont ‘.. SEMICONDUCTORS :.. ,: : critiques pour la securite. In each case, U : U, for example: ;sfi: Ne les remplacer que par UA...: uA..., UPA...: UPA..., UPC...: UPC, i:j:' une plice portant le numgro UPD...: uPD... : sp&ifi&. . .. ..\;:,::i :,:,: :::::,:: ,,,, . . . . ::::.: . . . . . .:. ,, . . ..;. I::,. . . . . . . . . ,, .,. www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ELECTRICAL PARTS ELECTRICAL PARTS Ref.No. Part No. c337 l-102-106-00 C338 l-102-106-00 c340 I-161-271-00 c341 l-123-333-00 C502 l-108-571-00 c503 l-123-380-00 c504 l-123-380-00 c505 l-161-330-00 C506 l-161-330-00 c507 l-161-330-00 C508 l-161-330-00 c509 l-161-330-00 c510 l-161-330-00 c511 l-161-330-00 C512 l-161-330-00 c513 l-161-330-00 c514 l-123-380-00 c515 l-161-323-00 C516 l-161-323-00 c517 l-123-607-00 C518 l-130-620-00 c519 l-130-621-00 C520 l-130-621-00 C521 l-130-620-00 C523 l-130-629-00 C524 l-130-629-00 C525 l-123-306-00 C526 l-123-369-00 C532 l-123-356-00 c533 l-130-628-00 c534 l-130-628-00 b CNP301;1-560-064-00 b CNP302:1-560-060-00 CNP303fl-560-064-00 PIN, CONNECTOR 6P PIN, CONNECTOR 2P PIN, CONNECTOR 6P CNP304;1-560-063-00 CNP305 l-561-965-00 CNP501;1-560-062-00 PIN, CONNECTOR 5P SOCKET 5P (REMOTE) PIN, CONNECTOR 4P CNP502;1-560-062-31 CNP503;1-560-063-21 CNP504;1-560-065-00 CNP507;1-560-062-41 PIN, CONNECTOR 4P PIN, CONNECTOR 5P PIN, CONNECTOR 8P PIN, CONNECTOR 4P CT101 1-141-225-21 CT201 1-141-225-21 CAP, TUNING, TRIMMER CAP, TUNING, TRIMMER D301 8-719-909-20 DIODE GL-9NG2 D302 8-719-909-20 DIODE GL-9NG2 D303 8-719-909-20 DIODE GL-9NG2 NOTE: CAPACITORS: Items with no part number and no des- MF:i,F, PF:bpf Description CERAMIC 1OOPF CERAMIC ZOOPF CERAMIC 1OOPF ELECT 1OOMF MYLAR 0.0047MF ELECT 1MF ELECT CERAMIC CERAMIC 1MF O.OlMF O.OlMF CERAMIC CERAMIC CERAMIC O.OlMF O.OlMF O.OlMF CERAMIC CERAMIC CERAMIC O.OlMF O.OlMF O.OlMF CERAMIC ELECT CERAMIC O.OlMF 1MF O.OOlMF CERAMIC ELECT FILM O.OOlMF O.lMF O.OlMF FILM FILM FILM 0.012MF 0.012MF O.OlMF FILM FILM ELECT 0.056MF 0.056MF 47MF ELECT ELECT FILM FILM 4.7MF 1OMF 0.047MF 0.047MF 10% 10% 5% 20% 5% 20% 20% 30% 30% 30% 30% 30% 30% 30% 30% 30% 20% 10% 10% 20% 5% 5% 5% 5% 5% 5% 20% 20% 20% :: cnption are not stocked because they are seldom required for routine service. Items marked ' b u are not stocked since they are seldom required for routine service. Some delay should be antici- pated when ordering these items. Due to standardization, parts with part number5 (A-Ah&-hzW,-XX or A-A&AC-~~~-X) may be different from those used in the set. 5ov 5ov 5ov 25v 5ov 5ov 5ov 25V 25V 25V 25V 25V 25V 25V 25V 25V 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 5ov 1ov 5ov 25V 5ov 5ov Ref.No. Part No. Description 0304 8-719-909-20 DIODE GL-9NG2 0305 8-719-901-33 DIODE lSS133 0306 8-719-901-33 DIODE lSS133 0307 8-719-901-33 DIODE lSS133 D308 8-719-901-33 DIODE lSS133 D309 8-719-910-92 DIODE HZ9A2L D310 8-719-901-33 D311 8-719-992-41 D312 8-719-200-02 0313 8-719-200-02 0314 8-719-200-02 D315 8-719-901-33 D316 8-719-200-02 D317 8-719-200-02 D318 8-719-200-02 D319 8-719-200-02 D501 8-719-901-33 D502 8-719-901-33 D506 8-719-901-33 D507 8-719-901-33 D508 8-719-901-33 0509 8-719-901-33 D510 8-719-901-33 D511 8-719-901-33 D513 8-719-901-33 D515 8-719-931-33 D516 8-719-901-33 0517 8-719-901-33 0518 8-719-901-33 0519 8-719-901-33 D525 8-719-934-05 D526 8-719-902-77 D527 8-719-902-77 D529 8-719-902-78 0534 8-719-901-33 0537 8-719-901-33 HE101 8-725-724-00 HRPlOl 8-725-507-50 FLT301 l-519-292-00 IClOl 8-752-002-70 IC102 8-759-906-02 IC201 8-752-002-80 IC202 8-759-906-02 IC301 8-759-101-56 IC302 8-759-101-55 RESISTORS All resistor5 are in ohms. F : nonflammable COILS MMH : mti, IJH : QH SEMICONDUCTORS In each case, U : ii. for example: IJA...: ,,A.... UPA...: UPA..., UPC...: "PC, UPD...: iJPD.' DIODE lSS133 DIODE HZ4Bl DIODE lOE-2 DIODE lOE-2 DIODE IOE-2 DIODE lSS133 DIODE lOE-2 DIODE IOE-2 DIODE lOE-2 DIODE lOE-2 DIODE lSS133 DIODE lSS133 DIODE lSS133 DIODE lSS133 DIODE lSS133 DIODE lSS133 DIODE lSS133 DIODE lSS133 DIODE lSS133 DIODE lSS133 DIODE lSS133 DIODE lSS133 DIODE lSS133 DIODE lSS133 OIODE SLR-34URC5 DIODE SLR-34PC5 DIODE SLR-34PC5 DIODE SLR-34DC5 DIODE lSS133 DIODE lSS133 HEAD, ERASE EF-201-36 HEAD, REC/PB (PP227-3602C) INDICATOR TUBE, FLUORESCEN IC CX20027 IC BA6146 IC CX20028 IC BA6146 IC CX10033A IC CX10032A -R7- www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ELECTRICAL PARTS Ref.No. Part No. Description IC303 8-759-700-47 IC cx10035 IC304 8-759-600-02 IC M5218L IC501 8-759-201-44 IC TC9310N-015 IC502 8-759-700-46 IC cx10034 IC503 8-759-201-84 IC TC9305P-003 IC504 8-759-201-84 IC TC9305P-003 JlOl l-507-762-00 JACK, PIN 4~ (LINE IN L) 5102 l-507-762-00 JACK, PIN 4~ (LINE O UT L) 5103 l-507-797-21 JACK, LARGE TYPE (MIC L) 5201 l-507-762-00 JACK, PIN 4P (LINE IN R) 5202 l-507-762-00 JACK, PIN 4P (LINE OUT R) 5203 l-507-797-21 JACK, LARGE TYPE (MIC R) 5301 l-507-796-21 JACK, (HEADPHONES) LlOl l-408-930-00 MICRO INDUCTOR 33MMH L102 l-408-252-00 MICRO INDUCTOR 3.9MMH L20f l-408-930-00 MICRO INDUCTOR 33MMH L202 l-408-252-00 MICRO INDUCTOR 3.9MMH L301 l-407-177-xx MICRO INDUCTOR 470UH LPFlOl 1-231-388-31 FILTER, LOW PASS LPL201 1-231-388-31 FILTER, LOW PASS PHI501 8-719-902-90 PHOTO INTERRUPTOR SPI201-20 PTl L& .l-447-603-00 PTl hi .l-447-604-00 PTl /& .l-447-605-00 (US,Canadian).... TRANSFORMER, POWER #;P;&AEP.UK) . ..TRANSFORMER. POWER , . . . . . . . . ..TRANSFORMER. POWER TRANSISTOR 2SC945-P TRANSISTOR 2SC945-P TRANSISTOR 2SC2001 TRANSISTOR 2SC945-P TRANSISTOR 2SC945-P TRANSISTOR 2SC945-P TRANSISTOR 2SC945-P TRANSISTOR 2SC945-P TRANSISTOR 2SC945-P QlOl 8-729-194-57 9103 8-729-194-57 QlO4 8-729-100-13 Q106 8-729-194-57 4107 8-729-194-57 Q108 8-729-194-57 QlO9 8-729-194-57 QllO 8-729-194-57 Qlll 8-729-194-57 Q201 8-729-194-57 TRANSISTOR 2SC945-P 0203 8-729-194-57 TRANSISTOR 2SC945-P 6204 8-729-100-13 TRANSISTOR 2SC2001 9206 8-729-194-57 TRANSISTOR 2SC945-P 9207 8-729-194-57 TRANSISTOR 2SC945-P 0208 8-729-194-57 TRANSISTOR 2SC945-P Q209 8-729-194-57 TRANSISTOR 2SC945-P Q210 8-729-194-57 TRANSISTOR 2SC945-P Q211 8-729-194-57 TRANSISTOR 2SC945-P TRANSISTOR 2SA1027R TRANSISTOR 2SC945-P TRANSISTOR 2SC945-P Q301 8-729-612-77 Q302 8-729-194-57 Q303 8-729-194-57 NOTE: CAPACITORS: Items with no part number and no des- MF:uF, PF:t,t,F. criprion are not stockea oecause rney are seldom required for routine service. Items marked ' b ' are not stocked since they are seldom required for routine service. Some delay should be antici- pated when ordering these items. Due to standardization, parts with part numbers (A-AAA-AAA-XX or A-AAAA-AAA-X) may be different from those used in the set. ELECTRICAL PARTS Ref.No. Part No. Description Q304 8-729-194-57 TRANSISTOR 2SC945-P 9305 8-729-117-54 TRANSISTOR 2SA1175 Q306 8-729-194-57 TRANSISTOR 2SC945-P 4307 8-729-194-57 TRANSISTOR 2SC945-P Q308 8-729-180-92 TRANSISTOR 2SD809-K Q309 8-729-180-92 TRANSISTOR 2SD809-K 4310 8-729-180-92 TRANSISTOR 2SD809-K 4311 8-729-173-13 TRANSISTOR 2SB731-K Q313 8-729-194-57 TRANSISTOR 2SC945-P Q314 8-729-194-57 TRANSISTOR 2SC945-P Q315 8-729-194-57 TRANSISTOR 2SC945-P Q316 8-729-612-77 TRANSISTOR 2SA1027R Q501 8-729-194-57 TRANSISTOR 2SC945-P 9503 8-729-194-57 TRANSISTOR 2SC945-P Q506 8-729-117-54 TRANSISTOR 2SA1175 Q508 8-729-117-54 TRANSISTOR 2SA1175 0510 8-729-194-57 TRANSISTOR 2SC945-P 6515 8-729-194-57 TRANSISTOR 2SC945-P Q516 8-729-194-57 TRANSISTOR 2SC945-P RlOl l-246-481-00 CARBON 2.2K 5% R102 l-246-509-00 CARBON 33K 5% R103 l-247-879-00 CARBON 1OOK 5% R104 l-247-855-00 CARBON 10K 5% R105 l-247-855-00 CARBON 10K 5% R106 l-247-819-00 CARBON 330 5% R107 l-247-866-00 CARBON 30K 5% R108 l-246-521-00 CARBON 1OOK 5% R109 l-246-505-00 CARBON 22K 5% RllO l-246-491-00 CARBON 5.6K 5% Rlll l-246-485-00 CARBON 3.3K 5% R112 l-246-521-00 CARBON 1OOK 5% R113 l-246-493-00 CARBON 6.8K 5% R114 l-246-529-00 CARBON 220K 5% R115 l-246-449-00 CARBON 100 5% R116 l-246-524-00 CARBON 130K 5% R117 l-246-491-00 CARBON 5.6K 5% R118 R120 R121 R122 R123 R124 R125 R126 R127 RI28 l-246-449-00 CARBON l-246-499-00 CARBON l-246-503-00 CARBON l-246-529-00 CARBON l-247-831-00 CARBON l-247-831-00 CARBON l-246-473-00 CARBON l-246-481-00 CARBON l-246-472-00 CARBON I-246-484-00 CARBON 100 5% 12K 5% 18K 5% 220K 5% 1/4w 1/4w 1/4w 1/4w 1/4w 1/4w 1K 5% 1/6W 1K 5% 1/6W 1K 5% 1/4w 2.2K 5% 910 5% 3K 5% 1/4w 1/4w 1/4w RESISTORS All resistors are in ohms. . F : nonflammable COILS MMH : mH, UH : uH SEMICONDUCTORS In each case, U : p. for example: UA...: uA..., UPA...: UPA..., UPC...: UPD...: PPD... 1/4w 1/4w 1/6W 1/6W 1/6W 1/6W 1/6W 1/4w 1/4w 1/4w 1/4w 1/4w 1/4w 1/4w 1/4w . : . . . : .: .,.,., ,. ‘: . .:.: . . ..: : . . . . ., : ., . . . . . . . . . “.. ::: . : ...:: : : :, : . . . . . . . ,?;,;:il The components identified ',' "" by shading and mark Aare .:::: '.;. /z critical for safety. ?fj;j Replace only with part j,$:i number specified. . . . . . . . . . ::::: j:::.!:: Les conposants identifies par "" : : : :: I:;$, une trame et une marqueAsont .i ::::: .:;:;:I:; critiques pour la securite. .: ;$i Ne les remplacer que par ., UPC, 'z{j une piece portant le numero :::..'.: sp&ci fib. . . . :\. .,. : : : ._:_:_:.: : : . . . . . .~..),.,.... .,,.,,.,.,., .,:. ..:. ..;,.,: ,,. . . . .: ‘. www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref.No. K129 R130 R131 R132 R133 R134 R135 R136 R137 RI38 R139 R140 RI43 R144 R145 R146 R147 R148 R149 R150 R151 R152 R153 R154 K155 R161 R163 R164 R166 R167 R169 R170 R171 R173 R174 R175 R176 R179 R180 R181 R182 R183 R184 R185 R188 NOTE: ELECTRICAL PARTS Part No. Description l-246-490-00 CARBON l-246-507-00 CARBON 1-246-466-00 CARBON l-246-537-00 CARBON l-214-776-00 METAL l-246-513-00 CARBON l-246-480-00 l-246-490-00 l-247-820-00 l-247-845-00 l-247-833-00 l-246-505-00 l-246-474-00 l-247-887-00 l-247-886-00 CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON l-247-845-00 CARBON l-247-887-00 CARBON l-247-886-00 CARBON l-246-497-00 CARBON l-246-497-00 CARBON l-246-489-00 CAKBON l-246-475-00 CARBON l-246-497-00 CARBON l-247-831-00 CARBON l-246-521-00 CARBON l-246-507-00 CARBON l-247-805-00 CARBON l-247-839-00 l-247-863-00 l-247-857-00 l-247-852-00 l-247-847-00 l-247-863-00 l-247-834-00 l-247-863-00 l-247-851-00 l-247-839-00 l-247-863-00 l-247-855-00 l-247-855-00 l-247-843-00 l-247-855-00 l-247-879-00 l-247-823-00 l-247-888-00 CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON 5.1K 5% 27K 5% 510 5% 470K 5% 91K 1% 47K 5% 5% FlK 5% 360 5% 3.9K 5% 1.2K 5% 22K 5% l.lK 5% 220K 5% 200K 5% 3.9K 5% 220K 5% 200K 5% 10K 5% 10K 5% 4.7K 5% 1.2K 5% 10K 5% 1K 5% 1OOK 5% 27K 5% 82 5% 2.2K 5% 22K 5% 12K 5% 7.5K 5% 4.7K 5% 22K 5% 1.3K 5% 22K 5% 6.8K 5% 2.2K 5% 22K 5% 10K 5% 10K 5% 3.3K 5% 10K 5% 1OOK 5% 470 5% 240K 5% 1/4w 1/4w 1/4w 1/4w 1/4w 1/4w 1/4w 1/4w 1/6W 1/6W 1/6W 1/4w 1/4w 1/6W 1/6W 1/6W 1/6W 1/6W 1/4w 1/4w 1/4w 1/4w 1/4w 1/6W 1/4w 1/4w 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W CAPACITORS: ELECTRICAL PARTS Ref.No. Part No. Description R189 l-247-855-00 CARBON R191 l-247-865-00 CARBON R192 l-247-807-00 CARBON R2Dl l-246-481-00 CARBON R202 l-246-509-00 CARBON R203 l-247-879-00 CARBON R204 R205 R206 R207 R208 R209 R210 R211 R212 l-247-855-00 l-247-855-00 l-247-819-00 l-247-866-00 l-246-521-00 l-246-505-00 l-246-491-00 l-246-485-00 l-246-521-00 CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON R213 l-246-493-00 CARBON R214 l-246-529-00 CARBON R215 I-246-449-00 CARBON R216 l-246-524-00 CARBON R217 l-246-491-00 CARBON R218 l-246-449-00 CARBON R220 l-246-499-00 CARBON R221 l-246-503-00 CARBON R222 l-246-529-00 CARBON R223 l-247-831-00 CARBON R224 l-247-831-00 CARBON R225 R226 R227 R228 R229 R230 R231 R232 R233 R234 R235 R236 R237 R238 R239 R240 R243 R244 R245 Items with no part number and no des- MF:nF, PF:bbF. cfiption are not stocked because they are seldom required for routine service. RESISTORS ... Items marked " 4 " are not stocked since AII resistors are in ohms. they are seldom required for routine . F : nonflammable l-246-473-00 CARBON l-246-481-00 l-246-472-00 l-246-484-00 l-246-490-00 l-246-507-00 l-246-466-00 l-246-537-00 l-214-776-00 l-246-513-00 l-246-480-00 l-246-490-00 l-247-820-00 l-247-845-00 l-247-833-00 l-246-505-00 l-246-474-00 l-247-887-00 I-247-886-00 CARBON CARBON CARBON CARBON CARBON CARBON CARBON METAL CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON CARBON 10K 5% 27K 5% 100 5% 2.2K 5% 33K 5% 1OOK 5% 1/6W 1/6W 1/6W 1/4w 1/4w 1/6W 10K 5% 10K 5% 330 5% 30K 5% 1OOK 5% 22K 5% 1/6W 1/6W 1/6W 1/6W 1/4w 1/4w 5.6K 5% 3.3K 5% 1DOK 5% 1/4w 1/4w 1/4w 6.8K 5% 220K 5% 100 5% 130K 5% 5.6K 5% 100 5% 12K 5% 18K 5% 220K 5% 1/4w 1/4w 1/4w 1/4w 1/4w 1/4w 1/4w 1/4w 1/4w 1K 1/6W 1K :: 1/6W 1K 5% 1/4w 2.2K 5% 910 5% 3K 5% 1/4w 1/4w 1/4w 5.1K 5% 27K 5% 510 5% 470K 5% 91K 1% 47K 5% 1/4w lf4W 1/4w 1/4w 1/4w 1/4w 2K 5% 5.1K 5% 360 5% 3.9K 5% 1.2K 5% 22K 5% 1/4w 1/4w 1/6W 1/6W 1/6W 1/4w l.lK 5% 220K 5% 200K 5% 1/4w 1/6W 1/6W service. Some delay should be antici- COILS pated when ordering these items. Due to standardization, parts with part MMH : mH, UH : uH numbers (n-AAA-f,AA-XX or A-AAAA-AM-X) SEMICONDUCTORS may be different from those used in the In each case, U : V, for example: set. UA...: LIA..., UPA...: UPA..., UPC....: UPC, UPD...: uPD... www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ELECTRICAL PARTS Ref.No. Part No. Description R246 R247 R248 R249 R250 R251 R252 R253 R254 R255 R261 R263 R264 R266 R267 R269 R270 R271 R273 R274 R275 R276 R279 R280 R281 R282 R283 R284 R285 R288 R289 R291 R292 R301 R302 R303 R304 R305 R306 R307 R308 R309 R310 R311 R312 l-247-845-00 CARBON l-247-887-00 CARBON l-247-886-00 CARBON l-246-497-00 CARBON l-246-497-00 CARBON l-246-489-00 CARBON l-246-475-00 CARBON l-246-497-00 CARBON l-247-831-00 CARBON l-246-521-00 CARBON l-246-507-00 CARBON l-247-805-00 CARBON l-247-839-00 CARBON l-247-863-00 CARBON l-247-857-00 CARBON l-247-852-00 CARBON l-247-847-00 CARBON l-247-863-00 CARBON l-247-834-00 CARBON l-247-863-00 CARBON l-247-851-00 CAKBON l-247-839-00 CARBON l-247-863-00 CARBON l-247-855-00 CARBON l-247-855-00 CARBON l-247-843-00 CARBON l-247-855-00 CARBON l-247-879-00 CARBON l-247-823-00 CARBON l-247-888-00 CARBON l-247-855-00 CARBON l-247-865-00 CARBON l-247-807-00 CARBON l-246-461-00 CARBON l-247-887-00 CARBON l-247-855-00 CARBON l-246-457-00 CARBON l-246-457-00 CARBON l-247-847-00 CARBON l-247-831-00 CARBON l-247-879-00 CARBON l-247-871-00 CARBON l-247-879-00 CARBON l-247-847-00 CARBON l-247-863-00 CARBON 3.9K 5% 220K 5% 200K 5% 10K 5% 10K 5% 4.7K 5% 1.2K 5% 10K 5% 1K 5% 1OOK 5% 27K 5% 82 5% 2.2K 5% 22K 5% 12K 5% 7.5K 5% 4.7K 5% 22K 5% 1.3K 5% 22K 5% 6.8K 5% 2.2K 5% 22K 5% 10K 5% 10K 5% 3.3K 5% 10K 5% 1OOK 5% 470 5% 240K 5% 10K 5% 27K 5% 100 5% 330 5% 220K 5% 10K 5% 220 5% 220 5% 4.7K 5% 5% ::OK 5% 47K 5% 1OOK 5% 4.7K 5% 22K 5% 1/6W 1/6W 1/6W 1/4w 1/4w 1/4w 1/4w 1/4w 1/6W 1/4w 1/4w 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/4w 1/6W 1/6W 1/4w 1/4w 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W I ELECTRICAL PARTS Ref.No. Part No. Description R313 l-247-863-00 CARBON R3148.1-217-529-00 FUSIBLE R315 l-247-857-00 CARBON R316 l-247-857-00 CARBON R317 l-247-855-00 CARBON R318 l-247-871-00 CARBON R319 R320 R321 l-247-871-00 CARBON l-247-852-00 CARBON l-247-844-00 CARBON R322 R323 R324 l-247-848-00 CARBON l-247-816-00 CARBON l-247-855-00 CARBON R325 R326 R327 l-247-847-00 CARBON l-247-855-00 CARBON l-247-847-00 CARBON R328 R329 R330 l-247-842-00 CARBON l-247-829-00 CARBON l-247-826-00 CARBON R331 R332 R333 l-247-847-00 CARBON l-246-500-00 CARBON l-246-482-00 CARBON R334 R335 R336 l-246-482-00 CARBON l-246-501-00 CARBON l-246-473-00 CARBON R338 l-247-807-00 CARBON R350n.l-217-523-00 FUSIBLE R501 l-247-839-00 CARBON R502 R503 R504 R507 R510 R511 R512 R513 R515 R516 R517 R518 R522 R523 R524 R525 R526 R527 l-247-903-00 CARBON l-247-839-00 CARBON l-247-903-00 CARBON l-247-847-00 CARBON l-247-863-00 CARBON l-247-863-00 CARBON l-247-879-00 CARBON l-247-863-00 CARBON l-247-811-00 CARBON l-247-819-00 CARBON l-247-827-00 CARBON l-247-811-00 CARBON l-247-872-00 CARBON l-247-855-00 CARBON l-247-879-00 CARBON l-247-855-00 CAKBON l-247-855-00 CARBON l-247-819-00 CARBON 22K 5% 33 5% 12K 5% 12K 5% 10K 5% 47K 5% 47K 5% 7.5K 5% 3.6K 5% 5.1K 5% 240 5% 10K 5% 4.7K 5% 10K 5% 4.7K 5% 3K 5% 820 5% 620 5% 4.7K 5% 13K 5% 2.4K 5% 2.4K 5% 15K 5% 1K 5% 100 5% 10 5% 2.2K 5% 1M 5% 2.2K 5% 1M 5% 4.7K 5% 22K 5% 22K 5% 1OOK 5% 22K 5% 150 5% 330 5% 680 5% 150 5% 51K 5% 10K 5% 1OOK 5% 10K 5% 10K 5% 330 5% 1/6W 1/4w 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/4w 1/4w 1/4w 1/4w 1/4w 1/6W 1/4w 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W NOTE: CAPACITORS: Items with no part number and no criptlon are not stocked because des- MF:L.F, PF:L~F. ‘,, ::. .\ . . . rney 5':::: The components identi'iied are seldom required tar routine service. RESISTORS All resistors are in ohms. '<: by chadlng and mark Aare z:., .?:: critical for safety. :;,:.,: ,. : Items marked " b II are not stocked Since .: :..:I:j: Replace only with part :I:: . F : nonflammable j :y. they are seldom required for routine service. Some delay should be antlci- COILS .:: . ...: pated when ordering these i terns. :.::.. MMH : mH, UH : uH 1:; Les ccmposants identlfibs par ;' Due to standardization, parts with part ii-_: une trame et une marquensont .:j. numbers (A-AAA-,“,?>A-XX or A-AAAA-MA-X) SEMICONDUCTORS "'.. :: .,. crltlques pour la s6curit6. iI may be different from those used In the In each case, U : LI, for example: >. :.. Ne les remplacer que par T set. IJA...: uA..., UPA...: ,JPA..., UPC...: UPC, :; u n e pi&ce portant le numCr0 upcl...: PPD... .,I,,, sp&iflk. .::_: .,,. . . . . . . . . . . :..: :. .i : www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref.No. R529 R530 R531 R532 R533 R534 R535 R536 R537 R538 R539 R540 ELECTRICAL PARTS Part No. Description l-247-831-00 CARBON l-247-831-00 CARBON l-247-831-00 CARBON 1K 1K 1K l-247-831-00 CARBON 1K l-247-831-00 CARBON 1K l-247-831-00 CARBON 1K l-247-831-00 CARBON 1K l-247-831-00 CARBON 1K l-247-831-00 CARBON 1K l-247-847-00 CARBON 4.7K l-247-855-00 CARBON 10K l-247-839-00 CARBON 2.2K R541 l-247-868-00 CARBON 36K R542 l-247-879-00 CARBON 1OOK R543 l-247-809-00 CARBON 120 R544 l-247-831-00 CARBON 1K R546 l-247-889-00 CARBON 270K R547 l-247-887-00 CARBON 220K R548 R549 R550 R551 R566 R568 R571 R573 l-247-875-00 l-247-871-00 l-247-831-00 l-247-871-00 l-247-871-00 l-247-863-00 l-247-831-00 l-247-831-00 CARBON CARBON CARBON 68K 47K 1K CARBON CARBON CARBON 47K 47K 22K CARBON 1K CARBON 1K 5% 5% 5% 5% 5% 5% 5% :z 5% 5% 5% 5% 5% 5% 5% 5% 5% 5% 5% 5% 5% 5% 5% 5% 5% 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W 1/6W RVlOl l-226-991-00 RES, VAR, SLIOE 20K/20K (REC LEVEL L RV201 l-226-991-00 RES, VAR, SLIDE 20K/20K (REC LEVEL R RV102 l-226-236-00 RES, ADJ, CARBON 10K RV103 1-226-851-41 RES, ADJ, CARBON 10K RV104 l-226-236-00 RES, ADJ, CARBON 10K RV202 l-226-236-00 RES, ADJ, CARBON 10K RV203 1-226-851-41 RES, ADJ. CARBON 10K RV204 l-226-236-00 RES, ADJ; CARBON 10K RY301 1-515-473-12 RELAY ELECTRICAL PARTS Ref.No. Part No. Description s301 l-554-510-00 SWITCH, PUSH (3 KEY) (DOLBY NR, TAPE SELECT) S302 l-554-510-00 SWITCH, PUSH (3 KEY) (REPEAT, MUSIC SCAN/BLANK SKIP) s303 l-554-208-00 SWITCH, SLIDE (TIMER) s501 l-554-303-00 SWITCH. KEY BOARD CREW) S502 l-554-303-00 SWITCH; KEY BOARD (STOi) s503 l-554-303-00 SWITCH, KEY BOARD (PB) s504 1-554-303-00 SWITCH, KEY BOARD (F F) S506 l-554-303-00 SWITCH, KEY BOARD (REC) s507 1-554-303-00 SWITCH, KEY BOARD (PA US E) S508 l-554-303-00 SWITCH, KEY BOARD (REC MUTE) s509 l-554-303-00 SWITCH, KEY BOARD (AMS) s551 l-554-205-00 SWITCH, PUSH (EJECT) S552 l-554-205-00 SWITCH, PUSH s553 l-554-205-00 SWITCH, PUSH s554 l-554-205-00 SWITCH, PUSH S9018.1-553-318-00 SWITCH, PUSH (AC POWER) SPKlOl l-235-186-00 ENCAPSULATED COMPONENT SPK201 l-235-186-00 ENCAPSULATED COMPONENT T301 l-433-267-00 TRANSFORMER, OSCILLATOR NOTE: CAPACITORS: . . . Items with no part number and no des- MF:L,F, PF:vbF. ;:::,:, .> :.: :,,.,.,i,,.., 5,: y. :&::::j,:,I :: ::. . . . . . .\ ,.,.. . . crlptlon are not stocked because they :':: The components identified : are seldom required for routine service. RESISTORS All resistors are in ohms. by shading and marknare i:j,. I terns marked II b II are not stocked since + critical for safety. ‘. :.: they are seldom required for routine . F : nonflammable ..: Replace only with part service. Some delay should be antici- ,:I':; number specified. COILS . pated when ordering these items. :::'::, MMH : mH, UH : uH :cG Les composants identlfihs par "'. ::::.. Due to standardization, parts with part .;:i une trame et une marquensont numbers (C-AAC-Ct)C-XX or A-t~fi?,-:,x-X) SEMICONDUCTORS .i> :. . . . critiques pour la s&curlt&. 'I.. may be different from those used in the In each case, U : p, for example: j;::.: i:::: Ne les remplacer que par ."' set. UA...: ,,A..., UPA...: "PA..., UPC...: UPC. $ une plbce portant le numbro UPD...: uPD... :...:. sp&ifi&. :,:::...,,.,......,.;... . . . . . . . . . . ,., ,, . . . . . . . . .,: ::::,:::.: ‘: :::: ..,;i’i’.:,.::,. f’. ; : ‘.:::.;I. 41-- www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
