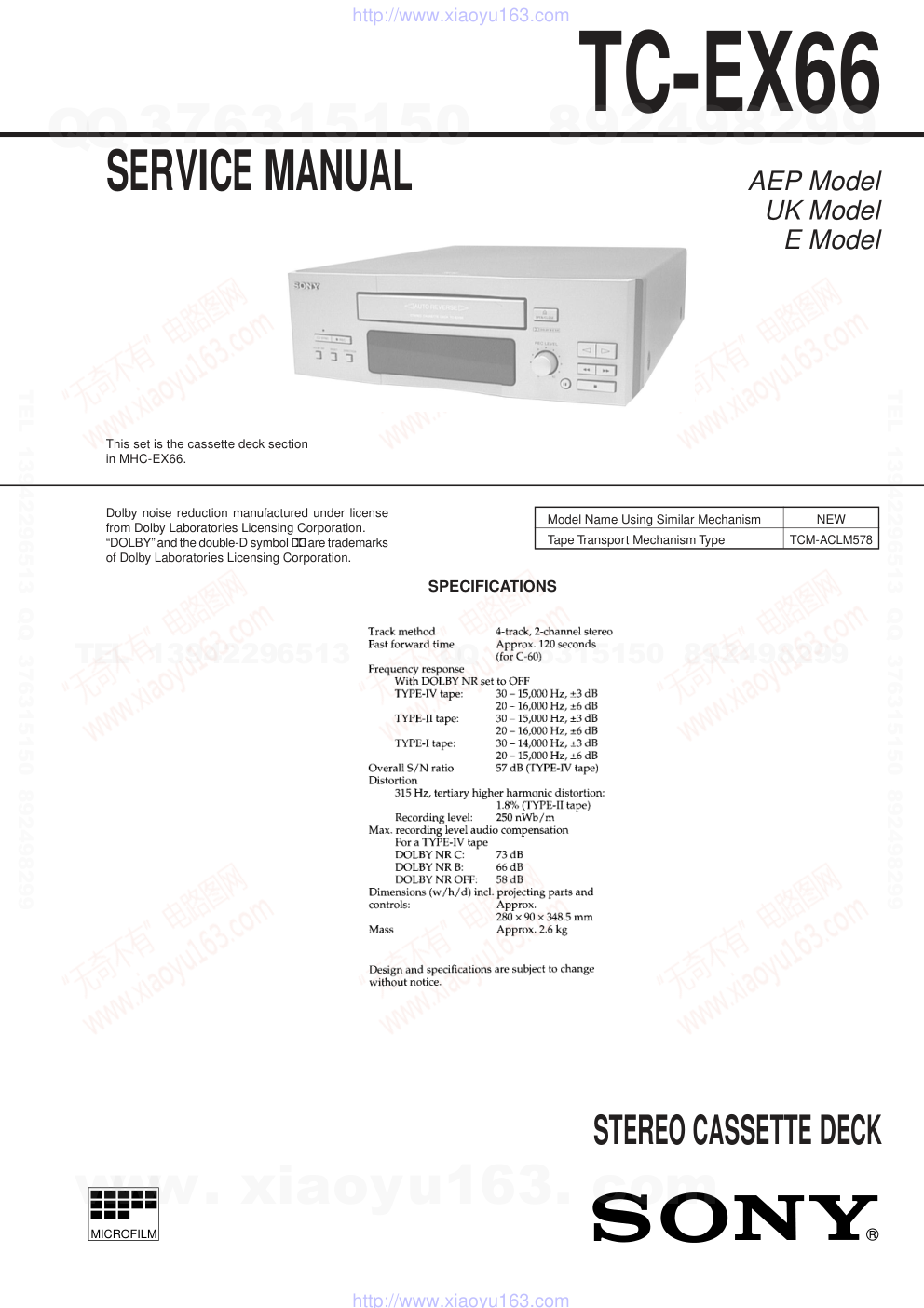

'MICROFILM
STEREO CASSETTE DECK
SERVICE MANUAL
This set is the cassette deck section
in MHC-EX66.
Dolby noise reduction manufactured under license
from Dolby Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol a are trademarks
of Dolby Laboratories Licensing Corporation.
SPECIFICATIONS
Model Name Using Similar Mechanism
NEW
Tape Transport Mechanism Type
TCM-ACLM578
AEP Model
UK Model
E Model
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 2 –

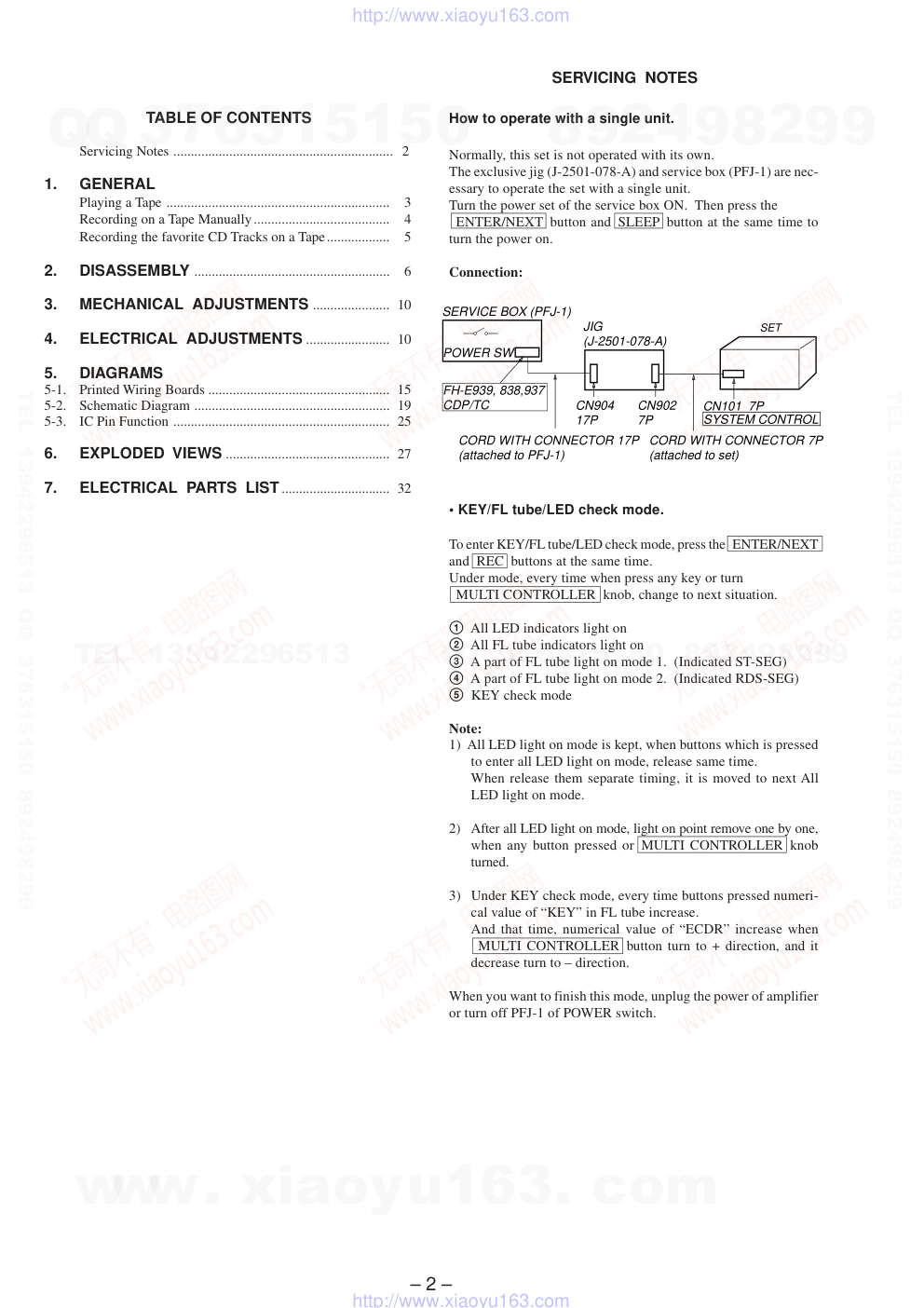

TABLE OF CONTENTS
Servicing Notes ............................................................... 2
1.
GENERAL
Playing a Tape ................................................................
3

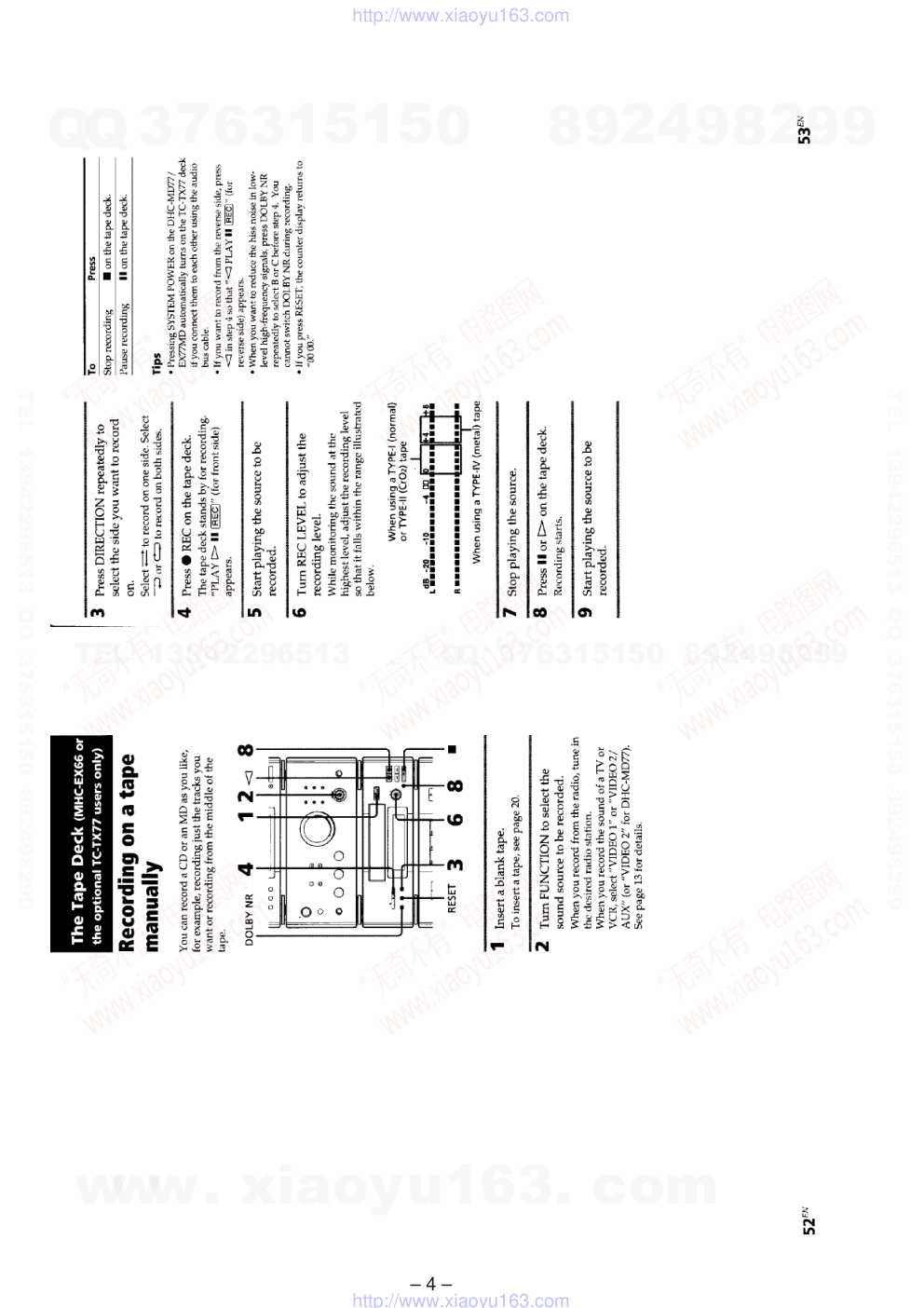

Recording on a Tape Manually.......................................
4

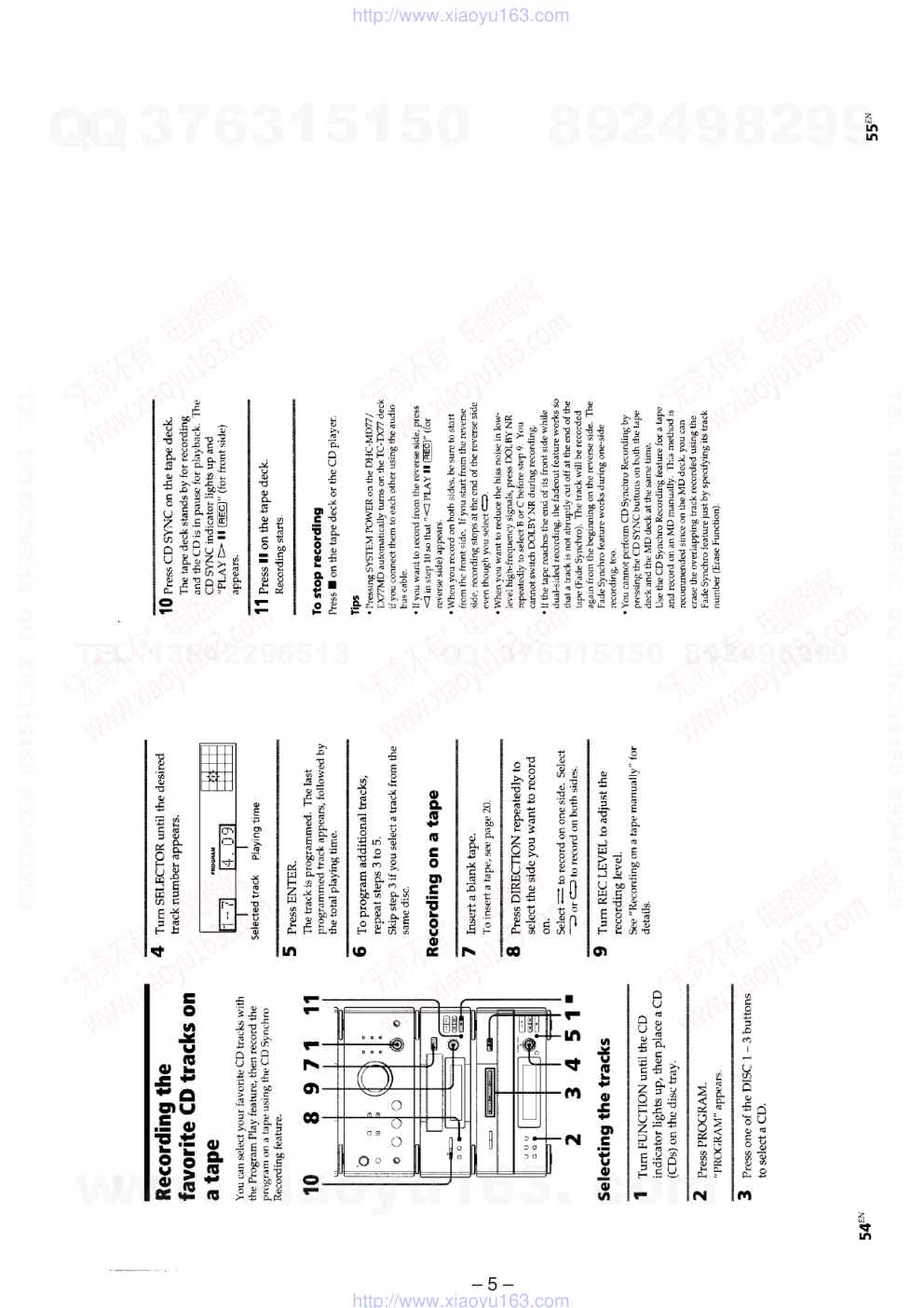

Recording the favorite CD Tracks on a Tape..................
5
2.
DISASSEMBLY ........................................................
6
3.
MECHANICAL  ADJUSTMENTS ...................... 10
4.
ELECTRICAL  ADJUSTMENTS ........................ 10
5.
DIAGRAMS
5-1.
Printed Wiring Boards .................................................... 15
5-2.
Schematic Diagram ........................................................ 19
5-3.
IC Pin Function .............................................................. 25
6.
EXPLODED  VIEWS ............................................... 27
7.
ELECTRICAL  PARTS  LIST ............................... 32
SERVICING  NOTES
How to operate with a single unit.
Normally, this set is not operated with its own.
The exclusive jig (J-2501-078-A) and service box (PFJ-1) are nec-
essary to operate the set with a single unit.
Turn the power set of the service box ON.  Then press the
ENTER/NEXT button and SLEEP button at the same time to
turn the power on.
Connection:
• KEY/FL tube/LED check mode.
To enter KEY/FL tube/LED check mode, press the ENTER/NEXT
and REC buttons at the same time.
Under mode, every time when press any key or turn
MULTI CONTROLLER knob, change to next situation.
1  All LED indicators light on
2  All FL tube indicators light on
3  A part of FL tube light on mode 1.  (Indicated ST-SEG)
4  A part of FL tube light on mode 2.  (Indicated RDS-SEG)
5  KEY check mode
Note:
1)  All LED light on mode is kept, when buttons which is pressed
to enter all LED light on mode, release same time.
When release them separate timing, it is moved to next All
LED light on mode.
2) After all LED light on mode, light on point remove one by one,
when any button pressed or MULTI CONTROLLER knob
turned.
3) Under KEY check mode, every time buttons pressed numeri-
cal value of “KEY” in FL tube increase.
And that time, numerical value of “ECDR” increase when
MULTI CONTROLLER button turn to + direction, and it
decrease turn to – direction.
When you want to finish this mode, unplug the power of amplifier
or turn off PFJ-1 of POWER switch.
POWER SW
FH-E939, 838,937
CDP/TC
CN904
17P
CN902
7P
CN101  7P
JIG
(J-2501-078-A)
SERVICE BOX (PFJ-1)
SET
SYSTEM CONTROL
CORD WITH CONNECTOR 7P
(attached to set)
CORD WITH CONNECTOR 17P
(attached to PFJ-1)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 3 –
This section is extracted
from instruction manual.

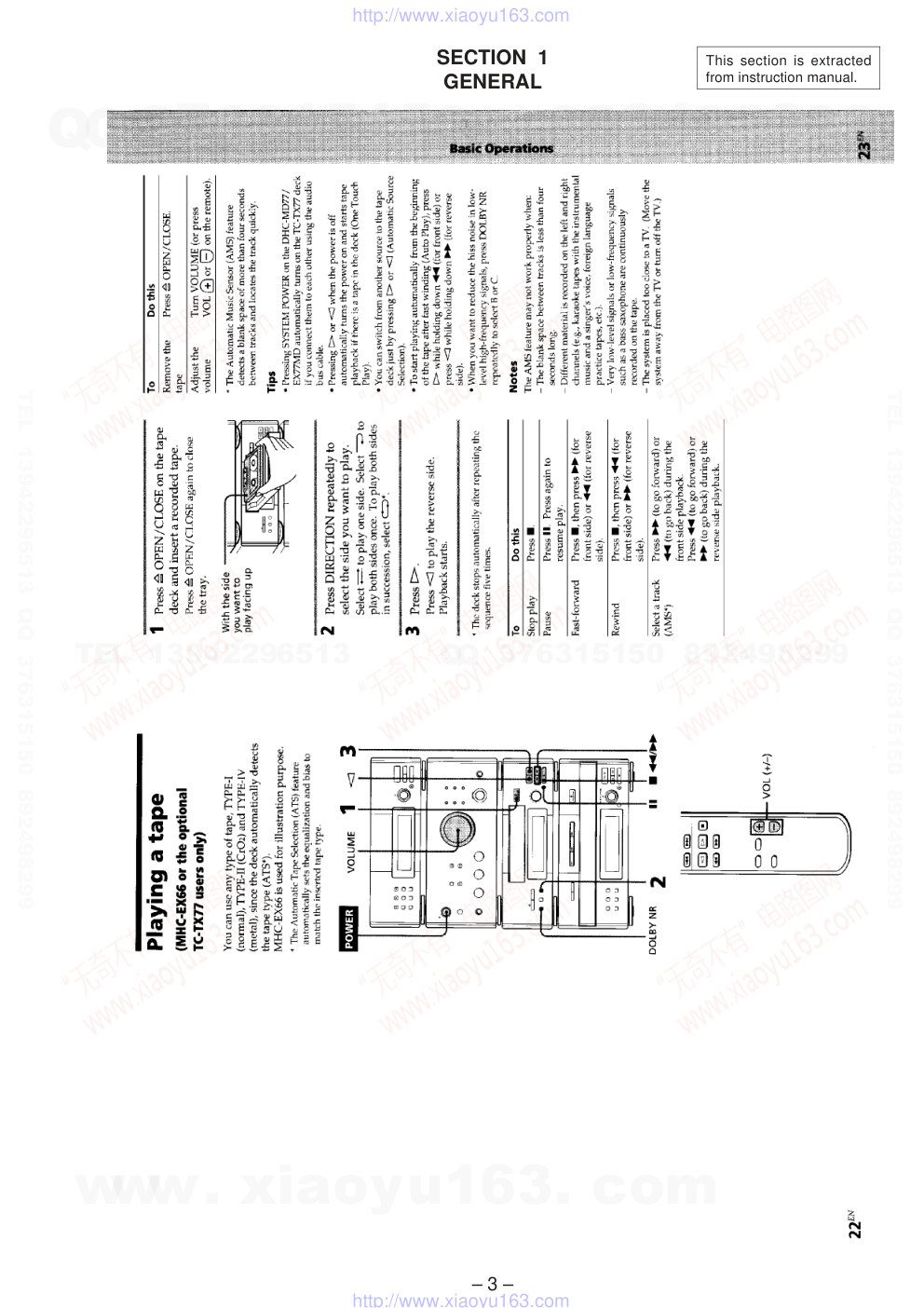

SECTION  1
GENERAL
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 4 –
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 5 –
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 6 –

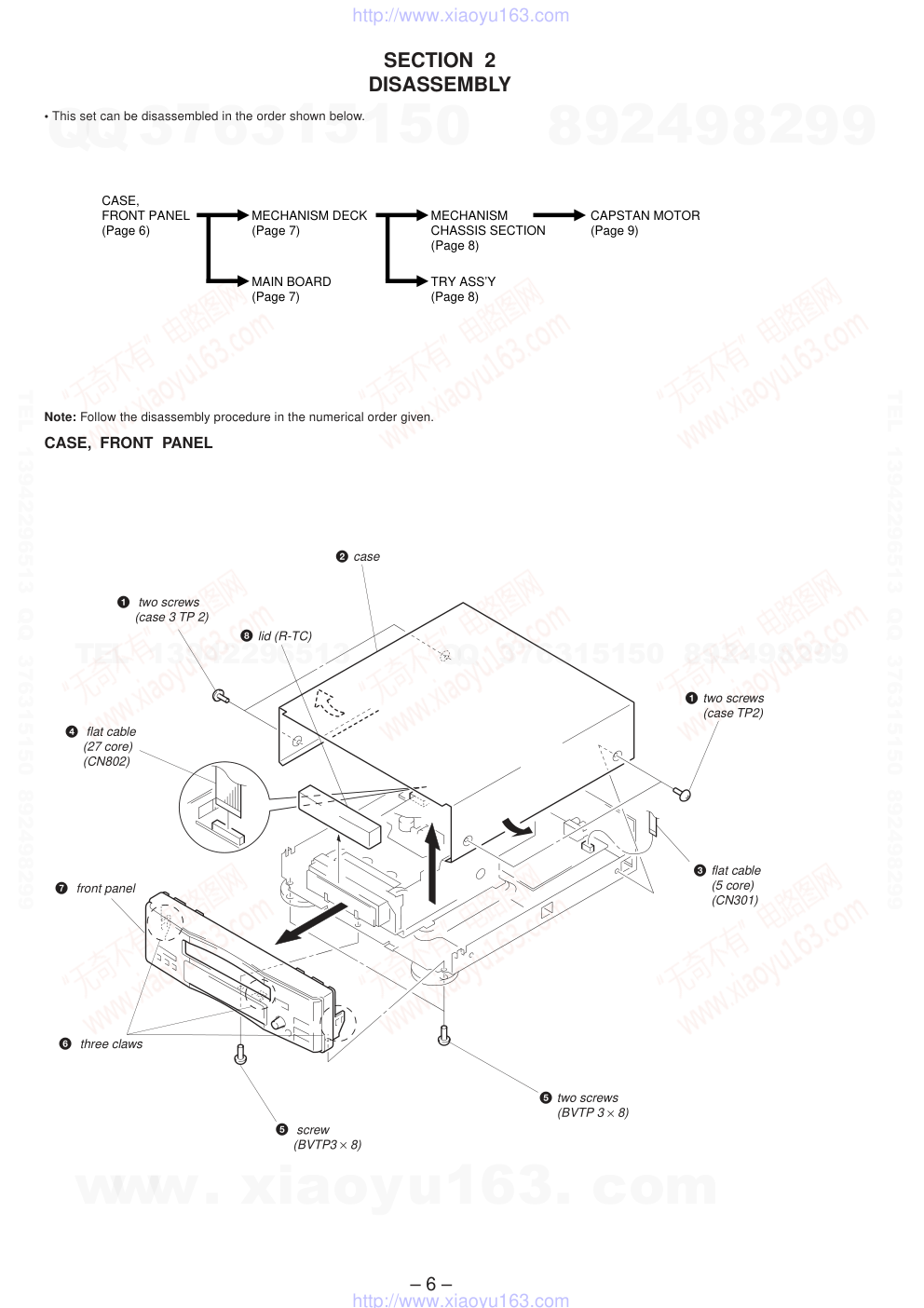

SECTION  2
DISASSEMBLY
• This set can be disassembled in the order shown below.
Note: Follow the disassembly procedure in the numerical order given.
CASE,  FRONT  PANEL
CASE,
FRONT PANEL
(Page 6)
MECHANISM DECK
(Page 7)
MAIN BOARD
(Page 7)
MECHANISM
CHASSIS SECTION
(Page 8)
TRY ASS’Y
(Page 8)
CAPSTAN MOTOR
(Page 9)
1 two screws
(case TP2)
3 flat cable
(5 core)
(CN301)
5 two screws
(BVTP 3 × 8)
5  screw
(BVTP3 × 8)
6  three claws
7  front panel
4  flat cable
(27 core)
(CN802)
1  two screws
(case 3 TP 2)
2 case
8 lid (R-TC)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 7 –

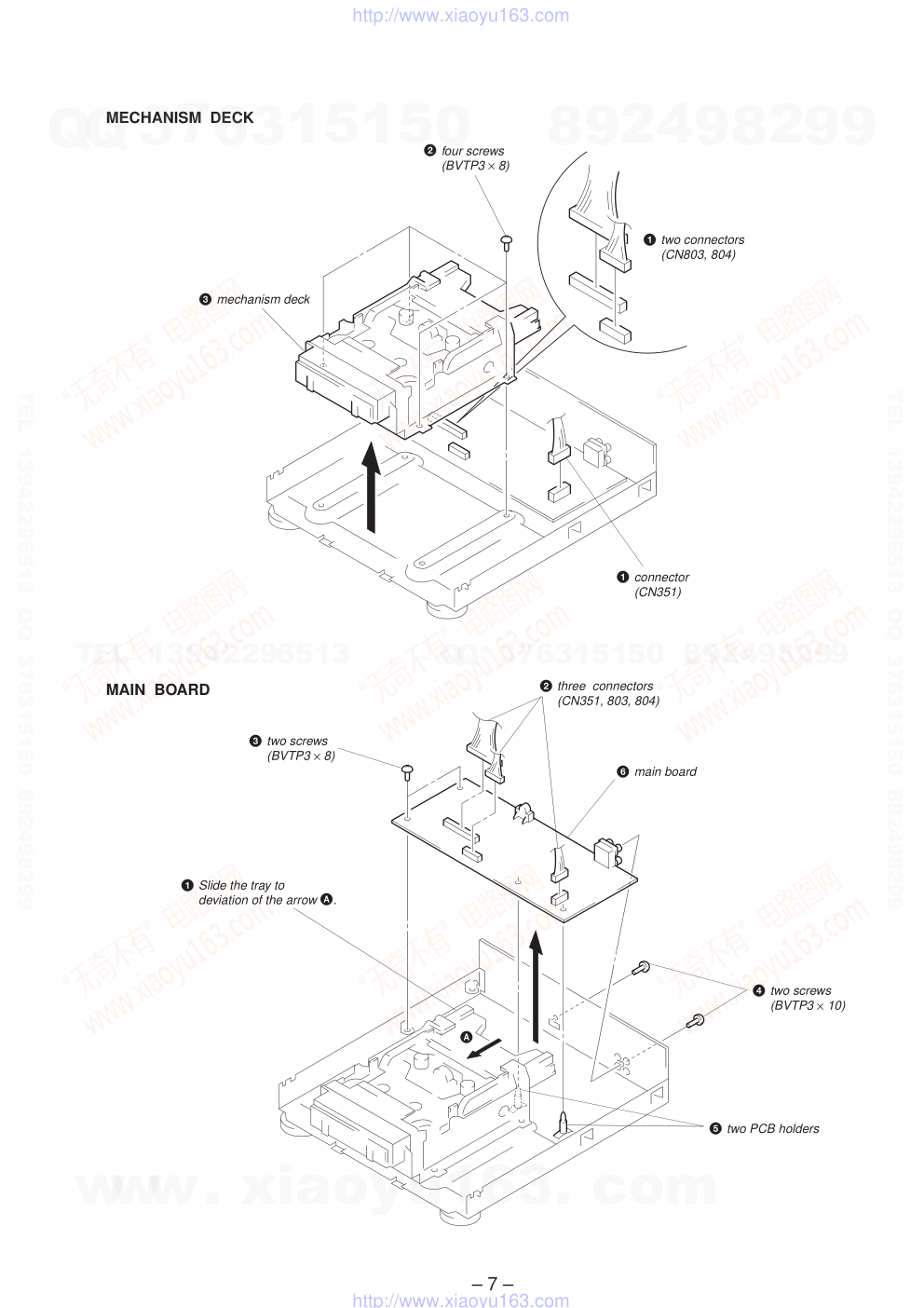

MECHANISM  DECK
2 four screws
(BVTP3 × 8)
3 mechanism deck
1 two connectors
(CN803, 804)
1 connector
(CN351)
MAIN  BOARD
2 three  connectors
(CN351, 803, 804)
3 two screws
(BVTP3 × 8)
1 Slide the tray to
deviation of the arrow A.
A
5 two PCB holders
4 two screws
(BVTP3 × 10)
6 main board
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 8 –

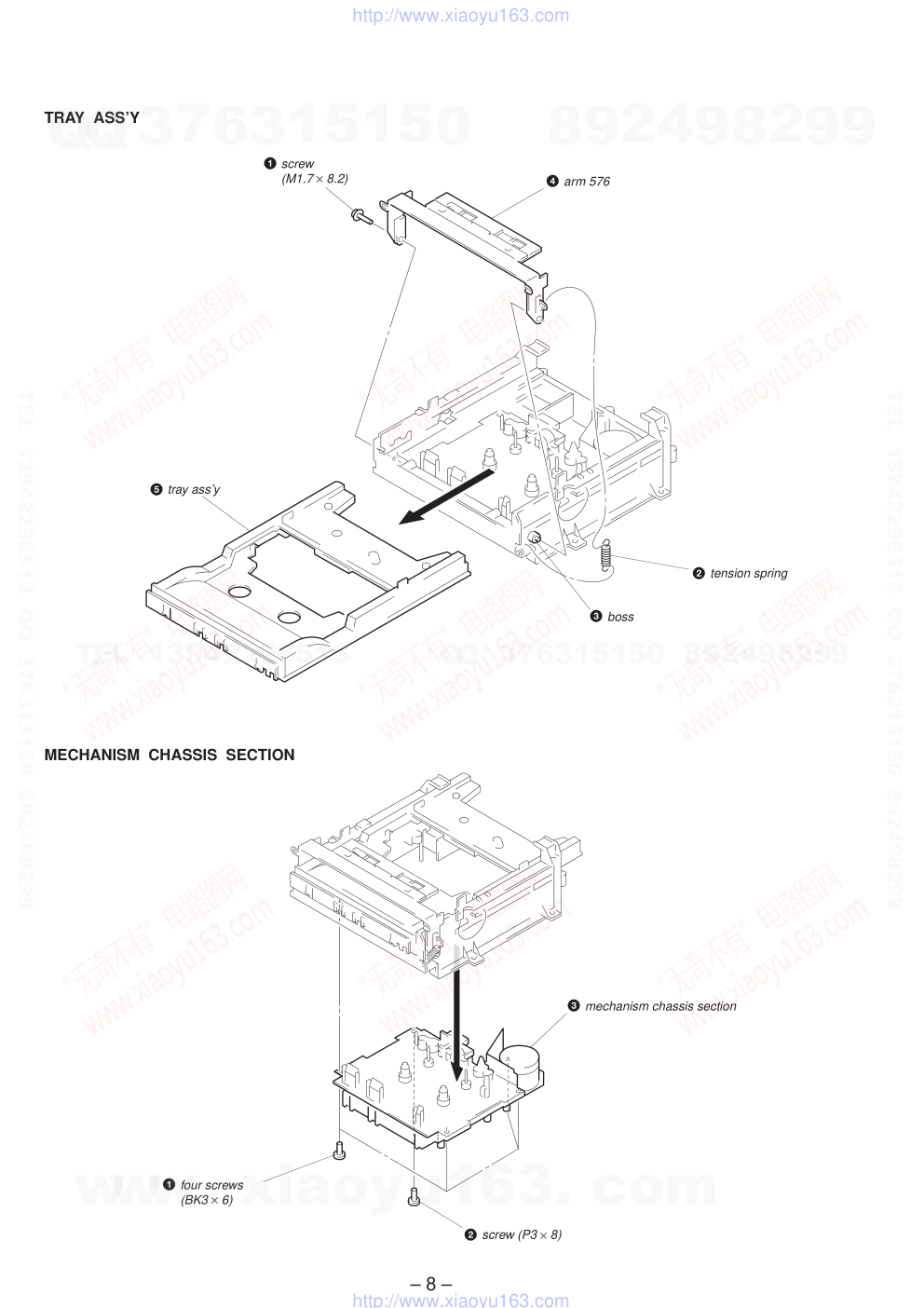

TRAY  ASS’Y
1 screw
(M1.7 × 8.2)
4 arm 576
5 tray ass’y
3 boss
2 tension spring
MECHANISM  CHASSIS  SECTION
3 mechanism chassis section
2 screw (P3 × 8)
1 four screws
(BK3 × 6)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 9 –
CAPSTAN  MOTOTR
7 capstan motor
5 Hang the belt.
6 three motor
screws.
4 Remove the solder
of motor lead wire.
1 step screw
3 control board
2 two claws
2 two claws
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 10 –

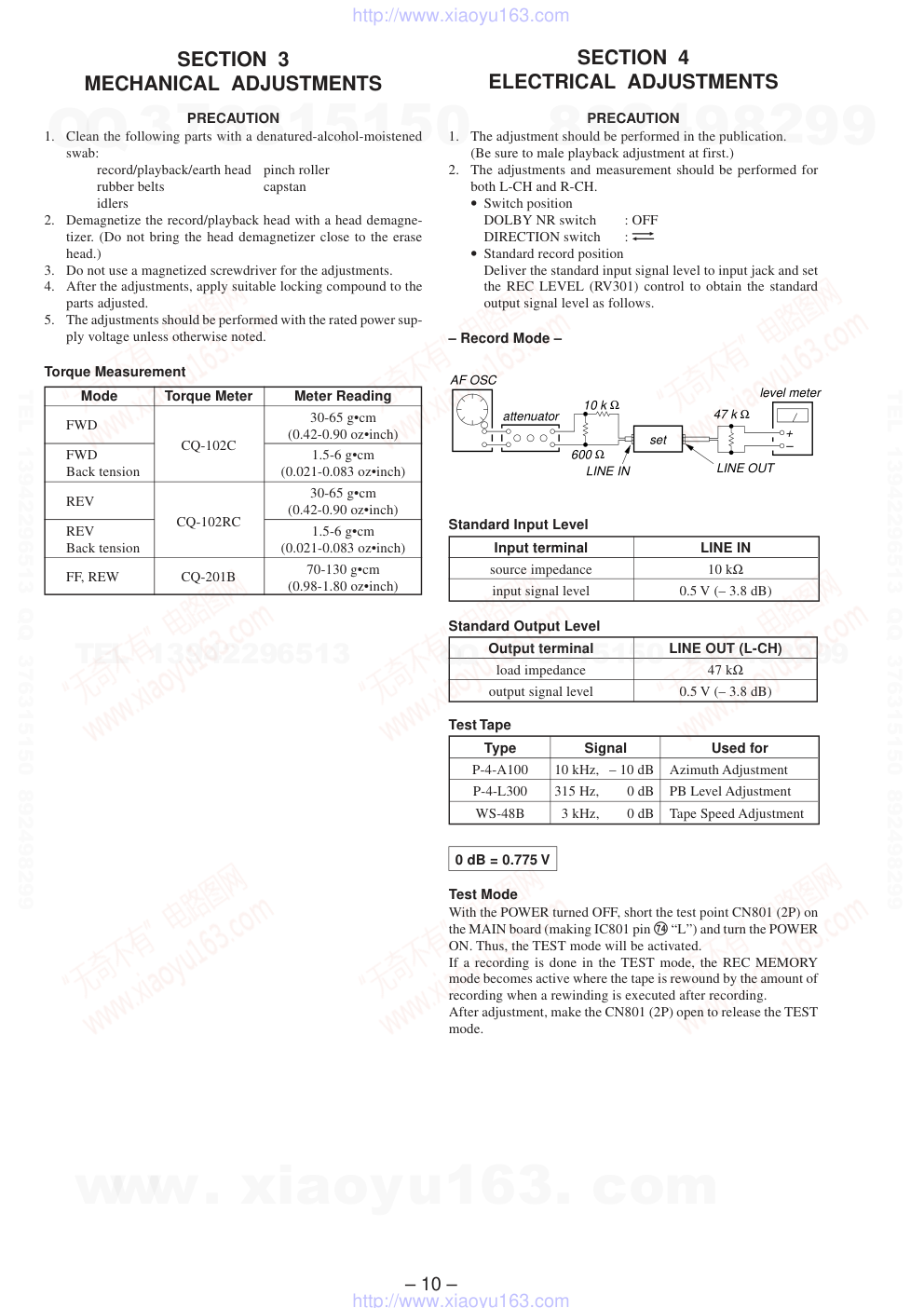

SECTION  4
ELECTRICAL  ADJUSTMENTS
PRECAUTION
1.
The adjustment should be performed in the publication.
(Be sure to male playback adjustment at first.)
2.
The adjustments and measurement should be performed for
both L-CH and R-CH.
• Switch position
DOLBY NR switch
: OFF
DIRECTION switch
: A
• Standard record position
Deliver the standard input signal level to input jack and set
the REC LEVEL (RV301) control to obtain the standard
output signal level as follows.
– Record Mode –
set
AF OSC
attenuator
600 Ω
10 k Ω
LINE IN
+
–
LINE OUT
47 k Ω
level meter
Mode
Torque Meter
Meter Reading
CQ-102C
30-65 g•cm
FWD
(0.42-0.90 oz•inch)
FWD
1.5-6 g•cm
Back tension
(0.021-0.083 oz•inch)
CQ-102RC
30-65 g•cm
REV
(0.42-0.90 oz•inch)
REV
1.5-6 g•cm
Back tension
(0.021-0.083 oz•inch)
70-130 g•cm
FF, REW
CQ-201B
(0.98-1.80 oz•inch)
SECTION  3
MECHANICAL  ADJUSTMENTS
PRECAUTION
1.
Clean the following parts with a denatured-alcohol-moistened
swab:
record/playback/earth head
pinch roller
rubber belts
capstan
idlers
2.
Demagnetize the record/playback head with a head demagne-
tizer. (Do not bring the head demagnetizer close to the erase
head.)
3.
Do not use a magnetized screwdriver for the adjustments.
4.
After the adjustments, apply suitable locking compound to the
parts adjusted.
5.
The adjustments should be performed with the rated power sup-
ply voltage unless otherwise noted.
Torque Measurement
Standard Input Level
Input terminal
LINE IN
source impedance
10 kΩ
input signal level
0.5 V (– 3.8 dB)
Standard Output Level
Output terminal
LINE OUT (L-CH)
load impedance
47 kΩ
output signal level
0.5 V (– 3.8 dB)
Test Tape
Type
Signal
Used for
P-4-A100
10 kHz, – 10 dB
Azimuth Adjustment
P-4-L300
315 Hz,
0 dB
PB Level Adjustment
WS-48B
3 kHz,
0 dB
Tape Speed Adjustment
0 dB = 0.775 V
Test Mode
With the POWER turned OFF, short the test point CN801 (2P) on
the MAIN board (making IC801 pin &¢ “L”) and turn the POWER
ON. Thus, the TEST mode will be activated.
If a recording is done in the TEST mode, the REC MEMORY
mode becomes active where the tape is rewound by the amount of
recording when a rewinding is executed after recording.
After adjustment, make the CN801 (2P) open to release the TEST
mode.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 11 –
Record/Playback Head Azimuth Adjustment
Procedure:
1.
Mode: REV playback
2.
Turn the adjustment screw for the maximum output levels. If
these levels do not match, turn the adjustment screw until both
of output levels match together within 1 dB.
+
–
set
LINE OUT
frequency counter
test tape
WS-48B
(3 kHz, 0 dB)
47 k Ω
1. Set to FWD playback mode.
2. Adjust Variable resistor on the motor (M902) so that the fre-
quency counter reading becomes
3,000 ± 90 Hz.
3. Confirm that the deviation between tape top and tape end is
within 3%.
Adjustment Location: CAPSTAN/REEL motor (M902)
Screw
position
L-CH
peak
within
1dB
output
level
L-CH peak
R-CH peak
within
1dB
angle
R-CH
peak
3.
Phase Check
Mode: REV playback
+
–
V
H
+
–
Screen pattern
Good
Wrong
in phase 45°
90°
135°
180°
LINE OUT
set
R-CH
L-CH
47 k Ω
47 k Ω
oscilloscope
test tape
P-4-A100
(10 kHz, –10 dB)
4.
Set in the FWD mode and repeat the step 1 to 3.
5.
After the adjustment, lock the screw with locking compound.
Adjustment Location: Record/Playback head















FWD side
REV side
Adjustment screw
+
–
set
47 k Ω
LINE OUT
level meter
test tape
P-4-A100
(10 kHz, – 10 dB)
Tape Speed Adjustment
Procedure:
Mode: FWD playback
M902
adjustable resistor
Sample Value of Wow and flutter: 0.3% or less W. RMS
(WS-48B)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 12 –
Record Level Adjustment
Setting:
REC LEVEL control: Standard record position (See page 10)
set to the TEST mode (REC MEMRY mode) (See page 10)
Procedure:
1.
Mode :Record
+
–
set
LINE OUT
47 k Ω
test tape
P-4-L300
(315 Hz, 0 dB)
level meter
Adjust RV151 (L-CH) and RV251 (R-CH) so that the reading on
level meter meets the adjustment limits below.
Adjustment Limits:
LINE OUT level: – 7.7 ± 0.5 dB (0.301 to 0.338 V)
Level difference between channels: within 2 dB
Check that the LINE OUT level does not change even if Playback
and Stop operation is repeated several times.
Adjustment Location: MAIN board (See page 13)
Playback Level Adjustment
Procedure:
Mode: FWD playback
Record BIAS Adjustment
Setting:
REC LEVEL control: Standard record position (See page 10)
Set to the TEST mode (REC MEMRY mode) (See page 10)
Procedure:
1.
Mode: Record
set
AF OSC
attenuator
600 Ω
10 k Ω
blank tape
CS-123
LINE IN
1) 315 Hz
2) 10 kHz
50 mV (– 23.8 dB)
2.
Mode: Playback
+
–
set
LINE OUT
47 k Ω
recorded portion
level meter
3.
Confirm playback the signal recorded in step 1 become ad-
justment level as follows.
4.
If these levels do not adjustment level, adjust the RV152 (L-
CH) and RV252 (R-CH) to repeat step 1 and 2.
Adjustment Level:
Playback output of 10 kHz to playback
output of 315 Hz: ± 0.5 dB.
Adjustment Location: MAIN board (See page 13)
set
AF OSC
attenuator
600 Ω
10 k Ω
blank tape
CS-123
LINE IN
315 Hz, 50 mV (– 23.8 dB)
2.
Mode: Playback
+
–
set
LINE OUT
47 k Ω
recorded portion
level meter
3.
Confirm playback the signal recorded in step 1 become ad-
justment level as follows.
4.
If these levels do not adjustment level, adjust RV153 (L-CH)
and RV253 (R-CH) to repeat step 1 and 2.
Adjustment Level:
– 23.8 ± 0.5 dB (47 to 53 mV)
Adjustment Location: MAIN board (See page 13)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 13 –
• Adjustment Parts Location
CN801
TEST Mode
RV152
Record BIAS (L-CH)
RV252
Record BIAS (R-CH)
RV253
Record Level (R-CH)
RV153
Record Level (L-CH)
RV151
Playback Level (L-CH)
RV251
Playback Level (R-CH)
J301
CN11
[MAIN BOARD] (Component Side)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 14 –
• IC Block Diagrams
1
2
3
4
5
6
7
8
9
10
16
15
14
13
12
11
GP
GL
GH
I
REF
VCC
IN
(R)
GND
(R)
OUT
(R)
IN
(L)
GND
(L)
OUT
(L)
f/Q
fQ
fM
REF
GND
VEE
CONTROL
EQ
EQ
1
2
3
4
5
6
7
8
9
10
GND
MOTOR
DRIVE
NOISE
FILTER
CLAMP
FWD.IN
REV.IN
VCC 1
VCC 2
NOISE
FILTER
MOTOR
DRIVE
MOTOR
DRIVE
MOTOR
DRIVE
T.S.D
O.C.P
FWD/REV/STOP
CONTROL LOGIC
IC304
CXA1198AP
IC804
LB1641
ON/OFF
CURRENT
LIMITER
START
CIRCUIT
VREF
OVER HEAT
PROTECT
ON/OFF
CURRENT
LIMITER
1
2
3
4
5
6
7
8
9
10
VCC
VMUTE
VCC
VREF
ERROR
AMP
VREF
ERROR
AMP
VO1
VCC
CN1
EN
EN DISPLAY
GND
NC
CN2
VEE
VO2
~_1.8V
~_140uA
COMPARATER
IC805
LA5617
SECTION  5
DIAGRAMS
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 25 –
1
PULSE
I
Pulse signal input
2
NO-USE
–
Not used (Fixed at “L”)
3
METER-L
I
Digital peak level meter signal input (L-ch)
4
METER-R
I
Digital peak level meter signal input (R-ch)
5
AD-GND
–
Ground for A/D converter
6
TEST
I
Not used (Fixed at “L”)
7
NO-USE
–
Not-used (Open)
8
NO-USE
–
Not-used (Fixed at “L”)
9
SYS-GND
–
Ground for system
10
OSC-OUT
O
System clock output (4 MHz)
11
OSC-IN
I
System clock input (4 MHz)
12
RESET
I
Reset signal input
13
AUB-IN
I
Audio bus input
14
AUB-OUT
O
Audio bus output
15
NO-USE
–
Not used (Fixed at “L”)
16
NO-USE
–
Not used (Fixed at “L”)
17
NO-USE
–
Not used (Fixed at “L”)
18
NO-USE
–
Not used (Fixed at “L”)
19
NO-USE
–
Not used (Fixed at “L”)
20
DOLBY C/B
O
DOLBY B/C select signal output “L”: DOLBY B, “H”: DOLBY C
21
DOLBY ON/OFF
O
DOLBY on/off select signal output  “L”: DOLBY off,  “H”: DOLBY on
22
CDSYNC-LED
O
Control output to CD SYNC LED (D851)
23
SEG17
O
Segment signal output to fluorescent indicator tube (FLT851)
24
SEG16
O
Segment signal output to fluorescent indicator tube (FLT851)
25
SEG15
O
Segment signal output to fluorescent indicator tube (FLT851)
26
SEG14
O
Segment signal output to fluorescent indicator tube (FLT851)
27
SEG13
O
Segment signal output to fluorescent indicator tube (FLT851)
28
SEG12
O
Segment signal output to fluorescent indicator tube (FLT851)
29
SEG11
O
Segment signal output to fluorescent indicator tube (FLT851)
30
SEG10
O
Segment signal output to fluorescent indicator tube (FLT851)
31
SEG9
O
Segment signal output to fluorescent indicator tube (FLT851)
32
SEG8
O
Segment signal output to fluorescent indicator tube (FLT851)
33
SEG7
O
Segment signal output to fluorescent indicator tube (FLT851)
34
SEG6
O
Segment signal output to fluorescent indicator tube (FLT851)
35
SEG5
O
Segment signal output to fluorescent indicator tube (FLT851)
36
SEG4
O
Segment signal output to fluorescent indicator tube (FLT851)
37
SEG3
O
Segment signal output to fluorescent indicator tube (FLT851)
38
SEG2
O
Segment signal output to fluorescent indicator tube (FLT851)
39
SEG1
O
Segment signal output to fluorescent indicator tube (FLT851)
40
FL-GND
I
Ground for fluorescent indicator tube (Fixed at “L” (–20 V))
41
GRID 1
O
Grid signal output to fluorescent indicator tube (FLT851)
42
GRID 2
O
Grid signal output to fluorescent indicator tube (FLT851)
43
GRID 3
O
Grid signal output to fluorescent indicator tube (FLT851)
44
GRID 4
O
Grid signal output to fluorescent indicator tube (FLT851)
45
GRID 5
O
Grid signal output to fluorescent indicator tube (FLT851)
5-3.
IC  PIN  FUNCTION  DESCRIPTION
• MAIN  BOARD  IC801
HD6433724E66F (SYSTEM  CONTROL)
Pin No.
Pin Name
I/O
Function
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 26 –
46
NO-USE
–
Not used (Open)
47
NO-USE
–
Not used (Open)
48
NO-USE
–
Not used (Open)
49
TYPE IV
O
Tape type output  “H”: Metal Position
50
TYPE II
O
Tape type output  “H”: High position
51
TYPE I
O
Tape type output  “H”: Normal position
52
REC MUTE
O
Recording mute on/off control output  “H”: Mute on
53
RELAY
O
Relay drive output “H”: On
54
NC
–
Not used (Open)
55
REC/PB
O
Mode control output to DOLBY NR amplifier (IC301)  “L”: Record
56
PB MUTE
O
Playback mute on/off control output  “H”: Mute on
57
SYS-VCC
I
Power supply for system
58
OPTION
O
Not used (Fixed at “L”)
59
NO-USE
–
Not used (Fixed at “L”)
60
POWER-OUT
O
Audio and mechanism power on/off output  “H”: On
61
BIAS
O
Control output to recording bias switch (Q352)  “L”: On
62
POW-IN
I
Primary power on/off input  “H”: On
63
CLOSE SW
I
Close detection input from S901  “L”: Close
64
OPEN-SW
I
Open detection input from S902  “L”: Open
65
SOLENOIDE
O
Plunger (PMxxx) drive output   “H”: On
66
LINE-MUTE
O
Line mute on/off control output   “L”: Mute on
67
CHORM-SW
I
Tape type detection input from Sxxx   “L”: Type I
68
METAL-SW
I
Tape type detection input from Sxxx   “L”: Type IV
69
REC-REV-SW
I
Record proof detection input from Sxxx (REV side)   “H”: Not nail
70
REC-FW-SW
I
Record proof detection input from Sxxx (FWD side)   “H”: Not nail
71
CAPSTAN
O
Capstan/reel motor (M902) drive output  “H”: On
72
CLOSE
O
Loading motor (M901) drive output *1
73
OPEN
O
Loading motor (M901) drive output *1
74
TEST
I
Test mode terminal
75
MODE-SW
I
Head sensor input from Sxxx
76
AD-VCC
I
Power supply for A/D converter
77
KEY 1
I
Key input (A/D convert input)*2
78
KEY 2
I
Key input (A/D convert input)*2
79
HALF-SW
I
Cassette half detection input from Sxxx
80
AMS-IN
I
AMS input
Pin No.
Pin Name
I/O
Function
*1 Loading Motor (M901)
IN
OUT
BRAKE
CLOSE &™
H
L
H
OPEN &£
L
H
H
Voltage
Input port
0 V
0.45 V
1.19 V
2.19 V
3.2 V
3.98 V
4.48 V
5.0 V
Pin &•, KEY 2
Open/Close
STOP
PAUSE
FWD
REV
CD
—
Not key input
§
p
P
·
ª
SYNC
Pin &¶, KEY 1
POWER
REW
FF
REC
RESET
DIRECTION DOLBY NR
Not key input
ON/OFF
0
)
r
*2 Key Input
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 27 –
NOTE:
• -XX and -X mean standardized parts, so they
may have some difference from the original
one.
• Color Indication of Appearance Parts
Example:
KNOB, BALANCE (WHITE) . . . (RED)
↑
↑
Parts Color
Cabinet\'s Color
• Items marked “*” are not stocked since they
are seldom required for routine service. Some
delay should be anticipated when ordering
these items.
• The mechanical parts with no reference num-
ber in the exploded views are not supplied.
• Hardware (# mark) list is given in the last of
the electrical parts list.
SECTION  6
EXPLODED  VIEWS
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
1
4-985-926-01 KNOB
2
X-3373-604-1 PANEL ASSY, FRONT
3
4-962-708-01 EMBLEM (4-A), SONY
4
3-939-648-01 WINDOW (TC)
5
3-939-646-01 BUTTON (REC) (CD SYNC, r REC)
6
3-939-647-01 INDICATOR (TC)
7
4-951-620-01 SCREW (2.6X8), +BVTP
8
3-012-560-01 BUTTON (EJECT) (§ OPEN/CLOSE)
9
3-939-642-01 BUTTON (PLAY) (ª, ·, p)
10
3-939-643-01 BUTTON (FF) (0, ))
* 11
A-2007-722-A PANEL BOARD, COMPLETE
12
1-782-490-11 WIRE (FLAT TYPE) (5 CORE)
13
1-773-257-11 WIRE (FLAT TYPE) (27 CORE)
14
3-012-561-01 LID (R-TC)
15
3-363-099-01 SCREW (CASE 3 TP2)
* 16
3-939-652-11 CASE
(1)  CASE,  FRONT  PANEL  SECTION
3
not
supplied
not
supplied
5
6
4
2
1
#1
#1
8
9
10
7
11
12
13
14
15
16
15
7
not
supplied
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 28 –
(2) CHASSIS  SECTION
TCM-ACLM578
#1
#1
55
#2
#2
#2
54
52
51
#2
not
supplied
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
51
4-977-699-11 LEG (F)
52
4-965-822-01 FOOT
* 53
3-350-847-31 HOLDER, PCB
* 54
A-2007-721-A MAIN BOARD, COMPLETE
* 55
3-012-563-02 PANEL, BACK
not supplied
53
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 29 –
(3) MECHANISM  DECK  SECTION-1
(TCM-ACLM578)
101
3-017-214-01 HOLDER
102
3-017-215-01 ARM (A)
103
3-017-233-01 RACK, GEAR
104
3-017-216-01 ARM (C)
105
3-017-213-01 CHASSIS
106
3-017-212-01 TRAY
107
3-017-235-01 SPRING (A)
108
3-017-244-01 SCREW (1.7X8.2), SPECIAL
109
3-017-217-01 ARM (576)
110
3-017-218-01 RETAINER
111
3-017-219-01 PLATE
112
3-017-211-01 FRAME
113
3-017-236-01 SPRING (B)
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
114
3-017-234-01 GROUND, PLATE
115
3-017-243-01 NUT
116
3-017-242-01 BUFFER
117
3-017-232-01 GEAR (B)
118
3-017-241-01 WASHER (1.6X4X0.5)
119
3-017-237-01 BELT (49.2)
120
3-017-231-01 PULLEY (C)
121
3-017-220-01 ARM
122
3-017-240-01 WASHER (2.1X4X0.5)
M901
3-017-239-01 PULLEY (MOTOR) (LOADING)
S901
3-017-238-01 LIMITTER (SW MSS-8B) (OPEN)
S902
3-017-238-01 LIMITTER (SW MSS-8B) (CLOSE)
102
103
101
#3
#3
105
106
107
108
110
111
121
M901
112
113
114
115
116
117
118
118
119
120
122
#7
S901
#6
116
#8
#9
104
#4
#6
S902
109
#5
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 30 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
151
3-017-294-01 SCREW (S), SPECIAL
* 152
CONTROL BOARD
153
3-017-273-01 LEVER AC, SPRING
154
3-017-270-01 AC, LEVER
155
3-017-279-01 SCREW (M2), SPECIAL
156
3-017-274-01 HEAD, SPRING BASE
157
3-017-254-01 PINCH ROLLER (F)
158
3-017-253-01 CHASSIS (HEAD)
159
3-017-277-01 PINCH (F), SPRING
160
3-017-278-01 PINCH (R), SPRING
161
3-017-300-01 WASHER, FLAT
162
3-017-255-01 PINCH ROLLER (R)
163
3-017-296-01 CUTION (MOTOR)
164
3-017-297-01 SCREW (MOTOR)
165
3-017-280-01 SCREW (M2 TAPPING), SPECIAL
166
3-017-285-01 BELT (MAIN)
HRPE901
HEAD ASSY (RECORD/PLAYBACK/ERASE)
M902
3-017-259-01 PULLEY (MOTOR) (CAPSTAN/REEL)
(4) MECHANISM  DECK  SECTION-2
(TCM-ACLM578)
not supplied
155
157
156
154
153
159
not
supplied
161
155
160
162
155
M902
HRPE901
155
A
not
supplied
165
164
155
166
152
151
158
not supplied
A
163
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 31 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
201
3-017-258-01 FLYWHEEL (R)
202
3-017-257-01 FLYWHEEL (F)
203
3-017-284-01 BELT (SUB)
204
3-017-265-01 IDLER, GEAR
205
GEAR P ASSY
206
3-017-283-01 WASHER, FLAT
207
CLUTCH ASSY
208
3-017-263-01 REEL, BASE
209
3-017-295-01 WASHER, FLAT
210
3-017-252-01 CHASSIS (OS)
211
3-017-298-01 WASHER (B/T)
212
3-017-299-01 SPRING (B/T) (F)
213
3-017-288-01 REEL, CAP
214
3-017-262-01 REEL, BUSHING
215
3-017-272-01 SPRING (BT) (R)
216
3-017-281-01 WASHER, FLAT
217
3-017-256-01 ARM (PLAY)
218
3-017-275-01 LOCK, SPRING CAM
219
3-017-267-01 LOCK, ARM CAM
220
3-017-282-01 WASHER, FLAT
221
3-017-264-01 CAM, GEAR
222
3-017-266-01 BASE, LEVER
223
3-017-268-01 ARM (RF)
224
3-017-269-01 GEAR (RF)
225
3-017-276-01 ARM (RF), SPRING
226
3-017-293-01 MAGNET, PLATE
227
3-017-271-01 CAP (MG)
(5) MECHANISM  DECK  SECTION-3
(TCM-ACLM578)
214
213
212
211
214
213
215
211
216
217
218
219
221
222
223
224
224
225
209
208
226
227
201
202
203
204
205
207
206
209
208
210
220
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 32 –
NOTE:
• Due to standardization, replacements in the
parts list may be different from the parts speci-
fied in the diagrams or the components used on
the set.
• -XX and -X mean standardized parts, so they
may have some difference from the original one.
• RESISTORS
All resistors are in ohms.
METAL: Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F: nonflammable
• Items marked “*” are not stocked since they
are seldom required for routine service.
Some delay should be anticipated when order-
ing these items.
• SEMICONDUCTORS
In each case, u: µ, for example:
uA. .
: µA. .
uPA. . : µPA. .
uPB. .
: µPB. .
uPC. . : µPC. .
uPD. .
: µPD. .
• CAPACITORS
uF: µF
• COILS
uH: µH
When indicating parts by reference
number, please include the board.
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
*
CONTROL BOARD
***************
< CONNECTOR >
CN
3-017-287-01 TERMINAL (RP)
< DIODE >
D
8-719-987-63 DIODE  1N418M
D
8-719-987-63 DIODE  1N418M
< IC >
IC
3-017-289-01 PLATE, ROTARY DETECTION
< PLUNGER SOLENOID >
PM
3-017-292-01 SOLENOID
< RESISTOR >
R
1-247-682-11 CARBBBON
< SWITCH >
S
3-017-290-01 SWITCH, DETECT (FWD REC DET)
S
3-017-290-01 SWITCH, DETECT (HALF DET)
S
3-017-290-01 SWITCH, DETECT (Cr02 DET)
S
3-017-290-01 SWITCH, DETECT (METAL DET)
S
3-017-290-01 SWITCH, DETECT (REV REC DET)
S
3-017-291-01 SWITCH, MODE (MODE)
*************************************************************
*
A-2007-721-A MAIN BOARD, COMPLETE
********************
*
3-309-144-21 HEAT SINK
7-685-871-01 SCREW +BVTT 3X6 (S)
< CAPACITOR >
C101
1-126-963-11 ELECT
4.7uF
20%
50V
C102
1-137-372-11 FILM
0.022uF
5%
50V
C103
1-126-964-11 ELECT
10uF
20%
50V
C104
1-136-165-00 FILM
0.1uF
5%
50V
C105
1-136-163-00 FILM
0.068uF
5%
50V
C106
1-126-964-11 ELECT
10uF
20%
50V
C107
1-126-961-11 ELECT
2.2uF
20%
50V
C111
1-126-960-11 ELECT
1uF
20%
50V
C121
1-162-306-11 CERAMIC
0.01uF
20%
16V
C122
1-162-306-11 CERAMIC
0.01uF
20%
16V
C131
1-162-290-31 CERAMIC
470PF
10%
50V
C132
1-162-282-31 CERAMIC
100PF
10%
50V
C151
1-130-467-00 MYLAR
470PF
5%
50V
C152
1-137-372-11 FILM
0.022uF
5%
50V
C153
1-107-714-11 ELECT
10uF
20%
16V
C154
1-107-610-11 CERAMIC
82PF
5%
500V
C155
1-107-609-11 CERAMIC
75PF
5%
500V
C156
1-102-820-00 CERAMIC
330PF
5%
50V
C157
1-126-964-11 ELECT
10uF
20%
50V
C158
1-126-960-11 ELECT
1uF
20%
50V
C159
1-126-964-11 ELECT
10uF
20%
50V
C160
1-162-282-31 CERAMIC
100PF
10%
50V
C161
1-128-563-11 ELECT
100uF
20%
100V
C162
1-128-563-11 ELECT
100uF
20%
100V
C163
1-126-935-11 ELECT
470uF
20%
16V
C164
1-126-935-11 ELECT
470uF
20%
16V
C191
1-162-282-31 CERAMIC
100PF
10%
50V
C201
1-126-963-11 ELECT
4.7uF
20%
50V
C202
1-137-372-11 FILM
0.022uF
5%
50V
C203
1-126-964-11 ELECT
10uF
20%
50V
C204
1-136-165-00 FILM
0.1uF
5%
50V
C205
1-136-163-00 FILM
0.068uF
5%
50V
C206
1-126-964-11 ELECT
10uF
20%
50V
C207
1-126-961-11 ELECT
2.2uF
20%
50V
C211
1-126-960-11 ELECT
1uF
20%
50V
C231
1-162-290-31 CERAMIC
470PF
10%
50V
C232
1-162-282-31 CERAMIC
100PF
10%
50V
C251
1-130-467-00 MYLAR
470PF
5%
50V
C252
1-137-372-11 FILM
0.022uF
5%
50V
C253
1-107-714-11 ELECT
10uF
20%
16V
C254
1-107-610-11 CERAMIC
82PF
5%
500V
C255
1-107-609-11 CERAMIC
75PF
5%
500V
C256
1-102-820-00 CERAMIC
330PF
5%
50V
C257
1-126-964-11 ELECT
10uF
20%
50V
C258
1-126-960-11 ELECT
1uF
20%
50V
C259
1-126-964-11 ELECT
10uF
20%
50V
C260
1-162-282-31 CERAMIC
100PF
10%
50V
C291
1-162-282-31 CERAMIC
100PF
10%
50V
C301
1-126-964-11 ELECT
10uF
20%
50V
C302
1-126-964-11 ELECT
10uF
20%
50V
C303
1-162-282-31 CERAMIC
100PF
10%
50V
C304
1-161-494-00 CERAMIC
0.022uF
25V
CONTROL
SECTION  7
ELECTRICAL  PARTS  LIST
MAIN
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 33 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
* CN804
1-564-715-11 PIN, CONNECTOR (SMALL TYPE)13P
< DIODE >
D101
8-719-987-63 DIODE   1N4148M
D102
8-719-987-63 DIODE   1N4148M
D201
8-719-987-63 DIODE   1N4148M
D202
8-719-987-63 DIODE   1N4148M
D301
8-719-987-63 DIODE   1N4148M
D302
8-719-987-63 DIODE   1N4148M
D303
8-719-987-63 DIODE   1N4148M
D351
8-719-987-63 DIODE   1N4148M
D352
8-719-987-63 DIODE   1N4148M
D353
8-719-987-63 DIODE   1N4148M
D354
8-719-987-63 DIODE   1N4148M
D355
8-719-200-82 DIODE   11ES2
D356
8-719-200-82 DIODE   11ES2
D702
8-719-200-82 DIODE   11ES2
D704
8-719-200-82 DIODE   11ES2
D705
8-719-987-63 DIODE   1N4148M
D706
8-719-987-63 DIODE   1N4148M
D715
8-719-933-33 DIODE   HZS6A1L
D716
8-719-200-82 DIODE   11ES2
D717
8-719-200-82 DIODE   11ES2
D718
8-719-200-82 DIODE   11ES2
D719
8-719-200-82 DIODE   11ES2
D801
8-719-933-33 DIODE   HZS6A1L
D802
8-719-933-33 DIODE   HZS6A1L
D803
8-719-987-63 DIODE   1N4148M
D804
8-719-987-63 DIODE   1N4148M
D805
8-719-987-63 DIODE   1N4148M
D806
8-719-933-33 DIODE   HZS6A1L
D807
8-719-987-63 DIODE   1N4148M
D808
8-719-933-48 DIODE   HZS7B3L
D809
8-719-987-63 DIODE   1N4148M
D810
8-719-987-63 DIODE   1N4148M
D811
8-719-210-21 DIODE   11EQS04
D812
8-719-200-82 DIODE   11ES2
D813
8-719-200-82 DIODE   11ES2
D814
8-719-200-82 DIODE   11ES2
D815
8-719-200-82 DIODE   11ES2
D816
8-719-200-82 DIODE   11ES2
D817
8-719-200-82 DIODE   11ES2
D818
8-719-200-82 DIODE   11ES2
D820
8-719-002-09 DIODE   UZL-18M
< GROUND TERMINAL >
EPT01
1-537-770-21 TERMINAL BOARD, GROUND
< IC >
IC301
8-752-060-46 IC   CXA1561S
IC302
8-759-634-51 IC   M5218AP
IC303
8-759-634-51 IC   M5218AP
IC304
8-752-060-64 IC   CXA1198AP
IC305
8-759-710-59 IC   NJM4580D-D
IC306
8-759-634-51 IC   M5218AP
IC703
8-759-604-35 IC   M5F78M05L
IC801
8-759-479-87 IC   HD6433724E66F
IC802
8-759-165-85 IC   PST600H-T
C305
1-162-217-31 CERAMIC
56PF
5%
50V
C306
1-126-961-11 ELECT
2.2uF
20%
50V
C307
1-126-961-11 ELECT
2.2uF
20%
50V
C310
1-162-306-11 CERAMIC
0.01uF
20%
16V
C311
1-162-306-11 CERAMIC
0.01uF
20%
16V
C312
1-164-159-11 CERAMIC
0.1uF
50V
C313
1-164-159-11 CERAMIC
0.1uF
50V
C314
1-162-294-31 CERAMIC
0.001uF
10%
50V
C315
1-162-294-31 CERAMIC
0.001uF
10%
50V
C351
1-126-925-11 ELECT
470uF
20%
10V
C352
1-126-925-11 ELECT
470uF
20%
10V
C353
1-126-961-11 ELECT
2.2uF
20%
50V
C354
1-126-933-11 ELECT
100uF
20%
16V
C355
1-126-960-11 ELECT
1uF
20%
50V
C356
1-137-370-11 FILM
0.01uF
5%
50V
C357
1-137-436-11 FILM
0.0039uF
5%
50V
C358
1-137-436-11 FILM
0.0039uF
5%
50V
C360
1-126-961-11 ELECT
2.2uF
20%
50V
C361
1-136-562-11 FILM
0.0082uF
5%
630V
C701
1-126-943-11 ELECT
2200uF
20%
25V
C702
1-126-943-11 ELECT
2200uF
20%
25V
C703
1-126-960-11 ELECT
1uF
20%
50V
C705
1-126-943-11 ELECT
2200uF
20%
25V
C719
1-126-916-11 ELECT
1000uF
20%
6.3V
C721
1-104-664-11 ELECT
47uF
20%
25V
C722
1-164-159-11 CERAMIC
0.1uF
50V
C801
1-126-964-11 ELECT
10uF
20%
50V
C802
1-161-494-00 CERAMIC
0.022uF
25V
C803
1-161-494-00 CERAMIC
0.022uF
25V
C804
1-162-294-31 CERAMIC
0.001uF
10%
50V
C805
1-126-916-11 ELECT
1000uF
20%
6.3V
C806
1-126-963-11 ELECT
4.7uF
20%
50V
C807
1-162-306-11 CERAMIC
0.01uF
20%
16V
C808
1-126-935-11 ELECT
470uF
20%
16V
C809
1-164-159-11 CERAMIC
0.1uF
50V
C810
1-164-159-11 CERAMIC
0.1uF
50V
C811
1-162-282-31 CERAMIC
100PF
10%
50V
C812
1-126-964-11 ELECT
10uF
20%
50V
C813
1-164-159-11 CERAMIC
0.1uF
50V
C814
1-162-306-11 CERAMIC
0.01uF
20%
16V
C815
1-126-933-11 ELECT
100uF
20%
10V
C816
1-126-933-11 ELECT
100uF
20%
10V
C817
1-164-159-11 CERAMIC
0.1uF
50V
C819
1-126-969-11 ELECT
220uF
20%
50V
C820
1-126-969-11 ELECT
220uF
20%
50V
C821
1-126-969-11 ELECT
220uF
20%
50V
C822
1-126-969-11 ELECT
220uF
20%
50V
C823
1-162-306-11 CERAMIC
0.01uF
20%
16V
C824
1-162-306-11 CERAMIC
0.01uF
20%
16V
< CONNECTOR >
CN11
1-770-158-21 HOUSING, CONNECTOR 7P
(SYSTEM CONTROL)
* CN301
1-568-824-11 SOCKET, CONNECTOR 5P
* CN351
1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P
* CN801
1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P
* CN802
1-568-842-11 SOCKET, CONNECTOR 27P
* CN803
1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P
MAIN
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 34 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
IC804
8-759-822-09 IC   LB1641
IC805
8-759-288-53 IC   LA5617
< JACK >
J301
1-770-720-11 JACK, PIN 4P (TAPE (IN/OUT))
< COIL >
L151
1-410-780-11 INDUCTOR        27mH
L251
1-410-780-11 INDUCTOR        27mH
L351
1-414-223-11 INDUCTOR        470uH
L352
1-414-223-11 INDUCTOR        470uH
< FILTER >
LPF101
1-236-087-11 FILTER, LOW PASS
LPF201
1-236-087-11 FILTER, LOW PASS
< TRANSISTOR >
Q101
8-729-900-80 TRANSISTOR   DTC114ES
Q102
8-729-620-05 TRANSISTOR   2SC2603-EF
Q103
8-729-620-05 TRANSISTOR   2SC2603-EF
Q104
8-729-620-05 TRANSISTOR   2SC2603-EF
Q151
8-729-142-25 TRANSISTOR   2SD1020-HFE
Q201
8-729-900-80 TRANSISTOR   DTC114ES
Q202
8-729-620-05 TRANSISTOR   2SC2603-EF
Q203
8-729-620-05 TRANSISTOR   2SC2603-EF
Q204
8-729-620-05 TRANSISTOR   2SC2603-EF
Q251
8-729-142-25 TRANSISTOR   2SD1020-HFE
Q301
8-729-119-76 TRANSISTOR   2SA1175-HFE
Q310
8-729-119-76 TRANSISTOR   2SA1175-HFE
Q351
8-729-900-80 TRANSISTOR   DTC114ES
Q352
8-729-422-57 TRANSISTOR   UN4111
Q353
8-729-281-53 TRANSISTOR   2SC1815-GR
Q354
8-729-194-57 TRANSISTOR   2SC945-P
Q355
8-729-194-57 TRANSISTOR   2SC945-P
Q356
8-729-900-80 TRANSISTOR   DTC114ES
Q357
8-729-900-80 TRANSISTOR   DTC114ES
Q358
8-729-900-80 TRANSISTOR   DTC114ES
Q359
8-729-900-80 TRANSISTOR   DTC114ES
Q360
8-729-900-80 TRANSISTOR   DTC114ES
Q801
8-729-620-05 TRANSISTOR   2SC2603-EF
Q803
8-729-422-57 TRANSISTOR   UN4111
Q806
8-729-900-89 TRANSISTOR   DTC144ES
Q809
8-729-140-97 TRANSISTOR   2SB734-34
Q810
8-729-140-97 TRANSISTOR   2SB734-34
Q811
8-729-140-97 TRANSISTOR   2SB734-34
Q812
8-729-900-80 TRANSISTOR   DTC114ES
Q813
8-729-900-80 TRANSISTOR   DTC114ES
Q814
8-729-119-76 TRANSISTOR   2SA1175-HFE
Q815
8-729-119-76 TRANSISTOR   2SA1175-HFE
< RESISTOR >
R11
1-249-435-11 CARBON
33K
5%
1/4W
R12
1-249-435-11 CARBON
33K
5%
1/4W
R13
1-247-874-11 CARBON
62K
5%
1/4W
R14
1-249-439-11 CARBON
68K
5%
1/4W
R15
1-247-880-11 CARBON
110K
5%
1/4W
R16
1-247-878-00 CARBON
91K
5%
1/4W
R21
1-247-870-11 CARBON
43K
5%
1/4W
R22
1-249-438-11 CARBON
56K
5%
1/4W
R23
1-247-884-11 CARBON
160K
5%
1/4W
R24
1-247-872-11 CARBON
51K
5%
1/4W
R25
1-247-883-00 CARBON
150K
5%
1/4W
R26
1-247-887-00 CARBON
220K
5%
1/4W
R41
1-249-438-11 CARBON
56K
5%
1/4W
R42
1-247-876-11 CARBON
75K
5%
1/4W
R43
1-249-439-11 CARBON
68K
5%
1/4W
R44
1-247-876-11 CARBON
75K
5%
1/4W
R45
1-247-876-11 CARBON
75K
5%
1/4W
R46
1-249-441-11 CARBON
100K
5%
1/4W
R101
1-249-441-11 CARBON
100K
5%
1/4W
R102
1-249-441-11 CARBON
100K
5%
1/4W
R103
1-249-429-11 CARBON
10K
5%
1/4W
R104
1-249-421-11 CARBON
2.2K
5%
1/4W
R105
1-247-843-11 CARBON
3.3K
5%
1/4W
R106
1-247-843-11 CARBON
3.3K
5%
1/4W
R107
1-249-428-11 CARBON
8.2K
5%
1/4W
R108
1-249-417-11 CARBON
1K
5%
1/4W
R109
1-249-418-11 CARBON
1.2K
5%
1/4W
R110
1-249-433-11 CARBON
22K
5%
1/4W
R111
1-249-417-11 CARBON
1K
5%
1/4W
R112
1-247-866-11 CARBON
30K
5%
1/4W
R113
1-249-439-11 CARBON
68K
5%
1/4W
R114
1-249-410-11 CARBON
270
5%
1/4W
R115
1-249-429-11 CARBON
10K
5%
1/4W
R117
1-249-441-11 CARBON
100K
5%
1/4W
R118
1-249-441-11 CARBON
100K
5%
1/4W
R121
1-249-429-11 CARBON
10K
5%
1/4W
R133
1-249-429-11 CARBON
10K
5%
1/4W
R134
1-249-429-11 CARBON
10K
5%
1/4W
R135
1-249-429-11 CARBON
10K
5%
1/4W
R151
1-247-881-00 CARBON
120K
5%
1/4W
R152
1-249-404-00 CARBON
82
5%
1/4W
R153
1-247-882-11 CARBON
130K
5%
1/4W
R154
1-247-850-11 CARBON
6.2K
5%
1/4W
R155
1-249-430-11 CARBON
12K
5%
1/4W
R156
1-249-426-11 CARBON
5.6K
5%
1/4W
R157
1-249-421-11 CARBON
2.2K
5%
1/4W
R158
1-247-843-11 CARBON
3.3K
5%
1/4W
R159
1-249-429-11 CARBON
10K
5%
1/4W
R160
1-249-421-11 CARBON
2.2K
5%
1/4W
R162
1-249-413-11 CARBON
470
5%
1/4W
R163
1-249-413-11 CARBON
470
5%
1/4W
R201
1-249-441-11 CARBON
100K
5%
1/4W
R202
1-249-441-11 CARBON
100K
5%
1/4W
R203
1-249-429-11 CARBON
10K
5%
1/4W
R204
1-249-421-11 CARBON
2.2K
5%
1/4W
R205
1-247-843-11 CARBON
3.3K
5%
1/4W
R206
1-247-843-11 CARBON
3.3K
5%
1/4W
R207
1-249-428-11 CARBON
8.2K
5%
1/4W
R208
1-249-417-11 CARBON
1K
5%
1/4W
R209
1-249-418-11 CARBON
1.2K
5%
1/4W
R210
1-249-433-11 CARBON
22K
5%
1/4W
R211
1-249-417-11 CARBON
1K
5%
1/4W
R212
1-247-866-11 CARBON
30K
5%
1/4W
R213
1-249-439-11 CARBON
68K
5%
1/4W
R214
1-249-410-11 CARBON
270
5%
1/4W
MAIN
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 35 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
R215
1-249-429-11 CARBON
10K
5%
1/4W
R221
1-249-429-11 CARBON
10K
5%
1/4W
R233
1-249-429-11 CARBON
10K
5%
1/4W
R234
1-249-429-11 CARBON
10K
5%
1/4W
R235
1-249-429-11 CARBON
10K
5%
1/4W
R251
1-247-881-00 CARBON
120K
5%
1/4W
R252
1-249-404-00 CARBON
82
5%
1/4W
R253
1-247-882-11 CARBON
130K
5%
1/4W
R254
1-247-850-11 CARBON
6.2K
5%
1/4W
R255
1-249-430-11 CARBON
12K
5%
1/4W
R256
1-249-426-11 CARBON
5.6K
5%
1/4W
R257
1-249-421-11 CARBON
2.2K
5%
1/4W
R258
1-247-843-11 CARBON
3.3K
5%
1/4W
R259
1-249-429-11 CARBON
10K
5%
1/4W
R260
1-249-421-11 CARBON
2.2K
5%
1/4W
R301
1-215-452-00 METAL
20K
1%
1/4W
R302
1-249-429-11 CARBON
10K
5%
1/4W
R303
1-249-429-11 CARBON
10K
5%
1/4W
R304
1-249-437-11 CARBON
47K
5%
1/4W
R305
1-249-427-11 CARBON
6.8K
5%
1/4W
R306
1-247-843-11 CARBON
3.3K
5%
1/4W
R307
1-249-441-11 CARBON
100K
5%
1/4W
R308
1-249-429-11 CARBON
10K
5%
1/4W
R309
1-249-441-11 CARBON
100K
5%
1/4W
R310
1-249-417-11 CARBON
1K
5%
1/4W
R311
1-249-432-11 CARBON
18K
5%
1/4W
R312
1-249-436-11 CARBON
39K
5%
1/4W
R333
1-249-397-11 CARBON
22
5%
1/4W
R351
1-249-413-11 CARBON
470
5%
1/4W
R352
1-249-413-11 CARBON
470
5%
1/4W
R353
1-249-425-11 CARBON
4.7K
5%
1/4W
R354
1-247-838-00 CARBON
2K
5%
1/4W
R355
1-249-432-11 CARBON
18K
5%
1/4W
R356
1-249-432-11 CARBON
18K
5%
1/4W
R357
1-249-432-11 CARBON
18K
5%
1/4W
R358
1-249-390-11 CARBON
5.6
5%
1/4W
R359
1-249-390-11 CARBON
5.6
5%
1/4W
R360
1-249-427-11 CARBON
6.8K
5%
1/4W
R361
1-247-838-00 CARBON
2K
5%
1/4W
R362
1-215-454-00 METAL
24K
1%
1/4W
R363
1-249-441-11 CARBON
100K
5%
1/4W
R364
1-249-417-11 CARBON
1K
5%
1/4W
R701
1-249-417-11 CARBON
1K
5%
1/4W
R702
1-249-429-11 CARBON
10K
5%
1/4W
R720
1-249-437-11 CARBON
47K
5%
1/4W
R801
1-247-807-31 CARBON
100
5%
1/4W
R802
1-247-807-31 CARBON
100
5%
1/4W
R803
1-249-417-11 CARBON
1K
5%
1/4W
R804
1-249-429-11 CARBON
10K
5%
1/4W
R805
1-249-441-11 CARBON
100K
5%
1/4W
R806
1-247-843-11 CARBON
3.3K
5%
1/4W
R807
1-249-441-11 CARBON
100K
5%
1/4W
R808
1-249-441-11 CARBON
100K
5%
1/4W
R809
1-249-417-11 CARBON
1K
5%
1/4W
R810
1-249-429-11 CARBON
10K
5%
1/4W
R811
1-249-429-11 CARBON
10K
5%
1/4W
R812
1-249-417-11 CARBON
1K
5%
1/4W
R813
1-249-429-11 CARBON
10K
5%
1/4W
R815
1-249-393-11 CARBON
10
5%
1/4W
R816
1-249-429-11 CARBON
10K
5%
1/4W
R817
1-249-429-11 CARBON
10K
5%
1/4W
R818
1-249-429-11 CARBON
10K
5%
1/4W
R819
1-249-417-11 CARBON
1K
5%
1/4W
R820
1-249-441-11 CARBON
100K
5%
1/4W
R821
1-247-807-31 CARBON
100
5%
1/4W
R822
1-247-807-31 CARBON
100
5%
1/4W
R823
1-249-429-11 CARBON
10K
5%
1/4W
R824
1-249-425-11 CARBON
4.7K
5%
1/4W
R827
1-249-413-11 CARBON
470
5%
1/4W
R828
1-249-429-11 CARBON
10K
5%
1/4W
R829
1-249-429-11 CARBON
10K
5%
1/4W
R830
1-249-429-11 CARBON
10K
5%
1/4W
R832
1-249-417-11 CARBON
1K
5%
1/4W
R835
1-249-429-11 CARBON
10K
5%
1/4W
R836
1-249-429-11 CARBON
10K
5%
1/4W
R837
1-249-429-11 CARBON
10K
5%
1/4W
R838
1-249-429-11 CARBON
10K
5%
1/4W
R839
1-249-429-11 CARBON
10K
5%
1/4W
R840
1-249-429-11 CARBON
10K
5%
1/4W
R841
1-249-429-11 CARBON
10K
5%
1/4W
R842
1-249-429-11 CARBON
10K
5%
1/4W
R845
1-249-429-11 CARBON
10K
5%
1/4W
R846
1-249-417-11 CARBON
1K
5%
1/4W
R849
1-249-427-11 CARBON
6.8K
5%
1/4W
R850
1-249-427-11 CARBON
6.8K
5%
1/4W
R863
1-247-807-31 CARBON
100
5%
1/4W
R864
1-247-807-31 CARBON
100
5%
1/4W
R865
1-247-807-31 CARBON
100
5%
1/4W
R870
1-247-807-31 CARBON
100
5%
1/4W
R871
1-249-440-11 CARBON
82K
5%
1/4W
R872
1-249-417-11 CARBON
1K
5%
1/4W
R873
1-247-807-31 CARBON
100
5%
1/4W
R874
1-247-807-31 CARBON
100
5%
1/4W
R875
1-249-430-11 CARBON
12K
5%
1/4W
< VARIABLE RESISTOR >
RV151
1-238-598-11 RES, ADJ, CARBON 2.2K
RV152
1-238-603-11 RES, ADJ, CARBON 100K
RV153
1-238-599-11 RES, ADJ, CARBON 4.7K
RV251
1-238-598-11 RES, ADJ, CARBON 2.2K
RV252
1-238-603-11 RES, ADJ, CARBON 100K
RV253
1-238-599-11 RES, ADJ, CARBON 4.7K
< RELAY >
RY351
1-515-614-11 RELAY
< TRANSFORMER >
T351
1-429-316-11 TRANSFORMER, BIAS OSCILLATION
< VIBRATOR >
X801
1-577-358-21 VIBRATOR, CERAMIC (4MHz)
************************************************************
MAIN
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 36 –
Ref. No.
Part No.
Description
Remark
*
A-2007-722-A PANEL BOARD, COMPLETE
*********************
*
4-932-810-01 CUSHION (FL)
*
4-946-899-01 HOLDER (FL)
< CAPACITOR >
C1
1-162-282-31 CERAMIC
100PF
10%
50V
C2
1-162-282-31 CERAMIC
100PF
10%
50V
< CONNECTOR >
* CN302
1-568-848-11 SOCKET, CONNECTOR 5P
* CN852
1-568-869-11 SOCKET, CONNECTOR 27P
< DIODE >
D851
8-719-057-09 DIODE   LNJ801LPDJA (CD SYNC)
< FLUORESCENT INDICATOR TUBE >
FLT851
1-517-317-21 INDICATOR TUBE, FLUORESCENT
< RESISTOR >
R851
1-249-415-11 CARBON
680
5%
1/4W
R852
1-249-417-11 CARBON
1K
5%
1/4W
R853
1-249-419-11 CARBON
1.5K
5%
1/4W
R854
1-247-843-11 CARBON
3.3K
5%
1/4W
R855
1-249-425-11 CARBON
4.7K
5%
1/4W
R856
1-249-415-11 CARBON
680
5%
1/4W
R857
1-249-417-11 CARBON
1K
5%
1/4W
R858
1-249-419-11 CARBON
1.5K
5%
1/4W
R859
1-247-843-11 CARBON
3.3K
5%
1/4W
R860
1-249-425-11 CARBON
4.7K
5%
1/4W
R861
1-249-429-11 CARBON
10K
5%
1/4W
R862
1-249-412-11 CARBON
390
5%
1/4W
< VARIABLE RESISTOR >
RV301
1-225-383-11 RES, VAR, CARBON 50K/50K (REC LEVEL)
< SWITCH >
S851
1-762-196-21 SWITCH, TACT (§ OPEN/CLOSE)
S852
1-762-196-21 SWITCH, TACT (p)
S853
1-762-196-21 SWITCH, TACT (P)
S854
1-762-196-21 SWITCH, TACT (·)
S855
1-762-196-21 SWITCH, TACT (ª)
S856
1-762-196-21 SWITCH, TACT (CD SYNC)
S858
1-762-196-21 SWITCH, TACT (0)
S859
1-762-196-21 SWITCH, TACT ())
S860
1-762-196-21 SWITCH, TACT (r REC)
S861
1-762-196-21 SWITCH, TACT (RESET)
S862
1-762-196-21 SWITCH, TACT (DIRECTION)
S863
1-762-196-21 SWITCH, TACT (DOLBY NR)
************************************************************
PANEL
97D0573-1
Printed in Japan   © 1997. 4
Published by General Engineering Dept.
(Shibaura)
9-960-930-11
Sony Corporation
Home A&V Products Company
TC-EX66
MISCELLANEOUS
*************
12
1-782-490-11 WIRE (FLAT TYPE) (5 CORE)
13
1-773-257-11 WIRE (FLAT TYPE) (27 CORE)
HRPE901
HEAD ASSY (RECORD/PLAYBACK/ERASE)
M901
3-017-239-01 PULLEY (MOTOR) (LOADING)
M902
3-017-259-01 PULLEY (MOTOR) (CAPSTAN/REEL)
S901
3-017-238-01 LIMITTER (SW MSS-8B) (OPEN)
S902
3-017-238-01 LIMITTER (SW MSS-8B) (CLOSE)
************************************************************
*************
HARDWARE LIST
*************
#1
7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S
#2
7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S
#3
7-685-132-19 SCREW +P2.6X5 TYPE2 NON-SLIT
#4
7-671-157-01 SCREW, PRECISION +P1.4X2
#5
7-627-551-18 SCREW, PRECISION +P1.4X2
#6
7-685-105-19 SCREW +P2X8 TYPE2 NON-SLIT
#7
7-621-255-20 SCREW +P2X4
#8
7-685-645-79 SCREW +BVTP 3X6 TYPE2 IT-3
#9
7-685-146-11 SCREW +P3X8 TYPE2 NON-SLIT
Ref. No.
Part No.
Description
Remark
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
Sony Corporation
Home A&V Products Company
AEP Model
UK Model
E Model
SERVICE MANUAL
9-960-930-81
98G001669-1
Printed in Japan   ©1998.7
Published by Quality Assurance Dept.
 (Shibaura)
SUPPLEMENT-1
File this supplement with the service manual.
Subject:  Additton of service parts on CONTROL board
                 (SPM-98013)
Ref. No.
Part No.
Description
Remark
  *
1-672-011-11
CONTROL BOARD
***************
3-017-287-01
CONNECTOR,TERMINAL (RP)
< DIODE >
D001
8-719-987-63
DIODE 1N4148M
D002
8-719-987-63
DIODE 1N4148M
<IC >
ICOO1 3-017-289-01
IC, HOLE, ROTARY DETECTION
< SOLENOID >
PM001 3-017-292-01
SOLENOID
< RESISTOR >
R001
1-247-862-11
CARBON     20K     5%     1/4W
< SWITCH >
S001
3-017-290-01
SWITCH, DETECT (FWD REC DET)
S002
3-017-290-01
SWITCH, DETECT (HALF DET)
S003
3-017-290-01
SWITCH, DETECT (CrO2 DET)
S004
3-017-290-01
SWITCH, DETECT (METAL DET)
S005
3-017-290-01
SWITCH, DETECT (REV REC DET)
S006
3-017-291-01
SWITCH, MODE (MODE)
PARTS LIST(CONTROL BOARD)
• Items marked “*” are not stocked since they are
seldom required for routine service. Some delay
should be anticipated when ordering these items.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
'

array (
  0 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/3286ba7b154e854.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '73909',
    'title' => '索尼SONY TC-EX66电路图-0',
    'description' => '索尼SONY TC-EX66电路图-0',
  ),
  1 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/4e1d48f7587d08a.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '73910',
    'title' => '索尼SONY TC-EX66电路图-1',
    'description' => '索尼SONY TC-EX66电路图-1',
  ),
  2 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/dbd2487bbe93147.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '73911',
    'title' => '索尼SONY TC-EX66电路图-2',
    'description' => '索尼SONY TC-EX66电路图-2',
  ),
  3 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/f6d77e3ca6ece60.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '73912',
    'title' => '索尼SONY TC-EX66电路图-3',
    'description' => '索尼SONY TC-EX66电路图-3',
  ),
  4 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/b7d54697f0f4314.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '73913',
    'title' => '索尼SONY TC-EX66电路图-4',
    'description' => '索尼SONY TC-EX66电路图-4',
  ),
  5 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/5562b118fcf26d6.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '73914',
    'title' => '索尼SONY TC-EX66电路图-5',
    'description' => '索尼SONY TC-EX66电路图-5',
  ),
  6 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/45899b38f6a68.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '73915',
    'title' => '索尼SONY TC-EX66电路图-6',
    'description' => '索尼SONY TC-EX66电路图-6',
  ),
  7 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/c959d67b7ac235f.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '73916',
    'title' => '索尼SONY TC-EX66电路图-7',
    'description' => '索尼SONY TC-EX66电路图-7',
  ),
  8 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/03fe76fed95e1a4.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '73917',
    'title' => '索尼SONY TC-EX66电路图-8',
    'description' => '索尼SONY TC-EX66电路图-8',
  ),
  9 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/f69bc4118c73bcd.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '73918',
    'title' => '索尼SONY TC-EX66电路图-9',
    'description' => '索尼SONY TC-EX66电路图-9',
  ),
)

'1680936254'

'1680936254'

'{"file":["73909","73910","73911","73912","73913","73914","73915","73916","73917","73918"],"title":["\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-0","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-1","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-2","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-3","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-4","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-5","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-6","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-7","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-8","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-9"],"description":["\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-0","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-1","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-2","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-3","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-4","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-5","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-6","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-7","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-8","\\u7d22\\u5c3cSONY TC-EX66\\u7535\\u8def\\u56fe-9"]}'

'索尼,SONY, ,TC,-,EX66,电路,电路图'

array (
  '索尼' => '/index.php?s=wenku&c=search&keyword=%E7%B4%A2%E5%B0%BC',
  'SONY' => '/index.php?s=wenku&c=search&keyword=SONY',
  'TC' => '/index.php?s=wenku&c=search&keyword=TC',
  '-' => '/index.php?s=wenku&c=search&keyword=-',
  'EX66' => '/index.php?s=wenku&c=search&keyword=EX66',
  '电路' => '/index.php?s=wenku&c=search&keyword=%E7%94%B5%E8%B7%AF',
  '电路图' => '/index.php?s=wenku&c=search&keyword=%E7%94%B5%E8%B7%AF%E5%9B%BE',
)

array (
)

array (
  'id' => '16378',
  'catid' => '8',
  'title' => '索尼SONY TC-EX5电路图',
  'thumb' => '73898',
  'keywords' => '索尼,SONY, ,TC,-,EX5,电路,电路图',
  'description' => '',
  'hits' => '0',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a16378.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680936220',
  'updatetime' => '1680936220',
  'displayorder' => '0',
  'xerhu_score' => '50',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '73897',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

array (
  'id' => '16380',
  'catid' => '8',
  'title' => '索尼SONY TC-EX7电路图',
  'thumb' => '73887',
  'keywords' => '索尼,SONY, ,TC,-,EX7,电路,电路图',
  'description' => '',
  'hits' => '1',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a16380.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680936287',
  'updatetime' => '1680936287',
  'displayorder' => '0',
  'xerhu_score' => '50',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '73886',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

'索尼SONY TC-EX66电路图_电子电工_行业资料_文汇知识网'

'索尼,SONY, ,TC,-,EX66,电路,电路图'

''

array (
  'id' => '8',
  'pid' => '5',
  'pids' => '0,5',
  'name' => '电子电工',
  'dirname' => 'dzdg',
  'pdirname' => 'hangye/',
  'child' => 0,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => 8,
  'thumb' => '',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => '',
  'index' => '2',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '8',
  ),
  'is_post' => 1,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/dzdg',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

1

array (
  'catid' => '8',
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  8 =>
  array (
    'id' => '8',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电子电工',
    'dirname' => 'dzdg',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 8,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '8',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dzdg',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  12 =>
  array (
    'id' => '12',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电脑手机',
    'dirname' => 'dnsj',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 12,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '12',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dnsj',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  13 =>
  array (
    'id' => '13',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '交通道路',
    'dirname' => 'jtdl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 13,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '13',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jtdl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  14 =>
  array (
    'id' => '14',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '机械设备',
    'dirname' => 'jixie',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 14,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '14',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jixie',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  15 =>
  array (
    'id' => '15',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '能源动力',
    'dirname' => 'nydl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 15,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '15',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/nydl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  16 =>
  array (
    'id' => '16',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电气工控',
    'dirname' => 'dqgk',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 16,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '16',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dqgk',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
)

'/index.php?s=wenku&c=show&id=16379&page=[page]'

''

'http://www.wenhuiw.com/wenku/a16379.html'

array (
  's' => 'wenku',
  'c' => 'show',
  'id' => '16379',
  'm' => 'index',
)
