索尼SONY TCS-60DV电路图

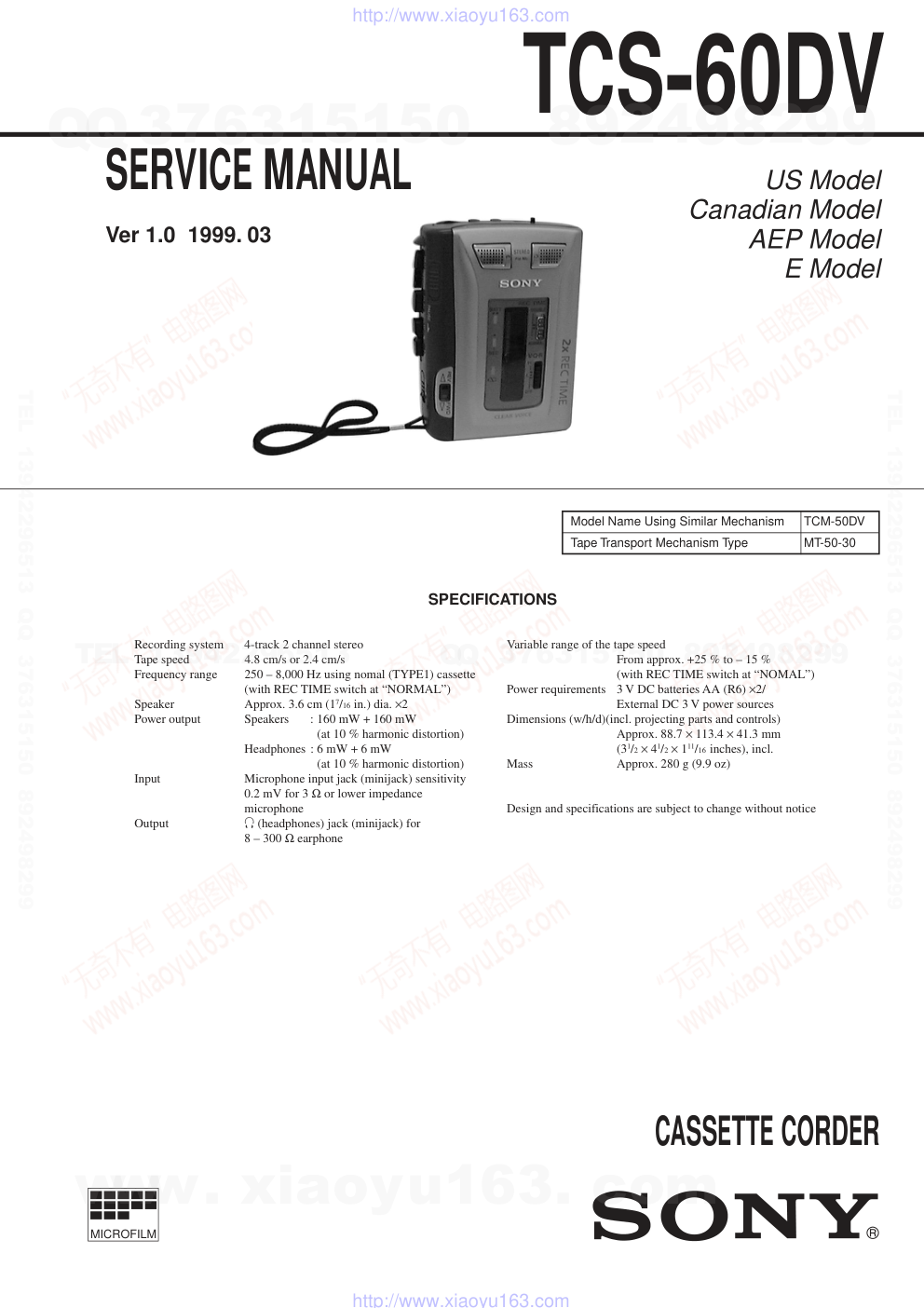

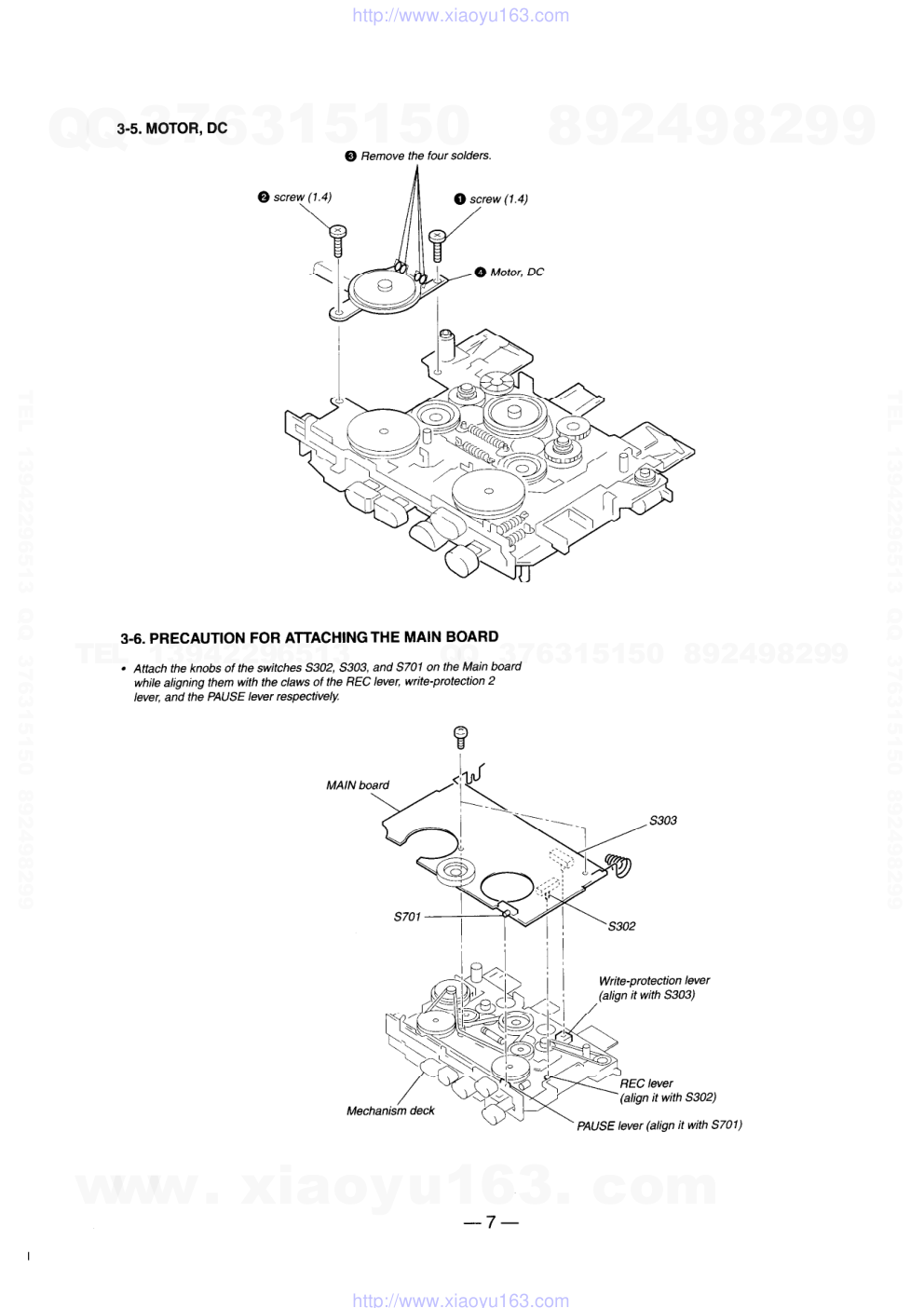

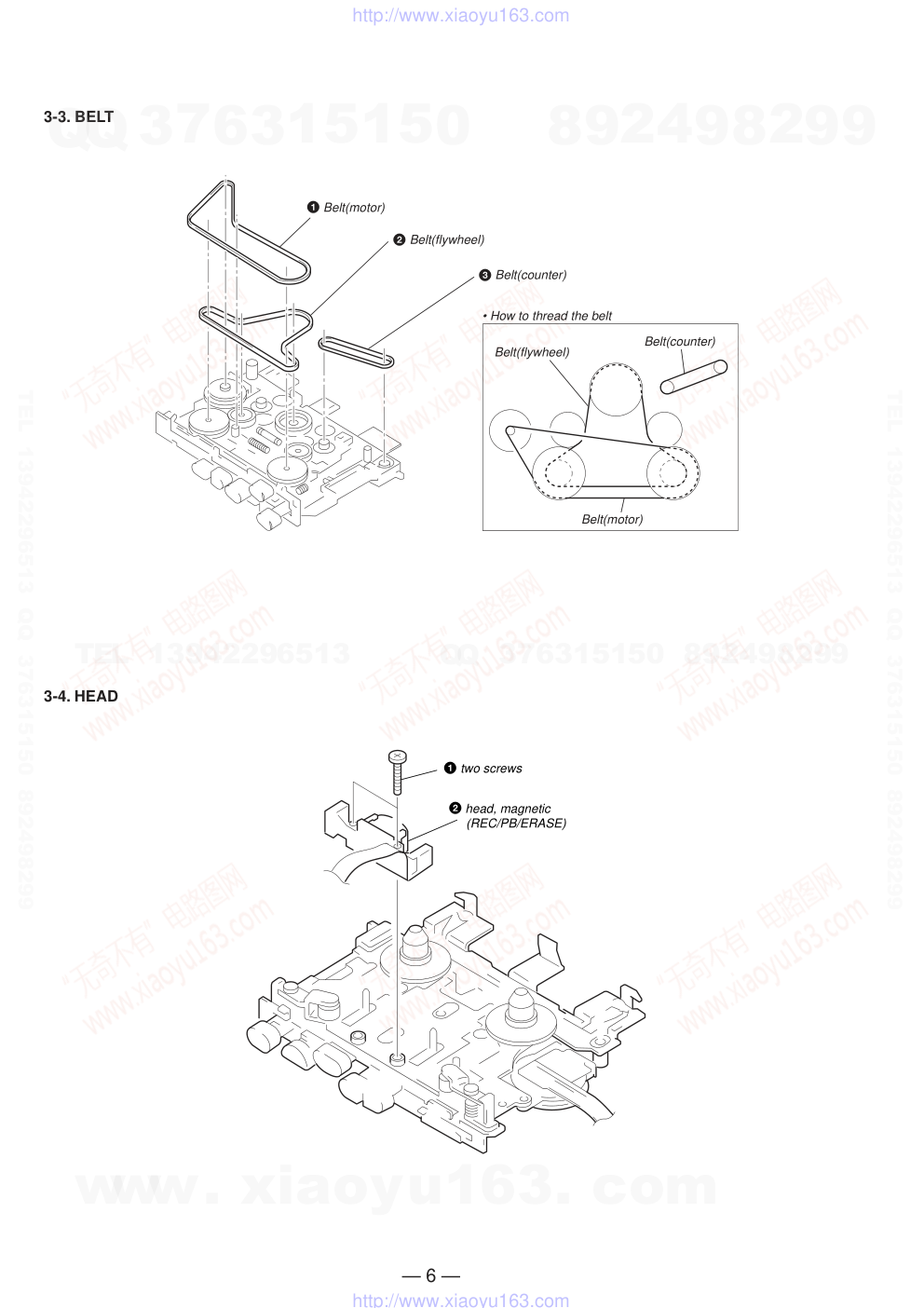

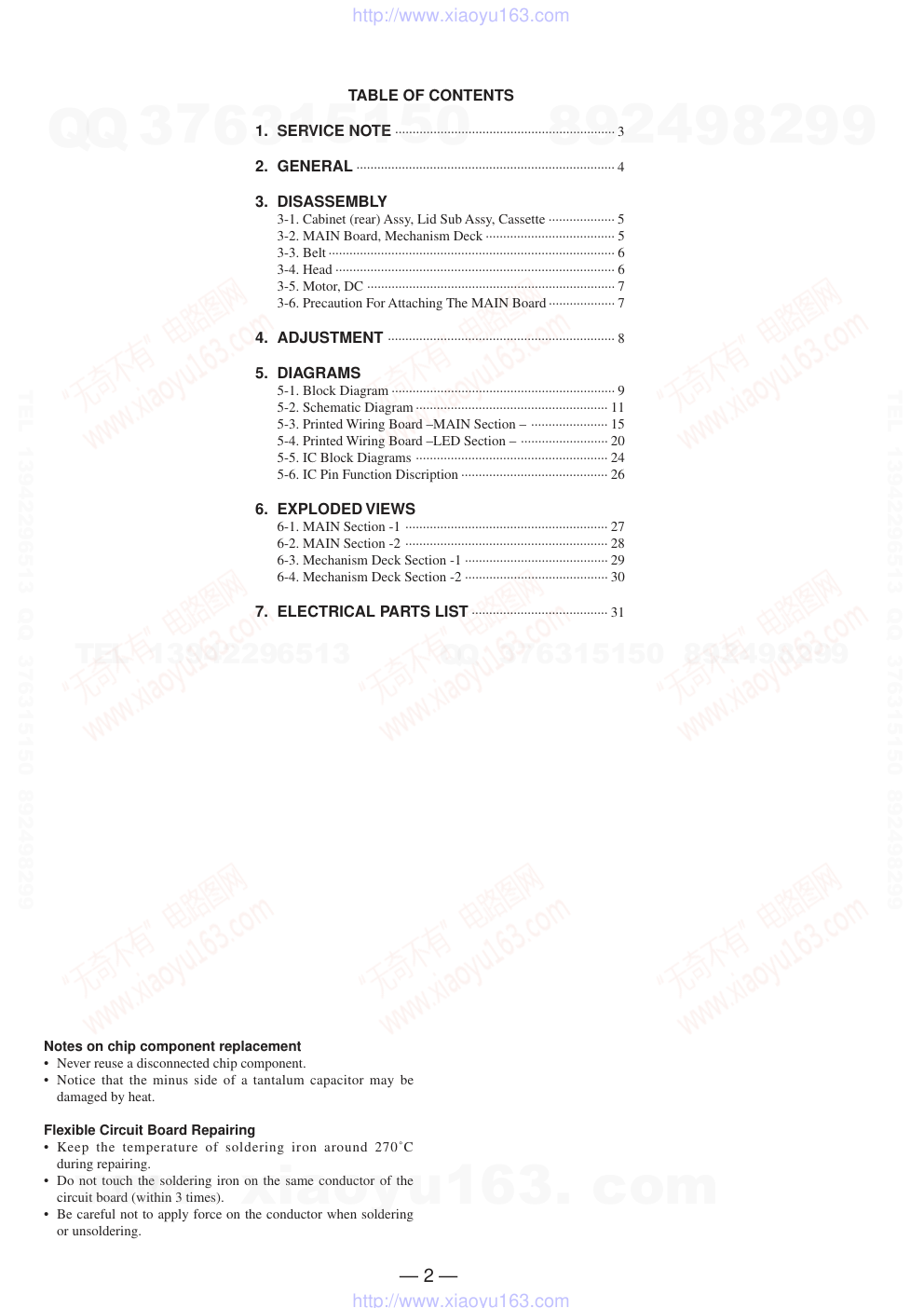

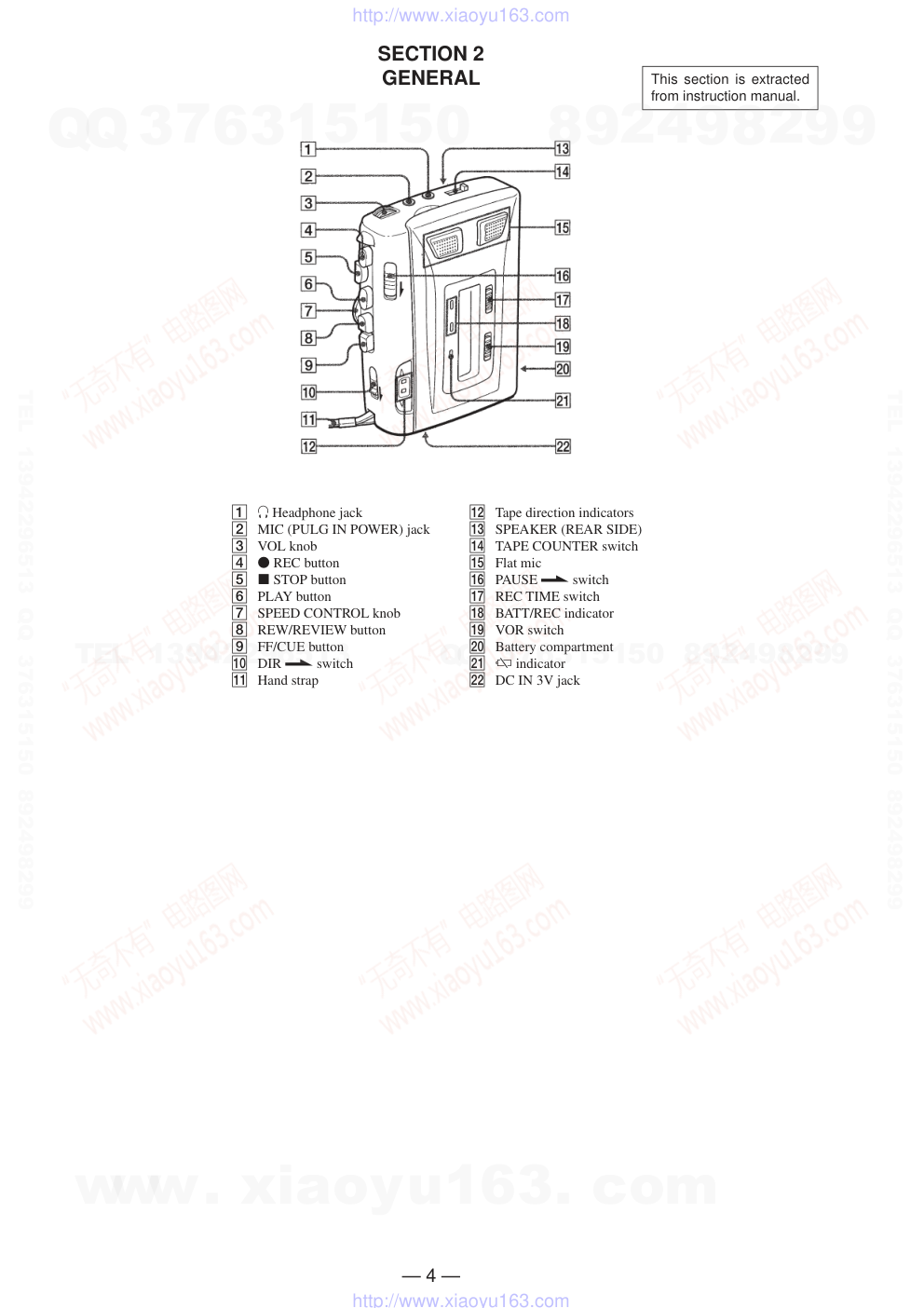

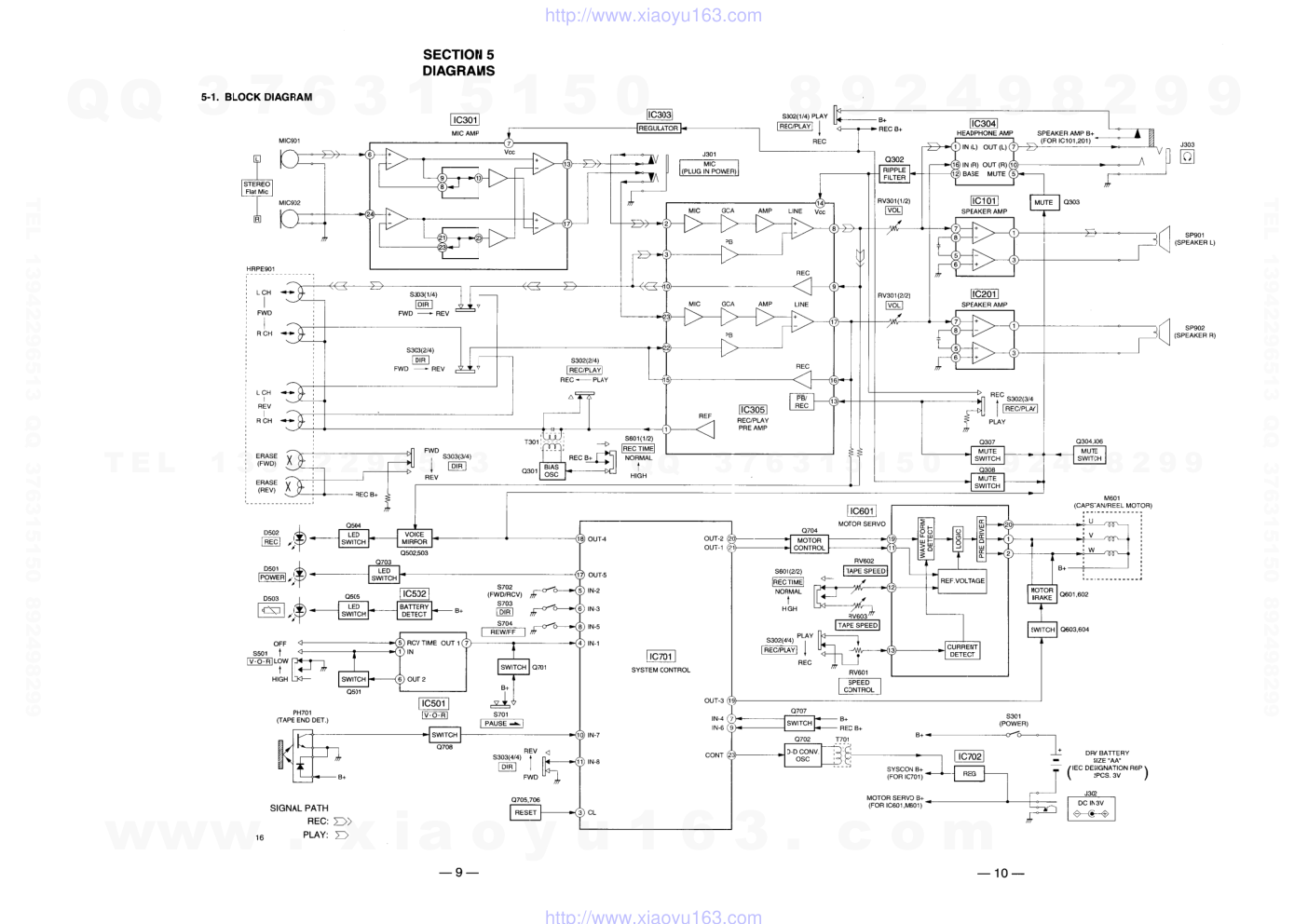

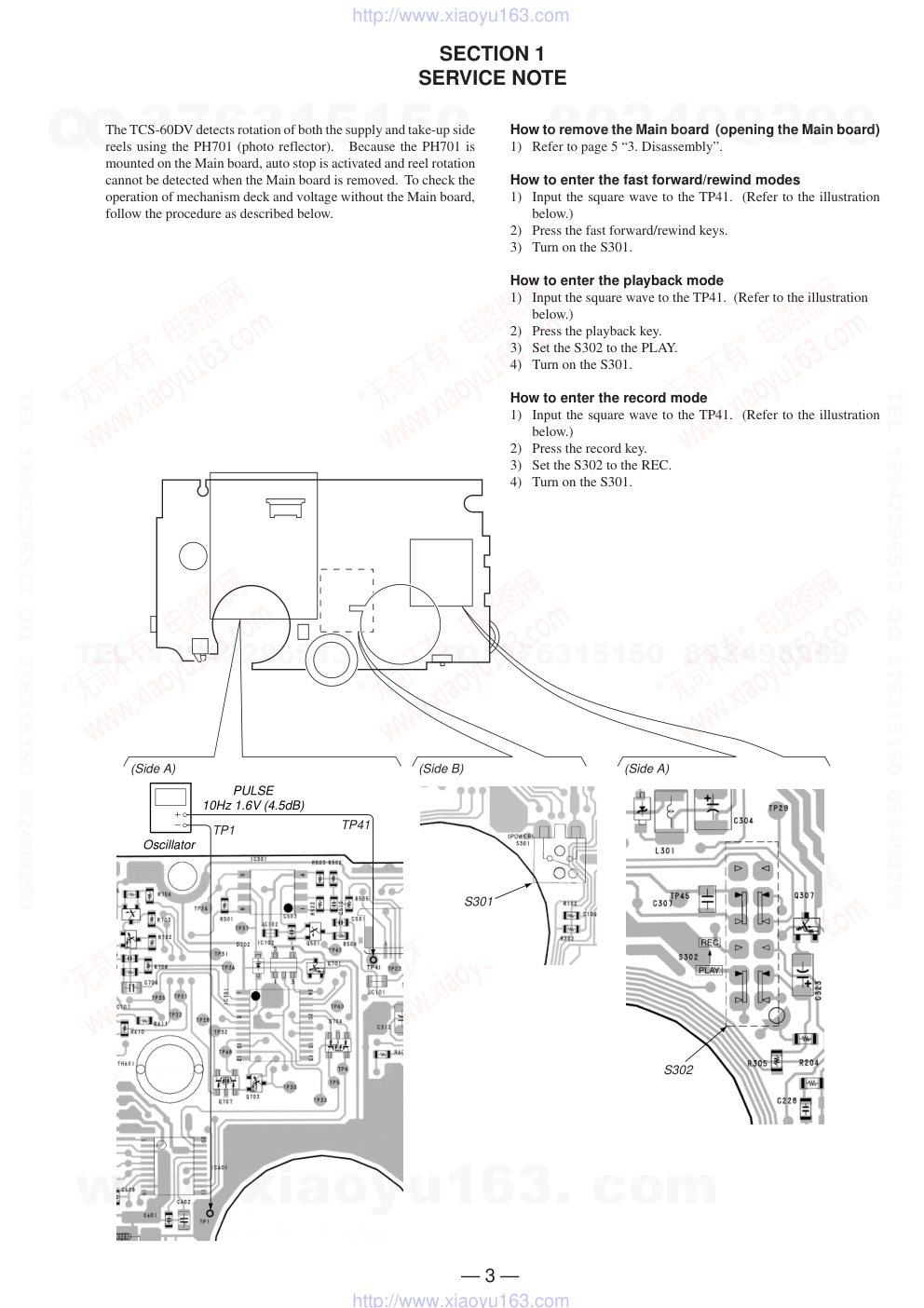

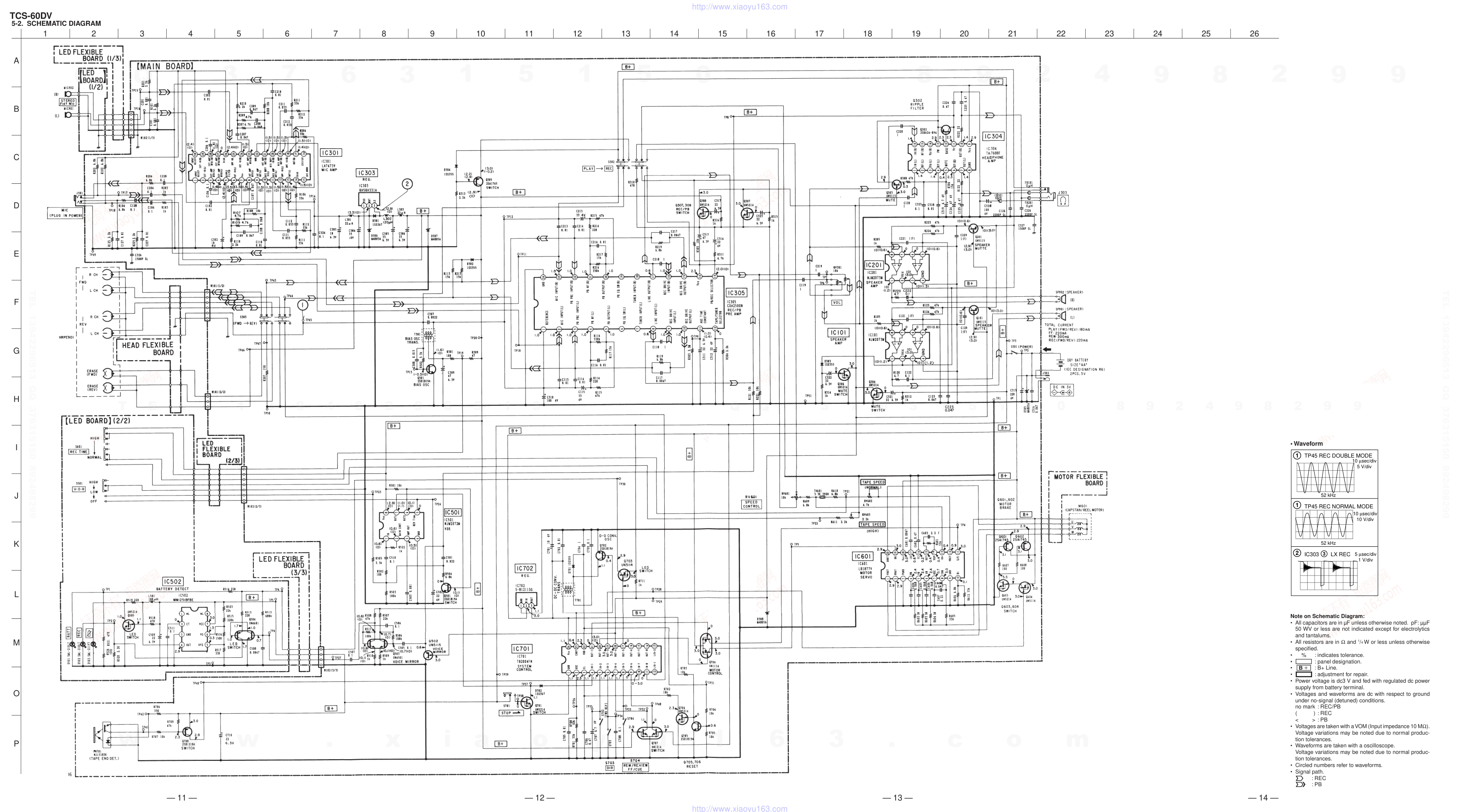

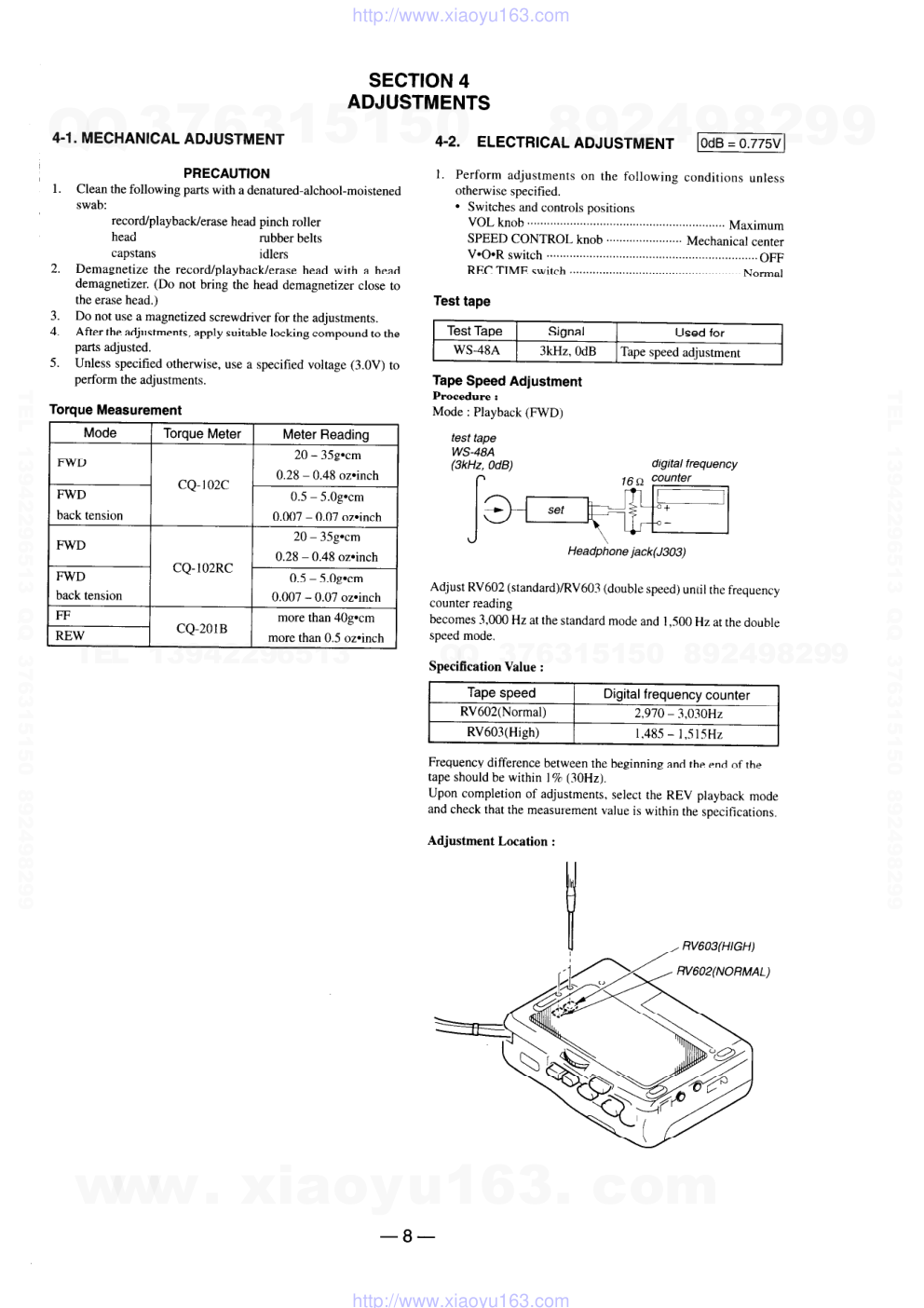

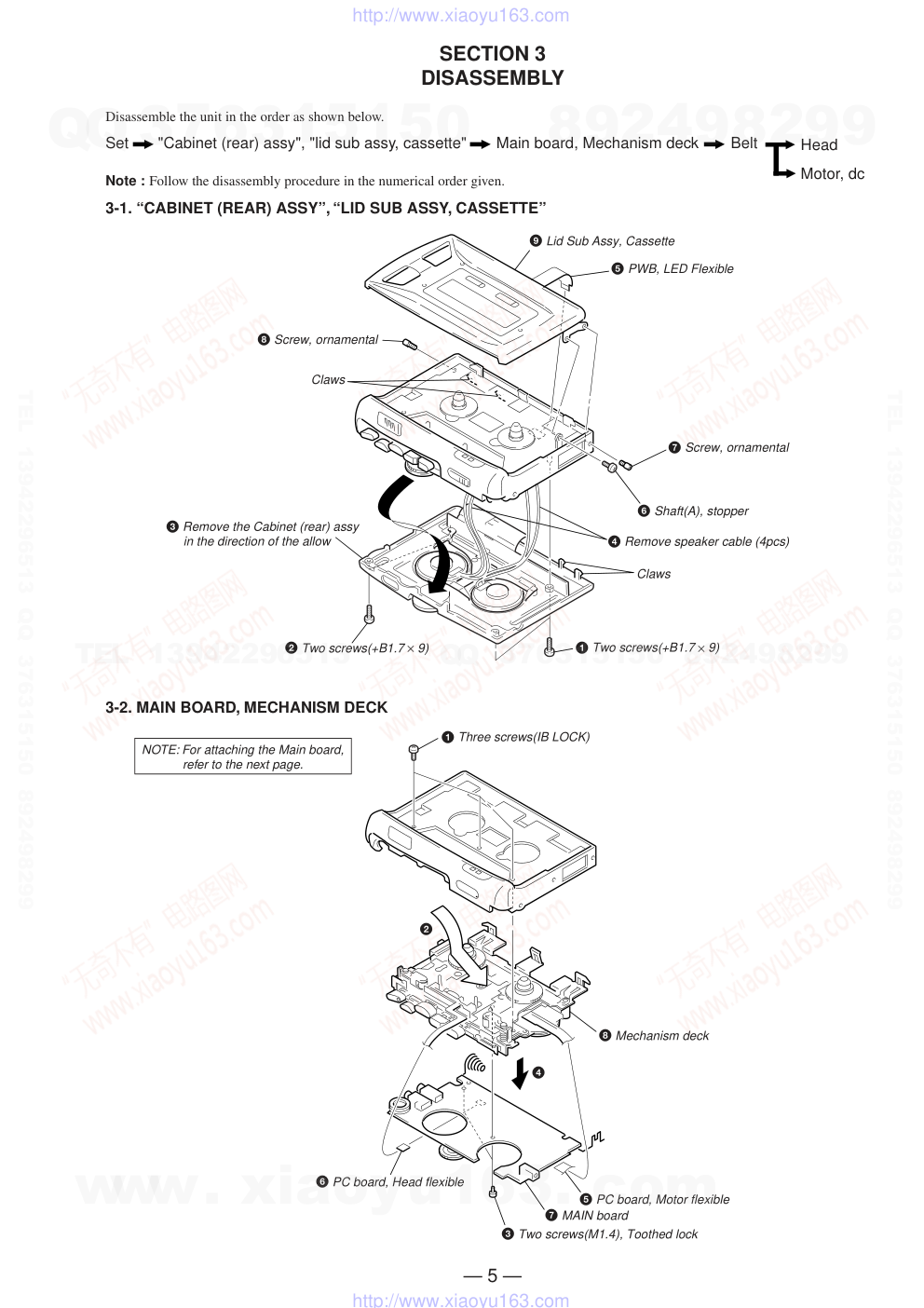

US Model Canadian Model AEP Model E Model SERVICE MANUAL CASSETTE CORDER MICROFILM SPECIFICATIONS Model Name Using Similar Mechanism TCM-50DV Tape Transport Mechanism Type MT-50-30 Recording system 4-track 2 channel stereo Tape speed 4.8 cm/s or 2.4 cm/s Frequency range 250 – 8,000 Hz using nomal (TYPE1) cassette (with REC TIME switch at “NORMAL”) Speaker Approx. 3.6 cm (17/16 in.) dia. ×2 Power output Speakers : 160 mW + 160 mW (at 10 % harmonic distortion) Headphones : 6 mW + 6 mW (at 10 % harmonic distortion) Input Microphone input jack (minijack) sensitivity 0.2 mV for 3 Ω or lower impedance microphone Output 2 (headphones) jack (minijack) for 8 – 300 Ω earphone Variable range of the tape speed From approx. +25 % to – 15 % (with REC TIME switch at “NOMAL”) Power requirements 3 V DC batteries AA (R6) ×2/ External DC 3 V power sources Dimensions (w/h/d)(incl. projecting parts and controls) Approx. 88.7 × 113.4 × 41.3 mm (31/2 × 41/2 × 111/16 inches), incl. Mass Approx. 280 g (9.9 oz) Design and specifications are subject to change without notice Ver 1.0 1999. 03 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — TABLE OF CONTENTS Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. 1. SERVICE NOTE ······························································· 3 2. GENERAL ·········································································· 4 3. DISASSEMBLY 3-1. Cabinet (rear) Assy, Lid Sub Assy, Cassette ··················· 5 3-2. MAIN Board, Mechanism Deck ····································· 5 3-3. Belt ·················································································· 6 3-4. Head ················································································ 6 3-5. Motor, DC ······································································· 7 3-6. Precaution For Attaching The MAIN Board ··················· 7 4. ADJUSTMENT ································································· 8 5. DIAGRAMS 5-1. Block Diagram ································································ 9 5-2. Schematic Diagram ······················································· 11 5-3. Printed Wiring Board –MAIN Section – ······················ 15 5-4. Printed Wiring Board –LED Section – ························· 20 5-5. IC Block Diagrams ······················································· 24 5-6. IC Pin Function Discription ·········································· 26 6. EXPLODED VIEWS 6-1. MAIN Section -1 ·························································· 27 6-2. MAIN Section -2 ·························································· 28 6-3. Mechanism Deck Section -1 ········································· 29 6-4. Mechanism Deck Section -2 ········································· 30 7. ELECTRICAL PARTS LIST ······································· 31 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — PULSE 10Hz 1.6V (4.5dB) Oscillator (Side B) (Side A) (Side A) TP41 TP1 S301 S302 SECTION 1 SERVICE NOTE The TCS-60DV detects rotation of both the supply and take-up side reels using the PH701 (photo reflector). Because the PH701 is mounted on the Main board, auto stop is activated and reel rotation cannot be detected when the Main board is removed. To check the operation of mechanism deck and voltage without the Main board, follow the procedure as described below. How to remove the Main board (opening the Main board) 1) Refer to page 5 “3. Disassembly”. How to enter the fast forward/rewind modes 1) Input the square wave to the TP41. (Refer to the illustration below.) 2) Press the fast forward/rewind keys. 3) Turn on the S301. How to enter the playback mode 1) Input the square wave to the TP41. (Refer to the illustration below.) 2) Press the playback key. 3) Set the S302 to the PLAY. 4) Turn on the S301. How to enter the record mode 1) Input the square wave to the TP41. (Refer to the illustration below.) 2) Press the record key. 3) Set the S302 to the REC. 4) Turn on the S301. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — SECTION 2 GENERAL This section is extracted from instruction manual. !™ Tape direction indicators !£ SPEAKER (REAR SIDE) !¢ TAPE COUNTER switch !∞ Flat mic !§ PAUSE c switch !¶ REC TIME switch !• BATT/REC indicator !ª VOR switch @º Battery compartment @¡ i indicator @™ DC IN 3V jack 1 2 Headphone jack 2 MIC (PULG IN POWER) jack 3 VOL knob 4 r REC button 5 p STOP button 6 PLAY button 7 SPEED CONTROL knob 8 REW/REVIEW button 9 FF/CUE button 0 DIR c switch !¡ Hand strap www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — SECTION 3 DISASSEMBLY Disassemble the unit in the order as shown below. Note : Follow the disassembly procedure in the numerical order given. 3-1. “CABINET (REAR) ASSY”, “LID SUB ASSY, CASSETTE” Set "Cabinet (rear) assy", "lid sub assy, cassette" Main board, Mechanism deck Belt Head Motor, dc 3-2. MAIN BOARD, MECHANISM DECK 1 Two screws(+B1.7 × 9) 2 Two screws(+B1.7 × 9) 4 Remove speaker cable (4pcs) 5 PWB, LED Flexible 6 Shaft(A), stopper 7 Screw, ornamental 8 Screw, ornamental 9 Lid Sub Assy, Cassette Claws 3 Remove the Cabinet (rear) assy in the direction of the allow Claws 5 PC board, Motor flexible 1 Three screws(IB LOCK) 8 Mechanism deck 6 PC board, Head flexible 3 Two screws(M1.4), Toothed lock 7 MAIN board 2 4 NOTE: For attaching the Main board, refer to the next page. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 6 — 3-3. BELT 1 Belt(motor) Belt(motor) 2 Belt(flywheel) Belt(flywheel) 3 Belt(counter) Belt(counter) • How to thread the belt 3-4. HEAD 1 two screws 2 head, magnetic (REC/PB/ERASE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www . x ia o y u 1 6 3 . c o m QQ 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TCS-60DV — 11 — — 12 — — 13 — — 14 — 5-2. SCHEMATIC DIAGRAM 1 2 A B C D E F G H I J K L M O P 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 • Waveform 1 TP45 REC DOUBLE MODE TP45 REC NORMAL MODE 1 52 kHz 10 µsec/div 5 V/div 10 µsec/div 10 V/div 5 µsec/div 1 V/div 52 kHz IC303 3 LX REC 2 Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • C : panel designation. • U : B+ Line. • H : adjustment for repair. • Power voltage is dc3 V and fed with regulated dc power supply from battery terminal. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : REC/PB ( ) : REC < > : PB • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. E : REC a : PB w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TCS-60DV — 15 — — 16 — — 17 — — 18 — — 19 — 5-3. PRINTED WIRING BOARD – MAIN SECTION – 1 2 A B C D E F G 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • Through hole is omit. • b : Pattern from the side which enables seeing. Caution: Pattern face side: Parts on the pattern face side seen from (SIDE A) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (SIDE B) the parts face are indicated. Ref. No. Location D301 B-2 D302 B-20 D303 C-23 D304 C-22 D305 E-13 D306 C-20 D307 B-3 D308 C-9 D701 B-9 D702 B-14 IC101 A-5 IC201 B-17 IC301 D-6 IC303 B-3 IC304 B-19 IC305 D-18 IC501 A-15 IC601 E-14 IC701 C-14 IC702 B-15 Q101 C-6 Q201 B-6 Q301 D-4 Q302 A-19 Q303 B-18 Q304 C-3 Q305 C-2 Q306 B-2 Q307 D-22 Q308 A-1 Q501 B-15 Q502 C-6 Q503 B-7 Q601 D-11 Q602 E-11 Q603 D-11 Q604 C-11 Q701 B-15 Q702 B-9 Q703 D-15 Q704 C-15 Q705 B-13 Q706 B-13 Q707 D-14 Q708 B-7 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TCS-60DV — 20 — — 21 — — 22 — — 23 — — 24 — 5-4. PRINTED WIRING BOARD – LED SECTION – 1 2 A B C D E 3 4 5 6 7 8 9 10 11 12 13 Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • Through hole is omit. • b : Pattern from the side which enables seeing. Caution: Pattern face side: Parts on the pattern face side seen from (SIDE A) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (SIDE B) the parts face are indicated. 5-5. IC BLOCK DIAGRAMS IC501 NJM2072M IC502 MM1251BFBE 1 2 3 4 8 7 6 5 GND AMP OUT GAIN CONT INPUT VCC OUTPUT2 OUTPUT1 RECOVERY TIME CAP CT OUT N.C GND VS VCC HYS N.C 1 2 3 4 5 6 7 8 – + – + BOOSTER SIRCUIT IC304 TA7688F-S0 IC305 CXA2500N-T4 9 IN2 NF1 VR GND BASE BY2 OUT1 VB1 NF2 BY1 PW VCC OUT2 MUTE VB2 IN1 10 11 12 13 14 15 16 1 5 2 3 4 6 7 8 – + RIPPLE FILTER MUTE PW-OFF – + DC DC REFERENCE MIC INPUT (A) PB OUTPUT (A) REC DRIVE INPUT (A) REC DRIVE OUTPUT (A) AGC TIME CONSTANT TAPE/TUNER SELECTOR 1 2 PB PRE INPUT (A) PB NF (A) 3 4 5 PB EQ SWITCH (A) TUNER INPUT (A) LINE OUTPUT (A) 6 7 8 9 10 11 12 REC DRIVE OUTPUT (B) VCC PB/REC SELECTOR 13 14 15 PB OUTPUT (B) PB NF (B) PB PRE INPUT (B) MIC INPUT (B) GND 20 21 22 23 24 TUNER INPUT(B) PB EQ SWITCH (B) 18 19 REC DRIVE INPUT (B) LINE OUTPUT (B) 16 17 TAPE/ TUNER REF AGC MIC NORM/ METAL GCA PB LINE REC AGC DET AMP AGC MIC GCA PB LINE REC AGC DET AMP MIC GCA PB LINE REC AMP PB/ REC 6dB 22dB 12dB -0.3dB 20.5dB Ref. No. Location D501 E-3 D502 E-4 D503 E-6 IC502 E-5 Q504 E-3 Q505 E-7 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 25 — IC301 LA7473V-TLM IC601 LB1877V-TLM EXT AMP NFB2-R EXT AMP NFB1-R EXT IN-R INPUT SELECT CTL-2 MIC VCC HPF ON INT IN-R INT AMP NFB-R MIX AMP OUT-R MIX BUFF IN-L INT AMP OUT-R GND INPUT SELECT CTL-1 EXT IN-L RIPPLE FILTER INT IN-L EXT AMP NFB1-L EXT AMP NFB2-L VCC INT AMP NFB-L INT AMP OUT-L MIX BUFF IN-R MIX AMP OUT-L HPF IN-L OUT-L BIAS MIC MONO HPF IN-R OUT-R EXT/INT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 EXT MIC DET EXT MIC AMP L EXT MIC AMP R INT MIC AMP L MIX AMP L OUTPUT AMP L RIPPLE FILTER MIC VCC INT MIC AMP R MIX AMP R OUTPUT AMP R BIAS ON OFF ON OFF EXT INT EXT INT UOUT DR VCC LB FC OUT VSP IN+ VREF S/S 20 19 18 17 16 15 14 13 12 11 VOUT WOUT P-GND WB VB UB OSC COM GND RI 1 2 3 4 5 6 7 8 9 10 DRIVER STARTUP DIR LOGIC STARTUP DET WAVEFORM DET CURRENT DET SPEED DET LOCKING PROTECT OSC BIAS REF V TSD + – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 26 — 5-6. IC PIN FUNCTION DESCRIPTION IC701 TB2004FN-020-ER(SYSTEM CONTROL)/MAIN BOARD Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 – 16 17 18 19 20 21 22 23 24 I/O – – I I I I I I I I I – – – O O O O O – O – Description Ground For generation of system clock (fosc = 3.2 kHz) Reset signal input PAUSE ON/OFF by the PAUSE switch and V•O•R switch “L”: ON, “OPEN”: OFF Recovery to FWD when opening/closing the cassette lid “L”: ON, “OPEN”: OFF Direction “L”: ON, “OPEN”: OFF REC/PB selection “L”: ON, “OPEN”: OFF FF/REW “L”: ON, “OPEN”: OFF POWER : ON/OFF “L”: ON, “OPEN”: OFF Photo reflector pulse input for tape end detection FWD/REV selection “L”: ON, “OPEN”: OFF Not used Not used Not used LED ON/OFF “L”: ON, “OPEN”: OFF Audio mute “L”: ON, “OPEN”: OFF Motor brake “L”: ON, “OPEN”: OFF Motor direction “L”: FWD, “OPEN”: OFF Motor ON/OFF “L”: ON, “OPEN”: OFF Power supply for CMOS block Voltage doubler circuit control output Power supply for bipolar block Pin Name GND OSC CL IN-1 IN-2 IN-3 IN-4 IN-5 IN-6 IN-7 IN-8 I/O-1 I/O-2 OUT-8 – 6 OUT-5 OUT-4 OUT-3 OUT-2 OUT-1 VDD CONT VCC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 6 EXPLODED VIEWS — 27 — NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories and packing materials are given in the last of this parts list. 1 2 2 3 4 7 11 8 9 5 6 MIC901 MIC902 14 10 12 13 12 A A B B 6-1. MAIN SECTION-1 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 A-3050-908-A LID SUB ASSY, CASSETTE 2 3-704-197-31 SCREW(M1.4 × 3.0), LOCKING 3 3-033-592-01 HOLDER, MICROPHONE 4 3-033-593-01 CUSHION, MICROPHONE 5 3-033-594-01 COVER, MICROPHONE 6 3-318-382-31 SCREW(1.7 × 3), TAPPING 7 1-673-130-11 PWB,LED FLEXIBLE * 8 3-033-584-01 HOLDER, CASSETTE 9 3-318-382-01 SCREW(1.7 × 3), TAPPING 10 3-311-772-11 SHAFT (A), STOPPER 11 A-3021-186-A LED BOARD, COMPLETE 12 3-315-989-11 SCREW, ORNAMENTAL 13 3-704-245-42 SCREW (1.4) * 14 X-3370-480-1 TOGGLE ASSY MIC901 1-542-298-11 MICROPHONE, ELECTRET CONDENSER (L) MIC902 1-542-298-11 MICROPHONE, ELECTRET CONDENSER (R) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 28 — 6-2. MAIN SECTION-2 55 51 52 53 54 56 58 62 57 60 61 63 59 70 66 69 70 68 67 65 SP902 SP901 MT-50-30 72 71 64 64 not supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 3-704-197-33 SCREW (IB LOCK) 52 X-3377-632-1 CABINET (FRONT) ASSY 53 3-032-431-01 KNOB(PAUSE) 54 3-032-432-01 KNOB(DIR) 55 3-925-231-01 REFLECTOR 56 X-3376-766-1 LEVER ASSY,COVERING INDICATION 57 3-831-441-99 SPACER, KNOB 58 3-925-230-01 SPRING, BATTERY COIL 59 3-925-229-01 TERMINAL, PLUS 60 4-017-441-01 CUSHION (B) 61 3-345-648-01 SCREW (M1.4), TOOTHED LOCK 62 A-3021-185-A MAIN BOARD, COMPLETE 63 X-3377-552-1 CABINET (REAR) ASSY 64 3-318-382-31 SCREW (1.7 × 3), TAPPING 65 3-328-319-01 STRAP, HAND 66 3-032-441-01 SHEET (PICK) 67 9-911-815-01 CUSHION 68 3-033-582-01 LID, BATTERY CASE 69 3-032-436-01 FOOT(B), RUBBER 70 3-318-203-92 SCREW (B1.7 × 9), TAPPING * 71 3-035-577-01 PAPER, SHIELD 72 3-570-611-00 SHEET, PROTECTION, LID SP901 1-544-657-11 SPEAKER (3.6cm) (L) SP902 1-544-657-11 SPEAKER (3.6cm) (R) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 29 — 6-3. MECHANISM DECK SECTION-1 (MT-50-30) 123 124 128 118 121 122 116 127 112 119 120 125 126 101 102 103 106 109 105 104 108 110 130 130 129 115 129 111 107 113 112 128 117 HRPE901 M601 114 not supplied not supplied not supplied not supplied • A NOTE : Refer to next page. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 101 3-925-247-11 BUTTON, FF 102 3-925-246-11 BUTTON, REW 103 3-925-245-11 BUTTON, PLAY 104 3-032-787-01 BUTTON, REC 105 3-925-248-11 BUTTON, STOP 106 3-924-595-01 SPRING (PINCH-N), TORSION 107 X-3370-380-1 ARM(PINCH-R) ASSY 108 3-924-596-01 SPRING (PINCH-R), TORSION 109 X-3370-379-1 ARM(PINCH-N) ASSY * 110 3-924-572-01 LEVER (DIR) * 111 3-924-575-01 LEVER (DIR-M) 112 3-924-601-01 SPRING, TENSION 113 X-3370-378-1 LEVER (HEAD) ASSY 114 3-938-133-01 SCREW 115 3-018-121-01 SPRING (B.T), COMPRESSION 116 3-365-630-02 SCREW (M1.4) 117 X-3370-375-1 TABLE ASSY, REEL * 118 3-924-535-01 LEVER (FR) * 119 3-924-534-01 LEVER (C/R) * 120 3-924-538-01 LEVER (S-OFF) 121 3-321-483-11 RING, RETAINING 122 3-924-569-01 PAD(S-OFF) 123 1-657-172-11 PC BOARD, MOTOR FLEXIBLE 124 3-704-245-42 SCREW (1.4) 125 3-035-367-11 BELT (MOTOR) 126 3-924-577-01 PULLEY (COUNTER) * 127 3-924-536-01 LEVER (OFF) 128 3-924-602-01 SPRING, TENSION 129 3-305-925-00 WASHER 130 3-321-483-01 RING, RETAINING M601 1-698-804-21 MOTOR, DC (including PULLEY)(CAPSTAN/REEL) HRPE9011-500-590-11 HEAD, MAGNETIC (REC/PB/ERAES) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 30 — 6-4. MECHANISM DECK SECTION-2 (MT-50-30) 156 158 158 159 160 161 155 154 163 191 164 166 153 151 152 167 168 169 185 161 162 159 176 175 159 178 179 159 183 184 174 173 172 171 170 177 180 159 182 183 184 186 187 188 189 190 157 165 (included • A) NOTE : Refer to befor page 181 not supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 151 X-3370-373-1 CHASSIS ASSY * 152 3-924-537-01 LEVER (F/R) 153 3-924-605-01 SPRING (FF), TENSION 154 3-924-593-01 BELT (FLYWHEEL) 155 3-701-437-51 WASHER 156 X-3377-138-1 FLYWHEEL ASSY 157 3-924-602-01 SPRING, TENSION 158 3-924-558-01 PULLEY (T) 159 3-321-483-11 RING, RETAINING 160 3-924-548-01 ARM(T-N) 161 3-924-557-01 GEAR (T) 162 3-924-549-01 ARM(T-R) * 163 3-924-539-01 LEVER (REW-F) * 164 3-924-540-01 LEVER (REW-R) 165 3-924-603-01 SPRING (F/R), TENSION 166 3-924-597-01 SPRING (F/R), TORSION * 167 3-924-568-01 LEVER (FF) * 168 3-924-567-01 LEVER (REW) * 169 3-924-566-01 LEVER (STOP) * 170 X-3370-377-1 LEVER (REC) ASSY * 171 3-924-565-01 LEVER (PLAY) 172 3-924-598-01 SPRING (P/S), TORSION 173 3-924-604-01 SPRING (PLAY), TENSION * 174 3-924-547-01 ARM (PLAY-SUB) * 175 3-924-545-01 LEVER (LOCK) * 176 3-924-546-01 LEVER (SW) 177 3-924-606-01 SPRING (LOCK), TENSION 178 3-924-725-01 REFLECTOR 179 3-924-579-01 GEAR (REF) 180 3-348-993-01 WASHER 181 X-3370-376-1 LEVER (CENTER) ASSY 182 3-924-556-01 GEAR (REW) 183 3-924-562-01 GEAR (FF) 184 3-924-560-01 GEAR (REEL) 185 3-924-600-01 SPRING (REC), TENSION 186 3-032-620-01 BELT (COUNTER) 187 3-704-245-42 SCREW (1.4) 188 3-032-438-01 BRACKET (COUNTER) 189 1-548-582-11 COUNTER, TAPE (SMALL TYPE) * 190 3-924-574-01 LEVER (PAUSE) 191 3-924-607-01 SPRING (ARM-T), TENSION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 31 — SECTION 7 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. A-3021-185-A MAIN BOARD, COMPLETE ******************** < CAPACITOR > C101 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C102 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C104 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C106 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C107 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C108 1-164-490-11 CERAMIC CHIP 0.068uF 16V C109 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C110 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C111 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C112 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C114 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C115 1-135-318-11 TANTAL. CHIP 33uF 20% 4V C116 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C117 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C118 1-164-346-11 CERAMIC CHIP 1uF 16V C119 1-164-346-11 CERAMIC CHIP 1uF 16V C120 1-164-346-11 CERAMIC CHIP 1uF 16V C121 1-164-346-11 CERAMIC CHIP 1uF 16V C122 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C123 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C124 1-104-908-11 TANTAL. CHIP 47uF 20% 4V C125 1-164-005-11 CERAMIC CHIP 0.47uF 25V C126 1-164-676-11 CERAMIC CHIP 2200PF 5% 16V C127 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C128 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C129 1-164-346-11 CERAMIC CHIP 1uF 16V C201 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C202 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C204 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C206 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C207 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C208 1-164-490-11 CERAMIC CHIP 0.068uF 16V C209 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C210 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C211 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C212 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C213 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C214 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C215 1-135-318-11 TANTAL. CHIP 33uF 20% 4V C216 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C217 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C218 1-164-346-11 CERAMIC CHIP 1uF 16V C219 1-164-346-11 CERAMIC CHIP 1uF 16V C220 1-164-346-11 CERAMIC CHIP 1uF 16V C221 1-164-346-11 CERAMIC CHIP 1uF 16V C222 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C223 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C224 1-164-005-11 CERAMIC CHIP 0.47uF 25V C225 1-164-005-11 CERAMIC CHIP 0.47uF 25V C226 1-164-676-11 CERAMIC CHIP 2200PF 5% 16V C227 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C228 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C229 1-164-346-11 CERAMIC CHIP 1uF 16V C302 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C303 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C304 1-113-682-11 TANTAL. CHIP 33uF 20% 10V C305 1-104-752-11 TANTAL. CHIP 33uF 20% 6.3V C306 1-104-752-11 TANTAL. CHIP 33uF 20% 6.3V C307 1-164-695-11 CERAMIC CHIP 0.0022uF 5% 50V C308 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C309 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C310 1-104-848-11 TANTAL. CHIP 100uF 20% 4V C311 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C312 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C313 1-110-569-11 TANTAL. CHIP 47uF 20% 6.3V C314 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C315 1-126-246-11 ELECT CHIP 220uF 20% 4V C316 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C317 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C318 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C319 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C320 1-104-848-11 TANTAL. CHIP 100uF 20% 4V C321 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C322 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C323 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C324 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C325 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C326 1-164-672-11 CERAMIC CHIP 1500PF 5% 16V C327 1-164-672-11 CERAMIC CHIP 1500PF 5% 16V C501 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C502 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C503 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C505 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C506 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 32 — C507 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C510 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C601 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C602 1-164-005-11 CERAMIC CHIP 0.47uF 25V C603 1-164-337-11 CERAMIC CHIP 2.2uF 16V C604 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C605 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C606 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C607 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C608 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C701 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C702 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C704 1-164-346-11 CERAMIC CHIP 1uF 16V C705 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C706 1-164-005-11 CERAMIC CHIP 0.47uF 25V C707 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C708 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C709 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C710 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V < DIODE > D301 8-719-049-09 DIODE 1SS367-T3SONY D302 8-719-988-61 DIODE 1SS355TE-17 D303 8-719-988-61 DIODE 1SS355TE-17 D304 8-719-988-61 DIODE 1SS355TE-17 D305 8-719-977-03 DIODE DTZ5.6B D306 8-719-977-03 DIODE DTZ5.6B D307 8-719-977-03 DIODE DTZ5.6B D308 8-719-977-03 DIODE DTZ5.6B D701 8-719-988-61 DIODE 1SS355TE-17 D702 8-719-049-09 DIODE 1SS367-T3SONY < FERRITE BEAD > FB101 1-500-444-11 FERRITE 0uH FB201 1-500-444-11 FERRITE 0uH FB301 1-500-444-11 FERRITE 0uH < IC > IC101 8-759-701-02 IC NJM2073M IC201 8-759-701-02 IC NJM2073M IC301 8-759-380-80 IC LA7473V-TLM IC303 8-759-434-03 IC RH5RH331A-T1 IC304 8-759-205-43 IC TA7688F-SO IC305 8-752-089-40 IC CXA2500N-T4 IC501 8-759-701-51 IC NJM2072M IC601 8-759-566-10 IC LB1877V-TLM IC701 8-759-494-76 IC TB2004FN-020-ER IC702 8-759-280-84 IC S-81211SG-QA-T1 < JACK > J301 1-774-321-31 JACK (SMALL TYPE)(MIC) J302 1-750-061-11 JACK,DC(POLARITY UNIFIED TYPE)(DC IN 3V) J303 1-695-514-21 JACK (SMALL TYPE) 1P(HEAD PHONE) < JUMPER CHIP > JC101 1-216-295-91 SHORT 0 JC102 1-216-864-11 METAL CHIP 0 5% 1/16W JC103 1-216-295-91 SHORT 0 JC104 1-216-295-91 SHORT 0 < COIL > L301 1-412-030-11 INDUCTOR CHIP 22uH L302 1-414-222-11 INDUCTOR 120uH L303 1-412-030-11 INDUCTOR CHIP 22uH < PHOTO INTERRUPTER > PH701 8-749-925-05 REFLECTOR NJL5183KA-F20-TE1 < TRANSISTOR > Q101 8-729-420-53 TRANSISTOR UN5115 Q201 8-729-420-53 TRANSISTOR UN5115 Q301 8-729-230-63 TRANSISTOR 2SC4116-YG Q302 8-729-141-48 TRANSISTOR 2SB624-BV345 Q303 8-729-420-53 TRANSISTOR UN5115 Q304 8-729-402-93 TRANSISTOR UN5214-TX Q305 8-729-823-86 TRANSISTOR 2SA1745 Q306 8-729-402-93 TRANSISTOR UN5214-TX Q307 8-729-402-93 TRANSISTOR UN5214-TX Q308 8-729-402-93 TRANSISTOR UN5214-TX Q501 8-729-230-63 TRANSISTOR 2SC4116-YG Q502 8-729-420-53 TRANSISTOR UN5115 Q503 8-729-402-81 TRANSISTOR XN4501 Q601 8-729-823-86 TRANSISTOR 2SA1745 Q602 8-729-823-86 TRANSISTOR 2SA1745 Q603 8-729-402-93 TRANSISTOR UN5214-TX Q604 8-729-402-96 TRANSISTOR UN5114 Q701 8-729-402-93 TRANSISTOR UN5214-TX Q702 8-729-230-63 TRANSISTOR 2SC4116-YG Q703 8-729-402-96 TRANSISTOR UN5114 Q704 8-729-422-41 TRANSISTOR XN1114 Q705 8-729-230-63 TRANSISTOR 2SC4116-YG Q706 8-729-402-93 TRANSISTOR UN5214-TX Q707 8-729-420-16 TRANSISTOR XN1214 Q708 8-729-420-24 TRANSISTOR 2SB1218A-QRS < RESISTOR > R101 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R102 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R103 1-216-821-11 METAL CHIP 1K 5% 1/16W R104 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R105 1-216-821-11 METAL CHIP 1K 5% 1/16W R106 1-216-839-11 METAL CHIP 33K 5% 1/16W R107 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R108 1-216-833-91 RES,CHIP 10K 5% 1/16W R109 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R110 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R111 1-216-839-11 METAL CHIP 33K 5% 1/16W R112 1-216-839-11 METAL CHIP 33K 5% 1/16W R113 1-216-835-11 METAL CHIP 15K 5% 1/16W R114 1-216-813-11 METAL CHIP 220 5% 1/16W R115 1-216-841-11 METAL CHIP 47K 5% 1/16W R116 1-216-851-11 METAL CHIP 330K 5% 1/16W R117 1-216-835-11 METAL CHIP 15K 5% 1/16W R119 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R120 1-216-793-11 RES,CHIP 4.7 5% 1/16W R121 1-216-833-91 RES,CHIP 10K 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 33 — R122 1-216-801-11 METAL CHIP 22 5% 1/16W R123 1-216-841-11 METAL CHIP 47K 5% 1/16W R124 1-216-841-11 METAL CHIP 47K 5% 1/16W R125 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R201 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R202 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R203 1-216-821-11 METAL CHIP 1K 5% 1/16W R204 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R205 1-216-821-11 METAL CHIP 1K 5% 1/16W R206 1-216-839-11 METAL CHIP 33K 5% 1/16W R207 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R208 1-216-833-91 RES,CHIP 10K 5% 1/16W R209 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R210 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R211 1-216-839-11 METAL CHIP 33K 5% 1/16W R212 1-216-839-11 METAL CHIP 33K 5% 1/16W R213 1-216-835-11 METAL CHIP 15K 5% 1/16W R214 1-216-813-11 METAL CHIP 220 5% 1/16W R215 1-216-841-11 METAL CHIP 47K 5% 1/16W R216 1-216-851-11 METAL CHIP 330K 5% 1/16W R217 1-216-835-11 METAL CHIP 15K 5% 1/16W R219 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R220 1-216-793-11 RES,CHIP 4.7 5% 1/16W R221 1-216-833-91 RES,CHIP 10K 5% 1/16W R222 1-216-801-11 METAL CHIP 22 5% 1/16W R223 1-216-841-11 METAL CHIP 47K 5% 1/16W R224 1-216-841-11 METAL CHIP 47K 5% 1/16W R225 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R301 1-216-809-11 METAL CHIP 100 5% 1/16W R302 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R303 1-216-863-11 RES,CHIP 3.3M 5% 1/16W R304 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R305 1-216-833-91 RES,CHIP 10K 5% 1/16W R306 1-216-835-11 METAL CHIP 15K 5% 1/16W R307 1-216-811-11 METAL CHIP 150 5% 1/16W R308 1-216-841-11 METAL CHIP 47K 5% 1/16W R309 1-216-805-11 METAL CHIP 47 5% 1/16W R310 1-216-817-11 METAL CHIP 470 5% 1/16W R311 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R312 1-216-821-11 METAL CHIP 1K 5% 1/16W R313 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R314 1-216-821-11 METAL CHIP 1K 5% 1/16W R315 1-216-821-11 METAL CHIP 1K 5% 1/16W R316 1-216-821-11 METAL CHIP 1K 5% 1/16W R501 1-216-833-91 RES,CHIP 10K 5% 1/16W R502 1-216-809-11 METAL CHIP 100 5% 1/16W R503 1-216-845-11 METAL CHIP 100K 5% 1/16W R504 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R505 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R506 1-216-845-11 METAL CHIP 100K 5% 1/16W R507 1-216-837-11 METAL CHIP 22K 5% 1/16W R508 1-216-841-11 METAL CHIP 47K 5% 1/16W R509 1-216-821-11 METAL CHIP 1K 5% 1/16W R510 1-216-821-11 METAL CHIP 1K 5% 1/16W R511 1-216-845-11 METAL CHIP 100K 5% 1/16W R522 1-216-821-11 METAL CHIP 1K 5% 1/16W R601 1-216-839-11 METAL CHIP 33K 5% 1/16W R602 1-216-857-11 METAL CHIP 1M 5% 1/16W R603 1-216-857-11 METAL CHIP 1M 5% 1/16W R604 1-216-857-11 METAL CHIP 1M 5% 1/16W R605 1-216-839-11 METAL CHIP 33K 5% 1/16W R606 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R607 1-216-809-11 METAL CHIP 100 5% 1/16W R608 1-216-809-11 METAL CHIP 100 5% 1/16W R609 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R610 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R611 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R612 1-216-839-11 METAL CHIP 33K 5% 1/16W R701 1-216-839-11 METAL CHIP 33K 5% 1/16W R702 1-216-833-91 RES,CHIP 10K 5% 1/16W R703 1-216-833-91 RES,CHIP 10K 5% 1/16W R704 1-216-833-91 RES,CHIP 10K 5% 1/16W R705 1-216-833-91 RES,CHIP 10K 5% 1/16W R706 1-216-815-11 METAL CHIP 330 5% 1/16W R707 1-216-833-91 RES,CHIP 10K 5% 1/16W R708 1-216-833-91 RES,CHIP 10K 5% 1/16W R709 1-216-841-11 METAL CHIP 47K 5% 1/16W R711 1-216-821-11 METAL CHIP 1K 5% 1/16W < VARIABLE RESISTOR > RV601 1-225-293-11 RES, VAR, CARBON 10K(SPEED CONTROL) RV602 1-238-663-11 RES, ADJ, CARBON 4.7K RV603 1-223-584-11 RES, ADJ, CARBON 2.2K < SWITCH > S301 1-762-594-41 SWITCH, PUSH (1 KEY)(POWER) S302 1-692-896-11 SWITCH, SLIDE(PLAY/REC) S303 1-692-896-11 SWITCH, SLIDE(FWD/REV) S701 1-572-922-11 SWITCH, SLIDE(STOP) S702 1-572-688-11 SWITCH, PUSH (1 KEY)(FWD RCV) S703 1-572-288-21 SWITCH, PUSH(DIR) S704 1-762-594-41 SWITCH, PUSH (1 KEY)(REW/FF) < TRANSFORMER > T301 1-433-286-11 TRANSFORMER, BIAS OSCILLATION T701 1-450-667-11 TRANSFORMER, DC-DC CONVERTER < THERMISTOR > TH601 1-810-794-11 THERMISTOR, POSITIVE < FLAT CABLE > W101 1-750-336-21 CONNECTOR, FFC/FPC (ZIF) 9P W102 1-573-925-11 CONNECTOR, FFC/FPC (ZIF) 16P ************************************************************ A-3021-186-A LED BOARD, COMPLETE ****************** 1-673-130-11 PWB,LED FLEXIBLE < CAPACITOR > C508 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C509 1-119-750-11 TANTAL. CHIP 22uF 20% 6.3V C511 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V MAIN LED www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 34 — TCS-60DV Sony Corporation Personal A&V Products Company 99C1684-1 Printed in Japan © 1999.3 Published by Quality Engineering Dept. (Shinagawa) 9-926-969-11 < DIODE > D501 8-719-059-96 DIODE SML-210LT-T86(POWER) D502 8-719-059-96 DIODE SML-210LT-T86(REC) D503 8-719-057-99 DIODE SML-211YT-T86 (BATT CHECK) < IC > IC502 8-759-399-49 IC MM1251BFBE < COIL > L501 1-412-032-11 INDUCTOR CHIP 100uH < TRANSISTOR > Q504 8-729-402-84 TRANSISTOR XN4601 Q505 8-729-402-93 TRANSISTOR UN5214-TX < RESISTOR > R512 1-216-855-11 METAL CHIP 680K 5% 1/16W R513 1-216-813-11 METAL CHIP 220 5% 1/16W R514 1-216-813-11 METAL CHIP 220 5% 1/16W R515 1-216-849-11 METAL CHIP 220K 5% 1/16W R516 1-216-847-11 METAL CHIP 150K 5% 1/16W R517 1-216-839-11 METAL CHIP 33K 5% 1/16W R518 1-216-841-11 METAL CHIP 47K 5% 1/16W R519 1-216-813-11 METAL CHIP 220 5% 1/16W R520 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R521 1-216-817-11 METAL CHIP 470 5% 1/16W R523 1-216-837-11 METAL CHIP 22K 5% 1/16W R524 1-216-809-11 METAL CHIP 100 5% 1/16W < SWITCH > S501 1-692-605-31 SWITCH, SLIDE(VOR) S601 1-571-277-51 SWITCH, SLIDE(REC TIME) MISCELLANEOUS ************** 123 1-657-172-11 PC BOARD, MOTOR FLEXIBLE 189 1-548-582-11 COUNTER, TAPE (SMALL TYPE) M601 1-698-804-21 MOTOR, DC (including PULLEY)(CAPSTAN/REEL) SP901 1-504-314-12 SPEAKER (3.6CM) (L) SP902 1-504-314-12 SPEAKER (3.6CM) (R) MIC901 1-542-298-11 MICROPHONE, ELECTRET CONDENSER (L) MIC902 1-542-298-11 MICROPHONE, ELECTRET CONDENSER (R) HRPE9011-500-590-11 HEAD, MAGNETIC (REC/PB/ERAES) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* X-2542-167-1 STAND ASSY 3-032-436-01 FOOT(B), RUBBER 3-865-283-11 MANUAL, INSTRUCTION (ENGLISH/FRENCH)(US/Canadian) 3-865-283-21 MANUAL, INSTRUCTION (ENGLISH/SPANISH/PORTUGUESE)(AEP/E) 3-865-283-31 MANUAL, INSTRUCTION (FRENCH/GERMAN/DUTCH)(AEP) 3-865-283-41 MANUAL, INSTRUCTION (SWEDISH/ITALIAN/FINNISH)(AEP) 8-814-296-90 MICROPHONE, CONDENSER ECM-TC60 8-953-130-90 HEADPHONE MDR-E801/K SET(AEP) LED www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
