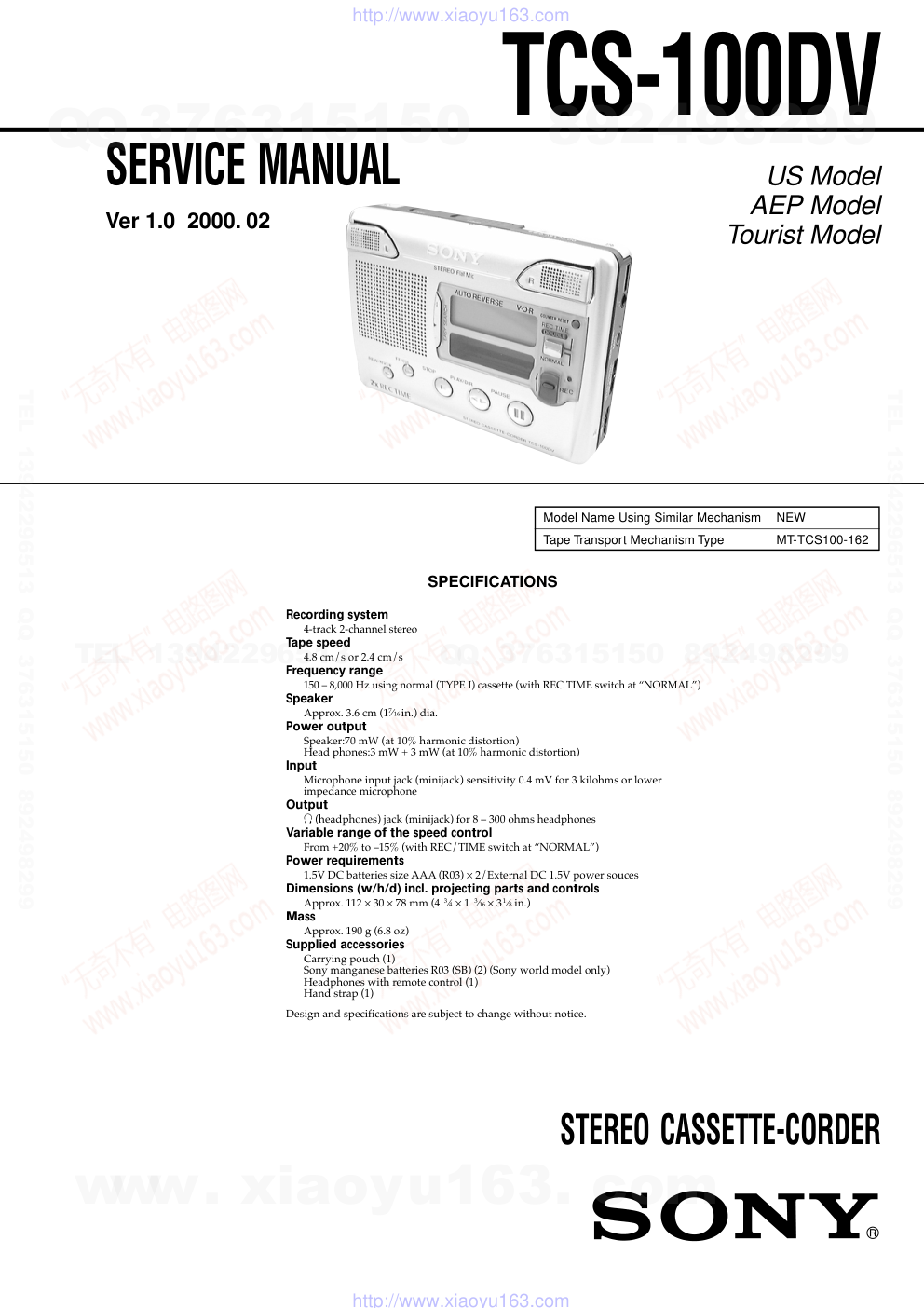

SERVICE MANUAL STEREO CASSETTE-CORDER US Model AEP Model Tourist Model SPECIFICATIONS TCS-100DV Model Name Using Similar Mechanism NEW Tape Transport Mechanism Type MT-TCS100-162 Recording system 4-track 2-channel stereo Tape speed 4.8 cm/s or 2.4 cm/s Frequency range 150 – 8,000 Hz using normal (TYPE I) cassette (with REC TIME switch at “NORMAL”) Speaker Approx. 3.6 cm (1 ⁄ in.) dia. 7 16 Power output Speaker:70 mW (at 10% harmonic distortion) Head phones:3 mW + 3 mW (at 10% harmonic distortion) Input Microphone input jack (minijack) sensitivity 0.4 mV for 3 kilohms or lower impedance microphone Output i (headphones) jack (minijack) for 8 – 300 ohms headphones Variable range of the speed control From +20% to –15% (with REC/TIME switch at “NORMAL”) Power requirements 1.5V DC batteries size AAA (R03) × 2/External DC 1.5V power souces Dimensions (w/h/d) incl. projecting parts and controls Approx. 112 × 30 × 78 mm (4 ⁄ × 1 ⁄ × 3 ⁄ in.) 3 4 3 16 1 8 Mass Approx. 190 g (6.8 oz) Supplied accessories Carrying pouch (1) Sony manganese batteries R03 (SB) (2) (Sony world model only) Headphones with remote control (1) Hand strap (1) Design and specifications are subject to change without notice. Ver 1.0 2000. 02 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 5 3. DISASSEMBLY ......................................................... 6 4. MECHANICAL ADJUSTMENT .......................... 11 5. ELECTRICAL ADJUSTMENT............................ 11 6. DIAGRAMS 6-1. Block Diagram – AUDIO Section – .............................. 13 6-2. Block Diagram – MAIN Section – ................................ 15 6-3. Printed Wiring Boards..................................................... 18 6-4. Schematic Diagram ......................................................... 21 6-5. IC Pin Function Description ........................................... 28 7. EXPLODED VIEWS ................................................ 30 8. ELECTRICAL PARTS LIST ............................... 33 Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SECTION 1 SERVICING NOTES SERVICE MODE This set detects the rotation of the idler gear (A) (side S) using the photo reflector (PH701). The PH701 is mounted on the MAIN board, therefore the idler gear (A) (side S) cannot be detected with the MAIN board removed. As a result, the motor (M601) cannot be controlled, causing malfunction. Further, the DIRECTION switch (S701) is also mounted on the MAIN board, and with the board removed, the mechanism posi- tion cannot be detected and the operation is not changed over. Therefor, when the voltage check is executed with the MAIN board removed, follow the procedure provided below. 1. Setting 1) Refer to “3. DISASSEMBLY”, and remove the MAIN board. 2) Connect the MAIN board to the motor (M601) and the plunger (PM701) using jumper wires. These can be connected easily with the use of the extension tool (Part No. 1-769-143-11) (ten in one set). 3) Short each terminals of REC PROTECT DETECT (REV) switch (S702-1), TAPE DETECT switch (S702-2), REC PRO- TECT (FWD) switch (S703-1) and ATS switch (S703-2). 4) Connect the AF oscillator to the TP33 (PHOTO IN) and the TP40 (GND). 5) Supply 1.3 V to the battery terminals using the regulated power supply. 2. Preset state To set the REC, PLAY, FF, REW modes, the preset state must be set. 1) Check that the slider (NR) and the DIRECTION switch (S701) are set to the center position. If not, set the preset state as fol- low. 2) Move the DIRECTION switch (S701) to the side, which the slider (NR) is facing. 3) The slider (NR) will move when the regulated power supply switch is set to OFF once and then set to ON. Move the DI- RECTION switch (S701) according to this timing and set to the center position. M Y m Y 3. FF, REW modes 1) Check that the preset state is set. 2) Input the square wave or sine wave to the TP33 (PHOTO IN) and the TP40 (GND). 3) Press the [FF/CUE ] button (S4) or the [REW/REVIEW ] button (S5). 4. REC, PLAY modes 1) Check that the preset state is set. 2) Input the square wave or sine wave to the TP33 (PHOTO IN) and the TP40 (GND). 3) Press the [REC] switch (S6) or [PLAY/DIR ] botton (S3) will move the slider (NR) once towards the side R and then to the side F. Move the DIRECTION switch (S701) according to this timing will set the REC or PLAY mode (side F). Press the [REC] switch (S6) or [PLAY/DIR ] botton (S3) another time and move the DIRECTION switch (S701) according to the movement of the slider (NR) will set the REC or PLAY mode (side R). Note 1: If the above fails, perform from preset again. Note 2: Use each button on the remote controller as much as possible. If no remote controller, do not touch the buttons with your hands, but using a stick with a round tip. Note 3: When using headphones, the timing for move the DIRECTION switch (S701) can be determined from the beep sound. REC PROTECT DETECT (REV ) switch S702-1 – MAIN BOARD (Component Side) – TAPE DETECT switch S702-2 ATS switch S703-2 REC PROTECT DETECT (FWD) switch S703-1 connect to plunger (PM701) connect to motor (M601) DIRECTION FWD ←STOP→ REV battery terminal # 3 TP40 (GND) TP33 (PHOTO IN) AF oscillator square wave (sine wave) 10 Hz,–3.5 dB – MAIN BOARD (Conductor Side) – S701 + – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – Slider (NR) Rotation system Rotation system during PLAY. Rotation system during FF. Rotation system during REW. slider (NR) side F side R center insert flywheel (N) insert flywheel (R) reverse pulley clutch assy (F) gear (Y) cam gear gear (REEL) (side T) motor pulley idler gear (A) (side T) gear (FR) (FF: left side) insert flywheel (N) insert flywheel (R) reverse pulley clutch assy (F) idler gear (B) gear (Y) cam gear gear (REEL) (side T) gear (REEL) (side S) motor pulley idler gear (A) (side T) idler gear (A) (side S) gear (NR) (FWD : left side/ REV : right side) insert flywheel (N) insert flywheel (R) reverse pulley clutch assy (F) gear (Y) cam gear gear (REEL) (side S) motor pulley idler gear (A) (side S) gear (FR) (REW: right side) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – SECTION 2 GENERAL A A A B C MIC D E Display window Visualizador VOR MIC SENS x STOP HOLD n N PLAY VOL REW V-UP x STOP FF X PAUSE REC TIME i/remote i/Controlador remoto X PAUSE HOLD Remote Control Controlador remoto i/remote i/Controlador remoto i AC power adaptor Adaptador de alimentación de CA DC IN 1.5V REC indicator Indicador REC Reverse side of the tape Cara posterior del casete Upper side of the tape Cara superior del casete Side A Cara A Tab for side A Lengüeta para This section is extracted from instruction manual. HOLD FF/CUE REW/REVIEW MIC SENS VOR Display window Visualizador i/remote i/Controlador remoto REC indicator Indicador REC HOLD Display window Visualizador COUNTER RESET SPEED CONTROL F H Pinch-roller Rodillo compresor Erase head Cabeza borradora Record/Playback head Cabeza grabadora/ reproductora Cotton swab Palillo con cabeza de algodón I nN PLAY/DIR X PAUSE SPEED CONTROL VOL G EASY SEARCH x STOP Reverse side of the tape Cara posterior del casete Upper side of the tape Cara superior del casete www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – CASE ASSY Note: Follow the disassembly procedure in the numerical order given. SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. Set Case Assy Holder (F) Assy Pinch Lever (N)/(R) Assy MAGNETIC HEAD (H901) MAIN board belt, motor (M601) Ornament Sub Assy, Reel Lid Sub Assy, Cassette Lid Assy, Cassette 1 Open the “lid, battery case”. 3 lid, battery case 2 claw 4 screw (M1.4 × 2.5) 4 two screws (M1.4 × 2.5) 4 two screws (M1.4 × 2.5) 5 case assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – LID ASSY, CASSETTE LID SUB ASSY, CASSETTE 2 screw (M1.4 × 2) 2 screw (M1.4 × 2) 5 lid sub assy, cassette 3 knob (open) 4 shaft 1 key board unit (CN 1) 1 seven screws 2 cover 6 lid assy, cassette speaker (3.6 cm) microphone sub assy (L) 4 cushion (B) 3 screw microphone sub assy (R) 5 key board unit www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – ORNAMENT SUB ASSY, REEL MAIN BOARD 1 claw 4 claw 4 claw 2 claw lever, lock 1 claw 3 boss 5 ornament sub assy, reel knob (hold) knob (open) S704 Note: On installation case assy adjust the S704 and knob (hold), “lever, lock” and knob (open). 6 Remove five solders of VOR flexible board. 8 screw (M1.4) 0 MAIN board 4 Remove two solders of plunger solenoid. 2 Remove four solders of leaf switch. S701 9 screw slider Note: On installation MAIN board adjust the S701 and slider. 7 washer 8 bracket (SW) 1 key board unit (CN 1) 9 screw (M1.4) 3 Remove six solders of ATS flexible board. 5 Remove four solders of motor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – HOLDER (F) ASSY BELT, MOTOR (M601) 8 head flexible board (CN301) 9 Remove the holder (F) assy in the direction of the arrow. 1 two screws (M1.4 × 1.4) 3 lever (B), lock 2 shaft 7 bracket (cassette) assy 5 lever (S), lock 4 screw (M1.4) 6 shaft 1 belt (F2) 3 motor, DC (M601) 2 screw (M1.5) 2 screw (M1.5) • See page 4 for Rotation system. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – PINCH LEVER (N)/(R) ASSY MAGNETIC HEAD (H901) 1 claw 2 Remove the pinch lever (R) assy in the dereciton of the arrow. 4 Remove the pinch lever (N) assy in the direction of the arrow. 3 claw 1 two screws (M1.4 x 7.2) 2 Remove the magnetic head (H901) in the direction of the arrow. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened swab: playback/rec/erase head pinch roller rubber belts capstan idler 2. Demagnetize the playback head with a head demagnetizer. (Do not bring the head demagnetizer close to the erase head.) 3. Do not use a magnetized screwdriver for the adjustments. 4. The adjustments should be performed with the rated power supply voltage (1.3 V) unless otherwise noted. Torque Measurement Mode Torque Meter Meter Reading 1.57-2.45 mN•m FWD (16 – 25 g•cm) CQ-102C (0.23 – 0.34 oz•inch) FWD 0.05-0.14 mN•m (0.5 – 1.5 g•cm) Back Tension (0.007 – 0.02 oz•inch) 1.57-2.45 mN•m REV (16 – 25 g•cm) CQ-102RC (0.23 – 0.34 oz•inch) REV 0.05-0.14 mN•m (0.5 – 1.5 g•cm) Back Tension (0.007 – 0.02 oz•inch) more than 4.91 mN•m FF, REW CQ-201B (more than 50 g•cm) (more than 0.7 oz•inch) SECTION 4 MECHANICAL ADJUSTMENT SECTION 5 ELECTRICAL ADJUSTMENT PRECAUTION 1. Specified voltage : 1.3 V (DC) 2. Setting SPEED CONTROL dial : center click 0 dB=0.775 V Test tape Type Signal Used for WS-48A 3 kHz, 0 dB Tape Speed Adjustment Tape Speed Adjustment Setting: Procedure: – Normal – 1. Set the[REC TIME] switch (S1) to [NORMAL] position. 2. Playback WS-48A (tape center) in the FWD state. 3. Adjust RV602 so that the frequency counter reading becomes 3,000 Hz. Specified Value: 2,970 to 3,030 Hz 4. Check that deflection of the frequency counter reading between the beginning and the end of tape is within 1.5% (approx. 45 Hz). – Double (1/2 SPEED) – 1. Set the[REC TIME] switch (S1) to [DOUBLE] position. 2. Playback WS-48A (tape center) in the FWD state. 3. Adjust RV603 so that the frequency counter reading becomes 1,500 Hz. Specified Value: 1,485 to 1,515 Hz Adjustment Location: frequency counter test tape WS-48A (3 kHz, 0 dB) set i jack (J301) – + 32 Ω – MAIN BOARD (Conductor Side) – RV603 Tape Speed (Double) Adjustment RV602 Tape Speed (Normal) Adjustment J301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TCS-100DV – 13 – – 14 – – 15 – – 16 – 6-1. BLOCK DIAGRAM – AUDIO Section – SECTION 6 DIAGRAMS 6-2. BLOCK DIAGRAM – MAIN Section – 1 5 7 8 46 44 H901 (REC/PB/ERASE) FWD REV L-CH R-CH R-CH ERASE L-CH R-CH R-CH ERASE PB AMP (PREAMP) IC301 (1/3) RV301 FWD IN-L REV IN-L R-CH F/R SW M/N SW PREAMP REC BIAS OSC Q309 METAL CONTROL EQ PRE OUT-L MTL DRV-L S703-2 (ATS) T301 REC BIAS OSC FR CTL CUE/REV V-UP CTL 5 6 + – 7 28 3 32 21 20 41 39 3 4 + – 1 33 32 35 20 10 21 9 6 ATTENUATOR Q303 BUFFER Q319-2 SPEAKER AMP IC303, Q321, 322 POWER AMP POWER AMP BUFFER Q319-1 R-CH R-CH R-CH R-CH R-CH R-CH R-CH DIRECTION CONTROL Q312, 315, 332 VOICE MIRROR Q330 LED OFF Q318 VOR DETECTOR IC306 AGC Q325 DIRECTION CONTROL Q310, 311, 331 REC BIAS CONTROL Q333 FWD ERASE SWITCH Q306-2 REV ERASE SWITCH Q306-1 VOICE MIRROR Q329 REV REC SWITCH Q304 FWD REC SWITCH Q305 MIC MONITOR AMP SOUND DIRECT SWITCH Q313 VOICE-UP SWITCH Q320 HEADPHONES DETECT Q326 BIAS B+ VOICE-UP AMP IC304 (1/2) VOICE-UP AMP IC304 (2/2) V-UP B+ SPEED CTL S302 MIC SENS J302 MIC VOR S301 FR CTL + + BEEP VREF PW IN-L PW OUT-L PB AMP (POWER AMP) IC301 (2/3) REF OUT PW IN-C PW OUT-C BEEP BEEP MT SW MUTE CTL HP DET SP301 (SPEAKER) J301 B i REMO GND REMO (Page 16) C V-UP CTL (Page 16) D SPEED CTL (Page 15) BIAS B+ LED (Page 16) 46 28 41 27 44 15 16 23 13 17 18 19 11 12 REC AMP REC AMP MIC AMP CONTROL REC AMP (REC/MIC/MONITOR AMP) IC302 (1/2) FWD REC L REV REC L CONT D CONT C REC IN L REC/ PLAY REC MUTE FWD/RVS MONITOR L MIC OUT L MIC IN L + R-CH R-CH X701 4MHz A Q308 • SIGNAL PATH : PB : REC : MIC 05 R-CH : Same as L-CH. 5 8 31 27 29 26 33 14 47 20 24 23 52 19 40 36 35 48 X0 X1 LED OFF REC CTL FR CTL (REC) REC MUTE VOR IN CUE/REVIEW BEEP MUTE CTL HP DET FR CTL (PLAY) SPEED CTL VOICE-UP CTL CUE/REV BEEP MUTE CTL HP DET FR CTL SPEED CTL V-UP CTL SYSTEM CONTROLLER IC701 (1/2) MIC SENSITIVITY CONTROL Q302 MIC SELECT SWITCH Q301 AMP CTL B+ L H R-CH R-CH MIC AMP H. P. F PREAMP L PREAMP MIC AMP MIX AMP MIX AMP H. P. F OUT HPF IN L HPF IN R MIX AMP OUT L MIX AMP OUT R MIC AMP IC305 MIX BUFF IN L INT AMP OUT L INT AMP OUT R MIX BUFF IN R INT IN L INT IN R 24 MIC101 R MIC201 VOR SW F TUME R TUME TAPE SW AMP CTL B+ ON OFF REC PROTECT DETECT (FWD) S703-1 REC PROTECT DETECT (REV) S702-1 S702-2 (TAPE DETECT) VOL 46 27 26 1 28 30 3 4 7 8 25 9 10 17 15 13 42 43 51 16 34 15 54 55 61 60 53 41 50 37 18 22 30 2 63 REWIND SWITCH Q604-2 MOTOR ON SWITCH Q604-1 BATT B+ BATT B+ MOTOR RESTART SWITCH Q605 CAPSTAN/REEL MOTOR DRIVE IC601 START-UP CONTROL SERVO, AMP CIRCUIT TIMING CONTROL SOFT SWITCHING DRIVE MOTOR DRIVE CIRCUIT DIRECTION CONTROL OSC CIRCUIT REFERENCE VOLTAGE GENERATOR INVERSE VOLTAGE DETECT BRAKE SIGNAL DETECT START U V W UIN VIN WIN BUF-IN BUF-OUT REV CSTART IV-OUT IV-IN SAW VREF W V U M601 (CAPSTAN/REEL) (Page 14) MOTOR BRAKE SWITCH Q609, 610 REC TIME MODE CONTROL SWITCH Q607 REC TIME MODE CONTROL Q608 SPEED CONTROL ON/OFF SWITCH Q602, 603-2 PHOTO REFLECTOR SWITCH & BUFFER Q701 REC TIME MODE CONTROL (NORMAL) Q601-1 REC TIME MODE CONTROL (DOUBLE) Q601-2, 603-1 Q606 D SPEED CTL TAPE SPEED (NORMAL) RV602 TAPE SPEED (DOUBLE) PLUNGER DRIVE Q702, 703 RV603 THP601 THP602 ROTATION DETECT SENSOR PH701 05 DDC B+ AMP CTL B+ PM701 (PLUNGER) MOTOR DIR RESTART MOTOR CTL SD SCK KEY IN 1 KEY IN 2 CS SPEED SW WAKE UP HOLD SW SPEAKER CTL AMP CTL REC CTL2 RST BATT DET SPCON OFF PM CTL PHOTO IN 62 MD SW MOTOR BRK SYSTEM CONTROLLER IC701 (2/2) BATT B+ WAKE UP DETECT Q704 KEY IN DETECT Q705 LIQUID CRYSTAL DISPLAY AMP CTL B+ KEY BOARD UNIT LCD DRIVER IC1 SD SCK CS SEG1 ı SEG14 OFF ON STOP x S1 REC TIME DOUBLE NORMAL S2 D1 REC (Page 13) REC S6 COUNTER RESET S8 + – – S9 S10 EASY SEARCH HOLD S704 RV601 SPEED CONTROL S2-10 PAUSE X S7 PLAY/DIR Y S3 FF/CUE M S4 REW/REVIEW m S5 – A (Page 14) C (Page 14) B LED REMO BATT B+ SPEAKER ON B+ SWITCH Q323, 324 REC BIAS REGULATOR Q307 RESET SIGNAL GENERATOR IC703 VOICE-UP B+ SWITCH Q327 REC ON B+ SWITCH Q317 SP B+ 18 7 5 8 45 3 17 42 45 19 RIPPLE FILTER Q316 B+ SWITCH Q328 B+ SWITCH Q314 DC/DC CONVERTER IC702 REC BIAS REGULATOR MIC REGULATOR RIPPLE FILTER BASE BASE VCC1 VCC2 VCC2 BIAS B+ MIC B+ BIAS REG MIC REG REC AMP (REC BIAS/MIC REGULATOR) IC302 (2/2) AMP CTL B+ RF OUT VCC PB AMP (RIPPLE FILTER) IC301 (3/3) PW SW PRE SW VOR B+ MIC AMP B+ DDC B+ V-UP B+ DRY BATTERY SIZE "AAA" (IEC DESIGNATION R03) 2PCS. 1.5V V-UP CTL – + J701 DC IN 1.5V AMP CTL B+ S701 (DIRECTION) FWD STOP REV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 18 – – 19 – – 20 – 6-3. PRINTED WIRING BOARDS Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. • MAIN board is multi-layer printed board. However, the patterns of intermediate-layer have not been included in the diagram. • Semiconductor Location Ref. No. Location D301 D-10 D701 C-4 D702 E-1 D703 C-5 D704 C-7 D705 F-10 IC301 E-10 IC302 E-12 IC303 C-10 IC304 D-12 IC305 H-10 IC306 G-12 IC601 F-15 IC701 E-14 IC702 E-1 IC703 E-2 PH701 E-2 Q301 G-9 Q302 G-7 Q303 C-12 Q304 F-12 Q305 F-12 Q306 G-14 Q307 E-13 Q308 G-4 Q309 C-4 Q310 F-13 Q311 F-13 Q312 F-14 Q313 D-12 Q314 F-2 Q315 F-13 Q316 E-11 Q317 F-2 Q318 G-2 Q319 C-12 Q320 D-12 Q321 C-10 Q322 C-11 Q323 C-10 Q324 C-9 Q325 G-3 Q326 C-9 Q327 D-4 Q328 E-5 Q329 H-2 Q330 G-3 Q331 F-13 Q332 F-13 Q333 D-13 Q601 E-15 Q602 E-15 Q603 E-2 Q604 F-14 Q605 E-15 Q606 F-15 Q607 G-15 Q608 F-15 Q609 F-1 Q610 F-1 Q701 D-3 Q702 C-5 Q703 C-5 Q704 E-5 Q705 D-5 C713 C705 C702 C710 C701 C601 R307 R708 R311 R306 C313 C708 C312 C340 C310 + C314 + C217 D703 Q327 Q702 B C E B C E C323 + C321 + C333 C332 C335 C327 C331 C334 C311 C336 C102 C101 C201 C202 C123 C223 C709 C304 R701 R703 R702 R610 R611 R608 R716 R717 R609 R621 R705 R706 R619 R618 R620 R334 R312 R326 R336 R337 R338 R308 R319 R335 R329 R333 R317 R316 R332 R346 R331 R219 R119 R101 R201 R230 R130 R123 R328 R310 R305 R713 R718 R115 R215 R223 R309 R715 R712 R711 JC301 FB701 FB101 FB201 FB302 FB301 FB202 FB102 + C703 + C329 + C301 + C330 + C318 + C309 + C303 + C322 + C117 C704 + Q317 Q314 S DG Q318 B C E Q325 Q308 B C E Q705 B C E Q701 Q603 Q329 D702 A K D701 A K A K D704 A K Q309 B C E Q703 B C E 1 3 5 4 IC702 B C E B C E MAIN BOARD ATS FLEXIBLE BOARD VOR FLEXIBLE BOARD (CONDUCTOR SIDE) MAIN BOARD (COMPONENT SIDE) R325 R323 R321 R341 R339 R324 R322 R320 R129 R229 R315 R347 R709 R313 R314 R710 R120 R121 R124 R116 R216 R122 R125 R225 R224 R719 R714 R222 R220 R221 R330 R231 R138 R105 C106 C105 R104 R103 R108 R109 R110 R210 R206 R205 R207 R204 R203 R238 R102 R107 R106 R209 R208 R202 R131 R212 R211 R114 R342 R304 R214 R213 R111 R113 R340 R112 R303 R118 R218 R707 R302 R343 R704 R301 R604 R605 R607 R616 R614 R615 R601 R603 R617 R602 R606 R327 R226 R134 R133 R217 R228 R233 R128 R117 R127 R318 R136 R126 R236 R227 R135 R234 R237 R137 R235 R232 R132 C711 C326 C320 C337 C706 C712 C225 C221 C218 C121 C122 C222 C228 C125 C128 C219 C119 C104 C118 C302 C210 C204 C208 C209 C211 C107 C108 C109 C206 C205 C207 C110 C111 C215 C113 C214 C213 C212 C328 C115 C307 C339 C338 C306 C114 C112 C325 C231 C126 C226 C127 C227 C124 C224 C229 C203 C103 C129 C230 C131 C130 C216 C116 C308 C611 C612 C605 C607 C604 C610 C608 Q322 B C E Q307 B C E Q333 B C E Q316 B C E + C317 + C120 + C324 + C316 + C305 + C606 + C603 + C319 + C315 + C609 + C220 + C602 D301 A K D705 A K 1 12 36 37 48 24 13 25 IC301 37 48 24 25 36 12 1 13 IC302 33 48 16 17 32 64 49 1 IC701 16 30 15 1 IC601 1 15 30 16 IC305 1 4 8 5 IC304 Q311 S D G Q312 S D G Q315 S D G CN301 CN1 Q326 Q324 S D G B C E Q321 B C E Q323 B C E S D G Q310 Q331 B C E Q332 B C E Q606 B C E Q607 G D S Q608 G D S Q605 B C E THP601 THP602 05 1 A 2 3 4 5 6 7 8 9 10 11 12 13 14 B C D E F G H I 15 16 TP40 (GND) TP33 (PHOTO IN) 1E 1B 2C 1C 2C 1B E 2B Q609 2C 1B 1E 2E 2B 1C 1C 2B 2E C707 + T301 REC BIAS OSC PH701 Q328 2S 2G 1D 2D 1G 1S Q704 2S 2G 1D 2D 1G 1S L701 Q610 1C 2C 2B E 1B S701 S701 (DIRECTI0N) REV STOP FWD 2C 1B 1E 2E 2B 1C Q330 1E 1B 2C 1C 2B 2E Q302 1S 1G 2D 1D 2G 2S RV301 VOR 1-677-181- (11) 11 1-677-181- (11) 11 J301 i REMO G DET L R COM Q301 1S 1G 2D 1D 2G 2S Q319 1C 2B 2E 1E 1B 2C Q320 1B E 2B 1C 2C Q313 2S 2G 1D 2D 1G 1S IC306 1 4 8 5 1 9 16 1 Q304 2B E 1B 2C 1C Q305 2B E 1B 2C 1C Q306 1E 1B 2C 1C 2B 2E Q602 2S 2G 1D 2D 1G 1S Q604 2B E 1B 2C 1C Q601 1D 2G 2S 1S 1G 2D RV603 RV602 L-CH 1 9 R-CH FWD REV ERASE ERASE L-CH R-CH RV601 SPEED CONTROL CB301 J302 MIC (CHASSIS) S702 REC PROTECT DETECT (REV) –1 (TAPE DETECT) –2 S703 REC PROTECT DETECT (FWD) –1 (ATS) –2 J701 DC IN 1.5V + – PM701 (PLUNGER) (CHASSIS) DRY BATTERY SIZE “AAA” (IEC DESIGNATION R03) 2PCS. 1.5V V COM W U 1 6 OFF ON S704 HOLD 1-677-407- 11 S302 MIC SENS S301 VOR 1 5 1-677-406- 11 IC703 1 3 2 IC303 5 8 4 1 Q303 2B E 1B 2C 1C H901 REC/PB/ ERASE MIC201 MIC101 SP301 (SPEAKER) KEY BOARD UNIT L R X701 W V U M601 (CAPSTAN/REEL) 1 5 ON OFF H L TCS-100DV w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TCS-100DV – 21 – – 22 – – 23 – – 24 – 6-4. SCHEMATIC DIAGRAM • See page 25 for IC Block Diagrams. 430 mVp-p 4.6 ms 4.3 Vp-p 250 ns 1.3 Vp-p 17.5 µs 41 mVp-p 17.5 µs • Waveforms 1 Q333 (emitter) (REC mode) 20 mV/DIV, 10 µs/DIV 2 Q309 (base) (REC mode) 500 mV/DIV, 10 µs/DIV 3 IC701 5 (XO) 2 V/DIV, 100 ns/DIV 4 IC601 wl (PULSE) 200 mV/DIV, 2 ms/DIV 4 Vp-p 10.5 µs 5 IC702 4 (LX) 1 V/DIV, 2 µs/DIV Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. • U : B+ Line. • H : adjustment for repair. • AC voltage readings in the REC bias oscillator with a level meter. • Power voltage is dc 1.5 V and fed with regulated dc power supply from battery terminal. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : PB (F: FWD, R: REV) ( ) : REC (F: FWD, R: REV) 〈〈 〉〉 : DOUBLE REC [ ] : VOICE-UP PB { } : REC PAUSE (VOR) ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. E : PB a : REC N : MIC w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 25 – – 26 – – 27 – – 28 – • IC Block Diagrams IC301 TA2123AF (EL) IC302 LA3235W IC306 NJM2072M IC601 TLP326ADB IC702 XC6371C301PR IC305 LA7473V-TLM PRE A PRE B MIX PW B PW A PW C BST MT TC BASE RF IN PW GND OUT B OUT C OUT A VCC RF OUT VREF OUT BST NF BST OUT PW IN C LPF EQ A PW NF A PW IN A PW IN B PW NF B 3 IN A-R 5 PRE NF-A 6 PRE OUT A 7 MTL DRV A 8 MTL DRV B 9 PRE OUT B 10 PRE NF-B 11 AMS IN 12 IN B-R 4 IN B-F 2 IN A-F 1 21 20 19 18 17 GND 16 AMS DET 15 AMS MIX 14 AMS SW 13 22 23 24 38 C-AMP SW 37 PW SW 42 MT SW 41 F/R SW 44 BST SW 43 M/N SW 46 PRE GND 47 VREF IN 48 PRE SW 45 AMS OUT 40 BEEP 39 26 27 28 29 30 31 32 33 34 DET 36 AGC IN 35 + – + – + – + – + – + – EQ B 25 RIPPLE FILTER AGC DET BEEP VREF SWITCH COMPARATOR MTL DRV 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 + – + – + – + – + – + – + – + – + – MIC VCC BIAS RIPPLE FILTER VCC + – INPUT SELECT EXT IN R EXT AMP NFB1 R EXT AMP NFB2 R MIC VCC HPF ON INT IN R INT AMP NFB R GND INT AMP OUT R MIX BUFF IN R HPF IN R OUT R EXT/INT MIX AMP OUT R MIC MONO BIAS OUT L HPF IN L MIX AMP OUT L INT AMP OUT L INT AMP NFB L RIPPLE FILTER EXT AMP FNB2 L EXT AMP FNB1 L INPUT SELECT EXT IN L VCC INT IN L MIX BUFF IN L OFF OFF HPF ON HPF ON INT INT EXT EXT 36 35 34 33 32 31 30 29 28 27 26 25 1 2 3 4 5 6 7 8 9 10 11 12 37 38 39 40 41 42 43 44 45 46 47 48 24 23 22 17 16 15 14 13 SYSTEM CONTROL ALC + – + – + – + – + – + – + – + – MIC REGULATOR DET REC BIAS REGULATOR ALC 21 20 19 ALC + – + – ALC 18 VCC2 REC (FWD) PLAY/ REC (REV) REC (REV) PLAY/ REC (FWD) REC (REV) PLAY/ REC (FWD) REC (FWD) PLAY/ REC (REV) PLAY REC MIC 1 RADIO 1 RADIO 2 MIC 2 MIC MONITOR 1 MIC MONITOR 2 VREF REC1 REV REC2 REV REC2 FWD REC1 FWD NC REC MUTE MIC/RADIO FWD/REV REC/PLAY CONT F CONT A CONT B CONT C CONT D CONT E NC GND MIC IN1 NF1 MIC OUT2 MIC OUT1 REC IN1 REC IN2 NC RADIO IN1 MIC IN2 NF2 RADIO IN2 NC REF VREF GND REC1 REV REC2 REV REC2 FWD REC1 FWD VCC2 MIC MONITOR 1 MIC MONITOR 2 NC NC MIC REG REF MIC REG BIAS REG REF BIAS REG OSC BASE VCC1 VCCRF ALC GND NC 1 2 3 4 5 6 7 8 INPUT GAIN CONT AMP OUT GND VCC OUTPUT1 RECOVERY TIME CAP OUTPUT2 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 START-UP CONTROL SERVO, AMP TIMING CONTROL SOFT SWITCHING DRIVE OUTPUT DRIVE, BUFFER OSC DIRECTION CONTROL THERMAL SHUT DOWN REFERENCE VOLTAGE GENERATOR INVERSE VOLTAGE DETECT BRAKE SIGNAL DETECT SAW PULSE VREF REV CSTART WIN CSOFT1 CSOFT2 WB VB GND PGND NC W PGND START VI-IN IV-IN IV-OUT VCC COM BUFF OUT BUFF IN VIN UIN UB PGND U PGND V ENABLE EXOR 1 2 3 5 4 CHIP ENABLE SLOW START PHASE COMP VLX LIMITER PWM CONTROL OSC 50/100/180kHz + – NC VOUT CE VDD VSS LX VREF BUFFER ERROR AMP 6-5. IC PIN FUNCTION DESCRIPTION • MAIN BOARD IC701 MB-89133LPFV-G-570BND (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 AVCC — Power supply terminal (+3V) (for A/D converter) 2 RST I System reset signal input from the reset signal generator (IC703) “L”: reset 3, 4 MODE2, MODE1 I Test input terminal Normally: fixed at “L” 5 X0 I Main system clock input terminal (4MHz) 6, 7 NC — Not used (open) 8 X1 O Main system clock output terminal (4MHz) 9 VCC — Power supply terminal (+3V) 10 X0A I Sub system clock input terminal (32.768kHz) Not used (fixed at “L”) 11, 12 NC — Not used (open) 13 X1A O Sub system clock output terminal (32.768kHz) Not used (open) 14 CUE/REVIEW O When cue/review, audio attenuate signal output terminal “H”: cue/review (normally output “L”) 15 MOTOR BRK O Motor brake on/off signal output to the capstan/reel motor driver (IC601) “H”: brake on (normally output “L”) 16 PM CTL O Plunger (PM701) drive signal output terminal “H”: plunger on 17 NC — Not used (open) 18 SPEAKER CTL O Power on/off control signal output to the speaker output circuit “L”: used headphone, “H”: speaker output 19 VOICE UP CTL O Power on/off control signal output to the voice-up circuit “L”: voice-up on, “H”: voice-up off 20 MUTE CTL O Muting signal output to the PB amp (IC301) “L”: mute on, “H”: mute off 21 NC — Not used (open) 22 AMP CTL O Power output terminal (+3V) 23 F/R CTL (PLAY) O FWD/REV selection signal output to the PB amp (IC301) and head switching circuit “L”: FWD direction (PB) /REV direction (REC), “H”: REV direction (PB) /FWD direction (REC) 24 HP DET I Detection signal input of headphones on/off “H”: headphones on 25 VSS — Ground terminal 26 REC MUTE O Muting signal output to the REC amp (IC302) “L”: muting on, “H”: muting off 27 REC CTL O REC on/off control signal output to the REC amp (IC302) “L”: recording 28 NC — Not used (open) 29 F/R CTL (REC) O FWD/REV selection signal output to the REC amp (IC302) “L”: REV direction, “H”: FWD direction 30 REC CTL2 O Power on/off control signal output to the recording circuit “L”: recording 31 LED OFF O The signal output to the goes off LED circuit for REC LED (D1) Output “H” only when recording is paused “H”: goes off the LED 32 NC — Not used (open) 33 VOR IN I VOR REC pausing signal input from the VOR detector (IC306) “L”: record is paused 34 PHOTO IN I Rotation detect signal input of the capstan/reel motor (M601) 35 R TUME I REC protect detect (REV) switch (S702-1) input terminal “L”: no protection, “H”: protected 36 F TUME I REC protect detect (FWD) switch (S703-1) input terminal “L”: no protection, “H”: protected 37 HOLD SW I Hold detect input from the HOLD switch (S704) “L”: hold, “H”: hold off 38, 39 NC — Not used (open) 40 VOR SW I VOR switch (S301) input terminal “L”: VOR off, “H”: VOR on w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 29 – Pin No. Pin Name I/O Description 41 SPEED SW I Recording time mode selection signal input from the REC TIME switch (S1) “L”: normal, “H”: double (1/2 speed) 42 RESTART O Motor restart control signal output to the capstan/reel motor driver (IC601) “H”: fast forward/rewinding 43 MOTOR CTL O Motor start control signal output to the capstan/reel motor driver (IC601) “L”: the motor is rotating, “H”: the motor is stopped 44, 45 NC — Not used (open) 46 MOTOR DIR O Motor direction control signal output to the capstan/reel motor driver (IC601) Output “L” only when rewinding “L”: counterclockwise, “H”: clockwise 47 BEEP O BEEP sound signal output to the PB amp (IC301) 48 TAPE SW I Cassette tape detect switch (S702-2) input terminal “L”: cassette detected, “H”: no cassette 49 NC — Not used (open) 50 WAKE UP I Input of acknowledge signal for the key entry Acknowledge signal is input to accept key entry in the power off status or hold the key status “H”: key is pressed 51 SPCON OFF O Variable/not variable switching signal output to the playback speed control circuit Output “H” only when playback “H”: playback speed is variable 52 SPEED CTL O Switching signal of recording time mode output to the speed control circuit for motor rotation and recording bias control circuit “L”: double (1/2 speed), “H”: normal 53 CS O Chip select signal output to the LCD driver (IC1) 54 SD O Serial data output to the LCD driver (IC1) 55 SCK O Serial data transfer clock signal output to the LCD driver (IC1) 56 NC — Not used (open) 57 AVSS — Ground terminal (for A/D converter) 58 NC — Not used (open) 59 AVR I Reference voltage (+3V) input for the A/D converter 60 KEY IN2 I Key input terminal (A/D input) S8 to S10 (COUNTER RESET, EASY SERCH +/–) 61 KEY IN1 I Key input terminal (A/D input) S2 to S7 (STOPx, PLAY/DIRbB, FF/CUEM, REW/REVIEWm, REC, PAUSEX) 62 MD SW I A tape rotating direction detect signal input from the direction switch (S701) (A/D input) “L”: FWD direction, center voltage: REV direction, “H”: stop 63 BATT DET I Battery voltage detection signal input (A/D input) 64 NC — Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 30 – (1) COVER SECTION SECTION 7 EXPLODED VIEWS • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SP301 not supplied 1 17 2 25 3 5 6 7 8 24 9 16 20 21 19 23 11 12 14 14 18 15 13 10 4 2 1 X-3376-279-1 BRACKET (CASSETTE) ASSY 2 3-704-197-11 SCREW (M1.4X2.0), LOCKING 3 X-3379-175-1 LID ASSY, CASSETTE 4 3-044-961-01 KNOB (REC) 5 3-044-962-01 BUTTON (REC) 6 3-044-963-01 SPRING (REC BUTTON), LEAF 7 3-044-960-01 KNOB (REC-T) 8 3-044-977-01 SPRING (REC), RETURN 9 3-044-981-01 BUTTON (COUNTER RESET) 10 A-3052-185-A MICROPHONE SUB ASSY (L) 11 1-418-745-11 KEY BOARD UNIT (INCLUDING D1,IC1, S1-10) 12 3-044-979-01 CUSHION (LCD) 13 A-3052-184-A MICROPHONE SUB ASSY (R) 14 3-375-114-41 SCREW 15 4-017-441-01 CUSHION (B) 16 3-047-911-01 CUSHION (CASSETTE LID) 17 3-365-630-41 SCREW (M1.4) 18 3-831-441-99 CUSHION 19 3-831-441-99 CUSHION 20 3-047-820-01 SHEET (A) 21 3-047-821-01 SHEET (B) 23 3-016-413-01 SHEET (SW) 24 3-328-483-11 SHEET 25 3-047-833-01 CUSHION (SP) SP301 1-529-606-11 SPEAKER (3.6 cm) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (2) MAIN SECTION MT-TCS100-162 S703 101 102 102 102 117 119 119 116 109 108 129 110 113 125 126 112 111 106 107 107 127 105 104 128 119 120 118 114 115 103 121 S702 S302 S301 S704 122 123 124 101 X-3378-651-1 CASE ASSY 102 3-704-197-21 SCREW (M1.4X2.5), LOCKING 103 3-044-976-01 KNOB (VM) 104 1-677-406-11 VOR FLEXIBLE BOARD 105 3-044-992-01 BRACKET (SW) 106 3-375-114-41 SCREW 107 3-345-648-71 SCREW (M1.4), TOOTHED LOCK 108 A-3021-321-A MAIN BOARD, COMPLETE 109 3-919-622-01 TERMINAL BOARD 110 3-919-621-01 TERMINAL BOARD 111 X-3378-644-1 TERMINAL BOARD ASSY, BATTERY 112 3-044-993-01 GUIDE, BATTERY 113 3-044-978-01 LID, BATTERY CASE 114 3-366-892-11 SCREW (M1.4X1.4) 115 3-029-217-01 LEVER (B), LOCK 116 3-328-483-11 SHEET 117 3-044-952-11 COVER, MD 118 1-677-407-11 ATS FLEXIBLE BOARD 119 3-366-892-01 SCREW (M1.4) 120 X-3378-645-1 BRACKET (A) ASSY 121 3-010-287-01 COLLAR (DC IN) 122 3-044-989-11 ORNAMENT, REEL 123 3-044-991-01 KNOB (HOLD) 124 3-044-990-01 KNOB (OPEN) 125 3-044-953-01 SHEET, INSULATING (M) 126 3-044-954-01 SHEET, INSULATING (MS) 127 3-704-197-91 SCREW (M 1.4 X 1.8), LOCKING 128 3-029-276-01 WASHER (STOPPER R) 129 3-048-215-01 CUSHION (N) S301 1-572-922-11 SWITCH, SLIDE (VOR) S302 1-572-922-11 SWITCH, SLIDE (MIC SENS) S702 1-692-101-11 SWITCH, LEAF (REC PROTECT DETECT (REV), TAPE DETECT) S703 1-692-100-11 SWITCH, LEAF (REC PROTECT DETECT (FWD), ATS) S704 1-572-922-11 SWITCH, SLIDE (HOLD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 32 – (3) MECHANISM DECK SECTION (MT-TCS100-162) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 X-3376-550-1 HOLDER (F) ASSY 52 X-3379-016-1 PINCH LEVER (RT) ASSY 53 3-029-271-01 SPRING (HD) 54 X-3377-227-1 LEVER (N) ASSY, PINCH 55 3-029-276-01 WASHER (STOPPER R) 56 3-029-289-01 WASHER 57 3-029-275-01 WASHER (STOPPER N) 58 3-029-278-01 WASHER 59 X-3376-813-1 CLUTCH ASSY (F) 60 3-932-724-21 WASHER 61 3-029-287-01 SPRING (TG), TORSION 62 3-386-694-01 WASHER 63 X-3378-628-1 WHEEL (N) ASSY, FLY 64 3-032-576-01 BELT 65 X-3378-629-1 WHEEL (R2) ASSY, FLY 66 3-007-428-01 WASHER (R) 67 3-029-765-01 SCREW (M1.4), TOOTHED LOCK 68 3-044-748-01 RETAINER (T), MOTOR 69 3-007-433-01 SHEET (N), REFLECTION 70 X-3378-438-1 CHASSIS (T) ASSY 71 3-010-274-02 TABLE, REEL 72 3-010-954-01 SPRING (BT), COMPRESSION 73 3-046-863-01 GEAR (Y) 74 3-029-285-01 GEAR, CAM 75 3-029-284-01 LEVER, TRIGGER 76 3-029-281-01 GEAR, IDLER (B) 77 3-010-273-02 GEAR (REEL) 78 3-029-273-01 GEAR (FR) 79 3-029-283-01 GEAR, IDLER (A) 80 3-029-286-01 GEAR (NR) 81 3-029-288-01 PULLEY, REVERSE 82 3-032-575-01 LEVER, HEAD 84 3-042-480-01 SCREW (M1.4) H901 1-500-643-11 HEAD, MAGNETIC (REC/PB/ERASE) M601 1-763-458-11 MOTOR, DC (WITH PULLEY) (CAPSTAN/REEL) PM701 1-454-674-31 SOLENOID, PLUNGER 63 PM701 H901 M601 60 59 62 61 66 65 67 68 69 56 70 55 58 57 54 51 53 52 84 82 64 71 71 72 72 73 74 75 76 77 77 78 79 79 80 81 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – SECTION 8 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH A-3021-321-A MAIN BOARD, COMPLETE ********************* 3-919-621-01 TERMINAL BOARD 3-919-622-01 TERMINAL BOARD < CAPACITOR > C101 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C102 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C103 1-115-156-11 CERAMIC CHIP 1uF 10V C104 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C105 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C106 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C107 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C108 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C109 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C110 1-162-969-11 CERAMIC CHIP 6800PF 10% 25V C111 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C112 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C113 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C114 1-115-156-11 CERAMIC CHIP 1uF 10V C115 1-115-156-11 CERAMIC CHIP 1uF 10V C116 1-115-156-11 CERAMIC CHIP 1uF 10V C117 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C118 1-115-156-11 CERAMIC CHIP 1uF 10V C119 1-115-156-11 CERAMIC CHIP 1uF 10V C120 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C121 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C122 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C123 1-115-156-11 CERAMIC CHIP 1uF 10V C124 1-164-156-11 CERAMIC CHIP 0.1uF 25V C125 1-115-156-11 CERAMIC CHIP 1uF 10V C126 1-115-156-11 CERAMIC CHIP 1uF 10V C127 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C128 1-115-156-11 CERAMIC CHIP 1uF 10V C129 1-115-156-11 CERAMIC CHIP 1uF 10V C130 1-164-156-11 CERAMIC CHIP 0.1uF 25V C131 1-164-156-11 CERAMIC CHIP 0.1uF 25V C201 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C202 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C203 1-115-156-11 CERAMIC CHIP 1uF 10V C204 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C205 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C206 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C207 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C208 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C209 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C210 1-162-969-11 CERAMIC CHIP 6800PF 10% 25V C211 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C212 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C213 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C214 1-115-156-11 CERAMIC CHIP 1uF 10V C215 1-115-156-11 CERAMIC CHIP 1uF 10V C216 1-115-156-11 CERAMIC CHIP 1uF 10V C217 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C218 1-115-156-11 CERAMIC CHIP 1uF 10V C219 1-115-156-11 CERAMIC CHIP 1uF 10V C220 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C221 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C222 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C223 1-115-156-11 CERAMIC CHIP 1uF 10V C224 1-164-156-11 CERAMIC CHIP 0.1uF 25V C225 1-115-156-11 CERAMIC CHIP 1uF 10V C226 1-115-156-11 CERAMIC CHIP 1uF 10V C227 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C228 1-115-156-11 CERAMIC CHIP 1uF 10V C229 1-115-156-11 CERAMIC CHIP 1uF 10V C230 1-164-156-11 CERAMIC CHIP 0.1uF 25V C231 1-164-156-11 CERAMIC CHIP 0.1uF 25V C301 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C302 1-115-156-11 CERAMIC CHIP 1uF 10V C303 1-135-149-21 TANTALUM CHIP 2.2uF 20% 10V C304 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C305 1-135-337-11 TANTALUM CHIP 1uF 20% 6.3V C306 1-165-128-11 CERAMIC CHIP 0.22uF 16V C307 1-115-156-11 CERAMIC CHIP 1uF 10V C308 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C309 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C310 1-164-690-11 CERAMIC CHIP 0.0022uF 5% 50V C311 1-115-156-11 CERAMIC CHIP 1uF 10V C312 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C313 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C314 1-119-663-11 TANTALUM CHIP 47uF 20% 2.5V C315 1-119-663-11 TANTALUM CHIP 47uF 20% 2.5V C316 1-135-337-11 TANTALUM CHIP 1uF 20% 6.3V C317 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C318 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 34 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C319 1-135-337-11 TANTALUM CHIP 1uF 20% 6.3V C320 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C321 1-110-569-11 TANTALUM CHIP 47uF 20% 4V C322 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C323 1-109-930-11 TANTALUM CHIP 220uF 20% 2.5V C324 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C325 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C326 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C327 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C328 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C329 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C330 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C331 1-164-156-11 CERAMIC CHIP 0.1uF 25V C332 1-164-156-11 CERAMIC CHIP 0.1uF 25V C333 1-164-156-11 CERAMIC CHIP 0.1uF 25V C334 1-164-156-11 CERAMIC CHIP 0.1uF 25V C335 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C336 1-164-156-11 CERAMIC CHIP 0.1uF 25V C337 1-164-156-11 CERAMIC CHIP 0.1uF 25V C338 1-115-156-11 CERAMIC CHIP 1uF 10V C339 1-115-156-11 CERAMIC CHIP 1uF 10V C340 1-164-156-11 CERAMIC CHIP 0.1uF 25V C601 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C602 1-135-337-11 TANTALUM CHIP 1uF 20% 6.3V C603 1-135-337-11 TANTALUM CHIP 1uF 20% 6.3V C604 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C605 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C606 1-135-337-11 TANTALUM CHIP 1uF 20% 6.3V C607 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V C608 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C609 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C610 1-164-156-11 CERAMIC CHIP 0.1uF 25V C611 1-164-156-11 CERAMIC CHIP 0.1uF 25V C612 1-164-156-11 CERAMIC CHIP 0.1uF 25V C701 1-164-505-11 CERAMIC CHIP 2.2uF 16V C702 1-115-156-11 CERAMIC CHIP 1uF 10V C703 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C704 1-104-852-11 TANTALUM CHIP 22uF 20% 10V C705 1-164-505-11 CERAMIC CHIP 2.2uF 16V C706 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C707 1-126-236-11 ELECT 330uF 20% 2V C708 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V C709 1-115-156-11 CERAMIC CHIP 1uF 10V C710 1-164-156-11 CERAMIC CHIP 0.1uF 25V C711 1-115-156-11 CERAMIC CHIP 1uF 10V C712 1-164-156-11 CERAMIC CHIP 0.1uF 25V C713 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V CB301 1-127-678-21 CERAMIC CHIP 330PF 50V < CONNECTOR > * CN1 1-573-925-11 CONNECTOR, FFC/FPC (ZIF) 16P CN301 1-573-349-21 CONNECTOR, FFC/FPC 9P < DIODE > D301 8-719-422-37 DIODE MA8051 D701 8-719-073-01 DIODE MA111- (K8).S0 D702 8-719-072-70 DIODE MA2ZD14001S0 D703 8-719-422-37 DIODE MA8051 D704 8-719-422-37 DIODE MA8051 D705 8-719-422-37 DIODE MA8051 < FERRITE BEAD > FB101 1-414-760-21 EMI FERRITE (SMD) FB102 1-414-760-21 EMI FERRITE (SMD) FB201 1-414-760-21 EMI FERRITE (SMD) FB202 1-414-760-21 EMI FERRITE (SMD) FB301 1-414-760-21 EMI FERRITE (SMD) FB302 1-414-760-21 EMI FERRITE (SMD) FB701 1-414-760-21 EMI FERRITE (SMD) < IC > IC301 8-759-579-12 IC TA2123AF (EL) IC302 8-759-428-23 IC LA3235W IC303 8-759-289-74 IC NJM2076M (TE2) IC304 8-759-559-89 IC NJU7015R-TE2 IC305 8-759-380-80 IC LA7473V-TLM IC306 8-759-701-51 IC NJM2072M IC601 8-759-996-13 IC TLP326ADB IC701 8-759-677-70 IC MB-89133LPFV-G-570BND IC702 8-759-661-39 IC XC6371C301PR IC703 8-759-497-26 IC XC61AN2502MR < JACK > J301 1-794-154-21 JACK (i) J302 1-794-084-11 JACK (MIC) J701 1-785-383-11 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 1.5V) < RESISTOR > JC301 1-216-864-11 METAL CHIP 0 5% 1/16W < COIL > L701 1-469-644-21 INDUCTOR 100uH < PHOTO INTERRUPTER > PH701 8-749-014-43 PHOTO PR-20-T < TRANSISTOR > Q301 8-729-038-05 FET HN1K02FU (T5RSONY) Q302 8-729-038-05 FET HN1K02FU (T5RSONY) Q303 8-729-426-42 TRANSISTOR XP1217-TXE Q304 8-729-425-89 TRANSISTOR XP1115 Q305 8-729-425-89 TRANSISTOR XP1115 Q306 8-729-422-39 TRANSISTOR XN4404 Q307 8-729-800-71 TRANSISTOR 2SB815B7-TB Q308 8-729-037-78 TRANSISTOR UN9217J- (TX).SO Q309 8-729-141-75 TRANSISTOR 2SD596DV345 Q310 8-729-028-27 FET 2SK2009 (TE85L) Q311 8-729-028-27 FET 2SK2009 (TE85L) Q312 8-729-028-27 FET 2SK2009 (TE85L) Q313 8-729-038-05 FET HN1K02FU (T5RSONY) Q314 8-729-037-75 TRANSISTOR UN9214J- (TX).SO Q315 8-729-028-27 FET 2SK2009 (TE85L) Q316 8-729-800-71 TRANSISTOR 2SB815B7-TB Q317 8-729-032-62 FET 2SJ347-TE85L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q318 8-729-037-75 TRANSISTOR UN9214J- (TX).SO Q319 8-729-427-72 TRANSISTOR XP4501 Q320 8-729-426-42 TRANSISTOR XP1217-TXE Q321 8-729-030-31 TRANSISTOR 2SA1182-0 (TE85L) Q322 8-729-030-31 TRANSISTOR 2SA1182-0 (TE85L) Q323 8-729-800-71 TRANSISTOR 2SB815B7-TB Q324 8-729-037-75 TRANSISTOR UN9214J- (TX).SO Q325 8-729-037-78 TRANSISTOR UN9217J- (TX).SO Q326 8-729-032-62 FET 2SJ347-TE85L Q327 8-729-037-63 TRANSISTOR UN9115J- (TX).SO Q328 8-729-425-46 TRANSISTOR XP4315-TXE Q329 8-729-427-74 TRANSISTOR XP4601 Q330 8-729-427-72 TRANSISTOR XP4501 Q331 8-729-037-58 TRANSISTOR UN9110J- (TX).SO Q332 8-729-037-58 TRANSISTOR UN9110J- (TX).SO Q333 8-729-400-56 TRANSISTOR 2SD1328-T Q601 8-729-038-05 FET HN1K02FU (T5RSONY) Q602 8-729-038-05 FET HN1K02FU (T5RSONY) Q603 8-729-425-89 TRANSISTOR XP1115 Q604 8-729-425-89 TRANSISTOR XP1115 Q605 8-729-037-75 TRANSISTOR UN9214J- (TX).SO Q606 8-729-037-78 TRANSISTOR UN9217J- (TX).SO Q607 8-729-047-68 FET SSM3K03FE (TPL3) Q608 8-729-047-68 FET SSM3K03FE (TPL3) Q609 8-729-427-74 TRANSISTOR XP4601 Q610 8-729-429-98 TRANSISTOR XP1401 Q701 8-729-425-46 TRANSISTOR XP4315-TXE Q702 8-729-013-60 TRANSISTOR RN1110-TE85L Q703 8-729-800-71 TRANSISTOR 2SB815B7-TB Q704 8-729-038-08 FET HN1J02FU (T5RSONY) Q705 8-729-037-52 TRANSISTOR 2SD2216J-QR (TX).SO < RESISTOR > R101 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R102 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R103 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R104 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R105 1-216-841-11 METAL CHIP 47K 5% 1/16W R106 1-216-839-11 METAL CHIP 33K 5% 1/16W R107 1-216-839-11 METAL CHIP 33K 5% 1/16W R108 1-216-839-11 METAL CHIP 33K 5% 1/16W R109 1-216-835-11 METAL CHIP 15K 5% 1/16W R110 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R111 1-216-835-11 METAL CHIP 15K 5% 1/16W R112 1-216-835-11 METAL CHIP 15K 5% 1/16W R113 1-216-833-11 RES-CHIP 10K 5% 1/16W R114 1-216-833-11 RES-CHIP 10K 5% 1/16W R115 1-216-817-11 METAL CHIP 470 5% 1/16W R116 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R117 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R118 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R119 1-216-821-11 METAL CHIP 1K 5% 1/16W R120 1-216-839-11 METAL CHIP 33K 5% 1/16W R121 1-216-811-11 METAL CHIP 150 5% 1/16W R122 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R123 1-216-789-11 METAL CHIP 2.2 5% 1/16W R124 1-216-849-11 METAL CHIP 220K 5% 1/16W R125 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R126 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R127 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R128 1-216-845-11 METAL CHIP 100K 5% 1/16W R129 1-216-845-11 METAL CHIP 100K 5% 1/16W R130 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R131 1-216-821-11 METAL CHIP 1K 5% 1/16W R132 1-216-857-11 METAL CHIP 1M 5% 1/16W R133 1-216-845-11 METAL CHIP 100K 5% 1/16W R134 1-216-835-11 METAL CHIP 15K 5% 1/16W R135 1-216-849-11 METAL CHIP 220K 5% 1/16W R136 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R137 1-216-815-11 METAL CHIP 330 5% 1/16W R138 1-216-845-11 METAL CHIP 100K 5% 1/16W R201 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R202 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R203 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R204 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R205 1-216-841-11 METAL CHIP 47K 5% 1/16W R206 1-216-839-11 METAL CHIP 33K 5% 1/16W R207 1-216-839-11 METAL CHIP 33K 5% 1/16W R208 1-216-839-11 METAL CHIP 33K 5% 1/16W R209 1-216-835-11 METAL CHIP 15K 5% 1/16W R210 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R211 1-216-835-11 METAL CHIP 15K 5% 1/16W R212 1-216-835-11 METAL CHIP 15K 5% 1/16W R213 1-216-833-11 RES-CHIP 10K 5% 1/16W R214 1-216-833-11 RES-CHIP 10K 5% 1/16W R215 1-216-817-11 METAL CHIP 470 5% 1/16W R216 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R217 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R218 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R219 1-216-821-11 METAL CHIP 1K 5% 1/16W R220 1-216-839-11 METAL CHIP 33K 5% 1/16W R221 1-216-811-11 METAL CHIP 150 5% 1/16W R222 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R223 1-216-789-11 METAL CHIP 2.2 5% 1/16W R224 1-216-849-11 METAL CHIP 220K 5% 1/16W R225 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R226 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R227 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R228 1-216-845-11 METAL CHIP 100K 5% 1/16W R229 1-216-845-11 METAL CHIP 100K 5% 1/16W R230 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R231 1-216-821-11 METAL CHIP 1K 5% 1/16W R232 1-216-857-11 METAL CHIP 1M 5% 1/16W R233 1-216-845-11 METAL CHIP 100K 5% 1/16W R234 1-216-835-11 METAL CHIP 15K 5% 1/16W R235 1-216-849-11 METAL CHIP 220K 5% 1/16W R236 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R237 1-216-815-11 METAL CHIP 330 5% 1/16W R238 1-216-845-11 METAL CHIP 100K 5% 1/16W R301 1-216-817-11 METAL CHIP 470 5% 1/16W R302 1-216-817-11 METAL CHIP 470 5% 1/16W R303 1-216-809-11 METAL CHIP 100 5% 1/16W R304 1-216-821-11 METAL CHIP 1K 5% 1/16W R305 1-216-859-11 RES-CHIP 1.5M 5% 1/16W R306 1-216-789-11 METAL CHIP 2.2 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 36 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R307 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R308 1-216-855-11 METAL CHIP 680K 5% 1/16W R309 1-216-793-11 RES-CHIP 4.7 5% 1/16W R310 1-216-809-11 METAL CHIP 100 5% 1/16W R311 1-216-809-11 METAL CHIP 100 5% 1/16W R312 1-216-853-11 METAL CHIP 470K 5% 1/16W R313 1-216-845-11 METAL CHIP 100K 5% 1/16W R314 1-216-845-11 METAL CHIP 100K 5% 1/16W R315 1-216-845-11 METAL CHIP 100K 5% 1/16W R316 1-216-845-11 METAL CHIP 100K 5% 1/16W R317 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R318 1-216-793-11 METAL CHIP 4.7 5% 1/16W R319 1-216-817-11 METAL CHIP 470 5% 1/16W R320 1-218-446-11 METAL CHIP 1 5% 1/16W R321 1-218-446-11 METAL CHIP 1 5% 1/16W R322 1-216-833-11 RES-CHIP 10K 5% 1/16W R323 1-216-809-11 METAL CHIP 100 5% 1/16W R324 1-216-845-11 METAL CHIP 100K 5% 1/16W R325 1-216-853-11 METAL CHIP 470K 5% 1/16W R326 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R327 1-216-821-11 METAL CHIP 1K 5% 1/16W R328 1-216-839-11 METAL CHIP 33K 5% 1/16W R329 1-216-833-11 RES-CHIP 10K 5% 1/16W R330 1-216-817-11 METAL CHIP 470 5% 1/16W R331 1-216-853-11 METAL CHIP 470K 5% 1/16W R332 1-216-845-11 METAL CHIP 100K 5% 1/16W R333 1-216-837-11 METAL CHIP 22K 5% 1/16W R334 1-216-833-11 RES-CHIP 10K 5% 1/16W R335 1-216-845-11 METAL CHIP 100K 5% 1/16W R336 1-216-821-11 METAL CHIP 1K 5% 1/16W R337 1-216-817-11 METAL CHIP 470 5% 1/16W R338 1-216-821-11 METAL CHIP 1K 5% 1/16W R339 1-216-853-11 METAL CHIP 470K 5% 1/16W R340 1-216-833-11 RES-CHIP 10K 5% 1/16W R341 1-216-833-11 RES-CHIP 10K 5% 1/16W R342 1-216-857-11 METAL CHIP 1M 5% 1/16W R343 1-216-857-11 METAL CHIP 1M 5% 1/16W R346 1-216-821-11 METAL CHIP 1K 5% 1/16W R347 1-216-845-11 METAL CHIP 100K 5% 1/16W R601 1-216-793-11 RES-CHIP 4.7 5% 1/16W R602 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R603 1-216-833-11 RES-CHIP 10K 5% 1/16W R604 1-216-839-11 METAL CHIP 33K 5% 1/16W R605 1-216-853-11 METAL CHIP 470K 5% 1/16W R606 1-216-845-11 METAL CHIP 100K 5% 1/16W R607 1-216-845-11 METAL CHIP 100K 5% 1/16W R608 1-216-853-11 METAL CHIP 470K 5% 1/16W R609 1-216-853-11 METAL CHIP 470K 5% 1/16W R610 1-216-853-11 METAL CHIP 470K 5% 1/16W R611 1-216-853-11 METAL CHIP 470K 5% 1/16W R614 1-216-845-11 METAL CHIP 100K 5% 1/16W R615 1-216-837-11 METAL CHIP 22K 5% 1/16W R616 1-216-839-11 METAL CHIP 33K 5% 1/16W R617 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R618 1-216-817-11 METAL CHIP 470 5% 1/16W R619 1-216-809-11 METAL CHIP 100 5% 1/16W R620 1-216-809-11 METAL CHIP 100 5% 1/16W R621 1-216-809-11 METAL CHIP 100 5% 1/16W R701 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R702 1-216-855-11 METAL CHIP 680K 5% 1/16W R703 1-216-849-11 METAL CHIP 220K 5% 1/16W R704 1-216-845-11 METAL CHIP 100K 5% 1/16W R705 1-216-841-11 METAL CHIP 47K 5% 1/16W R706 1-216-849-11 METAL CHIP 220K 5% 1/16W R707 1-216-853-11 METAL CHIP 470K 5% 1/16W R708 1-216-839-11 METAL CHIP 33K 5% 1/16W R709 1-216-853-11 METAL CHIP 470K 5% 1/16W R710 1-216-853-11 METAL CHIP 470K 5% 1/16W R711 1-216-853-11 METAL CHIP 470K 5% 1/16W R712 1-216-853-11 METAL CHIP 470K 5% 1/16W R713 1-216-853-11 METAL CHIP 470K 5% 1/16W R714 1-216-853-11 METAL CHIP 470K 5% 1/16W R715 1-216-821-11 METAL CHIP 1K 5% 1/16W R716 1-218-895-11 METAL CHIP 100K 0.5% 1/16W R717 1-218-907-11 METAL CHIP 330K 0.5% 1/16W R718 1-216-853-11 METAL CHIP 470K 5% 1/16W R719 1-216-845-11 METAL CHIP 100K 5% 1/16W < VARIABLE RESISTOR > RV301 1-225-684-21 RES, VAR, CARBON 30K/30K (VOL) RV601 1-227-158-11 RES, VAR, CARBON 4.7K (SPEED CONTROL) RV602 1-241-593-11 RES, ADJ, CARBON 4.7K RV603 1-225-870-21 RES, ADJ, CARBON 10K < SWITCH > S701 1-771-475-21 SWITCH, SLIDE (DIRECTION) < TRANSFORMER > T301 1-429-374-11 TRANSFORMER, BIAS OSCILLATION < THERMISTOR (POSITIVE) > THP601 1-803-950-21 THERMISTOR, POSITIVE THP602 1-810-722-11 THERMISTOR, POSITIVE < VIBRATOR > X701 1-767-289-11 VIBRATOR, CERAMIC (4MHz) ************************************************************ MISCELLANEOUS ************** 11 1-418-745-11 KEY BOARD UNIT (INCLUDING D1, IC1, S1-10) 104 1-677-406-11 VOR FLEXIBLE BOARD 118 1-677-407-11 ATS FLEXIBLE BOARD H901 1-500-643-11 HEAD, MAGNETIC (REC/PB/ERASE) M601 1-763-458-11 MOTOR, DC (WITH PULLEY) (CAPSTAN/REEL) PM701 1-454-674-31 SOLENOID, PLUNGER S301 1-572-922-11 SWITCH, SLIDE (VOR) S302 1-572-922-11 SWITCH, SLIDE (MIC SENS) S702 1-692-101-11 SWITCH, LEAF (REC PROTECT DETECT (REV), TAPE DETECT) S703 1-692-100-11 SWITCH, LEAF (REC PROTECT DETECT (FWD), ATS) S704 1-572-922-11 SWITCH, SLIDE (HOLD) SP301 1-529-606-11 SPEAKER (3.6cm) ************************************************************ MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 37 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark ACCESSORIES & PACKING MATERIALS ******************************* 1-418-916-11 REMOTE CONTROL UNIT (RM-TCS1) * 2-283-326-01 LABEL, CAUTION (Tourist) 3-042-996-01 MANUAL, INSTRUCTION (Tourist) (JAPANESE) 3-042-996-11 MANUAL, INSTRUCTION (US, AEP, Tourist) (ENGLISH, SPANISH) 3-042-996-21 MANUAL, INSTRUCTION (AEP) (FRENCH) 3-042-996-31 MANUAL, INSTRUCTION (AEP) (GERMAN, DUTCH) 3-042-996-41 MANUAL, INSTRUCTION (AEP) (PORTUGUESE, ITALIAN) 3-042-996-51 MANUAL, INSTRUCTION (Tourist) (RUSSIAN, KOREAN) 3-042-996-61 MANUAL, INSTRUCTION (Tourist) (CHINESE) 3-044-622-01 POUCH, CARRYING 3-349-265-01 STRAP, HAND 8-953-304-90 RECEIVER MDR-E805SP (AEP, Tourist) 8-953-733-90 HEADPHONE MDR-W034SP (US) ************************************************************ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 38 – TCS-100DV Sony Corporation Personal Audio Division Company 9-927-659-11 2000B0555-1 Printed in Japan C 2000. 2 Published by General Engineering Dept. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
