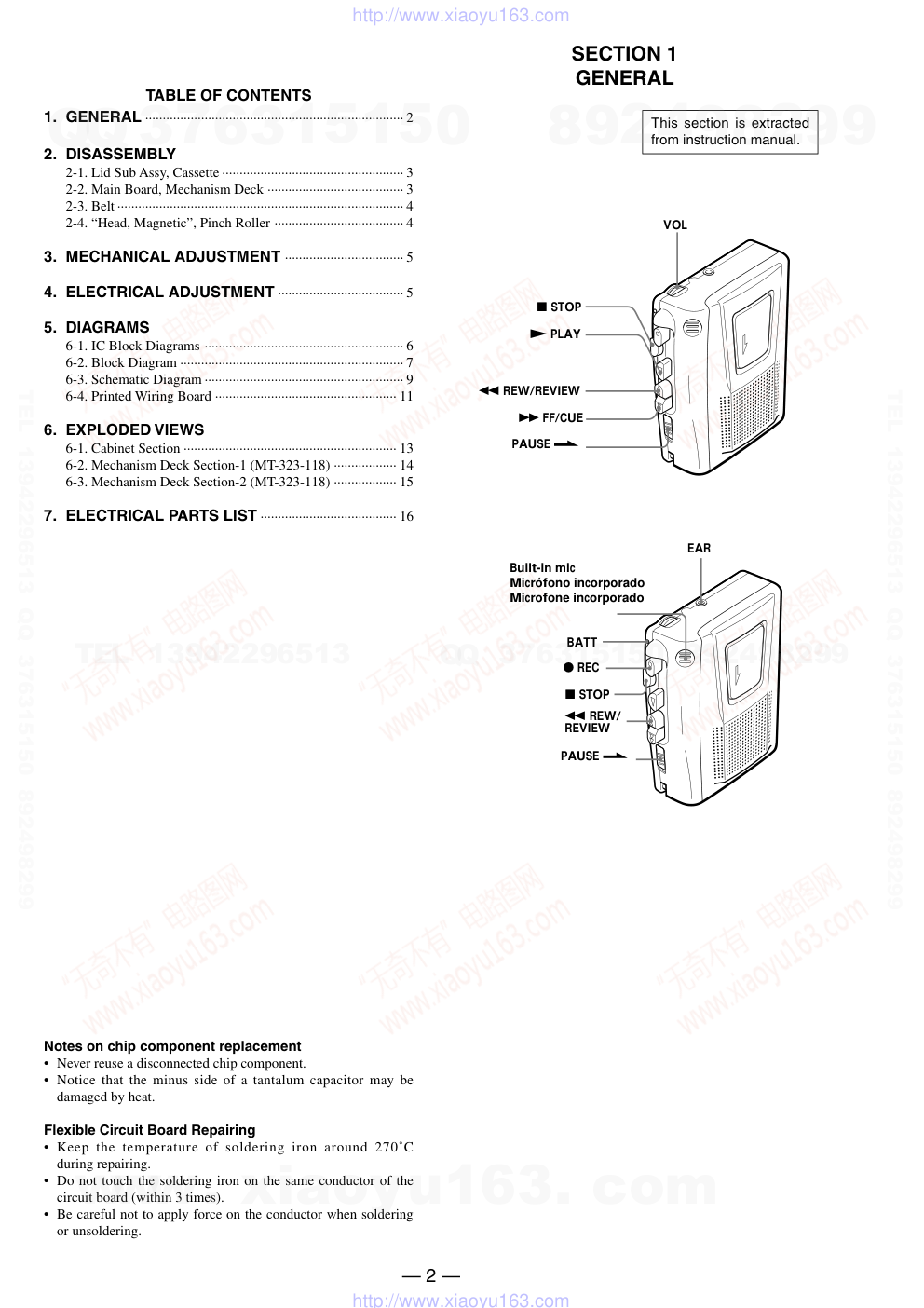

TCM-343 E Model Chinese Model SERVICE MANUAL CASSETTE-CORDER SPECIFICATIONS Model Name Using Similar Mechanism NEW Tape Transport Mechanism Type MT-323-118 Recording system 2-track 1 channel monaural Frequency range 250 - 6 300 Hz Speaker Approx. 3.6 cm (1 7 / 16 in.) dia. Power output (at 10% harmonic distortion) 250 mW Output Earphone jack (minijack) for 8 - 300Ω earphone Power requirements • 3 V DC batteries R6 (AA) × 2 • External DC 3 V power sources Dimensions (w/h/d) (incl. projecting parts and controls) Approx. 112 × 36.6 × 90.3 mm (4 1 ⁄2 × 1 1 ⁄2 × 3 5 ⁄8 in.) Mass (not incl. batteries) Approx. 180 g (6.4 oz.) Design and specifications are subject to change without notice. Ver 1.0 2000. 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. TABLE OF CONTENTS 1. GENERAL ·········································································· 2 2. DISASSEMBLY 2-1. Lid Sub Assy, Cassette ···················································· 3 2-2. Main Board, Mechanism Deck ······································· 3 2-3. Belt ·················································································· 4 2-4. “Head, Magnetic”, Pinch Roller ····································· 4 3. MECHANICAL ADJUSTMENT ·································· 5 4. ELECTRICAL ADJUSTMENT ···································· 5 5. DIAGRAMS 6-1. IC Block Diagrams ························································· 6 6-2. Block Diagram ································································ 7 6-3. Schematic Diagram ························································· 9 6-4. Printed Wiring Board ···················································· 11 6. EXPLODED VIEWS 6-1. Cabinet Section ····························································· 13 6-2. Mechanism Deck Section-1 (MT-323-118) ·················· 14 6-3. Mechanism Deck Section-2 (MT-323-118) ·················· 15 7. ELECTRICAL PARTS LIST ······································· 16 SECTION 1 GENERAL This section is extracted from instruction manual. VOL M FF/CUE x STOP m REW/REVIEW PAUSE . N PLAY EAR z REC x STOP m REW/ REVIEW PAUSE . Built-in mic Micrófono incorporado Microfone incorporado BATT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. • The equipment can be removed using the following procedure. 2-1. LID SUB ASSY, CASSETTE 2-2. MAIN BOARD, MECHANISM DECK 4 two cords(SP901) 6 spring, cassette 5 lid sub assy, cassette four claws claw 3 cabinet (rear) 2 screw (IB LOCK) 1 three screws (B1.7 × 9) 8 mechanism deck 6 main board 4 cord (HRP901) 5 two cords (MIC901) 3 two cords (M901) 1 screw (1.7) 2 screw (M1.4) 7 three screws (IB LOCK) Lid Sub Assy, Cassette Main Board, Mechanism Deck Belt Set “Head, Magnetic”, Pinch Roller www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — 2-3. BELT 1 belt (capstan) 2 belt (fr) screw (M1.4) screw (1.7) main board S101 (REC) REC lever 2-4. “HEAD, MAGNETIC”, PINCH ROLLER INSTALLATION MAIN BOARD On installation MAIN board, adjust to the S101 and the REC lever. 8 screw (M1.4) 6 head, magnetic (HRP901) 3 pinch roller 2 4 screw (1.4) 5 screw (M1.4 × 3.8) 9 head, magnetic (HE901) 1 lever (pinch roller) 7 spring (azimuth), compression www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — SECTION 3 MECHANICAL ADJUSTMENT PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened swab : playback head pinch roller capstan rubber belt 2. Demagnetize the playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. The adjustments should be performed with the rated power supply voltage (DC 3.0 V) unless otherwise noted. Torque Measurement SECTION 4 ELECTRICAL ADJUSTMENT PRECAUTION • Supplied voltage : 3.0 V • Switch and control position VOL control : mechanical mid PAUSE switch : OFF Test tape REC/PB Head Azimuth Adjustment Procedure : 1. Model : playback 2. Turn the adjustment screw to obtain the maximum readig on level meter. Note : Several peaks may appear, but take the maximum. Adjustment Location : Tape Speed Adjustment Procedure : 1. Playback WS-48A (tape center part) in the FWD state and adjust RV601 so that the frequency counter reading becomes 3,000 Hz. Specification Value : 2. Check that frequency counter reading is within 2% of reading of step 1. Digital frequency counter 2,970 to 3,030 Hz Type WS-48A P-4-A063 Signal 3 kHz, 0 dB 6.3 kHz, - 10dB Used for tape speed adjustment head azimuth adjustment Mode Torque Meter Meter Reading more than 1.96 mN • m (more than 20 g • cm) (more than 0.28 oz • inch) more than 4.90 mN • m (more than 50 g • cm) (more than 0.69 oz • inch) 0.05 – 0.29 mN • m (0.5 – 3 g • cm) (0.007 – 0.04 oz • inch) FWD CQ-102C FWD back tension FF, REW CQ-201B + – test tape WS-48A (3 kHz, 0 dB) set EAR jack (J102) 32 Ω frequency counter RV601 Adjustment Location : main board (conductor side) + – test tape P-4-A063 (6.3 kHz, -10 dB) set EAR jack (J102) 10 kΩ level meter adjustment screw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 6 — SECTION 5 DIAGRAMS Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. • A : B+ Line. • H : adjustment for repair. • Power voltage is dc 3 V and fed with regulated dc power supply from battery terminal. • Voltages and waveforms are dc with respect to ground under no- signal (detuned) conditions. no mark : PLAY ( ) : REC • Voltages are taken with a VOM (Input impedance 10 MΩ). • Voltage variations may be noted due to normal production toler- ances. • Voltage variations may be noted due to normal production toler- ances. • Signal path. E : PB a : REC F : MIC Note on Printed Wiring Board: • Y : parts extracted from the conductor side. • b : Pattern from the side which enables seeing. 5-1. IC BLOCK DIAGRAMS IC601 NJM2606AM-TE2 GND NC NC V+ REFERENCE VOLTAGE V CONTROL NC V SENSE V OUT 1 2 3 4 5 6 7 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TCM-343 5-2. BLOCK DIAGRAM — 7 — — 8 — • Signal Path : PB : REC : MIC K + – + – + – + – + – 15 1 16 3 6 8 4 3 4 5 6 9 14 11 M RV601 TAPE SPEED M901 (LOADING) D401 (BATT) IC601 SERVO REF VOLTAGE +B S601 PAUSE +B DRY BATTERY SIZE "AA" 2PCS 3V S102 (POWER SW) ALC IC101 PRE/POWER AMP, ALC Q101 SWITCH HRP901 HE901 MIC901 S101 (1/4) (PB REC) S101 (2/4) (PB REC) S101 (3/4) (PB REC) S101 (4/4) (PB REC) RV101 VOL SP901 (SPEAKER) J102 EAR (PB/REC) (ERASE) MIC + CN101 DC IN 3V 16 HEAD OFF ON K K w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TCM-343 5-3. SCHEMATIC DIAGRAM — 9 — — 10 — • See page 6 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TCM-343 5-4. PRINTED WIRING BOARD Ref. No. Location D401 F-11 IC101 D-8 IC601 C-5 Q101 E-8 • Semiconductor Location — 11 — — 12 — 16 1 2 A B C D E F G 3 4 5 6 7 8 9 10 11 12 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 6 EXPLODED VIEWS 6-1. CABINET SECTION Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 13 — 1 2 23 23 3 4 5 6 MT-323-118 7 8 9 MIC901 10 11 12 13 14 15 16 SP901 17 1 17 1 19 23 23 20 24 25 21 22 18 not supplied NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories and packing materials are given in the last of this parts list. 1 3-318-382-31 SCREW (1.7), TAPPING 2 3-345-648-01 SCREW (M1.4), TOOTHED LOCK * 3 A-3021-355-A MAIN BOARD, COMPLETE 4 3-924-741-01 TERMINAL, PLUS 5 3-936-973-01 TERMINAL, MINUS 6 3-334-565-41 SCREW (B1.7), TAPPING 7 3-924-745-01 BAR, GROUND 8 3-924-740-01 HOLDER, MICROPHONE 9 3-924-763-01 CUSHION (MICROPHONE) 10 3-924-743-01 CLAW, ERASING PROTECTION 11 3-924-744-01 SPRING(CLAW DETECTION),TENSION 12 3-939-590-26 SCREW (IB LOCK) 13 3-578-101-31 PLATE, ORNAMENTAL 14 3-019-363-51 CABINET (FRONT) 15 3-924-739-01 SPRING, CASSETTE 16 X-3379-563-1 LID SUB ASSY, CASSETTE * 17 3-924-757-01 BRACKET (SPEAKER) 18 X-3375-808-1 LID BLOCK ASSY, BATTERY CASE 19 4-017-441-01 CUSHION (B) 20 3-924-747-11 KNOB (PAUSE) 21 3-318-203-92 SCREW (B1.7X9), TAPPING 22 3-019-442-02 CABINET (REAR) 23 3-831-441-99 SPACER, KNOB 24 3-831-441-11 CUSHION (B) 25 3-366-890-51 SCREW (IB LOCK) MIC901 1-542-136-11 MICROPHONE, ELECTRET CONDEDSER SP901 1-529-188-11 SPEAKER (3.6cm) www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-2. MECHANISM DECK SECTION-1 (MT-323-118) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 14 — 62 63 61 65 68 69 74 75 M901 70 76 78 71 73 72 51 not supplied 54 53 52 55 56 57 HE901 67 66 HRP901 59 77 64 58 60 51 X-3377-250-1 LEVER (2) ASSY, PINCH 52 3-925-146-11 BUTTON (FF) 53 3-925-147-01 BUTTON (REW) 54 3-925-148-11 BUTTON (PLAY) 55 3-925-145-21 BUTTON (REC) 56 3-924-738-01 BUTTON (STOP) 57 3-703-925-21 SCREW (M1.4) 58 3-924-625-01 LEVER (HEAD) 59 3-924-645-01 BRACKET (HEAD) 60 3-924-685-01 SPRING (AZIMUTH), COMPRESSION 61 3-704-197-91 SCREW (IB LOCK) 62 3-375-135-01 SCREW (1.4), SPECIAL 63 3-376-177-01 SCREW (M1.4X3.8) 64 3-925-107-01 SPRING (IDLER), COMPRESSION 65 3-924-637-01 GEAR (FF) 66 3-924-673-01 GEAR (S REEL) 67 3-924-674-01 SPRING (B.T), COMPRESSION 68 3-924-641-01 GEAR (T REEL) 69 3-924-726-01 SPRING (M GROUND), TORSION 70 3-907-943-01 BELT (CAPSTAN) 71 3-925-109-01 CUSHION (MOTOR) 72 3-925-108-01 SCREW (MOTOR) 73 3-924-644-01 SPRING (POWER TENSION),TENSION 74 3-030-766-12 SHEET (MOTOR) 75 3-831-441-11 CUSHION, CABINET UPPER 10X7X0.5 76 3-927-754-11 CUSHION (M) 77 3-348-160-11 SCREW (M1.4X1.6), PRECISION PAN 78 3-561-685-01 SHEET (C), INSULATING M901 1-763-453-11 MOTOR, DC (LOADING)(WITH PULLY) HE901 1-500-232-11 HEAD, MAGNETIC (ERASE) HRP901 1-500-073-51 HEAD, MAGNETIC (PB/REC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 15 — 6-3. MECHANISM DECK SECTION-2 (MT-323-118) Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 113 114 115 127 101 116 117 119 120 121 122 123 118 124 125 126 129 128 102 101 102 103 102 104 105 106 107 109 110 111 108 112 101 not supplied 101 3-321-483-11 RING, RETAINING 102 3-701-437-51 WASHER 103 X-3370-384-1 FLYWHEEL ASSY 104 3-924-623-01 LEVER (PLAY) 105 3-924-621-01 LEVER (REW) 106 3-924-620-01 LEVER (FF) 107 X-3370-388-1 TABLE ASSY, FELT 108 3-924-642-01 SPRING (FR), TORSION 109 3-924-629-01 LEVER (DETECTION) 110 3-925-207-01 SPRING (S.OFF), TENSION 111 3-924-630-01 LEVER (S.OFF) 112 X-3370-387-1 LEVER ASSY, IDLER 113 3-924-682-01 BELT (FR) 114 X-3370-385-1 PULLEY (FR) ASSY 115 3-924-628-01 LEVER (FR) 116 3-924-633-01 SPRING (STOP), TENSION 117 3-924-622-01 LEVER (STOP) 118 3-045-541-01 SPRING (PR3), TORSION 119 3-924-684-01 SPRING (LOCK PLATE), TENSION 120 3-924-619-01 LEVER (SW) 121 3-924-639-01 LEVER (CR) 122 3-924-618-01 LEVER (LOCK) 123 3-925-208-01 SPRING (REC), TENSION 124 3-924-624-01 LEVER (REC) 125 X-3370-227-1 CHASSIS ASSY 126 3-924-613-01 GEAR (FR) 127 3-024-378-21 SPRING (FR LEVER), TORSION 128 3-029-566-21 STOPPER (FF) 129 3-704-197-33 SCREW (IB LOCK) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • Abbreviation EA : Saudi Arabia model. TW : Taiwan model. CH : Chinese model. MX : Mexican model. • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 16 — SECTION 7 ELECTRICAL PARTS LIST MAIN * A-3021-355-A MAIN BOARD, COMPLETE ********************* 3-924-741-03 TERMINAL, PLUS < CAPACITOR > C101 1-104-357-11 ELECT 47uF 20.00% 6.3V C102 1-104-396-11 ELECT 10uF 20.00% 16V C103 1-165-128-11 CERAMIC CHIP 0.22uF 16V C104 1-126-159-11 ELECT 0.47uF 20.00% 50V C105 1-165-128-11 CERAMIC CHIP 0.22uF 16V C106 1-162-974-11 CERAMIC CHIP 0.01uF 50V C107 1-104-396-11 ELECT 10uF 20.00% 16V C108 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C109 1-115-156-11 CERAMIC CHIP 1uF 10V C110 1-164-156-11 CERAMIC CHIP 0.1uF 25V C111 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C112 1-104-396-11 ELECT 10uF 20.00% 16V C113 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C115 1-104-357-11 ELECT 47uF 20.00% 6.3V C116 1-104-411-11 ELECT 1uF 20.00% 50V C117 1-126-163-11 ELECT 4.7uF 20% 50V C119 1-126-154-11 ELECT 47uF 20% 6.3V C121 1-164-361-11 CERAMIC CHIP 0.047uF 16V C122 1-165-128-11 CERAMIC CHIP 0.22uF 16V C123 1-124-434-00 ELECT 220uF 20.00% 4V C124 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C125 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C127 1-164-156-11 CERAMIC CHIP 0.1uF 25V C131 1-135-834-11 CERAMIC CHIP 2.2E+06PF 6.3V C603 1-115-156-11 CERAMIC CHIP 1uF 10V C604 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN101 1-580-919-11 JACK,DC(POLARITY UNIFIED TYPE) (DC IN 3V) < DIODE > D401 8-719-057-27 LED L-132XHD (BATT) < IC > IC101 8-759-682-35 IC NJM2775M-TE2 IC601 8-759-345-42 IC NJM2606AM-TE2 < JACK > J102 1-766-847-11 JACK (EAR) < JUMPER CHIP > JC101 1-216-864-11 METAL CHIP 0 5% 1/16W JC102 1-216-864-11 METAL CHIP 0 5% 1/16W JC105 1-216-864-11 METAL CHIP 0 5% 1/16W JC106 1-216-864-11 METAL CHIP 0 5% 1/16W JC107 1-216-864-11 METAL CHIP 0 5% 1/16W JC108 1-216-864-11 METAL CHIP 0 5% 1/16W JC110 1-216-864-11 METAL CHIP 0 5% 1/16W JC112 1-216-864-11 METAL CHIP 0 5% 1/16W JC113 1-216-864-11 METAL CHIP 0 5% 1/16W JC114 1-216-864-11 METAL CHIP 0 5% 1/16W JC115 1-216-864-11 METAL CHIP 0 5% 1/16W JC116 1-216-864-11 METAL CHIP 0 5% 1/16W JC117 1-216-864-11 METAL CHIP 0 5% 1/16W JC118 1-216-864-11 METAL CHIP 0 5% 1/16W JC119 1-216-864-11 METAL CHIP 0 5% 1/16W JC123 1-216-864-11 METAL CHIP 0 5% 1/16W JC125 1-216-864-11 METAL CHIP 0 5% 1/16W JC127 1-216-864-11 METAL CHIP 0 5% 1/16W JC129 1-216-864-11 METAL CHIP 0 5% 1/16W JC133 1-216-864-11 METAL CHIP 0 5% 1/16W JC135 1-216-864-11 METAL CHIP 0 5% 1/16W JC136 1-216-864-11 METAL CHIP 0 5% 1/16W JC137 1-216-864-11 METAL CHIP 0 5% 1/16W JC138 1-216-864-11 METAL CHIP 0 5% 1/16W JC139 1-216-864-11 METAL CHIP 0 5% 1/16W JC140 1-216-864-11 METAL CHIP 0 5% 1/16W JC141 1-216-864-11 METAL CHIP 0 5% 1/16W JC142 1-216-864-11 METAL CHIP 0 5% 1/16W JC143 1-216-864-11 METAL CHIP 0 5% 1/16W JC144 1-216-864-11 METAL CHIP 0 5% 1/16W JC148 1-216-864-11 METAL CHIP 0 5% 1/16W JC149 1-216-864-11 METAL CHIP 0 5% 1/16W JC150 1-216-864-11 METAL CHIP 0 5% 1/16W JC152 1-216-864-11 METAL CHIP 0 5% 1/16W JC154 1-216-864-11 METAL CHIP 0 5% 1/16W JC156 1-216-864-11 METAL CHIP 0 5% 1/16W JC157 1-216-864-11 METAL CHIP 0 5% 1/16W JC158 1-216-864-11 METAL CHIP 0 5% 1/16W JC159 1-216-864-11 METAL CHIP 0 5% 1/16W JC164 1-216-864-11 METAL CHIP 0 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 17 — JC165 1-216-864-11 METAL CHIP 0 5% 1/16W JC166 1-216-864-11 METAL CHIP 0 5% 1/16W JC167 1-216-864-11 METAL CHIP 0 5% 1/16W < TRANSISTOR > Q101 8-729-013-37 TRANSISTOR 2SC4213-AB-TE85L < RESISTOR > R101 1-216-815-11 METAL CHIP 330 5% 1/16W R102 1-216-833-11 METAL CHIP 10K 5% 1/16W R103 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R105 1-216-789-11 METAL CHIP 2.2 5% 1/16W R106 1-216-793-11 RES-CHIP 4.7 5% 1/16W R107 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R108 1-216-833-11 METAL CHIP 10K 5% 1/16W R109 1-216-864-11 METAL CHIP 0 5% 1/16W R110 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R111 1-216-817-11 METAL CHIP 470 5% 1/16W R112 1-216-835-11 METAL CHIP 15K 5% 1/16W R113 1-216-817-11 METAL CHIP 470 5% 1/16W R114 1-216-807-11 METAL CHIP 68 5% 1/16W R115 1-216-801-11 METAL CHIP 22 5% 1/16W R116 1-216-821-11 METAL CHIP 1K 5% 1/16W R118 1-216-841-11 METAL CHIP 47K 5% 1/16W R122 1-216-817-11 METAL CHIP 470 5% 1/16W R123 1-216-841-11 METAL CHIP 47K 5% 1/16W R125 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R126 1-216-833-11 METAL CHIP 10K 5% 1/16W R402 1-216-813-11 METAL CHIP 220 5% 1/16W R404 1-216-821-11 METAL CHIP 1K 5% 1/16W R602 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R603 1-216-841-11 METAL CHIP 47K 5% 1/16W R605 1-216-821-11 METAL CHIP 1K 5% 1/16W R607 1-216-831-11 METAL CHIP 6.8K 5% 1/16W < VARIABLE RESISTOR > RV101 1-225-597-11 RES, VAR, CARBON 10K (VOL) RV601 1-238-663-11 RES, ADJ, CARBON 4.7K < SWITCH > S101 1-786-026-11 SWITCH, SLIDE (PB/REC) S102 1-572-688-11 SWITCH, PUSH (1 KEY) (POWER) S601 1-572-922-11 SWITCH, SLIDE (PAUSE) < THERMISTOR > TH601 1-809-354-11 THERMISTOR, NTC (2125) < THERMISTOR(POSITIVE) > THP601 1-810-007-11 THERMISTOR, POSITIVE ************************************************************ MISCELLANEOUS ************** HE901 1-500-232-11 HEAD, MAGNETIC (ERASE) HRP901 1-500-073-51 HEAD, MAGNETIC (PB/REC) MIC901 1-542-136-11 MICROPHONE, ELECTRET CONDEDSER M901 1-763-453-11 MOTOR, DC (LOADING)(WITH PULLY) SP901 1-529-188-11 SPEAKER (3.6cm) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 3-222-957-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH,PORTUGUESE,CHINESE)(E,CH,MX) 3-222-957-61 MANUAL, INSTRUCTION (ENGLISH,CHINESE)(E,TW) 3-222-957-71 MANUAL, INSTRUCTION (ENGLISH,ARABIC)(EA) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 18 — TCM-343 Sony Corporation Audio Entertainment Group 2000K1616-1 Printed in Japan ©2000.11 Published by General Engineering Dept. 9-873-032-11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
