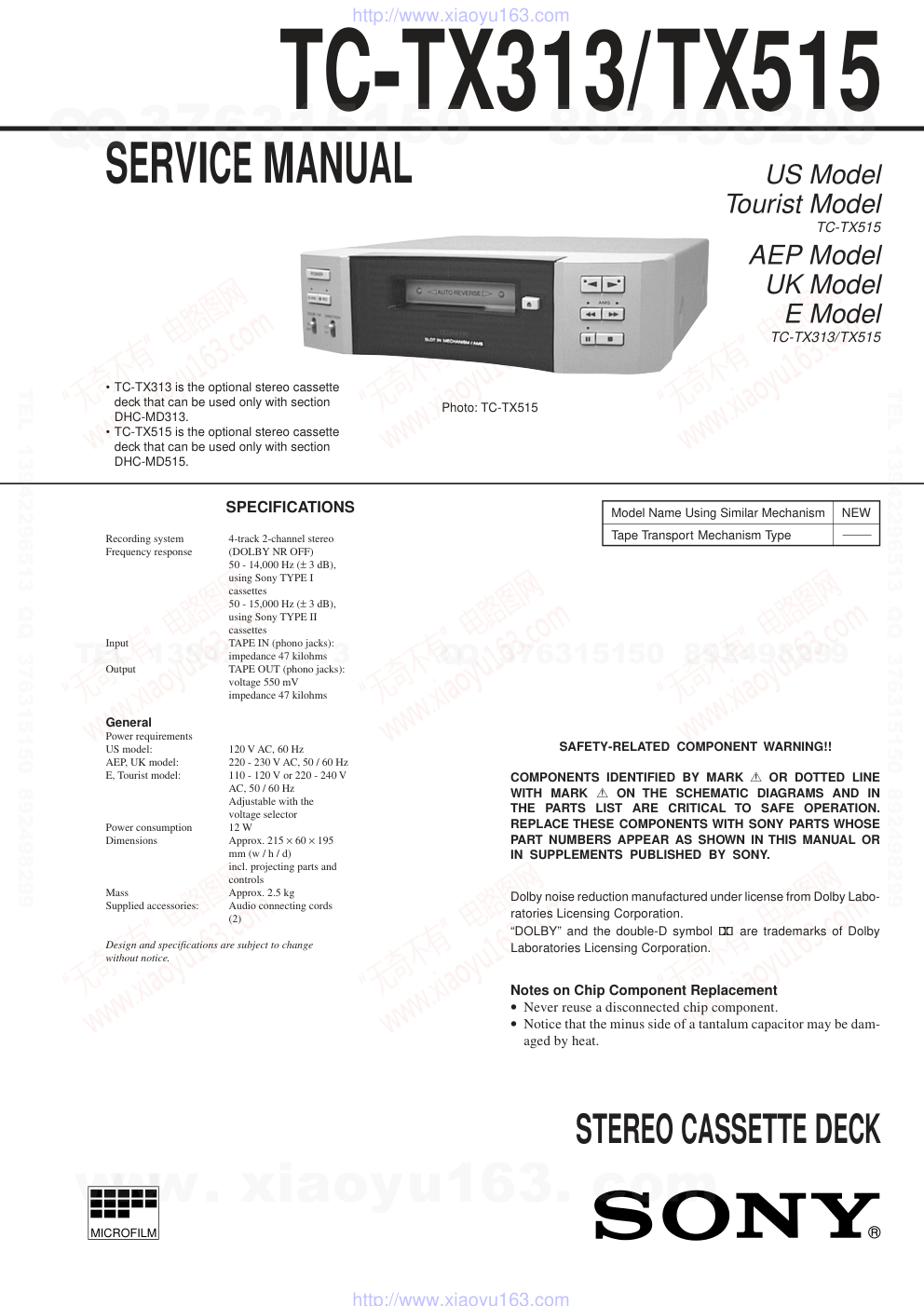

'– 1 –
MICROFILM
US Model
Tourist Model
TC-TX515
AEP Model
UK Model
E Model
TC-TX313/TX515
SERVICE MANUAL
SPECIFICATIONS
Recording system
4-track 2-channel stereo
Frequency response
(DOLBY NR OFF)
50 - 14,000 Hz (± 3 dB),
using Sony TYPE I
cassettes
50 - 15,000 Hz (± 3 dB),
using Sony TYPE II
cassettes
Input
TAPE IN (phono jacks):
impedance 47 kilohms
Output
TAPE OUT (phono jacks):
voltage 550 mV
impedance 47 kilohms
General
Power requirements
US model:
120 V AC, 60 Hz
AEP, UK model:
220 - 230 V AC, 50 / 60 Hz
E, Tourist model:
110 - 120 V or 220 - 240 V
AC, 50 / 60 Hz
Adjustable with the
voltage selector
Power consumption
12 W
Dimensions
Approx. 215 × 60 × 195
mm (w / h / d)
incl. projecting parts and
controls
Mass
Approx. 2.5 kg
Supplied accessories:
Audio connecting cords
(2)
Design and specifications are subject to change
without notice.
Model Name Using Similar Mechanism
NEW
Tape Transport Mechanism Type
Photo: TC-TX515
• TC-TX313 is the optional stereo cassette
deck that can be used only with section
DHC-MD313.
• TC-TX515 is the optional stereo cassette
deck that can be used only with section
DHC-MD515.
STEREO CASSETTE DECK
SAFETY-RELATED  COMPONENT  WARNING!!
COMPONENTS  IDENTIFIED  BY  MARK  !  OR  DOTTED  LINE
WITH  MARK  !  ON  THE  SCHEMATIC  DIAGRAMS  AND  IN
THE  PARTS  LIST  ARE  CRITICAL  TO  SAFE  OPERATION.
REPLACE  THESE  COMPONENTS  WITH  SONY  PARTS  WHOSE
PART  NUMBERS  APPEAR  AS  SHOWN  IN  THIS  MANUAL  OR
IN  SUPPLEMENTS  PUBLISHED  BY  SONY.
Notes on Chip Component Replacement
• Never reuse a disconnected chip component.
• Notice that the minus side of a tantalum capacitor may be dam-
aged by heat.
Dolby noise reduction manufactured under license from Dolby Labo-
ratories Licensing Corporation.
“DOLBY” and the double-D symbol a are trademarks of Dolby
Laboratories Licensing Corporation.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 2 –
TABLE OF CONTENTS
1. GENERAL
Parts and Controls...................................................................... 3
2. TEST MODE
2-1.   Checking the Items of Test Mode ......................................... 4
3. DISASSEMBLY
3-1.   Top Cover .............................................................................. 5
3-2.   Front Panel Assy ................................................................... 5
3-3.   Front Board (TC-TX313) ...................................................... 6
3-4.   Panel Board (TC-TX515)...................................................... 6
3-5.   Back Plate ............................................................................. 7
3-6.   Bracket (Power Trans) .......................................................... 7
3-7.   Main Board ........................................................................... 8
3-8.   TCM Assy ............................................................................. 8
3-9.   Lever ..................................................................................... 9
3-10. Tension Spring....................................................................... 9
3-11. Housing ............................................................................... 10
3-12. Chassis ................................................................................ 10
3-13. Motor (A)/(B) Assy ..............................................................11
3-14. Head Plate ............................................................................11
3-15. Pinch Roller Assy ................................................................ 12
3-16. Bracket (Head Unit) ............................................................ 12
4. MECHANICAL ADJUSTMENTS ................................. 13
5. ELECTRICAL ADJUSTMENTS................................... 13
6. DIAGRAMS
6-1.   Circuit Boards Location ...................................................... 16
6-2.   Printed Wiring Board –Deck Section– ................................ 17
6-3.   Schematic Diagram –Deck Section–................................... 18
6-4.   Printed Wiring Boards –Main Section– .............................. 20
6-5.   Schematic Diagram –Main Section–................................... 23
6-6.   Printed Wiring Boards –Front Panel Section– .................... 27
6-7.   Schematic Diagram –Front Panel Section–......................... 29
6-8.   IC Pin Description ............................................................... 31
7. EXPLODED VIEWS
7-1.   Top Cover Section ............................................................... 33
7-2.   Front Panel Section (TC-TX313) ........................................ 34
7-3.   Front Panel Section (TC-TX515) ........................................ 35
7-4.   Chassis Section ................................................................... 36
7-5.   TCM Assy Section .............................................................. 37
8. ELECTRICAL PARTS LIST........................................... 38
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 3 –

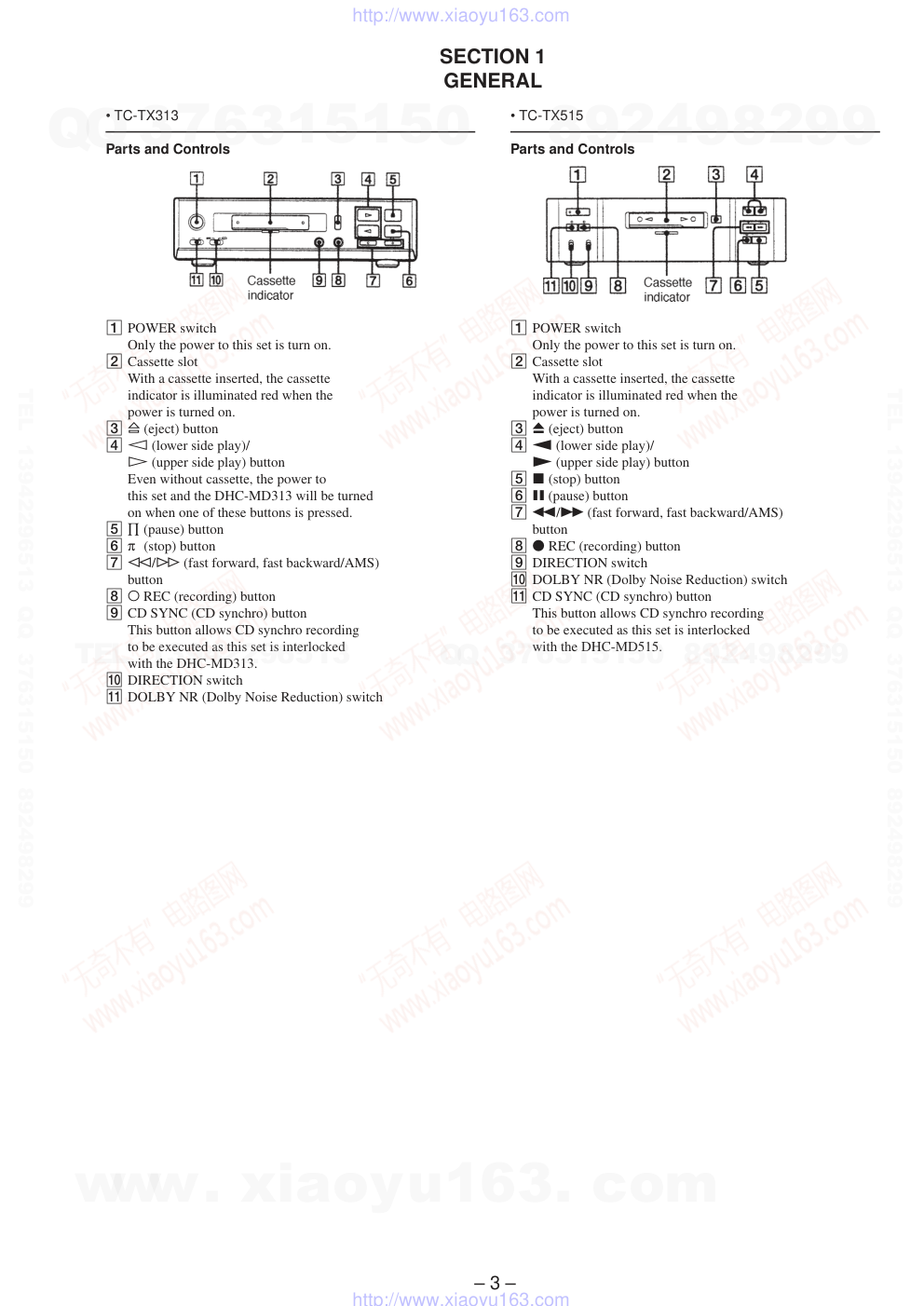

SECTION 1
GENERAL
• TC-TX313
Parts and Controls
• TC-TX515
Parts and Controls
1 POWER switch
Only the power to this set is turn on.
2 Cassette slot
With a cassette inserted, the cassette
indicator is illuminated red when the
power is turned on.
3 § (eject) button
4 ª (lower side play)/
· (upper side play) button
Even without cassette, the power to
this set and the DHC-MD313 will be turned
on when one of these buttons is pressed.
5 ∏ (pause) button
6 π  (stop) button
7 º/‚ (fast forward, fast backward/AMS)
button
8 ® REC (recording) button
9 CD SYNC (CD synchro) button
This button allows CD synchro recording
to be executed as this set is interlocked
with the DHC-MD313.
!º DIRECTION switch
!¡ DOLBY NR (Dolby Noise Reduction) switch
1 POWER switch
Only the power to this set is turn on.
2 Cassette slot
With a cassette inserted, the cassette
indicator is illuminated red when the
power is turned on.
3 6 (eject) button
4 9 (lower side play)/
( (upper side play) button
5 p (stop) button
6 P (pause) button
7 0/) (fast forward, fast backward/AMS)
button
8 r REC (recording) button
9 DIRECTION switch
!º DOLBY NR (Dolby Noise Reduction) switch
!¡ CD SYNC (CD synchro) button
This button allows CD synchro recording
to be executed as this set is interlocked
with the DHC-MD515.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 4 –

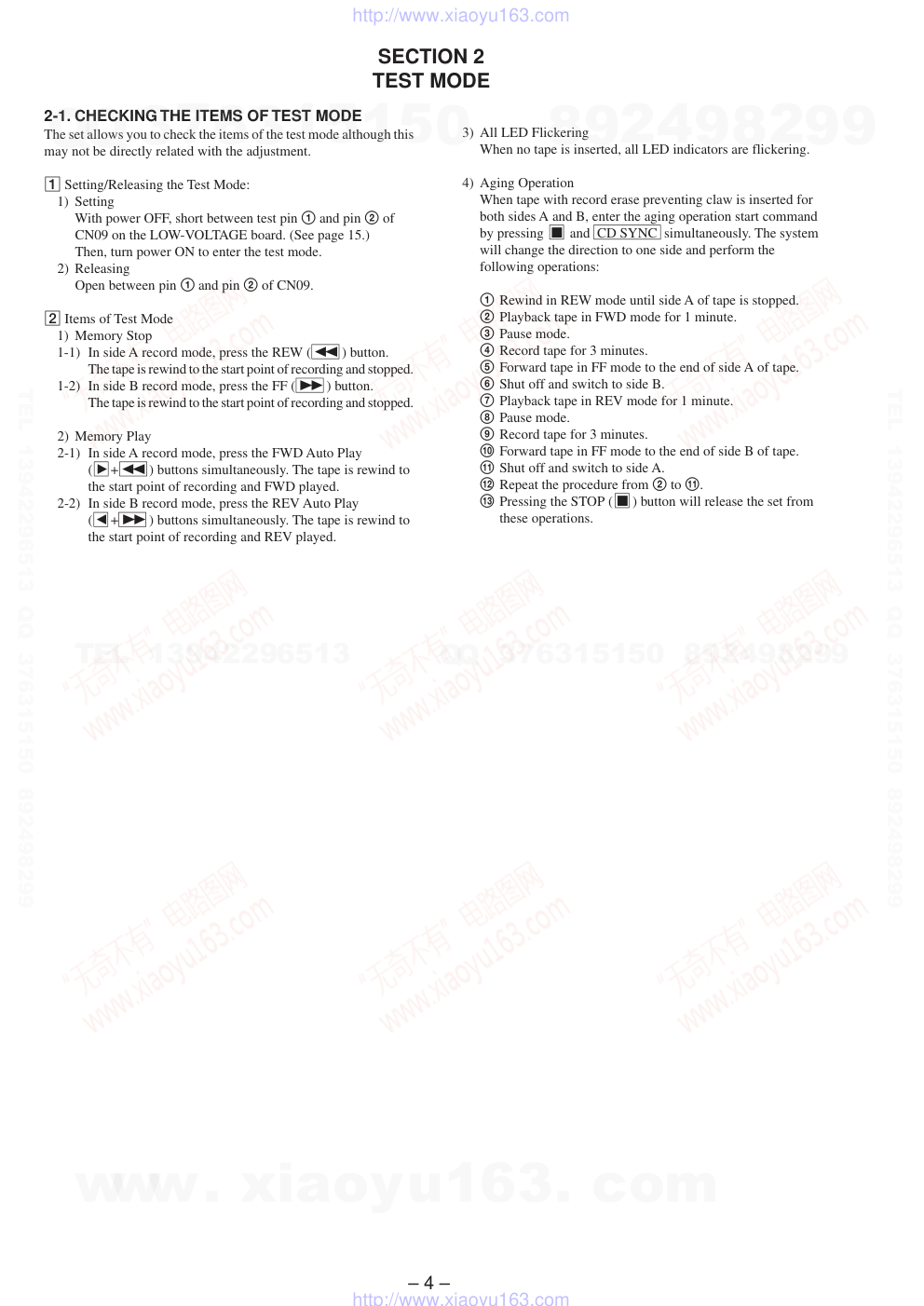

SECTION 2
TEST MODE
2-1. CHECKING THE ITEMS OF TEST MODE
The set allows you to check the items of the test mode although this
may not be directly related with the adjustment.
1 Setting/Releasing the Test Mode:
1) Setting
With power OFF, short between test pin 1 and pin 2 of
CN09 on the LOW-VOLTAGE board. (See page 15.)
Then, turn power ON to enter the test mode.
2) Releasing
Open between pin 1 and pin 2 of CN09.
2 Items of Test Mode
1) Memory Stop
1-1) In side A record mode, press the REW ( 0 ) button.
The tape is rewind to the start point of recording and stopped.
1-2) In side B record mode, press the FF ( ) ) button.
The tape is rewind to the start point of recording and stopped.
2) Memory Play
2-1) In side A record mode, press the FWD Auto Play
( ” + 0 ) buttons simultaneously. The tape is rewind to
the start point of recording and FWD played.
2-2) In side B record mode, press the REV Auto Play
( “ + ) ) buttons simultaneously. The tape is rewind to
the start point of recording and REV played.
3) All LED Flickering
When no tape is inserted, all LED indicators are flickering.
4) Aging Operation
When tape with record erase preventing claw is inserted for
both sides A and B, enter the aging operation start command
by pressing  p  and  CD SYNC  simultaneously. The system
will change the direction to one side and perform the
following operations:
1 Rewind in REW mode until side A of tape is stopped.
2 Playback tape in FWD mode for 1 minute.
3 Pause mode.
4 Record tape for 3 minutes.
5 Forward tape in FF mode to the end of side A of tape.
6 Shut off and switch to side B.
7 Playback tape in REV mode for 1 minute.
8 Pause mode.
9 Record tape for 3 minutes.
!º Forward tape in FF mode to the end of side B of tape.
!¡ Shut off and switch to side A.
!™ Repeat the procedure from 2 to !¡.
!£ Pressing the STOP ( p ) button will release the set from
these operations.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 5 –
SECTION 3
DISASSEMBLY
Note : Follow the disassembly procedure in the numerical order given.
3-1. TOP COVER
3-2. FRONT PANEL ASSY
1 screws (case 3 TP2)
3 top cover
2 screws (case 3 TP2)
1 CN6
2 BVTT 3x8
3 claw
4 claw
5 front panel assy
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 6 –

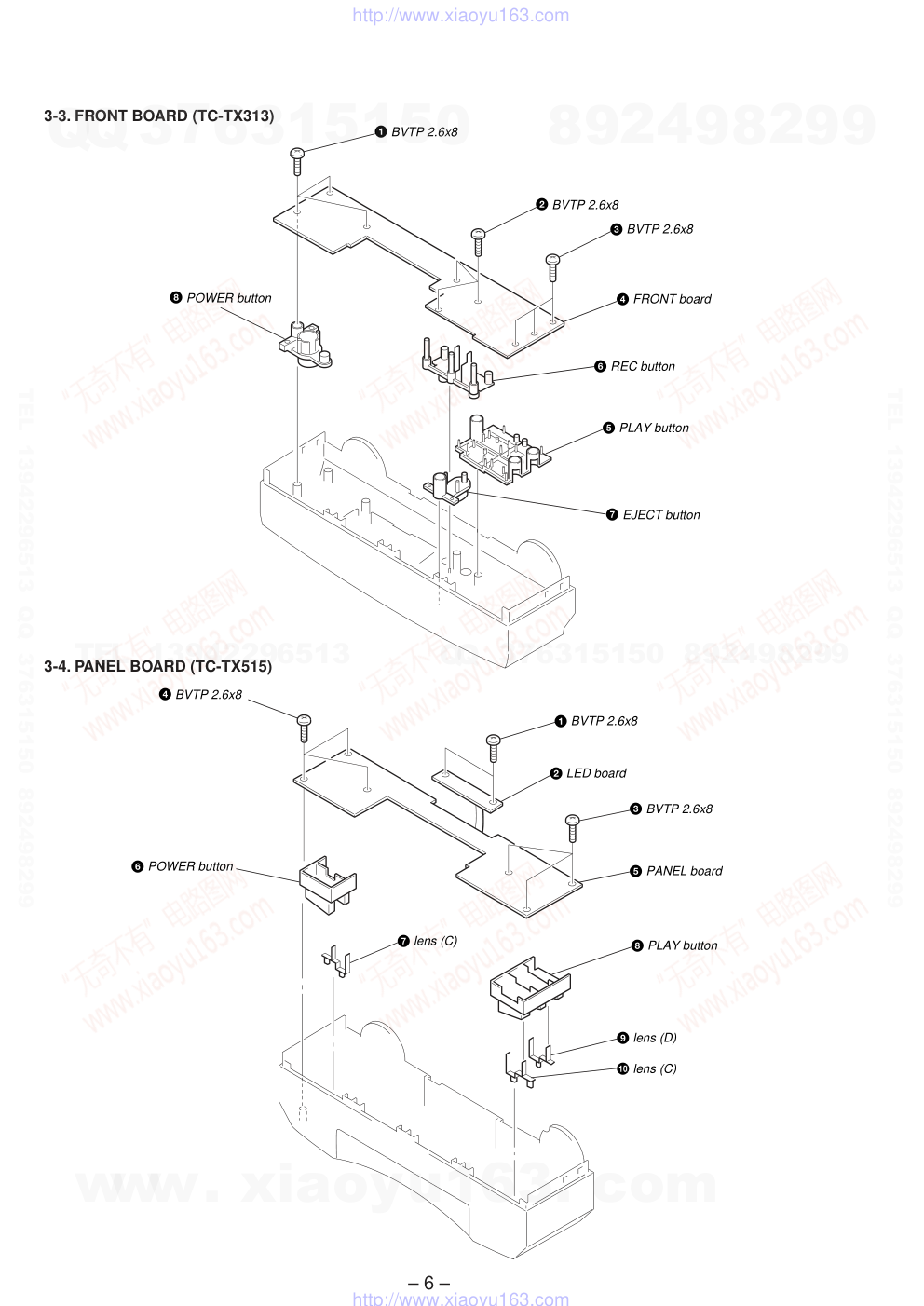

3-3. FRONT BOARD (TC-TX313)
3-4. PANEL BOARD (TC-TX515)
3 BVTP 2.6x8
1 BVTP 2.6x8
4 BVTP 2.6x8
5 PANEL board
2 LED board
8 PLAY button
6 POWER button
9 lens (D)
!º lens (C)
7 lens (C)
1 BVTP 2.6x8
2 BVTP 2.6x8
3 BVTP 2.6x8
4 FRONT board
6 REC button
5 PLAY button
7 EJECT button
8 POWER button
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 7 –

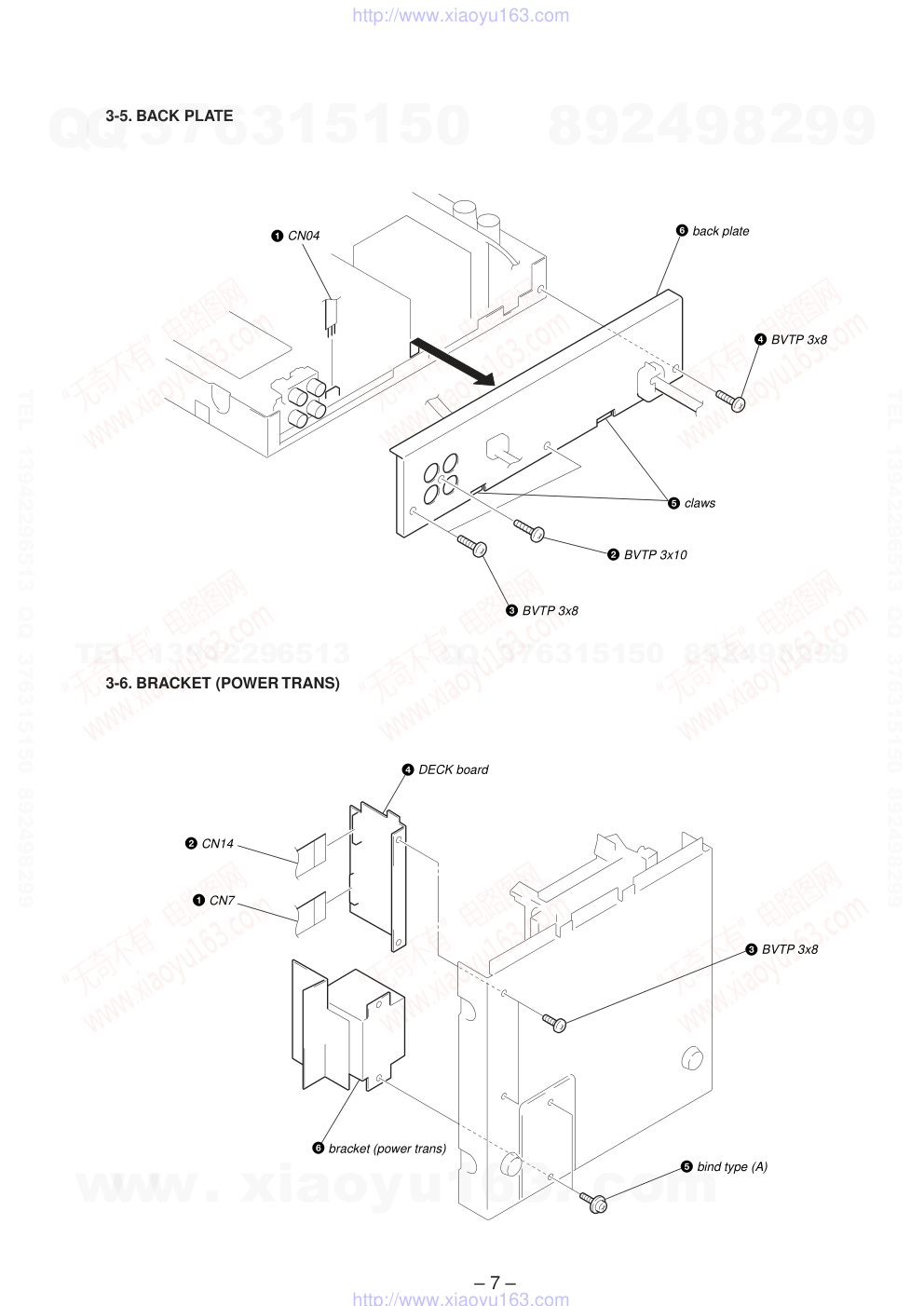

3-5. BACK PLATE
3-6. BRACKET (POWER TRANS)
4 BVTP 3x8
5 claws
2 BVTP 3x10
3 BVTP 3x8
1 CN04
6 back plate
5 bind type (A)
6 bracket (power trans)
2 CN14
1 CN7
4 DECK board
3 BVTP 3x8
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 8 –

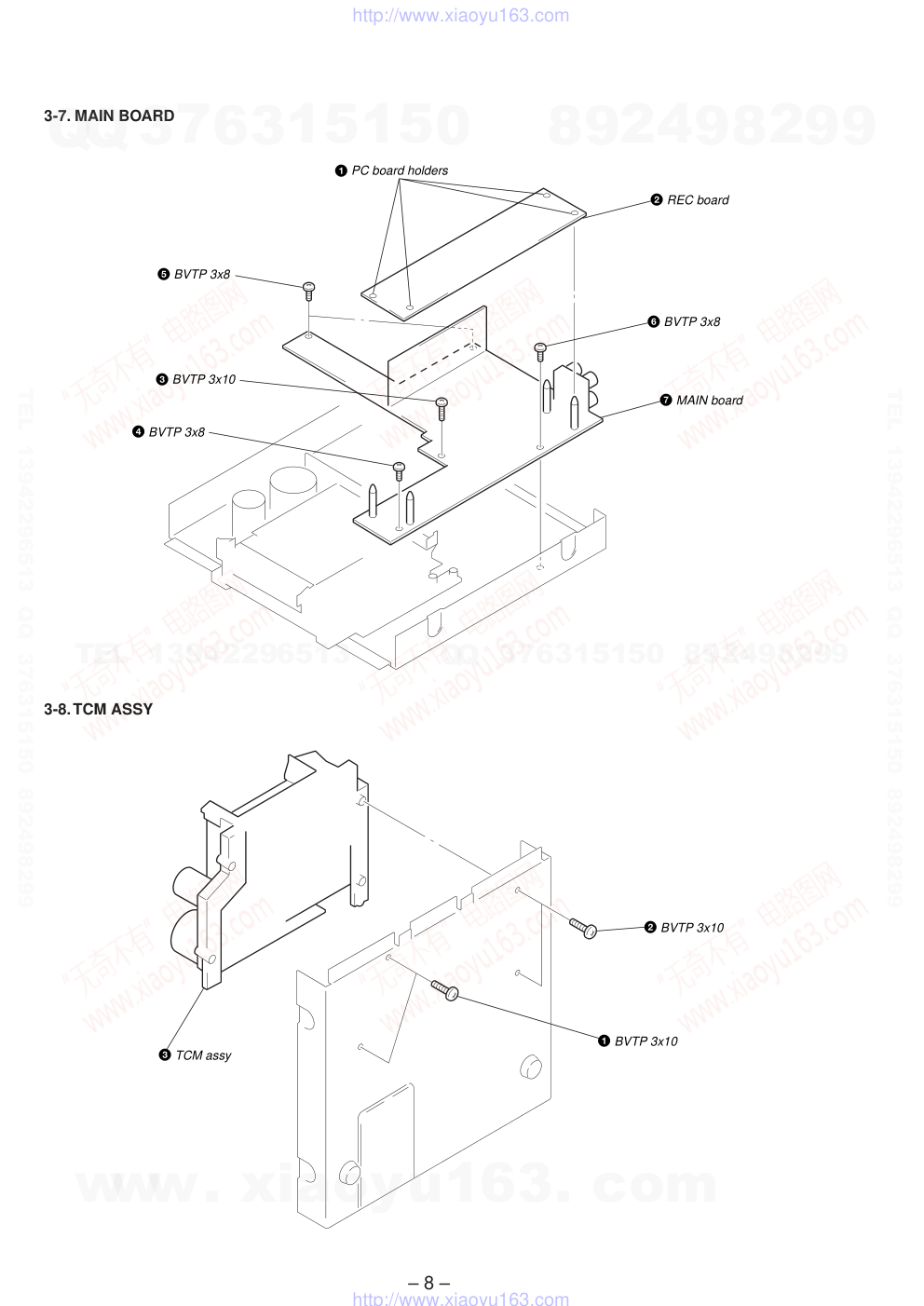

3-7. MAIN BOARD
3-8. TCM ASSY
6 BVTP 3x8
5 BVTP 3x8
3 BVTP 3x10
4 BVTP 3x8
2 REC board
1 PC board holders
7 MAIN board
2 BVTP 3x10
1 BVTP 3x10
3 TCM assy
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 9 –

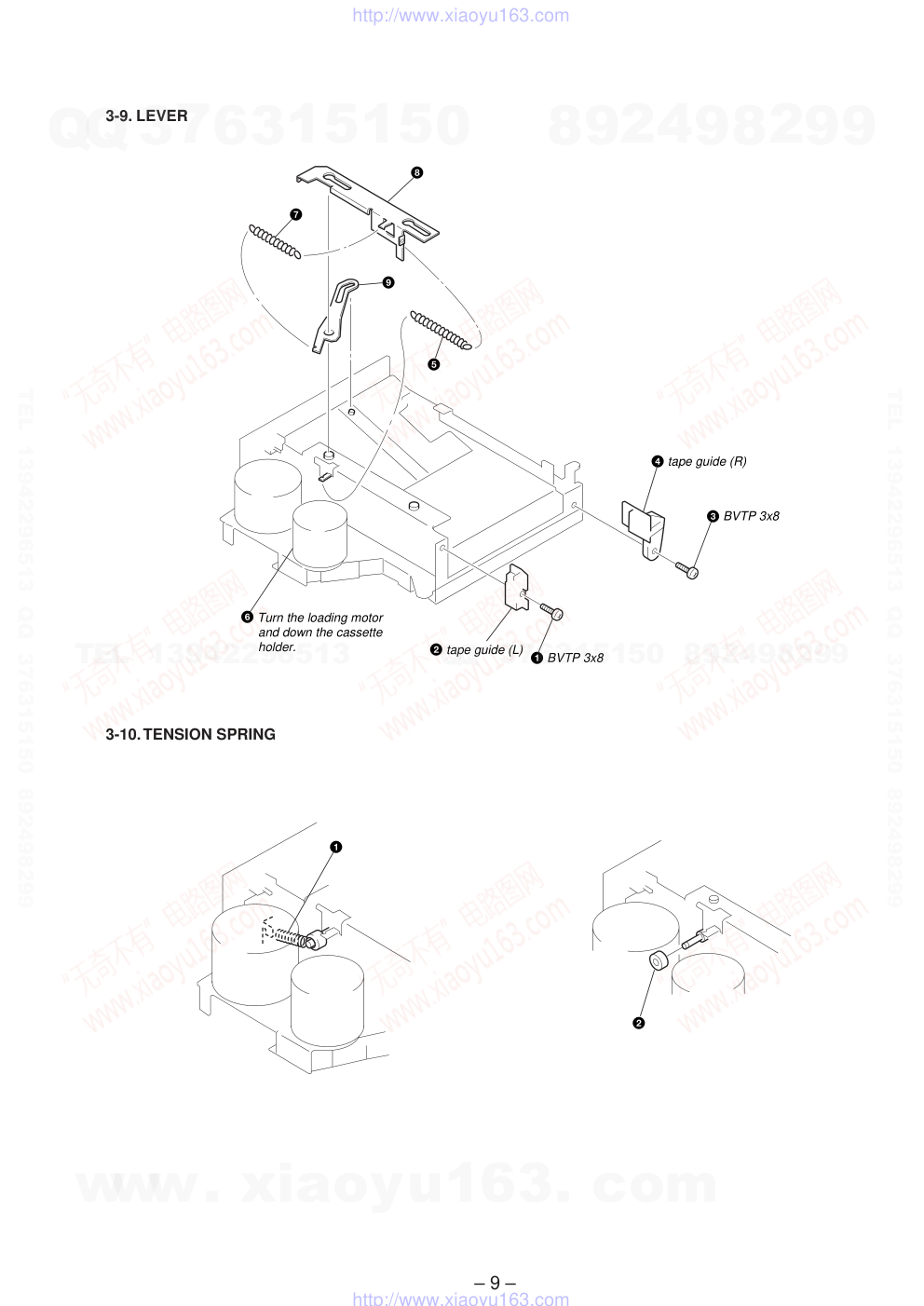

3-9. LEVER
3-10. TENSION SPRING
3 BVTP 3x8
1 BVTP 3x8
4 tape guide (R)
2 tape guide (L)
6 Turn the loading motor
     and down the cassette
     holder.
5
9
8
7
1
2
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 10 –

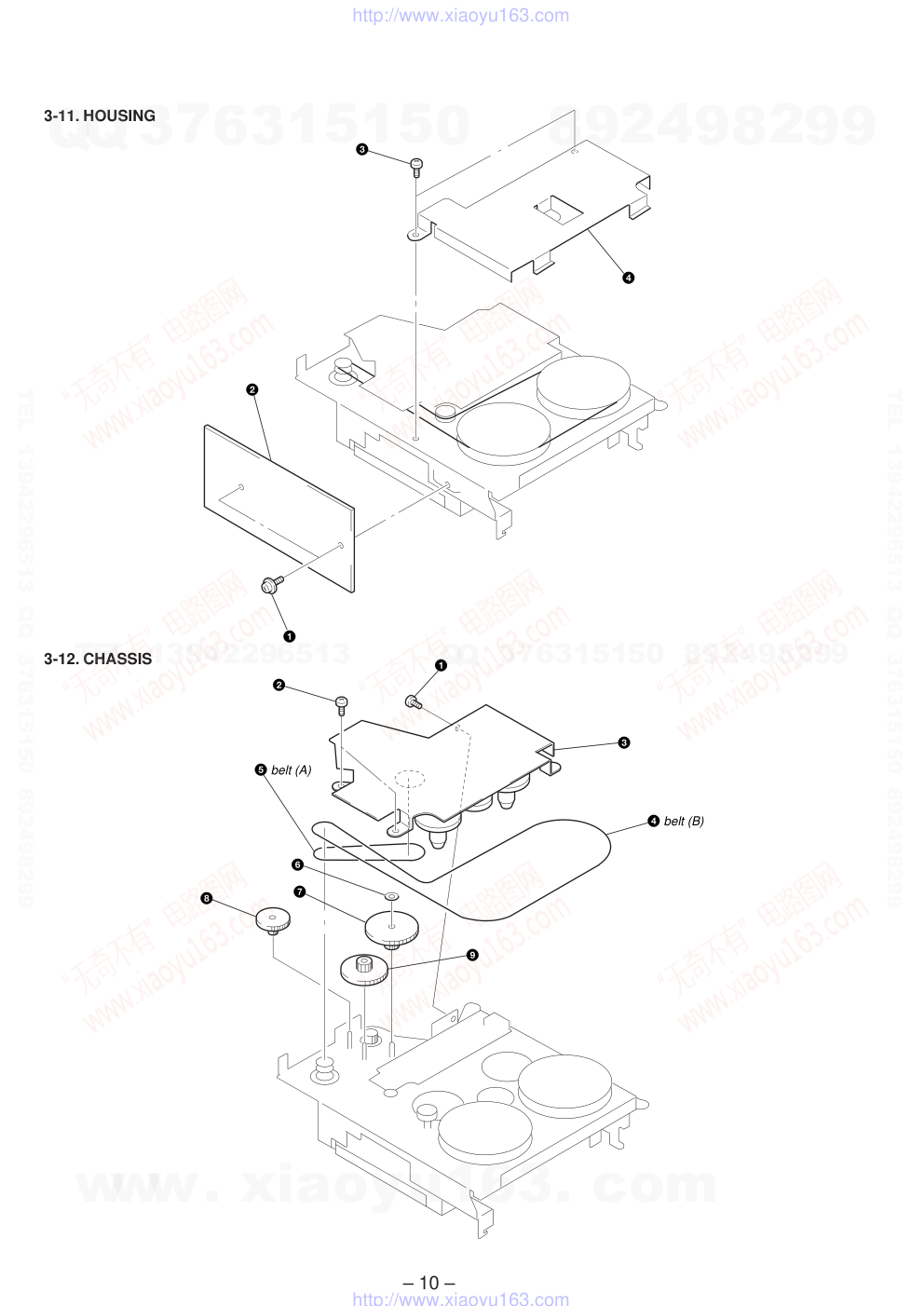

3-11. HOUSING
3-12. CHASSIS
3
4
2
1
4 belt (B)
5 belt (A)
3
1
2
6
7
8
9
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 11 –
3-13. MOTOR (A)/(B) ASSY
3-14. HEAD PLATE
4 motor (B) assy
2 motor (A) assy
1
3
A
3
1
B
2
Note : On install, set the portions A and B.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 12 –
3-15. PINCH ROLLER ASSY
3-16. BRACKET (HEAD UNIT)
3 bracket (head unit)
2
1
2
4
5
3 pinch roller assy (R)
6 pinch roller assy (F)
1
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 13 –
PRECAUTION
1.
Clean the following parts with a denatured-alcohol-moistened
swab :
record/playback/erase head
pinch roller
rubber belts
capstan
idlers
2.
Demagnetize the record/playback/erase head with a head
demagnetizer. (Do not bring the head demagnetizer close to the
erase head.)
3.
Do not use a magnetized screwdriver for the adjustments.
4.
After the adjustments, apply suitable locking compound to the
parts adjusted.
5.
The adjustments should be performed with the rated power
supply voltage unless otherwise noted.
Torque Measurement
Mode
Torque Meter
Meter Reading
35 – 80 g • cm
FWD
CQ-102C
(0.49 – 1.11 oz • inch)
FWD
1 – 7 g • cm
Back tension
(0.012 – 0.097 oz • inch)
35 – 80 g • cm
REV
CQ-102RC
(0.49 – 1.11 oz • inch)
REV
1 – 7 g • cm
Back tension
(0.012 – 0.097 oz • inch)
more than 40 g • cm
FF, REW
CQ-201B
(more than 0.56 oz • inch)
SECTION 5
ELECTRICAL ADJUSTMENTS
SECTION 4
MECHANICAL ADJUSTMENTS
PRECAUTION
1.
The adjustment should be performed in the publication.
(Be sure to male playback adjustment at first.)
2.
The adjustments and measurement should be performed for both
L-CH and R-CH.
• Switch position
DOLBY NR switch : OFF
DIRECTION switch : A
Standard Input Level
Input terminal
TAPE IN
source impedance
10 kΩ
input signal level
0.49 V (– 4 dB)
Standard Output Level
Output terminal
TAPE OUT (L-CH)
load impedance
47 kΩ
output signal level
0.49 V (– 4 dB)
Test Tape
Type
Signal
Used for
P-4-A100
10 kHz, –10 dB
Azimuth Adjustment
P-4-L300
315 Hz, 0 dB
PB Level Adjustment
WS-48A
3 kHz, 0 dB
Tape Speed Adjustment
0 dB = 0.775 V
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 14 –
TAPE IN
315 Hz, 0.49 V (– 4 dB)
TAPE IN
1) 315 Hz
2) 10 kHz
43.6 mV (– 25 dB)
TAPE OUT
Record Bias Adjustment
Setting :
Set to the TEST mode. (See page 4.)
Procedure :
1.
Mode: Record
speed checker
or
frequency counter
47 k Ω
set
test tape
WS-48A
(3 kHz, 0 dB)
Tape Speed Adjustment
Procedure :
1.
Mode: FWD playback
Adjustment Limits : normal speed
Speed checker
Frequency counter
– 3 to + 3 %
2,910 to 3,090 Hz
Confirm that the deviation between tape top and tape end is within
3%.
Adjustment Location : Capstan motor volume (See page 15.)
Sample Value of Wow and flutter
W. RMS (JIS) within 0.3%
(test tape : WS-48A)
Playback Level Adjustment
Procedure :
1.
Mode: FWD playback
2.
Adjust SFR03 (L-CH) and SFR04 (R-CH) on MAIN board
so that the reading on level meter meets the adjustment limits
below.
Adjustment Limits :
TAPE OUT level
Level difference
between channels
– 4 ± 2 dB (0.39 to 0.62 V)
within 2 dB
Check that the TAPE OUT level does not change even if Playback
and Stop operation is repeated several times.
Adjustment Location : MAIN board (See page 15.)
TAPE OUT
level meter
47 k Ω
set
test tape
P-4-L300
(315 Hz, 0 dB)
2.
Mode: Playback
3.
Confirm playback the signal recorded in step 1 become
adjustment level as follows.
4.
If these levels do not adjustment level, adjust SFR01 (L-CH)
and SFR02 (R-CH) on REC board to repeat step 1 and 2.
Adjustment Level : Difference of playback output of 10 kHz to
playback output of 315 Hz : 0 ± 0.5 dB
Adjustment Location : REC board (See page 15.)
Record Level Adjustment
Setting :
Set to the TEST mode. (See page 4.)
Procedure :
1.
Mode: Record
2.
Mode: Playback
3.
Confirm playback the signal recorded in step 1 become
adjustment level as follows.
4.
If these levels do not adjustment level, adjust SFR11 (L-CH)
and SFR12 (R-CH) on REC board to repeat step 1 and 2.
Adjustment Level : Playback output level of 315 Hz :
– 4 ± 2 dB (0.39 to 0.62 V)
Adjustment Location : REC board (See page 15.)
TAPE OUT
TAPE OUT
level meter
47 k Ω
set
recorded portion
AF OSC
attenuator
10 k Ω
set
600 Ω
blank tape
CS-123
AF OSC
attenuator
10 k Ω
set
600 Ω
blank tape
CS-123
level meter
47 k Ω
set
recorded portion
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 15 –
IC02
CN03
CN11
CN03
CN10
CN05
SFR04
PLAYBACK
LEVEL
ADJ
(R-CH)
SFR03
PLAYBACK
LEVEL
ADJ
(L-CH)
SFR11
RECORD
LEVEL
ADJ
(L-CH)
SFR12
RECORD
LEVEL
ADJ
(R-CH)
M1
CAPSTAN
/REEL
MOTOR
CN09
TEST MODE
TAPE
SPEED
ADJ
M2
LOADING
MOTOR
MECHANISM
DECK
SFR02
RECORD
BIAS
ADJ
(R-CH)
SFR01
RECORD
BIAS
ADJ
(L-CH)
Adjustment Location :
– MAIN board (component side) –
– LOW-VOLTAGE board
  (component side) –
– REC board
  (component side) –
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 16 –
SECTION 6
DIAGRAMS
6-1. CIRCUIT BOARDS LOCATION
• TC-TX313
TRANSFORMER board
SLIDE SW board (Singapore, Malaysia,
Hong Kong model)
LOW-VOLTAGE board
AMS board
REC board
MAIN board
MOTOR board
FRONT board
DECK board
POWER board
TRANSFORMER board
LOW-VOLTAGE board
AMS board
REC board
MAIN board
MOTOR board
LED board
PANEL board
DECK board
POWER board
SLIDE SW board (Singapore, Malaysia,
Hong Kong model)
• TC-TX515
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
w
w
w
.
x
i a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
w
w
w
.
x
i
a
o
y
u
1
6
3
.
c
o
m
Q
Q
3
7
6
3
1
5
1
5
0
9
9
2
8
9
4
2
9
8
T
E
L
1
3
9
4
2
2
9
6
5
1
3
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 31 –
6-8. IC PIN DESCRIPTION
• IC04 µPD75108GF-N14-3BE (SYSTEM CONTROL)
Pin No.
Pin Name
I/O
Pin Description
1
RVS REC RELAY
O
RVS REC relay control output (Not used in this set.)
2
FWD REC RELAY
O
FWD REC relay control output (Not used in this set.)
3
RVS PLAY RELAY
O
RVS PLAY relay control output (Not used in this set.)
4
FWD PLAY RELAY
O
FWD PLAY relay control output (Not used in this set.)
5
POWER OUT
O
Power output (Not used in this set.)
6
AMS OUT
O
AMS gain control output (Not used in this set.)
7
RESET
I
Reset input (L : Reset)
8
XTAL
—
Oscillator circuit (4.19 MHz)
9
XTAL
—
Oscillator circuit (4.19 MHz)
10
NR OUT
O
Noise reduction signal output (Not used in this set.)
11
REC/PB
O
REC/PB select output (H : REC, L : PB)
12
F/R
O
RVS/FWD select output (H : RVS, L : FWD) (Not used in this set.)
13
BIAS
O
Bias oscillation control output (H : ON, L : OFF)
14
LINE MUTE
O
Line mute control output (H : OFF, L : ON)
15
PB.MUTE
O
PB mute control output (H : OFF, L : ON)
16
REC.MUTE
O
REC mute control output (H : OFF, L : ON)
17
TAPE 4
O
REC equalizer select output (H : METAL) (Not used in this set.)
18
TAPE 2
O
REC equalizer select output (H : CrO2)
19
TAPE 1
O
REC equalizer select output (H : NORMAL)
20
M.FWD
O
Reel motor forward direction rotation output
21
M.REV
O
Reel motor reverse direction rotation output
22
H.SPEED
O
Tape speed control output
23
L+
O
Loading motor forward direction rotation output
24
L-
O
Loading motor reverse direction rotation output
25
AU BUS OUT
O
AU BUS signal output
26
VSS
—
Ground
27
F.REC
I
Mechanism deck FWD REC PROOF claw detection signal input (H : REC inhibit)
28
R.REC
I
Mechanism deck RVS REC PROOF claw detection signal input (H : REC inhibit)
29
PACK IN
I
Loading detection signal input
30
AU BUS IN
I
AU BUS signal input
31
AMS IN
I
AMS signal input
32
KEY 1
I
Key switch input 1
33
KEY 0
I
Key switch input 0
34
S.PLAY MODE
I
Mechanism deck tape position detection signal input
35
F.REEL
I
Mechanism deck FWD reel sensor detection signal input
36
R.REEL
I
Mechanism deck RVS reel sensor detection signal input
37
MODE SEL
I
Connect to Ground in this set.
38
CrO2
I
Mechanism deck CrO2 switch input
39
TAPE IN
I
Mechanism deck HALF switch input
40
TEST PIN
I
Input for test mode. (L : Test mode)
41
NC
I
Connect to Ground in this set.
42, 43
NC
O
Not used in this set.
44
POWER DOWN IN
I
Power detection input
45
NR.LED
O
NR LED output (Not used in this set.)
46
PB.LED
O
PLAYBACK LED output (Not used in this set.)
47
TAPE.LED
O
Tape indicator LED output
48
CD SYC.LED
O
CD SYNC LED output
49
REC.LED
O
REC LED output
50
>>.LED
O
) LED output
51
<<.LED
O
0 LED output
52
PAUSE.LED
O
PAUSE LED output
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 32 –
Pin No.
Pin Name
I/O
Pin Description
53
>.LED
O
” LED output
54
<.LED
O
“ LED output
55
POWER(GRN)LED
O
POWER LED output
56
POWER(RED)LED
O
POWER LED output (Not used in this set.)
57
NC
—
Not used in this set.
58
VDD
—
Power supply pin
59 – 61
NC
—
Not used in this set.
62
REC/PB
O
REC/PB select output (H : REC, L : PB)
63, 64
NC
—
Not used in this set.
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 33 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
SECTION 7
EXPLODED VIEWS
N
N
NOTE:
• The mechanical parts with no reference
number in the exploded views are not supplied.
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• Color Indication of Appearance Parts
Example :
KNOB, BALANCE (WHITE) ... (RED)
Parts Color  Cabinet’s Color
• Accessories and packing materials and
hardware (# mark) list are given in
the last of this parts list.
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
7-1. TOP COVER SECTION
1
7-685-872-09
SCREW +BVTT 3X8 (S)
2
4-951-620-01
SCREW (2.6X8), +BVTP
3
3-363-099-51
SCREW (CASE 3 TP2)
* 4
3-020-436-01
TAPE GUIDE (L)
* 5
3-020-437-01
TAPE GUIDE (R)
* 6
3-020-400-01
TOP COVER (TX515)
* 6
3-021-541-01
TOP COVER (TX313)
A
A
1
3
3
6
2
5
2
4
1
TC-TX515
TC-TX313
A
• Abbreviation
SP
: Singapore model
MY : Malaysia model
HK
: Hong Kong model
JE
: Tourist model
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 34 –
7-2. FRONT PANEL SECTION
(TC-TX313)
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
51
3-021-944-01
FRONT PANEL
52
3-021-557-01
DOLBY KNOB
53
3-020-421-01
SWITCH PAD
54
3-021-555-01
DOOR CASSETTE
55
3-020-419-01
DOOR SPRING
56
3-021-556-01
POWER BUTTON
57
3-021-559-01
EJECT BUTTON
58
3-021-570-01
REC.BUTTON
59
3-021-558-01
PLAY BUTTON
* 60
A-2007-757-A FRONT BOARD, COMPLETE
61
4-951-620-01
SCREW (2.6X8), +BVTP
62
3-020-401-01
FOOT (FRONT)
63
3-021-564-01
DIRECTION KNOB
64
3-021-565-01
KNOB PAD
65
4-962-708-01
EMBLEM (4-A), SONY
66
3-021-560-01
POWER LENS
67
3-021-572-01
EVA SHEET (A)
68
3-021-567-01
TAPE INDICATOR
69
3-021-571-01
PVC SHEET (B)
70
3-021-569-01
REC.LENS
71
3-021-568-01
CD SYNCHRO LENS
72
3-021-566-01
PVC SHEET (A)
73
3-021-562-01
PLAY BUTTON LENS (B)
74
3-021-561-01
PLAY BUTTON LENS (A)
75
3-022-176-01
BRACKET (FLEXIBLE D)
61
61
60
67
73
74
68
69
59
58
57
54
55
53
52
53
71 70
72
56
66
51
64
62
65
75
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 35 –
7-3. FRONT PANEL SECTION
(TC-TX515)
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
101
3-020-398-01
FRONT WINDOW
102
3-020-401-01
FOOT (FRONT)
103
3-020-963-01
BRACKET (FLEXIBLE C)
104
3-020-413-01
LENS (A)
105
3-020-414-01
LENS (B)
106
3-020-409-01
POWER BUTTON
107
3-020-411-01
PLAY BUTTON
108
3-020-408-01
DOOR CASSETTE
109
3-020-419-01
DOOR SPRING
110
3-020-422-01
KNOB PAD
111
3-020-410-01
DOLBY KNOB
112
3-020-418-01
DIRECTION KNOB
113
3-020-421-01
SWITCH PAD
* 114
A-2056-697-A PANEL BOARD, COMPLETE
115
4-951-620-01
SCREW (2.6X8), +BVTP
116
A-2004-639-A PANEL ASSY, FRONT
117
3-020-415-01
LENS (C)
118
3-020-416-01
LENS (D)
119
3-020-417-01
POWER INDICATOR
115
114 (including p )
110
112
111
113
113
103
116
106
117
108
109
115
115
p (LED board)
104
105
119
101
102
118
117
107
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 36 –
7-4. CHASSIS SECTION
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
155
170
173
176
164
155
173
170
172
155
152
TC-TX313
TC-TX515
168
152
167
169
155
155 171
174
166
155
165
158
152
165
154
153
152 TCM ASSY
152
175
175
155
151
PT301
152
162
181
161
157
155
155
155
(SP, MY, HK, JE)
155
178
177
156
159160
152
155
163
175
181
155
179
180
182
180
175
155
not supplied
SP, MY, HK, JE
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
* 151
A-2007-767-A MAIN BOARD, COMPLETE (SP,MY,HK,JE)
* 151
A-2056-691-A MAIN BOARD, COMPLETE (AEP,UK,US)
152
7-685-647-79
SCREW +BVTP 3X10 TYPE2 N-S
* 153
3-020-425-01
DECK CHASSIS (L)
* 154
3-020-434-01
DECK CHASSIS (R)
155
7-685-646-79
SCREW +BVTP 3X8 TYPE2 N-S
* 156
3-021-912-01
BACK PLATE (TX515:AEP,UK)
* 156
3-021-924-01
BACK PLATE (TX515:SP,MY,HK,JE)
* 156
3-021-943-01
BACK PLATE (TX313:AEP,UK)
* 156
3-021-968-01
BACK PLATE (TX313:SP,MY,HK)
* 156
3-024-252-01
BACK PLATE (TX515:US)
157
3-020-432-01
CORD STOPPER
!158
3-021-914-01
BRACKET (AC CORD) (EXCEPT UK,US)
!158
3-021-917-01
BRACKET (AC CORD) (UK)
!158
3-021-977-01
BRACKET (AC CORD) (US)
159
3-020-426-01
CORD BUSHING
160
3-020-433-01
BRACKET (3P WIRE) (AU BUS)
161
3-020-440-01
BIND TYPE (A)
162
3-020-399-01
FOOT (REAR)
* 163
3-020-428-01
BOTTOM PLATE
164
3-020-961-01
BRACKET (FLEXIBLE A) (TX515)
* 165
3-020-435-01
PC BOARD HOLDER
* 166
1-668-648-11
AMS BOARD (AEP,UK,US)
* 166
1-669-045-11
AMS BOARD (SP,MY,HK,JE)
* 167
1-668-652-11
TRANSFORMER BOARD (AEP,UK,US)
* 167
1-669-043-11
TRANSFORMER BOARD (SP,MY,HK,JE)
* 168
1-668-649-11
POWER BOARD (AEP,UK,US)
* 168
1-669-047-11
POWER BOARD (SP,MY,HK,JE)
* 169
A-2007-768-A REC BOARD, COMPLETE (SP,MY,HK,JE)
* 169
A-2056-692-A REC BOARD, COMPLETE (AEP,UK,US)
* 170
1-668-651-11
DECK BOARD (AEP,UK,US)
* 170
1-669-046-11
DECK BOARD (SP,MY,HK,JE)
* 171
1-668-650-11
LOW-VOLTAGE BOARD (AEP,UK,US)
* 171
1-669-044-11
LOW-VOLTAGE BOARD (SP,MY,HK,JE)
* 172
3-020-439-01
BOTTOM COVER
173
3-020-962-01
BRACKET (FLEXIBLE B)
* 174
3-020-429-01
BACK PLATE BRACKET (A)
175
3-020-438-01
HEMELON WASHER
176
3-021-552-01
BRACKET (FLEXIBLE A) (TX313)
* 177
1-669-048-11
SLIDE SW BOARD (SP,MY,HK,JE)
178
3-021-922-01
SWITCH COVER (SP,MY,HK,JE)
179
3-021-548-01
DECK PC BOARD SHEET (TX313)
180
3-021-550-01
P-RIVET (TX313)
181
3-021-549-01
CUSHION (TX313)
182
3-021-545-01
DECK BRACKET (TX313)
!PT301
3-021-913-01
BRACKET (POWER TRANS) (AEP,UK)
!PT301
3-021-925-01
BRACKET (POWER TRANS) (SP,MY,HK,JE)
!PT301
3-021-976-01
BRACKET (POWER TRANS) (US)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 37 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
7-5. TCM ASSY SECTION
M1
M2
201
205
204
203
202
HRPE101
C
D
B
D
C
B
not supplied
* 201
A-2004-641-A TCM ASSY
202
3-020-444-01
BELT (A)
203
3-020-445-01
BELT (B)
204
3-020-443-01
PINCH ROLLER ASSY (F)
205
3-020-450-01
PINCH ROLLER ASSY (R)
HRPE1013-020-446-01
BRACKET (HEAD UNIT)
M1
3-020-447-01
MOTOR (A) ASSY (REEL/CAPSTAN)
M2
3-020-448-01
MOTOR (B) ASSY (LOADING)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 38 –
SECTION 8
ELECTRICAL PARTS LIST
NOTE:
• Due to standardization, replacements in
the parts list may be different from the
parts specified in the diagrams or the
components used on the set.
• -XX and -X mean standardized parts, so
they may have some difference from the
original one.
• RESISTORS
All resistors are in ohms.
METAL:Metal-film resistor.
METAL OXIDE: Metal oxide-film resistor.
F:nonflammable
• Items marked “*” are not stocked since
they are seldom required for routine service.
Some delay should be anticipated
when ordering these items.
• SEMICONDUCTORS
In each case, u : µ, for example:
uA.. : µA..
uPA.. : µPA..
uPB.. : µPB.. uPC.. : µPC..  uPD.. : µPD..
• CAPACITORS
uF :  µF
• COILS
uH :  µH
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
The components identified by mark
! or dotted line with mark. ! are
critical for safety.
Replace only with part number
specified.
When indicating parts by reference
number, please include the board.
AMS
DECK
• Abbreviation
SP
: Singapore model
MY : Malaysia model
HK
: Hong Kong model
JE
: Tourist model
*
1-668-648-11
AMS BOARD (AEP,UK,US)
*
1-669-045-11
AMS BOARD (SP,MY,HK,JE)
**********
< CAPACITOR >
C55
1-124-907-11
ELECT
10uF
20%
50V
C56
1-124-907-11
ELECT
10uF
20%
50V
C84
1-126-961-11
ELECT
2.2uF
20%
50V
C85
1-162-282-31
CERAMIC
100PF
10%
50V
C86
1-162-217-31
CERAMIC
56PF
5%
50V
C87
1-101-005-00
CERAMIC
22000PF
50V
C88
1-126-961-11
ELECT
2.2uF
20%
50V
< DIODE >
D11
8-719-901-33
DIODE   1SS133
D28
8-719-901-33
DIODE   1SS133
< IC >
IC03
8-759-505-55
IC   NJM4558L
< TRANSISTOR >
Q53
8-729-029-68
TRANSISTOR   DTC114TSA
Q54
8-729-029-68
TRANSISTOR   DTC114TSA
Q55
8-729-029-68
TRANSISTOR   DTC114TSA
Q56
8-729-029-68
TRANSISTOR   DTC114TSA
Q60
8-729-900-65
TRANSISTOR   DTA144ES
Q71
8-729-900-65
TRANSISTOR   DTA144ES
Q72
8-729-119-76
TRANSISTOR   2SA1175-HFE
< RESISTOR >
R107
1-249-417-11
CARBON
1K
5%
1/4W
R108
1-249-417-11
CARBON
1K
5%
1/4W
R109
1-249-417-11
CARBON
1K
5%
1/4W
R110
1-249-417-11
CARBON
1K
5%
1/4W
R153
1-249-440-11
CARBON
82K
5%
1/4W
R154
1-247-879-11
CARBON
100K
5%
1/4W
R155
1-249-436-11
CARBON
39K
5%
1/4W
R156
1-249-432-11
CARBON
18K
5%
1/4W
R157
1-249-417-11
CARBON
1K
5%
1/4W
R158
1-247-879-11
CARBON
100K
5%
1/4W
R159
1-247-855-11
CARBON
10K
5%
1/4W
R166
1-247-871-11
CARBON
47K
5%
1/4W
R185
1-249-427-11
CARBON
6.8K
5%
1/4W
R186
1-247-843-11
CARBON
3.3K
5%
1/4W
*
1-668-651-11
DECK BOARD (AEP,UK,US)
*
1-669-046-11
DECK BOARD (SP,MY,HK,JE)
***********
3-020-961-01
BRACKET (FLEXIBLE A) (TX515)
3-020-962-01
BRACKET (FLEXIBLE B)
3-021-552-01
BRACKET (FLEXIBLE A) (TX313)
< CAPACITOR >
C1A
1-126-963-11
ELECT
4.7uF
20%
50V
C1B
1-164-159-11
CERAMIC
0.1uF
50V
C1C
1-164-159-11
CERAMIC
0.1uF
50V
< CONNECTOR >
* CN07
1-568-835-11
SOCKET, CONNECTOR 16P
CN14
1-580-123-11
SOCKET, CONNECTOR 16P
< DIODE >
D1A
8-719-901-33
DIODE   1SS133
D1B
8-719-901-33
DIODE   1SS133
D1C
8-719-921-80
DIODE   MTZJ-11B
D1D
8-719-901-33
DIODE   1SS133
D1E
8-719-901-33
DIODE   1SS133
D1F
8-719-901-33
DIODE   1SS133
D1G
8-719-901-33
DIODE   1SS133
D1H
8-719-901-33
DIODE   1SS133
D1J
8-719-901-33
DIODE   1SS133
D1K
8-719-921-63
DIODE   MTZJ-7.5B
< IC >
IC1A
8-759-822-09
IC   LB1641
< TRANSISTOR >
Q1A
8-729-188-23
TRANSISTOR   2SD882-P
Q1B
8-729-029-86
TRANSISTOR   DTC124ESA
Q1C
8-729-029-86
TRANSISTOR   DTC124ESA
Q1D
8-729-195-23
TRANSISTOR   2SA952
Q1E
8-729-195-23
TRANSISTOR   2SA952
Q1F
8-729-029-86
TRANSISTOR   DTC124ESA
Q1G
8-729-029-86
TRANSISTOR   DTC124ESA
Q1H
8-729-142-46
TRANSISTOR   2SC2001-LK
Q1J
8-729-142-46
TRANSISTOR   2SC2001-LK
Q1K
8-729-029-94
TRANSISTOR   DTC143TSA
Q1L
8-729-422-57
TRANSISTOR   UN4111
Q1M
8-729-029-86
TRANSISTOR   DTC124ESA
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 39 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
DECK
FRONT
LOW-VOLTAGE
< RESISTOR >
R1A
1-247-825-11
CARBON
560
5%
1/4W
R1B
1-247-879-11
CARBON
100K
5%
1/4W
R1C
1-247-871-11
CARBON
47K
5%
1/4W
R1D
1-249-417-11
CARBON
1K
5%
1/4W
R1E
1-249-417-11
CARBON
1K
5%
1/4W
R1F
1-249-417-11
CARBON
1K
5%
1/4W
R1G
1-249-417-11
CARBON
1K
5%
1/4W
R1H
1-249-417-11
CARBON
1K
5%
1/4W
R1J
1-249-417-11
CARBON
1K
5%
1/4W
R1K
1-247-847-11
CARBON
4.7K
5%
1/4W
*************************************************************
*
A-2007-757-A FRONT BOARD, COMPLETE (TX313)
**********************
*
3-021-575-01
LED COVER (A)
*
3-021-576-01
LED COVER (B)
*
3-021-577-01
LED COVER (C)
3-022-176-01
BRACKET (FLEXIBLE D)
< DIODE >
D851
8-719-028-88
LED   SEL3210S-D-LC05 (CD SYNC)
D852
8-719-028-88
LED   SEL3210S-D-LC05 (r REC)
D853
8-719-047-69
LED   EL204GT (9)
D854
8-719-047-69
LED   EL204GT (()
D855
8-719-028-87
LED   SEL3710K-D-LC05 (P)
D856
8-719-300-79
LED   SEL1213C (TAPE INDICATOR)
D857
8-719-023-78
LED   SEL3810DLC05 () (AMS))
D858
8-719-023-78
LED   SEL3810DLC05 (0 (AMS))
D859
8-719-047-69
LED   EL204GT (POWER)
< RESISTOR >
R853
1-249-411-11
CARBON
330
5%
1/4W
R854
1-249-411-11
CARBON
330
5%
1/4W
R855
1-249-407-11
CARBON
150
5%
1/4W
R856
1-249-409-11
CARBON
220
5%
1/4W
R857
1-249-409-11
CARBON
220
5%
1/4W
R858
1-249-409-11
CARBON
220
5%
1/4W
R861
1-249-416-11
CARBON
820
5%
1/4W
R862
1-249-417-11
CARBON
1K
5%
1/4W
R863
1-249-420-11
CARBON
1.8K
5%
1/4W
R864
1-247-841-11
CARBON
2.7K
5%
1/4W
R865
1-249-416-11
CARBON
820
5%
1/4W
R866
1-249-417-11
CARBON
1K
5%
1/4W
R867
1-249-420-11
CARBON
1.8K
5%
1/4W
R868
1-247-841-11
CARBON
2.7K
5%
1/4W
R869
1-247-847-11
CARBON
4.7K
5%
1/4W
R870
1-249-411-11
CARBON
330
5%
1/4W
R871
1-249-411-11
CARBON
330
5%
1/4W
R872
1-249-409-11
CARBON
220
5%
1/4W
< SWITCH >
S851
1-571-760-11
SWITCH, KEY BOARD (POWER)
S852
1-571-760-11
SWITCH, KEY BOARD (9)
S853
1-571-760-11
SWITCH, KEY BOARD (()
S854
1-571-760-11
SWITCH, KEY BOARD (p)
S855
1-571-760-11
SWITCH, KEY BOARD (P)
S856
1-771-304-11
SWITCH, SLIDE (DIRECTION)
S857
1-571-760-11
SWITCH, KEY BOARD (0 (AMS))
S858
1-571-760-11
SWITCH, KEY BOARD () (AMS))
S859
1-571-760-11
SWITCH, KEY BOARD (r REC)
S860
1-571-760-11
SWITCH, KEY BOARD (CD SYNC)
S861
1-571-760-11
SWITCH, KEY BOARD (6)
S862
1-771-304-11
SWITCH, SLIDE (DOLBY NR)
*************************************************************
*
1-668-650-11
LOW-VOLTAGE BOARD (AEP,UK,US)
*
1-669-044-11
LOW-VOLTAGE BOARD (SP,MY,HK,JE)
*******************
< CAPACITOR >
C62
1-126-941-11
ELECT
470uF
20%
16V
C62A
1-124-907-11
ELECT
10uF
20%
50V
C64
1-126-941-11
ELECT
470uF
20%
16V
C64A
1-124-907-11
ELECT
10uF
20%
50V
C66
1-124-471-00
ELECT
1000uF
20%
6.3V
C66A
1-124-907-11
ELECT
10uF
20%
50V
C66B
1-162-851-11
CERAMIC
0.1uF
10%
16V
C66E
1-162-851-11
CERAMIC
0.1uF
10%
16V
C67
1-126-942-61
ELECT
1000uF
20%
25V
C69A
1-104-664-11
ELECT
47uF
20%
25V
C70
1-164-159-11
CERAMIC
0.1uF
50V
< CONNECTOR >
CN10
1-784-406-11
CONNENTOR, BOARD TO BOARD 8P
< DIODE >
D15
8-719-901-33
DIODE   1SS133
< IC >
IC06
8-759-708-05
IC   NJM78L05A
IC07
8-759-990-36
IC   RC7908FA
IC08
8-759-982-07
IC   RC7808FA
< RESISTOR >
R123
1-247-879-11
CARBON
100K
5%
1/4W
R124
1-247-855-11
CARBON
10K
5%
1/4W
R125
1-249-417-11
CARBON
1K
5%
1/4W
R126
1-260-076-11
CARBON
10
5%
1/2W
************************************************************
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 40 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
MAIN
*
A-2007-767-A MAIN BOARD, COMPLETE (SP,MY,HK,JE)
*
A-2056-691-A MAIN BOARD, COMPLETE (AEP,UK,US)
*********************
3-020-433-01
BRACKET (3P WIRE) (AU BUS)
< CAPACITOR >
C01
1-162-292-31
CERAMIC
680PF
10%
50V
C02
1-162-292-31
CERAMIC
680PF
10%
50V
C03
1-136-157-00
FILM
0.022uF
5%
50V
C04
1-136-157-00
FILM
0.022uF
5%
50V
C05
1-126-941-11
ELECT
470uF
20%
16V
C06
1-126-941-11
ELECT
470uF
20%
16V
C07
1-136-157-00
FILM
0.022uF
5%
50V
C08
1-136-157-00
FILM
0.022uF
5%
50V
C11A
1-161-772-11
CERAMIC
0.1uF
10%
25V
C27
1-126-963-11
ELECT
4.7uF
20%
50V
C28
1-126-963-11
ELECT
4.7uF
20%
50V
C29
1-162-290-31
CERAMIC
470PF
10%
50V
C30
1-162-290-31
CERAMIC
470PF
10%
50V
C31
1-104-664-11
ELECT
47uF
20%
16V
C32
1-104-664-11
ELECT
47uF
20%
16V
C32A
1-126-956-11
ELECT
0.1uF
20%
50V
C51
1-126-963-11
ELECT
4.7uF
20%
50V
C51A
1-124-903-11
ELECT
1uF
20%
50V
C52
1-126-963-11
ELECT
4.7uF
20%
50V
C52A
1-124-903-11
ELECT
1uF
20%
50V
C53
1-136-165-00
FILM
0.1uF
5%
50V
C54
1-136-165-00
FILM
0.1uF
5%
50V
C57
1-124-907-11
ELECT
10uF
20%
50V
C58
1-124-907-11
ELECT
10uF
20%
50V
C59
1-124-907-11
ELECT
10uF
20%
50V
C60
1-124-907-11
ELECT
10uF
20%
50V
C61
1-164-159-11
CERAMIC
0.1uF
50V
C90
1-164-159-11
CERAMIC
0.1uF
50V
C90A
1-104-663-11
ELECT
33uF
20%
16V
C91
1-164-057-11
CERAMIC
30PF
5%
50V
C92
1-164-057-11
CERAMIC
30PF
5%
50V
C95
1-162-294-31
CERAMIC
0.001uF
10%
50V
C96
1-104-664-11
ELECT
47uF
20%
16V
C97
1-104-664-11
ELECT
47uF
20%
16V
C98
1-104-664-11
ELECT
47uF
20%
16V
< CONNECTOR >
CN04
1-574-314-11
CORD (WITH CONNECTOR) (AU BUS)
* CN07
1-568-835-11
SOCKET, CONNECTOR 16P
CN10
1-784-407-11
CONNECTOR, BOARD TO BOARD 8P
< DIODE >
D01
8-719-901-33
DIODE   1SS133
D12
8-719-921-54
DIODE   MTZJ-6.2B
D13
8-719-921-54
DIODE   MTZJ-6.2B
D14
8-719-901-33
DIODE   1SS133
D32
8-719-109-89
DIODE   RD5.6ESB2
D34
8-719-055-76
DIODE   1N4148
D35
8-719-109-72
DIODE   RD3.9ES-B2
< IC >
IC01
8-759-112-93
IC   uPC4570HA-1
IC02
8-752-057-19
IC   CXA1101P
IC04
8-759-497-87
IC   uPD75108GF-N14-3BE
IC05
8-759-165-85
IC   PST600H-T
IC11
8-759-708-05
IC   NJM78L05A
< JACK >
JK1
1-770-614-21
JACK, PIN 4P (TAPE IN/OUT)
< FILTER >
L81
1-234-023-11
FILTER, MPX
L82
1-234-023-11
FILTER, MPX
< TRANSISTOR >
Q05
8-729-194-57
TRANSISTOR   2SC945-P
Q12
8-729-029-86
TRANSISTOR   DTC124ESA
Q13
8-729-029-86
TRANSISTOR   DTC124ESA
Q15
8-729-900-63
TRANSISTOR   DTA124ES
Q51
8-729-029-68
TRANSISTOR   DTC114TSA
Q52
8-729-029-68
TRANSISTOR   DTC114TSA
Q57
8-729-119-78
TRANSISTOR   2SC403SP-51
Q59
8-729-900-65
TRANSISTOR   DTA144ES
Q74
8-729-900-65
TRANSISTOR   DTA144ES
Q76
8-729-119-76
TRANSISTOR   2SA1175-HFE
Q81
8-729-029-68
TRANSISTOR   DTC114TSA
Q82
8-729-029-68
TRANSISTOR   DTC114TSA
< RESISTOR >
R01
1-249-442-11
CARBON
510
5%
1/4W
R05
1-247-881-00
CARBON
120K
5%
1/4W
R06
1-247-881-00
CARBON
120K
5%
1/4W
R07
1-249-404-00
CARBON
82
5%
1/4W
R08
1-249-404-00
CARBON
82
5%
1/4W
R09
1-247-849-11
CARBON
5.6K
5%
1/4W
R10
1-247-849-11
CARBON
5.6K
5%
1/4W
R11
1-247-881-00
CARBON
120K
5%
1/4W
R12
1-247-881-00
CARBON
120K
5%
1/4W
R13
1-249-393-11
CARBON
10
5%
1/4W
R14
1-260-076-11
CARBON
10
5%
1/2W
R15
1-247-855-11
CARBON
10K
5%
1/4W
R16
1-247-855-11
CARBON
10K
5%
1/4W
R17
1-247-839-11
CARBON
2.2K
5%
1/4W
R17A
1-247-847-11
CARBON
4.7K
5%
1/4W
R18
1-247-839-11
CARBON
2.2K
5%
1/4W
R19
1-249-424-11
CARBON
3.9K
5%
1/4W
R20
1-249-424-11
CARBON
3.9K
5%
1/4W
R21
1-247-847-11
CARBON
4.7K
5%
1/4W
R26
1-247-807-11
CARBON
100
5%
1/4W
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 41 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
MAIN
PANEL
LED
R101
1-247-871-11
CARBON
47K
5%
1/4W
R102
1-247-871-11
CARBON
47K
5%
1/4W
R103
1-247-839-11
CARBON
2.2K
5%
1/4W
R104
1-247-839-11
CARBON
2.2K
5%
1/4W
R105
1-247-847-11
CARBON
4.7K
5%
1/4W
R106
1-247-847-11
CARBON
4.7K
5%
1/4W
R111
1-249-431-11
CARBON
15K
5%
1/4W
R112
1-249-431-11
CARBON
15K
5%
1/4W
R113
1-247-855-11
CARBON
10K
5%
1/4W
R114
1-247-855-11
CARBON
10K
5%
1/4W
R115
1-247-870-11
CARBON
43K
5%
1/4W
R116
1-247-855-11
CARBON
10K
5%
1/4W
R117
1-260-111-11
CARBON
10K
5%
1/2W
R118
1-249-393-11
CARBON
10
5%
1/4W
R119
1-249-417-11
CARBON
1K
5%
1/4W
R120
1-249-417-11
CARBON
1K
5%
1/4W
R121
1-247-855-11
CARBON
10K
5%
1/4W
R122
1-260-099-11
CARBON
1K
5%
1/2W
R160
1-247-871-11
CARBON
47K
5%
1/4W
R161
1-247-807-11
CARBON
100
5%
1/4W
R163
1-247-871-11
CARBON
47K
5%
1/4W
R169
1-247-847-11
CARBON
4.7K
5%
1/4W
R169A
1-247-847-11
CARBON
4.7K
5%
1/4W
R171
1-260-119-11
CARBON
47K
5%
1/2W
R173
1-249-393-11
CARBON
10
5%
1/4W
R174
1-249-393-11
CARBON
10
5%
1/4W
R183
1-247-855-11
CARBON
10K
5%
1/4W
R184
1-247-855-11
CARBON
10K
5%
1/4W
R187
1-260-119-11
CARBON
47K
5%
1/2W
R188
1-260-107-11
CARBON
4.7K
5%
1/2W
R189
1-260-119-11
CARBON
47K
5%
1/2W
R190
1-247-871-11
CARBON
47K
5%
1/4W
R191
1-247-871-11
CARBON
47K
5%
1/4W
R192
1-249-413-11
CARBON
470
5%
1/4W
R193
1-249-413-11
CARBON
470
5%
1/4W
RA
1-249-381-11
CARBON
1
5%
1/4W
RF
1-247-903-00
CARBON
1M
5%
1/4W
< RELAY >
RY01
1-755-244-11
RELAY
RY02
1-755-244-11
RELAY
RY03
1-755-244-11
RELAY
< VARIABLE RESISTOR >
SFR03
1-238-598-11
RES, ADJ, CARBON   2.2K
SFR04
1-238-598-11
RES, ADJ, CARBON   2.2K
< VIBRATOR >
X01
1-767-130-11
VIBRATOR, CERAMIC (4.19MHz)
*************************************************************
*
A-2056-697-A PANEL BOARD, COMPLETE (TX515)
(including LED BOARD)
**********************
3-020-963-01
BRACKET (FLEXIBLE C)
3-021-253-01
HOLDER LED
< DIODE >
D851
8-719-028-88
LED   SEL3210S-D-LC05 (CD SYNC)
D852
8-719-028-88
LED   SEL3210S-D-LC05 (r REC)
D853
8-719-047-69
LED   EL204GT (9)
D854
8-719-047-69
LED   EL204GT (()
D855
8-719-028-87
LED   SEL3710K-D-LC05 (P)
D856
8-719-300-79
LED   SEL1213C (TAPE INDICATOR)
D857
8-719-023-78
LED   SEL3810DLC05 () (AMS))
D858
8-719-023-78
LED   SEL3810DLC05 (0 (AMS))
D859
8-719-047-69
LED   EL204GT (POWER)
< RESISTOR >
R853
1-249-411-11
CARBON
330
5%
1/4W
R854
1-249-411-11
CARBON
330
5%
1/4W
R855
1-249-407-11
CARBON
150
5%
1/4W
R856
1-249-409-11
CARBON
220
5%
1/4W
R857
1-249-409-11
CARBON
220
5%
1/4W
R858
1-249-409-11
CARBON
220
5%
1/4W
R861
1-249-416-11
CARBON
820
5%
1/4W
R862
1-249-417-11
CARBON
1K
5%
1/4W
R863
1-249-420-11
CARBON
1.8K
5%
1/4W
R864
1-247-841-11
CARBON
2.7K
5%
1/4W
R865
1-249-416-11
CARBON
820
5%
1/4W
R866
1-249-417-11
CARBON
1K
5%
1/4W
R867
1-249-420-11
CARBON
1.8K
5%
1/4W
R868
1-247-841-11
CARBON
2.7K
5%
1/4W
R869
1-247-847-11
CARBON
4.7K
5%
1/4W
R870
1-249-411-11
CARBON
330
5%
1/4W
R871
1-249-411-11
CARBON
330
5%
1/4W
R872
1-249-409-11
CARBON
220
5%
1/4W
< SWITCH >
S851
1-571-760-11
SWITCH, KEY BOARD (POWER)
S852
1-571-760-11
SWITCH, KEY BOARD (9)
S853
1-571-760-11
SWITCH, KEY BOARD (()
S854
1-571-760-11
SWITCH, KEY BOARD (p)
S855
1-571-760-11
SWITCH, KEY BOARD (P)
S856
1-771-304-11
SWITCH, SLIDE (DIRECTION)
S857
1-571-760-11
SWITCH, KEY BOARD (0 (AMS))
S858
1-571-760-11
SWITCH, KEY BOARD () (AMS))
S859
1-571-760-11
SWITCH, KEY BOARD (r REC)
S860
1-571-760-11
SWITCH, KEY BOARD (CD SYNC)
S861
1-571-760-11
SWITCH, KEY BOARD (6)
S862
1-771-304-11
SWITCH, SLIDE (DOLBY NR)
*************************************************************
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 42 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
POWER
REC
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
*
1-668-649-11
POWER BOARD (AEP,UK,US)
*
1-669-047-11
POWER BOARD (SP,MY,HK,JE)
*************
< CAPACITOR >
C63
1-126-943-11
ELECT
2200uF
20%
25V
C65
1-126-943-11
ELECT
2200uF
20%
25V
C301
1-102-129-00
CERAMIC
10000PF
10%
50V
C302
1-102-129-00
CERAMIC
10000PF
10%
50V
C63A
1-162-851-11
CERAMIC
0.1uF
10%
16V
C65A
1-162-851-11
CERAMIC
0.1uF
10%
16V
< DIODE >
D20
8-719-200-02
DIODE   10E2
D21
8-719-200-02
DIODE   10E2
D22
8-719-200-02
DIODE   10E2
D23
8-719-200-02
DIODE   10E2
D24
8-719-901-33
DIODE   1SS133
D25
8-719-901-33
DIODE   1SS133
< RESISTOR >
!FR01
1-213-036-11
FUSIBLE
1
5%
1W
F
!FR02
1-213-036-11
FUSIBLE
1
5%
1W
F
*************************************************************
*
A-2056-692-A REC BOARD, COMPLETE (AEP,UK,US)
*
A-2007-768-A REC BOARD, COMPLETE (SP,MY,HK,JE)
********************
< CAPACITOR >
C09
1-164-066-11
CERAMIC
68PF
5%
50V
C10
1-164-066-11
CERAMIC
68PF
5%
50V
C13
1-124-907-11
ELECT
10uF
20%
50V
C14
1-124-907-11
ELECT
10uF
20%
50V
C15
1-164-077-11
CERAMIC
220PF
10%
50V
C16
1-164-077-11
CERAMIC
220PF
10%
50V
!C18
1-104-990-11
FILM
0.0033uF
5%
200V
!C19
1-137-464-11
FILM
0.039uF
5%
100V
C20
1-126-941-11
ELECT
470uF
20%
16V
!C21
1-137-392-11
FILM
0.0068uF
5%
100V
!C22
1-137-390-11
FILM
0.0033uF
5%
100V
!C23
1-137-390-11
FILM
0.0033uF
5%
100V
C24
1-104-664-11
ELECT
47uF
20%
16V
C71
1-124-903-11
ELECT
1uF
20%
50V
C72
1-124-903-11
ELECT
1uF
20%
50V
C73
1-126-233-11
ELECT
22uF
20%
50V
C74
1-126-233-11
ELECT
22uF
20%
50V
C75
1-136-155-00
FILM
0.015uF
5%
50V
C76
1-136-155-00
FILM
0.015uF
5%
50V
C77
1-136-154-00
FILM
0.012uF
5%
50V
C78
1-136-154-00
FILM
0.012uF
5%
50V
C81
1-136-166-00
FILM
0.12uF
5%
50V
C82
1-136-166-00
FILM
0.12uF
5%
50V
C83
1-124-903-11
ELECT
1uF
20%
50V
C83A
1-104-666-11
ELECT
220uF
20%
16V
C93
1-130-477-00
MYLAR
0.0033uF
5%
50V
C94
1-130-477-00
MYLAR
0.0033uF
5%
50V
< DIODE >
D03
8-719-010-62
DIODE   UZ-9.1BSB
D04
8-719-921-63
DIODE   MTZJ-7.5B
D26
8-719-901-33
DIODE   1SS133
D27
8-719-901-33
DIODE   1SS133
< IC >
IC09
8-759-112-93
IC   uPC4570HA-1
< COIL >
L03
1-416-568-11
COIL, CHOKE
39mH
L04
1-416-568-11
COIL, CHOKE
39mH
L05
1-431-706-11
TRANSFORMER, BIAS OSCILLATION
L07
1-416-567-11
COIL, CHOKE
6.8mH
L08
1-416-567-11
COIL, CHOKE
6.8mH
< TRANSISTOR >
Q06
8-729-142-46
TRANSISTOR   2SC2001-LK
Q07
8-729-142-46
TRANSISTOR   2SC2001-LK
Q08
8-729-140-96
TRANSISTOR   2SD774-34
Q09
8-729-194-57
TRANSISTOR   2SC945-P
Q11
8-729-194-57
TRANSISTOR   2SC945-P
Q65
8-729-029-86
TRANSISTOR   DTC124ESA
Q66
8-729-029-86
TRANSISTOR   DTC124ESA
Q67
8-729-029-86
TRANSISTOR   DTC124ESA
Q68
8-729-029-86
TRANSISTOR   DTC124ESA
Q69
8-729-029-68
TRANSISTOR   DTC114TSA
Q70
8-729-029-68
TRANSISTOR   DTC114TSA
< RESISTOR >
R23
1-249-387-11
CARBON
3.3
5%
1/4W
R24
1-249-434-11
CARBON
27K
5%
1/4W
R25
1-249-434-11
CARBON
27K
5%
1/4W
R27
1-247-847-11
CARBON
4.7K
5%
1/4W
R28
1-247-847-11
CARBON
4.7K
5%
1/4W
!R30
1-216-455-11
METAL OXIDE
560
5%
2W
F
R32
1-249-417-11
CARBON
1K
5%
1/4W
R37
1-249-412-11
CARBON
390
5%
1/4W
R127
1-249-430-11
CARBON
12K
5%
1/4W
R128
1-249-430-11
CARBON
12K
5%
1/4W
R133
1-247-871-11
CARBON
47K
5%
1/4W
R134
1-247-871-11
CARBON
47K
5%
1/4W
R135
1-247-871-11
CARBON
47K
5%
1/4W
R136
1-247-871-11
CARBON
47K
5%
1/4W
R137
1-247-883-00
CARBON
150K
5%
1/4W
R138
1-247-883-00
CARBON
150K
5%
1/4W
R139
1-247-863-11
CARBON
22K
5%
1/4W
R140
1-247-863-11
CARBON
22K
5%
1/4W
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 43 –
Ref. No.
Part No.
Description
Remark
Ref. No.
Part No.
Description
Remark
REC
SLIDE SW
TRANSFORMER
The components identified by
mark ! or dotted line with mark.
! are critical for safety.
Replace only with part number
specified.
R141
1-247-867-11
CARBON
33K
5%
1/4W
R142
1-247-867-11
CARBON
33K
5%
1/4W
R143
1-247-855-11
CARBON
10K
5%
1/4W
R144
1-247-855-11
CARBON
10K
5%
1/4W
R145
1-247-807-11
CARBON
100
5%
1/4W
R146
1-247-807-11
CARBON
100
5%
1/4W
R147
1-249-427-11
CARBON
6.8K
5%
1/4W
R148
1-249-427-11
CARBON
6.8K
5%
1/4W
R151
1-249-417-11
CARBON
1K
5%
1/4W
R152
1-247-879-11
CARBON
100K
5%
1/4W
< VARIABLE RESISTOR >
SFR01
1-238-603-11
RES, ADJ, CARBON   100K
SFR02
1-238-603-11
RES, ADJ, CARBON   100K
SFR11
1-238-601-11
RES, ADJ, CARBON   22K
SFR12
1-238-601-11
RES, ADJ, CARBON   22K
*************************************************************
*
1-669-048-11
SLIDE SW BOARD (SP,MY,HK,JE)
***************
< SWITCH >
!SW01
3-021-926-01
BRACKET (SLIDE SW) (VOLTAGE SELECTOR)
*************************************************************
*
1-668-652-11
TRANSFORMER BOARD (AEP,UK,US)
*
1-669-043-11
TRANSFORMER BOARD (SP,MY,HK,JE)
*******************
< COIL >
!L11
1-416-566-11
COIL, CHOKE
15uH
!L12
1-416-566-11
COIL, CHOKE
15uH
< TRANSFORMER >
!PT301
3-021-913-01
BRACKET (POWER TRANS) (AEP,UK)
!PT301
3-021-925-01
BRACKET (POWER TRANS) (SP,MY,HK,JE)
!PT301
3-021-976-01
BRACKET (POWER TRANS) (US)
*************************************************************
MISCELLANEOUS
***************
!158
3-021-914-01
BRACKET (AC CORD) (EXCEPT UK,US)
!158
3-021-917-01
BRACKET (AC CORD) (UK)
!158
3-021-977-01
BRACKET (AC CORD) (US)
HRPE1013-020-446-01
BRACKET (HEAD UNIT)
M1
3-020-447-01
MOTOR (A) ASSY (REEL/CAPSTAN)
M2
3-020-448-01
MOTOR (B) ASSY (LOADING)
!PT301
3-021-913-01
BRACKET (POWER TRANS) (AEP,UK)
!PT301
3-021-925-01
BRACKET (POWER TRANS) (SP,MY,HK,JE)
!PT301
3-021-976-01
BRACKET (POWER TRANS) (US)
*************************************************************
ACCESSORIES & PACKING MATERIALS
********************************
3-020-441-01
BRACKET (PATCH CORD)
!
1-569-008-11
ADAPTOR, CONVERSION 2P (SP,MY,JE)
!
1-770-019-11
ADAPTOR, CONVERSION PLUG 3P (HK)
3-860-838-13
MANUAL, INSTRUCTION (ENGLISH) (TX515)
3-860-838-22
MANUAL, INSTRUCTION (FRENCH,SPANISH)
(TX515:AEP,SP,MY,HK)
3-860-838-32
MANUAL, INSTRUCTION (PORTUGUESE,DUTCH,
ITALIAN,SWEDISH) (TX515:AEP)
3-860-838-42
MANUAL, INSTRUCTION (GERMAN) (TX515:AEP)
3-860-838-52
MANUAL, INSTRUCTION (CHINESE)
(TX515:SP,MY,HK)
3-860-838-61
MANUAL, INSTRUCTION (KOREAN,
PORTUGUESE) (JE)
3-860-887-12
MANUAL, INSTRUCTION (ENGLISH) (TX313)
3-860-887-22
MANUAL, INSTRUCTION (FRENCH, SPANISH)
(TX313:AEP,SP,MY,HK)
3-860-887-32
MANUAL, INSTRUCTION (PORTUGUESE,DUTCH,
ITALIAN,SWEDISH) (TX313:AEP)
3-860-887-42
MANUAL, INSTRUCTION (GERMAN) (TX313:AEP)
3-860-887-52
MANUAL, INSTRUCTION (CHINESE)
(TX313:SP,MY,HK)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
– 44 –
TC-TX313/TX515
Sony Corporation
Home A&V Products Company
9-920-969-12
98B047020-1
Printed in Singapore  C1998. 2
Published by General Engineering Dept. (Shibaura)
www. xiaoyu163. com
QQ 376315150
9
9
2
8
9
4
2
9
8
TEL 13942296513
9
9
2
8
9
4
2
9
8
0
5
1
5
1
3
6
7
3
Q
Q
TEL  13942296513  QQ  376315150  892498299
TEL  13942296513  QQ  376315150  892498299
http://www.xiaoyu163.com
'

array (
  0 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/1289b0a83d5f172.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '68403',
    'title' => '索尼SONY TC-TX313电路图-0',
    'description' => '索尼SONY TC-TX313电路图-0',
  ),
  1 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/3e799a076b8b6d6.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '68404',
    'title' => '索尼SONY TC-TX313电路图-1',
    'description' => '索尼SONY TC-TX313电路图-1',
  ),
  2 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/589dde4b62683f0.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '68405',
    'title' => '索尼SONY TC-TX313电路图-2',
    'description' => '索尼SONY TC-TX313电路图-2',
  ),
  3 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/b85834b2c9c3c83.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '68406',
    'title' => '索尼SONY TC-TX313电路图-3',
    'description' => '索尼SONY TC-TX313电路图-3',
  ),
  4 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/c3b00a9ad345a3f.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '68407',
    'title' => '索尼SONY TC-TX313电路图-4',
    'description' => '索尼SONY TC-TX313电路图-4',
  ),
  5 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/711348c8e9cfcab.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '68408',
    'title' => '索尼SONY TC-TX313电路图-5',
    'description' => '索尼SONY TC-TX313电路图-5',
  ),
  6 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/2414927aaf89817.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '68409',
    'title' => '索尼SONY TC-TX313电路图-6',
    'description' => '索尼SONY TC-TX313电路图-6',
  ),
  7 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/215a1b84fdb7c33.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '68410',
    'title' => '索尼SONY TC-TX313电路图-7',
    'description' => '索尼SONY TC-TX313电路图-7',
  ),
  8 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/17859855f7df0ad.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '68411',
    'title' => '索尼SONY TC-TX313电路图-8',
    'description' => '索尼SONY TC-TX313电路图-8',
  ),
  9 =>
  array (
    'url' => 'http://file.wenhuiw.com/202304/275dcc5a6376847.png#系统开启了相对路径模式，本地址是站外域名，不能转为相对路径（在关闭开发者模式后不显示这句话）',
    'file' => '68412',
    'title' => '索尼SONY TC-TX313电路图-9',
    'description' => '索尼SONY TC-TX313电路图-9',
  ),
)

'1680876778'

'1680876778'

'{"file":["68403","68404","68405","68406","68407","68408","68409","68410","68411","68412"],"title":["\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-0","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-1","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-2","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-3","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-4","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-5","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-6","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-7","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-8","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-9"],"description":["\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-0","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-1","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-2","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-3","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-4","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-5","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-6","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-7","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-8","\\u7d22\\u5c3cSONY TC-TX313\\u7535\\u8def\\u56fe-9"]}'

'索尼,SONY, ,TC,-,TX313,电路,电路图'

array (
  '索尼' => '/index.php?s=wenku&c=search&keyword=%E7%B4%A2%E5%B0%BC',
  'SONY' => '/index.php?s=wenku&c=search&keyword=SONY',
  'TC' => '/index.php?s=wenku&c=search&keyword=TC',
  '-' => '/index.php?s=wenku&c=search&keyword=-',
  'TX313' => '/index.php?s=wenku&c=search&keyword=TX313',
  '电路' => '/index.php?s=wenku&c=search&keyword=%E7%94%B5%E8%B7%AF',
  '电路图' => '/index.php?s=wenku&c=search&keyword=%E7%94%B5%E8%B7%AF%E5%9B%BE',
)

array (
)

array (
  'id' => '15410',
  'catid' => '8',
  'title' => '索尼SONY TC-TX1电路图',
  'thumb' => '68392',
  'keywords' => '索尼,SONY, ,TC,-,TX1,电路,电路图',
  'description' => '',
  'hits' => '1',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a15410.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680876746',
  'updatetime' => '1680876746',
  'displayorder' => '0',
  'xerhu_score' => '50',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '68391',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

array (
  'id' => '15412',
  'catid' => '8',
  'title' => '索尼SONY TC-TX515电路图',
  'thumb' => '68403',
  'keywords' => '索尼,SONY, ,TC,-,TX515,电路,电路图',
  'description' => '',
  'hits' => '1',
  'uid' => '1',
  'author' => 'admin',
  'status' => '9',
  'url' => '/wenku/a15412.html',
  'link_id' => '0',
  'tableid' => '0',
  'inputip' => '127.0.0.1',
  'inputtime' => '1680876808',
  'updatetime' => '1680876808',
  'displayorder' => '0',
  'xerhu_score' => '50',
  'xerhu_score_sku' => NULL,
  'xerhu_score_down_num' => '0',
  'xerhu_score_down_type' => '2',
  'xerhu_score_file' => '68402',
  'xerhu_score_pan' => NULL,
  'xerhu_score_tqm' => NULL,
)

'索尼SONY TC-TX313电路图_电子电工_行业资料_文汇知识网'

'索尼,SONY, ,TC,-,TX313,电路,电路图'

''

array (
  'id' => '8',
  'pid' => '5',
  'pids' => '0,5',
  'name' => '电子电工',
  'dirname' => 'dzdg',
  'pdirname' => 'hangye/',
  'child' => 0,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => 8,
  'thumb' => '',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => '',
  'index' => '2',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '8',
  ),
  'is_post' => 1,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/dzdg',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

1

array (
  'catid' => '8',
)

array (
  'id' => '5',
  'pid' => '0',
  'pids' => '0',
  'name' => '行业资料',
  'dirname' => 'hangye',
  'pdirname' => '',
  'child' => 1,
  'disabled' => '0',
  'ismain' => 1,
  'childids' => '5,8,12,13,14,15,16',
  'thumb' => '20',
  'show' => '1',
  'setting' =>
  array (
    'disabled' => '0',
    'linkurl' => '',
    'getchild' => '0',
    'notedit' => '0',
    'seo' =>
    array (
    ),
    'template' =>
    array (
      'pagesize' => '20',
      'mpagesize' => '20',
      'list' => 'list.html',
      'category' => 'category.html',
      'search' => 'search.html',
      'show' => 'show.html',
    ),
    'cat_field' => NULL,
    'module_field' => NULL,
    'urlrule' => 4,
    'html' => 0,
    'chtml' => 0,
  ),
  'displayorder' => '0',
  'icon' => 'fa fa-gears',
  'index' => '1',
  'mid' => 'wenku',
  'pcatpost' => 0,
  'topid' => '5',
  'catids' =>
  array (
    0 => '5',
    1 => '8',
    2 => '12',
    3 => '13',
    4 => '14',
    5 => '15',
    6 => '16',
  ),
  'is_post' => 0,
  'tid' => 1,
  'url' => 'http://www.wenhuiw.com/wenku/hangye',
  'total' => '请使用count标签查询',
  'field' =>
  array (
  ),
)

array (
  8 =>
  array (
    'id' => '8',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电子电工',
    'dirname' => 'dzdg',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 8,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '8',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dzdg',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  12 =>
  array (
    'id' => '12',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电脑手机',
    'dirname' => 'dnsj',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 12,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '12',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dnsj',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  13 =>
  array (
    'id' => '13',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '交通道路',
    'dirname' => 'jtdl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 13,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '13',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jtdl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  14 =>
  array (
    'id' => '14',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '机械设备',
    'dirname' => 'jixie',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 14,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '14',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/jixie',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  15 =>
  array (
    'id' => '15',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '能源动力',
    'dirname' => 'nydl',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 15,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '15',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/nydl',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
  16 =>
  array (
    'id' => '16',
    'pid' => '5',
    'pids' => '0,5',
    'name' => '电气工控',
    'dirname' => 'dqgk',
    'pdirname' => 'hangye/',
    'child' => 0,
    'disabled' => '0',
    'ismain' => 1,
    'childids' => 16,
    'thumb' => '',
    'show' => '1',
    'setting' =>
    array (
      'disabled' => '0',
      'linkurl' => '',
      'getchild' => '0',
      'notedit' => '0',
      'seo' =>
      array (
      ),
      'template' =>
      array (
        'pagesize' => '20',
        'mpagesize' => '20',
        'list' => 'list.html',
        'category' => 'category.html',
        'search' => 'search.html',
        'show' => 'show.html',
      ),
      'cat_field' => NULL,
      'module_field' => NULL,
      'urlrule' => 4,
      'html' => 0,
      'chtml' => 0,
    ),
    'displayorder' => '0',
    'icon' => '',
    'index' => '2',
    'mid' => 'wenku',
    'pcatpost' => 0,
    'topid' => '5',
    'catids' =>
    array (
      0 => '16',
    ),
    'is_post' => 1,
    'tid' => 1,
    'url' => 'http://www.wenhuiw.com/wenku/dqgk',
    'total' => '请使用count标签查询',
    'field' =>
    array (
    ),
  ),
)

'/index.php?s=wenku&c=show&id=15411&page=[page]'

''

'http://www.wenhuiw.com/wenku/a15411.html'

array (
  's' => 'wenku',
  'c' => 'show',
  'id' => '15411',
  'm' => 'index',
)
