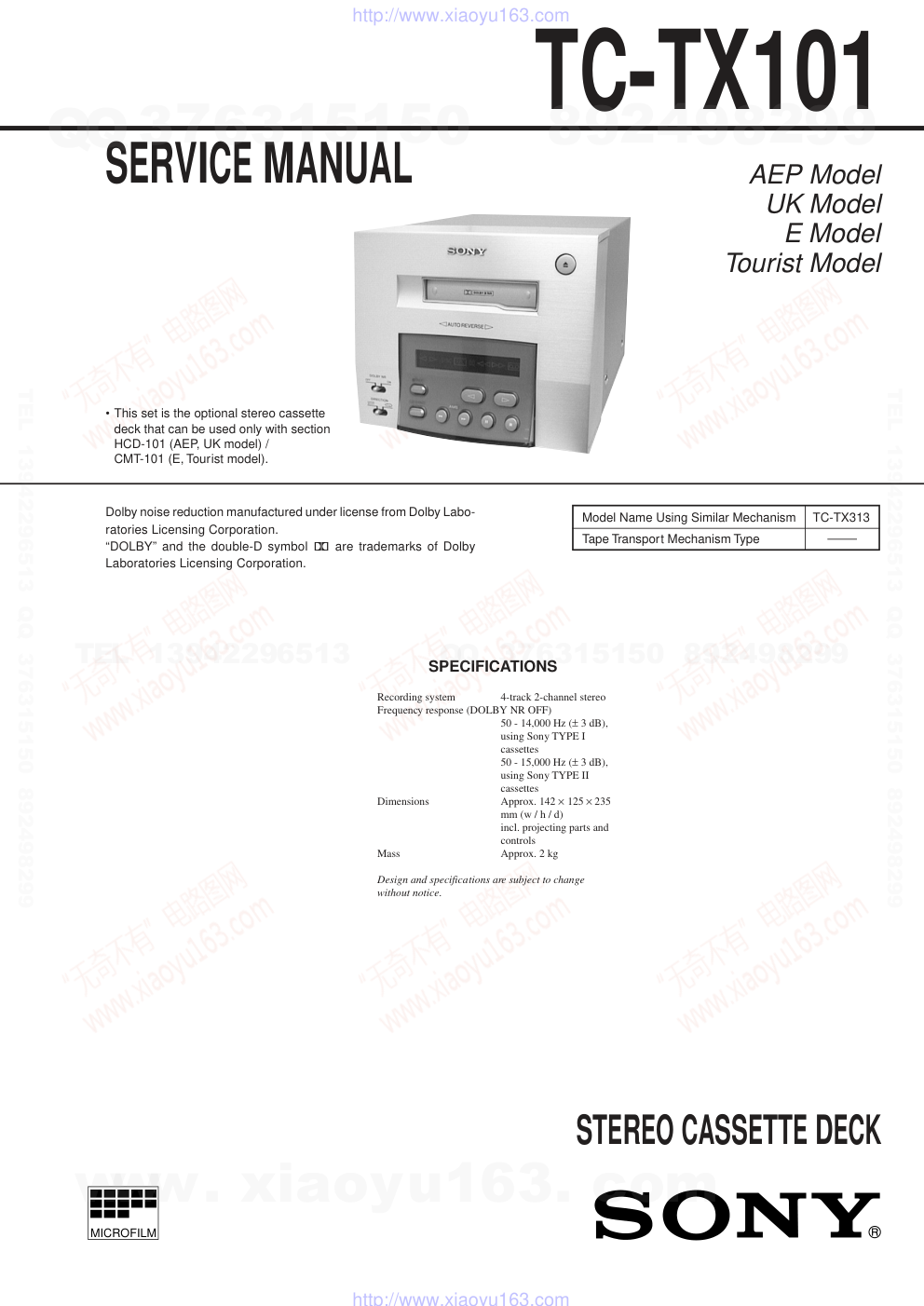

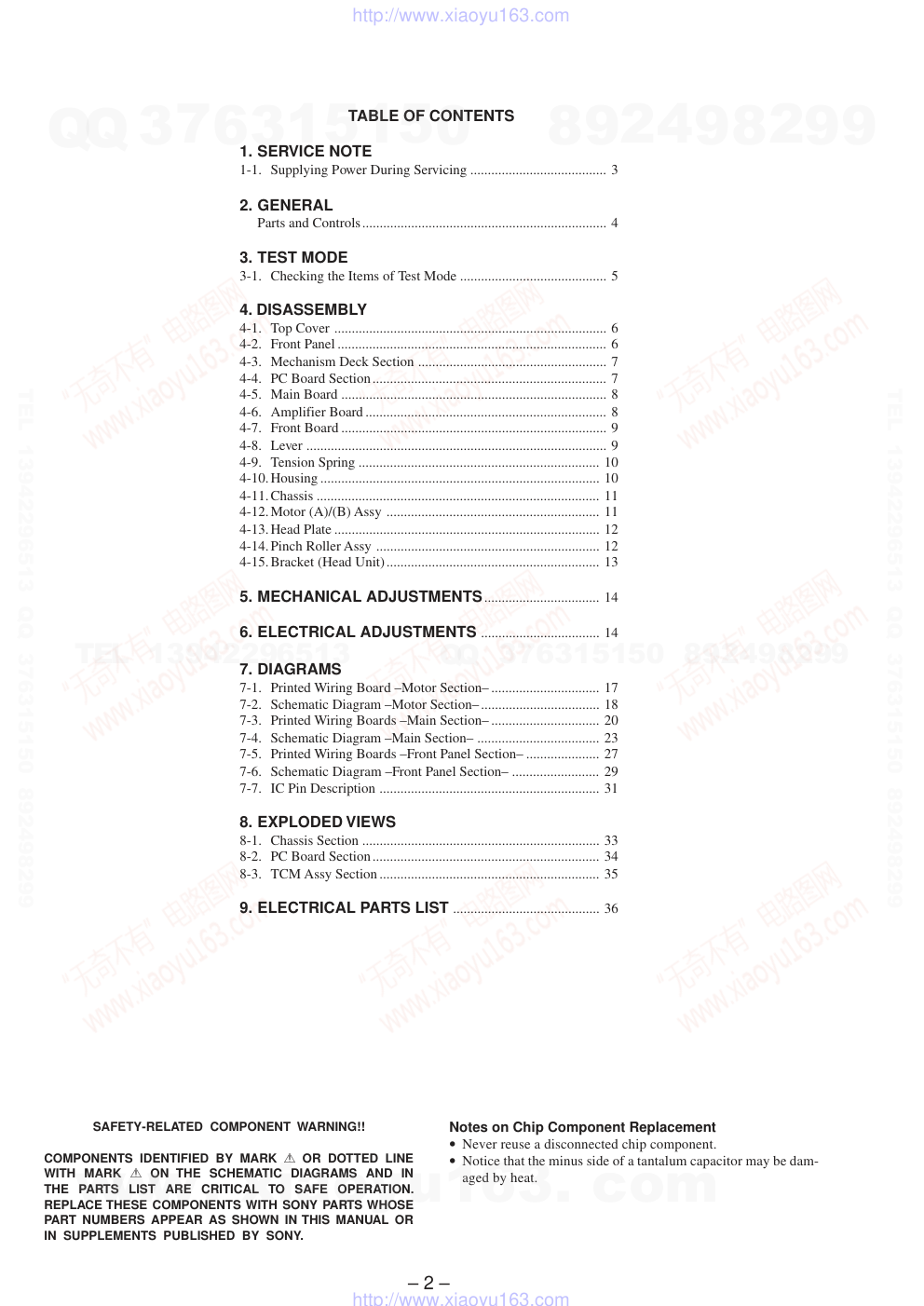

– 1 – Model Name Using Similar Mechanism TC-TX313 Tape Transport Mechanism Type MICROFILM AEP Model UK Model E Model Tourist Model SERVICE MANUAL Recording system 4-track 2-channel stereo Frequency response (DOLBY NR OFF) 50 - 14,000 Hz (± 3 dB), using Sony TYPE I cassettes 50 - 15,000 Hz (± 3 dB), using Sony TYPE II cassettes Dimensions Approx. 142 × 125 × 235 mm (w / h / d) incl. projecting parts and controls Mass Approx. 2 kg Design and specifications are subject to change without notice. • This set is the optional stereo cassette deck that can be used only with section HCD-101 (AEP, UK model) / CMT-101 (E, Tourist model). STEREO CASSETTE DECK Dolby noise reduction manufactured under license from Dolby Labo- ratories Licensing Corporation. “DOLBY” and the double-D symbol a are trademarks of Dolby Laboratories Licensing Corporation. SPECIFICATIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TABLE OF CONTENTS 1. SERVICE NOTE 1-1. Supplying Power During Servicing ....................................... 3 2. GENERAL Parts and Controls...................................................................... 4 3. TEST MODE 3-1. Checking the Items of Test Mode .......................................... 5 4. DISASSEMBLY 4-1. Top Cover .............................................................................. 6 4-2. Front Panel ............................................................................. 6 4-3. Mechanism Deck Section ...................................................... 7 4-4. PC Board Section................................................................... 7 4-5. Main Board ............................................................................ 8 4-6. Amplifier Board ..................................................................... 8 4-7. Front Board ............................................................................ 9 4-8. Lever ...................................................................................... 9 4-9. Tension Spring ..................................................................... 10 4-10.Housing ................................................................................ 10 4-11.Chassis ................................................................................. 11 4-12.Motor (A)/(B) Assy ............................................................. 11 4-13.Head Plate ............................................................................ 12 4-14.Pinch Roller Assy ................................................................ 12 4-15.Bracket (Head Unit)............................................................. 13 5. MECHANICAL ADJUSTMENTS................................. 14 6. ELECTRICAL ADJUSTMENTS .................................. 14 7. DIAGRAMS 7-1. Printed Wiring Board –Motor Section– ............................... 17 7-2. Schematic Diagram –Motor Section–.................................. 18 7-3. Printed Wiring Boards –Main Section– ............................... 20 7-4. Schematic Diagram –Main Section– ................................... 23 7-5. Printed Wiring Boards –Front Panel Section– ..................... 27 7-6. Schematic Diagram –Front Panel Section– ......................... 29 7-7. IC Pin Description ............................................................... 31 8. EXPLODED VIEWS 8-1. Chassis Section .................................................................... 33 8-2. PC Board Section................................................................. 34 8-3. TCM Assy Section............................................................... 35 9. ELECTRICAL PARTS LIST .......................................... 36 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Notes on Chip Component Replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – P707, 909 PFJ-1 (Power Supply jig) POWER SW Connector Cable 17P (supplied with set) set Conversion Board (J-2501-144-A) SYSTEM CONTROL Power Function SECTION 1 SERVICE NOTE 1-1. SUPPLYING POWER DURING SERVICING This equipment cannot operate without using a separate power supply. Connect this set to the HCD-101. To apply power set the SYSTEM POWER switch of HCD-101. When other units are not available use the PFJ-1 power supply jig. When using the PFJ-1, press the POWER switch of the conversion board to turn on the power. • Connection Diagram * When checking the recording function of TC-TX101, select any function other than TAPE using the Function key of the conversion board before check. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SECTION 2 GENERAL This section extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – SECTION 3 TEST MODE 3-1. CHECKING THE ITEMS OF TEST MODE The set allows you to check the items of the test mode although this may not be directly related with the adjustment. 1 Setting/Releasing the Test Mode: 1) Setting With power OFF, short between test pin 1 and pin 2 of TP1 on the MAIN board. (See page 16.) Then, turn power ON to enter the test mode. 2) Releasing Open between pin 1 and pin 2 of TP1. 2 Items of Test Mode 1) Memory Stop 1-1) In side A record mode, press the REW ( 0 ) button. The tape is rewind to the start point of recording and stopped. 1-2) In side B record mode, press the FF ( ) ) button. The tape is rewind to the start point of recording and stopped. 2) Memory Play 2-1) In side A record mode, press the FWD Auto Play ( ” + 0 ) buttons simultaneously. The tape is rewind to the start point of recording and FWD played. 2-2) In side B record mode, press the REV Auto Play ( “ + ) ) buttons simultaneously. The tape is rewind to the start point of recording and REV played. 3) All LED Flickering When no tape is inserted, all LED indicators are flickering. 4) Aging Operation When tape with record erase preventing claw is inserted for both sides A and B, enter the aging operation start command by pressing p and CD SYNC simultaneously. The system will change the direction to one side and perform the following operations: 1 Rewind in REW mode until side A of tape is stopped. 2 Playback tape in FWD mode for 1 minute. 3 Pause mode. 4 Record tape for 3 minutes. 5 Forward tape in FF mode to the end of side A of tape. 6 Shut off and switch to side B. 7 Playback tape in REV mode for 1 minute. 8 Pause mode. 9 Record tape for 3 minutes. !º Forward tape in FF mode to the end of side B of tape. !¡ Shut off and switch to side A. !™ Repeat the procedure from 2 to !¡. !£ Pressing the STOP ( p ) button will release the set from these operations. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – SECTION 4 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 4-1. TOP COVER 4-2. FRONT PANEL 3 front panel 2 BVTP 2.6X8 4 BVTP 3X12 7 claws 8 CN06 9 sub panel 6 BVTP 3X8 5 BVTP 3X12 1 BVTP 3X8 4 top cover 1 screws (case 3 TP2) 3 BVTP 3X8 2 screws (case 3 TP2) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – 4-3. MECHANISM DECK SECTION 4-4. PC BOARD SECTION 3 BVTP 3X8 1 flexible board 4 mechanism deck section 2 BVTP 2.6X6 3 BVTP 3X8 5 PC board section 2 BVTP 3X10 1 BVTP 3X10 4 CN05 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – 4-5. MAIN BOARD 4-6. AMPLIFIER BOARD 1 BVTP 3X8 3 CN02 (Remove the solder.) 2 BVTP 3X8 7 MAIN board 5 CN07 4 CN03 (Remove the solder.) 6 CN04 1 BVTP 3X8 2 BVTP 3X8 3 AMPLIFIER board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – 4-7. FRONT BOARD 4-8. LEVER 1 BVTP 3X8 4 BVTP 3X8 2 BVTP 3X8 3 BVTP 3X8 5 FRONT board 6 PLAY button 7 8 5 9 6 Turn the loading motor and down the cassette holder. 2 tape guide (L) 1 BVTP 3X8 4 tape guide (R) 3 BVTP 3X8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – 4-9. TENSION SPRING 4-10. HOUSING 1 1 2 3 4 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – 4-11. CHASSIS 4-12. MOTOR (A) / (B) ASSY 1 3 4 motor (B) assy 2 motor (A) assy 1 2 5 belt (A) 8 9 7 6 4 belt (B) 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 12 – 4-13. HEAD PLATE Note : On install, set the portions A and B. 4-14. PINCH ROLLER ASSY B 3 2 A 1 2 3 pinch roller assy (R) 1 4 5 6 pinch roller assy (F) pinch roller assy (F) pinch roller assy (R) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – 4-15. BRACKET (HEAD UNIT) 1 2 3bracket (head unit) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 14 – PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened swab : record/playback/erase head pinch roller rubber belts capstan idlers 2. Demagnetize the record/playback/erase head with a head demagnetizer. (Do not bring the head demagnetizer close to the erase head.) 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Check Mode Torque Meter Meter Reading 35 – 80 g • cm FWD CQ-102C (0.49 – 1.11 oz • inch) FWD 1 – 7 g • cm Back tension (0.014 – 0.097 oz • inch) 35 – 80 g • cm REV CQ-102RC (0.49 – 1.11 oz • inch) REV 1 – 7 g • cm Back tension (0.014 – 0.097 oz • inch) more than 40 g • cm FF, REW CQ-201B (more than 0.56 oz • inch) SECTION 6 ELECTRICAL ADJUSTMENTS SECTION 5 MECHANICAL ADJUSTMENTS PRECAUTION 1. The adjustment should be performed in the publication. (Be sure to male playback adjustment at first.) 2. The adjustments and measurement should be performed for both L-CH and R-CH. • Switch position DOLBY NR switch : OFF DIRECTION switch : A Standard Input Level Input terminal TAPE IN source impedance 10 kΩ input signal level 0.49 V (– 4 dB) Standard Output Level Output terminal TAPE OUT (L-CH) load impedance 47 kΩ output signal level 0.49 V (– 4 dB) Test Tape Type Signal Used for P-4-A100 10 kHz, –10 dB Azimuth Adjustment P-4-L300 315 Hz, 0 dB PB Level Adjustment WS-48A 3 kHz, 0 dB Tape Speed Adjustment 0 dB = 0.775 V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 15 – TAPE OUT L-CH : CN05 pin 2 (MAIN board) R-CH : CN05 pin 4 TAPE OUT L-CH : CN05 pin 2 (MAIN board) R-CH : CN05 pin 4 Record Bias Adjustment Setting : Set to the TEST mode. (See page 5.) Procedure : 1. Connection for recording : speed checker or frequency counter 47 k Ω set test tape WS-48A (3 kHz, 0 dB) Tape Speed Adjustment Procedure : 1. Connect the speed checker or frequency counter as shown below and set FWD playback mode. 2. Adjust the capstan motor (M1) volume so that the reading on the speed checker or frequency counter falls within the following adjustment value. Adjustment Value : normal speed Speed checker Frequency counter – 3 to + 3 % 2,910 to 3,090 Hz Confirm that the deviation between tape top and tape end is within 3%. Adjustment Location : Capstan motor (M1) volume (See page 16.) Sample Value of Wow and flutter W. RMS (JIS) within 0.3% (test tape : WS-48A) Playback Level Adjustment Procedure : 1. Connect the speed checker of frequency counter as shown below and set FWD playback mode. 2. Adjust SFR03 (L-CH) and SFR04 (R-CH) on AMPLIFIER board so that the reading on the level meter falls within the following adjustment value. Adjustment Value : TAPE OUT level Level difference between channels – 4 ± 2 dB (0.39 to 0.62 V) within 2 dB Confirm that the TAPE OUT level does not change even if Playback and Stop operation is repeated several times. Adjustment Location : AMPLIFIER board (See page 16.) level meter 47 k Ω set test tape P-4-L300 (315 Hz, 0 dB) 2. Connection for playback : 3. In the connection of item 2, playback the signal recorded in the connection of item 1, confirm that the reading on the level meter falls within the following adjustment value. 4. If these levels do not adjustment value, adjust SFR01 (L-CH) and SFR02 (R-CH) on AMPLIFIER board to repeat items 1 and 2. Adjustment Value :Difference of playback output of 10 kHz to playback output of 315 Hz : 0 ± 0.5 dB Adjustment Location : AMPLIFIER board (See page 16.) Record Level Adjustment Setting : Set to the TEST mode. (See page 5.) Procedure : 1. Connection for recording : 2. Connection for playback : 3. In the connection of item 2, playback the signal recorded in the connection of item 1, confirm that the reading on the level meter falls within the following adjustment value. 4. If these levels do not adjustment value, adjust SFR11 (L-CH) and SFR12 (R-CH) on MAIN board to repeat items 1 and 2. Adjustment Value :Playback output level of 315 Hz : – 4 ± 2 dB (0.39 to 0.62 V) Adjustment Location : MAIN board (See page 16.) level meter 47 k Ω set recorded portion AF OSC attenuator 10 k Ω set 600 Ω blank tape CS-123 AF OSC attenuator 10 k Ω set 600 Ω blank tape CS-123 level meter 47 k Ω set recorded portion TAPE IN L-CH : CN05 pin 1 (MAIN board) R-CH : CN05 pin 5 1) 315 Hz 2) 10 kHz 43.6 mV (– 25 dB) TAPE OUT L-CH : CN05 pin 2 (MAIN board) R-CH : CN05 pin 4 TAPE IN L-CH : CN05 pin 1 (MAIN board) R-CH : CN05 pin 5 315 Hz, 0.49 V (– 4 dB) TAPE OUT L-CH : CN05 pin 2 (MAIN board) R-CH : CN05 pin 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 16 – IC02 IC03 CN05 TP1 TEST MODE TAPE OUT (L-CH : pin 2, R-CH : pin 4) TAPE IN (L-CH : pin 1, R-CH : pin 5) SFR04 PLAYBACK LEVEL ADJ (R-CH) SFR03 PLAYBACK LEVEL ADJ (L-CH) SFR01 RECORD BIAS ADJ (L-CH) SFR12 RECORD LEVEL ADJ (R-CH) SFR11 RECORD LEVEL ADJ (L-CH) SFR02 RECORD BIAS ADJ (R-CH) M1 CAPSTAN / REEL MOTOR TAPE SPEED ADJ M2 LOADING MOTOR MECHANISM DECK Adjustment Location : – MAIN board (component side) – – AMPLIFIER board (component side) – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – 7-7. IC PIN DESCRIPTION • IC04 µPD75108GF-N14-3BE (SYSTEM CONTROL) Pin No. Pin Name I/O Pin Description 1 RVS REC RELAY O RVS REC relay control output (Not used in this set.) 2 FWD REC RELAY O FWD REC relay control output (Not used in this set.) 3 RVS PLAY RELAY O RVS PLAY relay control output (Not used in this set.) 4 FWD PLAY RELAY O FWD PLAY relay control output (Not used in this set.) 5 POWER OUT O Power output (Not used in this set.) 6 AMS OUT O AMS gain control output (Not used in this set.) 7 RESET I Reset input (L : Reset) 8 XTAL — Oscillator circuit (4.19 MHz) 9 XTAL — Oscillator circuit (4.19 MHz) 10 NR OUT O Noise reduction signal output (Not used in this set.) 11 REC/PB O REC/PB select output (H : REC, L : PB) 12 F/R O RVS/FWD select output (H : RVS, L : FWD) (Not used in this set.) 13 BIAS O Bias oscillation control output (H : ON, L : OFF) 14 LINE MUTE O Line mute control output (H : OFF, L : ON) 15 PB.MUTE O PB mute control output (H : OFF, L : ON) 16 REC.MUTE O REC mute control output (H : OFF, L : ON) 17 TAPE 4 O REC equalizer select output (H : METAL) (Not used in this set.) 18 TAPE 2 O REC equalizer select output (H : CrO2) 19 TAPE 1 O REC equalizer select output (H : NORMAL) 20 M.FWD O Reel motor forward direction rotation output 21 M.REV O Reel motor reverse direction rotation output 22 H.SPEED O Tape speed control output 23 L+ O Loading motor forward direction rotation output 24 L– O Loading motor reverse direction rotation output 25 AU BUS OUT O AU BUS signal output 26 VSS — Ground 27 F.REC I Mechanism deck FWD REC PROOF claw detection signal input (H : REC inhibit) 28 R.REC I Mechanism deck RVS REC PROOF claw detection signal input (H : REC inhibit) 29 PACK IN I Loading detection signal input 30 AU BUS IN I AU BUS signal input 31 AMS IN I AMS signal input 32 KEY 1 I Key switch input 1 33 KEY 0 I Key switch input 0 34 S.PLAY MODE I Mechanism deck tape position detection signal input 35 F.REEL I Mechanism deck FWD reel sensor detection signal input 36 R.REEL I Mechanism deck RVS reel sensor detection signal input 37 MODE SEL I Mode select input (Fixed at “H” in this set.) 38 CrO2 I Mechanism deck CrO2 switch input 39 TAPE IN I Mechanism deck HALF switch input 40 TEST PIN I Input for test mode. (L : Test mode) 41, 42 NC I Connect to Ground in this set. 43 NC O Not used in this set. 44 POWER DOWN IN I Power detection input 45 NR.LED O NR LED output (Not used in this set.) 46 PB.LED O PLAYBACK LED output (Not used in this set.) 47 TAPE.LED O Tape indicator LED output 48 CD SYC.LED O CD SYNC LED output 49 REC.LED O REC LED output 50 >>.LED O ) LED output 51 <<.LED O 0 LED output 52 PAUSE.LED O PAUSE LED output www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 32 – Pin No. Pin Name I/O Pin Description 53 >.LED O ” LED output 54 <.LED O “ LED output 55 POWER(GRN)LED O POWER LED output (Not used in this set.) 56 POWER(RED)LED O POWER LED output (Not used in this set.) 57 NC — Fixed at “H” in this set. 58 VDD — Power supply pin 59 – 61 NC — Not used in this set. 62 REC/PB O REC/PB select output (H : REC, L : PB) 63, 64 NC — Not used in this set. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SECTION 8 EXPLODED VIEWS N N NOTE: • The mechanical parts with no reference number in the exploded views are not supplied. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinet’s Color • Accessories and packing materials are given in the last of this parts list. 8-1. CHASSIS SECTION • Abbreviation G : German model SP : Singapore model MY : Malaysia model HK : Hong Kong model JE : Tourist model 1 2 2 20 24 4 3 6 19 5 7 20 22 22 22 8 9 10 11 20 20 20 12 14 13 15 19 19 16 17 21 23 23 18 not supplied * 1 3-021-633-01 TOP COVER 2 3-363-099-51 SCREW (CASE 3 TP2) 3 3-021-619-01 FRONT PANEL 4 4-942-636-21 EMBLEM (No.3.5), SONY 5 3-021-632-01 FRONT WINDOW 6 3-021-623-01 SUB PANEL 7 3-021-634-01 FOOT (FRONT) 8 3-021-622-01 EJECT BUTTON * 9 3-021-627-01 LED PLATE * 10 3-021-626-01 LED HOLDER 11 3-021-624-01 SLIDE KNOB * 12 A-2007-755-A FRONT BOARD, COMPLETE 13 3-021-620-01 DOOR CASSETTE 14 3-020-419-01 DOOR SPRING 15 3-021-621-01 PLAY BUTTON 16 3-020-399-01 FOOT (REAR) * 17 3-021-639-01 CUSHION * 18 3-021-643-01 BACK PLATE (AEP,UK,G) * 18 3-022-375-01 BACK PLATE (SP,MY,HK,JE) 19 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S 20 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S 21 1-782-804-11 CORD (WITH CONNECTOR) 22 7-685-648-79 SCREW +BVTP 3X12 TYPE2 N-S 23 7-685-645-79 SCREW +BVTP 3X6 TYPE2 N-S 24 3-021-640-01 BRACKET (FLEXIBLE A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 34 – 8-2. PC BOARD SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 59 59 59 52 58 58 53 51 61 60 60 54 58 55 59 56 59 57 59 59 59 59 TCM ASSY * 51 3-021-638-01 DECK BRACKET * 52 3-020-436-01 TAPE GUIDE (L) * 53 3-020-437-01 TAPE GUIDE (R) * 54 A-2007-756-A MOTOR BOARD, COMPLETE 55 3-021-644-01 CASSETTE DECK HOLDER * 56 A-2007-753-A AMPLIFIER BOARD, COMPLETE * 57 A-2007-752-A MAIN BOARD, COMPLETE 58 4-951-620-01 SCREW (2.6X8), +BVTP 59 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S 60 3-021-641-01 BRACKET (FLEXIBLE B) 61 7-685-103-19 SCREW +P 2X5 TYPE2 N-S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – 8-3. TCM ASSY SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark M1 not supplied M2 106 105 104 103 102 101 C D B D C B 101 3-020-446-01 BRACKET (HEAD UNIT) 102 3-020-444-01 BELT (A) 103 3-020-445-01 BELT (B) 104 3-020-443-01 PINCH ROLLER ASSY (F) 105 3-020-450-01 PINCH ROLLER ASSY (R) * 106 A-2004-641-A TCM ASSY M1 3-020-447-01 MOTOR (A) ASSY (REEL/CAPSTAN) M2 3-020-448-01 MOTOR (B) ASSY (LOADING) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 36 – SECTION 9 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. AMPLIFIER * A-2007-753-A AMPLIFIER BOARD, COMPLETE ************************** < CAPACITOR > C01 1-162-292-31 CERAMIC 680PF 10% 50V C02 1-162-292-31 CERAMIC 680PF 10% 50V C03 1-137-395-11 FILM 0.022uF 5% 100V C04 1-137-395-11 FILM 0.022uF 5% 100V C05 1-124-472-11 ELECT 470uF 20% 10V C05A 1-161-772-11 CERAMIC 0.1uF 10% 25V C06 1-124-472-11 ELECT 470uF 20% 10V C06A 1-161-772-11 CERAMIC 0.1uF 10% 25V C07 1-137-395-11 FILM 0.022uF 5% 100V C08 1-137-395-11 FILM 0.022uF 5% 100V C09 1-164-066-11 CERAMIC 68PF 5% 50V C10 1-164-066-11 CERAMIC 68PF 5% 50V C13 1-124-907-11 ELECT 10uF 20% 50V C14 1-124-907-11 ELECT 10uF 20% 50V C15 1-164-077-11 CERAMIC 220PF 10% 50V C16 1-164-077-11 CERAMIC 220PF 10% 50V C18 1-104-990-11 FILM 0.0033uF 5% 200V C19 1-137-464-11 FILM 0.039uF 5% 100V C20 1-126-941-11 ELECT 470uF 20% 16V C21 1-137-392-11 FILM 0.0068uF 5% 100V C22 1-137-390-11 FILM 0.0033uF 5% 100V C23 1-137-390-11 FILM 0.0033uF 5% 100V C24 1-124-910-11 ELECT 47uF 20% 50V C27 1-126-963-11 ELECT 4.7uF 20% 50V C28 1-126-963-11 ELECT 4.7uF 20% 50V C31 1-124-903-11 ELECT 1uF 20% 50V C32 1-124-903-11 ELECT 1uF 20% 50V C34 1-124-903-11 ELECT 1uF 20% 50V C37 1-104-664-11 ELECT 47uF 20% 10V C38 1-104-664-11 ELECT 47uF 20% 10V C40 1-162-290-31 CERAMIC 470PF 10% 50V C41 1-162-290-31 CERAMIC 470PF 10% 50V C51 1-126-963-11 ELECT 4.7uF 20% 50V C52 1-126-963-11 ELECT 4.7uF 20% 50V C53 1-137-399-11 FILM 0.1uF 5% 100V C54 1-137-399-11 FILM 0.1uF 5% 100V C55 1-124-907-11 ELECT 10uF 20% 50V C56 1-124-907-11 ELECT 10uF 20% 50V C57 1-124-907-11 ELECT 10uF 20% 50V C58 1-124-907-11 ELECT 10uF 20% 50V C59 1-124-907-11 ELECT 10uF 20% 50V C60 1-124-907-11 ELECT 10uF 20% 50V C97 1-104-664-11 ELECT 47uF 20% 16V C98 1-104-664-11 ELECT 47uF 20% 16V < DIODE > D02 8-719-901-33 DIODE 1SS133 D03 8-719-010-62 DIODE UZ-9.1BSB D04 8-719-921-67 DIODE MTZJ-8.2B D34 8-719-901-33 DIODE 1SS133 < IC > IC01 8-759-112-93 IC uPC4570HA-1 IC02 8-752-057-19 IC CXA1101P < COIL > L03 1-416-568-11 COIL, CHOKE 39mH L04 1-416-568-11 COIL, CHOKE 39mH L05 1-431-706-11 TRANSFORMER, BIAS OSCILLATION L81 1-234-023-11 FILTER, MPX L82 1-234-023-11 FILTER, MPX < TRANSISTOR > Q05 8-729-194-57 TRANSISTOR 2SC945-P Q06 8-729-142-46 TRANSISTOR 2SC2001-LK Q07 8-729-142-46 TRANSISTOR 2SC2001-LK Q08 8-729-140-96 TRANSISTOR 2SD774-34 Q10 8-729-194-57 TRANSISTOR 2SC945-P Q11 8-729-194-57 TRANSISTOR 2SC945-P Q12 8-729-029-86 TRANSISTOR DTC124ESA Q13 8-729-029-86 TRANSISTOR DTC124ESA Q51 8-729-029-68 TRANSISTOR DTC114TSA Q52 8-729-029-68 TRANSISTOR DTC114TSA Q53 8-729-029-68 TRANSISTOR DTC114TSA Q54 8-729-029-68 TRANSISTOR DTC114TSA Q55 8-729-029-68 TRANSISTOR DTC114TSA Q56 8-729-029-68 TRANSISTOR DTC114TSA Q81 8-729-029-68 TRANSISTOR DTC114TSA Q82 8-729-029-68 TRANSISTOR DTC114TSA < RESISTOR > R05 1-247-881-00 CARBON 120K 5% 1/4W R06 1-247-881-00 CARBON 120K 5% 1/4W R07 1-249-404-00 CARBON 82 5% 1/4W R08 1-249-404-00 CARBON 82 5% 1/4W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 37 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CONTACT FRONT AMPLIFIER R09 1-247-849-11 CARBON 5.6K 5% 1/4W R10 1-247-849-11 CARBON 5.6K 5% 1/4W R11 1-247-881-00 CARBON 120K 5% 1/4W R12 1-247-881-00 CARBON 120K 5% 1/4W R13 1-260-076-11 CARBON 10 5% 1/2W R14 1-260-076-11 CARBON 10 5% 1/2W R15 1-247-855-11 CARBON 10K 5% 1/4W R16 1-247-855-11 CARBON 10K 5% 1/4W R17 1-247-839-11 CARBON 2.2K 5% 1/4W R18 1-247-839-11 CARBON 2.2K 5% 1/4W R19 1-247-843-11 CARBON 3.3K 5% 1/4W R20 1-247-843-11 CARBON 3.3K 5% 1/4W R21 1-260-107-11 CARBON 4.7K 5% 1/2W R22 1-249-387-11 CARBON 3.3 5% 1/4W R24 1-249-434-11 CARBON 27K 5% 1/4W R25 1-249-434-11 CARBON 27K 5% 1/4W R25A 1-260-099-11 CARBON 1K 5% 1/2W R26 1-249-387-11 CARBON 3.3 5% 1/4W R27 1-247-847-11 CARBON 4.7K 5% 1/4W R28 1-247-847-11 CARBON 4.7K 5% 1/4W !R30 1-216-455-11 METAL OXIDE 560 5% 2W F R30A 1-249-412-11 CARBON 390 5% 1/4W R34 1-247-847-11 CARBON 4.7K 5% 1/4W R35 1-247-847-11 CARBON 4.7K 5% 1/4W R36 1-247-847-11 CARBON 4.7K 5% 1/4W R45A 1-247-879-11 CARBON 100K 5% 1/4W R101 1-249-436-11 CARBON 39K 5% 1/4W R102 1-249-436-11 CARBON 39K 5% 1/4W R103 1-247-855-11 CARBON 10K 5% 1/4W R104 1-247-855-11 CARBON 10K 5% 1/4W R105 1-247-847-11 CARBON 4.7K 5% 1/4W R106 1-247-847-11 CARBON 4.7K 5% 1/4W R107 1-249-417-11 CARBON 1K 5% 1/4W R108 1-249-417-11 CARBON 1K 5% 1/4W R109 1-249-417-11 CARBON 1K 5% 1/4W R109A 1-249-417-11 CARBON 1K 5% 1/4W R110 1-249-417-11 CARBON 1K 5% 1/4W R110A 1-249-417-11 CARBON 1K 5% 1/4W R113 1-247-855-11 CARBON 10K 5% 1/4W R114 1-247-855-11 CARBON 10K 5% 1/4W R115 1-247-870-11 CARBON 43K 5% 1/4W R173 1-249-393-11 CARBON 10 5% 1/4W R174 1-249-393-11 CARBON 10 5% 1/4W < RELAY > RY01 1-755-244-11 RELAY RY02 1-755-244-11 RELAY RY03 1-755-244-11 RELAY < VARIABLE RESISTOR > SFR01 1-230-724-11 RES, ADJ, CARBON 100K SFR02 1-230-724-11 RES, ADJ, CARBON 100K SFR03 1-238-598-11 RES, ADJ, CARBON 2.2K SFR04 1-238-598-11 RES, ADJ, CARBON 2.2K ************************************************************* * 1-668-911-11 CONTACT BOARD *************** < CONNECTOR > CN100 1-695-547-11 PIN, CONNECTOR (PC BOARD) 9P ************************************************************* * A-2007-755-A FRONT BOARD, COMPLETE *********************** < CONNECTOR > * CN06 1-568-856-11 SOCKET, CONNECTOR 13P < DIODE > D851 8-719-302-24 LED SEL2213C-D (SYNC) D852 8-719-302-24 LED SEL2213C-D (REC) D853 8-719-301-46 LED SEL2413E (ª) D854 8-719-301-46 LED SEL2413E (·) D855 8-719-302-86 LED SEL2913K (∏) D856 8-719-301-46 LED SEL2413E (TAPE) D857 8-719-301-54 LED SEL2813A (‚) D858 8-719-301-54 LED SEL2813A (º) < RESISTOR > R853 1-249-409-11 CARBON 220 5% 1/4W R854 1-249-409-11 CARBON 220 5% 1/4W R855 1-249-409-11 CARBON 220 5% 1/4W R856 1-249-409-11 CARBON 220 5% 1/4W R857 1-249-409-11 CARBON 220 5% 1/4W R858 1-249-409-11 CARBON 220 5% 1/4W R861 1-249-416-11 CARBON 820 5% 1/4W R862 1-249-417-11 CARBON 1K 5% 1/4W R863 1-249-420-11 CARBON 1.8K 5% 1/4W R864 1-247-841-11 CARBON 2.7K 5% 1/4W R865 1-249-416-11 CARBON 820 5% 1/4W R866 1-249-417-11 CARBON 1K 5% 1/4W R867 1-249-420-11 CARBON 1.8K 5% 1/4W R868 1-247-841-11 CARBON 2.7K 5% 1/4W R869 1-247-847-11 CARBON 4.7K 5% 1/4W R870 1-249-409-11 CARBON 220 5% 1/4W R871 1-249-409-11 CARBON 220 5% 1/4W < SWITCH > S852 1-571-760-11 SWITCH, KEY BOARD (ª) S853 1-571-760-11 SWITCH, KEY BOARD (·) S854 1-571-760-11 SWITCH, KEY BOARD (p) S855 1-571-760-11 SWITCH, KEY BOARD (P) S856 1-771-304-11 SWITCH, SLIDE (DIRECTION) S857 1-571-760-11 SWITCH, KEY BOARD (0(AMS)) S858 1-571-760-11 SWITCH, KEY BOARD ()(AMS)) The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 38 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN FRONT S859 1-571-760-11 SWITCH, KEY BOARD (r REC) S860 1-571-760-11 SWITCH, KEY BOARD (CD SYNC) S861 1-571-760-11 SWITCH, KEY BOARD (6) S862 1-771-304-11 SWITCH, SLIDE (DOLBY NR) ************************************************************* * A-2007-752-A MAIN BOARD, COMPLETE ********************** < CAPACITOR > C29 1-162-306-11 CERAMIC 0.01uF 20% 16V C30 1-162-306-11 CERAMIC 0.01uF 20% 16V C33A 1-126-956-11 ELECT 0.1uF 20% 50V C42 1-126-943-11 ELECT 2200uF 20% 25V C42A 1-161-772-11 CERAMIC 0.1uF 10% 25V C43 1-126-942-61 ELECT 1000uF 20% 25V C44 1-126-942-61 ELECT 1000uF 20% 25V C45 1-161-772-11 CERAMIC 0.1uF 10% 25V C46 1-161-772-11 CERAMIC 0.1uF 10% 25V C47 1-161-772-11 CERAMIC 0.1uF 10% 25V C48 1-161-772-11 CERAMIC 0.1uF 10% 25V C49 1-124-907-11 ELECT 10uF 20% 50V C61 1-161-772-11 CERAMIC 0.1uF 10% 25V C62 1-124-472-11 ELECT 470uF 20% 10V C62A 1-164-159-11 CERAMIC 0.1uF 50V C63 1-126-942-61 ELECT 1000uF 20% 16V C64 1-124-472-11 ELECT 470uF 20% 10V C64A 1-164-159-11 CERAMIC 0.1uF 50V C65 1-126-942-61 ELECT 1000uF 20% 16V C66 1-124-471-00 ELECT 1000uF 20% 6.3V C66A 1-164-159-11 CERAMIC 0.1uF 50V C67 1-126-767-11 ELECT 1000uF 20% 16V C67A 1-164-159-11 CERAMIC 0.1uF 50V C69 1-124-903-11 ELECT 1uF 20% 50V C70 1-161-772-11 CERAMIC 0.1uF 10% 25V C71 1-124-903-11 ELECT 1uF 20% 50V C72 1-124-903-11 ELECT 1uF 20% 50V C73 1-126-233-11 ELECT 22uF 20% 50V C74 1-126-233-11 ELECT 22uF 20% 50V C75 1-161-052-00 CERAMIC 0.012uF 10% 25V C76 1-161-052-00 CERAMIC 0.012uF 10% 25V C77 1-161-052-00 CERAMIC 0.012uF 10% 25V C78 1-161-052-00 CERAMIC 0.012uF 10% 25V C81 1-136-166-00 FILM 0.12uF 5% 50V C82 1-136-166-00 FILM 0.12uF 5% 50V C83 1-124-903-11 ELECT 1uF 20% 50V C84 1-126-961-11 ELECT 2.2uF 20% 50V C85 1-162-282-31 CERAMIC 100PF 10% 50V C86 1-162-217-31 CERAMIC 56PF 5% 50V C87 1-137-395-11 FILM 0.022uF 5% 100V C88 1-126-961-11 ELECT 2.2uF 20% 50V C89 1-104-666-11 ELECT 220uF 20% 10V C90 1-161-772-11 CERAMIC 0.1uF 10% 25V C91 1-164-057-11 CERAMIC 30PF 5% 50V The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. C92 1-164-057-11 CERAMIC 30PF 5% 50V C93 1-161-045-00 CERAMIC 0.0033uF 10% 50V C94 1-161-045-00 CERAMIC 0.0033uF 10% 50V C95 1-162-294-31 CERAMIC 0.001uF 10% 50V C96 1-104-664-11 ELECT 47uF 20% 16V C97A 1-161-772-11 CERAMIC 0.1uF 10% 25V C98A 1-161-772-11 CERAMIC 0.1uF 10% 25V < CONNECTOR > * CN04 1-568-272-11 SOCKET, CONNECTOR 6P * CN05 1-564-515-11 PLUG, CONNECTOR 12P * CN06 1-568-856-11 SOCKET, CONNECTOR 13P * CN07 1-568-835-11 SOCKET, CONNECTOR 16P < DIODE > !D01 8-719-510-14 DIODE S2VB60 D11 8-719-901-33 DIODE 1SS133 D12 8-719-921-54 DIODE MTZJ-6.2B D13 8-719-921-54 DIODE MTZJ-6.2B D14 8-719-901-33 DIODE 1SS133 D15 8-719-901-33 DIODE 1SS133 !D20 8-719-510-14 DIODE S2VB60 D24 8-719-901-33 DIODE 1SS133 D25 8-719-901-33 DIODE 1SS133 D26 8-719-901-33 DIODE 1SS133 D27 8-719-901-33 DIODE 1SS133 D28 8-719-901-33 DIODE 1SS133 D33 8-719-109-89 DIODE RD5.6ESB2 D35 8-719-200-02 DIODE 10E2 D36 8-719-200-02 DIODE 10E2 D37 8-719-901-33 DIODE 1SS133 D38 8-719-200-02 DIODE 10E2 D39 8-719-200-02 DIODE 10E2 < FUSIBLE RESISTOR > !FR01 1-202-972-61 FUSIBLE 1 5% 1/4W F !FR02 1-202-972-61 FUSIBLE 1 5% 1/4W F !FR03 1-202-972-61 FUSIBLE 1 5% 1/4W F < IC > IC03 8-759-634-51 IC M5218AP IC04 8-759-497-87 IC uPD75108GF-N14-3BE IC05 8-759-165-85 IC PST600H-T IC06 8-759-708-05 IC NJM78L05A IC07 8-759-700-65 IC NJM79L05A IC08 8-759-708-05 IC NJM78L05A IC09 8-759-112-93 IC uPC4570HA-1 IC10 8-759-231-58 IC TA7812S IC11 8-759-982-07 IC RC7808FA < COIL > L07 1-416-567-11 COIL, CHOKE 6.8mH L08 1-416-567-11 COIL, CHOKE 6.8mH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 39 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN MOTOR < TRANSISTOR > Q57 8-729-119-78 TRANSISTOR 2SC2785-HFE Q59 8-729-900-65 TRANSISTOR DTA144ES Q60 8-729-900-65 TRANSISTOR DTA144ES Q65 8-729-029-86 TRANSISTOR DTC124ESA Q66 8-729-029-86 TRANSISTOR DTC124ESA Q67 8-729-029-86 TRANSISTOR DTC124ESA Q68 8-729-029-86 TRANSISTOR DTC124ESA Q69 8-729-029-68 TRANSISTOR DTC114TSA Q70 8-729-029-68 TRANSISTOR DTC114TSA Q71 8-729-900-65 TRANSISTOR DTA144ES Q72 8-729-119-76 TRANSISTOR 2SA1175-HFE Q74 8-729-900-65 TRANSISTOR DTA144ES Q76 8-729-119-76 TRANSISTOR 2SA1175-HFE Q77 8-729-900-63 TRANSISTOR DTA124ES < RESISTOR > R116 1-247-855-11 CARBON 10K 5% 1/4W R117 1-260-111-11 CARBON 10K 5% 1/2W R118 1-249-393-11 CARBON 10 5% 1/4W R121 1-247-855-11 CARBON 10K 5% 1/4W R122 1-249-417-11 CARBON 1K 5% 1/4W R123 1-247-879-11 CARBON 100K 5% 1/4W R124 1-247-855-11 CARBON 10K 5% 1/4W R125 1-249-417-11 CARBON 1K 5% 1/4W R127 1-249-430-11 CARBON 12K 5% 1/4W R128 1-249-430-11 CARBON 12K 5% 1/4W R131 1-247-903-00 CARBON 1M 5% 1/4W R131A 1-247-839-11 CARBON 2.2K 5% 1/4W R132A 1-247-839-11 CARBON 2.2K 5% 1/4W R133 1-247-871-11 CARBON 47K 5% 1/4W R134 1-247-871-11 CARBON 47K 5% 1/4W R135 1-247-871-11 CARBON 47K 5% 1/4W R136 1-247-871-11 CARBON 47K 5% 1/4W R137 1-247-883-00 CARBON 150K 5% 1/4W R138 1-247-883-00 CARBON 150K 5% 1/4W R139 1-247-863-11 CARBON 22K 5% 1/4W R140 1-247-863-11 CARBON 22K 5% 1/4W R141 1-247-867-11 CARBON 33K 5% 1/4W R142 1-247-867-11 CARBON 33K 5% 1/4W R143 1-247-855-11 CARBON 10K 5% 1/4W R144 1-247-855-11 CARBON 10K 5% 1/4W R145 1-247-807-11 CARBON 100 5% 1/4W R146 1-247-807-11 CARBON 100 5% 1/4W R147 1-249-427-11 CARBON 6.8K 5% 1/4W R148 1-249-427-11 CARBON 6.8K 5% 1/4W R151 1-249-417-11 CARBON 1K 5% 1/4W R152 1-247-879-11 CARBON 100K 5% 1/4W R153 1-249-440-11 CARBON 82K 5% 1/4W R154 1-247-879-11 CARBON 100K 5% 1/4W R155 1-249-436-11 CARBON 39K 5% 1/4W R156 1-260-115-11 CARBON 22K 5% 1/2W R157 1-249-417-11 CARBON 1K 5% 1/4W R158 1-247-879-11 CARBON 100K 5% 1/4W R159 1-247-855-11 CARBON 10K 5% 1/4W R160 1-247-879-11 CARBON 100K 5% 1/4W R161 1-260-087-11 CARBON 100 5% 1/2W R163 1-247-871-11 CARBON 47K 5% 1/4W R164 1-247-843-11 CARBON 3.3K 5% 1/4W R165 1-249-427-11 CARBON 6.8K 5% 1/4W R166 1-247-871-11 CARBON 47K 5% 1/4W R169 1-247-847-11 CARBON 4.7K 5% 1/4W R170 1-247-847-11 CARBON 4.7K 5% 1/4W R171 1-247-871-11 CARBON 47K 5% 1/4W R183 1-260-111-11 CARBON 10K 5% 1/2W R184 1-247-855-11 CARBON 10K 5% 1/4W R187 1-247-871-11 CARBON 47K 5% 1/4W R188 1-247-871-11 CARBON 47K 5% 1/4W R189 1-247-847-11 CARBON 4.7K 5% 1/4W R190 1-247-847-11 CARBON 4.7K 5% 1/4W R191 1-247-847-11 CARBON 4.7K 5% 1/4W R196 1-247-847-11 CARBON 4.7K 5% 1/4W R197 1-249-413-11 CARBON 470 5% 1/4W R198 1-260-095-11 CARBON 470 5% 1/2W < VARIABLE RESISTOR > SFR11 1-241-765-11 RES, ADJ, CARBON 22K SFR12 1-241-765-11 RES, ADJ, CARBON 22K < VIBRATOR > X01 1-767-130-11 VIBRATOR, CERAMIC (4.19MHz) ************************************************************* * A-2007-756-A MOTOR BOARD, COMPLETE *********************** < CAPACITOR > C1A 1-126-963-11 ELECT 4.7uF 20% 50V C1B 1-164-159-11 CERAMIC 0.1uF 50V C1C 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > * CN07 1-568-835-11 SOCKET, CONNECTOR 16P * CN14 1-568-835-11 SOCKET, CONNECTOR 16P < DIODE > D1A 8-719-901-33 DIODE 1SS133 D1B 8-719-901-33 DIODE 1SS133 D1C 8-719-921-80 DIODE MTZJ-11B D1D 8-719-901-33 DIODE 1SS133 D1E 8-719-901-33 DIODE 1SS133 D1F 8-719-901-33 DIODE 1SS133 D1G 8-719-901-33 DIODE 1SS133 D1H 8-719-901-33 DIODE 1SS133 D1J 8-719-901-33 DIODE 1SS133 D1K 8-719-921-63 DIODE MTZJ-7.5B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 40 – TC-TX101 Sony Corporation Home A&V Products Company 9-922-704-11 97J0475-1 Printed in Japan C1997. 10 Published by General Engineering Dept. (Shibaura) Ref. No. Part No. Description Remark MOTOR < IC > IC1A 8-759-822-09 IC LB1641 < TRANSISTOR > Q1A 8-729-188-23 TRANSISTOR 2SD882-P Q1B 8-729-029-86 TRANSISTOR DTC124ESA Q1C 8-729-029-86 TRANSISTOR DTC124ESA Q1D 8-729-195-23 TRANSISTOR 2SA952 Q1E 8-729-195-23 TRANSISTOR 2SA952 Q1F 8-729-029-86 TRANSISTOR DTC124ESA Q1G 8-729-029-86 TRANSISTOR DTC124ESA Q1H 8-729-142-46 TRANSISTOR 2SC2001-LK Q1J 8-729-142-46 TRANSISTOR 2SC2001-LK Q1K 8-729-029-94 TRANSISTOR DTC143TSA Q1L 8-729-422-57 TRANSISTOR UN4111 Q1M 8-729-029-86 TRANSISTOR DTC124ESA < RESISTOR > R1A 1-247-825-11 CARBON 560 5% 1/4W R1B 1-247-879-11 CARBON 100K 5% 1/4W R1C 1-247-871-11 CARBON 47K 5% 1/4W R1D 1-249-417-11 CARBON 1K 5% 1/4W R1E 1-249-417-11 CARBON 1K 5% 1/4W R1F 1-249-417-11 CARBON 1K 5% 1/4W R1G 1-249-417-11 CARBON 1K 5% 1/4W R1H 1-249-417-11 CARBON 1K 5% 1/4W R1J 1-249-417-11 CARBON 1K 5% 1/4W R1K 1-249-409-11 CARBON 220 5% 1/4W ************************************************************* MISCELLANEOUS *************** 21 1-782-804-11 CORD (WITH CONNECTOR) 24 3-021-640-01 BRACKET (FLEXIBLE A) 60 3-021-641-01 BRACKET (FLEXIBLE B) 101 3-020-446-01 BRACKET (HEAD UNIT) M1 3-020-447-01 MOTOR (A) ASSY (REEL/CAPSTAN) M2 3-020-448-01 MOTOR (B) ASSY (LOADING) ************************************************************* ACCESSORIES & PACKING MATERIALS ******************************** 3-861-243-12 MANUAL, INSTRUCTION (ENGLISH,FRENCH, SPANISH,GERMAN,DUTCH,SWEDISH, ITALIAN,PORTUGUESE,CHINESE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
