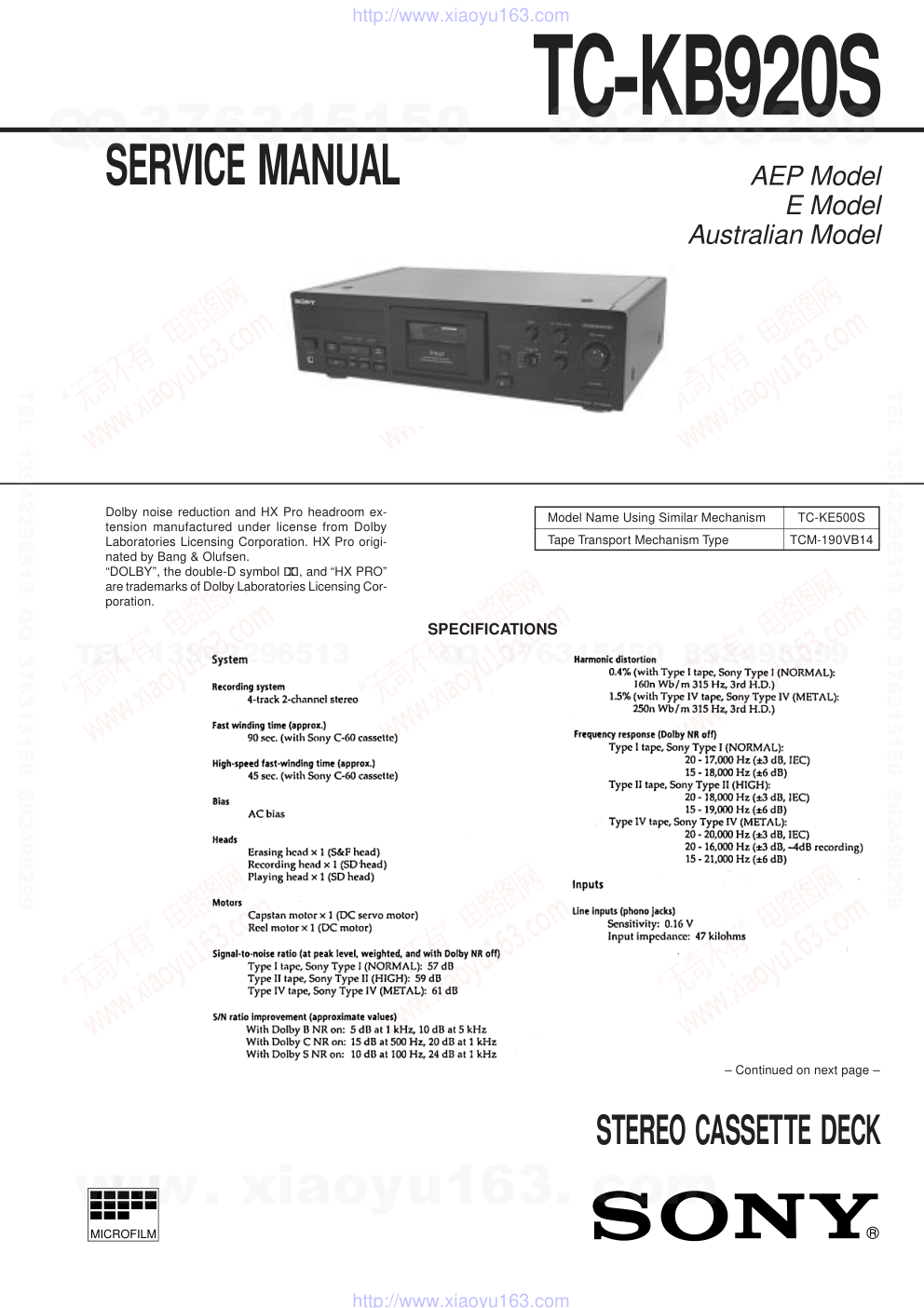

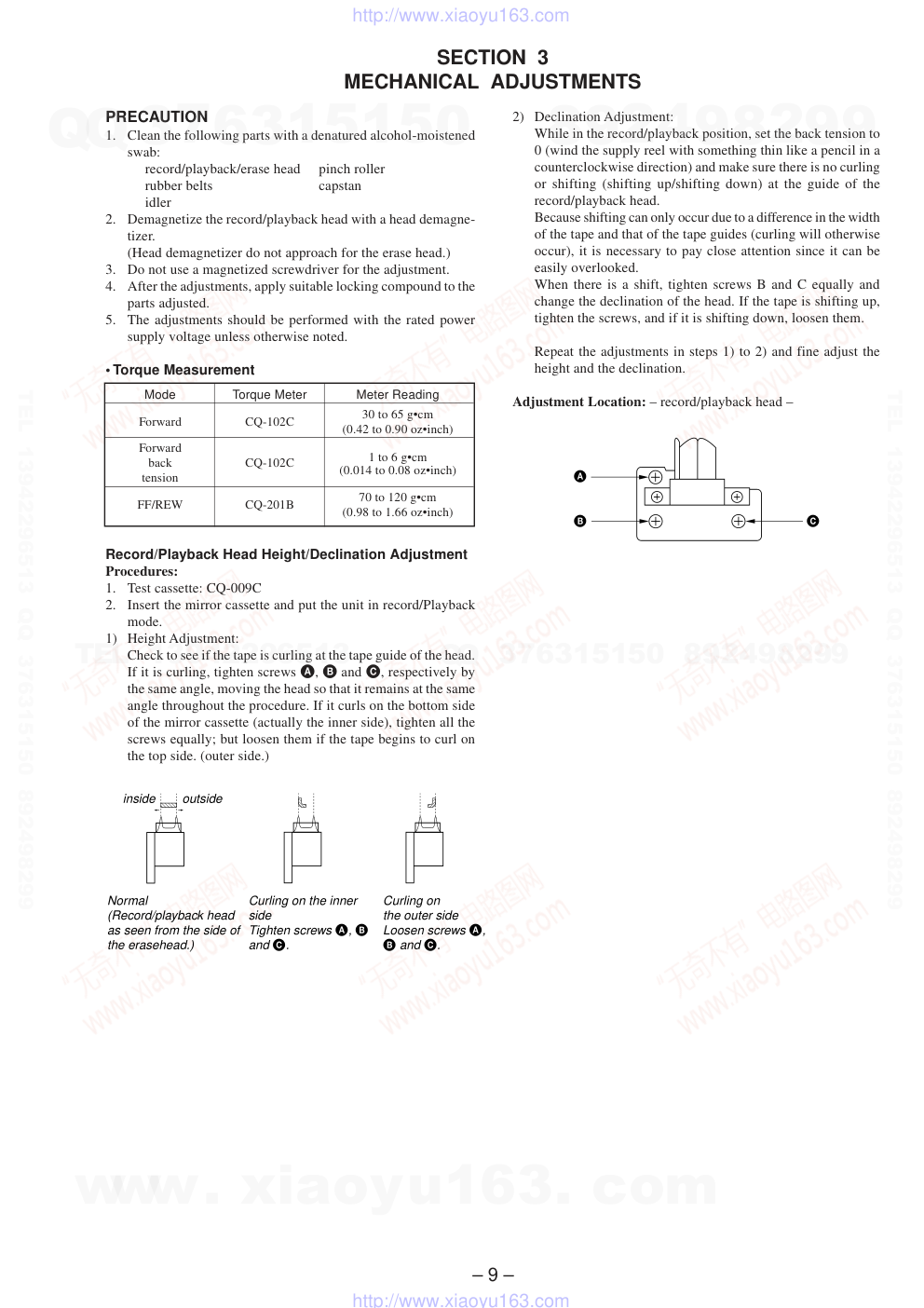

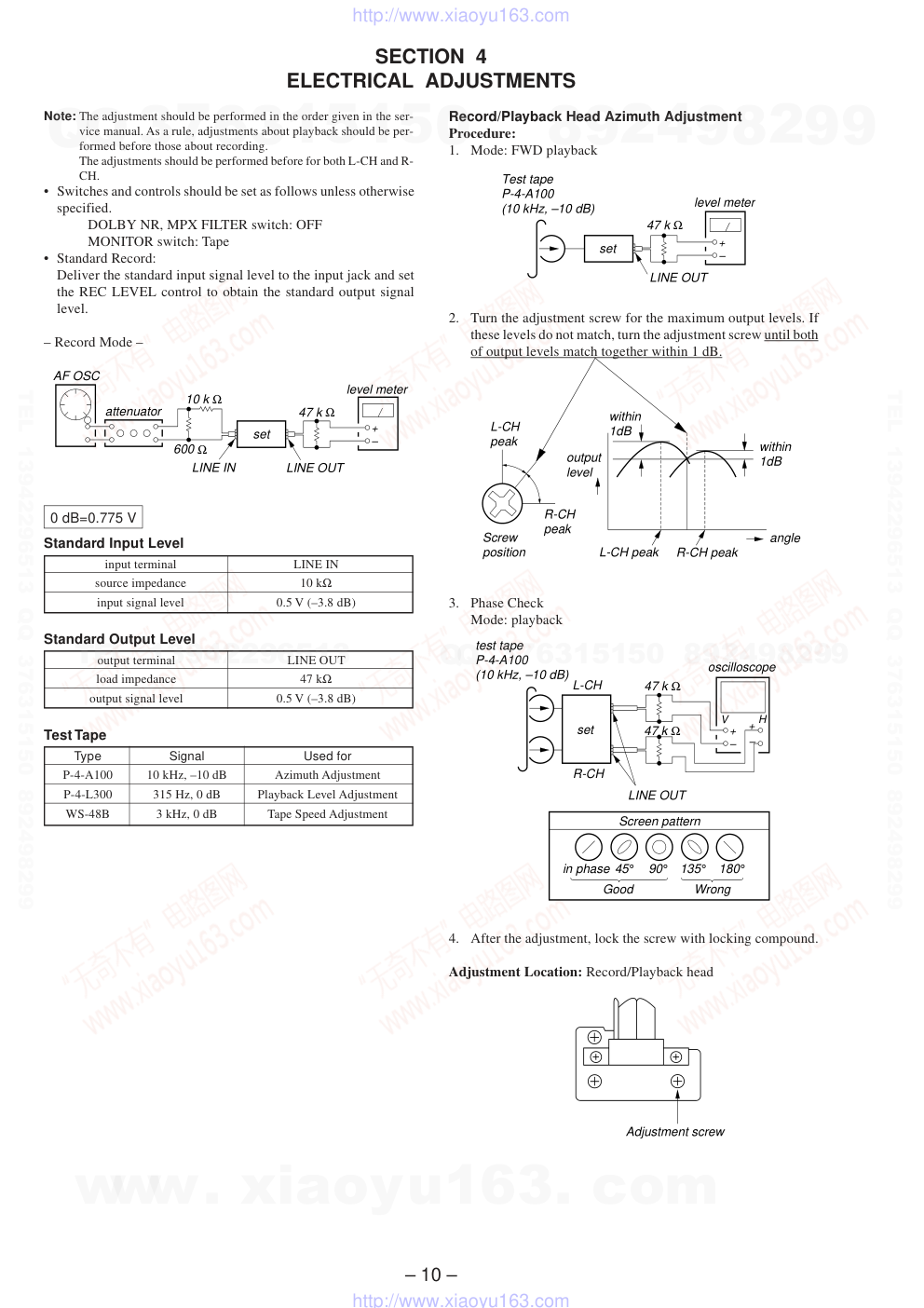

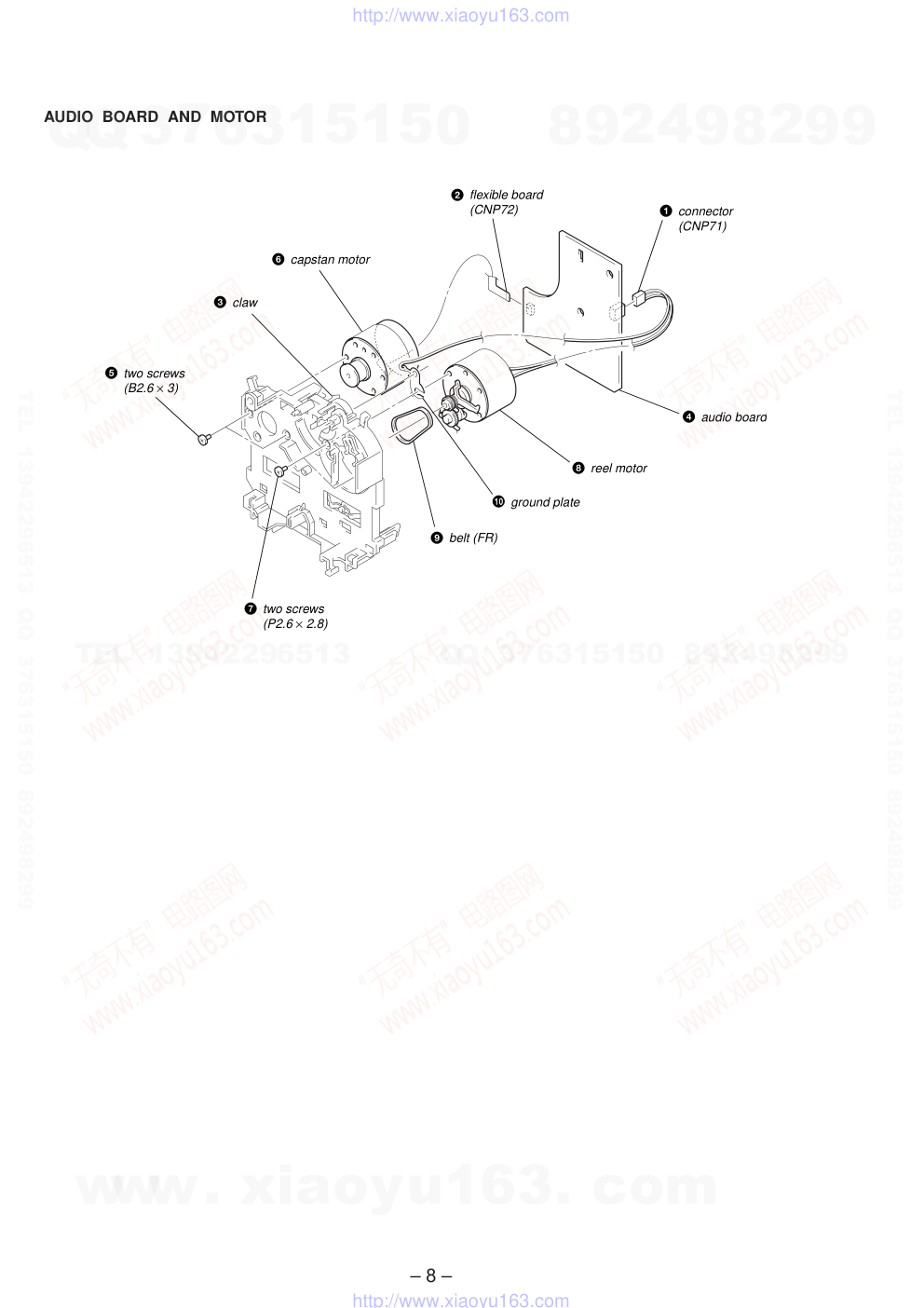

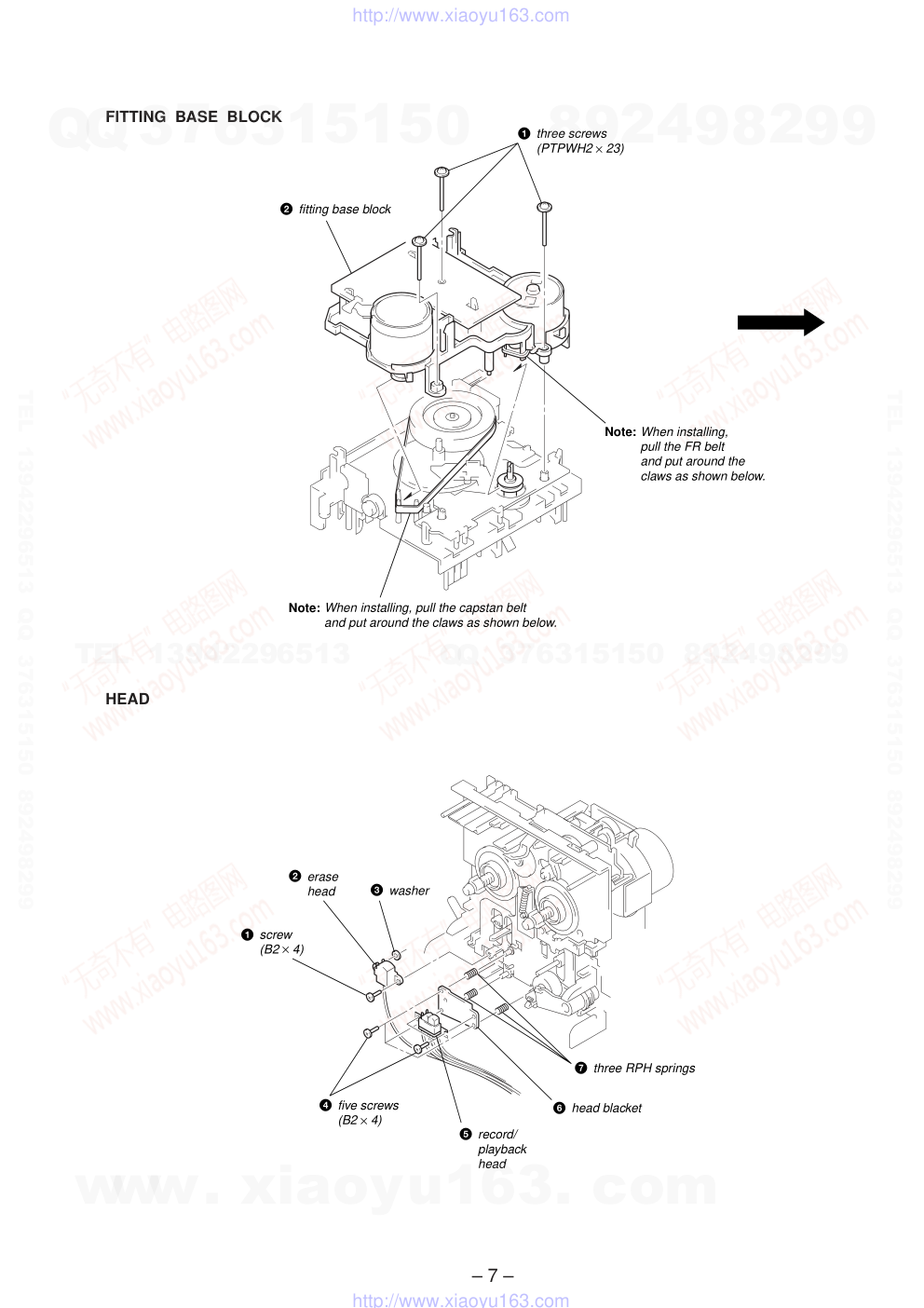

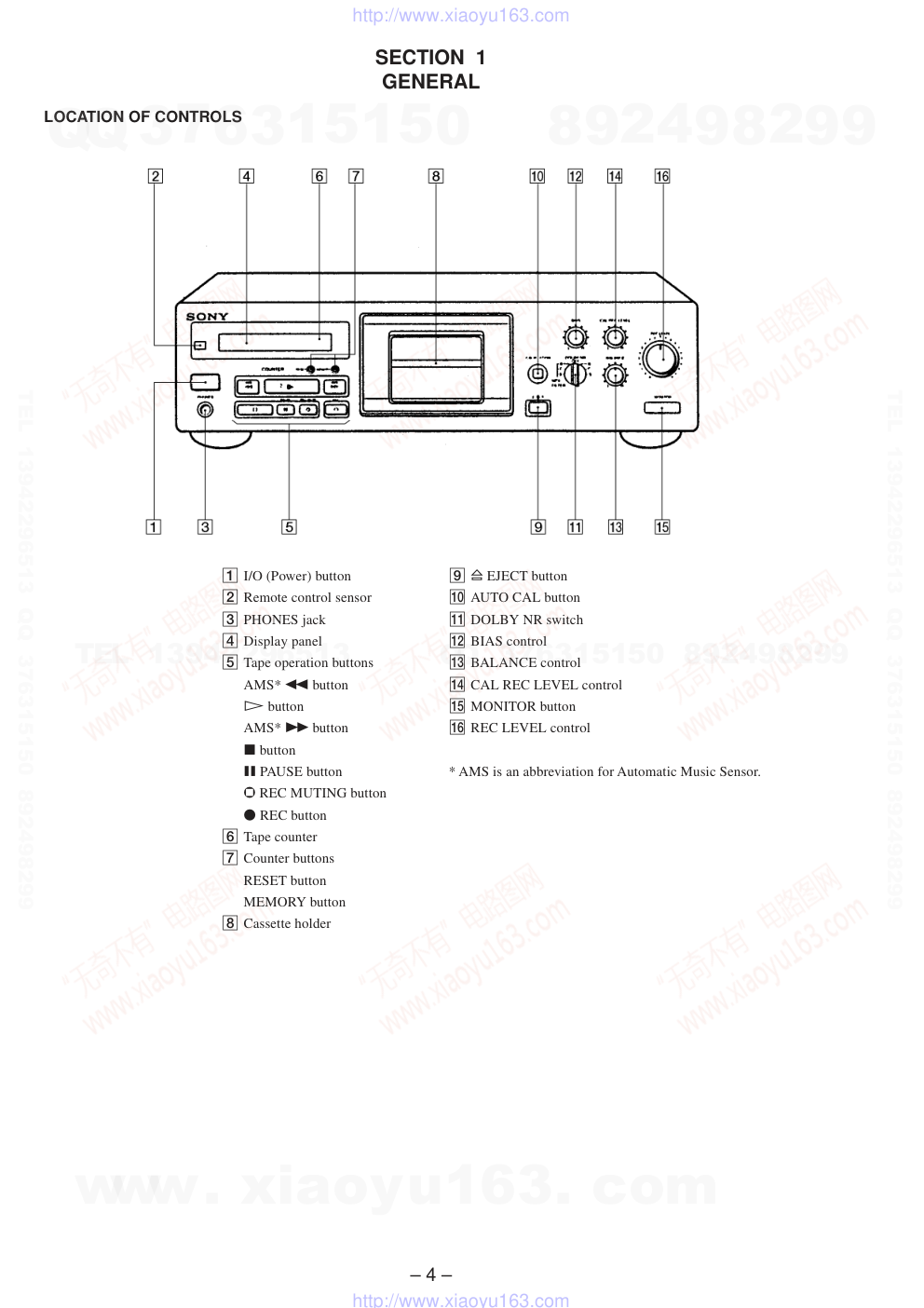

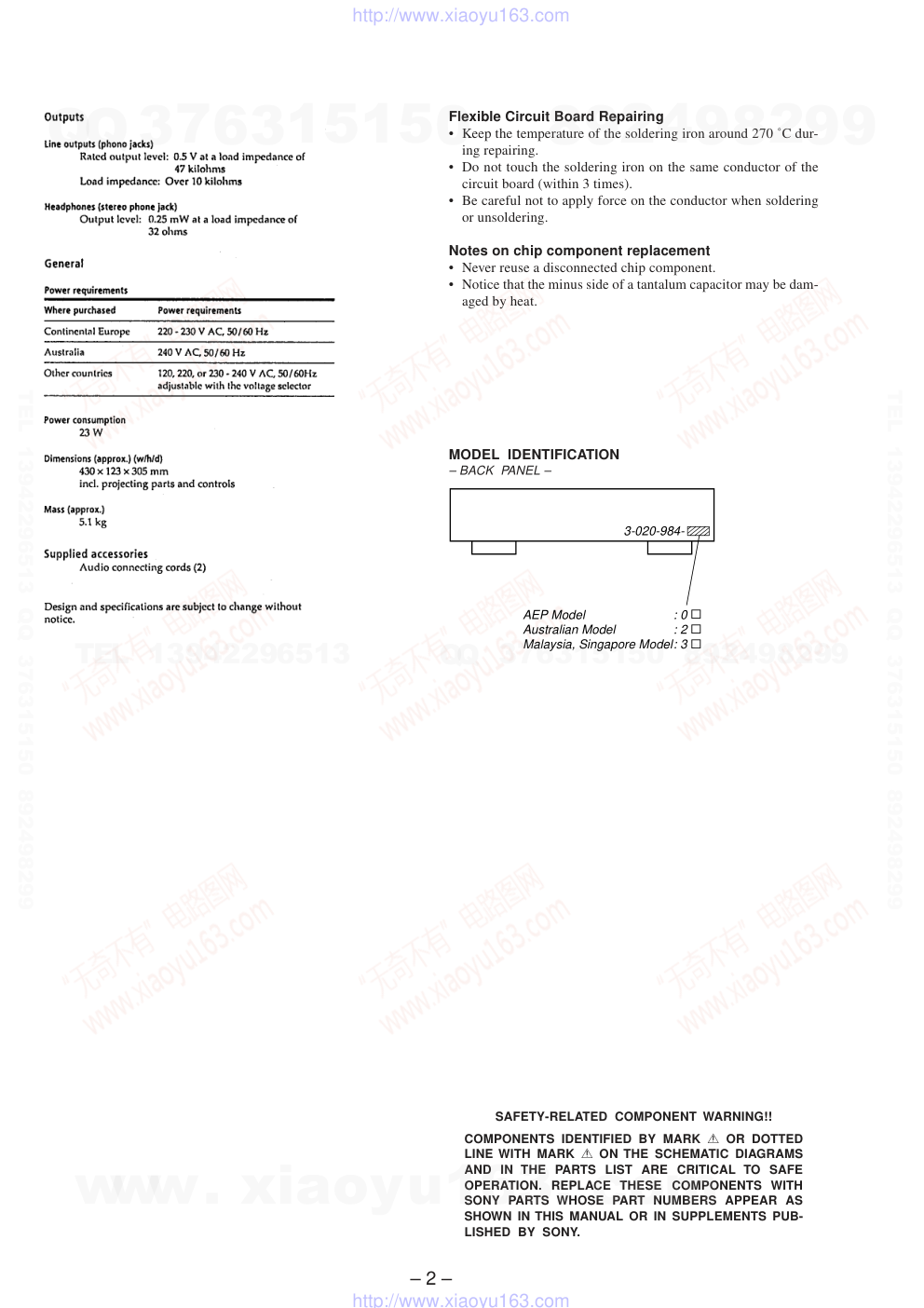

MICROFILM SERVICE MANUAL STEREO CASSETTE DECK AEP Model E Model Australian Model Model Name Using Similar Mechanism TC-KE500S Tape Transport Mechanism Type TCM-190VB14 SPECIFICATIONS Dolby noise reduction and HX Pro headroom ex- tension manufactured under license from Dolby Laboratories Licensing Corporation. HX Pro origi- nated by Bang & Olufsen. “DOLBY”, the double-D symbol a, and “HX PRO” are trademarks of Dolby Laboratories Licensing Cor- poration. – Continued on next page – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. MODEL IDENTIFICATION – BACK PANEL – 3-020-984- AEP Model : 0 π� Australian Model : 2 π� Malaysia, Singapore Model: 3 π www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – TABLE OF CONTENTS 1. GENERAL ................................................................... 4 2. DISASSEMBLY ......................................................... 5 3. MECHANICAL ADJUSTMENTS ....................... 9 4. ELECTRICAL ADJUSTMENTS......................... 10 5. DIAGRAMS 5-1. Note for Printed Wiring Boards and Schematic Diagrams ....................................................... 14 5-2. Printed Wiring Boards – MD Section –......................... 15 5-3. Schematic Diagram – MD Section – .............................. 17 5-4. Printed Wiring Board – MAIN Section – ...................... 19 5-5. Schematic Diagram – MAIN Section – (1/2) ................. 21 5-6. Schematic Diagram – MAIN Section – (2/2) ................. 23 5-7. Printed Wiring Board – DOLBY-S Section – ............... 25 5-8. Schematic Diagram – DOLBY-S Section – .................. 25 5-9. Printed Wiring Boards – POWER Section – ................. 27 5-10. Schematic Diagram – POWER Section – ...................... 28 5-11. Printed Wiring Boards – PANEL Section – .................. 29 5-12. Schematic Diagram – PANEL Section – ........................ 31 5-13. IC Pin Function Description ........................................... 33 6. EXPLODED VIEWS ................................................ 35 7. ELECTRICAL PARTS LIST ............................... 40 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SECTION 1 GENERAL LOCATION OF CONTROLS 1 I/O (Power) button 2 Remote control sensor 3 PHONES jack 4 Display panel 5 Tape operation buttons AMS* 0 button · button AMS* ) button p button P PAUSE button R REC MUTING button r REC button 6 Tape counter 7 Counter buttons RESET button MEMORY button 8 Cassette holder 9 § EJECT button !º AUTO CAL button !¡ DOLBY NR switch !™ BIAS control !£ BALANCE control !¢ CAL REC LEVEL control !∞ MONITOR button !§ REC LEVEL control * AMS is an abbreviation for Automatic Music Sensor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – FRONT PANEL SECTION MD ASS’Y SECTION Note: Follow the disassembly procedure in the numerical order given. SECTION 2 DISASSEMBLY CASE Unscrew the four case attachment seven tapping screws and remove the case. 1 three flat cables (CN803 – 805) 2 connector (CN704) 4 claw 4 claw 3 screw (BVTP3 × 8) 2 two connectors (CNP304, CN801) 2 five connectors (CNP301 – 303, 305, 306) 3 four screws (BVTP3 × 8) 5 front panel section 4 two screws (BVTT2.6 × 8) 5 two screws (BVTP2.6 × 8) 6 Remove the MD ass’y section to direction of arrow A. A 2 two claws 3 cassette lid ass’y 2 two claws 1 Push the eject button. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – MAIN BOARD CASSETTE HOLDER (R) ASS’Y 1 connector (CN701) 5 three PC board holders 4 screw (BV/ring) 2 screw (BV/ring) 4 two screws (BVTP3 × 8) 6 MAIN board 3 bracket (TR) 2 boss 4 cassette holder (R) ass’y 3 shaft 1 torsion spring www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – FITTING BASE BLOCK HEAD 1 three screws (PTPWH2 × 23) Note: When installing, pull the FR belt and put around the claws as shown below. Note: When installing, pull the capstan belt and put around the claws as shown below. 2 fitting base block 1 screw (B2 × 4) 4 five screws (B2 × 4) 5 record/ playback head 6 head blacket 7 three RPH springs 2 erase head 3 washer www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – AUDIO BOARD AND MOTOR 1 connector (CNP71) 2 flexible board (CNP72) 6 capstan motor 3 claw 5 two screws (B2.6 × 3) 7 two screws (P2.6 × 2.8) 9 belt (FR) 0 ground plate 8 reel motor 4 audio board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – SECTION 3 MECHANICAL ADJUSTMENTS PRECAUTION 1. Clean the following parts with a denatured alcohol-moistened swab: record/playback/erase head pinch roller rubber belts capstan idler 2. Demagnetize the record/playback head with a head demagne- tizer. (Head demagnetizer do not approach for the erase head.) 3. Do not use a magnetized screwdriver for the adjustment. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. • Torque Measurement Record/Playback Head Height/Declination Adjustment Procedures: 1. Test cassette: CQ-009C 2. Insert the mirror cassette and put the unit in record/Playback mode. 1) Height Adjustment: Check to see if the tape is curling at the tape guide of the head. If it is curling, tighten screws A, B and C, respectively by the same angle, moving the head so that it remains at the same angle throughout the procedure. If it curls on the bottom side of the mirror cassette (actually the inner side), tighten all the screws equally; but loosen them if the tape begins to curl on the top side. (outer side.) Mode Torque Meter Meter Reading Forward CQ-102C 30 to 65 g•cm (0.42 to 0.90 oz•inch) Forward back CQ-102C 1 to 6 g•cm tension (0.014 to 0.08 oz•inch) FF/REW CQ-201B 70 to 120 g•cm (0.98 to 1.66 oz•inch) 2) Declination Adjustment: While in the record/playback position, set the back tension to 0 (wind the supply reel with something thin like a pencil in a counterclockwise direction) and make sure there is no curling or shifting (shifting up/shifting down) at the guide of the record/playback head. Because shifting can only occur due to a difference in the width of the tape and that of the tape guides (curling will otherwise occur), it is necessary to pay close attention since it can be easily overlooked. When there is a shift, tighten screws B and C equally and change the declination of the head. If the tape is shifting up, tighten the screws, and if it is shifting down, loosen them. Repeat the adjustments in steps 1) to 2) and fine adjust the height and the declination. Adjustment Location: – record/playback head – outside Normal (Record/playback head as seen from the side of the erasehead.) Curling on the inner side Tighten screws A, B� and C. Curling on the outer side Loosen screws A, B and C. inside A B C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – SECTION 4 ELECTRICAL ADJUSTMENTS Note: The adjustment should be performed in the order given in the ser- vice manual. As a rule, adjustments about playback should be per- formed before those about recording. The adjustments should be performed before for both L-CH and R- CH. • Switches and controls should be set as follows unless otherwise specified. DOLBY NR, MPX FILTER switch: OFF MONITOR switch: Tape • Standard Record: Deliver the standard input signal level to the input jack and set the REC LEVEL control to obtain the standard output signal level. – Record Mode – Standard Input Level input terminal LINE IN source impedance 10 kΩ input signal level 0.5 V (–3.8 dB) Standard Output Level output terminal LINE OUT load impedance 47 kΩ output signal level 0.5 V (–3.8 dB) Test Tape Type Signal Used for P-4-A100 10 kHz, –10 dB Azimuth Adjustment P-4-L300 315 Hz, 0 dB Playback Level Adjustment WS-48B 3 kHz, 0 dB Tape Speed Adjustment + – set 47 k Ω LINE OUT LINE IN 600 Ω 10 k Ω attenuator AF OSC level meter Record/Playback Head Azimuth Adjustment Procedure: 1. Mode: FWD playback 2. Turn the adjustment screw for the maximum output levels. If these levels do not match, turn the adjustment screw until both of output levels match together within 1 dB. 3. Phase Check Mode: playback 4. After the adjustment, lock the screw with locking compound. Adjustment Location: Record/Playback head + – set 47 k Ω LINE OUT level meter Test tape P-4-A100 (10 kHz, –10 dB) Screw position L-CH peak within 1dB output level L-CH peak R-CH peak within 1dB angle R-CH peak + – V H + – Screen pattern Good Wrong in phase 45° 90° 135° 180° LINE OUT set R-CH L-CH 47 k Ω 47 k Ω oscilloscope test tape P-4-A100 (10 kHz, –10 dB) Adjustment screw 0 dB=0.775 V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – Tape Speed Adjustment Procedure: Mode: playback 1. Set to FWD playback mode. 2. Adjust RV71 so that the frequency counter reading becomes 3,000±90 Hz. 3. Frequency difference between the beginning and the end of the tape should be within 3%. Adjustment Location: AUDIO board (See page 12.) Sample value of Wow and Flutter: 0.3% or less W.RMS (JIS) (WS-48B) Playback Level Adjustment Procedure: Mode: playback Adjust RV121 (L-CH) and RV221 (R-CH) so that the reading on level meter meets the adjustment limits below. Adjustment Limits: LINE OUT level: –7.7±0.5 dB (0.301 to 0.338 V) Level difference between channels: within 0.5 dB Check that the LINE OUT level does not change even if Playback and Stop operation is repeated several times. Adjustment Location: MAIN board (See page 12.) + – set LINE OUT frequency counter test tape WS-48B (3 kHz, 0 dB) 47 k Ω + – set LINE OUT 47 k Ω test tape P-4-L300 (315 Hz, 0 dB) level meter Bias Consumption Current Adjustment Procedure: 1. Set RV103 (L-CH) and RV203 (R-CH) to mechanical center and turn the set recording mode. 2. Connect digital voltmeter as shown by the following table. 3. Adjust the following transformers for the minimum readings on the digital voltmeter. Measurement Point Adjustment Part Value L-CH 2 and 3, TP321 T101 minimum R-CH 1 and 2, TP321 T201 Adjustment Location: MAIN board (See page 12.) Record Bias Adjustment Setting: REC LEVEL control: Standard Record (See page 10.) Procedure: 1. Mode: record and playback 2. Adjust RV103 (L-CH) and RV203 (R-CH) so that 10 kHz play- back output is 0±0.3 dB relative to the 315 Hz output. Adjustment Location: MAIN board (See page 12.) – + set LINE IN (no signal) B+ (+7.5 V) TP321 3 2 1 L-CH R-CH 47 k Ω digital voltmeter CS-413 blank tape set 47 k Ω AF OSC Attenuator LINE IN 315 Hz 10 kHz 50 mV (–23.8 dB) 600 Ω 10 k Ω CS-123 blank tape LINE OUT level meter + – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 12 – Record Level Adjustment Setting: REC LEVEL control: Standard Record (See page 10.) Procedure: 1. Mode: record and playback 2. Adjust RV101 (L-CH) and RV201 (R-CH) so that the reading on level meter meets the adjustment limits below. Adjustment Limits: –23.8±0.5 dB (47.2 to 53 mV) Adjustment Location: MAIN board Record EQ (IV) Adjustment Setting: REC LEVEL control: Standard Record (See page 10.) Procedure: 1. Mode: record and playback 2. Adjust RV102 and RV202 so that they become maximum. 3. Adjust RV102 (L-CH) and RV202 (R-CH) so that the differ- ence between R-CH and L-CH at 10 kHz is within 1 dB. 4. Adjust RV306 so that the R-CH meet the specification. Adjustment Limits: 10 kHz level difference against 315 Hz reference. 0±1.0 dB Adjustment Location: MAIN board set 47 k Ω AF OSC Attenuator 600 Ω 10 k Ω CS-123 blank tape LINE OUT level meter LINE IN 315 Hz, 50 mV (–23.8 dB) + – set 47 k Ω AF OSC Attenuator LINE IN 315 Hz 10 kHz 50 mV (–23.8 dB) 600 Ω 10 k Ω CS-123 blank tape LINE OUT level meter + – Adjustment Location: [MAIN BOARD] – COMPONENT SIDE – [AUDIO BOARD] – COMPONENT SIDE – RV71 CNP73 CNP71 CNP72 RV103 RV306 RV121 RV202 DOLBY-S BOARD J301 RV102 RV201 RV101 RV221 RV203 T101 T201 1 3 TP301 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – – 14 – SECTION 5 DIAGRAMS 5-1. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS (In addition to this, the necessary note is each block.) • Circuit Boards Location • Abbreviation AUS : Australian MY : Malaysia SP : Singapore HP board AC POWER board TRANSFORMER board (AEP, AUS) DOLBY-S boards MAIN board TRANS 1 board (MY, SP) TRANS 2 board (MY, SP) REC VOL board AUDIO board LEAF SW board PANEL board Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • ¢ : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • b : Pattern from the side which enables seeing. • Abbreviation AUS : Australian model. MY : Malaysia model. SP : Singapore model. • Indication of transistor. • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : PB ( ) : REC • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. E : PB a : REC • Abbreviation AUS : Australian model. MY : Malaysia model. SP : Singapore model. Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. B These are omitted. C E Q B These are omitted. C E Q w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 15 – – 16 – TC-KB920S 5-2. PRINTED WIRING BOARDS – MD Section – • See page 13 for Circuit Boards Location. (Page 19) (Page 19) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 17 – 5-3. SCHEMATIC DIAGRAM – MD Section – TC-KB920S The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. (Page 24) (Page 24) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 18 – • Waveforms – MAIN BOARD (1/2) – 1 T101 4 2 IC304 !¡, !™ 4 IC304 7, 8 5 T301 1 6 IQ310 C, Q311 C 3 T201 4 – MAIN BOARD (2/2) – 7 IC801 #º (XIN) 26.4 Vp-p 6.4 µs 4.5 Vp-p 6.4 µs 23.2 Vp-p 6.4 µs 3.8 Vp-p 6.4 µs 148 Vp-p 6.4 µs 30 Vp-p 6.4 µs 4.1 Vp-p 4 MHz • IC Block Diagram IC803 BA6219B (MAIN BOARD) 1 2 3 4 5 6 7 8 9 10 GND MOTOR DRIVE NOISE FILTER CLAMP FWD.IN REV.IN VCC 1 VCC 2 NOISE FILTER MOTOR DRIVE MOTOR DRIVE MOTOR DRIVE T.S.D O.C.P FWD/REV/STOP CONTROL LOGIC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TC-KB920S – 19 – – 20 – 5-4. PRINTED WIRING BOARD – MAIN Section – • See page 13 for Circuit Boards Location. Ref. No. Location Ref. No. Location • Semiconductor Location D101 H-4 D102 H-4 D103 H-4 D201 H-5 D202 H-5 D203 H-4 D301 D-1 D302 F-5 D305 G-5 D306 D-5 D307 E-5 D308 D-5 D309 I-6 D310 I-6 D311 H-5 D312 F-5 D313 D-5 D341 D-1 D342 D-2 D701 G-2 D702 H-2 D703 H-2 D704 H-2 D705 G-3 D706 G-3 D707 H-3 D708 I-2 D709 G-1 D710 I-1 D711 F-3 D712 G-2 D713 G-3 D714 H-3 D715 H-3 D716 G-2 D717 G-2 D802 C-4 D803 C-4 D804 C-4 D814 E-5 D815 E-5 IC301 C-9 IC302 H-7 IC303 E-7 IC304 B-7 IC305 F-4 IC306 H-5 IC307 E-9 IC308 I-6 IC309 I-5 IC310 G-9 IC311 G-9 IC701 I-3 IC801 D-2 IC803 F-2 IC804 D-4 Q101 D-9 Q102 H-5 Q103 H-8 Q105 F-7 Q201 D-10 Q202 I-8 Q203 I-8 Q205 F-7 Q301 G-5 Q302 D-6 Q303 D-6 Q304 D-6 Q305 C-6 Q306 C-6 Q307 A-7 Q308 A-7 Q309 A-7 Q310 C-6 Q311 C-6 Q312 I-6 Q313 I-5 Q314 I-5 Q315 F-9 Q316 D-6 Q351 C-3 Q352 C-2 Q353 C-2 Q701 I-3 Q702 I-2 Q703 I-1 Q704 I-2 Q705 G-2 Q706 G-2 Q707 H-3 Q708 H-3 Q802 C-2 Q803 C-3 Q804 C-3 Q806 F-4 Q807 F-4 Q808 F-4 Q809 F-2 Q810 F-2 Q814 C-2 (Page 29) (Page 27) (Page 30) (Page 25) (Page 30) (Page 25) (Page 25) (Page 25) (Page 30) (Page 30) (Page 15) (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 21 – – 22 – TC-KB920S 5-5. SCHEMATIC DIAGRAM – MAIN Section – (1/2) • See page 18 for Waveforms. (Page 26) (Page 31) (Page 26) (Page 26) (Page 26) (Page 31) (Page 23) (Page 23) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – – 24 – TC-KB920S 5-6. SCHEMATIC DIAGRAM – MAIN Section – (2/2) • See page 18 for Waveforms and IC Block Diagram. (Page 31) (Page 22) (Page 31) (Page 22) (Page 31) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. (Page 17) (Page 17) (Page 28) (Page 28) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 25 – – 26 – TC-KB920S 5-7. PRINTED WIRING BOARD – DOLBY-S Section – • See page 13 for Circuit Boards Location. 5-8. SCHEMATIC DIAGRAM – DOLBY-S Section – • IC Block Diagram IC1 CXA1917AM-T6 (DOLBY-S BOARD) 2 1 RECOUT SCINL ANTSAT MC3IN MC4IN HLSOUT MCBO VCC IREF SCBOL TCS2L TCS1L FBOL TCF1L TCF2L 4 LFIN 3 TCL2 ZL2 5 9 8 7 6 TCL1 SCINH TCS1H ZL1 HLSMP MCTC 10 11 12 13 VCT 14 VEE 15 24 25 26 27 28 29 30 20 21 22 23 19 17 18 16 TCS2H TCF2H FBOH TCF1H ANTSAT FLVCR SLVCR FHVCR LFICG LFVCR LFDET SHVCR SLDET SLICG SHICG SHDET FLDET FHDET FLICG FHICG V TO I CONV H V TO I CONV H VREF & IREF MC4 MC3DS MC3DT MC2 MC1 MC4 MC3 MC1 MC (Page 19, 20) (Page 21) (Page 21) (Page 21) (Page 21) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 27 – – 28 – TC-KB920S 5-9. PRINTED WIRING BOARDS – POWER Section – • See page 13 for Circuit Boards Location. 5-10. SCHEMATIC DIAGRAM – POWER Section – (Page 27) (Page 27, 28) (Page 19) (Page 19) (Page 27) (Page 27) (Page 27) The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. (Page 24) (Page 24) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 29 – – 30 – TC-KB920S 5-11. PRINTED WIRING BOARDS – PANEL Section – • See page 13 for Circuit Boards Location. (Page 19) (Page 19) (Page 20) (Page 20) (Page 19) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – – 32 – TC-KB920S 5-12. SCHEMATIC DIAGRAM – PANEL Section – (Page 24) (Page 23) (Page 23) (Page 21) (Page 22) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – – 34 – 5-13. IC PIN FUNCTION DESCRIPTION • MAIN BOARD IC801 M38172M4-171FP (SYSTEM CONTROLLER) Pin No. Pin Name I/O Function 1 T.REEL I Take-up reel rotation pulse input from the rotation detect sensor (IC82) 2 S.REEL I Supply reel rotation pulse input from the rotation detect sensor (IC81) 3 METER.LCH I Signal input for the level meter drive (L-ch) 4 METER.RCH I Signal input for the level meter drive (R-ch) 5 AMS.IN I Auto music sensor signal input terminal “H”: AMS detect 6 DOOR/STOP.SW I Mechanism stop detect switch (S81) input terminal 7 CLOSE.SW I Not used (fixed at “H”) 8 OPEN.SW I Not used (fixed at “H”) 9 CAM.SW3 I Not used (fixed at “H”) 10 CAM.SW2 I Not used (fixed at “H”) 11 CAM.SW1 I Not used (fixed at “H”) 12 CAM.SW0 I Not used (fixed at “H”) 13 CAP.M ON/OFF O Capstan motor (M902) on/off control signal output terminal “H”: motor on 14 ASIST.M.UP O Assist motor drive signal output terminal Not used (pull down) 15 ASIST.M.DOWN O Assist motor drive signal output terminal Not used (pull down) 16 REEL.M.FWD O Reel motor (M901) drive signal output to the BA6219B (IC803) 17 REEL.M.REV O Reel motor (M901) drive signal output to the BA6219B (IC803) 18 EJECT.V (6.5V) O Reel motor (M901) eject control signal output terminal “H” active 19 FF/REW.V (4.4V) O Reel motor (M901) FF/REW control signal output terminal “H” active 20 PLAY.V (2.5V) O Reel motor (M901) play control signal output terminal “H” active 21 TYPE.IV I Metal detect switch (S83) input terminal “H”: metal 22 HALF.SW I Half detect switch input terminal Not used (fixed at “H”) 23 TYPE.II I CrO2 detect switch (S82) input terminal “H”: CrO2 24 TAB.SW I Not used (fixed at “H”) 25 POWER.IN I AC in detect signal input terminal “H”: AC in 26 SIRCS.IN I Sircs signal input from the remote control receiver (IC901) 27 RESET I System reset signal input from the reset signal generator (IC804) “L”: reset “L” is input for several 100 msec after power on, then it changes to “H” 28 XCIN I Sub system clock input terminal Not used (fixed at “L”) 29 XCOUT O Sub system clock output terminal Not used (open) 30 XIN I Main system clock input terminal (4 MHz) 31 XOUT O Main system clock output terminal (4 MHz) 32 VSS — Ground terminal 33 VER.200/190 I Setting terminal for the version (fixed at “L”) 34 POWER.OUT O Power on/off control signal output terminal “L”: power on Not used (open) 35 MONITOR.TAPE/ SOURCE O Audio monitor selection signal output terminal “H”: tape monitor, “L”: source monitor 37 OSC H/L O Calibration tone frequency high/low control signal output terminal “L”: frequency low 38 CAL.ON/OFF O Calibration tone on/off control signal output terminal “H”: on, “L”: off 39 REC.M.ON/OFF O Record muting on/off control signal output to the CXA1598S (IC303) “L”: record muting on 40 BIAS.ON/OFF O Recording bias on/off control signal output terminal “H”: bias on 41 DOL.CON O Dolby B/C type or dolby on/off selection signal output to the CXA1563S (IC302, 307) “H”: dolby C type, “L”: dolby off (center voltage: dolby B type) 42 SEG.IV O Metal on/off control signal output or segment drive signal output to the fluorescent indicator tube (VFD901) (for TYPE IV light up) Pin No. Pin Name I/O Function 43 SEG.DOL.C O Segment drive signal output to the fluorescent indicator tube (VFD901) (for DOLBY NR C light up) 44 SEG.DOL.B O Segment drive signal output to the fluorescent indicator tube (VFD901) (for DOLBY NR B light up) 45 SEG.PROPER O Segment drive signal output to the fluorescent indicator tube (VFD901) (for TYPE I, II light up) 46 SEG.FIL.ON/OFF O Multiplex filter on/off control signal output or segment drive signal output to the fluorescent indicator tube (VFD901) (for FILTER light up) “H”: multiplex filter on 47 SEG.DOL.S. ON/OFF O Dolby S type on/off selection signal output to the CXA1563S (IC302, 307) or segment drive signal output to the fluorescent indicator tube (VFD901) (for DOLBY NR S light up) “L”: dolby S on 48 NC O Not used (open) 49 SEG01 O 50 SEG02 O 51 SEG06 O 52 SEG07 O 53 SEG03 O 54 SEG05 O 55 SEG04 O 56 SEG08 O 57 SEG16 O 58 SEG09 O 59 SEG10 O 60 SEG14 O 61 SEG15 O 62 SEG11 O 63 SEG13 O 64 SEG12 O 65 SEG.CAL O Segment drive signal output to the fluorescent indicator tube (VFD901) (for CAL light up) 66 SEG.I O Recording equalizer type I select signal output or segment drive signal output to the fluorescent indicator tube (VFD901) (for TYPE I light up) 67 SEG.II O Recording equalizer type II select signal output or segment drive signal output to the fluorescent indicator tube (VFD901) (for TYPE II light up) 68 G5-DISPLAY O 69 G4-SEC O 70 G3-MIN O Grid drive signal output to the fluorescent indicator tube (VFD901) 71 G2-RCH O 72 G1-LCH O 73 VCC — Power supply terminal (+5V) 74 VEE — Power supply terminal (–24V) 75 AVSS — Ground terminal (for A/D converter) 76 VREF I Reference voltage (+5V) input terminal 77 KEY2 I Key input terminal (A/D input) (S906 to S909) ·, P PAUSE, MEMORY, RESET keys input 78 KEY1 I Key input terminal (A/D input) (S901 to S905) p, AMS 0, AMS ), r REC, R REC MUTING keys input 79 TIMER.SW I Half detect switch (S86) input terminal 80 DOLBY.SW I DOLBY NR switch (S913) input terminal (A/D input) Segment drive signal output to the fluorescent indicator tube (VFD901) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – SECTION 6 EXPLODED VIEWS The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (1) CASE, CHASSIS SECTION rA: TRANSFORMER BOARD (AEP, AUS) rB: TRANS 1 BOARD (MY, SP) rC: TRANS 2 BOARD (MY, SP) • Abbreviation AUS : Australian MY : Malaysia SP : Singapore 1 2 1 10 #2 #2 not supplied not supplied FRONT PANEL SECTION #1 #1 #1 AEP, MY, SP A A #1 not supplied not supplied T701 MY, SP 2 2 2 3 4 6 13 11 5 (including rA) 8 13 13 12 9 7 AUS 7 rA rB rC MY, SP T701 AEP, AUS 1 X-4949-523-1 FOOT ASSY (F50180S) 2 3-710-901-11 SCREW, TAPPING (BLACK) 2 3-710-901-01 SCREW, TAPPING (SILVER) * 3 3-021-377-01 CASE (BLACK) * 3 3-021-377-21 CASE (SILVER) * 4 A-2007-481-A DOLBY-S BOARD, COMPLETE * 5 A-2007-776-A MAIN BOARD, COMPLETE (AEP,AUS) * 5 A-2007-778-A MAIN BOARD, COMPLETE (MY,SP) 6 4-966-267-11 BUSHING (FBS001), CORD !7 1-575-651-21 CORD, POWER (AEP,MY,SP) !7 1-696-845-11 CORD, POWER (AUS) * 8 3-020-984-01 PANEL, BACK (AEP) * 8 3-020-984-22 PANEL, BACK (AUS) * 8 3-020-984-31 PANEL, BACK (MY,SP) * 9 3-703-353-02 SUPPORT, PC BOARD 10 3-703-249-21 SCREW, S TIGHT, +PTTWH (M3X8) !11 1-692-155-11 SELECTOR, POWER VOLTAGE (MY,SP) 12 4-956-370-12 BAND, PLUG FIXED (AUS) 13 3-704-515-21 SCREW (BV/RING) !T701 1-431-668-11 TRANSFORMER, POWER (AEP) !T701 1-431-737-11 TRANSFORMER, POWER (AUS) !T701 1-431-738-11 TRANSFORMER, POWER (MY,SP) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 36 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (2) FRONT PANEL SECTION rD: AC POWER BOARD rE: HP BOARD rF: REC VOL BOARD 51 3-020-978-01 KNOB (REC)(BLACK) 51 3-020-978-11 KNOB (REC)(SILVER) 52 3-020-979-01 KNOB (BALANCE)(BLACK) 52 3-020-979-11 KNOB (BALANCE)(SILVER) 53 X-3374-954-1 LID ASSY, CASSETTE (BLACK) 53 X-3375-905-1 LID ASSY, CASSETTE (SILVER) 54 4-942-568-41 EMBLEM (NO.5), SONY 55 3-020-971-11 PANEL, FRONT (BLACK)(AEP) 55 3-020-971-31 PANEL, FRONT (MY,SP,AUS) 55 3-020-971-41 PANEL, FRONT (SILVER)(AEP) 56 3-020-980-01 WINDOW (METER) 57 4-922-921-62 BUTTON (POWER)(BLACK) 57 4-922-921-91 BUTOON (POWER)(SILVER) 58 4-951-620-01 SCREW (2.6X8), +BVTP 59 1-777-109-11 WIRE (FLAT TYPE) (39 CORE) * 60 A-2007-775-A PANEL BOARD, COMPLETE (AEP,AUS) * 60 A-2007-777-A PANEL BOARD, COMPLETE (MY,SP) 61 3-020-975-01 BUTTON (CONTROL)(BLACK) 61 3-020-975-11 BUTTON (CONTROL)(SILVER) 62 3-020-977-01 BUTTON (AUTO CAL)(BLACK) 62 3-020-977-11 BUTTON (AUTO CAL)(SILVER) 63 3-933-299-01 KNOB (DIA. 12)(BLACK) 63 3-933-299-11 KNOB (DIA. 12)(SILVER) 64 X-3375-507-1 BASE (KB920S) ASSY, PANEL(BLACK) 64 X-3375-906-1 BASE (KB920S) ASSY, PANEL(SILVER) 65 3-933-296-01 BUTTON (MONITOR)(BLACK) 65 3-933-296-11 BUTOON (MONITOR)(SILVER) 66 3-937-169-01 SPRING, TENSION 67 3-020-976-01 BUTTON (EJECT)(BLACK) 67 3-020-976-11 BUTTON (EJECT)(SILVER) 68 3-354-981-11 SPRING (SUS), RING 51 52 68 53 54 55 56 57 58 58 58 58 58 63 64 67 62 61 59 rD rE #4 58 60 (including rB – rF) not supplied MD ASS’Y SECTION rF #3 66 65 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 37 – 101 X-3368-119-1 HOLDER (R) ASSY, CASSETTE 102 3-354-963-01 DAMPER 103 1-769-915-11 WIRE (FLAT TYPE)(9 CORE) 104 1-765-314-11 WIRE (FLAT TYPE)(7 CORE) 105 3-354-957-01 JOINT (LOCK LEVER) * 106 3-354-954-01 LEVER (LOCK LEVER R) 107 3-354-962-01 SPRING (EJ SAFTY SPRING R) 108 3-354-956-01 LEVER (EJ SAFTY LEVER R) 109 3-354-960-01 SPRING (LOADING R), TORSION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (3) MD ASS’Y SECTION #5 TCM-190VB14 101 109 108 107 106 105 104 103 102 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 38 – 151 3-911-014-01 SPRING, TORSION 152 3-701-437-01 WASHER 153 3-356-659-11 SPRING (RPH), COMPRESSION * 154 X-3374-992-1 SLIDER (LIMITTER) ASSY 155 3-363-868-01 SPRING (HEAD CHASSIS), TENSION 156 X-3368-368-1 FLYWHEEL (FWD) COMPLETE ASSY 157 3-937-332-01 BELT (CAPSTAN) 158 3-359-414-01 SCREW (+PTPWH 2X23) 159 1-638-983-11 MOTOR FLEXIBLE BOARD * 160 1-634-840-21 AUDIO BOARD 161 3-359-466-01 BELT (FR), SQUARE * 162 1-634-841-14 LEAF SW BOARD (4) MECHANISM DECK SECTION-1 (TCM-190VB14) 163 3-359-430-01 SPRING(CASSETTE RETAINER),LEAF 164 3-359-424-01 GEAR (REV GEAR) 165 3-575-321-00 RETAINER, THRUST, CAPSTAN 166 X-3366-971-1 TABLE ASSY (B), REEL 167 3-362-308-01 CAP (REEL) 168 3-356-713-01 WASHER 169 X-3366-047-1 LEVER (PINCH F) ASSY * 170 X-3369-024-1 SLIDER (HEAD CHASSIS) ASSY HE301 1-543-673-11 HEAD, MAGNETIC (ERASE) HRP301 1-543-733-11 HEAD,MAGNETIC (RECORD/PLAYBACK) M901 X-3363-501-2 MOTOR ASSY (REEL) M902 X-3374-302-1 MOTOR ASSY (CAPSTAN) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark not supplied not supplied HRP301 151 152 153 153 #6 #6 HE301 155 154 170 169 168 167 167 166 164 165 156 163 162 161 not supplied M901 M902 157 158 158 158 159 160 #7 #8 not supplied not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 39 – 201 3-359-469-01 SPACER 202 X-3368-719-2 CHASSIS(ONE)ASSY, MECHANICAL 203 3-359-415-11 SLIDER (TRIGGER SLIDER) 204 3-359-454-01 SPRING, TORSION 205 3-359-429-11 SLIDER (BRAKE PLATE) 206 3-359-456-01 SPRING(TRIGGER SPRING),TORSION 207 X-3366-569-1 ARM ASSY, FR 208 3-359-419-11 GEAR (FR GEAR) 209 3-359-421-01 CLUTCH (REEL DISK) 210 3-359-418-01 PULLEY (FR PULLEY) 211 3-924-185-11 SPRING (FR ARM), TORSION 212 3-936-483-01 GEAR (CAM GEAR) 213 3-359-448-01 GEAR (TRIGGER) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 201 202 203 204 205 206 207 208 209 210 211 212 213 (5) MECHANISM DECK SECTION-2 (TCM-190VB14) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 40 – SECTION 7 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark AC POWER SW BOARD ******************* (Included in PANEL BOARD, COMPLETE) < CAPACITOR > !C717 1-117-703-11 CERAMIC 0.0047uF 99% 250V < CONNECTOR > CN704 1-568-226-11 PIN, CONNECTOR 2P < SWITCH > !S701 1-762-581-11 SWITCH, AC POWER PUSH (1 KEY) (I/O) ************************************************************ * 1-634-840-21 AUDIO BOARD ************ < CAPACITOR > C71 1-124-903-11 ELECT 1uF 20% 50V C72 1-124-903-11 ELECT 1uF 20% 50V < CONNECTOR > * CNP71 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P CNP72 1-764-902-11 CONNECTOR, FFC/FPC 4P * CNP73 1-568-826-11 SOCKET, CONNECTOR 7P < RESISTOR > !R71 1-249-406-11 CARBON 120 5% 1/4W F < VARIABLE RESISTOR > RV71 1-241-761-11 RES, ADJ, CARBON 1K ************************************************************ * A-2007-481-A DOLBY-S BOARD, COMPLETE *********************** < CAPACITOR > C1 1-136-165-00 FILM 0.1uF 5% 50V C2 1-163-012-00 CERAMIC CHIP 0.0018uF 10% 50V C3 1-163-012-00 CERAMIC CHIP 0.0018uF 10% 50V C4 1-164-222-11 CERAMIC CHIP 0.22uF 25V C5 1-136-165-00 FILM 0.1uF 5% 50V C6 1-136-165-00 FILM 0.1uF 5% 50V C7 1-137-372-11 FILM 0.022uF 5% 50V C8 1-164-222-11 CERAMIC CHIP 0.22uF 25V C9 1-126-301-11 ELECT 1uF 20% 50V C10 1-137-442-11 FILM 0.039uF 5% 50V C11 1-163-007-11 CERAMIC CHIP 680PF 10% 50V C12 1-164-717-11 CERAMIC CHIP 0.0082uF 5% 50V C13 1-163-038-00 CERAMIC CHIP 0.1uF 25V C14 1-124-465-00 ELECT 0.47uF 20% 50V C15 1-164-222-11 CERAMIC CHIP 0.22uF 25V C16 1-163-038-00 CERAMIC CHIP 0.1uF 25V C17 1-124-465-00 ELECT 0.47uF 20% 50V C18 1-163-038-00 CERAMIC CHIP 0.1uF 25V C19 1-164-222-11 CERAMIC CHIP 0.22uF 25V C20 1-163-035-00 CERAMIC CHIP 0.047uF 50V C21 1-164-717-11 CERAMIC CHIP 0.0082uF 5% 50V C22 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C23 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C24 1-137-442-11 FILM 0.039uF 5% 50V C25 1-136-165-00 FILM 0.1uF 5% 50V C26 1-137-372-11 FILM 0.022uF 5% 50V C28 1-163-038-00 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN1 1-695-092-11 SOCKET, CONNECTOR 7P < IC > IC1 8-752-076-30 IC CXA1917AM-T6 < SHORT CHIP > J1 1-216-296-00 SHORT (CHIP) 0 J2 1-216-296-00 SHORT (CHIP) 0 J3 1-216-296-00 SHORT (CHIP) 0 < RESISTOR > R1 1-216-685-11 METAL CHIP 27K 0.5% 1/10W R2 1-208-811-11 RES,CHIP 16K 2% 1/10W R3 1-208-791-11 RES,CHIP 2.4K 2% 1/10W R4 1-208-799-11 RES,CHIP 5.1K 2% 1/10W R5 1-216-689-11 METAL CHIP 39K 0.5% 1/10W • Abbreviation AUS : Australian MY : Malaysia SP : Singapore AC POWER SW AUDIO DOLBY-S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 41 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R6 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R7 1-216-615-11 METAL CHIP 33 0.5% 1/10W R8 1-208-462-41 RES,CHIP 10K 2% 1/10W R9 1-208-812-11 RES,CHIP 18K 2% 1/10W R10 1-216-615-11 METAL CHIP 33 0.5% 1/10W R11 1-216-619-11 METAL CHIP 47 0.5% 1/10W R12 1-216-684-11 METAL CHIP 24K 0.5% 1/10W R13 1-216-615-11 METAL CHIP 33 0.5% 1/10W R14 1-216-619-11 METAL CHIP 47 0.5% 1/10W R15 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R16 1-216-678-11 METAL CHIP 13K 0.5% 1/10W R17 1-216-673-11 METAL CHIP 8.2K 0.5% 1/10W R18 1-208-462-41 RES,CHIP 10K 2% 1/10W R19 1-208-462-41 RES,CHIP 10K 2% 1/10W R20 1-216-689-11 METAL CHIP 39K 0.5% 1/10W ************************************************************ HP BOARD ********* (Included in PANEL BOARD, COMPLETE) < CAPACITOR > C317 1-161-494-00 CERAMIC 0.022uF 25V < JACK > J302 1-568-519-41 JACK, LARGE TYPE (PHONES) ************************************************************ * 1-634-841-14 LEAF SW BOARD ************** < CONNECTOR > * CNP81 1-568-852-11 SOCKET, CONNECTOR 9P < IC > IC81 8-749-924-10 IC PHOTO REFLECTOR NJL5165K-B(H1) IC82 8-749-924-10 IC PHOTO REFLECTOR NJL5165K-B(H1) < RESISTOR > R81 1-249-414-11 CARBON 560 5% 1/4W R83 1-247-834-11 CARBON 1.3K 5% 1/4W R84 1-249-417-11 CARBON 1K 5% 1/4W R85 1-249-408-11 CARBON 180 5% 1/4W R86 1-249-408-11 CARBON 180 5% 1/4W < SWITCH > S81 1-571-958-11 SWITCH, PUSH (1 KEY) (MECHANISM STOP) S82 1-571-281-21 SWITCH, LEAF (70u) S83 1-571-281-21 SWITCH, LEAF (METAL) S84 1-571-281-21 SWITCH, LEAF (REC) S86 1-571-281-21 SWITCH, LEAF (HALF) ************************************************************ * A-2007-776-A MAIN BOARD, COMPLETE (AEP, AUS) ********************* (Including TRANSFORMER BOARD) * A-2007-778-A MAIN BOARD, COMPLETE (MY, SP) ********************* 7-685-871-01 SCREW +BVTT 3X6 (S) < CAPACITOR > C101 1-126-963-11 ELECT 4.7uF 20% 50V C102 1-106-353-00 MYLAR 0.0027uF 5% 50V C103 1-136-173-00 FILM 0.47uF 5% 50V C104 1-126-964-11 ELECT 10uF 20% 50V C105 1-136-165-00 FILM 0.1uF 5% 50V C106 1-136-163-00 FILM 0.068uF 5% 50V C107 1-126-964-11 ELECT 10uF 20% 50V C110 1-126-959-11 ELECT 0.47uF 20% 50V C111 1-126-964-11 ELECT 10uF 20% 50V C112 1-126-963-11 ELECT 4.7uF 20% 50V C113 1-137-428-11 FILM 180PF 5% 50V C114 1-136-935-11 FILM 22PF 5% 630V C115 1-137-429-11 FILM 270PF 5% 50V C116 1-130-474-00 MYLAR 0.0018uF 5% 50V C117 1-130-487-00 MYLAR 0.022uF 5% 50V C118 1-107-714-11 ELECT 10uF 20% 16V C119 1-102-518-11 CERAMIC 33PF 5% 50V C120 1-130-488-00 MYLAR 0.027uF 5% 50V C121 1-126-961-11 ELECT 2.2uF 20% 50V C122 1-130-483-00 MYLAR 0.01uF 5% 50V C123 1-130-487-00 MYLAR 0.022uF 5% 50V C124 1-130-491-00 MYLAR 0.047uF 5% 50V C125 1-136-803-11 FILM 560PF 5% 630V C126 1-130-468-00 MYLAR 560PF 5% 50V C127 1-136-433-11 FILM 100PF 5% 630V C128 1-130-474-00 MYLAR 0.0018uF 5% 50V C130 1-106-351-00 MYLAR 2200PF 5% 200V C131 1-126-964-11 ELECT 10uF 20% 50V C132 1-136-165-00 FILM 0.1uF 5% 50V C133 1-136-163-00 FILM 0.068uF 5% 50V C136 1-126-964-11 ELECT 10uF 20% 50V C150 1-162-302-11 CERAMIC 0.0022uF 20% 16V C201 1-126-963-11 ELECT 4.7uF 20% 50V C202 1-106-353-00 MYLAR 0.0027uF 5% 50V C203 1-136-173-00 FILM 0.47uF 5% 50V C204 1-126-964-11 ELECT 10uF 20% 50V C205 1-136-165-00 FILM 0.1uF 5% 50V C206 1-136-163-00 FILM 0.068uF 5% 50V C207 1-126-964-11 ELECT 10uF 20% 50V C210 1-126-959-11 ELECT 0.47uF 20% 50V C211 1-126-964-11 ELECT 10uF 20% 50V C212 1-126-963-11 ELECT 4.7uF 20% 50V C213 1-137-428-11 FILM 180PF 5% 50V C214 1-136-935-11 FILM 22PF 5% 630V C215 1-137-429-11 FILM 270PF 5% 50V C216 1-130-474-00 MYLAR 0.0018uF 5% 50V C217 1-130-487-00 MYLAR 0.022uF 5% 50V C218 1-107-714-11 ELECT 10uF 20% 16V C219 1-102-518-11 CERAMIC 33PF 5% 50V C220 1-130-488-00 MYLAR 0.027uF 5% 50V C221 1-126-961-11 ELECT 2.2uF 20% 50V C222 1-130-483-00 MYLAR 0.01uF 5% 50V C223 1-130-487-00 MYLAR 0.022uF 5% 50V C224 1-130-491-00 MYLAR 0.047uF 5% 50V C225 1-136-803-11 FILM 560PF 5% 630V DOLBY-S HP LEAF SW MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 42 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C226 1-130-468-00 MYLAR 560PF 5% 50V C227 1-136-433-11 FILM 100PF 5% 630V C228 1-130-474-00 MYLAR 0.0018uF 5% 50V C230 1-106-351-00 MYLAR 2200PF 5% 200V C231 1-126-964-11 ELECT 10uF 20% 50V C232 1-136-165-00 FILM 0.1uF 5% 50V C233 1-136-163-00 FILM 0.068uF 5% 50V C236 1-126-964-11 ELECT 10uF 20% 50V C250 1-162-302-11 CERAMIC 0.0022uF 20% 16V C301 1-126-964-11 ELECT 10uF 20% 50V C302 1-126-964-11 ELECT 10uF 20% 50V C303 1-130-478-00 MYLAR 0.0039uF 5% 50V C304 1-126-959-11 ELECT 0.47uF 20% 50V C305 1-130-494-11 MYLAR 0.082uF 5% 50V C306 1-126-960-11 ELECT 1uF 20% 50V C307 1-104-665-11 ELECT 100uF 20% 10V C308 1-104-665-11 ELECT 100uF 20% 10V C309 1-162-282-31 CERAMIC 100PF 10% 50V C310 1-161-494-00 CERAMIC 0.022uF 25V C311 1-126-961-11 ELECT 2.2uF 20% 50V C312 1-162-217-31 CERAMIC 56PF 5% 50V C313 1-126-961-11 ELECT 2.2uF 20% 50V C319 1-126-964-11 ELECT 10uF 20% 50V C320 1-126-947-11 ELECT 47uF 20% 35V C321 1-126-947-11 ELECT 47uF 20% 35V C322 1-137-613-11 MYLAR 0.0018uF 5% 100V C323 1-137-613-11 MYLAR 0.0018uF 5% 100V C324 1-106-359-00 MYLAR 4700PF 5% 200V C325 1-126-965-11 ELECT 22uF 20% 50V C326 1-136-558-11 FILM 0.0039uF 5% 630V C327 1-107-584-11 CERAMIC 4PF 0.25PF 500V C330 1-126-964-11 ELECT 10uF 20% 50V C331 1-126-964-11 ELECT 10uF 20% 50V C332 1-126-961-11 ELECT 2.2uF 20% 50V C333 1-126-964-11 ELECT 10uF 20% 50V C334 1-126-964-11 ELECT 10uF 20% 50V C701 1-126-768-11 ELECT 2200uF 20% 16V C702 1-126-936-11 ELECT 3300uF 20% 16V C703 1-126-916-11 ELECT 1000uF 20% 6.3V C704 1-126-947-11 ELECT 47uF 20% 35V C705 1-126-942-61 ELECT 1000uF 20% 25V C706 1-126-942-61 ELECT 1000uF 20% 25V C707 1-128-548-11 ELECT 4700uF 20% 25V C708 1-126-964-11 ELECT 10uF 20% 50V C709 1-126-768-11 ELECT 2200uF 20% 16V C710 1-126-964-11 ELECT 10uF 20% 50V C711 1-126-937-11 ELECT 4700uF 20% 16V C712 1-126-964-11 ELECT 10uF 20% 50V C713 1-126-927-11 ELECT 2200uF 20% 10V C714 1-126-968-11 ELECT 100uF 20% 50V C715 1-164-159-11 CERAMIC 0.1uF 50V C716 1-126-947-11 ELECT 47uF 20% 35V C805 1-164-159-11 CERAMIC 0.1uF 50V C806 1-164-159-11 CERAMIC 0.1uF 50V C809 1-126-959-11 ELECT 0.47uF 20% 50V C811 1-164-159-11 CERAMIC 0.1uF 50V C813 1-126-959-11 ELECT 0.47uF 20% 50V C830 1-164-159-11 CERAMIC 0.1uF 50V C831 1-104-665-11 ELECT 100uF 20% 10V < CONNECTOR > CN101 1-695-087-11 PIN, CONNECTOR (PC BOARD) 7P CN102 1-695-087-11 PIN, CONNECTOR (PC BOARD) 7P CN201 1-695-087-11 PIN, CONNECTOR (PC BOARD) 7P CN202 1-695-087-11 PIN, CONNECTOR (PC BOARD) 7P * CN801 1-568-954-11 PIN, CONNECTOR 5P * CN803 1-568-828-11 SOCKET, CONNECTOR 9P * CN804 1-568-826-11 SOCKET, CONNECTOR 7P CN805 1-778-065-11 SOCKET, CONNECTOR 39P CNP301 1-506-468-11 PIN, CONNECTOR 3P * CNP302 1-560-062-00 PIN, CONNECTOR 4P * CNP303 1-560-060-00 PIN, CONNECTOR 2P * CNP304 1-560-062-00 PIN, CONNECTOR 4P CNP305 1-691-463-11 PIN, CONNECTOR (PC BOARD) 7P CNP306 1-764-328-11 PIN, CONNECTOR (PCB)(V TYPE)5P < DIODE > D101 8-719-911-19 DIODE 1SS119 D102 8-719-911-19 DIODE 1SS119 D103 8-719-933-33 DIODE HZS6A1L D201 8-719-911-19 DIODE 1SS119 D202 8-719-911-19 DIODE 1SS119 D203 8-719-933-33 DIODE HZS6A1L D301 8-719-911-19 DIODE 1SS119 D302 8-719-911-19 DIODE 1SS119 D305 8-719-911-19 DIODE 1SS119 D306 8-719-911-19 DIODE 1SS119 D307 8-719-911-19 DIODE 1SS119 D308 8-719-911-19 DIODE 1SS119 D309 8-719-911-19 DIODE 1SS119 D310 8-719-911-19 DIODE 1SS119 D311 8-719-911-19 DIODE 1SS119 D312 8-719-911-19 DIODE 1SS119 D313 8-719-911-19 DIODE 1SS119 D341 8-719-911-19 DIODE 1SS119 D342 8-719-911-19 DIODE 1SS119 D701 8-719-024-99 DIODE 11ES2-NTA2B D702 8-719-024-99 DIODE 11ES2-NTA2B D703 8-719-024-99 DIODE 11ES2-NTA2B D704 8-719-024-99 DIODE 11ES2-NTA2B D705 8-719-911-19 DIODE 1SS119 D706 8-719-933-33 DIODE HZS6A1L D707 8-719-933-33 DIODE HZS6A1L D708 8-719-933-33 DIODE HZS6A1L D709 8-719-025-03 DIODE RBA-402-SL D710 8-719-986-27 DIODE HZS12B1LTA D711 8-719-911-19 DIODE 1SS119 D712 8-719-200-31 DIODE 21DQ05 D713 8-719-985-95 DIODE HZS7A2LTA D714 8-719-911-19 DIODE 1SS119 D715 8-719-911-19 DIODE 1SS119 D716 8-719-986-00 DIODE HZS7C1LTA D717 8-719-024-99 DIODE 11ES2-NTA2B D802 8-719-911-19 DIODE 1SS119 D803 8-719-911-19 DIODE 1SS119 D804 8-719-911-19 DIODE 1SS119 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 43 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark D814 8-719-911-19 DIODE 1SS119 D815 8-719-911-19 DIODE 1SS119 < IC > IC301 8-759-111-44 IC uPC4570C-1 IC302 8-752-066-35 IC CXA1563S IC303 8-752-070-69 IC CXA1598S IC304 8-759-106-56 IC uPC1297CA IC305 8-759-634-51 IC M5218AP IC306 8-759-634-51 IC M5218AP IC307 8-752-066-35 IC CXA1563S IC308 8-759-634-50 IC M5218AL IC309 8-759-634-50 IC M5218AL IC310 8-759-140-53 IC uPD4053BC IC311 8-759-634-51 IC M5218AP IC701 8-759-634-51 IC M5218AP IC801 8-759-422-06 IC M38172M4-171FP IC803 8-759-973-95 IC BA6219B IC804 8-759-165-82 IC PST600E-T < JACK > J301 1-784-430-11 JACK, PIN 4P (LINE IN, OUT) < COIL > L101 1-410-780-11 INDUCTOR 27mH L121 1-410-778-11 INDUCTOR 18mH L201 1-410-780-11 INDUCTOR 27mH L221 1-410-778-11 INDUCTOR 18mH < FILTER > LPF101 1-234-037-11 FILTER, LOW PASS LPF201 1-234-037-11 FILTER, LOW PASS < TRANSISTOR > Q101 8-729-900-74 TRANSISTOR DTC143TS Q102 8-729-900-80 TRANSISTOR DTC114ES Q103 8-729-922-37 TRANSISTOR 2SD2144S Q105 8-729-900-80 TRANSISTOR DTC114ES Q201 8-729-900-74 TRANSISTOR DTC143TS Q202 8-729-900-80 TRANSISTOR DTC114ES Q203 8-729-922-37 TRANSISTOR 2SD2144S Q205 8-729-900-80 TRANSISTOR DTC114ES Q301 8-729-119-76 TRANSISTOR 2SA1175-HFE Q302 8-729-900-89 TRANSISTOR DTC144ES Q303 8-729-900-80 TRANSISTOR DTC114ES Q304 8-729-900-80 TRANSISTOR DTC114ES Q305 8-729-119-76 TRANSISTOR 2SA1175-HFE Q306 8-729-900-89 TRANSISTOR DTC144ES Q307 8-729-900-80 TRANSISTOR DTC114ES Q308 8-729-900-80 TRANSISTOR DTC114ES Q309 8-729-900-80 TRANSISTOR DTC114ES Q310 8-729-194-57 TRANSISTOR 2SC945-P Q311 8-729-194-57 TRANSISTOR 2SC945-P Q312 8-729-922-37 TRANSISTOR 2SD2144S Q313 8-729-119-78 TRANSISTOR 2SC403SP-51 Q314 8-729-119-78 TRANSISTOR 2SC403SP-51 Q315 8-729-900-80 TRANSISTOR DTC114ES Q316 8-729-900-74 TRANSISTOR DTC143TS Q351 8-729-119-76 TRANSISTOR 2SA1175-HFE Q352 8-729-900-65 TRANSISTOR DTA144ES Q353 8-729-900-80 TRANSISTOR DTC114ES Q701 8-729-141-83 TRANSISTOR 2SB1094-LK Q702 8-729-209-15 TRANSISTOR 2SD2012 Q703 8-729-141-83 TRANSISTOR 2SB1094-LK Q704 8-729-119-78 TRANSISTOR 2SC403SP-51 Q705 8-729-209-15 TRANSISTOR 2SD2012 Q706 8-729-119-78 TRANSISTOR 2SC403SP-51 Q707 8-729-119-76 TRANSISTOR 2SA1175-HFE Q708 8-729-140-04 TRANSISTOR 2SB1116A-L Q802 8-729-900-89 TRANSISTOR DTC144ES Q803 8-729-900-65 TRANSISTOR DTA144ES Q804 8-729-900-65 TRANSISTOR DTA144ES Q806 8-729-900-80 TRANSISTOR DTC114ES Q807 8-729-900-80 TRANSISTOR DTC114ES Q808 8-729-900-80 TRANSISTOR DTC114ES Q809 8-729-900-80 TRANSISTOR DTC114ES Q810 8-729-801-84 TRANSISTOR 2SB1013-4 Q814 8-729-900-89 TRANSISTOR DTC144ES < RESISTOR > R101 1-249-433-11 CARBON 22K 5% 1/4W R102 1-249-417-11 CARBON 1K 5% 1/4W R103 1-247-843-11 CARBON 3.3K 5% 1/4W R104 1-249-428-11 CARBON 8.2K 5% 1/4W R105 1-249-441-11 CARBON 100K 5% 1/4W R107 1-249-421-11 CARBON 2.2K 5% 1/4W R108 1-247-860-11 CARBON 16K 5% 1/4W R109 1-249-421-11 CARBON 2.2K 5% 1/4W R110 1-249-417-11 CARBON 1K 5% 1/4W R112 1-247-843-11 CARBON 3.3K 5% 1/4W R113 1-249-437-11 CARBON 47K 5% 1/4W R114 1-249-429-11 CARBON 10K 5% 1/4W R116 1-249-425-11 CARBON 4.7K 5% 1/4W R117 1-249-441-11 CARBON 100K 5% 1/4W R118 1-249-403-11 CARBON 68 5% 1/4W R119 1-247-882-11 CARBON 130K 5% 1/4W R120 1-249-426-11 CARBON 5.6K 5% 1/4W R121 1-249-429-11 CARBON 10K 5% 1/4W R122 1-249-420-11 CARBON 1.8K 5% 1/4W R123 1-247-838-00 CARBON 2K 5% 1/4W R124 1-249-441-11 CARBON 100K 5% 1/4W R125 1-249-421-11 CARBON 2.2K 5% 1/4W R126 1-249-425-11 CARBON 4.7K 5% 1/4W R127 1-249-435-11 CARBON 33K 5% 1/4W !R128 1-219-153-11 FUSIBLE 10 5% 1/4W F R129 1-247-883-00 CARBON 150K 5% 1/4W R130 1-249-434-11 CARBON 27K 5% 1/4W R131 1-247-874-11 CARBON 62K 5% 1/4W R133 1-249-410-11 CARBON 270 5% 1/4W R137 1-249-441-11 CARBON 100K 5% 1/4W R138 1-249-441-11 CARBON 100K 5% 1/4W R139 1-247-864-11 CARBON 24K 5% 1/4W R140 1-249-429-11 CARBON 10K 5% 1/4W R141 1-249-419-11 CARBON 1.5K 5% 1/4W R142 1-249-426-11 CARBON 5.6K 5% 1/4W MAIN The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 44 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R143 1-247-843-11 CARBON 3.3K 5% 1/4W R144 1-249-409-11 CARBON 220 5% 1/4W R145 1-249-426-11 CARBON 5.6K 5% 1/4W R152 1-247-887-00 CARBON 220K 5% 1/4W R201 1-249-433-11 CARBON 22K 5% 1/4W R202 1-249-417-11 CARBON 1K 5% 1/4W R203 1-247-843-11 CARBON 3.3K 5% 1/4W R204 1-249-428-11 CARBON 8.2K 5% 1/4W R205 1-249-441-11 CARBON 100K 5% 1/4W R207 1-249-421-11 CARBON 2.2K 5% 1/4W R208 1-247-860-11 CARBON 16K 5% 1/4W R209 1-249-421-11 CARBON 2.2K 5% 1/4W R210 1-249-417-11 CARBON 1K 5% 1/4W R212 1-247-843-11 CARBON 3.3K 5% 1/4W R213 1-249-437-11 CARBON 47K 5% 1/4W R214 1-249-429-11 CARBON 10K 5% 1/4W R216 1-249-425-11 CARBON 4.7K 5% 1/4W R217 1-249-441-11 CARBON 100K 5% 1/4W R218 1-249-403-11 CARBON 68 5% 1/4W R219 1-247-882-11 CARBON 130K 5% 1/4W R220 1-249-426-11 CARBON 5.6K 5% 1/4W R221 1-249-429-11 CARBON 10K 5% 1/4W R222 1-249-420-11 CARBON 1.8K 5% 1/4W R223 1-247-838-00 CARBON 2K 5% 1/4W R224 1-249-441-11 CARBON 100K 5% 1/4W R225 1-249-421-11 CARBON 2.2K 5% 1/4W R226 1-249-425-11 CARBON 4.7K 5% 1/4W R227 1-249-435-11 CARBON 33K 5% 1/4W !R228 1-219-153-11 FUSIBLE 10 5% 1/4W F R229 1-247-883-00 CARBON 150K 5% 1/4W R230 1-249-434-11 CARBON 27K 5% 1/4W R231 1-247-874-11 CARBON 62K 5% 1/4W R233 1-249-410-11 CARBON 270 5% 1/4W R237 1-249-441-11 CARBON 100K 5% 1/4W R238 1-249-441-11 CARBON 100K 5% 1/4W R239 1-247-864-11 CARBON 24K 5% 1/4W R240 1-249-429-11 CARBON 10K 5% 1/4W R241 1-249-419-11 CARBON 1.5K 5% 1/4W R242 1-249-426-11 CARBON 5.6K 5% 1/4W R243 1-247-843-11 CARBON 3.3K 5% 1/4W R244 1-249-409-11 CARBON 220 5% 1/4W R245 1-249-426-11 CARBON 5.6K 5% 1/4W R252 1-247-887-00 CARBON 220K 5% 1/4W R302 1-247-848-11 CARBON 5.1K 5% 1/4W R303 1-249-421-11 CARBON 2.2K 5% 1/4W R304 1-249-421-11 CARBON 2.2K 5% 1/4W !R305 1-215-452-00 METAL 20K 1% 1/4W F R306 1-249-436-11 CARBON 39K 5% 1/4W R307 1-249-433-11 CARBON 22K 5% 1/4W R308 1-249-437-11 CARBON 47K 5% 1/4W !R309 1-215-455-00 METAL 27K 1% 1/4W F R310 1-249-441-11 CARBON 100K 5% 1/4W R311 1-249-441-11 CARBON 100K 5% 1/4W R312 1-249-433-11 CARBON 22K 5% 1/4W R313 1-249-434-11 CARBON 27K 5% 1/4W R314 1-247-872-11 CARBON 51K 5% 1/4W R315 1-247-866-11 CARBON 30K 5% 1/4W R316 1-247-872-11 CARBON 51K 5% 1/4W R317 1-249-435-11 CARBON 33K 5% 1/4W R318 1-247-864-11 CARBON 24K 5% 1/4W R319 1-249-436-11 CARBON 39K 5% 1/4W R320 1-249-435-11 CARBON 33K 5% 1/4W R321 1-247-856-00 CARBON 11K 5% 1/4W R322 1-249-432-11 CARBON 18K 5% 1/4W R323 1-247-864-11 CARBON 24K 5% 1/4W R324 1-247-874-11 CARBON 62K 5% 1/4W R325 1-247-862-11 CARBON 20K 5% 1/4W R326 1-249-437-11 CARBON 47K 5% 1/4W R327 1-247-852-11 CARBON 7.5K 5% 1/4W R328 1-247-860-11 CARBON 16K 5% 1/4W R329 1-247-862-11 CARBON 20K 5% 1/4W R330 1-247-836-11 CARBON 1.6K 5% 1/4W R331 1-249-425-11 CARBON 4.7K 5% 1/4W R332 1-249-422-11 CARBON 2.7K 5% 1/4W R333 1-249-417-11 CARBON 1K 5% 1/4W R334 1-249-417-11 CARBON 1K 5% 1/4W R335 1-249-413-11 CARBON 470 5% 1/4W R336 1-247-832-11 CARBON 1.1K 5% 1/4W R337 1-249-429-11 CARBON 10K 5% 1/4W R338 1-249-421-11 CARBON 2.2K 5% 1/4W R339 1-249-440-11 CARBON 82K 5% 1/4W R340 1-249-440-11 CARBON 82K 5% 1/4W R341 1-249-390-11 CARBON 5.6 5% 1/4W R342 1-249-390-11 CARBON 5.6 5% 1/4W R343 1-249-437-11 CARBON 47K 5% 1/4W R344 1-249-429-11 CARBON 10K 5% 1/4W R345 1-249-433-11 CARBON 22K 5% 1/4W R346 1-249-437-11 CARBON 47K 5% 1/4W R349 1-249-427-11 CARBON 6.8K 5% 1/4W R350 1-249-441-11 CARBON 100K 5% 1/4W R351 1-247-843-11 CARBON 3.3K 5% 1/4W R352 1-249-429-11 CARBON 10K 5% 1/4W R353 1-249-429-11 CARBON 10K 5% 1/4W R354 1-249-417-11 CARBON 1K 5% 1/4W R355 1-249-401-11 CARBON 47 5% 1/4W R356 1-249-434-11 CARBON 27K 5% 1/4W R357 1-247-848-11 CARBON 5.1K 5% 1/4W R358 1-247-870-11 CARBON 43K 5% 1/4W R359 1-249-434-11 CARBON 27K 5% 1/4W R360 1-249-437-11 CARBON 47K 5% 1/4W R361 1-249-429-11 CARBON 10K 5% 1/4W !R363 1-215-452-00 METAL 20K 1% 1/4W F R365 1-249-433-11 CARBON 22K 5% 1/4W R366 1-247-862-11 CARBON 20K 5% 1/4W R367 1-249-429-11 CARBON 10K 5% 1/4W R368 1-249-429-11 CARBON 10K 5% 1/4W R701 1-249-417-11 CARBON 1K 5% 1/4W R702 1-249-409-11 CARBON 220 5% 1/4W R703 1-247-812-11 CARBON 160 5% 1/4W R704 1-249-420-11 CARBON 1.8K 5% 1/4W !R705 1-219-139-11 FUSIBLE 0.68 10% 1/4W F R706 1-249-425-11 CARBON 4.7K 5% 1/4W R707 1-249-427-11 CARBON 6.8K 5% 1/4W R708 1-249-419-11 CARBON 1.5K 5% 1/4W R709 1-249-419-11 CARBON 1.5K 5% 1/4W MAIN The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 45 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R710 1-249-427-11 CARBON 6.8K 5% 1/4W R711 1-249-425-11 CARBON 4.7K 5% 1/4W R712 1-249-417-11 CARBON 1K 5% 1/4W !R713 1-219-139-11 FUSIBLE 0.68 10% 1/4W F R714 1-249-427-11 CARBON 6.8K 5% 1/4W !R715 1-219-135-11 FUSIBLE 0.15 10% 1/4W F R716 1-249-425-11 CARBON 4.7K 5% 1/4W R717 1-249-417-11 CARBON 1K 5% 1/4W !R718 1-219-137-11 FUSIBLE 0.33 10% 1/4W F R719 1-249-425-11 CARBON 4.7K 5% 1/4W R720 1-247-830-11 CARBON 910 5% 1/4W R721 1-249-437-11 CARBON 47K 5% 1/4W R722 1-249-437-11 CARBON 47K 5% 1/4W R723 1-247-843-11 CARBON 3.3K 5% 1/4W R724 1-249-429-11 CARBON 10K 5% 1/4W R802 1-249-433-11 CARBON 22K 5% 1/4W R803 1-249-441-11 CARBON 100K 5% 1/4W R804 1-249-417-11 CARBON 1K 5% 1/4W R805 1-249-425-11 CARBON 4.7K 5% 1/4W R807 1-249-422-11 CARBON 2.7K 5% 1/4W R808 1-249-425-11 CARBON 4.7K 5% 1/4W R810 1-249-422-11 CARBON 2.7K 5% 1/4W R811 1-249-422-11 CARBON 2.7K 5% 1/4W R812 1-249-417-11 CARBON 1K 5% 1/4W R813 1-249-419-11 CARBON 1.5K 5% 1/4W R814 1-249-421-11 CARBON 2.2K 5% 1/4W R815 1-247-828-11 CARBON 750 5% 1/4W R816 1-249-413-11 CARBON 470 5% 1/4W !R817 1-212-954-11 FUSIBLE 6.8 5% 1/2W F R824 1-249-430-11 CARBON 12K 5% 1/4W R825 1-249-435-11 CARBON 33K 5% 1/4W R826 1-249-429-11 CARBON 10K 5% 1/4W R831 1-249-429-11 CARBON 10K 5% 1/4W R832 1-249-429-11 CARBON 10K 5% 1/4W R833 1-249-429-11 CARBON 10K 5% 1/4W R834 1-249-434-11 CARBON 27K 5% 1/4W R835 1-249-434-11 CARBON 27K 5% 1/4W R845 1-249-429-11 CARBON 10K 5% 1/4W < CONPOSITION CIRCUIT BLOCK > RB801 1-233-199-11 COMPOSITION CIRCUIT BLOCK 10k < VARIABLE RESISTOR > RV101 1-241-765-11 RES, ADJ, CARBON 22K RV102 1-238-019-11 RES, ADJ, CARBON 47K RV103 1-241-765-11 RES, ADJ, CARBON 22K RV121 1-241-763-11 RES, ADJ, CARBON 4.7K RV201 1-241-765-11 RES, ADJ, CARBON 22K RV202 1-238-019-11 RES, ADJ, CARBON 47K RV203 1-241-765-11 RES, ADJ, CARBON 22K RV221 1-241-763-11 RES, ADJ, CARBON 4.7K RV306 1-241-763-11 RES, ADJ, CARBON 4.7K < TRANSFORMER > T101 1-433-344-11 TRANSFORMER, BIAS OSCILLATION T201 1-433-344-11 TRANSFORMER, BIAS OSCILLATION T301 1-423-614-11 TRANSFORMER, BIAS OSCILLATION < TEST PIN > TP301 1-564-506-11 PLUG, CONNECTOR 3P (TEST TERMINAL) TP301 1-764-326-11 PIN, CONNECTOR (PCB)(V TYPE)3P (TEST TERMINAL) * TP801 1-560-060-00 PIN, CONNECTOR 2P (TESY TERMINAL) < VIBRATOR > X801 1-577-358-21 VIBRATOR, CERAMIC (4MHz) ************************************************************ * A-2007-775-A PANEL BOARD, COMPLETE (AEP, AUS) ********************** (Including AC POWER BOARD, HP BOARD, and REC VOL BOARD) * A-2007-777-A PANEL BOARD, COMPLETE (MY, SP) ********************** (Including AC POWER BOARD, HP BOARD, REC VOL BOARD, TRANS1 BOARD, and TRANS 2 BOARD) * 3-386-245-11 HOLDER (FL) < CAPACITOR > C901 1-104-665-11 ELECT 100uF 20% 10V < CONNECTOR > CN901 1-778-065-11 SOCKET, CONNECTOR 39P < DIODE > D901 8-719-911-19 DIODE 1SS119 D902 8-719-911-19 DIODE 1SS119 D903 8-719-911-19 DIODE 1SS119 < IC > IC901 8-749-014-66 IC NJL56H400 < TRANSISTOR > Q901 8-729-900-89 TRANSISTOR DTC144ES Q902 8-729-900-89 TRANSISTOR DTC144ES Q903 8-729-900-89 TRANSISTOR DTC144ES < RESISTOR > R901 1-249-441-11 CARBON 100K 5% 1/4W R905 1-247-838-00 CARBON 2K 5% 1/4W R906 1-249-422-11 CARBON 2.7K 5% 1/4W R907 1-247-848-11 CARBON 5.1K 5% 1/4W R908 1-249-429-11 CARBON 10K 5% 1/4W R909 1-247-866-11 CARBON 30K 5% 1/4W R910 1-247-838-00 CARBON 2K 5% 1/4W R911 1-249-422-11 CARBON 2.7K 5% 1/4W R912 1-247-848-11 CARBON 5.1K 5% 1/4W R923 1-247-807-31 CARBON 100 5% 1/4W R924 1-247-807-31 CARBON 100 5% 1/4W < SWITCH > S901 1-572-184-11 SWITCH, KEYBOARD (p) MAIN PANEL The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 46 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark S902 1-572-184-11 SWITCH, KEYBOARD (AMS 0) S903 1-572-184-11 SWITCH, KEYBOARD (AMS )) S904 1-572-184-11 SWITCH, KEYBOARD (r, REC) S905 1-572-184-11 SWITCH, KEYBOARD (R, REC MUTING) S906 1-572-184-11 SWITCH, KEYBOARD (·) S907 1-572-184-11 SWITCH, KEYBOARD (P, PAUSE) S908 1-572-184-11 SWITCH, KEYBOARD (MEMORY) S909 1-572-184-11 SWITCH, KEYBOARD (RESET) < FLUORESCENT INDICATOR TUBE > VFD901 1-517-163-11 INDICATOR TUBE, FLUORESCENT ************************************************************ REC VOL BOARD ************** (Included in PANEL BOARD, COMPLETE) < RESISTOR > R153 1-249-425-11 CARBON 4.7K 5% 1/4W R253 1-249-425-11 CARBON 4.7K 5% 1/4W R362 1-249-429-11 CARBON 10K 5% 1/4W R915 1-249-429-11 CARBON 10K 5% 1/4W R916 1-247-866-11 CARBON 30K 5% 1/4W R917 1-247-836-11 CARBON 1.6K 5% 1/4W R918 1-247-840-00 CARBON 2.4K 5% 1/4W R919 1-247-843-11 CARBON 3.3K 5% 1/4W R920 1-249-426-11 CARBON 5.6K 5% 1/4W R921 1-247-858-11 CARBON 13K 5% 1/4W R922 1-247-868-11 CARBON 36K 5% 1/4W < VARIABLE RESISTOR > RV301 1-225-220-11 RES, VAR, CARBON 50K/50K (REC LEVEL) RV302 1-241-897-11 RES, VAR, CARBON 50K/50K (BALANCE) RV303 1-241-896-11 RES, VAR, CARBON 10K (BIAS) RV304 1-225-568-11 RES, VAR, CARBON 5K/5K (CAL REC LEVEL) < SWITCH > S910 1-572-184-11 SWITCH, KEYBOARD (MONITOR) S911 1-572-184-11 SWITCH, KEYBOARD (AUTO CAL) S913 1-762-647-11 SWITCH, ROTARY (DOLBY NR) ************************************************************ TRANSFORMER BOARD (AEP, AUS) ******************** (Included in MAIN BOARD, COMPLETE) * 3-923-762-11 HOLDER (TR) < CAPACITOR > C718 1-136-165-00 FILM 0.1uF 5% 50V C719 1-136-165-00 FILM 0.1uF 5% 50V < CONNECTOR > CNP701 1-564-513-11 PLUG, CONNECTOR 10P CNP701 1-764-333-11 PIN, CONNECTOR(PCB)(V TYPE)10P * CNP702 1-580-230-31 PIN, CONNECTOR (PC BOARD) 2P PANEL REC VOL TRANSFORMER TRANS 1 TRANS 2 < LINE FILTER > !LF701 1-424-485-11 FILTER, LINE ************************************************************ TRANS 1 BOARD (MY, SP) ************** (Included in PANEL BOARD, COMPLETE) < CONNECTOR > * CNP702 1-580-230-31 PIN, CONNECTOR (PC BOARD) 2P < LINE FILTER > !LF701 1-424-485-11 FILTER, LINE ************************************************************ TRANS 2 BOARD (MY, SP) ************** (Included in PANEL BOARD, COMPLETE) < CAPACITOR > C718 1-136-165-00 FILM 0.1uF 5% 50V C719 1-136-165-00 FILM 0.1uF 5% 50V < CONNECTOR > CNP701 1-564-513-11 PLUG, CONNECTOR 10P CNP701 1-764-333-11 PIN, CONNECTOR(PCB)(V TYPE)10P ************************************************************ MISCELLANEOUS *************** !7 1-575-651-21 CORD, POWER (AEP,MY,SP) !7 1-696-845-11 CORD, POWER (AUS) !11 1-692-155-11 SELECTOR, POWER VOLTAGE (MY,SP) 59 1-777-109-11 WIRE (FLAT TYPE) (39 CORE) 103 1-769-915-11 WIRE (FLAT TYPE) (9 CORE) 104 1-765-314-11 WIRE (FLAT TYPE) (7 CORE) 159 1-638-983-11 MOTOR FLEXIBLE BOARD HE301 1-543-673-11 HEAD, MAGNETIC (ERASE) HRP301 1-543-733-11 HEAD,MAGNETIC (RECORD/PLAYBACK) M901 X-3363-501-2 MOTOR ASSY (REEL) M902 X-3374-302-1 MOTOR ASSY (CAPSTAN) !T701 1-431-668-11 TRANSFORMER, POWER (AEP) !T701 1-431-737-11 TRANSFORMER, POWER (AUS) !T701 1-431-738-11 TRANSFORMER, POWER (MY,SP) ************************************************************ ************** HARDWARE LIST ************** #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #2 7-685-885-09 SCREW +BVTT 4X16 (S) #3 7-685-863-09 SCREW +BVTT 2.6X8 (S) #4 7-685-134-19 SCREW +PTPWH 2.6X8 (TYPE2) #5 7-685-862-09 SCREW +BVTT 2.6X6 (S) #6 7-621-772-10 SCREW +B 2X4 #7 7-621-775-00 SCREW +B 2.6X3 #8 7-627-556-08 SCREW +P 2.6X2.8 ************************************************************ The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 47 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark ACCESSORIES & PACKING MATERIALS ******************************** 1-776-263-11 CORD, CONNECTION (AUDIO) 1.5m 3-862-301-11 MANUAL, INSTRUCTION (ENGLISH, FRENCH, SPANISH, PORTUGUESE) 3-862-301-21 MANUAL, INSTRUCTION (GERMAN, DUTCH, SWEDISH, ITALIAN)(AEP) 3-862-301-31 MANUAL, INSTRUCTION (CHINESE)(MY,SP) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 48 – TC-KB920S Sony Corporation Home A&V Products Company 9-922-816-11 98D0564-1 Printed in Japan © 1998. 4 Published by Quality Assurance Dept. (Shibaura) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
