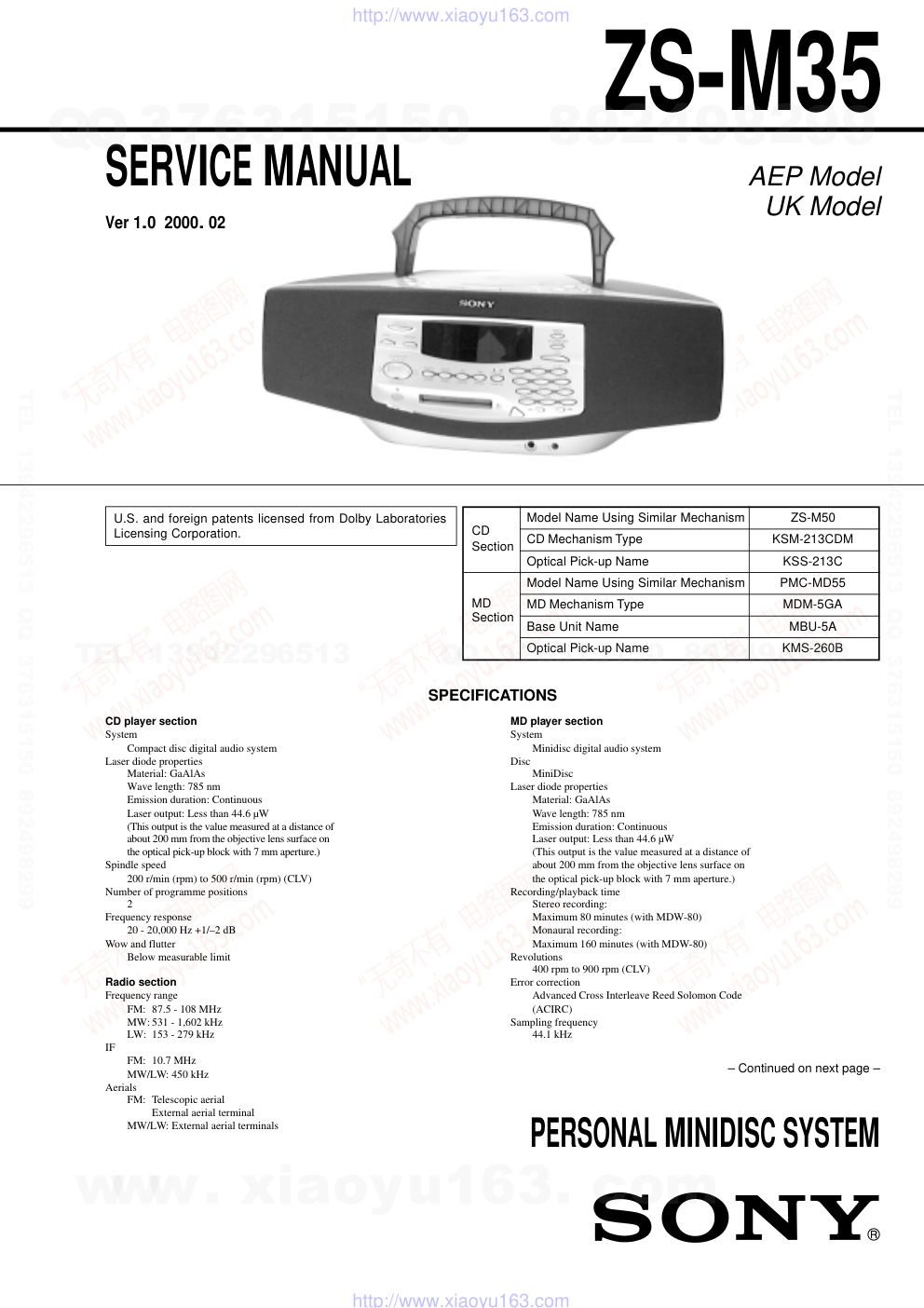

– 1 – SERVICE MANUAL PERSONAL MINIDISC SYSTEM AEP Model UK Model CD Model Name Using Similar Mechanism ZS-M50 Section CD Mechanism Type KSM-213CDM Optical Pick-up Name KSS-213C MD Model Name Using Similar Mechanism PMC-MD55 Section MD Mechanism Type MDM-5GA Base Unit Name MBU-5A Optical Pick-up Name KMS-260B U.S. and foreign patents licensed from Dolby Laboratories Licensing Corporation. CD player section System Compact disc digital audio system Laser diode properties Material: GaAlAs Wave length: 785 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of about 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) Spindle speed 200 r/min (rpm) to 500 r/min (rpm) (CLV) Number of programme positions 2 Frequency response 20 - 20,000 Hz +1/–2 dB Wow and flutter Below measurable limit Radio section Frequency range FM: 87.5 - 108 MHz MW: 531 - 1,602 kHz LW: 153 - 279 kHz IF FM: 10.7 MHz MW/LW: 450 kHz Aerials FM: Telescopic aerial External aerial terminal MW/LW: External aerial terminals SPECIFICATIONS MD player section System Minidisc digital audio system Disc MiniDisc Laser diode properties Material: GaAlAs Wave length: 785 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of about 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) Recording/playback time Stereo recording: Maximum 80 minutes (with MDW-80) Monaural recording: Maximum 160 minutes (with MDW-80) Revolutions 400 rpm to 900 rpm (CLV) Error correction Advanced Cross Interleave Reed Solomon Code (ACIRC) Sampling frequency 44.1 kHz – Continued on next page – Ver 1.0 2000. 02 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – Coding Adaptive TRansform Acoustic Coding (ATRAC) Modulation system EFM (Eight-to-Fourteen Modulation) Number of programme positions 2 stereo programme positions Frequency response 20 - 20,000 Hz +1/–2 dB Signal-to-noise ratio Over 80 dB (during playback) Wow and flutter Below measurable limit General Speaker Full-range: 8 cm (3 in.) dia.,4 ohms, cone type (2) Inputs LINE IN (stereo minijack):Sensitivity 436 mV/ 870 mV Outputs Headphones jack (stereo minijack) (1): For 32 ohms impedance headphones Maximum power output 5 W + 5 W Power requirements For personal minidisc system: 230 V AC, 50 Hz For back-up memory: 4.5 V DC, 3 R6 (size AA) batteries For remote control: 3 V DC, 2 R6 (size AA) batteries Power consumption 24 W Dimensions (incl.projecting parts) approx. 498.5 × 173.5 × 227 mm (w/h/d) (19 3/4 × 6 7/8 × 11 inches) Mass approx. 5.2 kg (11 lb. 7 oz) Supplied accessories Mains lead (1) Remote control (1) MW/LW loop aerial (1) Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – 1. SERVICING NOTES 1-1. Notes on Handling the Optical Pick-up Block or Base Unit .. 4 1-2. Notes on Laser Diode Emission Check............................... 4 1-3. Notes on Chip Component Replacement ............................ 4 1-4. Flexible Circuit Board Repairing ........................................ 4 1-5. Chuck Plate Jig on Repairing .............................................. 4 1-6. Demonstration ..................................................................... 4 1-7. Checking the Laser Diode and Focus Search Operation ..... 4 1-8. Jig for Checking BD Board Waveform ............................... 5 1-9. Checks Prior to Parts Replacement and Adjustments ......... 6 1-10. Change of Pulley ................................................................. 6 2. GENERAL Playing a CD ....................................................................... 7 Recording a whole CD ........................................................ 7 Playing an MD..................................................................... 8 Listening to the radio ........................................................... 8 3. DISASSEMBLY 3-1. Cabinet (Rear) Assy ............................................................ 9 3-2. Power Board ........................................................................ 9 3-3. Cabinet (Upper) Assy ........................................................ 10 3-4. MD Block Assy ................................................................. 10 3-5. Tuner Board....................................................................... 11 3-6. Jack Board ......................................................................... 11 3-7. LED Board ........................................................................ 12 3-8. Key Board ......................................................................... 12 3-9. Top Board .......................................................................... 13 3-10. FL Board ........................................................................... 13 3-11. Main board ........................................................................ 14 3-12. CD Board .......................................................................... 14 3-13. CD Mechanism Block ....................................................... 15 3-14. DG Board .......................................................................... 15 3-15. Plate (Front), Shield .......................................................... 16 3-16. MD Mechanism Block-1 (MDM-5GA) ............................ 16 3-17. MD Mechanism Block-2 (Slider (Cam) Assy) ................. 17 3-18. MD Mechanism Block-3 (BD Board) ............................... 18 3-19. MD Mechanism Black-4 (SW Board)............................... 18 4. TEST MODE 4-1. MD section ........................................................................ 19 5. ELECTRICAL ADJUSTMENTS 5-1. Tuner section ..................................................................... 24 5-2. MD section ........................................................................ 26 5-3. CD section ......................................................................... 33 TABLE OF CONTENTS 6. DIAGRAMS 6-1. IC Pin Function Descriptions ............................................ 35 6-2. Circuit Boards Location .................................................... 44 6-3. Block Diagram –Tuner Section– ....................................... 45 6-4. Block Diagram –MD Section–.......................................... 48 6-5. Block Diagram –CD Section–........................................... 51 6-6. Block Diagram –Audio Section– ...................................... 53 6-7. Schematic Diagram –CD Section (1/2)– ........................... 55 6-8. Schematic Diagram –CD Section (2/2)– ........................... 57 6-9. Printed Wiring Boards –CD Section– ............................... 59 6-10. Printed Wiring Boards –Tuner Section– ........................... 61 6-11. Schematic Diagrams –Tuner Section– .............................. 63 6-12. Printed Wiring Boards –BD Section– ............................... 65 6-13. Schematic Diagram –BD Section (1/2)– ........................... 67 6-14. Schematic Diagrams –BD Section (2/2)– ......................... 69 6-15. Schematic Diagram –DG Section– ................................... 71 6-16. Schematic Diagram –DG Section– ................................... 73 6-17. Printed Wiring Board –DG Section–................................. 75 6-18. Printed Wiring Board –Main Section– .............................. 77 6-19. Schematic Diagram –Main Section (1/3)– ........................ 79 6-20. Schematic Diagram –Main Section (2/3)– ........................ 81 6-21. Schematic Diagram –Main Section (3/3)– ........................ 83 6-22. Printed Wiring Boards –Panel Section– ............................ 85 6-23. Schematic Diagrams –Panel Section– ............................... 87 6-24. Printed Wiring Boards –Switch Section–.......................... 89 6-25. Schematic Diagrams –Switch Section– ............................ 91 6-26. Printed Wiring Boards –Power Supply Section– .............. 93 6-27. Schematic Diagrams –Power Supply Section– ................. 95 6-28. IC Block Diagrams............................................................ 97 7. EXPLODED VIEWS 7-1. Cabinet (Rear) Section .................................................... 103 7-2. Cabinet (Front) Section ................................................... 104 7-3. Cabinet (Upper) Section.................................................. 105 7-4. MD Block Section ........................................................... 106 7-5. MD Mechanism Section (MDM-5GA) .......................... 107 7-6. MD Base unit Section (MBU-5A) ................................. 108 7-7. Optical Pick-up Section (KSM-213CDM)...................... 109 8. ELECTRICAL PARTS LIST.................................... 110 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SECTION 1 SERVICING NOTES This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the bottom exterior. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE 0 SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. 1-1. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. 1-2. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. 1-3. NOTES ON CHIP COMPONENT REPLACEMENT • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. 1-4. FLEXIBLE CIRCUIT BOARD REPAIRING • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. 1-5. CHUCK PLATE JIG ON REPAIRING On repairing CD section, playing a disc without the CD lid, use Chuck Plate Jig. • Code number of Chuck Plate Jig: X-4918-255-1 1-6. DEMONSTRATION This set enters the demonstration mode about 10 seconds after the power cord is connected. The demonstration displays such as “DEMONSTRATION MODE” and “CREATE YOUR ORIGINAL MD” then appears. When no operation is entered for one minute after the [OPERATE] button is turned on, the demonstration mode is also entered. To release the demonstration mode, set the timer in this set or press and hold down the [NO/CANCEL] button for about 2 seconds. 1-7. CHECKING THE LASER DIODE AND FOCUS SEARCH OPERATION 1. Turn on the POWER and open the CD cover. 2. As shown below, push S402 (CD DOOR) with a screwdriver or other tool. 3. Press the CD button. 4. Check the objective lens to make sure that the laser diode is emitting light. If not so, the auto power control circuit or optical pickup would be damaged. Verify that the objective lens moves vertically three times for focus search. S402 CAUTION Use of controls or adjustments or performance of proce- dures other than those specified herein may result in haz- ardous radiation exposure. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – 1-8. JIG FOR CHECKING BD BOARD WAVEFORM The special jig (J-2501-149-A) is useful for checking the waveform of the BD board. The names of terminals and the checking items to be performed are shown as follows. GND : Ground I+3V : For measuring IOP (Check the deterioration of the optical pick-up laser) IOP : For measuring IOP (Check the deterioration of the optical pick-up laser) TEO : TRK error signal (Traverse adjustment) VC : Reference level for checking the signal RF : RF signal (Check jitter) CN110 RF 5P connector 6P connector VC TEO IOPI+3V GND Mechanism deck RF VC TEO for MDM-3 for MDM-5 IOP I+3V VC RF TEO IOP I+3V GND VC RF TEO IOP I+3V GND 1 5 1 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – 1-9. CHECKS PRIOR TO PARTS REPLACEMENT AND ADJUSTMENTS (FOR MD SECTION) Before performing repairs, perform the following checks to determine the faulty locations up to a certain extent. Details of the procedures are described in “5 Electrical Adjustments”. • 0.9 mW power Specified value : 0.84 to 0.92 mW • 7.0 mW power Specified value : 6.8 to 7.2 mW lop (at 7mW) • Labeled on the optical pickup Iop value ± 10mA • Error rate check Specified value : For points a, b, and c C1 error : About 200 ADER : Below 2 • Error rate check Specified value: a. When using test disc (MDW-74/AU-1) C1 error : Below 80 ADER : Below 2 b. When using check disc (TDYS-1) C1 error : Below 50 • CPLAY error rate check Specified value: C1 error : Below 80 ADER : Below 2 Laser power check (6-1 : See page 28) Focus bias check (6-2 : See page 28) C PLAY check (6-3 : See page 28) Self-recording/playback check (6-4 : See page 28) Criteria for Determination (Unsatisfactory if specified value is not satisfied) • Clean the optical pick-up • Adjust again • Replace the optical pick-up • Replace the optical pick-up • Replace the optical pick-up • Replace the optical pick-up If always unsatisfactory: • Replace the overwrite head • Check for disconnection of the circuits around the overwrite head If occasionally unsatisfactory: • Check if the overwrite head is distorted • Check the mechanism around the sled Measure if unsatisfactory: Note: The criteria for determination above is intended merely to determine if satisfactory or not, and does not serve as the specified value for adjustments. When performing adjustments, use the specified values for adjustments. 1-10. CHANGE OF PULLEY pulley M102, 103 2.5 mm Install the pulley to the motor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – SECTION 2 GENERAL This section is extracted from instruction manual. Playing a CD For hookup instructions, see pages 64 - 67. 1 Press Z PUSH OPEN/CLOSE down to open the CD compartment and place the CD on the CD compartment. 2 Close the lid of the CD compartment. 3 Press CD u (CD N on the remote). The player turns on (direct power-on) and the player plays all the tracks once. With the label side up Display Playing time Track number 1, 2 3 Use these buttons for additional operations To Press adjust the volume VOLUME +, – (VOL +, – on the remote) stop playback CD x pause playback CD u (CD X on the remote) Press the button again to resume play after pause. go to the next track > go back to the previous track . remove the CD Z PUSH OPEN/CLOSE turn on/off the player OPERATE Tip Next time you want to listen to a CD, just press CD u . The player turns on automatically and starts playing the CD. VOLUME –, + CD u ., > ZPUSH OPEN/CLOSE CDx OPERATE Recording a whole CD (Synchronized recording) Display 3 4 2 1 For hookup instructions, see pages 64 - 67. 1 Insert a recordable MD (direct power-on). 2 Press PUSH OPEN/CLOSE and place the CD on the CD compartment. Press PUSH OPEN/CLOSE again to close the CD compartment. 3 Press CD x . With the label side up With the label side up After “TOC Reading” is displayed, the disc name will be displayed if it is labelled. Insert in the direction of arrow 5 Z Z To Press stop recording MD x or CD x turn on/off the player OPERATE If “CD>MD OK?” alternates with time display There is not enough space on the MD to record the whole CD. If it is all right to record as much as possible and cancel recording of some tracks, press YES•ENTER. To stop recording, press NO•CANCEL. If any other messages are displayed, see page 80. Track number of MD YES ENTER OPERATE NO CANCEL 4 To record at high speed, press HIGH SPEED. The indicator lights up. To record at normal speed, skip this step. 5 Press SYNCHRO REC CD N MD. The player starts recording automatically. If the MD has any previous recording, recording will be made from the last recorded position. Remaining recording time of MD Use these buttons for additional operations CD MD x Notes • After you stop recording, do not disconnect the mains lead or move the player while “TOC EDIT” is flashing in the display. If you do so, recording may not be done properly. • When you record a whole CD, you cannot pause recording. Tips • Adjusting the volume or the audio emphasis (page 56) will not affect the recording level. Keep the volume at a moderate level so as to prevent the sound from skipping. • To record over the previous recording, see page 40. • Once the clock is set, the recording date and time are stamped automatically (page 57). • You can label an MD or a track during recording (page 51). MD x www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – Playing an MD For hookup instructions, see pages 64 - 67. 1 Insert the MD (direct power-on). 2 Press MD u (MD N on the remote). The player plays all the tracks once. With the label side up Display Playing time Track number 1 2 Insert in the direction of the arrow After “TOC Reading” is displayed, the disc name will be displayed if it is labelled. m Track name is displayed To Press adjust the volume VOLUME +, – (VOL +, – on the remote) stop playback MD x pause playback MD u (MD X on the remote) Press the button again to resume play after pause. go to the next track > go back to the previous track . remove the MD Z turn on/off the player OPERATE Tip Next time you want to listen to a MD, just press MD u. The player turns on automatically and starts playing the MD. VOLUME –, + Z MD x OPERATE MD u . . > Use these buttons for additional operations Listening to the radio For hookup instructions, see pages 64 - 67. 1 Press RADIO BAND until the band you want appears in the display (direct power-on). 2 Hold down TUNE + or TUNE – until the frequency digits begin to change in the display. The player automatically scans the radio frequencies and stops when it finds a clear station. If you can’t tune in a station, press TUNE + or TUNE – repeatedly to change the frequency step by step. 1 2 Display “FM1”, “FM2”, “MW” or “LW” appears Indicates an FM stereo broadcast Tips • The “FM1” and “FM2” bands have the same functions. You can store the stations you want separately in “FM1” and “FM2” (page 22). • If the FM broadcast is noisy, press MONO/ ST•REPEAT (MODE on the remote) until “Mono” appears in the display and radio will play in monaural. • Next time you want to listen to the radio, just press RADIO BAND. The player turns on automatically and starts playing the previous station. To Press adjust the volume VOLUME +, – (VOL +, – on the remote) turn on/off the radio OPERATE To improve broadcast reception FM: Set the FM ANTENNA SELECTOR at the rear of the player to “ ” (telescopic aerial). Reorient the aerial for FM. MW/LW: Keep the MW/LW loop aerial as far as possible from the player and reorient it. If the broadcast is still noisy, connect the external aerial (page 67). VOLUME –, + MONO/ST REPEAT OPERATE Use these buttons for additional operations www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – SECTION 3 DISASSEMBLY Note : This set can be disassemble according to the following sequence. Note : Follow the disassembly procedure in the numerical order given. 3-1. CABINET (REAR) ASSY Set Cabinet (Rear) Assy FL Board Main Board CD Board CD Mechanism Block Cabinet (Upper) Assy Power Board DG Board LED Board Plate (Front), Shield Tuner Board Top Board MD Block Assy Jack Board Key Board MD Mechanism Block - 1 (MDM-5GA) MD Mechanism Block - 2 (Slider (Cam) Assy) MD Mechanism Block - 3 (BD Board) MD Mechanism Block - 4 (SW board) 3-2. POWER BOARD 1 BVTP 3x12 6 CN402 7 CN401 handle 2 BVTP 3x14 3 BVTP 3x14 5 BVTP 3x14 8 cabinet (rear) assy 4 BVTP 3x12 1 BVTP 3x12 3 BVTP 4x12 4 BVTP 3x12 6 POWER board cabinet (rear) assy chassis, transformer 5 2 CN903 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – 3-3. CABINET (UPPER) ASSY 3-4. MD BLOCK ASSY 1 BVTP 3x10 3 CN404 5 CN301 6 CN408 7 CN303 8 CN407 q; CN409 9 CN406 4 connector 2 CN705 qacabinet (upper) assy 2 BVTP 3x14 3 MD block assy 1 CN2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – 3-5. TUNER BOARD 3-6. JACK BOARD 1 BVTP 3x10 2 BVTP 3x10 6 BVTP 3x10 7 antenna SW board 8 Remove the solders. 3 BVTP 3x10 4 BVTP 3x10 5 TUNER board chassis (TU) 1 BVTP 2.6x8 2 CN306 3 JACK board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 12 – 3-7. LED BOARD 3-8. KEY BOARD 1 BVTP 2.6x8 2 BVTP 2.6x8 3 LED board 1 BVTP 2.6x8 2 BVTP 2.6x8 3 KEY board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – 3-9. TOP BOARD 3-10. FL BOARD 1 BVTP 2.6x8 3 BVTP 2.6x8 5 TOP board 4 button (top) 2 2 BVTP 3x10 3 FL board 1 CN405 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 14 – 3-11. MAIN BOARD 3-12. CD BOARD 4 BVTP 3x10 5 BVTP 3x10 6 BVTP 3x10 7 CN403 8 MAIN board 1 CN410 2 CN707 3 CN704 CD board 2 BVTP 3x10 3 BVTP 3x10 1 CN801 4 CN701 5 CD board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 15 – 3-13. CD MECHANISM BLOCK 3-14. DG BOARD 1 PWH 2.6x10 4 CD mechanism block 2 PWH 2.6x10 3 1 P 2.6x5 3 P 2.6x5 8 CN602 9 CN601 q; DG board claws 5 CN605 6 CN603 4 P 2.6x5 7 2 plate (lower) , shield www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 16 – 3-15. PLATE (FRONT), SHIELD 3-16. MD MECHANISM BLOCK-1 (MDM-5GA) 1 P 2.6x5 2 P 2.6x5 3 plate (front), shield 6 BVTTWH M3 7 BVTTWH M3 8 harnes 9 MD mechanism block (MDM-5GA) 3 claws 5 plate (upper), shield 4 claws 1 P 2.6x5 2 P 2.6x5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 17 – 3-17. MD MECHANISM BLOCK-2 (SLIDER (CAM) ASSY) 1 BV 2.6 (1T3B) 4 BV 2.6 (1T3B) 2 spring, leaf 3 bracket (guide L) 6 slider (cam) assy 5 bracket (guide R) horizontal When assembling, set the press fitting shaft of the cam gear horizontal to the lever (head). When assembling, insert the shaft of the lever (O/C) with A part fit in the slot. lever (head) cam gear press fitting shaft A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 18 – 3-18. MD MECHANISM BLOCK-3 (BD BOARD) 3-19. MD MECHANISM BLOCK-4 (SW BOARD) 1 BV 2.6 (1T3B) 4 M 1.7 5 CN104 6 CN101 2 MD base unit BD board (side A) 7 BD board 3 Removal the solders 1 PTPWH M 2.6x6 3 PWH 1.7x4 5 BTP 2.6x6 4 motor assy, loading 6 SW board 2 gear (B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 19 – SECTION 4 TEST MODE Refer to “5. ELECTRICAL ADJUSTMENT” for the test mode of CD section. 4-1. MD SECTION 1. PRECAUTIONS FOR USE OF TEST MODE • As loading related operations will be performed regardless of the test mode operations being performed, be sure to check that the disc is stopped before setting and removing it. Even if the Z (MD) button is pressed while the disc is rotating during continuous playback, continuous recording, etc., the disc will not stop rotating. Therefore, it will be ejected while rotating. Be sure to press the Z (MD) button after pressing the [REC/REC MODE] button and the rotation of disc is stopped. 1-1. Recording laser emission mode and operating buttons • Continuous recording mode (CREC MODE) • Laser power check mode (LDPWR CHECK) • Laser power adjustment mode (LDPWR ADJUST) • When pressing the [REC] button. 2. SETTING THE TEST MODE 1. Set to standby state. 2. Press the buttons [SOUND] and [EDIT] and . (TUNE –) at the same time and then release them soon (within 100m sec). The TEST MODE is entered. 3. RELEASING THE TEST MODE Hold down the [OPERATE] button and remove the power cord to reset the set. 4. BASIC OPERATIONS OF THE TEST MODE All operations are performed with the following buttons: u (MD), x (MD), [RADIO/BAND], and [REC/REC MODE]. The functions of these buttons are as follows. Function name Function u (MD) Proceeds the parameter/mode change. x (MD) Returns to the parameter/mode change. RADIO/BAND Goes ahead. Determines the setting/selection. REC/REC MODE Suspends. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 20 – 5. SELECTING THE TEST MODE There are 9 types of test modes as shown below. The groups can be switched by press the u (MD) or x (MD) button. After selecting the group to be used, press the [RADIO/BAND] button. After setting a certain group, press the u (MD) or x (MD) button between these modes. Display TEMP ADJUST LDPWR ADJUST LDPWR CHECK EFBAL ADJUST FBIAS ADJUST FBIAS CHECK CPLAY MODE CREC MODE EEP MODE Contents Temperature compensation offset adjustment Laser power adjustment Laser power check EF balance adjustment Focus bias adjustment Focus bias check Continuous playback mode Continuous recording mode Non-volatile memory control • For details of each adjustment mode, refer to “5. Electrical Adjustments”. • If a different mode has been selected by mistake, press the [REC/REC MODE] button to release that mode. • EEP MODE is not used for servicing and therefore are not described in detail. If these modes are set accidentally, press the [REC/REC MODE] button to release the mode immediately. Be especially careful this mode will overwrite the non-volatile memory and reset it, and as a result, the unit will not operate normally. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 21 – 5-1. Operating the Continuous Playback Mode 1. Entering the continuous playback mode (1) Set the disc in the unit. (Whichever recordable discs or discs for playback only are available) (2) Press the u (MD) or x (MD) button to display “CPLAY MODE”. (3) Press the [RADIO/BAND] button to change the display to “CPLAY MID”. (4) When access completes, the display changes to “C1 = AD = ”. Note: The numbers “ ” displayed show you error rates and ADER. 2. Changing the parts to be played back (1) Press the [RADIO/BAND] button during continuous playback to change the display as below. When pressed another time, the parts to be played back can be moved. (2) When access completes, the display changes to “C1 = AD = ”. Note: The numbers “ ” displayed show you error rates and ADER. 3. Ending the continuous playback mode (1) Press the [REC/REC MODE] button. The display will change to “CPLAY MODE”. (2) Press the Z (MD) button and take out the disc. Note: The playback start addresses for IN, MID, and OUT are as follows. IN : 40h cluster MID : 300h cluster OUT : 700h cluster 5-2. Operating the Continuous Recording Mode (Use only when performing self-recording/palyback check) 1. Entering the continuous recording mode (1) Set a recordable disc in the unit. (2) Press the u (MD) or x (MD) button to display “CREC MODE”. (3) Press the [RADIO/BAND] button to change the display to “CREC MID”. (4) When access completes, the display changes to “CREC ( )” and “[REC]” lights up. Note: The numbers “ ” displayed shows you the recording position addresses. 2. Changing the parts to be recorded (1) When the [RADIO/BAND] button is pressed during continuous recording, the display changes as below. When pressed another time, the parts to be recorded can be changed. “[REC]” goes off. (2) When access completes, the display changes to “CREC ( )” and “[REC]” lights up. Note: The numbers “ ” displayed shows you the recording position addresses. 3. Ending the continuous recording mode (1) Press the [REC/REC MODE] button. The display changes to “CREC MODE” and “[REC]” goes off. (2) Press the Z (MD) button and take out the disc. Note 1: The recording start addresses for IN, MID, and OUT are as follows. IN : 40h cluster MID : 300h cluster OUT : 700h cluster Note 2: The [REC/REC MODE] button can be used to stop recording anytime. Note 3: Do not perform continuous recording for long periods of time above 5 minutes. Note 4: During continuous recording, be careful not to apply vibration. 5-3. Non-Volatile Memory Mode (EEP MODE) This mode reads and writes the contents of the non-volatile memory. It is not used in servicing. If the unit entered this mode accidentally, press the [REC/REC MODE] button immediately to release it. “CPLAY MID” t “CPLAY OUT” t “CPLAY IN” “CREC MID” t “CREC OUT” t “CREC IN” www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 22 – 6. FUNCTIONS OF OTHER BUTTONS 7. TEST MODE DISPLAYS Each time the [LINE/LINE LEVEL] button is pressed, the display changes in the following order. 1. Mode display Displays “TEMP ADJUST”, “CPLAYMODE”, etc. 2. Error rate display Displays the error rate in the following way. C1 = ssss AD = ss C1 = Indicates the C1 error. AD = Indicates ADER. 3. Address display The address is displayed as follows. (MO: recordable disc, CD: playback only disc) Press the x (CD) and [EDIT] buttons at the same time to switches between the groove display and pit display. h = ssss s = ssss (MO pit and CD) h = ssss a = ssss (MO groove) h = Indicates the header address. s = Indicates the SUBQ address. a = Indicates the ADIP address. Note: “–” is displayed when servo is not imposed. 4. Auto gain display (Not used in servicing) The auto gain is displayed as follows. AG F = ss T = ss 5. IVR display (Not used in servicing) The IVR is displayed as follows. [ss][ss][ss] Contents Sets continuous playback when pressed in the STOP state. When pressed during continuous playback, the tracking servo turns ON/OFF. Stops continuous playback and continuous recording. The sled moves to the outer circumference only when this is pressed. The sled moves to the inner circumference only when this is pressed. When pressed during continuous playback, REC ON/OFF. Switches between the pit and groove modes when pressed. When pressed during continuous playback, switches the spindle servo mode (CLV-S y CLV-A). Switches the displayed contents each time the button is pressed Ejects the disc Releases the test mode Function u (MD) and EDIT x (MD) and EDIT > . REC/REC MODE and EDIT x (CD) and EDIT RADIO/BAND and EDIT LINE/LINE LEVEL Z (MD) OPERATE Mode display Error rate display Address display Auto gain display (Not used in servicing) IVR display (Not used in servicing) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – SHUF PGM [REC] TOC EDIT TRACK TIMER When Off Contents Display When Lit During continuous playback (CLV: ON) Tracking servo OFF Recording mode ON ABCD adjustment completed Pit CLV-S STOP (CLV: OFF) Tracking servo ON Recording mode OFF Groove CLV-A MEANINGS OF OTHER DISPLAYS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 24 – FM FREQUENCY COVERAGE CHECK Frequency Display 87.5 MHz 108 MHz Reading on Digital voltmeter 1.4 + 0.6 V 6.9 + 1.1 V – 0.4 V – 1.0 V Adjustment Part FM TRACKING CHECK Adjust for a maximum reading on level meter. 87.5 MHz 108 MHz MW FREQUENCY COVERAGE ADJUSTMENT Frequency Display 531 kHz 1,611 kHz Reading on Digital voltmeter 1.0 ± 0.3 V 5.3 ± 0.3 V Adjustment Part L5 CT4 MW TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L3 CT2 621 kHz 1,404 kHz AM IF ADJUSTMENT Adjust for a maximum reading on level meter. T1 450 kHz LW FREQUENCY COVERAGE ADJUSTMENT Frequency Display 153 kHz 279 kHz Reading on Digital voltmeter 0.7 + 0.5 V 5.3 ± 0.2 V – 0.2 V Adjustment Part CT3 LW TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L4 CT1 162 kHz 261 kHz Adjustment Location: TUNER board (See page 25.) 5-1. TUNER SECTION 0 dB = 1 µV Precautions in Repairing Note : As a tuner unit (TU1) is difficult to repair if faulty, replace it with new one. • FM Section Setting: BAND button: FM 22.5 kHz frequency deviation by 400 Hz signal output level : as low as possible • MW/LW Section Setting: BAND button: MW or LW 30% amplitude modulation by 400 Hz signal output level : as low as possible • Connecting Level Meter (FM, MW and LW) • Connecting Digital Voltmeter (FM, MW and LW) • Repeat the procedures in each adjustment several times, and the frequency coverage and tracking adjustments should be finally done by the trimmer capacitors. FM antenna (JW1,2) FM RF signal generator 0.01 µF set Put the lead-wire antenna close to the supplied MW/LW loop aerial. AM RF signal generator phones jack (J301) set 32 Ω level meter (range: 0.5-5 V ac) digital voltmeter tuner board TP (VT) SECTION 5 ELECTRICAL ADJUSTMENTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 25 – Adjustment Location: (COMPONENT SIDE) CT4 T1 L4 JW1 JW2 L3 L5 CT2 CT1 TP(VT) CT3 MW FREQUENCY COVERAGE ADJUSTMENT LW FREQUENCY COVERAGE ADJUSTMENT MW TRACKING ADJUSTMENT AM IF ADJUSTMENT LW TRACKING ADJUSTMENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 26 – • Laser power check • Focus bias check • C PLAY check • Self-recording/playback check Parts Replacement and Repair NG Has the OWH been replaced? NO OK NO NO NO Has OP, IC171, IC101, or IC121 been replaced? YES YES Initial setting of the adjustment value Has OP or IC171 been replaced? YES IOP information recording (IOP value labeled on OP) Has IC171 or D101 been replaced? YES Temperature compensation offset adjustment • Laser power adjustment • Traverse adjustment • Focus bias adjustment • Error rate adjustment • Focus bias check • Auto gain adjustment Check the sled and spindle mechanisms. Other causes can be suspected. 5-2. MD SECTION 1. PARTS REPLACEMENT AND ADJUSTMENT • Check and adjust the mechanism deck as follows. The procedure changes according to the part replaced. • Abbreviation OP : Optical pick-up OWH : Overwrite head www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 27 – 2. PRECAUTIONS FOR CHECKING LASER DIODE EMISSION To check the emission of the laser diode during adjustments, never view directly from the top as this may lose your eye-sight. 3. PRECAUTIONS FOR USE OF OPTICAL PICK-UP (KMS-260B) As the laser diode in the optical pick-up is easily damaged by static electricity, solder the laser tap of the flexible board when using it. Before disconnecting the connector, desolder first. Before connect- ing the connector, be careful not to remove the solder. Also take adequate measures to prevent damage by static electricity. Handle the flexible board with care as it breaks easily. 4. Use the following tools and measuring device. • Check Disc (MD) TDYS-1 (Part No. 4-963-646-01) • Test Disc (MDW-74/AU-1) (Part No. 8-892-341-41) • Laser power meter LPM-8001 (Part No. J-2501-046-A) or MD Laser power meter 8010S (Part No. J-2501-145-A) • Oscilloscope (Measure after performing CAL of prove) • Digital voltmeter • Thermometer • Jig for checking BD board waveform (Part No. : J-2501-149-A) 5. When observing several signals on the oscilloscope, etc., make sure that VC and ground do not connect inside the oscilloscope. (VC and ground will become short-circuited) 6. Using the above jig enables the waveform to be checked with- out the need to solder. (Refer to Servicing Notes on page 5) 7. As the disc used will affect the adjustment results, make sure that not dusts nor fingerprints are attached to it. Laser Power Meter When performing laser power checks and adjustment (electrical adjustment), use of the new MD laser power meter 8010S (Part No. J-2501-145-A) instead of the conventional laser power meter is con- venient. It sharply reduces the time and trouble to set the laser power meter sensor onto the objective lens of optical pick-up. 5. CREATING CONTINUOUSLY-RECORDED DISC * This disc is used in focus bias adjustment and error rate check. The following describes how to create a continuous recording disc. 1. Insert a disc (blank disc) commercially available. 2. Press the u (MD) or x (MD) button to display “CREC MODE”. 3. Press the [RADIO/BAND] button again to display “CREC MID”. Display “CREC (0300)” and start to recording. 4. Complete recording within 5 minutes. 5. Press the [REC/REC MODE] button and stop recording. 6. Press the Z (MD) button and remove the disc. The above has been how to create a continuous recorded data for the focus bias adjustment/check and MO error rate check. Note: • Be careful not to apply vibration during continuous recording. Optical pick-up flexible board 4. PRECAUTIONS FOR ADJUSTMENTS 1. When replacing the following parts, perform the adjustments and checks with in the order shown in the following table. pick-up flexible board laser tap 2. Set the test mode when performing adjustments. After completing the adjustments, release the test mode. Perform the adjustments and checks in “group S” of the test mode. 3. Perform the adjustments to be needed in the order shown. 1.Temperature compensation offset adjustment 2.Laser power adjustment 3.EF balance adjustment 4.Focus bias adjustment 5.Error rate check Optical Pick-up BD Board IC171 D101 IC101, IC121 IC192 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 28 – 6. CHECK PRIOR TO REPAIRS These checks are performed before replacing parts according to “approximate specifications” to determine the faulty locations. For details, refer to “Checks Prior to Parts Replacement and Adjust- ments” (See page 6). 6-1. Laser Power Check Connection: 6-2. Focus Bias Check Change the focus bias and check the focus tolerance amount. Checking Procedure: 1. Load the test disc (MDW-74/AU-1). 2. Press the u (MD) or x (MD) button to display “CPLAY MODE”. 3. Press the [RADIO/BAND] button twice to display “CPLAY MID”. 4. Press the [REC/REC MODE] button when “C1 = AD = ” is displayed. 5. Turn the JOG dial to display “FBIAS CHECK”. 6. Press the [RADIO/BAND] button to display “ / c = ”. The first four digits indicate the C1 error rate, the two digits after [/] indicate ADER, and the 2 digits after [c =] indicate the focus bias value. Check that the C1 error is below 50 and ADER is below 2. 7. Press the [RADIO/BAND] button to display “ / b = ”. Check that the C1 error is about 200 and ADER is below 2. 8. Press the [RADIO/BAND] button to display “ / a = ”. Check that the C1 error is about 200 and ADER is below 2. 9. Press the [REC/REC MODE] button, then press the Z (MD) button and take out the test disc. 6-3. C PLAY Check MO Error Rate Check Checking Procedure: 1. Load the test disc (MDW-74/AU-1). 2. Press the u (MD) or x (MD) button to display “CPLAY MODE”. 3. Press the [RADIO/BAND] button to display “CPLAY MID”. 4. The display changes to “C1 = AD = ”. 5. If the C1 error rate is below 80, check that ADER is below 2. 6. Press the [REC/REC MODE] button to stop playback, then press the Z (MD) button and take out the test disc. CD Error Rate Check Checking Procedure: 1. Load the check disc (MD) TDYS-1. 2. Press the u (MD) or x (MD) button to display “CPLAY MODE”. 3. Press the [RADIO/BAND] button twice to display “CPLAY MID”. 4. The display changes to “C1 = AD = ”. 5. Check that the C1 error rate is below 50. 6. Press the [REC/REC MODE] button to stop playback, then press the Z (MD) button and take out the check disc. 6-4. Self-Recording/playback Check Prepare a continuous recording disc using the unit to be repaired and check the error rate. Checking Procedure: 1. Load a recordable disc (blank disc). 2. Press the u (MD) or x (MD) button to display “CREC MODE”. 3. Press the [RADIO/BAND] button to display “CREC MID”. 4. When recording starts, lights up “[REC]” and display “CREC @@@@” (@@@@ is the address). 5. About 1 minute later, press the [REC/REC MODE] button to stop continuous recording. 6. Turn the JOG dial to display “CPLAY MODE”. 7. Press the [RADIO/BAND] button to display “CPLAY MID”. 8. “C1 = AD = ” will be displayed. 9. Check that the C1 error becomes below 80 and the ADER be- low 2. 10. Press the [REC/REC MODE] button to stop play back, then press the Z (MD) button and take out the disc. Note: After the TEST MODE is entered, insert the disc. Checking Procedure: 1. Set the laser power meter on the objective lens of the optical pick-up. (When it cannot be set properly, press the . but- ton or > button to move the optical pick-up) Connect the digital voltmeter to CN110 pin 5 (I+3 V) and CN110 pin 4 (IOP) on the BD board. 2. Press the u (MD) or x (MD) button to display “LDPWR CHECK”. 3. Press the [RADIO/BAND] button once to display “LD 0.9 mW $ ”. Check that the reading of the laser power meter become 0.84 to 0.92 mW. 4. Press the [RADIO/BAND] button once more to display “LD 7.0 mW $ ”. Check that the reading the laser power meter and digital voltmeter satisfy the specified value. Specified Value: Laser power meter reading : 7.0 ± 0.2 mW Digital voltmeter reading : Value on the optical pick-up label ± 10 % Optical pick-up objective lens laser power meter + – BD board digital voltmeter CN110 pin 5 (I +3V) CN110 pin 4 (IOP) 5. Press the [REC/REC MODE] button to display “LDPWR CHECK” and stop the laser emission. (The [REC/REC MODE] button is effective at all times to stop the laser emission) Note 1: After step 4, each time the [RADIO/BAND] button is pressed, the display will be switched “LD 0.7 mW $ ”, “LD 6.2 mW $ ”, and “LD WP $ ”. Nothing needs to be performed here. ( = correction) KMS260B 27X40 B0825 lOP=82.5 mA in this case lOP (mA) = Digital voltmeter reading (mV)/1 (Ω) (Optical pick-up label) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 29 – 7. TEMPERATURE COMPENSATION OFFSET ADJUSTMENT Save the temperature data at that time in the non-volatile memory as 25 °C reference data. Note: 1. Usually, do not perform this adjustment. 2. Perform this adjustment in an ambient temperature of 22 °C to 28 °C. Perform it immediately after the power is turned on when the internal temperature of the unit is the same as the ambient temperature of 22 °C to 28 °C. 3. When D101 has been replaced, perform this adjustment after the tem- perature of this part has become the ambient temperature. Adjusting Procedure: 1. Press the u (MD) or x (MD) button to display “TEMP ADJUST”. 2. Press the [RADIO/BAND] button to select the “TEMP ADJUST” mode. 3. “TEMP = ” and the current temperature data will be displayed. 4. To save the data, press the [RADIO/BAND] button. When not saving the data, press the [REC/REC MODE] button. 5. When the [RADIO/BAND] button is pressed, “TEMP = SAVE” will be displayed and turned back to “TEMP ADJUST” display then. When the [REC/REC MODE] button is pressed, “TEMP ADJUST” will be displayed immediately. Specified Value: The “TEMP = ” should be within “E0 - EF”, “F0 - FF”, “00 - 0F”, “10 - 1F” and “20 - 2F”. 8. LASER POWER ADJUSTMENT Connection: 7. Then, press the u (MD) or x (MD) to display “LDPWR CHECK”. 8. Press the [RADIO/BAND] button once to display “LD 0.9mW $ ”. Check that the reading of the laser power meter become 0.85 to 0.91 mW. 9. Press the [RADIO/BAND] button once more to display “LD 7.0 mW $ ”. Check that the reading the laser power meter and digital voltmeter satisfy the specified value. Note down the digital voltmeter reading value. Specified Value: Laser power meter reading : 7.0 ± 0.2 mW Digital voltmeter reading : Value on the optical pick-up label ± 10% Adjusting Procedure: 1. Set the laser power meter on the objective lens of the optical pick-up. (When it cannot be set properly, press the . but- ton or > button to move the optical pick-up) Connect the digital voltmeter to CN110 pin 5 (I+3 V) and CN110 pin 4 (IOP) on the BD board. 2. Press the u (MD) or x (MD) button to display “LDPWR ADJUST”. (Laser power: For adjustment) 3. Press the [RADIO/BAND] button once to display “LD 0.9 mW $ ”. 4. Press the u (MD) or x (MD) button so that the reading of the laser power meter becomes 0.85 to 0.91 mW. Press the [RADIO/BAND] button after setting the range knob of the laser power meter, and save the adjustment results. (“LD SAVE $ ” will be displayed for a moment) 5. Then “LD 7.0 mW $ ” will be displayed. 6. Press the u (MD) or x (MD) button and adjust so that the reading on the laser power meter is 6.9 to 7.1 mV. Press the [RADIO/BAND] button to save the setting. Note: Do not perform the emission with 7.0 mW more than 15 seconds continuously. 10. Press the [REC/REC MODE] button to display “LDPWR CHECK” and stop the laser emission. (The [REC/REC MODE] button is effective at all times to stop the laser emission) Note 1: After step 9, each time the [RADIO/BAND] button is pressed, the display will be switched “LD 0.7 mW $ ”, “LD 6.2 mW $ ”, and “LD WP $ ”. Nothing needs to be performed here. ( = correction) Optical pick-up objective lens laser power meter + – BD board digital voltmeter CN110 pin 5 (I +3V) CN110 pin 4 (IOP) KMS260B 27X40 B0825 lOP=82.5 mA in this case lOP (mA) = Digital voltmeter reading (mV)/1 (Ω) (Optical pick-up label) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 30 – 9. EF BALANCE ADJUSTMENT Note 1: Data will be erased during MO reading if a recorded disc is used in this adjustment. Note 2: If the traverse waveform is not clear, connect the oscilloscope as shown in the following figure so that it can be seen more clearly. 8. Press the u (MD) or x (MD) button so that the waveform of the oscilloscope becomes the specified value. (When the JOG dial is turned, the of “EFB- ” changes and the waveform changes) In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the speci- fied value is satisfied as much as possible. (Write power traverse adjustment) Traverse Waveform Connection: Adjusting Procedure: 1. Connect an oscilloscope to CN110 pin 3 (TEO) and CN110 pin 1 (VC) on the BD board. 2. Load a disc (any available on the market). (Refer to Note 1) 3. Press the > button to move the optical pick-up outside the pit. 4. Press the u (MD) or x (MD) button to display “EFBAL ADJUST”. 5. Press the [RADIO/BAND] button to display “EFB = MO-R”. (Laser power READ power/Focus servo ON/tracking servo OFF/ spindle (S) servo ON) 6. Press the u (MD) or x (MD) button so that the waveform of the oscilloscope becomes the specified value. (When the u (MD) or x (MD) button is pressed, the of “EFB = ” changes and the waveform changes ) In this adjust- ment, waveform varies at intervals of approx. 2 %. Adjust the waveform so that the specified value is satisfied as much as possible. (Read power traverse adjustment) Traverse Waveform + – oscilloscope (DC range) 10 pF 330 k Ω CN110 pin 3 (TEO) CN110 pin 1 (VC) BD board + – oscilloscope (DC range) V: 0.1 V/div H: 10 ms/div BD board CN110 pin 3 (TEO) CN110 pin 1 (VC) 7. Press the [RADIO/BAND] button and save the result of adjust- ment to the non-volatile memory. (“EFB = SAVE” will be displayed for a moment. Then “EFB = MO-W” will be dis- played) A B VC Specification A = B 9. Press the [RADIO/BAND] button, and save the adjustment re- sults in the non-volatile memory. (“EFB = SAVE” will be displayed for a moment) 10. “EFB = MO-P” will be displayed. The optical pick-up moves to the pit area automatically and servo is imposed. 11. Press the u (MD) or x (MD) button until the waveform of the oscilloscope moves closer to the specified value. In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the specified value is satisfied as much as possible. Traverse Waveform A B VC Specification A = B 12. Press the [RADIO/BAND] button, and save the adjustment re- sults in the non-volatile memory. (“EFB = SABE” will be displayed for a moment) Next “EFBAL ADJUST” is displayed. The disc stops rotating automatically. 13. Press the Z (MD) button and take out the disc. 14. Load the check disc (MD) TDYS-1. 15. Press the [RADIO/BAND] button to display “EFB = CD”. Servo is imposed automatically. 16. Turn the JOG dial so that the waveform of the oscilloscope moves closer to the specified value. In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the specified value is satisfied as much as possible. Traverse Waveform A B VC Specification A = B A B VC Specification A = B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – 17. Press the [RADIO/BAND] button, display “EFB = SAVE” for a moment and save the adjustment results in the non-volatile memory. Next “EFBAL ADJUST” will be displayed. 18. Press the Z (MD) button and take out the disc. 10. FOCUS BIAS ADJUSTMENT Adjusting Procedure: 1. Load the continuously-recorded disc. (Refer to “5. CREATING CONTINUOUSLY-RECORDED DISC”) 2. Press the u (MD) or x (MD) button to display “CPLAY MODE”. 3. Press the [RADIO/BAND] button to display “CPLAY MID”. 4. Press the [REC/REC MODE] button when “C1 = AD = ” is displayed. 5. Press the u (MD) or x (MD) button to display “FBIAS ADJUST”. 6. Press the [RADIO/BAND] button to display “ / a = ”. The first four digits indicate the C1 error rate, the two digits after [/] indicate ADER, and the 2 digits after [a =] indicate the focus bias value. 7. Turn the JOG dial clockwise and find the focus bias value at which the C1 error rate becomes about 200 (Refer to Note 2). 8. Press the [RADIO/BAND] button to display “ / b = ”. 9. Press the u (MD) or x (MD) button counterclockwise and find the focus bias value at which the C1 error rate becomes about 200. 10. Press the [RADIO/BAND] button to display “ / c = ”. 11. Check that the C1 error rate is below 50 and ADER is 00. Then press the [RADIO/BAND] button. 12. If the “( )” in “ - - ( )” is above 20, press the [RADIO/BAND] button. If below 20, press the [REC/REC MODE] button and repeat the adjustment from step 2. 13. Press the Z (MD) button and take out the disc. Note 1: The relation between the C1 error and focus bias is as shown in the following figure. Find points A and B in the following figure using the above adjustment. The focal point position C is auto- matically calculated form points A and B. Note 2: As the C1 error rate changes, perform the adjustment using the average value. 11. ERROR RATE CHECK 11-1. CD Error Rate Check Checking Procedure: 1. Load the check disc (MD) TDYS-1. 2. Press the u (MD) or x (MD) button and display “CPLAY MODE”. 3. Press the [RADIO/BAND] button twice and display “CPLAY MID”. 4. The display changes to “C1 = AD = ”. 5. Check that the C1 error rate is below 20. 6. Press the [REC/REC MODE] button to stop playback, then press the Z (MD) button and take out the check disc. 11-2. MO Error Rate Check Checking Procedure: 1. Load the continuously-recorded disc. (Refer to “5. CREATING CONTINUOUSLY-RECORDED DISC”) 2. Press the u (MD) or x (MD) button to display “CPLAY MODE”. 3. Press the [RADIO/BAND] button to display “CPLAY MID”. 4. The display changes to “C1 = AD = ”. 5. If the C1 error rate is below 50, check that ADER is 00. 6. Press the [REC/REC MODE] button to stop playback, then press the Z (MD) button and take out the test disc. 12. FOCUS BIAS CHECK Change the focus bias and check the focus tolerance amount. Checking Procedure: 1. Load the continuously-recorded disc. (Refer to “5. CREAT- ING CONTINUOUSLY-RECORDED DISC”) 2. Press the u (MD) or x (MD) button to display “CPLAY MODE”. 3. Press the [RADIO/BAND] button twice to display “CPLAY MID”. 4. Press the [REC/REC MODE] button when “C1 = AD = ” is displayed. 5. Press the u (MD) or x (MD) button to display “FBIAS CHECK”. 6. Press the [RADIO/BAND] button to display “ / c = ”. The first four digits indicate the C1 error rate, the two digits after [/] indicate ADER, and the 2 digits after [c =] indicate the focus bias value. Check that the C1 error is below 50 and ADER is below 2. 7. Press the [RADIO/BAND] button and display “ / b = ”. Check that the C1 error is about 200 and ADER is below 2. 8. Press the [RADIO/BAND] button and display “ / a = ”. Check that the C1 error is about 200 and ADER is below 2. 9. Press the [REC/REC MODE] button, then press the Z (MD) button and take out the disc. Note 1: If the C1 error and ADER are above other than the specified value at points A (step 8. in the above) or B (step 7. in the above), the focus bias adjustment may not have been carried out properly. Adjust perform the beginning again. C1 error about 200 B C A Focus bias value (F. BIAS) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 32 – Adjustment Location: Note: It is useful to use the jig for checking the waveform. (Refer to Ser- vicing Notes on page 5) CN110 NOTE D101 I+3V IOP TEO RF VC GND IC171 IC121 IC101 IC192 CN101 – BD BOARD (COMPONENT SIDE) – – BD BOARD (CONDUCTOR SIDE) – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – 5-3. CD SECTION Set the CD test mode when performing confirmations. After completing the confirmation, release the CD test mode. In the CD test mode, the set works as following sequence. CD test mode sequence: Note 1: ALL SERVO ON mode 1 and TRACKING GAIN UP mode 1: LPC ON (lights up “ALL” indication) ALL SERVO ON mode 2 and TRACKING GAIN UP mode 2: LPC OFF (Does not lights up “ALL” indication) *) LPC: Laser power control Note 2: TRACKING GAIN UP mode 1, 2 is not used in servicing. 1. Entering the CD Test Mode 1. Press the [OPERATE] button to turn the power ON. 2. Open the disc lid, and put a disc. 3. Close the disc lid. 4. Press the [OPERATE] button to standby state. 5. Press the button [EDIT], [SOUND] and > (CD) simulta- neously. 6. After display “CD” for a few seconds, enter the CD test mode (STOP mode 1), and display as below. 1. Enter the CD test mode (STOP mode 1) Press the x (CD) button. 2. STOP mode 2 3. FOCUS mode 4. ALL SERVO ON mode 2 5. TRACKING GAIN UP mode 1 6. TRACKING GAIN UP mode 2 7. ALL SERVO ON mode1 Press the x (CD) button. Press the [ , CD] button. u Press the [ , CD] button. u Press the [ , CD] button. u Press the [ , CD] button. u Press the [ , CD] button. u Press the [ , CD] button. u Press the x (CD) button. Press the x (CD) button. Press the x (CD) button. Press the x (CD) button. Display 2. STOP Mode 2 1. Press the x (CD) button to enter the STOP mode 2, and dis- play as below. Display 2. Press the > and . button to move the optical pick-up to position of the track where signal is recorded. 3. FOCUS Mode (Traverse Confirmation) 1. Press the u button to enter the FOCUS mode and display as below. (Focus servo ON. CLV-S, tacking and sled servo OFF) Display 2. Connect an oscilloscope to TP (TEO) and TP (VC) on the CD board. Connection: 88 XX XX XXX 88 07 00 3A0 11 07 00 3A0 3. Confirm that the traverse level of waveform satisfy specified value as follows. Traverse Waveform + – CD board TP (TEO) TP (VC) oscilloscope (DC range) Specified Value: traverse level: 160 to 380 mVp-p Connecting Location: CD board (See page 34) A traverse level: 160 to 380 mVp-p B VC A = B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 34 – TP(RFO) TP(TEO) TP(VC) CD BOARD (CONDUCTOR SIDE) 4. ALL SERVO ON Mode 1 (RF Level and Jitter Confirmation 1) 1. Press the u button four times to enter the ALL SERVO ON mode 1 (start playback the disc) and display as below. (All servo ON. LPC ON) Display 2. Connect an oscilloscope to TP (RFO) and TP (VC) on the CD board. Connection: 21 07 00 3A0 ALL 3. Confirm that the RF level and jitter of waveform satisfy speci- fied values as follows. RF signal Waveform + – CD board TP (RFO) TP (VC) oscilloscope (DC range) Specified Values: RF level : 1.0 to 1.4 Vp-p jitter : less than 9 nsec Connecting Location: CD board 5. ALL SERVO ON Mode 2 (RF Level and Jitter Confirmation 2) 1. Press the u button to enter the LPC OFF mode and display as below. (All servo ON. LPC OFF) Display 2. Confirm that the RF level and jitter of waveform satisfy speci- fied values as follows. Specified Values: RF level : 0.8 to 1.4 Vp-p jitter : less than 9 nsec If the RF level and jitter are out of specified values, measure again after clean the object lens by an applicator with lens clean- ing liquid. 6. Releasing the CD Test Mode 1. Press the x (CD) button to stop rotate the disc. 2. Press the [OPERATE] button to release the CD test mode and turn to standby state. Connecting Location: 21 07 00 3A0 VOLT/DIV: 200 mV TIME/DIV: 500 ns RF level: 1.0 to 1.4 Vp-p www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – Pin No. Pin Name I/O Pin Description 1 I I I-V converted RF signal I input from the optical pick-up block detector 2 J I I-V converted RF signal J input from the optical pick-up block detector 3 VC O Middle point voltage (+ 1.65 V) generation output terminal 4 – 9 A – F I Signal input from the optical pick-up detector 10 PD I Light amount monitor input from the optical pick-up block laser diode 11 APC O Laser amplifier output terminal to the automatic power control circuit 12 APCREF I Reference voltage input terminal for setting laser power 13 GND — Ground terminal 14 TEMPI I Connected to the temperature sensor 15 TEMPR O Output terminal for a temperature sensor reference voltage 16 SWDT I Writing serial data input from the CXD2654R (IC121) 17 SCLK I Serial data transfer clock signal input from the CXD2654R (IC121) 18 XLAT I Serial data latch pulse signal input from the CXD2654R (IC121) 19 XSTBY I Standby signal input terminal “L”: standby (fixed at “H” in this set) 20 F0CNT I Center frequency control voltage input terminal of internal circuit (BPF22, BPF3T, EQ) input from the CXD2654R (IC121) 21 VREF O Reference voltage output terminal Not used (open) 22 EQADJ I Center frequency setting terminal for the internal circuit (EQ) 23 3TADJ I Center frequency setting terminal for the internal circuit (BPF3T) 24 VCC — Power supply terminal (+3.3V) 25 WBLADJ I Center frequency setting terminal for the internal circuit (BPF22) 26 TE O Tracking error signal output to the CXD2654R (IC121) 27 CSLED I Connected to the external capacitor for low-pass filter of the sled error signal 28 SE O Sled error signal output to the CXD2654R (IC121) 29 ADFM O FM signal output of the ADIP 30 ADIN I Receives a ADIP FM signal in AC coupling 31 ADAGC I Connected to the external capacitor for ADIP AGC 32 ADFG O ADIP duplex signal (22.05 kHz ± 1 kHz) output to the CXD2654R (IC121) 33 AUX O Auxiliary signal (I3 signal/temperature signal) output to the CXD2654R (IC121) 34 FE O Focus error signal output to the CXD2654R (IC121) 35 ABCD O Light amount signal (ABCD) output to the CXD2654R (IC121) 36 BOTM O Light amount signal (RF/ABCD) bottom hold output to the CXD264R (IC121) 37 PEAK O Light amount signal (RF/ABCD) peak hold output to the CXD2654R (IC121) 38 RF O Playback EFM RF signal output to the CXD2654R (IC121) 39 RFAGC I Connected to the external capacitor for RF auto gain control circuit 40 AGCI I Receives a RF signal in AC coupling 41 COMPO O User comparator output terminal Not used (open) 42 COMPP I User comparator input terminal Not used (fixed at “L”) 43 ADDC I Connected to the external capacitor for cutting the low band of the ADIP amplifier 44 OPO O User operational amplifier output terminal Not used (open) 45 OPN I User operational amplifier inversion input terminal Not used (fixed at “L”) 46 RFO O RF signal output terminal 47 MORFI I Receives a MO RF signal in AC coupling 48 MORFO O MO RF signal output terminal 6-1. IC PIN FUNCTION DESCRIPTIONS • BC BOARD IC101 CXA2523AR (RF AMP, FOCUS/TRACKING ERROR AMP) SECTION 6 DIAGRAMS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 36 – Pin No. Pin Name I/O Pin Description 1 MNT0 (FOK) O Focus OK signal output to the MD mechanism controller (IC601) “H” is output when focus is on (“L”: NG) 2 MNT1 (SHOCK) O Track jump detection signal output to the MD mechanism controller (IC601) 3 MNT2 (XBUSY) O Busy monitor signal output to the MD mechanism controller (IC601) 4 MNT3 (SLOCK) O Spindle servo lock status monitor signal output to the MD mechanism controller (IC601) 5 SWDT I Writing serial data signal input from the MD mechanism controller (IC601) 6 SCLK I (S) Serial data transfer clock signal input from the MD mechanism controller (IC601) 7 XLAT I (S) Serial data latch pulse signal input from the MD mechanism controller (IC601) 8 SRDT O (3) Reading serial data signal output to the MD mechanism controller (IC601) 9 SENS O (3) Internal status (SENSE) output to the MD mechanism controller (IC601) 10 XRST I (S) Reset signal input from the MD mechanism controller (IC601) “L”: reset 11 SQSY O Subcode Q sync (SCOR) output to the MD mechanism controller (IC601) “L” is output every 13.3 msec Almost all, “H” is output 12 DQSY O Digital In U-bit CD format subcode Q sync (SCOR) output to the MD mechanism controller (IC601) “L” is output every 13.3 msec Almost all, “H” is output 13 RECP I Laser power selection signal input from the MD mechanism controller (IC601) “L”: playback mode, “H”: recording mode 14 XINT O Interrupt status output to the MD mechanism controller (IC601) 15 TX I Recording data output enable signal input from the MD mechanism controller (IC601) Writing data transmission timing input (Also serves as the magnetic head on/off output) 16 OSCI I System clock signal (512 Fs = 22.5792 MHz) input terminal 17 OSCO O System clock signal (512 Fs = 22.5792 MHz) output terminal Not used (open) 18 XTSL I Input terminal for the system clock frequency setting “L”: 45.1584 MHz, “H”: 22.5792 MHz (fixed at “H” in this set) 19 DIN0 I Digital audio signal input terminal when recording mode (for digital optical input) Not used 20 DIN1 I Digital audio signal input terminal when recording mode (for digital optical input) 21 DOUT O Digital audio signal output terminal when playback mode (for digital optical output) Not used 22 DATAI I Serial data input terminal Not used (fixed at “L”) 23 LRCKI I L/R sampling clock signal (44.1 kHz) input terminal Not used (fixed at “L”) 24 XBCKI I Bit clock signal (2.8224 MHz) input terminal Not used (fixed at “L”) 25 ADDT I Recording data input from the A/D, D/A converter (IC603) 26 DADT O Playback data output to the A/D, D/A converter (IC603) 27 LRCK O L/R sampling clock signal (44.1 kHz) output to the A/D, D/A converter (IC603) 28 XBCK O Bit clock signal (2.8224 MHz) output to the A/D, D/A converter (IC603) 29 FS256 O Clock signal (11.2896 MHz) output terminal Not used (open) 30 DVDD — Power supply terminal (+3.3 V) (digital system) 31 – 34 A03 – A00 O Address signal output to the D-RAM (IC124) 35 A10 O Address signal output to the external D-RAM Not used (open) 36 – 40 A04 – A08 O Address signal output to the D-RAM (IC124) 41 A11 O Address signal output to the external D-RAM Not used (open) 42 DVSS — Ground terminal (digital system) 43 XOE O Output enable signal output to the D-RAM (IC124) “L” active 44 XCAS O Column address strobe signal output to the D-RAM (IC124) “L” active 45 A09 O Address signal output to the D-RAM (IC124) • BD BOARD IC121 CXD2654R (DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO SIGNAL PROCESSOR, EFM/ACIRC ENCODER/DECODER, SHOCK PROOF MEMORY CONTROLLER, ATRAC ENCODER/DECODER) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 37 – Pin No. Pin Name I/O Pin Description 46 XRAS O Row address strobe signal output to the D-RAM (IC124) “L” active 47 XWE O Write enable signal output to the D-RAM (IC124) “L” active 48 D1 I/O 49 D0 I/O Two-way data bus with the D-RAM (IC124) 50 D2 I/O 51 D3 I/O 52 MVCI I (S) Digital in PLL oscillation input from the external VCO Not used (fixed at “L”) 53 ASYO O Playback EFM full-swing output terminal 54 ASYI I (A) Playback EFM asymmetry comparator voltage input terminal 55 AVDD — Power supply terminal (+3.3 V) (analog system) 56 BIAS I (A) Playback EFM asymmetry circuit constant current input terminal 57 RFI I (A) Playback EFM RF signal input from the CXA2523AR (IC101) 58 AVSS — Ground terminal (analog system) 59 PCO O (3) Phase comparison output for master clock of the recording/playback EFM master PLL 60 FILI I (A) Filter input for master clock of the recording/playback master PLL 61 FILO O (A) Filter output for master clock of the recording/playback master PLL 62 CLTV I (A) Internal VCO control voltage input of the recording/playback master PLL 63 PEAK I (A) Light amount signal (RF/ABCD) peak hold input from the CXA2523AR (IC101) 64 BOTM I (A) Light amount signal (RF/ABCD) bottom hold input from the CXA2523AR (IC101) 65 ABCD I (A) Light amount signal (ABCD) input form the CXA2523AR (IC101) 66 FE I (A) Focus error signal input from the CXA2523AR (IC101) 67 AUX1 I (A) Auxiliary signal (I3 signal/temperature signal) input from the CXA2523AR (IC101) 68 VC I (A) Middle point voltage (+1.65 V) input from the CXA2523AR (IC101) 69 ADIO O (A) Monitor output of the A/D converter input signal Not used (open) 70 AVDD — Power supply terminal (+3.3 V) (analog system) 71 ADRT I (A) A/D converter operational range upper limit voltage input terminal (fixed at “H” in this set) 72 ADRB I (A) A/D converter operational range lower limit voltage input terminal (fixed at “L” in this set) 73 AVSS — Ground terminal (analog system) 74 SE I (A) Sled error signal input from the CXA2523AR (IC101) 75 TE I (A) Tracking error signal input from the CXA2523AR (IC101) 76 DCHG I (A) Connected to the +3.3 V power supply 77 APC I (A) Error signal input for the laser automatic power control Not used (fixed at “H”) 78 ADFG I (S) ADIP duplex FM signal (22.05 kHz ± 1 kHz) input from the CXA2523AR (IC101) 79 F0CNT O Filter f0 control signal output to the CXA2523AR (IC101) 80 XLRF O Serial data latch pulse signal output to the CXA2523AR (IC101) 81 CKRF O Serial data transfer clock signal output to the CXA2523AR (IC101) 82 DTRF O Writing serial data output to the CXA2523AR (IC101) 83 APCREF O Control signal output to the reference voltage generator circuit for the laser automatic power control 84 LDDR O PWM signal output for the laser automatic power control Not used (open) 85 TRDR O Tracking servo drive PWM signal (–) output to the BH6511FS (IC152) 86 TFDR O Tracking servo drive PWM signal (+) output to the BH6511FS (IC152) 87 DVDD — Power supply terminal (+3.3 V) (digital system) 88 FFDR O Focus servo drive PWM signal (+) output to the BH6511FS (IC152) 89 FRDR O Focus servo drive PWM signal (–) output to the BH6511FS (IC152) 90 FS4 O Clock signal (176.4 kHz) output terminal (X’tal system) Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 38 – Pin No. Pin Name I/O Pin Description 91 SRDR O Sled servo drive PWM signal (–) output to the BH6511FS (IC152) 92 SFDR O Sled servo drive PWM signal (+) output to the BH6511FS (IC152) 93 SPRD O Spindle servo drive PWM signal (–) output to the BH6511FS (IC152) 94 SPFD O Spindle servo drive PWM signal (+) output to the BH6511FS (IC152) 95 FGIN I (S) 96 TEST1 I Input terminal for the test (fixed at “L”) 97 TEST2 I 98 TEST3 I 99 DVSS — Ground terminal (digital system) 100 EFMO O EFM signal output terminal when recording mode * I (S) stands for schmitt input, I (A) for analog input, O (3) for 3-state output, and O (A) for analog output in the column I/O. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 39 – Pin No. Pin Name I/O Pin Description 1 NC — Not used 2 MEGA BASS O MEGA BASS on/off control signal output “L”: MEGA BASS on 3 LINE-LEVEL O Line in level control signal output “L”: normal, “H”: high 4 AU-CS O Chip select signal output to the electrical volume (IC301) 5 AU-DATA O Serial data output to the electrical volume (IC301) 6 AU-CLK O Serial data transfer clock signal output to the electrical volume (IC301) 7 RDS-DATA I RDS serial data input from the RDS decoder Used for the AEP, UK models 8 NC — Not used 9 RDS-CLK I RDS serial data transfer clock signal input from the RDS decoder Used for the AEP, UK models 10 TU-MUTE O Muting on/off control signal output for the tuner signal “L”: muting on 11 TU-CE O PLL serial chip enable signal output to the tuner PLL IC (IC2) 12 TU-DATA O PLL serial data output to the tuner PLL IC (IC2) 13 TU-CLK O PLL serial data transfer clock signal output to the tuner PLL IC (IC2) 14 TU-COUNT I PLL serial data input from the tuner PLL IC (IC2) 15 CD-DOOR I Detection signal input from the CD lid open/close detect switch (S402) 16 NC — Not used 17 – 21 KEY S4 – S0 I Key input terminal (A/D input) 22 LED-CHARA-KAN O LED (LED board D609) on/off drive signal output 23 LED-123 O LED (LED board D610-613) on/off drive signal output 24 LED-456 O LED (LED board D607,615-617) on/off drive signal output 25 LED-789 O LED (LED board D618-621) on/off drive signal output 26 LED-0 O LED (LED board D622-625) on/off drive signal output 27 LED-CHARA-ABC O LED (LED board D608) on/off drive signal output 28 NC — Not used 29 LED-CLOCK O LED (LED board D602-614) on/off drive signal output 30 LED-HISPEED O LED (LED board D601) on/off drive signal output 31 RA-POWER O RA7V power supply on/off control signal output 32 NC — Not used 33 FL-CTR O FL-BU3.3V power supply on/off control signal output 34 PA-STANDBY O Power amplifier on/off control signal output “L”: power on L: standby, H: power on 35 LINE-MUTE O LINE input muting on/off control signal output 36 KEY-C2 O Not used 37 KEY-C1 O Not used 38 FL-DIM O Control signal output for the brightness of fluorescent tube display 39 TU-SFT O Frequency shift of the main system clock control terminal 40 RST I System reset signal input from the reset signal generator (IC403) “L”: reset 41 VSS — Ground terminal 42 XTAL I Main system clock input terminal (8 MHz) 43 EXTAL O Main system clock input terminal (8 MHz) 44 FL-RST O Reset signal output to the fluorescent tube display drive IC (IC601) 45 FL-CS O Chip enable signal output to the fluorescent tube display drive IC (IC601) 46 FL-DATA O Serial data output to the fluorescent tube display drive IC (IC601) 47 FL-CLK O Serial data transfer clock signal output to the fluorescent tube display drive IC (IC601) 48 SELECT-GND I/O Destination setting terminal Fixed at “H” in this set 49 SELECT I Destination setting terminal 50 NC — Not used • IC401 CXP740096-043Q (SYSTEM CONTROL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 40 – Pin No. Pin Name I/O Pin Description 51 KEY-C4A I Key input terminal (A/D input) 52 AVSS — Ground terminal (for A/D converter) 53 AVREF — Reference voltage (+3.3V) input terminal (for A/D converter) 54 AVDD — Power supply terminal (+3.3V) (for A/D converter) 55 – 58 KEY C3A – C0A I Key input terminal (A/D input) 59 3.3V-SHORT I AU 7.5V short test pin 60 – 62 KEY AD2 – AD0 I Key input terminal (A/D input) (TOP board) 63 MD-PDOWN O Power down signal output to the MD mechanism controller (IC601) “L”: remove the AC power cord 64 MD-SRTS O System controller busy status monitor output to the MD mechanism controller (IC601) 65 MD-SCTS I MD mechanism controller busy status monitor input from the MD mechanism controller (IC601) 66 MD-RST O Power supply on/off control signal output for the MD mechanism controller (IC601) ”H”: power on 67 MD-H O MD play control signal output to the A/D, D/A converter (IC603) “L”: MD playback mode 68 REC-H O MD REC control signal output to the A/D, D/A converter (IC603) “L”: MD recording mode 69 MD-SRXD O UART communication data input from the MD mechanism controller (IC601) 70 MD-STXD I UART communication data output to the MD mechanism controller (IC601) 71, 72 NC — Not used 73 CD-12/8 O Servo setting when CD operates faster. 74 CD-HISPEED O CD higher speed setting 75 CD-POWER O CD servo system power supply on/off control signal output “L”: power on 76 CD-MUTE O Muting on/off control signal output for the CD playback signal “L”: muting on 77 NC — Not used 78 CD-CSOR I Subcode sync (S0+S1) detection signal input from the CD DSP IC (IC702) 79 CD-SQSO I Subcode Q data input from the CD DSP IC (IC702) 80 CD-XRST O Reset signal output to the CD RF AMP (IC701), CD DSP IC (IC702) 81 CD-SQCK O Subcode Q data reading clock signal output to the CD DSP IC (IC702) 82 CD-SENSE1 I Internal status (SENSE) input from the CD DSP IC (IC702) 83 CD-DATA O Serial data output to the CD DSP IC (IC702) 84 CD-XLAT O Serial data latch pulse signal output to the CD DSP IC (IC702) 85 RMC I Sircs remote control signal input from the remote control receiver (IC602) 86 TEX O Sub system clock output terminal (32.768 kHz) 87 TX I Sub system clock input terminal (32.768 kHz) 88 VSS — Ground terminal 89 VDD — Power supply terminal (+3.3V) 90 NC — Not used 91 CD-CLK O Serial data transfer clock signal output to the CD DSP IC (IC702) 92 CD-SENSE2 I Internal status (SENSE) input from the CD DSP IC (IC702) 93 CD-FOK I Focus OK signal input terminal Not used (open) 94 STBY-CTR O Power saving mode selection “H”: normal, “L”: Power saving mode 95 ACCHK I AC power supply detection signal input “L”: AC in 96 NC — Not used 97 PCON O Power on/off control signal output “L”: standby mode, “H”: power on 98 AMUTE O Audio muting on/off control signal output “H”: muting on 99 TU-LED I Input the signal for band tuning check from the tuner IC. 100 NC — Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 41 – Pin No. Pin Name I/O Pin Description 1, 2 DAOUT0, DAOUT1 O Not used (open) 3 – 5 KEY0 – KEY2 I Key input terminal (A/D input) Not used (fixed at “H”) 6 CHACK-IN I Detection input from the disc chucking-in detect switch “L: chucking Not used (fixed at “H”) 7 PACK-IN I Detection input from the loading-in detect switch “L” at a load-out position, others: “H” Not used (fixed at “H”) 8 PACK-OUT I Detection input from the loading-out detect switch (S602) “L” at a load-out position, others: “H” 9, 10 NC — Not used (fixed at “L”) 11 AVSS — Ground terminal 12 XINT I Interrupt status input from the CXD2654R (IC121) 13 PDOWN I Power down detection signal input terminal “L”: power down, normally: “H” 14 NC — Not used (fixed at “L”) 15 SQSY I Subcode Q sync (SCOR) input from the CXD2654R (IC121) “L” is input every 13.3 msec Almost all, “H” is input 16 DQSY I Digital In U-bit CD format subcode Q sync (SCOR) input from the CXD2654R (IC121) “L” is input every 13.3 msec Almost all, “H” is input 17 – 19 NC — Not used (fixed at “L”) 20 SYS-RST I System reset signal input from the reset switch (Q604) “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 21 TEST I Setting terminal for the test mode Not used (fixed at “L”) 22 +3.3V — Power supply terminal (+3.3V) 23 VBAT I Power supply for the internal real time clock and RAM 24 XOUT-T O Sub system clock output terminal (32.768 kHz) 25 XIN-T I Sub system clock input terminal (32.768 kHz) 26 GND — Ground terminal 27 XOUT O Main system clock output terminal (12 MHz) 28 XIN I Main system clock input terminal (12 MHz) 29 EXMEM I Setting terminal external ROM mode or internal ROM mode “L”: internal ROM mode (fixed at “L”) 30 S1 — Not used (open) 31 NC — Not used (fixed at “L”) 32 SENS I Internal status (SENSE) input from the CXD2654R (IC121) 33 SHOCK I Track jump detection signal input from the CXD2654R (IC121) 34, 35 NC — Not used (fixed at “L”) 36 STB O Relay drive signal output for the power on/off “L”: standby mode, “H”: relay on 37 REC P I Detection input from the recording position detect switch (S601) “L” active 38 PB P I Detection input from the playback position detect switch (S604) “L” active 39 LD-LOW O Loading motor drive voltage control signal output for the loading motor driver (IC602) “H” active 40 NC — Not used (open) 41 MNT2 (XBUSY) I Busy status signal input from the CXD2654R (IC121) 42 MNT3 (SLOCK) I Spindle servo lock status monitor signal input from the CXD2654R (IC121) 43 LED0 O LED drive signal output terminal “L”: LED on Not used (open) 44, 45 NC — Not used (fixed at “L”) 46 RST-LOW — Not used (open) 47 GND — Ground terminal • DG BOARD IC601 RU8X13MF-0102 (MD MECHANISM CONTROLLER) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 42 – Pin No. Pin Name I/O Pin Description 48 +3.3V — Power supply terminal (+3.3V) 49 SNG/CHG — Not used (fixed at “L”) 50, 51 JOG1, JOG0 I JOG dial pulse input Not used (fixed at “L”) 52 SDA I/O Two-way data bus with the EEPROM (IC171) 53 SCL O Clock signal output to the EEPROM (IC171) 54 2M/4M I Select whether D-RAM capacitance 2M bit or 4M bit “L”: 4M bit (external D-RAM), “H”: 2M bit (internal D-RAM of IC121 CXD2654R) (fixed at “H” in this set) 55, 56 NC — Not used (fixed at “L”) 57 RXD (UART) I UART communication data input from the system controller (IC401) 58 TXD (UART) O UART communication data output to the system controller (IC401) 59 RTS I RTS (Request To Send) input from the system controller (IC401) 60 CTS O CTS (Clear To Send) output to the system controller (IC401) 61, 62 AUBIT0, AUBIT1 — Not used (fixed at “L”) 63, 64 CLKSET0, I Clock destination setting terminal (fixed at “L”) CLKSET1 65 GND — Ground terminal 66 +3.3V — Power supply terminal (+3.3V) 67 SCLK O Serial clock signal output to the CXD2654R (IC121) 68 SWDT O Writing data output to the CXD2654R (IC121) 69 SRDT I Reading data input from the CXD2654R (IC121) 70 EMP O Emphasis control signal output to the A/D, D/A converter (IC603) when recording mode 71 SCK1 O Display serial clock signal output terminal Not used (open) 72 SOUT1 O Display serial data output terminal Not used (open) 73 SIN1 O Chip select signal output for the display Not used (open) 74 CSB I Not used (fixed at “H”) 75 LDON O Laser diode on/off control signal output to the automatic power control circuit “H”: laser on 76 PIT/GRV O Pit/groove detection signal output terminal “H”: is output for the playback only disc or TOC area Not used (open) 77 FOK I Focus OK signal input from the CXD2654R (IC121) “H” is input when focus is on (“L”: NG) 78 NC — Not used (open) 79 LOCK O Lock signal output terminal Not used (open) 80 WRPWR O Laser power select signal output to the CXD2654R (IC121) and HF module switch circuit “L”: playback mode, “H”: recording mode 81 DIG-RST O Reset signal output to the CXD2654R (IC121) and BH6511FS (IC152) “L”: reset 82 NC — Not used (open) 83 DA-RST O Reset signal output to the A/D, D/A converter (IC603) “L”: reset 84 DSEL-A — Not used (open) 85 DSEL-B — Not used (open) Laser modulation select signal output to the HF module switch circuit Stop: “L”, Playback power: “H”, Recording power: 86 MOD O 0.5 sec 2 sec www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 43 – Pin No. Pin Name I/O Pin Description 87 REC/PB O Not used (open) 88 NC — Not used (open) 89 SCTX O Recording data output enable signal output to the CXD2654R (IC121) and overwrite head driver (IC181) Writing data transmission timing output (Also serves as the magnetic head on/off output) 90 XLATCH O Serial data latch pules signal output to the CXD2654R (IC121) 91, 92 NC — Not used (open) 93 AMUTE O Muting control signal output terminal Not used (open) 94 LDOUT O Motor control signal output to the loading motor driver (IC602) “L” active *1 95 LDIN O Motor control signal output to the loading motor driver (IC602) “L” active *1 96 LIMIT-IN I Detection input from the sled limit-in detect switch (S101) The optical pick-up is inner position when “L” 97 PROTECT I Rec-proof claw detect input from the protect detect switch (S102-2) “H”: write protect 98 REFLECT I Detection input from the disc reflection rate detect switch (S102-1) “L”: high reflection rate disc, “H”: low reflection rate disc 99 GND — Ground terminal 100 +3.3V — Power supply terminal (+3.3V) *1 Loading motor (M103) control Mode LOADING EJECT BRAKE RUN IDLE Terminal LDIN (pin og) “L” “H” “L” “H” LDOUT (pin of) “H” “L” “L” “H” www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 44 – 6-2. CIRCUIT BOARDS LOCATION KEY board LED board TOP board POWER board SW board BD board DG board BATTERY (+) board BATTERY (–) board CD MOTOR board CD board MAIN board ANTENNA SW board TUNER board JACK board FL board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 45 – – 46 – – 47 – 6-3. BLOCK DIAGRAM — TUNER SECTION — ZS-M35 1 6 5 ANT +B VT Q4 12 11 FM-IN AM-IN 1/2 SWALLOW COUNTER 1/16, 1/17 4BIT 12BITS PROGRAMMABLE DIVIDER 16 PHASE DETECTOR CHARGE PUMP REFERENCE DIVIDER 17 PD LP-IN 18 DATA SHIFT REGISTER LATCH 19 20 X IN X OUT FM MW X1 75kHz 8 13 10 7 ST-IND MO/ST IF-IN AM/FM CCB/IF 1 2 3 4 CE RD CK CD PLL, LOW-PASS FILTER IC2 T1 AM IF CF1 FM IF AMP Q1 CF2 1 FM IF-IN AM IF-IN CF3 4 IF BUFFER 17 14 13 7 ST-LED IF-OUT ST-SW BAND AM DET FM DET AM/FM BUFFER 18 6 DET-OUT TU LED 16 MPX-IN DIVIDE DECODE VCO MUTE 13 14 R-CH L-OUT R-OUT 8 CF4 10.7MHz QUAD CN1 RA-LCH DET OUT TU LED IF, DET, FM MPX IC1 (2/2) TUNER BOARD COUNT CLK DATA CE VT VT CE RADIO DATA RCLOCK COUNT DATA 7 IF OUT 8 OSC OUT 04 LP-OUT 2 11 10 6 7 8 9 12 • SIGNAL PATH : FM : AM R-CH : Same as L-CH. ANT1 A MAIN SECTION FM DET OUT Q8 FM AGC Q9 21 23 24 AM RF-IN AM OSC-IN 2 AM MIX-OUT OSC OUT MIX AM OSC AM RF AMP Q1 9 6 FM DET +B ON Q7 Q3 D11 CT1 CT2, L3 MW TRACKING CT1, L4 LW TRACKING CT2 CT3 CT4 L3 L4 MW Q6 L5 Q2 LW TU1 AM FRONT-END IC1(1/2) RADIO +B S607 FM ANTENNA SELECTOR TBI-2 FM EXT ANTENNA TBI-1 D12 AM ANTENNA CT4, L5 MW FREQUENCY COVERAGE CT3 LW FREQUENCY COVERAGE (Page 53) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 MD-H 68 REC-H CN404 (1/2) 12 13 21 26 22 23 24 25 CN604 (2/2) F C B D A E I J J I B A C D E F DETECTOR J I A B C D E F LD PD LASER DIODE ILCC PD OPTICAL PICK-UP BLOCK (KMS-260B) AUTOMATIC POWER CONTROL Q162, 163 APC PD APCREF AT AMP B.P.F. WBL ADFM ADIN ADFG ABCD AMP ABCD FE TE SE F0CNT WBL 3T EQ COMMAND SWDT SCLK XLAT RFO RF AGC & EQ AGCI EQ RF RF AMP, FOCUS/TRACKING ERROR AMP IC101 TEMP MORFO MORFI 3T WBL AUX PEAK BOTM FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE IC152 OUT4F OUT4R M101 (SPINDLE) OUT2F OUT2R M102 (SLED) OUT1F OUT1R OUT3F OUT3R FCS+ FCS– TRK+ TRK– 2-AXIS DEVICE (TRACKING) (FOCUS) IN4R IN4F IN2F IN2R IN1F IN1R IN3F IN3R MOD SPFD SPRD APCREF SFDR SRDR FFDR FRDR TFDR TRDR PSB PWM GENERATOR FROM CPU INTERFACE DIGITAL SERVO SIGNAL PROCESSOR IC121 (2/2) RECP AUX1 ABCD FE TE SE PEAK BOTM XLRF CKRF DTRF XLAT SCLK SWDT FILI PCO CLTV FILO EFMO ADDT DATAI DIVIDER IC123 ASYO ASYI RFI SCTX HR901 (OVER WRITE HEAD) ADFG F0CNT SPFD SPRD SAMPLING RATE CONVERTER DIGITAL AUDIO INTERFACE DIN0 DOUT DIGITAL SIGNAL PROCESSOR, EFM/ACIRC ENCODER/DECODER, SHOCK PROOF MEMORY CONTROLLER, ATRAC ENCODER/DECODER IC121 (1/2) INTERNAL BUS DADT XBCK LRCK FS256 OSCI OSCO DQSY SQSY XINT SENS SRDT SWDT SCLK XLAT MNT0 MNT1 MNT2 MNT3 FOK SHOCK XBUSY SLOCK SWDT SCLK XLATCH FOK SHOCK MNT2 (XBUSY) MNT3 (SLOCK) DIG-RST SQSY DQSY LDON WR-PWR MOD XINT SENS SRDT LDIN LDOUT 04 FIN RIN OUT2 OUT1 VREF LOADING MOTOR DRIVE IC602 M103 (LOADING) DQ1 – DQ4 A0 – A9 D0 – D3 A00 – A09 XOE XWE XRAS XCAS XOE XWE XRAS XCAS D-RAM IC124 DIN1 MD MECHANISM CONTROLLER IC601 HF MODULE DA-RST EMP REFLECT PROTECT LD-LOW XIN XOUT B+ (D +5V) 39 RECP PACK-OUT S601 (REC POSITION) S602 (PACK OUT) PBP S604 (PLAY POSITION) XBCKI LRCKI S102-1 (REFLECT RATE DETECT) S102-2 (PROTECT DETECT) OVER WRITE HEAD DRIVE IC181, Q181, 182 11 9 8 4 1 2 48 47 46 40 33 38 37 36 32 35 34 26 28 18 17 16 20 12 30 29 5 6 7 10 LASER ON SWITCH Q101 LD/PD AMP I-V AMP I-V AMP FOCUS ERROR AMP TRACKING ERROR AMP RF AMP B.P.F. PEAK & BOTTOM 6 8 92 91 88 89 86 85 81 80 83 13 67 65 66 75 74 63 64 82 27 25 21 23 12 10 14 15 19 18 29 30 3 4 16 M M AUTOMATIC POWER CONTROL DIGITAL SERVO SIGNAL PROCESS ANALOG MUX A/D CONVERTER SERIAL/PARALLEL CONVERTER, DECODER AUTO SEQUENCER V-I CONVERTER HF MODULE SWITCH IC103, Q102 – 104 100 60 59 62 61 53 54 57 78 79 94 93 10 12 11 14 9 8 5 6 7 1 2 3 4 43 47 16 29 27 28 26 21 20 19 23 24 22 25 17 46 44 16 3 4 17 ADIP DEMODULATOR/ DECODER SPINDLE SERVO COMPA- RATOR PLL FILTER SUBCODE PROCESSOR EFM/ACIRC ENCODER/DECODER SHOCK PROOF MEMORY CONTROLLER ATRAC ENCODER/DECODER CPU INTERFACE MONITOR CONTROL 16 75 81 80 86 15 12 SCTX 89 32 69 67 90 77 33 41 42 68 XRST CLOCK GENERATOR 49, 48, 50, 51 1, 2, 18, 19 34 – 31, 36 – 40, 45 6 – 9, 11 – 15, 5 95 94 4 5 6 7 1 37 8 38 98 97 70 83 M REFERENCE VOLTAGE SWITCH Q611 CN104 CN101 (1/2) CN101 (2/2) 9 4 17 14 15 26 7 10 CN103 (2/5) CN602 (2/4) 15 XT 3 5 23 7 1 15 18 10 12 20 2 8 19 4 22 16 5 23 9 6 14 12 21 19 1 17 CN103 (1/5) CN602 (1/4) CN605 (1/2) CN601 (1/2) 28 27 X601 12MHz XIN-T XOUT-T SDA SCL 25 24 52 5 6 53 X602 32.768kHz 3 2 CN602 (3/4) 21 22 CN103 (3/5) SDA SCL EEPROM IC171 1 +3.3V REG IC192 3 MD B+ (+3.3V) 13 8 10 1 3 5 7 9 14 12 21 19 17 15 B+ (+5V) 12 15 11 10 SERIAL INTERFACE D/A CONVERTER A/D CONVERTER 19 20 6 3 9 7 8 18 PDAD PDDA DEMO VOUTL VOUTR VINL VINR SYSCK D/A, A/D CONVERTER IC603 R-CH R-CH 8 3 12 13 CN604 (1/2) DOUT DIN BCK LRCK 7 1 5 6 1 2 IC605 512FS OSC X603 22.5792MHz CN605 (2/2) CN601 (2/2) 3 5 7 3 5 7 13 11 11 13 SW BOARD (2/2) BD BOARD (2/2) 60 59 58 57 13 20 36 STB SYS-RST PDOWN RXD (UART) TXD (UART) RTS CTS RESET SWITCH Q604 B+ SWITCH Q612 B+ (D +5V) B+ (+5V) B+ SWITCH Q603 B+ (BU +3.3V) B+ (+3.3V) B+ SWITCH Q617 B+ (AU +3.3V) B+ 21 26 22 23 24 25 CN603 D-IN DA-LCH AD-LCH DG BOARD BD BOARD (1/2) CN601 CN102 4 3 2 1 8 16 12 13 14 18 19 20 17 9 6 1 2 1 2 Q616 Q610 15 7 2 MD PLAY/REC SWITCH Q620 64 MD-SRTS 65 MD-SCTS 69 MD-SRXD 70 MD-STXD 63 MD-PDOWN 66 MD-RST SYSTEM CONTROLLER IC401(1/3) MAIN BOARD (1/3) LIMIT-IN S101 (LIMIT IN) 96 CN602 (4/4) CN103 (4/4) 8 16 -2 -1 S102 • SIGNAL PATH : MD PLAY : MD REC (ANALOG) R-CH : Same as L-CH. : MD REC (DIGITAL) 1 SW BOARD (1/2) C MAIN SECTION B CD SECTION LEVEL SHIFT IC604 CLK Q SW IC606 – 48 – – 49 – – 50 – ZS-M35 6-4. BLOCK DIAGRAM — MD SECTION — (Page 52) (Page 53) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 + – + – + – + – + – + – AUTOMATIC POWER CONTROL Q701 34 38 46 36 37 39 35 APC E F LD VC PD1 PD2 PD VC CN701 RF AMP 31 32 25 RFO RF H FOK ILL DATA REGISTER INPUT SHIFT, REGISTER ADRESS DECODER OUTPUT DECODER IIL TTL 22 23 24 C.OUT SENS1 SENS2 TTL IIL 20 19 18 DATA XLT CLK 21 XRST FE AMP TRACKING PHASE COMPENSATION 12 FOCUS PHASE COMPENSATION 5 15 SL O FE O TA O RF AMP, FOCUS/TRACKING SERVO IC701 LD PD 27 26 2 1 LEVEL SHIFT LEVEL SHIFT T+ T– F+ F– 18 17 LEVEL SHIFT SL+ SL– M M802 (SLED) SL+ SL– CN703 CN801(1/2) 25 3 MUTE DRIVE 7 TRACKING/FOCUS COIL DRIVE, SLED MOTOR DRIVE IC703 35 18 11 10 12 13 14 79 CNIN SEIN DATO XLTO CLKO XRST CLV SERVO EFM DEMO. MDP D/A I/F 41 53 39 54 42 40 55 BCK PCMD LRCK SUB CODE PROCESSOR EMPH BCKI PCMDI LRCKI EMPHI PWM 76 70 71 AOUT1 AOUT2 R-CH SYSM SCOR SENS SQSO SQCK XLAT CLOK DATA X701 33.8688MHz XTAI XTAO 15 SPOA XLON DIGITAL SIGNAL PROCESSOR, CLV SERVO, D/A CONVERTER IC702 CD MUTE CD SCOR CD SENSE1 CD SQSO CD SQCK CD XLAT CD CLK CD DATA 73 CD-FOK 80 CD-XRST 92 CD SENSE2 75 CD POWER S801 (LIMIT) M801 (SPINDLE) D-OUT CD LCH CN705 CD BOARD CD MOTOR BOARD MAIN BOARD (2/3) OPTICAL PICK-UP BLOCK (KSS-213C) T+ T- F+ F- (TRACKING) (FOCUS) RF FOK DOUT 04 16 12 11 10 13 14 9 7 15 3 2 4 1 8 9 4 3 MUTE SLIN FIN TIN 10 2 3 5 6 4 1 CN702 CN403 (1/2) • SIGNAL PATH : CD PLAY : MD REC (DIGITAL) R-CH : Same as L-CH. 5 17 16 12 15 13 10 7 8 18 14 9 11 17 16 12 15 13 10 9 11 7 8 18 14 78 76 82 79 81 84 91 83 1 1 57 62 6 5 4 8 9 7 SYSTEM CONTROLLER IC401(2/3) 43 44 SERIAL I/F PWM 65 CPU I/F REG IC704 3.3V CD7V B D MAIN SECTION MD SECTION CD-HI SPEED 74 2 2 CD-12/8 73 15 27 26 19 10 16 M OUT4+ IN4 MUTE4 OUT4- POWER CONTROL Q806,807 HIGH SPEED MUTE Q705 3 5 6 4 CD 6V CN706 CN801(2/2) HIGH SPEED CONTROL Q801-804 SERVO CONTROL BUFFER IC801 1 2 MUTE Q805 SPINDLE MOTOR DRIVE IC802 LIMIT CD12CM MDP MUTE PCON DIGITAL CLV 21 17 – 51 – – 52 – ZS-M35 6-5. BLOCK DIAGRAM — CD SECTION — (Page 50) (Page 53) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 53 – – 54 – ZS-M35 6-6. BLOCK DIAGRAM — AUDIO SECTION — BATT BOARD 10 S608-631 5 13 14 15 6 4 2 98 34 33 46 47 45 38 26 23 25 24 29 22 27 97 31 86 87 94 95 11 12 13 14 35 3 85 60 40 15 62 61 39 43 17-21 51 55-58 63 62 61 60 43 43 4-39 42-54 MUTE DRIVE Q301,304,306 MUTE DRIVE Q305 FL DIMMER CONTROL Q430-432 FL AC POWER CONTROL Q419-422 7 FREQUENCY SHIFT Q401 POWER CONTROL Q411.412 LINE LEVEL CONTROL Q307,309,311 IR RECEIVER IC602 MUTE DRIVE Q312,313 RESET IC403 S633-638,640-646 CD LCH DA LCH AD LCH RA LCH TU CE TU DATA TU CLK TU COUNT R-CH J302 LINE IN RELAY DRIVE Q901 FL CONT Q902 FL DRIVER Q612,613 FL401 FL DRIVER IC601 J301 CN304 CN301 CN306 CN601 CN301 CN405 R-CH SP101 L-CH SPEAKER SP201 R-CH SPEAKER MAIN BOARD (3/3) JACK BOARD (1/2) LED BOARD (1/2) TOP BOARD KEY BOARD JACK BOARD (2/2) FL BOARD LED BOARD (2/2) POWER BOARD (2/2) 42 22 27 26 7 5 20 21 AMP Q105 CN403(2/2) CN408 CN303 CN305 TU MUTE TU CE RDS DATA RDS CLK LINE MUTE LINE LEVEL RMC KEY AD2 RST KEY AD0 KEY AD1 TU SFT XTAL EXTAL KEY S0-S4 KEY C0-C4 CD DOOR AU DATA AU CLK AU CS MEGA BASS A MUTE PA STANDBY FL CTR FL CTK FL CS FL RST FL DIM 30 LED HISPEED LED 0 LED 789 LED 456 LED CLOCK LED CHARA-KANA LED CHARA-ABC PC ON TEX TX STBY CTR ACCHK RA POWER LED 123 FL DATA TU DATA TU CLK TU COUNT CN404(2/2) D CD SECTION C MD SECTION A TUNER SECTION 5 8 3 11 4 TU LED 3 DET OUT 2 5 6 7 4 1 CN602 3 CN406 CN641 CN309 11 13 1 CN410 1 2 1 2 1 2 CN603 CN407 6-10 1-5 1-5 6-10 REC AMP IC303 Q104 Q111 Q103 X401 8KHz OUT2 ELECTRONIC VOLUME IC302 DAT CLK CS Q106 Q101 STANDBY CONTROL Q310 COM7V BU 3.3V 1 4 1 4 11 4 10 1 CN602 CN406 10 4 9 5 8 6 7 7 6 8 5 9 4 10 2 12 CN901 CN401 2 3 3 2 CN902 CN402 3 8 5 6 6 5 7 9 4 2 1 10 4 7 8 3 7 4 6 5 5 6 4 7 3 8 1 10 DA CP CS COM1 COM2 RESET LED DRIVE Q603,604, 606-611 J901 AC IN RY901 CN903 CN904 1 2 1 2 DC 4.5V UNREG 10V UNREG 14V ACCHK FLAC3.5V2 FLAC3.5V1 STBY CTR BATT FL-34V FL GND POWER CONTROL Q409 REG IC402 REG Q403 REG Q406 REG Q405 BU 3.3V CD 6V LED 5V COM 7V COM 7V AU 3.3V RA 7V X402 32kHz POWER CONTROL Q430-432 VDD FLAC3.5V1 FLAC3.5V2 VFL VDD AC3.5V VFL(-34V) 04 MEGA BASS IC305,Q102,308 44 SYSTWM CONTROLLER IC401(3/3) TONE/VOL AC CHECK Q408 REG IC411 10 1 T901 S402 (CD DOOR) S601-605 18 POWER AMP IC301 STANDBY • SIGNAL PATH : FM : CD PLAY : MD PLAY : MD REC (ANALOG) R-CH : Same as L-CH. i 99 TU LED 4 13 14 2 16 7 9 MUX XI XO R DATA RCLK RDS DECODER IC405 X403 4.332MHz VT 1 POWER CONTROL Q407,416 REG Q402 REG IC404 (Page 52) (Page 50) (Page 47) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 55 – – 56 – ZS-M35 6-7. SCHEMATIC DIAGRAM — CD SECTION (1/2) — • Refer to page 97 for IC Block Diagrams. Common Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • : carbon pattern. • x : parts mounted on the conductor side. • a : Through hole. • b : Pattern from the side which enables seeing. Common Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • C : panel designation. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM f : MW/LW E : MD PB q : MD REC (DIGITAL) j : MD REC (ANALOG) J : CD (Page 57) Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • A : B+ Line. • B : B– Line. • H : adjustment for repair. • Voltage and waveforms are dc with respect to ground under no-signal (detuned) conditions. ∗ : Impossible to measure w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 57 – – 58 – 6-8. SCHEMATIC DIAGRAM — CD SECTION (2/2) — • Refer to page 97 for IC Block Diagrams. Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : CD STOP ZS-M35 (Page 81) (Page 84) (Page 74) (Page 84) 500mV/div, 500ns/div IC701 ea (RFO) (CD PLAY) • Waveforms (CD BOARD) 1 2 Approx. 1.2Vp-p 3 22.7µs 4 4.1Vp-p 5 4.3Vp-p 6 7 50mV/div, 1µs/div IC701 ra (TEO) (CD PLAY) Approx. 180mVp-p 50mV/div, 1µs/div IC701 rk (EFO) (CD PLAY) Approx. 120mVp-p IC702 el (LRCK) (CD PLAY) 1V/div, 10µs/div 470ns IC702 rd (BCK) (CD PLAY) 1V/div, 200ns/div 4.3Vp-p 240ns IC702 rk (XPCK) (CD PLAY) 2V/div, 100ns/div 0.5V/div, 10ns/div IC702 u; (XTAI) 33.9MHz 2Vp-p (Page 55) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 59 – – 60 – 6-9. PRINTED WIRING BOARDS — CD SECTION — CD MOTOR BOARD 1-675-844- S801 (LIMIT) M801 (SPINDLE) M M802 (SLED) M TP(RFO) TP(TEO) TP(VC) (21) 21 (21) 21 1 A B C D E F G H 2 3 4 5 6 7 8 9 10 11 12 13 IC701 F-8 IC702 E-3 IC703 C-8 IC704 C-5 IC801 C-12 IC802 G-12 Q701 G-7 • Semiconductor Location Ref. No. Location Ref. No. Location Q705 F-6 Q801 E-12 Q802 E-12 Q803 F-11 Q804 F-12 Q805 G-12 Q806 D-11 Q807 E-11 ZS-M35 (Page 78) (Page 78) (Page 75) (Page 78) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-10. PRINTED WIRING BOARDS — TUNER SECTION — 1 A B C D E F G H I 2 3 4 5 6 7 8 9 10 11 TUNER BOARD ANTENNA SW BOARD S607 (21) 1-675-845- FM ANTENNA SELECTOR EXT 21 (11) 1-677-839- 11 GRY 04 YEL BLK ANT1 FM TELSCOPIC ANTENNA FM EXT ANTENNA TB1-2 AM ANTENNA TB1-1 MAIN BOARD CN408 1 1 4 TU1 TUNER UNIT 5 8 MD SHIELD BOX TP(VT) D1 C-7 D2 C-7 D3 B-6 D4 B-6 D5 C-5 D6 C-5 D7 C-4 D8 C-4 D9 B-3 D10 B-3 D11 I-4 D12 I-7 IC1 F-4 IC2 H-5 Q1 H-3 Q2 I-2 Q3 I-4 Q4 I-4 Q5 D-3 Q6 I-5 Q7 G-6 Q8 F-6 Q9 D-5 • Semiconductor Location Ref. No. Location – 61 – – 62 – ZS-M35 (Page 77) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-11. SCHEMATIC DIAGRAMS — TUNER SECTION — • Refer to page 98 for IC Block Diagrams. • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM ( ) : MW/LW – 63 – – 64 – ZS-M35 (Page 84) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 04 15 DG BOARD CN601 16 DG BOARD CN602 (LOADING) (PACK OUT) (REC POSITION) PLAY 1-671-115- (21) 21 17 DG BOARD CN605 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 12 13 6-12. PRINTED WIRING BOARDS — BD SECTION — – 65 – – 66 – ZS-M35 IC181 F-10 IC192 F-9 Q101 C-13 Q102 C-2 Q103 E-1 Q104 D-2 Q162 C-13 Q163 D-13 Q181 F-10 Q182 F-11 D101 A-1 D181 G-6 D183 G-6 IC101 B-12 IC103 D-2 IC121 E-12 IC123 F-4 IC124 E-13 IC152 C-9 IC171 G-1 • Semiconductor Location Ref. No. Location Ref. No. Location (Page 75) (Page 75) (Page 75) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6-13. SCHEMATIC DIAGRAM — BD SECTION (1/2) — • Refer to page 100 for IC Block Diagrams. – 67 – – 68 – ZS-M35 • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : MD STOP ( ) : MD PLAY < > : MD REC (Page 70) Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 69 – – 70 – ZS-M35 6-14. SCHEMATIC DIAGRAMS — BD SECTION (2/2) — • Refer to page 100 for IC Block Diagrams. • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : MD STOP ( ) : MD PLAY < > : MD REC • Waveforms (BD BOARD) 1 570mVp-p 2 200mV/div, 500ns/div IC101 1, 2 (I, J) (MD PLAY) 3 22.7µs 4 3.4Vp-p 1V/div, 10µs/div 5 4.3Vp-p 6 7 8 200mV/div, 500ns/div IC101 4 (A) (MD PLAY) Approx. 450mVp-p 200mV/div, 500ns/div IC101 8,9 (E, F) (MD PLAY) Approx. 440mVp-p IC121 wj (LRCK) (MD PLAY) 1V/div, 10ns/div IC121 qh (OSCI) 45.5MHz 354ns 4.6Vp-p IC121 wk (XBCK) (MD PLAY) 1V/div, 100ns/div 354ns 4.8Vp-p IC121 wl (FS256) (MD PLAY) 1V/div, 50ns/div 5.7µs 1V/div, 2µs/div 4.4Vp-p IC121 o; (FS4) (MD PLAY) (Page 71) (Page 71) (Page 71) (Page 68) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 71 – – 72 – ZS-M35 6-15. SCHEMATIC DIAGRAM — DG SECTION (1/2) — • Refer to page 101 for IC Block Diagrams. • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : MD PLAY ( ) : MD STOP • Waveforms (DG BOARD) 1 2 3 22.7µs 4 2.0Vp-p 1V/div, 10µs/div 5 3.7Vp-p 6 IC603 0 (LRCK) (MD PLAY) 1V/div, 50ns/div IC601 wk (XIN) 12MHz 1.9Vp-p 500mV/div, 10µs/div IC601 wg (XIN-T) 32.8MHz 4.2Vp-p 1V/div, 20ns/div IC603 9 (SYSCK) 22.6MHz 0.8Vp-p 200mV/div, 10ns/div IC605 6 44.6MHz 500mV/div, 10µs/div IC603 qa (BCK) (MD PLAY) 2.82MHz 3.4Vp-p (Page 69) (Page 69) (Page 69) (Page 73) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 73 – – 74 – ZS-M35 6-16. SCHEMATIC DIAGRAM — DG SECTION (2/2) — • Refer to page 102 for IC Block Diagrams. • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : MD PLAY ( ) : MD STOP (Page 72) (Page 81) (Page 58) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 75 – – 76 – ZS-M35 6-17. PRINTED WIRING BOARD — DG SECTION — 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 12 DG BOARD SIDE A (11) 1-677-061- 1-677-061- 11 04 MAIN BOARD CN404 14 BD BOARD CN102 15 SW BOARD CN601 17 CD BOARD CN705 12 DG BOARD SIDE B BD BOARD CN103 16 (11) 11 (Page 65) (Page 59) (Page 66) (Page 66) (Page 78) D602 G-6 D603 F-8 IC601 H-9 IC602 I-8 IC603 F-9 IC604 F-11 IC605 F-10 IC606 G-11 Q603 G-8 Q604 H-6 Q610 E-4 Q611 I-8 Q612 D-4 Q616 E-9 Q617 E-8 Q620 F-8 • Semiconductor Location Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 77 – – 78 – ZS-M35 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 12 13 MAIN BOARD 13 04 CD BOARD CN704 11 JACK BOARD CN304 6 POWER BOARD CN901 MD SHIELD BOX 2 CD BOARD CN707 13 TUNER BOARD CN1 1 JACK BOARD CN305 7 KEY BOARD CN603 8 LED BOARD CN602 4 TOP BOARD CN641 S402 CD DOOR 9 POWER BOARD CN902 3 FL BOARD CN601 5 CD BOARD CN702 10 DG BOARD CN604 14 1-675-212- BLK BLK/GRY R515 JC106 JC105 JC113 JC109 6-18. PRINTED WIRING BOARD — MAIN SECTION — (Page 86) (Page 62) (Page 86) (Page 86) (Page 89) (Page 89) (Page 86) (Page 75) (Page 59) (Page 93) (Page 93) (Page 59) (Page 59) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 79 – – 80 – ZS-M35 6-19. SCHEMATIC DIAMGRAM — MAIN SECTION (1/3) — • Refer to page 102 for IC Block Diagrams. • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM (Page 87) (Page 81) (Page 84) (Page 82) (Page 87) (Page 84) (Page 82) (Page 84) IC301 B-6 IC302 F-5 IC303 G-5 IC305 D-4 IC401 G-8 IC402 F-9 IC403 F-9 IC404 B-8 IC405 H-5 IC411 F-12 D301 D-5 D303 D-4 D304 D-4 D401 D-9 D402 D-9 D403 B-7 D404 C-8 D405 J-10 D406 J-11 D408 J-11 • Semiconductor Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Q101 B-5 Q102 D-3 Q103 F-3 Q104 C-3 Q105 F-4 Q106 C-5 Q111 G-3 Q201 B-5 Q202 D-5 Q203 F-3 Q204 D-3 Q205 F-4 Q206 C-5 Q211 G-3 Q301 D-3 Q304 D-3 Q305 C-6 Q306 D-3 Q307 E-3 Q308 D-4 Q309 E-3 Q310 D-7 Q311 E-3 Q312 F-3 Q313 D-3 Q401 H-8 Q402 B-9 Q403 B-8 Q405 C-8 Q406 I-11 Q407 B-9 Q408 E-9 Q409 H-5 Q411 C-7 Q412 C-8 Q415 I-9 Q416 B-9 Q419 I-12 Q420 I-11 Q421 I-10 Q422 J-9 Q430 J-10 Q431 J-10 Q432 J-11 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 81 – – 82 – • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM ( ) : MD STOP < > : CD STOP ZS-M35 6-20. SCHEMATIC DIAMGRAM — MAIN SECTION (2/3) — • Refer to page 102 for IC Block Diagrams. (Page 92) (Page 88) (Page 79) (Page 74) (Page 58) (Page 79) (Page 83) (Page 79) (Page 83) (Page 91) (Page 87) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 83 – – 84 – ZS-M35 • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM 6-21. SCHEMATIC DIAMGRAM — MAIN SECTION (3/3) — (Page 82) (Page 82) (Page 64) (Page 79) (Page 58) (Page 58) (Page 79) (Page 95) (Page 95) Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 85 – – 86 – ZS-M35 1 A B C D E F G H I 2 3 4 5 6 7 8 9 10 11 12 13 14 FL401 FLUORESCENT INDICATOR TUBE SYMBOL HIGH SPEED (11) 11 (11) 11 (11) 11 6-22. PRINTED WIRING BOARDS — PANEL SECTION — D301 B-12 D302 B-12 D303 C-11 D304 B-11 IC601 C-5 Q612 C-3 Q613 C-3 • Semiconductor Location Ref. No. Location (Page 77) (Page 78) (Page 77) (Page 77) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 87 – – 88 – ZS-M35 • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM 6-23. SCHEMATIC DIAMGRAMS — PANEL SECTION — • Refer to page 101 for IC Block Diagrams. (Page 79) (Page 79) (Page 82) (Page 81) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 89 – – 90 – ZS-M35 6-24. PRINTED WIRING BOARDS — SWITCH SECTION — SYMBOL abc OPERATE HIGH SPEED 1 A B C D E F G H I 2 3 4 5 6 7 8 9 10 11 12 13 14 (11) 11 (11) 11 D610 G-6 D611 G-4 D612 G-3 D613 G-2 D614 H-6 D615 H-4 D616 H-3 D617 H-2 D618 H-5 D601 H-13 D602 H-11 D603 H-10 D604 H-9 D605 H-8 D606 H-7 D607 H-5 D608 G-6 D609 G-7 • Semiconductor Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location D619 H-4 D620 H-3 D621 H-2 D622 I-5 D623 I-4 D624 I-3 D625 I-2 IC602 I-13 Q603 G-13 Q604 G-12 Q606 H-5 Q607 G-7 Q608 H-3 Q609 H-4 Q610 H-5 Q611 I-5 (Page 77) (Page 77) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 91 – – 92 – ZS-M35 6-25. SCHEMATIC DIAGRAMS — SWITCH SECTION — • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM (Page 81) (Page 82) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I 2 3 4 5 6 7 8 9 10 11 12 13 14 2 3 POWER BOARD BATT (+) BOARD BATT (–) BOARD AC IN J901 T901 POWER TRANSFORMER MAIN BOARD CN402 MAIN BOARD CN401 1-675-216- (11) 11 1-675-220- 1-675-221- 1 2 4 5 7 6 9 8 11 10 13 12 15 14 1 2 CN904 BLK/WHT BLK 04 DRY BATTERY UM3X3 4.5V MEMORY BACK-UP LF901 (11) 11 (11) 11 : NOT REPLACEABLE : BUILT IN TRANSFORMER – 93 – – 94 – ZS-M35 6-26. PRINTED WIRING BOARDS — POWER SUPPLY SECTION — D910 I-4 D911 I-3 D912 H-4 D913 H-5 D914 F-7 D915 H-5 Q901 I-6 D901 H-6 D902 H-7 D903 H-6 D904 H-7 D905 H-5 D906 H-6 D907 H-5 D908 H-5 D909 H-3 • Semiconductor Location Ref. No. Location Ref. No. Location (Page 78) (Page 78) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 95 – – 96 – ZS-M35 6-27. SCHEMATIC DIAGRAMS — POWER SUPPLY SECTION — • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. (Page 84) (Page 84) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 97 – – 98 – IC1 LA1833N IC2 LC72137M-TLM 6-28. IC BLOCK DIAGRAMS IC701 CXA2542AQ 12 11 10 9 8 7 6 5 4 3 2 1 13 14 15 16 17 20 21 UNLOCK DETECTOR POWER ON RESET UNIVERSAL COUNTER CCB I/F NC CE DI CL DO XOUT 22 NC AOUT XIN AIN PD VSS VDD B04 FMIN AMIN B01 B02 B03 I01 I02 IFIN PHASE DETECTOR CHARGE PUMP REFERENCE DIVIDER SWALLOW COUNTER 1/16,1/17 4BITS 12BITS PROGRAMMABLE DIVIDER DATA SHIFT REGISTER LATCH 1/2 18 19 FEI FOFCT FGD FLB FE_O FE_M SRCH TGU TG2 FSET TA_M TA_O SL_P SL_M SL_O ISET VCC VCC CLK XLT DATA XRST C. OUT SENS1 SENS2 FOK CC2 CC1 CB CP RF_I RF_O RF_H RFTC LD PD PD1 F E VEE TEO LPFI ATSC TZC VC FZC TM2 VEE VEE TM3 TM5 TM4 TM6 VCC VCC TM7 ISET TTL ↓ IIL IIL ↓ TTL IIL ↓ TTL IIL DATA REGISTER INPUT SHIFT REGISTER ADDRESS DECODER SENS SELECTOR OUTPUT DECODER DFCTO IFB1-6 BAL1-4 TOG1-4 FS1-4 TG1-2 TM1-7 PS1-4 FOH FOL TGH TGL BALH BALL ATSC TZC FZC FSET TG2 VEE VCC FS1 FS2 FOCUS PHASE COMPENSATION DFCT FS4 TRACKING PHASE COMPENSATION TG1 TM1 DFCT FZC COMP. VEE VCC VCC TDFCT TZC COMP. ATSC WINDOW COMP. E-F BALANCE WINDOW COMP. TRK. GAIN WINDOW COMP. FO. BIAS WINDOW COMP. VEE TGFL TOG1 TOG2 TOG3 TOG4 BAL1 BAL2 BAL3 BAL4 IFB1 IFB2 IFB3 IFB4 IFB5 IFB6 FE AMP VEE E IV AMP F IV AMP VCC APC VCC VCC VEE VEE LASER POWER CONTROL VEE PD1 IV AMP RF SUMMING AMP VCC VEE VEE LEVEL S VEE MIRR VCC FOK VCC INT LDON LPCL LPC TGFL MIRR DFCT2 XDFCT1 CC1 PD2 IV AMP 1 2 3 4 5 6 7 8 9 10 11 12 24 38 PD2 37 39 40 41 42 43 44 45 46 47 FEO 48 36 35 34 33 32 31 30 29 28 27 26 25 23 22 21 20 19 18 17 16 15 14 13 VCC VCC VEE VEE 24 23 22 21 20 19 18 1 2 3 4 5 6 7 17 15 16 13 14 11 10 9 8 12 OSC OUT AM OSC IN AM RF IN AM AGC AM DET OUT FM DET OUT PLL IN MPX IN PILOT DEL R OUT L OUT AFC AM IF IN REG AM MIX OUT FM IF IN GND TU LED ST LED FM DET VCC IF OUT BAND S/W ST S/W ALC AGC COMP REG S-CURVE AM OSC FM IF FM DET AM MIX AM IF AM/FM IF BUFF AM DET DECODER ANTI-BIRDIE PILOT CANCEL STEREO SW P-DET Ø VCO 304kHz AM RF. AMP BUFF LEVEL DET TUNING DRIVE GND VCC FF 38k FF 19k/0 PILOT DET FF 19k/2 π IC802 BA6892FP-E2 DRIVER CH4 PVCC 28 27 26 25 24 23 22 21 20 19 18 17 16 15 VCC – + CH4 MUTING – + CH3 MUTING DRIVER CH3 DRIVER CH1 PVCC 1 2 3 4 5 6 7 8 9 10 11 12 13 14 + – CH1 MUTING + – CH2 MUTING DRIVER CH2 THERMAL SHUTDOWN BIAS IN1 MUTE1 IN2 MUTE2 TEST PREGND PWGND PWGND VCCPOW OUT2– OUT2+ OUT1– OUT1+ VCCPRE IN4 MUTE4 IN3 MUTE3 NC PRGND PWGND PWGND VCCPOW OUT3– OUT3+ OUT4– OUT4+ w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 99 – IC702 CXD3009Q 1 2 3 10 11 12 13 14 15 16 17 18 19 20 CPU INTERFACE SERVO AUTO SEQUENCER VSS1 FOK VDD1 XLON SPOB CLKO SPOA DATO XLTO SEIN CNIN XLAT CLOCK SENS DATA SQCK SQSO LMUT RMUT VSS0 60 59 58 57 56 55 54 52 51 50 49 48 47 46 45 44 BCKI VSS2 VDD2 XPCK XUGF XTSL GFS DOUT C4M C2PO EMPHI EMPH SCOR WFCK EXCK SBSO VSS3 53 21 39 LRCK 40 LRCKI 41 PCMD 42 PCMDI 43 BCK MDP 22 23 PWM1 79 XRST 24 TEST1 TEST0 26 25 CLOCK GENERATOR DIGITAL CLV VCKI VPCO 28 27 VCTL V16M 29 PCO 30 FILO 31 FILI 32 AVSS 35 RF 36 BIAS 37 ASYI 38 ASYO 33 CLTV 34 AVDD 80 62 AVSS 61 VDD3 SYSM VDD0 77 78 AVDD AVSS 75 76 AIN2 AOUT2 73 74 AVSS LOUT2 72 XVSS 71 XTAO 70 XTAI 69 XVDD 66 AIN1 65 AOUT1 64 63 AVDD 68 AVSS 67 LOUT1 ASYMMETRY CORRECTOR DIGITAL PLL 3RD-ORDER NOISE SHAPER PWM OSC D / A INTERFACE D / A INTERFACE SERIAL-IN INTERFACE ERROR CORRECTOR 16K RAM OVER SAMPLING DIGITAL FILTER DIGITAL CUT EFM DEMODULATOR TIMING LOGIC PWM 4 5 6 7 8 9 – + VCC 28 27 26 25 24 23 22 21 20 19 18 17 16 15 LEVEL SHIFT – + VCC LEVEL SHIFT + – 1 2 3 5 6 7 8 9 10 11 12 13 14 LEVEL SHIFT + – + – DRIVE BUFFER DRIVE BUFFER DRIVE BUFFER DRIVE BUFFER REGULATOR VOLTAGE DETECT, BIAS VOLTAGE DETECT, THERMAL SHUT DOWN 4 – + DRIVER MUTING GND OUT4-B OUT4-A IN4 IN4' VREFIN VCC VCC IN3' IN3 OUT3-A OUT3-B NC OPIN-B OUT1-B OUT1-A IN1 RESET REG-B REGOUT MUTE GND IN2' IN2 OUT2-A OUT2-B GND OPOUT LEVEL SHIFT IC703 BA6998FP-E2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 100 – IC152 BH6511FS IC192 BA033FP-E2 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 GND VG IN4R IN4F VM4 OUT4F PGND4 OUT4R VM34 OUT3R PGND3 OUT3F VM3 IN3F IN3R PSB CAPA– CAPA+ IN2R IN2F VM2 OUT2F PGND2 OUT2R VM12 OUT1R PGND1 OUT1F VM1 IN1F IN1R VDD CHARGE PUMP. OSC INTERFACE AMP INTERFACE AMP AMP INTERFACE PREDRIVE PREDRIVE PREDRIVE PREDRIVE AMP INTERFACE AMP AMP AMP VDD PSB AMP 2 3 5 4 1 REFERENCE VOLTAGE CTL VCC GND N.C OUT –1 –2 + – IVR BB + – IVR AA + – IVR CC + – IVR DD + – IVR + – EE EE' EFB TESW PTGR 48 MORFO 47 MORFI 46 RFO 45 OPN 44 OPO 43 ADDC 42 COMPP 41 COMPO 40 AGCI 39 RF AGC 38 RF 37 PEAK 36 BOTM 35 ABCD 34 FE 33 AUX 32 ADFG 31 ADAGC 30 ADIN 29 ADFM 28 SE 27 CSLED 26 TE 25 WBLADJ 24 VCC 23 3TADJ 22 EQADJ 21 VREF 20 F0CNT 19 XSTBY 18 XLAT 17 SCLK 16 SWDT 15 TEMPR 14 TEMPI 13 GND 12 APCREF 11 APC 10 PD 9 F 8 E 7 D 6 C 5 B 4 A 3 VC VI CONV BGR VREF SCRI - PARA DECODE + – – + AUXSW COMMAND + – IVR GSW + – FF FBAL FF' TG SEA – +–+ –1 –2 TG TEA WBL 3T EQ – –++ + +–– – ––– DET ADIP AGC WBL BPF22 BPFC ABCDA FEA WBL ATA – + CVB + – RFA1 – –– – 1 2 – – – 1 2 GRVA OFST RFA2 GRV HLPT PTGR –2 –1 –1 –2 BOTTOM PEAK RF AGC EQ EQ DET P-P WBL 3T WBL TEMP PBH – + USROP + – USRC 3T BPF3T PEAK3T 1 I 2 J RFA3 PBSW AUX SW IV ESW EBAL IC101 CXA2523AR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 101 – 8BIT SHIFT REGISTER COMMAND DECODER CONTROL CIRCUIT TIMING GENERATOR1 OSCILLATOR DCRAM 16Wx8B CGROM 248Wx35B CGRAM 8Wx35B ADRAM 16Wx2B ADDRESS SELECTOR WRITE ADDRESS COUNTER READ ADDRESS COUNTER DIGIT CONTROL DUTY CONTROL TIMING GENERATOR2 SEGMENT DRIVE AD DRIVE PORT DRIVER GRID DRIVER 56 57 58 59 60 5 32 61 62 63 64 39 33 55 40 1 2 3 4 P1 P2 AD2 AD1 SEG1 SEG28 VDD DA CP CS RESET OSC1 OSC0 GND VFL COM16 COM1 SEG35 SEG29 IC121 CXD2654R IC602 BA6287F 100 99 98 97 96 95 94 93 EFMO DVSS TEST3 TEST2 TEST1 FGIN SPFD SPRD 92 SFDR 91 SRDR 90 FS4 89 FRDR 88 FFDR 87 DVDD 86 TFDR 85 TRDR 84 LDDR 83 APCREF 82 DTRF 81 CKRF 80 XLRF 79 F0CNT 78 ADFG 77 APC 76 DCHG 75 TE 74 SE 73 AVSS 72 ADRB 71 ADRT 70 AVDD 69 ADIO 62 CLTV 61 FILO 60 FILI 59 PCO 57 RFI 58 AVSS 56 BIAS 55 AVDD 54 ASYI 53 ASYO 52 MVCI 51 D3 68 VC 67 AUX1 66 FE 65 ABCD 64 BOTM 63 PEAK 50 D2 49 D0 48 D1 47 XWE 46 XRAS 45 A09 44 XCAS 43 XOE 42 DVSS 41 A11 40 A08 39 A07 38 A06 37 A05 36 A04 35 A10 34 A00 33 A01 32 A02 31 A03 30 DVDD 28 XBCK 29 FS256 26 DADT 27 LRCK 24 XBCKI 25 ADDT 23 LRCKI 22 DATAI 21 DOUT 20 DIN1 19 DIN0 18 XTSL 17 OSCO 16 OSCI 15 TX 14 XINT 13 RECP 12 DQSY 11 SQSY 10 XRST 9 SENS 8 SRDT 7 XLAT 6 SCLK 5 SWDT 4 MNT3 3 MNT2 2 MNT1 1 MNT0 PWM GENERATOR AUTO SEQUENCER SERVO DSP CPU I/F MONITOR CONTROL SPINDLE SERVO EACH BLOCK EACH BLOCK DIGITAL AUDIO I/F SAMPLING RATE CONVERTER CLOCK GENERATOR SUBCODE PROCESSOR EACH BLOCK A/D CONVERTER ANALOG MUX EFM/ACIRC ENCODER/ DECODER PLL SHOCK RESISTANT MEMORY CONTROLLER ATRAC ENCODER/DECODER ADIP DECODER COMP ADDRESS/DATA BUS A00 - A11, D0 - D3 1 2 3 4 OUT1 VM VCC FIN 8 7 6 5 GND OUT2 VREF RIN CONTROL LOGIC TSD POWER SAVE DRIVER DRIVER IC601 MSM-9202-09GS-KDR1 (FL BOARD) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 102 – IC603 PCM3003E/T2 IC302 M62443FPD61Q IC411 XC62FP3302PR VCC1 VCC1 VINR VREF1 VREF2 VINL A/D CONVERTER BLOCK D/A CONVERTER BLOCK 20 19 21 VCC2 AGND1 AGND2 VCOM VOUTR VOUTL 17 18 15 16 13 14 DEM0 DEM1 20BIT DIN VDD DGND 23 22 24 4 3 2 1 6 PDAD 7 PDDA 8 SYSCK 9 LRCIN 10 BCKIN 11 DOUT 12 5 ANALOG FRONT-END CIRCUIT ∆Σ MODULATOR DECIMATION & LOW CUT FILTER ANALOG FRONT-END CIRCUIT ∆Σ MODULATOR DECIMATION & LOW CUT FILTER ANALOG LOW-PASS FILTER MULTI-LEVEL ∆Σ MODULATOR INTERPOLATION FILTER X8 OVERSAMPLING ANALOG LOW-PASS FILTER MULTI-LEVEL ∆Σ MODULATOR INTERPOLATION FILTER X8 OVERSAMPLING MODE CONTROL INTERFACE REFERENCE RESET & POWER DOWN CLOCK SERIAL INTERFACE 18 19 20 21 22 23 24 25 26 27 11 12 13 14 10 9 8 7 6 5 4 3 2 1 17 16 15 28 CONTROL LOGIC SIMAMP2 SIMAMP1 VOLAMP2 VOLAMP1 VR3 VR2 VR1 VR5 VR3 VR5 TONE AMP2 TONE AMP1 REF CH2IN2 CH2IN3 CH2IN4 TRF2 OUT2 AGND DVDD CS RECOUT2 SIMIN2 SIMOUT2 BASS2 CH2IN1 AVDD RECOUT1 SIMIN1 SIMOUT1 BASS1 CH1IN1 REF CH1IN2 CH1IN3 CH1IN4 TER1 OUT1 DGND DAT CLK 2 1 3 VOUT VIN VREF VSS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 103 – SECTION 7 EXPLODED VIEWS Ref. No. Part No. Description Remark 7-1. CABINET (REAR) SECTION Ref. No. Part No. Description Remark * 1 A-3322-536-A POWER BOARD, COMPLETE * 2 3-039-987-01 CHASSIS, TRANSFORMER 3 3-039-974-01 HANDLE 4 3-039-976-01 LID, BATTERY CASE * 5 1-675-221-21 BATT (–) BOARD 6 3-039-958-01 TERMINAL, ANTENNA 7 3-039-971-41 CABINET (REAR) 8 3-039-967-01 TERMINAL (BATT –), BATTERY * 9 1-675-220-21 BATT (+) BOARD ANT1 1-501-452-11 ANTENNA, TELESCOPIC 0F901 1-532-467-51 FUSE (315mA/250V) 0F902 1-532-388-51 FUSE (2A/250V) 0F903 1-532-464-51 FUSE (2.5A/250V) 0T901 1-435-321-11 TRANSFORMER, POWER NOTE: • The mechanical parts with no reference number in the exploded views are not supplied. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinet’s Color • Accessories and packing materials are given in the last of this parts list. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. R R R R • Abbreviation CET : East European & CIS model F902 F903 F901 T901 ANT1 A A B B #3 #3 #3 #3 #3 #11 #11 #1 #1 #1 #1 #2 #2 #2 #2 #2 #7 1 2 3 4 7 6 5 8 8 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 104 – 7-2. CABINET (FRONT) SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 X-3378-656-1 CABINET FRONT (SUB) ASSY 52 3-040-916-01 FOOT (F), RUBBER 53 X-3377-977-1 CHASSIS ASSY, NET 54 3-039-977-02 WINDOW (FL) 55 3-040-704-01 BUTTON (REC) (4P) * 56 1-675-223-21 KEY BOARD * 57 A-3322-525-A LED BOARD, COMPLETE * 58 1-675-213-13 TOP BOARD * 59 1-675-845-21 ANTENNA SW BOARD 60 1-791-523-11 WIRE, PARALLEL (FFC) (13 CORE) 61 1-791-522-11 WIRE, PARALLEL (FFC) (10 CORE) * 62 A-3322-527-A TUNER BOARD, COMPLETE * 63 1-675-219-21 JACK BOARD 64 3-039-979-01 BUTTON (10 KEY) 65 4-951-620-01 SCREW (2.6X8), +BVTP 66 3-041-800-01 SHEET (A), ADHESIVE 67 3-041-801-01 SHEET (B), ADHESIVE 68 X-3378-404-1 BUTTON (TOP) ASSY 69 3-039-954-01 PLATE (10 KEY), LIGHT GUIDE SP101 1-529-463-11 SPEAKER (8cm) (L-CH) SP201 1-529-463-11 SPEAKER (8cm) (R-CH) 51(including ) 52 53 55 56 58 68 57 60 61 62 63 64 65 69 65 65 65 65 65 65 65 65 59 SP201 SP101 not supplied not supplied #3 #3 #3 #3 #3 #3 54 67 66 C C #3 #3 #3 #3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 105 – 7-3. CABINET (UPPER) SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 101 A-3322-530-A MAIN BOARD, COMPLETE 102 3-039-961-01 SPRING (IC) 103 1-791-521-11 WIRE, PARALLEL (FFC) (10 CORE) * 104 A-3322-528-A FL BOARD, COMPLETE 105 3-039-978-01 HOLDER (FL) 106 1-791-520-11 WIRE, PARALLEL (FFC) (18 CORE) * 107 A-3322-529-A CD BOARD, COMPLETE 108 3-039-972-01 CABINET (UPPER) 109 3-039-957-01 SPRING (CD UP) 110 3-922-112-31 DAMPER 111 3-039-975-11 LID, CD 112 1-452-899-11 MAGNET 113 3-036-467-01 PLATE, CHUCKING 114 3-923-736-01 COVER, CD 115 3-931-379-31 RUBBER, VIBRATION PROOF 116 3-931-379-21 RUBBER, VIBRATION PROOF 117 3-921-725-01 SCREW (2.6X10), +PWH 118 1-791-518-11 WIRE, PARALLEL (FFC) (16 CORE) * 119 A-3322-538-A CD MOTOR BOARD, COMPLETE FL401 1-517-916-11 INDICATOR TUBE, FLUORESCENT S402 1-692-960-11 SWITCH, PUSH (1 KEY) (CD DOOR) 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 115 116 116 117 117 117 117 118 119 #3 #3 FL401 #3 #3 #3 #3 #3 #3 #3 not supplied #4 not supplied S402 not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 106 – 7-4. MD BLOCK SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 151 3-036-318-11 CARTRIDGE, LID 152 3-036-311-01 SPRING (MD LID) 153 3-042-390-01 SCREW (+BVTTWH M3), STEP 154 1-791-519-11 WIRE, PARALLEL (FFC) (26 CORE) 155 1-791-531-21 WIRE, PARALLEL (FFC) (21 CORE) 156 1-791-532-21 WIRE, PARALLEL (FFC) (23 CORE) * 157 A-3322-531-A DG BOARD, COMPLETE 158 3-041-799-01 SHEET, INSULATING 159 X-3378-454-1 PLATE (LOWER) ASSY, SHIELD not supplied not supplied not supplied MDM-5GA not supplied 152 158 151 153 153 154 155 156 157 159 #5 #5 #5 #5 #5 #5 #5 #5 #5 #5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 107 – 7-5. MD MECHANISM SECTION (MDM-5GA) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 201 1-671-115-21 SW BOARD * 202 4-996-217-01 CHASSIS 203 4-996-223-11 INSULATOR (F) * 204 4-996-218-01 BRACKET (GUIDE R) 205 4-996-277-01 SPRING (O/C), TENSION 206 4-996-226-01 LEVER (O/C) 207 4-999-347-01 INSULATOR (R) * 208 4-996-225-01 BRACKET (GUIDE L) 209 4-988-466-11 SPRING (ELECTROSTATIC), LEAF 210 4-996-219-01 GEAR (CAM GEAR) 211 4-996-220-01 GEAR (A) 212 4-996-221-01 GEAR (B) 213 4-933-134-01 SCREW (+PTPWH M2.6X6) 214 4-996-224-01 SCREW (1.7X3), +PWH 215 4-996-227-11 LEVER (HEAD) 216 4-996-229-01 SPRING (HEAD LEVER), TORSION 217 4-996-212-01 LEVER (LIMITTER) 218 4-996-213-01 SPRING (LIMITTER), TORSION 219 4-996-214-01 SPRING (SLIDER), TENSION 220 4-996-216-01 SPRING (HOLDER), TENSION 221 4-996-215-11 SPRING (LOCK LEVER), TENSION 222 X-4949-668-3 SLIDER ASSY 223 X-4949-667-4 HOLDER ASSY * 224 4-996-211-11 SLIDER (CAM) 225 4-998-763-03 SPRING (SHUTTER), LEAF 226 A-4680-200-G HOLDER COMPLETE ASSY M103 X-4949-264-1 MOTOR ASSY, LOADING (LOADING) (MD) #6 M103 #6 #6 #4 MBU-5A 201 202 203 203 204 205 206 207 226 207 208 209 210 211 212 213 213 214 215 216 217 218 219 220 221 222 223 225 224 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 108 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-6. MD BASE UNIT SECTION (MBU-5A) 251 A-4699-893-A BD BOARD, COMPLETE 252 3-372-761-01 SCREW (M1.7), TAPPING * 253 4-996-267-01 BASE (BU-D) * 254 4-996-255-01 BASE (BU-C) 255 4-900-590-01 SCREW, PRECISION SMALL 256 4-996-258-01 SPRING, COMPRESSION 257 4-996-262-01 GEAR (SL-C) * 258 1-667-954-11 FLEXIBLE BOARD * 259 4-210-664-11 BASE (BU-A) 0260 A-4672-541-A PICK-UP ASSY, OPTICAL KMS-260B (MD) * 261 4-996-252-01 CHASSIS, BU * 262 4-996-254-01 BASE (BU-B) 263 4-967-688-11 MAGNET, ABSORPTION 264 4-996-260-01 GEAR (SL-A) 265 4-996-261-01 GEAR (SL-B) 266 4-996-264-01 SPRING (SHAFT), LEAF 267 4-996-265-01 SHAFT, MAIN 268 4-996-256-11 SL (BASE) 269 4-996-257-01 RACK (SL) 270 4-996-263-01 SPRING (CLV), TORSION 271 4-988-560-01 SCREW (+P 1.7X6) 272 4-211-036-01 SCREW (1.7X2.5), +PWH 273 A-4672-475-A MOTOR ASSY, SPINDLE (SPINDLE) (INCLUDING M101) (MD) HR901 1-500-502-11 HEAD, OVER WRITE M102 A-4672-474-A MOTOR ASSY, SLED (SLED) (MD) S102 1-762-148-21 SWITCH, PUSH (2 KEY) (REFLECT RATE DETECT,PROTECT DETECT) not supplied not supplied #8 #8 HR901 #8 #8 #8 #8 #8 #9 #9 #10 251 252 252 253 254 S102 M101 252 257 258 259 260 261 262 263 273 272 270 264 265 266 267 268 269 256 255 271 M102 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 109 – 7-7. OPTICAL PICK-UP SECTION (KSM-213CDM) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 301 2-626-908-01 SHAFT, SLED 302 3-713-786-51 SCREW +P 2X3 0303 8-848-483-05 PICK-UP, OPTICAL KSS-213C (CD) 304 X-2626-202-1 CHASSIS ASSY, MOTOR (MB) (SPINDLE) (INCLUDING M701) (CD) 305 2-626-907-01 GEAR (A) 306 2-627-003-02 GEAR (B) (RP) M702 X-2625-769-1 GEAR ASSY, MOTOR (MB) (RP) (SLED) (CD) 304 301 303 not supplied M702 302 305 306 M701 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 110 – SECTION 8 ELECTRICAL PARTS LIST BATT (+) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 1-675-845-21 ANTENNA SW BOARD ****************** < SWITCH > S607 1-771-672-11 SWITCH, SLIDE (FM ANTENNA SELECTOR) ************************************************************* * 1-675-220-21 BATT (+) BOARD ************** 3-039-967-01 TERMINAL (BATT –), BATTERY ************************************************************* * 1-675-221-21 BATT (–) BOARD ************** 3-039-967-01 TERMINAL (BATT –), BATTERY ************************************************************* A-4699-893-A BD BOARD, COMPLETE ******************* < CAPACITOR > C101 1-125-822-11 TANTALUM 10uF 20% 10V C102 1-163-038-00 CERAMIC CHIP 0.1uF 25V C103 1-125-822-11 TANTALUM 10uF 20% 10V C104 1-125-822-11 TANTALUM 10uF 20% 10V C105 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C106 1-163-275-11 CERAMIC CHIP 0.001uF 5% 50V C107 1-163-038-00 CERAMIC CHIP 0.1uF 25V C108 1-163-038-00 CERAMIC CHIP 0.1uF 25V C109 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C111 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C112 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C113 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C115 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V C116 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C117 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C118 1-163-038-00 CERAMIC CHIP 0.1uF 25V C119 1-125-822-11 TANTALUM 10uF 20% 10V C121 1-125-822-11 TANTALUM 10uF 20% 10V C122 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C123 1-163-038-00 CERAMIC CHIP 0.1uF 25V C124 1-163-038-00 CERAMIC CHIP 0.1uF 25V C127 1-163-038-00 CERAMIC CHIP 0.1uF 25V C128 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C129 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C130 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C131 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V C132 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C133 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C134 1-163-038-00 CERAMIC CHIP 0.1uF 25V C135 1-163-038-00 CERAMIC CHIP 0.1uF 25V C136 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C142 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C143 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C144 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C146 1-163-038-00 CERAMIC CHIP 0.1uF 25V C151 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C152 1-163-038-00 CERAMIC CHIP 0.1uF 25V C153 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C156 1-163-038-00 CERAMIC CHIP 0.1uF 25V C158 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C160 1-104-601-11 ELECT CHIP 10uF 20% 10V C161 1-104-601-11 ELECT CHIP 10uF 20% 10V C163 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C164 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C167 1-163-038-00 CERAMIC CHIP 0.1uF 25V C168 1-163-038-00 CERAMIC CHIP 0.1uF 25V C169 1-125-822-11 TANTALUM 10uF 20% 10V C171 1-163-038-00 CERAMIC CHIP 0.1uF 25V C181 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C183 1-163-038-00 CERAMIC CHIP 0.1uF 25V C184 1-117-970-11 ELECT CHIP 22uF 20% 10V 0C185 1-164-611-11 CERAMIC CHIP 0.001uF 10% 500V C187 1-104-913-11 TANTAL. CHIP 10uF 20% 16V C188 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C189 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V C190 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C191 1-163-038-00 CERAMIC CHIP 0.1uF 25V C196 1-163-038-00 CERAMIC CHIP 0.1uF 25V C197 1-163-038-00 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN101 1-569-479-51 CONNECTOR, FPC 21P CN102 1-784-833-21 CONNECTOR, FFC (LIF(NON-ZIF)) 21P CN103 1-784-834-21 CONNECTOR, FFC (LIF(NON-ZIF)) 23P CN104 1-770-687-11 CONNECTOR, FFC/FPC 4P CN110 1-695-440-21 PIN, CONNECTOR (PC BOARD) 6P < DIODE > D101 8-719-988-61 DIODE 1SS355TE-17 ANTENNA SW NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. • Abbreviation CET : East European & CIS model BATT (–) BD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 111 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark BD D181 8-719-046-86 DIODE F1J6TP D183 8-719-046-86 DIODE F1J6TP < IC > IC101 8-752-080-95 IC CXA2523AR IC103 8-729-903-10 TRANSISTOR FMW1-T-148 IC121 8-752-389-44 IC CXD2654R IC123 8-759-096-87 IC TC7WU04FU(TE12R) IC124 8-759-334-38 IC MN41V4400TT-08 IC152 8-759-430-25 IC BH6511FS-E2 IC171 8-759-487-04 IC BR24C02F-E2 IC181 8-759-481-17 IC MC74ACT08DTR2 IC192 8-759-460-72 IC BA033FP-E2 < COIL > L101 1-414-813-11 FERRITE BEAD INDUCTOR L102 1-414-813-11 FERRITE BEAD INDUCTOR L103 1-414-813-11 FERRITE BEAD INDUCTOR L105 1-414-813-11 FERRITE BEAD INDUCTOR L106 1-414-813-11 FERRITE BEAD INDUCTOR L121 1-414-813-11 FERRITE BEAD INDUCTOR L122 1-414-813-11 FERRITE BEAD INDUCTOR L151 1-412-029-11 INDUCTOR CHIP 10uH L152 1-412-029-11 INDUCTOR CHIP 10uH L153 1-412-032-11 INDUCTOR CHIP 100uH L154 1-412-032-11 INDUCTOR CHIP 100uH L161 1-414-813-11 FERRITE BEAD INDUCTOR L162 1-414-813-11 FERRITE BEAD INDUCTOR L181 1-216-295-00 SHORT 0 < TRANSISTOR > Q101 8-729-403-35 TRANSISTOR UN5113-TX Q102 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR Q103 8-729-402-93 TRANSISTOR UN5214-TX Q104 8-729-402-93 TRANSISTOR UN5214-TX Q162 8-729-101-07 TRANSISTOR 2SB798-T1DK Q163 8-729-403-35 TRANSISTOR UN5113-TX Q181 8-729-018-75 TRANSISTOR 2SJ278MYTR Q182 8-729-017-65 TRANSISTOR 2SK1764KYTR < RESISTOR > R103 1-216-049-11 RES-CHIP 1K 5% 1/10W R104 1-216-073-00 METAL CHIP 10K 5% 1/10W R105 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R106 1-216-133-00 METAL CHIP 3.3M 5% 1/10W R107 1-216-113-00 METAL CHIP 470K 5% 1/10W R109 1-216-295-00 SHORT 0 R110 1-216-073-00 METAL CHIP 10K 5% 1/10W R111 1-216-295-00 SHORT 0 R112 1-216-089-11 RES-CHIP 47K 5% 1/10W R113 1-216-049-11 RES-CHIP 1K 5% 1/10W R115 1-216-049-11 RES-CHIP 1K 5% 1/10W R117 1-216-113-00 METAL CHIP 470K 5% 1/10W R120 1-216-025-11 RES-CHIP 100 5% 1/10W R121 1-216-097-11 RES-CHIP 100K 5% 1/10W R123 1-216-295-00 SHORT 0 R124 1-216-025-11 RES-CHIP 100 5% 1/10W R125 1-216-025-11 RES-CHIP 100 5% 1/10W R127 1-216-025-11 RES-CHIP 100 5% 1/10W R129 1-216-295-00 SHORT 0 R130 1-216-295-00 SHORT 0 R131 1-216-073-00 METAL CHIP 10K 5% 1/10W R132 1-216-097-11 RES-CHIP 100K 5% 1/10W R133 1-216-117-00 METAL CHIP 680K 5% 1/10W R134 1-216-049-11 RES-CHIP 1K 5% 1/10W R135 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R136 1-216-049-11 RES-CHIP 1K 5% 1/10W R137 1-216-295-00 SHORT 0 R140 1-216-029-00 METAL CHIP 150 5% 1/10W R142 1-216-073-00 METAL CHIP 10K 5% 1/10W R143 1-216-073-00 METAL CHIP 10K 5% 1/10W R144 1-216-025-11 RES-CHIP 100 5% 1/10W R145 1-216-073-00 METAL CHIP 10K 5% 1/10W R146 1-216-037-00 METAL CHIP 330 5% 1/10W R147 1-216-025-11 RES-CHIP 100 5% 1/10W R148 1-216-045-00 METAL CHIP 680 5% 1/10W R149 1-216-073-00 METAL CHIP 10K 5% 1/10W R150 1-216-295-00 SHORT 0 R151 1-216-073-00 METAL CHIP 10K 5% 1/10W R152 1-216-073-00 METAL CHIP 10K 5% 1/10W R158 1-216-097-11 RES-CHIP 100K 5% 1/10W R159 1-216-097-11 RES-CHIP 100K 5% 1/10W R160 1-216-295-00 SHORT 0 R161 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R162 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R163 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R164 1-216-045-00 METAL CHIP 680 5% 1/10W R165 1-216-097-11 RES-CHIP 100K 5% 1/10W R166 1-216-298-00 METAL CHIP 2.2 5% 1/10W R167 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R169 1-219-724-11 METAL CHIP 1 1% 1/4W R170 1-216-073-00 METAL CHIP 10K 5% 1/10W R171 1-216-073-00 METAL CHIP 10K 5% 1/10W R173 1-216-121-11 RES-CHIP 1M 5% 1/10W R175 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R177 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R179 1-216-085-00 METAL CHIP 33K 5% 1/10W R180 1-216-073-00 METAL CHIP 10K 5% 1/10W R182 1-216-089-11 RES-CHIP 47K 5% 1/10W R183 1-216-089-11 RES-CHIP 47K 5% 1/10W R184 1-216-073-00 METAL CHIP 10K 5% 1/10W R185 1-216-081-00 METAL CHIP 22K 5% 1/10W R186 1-216-089-11 RES-CHIP 47K 5% 1/10W R188 1-216-073-00 METAL CHIP 10K 5% 1/10W R189 1-216-073-00 METAL CHIP 10K 5% 1/10W R190 1-216-073-00 METAL CHIP 10K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 112 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R195 1-216-073-00 METAL CHIP 10K 5% 1/10W R196 1-216-295-00 SHORT 0 R197 1-216-295-00 SHORT 0 R198 1-216-296-00 SHORT 0 < SWITCH > S101 1-762-596-21 SWITCH, PUSH (1 KEY) (LIMIT IN) S102 1-762-148-21 SWITCH, PUSH (2 KEY) (REFLECT RATE DETECT,PROTECT DETECT) ************************************************************* * A-3322-529-A CD BOARD, COMPLETE ******************* < CAPACITOR > C701 1-104-665-11 ELECT 100uF 20% 10V C702 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C703 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C704 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C705 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C706 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C707 1-126-925-11 ELECT 470uF 20% 10V C708 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C709 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C710 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C711 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C712 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C713 1-104-664-11 ELECT 47uF 20% 10V C714 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C715 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C716 1-126-964-11 ELECT 10uF 20% 50V C717 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C718 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C719 1-163-227-11 CERAMIC CHIP 10PF 0.50PF 50V C720 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C721 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C722 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V C723 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V C724 1-163-091-00 CERAMIC CHIP 8PF 50V C725 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C726 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C727 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C728 1-163-227-11 CERAMIC CHIP 10PF 0.50PF 50V C729 1-163-059-11 CERAMIC CHIP 0.01uF 10% 50V C730 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C731 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C732 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V C733 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C734 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C735 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C736 1-104-665-11 ELECT 100uF 20% 10V C737 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C738 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C739 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C740 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C743 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C744 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C745 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C746 1-163-001-11 CERAMIC CHIP 220PF 10% 50V C747 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V C748 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C749 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C750 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C752 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C753 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C754 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C755 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C756 1-163-263-11 CERAMIC CHIP 330PF 5% 50V C757 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C758 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C759 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C760 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C762 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C763 1-163-259-11 CERAMIC CHIP 220PF 5% 50V C764 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C765 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C766 1-104-665-11 ELECT 100uF 20% 10V C767 1-163-229-11 CERAMIC CHIP 12PF 5% 50V C768 1-163-229-11 CERAMIC CHIP 12PF 5% 50V C769 1-104-665-11 ELECT 100uF 20% 10V C770 1-104-665-11 ELECT 100uF 20% 10V C773 1-126-964-11 ELECT 10uF 20% 50V C774 1-126-964-11 ELECT 10uF 20% 50V C775 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C776 1-115-566-11 CERAMIC CHIP 4.7uF 10% 10V C777 1-104-665-11 ELECT 100uF 20% 10V C778 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C780 1-163-239-11 CERAMIC CHIP 33PF 5% 50V C781 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C782 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C783 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C790 1-163-251-11 CERAMIC CHIP 100PF 5% 50V < CONNECTOR > CN701 1-770-646-11 CONNECTOR, FFC/FPC 16P * CN702 1-691-077-21 HOUSING, CONNECTOR 18P CN704 1-569-614-11 PLUG, CONNECTOR 2P * CN705 1-785-654-11 PIN, CONNECTOR (PC BOARD) 2P * CN707 1-573-455-11 PLUG, CONNECTOR 4P < FERRITE BEAD > FB701 1-216-295-00 SHORT 0 FB702 1-216-295-00 SHORT 0 FB703 1-469-180-22 FERRITE BEAD INDUCTOR FB704 1-469-180-22 FERRITE BEAD INDUCTOR FB713 1-216-295-00 SHORT 0 FB714 1-216-295-00 SHORT 0 BD CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 113 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < IC > IC701 8-752-083-24 IC CXA2542AQ IC702 8-752-387-78 IC CXD3009Q IC703 8-759-591-62 IC BA6998FP-E2 IC704 8-759-652-44 IC BA033ST-V5 < JUMPER RESISTOR > JC702 1-216-295-00 SHORT 0 JC704 1-216-295-00 SHORT 0 JC705 1-216-295-00 SHORT 0 JC706 1-216-296-00 SHORT 0 JC707 1-216-049-11 RES-CHIP 1K 5% 1/10W JC708 1-216-295-00 SHORT 0 JC709 1-216-295-00 SHORT 0 JC711 1-216-296-00 SHORT 0 JC713 1-216-295-00 SHORT 0 JC715 1-216-295-00 SHORT 0 JC720 1-216-295-00 SHORT 0 JC721 1-216-295-00 SHORT 0 JC723 1-216-049-11 RES-CHIP 1K 5% 1/10W JC725 1-216-295-00 SHORT 0 JC730 1-216-295-00 SHORT 0 JC734 1-216-295-00 SHORT 0 JC739 1-216-295-00 SHORT 0 < COIL > L701 1-216-025-11 RES-CHIP 100 5% 1/10W L702 1-410-997-22 INDUCTOR CHIP 2.2uH < TRANSISTOR > Q701 8-729-101-07 TRANSISTOR 2SB798-T1-DLDK Q705 8-729-931-02 TRANSISTOR 2SC2413KT146-PQ < RESISTOR > R700 1-216-077-11 RES-CHIP 15K 5% 1/10W R701 1-216-089-11 RES-CHIP 47K 5% 1/10W R702 1-216-295-00 SHORT 0 R703 1-216-117-00 METAL CHIP 680K 5% 1/10W R704 1-216-075-00 METAL CHIP 12K 5% 1/10W R705 1-216-214-00 RES-CHIP 4.7K 5% 1/8W R706 1-216-101-00 METAL CHIP 150K 5% 1/10W R707 1-216-033-00 METAL CHIP 220 5% 1/10W R710 1-216-114-00 RES-CHIP 510K 5% 1/10W R711 1-216-101-00 METAL CHIP 150K 5% 1/10W R712 1-216-095-00 METAL CHIP 82K 5% 1/10W R713 1-216-089-11 RES-CHIP 47K 5% 1/10W R714 1-216-089-11 RES-CHIP 47K 5% 1/10W R715 1-216-101-00 METAL CHIP 150K 5% 1/10W R716 1-216-097-11 RES-CHIP 100K 5% 1/10W R718 1-216-041-00 METAL CHIP 470 5% 1/10W R719 1-216-041-00 METAL CHIP 470 5% 1/10W R720 1-216-041-00 METAL CHIP 470 5% 1/10W R721 1-216-097-11 RES-CHIP 100K 5% 1/10W R722 1-216-097-11 RES-CHIP 100K 5% 1/10W R723 1-216-097-11 RES-CHIP 100K 5% 1/10W R724 1-216-097-11 RES-CHIP 100K 5% 1/10W R725 1-216-097-11 RES-CHIP 100K 5% 1/10W R726 1-216-097-11 RES-CHIP 100K 5% 1/10W R731 1-216-081-00 METAL CHIP 22K 5% 1/10W R732 1-216-081-00 METAL CHIP 22K 5% 1/10W R733 1-216-097-11 RES-CHIP 100K 5% 1/10W R734 1-216-001-00 METAL CHIP 10 5% 1/10W R735 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R737 1-216-089-11 RES-CHIP 47K 5% 1/10W R738 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R741 1-216-105-11 RES-CHIP 220K 5% 1/10W R742 1-216-101-00 METAL CHIP 150K 5% 1/10W R743 1-216-101-00 METAL CHIP 150K 5% 1/10W R745 1-216-109-00 METAL CHIP 330K 5% 1/10W R750 1-216-076-00 METAL CHIP 13K 5% 1/10W R751 1-216-077-11 RES-CHIP 15K 5% 1/10W R752 1-216-085-00 METAL CHIP 33K 5% 1/10W R758 1-216-218-00 RES-CHIP 6.8K 5% 1/8W R760 1-216-097-11 RES-CHIP 100K 5% 1/10W R762 1-216-113-00 METAL CHIP 470K 5% 1/10W R763 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R764 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R765 1-216-073-00 METAL CHIP 10K 5% 1/10W R766 1-216-121-11 RES-CHIP 1M 5% 1/10W R767 1-216-073-00 METAL CHIP 10K 5% 1/10W R768 1-216-105-11 RES-CHIP 220K 5% 1/10W R770 1-216-049-11 RES-CHIP 1K 5% 1/10W R771 1-216-025-11 RES-CHIP 100 5% 1/10W R776 1-216-073-00 METAL CHIP 10K 5% 1/10W R777 1-216-049-11 RES-CHIP 1K 5% 1/10W R778 1-216-049-11 RES-CHIP 1K 5% 1/10W R780 1-216-049-11 RES-CHIP 1K 5% 1/10W R781 1-216-073-00 METAL CHIP 10K 5% 1/10W R787 1-216-049-11 RES-CHIP 1K 5% 1/10W R788 1-216-049-11 RES-CHIP 1K 5% 1/10W R789 1-216-033-00 METAL CHIP 220 5% 1/10W R790 1-216-049-11 RES-CHIP 1K 5% 1/10W R791 1-216-049-11 RES-CHIP 1K 5% 1/10W R795 1-216-041-00 METAL CHIP 470 5% 1/10W R796 1-216-049-11 RES-CHIP 1K 5% 1/10W R797 1-216-049-11 RES-CHIP 1K 5% 1/10W R798 1-216-049-11 RES-CHIP 1K 5% 1/10W R799 1-216-049-11 RES-CHIP 1K 5% 1/10W < VIBRATOR > X701 1-781-462-21 VIBRATOR, CRYSTAL (16.9344MHz) ************************************************************* CD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 114 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * A-3322-538-A CD MOTOR BOARD, COMPLETE ************************** < CAPACITOR > C801 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C802 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C803 1-163-038-00 CERAMIC CHIP 0.1uF 25V C804 1-126-934-11 ELECT 220uF 20% 16V < CONNECTOR > * CN801 1-785-677-11 PIN, CONNECTOR (PC BOARD) 11P < IC > IC801 8-759-344-00 IC NJM2100E(TE2) IC802 8-759-591-65 IC BA6892FP-E2 < JUMPER RESISTOR > JC801 1-216-295-00 SHORT 0 < TRANSISTOR > Q801 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q802 8-729-027-60 TRANSISTOR DTC144TKA-T146 Q803 8-729-027-60 TRANSISTOR DTC144TKA-T146 Q804 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q805 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q806 8-729-903-46 TRANSISTOR 2SB1132-T100-QR Q807 8-729-027-46 TRANSISTOR DTC114YKA-T146 < RESISTOR > R801 1-216-081-00 METAL CHIP 22K 5% 1/10W R802 1-216-099-00 METAL CHIP 120K 5% 1/10W R803 1-216-089-11 RES-CHIP 47K 5% 1/10W R804 1-216-081-00 METAL CHIP 22K 5% 1/10W R805 1-216-085-00 METAL CHIP 33K 5% 1/10W R806 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R807 1-216-073-00 METAL CHIP 10K 5% 1/10W R808 1-216-097-11 RES-CHIP 100K 5% 1/10W R809 1-216-073-00 METAL CHIP 10K 5% 1/10W R810 1-216-089-11 RES-CHIP 47K 5% 1/10W R811 1-216-198-11 RES-CHIP 1K 5% 1/8W < SWITCH > S801 1-762-812-11 SWITCH, LEAF (LIMIT) ************************************************************* * A-3322-531-A DG BOARD, COMPLETE ******************* < CAPACITOR > C601 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C602 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C604 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C606 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C607 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C608 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C609 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C610 1-164-156-11 CERAMIC CHIP 0.1uF 25V C611 1-164-156-11 CERAMIC CHIP 0.1uF 25V C612 1-164-156-11 CERAMIC CHIP 0.1uF 25V C613 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C614 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C615 1-164-156-11 CERAMIC CHIP 0.1uF 25V C616 1-164-156-11 CERAMIC CHIP 0.1uF 25V C617 1-164-156-11 CERAMIC CHIP 0.1uF 25V C619 1-126-207-11 ELECT CHIP 33uF 20% 4V C620 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C621 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C622 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C626 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C627 1-164-156-11 CERAMIC CHIP 0.1uF 25V C628 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C629 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C632 1-126-603-11 ELECT CHIP 4.7uF 20% 35V C633 1-126-603-11 ELECT CHIP 4.7uF 20% 35V C634 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C635 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C637 1-126-603-11 ELECT CHIP 4.7uF 20% 35V C639 1-124-779-00 ELECT CHIP 10uF 20% 16V C640 1-126-603-11 ELECT CHIP 4.7uF 20% 35V C641 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C642 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C644 1-164-156-11 CERAMIC CHIP 0.1uF 25V C645 1-164-156-11 CERAMIC CHIP 0.1uF 25V C646 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C650 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C651 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C655 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C657 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C659 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C660 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C662 1-163-038-00 CERAMIC CHIP 0.1uF 25V C663 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C664 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C665 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C668 1-164-156-11 CERAMIC CHIP 0.1uF 25V C669 1-164-360-11 CERAMIC CHIP 0.1uF 16V C670 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C672 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C673 1-162-912-11 CERAMIC CHIP 7PF 0.5PF 50V C675 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C676 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C680 1-163-224-11 CERAMIC CHIP 7PF 0.25PF 50V C681 1-164-156-11 CERAMIC CHIP 0.1uF 25V C682 1-163-038-00 CERAMIC CHIP 0.1uF 25V CD MOTOR DG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 115 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C683 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C684 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C685 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C686 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C687 1-163-038-00 CERAMIC CHIP 0.1uF 25V C689 1-164-156-11 CERAMIC CHIP 0.1uF 25V C690 1-163-259-11 CERAMIC CHIP 220PF 5% 50V C691 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C692 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C693 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C694 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C695 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C696 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C697 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C699 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > * CN601 1-793-115-21 CONNECTOR, FFC/FPC 21P * CN602 1-793-116-21 CONNECTOR, FFC/FPC 23P * CN603 1-580-055-21 PIN, CONNECTOR (SMD) 2P * CN604 1-785-370-21 CONNECTOR, FFC/FPC 26P CN605 1-784-687-41 PIN, CONNECTOR (PC BOARD) 7P < DIODE > D602 8-719-988-61 DIODE 1SS355TE-17 D603 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB601 1-500-445-21 FERRITE, EMI (SMD) FB602 1-216-821-11 METAL CHIP 1K 5% 1/16W FB603 1-216-821-11 METAL CHIP 1K 5% 1/16W FB604 1-216-295-00 SHORT 0 FB605 1-216-821-11 METAL CHIP 1K 5% 1/16W FB606 1-216-295-00 SHORT 0 FB607 1-500-445-21 FERRITE, EMI (SMD) FB608 1-216-821-11 METAL CHIP 1K 5% 1/16W FB609 1-216-821-11 METAL CHIP 1K 5% 1/16W FB610 1-412-985-11 INDUCTOR 3.3uH FB611 1-500-445-21 FERRITE, EMI (SMD) FB612 1-469-185-11 FERRITE BEAD INDUCTOR FB613 1-500-445-21 FERRITE, EMI (SMD) FB614 1-500-445-21 FERRITE, EMI (SMD) FB615 1-500-445-21 FERRITE, EMI (SMD) FB616 1-500-445-21 FERRITE, EMI (SMD) FB617 1-500-445-21 FERRITE, EMI (SMD) FB618 1-500-445-21 FERRITE, EMI (SMD) FB619 1-500-445-21 FERRITE, EMI (SMD) FB620 1-500-445-21 FERRITE, EMI (SMD) FB621 1-500-445-21 FERRITE, EMI (SMD) FB622 1-500-445-21 FERRITE, EMI (SMD) FB623 1-500-445-21 FERRITE, EMI (SMD) FB624 1-500-445-21 FERRITE, EMI (SMD) FB625 1-500-445-21 FERRITE, EMI (SMD) FB626 1-500-445-21 FERRITE, EMI (SMD) FB627 1-216-295-00 SHORT 0 FB628 1-500-445-21 FERRITE, EMI (SMD) FB629 1-500-445-21 FERRITE, EMI (SMD) FB630 1-469-125-21 FERRITE, EMI (SMD) FB631 1-500-445-21 FERRITE, EMI (SMD) FB632 1-500-445-21 FERRITE, EMI (SMD) FB633 1-469-185-11 FERRITE BEAD INDUCTOR FB634 1-469-185-11 FERRITE BEAD INDUCTOR FB636 1-500-445-21 FERRITE, EMI (SMD) FB637 1-500-445-21 FERRITE, EMI (SMD) FB638 1-500-445-21 FERRITE, EMI (SMD) FB639 1-500-445-21 FERRITE, EMI (SMD) FB640 1-500-445-21 FERRITE, EMI (SMD) FB641 1-500-445-21 FERRITE, EMI (SMD) FB642 1-500-445-21 FERRITE, EMI (SMD) FB643 1-500-445-21 FERRITE, EMI (SMD) FB644 1-500-445-21 FERRITE, EMI (SMD) FB645 1-500-445-21 FERRITE, EMI (SMD) FB646 1-500-445-21 FERRITE, EMI (SMD) FB647 1-500-445-21 FERRITE, EMI (SMD) FB648 1-216-295-00 SHORT 0 FB649 1-500-445-21 FERRITE, EMI (SMD) FB650 1-216-821-11 METAL CHIP 1K 5% 1/16W FB651 1-216-825-11 METAL CHIP 2.2K 5% 1/16W FB652 1-216-295-00 SHORT 0 FB653 1-216-295-00 SHORT 0 FB654 1-500-445-21 FERRITE, EMI (SMD) FB655 1-469-185-11 FERRITE BEAD INDUCTOR FB656 1-469-185-11 FERRITE BEAD INDUCTOR FB657 1-469-185-11 FERRITE BEAD INDUCTOR FB660 1-500-445-21 FERRITE, EMI (SMD) FB661 1-500-445-21 FERRITE, EMI (SMD) FB662 1-500-445-21 FERRITE, EMI (SMD) FB663 1-500-445-21 FERRITE, EMI (SMD) FB664 1-500-445-21 FERRITE, EMI (SMD) FB665 1-500-445-21 FERRITE, EMI (SMD) FB666 1-216-815-11 METAL CHIP 330 5% 1/16W FB671 1-500-445-21 FERRITE, EMI (SMD) FB672 1-500-445-21 FERRITE, EMI (SMD) FB673 1-500-445-21 FERRITE, EMI (SMD) < FILTER > FL601 1-239-901-21 FILTER, CHIP EMI FL602 1-239-901-21 FILTER, CHIP EMI FL603 1-239-899-21 FILTER, CHIP EMI FL604 1-239-899-21 FILTER, CHIP EMI FL605 1-239-899-21 FILTER, CHIP EMI FL606 1-239-899-21 FILTER, CHIP EMI * FL607 1-125-971-21 FILTER, 3 TERMINAL NOISE * FL608 1-125-971-21 FILTER, 3 TERMINAL NOISE * FL611 1-125-971-21 FILTER, 3 TERMINAL NOISE * FL612 1-125-971-21 FILTER, 3 TERMINAL NOISE DG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 116 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * FL619 1-125-971-21 FILTER, 3 TERMINAL NOISE * FL620 1-125-971-21 FILTER, 3 TERMINAL NOISE < IC > IC601 8-759-670-32 IC RU8X13MF-0102 IC602 8-759-040-83 IC BA6287F-T1 IC603 8-759-561-36 IC PCM3003E/T2 IC604 8-759-243-19 IC TC7SU04F-TE85L IC605 8-759-591-61 IC TC7WHU04FU(TE12R) IC606 8-759-447-77 IC TC7WH74FU(TE12R) < JUMPER RESISTOR > JC601 1-216-049-11 RES-CHIP 1K 5% 1/10W JC602 1-216-295-00 SHORT 0 JC603 1-216-049-11 RES-CHIP 1K 5% 1/10W JC605 1-216-295-00 SHORT 0 JC606 1-216-296-00 SHORT 0 JC607 1-216-295-00 SHORT 0 JC608 1-216-295-00 SHORT 0 JC609 1-216-821-11 METAL CHIP 1K 5% 1/16W JC610 1-216-821-11 METAL CHIP 1K 5% 1/16W JC611 1-216-821-11 METAL CHIP 1K 5% 1/16W JC612 1-216-821-11 METAL CHIP 1K 5% 1/16W JC613 1-216-295-00 SHORT 0 JC614 1-216-049-11 RES-CHIP 1K 5% 1/10W JC615 1-216-295-00 SHORT 0 JC616 1-216-295-00 SHORT 0 JC617 1-216-295-00 SHORT 0 JC618 1-216-295-00 SHORT 0 JC619 1-500-445-21 FERRITE, EMI (SMD) JC620 1-216-295-00 SHORT 0 JC621 1-216-864-11 METAL CHIP 0 5% 1/16W JC622 1-216-296-00 SHORT 0 JC623 1-216-295-00 SHORT 0 JC626 1-216-295-00 SHORT 0 JC627 1-216-295-00 SHORT 0 JC631 1-216-864-11 METAL CHIP 0 5% 1/16W JC632 1-216-295-00 SHORT 0 JC634 1-216-295-00 SHORT 0 JC635 1-216-295-00 SHORT 0 JC639 1-500-445-21 FERRITE, EMI (SMD) JC641 1-216-295-00 SHORT 0 JC651 1-216-295-00 SHORT 0 JC652 1-412-989-11 INDUCTOR 6.8uH < COIL > L601 1-414-521-21 INDUCTOR CHIP 10uH L602 1-414-398-11 INDUCTOR 10uH L603 1-414-398-11 INDUCTOR 10uH L604 1-414-398-11 INDUCTOR 10uH L605 1-414-398-11 INDUCTOR 10uH L606 1-414-398-11 INDUCTOR 10uH L607 1-414-398-11 INDUCTOR 10uH L608 1-414-398-11 INDUCTOR 10uH L609 1-414-398-11 INDUCTOR 10uH L610 1-414-398-11 INDUCTOR 10uH L611 1-416-107-21 COIL, COMMON MODE CHOKE L612 1-414-521-21 INDUCTOR CHIP 10uH L613 1-414-398-11 INDUCTOR 10uH L614 1-414-398-11 INDUCTOR 10uH L615 1-500-445-21 FERRITE, EMI (SMD) L616 1-500-445-21 FERRITE, EMI (SMD) L617 1-414-766-22 FERRITE BEAD INDUCTOR L618 1-500-445-21 FERRITE, EMI (SMD) L619 1-414-398-11 INDUCTOR 10uH L620 1-414-398-11 INDUCTOR 10uH L621 1-414-521-21 INDUCTOR CHIP 10uH L622 1-414-521-21 INDUCTOR CHIP 10uH < TRANSISTOR > Q603 8-729-402-84 TRANSISTOR XN4601-TX Q604 8-729-402-84 TRANSISTOR XN4601-TX Q610 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q611 8-729-031-43 TRANSISTOR IMD9A-T108 Q612 8-729-101-07 TRANSISTOR 2SB798-T1-DLDK Q616 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q617 8-729-019-72 TRANSISTOR 2SB1260T100 Q620 8-729-046-16 TRANSISTOR UMG5NTR < RESISTOR > R601 1-216-821-11 METAL CHIP 1K 5% 1/16W R602 1-216-049-11 RES-CHIP 1K 5% 1/10W R603 1-216-821-11 METAL CHIP 1K 5% 1/16W R604 1-500-329-11 FERRITE BEAD INDUCTOR R605 1-216-073-00 METAL CHIP 10K 5% 1/10W R606 1-216-073-00 METAL CHIP 10K 5% 1/10W R607 1-216-073-00 METAL CHIP 10K 5% 1/10W R608 1-216-833-11 RES-CHIP 10K 5% 1/16W R609 1-216-097-11 RES-CHIP 100K 5% 1/10W R610 1-216-097-11 RES-CHIP 100K 5% 1/10W R611 1-216-845-11 METAL CHIP 100K 5% 1/16W R612 1-216-097-11 RES-CHIP 100K 5% 1/10W R613 1-216-833-11 RES-CHIP 10K 5% 1/16W R614 1-216-857-11 METAL CHIP 1M 5% 1/16W R615 1-216-833-11 RES-CHIP 10K 5% 1/16W R616 1-216-845-11 METAL CHIP 100K 5% 1/16W R617 1-216-809-11 METAL CHIP 100 5% 1/16W R618 1-216-809-11 METAL CHIP 100 5% 1/16W R619 1-216-845-11 METAL CHIP 100K 5% 1/16W R620 1-216-851-11 METAL CHIP 330K 5% 1/16W R621 1-216-073-00 METAL CHIP 10K 5% 1/10W R622 1-216-833-11 RES-CHIP 10K 5% 1/16W R623 1-216-833-11 RES-CHIP 10K 5% 1/16W R624 1-216-833-11 RES-CHIP 10K 5% 1/16W R625 1-216-833-11 RES-CHIP 10K 5% 1/16W DG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 117 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R626 1-216-073-00 METAL CHIP 10K 5% 1/10W R627 1-216-089-11 RES-CHIP 47K 5% 1/10W R628 1-216-841-11 METAL CHIP 47K 5% 1/16W R629 1-216-833-11 RES-CHIP 10K 5% 1/16W R630 1-216-833-11 RES-CHIP 10K 5% 1/16W R631 1-216-821-11 METAL CHIP 1K 5% 1/16W R632 1-216-821-11 METAL CHIP 1K 5% 1/16W R633 1-216-833-11 RES-CHIP 10K 5% 1/16W R634 1-216-833-11 RES-CHIP 10K 5% 1/16W R636 1-216-851-11 METAL CHIP 330K 5% 1/16W R637 1-216-109-00 METAL CHIP 330K 5% 1/10W R638 1-216-841-11 METAL CHIP 47K 5% 1/16W R639 1-216-847-11 METAL CHIP 150K 5% 1/16W R640 1-216-821-11 METAL CHIP 1K 5% 1/16W R641 1-216-843-11 METAL CHIP 68K 5% 1/16W R643 1-216-809-11 METAL CHIP 100 5% 1/16W R644 1-216-833-11 RES-CHIP 10K 5% 1/16W R646 1-216-041-00 METAL CHIP 470 5% 1/10W R647 1-216-089-11 RES-CHIP 47K 5% 1/10W R648 1-216-833-11 RES-CHIP 10K 5% 1/16W R649 1-216-835-11 METAL CHIP 15K 5% 1/16W R650 1-216-833-11 RES-CHIP 10K 5% 1/16W R651 1-216-835-11 METAL CHIP 15K 5% 1/16W R652 1-500-329-11 FERRITE BEAD INDUCTOR R653 1-216-073-00 METAL CHIP 10K 5% 1/10W R654 1-216-833-11 RES-CHIP 10K 5% 1/16W R655 1-216-073-00 METAL CHIP 10K 5% 1/10W R656 1-216-833-11 RES-CHIP 10K 5% 1/16W R657 1-216-238-11 RES-CHIP 47K 5% 1/8W R658 1-216-853-11 METAL CHIP 470K 5% 1/16W R659 1-216-817-11 METAL CHIP 470 5% 1/16W R660 1-216-841-11 METAL CHIP 47K 5% 1/16W R661 1-216-857-11 METAL CHIP 1M 5% 1/16W R662 1-216-037-00 METAL CHIP 330 5% 1/10W R663 1-216-821-11 METAL CHIP 1K 5% 1/16W R664 1-216-821-11 METAL CHIP 1K 5% 1/16W R665 1-216-073-00 METAL CHIP 10K 5% 1/10W R666 1-500-329-11 FERRITE BEAD INDUCTOR R667 1-500-329-11 FERRITE BEAD INDUCTOR R668 1-216-815-11 METAL CHIP 330 5% 1/16W R669 1-216-857-11 METAL CHIP 1M 5% 1/16W R670 1-216-841-11 METAL CHIP 47K 5% 1/16W R671 1-216-821-11 METAL CHIP 1K 5% 1/16W R672 1-216-821-11 METAL CHIP 1K 5% 1/16W R674 1-216-857-11 METAL CHIP 1M 5% 1/16W R691 1-216-821-11 METAL CHIP 1K 5% 1/16W R692 1-216-025-11 RES-CHIP 100 5% 1/10W R693 1-216-025-11 RES-CHIP 100 5% 1/10W R694 1-216-821-11 METAL CHIP 1K 5% 1/16W R695 1-216-821-11 METAL CHIP 1K 5% 1/16W < VIBRATOR > X601 1-767-179-21 VIBRATOR, CERAMIC (12MHz) X602 1-781-183-11 VIBRATOR, CRYSTAL (32.768kHz) X603 1-760-173-11 VIBRATOR, CRYSTAL (22.5792MHz) ************************************************************* * A-3322-528-A FL BOARD, COMPLETE ******************* 3-039-978-01 HOLDER (FL) 3-042-764-01 SHEET (FL), ADHESIVE 3-846-312-01 SPACER < CAPACITOR > C601 1-126-964-11 ELECT 10uF 20% 50V C602 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C603 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C604 1-104-664-11 ELECT 47uF 20% 10V C605 1-107-682-11 CERAMIC CHIP 1uF 10% 16V C606 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C607 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C608 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C609 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C614 1-163-259-11 CERAMIC CHIP 220PF 5% 50V C621 1-163-259-11 CERAMIC CHIP 220PF 5% 50V C622 1-164-005-11 CERAMIC CHIP 0.47uF 25V C623 1-164-005-11 CERAMIC CHIP 0.47uF 25V C624 1-164-005-11 CERAMIC CHIP 0.47uF 25V C625 1-164-005-11 CERAMIC CHIP 0.47uF 25V < CONNECTOR > CN601 1-695-371-31 CONNECTOR, FFC/FPC 10P < FILTER > FL401 1-517-916-11 INDICATOR TUBE, FLUORESCENT < IC > IC601 8-759-648-76 IC MSM9202-09GS-KDR1 < TRANSISTOR > Q612 8-729-027-44 TRANSISTOR DTC114TKA-T146 Q613 8-729-027-44 TRANSISTOR DTC114TKA-T146 < RESISTOR > R601 1-216-073-00 METAL CHIP 10K 5% 1/10W R602 1-216-017-11 RES-CHIP 47 5% 1/10W R605 1-216-073-00 METAL CHIP 10K 5% 1/10W R606 1-216-017-11 RES-CHIP 47 5% 1/10W R609 1-216-041-00 METAL CHIP 470 5% 1/10W R610 1-216-049-11 RES-CHIP 1K 5% 1/10W R611 1-216-049-11 RES-CHIP 1K 5% 1/10W R612 1-216-041-00 METAL CHIP 470 5% 1/10W R613 1-216-049-11 RES-CHIP 1K 5% 1/10W ************************************************************* FL DG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 118 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark LED * 1-675-219-21 JACK BOARD *********** < CONNECTOR > * CN306 1-573-455-11 PLUG, CONNECTOR 4P < DIODE > D301 8-719-988-61 DIODE 1SS355TE-17 D302 8-719-988-61 DIODE 1SS355TE-17 D303 8-719-988-61 DIODE 1SS355TE-17 D304 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB101 1-216-295-00 SHORT 0 FB102 1-469-152-11 FERRITE, EMI (SMD) FB201 1-216-295-00 SHORT 0 FB202 1-469-152-11 FERRITE, EMI (SMD) FB301 1-216-295-00 SHORT 0 FB302 1-469-152-11 FERRITE, EMI (SMD) < JACK > J301 1-779-050-11 JACK (i) J302 1-779-050-11 JACK (LINE IN) < RESISTOR > R103 1-216-033-00 METAL CHIP 220 5% 1/10W R203 1-216-033-00 METAL CHIP 220 5% 1/10W ************************************************************* * 1-675-223-21 KEY BOARD ********** < CONNECTOR > * CN603 1-695-333-41 PIN, CONNECTOR (PC BOARD) 10P ************************************************************* * A-3322-525-A LED BOARD, COMPLETE ******************** < CAPACITOR > C610 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C611 1-126-794-11 ELECT 4.7uF 20% 25V < CONNECTOR > * CN602 1-695-374-31 PIN, CONNECTOR (PC BOARD) 13P < DIODE > D601 8-719-077-79 LED SLR-332VRT32 (HIGH SPEED) D602 8-719-078-08 LED SLA-362MT-T31XFG (DELETE/CLOCK) D603 8-719-078-08 LED SLA-362MT-T31XFG (INSERT/TIMER) D604 8-719-078-08 LED SLA-362MT-T31XFG (NO/CANCELE) D605 8-719-078-08 LED SLA-362MT-T31XFG (YES/ENTER) D606 8-719-078-08 LED SLA-362MT-T31XFG (DISPLAY) D607 8-719-078-08 LED SLA-362MT-T31XFG (4/GHI) D608 8-719-077-79 LED SLR-332VRT32 (abc) D609 8-719-077-79 LED SLR-332VRT32 (ABC) D610 8-719-078-08 LED SLA-362MT-T31XFG (1) D611 8-719-078-08 LED SLA-362MT-T31XFG (1) D612 8-719-078-08 LED SLA-362MT-T31XFG (2/ABC) D613 8-719-078-08 LED SLA-362MT-T31XFG (3/DEF) D614 8-719-078-08 LED SLA-362MT-T31XFG (DISPLAY) D615 8-719-078-08 LED SLA-362MT-T31XFG (4/GHI) D616 8-719-078-08 LED SLA-362MT-T31XFG (5/JKL) D617 8-719-078-08 LED SLA-362MT-T31XFG (6/MNO) D618 8-719-078-08 LED SLA-362MT-T31XFG (7/PQRS) D619 8-719-078-08 LED SLA-362MT-T31XFG (7/PQRS) D620 8-719-078-08 LED SLA-362MT-T31XFG (8/TUV) D621 8-719-078-08 LED SLA-362MT-T31XFG (9/WXYZ) D622 8-719-078-08 LED SLA-362MT-T31XFG (SYMBOL) D623 8-719-078-08 LED SLA-362MT-T31XFG (SYMBOL) D624 8-719-078-08 LED SLA-362MT-T31XFG (0/10) D625 8-719-078-08 LED SLA-362MT-T31XFG (>10) < IC > IC602 8-749-016-97 IC NJL62H400A < JUMPER RESISTOR > JC601 1-216-295-00 SHORT 0 JC602 1-216-296-00 SHORT 0 JC603 1-216-295-00 SHORT 0 JC604 1-216-295-00 SHORT 0 < TRANSISTOR > Q603 8-729-027-58 TRANSISTOR DTC143ZKA-T146 Q604 8-729-901-88 TRANSISTOR 2SC2411K-T-146-CR Q606 8-729-027-58 TRANSISTOR DTC143ZKA-T146 Q607 8-729-027-58 TRANSISTOR DTC143ZKA-T146 Q608 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q609 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q610 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q611 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR < RESISTOR > R603 1-216-025-11 RES-CHIP 100 5% 1/10W R614 1-216-085-00 METAL CHIP 33K 5% 1/10W R615 1-216-033-00 METAL CHIP 220 5% 1/10W R617 1-216-025-11 RES-CHIP 100 5% 1/10W R620 1-216-025-11 RES-CHIP 100 5% 1/10W R622 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R624 1-216-033-00 METAL CHIP 220 5% 1/10W R626 1-216-033-00 METAL CHIP 220 5% 1/10W R628 1-216-025-11 RES-CHIP 100 5% 1/10W R631 1-216-174-00 RES-CHIP 100 5% 1/8W R633 1-216-025-11 RES-CHIP 100 5% 1/10W R636 1-216-025-11 RES-CHIP 100 5% 1/10W KEY JACK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 119 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R638 1-216-025-11 RES-CHIP 100 5% 1/10W R641 1-216-025-11 RES-CHIP 100 5% 1/10W R643 1-216-025-11 RES-CHIP 100 5% 1/10W R646 1-216-025-11 RES-CHIP 100 5% 1/10W R648 1-216-045-00 METAL CHIP 680 5% 1/10W R649 1-216-048-00 METAL CHIP 910 5% 1/10W R650 1-216-056-00 RES-CHIP 2K 5% 1/10W R651 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R666 1-216-025-11 RES-CHIP 100 5% 1/10W R667 1-216-025-11 RES-CHIP 100 5% 1/10W R668 1-216-025-11 RES-CHIP 100 5% 1/10W R670 1-216-025-11 RES-CHIP 100 5% 1/10W R671 1-216-025-11 RES-CHIP 100 5% 1/10W R672 1-216-025-11 RES-CHIP 100 5% 1/10W R673 1-216-025-11 RES-CHIP 100 5% 1/10W R674 1-216-025-11 RES-CHIP 100 5% 1/10W R675 1-216-025-11 RES-CHIP 100 5% 1/10W R676 1-216-025-11 RES-CHIP 100 5% 1/10W R677 1-216-025-11 RES-CHIP 100 5% 1/10W < SWITCH > S601 1-762-798-11 SWITCH, KEY BOARD (OPERATE) S602 1-762-798-11 SWITCH, KEY BOARD (SLEEP) S603 1-762-798-11 SWITCH, KEY BOARD (STANDBY) S604 1-762-798-11 SWITCH, KEY BOARD (AUTO PRESET/RDS/ SHUF/PGM) S605 1-762-798-11 SWITCH, KEY BOARD (MONO/ST/REPEAT) S606 1-762-798-11 SWITCH, KEY BOARD (EDIT) ************************************************************* * A-3322-530-A MAIN BOARD, COMPLETE ********************* 3-039-961-01 SPRING (IC) 3-831-441-99 CUSHION (A) 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S < CAPACITOR > C101 1-126-767-11 ELECT 1000uF 20% 16V C102 1-126-963-11 ELECT 4.7uF 20% 50V C103 1-126-963-11 ELECT 4.7uF 20% 50V C104 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C105 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C106 1-136-165-00 MYLAR 0.1uF 5% 50V C107 1-136-165-00 MYLAR 0.1uF 5% 50V C108 1-126-960-11 ELECT 1uF 20% 50V C109 1-126-964-11 ELECT 10uF 20% 50V C110 1-126-961-11 ELECT 2.2uF 20% 50V C111 1-126-961-11 ELECT 2.2uF 20% 50V C112 1-126-961-11 ELECT 2.2uF 20% 50V C113 1-126-961-11 ELECT 2.2uF 20% 50V C114 1-136-157-00 MYLAR 0.022uF 5% 50V C115 1-136-173-00 MYLAR 0.47uF 5% 50V C116 1-136-153-00 FILM 0.01uF 5% 50V C117 1-126-963-11 ELECT 4.7uF 20% 50V C118 1-126-961-11 ELECT 2.2uF 20% 50V C119 1-126-960-11 ELECT 1uF 20% 50V C126 1-126-960-11 ELECT 1uF 20% 50V C127 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C128 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C201 1-126-767-11 ELECT 1000uF 20% 16V C202 1-126-963-11 ELECT 4.7uF 20% 50V C203 1-126-963-11 ELECT 4.7uF 20% 50V C204 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C205 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C206 1-136-165-00 MYLAR 0.1uF 5% 50V C207 1-136-165-00 MYLAR 0.1uF 5% 50V C208 1-126-960-11 ELECT 1uF 20% 50V C209 1-126-964-11 ELECT 10uF 20% 50V C210 1-126-961-11 ELECT 2.2uF 20% 50V C211 1-126-961-11 ELECT 2.2uF 20% 50V C212 1-126-961-11 ELECT 2.2uF 20% 50V C213 1-126-961-11 ELECT 2.2uF 20% 50V C214 1-136-157-00 MYLAR 0.022uF 5% 50V C215 1-136-173-00 MYLAR 0.47uF 5% 50V C216 1-136-153-00 FILM 0.01uF 5% 50V C217 1-126-963-11 ELECT 4.7uF 20% 50V C218 1-126-961-11 ELECT 2.2uF 20% 50V C219 1-126-960-11 ELECT 1uF 20% 50V C226 1-126-960-11 ELECT 1uF 20% 50V C227 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C228 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C301 1-104-665-11 ELECT 100uF 20% 10V C302 1-126-963-11 ELECT 4.7uF 20% 50V C303 1-115-877-11 ELECT(BLOCK) 4700uF 20% 25V C306 1-126-964-11 ELECT 10uF 20% 50V C307 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C308 1-104-665-11 ELECT 100uF 20% 10V C309 1-126-934-11 ELECT 220uF 20% 10V C310 1-104-665-11 ELECT 100uF 20% 10V C311 1-104-665-11 ELECT 100uF 20% 10V C312 1-104-665-11 ELECT 100uF 20% 10V C313 1-126-964-11 ELECT 10uF 20% 50V C314 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C315 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C316 1-104-665-11 ELECT 100uF 20% 10V C317 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C318 1-126-964-11 ELECT 10uF 20% 50V C319 1-126-960-11 ELECT 1uF 20% 50V C320 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C321 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C322 1-126-964-11 ELECT 10uF 20% 50V C323 1-104-665-11 ELECT 100uF 20% 10V C324 1-104-665-11 ELECT 100uF 20% 10V C326 1-126-964-11 ELECT 10uF 20% 50V C401 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C402 1-163-104-00 CERAMIC CHIP 30PF 5% 50V LED MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 120 – C403 1-164-346-11 CERAMIC CHIP 1uF 16V C404 1-163-239-11 CERAMIC CHIP 33PF 5% 50V C405 1-163-239-11 CERAMIC CHIP 33PF 5% 50V C406 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C407 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C408 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C409 1-163-234-11 CERAMIC CHIP 20PF 5% 50V C410 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C411 1-104-665-11 ELECT 100uF 20% 10V C412 1-164-346-11 CERAMIC CHIP 1uF 16V C413 1-104-664-11 ELECT 47uF 20% 10V C414 1-126-964-11 ELECT 10uF 20% 50V C416 1-126-919-11 ELECT 6800uF 20% 6.3V C417 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C418 1-164-346-11 CERAMIC CHIP 1uF 16V C419 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C420 1-126-933-11 ELECT 100uF 20% 16V C421 1-107-725-11 CERAMIC CHIP 0.1uF 10% 16V C422 1-126-925-11 ELECT 470uF 20% 10V C423 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C424 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C425 1-126-934-11 ELECT 220uF 20% 10V C426 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C428 1-104-664-11 ELECT 47uF 20% 10V C430 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C431 1-126-934-11 ELECT 220uF 20% 10V C432 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C433 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C434 1-126-964-11 ELECT 10uF 20% 50V C435 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C436 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C437 1-126-964-11 ELECT 10uF 20% 50V C438 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C439 1-126-968-11 ELECT 100uF 20% 50V C440 1-126-960-11 ELECT 1uF 20% 50V C441 1-126-960-11 ELECT 1uF 20% 50V C442 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C443 1-126-937-11 ELECT 4700uF 20% 16V C444 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C445 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C446 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C447 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C448 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C449 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C450 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C451 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C452 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C453 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C454 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C455 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C456 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C457 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C458 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C459 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C460 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C461 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C462 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C463 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C464 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C465 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C466 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C468 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C469 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C470 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C471 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C472 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C473 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C474 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C475 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C477 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C478 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C479 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C480 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C481 1-126-964-11 ELECT 10uF 20% 50V C482 1-126-964-11 ELECT 10uF 20% 50V C483 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C484 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C485 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C486 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C487 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C488 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C489 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C490 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C491 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C492 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C493 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C494 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C495 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C496 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C497 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C498 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C499 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C500 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C502 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C503 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C504 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C505 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C506 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C507 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C509 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C510 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C512 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C513 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C514 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C515 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C516 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 121 – C517 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C518 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C519 1-126-961-11 ELECT 2.2uF 20% 50V C520 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C521 1-163-263-11 CERAMIC CHIP 330PF 5% 50V C522 1-163-233-11 CERAMIC CHIP 18PF 5% 50V C523 1-128-551-11 ELECT 22uF 20% 25V C524 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C525 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C526 1-128-551-11 ELECT 22uF 20% 25V C527 1-163-135-00 CERAMIC CHIP 560PF 5% 50V C528 1-104-665-11 ELECT 100uF 20% 10V C529 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C530 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C531 1-126-933-11 ELECT 100uF 20% 16V C532 1-126-933-11 ELECT 100uF 20% 16V C533 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C534 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C535 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C536 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C537 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C538 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C539 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C540 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C541 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > * CN301 1-564-778-11 PLUG, CONNECTOR (2.5mm) 4P * CN303 1-785-656-11 PIN, CONNECTOR (PC BOARD) 4P * CN401 1-564-778-11 PLUG, CONNECTOR (2.5mm) 4P * CN402 1-785-662-11 PIN, CONNECTOR (PC BOARD) 10P * CN403 1-568-468-11 PIN, CONNECTOR (PC BOARD) 18P CN404 1-568-931-11 PIN, CONNECTOR (PC BOARD) 26P * CN405 1-695-333-41 PIN, CONNECTOR (PC BOARD) 10P CN406 1-695-336-31 PIN, CONNECTOR (PC BOARD) 13P * CN407 1-695-333-41 PIN, CONNECTOR (PC BOARD) 10P * CN408 1-785-664-11 PIN, CONNECTOR (PC BOARD) 12P * CN409 1-785-655-11 PIN, CONNECTOR (PC BOARD) 3P * CN410 1-785-654-11 PIN, CONNECTOR (PC BOARD) 2P CN412 1-566-690-11 PLUG, CONNECTOR (2.5mm) 2P < DIODE > D301 8-719-988-61 DIODE 1SS355TE-17 D303 8-719-988-61 DIODE 1SS355TE-17 D304 8-719-988-61 DIODE 1SS355TE-17 D401 8-719-988-61 DIODE 1SS355TE-17 D402 8-719-988-61 DIODE 1SS355TE-17 D403 8-719-056-84 DIODE UDZ-TE-17-7.5B D404 8-719-056-85 DIODE UDZ-TE-17-8.2B D405 8-719-056-82 DIODE UDZ-TE-17-6.2B D406 8-719-977-81 DIODE UDZ-TE-17-33B D408 8-719-056-97 DIODE UDZ-TE-17-27B < FERRITE BEAD > FB401 1-216-295-00 SHORT 0 FB402 1-216-295-00 SHORT 0 FB403 1-216-295-00 SHORT 0 FB404 1-216-295-00 SHORT 0 FB405 1-216-295-00 SHORT 0 FB406 1-216-295-00 SHORT 0 FB407 1-216-295-00 SHORT 0 FB408 1-216-295-00 SHORT 0 FB409 1-216-295-00 SHORT 0 FB410 1-216-295-00 SHORT 0 FB411 1-216-295-00 SHORT 0 FB412 1-469-185-11 FERRITE BEAD INDUCTOR FB413 1-469-185-11 FERRITE BEAD INDUCTOR FB414 1-216-295-00 SHORT 0 FB415 1-216-295-00 SHORT 0 FB416 1-216-295-00 SHORT 0 FB417 1-216-295-00 SHORT 0 FB418 1-216-296-00 SHORT 0 FB419 1-216-296-00 SHORT 0 FB420 1-216-295-00 SHORT 0 FB421 1-216-295-00 SHORT 0 FB422 1-216-295-00 SHORT 0 FB423 1-216-295-00 SHORT 0 FB424 1-216-295-00 SHORT 0 FB425 1-216-295-00 SHORT 0 FB426 1-216-295-00 SHORT 0 FB427 1-216-295-00 SHORT 0 FB428 1-216-073-00 METAL CHIP 10K 5% 1/10W FB429 1-216-295-00 SHORT 0 FB430 1-216-073-00 METAL CHIP 10K 5% 1/10W FB431 1-216-295-00 SHORT 0 FB432 1-216-295-00 SHORT 0 < IC > IC301 8-759-543-56 IC LA4601N IC302 8-759-652-74 IC M62443FPD61Q IC303 8-759-100-96 IC NJM4558M-TE2 IC305 8-759-636-55 IC M5218AFP-T1 IC401 8-752-914-58 IC CXP740096-043Q IC402 8-759-486-73 IC XC62FP3302PR IC403 8-759-649-23 IC XC61CN2802PR IC404 8-759-450-47 IC BA05T IC405 8-759-557-36 IC BU1924F-E2 IC411 8-759-486-73 IC XC62FP3302PR < JUMPER RESISTOR > JC101 1-216-296-00 SHORT 0 JC102 1-216-295-00 SHORT 0 JC103 1-216-295-00 SHORT 0 JC104 1-216-296-00 SHORT 0 JC105 1-216-295-00 SHORT 0 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 122 – JC106 1-216-295-00 SHORT 0 JC107 1-216-295-00 SHORT 0 JC108 1-216-295-00 SHORT 0 JC109 1-216-295-00 SHORT 0 JC113 1-216-295-00 SHORT 0 < COIL > L401 1-216-017-11 RES-CHIP 47 5% 1/10W < TRANSISTOR > Q101 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q102 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q103 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q104 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q105 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q106 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q111 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q201 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q202 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q203 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q204 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q205 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q206 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q211 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q301 8-729-027-24 TRANSISTOR DTA114TKA-T146 Q304 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q305 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q306 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q307 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q308 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q309 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q310 8-729-027-26 TRANSISTOR DTA114YKA-T146 Q311 8-729-027-24 TRANSISTOR DTA114TKA-T146 Q312 8-729-027-24 TRANSISTOR DTA114TKA-T146 Q313 8-729-027-26 TRANSISTOR DTA114YKA-T146 Q401 8-729-903-10 TRANSISTOR FMW1-T-148 Q402 8-729-018-99 TRANSISTOR 2SD2394-F Q403 8-729-021-82 TRANSISTOR 2SD2396K Q405 8-729-021-82 TRANSISTOR 2SD2396K Q406 8-729-903-46 TRANSISTOR 2SB1132-T100-QR Q407 8-729-027-26 TRANSISTOR DTA114YKA-T146 Q408 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q409 8-729-904-86 TRANSISTOR 2SB1197K-T-146-Q Q411 8-729-027-26 TRANSISTOR DTA114YKA-T146 Q412 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q415 8-729-027-29 TRANSISTOR DTA123JKA-T146 Q416 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q419 8-729-012-83 FET 2SK679A-T Q420 8-729-012-83 FET 2SK679A-T Q421 8-729-027-26 TRANSISTOR DTA114YKA-T146 Q422 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q430 8-729-027-26 TRANSISTOR DTA114YKA-T146 Q431 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q432 8-729-027-26 TRANSISTOR DTA114YKA-T146 < RESISTOR > R101 1-216-049-11 RES-CHIP 1K 5% 1/10W R102 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R103 1-216-025-11 RES-CHIP 100 5% 1/10W R104 1-216-049-11 RES-CHIP 1K 5% 1/10W R105 1-216-052-00 METAL CHIP 1.3K 5% 1/10W R106 1-216-111-00 METAL CHIP 390K 5% 1/10W R107 1-216-121-11 RES-CHIP 1M 5% 1/10W R108 1-216-079-00 METAL CHIP 18K 5% 1/10W R109 1-216-073-00 METAL CHIP 10K 5% 1/10W R110 1-216-049-11 RES-CHIP 1K 5% 1/10W R111 1-216-077-11 RES-CHIP 15K 5% 1/10W R112 1-216-073-00 METAL CHIP 10K 5% 1/10W R113 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R114 1-216-089-11 RES-CHIP 47K 5% 1/10W R115 1-216-079-00 METAL CHIP 18K 5% 1/10W R116 1-216-113-00 METAL CHIP 470K 5% 1/10W R117 1-216-077-11 RES-CHIP 15K 5% 1/10W R118 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R119 1-216-047-11 RES-CHIP 820 5% 1/10W R120 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R122 1-216-198-11 RES-CHIP 1K 5% 1/8W R123 1-216-077-11 RES-CHIP 15K 5% 1/10W R124 1-216-049-11 RES-CHIP 1K 5% 1/10W R125 1-216-089-11 RES-CHIP 47K 5% 1/10W R201 1-216-049-11 RES-CHIP 1K 5% 1/10W R202 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R203 1-216-025-11 RES-CHIP 100 5% 1/10W R204 1-216-049-11 RES-CHIP 1K 5% 1/10W R205 1-216-052-00 METAL CHIP 1.3K 5% 1/10W R206 1-216-111-00 METAL CHIP 390K 5% 1/10W R207 1-216-121-11 RES-CHIP 1M 5% 1/10W R208 1-216-079-00 METAL CHIP 18K 5% 1/10W R209 1-216-073-00 METAL CHIP 10K 5% 1/10W R210 1-216-049-11 RES-CHIP 1K 5% 1/10W R211 1-216-077-11 RES-CHIP 15K 5% 1/10W R212 1-216-073-00 METAL CHIP 10K 5% 1/10W R213 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R214 1-216-089-11 RES-CHIP 47K 5% 1/10W R215 1-216-079-00 METAL CHIP 18K 5% 1/10W R216 1-216-113-00 METAL CHIP 470K 5% 1/10W R217 1-216-077-11 RES-CHIP 15K 5% 1/10W R218 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R219 1-216-047-11 RES-CHIP 820 5% 1/10W R220 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R222 1-216-049-11 RES-CHIP 1K 5% 1/10W R223 1-216-077-11 RES-CHIP 15K 5% 1/10W R224 1-216-049-11 RES-CHIP 1K 5% 1/10W R225 1-216-089-11 RES-CHIP 47K 5% 1/10W R302 1-216-073-00 METAL CHIP 10K 5% 1/10W R303 1-216-073-00 METAL CHIP 10K 5% 1/10W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 123 – R304 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R306 1-216-025-11 RES-CHIP 100 5% 1/10W R307 1-216-073-00 METAL CHIP 10K 5% 1/10W R308 1-216-073-00 METAL CHIP 10K 5% 1/10W R309 1-216-166-00 RES-CHIP 47 5% 1/8W R310 1-216-049-11 RES-CHIP 1K 5% 1/10W R311 1-216-049-11 RES-CHIP 1K 5% 1/10W R312 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R313 1-216-073-00 METAL CHIP 10K 5% 1/10W R314 1-216-073-00 METAL CHIP 10K 5% 1/10W R315 1-216-073-00 METAL CHIP 10K 5% 1/10W R316 1-216-113-00 METAL CHIP 470K 5% 1/10W R317 1-216-049-11 RES-CHIP 1K 5% 1/10W R318 1-216-121-11 RES-CHIP 1M 5% 1/10W R319 1-216-049-11 RES-CHIP 1K 5% 1/10W R320 1-216-049-11 RES-CHIP 1K 5% 1/10W R321 1-216-097-11 RES-CHIP 100K 5% 1/10W R322 1-216-073-00 METAL CHIP 10K 5% 1/10W R323 1-216-041-00 METAL CHIP 470 5% 1/10W R324 1-216-049-11 RES-CHIP 1K 5% 1/10W R327 1-216-073-00 METAL CHIP 10K 5% 1/10W R328 1-216-073-00 METAL CHIP 10K 5% 1/10W R329 1-216-025-11 RES-CHIP 100 5% 1/10W R401 1-216-222-00 RES-CHIP 10K 5% 1/8W R402 1-216-198-11 RES-CHIP 1K 5% 1/8W R403 1-216-049-11 RES-CHIP 1K 5% 1/10W R404 1-216-025-11 RES-CHIP 100 5% 1/10W R407 1-216-017-11 RES-CHIP 47 5% 1/10W R408 1-216-047-11 RES-CHIP 820 5% 1/10W R409 1-216-047-11 RES-CHIP 820 5% 1/10W R410 1-216-041-00 METAL CHIP 470 5% 1/10W R411 1-216-077-11 RES-CHIP 15K 5% 1/10W R412 1-216-295-00 SHORT 0 R413 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R416 1-216-073-00 METAL CHIP 10K 5% 1/10W R417 1-216-049-11 RES-CHIP 1K 5% 1/10W R418 1-216-049-11 RES-CHIP 1K 5% 1/10W R419 1-216-049-11 RES-CHIP 1K 5% 1/10W R420 1-216-041-00 METAL CHIP 470 5% 1/10W R421 1-216-041-00 METAL CHIP 470 5% 1/10W R422 1-216-073-00 METAL CHIP 10K 5% 1/10W R423 1-216-049-11 RES-CHIP 1K 5% 1/10W R424 1-216-041-00 METAL CHIP 470 5% 1/10W R425 1-216-041-00 METAL CHIP 470 5% 1/10W R426 1-216-049-11 RES-CHIP 1K 5% 1/10W R427 1-216-073-00 METAL CHIP 10K 5% 1/10W R428 1-216-049-11 RES-CHIP 1K 5% 1/10W R429 1-216-049-11 RES-CHIP 1K 5% 1/10W R430 1-216-049-11 RES-CHIP 1K 5% 1/10W R431 1-216-049-11 RES-CHIP 1K 5% 1/10W R432 1-216-049-11 RES-CHIP 1K 5% 1/10W R433 1-216-049-11 RES-CHIP 1K 5% 1/10W R434 1-216-049-11 RES-CHIP 1K 5% 1/10W R435 1-216-049-11 RES-CHIP 1K 5% 1/10W R436 1-216-049-11 RES-CHIP 1K 5% 1/10W R437 1-216-049-11 RES-CHIP 1K 5% 1/10W R438 1-216-049-11 RES-CHIP 1K 5% 1/10W R439 1-216-113-00 METAL CHIP 470K 5% 1/10W R440 1-216-049-11 RES-CHIP 1K 5% 1/10W R441 1-216-049-11 RES-CHIP 1K 5% 1/10W R442 1-216-085-00 METAL CHIP 33K 5% 1/10W R443 1-216-085-00 METAL CHIP 33K 5% 1/10W R444 1-216-085-00 METAL CHIP 33K 5% 1/10W R445 1-216-085-00 METAL CHIP 33K 5% 1/10W R446 1-216-085-00 METAL CHIP 33K 5% 1/10W R447 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R448 1-216-049-11 RES-CHIP 1K 5% 1/10W R449 1-216-049-11 RES-CHIP 1K 5% 1/10W R450 1-216-049-11 RES-CHIP 1K 5% 1/10W R451 1-216-049-11 RES-CHIP 1K 5% 1/10W R452 1-216-049-11 RES-CHIP 1K 5% 1/10W R453 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R454 1-216-113-00 METAL CHIP 470K 5% 1/10W R455 1-216-041-00 METAL CHIP 470 5% 1/10W R456 1-216-041-00 METAL CHIP 470 5% 1/10W R457 1-216-049-11 RES-CHIP 1K 5% 1/10W R458 1-216-049-11 RES-CHIP 1K 5% 1/10W R459 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R460 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R461 1-216-081-00 METAL CHIP 22K 5% 1/10W R462 1-216-089-11 RES-CHIP 47K 5% 1/10W R463 1-216-049-11 RES-CHIP 1K 5% 1/10W R464 1-216-049-11 RES-CHIP 1K 5% 1/10W R465 1-216-049-11 RES-CHIP 1K 5% 1/10W R466 1-216-049-11 RES-CHIP 1K 5% 1/10W R467 1-216-049-11 RES-CHIP 1K 5% 1/10W R468 1-216-049-11 RES-CHIP 1K 5% 1/10W R469 1-216-049-11 RES-CHIP 1K 5% 1/10W R470 1-216-198-11 RES-CHIP 1K 5% 1/8W R471 1-216-049-11 RES-CHIP 1K 5% 1/10W R472 1-216-049-11 RES-CHIP 1K 5% 1/10W R473 1-216-190-00 RES-CHIP 470 5% 1/8W R474 1-216-190-00 RES-CHIP 470 5% 1/8W R475 1-216-049-11 RES-CHIP 1K 5% 1/10W R476 1-216-049-11 RES-CHIP 1K 5% 1/10W R477 1-216-073-00 METAL CHIP 10K 5% 1/10W R478 1-216-049-11 RES-CHIP 1K 5% 1/10W R479 1-216-049-11 RES-CHIP 1K 5% 1/10W R480 1-216-049-11 RES-CHIP 1K 5% 1/10W R481 1-216-025-11 RES-CHIP 100 5% 1/10W R482 1-216-049-11 RES-CHIP 1K 5% 1/10W R483 1-216-025-11 RES-CHIP 100 5% 1/10W R484 1-216-049-11 RES-CHIP 1K 5% 1/10W R485 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R486 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R487 1-216-065-11 RES-CHIP 4.7K 5% 1/10W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 124 – R488 1-216-041-00 METAL CHIP 470 5% 1/10W R489 1-216-049-11 RES-CHIP 1K 5% 1/10W R490 1-216-049-11 RES-CHIP 1K 5% 1/10W R491 1-216-049-11 RES-CHIP 1K 5% 1/10W R492 1-216-049-11 RES-CHIP 1K 5% 1/10W R493 1-216-049-11 RES-CHIP 1K 5% 1/10W R494 1-216-073-00 METAL CHIP 10K 5% 1/10W R495 1-216-049-11 RES-CHIP 1K 5% 1/10W R496 1-216-049-11 RES-CHIP 1K 5% 1/10W R497 1-216-049-11 RES-CHIP 1K 5% 1/10W R498 1-216-073-00 METAL CHIP 10K 5% 1/10W R499 1-216-089-11 RES-CHIP 47K 5% 1/10W R500 1-216-041-00 METAL CHIP 470 5% 1/10W R503 1-216-043-11 RES-CHIP 560 5% 1/10W R504 1-216-089-11 RES-CHIP 47K 5% 1/10W R505 1-216-085-00 METAL CHIP 33K 5% 1/10W R506 1-216-073-00 METAL CHIP 10K 5% 1/10W R507 1-216-049-11 RES-CHIP 1K 5% 1/10W R508 1-216-049-11 RES-CHIP 1K 5% 1/10W R509 1-216-037-00 METAL CHIP 330 5% 1/10W R510 1-216-041-00 METAL CHIP 470 5% 1/10W R511 1-216-025-11 RES-CHIP 100 5% 1/10W R512 1-216-295-00 SHORT 0 R513 1-216-049-11 RES-CHIP 1K 5% 1/10W R514 1-216-049-11 RES-CHIP 1K 5% 1/10W 0R515 1-260-300-11 RES, CARBON 4.7 5% 1/2W R520 1-216-049-11 RES-CHIP 1K 5% 1/10W R521 1-216-049-11 RES-CHIP 1K 5% 1/10W R522 1-216-049-11 RES-CHIP 1K 5% 1/10W R523 1-216-049-11 RES-CHIP 1K 5% 1/10W R524 1-216-049-11 RES-CHIP 1K 5% 1/10W R525 1-216-049-11 RES-CHIP 1K 5% 1/10W R526 1-216-049-11 RES-CHIP 1K 5% 1/10W R527 1-216-041-00 METAL CHIP 470 5% 1/10W R528 1-216-097-11 RES-CHIP 100K 5% 1/10W R529 1-216-097-11 RES-CHIP 100K 5% 1/10W R534 1-216-097-11 RES-CHIP 100K 5% 1/10W < VIBRATOR > X401 1-781-598-11 VIBRATOR, CERAMIC (8MHz) X402 1-767-697-11 VIBRATOR, CRYSTAL (32kHz) X403 1-760-556-41 VIBRATOR, CRYSTAL (4.332MHz) ************************************************************* * A-3322-536-A POWER BOARD, COMPLETE *********************** 1-533-233-31 HOLDER, FUSE < CAPACITOR > C901 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C902 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C903 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C904 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C905 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C906 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C907 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C908 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C909 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C910 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C911 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C912 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C913 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C914 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C915 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C916 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C917 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C918 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C919 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V 0C920 1-113-925-11 CERAMIC 0.01uF 20% 250V 0C922 1-113-925-11 CERAMIC 0.01uF 20% 250V < CONNECTOR > * CN903 1-785-654-11 PIN, CONNECTOR (PC BOARD) 2P < DIODE > D901 8-719-046-07 DIODE 2A02M D902 8-719-046-07 DIODE 2A02M D903 8-719-046-07 DIODE 2A02M D904 8-719-046-07 DIODE 2A02M D905 8-719-046-07 DIODE 2A02M D906 8-719-046-07 DIODE 2A02M D907 8-719-046-07 DIODE 2A02M D908 8-719-046-07 DIODE 2A02M D909 8-719-063-79 DIODE 1N4002B D910 8-719-063-79 DIODE 1N4002B D911 8-719-063-79 DIODE 1N4002B D912 8-719-063-79 DIODE 1N4002B D913 8-719-988-61 DIODE 1SS355TE-17 D914 8-719-988-61 DIODE 1SS355TE-17 D915 8-719-988-61 DIODE 1SS355TE-17 < FUSE > 0F901 1-532-467-51 FUSE (315mA/250V) 0F902 1-532-388-51 FUSE (2A/250V) 0F903 1-532-464-51 FUSE (2.5A/250V) < JACK > 0J901 1-526-838-11 INLET, AC 2P (- AC IN) < LINE FILTER > 0LF901 1-402-663-11 TRANSFORMER, LINE FILTER (LFT) < IC LINK > 0PS901 1-532-605-00 LINK, IC (ICP-N10) 0.4A Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN POWER The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 125 – < TRANSISTOR > Q901 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q902 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR < RESISTOR > R901 1-216-073-00 METAL CHIP 10K 5% 1/10W R902 1-216-089-11 RES-CHIP 47K 5% 1/10W R905 1-216-089-11 RES-CHIP 47K 5% 1/10W R906 1-216-073-00 METAL CHIP 10K 5% 1/10W < RELAY > RY901 1-755-363-11 RELAY < TRANSFORMER > 0T901 1-435-321-11 TRANSFORMER, POWER ************************************************************* * 1-671-115-21 SW BOARD ********** < CONNECTOR > * CN601 1-506-486-11 PIN, CONNECTOR 7P < SWITCH > S601 1-572-126-21 SWITCH, PUSH (1 KEY) (REC POSITION) S602 1-572-126-21 SWITCH, PUSH (1 KEY) (PACK OUT) S604 1-771-264-11 SWITCH, PUSH (DETECTION) (1 KEY) (PLAY POSITION) ************************************************************* * 1-675-213-13 TOP BOARD ********** < RESISTOR > R654 1-216-045-00 METAL CHIP 680 5% 1/10W R655 1-216-048-00 METAL CHIP 910 5% 1/10W R656 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R657 1-216-056-00 RES-CHIP 2K 5% 1/10W R658 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R660 1-216-045-00 METAL CHIP 680 5% 1/10W R661 1-216-048-00 METAL CHIP 910 5% 1/10W R662 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R663 1-216-056-00 RES-CHIP 2K 5% 1/10W R664 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R665 1-216-069-00 METAL CHIP 6.8K 5% 1/10W < SWITCH > S633 1-762-798-11 SWITCH, KEY BOARD (MEGA BASS) S634 1-762-798-11 SWITCH, KEY BOARD (SOUND) S635 1-762-798-11 SWITCH, KEY BOARD (MD x) S636 1-762-798-11 SWITCH, KEY BOARD (MD u) S637 1-762-798-11 SWITCH, KEY BOARD (RADIO/BAND) S638 1-762-798-11 SWITCH, KEY BOARD (CD x) S640 1-762-798-11 SWITCH, KEY BOARD (VOLUME–) S641 1-762-798-11 SWITCH, KEY BOARD (VOLUME+) S642 1-762-798-11 SWITCH, KEY BOARD (REC/REC MODE) S643 1-762-798-11 SWITCH, KEY BOARD (CD u) S644 1-762-798-11 SWITCH, KEY BOARD (TUNE > +) S645 1-762-798-11 SWITCH, KEY BOARD (TUNE . –) S646 1-762-798-11 SWITCH, KEY BOARD (LINE/LINE LEVEL) ************************************************************* * A-3322-527-A TUNER BOARD, COMPLETE *********************** < CAPACITOR > C1 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C2 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C3 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C4 1-126-934-11 ELECT 220uF 20% 10V C5 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C6 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C7 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C9 1-163-113-00 CERAMIC CHIP 68PF 5% 50V C10 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C11 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C12 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C13 1-163-263-11 CERAMIC CHIP 330PF 5% 50V C14 1-163-222-11 CERAMIC CHIP 5PF 0.25PF 50V C15 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C16 1-126-962-11 ELECT 3.3uF 20% 50V C17 1-128-551-11 ELECT 22uF 20% 25V C18 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C21 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C22 1-126-934-11 ELECT 220uF 20% 10V C23 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C24 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C26 1-126-963-11 ELECT 4.7uF 20% 50V C27 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C28 1-126-964-11 ELECT 10uF 20% 50V C29 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C30 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C31 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C32 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C33 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C34 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C35 1-163-024-00 CERAMIC CHIP 0.018uF 10% 50V C36 1-163-024-00 CERAMIC CHIP 0.018uF 10% 50V C37 1-164-346-11 CERAMIC CHIP 1uF 16V C38 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C39 1-164-346-11 CERAMIC CHIP 1uF 16V C40 1-126-960-11 ELECT 1uF 20% 50V C41 1-126-960-11 ELECT 1uF 20% 50V C42 1-126-934-11 ELECT 220uF 20% 10V C43 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C44 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark TUNER POWER SW TOP The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 126 – C45 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C46 1-163-227-11 CERAMIC CHIP 10PF 0.50PF 50V C47 1-163-227-11 CERAMIC CHIP 10PF 0.50PF 50V C48 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C49 1-126-935-11 ELECT 470uF 20% 6.3V C50 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C51 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C52 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C53 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C54 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C55 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C56 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C57 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C58 1-126-934-11 ELECT 220uF 20% 16V C59 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C60 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C61 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C71 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C72 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V < FILTER > CF1 1-781-407-11 FILTER, CERAMIC CF2 1-781-407-11 FILTER, CERAMIC CF3 1-781-344-11 FILTER, MW CERAMIC CF4 1-781-817-11 DISCRIMINATOR, CERAMIC < CONNECTOR > CN2 1-566-690-11 PLUG, CONNECTOR (2.5mm) 2P < TRIMMER > CT1 1-141-459-11 CAP, TRIMMER (SEAL TYPE) 45PF CT2 1-141-601-11 CAP, ADJ 10PF CT3 1-141-459-11 CAP, TRIMMER (SEAL TYPE) 45PF CT4 1-141-601-11 CAP, ADJ 10PF < DIODE > D1 8-719-988-61 DIODE 1SS355TE-17 D2 8-719-988-61 DIODE 1SS355TE-17 D3 8-719-988-61 DIODE 1SS355TE-17 D4 8-719-988-61 DIODE 1SS355TE-17 D5 8-719-988-61 DIODE 1SS355TE-17 D6 8-719-988-61 DIODE 1SS355TE-17 D7 8-719-988-61 DIODE 1SS355TE-17 D8 8-719-988-61 DIODE 1SS355TE-17 D9 8-719-988-61 DIODE 1SS355TE-17 D10 8-719-988-61 DIODE 1SS355TE-17 D11 8-719-050-69 DIODE KV1520NT-2 D12 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB1 1-500-445-21 FERRITE, EMI (SMD) < IC > IC1 8-759-663-31 IC LA1833N IC2 8-759-483-40 IC LC72137M-TLM < JUMPER RESISTOR > JC1 1-216-295-00 SHORT 0 JC2 1-216-296-00 SHORT 0 JC3 1-216-295-00 SHORT 0 JC4 1-216-295-00 SHORT 0 JC5 1-216-296-00 SHORT 0 JC6 1-216-296-00 SHORT 0 < COIL > L1 1-410-994-22 INDUCTOR CHIP 1.2uH L3 1-416-991-11 COIL, MW ANT L4 1-416-129-11 COIL, LW ANT L5 1-411-959-11 COIL, MW OSC L6 1-410-071-11 INDUCTOR 10mH < TRANSISTOR > Q1 8-729-119-32 FET 2SK193TP-E Q2 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q3 8-729-920-38 TRANSISTOR 2SC2059K-T146-N Q4 8-729-931-02 TRANSISTOR 2SC2413KT146-PQ Q5 8-729-931-02 TRANSISTOR 2SC2413KT146-PQ Q6 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q7 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q8 8-729-120-28 TRANSISTOR 2SC2412K-T-146-QR Q9 1-801-806-11 TRANSISTOR DTC144EKA-T146 < RESISTOR > R1 1-216-017-11 RES-CHIP 47 5% 1/10W R2 1-216-017-11 RES-CHIP 47 5% 1/10W R3 1-216-017-11 RES-CHIP 47 5% 1/10W R4 1-216-041-00 METAL CHIP 470 5% 1/10W R5 1-216-295-00 SHORT 0 R6 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R7 1-216-073-00 METAL CHIP 10K 5% 1/10W R8 1-216-097-11 RES-CHIP 100K 5% 1/10W R9 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R11 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R12 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R13 1-216-073-00 METAL CHIP 10K 5% 1/10W R16 1-216-105-11 RES-CHIP 220K 5% 1/10W R17 1-216-037-00 METAL CHIP 330 5% 1/10W R18 1-216-009-11 RES-CHIP 22 5% 1/10W R19 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R20 1-216-033-00 METAL CHIP 220 5% 1/10W R21 1-216-025-11 RES-CHIP 100 5% 1/10W R22 1-216-079-00 METAL CHIP 18K 5% 1/10W R23 1-216-079-00 METAL CHIP 18K 5% 1/10W R24 1-216-093-11 RES-CHIP 68K 5% 1/10W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark TUNER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 127 – R25 1-216-105-11 RES-CHIP 220K 5% 1/10W R26 1-216-206-00 RES-CHIP 2.2K 5% 1/8W R27 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R28 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R29 1-216-023-00 METAL CHIP 82 5% 1/10W R30 1-216-049-11 RES-CHIP 1K 5% 1/10W R31 1-216-073-00 METAL CHIP 10K 5% 1/10W R32 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R33 1-216-081-00 METAL CHIP 22K 5% 1/10W R34 1-216-025-11 RES-CHIP 100 5% 1/10W R35 1-216-073-00 METAL CHIP 10K 5% 1/10W R36 1-216-025-11 RES-CHIP 100 5% 1/10W R37 1-216-049-11 RES-CHIP 1K 5% 1/10W R38 1-216-025-11 RES-CHIP 100 5% 1/10W R39 1-216-049-11 RES-CHIP 1K 5% 1/10W R40 1-216-025-11 RES-CHIP 100 5% 1/10W R41 1-216-025-11 RES-CHIP 100 5% 1/10W R42 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R43 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R44 1-216-025-11 RES-CHIP 100 5% 1/10W R45 1-216-025-11 RES-CHIP 100 5% 1/10W R46 1-216-025-11 RES-CHIP 100 5% 1/10W R47 1-216-025-11 RES-CHIP 100 5% 1/10W R48 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R49 1-216-073-00 METAL CHIP 10K 5% 1/10W R50 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R51 1-216-027-00 METAL CHIP 120 5% 1/10W R52 1-216-021-00 METAL CHIP 68 5% 1/10W R53 1-216-021-00 METAL CHIP 68 5% 1/10W R54 1-216-021-00 METAL CHIP 68 5% 1/10W R55 1-216-065-11 RES-CHIP 4.7K 5% 1/10W R56 1-216-073-00 METAL CHIP 10K 5% 1/10W R57 1-216-013-00 METAL CHIP 33 5% 1/10W R72 1-216-017-11 RES-CHIP 47 5% 1/10W < TRANSFORMER > T1 1-433-741-11 TRANSFORMER, IF < TERMINAL > TB1 1-537-489-21 TERMINAL BOARD (ANT) < TUNER > TU1 1-693-495-11 TUNER UNIT < VIBRATOR > X1 1-760-130-11 VIBRATOR, CRYSTAL (75kHz) ************************************************************* MISCELLANEOUS *************** 60 1-791-523-11 WIRE, PARALLEL (FFC) (13 CORE) 61 1-791-522-11 WIRE, PARALLEL (FFC) (10 CORE) 103 1-791-521-11 WIRE, PARALLEL (FFC) (10 CORE) 106 1-791-520-11 WIRE, PARALLEL (FFC) (18 CORE) 118 1-791-518-11 WIRE, PARALLEL (FFC) (16 CORE) 154 1-791-519-11 WIRE, PARALLEL (FFC) (26 CORE) 155 1-791-531-21 WIRE, PARALLEL (FFC) (21 CORE) 156 1-791-532-21 WIRE, PARALLEL (FFC) (23 CORE) * 258 1-667-954-11 FLEXIBLE BOARD 0260 A-4672-541-A PICK-UP ASSY, OPTICAL KMS-260B (MD) 273 A-4672-475-A MOTOR ASSY, SPINDLE (SPINDLE) (INCLUDING M101) (MD) 0303 8-848-483-05 PICK-UP, OPTICAL KSS-213C (CD) 304 X-2626-202-1 CHASSIS ASSY, MOTOR (MB) (SPINDLE) (INCLUDING M701) (CD) ANT1 1-501-452-11 ANTENNA, TELESCOPIC 0F901 1-532-467-51 FUSE (315mA/250V) 0F902 1-532-388-51 FUSE (2A/250V) 0F903 1-532-464-51 FUSE (2.5A/250V) HR901 1-500-502-11 HEAD, OVER WRITE M102 A-4672-474-A MOTOR ASSY, SLED (SLED) (MD) M103 X-4949-264-1 MOTOR ASSY, LOADING (LOADING) (MD) M702 X-2625-769-1 GEAR ASSY, MOTOR (MB) (RP) (SLED) (CD) S102 1-762-148-21 SWITCH, PUSH (2 KEY) (REFLECT RATE DETECT,PROTECT DETECT) S402 1-692-960-11 SWITCH, PUSH (1 KEY) (CD DOOR) SP101 1-529-463-11 SPEAKER (8cm) (L-CH) SP201 1-529-463-11 SPEAKER (8cm) (R-CH) 0T901 1-435-321-11 TRANSFORMER, POWER ************************************************************* Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark TUNER The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 128 – Sony Corporation Personal Audio Division Company 9-927-183-11 2000B0451-1 Printed in Japan C2000. 2 Published by General Engineering Dept. ZS-M35 Ref. No. Part No. Description Remark ACCESSORIES & PACKING MATERIALS ******************************** 1-754-102-21 ANTENNA, LOOP (MW/LW) (ANT2) 0 1-769-412-11 CORD, POWER 0 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK) 3-027-153-21 LID, BATTERY CASE (for RMT-CM35) 3-867-609-21 MANUAL, INSTRUCTION (ENGLISH,SPANISH) (AEP,UK) 3-867-609-31 MANUAL, INSTRUCTION (FRENCH,GERMAN) (AEP) 3-867-609-41 MANUAL, INSTRUCTION (DUTCH,PORTUGUESE) (AEP) 3-867-609-51 MANUAL, INSTRUCTION (ITALIAN) (AEP) 3-867-609-61 MANUAL, INSTRUCTION (SWEDISH,FINNISH) (CET) 3-867-609-71 MANUAL, INSTRUCTION (POLISH,CZECH,HUNGARIAN) (CET) 3-867-609-81 MANUAL, INSTRUCTION (RUSSIAN,SLOVAKIAN) (CET) X-3378-617-1 REMOTE CONTROLLER (RMT-CM35) ************************************************************* ************** HARDWARE LIST ************** #1 7-685-649-79 SCREW +BVTP 3X14 TYPE2 N-S #2 7-685-648-79 SCREW +BVTP 3X12 TYPE2 N-S #3 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #4 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S #5 7-621-770-87 SCREW +P 2.6X5 #6 7-685-133-19 SCREW (DIA.2.6) (IT3B) #7 7-682-549-04 SCREW +B 3X10 #8 7-621-772-20 SCREW +B 2X5 #9 7-621-772-40 SCREW +B 2X8 #10 7-627-852-08 SCREW, PRECISION +P 1.7X2.5 #11 7-685-661-79 SCREW +BVTP 4X12 TYPE2 N-S The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
