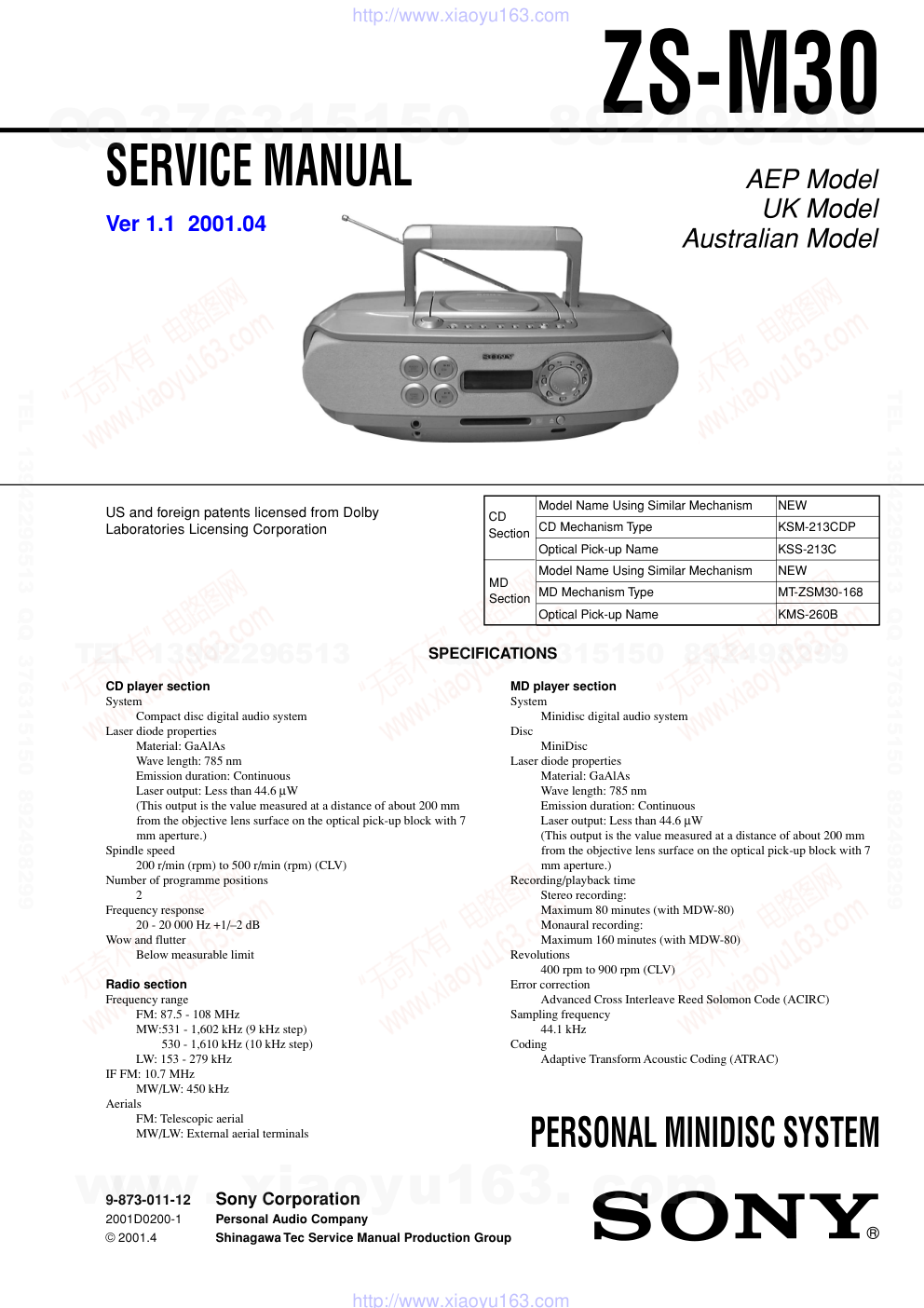

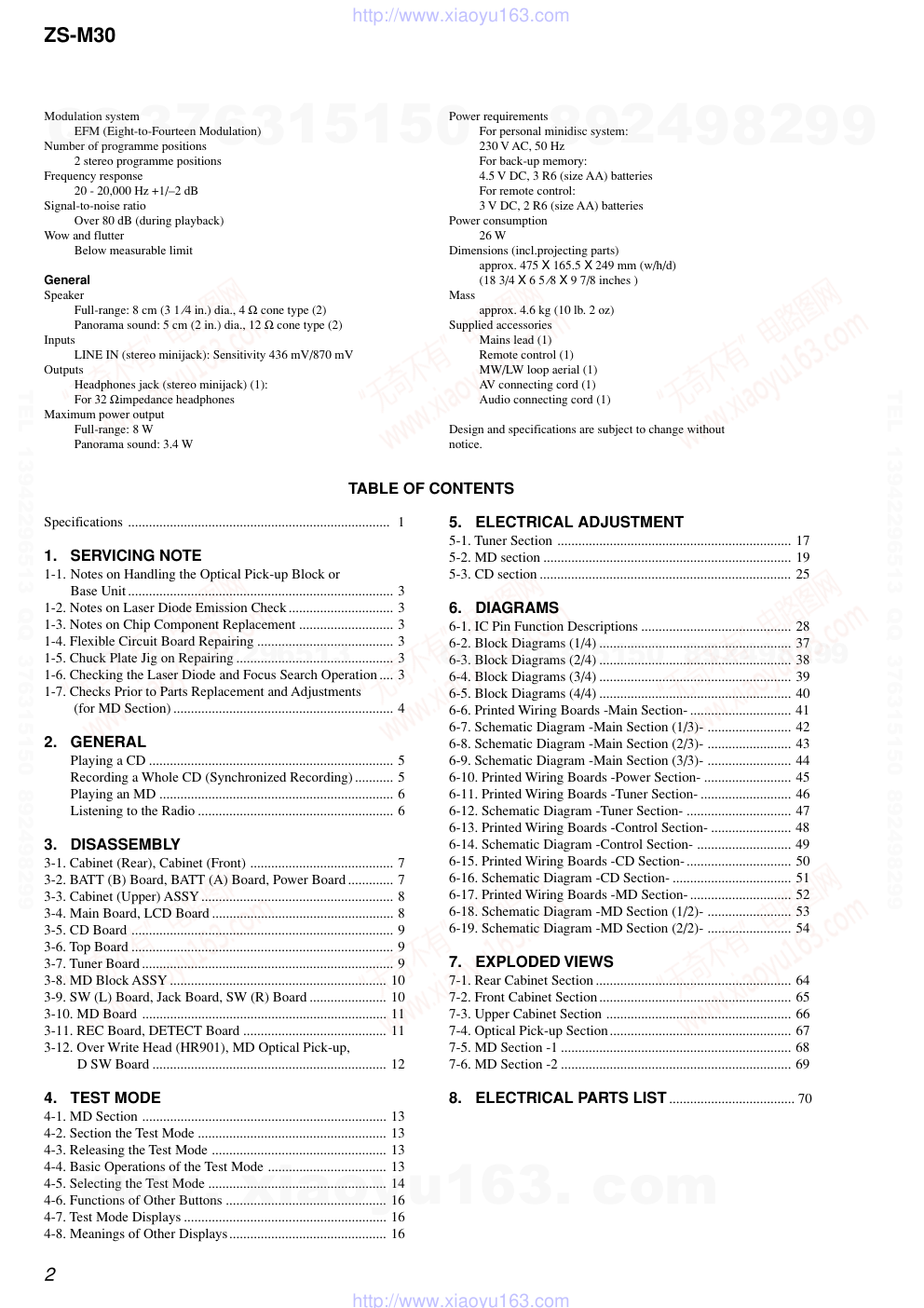

Ver 1.1 2001.04 Model Name Using Similar Mechanism CD Mechanism Type Optical Pick-up Name Model Name Using Similar Mechanism MD Mechanism Type Optical Pick-up Name ZS-M30 SERVICE MANUAL PERSONAL MINIDISC SYSTEM SPECIFICATIONS AEP Model UK Model Australian Model US and foreign patents licensed from Dolby Laboratories Licensing Corporation CD player section System Compact disc digital audio system Laser diode properties Material: GaAlAs Wave length: 785 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of about 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) Spindle speed 200 r/min (rpm) to 500 r/min (rpm) (CLV) Number of programme positions 2 Frequency response 20 - 20 000 Hz +1/–2 dB Wow and flutter Below measurable limit Radio section Frequency range FM: 87.5 - 108 MHz MW:531 - 1,602 kHz (9 kHz step) 530 - 1,610 kHz (10 kHz step) LW: 153 - 279 kHz IF FM: 10.7 MHz MW/LW: 450 kHz Aerials FM: Telescopic aerial MW/LW: External aerial terminals MD player section System Minidisc digital audio system Disc MiniDisc Laser diode properties Material: GaAlAs Wave length: 785 nm Emission duration: Continuous Laser output: Less than 44.6 µW (This output is the value measured at a distance of about 200 mm from the objective lens surface on the optical pick-up block with 7 mm aperture.) Recording/playback time Stereo recording: Maximum 80 minutes (with MDW-80) Monaural recording: Maximum 160 minutes (with MDW-80) Revolutions 400 rpm to 900 rpm (CLV) Error correction Advanced Cross Interleave Reed Solomon Code (ACIRC) Sampling frequency 44.1 kHz Coding Adaptive Transform Acoustic Coding (ATRAC) 9-873-011-12 2001D0200-1 © 2001.4 Sony Corporation Personal Audio Company Shinagawa Tec Service Manual Production Group NEW KSM-213CDP KSS-213C NEW MT-ZSM30-168 KMS-260B CD Section MD Section www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 ZS-M30 Modulation system EFM (Eight-to-Fourteen Modulation) Number of programme positions 2 stereo programme positions Frequency response 20 - 20,000 Hz +1/–2 dB Signal-to-noise ratio Over 80 dB (during playback) Wow and flutter Below measurable limit General Speaker Full-range: 8 cm (3 1 ⁄4 in.) dia., 4 Ω cone type (2) Panorama sound: 5 cm (2 in.) dia., 12 Ω cone type (2) Inputs LINE IN (stereo minijack): Sensitivity 436 mV/870 mV Outputs Headphones jack (stereo minijack) (1): For 32 Ωimpedance headphones Maximum power output Full-range: 8 W Panorama sound: 3.4 W Specifications ........................................................................... 1 1. SERVICING NOTE 1-1. Notes on Handling the Optical Pick-up Block or Base Unit............................................................................ 3 1-2. Notes on Laser Diode Emission Check.............................. 3 1-3. Notes on Chip Component Replacement ........................... 3 1-4. Flexible Circuit Board Repairing ....................................... 3 1-5. Chuck Plate Jig on Repairing ............................................. 3 1-6. Checking the Laser Diode and Focus Search Operation .... 3 1-7. Checks Prior to Parts Replacement and Adjustments (for MD Section) ............................................................... 4 2. GENERAL Playing a CD ...................................................................... 5 Recording a Whole CD (Synchronized Recording)........... 5 Playing an MD ................................................................... 6 Listening to the Radio ........................................................ 6 3. DISASSEMBLY 3-1. Cabinet (Rear), Cabinet (Front) ......................................... 7 3-2. BATT (B) Board, BATT (A) Board, Power Board ............. 7 3-3. Cabinet (Upper) ASSY....................................................... 8 3-4. Main Board, LCD Board .................................................... 8 3-5. CD Board ........................................................................... 9 3-6. Top Board ........................................................................... 9 3-7. Tuner Board ........................................................................ 9 3-8. MD Block ASSY .............................................................. 10 3-9. SW (L) Board, Jack Board, SW (R) Board ...................... 10 3-10. MD Board ...................................................................... 11 3-11. REC Board, DETECT Board ......................................... 11 3-12. Over Write Head (HR901), MD Optical Pick-up, D SW Board ................................................................... 12 4. TEST MODE 4-1. MD Section ...................................................................... 13 4-2. Section the Test Mode ...................................................... 13 4-3. Releasing the Test Mode .................................................. 13 4-4. Basic Operations of the Test Mode .................................. 13 4-5. Selecting the Test Mode ................................................... 14 4-6. Functions of Other Buttons .............................................. 16 4-7. Test Mode Displays .......................................................... 16 4-8. Meanings of Other Displays............................................. 16 TABLE OF CONTENTS Power requirements For personal minidisc system: 230 V AC, 50 Hz For back-up memory: 4.5 V DC, 3 R6 (size AA) batteries For remote control: 3 V DC, 2 R6 (size AA) batteries Power consumption 26 W Dimensions (incl.projecting parts) approx. 475 X 165.5 X 249 mm (w/h/d) (18 3/4 X 6 5 ⁄8 X 9 7/8 inches ) Mass approx. 4.6 kg (10 lb. 2 oz) Supplied accessories Mains lead (1) Remote control (1) MW/LW loop aerial (1) AV connecting cord (1) Audio connecting cord (1) Design and specifications are subject to change without notice. 5. ELECTRICAL ADJUSTMENT 5-1. Tuner Section ................................................................... 17 5-2. MD section ....................................................................... 19 5-3. CD section ........................................................................ 25 6. DIAGRAMS 6-1. IC Pin Function Descriptions ........................................... 28 6-2. Block Diagrams (1/4) ....................................................... 37 6-3. Block Diagrams (2/4) ....................................................... 38 6-4. Block Diagrams (3/4) ....................................................... 39 6-5. Block Diagrams (4/4) ....................................................... 40 6-6. Printed Wiring Boards -Main Section- ............................. 41 6-7. Schematic Diagram -Main Section (1/3)- ........................ 42 6-8. Schematic Diagram -Main Section (2/3)- ........................ 43 6-9. Schematic Diagram -Main Section (3/3)- ........................ 44 6-10. Printed Wiring Boards -Power Section- ......................... 45 6-11. Printed Wiring Boards -Tuner Section- .......................... 46 6-12. Schematic Diagram -Tuner Section- .............................. 47 6-13. Printed Wiring Boards -Control Section- ....................... 48 6-14. Schematic Diagram -Control Section- ........................... 49 6-15. Printed Wiring Boards -CD Section-.............................. 50 6-16. Schematic Diagram -CD Section- .................................. 51 6-17. Printed Wiring Boards -MD Section- ............................. 52 6-18. Schematic Diagram -MD Section (1/2)- ........................ 53 6-19. Schematic Diagram -MD Section (2/2)- ........................ 54 7. EXPLODED VIEWS 7-1. Rear Cabinet Section ........................................................ 64 7-2. Front Cabinet Section....................................................... 65 7-3. Upper Cabinet Section ..................................................... 66 7-4. Optical Pick-up Section.................................................... 67 7-5. MD Section -1 .................................................................. 68 7-6. MD Section -2 .................................................................. 69 8. ELECTRICAL PARTS LIST .................................... 70 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 ZS-M30 1-1. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. 1-2. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion,observe from more than 30 cm away from the objectivelens. 1-3. NOTES ON CHIP COMPONENT REPLACEMENT • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. 1-4. FLEXIBLE CIRCUIT BOARD REPAIRING • Keep the temperature of the soldering iron around 270 °C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. 1-6. CHECKING THE LASER DIODE AND FOCUS SEARCH OPERATION 1. Turn on the POWER and open the CD cover. 2. As shown below, push S701 (CD DOOR) with a screwdriver or other tool. 3. Press the CD button. 4. Check the objective lens to make sure that the laser diode is emitting light. If not so, the auto power control circuit or optical pickup would be damaged. Verify that the objective lens moves vertically three times for focus search. This Compact Disc player is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT label is located on the bottom exterior. CAUTION Use of controls or adjustments or performance of proce- duresother than those specified herein may result in haz- ardous radiation exposure. 1-5. CHUCK PLATE JIG ON REPAIRING On repairing CD section, playing a disc without the CD lid, use Chuck Plate Jig. • Code number of Chuck Plate Jig: X-4918-255-1 Insert a precision screw driver and push SWITCH (S701) SECTION 1 SERVICE NOTE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 ZS-M30 1-7. CHECKS PRIOR TO PARTS REPLACEMENT AND ADJUSTMENTS (FOR MD SECTION) Before performing repairs, perform the following checks to determine the faulty locations up to a certain extent. Details of the procedures are described in “5 Electrical Adjustments” Laser power check Criteria for Determination (Unsatisfactory if specified value is not satisfied) Note: The criteria for determination above is intended merely to determine if satisfactory or not, and does not serve as the specified value for adjustments. When performing adjustments, use the specified values for adjustments. Measure if unsatisfactory: • Clean the optical pick-up • Adjust again • Replace the optical pick-up • 0.9 mW power Specified value : 0.80 to 0.96 mW • 7.0 mW power Specified value : 6.8 to 7.2 mW lop (at 7mW) • Labeled on the optical pickup Iop value ± 10% • Replace the optical pick-up If always unsatisfactory: • Replace the overwrite head • Check for disconnection of the circuits around the overwrite head If occasionally unsatisfactory: • Check if the overwrite head is distorted • Check the mechanism around the sled • Error rate check Specified value : For points a and b C1 error : About 200 ADER : Below 2 Point C C1 error :Below 50 AD error :Below 2 • Error rate check Specified value: a. When using test disc (MDW-74/AU-1) C1 error : Below 80 ADER : Below 2 b. When using check disc (TDYS-1) C1 error : Below 50 • CPLAY error rate check Specified value: C1 error : Below 80 ADER : Below 2 • Replace the optical pick-up • Replace the optical pick-up Focus power check C PLAY check Self-recording/playback check www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 ZS-M30 SECTION 2 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 ZS-M30 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 ZS-M30 SECTION 3 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 3-1. CABINET (REAR), CABINET (FRONT) 3-2. BATT (B) BOARD, BATT (A) BOARD, POWER BOARD r The equipment can be removed using the following procedure. Set Cabinet (rear) Cabinet (front) BATT (B) board, BATT (A) board, power board Cabinet (upper) ASSY Main board, LCD board SW (L) board, jack board, SW (R) board REC board, detect board Over write head (HR901), MD optical pick-up, D SW board MD block ASSY CD board MD board TOP board Tuner board 4 2 7 9 Cabinet (rear) BATT (A) board Chissis, transformer BATT (B) board Power board 5Screws (+BVTP 3 X 12) (silver) 8Screws (+BVTP 3 X 10) 6Screws (+BVTP 3 X 10) 0CN902 1Claw 3Claw 4Main board CN801 Cabinet (front) Cabinet (rear) 2Screws (+BVTP 3 X 12) (silver) 2Screws (+BVTP 3 X 12) (silver) 1Screws (+BVTP 3 X 14) 1Screws (+BVTP 3 X 14) 3 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 ZS-M30 3-3. CABINET (UPPER) ASSY 3-4. MAIN BOARD, LCD BOARD 9 Cabinet (front) Cabinet (upper) ASSY 8Main board (CN303) 7Main board (CN302) 6Main board (CN301) 2CN810 1Screws (+BVTP 3 X 10) 4CD board (CN703) 5Wire,parallel (22 core) Main board (CN807) 0Wire,parallel (8 core) SW (R) board (CN402) 3Tuner board (CN1) 5 8 LCD1 Cabinet (upper) ASSY 6LCD board (CN404) 0LCD board Main board 7Screws (+BVTP 3 X 10) 4Screws (+BVTP 3 X 10) 4Screws (+BVTP 3 X 10) 9Remove solder (7 places) 2Wire,parallel (19 core) Main board (CN808) 1Wire,parallel (6 core) Main board (CN803) 3Main board (CN805) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 ZS-M30 3-5. CD BOARD 3-6. TOP BOARD CD board Cabinet (upper) ASSY 4 1Screw (+P 2 X 6) 3Remove solder (4 places) 2Wire,Parallel (16 core) (CN701) Top board Cabinet (upper) ASSY 1Screws (+BVTP 2.6 X 10) 2 3-7. TUNER BOARD Tuner board Cabinet (front) 1Screws (+BVTP 3 X 10) 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 ZS-M30 3-9. SW (L) BOARD, JACK BOARD, SW (R) BOARD 3-8. MD BLOCK ASSY Cabinet (front) SW (L) board 6 SW (R) board Jack board Retainer (A) Retainer (B) 2 1Screws (+BVTP 2.6 X 10) 3Screws (+BVTP 3 X 10) 5Screws (+BVTP 2.6 X 10) 4 MD block ASSY (MT-ZSM30-168) Chassis (TU) Cabinet (front) 1Screws (+BVTP3 X10) 1Screws (+BVTP 3 X10) 3Screws (+BVTT 2.6 X 6) 4 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 ZS-M30 3-10. MD BOARD 3-11. REC BOARD, DETECT BOARD REC board Chassis 3 DETECT board 7 Slider 4Move slider away from pin. 8Remove solder (2 places) 2Claws 2Claw 1Over write head flexible board (CN504) 5 6Claws MT-ZSM30-168 Case (MD upper) shield Case (MD lower) shield MD board 2 qsCN601 (2pin) 7Screws (+P 2.6 X 2.5) 4Screws, MD fitting 4Screws, MD fitting 0Op flexible board 8Claw 8Claw 8Claw 1Screws (+BVTP 2.6 X 5) 5 9 6Wire,parallel (9 core) REC board (CN505) qaWire,Parallel (7 core) 3Wire,parallel (22 core) Main board (CN807) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 ZS-M30 Over write head (HR901) 3 MD optical pick-up (KMS-260B) 4 Chassis 1Screw (+P 1.7X2.5) 6D SW board 5Screws (1.4 X 2) 2Screws (+P 1.4 X 3.5) 3-12. OVER WRITE HEAD (HR901), MD OPTICAL PICK-UP, D SW BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 ZS-M30 SECTION 4 TEST MODE Refer to “5. ELECTRICAL ADJUSTMENT” for the test mode of CD section. 4-1. MD SECTION 1. PRECAUTIONS FOR USE OF TEST MODE • As loading related operations will be performed regardless of the test mode operations being performed, be sure to check that the disc is stopped before setting and removing it. Even if the Z (MD EJECT) button is pressed while the disc is rotating during continuous playback, continuous recording, etc., the disc will not stop rotating. Therefore, it will be ejected while rotating. Be sure to press the Z (MD EJECT) button after pressing the NO/CANCEL button and the rotation of disc is stopped. 1-1. Recording laser emission mode and operating buttons • Continuous recording mode (CREC MODE) • Laser power check mode (LDPWR CHECK) • Laser power adjustment mode (LDPWR ADJUST) • When pressing the YES/ENTER button. 4-2. SETTING THE TEST MODE 1. Set to standby state. 2. Press and hold the YES/ENTER button then press MD u t x t u t x . 4-3. RELEASING THE TEST MODE Remove the power cord to release the test mode. 4-4. BASIC OPERATIONS OF THE TEST MODE All operations are performed with the following buttons: jogdial . , > , YES/ENTER and NO/CANSEL . The functions of these buttons are as follows. JOG ( > ) Proceeds the parameter/mode change. JOG ( . ) Returns to the parameter/mode change. YES/ENTER Goes ahead. Determines the setting/selection. NO/CANCEL Suspends. Function name Function www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 ZS-M30 •When selecting test mode, usually the message “TEMP ADJUST” appears. In two rare cases, however, another message may be shown. 1. After conclusion of automatic temperature compensation (starting from display “TEMP = 00”), the message “Disc Insert” appears. 2. The message “Disc Insert” is displayed right form the start. In both cases press the YES/ENTER button while holding the EDIT button, thus displaying “TEMP ADJUST” and entering normal test mode. In order to cause “TEMP ADJUST” to be displayed whenever test mode is selected, execute the following steps. 1. Rotate the jog dial until “EEP MODE” is shown. 2. Press the YES/ENTER button to display “EEP READ”. 3. Press the YES/ENTER button to display “EEP XXXX”. (The first two “X”-marks represent the address, the latter two the value). 4. Rotate the jog dial to set the address to 15. 5. Press the YES/ENTER button while holding the EDIT button. 6. Confirm that the display shows “EEP15XX >XX”. 7. Rotate the jog dial to set the value after the “>”-mark to FF. 8. Press the YES/ENTER button. 9. Confirm that the display shows “Complete”. 10.After that, confirm that the display turns to “EEP READ”. 11.Press the YES/ENTER button. 12.Confirm that the display shows “EEP15FF”. 13.Press the NO/CANCEL button. 4-5. SELECTING THE TEST MODE There are 9 types of test modes as shown below. The groups can be switched by turn the jog dial. After selecting the group to be used, press the YES/ENTER button. After setting a certain group, turn the jog dial between these modes. • For details of each adjustment mode, refer to “5. Electrical Adjustments”. • If a different mode has been selected by mistake, press the NO/CANCEL button to release that mode. • EEP MODE is not used for servicing and therefore are not described in detail. If these modes are set accidentally, press the NO/CANCEL button to release the mode immediately. Be especially careful this mode will overwrite the non-volatile memory and reset it, and as a result, the unit will not operate normally. TEMP ADJUST Temperature compensation offset adjustment LDPWR ADJUST Laser power adjustment LDPWR CHECK Laser power check LOAD CHECK load check S CURVE CHECK S curve check EFBAL ADJUST EF balance adjustment FBIAS ADJUST Focus bias adjustment FBIAS CHECK Focus bias check CPLAY MODE Continuous playback mode CREC MODE Continuous recording mode DETRK CHECK Detrack check LOAD AGING Load aging EEP MODE Non-volatile memory control Display Contents www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 ZS-M30 4-5-1. Operating the Continuous Playback Mode 1. Entering the continuous playback mode 1 Set the disc in the unit. (Whichever recordable discs or discs for playback only are available) 2 Potate the jog dial and display “CPLAY MODE”. 3 Press the YES/ENTER button to change the display to “CPLAY MID”. 4 When access completes, the display changes to “C1 = AD = ”. Note: The numbers “ ” displayed show you error rates and ADER. 2. Changing the parts to be played back 1 Press the YES/ENTER button during continuous playback to change the display as below. CPLAY MID CPLAY OUT CPLAY IN When pressed another time, the parts to be played back can be moved. 2 When access completes, the display changes to “C1 = AD = ”. Note: The numbers “ ” displayed show you error rates and ADER. 3. Ending the continuous playback mode 1 Press the NO/CANCEL button. The display will change to “CPLAY MODE”. 2 Press the Z (MD) button and take out the disc. Note: The playback start addresses for IN, MID, and OUT are as follows. IN : 40h cluster MID : 300h cluster OUT: 700h cluster 4-5-2. Operating the Continuous Recording Mode (Use only when performing self-recording/palyback check) 1. Entering the continuous recording mode 1 Set a recordable disc in the unit. 2 Rotate the jog dial and display “CRDE MODE”. 3 Press the YES/ENTER button to change the display to “CREC MID”. 4 When access completes, the display changes to “CREC ( )” and “REC ” lights up. Note: The numbers “ ” displayed shows you the recording position addresses. 2. Changing the parts to be recorded 1 When the YES/ENTER button is pressed during continuous recording, the display changes as below. When pressed another time, the parts to be recorded can be changed. “REC ” goes off. 2 When access completes, the display changes to “CREC ( )” and “REC ” lights up. Note: The numbers “ ” displayed shows you the recording position addresses. 3. Ending the continuous recording mode 1 Press the NO/CANCEL button. The display changes to “CREC MODE” and “REC ” goes off. 2 Press the Z (MD) button and take out the disc. Note 1: The recording start addresses for IN, MID, and OUT are as follows. IN : 40h cluster MID : 300h cluster OUT: 700h cluster Note 2: The NO/CANCEL button can be used to stop recording anytime. Note 3: Do not perform continuous recording for long periods of time above 5 minutes. Note 4: During continuous recording, be careful not to apply vibration. 4-5-3. Non-storage memory mode (EEP mode) This is the mode to read write the contents of the non-volatile storage memory. This mode is not used for servicing. If you accidentally enter this mode, exit immediately by pressing the NO/CANCEL button. CREC MID CREC OUT CREC IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 ZS-M30 SHUF PGM During continuous playback (CLV: ON) Tracking servo OFF STOP (CLV: OFF) Tracking servo ON Recording mode OFF Display Contents When Lit When Off 4-8.MEANINGS OF OTHER DISPLAYS Contents TOC EDIT TRACK TIMER MONO REC Recording mode ON ABCD adjustment completed Pit CLV-S FCS/TRK/AUTO GAIN successful Groove CLV-A FCS successful, TRK unsuccessful 4-7. TEST MODE DISPLAYS Each time the DISPLAY button is pressed, the display changes in the following order. 1. Mode display Displays “TEMP ADJUST”, “CPLAYMODE”, etc. 2. Error rate display Displays the error rate in the following way. C1 = AD = C1 = Indicates the C1 error. AD = Indicates ADER. 3. Address display The address is displayed as follows. (MO: recordable disc, CD: playback only disc) Press the REPEAT buttons at the same time to switches between the groove display and pit display. h = s = (MO pit and CD) h = a = (MO groove) h = Indicates the header address. s = Indicates the SUBQ address. a = Indicates the ADIP address. Note: “–” is displayed when servo is not imposed. 4. Auto gain display (Not used in servicing) The auto gain is displayed as follows. AG F = T = 5. IVR display (Not used in servicing) The IVR is displayed as follows. [ ][ ][ ] Function Contents REC/REC MODE Sets continuous playback when pressed in the STOP state. When pressed during continuous playback, the tracking servo turns ON/OFF. 4-6. FUNCTIONS OF OTHER BUTTONS u (MD) x (MD) M m DISPLAY Z (MD) When pressed during continuous playback, switches between recording start stop. Stops continuous playback and continuous recording. The sled moves to the outer circumference only when this is pressed. The sled moves to the inner circumference only when this is pressed. Switches the displayed contents each time the button is pressed Ejects the disc Mode display Error rate display Address display Auto gain display (Not used in servicing) IVR display (Not used in servicing) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 ZS-M30 TUNER BOARD C27 C10 R5 JC3 C12 R28 C44 Q3 C45 C43 C51 C5 R7 R4 D2 C6 R2 R3 C7 R32 Q2 Q4 R6 C8 C46 C47 C4 L7 C54 C11 R13 C26 R14 C9 R30 D4 D8 D9 D5 R31 D6 D7 9 JW2 JW7 CT4 JW6 8 D3 L4 L2 JW10 L5 JW5 Q1 FL1 CT3 L3 CT2 JW4 JW3 JW1 + — Digital JW4 (VT) 100KΩ voltmeter SECTION 5 ELECTRICAL ADJUSTMENTS RADIO BAND button : MW or LW Volume : MIN 5-1.TUNER SECTION AM Section FM Section RADIO BAND button : FM Volume : MIN Put the lead-wire antenna close to the supplisd MW/LW loop antenna. AM RF signal generator 30% amplitude modulation by 400Hz signal. Output level : as low as possible telescopic antenna terminal FM RF signal generator 22.5kHz frequency deviation by 400Hz signal. Output level : as low as possible 0.01 uF Adjustment Location : Tuner board (See page 18) • Repeat the procedures in each adjustment several times, and the frequency coverage and tracking adjustments should be finally done by the trimmer capacitors. AM IF ADJUSTMENT Adjust for a maximum reading on level meter. T1 450kHz MW FREQUENCY COVERAGE ADJUSTMENT Adjust part Frequency display L5 531kHz Confirmation 1,611kHz reading on digital voltmeter. Adjustment value: 1.0V Standaed value: 0.7 to 1.3V 5.1 to 5.9V MW TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L 3 621kHz CT2 1,404kHz LW FREQUENCY COVERAGE ADJUSTMENT Adjust part Frequency display CT4 279kHz Adjustment value: 5.4 to 6.0V Confirmation 153kHz 0.4 to 1.1V Frequency Coverage Adjustment Connect Location : reading on digital voltmeter LW TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L 4 162kHz CT3 261kHz FM FREQUENCY COVERAGE ADJUSTMENT Adjust part Frequency display Confirmation 87.5kHz 1.4 to 2.4V Confirmation 108kHz 2.7 to 3.7V reading on digital voltmeter FM IF ADJUSTMENT Adjust for a maximum reading on level meter. L6 10.7MHz FM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L1 87.5MHz CT1 108MHz 47KΩ level meter set LINE OUT + – (SIDE B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 ZS-M30 L5 : MW Frequency Coverage Adjustment CT4 : LW Frequency Coverage Adjustment T1 : AM IF Adjustment L6 : FM IF Adjustment L3 : MW Tracking Adjustment CT2 : MW Tracking Adjustment CT1 : FM Tracking Adjustment L4 : LW Tracking Adjustment CT3 : LW Tracking Adjustment L1 : FM Tracking Adjustment [TUNER BOARD] (Component side) Adjustment Location: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 ZS-M30 5-2. MD SECTION 1. PARTS REPLACEMENT AND ADJUSTMENT • Check and adjust the mechanism deck as follows. The procedure changes according to the part replaced. • Laser power check • Focus bias check • C PLAY check • Self-recording/playback check Parts Replacement and Repair NG Has the OWH been replaced? NO OK NO NO NO Has OP, IC603, IC502, or IC504 been replaced? YES YES Initial setting of the adjustment value Has OP or IC603 been replaced? YES IOP information recording (IOP value labeled on OP) Has IC603 or D501 been replaced? YES Temperature compensation offset adjustment • Laser power adjustment • EF balance adjustment • Focus bias adjustment • Error rate adjustment • Focus bias check • Auto gain adjustment Check the sled and spindle mechanisms. Other causes can be suspected. • Abbreviation OP : Optical pick-up OWH : Overwrite head www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 ZS-M30 2. PRECAUTIONS FOR CHECKING LASER DIODE EMISSION To check the emission of the laser diode during adjustments, never view directly from the top as this may lose your eye-sight. 3. PRECAUTIONS FOR USE OF OPTICAL PICK-UP (KMS-260B) As the laser diode in the optical pick-up is easily damaged by static electricity, solder the laser tap of the flexible board when using it. Before disconnecting the connector, desolder first. Before connect- ingthe connector, be careful not to remove the solder. Also take adequate measures to prevent damage by static electricity. Handle the flexible board with care as it breaks easily. 4. PRECAUTIONS FOR ADJUSTMENTS 1. When replacing the following parts, perform the adjustments and checks with in the order shown in the following table. 2. Set the test mode when performing adjustments. After completing the adjustments, release the test mode. Perform the adjustments and checks in “group S” of the test mode. 3. Perform the adjustments to be needed in the order shown. 4. Use the following tools and measuring device. • Check Disc (MD) TDYS-1 (Part No. 4-963-646-01) • Test Disc (MDW-74/AU-1) (Part No. 8-892-341-41) • Laser power meter LPM-8001 (Part No. J-2501-046-A) or MD Laser power meter 8010S (Part No. J-2501-145-A) • Oscilloscope (Measure after performing CAL of prove) • Digital voltmeter • Thermometer 5. When observing several signals on the oscilloscope, etc., make sure that VC and ground do not connect inside the oscilloscope. (VC and ground will become short-circuited) 6. Using the above jig enables the waveform to be checked with-out the need to solder. (Refer to Service Note on page 3) 7. As the disc used will affect the adjustment results, make sure that not dusts nor fingerprints are attached to it. Laser Power Meter When performing laser power checks and adjustment (electrical adjustment), use of the new MD laser power meter 8010S (Part No. J-2501-145-A) instead of the conventional laser power meter is con- venient. It sharply reduces the time and trouble to set the laser power meter sensor onto the objective lens of optical pick-up. 5. CREATING CONTINUOUSLY-RECORDED DISC * This disc is used in focus bias adjustment and error rate check. The following describes how to create a continuous recording disc. 1. Insert a disc (blank disc) commercially available. 2. Turn the JOG dial to display “CREC MODE”. 3. Press the YES/ENTER button again to display “CREC MID”. Display “CREC (0300)” and start to recording. 4. Complete recording within 5 minutes. 5. Press the NO/CANCEL button and stop recording. 6. Press the Z (MD) button and remove the disc. The above has been how to create a continuous recorded data for the focus bias adjustment/check and MO error rate check. Note: • Be careful not to apply vibration during continuous recording. flexible board laser tap pick- up Optical pick-up flexible board 2.Temperature compensation offset adjustment 1.Recording of IOP information (Value written in the pick-up) 3.Laser power adjustment 4.EF balance adjustment 5.Focus bias adjustment 6.Error rate check Optical Pick-up BD Board IC603 D501 IC502, IC504 IC506 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 ZS-M30 6. CHECK PRIOR TO REPAIRS These checks are performed before replacing parts according to “approximate specifications” to determine the faulty locations. For details, refer to “Checks Prior to Parts Replacement and Adjust- ments”(See page 4). 6-1. Laser Power Check Connection: Checking Procedure: 1. Set the laser power meter on the objective lens of the optical pick-up. (When it cannot be set properly, press the m but-ton or M button to move the optical pick-up) Connect the digital voltmeter to TPO 502 (I+3 V) and TP503 (IOP) on the MD board. 2. Turm the JOG dial to display “LDPWR CHECK”. 3. Press the YES/ENTER button once to display “LD 0.9 mW $ ”. Check that the reading of the laser power meter become 0.80 to 0.96 mW. 4. Press the YES/ENTER button once more to display “LD 7.0 mW $ ”. Check that the reading the laser power meter and digital voltmeter satisfy the specified value. Specified Value: Laser power meter reading : 6.8 - 7.2 mW Digital voltmeter reading : Value on the optical pick-up label ± 10 % 5. Press the NO/CANCEL button to display “LDPWR CHECK” and stop the laser emission. (The NO/CANCEL button is effective at all times to stop the laser emission) Note 1: After step 4, each time the YES/ENTER button is pressed, the display will be switched “LD 0.7 mW $ ”, “LD 6.2 mW $ ”, and “LD WP $ ”. Nothing needs to be performed here.( = correction) 6-2. Focus Bias Check Change the focus bias and check the focus tolerance amount. Checking Procedure: 1. Load the test disc (MDW-74/AU-1). 2. Turn the JOG dial to display “CPLAY MODE”. 3. Press the YES/ENTER button twice to display “CPLAY MID”. 4. Press the NO/CANCEL button when “C1 = AD = ” is displayed. 5. Turn the JOG dial to display “FBIAS CHECK”. 6. Press the YES/ENTER button to display “ / c = ”. The first four digits indicate the C1 error rate, the two digits after (( / )) indicate ADER, and the 2 digits after “c =” indicate the focus bias value. Check that the C1 error is below 50 and ADER is below 2. 7. Press the YES/ENTER button to display “ / b = ”. Check that the C1 error is about 200 and ADER is below 2. 8. Press the YES/ENTER button to display “ / a = ”. Check that the C1 error is about 200 and ADER is below 2. 9. Press the NO/CANCEL button, then press the Z (MD) button and take out the test disc. 6-3. C PLAY Check MO Error Rate Check Checking Procedure: 1. Load the test disc (MDW-74/AU-1). 2. Turn the JOG dial to display “CPLAY MODE”. 3. Press the YES/ENTER button to display “CPLAY MID”. 4. The display changes to “C1 = AD = ”. 5. If the C1 error rate is below 80, check that ADER is below 2. 6. Press the NO/CANCEL button to stop playback, then press the Z (MD) button and take out the test disc. CD Error Rate Check Checking Procedure: 1. Load the check disc (MD) TDYS-1. 2. Turn the JOG dial to display “CPLAY MODE”. 3. Press the YES/ENTER button twice to display “CPLAY MID”. 4. The display changes to “C1 = AD = ”. 5. Check that the C1 error rate is below 50. 6. Press the NO/CANCEL button to stop playback, then press the Z (MD) button and take out the check disc. laser power meter Optical pick-up objective lens R622 C508 C521 C512 L503 C502 R511 C518 C511 C505 R505 R510 Q503 R508 R513 R509 R517 C519 C517 C520 C522 R519 R516 R512 C506 R504 R503 Q506 Q507 Q505 Q504 R518 Q502 R515 IC502 R52 L501 L506 C611 R633 Q501 R514 R502 C607 TP503 (IOP) TP502 (I+3V) (TE) 1 36 25 24 13 15 20 37 48 45 40 30 35 5 1012 TP502 (I+3V) TP503 (IOP) MD BOARD (SIDE B) digital voltmeter KMS260B 27X40 B0825 lOP=82.5 mA in this case lOP (mA) = Digital voltmeter reading (mV)/3.3 (Ω) (Optical pick-up label) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 ZS-M30 7. Turn the JOG dial to display “LDPWR CHECK”. 8. Press the YES/ENTER button once to display “LD 0.9mW $ ”. Check that the reading of the laser power meter become 0.85 to 0.91 mW. 9. Press the YES/ENTER button once more to display “LD 7.0 mW $ ”. Check that the reading the laser power meter and digital voltmeter satisfy the specified value. Note down the digital voltmeter reading value. 6-4. Self-Recording/playback Check Prepare a continuous recording disc using the unit to be repaired and check the error rate. Checking Procedure: 1. Load a recordable disc (blank disc). 2. Turn the JOG dial to display “CREC MODE”. 3. Press the YES/ENTER button to display “CREC MID”. 4. When recording starts, lights up “ REC ” and display “CREC (@@@@)” (@@@@ is the address). 5. About 1 minute later, press the NO/CANCEL button to stop continuous recording. 6. Turn the JOG dial to display “CPLAY MODE”. 7. Press the YES/ENTER button to display “CPLAY MID”. 8. “C1 = AD = ” will be displayed. 9. Check that the C1 error becomes below 80 and the ADER be- low 2. 10.Press the NO/CANCEL button to stop play back, then press the Z (MD) button and take out the disc. Note: After the TEST MODE is entered, insert the disc. 7. TEMPERATURE COMPENSATION OFFSET ADJUSTMENT Save the temperature data at that time in the non-volatile memory as 25 °C reference data. Note: 1. Usually, do not perform this adjustment. 2. Perform this adjustment in an ambient temperature of 22 °C to 28 °C. Perform it immediately after the power is turned on when the internal temperature of the unit is the same as the ambient tem perature of 22 °C to 28 °C. 3. When D501 has been replaced, perform this adjustment after the tem-perature of this part has become the ambient tempera ture. Adjusting Procedure: 1. Turn the JOG dial to display “TEMP ADJUST”. 2. Press the YES/ENTER button to select the “TEMP ADJUST” mode. 3. “TEMP = ” and the current temperature data will be displayed. 4. To save the data, press the YES/ENTER button. When not saving the data, press the NO/CANCEL button. 5. When the YES/ENTER button is pressed, “TEMP = SAVE” will be displayed and turned back to “TEMP ADJUST” display then. When the NO/CANCEL button is pressed, “TEMP ADJUST” will be displayed immediately. Specified Value: The “TEMP = ” should be within “E0 - EF”, “F0 - FF”, “00 - 0F”,“10 - 1F” and “20 - 2F”. Adjusting Procedure: 1. Set the laser power meter on the objective lens of the optical pick-up. (When it cannot be set properly, press the m but-ton or M button to move the optical pick-up) Connect the digital voltmeter to TP502 (I+3 V) and TP503 (IOP) on the MD board. 2. Turn the JOG dial to display “LDPWR ADJUST”. (Laser power: For adjustment) 3. Press the YES/ENTER button once to display “LD 0.9 mW $ ”. 4. Turn the JOG dial so that the reading of the laser power meter becomes 0.85 to 0.91 mW. Press the YES/ENTER button after setting the range knob of the laser power meter, and save the adjustment results. (“LD SAVE $ ” will be displayed for a moment) 5. Then “LD 7.0 mW $ ” will be displayed. 6. Turn the JOG dial and adjust so that the reading on the laser power meter is 6.9 to 7.1 mW. Press the YES/ENTER button to save the setting. Note: Do not perform the emission with 7.0 mW more than 15 sec onds continuously. 8. LASER POWER ADJUSTMENT Connection: laser power meter Optical pick-up objective lens R622 C508 C521 C512 L503 C502 R511 C518 C511 C505 R505 R510 Q503 R508 R513 R509 R517 C519 C517 C520 C522 R519 R516 R512 C506 R504 R503 Q506 Q507 Q505 Q504 R518 Q502 R515 IC502 R52 L501 L506 C611 R633 Q501 R514 R502 C607 TP503 (IOP) TP502 (I+3V) (TE) 1 36 25 24 13 15 20 37 48 45 40 30 35 5 1012 TP502 (I+3V) TP503 (IOP) MD BOARD (SIDE B) digital voltmeter www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 ZS-M30 10. Press the NO/CANCEL button to display “LDPWR CHECK” and stop the laser emission. (The NO/CANCEL button is effective at all times to stop the laser emission) Note 1: After step 9, each time the YES/ENTER button is pressed, the display will be switched “LD 0.7 mW $ ”, “LD 6.2 mW $ ”, and “LD WP $ ”. Nothing needs to be performed here. ( = correction) KMS260B 27X40 B0825 lOP=82.5 mA in this case lOP (mA) = Digital voltmeter reading (mV)/3.3 (Ω) (Optical pick-up label) 9. EF BALANCE ADJUSTMENT Adjusting Procedure: 1. Connect an oscilloscope to TP504 (TE) and TP506 (VC) on the MD board. 2. Load a disc (any available on the market). (Refer to Note 1) 3. Press the M button to move the optical pick-up outside the pit. 4. Turn the JOG dial to display “EFBAL ADJUST”. 5. Press the YES/ENTER button to display “EFB = MO-R”. (Laser power READ power/Focus servo ON/tracking servo OFF/ spindle (S) servo ON) 6. Turn the JOG dial so that the waveform of the oscilloscope be comes the specified value. (When the JOG dial is turned, the of “EFB = ” changes and the waveform changes ) In this adjust-ment, wave form var ies at intervals of approx. 2 %. Adjust the waveform so that the specified value is satisfied as much as possible. (Read power traverse adjustment) 7. Press the YES/ENTER button and save the result of adjust- ment to the non-volatile memory. (“EFB = SAVE” will be displayed for a moment. Then “EFB = MO-W” will be dis- played) 8. Turn the JOG dial so that the waveform of the oscilloscope be comes the specified value. (When the JOG dial is turned, the of “EFB- ” changes and the waveform changes) In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the speci- fied value is satisfied as much as possible. (Write power traverse adjustment) Note 1: Data will be erased during MO reading if a recorded disc is used in this adjustment. Note 2: If the traverse waveform is not clear, connect the oscilloscope as shown in the following figure so that it can be seen more clearly. C521 C526 L509 517 C519 C520 C522 R519 R518 R533 R531 R535 IC502 R524 R532 R525 R540 R542 R54 C546 R538 C550 TP505 (RF) TP506 (VC) TP504 (TE) 36 25 24 20 37 40 30 35 MD BOARD (SIDE B) Ω oscilloscope (DC range) Connection: C521 C526 L509 517 C519 C520 C522 R519 R518 R533 R531 R535 IC502 R524 R532 R525 R540 R542 R54 C546 R538 C550 TP505 (RF) TP506 (VC) TP504 (TE) 36 25 24 20 37 40 30 35 [MD BOARD] (SIDE B) oscilloscope (DC range) A B VC Specification : A = B Traverse Waveform A B VC Specification : A = B Traverse Waveform Specified Value: Laser power meter reading : 7.0 ± 0.2 mW Digital voltmeter reading : Value on the optical pick-up label ± 10% www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 ZS-M30 9. Press the YES/ENTER button, and save the adjustment re- sults in the non-volatile memory. (“EFB = SAVE” will be displayed for a moment) 10. “EFB = MO-P” will be displayed. The optical pick-up moves to the pit area automatically and servo is imposed. 11. Turn the JOG dial until the waveform of the oscilloscope moves closer to the specified value. In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the specified value is satisfied as much as possible. 12. Press the YES/ENTER button, and save the adjustment re- sults in the non-volatile memory. (“EFB = SAVE” will be displayed for a moment) Next “EFBAL ADJUST” is displayed. The disc stops rotating automatically. 13. Press the Z (MD) button and take out the disc. 14. Load the check disc (MD) TDYS-1. 15. Press the YES/ENTER button to display “EFB = CD”. Servo is imposed automatically. 16. Turn the JOG dial so that the waveform of the oscilloscope moves closer to the specified value. In this adjustment, waveform varies at intervals of approx. 2%. Adjust the waveform so that the specified value is satisfied as much as possible. 17. Press the YES/ENTER button, display “EFB = SAVE” for a moment and save the adjustment results in the non-volatile memory. Next “EFBAL ADJUST” will be displayed. 18. Press the Z (MD) button and take out the disc. 10. FOCUS BIAS ADJUSTMENT Adjusting Procedure: 1. Load the continuously-recorded disc. (Refer to “5. CREATING CONTINUOUSLY-RECORDED DISC”) 2. Turn the JOG dial to display “CPLAY MODE”. 3. Press the YES/ENTER button to display “CPLAY MID”. 4. Press the NO/CANCEL button when “C1 = AD = ” is displayed. 5. Turn the JOG dial to display “FBIAS ADJUST”. 6. Press the YES/ENTER button to display “ / a = ”. The first four digits indicate the C1 error rate, the two digits after “ / ” indicate ADER, and the 2 digits after “a =” indicate the focus bias value. 7. Turn the JOG dial clockwise and find the focus bias value at which the C1 error rate becomes about 200 (Refer to Note 2). 8. Press the YES/ENTER button to display “ / b = ”. 9. Turn the JOG dial counterclockwise and find the focus bias value at which the C1 error rate becomes about 200. 10. Press the YES/ENTER button to display “ / c = ”. 11. Check that the C1 error rate is below 50 and ADER is 00. Then press the YES/ENTER button. 12. If the “( )” in “ - - ( )” is above 20, press the YES/ENTER button. If below 20, press the NO/CANCEL button and repeat the adjustment from step 2. 13. Press the Z (MD) button and take out the disc. Note 1: The relation between the C1 error and focus bias is as shown in the following figure. Find points A and B in the following figure using the above adjustment. The focal point position C is auto- matically calculated form points A and B. Note 2: As the C1 error rate changes, perform the adjustment using the average value. 11. ERROR RATE CHECK 11-1. CD Error Rate Check Checking Procedure: 1. Load the check disc (MD) TDYS-1. 2. Turn the JOG dial and display “CPLAY MODE”. 3. Press the YES/ENTER button twice and display “CPLAY MID”. 4. The display changes to “C1 = AD = ”. 5. Check that the C1 error rate is below 20. 6. Press the NO/CANCEL button to stop playback, then press the Z (MD) button and take out the check disc. 11-2. MO Error Rate Check Checking Procedure: 1. Load the continuously-recorded disc. (Refer to “5. CREATING CONTINUOUSLY-RECORDED DISC”) 2. Turn the JOG dial to display “CPLAY MODE”. 3. Press the YES/ENTER button to display “CPLAY MID”. 4. The display changes to “C1 = AD = ”. 5. If the C1 error rate is below 50, check that ADER is 00. 6. Press the NO/CANCEL button to stop playback, then press the Z (MD) button and take out the test disc. A B VC Specification : A = B Traverse Waveform A B VC Specification : A = B Traverse Waveform B C A C1 error Focus bias value (F.BIAS) about www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 ZS-M30 12. FOCUS BIAS CHECK Change the focus bias and check the focus tolerance amount. Checking Procedure: 1. Load the continuously-recorded disc. (Refer to “5. CREATING CONTINUOUSLY-RECORDED DISC”) 2. Turn the JOG dial to display “CPLAY MODE”. 3. Press the YES/ENTER button twice to display “CPLAY MID”. 4. Press the NO/CANCEL button when “C1 = AD = ” is displayed. 5. Turn the JOG dial to display “FBIAS CHECK”. 6. Press the YES/ENTER button to display “ / c = ”. The first four digits indicate the C1 error rate, the two digits after “ / ” indicate ADER, and the 2 digits after “c =” indicate the focus bias value. Check that the C1 error is below 50 and ADER is below 2. 7. Press the YES/ENTER button and display “ / b = ”. Check that the C1 error is about 200 and ADER is below 2. 8. Press the YES/ENTER button and display “ / a = ”. Check that the C1 error is about 200 and ADER is below 2. 9. Press the NO/CANCEL button, then press the Z (MD) button and take out the disc. Note 1: If the C1 error and ADER are above other than the speci- fied value at points A (step 8. in the above) or B (step 7. in the above), the focus bias adjustment may not have been carried out properly. Adjust perform the beginning again. 5-3. CD SECTION Set the CD test mode when performing confirmations. After completing the confirmation, release the CD test mode. In the CD test mode, the set works as following sequence. CD test mode sequence: 2. CD test mode 2 Press the x (CD) button Press the x (CD) button 3. STOP mode 2 4. FOCUS mode 5. ALL SERVO ON mode 6. LPC OFF mode 7. TRACKING GAIN UP mode 8.High speed mode Press the u (CD) button Press the u (CD) button Press the x (CD) button. Press the u ,(CD) button. Press the x (CD) button. Press the x (CD) button. Press the x (CD) button. Press the x (CD) button. Press the u ,(CD) button. Press the u ,(CD) button. Press the u ,(CD) button. Press the u ,(CD) button. Press the u ,(CD) button. 1. CD test mode 1 Enter the CD test mode CD test mode www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 ZS-M30 2. STOP Mode 2 1. Press the x (CD) button to enter the STOP mode 2, and dis- play as below. Display 1. Entering the CD test Mode 1. Press POWER button to turn on the power. 2. Place CD into tray (TOC data of the CD will be read). 3. Press and hold EDIT button, then press CD buttons in the following order: u (CD)t x (CD)t u (CD)t x (CD) 4. All LED and LCD segments start flashing. 5. Press any button to stop flashing of LED and LCD segments and to shoe the following display. 82 PGM Display Specified Value: traverse level: 0.65 to 1.20 Vp-p 2. Press the M and m button to move the optical pick-up to position of the track where signal is recorded. 3. FOCUS Mode (Traverse Confirmation) 1. Press the u (CD ) button to enter the FOCUS mode and dis play as below. (Focus servo ON. CLV-S, tacking and sled servo OFF) Display F- PGM 2. Connect an oscilloscope to TP (TE) and TP (VC) on the CD board. Connection: 3. Confirm that the traverse level of waveform satisfy specified value as follows. Traverse Waveform A B A = B VC traverse level: 0.65 to 1.20 Vp- 81 PGM 21 41 TP (RF) TP (VC) TP(TE) C731 C715 R718 J R716 R719 R722 R721 R7 C726 R717 C730 R786 C720 C723 C712 C721 C722 C R715 C714 C716 R713 Q702 R783 Q701 R708 IC702 JW724 JW701 10 JW719 JW70 JW715 JW720 [CD BOARD](SIDE B) TP (TE) TP (VC) oscilloscope (DC range) P- PGM 4. ALL SERVO ON Mode 1 (RF Level and Jitter Confirmation 1) 1. Press the u (CD) button four times to enter the ALL SERVO ON mode 1 (start playback the disc) and display as below. (All servo ON. LPC ON) Display 6. Press x (CD)button to enter CD test mode (STOP MODE 1) and to show the following display. 88 PGM Display www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 ZS-M30 6. Releasing the CD Test Mode 1. Press the x (CD) button to stop rotate the disc. 2. Press the POWER button, then remove the power cord to release the test mode. Specified Values: RF level : 1.1 to 1.3 Vp-p jitteriless than 9nsec P- OF PGM VOLT/DIV: 200 mV TIME/DIV: 500 ns RF level: 1.1 to1.3 Vp-p 5. LPC Mode (RF Level and Jitter Confirmation 2) 1. Press the u button to enter the LPC OFF mode and display as below. (All servo ON. LPC OFF) RF signal Waveform 21 41 TP (RF) TP (VC) TP(TE) C731 C715 R718 J R716 R719 R722 R721 R7 C726 R717 C730 R786 C720 C723 C712 C721 C722 C R715 C714 C716 R713 Q702 R783 Q701 R708 IC702 JW724 JW701 10 JW719 JW70 JW715 JW720 [CD BOARD](SIDE B) TP (RF) TP (VC) oscilloscope (DC range) 2. Connect an osilloscope to TP (RF) and TP (VC) on the CD board. Connection: 3. Confirm that the RF level and jitter of waveform satisfy speci- fiedvalues as follows. Display 2. Confirm that the RF level and jitter of waveform satisfy speci- fiedvalues as follows. Specified Values: RF level : 0.9 to 1.4 Vp-p jitteriless than 9nsec If the RF level and jitter are out of specified values, measure again after clean the object lens by an applicator with lens cleaning liq- uid. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 ZS-M30 Pin No. Pin name I/O Description 1 MD–PDOWN O Power down signal output to the MD mechanism coutroller(IC601) 2 MD–SRTS I System controller busy status monitor input from the MD mechanism controller 3 MD–PACK IN I MO disc detection signal input 4 MD–SCTS I MD mechanism controller busy status monitor input from the MD mechanism controller 5 MD–RST O Power supply on /off control signal output for the MD mechanism controller 6 MD–H O MD play control signal output to the A/D, D/A converter(IC604) 7 REC–H O MD record signal output to the A/D, D/A converter (IC604) 8–10 — Not used (OPEN) 11 B/L7V–SHORT I Backlight voltage detection input 12 — Not used (OPEN) 13 CD–MUTE — Not used (OPEN) 14 AU–MUTE O Audio mute drive signal output 15–17 — Not used (OPEN) 18 SUR–CTR — Not used (OPEN) 19, 20 — Not used (OPEN) 21 MEGA BASS O MEGA–BASS ON/OFF signal output 22 HP–SW O Headphones ON/OFF signal output 23 AU–CS O Audio chip select signal output 24 AU–DATA O Serial data output to the electrical volume (IC302) 25 AU–CLK O Serial data transfer clock signal output 26–29 — Not used (OPEN) 30 LEO–OPERATION2 — Not used (OPEN) 31 PA–STANDBY O Power amplifier ON/OFF signal output “ L ” : standby “ H ” power ON 32 P–CON2 — Not used (OPEN) 33 LINE–MUTE O Line mute drive signal output 34 TU–MUTE — Not used (OPEN) 35 SUR O Panorama sound select signal output 36 LED–HIGHSPEED2 O HIGHSPEED LED ON/OFF control signal output 37 LED–SURROUND2 O Panorama sound LED ON/OFF control signal output 38 VDD–CONT O VDD 3.3V ON/OFF control signal output 39 TU–SFT O Level shift control signal output 40 RST I System reset signal input 41 VSS — Ground terminal 42 XTAL I Main system clock input terminal (8MHz) 43 EXTAL O Main system clock output terminal (8MHz) 44 — Not used (OPEN) 45 LCD–STB O LCD standby signal output 46 LCD–DATA O LCD serial data output 47 LCD–CLK O LCD clock signal output 48 SELECT–GND — Not used (OPEN) 49 SELECT — Not used (fixed “ H ” ) 50 LED–OPERATION — Not used (OPEN) 51 LEO–HISPEED — Not used (OPEN) 52 AVSS — Ground terminal 53 AVREF — Reference voltage (3.3V) input for A/D converter 54 AVDD — Power supply terminal(3.3V) 55 KEY–AD1 I Key input terminal 56 KEY–AD0 I Key input terminal 57 JOG–B I Jog controller (B) input SECTION 6 DIAGRAMS 6-1. IC PIN FUNCTION DESCRIPTIONS • MAIN BOARD IC801 System control (CXP740096-059Q) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 ZS-M30 58 JOG–A I Jog controller (A) input 59 KEY–AD4 I Key input terminal 60 KEY–AD3 I Key input terminal 61 KEY–AD2 I Key input terminal 62 COM3.3V–SHORT I COM3.3V voltage detection terminal 63 LED–SURROUND — Not used (OPEN) 64 CD–POWER O Power supply ON/OFF signal output for CD servo system 65 CD–C2P0 — Not used (OPEN) 66 CD–SPH O CD High speed recording control signal output 67 CD–AGC CONT O CD AGC signal output 68 CD–SCLK O Subcode Q data transfer clock signal output for CD DSP IC (IC702) 69 MD–SRXD I UART communication data input from the MD mechanism controller (IC601) 70 MD–STXD O UART communication data output to the MD mechanism controller (IC601) 71 — Not used (OPEN) 72 — Not used (OPEN) 73 CD–CLK O Serial data transfer clock signal output to the CD DSP IC (IC702) 74 CD–XLAT O Serial data latch pulse signal output to the CD DSP IC (IC702) 75 CD–DATA O Serial data output to the CD DSP IC (IC702) 76 CD–XRST O CD reset signal output to the CD RF AMP (IC701),CD DSP IC (IC702) 77 CD SENSE I Internal status (SENSE) input from the CD DSP IC (IC702) 78 CD–SCOR I Subcode sync (SO +S1) detection signal input from the CD DSP IC (IC702) 79 CD–SQSO I Subcode Q data input from the CD DSP IC (IC702) 80 CD–RFH O CD RF level select output 81 CD–SQCK O Subcode Q data reading clock signal output to the CD DSP IC (IC702) 82,83 — Not used (OPEN) 84 CD–DOOR I CD door open/close signal input 85 RMC I Remote control signal input 86 TEX I Sub system clock input terminal (32.768KHz) 87 TX O Sub system clock output terminal (32.768KHz) 88 VSS — Ground terminal 89 VDD — Power supply terminal (3.3V) 90-92 — Not used (OPEN) 93 B/L–CONT O LCD backlight control signal output 94 ACCHK I AC power supply voltage detection terminal 95 P–COM O Power ON/OFF control signal output 96 — Not used (OPEN) 97 TU–CE O PLL serial chip enable signal output to the tuner IC (IC1) 98 TU–DATA O PLL serial data output to the tuner IC (IC1) 99 TU–CLK O PLL serial data transfer clock signal output to the tuner IC (IC1) 100 TU–COUNT I PLL serial data input from the tuner IC (IC1) Pin No. Pin name I/O Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 ZS-M30 1 I I I-V converted RF signal I input from the optical pick-up block detector 2 J I I-V converted RF signal J input from the optical pick-up block detector 3 VC O Middle point voltage (+ 1.65 V) generation output terminal 4 – 9 A – F I Signal input from the optical pick-up detector 10 PD I Light amount monitor input from the optical pick-up block laser diode 11 APC O Laser amplifier output terminal to the automatic power control circuit 12 APCREF I Reference voltage input terminal for setting laser power 13 GND — Ground terminal 14 TEMPI I Connected to the temperature sensor 15 TEMPR O Output terminal for a temperature sensor reference voltage 16 SWDT I Writing serial data input from the CXD2654R (IC504) 17 SCLK I Serial data transfer clock signal input from the CXD2654R (IC504) 18 XLAT I Serial data latch pulse signal input from the CXD2654R (IC504) 19 XSTBY I Standby signal input terminal “L”: standby (fixed at “H” in this set) 20 F0CNT I Center frequency control voltage input terminal of internal circuit (BPF22, BPF3T, EQ) inputfrom the CXD2654R (IC504) 21 VREF O Reference voltage output terminal Not used (open) 22 EQADJ I/O Center frequency setting terminal for the internal circuit (EQ) 23 3TADJ I/O Center frequency setting terminal for the internal circuit (BPF3T) 24 VCC — Power supply terminal (+3.3V) 25 WBLADJ I/O Center frequency setting terminal for the internal circuit (BPF22) 26 TE O Tracking error signal output to the CXD2654R (IC504) 27 CSLED I Connected to the external capacitor for low-pass filter of the sled error signal 28 SE O Sled error signal output to the CXD2654R (IC504) 29 ADFM O FM signal output of the ADIP 30 ADIN I Receives a ADIP FM signal in AC coupling 31 ADAGC I Connected to the external capacitor for ADIP AGC 32 ADFG O ADIP duplex signal (22.05 kHz ± 1 kHz) output to the CXD2654R (IC504) 33 AUX O Auxiliary signal (I3 signal/temperature signal) output to the CXD2654R (IC504) 34 FE O Focus error signal output to the CXD2654R (IC504) 35 ABCD O Light amount signal (ABCD) output to the CXD2654R (IC504) 36 BOTM O Light amount signal (RF/ABCD) bottom hold output to the CXD264R (IC504) 37 PEAK O Light amount signal (RF/ABCD) peak hold output to the CXD2654R (IC504) 38 RF O Playback EFM RF signal output to the CXD2654R (IC504) 39 RFAGC I Connected to the external capacitor for RF auto gain control circuit 40 AGCI I Receives a RF signal in AC coupling 41 COMPO O User comparator output terminal Not used (open) 42 COMPP I User comparator input terminal Not used (fixed at “L”) 43 ADDC I/O Connected to the external capacitor for cutting the low band of the ADIP amplifier 44 OPO O User operational amplifier output terminal Not used (open) 45 OPN I User operational amplifier inversion input terminal Not used (fixed at “L”) 46 RFO O RF signal output terminal 47 MORFI I Receives a MO RF signal in AC coupling 48 MORFO O MO RF signal output terminal • MD BOARD IC502 CXA2523AR (RF AMP, FOCUS/TRACKING ERROR AMP) Pin No. Pin Name I/O Pin Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 ZS-M30 • MD BOARD IC 504 CXD2654R (DIGITAL SIGNAL PROCESSOR, DIGITAL SERVO SIGNAL PROCESSOR, EFM/ACIRC ENCODER/DECODER, SHOCK PROOF MEMORY CONTROLLER, ATRAC ENCODER/DECODER) 1 MNT0 (FOK) O Focus OK signal output to the MD mechanism controller (IC601) “H” is output when focus is on (“L”: NG) 2 MNT1 (SHOCK) O Track jump detection signal output to the MD mechanism controller (IC601) 3 MNT2 (XBUSY) O Busy monitor signal output to the MD mechanism controller (IC601) 4 MNT3 (SLOCK) O Spindle servo lock status monitor signal output to the MD mechanism controller (IC601) 5 SWDT I Writing serial data signal input from the MD mechanism controller (IC601) 6 SCLK I (S) Serial data transfer clock signal input from the MD mechanism controller (IC601) 7 XLAT I (S) Serial data latch pulse signal input from the MD mechanism controller (IC601) 8 SRDT O (3) Reading serial data signal output to the MD mechanism controller (IC601) 9 SENS O (3) Internal status (SENSE) output to the MD mechanism controller (IC601) 10 XRST I (S) Reset signal input from the MD mechanism controller (IC601) “L”: reset 11 SQSY O Subcode Q sync (SCOR) output to the MD mechanism controller (IC601) “L” is output every 13.3 msec Almost all, “H” is output 12 DQSY O Digital In U-bit CD format subcode Q sync (SCOR) output to the MD mechanism controller(IC601) “L” is output every 13.3 msec Almost all, “H” is output 13 RECP I Laser power selection signal input from the MD mechanism controller (IC601)“L”: playback mode, “H”: recording mode 14 XINT O Interrupt status output to the MD mechanism controller (IC601) 15 TX I Recording data output enable signal input from the MD mechanism controller(IC601) Writing data transmission timing input (Also serves as the magnetic head on/off output) 16 OSCI I System clock signal (512 Fs = 45.1584 MHz) input terminal 17 OSCO O System clock signal (512 Fs = 45.1584 MHz) output terminal 18 XTSL I Input terminal for the system clock frequency setting “L”: 45.1584 MHz, “H”: 22.5792 MHz (fixed at “H” in this set) 19 DIN0 I Digital audio signal input terminal when recording mode (for digital optical input) Not used 20 DIN1 I Digital audio signal input terminal when recording mode (for digital optical input) 21 DOUT O Digital audio signal output terminal when playback mode (for digital optical output) Not used 22 DATAI I Serial data input terminal Not used (fixed at “L”) 23 LRCKI I L/R sampling clock signal (44.1 kHz) input terminal Not used (fixed at “L”) 24 XBCKI I Bit clock signal (2.8224 MHz) input terminal Not used (fixed at “L”) 25 ADDT I Recording data input from the A/D, D/A converter (IC604) 26 DADI I Playback data input from the A/D, D/A converter (IC604) 27 LRCK O L/R sampling clock signal (44.1 kHz) output to the A/D, D/A converter (IC604) 28 XBCK O Bit clock signal (2.8224 MHz) output to the A/D, D/A converter (IC604) 29 FS256 O Clock signal (11.2896 MHz) output terminal 30 DVDD — Power supply terminal (+3.3 V) (digital system) 31 – 34 A03 O A00 O Address signal output to the D-RAM (IC505) 35 A10 O Address signal output to the external D-RAM Not used (open) 36 – 40 A04 – A08 O Address signal output to the D-RAM (IC505) 41 A11 O Address signal output to the external D-RAM Not used (open) 42 DVSS — Ground terminal (digital system) 43 XOE O Output enable signal output to the D-RAM (IC505) “L” active 44 XCAS O Column address strobe signal output to the D-RAM (IC505) “L” active 45 A09 O Address signal output to the D-RAM (IC505) Pin No. Pin Name I/O Pin Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 ZS-M30 46 XRAS O Row address strobe signal output to the D-RAM (IC505) “L” active 47 XWE O Write enable signal output to the D-RAM (IC505) “L” active 48 D1 I/O 49 D0 I/O Two-way data bus with the D-RAM (IC505) 50 D2 I/O 51 D3 I/O 52 MVCI I (S) Digital in PLL oscillation input from the external VCO Not used (fixed at “L”) 53 ASYO O Playback EFM full-swing output terminal 54 ASYI I (A) Playback EFM asymmetry comparator voltage input terminal 55 AVDD — Power supply terminal (+3.3 V) (analog system) 56 BIAS I (A) Playback EFM asymmetry circuit constant current input terminal 57 RFI I (A) Playback EFM RF signal input from the CXA2523AR (IC502) 58 AVSS — Ground terminal (analog system) 59 PCO O (3) Phase comparison output for master clock of the recording/playback EFM master PLL 60 FILI I (A) Filter input for master clock of the recording/playback master PLL 61 FILO O (A) Filter output for master clock of the recording/playback master PLL 62 CLTV I (A) Internal VCO control voltage input of the recording/playback master PLL 63 PEAK I (A) Light amount signal (RF/ABCD) peak hold input from the CXA2523AR (IC502) 64 BOTM I (A) Light amount signal (RF/ABCD) bottom hold input from the CXA2523AR (IC502) 65 ABCD I (A) Light amount signal (ABCD) input form the CXA2523AR (IC502) 66 FE I (A) Focus error signal input from the CXA2523AR (IC502) 67 AUX1 I (A) Auxiliary signal (I3 signal/temperature signal) input from the CXA2523AR (IC502) 68 VC I (A) Middle point voltage (+1.65 V) input from the CXA2523AR (IC502) 69 ADIO O (A) Monitor output of the A/D converter input signal Not used (open) 70 AVDD — Power supply terminal (+3.3 V) (analog system) 71 ADRT I (A) A/D converter operational range upper limit voltage input terminal (fixed at “H” in this set) 72 ADRB I (A) A/D converter operational range lower limit voltage input terminal (fixed at “L” in this set) 73 AVSS — Ground terminal (analog system) 74 SE I (A) Sled error signal input from the CXA2523AR (IC502) 75 TE I (A) Tracking error signal input from the CXA2523AR (IC502) 76 DCHG I (A) Connected to the +3.3 V power supply 77 APC I (A) Error signal input for the laser automatic power control Not used (fixed at “H”) 78 ADFG I (S) ADIP duplex FM signal (22.05 kHz ± 1 kHz) input from the CXA2523AR (IC502) 79 F0CNT O Filter f0 control signal output to the CXA2523AR (IC502) 80 XLRF O Serial data latch pulse signal output to the CXA2523AR (IC502) 81 CKRF O Serial data transfer clock signal output to the CXA2523AR (IC502) 82 DTRF O Writing serial data output to the CXA2523AR (IC502) 83 APCREF O Control signal output to the reference voltage generator circuit for the laser automatic powercontrol 84 TESTO — Not used (OPEN) 85 TRDR O Tracking servo drive PWM signal (–) output to the BH6511FS (IC501) 86 TFDR O Tracking servo drive PWM signal (+) output to the BH6511FS (IC501) 87 DVDD — Power supply terminal (+3.3 V) (digital system) 88 FFDR O Focus servo drive PWM signal (+) output to the BH6511FS (IC501) 89 FRDR O Focus servo drive PWM signal (–) output to the BH6511FS (IC501) 90 FS4 O Clock signal (176.4 kHz) output terminal (X’tal system) Not used (open) Pin No. Pin Name I/O Pin Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 ZS-M30 91 SRDR O Sled servo drive PWM signal (–) output to the BH6511FS (IC501) 92 SFDR O Sled servo drive PWM signal (+) output to the BH6511FS (IC501) 93 SPRD O Spindle servo drive PWM signal (–) output to the BH6511FS (IC501) 94 SPFD O Spindle servo drive PWM signal (+) output to the BH6511FS (IC501) 95 FGIN I (S) 96 TEST1 I Input terminal for the test (fixed at “L”) 97 TEST2 I 98 TEST3 I 99 DVSS — Ground terminal (digital system) 100 EFMO O EFM signal output terminal when recording mode Pin No. Pin Name I/O Pin Description * I (S) stands for schmitt input, I (A) for analog input, O (3) for 3-state output, and O (A) for analog output in the column I/O. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 ZS-M30 1 LCD_DATA — Not used (OPEN) 2 LCD_CLK — Not used (OPEN) 3 LCD_CE — Not used (OPEN) 4 LCD_AO — Not used (OPEN) 5–7 — Not used (OPEN) 8 BYTE — Not used (OPEN) (connect to ground) 9 CNVss — Ground terminal 10,11 — Not used (OPEN) 12 SYS–RST I System reset input “L” reset 13 EXTAL O Main system clock output terminal (12MHz) 14 Vss — Ground terminal 15 XTAL I Main system clock input terminal (12MHz) 16 Vcc — Power supply terminal 17 — Not used (fixed at “L” ) 18 — Not used (OPEN) 19 XINT I Sub system clock input terminal (32.768KHz) 20 PDOWN I Power down signal input from main system control (IC801) 21 — Not used (OPEN) 22 LEO–0 — Not used (OPEN) 23 LEO–1 — Not used (OPEN) 24 LEO–2 — Not used (OPEN) 25–30 — Not used (OPEN) 31 SWDT O Writing data signal output to the serial bus 32 SRDT I Reading signal input from the serial bus 33 SCLK O Clock signal output to the serial bus 34 XLATCH O Latch signal output to the serial bus 35 TXD(UART) I Communication UART transfer input for main system control (IC801) 36 RXD(UART) O Communication UART receive output for main system control (IC801) 37 RTS(T) I UART transfer request input from master system control (IC801) 38 CTS(R) O UART transfer request output to master system control (IC801) 39,40 — Not used (OPEN) 41 — Not used (fixed at “L” ) 42 – 45 — Not used (OPEN) 46 — Not used (fixed at “H” ) 47– 50 — Not used (OPEN) 51 A–MUTE — Not used (OPEN) 52 SDA I/O Serial data IN/OUT terminal for EEPROM (IC603) 53 SCL O Serial clock output terminal for EEPROM (IC603) 54 2654/2662 I Destination select terminal 55 STB O Power ON/OFF control signal output 56 SCTX O Writing data transmission timing output to the CXD2654R (IC504) shared with the magnetic head ON/OFF output 57 EMP O Diemphasis ON/OFF control signal output 58 DIG–RST O Reset signal output “L” reset 59 WRPWR O Write power ON/OFF output 60 DA–RST O Reset signal output to the D/A, A/D converter (IC604) 61 MOD O Laser modulation swithing signal output 62 Vcc — Power supply terminal 63 — Not used (OPEN) Pin No. Pin Name I/O Pin Description • MD BOARD IC601 MD System control ( M30620MCA-A73FP ) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 ZS-M30 64 Vss — Ground terminal 65 SENS I Internal status (SENS) input from the CXD2654R (IC504) 66 FOK I Focus OK signal input from CXD2654R (IC504) 67 SHOCK I Track jump detection signal input from CXD2654R (IC504) 68 MNT2(XBUSY) I In the state of executive command from the CXD2654R (IC504) 69 MNT3(SLOCK) I In the state of spindle servo lock from the CXD2654R (IC504) 70 — Not used (OPEN) 71 LDON O Laser ON/OFF control output “H” : Laser ON 72–73 — Not used (OPEN) 74 SQSY I ADIP sync or subcode Q sync input from the CXD2654R (IC504) 75 DQSY I Digital in sync input from the CXD2654R (IC504) 76–79 — Not used (OPEN) 80 LDOUT O Loading motor control output 81 LDIN I Loading motor control input 82 LD LOW O Loading motor voltage control output Low voltage : “H” 83 REC P I Recording position detection switch (S502) input 84 PB P I Playback position detection switch (S504) input 85 LIMIT–IN I Limit switch (S681) input 86 PROTECT I Disc write protect detect switch (SW5) input 87 REFLECT I Disc reflection rate detection input from the reflect detection switch (SW5) 88 PAC–OUT I Pack out switch (S503) input 89 KYE0 — Not used (OPEN) 90 KYE1 — Not used (OPEN) 91 KYE2 — Not used (OPEN) 92 JOG0 — Not used (OPEN) 93 JOG1 — Not used (OPEN) 94 –95 — Not used (OPEN) 96 Avss — Ground terminal 97 Vref — Reference voltage input 98 — Not used (OPEN) 99 Avcc — Power supply terminal 100 — Not used (OPEN) Pin No. Pin Name I/O Pin Description www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 ZS-M30 • Circuit Board Location. POWER BOARD TOP BOARD SW (L) BOARD SW (R) BOARD CD BOARD TUNER BOARD MAIN BOARD BATT (B) BOARD BATT (A) BOARD JACK BOARD LCD BOARD DETECT BOARD D SW BOARD MD BOARD REC BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 37 ZS-M30 6-2. BLOCK DIAGRAMS (1/4) F C B D A E I J J I B A C D E F DETECTOR J I A B C D E F LD PD LASER DIODE ILCC PD OPTICAL PICK-UP (KMS-260B) AUTOMATIC POWER CONTROL Q506,507 APC PD APCREF AT AMP B.P.F. WBL ADFM ADIN ADFG ABCD AMP ABCD FE TE SE F0CNT WBL 3T EQ COMMAND SWDT SCLK XLAT RFO RF AGC & EQ AGCI EQ RF RF AMP, FOCUS/TRACKING ERROR AMP IC502 TEMP MORFO MORFI 3T WBL AUX PEAK BOTM FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE IC501 OUT4F OUT4R SP+ SP- SL+ SL- M601 (SPINDLE) OUT2F OUT2R M602 (SLED) OUT1F OUT1R OUT3F OUT3R FCS+ FCS– TRK+ TRK– 2-AXIS DEVICE (TRACKING) (FOCUS) IN4R IN4F IN2F IN2R IN1F IN1R IN3F IN3R MOD SPFD SPRD APCREF SFDR SRDR FFDR FRDR TFDR TRDR PSB PWM GENERATOR FROM CPU INTERFACE DIGITAL SERVO SIGNAL PROCESSOR IC504 (2/2) WRPWR AUX1 ABCD FE TE SE PEAK BOTM XLRF CKRF DTRF XLAT SCLK SWDT FILI PCO CLTV FILO EFMO ADDT DADT IC151 (1/2) TX ASYO ASYI RFI SCTX HR901 OVER WRITE HEAD ADFG F0CNT SPFD SPRD SAMPLING RATE CONVERTER DIGITAL AUDIO INTERFACE DIN0 DOUT DIGITAL SIGNAL PROCESSOR, EFM/ACIRC ENCODER/DECODER, SHOCK PROOF MEMORY CONTROLLER, ATRAC ENCODER/DECODER IC504 (1/2) INTERNAL BUS DADT XBCK LRCK FS256 OSCI OSCO DQSY SQSY XINT SENS SRDT SWDT SCLK XLAT MNT0 MNT1 MNT2 MNT3 SWDT SCLK XLAT DIG-RST SQSY DQSY LDON WR-PWR MOD XINT SENS SRDT LDOUT LDIN RIN FIN OUT1 OUT2 VREF LOADING MOTOR DRIVE IC602 M103 (LOADING) DQ1 – DQ4 A0 – A9 D0 – D3 A00 – A09 XOE XWE XRAS XCAS XOE XWE XRAS XCAS D-RAM IC505 DIN1 MD SYSTEM CONTROLLER IC601 HF MODULE REFLECT PROTECT LD-LOW SDA(EEP) SCL REC-P SYS-RST PAC-OUT PLAY-P PODWN DARST XTAL STB EXTAL SCL SDA M+5V 82 13 15 60 30 85 87 86 84 83 LIMIT-IN (LIMIT IN SW) XBCKI LRCKI OVER WRITE HEAD DRIVE IC503 HEAD DRIVER Q509,510 SW5 PROTECT/REFLECT 11 9 8 4 1 2 48 47 46 40 33 38 37 36 32 35 34 26 28 18 17 16 20 12 30 29 5 6 7 10 LASER ON SWITCH Q503 LD/PD AMP I-V AMP I-V AMP FOCUS ERROR AMP TRACKING ERROR AMP RF AMP B.P.F. PEAK & BOTTOM 6 8 92 91 88 89 86 85 81 80 83 13 67 65 66 75 74 63 64 82 27 25 21 23 12 10 14 15 19 18 29 30 3 4 16 M M AUTOMATIC POWER CONTROL DIGITAL SERVO SIGNAL PROCESS ANALOG MUX A/D CONVERTER SERIAL/PARALLEL CONVERTER, DECODER AUTO SEQUENCER V-I CONVERTER HF MODULE SWITCH Q501,502 Q504,505 100 60 59 62 61 53 54 57 78 79 94 93 10 12 11 14 9 8 5 6 7 1 2 3 4 43 47 16 29 27 28 26 21 20 19 23 24 22 25 12 3 6 7 17 46 44 16 3 4 17 15 ADIP DEMODULATOR/ DECODER SPINDLE SERVO COMPA- RATOR PLL FILTER SUBCODE PROCESSOR EFM/ACIRC ENCODER/DECODER SHOCK PROOF MEMORY CONTROLLER ATRAC ENCODER/DECODER CPU INTERFACE MONITOR CONTROL 75 71 SCTX 56 58 59 61 74 19 65 65 32 FOK SHOCK MNT3(SLOCK) MNT2(BUSY) 64 33 34 67 68 31 XRST CLOCK GENERATOR 49, 48, 50, 51 1, 2, 18, 19 34 – 31, 36 – 40, 45 6 – 9, 11 – 15,5 80 81 5 4 6 VCC 3 1 7 M REFERENCE VOLTAGE SWITCH Q601 DIN S501 S502 LD+3V X601 12MHz 55 RXD(UART) 36 TXD(UART) 35 53 52 12 88 CTS(R) RTS(L) 38 37 6 8 5 IC603 EEPROM LD+3V X501 45.1584MHz • RCH : Same as LCH • SIGNAL PATH : MD (PLAY) : MD (REC) Q508 S504 15 11 10 9 14 1 2 24 A/D VINL VINR AD-LCH AD-RCH DA-LCH DA-RCH REC-H MD-H D+5V PODWM BU3.3V STXD SRXD SRTS S503 (OUT) SCTS MDRST PACKIN AU3.3V PDAD 20 19 8 A/D VOUTL VOUTR PDDA Q604(2/2) GATE Q604(1/2) B+SWITCH Q605,606 B+SWITCH Q602,603 B+SWITCH Q607 +5V M+5V H+5V 2 CN602 1 (REC P) (PLAY P) IC604 A/D,D/A CONVERTER VDD VCC1 VCC1 VCC2 DOUT DIN BCK LRCK 256FS REC BOARD (1/2) MD BOARD D SW BOARD DETECT BOARD REC BOARD (2/2) E CD BOARD C MAIN BOARD (1/2) D MAIN BOARD (2/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ZS-M30 38 38 6-3. BLOCK DIAGRAMS (2/4) E F A B C D DRIVE Q101 LD RF EQ AMP SUMMING AMP RF ERROR AMP FOCUS ERROR AMP TRACKING APC LD AMP VC BUFFER RF AMP IC701 DIGITAL SERVO DIGITAL SIGNAL PRCESSOR IC702 LASER DIODE DETECTOR OPTICAL PICK-UP BLOCK (KSS-213C) PD1 PD2 E F LD POWER PD LDON LD PD LD A C D B E F TE FE RFO RF-I ASYMMETRY CORRECTION AUTO SEQUENCER SERVO INTE- GRATOR DIGITAL PLL EFM DEMODULATOR REGISTER SUB CODE PROCESSOR ERROR CORRECTOR DATA BUS 10K RAM D/A INTERFACE SERIAL IN INTERFACE DIGITAL OUT SERVO INTERFACE DIGITAL CLV AGC CONT OP AMP ANALOG SW A/D CONVERTER PWM GENERATOR TRACKING PWM GENERATOR FOCUS PWM GENERATOR SLED PWM GENERATOR VC TRACKING SERVO FOCUS SERVO SLED SERVO SERVO DSP TFDR TRDR FFDR FRDR SFDR SRDR MDP DETECTOR MIRR DFCT FOK D OUT PCMD NC NC NC NC NC NC NC NC SSTP RFDC FE TE CE SE CPU INTERFACE SENS DATA XLAT CLK CLOCK GENERATOR XTSL M M TRACKING COIL FOCUS COIL SLED MOTOR M902 SPINDLE MOTOR M901 T+ T F+ F SL+ SL SP+ SP FOCUS/TRACKING COIL DRIVE SPINDLE/SLED MOTOR DRIVE IC703 TFDR TRDR FFDR FRDR SFDR SRDR SPIN NC MUTE MUTE S702 LIMIT SW SQCK SYSM AU3.3V XRST SENS ROUT LOUT DATA SCLK SCLK RF-H XLAT CLK SCOR SQSO SCOR SQSO SQCK SP-H XRST AGC CONT LRCK BCLK C2PO RF AC ASYI ASYO CONTROL SIGNAL BLOCK SERVO BLOCK VCC VC • SIGNAL PATH : CD : MD (REC) 4 6 4 1 5 2 10 5 8 7 2 3 6 5 25 26 20 18 19 10 11 16 RFM Q703 HI-SPEED SWITCH 14 15 15 51 48 49 XTAO XTAI 66 67 43 38 41 39 40 42 31 30 33 32 29 28 26 60 63 62 19 61 3 8 37 20 7 6 5 2 4 1 9 27 3 XLON 14 13 14 17 18 12 11 15 16 23 24 3 2 INTEG- RATOR AIN1 LOUT1 71 72 AOUT1 70 AIN2 AOUT2 76 77 LOUT2 75 RMUT 79 LMUT 80 SPEED SW Q705 Q707 X701 33.8688MHz DIGITAL FILTER 3rd ORDER NOISE SHAPER PWM PWM 1 CN703 2 CD BOARD Q702 E MD BOARD B MAIN BOARD (1/2) MAIN BOARD (2/2) A w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 39 ZS-M30 6-4. BLOCK DIAGRAMS (3/4) TB1 D5 D1 D2 D3 D9 D7 D4 D8 D6 B.P.F FL1 36 FM MIX FM OSC 34 FM RF-IN FM RF OUT CT1 CT1 B+ (5V) 32 FM OSC B+ (5V) AM RF-IN 1 AM MIX L5 MW/LW OSC AM OSC 31 30 29 8 7 6 12 29 AM OSC OSC FM TRACKING FM TRACKING L1 L3 L4 MW TRACKING LW SWITCH Q3 RF AMP Q1 CT2 LW TRACKING CT3 MW TRACKING L3 LW TRACKING L4 CT3 CT4 LW SWITCH Q4 MW SWITCH Q2 CT2 MW FREQUENCY COVERAGE L5 LW FREQUENCY COVERAGE CT4 T1 AM IF FM IF CF2 CF1 8 FM IF-IN AM IF-IN CF3 7 IF BUFFER AM DET DET-OUT DO CL DI CE XOUT XIN MP IN MUTE FM MPX 12 13 R-CH 11 L6 FM DET FM/AM FRONT-END, IF, DET, FM MPX IC1 MW/LW ANTENNA MAIN BOARD TUNER BOARD 3 FM MIX-OUT • SIGNAL PATH : FM : AM R-CH : Same as L-CH. ANT1 FM TELESCOPIC ANTENNA X1 75kHz FM DET AM/FM BUFFER 23 22 5 AM MIX-OUT PLL VT(+7.5V) 28 27 19 17 18 15 16 20 CONTROL 14 10 9 5 5 7 AMP 13 11 17 17 18 20 21 22 26 AMP CONTROL 2 1 30 MUTE Q111 J302 LINE IC305 MEGA BASS AMP 11 5 8 4 IC301 POWER AMP 11 5 8 4 IC303 POWER AMP MUTE Q101 MUTE Q106 AUDIO LEVEL DETECT D101,201,301 VCC OUT1 STBY VCC OUT1 STBY HP-SW TU CONT TU CLK TU DATA TU CE PA-STANDBY SUR MEGA BASS A-MUTE R-CH R-CH R-CH UNREG 14V UNREG 14V COM7V R-CH Q302 Q305 AD LCH AD RCH DA LCH DA RCH CD LOUT CD ROUT LINE MUTE AU-CS AU-DATA AU-CLK R-CH Q102 R-CH R-CH IN1 IN1 L1 FM RF L2 FM OSC B+(5V) B+(5V) B+(5V) P-OUT P-IN JACK BOARD (2/2) JACK BOARD (1/2) (1/2) J301 R-CH MD R-CH MD R-CH CD R-CH R-CH MUTE DRIVER Q313,312 L1 LIN LTRE NC NC NC LBASS1 LBASS2 RIN CE VCC R-CH DI CL L2 L3 L4 R1 R2 R3 R4 LSELO RSELO LOUT ROUT IC302 INPUT SELECT Q310 SP201 MAIN SPEAKER (R-CH) SP102 PANORAMA SOUND (L-CH) SP101 MAIN SPEAKER (L-CH) SP202 PANORAMA SOUND (R-CH) i C MD BOARD B CD BOARD H MAIN BOARD (2/2) I MAIN BOARD (2/2) G MAIN BOARD (2/2) Q5 Q6 MW LW w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ZS-M30 40 40 6-5. BLOCK DIAGRAMS (4/4) LINE MUTE 33 AU-CS 23 AU-DATA 24 AU-CLK HP-SW PA-STANDBY SUR MEGA BASS A MUTE 25 22 31 35 21 14 TU-CONT TU-CLK TU-DATA TU-CE 100 99 98 97 STXD 69 2 PDOWN SRTS PACK IN 3 SCTS 4 MDRST MD-H REC-H SP-H 70 1 5 6 7 RF-H 66 AGCCONT 80 SCLK 67 SCOR 68 SENS 78 SQSO 77 79 SQCK 81 XLAT 74 CLK 73 DATA 75 XRST 76 84 LCD-CLK 47 LCD-DATA 46 LCD-STB B/L VDD (+7V) 45 93 38 87 42 43 39 BU3.3V AU3.3V D+5V SRXD TU-CONT TU-CLK TU-DATA TU-CE MD-STXD MD-PDOWN MD-SRTS MD-PACK IN MD-SCTS MD-RST MD-H REC-H CD-SPH CD-RFH CD-AGCCONT CD-SCLK CD-SCOR CD-SENS CD-SQSO CD-SQCK CD-XLAT CD-CLK CD-DATA CD-XRST CD-DOOR CD-CLK LCD-DATA LCD-STB VDD-CONT B/L-CONT BU3.3V AU3.3V D+5V MD-SRXD LINE MUTE AU-CS AU-DATA AU-CLK HP-SW PA-STANDBY SUR MEGA BASS A MUTE 55 61 60 57 85 1 85 58 59 56 36 37 64 40 1 2 94 T901 POWER TRANSFORMER RECT D901-904 RECT D905-908 REMOTE CONTROL RECEIVER IC401 KEY AD0 KEY AD1 KEY AD2 KEY AD3 KEY AD0 KEY AD1 KEY AD2 KEY AD3 KEY AD4 JOG-A JOG-B JOG-A JOG-B RMC RMC P-CON RST TU SFT EXTAL XTAL TX TTEX ACCHK CD-POWER KEY AD4 LED-HISPEED2 LED-SURROUND2 X802 8MHz X801 32.768kHz 86 LEVEL SHIFT Q801 2 1 RESET IC804 3 2 BU +3.3V REG IC803 3 1 MD +5V REG IC802 S701 (CD DOOR OPEN/CLOSE) PL404,405 LCD BACK LIGHT +7V REG. Q811, Q818,819 B+SWITCH Q812 +7.5V REG Q804 +3.3V REG Q805 CD POWER SWITCH Q806,807 POWER SWITCH Q808,809 +7V REG Q810 AC CHECK Q802 REG SWITCH Q816,817 B/L VCC BU3.3V BU3.3V IC801 MASTER CONTROL MD+5V D402 HI-SPEED D403 PANORAMA SOUND S401-405 S406-410 MAIN BOARD TOP BOARD SW(R)BOARD SW(L)BOARD POWER BOARD LCD BOARD (2/2) F901 3.15A F902 1.6A D910 D911 B/L VCC B+ (UNREG 14V) B+ (UNREG 10V) B+ (CD 7V) B+ (MD 5V) B+ (BU 3.3V) 3 1 B +5V REG IC506 B +5V (MD) B+ (BU 3.3V) B+ (CD 3.3V) B+ (COM 3.3V) B+ (COM 7.5V) D806 D802 B+(BL VCC) P-CON CD POWER P-CON CD POWER S413-416 S412 S423 S420 S424 S421,422 S417-419, S411 DRY BATTERY SIZE "AA" (IEC DESIGNATION R6) 3PCS,4.5V (FOR MEMORY BACK-UP) LCD1 LCD UNIT H MAIN BOARD (1/2) I MAIN BOARD (1/2) G TUNER BOARD D MD BOARD A CD BOARD BATT(A)BOARD BATT(B)BOARD S425 (JOG) . > LF901 B+ (MD 5V) KEY CONTROL Q401 J901 - AC IN w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 41 ZS-M30 6-6. PRINTED WIRING BOARDS – MAIN SECTION – NOTE: • X : parts extracted from the component side. • b : Pattern of the rear side. D101 B-5 D201 C-5 D301 B-6 D802 F-7 D803 C-7 D804 D-5 D805 G-4 D806 F-7 D811 G-8 IC301 D-8 IC302 C-4 IC303 A-8 IC305 B-6 IC801 E-5 IC802 F-9 IC803 F-6 IC804 F-6 Q101 C-8 Q102 B-5 Q106 B-7 Q111 B-3 Q201 B-7 Q202 B-5 Q206 B-7 Q211 B-3 Q302 C-7 Q305 C-8 Q310 C-7 Q312 B-3 Q313 B-3 Q801 D-5 Q802 F-6 Q804 C-7 Q805 D-5 Q806 E-4 Q807 F-4 Q808 D-7 Q809 A-7 Q810 G-4 Q811 G-7 Q812 E-4 Q816 G-5 Q817 G-5 Q818 G-7 Q819 G-7 Ref. No. Location z Semiconductor Location 2 3 4 5 6 7 8 9 10 A 1 B C D E F G H 1 31 51 81 1 2 3 1 2 3 6 A TOP BOARD CN401 B JACK BOARD CH302 C JACK BOARD CH306 D POWER BOARD CN901 F MD BOARD CN603 (MD CHASSIS) G TUNER BOARD CN1 S701 (CD DOOR OPEN/CLOSE) H CD BOARD CN702 I SW (R) BOARD CN402 C879 D802 FB823 R457 R878 Q817 R811 Q811 Q819 R891 R890 C854 R892 D806 R312 R453 R216 R116 R218 R118 R328 R327 R225 R224R223 R222 R217 R214 R213 R203 R125 R124 R123 R122 R117 R114 R113 R103 Q313 Q312 Q211 Q111 R323 R105 D301 C204 C104 Q310 Q102 R207 R304 R318 R306 R108 R210 R208 R302 R110 R107 R205 R211 R206 R106 R115 R303 R324 R309 R320 R111 R319 Q202 C865 R887 R226 R857 C878 D201 D101 JC804 R121 R221 C822 C881 R456 R886 R885 R884 R883 R882 R881 R875 R874 R873 R894 R870 CN808 R869 R868 R866 R865 R864 R863 R862 R861 R860 R859 R858 Q806 R856 R855 R853 R852 R851 R850 R848 R847 R846 R845 R844 R843 R842 R841 R839 R837 R836 R835 R834 R833 R832 R831 R829 R826 R825 R824 R823 R827 R822 R821 R819 R818 R817 R816 R814 R813 R812 R898 R809 R808 R807 R806 R805 R804 R803 R802 R801 R820 Q812 Q809 Q808 Q807 C856 Q802 Q801 IC804 IC803 FB829 FB827 FB828 D805 D804 D803 C862 C861 C859 C869 C857 C863 C855 C853 C850 C849 C848 C847 C845 C846 C844 C843 C842 C840 C839 C838 C836 C835 C834 C833 C832 C831 C805 C804 C819 C806 C807 C808 C801 C877 C803 R220 R867 R893 R326 R459 R228 Q305 R325 Q302 R854 Q101 R212 R104 R219 R102 R119 C304 R314 R120 R204 R201 R202 R101 Q206 Q201 Q106 R215 R126 R455 IC305 R454 R112 R128 FB830 Q816 D811 FB831 R426 R425 R424 R429 R428 R430 R427 C407 JW869 JW307 JW881 CN811 JW880 JW855 JW897 JW865 JW892 JW879 JW839 R452 R451 R899 JW323 JW305 JW823 JW835 JW885 JW863 JW306 JW850 JW856 JW836 JW887 JW842 JW826 JW847 JW884 CH802 JW864 CN804 JW858 C870 JW888 JW819 C219 C119 JW816 JW818 JW815 JW324 C202 C326 CN302 C226 C222 C218 C126 C122 C207 C206 C107 C106 C311 C306 C323 C319 C208 C108 JW838 C308 C310 C217 C215 C117 C216 C115 JW332 JW877 C114 JW834 C113 JW810 C110 C112 JW889 C221 Q818 JW868 JW867 JW871 X802 JW814 JW813 JW806 JW840 C229 JW891 C230 JW894 CN301 JW866 JW822 C129 CN810 C212 C116 JW876 JW898 JW870 C111 JW886 JW874 C118 C823 JW844 Q810 Q805 Q804 IC802 C827 JW872 CN805 JW831 X801 C829 C828 C102 C825 C820 C818 C817 C811 C816 C814 C813 JW830 JW804 JW824 JW896 CN803 JW330 JW859 JW845 JW301 JW882 C303 JW308 JW309 JW899 JW878 JW849 JW817 JW890 JW843 JW883 JW861 JW862 JW860 JW833 JW805 IC303 C121 C101 C201 JW820 C225 C205 C223 C123 C220 C120 IC301 C210 JW811 C203 JW825 C103 JW304 IC302 C130 JW821 JW857 JW331 CN303 JW827 JW801 JW828 C105 JW875 C125 C214 JW829 C211 JW893 JW310 JW311 C213 JW312 JW313 JW314 JW315 JW848 JW322 C821 JW802 C864 C309 JW832 JW807 JW873 JW895 JW321 CN801 JW319 CN807 FB880 JW809 JW803 PL405 (BACK LIGHT) PL404 (BACK LIGHT) CN404 21 (21) 1-679-399- MAIN BOARD LCD BOARD LCD1 LIQUID CRYSTAL DISPLAY 1 4 5 8 IC801 C810 SP202 PANORAMA SOUND (R-CH) SP102 PANORAMA SOUND (L-CH) – + – + 21 (21) 1-679-400- FB819 FB802 FB816 FB808 FB820 FB821 FB815 FB811 FB810 FB803 FB806 FB807 FB809 FB813 FB812 FB814 FB817 C124 C224 FB818 C882 C883 CN812 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 42 ZS-M30 6-7. SCHEMATIC DIAGRAM – MAIN SECTION (1/3) – z Refer to page 55 for Notes. z Refer to page 58 to 61 for IC Block Diagrams. z Refer to page 56 for Waveforms. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 43 ZS-M30 6-8. SCHEMATIC DIAGRAM – MAIN SECTION (2/3) – z Refer to page 55 for Notes. z Refer to page 58 to 61 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 44 ZS-M30 6-9. SCHEMATIC DIAGRAM – MAIN SECTION (3/3) – z Refer to page 55 for Notes. z Refer to page 58 to 61 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 45 ZS-M30 6-10. PRINTED WIRING BOARDS – POWER SECTION – 2 3 4 5 6 7 A 1 B C D E J901 - AC IN D MAIN BOARD CN801 DRY BATTERY SIZE "AA" (IEC DESIGNATION R6) 3PCS, 4.5V (FOR MEMORY BACK-UP) WHT RED 6 * * NOT REPLACEABLE: BUILT IN TRANSFORMER T901 POWER TRANSFORMER JW402 JW403 JW404 JW405 JW406 JW407 R902 C902 C901 C903 C905 R901 C906 D911 D910 C904 F901 CN901 CN902 F902 D903 D901 D902 D904 D908 LF901 D907 D905 RED D906 21 (21) 1-679-406- 21 (21) 1-679-405- 21 21) 1-679-404- POWER BOARD BATT (B) BOARD BATT (A) BOARD NOTE: • X : parts extracted from the component side. • b : Pattern of the rear side. D901 E-2 D902 E-2 D903 E-2 D904 D-2 D905 E-3 D906 E-3 D907 E-3 D908 D-3 D910 E-3 D911 E-3 Ref. No. Location z Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 46 ZS-M30 D1 D-1 D2 C-2 D3 B-3 D4 B-2 D5 B-2 D6 B-3 D7 B-3 D8 B-3 D9 B-3 D10 D-3 IC1 D-2 Q1 B-1 Q2 B-2 Q3 B-2 Q4 C-3 Q5 C-4 Q6 C-3 6-11. PRINTED WIRING BOARDS – TUNER SECTION – NOTE: • X : parts extracted from the component side. • f : internal component. • x : parts mounted on the conductor side. • b : Pattern of the rear side. Ref. No. Location z Semiconductor Location 2 3 4 A 1 B C D E IC1 G MAIN BOARD CH802 11 (11) 1-681-053- TUNER BOARD ANT1 FM TELESCOPIC ANTENNA TB1 MW/LW ANTENNA R22 R23 C37 C36 R21 R20 R35 C27 Q5 C16 C53 C52 C19 C21 C13 C41 R5 R33 C17 JC3 R10 R34 C22 C20 C12 R28 C44 Q3 C45 C18 C2 R11 C23 C25 C24 C3 C43 D1 C1 JC2 R1 C51 C49 C5 R7 R4 D2 C6 R2 R3 C7 R32 Q2 Q6 Q4 R6 C8 C46 C47 C4 L7 R36 C11 R19 C35 C34 R13 C29 C26 C33 R27 C50 R26 R15 R25 R12 D10 R14 C9 R30 D4 D8 D9 D5 R31 D6 D7 R17 R18 R16 R24 C39 C38 JW9 JW2 JW7 JW14 T1 L6 CT4 JW16 CF2 JW12 JW6 JW11 CF1 L8 C14 CN1 C15 JW8 CT1 D3 L4 JW13 L2 JW10 L5 JW5 Q1 FL1 CT3 JW17 L3 L1 CT2 JW4 X1 C40 C32 C30 C28 JW3 JW1 CF3 R8 R9 R29 C60 C10 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 47 ZS-M30 6-12. SCHEMATIC DIAGRAM – TUNER SECTION – z Refer to page 55 for Notes. z Refer to page 58 to 61 for IC Block Diagrams. z Refer to page 56 for Waveforms. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 48 ZS-M30 6-13. PRINTED WIRING BOARDS – CONTROL SECTION – NOTE: • X : parts extracted from the component side. • b : Pattern of the rear side. D306 D-3 D307 D-3 D308 D-2 D309 D-2 D402 A-3 D403 A-7 Q401 E-8 IC401 C-8 Ref. No. Location z Semiconductor Location 2 3 4 5 6 7 8 9 A 1 B C D E F G F A MAIN BOARD CN803 S401 OPERATE D402, S402 HIGH SPEED S425 (JOG) . > I MAIN BOARD CN804 C MAIN BOARD CN301 SP201 MAIN SPEAKER (R-CH) – + SP101 MAIN SPEAKER (L-CH) + – RED WHT BLK BLU J302 LINE IN 6 R413 R415 R414 R416 S415 RADIO BAND AUTO PRESET S413 S411 S412 S416 CH402 R420 R421 R423 R422 R418 R431 Q401 R417 C403 C402 R419 R412 S418 S422 S421 DEL CLOCK/SLEEP/TIMER S423 S420 CH401 CN402 IC401 S424 MD C401 L201 L101 D308 R227 R127 L301 FB102 FB202 D307 D309 D306 L302 J302 JW318 JW316 JW317 CH306 CN304 CH302 R411 R409 R408 R410 R407 R406 R405 R404 S410 D403, S409 S407 S406 D403 S408 S405 S404 S403 S402 D402 CN401 TOP BOARD JACK BOARD SW (L) BOARD SW (R) BOARD 21 (21) 1-679-401- 21 (21) 1-679-407- 21 (21) 1-679-403- 21 (21) 1-679-402- SYNCHRO REC CDBMD REC REC MODE STANDBY MODE SOUND MEGA BASS PANORAMA SOUND VOLUME+ VOLUME– 1 3 Z EDIT S417 DISPLAY YES ENTER TUNE+ M g S419 TUNE– G m NO CANCEL (GAME)LINE LINE LEVEL MD u CD u MD x S414 CD x B MAIN BOARD CN303 J301 i S409 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 49 ZS-M30 6-14. SCHEMATIC DIAGRAM – CONTROL SECTION – z Refer to page 55 for Notes. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 50 ZS-M30 6-15. PRINTED WIRING BOARDS – CD SECTION – 2 3 4 5 6 7 8 A 1 B C D E F M901 SPINDLE MOTOR M M902 SLED MOTOR M 1 21 41 61 TP (RF) TP (VC) TP(TE) CD BOARD 11 (11) 1-679-411- R729 JC720 C768 R730 C731 C715 R791 C737 R735 R718 R799 R759 L702 R726 C739 JC701 C758 JC708 C759 R760 R723 R762 C738 R716 R761 C765 C764 C766 C740 L701 R719 C743 R727 C744 R728 R722 C711 R736 FB705 R788 R710 Q707 R721 R701 R720 C734 C726 R712 R776 R777 R725 R779 R780 R781 C760 IC701 JC711 R751 R717 IC703 R775 R750 R774 C730 FB704 R724 C713 R786 R782 FB706 C720 C723 Q705 C732 C712 C721 C710 C733 C741 R702 C757 JC712 JC703 R731 R787 R785 C722 C727 C701 R715 C714 R714 FB703 C762 C716 R713 R732 Q702 R783 Q701 C706 R708 R706 R703 C702 R704 C703 C705 Q703 R707 R709 R705 R790 JC722 JC707 JC721 CN702 JW723 CN703 IC702 JW709 JW730 JW724 JW714 JW729 JW702 JW701 JW710 JW703 CN701 C746 C729 JW719 JW708 JW707 JW732 JW726 JW712 JW725 JW705 JW715 JW704 C708 JW733 X701 C761 JW713 C717 JW718 JW711 JW706 JW721 JW727 JW716 JW728 JW717 JW720 JW722 JW734 C707 C704 C781 S702 (LIMIT) E MD BOARD CN602 H MAIN BOARD CN808 OPTICAL PICK-UP BLOCK (KSS-213C) NOTE: • X : parts extracted from the component side. • b : Pattern of the rear side. IC701 E-3 IC702 D-5 IC703 B-2 Q701 E-4 Q702 D-5 Q703 D-1 Q705 B-3 Q707 B-4 Ref. No. Location z Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 51 ZS-M30 6-16. SCHEMATIC DIAGRAM – CD SECTION – z Refer to page 55 for Notes. z Refer to page 58 to 61 for IC Block Diagrams. z Refer to page 56 for Waveforms. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 52 ZS-M30 D501 E-7 D502 I-5 D503 I-5 IC501 E-9 IC502 E-5 IC503 F-11 IC504 B-5 IC505 B-3 IC506 C-3 IC601 F-2 IC602 A-5 IC603 G-3 IC604 A-3 Q501 F-4 Q502 F-4 Q503 F-5 Q504 F-4 Q505 F-4 Q506 F-5 Q507 F-5 Q508 G-5 Q509 I-5 Q510 I-4 Q601 B-5 Q602 D-10 Q603 C-10 Q604 B-10 Q605 A-10 Q606 A-10 Q607 F-1 6-17. PRINTED WIRING BOARDS – MD SECTION – 2 3 4 5 6 7 8 9 10 11 12 A 1 B C D E F G H I 3 1 1 5 6 10 20 16 15 11 2 1 75 5 70 10 65 15 55 60 25 20 31 90 100 30 85 35 81 40 80 45 50 95 51 M103 LOADING MOTOR M 1 7 5 CN108 SW5 (PROTECT/REFLECT) 11 (11) 1-677-526- M601 SPINDLE MOTOR M602 SLED MOTOR M M D SW BOARD 1 4 HR901 OVER WRITE HEAD S502 (REC POSITION) S504 (PLAY POSITION) S503 (PACK OUT) E CD BOARD CN703 C563 C561 CN505 R560 C564 S504 S502 JC509 C565 C562 D503 D502 L513 Q510 R561 CN504 Q509 C524 C539 C556 C559 C626 C533 C503 C510 C515 C501 C509 C516 C630 C560 CN501 R658 R548 R653 JC510 R607 R605 R603 R601 C523 R534 CN603 C606 R620 R619 R627 C602 C616 R652 R608 CN503 FL612 R646 C612 C537 C536 R645 C558 L510 IC503 CN502 L502 C528 C532 R528 R527 R523 R522 R521 D501 L610 C613 C610 JC602 L512 R501 FB628 R651 Q602 Q603 X501 L504 L508 C530 C541 C542 R544 C544 C545 C548 C549 R539 FB507 FB508 C555 C632 C633 FB627 JC502 JC501 JC506 JC505 C538 C514 C531 JC601 FB625 FL611 L608 L612 L613 C618 R606 C601 R602 C605 R604 L601 L602 L603 L604 L606 R616 C608 L507 R611 Q605 CN601 CN602 L611 Q604 C622 R520 L511 L505 C615 C617 FB621 C627 C629 R656 R654 C621 R642 R641 C623 JC511 Q606 R625 R637 R635 FB603 R557 FB506 FB505 FB607 C534 FB602 R640 R650 R626 R554 FL608 FL610 R643 FL604 FL606 FL605 FB620 R622 R613 R555 FL502 FL503 JC508 R562 Q607 C624 R649 R618 R609 L607 C631 R660 FB619 C508 C521 C526 C512 L503 L509 C502 R511 C518 FB601 FB504 C511 C505 R505 R510 Q503 R508 R513 R509 R517 C519 C517 C520 C522 R519 R516 R512 C506 R504 R503 C540 Q601 IC603 Q506 Q507 R537 Q505 Q504 R518 Q502 IC506 R530 IC505 R515 IC602 R533 R531 R535 IC504 IC502 R524 R629 R532 R631 R525 R536 R526 R547 R558 R559 X601 R556 R540 R541 R542 R543 IC601 R549 R551 R553 C552 C553 C554 C547 C546 FL609 FB616 FB501 JC503 Q508 R552 C557 C513 C525 FL602 FB615 FB617 R647 FL607 FL603 FB605 FB606 FB624 FB618 FB622 C625 L501 FB610 R538 FB611 FB502 FB623 IC604 R621 R628 L506 JC603 FB626 R659 C609 JC605 C604 R529 FB612 FB609 C550 R612 C611 R630 R633 R632 JC507 R638 R639 JC604 C614 R617 C603 R648 R644 Q501 R614 R623 R624 FL501 JC512 C619 R545 R550 C551 C527 C529 R514 JC504 FB503 FB613 C620 R502 R610 FL601 C607 FB604 R661 JC514 L605 JC516 FB629 R655 FB614 11 (11) 1-679-412- 11 (11) 1-679-413- 11 (11) 1-679-413- 11 (11) 1-679-414- 11 (11) 1-679-412- MD BOARD (SIDE B) MD BOARD (SIDE A) REC BOARD (SIDE A) REC BOARD (SIDE B) DETECT BOARD (CHASSIS) TP505 (RF) TP503 (IOP) TP502 (I+3V) TP506 (VC) TP504 (TE) 1 75 5 70 10 65 15 55 60 25 20 26 90 100 30 85 35 81 40 80 45 50 76 51 1 36 25 24 13 15 20 37 48 45 40 30 35 5 1012 OPTICAL PICK-UP BLOCK (KMS-260B) R506 IC501 7 5 1 5 10 15 20 22 1 MAIN BOARD CN807 F S501 (LIMIT) 21 NOTE: • X : parts extracted from the component side. • a : Through hole. • b : Pattern from the side which enables seeing. (The other layers’ patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the Ref. No. Location z Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 53 ZS-M30 6-18. SCHEMATIC DIAGRAM – MD SECTION (1/2) – z Refer to page 55 for Notes. z Refer to page 58 to 61 for IC Block Diagrams. z Refer to page 57 for Waveforms. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 54 ZS-M30 6-19. SCHEMATIC DIAGRAM – MD SECTION (2/2) – z Refer to page 55 for Notes. z Refer to page 58 to 61 for IC Block Diagrams. z Refer to page 57 for Waveforms. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 ZS-M30 Note on Schematic Diagram: MAIN SECTION (1/3) • All capacitors are in mF unless otherwise noted. pF: mmF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • A : B+ Line. • Voltages and waveforms are dc with respect to ground under no- signal (detuned) conditions. no mark: FM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production toler- ances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production toler- ances. • Circled numbers refer to waveforms. Note on Schematic Diagram: MAIN SECTION (2/3) • All capacitors are in mF unless otherwise noted. pF: mmF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • A : B+ Line. • Voltages and waveforms are dc with respect to ground under no- signal (detuned) conditions. no mark: FM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production toler- ances. Note on Schematic Diagram: MAIN SECTION (3/3) • All capacitors are in mF unless otherwise noted. pF: mmF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in W and 1/4 Ω or less unless otherwise specified. • A : B+ Line. • Voltages and waveforms are dc with respect to ground under no- signal (detuned) conditions. no mark : FM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production toler- ances. • Signal path. F : FM Note on Schematic Diagram: TUNER SECTION • All capacitors are in mF unless otherwise noted. pF: mmF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 Ω or less unless otherwise specified. • f : internal component. • A : B+ Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no- signal (detuned) conditions. no mark: FM ( ) : MW < > : LW • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production toler- ances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production toler- ances. • Circled numbers refer to waveforms. • Signal path. F: FM f: AM Note on Schematic Diagram: CONTROLSECTION • All capacitors are in mF unless otherwise noted. pF: mmF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or9Uss unless otherwise specified. • A : B+ Line. • Voltages and waveforms are dc with respect to ground under no- signal (detuned) conditions. no mark: FM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production toler- ances. Note on Schematic Diagram: CD SECTION • All capacitors are in mF unless otherwise noted. pF: mmF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • A : B+ Line. • Voltages and waveforms are dc with respect to ground under no- signal conditions. no mark: CD PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production toler- ances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production toler- ances. • Circled numbers refer to waveforms. • Signal path. J: CD j: MD REC Note on Schematic Diagram: MD SECTION (1/2) (2/2) • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. Note: The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • A : B+ Line. • Voltages and waveforms are dc with respect to ground under no- signal conditions. no mark : STOP ( ) : PLAY < > : REC ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production toler- ances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production toler- ances. • Circled numbers refer to waveforms. • Signal path. E : MD PLAY j : MD REC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 ZS-M30 • Waveforms – CD SECTION – 1 IC701qg(RFO) (PLAY MODE) VOLT/DIV : 0.5 V AC TIME/DIV : 1 msec 2 IC701 qd(FE) (PLAY MODE) VOLT/DIV : 0.1 V AC TIME/DIV : 5 msec 3 IC701 qa (TE) (PLAY MODE) VOLT/DIV : 0.1 V AC TIME/DIV : 5 msec 4 IC702 rd (RF DC) (PLAY MODE) VOLT/DIV : 0.5 V AC TIME/DIV : 1 msec 5 IC702 yj (XTAO) (PLAY MODE) VOLT/DIV : 0.5 V AC TIME/DIV : 20 µsec 1IC801 ij TX VOLT/DIV : 1 V AC TIME/DIV : 20 µsec 2IC801 rs XTAL VOLT/DIV : 1 V AC TIME/DIV : 0.1 µsec 1IC1 w; X OUT VOLT/DIV : 0.5 V AC TIME/DIV : 10 µsec • Waveforms – TUNER SECTION – 1.1 – 1.3 Vp-p 0.6 Vp-p 0.3 Vp-p 1.1 – 1.3 Vp-p 2.1 Vp-p 33.8688 MHz • Waveforms – MAIN SECTION – 1.5 Vp-p 75 kHz 3.4 Vp-p 32.768 kHz 2.8 Vp-p 8 MHz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 ZS-M30 • Waveforms – MD SECTION – 1 IC502 1,2I , J (PLAY MODE) VOLT/DIV : 0.2 V AC TIME/DIV : 0.5 µsec 2 IC502 ek FE (PLAY MODE) VOLT/DIV : 0.5 V AC TIME/DIV : 0.5 µsec 3 IC502 ef FE (PLAY MODE) VOLT/DIV : 100 V AC TIME/DIV : 5 µsec 4 IC502 wh TE (PLAY Mode) VOLT/DIV : 2 V AC TIME/DIV : 5 msec 5 IC504 qj OSCO VOLT/DIV : 0.5 V AC TIME/DIV : 20 msec 6IC504 wj LRCK VOLT/DIV : 1 V AC TIME/DIV : 10 µsec 7IC504 wk XBCK VOLT/DIV : 1 V AC TIME/DIV : 0.1 µsec 8IC504 wl FS256 VOLT/DIV : 1 V AC TIME/DIV : 50 nsec 9 IC504 o; FS4 VOLT/DIV : 1 V AC TIME/DIV : 2 µsec 0 IC601 qd EXTAL VOLT/DIV : 1 V AC TIME/DIV : 0.1 µsec 0.46 Vp-p 1.2–1.6 Vp-p 0.2 Vp-p 1.0 Vp-p 1.2 Vp-p 22 nsec 3.3 Vp-p 22.7 µsec 0.36 µsec 3.5 Vp-p 90 nsec 4 Vp-p 3.4 Vp-p 5.6 µsec 2.5 Vp-p 0.083 µsec www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 ZS-M30 • IC BLOCK DIAGRAMS (MAIN SECTION) IC301,303 BA5417 IC305 NJM4558V-TE2 1 N.C 2 B.S.2 3 OUT1 4 B.S.1 OUT2 VCC 5 POWER GND 6 ST-BY 7 FLTR 8 NF1 9 IN1 10 IN2 11 NF2 12 PRE GND PRE GND 13 14 15 BS BS ST. BY FILTER T. S. D + – 6 7 5 8 B + – 2 1 3 4 A A OUT A IN– A IN+ VEE VCC B OUT B IN– B IN+ IC302 LC75342 CONTROL CIRCUIT LOGIC CIRCUIT CONTROL CIRCUIT CCB INTERFACE 1 2 3 4 5 6 7 8 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 15 14 13 12 11 10 9 DI CE VSS TEST LOUT LBASS2 LBASS1 LTRE LIN LSELO L4 L3 L2 L1 NC CL VDD VREF RVREF LVREF NC ROUT RBASS2 RBASS1 RTRE RIN RSELO R4 R3 R2 R1 NC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 ZS-M30 • IC BLOCK DIAGRAMS (TUNER SECTION) IC1 LV23000M-TLM DATA SHIFT REGISTER LATCH 32 31 30 29 28 27 24 23 22 21 20 19 18 17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 AM RF-IN REG FM MIX-OUT GND1 AM MIX-OUT VCC1 AM IF-IN FM IF-IN P-DET P-CONP FM-DET L-OUT R-OUT VSS CE D0 CL DI FM OSC 33 VCC2 34 FM RF-OUT 35 GND2 36 FM RF-IN AM OSC BO2 BO1 LP-OUT LP-IN PD AGC AM LOW CUT DET-OUT MPX-IN VDD X OUT X IN AM RF FM RF GND2 FM OSC REG FM MIX BND1 AM MIX AM IF FM IF IF BUFFER PILOT DET PHASE COMP I/F POWER ON RESET UNIVERSAL COUNTER PROGRAMMABLE DIVIDER SHALLOW COUNTER UNLOCK DETECTOR REFERENCE DEVIDER PHASE DETECTOR CHARGE PUMP AM DET FM DET FM S-METER OSC BUFFER AM OSC VCC1 VCC2 AGC SD ST TRIG ST SN FF FF FF MUTE DECODER VSS VCO VCO LPF 26 25 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 ZS-M30 • IC BLOCK DIAGRAMS (CD SECTION) IC701 CXA2550M-T6 20 19 18 17 16 15 14 13 12 11 3 VC 2k 2k 32k 15k 54k 6k 174k 154k 95k 24p 24p 12p 12p 32k 87k 4 5 6 7 8 9 10 1 2 VCC LD ON VCC VCC AGCCONT RFTC RF I RF O RFM FE FE BIAS TE AGCVTH LD PD PD1 PD2 VEE F E EI VC FOCUS ERROR AMP TRACKING ERROR AMP VC VC VCC VEE VEE VC VC VC VC VC VC VC VC 49 26k 260k 260k 8k 2k 6p 8k 2k 10k 10k 13.4k 6p 25k 15k 30k 30k 96k 30k 30k 13k 13k VEE VCC VC VC 670mV 50µA 10k 55k 10k 10k 56k 10k 56k 1k APC PD AMP APC LD AMP VEE VEE VREF 1.25V VC 28 27 26 + – 25 24 23 21 20 19 18 1 2 3 6 INTERFACE MUTE LEVEL SHIFT INTERFACE F R R F R F R F INTERFACE R F R F 17 15 16 11 10 9 8 12 14 13 POWER VCC VREF POWER VCC POWER VCC VCC VREF NC SPIN FFDR FRDR GND MUTE VCC F– F+ SP– SP+ VREFOUT TFDR TRDR SRDR GND VREFIN VCC SL- SL+ T+ T- 7 SCAP 5 SFDR 4 TCAP 22 FCAP 50k 30k 50k 30k DRIVE BUFFER DRIVE BUFFER THERMAL SHUTDOWN PRE VCC 10k 100k 190k IC703 BA5974FP-E2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 ZS-M30 IC702 CXD3017Q 1 2 3 10 11 12 13 14 15 16 17 18 19 20 60 59 58 57 56 55 54 52 51 50 49 48 47 46 45 44 53 21 39 40 41 42 43 22 23 79 24 26 25 28 27 29 30 31 32 35 36 37 38 33 34 80 62 61 77 78 75 76 73 74 72 71 70 69 66 65 64 63 68 67 4 5 6 7 8 9 D/A Interface Digital PLL CPU Interface Digital OUT Serial-In Interface Over Sampling Digital Filter Timing Logic PWM 3rd-Order Noise Shaper PWM Asymmetry Corrector A/D Converter OP Amp Analog SW Clock Generator Digital CLV MIRR DFCT FOK SERVO DSP FOCUS SERVO TRACKING SERVO SELED SERVO EFM Demodurator Servo Auto Sequencer SERVO Interface Error Corrector 16K RAM Sub Code Processor PWM GENERATOR FOCUS PWM GENERATOR TRACKING PWM GENERATOR SLED PWM GENERATOR SQSO SQCK XRST DATA XLAT CLOK SENS SCLK VDD SPOA SPOB XLON XPCK SCOR COUT MIRR DFCT FOK LOCK MDP SSTP SFDR SRDR TFDR TRDR FFDR FRDR TEST TES1 VC FE SE TE CE RFDC ADIO IGEN ASYO ASYI BIAS RFAC CLTV FILO FILI PCO DOUT XTAI XTAO AVDD1 AOUT1 AIN1 LOUT1 LOUT2 AIN2 AOUT2 LMUT XVSS RMUT SYSM ATSK WFCK XUGF GFS C2PO VSS XTSL AVDD AVSS AVSS AVDD VSS VDD LRCK PCMD BCK EMPH XVDD AVSS1 AVSS2 AVDD2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 ZS-M30 IC501 BH6511FS-E2 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 GND VG IN4R IN4F VM4 OUT4F PGND4 OUT4R VM34 OUT3R PGND3 OUT3F VM3 IN3F IN3R PSB CAPA– CAPA+ IN2R IN2F VM2 OUT2F PGND2 OUT2R VM12 OUT1R PGND1 OUT1F VM1 IN1F IN1R VDD CHARGE PUMP. OSC INTERFACE AMP INTERFACE AMP AMP INTERFACE PRE DRIVE PRE DRIVE PRE DRIVE PRE DRIVE AMP INTERFACE AMP AMP AMP VDD PSB AMP IC603 BR24C02F-WE2 1 2 3 4 A0 A1 A2 GND 8 7 6 5 VCC WP SCL SDA CONTROL LOGIC ADDRESS DECODER SAVE•WORD ADDRESS REGISTER DATA REGISTER HI-VOLTAGE OCUURENCE CIRCUIT 1KBIT EEPROM ARRAY POWER SUPPLY VOLTAGE DET 7BIT 7BIT 8BIT START STOP IC602 BA6287F-T1 1 2 3 4 OUT1 VM VCC FIN 8 7 6 5 GND OUT2 VREF RIN CONTROL LOGIC TSD POWER SAVE DRIVER DRIVER • IC BLOCK DIAGRAMS (MD SECTION) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 ZS-M30 IC604 PCM3003E/T2 MODE CONTROL INTERFACE ANALOG LOW-PASS FILTER POWER SUPPLY 1 2 3 4 5 24 23 22 21 20 19 18 17 16 15 14 13 6 7 8 9 10 11 12 MULTI-LEVEL DELTA-SIGMA MODULATOR D/A CONVERTER A/D CONVERTER VCC1 VCC2 AGND1 AGND2 VCOM VOUTR VOUTL DEM0 DEM1 20BIT DIN VDD DGND VCC1 VINR VERF1 VERF2 VINL PDAD PDDA SYSCK LRCK BCK DOUT INTERPOLATION FILTER OVERFLOWING ANALOG LOW-PASS FILTER DELTA-SIGMA MODULATOR DELTA-SIGMA MODULATOR SERIAL INTERFACE ANALOG FRONT-END CIRCUIT ANALOG FRONT-END CIRCUIT RESET AND POWER DOWN CLOCK REFERENCE DECIMATION & LOW CUT FILTER DECIMATION & LOW CUT FILTER MULTI-LEVEL DELTA-SIGMA MODULATOR INTERPOLATION FILTER OVERFLOWING (+) (-) (+) (-) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 ZS-M30 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. SECTION 7 EXPLODED VIEWS NOTE : • -XX, -X mean standardized parts, so they may have some difference from the original one. • Color indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ••• (RED) ↑ ↑ Parts color Cabinet's color • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-1. REAR CABINET SECTION * 1 A-3347-168-A TUNER BOARD, COMPLETE 2 3-222-353-01 CHASSIS (TU) 3 3-222-362-01 TERMINAL, ANT * 4 1-679-404-21 BATT (A) BOARD * 5 1-679-405-21 BATT (B) BOARD 6 3-039-967-01 TERMINAL (–) , BATTERY * 7 1-679-406-21 POWER BOARD 8 3-222-350-01 CHASSIS, TRANSFORMER 9 3-222-341-41 CABINET (REAR) ... (ORANGE) 9 3-222-341-51 CABINET (REAR) ... (WHITE) 9 3-222-341-61 CABINET (REAR) ... (BLUE) 9 3-222-341-71 CABINET (REAR) ... (GREEN) 10 3-222-343-01 HANDLE... (ORANGE) 10 3-222-343-11 HANDLE... (WHITE) 10 3-222-343-21 HANDLE... (BLUE) 10 3-222-343-31 HANDLE... (GREEN) 11 3-226-496-01 LID, BATTERY CASE... (ORANGE) 11 3-226-496-11 LID, BATTERY CASE... (WHITE) 11 3-226-496-21 LID, BATTERY CASE... (BLUE) 11 3-226-496-31 LID, BATTERY CASE... (GREEN) 12 3-831-441-99 CUSHION (A) ANT1 1-501-452-11 ANTENNA, TELESCOPIC !F901 1-532-465-51 FUSE,TIME LAG 3.15A/250V !F902 1-532-503-51 FUSE,TIME LAG 1.6A/250V !T901 1-435-872-11 TRANSFORMER, POWER #6 #9 #9 #9 #9 #10 #10 #12 #10 #10 #10 #10 #10 #10 #10 #11 #11 F901 F902 T901 ANT1 1 2 12 3 4 5 6 6 7 8 9 12 10 11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ZS-M30 65 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-2. FRONT CABINET SECTION not supplied #10 #10 #10 #10 #10 #10 #10 #10 #10 #10 #10 52 53 54 55 56 57 58 59 70 60 51 62 63 61 64 65 66 62 67 68 68 61 72 71 72 72 SP101 SP102 SP202 SP201 69 51 X-3379-522-1 CHASSIS ASSY, NET (ORANGE) 51 X-3379-574-1 CHASSIS ASSY, NET (WHITE) 51 X-3379-575-1 CHASSIS ASSY, NET (BLUE) 51 X-3379-576-1 CHASSIS ASSY, NET (GREEN) 52 3-222-387-01 ORNAMENT (CD.MD) , BUTTON... (ORANGE,WHITE,BLUE) 52 3-222-387-11 ORNAMENT (CD.MD) , BUTTON... (GREEN) 53 3-222-388-01 ORNAMENT (BAND.LINE) , BUTTON... (ORANGE,WHITE,BLUE) 53 3-222-388-11 ORNAMENT (BAND.LINE) , BUTTON...(GREEN) 54 3-222-349-01 KNOB (JOG) 55 3-222-386-01 PLATE (JOG) , ORNAMENTAL... (ORANGE,WHITE) 55 3-222-386-11 PLATE (JOG) , ORNAMENTAL... (BLUE) 55 3-222-386-21 PLATE (JOG) , ORNAMENTAL... (GREEN) 56 3-222-352-01 WINDOW (LCD) ... (ORANGE) 56 3-222-352-11 WINDOW (LCD) ... (WHITE) 56 3-222-352-21 WINDOW (LCD) ... (BLUE) 56 3-222-352-31 WINDOW (LCD) ... (GREEN) 57 3-222-336-01 CABINET (FRONT) ... (ORANGE) 57 3-222-336-11 CABINET (FRONT) ... (WHITE) 57 3-222-336-21 CABINET (FRONT) ... (BLUE) 57 3-222-336-31 CABINET (FRONT) ... (GREEN) 58 3-222-344-01 BUTTON (PLAY) ... (ORANGE) 58 3-222-344-11 BUTTON (PLAY) ... (WHITE) 58 3-222-344-21 BUTTON (PLAY) ... (BLUE) 58 3-222-344-31 BUTTON (PLAY) ... (GREEN) 59 3-224-892-01 CUSHION * 60 1-679-403-21 SW (L) BOARD 61 4-951-620-11 SCREW (2.6X10) , +BVTP * 62 3-222-389-01 BRACKET (SP) 63 1-757-153-11 WIRE, PARALLEL (FFC) (8 CORE) * 64 1-679-402-21 SW (R) BOARD * 65 1-679-407-21 JACK BOARD 66 3-222-346-01 BUTTON (EJECT) 67 3-222-337-01 WINDOW, REMOTE CONTROL 68 3-831-441-99 CUSHION (A) 69 3-226-251-01 SHEET (LCD) , ADHESIVE 70 3-041-801-01 SHEET (B) , ADHESIVE 71 3-040-916-01 FOOT (F) , RUBBER 72 3-831-441-11 CUSHION (F) SP101 1-529-846-11 SPEAKER (8 cm) (L-CH) SP102 1-529-847-11 SPEAKER (5.7 cm) (L-CH) SP201 1-529-846-11 SPEAKER (8 cm) (R-CH) SP202 1-529-847-11 SPEAKER (5.7 cm) (R-CH) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 ZS-M30 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 101 A-3347-176-A MAIN BOARD, COMPLETE 102 3-222-467-01 ILLUMINATOR 103 3-222-351-01 HOLDER (LCD) 104 4-951-620-11 SCREW (2.6X10) , +BVTP * 105 1-679-401-21 TOP BOARD 106 1-757-152-11 WIRE, PARALLEL (FFC) (6 CORE) 107 3-222-348-11 BUTTON (TOP) 108 3-049-782-21 DAMPER 109 3-222-342-01 CABINET (UPPER) ... (ORANGE) 109 3-222-342-11 CABINET (UPPER) ... (WHITE) 109 3-222-342-21 CABINET (UPPER) ... (BLUE) 109 3-222-342-31 CABINET (UPPER) ... (GREEN) 110 3-222-361-01 SPRING (CD UP) 111 3-222-340-01 LID, CD... (ORANGE) 111 3-222-340-11 LID, CD... (WHITE) 111 3-222-340-21 LID, CD... (BLUE) 111 3-222-340-31 LID, CD... (GREEN) 112 1-471-110-11 MAGNET 113 3-021-020-01 PLATE, CHUCKING 114 3-923-736-01 COVER, CD 115 3-931-379-31 RUBBER, VIBRATION PROOF (PINK) 116 3-931-379-21 RUBBER, VIBRATION PROOF (GREEN) 117 3-921-725-11 SCREW (2.6X10) , +PWH * 118 A-3347-177-A CD BOARD, COMPLETE 119 1-757-470-11 WIRE, PARALLEL (FFC) (16 CORE) 120 1-757-154-11 CABLE, FLEXIBLE FLAT (19 CORE) 121 3-225-870-01 CUSHION, RUBBER * 122 1-679-400-21 LCD BOARD 123 3-226-009-01 SHEET (CD), ADHESIVE 124 3-831-441-11 CUSHION (B) LCD1 1-476-281-11 INDICATOR UNIT, LIQUID CRYSTAL S701 1-692-960-11 SWITCH, PUSH (1 KEY) (CD DOOR OPEN/ CLOSE) 7-3. UPPER CABINET SECTION #8 #10 #10 #10 #10 #1 #10 #10 S701 LCD1 102 122 103 104 105 106 107 108 109 110 101 112 113 114 115 115 116 116 117 117 117 117 118 123 119 120 111 121 not supplied 124 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ZS-M30 67 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-4. OPTICAL PICK-UP SECTION (KSM-213CDP) M902 M901 152 151 155 153 (including M901) 154 not supplied not supplied 151 3-713-786-51 SCREW +P 2X3 152 2-626-908-01 SHAFT, SLED 153 X-2646-381-1 SHASSIS ASSY, MOTOR (MB) (SPINDLE) (INCLUDING M901) !154 8-848-483-05 OPTICAL PICK-UP KSS-213C 155 2-627-003-01 GEAR B (RP) M902 X-2625-769-1 GEAR ASSY, MOTOR (MB) (SLED) (INCLUDING GEAR) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 ZS-M30 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-5. MD SECTION-1 (MT-ZSM30-168) #7 #5 #12 #12 #12 M103 209 not supplied not supplied 210 211 213 214 208 212 213 202 204 207 201 203 205 223 212 213 206 224 222 221 218 219 220 216 225 215 217 * 201 A-3322-905-A MD BOARD, COMPLETE 202 1-669-180-11 OP FLEXIBLE BOARD 203 1-757-156-11 CABLE, FLEXIBLE FLAT (9 CORE) 204 1-792-047-11 CABLE, FLEXIBLE FLAT (7 CORE) * 205 3-042-574-01 SLIDER * 206 3-042-575-01 CATCHER, LOADING 207 3-042-582-01 SPRING, CATCHER * 208 3-042-572-01 CHASSIS 209 3-042-587-12 LID (B) 210 3-042-585-13 LID (A) 211 3-042-586-01 SPRING, LID (A) 212 3-044-636-01 SCREW, MD FITTING 213 3-042-689-01 DAMPER * 214 1-679-414-11 DETECTION BOARD 215 3-042-588-01 SCREW (1.4X4) , PWH * 216 3-042-573-01 LIFTER 217 3-042-579-01 GEAR (A) 218 3-042-580-01 GEAR (B) 219 3-042-576-01 GEAR, LOADING * 220 A-3322-907-A REC BOARD, COMPLETE 221 3-042-583-01 SPRING, HEAD ARM 222 3-042-577-01 ARM, HEAD 223 3-042-581-01 SPRING, SHUTTER 224 1-757-155-11 WIRE, PARALLEL (FFC) (22 CORE) 225 3-831-441-99 CUSFION (A) M103 X-3378-325-1 MOTOR ASSY, LOADING (INCLUDING GEAR) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ZS-M30 69 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 7-6. MD SECTION-2 (MT-ZSM30-168) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. #4 #2 #2 #3 #2 #2 M601 M602 HR901 256 not supplied 251 253 252 266 267 256 264 263 262 259 265 261 260 258 256 254 255 257 !251 A-4672-541-A KMS-260B (MD) OPTICAL PICK-UP ASSY 252 2-646-452-01 SHAFT, GUIDE 253 3-042-584-01 LEVER, DETECTION * 254 2-646-566-01 BRACKET, SP MOTOR 255 2-648-052-01 GUIDE, SUB 256 2-627-404-01 GRIP (1.4X3.5) * 257 1-677-526-11 D SW BOARD 258 2-627-431-01 SCREW (1.2X3.3) * 259 2-646-571-11 GEAR (MD) * 260 2-646-567-01 PLATE, PRE ROAD 261 2-648-049-01 BRACKET, SL MOTOR 262 X-2626-330-1 SCREW ASSY, LEAD * 263 2-646-574-03 HOLDER (A) , LEAD * 264 2-646-573-01 HOLDER (B) , LEAD 265 2-648-055-01 GEAR (LD) * 266 2-647-338-01 SPRING, RACK 267 1-676-550-11 FLEXIBLE BOARD * HR901 1-500-518-11 HEAD, MD OVER LIGHT M601 X-2626-327-1 MOTOR ASSY, SPINDLE (MB) (SPINDLE) M602 X-2646-617-2 MOTOR ASSY, SLED (SLED) (INCLUDING GEAR) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 ZS-M30 NOTE : • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms METAL : Metal-film resistor METAL OXIDE :Metal oxide-film resistor F : nonflammable • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ , for example : uA.... : µ A.... , uPA.... : µ PA.... uPB.... : µ PB.... , uPC.... : µ PC.... uPD.... : µ PD.... • CAPACITORS uF : µ F • COILS uH : µ H SECTION 8 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark BATT (A) When indicating parts by reference num- ber, please include the board. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. * 1-679-404-21 BATT (A) BOARD ************** 3-039-967-01 TERMINAL (–) , BATTERY ************************************************************** * 1-679-405-21 BATT (B) BOARD ************** 3-039-967-01 TERMINAL (–) , BATTERY ************************************************************** * A-3347-177-A CD BOARD, COMPLETE ******************* < CAPACITOR > C701 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C702 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C703 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C704 1-104-664-11 ELECT 47uF 20% 10V C705 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C706 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C707 1-104-665-11 ELECT 100uF 20% 10V C708 1-104-665-11 ELECT 100uF 20% 10V C710 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C711 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C712 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C713 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C714 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C715 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C716 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C717 1-104-664-11 ELECT 47uF 20% 10V C720 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C721 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C722 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C723 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C726 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C727 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C729 1-104-665-11 ELECT 100uF 20% 10V C730 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C731 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C732 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C733 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C734 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C737 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V BATT (B) CD C738 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C739 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C740 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C741 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C743 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C744 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C746 1-126-934-11 ELECT 220uF 20% 10V C757 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C758 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C759 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C760 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C761 1-104-665-11 ELECT 100uF 20% 10V C762 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C764 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C765 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C766 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C768 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C781 1-104-665-11 ELECT 100uF 20% 10V < CONNECTOR > CN701 1-779-466-11 CONNECTOR,FFC (LIF (NON-ZIF) ) 16P CN702 1-695-380-31 PIN, CONNECTOR (PC BOARD) 19P CN703 1-569-614-11 PLUG, CONNECTOR 2P < FERRITE BEAD > FB703 1-216-864-91 SHORT 0 FB704 1-216-864-91 SHORT 0 FB705 1-216-864-91 SHORT 0 FB706 1-216-864-91 SHORT 0 < IC > IC701 8-752-097-74 IC CXA2550M-T6 IC702 8-752-402-31 IC CXD3017Q IC703 8-759-549-28 IC BA5974FP-E2 < JUMPER > JC701 1-216-864-91 SHORT 0 JC703 1-216-864-91 SHORT 0 JC707 1-216-864-91 SHORT 0 JC708 1-216-864-91 SHORT 0 JC711 1-216-864-91 SHORT 0 JC712 1-216-864-91 SHORT 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 ZS-M30 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark JC720 1-216-864-91 SHORT 0 JC721 1-216-864-91 SHORT 0 JC722 1-216-864-91 SHORT 0 < COIL > L701 1-412-981-11 INDUCTOR 1.5uH L702 1-216-813-11 METAL CHIP 220 5% 1/16W < TRANSISTOR > Q701 8-729-903-46 TRANSISTOR 2SB1132-P Q702 8-729-900-53 TRANSISTOR DTC114EK Q703 8-729-931-02 TRANSISTOR 2SC2413KQ Q705 8-729-027-60 TRANSISTOR DTC144TKA-T146 Q707 8-729-027-60 TRANSISTOR DTC144TKA-T146 < RESISTOR > R701 1-216-849-11 METAL CHIP 220K 5% 1/16W R702 1-216-849-11 METAL CHIP 220K 5% 1/16W R703 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R704 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R705 1-216-841-11 METAL CHIP 47K 5% 1/16W R706 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R707 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R708 1-216-797-11 METAL CHIP 10 5% 1/16W R709 1-216-835-11 METAL CHIP 15K 5% 1/16W R710 1-412-967-31 INDUCTOR 0.1uH R712 1-216-833-11 METAL CHIP 10K 5% 1/16W R713 1-216-839-11 METAL CHIP 33K 5% 1/16W R714 1-216-845-11 METAL CHIP 100K 5% 1/16W R715 1-216-839-11 METAL CHIP 33K 5% 1/16W R716 1-216-839-11 METAL CHIP 33K 5% 1/16W R717 1-216-833-11 METAL CHIP 10K 5% 1/16W R718 1-216-845-11 METAL CHIP 100K 5% 1/16W R719 1-216-857-11 METAL CHIP 1M 5% 1/16W R720 1-216-833-11 METAL CHIP 10K 5% 1/16W R721 1-216-821-11 METAL CHIP 1K 5% 1/16W R722 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R723 1-216-839-11 METAL CHIP 33K 5% 1/16W R724 1-216-839-11 METAL CHIP 33K 5% 1/16W R725 1-216-839-11 METAL CHIP 33K 5% 1/16W R726 1-216-839-11 METAL CHIP 33K 5% 1/16W R727 1-216-839-11 METAL CHIP 33K 5% 1/16W R728 1-216-839-11 METAL CHIP 33K 5% 1/16W R729 1-216-819-11 METAL CHIP 680 5% 1/16W R730 1-216-821-11 METAL CHIP 1K 5% 1/16W R731 1-216-841-11 METAL CHIP 47K 5% 1/16W R732 1-216-864-91 SHORT 0 R735 1-216-809-11 METAL CHIP 100 5% 1/16W R736 1-216-809-11 METAL CHIP 100 5% 1/16W R750 1-216-837-11 METAL CHIP 22K 5% 1/16W R751 1-216-843-11 METAL CHIP 68K 5% 1/16W R759 1-216-845-11 METAL CHIP 100K 5% 1/16W R760 1-216-845-11 METAL CHIP 100K 5% 1/16W R761 1-216-845-11 METAL CHIP 100K 5% 1/16W R762 1-216-845-11 METAL CHIP 100K 5% 1/16W R774 1-216-821-11 METAL CHIP 1K 5% 1/16W R775 1-216-821-11 METAL CHIP 1K 5% 1/16W R776 1-216-821-11 METAL CHIP 1K 5% 1/16W R777 1-216-821-11 METAL CHIP 1K 5% 1/16W R779 1-216-821-11 METAL CHIP 1K 5% 1/16W R780 1-216-821-11 METAL CHIP 1K 5% 1/16W R781 1-216-821-11 METAL CHIP 1K 5% 1/16W R782 1-216-821-11 METAL CHIP 1K 5% 1/16W R783 1-216-841-11 METAL CHIP 47K 5% 1/16W R785 1-216-837-11 METAL CHIP 22K 5% 1/16W R786 1-216-833-11 METAL CHIP 10K 5% 1/16W R787 1-216-821-11 METAL CHIP 1K 5% 1/16W R788 1-216-821-11 METAL CHIP 1K 5% 1/16W R790 1-216-821-11 METAL CHIP 1K 5% 1/16W R791 1-216-843-11 METAL CHIP 68K 5% 1/16W R799 1-216-841-11 METAL CHIP 47K 5% 1/16W < SWITCH > S702 1-762-812-11 SWITCH, LEAF (LIMIT) < VIBRATOR > X701 1-795-046-21 VIBRATOR, CRYSTAL (33.8688MHz) ************************************************************** 1-677-526-11 D SW BOARD *********** < CONNECTOR > * CN108 1-794-627-21 CONNECTOR, FFC/FPC 7P < SWITCH > SW5 1-771-327-11 SWITCH, 2PIN PUSH (2KEY)(PROTECT/ REFLECT) ************************************************************** 1-679-414-11 DETECTION BOARD **************** < SWITCH > S503 1-572-688-11 SWITCH, PUSH LEVER (1KEY) (PACK OUT) ************************************************************** 1-679-407-21 JACK BOARD *********** < HOLDER > * CH302 1-565-386-11 HOLDER, CABLE 5P * CH306 1-815-170-11 HOLDER, CABLE 4P < CONNECTOR > * CN304 1-564-778-11 PLUG, CONNECTOR (2.5MM) 4P < DIODE > D306 8-719-988-61 DIODE 1SS355TE-17 D307 8-719-988-61 DIODE 1SS355TE-17 D308 8-719-988-61 DIODE 1SS355TE-17 D309 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB102 1-216-864-91 SHORT 0 FB202 1-216-864-91 SHORT 0 CD D SW JACK DETECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 ZS-M30 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark LCD JACK MAIN < COIL > L101 1-412-987-41 INDUCTION 4.7uH L201 1-412-987-41 INDUCTION 4.7uH L301 1-412-987-41 INDUCTION 4.7uH L302 1-412-987-41 INDUCTION 4.7uH < JACK > J301 1-794-838-11 JACK (2) J302 1-566-891-11 JACK (LINE IN) < RESISTOR > R127 1-216-813-11 METAL CHIP 220 5% 1/16W R227 1-216-813-11 METAL CHIP 220 5% 1/16W ************************************************************** 1-679-400-21 LCD BOARD ********** 3-222-351-01 HOLDER (LCD) 3-222-467-01 ILLUMINATOR 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S < CAPACITOR > C407 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > CN404 1-573-069-11 SOCKET, CONNECTOR 7P < LIQUID CRYSTAL DISPLAY > LCD1 1-476-281-11 INDICATOR UNIT, LIQUID CRYSTAL < PILOT LAMP > PL404 1-517-409-11 LAMP, PILOT (ORANGE) (BACK LIGHT) PL404 1-518-726-11 LAMP, PILOT (WHITE,BLUE) (BACK LIGHT) PL404 1-518-727-11 LAMP, PILOT (GREEN) (BACK LIGHT) PL405 1-517-409-11 LAMP, PILOT (ORANGE) (BACK LIGHT) PL405 1-518-726-11 LAMP, PILOT (WHITE,BLUE) (BACK LIGHT) PL405 1-518-727-11 LAMP, PILOT (GREEN) (BACK LIGHT) < RESISTOR > R424 1-216-821-11 METAL CHIP 1K 5% 1/16W R425 1-216-821-11 METAL CHIP 1K 5% 1/16W R426 1-216-821-11 METAL CHIP 1K 5% 1/16W R427 1-216-841-11 METAL CHIP 47K 5% 1/16W R428 1-216-833-11 METAL CHIP 10K 5% 1/16W R429 1-216-839-11 METAL CHIP 33K 5% 1/16W R430 1-216-864-91 SHORT 0 ************************************************************** A-3347-176-A MAIN BOARD, COMPLETE ********************* 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S < CAPACITOR > C101 1-126-926-11 ELECT 1000uF 20% 10V C102 1-126-960-11 ELECT 1uF 20% 50V C103 1-126-963-11 ELECT 4.7uF 20% 50V C104 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C105 1-104-664-11 ELECT 47uF 20% 10V C106 1-130-495-00 MYLAR 0.1uF 5% 50V C107 1-130-495-00 MYLAR 0.1uF 5% 50V C108 1-126-960-11 ELECT 1uF 20% 50V C110 1-126-961-11 ELECT 2.2uF 20% 50V C111 1-126-961-11 ELECT 2.2uF 20% 50V C112 1-126-961-11 ELECT 2.2uF 20% 50V C113 1-126-961-11 ELECT 2.2uF 20% 50V C114 1-126-961-11 ELECT 2.2uF 20% 50V C115 1-130-495-00 MYLAR 0.1uF 5% 50V C116 1-137-366-11 MYLAR 0.0022uF 5% 50V C117 1-130-495-00 MYLAR 0.1uF 5% 50V C118 1-126-961-11 ELECT 2.2uF 20% 50V C119 1-130-495-00 MYLAR 0.1uF 5% 50V C120 1-104-664-11 ELECT 47uF 20% 10V C121 1-126-963-11 ELECT 4.7uF 20% 50V C122 1-130-495-00 MYLAR 0.1uF 5% 50V C123 1-104-664-11 ELECT 47uF 20% 10V C124 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C125 1-104-664-11 ELECT 47uF 20% 10V C126 1-126-960-11 ELECT 1uF 20% 50V C129 1-126-963-11 ELECT 4.7uF 20% 50V C130 1-137-366-11 MYLAR 0.0022uF 5% 50V C201 1-126-926-11 ELECT 1000uF 20% 10V C202 1-126-960-11 ELECT 1uF 20% 50V C203 1-126-963-11 ELECT 4.7uF 20% 50V C204 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C205 1-104-664-11 ELECT 47uF 20% 10V C206 1-130-495-00 MYLAR 0.1uF 5% 50V C207 1-130-495-00 MYLAR 0.1uF 5% 50V C208 1-126-960-11 ELECT 1uF 20% 50V C210 1-126-961-11 ELECT 2.2uF 20% 50V C211 1-126-961-11 ELECT 2.2uF 20% 50V C212 1-126-961-11 ELECT 2.2uF 20% 50V C213 1-126-961-11 ELECT 2.2uF 20% 50V C214 1-126-961-11 ELECT 2.2uF 20% 50V C215 1-130-495-00 MYLAR 0.1uF 5% 50V C216 1-137-366-11 MYLAR 0.0022uF 5% 50V C217 1-130-495-00 MYLAR 0.1uF 5% 50V C218 1-126-961-11 ELECT 2.2uF 20% 50V C219 1-130-495-00 MYLAR 0.1uF 5% 50V C220 1-104-664-11 ELECT 47uF 20% 10V C221 1-126-963-11 ELECT 4.7uF 20% 50V C222 1-130-495-00 MYLAR 0.1uF 5% 50V C223 1-104-664-11 ELECT 47uF 20% 10V C224 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C225 1-104-664-11 ELECT 47uF 20% 10V C226 1-126-960-11 ELECT 1uF 20% 50V C229 1-126-963-11 ELECT 4.7uF 20% 50V C230 1-137-366-11 MYLAR 0.0022uF 5% 50V C303 1-128-548-11 ELECT 4700uF 20% 25V C304 1-104-664-11 ELECT 47uF 20% 10V C306 1-126-964-11 ELECT 10uF 20% 50V C308 1-104-665-11 ELECT 100uF 20% 10V C309 1-104-664-11 ELECT 47uF 20% 10V C310 1-104-664-11 ELECT 47uF 20% 10V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 ZS-M30 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C311 1-104-664-11 ELECT 47uF 20% 10V C319 1-126-960-11 ELECT 1uF 20% 50V C323 1-104-665-11 ELECT 100uF 20% 10V C326 1-126-964-11 ELECT 10uF 20% 50V C801 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C803 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C804 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C805 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C806 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C807 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C808 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C810 1-126-937-11 ELECT 4700uF 20% 16V C811 1-104-665-11 ELECT 100uF 20% 10V C813 1-104-664-11 ELECT 47uF 20% 10V C814 1-104-665-11 ELECT 100uF 20% 10V C816 1-104-664-11 ELECT 47uF 20% 10V C817 1-104-664-11 ELECT 47uF 20% 10V C818 1-104-665-11 ELECT 100uF 20% 10V C819 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C820 1-104-664-11 ELECT 47uF 20% 10V C821 1-104-664-11 ELECT 47uF 20% 10V C822 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C823 1-126-964-11 ELECT 10uF 20% 50V C825 1-104-664-11 ELECT 47uF 20% 10V C827 1-104-664-11 ELECT 47uF 20% 10V C828 1-104-664-11 ELECT 47uF 20% 10V C829 1-104-664-11 ELECT 47uF 20% 10V C831 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C832 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C833 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C834 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C835 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C836 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C838 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C839 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C840 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C842 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C843 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C844 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C845 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C846 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C847 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C848 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C849 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C850 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C853 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C854 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C855 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C856 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C857 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C859 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C861 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C862 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C863 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C864 1-104-905-11 CAPACITOR 0.22F 5.5V C865 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C869 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C870 1-126-960-11 ELECT 1uF 20% 50V C877 1-164-378-11 CERAMIC CHIP 30PF 5% 50V C878 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C879 1-104-664-11 ELECT 47uF 20% 10V C881 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C882 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C883 1-285-511-11 ELECT 22uF 20% 25V < HOLDER > * CH802 1-815-154-11 HOLDER, CABLE 10P < CONNECTOR > * CN301 1-785-656-21 PIN, CONNECTOR (PC BOARD) 4P * CN302 1-785-656-11 PIN, CONNECTOR (PC BOARD) 4P * CN303 1-785-657-11 PIN, CONNECTOR (PC BOARD) 5P * CN801 1-564-779-11 PLUG, CONNECTOR (2.5MM) 6P * CN803 1-695-329-31 PIN, CONNECTOR (PC BOARD) 6P * CN804 1-568-827-11 PIN, CONNECTOR (PC BOARD) 8P * CN805 1-785-654-11 PIN, CONNECTOR (PC BOARD) 2P CN807 1-770-650-11 CONNECTOR, FFC/FPC 22P CN808 1-695-342-31 PIN, CONNECTOR (PC BOARD) 19P CN810 1-569-614-11 PLUG, CONNECTOR 2P < DIODE > D101 8-719-988-61 DIODE 1SS355TE-17 D201 8-719-988-61 DIODE 1SS355TE-17 D301 8-719-988-61 DIODE 1SS355TE-17 D802 8-719-988-61 DIODE 1SS355TE-17 D803 8-719-056-85 DIODE UDZ-TE-17-8.2B D804 8-719-422-12 DIODE MA8039 D805 8-719-056-84 DIODE UDZ-TE-17-7.5B D806 8-719-988-61 DIODE 1SS355TE-17 D811 8-719-056-84 DIODE UDZ-TE-17-7.5B < FERRITE BEAD > FB802 1-500-329-21 FERRITE 0uH FB803 1-500-329-21 FERRITE 0uH FB806 1-500-329-21 FERRITE 0uH FB807 1-500-329-21 FERRITE 0uH FB808 1-500-329-21 FERRITE 0uH FB809 1-500-329-21 FERRITE 0uH FB810 1-500-329-21 FERRITE 0uH FB811 1-500-329-21 FERRITE 0uH FB812 1-469-185-11 FERRITE 0uH FB813 1-469-185-11 FERRITE 0uH FB814 1-500-329-21 FERRITE 0uH FB815 1-500-329-21 FERRITE 0uH FB816 1-500-329-21 FERRITE 0uH FB817 1-500-329-21 FERRITE 0uH FB818 1-500-329-21 FERRITE 0uH FB819 1-500-329-21 FERRITE 0uH FB820 1-500-329-21 FERRITE 0uH FB821 1-500-329-21 FERRITE 0uH FB823 1-216-864-11 SHORT 0 FB827 1-469-179-21 FERRITE 0uH FB828 1-469-179-21 FERRITE 0uH FB829 1-469-179-21 FERRITE 0uH FB830 1-469-179-21 FERRITE 0uH * FB831 1-469-532-21 FERRITE 0uH MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 ZS-M30 FB880 1-500-329-21 FERRITE 0uH < IC > IC301 8-759-426-51 IC BA5417 IC302 8-759-669-03 IC LC75342 IC303 8-759-426-51 IC BA5417 IC305 8-759-278-58 IC NJM4558V-TE2 IC801 8-752-921-18 IC CXP740096-059Q IC802 8-759-646-52 IC KIA7805API IC803 8-759-486-73 IC XC62FP3302PR IC804 8-759-649-23 IC XC61CN2802PR < JUMPER > JC804 1-216-864-91 SHORT 0 < JUMPER RESISTOR > JW876 1-249-401-11 CARBON 47 5% 1/4W < TRANSISTOR > Q101 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q102 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q106 8-729-920-31 TRANSISTOR DTC343TK Q111 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q201 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q202 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q206 8-729-920-31 TRANSISTOR DTC343TK Q211 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q302 8-729-027-26 TRANSISTOR DTA114YKA-T146 Q305 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q310 8-729-027-26 TRANSISTOR DTA114YKA-T146 Q312 8-729-027-24 TRANSISTOR DTA114TKA-T146 Q313 8-729-027-26 TRANSISTOR DTA114YKA-T146 Q801 8-729-903-10 TRANSISTOR FMW1 Q802 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q804 8-729-052-52 TRANSISTOR KTC2026Y Q805 8-729-052-52 TRANSISTOR KTC2026Y Q806 8-729-903-46 TRANSISTOR 2SB1132-P Q807 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q808 8-729-027-26 TRANSISTOR DTA114YKA-T146 Q809 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q810 8-729-021-82 TRANSISTOR 2SD2396K Q811 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q812 8-729-903-46 TRANSISTOR 2SB1132-P Q816 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q817 8-729-027-26 TRANSISTOR DTA114YKA-T146 Q818 8-729-052-52 TRANSISTOR KTC2026Y Q819 8-729-027-26 TRANSISTOR DTA114YKA-T146 < RESISTOR > R101 1-216-817-11 METAL CHIP 470 5% 1/16W R102 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R103 1-216-821-11 METAL CHIP 1K 5% 1/16W R104 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R105 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R106 1-216-851-11 METAL CHIP 330K 5% 1/16W R107 1-216-857-11 METAL CHIP 1M 5% 1/16W R108 1-216-837-11 METAL CHIP 22K 5% 1/16W R110 1-216-821-11 METAL CHIP 1K 5% 1/16W R111 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R112 1-216-821-11 METAL CHIP 1K 5% 1/16W R113 1-216-841-11 METAL CHIP 47K 5% 1/16W R114 1-216-835-11 METAL CHIP 15K 5% 1/16W R115 1-216-789-11 METAL CHIP 2.2 5% 1/16W R116 1-216-809-11 METAL CHIP 100 5% 1/16W R117 1-216-845-11 METAL CHIP 100K 5% 1/16W R118 1-216-864-91 SHORT 0 R119 1-216-789-11 METAL CHIP 2.2 5% 1/16W R120 1-216-821-11 METAL CHIP 1K 5% 1/16W R121 1-216-833-11 METAL CHIP 10K 5% 1/16W R122 1-216-821-11 METAL CHIP 1K 5% 1/16W R123 1-216-845-11 METAL CHIP 100K 5% 1/16W R124 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R125 1-216-843-11 METAL CHIP 68K 5% 1/16W R126 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R128 1-216-837-11 METAL CHIP 22K 5% 1/16W R201 1-216-817-11 METAL CHIP 470 5% 1/16W R202 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R203 1-216-821-11 METAL CHIP 1K 5% 1/16W R204 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R205 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R206 1-216-851-11 METAL CHIP 330K 5% 1/16W R207 1-216-857-11 METAL CHIP 1M 5% 1/16W R208 1-216-837-11 METAL CHIP 22K 5% 1/16W R210 1-216-821-11 METAL CHIP 1K 5% 1/16W R211 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R212 1-216-821-11 METAL CHIP 1K 5% 1/16W R213 1-216-841-11 METAL CHIP 47K 5% 1/16W R214 1-216-835-11 METAL CHIP 15K 5% 1/16W R215 1-216-789-11 METAL CHIP 2.2 5% 1/16W R216 1-216-809-11 METAL CHIP 100 5% 1/16W R217 1-216-845-11 METAL CHIP 100K 5% 1/16W R218 1-216-864-91 SHORT 0 R219 1-216-789-11 METAL CHIP 2.2 5% 1/16W R220 1-216-821-11 METAL CHIP 1K 5% 1/16W R221 1-216-833-11 METAL CHIP 10K 5% 1/16W R222 1-216-821-11 METAL CHIP 1K 5% 1/16W R223 1-216-845-11 METAL CHIP 100K 5% 1/16W R224 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R225 1-216-843-11 METAL CHIP 68K 5% 1/16W R226 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R228 1-216-837-11 METAL CHIP 22K 5% 1/16W R302 1-216-833-11 METAL CHIP 10K 5% 1/16W R303 1-216-833-11 METAL CHIP 10K 5% 1/16W R304 1-216-833-11 METAL CHIP 10K 5% 1/16W R306 1-216-809-11 METAL CHIP 100 5% 1/16W R309 1-216-805-11 METAL CHIP 47 5% 1/16W R312 1-216-839-11 METAL CHIP 33K 5% 1/16W R314 1-216-821-11 METAL CHIP 1K 5% 1/16W R318 1-216-857-11 METAL CHIP 1M 5% 1/16W R319 1-216-821-11 METAL CHIP 1K 5% 1/16W R320 1-216-821-11 METAL CHIP 1K 5% 1/16W R323 1-216-817-11 METAL CHIP 470 5% 1/16W R324 1-216-821-11 METAL CHIP 1K 5% 1/16W R325 1-216-817-11 METAL CHIP 470 5% 1/16W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 ZS-M30 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R326 1-216-837-11 METAL CHIP 22K 5% 1/16W R327 1-216-833-11 METAL CHIP 10K 5% 1/16W R328 1-216-833-11 METAL CHIP 10K 5% 1/16W R451 1-249-411-11 CARBON 330 5% 1/4W R452 1-249-413-11 CARBON 470 5% 1/4W R453 1-216-821-11 METAL CHIP 1K 5% 1/16W R454 1-216-839-11 METAL CHIP 33K 5% 1/16W R455 1-216-837-11 METAL CHIP 22K 5% 1/16W R456 1-216-833-11 METAL CHIP 10K 5% 1/16W R457 1-216-841-11 METAL CHIP 47K 5% 1/16W R459 1-216-833-11 METAL CHIP 10K 5% 1/16W R801 1-216-821-11 METAL CHIP 1K 5% 1/16W R802 1-216-821-11 METAL CHIP 1K 5% 1/16W R803 1-216-821-11 METAL CHIP 1K 5% 1/16W R804 1-216-821-11 METAL CHIP 1K 5% 1/16W R805 1-216-821-11 METAL CHIP 1K 5% 1/16W R806 1-216-821-11 METAL CHIP 1K 5% 1/16W R807 1-216-821-11 METAL CHIP 1K 5% 1/16W R808 1-216-821-11 METAL CHIP 1K 5% 1/16W R809 1-216-821-11 METAL CHIP 1K 5% 1/16W R811 1-216-821-11 METAL CHIP 1K 5% 1/16W R812 1-216-821-11 METAL CHIP 1K 5% 1/16W R813 1-216-821-11 METAL CHIP 1K 5% 1/16W R814 1-216-821-11 METAL CHIP 1K 5% 1/16W R816 1-216-821-11 METAL CHIP 1K 5% 1/16W R817 1-216-817-11 METAL CHIP 470 5% 1/16W R818 1-216-817-11 METAL CHIP 470 5% 1/16W R819 1-216-821-11 METAL CHIP 1K 5% 1/16W R820 1-216-821-11 METAL CHIP 1K 5% 1/16W R821 1-216-821-11 METAL CHIP 1K 5% 1/16W R822 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R823 1-216-817-11 METAL CHIP 470 5% 1/16W R824 1-216-821-11 METAL CHIP 1K 5% 1/16W R825 1-216-817-11 METAL CHIP 470 5% 1/16W R826 1-216-817-11 METAL CHIP 470 5% 1/16W R827 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R829 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R831 1-216-821-11 METAL CHIP 1K 5% 1/16W R832 1-216-821-11 METAL CHIP 1K 5% 1/16W R833 1-216-821-11 METAL CHIP 1K 5% 1/16W R834 1-216-821-11 METAL CHIP 1K 5% 1/16W R835 1-216-821-11 METAL CHIP 1K 5% 1/16W R836 1-216-821-11 METAL CHIP 1K 5% 1/16W R837 1-216-821-11 METAL CHIP 1K 5% 1/16W R839 1-216-821-11 METAL CHIP 1K 5% 1/16W R841 1-216-821-11 METAL CHIP 1K 5% 1/16W R842 1-216-821-11 METAL CHIP 1K 5% 1/16W R843 1-216-821-11 METAL CHIP 1K 5% 1/16W R844 1-216-817-11 METAL CHIP 470 5% 1/16W R845 1-216-817-11 METAL CHIP 470 5% 1/16W R846 1-216-821-11 METAL CHIP 1K 5% 1/16W R847 1-216-821-11 METAL CHIP 1K 5% 1/16W R848 1-216-821-11 METAL CHIP 1K 5% 1/16W R850 1-216-821-11 METAL CHIP 1K 5% 1/16W R851 1-216-821-11 METAL CHIP 1K 5% 1/16W R852 1-216-821-11 METAL CHIP 1K 5% 1/16W R853 1-216-809-11 METAL CHIP 100 5% 1/16W R854 1-216-805-11 METAL CHIP 47 5% 1/16W R855 1-216-817-11 METAL CHIP 470 5% 1/16W R856 1-216-821-11 METAL CHIP 1K 5% 1/16W R857 1-216-805-11 METAL CHIP 47 5% 1/16W R858 1-216-821-11 METAL CHIP 1K 5% 1/16W R859 1-216-821-11 METAL CHIP 1K 5% 1/16W R860 1-216-833-11 METAL CHIP 10K 5% 1/16W R861 1-216-821-11 METAL CHIP 1K 5% 1/16W R862 1-216-841-11 METAL CHIP 47K 5% 1/16W R863 1-216-821-11 METAL CHIP 1K 5% 1/16W R864 1-216-833-11 METAL CHIP 10K 5% 1/16W R865 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R866 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R867 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R868 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R869 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R870 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R873 1-216-817-11 METAL CHIP 470 5% 1/16W R874 1-216-813-11 METAL CHIP 220 5% 1/16W R875 1-216-841-11 METAL CHIP 47K 5% 1/16W R878 1-216-833-11 METAL CHIP 10K 5% 1/16W R881 1-216-821-11 METAL CHIP 1K 5% 1/16W R882 1-216-809-11 METAL CHIP 100 5% 1/16W R883 1-216-833-11 METAL CHIP 10K 5% 1/16W R884 1-216-835-11 METAL CHIP 15K 5% 1/16W R885 1-216-821-11 METAL CHIP 1K 5% 1/16W R886 1-216-841-11 METAL CHIP 47K 5% 1/16W R887 1-216-821-11 METAL CHIP 1K 5% 1/16W R890 1-216-817-11 METAL CHIP 470 5% 1/16W R891 1-216-813-11 METAL CHIP 220 5% 1/16W R892 1-216-821-11 METAL CHIP 1K 5% 1/16W R893 1-216-821-11 METAL CHIP 1K 5% 1/16W R894 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R898 1-216-821-11 METAL CHIP 1K 5% 1/16W R899 1-249-413-11 CARBON 470 5% 1/4W < VIBRATOR > X801 1-767-697-11 VIBRATOR, CRYSTAL (32.768KHz) X802 1-781-598-21 VIBRATOR, CERAMIC (8MHz) ************************************************************** A-3322-905-A MD BOARD, COMPLETE ******************** < CAPACITOR > C501 1-126-791-11 ELECT 10uF 20% 16V C502 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C503 1-126-791-11 ELECT 10uF 20% 16V C505 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C506 1-164-156-11 CERAMIC CHIP 0.1uF 25V C508 1-164-156-11 CERAMIC CHIP 0.1uF 25V C509 1-126-791-11 ELECT 10uF 20% 16V C510 1-126-791-11 ELECT 10uF 20% 16V C511 1-164-156-11 CERAMIC CHIP 0.1uF 25V C512 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C513 1-164-156-11 CERAMIC CHIP 0.1uF 25V C514 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C515 1-126-791-11 ELECT 10uF 20% 16V C516 1-126-791-11 ELECT 10uF 20% 16V MD MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 ZS-M30 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C517 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C518 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C519 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C520 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C521 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C522 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C523 1-164-156-11 CERAMIC CHIP 0.1uF 25V C524 1-126-791-11 ELECT 10uF 20% 16V C525 1-164-156-11 CERAMIC CHIP 0.1uF 25V C526 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C527 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C528 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C529 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C530 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C531 1-164-156-11 CERAMIC CHIP 0.1uF 25V C532 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C533 1-126-382-11 ELECT 100uF 20% 6.3V C534 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C536 1-124-779-00 ELECT CHIP 10uF 20% 16V C537 1-164-156-11 CERAMIC CHIP 0.1uF 25V C538 1-164-156-11 CERAMIC CHIP 0.1uF 25V C539 1-126-382-11 ELECT 100uF 20% 6.3V C540 1-164-156-11 CERAMIC CHIP 0.1uF 25V C541 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C542 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C544 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C545 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C546 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C547 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C548 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C549 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C550 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C551 1-163-038-11 CERAMIC CHIP 0.1uF 25V C552 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C553 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C554 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C555 1-164-156-11 CERAMIC CHIP 0.1uF 25V C556 1-126-791-11 ELECT 10uF 20% 16V C557 1-164-156-11 CERAMIC CHIP 0.1uF 25V C558 1-164-156-11 CERAMIC CHIP 0.1uF 25V C559 1-126-382-11 ELECT 100uF 20% 6.3V C560 1-126-791-11 ELECT 10uF 20% 16V C601 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C602 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C603 1-164-156-11 CERAMIC CHIP 0.1uF 25V C604 1-164-156-11 CERAMIC CHIP 0.1uF 25V C605 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C606 1-164-156-11 CERAMIC CHIP 0.1uF 25V C607 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C608 1-164-156-11 CERAMIC CHIP 0.1uF 25V C609 1-164-156-11 CERAMIC CHIP 0.1uF 25V C610 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C611 1-164-156-11 CERAMIC CHIP 0.1uF 25V C612 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C613 1-126-246-11 ELECT CHIP 220uF 20% 4V C614 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C615 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C616 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C617 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C618 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C619 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C620 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C621 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C622 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C623 1-124-779-00 ELECT CHIP 10uF 20% 16V C624 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C625 1-164-156-11 CERAMIC CHIP 0.1uF 25V C626 1-124-589-11 ELECT 47uF 20% 16V C627 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C629 1-164-156-11 CERAMIC CHIP 0.1uF 25V C630 1-124-589-11 ELECT 47uF 20% 16V C631 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C632 1-469-125-21 FERRITE 0uH < CONNECTOR > CN501 1-766-833-21 CONNECTOR, FFC/FPC (ZIF) 21P * CN502 1-794-627-21 CONNECTOR, FFC/FPC 7P CN503 1-770-692-11 CONNECTOR, FFC/FPC 9P * CN601 1-580-055-21 PIN, CONNECTOR (SMD) 2P * CN602 1-580-055-21 PIN, CONNECTOR (SMD) 2P CN603 1-770-705-11 CONNECTOR, FFC/FPC 22P < DIODE > D501 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB501 1-469-179-21 FERRITE 0uH FB502 1-469-125-21 FERRITE 0uH FB503 1-412-987-31 INDUCTOR 4.7uH FB504 1-412-987-31 INDUCTOR 4.7uH FB505 1-412-987-31 INDUCTOR 4.7uH FB506 1-412-987-31 INDUCTOR 4.7uH FB507 1-216-864-91 SHORT 0 FB508 1-216-864-91 SHORT 0 FB601 1-216-864-91 SHORT 0 FB602 1-216-864-91 SHORT 0 FB603 1-216-864-91 SHORT 0 FB604 1-469-125-21 FERRITE 0uH FB605 1-469-125-21 FERRITE 0uH FB606 1-469-125-21 FERRITE 0uH FB607 1-469-125-21 FERRITE 0uH FB609 1-469-125-21 FERRITE 0uH FB610 1-469-125-21 FERRITE 0uH FB611 1-469-125-21 FERRITE 0uH FB612 1-469-125-21 FERRITE 0uH FB613 1-469-125-21 FERRITE 0uH * FB614 1-469-532-21 FERRITE 0uH FB615 1-469-125-21 FERRITE 0uH FB616 1-469-125-21 FERRITE 0uH FB617 1-469-125-21 FERRITE 0uH FB618 1-469-125-21 FERRITE 0uH FB619 1-469-125-21 FERRITE 0uH FB620 1-469-125-21 FERRITE 0uH FB621 1-500-329-21 FERRITE 0uH MD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 ZS-M30 FB622 1-469-125-21 FERRITE 0uH FB623 1-469-125-21 FERRITE 0uH FB624 1-469-125-21 FERRITE 0uH FB625 1-469-125-21 FERRITE 0uH FB626 1-469-125-21 FERRITE 0uH FB627 1-469-125-21 FERRITE 0uH FB628 1-469-125-21 FERRITE 0uH FB629 1-469-125-21 FERRITE 0uH < FILTER > FL501 1-234-117-21 FILTER, CHIP EMI FL502 1-234-117-21 FILTER, CHIP EMI FL503 1-234-117-21 FILTER, CHIP EMI FL601 1-239-899-21 FILTER, CHIP EMI FL602 1-239-899-21 FILTER, CHIP EMI FL603 1-234-121-21 FILTER, CHIP EMI FL604 1-234-121-21 FILTER, CHIP EMI FL605 1-234-177-21 FILTER, CHIP EMI FL606 1-234-177-21 FILTER, CHIP EMI FL607 1-234-177-21 FILTER, CHIP EMI FL608 1-234-121-21 FILTER, CHIP EMI FL609 1-234-177-21 FILTER, CHIP EMI FL610 1-234-121-21 FILTER, CHIP EMI FL611 1-234-126-21 FILTER, CHIP EMI FL612 1-234-126-21 FILTER, CHIP EMI < IC > IC501 8-759-430-25 IC BH6511FS-E2 IC502 8-752-080-95 IC CXA2523AR IC503 8-759-523-37 IC TC74ACT08FT (EL) IC504 8-752-389-44 IC CXD2654R IC505 8-759-653-36 IC GLT441M04-70TC IC506 8-759-460-72 IC BA033FP-E2 IC601 8-759-697-89 IC M30620MCA-A73FP IC602 8-759-040-83 IC BA6287F-T1 IC603 8-759-640-39 IC BR24C02F-WE2 IC604 8-759-561-36 IC PCM3003E/T2 < JUMPER > JC501 1-216-295-11 SHORT 0 JC502 1-216-295-11 SHORT 0 JC503 1-216-295-11 SHORT 0 JC504 1-216-295-11 SHORT 0 JC505 1-216-295-11 SHORT 0 JC506 1-216-295-11 SHORT 0 JC507 1-216-295-11 SHORT 0 JC508 1-216-295-11 SHORT 0 JC510 1-216-295-11 SHORT 0 JC511 1-216-295-11 SHORT 0 JC512 1-216-295-11 SHORT 0 JC514 1-216-295-11 SHORT 0 JC516 1-216-295-11 SHORT 0 JC601 1-216-295-11 SHORT 0 JC602 1-216-295-11 SHORT 0 JC603 1-216-864-91 SHORT 0 JC604 1-216-864-91 SHORT 0 JC605 1-216-295-11 SHORT 0 < COIL > * L501 1-469-532-21 FERRITE 0uH L502 1-469-967-21 INDUCTOR 10uH L503 1-414-771-91 INDUCTOR 10uH L504 1-414-398-11 INDUCTOR 10uH L505 1-414-398-11 INDUCTOR 10uH L506 1-469-967-21 INDUCTOR 10uH L507 1-414-404-11 INDUCTOR 100uH L508 1-414-404-11 INDUCTOR 100uH L509 1-414-771-91 INDUCTOR 10uH L510 1-414-398-11 INDUCTOR 10uH L511 1-216-295-11 SHORT 0 L512 1-469-967-21 INDUCTOR 10uH L601 1-469-967-21 INDUCTOR 10uH L602 1-469-967-21 INDUCTOR 10uH L603 1-414-398-11 INDUCTOR 10uH L604 1-414-398-11 INDUCTOR 10uH L605 1-414-771-91 INDUCTOR 10uH L606 1-469-967-21 INDUCTOR 10uH L607 1-216-295-11 SHORT 0 L608 1-414-398-11 INDUCTOR 10uH L610 1-216-295-11 SHORT 0 L611 1-416-107-21 INDUCTOR 0uH L612 1-414-398-11 INDUCTOR 10uH L613 1-414-398-11 INDUCTOR 10uH < TRANSISTOR > Q501 8-729-402-93 TRANSISTOR UN5214 Q502 8-729-903-10 TRANSISTOR FMW1 Q503 8-729-403-35 TRANSISTOR UN5113 Q504 8-729-402-93 TRANSISTOR UN5214 Q505 8-729-026-53 TRANSISTOR 2SA1576A-T106-QR Q506 8-729-903-46 TRANSISTOR 2SB1132-P Q507 8-729-403-35 TRANSISTOR UN5113 Q508 8-729-031-43 TRANSISTOR IMD9A-T108 Q601 8-729-031-43 TRANSISTOR IMD9A-T108 Q602 8-729-028-99 TRANSISTOR DTC114YUA-T106 Q603 8-729-101-07 TRANSISTOR 2SB798-DL Q604 8-729-907-03 TRANSISTOR FMG5 Q605 8-729-027-46 TRANSISTOR DTC114YKA-T146 Q606 8-729-904-87 TRANSISTOR 2SB1197K-R Q607 8-729-031-43 TRANSISTOR IMD9A-T108 < RESISTOR > R501 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R502 1-216-821-11 METAL CHIP 1K 5% 1/16W R503 1-216-853-11 METAL CHIP 470K 5% 1/16W R504 1-216-863-11 RES-CHIP 3.3M 5% 1/16W R505 1-216-821-11 METAL CHIP 1K 5% 1/16W R506 1-249-387-11 CARBON 3.3 5% 1/4W R508 1-216-821-11 METAL CHIP 1K 5% 1/16W R509 1-216-841-11 METAL CHIP 47K 5% 1/16W R510 1-216-833-11 METAL CHIP 10K 5% 1/16W R511 1-216-845-11 METAL CHIP 100K 5% 1/16W R512 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R513 1-216-853-11 METAL CHIP 470K 5% 1/16W R514 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R515 1-216-833-11 METAL CHIP 10K 5% 1/16W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 ZS-M30 R516 1-216-819-11 METAL CHIP 680 5% 1/16W R517 1-216-833-11 METAL CHIP 10K 5% 1/16W R518 1-216-833-11 METAL CHIP 10K 5% 1/16W R519 1-216-845-11 METAL CHIP 100K 5% 1/16W R520 1-216-833-11 METAL CHIP 10K 5% 1/16W R521 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R522 1-216-833-11 METAL CHIP 10K 5% 1/16W R523 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R524 1-216-845-11 METAL CHIP 100K 5% 1/16W R525 1-216-833-11 METAL CHIP 10K 5% 1/16W R526 1-216-864-91 SHORT 0 R527 1-216-837-11 METAL CHIP 22K 5% 1/16W R528 1-216-839-11 METAL CHIP 33K 5% 1/16W R529 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R530 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R531 1-216-864-91 SHORT 0 R532 1-216-815-11 METAL CHIP 330 5% 1/16W R533 1-216-819-11 METAL CHIP 680 5% 1/16W R534 1-216-841-11 METAL CHIP 47K 5% 1/16W R535 1-216-809-11 METAL CHIP 100 5% 1/16W R536 1-216-833-11 METAL CHIP 10K 5% 1/16W R537 1-216-833-11 METAL CHIP 10K 5% 1/16W R538 1-216-864-91 SHORT 0 R539 1-216-845-11 METAL CHIP 100K 5% 1/16W R540 1-216-811-11 METAL CHIP 150 5% 1/16W R541 1-216-821-11 METAL CHIP 1K 5% 1/16W R542 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R543 1-216-821-11 METAL CHIP 1K 5% 1/16W R544 1-216-809-11 METAL CHIP 100 5% 1/16W R545 1-216-864-91 SHORT 0 R547 1-216-833-11 METAL CHIP 10K 5% 1/16W R548 1-216-813-11 METAL CHIP 220 5% 1/16W R549 1-216-855-11 METAL CHIP 680K 5% 1/16W R550 1-216-833-11 METAL CHIP 10K 5% 1/16W R551 1-216-845-11 METAL CHIP 100K 5% 1/16W R552 1-216-833-11 METAL CHIP 10K 5% 1/16W R553 1-216-833-11 METAL CHIP 10K 5% 1/16W R554 1-216-833-11 METAL CHIP 10K 5% 1/16W R555 1-216-809-11 METAL CHIP 100 5% 1/16W R556 1-216-817-11 METAL CHIP 470 5% 1/16W R557 1-216-817-11 METAL CHIP 470 5% 1/16W R558 1-216-817-11 METAL CHIP 470 5% 1/16W R559 1-216-813-11 METAL CHIP 220 5% 1/16W R562 1-216-864-91 SHORT 0 R601 1-216-833-11 METAL CHIP 10K 5% 1/16W R602 1-216-821-11 METAL CHIP 1K 5% 1/16W R603 1-216-833-11 METAL CHIP 10K 5% 1/16W R604 1-216-049-11 RES-CHIP 1K 5% 1/10W R605 1-216-833-11 METAL CHIP 10K 5% 1/16W R606 1-216-049-11 RES-CHIP 1K 5% 1/10W R607 1-216-833-11 METAL CHIP 10K 5% 1/16W R608 1-216-049-11 RES-CHIP 1K 5% 1/10W R609 1-216-853-11 METAL CHIP 470K 5% 1/16W R610 1-216-853-11 METAL CHIP 470K 5% 1/16W R611 1-216-853-11 METAL CHIP 470K 5% 1/16W R612 1-216-853-11 METAL CHIP 470K 5% 1/16W R613 1-216-853-11 METAL CHIP 470K 5% 1/16W R614 1-216-853-11 METAL CHIP 470K 5% 1/16W R616 1-216-833-11 METAL CHIP 10K 5% 1/16W R617 1-216-049-11 RES-CHIP 1K 5% 1/10W R618 1-216-049-11 RES-CHIP 1K 5% 1/10W R619 1-216-845-11 METAL CHIP 100K 5% 1/16W R620 1-216-845-11 METAL CHIP 100K 5% 1/16W R621 1-216-857-11 METAL CHIP 1M 5% 1/16W R622 1-216-833-11 METAL CHIP 10K 5% 1/16W R623 1-216-841-11 METAL CHIP 47K 5% 1/16W R624 1-216-841-11 METAL CHIP 47K 5% 1/16W R625 1-216-833-11 METAL CHIP 10K 5% 1/16W R626 1-216-025-11 RES-CHIP 100 5% 1/10W R627 1-216-845-11 METAL CHIP 100K 5% 1/16W R628 1-216-864-91 SHORT 0 R629 1-216-845-11 METAL CHIP 100K 5% 1/16W R630 1-216-833-11 METAL CHIP 10K 5% 1/16W R631 1-216-845-11 METAL CHIP 100K 5% 1/16W R632 1-216-833-11 METAL CHIP 10K 5% 1/16W R633 1-216-833-11 METAL CHIP 10K 5% 1/16W R635 1-216-845-11 METAL CHIP 100K 5% 1/16W R637 1-216-845-11 METAL CHIP 100K 5% 1/16W R638 1-216-809-11 METAL CHIP 100 5% 1/16W R639 1-216-809-11 METAL CHIP 100 5% 1/16W R640 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R641 1-216-817-11 METAL CHIP 470 5% 1/16W R642 1-216-841-11 METAL CHIP 47K 5% 1/16W R643 1-216-833-11 METAL CHIP 10K 5% 1/16W R644 1-216-833-11 METAL CHIP 10K 5% 1/16W R645 1-216-821-11 METAL CHIP 1K 5% 1/16W R646 1-216-821-11 METAL CHIP 1K 5% 1/16W R647 1-216-821-11 METAL CHIP 1K 5% 1/16W R648 1-216-821-11 METAL CHIP 1K 5% 1/16W R649 1-216-833-11 METAL CHIP 10K 5% 1/16W R650 1-216-833-11 METAL CHIP 10K 5% 1/16W R651 1-216-821-11 METAL CHIP 1K 5% 1/16W R652 1-216-821-11 METAL CHIP 1K 5% 1/16W R653 1-500-329-21 FERRITE 0uH R654 1-216-817-11 METAL CHIP 470 5% 1/16W R655 1-216-073-00 METAL CHIP 10K 5% 1/10W R656 1-216-841-11 METAL CHIP 47K 5% 1/16W R658 1-216-864-91 SHORT 0 R659 1-216-821-11 METAL CHIP 1K 5% 1/16W R660 1-216-821-11 METAL CHIP 1K 5% 1/16W R661 1-216-845-11 METAL CHIP 100K 5% 1/16W < SWITCH > S501 1-762-596-21 SWITCH, PUSH (1 KEY) (LIMIT) < VIBRATOR > X501 1-760-173-11 VIBRATOR, CRYSTAL (45.1584MHz) X601 1-781-155-21 VIBRATOR, CERAMIC (12MHz) ************************************************************** Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 ZS-M30 1-679-406-21 POWER BOARD ************* < CAPACITOR > C901 1-162-995-11 CERAMIC CHIP 0.022uF 50V C902 1-162-995-11 CERAMIC CHIP 0.022uF 50V C903 1-162-995-11 CERAMIC CHIP 0.022uF 50V C904 1-162-995-11 CERAMIC CHIP 0.022uF 50V C905 1-162-995-11 CERAMIC CHIP 0.022uF 50V C906 1-162-995-11 CERAMIC CHIP 0.022uF 50V < CONNECTOR > * CN902 1-785-654-11 PIN, CONNECTOR (PC BOARD) 2P < DIODE > D901 8-719-046-07 DIODE 2A02M D902 8-719-046-07 DIODE 2A02M D903 8-719-046-07 DIODE 2A02M D904 8-719-046-07 DIODE 2A02M D905 8-719-046-07 DIODE 2A02M D906 8-719-046-07 DIODE 2A02M D907 8-719-046-07 DIODE 2A02M D908 8-719-046-07 DIODE 2A02M D910 8-719-988-61 DIODE 1SS355TE-17 D911 8-719-988-61 DIODE 1SS355TE-17 < FUSE > !F901 1-532-465-51 FUSE,TIME LAG 3.15A/250V !F902 1-532-503-51 FUSE,TIME LAG 1.6A/250V < FUSE HOLDER > FH901 1-533-233-31 HOLDER, FUSE FH902 1-533-233-31 HOLDER, FUSE FH903 1-533-233-31 HOLDER, FUSE FH904 1-533-233-31 HOLDER, FUSE < JACK > 0J901 1-526-838-11 INLET, AC 2P ( - AC IN) < LINE FILTER > 0LF901 1-402-663-11 TRANSFORMER, LINE FILTER (LFT) < RESISTOR > R901 1-216-833-11 METAL CHIP 10K 5% 1/16W R902 1-216-841-11 METAL CHIP 47K 5% 1/16W < TRANSFORMER > 0T901 1-435-872-11 TRANSFORMER, POWER ************************************************************** A-3322-907-A REC BOARD, COMPLETE ******************** < CAPACITOR > C561 1-127-677-21 CERAMIC CHIP 0.001uF 10% 250V C562 1-119-667-11 CERAMIC CHIP 22uF 10V C563 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C564 1-125-817-11 CERAMIC CHIP 10uF 10% 6.3V C565 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V < CONNECTOR > * CN504 1-778-774-11 HOUSING, CONNECTOR (FPC) 4P CN505 1-784-683-11 CONNECTOR, FFC/FPC 9P < DIODE > D502 8-719-046-86 DIODE F1J6TP D503 8-719-046-86 DIODE F1J6TP < JUMPER > JC509 1-216-864-91 SHORT 0 < COIL > L513 1-414-398-11 INDUCTOR 10uH < TRANSISTOR > Q509 8-729-017-65 TRANSISTOR 2SK1764KYTR Q510 8-729-018-75 TRANSISTOR 2SJ278MYTR < RESISTOR > R560 1-216-841-11 METAL CHIP 47K 5% 1/16W R561 1-216-841-11 METAL CHIP 47K 5% 1/16W < SWITCH > S502 1-771-783-21 SWITCH, PUSH LEVER (REC POSOTION) S504 1-771-783-21 SWITCH, PUSH LEVER (PLAY POSOTION) ************************************************************** 1-679-403-21 SW (L) BOARD ************ 3-831-441-11 CUSHION (B) < HOLDER > * CH402 1-815-155-11 HOLDER, CABLE 4P < RESISTOR > R413 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R414 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R415 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R416 1-216-823-11 METAL CHIP 1.5K 5% 1/16W < SWITCH > S411 1-786-050-21 SWITCH, KEY BOARD (MDu) S412 1-786-050-21 SWITCH, KEY BOARD (MDx) S413 1-786-050-21 SWITCH, KEY BOARD (CDu) S414 1-786-050-21 SWITCH, KEY BOARD (CDx) S415 1-786-050-21 SWITCH, KEY BOARD (RADIO BAND,AUTO PRESET) S416 1-786-050-21 SWITCH, KEY BOARD (GAME(LINE),LINE LEVEL) ************************************************************** Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark POWER REC SW(L) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 ZS-M30 1-679-402-21 SW (R) BOARD ************* < CAPACITOR > C401 1-124-259-11 ELECT 4.7uF 20% 16V C402 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C403 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V < HOLDER > * CH401 1-565-385-11 HOLDER, CABLE 4P < TRANSISTOR > Q401 8-729-027-43 TRANSISTOR DTC144EKA-T146 < CONNECTOR > CN402 1-770-516-31 PIN, CONNECTOR (PC BOARD) 8P < IC > IC401 8-749-016-97 IC NJL62H400A < RESISTOR > R412 1-216-839-11 METAL CHIP 33K 5% 1/16W R417 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R418 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R419 1-216-833-11 METAL CHIP 10K 5% 1/16W R420 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R421 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R422 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R423 1-216-833-11 METAL CHIP 10K 5% 1/16W R431 1-216-833-11 METAL CHIP 10K 5% 1/16W < SWITCH > S417 1-786-050-21 SWITCH, KEY BOARD (DISPLAY) S418 1-786-050-21 SWITCH, KEY BOARD (TUNE+,M k) S419 1-786-050-21 SWITCH, KEY BOARD (TUNE-,m K) S420 1-786-050-21 SWITCH, KEY BOARD (EDIT) S421 1-786-050-21 SWITCH, KEY BOARD (DEL,CLOCK/SLEEP/ TIMER) S422 1-786-050-21 SWITCH, KEY BOARD (YES,ENTER) S423 1-786-050-21 SWITCH, KEY BOARD (NO,CANCEL) S424 1-786-050-21 SWITCH, KEY BOARD ((MD)Z) S425 1-771-915-11 SWITCH, ROTARY (JOG) ************************************************************** 1-679-401-21 TOP BOARD ********** < CONNECTOR > CN401 1-770-540-31 PIN, CONNECTOR (PC BOARD) 6P < DIODE > D402 8-719-941-07 LED SLC-22VR3 (HIGH SPEED) D403 8-719-077-29 LED SLC-22MG3F (PANORAMA SOUND) < RESISTOR > R404 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R405 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R406 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R407 1-216-833-11 METAL CHIP 10K 5% 1/16W R408 1-216-833-11 METAL CHIP 10K 5% 1/16W R409 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R410 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R411 1-216-823-11 METAL CHIP 1.5K 5% 1/16W < SWITCH > S401 1-786-050-21 SWITCH, KEY BOARD (OPERATE) S402 1-786-050-21 SWITCH, KEY BOARD (HIGH SPEED) S403 1-786-050-21 SWITCH, KEY BOARD (SYNCHRO REC,CDNMD) S404 1-786-050-21 SWITCH, KEY BOARD (REC,REC MODE) S405 1-786-050-21 SWITCH, KEY BOARD (STANDBY) S406 1-786-050-21 SWITCH, KEY BOARD (VOLUME+) S407 1-786-050-21 SWITCH, KEY BOARD (VOLUME-) S408 1-786-050-21 SWITCH, KEY BOARD (MODE) S409 1-786-050-21 SWITCH, KEY BOARD (PANORAMA SOUND) S410 1-786-050-21 SWITCH, KEY BOARD (SOUND MEGA BASS) ************************************************************** A-3347-168-A TUNER BOARD, COMPLETE ********************** < CAPACITOR > C1 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C3 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C4 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C5 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C6 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C7 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C8 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C9 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C10 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C11 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C12 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C13 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C14 1-104-664-11 ELECT 47uF 20% 10V C15 1-126-935-11 ELECT 470uF 20% 10V C16 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C17 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C18 1-115-156-11 CERAMIC CHIP 1uF 10V C19 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C20 1-115-156-11 CERAMIC CHIP 1uF 10V C21 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C22 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C23 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C24 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C25 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C26 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C27 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C28 1-128-551-11 ELECT 22uF 20% 25V C29 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C30 1-126-963-11 ELECT 4.7uF 20% 50V C32 1-126-934-11 ELECT 220uF 20% 10V C33 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C34 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C35 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SW(R) TOP TUNER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 ZS-M30 C36 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C37 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C38 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C39 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C40 1-126-964-11 ELECT 10uF 20% 50V C41 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C43 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C44 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C45 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C46 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C47 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C49 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C50 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C51 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C52 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C53 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C60 1-164-230-11 CERAMIC CHIP 220PF 5% 50V < FILTER > CF1 1-781-407-11 FILTER, CERAMIC CF2 1-781-407-11 FILTER, CERAMIC CF3 1-781-344-12 FILTER, AM CERAMIC < CONNECTOR > * CN1 1-785-662-11 PIN, CONNECTOR (PC BOARD) 10P < TRIMMER > CT1 1-141-601-21 CAP, ADJ 10PF (FM TRACKING) CT2 1-141-601-21 CAP, ADJ 10PF (MW TRACKING) CT3 1-141-459-11 CAP, TRIMMER (SEAL TYPE) 45PF (LW TRACKING) CT4 1-141-459-11 CAP, TRIMMER (SEAL TYPE) 45PF (LW FREQUENCY COVERAGE) < DIODE > D1 8-719-076-71 DIODE KV1471ETR D2 8-719-076-71 DIODE KV1471ETR D3 8-719-050-69 DIODE KV1520N D4 8-719-988-61 DIODE 1SS355TE-17 D5 8-719-988-61 DIODE 1SS355TE-17 D6 8-719-988-61 DIODE 1SS355TE-17 D7 8-719-988-61 DIODE 1SS355TE-17 D8 8-719-988-61 DIODE 1SS355TE-17 D9 8-719-988-61 DIODE 1SS355TE-17 D10 8-719-978-04 DIODE DTZ-TT11-3.3B < FILTER > FL1 1-236-711-21 FILTER, BAND PASS < IC > IC1 8-759-689-35 IC LV23000M-TLM < JUMPER > JC2 1-216-864-91 SHORT 0 JC3 1-216-864-91 SHORT 0 < COIL > L1 1-424-716-11 COIL, AIR-CORE (FM TRACKING) L2 1-424-717-11 COIL, AIR-CORE L3 1-416-991-11 COIL, AM ANT (MW TRACKING) L4 1-416-129-11 COIL, LW ANT (LW TRACKING) L5 1-411-959-11 COIL, AM OSC (MW FREQUENCY COVERAGE) L6 1-419-465-11 COIL (FM DET) (FM IF) L7 1-412-979-21 INDUCTOR 1uH L8 1-410-071-11 INDUCTOR 10MH < TRANSISTOR > Q1 8-729-119-32 TRANSISTOR 2SK193-E Q2 8-729-920-31 TRANSISTOR DTC343TK Q3 8-729-920-38 TRANSISTOR 2SC2059K-N Q4 8-729-931-02 TRANSISTOR 2SC2413KQ Q5 8-729-027-26 TRANSISTOR DTA114YKA-T146 Q6 8-729-027-26 TRANSISTOR DTA114YKA-T146 < RESISTOR > R1 1-216-845-11 METAL CHIP 100K 5% 1/16W R2 1-216-797-11 METAL CHIP 10 5% 1/16W R3 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R4 1-216-835-11 METAL CHIP 15K 5% 1/16W R5 1-216-833-11 METAL CHIP 10K 5% 1/16W R6 1-216-845-11 METAL CHIP 100K 5% 1/16W R7 1-216-839-11 METAL CHIP 33K 5% 1/16W R8 1-216-805-11 METAL CHIP 47 5% 1/16W R9 1-216-817-11 METAL CHIP 470 5% 1/16W R10 1-216-801-11 METAL CHIP 22 5% 1/16W R11 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R12 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R13 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R14 1-216-821-11 METAL CHIP 1K 5% 1/16W R15 1-216-833-11 METAL CHIP 10K 5% 1/16W R16 1-216-809-11 METAL CHIP 100 5% 1/16W R17 1-216-809-11 METAL CHIP 100 5% 1/16W R18 1-216-809-11 METAL CHIP 100 5% 1/16W R19 1-216-809-11 METAL CHIP 100 5% 1/16W R20 1-216-833-11 METAL CHIP 10K 5% 1/16W R21 1-216-821-11 METAL CHIP 1K 5% 1/16W R22 1-216-821-11 METAL CHIP 1K 5% 1/16W R23 1-216-809-11 METAL CHIP 100 5% 1/16W R24 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R25 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R26 1-216-819-11 METAL CHIP 680 5% 1/16W R27 1-216-837-11 METAL CHIP 22K 5% 1/16W R28 1-216-819-11 METAL CHIP 680 5% 1/16W R29 1-216-813-11 METAL CHIP 220 5% 1/16W R30 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R31 1-216-833-11 METAL CHIP 10K 5% 1/16W R32 1-216-833-11 METAL CHIP 10K 5% 1/16W R33 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R34 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R35 1-216-837-11 METAL CHIP 22K 5% 1/16W R36 1-216-837-11 METAL CHIP 22K 5% 1/16W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark TUNER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 ZS-M30 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < TRANSFORMER > T1 1-433-741-11 TRANSFORMER, IF (AM IF) < TERMINAL > TB1 1-694-156-11 TERMINAL BOARD (MW/LW ANTENNA) < VIBRATOR > X1 1-760-130-11 VIBRATOR, CRYSTAL (75kHz) ************************************************************** MISCELLANEOUS *************** 63 1-757-153-11 WIRE, PARALLEL (FFC) (8 CORE) 106 1-757-152-11 WIRE, PARALLEL (FFC) (6 CORE) 112 1-471-110-11 MAGNET 119 1-757-470-11 WIRE, PARALLEL (FFC) (16 CORE) 120 1-757-154-11 CABLE, FLEXIBLE FLAT (19 CORE) 153 X-2646-381-1 SHASSIS ASSY, MOTOR (MB) (SPINDLE) (INCLUDING M901) !154 8-848-483-05 OPTICAL PICK-UP KSS-213C 202 1-669-180-11 OP FLEXIBLE BOARD 203 1-757-156-11 CABLE, FLEXIBLE FLAT (9 CORE) 204 1-792-047-11 CABLE, FLEXIBLE FLAT (7 CORE) 224 1-757-155-11 WIRE, PARALLEL (FFC) (22 CORE) !251 A-4672-541-A KMS-260B (MD) OPTICAL PICK-UP ASSY 267 1-676-550-11 FLEXIBLE BOARD ANT1 1-501-452-22 ANTENNA, TELESCOPIC !F901 1-532-465-51 FUSE,TIME LAG 3.15A/250V !F902 1-532-503-51 FUSE,TIME LAG 1.6A/250V LCD1 1-476-281-11 INDICATOR UNIT, LIQUID CRYSTAL M103 X-3378-325-1 MOTOR ASSY, LOADING (INCLUDING GEAR) M601 X-2626-327-1 MOTOR ASSY, SPINDLE (MB) (SPINDLE) M602 X-2646-617-2 MOTOR ASSY, SLED (SLED) (ENCLUDING GEAR) M603 X-3378-325-1 MOTOR ASSY, LOADING (ENCLUDING GEAR) M902 X-2625-769-1 GEAR ASSY, MOTOR (MB) (RP) (SLED) (ENCLUDING GEAR) S701 1-692-960-11 SWITCH, PUSH (1 KEY) (CD DOOR OPEN/ CLOSE) !T901 1-435-872-11 TRANSFORMER, POWER * HR901 1-500-518-11 HEAD, MD OVER LIGHT SP101 1-529-846-11 SPEAKER (8cm)(L-CH) SP102 1-529-847-11 SPEAKER (5.7cm)(L-CH) SP201 1-529-846-11 SPEAKER (8 cm) (R-CH) SP202 1-529-847-11 SPEAKER (5.7 cm) (R-CH) ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************** ! 1-696-819-11 CORD, POWER (Australian) 1-754-102-21 ANTENNA, ROOP (LW.MW) 1-757-404-11 CORD, CONNECTION (AUDIO)(STEREO MINI PLUG/STEREO MINI PULUG,102cm) ! 1-769-412-13 CORD, POWER (AEP,UK) ! 1-770-019-11 ADAPTOR, CONVERSION PLUG 3P (UK) 3-027-153-11 LID, BATTERY CASE (for RMT-CM30AD) 3-222-390-31 MANUAL, INSTRUCTION (ENGLISH,SPANISH) (AEP,UK,Australian) 3-222-390-42 MANUAL, INSTRUCTION (FRENCH,GERMAN) (AEP) 3-222-390-52 MANUAL, INSTRUCTION (DUTCH,PORTUGUESE) (AEP) 3-222-390-72 MANUAL, INSTRUCTION (SWEDISH,FINNISH) (AEP) A-3364-624-A CONNECTION UNIT ASSY(AV CONNECTING CORD) A-3258-095-A REMOTE CONTROLLER (RMT-CM30AD) ************************************************************** ************** HARDWARE LIST ************** #1 7-621-255-45 SCREW +P 2X6 #2 7-627-850-79 SCREW, PRECISION +P1.4X1.8TYPE3 #3 7-627-852-08 SCREW, PRECISION +P 1.7X2.5 #4 7-627-852-18 SCREW, PRECISION +P 1.7X4 TYPE3 #5 7-627-853-28 SCREW, PRECISION +P 2X3 TYPE3 #6 7-682-549-04 SCREW +B 3X10 #7 7-685-132-19 SCREW +P 2.6X5 TYPE2 NON-SLIT #8 7-685-533-19 SCREW +BTP 2.6X6 TYPE2 N-S #9 7-685-648-14 SCREW +BVTP 3X12 TYPE2 N-S #10 7-685-647-79 SCREW +BVTP 3X10 TYPE2 N-S #11 7-685-649-79 SCREW +BVTP 3X14 TYPE2 N-S #12 7-685-862-09 SCREW +BVTT 2.6X6 (S) TUNER The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ver 1.1 2001.04 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 ZS-M30 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 ZS-M30 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.1 2001.04 Australian model added. 1.0 2001.02 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
