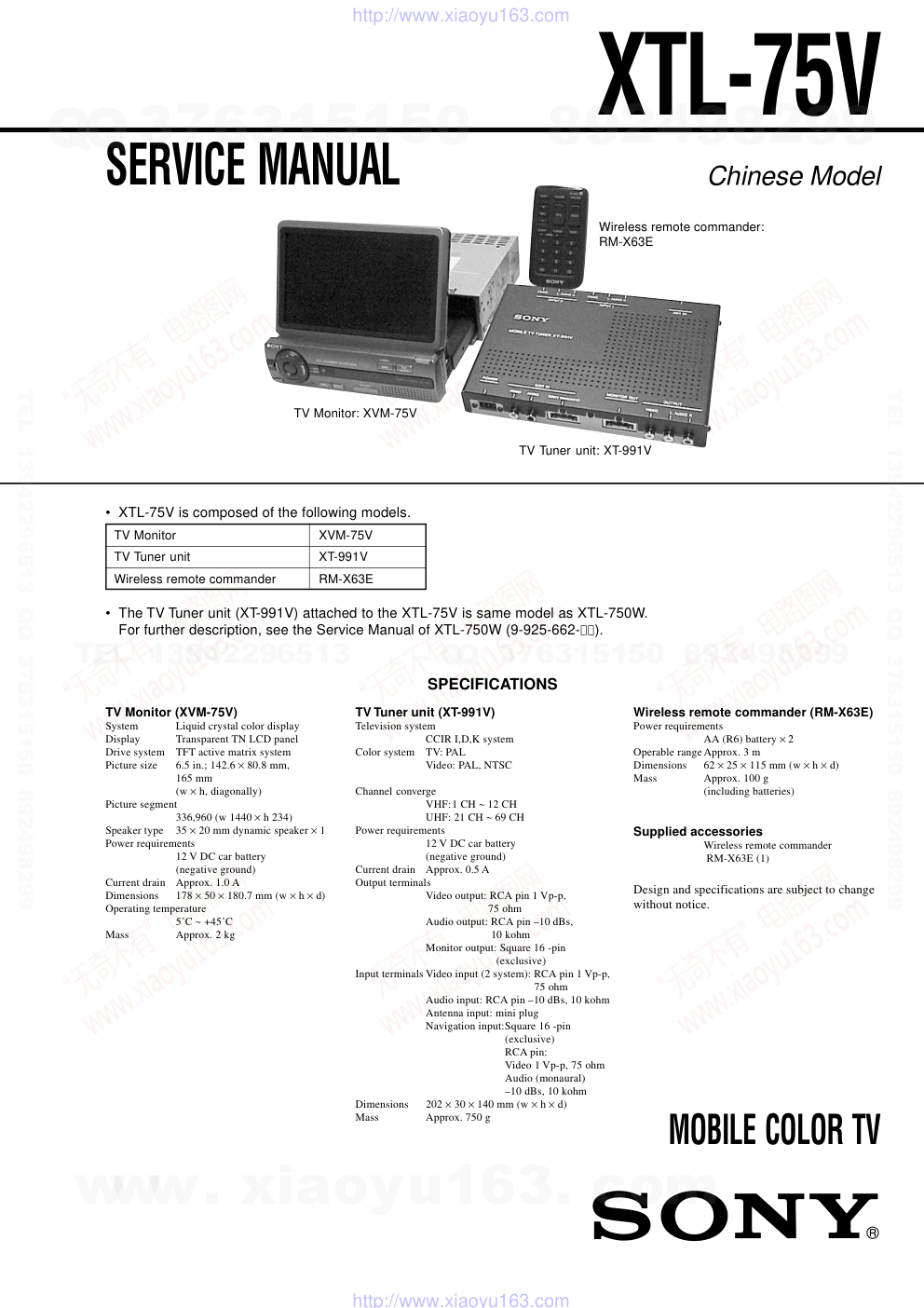

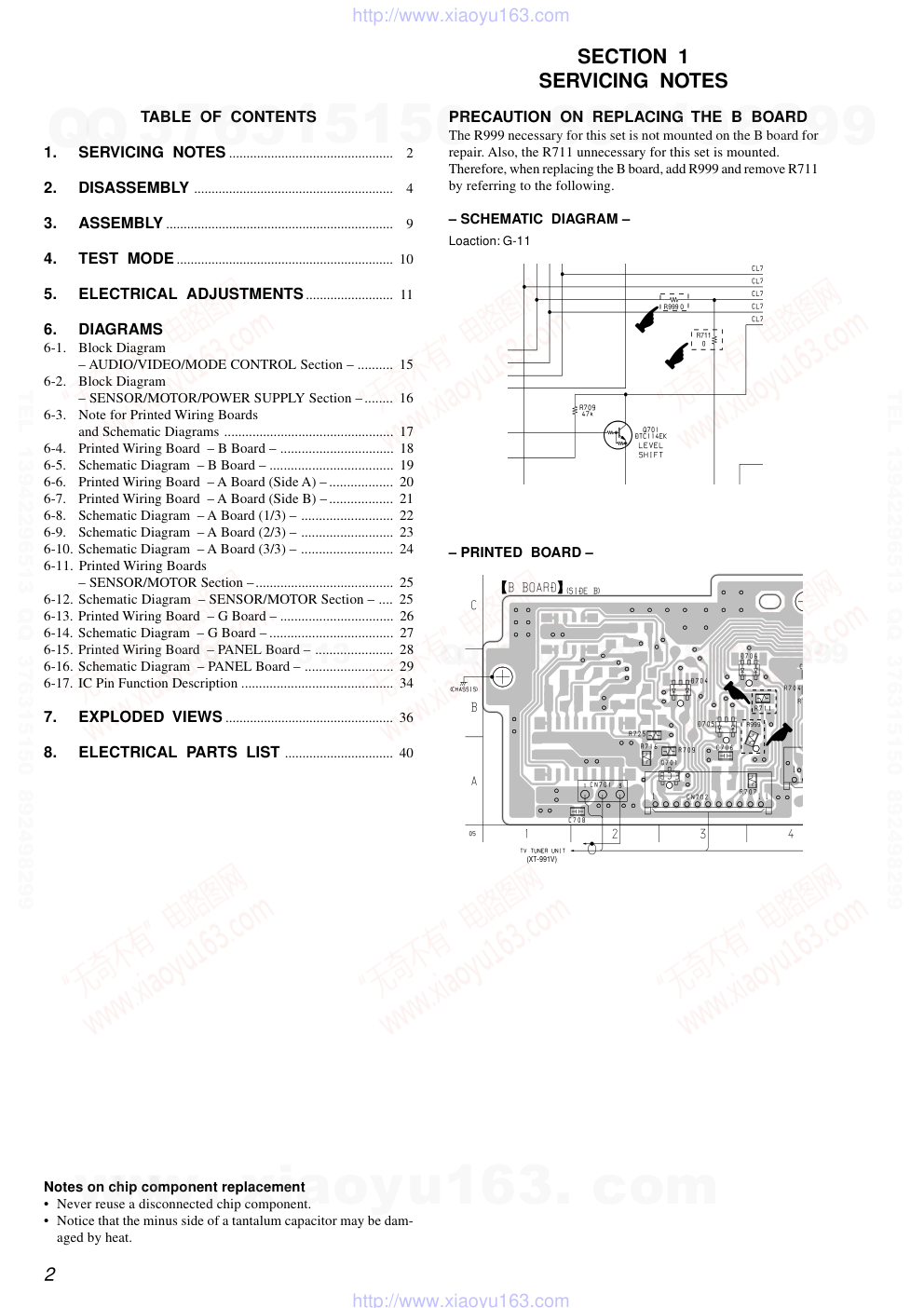

SERVICE MANUAL • XTL-75V is composed of the following models. • The TV Tuner unit (XT-991V) attached to the XTL-75V is same model as XTL-750W. For further description, see the Service Manual of XTL-750W (9-925-662-[][]). MOBILE COLOR TV Chinese Model SPECIFICATIONS XTL-75V TV Monitor XVM-75V TV Tuner unit XT-991V Wireless remote commander RM-X63E TV Tuner unit: XT-991V TV Monitor: XVM-75V Wireless remote commander: RM-X63E TV Monitor (XVM-75V) System Liquid crystal color display Display Transparent TN LCD panel Drive system TFT active matrix system Picture size 6.5 in.; 142.6 × 80.8 mm, 165 mm (w × h, diagonally) Picture segment 336,960 (w 1440 × h 234) Speaker type 35 × 20 mm dynamic speaker × 1 Power requirements 12 V DC car battery (negative ground) Current drain Approx. 1.0 A Dimensions 178 × 50 × 180.7 mm (w × h × d) Operating temperature 5˚C ~ +45˚C Mass Approx. 2 kg TV Tuner unit (XT-991V) Television system CCIR I,D,K system Color system TV: PAL Video: PAL, NTSC Channel converge VHF:1 CH ~ 12 CH UHF: 21 CH ~ 69 CH Power requirements 12 V DC car battery (negative ground) Current drain Approx. 0.5 A Output terminals Video output: RCA pin 1 Vp-p, 75 ohm Audio output: RCA pin –10 dBs, 10 kohm Monitor output: Square 16 -pin (exclusive) Input terminals Video input (2 system): RCA pin 1 Vp-p, 75 ohm Audio input: RCA pin –10 dBs, 10 kohm Antenna input: mini plug Navigation input:Square 16 -pin (exclusive) RCA pin: Video 1 Vp-p, 75 ohm Audio (monaural) –10 dBs, 10 kohm Dimensions 202 × 30 × 140 mm (w × h × d) Mass Approx. 750 g Wireless remote commander (RM-X63E) Power requirements AA (R6) battery × 2 Operable range Approx. 3 m Dimensions 62 × 25 × 115 mm (w × h × d) Mass Approx. 100 g (including batteries) Supplied accessories Wireless remote commander RM-X63E (1) Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 (XT-991V) TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 2 2. DISASSEMBLY ......................................................... 4 3. ASSEMBLY ................................................................. 9 4. TEST MODE .............................................................. 10 5. ELECTRICAL ADJUSTMENTS ......................... 11 6. DIAGRAMS 6-1. Block Diagram – AUDIO/VIDEO/MODE CONTROL Section – .......... 15 6-2. Block Diagram – SENSOR/MOTOR/POWER SUPPLY Section – ........ 16 6-3. Note for Printed Wiring Boards and Schematic Diagrams ................................................ 17 6-4. Printed Wiring Board – B Board – ................................ 18 6-5. Schematic Diagram – B Board – ................................... 19 6-6. Printed Wiring Board – A Board (Side A) – .................. 20 6-7. Printed Wiring Board – A Board (Side B) – .................. 21 6-8. Schematic Diagram – A Board (1/3) – .......................... 22 6-9. Schematic Diagram – A Board (2/3) – .......................... 23 6-10. Schematic Diagram – A Board (3/3) – .......................... 24 6-11. Printed Wiring Boards – SENSOR/MOTOR Section –....................................... 25 6-12. Schematic Diagram – SENSOR/MOTOR Section – .... 25 6-13. Printed Wiring Board – G Board – ................................ 26 6-14. Schematic Diagram – G Board – ................................... 27 6-15. Printed Wiring Board – PANEL Board – ...................... 28 6-16. Schematic Diagram – PANEL Board – ......................... 29 6-17. IC Pin Function Description ........................................... 34 7. EXPLODED VIEWS ................................................ 36 8. ELECTRICAL PARTS LIST ............................... 40 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. SECTION 1 SERVICING NOTES PRECAUTION ON REPLACING THE B BOARD The R999 necessary for this set is not mounted on the B board for repair. Also, the R711 unnecessary for this set is mounted. Therefore, when replacing the B board, add R999 and remove R711 by referring to the following. – SCHEMATIC DIAGRAM – R999 0 R711 0 # # – PRINTED BOARD – % ^ Loaction: G-11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 two screws four screws three screws screw monitor gear (L) gear (slide L) slider knob (L) slider knob (L) 2 1 3 front panel section slider knob (R) shaft (stopper) monitor slider knob (R) gear (slide R) monitor gear (R) PRECAUTION ON HANDLING THE SET During the manufacturing of this set, the slide gear phase has been finely adjusted. Therefore, never remove those screws shown in the figure when making repairs. HOW TO PULL UP THE MONITOR BY HANDS AT POWER OFF 1. Draw out the front panel fully in the direction of the arrow 1, and remove the shaft (stopper) from the monitor. 2. Push the slider knob (L) and slider (R) in the direction of ar- row 2. (Meshing of gear (slide L) – monitor gear (L), and gear (slide R) – monitor gear (R) can be disengaged) 3. Pull up the monitor in the direction of arrow 3. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 SET FRONT PANEL SECTION (PAGE 4) C BOARD (PAGE 8) MONITOR (PAGE 8) DC MOTOR (SMALL TYPE) (ANGLE) (M11) (PAGE 8) COVER (PAGE 6) COVER (PAGE 6) HOW TO PULL UP THE MONITOR (PAGE 6) HOW TO PULL UP THE MONITOR (PAGE 6) B BOARD (PAGE 5) A BOARD (PAGE 7) D BOARD, DC MOTOR (SMALL TYPE) (SLIDE) (M21) (PAGE 7) FRONT FRAME, CHASSIS (UPPER) (PAGE 5) FRONT PANEL SECTION SECTION 2 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. 3 boss 2 two screws (M2 × 3) 1 A 5 claw 4 Remove the front panel section in the direction of arrow A. 2 two screws (M2 × 3) 3 boss 6 flat cable 26P (CN701) • This set can be disassembled in the order shown below. Note: Be sure to read the SERVICE NOTES before starting repairs. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 FRONT FRAME, CHASSIS (UPPER) B BOARD 1 screw (B2.6 × 4) 4 front frame Note: Do not pull the front frame by force, or it gets damaged. 1 screw (B2.6 × 4) 5 boss 1 screw (B2.6 × 4) 2 car mount bracket 1 screw (B2.6 × 4) 1 screw (B2.6 × 4) 6 chassis (upper) 1 screw (B2.6 × 4) 3 five claws 1 screw (B2.6 × 4) 2 car mount bracket 5 boss 1 Pull the front panel ass’y. 2 four screws (B2.6 × 4) 2 screw (B2.6 × 4) 4 binding band 5 connection cords (CN701, 702, 703) 6 B board 3 two flat cables (L) 26P (CN705, 706) Note: When removing the flat cable (L) 26P, pull out the front panel but do not raise the B board by force. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 COVER HOW TO PULL UP THE MONITOR 3 After making sure the shaft (stopper) has been removed from the monitor, pull up the monitor in the direction of arrow C. shaft (stopper) C B A B 2 Push the slider knob (R) in the direction of arrow B. 1 Pull the monitor base ass’y in the direction of arrow A. 2 Push the slider knob (L) in the direction of arrow B. 1 two screws (M2 × 3) 2 Open this side, as there are screws that fix the side plate. 1 six screws (M2 × 3) 3 Remove the cover in the direction of arrow A. 1 two screws (M2 × 3) A S102 Note: When removing or mounting the cover, take care not to allow the cover to be stuck to the S102. screw head side plate www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 A BOARD D BOARD, DC MOTOR (SMALL TYPE) (SLIDE) (M21) 2 three connectors (CN104, 105, 107) 1 two flat cables (L) 26P (CN101, 102) 3 five screws (M2 × 4) 4 A board 1 flat cable 26P (CN109) 1 flat cable 26P (CN401) 2 two connectors (CN106, 108) 8 two screws (M2 × 3) Note: When installing these screws and DC motor, apply a drop of screw lock G (1401B). 0 bracket (monitor motor) 9 DC motor (small type) (slide) (M21) 1 screw (M2 × 3) 2 bracket (monitor stopper) 5 screw (M2 × 3) 6 D board 7 motor gear (slide) 3 screw (M2 × 3) 4 Remove the bracket (monitor motor) in the direction of the arrow. Part Name Part No. SCREW LOCK G 7-432-114-11 (1401B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DC MOTOR (SMALL TYPE) (ANGLE) (M11) C BOARD, MONITOR 5 three screws (M2 × 3) 6 side plate B 8 Remove the monitor in the direction of arrow B. 1 flat cable 26P (CN401) A 7 Push the slider knob (R) in the direction of arrow A. 4 C board 3 screw (M2 × 3) 2 connector (CN11) 2 four screws (M2 × 3) 1 connector (CN108) 4 two screws (M2 × 3) 3 motor gear (monitor) 6 bracket (monitor motor) 5 DC motor (small type) (angle) (M11) B Note: When installing these screws and DC motor, apply a drop of screw lock G (1401B). Part Name Part No. SCREW LOCK G 7-432-114-11 (1401B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 INSTALLATION OF FLAT CABLE (L) 26P Note: Follow the assembly procedure in the numerical order given. SECTION 3 ASSEMBLY 7 two screws (M2 × 3) 6 FFC cover (2) 5 5 3 B board 4 four screws (B2.6 × 4) 2 two flat cables (L) 26P (CN705, 706) 4 screw (B2.6 × 4) B board two flat cables (L) 26P chassis (lower) ass’y Note: No slack is allowed. filament tape 16 × 50 8 Using a filament tape 16 × 50, stick two flat cables (L) 26P to the chassis bottom without a slack as shown in the figfure. base ass’y 1 Pull the base ass’y in the direction of arrow A. A 0 Pull the flat cable (L) 26P in the direction of arrow B, and stick it to the sheet (FFC) with an adhesive tape. DC motor (small type) (slide) (M21) B adhesive tape sheet (FFC) qs screw (M2 × 3) qa FFC cover (1) 0 Pull the flat cable (L) 26P in the direction of arrow C, and stick it to the sheet (FFC) with an adhesive tape. C adhesive tape sheet (FFC) 9 flat cable (L) 26P (CN101) 9 Let the flat cable (L) 26P through under DC motor (small type) (slide) (M21) as shown in the figure, and connect to the connector (CN102). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 SECTION 4 TEST MODE Test mode setting 1. Press the [OPEN/CLOSE] button to place the set in open state. 2. Press the [V ADJ] button and [TV/VIDEO] button simulta- neously. 3. A beep sounds and the test mode is activated. Note: The test mode is active for several seconds only, and it returns to normal state if no operation is performed during this time. When the test mode is activated, perform the following operation imme- diately. Monitor position initializing Return the position and angle at the time of monitor open state to the initial position set in the factory. 1. Immediately after the Test mode is activated, press the [SEARCH --] button and [TV/VIDEO] button. (A beep will sound) 2. Press the RESET button, and the monitor is stored and the monitor position is initialized. (Normal state will get back) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 SECTION 5 ELECTRICAL ADJUSTMENTS MAIN SECTION 5.35 V Adjustment Connection: Adjustment Procedure: 1. Connect a digital voltmeter to the TP1 (5.35 V) on the A board. 2. Adjust RV501 on the A board so that digital voltmeter reading is 5.35 V. Inverter Standard Frequency Adjustment Connection: Adjustment Procedure: 1. Connect a frequency counter to the CL299 on the A board. 2. Adjust RV502 on the A board so that frequency counter read- ing is 115 ± 2 kHz. Adjustment Location: digital voltmeter A board TP1 (5.35 V) + – RV501 5.35 V Adjustment RV502 INVERTER STANDARD FREQUENCY Adjustment TP1 (5.35 V) CN401 – A BOARD (Side A) – A board CL299 + – frequency counter CL299 – A BOARD (Side B) – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 MONITOR SECTION Equipment Used The measuring equipment below are used for these electrical adjustments: • Oscilloscope • NTSC pattern generator • PAL pattern generator • Regulated DC power supply • Digital voltmeter Connection of Equipment Unless otherwise specified, the measuring equipment should be connected as shown below: Setup at Adjustment 1. Press the [SEL] button of the wireless remote commander, set the image quality of the set to “VISUAL STD”. 2. The adjustment signal is a 5-step gray scale signal from a NTSC pattern generator. Input the gray scale signal into the tuner unit and connect an oscilloscope to TP415 on the G board. Check that the width between the black and white levels of the gray scale signal is 0.74 Vp-w. Bright Adjustment Adjustment Procedure: 1. Display the gray scale on the monitor screen. 2. Connect a digital voltmeter to TP (BRIGHT) on the G board. 3. Adjust RV405 so that the reading on the digital voltmeter is 2 V. Adjustment Location: See page 13. ACC cord TV tuner unit XT-991V NTSC pattern generator MONITOR OUT jack INPUT (1) (VIDEO) jack TV monitor XVM-75V regulated DC power supply (DC 14.4 V) ACC cord Connection cord parking brake terminal (Connected to ground) VIDEO OUT (75 Ω) + – white black 0.74 Vp-p V COM Amplitude/Bias Adjustment Adjustment Procedure: 1. Display the gray scale on the monitor screen. 2. Connect an oscilloscope to TP (COM) on the G board. 3. V COM Amplitude Adjustment Adjust RV401 so that the amplitude of the output waveform is 6.0 V. 4. V COM Bias Adjustment Adjust RV409 so that the level A of the output waveform is at 4.3 V DC. Adjustment Location: See page 13. RGB Amplitude Adjustment Adjustment Procedure: 1. Display the gray scale on the monitor screen. 2. Connect a oscilloscope to TP (G) on the G board. 3. Adjust RV406 so that the white and the next step of pedestal are on the same level. Adjustment Location: See page 13. γ 0 Adjustment Adjustment Procedure: 1. Display the gray scale on the monitor screen. 2. Connect an oscilloscope to TP (G) on the G board. 3. Adjust RV407 so that the third step from the bottom becomes 1.2 V. Adjustment Location: See page 13. 6.0 Vp-p 0 V A pedestal pedestal white white 1.2 V GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 γ 2 Adjustment Adjustment Procedure: 1. Display the gray scale on the monitor screen. 2. Connect a oscilloscope to TP (G) on the G board. 3. Adjust RV408 so that the white level becomes 3.6 V. R Sub Bright Adjustment Adjustment Procedure: 1. Display the gray scale on the monitor screen. 2. Connect a oscilloscope to TP (R) on the G board. 3. Adjust RV403 so that the third step from the bottom becomes 1.2 V. Adjsutment Location: 3.6 V GND 1.2 V GND B Sub Bright Adjustment Adjustment Procedure: 1. Display the gray scale on the monitor screen. 2. Connect a oscilloscope to TP (B) on the G board. 3. Adjust RV404 so that the third step from the bottom becomes 1.2 V. Note: After all adjustments finished, enter connect the PAL pattern generator to check that a picture appears. 1.2 V GND RV401 V COM AMPLITUDE Adjustment RV404 B SUB BRIGHT Adjustment RV406 RGB AMPLITUDE Adjustment RV409 V COM BIAS Adjustment RV403 R SUB BRIGHT Adjustment RV405 BRIGHT Adjustment RV407 γ 0 Adjustment RV408 γ 2 Adjustment – G BOARD (Side A) – TP (BRIGHT) C424 TP (R) TP (COM) TP (G) TP (B) – G BOARD (Side B) – TP415 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 XTL-75V LIQUID CRYSTAL DISPLAY MODULE VIDEO INTERFACE, LIQUID CRYSTAL DISPLAY DRIVER IC403 05 VR VG VB FRPT COM FRPV SYN HSY VSY MODN MODW VGH (+13V) VSH (+5V) HRV VRV CLKC MODS VGL (–16V) NTP VCS +9V D711 LED 4 BZ101 (BUZZER) BEEP OUT EEPROM IC111 X100 10MHz SIRCS SIGNAL SELECT SWITCH IC106 SYSTEM CONTROLLER IC110 (1/2) MICON VDD D126 SP701 (SPEAKER) VGH (+13V) +5V VGL (–16V) R G B SYNC HSY VSY AUDIO L TO TV TUNER UNIT (XT-991V) CN703 (1/2) CN703 (2/2) AUDIO R IC401 (1/2) 6 2 BGP RIN INT/ EXT SWITCH V COM AMP IC402 SYNC BUFFER Q517 AUDIO AMP IC101 POWER AMP IC105 MUTING Q112 MUTING CONTROL SWITCH Q113 RESET SIGNAL GENERATOR IC108 REMOTE CONTROL RECEIVER IC701 SIRCS BUFFER Q701 MULTI-VIBRATOR IC107 (1/3) LED DRIVE Q703 BUZZER DRIVE Q102 S702 (RESET) MUTING Q114 SYNC BUFFER Q516 V COM BIAS Q401 – 404 SYNC SEP BGP GEN RV408 GAMMA 2 GAMMA AMP BIN GIN ROUT BOUT COMOUT COMAMP GOUT KO 0 – KO 3 KI 0 – KI 3 SDA SCL S.MUTE W.MODE 1 W.MODE 2 SYNC OUT SYNC IN GAMMA 2 29 31 5 6 1 2 3 1 6 7 51 POWER SW 32 SIRCS SDAI SDAO 23 24 X0 X1 SCL 54 REM SEL 64 5 PICTURE OFF IN 19 XRESET 20 7 10 38 37 26 42 41 INV AMP 40 RV407 GAMMA 0 GAMMA 0 27 RV405 BRIGHT BRIGHT 29 RV403 R SUB BRIGHT RV404 B SUB BRIGHT RV406 RGB AMPLITUDE RV401 V COM AMPLITUDE RV409 V COM BIAS SUBBRTR 31 SUBBRTB 30 RGBAMP 28 19 21 24 SYNC SEP 11 10 9 8 6 7 36 34 35 SW 39 FRP 33 COMFRP 32 CE2 (PICTURE OFF) CN702 2 POWER SW 9 XRESET 7 SIRCS 11 LEVEL SHIFT Q701 BRIGHT 10 2 3 IC401 (2/2) 7 1 D130 41 – 38 37 – 34 LSW703, 704, 706 – 717 D718, LSW707 LSW703 (GREEN) (AMBER) LED A/G Q709 LED DRIVE Q708 LED DRIVE Q710 REGULATOR Q712 52 BUS SW 58 D719, LSW708 (GREEN) (AMBER) +9V REGULATOR Q711 LED BRIGHT 53 D721 – 725, LSW704, LSW706, 709 – 717 (GREEN) (AMBER) • SIGNAL PATH : AUDIO : VIDEO V OFF NAVI OPEN/CLOSE TV/VIDEO SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAM – AUDIO/VIDEO/MODE CONTROL Section – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 XTL-75V 6-2. BLOCK DIAGRAM – SENSOR/MOTOR/POWER SUPPLY Section – 05 SYSTEM CONTROLLER IC110 (2/2) POWER CONTROL IC501 IC107 (2/3) IC107 (3/3) Q515 SWITCHING Q506 ILLUMI SWITCH Q108 REFERENCE VOLTAGE CONTROL SWITCH ACC CN704 (POWER CONNECTOR) 7 ILLUMI 8 BATT 5 PARKING 2 CN701 TO TV TUNER UNIT (XT-991V) +B (SW) 1 PICTURE OFF POWER CNTL ACC CHK +B (SW) DET VGH (+13V) (LCD MODULE B+) VGL (–16V) (LCD MODULE B–) –5V (V COM AMP CIRCUIT B–) OUT1 BATT B+ BATT B+ +5V (MICON VDD) F704 D110 F104 M21 (SLIDE) S32 (SET BACK) (ON : When the monitor base is set back.) +5.6V REGULATOR IC103 SWITCHING REGULATOR Q510 – 512 ILLUMI SWITCH CONTROL Q514 INVERTER STANDARD FREQUENCY BACK LIGHT UNIT OSC Q911, 912 ERROR AMP PWM COMPARATOR OSC OUTPUT CIRCUIT B+ SWITCH Q109, 110 +9V (MOTOR, PANEL CIRCUIT B+) +9V REGULATOR IC102 +5V REGULATOR Q702 ANGLE MOTOR ROTATION DETECT PH11 LEVEL SHIFT Q11 DT1 33 30 17 AD BAT 9 PARKING 49 16 7 3 VCC +IN1 RV502 9 6 POWER CONTROL IC503 OUT PRE DRIVE Q502, 503 DC/DC CONVERTER DRIVE Q504 ERROR AMP PWM COMPARATOR OSC OUTPUT CIRCUIT 1 4 VCC IN 5.35V RV501 2 42 43 44 60 61 46 47 48 62 63 S31 (PUSH OUT) (ON : When the monitor base is pushed out.) S102 (MONITOR CLOSE DETECT) S11 (MONITOR OPEN DETECT) ANGLE MOTOR DRIVE IC112 +9V D121 OUT1 M11 (ANGLE) OUT2 V.MO 0 V.MO 1 VSEN 1 VSEN 0 VSEN 2 H.MO 0 H.MO 1 HSEN 1 HSEN 0 HSEN 2 FW RW REGULATOR Q106 MOTOR DRIVE VREF 8 5 17 20 19 M SLIDE MOTOR ROTATION DETECT PH21 LEVEL SHIFT Q21 SLIDE MOTOR DRIVE IC113 +9V OUT1 OUT2 FW RW REGULATOR Q105 MOTOR DRIVE VREF 8 5 17 20 19 M F401 F102 +5V REGULATOR Q704 +5V (LED B+) +9V REGULATOR IC104 +9V (AUDIO CIRCUIT B+) +5V REGULATOR IC703 +5V (SERIAL INTERFACE CIRCUIT B+) +9V (SENSOR CIRCUIT B+) D508 D507 D506 D503 D504 D708 T601, 602 INVERTER TRANSFORMER T501 DC/DC CONVERTER ACC B+ AD ACC 8 +7.5V V COM AMP CIRCUIT, LCD DRIVER (IC403) B+ +5V LCD MODULE, LCD DRIVER (IC403) B+ +5V REMOTE CONTROL RECEIVER (IC701) B+ 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 6-3. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • C : panel designation. • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Power voltage is dc 14.4V and fed with regulated dc power supply from ACC and BATT cords. • Voltages and waveforms are dc with respect to ground in color-bar signal input. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : AUDIO c : VIDEO • Circuit Boards Location G board D board E board B board A board C board PANEL board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 XTL-75V 6-4. PRINTED WIRING BOARD – B Board – • See page 17 for Circuit Boards Location. • Semiconductor Location (Side B) Ref. No. Location D702 A-4 D703 B-5 D704 B-3 D705 B-3 D706 B-4 D708 B-7 IC703 A-7 Q701 A-3 (XT-991V) R799 R798 (Page 20) (Page 20) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 19 XTL-75V 6-5. SCHEMATIC DIAGRAM – B Board – (Page 22) (Page 22) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 20 XTL-75V 6-6. PRINTED WIRING BOARD – A Board (Side A) – • See page 17 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D104 A-9 D111 D-1 D508 E-9 D510 F-11 IC101 B-8 IC102 D-2 IC103 H-2 IC104 B-9 IC105 A-11 IC106 E-3 IC107 H-1 IC108 H-2 IC110 F-2 IC111 E-3 IC112 F-9 IC113 C-3 IC501 E-11 IC503 C-11 Q105 D-3 Q106 F-8 Q110 C-7 Q502 C-9 Q503 C-9 Q504 C-9 Q510 E-10 Q511 D-10 Q512 F-10 Q514 E-9 Q516 D-6 Q517 D-6 (Page 28) (Page 26) (Page 25) (Page 25) (Page 25) (Page 18) (Page 18) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 21 XTL-75V 6-7. PRINTED WIRING BOARD – A Board (Side B) – • See page 17 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D001 E-2 D107 E-2 D108 I-2 D110 H-2 D112 G-3 D117 B-7 D118 D-3 D119 F-8 D121 F-8 D122 C-3 D123 C-3 D124 F-9 D125 F-9 D126 G-1 D130 C-1 D131 H-2 D503 E-8 D504 D-7 D506 E-8 D507 E-7 Q102 H-4 Q108 F-8 Q109 B-8 Q112 B-9 Q113 B-10 Q114 B-8 Q506 D-9 Q515 E-10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 22 XTL-75V 6-8. SCHEMATIC DIAGRAM – A Board (1/3) – • See page 31 for IC Block Diagrams. (Page 19) (Page 19) (Page 24) (Page 23) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 23 XTL-75V 6-9. SCHEMATIC DIAGRAM – A Board (2/3) – • See page 30 for Waveform. • See page 31 for IC Block Diagrams. (Page 22) (Page 29) (Page 27) (Page 24) (Page 25) (Page 25) (Page 25) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 24 XTL-75V 6-10. SCHEMATIC DIAGRAM – A Board (3/3) – • See page 30 for Waveforms. • See page 31 for IC Block Diagrams. (Page 22) (Page 23) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 25 XTL-75V 6-11. PRINTED WIRING BOARDS – SENSOR/MOTOR Section – • See page 17 for Circuit Boards Location. 6-12. SCHEMATIC DIAGRAM – SENSOR/MOTOR Section – (Page 20) (Page 20) (Page 20) (Page 23) (Page 23) (Page 23) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 26 XTL-75V 6-13. PRINTED WIRING BOARD – G Board – • See page 17 for IC Circuit Boards Location. (Page 20) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 27 XTL-75V 6-14. SCHEMATIC DIAGRAM – G Board – • See page 30 for IC Waveforms. • See page 31 for IC Block Diagram. (Page 23) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 28 XTL-75V • Semiconductor Location Ref. No. Location 6-15. PRINTED WIRING BOARD – PANEL Board – • See page 17 for IC Circuit Boards Location. D701 D-3 D702 D-3 D703 D-3 D704 D-4 D706 D-4 D710 D-4 D711 B-5 D716 D-2 D717 E-5 D718 A-7 D719 A-7 D720 E-3 D721 B-2 D722 A-2 D723 B-1 D724 B-3 D725 B-3 D727 E-6 IC701 B-4 Q701 D-4 Q702 E-4 Q703 D-5 Q704 E-5 Q708 E-4 Q709 E-4 Q710 E-4 Q711 E-3 Q712 E-6 (Page 20) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 29 XTL-75V 6-16. SCHEMATIC DIAGRAM – PANEL Board – (Page 23) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 30 • Waveforms – A Board – 1 IC110 wd (XO) – G Board – 1 IC403 ef (SYNC IN) 2 IC403 eg (SYNC OUT) 3 IC403 eh (SYNC SEP) 4 IC403 r; (B IN) 5 IC403 ra (G IN) 6 IC403 rs (R IN) 7 Q911 Base 8 Q911 Collector 3.9 Vp-p 100 ns H 5.0 Vp-p H 4.9 Vp-p H 960 mVp-p H 1.0 Vp-p H 1.0 Vp-p H 1.0 Vp-p 26.2 Vp-p 19.4 µs 19.6 µs 4.7 Vp-p 11.5 Vp-p 11.5 µs 42.8 Vp-p 11.6 µs 13 Vp-p 8.6 µs 4 IC501 7 (OUT) 3 Q504 Collector 2 IC503 1 (OUT), Q503 Base 9 Q912 Base 0 Q912 Collecter 19.2 µs 4.6 Vp-p qa Q403, 404 Emitter qs Q401 Emitter, Q403 Base 6.0 Vp-p 128 µs 6.0 Vp-p 128 µs 26 Vp-p 19 µs www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 • IC Block Diagrams – A Board – IC101 BA3121F AMP 8 4 3 2 1 OUT1 VM1 IN1 GND VCC OUT2 VM2 IN2 AMP 7 6 5 IC102 LM2595SX-ADJ 2 FREQUENCY SHIFT RESET COMP. OP AMP AMP GM ACTIVE CAPACITOR CURRENT LIMIT COMP. COMP. VCC VCC +2.5V VIN 1 OUTPUT 3 GND 4 FEED BACK 5 150kHz OSC LATCH DRIVER THERMAL LIMIT OUTPUT CIRCUIT +2.5V REGULATOR START UP 1.235V REFERENCE CURRENT SOURCE BIAS + – + – + – + – + – ON/OFF IC111 BR24C01AF-E2 1 2 3 4 5 6 7 8 LOGIC DOUT/ACK X DEC DATA REGISTER SERIAL MUX EEPROM ADDRESS/COUNTER DATA WORD LOGIC CONTROL SERIAL LOGIC STOP START H.V.PUMP/TIMING Y DEC DOUT R/W DIN INC LOAD EN VCC TEST SCL SDA NC NC NC GND IC112, 113 BA6285FP-E2 DRIVER DRIVER NC NC NC GND OUT2 RNF FIN VCC OUT1 5 6 16 VM 15 NC 14 NC 13 17 POWER SAVE 18 RIN 19 VREF 20 7 8 CONTROL LOGIC POWER SAVE TSD 24 – 21 1 – 4 9 – 12 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 IC501 TL453CPWR-E20 IC503 TL5001CD + – + – OUTPUT 2 OUTPUT 1 PWM COMPARATOR 1 PWM COMPARATOR 2 VREF ERROR AMP 1 ERROR AMP 2 REFERENCE VOLTAGE R U. V. L. O. TRIANGLE OSCILLATOR VREF VREF 13 14 15 16 REF OUT UVK NON INV INPUT2 INV INPUT2 12 FEED BACK2 11 DEAD TIME CONTROL2 10 OUT2 9 VCC CT RT NON INV INPUT1 INV INPUT1 FEED BACK1 DEAD TIME CONTROL1 OUT1 GND 1 2 3 4 5 6 7 8 REFERENCE VOLTAGE S.C.P. COMPARATOR 1 SWITCH 'ON' AT 'H' PWM COMPARATOR S.C.P. COMPARATOR 2 DEAD-TIME COMPARATOR S.C.P. LATCH OSC U.V.L.O ERROR AMP – + – + + – + – – + 5 6 7 8 1 2 3 4 OUT VCC FEED BACK INPUT SCP DEAD-TIME CONTROL RT GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 – G Board – IC403 IR3Y29B4 38 39 40 41 42 43 44 45 47 46 48 37 36 35 34 33 32 31 30 29 25 24 23 22 21 20 19 18 17 15 16 14 13 26 27 28 SYNC SEP BGP GEN WINDOW PULSE GEN γ AMP REG1 REG3 REG2 IDENT KILLER TRAP AGC HPF COLOR CLAMP AGC AMP AGC DET AGC DET PICTURE INV 5 7 8 9 10 11 12 6 3 1 2 4 F/F PAL SW TINT VCO APC PHASE SHIFT P N COMP COMP MATRIX INT/EXT SW γ AMP γ AMP INV INV VREF DEMOD R-Y G-Y B-Y SYNC IN Y/C Y/C BGP F/F Y R-Y G-Y B-Y PAL ON P N N P CHROMA OUT ACC FILTER B-Y R-Y KILLER FILTER BURST OUT COLOR C IN IDENT FILTER VIDEO IN CONTRAST TRAP PICTURE AGC OUT AGC FILTER CLAMP F ADJ VCC1 G IN R IN B IN SW COMMON OUT COMMON AMPLITUDE ADJUST SYNC SEP SYNC OUT SYNC IN FRP SUB BRIGHT R SUB BRIGHT B BRIGHT GAMMA 0 GAMMA 2 B DC DET RGB AMPLITUED ADJUST COMMON FRP B OUT VCC2 G DC DET G OUT R DC DET R OUT GND2 GND1 VCO OUT APC FILTER VCO IN TINT P N P N www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 6-17. IC PIN FUNCTION DESCRIPTION • A BOARD IC110 MB89627RPF-G-642-BND (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 SDAI I Serial data input from the EEPROM (IC111) 2 SDAO O Serial data output to the EEPROM (IC111) 3 SCL O Shift clock signal output to the EEPROM (IC111) 4 M.MODE1 I Mode signal (1) input terminal Not used (open) 5 M.MODE2 I Mode signal (2) input terminal Not used (open) 6 M.MODE3 I Mode signal (3) input terminal Not used (open) 7 W.MODE1 O Monitor display selection control signal output to the liquid crystal display module 8 AD ACC I Accessory voltage detection signal input terminal (A/D input) “L” is input at low voltage 9 AD BAT I Battery voltage detection signal input terminal (A/D input) “L” is input at low voltage 10 W.MODE2 O Monitor display selection control signal output to the liquid crystal display module 11 OPEN SEL I Model check signal input terminal At the resetting, the signal at this terminal is read to check the model (fixed at “H”) 12 AVCC — Power supply terminal (+5V) (for A/D converter) 13 AVR I Reference voltage (+5V) input terminal (for A/D converter) 14 AVSS — Ground terminal (for A/D converter) 15 NC — Not used (open) 16 +B (SW) DET I Input terminal to detect the power supply (+12V) from the TV tuner unit “H”: power present 17 ACC CHK I Accessory detection signal input terminal “H”: accessory on 18 +BAT MIN DET — Not used (open) 19 PICTURE OFF IN I Picture off control signal input from the TV tuner unit 20 XRESET I System reset signal input from the TV tuner unit, reset signal generator (IC108) and reset switch (S702) “L”: reset “L” is input for several 100 msec after power on, then it changes to “H” 21 MOD 0 I Setting terminal for the CPU operational mode (fixed at “H” in this set) 22 MOD 1 I Setting terminal for the CPU operational mode (fixed at “H” in this set) 23 X0 I Main system clock input terminal (10 MHz) 24 X1 O Main system clock output terminal (10 MHz) 25 VSS — Ground terminal 26 to 28 LED 1 to LED 3 O LED drive signal output terminal “H”: LED on Not used (fixed at “L”) 29 LED 4 O LED drive signal output of the V OFF (D711) indicator “H”: LED on 30 POWER CNTL O Power supply (+9V) on/off control signal output of the sensor circuit/motor circuit/panel block “H”: power on 31 BEEP OUT O Beep sound drive signal output terminal 32 POWER SW O Power supply on/off control signal output to the TV tuner unit “H”: power on 33 PICTURE OFF O “H” is output to TL1453CPWR (IC501) in power circuit by the signal input to pin ql to turn off the picture 34 to 37 KO 3 to KO 0 O Key send signal output to the key matrix 38 to 41 KI 3 to KI 0 I Key return signal input from the key matrix 42 HSEN 0 I Set back detect switch (S32) input terminal “L” is input when monitor base is housed completely “H” is input at other position 43 HSEN 1 I Push out detect switch (S31) input terminal “L” is input when monitor base comes out to the front (“L” is also input during watching of picture) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 Pin No. Pin Name I/O Description 44 HSEN 2 I Slide motor (M21) rotation sensor input terminal This is also used for monitor horizontal position adjustment 45 NC — Not used (open) 46 VSEN 0 I Monitor close detect switch (S102) input terminal “L” is input when monitor falls down completely, “H” is input at other position 47 VSEN 1 I Monitor open detect switch (S11) input terminal “L” is input when monitor rises up completely, “H” is input at other position 48 VSEN 2 I Angle motor (M11) rotation sensor input terminal This is also used for monitor tilt angle adjustment 49 PARKING I Parking brake sensor input terminal “L” is input during parking, “H” is input during running 50 VSS — Ground terminal 51 S.MUTE O Power on muting control signal output to the power amplifier (IC105) “H”: muting on 52 LED A/G O Selection signal output of the LED illumination “L”: amber, “H”: green 53 LED BRIGHT O LED drive signal output of the –, +, SEARCH –, SEARCH +, ANGLE SLIDE, OFF, DSPL, SELECT, V ADJ, VOLUME +/– (D721 to 725, LSW704, 706, 709 to 717) indicators “L”: LED on 54 SIRCS O Sircs remote control signal input from the remote control receiver (IC701) 55 MASTER I Control signal input terminal Not used (open) 56 AV SW I Control signal input terminal Not used (open) 57 VCC — Power supply terminal (+5V) 58 BUS SW O LED drive signal output of the TV/VIDEO (D719, LSW708) indicators “L”: LED on 59 RF CONT O Not used (open) 60 H.MO 0 O Slide motor (M21) drive signal output “L” active 61 H.MO 1 O Slide motor (M21) drive signal output “L” active 62 V.MO 0 O Angle motor (M11) drive signal output “L” active 63 V.MO 1 O Angle motor (M11) drive signal output “L” active 64 REM SEL O Signal is output to select sircs remote control signal output from remote control receiver (IC701) and SIRCS (pin tf) “L”: Signal from IC701, “H”: Signal from SIRCS (pin tf) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 (1) GENERAL SECTION SECTION 7 EXPLODED VIEWS • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 9 10 9 9 12 11 9 10 9 9 9 8 1 7 1 6 5 13 1 14 1 2 1 1 1 3 4 Front panel section F704 1 4-931-871-01 SCREW (M2X3) * 2 1-670-608-12 C BOARD * 3 3-027-951-02 KNOB (L), SLIDER * 4 3-027-946-01 PLATE, SIDE * 5 3-032-376-01 SHEET, COPPER LEAF * 6 3-027-948-01 COVER * 7 3-027-957-11 FRAME, FRONT * 8 3-033-754-01 SHEET (UPPER CASE) 9 7-621-773-86 SCREW +B 2.6X4 * 10 3-027-945-01 BRACKET, CAR MOUNT * 11 3-027-944-01 CHASSIS (UPPER) * 12 3-027-962-01 CUSHION (MONITOR STOPPER) 13 1-783-609-21 CORD (WITH CONNECTOR) 10P (POWER) * 14 3-027-950-02 KNOB (R), SLIDER F704 1-532-796-11 FUSE (BLADE TYPE) (AUTO FUSE) (5A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (2) CHASSIS SECTION * 51 X-3376-032-2 CHASSIS (LOWER) ASSY * 52 3-032-801-01 SHEET (SLIDER) 53 4-931-871-01 SCREW (M2X3) 54 3-027-943-01 GEAR (MONITOR), MOTOR * 55 3-027-942-01 BRACKET (MONITOR MOTOR) 56 3-027-965-01 RUBBER, VIBRATION PROOF * 58 1-670-609-12 D BOARD 59 3-027-949-01 GEAR (SLIDE), MOTOR * 60 3-027-947-01 BRACKET (SLIDE MOTOR) * 61 3-027-933-01 PROTECTOR, MM HARNESS * 62 3-032-085-01 SHEET (SLIDE MOTOR) * 63 3-031-587-01 BRACKET (MONITOR STOPPER) * 64 3-027-962-01 CUSHION (MONITOR STOPPER) * 65 1-670-610-12 E BOARD * 66 3-027-964-01 SHEET (FFC) * 67 A-3317-279-A A BOARD, COMPLETE 68 3-941-545-01 SCREW (M2X4), +P * 69 3-027-960-01 COVER (1), FFC * 70 3-027-961-01 COVER (2), FFC 71 1-783-614-11 CABLE, FLAT 26P * 72 A-3317-281-A B BOARD, COMPLETE * 73 3-655-653-01 BAND (TAITON), BINDING 74 7-621-773-86 SCREW +B 2.6X4 75 1-790-173-12 CORD, CONNECTION (for TV TUNER UNIT) * 77 3-032-802-01 SHEET (FFC COVER 1) M11 1-763-115-11 MOTOR, DC (SMALL TYPE) (ANGLE) M21 1-763-114-11 MOTOR, DC (SMALL TYPE) (SLIDE) 53 58 59 53 60 56 56 55 53 54 61 53 52 51 74 62 63 64 53 65 53 66 not supplied 68 67 77 69 53 53 71 71 74 75 73 72 M21 M11 70 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 (3) FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 105 104 103 101 102 115 114 113 112 111 110 119 117 109 108 SP701 116 120 118 123 122 121 124 107 101 9-881-999-01 SERCH/CH KEY (SERCH +) 102 9-882-001-01 SERCH/CH KEY (-) 103 9-882-004-01 ENTER KEY 104 9-882-002-01 SERCH/CH KEY (SERCH -) 105 9-882-000-01 SERCH/CH KEY (+) 107 9-881-990-01 FRONT PANEL 108 9-881-993-01 OPEN/CLOSE KEY 109 9-881-992-01 NAVI TV/VIDEO KEY 110 9-881-994-01 VOL +/- KEY 111 9-881-995-01 DISPLAY KEY 112 9-882-003-01 RESET KEY 113 9-881-997-01 OFF KEY 114 9-881-996-01 ANGLE/SLIDE KEY 115 9-881-998-01 V ADJ KEY 116 3-018-974-01 SCREW (2X5) * 117 9-882-029-01 PANEL BOARD, COMPLETE 118 9-882-045-01 REFLECTION BOARD B 119 9-882-027-11 REFLECTION BOARD A 120 9-882-028-01 BLIND SHEET 121 9-881-991-01 REAR PANEL 122 3-719-408-01 SCREW (B2), TAPPING, P3 (STEEL) 123 9-882-023-01 FLAT CABLE 26P 124 3-038-333-01 PROTECTOR, FP SP701 1-505-588-11 SPEAKER (3.5X2cm) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 (4) MONITOR SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 153 169 168 153 167 166 153 165 153 153 153 162 161 164 153 153 170 167 153 168 171 159 158 160 157 154 156 155 153 152 151 172 163 * 151 3-027-936-01 SHAFT (MONITOR) 152 3-027-939-11 CABINET, MONITOR (FRONT) 153 4-931-871-01 SCREW (M2X3) 154 1-783-611-11 CABLE, FLAT 24P 155 1-803-141-11 DISPLAY PANEL, LIQUID CRYSTAL * 156 3-030-472-01 SHEET, BLACK * 157 3-027-952-01 PROTECTOR, FFC * 158 3-027-919-01 FRAME, MONITOR * 159 3-033-105-01 SHEET (L), BLACK 160 3-713-790-21 SCREW (M2X6), TAPPING, P3 161 3-016-188-01 SCREW (2.6X5) 162 3-027-941-01 PLATE, MONITOR FIXED * 163 A-3317-076-A G BOARD, COMPLETE 164 1-783-613-11 CABLE, FLAT 26P 165 3-027-940-02 CABINET, MONITOR (REAR) * 166 3-027-938-02 GEAR (L), MONITOR 167 3-032-813-01 CUSHION (MONITOR GEAR) 168 7-621-775-20 SCREW +B 2.6X5 169 3-027-958-01 LID, VOL * 170 3-027-937-02 GEAR (R), MONITOR * 171 3-030-471-01 COVER (MONITOR GEAR R) 172 3-941-545-01 SCREW (M2X4), +P www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 A SECTION 8 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * A-3317-279-A A BOARD, COMPLETE ****************** < BUZZER > BZ101 1-504-920-11 BUZZER < CAPACITOR > C001 1-117-720-11 CERAMIC CHIP 4.7uF 10V C101 1-104-913-11 TANTALUM CHIP 10uF 20% 16V C102 1-135-210-11 TANTALUM CHIP 4.7uF 20% 10V C103 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C104 1-135-210-11 TANTALUM CHIP 4.7uF 20% 10V C105 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C106 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C107 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C110 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C111 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V C112 1-128-078-11 ELECT 33uF 20% 25V C113 1-124-943-11 ELECT 39uF 20% 25V C114 1-128-078-11 ELECT 33uF 20% 25V C115 1-124-943-11 ELECT 39uF 20% 25V C117 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C118 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C119 1-163-017-00 CERAMIC CHIP 0.0047uF 10% 50V C121 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C122 1-126-968-11 ELECT 100uF 20% 16V C124 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C125 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C126 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C127 1-127-498-00 ELECT 15uF 20% 16V C128 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C129 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C130 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C131 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C133 1-125-710-31 DOUBLE LAYER 0.1F 5.5V C134 1-107-682-11 CERAMIC CHIP 1uF 10% 16V C135 1-107-682-11 CERAMIC CHIP 1uF 10% 16V C136 1-126-320-11 ELECT 10uF 20% 16V C137 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C138 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C139 1-163-017-00 CERAMIC CHIP 0.0047uF 10% 50V C140 1-163-235-11 CERAMIC CHIP 22uF 5% 50V C141 1-163-235-11 CERAMIC CHIP 22uF 5% 50V C144 1-117-720-11 CERAMIC CHIP 4.7uF 10V C145 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C146 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C147 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C148 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C149 1-124-589-11 ELECT 47uF 20% 16V C150 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C151 1-115-340-11 CERAMIC CHIP 0.22uF 10% 25V C152 1-164-299-11 CERAMIC CHIP 0.22uF 10% 25V C201 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C202 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C210 1-107-889-11 ELECT 220uF 20% 25V C439 1-126-155-11 ELECT 100uF 20% 6.3V C440 1-128-078-11 ELECT 33uF 20% 25V C441 1-128-078-11 ELECT 33uF 20% 25V C501 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C502 1-128-078-11 ELECT 33uF 20% 25V C505 1-163-135-00 CERAMIC CHIP 560PF 5% 50V C507 1-163-131-00 CERAMIC CHIP 390PF 10% 50V C509 1-164-182-11 CERAMIC CHIP 0.0033uF 10% 50V C511 1-125-835-11 CERAMIC 4.7uF 10% 25V C512 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C513 1-115-827-11 ELECT 56uF 20% 25V C514 1-163-002-11 CERAMIC CHIP 270PF 10% 50V C519 1-127-559-11 ELECT 15uF 20% 6.3V C520 1-128-078-11 ELECT 33uF 20% 25V C521 1-128-078-11 ELECT 33uF 20% 25V C522 1-127-498-00 ELECT 15uF 20% 16V C524 1-127-561-11 ELECT 33uF 20% 6.3V C526 1-126-155-11 ELECT 100uF 20% 6.3V C527 1-128-078-11 ELECT 33uF 20% 25V C528 1-128-078-11 ELECT 33uF 20% 25V C529 1-124-589-11 ELECT 47uF 20% 16V C530 1-126-155-11 ELECT 100uF 20% 6.3V C534 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C535 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C536 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C537 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C538 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C541 1-163-002-11 CERAMIC CHIP 270PF 10% 50V C555 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C574 1-117-808-11 CERAMIC CHIP 10uF 10% 10V NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH When indicating parts by reference number, please include the board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < CONNECTOR > CN101 1-573-935-11 CONNECTOR, FFC/FPC (ZIF) 26P CN102 1-573-935-11 CONNECTOR, FFC/FPC (ZIF) 26P * CN104 1-580-056-21 PIN, CONNECTOR (SMD) 3P * CN105 1-580-056-21 PIN, CONNECTOR (SMD) 3P * CN106 1-580-057-11 PIN, CONNECTOR (SMD) 4P CN107 1-580-055-21 PIN, CONNECTOR (SMD) 2P * CN108 1-580-055-21 PIN, CONNECTOR (SMD) 2P CN109 1-573-366-21 CONNECTOR, FFC/FPC 26P CN401 1-573-366-21 CONNECTOR, FFC/FPC 26P < DIODE > D001 8-719-422-16 DIODE MA8039-L-TX D104 8-719-026-18 DIODE MA3091WK- (TX) D107 8-719-420-90 DIODE MA8051-M-TX D108 8-719-073-01 DIODE MA111-TX D110 8-719-073-01 DIODE MA111-TX D111 8-719-048-98 DIODE RB160L-40TE25 D112 8-719-420-90 DIODE MA8051-M-TX D117 8-719-422-16 DIODE MA8039-L-TX D118 8-719-422-76 DIODE MA8075-M D119 8-719-420-14 DIODE MA8082-M D121 8-719-977-03 DIODE MA8056-M-TX D122 8-719-420-51 DIODE MA729-TX D123 8-719-420-51 DIODE MA729-TX D124 8-719-420-51 DIODE MA729-TX D125 8-719-420-51 DIODE MA729-TX D126 8-719-073-01 DIODE MA111-TX D130 8-719-073-01 DIODE MA111-TX D131 8-719-977-03 DIODE MA8056-M-TX D503 8-719-801-78 DIODE MA152WK-TX D504 8-719-801-78 DIODE MA152WK-TX D506 8-719-801-78 DIODE MA152WK-TX D507 8-719-801-78 DIODE MA152WK-TX D508 8-719-938-75 DIODE SB05-05CP-TB D510 8-719-048-98 DIODE RB160L-40TE25 < FUSE > F102 1-533-950-11 FUSE, CHIP (2A) F104 1-533-950-11 FUSE, CHIP (2A) F401 1-533-950-11 FUSE, CHIP (2A) < IC > IC101 8-759-048-67 IC BA3121F IC102 8-759-541-39 IC LM2595SX-ADJ IC103 8-759-548-13 IC TA78DS05AF (TE12L) IC104 8-759-170-92 IC PQ09SZ1T IC105 8-759-701-02 IC NJM2073M IC106 8-759-242-64 IC TC4W53F IC107 8-759-523-78 IC TC74VHC00FT (EL) IC108 8-759-562-07 IC PST9138NL IC110 8-759-588-71 IC MB89627RPF-G-642-BND IC111 8-759-484-73 IC BR24C01AF-E2 IC112 8-759-276-89 IC BA6285FP-E2 IC113 8-759-276-89 IC BA6285FP-E2 IC501 8-759-360-66 IC TL1453CPWR-E20 IC503 8-759-521-35 IC TL5001CD < COIL > L101 1-411-770-11 INDUCTOR 150uH L201 1-412-032-11 INDUCTOR CHIP 100uH L407 1-412-031-11 INDUCTOR CHIP 47uH L408 1-412-031-11 INDUCTOR CHIP 47uH L409 1-412-031-11 INDUCTOR CHIP 47uH L501 1-415-929-21 INDUCTOR 100uH L502 1-411-736-21 INDUCTOR 22uH L503 1-412-032-11 INDUCTOR CHIP 100uH L504 1-412-032-11 INDUCTOR CHIP 100uH L505 1-412-032-11 INDUCTOR CHIP 100uH L506 1-412-032-11 INDUCTOR CHIP 100uH L507 1-414-862-11 INDUCTOR 82uH L508 1-411-770-11 INDUCTOR 150uH < TRANSISTOR > Q102 8-729-422-29 TRANSISTOR 2SD601A-R-TX Q105 8-729-140-75 TRANSISTOR 2SD999-T1-CLCK Q106 8-729-140-75 TRANSISTOR 2SD999-T1-CLCK Q108 8-729-421-22 TRANSISTOR UN2211-TX Q109 8-729-421-22 TRANSISTOR UN2211-TX Q110 8-729-808-69 TRANSISTOR 2SB1204T-FA-TL Q112 8-729-422-29 TRANSISTOR 2SD601A-R-TX Q113 8-729-422-29 TRANSISTOR 2SD601A-R-TX Q114 8-729-421-22 TRANSISTOR UN2211-TX Q502 8-729-905-34 TRANSISTOR 2SC4081T106Q Q503 8-729-026-51 TRANSISTOR 2SA1576A-T106-Q Q504 8-729-822-72 TRANSISTOR 2SD1815FAS-TL Q506 8-729-421-22 TRANSISTOR UN2211-TX Q510 8-729-422-37 TRANSISTOR 2SB709A-R-TX Q511 8-729-422-29 TRANSISTOR 2SD601A-R-TX Q512 8-729-044-78 FET 2SJ327-Z-E1 Q514 8-729-422-29 TRANSISTOR 2SD601A-R-TX Q515 8-729-422-29 TRANSISTOR 2SD601A-R-TX Q516 8-729-905-34 TRANSISTOR 2SC4081T106Q Q517 8-729-905-34 TRANSISTOR 2SC4081T106Q < RESISTOR > R001 1-216-054-00 RES-CHIP 1.6K 5% 1/10W R102 1-216-041-00 METAL CHIP 470 5% 1/10W R104 1-216-001-00 METAL CHIP 10 5% 1/10W R107 1-216-073-00 METAL CHIP 10K 5% 1/10W R108 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R111 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R113 1-216-298-00 METAL CHIP 2.2 5% 1/10W R114 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R116 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R119 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R120 1-216-049-11 RES-CHIP 1K 5% 1/10W R121 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R122 1-216-049-11 RES-CHIP 1K 5% 1/10W R123 1-216-068-00 METAL CHIP 6.2K 5% 1/10W R124 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R127 1-216-049-11 RES-CHIP 1K 5% 1/10W R128 1-216-075-00 METAL CHIP 12K 5% 1/10W R129 1-216-097-00 RES-CHIP 100K 5% 1/10W R130 1-216-089-00 RES-CHIP 47K 5% 1/10W R131 1-216-089-00 RES-CHIP 47K 5% 1/10W A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R132 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R134 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R137 1-216-295-00 SHORT 0 R138 1-216-295-00 SHORT 0 R140 1-216-089-00 RES-CHIP 47K 5% 1/10W R142 1-216-089-00 RES-CHIP 47K 5% 1/10W R143 1-216-089-00 RES-CHIP 47K 5% 1/10W R144 1-216-089-00 RES-CHIP 47K 5% 1/10W R145 1-216-089-00 RES-CHIP 47K 5% 1/10W R146 1-216-089-00 RES-CHIP 47K 5% 1/10W R148 1-216-089-00 RES-CHIP 47K 5% 1/10W R149 1-216-295-00 SHORT 0 R150 1-216-089-00 RES-CHIP 47K 5% 1/10W R151 1-216-295-00 SHORT 0 R152 1-216-295-00 SHORT 0 R153 1-216-295-00 SHORT 0 R154 1-216-295-00 SHORT 0 R155 1-216-680-11 METAL CHIP 16K 0.5% 1/10W R156 1-216-680-11 METAL CHIP 16K 0.5% 1/10W R157 1-216-691-11 METAL CHIP 47K 0.5% 1/10W R158 1-216-691-11 METAL CHIP 47K 0.5% 1/10W R159 1-216-089-00 RES-CHIP 47K 5% 1/10W R160 1-216-041-00 METAL CHIP 470 5% 1/10W R161 1-216-041-00 METAL CHIP 470 5% 1/10W R162 1-216-089-00 RES-CHIP 47K 5% 1/10W R163 1-216-073-00 METAL CHIP 10K 5% 1/10W R164 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R165 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R166 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R167 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R168 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R169 1-216-049-11 RES-CHIP 1K 5% 1/10W R170 1-216-089-00 RES-CHIP 47K 5% 1/10W R172 1-216-089-00 RES-CHIP 47K 5% 1/10W R173 1-216-089-00 RES-CHIP 47K 5% 1/10W R174 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R175 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R176 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R177 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R178 1-216-063-00 RES-CHIP 3.9K 5% 1/10W R179 1-216-073-00 METAL CHIP 10K 5% 1/10W R181 1-216-295-00 SHORT 0 R182 1-216-089-00 RES-CHIP 47K 5% 1/10W R183 1-216-295-00 SHORT 0 R184 1-216-089-00 RES-CHIP 47K 5% 1/10W R185 1-216-295-00 SHORT 0 R186 1-216-295-00 SHORT 0 R187 1-216-295-00 SHORT 0 R188 1-216-089-00 RES-CHIP 47K 5% 1/10W R189 1-216-033-00 METAL CHIP 220 5% 1/10W R190 1-216-033-00 METAL CHIP 220 5% 1/10W R191 1-216-033-00 METAL CHIP 220 5% 1/10W R192 1-216-033-00 METAL CHIP 220 5% 1/10W R193 1-216-033-00 METAL CHIP 220 5% 1/10W R194 1-216-033-00 METAL CHIP 220 5% 1/10W R195 1-216-033-00 METAL CHIP 220 5% 1/10W R196 1-216-033-00 METAL CHIP 220 5% 1/10W R197 1-216-170-00 RES-CHIP 68 5% 1/8W R198 1-216-170-00 RES-CHIP 68 5% 1/8W R199 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R200 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R201 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R202 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R203 1-216-295-00 SHORT 0 R204 1-216-295-00 SHORT 0 R205 1-216-295-00 SHORT 0 R206 1-216-049-11 RES-CHIP 1K 5% 1/10W R207 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R210 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R454 1-216-295-00 SHORT 0 R455 1-216-295-00 SHORT 0 R503 1-216-081-00 METAL CHIP 22K 5% 1/10W R504 1-216-081-00 METAL CHIP 22K 5% 1/10W R507 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R509 1-216-675-11 METAL CHIP 10K 0.5% 1/10W R510 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R512 1-216-083-00 METAL CHIP 27K 5% 1/10W R513 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R514 1-216-085-00 METAL CHIP 33K 5% 1/10W R515 1-216-085-00 METAL CHIP 33K 5% 1/10W R516 1-216-041-00 METAL CHIP 470 5% 1/10W R517 1-216-037-00 METAL CHIP 330 5% 1/10W R518 1-216-037-00 METAL CHIP 330 5% 1/10W R520 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R527 1-216-295-00 SHORT 0 R528 1-216-049-11 RES-CHIP 1K 5% 1/10W R529 1-216-295-00 SHORT 0 R534 1-216-097-00 RES-CHIP 100K 5% 1/10W R535 1-216-097-00 RES-CHIP 100K 5% 1/10W R536 1-216-097-00 RES-CHIP 100K 5% 1/10W R537 1-216-097-00 RES-CHIP 100K 5% 1/10W R538 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R539 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R540 1-216-049-11 RES-CHIP 1K 5% 1/10W R541 1-216-081-00 METAL CHIP 22K 5% 1/10W R542 1-216-089-00 RES-CHIP 47K 5% 1/10W R543 1-216-089-00 RES-CHIP 47K 5% 1/10W R548 1-216-097-00 RES-CHIP 100K 5% 1/10W R550 1-216-001-00 METAL CHIP 10 5% 1/10W R554 1-216-295-00 SHORT 0 R556 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R562 1-216-009-00 RES-CHIP 22 5% 1/10W R564 1-216-308-00 METAL CHIP 4.7 5% 1/10W R565 1-216-081-00 METAL CHIP 22K 5% 1/10W R566 1-216-089-00 RES-CHIP 47K 5% 1/10W R567 1-216-033-00 METAL CHIP 220 5% 1/10W R568 1-216-073-00 METAL CHIP 10K 5% 1/10W R569 1-216-041-00 METAL CHIP 470 5% 1/10W R570 1-216-041-00 METAL CHIP 470 5% 1/10W R572 1-216-081-00 METAL CHIP 22K 5% 1/10W R574 1-216-099-00 METAL CHIP 120K 5% 1/10W R580 1-216-071-00 METAL CHIP 8.2K 5% 1/10W A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < VARIABLE RESISTOR > RV501 1-238-087-11 RES, ADJ, CERMET 1K RV502 1-238-090-11 RES, ADJ, CERMET 10K < SWITCH > S102 1-771-447-11 SWITCH, PUSH (MONITOR CLOSE DETECT) < TRANSFORMER > T501 1-433-449-21 TRANSFORMER, DC-DC CONVERTER < VIBRATOR > X100 1-579-358-11 VIBLATOR, CRYSTAL (10MHz) ************************************************************** * A-3317-281-A B BOARD, COMPLETE ****************** (Refer to SECTION 1. SERVICING NOTES on page 2.) < CAPACITOR > C701 1-127-712-11 ELECT 2500uF 20% 25V C702 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C703 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C704 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C705 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C706 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C707 1-125-938-91 ELECT 330uF 20% 25V C708 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C709 1-124-779-00 ELECT CHIP 10uF 20% 16V C710 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V < CONNECTOR > * CN701 1-564-518-11 PLUG, CONNECTOR 3P * CN702 1-565-883-11 PIN, CONNECTOR (PC BOARD) 11P * CN703 1-565-884-11 PIN, CONNECTOR (PC BOARD) 12P CN704 1-784-965-11 CONNECTOR (WITH FUSE) (POWER) CN705 1-764-532-21 CONNECTOR, FFC/FPC (ZIF) 26P CN706 1-764-532-21 CONNECTOR, FFC/FPC (ZIF) 26P < DIODE > D701 8-719-023-54 DIODE EA60QC06-TE16F2 D702 8-719-066-17 DIODE FTZ6.8E-T148 D703 8-719-066-17 DIODE FTZ6.8E-T148 D704 8-719-066-17 DIODE FTZ6.8E-T148 D705 8-719-066-17 DIODE FTZ6.8E-T148 D706 8-719-066-17 DIODE FTZ6.8E-T148 D708 8-719-420-51 DIODE MA729-TX < IC > IC703 8-759-711-58 IC NJM78L05UA < COIL > L701 1-421-961-41 INDUCTOR 450uH L702 1-416-510-21 INDUCTOR 100uH < TRANSISTOR > Q701 8-729-027-43 TRANSISTOR DTC114EK-T146 < RESISTOR > R701 1-216-089-00 RES-CHIP 47K 5% 1/10W R702 1-216-089-00 RES-CHIP 47K 5% 1/10W R703 1-216-296-00 SHORT 0 R704 1-216-092-00 RES-CHIP 62K 5% 1/10W R705 1-216-083-00 METAL CHIP 27K 5% 1/10W R707 1-216-295-00 SHORT 0 R709 1-216-089-00 RES-CHIP 47K 5% 1/10W R716 1-216-073-00 METAL CHIP 10K 5% 1/10W R725 1-216-025-00 RES-CHIP 100 5% 1/10W R727 1-220-271-11 RES-CHIP 560 5% 1/2W R798 1-249-418-11 CARBON 1.2K 5% 1/4W R799 1-249-418-11 CARBON 1.2K 5% 1/4W R999 1-216-295-00 SHORT 0 < VARISTOR > VR701 1-810-601-11 VARISTOR ************************************************************** * 1-670-608-12 C BOARD ******** < CAPACITOR > C11 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V < CONNECTOR > CN11 1-573-290-21 PIN, CONNECTOR (1.5mm) (SMD) 4P < DIODE > D11 8-719-422-16 DIODE MA8039-L-TX < PHOTO INTERRUPTER > * PH11 8-749-013-34 PHOTO INTERRUPTER GP1S23K < TRANSISTOR > Q11 8-729-422-29 TRANSISTOR 2SD601A-R-TX < RESISTOR > R11 1-216-658-11 METAL CHIP 2K 0.5% 1/10W R13 1-216-097-00 RES-CHIP 100K 5% 1/10W R14 1-216-039-00 METAL CHIP 390 5% 1/10W < SWITCH > S11 1-692-440-11 SWITCH, PUSH (MONITOR OPEN DETECT) ************************************************************** * 1-670-609-12 D BOARD ******** < CONNECTOR > * CN21 1-580-056-21 PIN, CONNECTOR (SMD) 3P < DIODE > D21 8-719-422-16 DIODE MA8039-L-TX A B C D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < PHOTO INTERRUPTER > * PH21 8-749-013-34 PHOTO INTERRUPTER GP1S23K < TRANSISTOR > Q21 8-729-422-29 TRANSISTOR 2SD601A-R-TX < RESISTOR > R21 1-216-658-11 METAL CHIP 2K 0.5% 1/10W R23 1-216-097-00 RES-CHIP 100K 5% 1/10W R24 1-216-039-00 METAL CHIP 390 5% 1/10W ************************************************************** * 1-670-610-12 E BOARD ******** < CAPACITOR > C31 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C32 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V < CONNECTOR > CN31 1-568-961-11 PIN, CONNECTOR (PC BOARD) 3P < SWITCH > S31 1-572-126-21 SWITCH, PUSH (1 KEY) (PUSH OUT) S32 1-572-126-21 SWITCH, PUSH (1 KEY) (SET BACK) ************************************************************** * A-3317-076-A G BOARD, COMPLETE ****************** < CAPACITOR > C403 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C404 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C405 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C406 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C407 1-104-851-11 TANTALUM CHIP 10uF 20% 10V C408 1-163-255-11 CERAMIC CHIP 150PF 5% 50V C409 1-135-179-21 TANTALUM CHIP 2.2uF 20% 16V C410 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C411 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C414 1-113-642-11 TANTALUM CHIP 47uF 20% 10V C415 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C416 1-163-091-00 CERAMIC CHIP 8PF 50V C418 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C420 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C422 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C424 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C425 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C426 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C428 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C429 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C430 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C431 1-117-808-11 CERAMIC CHIP 10uF 10% 10V C432 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C434 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C436 1-113-642-11 TANTALUM CHIP 47uF 20% 10V C437 1-104-823-11 TANTALUM CHIP 47uF 20% 16V C442 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C443 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C444 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C923 1-135-179-21 TANTALUM CHIP 2.2uF 20% 16V C924 1-127-746-21 FILM CHIP 0.082uF 10% 100V C926 1-107-526-11 CERAMIC CHIP 22PF 10% 3KV C927 1-107-526-11 CERAMIC CHIP 22PF 10% 3KV < CONNECTOR > CN901 1-569-629-11 HOUSING, CONNECTOR 24P CN902 1-573-366-21 CONNECTOR, FFC/FPC 26P * CN903 1-766-311-21 PIN, CONNECTOR (PC BOARD) 2P < DIODE > D405 8-719-422-64 DIODE MA8062-M-TX D406 8-719-422-64 DIODE MA8062-M-TX D407 8-719-422-64 DIODE MA8062-M-TX D408 8-719-422-64 DIODE MA8062-M-TX D409 8-719-422-64 DIODE MA8062-M-TX D410 8-719-061-22 DIODE MA8130-M-TX D411 8-719-022-90 DIODE MA8160-M-TX D907 8-719-801-78 DIODE MA152WK-TX < IC > IC401 8-759-242-74 IC TC7W04F IC402 8-759-278-58 IC NJM4558V-TE2 IC403 8-759-450-52 IC IR3Y29B4 < COIL > L404 1-412-033-11 INDUCTOR CHIP 220uH L405 1-412-031-11 INDUCTOR CHIP 47uH L406 1-412-031-11 INDUCTOR CHIP 47uH < TRANSISTOR > Q401 8-729-905-34 TRANSISTOR 2SC4081T106Q Q402 8-729-026-51 TRANSISTOR 2SA1576A-T106-Q Q403 8-729-101-07 TRANSISTOR 2SB798-T1-DLDK Q404 8-729-140-75 TRANSISTOR 2SD999-T1-CLCK Q911 8-729-018-95 TRANSISTOR 2SD1803FAT-TL Q912 8-729-018-95 TRANSISTOR 2SD1803FAT-TL < RESISTOR > R405 1-216-022-00 METAL CHIP 75 5% 1/10W R406 1-216-035-00 METAL CHIP 270 5% 1/10W R407 1-216-035-00 METAL CHIP 270 5% 1/10W R408 1-216-035-00 METAL CHIP 270 5% 1/10W R411 1-216-043-00 RES-CHIP 560 5% 1/10W R412 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R415 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R416 1-216-073-00 METAL CHIP 10K 5% 1/10W R418 1-216-073-00 METAL CHIP 10K 5% 1/10W R419 1-216-079-00 METAL CHIP 18K 5% 1/10W R420 1-216-080-00 METAL CHIP 20K 5% 1/10W R421 1-216-073-00 METAL CHIP 10K 5% 1/10W R422 1-216-073-00 METAL CHIP 10K 5% 1/10W R423 1-216-080-00 METAL CHIP 20K 5% 1/10W R424 1-216-049-11 RES-CHIP 1K 5% 1/10W D E G www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark G PANEL R427 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R428 1-216-073-00 METAL CHIP 10K 5% 1/10W R429 1-216-077-00 RES-CHIP 15K 5% 1/10W R430 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R431 1-216-073-00 METAL CHIP 10K 5% 1/10W R433 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R434 1-216-058-00 RES-CHIP 2.4K 5% 1/10W R435 1-216-077-00 RES-CHIP 15K 5% 1/10W R436 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R437 1-216-073-00 METAL CHIP 10K 5% 1/10W R439 1-216-001-00 METAL CHIP 10 5% 1/10W R440 1-216-001-00 METAL CHIP 10 5% 1/10W R441 1-216-080-00 METAL CHIP 20K 5% 1/10W R442 1-216-073-00 METAL CHIP 10K 5% 1/10W R443 1-216-080-00 METAL CHIP 20K 5% 1/10W R444 1-216-073-00 METAL CHIP 10K 5% 1/10W R445 1-216-082-00 RES-CHIP 24K 5% 1/10W R446 1-216-079-00 METAL CHIP 18K 5% 1/10W R449 1-216-025-00 RES-CHIP 100 5% 1/10W R450 1-216-025-00 RES-CHIP 100 5% 1/10W R451 1-216-025-00 RES-CHIP 100 5% 1/10W R456 1-216-295-00 SHORT 0 R457 1-216-089-00 RES-CHIP 47K 5% 1/10W R460 1-216-295-00 SHORT 0 R461 1-216-295-00 SHORT 0 R923 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R927 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R929 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R931 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R932 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R933 1-216-079-00 METAL CHIP 18K 5% 1/10W R934 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R951 1-216-296-00 SHORT 0 < VARIABLE RESISTOR > RV401 1-238-092-11 RES, ADJ, CERMET 47K RV403 1-238-092-11 RES, ADJ, CERMET 47K RV404 1-238-092-11 RES, ADJ, CERMET 47K RV405 1-238-088-11 RES, ADJ, CERMET 2.2K RV406 1-238-092-11 RES, ADJ, CERMET 47K RV407 1-238-092-11 RES, ADJ, CERMET 47K RV408 1-238-092-11 RES, ADJ, CERMET 47K RV409 1-238-090-11 RES, ADJ, CERMET 10K < TRANSFORMER > T601 1-431-914-12 TRANSFORMER, INVERTER T602 1-431-914-12 TRANSFORMER, INVERTER ************************************************************** * 9-882-029-01 PANEL BOARD, COMPLETE ********************** < CAPACITOR > C702 1-135-210-11 TANTALUM CHIP 4.7uF 20% 10V C703 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C704 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C705 1-104-913-11 TANTALUM CHIP 10uF 20% 16V C706 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V < CONNECTOR > CN701 1-573-366-21 FFC CONNECTOR 26P < DIODE > D701 9-882-025-01 DIODE NNCD6.8G-T1 D702 9-882-025-01 DIODE NNCD6.8G-T1 D703 9-882-025-01 DIODE NNCD6.8G-T1 D704 9-882-025-01 DIODE NNCD6.8G-T1 D706 9-882-026-01 DIODE PTZ-TE25-5.6B D710 9-882-600-01 DIODE NNCD6.8F-T1B D711 8-719-989-79 LED AA1102W (V OFF) D716 8-719-070-29 DIODE PTZ-TE25-5.1B D717 8-719-070-29 DIODE PTZ-TE25-5.1B D718 8-719-987-45 LED CL-155Y/PG-CD-T (NAVI) D719 8-719-987-45 LED CL-155Y/PG-CD-T (TV/VIDEO) D720 8-719-070-29 DIODE PTZ-TE25-5.1B D721 8-719-987-45 LED CL-155Y/PG-CD-T (–) D722 8-719-987-45 LED CL-155Y/PG-CD-T (+) D723 8-719-987-45 LED CL-155Y/PG-CD-T (SEARCH –) D724 8-719-987-45 LED CL-155Y/PG-CD-T (SEARCH +) D725 8-719-987-45 LED CL-155Y/PG-CD-T (• SLIDE, – ANGLE) D727 8-719-070-29 DIODE PTZ-TE25-5.1B < IC > IC701 8-749-925-13 IC RS-30E < SWITCH > LSW703 1-762-143-12 SWITCH, TACTILE (WITH LED) (OPEN/CLOSE) LSW704 1-762-143-12 SWITCH, TACTILE (WITH LED) (OFF) LSW706 1-762-143-12 SWITCH, TACTILE (WITH LED) (• SLIDE, – ANGLE) LSW707 1-762-143-12 SWITCH, TACTILE (WITH LED) (NAVI) LSW708 1-762-143-12 SWITCH, TACTILE (WITH LED) (TV/VIDEO) LSW709 1-762-143-12 SWITCH, TACTILE (WITH LED) (DSPL) LSW710 1-762-143-12 SWITCH, TACTILE (WITH LED) (SELECT) LSW711 1-762-143-12 SWITCH, TACTILE (WITH LED) (+) LSW712 1-762-143-12 SWITCH, TACTILE (WITH LED) (–) LSW713 1-762-143-12 SWITCH, TACTILE (WITH LED) (SEARCH +) LSW714 1-762-143-12 SWITCH, TACTILE (WITH LED) (SEARCH –) LSW715 1-762-143-12 SWITCH, TACTILE (WITH LED) (V ADJ) LSW716 1-762-143-12 SWITCH, TACTILE (WITH LED) (VOLUME –) LSW717 1-762-143-12 SWITCH, TACTILE (WITH LED) (VOLUME +) < TRANSISTOR > Q701 8-729-028-97 TRANSISTOR DTC114TUA-T106 Q702 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q703 8-729-027-38 TRANSISTOR DTC144EKA-T146 Q704 8-729-901-97 TRANSISTOR 2SA1036K-Q Q708 8-729-900-53 TRANSISTOR DTC114EK Q709 8-729-027-38 TRANSISTOR DTA144EKA-T146 Q710 8-729-904-66 TRANSISTOR DTC113EK Q711 8-729-901-97 TRANSISTOR 2SA1036K-Q Q712 8-729-901-97 TRANSISTOR 2SA1036K-Q < RESISTOR > R702 1-216-065-00 METAL CHIP 4.7K 5% 1/10W R703 1-216-045-00 METAL CHIP 680 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark PANEL R704 1-216-035-00 METAL CHIP 270 5% 1/10W R705 1-216-035-00 METAL CHIP 270 5% 1/10W R706 1-216-035-00 METAL CHIP 270 5% 1/10W R707 1-216-035-00 METAL CHIP 270 5% 1/10W R708 1-216-188-00 METAL CHIP 390 5% 1/8W R709 1-216-190-00 METAL CHIP 470 5% 1/8W R710 1-216-190-00 METAL CHIP 470 5% 1/8W R714 1-216-049-11 METAL CHIP 1K 5% 1/10W R715 1-216-042-00 METAL CHIP 510 5% 1/10W R716 1-216-042-00 METAL CHIP 510 5% 1/10W R717 1-216-042-00 METAL CHIP 510 5% 1/10W R718 1-216-042-00 METAL CHIP 510 5% 1/10W R719 1-216-035-00 METAL CHIP 270 5% 1/10W R720 1-216-035-00 METAL CHIP 270 5% 1/10W R721 1-216-042-00 METAL CHIP 510 5% 1/10W R722 1-216-042-00 METAL CHIP 510 5% 1/10W R723 1-216-184-00 METAL CHIP 270 5% 1/8W R724 1-216-184-00 METAL CHIP 270 5% 1/8W R725 1-216-178-00 METAL CHIP 150 5% 1/8W R726 1-216-178-00 METAL CHIP 150 5% 1/8W R727 1-216-178-00 METAL CHIP 150 5% 1/8W R728 1-216-081-00 METAL CHIP 22K 5% 1/10W R729 1-216-178-00 METAL CHIP 150 5% 1/8W R730 1-216-184-00 METAL CHIP 270 5% 1/8W R731 1-216-184-00 METAL CHIP 270 5% 1/8W R732 1-216-081-00 METAL CHIP 22K 5% 1/10W R733 1-216-178-00 METAL CHIP 150 5% 1/8W R734 1-216-081-00 METAL CHIP 22K 5% 1/10W R735 1-216-178-00 METAL CHIP 150 5% 1/8W R736 1-216-081-00 METAL CHIP 22K 5% 1/10W R737 1-216-184-00 METAL CHIP 270 5% 1/8W R738 1-216-184-00 METAL CHIP 270 5% 1/8W R739 1-216-295-00 METAL CHIP 0 5% 1/10W R740 1-216-295-00 METAL CHIP 0 5% 1/10W R741 1-216-042-00 METAL CHIP 510 5% 1/10W R742 1-216-042-00 METAL CHIP 510 5% 1/10W R743 1-216-042-00 METAL CHIP 510 5% 1/10W R744 1-216-042-00 METAL CHIP 510 5% 1/10W R745 1-216-042-00 METAL CHIP 510 5% 1/10W R746 1-216-042-00 METAL CHIP 510 5% 1/10W R747 1-216-295-00 METAL CHIP 0 5% 1/10W R748 1-216-295-00 METAL CHIP 0 5% 1/10W R749 1-216-295-00 METAL CHIP 0 5% 1/10W R750 1-216-295-00 METAL CHIP 0 5% 1/10W R751 1-216-295-00 METAL CHIP 0 5% 1/10W R752 1-216-295-00 METAL CHIP 0 5% 1/10W R753 1-216-295-00 METAL CHIP 0 5% 1/10W R754 1-216-295-00 METAL CHIP 0 5% 1/10W < SWITCH > S702 1-771-027-11 SWITCH, KEY BOARD (RESET) ************************************************************** MISCELLANEOUS ************** 13 1-783-609-21 CORD (WITH CONNECTOR) 10P (POWER) 71 1-783-614-11 CABLE, FLAT 26P 75 1-790-173-12 CORD, CONNECTION (for TV TUNER UNIT) 154 1-783-611-11 CABLE, FLAT 24P 155 1-803-141-11 DISPLAY PANEL, LIQUID CRYSTAL 164 1-783-613-11 CABLE, FLAT 26P F704 1-532-796-11 FUSE (BLADE TYPE) (AUTO FUSE) (5A) M11 1-763-115-11 MOTOR, DC (SMALL TYPE) (ANGLE) M21 1-763-114-11 MOTOR, DC (SMALL TYPE) (SLIDE) SP701 1-505-588-11 SPEAKER (3.5X2cm) ************************************************************ ACCESSORIESE & PACKING MATERIALS ******************************** 1-473-715-21 REMOTE COMMANDER (RM-X63E) 9-939-691-01 LID, BATTERY CASE (for RM-X63E) XTL-75V Sony Corporation Audio Entertainment Group 9-926-022-11 2000D05038-1 Printed in Japan C 2000. 4 Published by ME General Engineering Dept. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
