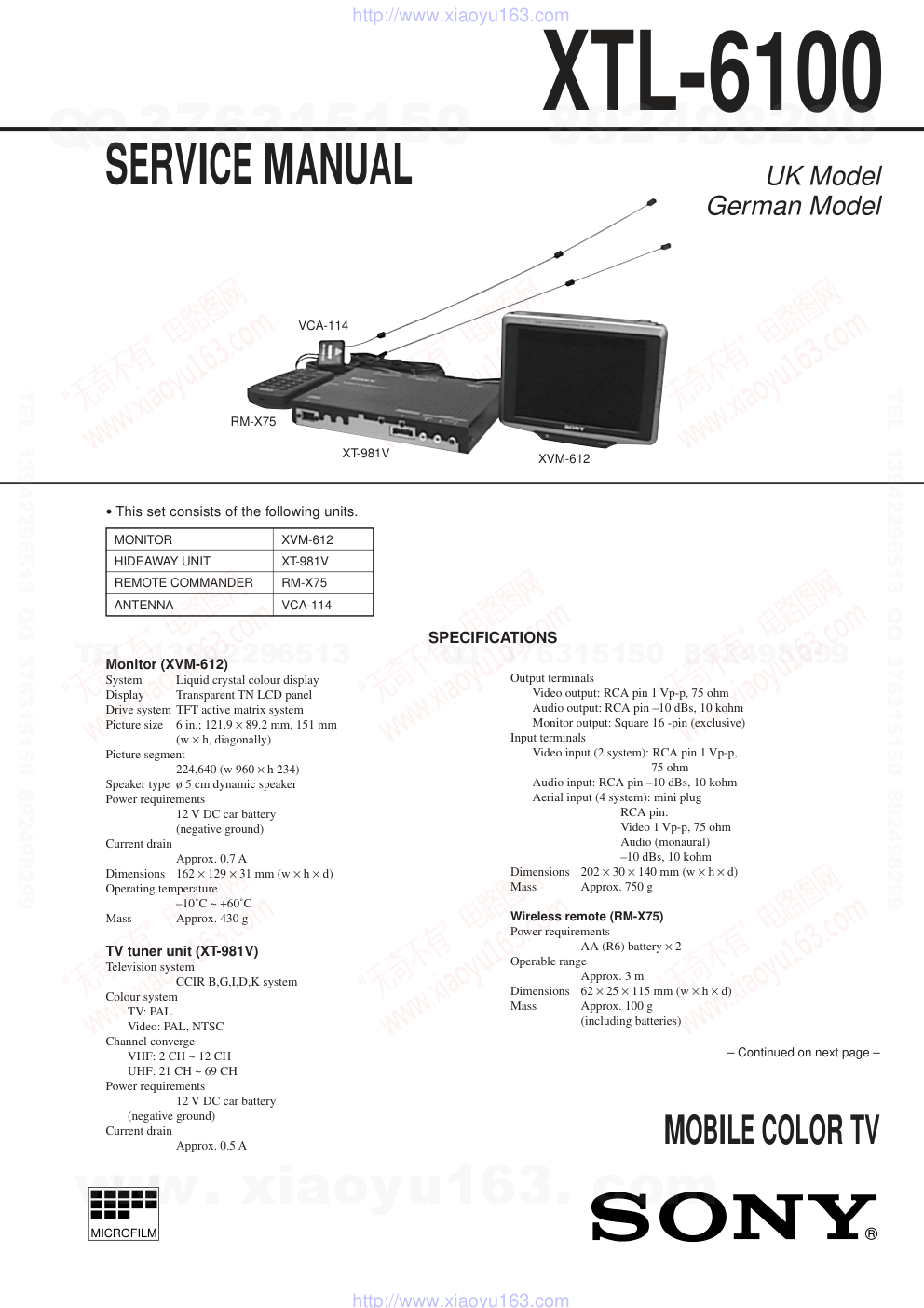

– 1 – Output terminals Video output: RCA pin 1 Vp-p, 75 ohm Audio output: RCA pin –10 dBs, 10 kohm Monitor output: Square 16 -pin (exclusive) Input terminals Video input (2 system): RCA pin 1 Vp-p, 75 ohm Audio input: RCA pin –10 dBs, 10 kohm Aerial input (4 system): mini plug RCA pin: Video 1 Vp-p, 75 ohm Audio (monaural) –10 dBs, 10 kohm Dimensions 202 × 30 × 140 mm (w × h × d) Mass Approx. 750 g Wireless remote (RM-X75) Power requirements AA (R6) battery × 2 Operable range Approx. 3 m Dimensions 62 × 25 × 115 mm (w × h × d) Mass Approx. 100 g (including batteries) SERVICE MANUAL UK Model German Model MICROFILM • This set consists of the following units. MOBILE COLOR TV MONITOR XVM-612 HIDEAWAY UNIT XT-981V REMOTE COMMANDER RM-X75 ANTENNA VCA-114 – Continued on next page – SPECIFICATIONS Monitor (XVM-612) System Liquid crystal colour display Display Transparent TN LCD panel Drive system TFT active matrix system Picture size 6 in.; 121.9 × 89.2 mm, 151 mm (w × h, diagonally) Picture segment 224,640 (w 960 × h 234) Speaker type ø 5 cm dynamic speaker Power requirements 12 V DC car battery (negative ground) Current drain Approx. 0.7 A Dimensions 162 × 129 × 31 mm (w × h × d) Operating temperature –10˚C ~ +60˚C Mass Approx. 430 g TV tuner unit (XT-981V) Television system CCIR B,G,I,D,K system Colour system TV: PAL Video: PAL, NTSC Channel converge VHF: 2 CH ~ 12 CH UHF: 21 CH ~ 69 CH Power requirements 12 V DC car battery (negative ground) Current drain Approx. 0.5 A XT-981V XVM-612 RM-X75 VCA-114 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TABLE OF CONTENTS 1. GENERAL Location of Controls ............................................................... 3 Getting Started ........................................................................ 3 Watching a TV Programme .................................................... 3 Watching a Video.................................................................... 4 Listening to the TV/ Video Sound with the Picture Off ................................................................ 4 Adjusting the Picture .............................................................. 4 Adjusting the Screen Brightness ............................................ 5 Connections ............................................................................ 6 2. ELECTRICAL ADJUSTMENTS Monitor Section ...................................................................... 7 3. DIAGRAMS 3-1. Block Diagram – Monitor Section (XVM-612) –.............. 9 3-2. Printed Wiring Board – Monitor Section (XVM-612) – ..................................... 11 3-3. Schematic Diagram – Monitor Section (XVM-612) – ..................................... 15 4. EXPLODED VIEW 4-1. Monitor Section (XVM-612) ........................................... 20 5. ELECTRICAL PARTS LIST ................................... 21 TV aerial (VCA-114) Cord 5 m, 75 ohm Supplied accessories Wireless remote (1) Power input cord (1) Monitor cable (1) TV aerial (1) Parts for installation and connections (1 set) Cleaning cloth (1) Design and specifications are subject to change without notice. Notes on Chip Component Replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SECTION 1 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – SECTION 2 ELECTRICAL ADJUSTMENTS Equipment Use the following test equipment for alignment. • Oscilloscope dual trace, 10 MHz band or above with delay mode (use a 10 to 1 probe unless otherwise instructed.) • PAL color bar generator • DC power supply • Digital voltmeter • XT-981V (Hideaway unit) • Frequency counter Equipment Connections Make the test equipment connections as shown below (unless instructed otherwise) and perform the alignment. INPUT 1 VIDEO color bar generator XT-981V XVM-612 VIDEO output (75 Ω) MONITOR OUT MONITOR SECTION Voltage Adjustment Setting : DIMMER selector (S701) : HIGH BRIGHT dial (RV702) : Max. (light) VOL dial (RV301) : Max. Procedure : 1. Input the color bar (chroma off) signal from PAL color bar gen- erator and display on the monitor screen. 2. Connect the digital voltmeter to CL66 on the monitor main board. 3. Adjust RV401 (+5V) so that the digital voltmeter reads 5 ± 0.1 V DC. 4. Connect the digital voltmeter to CL86 on the monitor main board. 5. Adjust RV601 (+9V) so that the digital voltmeter reads 8.5 ± 0.1 V DC. Connection points : Monitor main board Alignment points : Monitor main board RGB Adjustment Procedure : 1. Input the color bar (chroma off) signal from PAL color bar gen- erator and display on the monitor screen. 2. Connect the digital voltmeter to CL151 on the monitor main board. 3. Adjust RV213 (OFFSET) so that the digital voltmeter reads 2.3 ± 0.1 V DC. 4. Connect the oscilloscope to CL42 on the monitor main board. 5. Adjust RV212 (COM CUT) so that the lower black level is 6.2 ± 0.05 V DC. 6. Adjust RV208 (COM DRIVE) so that the upper 100% white level is 9.2 ± 0.05 V DC. 7. Repeat steps 5 & 6 until the items in the standards are satisfied. 8. Connect the oscilloscope to CL41 of the monitor main board. 9. Adjust RV207 (R DRIVE) so that the lower black level is 6.2 ± 0.05 V DC. 10. Adjust RV202 (R CUT) so that the upper 100% white level is 9.2 ± 0.05 V DC. 11. Repeat steps 9 & 10 until the items in the standards are satisfied. 12. Connect the oscilloscope to CL43 of the monitor main board. 13. Adjust RV209 (B DRIVE) so that the upper 100% white level is 6.1 ± 0.05 V DC. 14. Adjust RV204 (B CUT) so that the upper 100% white level is 9.1 ± 0.05 V DC. 15. Repeat steps 13 & 14 until the items in the standards are satisfied. 1 2 3 4 5 6 7 8 white level (1st step) black level (8th step) 0 V Connection points : Monitor main board Alignment points : Monitor main board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – V COM Adjustment Procedure : 1. Connect the oscilloscope to CL44 on the monitor main board. 2. Adjust RV210 (V COM AMP) & RV211 (V COM BIAS) so that the output waveform is within the standards. 3. Repeat step 2 until the standards are satisfied. Standard values : A : Adjust RV210 so the value is 4.9 ± 0.1 Vp-p. B : Adjust RV211 so the value is 5.1 ± 0.1 V. A B 0 V Connection points : Monitor main board RV207 R DRIVE ADJ RV208 COM DRIVE ADJ RV213 OFFSET ADJ RV212 COM CUT ADJ RV202 R CUT ADJ RV209 B DRIVE ADJ RV204 B CUT ADJ RV210 V COM AMP ADJ RV211 V COM BIAS ADJ RV401 +5V ADJ RV601 +9V ADJ – MONITOR MAIN BOARD (COMPONENT SIDE) – – MONITOR MAIN BOARD (CONDUCTOR SIDE) – CL44 CL43 CL41 CL66 CL42 CL151 Alignment points : Monitor main board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – – 10 – 3-1. BLOCK DIAGRAM — MONITOR SECTION (XVM-612) — XTL-6100 SECTION 3 DIAGRAMS 7 8 5 6 8 : AUDIO : VIDEO 1 3 AUDIO POWER AMP IC301 CN3 SP301 SPEAKER R CLAMP Q1 7 G CLAMP Q11 6 22 23 24 25 27 30 9 10 11 5 2 1 2 7 3 15 14 10 28 B CLAMP Q21 OFFSET CANSEL POLARITY SELECT γ RECTIFY CH DISPLAY SELECT OUTPUT AMP LEVEL ADJUSTMENT PULSE CONVERSION CURRENT CONVERSION CURRENT CONVERSION 16 17 18 19 RV213 OFFSET RV212 COM CUT RV202 R CUT RV204 B CUT CURRENT CONVERSION F. F. 12 13 14 21 5 1 RV209 B DRIVE RV207 R DRIVE RV208 COM DRIVE COUNT DOWN VERTICAL SEP 32FH VCO VIDEO CHROMA INTERFACE, γ-AMP, DRIVE AMP IC201 RV702 BRIGHT RV301 VOL B+ (+5V) B+ (+5V) Q Q HD SINGLE SHOT IC203 SYNC SEP AFC X202 480kHz SYNC SEP IC202 S1 POWER RV601 +9V RV401 +5V REG IC302 D102 POWER F901 F501 F601 B+ SWITCH Q609 B+ ON/OFF Q605, 606 B+ (+23V) B+ (+13V) B+ (+5V) B- (-5V) B+ (+9.1V) B+ (+8.7V) OUT2 +IN1 OUT1 SCP +IN2 INVERTER Q502-504 DC-DC CONVERTER IC401 DC-DC CONVERTER T501 PROTECTOR Q401 D505 D504 D503 D502 D401 BL B+ SWITCH Q602 V COM AMP Q211 V COM BIAS Q207-210 BL ON/OFF Q801, 802 BL DRIVE Q601 REG Q604 SWITCH Q610 INVERTER Q607, 608 2 3 1 IC601 (3/3) 13 12 14 IC601 (1/3) 8 10 IC601 (2/3) HIGH LOW S701 DIMMER BUFFER Q603 DIMMER IC601 CN1 3 2 15 14 13 AUDIO IN BEEP R. IN G. IN B. IN 5 BRIGHT 12 C. SYNC 16 NTSC/PAL 8 POWER. SW 9 BL. ON/OFF 6 +B (+12V) 1 TUNER MAIN BOARD CN3 (XT-981V) RV210 V COM AMP RV211 V COM BIAS B+ VGG (+23V) VBB (+13V) VBB (+13V) VDD (+5V) VDD (+5V) VEE (-5V) VEE (-5V) CN8 15 13 11 VR VG VB 10 V COM 21 POLC 22 POLS 24 HD 23 VD 18 9 8 7 6 5 3 2 N/S B+ (+23V) B+ (+13V) B+ (+5V) B- (-5V) CN601 HV GND BACK-LIGHT UNIT DSP301 LIQUID CRYSTAL DISPLAY PANEL Signal Path DC-AC CONVERTER INVERTER T601 MONITOR MAIN BOARD 04 . 10 SIRCS 3 1 REG IC101 3 2 IR RECEIVER IC102 SIRCS BUFFER Q103 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 19 – • IC Block Diagrams IC201 TA8696F IC202 LA7218M-TE-R IC203 TC74HC123AF IC401 TL1451ACPW 14 15 13 12 17 16 18 19 22 21 20 23 24 27 26 30 29 28 25 PULSE CONVERSION INPUT DISCRIMINATION INPUT LATCH POLARITY SELECT LEVEL ADJUSTMENT CH DISPLAY SELECT γ RECTFY OFFSET CANCEL OUTPUT AMP CURRENT CONVERSION CURRENT CONVERSION CURRENT CONVERSION REFERENCE VOLTAGE F.F. 11 7 6 5 8 9 10 3 4 2 1 XH MODE B-CH IN G-CH IN R-CH IN B S/H B IN G IN R IN L GND R S/H V REF B DRIVE R DRIVE COM DRIVE L VCC HD VD CP F.F. OUT F.F. CONT H VCC VO CENTER B OUT G OUT R OUT H GND B CUTOFF R CUTOFF COM CUTOFF γ OFFSET 1 2 3 4 5 6 7 8 9 10 11 12 13 14 AFC 32fH VCO COUNT DOWN LOCK DET SYNC SEP V.SEP NC VCC AFC CTL VCO OUT VCO IN HD OUT DET OUT EXC GND VD OUT SYNC OUT F.B. CLAMP VIDEO IN NC 16 15 14 13 12 11 10 9 1 2 3 4 5 6 7 8 VREF S R LATCH S U. Y. LO VREF VREF – + + + – + – OUTPUT1 PWM COMP OUTPUT2 PWM COMP ERROR AMP SHORT CIRCUIT PROTECTION COMP TRAINGLE OSC REFERENCE VOLTAGE VREF +25V ERROR AMP REF OUT S.C.P NON-INV- INPUT2 INV- INPUT2 FEED BACK2 DEAD TIME CONTROL2 OUT2 VCC GND OUT1 RT NON-INV- INPUT1 INV- INPUT1 FEED BACK1 DEAD TIME CONTROL1 CT 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 CLR Q Q CLR Q Q 1A 1B 1 CLR CEXT 2 2 REXT/CEXT 1Q 2Q GND VCC 1 REXT/CEXT CEXT 1 1Q 2Q 2 CLR 2B 2A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 20 – • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinet’s Color SECTION 4 EXPLODED VIEW NOTE: • The mechanical parts with no reference number in the exploded views are not supplied. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Accessories and packing materials and hardware (# mark) list are given in the last of this parts list. Ref. No. Part No. Description Remark 4-1. MONITER SECTION (XVM-612) N N Ref. No. Part No. Description Remark 1 3-906-376-01 SCREW (2.6X6) 2 3-007-691-01 CUSHION (PC BOARD) 3 X-3375-954-1 PANEL ASSY, FRONT 4 3-007-512-01 CUSHION (1) 5 3-007-693-01 CUSHION (LCD) * 6 A-3317-004-A MONITOR MAIN BOARD, COMPLETE 7 3-928-056-01 KNOB 8 3-704-197-52 SCREW (M1.4X3.5), LOCKING 9 3-713-790-01 SCREW (M2X5), TAPPING, P3 * 10 3-937-857-01 BRACKET, SPEAKER 11 X-3374-921-1 PANEL ASSY (6100), REAR * 12 3-937-856-01 BRACKET, PANEL * 13 3-937-858-01 BRACKET, STAND 14 7-627-853-28 SCREW, PRECISION +P 2X3 TYPE3 DSP301 1-801-370-11 DISPLAY PANEL, LIQUID CRYSTAL SP301 1-505-386-11 SPEAKER (5cm) 3 4 5 2 9 9 9 9 9 9 9 7 8 9 9 10 6 12 11 13 1 1 1 DSP301 SP301 14 14 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 21 – SECTION 5 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH When indicating parts by reference number, please include the board. MONITOR MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * A-3317-004-A MONITOR MAIN BOARD, COMPLETE ****************************** 3-704-197-52 SCREW (M1.4X3.5), LOCKING 3-928-056-01 KNOB < CAPACITOR > C1 1-135-208-11 TANTAL. CHIP 1uF 20% 10V C2 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C11 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C12 1-135-208-11 TANTAL. CHIP 1uF 20% 10V C21 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C22 1-135-208-11 TANTAL. CHIP 1uF 20% 10V C101 1-126-155-11 ELECT 100uF 20% 6.3V C102 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C204 1-104-911-11 TANTAL. CHIP 33uF 20% 10V C209 1-135-208-11 TANTAL. CHIP 1uF 20% 10V C210 1-135-208-11 TANTAL. CHIP 1uF 20% 10V C211 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C212 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C213 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C214 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C215 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C216 1-127-485-00 ELECT 33uF 20% 6.3V C217 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C218 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C219 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C220 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C221 1-164-357-11 CERAMIC CHIP 1000PF 5% 50V C222 1-164-357-11 CERAMIC CHIP 1000PF 5% 50V C225 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C235 1-164-346-11 CERAMIC CHIP 1uF 16V C237 1-135-208-11 TANTAL. CHIP 1uF 20% 10V C238 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C239 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C240 1-164-473-11 CERAMIC CHIP 820PF 5% 50V C241 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C242 1-135-208-11 TANTAL. CHIP 1uF 20% 10V C249 1-127-498-00 ELECT 15uF 20% 16V C250 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C251 1-104-957-11 ELECT 47uF 20% 25V C252 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C253 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C302 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C303 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C304 1-164-676-11 CERAMIC CHIP 2200PF 5% 16V C305 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C306 1-117-202-21 ELECT CHIP 1uF 20% 50V C307 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C308 1-117-202-21 ELECT CHIP 1uF 20% 50V C309 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C310 1-165-128-11 CERAMIC CHIP 0.22uF 16V C311 1-127-512-00 ELECT 10uF 20% 25V C312 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C313 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C314 1-124-122-11 ELECT 100uF 20% 50V C315 1-124-122-11 ELECT 100uF 20% 50V C401 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C402 1-164-392-11 CERAMIC CHIP 390PF 5% 50V C403 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C404 1-164-156-11 CERAMIC CHIP 0.1uF 25V C405 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C406 1-164-392-11 CERAMIC CHIP 390PF 5% 50V C407 1-164-156-11 CERAMIC CHIP 0.1uF 25V C408 1-164-346-11 CERAMIC CHIP 1uF 16V C409 1-135-214-21 TANTAL. CHIP 4.7uF 20% 20V C501 1-162-958-11 CERAMIC CHIP 270PF 5% 50V C502 1-126-098-11 ELECT 22uF 20% 35V C503 1-127-498-00 ELECT 15uF 20% 16V C504 1-127-485-00 ELECT 33uF 20% 6.3V C505 1-127-485-00 ELECT 33uF 20% 6.3V C506 1-126-098-11 ELECT 22uF 20% 35V C507 1-127-498-00 ELECT 15uF 20% 16V C508 1-107-869-11 ELECT 470uF 20% 6.3V C509 1-127-485-00 ELECT 33uF 20% 6.3V C510 1-128-078-11 ELECT 33uF 20% 25V C512 1-126-155-11 ELECT 100uF 20% 6.3V C601 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C602 1-126-096-11 ELECT 10uF 20% 35V C603 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C604 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C605 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C606 1-107-682-11 CERAMIC CHIP 1uF 10% 16V C607 1-107-682-11 CERAMIC CHIP 1uF 10% 16V C609 1-127-498-00 ELECT 15uF 20% 16V C611 1-117-198-21 FILM CHIP 0.033uF 10% 100V C612 1-107-526-11 CERAMIC CHIP 22PF 10% 3KV C613 1-127-512-00 ELECT 10uF 20% 25V C801 1-128-078-11 ELECT 33uF 20% 16V C901 1-128-528-11 ELECT 470uF 20% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 22 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MONITOR MAIN C902 1-127-491-00 ELECT(SOLID) 22uF 20% 10V < CONNECTOR > CN1 1-695-022-21 PLUG, CONNECTOR 16P CN3 1-566-757-11 PIN, CONNECTOR (PC BOARD) 2P CN8 1-778-463-11 HOUSING, CONNECTOR 24P CN601 1-766-311-21 PIN, CONNECTOR (PC BOARD) 2P < DIODE > D102 8-719-056-07 LED SLR-342MC3F (POWER) D105 8-719-941-86 DIODE DAN202U D201 8-719-037-00 DIODE RD6.2SB2-T1 D202 8-719-037-00 DIODE RD6.2SB2-T1 D203 8-719-037-00 DIODE RD6.2SB2-T1 D204 8-719-037-00 DIODE RD6.2SB2-T1 D205 8-719-037-00 DIODE RD6.2SB2-T1 D206 8-719-037-00 DIODE RD6.2SB2-T1 D207 8-719-037-00 DIODE RD6.2SB2-T1 D208 8-719-037-00 DIODE RD6.2SB2-T1 D209 8-719-158-61 DIODE RD16SB2-T1 D210 8-719-158-61 DIODE RD16SB2-T1 D211 8-719-158-61 DIODE RD16SB2-T1 D212 8-719-158-61 DIODE RD16SB2-T1 D213 8-719-158-61 DIODE RD16SB2-T1 D214 8-719-037-54 DIODE RD30SB-T1 D215 8-719-037-00 DIODE RD6.2SB2-T1 D216 8-719-037-00 DIODE RD6.2SB2-T1 D301 8-719-037-00 DIODE RD6.2SB2-T1 D302 8-719-037-00 DIODE RD6.2SB2-T1 D401 8-719-404-49 DIODE MA111 D502 8-719-941-09 DIODE DAP202U D503 8-719-938-75 DIODE SB05-05CP D504 8-719-938-75 DIODE SB05-05CP D505 8-719-941-09 DIODE DAP202U D601 8-719-941-09 DIODE DAP202U D602 8-719-037-00 DIODE RD6.2SB2-T1 D603 8-719-033-53 DIODE RD6.8SB2-T1 D604 8-719-048-98 DIODE RB160L-40TE25 D605 8-719-048-98 DIODE RB160L-40TE25 D701 8-719-037-00 DIODE RD6.2SB2-T1 D702 8-719-037-00 DIODE RD6.2SB2-T1 D801 8-719-404-49 DIODE MA111 D802 8-719-404-49 DIODE MA111 D901 8-719-037-00 DIODE RD6.2SB2-T1 < FUSE > F501 1-533-771-21 FUSE (SMD) 2A F601 1-533-760-21 FUSE (SMD) 1.4A F901 1-533-351-11 FUSE, CHIP 2A < FERRITE BEAD > FB901 1-414-581-21 FERRITE(CHIP) 1.1uH < IC > IC101 8-759-711-58 IC NJM78L05UA IC102 8-749-923-80 IC GP1U90XB IC201 8-759-234-85 IC TA8696F IC202 8-759-164-09 IC LA7218M IC203 8-759-206-28 IC TC74HC123AF-TP1 IC301 8-759-701-02 IC NJM2073M IC302 8-759-170-92 IC PQ09SZ1T IC401 8-759-261-48 IC TL1451ACPW-E20 IC601 8-759-337-41 IC NJM2902V(TE2) < COIL > L203 1-412-032-11 INDUCTOR CHIP 100uH L204 1-412-032-11 INDUCTOR CHIP 100uH L205 1-412-033-11 INDUCTOR CHIP 220uH L501 1-412-032-11 INDUCTOR CHIP 100uH L502 1-412-032-11 INDUCTOR CHIP 100uH L503 1-411-737-21 COIL, CHOKE 47uH L504 1-412-032-11 INDUCTOR CHIP 100uH L505 1-411-954-21 COIL, CHOKE 100uH L601 1-411-954-21 COIL, CHOKE 100uH L603 1-411-954-21 COIL, CHOKE 100uH < TRANSISTOR > Q1 8-729-920-59 TRANSISTOR IMX2 Q11 8-729-920-59 TRANSISTOR IMX2 Q21 8-729-920-59 TRANSISTOR IMX2 Q103 8-729-907-00 TRANSISTOR DTC114EU Q207 8-729-026-51 TRANSISTOR 2SA1576A-T106-Q Q208 8-729-140-75 TRANSISTOR 2SD999-CLCK Q209 8-729-101-07 TRANSISTOR 2SB798-DL Q210 8-729-905-34 TRANSISTOR 2SC4081-Q Q211 8-729-905-34 TRANSISTOR 2SC4081-Q Q401 8-729-907-00 TRANSISTOR DTC114EU Q502 8-729-026-51 TRANSISTOR 2SA1576A-T106-Q Q503 8-729-905-34 TRANSISTOR 2SC4081-Q Q504 8-729-202-37 TRANSISTOR 2SC3303-Y Q601 8-729-015-87 TRANSISTOR UMC3TR Q602 8-729-015-87 TRANSISTOR UMC3TR Q603 8-729-907-00 TRANSISTOR DTC114EU Q604 8-729-905-34 TRANSISTOR 2SC4081-Q Q607 8-729-931-29 TRANSISTOR 2SC4132-Q-T100 Q608 8-729-931-29 TRANSISTOR 2SC4132-Q-T100 Q609 8-729-926-85 TRANSISTOR 2SB1424-T101-Q Q610 8-729-202-37 TRANSISTOR 2SC3303-Y Q801 8-729-026-51 TRANSISTOR 2SA1576A-T106-Q Q802 8-729-905-34 TRANSISTOR 2SC4081-Q < RESISTOR > R1 1-216-809-11 METAL CHIP 100 5% 1/16W R2 1-216-845-11 METAL CHIP 100K 5% 1/16W R3 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R4 1-216-825-11 METAL CHIP 2.2K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MONITOR MAIN R5 1-216-821-11 METAL CHIP 1K 5% 1/16W R6 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R11 1-216-809-11 METAL CHIP 100 5% 1/16W R12 1-216-845-11 METAL CHIP 100K 5% 1/16W R13 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R14 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R15 1-216-821-11 METAL CHIP 1K 5% 1/16W R16 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R21 1-216-809-11 METAL CHIP 100 5% 1/16W R22 1-216-845-11 METAL CHIP 100K 5% 1/16W R23 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R24 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R25 1-216-821-11 METAL CHIP 1K 5% 1/16W R26 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R102 1-216-818-11 METAL CHIP 560 5% 1/16W R105 1-216-817-11 METAL CHIP 470 5% 1/16W R107 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R108 1-216-830-11 METAL CHIP 5.6K 5% 1/16W R202 1-216-814-11 METAL CHIP 270 5% 1/16W R204 1-216-814-11 METAL CHIP 270 5% 1/16W R206 1-216-814-11 METAL CHIP 270 5% 1/16W R207 1-218-285-11 RES,CHIP 75 5% 1/16W R216 1-216-833-11 METAL CHIP 10K 5% 1/16W R217 1-216-833-11 METAL CHIP 10K 5% 1/16W R218 1-216-833-11 METAL CHIP 10K 5% 1/16W R219 1-216-809-11 METAL CHIP 100 5% 1/16W R220 1-216-809-11 METAL CHIP 100 5% 1/16W R221 1-216-809-11 METAL CHIP 100 5% 1/16W R222 1-216-837-11 METAL CHIP 22K 5% 1/16W R223 1-216-837-11 METAL CHIP 22K 5% 1/16W R226 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R227 1-216-818-11 METAL CHIP 560 5% 1/16W R230 1-216-864-11 METAL CHIP 0 5% 1/16W R246 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R247 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R248 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R249 1-218-290-11 RES,CHIP 6.2K 5% 1/16W R250 1-216-834-11 METAL CHIP 12K 5% 1/16W R251 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R257 1-216-848-11 METAL CHIP 180K 5% 1/16W R258 1-216-818-11 METAL CHIP 560 5% 1/16W R259 1-216-828-11 METAL CHIP 3.9K 5% 1/16W R260 1-216-835-11 METAL CHIP 15K 5% 1/16W R261 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R262 1-216-828-11 METAL CHIP 3.9K 5% 1/16W R263 1-216-833-11 METAL CHIP 10K 5% 1/16W R270 1-216-864-11 METAL CHIP 0 5% 1/16W R302 1-216-853-11 METAL CHIP 470K 5% 1/16W R303 1-216-833-11 METAL CHIP 10K 5% 1/16W R304 1-216-820-11 METAL CHIP 820 5% 1/16W R305 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R306 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R307 1-216-789-11 METAL CHIP 2.2 5% 1/16W R401 1-216-834-11 METAL CHIP 12K 5% 1/16W R402 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R403 1-216-837-11 METAL CHIP 22K 5% 1/16W R404 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R405 1-216-837-11 METAL CHIP 22K 5% 1/16W R406 1-216-837-11 METAL CHIP 22K 5% 1/16W R407 1-216-837-11 METAL CHIP 22K 5% 1/16W R408 1-216-840-11 METAL CHIP 39K 5% 1/16W R409 1-216-837-11 METAL CHIP 22K 5% 1/16W R410 1-216-837-11 METAL CHIP 22K 5% 1/16W R411 1-216-835-11 METAL CHIP 15K 5% 1/16W R412 1-216-842-11 METAL CHIP 56K 5% 1/16W R414 1-216-841-11 METAL CHIP 47K 5% 1/16W R501 1-216-817-11 METAL CHIP 470 5% 1/16W R502 1-216-839-11 METAL CHIP 33K 5% 1/16W R503 1-216-839-11 METAL CHIP 33K 5% 1/16W R504 1-218-288-11 RES,CHIP 300 5% 1/16W R506 1-216-814-11 METAL CHIP 270 5% 1/16W R507 1-216-810-11 METAL CHIP 120 5% 1/16W R508 1-216-838-11 METAL CHIP 27K 5% 1/16W R509 1-216-839-11 METAL CHIP 33K 5% 1/16W R510 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R520 1-218-288-11 RES,CHIP 300 5% 1/16W R601 1-218-272-11 RES,CHIP 5.1K 5% 1/16W R602 1-216-833-11 METAL CHIP 10K 5% 1/16W R603 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R604 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R605 1-216-833-11 METAL CHIP 10K 5% 1/16W R606 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R607 1-216-797-11 METAL CHIP 10 5% 1/16W R608 1-216-853-11 METAL CHIP 470K 5% 1/16W R609 1-216-833-11 METAL CHIP 10K 5% 1/16W R611 1-216-817-11 METAL CHIP 470 5% 1/16W R612 1-216-817-11 METAL CHIP 470 5% 1/16W R613 1-216-864-11 METAL CHIP 0 5% 1/16W R614 1-216-213-00 RES,CHIP 4.3K 5% 1/8W R615 1-216-213-00 RES,CHIP 4.3K 5% 1/8W R617 1-216-821-11 METAL CHIP 1K 5% 1/16W R618 1-216-835-11 METAL CHIP 15K 5% 1/16W R619 1-216-818-11 METAL CHIP 560 5% 1/16W R620 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R621 1-216-818-11 METAL CHIP 560 5% 1/16W R622 1-216-864-11 METAL CHIP 0 5% 1/16W R710 1-216-821-11 METAL CHIP 1K 5% 1/16W R712 1-216-833-11 METAL CHIP 10K 5% 1/16W R715 1-216-822-11 METAL CHIP 1.2K 5% 1/16W R716 1-216-803-11 METAL CHIP 33 5% 1/16W R717 1-216-835-11 METAL CHIP 15K 5% 1/16W R801 1-216-839-11 METAL CHIP 33K 5% 1/16W R802 1-216-839-11 METAL CHIP 33K 5% 1/16W R803 1-216-833-11 METAL CHIP 10K 5% 1/16W R804 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R805 1-216-821-11 METAL CHIP 1K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 24 – Sony Corporation Personal & Mobile Communication Company 9-925-994-11 XTL-6100 98G047516-1 Printed in Hungary C1998. 7 Published by Quality Assurance Dept. MONITOR MAIN < VARIABLE RESISTOR > RV202 1-238-091-11 RES, ADJ, CERMET 22K RV204 1-238-091-11 RES, ADJ, CERMET 22K RV207 1-238-091-11 RES, ADJ, CERMET 22K RV208 1-238-091-11 RES, ADJ, CERMET 22K RV209 1-238-091-11 RES, ADJ, CERMET 22K RV210 1-238-090-11 RES, ADJ, CERMET 10K RV211 1-238-090-11 RES, ADJ, CERMET 10K RV212 1-238-093-11 RES, ADJ, CERMET 100K RV213 1-238-091-11 RES, ADJ, CERMET 22K RV301 1-223-954-11 RES, VAR, CARBON 10K (VOL) RV401 1-238-090-11 RES, ADJ, CERMET 10K RV601 1-238-088-11 RES, ADJ, CERMET 2.2K RV702 1-225-679-11 RES, VAR, CARBON 11K (BRIGHT) < SWITCH > S1 1-692-088-51 SWITCH, TACTILE (POWER) S701 1-692-991-11 SWITCH, SLIDE (DIMMER) < TRANSFORMER > T501 1-429-744-21 TRANSFORMER, DC-DC CONVERTER T601 1-429-743-11 TRANSFORMER, INVERTER < VIBRATOR > X202 1-760-862-21 VIBRATOR, CERAMIC (480kHz) ************************************************************* MISCELLANEOUS *************** DSP301 1-801-370-11 DISPLAY PANEL, LIQUID CRYSTAL SP301 1-505-386-11 SPEAKER (5cm) ************************************************************* ACCESSORIES & PACKING MATERIALS ******************************** 1-473-715-41 REMOTE COMMANDER (RM-X75) 9-939-691-01 LID, BATTERY CASE (FOR RM-X75) 3-864-210-11 MANUAL, INSTRUCTION (ENGLISH,GERMAN) 3-864-211-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH, GERMAN) ************************************************************* Ref. No. Part No. Description Remark PARTS FOR INSTALLATION AND CONNECTIONS *************************************** 101 3-310-656-01 TAPE, MAGIC 102 3-310-658-01 TAPE (B), MAGIC 103 1-777-901-11 CORD (WITH CONNECTOR) (POWER) (2m) (INCLUDING 4A) 104 1-777-317-11 CORD, CONNECTION (16P-16P) (3m) (MONITOR EXTENSION) 105 1-690-814-11 CORD (WITH TERMINAL) 106 1-695-529-11 CONNECTOR (RELAY) 107 X-3372-568-1 STAND ASSY 108 7-685-661-79 SCREW +P 4X12 TYPE4 109 3-938-291-01 COVER (STAND) 110 NOT SUPPLIED 111 3-389-594-01 CLAMP, CORD 112 1-754-015-11 ANTENNA, TV (VCA-114) (5m) (INCLUDING 4B) 4A 1-532-731-11 FUSE (BLADE TYPE) (AUTO FUSE) 3A 4B 1-532-414-11 FUSE (1A/125V) Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 1 – SUPPLEMENT-1 File this supplement with the Service Manual. UK Model German Model SERVICE MANUAL Subject : HIDEAWAY UNIT (XT-981V) TABLE OF CONTENTS 1. ELECTRICAL ADJUSTMENTS ...............................2 2. DIAGRAMS 2-1. Block Diagram –Video Section–......................................... 5 2-2. Block Diagram –Audio Section– ........................................ 7 2-3. Printed Wiring Board .......................................................... 9 2-4. Schematic Diagram –Tuner Main Section (1/3)– ............. 13 2-5. Schematic Diagram –Tuner Main Section (2/3)– ............. 15 2-6. Schematic Diagram –Tuner Main Section (3/3)– ............. 17 3. EXPLODED VIEW 3-1. Hideaway Unit (XT-981V) ............................................... 21 4. ELECTRICAL PARTS LIST..................................... 22 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TRAP Adjustment Procedure: 1. With the Power off, input the output of TG to TP30 (with DC cut by a capacitor (0.01 µF)). 2. Connect a spectrum analyzer to TP31 (with DC cut by a capacitor (0.01 µF)). 3. Adjust T1 so that the waveform peak is 40.9 MHz ± 50 Hz. 4. Adjust T2 so that the waveform peak is 31.9 MHz ± 50 Hz. 5. After this adjustment, open TP30 and TP31. (Disconnect the spectrum analyzer.) VCO Adjustment Procedure: 1. No connection to ANT IN. (no signal state) 2. Connect a resistor (10 kΩ) between TP33 and +9 V (TP35). 3. Connect a spectrum analyzer to TP34 (with DC cut by a capacitor (0.01 µF)). 4. Adjust T3 so that the waveform peak is 38.9 MHz ± 1 kHz. 5. After this adjustment, open TP34. (Disconnect the spectrum analyzer.) AGC Adjustment Procedure: 1. Set the TV SYSTEM switch to 1. 2. Input a color bar signal of E8ch (196.25 MHz) and 66 dBµV (75 Ω OPEN). 3. Connect the digital voltmeter to TP42. 4. Adjust VR1 so that reading on the digital voltmeter is 6.0 ± 0.1 V. AFT Adjustment Procedure: 1. Input a color bar signal of E8ch (196.25 MHz) and 74 dBµV (75 Ω OPEN). 2. Connect the oscilloscope to TP102. 3. Adjust T3 untill the waveform on the oscilloscope is 2.5 Vp-p. • Use the following equipment for the electrical adjustment. Equipment 1 Monitor TV (XVM-6100, etc.) 2 Spectrum analyzer 3 TV signal generator 4 Digital voltmeter 5 Oscilloscope 6 Audio analyzer 7 DC power supply 8 Frequency counter Equipment Connections Connect the test equipment as shown in the figure below (unless otherwise instructed) and perform the adjustment. Setup during Adjustment Use the video signal obtained from the TV signal generator as the alignment signal, and check that this signal is within video output signal standards. Connection points: Refer to page 4. Adjustment points: Refer to page 4. SECTION 1 ELECTRICAL ADJUSTMENTS TUNER UNIT SECTION TV SG set POWER (CN4) RF out ANT IN DC power supply 0.7 V 0.3 V 0.3 V red white (approx. 100%) horizontal sync. signal burst signal (flat) Color bar signal from TV signal generator T1= 40.9 MHz T2= 31.9 MHz 38.9 MHz 2.5 Vp-p 0 V Note: Small peaks (dips) coming out from the top of the waveform are unacceptable. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – – 4 – RGB Decoder FO Adjustment Procedure: 1. Without INPUT1, INPUT2 inputs (no signal input mode), short the jumper wire between TP100 and GND. 2. Connect a frequency counter to TP61. 3. Adjust VR6 so that reading on frequency counter is 4.433619 MHz ± 10 Hz. 4. Short the jumper wire between TP106 and GND. 5. Connect a frequency counter to TP61. 6. Confirm that reading on frequency counter is 3.579545 MHz ± 100 Hz. 7. After this adjustment, remove the jumper wires. RGB Decoder Input Level Adjustment Procedure: 1. Input signal : PAL EBU color bar (INPUT 1 VIDEO) 2. Adjust VR4 so that the white peak 1 (100% white) of TP111 (B OUT) is at 1.0 Vp-p. DL AMP & DAT Adjustment Procedure: 1. Adjust DAT so as to minimize the variation between the level 2 and the level 3 of TP111. 2. Adjust VR5 so that the blue level 4 is at 1.0 Vp-p. 3. Set the input to NTSC, and confirm that the blue level 4 is at 1.0 ± 0.1 Vp-p. T3: VCO Adjustment : AFT Adjustment VR1: AGC Adjustment T2: TRAP Adjustment T1: TRAP Adjustment VR5: DL AMP & DAT Adjustment VR6: RGB Decoder FO Adjustment VR4: RGB Decoder input Level Adjustment TP100 TP106 TP111 TP61 TP102 TP42 TP30 TP34 TP33 TP31 white blue SYNC TP111 1 2 4 3 white blue SYNC TP111 1 2 4 3 Connection Points and Adjustment Points: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com XTL-6100 – 5 – – 6 – 2-1. BLOCK DIAGRAM — VIDEO SECTION — SECTION 2 DIAGRAMS J5-1 INPUT 1 VIDEO J6-1 INPUT 2 VIDEO TO AUDIO SECTION VIDEO V1 1 2 3 7 2 13 3 5 6 7 1 3 4 VIDEO SWITCH IC19 V2 SYNC GENERATOR IC31 X3 3.58MHz XT XT C. SYNC RESET BUF Q90 12 14 4 VIDEO SWITCH IC18 (1/2) 9 10 11 COMP BUF Q60 NT/PAL SWITCH Q129 RELAY DRIVE Q128 VR4 RGB DECODER INPUT LEVEL VR6 RGB DECODER FO DL2 BUF Q103 APC ACC IH DL DEM DL AMP MONITOR OUT DL AMP & DAT Y/C MIX HUE VXO CHROMA AMP 24 2 4 3 1 10 15 9 8 11 12 14 23 32 Y SYNC IN C RL1 R C. SYNC G B DAT 30 RGB DECODER IC24 X5 4.43MHz X4 3.58MHz VIDEO BUF Q91, 92 5 4 12 2 9 10 11 14 15 R BUF Q64 G BUF Q63 B BUF Q62 SYNC BUF Q61 RGB SWITCH IC26 C B A 12 15 14 13 CN3 VBS R G B 6 +B 12V 16 NT/PAL 3 AUDIO 5 BRIGHT 9 PICTURE SW 8 POWER SW 10 SIRCS 2 BEEP Q101 Q100 VR5 61 62 46 13 58 59 52 51 64 11 45 POWER ON/OFF Q10 SYNC SEP IC17 SIRCS Q77 COL HUE V SYNC H SYNC H 43 V. MUTE 39 VD/RGB 38 SIMUL NT/PAL YS ON/OFF DISPLAY OFF BRT SIRCS 37 BEEP BEEP GEN IC21 (1/2) 1 6 SYSTEM CONTROL IC12 (2/2) 8 6 7 BUF Q42 BUF Q40, 41 SIMULATION BUFFER Q53 12 13 11 IC21 (2/4) +B (S +12V) AUDIO TO AUDIO SECTION J8-1 OUTPUT VIDEO 04 • Signal path : AUDIO : VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – – 8 – 2-2. BLOCK DIAGRAM — AUDIO SECTION — XTL-6100 R-CH R J5-2,3 L INPUT 1 AUDIO R-CH R J6-2,3 L INPUT 2 AUDIO J1 ANT IN TUNER BLOCK TU1 IN VCO VCO IF2 11 AGC 1 5 4 9 1 4 3 SF1 BT SCL SDA VOLTAGE CONTROL IC3 1 4 B+ (S +12V) VIDEO DET LATCH Q20, 21 EQ AMP RF AGC HPF FM DET HPF VCA GATE PULSE DET LPF PILOT CANCEL LATCH Q22, 23 CF1 CF2 5.5MHz CF3 6MHz VIDEO AMP Q24 47 SYSTEM CONTROL IC12 (1/2) UK/CCIR (CH/HK) 36 42 40 60 44 AFT VIDEO1 VIDEO2 VOL S. MUTE 29 RESET 21 XIN 22 XOUT 14 PLL DATA 15 PLL CLK 12 P.B 49 POWER 1 2 10 TONE AMP Q30, 31 RESET IC1 LEVEL DETECT Q32 VOL CONTROL IC16 R-CH LEVEL ADJ. Q33 12 9 10 7 4 8 14 13 15 AUDIO SWITCH IC14 B A 4 5 X2 8MHz ACC R-CH IC27 5 7 IC15 5 7 IC28 5 7 NOISE CANCELLER IC33 VIDEO TO VIDEO SECTION TO VIDEO SECTION 18 19 14 11 12 3 13 21 10 8 6 1 24 AFT VR1 AGC T1,2 TRAP T3 VCO, AFT VIF/SIF PROCESSOR IC13 Q106 POWER ON/OFF Q3, 4 B+ SWITCH Q2 B+ (S +12V) ACC CN4 3 4 ACC P.B ACC POWER +9V REG IC4 B+ (S +9V) B+ (S +5V) ACC 1 3 5V REG IC2 1 3 +5V REG Q1 B+ (+5V) ACC 04 S. MUTE DRIVE Q72, 73 MUTE Q81 MUTE Q80 R-CH R J8-2,3 L OUTPUT AUDIO AUDIO TO VIDEO SECTION V2 V1 • Signal path : AUDIO : VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – – 10 – 2-3. PRINTED WIRING BOARD XTL-6100 Note: • r : Through hole. • b : Pattern from the side which enables seeing. (The other layer’s patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. Ref. No. Location (D1) F-1 D2 E-2 D3 E-2 D4 F-3 D5 D-2 D6 D-2 D20 D-9 D30 D-8 D31 D-7 D40 A-5 D41 A-7 D42 A-2 D43 A-4 D55 F-5 (D70) H-9 (D71) H-9 (D72) H-9 (D73) H-8 (D74) H-7 (D75) H-8 (D78) H-9 IC1 D-2 IC2 F-3 IC3 D-2 (IC4) G-4 IC12 B-2 IC13 F-11 IC14 B-8 IC15 C-6 IC16 D-6 IC17 C-4 IC18 C-5 IC19 B-5 IC21 D-4 IC24 F-7 IC26 G-7 IC27 B-6 IC28 B-3 IC31 D-6 (IC33) C-8 IC50 D-1 Q1 F-3 (Q2) G-2 Q3 D-1 Q4 D-1 (Q10) E-2 (Q20) F-10 Q21 G-10 (Q22) F-11 Q23 G-10 Q24 A-5 Q30 D-8 Q31 D-7 Q32 D-7 Q33 C-7 Q40 C-4 Q41 C-3 Q42 C-4 Q53 D-3 Q60 D-5 (Q61) G-7 (Q62) G-8 (Q63) G-8 (Q64) G-7 (Q72) H-10 (Q73) H-10 (Q77) C-3 (Q79) H-12 (Q80) H-11 (Q81) H-7 Q90 D-6 Q91 G-8 Q92 G-8 Q100 F-8 Q101 F-8 (Q103) E-6 Q106 D-1 Q127 F-5 Q128 F-5 Q129 F-6 • Semiconductor Location ( ) : SIDE B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – – 12 – XTL-6100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – – 14 – XTL-6100 Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • C : panel designation. • S : B+ Line. • Power voltage is dc 14.4V and fed with regulated dc power supply from ACC (CN4). • Voltage is dc with respect to ground under no-signal condition. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. L : VIDEO F : AUDIO 2-4. SCHEMATIC DIAGRAM — TUNER MAIN SECTION (1/3) — • Refer to page 19 for IC Block Diagrams. 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 (Page 15) (Page 17) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 15 – – 16 – XTL-6100 Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. 2-5. SCHEMATIC DIAGRAM — TUNER MAIN SECTION (2/3) — • Refer to page 19 for IC Block Diagrams. • C : panel designation. • S : B+ Line. • Power voltage is dc 14.4V and fed with regulated dc power supply from ACC (CN4). • Voltage is dc with respect to ground under no-signal condition. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. L : VIDEO F : AUDIO 1 A B C D E F G H I J 2 3 4 5 6 7 8 9 10 11 12 13 14 (Page 14) (Page 17) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H 2 3 4 5 6 7 8 9 10 11 12 13 14 – 17 – – 18 – XTL-6100 Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • C : panel designation. • S : B+ Line. • Power voltage is dc 14.4V and fed with regulated dc power supply from ACC (CN4). 2-6. SCHEMATIC DIAGRAM — TUNER MAIN SECTION (3/3) — • Refer to page 20 for IC Block Diagrams. • Voltage is dc with respect to ground under no-signal condition. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. L : VIDEO F : AUDIO (Page 14) (Page 15) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 19 – • IC Block Diagrams IC1 PST9145NR IC13 LA7565EM IC3 BA6161F IC17 MA1108XF IC27, 28 BA3121F IC14 TC74HC4052AF IC50 AT24C01 5 1 2 3 4 COMP + – NC SUB GND VCC OUT BLOCKING OSCILLATOR 8 7 6 5 1 2 3 4 FB NC NC GND DRIVE NC NC VCC FM DET MIX HPF RF AGC EQ AMP IF AGC VIDEO DET VIF AMP LIM AMP AGC 1st DET FFT HPF HPF VCO 1stT SMP 24 23 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 2nd SIF IN BIAS FILTER MIX OUT CER. OSC Vcc VIDEO OUT EQ FILTER EQ IN APC FILTER V DET OUT VCO COIL VCO COIL FM DET OUT FM FILTER 1st SIF OUT RF AGC VR GND VIF IN VIF IN IF AGC FILTER 1st SIF AGC FILTER 1st AGC OUT RF AGC OUT AFT OUT 2 3 4 1 7 6 5 8 VCO V SYNC SEP SYNC SEP PHASE COMP H. SYNC V. SYNC VIN GND VCC SC VCO LPF 3V AMP 8 4 3 2 1 OUT1 VM1 IN1 GND VCC OUT2 VM2 IN2 AMP 7 6 5 1 5 2 4 3 6 7 8 SELECT A SELECT B 3 2 1 0 3 2 1 0 INH Y1 Y3 Y Y1 Y0 VEE VSS X3 X0 X X1 X2 VDD A B 9 12 14 15 11 16 13 10 LOGIC DOUT/ACK ADDRESS/COUNTER DATA WORD Y DEC SERIAL MUX EEPROM DATA REGISTER X DEC H. V. PUMP/TIMING LOGIC CONTROL SERIAL R/W INC LOAD EN LOGIC STOP START 3 6 2 5 1 7 8 4 DIN DOUT VCC TEST SCL SDA NC NC NC GND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 20 – IC18, 26 TC4053BF IC31 MSM5258M IC24 CXA1585Q IC33 TA2005SN 1 2 3 4 5 6 7 8 B1 B0 C.COM CO INH VEE VSS VDD B.COM A.COM A1 A0 A B C C1 9 10 11 12 13 14 15 16 OPEN OPEN OPEN SHARPNESS CLP BLK ACK ACK DET Y CLP SYNC SLICE SYNC SEP PAL ID BURST GATE CHROMA AMP DL AMP FF INV PS HUE APC VXO ACC ACC DET ADD/SUB SW DEM SIG AMP PULSE GEN APL DET APL AMP 19 18 17 16 15 13 12 14 11 10 9 21 22 20 3 1 32 31 30 27 26 25 28 29 2 4 5 7 6 8 24 23 Y/C MIX 0° 90° G OUT R OUT DLA IN C OUT ACK TC DLA BIAS SYNC Y CLP TC APL CTL APL TC SYNC TC CLP TC VREG SYNC IN Y IN BF VCC1 GND1 SHP CTL SHP F0 TP ADJ C ADJ ACC TC C IN HUE ADJ APC TC VXO2 VXO1 SC OUT GND2 VCC2 B OUT B-Y R-Y V. DECODER 1/525, 1/625 V. COUNTER 1/19 H. COUNTER 1/2 1/6 1 2 3 4 5 6 7 8 RESET VD COMP.SYNC VDD PAL/NTSC XT XT VSS 12 11 10 7 6 5 4 3 2 1 8 9 LPF HPF VCA REF TRIGGER GATE PULSE DET PILOT CANCEL BUFF BUFF BUFF BUFF INV AMP PILOT IN LPF OUT OUT GATE REF +B GND PW AGC BYPASS NF IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 21 – SECTION 3 EXPLODED VIEW NOTE: • The mechanical parts with no reference number in the exploded views are not supplied. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinet’s Color Ref. No. Part No. Description Remark 3-1. HIDEAWAY UNIT (XT-981V) N N Ref. No. Part No. Description Remark 8 4 8 5 7 7 1 3 2 6 7 7 TU1 JP1 8 * 1 9-882-924-01 CASE (TOP) * 2 9-882-920-01 TUNER MAIN BOARD, COMPLETE * 3 9-882-921-01 PLATE, SHIELD (PIF) * 4 9-882-922-01 HEAT SINK * 5 9-936-532-01 PLATE, REINFORCEMENT * 6 9-882-923-01 CASE (BOTTOM) * 7 7-621-770-67 SCREW +B 2.6X6 * 8 7-621-773-95 SCREW +B 2.6X7 JP1 9-939-916-01 CORD (WITH PHONO PLUG) TU1 9-882-919-01 TUNER UNIT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 22 – SECTION 4 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark When indicating parts by reference number, please include the board. * 9-882-920-01 TUNER MAIN BOARD, COMPLETE **************************** < DELAY LINE > 1HDL 1-415-313-00 DELAY LINE (1H) < CAPACITOR > C1 1-128-268-11 ELECT 3300uF 20% 16V C2 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C3 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C4 1-164-346-11 CERAMIC CHIP 1uF 16V C5 1-124-589-11 ELECT 47uF 20% 16V C6 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C8 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C9 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C10 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C11 1-126-925-11 ELECT 470uF 20% 10V C12 1-124-589-11 ELECT 47uF 20% 16V C13 1-126-163-11 ELECT 4.7uF 20% 50V C14 1-126-163-11 ELECT 4.7uF 20% 50V C15 1-104-942-11 ELECT 1uF 20% 50V C16 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C20 1-126-157-11 ELECT 10uF 20% 16V C21 1-124-589-11 ELECT 47uF 20% 16V C22 1-124-247-11 ELECT 10uF 20% 35V C23 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C30 1-163-222-11 CERAMIC CHIP 5PF 0.5PF 50V C31 1-163-222-11 CERAMIC CHIP 5PF 0.5PF 50V C32 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C33 1-163-089-00 CERAMIC CHIP 6PF 0.5PF 50V C34 1-163-089-00 CERAMIC CHIP 6PF 0.5PF 50V C35 1-163-109-00 CERAMIC CHIP 47PF 5% 50V C36 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C38 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C41 1-104-942-11 ELECT 1uF 20% 50V C42 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C43 1-126-933-11 ELECT 100uF 20% 16V C45 1-163-107-00 CERAMIC CHIP 39PF 5% 50V C46 1-124-465-00 ELECT 0.47uF 20% 50V C47 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C48 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C49 1-126-163-11 ELECT 4.7uF 20% 25V C50 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C51 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C52 1-126-961-11 ELECT 2.2uF 20% 50V C53 1-163-109-00 CERAMIC CHIP 47PF 5% 50V C55 1-126-163-11 ELECT 4.7uF 20% 25V C69 1-163-104-00 CERAMIC CHIP 30PF 5% 50V C70 1-163-109-00 CERAMIC CHIP 47PF 5% 50V C71 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C72 1-126-163-11 ELECT 4.7uF 20% 25V C74 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C75 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C76 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C77 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C78 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C89 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C90 1-163-135-00 CERAMIC CHIP 560PF 5% 50V C91 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C92 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C93 1-124-234-00 ELECT 22uF 20% 16V C94 1-164-346-11 CERAMIC CHIP 1uF 16V C96 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C98 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C100 1-164-346-11 CERAMIC CHIP 1uF 16V C101 1-164-346-11 CERAMIC CHIP 1uF 16V C106 1-164-346-11 CERAMIC CHIP 1uF 16V C107 1-164-346-11 CERAMIC CHIP 1uF 16V C108 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C109 1-124-234-00 ELECT 22uF 20% 16V C110 1-164-346-11 CERAMIC CHIP 1uF 16V C111 1-163-125-00 CERAMIC CHIP 220PF 5% 50V C112 1-164-346-11 CERAMIC CHIP 1uF 16V C113 1-163-125-00 CERAMIC CHIP 220PF 5% 50V C114 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C115 1-164-346-11 CERAMIC CHIP 1uF 16V C116 1-164-346-11 CERAMIC CHIP 1uF 16V C117 1-124-234-00 ELECT 22uF 20% 16V C118 1-164-346-11 CERAMIC CHIP 1uF 16V C119 1-163-135-00 CERAMIC CHIP 560PF 5% 50V C120 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C121 1-126-157-11 ELECT 10uF 20% 16V C122 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C123 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C130 1-164-346-11 CERAMIC CHIP 1uF 16V C131 1-163-135-00 CERAMIC CHIP 560PF 5% 50V C132 1-164-346-11 CERAMIC CHIP 1uF 16V C133 1-163-135-00 CERAMIC CHIP 560PF 5% 50V C134 1-104-942-11 ELECT 1uF 20% 50V TUNER MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C136 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C137 1-126-157-11 ELECT 10uF 20% 16V C138 1-163-135-00 CERAMIC CHIP 560PF 5% 50V C139 1-126-162-11 ELECT 3.3uF 20% 50V C140 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V C141 1-126-157-11 ELECT 10uF 20% 16V C157 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C158 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C159 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C160 1-126-157-11 ELECT 10uF 20% 16V C161 1-126-157-11 ELECT 10uF 20% 16V C162 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C163 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C164 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C165 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C166 1-163-113-00 CERAMIC CHIP 68PF 5% 50V C167 1-163-104-00 CERAMIC CHIP 30PF 5% 50V C168 1-164-346-11 CERAMIC CHIP 1uF 16V C169 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C170 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C171 1-126-163-11 ELECT 4.7uF 20% 25V C172 1-124-234-00 ELECT 22uF 20% 16V C173 1-104-942-11 ELECT 1uF 20% 50V C174 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C175 1-126-163-11 ELECT 4.7uF 20% 25V C176 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C177 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C178 1-163-121-00 CERAMIC CHIP 150PF 5% 50V C179 1-126-925-11 ELECT 470uF 20% 10V C180 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C181 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C182 1-126-925-11 ELECT 470uF 20% 10V C183 1-126-925-11 ELECT 470uF 20% 10V C184 1-126-925-11 ELECT 470uF 20% 10V C185 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C188 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C189 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C190 1-126-513-11 ELECT 47uF 20% 6.3V C191 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C192 1-164-346-11 CERAMIC CHIP 1uF 16V C193 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C194 1-164-346-11 CERAMIC CHIP 1uF 16V C195 1-104-942-11 ELECT 1uF 20% 50V C196 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C197 1-126-163-11 ELECT 4.7uF 20% 25V C198 1-126-157-11 ELECT 10uF 20% 16V C199 1-126-513-11 ELECT 47uF 20% 6.3V C200 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C201 1-164-346-11 CERAMIC CHIP 1uF 16V C202 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C203 1-164-346-11 CERAMIC CHIP 1uF 16V C204 1-104-942-11 ELECT 1uF 20% 50V C205 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C206 1-126-163-11 ELECT 4.7uF 20% 25V C207 1-126-157-11 ELECT 10uF 20% 16V C208 1-124-234-00 ELECT 22uF 20% 16V C213 1-126-157-11 ELECT 10uF 20% 16V C214 1-126-157-11 ELECT 10uF 20% 16V C215 1-126-157-11 ELECT 10uF 20% 16V C242 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C243 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C244 1-163-237-11 CERAMIC CHIP 27PF 5% 50V C245 1-126-925-11 ELECT 470uF 20% 10V C250 1-164-346-11 CERAMIC CHIP 1uF 16V C251 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C252 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C253 1-124-234-00 ELECT 22uF 20% 16V C254 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C255 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C256 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C257 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C258 1-163-986-00 CERAMIC CHIP 0.027uF 10% 25V C259 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C260 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C261 1-126-934-11 ELECT 220uF 20% 16V C263 1-126-767-11 ELECT 1000uF 20% 16V C282 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C288 1-104-942-11 ELECT 1uF 20% 50V C296 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C297 1-163-137-00 CERAMIC CHIP 680PF 5% 50V < FILTER > CF1 1-760-728-11 TRAP, CERAMIC CF2 9-882-916-01 FILTER, CERAMIC (5.5MHz) CF3 9-882-917-01 FILTER, CERAMIC (6MHz) < CONNECTOR > CN3 1-764-632-21 PLUG, CONNECTOR 16P (MONITOR OUT) CN4 1-569-216-11 CONNECTOR 5P < DIODE > D1 8-719-023-54 DIODE EA60QC06-F D2 8-719-988-61 DIODE 1SS355TE-17 D3 8-719-056-83 DIODE UDZ-TE-17-6.8B D4 8-719-158-15 DIODE RD5.6SB D5 8-719-978-69 DIODE DTZ-TT11-16B D6 8-719-914-44 DIODE DAP202K D20 8-719-978-96 DIODE DTZ-TT11-33A D30 8-719-971-05 DIODE HSM123 D31 8-719-056-74 DIODE UDZ-TE-17-3.0B D40 8-719-026-18 DIODE MA3091WK D41 8-719-026-18 DIODE MA3091WK D42 8-719-026-18 DIODE MA3091WK D43 8-719-026-18 DIODE MA3091WK D55 8-719-988-61 DIODE 1SS355TE-17 D70 8-719-056-83 DIODE UDZ-TE-17-6.8B TUNER MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 24 – D71 8-719-056-83 DIODE UDZ-TE-17-6.8B D72 8-719-056-83 DIODE UDZ-TE-17-6.8B D73 8-719-056-83 DIODE UDZ-TE-17-6.8B D74 8-719-056-83 DIODE UDZ-TE-17-6.8B D75 8-719-056-94 DIODE UDZ-TE-17-20B D78 8-719-056-83 DIODE UDZ-TE-17-6.8B < COIL > DAT 1-416-650-11 COIL (WITH CORE) < DELAY LINE > DL2 1-416-403-11 DELAY LINE < FERRITE BEAD > FB1 1-410-397-21 FERRITE BEAD INDUCTOR 1.1uH < FUSE > FU1 9-939-529-01 FUSE (3.15A) < IC > IC1 9-882-911-01 IC PST9145NR IC2 9-882-912-01 IC BA17805FP IC3 8-759-945-44 IC BA6161F IC4 8-759-701-59 IC NJM78M09FA IC12 9-882-913-01 IC M37210M3 IC13 9-882-914-01 IC LA7565EM IC14 8-759-089-61 IC TC74HC4052AFS(EL) IC15 8-759-100-96 IC uPC4558G2 IC16 9-882-915-01 IC M5282FP IC17 8-759-098-00 IC MM1108XF IC18 8-759-300-71 IC HD14053BFP IC19 8-759-088-00 IC MM1114XF IC21 8-759-256-59 IC HD74HC00FP IC24 8-752-058-96 IC CXA1585Q IC26 8-759-300-71 IC HD14053BFP IC27 8-759-048-67 IC BA3121F IC28 8-759-048-67 IC BA3121F IC31 8-759-041-30 IC MSM5258M-K-R4 IC33 8-759-246-44 IC TA2005SN IC50 8-759-248-67 IC AT24C01-10SC < JACK > J1 1-573-798-21 JACK, MINIATURE (DIA.3.5) (ANT IN) J5 1-580-442-11 JACK, PIN 3P (INPUT1 VIDEO/AUDIO) J6 1-580-442-11 JACK, PIN 3P (INPUT2 VIDEO/AUDIO) J8 1-778-070-11 JACK, PIN 3P (OUTPUT VIDEO/AUDIO) < CORD > JP1 9-939-916-01 CORD (WITH PHONO PLUG) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < COIL > L1 1-421-961-41 COIL, CHOKE 450uH L2 1-408-989-21 INDUCTOR 470uH L3 1-410-771-11 INDUCTOR 4.7mH L20 1-408-969-21 INDUCTOR 8.2uH L21 1-408-969-21 INDUCTOR 8.2uH L22 1-408-969-21 INDUCTOR 8.2uH L24 1-408-969-21 INDUCTOR 8.2uH L27 1-408-975-21 INDUCTOR 27uH L30 1-414-161-21 INDUCTOR 1mH L31 1-414-161-21 INDUCTOR 1mH L40 1-408-978-21 INDUCTOR 47uH L50 1-408-978-21 INDUCTOR 47uH L51 1-408-975-21 INDUCTOR 27uH L82 1-408-969-21 INDUCTOR 8.2uH L93 1-408-978-21 INDUCTOR 47uH L94 1-408-969-21 INDUCTOR 8.2uH < TRANSISTOR > Q1 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q2 8-729-035-48 TRANSISTOR 2SB1482R Q3 8-729-900-53 TRANSISTOR DTC114EK Q4 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q10 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q20 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q21 8-729-900-53 TRANSISTOR DTC114EK Q22 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q23 8-729-900-53 TRANSISTOR DTC114EK Q24 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q30 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q31 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q32 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q33 8-729-027-59 TRANSISTOR DTC144EKA-T146 Q40 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q41 8-729-027-59 TRANSISTOR DTC144EKA-T146 Q42 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q53 8-729-900-53 TRANSISTOR DTC114EK Q60 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q61 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q62 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q63 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q64 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q72 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q73 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q77 8-729-901-47 TRANSISTOR DTA143EK Q79 8-729-900-53 TRANSISTOR DTC114EK Q80 8-729-900-53 TRANSISTOR DTC114EK Q81 8-729-900-53 TRANSISTOR DTC114EK Q90 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q91 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q92 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q100 8-729-900-53 TRANSISTOR DTC114EK TUNER MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 25 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark Q101 8-729-900-53 TRANSISTOR DTC114EK Q103 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q106 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q127 8-729-027-59 TRANSISTOR DTC144EKA-T146 Q128 8-729-016-77 TRANSISTOR 2SC2412KLN-R Q129 8-729-900-53 TRANSISTOR DTC114EK < RESISTOR > R1 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R2 1-216-037-00 METAL CHIP 330 5% 1/10W R3 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R4 1-216-090-00 RES,CHIP 51K 5% 1/10W R5 1-216-089-00 RES,CHIP 47K 5% 1/10W R6 1-216-073-00 METAL CHIP 10K 5% 1/10W R7 1-220-271-11 METAL CHIP 560 5% 1/2W R8 1-216-041-11 METAL CHIP 470 5% 1/10W R9 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R10 1-216-073-00 METAL CHIP 10K 5% 1/10W R11 1-218-050-11 METAL OXIDE 10 5% 2W F R12 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R13 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R23 1-216-073-00 METAL CHIP 10K 5% 1/10W R30 1-216-015-00 RES,CHIP 39 5% 1/10W R31 1-216-017-00 RES,CHIP 47 5% 1/10W R32 1-216-081-00 METAL CHIP 22K 5% 1/10W R33 1-216-049-11 RES,CHIP 1K 5% 1/10W R34 1-216-081-00 METAL CHIP 22K 5% 1/10W R35 1-216-049-11 RES,CHIP 1K 5% 1/10W R40 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R41 1-216-041-11 METAL CHIP 470 5% 1/10W R42 1-216-033-00 METAL CHIP 220 5% 1/10W R43 1-216-029-00 METAL CHIP 150 5% 1/10W R44 1-216-095-00 METAL CHIP 82K 5% 1/10W R45 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R46 1-216-089-00 RES,CHIP 47K 5% 1/10W R47 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R48 1-216-083-00 METAL CHIP 27K 5% 1/10W R49 1-216-077-00 METAL CHIP 15K 5% 1/10W R50 1-216-075-00 METAL CHIP 12K 5% 1/10W R51 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R52 1-216-033-00 METAL CHIP 220 5% 1/10W R53 1-216-031-00 METAL CHIP 180 5% 1/10W R54 1-216-029-00 METAL CHIP 150 5% 1/10W R55 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R56 1-216-073-00 METAL CHIP 10K 5% 1/10W R63 1-216-025-00 RES,CHIP 100 5% 1/10W R70 1-216-041-11 METAL CHIP 470 5% 1/10W R71 1-216-041-11 METAL CHIP 470 5% 1/10W R72 1-216-041-11 METAL CHIP 470 5% 1/10W R73 1-216-041-11 METAL CHIP 470 5% 1/10W R74 1-216-041-11 METAL CHIP 470 5% 1/10W R75 1-216-041-11 METAL CHIP 470 5% 1/10W R78 1-216-041-11 METAL CHIP 470 5% 1/10W R79 1-216-041-11 METAL CHIP 470 5% 1/10W R80 1-216-089-00 RES,CHIP 47K 5% 1/10W R81 1-216-041-11 METAL CHIP 470 5% 1/10W R83 1-216-025-00 RES,CHIP 100 5% 1/10W R84 1-216-089-00 RES,CHIP 47K 5% 1/10W R85 1-216-073-00 METAL CHIP 10K 5% 1/10W R86 1-216-089-00 RES,CHIP 47K 5% 1/10W R87 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R88 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R90 1-216-089-00 RES,CHIP 47K 5% 1/10W R91 1-216-089-00 RES,CHIP 47K 5% 1/10W R92 1-216-089-00 RES,CHIP 47K 5% 1/10W R94 1-216-089-00 RES,CHIP 47K 5% 1/10W R96 1-216-089-00 RES,CHIP 47K 5% 1/10W R97 1-216-089-00 RES,CHIP 47K 5% 1/10W R98 1-216-089-00 RES,CHIP 47K 5% 1/10W R99 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R100 1-216-105-00 RES,CHIP 220K 5% 1/10W R102 1-216-021-00 METAL CHIP 68 5% 1/10W R103 1-216-081-00 METAL CHIP 22K 5% 1/10W R104 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R105 1-216-049-11 RES,CHIP 1K 5% 1/10W R107 1-216-083-00 METAL CHIP 27K 5% 1/10W R109 1-216-069-11 METAL CHIP 6.8K 5% 1/10W R110 1-216-089-00 RES,CHIP 47K 5% 1/10W R111 1-216-089-00 RES,CHIP 47K 5% 1/10W R112 1-216-089-00 RES,CHIP 47K 5% 1/10W R113 1-216-089-00 RES,CHIP 47K 5% 1/10W R114 1-216-073-00 METAL CHIP 10K 5% 1/10W R115 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R116 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R123 1-216-089-00 RES,CHIP 47K 5% 1/10W R124 1-216-089-00 RES,CHIP 47K 5% 1/10W R125 1-216-079-00 METAL CHIP 18K 5% 1/10W R126 1-216-081-00 METAL CHIP 22K 5% 1/10W R127 1-216-097-00 RES,CHIP 100K 5% 1/10W R128 1-216-097-00 RES,CHIP 100K 5% 1/10W R129 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R130 1-216-081-00 METAL CHIP 22K 5% 1/10W R131 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R132 1-216-081-00 METAL CHIP 22K 5% 1/10W R133 1-216-089-00 RES,CHIP 47K 5% 1/10W R134 1-216-069-11 METAL CHIP 6.8K 5% 1/10W R135 1-216-089-00 RES,CHIP 47K 5% 1/10W R136 1-216-045-00 METAL CHIP 680 5% 1/10W R137 1-216-073-00 METAL CHIP 10K 5% 1/10W R138 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R140 1-216-049-11 RES,CHIP 1K 5% 1/10W R141 1-216-089-00 RES,CHIP 47K 5% 1/10W R142 1-216-115-00 METAL CHIP 560K 5% 1/10W R143 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R144 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R145 1-216-097-00 RES,CHIP 100K 5% 1/10W TUNER MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 26 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R146 1-216-101-00 METAL CHIP 150K 5% 1/10W R147 1-216-049-11 RES,CHIP 1K 5% 1/10W R148 1-216-049-11 RES,CHIP 1K 5% 1/10W R149 1-216-043-00 RES,CHIP 560 5% 1/10W R150 1-216-109-00 METAL CHIP 330K 5% 1/10W R151 1-216-073-00 METAL CHIP 10K 5% 1/10W R152 1-216-073-00 METAL CHIP 10K 5% 1/10W R153 1-216-097-00 RES,CHIP 100K 5% 1/10W R154 1-216-095-00 METAL CHIP 82K 5% 1/10W R155 1-216-049-11 RES,CHIP 1K 5% 1/10W R156 1-216-073-00 METAL CHIP 10K 5% 1/10W R157 1-216-073-00 METAL CHIP 10K 5% 1/10W R159 1-216-041-11 METAL CHIP 470 5% 1/10W R162 1-216-041-11 METAL CHIP 470 5% 1/10W R163 1-216-041-11 METAL CHIP 470 5% 1/10W R168 1-216-073-00 METAL CHIP 10K 5% 1/10W R169 1-216-041-11 METAL CHIP 470 5% 1/10W R172 1-216-295-00 SHORT 0 R173 1-216-073-00 METAL CHIP 10K 5% 1/10W R174 1-216-073-00 METAL CHIP 10K 5% 1/10W R175 1-216-073-00 METAL CHIP 10K 5% 1/10W R176 1-216-117-00 METAL CHIP 680K 5% 1/10W R178 1-216-073-00 METAL CHIP 10K 5% 1/10W R179 1-216-049-11 RES,CHIP 1K 5% 1/10W R190 1-216-073-00 METAL CHIP 10K 5% 1/10W R191 1-216-073-00 METAL CHIP 10K 5% 1/10W R192 1-216-085-00 METAL CHIP 33K 5% 1/10W R193 1-216-077-00 METAL CHIP 15K 5% 1/10W R194 1-216-099-00 METAL CHIP 120K 5% 1/10W R195 1-216-081-00 METAL CHIP 22K 5% 1/10W R196 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R197 1-216-089-00 RES,CHIP 47K 5% 1/10W R198 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R199 1-216-039-00 METAL CHIP 390 5% 1/10W R200 1-216-039-00 METAL CHIP 390 5% 1/10W R201 1-216-025-00 RES,CHIP 100 5% 1/10W R202 1-216-025-00 RES,CHIP 100 5% 1/10W R203 1-216-025-00 RES,CHIP 100 5% 1/10W R204 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R205 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R206 1-216-063-00 RES,CHIP 3.9K 5% 1/10W R207 1-216-097-00 RES,CHIP 100K 5% 1/10W R208 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R211 1-216-041-11 METAL CHIP 470 5% 1/10W R212 1-216-103-00 METAL CHIP 180K 5% 1/10W R213 1-216-041-11 METAL CHIP 470 5% 1/10W R214 1-216-025-00 RES,CHIP 100 5% 1/10W R215 1-216-021-00 METAL CHIP 68 5% 1/10W R216 1-216-113-00 METAL CHIP 470K 5% 1/10W R219 1-216-073-00 METAL CHIP 10K 5% 1/10W R220 1-216-073-00 METAL CHIP 10K 5% 1/10W R221 1-216-033-00 METAL CHIP 220 5% 1/10W R222 1-216-022-00 METAL CHIP 75 5% 1/10W R223 1-216-073-00 METAL CHIP 10K 5% 1/10W R224 1-216-069-11 METAL CHIP 6.8K 5% 1/10W R225 1-216-069-11 METAL CHIP 6.8K 5% 1/10W R226 1-216-073-00 METAL CHIP 10K 5% 1/10W R227 1-216-033-00 METAL CHIP 220 5% 1/10W R228 1-216-033-00 METAL CHIP 220 5% 1/10W R229 1-216-033-00 METAL CHIP 220 5% 1/10W R230 1-216-033-00 METAL CHIP 220 5% 1/10W R231 1-216-033-00 METAL CHIP 220 5% 1/10W R232 1-216-033-00 METAL CHIP 220 5% 1/10W R233 1-216-022-00 METAL CHIP 75 5% 1/10W R234 1-216-022-00 METAL CHIP 75 5% 1/10W R235 1-216-022-00 METAL CHIP 75 5% 1/10W R236 1-216-085-00 METAL CHIP 33K 5% 1/10W R237 1-216-079-00 METAL CHIP 18K 5% 1/10W R238 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R239 1-216-082-00 METAL CHIP 24K 5% 1/10W R240 1-216-022-00 METAL CHIP 75 5% 1/10W R241 1-216-075-00 METAL CHIP 12K 5% 1/10W R242 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R243 1-216-075-00 METAL CHIP 12K 5% 1/10W R244 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R245 1-216-041-11 METAL CHIP 470 5% 1/10W R246 1-216-001-00 METAL CHIP 10 5% 1/10W R247 1-216-022-00 METAL CHIP 75 5% 1/10W R248 1-216-075-00 METAL CHIP 12K 5% 1/10W R249 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R250 1-216-075-00 METAL CHIP 12K 5% 1/10W R251 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R252 1-216-041-11 METAL CHIP 470 5% 1/10W R253 1-216-001-00 METAL CHIP 10 5% 1/10W R254 1-216-049-11 RES,CHIP 1K 5% 1/10W R255 1-216-081-00 METAL CHIP 22K 5% 1/10W R256 1-216-081-00 METAL CHIP 22K 5% 1/10W R257 1-216-049-11 RES,CHIP 1K 5% 1/10W R258 1-216-073-00 METAL CHIP 10K 5% 1/10W R259 1-216-041-11 METAL CHIP 470 5% 1/10W R280 1-216-089-00 RES,CHIP 47K 5% 1/10W R282 1-216-073-00 METAL CHIP 10K 5% 1/10W R284 1-216-049-11 RES,CHIP 1K 5% 1/10W R285 1-216-073-00 METAL CHIP 10K 5% 1/10W R286 1-216-049-11 RES,CHIP 1K 5% 1/10W R287 1-216-097-00 RES,CHIP 100K 5% 1/10W R288 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R289 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R290 1-216-097-00 RES,CHIP 100K 5% 1/10W R291 1-216-097-00 RES,CHIP 100K 5% 1/10W R292 1-216-073-00 METAL CHIP 10K 5% 1/10W R293 1-216-073-00 METAL CHIP 10K 5% 1/10W R300 1-216-095-00 METAL CHIP 82K 5% 1/10W R301 1-216-077-00 METAL CHIP 15K 5% 1/10W R304 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R305 1-216-049-11 RES,CHIP 1K 5% 1/10W TUNER MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 27 – R306 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R307 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R308 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R309 1-216-049-11 RES,CHIP 1K 5% 1/10W R310 1-216-029-00 METAL CHIP 150 5% 1/10W R313 1-216-049-11 RES,CHIP 1K 5% 1/10W R320 1-216-077-00 METAL CHIP 15K 5% 1/10W R321 1-216-075-00 METAL CHIP 12K 5% 1/10W R322 1-216-077-00 METAL CHIP 15K 5% 1/10W R323 1-216-073-00 METAL CHIP 10K 5% 1/10W R347 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R348 1-216-073-00 METAL CHIP 10K 5% 1/10W R349 1-216-073-00 METAL CHIP 10K 5% 1/10W R376 1-216-021-00 METAL CHIP 68 5% 1/10W R377 1-216-095-00 METAL CHIP 82K 5% 1/10W R378 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R379 1-216-049-11 RES,CHIP 1K 5% 1/10W R381 1-216-043-00 RES,CHIP 560 5% 1/10W < RELAY > RY1 9-939-919-01 RELAY < FILTER > SF1 9-882-918-01 FILTER, SAW < SWITCH > SW1 9-939-918-01 SWITCH (TV SYSTEM) < COIL > T1 1-404-999-11 COIL T2 1-404-999-11 COIL T3 1-416-000-11 COIL < TUNER > TU1 9-882-919-01 TUNER UNIT < VARIABLE RESISTOR > VR1 1-238-601-11 RES, ADJ, CARBON 22K VR4 1-238-595-11 RES, ADJ, CARBON 220 VR5 1-238-600-11 RES, ADJ, CARBON 10K VR6 1-241-760-11 RES, ADJ, CERMET 470 < VIBRATOR > X2 9-939-921-01 VIBRATOR, CRYSTAL (8MHz) X3 1-567-859-11 VIBRATOR, CRYSTAL (3.58MHz) X4 1-567-859-11 VIBRATOR, CRYSTAL (3.58MHz) X5 1-567-860-11 VIBRATOR, CRYSTAL (4.43MHz) Ref. No. Part No. Description Remark TUNER MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 28 – Sony Corporation Personal & Mobile Communication Company 99D047515-1 Printed in Hungary C1999. 4 Published by Quality Assurance Dept. 9-925-994-81 XTL-6100 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
