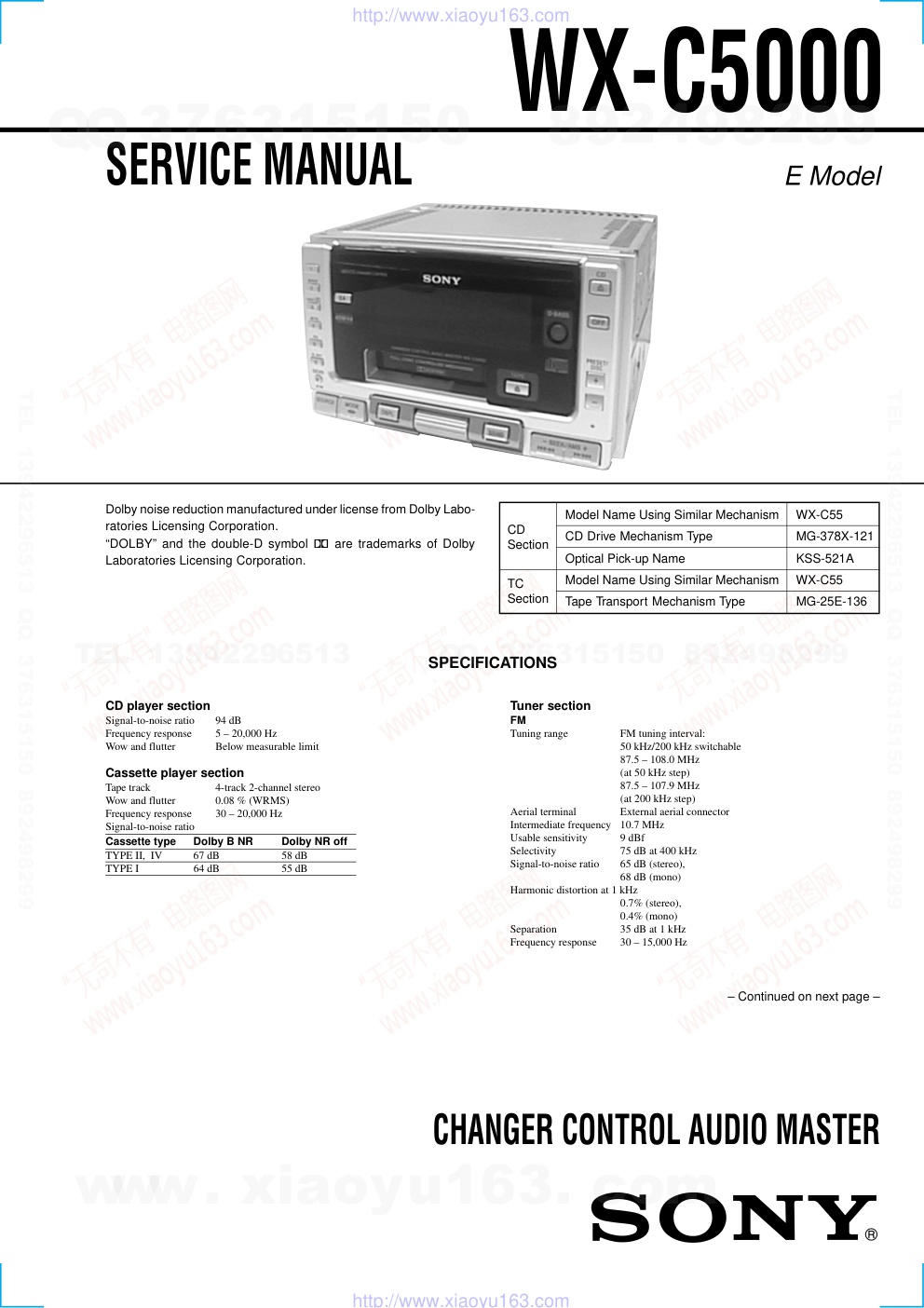

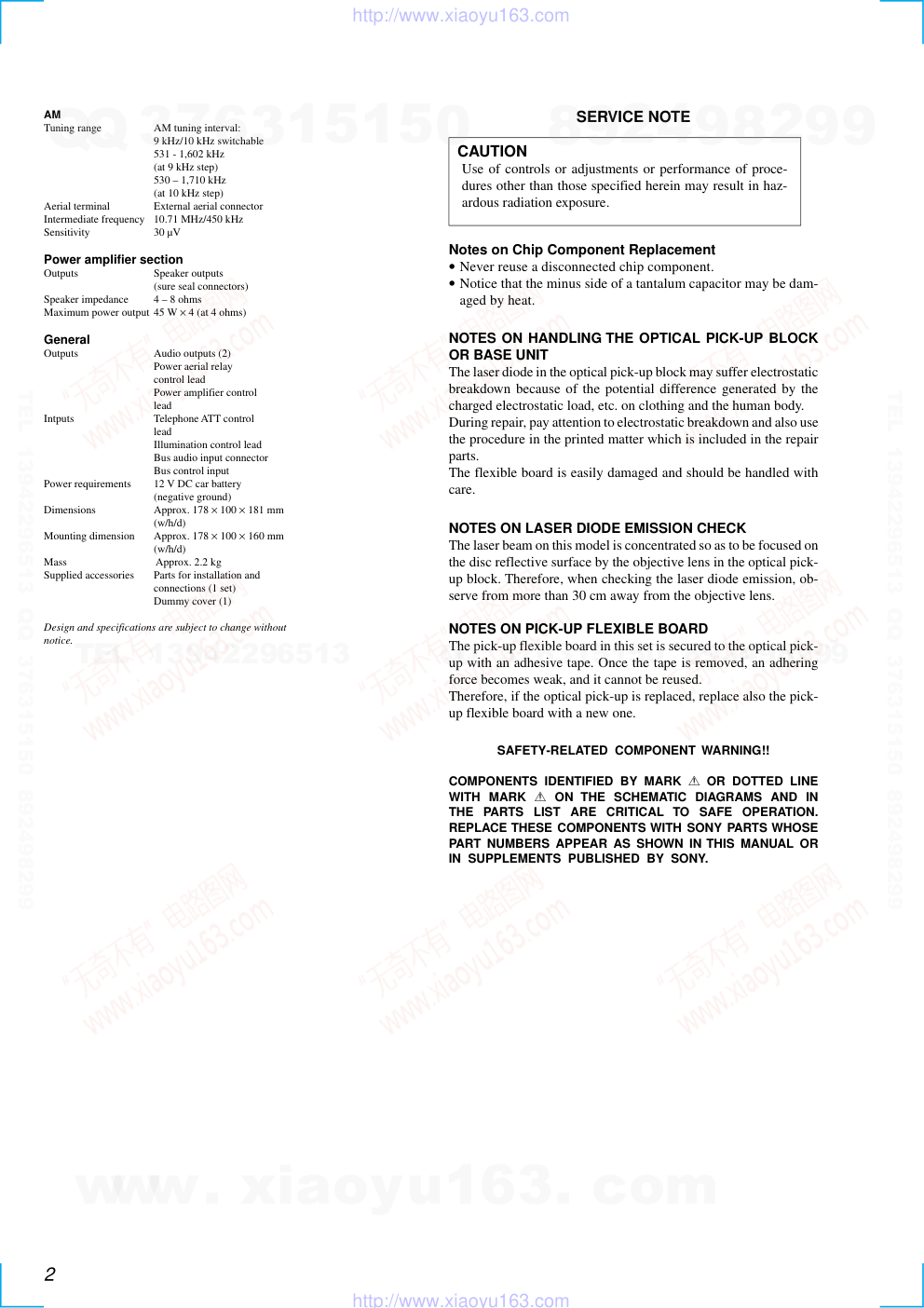

1 CD player section Signal-to-noise ratio 94 dB Frequency response 5 – 20,000 Hz Wow and flutter Below measurable limit Cassette player section Tape track 4-track 2-channel stereo Wow and flutter 0.08 % (WRMS) Frequency response 30 – 20,000 Hz Signal-to-noise ratio Cassette type Dolby B NR Dolby NR off TYPE II, IV 67 dB 58 dB TYPE I 64 dB 55 dB Model Name Using Similar Mechanism WX-C55 CD Drive Mechanism Type MG-378X-121 Optical Pick-up Name KSS-521A Model Name Using Similar Mechanism WX-C55 Tape Transport Mechanism Type MG-25E-136 SERVICE MANUAL E Model WX-C5000 CHANGER CONTROL AUDIO MASTER SPECIFICATIONS – Continued on next page – CD Section TC Section Dolby noise reduction manufactured under license from Dolby Labo- ratories Licensing Corporation. “DOLBY” and the double-D symbol ; are trademarks of Dolby Laboratories Licensing Corporation. Tuner section FM Tuning range FM tuning interval: 50 kHz/200 kHz switchable 87.5 – 108.0 MHz (at 50 kHz step) 87.5 – 107.9 MHz (at 200 kHz step) Aerial terminal External aerial connector Intermediate frequency 10.7 MHz Usable sensitivity 9 dBf Selectivity 75 dB at 400 kHz Signal-to-noise ratio 65 dB (stereo), 68 dB (mono) Harmonic distortion at 1 kHz 0.7% (stereo), 0.4% (mono) Separation 35 dB at 1 kHz Frequency response 30 – 15,000 Hz www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 SERVICE NOTE CAUTION Use of controls or adjustments or performance of proce- dures other than those specified herein may result in haz- ardous radiation exposure. Notes on Chip Component Replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT The laser diode in the optical pick-up block may suffer electrostatic breakdown because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic breakdown and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick- up block. Therefore, when checking the laser diode emission, ob- serve from more than 30 cm away from the objective lens. NOTES ON PICK-UP FLEXIBLE BOARD The pick-up flexible board in this set is secured to the optical pick- up with an adhesive tape. Once the tape is removed, an adhering force becomes weak, and it cannot be reused. Therefore, if the optical pick-up is replaced, replace also the pick- up flexible board with a new one. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. AM Tuning range AM tuning interval: 9 kHz/10 kHz switchable 531 - 1,602 kHz (at 9 kHz step) 530 – 1,710 kHz (at 10 kHz step) Aerial terminal External aerial connector Intermediate frequency 10.71 MHz/450 kHz Sensitivity 30 µV Power amplifier section Outputs Speaker outputs (sure seal connectors) Speaker impedance 4 – 8 ohms Maximum power output 45 W × 4 (at 4 ohms) General Outputs Audio outputs (2) Power aerial relay control lead Power amplifier control lead Intputs Telephone ATT control lead Illumination control lead Bus audio input connector Bus control input Power requirements 12 V DC car battery (negative ground) Dimensions Approx. 178 × 100 × 181 mm (w/h/d) Mounting dimension Approx. 178 × 100 × 160 mm (w/h/d) Mass Approx. 2.2 kg Supplied accessories Parts for installation and connections (1 set) Dummy cover (1) Design and specifications are subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 TABLE OF CONTENTS 1. GENERAL Location of Controls ............................................................... 4 Getting Started ........................................................................ 4 CD Player ............................................................................... 4 Cassette Player ....................................................................... 5 Radio ...................................................................................... 5 Other Functions ...................................................................... 5 CD/MD Unit ........................................................................... 6 Additional Information ........................................................... 7 Connections ............................................................................ 8 2. DISASSEMBLY 2-1. Cover ................................................................................ 10 2-2. Front Panel Assy .............................................................. 10 2-3. CD Mechanism Block ...................................................... 11 2-4. TR Board, Heat Sink ........................................................ 11 2-5. CD Board ......................................................................... 12 2-6. Chassis (U) ....................................................................... 12 2-7. Tape Mechanism Block .................................................... 13 2-8. Main Board ...................................................................... 13 2-9. Chassis (TM) Assy ........................................................... 14 2-10. Sensor Board .................................................................... 14 2-11. Servo Board ...................................................................... 15 2-12. Roller Assy ....................................................................... 15 2-13. Chassis (OP) (O/S) Assy .................................................. 16 2-14. Optical Pick-up Block ...................................................... 16 3. ASSEMBLY OF MECHANISM DECK 3-1. Housing ............................................................................ 17 3-2. Arm (Suction) ................................................................... 17 3-3. Lever (LDG-A)/(LDG-B) ................................................ 18 3-4. Gear (Loading FT) ........................................................... 18 3-5. Guide (C).......................................................................... 19 3-6. Capstan/Reel Motor (M904) ............................................ 19 4. MECHANICAL ADJUSTMENTS .............................. 20 5. ELECTRICAL ADJUSTMENTS Tape Section ......................................................................... 21 Tuner Section........................................................................ 21 CD Section ........................................................................... 24 6. DIAGRAMS 6-1. IC Pin Descriptions .......................................................... 25 6-2. Block Diagram –CD Section–.......................................... 29 6-3. Block Diagram –Tape Section– ....................................... 30 6-4. Block Diagram –Main Section– ....................................... 31 6-5. Circuit Boards Location ................................................... 32 6-6. Printed Wiring Boards –CD Mechanism Section–........... 33 6-7. Schematic Diagram –CD Mechanism Section (1/2)– ...... 34 6-8. Schematic Diagram –CD Mechanism Section (2/2)– ...... 35 6-9. Printed Wiring Board –TR Section– ................................ 36 6-10. Schematic Diagram –TR Section– ................................... 36 6-11. Printed Wiring Board –CD Section– ................................ 36 6-12. Schematic Diagram –CD Section–................................... 37 6-13. Printed Wiring Board –Main Section– ............................. 38 6-14. Schematic Diagram –Main Section (1/4)– ....................... 40 6-15. Schematic Diagram –Main Section (2/4)– ....................... 41 6-16. Schematic Diagram –Main Section (3/4)– ....................... 42 6-17. Schematic Diagram –Main Section (4/4)– ....................... 43 6-18. Printed Wiring Board –Control Section– ......................... 44 6-19. Schematic Diagram –Control Section– ............................ 46 6-20. Printed Wiring Board –Jog Section– ................................ 47 6-21. Schematic Diagram –Jog Section–................................... 47 7. EXPLODED VIEWS 7-1. Cover Section ................................................................... 53 7-2. Front Panel Section .......................................................... 54 7-3. Chassis Section ................................................................ 55 7-4. Tape Mechanism Section ................................................. 56 7-5. CD Mechanism Section (1) .............................................. 57 7-6. CD Mechanism Section (2) .............................................. 58 7-7. CD Mechanism Section (3) .............................................. 59 8. ELECTRICAL PARTS LIST ................................... 60 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 SECTION 1 GENERAL This section extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 2-1. COVER 2-2. FRONT PANEL ASSY 2 claws 1 PTT 2.6x5 3 cover 2 PTT 2.6x5 1 PTT 2.6x5 3 claw 7 CN501 5 CN801 6 CN500 8 front panel assy 4 claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 2-3. CD MECHANISM BLOCK 2-4. TR BOARD, HEAT SINK 2 CN802 3 CD mechanism block 5 bracket (CD) 1 PTT 2.6x5 4 PTT 2.6x5 5 PTT 2.6x12 6 PTT 2.6x12 7 PTT 2.6x12 3 TR board 1 PTT 2.6x10 2 cover (D/D converter) 8 PTT 2.6x12 9 heat sink 4 CN901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 3 PTT 2.6x5 1 PTT 2.6x5 2 PTT 2.6x5 4 chassis (U) 6 insulating sheet (U) 5 CD board 2 CN402 1 CN803 4 3 ground point screw (PTT2.6x6) ground point screw (PTT2.6x6) 2-5. CD BOARD 2-6. CHASSIS (U) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 1 2 3 MAIN board 4 insulating sheet (L) ground point screw (PTT2.6x6) ground point screw (PTT2.6x6) 2 PTT 2.6x5 1 PTT 2.6x5 4 CN300 3 CN600 5 tape mechanism block 2-7. TAPE MECHANISM BLOCK 2-8. MAIN BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 2 claw 4 PS 2x3 5 SENSOR board 1 claw 3 guide (DISC M) 6 chassis (TM) assy 3 P 2x3 1 P 2x3 5 CN4 4 claw 2 P 2x3 2-9. CHASSIS (TM) ASSY 2-10. SENSOR BOARD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 7 roller assy 4 washer 6 retaining ring (roller) retaining ring (roller) washer washer Fig. 1 5 arm (roller) arm (roller) arm (roller) 2 compression spring (RA-R) 3 compression spring (RA-L) 1 tension spring (RA-E) 8 PS 2x3 9 LOAD board 8 PS 2x5 7 PS 2x5 5 P 2x3 4 wires 3 Removal the two solders. 1 CN3 2 CN2 9 SERVO board 6 loading motor assy 2-11. SERVO BOARD • When installing, take note of the positions arm (roller) and washers. (Fig. 1) 2-12. ROLLER ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 1 P 2x3 2 sled motor assy 3 optical pick-up block 6 chassis (OP) (O/S) assy 7 compression spring (FL) 8 compression spring (FL) 1 tension spring (KF8) 3 damper (T) 2 damper (T) 4 Fit lever (D) in the direction of the arrow. 5 Turn loading ring in the direction of the arrow. 2-14. OPTICAL PICK-UP BLOCK 2-13. CHASSIS (OP) (O/S) ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 2 Move the arm (suction) in the arrow Direction and fit on projection. 1 Fit the arm (suction) on the shaft. projection 7 Holder the hanger by bending the claw. 1 Install the catcher to the hanger. 2 Install the hanger onto two claws of the housing. 3 Put the housing under A part. 6 Fit projection on D part. 4 Fit claw on B part. 5 Fit projection on C part. 8 Hold the hanger by bending the claw. hanger housing D part C part B part A part SECTION 3 ASSEMBLY OF MECHANISM DECK Note : Follow the assembly procedure in the numerical order given. 3-1. HOUSING 3-2. ARM (SUCTION) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 4 Align hole in the gear (LDG-D) with hole the lever (LDG-A). 3 Move the lever (LDG-B) in the arrow direction. 2 tension spring (LD-2) 1 2 tension spring (LD-1) 6 polyethylene washer 5 gear (loading FT) gear (LDG-D) gear (LDG-FB) lever (LDG-A) hole hole 3-3. LEVER (LDG-A) / (LDG-B) 3-4. GEAR (LOADING FT) 1 Fit the lever (LDG-A) on shafts A to C and install it. 2 Fit the lever (LDG-B) on shafts A and B and install it. 3 type-E stop ring 2.0 shaft A shaft C shaft A shaft B shaft B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 3 belt (25) 2 precision screws P 2x3 1 main motor assy (CAPSTAN/REEL) (M904) 30° 1 claws 2 guide (C) 3-5. GUIDE (C) 3-6. CAPSTAN / REEL MOTOR (M904) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 TEST MODE This set have the test mode function. In the test mode, FM Auto Scan/Stop Level and AM Auto Scan/Stop Level adjustments can be performed easier than it in ordinary procedure. 1. Turn ON the regulated power supply to ACC and BATT terminals is “OFF” position (display 1:00). 2. Push the preset 4 button. 3. Push the preset 5 button. 4. Press the preset 1 button for more than two seconds. 5. Then the display and LED on the front panel indicates all lights, the test mode is set. 1. Push the OFF button. PRECAUTION 1. Wipe the following components with an absorbent cotton cloth moistened with alcohol before adjustment : PB head Pinch roller Idler Rubber belt Capstan 2. Demagnetize the PB head using a head demagnetizer. 3. Be careful not to use a magnetized screwdriver. 4. After the adjustment is completed, lock the adjustment parts using screws. 5. Unless otherwise specified, make adjustments at the specified voltage (14.4 V). Torque Measurement Mode Torque Meter Meter Reading 2.95 – 6.37 mN • m FWD (30 – 65 g • cm) CQ-102C (0.42 – 0.90 oz • inch) 0.05 – 0.44 mN • m FWD (0.5 – 4.5 g • cm) Back Tension (0.01 – 0.06 oz • inch) 2.95 – 6.37 mN • m REV (30 – 65 g • cm) CQ-102RC (0.42 – 0.90 oz • inch) 0.05 – 0.44 mN • m REV (0.5 – 4.5 g • cm) Back Tension (0.01 – 0.06 oz • inch) 5.89 – 19.61 mN • m FF, REW CQ-201B (60 – 200 g • cm) (0.83 – 2.78 oz • inch) Tape Tension Measurement Mode Tension Meter Meter Reading 882.60 mN FWD CQ-403A (more than 90 g) REV CQ-403R (more than 3.17 oz) SECTION 5 ELECTRICAL ADJUSTMENTS SECTION 4 MECHANICAL ADJUSTMENTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 SHUF1 PRESET SHUF1 PRESET SHUF1 antenna terminal FM RF signal generator 0.01 µF set TUNER SECTION Cautions during repair When the tuner unit is defective, replace it by a new one because its internal block is difficult to repair. Procedure : 1. Set to the test mode. 2. Push the SOURCE button and set to FM. Display FM Auto Scan/Stop Level Adjustment Setting : SOURCE button : FM FREQUENCY SELECT switch : FM 200k 3. Push the preset 3 button. Display 4. Adjust with the volume RV2 on TU1 so that the “FM” indication turns to “2” indication on the display window. But, in case of already indicated “2”, turn the RV2 so that put out light “2” indication and adjustment. Display 0 dB = 1 µV Note on Adjustment The adjustments of tuner section, should be performed according to the following sequence. 1. FM Auto Scan/Stop Level Adjustment 2. FM Stereo Separation Adjustment 3. AM Auto Scan/Stop Level Adjustment Carrier frequency : 97.9 MHz Output level : 22 dB (12.6 µV) Mode : mono Modulation : 1 kHz, 22.5 kHz deviation (30%) Adjustment Location : See page 23. main board TP-L TP-R test tape P-4-D400 (400 Hz, 0 dB) level meter set set frequency counter test tape WS-48A (3 kHz, 0 dB) AUDIO OUT REAR 10 kΩ See the adjustment location from on page 23 for the adjustment. TAPE SECTION Tape Speed Adjustment Procedure : 1. Put the set into the FWD PB mode. Specification : Constant speed Frequency counter 3,010 to 3,030 Hz Adjustment Location : Capstan motor internal volume (See page 23) DOLBY Level Adjustment Setting : Preset 3 (SHUF/;) button : Light down mark ; (DOLBY OFF) Procedure : 1. Put the set into the FWD PB mode. 2. Adjust RV100 (L-CH) and RV200 (R-CH) on main board so that level meter reading is – 6 ± 0.5 dB (0.37 to 0.41 V). Adjustment Location : See page 23. 0 dB = 0.775 V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 AM Auto Scan/Stop Level Adjustment Note : This adjustment should be performed after the FM Auto Scan / Stop Level Adjustment is done. Setting : SOURCE t MODE button : AM FREQUENCY SELECT switch : AM 10k SHUF1 PRESET SHUF1 PRESET SHUF1 antenna terminal set AM RF signal generator AM dummy antenna (50 Ω) 65 pF 15 pF set 30 Ω Carrier frequency : 1000 kHz Output level : 30 dB (44.7 µV) Mode : mono Modulation : 1 kHz, 22.5 kHz deviation (30%) Procedure : 1. Set to the test mode. (See page 20.) 2. Push the SOURCE button. 3. Push the MODE button and set to AM. Display 4. Push the preset 3 button. Display 5. Adjust with the volume RV1 on TU1 so that the “AM” indication turns to “2” indication on the display window. But, in case of already indicated “2”, turn the RV1 so that put out light “2” indication and adjustment. Display Adjustment Location : See page 23. antenna terminal 0.01 µF set level meter FM RF signal generator AUDIO OUT REAR 10 kΩ FM Stereo Separation Adjustment Setting : SOURCE button : FM FREQUENCY SELECT switch : FM 200k Carrier frequency : 97.9 MHz Output level : 70 dB (3.2 mV) Mode : stereo Modulation : main :1 kHz, 33.75 kHz deviation (45%) sub :1 kHz, 33.75 kHz deviation (45%) 19 kHz pilot : 7.5 kHz deviation (10%) L-CH stereo separation : A – B R-CH stereo separation : C – D The separations of both channels should be equal. Specification : Separation more than 28 dB Adjustment Location : See page 23. FM stereo Level meter Level meter signal generator connection reading (dB) output channel L-CH L-CH A B R-CH L-CH Adjust RV4 on TU1 for maximum reading. R-CH R-CH C D L-CH R-CH Adjust RV4 on TU1 for maximum reading. Procedure : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 TAPE SPEED ADJ TU1 RV1 AM AUTO SCAN/STOP LEVEL ADJ RV2 FM AUTO SCAN/STOP LEVEL ADJ RV200 (R-CH) DOLBY LEVEL ADJ RV4 FM STEREO SEPARATION ADJ RV100 (L-CH) DOLBY LEVEL ADJ – set upper view – RV200 (R-CH) RV100 (L-CH) DOLBY LEVEL ADJ – set lower view – TP-R TP-L DOLBY LEVEL ADJ Adjustment Location : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 FOCUS GAIN ADJ RV4 RV1 FOCUS BIAS ADJ IC3 CN2 CN1 IC1 TP (RF) CN3 IC2 TP (RF GND) VOLT/DIV : 200 mV TIME/DIV : 500 nS RF signal waveform RF level : 1.0 – 1.5 Vp-p oscilloscope servo board TP (RF) TP (RF GND) (DC range) CD SECTION Note : 1. CD Block basically constructed to operate without adjustment. Therefore, check each item in order given. 2. Use YEDS-18 disc (3-702-101-01) unless otherwise indicated. 3. Use the oscilloscope with more than 10 MΩ impedance. 4. Clean an objective lens by an applicator with neutral detergent when the signal level is low than specified value with the following checks. Focus Bias Adjustment Setting : This adjustment is performed with the set placed horizontally. Focus Gain Adjustment (Coarse adjustment) This adjustment is not required unless the following parts are replaced: • Optical pick-up • RV4 Procedure : 1. Set RV4 to the standard position. (mechanical center) 2. Check whether operation noise (while noise type) caused by the 2-axis device (lens section of the optical pick-up) is abnormally loud. If the operation noise is too loud, turn RV4 slightly counter- clockwise. • If the gain is too low : Focus does not function and no music is selected. • If the gain is too high : Noise caused by scratches and dust is heard and the operation becomes unstable. Adjustment Location : servo board (component side) Procedure : 1. Connect an oscilloscope between TP (RF) and TP (RF GND) on the servo board. 2. Connect the power supply. 3. Push the RESET button (SW701) on the control board. 4. Insert the disc (YEDS-18) and playback. 5. Adjust RV1 so that the oscilloscope waveform is clear and check RF signal level is correct or not. Note : Clear RF signal waveform means that the sharp “ ” can be clearly distinguished at the center of the waveform. • When observing the eye pattern, set the oscilloscope to AC range and raise the vertical sensitivity so that it may be easily seen. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 SECTION 6 DIAGRAMS • IC500 µPD78058GC-B51-8BT (SYSTEM CONTROL) Pin No. Pin Name I/O Pin Description 1 VSM I FM, AM common signal meter A/D conversion input 2 NIL I Not used. (Connect to ground in this set.) 3 SD-IN I Station detecter input (“H” : with SD) 4 AVSS — Analog ground 5 FM-ST I FM stereo input pin (“L” : stereo) 6 AM-ST I AM stereo input pin (“L” : stereo) 7 AVREF — Reference power supply for D/A conversion. 8 PLL-SI I PLL serial data input 9 PLL-SO O PLL serial data output 10 PLL-CKO O PLL serial clock output 11 PLL-CE O PLL serial chip enable output 12 AMS I Music with/without detection input at AMS. (“L” : with music, “H” : without music) 13 PLAY/AMS O Tape AMS control output 14 F/R O FWD/REV detection output (“H” : FWD, “L” : REV) 15 MTL O Metal control output (“H” : metal) 16 BUS-SI I Uni-link serial interface data input 17 BUS-SO O Uni-link serial interface data output 18 BUS-CKI I Uni-link serial interface clock input 19 BUS-CKO O Uni-link serial interface clock output 20 TAPE-MUTE O Tape mute control output 21 DOLON I/O Dolby control input/output 22 EQ-CE O Equalizer serial chip enable output (Not used in this set.) 23 EQ-CLK O Equalizer serial clock output (Not used in this set.) 24 DATA O Serial data output 25 VOL-CLK O Electronic volume serial clock output 26 VOL-CE O Electronic volume serial chip enable output 27 MUT O System mute control output 28 AMP-ON O Power amplifier power supply control output 29 AUX-MUT O AUX mute control output 30 C/B I/O Dolby B/C select control output (Not used in this set.) 31 PWR-SEL I Power select initial setting input 32 TEST I Test mode setting input 33 VSS — Ground 34 NIL I Not used. (Connect to ground in this set.) 35 POWER-ON O System power supply control output 36 TUN-ON O Tuner power supply control output 37 FM-ON O FM power supply control output 38 AM-ON O AM power supply control output (Not used in this set.) 39 NIL I Not used. (Connect to ground in this set.) 40 CM-ON O Capstan motor control output 41 TP-ON O Tape power supply control output 42 LM-EJ O Loading motor control output (Eject direction) 43 LM-LOD O Loading motor control output (Loading direction) 44, 45 POS1, 0 I Position signal detection input 1, 0 46 BEEP O Buzzer control output 47, 48 POS2, 3 I Position signal detection input 2, 3 49 REL I Reel stand rotation detection input 50 RC-IN1 I Rotary commander A/D conversion input 1 51 SUB-CE O Sub serial chip enable output (Not used in this set.) 52 SUB-DATA O Sub serial data output (Not used in this set.) 53 SUB-CLK O Sub serial clock output (Not used in this set.) 6-1. IC PIN DESCRIPTIONS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 Pin No. Pin Name I/O Pin Description 54 SYS-RST O System reset signal output 55 BUS-ON O Bus ON control output 56, 57 RE1, 0 I Rotary encoder input 1, 0 58 AD-ON O Power supply output for A/D conversion. 59 RAMBU I RAM reset detection input 60 RESET — Reset input 61 SIRCS I Remote control input (Not used in this set.) 62 BU-IN I Backup power detection input 63 NIL — Not used (Connect to ground in this set.) 64 ACC-IN I Accessory power supply detection input 65 DIMMER I Dimmer control input 66 TEL-MUTE I Telephone mute control input 67 KEY-ACK I Key input acknowledge 68 VDD — µ-con power supply 69 X2 O Main ceramic oscillator output (5 MHz) 70 X1 I Main ceramic oscillator input (5 MHz) 71 IC — Connect to ground in this set. 72 XT2 O Sub crystal oscillator output (32.768 kHz) 73 XT1 I Sub crystal oscillator input (32.768 kHz) 74 AVDD — Power supply for A/D conversion. 75 AVREF — Reference power supply for A/D conversion. 76, 77 KEY-IN0, 1 I Key input 0, 1 78 KEY-IN2 I Key input 2 (Not used in this set.) 79 RC-IN0 I Rotary commander A/D conversion input 0 80 DSTSEL I Initial setting input of destination. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 • IC801 µPD78054GC-A32-8BT (CD SYSTEM CONTROL) Pin No. Pin Name I/O Pin Description 1 LEDCLK — Not used in this set. 2 LEDCKO — Not used in this set. 3 LEDSO — Not used in this set. 4 AVSS — Analog ground 5 FL-CE0 O Display driver chip select output 0 6 FL-CE1 O Display driver chip select output 1 (Not used in this set.) 7 AVREF1 — Reference power supply for D/A conversion. 8 FL-RST O Display driver reset output (Not used in this set.) 9 FL-SO O Display driver data output 10 FL-CKO O Display driver clock output 11 SRDT — Not used in this set. 12 NCO — Not used. 13 SCLK — Not used in this set. 14 FL-BLK O Display driver blank control output 15 NIL — Not used. (Connect to ground in this set.) 16 UNISI I Uni-link serial interface data input 17 UNISO O Uni-link serial interface data output 18 UNICKI I Uni-link serial interface clock input 19 LINKOFF O Link off output 20 ILLON O Illumination power supply control output 21 CMDON O CD mechanism power supply control output 22 CD-ON O CD power supply control output 23 SP-SEL O Signal (L/R channel) select control signal output to spectrum analyzer control IC. 24 SP-C O Frequency select control signal output to spectrum analyzer control IC. 25 SP-B O Frequency select control signal output to spectrum analyzer control IC. 26 SP-A O Frequency select control signal output to spectrum analyzer control IC. 27 CDMUT O CD mute control output 28 EMPH-O O Emphasis control output 29 CD-RST O CD signal process IC reset output 30 XMODE — Not used in this set. 31, 32 NIL — Not used. (Connect to ground in this set.) 33 VSS — Ground 34 TBTGSEL I CD tracking balance, tracking gain auto adjustment select input. 35 – 39 NIL — Not used. (Connect to ground in this set.) 40 GFS I GFS signal detection input 41 SQ-SI I SUB Q data input 42 SQ-CKO O SUB Q clock output 43 NIL — Not used. (Connect to ground in this set.) 44 CD-SO O CD signal process serial data output 45 CD-LAT O CD signal process latch output 46 CD-CKO O CD signal process serial clock output 47 PH2 I 8/12 cm disc detection input 48 F-OK I Focus signal detection input 49 LD-ON O Laser on/off select control output 50 D-SW I Down switch detection input 51 PH1 I Disc insert detection input 52 L-SW I Sled limit switch input 53 LM-LOD O Loading motor control output (Loading direction) 54 LM-EJ O Loading motor control output (Eject direction) 55 PH3 I Disc detect sensor input 56 CTL1 O Driver IC control output 57 NCO — Not used. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 Pin No. Pin Name I/O Pin Description 58 EESIO O Not used in this set. 59 EECKO O Not used in this set. 60 RESET — Reset input 61 SCOR I SCOR signal detection input 62 CNIN I Track jump count input 63 SELF-SW I Disc self store detection input 64 SENS I SENS signal detection input 65 DQSY — Not used in this set. 66 BUIN I Backup power supply detection input 67 BUSON I Bus on control input 68 VDD — µ-con power supply 69 X2 O Main ceramic oscillator output (5 MHz) 70 X1 I Main ceramic oscillator input (5 MHz) 71 IC — Not used. (Not used in this set.) 72 XT2 O Sub crystal oscillator output (Not used in this set.) 73 XT1 I Sub crystal oscillator input (Connect to ground in this set.) 74 AVDD — Power supply for A/D conversion. 75 AVREF — Reference power supply for A/D conversion. 76 NIL — Not used. (Connect to ground in this set.) 77 SP-IN I Spectrum analyzer control signal input from spectrum analyzer control IC. 78 TSTIN0 I LOAD/EJECT prohibition setting input 79 NCO — Not used. 80 LEDOE — Not used in this set. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 29 6-2. BLOCK DIAGRAM — CD SECTION — WX-C5000 (Page 31) 14 RF 59 CLKO 57 XLTO 56 DATO 21 PCMD 20 LRCK 22 BCK 34 XTAI 50 XRST DIGITAL SIGNAL PROCESSOR IC1 D/A CONVERTER IC401 55 CNIN 54 SEIN 1 FOK 3 MDP 46 47 SQSO GFS SCOR 49 SQCK 51 SENS 52 DATA 53 XLAT CLOK 5 OPTICAL PICK-UP KSS-521A SERVO 5V PD LD RV1 FOCUS BIAS RV4 FOCUS GAIN LD DRIVE Q1,2 35 PD1 36 PD2 39 E 38 F 31 RFO 19 CLK 20 XLT 21 DATA RF AMP, SERVO CONTROL IC2 37 FE BIAS 1 FEO 2 FEI 16 SLO 22 XRST 23 C. OUT 24 SENS 25 FOK 6 FEO 13 TAO 34 PD 33 LD TRACKING FOCUS M902 (SLED) M901 (SPINDLE) M903 (LOADING) 16 CH2+ 15 CH2– 18 CH1+ 17 CH1– 19 CH1 IN 22 CH2 IN 24 CH3 IN 3 CH4 IN FOCUS/TRACKING COIL DRIVE, MOTOR DRIVE IC3 13 CH3+ 14 CH3– 12 CH4+ 11 COM 6 FWD 7 REV 4 CTL1 5 CTL2 10 CH5+ 04 M M M I - V AMP X401 16.9MHz DATA 4 LRCK 6 BCK CLKO 12 LOUT 9 ROUT 19 17 EMPH 18 MUTE CD 1 XTI 54 49 20 53 XTO LDON LMLOD LMEJ 48 62 F OK 29 CDRST 56 CNIN CTL1 R-CH 41 SQ SI 42 SQ CKO 64 SENS 44 SO SW3 (LIMIT) 28 EMPHOD 27 CDMUT CD SYSTEM CONTROL IC801(1/2) 40 61 GFS SCOR SELFSW DSW 52 LSW 22 CD ON 21 CMDON PH2 55 PH3 DISC IN DET Q11,D12 DISC SIZE DET Q12,D11 LOADING COMPLETION Q13,D10 8V REG Q851,852 5V REG Q853,854 45 LAT 46 CKO MAIN SECTION 1 27 43 47 PH1 51 BATT MD8V SERVO 5V Q804 SW1 (SELF) SW4 (DOWN) Q806 Signal path : CD Q807 Q803 63 50 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 30 6-3. BLOCK DIAGRAM — TAPE SECTION — WX-C5000 (Page 31) (Page 31) FWD L R REV L R HP901 PLAYBACK HEAD R-CH R-CH 32 34 24 27 29 14 17 EQ DOLBY NR AUTO MUSIC SENSOR R-CH MUTE/TAPE L OUT 16 NR ON AMS OUT 20 AMS/PLAY 18 MTL/NORMAL 19 FWD/REV TAPE EQ/DOLBY NR IC300 RV100 DOLBY LEVEL (L-CH) TAPE MECHANISM BLOCK 7 9 4 2 LOADING MOTOR DRIVE IC600 CAPSTAN/REEL MOTOR DRIVE Q603, 604 BATT BATT M M904 (CAPSTAN/REEL) +8.5V REG Q600 VR771 JOG ENCODER TAPE POWER CONTROL Q601, 602 +8.5V 2 13 3 10 BUS INTERFACE IC620 4 6 11 9 8 BATT CHECK IN RST RST 1 12 BUS ON BUS ON CLK DATA CLK IN OUT Q621 D622 5 6 4 2 3 1 7 8 BATT CN620 (BUS CONTROL IN) Q801 45 44 77 76 47 12 20 21 13 15 14 TAPE L-CH 2 F/R MTL DOL ON TAPE MUTE AMS PLAY/AMS POS1 IN1 58 AD ON 67 KEY ACK 50 IN1 79 IN0 55 ON 16 SI 17 SO 18 CKI 19 CKO 62 BU IN 54 SYS RST 60 RESET 35 POWER ON IN0 POS0 POS2 POS3 REL LM EJ LM LOD CM ON RE1 RE0 TP ON SYSTEM CONTROL IC500 (2/2) CD SYSTEM CONTROL IC801 (2/2) FL DRIVER IC701 42 43 40 48 49 56 57 41 KEY RC BUS RESET IC501 BATT DET Q620 1 Q620 BATT 17 19 LINK OFF UNISO RESET X2 X1 BU IN UNICKI UNISI BUS ON 60 69 ILL ON 20 70 66 18 SW701 RESET X801 5MHz 16 67 A 26 B 25 C 24 SEL SP IN CKO 23 KEY ACTIVE Q504, 505 KEY MATRIX SP FL FL 11 12 14 10 17 77 10 BLK 14 SO 9 CEO CL 1GB 2GB 3GB BLK DATA CE 5 8 AIN AOUT A B C SEL SA CONTROL IC802 SA MAIN SECTION MAIN SECTION 3 99 1 2 3 97 100 98 FL DRIVER Q702-704 FL701 +3V REG Q901 POWER CONTROL Q856 +10V REG Q857, 858 BU5V BATT REF VOLTAGE CONTROL Q805 BU5V +5V REG Q701 ILL POWER CONTROL Q859, 860 DRIVER +5V AVREF Q802 FL+ 04 Signal path : TAPE (PB) J500 (REMOTE IN) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 31 6-4. BLOCK DIAGRAM — MAIN SECTION — WX-C5000 (Page 30) (Page 29) (Page 30) J1 (ANTENNA) 1 2 18 16 TUNER INIT TU1 ANT AM L-CH OUT R-CH OUT 12 AM DET 8 +8V FM 9 +8V TU 10 +8V AM 19 S-METER ANT FM R-CH R-CH D1 FM8V AM8V 20 SD 22 ST 13 SEEK 11 IFC AM 6 VCO 4 LO/DX 5 VT 21 IFC FM SEEK S-METER Q3 PLL IC1 7 AM IF 13 AM OSC 15 FM OSC SI SD CKO CE 16 LO/DX 9 PD 18 1 XI 20 XO 6 DATA OUT 5 DATA IN 4 CLK 2 8 FM ST 5 SD IN 3 VSM DATA 1 24 VOL CLK 25 VOL CE 26 BEEP 46 MUT 27 AMP ON 28 AUX MUT 29 TEST 32 ACC IN 64 DIMMER 65 TEL MUTE 66 TUN ON 36 FM ON 37 RAMBU 9 10 11 X2 69 X1 70 CE LPF Q1, 2 X1 7.2MHz PLL SYSTEM CONTROL IC500 (1/2) MUTE SWITCH Q500 MUTE DRIVE Q655 X500 5MHz XT2 72 XT1 73 PWR SEL 31 X501 32.768KHz RAM RESET IC502 59 DSTSEL 80 1 S501 (POWER SELECT) B A 38 36 35 R-CH 37 17 16 18 44 34 20 21 CD L-CH TAPE L-CH CD SECTION 1 TAPE SECTION 2 LPF IC331 3 1 CN401(1/2) BUS AUDIO IN L R –2 R -4 -3 R-CH –1 ELECTRONIC VOLUME IC350 TONE DI CL CE SEL OUT R SEL OUT L FL OUT RL OUT SA MUTE Q340 VC BUFFER IC341 SA TAPE SECTION 3 2 3 1 Q180 Q190 12 11 4 22 POWER AMP IC751 FL IN RL IN FL+ FL– RL+ RL– 5 3 9 7 STNBY MUTE BATT DET Q653 ACC DET Q654 DIMMER SWITCH Q503 D659 D663 BATT MUTE DET Q651,652 D657 R654 BATT BATT 1 9 2 10 CN651 FL+ FL– RL+ RL– 4 FR+ 12 FR– 3 RR+ 11 RR– 15 TEST R-CH 7 ACC 14 ILL 13 ATT 16 BATT 6 ANT REM 5 AMP REM Q501 BATT BU5V PULL-UP+5V COM8V AM8V FM8V F901 2 7 3 POWER SUPPLY IC680 MODE2 VCC 8 ANT+B 6 AMP+B MODE1 5 BU+B 9 COM8V 10 AM8V 11 FM8V 04 Signal path : FM : AM : TAPE (PB) : CD L R CN401(2/2) -6 -5 R-CH REAR FRONT L AUDIO OUT BU.5V FM200K AM10K FM50K AM9K S502 FREQUENCY SELECT ( ) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 32 32 LOAD board SENSOR board SUB board TR board LIMIT board CD board SERVO board MAIN board JOG board CONTROL board 6-5. CIRCUIT BOARDS LOCATION Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • a : Through hole. • f : internal component. • b : Pattern from the side which enables seeing. (The other layer’s patterns are not indicated.) THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • f : internal component. • C : panel designation. Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • U : B+ Line. • H : adjustment for repair. • Power voltage is dc 14.4V and fed with regulated dc power supply from ACC and BATT cords. • Voltage and waveforms are dc with respect to ground under no-signal conditions. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM f : AM E : TAPE (PB) J : CD Ref. No. Location IC1 D-2 IC2 D-5 IC3 B-2 Q1 F-4 Q2 F-5 Q11 E-4 Q12 F-3 Q13 F-1 • Semiconductor Location (SERVO Board) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 33 1 A B C D E F 2 3 4 5 6 M M M 1 6 CN3 JR54 RED WHT M903 (LOADING) M901 (SPINDLE) M902 (SLED) 04 20 25 30 60 55 15 10 5 1 35 30 25 20 15 10 5 2 1 40 45 50 JR38 R4 C5 R6 C6 R47 C36 JR40 JR39 C1 JR22 JR35 JR37 JR36 JR34 JR15 JR24 JR30 JR02 JR31 Q13 JR29 JR28 JR27 JR26 JR25 IC1 CN1 L1 L2 Q12 L3 C11 R51 C30 R23 R24 R22 R40 C31 JR16 JR18 JR17 JR19 JR20 JR23 JR14 JR13 JR03 JR12 R50 JR10 JR08 JR07 JR06 JR05 JR09 JR11 C7 R5 C2 R1 R2 R49 R48 C38 C40 R3 C4 C3 C32 R41 C29 R43 R39 C21 TP (RF GND) C19 C17 C18 RV1 R11 R21 R10 R9 R8 R15 R14 Q2 Q1 R16 C10 C39 R7 R38 R46 Q11 C33 R17 JR47 C23 C12 C14 C9 C16 C26C27R36 C25 R35 RV4 1 5 10 35 30 25 BL2 BL1 C24 R34 C22 R31 C28 R33 R44 R42 R37 R30 R27 R29 R28 R20 15 20 C15 C13 JR50 (CHASSIS) (CHASSIS) (CHASSIS) 45 40 R19 C20 R32 JR21 C34 R45 C35 B C E B C E JR56 JR57 JR55 JR60 JR49 JR48 JR45 JR46 JR42 JR43 JR52 JR44 JR41 JR51 JR53 JR58 JR59 IC2 IC3 1 5 7 8 10 14 28 22 21 25 15 17 15 10 5 1 CN2 1 6 CN1 BLU BLU BLU BLU WHT YEL RED BLK SW4 SW3 SW1 1 3 CN4 BLU BLK RED WHT WHT 11 (11) 11 (31) 12 (31) 11 12 (31) 21 (31) WHT WHT BLU R12 R11 11 R10 D12 D10 D11 RED BLK 3 1 2 D12 DISC IN DETECT D10 LOADING COMPLETION DETECT D11 DISC SIZE (8CM/12CM) DETECT SW4 (DOWN) ON:WHEN COMPLETION OF THE DISC CHUKING OPERATION. SW1 (SELF) ON:WHEN THE DISC IS IN/OUT OPERATION ON:WHEN THE OPTICAL PICK-UP IS INNER POSITION. SW3 (LIMIT) 1-659-837- 1-660-796- 1-660-797- 1-659-881- 1-659-835- 1-659-834- 1-659-880- OPTICAL PICK-UP KSS-521A TP(RF) CD BOARD CN802 1 SUB BOARD MOTOR FLEXIBLE BOARD LIMIT BOARD SENSOR BOARD SERVO BOARD PICK-UP FLEXIBLE BOARD LOAD BOARD WX-C5000 (Page 36) 6-6. PRINTED WIRING BOARDS — CD MECHANISM SECTION — w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 34 WX-C5000 6-7. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (1/2) — • Refer to page 35 for Waveforms and page 48 for IC Block Diagrams. Note: • Voltage and waveforms are dc with respect to ground under no-signal conditions. no mark : CD PLAY ∗ : Impossible to measure (Page 35) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 35 WX-C5000 6-8. SCHEMATIC DIAGRAM — CD MECHANISM SECTION (2/2) — • Refer to page 48 for IC Block Diagrams. Note: • Voltage and waveforms are dc with respect to ground under no-signal conditions. no mark : CD PLAY (Page 34) (Page 37) • Waveforms (MODE : CD PLAY) 1 2 3 4 5 6 7 IC1 3 (MDP) 2.6Vp-p 7.6µsec IC1 w; (LRCK) 5.8Vp-p 22.7µsec IC1 ws (BCK) 5.7Vp-p 474nsec 16.89MHz IC1 ef (XTAI) 3.2Vp-p Approx. 200mVp-p IC2 rs (TEO) 0V Approx. 620mVp-p IC2 1 (FEO) 0V IC2 ea (RFO) 1.2Vp-p w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 36 WX-C5000 6-11. PRINTED WIRING BOARD — CD SECTION — (Page 33) (Page 39) (Page 38) (Page 45) Ref. No. Location D401 F-4 D801 G-8 D802 G-10 D851 H-2 D852 I-2 D853 E-2 D854 E-2 D855 E-2 D856 F-3 D857 F-3 D858 F-2 D859 K-3 D860 I-11 D862 J-11 D865 K-10 IC401 F-5 IC801 I-7 IC802 F-8 Q801 G-8 Q802 G-9 Q803 G-7 Q804 F-8 Q805 I-9 Q806 H-3 Q807 G-7 Q811 F-10 Q812 E-10 Q851 H-1 Q852 G-3 Q853 I-1 Q854 H-3 Q856 D-4 Q857 G-1 Q858 F-2 Q859 J-2 Q860 K-2 • Semiconductor Location (CD board) 6-9. PRINTED WIRING BOARD — TR SECTION — 6-10. SCHEMATIC DIAGRAM — TR SECTION — Note: • Voltage is dc with respect to ground under no-signal conditions. no mark : CD PLAY (Page 37) (Page 37) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 37 WX-C5000 6-12. SCHEMATIC DIAGRAM — CD SECTION — • Refer to page 51 for IC Block Diagrams. Note: • Voltage is dc with respect to ground under no-signal condition. no mark : CD PLAY (Page 41) (Page 46) (Page 41) (Page 35) (Page 36) (Page 36) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 38 WX-C5000 6-13. PRINTED WIRING BOARD — MAIN SECTION — (Page 36) D756 C-8 D757 B-7 D758 B-7 IC1 E-11 IC300 H-10 IC331 J-11 IC341 F-10 IC350 H-8 IC500 J-4 (IC501) J-3 IC502 I-2 (IC600) F-2 IC620 F-3 (IC680) D-6 (IC751) A-9 (Q1) D-11 (Q2) D-12 Q3 H-13 (Q4) F-6 (Q5) E-6 Q180 E-8 Q190 E-8 Q280 E-9 Q290 E-9 Q340 D-9 Q500 G-5 Q501 G-4 Q503 G-4 Q504 K-6 Q505 K-6 (Q600) G-2 Q601 G-2 Q602 G-2 (Q603) E-3 (Q604) E-2 Q620 E-2 Q621 E-3 Q651 B-7 Q652 B-7 Q653 E-7 Q654 E-4 (Q655) E-8 (D1) F-11 (D500) I-2 (D501) I-3 (D502) F-5 (D503) F-5 D504 K-6 D505 H-6 D506 B-12 D507 B-12 D508 K-11 D509 K-11 D510 K-11 (D511) L-4 (D512) L-5 D513 H-5 (D514) I-3 D600 D-2 D601 G-2 D602 F-2 (D603) E-2 D620 E-2 (D621) E-3 (D622) E-3 D623 B-2 D624 D-3 D625 B-2 (D651) C-3 D652 B-6 D653 A-6 D654 B-6 D656 D-3 D657 D-7 D659 E-7 D660 C-6 D661 C-6 D662 D-3 D663 D-4 D664 F-5 D680 E-8 (D681) E-9 D751 C-9 D752 C-9 D753 C-9 D754 C-8 D755 B-8 • Semiconductor Location Ref. No. Location Ref. No. Location ( ) : SIDE B w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 39 WX-C5000 (Page 45) (Page 36) (Page 47) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 40 WX-C5000 6-14. SCHEMATIC DIAGRAM — MAIN SECTION (1/4) — • Refer to page 50 for IC Block Diagrams. Note: • Voltage is dc with respect to ground under no-signal condition. no mark : FM ( ) : AM (Page 41) (Page 42) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 41 WX-C5000 6-15. SCHEMATIC DIAGRAM — MAIN SECTION (2/4) — Note: • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM (Page 43) (Page 42) (Page 40) (Page 37) (Page 37) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 42 WX-C5000 6-16. SCHEMATIC DIAGRAM — MAIN SECTION (3/4) — • Refer to page 50 for IC Block Diagrams. (Page 43) (Page 40) (Page 41) Note: • Voltage is dc with respect to ground under no-signal condition. no mark : FM ( ) : TAPE PLAY w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 43 WX-C5000 6-17. SCHEMATIC DIAGRAM — MAIN SECTION (4/4) — • Refer to page 50 for IC Block Diagrams. (Page 42) (Page 41) (Page 47) (Page 46) Note: • Voltage is dc with respect to ground under no-signal condition. no mark : FM ( ) : AM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 44 6-18. PRINTED WIRING BOARD — CONTROL SECTION — WX-C5000 (IC701) C-7 (Q701) C-9 (Q702) C-10 (Q703) D-10 (Q704) C-9 (D701) B-8 (D704) C-10 (D705) C-10 (D706) C-9 D730 F-6 D731 A-7 D732 F-6 D733 B-12 • Semiconductor Location Ref. No. Location Ref. No. Location ( ) : SIDE Bw w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 45 (Page 36) (Page 39) WX-C5000 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 46 6-19. SCHEMATIC DIAGRAM — CONTROL SECTION — (Page 37) (Page 43) WX-C5000 Note: • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 6-21. SCHEMATIC DIAGRAM — JOG SECTION — (Page 43) 6-20. PRINTED WIRING BOARD — JOG SECTION — (Page 39) WX-C5000 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 1 2 3 4 5 6 7 8 9 10 11 12 13 14 OPOUT CH4-IN CH4 CTL1 CTL2 FWD REV TRAY GND CH3 – CH5 – COM CH4 + CH3 + CH3-IN CH3 VREF CH2 CH2-IN VCC VCC CH1 – CH2 – CH1-IN OP IN – CH1 CH1 + OP IN + CH2 + DRIVE BUFFER DRIVE BUFFER DRIVE BUFFER DRIVE BUFFER DRIVE BUFFER DRIVE BUFFER DRIVE BUFFER DRIVE BUFFER DRIVE BUFFER LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT THERMAL SHUT DOWN 15 16 17 18 19 20 21 22 23 24 25 26 27 28 LOGIC CTL1 CTL2 FWD REV V/I XLON SPOD SPOC SPOB SPOA CLKO VDD CNIN SEIN CLOK XLAT XLTO DATO 52 53 54 55 56 57 58 59 60 61 62 63 64 51 SERVO AUTO SEQUENCER 33 34 35 36 37 38 39 40 41 42 43 45 46 47 48 49 50 44 DATA XRST SENS MUTE SQCK SQSO EXCK SBSO SCOR VSS WFCK EMPH DOUT C4M FSTT XTSL XTAO XTAI MNTO 20 21 22 23 24 25 26 27 29 30 31 32 28 LRCK PCMD BCLK GTOP XUGF XPCK VDD GFS RFCK C2PO XROF MNT3 MNT1 1 2 3 4 5 6 7 8 9 10 11 12 16 17 18 19 13 14 15 FOK MON MDP MDS LOCK TEST FILO FILI PCO VSS AVSS CLTV AVDD RF BIAS ASYI ASYO ASYE WDCK 5 14 CPU INTERFACE SUB CODE PROCESSOR DIGITAL CLV EFM DEMODULATOR DIGITAL PLL ASYMMETRY CORRECTOR 5 D/A INTERFACE ERROR CORRECTOR 3 6 3 16K RAM DIGITAL OUT CLOCK GENERATOR 4 • IC Block Diagrams IC1 CXD2507AQ (SERVO BOARD) IC3 BA6796FP-T1 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 36 35 34 33 32 31 30 29 28 27 26 25 24 23 22 21 20 19 18 17 16 15 14 13 12 11 10 9 8 7 6 5 4 3 2 1 37 38 39 40 41 42 43 44 45 46 47 48 PHD 2 PHD 1 PHD LD RF O RF I CP CB CC1 CC2 FOK SENS C.OUT XRST DATA XLT CLK VCC ISET SL O SL M SL P TA O TA M FSET TG2 TGU SRCH FE O FLB FGD FDFCT FE M FEI FEO FE BIAS F E EI VEE TED LPFI TEI ATSC TZC TDFCT VC APC LEVEL S FOK MIRR RF IV AMP1 RF IV AMP2 FE AMP TTL IIL FZC COMP DFCT IIL TTL IIL DATA REGISTER INPUT SHIFT REGISTER ADDRESS DECODER OUTPUT DECODER TTL IIL TOG1-3 BAL1-3 FS1-4 TG1-2 TM1-7 PS1-4 F IV AMP E IV AMP BAL1 BAL2 BAL 3 TE AMP TZC COMP DFCT TM1 DFCT FS4 ATSC WINDOW COMP TOG1 TOG2 TOG3 FCS PHASE COMPENSATION FS1 F SET TG2 TM7 TM3 TM4 TM5 TM6 ISET TRACKING PHASE COMPENSATION HPF COMP LPF COMP TG1 FS2 TM2 RF M IC2 CXA1782BQ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 PHASE DET PRESCALER MAIN COUNT IF COUNT CTL 20BIT COUNT SHIFT REGISTER LATCH REFERENCE DIVIDER I/O CTL 1 2 4 5 6 7 9 10 20 18 17 16 15 14 13 12 11 19 XIN CE CK DA CD P0 P1 P3 XOUT VSS PD VDD FMIN AMIN P2 IFIN SD P4 IC1 BU2624FV-E2 (MAIN BOARD) IC300 CXA2510AQ-T4 IC331, 341 NJM4558M-T1 IC620 BA8270F-E2 + – 6 7 5 8 B + – 2 1 3 4 A A OUT A IN– A IN+ VEE VCC B OUT B IN– B IN+ + – + – + – + – + – 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 21 22 23 26 27 28 29 30 31 32 33 34 37 38 39 40 24 25 PBFB2 PBRIN2 PBREF2 PBFIN2 35 36 PBGND VCT PBFIN1 PBREF1 PBRIN1 PBFB1 PBEQ2 PBOUT2 VCC TAPEIN2 AUXIN2 MSLPF LINEOUT2 TCH2 NC PLAY FF MSTC DGND MSOUT NC NRSW INSW TAPESW MSMODE DRSW MSSW NC TCH1 LINEOUT1 DIREF AUXIN1 TAPEIN1 PBEQ1 PBOUT1 GND F2 120µ/ 70µ X1 X1 VCT + F1 120µ/ 70µ NR OFF/B F3 LPF VCC DETECT MS ON/ OFF NR MODE FWD/RVS TAPE EQ TAPE/AUX NR BIAS NR MS MODE OFF/B T2 T1 1 2 3 4 5 6 7 8 9 10 14 13 12 11 BUS ON SWITCH RESET SWITCH BATTERY SWITCH BUS ON RST BATT CLK VREF DATA GND VCC RST BUS ON CLK IN BU IN DATA IN DATA OUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 1 2 3 4 5 CD NC OUT VDD GND RESET + – + – + – + – + – + – + – + – + – + – + – + – + – + – DECODER LATCH SHIFT REGISTER CONTROL – + + – 1 2 3 4 5 6 7 8 9 10 20 19 18 17 16 15 14 13 12 11 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 LSELO L4 L3 L2 L1 VDD R1 R2 R3 R4 RSELO RVRIN RCOM RT1 RT2 RT3 RTOUT RSIN NC NC RSB1 RSB2 RFIN RFOUT RROUT VSS CL DI CE VREF LROUT LFOUT LFIN LSB2 LSB1 NC NC LSIN LTOUT LT3 LT2 LT1 LCOM LVRIN 1 2 3 4 5 6 7 8 9 10 VCC IN2 S-GND IN1 NC NC OUT2 NC P-GND OUT1 CONTROL CIRCUIT MOTOR DRIVE CIRCUIT BUFFER BUFFER 3 4 5 6 7 18 19 20 17 16 15 14 8 9 10 13 12 11 2 1 CLK CONTROL INPUT INTERFACE DIGITAL FILTER 5LEVE DAC LOWPASS FILTER CMOS AMP 5LEVEL DAC LOWPASS FILTER CMOS AMP MODE CONT ROL XTI DGND VDD LRCIN DIN BCKIN ZERO D/C R VOUTR AGND VCC VOUTL D/C L MODE RSTB MD/DM0 MC/DM1 ML/MUTE CLKO XTO NOISE SHAPER IC401 PCM1717E-ST2 IC350 LC75374E IC502 RN5VD23AA-TL IC600 LB1930M-TLM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 + – + – + – + – OVER VOLTAGE PROTECT REGULATOR 1 2 3 4 5 6 7 8 9 10 12 11 NC MODE2 MODE1 STB VDD AMP VCC ANT COM AM FM GND REGISTER PEAK HOLD 68Hz B.P.F. REGISTER PEAK HOLD 170Hz B.P.F. REGISTER PEAK HOLD 420Hz B.P.F. REGISTER PEAK HOLD 1kHz B.P.F. REGISTER PEAK HOLD 2.4kHz B.P.F. REGISTER PEAK HOLD 5.9kHz B.P.F. REGISTER PEAK HOLD 14.4kHz B.P.F. DIFFERENTIAL AMPLIFIER MULTIPLEXER 1 2 3 4 5 6 7 8 9 BIASC VREFC RREF NC DIFOUT NC CIN AIN VCC DECODER 10 11 12 13 14 15 16 17 18 A B C NC SEL NC TEST AOUT GND IC802 BA3834F IC680 BA3918-V2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 #1 #1 #1 #2 #11 F901 #2 #2 #2 1 2 3 4 5 6 SECTION 7 EXPLODED VIEWS NOTE: • The mechanical parts with no reference number in the exploded views are not supplied. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinet’s Color • Accessories and packing materials and hardware (# mark) list are given in the last of this parts list. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Ref. No. Part No. Description Remark 7-1. COVER SECTION R Ref. No. Part No. Description Remark R 1 1-791-457-11 CORD (WITH CONNECTOR) (POWER) * 2 3-024-092-21 COVER * 3 3-024-091-21 HEAT SINK * 4 1-676-336-11 TR BOARD * 5 3-025-964-01 SHEET (TRANSFORMER), INSULATING * 6 3-025-584-01 COVER (D/D CONVERTER) F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 62 63 64 65 60 59 53 52 54 51 57 58 67 68 55 VR771 56 61 FL701 53 53 53 53 53 66 7-2. FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 3-036-193-11 PANEL (VOL) 52 3-036-185-01 PLATE (VOL), LIGHT GUIDE 53 3-029-975-01 SCREW (2X8), +P TITE * 54 1-673-785-12 JOG BOARD 55 X-3379-666-1 PANEL ASSY, FRONT 56 3-036-178-31 BUTTON (1-6) * 57 A-3283-037-A CONTROL BOARD, COMPLETE 58 3-036-179-31 BUTTON (M, T) 59 3-036-184-01 PLATE (CD), LIGHT GUIDE 60 3-036-198-01 SPRING (C DOOR), TORSION 61 3-036-182-01 DOOR, CASSETTE 62 3-036-183-01 PLATE (CASSETTE), LIGHT GUIDE 63 3-036-186-02 BUTTON (D-BASS) 64 3-036-181-11 BUTTON (OFF) 65 3-036-180-11 BUTTON (S.A.S) 66 3-036-194-01 SHEET (FL) 67 3-037-479-01 SHEET (LIGHT INTERCEPTION) 68 4-926-578-01 PLATE (P), RUBBER FL701 1-517-885-11 INDICATOR TUBE, FLUORESCENT VR771 1-418-378-12 ENCODER, JOG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 #1 #4 #4 #1 MG-25E-136 MG-378X-121 #1 #1 #1 #1 #1 TU1 101 102 103 104 102 102 102 109 111 108 110 107 106 105 113 #4 #3 112 7-3. CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * 101 3-024-109-02 BRACKET (CD) 102 3-376-464-11 SCREW (+PTT 2.6X6), GROUND POINT * 103 3-024-107-11 BRACKET (U) * 104 3-024-222-01 HEAT SINK (3 TERMINAL) * 105 A-3283-035-A CD BOARD, COMPLETE * 106 3-024-113-01 SHEET (U), INSULATING * 107 3-024-097-12 CHASSIS (U) * 108 3-027-592-01 SHEET (L), INSULATING * 109 A-3283-034-A MAIN BOARD, COMPLETE * 110 X-3377-429-1 CHASSIS (L) ASSY * 111 3-342-925-01 CUSHION, RUBBER 112 3-924-145-01 CUSHION (TU), RUBBER 113 3-563-691-01 CUSHION TU1 A-3282-029-A TUNER UNIT (TUX-006/2 (E)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 56 160 159 158 155 154 153 152 156 157 163 161 162 164 165 166 167 151 168 168 HP901 M904 #8 #5 not supplied 7-4. TAPE MECHANISM SECTION (MG-25E-136) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 151 A-3291-667-A CLUTCH (FR) ASSY * 152 3-019-130-01 LEVER (LDG-A) 153 3-019-131-01 LEVER (LDG-B) 154 3-020-539-01 SPRING (LD-1), TENSION 155 3-020-540-01 SPRING (LD-2), TENSION 156 3-020-542-01 GEAR (LOADING FT) 157 3-341-753-11 WASHER, POLYETHYLENE 158 3-020-533-01 HOUSING * 159 3-020-532-01 ARM (SUCTION) 160 3-020-534-01 HANGER 161 3-933-346-01 CATCHER 162 3-933-344-01 GUIDE (C) 163 3-014-798-01 SCREW (HEAD), SPECIAL 164 3-364-151-01 WASHER 165 A-3220-607-A DECK ASSY, MECHANISM 166 3-017-302-01 BELT (25) 167 3-936-853-01 FLYWHEEL (F) 168 3-701-437-21 WASHER HP901 1-500-157-21 HEAD, MAGNETIC (PLAYBACK) M904 A-3291-665-A MOTOR ASSY, MAIN (CAPSTAN/REEL) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 57 M903 214 213 212 210 215 211 206 207 209 208 205 201 203 202 204 204 #6 #7 #8 #6 #6 A A #7 #6 7-5. CD MECHANISM SECTION (1) (MG-378X-121) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 201 X-3376-767-2 CHASSIS (TM) ASSY * 202 1-660-797-21 SENSOR BOARD 203 3-032-474-02 GUIDE (DISC M) 204 3-338-737-01 SCREW (2X3), +PS * 205 1-659-837-11 LOAD BOARD 206 A-3301-204-A ROLLER ASSY 207 3-931-913-11 RING (ROLLER), RETAINING 208 3-040-324-01 SPRING (RA-R), COMPRESSION 209 3-321-813-01 WASHER, COTTER POLYETHYLENE 210 3-025-419-01 ARM (ROLLER) 211 3-937-561-01 SPRING (RA-E), TENSION * 212 A-3313-563-A SERVO BOARD, COMPLETE * 213 3-007-530-01 BRACKET (MOTOR) * 214 3-939-139-01 SPACER 215 3-040-323-01 SPRING (RA-L), COMPRESSION M903 A-3291-676-A MOTOR SUB ASSY, LO (LOADING) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 58 #8 B B 266 266 267 258 262 265 264 259 257 256 256 260 260 255 251 253 252 263 261 268 269 254 7-6. CD MECHANISM SECTION (2) (MG-378X-121) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 251 X-3372-203-1 ARM ASSY, CHUCKING 252 3-931-894-01 BRACKET (CP) * 253 3-027-767-01 RETAINER (DISC) 254 3-021-326-01 SPRING (8) 255 3-931-895-11 SPRING (CH), TENSION 256 3-931-898-11 SPRING (FL), COMPRESSION 257 3-023-470-01 SPRING (KF8), TENSION 258 A-3277-813-I CHASSIS (M) COMPLETE ASSY 259 3-931-883-01 SPRING (TR), TENSION 260 3-018-272-01 WASHER 261 3-014-727-01 WHEEL (LW), WORM 262 3-931-881-03 LEVER (LOCK) 263 3-935-828-05 LEVER (D) 264 3-931-882-02 GEAR (MDL) 265 3-007-537-11 WHEEL (U), WORM 266 3-931-897-41 DAMPER (T) 267 3-931-897-31 DAMPER (T) 268 4-926-578-01 PLATE (P), RUBBER 269 3-025-418-11 RING, LOADING www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 59 312 311 313 310 309 308 307 301 305 306 304 303 302 #10 #6 #6 #8 #9 M902 M901 7-7. CD MECHANISM SECTION (3) (MG-378X-121) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. * 301 X-3379-646-1 CHASSIS (OP) (O/S) ASSY 302 3-931-829-01 SPRING (SL), PLATE 303 X-3375-832-1 BASE (DRIVING) ASSY 304 3-931-832-01 GEAR (SL MIDWAY) * 305 1-659-835-12 LIMIT BOARD 306 3-338-737-01 SCREW (2X3), +PS 307 1-659-880-11 MOTOR FLEXIBLE BOARD * 308 1-659-834-11 SUB BOARD 309 3-909-607-01 SCREW 0310 8-820-010-06 PICK-UP, OPTICAL KSS-521A/K1RP 311 3-025-743-01 SPRING (FEED), LEAF 312 1-659-881-11 PICK-UP FLEXIBLE BOARD 313 A-3291-669-A SHAFT (FEED) ASSY M901 X-3373-664-2 MOTOR ASSY (SPINDLE) M902 A-3291-674-A MOTOR ASSY, SLED (SLED) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 SECTION 8 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. CD * A-3283-035-A CD BOARD, COMPLETE ******************* * 3-024-107-11 BRACKET (U) * 3-024-222-01 HEAT SINK (3 TERMINAL) 7-685-792-09 SCREW +PTT 2.6X6 (S) 7-685-793-09 SCREW +PTT 2.6X8 (S) < CAPACITOR > C401 1-124-589-11 ELECT 47uF 20% 16V C402 1-124-584-00 ELECT 100uF 20% 10V C403 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C404 1-124-584-00 ELECT 100uF 20% 10V C405 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C406 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C407 1-163-233-11 CERAMIC CHIP 18PF 5% 50V C408 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C409 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C410 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C411 1-163-209-00 CERAMIC CHIP 0.0015uF 10% 50V C412 1-124-234-00 ELECT 22uF 20% 16V C413 1-126-160-11 ELECT 1uF 20% 50V C421 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C422 1-124-234-00 ELECT 22uF 20% 16V C423 1-126-160-11 ELECT 1uF 20% 50V C433 1-163-181-00 CERAMIC CHIP 100PF 5% 50V C434 1-163-181-00 CERAMIC CHIP 100PF 5% 50V C443 1-163-181-00 CERAMIC CHIP 100PF 5% 50V C444 1-163-181-00 CERAMIC CHIP 100PF 5% 50V C451 1-124-257-00 ELECT 2.2uF 20% 50V C461 1-124-257-00 ELECT 2.2uF 20% 50V C481 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C482 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C483 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C484 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C485 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C801 1-124-259-11 ELECT 4.7uF 20% 35V C802 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C803 1-163-077-00 CERAMIC CHIP 0.1uF 10% 25V C805 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C807 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C809 1-124-259-11 ELECT 4.7uF 20% 35V C810 1-128-057-11 ELECT 330uF 20% 6.3V C813 1-163-287-11 CERAMIC CHIP 10PF 5% 50V C814 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C822 1-124-233-11 ELECT 10uF 20% 16V C823 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C824 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C825 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C826 1-163-077-00 CERAMIC CHIP 0.1uF 10% 25V C827 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C851 1-126-941-11 ELECT 470uF 20% 25V C852 1-124-234-00 ELECT 22uF 20% 16V C853 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C854 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C855 1-124-589-11 ELECT 47uF 20% 16V C856 1-124-589-11 ELECT 47uF 20% 16V C857 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V C858 1-124-233-11 ELECT 10uF 20% 16V C859 1-124-589-11 ELECT 47uF 20% 16V C860 1-124-589-11 ELECT 47uF 20% 16V C861 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C862 1-124-233-11 ELECT 10uF 20% 16V C863 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C864 1-124-234-00 ELECT 22uF 20% 16V C865 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C866 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C867 1-163-251-11 CERAMIC CHIP 100PF 5% 50V < JACK > CN401 1-774-700-11 JACK, PIN 6P (BUS AUDIO IN, AUDIO OUT FRONT/REAR) < CONNECTOR > * CN402 1-564-728-11 PIN, CONNECTOR (SMALL TYPE) 12P CN801 1-784-988-11 CONNECTOR 20P CN802 1-764-617-12 PIN, CONNECTOR (PC BOARD) 30P * CN803 1-506-999-11 PIN, CONNECTOR (PC BOARD) 3P < DIODE > D401 8-719-911-19 DIODE 1SS119-25TD D801 8-719-911-19 DIODE 1SS119-25TD D802 8-719-911-19 DIODE 1SS119-25TD D851 8-719-422-97 DIODE MA8091-M-TX D852 8-719-977-03 DIODE MA8056-M-TX D853 8-719-035-39 DIODE MA4027-H(TA) D854 8-719-911-19 DIODE 1SS119-25TD D855 8-719-200-82 DIODE 11ES2-TA1B D856 8-719-911-19 DIODE 1SS119-25TD D857 8-719-911-19 DIODE 1SS119-25TD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CD D858 8-719-110-17 DIODE MA4100-L(TA) D859 8-719-911-19 DIODE 1SS119-25TD D860 8-719-053-18 DIODE 1SR154-400TE-25 D862 8-719-053-18 DIODE 1SR154-400TE-25 D865 8-719-053-18 DIODE 1SR154-400TE-25 < IC > IC401 8-759-464-81 IC PCM1717E-ST2 IC801 8-759-637-89 IC uPD78054GC-A32-8BT IC802 8-759-392-22 IC BA3834F < JUMPER RESISTOR > JC401 1-216-296-91 SHORT 0 JC431 1-216-295-11 SHORT 0 JC441 1-216-295-11 SHORT 0 JC481 1-216-295-11 SHORT 0 JC801 1-216-295-11 SHORT 0 JC804 1-216-296-91 SHORT 0 JC806 1-216-296-91 SHORT 0 JC807 1-216-296-91 SHORT 0 < COIL > L401 1-410-946-31 INDUCTOR 22uH L402 1-410-946-31 INDUCTOR 22uH L801 1-410-946-31 INDUCTOR 22uH < EARTH TERMINAL > * LUG1 1-537-738-21 TERMINAL, EARTH * LUG3 1-537-738-21 TERMINAL, EARTH * LUG4 1-537-738-21 TERMINAL, EARTH < TRANSISTOR > Q801 8-729-230-49 TRANSISTOR 2SC2712L-TE85L Q802 8-729-230-49 TRANSISTOR 2SC2712L-TE85L Q803 8-729-421-22 TRANSISTOR UN2211-TX Q804 8-729-421-22 TRANSISTOR UN2211-TX Q805 8-729-424-08 TRANSISTOR UN2111-TX Q806 8-729-421-22 TRANSISTOR UN2211-TX Q807 8-729-421-22 TRANSISTOR UN2211-TX Q811 8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L Q812 8-729-230-49 TRANSISTOR 2SC2712L-TE85L Q851 8-729-019-00 TRANSISTOR 2SD2394-G Q852 8-729-424-08 TRANSISTOR UN2111-TX Q853 8-729-019-00 TRANSISTOR 2SD2394-G Q854 8-729-424-08 TRANSISTOR UN2111-TX Q856 8-729-019-03 TRANSISTOR 2SB1202FA-T-TL Q857 8-729-019-00 TRANSISTOR 2SD2394-G Q858 8-729-424-08 TRANSISTOR UN2111-TX Q859 8-729-106-60 TRANSISTOR 2SB1122-T-TD Q860 8-729-421-22 TRANSISTOR UN2211-TX < RESISTOR > R401 1-216-037-00 METAL CHIP 330 5% 1/10W R402 1-216-037-00 METAL CHIP 330 5% 1/10W R411 1-216-049-11 RES-CHIP 1K 5% 1/10W R412 1-216-296-91 SHORT 0 R421 1-216-049-11 RES-CHIP 1K 5% 1/10W R422 1-216-296-91 SHORT 0 R451 1-216-073-00 METAL CHIP 10K 5% 1/10W R452 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R461 1-216-073-00 METAL CHIP 10K 5% 1/10W R462 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R801 1-216-049-11 RES-CHIP 1K 5% 1/10W R802 1-216-049-11 RES-CHIP 1K 5% 1/10W R803 1-216-049-11 RES-CHIP 1K 5% 1/10W R804 1-216-049-11 RES-CHIP 1K 5% 1/10W R805 1-249-437-11 CARBON 47K 5% 1/4W R806 1-216-097-11 RES-CHIP 100K 5% 1/10W R807 1-216-073-00 METAL CHIP 10K 5% 1/10W R808 1-216-073-00 METAL CHIP 10K 5% 1/10W R809 1-216-049-11 RES-CHIP 1K 5% 1/10W R810 1-216-049-11 RES-CHIP 1K 5% 1/10W R811 1-216-049-11 RES-CHIP 1K 5% 1/10W R812 1-216-049-11 RES-CHIP 1K 5% 1/10W R813 1-216-049-11 RES-CHIP 1K 5% 1/10W R814 1-216-049-11 RES-CHIP 1K 5% 1/10W R815 1-216-049-11 RES-CHIP 1K 5% 1/10W R816 1-216-049-11 RES-CHIP 1K 5% 1/10W R817 1-216-049-11 RES-CHIP 1K 5% 1/10W R818 1-216-105-91 RES-CHIP 220K 5% 1/10W R819 1-216-097-11 RES-CHIP 100K 5% 1/10W R820 1-216-105-91 RES-CHIP 220K 5% 1/10W R821 1-249-441-11 CARBON 100K 5% 1/4W R822 1-216-105-91 RES-CHIP 220K 5% 1/10W R823 1-216-089-11 RES-CHIP 47K 5% 1/10W R824 1-216-097-11 RES-CHIP 100K 5% 1/10W R825 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R826 1-216-097-11 RES-CHIP 100K 5% 1/10W R827 1-216-049-11 RES-CHIP 1K 5% 1/10W R828 1-249-411-11 CARBON 330 5% 1/4W R829 1-216-049-11 RES-CHIP 1K 5% 1/10W R830 1-216-049-11 RES-CHIP 1K 5% 1/10W R831 1-249-417-11 CARBON 1K 5% 1/4W R832 1-249-417-11 CARBON 1K 5% 1/4W R833 1-249-417-11 CARBON 1K 5% 1/4W R834 1-249-417-11 CARBON 1K 5% 1/4W R835 1-249-417-11 CARBON 1K 5% 1/4W R836 1-249-417-11 CARBON 1K 5% 1/4W R838 1-216-295-11 SHORT 0 R839 1-216-049-11 RES-CHIP 1K 5% 1/10W R840 1-216-049-11 RES-CHIP 1K 5% 1/10W R841 1-216-049-11 RES-CHIP 1K 5% 1/10W R842 1-216-699-91 METAL CHIP 100K 0.5% 1/10W R843 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R851 1-249-385-11 CARBON 2.2 5% 1/6W R852 1-249-417-11 CARBON 1K 5% 1/4W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark CD CONTROL R853 1-249-417-11 CARBON 1K 5% 1/4W R854 1-249-417-11 CARBON 1K 5% 1/4W R855 1-249-421-11 CARBON 2.2K 5% 1/4W R856 1-249-413-11 CARBON 470 5% 1/4W R857 1-249-417-11 CARBON 1K 5% 1/4W R858 1-249-385-11 CARBON 2.2 5% 1/6W R859 1-216-073-00 METAL CHIP 10K 5% 1/10W R860 1-249-421-11 CARBON 2.2K 5% 1/4W < VIBRATOR > X401 1-579-280-31 VIBRATOR, CRYSTAL (16.9MHz) X801 1-579-233-11 VIBRATOR, CERAMIC (5MHz) ************************************************************* * A-3283-037-A CONTROL BOARD, COMPLETE ************************* < CAPACITOR > C701 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C702 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C703 1-163-110-00 CERAMIC CHIP 51PF 5% 50V C704 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > CN701 1-779-170-11 SOCKET, CONNECTOR 20P CN702 1-774-276-21 SOCKET, CONNECTOR 16P < DIODE > D701 8-719-977-03 DIODE MA8056-M-TX D704 8-719-073-01 DIODE MA111-TX D705 8-719-073-01 DIODE MA111-TX D706 8-719-073-01 DIODE MA111-TX D730 8-719-991-27 LED CL-170G-CD-T (TAPE WINDOW) D731 8-719-991-27 LED CL-170G-CD-T (CD WINDOW) D732 8-719-991-27 LED CL-170G-CD-T (TAPE WINDOW) D733 8-719-991-27 LED CL-170G-CD-T (D-BASS) < INDICATOR TUBE > FL701 1-517-885-11 INDICATOR TUBE, FLUORESCENT < IC > IC701 8-759-528-30 IC LC75750EHS < SWITCH > LSW701 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (Z (TAPE)) LSW702 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (DSPL) LSW703 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (MODE o) LSW704 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (SOURCE) LSW706 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (6/BL SKIP) LSW707 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (5/ATA) LSW708 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (4/METAL) LSW709 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (3/SHUF/ ;) LSW710 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (2/REPEAT) LSW711 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (1) LSW721 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (OFF) LSW722 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (Z (CD)) LSW724 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (SA) LSW725 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (SENS) LSW726 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (SOUND) LSW727 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (SEEK/AMS . m –) LSW728 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (SEEK/AMS M > +) LSW729 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (PRESET/DISC –) LSW730 1-762-618-21 SWITCH, KEY BOARD (WITH LED) (PRESET/DISC +) < TRANSISTOR > Q701 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q702 8-729-271-31 TRANSISTOR 2SC2713G-TE85L Q703 8-729-271-31 TRANSISTOR 2SC2713G-TE85L Q704 8-729-271-31 TRANSISTOR 2SC2713G-TE85L < RESISTOR > R701 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R702 1-216-075-00 METAL CHIP 12K 5% 1/10W R703 1-216-029-00 METAL CHIP 150 5% 1/10W R704 1-216-097-11 RES-CHIP 100K 5% 1/10W R705 1-216-029-00 METAL CHIP 150 5% 1/10W R706 1-216-097-11 RES-CHIP 100K 5% 1/10W R707 1-216-029-00 METAL CHIP 150 5% 1/10W R708 1-216-097-11 RES-CHIP 100K 5% 1/10W R711 1-216-017-00 RES-CHIP 47 5% 1/10W R712 1-216-186-00 RES-CHIP 330 5% 1/8W R713 1-216-295-11 SHORT 0 R716 1-216-295-11 SHORT 0 R718 1-216-295-11 SHORT 0 R719 1-216-017-00 RES-CHIP 47 5% 1/10W R721 1-216-295-11 SHORT 0 R722 1-216-295-11 SHORT 0 R724 1-216-021-00 METAL CHIP 68 5% 1/10W R725 1-216-032-00 METAL CHIP 200 5% 1/10W R726 1-216-019-00 METAL CHIP 56 5% 1/10W R727 1-216-186-00 RES-CHIP 330 5% 1/8W R728 1-216-295-11 SHORT 0 R740 1-216-647-11 METAL CHIP 680 0.5% 1/10W R741 1-216-647-11 METAL CHIP 680 0.5% 1/10W R742 1-216-647-11 METAL CHIP 680 0.5% 1/10W R743 1-208-437-61 RES-CHIP 1K 2% 1/10W R744 1-208-441-61 RES-CHIP 1.5K 2% 1/10W R745 1-208-441-61 RES-CHIP 1.5K 2% 1/10W R746 1-216-659-11 METAL CHIP 2.2K 0.5% 1/10W R747 1-208-449-61 RES-CHIP 3.3K 2% 1/10W R748 1-208-453-61 RES-CHIP 4.7K 2% 1/10W R751 1-216-647-11 METAL CHIP 680 0.5% 1/10W R752 1-216-647-11 METAL CHIP 680 0.5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN CONTROL JOG LIMIT LOAD R753 1-216-647-11 METAL CHIP 680 0.5% 1/10W R754 1-208-437-61 RES-CHIP 1K 2% 1/10W R755 1-208-441-61 RES-CHIP 1.5K 2% 1/10W R756 1-208-441-61 RES-CHIP 1.5K 2% 1/10W R757 1-216-659-11 METAL CHIP 2.2K 0.5% 1/10W R758 1-208-449-61 RES-CHIP 3.3K 2% 1/10W R759 1-208-453-61 RES-CHIP 4.7K 2% 1/10W R760 1-216-671-11 METAL CHIP 6.8K 0.5% 1/10W R782 1-216-295-11 SHORT 0 R784 1-216-295-11 SHORT 0 < SWITCH > SW701 1-771-027-21 SWITCH, KEY BOARD (WITH LED) (RESET) SW702 1-771-027-21 SWITCH, KEY BOARD (WITH LED) (D-BASS) ************************************************************* * 1-673-785-12 JOG BOARD ********** < DIODE > D771 8-719-991-27 LED CL-170G-CD-T D772 8-719-991-27 LED CL-170G-CD-T D773 8-719-991-27 LED CL-170G-CD-T < RESISTOR > R771 1-216-295-11 SHORT 0 R772 1-216-295-11 SHORT 0 R773 1-216-033-00 METAL CHIP 220 5% 1/10W < JOG ENCODER > VR771 1-418-378-12 ENCODER, JOG ************************************************************* * 1-659-835-12 LIMIT BOARD *********** < SWITCH > SW3 1-572-688-11 SWITCH, PUSH (1 KEY) (LIMIT) ************************************************************* * 1-659-837-11 LOAD BOARD *********** < SWITCH > SW4 1-572-288-21 SWITCH, PUSH (DOWN) ************************************************************* * A-3283-034-A MAIN BOARD, COMPLETE ********************* * 3-026-742-01 SPACER (PWR) 7-685-792-09 SCREW +PTT 2.6X6 (S) < CAPACITOR > C1 1-163-235-11 CERAMIC CHIP 22PF 5% 50V C2 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C3 1-124-584-00 ELECT 100uF 20% 10V C4 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C5 1-124-584-00 ELECT 100uF 20% 10V C6 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C7 1-124-584-00 ELECT 100uF 20% 10V C8 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C9 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C10 1-124-584-00 ELECT 100uF 20% 10V C11 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V C12 1-136-177-00 FILM 1uF 5% 50V C13 1-136-287-11 MYLAR 0.0047uF 5% 50V C14 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C15 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C16 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C17 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C18 1-124-233-11 ELECT 10uF 20% 16V C19 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C20 1-163-234-11 CERAMIC CHIP 20PF 5% 50V C21 1-163-243-11 CERAMIC CHIP 47PF 5% 50V C22 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C23 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C24 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C100 1-163-263-11 CERAMIC CHIP 330PF 5% 50V C101 1-163-263-11 CERAMIC CHIP 330PF 5% 50V C102 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C103 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C104 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C105 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C106 1-124-465-00 ELECT 0.47uF 20% 50V C107 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C108 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C109 1-124-259-11 ELECT 4.7uF 20% 35V C131 1-126-160-11 ELECT 1uF 20% 50V C132 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C133 1-163-022-00 CERAMIC CHIP 0.012uF 10% 50V C134 1-163-139-00 CERAMIC CHIP 820PF 5% 50V C135 1-163-135-00 CERAMIC CHIP 560PF 5% 50V C136 1-164-343-11 CERAMIC CHIP 0.056uF 10% 25V C141 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C142 1-124-259-11 ELECT 4.7uF 20% 35V C150 1-126-160-11 ELECT 1uF 20% 50V C151 1-124-233-11 ELECT 10uF 20% 16V C152 1-115-419-11 CERAMIC CHIP 3300PF 5% 25V C153 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C154 1-124-233-11 ELECT 10uF 20% 16V C155 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V C156 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V C157 1-124-233-11 ELECT 10uF 20% 16V C180 1-124-233-11 ELECT 10uF 20% 16V C181 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C182 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C190 1-124-233-11 ELECT 10uF 20% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C191 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C192 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C200 1-163-263-11 CERAMIC CHIP 330PF 5% 50V C201 1-163-263-11 CERAMIC CHIP 330PF 5% 50V C202 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C203 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C204 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C205 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C206 1-124-465-00 ELECT 0.47uF 20% 50V C207 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C208 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C209 1-124-259-11 ELECT 4.7uF 20% 35V C231 1-126-160-11 ELECT 1uF 20% 50V C232 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C233 1-163-022-00 CERAMIC CHIP 0.012uF 10% 50V C234 1-163-139-00 CERAMIC CHIP 820PF 5% 50V C235 1-163-135-00 CERAMIC CHIP 560PF 5% 50V C236 1-164-343-11 CERAMIC CHIP 0.056uF 10% 25V C241 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C242 1-124-259-11 ELECT 4.7uF 20% 35V C250 1-126-160-11 ELECT 1uF 20% 50V C251 1-124-233-11 ELECT 10uF 20% 16V C252 1-115-419-11 CERAMIC CHIP 3300PF 5% 25V C253 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C254 1-124-233-11 ELECT 10uF 20% 16V C255 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V C256 1-164-492-11 CERAMIC CHIP 0.15uF 10% 16V C257 1-124-233-11 ELECT 10uF 20% 16V C280 1-124-233-11 ELECT 10uF 20% 16V C281 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C282 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C290 1-124-233-11 ELECT 10uF 20% 16V C291 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C292 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C300 1-124-584-00 ELECT 100uF 20% 10V C301 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C302 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C303 1-131-360-41 TANTALUM 15uF 10% 25V C304 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C305 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C306 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C307 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C308 1-124-259-11 ELECT 4.7uF 20% 35V C331 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C332 1-124-233-11 ELECT 10uF 20% 16V C341 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C342 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C343 1-124-233-11 ELECT 10uF 20% 16V C344 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C350 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C351 1-124-584-00 ELECT 100uF 20% 10V C352 1-124-234-00 ELECT 22uF 20% 16V C353 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C500 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C501 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C502 1-124-233-11 ELECT 10uF 20% 16V C503 1-124-233-11 ELECT 10uF 20% 16V C504 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C505 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C506 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C507 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C508 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C509 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C510 1-124-584-00 ELECT 100uF 20% 10V C511 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C512 1-163-234-11 CERAMIC CHIP 20PF 5% 50V C513 1-163-234-11 CERAMIC CHIP 20PF 5% 50V C514 1-124-233-11 ELECT 10uF 20% 16V C515 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C516 1-164-346-11 CERAMIC CHIP 1uF 16V C517 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C518 1-124-584-00 ELECT 100uF 20% 10V C519 1-125-701-11 DOUBLE LAYERS 0.047F 5.5V C520 1-126-153-11 ELECT 22uF 20% 6.3V C521 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C523 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C524 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C525 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C600 1-126-941-11 ELECT 470uF 20% 25V C601 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C602 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C603 1-124-233-11 ELECT 10uF 20% 16V C604 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V C605 1-124-234-00 ELECT 22uF 20% 16V C620 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C622 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C651 1-111-233-11 ELECT 5600uF 20% 16V C654 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C655 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C656 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C657 1-163-205-00 CERAMIC CHIP 0.001uF 5% 50V C658 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C659 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C660 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C661 1-126-933-11 ELECT 100uF 20% 16V C662 1-124-233-11 ELECT 10uF 20% 16V C663 1-124-233-11 ELECT 10uF 20% 16V C664 1-124-589-11 ELECT 47uF 20% 16V C665 1-124-259-11 ELECT 4.7uF 20% 35V C666 1-124-257-00 ELECT 2.2uF 20% 50V C667 1-124-589-11 ELECT 47uF 20% 16V C680 1-124-233-11 ELECT 10uF 20% 16V C681 1-124-234-00 ELECT 22uF 20% 16V C682 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C683 1-124-233-11 ELECT 10uF 20% 16V C684 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C685 1-124-233-11 ELECT 10uF 20% 16V C686 1-124-229-00 ELECT 33uF 20% 10V C687 1-124-229-00 ELECT 33uF 20% 10V C688 1-124-242-00 ELECT 33uF 20% 25V C751 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C752 1-137-194-11 FILM 0.47uF 5% 50V C753 1-124-233-11 ELECT 10uF 20% 16V C754 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C755 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C756 1-136-165-00 FILM 0.1uF 5% 50V < CONNECTOR > CN300 1-766-260-11 CONNECTOR, FFC/FPC (ZIF) 7P CN350 1-778-965-21 CONNECTOR 12P CN500 1-778-832-11 CONNECTOR 16P * CN501 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P * CN600 1-506-995-11 PIN, CONNECTOR (PC BOARD) 13P CN620 1-580-907-31 PLUG, CONNECTOR (BUS CONTROL IN) CN651 1-774-701-11 PIN, CONNECTOR 16P * CN652 1-506-985-11 PIN, CONNECTOR (PC BOARD) 3P < DISCHARGE GAP > CP1 1-519-504-11 GAP, DISCHARGE < DIODE > D1 8-719-991-65 DIODE SB02W03C-TB D500 8-719-073-01 DIODE MA111-TX D501 8-719-073-01 DIODE MA111-TX D502 8-719-991-65 DIODE SB02W03C-TB D503 8-719-073-01 DIODE MA111-TX D504 8-719-400-20 DIODE MA152WA-TX D505 8-719-073-01 DIODE MA111-TX D506 8-719-422-64 DIODE MA8062-M-TX D507 8-719-422-64 DIODE MA8062-M-TX D508 8-719-422-64 DIODE MA8062-M-TX D509 8-719-977-12 DIODE MA8068-M-TX D510 8-719-977-12 DIODE MA8068-M-TX D511 8-719-422-64 DIODE MA8062-M-TX D512 8-719-422-64 DIODE MA8062-M-TX D513 8-719-073-01 DIODE MA111-TX D514 8-719-073-01 DIODE MA111-TX D600 8-719-053-18 DIODE 1SR154-400TE-25 D601 8-719-422-97 DIODE MA8091-M-TX D602 8-719-073-01 DIODE MA111-TX D603 8-719-073-01 DIODE MA111-TX D620 8-719-022-90 DIODE MA8160-M-TX D621 8-719-057-80 DIODE MA8180-M-TX D622 8-719-422-67 DIODE MA8062-H-TX D623 8-719-057-80 DIODE MA8180-M-TX D624 8-719-033-43 DIODE RB751H-TT11 D625 8-719-057-80 DIODE MA8180-M-TX D651 8-719-049-38 DIODE 1N5404TU D652 8-719-977-03 DIODE MA8056-H-TX D653 8-719-053-18 DIODE 1SR154-400TE-25 D654 8-719-053-18 DIODE 1SR154-400TE-25 D656 8-719-057-80 DIODE MA8180-M-TX D657 8-719-073-01 DIODE MA111-TX D659 8-719-022-90 DIODE MA8160-M-TX D660 8-719-053-18 DIODE 1SR154-400TE-25 D661 8-719-053-18 DIODE 1SR154-400TE-25 D662 8-719-801-78 DIODE MA152WK-TX D663 8-719-422-62 DIODE MA8062-L-TX D664 8-719-053-18 DIODE 1SR154-400TE-25 D680 8-719-073-01 DIODE MA111-TX D681 8-719-422-16 DIODE MA8039-L-TX D751 8-719-079-29 DIODE PTZ-TE25-22B D752 8-719-079-29 DIODE PTZ-TE25-22B D753 8-719-079-29 DIODE PTZ-TE25-22B D754 8-719-079-29 DIODE PTZ-TE25-22B D755 8-719-079-29 DIODE PTZ-TE25-22B D756 8-719-079-29 DIODE PTZ-TE25-22B D757 8-719-079-29 DIODE PTZ-TE25-22B D758 8-719-079-29 DIODE PTZ-TE25-22B < IC > IC1 8-759-448-85 IC BU2624FV-E2 IC300 8-752-079-79 IC CXA2510AQ-T4 IC331 8-759-100-96 IC NJM4558M-T1 IC341 8-759-100-96 IC NJM4558M-T1 IC350 8-759-487-82 IC LC75374E IC500 8-759-590-59 IC uPD78058GC-B51-8BT IC501 8-759-363-81 IC XC61AN4002PR IC502 8-759-344-91 IC RN5VD23AA-TL IC600 8-759-527-33 IC LB1930M-TLM IC620 8-759-449-89 IC BA8270F-E2 IC680 8-759-347-49 IC BA3918-V2 IC751 8-759-690-99 IC TA8268HS < JACK > J1 1-764-808-21 JACK (ANTENNA) J500 1-566-822-41 JACK (REMOTE IN) < JUMPER RESISTOR > JC1 1-216-295-11 SHORT 0 JC2 1-216-295-11 SHORT 0 JC3 1-216-296-00 SHORT 0 JC4 1-216-295-11 SHORT 0 JC351 1-216-296-00 SHORT 0 JC500 1-216-295-11 SHORT 0 JC501 1-216-295-11 SHORT 0 JC502 1-216-295-11 SHORT 0 JC651 1-216-295-11 SHORT 0 < COIL > L1 1-410-509-61 INDUCTOR 10uH L500 1-410-509-61 INDUCTOR 10uH www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN L651 1-411-669-12 COIL, CHOKE (TROIDAL-S) < EARTH TERMINAL > * LUG1 1-537-738-21 TERMINAL, EARTH * LUG2 1-537-738-21 TERMINAL, EARTH * LUG3 1-537-738-21 TERMINAL, EARTH < THERMISTOR (POSITIVE) > PS620 1-801-792-21 THERMISTOR, POSITIVE < TRANSISTOR > Q1 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q2 8-729-021-94 FET 2SK1657-T1B Q3 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q4 8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L Q5 8-729-421-22 TRANSISTOR UN2211-TX Q180 8-729-021-95 TRANSISTOR RN1441-A(TE85L) Q190 8-729-021-95 TRANSISTOR RN1441-A(TE85L) Q280 8-729-021-95 TRANSISTOR RN1441-A(TE85L) Q290 8-729-021-95 TRANSISTOR RN1441-A(TE85L) Q340 8-729-021-95 TRANSISTOR RN1441-A(TE85L) Q500 8-729-021-94 FET 2SK1657-T1B Q501 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q503 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q504 8-729-424-08 TRANSISTOR UN2111-TX Q505 8-729-424-08 TRANSISTOR UN2111-TX Q600 8-729-807-12 TRANSISTOR 2SD1802FAT-TL Q601 8-729-424-08 TRANSISTOR UN2111-TX Q602 8-729-421-22 TRANSISTOR UN2211-TX Q603 8-729-106-60 TRANSISTOR 2SB1122-T-TD Q604 8-729-421-22 TRANSISTOR UN2211-TX Q620 8-729-421-22 TRANSISTOR UN2211-TX Q621 8-729-216-22 TRANSISTOR 2SA1162-YG-TE85L Q651 8-729-424-08 TRANSISTOR UN2111-TX Q652 8-729-421-22 TRANSISTOR UN2211-TX Q653 8-729-421-22 TRANSISTOR UN2211-TX Q654 8-729-230-49 TRANSISTOR 2SC2712-YG-TE85L Q655 8-729-424-52 TRANSISTOR UN211F-TX < RESISTOR > R1 1-216-037-00 METAL CHIP 330 5% 1/10W R2 1-216-134-00 METAL CHIP 2.2 5% 1/8W R3 1-216-049-11 RES-CHIP 1K 5% 1/10W R4 1-216-049-11 RES-CHIP 1K 5% 1/10W R5 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R6 1-216-049-11 RES-CHIP 1K 5% 1/10W R7 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R8 1-216-134-00 METAL CHIP 2.2 5% 1/8W R9 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R10 1-216-073-00 METAL CHIP 10K 5% 1/10W R11 1-216-097-11 RES-CHIP 100K 5% 1/10W R12 1-216-097-11 RES-CHIP 100K 5% 1/10W R13 1-216-025-11 RES-CHIP 100 5% 1/10W R14 1-216-073-00 METAL CHIP 10K 5% 1/10W R15 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R16 1-216-073-00 METAL CHIP 10K 5% 1/10W R17 1-216-081-00 METAL CHIP 22K 5% 1/10W R18 1-216-073-00 METAL CHIP 10K 5% 1/10W R19 1-216-073-00 METAL CHIP 10K 5% 1/10W R20 1-216-073-00 METAL CHIP 10K 5% 1/10W R21 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R100 1-216-097-11 RES-CHIP 100K 5% 1/10W R101 1-216-097-11 RES-CHIP 100K 5% 1/10W R102 1-216-027-00 METAL CHIP 120 5% 1/10W R103 1-216-109-00 METAL CHIP 330K 5% 1/10W R104 1-216-075-00 METAL CHIP 12K 5% 1/10W R105 1-216-079-00 METAL CHIP 18K 5% 1/10W R106 1-216-077-00 RES-CHIP 15K 5% 1/10W R131 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R132 1-216-091-00 METAL CHIP 56K 5% 1/10W R133 1-216-089-11 RES-CHIP 47K 5% 1/10W R134 1-216-113-00 METAL CHIP 470K 5% 1/10W R135 1-216-091-00 METAL CHIP 56K 5% 1/10W R136 1-216-089-11 RES-CHIP 47K 5% 1/10W R137 1-216-073-00 METAL CHIP 10K 5% 1/10W R141 1-216-089-11 RES-CHIP 47K 5% 1/10W R150 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R182 1-216-073-00 METAL CHIP 10K 5% 1/10W R183 1-216-069-11 METAL CHIP 6.8K 5% 1/10W R184 1-216-129-00 METAL CHIP 2.2M 5% 1/10W R185 1-216-033-00 METAL CHIP 220 5% 1/10W R186 1-216-081-00 METAL CHIP 22K 5% 1/10W R192 1-216-073-00 METAL CHIP 10K 5% 1/10W R193 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R194 1-216-129-00 METAL CHIP 2.2M 5% 1/10W R195 1-216-033-00 METAL CHIP 220 5% 1/10W R196 1-216-081-00 METAL CHIP 22K 5% 1/10W R200 1-216-097-11 RES-CHIP 100K 5% 1/10W R201 1-216-097-11 RES-CHIP 100K 5% 1/10W R202 1-216-027-00 METAL CHIP 120 5% 1/10W R203 1-216-109-00 METAL CHIP 330K 5% 1/10W R204 1-216-075-00 METAL CHIP 12K 5% 1/10W R205 1-216-079-00 METAL CHIP 18K 5% 1/10W R206 1-216-077-00 RES-CHIP 15K 5% 1/10W R231 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R232 1-216-091-00 METAL CHIP 56K 5% 1/10W R233 1-216-089-11 RES-CHIP 47K 5% 1/10W R234 1-216-113-00 METAL CHIP 470K 5% 1/10W R235 1-216-091-00 METAL CHIP 56K 5% 1/10W R236 1-216-089-11 RES-CHIP 47K 5% 1/10W R237 1-216-073-00 METAL CHIP 10K 5% 1/10W R241 1-216-089-11 RES-CHIP 47K 5% 1/10W R250 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R282 1-216-073-00 METAL CHIP 10K 5% 1/10W R283 1-216-069-11 METAL CHIP 6.8K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R284 1-216-129-00 METAL CHIP 2.2M 5% 1/10W R285 1-216-033-00 METAL CHIP 220 5% 1/10W R286 1-216-081-00 METAL CHIP 22K 5% 1/10W R292 1-216-073-00 METAL CHIP 10K 5% 1/10W R293 1-216-069-11 METAL CHIP 6.8K 5% 1/10W R294 1-216-129-00 METAL CHIP 2.2M 5% 1/10W R295 1-216-033-00 METAL CHIP 220 5% 1/10W R296 1-216-081-00 METAL CHIP 22K 5% 1/10W R300 1-216-080-00 METAL CHIP 20K 5% 1/10W R301 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R302 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R303 1-216-113-00 METAL CHIP 470K 5% 1/10W R304 1-216-073-00 METAL CHIP 10K 5% 1/10W R305 1-216-298-00 METAL CHIP 2.2 5% 1/10W R331 1-216-025-11 RES-CHIP 100 5% 1/10W R341 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R342 1-216-295-11 SHORT 0 R345 1-216-049-11 RES-CHIP 1K 5% 1/10W R500 1-216-097-11 RES-CHIP 100K 5% 1/10W R501 1-216-049-11 RES-CHIP 1K 5% 1/10W R502 1-216-049-11 RES-CHIP 1K 5% 1/10W R503 1-216-049-11 RES-CHIP 1K 5% 1/10W R504 1-216-049-11 RES-CHIP 1K 5% 1/10W R505 1-216-295-11 SHORT 0 R506 1-216-049-11 RES-CHIP 1K 5% 1/10W R507 1-216-049-11 RES-CHIP 1K 5% 1/10W R508 1-216-049-11 RES-CHIP 1K 5% 1/10W R509 1-216-097-11 RES-CHIP 100K 5% 1/10W R511 1-216-295-11 SHORT 0 R512 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R513 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R514 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R515 1-216-295-11 SHORT 0 R516 1-216-097-11 RES-CHIP 100K 5% 1/10W R517 1-216-097-11 RES-CHIP 100K 5% 1/10W R518 1-216-097-11 RES-CHIP 100K 5% 1/10W R520 1-216-097-11 RES-CHIP 100K 5% 1/10W R521 1-216-097-11 RES-CHIP 100K 5% 1/10W R522 1-216-097-11 RES-CHIP 100K 5% 1/10W R523 1-216-097-11 RES-CHIP 100K 5% 1/10W R524 1-216-097-11 RES-CHIP 100K 5% 1/10W R525 1-216-037-00 METAL CHIP 330 5% 1/10W R526 1-216-089-11 RES-CHIP 47K 5% 1/10W R527 1-216-089-11 RES-CHIP 47K 5% 1/10W R528 1-216-089-11 RES-CHIP 47K 5% 1/10W R529 1-216-089-11 RES-CHIP 47K 5% 1/10W R530 1-216-073-00 METAL CHIP 10K 5% 1/10W R531 1-216-073-00 METAL CHIP 10K 5% 1/10W R532 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R533 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R534 1-216-698-11 METAL CHIP 91K 0.5% 1/10W R535 1-216-698-11 METAL CHIP 91K 0.5% 1/10W R536 1-216-699-11 METAL CHIP 100K 0.5% 1/10W R538 1-216-097-11 RES-CHIP 100K 5% 1/10W R539 1-216-085-00 METAL CHIP 33K 5% 1/10W R540 1-216-073-00 METAL CHIP 10K 5% 1/10W R541 1-216-073-00 METAL CHIP 10K 5% 1/10W R542 1-216-089-11 RES-CHIP 47K 5% 1/10W R543 1-216-089-11 RES-CHIP 47K 5% 1/10W R544 1-216-113-00 METAL CHIP 470K 5% 1/10W R545 1-216-097-11 RES-CHIP 100K 5% 1/10W R546 1-216-675-11 METAL CHIP 10K 0.5% 1/10W R547 1-216-675-11 METAL CHIP 10K 0.5% 1/10W R548 1-216-025-11 RES-CHIP 100 5% 1/10W R549 1-216-025-11 RES-CHIP 100 5% 1/10W R550 1-216-025-11 RES-CHIP 100 5% 1/10W R551 1-216-025-11 RES-CHIP 100 5% 1/10W R552 1-216-675-11 METAL CHIP 10K 0.5% 1/10W R553 1-216-675-11 METAL CHIP 10K 0.5% 1/10W R554 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R555 1-216-073-00 METAL CHIP 10K 5% 1/10W R556 1-216-105-00 RES-CHIP 220K 5% 1/10W R557 1-216-049-11 RES-CHIP 1K 5% 1/10W R558 1-216-049-11 RES-CHIP 1K 5% 1/10W R600 1-216-049-11 RES-CHIP 1K 5% 1/10W R601 1-216-150-00 RES-CHIP 10 5% 1/8W R602 1-216-150-00 RES-CHIP 10 5% 1/8W R603 1-216-150-00 RES-CHIP 10 5% 1/8W R604 1-216-150-00 RES-CHIP 10 5% 1/8W R605 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R606 1-216-073-00 METAL CHIP 10K 5% 1/10W R620 1-216-158-00 RES-CHIP 22 5% 1/8W R621 1-216-295-11 SHORT 0 R623 1-216-079-00 METAL CHIP 18K 5% 1/10W R624 1-216-089-11 RES-CHIP 47K 5% 1/10W R625 1-216-073-00 METAL CHIP 10K 5% 1/10W R626 1-216-025-11 RES-CHIP 100 5% 1/10W R627 1-216-025-11 RES-CHIP 100 5% 1/10W R628 1-216-073-00 METAL CHIP 10K 5% 1/10W R651 1-216-025-11 RES-CHIP 100 5% 1/10W R652 1-216-085-00 METAL CHIP 33K 5% 1/10W R653 1-216-041-00 METAL CHIP 470 5% 1/10W R654 8-719-421-24 DIODE MA8039-H-TX R655 1-216-049-11 RES-CHIP 1K 5% 1/10W R656 1-216-079-00 METAL CHIP 18K 5% 1/10W R657 1-216-214-00 RES-CHIP 4.7K 5% 1/8W R658 1-216-214-00 RES-CHIP 4.7K 5% 1/8W R659 1-216-075-00 METAL CHIP 12K 5% 1/10W R660 1-216-081-00 METAL CHIP 22K 5% 1/10W R661 1-216-081-00 METAL CHIP 22K 5% 1/10W R662 1-216-017-00 RES-CHIP 47 5% 1/10W R680 1-216-073-00 METAL CHIP 10K 5% 1/10W R681 1-216-073-00 METAL CHIP 10K 5% 1/10W < VARIABLE RESISTOR > RV100 1-238-600-11 RES, ADJ, CARBON 10K www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN SENSOR SERVO RV200 1-238-600-11 RES, ADJ, CARBON 10K < SWITCH > S501 1-571-478-11 SWITCH, SLIDE (POWER SELECT) S502 1-571-478-11 SWITCH, SLIDE (FREQUENCY SELECT) < TUNER > TU1 A-3282-029-A TUNER UNIT (TUX-006/2 (E)) < VIBRATOR > X1 1-567-848-11 VIBRATOR, CRYSTAL (7.2MHz) X500 1-579-233-11 VIBRATOR, CERAMIC (5MHz) X501 1-567-098-41 VIBRATOR, CRYSTAL (32.768kHz) ************************************************************* * 1-660-797-21 SENSOR BOARD ************** < DIODE > D10 8-719-045-75 LED CL-200IR-X-TU D11 8-719-045-75 LED CL-200IR-X-TU D12 8-719-045-75 LED CL-200IR-X-TU < RESISTOR > R10 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R11 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R12 1-216-053-00 METAL CHIP 1.5K 5% 1/10W < SWITCH > SW1 1-572-288-21 SWITCH, PUSH (SELF) ************************************************************* * A-3313-563-A SERVO BOARD, COMPLETE ********************** < CAPACITOR > C1 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C2 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C3 1-135-145-11 TANTALUM CHIP 0.47uF 10% 35V C4 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C5 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C6 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C7 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C9 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C10 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C11 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C12 1-163-227-11 CERAMIC CHIP 10PF 0.5PF 50V C13 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C14 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V C15 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C16 1-163-989-11 CERAMIC CHIP 0.033uF 10% 25V C17 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C18 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C19 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C20 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C21 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C22 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C23 1-135-259-11 TANTAL. CHIP 10uF 20% 6.3V C24 1-163-125-00 CERAMIC CHIP 220PF 5% 50V C25 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C26 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C27 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C28 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V C29 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C30 1-126-603-11 ELECT CHIP 4.7uF 20% 35V C31 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C32 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V C33 1-124-779-00 ELECT CHIP 10uF 20% 16V C34 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C35 1-163-021-11 CERAMIC CHIP 0.01uF 10% 50V C36 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C38 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C39 1-126-204-11 ELECT CHIP 47uF 20% 16V C40 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > CN1 1-764-616-12 HOUSING, CONNECTOR (PC BOARD) 30P CN2 1-565-728-11 CONNECTOR, FPC 17P CN3 1-770-347-21 CONNECTOR, FPC 6P * CN4 1-580-056-21 PIN, CONNECTOR (SMD) 3P < IC > IC1 8-752-372-94 IC CXD2507AQ IC2 8-752-074-34 IC CXA1782BQ IC3 8-759-354-16 IC BA6796FP-T1 < JUMPER RESISTOR > JR2 1-216-296-00 SHORT 0 JR3 1-216-296-00 SHORT 0 JR5 1-216-296-00 SHORT 0 JR6 1-216-296-00 SHORT 0 JR7 1-216-296-00 SHORT 0 JR8 1-216-296-00 SHORT 0 JR9 1-216-296-00 SHORT 0 JR10 1-216-296-00 SHORT 0 JR11 1-216-296-00 SHORT 0 JR12 1-216-296-00 SHORT 0 JR13 1-216-296-00 SHORT 0 JR14 1-216-296-00 SHORT 0 JR15 1-216-296-00 SHORT 0 JR16 1-216-296-00 SHORT 0 JR17 1-216-296-00 SHORT 0 JR18 1-216-296-00 SHORT 0 JR19 1-216-296-00 SHORT 0 JR20 1-216-296-00 SHORT 0 JR21 1-216-296-00 SHORT 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark SERVO JR22 1-216-296-00 SHORT 0 JR23 1-216-296-00 SHORT 0 JR24 1-216-296-00 SHORT 0 JR25 1-216-296-00 SHORT 0 JR26 1-216-296-00 SHORT 0 JR27 1-216-296-00 SHORT 0 JR28 1-216-296-00 SHORT 0 JR29 1-216-296-00 SHORT 0 JR30 1-216-296-00 SHORT 0 JR31 1-216-296-00 SHORT 0 JR34 1-216-296-00 SHORT 0 JR35 1-216-296-00 SHORT 0 JR36 1-216-296-00 SHORT 0 JR37 1-216-296-00 SHORT 0 JR38 1-216-296-00 SHORT 0 JR39 1-216-296-00 SHORT 0 JR40 1-216-296-00 SHORT 0 JR41 1-216-296-00 SHORT 0 JR42 1-216-296-00 SHORT 0 JR43 1-216-296-00 SHORT 0 JR44 1-216-296-00 SHORT 0 JR45 1-216-296-00 SHORT 0 JR46 1-216-296-00 SHORT 0 JR47 1-216-296-00 SHORT 0 JR48 1-216-296-00 SHORT 0 JR49 1-216-296-00 SHORT 0 JR50 1-216-296-00 SHORT 0 JR51 1-216-296-00 SHORT 0 JR52 1-216-296-00 SHORT 0 JR53 1-216-296-00 SHORT 0 JR54 1-216-296-00 SHORT 0 JR55 1-216-296-00 SHORT 0 JR56 1-216-296-00 SHORT 0 JR57 1-216-296-00 SHORT 0 JR58 1-216-296-00 SHORT 0 JR59 1-216-296-00 SHORT 0 JR60 1-216-296-00 SHORT 0 < COIL > L1 1-412-058-11 INDUCTOR CHIP 10uH L2 1-412-058-11 INDUCTOR CHIP 10uH L3 1-412-058-11 INDUCTOR CHIP 10uH < TRANSISTOR > Q1 8-729-904-60 TRANSISTOR DTB113ZK-T-146 Q2 8-729-904-86 TRANSISTOR 2SB1197K-T-146-Q Q11 8-729-037-94 PHOTO TRANISTOR CPT-230S-C-TD-BC Q12 8-729-037-94 PHOTO TRANISTOR CPT-230S-C-TD-BC Q13 8-729-037-94 PHOTO TRANISTOR CPT-230S-C-TD-BC < RESISTOR > R1 1-216-073-00 METAL CHIP 10K 5% 1/10W R2 1-216-097-11 RES-CHIP 100K 5% 1/10W R3 1-216-121-11 RES-CHIP 1M 5% 1/10W R4 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R5 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R6 1-216-073-00 METAL CHIP 10K 5% 1/10W R7 1-216-009-00 RES-CHIP 22 5% 1/10W R8 1-216-119-00 METAL CHIP 820K 5% 1/10W R9 1-216-119-00 METAL CHIP 820K 5% 1/10W R10 1-216-073-00 METAL CHIP 10K 5% 1/10W R11 1-216-073-00 METAL CHIP 10K 5% 1/10W R14 1-216-085-00 METAL CHIP 33K 5% 1/10W R15 1-216-085-00 METAL CHIP 33K 5% 1/10W R16 1-216-077-00 RES-CHIP 15K 5% 1/10W R17 1-216-081-00 METAL CHIP 22K 5% 1/10W R19 1-216-079-00 METAL CHIP 18K 5% 1/10W R20 1-216-105-00 RES-CHIP 220K 5% 1/10W R21 1-216-105-00 RES-CHIP 220K 5% 1/10W R22 1-216-085-00 METAL CHIP 33K 5% 1/10W R23 1-216-121-11 RES-CHIP 1M 5% 1/10W R24 1-216-073-00 METAL CHIP 10K 5% 1/10W R27 1-216-295-11 SHORT 0 R28 1-216-101-00 METAL CHIP 150K 5% 1/10W R29 1-216-097-11 RES-CHIP 100K 5% 1/10W R30 1-216-097-11 RES-CHIP 100K 5% 1/10W R31 1-216-081-00 METAL CHIP 22K 5% 1/10W R32 1-216-109-00 METAL CHIP 330K 5% 1/10W R33 1-216-105-00 RES-CHIP 220K 5% 1/10W R34 1-216-009-00 RES-CHIP 22 5% 1/10W R35 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R36 1-216-097-11 RES-CHIP 100K 5% 1/10W R37 1-216-117-00 METAL CHIP 680K 5% 1/10W R38 1-216-109-00 METAL CHIP 330K 5% 1/10W R39 1-216-101-00 METAL CHIP 150K 5% 1/10W R40 1-216-114-00 RES-CHIP 510K 5% 1/10W R41 1-216-093-00 RES-CHIP 68K 5% 1/10W R42 1-216-101-00 METAL CHIP 150K 5% 1/10W R43 1-216-097-11 RES-CHIP 100K 5% 1/10W R44 1-216-085-00 METAL CHIP 33K 5% 1/10W R45 1-216-081-00 METAL CHIP 22K 5% 1/10W R46 1-216-097-11 RES-CHIP 100K 5% 1/10W R47 1-216-105-00 RES-CHIP 220K 5% 1/10W R48 1-216-073-00 METAL CHIP 10K 5% 1/10W R49 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R50 1-216-065-00 RES-CHIP 4.7K 5% 1/10W R51 1-216-295-11 SHORT 0 < VARIABLE RESISTOR > RV1 1-238-091-11 RES, ADJ, CERMET 22K RV4 1-238-091-11 RES, ADJ, CERMET 22K ************************************************************* www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 Sony Corporation Audio Entertainment Group 9-870-210-11 WX-C5000 2000I0415-1 Printed in Japan ©2000. 9 Published by ME General Engineering Dept. Ref. No. Part No. Description Remark SUB Ref. No. Part No. Description Remark The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. TR * 1-659-834-11 SUB BOARD ********** < CONNECTOR > CN1 1-770-347-21 CONNECTOR, FPC 6P ************************************************************* * 1-676-336-11 TR BOARD ********* < CAPACITOR > C901 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C902 1-126-964-11 ELECT 10uF 20% 50V C903 1-126-964-11 ELECT 10uF 20% 50V C904 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C905 1-126-964-11 ELECT 10uF 20% 50V C906 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V < CONNECTOR > * CN901 1-564-508-11 PLUG, CONNECTOR 5P < TRANSISTOR > Q901 8-729-019-00 TRANSISTOR 2SD2394-G ************************************************************* MISCELLANEOUS *************** 1 1-791-457-11 CORD (WITH CONNECTOR) (POWER) 307 1-659-880-11 MOTOR FLEXIBLE BOARD 0310 8-820-010-06 PICK-UP, OPTICAL KSS-521A/K1RP 312 1-659-881-11 PICK-UP FLEXIBLE BOARD F901 1-532-877-11 FUSE (BLADE TYPE) (AUTO FUSE) 10A FL701 1-517-885-11 INDICATOR TUBE, FLUORESCENT HP901 1-500-157-21 HEAD, MAGNETIC (PLAYBACK) M901 X-3373-664-2 MOTOR ASSY (SPINDLE) M902 A-3291-674-A MOTOR ASSY, SLED (SLED) M903 A-3291-676-A MOTOR SUB ASSY, LO (LOADING) M904 A-3291-665-A MOTOR ASSY, MAIN (CAPSTAN/REEL) VR771 1-418-378-12 ENCODER, JOG ************************************************************* ACCESSORIES & PACKING MATERIALS ******************************** 3-048-532-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH, TRADITIONAL CHINESE,KOREAN) 3-048-533-11 MANUAL, INSTRUCTION, INSTALL (ENGLISH, SPANISH,TRADITIONAL CHINESE,KOREAN) X-3374-605-2 COVER ASSY, FRONT ************************************************************* ************** HARDWARE LIST ************** #1 7-685-791-09 SCREW +PTT 2.6X5 (S) #2 7-685-795-09 SCREW +PTT 2.6X12 (S) #3 7-685-793-09 SCREW +PTT 2.6X8 (S) #4 7-685-792-09 SCREW +PTT 2.6X6 (S) #5 7-624-104-04 STOP RING 2.0, TYPE -E #6 7-627-553-37 SCREW, PRECISION +P 2X3 TYPE 3 #7 7-628-253-15 SCREW +PS 2X5 #8 7-627-553-17 SCREW, PRECISION +P 2X2 TYPE 3 #9 7-627-000-00 SCREW, PRECISION +P 1.7X2.2 TYPE 3 #10 7-627-850-28 SCREW, PRECISION +P 1.4X3 #11 7-685-794-09 SCREW +PTT 2.6X10 (S) ************************************************************* PARTS FOR INSTALLATION AND CONNECTIONS *************************************** 401 X-3375-549-1 SCREW ASSY (6) 402 3-034-274-01 FRAME (N), ORNAMENT 403 1-791-457-11 CORD (WITH CONNECTOR) (POWER) 402 401 403 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
