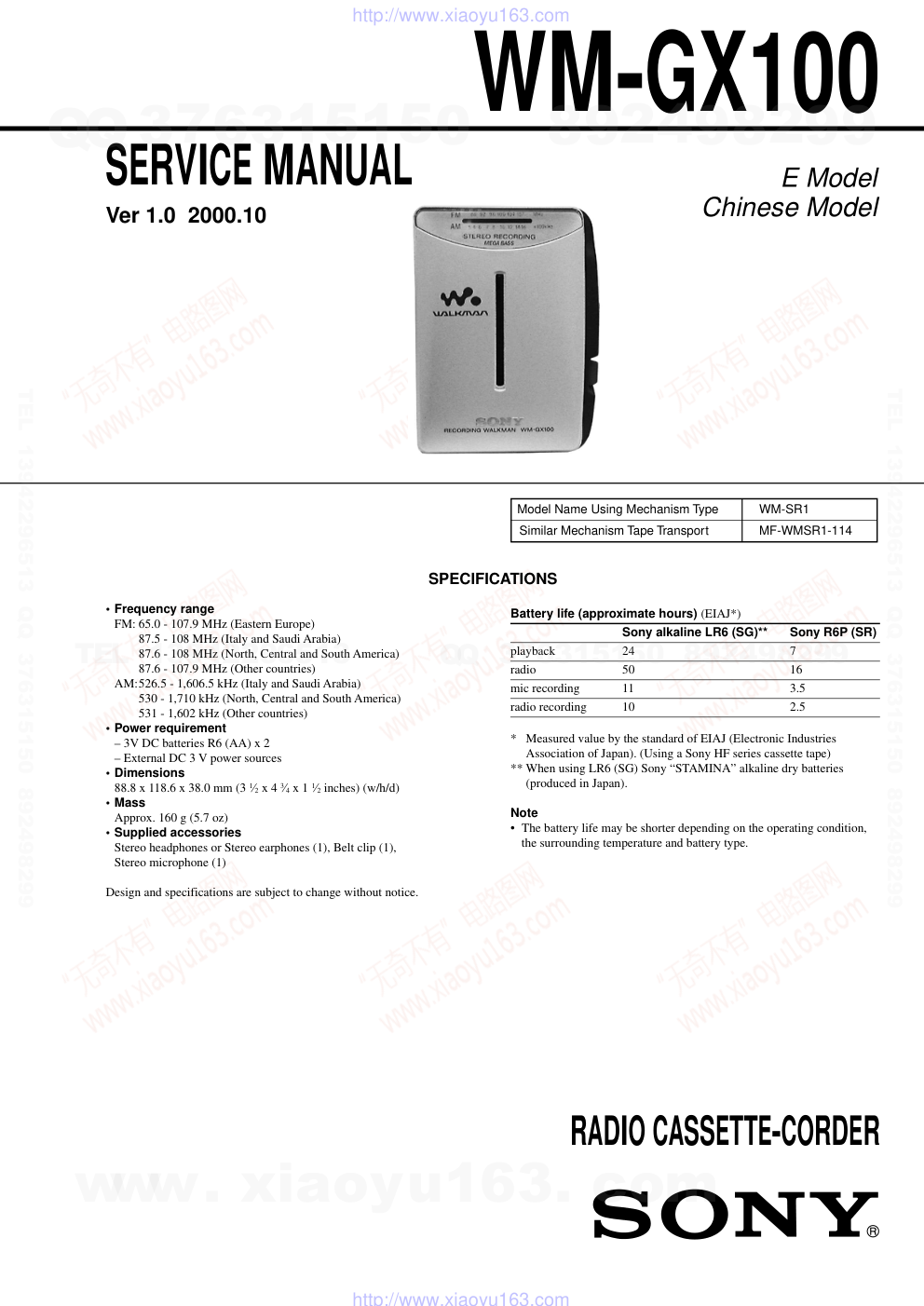

Ver 1.0 2000.10 SERVICE MANUAL RADIO CASSETTE-CORDER SPECIFICATIONS E Model Chinese Model • Frequency range FM: 65.0 - 107.9 MHz (Eastern Europe) 87.5 - 108 MHz (Italy and Saudi Arabia) 87.6 - 108 MHz (North, Central and South America) 87.6 - 107.9 MHz (Other countries) AM:526.5 - 1,606.5 kHz (Italy and Saudi Arabia) 530 - 1,710 kHz (North, Central and South America) 531 - 1,602 kHz (Other countries) • Power requirement – 3V DC batteries R6 (AA) x 2 – External DC 3 V power sources • Dimensions 88.8 x 118.6 x 38.0 mm (3 1⁄2 x 4 3⁄4 x 1 1⁄2 inches) (w/h/d) • Mass Approx. 160 g (5.7 oz) • Supplied accessories Stereo headphones or Stereo earphones (1), Belt clip (1), Stereo microphone (1) Design and specifications are subject to change without notice. Battery life (approximate hours) (EIAJ*) Sony alkaline LR6 (SG)** Sony R6P (SR) playback 24 7 radio 50 16 mic recording 11 3.5 radio recording 10 2.5 * Measured value by the standard of EIAJ (Electronic Industries Association of Japan). (Using a Sony HF series cassette tape) ** When using LR6 (SG) Sony “STAMINA” alkaline dry batteries (produced in Japan). Note • The battery life may be shorter depending on the operating condition, the surrounding temperature and battery type. Model Name Using Mechanism Type WM-SR1 Similar Mechanism Tape Transport MF-WMSR1-114 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Specifications ........................................................................... 1 1. GENERAL Location and Function of Controls .................................... 2 2. DISASSEMBLY 2-1. Cabinet (Rear)............................................................. 3 2-2. Main Board ................................................................. 4 2-3. Mechanism Deck ........................................................ 4 2-4. Motor (M901), “Head, Magnetic” (HRP901) ............ 5 2-5. Holder Sub ASSY, Cassette ........................................ 5 2-6. Setting the Pointer ...................................................... 6 3. ADJUSTMENTS 3-1. Mechanical Adjustments............................................. 7 3-2. Electrical Adjustments ................................................ 7 4. DIAGRAMS 4-1. Block Diagram (1/2) ................................................... 9 4-2. Block Diagram (2/2) ..................................................11 4-3. Printed Wiring Boards .............................................. 13 4-4. Schematic Diagram (1/2) .......................................... 15 4-5. Schematic Diagram (2/2) .......................................... 17 5. EXPLODED VIEWS 5-1. Cabinet Section ......................................................... 21 5-2. Mechanism Deck Section ......................................... 22 6. ELECTRICAL PARTS LIST ................................... 23 Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270°C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. TABLE OF CONTENTS SECTION 1 GENERAL LOCATION AND FUNCTION OF CONTROLS This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 2-1. CABINET (REAR) z The equipment can be removed using the following procedure. L K J I B C D E F G H 2 Cabinet (rear) (A– L : Claws) 1 Screws (B 1.7) A Align switches and knobs with arrow direction z CAUTIONS DURING CABINET (REAR) ASSEMBLY S310 S308 S2 S305 S307 Cabinet (Front) Main board Cabinet (rear) “Holder sub ASSY, Cassette” Mechanism deck (MF-WMSR1-114) Motor (M901), “Head, Magnetic” (HRP901) Set www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – 2-3. MECHANISM DECK (MF-WMSR1-114) 2-2. MAIN BOARD Main board 3 Screw (M1.4) 2 Head flexible board (CN301) 1 Remove solder (4 places) (M901) 4 Claws 5 1 Claws Mechanism deck (MF-WMSR1-114) 2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – 2-5. HOLDER SUB ASSY, CASSETTE 2-4. MOTOR (M901), “HEAD, MAGNETIC” (HRP901) 1 Belt Belt 3 Motor (M901) 2 Screws (M1.4) 4 “Head, Magnetic” (HRP901) Wheel ASSY (NP), capstan How to apply the belt M901 2 4 Holder sub ASSY, cassette 3 Spring (tortion) Hinge 1 Move hinge awsy from projection 1 Move hinge awsy from projection Hinge www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – z CAUTIONS DURING “HOLDER SUB ASSY, CASSETTE” ASSEMBLY 2 4 Holder sub ASSY, cassette 1 Spring (tortion) 3 Close the “Holder sub ASSY, cassette” then press it 2-6. SETTING THE POINTER 2 Install the pointer and align it with A section A Pointer Pointer 1 Turn the tuning knob in the arrow direction www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – SECTION 3 ADJUSTMENTS 3-2. ELECTRICAL ADJUSTMENTS PRECAUTION • Supplied voltage : 2.5V. • Switch and control position MEGA BASS : OFF VOLUME control : maximum AVLS : NORM PB EQ : NORM ISS : 1 FM MODE : ST TAPE SECTION Test Tape Type Signal Used for WS-48A 3kHz, 0dB Tape Speed Adjustment Tape Speed Adjustment Procedure : 1. Playback WS-48A (tape center part) and adjust RV601 so that the frequency counter reading becomes 3,000Hz. Standard value : 2,985–3,015Hz 2. Playback WS-48A (tape top and end) . Check that frequency counter reading is within ±1.5% of the reading of step 1. 0 dB = 0.775V set test tape WS-48A (3kHz, 0dB) frequency counter 16 Ω phones jack (J301) 3-1. MECHANICAL ADJUSTMENTS PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened swab : playback head pinch roller capstan rubber belt 2. Demagnetize the playback head with a head demagnetizer. Do not use a magnetized screwdriver for the adjustments. 3. These measurement and adjustment should be performed with the rated power supply voltage (2.5 V) unless otherwise noted. Torque Measurement Mode Torque meter Meter reading 1.97 – 2.94 mN•m FWD (20 – 30 g • cm) CQ-102D (0.28 – 0.41 oz• inch) FWD less than 0.19 mN•m (less than 2 g • cm) back tension (less than 0.027 oz• inch) more than 3.93 mN•m FF, REW CQ-201B (more than 40 g • cm) (more than 0.56 oz• inch) RV601 : Tape speed Adjustment TUNER SECTION AM Section BAND : AM FM Section BAND : FM 0 dB = 1µ V AM RF signal generator 30% amplitude modulation by 400Hz signal. Output level : as low as possible Put the lead-wire antenna close to the set. set 16 Ω phones jack (J301) level meter CT1-2 3 FM RF signal generator 22.5kHz frequency deviation by 400Hz signal. Output level : as low as possible ANT (TP30) 0.01µF MAIN BOARD (SIDE A) Adjustment Location : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – AM IF ADJUSTMENT Adjust for a maximum reading on level meter. T1 455kHz AM FREQUENCY COVERAGE ADJUSTMENT Adjust for a maximum reading on level meter. L4 515kHz <516.5kHz> CT1-4 1,680kHz <1631.5kHz> AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L1 620kHz CT1-1 1,400kHz FM FREQUENCY COVERAGE ADJUSTMENT Adjust for a maximum reading on level meter. L3 86MHz <87.35MHz> CT1-3 109.5MHz <108.25MHz> FM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L2 86MHz <87.35MHz> CT1-2 109.5MHz <108.25MHz> • Repeat the procedures in each adjustment several times, and the frequency coverage and tracking adjustments should be finally done by the trimmer capacitors. < > : Saudi Arabia model J302 L1 L2 L3 L4 T1 CT1-4 CT1-3 CT1-1 CT1-2 J302 FM Frequency Coverage Adjustment AM Frequency Coverage Adjustment AM IF Adjustment AM Tracking Adjustment Tape speed adjustment RV601 FM Tracking Adjustment MAIN BOARD (SIDE B) MAIN BOARD (SIDE A) Adjustment Location : Main board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – – 10 – WM-GX100 4-1. BLOCK DIAGRAM (1/2) SECTION 4 DIAGRAMS MIC AMP, ALC IC341 (1/2) REC/PB AMP IC341 (2/2) TAPE EQ AMP, MEGA BASS/AVLS CONTROL, HEADPHONE AMP IC301 02 ANT A TUNER MUTE C TUNER L/R TUNER L TUNER R B VCC B+ REC B+ D309 TAPE B+ REC B+ TAPE B+ BATT B+ SWITCHING Q608 D301 D302 D101 D102 HP MUTE VCC B+ VCC B+ REC B+ POWER MUTE SWITCH Q305 VCC B+ –2 –1 MIX OUT (L) MIX OUT (R) POWER IN (L) POWER IN (R) POWER OUT (L) POWER OUT (R) COM VREF L R LOW BOOST IN (L) LOW BOOST IN (R) MUTE PRE OUT L L-CH HE901 (ERASE) FWD L REV L HRP901 (REC/PB) D305 D306 TUNER B+ REC B+ TUNER VCC REC B+ BUF IN B PB OUT B REC OUT B BUF IN A MIC IN B MIC OUT B MIC IN A DET 2 OUT PRE NF 2 PRE OUT 2 PRE NF 1 PRE OUT 1 2 PWR MUTE 9 TUNER B+ PRE MUTE 10 26 25 21 22 6 AVLS 3 8 4 35 34 36 1 20 18 24 31 28 15 8 2 14 13 16 21 19 + + + + ALC MIC AMP PB AMP REC AMP MIC OUT A 17 ALC MIC AMP REC MUTE SWITCH Q359 PB MUTE SWITCH Q360 B+ SWITCH Q609 START/STOP CONTROL SWITCH Q610 START MUTE SWITCH Q606 REC BIAS OSC Q351 PRE MUTE SWITCH Q310 MUTING CONTROL SWITCH Q311 HEADPHONE SWITCHING Q356 TAPE EQ SWITCH Q101, 201 NF DET DET CONTROL M.B. ON/OFF 14 LOW BOOST J303 MIC RV301 VOLUME MUTING Q141 MUTING Q241 PB OUT A REC OUT A 9 3 EQ AMP POWER AMP POWER AMP POWER AMP MODE CONTROL CIRCUIT PB AMP REC AMP RADIO/TAPE 11 12 PWSW REC/PB R-CH S303 (1/4) S303 (2/4) REC PB S303 (REC/PB) REC PB S303 (4/4) (REC/PB) REC PB S303 (4/4) (REC/PB) NORM LIMIT CrO2/METAL NORM PB EQ S310 VREF OFF ON MEGA BASS S306 AVLS S305 OFF ON PAUSE ç S308 MUTE PRE OUT R FWD R REV R VREF VREF 23 30 29 32 EQ AMP + – + – + – VREF VREF MIX 2 MIX 1 T351 BIAS OSC S307 ISS 3 2 1 + J301 (HEADPHONE) 2 + STOP MUTE SWITCH Q607 + – SPEED CONTROL CAPSTAN/REEL MOTOR DRIVE IC601 M901 (CAPSTAN/REEL) MOTOR DRIVE CIRCUIT SWITCH & LOGIC CIRCUIT BIAS REFERENCE VOLTAGE OSC CIRCUIT TH601 TAPE SPEED RV601 S/S VREF IN+ COMPARATOR VSP OUT OSC 13 14 11 15 16 17 WOUT 6 VOUT 5 UOUT W V U 4 S301 (TAPE POWER) (ON at FF/REW/PLAY modes.) BATT B+ REC B+ VCC B+ TUNER VCC MIC B+ S1 (1/2) (FUNCTION) FM B+ TUNER B+ D503 D502 AM B+ TAPE B+ RIPPLE FILTER Q301, 302 B+ SWITCH Q341, 343 TUNER ON SWITCH Q303 TAPE ON SWITCH Q304 DRY BATTERY SIZE ‘‘AA’’ (IEC DESIGNATION R6) 2PCS. 3V FM AM TAPE (RADIO OFF) S1 (2/2) (FUNCTION) FM AM TAPE (RADIO OFF) D308 BATT J302 DC IN 3V – + • SIGNAL PATH : TUNER (FM/AM) : TAPE PLAY : TAPE REC : MIC INPUT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – – 12 – WM-GX100 4-2. BLOCK DIAGRAM (2/2) 1 4 8 24 21 23 FM RF AMP FM/AM MIX AMP FM/AM OSC FM IF AMP DECODER AMP SWITCH DIVIDER/ VCO FM DET LEVEL DET AM DET FM MUTE AF BUFFER AM IF AMP PD1 PD2 AM RF AMP 7 FM RF IN FM/AM MIX OUT CF1 10.7MHz X1 10.7MHz CF2 455kHz 12 FM IF IN 14 13 L-OUT R-OUT 15 16 10 AM IF IN LPF2 AM/XFM LPF1 M/XST TUN LED FM OSC 20 AM OSC L1 AM FERRITE-ROD ANTENNA FM RF OUT AM RF IN L2 FM RF FM/AM RF AMP, FM/AM MIX AMP, FM/AM OSC, FM/AM IF AMP, DET, MPX IC1 CT1-2 CV1-2 CV1 TUNING CT1-1 CV1-1 L3 FM OSC CT1-3 CV1-3 L4 AM OSC CT1-4 CV1-4 CT1-3, L3 FM FREQUENCY COVERAGE CT1-4, L4 AM FREQUENCY COVERAGE CT1-1, L1 AM TRACKING CT1-2, L2 FM TRACKING T1 AM IF B.P.F. FL1 FM/AM BAND SELECT SWITCH Q33, 34 FM B+ D33 ANT A TUNER MUTE C TUNER L/R B • SIGNAL PATH : FM : AM 02 11 ST LED AGC TUN LED ST LED MUTING CONTROL SWITCH Q30 – 32 AM B+ FM B+ DET OUT AF AMP MPX IN QUAD 18 17 S2 FM MODE MONO ST w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – – 14 – WM-GX100 02 2 3 4 5 6 7 8 9 10 11 A 1 B C D E F G H IC1 IC341 IC301 IC601 D308 BATT 11 (11) 1-679-163- 11 (11) 1-679-163- C7 RV301 w VOLUME C9 R310 CV1-1 CV1-4 CV1-2 CV1-3 CT1-2 CT1-3 CT1-1 CT1-4 4-3. PRINTED WIRING BOARDS Note: • X : parts extracted from the component side. • a : Through hole. • Abbreviation EA : Saudi Arabia CH : Chinese TW : Taiwan E : Indication of country of origin 9E : No Indication of country of origin • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. D33 E-7 D101 G-10 D102 G-10 D301 F-8 D302 F-8 D305 D-9 D306 D-9 D308 G-2 D309 F-9 D405 F-8 D502 E-2 D503 E-2 IC1 C-3 IC301 E-3 IC341 D-2 IC601 G-2 Q30 F-9 Q31 F-7 Q32 F-7 Q33 D-7 Q34 D-7 Q101 F-2 Q141 B-10 Q201 F-2 Q241 B-10 Q301 F-3 Q302 F-3 Q303 F-3 Q304 F-3 Q305 E-10 Q310 E-9 Q311 F-9 Q341 D-10 Q343 D-10 Q351 H-4 Q356 D-9 Q359 F-9 Q360 F-9 Q606 G-10 Q607 F-10 Q608 F-10 Q609 F-10 Q610 F-10 Ref. No. Location z Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 15 – – 16 – WM-GX100 4-4. SCHEMATIC DIAGRAM (1/2) z Refer to page 19 - 20 for IC Block Diagrams. z Refer to page 19 for Notes. z Refer to page 19 for Waveforms. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 17 – – 18 – WM-GX100 4-5. SCHEMATIC DIAGRAM (2/2) z Refer to page 19 - 20 for IC Block Diagrams. z Refer to page 19 for Notes. z Refer to page 19 for Waveforms. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 19 – Note on Schematic Diagram: Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • A : B+ Line. • H : adjustment for repair. • Power voltage is dc 3 V and fed with regulated dc power supply from external power voltage jack. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark :FM ( ) :AM (RADIO SECTION), PLAY (TAPE SECTION) • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM f : AM E : PB d : REC N : MIC • Abbreviation EA : Saudi Arabia CH : Chinese TW : Taiwan E : Indication of country of origin 9E : No Indication of country of origin IC1 TA2111F- (EL) r IC Block Diagrams AM RF IN FM RF OUT FM RF IN RF GND AM LOW-CUT FM/AM MIX OUT AGC VCC AM IF IN FM IF IN GND TUN LED ST LED QUAD FM OSC AM OSC AFC DET OUT MPX IN LPF2 LPF1 L-OUT R-OUT 7 5 4 3 1 2 6 8 9 12 10 11 14 15 16 17 18 19 21 20 24 23 RF VCC 22 13 Φ Φ DECODER VCO DIVIDER ST/MONO FM/AM AF AMP FM MUTE AF BUFFER FM DET AM DET AM RF AMP FM RF AMP FM MIX FM OSC AM OSC AM MIX TUN LED ST LED FM IF AMP AM IF AMP AGC LEVEL DET z Waveforms 1 T351 (REC MODE) 2 VOLT/DIV : 50 mV AC TIME/DIV : 10 µs IC601 qa 80 mVp-p 20 µs 42 mVp-p 15 ms www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 20 – IC601 LB1979V-TLM IC301 LA4585M-TLM SW OUT 1 PRE OUT 1 POWER IN 1 DET 2 OUT DET 2 IN POWER OUT 1 POWER GND POWER OUT C VCC POWER OUT 2 PWR MUTE SW LOW BOOST IN 2 H.P. 2 LOW BOOST NF L.P. 1 FWD/REV SW PRE MUTE SW DET 1 OUT L.P. 2 LOW BOOST SW PRE NF 1 LOW BOOST IN 1 H.P. 1 7 5 4 3 1 2 6 8 9 12 10 11 14 15 16 17 18 19 21 20 23 22 PRE OUT 2 SW OUT 2 25 24 PRE GND PRE NF 2 27 26 13 PRE REV IN 2 PRE REV IN 1 PRE FWD IN 2 PRE FWD IN 1 MIX OUT 2 POWER IN 2 MIX OUT 1 R.F. REF VREF 34 36 35 32 31 30 29 28 33 LOW BOOST SYSTEM CONTROL DET DET RIPPLE FILTER PRE 1 PRE 2 MIX 1 MIX 2 PWR 1 PWR C PWR 2 REF REF + – + – + – + – + – REF REF REF FC GND VCC VCC FC WB VCC NC UOUT VOUT WOUT P-GND VB UB GND TO CONTROL BLOCKS TO EACH BLOCKS RI OUT VSP IN+ VREF S/S COM OSC 7 5 4 3 1 2 6 8 9 10 11 12 13 14 15 16 18 20 19 STARTING DETECT POWER SUPPLY BIAS OSCILLATING CIRCUIT SPEED CONTROL REFERENCE VOLTAGE REFERENCE VOLTAGE CURRENT DETECT SPEED DETECT WAVEFORM DETECT COMMUTATION STARTING LOGIC SOFT SWITCH PRE DRIVER + – 17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 21 – SECTION 5 EXPLODED VIEWS NOTE : • -XX, -X mean standardized parts, so they may have some difference from the original one. • Color indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ••• (RED) ↑ ↑ Parts color Cabinet's color • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 5-1. CABINET SECTION 1 3-932-037-01 SPRING (CASSETTE) 2 3-930-036-01 SPRING (REC) 3 3-930-035-01 LEVER (REC) 4 3-220-773-11 CABINET (FRONT) 5 3-007-012-01 SPRING (TORSION) 6 X-3379-416-2 HOLDER SUB ASSY (S-E),CASSETTE (SILVER) (E,9E,CH,TW) 6 X-3379-417-1 HOLDER SUB ASSY (S-E),CASSETTE (BLUE) (E,9E,CH,TW) 6 X-3379-418-2 HOLDER SUB ASSY(S-EA),CASSETTE (SILVER) (EA) 6 X-3379-419-1 HOLDER SUB ASSY(B-EA),CASSETTE (BLUE) (EA) 7 3-930-021-11 BUTTON (REC) 8 3-221-751-11 BUTTON (REW) 9 3-221-752-11 BUTTON (PLAY) 10 3-221-750-11 BUTTON (FF) 11 3-221-749-11 BUTTON (STOP) 12 3-022-294-01 POINTER 13 3-022-293-01 KNOB, TUNING * 14 A-3021-347-A MAIN PC BOARD ASSY (E,9E,CH,TW) * 14 A-3021-348-A MAIN PC BOARD ASSY (EA) 15 3-029-332-03 TERMINAL (-), BATTERY 16 3-031-416-01 TERMINAL (+), BATTERY 17 3-015-285-01 SCREW (M1.4),TOOTHED LOCK (WH) 18 3-022-580-01 SHEET 19 3-220-774-11 CABINET (REAR) (E,EA,CH,TW) 19 3-220-774-21 CABINET (REAR) (9E) 20 3-318-203-92 SCREW (B1.7), TAPPING 21 3-221-756-11 LID, BATTERY CASE 22 3-221-754-11 KNOB (AVLS) 23 3-221-755-11 KNOB (PAUSE) 24 3-022-581-01 PLATE, LIGHT GUIDE L1 1-754-041-11 ANTENNA, FERRITE-ROD (MW) (AM TRACKING) 5 6 7 8 9 10 11 12 13 15 14 16 17 24 18 20 22 23 22 20 19 21 1 2 3 4 MF-WMSR1-114 L1 • Abbreviation EA : Saudi Arabia CH : Chinese TW : Taiwan E : Indication of country of origin 9E : No Indication of country of origin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 22 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 3-703-816-73 SCREW (M1.4), SPECIAL HEAD 52 3-704-197-01 SCREW (M1.4), SPECIAL HEAD 53 X-3369-749-1 PINCH LEVER (N) ASSY 54 3-920-996-01 SPRING (PINCH N) 55 3-921-797-01 WASHER 56 X-3376-931-1 CHASSIS (COMP) ASSY (GL-02-REC) 57 3-938-613-01 LEVER (OW), DETECTION 58 3-920-990-01 SPRING (UD), COMPRESSION 59 3-921-335-01 WASHER, LEVER 60 3-923-530-01 SLEEVE (M) 61 3-728-091-01 WASHER, STOPPER 62 X-3372-619-1 WHEEL ASSY (NP), CAPSTAN 63 3-013-560-11 BELT M901 1-698-839-11 MOTOR (including PULLEY) HE901 1-500-291-11 HEAD, MAGNETIC (ERASE) HRP901 1-500-595-11 HEAD, MAGNETIC(RECOR.PLAYBACK) 51 HRP901 HE901 M901 52 53 54 55 56 57 58 59 60 61 62 63 5-2. MECHANISM DECK SECTION (MF-WMSR1-114) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – NOTE : • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms METAL : Metal-film resistor METAL OXIDE :Metal oxide-film resistor F : nonflammable • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ , for example : uA.... : µ A.... , uPA.... : µ PA.... uPB.... : µ PB.... , uPC.... : µ PC.... uPD.... : µ PD.... • CAPACITORS uF : µ F • COILS uH : µ H When indicating parts by reference num- ber, please include the board. SECTION 6 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * A-3021-347-A MAIN BOARD, COMPLETE (E,9E,CH,TW) * A-3021-348-A MAIN BOARD, COMPLETE (EA) ********************* 3-029-332-02 TERMINAL (-), BATTERY 3-031-416-01 TERMINAL (+), BATTERY < CAPACITOR > C1 1-163-086-03 CERAMIC CHIP 3PF 50V (EA) C1 1-163-217-11 CERAMIC CHIP 1PF 0.25PF 50V (E,9E,CH,TW) C3 1-163-101-00 CERAMIC CHIP 22PF 5% 50V (EA) C3 1-163-093-00 CERAMIC CHIP 10PF 5% 50V (E,9E,CH,TW) C4 1-163-091-00 CERAMIC CHIP 8PF 50V (E,9E,CH,TW) C5 1-163-101-11 CERAMIC CHIP 22PF 5% 50V (EA) C5 1-163-097-00 CERAMIC CHIP 15PF 5% 50V (E,9E,CH,TW) C6 1-163-088-00 CERAMIC CHIP 5PF 50V (EA) C6 1-163-090-00 CERAMIC CHIP 7PF 50V (E,9E,CH,TW) C7 1-163-085-00 CERAMIC CHIP 2PF 50V C8 1-163-092-00 CERAMIC CHIP 9PF 0.25PF 50V (EA) C8 1-163-091-00 CERAMIC CHIP 8PF 50V (E,9E,CH,TW) C9 1-162-911-11 CERAMIC CHIP 6PF 0.50PF 50V C10 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C11 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V C12 1-164-156-11 CERAMIC CHIP 0.1uF 25V C13 1-164-346-11 CERAMIC CHIP 1uF 16V C14 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C15 1-124-584-00 ELECT 100uF 20% 10V C16 1-164-373-11 CERAMIC CHIP 0.033uF 25V C17 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C18 1-164-005-11 CERAMIC CHIP 0.47uF 25V C19 1-164-357-11 CERAMIC CHIP 0.001uF 5% 50V C21 1-164-005-11 CERAMIC CHIP 0.47uF 25V C22 1-164-005-11 CERAMIC CHIP 0.47uF 25V C23 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V C24 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V C29 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C30 1-164-346-11 CERAMIC CHIP 1uF 16V C31 1-164-346-11 CERAMIC CHIP 1uF 16V C32 1-164-346-11 CERAMIC CHIP 1uF 16V C52 1-162-995-11 CERAMIC CHIP 0.022uF 50V C53 1-162-995-11 CERAMIC CHIP 0.022uF 50V C55 1-162-995-11 CERAMIC CHIP 0.022uF 50V C100 1-124-635-00 ELECT 220uF 20% 6.3V C101 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C103 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C104 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C105 1-164-346-11 CERAMIC CHIP 1uF 16V C106 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C107 1-164-346-11 CERAMIC CHIP 1uF 16V C108 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C142 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C143 1-164-346-11 CERAMIC CHIP 1uF 16V C144 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C145 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C146 1-164-005-11 CERAMIC CHIP 0.47uF 25V C147 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C148 1-164-346-11 CERAMIC CHIP 1uF 16V C149 1-164-346-11 CERAMIC CHIP 1uF 16V C150 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C151 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C201 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C203 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C204 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C205 1-164-346-11 CERAMIC CHIP 1uF 16V C206 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C207 1-164-346-11 CERAMIC CHIP 1uF 16V C208 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C242 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C243 1-164-346-11 CERAMIC CHIP 1uF 16V C244 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C245 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C246 1-164-005-11 CERAMIC CHIP 0.47uF 25V C247 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C248 1-164-346-11 CERAMIC CHIP 1uF 16V C249 1-164-346-11 CERAMIC CHIP 1uF 16V C250 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C251 1-162-953-11 CERAMIC CHIP 100PF 5% 50V MAIN • Abbreviation EA : Saudi Arabia CH : Chinese TW : Taiwan E : Indication of country of origin 9E : No Indication of country of origin www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 24 – C265 1-164-156-11 CERAMIC CHIP 0.1uF 25V C301 1-164-346-11 CERAMIC CHIP 1uF 16V C302 1-162-638-11 CERAMIC CHIP 1uF 16V C303 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C304 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V C305 1-164-505-11 CERAMIC CHIP 2.2uF 16V C306 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C307 1-104-912-11 TANTAL. CHIP 3.3uF 20% 4V C308 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C309 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C310 1-165-128-11 CERAMIC CHIP 0.22uF 16V C311 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C312 1-126-153-11 ELECT 22uF 20% 6.3V C313 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C314 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C315 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C316 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C317 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C318 1-164-346-11 CERAMIC CHIP 1uF 16V C319 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C320 1-164-346-11 CERAMIC CHIP 1uF 16V C321 1-164-346-11 CERAMIC CHIP 1uF 16V C325 1-164-346-11 CERAMIC CHIP 1uF 16V C326 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C342 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C343 1-124-589-11 ELECT 47uF 20% 16V C344 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C345 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C346 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C347 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C348 1-164-346-11 CERAMIC CHIP 1uF 16V C349 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C350 1-164-505-11 CERAMIC CHIP 2.2uF 16V C351 1-110-569-11 TANTAL. CHIP 47uF 20% 4V C352 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C353 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C354 1-163-145-00 CERAMIC CHIP 0.0015uF 5% 50V C355 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C356 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C357 1-162-957-11 CERAMIC CHIP 220PF 5% 50V C358 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C359 1-165-128-11 CERAMIC CHIP 0.22uF 16V C361 1-164-346-11 CERAMIC CHIP 1uF 16V C362 1-164-346-11 CERAMIC CHIP 1uF 16V C601 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C602 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C603 1-126-246-11 ELECT CHIP 220uF 20% 4V C604 1-164-505-11 CERAMIC CHIP 2.2uF 16V C605 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C606 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C607 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C608 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C609 1-162-638-11 CERAMIC CHIP 1uF 16V C610 1-162-638-11 CERAMIC CHIP 1uF 16V C612 1-164-156-11 CERAMIC CHIP 0.1uF 25V C616 1-164-489-11 CERAMIC CHIP 0.22uF 10% 16V < FILTER > CF1 1-767-733-71 FILTER ASSY, CERAMIC CF2 1-527-870-00 FILTER < CONNECTOR > CN301 1-750-346-21 CONNECTOR, FFC/EPC (ZIF) 6P < TRIMMER > CT1-1 1-141-595-21 CAP, VAR (AM TRACKING) CT1-2 1-141-595-21 CAP, VAR (FM TRACKING) CT1-3 1-141-595-21 CAP, VAR (FM FREQUENCY COVERAGE) CT1-4 1-141-595-21 CAP, VAR (AM FREQUENCY COVERAGE) < VARIABLE CAPACITOR > CV1-1 1-141-595-21 CAP, VAR (TUNE) CV1-2 1-141-595-21 CAP, VAR (TUNE) CV1-3 1-141-595-21 CAP, VAR (TUNE) CV1-4 1-141-595-21 CAP, VAR (TUNE) < DIODE > D33 8-719-073-01 DIODE MA111-(K8).S0 D101 8-719-073-01 DIODE MA111-(K8).S0 D102 8-719-073-01 DIODE MA111-(K8).S0 D301 8-719-073-01 DIODE MA111-(K8).S0 D302 8-719-073-01 DIODE MA111-(K8).S0 D305 8-719-073-01 DIODE MA111-(K8).S0 D306 8-719-073-01 DIODE MA111-(K8).S0 D308 8-719-074-20 LED LNV210C6AOSO (BATT) D309 8-719-073-01 DIODE MA111-(K8).S0 D405 8-719-073-01 DIODE MA111-(K8).S0 D502 8-719-073-01 DIODE MA111-(K8).S0 D503 8-719-073-01 DIODE MA111-(K8).S0 < FILTER > FL1 1-236-711-21 FILTER, BAND PASS < IC > IC1 8-759-493-20 IC TA2111F-(EL) IC301 8-759-332-69 IC LA4585M-TLM IC341 8-759-062-63 IC TA8155FN IC601 8-759-638-51 IC LB1979VL-TLM < JACK > J301 1-565-287-11 JACK (i) J302 1-750-061-11 JACK,DC(POLARITY UNIFIED TYPE) (DC IN 3V) J303 1-565-287-91 JACK (MIC) < JUMPER > JC101 1-216-296-91 SHORT 0 JC102 1-216-296-91 SHORT 0 JC103 1-216-296-91 SHORT 0 < COIL > L2 1-416-624-11 COIL (WITH CORE) (FM TRACKING) (EA) L2 1-416-623-11 COIL (WITH CORE) (FM TRACKING) (E,9E,CH,TW) MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 25 – L3 1-416-627-11 COIL (WITH CORE) (FM FREQUENCY COVERAGE) (EA) L3 1-416-626-11 COIL (WITH CORE) (FM FREQUENCY COVERAGE) (E,9E,CH,TW) L4 1-406-409-11 COIL (OSC) (AM FREQUENCY COVERAGE) (EA) L4 1-406-408-11 COIL (OSC) (AM FREQUENCY COVERAGE) (E,9E,CH,TW) L101 1-414-760-21 INDUCTOR 0uH L201 1-414-760-21 INDUCTOR 0uH L301 1-414-760-21 INDUCTOR 0uH L302 1-412-002-31 INDUCTOR 4.7uH L303 1-412-002-31 INDUCTOR 4.7uH < TRANSISTOR > Q30 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q31 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q32 8-729-216-22 TRANSISTOR 2SA1162-G Q33 8-729-216-22 TRANSISTOR 2SA1162-G Q34 8-729-028-99 TRANSISTOR DTC114YUA-T106 Q101 8-729-421-26 TRANSISTOR UN5216 Q141 8-729-230-49 TRANSISTOR 2SC2712-YG Q201 8-729-421-26 TRANSISTOR UN5216 Q241 8-729-230-49 TRANSISTOR 2SC2712-YG Q301 8-729-402-13 TRANSISTOR XN1501 Q302 8-729-141-48 TRANSISTOR 2SB624-BV345 Q303 8-729-028-99 TRANSISTOR DTC114YUA-T106 Q304 8-729-028-99 TRANSISTOR DTC114YUA-T106 Q305 8-729-028-99 TRANSISTOR DTC114YUA-T106 Q310 8-729-028-76 TRANSISTOR DTA114YUA-T106 Q311 8-729-420-16 TRANSISTOR XN1214 Q341 8-729-028-76 TRANSISTOR DTA114YUA-T106 Q343 8-729-230-49 TRANSISTOR 2SC2712-YG Q351 8-729-141-75 TRANSISTOR 2SD596DV345 Q356 8-729-028-76 TRANSISTOR DTA114YUA-T106 Q359 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q360 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q606 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q607 8-729-028-74 TRANSISTOR DTA114TUA-T106 Q608 8-729-028-99 TRANSISTOR DTC114YUA-T106 Q609 8-729-216-22 TRANSISTOR 2SA1162-G Q610 8-729-420-16 TRANSISTOR XN1214 < RESISTOR > R2 1-216-839-11 METAL CHIP 33K 5% 1/16W R3 1-216-815-11 METAL CHIP 330 5% 1/16W R5 1-216-847-11 METAL CHIP 150K 5% 1/16W R6 1-216-847-11 METAL CHIP 150K 5% 1/16W R30 1-216-845-11 METAL CHIP 100K 5% 1/16W R32 1-216-849-11 METAL CHIP 220K 5% 1/16W R33 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R34 1-216-819-11 METAL CHIP 680 5% 1/16W R62 1-216-857-11 METAL CHIP 1M 5% 1/16W R63 1-216-845-11 METAL CHIP 100K 5% 1/16W R64 1-216-857-11 METAL CHIP 1M 5% 1/16W R73 1-216-821-11 METAL CHIP 1K 5% 1/16W R101 1-216-855-11 METAL CHIP 680K 5% 1/16W R102 1-216-819-11 METAL CHIP 680 5% 1/16W R103 1-216-835-11 METAL CHIP 15K 5% 1/16W R104 1-216-837-11 METAL CHIP 22K 5% 1/16W R105 1-216-845-11 METAL CHIP 100K 5% 1/16W R107 1-216-845-11 METAL CHIP 100K 5% 1/16W R108 1-216-797-11 METAL CHIP 10 5% 1/16W R112 1-216-845-11 METAL CHIP 100K 5% 1/16W R139 1-216-833-11 METAL CHIP 10K 5% 1/16W R141 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R142 1-216-833-11 METAL CHIP 10K 5% 1/16W R143 1-216-849-11 METAL CHIP 220K 5% 1/16W R144 1-216-833-11 METAL CHIP 10K 5% 1/16W R145 1-216-833-11 METAL CHIP 10K 5% 1/16W R146 1-216-845-11 METAL CHIP 100K 5% 1/16W R149 1-216-817-11 METAL CHIP 470 5% 1/16W R150 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R201 1-216-855-11 METAL CHIP 680K 5% 1/16W R202 1-216-819-11 METAL CHIP 680 5% 1/16W R203 1-216-835-11 METAL CHIP 15K 5% 1/16W R204 1-216-837-11 METAL CHIP 22K 5% 1/16W R205 1-216-845-11 METAL CHIP 100K 5% 1/16W R207 1-216-845-11 METAL CHIP 100K 5% 1/16W R208 1-216-797-11 METAL CHIP 10 5% 1/16W R212 1-216-845-11 METAL CHIP 100K 5% 1/16W R239 1-216-833-11 METAL CHIP 10K 5% 1/16W R241 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R242 1-216-833-11 METAL CHIP 10K 5% 1/16W R243 1-216-849-11 METAL CHIP 220K 5% 1/16W R244 1-216-833-11 METAL CHIP 10K 5% 1/16W R245 1-216-833-11 METAL CHIP 10K 5% 1/16W R249 1-216-817-11 METAL CHIP 470 5% 1/16W R250 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R301 1-216-833-11 METAL CHIP 10K 5% 1/16W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R303 1-216-821-11 METAL CHIP 1K 5% 1/16W R306 1-216-819-11 METAL CHIP 680 5% 1/16W R308 1-216-839-11 METAL CHIP 33K 5% 1/16W R309 1-216-009-91 RES-CHIP 22 5% 1/10W R310 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R311 1-216-789-11 METAL CHIP 2.2 5% 1/16W R312 1-216-857-11 METAL CHIP 1M 5% 1/16W R313 1-216-833-11 METAL CHIP 10K 5% 1/16W R314 1-216-845-11 METAL CHIP 100K 5% 1/16W R331 1-216-819-11 METAL CHIP 680 5% 1/16W R332 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R341 1-216-833-11 METAL CHIP 10K 5% 1/16W R342 1-216-841-11 METAL CHIP 47K 5% 1/16W R344 1-216-849-11 METAL CHIP 220K 5% 1/16W R345 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R350 1-216-845-11 METAL CHIP 100K 5% 1/16W R352 1-218-446-11 METAL CHIP 1 5% 1/16W R353 1-216-009-91 RES-CHIP 22 5% 1/10W R354 1-216-797-11 METAL CHIP 10 5% 1/16W R355 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R361 1-216-833-11 METAL CHIP 10K 5% 1/16W R363 1-216-845-11 METAL CHIP 100K 5% 1/16W R364 1-216-845-11 METAL CHIP 100K 5% 1/16W R380 1-216-857-11 METAL CHIP 1M 5% 1/16W MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 26 – WM-GX100 9-873-025-11 Sony Corporation Audio Entertainment Group 2000J0215-1 Printed in Japan © 2000.10 Published by General Engineering Dept. R381 1-216-857-11 METAL CHIP 1M 5% 1/16W R601 1-216-857-11 METAL CHIP 1M 5% 1/16W R602 1-216-857-11 METAL CHIP 1M 5% 1/16W R603 1-216-857-11 METAL CHIP 1M 5% 1/16W R604 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R605 1-216-821-11 METAL CHIP 1K 5% 1/16W R606 1-216-845-11 METAL CHIP 100K 5% 1/16W R607 1-216-833-11 METAL CHIP 10K 5% 1/16W R608 1-216-821-11 METAL CHIP 1K 5% 1/16W R609 1-216-821-11 METAL CHIP 1K 5% 1/16W R612 1-218-975-11 METAL CHIP 68K 5% 1/16W R613 1-216-841-11 METAL CHIP 47K 5% 1/16W R617 1-216-819-11 METAL CHIP 680 5% 1/16W R618 1-216-833-11 METAL CHIP 10K 5% 1/16W R619 1-216-821-11 METAL CHIP 1K 5% 1/16W R660 1-216-857-11 METAL CHIP 1M 5% 1/16W R661 1-216-857-11 METAL CHIP 1M 5% 1/16W < VARIABLE RESISTOR > RV301 1-225-362-11 RES, VAR, CARBON (w VOLUME) RV601 1-223-258-11 RES, CARBON ADJ VAR 4.7K (TAPE SPEED) < SWITCH > S1 1-692-299-11 SWITCH, SLIDE (FUNCTION) S2 1-572-922-11 SWITCH, SLIDE (FM MODE) S301 1-572-288-21 SWITCH, PUSH (TAPE POWER SW) S303 1-762-541-11 SWITCH, SLIDE (REC/PB) S305 1-572-922-11 SWITCH, SLIDE (AVLS) S306 1-692-901-11 SWITCH, SLIDE (MEGA BASS) S307 1-762-079-11 SWITCH, SLIDE (ISS) S308 1-572-922-11 SWITCH, SLIDE (PAUSE) S310 1-572-922-11 SWITCH, SLIDE (PB EQ) < TRANSFORMER > T1 1-404-949-31 TRANSFORMER, IF (AM IF) T351 1-427-653-21 TRANSFORMER, BIAS OSCILLATION < THERMISTOR > TH601 1-810-794-11 THERMISTOR, POSITIVE < VIBRATOR > X1 1-767-733-71 FILTER ASSY, CERAMIC (10.7MHz) ************************************************************** MISCELLANEOUS ************** L1 1-754-041-11 ANTENNA, FERRITE-ROD (MW) (AM TRACKING) M901 1-698-839-11 MOTOR (including PULLEY) HE901 1-500-291-11 HEAD, MAGNETIC (ERASE) HRP901 1-500-595-11 HEAD, MAGNETIC(RECOR.PLAYBACK) ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************** 1-542-307-11 MICROPHONE 3-221-757-11 CLIP, BELT 3-222-088-11 MANUAL, INSTRUCTION (ENGLISH, TRADITIONAL CHINESE,ARABIC) (E,EA,TW) 3-222-088-21 MANUAL, INSTRUCTION (ENGLISH,SIMPLIFIED CHINESE) (CH) 3-222-088-31 MANUAL, INSTRUCTION (ENGLISH, TRADITIONAL CHINESE,ARABIC) (9E) 8-953-130-90 HEADPHONE MDR-E805LP MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
