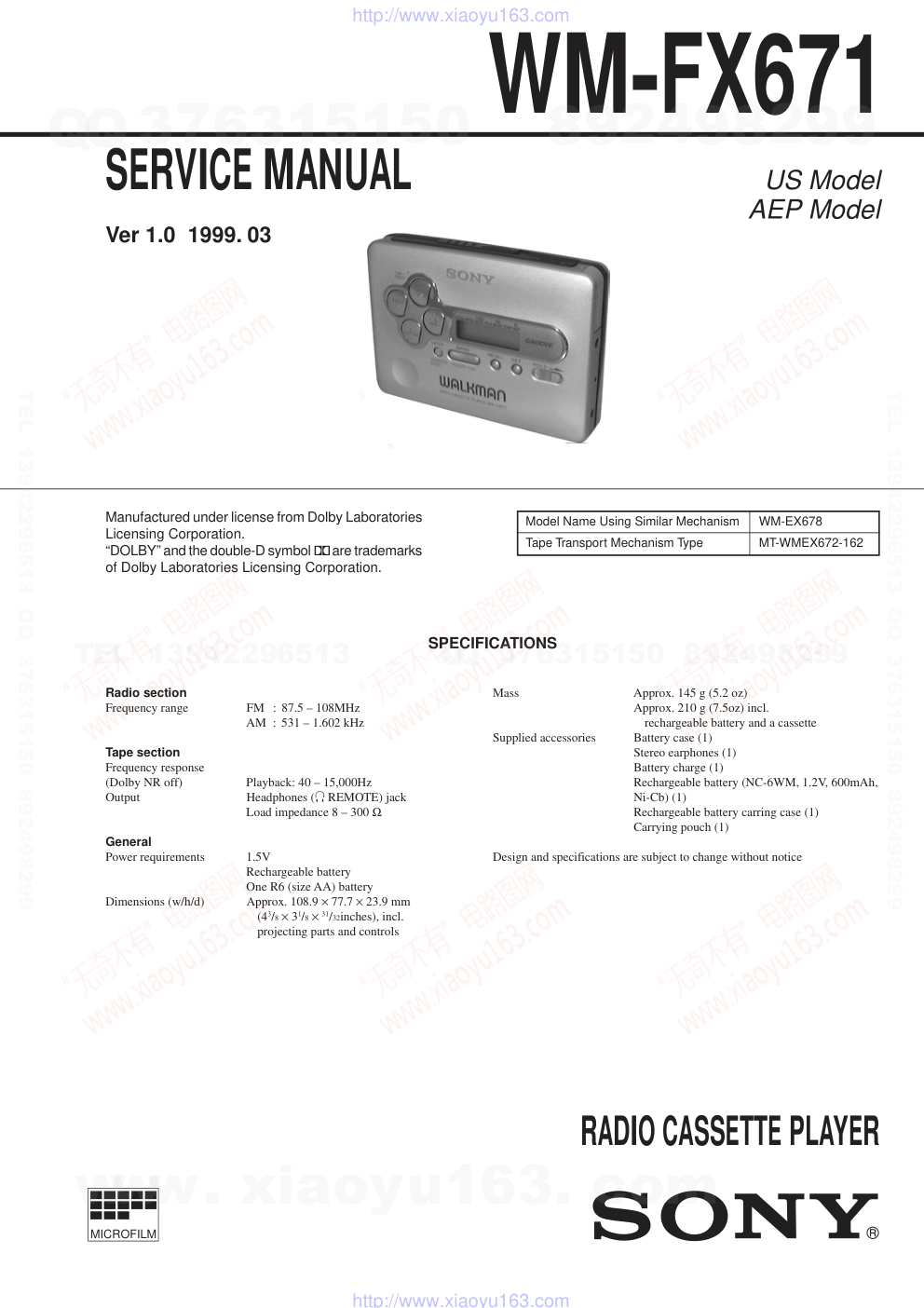

US Model AEP Model SERVICE MANUAL RADIO CASSETTE PLAYER MICROFILM Manufactured under license from Dolby Laboratories Licensing Corporation. “DOLBY” and the double-D symbol a are trademarks of Dolby Laboratories Licensing Corporation. Model Name Using Similar Mechanism WM-EX678 Tape Transport Mechanism Type MT-WMEX672-162 SPECIFICATIONS Radio section Frequency range FM : 87.5 – 108MHz AM : 531 – 1.602 kHz Tape section Frequency response (Dolby NR off) Playback: 40 – 15,000Hz Output Headphones (2 REMOTE) jack Load impedance 8 – 300 Ω General Power requirements 1.5V Rechargeable battery One R6 (size AA) battery Dimensions (w/h/d) Approx. 108.9 × 77.7 × 23.9 mm (43/8 × 31/8 × 31/32inches), incl. projecting parts and controls Mass Approx. 145 g (5.2 oz) Approx. 210 g (7.5oz) incl. rechargeable battery and a cassette Supplied accessories Battery case (1) Stereo earphones (1) Battery charge (1) Rechargeable battery (NC-6WM, 1.2V, 600mAh, Ni-Cb) (1) Rechargeable battery carring case (1) Carrying pouch (1) Design and specifications are subject to change without notice Ver 1.0 1999. 03 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. TABLE OF CONTENTS 1. SERVICE NOTE ······························································· 3 2. GENERAL ·········································································· 5 3. DISASSEMBLY 3-1. Case Block Assembly ····················································· 6 3-2. Belt (F2) ·········································································· 7 3-3. Cassette Lid Assembly ···················································· 7 3-4. Reel Ornament Assembly ··············································· 8 3-5. Main Board ····································································· 8 3-6. Motor (F2) (M901) ························································· 9 3-7. Holder Assembly····························································· 9 3-8. Pinch Lever (N)/(R) Assembly ····································· 10 3-9. Magnetic Head (HP901) ··············································· 10 4. MECHANICAL ADJUSTMENT ································ 11 5. ELECTRICAL ADJUSTMENT ·································· 11 6. DIAGRAMS 6-1. Block Diagram ······························································ 13 6-2. Printed Wiring Board ···················································· 16 6-3. Schematic Diagram (1/2) ·············································· 19 6-4. Schematic Diagram (2/2) ·············································· 22 6-5. IC Block Diagrams ······················································· 25 6-6. IC Pin Function Discription ·········································· 27 7. EXPLODED VIEWS 7-1. Cabinet Block, Main Board ·········································· 29 7-2. Mechanism Deck Block ················································ 30 8. ELECTRICAL PARTS LIST ······································· 31 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — p� � (S3) ENTER (S10) BAND (S8) MENU (S6) R43 (SIDE A) Q15 (SIDE A) PH1 (SIDE A) SET (S7) (S1) FWD←STOP→REV Battery terminal ’� Battery terminal ‘� Square-wave (sine wave) 10 Hz, -3.5 dB AF OSC Plunger (PM901) Short R TUME SWITCH (S901-2) TAPE DETECT SWITCH (S901-1) FF AMS (S4) REW AMS (S5) œREPEAT (S9) M601 M SECTION 1 SERVISE NOTE [Service Mode] The service mode enables to operate the mechanism of WM-FX671 while the MAIN board is opened. Rotation of the idler gear (A) (S side) is detected using the photo- reflector (PH1) in the WM-FX671. PH1 is located on the MAIN board, therefore the rotation of the idler gear (A) (S side) cannot be detected by PH1 when the MAIN board is removed. As a result, the motor cannot be controlled and cannot run correctly. To repair the machine after the MAIN board is removed while the main power is turned on, follow the procedures as described below. 1. Setting 1) Remove the cabinets referring to section “3. DISASSEMBLY”. Open the MAIN board. 2) Connect the motor (M601) and the plunger solenoid (PM901) to the MAIN board using the jumper wires. When the extension jig (1-769-143-11) (10 wires as a set) is used, they can be connected easily. 3) Short the TAPE DETECT switch (S901-2), R TUME switch (S901-1). 4) Connect an AF oscillator to resistor (R43). 5) Connect DC 1.3 V from external regulated power supply to ‘ and ’ terminals of the battery. 2. PRE-SET status The PLAY, FF and REW modes can be entered only from the PRE- SET status. 1) Check that the slider (NR) is in the center position (S1), and the FWD/REV switch is also in the center position. When these switches are not in the center position, set them to the PRE-SET status as follows. 2) Move the FWD/REV switch (S1) to the same position as the slider (NR) is set. 3) The slider (NR) can be moved when the main power of the regulated power supply is turned OFF once then back ON. Move the FWD/REV switch (S1) to the center position in synchronism with the timing when the slider (NR) is moved. 3. FF, REW modes 1) Check that the PRE-SET status is set. 2) Connect square wave or sine wave to resistor (R43). (See illustration below.) 3) Press the p switch (S3) to enter the STOP mode. 4) Press the FF AMS switch (S4) and the REW AMS switch (S5). 4. PLAY mode 1) Check that the PRE-SET status is set. 2) Connect square wave or sine wave to resistor (R43). (See illustration below.) 3) Press the p switch (S3) to enter the stop mode. 4) When the 9(REPEAT switch (S9) of the MAIN board is pressed, the slider (N/R) moves once to the F side then moves to the R side. When the FWD/REV switch (S1) is pressed in the synchronism with the above timing, the machine can enter the PLAY (R side) mode. Press the 9(REPEAT switch (S9) again, and move the FWD/REV switch (S1) in the synchronism with the motion of slider (NR). It enables the machine to enter into the PLAY (F side) mode. Note 1: When you fail to enter the PLAY mode, re-start from step 1) PRE-SET status. Note 2: Regarding the 9(REPEAT (S9), p (S3), FF AMS (S4), and REW AMS (S5) switches, use these switches of the remote control unit as much as possible. Note 3: If a headphones are used, the beep sound shows the timing of the FWD/REV switch (S1). – MAIN BOARD (SIDE B) — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — [ Slider (NR) ] [ Tape drive mechanism ] Tape drive mechanism in PLAY mode Tape drive mechanism in FF mode Tape drive mechanism in REW mode Slider (NR) Center F side R side Insert Flywheel (N) Pulley (Reverse) Clutch Assy Motor Pulley Gear (REEL)(S side) Gear (REEL)(T side) Gear (NR) (FWD : Left side REV : Right side) Idler Gear Idler Gear (A)(S side) Idler Gear (A)(T side) Insert Flywheel (R) Cam Gear Gear (Y) Insert Flywheel (N) Pulley (Reverse) Clutch Assy Motor Pulley Gear (REEL)(T side) Idler Gear (A)(T side) Insert Flywheel (R) Cam Gear Gear (Y) Gear (FR) (FF : Left side) Insert Flywheel (N) Pulley (Reverse) Clutch Assy Motor Pulley Gear (REEL)(S side) Idler Gear (A)(S side) Insert Flywheel (R) Cam Gear Gear (Y) Gear (FR) (REW : Right side) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — SECTION 2 GENERAL 1 2 3 4 5 6 7 8 9 !º� !¡� !™� !£� !¢� • LOCATION OF CONTROLS 1 2 REMOTE jack 2 REW, AMS button 3 “ ”, REPEAT button 4 FF, AMS button 5 OPEN knob 6 Battery case 7 Display window 8 HOLD c knob 9 SET button !º MENU button !¡ BAND, RADIO ON button !™ ENTER, COUNTER RESET button !£ p, RADIO OFF button !¢ ∑ VOL knob www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 6 — SECTION 3 DISASSEMBLY Note : Disassemble the unit in the order as shown below. Note : Follow the disassembly procedure in the numerical order given. Set Case block assembly Belt (F2) Cassette lid assembly Main board Reel ornament assembly Motor (F2) (M901) Holder assembly Pinch lever (N)/(R) assembly Magnetic head (HP901) 3-1. CASE BLOCK ASSEMBLY 3 Screw (M1.4 × 2.5) 2 Two screws (M1.4 × 2.5) 1 Battery case Lid 5 Remove the case block assembly in the direction of the arrow. 4 Two screws (M1.4 × 2.5) knob (HOLD) Claw S2 Note: When assembling the case block assembly, align the knob (HOLD) with the position of S2. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 7 — 3-2. BELT (F2) 3 Belt (F2) 2 Terminal board (Battery ’) 1 Remove solder from the battery terminal board. Belt (F2) Belt threading 3-3. CASSETTE LID ASSEMBLY 5 Cassette lid assembly 4 Shaft 3 Open the cassette lid 1 Screw (M1.4 × 2.0) 2 Two screws (M1.4 × 2.0) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 8 — 3-4. REEL ORNAMENT ASSEMBLY 1 Reel Ornament assembly Remove the assembly while removing the three claws and boss carefully. Note: Claw Claw 3-5. MAIN BOARD SLIDER 9 Remove soldeing (two points) from plunger solenoid. 7 Screw (B1.7 × 3) tapping 6 Screw (B1.7 × 3) tapping 3 Screw (M1.4) 8 Screw (M1.4) 2 Head flexible board 4 Screw (M1.4) Bracket assy 0 Remove soldeing (four points) from motor. When assembling the MAIN board, align the slider with the position of S1. Note: 5 Screw (M1.4) 1 Remove soldering from Head flexible board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 9 — 3-6. MOTOR (F2) (M901) 1 Two screws (M1.4) 2 Motor (F2) (M901) Toothed lock 3-7. HOLDER ASSEMBLY 4 Screw (M1.4) 2 Shaft 6 Shaft 1 Two screws (M1.4 × 1.4) 3 Lock lever (B) 0 Remove the holder assembly in the direction of the arrow. 8 Remove soldering from Head flexible board. 5 Lock lever (S) 9 Head flexible board 7 Cassette bracket assembly www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 10 — 3-8. PINCH LEVER (N) / (R) ASSEMBLY Claw Claw 2 Remove the pinch lever (N) assembly in the direction of the arrow. Note: Be careful of the claw 1 Remove the pinch lever (R) assembly in the direction of the arrow. Note: Be careful of the claw 3-9. MAGNETIC HEAD (HP901) 1 Remove the magnetic head (HP901) in the direction of the arrow. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 11 — SECTION 4 MECHANICAL ADJUSTMENT SECTION 5 ELECTRICAL ADJUSTMENT PRECAUTION 1. Specified voltage: 1.3 V (DC) 2. Switch and control position MENU switch aNR : OFF AVLS : OFF SOUND : OFF HOLD : OFF VOL : MAX Test Tape Tape Speed Adjustment Procedure: 1. Enter the FWD playback mode. 2. Adjust RV601 so that the value of the frequency counter reading becomes 3,000 Hz. Specification value: Frequency counter 2,955 Hz – 3,060 Hz 3. Check that the frequency deviation at the beginning and ending of a tape is within 1.5 % (45 Hz). PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened swab: playback head pinch roller rubber belts capstan 2. Demagnetize the playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. • Torque Measurement Mode FWD FWD Back Tension REV REV Back Tension FF, REW Torque Meter CQ-102C CQ-102C CQ-102RC CQ-102RC CQ-201B Meter Reading 15 to 25 g•cm (0.21 to 0.34 oz•inch) Less than 2.0g•cm (Less than 0.028 oz•inch) 15 to 25 g•cm (0.21 to 0.34 oz•inch) Less than 2.0g•cm (Less than 0.028 oz•inch) More than 50 g•cm (More than 0.69 oz•inch) Signal 3 kHz, 0 dB Used for Tape Speed Adjustment Tape WS-48A Test tape WS-48A (3kHz, 0dB) Set 2 REMOTE jack (J701) 16 Ω Frequency counter + – [MAIN BOARD] — SIDE B — ‘� ‘� ’� RV601 L2 T2 TP6 TP5 IC2 13 24 1 12 T1 RV1 RV601 : Tape speed adjustment RV1 : FM VCO adjustment T2 : AM IF adjustment L2 : FM frequency coverage adjustment T1 : AM frequency coverage adjustment TP1 Adjustment Parts Location : [MAIN BOARD] — SIDE A — TAPE SECTION www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 12 — [AM] BAND switch : AM [FM] BAND : FM • Repeat the procedures in each adjustment several times. AM FREQUENCY COVERAGE ADJUSTMENT Adjust for a maximum reading on level meter. T1 531 kHz FM FREQUENCY COVERAGE ADJUSTMENT Adjust for a maximum reading on level meter. L2 76 MHz FM VCO Adjustment Procedure : 1. Connect frequency counter to the positions shown below. 2. Tune the set to 98 MHz. 3. Adjust RV1 so that the value of the frequency counter reading becomes 19 kHz. Specification Value : Frequency counter 18,900 – 19,100 Hz TUNER SECTION 0.01µF FM RF signal generator to ANT (TP1) 22.5kHz frequency deviation by 400Hz signal. Output level : as low as possible Put the lead-wire antenna close to the set. 30% amplitude modulation by 400Hz signal. Output level : as low as possible AM RF signal generator 16Ω set + – level meter 2 REMOTE jack (J701) AM IF ADJUSTMENT Adjust for a maximum reading on level meter. T2 450 kHz 0.01µF FM RF signal generator to ANT (TP1) Carrier frequency : 98MHz IModulation : no modulation Output level : 0.1V (100dB) Frequency counter 1µF + – 100kΩ TP5 (IC2 Pin !™) TP6 (IC2 Pin 9) 0dB=1µV Adjustment Location: MAIN board (See page 11) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX671 SECTION 6 DIAGRAMS — 13 — — 14 — — 15 — 6-1. BLOCK DIAGRAM w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ ○ WM-FX671 — 17 — — 18 — 6-2. PRINTED WIRING BOARD Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • Through hole is omit. • b : Pattern from the side which enables seeing. Caution: Pattern face side: Parts on the pattern face side seen from (SIDE B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (SIDE A) the parts face are indicated. — 16 — 1 2 A B C D E F G H 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 • Semiconductor Location Ref. No. Location Ref. No. Location D1 A-14 D2 B-14 D3 F-14 D4 C-15 D5 B-8 D6 C-13 D101 C-9 D201 C-9 D301 C-9 D302 B-9 D303 B-9 Ref. No. Location D304 B-8 D305 G-9 D801 D-4 D802 E-3 D803 D-3 D804 D-3 IC1 B-14 IC2 D-14 IC3 D-17 IC4 F-18 IC5 D-18 IC6 C-19 IC301 F-17 IC302 E-9 IC601 D-19 IC801 D-3 Q1 D-16 Q2 C-16 Q3 B-13 Q4 B-14 Q5 D-15 Q6 C-15 Q7 B-13 Q8 C-16 Q9 D-6 Q10 C-13 Q11 D-15 Q12 E-16 Q13 E-13 Q14 B-13 Q15 C-4 Ref. No. Location Q16 C-15 Q17 C-15 Q18 F-15 Q19 F-16 Q20 C-6 Q301 E-19 Q302 F-16 Q303 F-16 Q304 F-9 Q305 F-9 Q601 C-19 Ref. No. Location Ref. No. Location Q602 C-19 Q801 D-3 Q802 C-2 Q803 D-2 Q804 C-3 Q805 C-2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX671 — 19 — — 20 — 6-3. SCHEMATIC DIAGRAM (1/2) Note • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • U : B+ Line. • C : panel designation. • H : adjustment for repair. • Power voltage is dc 1.5 V and fed with regulated dc power supply from battery terminal. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM/AM, STOP (TAPE) ( ) : FM [ ] : AM < > : PLAY (TAPE) • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM E : PLAY (TAPE) • Waveform 51.7kHz 1 TP32 10µsec/div 5V/div 1 2 A B C D E F G H I 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 — 21 — w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX671 — 22 — — 23 — 6-4. SCHEMATIC DIAGRAM (2/2) — 24 — Note • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • U : B+ Line. • C : panel designation. • H : adjustment for repair. • Power voltage is dc 1.5 V and fed with regulated dc power supply from battery terminal. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM E : PLAY (TAPE) 2 IC2 !¶ VCO 5µsec/div 50mV/div 3 IC801 5 PLAY 5µsec/div 1V/div 75kHz 4 IC3 &¢ XOUT 5µsec/div 0.5V/div • Waveform 1 2 A B C D E F G H I J K L M 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 25 — 6-5. IC BLOCK DIAGRAMS V 1 PW 2 W 3 GND 4 OSC 5 DR 6 VREF 7 START 8 VSP 9 IN+ 10 PV 20 U 19 PU 18 GND 17 VCC 16 FC 15 TC1 14 TC2 13 R1 12 OUT 11 MOTIVE CONTROL CIRCUIT MOTIVE/ OSC MOTIVE LOGIC SOFT SWITCH PRE DRIVER INVERTER BIAS REFERENCE VOLTAGE SPEED CONTROL CURRENT CONTROL OUTPUT BIAS + – IC302 NJM2185AV-TE2 37 38 39 40 41 42 43 44 45 46 47 48 24 23 22 21 20 19 18 17 16 15 14 13 1 2 3 4 5 6 7 8 9 10 11 12 35 36 34 33 32 31 30 29 28 27 26 25 N.C. REF V REF GND REV REC L REV REC R FWD REC R FWD REC L VCC2 MONITOR L MONITOR R N.C. GND MIC IN L NF L RADIO IN L MIC IN R NF R RADIO IN R MIC OUT R MIC OUT L REC IN L REC IN R N.C. N.C. REC MUTE MIC/RADIO FWD/REV REC/PLAY CONT F CONT A (FWD) PLAY(REV) (REV) PLAY(FWD) PLAY(FWD) (REV) (REV) PLAY(FWD) PLAY REC CONT B CONT C CONT D CONT E N.C. N.C. MIC REG REF MIC REG REC BIAS REG REF REC BIAS REG OSC BASE VCC1 VCCRF ALC GND N.C. SYSTEM CONTROL V REF REV REC AMP FWD REC AMP MONITOR AMP DET MIC REGULATOR REC BIAS REGULATOR ALC AMP L ALC AMP R VCC2 ( ):REC GND AFC DIODE(A) RF IN OFC DIODE(C) MIX OUT VCC OSC RF OUT 1 2 3 4 5 6 7 8 RF REG MIX OSC IC2 TA2022AFN-EL IC1 TA7371AF-EL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 26 — 8 9 10 14 13 12 2 1 3 A-CH BLOCK 11 7 6 5 4 G2 G1 V/I WEIGHT BIAS CIRCUIT + – + – GM SUM V+ SW VEXT OUTA DCA DETA INA GND IREF VREF OUTB DCB DETB INB B-CH BLOCK: SAME AS A-CH. PRE A PRE B MIX PW B PW A PW C BST MT TC BASE RF IN PW GND OUT B OUT C OUT A VCC RF OUT VREF OUT BST NF BST OUT PW IN C LPF EQ A PW NF A PW IN A PW IN B PW NF B 3 IN A-R 5 PRE NF-A 6 PRE OUT A 7 MTL DRV A 8 MTL DRV B 9 PRE OUT B 10 PRE NF-B 11 AMS IN 12 IN B-R 4 IN B-F 2 IN A-F 1 21 20 19 18 17 GND 16 AMS DET 15 AMS MIX 14 AMS SW 13 22 23 24 38 C-AMP SW 37 PW SW 42 MT SW 41 F/R SW 44 BST SW 43 M/N SW 46 PRE GND 47 VREF IN 48 PRE SW 45 AMS OUT 40 BEEP 39 26 27 28 29 30 31 32 33 34 DET 36 AGC IN 35 + – + – + – + – + – + – EQ B 25 RIPPLE FILTER AGC DET BEEP VREF SWITCH COMPARATOR MTL DRV IC301 TA2123AF (EL) IC601 MM1279XVBE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 27 — 6-6. IC PIN FUNCTION DESCRIPTION • IC3 TC9327AF-604 Pin No. 1 to 4 5 to 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 I/O O O O O — — O O O O O I I I I I I O I O I I I I I O I/O O O O Description Common terminal. Segment output terminal. Dolby control terminal. (L: ON, Hi-imp: OFF) Motor speed control terminal. Not used Not used PRE AMP control terminal. MUTE control terminal (L: MUTE ON). HEAD select terminal (PLAY mode) (L: FWD, H: REW). BAND control output (L: FM, H: AM). Remote control data output. TAPE error erase detect terminal. (FWD). TAPE error erase detect terminal. (REV). Remote control data input. Input when the key is pressed during HOLD (H= AD Vref). Tape end Locking detect input terminal. Tape sound existing or not-exiting detect (L: Music exists: H: Music does not exist). Terminal for controlling the rotation detect circuit. Rotation detect input. DDC control terminal (H: DDC ON). HOLD detect input (L: HOLD ON). Voltage detect input. KEY input terminal. TAPE rotating direction detect terminal. AD IN 1, 2, 3 reference viltage interrupt terminal. E2PROM CS control terminal. E2PROM DATA I/O. E2PROM CLOCK terminal. BEEP (when TC: 1.6kHz, when CF: 3.0kHz). MOTOR control terminal. Pin Name COM 1 to COM 4 S1 to S18 DOLBY VCC CTL S1/2 CTL RADIO/MIC F/R CTR (REC) PRE CTL MUTE CTL F/R CTL PLAY BAND AM/FM R DATA OUT F TUME R TUME R DATA IN HOLD SENS OSC CTL AMS IN PHOTO CTL PHOTO IN DDC1 CTL HOLD SW BATT DET KEY IN F/R SW (VCC) AD REF CS M DATA I/O M CLOCK BEEP MOTOR CTL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 28 — Pin No. 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 I/O O I — O O O O O O O O O I I O O I O — I I — I O I — — — — — Description MOTOR control terminal. TAPE detect terminal. (L: ON, H: OFF) Not used Terminal for controlling AVLS (when ON=H). Tone control terminal (L: normal, Hi-imp: MEGA BASS). Revive control terminal. Tone control terminal (L: GRV, H: MB). AMP control output (H: AMP ON). Terminal for controlling DOLBY circuit (L: OFF, Hi-imp: ON). PL control terminal. DDC control terminal (L: OFF, Hi-imp: ON). RADIO system control terminal (L: RADIO ON). TEST terminal (Normal operation at L or NC). IF input. TUNER sensitivity select terminal (H: LOCAL, L: DX). Phase comparator output. External interrupt terminal (Interrupt by key input). FM MONO/STEREO select terminal (H: MONO, L: ST). Power supply Ground terminal. FM local oscillator input. AM local oscillator input. Power supply voltage. RESET terminal (H during operation). Terminal to which external oscillator is connected. Terminal to which external capacitor is connected to stabilize crystal oscillator power supply. Terminal to step-up power supply voltage for LCD drive. (3V) Terminal to step-up power supply voltage for LCD drive. Terminal for 1.5V constant voltage power supply of LCD drive. Pin Name MOTOR DIR TAPE REC CTL AVLS CTL BST CTL RV CTL MB/GRV CTL AMP CTL DOLBY CTL PM CTL DDC2 CTL RADIO CTL TEST IF IN LOCAL/DX DO WAKE UP MONO/ST GND FM IN AM IN VDD RESET XOUT XIN VXT VLCD C1 C2 VEE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 7 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. — 29 — 7-1. CABINET BLOCK, MAIN BOARD 1 X-3377-346-1 CASE(FX-AS1) ASSY (US) 1 X-3377-356-1 CASE(FX-AS10) ASSY (AEP,FR,CET) 2 3-704-197-21 SCREW(M1.4 × 2.5), LOCKING 4 3-034-075-01 LEVER(HOLD) 5 3-029-219-01 KNOB(OPEN) 6 3-029-220-01 SPRING, TENSION 7 3-029-213-01 TERMINAL BOARD 8 3-345-648-71 SCREW(M1.4), TOOTHED LOCK 9 3-893-942-11 SCREW(1.7 × 3), TAPPING (B) 10 A-3021-222-A MAIN BOARD, COMPLETE (US,AEP,CET) 10 A-3021-223-A MAIN BOARD, COMPLETE (FR) 11 3-029-210-01 TERMINAL BOARD (MINUS) 12 3-366-892-01 SCREW (M1.4) 13 3-328-483-21 SHEET 14 X-3376-277-2 BRACKET ASSY 15 3-029-205-11 COVER, MD 16 3-029-217-01 LEVER (B), LOCK 17 3-366-892-11 SCREW (M1.4 × 1.4) 18 X-3377-281-1 TERMINAL BOARD ASSY, BATTERY 19 3-031-460-01 SHEET (BT) 20 3-034-068-21 LID,BATTERY 21 A-3052-005-A LIDBLOCK ASSY, CASSETTE 22 3-365-630-41 SCREW (M1.4) 23 3-704-197-11 SCREW (M1.4 × 2.0), LOCKING 24 X-3376-279-1 BRACKET (CASSETTE) ASSY S901 1-762-553-11 SWITCH, LEAF Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks • Abbreviation FR : French model CET : East European and CIS model 15 21 23 22 23 24 16 17 18 9 6 5 7 2 4 1 2 2 9 8 10 11 20 19 12 S901 14 12 13 MT-WMEX672-162 not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 30 — Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 7-2. MECHANISM DECK BLOCK (MT-WMEX672-162) 51 X-3377-039-1 HOLDER ASSY (/M) 52 X-3377-363-1 PINCH LEVER (R) ASSY 53 3-029-271-01 SPRING (HD) 54 X-3377-362-1 PINCH LEVER (N) ASSY 55 3-029-275-01 WASHER (STOPPER N) 56 3-029-278-01 WASHER 57 3-029-276-01 WASHER (STOPPER R) 58 3-029-289-01 WASHER 59 X-3376-813-1 CLUTCH ASSY (F) 60 3-932-724-21 WASHER 61 3-029-287-01 SPRING (TG), TORSION 62 3-386-694-01 WASHER 63 3-029-306-11 FLYWHEEL (N), INSERT 64 3-029-280-01 BELT(F2) 65 3-029-268-11 FLYWHEEL (R), INSERT 66 3-007-428-01 WASHER (R) 67 3-029-765-01 SCREW (M1.4), TOOTHED LOCK 68 3-029-274-01 RETAINER (F2), MOTOR 69 3-007-433-01 SHEET (N), REFLECTION 70 X-3377-037-1 CHASSIS ASSY (F) (/M) 71 3-010-274-02 TABLE, REEL 72 3-010-954-01 SPRING (BT), COMPRESSION 73 3-029-282-01 GEAR(Y) 74 3-029-285-01 GEAR, CAM 75 3-029-284-01 LEVER, TRIGGER 76 3-029-281-01 GEAR, IDLER (B) 77 3-010-273-02 GEAR(REEL) 78 3-029-273-01 GEAR(FR) 79 3-029-283-01 GEAR, IDLER (A) 80 3-029-286-01 GEAR(NR) 81 3-029-288-01 PULLEY, REVERSE M601 1-763-166-11 MOTOR(CAPSTAN/REEL)(WITH PULLEY) HP901 1-500-576-11 HEAD, MAGNETIC (PLAYBACK) PM901 1-454-674-31 SOLENOID, PLUNGER 63 PM901 HP901 M601 60 59 62 61 66 65 67 68 69 56 70 55 58 57 54 51 53 52 64 71 71 72 72 73 74 75 76 77 77 78 79 79 80 81 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 31 — SECTION 8 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH The components identified by mark ! or dotted line with mark ! are critical for safety. Replace only with part number specified. • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. • Abbreviation FR : French model CET : East European and CIS model * A-3021-222-A MAIN BOARD, COMPLETE (US,AEP,CET) ********************* * A-3021-223-A MAIN BOARD, COMPLETE (FR) ********************* 1-694-502-11 CONDUCTIVE BOARD, CONNECTION 3-034-073-01 HOLDER(LCD) < CAPACITOR > C1 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C2 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C4 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C5 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C6 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C7 1-164-676-11 CERAMIC CHIP 2200PF 5% 16V C8 1-164-676-11 CERAMIC CHIP 2200PF 5% 16V C9 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C10 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C11 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C12 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V C13 1-107-817-11 TANTAL. CHIP 0.33uF 10% 16V C14 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V C15 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C16 1-164-676-11 CERAMIC CHIP 2200PF 5% 16V C17 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C18 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C19 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C20 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C21 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C22 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C23 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C24 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C25 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C26 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C27 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C28 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C29 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C30 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C31 1-164-362-11 CERAMIC CHIP 470PF 5% 50V C32 1-125-984-21 TANTAL. CHIP 22uF 20% 4V C33 1-115-156-11 CERAMIC CHIP 1uF 10V C34 1-115-156-11 CERAMIC CHIP 1uF 10V C35 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C36 1-115-156-11 CERAMIC CHIP 1uF 10V C37 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C38 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C39 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C40 1-127-578-91 TANTAL. CHIP 3.3uF 20% 6.3V C41 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C42 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C43 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C44 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C45 1-164-360-11 CERAMIC CHIP 0.1uF 16V C46 1-164-360-11 CERAMIC CHIP 0.1uF 16V C47 1-164-360-11 CERAMIC CHIP 0.1uF 16V C48 1-115-156-11 CERAMIC CHIP 1uF 10V C49 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C50 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C51 1-125-984-21 TANTAL. CHIP 22uF 20% 4V C52 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C53 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C54 1-115-156-11 CERAMIC CHIP 1uF 10V C55 1-164-676-11 CERAMIC CHIP 2200PF 5% 16V C56 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C57 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C58 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C59 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C60 1-164-676-11 CERAMIC CHIP 2200PF 5% 16V C62 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C63 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C64 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C65 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C66 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C80 1-115-156-11 CERAMIC CHIP 1uF 10V C81 1-115-156-11 CERAMIC CHIP 1uF 10V C101 1-125-984-21 TANTAL. CHIP 22uF 20% 4V C104 1-113-619-11 CERAMIC CHIP 0.47uF 10% 6.3V C105 1-115-156-11 CERAMIC CHIP 1uF 10V C106 1-113-619-11 CERAMIC CHIP 0.47uF 10% 6.3V C107 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C108 1-115-156-11 CERAMIC CHIP 1uF 10V C110 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C111 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C201 1-125-984-21 TANTAL. CHIP 22uF 20% 4V C204 1-113-619-11 CERAMIC CHIP 0.47uF 10% 6.3V C205 1-115-156-11 CERAMIC CHIP 1uF 10V C206 1-115-156-11 CERAMIC CHIP 1uF 10V C207 1-113-619-11 CERAMIC CHIP 0.47uF 10% 6.3V C208 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C210 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C211 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C301 1-119-663-11 TANTAL. CHIP 47uF 20% 2.5V C302 1-107-815-11 TANTAL. CHIP 2.2uF 20% 4V C303 1-164-360-11 CERAMIC CHIP 0.1uF 16V C304 1-125-984-21 TANTAL. CHIP 22uF 20% 4V C305 1-125-984-21 TANTAL. CHIP 22uF 20% 4V C306 1-113-619-11 CERAMIC CHIP 0.47uF 10% 6.3V C307 1-117-181-11 TANTAL. CHIP 4.7uF 20% 2.5V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 32 — C308 1-117-181-11 TANTAL. CHIP 4.7uF 20% 2.5V C309 1-135-149-21 TANTALUM CHIP 2.2uF 20% 10V C310 1-164-360-11 CERAMIC CHIP 0.1uF 16V C311 1-165-112-11 CERAMIC CHIP 0.33uF 16V C312 1-165-128-11 CERAMIC CHIP 0.22uF 16V C313 1-115-156-11 CERAMIC CHIP 1uF 10V C314 1-165-128-11 CERAMIC CHIP 0.22uF 16V C315 1-115-156-11 CERAMIC CHIP 1uF 10V C316 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C317 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C318 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C319 1-164-360-11 CERAMIC CHIP 0.1uF 16V C320 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C321 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C325 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C601 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C602 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C603 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C604 1-164-360-11 CERAMIC CHIP 0.1uF 16V C605 1-107-826-91 CERAMIC CHIP 0.1uF 10% 16V C606 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C607 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C608 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C803 1-135-177-21 TANTALUM CHIP 1uF 20% 20V C804 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C805 1-125-837-91 CERAMIC CHIP 1uF 10% 6.3V C806 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C807 1-125-984-21 TANTAL. CHIP 22uF 20% 4V C808 1-115-156-11 CERAMIC CHIP 1uF 10V C809 1-127-808-21 TANTAL. CHIP 10uF 20% 6.3V C810 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C811 1-115-156-11 CERAMIC CHIP 1uF 10V C812 1-125-984-21 TANTAL. CHIP 22uF 20% 4V C813 1-115-156-11 CERAMIC CHIP 1uF 10V < CAPACITOR COMPOSITION CIRCUIT BLOCK > CB301 1-127-678-21 CERAMIC CHIP 330PF 0 50V < FILTER > CF1 1-767-362-11 FILTER, CERAMIC 10.7MHz CF2 1-767-480-11 FILTER, CERAMIC (AM) 450kHz < DIODE > D1 8-719-053-30 DIODE MA2S357-(TX). SO D2 8-719-053-30 DIODE MA2S357-(TX). SO D3 8-719-072-58 DIODE SVC347-TL D4 8-719-404-50 DIODE MA111-TX D5 8-719-049-09 DIODE 1SS367-T3SONY D6 8-719-422-37 DIODE MA8051 D101 8-719-422-37 DIODE MA8051 D201 8-719-422-37 DIODE MA8051 D301 8-719-422-37 DIODE MA8051 D302 8-719-422-37 DIODE MA8051 D303 8-719-422-37 DIODE MA8051 D304 8-719-422-37 DIODE MA8051 D305 8-719-422-37 DIODE MA8051 D801 8-719-049-09 DIODE 1SS367-T3SONY D802 8-719-420-87 DIODE MA8130 D803 8-719-404-50 DIODE MA111-TX D804 8-719-420-51 DIODE MA729 < FUSE > F1 1-533-792-11 FUSE (SMD)(0.25A/125V) < FERRITE BEAD > FB1 1-500-445-21 FERRITE 0uH FB2 1-500-445-21 FERRITE 0uH FB3 1-500-445-21 FERRITE 0uH FB4 1-500-245-11 FERRITE 0uH FB5 1-500-245-11 FERRITE 0uH FB6 1-500-245-11 FERRITE 0uH FB7 1-500-245-11 FERRITE 0uH < IC > IC1 8-759-362-23 IC TA7371AF-EL IC2 8-759-362-25 IC TA2022AFN-EL IC3 8-759-574-08 IC TC9327AF-604 IC4 8-759-457-68 IC AK93C45AV-L IC5 8-759-387-31 IC TC75S55F(TE85R) IC6 8-759-457-70 IC XC62RP1602MR IC301 8-759-579-12 IC TA2123AF(EL) IC302 8-759-488-80 IC NJM2185AV-TE2 IC601 8-759-356-46 IC MM1279XVBE IC801 8-759-553-28 IC XC6383C251ML < JACK > J701 1-779-867-81 JACK (REMOTE) < JUMPER CHIP > JC101 1-216-864-11 METAL CHIP 0 5% 1/16W (US,AEP,CET) JC201 1-216-864-11 METAL CHIP 0 5% 1/16W (US,AEP,CET) < COIL > L1 1-469-373-21 INDUCTOR 0uH L2 1-416-941-21 COIL(FM OSC) L3 1-410-997-42 INDUCTOR CHIP 2.2uH L4 1-412-995-21 INDUCTOR 22uH L5 1-754-046-11 ANTENNA, FERRITE-ROD L6 1-412-995-21 INDUCTOR 22uH L7 1-412-967-31 INDUCTOR 0.1uH L8 1-412-967-31 INDUCTOR 0.1uH L801 1-412-034-11 INDUCTOR CHIP 330uH L802 1-412-995-21 INDUCTOR 22uH L803 1-412-010-41 INDUCTOR CHIP 22uH < FLUORESCENT INDICATOR > ND1 1-803-469-11 DISPLAY PANEL, LIQUID CRYSTAL < PHOTO INTERRUPTER > PH1 8-749-014-43 PHOTO PR-20-T MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 33 — < TRANSISTOR > Q1 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO Q2 8-729-028-69 TRANSISTOR 2SC4655-BC(TX) Q3 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO Q4 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO Q5 8-729-231-96 TRANSISTOR 2SK880GR-TE85L Q6 8-729-028-69 TRANSISTOR 2SC4655-BC(TX) Q7 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO Q8 8-729-037-64 TRANSISTOR UN9116J-(TX).SO Q9 8-729-823-86 TRANSISTOR 2SA1745 Q10 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO Q11 8-729-037-63 TRANSISTOR UN9115J-(TX).SO Q12 8-729-037-71 TRANSISTOR UN9210J-(TX).SO Q13 8-729-037-71 TRANSISTOR UN9210J-(TX).SO Q14 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO Q15 8-729-425-46 TRANSISTOR XP4315-TXE Q16 8-729-013-60 TRANSISTOR RN1110-TE85L Q17 8-729-800-71 TRANSISTOR 2SB815B7-TB Q18 8-729-427-72 TRANSISTOR XP4501 Q19 8-729-426-36 TRANSISTOR XP1215-TXE Q20 8-729-037-71 TRANSISTOR UN9210J-(TX).SO Q301 8-729-800-71 TRANSISTOR 2SB815B7-TB Q302 8-729-037-71 TRANSISTOR UN9210J-(TX).SO Q303 8-729-426-36 TRANSISTOR XP1215-TXE Q304 8-729-037-62 TRANSISTOR UN9114J-(TX).SO Q305 8-729-426-36 TRANSISTOR XP1215-TXE Q601 8-729-037-71 TRANSISTOR UN9210J-(TX).SO Q801 8-729-800-37 TRANSISTOR 2SD1048-X7 Q802 8-729-400-55 TRANSISTOR 2SD1328-S Q803 8-729-800-71 TRANSISTOR 2SB815B7-TB Q804 8-729-800-71 TRANSISTOR 2SB815B7-TB Q805 8-729-037-71 TRANSISTOR UN9210J-(TX).SO < RESISTOR > R1 1-216-841-11 METAL CHIP 47K 5% 1/16W R2 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R3 1-216-809-11 METAL CHIP 100 5% 1/16W R4 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R5 1-216-821-11 METAL CHIP 1K 5% 1/16W R6 1-216-817-11 METAL CHIP 470 5% 1/16W R7 1-216-845-11 METAL CHIP 100K 5% 1/16W R8 1-216-853-11 METAL CHIP 470K 5% 1/16W R9 1-216-817-11 METAL CHIP 470 5% 1/16W R10 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R11 1-216-833-91 RES,CHIP 10K 5% 1/16W R12 1-216-833-91 RES,CHIP 10K 5% 1/16W R13 1-216-837-11 METAL CHIP 22K 5% 1/16W R14 1-216-845-11 METAL CHIP 100K 5% 1/16W R15 1-216-833-91 RES,CHIP 10K 5% 1/16W R16 1-216-853-11 METAL CHIP 470K 5% 1/16W R17 1-216-821-11 METAL CHIP 1K 5% 1/16W R18 1-216-849-11 METAL CHIP 220K 5% 1/16W R19 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R20 1-216-821-11 METAL CHIP 1K 5% 1/16W R21 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R22 1-216-845-11 METAL CHIP 100K 5% 1/16W R23 1-216-821-11 METAL CHIP 1K 5% 1/16W R24 1-216-821-11 METAL CHIP 1K 5% 1/16W R25 1-216-845-11 METAL CHIP 100K 5% 1/16W R26 1-216-833-91 RES,CHIP 10K 5% 1/16W R27 1-216-853-11 METAL CHIP 470K 5% 1/16W R28 1-216-845-11 METAL CHIP 100K 5% 1/16W R29 1-216-839-11 METAL CHIP 33K 5% 1/16W R30 1-216-833-91 RES,CHIP 10K 5% 1/16W R31 1-216-843-11 METAL CHIP 68K 5% 1/16W R32 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R33 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R34 1-216-857-11 METAL CHIP 1M 5% 1/16W R35 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R36 1-216-849-11 METAL CHIP 220K 5% 1/16W R37 1-216-857-11 METAL CHIP 1M 5% 1/16W R38 1-216-853-11 METAL CHIP 470K 5% 1/16W R39 1-216-815-11 METAL CHIP 330 5% 1/16W R40 1-216-833-91 RES,CHIP 10K 5% 1/16W R41 1-218-871-11 RES,CHIP 10K 0.50% 1/16W R42 1-218-839-11 RES,CHIP 470 0.50% 1/16W R43 1-216-849-11 METAL CHIP 220K 5% 1/16W R44 1-216-851-11 METAL CHIP 330K 5% 1/16W R45 1-216-855-11 METAL CHIP 680K 5% 1/16W R46 1-216-821-11 METAL CHIP 1K 5% 1/16W R47 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R48 1-218-863-11 RES,CHIP 4.7K 0.50% 1/16W R49 1-218-911-11 RES,CHIP 470K 0.50% 1/16W R50 1-218-855-11 RES,CHIP 2.2K 0.50% 1/16W R51 1-218-847-11 RES,CHIP 1K 0.50% 1/16W R52 1-218-859-11 RES,CHIP 3.3K 0.50% 1/16W R53 1-218-859-11 RES,CHIP 3.3K 0.50% 1/16W R54 1-218-859-11 RES,CHIP 3.3K 0.50% 1/16W R55 1-218-863-11 RES,CHIP 4.7K 0.50% 1/16W R56 1-218-875-11 RES,CHIP 15K 0.50% 1/16W R58 1-216-833-91 RES,CHIP 10K 5% 1/16W R59 1-216-833-91 RES,CHIP 10K 5% 1/16W R60 1-216-833-91 RES,CHIP 10K 5% 1/16W R61 1-216-833-91 RES,CHIP 10K 5% 1/16W R62 1-216-845-11 METAL CHIP 100K 5% 1/16W R63 1-216-853-11 METAL CHIP 470K 5% 1/16W R64 1-216-853-11 METAL CHIP 470K 5% 1/16W R65 1-216-849-11 METAL CHIP 220K 5% 1/16W R66 1-216-839-11 METAL CHIP 33K 5% 1/16W R67 1-216-839-11 METAL CHIP 33K 5% 1/16W R68 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R69 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R70 1-218-895-11 RES,CHIP 100K 0.50% 1/16W R71 1-218-851-11 RES,CHIP 1.5K 0.50% 1/16W R72 1-218-871-11 RES,CHIP 10K 0.50% 1/16W R73 1-218-831-11 RES,CHIP 220 0.50% 1/16W R74 1-218-875-11 RES,CHIP 15K 0.50% 1/16W R75 1-218-839-11 RES,CHIP 470 0.50% 1/16W R76 1-218-875-11 RES,CHIP 15K 0.50% 1/16W R77 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R101 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R102 1-216-837-11 METAL CHIP 22K 5% 1/16W R103 1-216-789-11 METAL CHIP 2.2 5% 1/16W R104 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R105 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R106 1-216-811-11 METAL CHIP 150 5% 1/16W (US,AEP,CET) R106 1-216-821-11 METAL CHIP 1K 5% 1/16W (FR) R107 1-216-837-11 METAL CHIP 22K 5% 1/16W R108 1-216-811-11 METAL CHIP 150 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 34 — R109 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R110 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R111 1-216-849-11 METAL CHIP 220K 5% 1/16W R112 1-216-807-11 METAL CHIP 68 5% 1/16W (FR) R201 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R202 1-216-837-11 METAL CHIP 22K 5% 1/16W R203 1-216-789-11 METAL CHIP 2.2 5% 1/16W R204 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R205 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R206 1-216-811-11 METAL CHIP 150 5% 1/16W (US,AEP,CET) R206 1-216-821-11 METAL CHIP 1K 5% 1/16W (FR) R207 1-216-837-11 METAL CHIP 22K 5% 1/16W R208 1-216-811-11 METAL CHIP 150 5% 1/16W R209 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R210 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R211 1-216-849-11 METAL CHIP 220K 5% 1/16W R212 1-216-807-11 METAL CHIP 68 5% 1/16W (FR) R301 1-216-849-11 METAL CHIP 220K 5% 1/16W R302 1-216-833-91 RES,CHIP 10K 5% 1/16W R303 1-216-835-11 METAL CHIP 15K 5% 1/16W R304 1-216-837-11 METAL CHIP 22K 5% 1/16W R305 1-216-789-11 METAL CHIP 2.2 5% 1/16W R306 1-216-851-91 METAL CHIP 330K 5% 1/16W R307 1-216-825-91 METAL CHIP 2.2K 5% 1/16W R308 1-218-887-11 RES,CHIP 47K 0.50% 1/16W R309 1-216-841-11 METAL CHIP 47K 5% 1/16W R310 1-216-845-11 METAL CHIP 100K 5% 1/16W R311 1-216-841-11 METAL CHIP 47K 5% 1/16W R312 1-216-845-11 METAL CHIP 100K 5% 1/16W R313 1-218-899-11 RES,CHIP 150K 0.50% 1/16W R601 1-216-837-11 METAL CHIP 22K 5% 1/16W R602 1-216-809-11 METAL CHIP 100 5% 1/16W R603 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R604 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R605 1-216-833-91 RES,CHIP 10K 5% 1/16W R607 1-216-845-11 METAL CHIP 100K 5% 1/16W R801 1-216-849-11 METAL CHIP 220K 5% 1/16W R802 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R803 1-216-817-11 METAL CHIP 470 5% 1/16W R804 1-216-805-11 METAL CHIP 47 5% 1/16W R805 1-216-819-11 METAL CHIP 680 5% 1/16W R806 1-216-819-11 METAL CHIP 680 5% 1/16W R807 1-216-845-11 METAL CHIP 100K 5% 1/16W < RESISTOR COMPOSITION CIRCUIT BLOCK > RB1 1-233-811-21 RES, NETWORK 470K (3216) RB601 1-233-873-21 RES, NETWORK (CHIP TYPE)(3216) < VARIABLE RESISTOR > RV1 1-223-587-11 RES, ADJ, CARBON 22K RV301 1-225-684-21 RES, VAR, CARBON 30K/30K (VOL) RV601 1-223-584-11 RES, ADJ, CARBON 2.2K < SWITCH > S1 1-771-475-21 SWITCH, SLIDE (REV/STOP/FWD) S2 1-572-922-11 SWITCH, SLIDE (HOLD) S3 1-771-053-21 SWITCH, KEY BOARD (RADIO OFF) S4 1-771-053-21 SWITCH, KEY BOARD (FF/AMS) S5 1-771-053-21 SWITCH, KEY BOARD (REW/AMS) S6 1-771-053-21 SWITCH, KEY BOARD (MENU) S7 1-771-053-21 SWITCH, KEY BOARD (SET) S8 1-771-053-21 SWITCH, KEY BOARD (BAND RADIO ON) S9 1-771-053-21 SWITCH, KEY BOARD (REPEAT) S10 1-771-053-21 SWITCH, KEY BOARD (ENTER) < TRANSFORMER > T1 1-416-943-21 COIL(AM OSC) T2 1-416-942-21 COIL(AM MIX) T801 1-423-745-11 TRANSFORMER, DC-DC CONVERTER < THERMISTOR(POSITIVE) > THP601 1-810-794-11 THERMISTOR, POSITIVE < VIBRATOR > X1 1-767-357-11 FILTER, CERAMIC (10.7MHz) X2 1-579-615-11 VIBRATOR, CRYSTAL (75kHz) ************************************************************ MISCELLANEOUS ************* S901 1-762-553-11 SWITCH, LEAF M601 1-763-166-12 MOTOR (CAPSTAN/REEL)(WITH PULLEY) HP901 1-500-576-11 HEAD, MAGNETIC (PLAYBACK) PM901 1-454-674-32 SOLENOID, PLUNGER ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 1-528-299-41 BATTERY, NI-CD (NC-6WM) (US) 1-528-543-22 BATTERY,NICKEL CADMIUM(NC-6WM) (AEP,FR,CET) 1-528-713-21 BATTERY CHARGER (BC-7DC) (US) 1-528-744-23 BATTERY CHARGER (BC-7DY) (AEP,FR,CET) 1-759-213-11 CASE,BATTERY (US) 1-759-700-21 CASE,BATTERY (AEP,FR,CET) 3-008-521-01 CASE,BATTERY CHARGE 3-029-488-01 POUCH,CARRYING 3-759-706-21 MANUAL, INSTRUCTION (ENGLISH) (CET) 3-864-890-11 MANUAL, INSTRUCTION 3-864-890-21 MANUAL, INSTRUCTION (SPANISH/PORTUGUESE) (AEP) 3-864-890-31 MANUAL, INSTRUCTION (AEP) 3-864-890-41 MANUAL, INSTRUCTION (AEP) 3-864-890-51 MANUAL, INSTRUCTION (AEP) 3-864-890-61 MANUAL, INSTRUCTION (CET) 8-953-272-90 HEADPHONE MDR-ED136SP//K SET (AEP,FR,CET) 8-953-735-90 HEADPHONE MDR-W034LP//O SET (US) MAIN WM-FX671 Sony Corporation Personal A&V Products Company 99C1661-1 Printed in Japan ©1999.3 Published by Quality Engineering Dept. (Shinagawa) 9-926-978-11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
