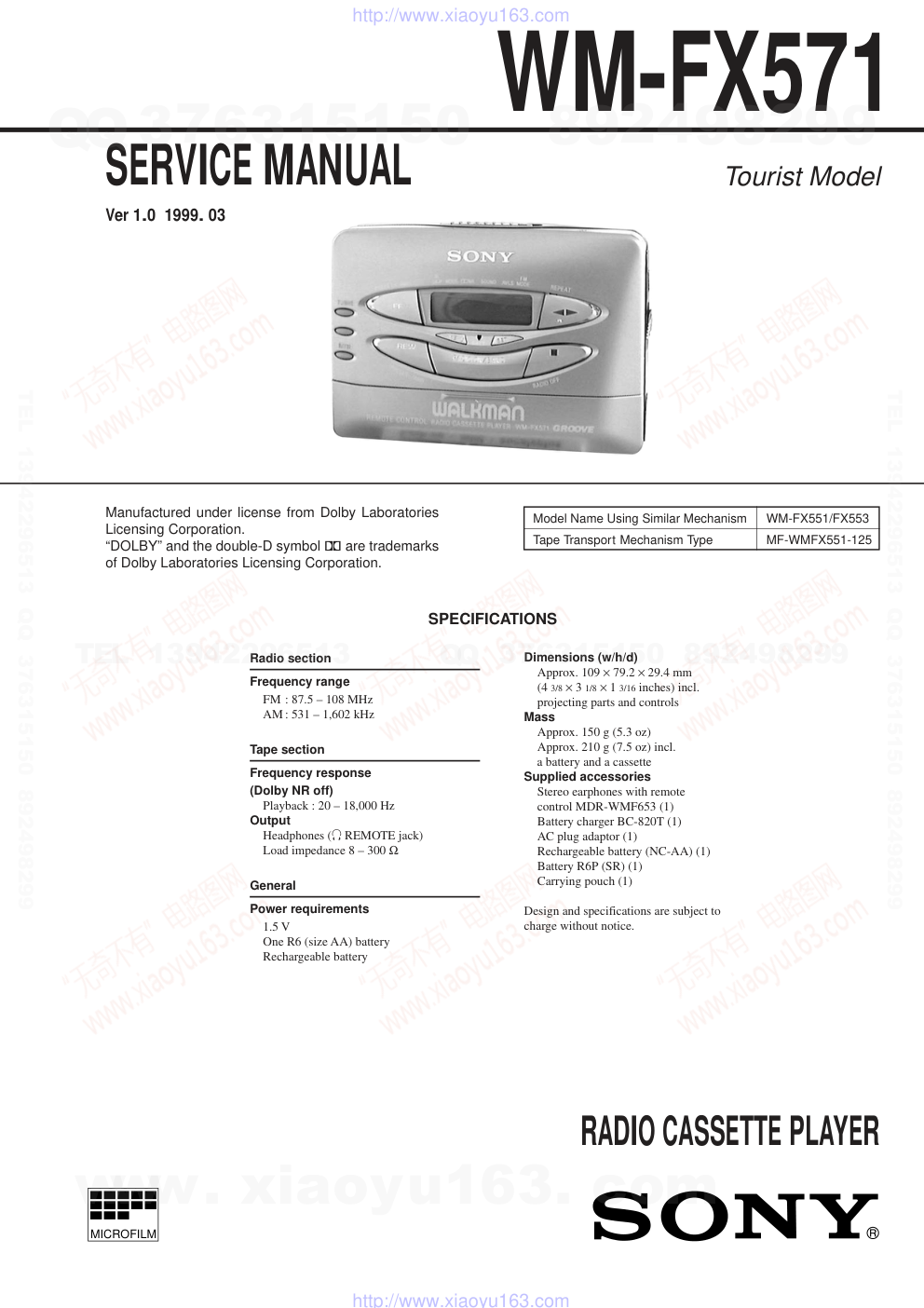

– 1 – Model Name Using Similar Mechanism WM-FX551/FX553 Tape Transport Mechanism Type MF-WMFX551-125 SERVICE MANUAL Tourist Model RADIO CASSETTE PLAYER Ver 1.0 1999. 03 SPECIFICATIONS Radio section Frequency range FM : 87.5 – 108 MHz AM : 531 – 1,602 kHz Tape section Frequency response (Dolby NR off) Playback : 20 – 18,000 Hz Output Headphones (2 REMOTE jack) Load impedance 8 – 300 Ω General Power requirements 1.5 V One R6 (size AA) battery Rechargeable battery Dimensions (w/h/d) Approx. 109 × 79.2 × 29.4 mm (4 3/8 × 3 1/8 × 1 3/16 inches) incl. projecting parts and controls Mass Approx. 150 g (5.3 oz) Approx. 210 g (7.5 oz) incl. a battery and a cassette Supplied accessories Stereo earphones with remote control MDR-WMF653 (1) Battery charger BC-820T (1) AC plug adaptor (1) Rechargeable battery (NC-AA) (1) Battery R6P (SR) (1) Carrying pouch (1) Design and specifications are subject to charge without notice. Manufactured under license from Dolby Laboratories Licensing Corporation. “DOLBY” and the double-D symbol a are trademarks of Dolby Laboratories Licensing Corporation. MICROFILM www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TABLE OF CONTENTS 1. GENERAL ....................................................................3 2. SERVICE NOTE ..........................................................3 3. DISASSEMBLY 3-1. Case Assy ............................................................................ 4 3-2. Tuner Board ........................................................................ 4 3-3. Audio Board ........................................................................ 5 3-4. Cassette Lid Assy ................................................................ 5 3-5. Tape Mechanism Deck ........................................................ 6 4. MECHANICAL ADJUSTMENTS ..............................7 5. ELECTRICAL ADJUSTMENTS Tape Section ............................................................................ 7 Tuner Section........................................................................... 8 6. DIAGRAMS 6-1. Block Diagram .................................................................... 9 6-2. IC Pin Description............................................................. 11 6-3. Printed Wiring Boards –Tuner Section– ........................... 13 6-4. Schematic Diagram –Tuner Section– ................................ 17 6-5. Schematic Diagram –Audio Section– ............................... 20 6-6. Printed Wiring Board –Audio Section– ............................ 23 7. EXPLODED VIEWS 7-1. Cabinet Section ................................................................. 29 7-2. Audio and Tuner Board Section ........................................ 30 7-3. Tape Mechanism Section .................................................. 31 8. ELECTRICAL PARTS LIST .................................... 32 Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on Chip Component Replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – screw (M1.4 × 5.0) screw (M1.4 × 5.0) TUNER board screw (M1.7 × 4.0) screw (M1.4 × 5.0) JIG AUDIO board 0 !¡ !™ !£ !¢ !∞ !§ !¶ 9 8 7 6 5 4 3 2 1 SECTION 1 GENERAL • LOCATION OF CONTROLS SECTION 2 SERVICE NOTE • Regarding the method of adjustment and voltage check, perform sections 3-1 and 3-2 of the DISASSEMBLY, and attach the JIG (extension cable) to the AUDIO board as shown below. JIG Part No.: J-2503-005-A 1 OPEN knob 2 Display window 3 PRESET + /AMS FF (Fast Forward) button 4 TUNING + button 5 TUNING – button 6 ENTER button 7 PRESET – /AMS REW (Rewind) button 8 MENU button 9 RADIO ON/BAND button !º SET button !¡ p /RADIO OFF button !™ “” /REPEAT button !£ VOLUME control !¢ C HOLD knob !∞ 2 REMOTE jack !§ Battery case !¶ DC IN 1.5V jack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – 1 screw (M1.7 × 6) 5 TUNER board 4 3 screw (M1.4 × 4.5) 7 guide (TU) 6 2 screw (M1.7 × 3) 1 screw (M1.7 × 6) 6 case assy 4 claws 3 screws (M1.4 × 2.2) 1 screw (M1.4 × 2.2) 2 screw (M1.4 × 3.0) 5 CASE ASSY TUNER BOARD AUDIO BOARD CASSETTE LID ASSY TAPE MECHANISM DECK SET SECTION 3 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 3-1. CASE ASSY 3-2. TUNER BOARD Note : Disassemble the unit in the order as shown below. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – 2 screw (M1.4 × 2) 5 cassette lid assy 3 screw (M1.4 × 1.6) 1 OPEN button 4 7 AUDIO board 1 Unsolder the 3 places. 2 battery terminal (–) 4 battery terminal (+) 3 Unsolder the 5 places. 5 Flexible board 6 3-3. AUDIO BOARD 3-4. CASSETTE LID ASSY www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – 2 1 3 4 reel ornament 5 tape mechanism deck 3-5. TAPE MECHANISM DECK www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – PRECAUTION 1. Specified voltage : 1.3V 2. Switch position MENU button : a NR light off (OFF) : AVLS light off (OFF) TAPE SECTION 0 dB=0.775 V Test Tape Tape Speed Adjustment Procedure : 1. Playback WS-48A (Tape center part) in the FWD state and adjust RV601 so that the frequency counter reading becomes 3,000 Hz. Specification Value: Digital frequency counter 2,970 to 3,030 Hz 2. Playback WS-48A (Tape center part) in the REV state. Check that frequency counter reading is within 60 Hz of the reading of step1. Adjustment Location : [MAIN BOARD] — SIDE A — Torque meter CQ-102C CQ-102RC CQ-201B Mode FWD FWD Back Tension REV REV Back Tension FF REW Test tape WS-48A (3kHz, 0dB) set 16Ω 2 REMOTE jack (J701) + – Frequency counter RV601 : Tape speed SECTION 4 MECHANICAL ADJUSTMENTS PRECAUTION 1. Clean the following parts with a denatured-alcahol-moistened sweb : Playback head Pinch roller Rubber belt Capstan 2. Demagnetize the playback head using a demagnetizer. 3. Do not use a magnetized screwdriver for adjustments. 4. After adjusting, apply screw-locking compound onto the adjusted parts. 5. Unless specified otherwise, use a specified voltage (1.3V) to perform the adjustments. Torque Measurement Meter reading 20 to 30 g · cm (0.28 to 0.42 oz · inch) 0.4 to 2.0 g · cm (0.0056 to 0.028 oz · inch) 20 to 30 g · cm (0.28 to 0.42 oz · inch) 0.4 to 2.0 g · cm (0.0056 to 0.028 oz · inch) More than 40 g · cm (More than 0.56 oz · inch) Type WS-48A Signal 3kHz, 0dB Purpose Tape Speed Adjustment SECTION 5 ELECTRICAL ADJUSTMENTS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – FM VCO Adjustment Procedure : 1. Connect the frequency counter to the positions shown below. 2. Turn the set to 98 MHz. 3. Adjust RV1 for 19,000 Hz reading on the frequency counter. Specification Value: Digital frequency counter 18,900 to 19,100 Hz TUNER SECTION 0 dB=1 µV [AM] RADIO ON/BAND button : AM [FM] RADIO ON/BAND button : FM • Repeat the procedures in each adjustment several times, and the frequency coverage and tracking adjustments should be finally done by the trimmer capacitors. AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L4 621kHz CT1 1,395kHz FM IF ADJUSTMENT Adjust for a maximum reading on level meter. L3 10.7MHz FM VOLTAGE ADJUSTMENT 1.05 to 1.15 V L2 76MHz L3 : FM IF Adjustment TP1 TP13 IC7 L2 : FM Voltage Adjustment RV1 : FM VCO Adjustment L4 : AM Tracking Adjustment CT1 : AM Tracking Adjustment 100Ω + – Frequency counter 1µF TP23 (IC7 pin !™) IC7 pin 9 FM RF signal generator Carrier frequency : 98MHz Modulation : No moduration Output level : 0.1V (100dB) 0.01µF to ANT (TP1) set 16Ω 2 REMOTE jack (J701) + – FM RF signal generator 22.5kHz frequency deviation by 400Hz signal. Output level : as low as possible 0.01µF to ANT (TP1) Level meter AM RF signal generator 30% amplitude modulation by 400Hz signal. Output level : as low as possible Put the lead-wire antenna close to the set. Adjustment Location : [TUNER BOARD] — SIDE A — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Pin No. 1 to 3 4 to 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 I/O — — O O O O O O O I I I I I O I O I I I I O O I/O O O O O O O O O O O O O O O O — I O O I O — Description Common terminal. Segment output terminal. Remote control data output. DDC control terminal (when DDC ON = L). BAND control output (when AM = Hi-imp, when FM = L). MUTE control terminal (when MUTE ON = L). HEAD select terminal (when FWD = Hi-imp, when REV = L). Tone control terminal (when BOOST ON = Hi-imp, when OFF = L). IF REQ control terminal (when REQ = Hi-imp). HOLDER detect input (when HOLDER CLOSE = H). Communication request from the remote controller. (H = VCC). HOLDER detect and TAPE error erase detect terminal. TAPE rotating direction detect terminal. Input when the key is pressed during HOLD (H = AD Vref). Terminal for controlling the rotation detect circuit. Rotation detect input. AMS sensitivity select (when AMS = H, when BL.SKIP = L). Tape sound existing or not-exiting detect (Music exists: L, music does not exist: H. Voltage detect input. KEY input terminal. Reference voltage of AD IN 1, 2. LED output terminal. E2PROM CS control terminal. E2PROM DATA I/O. E2PROM CLOCK terminal. BEEP (when TC : 1.6 kHz, when CF : 3.0 kHz). MOTOR control terminal. MOTOR control terminal. MOTOR control terminal. REC circuit control output. RADIO system control terminal (when RADIO ON = L). Terminal for controlling AVLS (when ON = L). AMP control output (when AMP ON = H). Tone control terminal (when GRV = L, when MB = H). PL control terminal. TC/CF select output (when PRE OFF = H, when PRE ON = Hi-imp). Terminal for controlling DOLBY circuit (when OFF = H, when ON = Hi-imp). DDC control terminal (ON at Hi-imp, OFF at L). TUNER MONO/STEREO select terminal (MONO at H). TEST terminal (Normal operation at L or NC). IF input. TUNER sensitivity select terminal (LOCAL at H, DX at L). Phase comparator output. External interrupt terminal. Pre-scaler output (FM at H). Power supply GND terminal. Function COM 1 to 3 S1 to 22 R DATA OUT DDC1 CTL BAND AM/FM MUTE CTL F/R CTL BST CTL IF REQ HOLD SW R DATA IN HOLDER, TUME F/R SW HOLD SENS PHOTO CTL PHOTO IN AMS CTL AMS IN BATT DET KEY IN AD Vref LED CTL CS M DATA I/O M CLOCK BEEP MOTOR CTL MOTOR DIR MOTOR BRK REC CTL RADIO CTL AVLS CTL AMP CTL GRV/MB CTL PM CTL PRE AMP CTL DOLBY CTL DDC2 CTL MONO/ST TEST IF IN LOCAL/DX DO HOLD PSC GND Circuit Output Output (Nch) Output (Nch) Output (Nch) Output (Nch) Output (Nch) Output (Nch) Input Input Input Input Input Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Input/Output Ternary output Ternary output Ternary output Ternary output Output Output External interrupt Remarks VLD at High level. Pull-up at outside (TUNER side). Pull-up at outside (Vref). Pull-up at outside (Vcc). Pull-up at outside (Vcc). Pull-up at outside (Vcc). Pull-up at outside (Vref). Pull-up at outside (VLCD). A/D input. A/D input. A/D input. A/D input. Pull-down at outside. Pull-up at outside. Open Pin Name COM 1 to 3 S1 to 22 P13-1 P13-2 P13-3 P14-0 P14-1 P14-2 P14-3 IN2 K0 K1 K2 K3 P1-1 P1-2 P1-3 P2-0/AD IN1 P2-1/AD IN2 P2-2 P2-3 P3-0 P3-1 P3-2 P3-3/BUZR P4-0 P4-1 P4-1 P4-2 P4-3 P5-0 P5-1 P5-2 P5-3 P6-0 P6-1 P6-2 P6-3 MUTE TEST IF IN DO1/OT DO2 HOLD PSC GND INT — — H Hi-imp Hi-imp Hi-imp Hi-imp L Hi-imp — L — — L L — L — — H — L L L L — L L L L H L L L L Hi-imp Hi-imp Hi-imp L — — L — H — — ACT — — — L — L — Hi-imp L — VCC — — AD Vrcl H — H — — — — H — — — — H H H H L L H H H Hi-imp Hi-imp Hi-imp — — — — — — H — Pin No. 70 71 72 73 74 75 76 77 78 79 80 I/O I O — I O I — — — — — Description Pre-scaler input. AM local oscillator output. Power supply voltage. RESET terminal (H during operation). Terminal to which external oscillator is connected. Terminal to which external oscillator is connected. Terminal to which external capacitor is connected to stabilize crystal oscillator power supply. Terminal to step-up power supply voltage for LCD drive. Terminal to step-up power supply voltage for LCD drive. Terminal to step-up power supply voltage for LCD drive. Terminal for 1.5 V constant voltage power supply of LCD drive. Function FM IN AM IN VDD RESET XOUT XIN VXT VLCD C1 C2 VEE Circuit Remarks Pin Name FM IN AM IN VDD RESET XOUT XIN VXT VLCD C1 C2 VEE INT — — — L — — — — — — — ACT — — — H — — — — — — — • IC1 TC9326F-051 (SYSTEM CONTROL) 6-2. IC PIN DESCRIPTION – 12 – – 9 – – 10 – – 11 – WM-FX571 6-1. BLOCK DIAGRAM SECTION 6 DIAGRAMS FUNCTION KEY S701 FM/AM RF,IF AMP IC7 VCC1 T2 AM MIX CF2 10.7MHz CF3 450kHz 450kHz MIX OUT 4 FM IF IN 3 AM IF IN 6 AM OSC L.P.F Q16,17 CT1, L4 CT1 AM TRACKING L OUT 14 R OUT 15 R CH FWD HP301 PB HEAD REV L L R CH GND REMO DATA VCC L CH S1-5,7-11 ON OFF HOLD DDC CONT S702 (F/R) RADIO +B SWITCH Q18 SYSTEM CONTROL IC1 2 5 MOTOR BRK 52 PH701 BRAKE SWITCH Q601,602 SPEED TAPE RV601 START 8 DIR 6 IN 10 MOTOR SERVO IC601 U 19 V 1 W 3 4 25 X IN 75 X OUT 74 X701 75kHz 1 3 COM1 COM3 S1 S22 04 LIQUID CRYSTAL DISPLAY PANEL REMOTE J701 : FM • Signal Path • R-CH is omitted. : PB : AM FM LOCAL/DX Q1 RF IN 1 6 MIX 5 OSC 8 RF OUT FM FRONT END IC3 D2 D1 FM IF AMP Q4 FM VOLTAGE L2 L2 FM IF L1 L1 CF1 10.7MHz FM IF AMP Q6 FM IN 2 5 FM OUT PRESCALER IC2 PSC 7 L4 AM FERRITE-ROD ANTENNA AM RF 24 AM LOCAL/DX Q2 Q7 RF AMP T1 AM OSC 2 IF REQ SWITCH Q15 D3 D4 IF REQ 11 7 QUAD 17 VCO FM VCO RV1 CF4 10.7MHz 18 LP2A 19 LP2B BAND SELECT Q5 5 VCC Q8 Q304 VCC1 RADIO +B SWITCH Q7 VCC2 2.8V 16 LPF1 Q8 Q14 10 IF OUT Q13 FWD 34 18 REV 33 F/R SW 26 NR SW 19 BST SW 62 16 47 BST IN Q301 (2/2) 25 DET Q301 (1/2) PWR AVLS CONT Q302 Q303 BEEP 60 MUTE SW 59 PW SW 58 AVLS 64 3 24 AMS 22 PRE SW 57 63 56 50 AVLS PW C AGC AUDIO POWER AMP IC301 GND COM VCC1 S901 (ATS) PLUNGER DRIVE Q701,702 PM901 PLUNGER S703 (HOLDER) 65 LOCAL/DX 36 F/R SW 66 DO 68 PSC 70 FM IN 32 IF REQ 64 IF IN 71 AM IN 62 MONO/ST 54 RADIO CTL 30 F/R CTL BST IN DET 28 BAND AM/FM 60 DOLBY CTL 31 BST CTL 33 AMS IN 57 MB/GRV CTL 40 AMS CTL 55 AVLS CTL 56 AMP CTL 29 MUTE 49 BEEP 59 PRE AMP CTL 26 R DATA OUT 43 KEY IN 58 PW CTL 67 WAKE UP 37 HOLD SENS 41 HOLD SW 35 HOLDER SW 34 R DATA IN Q21 IC6 M CS 46 DC-DC CONV. T3,Q9-11 REG IC5 2 3 1 IC701 VCC1 VCC2 DDC2 CTL 61 (VCC) AD REF 44 DDC1 CTL 27 EEPROM IC4 3 4 2 1 M DATA I/O 47 M CLOCK 48 PH701 VCC2 Q704 PHOTO CTL 38 PHOTO IN 39 LED CTL 45 D5 BATT MOTOR CTL 50 MOTOR DIR 51 LCD1 Q306 PW VCC 53 BASS 52 RF OUT 51 J801 DRY BATTERY SIZE "AA" (IEC DESIGNATION R6) 1PC, 1.5V DC IN 1.5V M901 CAPSTAN/ REEL MOTOR FWD STOP REV RV301 VOLUME w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – – 14 – – 15 – WM-FX571 – 16 – 6-3. PRINTED WIRING BOARD — TUNER SECTION — w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 17 – – 18 – – 19 – WM-FX571 6-4. SCHEMATIC DIAGRAM — TUNER SECTION — • Refer to page 27 for IC Block Diagrams. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • C : panel designation. • U : B+ Line. • H : adjustment for repair. • Power voltage is dc 1.5 V and fed with regulated dc power supply from external power voltage jack. • Voltage and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : FM ( ) : AM ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • : Printed inductor. • Signal path. F : FM f : AM Ref. No. Location D1 B-20 D2 B-19 D3 A-21 D4 D-19 D5 D-17 D6 E-13 D7 E-13 D8 E-14 D9 E-16 IC1 B-13 IC2 B-18 IC3 B-19 IC4 E-13 IC5 B-12 IC6 G-12 IC7 F-20 Q1 A-19 Q2 B-21 Q3 C-20 Q4 C-20 Q5 C-19 Q6 E-20 Q7 D-15 Q8 C-19 Q9 E-15 Q10 F-14 Q11 F-14 Q12 F-13 Q13 G-19 Q14 G-21 Q15 E-18 Q16 D-13 Q17 D-13 Q18 E-17 Q21 A-12 • Semiconductor Location Note on Printed Wiring Board: • r : Through hole. • b : Pattern from the side which enables seeing. (The other layer’s patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 20 – – 21 – – 22 – WM-FX571 Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • C : panel designation. • U : B+ Line. • H : adjustment for repair. • Total current is measured with no cassette installed. • Power voltage is dc 1.5 V and fed with regulated dc power supply from external power voltage jack. • Voltage and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : PB ( ) : FM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : FM E : PB 6-5. SCHEMATIC DIAGRAM — AUDIO SECTION — • Refer to page 28 for IC Block Diagrams. TUNER BOARD w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – – 24 – – 25 – WM-FX571 – 26 – 6-6. PRINTED WIRING BOARD — AUDIO SECTION — Ref. No. Location D701 F-14 D702 C-19 D703 E-13 D704 F-13 D705 G-13 IC301 D-6 IC601 D-3 IC701 C-19 PH701 E-18 Q301 C-18 Q302 B-13 Q303 E-4 Q304 D-4 Q306 C-12 Q601 D-19 Q602 D-18 Q701 G-14 Q702 G-14 Q704 E-17 • Semiconductor Location Note: • r : Through hole. • b : Pattern from the side which enables seeing. (The other layer’s patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – 110 109 108 107 106 105 104 120 111 121 112 113 129 114 115 116 122 131 130 117 123 118 124 125 126 127 102 125 119 128 127 103 HP301 not supplied M901 PM901 101 131 7-3. TAPE MECHANISM SECTION (MF-WMFX551-125) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 3-011-277-01 COVER (B) (Y), MD 102 3-704-413-31 SCREW (M1.4X7.2) 103 X-3372-850-1 PINCH LEVER (N) ASSY 104 3-007-434-01 PULLEY (REVERSE) 105 3-007-428-01 WASHER (R) 106 X-3372-851-1 FLYWHEEL (R) ASSY 107 3-007-439-01 SLIDER (LOCK) 108 3-386-694-21 WASHER 109 X-3372-852-1 FLYWHEEL (N) ASSY 110 3-007-430-01 BELT 111 3-007-960-01 SPRING (EJECT) (Y), TORSION 112 3-007-436-01 SPRING (TRIGGER), TORSION 113 X-3372-848-1 CLUTCH ASSY (M) 114 3-016-696-01 GEAR (FRN) 115 X-3372-853-1 LEVER (FRG) ASSY 116 3-007-432-01 SHEET (R), REFLECTION 117 3-029-765-01 SCREW (M1.4), TOOTHED LOCK 118 X-3374-094-1 CHASSIS (S) ASSY (F) 119 3-019-710-01 SPRING (R), TORSION 120 3-007-458-01 SPRING (H/B), TENSION 121 3-019-709-01 SPRING (N), TORSION 122 3-007-454-01 SPRING (FR), TORSION 123 3-007-457-01 SPRING (TEN), TENSION 124 X-3372-849-1 PINCH LEVER (R) ASSY 125 3-010-954-01 SPRING (BT), COMPRESSION 126 3-918-943-01 WASHER, STOPPER 127 3-366-017-01 BUSHING (CAPSTAN) 128 3-007-429-01 WASHER (R), STOPPER 129 3-932-724-21 WASHER * 130 3-010-272-01 BELT, RETAINER 131 3-010-274-02 TABLE, REEL HP301 1-500-536-11 HEAD, MAGNETIC (PLAYBACK) M901 1-698-885-11 MOTOR (CAPSTAN/REEL) (including PULLEY) PM901 1-454-674-31 SOLENOID, PLUNGER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 32 – SECTION 8 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. AUDIO A-3061-472-A AUDIO BOARD, COMPLETE ********************** < CAPACITOR > C101 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C102 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C103 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C104 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C105 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C106 1-115-156-11 CERAMIC CHIP 1uF 10V C107 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C108 1-135-180-21 TANTALUM CHIP 3.3uF 20% 6.3V C109 1-164-174-11 CERAMIC CHIP 0.0082uF 10% 25V C110 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C111 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C112 1-115-156-11 CERAMIC CHIP 1uF 10V C113 1-115-156-11 CERAMIC CHIP 1uF 10V C114 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C115 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C116 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C117 1-115-156-11 CERAMIC CHIP 1uF 10V C119 1-115-156-11 CERAMIC CHIP 1uF 10V C201 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C202 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C203 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C204 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C205 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C206 1-115-156-11 CERAMIC CHIP 1uF 10V C207 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C208 1-135-180-21 TANTALUM CHIP 3.3uF 20% 6.3V C209 1-164-174-11 CERAMIC CHIP 0.0082uF 10% 25V C210 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C211 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C212 1-115-156-11 CERAMIC CHIP 1uF 10V C213 1-115-156-11 CERAMIC CHIP 1uF 10V C214 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C215 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C216 1-115-156-11 CERAMIC CHIP 1uF 10V C217 1-115-156-11 CERAMIC CHIP 1uF 10V C219 1-115-156-11 CERAMIC CHIP 1uF 10V C301 1-135-316-11 TANTAL. CHIP 22uF 20% 2.5V C302 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C303 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C304 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C305 1-135-316-11 TANTAL. CHIP 22uF 20% 2.5V C306 1-135-149-21 TANTALUM CHIP 2.2uF 20% 10V C307 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C308 1-135-180-21 TANTALUM CHIP 3.3uF 20% 6.3V C309 1-115-156-11 CERAMIC CHIP 1uF 10V C310 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C311 1-165-128-11 CERAMIC CHIP 0.22uF 16V C312 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C313 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C314 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C315 1-115-156-11 CERAMIC CHIP 1uF 10V C316 1-115-156-11 CERAMIC CHIP 1uF 10V C317 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C318 1-135-149-21 TANTALUM CHIP 2.2uF 20% 10V C319 1-107-688-11 TANTAL. CHIP 1.5uF 20% 10V C320 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C321 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C322 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C601 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C602 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C603 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C604 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C606 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C607 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C608 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C701 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C702 1-115-156-11 CERAMIC CHIP 1uF 10V C703 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > CN301 1-766-336-21 CONNECTOR, FFC/FPC 6P CN701 1-779-079-11 CONNECTOR, BOARD TO BOARD < DIODE > D701 8-719-404-50 DIODE MA111-TX D702 8-719-049-09 DIODE 1SS367-T3SONY D703 8-719-423-35 DIODE MA8120-H D704 8-719-423-35 DIODE MA8120-H D705 8-719-423-35 DIODE MA8120-H < FERRITE BEAD > FB703 1-414-760-21 INDUCTOR, FERRITE BEAD FB704 1-414-760-21 INDUCTOR, FERRITE BEAD FB705 1-414-235-22 INDUCTOR, FERRITE BEAD www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark FB706 1-414-235-22 INDUCTOR, FERRITE BEAD FB707 1-414-235-22 INDUCTOR, FERRITE BEAD < IC > IC301 8-759-359-76 IC TA2072AF IC601 8-759-356-46 IC MM1279XVBE IC701 8-759-460-25 IC S-8321AJMP-DNJ-T2 < JACK > J701 1-778-930-21 JACK 7P (2 REMOTE) J801 1-779-080-11 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 1.5V) < JUMPER RESISTOR > JC801 1-216-296-00 SHORT 0 < COIL > L101 1-412-011-31 INDUCTOR CHIP 27uH L201 1-412-011-31 INDUCTOR CHIP 27uH L301 1-412-011-31 INDUCTOR CHIP 27uH L701 1-412-034-11 INDUCTOR CHIP 330uH < PHOTO INTERRUPTER > PH701 8-719-988-15 PHOTO INTERRUPTER PR-11-C < TRANSISTOR > Q301 8-729-426-51 TRANSISTOR XP1210-TXE Q302 8-729-422-39 TRANSISTOR XN4404 Q303 8-729-426-36 TRANSISTOR XP1215-TXE Q304 8-729-230-72 TRANSISTOR 2SA1362YG Q306 8-729-426-36 TRANSISTOR XP1215-TXE Q601 8-729-403-42 TRANSISTOR XN1401 Q602 8-729-402-84 TRANSISTOR XN4601 Q701 8-729-421-26 TRANSISTOR UN5216 Q702 8-729-230-72 TRANSISTOR 2SA1362YG Q704 8-729-425-46 TRANSISTOR XP4315-TXE < RESISTOR > R101 1-216-812-11 METAL CHIP 180 5% 1/16W R102 1-216-847-11 METAL CHIP 150K 5% 1/16W R103 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R104 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R105 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R107 1-216-795-11 RES,CHIP 6.8 5% 1/16W R108 1-218-270-11 RES,CHIP 1.1K 5% 1/16W R109 1-216-834-11 METAL CHIP 12K 5% 1/16W R110 1-216-852-11 METAL CHIP 390K 5% 1/16W R111 1-216-822-11 METAL CHIP 1.2K 5% 1/16W R112 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R113 1-216-809-11 METAL CHIP 100 5% 1/16W R114 1-216-840-11 METAL CHIP 39K 5% 1/16W R115 1-218-739-11 RES,CHIP 91K 5% 1/16W R151 1-216-864-11 METAL CHIP 0 5% 1/16W R201 1-216-812-11 METAL CHIP 180 5% 1/16W R202 1-216-847-11 METAL CHIP 150K 5% 1/16W R203 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R204 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R205 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R207 1-216-795-11 RES,CHIP 6.8 5% 1/16W R208 1-218-270-11 RES,CHIP 1.1K 5% 1/16W R209 1-216-834-11 METAL CHIP 12K 5% 1/16W R210 1-216-852-11 METAL CHIP 390K 5% 1/16W R211 1-216-822-11 METAL CHIP 1.2K 5% 1/16W R212 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R213 1-216-809-11 METAL CHIP 100 5% 1/16W R214 1-216-840-11 METAL CHIP 39K 5% 1/16W R215 1-218-739-11 RES,CHIP 91K 5% 1/16W R251 1-216-864-11 METAL CHIP 0 5% 1/16W R301 1-218-891-11 RES,CHIP 68K 0.50% 1/16W R302 1-216-839-11 METAL CHIP 33K 5% 1/16W R303 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R304 1-218-295-11 RES,CHIP 43K 5% 1/16W R305 1-216-821-11 METAL CHIP 1K 5% 1/16W R307 1-216-847-11 METAL CHIP 150K 5% 1/16W R309 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R310 1-216-793-11 RES,CHIP 4.7 5% 1/16W R604 1-216-817-11 METAL CHIP 470 5% 1/16W R605 1-216-830-11 METAL CHIP 5.6K 5% 1/16W R606 1-216-809-11 METAL CHIP 100 5% 1/16W R607 1-216-837-11 METAL CHIP 22K 5% 1/16W R611 1-216-821-11 METAL CHIP 1K 5% 1/16W R612 1-216-833-11 RES,CHIP 10K 5% 1/16W R701 1-216-849-11 METAL CHIP 220K 5% 1/16W R702 1-216-849-11 METAL CHIP 220K 5% 1/16W R703 1-216-845-11 METAL CHIP 100K 5% 1/16W R704 1-216-821-11 METAL CHIP 1K 5% 1/16W R705 1-216-821-11 METAL CHIP 1K 5% 1/16W R706 1-216-843-11 METAL CHIP 68K 5% 1/16W R707 1-216-843-11 METAL CHIP 68K 5% 1/16W R708 1-216-849-11 METAL CHIP 220K 5% 1/16W R709 1-216-857-11 METAL CHIP 1M 5% 1/16W R710 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R711 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R712 1-216-849-11 METAL CHIP 220K 5% 1/16W R713 1-216-821-11 METAL CHIP 1K 5% 1/16W R714 1-216-821-11 METAL CHIP 1K 5% 1/16W R715 1-216-821-11 METAL CHIP 1K 5% 1/16W < NETWORK RESISTOR > RB301 1-233-872-21 RES, NETWORK (CHIP TYPE) 33K (3216) RB601 1-233-873-21 RES, NETWORK (CHIP TYPE) 220K (3216) RB602 1-233-576-11 RES, NETWORK (CHIP TYPE) 100 < VARIABLE RESISTOR > RV301 1-225-342-23 RES, VAR, CARBON 10K/10K (VOLUME) RV601 1-223-576-11 RES, ADJ, METAL GLAZE 2.2K AUDIO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 34 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark TUNER < SWITCH > S701 1-572-922-11 SWITCH, SLIDE (HOLD) S702 1-572-581-11 SWITCH, SLIDE (F/R) S703 1-762-970-21 SWITCH, PUSH (1 KEY) (HOLDER) < THERMISTOR (POSITIVE) > THP601 1-810-794-11 THERMISTOR, POSITIVE ************************************************************* A-3016-925-A TUNER BOARD, COMPLETE *********************** 1-694-248-11 CONDUCTIVE BOARD, CONNECTION * 3-012-429-01 HOLDER (LCD) < CAPACITOR > C1 1-164-360-11 CERAMIC CHIP 0.1uF 16V C2 1-164-360-11 CERAMIC CHIP 0.1uF 16V C3 1-164-360-11 CERAMIC CHIP 0.1uF 16V C4 1-115-156-11 CERAMIC CHIP 1uF 10V C5 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C6 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C7 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C8 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C9 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C10 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C11 1-164-676-11 CERAMIC CHIP 2200PF 5% 16V C12 1-162-928-11 CERAMIC CHIP 120PF 5% 50V C13 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C14 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C15 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C16 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V C17 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C18 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C19 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V C20 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C21 1-164-676-11 CERAMIC CHIP 2200PF 5% 16V C22 1-162-926-11 CERAMIC CHIP 82PF 5% 50V C23 1-162-928-11 CERAMIC CHIP 120PF 5% 50V C24 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C25 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C26 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C27 1-162-935-11 CERAMIC CHIP 4PF 0.25PF 50V C28 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C29 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C30 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C31 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C32 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C33 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C34 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C35 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C36 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C37 1-115-156-11 CERAMIC CHIP 1uF 10V C38 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C39 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C40 1-115-156-11 CERAMIC CHIP 1uF 10V C41 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C42 1-164-362-11 CERAMIC CHIP 470PF 5% 50V C43 1-104-908-11 TANTAL. CHIP 47uF 20% 2.5V C44 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C45 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C46 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C47 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C48 1-115-156-11 CERAMIC CHIP 1uF 10V C49 1-115-156-11 CERAMIC CHIP 1uF 10V C50 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C52 1-163-139-00 CERAMIC CHIP 820PF 5% 50V C53 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C54 1-104-912-11 TANTAL. CHIP 3.3uF 20% 6.3V C55 1-104-912-11 TANTAL. CHIP 3.3uF 20% 6.3V C56 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C57 1-164-345-11 CERAMIC CHIP 0.082uF 10% 25V C58 1-115-156-11 CERAMIC CHIP 1uF 10V C59 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C60 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C61 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C62 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C63 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C64 1-115-156-11 CERAMIC CHIP 1uF 10V C65 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C66 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C67 1-135-177-21 TANTALUM CHIP 1uF 20% 20V C68 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C69 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C70 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C71 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C72 1-110-501-11 CERAMIC CHIP 0.33uF 10% 16V C73 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C74 1-164-360-11 CERAMIC CHIP 0.1uF 16V C75 1-164-360-11 CERAMIC CHIP 0.1uF 16V C76 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C77 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C78 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C79 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C81 1-164-360-11 CERAMIC CHIP 0.1uF 16V C86 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C87 1-162-928-11 CERAMIC CHIP 120PF 5% 50V C88 1-162-927-11 CERAMIC CHIP 100PF 5% 50V < FILTER > CF1 1-767-313-11 FILTER, CERAMIC CF2 1-767-313-11 FILTER, CERAMIC CF3 1-767-480-11 FILTER, CERAMIC (AM) CF4 1-767-357-11 FILTER, CERAMIC AUDIO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < TRIMMER > CT1 1-141-327-11 CAP, CHIP TYPE TRIMMER 10PF < DIODE > D1 8-719-053-30 DIODE MA2S357-(TX).SO D2 8-719-053-30 DIODE MA2S357-(TX).SO D3 8-719-055-61 DIODE HVR100-9TRU D4 8-719-055-61 DIODE HVR100-9TRU D5 8-719-051-01 LED CL-170HR-CD-T (BATT) D6 8-719-420-51 DIODE MA729 D7 8-719-404-50 DIODE MA111-TX D8 8-719-420-87 DIODE MA8130 D9 8-719-049-09 DIODE 1SS367-T3SONY < IC > IC1 8-759-535-53 IC TC9326F-051 IC2 8-759-545-88 IC TD6134AF(ER) IC3 8-759-362-23 IC TA7371AF-EL IC4 8-759-457-68 IC AK93C45AV-L IC5 8-759-457-70 IC XC62RP1602MR IC6 8-759-387-31 IC TC75S55F(TE85R) IC7 8-759-362-25 IC TA2022AFN-EL < JUMPER RESISTOR > JC1 1-216-864-11 METAL CHIP 0 5% 1/16W < COIL > L2 1-416-180-11 COIL (WITH CORE) (FM OSC) L3 1-416-181-11 COIL (WITH CORE) (FM MIX) L4 1-501-812-11 ANTENNA, FERRITE-ROD (AM) L5 1-412-010-41 INDUCTOR CHIP 22uH L6 1-412-010-41 INDUCTOR CHIP 22uH L7 1-412-010-41 INDUCTOR CHIP 22uH L8 1-412-010-41 INDUCTOR CHIP 22uH L9 1-412-010-41 INDUCTOR CHIP 22uH L10 1-412-010-41 INDUCTOR CHIP 22uH < LIQUID CRYSTAL DISPLAY > LCD1 1-801-656-11 DISPLAY PANEL, LIQUID CRYSTAL < TRANSISTOR > Q1 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO Q2 8-729-028-69 TRANSISTOR 2SC4655-BC(TX) Q3 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO Q4 8-729-037-89 TRANSISTOR 2SC4627J-C(TX).SO Q5 8-729-823-86 TRANSISTOR 2SA1745 Q6 8-729-028-69 TRANSISTOR 2SC4655-BC(TX) Q7 8-729-037-64 TRANSISTOR UN9116J-(TX).SO Q8 8-729-037-63 TRANSISTOR UN9115J-(TX).SO Q9 8-729-800-71 TRANSISTOR 2SB815B7-TB Q10 8-729-800-71 TRANSISTOR 2SB815B7-TB Q11 8-729-420-68 TRANSISTOR 2SD1328-R-TX Q12 8-729-800-37 TRANSISTOR 2SD1048-X7 Q13 8-729-028-69 TRANSISTOR 2SC4655-BC(TX) Q14 8-729-037-71 TRANSISTOR UN9210J-(TX).SO Q15 8-729-037-63 TRANSISTOR UN9115J-(TX).SO Q16 8-729-028-69 TRANSISTOR 2SC4655-BC(TX) Q17 8-729-028-69 TRANSISTOR 2SC4655-BC(TX) Q18 8-729-800-71 TRANSISTOR 2SB815B7-TB Q21 8-729-037-63 TRANSISTOR UN9115J-(TX).SO < RESISTOR > R1 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R2 1-216-853-11 METAL CHIP 470K 5% 1/16W R3 1-216-853-11 METAL CHIP 470K 5% 1/16W R4 1-216-821-11 METAL CHIP 1K 5% 1/16W R5 1-216-813-11 METAL CHIP 220 5% 1/16W R6 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R7 1-218-870-11 RES,CHIP 9.1K 0.50% 1/16W R8 1-218-836-11 RES,CHIP 360 0.50% 1/16W R9 1-216-833-11 RES,CHIP 10K 5% 1/16W R10 1-216-813-11 METAL CHIP 220 5% 1/16W R11 1-216-853-11 METAL CHIP 470K 5% 1/16W R12 1-216-853-11 METAL CHIP 470K 5% 1/16W R13 1-216-809-11 METAL CHIP 100 5% 1/16W R14 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R15 1-216-845-11 METAL CHIP 100K 5% 1/16W R16 1-218-907-11 RES,CHIP 330K 0.50% 1/16W R17 1-216-833-11 RES,CHIP 10K 5% 1/16W R18 1-216-821-11 METAL CHIP 1K 5% 1/16W R19 1-216-821-11 METAL CHIP 1K 5% 1/16W R20 1-216-833-11 RES,CHIP 10K 5% 1/16W R21 1-216-833-11 RES,CHIP 10K 5% 1/16W R22 1-216-815-11 METAL CHIP 330 5% 1/16W R23 1-216-845-11 METAL CHIP 100K 5% 1/16W R24 1-216-853-11 METAL CHIP 470K 5% 1/16W R25 1-218-857-11 RES,CHIP 2.7K 0.50% 1/16W R26 1-218-903-11 RES,CHIP 220K 0.50% 1/16W R27 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R28 1-216-815-11 METAL CHIP 330 5% 1/16W R29 1-218-845-11 RES,CHIP 820 0.50% 1/16W R30 1-218-847-11 RES,CHIP 1K 0.50% 1/16W R31 1-218-849-11 RES,CHIP 1.2K 0.50% 1/16W R32 1-218-851-11 RES,CHIP 1.5K 0.50% 1/16W R33 1-218-863-11 RES,CHIP 4.7K 0.50% 1/16W R34 1-218-859-11 RES,CHIP 3.3K 0.50% 1/16W R35 1-218-864-11 RES,CHIP 5.1K 0.50% 1/16W R36 1-218-868-11 RES,CHIP 7.5K 0.50% 1/16W R37 1-218-871-11 RES,CHIP 10K 0.50% 1/16W R38 1-218-879-11 RES,CHIP 22K 0.50% 1/16W R39 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R40 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R41 1-216-845-11 METAL CHIP 100K 5% 1/16W R42 1-216-820-11 METAL CHIP 820 5% 1/16W TUNER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 36 – Sony Corporation Personal A&V Products Company 9-926-920-31 WM-FX571 99C0470031-1 Printed in Singapore C1999. 3 Published by Quality Engineering Dept. (Shinagawa) R43 1-216-833-11 RES,CHIP 10K 5% 1/16W R44 1-216-819-11 METAL CHIP 680 5% 1/16W R45 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R46 1-216-799-11 METAL CHIP 15 5% 1/16W R47 1-216-817-11 METAL CHIP 470 5% 1/16W R48 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R49 1-216-845-11 METAL CHIP 100K 5% 1/16W R50 1-216-833-11 RES,CHIP 10K 5% 1/16W R51 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R52 1-216-839-11 METAL CHIP 33K 5% 1/16W R53 1-216-817-11 METAL CHIP 470 5% 1/16W R54 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R55 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R56 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R57 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R58 1-216-845-11 METAL CHIP 100K 5% 1/16W R59 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R60 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R61 1-216-833-11 RES,CHIP 10K 5% 1/16W R62 1-216-841-11 METAL CHIP 47K 5% 1/16W R63 1-216-833-11 RES,CHIP 10K 5% 1/16W R64 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R65 1-216-849-11 METAL CHIP 220K 5% 1/16W R66 1-216-849-11 METAL CHIP 220K 5% 1/16W R67 1-216-853-11 METAL CHIP 470K 5% 1/16W R68 1-216-857-11 METAL CHIP 1M 5% 1/16W R69 1-216-853-11 METAL CHIP 470K 5% 1/16W R70 1-216-849-11 METAL CHIP 220K 5% 1/16W R71 1-216-821-11 METAL CHIP 1K 5% 1/16W R72 1-216-845-11 METAL CHIP 100K 5% 1/16W R73 1-216-849-11 METAL CHIP 220K 5% 1/16W R75 1-216-845-11 METAL CHIP 100K 5% 1/16W R76 1-216-835-11 METAL CHIP 15K 5% 1/16W R77 1-216-819-11 METAL CHIP 680 5% 1/16W R78 1-216-821-11 METAL CHIP 1K 5% 1/16W R79 1-216-821-11 METAL CHIP 1K 5% 1/16W R80 1-216-821-11 METAL CHIP 1K 5% 1/16W R82 1-216-805-11 METAL CHIP 47 5% 1/16W < VARIABLE RESISTOR > RV1 1-223-578-11 RES, ADJ, METAL GLAZE 22K < SWITCH > S1 1-692-453-11 SWITCH, KEY BOARD (p RADIO OFF) S2 1-692-453-11 SWITCH, KEY BOARD (ª ·) S3 1-692-453-11 SWITCH, KEY BOARD (FF) S4 1-692-453-11 SWITCH, KEY BOARD (REW) S5 1-692-453-11 SWITCH, KEY BOARD (BAND) S7 1-771-053-21 SWITCH, KEY BOARD (MENU) S8 1-771-053-21 SWITCH, KEY BOARD (SET) S9 1-692-453-11 SWITCH, KEY BOARD (TUNING +) S10 1-692-453-11 SWITCH, KEY BOARD (TUNING –) S11 1-692-453-11 SWITCH, KEY BOARD (ENTER) < COIL > T1 1-416-182-11 COIL (AM OSC) T2 1-416-183-11 COIL (AM MIX) T3 1-423-745-11 TRANSFORMER, DC-DC CONVERTER < VIBRATOR > X1 1-579-615-11 VIBRATOR, CRYSTAL (75kHz) ************************************************************* MISCELLANEOUS ************** HP301 1-500-536-11 HEAD, MAGNETIC (PLAYBACK) M901 1-698-885-11 MOTOR (CAPSTAN/REEL) (including PULLEY) PM901 1-454-674-31 SOLENOID, PLUNGER S901 1-762-793-11 SWITCH, LEAF (ATS) ************************************************************* ACCESSORIES & PACKING MATERIALS ******************************** 1-505-536-11 HEADPHONE (WITH REMOTE CONTROL) (MDR-WMF653) 1-528-465-15 BATTERY CHARGER (BC-820T) ! 1-569-007-11 ADAPTOR, CONVERSION 2P 3-864-889-91 MANUAL, INSTRUCTION (ENGLISH,ARABIC) 3-864-895-11 MANUAL, INSTRUCTION (TRADITIONAL CHINESE,KOREAN) 3-918-937-01 CASE (MS), CARRYING Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. TUNER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
