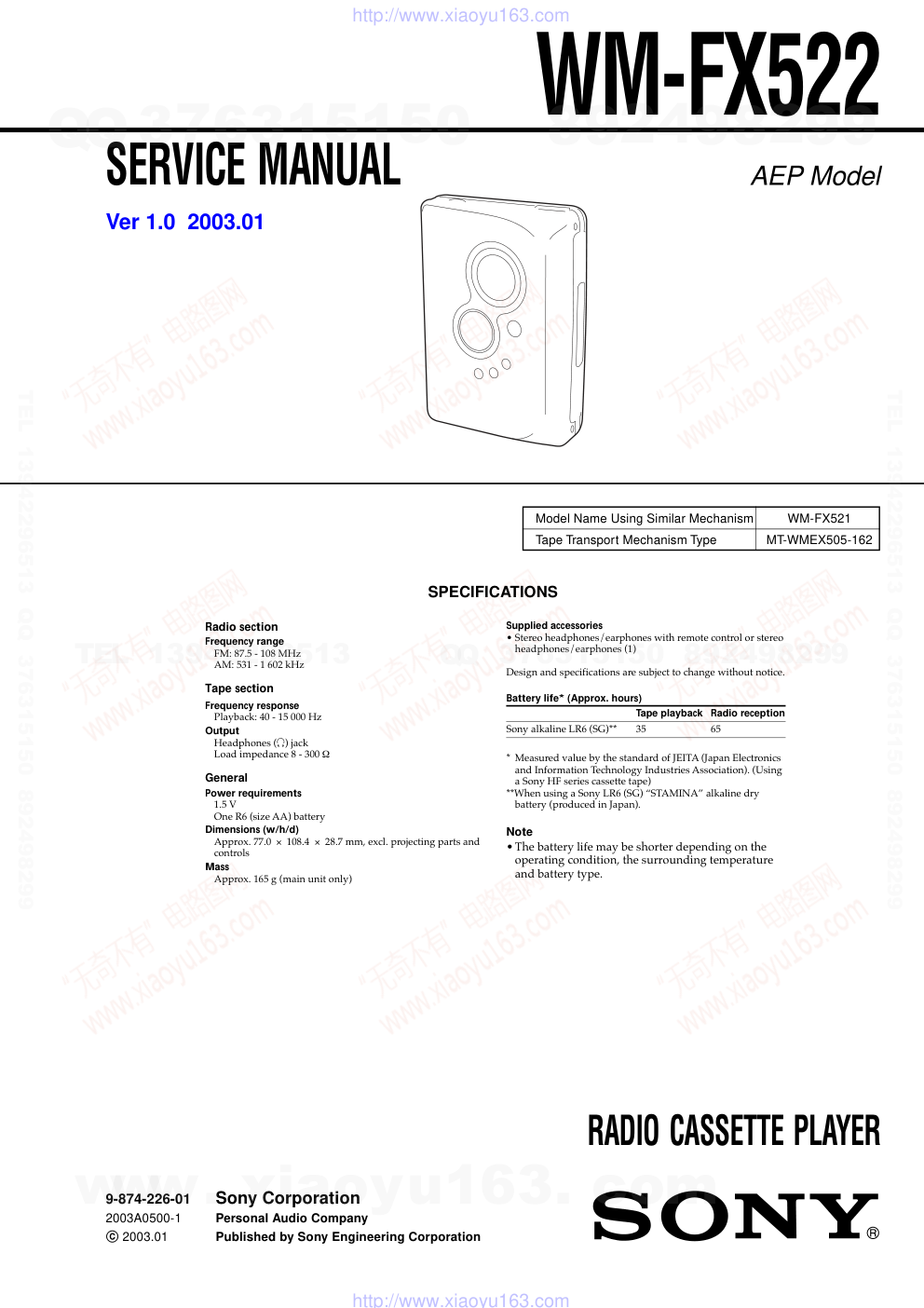

SERVICE MANUAL Ver 1.0 2003.01 9-874-226-01 Sony Corporation 2003A0500-1 Personal Audio Company C 2003.01 Published by Sony Engineering Corporation RADIO CASSETTE PLAYER AEP Model SPECIFICATIONS WM-FX522 Model Name Using Similar Mechanism WM-FX521 Tape Transport Mechanism Type MT-WMEX505-162 Radio section Frequency range FM: 87.5 - 108 MHz AM: 531 - 1 602 kHz Tape section Frequency response Playback: 40 - 15 000 Hz Output Headphones (i) jack Load impedance 8 - 300 Ω General Power requirements 1.5 V One R6 (size AA) battery Dimensions (w/h/d) Approx. 77.0 × 108.4 × 28.7 mm, excl. projecting parts and controls Mass Approx. 165 g (main unit only) Supplied accessories • Stereo headphones/earphones with remote control or stereo headphones/earphones (1) Design and specifications are subject to change without notice. Battery life* (Approx. hours) Tape playback Radio reception Sony alkaline LR6 (SG)** 35 65 * Measured value by the standard of JEITA (Japan Electronics and Information Technology Industries Association). (Using a Sony HF series cassette tape) **When using a Sony LR6 (SG) “STAMINA” alkaline dry battery (produced in Japan). Note •The battery life may be shorter depending on the operating condition, the surrounding temperature and battery type. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 WM-FX522 TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 5 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 6 3-2. Cassette Lid Assy ............................................................ 6 3-3. Case Block Assy.............................................................. 7 3-4. Ornament Reel ................................................................ 7 3-5. Battery Holder ................................................................. 8 3-6. Belt (F2) .......................................................................... 8 3-7. MAIN Board ................................................................... 9 3-8. Motor (Capstan/Reel) (M901) ........................................ 10 3-9. Holder (FS) Assy............................................................. 10 3-10. Pinch Lever (N) Assy, Pinch Lever (R) Assy ................. 11 3-11. Magnetic Head (Playback) (HP901) .............................. 11 4. MECHANICAL ADJUSTMENTS ....................... 12 5. ELECTRICAL ADJUSTMENTS ......................... 12 6. DIAGRAMS 6-1. Block Diagram – TUNER Section – ............................. 15 6-2. Block Diagram – MAIN Section – ................................ 16 6-3. Note for Printed Wiring Board and Schematic Diagrams ................................................ 17 6-4. Schematic Diagram – MAIN Board (1/2) – .................. 18 6-5. Schematic Diagram – MAIN Board (2/2) – .................. 19 6-6. Printed Wiring Board ...................................................... 20 6-7. IC Pin Function Description ........................................... 23 7. EXPLODED VIEWS 7-1. Case Section .................................................................... 25 7-2. Bracket, MAIN Board Section ....................................... 26 7-3. Mechanism Deck Section (MT-WMEX505-162) .......... 27 8. ELECTRICAL PARTS LIST ............................... 28 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 WM-FX522 SECTION 1 SERVICING NOTES This set detects the rotation of the idler gear (A) (side S) using the PH701 (photo reflector). The PH701 is mounted on the MAIN board, therefore the idler gear (A) (side S) cannot be detected with the MAIN board removed. As a result, the motor (M901) cannot be controlled, causing malfunction. Further, the DIRECTION switch (S703) is also mounted on the MAIN board, and with the board removed, the mechanism posi- tion cannot be detected and the operation is not changed over. Therefor, when the voltage check is executed with the MAIN board removed, follow the procedure provided below. 1. Setting (1) Refer to “3. DISASSEMBLY”, and remove the MAIN board. (2) Connect the MAIN board to the motor (M901) and the plunger (PM901) using jumper wires. These can be connected easily with the use of the extension tool (Part No. 1-769- 143-11) (ten in one set). (3) Short the TAPE DETECT switch (S901-1) terminals and the ATS switch (S901-2) terminals. (4) Connect the AF oscillator to the TP40 (PHOTO IN) and the TP2 (GND). (5) Supply 1.3 V to the battery terminals using the regulated power supply. 2. Preset state To set the PLAY, FF, REW modes, the preset state must be set. (1) Check that the slider (NRA) and the DIRECTION switch (S1) are set to the center position. If not, set the preset state as follow. (2) Move the DIRECTION switch (S703) to the side, which the slider (NRA) is facing. (3) The slider (NRA) will move when the regulated power sup- ply switch is set to OFF once and then set to ON. Move the DIRECTION switch (S703) according to this timing and set to the center position. 3. FF, REW modes (1) Check that the preset state is set. (2) Input the square wave or sine wave to the TP40 (PHOTO IN) and the TP2 (GND). (3) Press the [RADIO OFF ] button (S709) to set the STOP mode. (4) Press the [FF AMS] button (S707) or the [REW AMS] but- ton (S708). 4. PLAY mode (1) Check that the preset state is set. (2) Input the square wave or sine wave to the TP40 (PHOTO IN) and the TP2 (GND). (3) Press the [RADIO OFF ] button (S709) to set the STOP mode. (4) Press the [ REPEAT] button (S710) will move the slider (NRA) once towards the side R and then to the side F. Move the DIRECTION switch (S703) according to this timing will set the PLAY mode (side F). Press the [ REPEAT] button (S710) another time and move the DIRECTION switch (S703) according to the movement of the slider (NRA) will set the PLAY (R mode). Note 1: If the above fails, perform from preset again. Note 2: Use the [ REPEAT] (S710), [RADIO OFF ] (S709), [FF AMS] (S707), and [REW AMS] (S708) buttons on the remote control- ler as much as possible. If no remote controller, do not touch the buttons with your hands, but using a stick with a round tip. Note 3: When using headphones, the timing for move the DIRECTION switch (S703) can be determined from the beep sound. + – PH701 TP40 (PHOTO IN) TP2 (GND) TAPE DETECT (S901-1) ATS (S901-2) REPEAT (S710) RADIO OFF (S709) connect to the plunger (PM901) connect to the motor (M901) FF AMS (S707) battery terminal # battery terminal 3 square wave (sine wave) 10 Hz, – 3.5 dB AF oscillator S703 DIRECTION FWD R STOP r REV REW AMS (S708) – MAIN BOARD – x Y Y Y x x www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 WM-FX522 SLIDER (NRA) Rotation system Rotation system during PLAY Rotation system during FF Rotation system during REW slider (NRA) side F side R center insert flywheel (N) insert flywheel (R) reverse pulley clutch assy (F) gear (Y) cam gear gear (REEL) (T side) motor pulley idler (A) gear (T side) gear (FR) (FF: left side) insert flywheel (N) insert flywheel (R) reverse pulley clutch assy (F) gear (Y) cam gear gear (REEL) (T side) motor pulley idler (A) gear (T side) gear (NR) (FWD: left side REW: right side) idler (B) gear idler (A) gear (S side) gear (REEL) (S side) insert flywheel (N) insert flywheel (R) reverse pulley clutch assy (F) gear (Y) cam gear motor pulley gear (FR) (REW: right side) idler (A) gear (S side) gear (REEL) (S side) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 WM-FX522 SECTION 2 GENERAL This section is extracted from instruction manual. C D x VOL VOL* HOLD HOLD Y•REPEAT** FF (AMS) REW (AMS) Y•x** REW Plug in firmly. Branchez fermement. Fest einstecken. i FF MENU SET FWD (forward) side Face FWD (avant) Vorderseite (FWD) REV (reverse) side Face REV (inverse) Rückseite (REV) A PRESET – RADIO OFF SET MENU TUNE/PRESET + RADIO ON/ BAND•OFF PRESET + TUNE/PRESET – ENTER BAND• RADIO ON B OPEN * There is a tactile dot beside VOL on the main unit to show the direction to turn up the volume. **The button has a tactile dot. * Un point tactile à côté de VOL sur l’appareil principal indique le sens de rotation du bouton de volume. ** Le bouton comporte un point en relief. * Am Hauptgerät befindet sich ein fühlbarer Punkt neben VOL. Dieser gibt die Richtung an, in der man die Lautstärke erhöht. ** An dieser Taste befindet sich ein fühlbarer Punkt. Model supplied with remote control Modèle fourni avec télécommande Modelle mit Fernbedienung Model supplied with headphones/earphones only Modèle fourni uniquement avec un casque/des écouteurs Modelle mit Kopfhörer/Ohrhörer RADIO OFF SET MENU TUNE/PRESET + TUNE/PRESET – ENTER BAND• RADIO ON Model supplied with remote control Modèle fourni avec télécommande Modelle mit Fernbedienung Model supplied with headphones/earphones only Modèle fourni uniquement avec un casque/des écouteurs Modelle mit Kopfhörer/Ohrhörer F SET MENU HOLD HOLD E PRESET – RADIO OFF SET MENU TUNE/PRESET + RADIO ON/ BAND•OFF PRESET + TUNE/PRESET – ENTER BAND• RADIO ON RADIO OFF SET MENU TUNE/PRESET + TUNE/PRESET – ENTER BAND• RADIO ON Model supplied with remote control Modèle fourni avec télécommande Modelle mit Fernbedienung Model supplied with headphones/earphones only Modèle fourni uniquement avec un casque/ des écouteurs Modelle mit Kopfhörer/Ohrhörer SET MENU HOLD Model supplied with remote control Modèle fourni avec télécommande Modelle mit Fernbedienung Model supplied with headphones/ earphones only Modèle fourni uniquement avec un casque/ des écouteurs Modelle mit Kopfhörer/Ohrhörer www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX522 6 • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW SECTION 3 DISASSEMBLY Note: Follow the disassembly procedure in the numerical order given. 3-2. CASSETTE LID ASSY 3-4. ORNAMENT REEL (Page 7) 3-2. CASSETTE LID ASSY (Page 6) 3-3. CASE BLOCK ASSY (Page 7) 3-9. HOLDER (FS) ASSY (Page 10) 3-10. PINCH LEVER (N) ASSY, PINCH LEVER (R) ASSY (Page 11) 3-11. MAGNETIC HEAD (PLAYBACK) (HP901) (Page 11) 3-8. MOTOR (CAPSTAN/REEL) (M901) (Page 10) 3-5. BATTERY HOLDER (Page 8) 3-7. MAIN BOARD (Page 9) 3-6. BELT (F2) (Page 8) Note 1: The process described in can be performed in any order. Note 2: Without completing the process described in , the next process can not be performed. SET 4 cassette lid assy 1 Open the cassette lid assy. 3 boss 2 two screws (M1.4) 2 screw (M1.4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX522 7 3-3. CASE BLOCK ASSY 3-4. ORNAMENT REEL 1 three screws (M1.4) 1 two screws (M1.4) 2 Remove the case block assy to direction of the arrow. knob (hold) S701 On installation case block assy, adjust the S701 and knob (hold). 1 two claws 2 ornament reel 1 claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX522 8 3-5. BATTERY HOLDER 3-6. BELT (F2) 2 two screws 3 battery holder 1 Break the soldering of battery terminal (+). 1 Break the soldering of battery terminal (–). 1 belt (F2) (See page 4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX522 9 3-7. MAIN BOARD NOTE FOR INSTALLATION • MAIN BOARD 2 screw (M1.4) flexible board 1 Remove six solders of flexible board. 1 Remove two solders of plunger solenoid. 1 Remove four solders of motor. 1 Remove four solders of leaf switch. 3 main board slider (NRA) S703 main board On installation main board, adjust the S703 and slider (NRA). www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX522 10 3-8. MOTOR (CAPSTAN/REEL) (M901) 3-9. HOLDER (FS) ASSY 1 two screws (M1.4) 2 motor (capstan/reel) (M901) 1 two screws (IB lock) 2 boss 3 lock lever (B) (/M) 7 bracket (cassette) assy (/M) 5 lock lever (S) (/M) 4 screw (M1.4) 6 boss 9 Remove the holder (FS) assy to direction of the arrow. 8 Remove six solders of flexible board. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX522 11 3-10. PINCH LEVER (N) ASSY, PINCH LEVER (R) ASSY 1 claw 2 Remove the pinch lever (R) assy to direction of the arrow. 4 Remove the pinch lever (N) assy to direction of the arrow. 3 claw 3-11. MAGNETIC HEAD (PLAYBACK) (HP901) 1 claw 2 Remove the magnetic head (HP901) to direction of the arrow. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 WM-FX522 SECTION 4 MECHANICAL ADJUSTMENTS SECTION 5 ELECTRICAL ADJUSTMENTS TAPE SPEED ADJUSTMENT Setting: Function: TAPE Procedure: 1. Playback WS-48A (tape center) in the FWD state. 2. Adjust RV601 so that the frequency counter reading becomes 3,000 Hz. Specification Values: 2,970 to 3,030 Hz 3. Check that deflection of the frequency counter reading between the beginning and the end of tape is within 1.5% (approx.45 Hz). 4. Playback WS-48A (tape center) in the REV state. Check that the frequency counter reading is within 2% (approx.60 Hz) of the reading of step 1. Adjustment Location: MAIN BOARD (See page 13) PRECAUTION 1. Specified voltage: 1.3 V (DC) 2. Setting MB : OFF AVLS : OFF BL SKIP : OFF MODE : s VOLUME : MAX HOLD : OFF TAPE DECK SECTION 0 dB=0.775 V TEST TAPE Type Signal Used for WS-48A 3 kHz, 0 dB Tape Speed Adjustment + – set Test tape WS-48A (3 kHz, 0 dB) frequency counter 16 Ω i jack (J301) PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened swab: playback head pinch roller rubber belts capstan 2. Demagnetize the playback head with a head demagnetizer. (Do not bring the head demagnetizer close to the erase head.) 3. The adjustments should be performed with the rated power supply voltage (1.3 V) unless otherwise noted. TORQUE MEASUREMENT Mode Torque Meter Meter Reading 1.57 – 2.45 mN•m FWD CQ-102C (16 – 25 g•cm) (0.23 – 0.34 oz•inch) FWD 0.049 – 0.147 mN•m Back Tension CQ-102C (0.5 – 1.5 g•cm) (0.007 – 0.02 oz•inch) 1.57 – 2.45 mN•m REV CQ-102RC (16 – 25 g•cm) (0.23 – 0.34 oz•inch) REV 0.049 – 0.147 mN•m Back Tension CQ-102RC (0.5 – 1.5 g•cm) (0.007 – 0.02 oz•inch) more than 4.90 mN•m FF, REW CQ-201B (more than 50 g•cm) (more than 0.7 oz•inch) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 WM-FX522 • AM alignment should be done with mechadeck attached. • Repeat the procedures in each adjustment several times for a maximum reading on level meter. AM VT VOLTAGE ADJUSTMENT Adjustment Part Frequency Display Reading on Digital Voltmeter Confirmation 531kHz 1.3 ± 0.3 V Confirmation 1602 kHz 7.0 ± 0.5 V AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L5 621 kHz CT1 1395 kHz FM VT VOLTAGE ADJUSTMENT Adjustment Part Frequency Display Reading on Digital Voltmeter Confirmation 87.5 MHz 3.85 ± 0.5 V Confirmation 108 MHz 7.7 ± 1 V FM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter L7 87.5 MHz Confirmation 108 MHz TUNER SECTION 0 dB=1 µV [AM] Setting: function : RADIO BAND button : AM [FM] Setting: function : RADIO BAND button : FM + – digital voltmeter TP5 (VT) AM RF signal generator 30% amplitude modulation by 400 Hz signal Output level: as low as possible Put the lead-wire antenna close to the set. + – level meter set 16 Ω i jack (J301) FM RF signal generator 22.5 kHz frequency deviation by 400 Hz signal Output level: as low as possible + – level meter i jack (J301) set 16 Ω 0.01 µF TP61 (FM RF IN) Adjustment Location: TP5 (VT) TP61 (FM RF IN) TP2 (GND) L7 FM Tracking Adjustment AM Tracking Adjustment RV601 Tape Speed Adjustment CT1 L5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 WM-FX522 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX522 15 15 SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAM – TUNER Section – 8 12 27 25 FM IF AMP FM DET AF AMP FM MPX AM IF AMP RF AMP MIX AMP OSC AM DET IF BUFFER SWITCH 13 MIX AMP OSC 10 FMIFIN DETOUT 19 IFCOUNT X1 SYSTEM CONTROLLER IC701 (1/2) CF2 11 QUAD 16 15 L-OUT R-OUT 14 18 17 AMIFIN LP2A LP2B LPF1 AMOSC AMRFIN AM-MIX FM RF AMP, FM/AM MIX AMP, FM/AM OSC, IC1 (1/2) CF1 B.P.F. FL1 : FM : AM D1 (1/2) L4 AM FERRITE-ROD ANTENNA LOCAL/DX 57 VCO IN 49 BAND1 54 BAND2 55 IF REQ 65 IF IN 45 D3 L5 AM OSC A (Page 16) B (Page 16) TUNER L-CH R-CH MPXIN FM-MIX FMRFIN ANT REQSW FMRFOUT FM/TVOSC 20 5 OSCOUT 4 29 24 2 D1 (2/2) D4 • SIGNAL PATH • R-ch is omitted due to same as L-ch. L7 FM RF L7 FM TRACKING CT1, L5 AM TRACKING CT1 FM/AM POWER SWITCH MODE1 21 MODE2 22 BUFFER 5 LOW-PASS FILTER Q404, 408 DO 52 FM/AM IF AMP, FM/AM DET, MPX IC1 (2/2) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX522 16 16 6-2. BLOCK DIAGRAM – MAIN Section – W V U + – PREAMP AMS AGC DET BEEP V/I EQ METAL CONTROL SPEED CONTROL DIRECTION CONTROL PHOTO REFLECTOR SWITCH & BUFFER Q306 PLUNGER DRIVE Q701, 702 AVLS CONTROL SWITCH Q304 RIPPLE FILTER Q301 RIPPLE FILTER BATTERY DETECT IC201 B+ SWITCH Q401 ROTATION DETECT SENSOR PH701 CAPSTAN/REEL MOTOR DRIVER IC601 SYSTEM CONTROLLER, LIQUID CRYSTAL DISPLAY DRIVER IC701 (2/2) M901 (CAPSTAN/REEL) HP901 (PLAYBACK) AUDIO MASTER AMP (FWD/REV SELECT, PLAYBACK EQ AMP) IC301 (1/3) AUDIO MASTER AMP (BASS BOOST AMP, AMS, POWER AMP) IC301 (2/3) AUDIO MASTER AMP (RIPPLE FILTER) IC301 (3/3) : TUNER (FM/AM) MOTOR DRIVE CIRCUIT SWITCH & LOGIC CIRCUIT BIAS REFERENCE VOLTAGE OSC CIRCUIT DC/DC CONVERTER T401, Q405 DC/DC CONVERTER IC801 DRY BATTERY SIZE “AA” (IEC DESIGNATION R6) 1PC. 1.5V BATT B+ (1.5V) 2.5V B+ 2 5 1 X701 75kHz TH601 TAPE SPEED RV601 START VREF IN+ COMPARATOR VSP OUT VCC DATA REMOTE GND BASE PW OUT L PW OUT R PW OUT C POWER AMP POWER AMP POWER AMP PW NF-L BASS BOOST AMP PW IN-L PW IN-C BST OUT VOL RV301 i J301 S901-2 (ATS) PRE OUT-L MTL DRV-L FWD IN-L REV IN-L L-CH R-CH FWD L-CH R-CH REV R-CH R-CH R-CH R-CH R-CH R-CH R-CH S703 (DIRECTION) OSC OSC IN MOTOR DIR AMS OUT F/R SW M/N SW 67 8 7 5 DR 6 10 9 11 W 3 V 1 U 19 61 XOUT 71 XIN 72 33 18 VCC 19 RFOUT 17 20 22 21 29 EQ-L 30 40 BST SW 43 AGC IN 35 BEEP 39 28 32 33 AMS IN 12 7 8 46 44 F/R CTL 40 TAPE IN 46 F/R SW 59 AVLS CTL 37 AMS IN 44 BST CTL 38 SPEED CTL 23 MOTOR CTL 32 BEEP 36 MT SW 41 MUTE CTL 39 PRE SW 45 PRE CTL 56 PW SW 42 AMP CTL 51 TEST DATA OUT 22 REMOTE 60 1 5 S901-1 (TAPE DETECT) + + + + FWD STOP REV PHOTO IN 24 PHOTO CTL 34 PM CTL PM901 (PLUNGER) 35 2.5V B+ DDC CTL 68 RADIO ON B (Page 15) TUNER L-CH A (Page 15) ANT EEPROM IC501 LIQUID CRYSTAL DISPLAY LCD1 DATA (EEP) 63 SCLK (EEP) 64 2 1 CS (EEP) SK 3 DI 4 DO CS 62 COM1 – COM4 5 – 21 SEG1 – SEG17 1 – 4 58 BATT DET 70 D802 D402 VT B+ PLL LOW-PASS FILTER CIRCUIT B+ B+ SWITCH Q2 TUNER B+ (TUNER CIRCUIT B+) • SIGNAL PATH • R-ch is omitted due to same as L-ch. : PLAYBACK HOLD S701 HOLD SW 43 OFF HOLD K1 – K4 25, 26 KO1, KO2 27 – 30 KEY MATRIX S702, S704 – 710 RESET SIGNAL GENERATOR IC704 RESET w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX522 17 17 Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • W : indicates side identified with part number. • f : internal component. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) 6-3. NOTE FOR PRINTED WIRING BOARD AND SCHEMATIC DIAGRAMS Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. • A : B+ Line. • H : adjustment for repair. • Total current is measured with no cassette installed. • Power voltage is dc 1.5V and fed with regulated dc power supply from battery terminal. • Voltages and waveforms are dc with respect to ground in no-signal (detuned) conditions. no mark : PLAYBACK ( ) : FM 〈〈 〉〉 : AM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM f : AM E : PLAYBACK • Waveforms 1 IC701 ua (XOUT) 2 IC801 5 (LX) (Playback mode) 3 Q405 (Collector) (FM/AM mode) 1.4 Vp-p 13.3 µs 3.1 Vp-p 13.5 µs 1.7 Vp-p 306 ns 4 Q405 (Emitter) (FM/AM mode) 0.9 Vp-p 306 ns Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. 5 Q405 (Base) (FM/AM mode) 0.3 Vp-p 306 ns w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX522 18 18 6-4. SCHEMATIC DIAGRAM – MAIN Board (1/2) – • See page 21 for IC Block Diagrams. TP20 R302 R18 C33 D4 C34 C35 R10 CT1 C23 R8 D1 R7 R9 C30 C29 C37 C24 C27 D3 C40 C28 R6 C21 C47 C36 TP1 C18 C39 C38 C19 TP9 C4 C16 R4 C17 C45 C13 TP6 TP7 C6 C2 C7 R1 C11 C12 C46 C14 R2 R3 TP64 TP65 TP55 TP28 TP27 TP26 TP25 TP37 TP14 TP29 TP19 TP17 TP18 TP16 TP15 R205 C208 R209 R204 R203 R201 C201 CB301 C209 C109 R109 R206 R106 R104 C108 R103 C101 R102 C319 R101 R303 C320 R305 C302 R304 R105 TP62 TP63 R107 R202 R207 C303 R306 C315 C103 R108 C305 R307 R308 C311 C310 C317 C318 C309 C316 R208 C203 C306 C312 R212 C321 C322 R312 TP22 TP23 TP21 TP11 TP12 FB2 FB3 FB4 FB5 FB6 FB7 TP3 R309 C102 C202 C307 R17 C324 C301 C1 RV301 C5 C10 JC6 FL1 C9 IC1 TP61 J301 L7 L3 L5 C31 TP5 C3 TP4 C15 TP8 TP2 C20 JC301 C8 JC1 C313 C314 C308 220k 100k 2p MA2S357 2200p 2200p 100k 0.022 470k SVC347 10k 470k 470p 10p 5p 0.022 2200p MA2S357 2p 100p 100k 2200p 220p 1000p 0.022 220p 1000p 0.01 0.1 0.01 2.2k 0.01 0.01 0.022 4.7 4V 4.7 4V 470p 1k 0.01 0.01 0.01 0.022 2.2k 2.2k 1k 0.022 47k 10k 100 220k 47 4V 470P 0.047 0.047 47k 1k 1k 10k 0.022 100 47 4V 22k 0.1 220k 22k 0.0047 22k 0.1 47k 1k 22k 22k 22k 22 6.3V 4.7 220 6.3V 0.47 2.2 470 4V 2.2k 470k 0.1 2.2 6.3V 0.022 0.022 1 2.2 2.2 0.47 4.7 4V 1 1 1 10k 2.2 2.2 0.1 1k 220p 47 4V 1000p 30k/30k 0.047 47 4V TA2154FN (FM IF IN) 0.022 (VT) 1000p 0.1 (GND) 2200p 0.47 4.7 4V 2.2 6.3V 0.22 A1 A2 A3 A4 A5 A6 A8 A9 A10 C1 C2 C3 C4 C5 C6 C7 D1 D2 D3 D4 D5 D6 X1 X2 X3 X4 X5 X3 X4 X5 REMOTE GND VCC DATA COM LCH RCH RFGND FM-MIX AM-MIX AGC Vcc GND AMIFin QUAD DETout MPXin LPF1 R-OUT FMRFin TVRFin REV-L FWD-L REV-R REF CAMP_SW AMS_SW AMS_MIX AMS_DET GND RF_OUT BASE VCC PW_OUT_L PW_OUT_C PW_OUT_R PW_GND RF_IN AMS IN PRE NF-R PRE OUT-R MTL DRV-R MTL DRV-L PRE OUT-L PRE NF-L REV IN-L REV IN-R REF OUT FWD IN-R FWD IN-L FWD-R (1/2) -1 -2 -1 -2 VOL FMIFin B.P.F. L-CH R-CH R-CH L-CH REV FWD FM RF AM OSC 1 2 3 L4 AM FERRITE-ROD ANTENNA FM/AM OSC,FM/AM IF AMP, FM RF AMP,FM/AM MIX AMP, FM/AM DET,MPX L-OUT LPF2A LPF2B IFcount REQSW MODE-1 MODE-2 OSCout FM/TVOSC AMOSC RFVcc AMRFin AMB/P FMRFout TVRFout VREF_IN PRE_GND M/N_SW PRE_SW F/R_SW BST_SW PW_SW MT_SW AMS_OUT BEEP MT_TC AGC DET AGC IN BST NF BST OUT PW IN-C LPF EQ-L PW NF-L PW IN-L PW IN-R PW NF-R EQ-R IC301 TA2123AF AUDIO MASTER AMP FWD/REV SELECT, PLAYBACK EQ AMP, BASS BOOST AMP, AMS,POWER AMP, RIPPLE FILTER Q304 XN1116-TX SWITCH AVLS CONTROL Q301 2SB815B7-TB RIPPLE FILTER FWD(L) FWD(R) REV(L) REV(R) REF GND HP901 (PLAYBACK) Q2 2SB815B7-TB B+ SWITCH JC2 CF2 X1 CF1 C43 C44 0.0022 0.0022 R112 R311 2.2k 100k 2.2k 100k CT1, L5 (Page 19) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX522 19 19 6-5. SCHEMATIC DIAGRAM – MAIN Board (2/2) – • See page 17 for Waveforms. • See page 21 for IC Block Diagrams. TP36 TP31 TP32 TP34 TP33 R705 TP56 R715 R704 R719 C714 C704 C710 R714 C703 R713 R716 TP52 TP42 C706 C705 TP53 IC704 TP48 TP49 TP50 R401 C402 C405 C403 C404 D401 C411 R416 C410 Q408 Q404 C414 C415 R411 R414 R417 R410 R412 R413 C416 L701 R718 R707 R701 R415 R408 D402 R403 TP45 TP44 TP43 RV601 TP47 C603 TP58 TP59 TP57 R501 R711 R712 R710 C501 R327 R325 R328 R326 R801 TP60 L801 C801 C602 R602 C604 RB601 R730 C601 R601 R404 R409 C401 TP46 TP38 C605 R605 C409 C412 C717 C707 C708 C702 TP30 R721 R725 TP51 R703 TP13 TP39 C713 R708 R709 L401 R402 R706 C701 R702 R720 BP701 D701 Q702 Q701 S704 S706 C606 C608 S708 S707 S705 R728 S702 TP35 S710 R724 R726 R727 S709 S701 JC4 IC501 D802 TP40 X701 JC5 D801 TH601 R603 IC601 C406 C709 C712 R722 R723 TP41 R717 IC801 C607 1M 470k 220k 220k 1 0.1 10 4V 470k 22p 22k 47k 0.1 0.1 S-80808ANNP-E7Y 22 0.022 22 6.3V 5p 2.2 MA8120 1000p 1M 0.022 2SC4154TP-1EF 2SC4154TP-1EF 470p 0.47 1k 47k 22k 47k 4.7k 10k 220p 100k 220k 10k 470k 1k MA111 1k 2.2k 0.22 1k 47k 47k 47k 1 220k 470k 4.7k 2.2k 470k 1 0.1 100 0.1 220k 10k 1 22k 1k 100k 10p 0.1 4.7k 0.01 0.22 2200p 0.1 0.1 10p 1k 10k 220k 0.47 100k 100k 6.8k 220k 1000p 1M 100k MA111 2SB1295-UL6-TB UN9216J-(TX).SO 0.01 0.01 10k 10k 10k 10k AK93C45AV-L MA111 (PHOTO IN) 75KHz 1SS367 -T3SONY 1k MM1279XVBE 0.01 22 4V 1 10k 10k 22 XC6383C251ML 0.01 A1 A2 A3 A4 A5 A7 A8 A9 A10 B1 B2 B3 B4 B5 B6 B1 B2 B3 B4 B5 B6 C1 C2 C3 C4 C5 C6 C7 COM1 COM2 COM3 COM4 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 COM1 COM2 COM3 COM4 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 D1 D2 D3 D4 D5 D6 E1 E2 E3 X1 X2 SEG16 SEG17 SEG17 E2 E1 E3 LX VSS CE VOUT NC SEG17 COM1 COM2 COM3 COM4 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 SEG16 VCC NC NC GND CS SK D1 D0 COM1 COM2 COM3 COM4 SEG1 SEG2 SEG3 SEG4 SEG5 SEG6 SEG7 SEG8 SEG9 SEG10 SEG11 SEG12 SEG13 SEG14 SEG15 IF REQ CS(EEP) SCLK(EEP) XOUT XIN GND VDB C1 C2 VEE C3 C4 VLCD OSC OUT RI TC2 TC1 FC VCC GND PU U PV VOUT VIN VSS W V U VCC (2/2) S901-2 (ATS) PLUNGER DRIVE Q701,702 MENU SET REPEAT ENTER RADIO OFF HOLD HOLD OFF STOP FWD REV EEPROM -1 -2 NC GND IN OUT RESET NC RADIO ON NC DDC CTL DATA(EEP) IN Q404,408 LOW-PASS FILTER DC/DC CONVERTER GENERATOR RESET SIGNAL 22µH 220µH 22µH LCD1 LIQUID CRYSTAL DISPLAY IC201 XC62RP1602MR BATTERY DETECT IC701 TC9328AF-108 SYSTEM CONTROLLER, LIQUID CRYSTAL DISPLAY DRIVER HOLD SW AMS IN IF IN GND VCO IN VDD DO DET F/R SW REMOTE BAND1 PRE CTL AMP CTL BAND2 IN WRITE EEP BATT VREG NC TAPE IN NC LOCAL/DX SEG16 AVLS CTL SEG17 SPEED CTL K01 K02 K1 K2 K3 K4 VDD MOTOR CTL MOTOR DIR PHOTO CTL PHOTO IN BEEP PM CTL MUTE CTL OUT F/R CTL BST CTL TEST DATA FF AMS TUNE/PRESET + REW AMS TUNE/PRESET - BAND RADIO ON S703 (DIRECTION) S901-1 (TAPE DETECT) PM901 (PLUNGER) DRY BATTERY SIZE"AA" (IEC DESIGNATION R6) 1PC. 1.5V M901 (CAPSTAN/REEL) Q401 2SB815B7 -TB B+ SWITCH Q405 2SC4154TP-1EF DC/DC CONVERTER T401 DC/DC CONVERTER CAPSTAN/REEL MOTOR DRIVER IN+ VSP START VREF DR OSC W PW V GND PH701 PR-20 SENSOR ROTATION DETECT Q306 XP4315-TXE PHOTO REFLECTOR SWITCH & BUFFER (Page 18) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX522 20 20 6-6. PRINTED WIRING BOARD 1 12 13 24 25 36 37 48 IC301 IC601 IC801 MAIN BOARD (COMPONENT SIDE) 1-682-754- 11 (11) –1 –2 VOL RV301 2B E 1B 2C 1C HOLD S701 HOLD OFF CF2 J301 TP5 (VT) + C305 TP40 (PHOTO IN) 1E 1C2B2E 1B2C S703 (DIRECTION) FWD STOP REV MAIN BOARD IC1 IC701 IC501 IC704 1-682-754- 11 (11) R-CH L-CH FWD R-CH L-CH REV HP901 (PLAYBACK) 1 2 3 L4 AM FERRITE-ROD ANTENNA (CONDUCTOR SIDE) S901-1 (TAPE DETECT) S901-2 (ATS) + C315 1 1 2 3 IC201 X701 T401 DC/DC CONVERTER PM901 (PLUNGER) 1 21 LCD1 LIQUID CRYSTAL DISPLAY V W U VCC M901 (CAPSTAN/REEL) REPEAT S710 REW AMS TUNE/PRESET − S708 FF AMS TUNE/PRESET + S707 RADIO OFF S709 x BAND RADIO ON S702 DRY BATTERY SIZE AA (IEC DESIGNATION R6) 1PC 1.5V MENU SET ENTER B. P. F. 1 2 3 4 5 6 7 8 9 10 11 12 13 A B C D E F G H 4 5 3 2 1 TP61 (FM RF IN) TP2 (GND) • Semiconductor Location Ref. No. Location D1 C-12 D3 C-3 D4 C-11 D401 H-3 D402 H-3 D701 D-12 D801 F-3 D802 F-9 IC1 C-11 IC201 F-9 IC301 D-3 IC501 E-9 IC601 G-4 IC701 F-10 IC704 E-9 IC801 F-3 PH701 F-3 Q2 D-11 Q301 E-11 Q304 B-4 Q306 F-3 Q401 G-3 Q404 E-9 Q405 G-11 Q408 E-9 Q701 D-12 Q702 D-2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 WM-FX522 • IC Block Diagrams IC1 TA2154FN-(EL) 1 2 3 4 27 26 25 5 FM/TV MIX 30 29 28 AM MIX 24 AM OSC 1/2 FM OSC TV OSC 6 7 8 9 10 AGC 23 22 21 20 1/8 OR 1/16 FM/AM/TV PW SW 11 12 FM DET LEVEL DET AM DET 19 SW 13 14 15 FM MPX 18 17 16 TV RF FM RF BUFFER BUFFER BUFFER IF BUFFER FM IF AM IF AF TV RF IN FM RF IN RF GND FM MIX AM MIX AGC VCC FM IF IN GND AM IF IN QUAD DET OUT MPX IN LPF1 R OUT AM RF IN RFVCC AM OSC TV RF OUT FM RF OUT AM BYPASS TV FM OSC OSC OUT MODE2 MODE1 IF REQ IF COUNT LPF2B LPF2A L OUT IC301 TA2123AF (EL) PRE A PRE B MIX PW B PW A PW C BST MT TC BASE RF IN PW GND OUT B OUT C OUT A VCC RF OUT VREF OUT BST NF BST OUT PW IN C LPF EQ A PW NF A PW IN A PW IN B PW NF B 3 IN A-R 5 PRE NF-A 6 PRE OUT A 7 MTL DRV A 8 MTL DRV B 9 PRE OUT B 10 PRE NF-B 11 AMS IN 12 IN B-R 4 IN B-F 2 IN A-F 1 21 20 19 18 17 GND 16 AMS DET 15 AMS MIX 14 AMS SW 13 22 23 24 38 C-AMP SW 37 PW SW 42 MT SW 41 F/R SW 44 BST SW 43 M/N SW 46 PRE GND 47 VREF IN 48 PRE SW 45 AMS OUT 40 BEEP 39 26 27 28 29 30 31 32 33 34 DET 36 AGC IN 35 + – + – + – + – + – + – EQ B 25 RIPPLE FILTER AGC DET BEEP VREF SWITCH COMPARATOR MTL DRV www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 WM-FX522 IC801 XC6383C251ML V 1 PW 2 W 3 GND 4 OSC 5 DR 6 VREF 7 START 8 VSP 9 IN+ 10 PV 20 U 19 PU 18 GND 17 VCC 16 FC 15 TC1 14 TC2 13 R1 12 OUT 11 MOTIVE CONTROL CIRCUIT MOTIVE/ OSC MOTIVE LOGIC SOFT SWITCH PRE DRIVER INVERTER BIAS REFERENCE VOLTAGE SPEED CONTROL CURRENT CONTROL OUTPUT BIAS + – IC601 MM1279XVBE + – + – CHIP ENABLE V REF VDD 2 STEP PFM CONTROL OSC 100/180 kHz VLx LIMITER BUFFER 1 2 3 4 5 CE V OUT NC LX VSS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 WM-FX522 6-7. IC PIN FUNCTION DESCRIPTION • IC701 TC9328AF-108 (SYSTEM CONTROLLER, LIQUID CRYSTAL DISPLAY DRIVER) Pin No. Pin Name I/O Description 1 to 4 COM1 to COM4 O Common drive signal output to the liquid crystal display 5 to 21 SEG1 to SEG17 O Segment drive signal output to the liquid crystal display 22 TEST DATA OUT O Remote control data output to the remote commander 23 SPEED CTL O Capstan/reel motor speed control signal output “L”: 1/2 speed, “H”: normal speed 24 PHOTO IN I Rotation detection signal input of the capstan/reel motor 25, 26 KO1, KO2 O Key output to the key matrix 27 to 30 K1 to K4 I Key input from the key matrix 31 VDD — Power supply terminal (+1.5V) 32 MOTOR CTL O Capstan/reel motor start control signal output “H”: motor on 33 MOTOR DIR O Capstan/reel motor direction control signal output “L”: counterclockwise, “H”: clockwise 34 PHOTO CTL O Control signal output to the capstan/reel motor rotation detection circuit “H”: rotation detection circuit on 35 PM CTL O Plunger drive signal output “H”: plunger on 36 BEEP O Beep sound signal output “H”: beep sound on 37 AVLS CTL O AVLS (Automatic Volume Limiter System) on/off control signal output “L”: AVLS on 38 BST CTL O Bass boost control signal output “H”: mega bass on 39 MUTE CTL O Power on muting control signal output “L”: muting on 40 F/R CTL O Forward/reverse selection signal output “L”: forward direction, “H”: reverse direction 41 NC I Not used 42 EEP WRITE IN I Input terminal for the EEPROM write mode “L”: EEPROM write mode 43 HOLD SW I HOLD switch input terminal “L”: hold on 44 AMS IN I AMS (Automatic Music Sensor) detection signal input “L”: music is present, “H”: music is not present 45 IF IN I Intermediate frequency detection signal input 46 TAPE IN I Cassette tape detection switch input terminal “L”: cassette detected, “H”: no cassette 47 GND — Ground terminal 48 NC I Not used 49 VCO IN I FM/AM VCO input 50 VDD — Power supply terminal (+1.5V) 51 AMP CTL O Power on/off control signal output to the audio master amplifier “H”: power on 52 DO O PLL phase comparator output 53 VREG — PLL constant voltage power supply 54 BAND1 O Band selection signal output “L”: AM, “H”: FM 55 BAND2 O Band selection signal output “L”: FM, “H”: AM 56 PRE CTL O Pre-amplifier on/off control signal output “L”: tape play, “H”: radio on 57 LOCAL/DX O FM stereo/mono selection signal output “L”: mono, “H”: stereo 58 BATT DET I Battery voltage detection signal input (reference voltage input) (A/D input) 59 F/R SW I Tape direction switch input terminal (A/D input) “L”: forward position 60 REMOTE I Remote control data input from the remote commander (A/D input) 61 OSC IN I Motor restart control signal input (A/D input) 62 CS (EEP) O Chip select signal output to the EEPROM 63 DATA (EEP) I/O Two-way data bus with the EEPROM 64 SCLK (EEP) O Serial clock signal output to the EEPROM 65 IF REQ O Intermediate frequency request signal output “L”: request 67 DDC CTL O Power on/off control signal output of the DC/DC converter “H”: power on www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 WM-FX522 Pin No. Pin Name I/O Description 68 RADIO ON O Power on/off control signal output of the tuner circuit “L”: power on (tuner on), “H”: power off (tape on) 69 NC O Not used 70 RESET I System reset signal input “L”: reset For several hundreds msec. after the power supply rises, “L” is input, then it changes to “H” 71 XOUT O Main system clock output terminal (75 kHz) 72 XIN I Main system clock input terminal (75 kHz) 73 GND — Ground terminal 74 VDB — Connection terminal of doubler circuit capacitor for liquid crystal display drive power supply 75, 76 C1, C2 — Connection terminal of doubler circuit capacitor for liquid crystal display drive power supply 77 VEE — Connection terminal of doubler circuit capacitor for liquid crystal display drive power supply 78, 79 C3, C4 — Connection terminal of doubler circuit capacitor for liquid crystal display drive power supply 80 VLCD — Connection terminal of doubler circuit capacitor for liquid crystal display drive power supply www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 WM-FX522 7-1. CASE SECTION SECTION 7 EXPLODED VIEWS • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Accessories are given in the last of the elec- trical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-3382-977-1 LID ASSY, CASSETTE (S) (SILVER) 1 X-3382-978-1 LID ASSY, CASSETTE (L) (BLUE) 1 X-3382-979-1 LID ASSY, CASSETTE (R) (RED) 2 3-225-996-09 SCREW (M1.4) (EG), PRECISION PAN 3 3-029-219-61 KNOB (OPEN) (for SILVER) 3 3-029-219-71 KNOB (OPEN) (for BLUE, RED) 4 3-029-220-11 SPRING, TENSION 5 3-233-968-41 ORNAMENT REEL (for SILVER) 5 3-233-968-51 ORNAMENT REEL (for BLUE, RED) 6 3-225-996-11 SCREW (M1.4) (EG), PRECISION PAN 7 X-3382-685-1 BLOCK (S) ASSY, CASE (SILVER) 7 X-3382-686-1 BLOCK (L) ASSY, CASE (BLUE) 7 X-3382-687-1 BLOCK (R) ASSY, CASE (RED) 6 2 7 bracket, main board section 6 6 2 1 3 5 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 WM-FX522 7-2. BRACKET, MAIN BOARD SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 3-375-114-81 SCREW 52 3-042-004-01 TERMINAL (+), BATTERY 53 3-042-005-11 TERMINAL (-), BATTERY 54 3-042-001-04 HOLDER, BATTERY 55 3-042-003-01 SPRING 56 3-042-002-01 LID, BATTERY CASE 57 3-345-648-95 SCREW (M1.4), TOOTHED LOCK * 58 A-3021-647-A MAIN BOARD, COMPLETE 59 3-234-097-01 HOLDER, LCD 60 3-234-413-01 RUBBER, CONDUCTIVE 61 3-939-590-05 SCREW (IB LOCK) 62 3-038-054-01 LEVER (B) (/M), LOCK 64 X-3377-719-1 BRACKET (CASSETTE) ASSY (/M) 65 3-365-630-41 SCREW (M1.4) 66 X-3377-717-2 BRACKET ASSY (/M) 67 3-241-345-02 CUSHION 68 3-033-757-01 SHEET (H) LCD1 1-804-524-11 LIQUID CRYSTAL DISPLAY S901 1-771-888-11 SWITCH, LEAF (TAPE DETECT, ATS) S901 not supplied main board LCD1 MT-WMEX505-162 not supplied 51 52 67 53 51 54 55 56 57 58 59 61 61 60 68 61 64 62 65 66 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 WM-FX522 7-3. MECHANISM DECK SECTION (MT-WMEX505-162) 113 PM901 HP901 M901 110 109 112 111 116 115 117 118 119 106 120 105 108 107 104 101 103 102 114 121 121 132 132 122 122 123 124 125 126 127 127 128 129 129 130 131 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 X-3378-354-5 HOLDER (FS) ASSY 102 X-3377-363-1 LEVER (R) ASSY, PINCH 103 3-046-789-01 SPRING (HDA) 104 X-3377-362-1 LEVER (N) ASSY, PINCH 105 3-029-275-01 WASHER (STOPPER N) 106 3-029-278-01 WASHER 107 3-029-276-02 WASHER (STOPPER R) 108 3-029-289-01 WASHER 109 X-3376-813-1 CLUTCH ASSY (F) 110 3-932-724-21 WASHER 111 3-040-897-04 SPRING (TGA), TORSION 112 3-386-694-01 WASHER 113 3-029-306-21 FLYWHEEL (N), INSERT 114 3-388-079-01 BELT 115 3-029-268-21 FLYWHEEL (R), INSERT 116 3-007-428-01 WASHER (R) 117 3-029-765-01 SCREW (M1.4), TOOTHED LOCK 118 3-029-274-11 RETAINER (F2), MOTOR 119 3-007-433-01 SHEET (N), REFLECTION 120 X-3378-107-3 CHASSIS ASSY (FB) 121 3-010-274-02 TABLE, REEL 122 3-010-954-01 SPRING (BT), COMPRESSION 123 3-029-282-01 GEAR (Y) 124 3-029-285-02 GEAR, CAM 125 3-029-284-03 LEVER, TRIGGER 126 3-029-281-01 GEAR, IDLER (B) 127 3-010-273-02 GEAR (REEL) 128 3-029-273-01 GEAR (FR) 129 3-029-283-02 GEAR, IDLER (A) 130 3-029-286-01 GEAR (NR) 131 3-029-288-01 PULLEY, REVERSE 132 3-033-757-01 SHEET (H) HP901 1-500-639-21 HEAD, MAGNETIC (PLAYBACK) M901 1-763-166-14 MOTOR (CAPSTAN/REEL) (WITH PULLEY) PM901 1-454-674-41 SOLENOID, PLUNGER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 WM-FX522 SECTION 8 ELECTRICAL PARTS LIST MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * A-3021-647-A MAIN BOARD, COMPLETE ********************* 3-033-757-01 SHEET (H) 3-234-097-01 HOLDER, LCD 3-234-413-01 RUBBER, CONDUCTIVE < CAPACITOR > C1 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C2 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C3 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C4 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C5 1-119-923-81 CERAMIC CHIP 0.047uF 10% 10V C6 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C7 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C8 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C9 1-131-862-11 TANTALUM CHIP 47uF 20% 4V C10 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C11 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C12 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C13 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C14 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C15 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C16 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C17 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C18 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C19 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C20 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C21 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C23 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C24 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C27 1-164-676-11 CERAMIC CHIP 2200PF 5% 16V C28 1-164-874-11 CERAMIC CHIP 100PF 5% 50V C29 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V C30 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C31 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C33 1-164-842-11 CERAMIC CHIP 2PF 0.25PF 50V C34 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C35 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C36 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C37 1-164-845-11 CERAMIC CHIP 5PF 0.25PF 50V C38 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C39 1-164-882-11 CERAMIC CHIP 220PF 5% 16V C40 1-164-842-11 CERAMIC CHIP 2PF 0.25PF 50V NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH When indicating parts by reference number, please include the board. C43 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C44 1-164-939-11 CERAMIC CHIP 0.0022uF 10% 50V C45 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C46 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C47 1-164-882-11 CERAMIC CHIP 220PF 5% 16V C101 1-131-862-11 TANTALUM CHIP 47uF 20% 4V C102 1-135-834-11 CERAMIC CHIP 2.2uF 6.3V C103 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C108 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C109 1-119-923-81 CERAMIC CHIP 0.047uF 10% 10V C201 1-131-862-11 TANTALUM CHIP 47uF 20% 4V C202 1-135-834-11 CERAMIC CHIP 2.2uF 6.3V C203 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C208 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C209 1-119-923-81 CERAMIC CHIP 0.047uF 10% 10V C301 1-131-862-11 TANTALUM CHIP 47uF 20% 4V C302 1-107-820-11 CERAMIC CHIP 0.1uF 16V C303 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C305 1-126-518-11 ELECT 470uF 20% 4V C306 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C307 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C308 1-165-128-11 CERAMIC CHIP 0.22uF 16V C309 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C310 1-135-149-21 TANTALUM CHIP 2.2uF 20% 10V C311 1-107-820-11 CERAMIC CHIP 0.1uF 16V C312 1-115-156-11 CERAMIC CHIP 1uF 10V C313 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C314 1-135-149-21 TANTALUM CHIP 2.2uF 20% 10V C315 1-124-635-00 ELECT 220uF 20% 6.3V C316 1-135-834-11 CERAMIC CHIP 2.2uF 6.3V C317 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C318 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C319 1-107-820-11 CERAMIC CHIP 0.1uF 16V C320 1-164-941-11 CERAMIC CHIP 0.0047uF 10% 16V C321 1-115-156-11 CERAMIC CHIP 1uF 10V C322 1-115-156-11 CERAMIC CHIP 1uF 10V C324 1-164-933-11 CERAMIC CHIP 220PF 10% 50V C401 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 50V C402 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C403 1-164-845-11 CERAMIC CHIP 5PF 0.25PF 50V C404 1-164-505-11 CERAMIC CHIP 2.2uF 16V C405 1-119-750-11 TANTALUM CHIP 22uF 20% 6.3V C406 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C409 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 29 WM-FX522 MAIN C410 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C411 1-164-937-11 CERAMIC CHIP 0.001uF 10% 50V C412 1-165-128-11 CERAMIC CHIP 0.22uF 16V C414 1-164-935-11 CERAMIC CHIP 470PF 10% 50V C415 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C416 1-164-933-11 CERAMIC CHIP 220PF 10% 50V C501 1-115-156-11 CERAMIC CHIP 1uF 10V C601 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C602 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C603 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C604 1-107-820-11 CERAMIC CHIP 0.1uF 16V C605 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C606 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C607 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C608 1-164-943-11 CERAMIC CHIP 0.01uF 10% 16V C701 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C702 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C703 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C704 1-107-820-11 CERAMIC CHIP 0.1uF 16V C705 1-107-820-11 CERAMIC CHIP 0.1uF 16V C706 1-107-820-11 CERAMIC CHIP 0.1uF 16V C707 1-107-820-11 CERAMIC CHIP 0.1uF 16V C708 1-107-820-11 CERAMIC CHIP 0.1uF 16V C709 1-104-847-11 TANTALUM CHIP 22uF 20% 4V C710 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C712 1-115-156-11 CERAMIC CHIP 1uF 10V C713 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C714 1-115-156-11 CERAMIC CHIP 1uF 10V C717 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C801 1-115-156-11 CERAMIC CHIP 1uF 10V < COMPOSITION CIRCUIT BLOCK > CB301 1-127-575-21 CAP, CHIP CERAMIC 470PF SL < CERAMIC FILTER > CF1 1-767-362-11 FILTER, CERAMIC CF2 1-767-480-11 FILTER, CERAMIC (AM) < TRIMMER > CT1 1-141-327-11 CAP, CHIP TYPE TRIMMER < DIODE > D1 8-759-072-60 DIODE SVC347T-TL D3 8-719-080-77 DIODE MA2S357 (E) -(TX).SO D4 8-719-080-77 DIODE MA2S357 (E) -(TX).SO D401 8-719-158-49 DIODE RD12SB2 D402 8-719-404-50 DIODE MA111-TX D701 8-719-404-50 DIODE MA111-TX D801 8-719-049-09 DIODE 1SS367-T3SONY D802 8-719-404-50 DIODE MA111-TX < FERRITE BEAD > FB2 1-414-760-21 FERRITE 0uH FB3 1-414-760-21 FERRITE 0uH FB4 1-414-760-21 FERRITE 0uH FB5 1-500-245-22 FERRITE 0uH FB6 1-414-760-21 FERRITE 0uH FB7 1-414-760-21 FERRITE 0uH < BAND PASS FILTER > FL1 1-239-015-21 FILTER, BAND PASS < IC > IC1 6-701-310-01 IC TA2154FN-(EL) IC201 8-759-457-70 IC XC62RP1602MR IC301 8-759-579-12 IC TA2123AF (EL) IC501 8-759-457-68 IC AK93C45AV-L IC601 8-759-356-46 IC MM1279XVBE IC701 6-801-906-01 IC TC9328AF-108 IC704 8-759-572-21 IC S-80808ANNP-E7Y-T2 IC801 8-759-553-28 IC XC6383C251ML < JACK > J301 1-779-867-81 JACK (i) < RESISTOR > JC1 1-218-990-11 SHORT CHIP 0 JC2 1-218-990-11 SHORT CHIP 0 JC4 1-216-864-11 SHORT CHIP 0 JC5 1-218-990-11 SHORT CHIP 0 JC6 1-218-990-11 SHORT CHIP 0 JC301 1-218-990-11 SHORT CHIP 0 < COIL > L3 1-400-215-21 FERRITE 0uH L4 1-424-991-11 ANTENNA, FERRITE-ROD L5 1-406-404-11 COIL (MW OSCILATION) L7 1-424-983-21 COIL, RF (FM ) L401 1-412-010-41 INDUCTOR CHIP 22uH L701 1-412-010-41 INDUCTOR CHIP 22uH L801 1-412-033-11 INDUCTOR CHIP 220uH < LIQUID CRYSTAL DISPLAY > LCD1 1-804-524-11 LIQUID CRYSTAL DISPLAY < PHOTO REFLECTOR > PH701 8-749-014-43 PHOTO REFLECTOR PR-20-T < TRANSISTOR > Q2 8-729-800-71 TRANSISTOR 2SB815B7-TB Q301 8-729-800-71 TRANSISTOR 2SB815B7-TB Q304 8-729-423-75 TRANSISTOR XN1116 Q306 8-729-425-46 TRANSISTOR XP4315-TXE Q401 8-729-800-71 TRANSISTOR 2SB815B7-TB Q404 8-729-602-21 TRANSISTOR 2SC4154-F Q405 8-729-602-21 TRANSISTOR 2SC4154-F Q408 8-729-602-21 TRANSISTOR 2SC4154-F Q701 8-729-013-60 TRANSISTOR RN1110-TE85L Q702 8-729-800-71 TRANSISTOR 2SB815B7-TB < RESISTOR > R1 1-218-953-11 RES-CHIP 1K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 30 WM-FX522 MAIN R2 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R3 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R4 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R6 1-216-845-11 METAL CHIP 100K 5% 1/10W R7 1-218-965-11 RES-CHIP 10K 5% 1/16W R8 1-218-985-11 RES-CHIP 470K 5% 1/16W R9 1-218-985-11 RES-CHIP 470K 5% 1/16W R10 1-218-977-11 RES-CHIP 100K 5% 1/16W R17 1-218-953-11 RES-CHIP 1K 5% 1/16W R18 1-218-977-11 RES-CHIP 100K 5% 1/16W R101 1-218-981-11 RES-CHIP 220K 5% 1/16W R102 1-218-969-11 RES-CHIP 22K 5% 1/16W R103 1-218-941-81 RES-CHIP 100 5% 1/16W R104 1-218-965-11 RES-CHIP 10K 5% 1/16W R105 1-218-953-11 RES-CHIP 1K 5% 1/16W R106 1-218-953-11 RES-CHIP 1K 5% 1/16W R107 1-218-969-11 RES-CHIP 22K 5% 1/16W R108 1-216-789-11 METAL CHIP 2.2 5% 1/10W R109 1-218-973-11 RES-CHIP 47K 5% 1/16W R112 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R201 1-218-981-11 RES-CHIP 220K 5% 1/16W R202 1-218-969-11 RES-CHIP 22K 5% 1/16W R203 1-218-941-81 RES-CHIP 100 5% 1/16W R204 1-218-965-11 RES-CHIP 10K 5% 1/16W R205 1-218-953-11 RES-CHIP 1K 5% 1/16W R206 1-218-953-11 RES-CHIP 1K 5% 1/16W R207 1-218-969-11 RES-CHIP 22K 5% 1/16W R208 1-216-789-11 METAL CHIP 2.2 5% 1/10W R209 1-218-973-11 RES-CHIP 47K 5% 1/16W R212 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R302 1-218-981-11 RES-CHIP 220K 5% 1/16W R303 1-218-969-11 RES-CHIP 22K 5% 1/16W R304 1-218-973-11 RES-CHIP 47K 5% 1/16W R305 1-218-969-11 RES-CHIP 22K 5% 1/16W R306 1-220-803-81 RES-CHIP 4.7 5% 1/16W R307 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R308 1-218-985-11 RES-CHIP 470K 5% 1/16W R309 1-218-965-11 RES-CHIP 10K 5% 1/16W R311 1-218-977-11 RES-CHIP 100K 5% 1/16W R312 1-218-977-11 RES-CHIP 100K 5% 1/16W R325 1-218-985-11 RES-CHIP 470K 5% 1/16W R326 1-218-957-11 RES-CHIP 2.2K 5% 1/16W R327 1-218-981-11 RES-CHIP 220K 5% 1/16W R328 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R401 1-208-643-11 RES-CHIP 22 5% 1/16W R402 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W R403 1-218-953-11 RES-CHIP 1K 5% 1/16W R404 1-218-953-11 RES-CHIP 1K 5% 1/16W R408 1-218-953-11 RES-CHIP 1K 5% 1/16W R409 1-218-977-11 RES-CHIP 100K 5% 1/16W R410 1-208-927-11 METAL CHIP 47K 0.5% 1/16W R411 1-218-953-11 RES-CHIP 1K 5% 1/16W R412 1-208-699-11 METAL CHIP 4.7K 0.5% 1/16W R413 1-218-965-11 RES-CHIP 10K 5% 1/16W R414 1-208-927-11 METAL CHIP 47K 0.5% 1/16W R415 1-218-985-11 RES-CHIP 470K 5% 1/16W R416 1-218-989-11 RES-CHIP 1M 5% 1/16W R417 1-208-715-11 METAL CHIP 22K 0.5% 1/16W R501 1-218-953-11 RES-CHIP 1K 5% 1/16W R601 1-218-969-11 RES-CHIP 22K 5% 1/16W R602 1-218-941-81 RES-CHIP 100 5% 1/16W R603 1-218-953-11 RES-CHIP 1K 5% 1/16W R605 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R701 1-208-707-11 METAL CHIP 10K 0.5% 1/16W R702 1-218-989-11 RES-CHIP 1M 5% 1/16W R703 1-218-981-11 RES-CHIP 220K 5% 1/16W R704 1-208-943-11 METAL CHIP 220K 0.5% 1/16W R705 1-218-989-11 METAL CHIP 1M 0.5% 1/16W R706 1-218-981-11 RES-CHIP 220K 5% 1/16W R707 1-218-981-11 RES-CHIP 220K 5% 1/16W R708 1-208-935-11 METAL CHIP 100K 0.5% 1/16W R709 1-208-935-11 METAL CHIP 100K 0.5% 1/16W R710 1-218-973-11 RES-CHIP 47K 5% 1/16W R711 1-218-973-11 RES-CHIP 47K 5% 1/16W R712 1-218-973-11 RES-CHIP 47K 5% 1/16W R713 1-208-715-11 METAL CHIP 22K 0.5% 1/16W R714 1-218-985-11 RES-CHIP 470K 5% 1/16W R715 1-218-985-11 METAL CHIP 470K 0.5% 1/16W R716 1-208-927-11 METAL CHIP 47K 0.5% 1/16W R717 1-208-643-11 RES-CHIP 22 5% 1/16W R718 1-218-977-11 RES-CHIP 100K 5% 1/16W R719 1-208-943-11 METAL CHIP 220K 0.5% 1/16W R720 1-218-977-11 RES-CHIP 100K 5% 1/16W R721 1-216-821-11 METAL CHIP 1K 5% 1/10W R722 1-218-965-11 RES-CHIP 10K 5% 1/16W R723 1-218-965-11 RES-CHIP 10K 5% 1/16W R724 1-218-965-11 RES-CHIP 10K 5% 1/16W R725 1-216-833-11 RES-CHIP 10K 5% 1/10W R726 1-218-965-11 RES-CHIP 10K 5% 1/16W R727 1-218-965-11 RES-CHIP 10K 5% 1/16W R728 1-218-965-11 RES-CHIP 10K 5% 1/16W R730 1-218-965-11 RES-CHIP 10K 5% 1/16W R801 1-218-985-11 RES-CHIP 470K 5% 1/16W < COMPOSITION CIRCUIT BLOCK > RB601 1-234-243-21 RES, NETWORK 220K (3216) < VARIABLE RESISTOR > RV301 1-227-167-21 RES, VAR, CARBON 30K/30K (VOL) RV601 1-238-088-11 RES, ADJ, CERMET 2.2K < SWITCH > S701 1-570-397-11 SWITCH, SLIDE (HOLD) S702 1-771-851-21 SWITCH, TACTILE (SMD) (BAND, RADIO ON) S703 1-771-475-21 SWITCH, SLIDE (DIRECTION) S704 1-771-851-21 SWITCH, TACTILE (SMD) (ENTER) S705 1-771-851-21 SWITCH, TACTILE (SMD) (SET) S706 1-771-851-21 SWITCH, TACTILE (SMD) (MENU) S707 1-771-693-21 SWITCH, TACTILE (FF AMS, TUNE/PRESET +) S708 1-771-693-21 SWITCH, TACTILE (REW AMS, TUNE/PRESET –) S709 1-771-693-21 SWITCH, TACTILE (RADIO OFF, x) S710 1-771-693-21 SWITCH, TACTILE(Y REPEAT) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 31 WM-FX522 < TRANSFORMER > T401 1-437-599-21 TRANSFORMER, DC/DC CONVERTER < THERMISTOR > TH601 1-810-794-11 THERMISTOR, POSITIVE < CERAMIC FILTER/VIBRATOR > X1 1-795-410-21 FILTER, CERAMIC X701 1-577-262-11 VIBRATOR, CRYSTAL (75kHz) ************************************************************** MISCELLANEOUS ************** HP901 1-500-639-21 HEAD, MAGNETIC (PLAYBACK) M901 1-763-166-14 MOTOR (CAPSTAN/REEL) (WITH PULLEY) PM901 1-454-674-41 SOLENOID, PLUNGER S901 1-771-888-11 SWITCH, LEAF (TAPE DETECT, ATS) ************************************************************ ACCESSORIES *********** 3-021-018-11 LABEL, FRANCE 3-235-078-24 MANUAL, INSTRUCTION (ENGLISH, FRENCH, GERMAN) 3-235-078-34 MANUAL, INSTRUCTION (SPANISH, PORTUGUESE, ITALIAN) 3-235-078-44 MANUAL, INSTRUCTION (DUTCH, SWEDISH, FINNISH) 3-235-078-54 MANUAL, INSTRUCTION (ENGLISH, RUSSIAN, POLISH) 3-235-078-64 MANUAL, INSTRUCTION (CZECH, SLOVAKIAN, HUNGARIAN) 8-954-008-93 RECEIVER, EAR MDR-E808LP/C1 SET MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FX522 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2003.01 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
