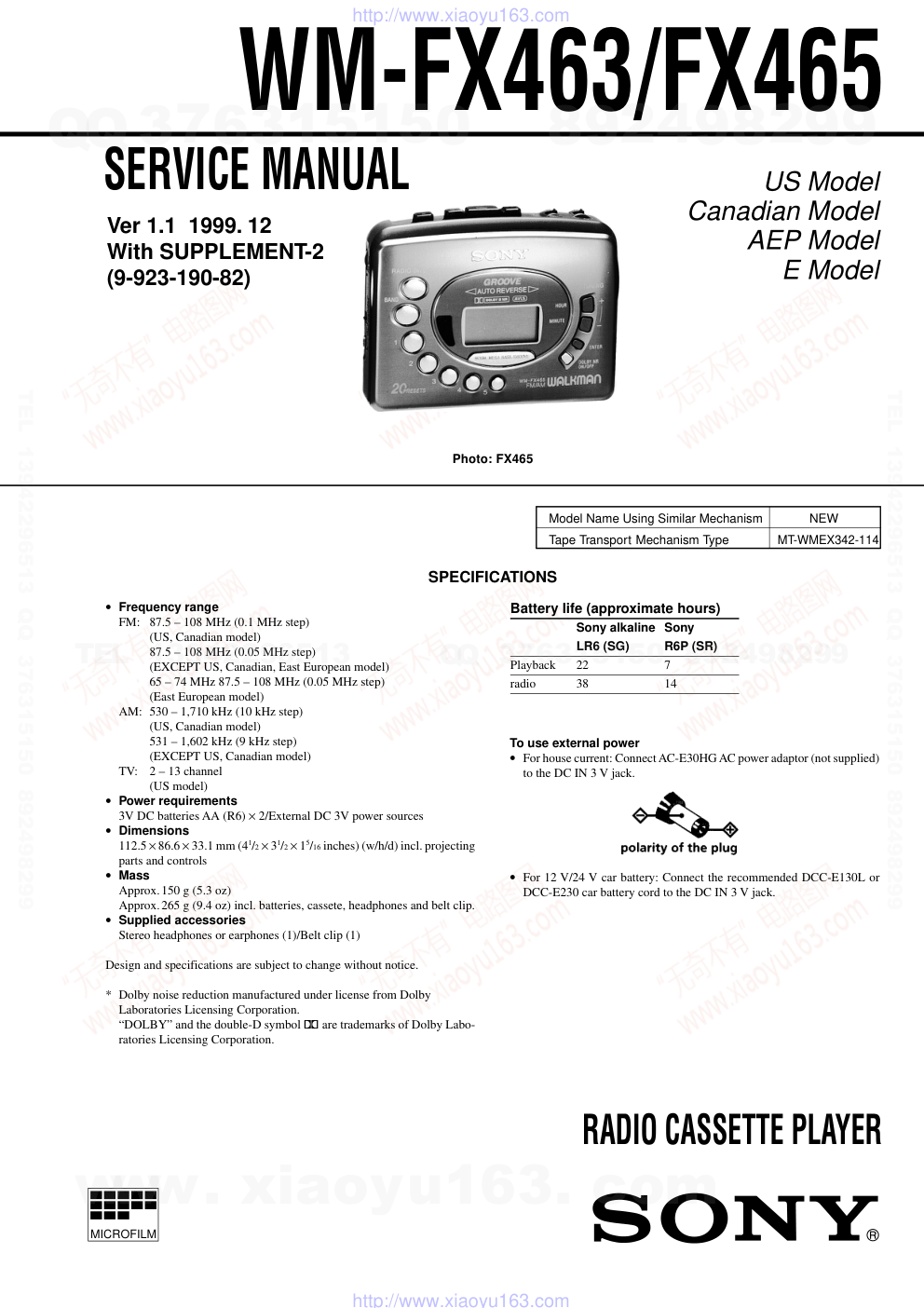

'MICROFILM
RADIO CASSETTE PLAYER
SERVICE MANUAL
US Model
Canadian Model
AEP Model
E Model
SPECIFICATIONS
WM-FX463/FX465
Photo: FX465
Model Name Using Similar Mechanism
NEW
Tape Transport Mechanism Type
MT-WMEX342-114
• Frequency range
FM: 87.5 – 108 MHz (0.1 MHz step)
(US, Canadian model)
87.5 – 108 MHz (0.05 MHz step)
(EXCEPT US, Canadian, East European model)
65 – 74 MHz 87.5 – 108 MHz (0.05 MHz step)
(East European model)
AM: 530 – 1,710 kHz (10 kHz step)
(US, Canadian model)
531 – 1,602 kHz (9 kHz step)
(EXCEPT US, Canadian model)
TV:
2 – 13 channel
(US model)
• Power requirements
3V DC batteries AA (R6) × 2/External DC 3V power sources
• Dimensions
112.5 × 86.6 × 33.1 mm (41/2 × 31/2 × 15/16 inches) (w/h/d) incl. projecting
parts and controls
• Mass
Approx.150 g (5.3 oz)
Approx.265 g (9.4 oz) incl. batteries, cassete, headphones and belt clip.
• Supplied accessories
Stereo headphones or earphones (1)/Belt clip (1)
Design and specifications are subject to change without notice.
* Dolby noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
“DOLBY” and the double-D symbol a are trademarks of Dolby Labo-
ratories Licensing Corporation.
Battery life (approximate hours)
Sony alkaline Sony
LR6 (SG)
R6P (SR)
Playback
22
7
radio
38
14
To use external power
• For house current: Connect AC-E30HG AC power adaptor (not supplied)
to the DC IN 3 V jack.
• For 12 V/24 V car battery: Connect the recommended DCC-E130L or
DCC-E230 car battery cord to the DC IN 3 V jack.
Ver 1.1  1999. 12
With SUPPLEMENT-2
(9-923-190-82)
