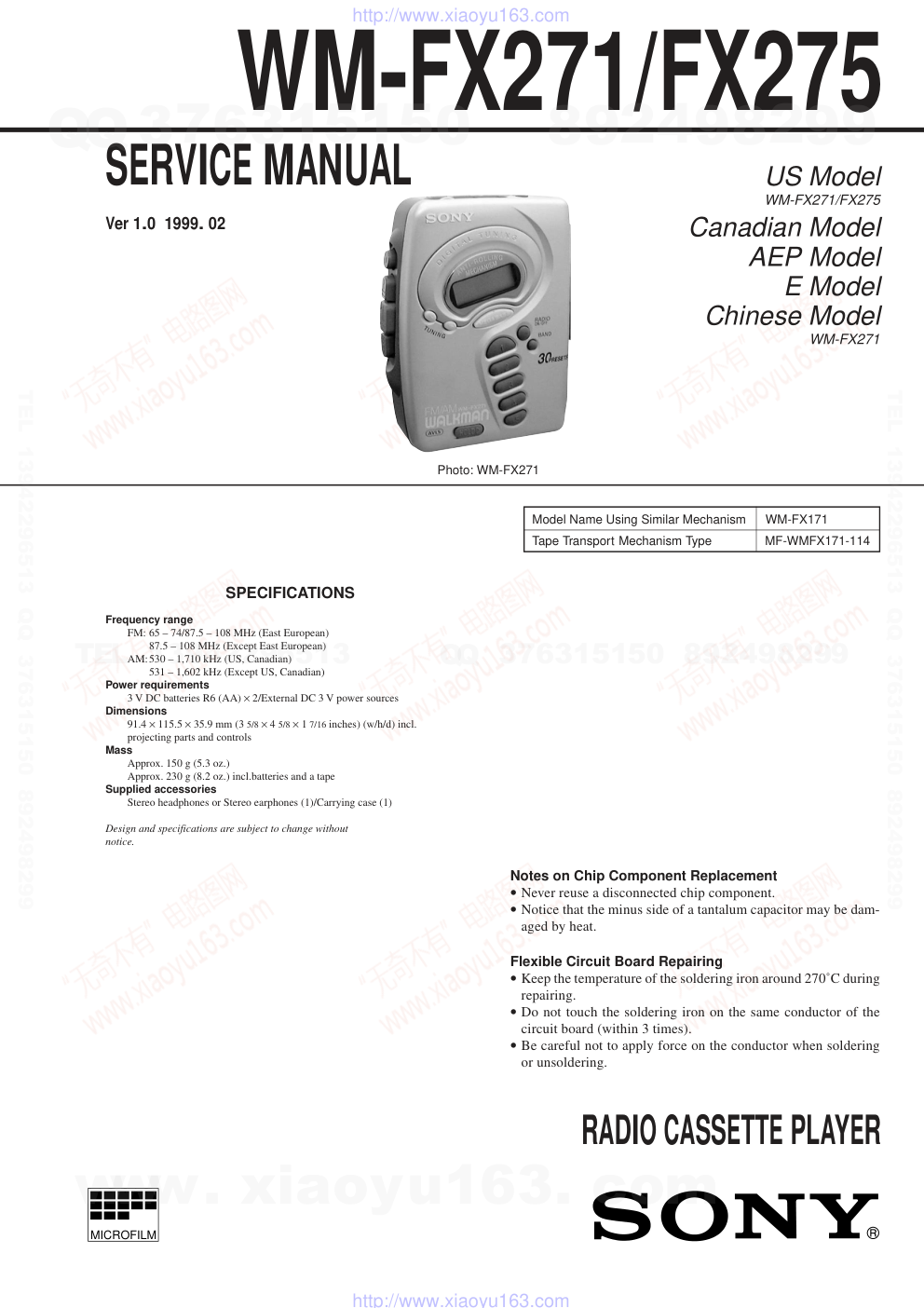

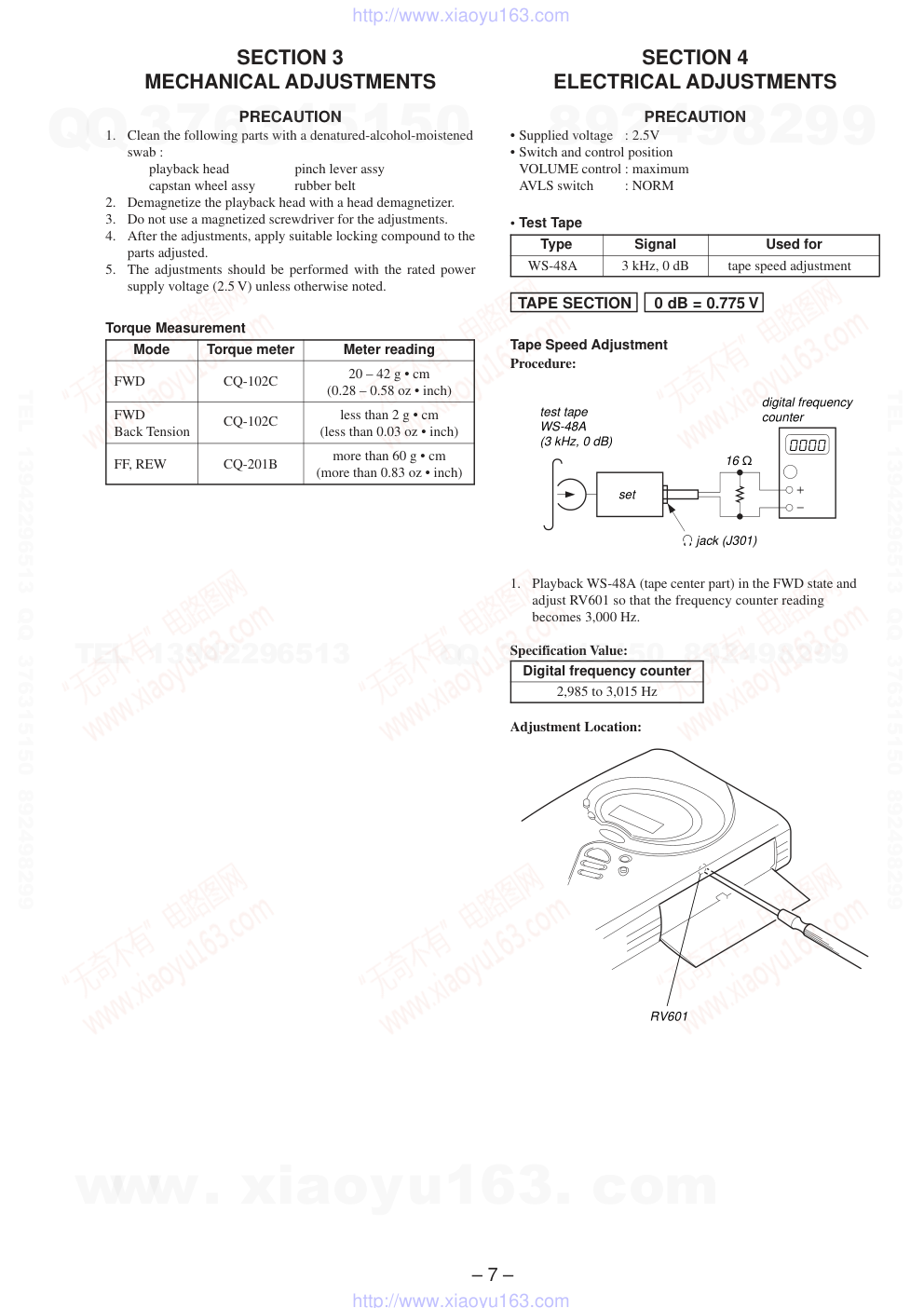

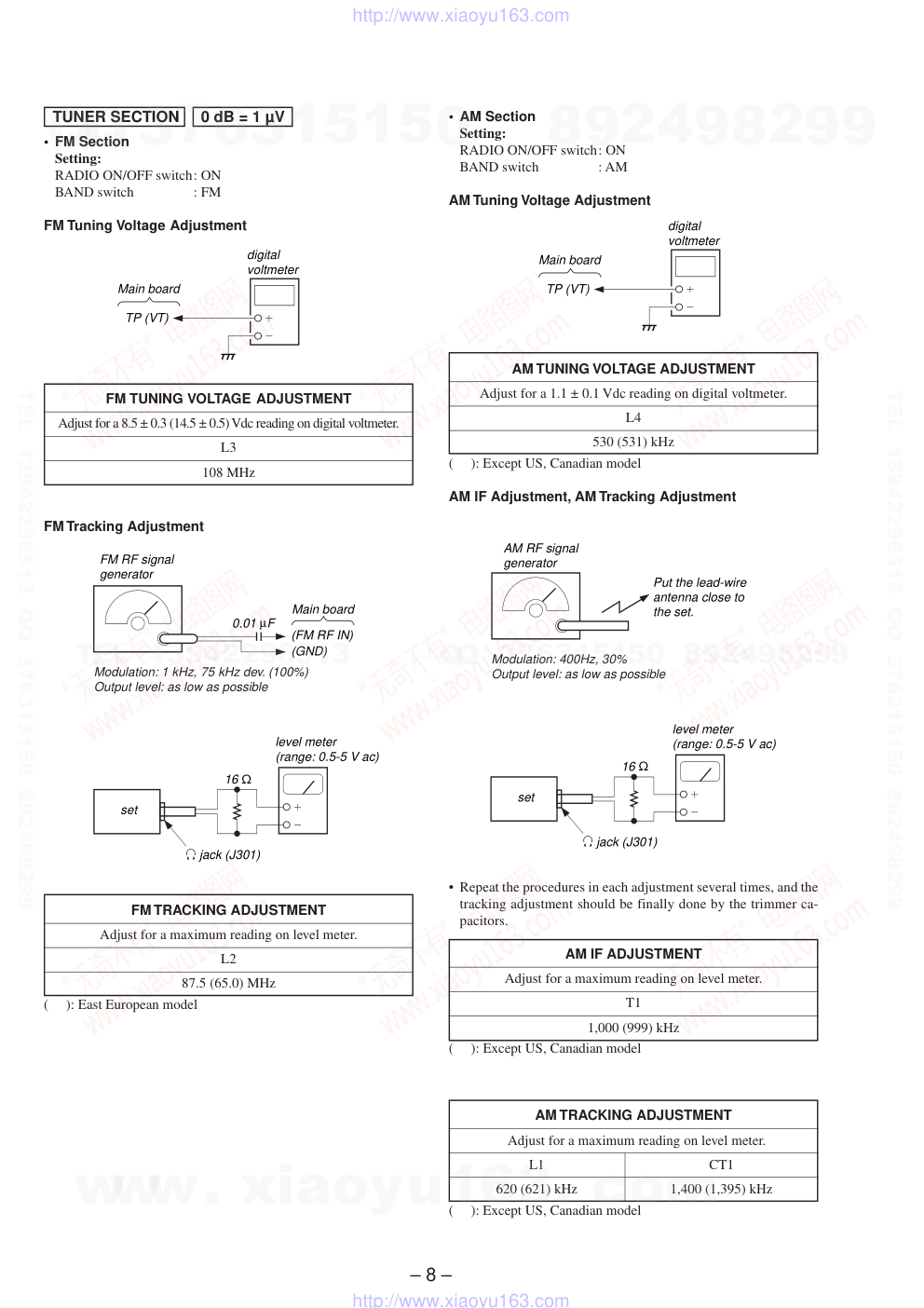

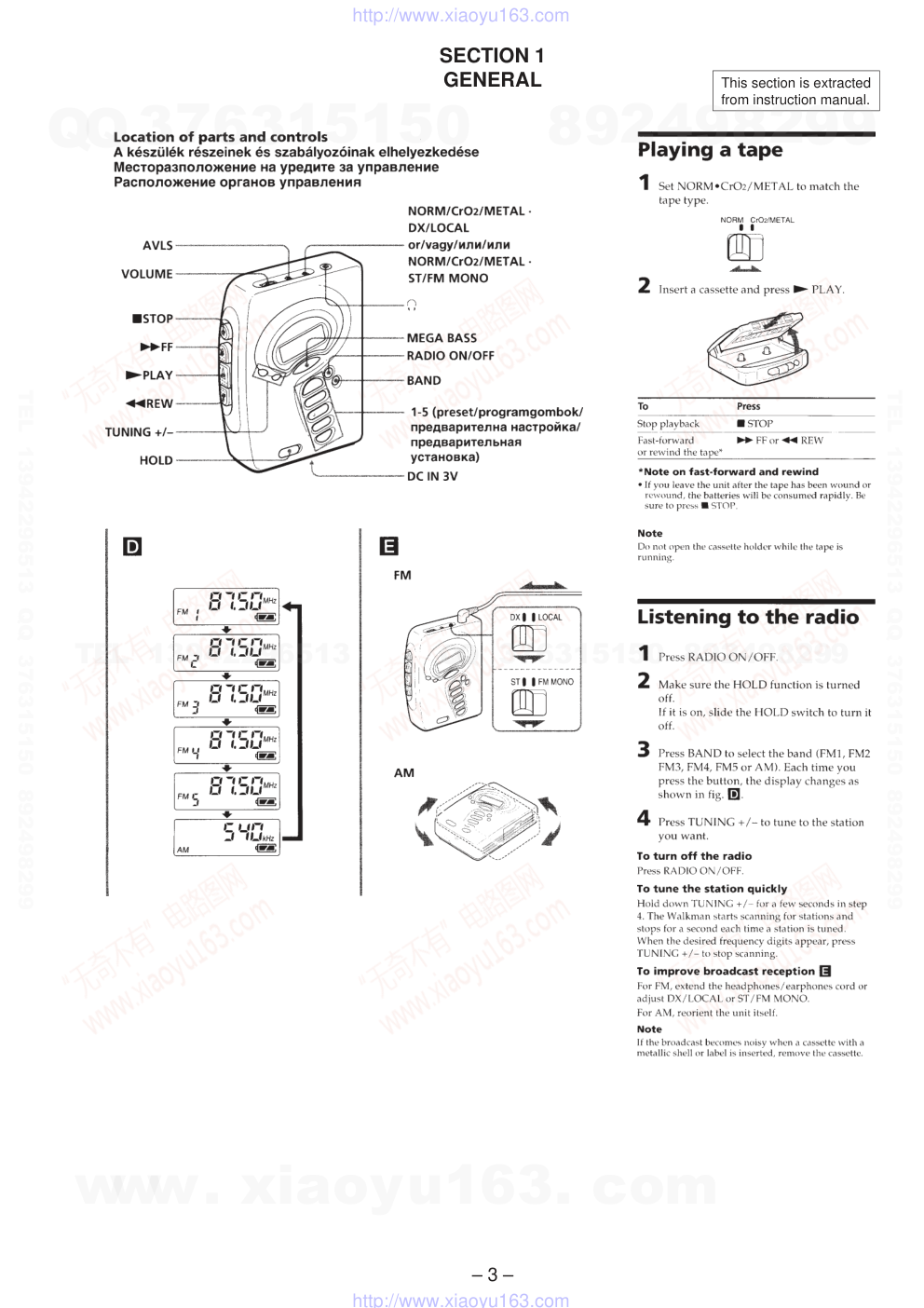

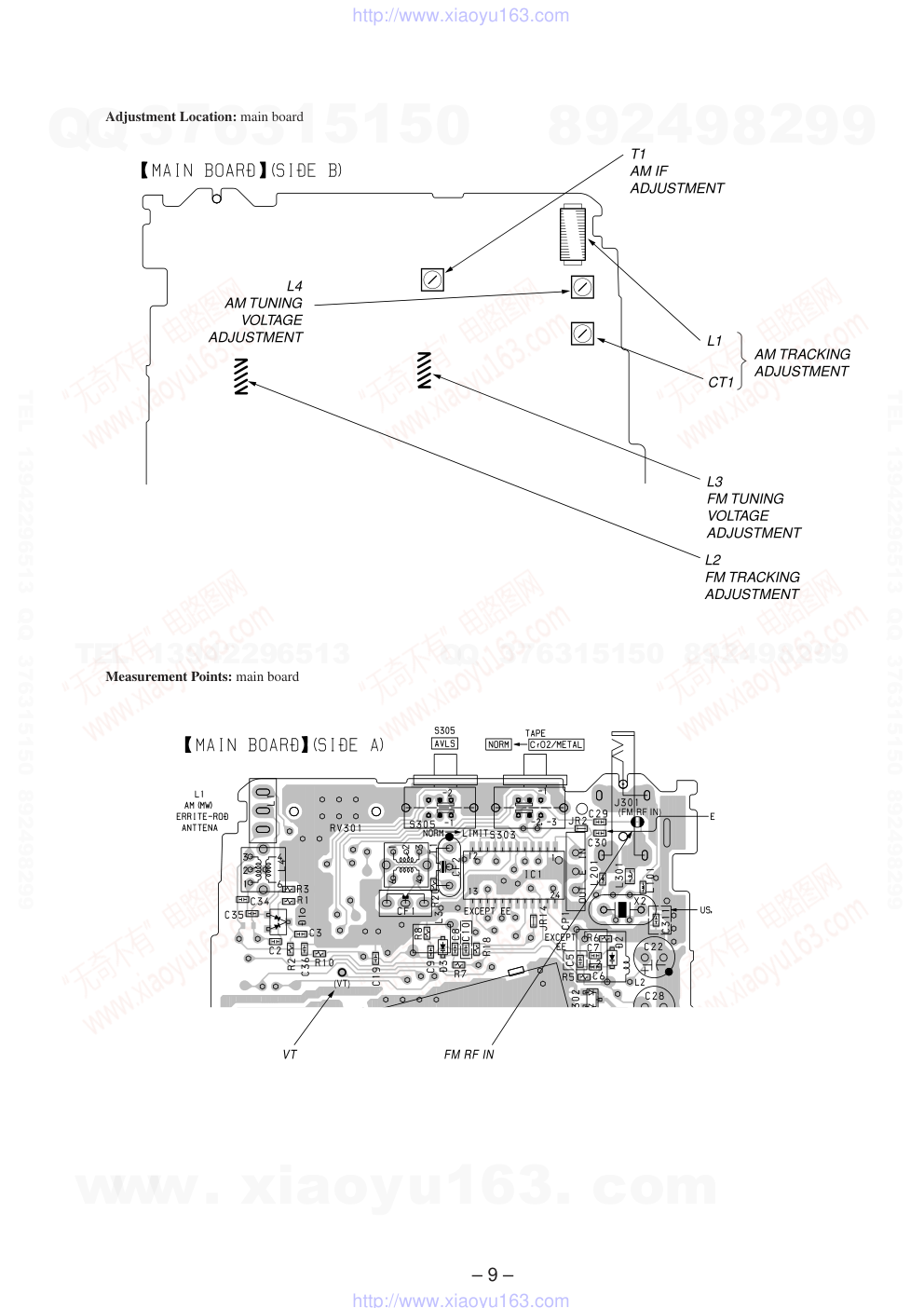

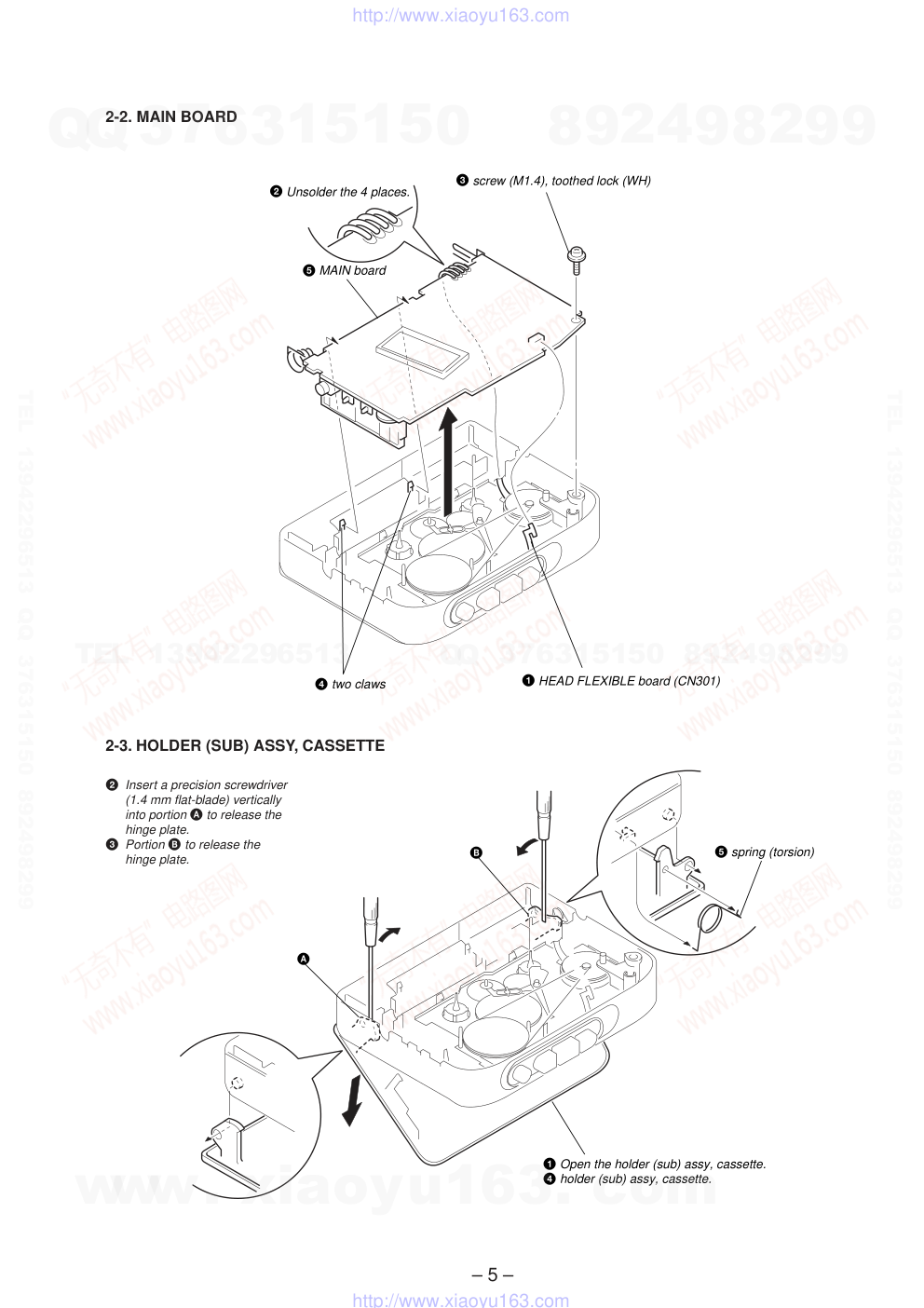

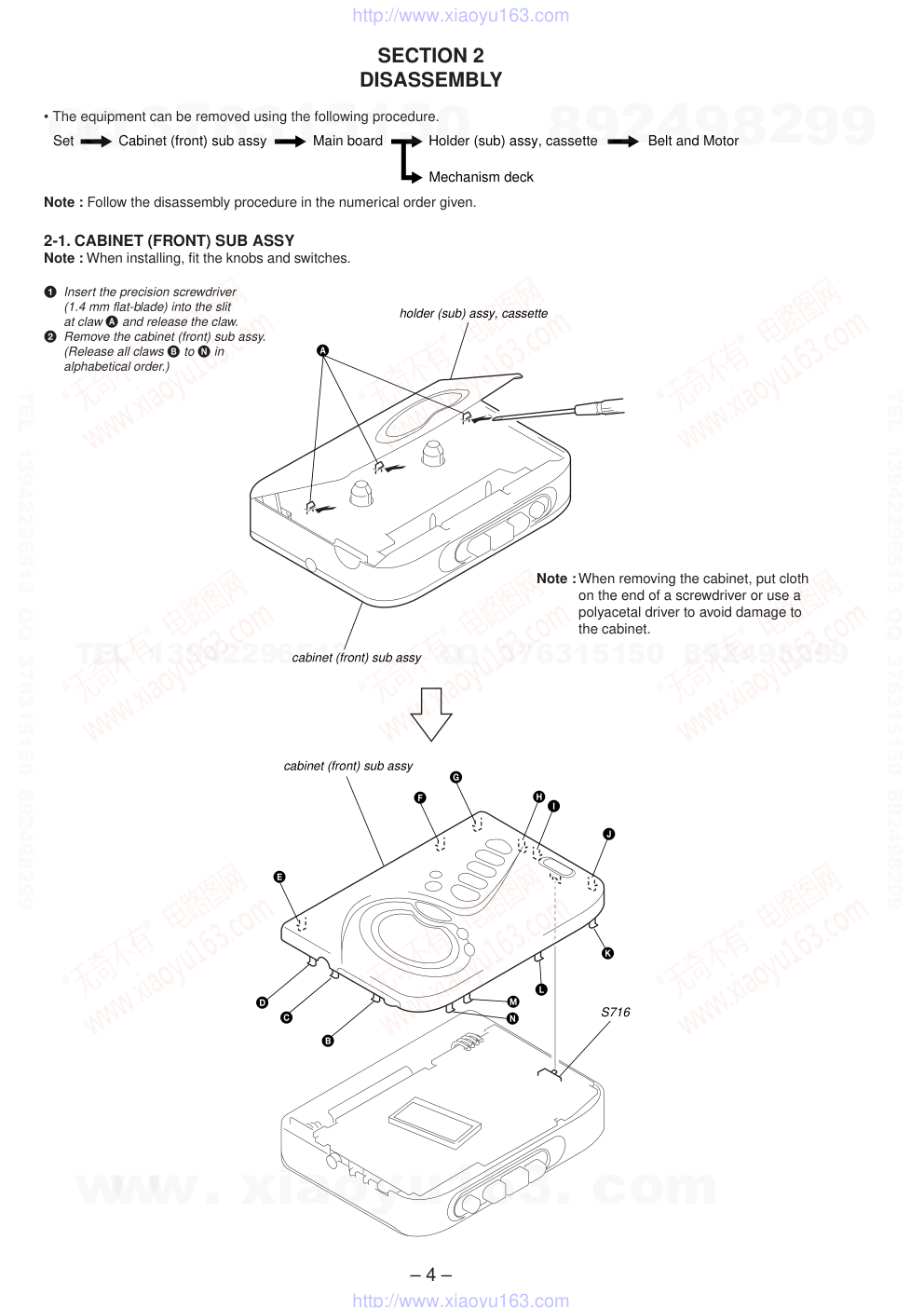

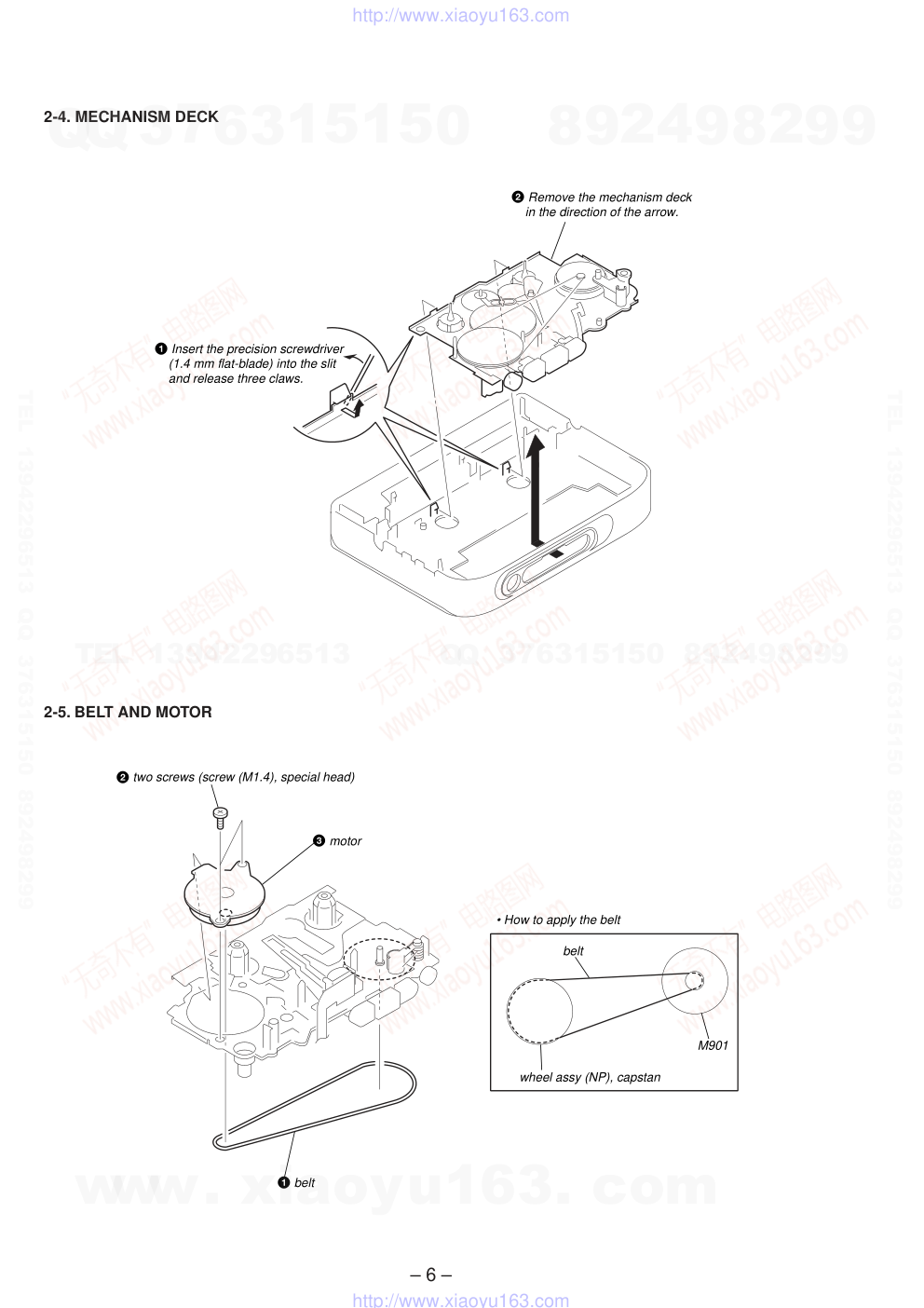

– 1 – MICROFILM SERVICE MANUAL US Model WM-FX271/FX275 Canadian Model AEP Model E Model Chinese Model WM-FX271 RADIO CASSETTE PLAYER Photo: WM-FX271 Frequency range FM: 65 – 74/87.5 – 108 MHz (East European) 87.5 – 108 MHz (Except East European) AM:530 – 1,710 kHz (US, Canadian) 531 – 1,602 kHz (Except US, Canadian) Power requirements 3 V DC batteries R6 (AA) × 2/External DC 3 V power sources Dimensions 91.4 × 115.5 × 35.9 mm (3 5/8 × 4 5/8 × 1 7/16 inches) (w/h/d) incl. projecting parts and controls Mass Approx. 150 g (5.3 oz.) Approx. 230 g (8.2 oz.) incl.batteries and a tape Supplied accessories Stereo headphones or Stereo earphones (1)/Carrying case (1) Design and specifications are subject to change without notice. SPECIFICATIONS Model Name Using Similar Mechanism WM-FX171 Tape Transport Mechanism Type MF-WMFX171-114 Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on Chip Component Replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Ver 1.0 1999. 02 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TABLE OF CONTENTS 1. GENERAL ........................................................................... 3 2. DISASSEMBLY 2-1. Cabinet (Front) Sub Assy .................................................... 4 2-2. Main Board ......................................................................... 5 2-3. Holder (Sub) Assy, Cassette ................................................ 5 2-4. Mechanism Deck ................................................................. 6 2-5. Belt and Motor .................................................................... 6 3. MECHANICAL ADJUSTMENTS ................................. 7 4. ELECTRICAL ADJUSTMENTS Tape Section ............................................................................ 7 Tuner Section........................................................................... 8 5. DIAGRAMS 5-1. IC Pin Description ............................................................. 10 5-2. Block Diagram .................................................................. 11 5-3. Printed Wiring Board ........................................................ 13 5-4. Schematic Diagram ........................................................... 15 6. EXPLODED VIEWS 6-1. Cabinet Section ................................................................. 18 6-2. Tape Mechanism Section-1 ............................................... 19 6-3. Tape Mechanism Section-2 ............................................... 20 7. ELECTRICAL PARTS LIST ........................................ 21 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SECTION 1 GENERAL This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SECTION 2 DISASSEMBLY 2-1. CABINET (FRONT) SUB ASSY Note : When installing, fit the knobs and switches. Cabinet (front) sub assy Main board Set Holder (sub) assy, cassette Belt and Motor Mechanism deck 1 Insert the precision screwdriver (1.4 mm flat-blade) into the slit at claw A and release the claw. 2 Remove the cabinet (front) sub assy. (Release all claws B to N in alphabetical order.) • The equipment can be removed using the following procedure. A cabinet (front) sub assy holder (sub) assy, cassette B C D E F HI J K S716 G L M N cabinet (front) sub assy Note : When removing the cabinet, put cloth on the end of a screwdriver or use a polyacetal driver to avoid damage to the cabinet. Note : Follow the disassembly procedure in the numerical order given. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – 2-2. MAIN BOARD 4 two claws 1 HEAD FLEXIBLE board (CN301) 2 Unsolder the 4 places. 5 MAIN board 3 screw (M1.4), toothed lock (WH) 1 Open the holder (sub) assy, cassette. 4 holder (sub) assy, cassette. A B 5 spring (torsion) 2-3. HOLDER (SUB) ASSY, CASSETTE 2 Insert a precision screwdriver (1.4 mm flat-blade) vertically into portion A to release the hinge plate. 3 Portion B to release the hinge plate. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – 2-4. MECHANISM DECK 2-5. BELT AND MOTOR 1 Insert the precision screwdriver (1.4 mm flat-blade) into the slit and release three claws. 2 Remove the mechanism deck in the direction of the arrow. • How to apply the belt 1 belt 3 motor 2 two screws (screw (M1.4), special head) wheel assy (NP), capstan belt M901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – 0000 2 jack (J301) digital frequency counter set 16 Ω test tape WS-48A (3 kHz, 0 dB) PRECAUTION • Supplied voltage : 2.5V • Switch and control position VOLUME control : maximum AVLS switch : NORM • Test Tape Type Signal Used for WS-48A 3 kHz, 0 dB tape speed adjustment TAPE SECTION 0 dB = 0.775 V Tape Speed Adjustment Procedure: PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened swab : playback head pinch lever assy capstan wheel assy rubber belt 2. Demagnetize the playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage (2.5 V) unless otherwise noted. Torque Measurement Mode Torque meter Meter reading FWD CQ-102C 20 – 42 g • cm (0.28 – 0.58 oz • inch) FWD CQ-102C less than 2 g • cm Back Tension (less than 0.03 oz • inch) FF, REW CQ-201B more than 60 g • cm (more than 0.83 oz • inch) SECTION 4 ELECTRICAL ADJUSTMENTS SECTION 3 MECHANICAL ADJUSTMENTS 1. Playback WS-48A (tape center part) in the FWD state and adjust RV601 so that the frequency counter reading becomes 3,000 Hz. Specification Value: Digital frequency counter 2,985 to 3,015 Hz Adjustment Location: RV601 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – 2 jack (J301) set 16 Ω level meter (range: 0.5-5 V ac) Put the lead-wire antenna close to the set. AM RF signal generator digital voltmeter TP (VT) Main board • Repeat the procedures in each adjustment several times, and the tracking adjustment should be finally done by the trimmer ca- pacitors. AM IF ADJUSTMENT Adjust for a maximum reading on level meter. T1 1,000 (999) kHz ( ): Except US, Canadian model AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L1 CT1 620 (621) kHz 1,400 (1,395) kHz ( ): Except US, Canadian model TUNER SECTION 0 dB = 1 µV • FM Section Setting: RADIO ON/OFF switch: ON BAND switch : FM FM Tuning Voltage Adjustment FM TUNING VOLTAGE ADJUSTMENT Adjust for a 8.5 ± 0.3 (14.5 ± 0.5) Vdc reading on digital voltmeter. L3 108 MHz FM Tracking Adjustment Modulation: 1 kHz, 75 kHz dev. (100%) Output level: as low as possible digital voltmeter TP (VT) Main board FM RF signal generator 0.01 µF (FM RF IN) Main board (GND) 2 jack (J301) set 16 Ω level meter (range: 0.5-5 V ac) FM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L2 87.5 (65.0) MHz ( ): East European model • AM Section Setting: RADIO ON/OFF switch: ON BAND switch : AM AM Tuning Voltage Adjustment AM TUNING VOLTAGE ADJUSTMENT Adjust for a 1.1 ± 0.1 Vdc reading on digital voltmeter. L4 530 (531) kHz ( ): Except US, Canadian model AM IF Adjustment, AM Tracking Adjustment Modulation: 400Hz, 30% Output level: as low as possible www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – L3 FM TUNING VOLTAGE ADJUSTMENT L2 FM TRACKING ADJUSTMENT L4 AM TUNING VOLTAGE ADJUSTMENT T1 AM IF ADJUSTMENT CT1 AM TRACKING ADJUSTMENT L1 Adjustment Location: main board Measurement Points: main board (FM RF IN) (VT) FM RF IN VT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – 5-1. IC PIN DESCRIPTION • IC701 µPD17072GB-559-1A7 (SYSTEM CONTROL/LCD DRIVE) Pin No. Pin Name I/O Pin Description 1 INIT O Initialize output 2, 3 NC — Not used. 4 MEGA BASS O MEGA BASS ON/OFF output (L: ON, H: OFF) 5 RADIO-ON O Radio circuit power control output 6 – 8 KEY OUT1 – 3 O Key matrix output 1 – 3 9 NC — Not used. 10, 11 KEY IN1, 3 I Key input 1, 3 12, 13 BTT-REF1, 2 I Reference voltage input for battery voltage check. 14 MUTE OUT O Mute output (Mute ON: L, Mute OFF: input) 15 SD I SD (with local) signal input 16 BAND O Radio band select output (AM: L, FM: input) 17 HOLD I Key hold input (Key input effect: L, Key input ineffect: H) 18 GND — Ground 19 EO O PLL error out output 20 VCO (AM) I VCO (AM) input 21 VCO (FM/TV) I VCO (FM) input 22 VDD2 — Voltage regulator for PLL. 23 VDD1 — Power supply pin 24 XO — Crystal oscillator output (75 kHz) 25 XI — Crystal oscillator input (75 kHz) 26 VDD5 — Voltage regulator for oscillation circuit. 27 VDD3 — Power supply for LCD driver. 28, 29 CAP1, 2 — Stabilized capacitor connection of crystal oscillation power supply. 30 VDD4 — Power supply for LCD driver. 31 – 34 COM0 – 3 O LCD driver common output 35 – 49 LCD0 – 14 O LCD driver output 50 CE I L: Clock stop, H: Normally operation 51 TAPE ON I At TAPE ON: H 52 BEEP O BEEP output 53 NC — Not used. 54 KEY IN2 I Key input 2 55 NC — Not used. 56 KEY IN4 I Key input 4 SECTION 5 DIAGRAMS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-2. BLOCK DIAGRAM – 11 – – 12 – WM-FX271/FX275 D2 D303 L OUT R OUT VCC2 QUAD LPF1 FM/AM RF, IF, MPX IC1 14 13 6 12 CF2 10.7MHz X2 RADIO +B R CH R-CH L HP901 PLAYBACK HEAD L.P.F Q701,702 TAPE SPEED RV601 SYSTEM CONTROL/ LCD DRIVE IC701 RADIO +B CF1 450kHz L2 FM RF T1 AM IFT BATT+B DC/DC CONV. Q307, T301 RADIO+B SWITCH Q53 BAND SWITCH Q703 NF LEVEL SWITCH Q101 MIX IN(L) H.PIN(L) FM/AM MIX FM IN 1 4 MOTOR SERVO IC301(2/2) IN+ 35 M-V REF 34 UOUT VOUT WOUT FM IF 8 AUDIO POWER AMP IC301(1/2) REV IN(L) FWD IN(L) NF SYSTEM 6 15 AM IF 7 FM RF 23 FM OSC 21 AM OSC 20 AM IN 24 LPF2 15 TUN LED 10 KEY OUT1 KEY OUT3 HOLD 17 BTT-REF1 12 X OUT X IN SYS CONT HOLD S701 FUNCTION KEY S701, 702, 704-708, 713, 715 VDD ON OFF B.P.F CP1 DC IN 3V J302 DRY BATTERY SIZE "AA" (IEC DESIGNATION R6) 2PCS, 3V D3 L3 FM OSC L4 AM OSC D1 CT1 D731 BATT+B L1 AM FERRITE-ROD ANTENNA R FWD + – 9 5 POWER MUTE 21 19 REG IC702 1 30 28 L.B-SW 32 MIX OUT(L) RV301-1 24 POWER IN(L) PWR R-CH COM L CH R CH 22 POWER OUT(L) 16 POWER OUT(COM) 18 J301 6 8 35 49 LCD1 LCD14 X701 75kHz BATT+B M901 CAPSTAN/ REEL MOTOR 31 34 COM1 04 LCD701 LIQUID CRYSTAL DISPLAY PANEL COM4 KEY IN1 KEY IN4 10,11,54,56 BEEP 52 MEGA BASS 4 MUTE OUT 14 RADIO-ON 5 BAND 16 EO 19 SD 15 3 24 25 39 41 40 R-CH DX LOCAL EXCEPT US,CND,C&SA ST FM MONO EXCEPT US,CND,C&SA S303-2 VCO BUFFER Q2, 703 20 21 18 17 DET OUT MPX IN MUTE Q306 TAPE +B RADIO +B NORM CrO2/ METAL AMP +B BATT +B DOLBY B+ SWITCH Q331 TAPE +B TAPE +B S303-1 NORM LIMIT S305-1 AVLS 26 L. P2 BTT-REF2 13 S301 TAPE POWER VDD INIT 1 S303-2 US,CND,C&SA (COM) TAPE +B D701 AEP,2AEP,FR,CEV,CH EE,E,9E JR701 JR702 10 RADIO +B Q308 VCO(FM/TV) VCO(AM) VOLUME ∑ ( ) • R-CH: same as L-CH • Signal path : FM : AM : PB T1 AM IF L2 FM TRACKING L3 FM TUNING VOLTAGE L4 AM TRACKING CT1,L1 AM TRACKING • Abbreviation CND : Canadian model C&SA : Central and South America model AEP : Headphone (MDR-E805LP) model 2AEP : Earphone (MDR-023) model FR : French model CEV : Poland, Czech, Greece and Turkey model CH : Chinese model EE : East European model E : Indication of country of origin 9E : No indication of country of origin w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I 2 3 4 5 6 7 8 9 10 11 12 13 M901 CAPSTAN/REEL MOTOR M HP901 PLAYBACK HEAD FWD R GND 6 GND 5 FWD (R) 4 FWD (L) 3 REF 2 GND 1 L (FM RF IN) (VT) PANEL C204 C104 C333 04 C&SA C&SA 19 , C&SA C&SA C&SA ( ) ( ) WM-FX271/FX275 – 13 – – 14 – 5-3. PRINTED WIRING BOARD Note: • Y : parts extracted from the conductor side. • ® : Through hole. • b : Pattern from the side which enables seeing. • Abbreviation CND : Canadian model CEV : Poland, Czech, Greece and Turkey model CH : Chinese model Ref. No. Location D1 C-3 D2 C-6 D3 C-8 D301 I-9 D302 D-6 D303 F-10 D701 F-10 IC1 C-5 IC301 H-11 IC701 F-11 IC702 F-13 Q2 D-10 Q101 H-12 Q201 H-12 Q301 D-10 Q302 E-6 Q303 D-6 Q304 G-10 Q305 G-10 Q306 H-10 Q307 G-6 Q308 G-10 Q701 F-12 Q702 F-12 Q703 F-12 Q704 D-12 • Semiconductor Location 2AEP : Earphone (MDR-023) model EE : East European model FR : French model C&SA : Central and South America model 9E : No indication of country of origin E : Indication of country of origin AEP : Headphone (MDR-E805LP) model w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com (EE) (EXCEPT EE) – 15 – – 16 – WM-FX271/FX275 Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • ¢ : internal component. • C : panel designation. 5-4. SCHEMATIC DIAGRAM • Refer to page 17 for IC Block Diagrams. • U : B+ Line. • H : adjustment for repair. • Total current is measured with no cassette installed. • Power voltage is dc 3 V and fed with regulated dc power supply from battery terminal. • Voltage is dc with respect to ground under no-signal (detuned) condition. no mark : FM ( ) : AM < > : PB • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Signal path. F : FM f : AM E : PB • Abbreviation CND : Canadian model CEV : Poland, Czech, Greece and Turkey model CH : Chinese model 2AEP : Earphone (MDR-023) model EE : East European model FR : French model C&SA : Central and South America model 9E : No indication of country of origin E : Indication of country of origin AEP : Headphone (MDR-E805LP) model w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 not supplied MF-WMFX171-114 1 3 14 5 6 7 8 16 15 12 13 4 17 10 11 9 LCD701 L1 24 1 2 23 22 21 20 AGC AM DET AM MIX FM DET LEVEL DET ST/MONO FM/AM TUN LED ST LED FM MUTE AM OSC FM OSC FM MIX DECODE DIVIDE VCO 19 18 17 16 15 14 13 3 4 5 6 7 8 9 10 11 12 AF BUFFER FM RF AF AMP AM IF FM IF FM RF IN RF GND AM LOW CUT MIX OUT AGC VCC AM IF IN FM IF IN GND TUN LED ST LED QUAD AM RF IN FM RF OUT RF VCC FM OSC AM OSC AFC DET OUT MPX IN LPF2 LPF1 L-OUT R-OUT 1 2 3 4 5 6 7 8 9 10 11 12 36 35 34 33 32 31 30 29 28 27 26 25 13 14 15 16 17 18 19 20 21 22 23 24 48 47 46 45 44 43 42 41 40 39 38 37 COM RI PRE NF1 PRE OUT2 PRE NF2 VREF POWER OUTC POWER OUT2 VCC POWER MUTE POWER IN1 POWER IN2 MIX OUT1 MIX OUT2 LP.2 R. P2 R.P1 DET OUT MVREF IN+ VSP LOW BOOST IN2 LOW BOOST IN1 LOW BOOST SW M-GND R.VREF (FWD/REW) PRE MUTE SW POWER OUT1 POWER GND MVCC DR WOUT MP-GND VOUT UOUT FC OUT OSC UB VB WB PRE FWD IN2 PRE REV IN2 PRE REV IN1 PRE FWD IN1 S/S PRE GND PRE OUT1 BIAS R.F REF SYS CONT DET VREF SPEED LOW BOOST PRE DRIVER OPERATION LOGIC OSC PLUSE DET REF VOLTAGE REF VOLTAGE FOR SPEED CONTROL CURRENT DET OPERATION DET FWD/ REV FREQ CARC. + – – 17 – – 18 – • IC Block Diagrams IC1 TA2111F IC301 LB8115 SECTION 6 EXPLODED VIEWS NOTE: • The mechanical parts with no reference number in the exploded views are not supplied. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinet’s Color • Accessories and packing materials are given in the last of this parts list. • Abbreviation CND : Canadian model CEV : Poland, Czech, Greece and Turkey model CH : Chinese model 2AEP : Earphone (MDR-023) model EE : East European model FR : French model C&SA : Central and South America model 9E : No indication of country of origin E : Indication of country of origin AEP : Headphone (MDR-E805LP) model Ref. No. Part No. Description Remark 6-1. CABINET SECTION N N Ref. No. Part No. Description Remark 1 X-3376-891-1 HOLDER (SUB) ASSY, CASSETTE (FX271:US,CND,EE,E,C&SA,CH) 1 X-3376-893-1 HOLDER (SUB) ASSY, CASSETTE (AEP,2AEP,FR,9E,CEV) 1 X-3377-162-1 HOLDER (SUB) ASSY, CASSETTE (FX275) 2 3-007-012-01 SPRING (TORSION) 3 3-007-011-01 SPRING (CASSETTE) * 4 3-030-057-01 HOLDER, LCD 5 3-007-006-21 BUTTON (STOP) 6 3-007-004-21 BUTTON (FF) 7 3-030-054-01 BUTTON (PLAY) 8 3-007-005-21 BUTTON (REW) 9 X-3376-890-1 CABINET (FRONT) SUB ASSY (FX271) 9 X-3377-161-1 CABINET (FRONT) SUB ASSY (FX275) 10 3-015-285-01 SCREW (M1.4), TOOTHED LOCK (WH) 11 3-030-058-01 BUTTON (PRESET) 12 3-007-010-01 TERMINAL (-), BATTERY 13 3-030-055-01 TERMINAL (+), BATTERY 14 X-3376-892-1 CENTER SUB ASSY, CABINET (US,CND,C&SA) 14 X-3376-894-1 CENTER SUB ASSY, CABINET (EXCEPT US,CND,C&SA) 15 A-3021-177-A MAIN BOARD, COMPLETE (FX271:US,CND) 15 A-3021-178-A MAIN BOARD, COMPLETE (AEP,CEV,CH) 15 A-3021-179-A MAIN BOARD, COMPLETE (2AEP) 15 A-3021-180-A MAIN BOARD, COMPLETE (EE) 15 A-3021-181-A MAIN BOARD, COMPLETE (E,9E) 15 A-3021-183-A MAIN BOARD, COMPLETE (FR) 15 A-3021-184-A MAIN BOARD, COMPLETE (C&SA) 15 A-3021-215-A MAIN BOARD, COMPLETE (FX275) 16 3-007-762-01 STOPPER 17 3-030-056-01 RUBBER, CONDUCTIVE L1 1-501-961-11 ANTENNA, FERRITE-ROD (AM) LCD701 1-803-305-11 DISPLAY PANEL, LIQUID CRYSTAL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 19 – 6-2. TAPE MECHANISM SECTION-1 (MF-WMFX171-114) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 54 53 55 56 52 51 M901 HP901 51 3-013-560-11 BELT 52 3-703-816-31 SCREW (M1.4), SPECIAL HEAD 53 3-921-042-01 GEAR (REEL) 54 3-703-816-73 SCREW (M1.4), SPECIAL HEAD 55 X-3369-749-7 PINCH LEVER (N) ASSY 56 3-920-996-01 SPRING (PINCH N) HP901 1-500-532-11 HEAD, MAGNETIC (PLAYBACK) M901 1-763-073-11 MOTOR (CAPSTAN/REEL) (including PULLEY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 20 – 6-3. TAPE MECHANISM SECTION-2 (MF-WMFX171-114) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 105 108 104 109 110 111 112 113 114 115 116 117 119 102 101 103 107 106 118 101 3-921-797-01 WASHER 102 3-921-003-01 BEARING 103 3-938-628-01 SPRING (PLAY-CP) 104 3-920-999-01 GEAR (A) 105 X-3375-837-1 CLUTCH ASSY 106 3-013-142-01 SPRING (FR-CP) 107 3-015-436-01 SPRING (STOP) 108 3-938-613-04 LEVER (OW), DETECTION 109 3-728-091-01 WASHER, STOPPER 110 3-923-530-01 SLEEVE (M) 111 3-921-335-03 WASHER, LEVER 112 3-920-990-01 SPRING (UD), COMPRESSION 113 3-921-050-01 GEAR (B) 114 X-3372-619-2 WHEEL ASSY (NP), CAPSTAN 115 3-921-043-01 GEAR (D) 116 3-014-709-01 SPRING (FR LEVER OW) 117 X-3375-054-3 CHASSIS ASSY (GL-02) 118 3-016-989-01 SPRING (SW-CP) 119 X-3376-931-1 CHASSIS (COMP) ASSY (GL-02-REC) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 21 – SECTION 7 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark When indicating parts by reference number, please include the board. • Abbreviation CND : Canadian model CEV : Poland, Czech, Greece and Turkey model CH : Chinese model 2AEP : Earphone (MDR-023) model EE : East European model FR : French model C&SA : Central and South America model 9E : No indication of country of origin E : Indication of country of origin AEP : Headphone (MDR-E805LP) model MAIN A-3021-177-A MAIN BOARD, COMPLETE (FX271:US,CND) A-3021-178-A MAIN BOARD, COMPLETE (AEP,CEV,CH) A-3021-179-A MAIN BOARD, COMPLETE (2AEP) A-3021-180-A MAIN BOARD, COMPLETE (EE) A-3021-181-A MAIN BOARD, COMPLETE (E,9E) A-3021-183-A MAIN BOARD, COMPLETE (FR) A-3021-184-A MAIN BOARD, COMPLETE (C&SA) A-3021-215-A MAIN BOARD, COMPLETE (FX275) ********************* 3-007-010-01 TERMINAL (-), BATTERY 3-030-055-01 TERMINAL (+), BATTERY < CAPACITOR > C2 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3 1-162-995-11 CERAMIC CHIP 0.022uF 50V C4 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C5 1-162-997-11 CERAMIC CHIP 10PF 0.5PF 50V (EXCEPT EE) C6 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C7 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C8 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C9 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C10 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V (EE) C10 1-164-118-11 CERAMIC CHIP 15PF 5% 50V (EXCEPT EE) C12 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C13 1-165-128-11 CERAMIC CHIP 0.22uF 16V C14 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C16 1-164-360-11 CERAMIC CHIP 0.1uF 16V C17 1-115-156-11 CERAMIC CHIP 1uF 10V C18 1-164-360-11 CERAMIC CHIP 0.1uF 16V C19 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C20 1-162-974-11 CERAMIC CHIP 0.01uF 50V C21 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C22 1-126-963-11 ELECT 4.7uF 20% 50V C23 1-113-619-11 CERAMIC CHIP 0.47uF 10V C24 1-113-619-11 CERAMIC CHIP 0.47uF 10V C25 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (EXCEPT US,CND,C&SA) C25 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V (US,CND,C&SA) C26 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (EXCEPT US,CND,C&SA) C26 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V (US,CND,C&SA) C27 1-162-974-11 CERAMIC CHIP 0.01uF 50V C28 1-124-434-00 ELECT 220uF 20% 4V C29 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (US,CND,C&SA) C30 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (EXCEPT US,CND,C&SA) C31 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C34 1-164-437-11 CERAMIC CHIP 18PF 5% 50V C35 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C36 1-115-156-11 CERAMIC CHIP 1uF 10V C40 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C41 1-113-619-11 CERAMIC CHIP 0.47uF 10V C42 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C101 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C103 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C104 1-126-153-11 ELECT 22uF 20% 6.3V C105 1-115-156-11 CERAMIC CHIP 1uF 10V C107 1-115-156-11 CERAMIC CHIP 1uF 10V C108 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C109 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C201 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C203 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C204 1-126-153-11 ELECT 22uF 20% 6.3V C205 1-115-156-11 CERAMIC CHIP 1uF 10V C207 1-115-156-11 CERAMIC CHIP 1uF 10V C208 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C209 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C301 1-126-246-11 ELECT CHIP 220uF 20% 4V C302 1-117-579-11 DOUBLE LAYERS 0.1F 3.5V C303 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C304 1-128-551-11 ELECT 22uF 20% 25V C305 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C306 1-164-113-11 CERAMIC CHIP 20PF 5% 50V C307 1-128-551-11 ELECT 22uF 20% 25V C308 1-162-974-11 CERAMIC CHIP 0.01uF 50V C309 1-115-156-11 CERAMIC CHIP 1uF 10V C310 1-164-360-11 CERAMIC CHIP 0.1uF 16V C311 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V (US,CND) C319 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C321 1-124-434-00 ELECT 220uF 20% 4V C324 1-115-156-11 CERAMIC CHIP 1uF 10V C325 1-126-153-11 ELECT 22uF 20% 6.3V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 22 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN C326 1-164-505-11 CERAMIC CHIP 2.2uF 16V C327 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C332 1-162-974-11 CERAMIC CHIP 0.01uF 50V C333 1-126-162-11 ELECT 3.3uF 20% 50V C334 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C335 1-163-077-00 CERAMIC CHIP 0.1uF 10% 25V C336 1-164-360-11 CERAMIC CHIP 0.1uF 16V C337 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C338 1-162-974-11 CERAMIC CHIP 0.01uF 50V C601 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C602 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C603 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C604 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C605 1-135-149-21 TANTALUM CHIP 2.2uF 20% 10V C606 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C608 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C701 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C702 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C703 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C705 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C706 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C707 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C708 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C709 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C710 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C711 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C712 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C714 1-162-974-11 CERAMIC CHIP 0.01uF 50V C715 1-164-360-11 CERAMIC CHIP 0.1uF 16V < FILTER > CF1 1-760-345-21 FILTER, CERAMIC CF2 1-781-137-11 FILTER ASSY, CERAMIC < CONNECTOR > CN301 1-750-346-21 CONNECTOR, FFC/EPC (ZIF) 6P < BPF > CP1 1-236-711-21 FILTER, BAND PASS (EXCEPT EE) CP1 1-239-813-21 FILTER, BAND PASS (EE) < TRIMMER > CT1 1-141-422-11 CAP, ADJ 10PF < DIODE > D1 8-719-049-75 DIODE KV1520TL00 D2 8-719-053-30 DIODE MA2S357-(TX).SO D3 8-719-053-30 DIODE MA2S357-(TX).SO D301 8-719-049-09 DIODE 1SS367-T3SONY D302 8-719-801-78 DIODE 1SS184 D303 8-719-801-78 DIODE 1SS184 D701 8-719-400-20 DIODE MA152WA < IC > IC1 8-759-493-20 IC A2111F-(EL) IC301 8-759-574-69 IC LB8115W-TLM IC701 8-759-574-71 IC uPD17072GB-559-1A7 IC702 8-759-469-63 IC S-81215SGUP-DQK-T1 < JACK > J301 1-565-287-11 JACK (2) J302 1-750-061-11 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 3V) < JUMPER RESISTOR > JR2 1-216-864-11 METAL CHIP 0 5% 1/16W (US,CND,C&SA) JR4 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT US,CND,C&SA) JR5 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT US,CND,C&SA) JR14 1-216-793-11 RES,CHIP 4.7 5% 1/16W (US,CND) JR14 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT US,CND) JR301 1-216-296-00 SHORT 0 JR701 1-216-864-11 METAL CHIP 0 5% 1/16W (EE,E,9E) JR702 1-216-864-11 METAL CHIP 0 5% 1/16W (AEP,2AEP,FR,CEV,CH) JR704 1-216-864-11 METAL CHIP 0 5% 1/16W JR706 1-216-864-11 METAL CHIP 0 5% 1/16W JR707 1-216-864-11 METAL CHIP 0 5% 1/16W < COIL > L2 1-416-528-11 COIL, AIR-CORE (EXCEPT EE) L2 1-416-967-11 COIL, AIR-CORE (EE) L3 1-416-449-11 COIL, AIR-CORE (EXCEPT EE) L3 1-416-968-11 COIL, AIR-CORE (EE) L4 1-416-423-11 COIL(WITH CORE) (AM OSC) L101 1-414-760-21 INDUCTOR, FERRITE BEAD L201 1-414-760-21 INDUCTOR, FERRITE BEAD L301 1-414-235-22 INDUCTOR, FERRITE BEAD L302 1-414-760-21 INDUCTOR, FERRITE BEAD L304 1-414-760-21 INDUCTOR, FERRITE BEAD L701 1-412-995-21 INDUCTOR 22uH < TRANSISTOR > Q2 8-729-102-27 TRANSISTOR 2SC2223-T1F12 Q101 8-729-424-67 TRANSISTOR UN2216 Q201 8-729-424-67 TRANSISTOR UN2216 Q301 8-729-216-22 TRANSISTOR 2SA1162-G Q302 8-729-900-52 TRANSISTOR DTC114YK Q303 8-729-402-13 TRANSISTOR XN1501 Q304 8-729-141-48 TRANSISTOR 2SB624-BV345 Q305 8-729-402-13 TRANSISTOR XN1501 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN Q306 8-729-403-17 TRANSISTOR XN1215 Q307 8-729-422-27 TRANSISTOR 2SD601A-Q Q308 8-729-900-52 TRANSISTOR DTC114YK Q701 8-729-422-27 TRANSISTOR 2SD601A-Q Q702 8-729-422-27 TRANSISTOR 2SD601A-Q Q703 8-729-102-27 TRANSISTOR 2SC2223-T1F12 Q704 8-729-011-47 TRANSISTOR XN4311 < RESISTOR > R1 1-216-851-11 METAL CHIP 330K 5% 1/16W R2 1-216-839-11 METAL CHIP 33K 5% 1/16W R3 1-216-851-11 METAL CHIP 330K 5% 1/16W R4 1-216-837-11 METAL CHIP 22K 5% 1/16W R5 1-216-847-11 METAL CHIP 150K 5% 1/16W R6 1-216-851-11 METAL CHIP 330K 5% 1/16W R7 1-216-847-11 METAL CHIP 150K 5% 1/16W R8 1-216-851-11 METAL CHIP 330K 5% 1/16W R9 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R10 1-216-809-11 METAL CHIP 100 5% 1/16W R11 1-216-833-11 RES,CHIP 10K 5% 1/16W R12 1-216-797-11 METAL CHIP 10 5% 1/16W R13 1-216-821-11 METAL CHIP 1K 5% 1/16W R14 1-216-815-11 METAL CHIP 330 5% 1/16W R15 1-216-841-11 METAL CHIP 47K 5% 1/16W (EXCEPT FR) R15 1-216-842-11 METAL CHIP 56K 5% 1/16W (FR) R16 1-216-841-11 METAL CHIP 47K 5% 1/16W (EXCEPT FR) R16 1-216-842-11 METAL CHIP 56K 5% 1/16W (FR) R17 1-216-797-11 METAL CHIP 10 5% 1/16W R18 1-216-825-11 METAL CHIP 2.2K 5% 1/16W (US,CND) R18 1-216-835-11 METAL CHIP 15K 5% 1/16W (EXCEPT US,CND) R20 1-216-815-11 METAL CHIP 330 5% 1/16W R21 1-216-864-11 METAL CHIP 0 5% 1/16W R103 1-216-835-11 METAL CHIP 15K 5% 1/16W R104 1-216-835-11 METAL CHIP 15K 5% 1/16W R105 1-216-855-11 METAL CHIP 680K 5% 1/16W R106 1-216-818-11 METAL CHIP 560 5% 1/16W R107 1-216-795-11 RES,CHIP 6.8 5% 1/16W (FX271:US,CND,2AEP) R107 1-216-799-11 METAL CHIP 15 5% 1/16W (FX271:EXCEPT US,CND,2AEP,FR/FX275) R107 1-216-807-11 METAL CHIP 68 5% 1/16W (FR) R108 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R110 1-216-812-11 METAL CHIP 180 5% 1/16W (EXCEPT US,CND,2AEP,FR) R110 1-216-815-11 METAL CHIP 330 5% 1/16W (US,CND,2AEP) R110 1-216-816-11 METAL CHIP 390 5% 1/16W (FR) R111 1-216-821-11 METAL CHIP 1K 5% 1/16W R112 1-216-821-11 METAL CHIP 1K 5% 1/16W R203 1-216-835-11 METAL CHIP 15K 5% 1/16W R204 1-216-835-11 METAL CHIP 15K 5% 1/16W R205 1-216-855-11 METAL CHIP 680K 5% 1/16W R206 1-216-818-11 METAL CHIP 560 5% 1/16W R207 1-216-795-11 RES,CHIP 6.8 5% 1/16W (FX271:US,CND,2AEP) R207 1-216-799-11 METAL CHIP 15 5% 1/16W (FX271:EXCEPT US,CND,2AEP,FR/FX275) R207 1-216-807-11 METAL CHIP 68 5% 1/16W (FR) R208 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R210 1-216-812-11 METAL CHIP 180 5% 1/16W (EXCEPT US,CND,2AEP,FR) R210 1-216-815-11 METAL CHIP 330 5% 1/16W (US,CND,2AEP) R210 1-216-816-11 METAL CHIP 390 5% 1/16W (FR) R301 1-216-821-11 METAL CHIP 1K 5% 1/16W R302 1-216-837-11 METAL CHIP 22K 5% 1/16W R303 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R304 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R305 1-216-833-11 RES,CHIP 10K 5% 1/16W R306 1-216-847-11 METAL CHIP 150K 5% 1/16W R307 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R308 1-216-819-11 METAL CHIP 680 5% 1/16W R309 1-216-845-11 METAL CHIP 100K 5% 1/16W R310 1-216-864-11 METAL CHIP 0 5% 1/16W R311 1-216-821-11 METAL CHIP 1K 5% 1/16W R312 1-216-835-11 METAL CHIP 15K 5% 1/16W R313 1-216-821-11 METAL CHIP 1K 5% 1/16W R319 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R320 1-216-218-00 RES,CHIP 6.8K 5% 1/8W R321 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R324 1-216-833-11 RES,CHIP 10K 5% 1/16W R326 1-216-845-11 METAL CHIP 100K 5% 1/16W R327 1-216-134-00 METAL CHIP 2.2 5% 1/8W R328 1-216-839-11 METAL CHIP 33K 5% 1/16W R329 1-216-864-11 METAL CHIP 0 5% 1/16W R408 1-216-845-11 METAL CHIP 100K 5% 1/16W R601 1-216-821-11 METAL CHIP 1K 5% 1/16W R605 1-216-835-11 METAL CHIP 15K 5% 1/16W R606 1-216-845-11 METAL CHIP 100K 5% 1/16W R608 1-216-833-11 RES,CHIP 10K 5% 1/16W R609 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R610 1-216-821-11 METAL CHIP 1K 5% 1/16W R611 1-216-864-11 METAL CHIP 0 5% 1/16W R701 1-216-842-11 METAL CHIP 56K 5% 1/16W R702 1-216-845-11 METAL CHIP 100K 5% 1/16W R703 1-216-815-11 METAL CHIP 330 5% 1/16W R704 1-216-803-11 METAL CHIP 33 5% 1/16W R706 1-216-833-11 RES,CHIP 10K 5% 1/16W R707 1-216-833-11 RES,CHIP 10K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 24 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R708 1-216-833-11 RES,CHIP 10K 5% 1/16W R709 1-216-833-11 RES,CHIP 10K 5% 1/16W R710 1-216-833-11 RES,CHIP 10K 5% 1/16W R711 1-216-833-11 RES,CHIP 10K 5% 1/16W R712 1-216-833-11 RES,CHIP 10K 5% 1/16W R715 1-216-841-11 METAL CHIP 47K 5% 1/16W R718 1-220-397-11 RES,CHIP 4.7M 5% 1/16W R719 1-216-833-11 RES,CHIP 10K 5% 1/16W R720 1-218-879-11 RES,CHIP 22K 0.50% 1/16W R721 1-218-915-11 RES,CHIP 680K 0.50% 1/16W R723 1-216-845-11 METAL CHIP 100K 5% 1/16W R725 1-216-845-11 METAL CHIP 100K 5% 1/16W < VARIABLE RESISTOR > RV301 1-225-748-21 RES, VAR, CARBON 10K/10K (VOLUME) RV601 1-241-784-11 RES, ADJ, CARBON 5K < SWITCH > S301 1-762-742-31 SWITCH, DETECTION (SMALL TYPE) (TAPE POWER) S303 1-692-298-11 SWITCH, SLIDE (NORM•CrO2/METAL, DX•LOCAL) (US,CND,C&SA) S303 1-692-298-11 SWITCH, SLIDE (NORM•CrO2/METAL, ST•FM MONO) (EXCEPT US,CND,C&SA) S305 1-692-298-11 SWITCH, SLIDE (AVLS) S716 1-572-922-11 SWITCH, SLIDE (HOLD) < TRANSFORMER > T1 1-406-694-11 COIL, AM IFT T301 1-426-917-11 TRANSFORMER, DC-DC CONVERTER < THERMISTOR (POSITIVE) > TH601 1-810-794-11 THERMISTOR, POSITIVE < VIBRATOR > X2 1-781-137-11 FILTER ASSY, CERAMIC X701 1-577-262-11 VIBRATOR, CRYSTAL (75kHz) ************************************************************* MISCELLANEOUS *************** HP901 1-500-532-11 HEAD, MAGNETIC (PLAYBACK) L1 1-501-961-11 ANTENNA, FERRITE-ROD (AM) LCD701 1-803-305-11 DISPLAY PANEL, LIQUID CRYSTAL M901 1-763-073-11 MOTOR (CAPSTAN/REEL) (including PULLEY) ************************************************************* ACCESSORIES & PACKING MATERIALS ******************************** 1-505-521-11 HEADPHONE (MDR-023) (FX271:US,CND,2AEP,FR) 3-032-906-01 CASE, CARRYING 3-864-879-11 MANUAL, INSTRUCTION (ENGLISH,FRENCH, ITALIAN) (US,CND,AEP,2AEP,FR) 3-864-879-21 MANUAL, INSTRUCTION (SPANISH, PORTUGUESE) (AEP,2AEP,C&SA) 3-864-879-31 MANUAL, INSTRUCTION (GERMAN,DUTCH, SWEDISH,FINNISH) (AEP,2AEP) 3-864-879-41 MANUAL, INSTRUCTION (ENGLISH,HUNGARIAN, BULGARIAN,RUSSIAN) (EE,CEV) 3-864-879-51 MANUAL, INSTRUCTION (POLISH,CZECH, GREEK,TURKISH) (CEV) 3-864-879-61 MANUAL, INSTRUCTION (ENGLISH, TRADITIONAL CHINESE, KOREAN,ARABIC) (E) 3-864-879-71 MANUAL, INSTRUCTION (ENGLISH, TRADITIONAL CHINESE, KOREAN,ARABIC) (9E) 3-864-879-91 MANUAL, INSTRUCTION (SIMPLIFIED CHINESE, ENGLISH) (CH) 8-953-130-90 HEADPHONE MDR-E805LP/K SET (EXCEPT US,CND,2AEP,FR) 8-953-741-90 HEADPHONE, STEREO MDR-A0101LP (FX275) Sony Corporation Personal A&V Products Company 9-926-958-11 WM-FX271/FX275 99B0482-1 Printed in Japan C1999. 2 Published by Quality Engineering Dept. (Shinagawa) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 1 A B C D E F G H I 2 3 4 5 6 7 8 9 10 11 12 13 M901 CAPSTAN/REEL MOTOR M HP901 PLAYBACK HEAD FWD R GND 6 GND 5 FWD (R) 4 FWD (L) 3 REF 2 GND 1 L (FM RF IN) (VT) PANEL C204 C104 C333 04 C&SA C&SA 19 , C&SA C&SA C&SA ( ) ( ) 1-671-695- 1-671-695- S713 S714 S707 S708 S706 S705 S704 S715 S701 S702 WM-FX271/FX275 – 3 – – 4 – 1. PRINTED WIRING BOARD Note: • Y : parts extracted from the conductor side. • ® : Through hole. • ¢ : internal component. • b : Pattern from the side which enables seeing. • Abbreviation CND : Canadian model CEV : Poland, Czech, Greece and Turkey model CH : Chinese model Ref. No. Location D1 C-3 D2 C-6 D3 C-8 D301 I-9 D302 D-6 D303 G-9 D701 F-10 IC1 C-5 IC301 H-11 IC701 F-11 IC702 F-13 Q2 D-10 Q101 H-12 Q201 H-12 Q301 D-10 Q302 E-6 Q303 D-6 Q304 G-10 Q305 G-10 Q306 H-10 Q307 G-6 Q308 G-10 Q701 F-12 Q702 F-12 Q703 F-12 Q704 D-12 • Semiconductor Location 2AEP : Earphone (MDR-023) model EE : East European model FR : French model C&SA : Central and South America model 9E : No indication of country of origin E : Indication of country of origin AEP : Headphone (MDR-E805LP) model w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – – 6 – WM-FX271/FX275 2. SCHEMATIC DIAGRAM • Refer to page 2 for Note on Schematic Diagram. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark When indicating parts by reference number, please include the board. • Abbreviation CND : Canadian model CEV : Poland, Czech, Greece and Turkey model CH : Chinese model 2AEP : Earphone (MDR-023) model EE : East European model FR : French model C&SA : Central and South America model 9E : No indication of country of origin E : Indication of country of origin AEP : Headphone (MDR-E805LP) model MAIN 3. ELECTRICAL PARTS LIST – 7 – – 8 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-3021-177-A MAIN BOARD, COMPLETE (FX271:US,CND) A-3021-178-A MAIN BOARD, COMPLETE (AEP,CEV,CH) A-3021-179-A MAIN BOARD, COMPLETE (2AEP) A-3021-180-A MAIN BOARD, COMPLETE (EE) A-3021-181-A MAIN BOARD, COMPLETE (E,9E) A-3021-183-A MAIN BOARD, COMPLETE (FR) A-3021-184-A MAIN BOARD, COMPLETE (C&SA) A-3021-215-A MAIN BOARD, COMPLETE (FX275) ********************* 3-007-010-01 TERMINAL (–), BATTERY 3-030-055-01 TERMINAL (+), BATTERY < CAPACITOR > C2 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3 1-162-995-11 CERAMIC CHIP 0.022uF 50V C4 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C5 1-162-997-11 CERAMIC CHIP 10PF 0.5PF 50V (EXCEPT EE) C6 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C7 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C8 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C9 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C10 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V (EE) C10 1-164-118-11 CERAMIC CHIP 15PF 5% 50V (EXCEPT EE) C12 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C13 1-165-128-11 CERAMIC CHIP 0.22uF 16V C14 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C16 1-164-360-11 CERAMIC CHIP 0.1uF 16V C17 1-115-156-11 CERAMIC CHIP 1uF 10V C18 1-164-360-11 CERAMIC CHIP 0.1uF 16V C19 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C20 1-162-974-11 CERAMIC CHIP 0.01uF 50V C21 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C22 1-126-963-11 ELECT 4.7uF 20% 50V C23 1-113-619-11 CERAMIC CHIP 0.47uF 10V C24 1-113-619-11 CERAMIC CHIP 0.47uF 10V C25 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (EXCEPT US,CND,C&SA) C25 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V (US,CND,C&SA) C26 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V (EXCEPT US,CND,C&SA) C26 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V (US,CND,C&SA) C27 1-162-974-11 CERAMIC CHIP 0.01uF 50V C28 1-124-434-00 ELECT 220uF 20% 4V C29 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (US,CND,C&SA) C30 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V (EXCEPT US,CND,C&SA) C31 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C34 1-164-437-11 CERAMIC CHIP 18PF 5% 50V C35 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C36 1-115-156-11 CERAMIC CHIP 1uF 10V C40 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C41 1-113-619-11 CERAMIC CHIP 0.47uF 10V C42 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C101 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C103 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C104 1-126-153-11 ELECT 22uF 20% 6.3V C105 1-115-156-11 CERAMIC CHIP 1uF 10V C107 1-115-156-11 CERAMIC CHIP 1uF 10V C108 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C109 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C201 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C203 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C204 1-126-153-11 ELECT 22uF 20% 6.3V C205 1-115-156-11 CERAMIC CHIP 1uF 10V C207 1-115-156-11 CERAMIC CHIP 1uF 10V C208 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C209 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C301 1-126-246-11 ELECT CHIP 220uF 20% 4V C302 1-117-579-11 DOUBLE LAYERS 0.1F 3.5V C303 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C304 1-128-551-11 ELECT 22uF 20% 25V C305 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C306 1-164-113-11 CERAMIC CHIP 20PF 5% 50V C307 1-126-153-11 ELECT 22uF 20% 6.3V C308 1-162-974-11 CERAMIC CHIP 0.01uF 50V C309 1-115-156-11 CERAMIC CHIP 1uF 10V C310 1-164-360-11 CERAMIC CHIP 0.1uF 16V C311 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V (US,CND) C312 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C319 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C321 1-124-434-00 ELECT 220uF 20% 4V C324 1-115-156-11 CERAMIC CHIP 1uF 10V C325 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C326 1-164-505-11 CERAMIC CHIP 2.2uF 16V C327 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C332 1-162-974-11 CERAMIC CHIP 0.01uF 50V C333 1-126-162-11 ELECT 3.3uF 20% 50V C334 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C335 1-163-077-00 CERAMIC CHIP 0.1uF 10% 25V C336 1-164-360-11 CERAMIC CHIP 0.1uF 16V C337 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C338 1-162-974-11 CERAMIC CHIP 0.01uF 50V C601 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C602 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C603 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C604 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C605 1-135-149-21 TANTALUM CHIP 2.2uF 20% 10V C606 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C608 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C701 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C702 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C703 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C704 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V (EXCEPT EE) C705 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C706 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C707 1-162-920-11 CERAMIC CHIP 27PF 5% 50V C708 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C709 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C710 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C711 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C712 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C714 1-162-974-11 CERAMIC CHIP 0.01uF 50V C715 1-164-360-11 CERAMIC CHIP 0.1uF 16V < FILTER > CF1 1-760-345-21 FILTER, CERAMIC CF2 1-781-137-11 FILTER ASSY, CERAMIC < CONNECTOR > CN301 1-750-346-21 CONNECTOR, FFC/EPC (ZIF) 6P < BPF > CP1 1-236-711-21 FILTER, BAND PASS (EXCEPT EE) CP1 1-239-813-21 FILTER, BAND PASS (EE) < TRIMMER > CT1 1-141-422-11 CAP, ADJ 10PF < DIODE > D1 8-719-049-75 DIODE KV1520TL00 D2 8-719-053-30 DIODE MA2S357-(TX).SO D3 8-719-053-30 DIODE MA2S357-(TX).SO D301 8-719-049-09 DIODE 1SS367-T3SONY D302 8-719-801-78 DIODE 1SS184 D303 8-719-801-78 DIODE 1SS184 D701 8-719-400-20 DIODE MA152WA < IC > IC1 8-759-493-20 IC TA2111F-(EL) IC301 8-759-574-69 IC LB8115W-TLM IC701 8-759-574-71 IC uPD17072GB-559-1A7 IC702 8-759-469-63 IC S-81215SGUP-DQK-T1 < JACK > J301 1-565-287-11 JACK (2) J302 1-750-061-11 JACK, DC (POLARITY UNIFIED TYPE) (DC IN 3V) < JUMPER RESISTOR > JR2 1-216-864-11 METAL CHIP 0 5% 1/16W (US,CND,C&SA) JR4 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT US,CND,C&SA) JR5 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT US,CND,C&SA) JR14 1-216-793-11 RES,CHIP 4.7 5% 1/16W (US,CND) JR14 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT US,CND) JR301 1-216-296-00 SHORT 0 JR701 1-216-864-11 METAL CHIP 0 5% 1/16W (EE,E,9E) JR702 1-216-864-11 METAL CHIP 0 5% 1/16W (AEP,2AEP,FR,EE,CEV,CH) JR704 1-216-864-11 METAL CHIP 0 5% 1/16W JR706 1-216-864-11 METAL CHIP 0 5% 1/16W JR707 1-216-864-11 METAL CHIP 0 5% 1/16W < COIL > L2 1-416-528-11 COIL, AIR-CORE (EXCEPT EE) L2 1-416-967-11 COIL, AIR-CORE (EE) L3 1-416-449-21 COIL, AIR-CORE (EXCEPT EE) L3 1-416-968-12 COIL, AIR-CORE (EE) L4 1-416-423-11 COIL (WITH CORE) (AM OSC) L101 1-414-760-21 INDUCTOR, FERRITE BEAD L201 1-414-760-21 INDUCTOR, FERRITE BEAD L301 1-414-235-22 INDUCTOR, FERRITE BEAD L302 1-414-760-21 INDUCTOR, FERRITE BEAD L304 1-414-760-21 INDUCTOR, FERRITE BEAD L701 1-412-995-21 INDUCTOR 22uH < TRANSISTOR > Q2 8-729-102-27 TRANSISTOR 2SC2223-T1F12 Q101 8-729-424-67 TRANSISTOR UN2216 Q201 8-729-424-67 TRANSISTOR UN2216 Q301 8-729-216-22 TRANSISTOR 2SA1162-G Q302 8-729-900-52 TRANSISTOR DTC114YK MAIN w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN Q303 8-729-402-13 TRANSISTOR XN1501 Q304 8-729-141-48 TRANSISTOR 2SB624-BV345 Q305 8-729-402-13 TRANSISTOR XN1501 Q306 8-729-403-17 TRANSISTOR XN1215 Q307 8-729-422-27 TRANSISTOR 2SD601A-Q Q308 8-729-900-52 TRANSISTOR DTC114YK Q701 8-729-422-27 TRANSISTOR 2SD601A-Q Q702 8-729-422-27 TRANSISTOR 2SD601A-Q Q703 8-729-102-27 TRANSISTOR 2SC2223-T1F12 Q704 8-729-011-47 TRANSISTOR XN4311 < RESISTOR > R1 1-216-851-11 METAL CHIP 330K 5% 1/16W R2 1-216-839-11 METAL CHIP 33K 5% 1/16W R3 1-216-851-11 METAL CHIP 330K 5% 1/16W R4 1-216-837-11 METAL CHIP 22K 5% 1/16W R5 1-216-847-11 METAL CHIP 150K 5% 1/16W R6 1-216-851-11 METAL CHIP 330K 5% 1/16W R7 1-216-847-11 METAL CHIP 150K 5% 1/16W R8 1-216-851-11 METAL CHIP 330K 5% 1/16W R9 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R10 1-216-809-11 METAL CHIP 100 5% 1/16W R11 1-216-833-11 RES,CHIP 10K 5% 1/16W R12 1-216-797-11 METAL CHIP 10 5% 1/16W R13 1-216-821-11 METAL CHIP 1K 5% 1/16W R14 1-216-815-11 METAL CHIP 330 5% 1/16W R15 1-216-841-11 METAL CHIP 47K 5% 1/16W (EXCEPT FR) R15 1-216-842-11 METAL CHIP 56K 5% 1/16W (FR) R16 1-216-841-11 METAL CHIP 47K 5% 1/16W (EXCEPT FR) R16 1-216-842-11 METAL CHIP 56K 5% 1/16W (FR) R17 1-216-797-11 METAL CHIP 10 5% 1/16W R18 1-216-827-11 METAL CHIP 3.3K 5% 1/16W (US,CND) R18 1-216-835-11 METAL CHIP 15K 5% 1/16W (EXCEPT US,CND) R20 1-216-815-11 METAL CHIP 330 5% 1/16W R21 1-216-864-11 METAL CHIP 0 5% 1/16W R103 1-216-835-11 METAL CHIP 15K 5% 1/16W R104 1-216-835-11 METAL CHIP 15K 5% 1/16W R105 1-216-855-11 METAL CHIP 680K 5% 1/16W R106 1-216-818-11 METAL CHIP 560 5% 1/16W R107 1-216-795-11 RES,CHIP 6.8 5% 1/16W (FX271:US,CND,2AEP) R107 1-216-799-11 METAL CHIP 15 5% 1/16W (FX271:EXCEPT US,CND,2AEP,FR/FX275) R107 1-216-807-11 METAL CHIP 68 5% 1/16W (FR) R108 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R110 1-216-812-11 METAL CHIP 180 5% 1/16W (EXCEPT US,CND,2AEP,FR) R110 1-216-815-11 METAL CHIP 330 5% 1/16W (US,CND,2AEP) R110 1-216-816-11 METAL CHIP 390 5% 1/16W (FR) R111 1-216-821-11 METAL CHIP 1K 5% 1/16W R112 1-216-821-11 METAL CHIP 1K 5% 1/16W R203 1-216-835-11 METAL CHIP 15K 5% 1/16W R204 1-216-835-11 METAL CHIP 15K 5% 1/16W R205 1-216-855-11 METAL CHIP 680K 5% 1/16W R206 1-216-818-11 METAL CHIP 560 5% 1/16W R207 1-216-795-11 RES,CHIP 6.8 5% 1/16W (FX271:US,CND,2AEP) R207 1-216-799-11 METAL CHIP 15 5% 1/16W (FX271:EXCEPT US,CND,2AEP,FR/FX275) R207 1-216-807-11 METAL CHIP 68 5% 1/16W (FR) R208 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R210 1-216-812-11 METAL CHIP 180 5% 1/16W (EXCEPT US,CND,2AEP,FR) R210 1-216-815-11 METAL CHIP 330 5% 1/16W (US,CND,2AEP) R210 1-216-816-11 METAL CHIP 390 5% 1/16W (FR) R301 1-216-821-11 METAL CHIP 1K 5% 1/16W R302 1-216-837-11 METAL CHIP 22K 5% 1/16W R303 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R304 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R305 1-216-833-11 RES,CHIP 10K 5% 1/16W R306 1-216-847-11 METAL CHIP 150K 5% 1/16W R307 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R308 1-216-819-11 METAL CHIP 680 5% 1/16W R309 1-216-845-11 METAL CHIP 100K 5% 1/16W R310 1-216-864-11 METAL CHIP 0 5% 1/16W R311 1-216-821-11 METAL CHIP 1K 5% 1/16W R312 1-216-835-11 METAL CHIP 15K 5% 1/16W R313 1-216-821-11 METAL CHIP 1K 5% 1/16W R319 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R320 1-216-218-00 RES,CHIP 6.8K 5% 1/8W R321 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R324 1-216-833-11 RES,CHIP 10K 5% 1/16W R326 1-216-845-11 METAL CHIP 100K 5% 1/16W R327 1-216-134-00 METAL CHIP 2.2 5% 1/8W R328 1-216-833-11 RES,CHIP 10K 5% 1/16W (EXCEPT EE) R328 1-216-839-11 METAL CHIP 33K 5% 1/16W (EE) R329 1-216-864-11 METAL CHIP 0 5% 1/16W R408 1-216-845-11 METAL CHIP 100K 5% 1/16W R601 1-216-821-11 METAL CHIP 1K 5% 1/16W R605 1-216-835-11 METAL CHIP 15K 5% 1/16W R606 1-216-845-11 METAL CHIP 100K 5% 1/16W R608 1-216-833-11 RES,CHIP 10K 5% 1/16W R609 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R610 1-216-821-11 METAL CHIP 1K 5% 1/16W R611 1-216-864-11 METAL CHIP 0 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – Ref. No. Part No. Description Remark MAIN Sony Corporation Personal Audio Company 9-926-958-81 WM-FX271/FX275 99H0482-1 Printed in Japan C1999. 8 Published by General Engineering Dept. R701 1-216-837-11 METAL CHIP 22K 5% 1/16W (EXCEPT EE) R701 1-216-842-11 METAL CHIP 56K 5% 1/16W (EE) R702 1-216-839-11 METAL CHIP 33K 5% 1/16W (EXCEPT EE) R702 1-216-845-11 METAL CHIP 100K 5% 1/16W (EE) R703 1-216-812-11 METAL CHIP 180 5% 1/16W (EXCEPT EE) R703 1-216-815-11 METAL CHIP 330 5% 1/16W (EE) R704 1-216-803-11 METAL CHIP 33 5% 1/16W R705 1-216-833-11 RES,CHIP 10K 5% 1/16W (EXCEPT EE) R706 1-216-833-11 RES,CHIP 10K 5% 1/16W R707 1-216-833-11 RES,CHIP 10K 5% 1/16W R708 1-216-833-11 RES,CHIP 10K 5% 1/16W R709 1-216-833-11 RES,CHIP 10K 5% 1/16W R710 1-216-833-11 RES,CHIP 10K 5% 1/16W R711 1-216-833-11 RES,CHIP 10K 5% 1/16W R712 1-216-833-11 RES,CHIP 10K 5% 1/16W R715 1-216-841-11 METAL CHIP 47K 5% 1/16W R719 1-216-833-11 RES,CHIP 10K 5% 1/16W R720 1-218-879-11 METAL CHIP 22K 0.50% 1/16W R721 1-218-915-11 METAL CHIP 680K 0.50% 1/16W R723 1-216-845-11 METAL CHIP 100K 5% 1/16W R725 1-216-845-11 METAL CHIP 100K 5% 1/16W < VARIABLE RESISTOR > RV301 1-225-748-21 RES, VAR, CARBON 10K/10K (VOLUME) RV601 1-241-784-11 RES, ADJ, CARBON 5K < SWITCH > S301 1-762-742-31 SWITCH, DETECTION (SMALL TYPE) (TAPE POWER) S303 1-692-298-11 SWITCH, SLIDE (NORM•CrO2/METAL, DX•LOCAL) (US,CND,C&SA) S303 1-692-298-11 SWITCH, SLIDE (NORM•CrO2/METAL, ST•FM MONO) (EXCEPT US,CND,C&SA) S305 1-692-298-11 SWITCH, SLIDE (AVLS) S716 1-572-922-11 SWITCH, SLIDE (HOLD ·) < TRANSFORMER > T1 1-406-694-11 COIL, AM IFT T301 1-426-917-11 TRANSFORMER, DC-DC CONVERTER < THERMISTOR (POSITIVE) > TH601 1-810-794-11 THERMISTOR, POSITIVE < VIBRATOR > X2 1-781-137-11 FILTER ASSY, CERAMIC X701 1-577-262-11 VIBRATOR, CRYSTAL (75kHz) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
