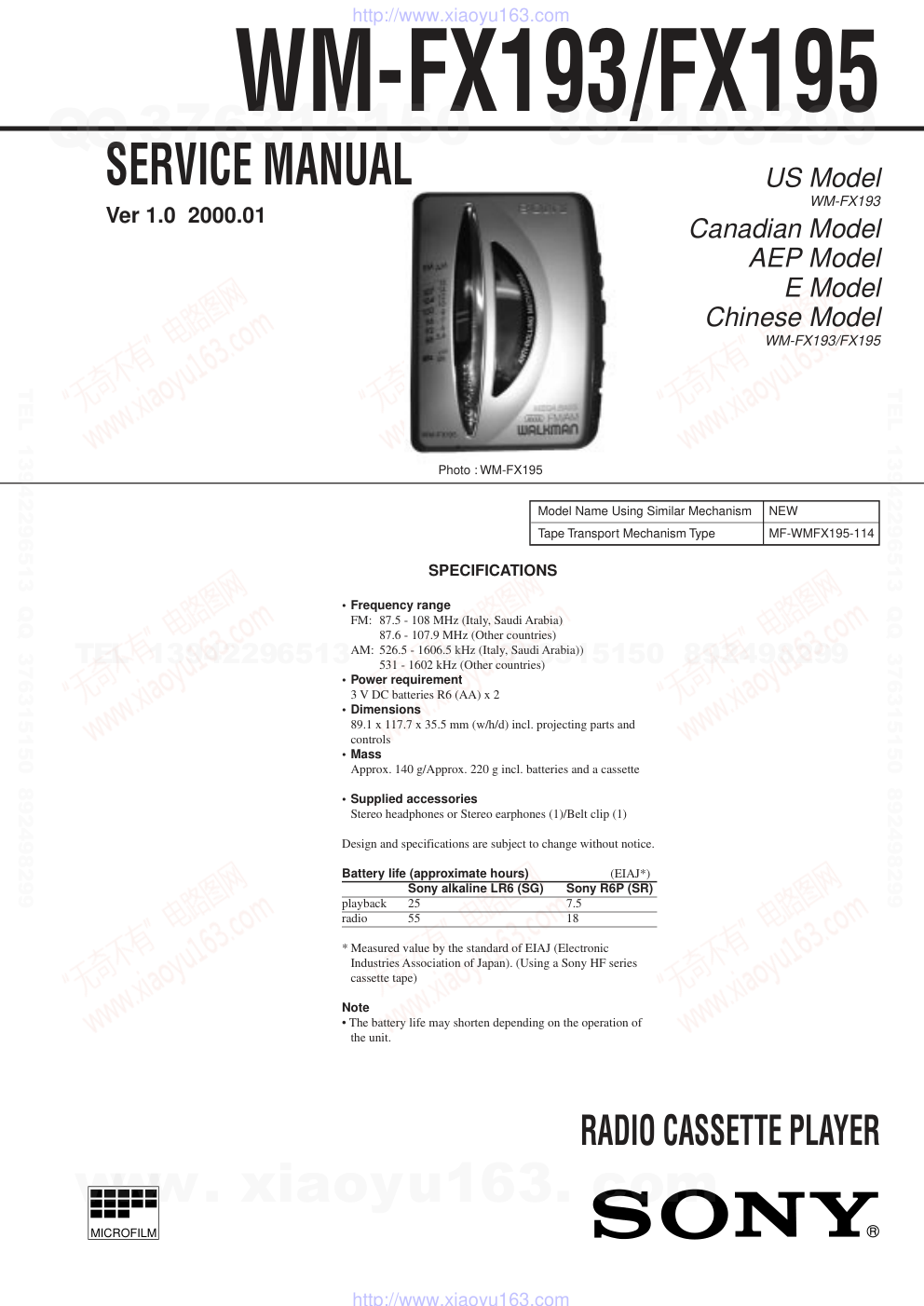

Ver 1.0 2000.01 MICROFILM WM-FX193/FX195 RADIO CASSETTE PLAYER SPECIFICATIONS US Model WM-FX193 Canadian Model AEP Model E Model Chinese Model WM-FX193/FX195 Model Name Using Similar Mechanism NEW Tape Transport Mechanism Type MF-WMFX195-114 Photo : WM-FX195 • Frequency range FM: 87.5 - 108 MHz (Italy, Saudi Arabia) 87.6 - 107.9 MHz (Other countries) AM: 526.5 - 1606.5 kHz (Italy, Saudi Arabia)) 531 - 1602 kHz (Other countries) • Power requirement 3 V DC batteries R6 (AA) x 2 • Dimensions 89.1 x 117.7 x 35.5 mm (w/h/d) incl. projecting parts and controls • Mass Approx. 140 g/Approx. 220 g incl. batteries and a cassette • Supplied accessories Stereo headphones or Stereo earphones (1)/Belt clip (1) Design and specifications are subject to change without notice. Battery life (approximate hours) (EIAJ*) Sony alkaline LR6 (SG) Sony R6P (SR) playback 25 7.5 radio 55 18 * Measured value by the standard of EIAJ (Electronic Industries Association of Japan). (Using a Sony HF series cassette tape) Note • The battery life may shorten depending on the operation of the unit. SERVICE MANUAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – Specifications ........................................................................... 1 1. GENERAL Location and Function of Controls .................................... 2 2. DISASSEMBLY 2-1. Cabinet (Rear) Sub ASSY .......................................... 3 2-2. Main Board ................................................................. 3 2-3. Mechanism Deck ........................................................ 4 2-4. Belt, Capstan/Reel Motor (M901) .............................. 4 2-5. Holder Sub ASSY, Cassette ........................................ 5 3. ADJUSTMENTS 3-1. Mechanical Adjustments............................................. 6 3-2. Electrical Adjustments ................................................ 6 4. DIAGRAMS 4-1. Block Diagram............................................................ 9 4-2. Printed Wiring Boards ...............................................11 4-3. Schematic Diagram................................................... 13 5. EXPLODED VIEWS 5-1. Cabinet Section ......................................................... 17 5-2. Mechanism Section -1 .............................................. 19 5-3. Mechanism Section -2 .............................................. 20 6. ELECTRICAL PARTS LIST ................................... 21 Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270°C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. TABLE OF CONTENTS SECTION 1 GENERAL nPLAY MEGA BASS/ OFF (FX195 only) M m FM/AM/TAPE (RADIO OFF) VOLUME TUNING FM MODE i AVLS NORM/ LIMIT BATT x LOCATION AND FUNCTION OF CONTROLS This section is extracted from instruction manual. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. 2-1. CABINET (REAR) SUB ASSY 2-2. MAIN BOARD z The equipment can be removed using the following procedure. Main board Cabinet (rear) sub ASSY Holder sub ASSY, Cassette Mechanism deck Belt, Capstan/reel moter (M901) Set 1 Screws B1.7x9 3 Claws 4 2 6 Claws Holder sub ASSY, Cassette Cabinet (front) Cabinet (rear) sub ASSY 3 Claws 3 Claws 5 Claw 4 Claws 4 Claw 5 Claw 5 Claw 1 Screw WH1.4 3 Claws 2 Remove solder 4 Head flexible board Red White Orange Black Cabinet (front) Main board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – 2-3. MECHANISM DECK 2-4. BELT, CAPSTAN/REEL MOTOR (M901) 2 Mechanism deck 1 Insert the precision screwdriver (1.4 mm flat-blabe) in to the slit and release two claws. Cabinet (front) Mechanism deck 2 Screws (M1.4) 3 Capstan/reel motor (M901) 1 Belt www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – 3 Move it away from projection 1 5 Holder sub ASSY, Cassette Holder sub ASSY, Cassette Holder sub ASSY, Cassette Cabinet (front) Cabinet (front) Cabinet (front) 2 Move it away from projection 4 Spring (torsion) Holder sub ASSY, Cassette Cabinet (front) 5 4 1 3 2 Spring (torsion) Hinge Hinge Dial indicator 2-5. HOLDER SUB ASSY, CASSETTE z CAUTIONS DURING ASSEMBLY 1 Insert the dial indicator to the square hole of the cabinet (front) and align to the pointer. 2 Insert the spring (torsion) in to the L shape slot as shown in the figure. 3, 4 Insert the hinge of the “Holder sub ASSY, Cassette”. 5 Close the “Holder sub ASSY, Cassette” then press in. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – 3-1. MECHANICAL ADJUSTMENTS PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened swab : playback head pinch roller capstan rubber belt 2. Demagnetize the playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. These measurement and adjustment should be performed with the rated power supply voltage (2.5 V) unless otherwise noted. Torque Measurement Mode Torque Meter Meter Reading FWD 20 – 30 g • cm CQ-102C (0.28 – 0.41 oz• inch) FWD 0.4 – 2 g • cm back tension (0.006 – 0.027 oz• inch) FF, REW CQ-201B more than 40 g • cm (more than 0.56 oz• inch) SECTION 3 ADJUSTMENTS 3-2. ELECTRICAL ADJUSTMENTS PRECAUTION • Supplied voltage : 2.5V. • Switch and control position MEGA BASS switch : OFF (FX195) VOLUME control : maximum AVLS switch : NORM Test Tape Type Signal Used for WS-48A 3kHz, 0dB Tape Speed Adjustment Tape Speed Adjustment Procedure : 1. Playback WS-48A (tape center part) and adjust RV601 so that the frequency counter reading becomes 3,000Hz. Standard value : 2,985–3,015Hz 2. Playback WS-48A (tape top and end). Check that frequency counter reading is within 1.5% of the read- ing of step 1. *1 FX193 E, Chines, Saudi Arabia, 16Ω FX195 E, Chines, Saudi Arabia, AEP, French, Italian, CEV 32Ω FX193 US, Canadian, AEP, French, Italian, CEV FX195 Canadian • Abbreviation CEV : Ukraine, Hungary, Czech Adjustment Location : set test tape WS-48A (3kHz, 0dB) frequency counter phones jack (J302) *1 [MAIN BOARD] (Conductor side) RV601 : Tape Speed Adjustment www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – TUNER SECTION AM Section BAND : AM FM Section BAND : FM *1 FX193 E, Chines, Saudi Arabia, 16Ω FX195 E, Chines, Saudi Arabia, AEP, French, Italian, CEV 32Ω FX193 US, Canadian, AEP, French, Italian, CEV FX195 Canadian • Abbreviation CND : Canadian E5, E6 : South America CEV : Ukraine, Hungary, Czech AM RF signal generator 30% amplitude modulation by 400Hz signal. Output level : as low as possible Put the lead-wire antenna close to the set. set *1 phones jack (J302) level meter < > : US, Canadian, E5, E6 model [ ] : Italian, Saudi Arabia model AM IF ADJUSTMENT Adjust for a maximum reading on level meter. T1 455kHz AM FREQUENCY COVERAGE ADJUSTMENT Adjust for a maximum reading on level meter. L4 505kHz [516.5kHz] CT4 1,690kHz < 1,770kHz> [1,631.5kHz] AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L1 620kHz CT1 1,400kHz FM FREQUENCY COVERAGE ADJUSTMENT Adjust for a maximum reading on level meter. L3 86MHz [87.35MHz] CT3 109.5MHz [108.25MHz] FM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L2 86MHz [87.35MHz] CT2 109.5MHz [108.25MHz] C12 TP339 TP338 FB101 FB301 JR5 JR2 JR3 FB201 JR4 JR1 TP1 TP9 TP8 S1 L4 T1 CP1 BATT -1 -2 EXCEPT US, CND, E5, E6 MODEL US, CND, E5, E6 MODEL US, CN FM RF signal generator 22.5kHz frequency deviation by 400Hz signal. Output level : as low as possible TP1 0.01µF [MAIN BOARD] (Conductor side) Adjustment Location : Main board (See page 8) 0 dB = 1µV • Repeat the procedures in each adjustment several times, and the frequency coverage and tracking adjustments should be finally done by the trimmer capacitors. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – [MAIN BOARD] (Conductor side) [MAIN BOARD] (Component side) CT4 : AM Frequency Coverage Adjustment CT3 : FM Frequency Coverage Adjustment L3: FM Frequency Coverage Adjustment L4 : AM Frequency Coverage Adjustment T1 : AM IF Adjustment CT1 : AM Tracking Adjustment CT2 : FM Tracking Adjustment L1 : AM Tracking Adjustment L2 : FM Tracking Adjustment Adjustment Location : www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – – 10 – WM-FX193/FX195 4-1. BLOCK DIAGRAM • Signal path. F : FM f : AM E : PB SECTION 4 DIAGRAMS • Abbreviation CND : Canadian EA : Saudi Arabia CH : Chinese E : Indication of country of origin E9 : No Indication of country of origin CEV : Ukrine, Hungary, Czech E5, E6 : South America FR : French w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – – 12 – WM-FX193/FX195 4-2. PRINTED WIRING BOARDS D120 G-4 IC1 E-4 IC301 E-8 Q1 E-6 Q2 F-4 Q301 E-6 Q302 D-6 Ref. No. Location z Semiconductor Location Note: • X : parts extracted from the component side. • f : internal component. • b : Pattern of the rear side. • Abbreviation CND : Canadian EA : Saudi Arabia CH : Chinese E : Indication of country of origin E9 : No Indication of country of origin CEV : Ukraine, Hungary, Czech E5, E6 : South America 02 2 3 4 5 6 7 8 9 10 11 A 1 B C D E F G H CV1 CV2 CT3 CV4 CT4 CT1 CT2 CV3 C40 R609 Q1 R5 R302 JR365 JR216 JR362 C20 JR346 R22 JR341 JR332 R3 R4 R109 JR306 RV601 C325 R209 JR345 TP334 JR218 JR337 R21 C313 C310 R610 JR308 JR217 C311 JR307 C303 JR312 JR363 C301 TP217 C15 TP214 Q2 JR351 C12 TP339 JR364 JR344 TP338 JR331 C306 JR368 JR343 TP341 C23 C207 C201 C101 R106 JR325 C107 R206 R1 Q301 R103 FB101 R204 JR301 R203 C105 C103 JR342 JR336 JR324 JR328 C203 JR310 JR321 JR327 JR347 JR326 R104 JR330 C205 R601 R602 TP330 C603 C605 C604 C330 C602 R110 C106 C206 R108 C334 FB301 R308 C308 C302 TP647 TP336 R603 R607 C304 JR215 TP231 JR323 R201 R101 C208 JR339 JR340 L302 R107 C609 JR366 C24 JR361 R207 JR348 JR349 JR350 JR338 C108 JR309 JR311 C309 C307 IC301 C9 JR329 R2 JR372 R320 JR5 C28 C3 FX193:US,CND TP320 R9 C6 C7 C8 JR370 C4 C13 R6 C21 C314 C18 C19 JR2 IC1 C608 L5 JR3 FB201 JR213 C10 JR214 C2 R307 C22 C16 JR334 JR335 C5 JR4 JR401 C14 JR212 JR367 JR1 D120 R8 JR211 TP1 TP222 JR302 JR371 JR369 TP223 JR303 C315 TP3 JR305 C26 JR201 TP11 TP10 TP4 TP5 TP12 TP209 TP211 Q302 R7 R10 R321 JR304 TP232 TP635 TP634 TP230 TP319 TP636 TP233 TP229 TP315 TP648 TP207 TP205 TP227 TP226 TP228 TP212 TP321 TP210 R121 TP337 TP316 TP317 TP213 JR333 C331 TP224 TP642 TP331 TP332 TP225 TP221 TP7 TP9 TP8 TP335 BT2 TP333 TP643 L301 JR322 R210 R208 JR402 C606 R120 C329 C11 TP13 TP6 TP2 C1 TP641 TP639 TP640 C607 S301 RV301 C17 S305 C333 C204 C104 C305 S1 S1 L2 CF1 X2 L4 CF2 CV1-4 L3 T1 CP1 L1 S304 J301 J302 S302 BATT(–) Vref L R G COM W V U AM FERRITE ROD ANTENNA BATT(+) AVLS NORM LIMIT -1 -2 � i [MAIN BOARD] FM MODE LOCAL DX MONO ST TUNING VOLUME 1 5 10 12 13 15 20 24 -2 -1 FM AM TAPE (RADIO OFF) BATT (POWER) L-CH R-CH 1 2 3 4 HP901 PLAYBACK HEAD 1 5 10 12 1315 20 24 25 30 35 36 37 40 45 48 MEGA BASS OFF WM-FX195 WM-FX193 11 (11) 1-675-134- DC IN 3V DRY BATTERY SIZE "AA" (IEC DESIGNATION R6) 2PCS, 3V COM W V U M901 CAPSTAN/REEL MOTOR B E C B E C B E C B E C TH601 4 3 2 1 EXCEPT US, CND, E5, E6 MODEL EXCEPT US, CND, E5, E6 MODEL US, CND, E5, E6 MODEL US, CND, E5, E6 MODEL US, CND, E5, E6 MODEL EXCEPT E, E9, CH, EA MODEL E, E9, CH, EA MODEL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – – 15 – – 14 – WM-FX193/FX195 4-3. SCHEMATIC DIAGRAM Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • U : B+ Line. • Power voltage is dc 3V and fed with regulated dc power supply from external power voltage jack (J301). no mark : FM ( ) : AM < > : TAPE PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : FM E : PB • Abbreviation CND : Canadian EA : Saudi Arabia CH : Chinese E : Indication of country of origin E9 : No Indication of country of origin CEV : Ukraine, Hungary, Czech E5, E6 : South America FR : French w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 16 – – 18 – – 17 – z IC Block Diagrams. IC301 LB8115W-NA-TLM IC1 TA2111F-(EL) 1 2 36 35 34 33 32 31 30 29 28 27 26 25 13 14 15 16 17 18 19 20 21 22 23 24 48 47 46 45 44 43 42 41 40 39 38 37 COM RI VREF POWER OUT (COM) POWER OUT (R) VCC POWER MUTE POWER IN (L) POWER IN (R) MIX OUT (L) MIX OUT (R) LP.2 H.P IN (R) H.P IN (L) DET OUT MVREF IN+ VSP MIX IN (R) MIX IN (L) LOW BOOST SW M-GND R.REF SYSTEM POWER OUT (L) POWER GND MVCC DR WOUT MP-GND VOUT UOUT FC OUT OSC UB VB WB 3 4 5 6 7 8 9 10 11 12 PRE NF (L) PRE OUT (R) PRE NF (R) PRE FWD IN (R) PRE REV IN (R) PRE REV IN (L) PRE FWD IN (L) S/S PRE GND PRE OUT (L) BIAS R.F REF SYS CONT DET VREF SPEED LOW BOOST PRE DRIVER OPERATION LOGIC OSC PLUSE DET REF VOLTAGE REF VOLTAGE FOR SPEED CONTROL CURRENT DET OPERATION DET FWD/ REV FREQ CARC. + – 1 2 3 4 21 5 6 22 18 23 24 7 8 9 FM RF IN RF GND AM LOW CUT MIX OUT AGC VCC AM IF IN FM IF IN GND TUN LED ST LED QUAD R-OUT L-OUT LPF1 LPF2 MPX IN DET OUT AFC AM OSC FM OSC RF VCC FM RF OUT AM RF IN AF BUFFER AF AMP VCO DIVIDE DECODE FM MIX AM MIX AM DET AM IF FM RF 20 FM OSC AM OSC AGC 10 TUN LED FM DET LEVEL DET ST/MONO FM/AM FM MUTE FM IF 11 12 ST LED 13 14 15 16 17 19 SECTION 5 EXPLODED VIEWS NOTE : • -XX, -X mean standardized parts, so they may have some difference from the original one. • Color indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ••• (RED) ↑ ↑ Parts color Cabinet's color • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. 5-1. CABINET SECTION • Abbreviation CND : Canadian EA : Saudi Arabia CH : Chinese E : Indication of country of origin E9 : No Indication of country of origin CEV : Ukraine, Hungary, Czech E5, E6 : South America FR : French L1 1 2 3 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 MF-WMFX195-114 FX195 3 4 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 X-3378-185-1 CABINET (REAR) SUB ASSY (EXCEPT E, E9, EA,CH) 1 X-3378-186-1 CABINET (REAR) SUB ASSY (E, E9, EA,CH) 2 3-019-503-11 SHEET(CABINET REAR) 3 3-318-203-92 SCREW(B1.7), TAPPING 4 3-022-581-01 PLATE, LIGHT GUIDE 5 3-039-265-01 LID,BATTERY CASE 6 A-3021-289-A MAINBOARD, COMPLETE (FX195:E,E9,CH) 6 A-3021-290-A MAINBOARD, COMPLETE (FX193:E,E9,CH) 6 A-3021-291-A MAINBOARD, COMPLETE (FX193:EA) 6 A-3021-292-A MAINBOARD, COMPLETE (FX193:E5,E6) 6 A-3021-293-A MAINBOARD, COMPLETE (FX193:US,CND) 6 A-3021-294-A MAINBOARD, COMPLETE (FX193:AEP,CEV) 6 A-3021-295-A MAINBOARD, COMPLETE (FX193:FR) 6 A-3021-296-A MAINBOARD, COMPLETE (FX193:Italian) 6 A-3021-297-A MAINBOARD, COMPLETE (FX195:EA) 6 A-3021-298-A MAINBOARD, COMPLETE (FX195:CND) 6 A-3021-299-A MAINBOARD, COMPLETE (FX195:AEP,CEV) 6 A-3021-300-A MAINBOARD, COMPLETE (FX195:FR) 6 A-3021-301-A MAINBOARD, COMPLETE (FX195:Italian) 6 A-3021-302-A MAINBOARD, COMPLETE (FX195:E5,E6) 7 3-029-332-01 TERMINAL (-), BATTERY 8 9-910-999-31 SCREW(M1.7X1.5) 9 3-039-262-01 KNOB(TUNING) 10 3-039-266-01 TERMINAL (+), BATTERY 11 3-921-955-01 SCREW (M1.4), TOOTH (WH) 12 3-019-859-01 BUTTON (STOP) 13 3-019-860-01 BUTTON (FF) 14 3-019-858-01 BUTTON (PLAY) 15 3-019-861-01 BUTTON (REW) 16 3-375-114-31 SCREW 17 3-039-259-01 COVER, LID 18 3-039-260-01 DIAL INDICATOR 19 3-039-267-01 HOLDER, CASSETTE (FX195:CND,E5,E6) (GOLD) 19 3-039-267-11 HOLDER, CASSETTE (FX195:CND,E5,E6) (BLUE) 19 3-039-267-21 HOLDER, CASSETTE (FX195:CND,E5) (BLACK) 19 3-039-267-31 HOLDER, CASSETTE (FX195:AEP,CEV,FR,E,E9,CH) (GOLD) 19 3-039-267-41 HOLDER, CASSETTE (FX195:AEP,CEV,FR,E,E9,CH) (BLUE) 19 3-039-267-51 HOLDER, CASSETTE (FX195:AEP,CEV,FR,E,E9,CH) (BLACK) 19 3-039-267-61 HOLDER, CASSETTE (FX195:Italian,EA)(GOLD) 19 3-039-267-71 HOLDER, CASSETTE (FX195:Italian,EA) (BLUE) 19 3-039-267-81 HOLDER, CASSETTE (FX195:Italian,EA) (BLACK) 19 X-3378-178-1 HOLDER SUB ASSY, CASSETTE (FX193:AEP,FR,CEV,E,E9,CH) (GRAY) 19 X-3378-179-1 HOLDER SUB ASSY, CASSETTE (FX193:AEP,CEV,E,E9,CH) (BLUE) 19 X-3378-180-1 HOLDER SUB ASSY, CASSETTE (FX193:EA) (GRAY) 19 X-3378-181-1 HOLDER SUB ASSY, CASSETTE (FX193:Italian,EA) (BLUE) 19 X-3378-182-1 HOLDER SUB ASSY, CASSETTE (FX193:E5,E6) (GRAY) 19 X-3378-183-1 HOLDER SUB ASSY, CASSETTE (FX193:US,CND,E5,E6) (BLUE) 19 X-3378-184-1 HOLDER SUB ASSY, CASSETTE (FX193:E5,E6) (ORANGE) 20 3-007-012-01 SPRING (TORSION) 21 3-039-268-01 KNOB(MEGABASS) (FX195) 22 3-932-037-01 SPRING (CASSETTE) 23 3-039-255-01 CABINET (FRONT) (FX193:E,E9,CH,EA) 23 3-039-255-11 CABINET (FRONT) (FX193:AEP,Italian,FR,CEV) 23 3-039-255-21 CABINET (FRONT) (FX193:US,CND,E5,E6) 23 3-039-255-31 CABINET (FRONT) (FX195:E,E9,CH,EA) 23 3-039-255-41 CABINET (FRONT) (FX195:AEP,Italian,CEV,FR) 23 3-039-255-51 CABINET (FRONT) (FX195:CND,E5,E6) 24 3-039-261-01 POINTER L1 1-754-084-11 ANTENNA, FERRITE-ROD (AM TRACKING) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 19 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 3-013-560-11 BELT 52 3-703-816-31 SCREW (M1.4), SPECIAL HEAD 53 3-921-042-01 GEAR(REEL) 54 3-703-816-73 SCREW (M1.4), SPECIAL HEAD 55 X-3369-749-1 PINCH LEVER (N) ASSY 5-2. MECHANISM SECTION-1 (MF-WMFX195-114) 56 3-920-996-01 SPRING (PINCH N) HP901 1-500-641-11 HEAD, MAGNETIC (PLAYBACK) M901 1-763-073-11 MOTOR (CAPSTAN/REEL) (INCLUDING PULLEY) 54 53 55 56 52 51 M901 HP901 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 20 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 3-921-797-01 WASHER 102 3-921-003-01 BEARING 103 3-938-628-02 SPRING (PLAY-CP) 104 3-920-999-01 GEAR (A) 105 X-3376-169-1 CLUTCH ASSY 106 3-013-142-01 SPRING (FR-CP) 107 3-015-436-01 SPRING (STOP) 108 3-938-613-01 LEVER (OW), DETECTION 109 3-728-091-01 WASHER, STOPPER 110 3-923-530-01 SLEEVE (M) 111 3-921-335-01 WASHER, LEVER 112 3-920-990-01 SPRING (UD), COMPRESSION 113 3-921-050-01 GEAR (B) 114 X-3372-619-1 WHEEL ASSY (P), CAPSTAN 115 3-921-043-11 GEAR (D) 116 3-036-664-11 SPRING (FR LEVER OWN) 117 X-3377-890-1 CHASSIS ASSY (GL-02C) 118 3-016-989-01 SPRING (SW-CP) 5-3. MECHANISM SECTION-2 (MF-WMFX195-114) 105 108 104 109 110 111 112 113 114 115 116 117 102 101 103 107 106 118 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 21 – NOTE : • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms METAL : Metal-film resistor METAL OXIDE :Metal oxide-film resistor F : nonflammable • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ , for example : uA.... : µ A.... , uPA.... : µ PA.... uPB.... : µ PB.... , uPC.... : µ PC.... uPD.... : µ PD.... • CAPACITORS uF : µ F • COILS uH : µ H When indicating parts by reference num- ber, please include the board. SECTION 6 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark A-3021-289-A MAIN BOARD, COMPLETE (FX195:E,E9,CH) A-3021-290-A MAIN BOARD, COMPLETE (FX193:E,E9,CH) A-3021-291-A MAIN BOARD, COMPLETE (FX193:EA) A-3021-292-A MAIN BOARD, COMPLETE (FX193:E5,E6) A-3021-293-A MAIN BOARD, COMPLETE (FX193:US,CND) A-3021-294-A MAIN BOARD, COMPLETE (FX193:AEP,CEV) A-3021-295-A MAIN BOARD, COMPLETE (FX193:FR) A-3021-296-A MAIN BOARD, COMPLETE (FX193:Italian) A-3021-297-A MAIN BOARD, COMPLETE (FX195:EA) A-3021-298-A MAIN BOARD, COMPLETE (FX195:CND) A-3021-299-A MAIN BOARD, COMPLETE (FX195:AEP,CEV) A-3021-300-A MAIN BOARD, COMPLETE (FX195:FR) A-3021-301-A MAIN BOARD, COMPLETE (FX195:Italian) A-3021-302-A MAIN BOARD, COMPLETE (FX195:E5,E6) ********************************* 3-029-332-02 TERMINAL (-), BATTERY < CAPACITOR > C1 1-163-083-00 CERAMIC CHIP 1PF 50V (EXCEPT Italian,EA) C1 1-163-085-00 CERAMIC CHIP 2PF 50V (Italian,EA) C2 1-163-093-00 CERAMIC CHIP 10PF 5% 50V (EXCEPT Italian,EA) C2 1-163-101-00 CERAMIC CHIP 22PF 5% 50V (Italian,EA) C3 1-163-093-00 CERAMIC CHIP 10PF 5% 50V (EXCEPT Italian,EA) C3 1-163-101-00 CERAMIC CHIP 22PF 5% 50V (Italian,EA) C4 1-163-575-11 CERAMIC CHIP 3PF 50V (EXCEPT Italian,EA) C4 1-163-088-00 CERAMIC CHIP 5PF 50V (Italian,EA) C4 1-163-089-00 CERAMIC CHIP 6PF 50V C5 1-162-937-11 CERAMIC CHIP 6PF 0.5PF 50V C6 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C7 1-165-128-11 CERAMIC CHIP 0.22uF 0% 16V C8 1-164-360-11 CERAMIC CHIP 0.1uF 16V C9 1-115-156-11 CERAMIC CHIP 1uF 0% 10V C10 1-164-360-11 CERAMIC CHIP 0.1uF 16V C11 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C12 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C13 1-163-091-00 CERAMIC CHIP 8PF 0.25PF 50V (EXCEPT Italian,EA) C13 1-163-217-11 CERAMIC CHIP 1PF 0.25PF 50V (Italian,EA) C14 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C15 1-163-077-00 CERAMIC CHIP 0.1uF 10% 25V C16 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C17 1-124-584-00 ELECT 100uF 20% 10V C18 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V (US,CND,E5,E6) C18 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V (EXCEPT US,CND,E5,E6) C19 1-163-023-00 CERAMIC CHIP 0.015uF 5% 50V (US,CND,E5,E6) C19 1-163-021-91 CERAMIC CHIP 0.01uF 10% 50V (EXCEPT US,CND,E5,E6) C20 1-164-360-11 CERAMIC CHIP 0.1uF 16V C21 1-164-360-11 CERAMIC CHIP 0.1uF 16V C22 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C23 1-115-156-11 CERAMIC CHIP 1uF 0% 10V C24 1-164-360-11 CERAMIC CHIP 0.1uF 16V C26 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C28 1-163-090-00 CERAMIC CHIP 7PF 50V (EXCEPT Italian,EA) C28 1-163-217-11 CERAMIC CHIP 1PF 50V (Italian,EA) C40 1-164-360-11 CERAMIC CHIP 0.1uF 16V C101 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C103 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C104 1-126-153-11 ELECT 22uF 20% 6.3V C105 1-115-156-11 CERAMIC CHIP 1uF 0% 10V C106 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C107 1-115-156-11 CERAMIC CHIP 1uF 0% 10V C108 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C201 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C203 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C204 1-126-153-11 ELECT 22uF 20% 6.3V C205 1-115-156-11 CERAMIC CHIP 1uF 0% 10V C206 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C207 1-115-156-11 CERAMIC CHIP 1uF 0% 10V C208 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C301 1-115-156-11 CERAMIC CHIP 1uF 0% 10V C302 1-104-847-11 TANTAL. CHIP 22uF 20% 4V C303 1-164-360-11 CERAMIC CHIP 0.1uF 16V MAIN • Abbreviation CND : Canadian EA : Saudi Arabia CH : Chinese E : Indication of country of origin E9 : No Indication of country of origin CEV : Ukraine, Hungary, Czech E5, E6 : South America FR : French www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 22 – C304 1-164-360-11 CERAMIC CHIP 0.1uF 16V C305 1-124-584-00 ELECT 100uF 20% 10V C306 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C307 1-164-360-11 CERAMIC CHIP 0.1uF 16V C308 1-115-156-11 CERAMIC CHIP 1uF 0% 10V C309 1-164-505-11 CERAMIC CHIP 2.2uF 0% 16V C310 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C311 1-162-974-11 CERAMIC CHIP 0.01uF 50V C313 1-135-149-21 TANTALUM CHIP 2.2uF 20% 10V C314 1-164-360-11 CERAMIC CHIP 0.1uF 16V C315 1-115-156-11 CERAMIC CHIP 1uF 0% 10V C325 1-115-156-11 CERAMIC CHIP 1uF 0% 10V C329 1-115-156-11 CERAMIC CHIP 1uF 0% 10V C330 1-115-156-11 CERAMIC CHIP 1uF 0% 10V C331 1-135-151-21 TANTALUM CHIP 4.7uF 20% 4V C333 1-124-434-00 ELECT 220uF 20% 4V C334 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C602 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C603 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C604 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C605 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C606 1-163-809-11 CERAMIC CHIP 0.047uF 10% 25V C607 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C608 1-135-149-21 TANTALUM CHIP 2.2uF 20% 10V C609 1-164-360-11 CERAMIC CHIP 0.1uF 16V < FILTER > CF1 1-527-870-00 FILTER CF2 1-767-733-71 FILTER ASSY, CERAMIC < COMPOSITION CIRCUIT BLOCK > CP1 1-234-395-11 FILTER, BAND PASS (US,CND,E5,E6) CP1 1-236-711-21 FILTER, BAND PASS (EXCEPT US,CND,E5,E6) < TRIMMER > CT1 1-141-613-11 CAP, VAR (AM TRACKING) CT2 1-141-613-11 CAP, VAR (FM TRACKING) CT3 1-141-613-11 CAP, VAR (FM FREQUENCY COVERAGE) CT4 1-141-613-11 CAP, VAR (AM FREQUENCY COVERAGE) < VARIABLE CAPACITOR > CV1 1-141-613-11 CAP, VAR (TUNING) CV2 1-141-613-11 CAP, VAR (TUNING) CV3 1-141-613-11 CAP, VAR (TUNING) CV4 1-141-613-11 CAP, VAR (TUNING) < DIODE > D120 8-719-074-20 LED LNV210C6AOSO (BATT) < FERRITE BEAD > FB101 1-414-760-21 INDUCTOR CHIP FB201 1-414-760-21 INDUCTOR CHIP FB301 1-414-760-21 INDUCTOR CHIP < IC > IC1 8-759-493-20 IC TA2111F-(EL) IC301 8-759-574-69 IC LB8115W-TLM < JACK > J301 1-750-061-11 JACK,DC(POLARITY UNIFIED TYPE) (DC IN 3V)(E,E9,CH,EA) J302 1-565-287-11 JACK (i) < JUMPER RESISTOR > JR1 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT US,CND,E5,E6) JR2 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT US,CND,E5,E6) JR3 1-216-821-11 METAL CHIP 1K 5% 1/16W (EXCEPT US,CND,E5,E6) JR4 1-216-864-11 METAL CHIP 0 5% 1/16W (US,CND,E5,E6) JR5 1-216-864-11 METAL CHIP 0 5% 1/16W (US,CND,E5,E6) JR201 1-216-295-00 METAL CHIP 0 5% 1/10W JR211 1-216-295-00 METAL CHIP 0 5% 1/10W JR212 1-216-295-00 METAL CHIP 0 5% 1/10W JR213 1-216-295-00 METAL CHIP 0 5% 1/10W JR214 1-216-295-00 METAL CHIP 0 5% 1/10W JR215 1-216-295-00 METAL CHIP 0 5% 1/10W JR216 1-216-295-00 METAL CHIP 0 5% 1/10W JR217 1-216-295-00 METAL CHIP 0 5% 1/10W JR218 1-216-295-00 METAL CHIP 0 5% 1/10W JR301 1-216-296-00 METAL CHIP 0 5% 1/8W JR302 1-216-296-00 METAL CHIP 0 5% 1/8W JR303 1-216-296-00 METAL CHIP 0 5% 1/8W JR304 1-216-296-00 METAL CHIP 0 5% 1/8W JR305 1-216-296-00 METAL CHIP 0 5% 1/8W JR306 1-216-296-00 METAL CHIP 0 5% 1/8W JR307 1-216-296-00 METAL CHIP 0 5% 1/8W JR308 1-216-296-00 METAL CHIP 0 5% 1/8W JR309 1-216-296-00 METAL CHIP 0 5% 1/8W JR310 1-216-296-00 METAL CHIP 0 5% 1/8W JR311 1-216-296-00 METAL CHIP 0 5% 1/8W JR312 1-216-296-00 METAL CHIP 0 5% 1/8W JR321 1-216-296-00 METAL CHIP 0 5% 1/8W JR322 1-216-864-11 METAL CHIP 0 5% 1/16 JR323 1-216-296-00 METAL CHIP 0 5% 1/8W JR324 1-216-296-00 METAL CHIP 0 5% 1/8W JR325 1-216-296-00 METAL CHIP 0 5% 1/8W JR326 1-216-296-00 METAL CHIP 0 5% 1/8W JR327 1-216-296-00 METAL CHIP 0 5% 1/8W JR328 1-216-296-00 METAL CHIP 0 5% 1/8W JR329 1-216-296-00 METAL CHIP 0 5% 1/8W JR330 1-216-296-00 METAL CHIP 0 5% 1/8W JR331 1-216-296-00 METAL CHIP 0 5% 1/8W JR332 1-216-296-00 METAL CHIP 0 5% 1/8W JR333 1-216-296-00 METAL CHIP 0 5% 1/8W JR334 1-216-296-00 METAL CHIP 0 5% 1/8W JR335 1-216-296-00 METAL CHIP 0 5% 1/8W JR336 1-216-296-00 METAL CHIP 0 5% 1/8W JR337 1-216-296-00 METAL CHIP 0 5% 1/8W JR338 1-216-296-00 METAL CHIP 0 5% 1/8W JR339 1-216-296-00 METAL CHIP 0 5% 1/8W JR340 1-216-296-00 METAL CHIP 0 5% 1/8W JR341 1-216-296-00 METAL CHIP 0 5% 1/8W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – JR342 1-216-296-00 METAL CHIP 0 5% 1/8W JR343 1-216-296-00 METAL CHIP 0 5% 1/8W JR344 1-216-296-00 METAL CHIP 0 5% 1/8W JR345 1-216-296-00 METAL CHIP 0 5% 1/8W JR346 1-216-296-00 METAL CHIP 0 5% 1/8W JR347 1-216-296-00 METAL CHIP 0 5% 1/8W JR348 1-216-296-00 METAL CHIP 0 5% 1/8W JR349 1-216-296-00 METAL CHIP 0 5% 1/8W JR350 1-216-296-00 METAL CHIP 0 5% 1/8W JR351 1-216-296-00 METAL CHIP 0 5% 1/8W JR361 1-216-296-00 METAL CHIP 0 5% 1/8W JR362 1-216-296-00 METAL CHIP 0 5% 1/8W JR363 1-216-296-00 METAL CHIP 0 5% 1/8W JR364 1-216-296-00 METAL CHIP 0 5% 1/8W JR365 1-216-296-00 METAL CHIP 0 5% 1/8W JR366 1-216-296-00 METAL CHIP 0 5% 1/8W JR367 1-216-296-00 METAL CHIP 0 5% 1/8W JR368 1-216-296-00 METAL CHIP 0 5% 1/8W JR369 1-216-296-00 METAL CHIP 0 5% 1/8W JR370 1-216-296-00 METAL CHIP 0 5% 1/8W JR371 1-216-296-00 METAL CHIP 0 5% 1/8W JR372 1-216-296-00 METAL CHIP 0 5% 1/8W JR401 1-216-295-00 METAL CHIP 0 5% 1/10W (EXCEPT E,E9,CH,EA) JR402 1-216-864-11 METAL CHIP 0 5% 1/16W (FX193) < COIL > L1 1-754-084-11 ANTENNA, FERRITE-ROD (AM TRACKING) L2 1-416-623-11 COIL (WITH CORE) (EXCEPT Italian,EA) (FM TRACKING) L2 1-416-624-11 COIL (WITH CORE) (Italian,EA) (FM TRACKING) L3 1-416-626-11 COIL (WITH CORE) (EXCEPT Italian,EA) (FM FREQUENCY COVERAGE) L3 1-416-627-11 COIL (WITH CORE) (Italian,EA) (FM FREQUENCY COVERAGE) L4 1-406-408-11 COIL (OSC) (EXCEPT Italian,EA) (AM FREQUENCY COVERAGE) L4 1-406-409-11 COIL (OSC) (Italian,EA) (AM FREQUENCY COVERAGE) L5 1-216-295-00 METAL CHIP 0 5% 1/10W L301 1-412-002-31 INDUCTOR CHIP 4.7uH L302 1-216-864-11 METAL CHIP 0 5% 1/16W < TRANSISTOR > Q1 8-729-216-22 TRANSISTOR 2SA1162-G Q2 8-729-216-22 TRANSISTOR 2SA1162-G Q301 8-729-230-49 TRANSISTOR 2SC2712-YG Q302 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR > R1 1-216-295-00 METAL CHIP 0 5% 1/10W R2 1-216-839-11 METAL CHIP 33K 5% 1/16W R3 1-216-234-00 RES-CHIP 33K 5% 1/8W R4 1-216-234-00 RES-CHIP 33K 5% 1/8W R5 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R6 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R7 1-216-815-11 METAL CHIP 330 5% 1/16W R8 1-216-797-11 METAL CHIP 10 5% 1/16W R9 1-216-815-11 METAL CHIP 330 5% 1/16W R10 1-216-827-11 RES-CHIP 3.3K 5% 1/16W (FX193:US,CND) R21 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R22 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R101 1-216-821-11 METAL CHIP 1K 5% 1/16W R103 1-216-855-11 METAL CHIP 680K 5% 1/16W R104 1-216-839-11 METAL CHIP 33K 5% 1/16W R106 1-216-819-11 METAL CHIP 680 5% 1/16W R107 1-216-214-00 RES-CHIP 4.7K 5% 1/8W R108 1-216-138-00 METAL CHIP 3.3 5% 1/8W (US) R108 1-216-150-91 RES-CHIP 10 5% 1/8W (FX193:CND,AEP,Italian,CEV/FX195:CND) R108 1-216-166-00 RES-CHIP 47 5% 1/8W (FX193:FR) R108 1-216-154-00 RES-CHIP 15 5% 1/8W (FX193:E,E5,E6,E9,CH,EA/FX195:EXCEPT CND,FR) R108 1-216-174-00 RES-CHIP 100 5% 1/8W (FX195:FR) R109 1-216-190-00 RES-CHIP 470 5% 1/8W (FX193:US,CND,AEP,Italian,CEV/FX195:CND) R109 1-216-198-91 RES-CHIP 1K 5% 1/8W (FR) R109 1-216-182-00 RES-CHIP 220 5% 1/8W (FX193:E,E5,E6,E9,CH,EA/FX195:EXCEPT CND,FR) R110 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT FX195: FR) R110 1-216-807-11 METAL CHIP 68 5% 1/16W (FX195:FR) R120 1-216-819-11 METAL CHIP 680 5% 1/16W R121 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R201 1-216-821-11 METAL CHIP 1K 5% 1/16W R203 1-216-855-11 METAL CHIP 680K 5% 1/16W R204 1-216-839-11 METAL CHIP 33K 5% 1/16W R206 1-216-819-11 METAL CHIP 680 5% 1/16W R207 1-216-214-00 RES-CHIP 4.7K 5% 1/8W R208 1-216-138-00 METAL CHIP 3.3 5% 1/8W (US) R208 1-216-150-91 RES-CHIP 10 5% 1/8W (FX193:CND,AEP,Italian,CEV/FX195:CND) R208 1-216-166-00 RES-CHIP 47 5% 1/8W (FX193:FR) R208 1-216-154-00 RES-CHIP 15 5% 1/8W (FX193:E,E5,E6,E9,CH,EA/FX195:EXCEPT CND,FR) R208 1-216-174-00 RES-CHIP 100 5% 1/8W (FX195:FR) R209 1-216-190-00 RES-CHIP 470 5% 1/8W (FX193:US,CND,AEP,Italian,CEV/FX195:CND) R209 1-216-198-91 RES-CHIP 1K 5% 1/8W (FR) R209 1-216-182-00 RES-CHIP 220 5% 1/8W (FX193:E,E5,E6,E9,CH,EA/FX195:EXCEPT CND,FR) R210 1-216-864-11 METAL CHIP 0 5% 1/16W (EXCEPT FR) R210 1-216-807-11 METAL CHIP 68 5% 1/16W (FX195:FR) R302 1-216-789-11 METAL CHIP 2.2 5% 1/16W R307 1-216-833-91 RES-CHIP 10K 5% 1/16W Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 24 – WM-FX193/FX195 R308 1-216-845-11 METAL CHIP 100K 5% 1/16W R320 1-216-845-11 METAL CHIP 100K 5% 1/16W R321 1-216-841-11 METAL CHIP 47K 5% 1/16W R601 1-216-821-11 METAL CHIP 1K 5% 1/16W R602 1-216-835-11 METAL CHIP 15K 5% 1/16W R603 1-216-841-11 METAL CHIP 47K 5% 1/16W R607 1-216-845-11 METAL CHIP 100K 5% 1/16W R609 1-216-833-91 RES-CHIP 10K 5% 1/16W R610 1-216-821-11 METAL CHIP 1K 5% 1/16W < VARIABLE RESISTOR > RV301 1-225-362-11 RES, VAR, CARBON (VOLUME w) RV601 1-223-994-21 RES, CARBON ADJ VAR 4.7K (TAPE SPEED) < SWITCH > S1 1-692-298-11 SWITCH, SLIDE (FM MODE) S301 1-692-299-11 SWITCH, SLIDE (FM/AM/TAPE, RADIO OFF) S302 1-762-302-11 SWITCH, DETECTION (SMALL TYPE) (POWER) S304 1-692-462-31 SWITCH, SLIDE (MEGA BASS) (FX195) S305 1-692-298-11 SWITCH, SLIDE (AVLS) < TRANSFORMER > T1 1-404-949-11 TRANSFORMER, IF (AM IF) < THERMISTOR > TH601 1-803-751-21 THERMISTOR, POSITIVE < VIBRATOR > X2 1-767-733-71 FILTER ASSY, CERAMIC ************************************************************** MISCELLANEOUS ************** HP901 1-500-641-11 HEAD, MAGNETIC (PLAYBACK) L1 1-754-084-11 ANTENNA, FERRITE-ROD (AM TRACKING) M901 1-763-073-11 MOTOR (CAPSTAN/REEL) ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************* 1-505-521-11 HEADPHONE (MDR-023) (FX193:US,CND,AEP, Italian,FR,CEV/FX195:CND) 3-020-998-01 CLIP, BELT 3-867-998-11 MANUAL, INSTRUCTION (AEP,Italian,FR) (ENGLISH,FRENCH,SPANISH,PORTUGUESE, GERMAN,ITALIAN,DUTCH,SWEDISH,FINNISH) 3-867-998-21 MANUAL, INSTRUCTION (US,E5,E6) (ENGLISH, SPANISH, PORTUGUESE) 3-867-998-31 MANUAL, INSTRUCTION (CND,CH) (ENGLISH,FRENCH,SIMPLIFIED,CHINESE) 3-867-998-41 MANUAL, INSTRUCTION (E,EA) (ENGLISH,TRADITIONAL CHINESE,ARABIC) 3-867-998-51 MANUAL, INSTRUCTION (E9) (ENGLISH,TRADITIONAL CHINESE,ARABIC) 3-867-998-61 MANUAL, INSTRUCTION (CEV) (ENGLISH, RUSSIAN,HUNGARIAN,SLOVAK,POLISH, CZECH,TURKISH,GREEK) 8-953-130-90 HEADPHONE MDR-E805LP (FX193:E,E5,E6, E9,CH,EA/FX195:EXCEPT CND) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN 9-927-646-11 Sony Corporation Personal Audio Division Company 2000A0278-1 Printed in Japan © 2000.1 Published by General Engineering Dept. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
