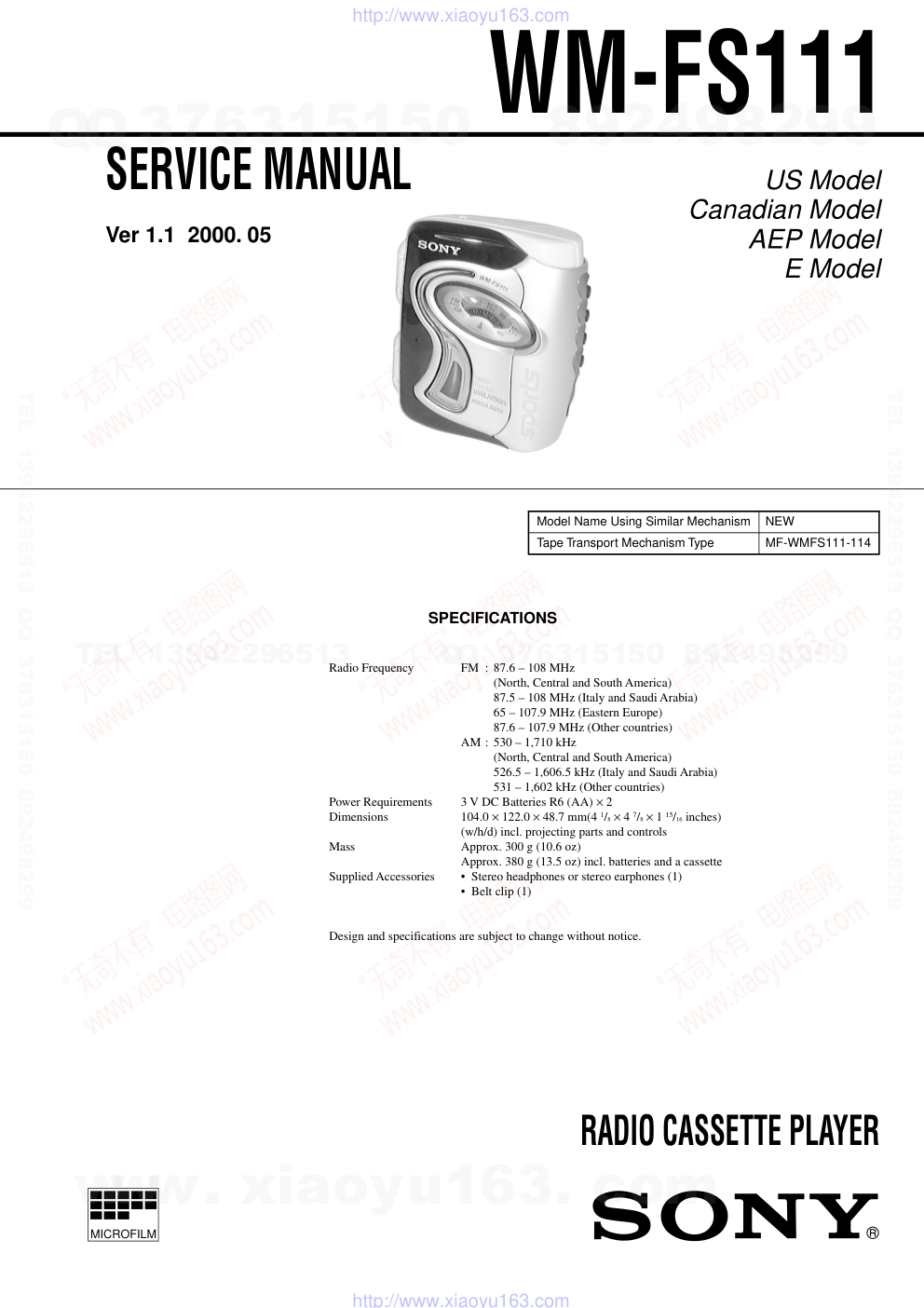

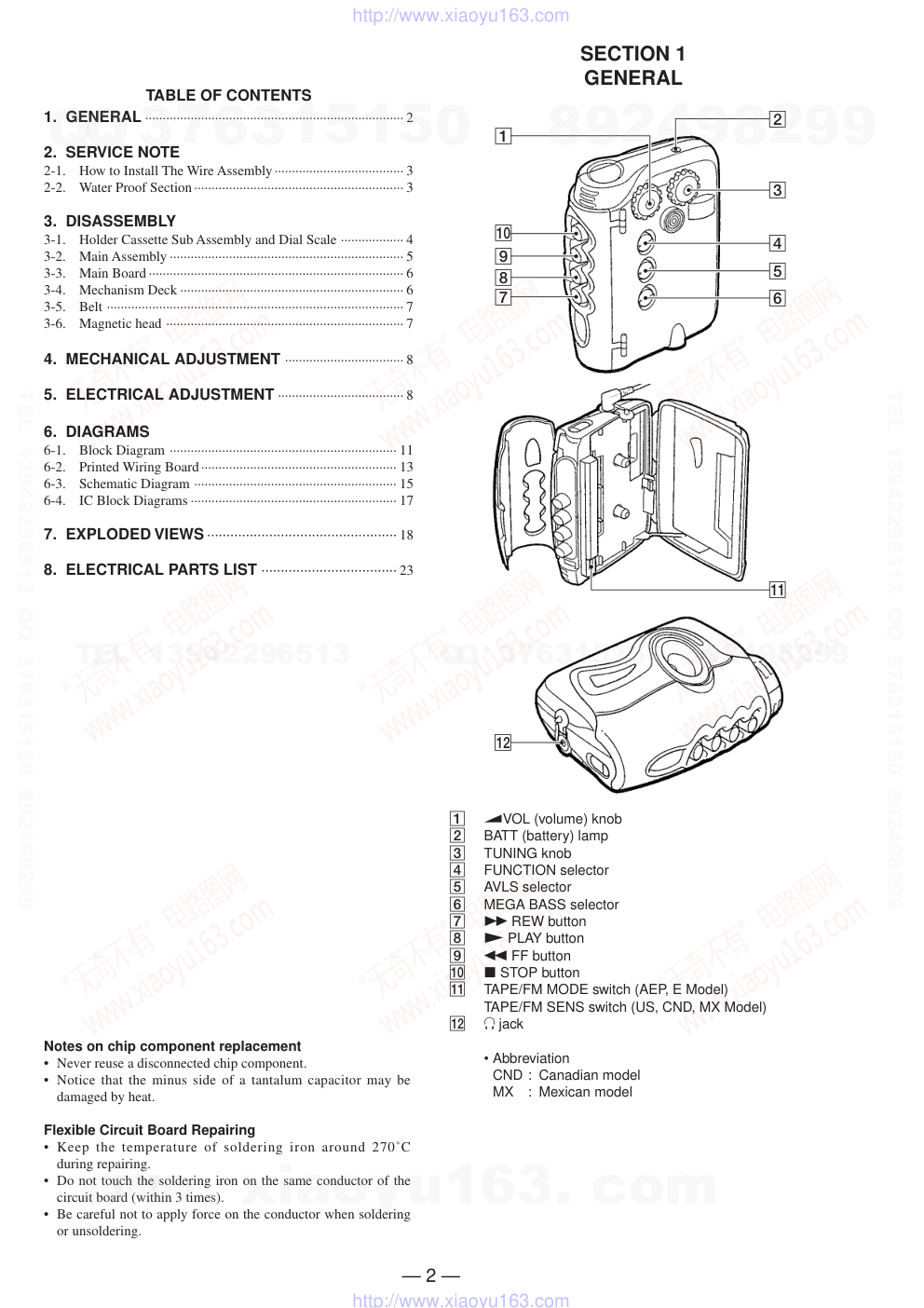

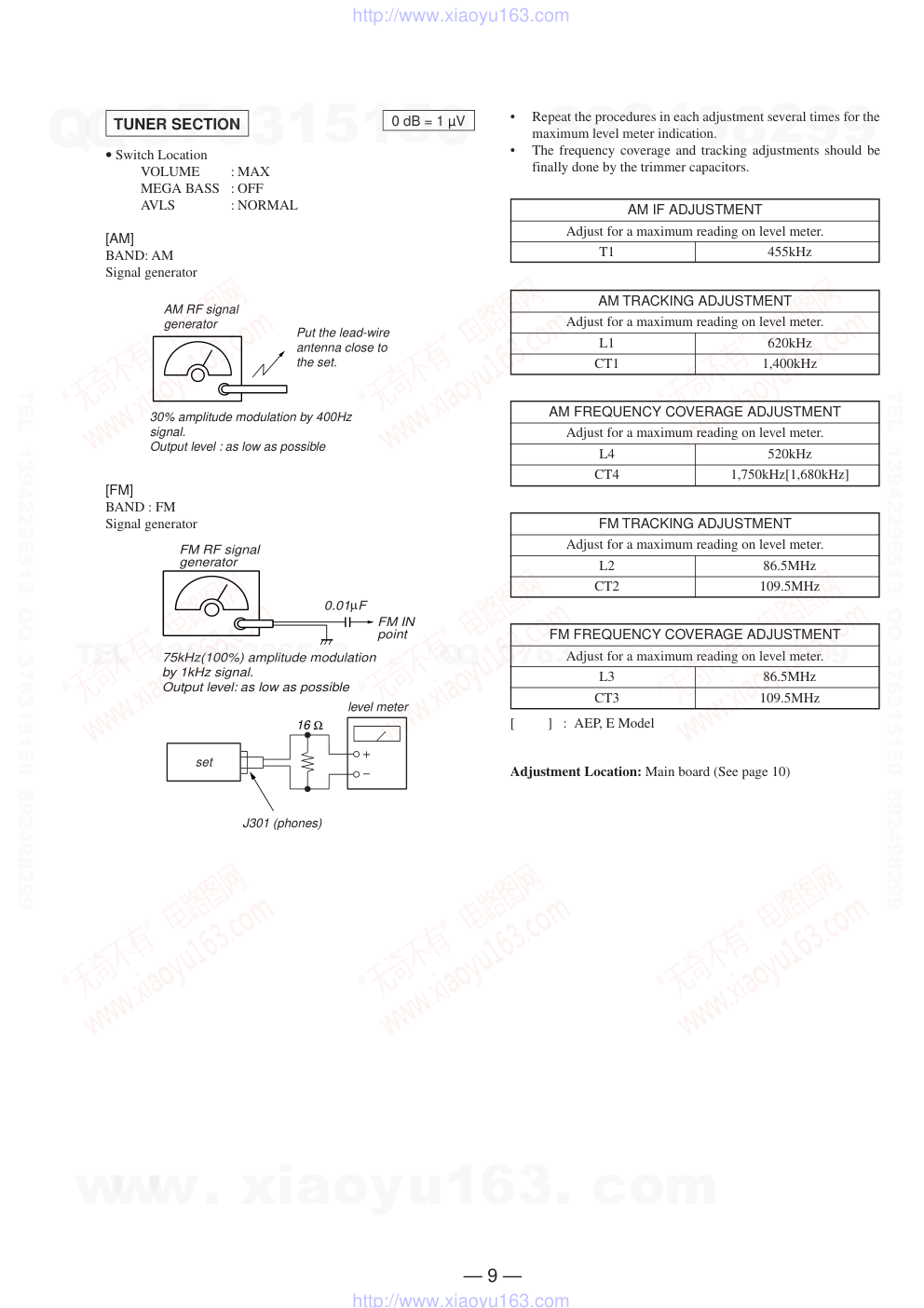

WM-FS111 US Model Canadian Model AEP Model E Model SERVICE MANUAL RADIO CASSETTE PLAYER MICROFILM SPECIFICATIONS Model Name Using Similar Mechanism NEW Tape Transport Mechanism Type MF-WMFS111-114 Radio Frequency FM : 87.6 – 108 MHz (North, Central and South America) 87.5 – 108 MHz (Italy and Saudi Arabia) 65 – 107.9 MHz (Eastern Europe) 87.6 – 107.9 MHz (Other countries) AM : 530 – 1,710 kHz (North, Central and South America) 526.5 – 1,606.5 kHz (Italy and Saudi Arabia) 531 – 1,602 kHz (Other countries) Power Requirements 3 V DC Batteries R6 (AA) × 2 Dimensions 104.0 × 122.0 × 48.7 mm(4 1/8 × 4 7/8 × 1 15/16 inches) (w/h/d) incl. projecting parts and controls Mass Approx. 300 g (10.6 oz) Approx. 380 g (13.5 oz) incl. batteries and a cassette Supplied Accessories • Stereo headphones or stereo earphones (1) • Belt clip (1) Design and specifications are subject to change without notice. Ver 1.1 2000. 05 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — TABLE OF CONTENTS Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SECTION 1 GENERAL 1 ∑VOL (volume) knob 2 BATT (battery) lamp 3 TUNING knob 4 FUNCTION selector 5 AVLS selector 6 MEGA BASS selector 7 ) REW button 8 ( PLAY button 9 0 FF button 0 p STOP button !¡ TAPE/FM MODE switch (AEP, E Model) TAPE/FM SENS switch (US, CND, MX Model) !™ 2 jack • Abbreviation CND : Canadian model MX : Mexican model 1. GENERAL ·········································································· 2 2. SERVICE NOTE 2-1. How to Install The Wire Assembly····································· 3 2-2. Water Proof Section···························································· 3 3. DISASSEMBLY 3-1. Holder Cassette Sub Assembly and Dial Scale ·················· 4 3-2. Main Assembly ··································································· 5 3-3. Main Board ········································································· 6 3-4. Mechanism Deck ································································ 6 3-5. Belt ····················································································· 7 3-6. Magnetic head ···································································· 7 4. MECHANICAL ADJUSTMENT ·································· 8 5. ELECTRICAL ADJUSTMENT ···································· 8 6. DIAGRAMS 6-1. Block Diagram ································································· 11 6-2. Printed Wiring Board························································ 13 6-3. Schematic Diagram ·························································· 15 6-4. IC Block Diagrams ··························································· 17 7. EXPLODED VIEWS ················································· 18 8. ELECTRICAL PARTS LIST ··································· 23 1 0 9 8 7 2 3 4 5 6 !¡� !™� www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — SECTION 2 SERVICE NOTE 2-1. HOW TO INSTALL THE WIRE ASSEMBLY • To install the wire assembly, route the wire assembly in the correct position referring to the illustration below. 2-2. WATER PROOF SECTION NOTE : In case the parts in the figure are removed for repair, treat them to protect from water drop following the instructions in the figure (spread grease, bond etc.) • sony grease SGL-601 : 7-651-000-10 Wire assembly Knob (function) Knob (VOL) Knob (TUNE) Tapping screw (B)(1.4x6) Tapping screw (B)(1.4x6) Joint (AVLS) Gear (VOL) Gear (B) Gear (A) O ring (DIA. 2.5xDIA. 4.5) (Apply Sony grease SGL-601) O ring (Apply Sony grease SGL-601) Apply Sony grease SGL-601 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — SECTION 3 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. Note : Disassemble the unit in the order as shown below. Set Holder cassette sub assembly and dial scale Main assembly Main board Mechanism deck Magnetic head Belt 3-1. HOLDER CASSETTE SUB ASSEMBLY AND DIAL SCALE 1 Stop ring (E-1.2) 2 Tapping screw 3 Tapping screw 4 Holder cassette sub assembly 6 Cover (Cassette) 7 Dial scale 8 Wire assembly 5 Two tapping screws (B1.7 × 4) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — 3-2. MAIN ASSEMBLY 3 Remve the main assembly in the direction of arrow. (Be careful not to focibly pull the wire that connects the main board and the headphone board.) 4 Remove the headphone borad in the direction of arrow. 1 Stop ring (E 1.2) 2 Two screws (+B1.7 × 7) CAUTION WHEN ASSEMBLING THE MAIN ASSEMBLY • Assemble the main assembly in a way that each switch mates with the corresponding knob each other. Function switch (S301) Tuner (CV1) AVLS switch (S305) Mega Bass switch (S306) Volume (RV301) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 6 — 3-3. MAIN BOARD 3-4. MECHANISM DECK 1 Remove the solder (four points) 3 Tooth screw ( M1.4) 4 Two claws 5 Main board 2 Flexible board (head) 1 Two claws 2 Remove the mechanism deck in the direction of arrow. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 7 — 3-5. BELT 3-6. MAGNETIC HEAD Reel/Capstan motor Capstan wheel assy(SP) Belt threading Belt Belt 1 Two screws (M1.4) 2 Magnetic head (HP301) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 8 — SECTION 4 MECHANICAL ADJUSTMENT SECTION 5 ELECTRICAL ADJUSTMENT PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened swab: playback head pinch roller rubber belts capstan 2. Demagnetize the playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. After the adjustments, apply suitable locking compound to the parts adjusted. Torque Measurement Mode FWD FWD Back Tension FF, REW Torque Meter CQ-102C CQ-102C CQ-201B Meter Reading 20 to 42 g•cm (0.27 to 0.58 oz•inch) More than 2.0g•cm (More than 0.027 oz•inch) More than 50 g•cm (More than 0.69 oz•inch) TAPE SECTION Signal 3 kHz, 0 dB Used for Tape speed adjustment Tape WS-48A Test Tape Tape Speed Adjustment Procedure: Mode: Playback Adjustment Value: normal tape speed Adjust the tape speed adjustment RV601, so that the freqency counter reading becomes 2,985Hz. Specification Value: Frequency difference between the beginning and the end of the tape should be within 1.5% (45Hz). Adjustment Location: Test tape WS-48A (3kHz, 0dB) Set J301 (phones) 16 Ω digital frequency counter + – Digital frequency counter 2,970 to 3,000Hz 0dB=0.775V RV601 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 9 — • Switch Location VOLUME : MAX MEGA BASS : OFF AVLS : NORMAL [AM] BAND: AM Signal generator [FM] BAND : FM Signal generator AM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L1 620kHz CT1 1,400kHz TUNER SECTION Put the lead-wire antenna close to the set. 30% amplitude modulation by 400Hz signal. Output level : as low as possible AM RF signal generator 0.01µF FM RF signal generator FM IN point 75kHz(100%) amplitude modulation by 1kHz signal. Output level: as low as possible 16 Ω set level meter J301 (phones) • Repeat the procedures in each adjustment several times for the maximum level meter indication. • The frequency coverage and tracking adjustments should be finally done by the trimmer capacitors. AM FREQUENCY COVERAGE ADJUSTMENT Adjust for a maximum reading on level meter. L4 520kHz CT4 1,750kHz[1,680kHz] AM IF ADJUSTMENT Adjust for a maximum reading on level meter. T1 455kHz FM TRACKING ADJUSTMENT Adjust for a maximum reading on level meter. L2 86.5MHz CT2 109.5MHz FM FREQUENCY COVERAGE ADJUSTMENT Adjust for a maximum reading on level meter. L3 86.5MHz CT3 109.5MHz Adjustment Location: Main board (See page 10) 0 dB = 1 µV [ ] : AEP, E Model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 10 — [MAIN BOARD] — Component side — — Conductor side — CV1 CT1 L1 AM Tracking Adjustment AM IF Adjustment L2 L3 L4 CT2 CT3 CT4 T1 FM Tracking Adjustment FM Frequency Coverage Adjustment AM Frequency Coverage Adjustment TP18 FM IN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FS111 SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAM — 11 — — 12 — 8 AM IF IN FM IF IN 7 IC301 19 L R 2 1 23 18 17 12 16 T1 CF1 450kHz 10.7MHz 10.7MHz CF2 RV301 VOL M901 REEL/CAPSTAN MOTOR 16 5 15 11 14 L OUT 13 R OUT AM OSC FM OSC FM RF OUT AM RF IN FM RF IN IC601 SERVO AMP IC1 FM/AM RF,IF AMP DET,MPX J301 4 5 6 15 14 18 7 6 12 D301 BATT RV601 TAPE SPEED S304 RIPPLE FILTER SWITCH VCC2 15 LP1 LP2 VREF VREF PRE OUT (L) PWR- IN L PWR- IN R PRE OUT (R) L2 FM TRACKING CT2 CV1(2/4) X2 DET OUT MPX IN L3 FM FREQUENCY COVERAGE CT3 CV1(3/4) 20 L4 AM FREQUENCY COVERAGE CT4 CV1(4/4) 24 L1 AM TRACKING CT1 CV1(1/4) FL1 22 VCC1 14 21 MEGA BASS MEGA BASS MEGA BASS S306 VREF 13 PWR (L) PWR (R) BPF DRY BATTERY SIZE "AA" (IEC DESIGNATION R6) 2PCS, 3V CV1,CTI-CT4 TUNING AM IF 4 AM/FM MIX 6 OFF ON AVLS : FM • Signal path : PB S305 LIMIT NORM LOCAL DX MONO FM MODE TAPE SEL FM SENS ST FM AM TAPE(RADIO OFF) METAL NORM S302 / / 20 16 U U V V W W IN+ Vcc 2 START 3 17 VREF L1 AM FERITE-ROD ANTENNA Q5,Q6 BAND SWITCH Q1 LOCAL/DX SWITCH US,CND,MX MODEL HP301 PLAYBACK HEAD PRE-POWER AMP Vcc Vcc Q201,Q202 Q101 Q102 VREF Q203 AVLS SWITCH Q103 AVLS SWITCH COM PRE-MUTE PRW-MUTE Q7,Q8 MONO/ST SWITCH AEP,E MODEL AEP,E MODEL US,CND,MX MODEL Vcc Vcc Q104 SWITCH SWITCH 3 4 Q204 SWITCH SW-OUT (R) SW-OUT (L) NF NF Q304 Q305 Q308 Q306,Q307 Q3,Q4 Q2 SWITCH MUTE Q301 S301 FUNCTION • Abbreviation CND : Canadian model MX : Mexican model w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FS111 1 2 A B C D E F G H 3 4 5 6 7 8 9 10 11 12 13 14 6-2. PRINTED WIRING BOARD Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • b : Pattern from the side which enables seeing. • Abbreviation CND : Canadian model MX : Mexican model — 13 — — 14 — • Semiconductor Location Ref. No. Location Ref. No. Location D301 B-1 IC1 B-4 IC301 D-6 IC601 E-10 Q1 C-3 Q2 B-6 Q3 B-6 Q4 B-6 Q5 C-6 Ref. No. Location Q6 C-6 Q7 E-3 Q8 B-5 Q101 D-5 Q102 D-5 Q103 F-5 Q104 D-6 Q201 D-7 Q202 D-8 Q203 F-5 Q204 D-7 Q301 C-5 Q304 B-8 Q305 C-8 Q306 C-9 Q307 C-7 Q308 B-8 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FS111 6-3. SCHEMATIC DIAGRAM Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • C : panel designation. • U : B+ Line. • H : adjustment for repair. • Power voltage is dc 3 V and fed with regulated dc power supply from battery terminal. • Voltages are dc with respect to ground under no-signal (detuned) conditions. no mark : PB ( ) : FM < > : AM • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : FM f : AM E : PB • Abbreviation CND : Canadian model MX : Mexican model — 15 — — 16 — w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-FS111 6-4. IC BLOCK DIAGRAMS — 17 — — 18 — IC1 TA2111F-(EL) IC301 LA4571M-T1 IC601 LB1979V-TLM FM IN RF GND AGC GND2 TU-IND ST-IND QUAD 1 2 AM L/CUT AM/FM MIX 3 4 5 VCC2 AM IF FM IF 6 7 8 9 10 11 12 LPF1 M/XST L-OUT R-OUT 13 14 15 AM OSC FM OSC RF VCC FM RF AM IN 20 21 22 23 24 DET OUT AFC 18 19 LPF2 AM/XFM MPX IN 16 17 FM IF FM RF FM IF AM IF AF FM DET LEVEL DET ST/MO FM/AM TUNE LED FM MUTE ST LED AM DET FM OSC AM OSC FM MIX AM MIX AGC VCO DIVIDE DECODE 20 19 18 17 16 15 14 13 12 11 1 2 3 4 5 6 7 8 9 10 CORRENT DETECT OUTPUT PRE DRIVER MIX WAVEFORM DETECT CURRENT/MOTIVE LOGIC SOFT SW REFERENCE VOLTAGE FOR SPEED CONTROL MOTIVE POWER DETECT POWER SUPPLY BIAS REFERENCE VOLTAGE OSCILLATOR CIRCUIT SPEED DETECT FC GND FC RI OUT VSP IN+ VREF S/S COM OSC WB VCC NC U OUT V OUT W OUT P-GND VB UB GND 7-1. HOLDER CASSETTE ASSY SECTION 1 2 1 8 9 6 3 4 5 4 7 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 3-386-373-01 SCREW, TAPPING 2 X-3377-167-1 CASSETTE SUB ASSY, HOLDER (YELLOW) 2 X-3377-168-1 CASSETTE SUB ASSY, HOLDER (BLACK) (CND) 2 X-3377-169-1 CASSETTE SUB ASSY, HOLDER (BLUE) (CND) 3 X-3369-989-1 ARM ASSY 4 3-318-203-62 SCREW(B1.7 × 4), TAPPING 5 3-032-167-01 SCALE, DIAL (US,CND,MX) 5 3-032-167-11 SCALE, DIAL (AEP,E) 6 7-624-101-04 STOP RING 1.2 (E TYPE) 7 3-032-144-01 COVER(CASSETTE) 8 3-318-203-82 SCREW(B1.7 × 7), TAPPING * 9 1-672-324-11 HEADPHONE BOARD NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Abbreviation CND : Canadian model MX : Mexican model SECTION 7 EXPLODED VIEWS When indicating parts by reference number, please include the board name. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE)←Cabinet’s Color 1 2 3 4 5 6 7 8 9 10 13 14 15 20 11 12 18 19 16 17 GND Vref Power mute Ripple Filter Pre mute Vcc GND w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 19 — 7-2. MAIN BOARD SECTION 51 57 58 59 60 61 55 62 63 64 65 66 52 53 54 56 not supplied mechanism deck BT1 BT2 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 X-3377-165-1 CHASSIS SUB ASSY (AEP,E) 51 X-3377-166-1 CHASSIS SUB ASSY (US,CND,MX) 52 3-934-020-31 LID,BATTERY CASE 53 3-936-792-01 SPRING, TORSION 54 3-032-153-01 SHEET, BATTERY 55 3-831-441-99 SPACER, KNOB 56 3-934-005-01 KNOB(DX-LOCAL) 57 3-032-148-01 BUTTON (REW) 58 3-032-145-01 BUTTON (PLAY) 59 3-032-147-01 BUTTON (FF) 60 3-032-146-01 BUTTON (STOP) 61 3-921-955-01 SCREW (M1.4), TOOTH (WH) 62 A-3021-212-A MAIN BOARD, COMPLETE (US,CND,MX) 62 A-3021-214-A MAIN BOARD, COMPLETE (AEP,E) 63 3-934-023-01 JOINT (VOL) 64 3-934-003-01 JOINT (TUNE) 65 7-627-850-57 SCREW,PRECISION +P 1.4 × 3.5 66 3-386-374-01 SCREW(1.7) BT1 3-921-878-01 TERMINAL BOARD, BATTERY BT2 3-032-149-01 SPRING, BATTERY COIL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 20 — 7-3. CABINET (REAR) ASSY SECTION 101 104 106 107 108 109 109 104 104 105 110 115 111 112 113 115 114 105 116 117 118 119 120 120 121 102 103 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 101 3-318-203-62 SCREW (B1.7 × 4), TAPPING 102 3-032-164-01 PLATE, LOCK 103 3-032-163-01 BUCKLE (YELLOW) 103 3-032-163-11 BUCKLE (BLACK) (CND) 103 3-032-163-21 BUCKLE (BLUE) (CND) 104 3-318-201-61 SCREW (B) (1.4 × 6), TAPPING 105 3-381-629-11 SCREW, (B) (1.4 × 3), TAPPING 106 3-032-162-01 JOINT (AVLS) 107 3-386-371-01 PACKING, HP JACK 108 3-922-447-01 PACKING, DC JACK 109 3-023-112-01 SHAFT (BUCKLE) 110 X-3376-867-1 WIRE ASSY 111 3-032-156-01 GEAR (A) 112 3-032-157-01 GEAR (B) 113 X-3377-288-1 CABINET (REAR) SUB ASSY (YELLOW) 113 X-3377-289-1 CABINET (REAR) SUB ASSY (BLACK) (CND) 113 X-3377-282-1 CABINET (REAR) SUB ASSY (BLUE) (CND) 114 3-914-156-01 WINDOW, LED 115 3-934-002-01 GEAR (VOL) 116 3-012-927-01 RING, O 117 3-326-560-02 RING (DIA. 2.5 × DIA. 4.5), O 118 3-032-159-01 KNOB (FUNCTION) (YELLOW) 118 3-032-159-11 KNOB (FUNCTION) (BLACK) (CND) 118 3-032-159-21 KNOB (FUNCTION) (BLUE) (CND) 119 3-032-158-01 KNOB (VOL.TUNE) (YELLOW) 119 3-032-158-11 KNOB (VOL.TUNE) (BLACK) (CND) 119 3-032-158-21 KNOB (VOL.TUNE) (BLUE) (CND) 120 3-009-870-01 ROLLER (BUCKLE) 121 3-033-952-01 SHAFT (BUCKLE) Ver 1.1 2000. 05 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 21 — 7-4. MECHANISM DECK SECTION 1 (MF-WMFS111-114) 204 203 205 206 202 201 M901 HP301 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 201 3-013-560-11 BELT 202 3-703-816-31 SCREW (M1.4), SPECIAL HEAD 203 3-019-776-01 GEAR (REEL-S) 204 3-703-816-73 SCREW (M1.4), SPECIAL HEAD 205 X-3369-749-1 PINCH LEVER (N) ASSY 206 3-920-996-01 SPRING (PINCH N) HP301 1-500-517-11 HEAD, MAGNETIC (PLAYBACK) M901 1-763-073-11 MOTOR (REEL/CAPSTAN) (WITH PULLEY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 22 — 7-5. MECHANISM DECK SECTION 2 (MF-WMFS111-114) 255 258 254 259 260 261 262 263 264 265 266 267 252 251 253 257 256 268 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 251 3-921-797-01 WASHER 252 3-921-003-01 BEARING 253 3-938-628-01 SPRING (PLAY-CP) 254 3-019-773-01 GEAR (AS) 255 X-3374-598-1 CLUTCH ASSY (S) 256 3-022-093-01 SPRING (FR-S) 257 3-022-094-01 SPRING (STOP-S) 258 3-019-777-01 LEVER (OWS), DETECTION 259 3-728-091-01 WASHER, STOPPER 260 3-019-778-01 SLEEVE (MS) 261 3-921-335-01 WASHER, LEVER 262 3-920-990-01 SPRING (UD), COMPRESSION 263 3-019-774-01 GEAR (BS) 264 X-3369-747-1 WHEEL ASSY (SP), CAPSTAN 265 3-019-775-01 GEAR (DS) 266 3-036-664-01 SPRING (FR LEVER OWN) 267 X-3377-081-1 CHASSIS (COMP) ASSY (GL/O-CS) 268 3-025-454-01 SPRING(SW-S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 23 — NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • Abbreviation CND : Canadian model MX : Mexican model When indicating parts by reference number, please include the board name. SECTION 8 ELECTRICAL PARTS LIST A-3021-212-A MAIN BOARD, COMPLETE (US,CND,MX) ******************** A-3021-214-A MAIN BOARD, COMPLETE (AEP,E) ******************** 3-386-374-01 SCREW(1.7) 3-934-003-01 JOINT(TUNE) 3-934-023-01 JOINT(VOL) 7-627-850-57 SCREW,PRECISION +P 1.4 × 3.5 < BATTERY > BT1 3-921-878-01 TERMINAL BOARD, BATTERY BT2 3-032-149-01 SPRING, BATTERY COIL < CAPACITOR > C1 1-163-133-00 CERAMIC CHIP 470PF 5% 50V C2 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C3 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C4 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C5 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V C6 1-162-997-11 CERAMIC CHIP 10PF 0.5PF 50V C7 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C8 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C9 1-162-939-11 CERAMIC CHIP 8PF 0.5PF 50V (US,CND,MX) C9 1-162-997-11 CERAMIC CHIP 10PF 0.5PF 50V (AEP,E) C10 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C11 1-115-156-11 CERAMIC CHIP 1uF 10V C12 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C13 1-164-156-11 CERAMIC CHIP 0.1uF 25V C14 1-115-156-11 CERAMIC CHIP 1uF 10V C17 1-164-156-11 CERAMIC CHIP 0.1uF 25V C18 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V (US,CND,MX) C18 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V (AEP,E) C19 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V (US,CND,MX) C19 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V (AEP,E) C20 1-124-433-00 ELECT 100uF 20% 4V C22 1-109-935-11 TANTAL. CHIP 4.7uF 20% 4V C23 1-164-505-11 CERAMIC CHIP 2.2uF 16V C25 1-115-416-11 CERAMIC CHIP 1000PF 5% 25V (US,CND,MX) C26 1-164-362-11 CERAMIC CHIP 470PF 5% 50V C27 1-115-156-11 CERAMIC CHIP 1uF 10V C28 1-163-205-00 CERAMIC CHIP 0.001uF 5% 50V C29 1-163-081-00 CERAMIC CHIP 0.22uF 25V C30 1-163-081-00 CERAMIC CHIP 0.22uF 25V C31 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C101 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C102 1-164-505-11 CERAMIC CHIP 2.2uF 1 6V C103 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C104 1-126-153-11 ELECT 22uF 20% 6.3V C105 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C106 1-115-156-11 CERAMIC CHIP 1uF 10V C107 1-164-346-11 CERAMIC CHIP 1uF 16V C108 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C109 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C201 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C202 1-164-505-11 CERAMIC CHIP 2.2uF 16V C203 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C204 1-126-153-11 ELECT 22uF 20% 6.3V C205 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C206 1-115-156-11 CERAMIC CHIP 1uF 10V C207 1-115-156-11 CERAMIC CHIP 1uF 10V C208 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C209 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C301 1-115-156-11 CERAMIC CHIP 1uF 10V C302 1-115-156-11 CERAMIC CHIP 1uF 10V C305 1-164-505-11 CERAMIC CHIP 2.2uF 16V C306 1-124-433-00 ELECT 100uF 20% 4V C307 1-115-156-11 CERAMIC CHIP 1uF 10V C308 1-115-156-11 CERAMIC CHIP 1uF 10V C309 1-124-433-00 ELECT 100uF 20% 4V C310 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C311 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C312 1-164-346-11 CERAMIC CHIP 1uF 16V C313 1-115-156-11 CERAMIC CHIP 1uF 10V C314 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C315 1-126-153-11 ELECT 22uF 20% 6.3V C316 1-126-153-11 ELECT 22uF 20% 6.3V C317 1-113-619-11 CERAMIC CHIP 0.47uF 10V C318 1-162-974-11 CERAMIC CHIP 0.01uF 50V C319 1-162-974-11 CERAMIC CHIP 0.01uF 50V C320 1-163-063-00 CERAMIC CHIP 0.022uF 50V C601 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V C602 1-135-187-21 TANTAL. CHIP 2.2uF 20% 4V C603 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C604 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 24 — MAIN C605 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C606 1-124-434-00 ELECT 220uF 20% 4V C607 1-164-344-11 CERAMIC CHIP 0.068uF 10% 25V C608 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C609 1-162-974-11 CERAMIC CHIP 0.01uF 50V C610 1-107-823-11 CERAMIC CHIP 0.47uF 10% 16V < FILTER > CF1 1-781-300-21 FILTER, CERAMIC (450kHz) CF2 1-767-736-71 FILTER ASSY, CERAMIC (10.7MHz) < CONNECTOR > CN303 1-750-346-21 CONNECTOR, FFC/EPC (ZIF) 6P < VARIABLE CAPACITOR > CV1 1-151-653-11 CAP, VARIABLE (US,CND,MX) CT1-4 1-151-653-11 CAP, ADJ (US,CND,MX) CV1 1-151-654-11 CAP, VARIABLE (AEP,E) CT1-4 1-151-654-11 CAP, ADJ (AEP,E) < DIODE > D301 8-719-984-02 LED BR4371F (BATT) < FERRITE BEAD > FB101 1-414-760-21 FERRITE 0uH FB201 1-414-760-21 FERRITE 0uH FB301 1-414-813-11 FERRITE 0uH < FILTER > FL1 1-236-711-21 FILTER, BAND PASS < IC > IC1 8-759-493-20 IC TA2111F-(EL) IC301 8-759-821-89 IC LA4571M-T1 IC601 8-759-447-73 IC LB1979V-TLM < JUMPER CHIP > JC1 1-216-296-91 SHORT 0 JC2 1-216-296-91 SHORT 0 JC3 1-216-296-91 SHORT 0 JC4 1-216-296-91 SHORT 0 JC5 1-216-296-91 SHORT 0 JC6 1-216-296-91 SHORT 0 JC7 1-216-296-91 SHORT 0 JC8 1-216-296-91 SHORT 0 JC9 1-216-296-91 SHORT 0 JC10 1-216-296-91 SHORT 0 JC11 1-216-296-91 SHORT 0 JC12 1-216-296-91 SHORT 0 JC14 1-216-296-91 SHORT 0 JC15 1-216-296-91 SHORT 0 JC16 1-216-296-91 SHORT 0 JC17 1-216-296-91 SHORT 0 JC18 1-216-296-91 SHORT 0 JC19 1-216-296-91 SHORT 0 JC20 1-216-296-91 SHORT 0 JC21 1-216-296-91 SHORT 0 JC22 1-216-296-91 SHORT 0 JC23 1-216-296-91 SHORT 0 JC24 1-216-296-91 SHORT 0 JC25 1-216-296-91 SHORT 0 JC26 1-216-296-91 SHORT 0 JC27 1-216-296-91 SHORT 0 JC28 1-216-296-91 SHORT 0 JC31 1-216-295-91 SHORT 0 JC32 1-216-295-91 SHORT 0 JC33 1-216-295-91 SHORT 0 JC41 1-216-864-11 METAL CHIP 0 5% 1/16W JC42 1-216-864-11 METAL CHIP 0 5% 1/16W JC43 1-216-864-11 METAL CHIP 0 5% 1/16W JC44 1-216-864-11 METAL CHIP 0 5% 1/16W JC47 1-216-864-11 METAL CHIP 0 5% 1/16W JC50 1-216-864-11 METAL CHIP 0 5% 1/16W JC51 1-216-864-11 METAL CHIP 0 5% 1/16W JC52 1-216-864-11 METAL CHIP 0 5% 1/16W < COIL > L1 1-754-052-11 ANTENNA, FERRITE-ROD L2 1-416-960-11 COIL(WITH CORE) L3 1-416-959-11 COIL(WITH CORE) L4 1-416-958-11 COIL(OSC) < TRANSISTOR > Q1 8-729-231-74 TRANSISTOR 2SC4116GL-TE85L (US,CND,MX) Q2 8-729-230-60 TRANSISTOR 2SA1586YG-TE85L Q3 8-729-014-12 TRANSISTOR RN1311-TE85L Q4 8-729-014-12 TRANSISTOR RN1311-TE85L Q5 8-729-014-12 TRANSISTOR RN1311-TE85L Q6 8-729-028-76 TRANSISTOR RN2307-TE85L Q7 8-729-014-12 TRANSISTOR RN1311-TE85L (AEP,E) Q8 8-729-028-76 TRANSISTOR RN2307-TE85L (AEP,E) Q101 8-729-421-26 TRANSISTOR RN1310-TE85L Q102 8-729-231-74 TRANSISTOR 2SC4116GL-TE85L Q103 8-729-231-74 TRANSISTOR 2SC4116GL-TE85L Q104 8-729-421-26 TRANSISTOR RN1310-TE85L Q201 8-729-421-26 TRANSISTOR RN1310-TE85L Q202 8-729-231-74 TRANSISTOR 2SC4116GL-TE85L Q203 8-729-231-74 TRANSISTOR 2SC4116GL-TE85L Q204 8-729-421-26 TRANSISTOR RN1310-TE85L Q301 8-729-014-12 TRANSISTOR RN1311-TE85L Q304 8-729-014-12 TRANSISTOR RN1311-TE85L Q305 8-729-014-12 TRANSISTOR RN1311-TE85L Q306 8-729-014-86 TRANSISTOR 2SC4207-YGRTE85L Q307 8-729-230-72 TRANSISTOR 2SA1362-YG-EL Q308 8-729-014-12 TRANSISTOR RN1311-TE85L < RESISTOR > R1 1-216-821-11 METAL CHIP 1K 5% 1/16W (US,CND,MX) R2 1-216-308-00 METAL CHIP 4.7 5% 1/10W R3 1-216-835-11 METAL CHIP 15K 5% 1/16W R4 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R6 1-216-815-11 METAL CHIP 330 5% 1/16W R8 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R9 1-216-845-11 METAL CHIP 100K 5% 1/16W R13 1-216-835-11 METAL CHIP 15K 5% 1/16W R14 1-216-835-11 METAL CHIP 15K 5% 1/16W R103 1-216-855-11 METAL CHIP 680K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 25 — R104 1-216-835-11 METAL CHIP 15K 5% 1/16W R105 1-216-819-11 METAL CHIP 680 5% 1/16W R107 1-216-864-11 METAL CHIP 0 5% 1/16W R108 1-216-811-11 METAL CHIP 150 5% 1/16W R109 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R110 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R111 1-216-811-11 METAL CHIP 150 5% 1/16W R112 1-216-849-11 METAL CHIP 220K 5% 1/16W R113 1-216-202-00 RES,CHIP 1.5K 5% 1/8W R114 1-216-835-11 METAL CHIP 15K 5% 1/16W R115 1-216-835-11 METAL CHIP 15K 5% 1/16W R203 1-216-855-11 METAL CHIP 680K 5% 1/16W R204 1-216-835-11 METAL CHIP 15K 5% 1/16W R205 1-216-819-11 METAL CHIP 680 5% 1/16W R207 1-216-864-11 METAL CHIP 0 5% 1/16W R208 1-216-811-11 METAL CHIP 150 5% 1/16W R209 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R210 1-216-823-11 METAL CHIP 1.5K 5% 1/16W R211 1-216-811-11 METAL CHIP 150 5% 1/16W R212 1-216-849-11 METAL CHIP 220K 5% 1/16W R213 1-216-202-00 RES,CHIP 1.5K 5% 1/8W R214 1-216-835-11 METAL CHIP 15K 5% 1/16W R215 1-216-835-11 METAL CHIP 15K 5% 1/16W R301 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R303 1-216-817-11 METAL CHIP 470 5% 1/16W R304 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R305 1-216-789-11 METAL CHIP 2.2 5% 1/16W R308 1-216-065-91 RES,CHIP 4.7K 5% 1/10W R309 1-216-833-91 RES,CHIP 10K 5% 1/16W R310 1-216-845-11 METAL CHIP 100K 5% 1/16W R311 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R312 1-216-821-11 METAL CHIP 1K 5% 1/16W R313 1-216-194-00 METAL CHIP 680 5% 1/8W R314 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R315 1-216-841-11 METAL CHIP 47K 5% 1/16W R601 1-216-821-11 METAL CHIP 1K 5% 1/16W R602 1-216-845-11 METAL CHIP 100K 5% 1/16W R603 1-216-821-11 METAL CHIP 1K 5% 1/16W R604 1-216-833-91 RES,CHIP 10K 5% 1/16W R605 1-216-821-11 METAL CHIP 1K 5% 1/16W R606 1-216-857-11 METAL CHIP 1M 5% 1/16W R607 1-216-857-11 METAL CHIP 1M 5% 1/16W R608 1-216-857-11 METAL CHIP 1M 5% 1/16W R609 1-216-821-11 METAL CHIP 1K 5% 1/16W R611 1-216-821-11 METAL CHIP 1K 5% 1/16W < VARIABLE RESISTOR > RV301 1-225-184-11 RES, VAR, CARBON 10K/10K (∑VOL) RV601 1-241-916-11 RES, ADJ, CARBON 4.7K < SWITCH > S301 1-692-605-31 SWITCH, SLIDE (FUNCTION) S302 1-771-092-21 SWITCH, PUSH (1 KEY) (0/(/)) S304 1-762-624-11 SWITCH, SLIDE (TAPE/FM SENS) (US,CND,MX) S304 1-762-624-11 SWITCH, SLIDE (TAPE/FM MODE) (AEP,E) S305 1-771-586-11 SWITCH, LEVER (SLIDE) (AVLS) S306 1-771-586-11 SWITCH, LEVER (SLIDE) (MEGA BASS) < TRANSFORMER > T1 1-411-722-11 TRANSFORMER, IF < THERMISTOR > TH601 1-810-794-11 THERMISTOR, POSITIVE < VIBRATOR > X2 1-767-736-71 FILTER ASSY, CERAMIC (10.7MHz) ************************************************************ * 1-672-324-11 HEADPHONE BOARD **************** < JACK > J301 1-565-376-11 JACK (2) ************************************************************ MISCELLANEOUS ************* BT1 3-921-878-01 TERMINAL BOARD, BATTERY BT2 3-032-149-01 SPRING, BATTERY COIL HP301 1-500-517-11 HEAD, MAGNETIC (PLAYBACK) M901 1-763-073-11 MOTOR (REEL/CAPSTAN) (WITH PULLEY) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 3-032-171-01 CLIP(BELT) 3-037-307-01 STOPPER (BUCKLE) 3-326-162-08 WASHER, POLYETHYLENE, SLIT 3-378-331-21 SCREW,CARRYING CASE 3-864-882-11 MANUAL, INSTRUCTION (ENGLISH/FRENCH/GERMAN/ITALIAN) (US,CND,AEP) 3-864-882-21 MANUAL, INSTRUCTION (SPANISH/PORTUGUESE/DUTCH/ SWEDISH/FINNISH)(AEP) 3-864-882-31 MANUAL, INSTRUCTION (ENGLISH/SPANISH/TRADITIONAL CHINESE/ KOREAN)(E) 3-864-882-41 MANUAL, INSTRUCTION (SPANISH) (MX) 8-953-284-90 HEADPHONE MDR-W014LP/RK SET (BLACK)(CND) 8-953-284-91 HEADPHONE MDR-W014LP/YK SET (YELLOW) 8-953-284-92 HEADPHONE MDR-W014LP/LK SET(BLUE) (CND) MAIN HEADPHONE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 26 — WM-FS111 Sony Corporation Personal A&V Products Company 99C1682-1 Printed in Japan ©1999.3 Published by Quality Engineering Dept. (Shinagawa) 9-926-980-11 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
