索尼SONY WM-EX910电路图
)
)
)
)
)
)
)
)
)
)

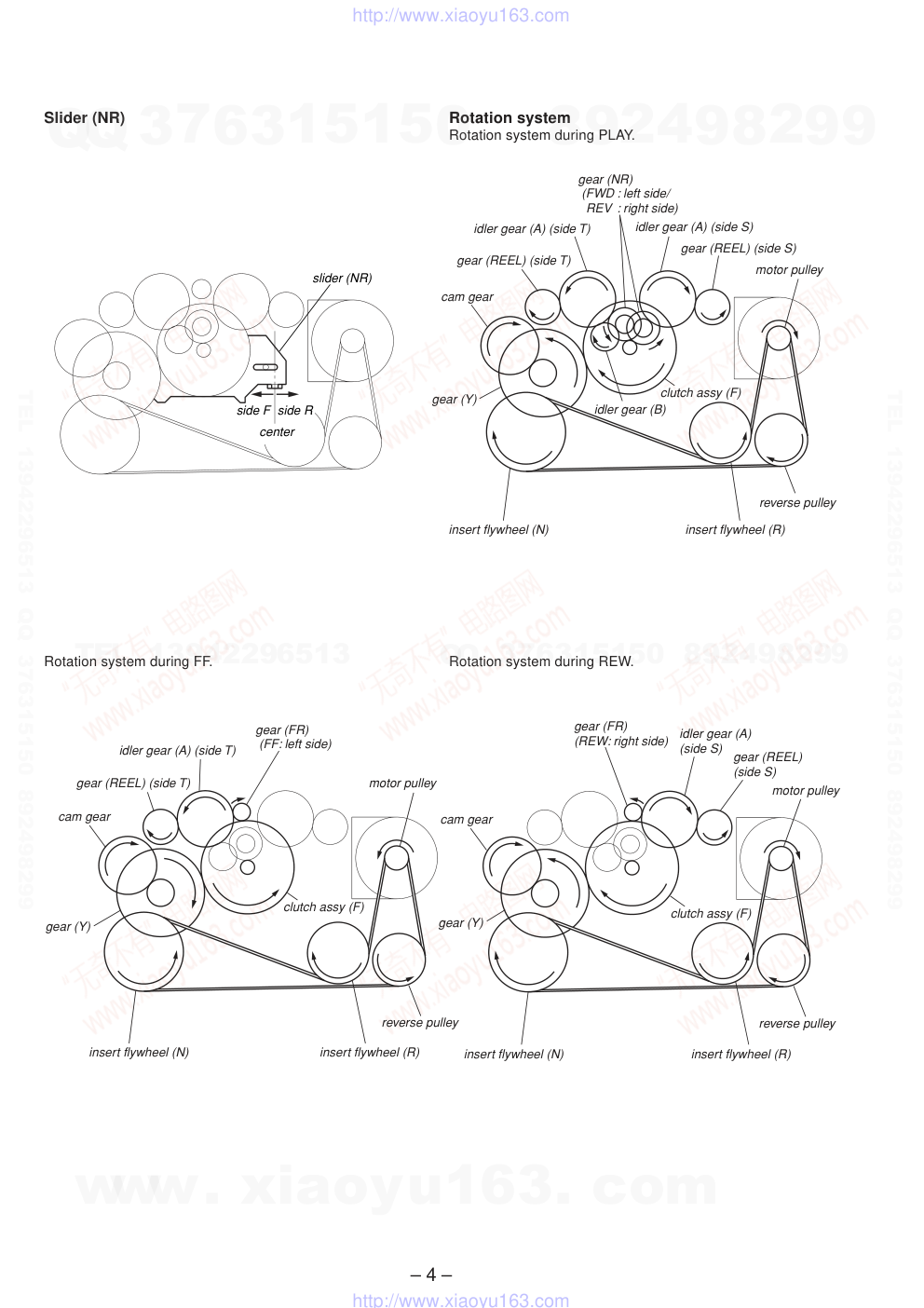

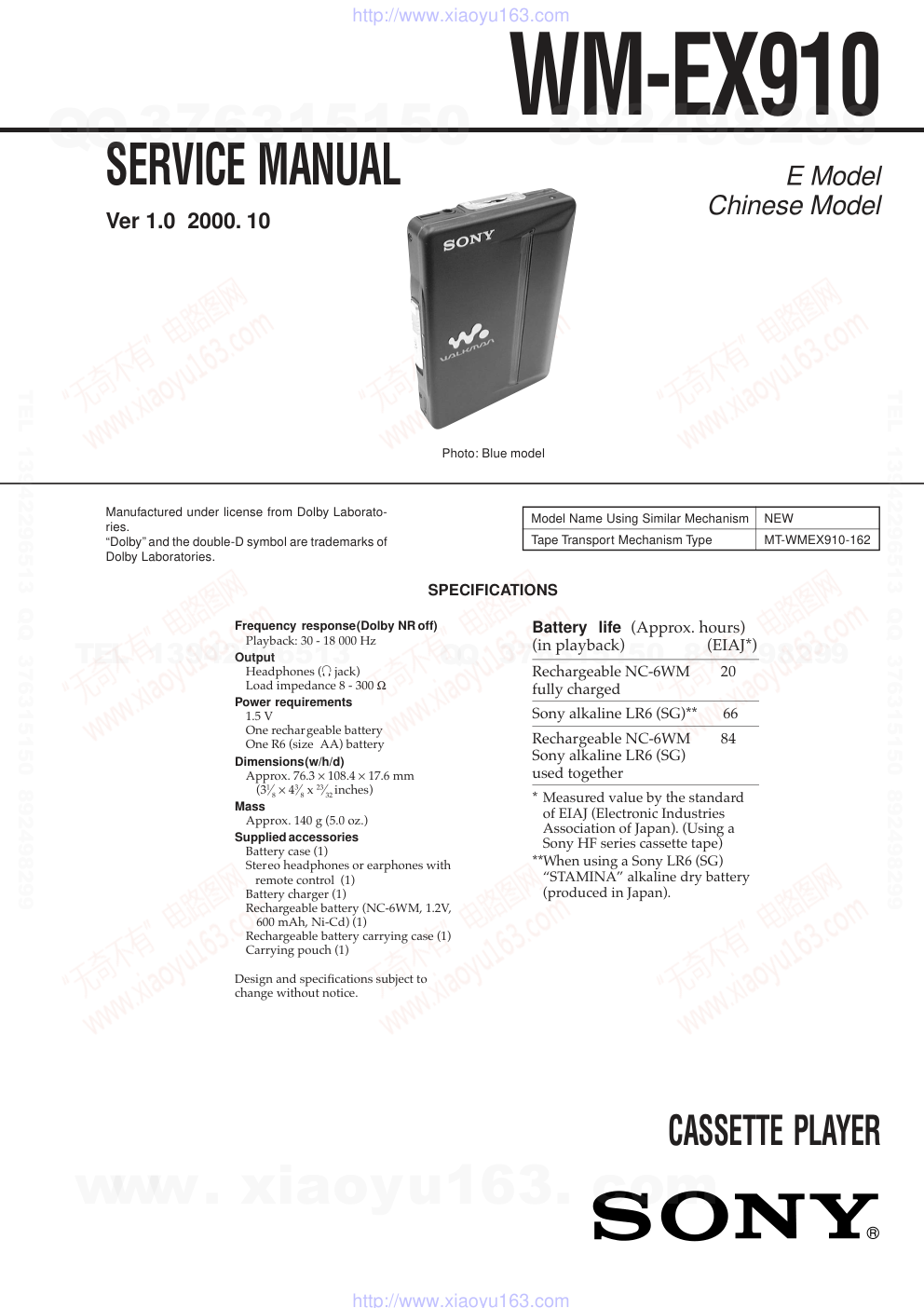

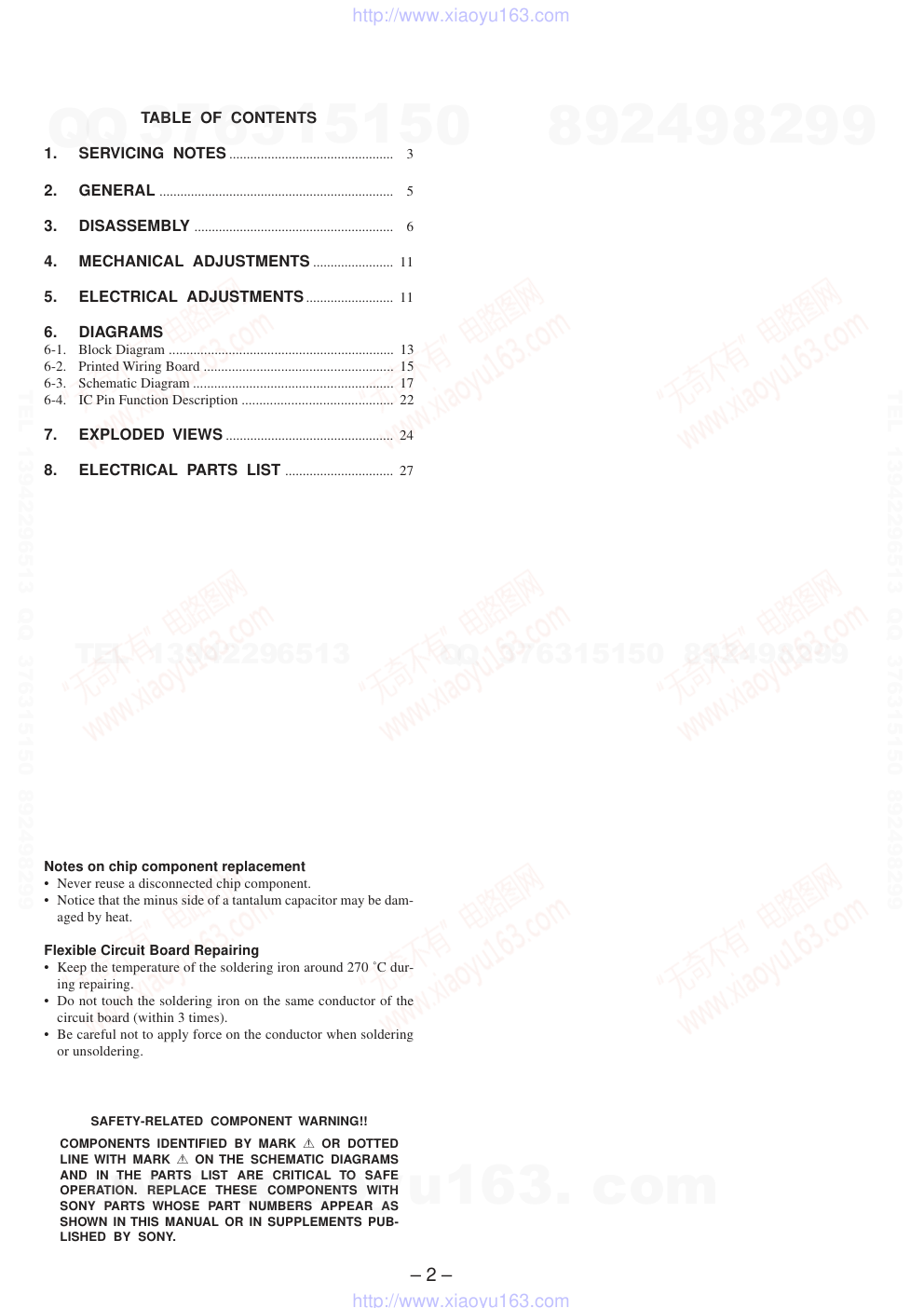

SERVICE MANUAL Ver 1.0 2000. 10 CASSETTE PLAYER E Model Chinese Model SPECIFICATIONS WM-EX910 Photo: Blue model Manufactured under license from Dolby Laborato- ries. “Dolby” and the double-D symbol are trademarks of Dolby Laboratories. Model Name Using Similar Mechanism NEW Tape Transport Mechanism Type MT-WMEX910-162 Battery life (Approx. hours) (in playback) (EIAJ*) Rechargeable NC-6WM 20 fully charged Sony alkaline LR6 (SG)** 66 Rechargeable NC-6WM 84 Sony alkaline LR6 (SG) used together * Measured value by the standard of EIAJ (Electronic Industries Association of Japan). (Using a Sony HF series cassette tape) **When using a Sony LR6 (SG) “STAMINA” alkaline dry battery (produced in Japan). Frequency response (Dolby NR off) Playback: 30 - 18 000 Hz Output Headphones (i jack) Load impedance 8 - 300 Ω Power requirements 1.5 V One rechargeable battery One R6 (size AA) battery Dimensions (w/h/d) Approx. 76.3 × 108.4 × 17.6 mm (31⁄8 × 43⁄8 x 23⁄32 inches) Mass Approx. 140 g (5.0 oz.) Supplied accessories Battery case (1) Stereo headphones or earphones with remote control (1) Battery charger (1) Rechargeable battery (NC-6WM, 1.2V, 600 mAh, Ni-Cd) (1) Rechargeable battery carrying case (1) Carrying pouch (1) Design and specifications subject to change without notice. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 3 2. GENERAL ................................................................... 5 3. DISASSEMBLY ......................................................... 6 4. MECHANICAL ADJUSTMENTS ....................... 11 5. ELECTRICAL ADJUSTMENTS ......................... 11 6. DIAGRAMS 6-1. Block Diagram ................................................................ 13 6-2. Printed Wiring Board ...................................................... 15 6-3. Schematic Diagram ......................................................... 17 6-4. IC Pin Function Description ........................................... 22 7. EXPLODED VIEWS ................................................ 24 8. ELECTRICAL PARTS LIST ............................... 27 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – SECTION 1 SERVICING NOTES This set detects the rotation of the idler gear (A) (side S and side T) using the photo reflector (PH701, 702). The PH701, 702 are mounted on the MAIN board, therefore the idler gear (A) (side S and side T) cannot be detected with the MAIN board removed. As a result, the motor (M601) cannot be controlled, causing malfunc- tion. Further, the DIRECTION switch (S702) is also mounted on the MAIN board, and with the board removed, the mechanism posi- tion cannot be detected and the operation is not changed over. Therefor, when the voltage check is executed with the MAIN board removed, follow the procedure provided below. 1. Setting 1) Refer to “3. DISASSEMBLY”, and remove the MAIN board. 2) Connect the MAIN board to the motor (M601) and the plunger (PM701) using jumper wires. These can be connected easily with the use of the extension tool (Part No. 1-769-143-11) (ten in one set). 3) Short the lands by solder. 4) Connect the AF oscillator to the TP31 (PH-S), TP32 (PH-T) and the TP (GND). 5) Supply 1.3 V to the battery terminals using the regulated power supply. 2. Preset state To set the PLAY, FF, REW modes, the preset state must be set. 1) Check that the slider (NR) and the DIRECTION switch (S702) are set to the center position. If not, set the preset state as fol- low. 2) Move the DIRECTION switch (S702) to the side, which the slider (NR) is facing. 3) The slider (NR) will move when the regulated power supply switch is set to OFF once and then set to ON. Move the DI- RECTION switch (S702) according to this timing and set to the center position. 3. FF, REW modes 1) Check that the preset state is set. 2) Input the square wave or sine wave to the TP31 (PH-S), TP32 (PH-T) and the TP (GND). 3) Move the jog lever (S703) toward [FF] or [REW]. 4. PLAY mode 1) Check that the preset state is set. 2) Input the square wave or sine wave to the TP31 (PH-S), TP32 (PH-T) and the TP (GND). 3) Press the jog lever (S703) will move the slider (NR) once to- wards the side REV and then to the side FWD. Move the DI- RECTION switch (S702) according to this timing will set the PLAY mode (side FWD). Press the jog lever (S703) another time for a second and move the DIRECTION switch (S702) ac- cording to the movement of the slider (NR) will set the PLAY mode (side REV). Note 1: If the above fails, perform from preset again. Note 2: When using headphones, the timing for move the DIRECTION switch (S702) can be determined from the beep sound. + – PUSH – Y/ x r PH702 S703 jog lever S702 (DIRECTION) BP701 FWD R STOP r REV PH701 > REW . FF – MAIN BOARD (Side A) – – MAIN BOARD (Side B) – connect to the plunger (PM701) TP32 (PH-T) TP (GND) TP31 (PH-S) AF oscillator square wave (sine wave) 100 Hz, –3.5 dB connect to the motor (M601) battery terminal 3 battery terminal # www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – Slider (NR) Rotation system Rotation system during PLAY. Rotation system during FF. Rotation system during REW. slider (NR) side F side R center insert flywheel (N) insert flywheel (R) reverse pulley clutch assy (F) gear (Y) cam gear gear (REEL) (side T) motor pulley idler gear (A) (side T) gear (FR) (FF: left side) insert flywheel (N) insert flywheel (R) reverse pulley clutch assy (F) idler gear (B) gear (Y) cam gear gear (REEL) (side T) gear (REEL) (side S) motor pulley idler gear (A) (side T) idler gear (A) (side S) gear (NR) (FWD : left side/ REV : right side) insert flywheel (N) insert flywheel (R) reverse pulley clutch assy (F) gear (Y) cam gear gear (REEL) (side S) motor pulley idler gear (A) (side S) gear (FR) (REW: right side) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – SECTION 2 GENERAL This section is extracted from instruction manual. A UK, Australian, and Hong Kong model Modèle pour le Royaume-Unie, l’Australie et Hong-Kong Modell für GB, Australien und Hongkong Other models Autres modèles Andere Modelle 1 2 3 4 B VOL AVLS OPEN C D Y • x FF (+) REW (–) Jog lever Levier Jog Jog-Hebel FWD REV HOLD Plug in firmly. Branchez fermement. Fest einstecken. Hold shutter Cache de verrouillage Schutzschieber Jog lever Levier Jog Jog-Hebel FF REW E HOLD MODE SOUND F G OPEN Hold shutter Cache de verrouillage Schutzschieber VOL AVLS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – SECTION 3 DISASSEMBLY • This set can be disassembled in the order shown below. Note: Follow the disassembly procedure in the numerical order given. CASE SECTION SET CASE SECTION MAIN BOARD HOLDER (FA) ASSY HEAD, MAGNETIC (PLAYBACK) (HP901) BELT (F4) MOTOR, DC (CAPSTAN/REEL) (M601) ORNAMENT (OPEN) BLOCK ASSY LID SUB ASSY, CASSETTE LEVER (N2)/(R2) ASSY, PINCH S701 knob (vol) Note:On installation “lid assy, cassette” adjust the S701 and knob (vol). lid assy, cassette 4 Close terminal board assy. 5 two screws (MI) 6 screw (MI) 2 claw 1 open “lid, battery case”. 3 lid, battery case 7 case section 5 two screws (MI) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – MAIN BOARD BELT (F4) 2 screw (M1.4) (toothed lock) 3 MAIN board 2 screw 2 screw 1 Remove six solders of head flexible board. 1 Remove seven solders of “motor, DC (M601)”. 1 Remove two solders of “solenoid, plunger”. 1 Remove four solders of “switch, leaf (S704)” slider S702 Note:On installation MAIN board adjust the S702 and slider. 2 terminal board, battery 1 Remove solder of “terminal board, battery”. 3 belt (F4) pulley, motor pulley, reverse flywheel (R), insert belt (F4) flywheel (N), insert www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – MOTOR, DC (CAPSTAN/REEL) (M601) LID SUB ASSY, CASSETTE 2 motor, DC (capstan/reel) (M601) 1 two screws (M1.4) 2 two screws (MI) 2 screw 3 boss 1 Open “lid assy, cassette”. 4 lid sub assy, cassette www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – ORNAMENT (OPEN) BLOCK ASSY HOLDER (FA) ASSY 2 claw 4 two claws 5 ornament (open) block assy 3 boss 1 1 7 bracket (cassette/910) assy 2 boss 6 boss 3 lever (B) (/M), lock 5 lever (S) (/M), lock 1 two screws (M1.4) 4 screws (M1.4) 8 Remove six solders of head flexible board. 9 holder (FA) assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – LEVER (N2)/(R2) ASSY, PINCH HEAD, MAGNETIC (PLAYBACK) (HP901) 1 claw 3 claw 2 Remove “lever (R2) assy, pinch” in the direction of the arrow. 4 Remove “lever (N2) assy, pinch” in the direction of the arrow. holder (FA) assy 4 boss lever, head 3 claw 1 claw 2 5 head, magnetic (playback) (HP901) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened swab: playback head pinch roller rubber belts capstan 2. Demagnetize the playback head with a head demagnetizer. (Do not bring the head demagnetizer close to the erase head.) 3. Do not use a magnetized screwdriver for the adjustments. 4. The adjustments should be performed with the rated power supply voltage (1.3 V) unless otherwise noted. Torque Measurement Mode Torque Meter Meter Reading (1.47 – 2.94 mN•m) FWD 15 – 25 g•cm CQ-102C (0.22 – 0.36 oz•inch) (0.029 – 0.196 mN•m) FWD 0.3 – 2.0 g•cm Back Tension (0.004 – 0.01 oz•inch) (1.47 – 2.94 mN•m) REV 15 – 25 g•cm CQ-102RC (0.22 – 0.36 oz•inch) (0.029 – 0.196 mN•m) REV 0.3 – 2.0 g•cm Back Tension (0.004 – 0.01 oz•inch) (more than 3.43 mN•m) FF, REW CQ-201B more than 35 g•cm (more than 0.5 oz•inch) SECTION 4 MECHANICAL ADJUSTMENTS SECTION 5 ELECTRICAL ADJUSTMENTS PRECAUTION 1. Specified voltage : 1.3 V (DC) 2. Switch position VOL, AVLS : Center 3. Remote control setting HOLD switch : OFF VOL knob : MAX DOLBY NR : OFF SOUND mode : Normal 0 dB=0.775 V Test tape Type Signal Used for WS-48A 3 kHz, 0 dB Tape Speed Adjustment Tape Speed Adjustment Setting: Procedure: 1. Playback WS-48A (tape center) in the FWD state. 2. Adjsut RV601 so that the frequency counter reading becomes 3,000 Hz. Specification Values: 2,985 to 3,015 Hz 3. Playback WS-48A (tape center) in the REV state. Check that the frequency counter reading is within 2.0% (approx.60 Hz) of the reading of step 1. Adjustment Location: – MAIN BOARD – frequency counter test tape WS-48A (3 kHz, 0 dB) set i jack (J301) – + 16 Ω RV601 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-EX910 – 13 – – 14 – SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAM PREAMP METAL CONTROL HP901 (PLAYBACK) AUDIO MASTER AMP IC301-1 S704-2 (ATS) PRE OUT-L MTL DRV-R FWD IN-L REV IN-L L-CH R-CH FWD L-CH R-CH REV R-CH R-CH R-CH F/R SW M/N SW 7 9 46 1 5 S704-1 (TAPE DETECT) F/R CTL 9 17 CASSETTE SW 5 METAL SWITCH Q306 METAL EQ AMP CONTROL Q305 PRE OUT CONTROL Q315 R-CH FWD SW CEN SW REV SW S701 (DIRECTION) FWD STOP REV 2 3 4 MAX MID MIN 4 5 14 IN-L OUL-L VCC B+ SWITCH Q316 DOLBY NR AMP IC303 DDC B+ VOLUME MIN SWITCH Q315 VOLUME MAX SWITCH Q311 R-CH R-CH R-CH DDC B+ VOL, AVLS S301 MUTING Q317 DOLBY CTL 20 AUDIO ATT REVIVE CTL MEGA BASS CTL AMS IN BOOST CTL MUTE CTL BEEP DATA/RMUM KEY IN XT0 XT1 1 7 28 29 30 MEGA BASS/ GROOVE SWITCHING Q302 REVIVE/ GROOVE SWITCHING Q304 8 R-CH AMS V/I BASS BOOST AMP BST OUT AMS OUT 40 33 AMS IN 12 POWER AMP POWER AMP EQ-L PW IN-C PW NF-L PW IN-L 32 43 41 42 R-CH R-CH AGC DET 35 AGC IN 21 PW OUT-C 20 17 18 19 PW OUT-L BEEP i 39 39 10 12 36 BST SW MT SW PW SW BEEP R-CH BATT B+ VCC DATA REMO GND JOG LEVER & SWITCH S703 REW/FF PUSH Y/x + RIPPLE FILTER Q309 BATT B+ AUDIO MASTER AMP IC301-2 RF OUT BASE VCC J301 6 16 28 29 X701 32.768kHz M/N CONTROL Q301 PLUNGER DRIVE Q701 PM701 (PLUNGER) PM CTL RECHARGEABLE BATTERY NC-6WM DRY BATTERY SIZE “AA” (IEC DESIGNATION R6) 1PC. 1.5V BATTERY CASE DC/DC CONVERTER IC701 1 2 3 4 8 7 VOLTAGE DETECT IC702 STOP SWITCH Q702 BATT B+ RESET SIGNAL GENERATOR IC704 VOLTAGE DETECT IC703 35 15 11 DDC B+ OUT1 OUT2 OUT3 OUT4 VCC CE DDC B+ ROTATION DETECT SENSOR (T REEL) PH702 DDC B+ ROTATION DETECT SENSOR (S REEL) PH701 19 CAPSTAN/REEL MOTOR SERVO IC601 DECODER SOFT CLIP 13 34 32 31 35 36 1 28 29 30 P-SIG ENCODER COMPARATOR PULSE ∆/∆t BUFFER COMPARATOR 14 15 17 CAPSTAN/REEL MOTOR START SWITCH Q602 BUFFER VI 16 4 5 6 POWER CURRENT AMP 21 9 7 TAPE SPEED RV601 CONTROL BLOCK 8 10 40 19 BATT B+ 2 CAPSTAIN/REEL MOTOR SWITCH Q601 CAPSTAIN/REEL MOTOR CONTROL Q603-2 CAPSTAIN/REEL MOTOR CONTROL Q603-1 M601 CAPSTAIN/REEL MOTOR 41 18 47 46 45 42 44 43 U V W TU TV TW COM MC UOUT VOUT WOUT US VS WS UT VT WT MC ENTER PSIG PW VC IV VI2 VI1 UIN VIN WIN U V W ICI1 DR CTRL1 CTRL2 CTRL1 CTRL2 U V W CTRL1 CTRL2 RESET BATT DET AMP CTL PHOTO CTL P-SIG MOTOR START SPEED CTL MOTOR U MOTOR V MOTOR W MOTOR DIR CTRL1 CTRL2 SYSTEM CONTROLLER IC705 44 37 PHOTO (S) IN 38 PHOTO (T) IN 05 • SIGNAL PATH • R-ch is omitted due to same as L-ch. : PLAY PHOTO REFLECTOR SWITCH & BUFFER Q703 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-EX910 – 15 – – 16 – 6-2. PRINTED WIRING BOARD • Semiconductor Location Ref. No. Location D701 D-2 D702 G-6 IC301 B-6 IC303 C-3 IC601 H-4 IC701 G-6 IC702 D-1 IC703 D-1 IC704 E-3 IC705 D-4 PH701 G-3 PH702 E-3 Q301 E-10 Q302 D-11 Q304 D-11 Q305 B-7 Q306 C-9 Q309 B-5 Q311 B-3 Q312 A-13 Q314 A-13 Q315 C-4 Q316 C-4 Q317 B-13 Q601 I-3 Q602 G-3 Q603 H-5 Q701 C-1 Q702 D-1 Q703 F-3 Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • z : Through hole. • b : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Side B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side A) the parts face are indicated. Q309 B C E FB701 E C B Q701 F701 R701 Q311 R212 R211 R112 R111 R317 C111 C113 C112 C212 C213 C211 1 7 14 8 IC303 R313 R314 C327 Q315 R724 R723 R721 R720 R718 R719 R716 R717 R722 R109 R209 R301 R308 C109 C209 C306 C324 + C303 C302 + IC301 48 37 13 24 1 12 36 25 C326 + C322 + C201 + C101 + Q305 C304 + CB301 C301 + 5 8 4 1 IC703 C702 IC702 1 2 4 3 E C B Q702 X701 D701 K A C707 C705 C708 C706 C709 R318 C329 R319 R320 E C B Q316 C208 C108 R709 R708 R706 IC705 24 13 37 48 12 1 25 36 IC704 1 2 4 3 R707 C704 C703 R714 R715 PH702 C710 R711 Q703 R712 R713 R614 R613 C611 R611 C610 Q602 B C E PH701 C612 + R610 C609 RV601 R606 E C B Q601 C601 R608 R605 R607 C608 + IC601 1 9 27 19 10 18 36 28 Q603 R729 R726 R728 R727 S702 (DIRECTION) FWD r STOP r REV IC701 1 2 3 5 4 L701 D702 A K i J301 VCC DATA REMOTE GND L R COM S703 REW/FF, PUSH Y / x S301 C328 + MAIN BOARD (SIDE A) 1-679-256- 11 (11) CB301 R205 R204 R201 R202 R105 R102 C203 R203 R104 R103 R101 C103 R303 Q306 B C E C323 + Q312 B C E Q314 B C E R316 R216 R116 R213 R113 R214 R114 R217 R117 Q317 R725 JC201 C107 C207 JC101 JC102 JC202 C325 R309 R310 C316 R108 R208 R312 R306 C319 R302 C102 C313 C202 C205 R207 C105 R107 C312 C310 C311 C309 C307+ C308 Q302 Q304 R710 R702 R705 R703 R704 R730 JC701 Q301 R602 R601 C605 R609 C607 C606 R604 R603 R612 C603 C604 C602 S704-1 (TAPE DETECT) S704-2 (ATS) BP701 PM701 RECHARGEABLE BATTERY NC-6WM 1.2V 600mAh REV FWD L-ch R-ch L-ch R-ch HP901 (PLAYBACK) 1 2 3 4 5 6 1 2 3 4 5 6 MAIN BOARD (SIDE B) 1-679-256- 11 (11) TV TW COM TU V U W M601 CAPSTAN/ REEL (CHASSIS) 05 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 A B C D E F G H I 1 7 14 8 C701 + 1S 1G 2D 1D 2G 2S FF REW 1S 1G 2D 1D 2G 2S 1S 1G 2D 1D 2G 2S VOL, AVLS MIN t MID t MAX 1E 1B 2C 1C 2B 2E 1B E 2B 1C 2C 1B E 2B 1C 2C 1B E 2B 1C 2C 1E 1B 2C 1C 2B 2E TP32 (PH-T) TP31 (PH-S) TP (GND) DRY BATTERY SIZE “AA” (IEC DESIGNATION R6) 1PC. 1.5V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-EX910 – 17 – – 18 – – 19 – 6-3. SCHEMATIC DIAGRAM • See page 20 for IC Block Diagrams. • Waveforms 1 IC701 5 (LX) 1 V/DIV, 10 µs/DIV 2 IC705 wh (CB2) 500 mV/DIV, 20 µs/DIV Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • C : panel designation. • A : B+ Line. • U : B+ Line. • H : adjustment for repair. • Power voltage is dc 1.3 V and fed with regulated dc power supply from battery terminal. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : PLAY ( ) : STOP [ ] : DOLBY NR ON • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. E : PLAY 3 IC705 wl (XT1) 1 V/DIV, 20 µs/DIV 4 IC705 ef (OSC1) 1 V/DIV, 1 µs/DIV 5 IC705 rg (MOTOR W), rh (MOTOR V), rj (MOTOR U) 500 mV/DIV, 2 ms/DIV 3 Vp-p 3 µs 2.4 Vp-p 1.8 µs 1.2 Vp-p 61 µs 1.3 Vp-p 6.6 ms 2.2 Vp-p 30 µs w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 20 – – 21 – – 22 – • IC Block Diagrams IC301 TA2123AF (EL) IC303 NJM2185AV-TE2 IC601 LB1994M-TLM IC703 MM1305BWBE PRE A PRE B MIX PW B PW A PW C BST MT TC BASE RF IN PW GND OUT B OUT C OUT A VCC RF OUT VREF OUT BST NF BST OUT PW IN C LPF EQ A PW NF A PW IN A PW IN B PW NF B 3 IN A-R 5 PRE NF-A 6 PRE OUT A 7 MTL DRV A 8 MTL DRV B 9 PRE OUT B 10 PRE NF-B 11 AMS IN 12 IN B-R 4 IN B-F 2 IN A-F 1 21 20 19 18 17 GND 16 AMS DET 15 AMS MIX 14 AMS SW 13 22 23 24 38 C-AMP SW 37 PW SW 42 MT SW 41 F/R SW 44 BST SW 43 M/N SW 46 PRE GND 47 VREF IN 48 PRE SW 45 AMS OUT 40 BEEP 39 26 27 28 29 30 31 32 33 34 DET 36 AGC IN 35 + – + – + – + – + – + – EQ B 25 RIPPLE FILTER AGC DET BEEP VREF SWITCH COMPARATOR MTL DRV 8 9 10 14 13 12 2 1 3 A-CH BLOCK 11 7 6 5 4 G2 G1 V/I WEIGHT BIAS CIRCUIT + – + – GM SUM V+ SW VEXT OUTA DCA DETA INA GND IREF VREF OUTB DCB DETB INB B-CH BLOCK: SAME AS A-CH. DECODER CTRL BLOCK POWER D/DT PULSE BUFFER COMPARATOR BUFFER VI COMPARATOR SOFT CLIP CURRENT AMP P-SIG PW•SW 4 5 6 1 2 9 7 8 14 15 16 17 18 19 20 21 22 24 23 25 26 27 30 29 28 36 35 34 33 32 31 WS MC U IN 3 VCC V IN W IN CTRL1 CTRL2 DIR VS US U OUT NC V OUT W OUT WT VT UT PGND FC CT2 CT1 IR ICI2 ICI1 I SOFT M CENTER GND VI2 VI1 IV VC 13 PW 12 CI 11 Vref 10 P SIG – + – + – + 1 2 3 4 5 6 7 8 OUT2 OUT3 OUT4 GND RIPPLE CE VCC OUT1 – + 6-4. IC PIN FUNCTION DESCRIPTION • MAIN BOARD IC705 ML63514-024TBZ060 (SYSTEM CONTROLLER) Pin No. Pin Name I/O Description 1 AUDIO ATT O Audio attenuate control signal output It attenuates, when cue/review “H”: attenuate 2 FWD SW I Tape direction switch (S702) input terminal “L”: forward position 3 CEN SW I Tape direction switch (S702) input terminal “L”: center position 4 RVS SW I Tape direction switch (S702) input terminal “L”: reverse position 5 CASSETTE SW I Cassette tape detect switch (S704-1) input terminal “L”: cassette detected, “H”: no cassette 6 DATA/RMUM I/O Communication serial data output to the remote commander, and connection detect signal input of the remote commander 7 REVIVE CTL O Emphasizing sound control signal output to the TA2123AF (IC301) “L”: normal/mega bass/groove, “H”: revive 8 MEGA BASS CTL O Emphasizing sound control signal output to the TA2123AF (IC301) “L”: normal/groove, “H”: mega bass/revive 9 F/R CTL O Forward/reverse selection signal output to the TA2123AF (IC301) “L”: forward direction, “H”: reverse direction 10 BOOST CTL O Bass boost control signal output to the TA2123AF (IC301) “L”: off, “H”: on 11 AMP CTL O Also, this is used as control signal output for power on/off to the TA2123AF (IC301), DC/DC converter (IC701) and voltage detector (IC703) “L”: power off, “H”: power on 12 MUTE CTL O Power on mute control signal output to the TA2123AF (IC301) “L”: mute on 13 A/B SW I Detection signal input of side A or B “L”: side A, “H”: side B Not used 14 MODEL SELECT I Model destination setting terminal Fixed at “H” in this set 15 BATT DET I Battery voltage detection signal input (A/D input) 16 KEY IN I Key input from the main unit or remote commander (A/D input) 17 PM CTL O Plunger drive signal output terminal “L”: plunger on 18 SPEED CTL O Motor speed control signal output to the capstan/reel motor driver IC (IC601) “L”: normal speed, “H”: 1/2 speed 19 PHOTO CTL O Control signal output to the idler gear rotation detect circuit “L”: rotation detect circuit on 20 DOLBY CTL O Power on/off control signal output to the Dolby NR circuit “L”: Dolby NR on 21 VDD1 — Power supply terminal (+2.5V) (for external interface) 22 VSS — Ground terminal 23 VDD — Power supply terminal (+1.5V) 24 VDDH — Power supply terminal (+2.5V) (for back-up boost) 25, 26 CB1, CB2 — Connected to capacitor for the boost power supply 27 VDDL — Power supply terminal (for internal logic) 28 XT0 I Main system clock input terminal (32.768kHz MHz) 29 XT1 O Main system clock output terminal (32.768kHz MHz) 30, 31 TST1B, TEST2B I Test input terminal Normally: fixed at “H” 32 OSCM — Connected to capacitor for the oscillator Not used (open) 33 OSC0 I Connected to resistor for the high speed CR oscillator (550 kHz) 34 OSC1 O Connected to resistor for the high speed CR oscillator (550 kHz) 35 RESET I System reset signal input from the reset signal generator (IC704) “L”: reset “L” is input for several 100 msec after power on, then it changes to “H” 36 BEEP O Beep sound signal output to the TA2123AF (IC301) 37 PHOTO (S) IN I Rotation detect signal input of the capstan/reel motor (M601) It detects rotation of the idler gear (A) (side S) 38 PHOTO (T) IN I Rotation detect signal input of the capstan/reel motor (M601) It detects rotation of the idler gear (A) (side T) 39 AMS IN I Whether a music is present or not from TA2123AF (IC301) is detected at auto music sensor “L”: music is present, “H”: music is not present w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 23 – Pin No. Pin Name I/O Description 40 P-SIG I P-SIG signal input from the capstan/reel motor driver IC (IC601) 41 MOTOR RESTART O Motor restart control signal output to the capstan/reel motor driver IC (IC601) “L”: restart the motor 42 MOTOR DIR O Motor direction control signal output to the capstan/reel motor driver IC (IC601) “L”: clockwise, “H”: counterclockwise 43, 44 CTRL1, CTRL2 O Mode selection signal output to the capstan/reel motor driver IC (IC601) 45 MOTOR W O Motor control signal output to the capstan/reel motor driver IC (IC601) (W phase) 46 MOTOR V O Motor control signal output to the capstan/reel motor driver IC (IC601) (V phase) 47 MOTOR U O Motor control signal output to the capstan/reel motor driver IC (IC601) (U phase) 48 SURROUND CTL O Surround circuit control signal output terminal Not used (open) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 24 – (1) CASE SECTION SECTION 7 EXPLODED VIEWS • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark not supplied not supplied 4 4 4 4 5 6 3 2 8 1 1 3-221-642-11 LID, BATTERY CASE (BLUE) 1 3-221-642-21 LID, BATTERY CASE (PINK) 1 3-221-642-31 LID, BATTERY CASE (SILVER) 2 A-3052-259-A ORNAMENT (OPEN) BLOCK ASSY 3 3-029-220-11 SPRING, TENSION 4 4-218-229-25 SCREW (1.4), MI (PINK, SILVER) 4 4-218-229-27 SCREW (1.4), MI (BLUE) 5 4-218-229-09 SCREW (1.4), MI (PINK, SILVER) 5 4-218-229-11 SCREW (1.4), MI (BLUE) 6 X-3379-836-1 CASE SUB ASSY (L) (BLUE) 6 X-3379-837-1 CASE SUB ASSY (P) (PINK) 6 X-3379-839-1 CASE SUB ASSY (S) (SILVER) 8 X-3379-840-1 LID SUB ASSY (L), CASSETTE (BLUE) 8 X-3379-841-1 LID SUB ASSY (P), CASSETTE (PINK) 8 X-3379-843-1 LID SUB ASSY (S), CASSETTE (SILVER) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 25 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark (2) MAIN BOARD SECTION S704 61 62 60 63 64 55 53 57 58 56 53 51 52 55 54 68 67 52 66 65 59 51 3-038-056-01 TERMINAL BOARD (MINUS) (/M) 52 3-375-114-41 SCREW 53 3-224-837-01 SHEET (ATS) * 54 A-3021-344-A MAIN BOARD, COMPLETE 55 3-224-466-01 SHEET (BOARD) 56 4-225-239-01 KNOB (JOG) 57 3-366-892-01 SCREW (M1.4) 58 X-3377-717-1 BRACKET ASSY (/M) 59 4-963-883-51 SCREW (M1.4), PRECISION PAN 60 3-221-643-51 COVER, MD 61 3-365-630-41 SCREW (M1.4) 62 X-3379-431-1 BRACKET (CASSETTE/910) ASSY 63 3-038-054-01 LEVER (B) (/M), LOCK 64 3-704-197-01 SCREW (M1.4), SPECIAL HEAD 65 3-029-213-01 TERMINAL BOARD, BATTERY 66 3-345-648-71 SCREW (M1.4), TOOTHED LOCK 67 X-3377-726-1 TERMINAL BOARD ASSY (/M) 68 3-031-460-01 SHEET (BT) S704 1-762-553-11 SWITCH, LEAF www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 26 – (3) MECHANISM DECK SECTION (MT-WMEX910-162) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 X-3377-589-1 HOLDER (FA) ASSY /M 102 X-3377-995-1 LEVER (R2) ASSY, PINCH 103 3-038-611-01 SPRING (HD2) 104 X-3377-994-1 LEVER (N2) ASSY, PINCH 105 3-029-276-01 WASHER (STOPPER R) 106 3-029-289-01 WASHER 107 3-029-275-01 WASHER (STOPPER N) 108 3-029-278-01 WASHER 109 X-3376-813-1 CLUTCH ASSY (FM) 110 3-932-724-21 WASHER 111 3-040-897-01 SPRING (TGA), TORSION 112 3-386-694-01 WASHER 113 3-029-306-11 FLYWHEEL (N), INSERT 114 3-220-035-01 BELT (F4) 115 3-029-268-11 FLYWHEEL (R), INSERT 116 3-007-428-01 WASHER (R) 117 3-029-765-01 SCREW (M1.4), TOOTHED LOCK 118 3-029-883-01 RETAINER (F1), MOTOR 119 3-007-433-01 SHEET (N), REFLECTION 120 X-3377-584-1 CHASSIS ASSY (FA) 121 3-010-274-02 TABLE, REEL 122 3-010-954-01 SPRING (BT), COMPRESSION 123 3-029-282-01 GEAR (Y) 124 3-029-285-01 GEAR, CAM 125 3-029-284-01 LEVER, TRIGGER 126 3-029-281-01 GEAR, IDLER (B) 127 3-010-273-02 GEAR (REEL) 128 3-029-273-01 GEAR (FR) 129 3-029-283-01 GEAR, IDLER (A) 130 3-029-286-01 GEAR (NR) 131 3-029-288-01 PULLEY, REVERSE 132 3-046-789-01 SPRING (HDA) 133 3-038-610-01 LEVER, HEAD 134 3-033-757-01 SHEET (H) HP901 1-500-623-11 HEAD, MAGNETIC (PLAYBACK) M601 1-763-559-11 MOTOR, DC (CAPSTAN/REEL) (WITH PULLEY) PM701 1-454-674-31 SOLENOID, PLUNGER 113 PM701 HP901 M601 110 109 112 111 116 115 117 118 119 106 120 105 108 107 104 101 132 102 103 134 133 114 119 121 121 122 122 123 124 125 126 127 127 128 129 129 130 131 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 27 – SECTION 8 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * A-3021-344-A MAIN BOARD, COMPLETE ********************* < CAPACITOR > C101 1-107-520-11 TANTALUM CHIP 33uF 20% 2.5V C102 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C103 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C105 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C107 1-115-156-11 CERAMIC CHIP 1uF 10V C108 1-115-156-11 CERAMIC CHIP 1uF 10V C109 1-115-156-11 CERAMIC CHIP 1uF 10V C110 1-115-156-11 CERAMIC CHIP 1uF 10V C111 1-115-156-11 CERAMIC CHIP 1uF 10V C112 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C113 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C201 1-107-520-11 TANTALUM CHIP 33uF 20% 2.5V C202 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C203 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C205 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C207 1-115-156-11 CERAMIC CHIP 1uF 10V C208 1-115-156-11 CERAMIC CHIP 1uF 10V C209 1-115-156-11 CERAMIC CHIP 1uF 10V C211 1-115-156-11 CERAMIC CHIP 1uF 10V C212 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C213 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C301 1-113-600-11 TANTALUM CHIP 2.2uF 20% 6.3V C302 1-125-926-11 TANTALUM CHIP 4.7uF 20% 6.3V C303 1-115-156-11 CERAMIC CHIP 1uF 10V C304 1-127-895-11 TANTALUM CHIP 22uF 20% 4V C306 1-107-820-11 CERAMIC CHIP 0.1uF 16V C307 1-113-600-11 TANTALUM CHIP 2.2uF 20% 6.3V C308 1-164-505-11 CERAMIC CHIP 2.2uF 16V C309 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C310 1-115-467-11 CERAMIC CHIP 0.22uF 10% 10V C311 1-165-112-11 CERAMIC CHIP 0.33uF 16V C312 1-165-128-11 CERAMIC CHIP 0.22uF 16V C313 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C316 1-107-820-11 CERAMIC CHIP 0.1uF 16V C319 1-164-874-11 CERAMIC CHIP 100PF 5% 16V C322 1-125-926-11 TANTALUM CHIP 4.7uF 20% 6.3V C323 1-125-926-11 TANTALUM CHIP 4.7uF 20% 6.3V C324 1-125-976-11 TANTALUM CHIP 150uF 20% 2.5V C325 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C326 1-127-895-11 TANTALUM CHIP 22uF 20% 4V C327 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C328 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C329 1-115-156-11 CERAMIC CHIP 1uF 10V C601 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C602 1-115-156-11 CERAMIC CHIP 1uF 10V C603 1-115-156-11 CERAMIC CHIP 1uF 10V C604 1-115-156-11 CERAMIC CHIP 1uF 10V C605 1-117-863-11 CERAMIC CHIP 0.47uF 10% 6.3V C606 1-119-923-81 CERAMIC CHIP 0.047uF 10% 10V C607 1-119-923-81 CERAMIC CHIP 0.047uF 10% 10V C608 1-119-663-11 TANTALUM CHIP 47uF 20% 2.5V C609 1-107-819-11 CERAMIC CHIP 0.022uF 10% 16V C610 1-127-671-91 CERAMIC CHIP 10000PF 5% 50V C611 1-164-937-11 CERAMIC CHIP 0.001uF 10% 16V C612 1-113-600-11 TANTALUM CHIP 2.2uF 20% 6.3V C701 1-135-259-11 TANTALUM CHIP 10uF 20% 6.3V C702 1-115-156-11 CERAMIC CHIP 1uF 10V C703 1-115-156-11 CERAMIC CHIP 1uF 10V C704 1-115-156-11 CERAMIC CHIP 1uF 10V C705 1-164-850-11 CERAMIC CHIP 10PF 0.5PF 16V C706 1-115-156-11 CERAMIC CHIP 1uF 10V C707 1-125-777-11 CERAMIC CHIP 0.1uF 10% 10V C708 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C709 1-115-156-11 CERAMIC CHIP 1uF 10V C710 1-115-156-11 CERAMIC CHIP 1uF 10V CB301 1-127-575-21 CERAMIC CHIP 470PF 50V < DIODE > D701 8-719-073-01 DIODE MA111- (K8). S0 D702 8-719-072-70 DIODE MA2ZD14001S0 < FUSE > F701 1-576-439-21 FUSE (SMD) (0.25A) < FERRITE BEAD > FB701 1-414-760-21 FERRITE BEAD < IC > IC301 8-759-579-12 IC TA2123AF (EL) IC303 8-759-488-80 IC NJM2185AV-TE2 IC601 8-759-553-51 IC LB1994M-TLM IC701 8-759-553-28 IC XC6383C251ML IC702 8-759-692-22 IC XC61CS1RXXNR NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 28 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN IC703 8-759-438-27 IC MM1305BWBE IC704 8-759-572-21 IC S-80808ANNP-E7Y-T2 IC705 8-759-833-30 IC ML63514-024TBZ060 < JACK > J301 1-779-867-81 JACK (i) < SHORT > JC101 1-218-990-11 SHORT 0 JC102 1-218-990-11 SHORT 0 JC201 1-218-990-11 SHORT 0 JC202 1-218-990-11 SHORT 0 JC701 1-218-990-11 SHORT 0 < COIL > L701 1-412-034-11 INDUCTOR 330uH < PHOTO REFLECTOR > PH701 8-749-016-56 REFLECTOR NJL5197K-W-F20 (TE1) PH702 8-749-016-56 REFLECTOR NJL5197K-W-F20 (TE1) < TRANSISTOR > Q301 8-729-425-46 TRANSISTOR XP4315-TXE Q302 8-729-426-36 TRANSISTOR XP1215-TXE Q304 8-729-426-36 TRANSISTOR XP1215-TXE Q305 8-729-038-06 TRANSISTOR HN1K02FU (TE85L) Q306 8-729-037-63 TRANSISTOR UN9115J- (TX). SO Q309 8-729-053-70 TRANSISTOR 2SA202800LS0 Q311 8-729-038-06 TRANSISTOR HN1K02FU (TE85L) Q312 8-729-230-63 TRANSISTOR 2SC4116-YG Q314 8-729-230-63 TRANSISTOR 2SC4116-YG Q315 8-729-038-06 TRANSISTOR HN1K02FU (TE85L) Q316 8-729-046-89 TRANSISTOR 2SB970-S (TX). S0 Q317 8-729-426-36 TRANSISTOR XP1215-TXE Q601 8-729-043-94 TRANSISTOR CPH3106-PM-TL Q602 8-729-420-24 TRANSISTOR 2SB1218A-QRS Q603 8-729-039-36 TRANSISTOR MDC06TR Q701 8-729-046-89 TRANSISTOR 2SB970-S (TX). S0 Q702 8-729-037-63 TRANSISTOR UN9115J- (TX). SO Q703 8-729-427-51 TRANSISTOR XP4215-TXE < RESISTOR > R101 1-218-967-11 RES-CHIP 15K 5% 1/16W R102 1-218-943-11 RES-CHIP 150 5% 1/16W R103 1-218-977-11 RES-CHIP 100K 5% 1/16W R104 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R105 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R107 1-218-953-11 RES-CHIP 1K 5% 1/16W R108 1-218-969-11 RES-CHIP 22K 5% 1/16W R109 1-244-161-81 RES-CHIP 2.2 5% 1/16W R111 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R112 1-218-971-11 RES-CHIP 33K 5% 1/16W R113 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R114 1-218-989-11 RES-CHIP 1M 5% 1/16W R116 1-218-973-11 RES-CHIP 47K 5% 1/16W R117 1-218-943-11 RES-CHIP 150 5% 1/16W R201 1-218-967-11 RES-CHIP 15K 5% 1/16W R202 1-218-943-11 RES-CHIP 150 5% 1/16W R203 1-218-977-11 RES-CHIP 100K 5% 1/16W R204 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R205 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R207 1-218-953-11 RES-CHIP 1K 5% 1/16W R208 1-218-969-11 RES-CHIP 22K 5% 1/16W R209 1-244-161-81 RES-CHIP 2.2 5% 1/16W R211 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R212 1-218-971-11 RES-CHIP 33K 5% 1/16W R213 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R214 1-218-989-11 RES-CHIP 1M 5% 1/16W R216 1-218-973-11 RES-CHIP 47K 5% 1/16W R217 1-218-943-11 RES-CHIP 150 5% 1/16W R301 1-218-981-11 RES-CHIP 220K 5% 1/16W R302 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R303 1-218-985-11 RES-CHIP 470K 5% 1/16W R306 1-218-983-11 RES-CHIP 330K 5% 1/16W R308 1-220-803-81 RES-CHIP 4.7 5% 1/16W R309 1-218-971-11 RES-CHIP 33K 5% 1/16W R310 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R312 1-218-969-11 RES-CHIP 22K 5% 1/16W R313 1-208-939-11 METAL CHIP 150K 0.5% 1/16W R314 1-208-927-11 METAL CHIP 47K 0.5% 1/16W R316 1-218-985-11 RES-CHIP 470K 5% 1/16W R317 1-218-985-11 RES-CHIP 470K 5% 1/16W R318 1-218-941-11 RES-CHIP 100 5% 1/16W R319 1-218-969-11 RES-CHIP 22K 5% 1/16W R320 1-218-985-11 RES-CHIP 470K 5% 1/16W R601 1-218-973-11 RES-CHIP 47K 5% 1/16W R602 1-218-973-11 RES-CHIP 47K 5% 1/16W R603 1-218-969-11 RES-CHIP 22K 5% 1/16W R604 1-218-977-11 RES-CHIP 100K 5% 1/16W R605 1-218-985-11 RES-CHIP 470K 5% 1/16W R606 1-218-981-11 RES-CHIP 220K 5% 1/16W R607 1-218-979-11 RES-CHIP 150K 5% 1/16W R608 1-218-977-11 RES-CHIP 100K 5% 1/16W R609 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R610 1-218-977-11 RES-CHIP 100K 5% 1/16W R611 1-218-983-11 RES-CHIP 330K 5% 1/16W R612 1-218-989-11 RES-CHIP 1M 5% 1/16W R613 1-218-989-11 RES-CHIP 1M 5% 1/16W R614 1-218-977-11 RES-CHIP 100K 5% 1/16W R701 1-218-935-11 RES-CHIP 33 5% 1/16W R702 1-218-977-11 RES-CHIP 100K 5% 1/16W R703 1-218-971-11 RES-CHIP 33K 5% 1/16W R704 1-218-971-11 RES-CHIP 33K 5% 1/16W R705 1-218-973-11 RES-CHIP 47K 5% 1/16W R706 1-208-711-11 METAL CHIP 15K 0.5% 1/16W R707 1-208-943-11 METAL CHIP 220K 0.5% 1/16W R708 1-218-985-11 RES-CHIP 470K 5% 1/16W R709 1-218-977-11 RES-CHIP 100K 5% 1/16W R710 1-218-985-11 RES-CHIP 470K 5% 1/16W R711 1-218-973-11 RES-CHIP 47K 5% 1/16W R712 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R713 1-218-987-11 RES-CHIP 680K 5% 1/16W R714 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R715 1-218-987-11 RES-CHIP 680K 5% 1/16W R716 1-208-935-11 METAL CHIP 100K 0.5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 29 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R717 1-208-707-11 METAL CHIP 10K 0.5% 1/16W R718 1-208-675-11 METAL CHIP 470 0.5% 1/16W R719 1-208-687-11 METAL CHIP 1.5K 0.5% 1/16W R720 1-208-683-11 METAL CHIP 1K 0.5% 1/16W R721 1-208-699-11 RES-CHIP 4.7K 0.5% 1/16W R722 1-208-683-11 METAL CHIP 1K 0.5% 1/16W R723 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W R724 1-208-687-11 METAL CHIP 1.5K 0.5% 1/16W R725 1-218-953-11 RES-CHIP 1K 5% 1/16W R726 1-218-985-11 RES-CHIP 470K 5% 1/16W R727 1-218-985-11 RES-CHIP 470K 5% 1/16W R728 1-218-985-11 RES-CHIP 470K 5% 1/16W R729 1-218-985-11 RES-CHIP 470K 5% 1/16W R730 1-218-981-11 RES-CHIP 220K 5% 1/16W < VARIABLE RESISTOR > RV601 1-223-325-21 RES, ADJ, METAL GLAZE 100K < SWITCH > S301 1-692-605-11 SWITCH, SLIDE (VOL, AVLS) S702 1-771-475-21 SWITCH, SLIDE (DIRECTION) S703 1-771-816-21 SWITCH, LEVER (SLIDE) (REW/FF, PUSH Y/x) < VIBRATOR > X701 1-579-258-11 VIBRATOR, CRYSTAL (32.768kHz) ************************************************************ MISCELLANEOUS ************** HP901 1-500-623-11 HEAD, MAGNETIC (PLAYBACK) M601 1-763-559-11 MOTOR, DC (CAPSTAN/REEL) (WITH PULLEY) PM701 1-454-674-31 SOLENOID, PLUNGER S704 1-762-553-11 SWITCH, LEAF ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 1-528-543-22 BATTERY, NI-CD (NC-6WM) 0 1-528-661-15 BATTERY CHARGER (BC-7DR) (Korean) 0 1-528-822-13 BATTERY CHARGER (BC-7DN) (Chinese) 1-759-700-22 CASE, BATTERY 3-008-521-01 CASE, BATTERY CHARGE 3-221-647-11 MANUAL, INSTRUCTION (ENGLISH, KOREAN, CHINESE) 3-222-163-01 POUCH, CARRYING 8-953-304-90 RECEIVER MDR-E805SP A-3052-256-A REMOTE CONTROL ASSY(RM-WME23L) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 30 – WM-EX910 Sony Corporation Audio Entertainment Group 9-873-015-11 2000J0515-1 Printed in Japan C 2000. 10 Published by General Engineering Dept. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
