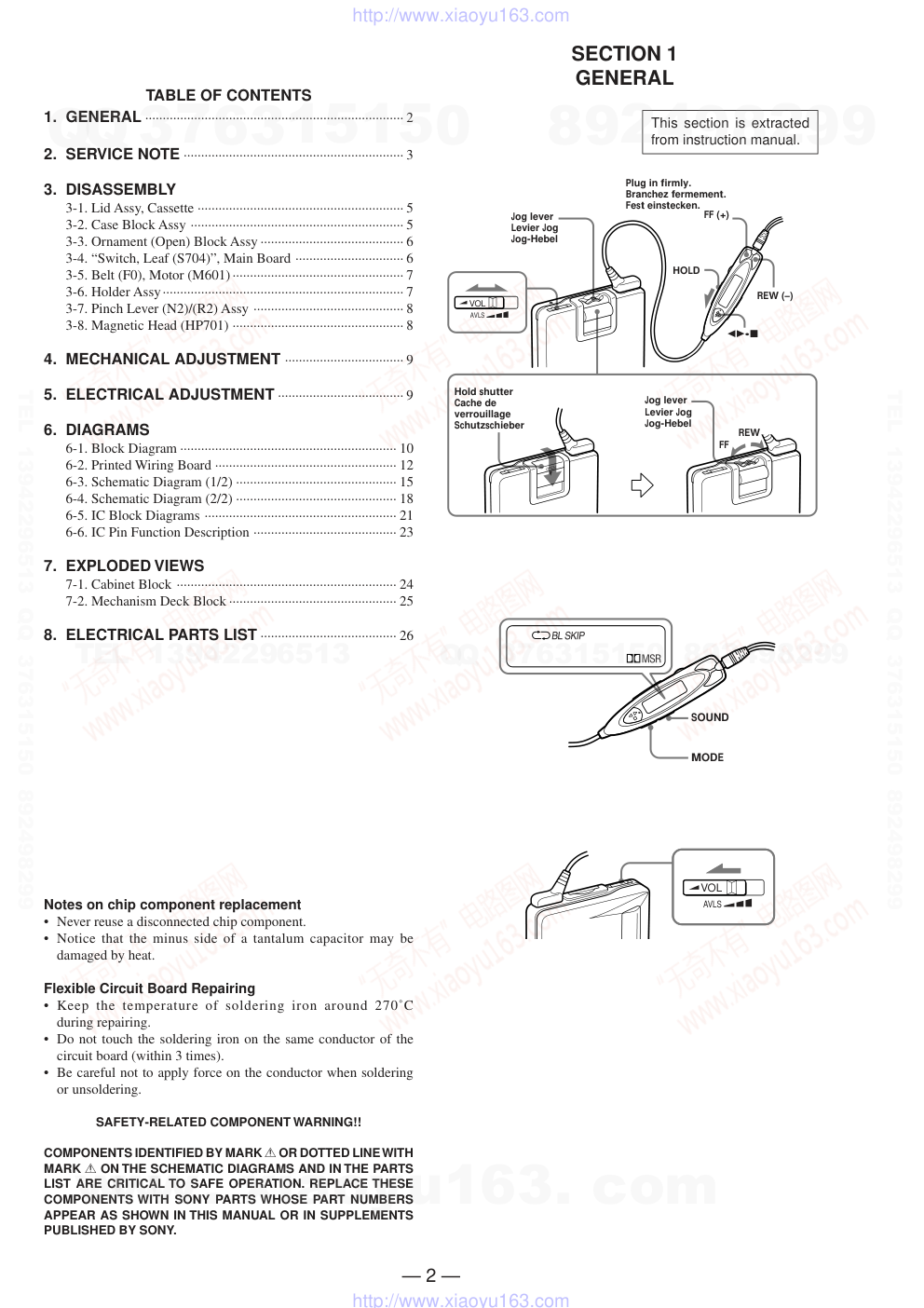

WM-EX2000 E Model Chinese Model Tourist Model SERVICE MANUAL CASSETTE PLAYER SPECIFICATIONS Model Name Using Similar Mechanism NEW Tape Transport Mechanism Type MT-WMEX2000-162 Manufactured under license from Dolby Laboratories Licensing Corporation. “DOLBY” and the double-D symbol ; are trademarks of Dolby Laboratories Licensing Corporation. Frequency response (Dolby NR off) Playback: 30 – 18,000 Hz Output Headphones (i jack) Load impedance 8 – 300 Ω Power requirements 1.2 V One rechargeable battery Dimensions (w/h/d) Approx. 76.3 × 108.4 × 17.5 mm (31/8 × 43/8 × 23/32 inches) Mass Approx. 145 g (5.2 oz.) Supplied accessories Stereo headphones or earphones with remote control (1) Battery charging stand (1) AC power adaptor (1) Rechargeable battery (NH-14WM (A), 1.2V, 1 350 mAh (MIN), Ni-MH) (1) Rechargeable battery carrying case (1) Carrying pouch (1) Design and specifications are subject to change without notice Ver 1.0 2000. 10 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. TABLE OF CONTENTS 1. GENERAL ·········································································· 2 2. SERVICE NOTE ······························································· 3 3. DISASSEMBLY 3-1. Lid Assy, Cassette ··························································· 5 3-2. Case Block Assy ····························································· 5 3-3. Ornament (Open) Block Assy ········································· 6 3-4. “Switch, Leaf (S704)”, Main Board ······························· 6 3-5. Belt (F0), Motor (M601) ················································· 7 3-6. Holder Assy····································································· 7 3-7. Pinch Lever (N2)/(R2) Assy ··········································· 8 3-8. Magnetic Head (HP701) ················································· 8 4. MECHANICAL ADJUSTMENT ·································· 9 5. ELECTRICAL ADJUSTMENT ···································· 9 6. DIAGRAMS 6-1. Block Diagram ······························································ 10 6-2. Printed Wiring Board ···················································· 12 6-3. Schematic Diagram (1/2) ·············································· 15 6-4. Schematic Diagram (2/2) ·············································· 18 6-5. IC Block Diagrams ······················································· 21 6-6. IC Pin Function Description ········································· 23 7. EXPLODED VIEWS 7-1. Cabinet Block ······························································· 24 7-2. Mechanism Deck Block ················································ 25 8. ELECTRICAL PARTS LIST ······································· 26 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. SECTION 1 GENERAL This section is extracted from instruction manual. MODE SOUND VOL AVLS HOLD Hold shutter Cache de verrouillage Schutzschieber VOL AVLS REW (–) FF (+) Y•x Jog lever Levier Jog Jog-Hebel FF REW Jog lever Levier Jog Jog-Hebel Plug in firmly. Branchez fermement. Fest einstecken. OPEN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — M601 M TAPE IN SWITCH (S704-1) ATS SWITCH (S704-2) BP1 Battery terminal # Plunger (PM701) Battery terminal 3 (S702) FWD←CNT→REV jumper GND (TP10) S PH IN(S)(TP32) T PH IN(S)(TP31) Square wave (sine wave) 10 Hz, -3.5 dBs AF OSC SECTION 2 SERVICE NOTE [Service Mode] The service mode enables to operate the mechanism of WM-EX2000 while the MAIN board is opened. Rotation of the idler gear (A) (S side) is detected using the photo- reflector (PH702) in the WM-EX2000. PH702 is located on the MAIN board, therefore the rotation of the idler gear (A) (S side) cannot be detected by PH702 when the MAIN board is removed. As a result, the motor cannot be controlled and cannot run correctly. To repair the machine after the MAIN board is removed while the main power is turned on, follow the procedures as described below. 1. Setting 1) Remove the cabinets referring to section “3. DISASSEMBLY”. Open the MAIN board. 2) Connect the motor (M601) and the plunger solenoid (PM701) to the MAIN board using the jumper wires. When the extension jig (1-769-143-11) (10 wires as a set) is used, they can be connected easily. 3) Short the TAPE IN switch land (BP1) with solder. Input a square (or sine) wave of 10 Hz (at 1.3 Vp-p) to both PH IN T land (TP31) and PH IN S land (TP32) with jumper wire. 4) Connect DC 1.3 V from external regulated power supply to 3 and # terminals of the battery. 2. PRE-SET status The set must be in this state before the PLAY, FF and REW modes can be entered. 1) Make sure that the slider (F/R) is in the center position and that the F/R switch (S702) is in the center position. Make sure that the reel gear does not rotate by rotating the flywheel on the F side clockwise. If improper, place the set in the preset state according to the following instructions: 2) Repeat the step below some times to ensure the above conditions. * Pull away the trigger level from the plunger with tweezers or other means. Then rotate the flywheel on the F side clockwise. 3) Turn the stabilized power supply OFF once and then ON. 3. FF, REW modes 1) Check for “2. Preset state” and push the FF switch and the REW switch. 2) Move the F/R switch (S702) to the movement of the slider to enter the FF/REW mode. 4. PLAY mode 1) Check for “2. Preset state”. 2) Push the nN switch on the remote commander to move the lever (SW) toward the R side. With timing to this, move the F/ R switch (S702) to enter the PLAY (R side) mode. Note 1: If failed, retry from the preset state. Note 2: The nN, x, FF, and REW switches on the remote commander should be used whenever possible. – MAIN BOARD (SIDE B) — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — [ Slider (NR) ] [ Rotational system ] 1. Rotational System of PLAY Mode 2. Rotational System of FF Mode 3. Rotational System of REW Mode F side flywheel F side center R side slider (NR) motor pulley gear (reel) (T side) gear (reel) (S side) idler gear (A) (T side) idler gear (A) (S side) gear (NR) FWD REV idler gear (B) gear (Y) clutch assy (F) reverse pulley flywheel (R) assy flywheel (N) assy motor pulley gear (FR) gear (reel) (T side) idler gear (A) (T side) reverse pulley flywheel (R) assy flywheel (N) assy gear (Y) clutch assy (F) gear (reel) (S side) idler gear (A) (S side) motor pulley gear (FR) gear (Y) clutch assy (F) reverse pulley flywheel (R) assy flywheel (N) assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — SECTION 3 DISASSEMBLY Lid Assy, Cassette Case Block Assy Ornament (OPEN) Block Assy "Switch, Leaf (S704)" Main Board Belt (F0), Motor (M601) Set Holder Assy Pinch Lever (N2)/(R2) Assy Magnetic Head (HP701) Note : Follow the disassembly procedure in the numerical order given. • The equipment can be removed using the following procedure. 3-1. LID ASSY, CASSETTE 3-2. CASE BLOCK ASSY 3 4 1 Two screws (M1.4 × 2.5) 2 Screw (M1.4 × 2.5) Lid assy, cassette Mechanism deck block 3 Two screws (M1.4 × 2.5) 4 Screw (M1.4 × 1.6) 5 2 Two screws (M1.4 × 2.5) Case block assy 1 Lid, battery case Claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 6 — 3-3. ORNAMENT (OPEN) BLOCK ASSY 3-4. “SWITCH, LEAF (S704)”, MAIN BOARD Mechanism deck block Ornament (open) block assy 2 1 1 3 Screw (M1.7 × 3) 5 Screw (M1.4 × 2) 1 Screw (M1.7 × 3) 4 Unsolder the 4 places. 7 Unsolder the plunger. 0 Claw 6 Switch leaf (S704) 2 Screw (M1.4 × 1.4) qa MAIN board 8 Unsolder the flexible board. 9 Unsolder the motor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 7 — 2 Two screws (M1.4 × 2.7) 4 Motor (M601) 3 Retainer (F1) motor 1 Belt (F0) Belt (F0) 3-5. BELT (F0), MOTOR (M601) 3-6. HOLDER ASSY 8 Screw (M1.4 × 2) qa Remove soldering from Head flexible board. 0 Bracket (cassette) assy 9 Shaft 6 Shaft 5 Two screws (M1.4 × 1.6) 7 Lock lever (B)/M qd Remove the holder assy in the direction of the arrow. 2 Screw (M1.4 × 1.6) qs Head flexible board 3 Spring hook 1 Tension spring 4 Tension spring www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 8 — 3-7. PINCH LEVER (N2)/(R2) ASSY 3-8. MAGNETIC HEAD (HP701) Claw Claw 1 Remove the pinch lever (R2) assy in the direction of the arrow. Note: Be careful of the claw 2 Remove the pinch lever (N2) assy in the direction of the arrow. Note: Be careful of the claw 5 Remove the magnetic head (HP701) in the direction of the arrow. 1 Remove the spring (HD2). 2 Remove the spring (HDA). 3 Remove the seat (H). Head lever 4 Remove the head lever while the magnetic head (HP701) is kept attached. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-EX2000 — 9 — — 10 — — 11 — SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAM SECTION 4 MECHANICAL ADJUSTMENTS PRECAUTION 1. Clean the following parts with a denatured-alcohol-moistened swab : playback head pinch roller capstan rubber belt 2. Demagnetize the playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustments. 4. The adjustments should be performed with the rated power supply voltage (DC 1.3 V) unless otherwise noted. Torque Measurement SECTION 5 ELECTRICAL ADJUSTMENT PRECAUTION • Supplied voltage : 1.3 V • Switch and control position VOL switch : NORM • Remote control position HOLD switch : OFF VOL control : MAX SOUND mode : NORM DOLBY mode : OFF Test tape Tape Speed Adjustment Procedure : 1. Playback WS-48A (tape center part) in the FWD state and adjust RV601 so that the frequency counter reading becomes 3,000 Hz. Specification Value : 2. Check that frequency counter reading is within 2% of reading of step 1. Adjustment Location : Digital frequency counter 2,985 to 3,015 Hz Type WS-48A Signal 3 kHz, 0 dB Used for tape speed adjustment Mode Torque Meter Meter Reading 1.47 – 2.45 mN • m FWD CQ-102C (15 – 25 g • cm) FWD 0.03 – 0.20 mN • m back tension (0.3 – 2.0 g • cm) 1.47 – 2.45 mN • m REV CQ-102RC (15 – 25 g • cm) REV 0.03 – 0.20 mN • m back tension (0.3 – 2.0 g • cm) more than 3.43 mN • m FF, REW CQ-201B (more than 35 g • cm) + – i test tape WS-48A (3 kHz, 0 dB) set REMOTE jack (J301) 32 Ω frequency counter RV601 AMS IN DOLBY CTL BOOST CTL F/R CTL SURRUND CTL MEGA BASS CTL XT0 XT1 CASSETE SW PHOTO CTL PHOTO (T) IN 39 BEEP 36 20 48 8 RV CTL 7 10 9 28 29 5 19 38 PHOTO (S) IN 39 SPEED DTL 18 MOTOR START 41 MOTOR U 47 MOTOR V 46 MOTOR W 45 CTRL 1 44 CTRL 2 43 MOTOR DIR 42 40 X701 32.768kHz MUTE CTL 12 SURROUND SWITCH Q308 SURROUND SWITCH Q310 SURROUND SWITCH Q313 PLUNGER DRIVER Q701 RESET IC704 MB&RV CONTROL Q302 REVIVE CONTROL Q304 HI UP CONTROL Q307 RIPPLE FILTER RIPPLE FILTER Q309 VOL MAX SWITCH Q311 DOLBY SWITCH Q316 VOL MIN SWITCH Q312,314 METAL EQ AMP Q305(1/2) T REEL SENS PH701 MOTOR SW Q601 -1 (TAPE IN) -2 (ATS) 12 10 41 39 40 42 43 44 46 S REEL SENS PH702 INV. Q703(2/2) MOTOR START SWITCH Q602 RV601 TAPE SPEED 21 30 29 28 S704 P-SIG AMP CTL 11 16 17 15 1 36 35 4 5 6 7 8 9 10 31 32 34 19 2 MOTOR SERVO IC601 9 11 13 2 4 6 8 7 10 12 1 3 5 MOTOR DRIVE Q603 9 1 2 SWITCH MTL DRV BEEP BEEP M/N SW F/R SW BST SW PW SW MT SW AMS IN PRE OUT R PRE OUT L PRE NF L PRE NF R + – + – 7 6 5 4 3 AUDIO AMP IC301 (1/2) VREF FWD L FWD R REV L REV R L R L R REF V ICI1 VI1 VI2 IV U IN V IN W IN CTRL 1 CTRL 2 DIR PSIG UT VT WT UT VT WT WS VS US TU TW TV TU TW TV W V U W V U C 16 WS VS US W OUT V OUT U OUT MCENTER MC B+ (BATT) SYSTEM CONTROL IC705 6 PM CTL DATA/RMUM 1 AUDIO ATT 17 RESET 35 1 2 A/B SW 13 FWD SW CEN SW RVS SW 2 BATT DET 15 NOIZE SELECT 14 B+ (DDC) SURROUND CONTROL Q303 9 SURROUND AMP IC302 VCC B+ (DDC) B+ (+2.0V) S301 MIN NORM MAX PW IN C PW IN R PW IN L PW NF R PW NF L 26 32 27 28 21 35 22 20 + – + – METAL EQ AMP Q305(2/2) + – PW OUT L PW OUT R 33 34 17 18 BASE RF OUT PW OUT C AGC IN AGC DET AUDIO AMP IC301 (2/2) B+ (BATT) S702 FWD CNT REV S701 (A/B) KEY IN 16 4 3 1 2 3 4 7 1 2 8 OUT1 OUT2 OUT3 OUT4 CE VCC VOLTAGE DETECT IC703 STOP IC702 LX V OUT B+ (BATT) B+ (BATT) 5 1 2 DC/DC CONVERTER IC701 B+ (BATT) B+ (DDC) RECHAGEABLE BATTERY NH-14WM(1.2V 1400mA) BATTERY CASE DRY BATTERY SIZE "AA" (IEC DESIGNATION R6) 1PC, 1.5V GND REMO DATA VCC J301 CAPSTAN /REEL MOTOR M601 HP701 (PLAYBACK) L CH R CH FWD L CH R CH REV INV. Q703(1/2) • Signal path : PB B+ (BATT) PW OUT IN D702 L701 Q702 + + F701 0.25A W702 PM701 (PLUNGER) 16 1 10 7 DOLBY SWITCH Q315 DOLBY AMP IC303 VCC 11 14 4 + 10 5 CUE/REV CONTROL Q317 15 14 11 AMS OUT AMS DET PW Q306 INV. 29 JOG S703 JOG PUSH STOP SW BST OUT BST NF Q301 BUFFER VOL w Y/x � w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-EX2000 — 12 — — 13 — — 14 — 6-2. PRINTED WIRING BOARD Note on Printed Wiring Board: • Y : parts extracted from the conductor side. • z : Through hole. • b : Pattern from the side which enables seeing. Caution: Pattern face side: Parts on the pattern face side seen from (Side A) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Side B) the parts face are indicated. R211 R111 IC705 IC704 IC301 IC303 IC703 IC302 IC702 IC601 IC701 M601 CAPSTAN/REEL MOTOR 1 2 A B C D E F G 3 4 5 6 7 8 9 10 11 12 13 14 15 1-679-256- 11 (11) 11 (11) 1-679-256- MAIN BOARD (SIDE A) MAIN BOARD (SIDE B) S301 w VOL AVLS J301 MIN NORM MAX S704-1 TAPE IN SWITCH S704-2 ATS SWITCH PM701 (PLUNGER) V U W TV TW C TU L CH L CH FLEXIBLE BOARD R CH R CH HP701 (PLAYBACK ) REV FWD + + BATTERY CASE DRY BATTERY SIZE "AA" (IEC DESIGNATION R6) 1PC, 1.5V RECHAGEABLE BATTERY NH-14WM (1.2V 1400mA) 16 JOG FF/REW bB / x (REVTCNTTFWD) (A/B) Ref. No. Location D701 B-5 D702 E-3 IC301 E-6 IC302 B-6 IC303 C-6 IC601 D-2 IC701 F-3 IC702 B-5 IC703 B-5 IC704 C-4 IC705 D-5 Q301 E-11 Q302 D-10 Q303 B-9 Q304 C-10 Q305 F-6 Q306 E-9 Q307 D-10 Q308 B-6 Q309 E-6 Q310 B-9 Q311 C-6 Q312 C-8 Q313 B-8 Q314 C-8 Q315 D-6 Q316 D-5 Q317 C-9 Q601 C-1 Q602 C-3 Q603 D-2 Q701 B-6 Q702 B-5 Q703 C-4 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-EX2000 — 15 — — 16 — — 17 — 6-3. SCHEMATIC DIAGRAM MAIN (1/2) SECTION Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. • U : B+ Line. • H : adjustment for repair. • Power voltage is dc 1.3 V and fed with regulated dc power supply from battery terminal. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark : PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. E : PB • Refer to page 21 for IC Block Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WM-EX2000 — 18 — — 19 — — 20 — 6-4. SCHEMATIC DIAGRAM MAIN (2/2) SECTION Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. • U : B+ Line. • H : adjustment for repair. • Power voltage is dc 1.3 V and fed with regulated dc power supply from battery terminal. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. no mark: PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Refer to page 22 for IC Block Diagrams. • Refer to page 23 for IC Pin Function Description. • Waveform 1 IC601 456 0.5V/div 2µsec/div 2 IC601 0 0.5V/div 1µsec/div 444 Hz 150 Hz 5 Q603 80qs 0.5V/div 5µsec/div 150 Hz 3 IC601 wkwle; 0.2V/div 5µsec/div 150 Hz 150 Hz 4 Q603 135 0.5V/div 5µsec/div 6 IC701 5 1V/div 5µsec/div 100 kHz 7 IC702 wk 1V/div 0.2µsec/div 4 MHz w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 21 — 6-5. IC BLOCK DIAGRAMS IC301 TA2123AF + – + – AGC DET BST PWC PWB – + PWA + – + – + – + – TOMP RIPPLE FILTER MIX MTL DRV VREF PREA PREB BEEP SW 36 35 34 33 32 31 30 29 28 27 26 25 24 22 21 20 19 18 17 16 15 14 13 23 12 11 10 9 8 7 6 5 3 2 1 4 48 47 46 45 44 43 42 41 40 39 38 37 AGC DET AGC IN BST NF BST OUT PW IN C LPF EQ L PW NF L PW IN L PW IN R PW NF R EQ R RF IN PW GND PW OUT R PW OUT C PW OUT L VCC BASE RF OUT GND AMS DET AMS MIX AMS IN VREF IN PRE GND M/N SW PRE SW F/R SW BST SW PW SW NT SW AMS OUT BEEP MT TC CAMP SW AMS IN PRE NF-R PRE OUT-R MTL DRV-R MTL DRV-L PRE OUT-L PRE NF-L REV IN-L REV IN-R REF OUT FWD IN-R FWD IN-L IC701 XC6383C251ML + – + – BIAS CIRCUIT WEIGHT G2 G1 V/I ACH BLOCK GM SUN BCH BLOCK (SAME ACH) 14 13 12 11 10 9 8 1 2 3 4 5 6 7 GND IREF VREF INB OUT B DC B DET B VCC SW VEXT IN A OUT A DC A DET A IC303 NJM2185AV IC302 NJM2190V 9 LIN VREF C3 GND C4 MODE ROUT REFIN WOUT C2 V+/2 V+ LOUT C1 WIN RIN 10 11 12 13 14 15 16 1 5 2 3 4 6 7 8 – + EXT FILTER MATRIX MODE CONTROL BIAS BYPASS BYPASS SRS SRS 3 1 BUFFER PWM/PFM CONTROL OSC 50/100/180 kHz VLx LIMITER PHASE COMP V REF SLOW START 2 Lx Vss V OUT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 22 — IC601 LB1994M DECODER CTRL BLOCK POWER D/DT PULSE BUFFER COMPARATOR BUFFER VI COMPARATOR SOFT CLIP CURRENT AMP P-SIG PW•SW 4 5 6 1 2 9 7 8 14 15 16 17 18 19 20 21 22 24 23 25 26 27 30 29 28 36 35 34 33 32 31 WS MC U IN 3 VCC V IN W IN CTRL1 CTRL2 DIR VS US U OUT NC V OUT W OUT WT VT UT PGND FC CT2 CT1 IR ICI2 ICI1 I SOFT M CENTER GND VI2 VI1 IV VC 13 PW 12 CI 11 Vref 10 P SIG IC703 MM1305BWBE + – + – + – + – 1 2 3 4 8 7 6 5 VCC CE RIPPLE GND OUT 1 OUT 2 OUT 3 OUT 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 23 — 6-6. IC PIN FUNCTION DESCRIPTION • IC705 ML63514-023TBZ060 (SYSTEM CONTROL) Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 I/O O I I I I I/O O O O O O O I I I I O O O O — — — — — — — I O I I — I O I O I I I I O O O O O O O O Description Audio ATT circuit control output. L=OFF. H=ON (during CUE/REVIEW) MD MODE SW (FWD). L=ON MD MODE SW (CENTER). L=ON MD MODE SW (RVS). L=ON Cassette detection switch input. L= Exists. H=Not exist. Data output for communication. Remote control inspection input terminal. Tone control. H=REVIVE ON. L=OFF/MB/GRV/SUR Tone control. H=MB/REV ON. L=OFF/GRV/SUR Head switching output. L=FWD. H=RVS Tone control. H=BOOST ON. L=OFF Audio circuit/DDC control output. H=POWER ON Audio muting control output. L=MUTE ON A/B-side detection SW input. L=FWD: Side A Input for switching between two models. L=EX2000. H=EX910 Input terminal for power supply voltage detection Operation button signal, input terminal Plunger solenoid control output. L=ON Motor speed 1/2 control output. L=Normally. Open=During 1/2 time speed Rotation detection intermittent output. L=ON Dolby circuit control output. L=ON External interface power supply (P8 power supply) terminal Power supply terminal of negative polarity side Power supply terminal of positive polarity side Pressure power supply terminal for backup External capacitor for step-up power supply is connected to this terminal. External capacitor for step-up power supply is connected to this terminal. Power supply terminal of positive polarity side for internal logic External crystal oscillator External crystal oscillator Test input terminal Test input terminal External capacitor for oscillation is connected to this terminal. External resistor for high-speed CR oscillator (550 kHz) is connected to this terminal. External resistor for high-speed CR oscillator (550 kHz) is connected to this terminal. Reset input terminal Beep sound output Rotation detection signal input, S side Rotation detection signal input, T side Sound detection signal (AMS) input terminal. H=No sound. (external interrupt) Motor P-SIG input (external interrupt) Motor startup signal output. L=During startup Motor rotation direction control output. H=CCW. L=CW Servo IC mode selection output Servo IC mode selection output Motor control output Motor control output Motor control output Sound circuit control output. EX2000: L=N. H=OFF. EX910: L. Fixed Pin Name AUDIO ATT FWD SW CENTER SW RVS SW CASSETTE SW DATA/RMUM REVIVE CTL MEGA BASS CTL F/R CTL BOOST CTL AMP CTL MUTE CTL A/B SW MODEL SELECT BATT DET KEY IN PM CTL SPEED CTL PHOTO CTL DOLBY CTL VDDI VSS VDD VDDH CB1 CB2 VDDL XT0 XT1 TEST1B TEST2B NC OSC0 OSC1 RESET BEEP PHOTO (S) IN PHOTO (T) IN AMS IN P-SIG MOTOR START MOTOR DIR CTRL2 CTRL1 MOTOR W MOTOR V MOTOR U SURROUND CTL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 7 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts of Color Cabinet’s Color — 24 — 7-1. CABINET BLOCK Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 3-029-213-01 TERMINAL BOARD, BATTERY 2 3-345-648-71 SCREW (M1.4), TOOTHED LOCK 3 3-375-114-41 SCREW 4 3-038-056-01 TERMINAL BOARD (MINUS) * 5 A-3021-341-A MAIN BOARD, COMPLETE 6 3-221-642-01 LID, BATTERY CASE 7 3-704-197-01 SCREW(M1.4), SPECIAL HEAD 8 X-3377-726-1 TERMINAL BOARD ASSY (/M) 9 A-3052-253-A ORNAMENT (OPEN) BLOCK ASSY 10 3-031-460-01 SHEET (BT) 11 4-963-883-51 SCREW (M1.4), PRECISION PAN 12 3-029-220-11 SPRING, TENSION 13 3-365-630-41 SCREW (M1.4) 14 X-3379-426-1 BRACKET (CASSETTE) ASSY 15 X-3379-425-1 LEVER (B) ASSY, LOCK 16 3-366-892-01 SCREW (M1.4) 17 X-3377-717-1 BRACKET ASSY 18 A-3052-254-A LID BLOCK ASSY, CASSETTE 19 4-218-229-25 SCREW (1.4), MI 20 3-221-643-01 COVER, MD (JE) 20 3-221-643-21 COVER, MD (CH,KR) 21 4-225-239-01 KNOB (JOG) 22 A-3052-252-A CASE BLOCK ASSY 23 4-218-229-09 SCREW (1.4), MI 24 3-221-637-01 KNOB (VOL) 25 3-221-626-01 SPRING (EJECT-N), TENSION 26 3-221-765-01 HOOK, SPRING 27 3-221-627-01 SPRING (EJECT-R), TENSION 28 3-224-837-01 SHEET (ATS) 29 3-224-466-01 SHEET (BOARD) S704 1-762-553-11 SWITCH, LEAF 10 28 1 2 3 11 4 3 5 6 8 7 7 7 15 25 26 27 21 9 16 14 13 17 18 19 19 19 19 20 24 22 23 A A B B 11 12 MT-WMEX2000-162 S704 not supplied 29 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 25 — 7-2. MECHANISM DECK BLOCK Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 51 X-3377-589-1 HOLDER (FA) ASSY /M 52 X-3377-995-1 LEVER (R2) ASSY, PINCH 53 X-3377-994-1 LEVER (N2) ASSY, PINCH 54 3-029-275-01 WASHER (STOPPER N) 55 3-029-278-01 WASHER 56 X-3377-584-1 CHASSIS ASSY (FA) 57 3-386-694-01 WASHER 58 3-040-897-01 SPRING (TGA), TORSION 59 3-029-281-01 GEAR, IDLER (B) 60 X-3379-420-1 FLYWHEEL (N) ASSY 61 3-029-285-01 GEAR, CAM 62 3-029-282-01 GEAR (Y) 63 3-029-284-01 LEVER, TRIGGER 64 X-3376-813-1 CLUTCH ASSY (F) 65 3-932-724-21 WASHER 66 3-029-286-01 GEAR(NR) 67 3-221-357-01 BELT(F0) 68 3-007-433-01 SHEET (N), REFLECTION 69 3-029-283-01 GEAR, IDLER (A) 70 3-029-765-01 SCREW (M1.4), TOOTHED LOCK 71 X-3379-421-1 FLYWHEEL (R) ASSY 72 3-029-883-01 RETAINER (F1), MOTOR 73 3-029-273-01 GEAR(FR) 74 3-010-273-02 GEAR(REEL) 75 3-029-288-01 PULLEY, REVERSE 76 3-010-954-01 SPRING (BT), COMPRESSION 77 3-010-274-02 TABLE, REEL 78 3-029-289-01 WASHER 79 3-029-276-01 WASHER (STOPPER R) 80 3-007-428-01 WASHER (R) 81 3-046-789-01 SPRING (HDA) 82 3-038-611-01 SPRING (HD2) 83 3-038-610-01 LEVER, HEAD 85 3-033-757-01 SHEET (H) M601 1-763-559-11 MOTOR, DC (WITH PULLEY) HP701 1-500-676-11 HEAD, MAGNETIC (PLAYBACK) PM701 1-454-674-31 SOLENOID, PLUNGER 51 M601 HP701 PM701 52 54 55 53 56 58 59 60 61 62 64 63 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 81 82 83 85 57 80 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • Abbreviation CH: Chinese model JE: Tourist model The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 26 — SECTION 8 ELECTRICAL PARTS LIST * A-3021-341-A MAIN BOARD, COMPLETE ********************* 3-032-323-01 PAPER (A), SHIELD < CAPACITOR > C101 1-107-520-11 TANTAL. CHIP 33uF 20.00% 2.5V C103 1-107-819-11 CERAMIC CHIP 0.022uF 10.00% 16V C104 1-127-988-11 CERAMIC CHIP 15000PF 10% 16V C105 1-127-988-11 CERAMIC CHIP 15000PF 10% 16V C106 1-113-619-11 CERAMIC CHIP 0.47uF 10V C107 1-115-156-11 CERAMIC CHIP 1uF 10V C108 1-115-156-11 CERAMIC CHIP 1uF 10V C109 1-115-156-11 CERAMIC CHIP 1uF 10V C110 1-115-156-11 CERAMIC CHIP 1uF 10V C111 1-115-156-11 CERAMIC CHIP 1uF 10V C112 1-117-863-11 CERAMIC CHIP 0.47uF 10.00% 6.3V C113 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C201 1-107-520-11 TANTAL. CHIP 33uF 20.00% 2.5V C203 1-107-819-11 CERAMIC CHIP 0.022uF 10.00% 16V C204 1-127-988-11 CERAMIC CHIP 15000PF 10% 16V C205 1-127-988-11 CERAMIC CHIP 15000PF 10% 16V C206 1-113-619-11 CERAMIC CHIP 0.47uF 10V C207 1-115-156-11 CERAMIC CHIP 1uF 10V C208 1-115-156-11 CERAMIC CHIP 1uF 10V C209 1-115-156-11 CERAMIC CHIP 1uF 10V C210 1-115-156-11 CERAMIC CHIP 1uF 10V C211 1-115-156-11 CERAMIC CHIP 1uF 10V C212 1-117-863-11 CERAMIC CHIP 0.47uF 10.00% 6.3V C213 1-115-467-11 CERAMIC CHIP 0.22uF 10.00% 10V C301 1-113-600-11 TANTAL. CHIP 2.2uF 20.00% 6.3V C302 1-125-926-11 TANTAL. CHIP 4.7uF 20% 6.3V C303 1-115-156-11 CERAMIC CHIP 1uF 10V C304 1-127-895-11 TANTAL. CHIP 22uF 20% 4V C306 1-107-820-11 CERAMIC CHIP 0.1uF 16V C307 1-113-600-11 TANTAL. CHIP 2.2uF 20.00% 6.3V C308 1-164-505-11 CERAMIC CHIP 2.2uF 16V C310 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C311 1-165-112-11 CERAMIC CHIP 0.33uF 16V C312 1-165-128-11 CERAMIC CHIP 0.22uF 16V C313 1-164-937-11 CERAMIC CHIP 0.001uF 10.00% 16V C314 1-117-920-11 TANTAL. CHIP 10uF 20.00% 6.3V C315 1-117-920-11 TANTAL. CHIP 10uF 20.00% 6.3V C316 1-107-820-11 CERAMIC CHIP 0.1uF 16V C317 1-164-941-11 CERAMIC CHIP 0.0047uF 10.00% 16V C318 1-164-940-11 CERAMIC CHIP 0.0033uF 10.00% 16V C319 1-164-874-11 CERAMIC CHIP 100PF 5.00% 16V C320 1-125-777-11 CERAMIC CHIP 0.1uF 10.00% 10V C321 1-115-156-11 CERAMIC CHIP 1uF 10V C322 1-125-926-11 TANTAL. CHIP 4.7uF 20% 6.3V C323 1-125-926-11 TANTAL. CHIP 4.7uF 20% 6.3V C324 1-125-976-11 TANTAL. CHIP 150PF 20% 2.5V C325 1-107-819-11 CERAMIC CHIP 0.022uF 10.00% 16V C326 1-127-895-11 TANTAL. CHIP 22uF 20% 4V C327 1-164-937-11 CERAMIC CHIP 0.001uF 10.00% 16V C328 1-135-201-11 TANTALUM CHIP 10uF 20% 4V C329 1-115-156-11 CERAMIC CHIP 1uF 10V C601 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C602 1-115-156-11 CERAMIC CHIP 1uF 10V C603 1-115-156-11 CERAMIC CHIP 1uF 10V C604 1-115-156-11 CERAMIC CHIP 1uF 10V C605 1-117-863-11 CERAMIC CHIP 0.47uF 10.00% 6.3V C606 1-119-923-11 CERAMIC CHIP 0.047uF 10.00% 10V C607 1-119-923-11 CERAMIC CHIP 0.047uF 10.00% 10V C608 1-119-663-11 TANTAL. CHIP 47uF 20.00% 2.5V C609 1-107-819-11 CERAMIC CHIP 0.022uF 10.00% 16V C610 1-127-671-11 CERAMIC CHIP 10000PF 5% 50V C611 1-164-937-11 CERAMIC CHIP 0.001uF 10.00% 16V C612 1-113-600-11 TANTAL. CHIP 2.2uF 20.00% 6.3V C701 1-135-259-11 TANTAL. CHIP 10uF 20.00% 6.3V C702 1-115-156-11 CERAMIC CHIP 1uF 10V C703 1-115-156-11 CERAMIC CHIP 1uF 10V C704 1-115-156-11 CERAMIC CHIP 1uF 10V C705 1-164-850-11 CERAMIC CHIP 10PF 0.50PF 16V C706 1-115-156-11 CERAMIC CHIP 1uF 10V C707 1-125-777-11 CERAMIC CHIP 0.1uF 10.00% 10V C708 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C709 1-115-156-11 CERAMIC CHIP 1uF 10V C710 1-115-156-11 CERAMIC CHIP 1uF 10V CB301 1-127-575-21 CERAMIC CHIP 470PF 50V < DIODE > D701 8-719-073-01 DIODE MA111-(K8).S0 D702 8-719-072-70 DIODE MA2ZD14001S0 < FUSE > F701 1-576-439-21 FUSE (SMD) < FERRITE BEAD > FB701 1-414-760-21 INDUCTOR 0uH MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 27 — < IC > IC301 8-759-579-12 IC TA2123AF(EL) IC302 8-759-597-24 IC NJM2190V(TE2) IC303 8-759-488-80 IC NJM2185AV-TE2 IC601 8-759-553-51 IC LB1994M-TLM IC701 8-759-553-28 IC XC6383C251ML IC702 8-759-692-22 IC XC61CS1RXXNR IC703 8-759-438-27 IC MM1305BWBE IC704 8-759-572-21 IC S-80808ANNP-E7Y-T2 IC705 8-759-687-38 IC ML63514-023TBZ060 < JACK > J301 1-779-867-81 JACK (i) < JUMPER CHIP > JC102 1-218-990-11 SHORT 0 JC202 1-218-990-11 SHORT 0 JC702 1-218-990-11 SHORT 0 < COIL > L701 1-412-032-11 INDUCTOR 100uH < PHOTO INTERRUPTER > PH701 8-749-016-61 REFLECTOR NJL5197K-W-F20(TE1) PH702 8-749-016-61 REFLECTOR NJL5197K-W-F20(TE1) < TRANSISTOR > Q301 8-729-425-46 TRANSISTOR XP4315-TXE Q302 8-729-426-36 TRANSISTOR XP1215-TXE Q303 8-729-425-46 TRANSISTOR XP4315-TXE Q304 8-729-426-36 TRANSISTOR XP1215-TXE Q305 8-729-038-06 TRANSISTOR HN1K02FU(TE85L) Q306 8-729-037-63 TRANSISTOR UN9115J-(TX).SO Q307 8-729-426-36 TRANSISTOR XP1215-TXE Q308 8-729-046-89 TRANSISTOR 2SB970-S(TX).S0 Q309 8-729-053-70 TRANSISTOR 2SA202800LS0 Q310 8-729-038-06 TRANSISTOR HN1K02FU(TE85L) Q311 8-729-038-06 TRANSISTOR HN1K02FU(TE85L) Q312 8-729-230-63 TRANSISTOR 2SC4116-YG Q313 8-729-426-36 TRANSISTOR XP1215-TXE Q314 8-729-230-63 TRANSISTOR 2SC4116-YG Q315 8-729-038-06 TRANSISTOR HN1K02FU(TE85L) Q316 8-729-046-89 TRANSISTOR 2SB970-S(TX).S0 Q317 8-729-426-36 TRANSISTOR XP1215-TXE Q601 8-729-043-94 TRANSISTOR CPH3106-PM-TL Q602 8-729-420-24 TRANSISTOR 2SB1218A-QRS Q603 8-729-039-36 TRANSISTOR MDC06TR Q701 8-729-046-89 TRANSISTOR 2SB970-S(TX).S0 Q702 8-729-037-63 TRANSISTOR UN9115J-(TX).SO Q703 8-729-427-51 TRANSISTOR XP4215-TXE < RESISTOR > R101 1-218-967-11 RES-CHIP 15K 5% 1/16W R102 1-218-943-11 RES-CHIP 150 5% 1/16W R103 1-218-977-11 RES-CHIP 100K 5% 1/16W R104 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R105 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R106 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R107 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R108 1-218-969-11 RES-CHIP 22K 5% 1/16W R109 1-244-161-11 RES-CHIP 2.2 5% 1/16W R110 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R111 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R112 1-218-971-11 RES-CHIP 33K 5% 1/16W R113 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R114 1-218-989-11 RES-CHIP 1M 5% 1/16W R115 1-218-967-11 RES-CHIP 15K 5% 1/16W R116 1-218-973-11 RES-CHIP 47K 5% 1/16W R117 1-218-943-11 RES-CHIP 150 5% 1/16W R201 1-218-967-11 RES-CHIP 15K 5% 1/16W R202 1-218-943-11 RES-CHIP 150 5% 1/16W R203 1-218-977-11 RES-CHIP 100K 5% 1/16W R204 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R205 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R206 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R207 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R208 1-218-969-11 RES-CHIP 22K 5% 1/16W R209 1-244-161-11 RES-CHIP 2.2 5% 1/16W R210 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R211 1-218-959-11 RES-CHIP 3.3K 5% 1/16W R212 1-218-971-11 RES-CHIP 33K 5% 1/16W R213 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R214 1-218-989-11 RES-CHIP 1M 5% 1/16W R215 1-218-967-11 RES-CHIP 15K 5% 1/16W R216 1-218-973-11 RES-CHIP 47K 5% 1/16W R217 1-218-943-11 RES-CHIP 150 5% 1/16W R301 1-218-981-11 RES-CHIP 220K 5% 1/16W R302 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R303 1-218-985-11 RES-CHIP 470K 5% 1/16W R304 1-218-969-11 RES-CHIP 22K 5% 1/16W R305 1-218-969-11 RES-CHIP 22K 5% 1/16W R306 1-218-983-11 RES-CHIP 330K 5% 1/16W R307 1-218-969-11 RES-CHIP 22K 5% 1/16W R308 1-220-803-81 RES-CHIP 4.7 5% 1/16W R309 1-218-971-11 RES-CHIP 33K 5% 1/16W R310 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R311 1-218-937-11 RES-CHIP 47 5% 1/16W R312 1-218-969-11 RES-CHIP 22K 5% 1/16W R313 1-208-939-11 METAL CHIP 150K 0.5% 1/16W R314 1-208-927-11 METAL CHIP 47K 0.5% 1/16W R315 1-218-985-11 RES-CHIP 470K 5% 1/16W R316 1-218-985-11 RES-CHIP 470K 5% 1/16W R317 1-218-985-11 RES-CHIP 470K 5% 1/16W R318 1-218-941-11 RES-CHIP 100 5% 1/16W R319 1-218-969-11 RES-CHIP 22K 5% 1/16W R320 1-218-985-11 RES-CHIP 470K 5% 1/16W R321 1-216-829-11 RES-CHIP 4.7K 5% 1/16W R601 1-218-973-11 RES-CHIP 47K 5% 1/16W R602 1-218-973-11 RES-CHIP 47K 5% 1/16W R603 1-218-969-11 RES-CHIP 22K 5% 1/16W R604 1-218-977-11 RES-CHIP 100K 5% 1/16W R605 1-218-985-11 RES-CHIP 470K 5% 1/16W R606 1-218-981-11 RES-CHIP 220K 5% 1/16W R607 1-218-979-11 RES-CHIP 150K 5% 1/16W R608 1-218-977-11 RES-CHIP 100K 5% 1/16W R609 1-218-963-11 RES-CHIP 6.8K 5% 1/16W R610 1-218-977-11 RES-CHIP 100K 5% 1/16W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 28 — WM-EX2000 Sony Corporation Audio Entertainment Group 2000J1617-1 Printed in Japan ©2000.10 Published by General Engineering Dept. 9-873-022-11 R611 1-218-983-11 RES-CHIP 330K 5% 1/16W R612 1-218-989-11 RES-CHIP 1M 5% 1/16W R613 1-218-989-11 RES-CHIP 1M 5% 1/16W R614 1-218-977-11 RES-CHIP 100K 5% 1/16W R701 1-218-935-11 RES-CHIP 33 5% 1/16W R702 1-218-977-11 RES-CHIP 100K 5% 1/16W R703 1-218-971-11 RES-CHIP 33K 5% 1/16W R704 1-218-971-11 RES-CHIP 33K 5% 1/16W R705 1-218-973-11 RES-CHIP 47K 5% 1/16W R706 1-208-711-11 METAL CHIP 15K 0.5% 1/16W R707 1-208-943-11 METAL CHIP 220K 0.5% 1/16W R708 1-218-985-11 RES-CHIP 470K 5% 1/16W R709 1-218-977-11 RES-CHIP 100K 5% 1/16W R710 1-218-985-11 RES-CHIP 470K 5% 1/16W R711 1-218-973-11 RES-CHIP 47K 5% 1/16W R712 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R713 1-218-987-11 RES-CHIP 680K 5% 1/16W R714 1-218-955-11 RES-CHIP 1.5K 5% 1/16W R715 1-218-987-11 RES-CHIP 680K 5% 1/16W R716 1-208-935-11 METAL CHIP 100K 0.5% 1/16W R717 1-208-707-11 METAL CHIP 10K 0.5% 1/16W R718 1-208-675-11 METAL CHIP 470 0.5% 1/16W R719 1-208-687-11 METAL CHIP 1.5K 0.5% 1/16W R720 1-208-683-11 METAL CHIP 1K 0.5% 1/16W R721 1-218-961-11 RES-CHIP 4.7K 5% 1/16W R722 1-208-683-11 METAL CHIP 1K 0.5% 1/16W R723 1-208-703-11 METAL CHIP 6.8K 0.5% 1/16W R724 1-208-687-11 METAL CHIP 1.5K 0.5% 1/16W R725 1-218-953-11 RES-CHIP 1K 5% 1/16W R726 1-218-985-11 RES-CHIP 470K 5% 1/16W R727 1-218-985-11 RES-CHIP 470K 5% 1/16W R728 1-218-985-11 RES-CHIP 470K 5% 1/16W R729 1-218-985-11 RES-CHIP 470K 5% 1/16W R730 1-218-981-11 RES-CHIP 220K 5% 1/16W < VARIABLE RESISTOR > RV601 1-223-325-21 RES, ADJ, METAL GLAZE 100K < SWITCH > S301 1-692-605-11 SWITCH, SLIDE (VOL) S701 1-762-516-11 SWITCH, PUSH (1 KEY)(A/B) S702 1-771-475-11 SWITCH, SLIDE (REW/CONT/FF) S703 1-771-816-11 SWITCH, LEVER (SLIDE) (JOG) < VIBRATOR > X701 1-579-258-11 VIBRATOR, CRYSTAL 32.768kHz ************************************************************ MISCELLANEOUS ************** HP701 1-500-676-11 HEAD, MAGNETIC (PLAYBACK) M601 1-763-559-11 MOTOR, DC (WITH PULLEY) PM701 1-454-674-31 SOLENOID, PLUNGER S704 1-762-553-11 SWITCH, LEAF ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************** 0 1-467-550-13 ADAPTOR, AC (AC-E455A) (JE) 0 1-475-622-14 ADAPTOR, AC (AC-E455) (CH) 0 1-569-007-11 ADAPTOR, CONVERSION 2P (JE) 1-756-120-11 BATTERY, NICKEL HYDROGEN (JE) 1-756-120-21 BATTERY, NICKEL HYDROGEN (CH,KR) 3-008-521-01 CASE, BATTERY CHARGE 3-221-645-01 MANUAL, INSTRUCTION (JAPANESE)(JE) 3-221-645-11 MANUAL, INSTRUCTION (ENGLISH,CHINESE,KOREAN) 3-222-163-01 POUCH, CARRYING 8-953-811-90 EAR,RECEIVER MDR-E803SP A-3052-255-A STAND ASSY (BCA-WM1), CHARGE A-3052-256-A REMOTE CONTROL ASSY(RM-WME23L) MAIN The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
