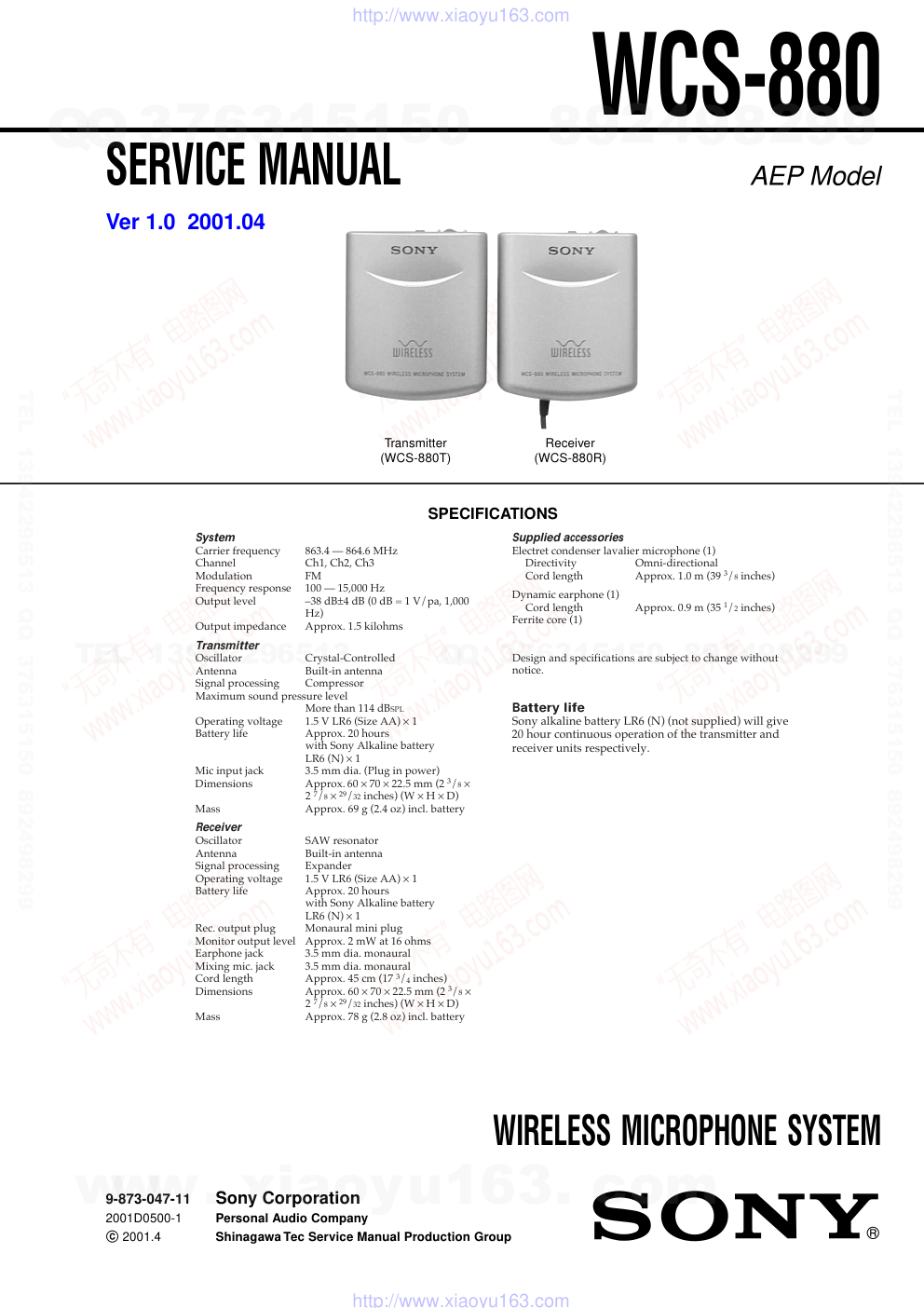

SERVICE MANUAL WIRELESS MICROPHONE SYSTEM AEP Model SPECIFICATIONS WCS-880 Ver 1.0 2001.04 Transmitter (WCS-880T) Receiver (WCS-880R) System Carrier frequency 863.4 — 864.6 MHz Channel Ch1, Ch2, Ch3 Modulation FM Frequency response 100 — 15,000 Hz Output level –38 dB±4 dB (0 dB = 1 V/pa, 1,000 Hz) Output impedance Approx. 1.5 kilohms Transmitter Oscillator Crystal-Controlled Antenna Built-in antenna Signal processing Compressor Maximum sound pressure level More than 114 dBSPL Operating voltage 1.5 V LR6 (Size AA) × 1 Battery life Approx. 20 hours with Sony Alkaline battery LR6 (N) × 1 Mic input jack 3.5 mm dia. (Plug in power) Dimensions Approx. 60 × 70 × 22.5 mm (2 3/8 × 2 7/8 × 29/32 inches) (W × H × D) Mass Approx. 69 g (2.4 oz) incl. battery Receiver Oscillator SAW resonator Antenna Built-in antenna Signal processing Expander Operating voltage 1.5 V LR6 (Size AA) × 1 Battery life Approx. 20 hours with Sony Alkaline battery LR6 (N) × 1 Rec. output plug Monaural mini plug Monitor output level Approx. 2 mW at 16 ohms Earphone jack 3.5 mm dia. monaural Mixing mic. jack 3.5 mm dia. monaural Cord length Approx. 45 cm (17 3/4 inches) Dimensions Approx. 60 × 70 × 22.5 mm (2 3/8 × 2 7/8 × 29/32 inches) (W × H × D) Mass Approx. 78 g (2.8 oz) incl. battery Supplied accessories Electret condenser lavalier microphone (1) Directivity Omni-directional Cord length Approx. 1.0 m (39 3/8 inches) Dynamic earphone (1) Cord length Approx. 0.9 m (35 1/2 inches) Ferrite core (1) Design and specifications are subject to change without notice. Battery life Sony alkaline battery LR6 (N) (not supplied) will give 20 hour continuous operation of the transmitter and receiver units respectively. 9-873-047-11 Sony Corporation 2001D0500-1 Personal Audio Company C 2001.4 Shinagawa Tec Service Manual Production Group www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 WCS-880 TABLE OF CONTENTS 1. GENERAL ............................................................ 3 2. DISASSEMBLY 2-1. TX Board, VCO Board ................................................... 4 2-2. Antenna Setting ............................................................... 4 2-3. RX Board, FE Board ....................................................... 5 2-4. Antenna Setting ............................................................... 5 3. ELECTRICAL ADJUSTMENTS TX Section ...................................................................... 6 RX Section ...................................................................... 8 4. DIAGRAMS 4-1. Block Diagram – TX Section – ..................................... 10 4-2. Block Diagram – RX Section – ..................................... 11 4-3. Printed Wiring Boards – TX Section – .......................... 12 4-4. Schematic Diagram – TX Section – ............................... 13 4-5. Printed Wiring Boards – RX Section – ......................... 14 4-6. Schematic Diagram – RX Section – .............................. 15 5. EXPLODED VIEWS 5-1. TX Section (WCS-880T) ................................................ 17 5-2. RX Section (WCS-880R)................................................ 18 6. ELECTRICAL PARTS LIST ............................... 19 Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 WCS-880 SECTION 1 GENERAL This section is extracted from instruction manual. 1-a Receiver unit / Récepteur / Empfänger / Ontvanger To the microphone jack of your tape recorder vers la prise microphone de votre magnétocassette an die Mikrofonbuchse des Kassettenrecorders Naar de microfoonaansluiting van uw cassetterecorder Transmitter unit / Emetteur / Sender / Zender 2 MIC jack Prise microphone (MIC) Buchse MIC MIC aansluiting 2 1-b To the microphone jack of your video camera recorder vers la prise de microphone de votre camescope an die Mikrofonbuchse der Videokamera Naar de microfoonaansluiting van uw camcorder 4 POWER switch Interrupteur d’alimentation (POWER) Netzschalter POWER POWER schakelaar 3 CHANNEL selector Sélecteur de canal (CHANNEL) Wählschalter CHANNEL CHANNEL keuzeschakelaar Approx. 45 m (150 feet) Env. 45 m (150 pieds) ca. 45 m Ong. 45 m 2 4 POWER switch Interrupteur d’alimentation (POWER) Netzschalter POWER POWER schakelaar 1-a,b 3 CHANNEL selector Sélecteur de canal (CHANNEL) Wählschalter CHANNEL CHANNEL keuzeschakelaar 1-a v (earphone) jack Prise d’écouteur (v) Ohrhörerbuchse v v (oortelefoon) aansluiting MIX MIC jack Prise de mixage (MIX MIC) Buchse MIX MIC MIX MIC aansluiting C To the MIC jack vers la prise MIC an Buchse MIC Naar de MIC aansluiting Lavalier microphone (supplied) Micro-cravate (fourni) Ansteckmikrofon (mitgeliefert) Lavalier-microfoon (meegeleverd) To the v (earphone) jack Vers la prise v (écouteur) an die Buchse v (Ohrhörer) Naar v (oortelefoon). earphone (supplied) écouteur (fourni) Ohrhörer (mitgeliefert) oortelefoon (meegeleverd) To the v (earphone) jack Vers la prise v (écouteur) an die Buchse v (Ohrhörer) Naar v (oortelefoon). earphone (supplied) écouteur (fourni) Ohrhörer (mitgeliefert) oortelefoon (meegeleverd) Features This wireless microphone system is designed to be used with a video camera recorder, etc. By attaching the receiver unit onto a video camera recorder, etc. you can receive the sound picked up by the transmitter unit. You can enjoy vivid sound which matches the zoomed up images recorded by your video camera recorder. You can also use this system with a tape recorder as a conventional wireless microphone system to record the sound. •The operational distance between the transmitter unit and the receiver unit can be up to approximately 45 m (150 feet). However, this distance may become shorter if there are some obstacles in between the transmitter unit and the receiver unit. •The radio frequency can be selected so that a less busy channel can be used while the air is busy. •Compact design featuring built-in antennas. •The transmitter unit is equipped with a plug in power∗ type MIC jack (monaural/ 3.5 mm dia.) An optional microphone other than the supplied one can be connected to this jack. •The transmitter and receiver units are equipped with clip type holders with the adjustable clips which can be rotated 360 degrees so that the transmitter and receiver units can be attached onto your clothes, etc. •The receiver unit is equipped with the MIX MIC jack to which an optional microphone such as the ECM-T145 (lavalier microphone) can be connected, so that the sound transmitted from the transmitter unit can be mixed with the sound picked up by the optional microphone. •The receiver unit is equipped with the v (earphone) jack to which the supplied earphone can be connected, so that you can monitor the sound being recorded. You can use the earphone connected to the receiver unit to monitor the subject using the transmitter unit. •The supplied lavalier microphone has a built-in wind screen effect so that you can use the microphone in the open air without a wind screen. * Plug in power system The system that power is supplied directly to the microphone from the microphone jack of the connected equipment. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 WCS-880 SECTION 2 DISASSEMBLY 2-2. ANTENNA SETTING Note: Follow the disassembly procedure in the numerical order given. 2-1. TX BOARD, VCO BOARD 1 two screws (P2 × 6) 4 TX board, VCO board 5 case (upper) 2 two claws 3 case (lower) TX board case (upper) antenna case (upper) rear view cushion (lower), switch cushion (lower), switch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 WCS-880 2-3. RX BOARD, FE BOARD 2-4. ANTENNA SETTING 5 case (upper) 2 two claws 3 case (lower) 1 two screws (P2 × 6) 4 RX board, FE board antenna case (upper) case (upper) rear view RX board cushion (lower), switch www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 WCS-880 SECTION 3 ELECTRICAL ADJUSTMENTS 0 dBm = 1 mW, 0 dBV = 1 Vrms TX SECTION 1. Consumption Current Check Setting: Procedure: 1. Connect a regulated dc power supply (1.5 V) and ampere meter. 2. Check that the value of ampere meter satisfy specified value. Specified value: 50 mA to 60 mA 2. TX OSC (12.8 MHz) Adjustment Setting: Procedure: 1. Connect a frequency counter to the TP53 on TX BASE board and the foot of VCO board shield case. 2. Set the [RF CHANNEL] switch (SW51) to[2]. 3. Adjust CT2 on the TX BASE board so that the value of frequency counter becomes 12.794 MHz. Specified value: 12.794 ± 0.001 MHz 3. TX Frequency Confirmation Setting: Procedure: 1. Connect the 1/4 λ sleeve antenna to a frequency counter, and put the antenna by the lead wire antenna (ANT1). 2. Set the [RF CHANNEL] switch (SW51) to[1]. 3. Confirm that the value of frequency counter satisfy specified value. 4. Change the [RF CHANNEL] switch (SW51) to [2]. 5. Confirm that the value of frequency counter satisfy specified value. 6. Change the [RF CHANNEL] switch (SW51) to [3]. 7. Confirm that the value of frequency counter satisfy specified value. Specified values: CH-1: 863.33 MHz to 863.47 MHz CH-2: 864.13 MHz to 864.27 MHz CH-3: 864.53 MHz to 864.67 MHz Note: Tool • 1/4 λ sleeve antenna Production procedure: 1. Cut about 80 mm of the outer cover at the other end of an approximately 2 meter coaxial cable (1.5D-2V or the equiva- lent) with a BNC connector. 2. Pull back the outer cover and fold the wire mesh over the out- side cover. 3. Cover the folded back wire mesh (outer cover) with a tube (for example, heat shrink tube) and fasten. 4. Preparation of 1.50 - 2 V coaxial cable 80 mm BNC 80 mm 80 mm BNC BNC The WCS-880 is a wireless microphone system operating in the 800 MHz. This system comprises the transmitter unit and the receiver unit. + – regulated dc power supply mA Set battery terminal # battery terminal 3 frequency counter lead wire antenna (ANT1) 1/4 λ sleeve antenna TX BASE board TX BASE board TP53 + – frequency counter Foot of VCO board shield case 4 mm 6 mm Mesh 80 cm BNC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 WCS-880 4. TX Output Level Adjustment Setting: Procedure: 1. Solder the core wire of coaxial cable to the CP54 on TX BASE board, and the mesh to the foot of VCO board shield case. 2. Connect BNC to the spectrum analyzer. 3. Set the [RF CHANNEL] switch (SW51) to [3]. 4. Adjust RV51 on the TX BASE board so that the value of spec- trum analyzer becomes –1 ± 2.5 dBm. 5. Change the [RF CHANNEL] switch (SW51) to [2]. 6. Confirm that the value of spectrum analyzer satisfy specified value. 7. Change the [RF CHANNEL] switch (SW51) to [1]. 8. Confirm that the value of spectrum analyzer satisfy specified value. Specified values: CH-1: –1 dBm to ±2.5 dBm CH-2: –1 dBm to ±2.5 dBm CH-3: –1 dBm to ±2.5 dBm 5. VCO Voltage Adjustment Setting: Procedure: 1. Connect digital voltmeter to the TP58 on TX BASE board and the foot of VCO board shield case. 2. Set the [RF CHANNEL] switch (SW51) to [3]. 3. Adjust CT1 on the VCO board so that the value of digital volt- meter becomes 1.6 V. 4. Set the [RF CHANNEL] switch (SW51) to [1]. 5. Confirm that the value of digital voltmeter satisfy specified value. 6. Set the [RF CHANNEL] switch (SW51) to [2]. 7. Confirm that the value of digital voltmeter satisfy specified value. Specified values: CH-2: 1.4 V to ±0.1 V CH-1: 1.1 V to ±0.1 V CH-3: 1.6 V to ±0.1 V 6. TX Modulation Sensitivity Adjustment Setting: Procedure: 1. Connect an AF OSC to the MIC jack (J1) on the TX BASE board (transmitter unit). 2. Connect a 3.3 kΩ load to the REC OUT plug (receiver unit), and under this condition connect to the audio analyzer. 3. Set the [RF CHANNEL] switch (SW51) to [1]. 4. Adjust RV1 on the TX BASE board (transmitter unit) so that the value of audio analyzer becomes –50 dBV. 5. Change the [RF CHANNEL] switch (SW51) to [2]. 6. Adjust RV2 on the TX BASE board (transmitter unit) so that the value of audio analyzer becomes –50 dBV. 7. Change the [RF CHANNEL] switch (SW51) to [3]. 8. Adjust RV3 on the TX BASE board (transmitter unit) so that the value of audio analyzer becomes –50 dBV. Adjustment Location: TX BASE Board (See page 8) audio analyzer AF OSC Frequency: 1 kHz Output level: –53.7 dBV + – MIC jack (J1) TX BASE board receiver unit lead wire antenna (ANT1) REC out plug (P1) spectrum analyzer more than 1 GHz TP54 Foot of VCO board shield case TX BASE board + – digital voltmeter Set TP58 Foot of VCO board shield case www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 WCS-880 RX SECTION 1. Consumption Current Check Setting: Procedure: 1. Connect a regulated dc power supply (1.5 V) and ampere meter. 2. Set the [RF CHANNEL] switch (SW1) to [1]. 3. Check that the value of ampere meter satisfy specified value. Specified value: 50 mA to 65 mA 2. RX Frequency Adjustment Setting: Procedure: 1. Connect the 1/4 λ sleeve antenna to a SSG, and put the an- tenna by the lead wire antenna (ANT2). 2. Connect a digital voltmeter to the TP51 on RX BASE board and the foot of FE board shield case. 3. Connect REC out plug (P1) to an oscilloscope. 4. Set the [RF CHANNEL] switch (SW1) to [1]. 5. Adjust CT1 on the RX BASE board so that the value of digi- tal voltmeter becomes 1.4 V. 6. Confirm that the waveform of oscilloscope is sine wave. 7. Change the carrier frequency of SSG to 864.2 MHz. 8. Change the [RF CHANNEL] switch (SW1) to [2]. 9. Adjust CT2 on the RX BASE board so that the value of digi- tal voltmeter becomes 1.4 V. 10. Confirm that the waveform of oscilloscope is sine wave. 11. Change the carrier frequency of SSG to 864.6 MHz. 12. Change the [RF CHANNEL] switch (SW1) to [3]. 13. Adjust CT3 on the RX BASE board so that the value of digi- tal voltmeter becomes 1.4 V. 14. Confirm that the waveform of oscilloscope is sine wave. Adjustment Location: RX BASE Board (See page 9) + – regulated dc power supply mA Set battery terminal # battery terminal 3 FM RF SSG Carrier frequency: 863.4 MHz Modulation: 1 kHz, ±20 kHz deviation Output level: – 60 dBm REC out plug (P1) RX BASE board lead wire antenna (ANT1) 1/4 λ sleeve antenna + – digital voltmeter Foot of VCO board shield case to TP51 oscilloscope (DC range) – TX BASE BOARD – (Conductor Side) IC51 Q50 TP53 TP58 Foot of VCO board shield case CP54 Adjustment Location: – TX BASE BOARD – (Component Side) MIC jack (J1) 1 t 2 t 3 SW51 [RF CHANNEL] RV3 RV1 RV2 TX Modulation Sensitivity Adjustment RV51 TX Output Level Adjustment CT1 VCO Voltage Adjustment CT2 TX OSC (12.8MHz) Adjustment lead wire antenna (ANT1) –VCO BOARD – shield case www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WCS-880 9 9 3. RX Output Level Adjustment Setting: Procedure: 1. Connect the 1/4 λ sleeve antenna to a SSG, and put the an- tenna by the lead wire antenna (ANT2). 2. Connect a 3.3 kΩ load to the REC OUT plug (receiver unit), and under this condition connect to the audio analyzer. 3. Set the [RF CHANNEL] switch (SW1) to [2]. 4. Adjust RV52 on the RX BASE board so that the value of au- dio analyzer becomes –50 dBV. 4. DISTORTION Level Adjustment Setting: Procedure: 1. Select CH2 of the Transmitter (WCS-880T). 2. Set the [RF CHANNEL] switch (SW1) on the RX BASE board to [2]. 3. Connect a 3.3 kΩ load to the REC OUT plug (P1), then con- nect to the input of audio analyzer. 4. Set the output of audio analyzer to 1 kHz, –36 to –40 dBV and enter its output to the MIC of Transmitter (WCS-880T). 5. Rotating the RV51 on RX BASE board, adjust so as to mini- mize the distortion. (Target distortion is 1.5 % or less.) FM RF SSG Carrier frequency: 864.2 MHz Modulation: 1 kHz, ±19 kHz deviation Output level: – 60 dBm audio analyzer REC out plug (P1) RX BASE board lead wire antenna (ANT2) 1/4 λ sleeve antenna audio analyzer 1 kHz –36 to –40 dBV RX BASE board REC OUT plug (P1) 3.3 kΩ + – Transmitter (WCS-880T) MIC Adjustment Location: – RX BASE BOARD (Component Side) – 1 t 2 t 3 SW1 [RF CHANNEL] CT1 CH-1 CT2 CH-2 CT3 CH-3 RX Frequency Adjustment RV52 RX Output Level Adjustment RV51 DISTORTION Level Adjustment lead wire antenna (ANT2) IC1 IC51 TP51 TP54 – RX BASE BOARD (Coductor Side) – Foot of VCO board shield case MEMO w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WCS-880 10 10 DIV OSC IN 8 75 REFERENCE FREQUENCY DIVIDER PHASE COMPARATOR DATA SET CIRCUIT CRYSTAL INPUT BUFFER PRESCALER CONTROL CIRCUIT COMPARATOR FERQUENCY DIVIDER OUTPUT SELECTOR CIRCUIT FIN 4 CHARGE PUMP 2 DO DIGITAL LOCK DETECTOR X51 12.8MHz L50 CT2 TX OSC Q50 AMP Q51 SW51 RF CHANNEL SW51 – 1 1 2 3 RV1 CH-1 RV3 CH-3 RV2 CH-2 RV1 – 3 TX MODULATION SENSITIVITY J1 MIC LPF MULTIVIBRATOR (FOR MUTING) Q121, 123 SWITCHING Q122 X1 970MHz IN MOD OUT VCO VOLTAGE CT1 RV51 ANT1 LEAD ANTENNA TX OUTPUT LEVEL ERROR AMP V OUT 2 LX OUTPUT CIRCUIT OSC VREF DC/DC CONVERTER IC101 PWM CONTROL B+ L101 ON OFF SW101 POWER LINE FILTER LF101 DRY BATTERY SIZE “AA” (IEC DESIGNATION R6) 1PCS. 1.5V 3 D101 LED DRIVE Q101 D102 BATT • SIGNAL PATH : TX PLL IC51 CT1 PRE-EMPHASIS & COMPRESSOR IC1 RF AMP Q2, 3 FREQUENCY Q1 SECTION 4 DIAGRAMS 4-1. BLOCK DIAGRAM – TX Section – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WCS-880 11 11 FM FRONT-END, IF AMP, DET IC1 (1/2) POWER AMP IC1 (2/2) • SIGNAL PATH : RX B+ ANT2 LEAD ANTENNA ANT FRONT-END BLOCK IF CT3 CT1 CF2 10.7MHz CF1 10.7MHz CT2 EXPANDER D51 v J51 RF CHANNEL SW1 RF CHANNEL D153 CH-3 CT1 CH-2 CT2 CH-1 CT3 RX OUTPUT LEVEL RV52 RX FREQUENCY CT1 – 3 BUFFER Q152 SWITCHING Q153 LED DRIVE Q155 LINE FILTER LF101 EMI FILTER LF51 LOCAL OSC Q3 LED DRIVE Q101 TUNING METER FM IF AMP FM DISCRIMI- NATOR FM FRONT-END AF POWER AMP DET, AGC RF AMP Q1 MIXER Q2 MIX MIC J52 X1 409MHz 1 2 3 POWER SW101 BATT D102 ON OFF DRY BATTERY SIZE “AA” (IEC DESIGNATION R6) 1PCS. 1.5V SIGNAL METER BUFFER Q151 L1 (RF) L2 (OSC) REG (1.25V) VREF FM/AM FE OUT FM RF IN FM IF IN FM DISCRI DET OUT MUTING Q154 P1 (REC OUT) VREF VOL AF IN AF OUT METER AFC/AGC AFC/AGC REG OUT AFC FM OSC FM RF 9 7 6 8 19 21 22 12 17 14 2 23 4 24 27 LIMITER D151 D154 DC/DC CONVERTER IC101 VOUT LX OSC OUTPUT CIRCUIT PWM CONTROL ERROR AMP VREF 2 3 L101 D101 SAW F1 818MHz CH1: 863.4MHz CH2: 864.2MHz CH3: 864.6MHz CH1: 56.1MHz CH2: 56.9MHz CH3: 57.3MHz RV51 FILTER LF52 FILTER LF54 EXPANDER AMP IC51 (1/2) EXPANDER AMP IC51 (2/2) DISTORTON LEVEL DEEMPHASIS AMP IC52 (1/2) DEEMPHASIS AMP IC52 (2/2) 4-2. BLOCK DIAGRAM – RX Section – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WCS-880 12 12 RV2 RV3 RV1 + D102 L101 C105 C104 + SW101 R102 C107 + LF101 C101 JC52 C72 RV51 + C58 SW51 + C64 CT2 X51 C76 L2 TX BASE BOARD (COMPONENT SIDE) R103 R104 + C1 C2 L1 C4 C11 + R1 C3 R5 R4 C5 R6 C8 IC1 R2 1 4 5 8 R3 C10 C9 E C B Q121 Q122 B C E C7 D1 K A A/K R7 R8 C12 C125 Q51 E C B R53 R67 C55 C56 C54 R54 C53 R55 C61 R57 C57 C52 L50 Q50 B C E R68 C51 C59 C60 IC51 C62 C63 R64 R56 R51 R58 R62 L53 C66 L52 C68 C50 R63 R65 L51 D121 R127 R128 JC53 JC55 C65 R66 C69 E C B Q123 R121 C124 R124 R126 R125 C121 C123 R123 JC54 C75 C70 C73 FS1 C106 R58 R105 C108 E C B Q101 D101 IC101 A 1 A K K R101 C102 C103 + 2 3 TX BASE BOARD (CONDUCTOR SIDE) 1 4 8 5 K A A 1 B C D E F 2 3 4 5 6 7 8 A VCO BOARD (COMPONENT SIDE) X1 CT1 C24 C1 R5 R6 C11 C12 L4 C13 L5 C20 L3 E C B Q3 C19 R8 R11 L2 C10 R7 C9 C8 L1 C17 C18 R10 C21 C7 C6 E C B Q2 R4 E C B Q1 C5 R3 C3 R12 C25 D1 A K C2 R1 R9 R2 C16 C15 C22 C23 VCO BOARD (CONDUCTORT SIDE) RF CHANNEL SW51 1 2 3 J1 MIC SW101 POWER OFF ON D102 BATT 1-681-323- 11 (11) 9 10 11 (11) 1-681-323- DRY BATTERY SIZE “AA” (IEC DESIGNATION R6) 1PC. 1.5V ANT1 LEAD ANTENNA C53 C52 C51 (SHIELD CASE) 11 (11) 1-681-324- (SHIELD CASE) 1-681-324- 11 (11) C71 + C4 + TP53 CP52 CP54 TP58 D1 C-9 (*1) D1 F-6 (*2) D101 B-6 D102 A-5 D121 C-8 IC1 C-10 IC51 B-3 IC101 B-6 Ref. No. Location Ref. No. Location • Semiconductor Location Q1 F-7 Q2 F-8 Q3 F-8 Q50 A-9 Q51 B-9 Q101 B-7 Q121 D-9 Q122 D-9 Q123 D-8 4-3. PRINTED WIRING BOARDS – TX Section – Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • z : Through hole. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. *1: Mounted on the TX BASE board. *2: Mounted on the VCO board. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WCS-880 13 13 4-4. SCHEMATIC DIAGRAM – TX Section – • See page 16 for Waveforms. • See page 16 for IC Block Diagrams. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • C : panel designation. • A : B+ Line. • H : adjustment for repair. • Power voltage is dc 1.5 V and fed with regulated dc power supply from battery terminal. • Voltages and waveforms are dc with respect to ground under no-signal conditions. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F :TX w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WCS-880 14 14 C154 + L151 D102 L101 SW101 R102 C102 + C52 + C58 + R101 C104 + C71 + C101 LF101 RV51 C7 C16 + C13 + R51 C73 + C10 R52 C51 CT3 CT2 CT1 C17 L52 C19 + R75 L1 C6 L2 SW1 C14 CF2 J51 J52 C158 R155 Q153 B C E R152 C155 L58 L55 L57 L58 R82 C77 R83 C67 + RV52 LF51 R76 C79 R79 C75 RX BASE BOARD (COMPONENT SIDE) L4 L3 C1 F1 L9 L8 C27 C26 C25 C8 L1 C7 C10 L6 L5 C24 C15 C46 R8 E B Q3 C C12 L7 C13 R10 C14 FE BOARD (COMPONENT SIDE) X1 C32 C6 D1 A K C31 C30 C5 Q2 C E B E R12 R4 R3 C39 C20 C4 R11 C3 C43 C44 Q1 S D G2 G1 C40 C17 C41 R1 R13 R5 C2 FE BOARD (CONDUCTOR SIDE) C153 C78 C80 1 4 5 8 Q155 L53 R80 R153 D151 C156 R154 R159 E C B D53 A K E C B Q152 C152 Q151 B C E R151 R74 L51 C74 R73 L54 C151 D154 A K D152 A K R156 R161 Q154 B C E R71 C69 JC152 R158 R68 C68 C63 R65 R70 C64 C62 R66 R72 D54 A K LF52 C70 R67 C66 R69 IC52 1 4 5 8 C65 C59 R78 R59 C56 C60 R62 C61 C57 + C55 R6 C20 C18 L3 LF54 1 28 IC1 R7 D153 R3 C21 R4 C11 C15 C12 C8 C5 C4 C1 C2 R9 C3 R1 R2 14 CF1 15 D51 A K A/K R58 C9 R57 R53 IC51 C53 R56 R77 C72 R54 R55 C54 A K D1 A/K L4 FS1 C103 IC101 Q101 B C E C105 R103 R104 D101 1 3 2 K K A A RX BASE BOARD (CONDUCTOR SIDE) 1 A B C D E F 2 3 4 5 6 7 8 A K A/K MIX MIC v RF CHANNEL SW1 1 2 3 SW101 POWER OFF ON D102 BATT 1-681-325- 11 (11) DRY BATTERY SIZE “AA” (IEC DESIGNATION R6) 1PC. 1.5V ANT2 LEAD ANTENNA P1 (REC OUT) C53 C51 (SHIELD CASE) C52 C52 11 (11) 1-681-326- (SHIELD CASE) 1-681-326- 11 (11) PC7 (PRINT COIL) 9 10 1-681-325- 11 (11) TP51 TP54 TP102 C22 D55 IC51 C-8 IC52 D-9 IC101 B-6 Q1 F-7 Q2 F-7 Q3 F-3 Q101 A-6 Q151 B-10 Q152 B-9 Q153 A-1 Q154 C-10 Q155 A-9 4-5. PRINTED WIRING BOARDS – RX Section – Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • z : Through hole. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. D1 D-7 (*1) D1 F-8 (*2) D51 C-7 D53 B-9 D54 D-10 D55 C-9 D101 B-6 D102 A-5 D151 A-10 D152 C-9 D153 A-9 D154 C-10 IC1 B-8 Ref. No. Location Ref. No. Location • Semiconductor Location *1: Mounted on the RX BASE board. *2: Mounted on the FE board. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WCS-880 15 15 4-6. SCHEMATIC DIAGRAM – RX Section – • See page 16 for Waveform. • See page 16 for IC Block Diagrams. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • C : panel designation. • A : B+ Line. • H : adjustment for repair. • Power voltage is dc 1.5 V and fed with regulated dc power supply from battery terminal. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : without the signal ( ) : receive the signal • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. J : RX w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WCS-880 16 16 LX SWITCH VSS 1 VOUT 2 LX 3 BUFFER PHASE COMPARATOR PWM CONTROL OSC 50/100/180kHz VLX LIMITER SLOW START ERROR AMP VREF + – GND 28 AF OUT 27 VCC AFC/AGC 26 RIPPLE FILTER 25 AF IN 24 DET OUT 23 22 AFC/AGC 21 IF GND 20 TUNING METER 19 NC 18 FM IF IN 17 AM IF IN 16 FM/AM BAND SELECT 15 MUTE 1 FM DISCRI 2 NF FM OSC 3 VOL 4 AM OSC 5 AFC 6 7 REG OUT 8 FM RF 9 AM RF IN 10 NC 11 FM RF IN 12 FE GND 13 FM/AM FE OUT 14 TUNING METER FM IF AMP FM DISCRIMI- NATOR FM FRONT-END AM FRONT-END AF POWER AMP AM IF AMP, DET, AGC 1 2 3 4 FIN GND DO VCC OSCIN LD 8 7 6 FOUT 5 DIV SWALLOW COUNTER (A) CONTROL CIRCUIT PRESCALER (P) MC COMPARATOR FREQUENCY DIVIDER REFERENCE FREQUENCY DIVIDER PHASE COMPARATOR OUTPUT SELECTOR CIRCUIT fr fp CHARGE PUMP DIGITAL LOCK DETECTOR REFERENCE COUNTER (R) CRYSTAL INPUT BUFFER DATA SET CIRCUIT MAIN COUNTER (N) 3.5 Vp-p 10.3 µs 1.2 Vp-p 80 ns 2 Vp-p 80 ns 3.5 Vp-p 10.3 µs – RX BASE Board – 1 IC101 2 (LX) 2 V/DIV, 5 µs/DIV • Waveforms – TX BASE Board – 1 Q51 Emitter 1 V/DIV, 50 ns/DIV 2 IC51 8 (OSCIN) 500 mV/DIV, 50 ns/DIV 3 IC101 3 (LX) 2 V/DIV, 5 µs/DIV • IC Block Diagrams IC51 MB15C132PFV-G-BND-ER (TX BASE Board) IC101 XC6371A301PR (TX BASE Board) (RX BASE Board) IC1 CXA1691BM-T6 (RX BASE Board) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 WCS-880 5-1. TX SECTION (WCS-880T) SECTION 5 EXPLODED VIEWS • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference num- ber in the exploded views are not supplied. • Accessories and packing materials are given in the last of the electrical parts list. NOTE: • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example: KNOB, BALANCE (WHITE) . . . (RED) ↑ ↑ Parts Color Cabinet's Color Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 A-4540-661-A CASE (TX) SUB ASSY 2 2-544-527-21 KNOB (BANDO) 3 2-544-526-21 KNOB (POWER) * 4 A-4542-700-A TX BASE BOARD, COMPLETE 5 2-545-828-01 TERMINAL (-), BATTERY 6 2-545-827-01 TERMINAL (+), BATTERY 7 2-544-532-11 CLIP (LOWER) 8 4-958-149-01 SPRING (CLIP) 9 2-544-531-11 CLIP (UPPER) 10 3-895-517-11 SCREW (2), TAPPING, STEP 13 2-545-825-11 LID, BATTERY CASE 14 2-544-524-21 CASE (LOWER) 15 A-4540-587-A MIC ASSY, LAVALIER 16 4-963-644-11 CUSHION (LOWER), SWITCH 17 3-041-922-01 SHEET, ELECTROSTATIC 18 2-544-602-21 CASE (UPPER) TRANSFORMER * 19 A-4542-701-A VCO BOARD, COMPLETE #1 7-626-314-61 SPRING PIN 2X15 #2 7-685-104-19 SCREW +P 2X6 TYPE2 NON-SLIT 4 2 1 18 6 5 14 15 13 10 9 8 7 19 16 16 17 not supplied #1 #2 not supplied www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 WCS-880 5-2. RX SECTION (WCS-880R) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 A-4540-663-A CASE (RX) SUB ASSY 52 2-544-527-21 KNOB (BANDO) 53 2-544-526-21 KNOB (POWER) * 54 A-4542-702-A RX BASE BOARD, COMPLETE 55 2-545-828-01 TERMINAL (-), BATTERY 56 2-545-827-01 TERMINAL (+), BATTERY 57 2-544-532-11 CLIP (LOWER) 58 4-958-149-01 SPRING (CLIP) 59 2-544-531-11 CLIP (UPPER) 60 3-895-517-11 SCREW (2), TAPPING, STEP 63 2-545-825-11 LID, BATTERY CASE 64 2-544-524-21 CASE (LOWER) 65 8-952-251-90 HEADPHONE MDR-E122 SET 66 4-963-644-11 CUSHION (LOWER), SWITCH 67 4-956-742-01 BUSHING, CASE 68 3-229-649-01 SHEET (880), ELECTROSTATIC 69 3-229-770-01 SHEET (UPPER), SHIELD 70 2-544-523-21 RECEIVER, CASE (UPPER) * 71 A-4542-703-A FE BOARD, COMPLETE 72 3-229-771-01 SHEET (LOWER), SHIELD 73 1-500-699-11 CORE, FERRITE (ESD-SR-S10) #1 7-626-314-61 SPRING PIN 2X15 #2 7-685-104-19 SCREW +P 2X6 TYPE2 NON-SLIT P1 1-769-573-11 CORD, MICROPHONE (1 CORE) (REC OUT) 51 70 67 52 68 69 53 P1 65 64 63 55 56 73 54 60 59 58 57 66 71 72 66 66 not supplied not supplied #1 #2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 WCS-880 FE RX BASE SECTION 6 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * A-4542-703-A FE BOARD, COMPLETE ****************** < CAPACITOR > C1 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V C2 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C3 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C4 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V C5 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C6 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C7 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V C8 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C10 1-107-494-11 CERAMIC CHIP 0.5PF 0.10PF 50V C12 1-162-913-11 CERAMIC CHIP 8PF 0.5PF 50V C13 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C14 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C15 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C17 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C20 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C24 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C25 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C26 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C27 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C30 1-164-238-11 CERAMIC CHIP 36PF 5% 50V C31 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C32 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C39 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C40 1-162-909-11 CERAMIC CHIP 4PF 0.25PF 50V C41 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C43 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C44 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C46 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C51 1-104-511-44 CERAMIC 0.001uF C52 1-111-231-44 CERAMIC 2PF C53 1-111-231-44 CERAMIC 2PF < DIODE > D1 8-719-988-61 DIODE 1SS355TE-17 < SAW FILTER > F1 1-795-122-21 RESONATOR, SAW NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. < COIL > L1 1-469-546-21 INDUCTOR 0.56uH L3 1-469-911-21 INDUCTOR 6.8nH L4 1-469-911-21 INDUCTOR 6.8nH L5 1-469-889-21 INDUCTOR 100nH L6 1-469-913-21 INDUCTOR 10nH L7 1-469-889-21 INDUCTOR 100nH L8 1-469-546-21 INDUCTOR 0.56uH L9 1-469-888-21 INDUCTOR 68nH < TRANSISTOR > Q1 8-729-040-64 FET 3SK309XV-TL Q2 8-729-053-69 TRANSISTOR 2SC5092-O(TE85L) Q3 8-729-043-92 TRANSISTOR 2SC5084-0(TE85L) < RESISTOR > R1 1-216-852-11 METAL CHIP 390K 5% 1/16W R3 1-216-841-11 METAL CHIP 47K 5% 1/16W R4 1-216-853-11 METAL CHIP 470K 5% 1/16W R5 1-216-845-11 METAL CHIP 100K 5% 1/16W R8 1-216-838-11 METAL CHIP 27K 5% 1/16W R10 1-216-845-11 METAL CHIP 100K 5% 1/16W R11 1-216-815-11 METAL CHIP 330 5% 1/16W R12 1-216-809-11 METAL CHIP 100 5% 1/16W R13 1-216-803-11 METAL CHIP 33 5% 1/16W < VIBRATOR > X1 1-781-854-21 RESONANTOR, SAW (409MHz) ************************************************************** * A-4542-702-A RX BASE BOARD, COMPLETE ************************ < CAPACITOR > C1 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C2 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C3 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C4 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C5 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C6 1-128-006-11 ELECT CHIP 4.7uF 20% 25V C7 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C8 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C9 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C10 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 20 WCS-880 RX BASE C11 1-162-997-11 CERAMIC CHIP 10PF 0.5PF 50V C12 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C13 1-107-686-11 TANTAL. CHIP 4.7uF 10% 16V C14 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C15 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V C16 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C17 1-162-912-11 CERAMIC CHIP 7PF 0.5PF 50V C18 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C19 1-135-177-21 TANTALUM CHIP 1uF 20% 20V C20 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C21 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C22 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C51 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C52 1-128-257-21 ELECT CHIP 33uF 20% 10V C53 1-164-392-11 CERAMIC CHIP 390PF 5% 50V C54 1-164-505-11 CERAMIC CHIP 2.2uF 16V C55 1-109-994-11 CERAMIC CHIP 2.2uF 10% 10V C56 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C57 1-104-915-11 TANTAL. CHIP 2.2uF 10% 16V C58 1-126-603-11 ELECT CHIP 4.7uF 20% 35V C59 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C60 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C61 1-162-967-11 CERAMIC CHIP 0.0033uF 10% 50V C62 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C63 1-164-505-11 CERAMIC CHIP 2.2uF 16V C64 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C65 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C66 1-164-315-11 CERAMIC CHIP 470PF 5% 50V C67 1-126-607-11 ELECT CHIP 47uF 20% 4V C68 1-164-505-11 CERAMIC CHIP 2.2uF 16V C69 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C70 1-164-505-11 CERAMIC CHIP 2.2uF 16V C71 1-126-209-11 ELECT CHIP 100uF 20% 4V C72 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C73 1-126-209-11 ELECT CHIP 100uF 20% 4V C74 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C75 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C77 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C78 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C79 1-164-505-11 CERAMIC CHIP 2.2uF 16V C80 1-115-156-11 CERAMIC CHIP 1uF 10V C101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C102 1-113-642-11 TANTAL. CHIP 47uF 20% 10V C103 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C104 1-113-642-11 TANTAL. CHIP 47uF 20% 10V C105 1-115-156-11 CERAMIC CHIP 1uF 10V C151 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C152 1-162-969-11 CERAMIC CHIP 0.0068uF 10% 25V C153 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C154 1-126-607-11 ELECT CHIP 47uF 20% 4V C155 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C156 1-109-982-11 CERAMIC CHIP 1uF 10% 10V C158 1-115-156-11 CERAMIC CHIP 1uF 10V < FILTER > CF1 1-567-198-11 FILTER, CERAMIC CF2 1-767-414-71 FILTER, CERAMIC < TRIMMER > CT1 1-141-327-11 CAP, CHIP TYPE TRIMMER 10PF CT2 1-141-327-11 CAP, CHIP TYPE TRIMMER 10PF CT3 1-141-327-11 CAP, CHIP TYPE TRIMMER 10PF < DIODE > D1 8-719-820-41 DIODE 1SS302-TE85L D51 8-719-820-41 DIODE 1SS302-TE85L D53 8-719-056-74 DIODE UDZ-TE-17-3.0B D54 8-719-976-96 DIODE UDZ-TE-17-4.7B D55 8-719-056-29 DIODE 015AZ4.7-TPL3 D101 8-719-076-78 DIODE 1SS383-TE85L D102 8-719-989-53 LED CL-200HR-C-TSL (BATT) D151 8-719-054-23 DIODE RB706D-40-T146 D152 8-719-988-61 DIODE 1SS355TE-17 D153 8-719-066-82 LED CL-200YG-C-TS (BATT) D154 8-719-988-61 DIODE 1SS355TE-17 < FUSE> FS1 1-533-792-11 FUSE (SMD) < IC > IC1 8-752-093-09 IC CXA1691BM-T6 IC51 8-759-344-00 IC NJM2100E (TE2) IC52 8-759-344-00 IC NJM2100E (TE2) IC101 8-759-644-78 IC XC6371A301PR < JACK > J51 1-764-624-11 JACK (v) J52 1-764-624-11 JACK (MIX MIC) < SHORT > JC152 1-216-864-11 SHORT 0 < COIL > L1 1-412-933-11 INDUCTOR 0.33uH L2 1-469-656-21 INDUCTOR 145nH L3 1-469-179-21 FERRITE 0uH L4 1-414-663-21 INDUCTOR 8.2nH L51 1-500-245-11 FERRITE 0uH L52 1-500-245-11 FERRITE 0uH L53 1-500-245-11 FERRITE 0uH L54 1-500-245-11 FERRITE 0uH L55 1-469-179-21 FERRITE 0uH L56 1-469-179-21 FERRITE 0uH L57 1-469-179-21 FERRITE 0uH L58 1-469-179-21 FERRITE 0uH L101 1-419-334-21 INDUCTOR 100uH L151 1-412-034-11 INDUCTOR 330uH < LINE FILTER > LF51 1-411-236-11 FILTER, EMI LF52 1-234-646-21 INDUCTOR 0uH LF54 1-234-647-21 INDUCTOR 0uH LF101 1-411-236-11 FILTER, EMI www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 21 WCS-880 RX BASE TX BASE < TRANSISTOR > Q101 8-729-230-49 TRANSISTOR 2SC2712L-TE85L Q151 8-729-230-49 TRANSISTOR 2SC2712L-TE85L Q152 8-729-050-31 FET 2SK880-Y-TE85L Q153 8-729-920-31 TRANSISTOR DTC343TK-T-146 Q154 8-729-015-39 TRANSISTOR DTC323TKT146 Q155 8-729-040-78 TRANSISTOR DTA124GKA-T146 < RESISTOR > R1 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R2 1-216-815-11 METAL CHIP 330 5% 1/16W R3 1-218-331-11 RES-CHIP 51K 5% 1/16W R4 1-218-725-11 RES-CHIP 24K 5% 1/16W R6 1-216-845-11 METAL CHIP 100K 5% 1/16W R7 1-216-812-11 METAL CHIP 180 5% 1/16W R9 1-216-813-11 METAL CHIP 220 5% 1/16W R51 1-216-864-91 SHORT 0 R52 1-216-836-11 METAL CHIP 18K 5% 1/16W R53 1-216-837-11 METAL CHIP 22K 5% 1/16W R54 1-218-294-11 RES-CHIP 30K 5% 1/16W R55 1-803-804-21 THERMISTOR, CHIP R56 1-216-834-11 METAL CHIP 12K 5% 1/16W R57 1-216-833-11 METAL CHIP 10K 5% 1/16W R58 1-216-847-11 METAL CHIP 150K 5% 1/16W R59 1-216-833-11 METAL CHIP 10K 5% 1/16W R62 1-216-837-11 METAL CHIP 22K 5% 1/16W R65 1-220-158-11 RES-CHIP 3.6K 5% 1/16W R66 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R67 1-216-833-11 METAL CHIP 10K 5% 1/16W R68 1-218-707-11 RES-CHIP 4.3K 5% 1/16W R69 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R70 1-216-836-11 METAL CHIP 18K 5% 1/16W R71 1-216-833-11 METAL CHIP 10K 5% 1/16W R72 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R73 1-216-821-11 METAL CHIP 1K 5% 1/16W R74 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R75 1-216-821-11 METAL CHIP 1K 5% 1/16W R76 1-216-815-11 METAL CHIP 330 5% 1/16W R77 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R78 1-216-833-11 METAL CHIP 10K 5% 1/16W R79 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R80 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R82 1-216-864-91 SHORT 0 R83 1-216-864-91 SHORT 0 R101 1-216-297-11 RES-CHIP 5.1 5% 1/10W R102 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R103 1-216-849-11 METAL CHIP 220K 5% 1/16W R104 1-218-332-11 RES-CHIP 130K 5% 1/16W R151 1-218-273-11 RES-CHIP 510K 5% 1/16W R152 1-216-821-11 METAL CHIP 1K 5% 1/16W R153 1-216-835-11 METAL CHIP 15K 5% 1/16W R154 1-216-824-11 METAL CHIP 1.8K 5% 1/16W R155 1-216-857-11 METAL CHIP 1M 5% 1/16W R156 1-218-331-11 RES-CHIP 51K 5% 1/16W R158 1-216-833-11 METAL CHIP 10K 5% 1/16W R159 1-218-484-11 RES-CHIP 750 5% 1/16W R161 1-216-845-11 METAL CHIP 100K 5% 1/16W < VARIABLE RESISTOR > RV51 1-223-586-11 RES, ADJ, CARBON 10K RV52 1-223-586-11 RES, ADJ, CARBON 10K < SWITCH > S1 1-692-034-11 SWITCH, SLIDE (RF CHANNEL) S101 1-572-018-11 SWITCH, SLIDE (POWER) ************************************************************** * A-4542-700-A TX BASE BOARD, COMPLETE ************************ < CAPACITOR > C1 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C2 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C3 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C4 1-164-346-11 CERAMIC CHIP 1uF 16V C5 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C7 1-107-520-11 TANTAL. CHIP 33uF 20% 2.5V C8 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C9 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C10 1-164-346-11 CERAMIC CHIP 1uF 16V C11 1-104-851-11 TANTAL. CHIP 10uF 20% 10V C12 1-164-505-11 CERAMIC CHIP 2.2uF 16V C39 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C50 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C51 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C52 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C53 1-164-164-11 CERAMIC CHIP 33PF 5% 50V C54 1-162-997-11 CERAMIC CHIP 10PF 0.5PF 50V C55 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C56 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C57 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C58 1-126-607-11 ELECT CHIP 47uF 20% 4V C59 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C60 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C61 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C62 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C63 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C64 1-126-209-11 ELECT CHIP 100uF 20% 4V C65 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C66 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C68 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C69 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C70 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V C71 1-126-246-11 ELECT CHIP 220uF 20% 4V C72 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C73 1-162-905-11 CERAMIC CHIP 1PF 0.25PF 50V C75 1-162-907-11 CERAMIC CHIP 2PF 0.25PF 50V C76 1-126-607-11 ELECT CHIP 47uF 20% 4V C101 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C102 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C103 1-111-253-11 TANTAL. CHIP 100uF 20% 6.3V C104 1-113-642-11 TANTAL. CHIP 47uF 20% 10V C105 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C106 1-115-339-11 CERAMIC CHIP 0.1uF 10% 50V C107 1-113-996-11 TANTAL. CHIP 220uF 20% 4V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 22 WCS-880 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. C108 1-164-346-11 CERAMIC CHIP 1uF 16V C121 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C123 1-164-160-11 CERAMIC CHIP 20PF 5% 50V C124 1-164-160-11 CERAMIC CHIP 20PF 5% 50V C125 1-109-982-11 CERAMIC CHIP 1uF 10% 10V < TRIMMER > CT2 1-141-327-11 CAP, CHIP TYPE TRIMMER 10PF < DIODE > D1 8-719-820-41 DIODE 1SS302-TE85L D101 8-719-076-78 DIODE 1SS383-TE85L D102 8-719-989-53 LED CL-200HR-C-TSL (BATT) D121 8-719-941-04 DIODE SB007-03CP-TB < FUSE > 0FS1 1-533-792-11 FUSE (SMD) < IC > IC1 8-759-344-00 IC NJM2100E(TE2) IC51 8-759-695-42 IC MB15C132PFV-G-BND-ER IC101 8-759-644-78 IC XC6371A301PR < JACK > J1 1-764-624-11 JACK (MIC) < SHORT > JC52 1-216-295-11 SHORT 0 JC53 1-216-295-11 SHORT 0 JC54 1-216-296-11 SHORT 0 JC55 1-216-295-11 SHORT 0 < COIL > L1 1-412-933-11 INDUCTOR 0.33uH L2 1-412-933-11 INDUCTOR 0.33uH L50 1-469-870-21 INDUCTOR 4.7uH L51 1-469-911-21 INDUCTOR 6.8nH L52 1-469-911-21 INDUCTOR 6.8nH L53 1-469-911-21 INDUCTOR 6.8nH L101 1-419-334-21 INDUCTOR 100uH < LINE FILTER > LF101 1-411-236-11 FILTER, EMI < TRANSISTOR > Q50 8-729-230-49 TRANSISTOR 2SC2712L-TE85L Q51 8-729-230-49 TRANSISTOR 2SC2712L-TE85L Q101 8-729-230-49 TRANSISTOR 2SC2712L-TE85L Q121 8-729-230-49 TRANSISTOR 2SC2712L-TE85L Q122 8-729-230-49 TRANSISTOR 2SC2712L-TE85L Q123 8-729-230-49 TRANSISTOR 2SC2712L-TE85L < RESISTOR > R1 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R2 1-218-741-11 RES-CHIP 110K 5% 1/16W R3 1-216-845-11 METAL CHIP 100K 5% 1/16W R4 1-216-817-11 METAL CHIP 470 5% 1/16W R5 1-216-821-11 METAL CHIP 1K 5% 1/16W R6 1-218-344-11 RES-CHIP 7.5K 5% 1/16W R7 1-216-847-11 METAL CHIP 150K 5% 1/16W R8 1-216-833-11 METAL CHIP 10K 5% 1/16W R51 1-216-833-11 METAL CHIP 10K 5% 1/16W R53 1-216-853-11 METAL CHIP 470K 5% 1/16W R54 1-216-820-11 METAL CHIP 820 5% 1/16W R55 1-216-820-11 METAL CHIP 820 5% 1/16W R56 1-216-803-11 METAL CHIP 33 5% 1/16W R57 1-216-833-11 METAL CHIP 10K 5% 1/16W R58 1-216-815-11 METAL CHIP 330 5% 1/16W R59 1-216-815-11 METAL CHIP 330 5% 1/16W R62 1-216-864-11 SHORT 0 R63 1-216-864-11 SHORT 0 R64 1-216-809-11 METAL CHIP 100 5% 1/16W R65 1-216-833-11 METAL CHIP 10K 5% 1/16W R66 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R67 1-216-807-11 METAL CHIP 68 5% 1/16W R68 1-216-833-11 METAL CHIP 10K 5% 1/16W R101 1-216-809-11 METAL CHIP 100 5% 1/16W R102 1-216-150-91 RES-CHIP 10 5% 1/8W R103 1-218-332-11 RES-CHIP 130K 5% 1/16W R104 1-216-849-11 METAL CHIP 220K 5% 1/16W R105 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R121 1-216-837-11 METAL CHIP 22K 5% 1/16W R123 1-216-851-11 METAL CHIP 330K 5% 1/16W R124 1-216-851-11 METAL CHIP 330K 5% 1/16W R125 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R126 1-216-836-11 METAL CHIP 18K 5% 1/16W R127 1-216-853-11 METAL CHIP 470K 5% 1/16W R128 1-216-837-11 METAL CHIP 22K 5% 1/16W < VARIABLE RESISTOR > RV1 1-238-663-11 RES, ADJ, CARBON 4.7K RV2 1-238-663-11 RES, ADJ, CARBON 4.7K RV3 1-238-663-11 RES, ADJ, CARBON 4.7K RV51 1-225-946-21 RES, ADJ, CERMET (3 TYPE) 200 < SWITCH > SW51 1-692-034-11 SWITCH, SLIDE (RF CHANNEL) SW101 1-572-018-11 SWITCH, SLIDE (POWER) < VIBRATOR > X51 1-795-069-21 VIBRATOR, CRYSTAL (12.8MHz) ************************************************************** * A-4542-701-A VCO BOARD, COMPLETE ******************** < CAPACITOR > C1 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C2 1-164-429-91 CERAMIC CHIP 1.5PF 0.25PF 50V C3 1-164-429-91 CERAMIC CHIP 1.5PF 0.25PF 50V C5 1-107-494-11 CERAMIC CHIP 0.5PF 0.10PF 50V C6 1-107-494-11 CERAMIC CHIP 0.5PF 0.10PF 50V C7 1-131-747-91 CERAMIC CHIP 1.5PF 50V C8 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V TX BASE VCO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 23 WCS-880 C9 1-162-911-11 CERAMIC CHIP 6PF 0.5PF 50V C10 1-113-713-91 CERAMIC CHIP 1PF 0.10PF 50V C11 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C12 1-162-910-11 CERAMIC CHIP 5PF 0.25PF 50V C13 1-162-908-11 CERAMIC CHIP 3PF 0.25PF 50V C15 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C16 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C17 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C18 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C19 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C20 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C21 1-104-912-11 TANTAL. CHIP 3.3uF 20% 10V C22 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C23 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C24 1-113-713-91 CERAMIC CHIP 1PF 0.10PF 50V C25 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C51 1-125-825-11 CERAMIC 0.001uF 50V C52 1-125-825-11 CERAMIC 0.001uF 50V C53 1-125-824-11 CERAMIC 2PF 0.5PF 50V < TRIMMER > CT1 1-141-435-21 CAP, CHIP TYPE TRIMMER 3PF < DIODE > D1 8-719-821-53 DIODE 1SV245(TPH4) < COIL > L1 1-414-660-11 INDUCTOR 4.7nH L2 1-414-663-21 INDUCTOR 8.2nH L3 1-414-663-21 INDUCTOR 8.2nH L4 1-414-664-21 INDUCTOR 10nH L5 1-414-664-21 INDUCTOR 10nH < TRANSISTOR > Q1 8-729-043-92 TRANSISTOR 2SC5084-0 (TE85L) Q2 8-729-043-92 TRANSISTOR 2SC5084-0 (TE85L) Q3 8-729-043-92 TRANSISTOR 2SC5084-0 (TE85L) < RESISTOR > R1 1-216-837-11 METAL CHIP 22K 5% 1/16W R2 1-216-819-11 METAL CHIP 680 5% 1/16W R3 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R4 1-216-817-11 METAL CHIP 470 5% 1/16W R5 1-216-838-11 METAL CHIP 27K 5% 1/16W R6 1-216-837-11 METAL CHIP 22K 5% 1/16W R7 1-216-837-11 METAL CHIP 22K 5% 1/16W R8 1-216-835-11 METAL CHIP 15K 5% 1/16W R9 1-216-809-11 METAL CHIP 100 5% 1/16W R10 1-216-809-11 METAL CHIP 100 5% 1/16W R11 1-216-801-11 METAL CHIP 22 5% 1/16W R12 1-216-845-11 METAL CHIP 100K 5% 1/16W < VIBRATOR > X1 1-781-602-21 RESONANCE, RESONATOR (970MHz) ************************************************************** MISCELLANEOUS ************** 65 8-952-251-90 HEADPHONE MDR-E122 SET P1 1-751-137-11 CORD, MICROPHONE (1 CORE) (REC OUT) ************************************************************ ACCESSORIES & PACKING MATERIALS ******************************* 2-545-832-01 CLIP, MICROPHONE 3-229-058-11 MANUAL, INSTRUCTION (ENGLISH) 8-952-251-90 HEADPHONE MDR-E122 A-4540-587-A MIC ASSY, LAVALIER VCO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com WCS-880 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2001.04 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
