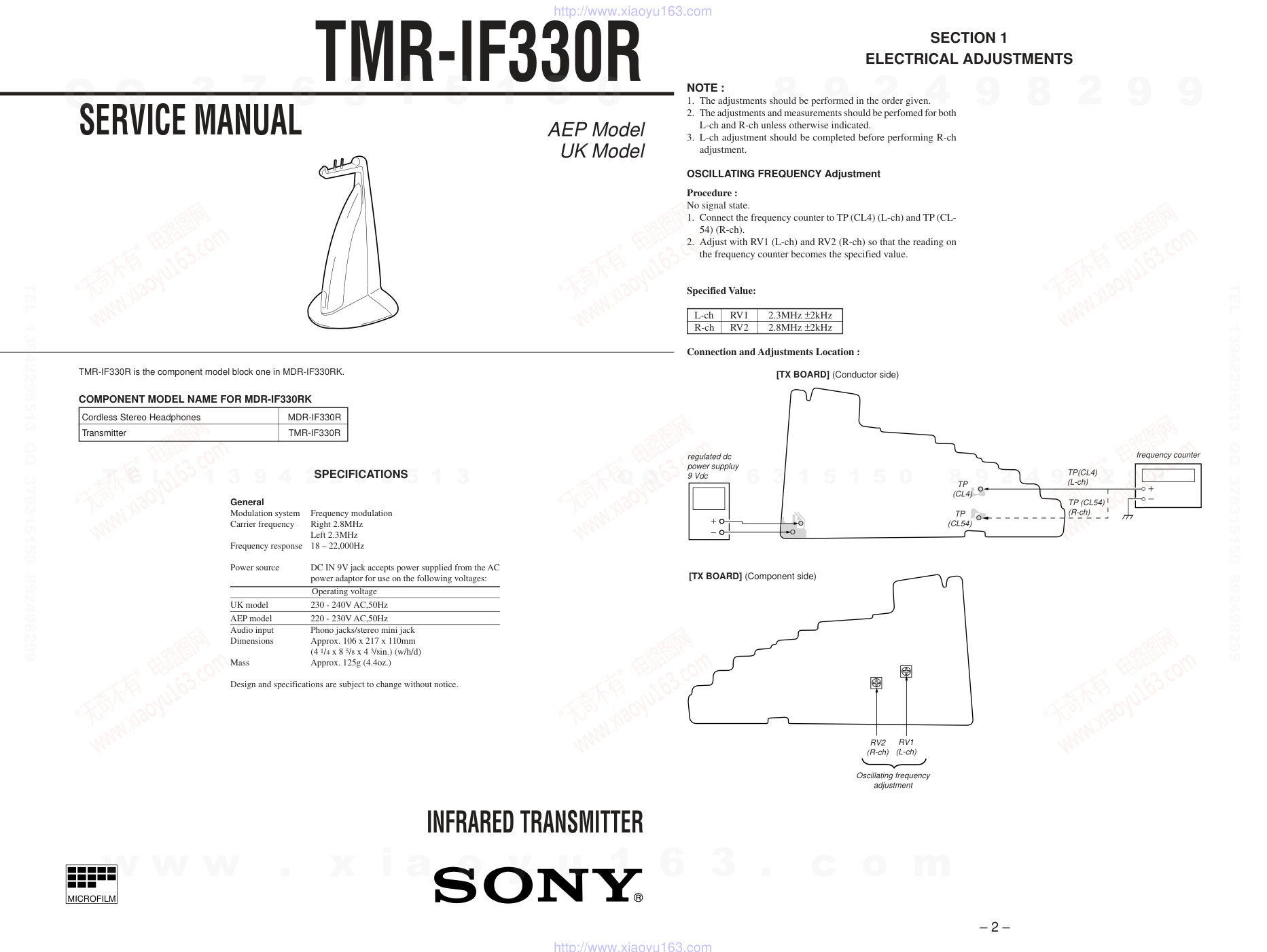

– 2 – SECTION 1 ELECTRICAL ADJUSTMENTS NOTE : 1. The adjustments should be performed in the order given. 2. The adjustments and measurements should be perfomed for both L-ch and R-ch unless otherwise indicated. 3. L-ch adjustment should be completed before performing R-ch adjustment. OSCILLATING FREQUENCY Adjustment Procedure : No signal state. 1. Connect the frequency counter to TP (CL4) (L-ch) and TP (CL- 54) (R-ch). 2. Adjust with RV1 (L-ch) and RV2 (R-ch) so that the reading on the frequency counter becomes the specified value. Specified Value: L-ch RV1 2.3MHz ±2kHz R-ch RV2 2.8MHz ±2kHz Connection and Adjustments Location : [TX BOARD] (Conductor side) regulated dc power suppluy 9 Vdc frequency counter TP (CL4) TP (CL54) TP (CL54) (R-ch) TP(CL4) (L-ch) RV2 (R-ch) RV1 (L-ch) [TX BOARD] (Component side) Oscillating frequency adjustment MICROFILM TMR-IF330R SERVICE MANUAL INFRARED TRANSMITTER SPECIFICATIONS AEP Model UK Model TMR-IF330R is the component model block one in MDR-IF330RK. Cordless Stereo Headphones MDR-IF330R Transmitter TMR-IF330R COMPONENT MODEL NAME FOR MDR-IF330RK General Modulation system Frequency modulation Carrier frequency Right 2.8MHz Left 2.3MHz Frequency response 18 – 22,000Hz Power source DC IN 9V jack accepts power supplied from the AC power adaptor for use on the following voltages: Operating voltage UK model 230 - 240V AC,50Hz AEP model 220 - 230V AC,50Hz Audio input Phono jacks/stereo mini jack Dimensions Approx. 106 x 217 x 110mm (4 1/4 x 8 5/8 x 4 3/8in.) (w/h/d) Mass Approx. 125g (4.4oz.) Design and specifications are subject to change without notice. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – – 6 – 2-2. SCHEMATIC DIAGRAM r IC BLOCK DIAGRAM IC11 TA2061AF-EL 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 R-CH IN NF VREF L-CH IN AGC T/C AGC ON/OFF F0 ADJ (R) VCC L-CH OUT ADJ ON/OFF AUTO OFF T/C GND F0 ADJ (L) SURROUND ON/OFF R-CH OUT LEVEL DET. LEVEL DET. AGC MIX AMP AGC O.S.M. Lout = L + K • (L–R) Rout = R – K • (L–R) PRE EMPHASIS PRE EMPHASIS VCO VCO BUFFER BUFFER VREF TMR-IF330R Note: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • U : B+ Line. • H : adjustment for repair. • Power voltage is dc 9 V and fed with regulated dc power supply from external power voltage jack (J4). • Voltages are dc with respect to ground under no-signal conditions. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Signal path. F : AUDIO J : RF w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – – 8 – SECTION 3 EXPLODED VIEW NOTE : • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 1 4-995-958-01 WINDOW, LUMINOUS 2 4-995-956-01 CABINET (FRONT) * 3 A-4542-507-A TX BOARD, COMPLETE 4 4-995-957-01 CABINET (REAR) 5 7-685-104-19 SCREW +P 2X6 TYPE2 NON-SLIT 6 4-984-729-01 FOOT, RUBBER 7 4-995-959-01 KNOB, CHANNEL 8 X-4949-961-1 CONNECTOR (2P) ASSY 1 2 3 4 5 5 6 7 8 NOTE : • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms METAL : Metal-film resistor METAL OXIDE :Metal oxide-film resistor F : nonflammable • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ , for example : uA.... : µ A.... , uPA.... : µ PA.... uPB.... : µ PB.... , uPC.... : µ PC.... uPD.... : µ PD.... • CAPACITORS uF : µ F • COILS uH : µ H When indicating parts by reference num- ber, please include the board. SECTION 4 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark * A-4542-507-A TX BOARD, COMPLETE ****************** < CAPACITOR > C1 1-126-163-11 ELECT 4.7uF 20% 50V C2 1-126-786-11 ELECT 47uF 20% 16V C3 1-163-031-11 CERAMIC CHIP 0.01uF 50V C6 1-163-031-11 CERAMIC CHIP 0.01uF 50V C7 1-126-163-11 ELECT 4.7uF 20% 50V C8 1-126-382-11 ELECT 100uF 20% 16V C11 1-124-464-11 ELECT 0.22uF 20% 50V C12 1-163-031-11 CERAMIC CHIP 0.01uF 50V C13 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C14 1-163-245-11 CERAMIC CHIP 56PF 5% 50V C51 1-124-464-11 ELECT 0.22uF 20% 50V C53 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C54 1-163-245-11 CERAMIC CHIP 56PF 5% 50V C91 1-163-031-11 CERAMIC CHIP 0.01uF 50V C93 1-163-031-11 CERAMIC CHIP 0.01uF 50V C94 1-126-786-11 ELECT 47uF 20% 16V C95 1-165-319-11 CERAMIC CHIP 0.1uF 50V C96 1-126-382-11 ELECT 100uF 20% 16V C97 1-165-319-11 CERAMIC CHIP 0.1uF 50V C99 1-165-319-11 CERAMIC CHIP 0.1uF 50V < DIODE > D1 8-719-992-13 LED LIR5BE (INFRARED EMITTER) D2 8-719-992-13 LED LIR5BE (INFRARED EMITTER) D3 8-719-992-13 LED LIR5BE (INFRARED EMITTER) D4 8-719-992-13 LED LIR5BE (INFRARED EMITTER) D91 8-719-066-58 LED SM2512 (CHARGE) < IC > IC11 8-759-497-48 IC TA2061AF-EL IC91 8-759-095-60 IC S-81250PG < JACK > J1 1-764-270-11 JACK,STEREO MINIATURE(DIA.3.5) (AUDIO IN B) J2 1-784-910-21 JACK, PIN (AUDIO IN A L-CH) J3 1-784-910-11 JACK, PIN (AUDIO IN A R-CH) J4 1-778-380-11 JACK,DC(POLARITY UNIFIED TYPE) (DC IN 9V) < TRANSISTOR > Q11 8-729-119-76 TRANSISTOR 2SA1175-HFE Q12 8-729-024-00 TRANSISTOR 2SC3377-QR Q13 8-729-119-78 TRANSISTOR 2SC403SP-51 Q51 8-729-119-76 TRANSISTOR 2SA1175-HFE Q52 8-729-024-00 TRANSISTOR 2SC3377-QR Q53 8-729-119-78 TRANSISTOR 2SC403SP-51 Q91 8-729-422-57 TRANSISTOR UN4111 Q92 8-729-422-57 TRANSISTOR UN4111 Q93 8-729-029-72 TRANSISTOR DTC114YS-TP < RESISTOR > R1 1-216-133-00 RES,CHIP 3.3M 5% 1/10W R2 1-216-041-00 METAL CHIP 470 5% 1/10W R10 1-216-097-91 METAL CHIP 100K 5% 1/10W R11 1-216-003-11 RES,CHIP 12 5% 1/10W R12 1-216-025-91 METAL CHIP 100 5% 1/10W R13 1-216-024-00 METAL CHIP 91 5% 1/10W R14 1-216-338-11 RES,CHIP 30K 1% 1/10W R15 1-216-596-11 RES,CHIP 2.7K 1% 1/10W R16 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R17 1-216-041-00 METAL CHIP 470 5% 1/10W R18 1-216-003-11 RES,CHIP 12 5% 1/10W R19 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R50 1-216-097-91 METAL CHIP 100K 5% 1/10W R51 1-216-003-11 RES,CHIP 12 5% 1/10W R52 1-216-025-91 METAL CHIP 100 5% 1/10W R53 1-216-024-00 METAL CHIP 91 5% 1/10W R54 1-216-338-11 RES,CHIP 30K 1% 1/10W R55 1-216-596-11 RES,CHIP 2.7K 1% 1/10W R56 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R57 1-216-041-00 METAL CHIP 470 5% 1/10W R58 1-216-003-11 RES,CHIP 12 5% 1/10W R59 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R91 1-216-019-00 METAL CHIP 56 5% 1/10W R92 1-216-021-00 METAL CHIP 68 5% 1/10W R93 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R94 1-216-073-00 METAL CHIP 10K 5% 1/10W R97 1-216-017-11 RES,CHIP 47 5% 1/10W < VARIABLE RESISTOR > RV1 1-241-767-21 RES, ADJ, CARBON 100K (OSC FREQUENCY L-CH) RV2 1-241-767-21 RES, ADJ, CARBON 100K (OSC FREQUENCY R-CH) < SWITCH > S1 1-554-222-00 SWITCH, SLIDE (INPUT SELECT) TX TMR-IF330R 9-923-358-11 Sony Corporation Personal A&V Products Company 98C027546-1 Printed in Hungary © 1998.3 Published by Quality Engineering Dept. (Shibaura) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
