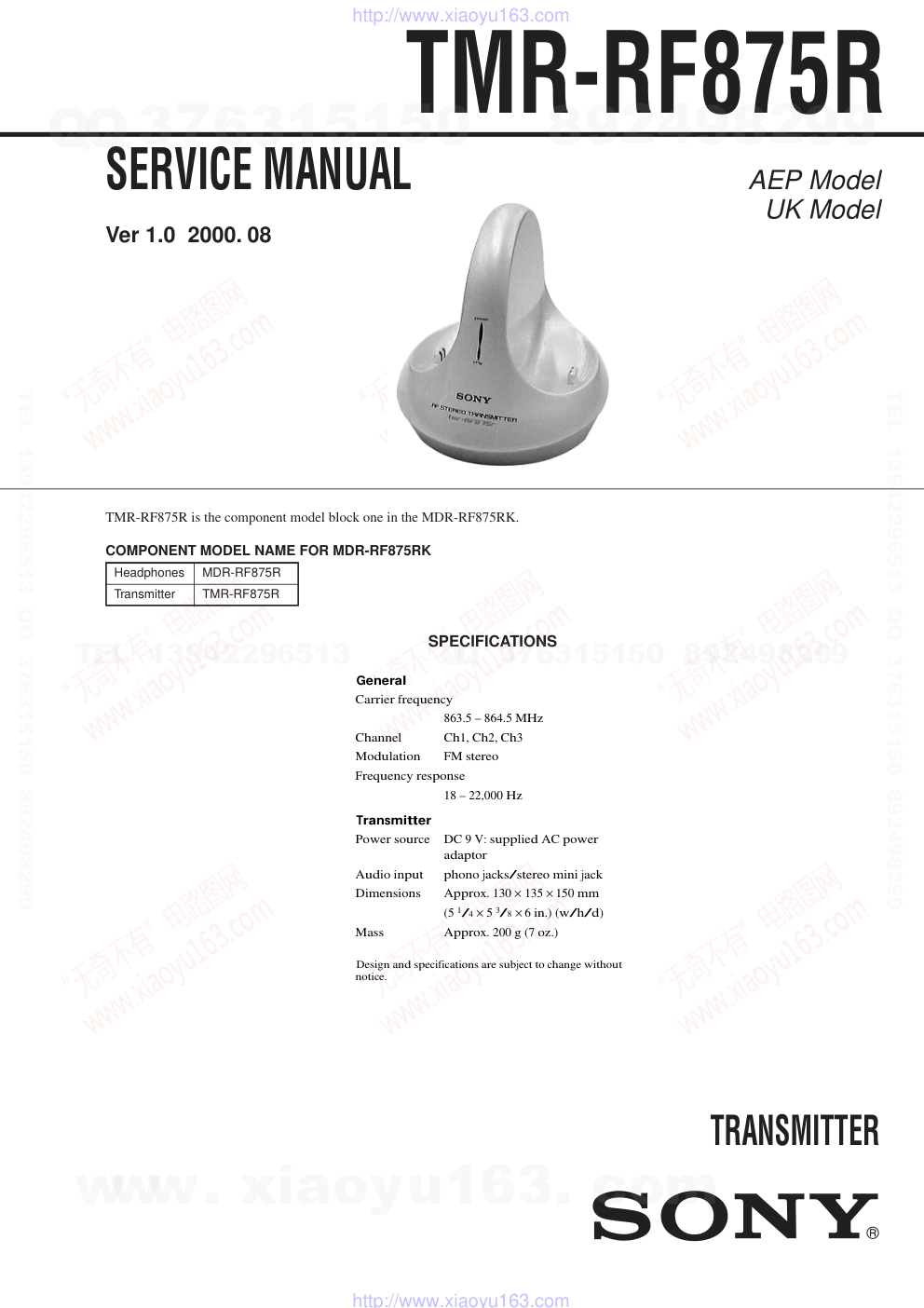

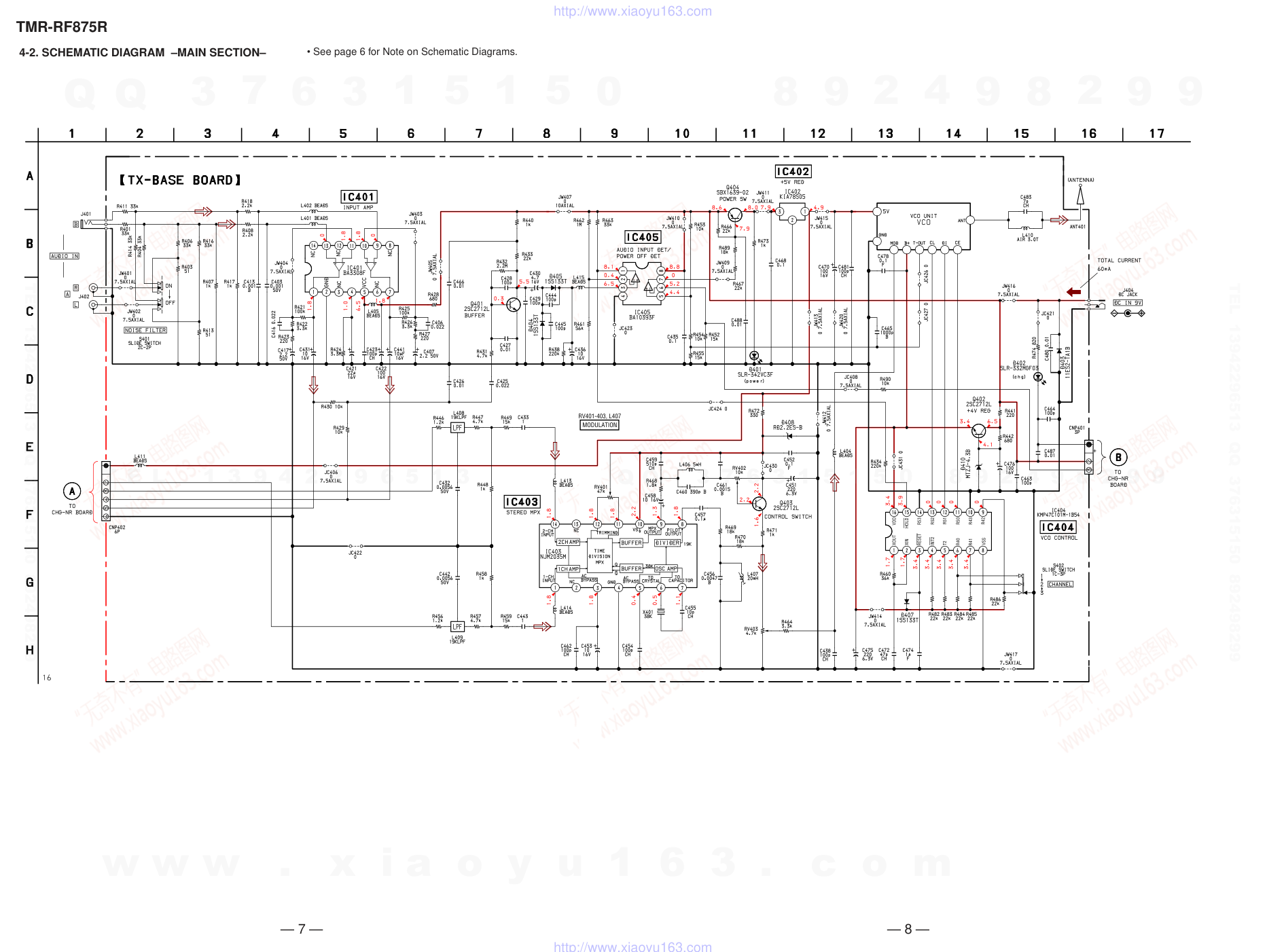

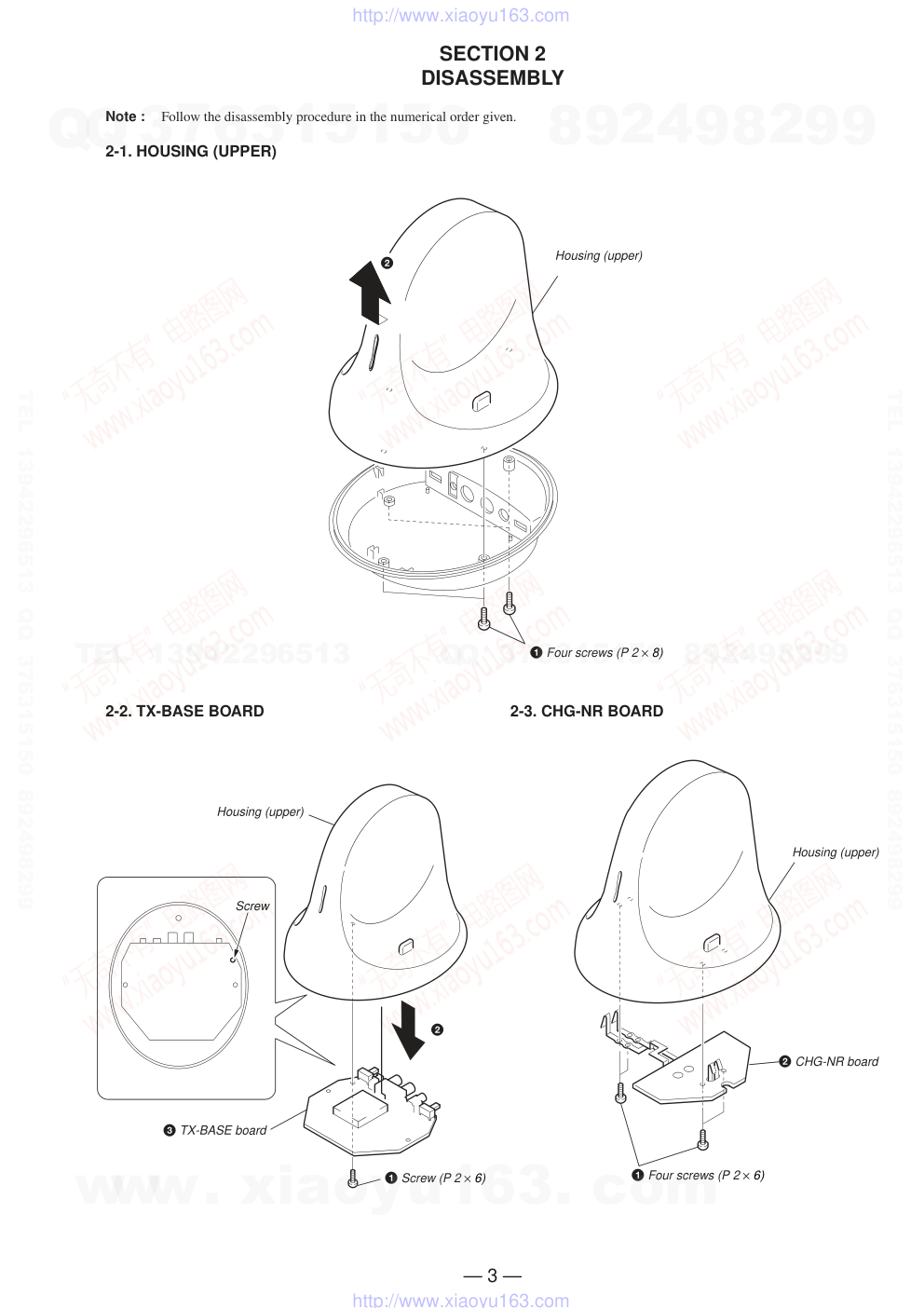

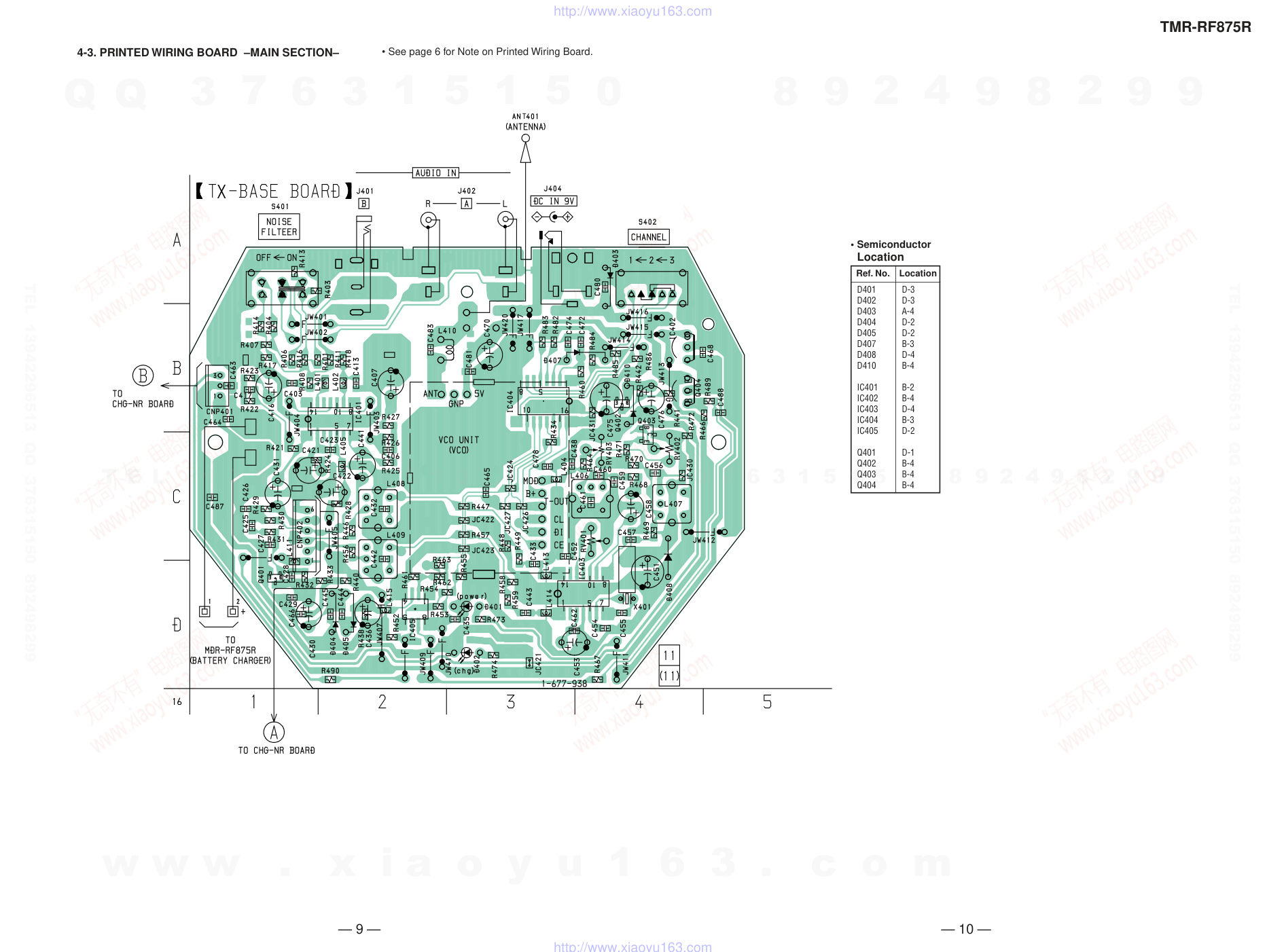

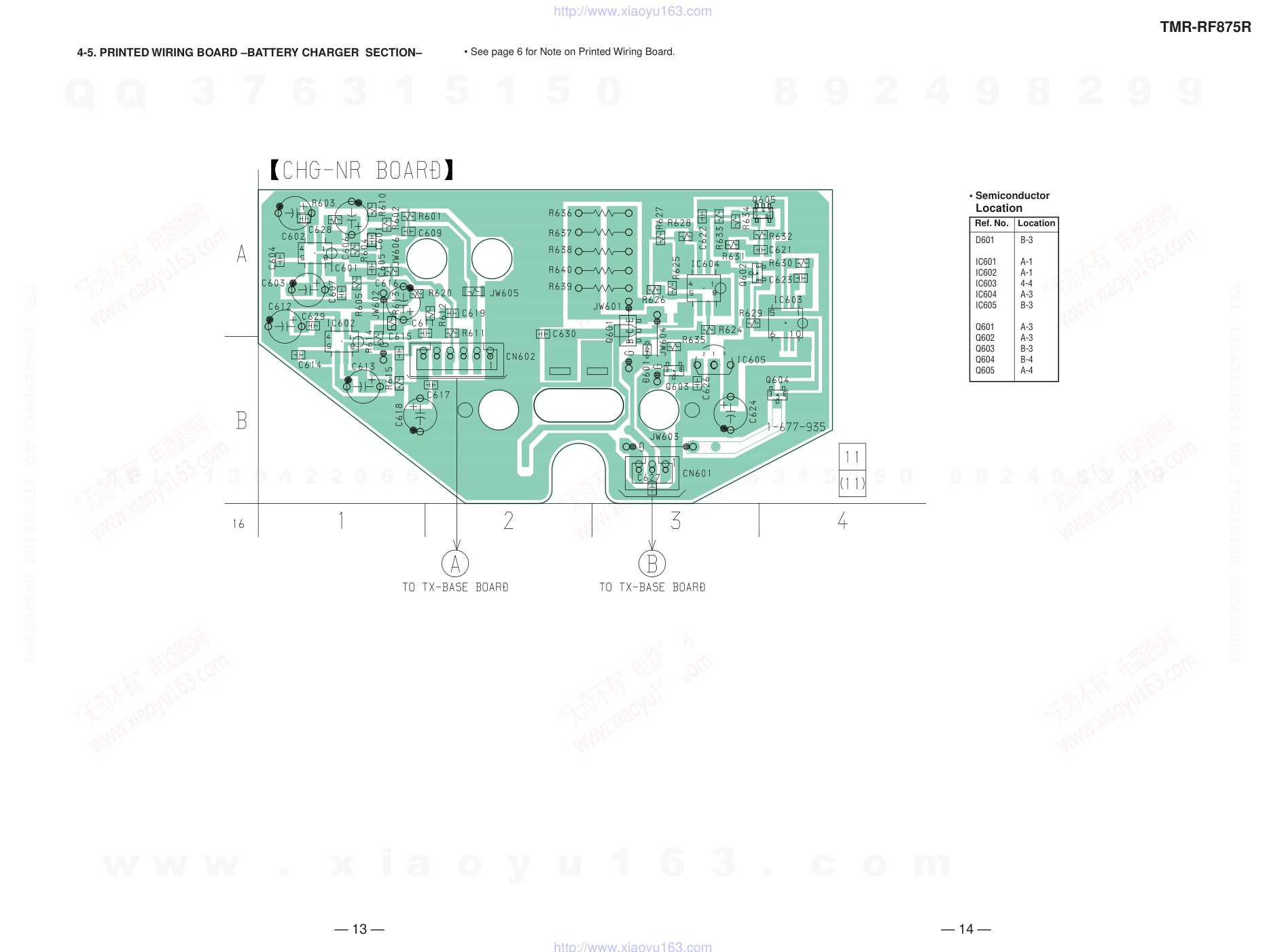

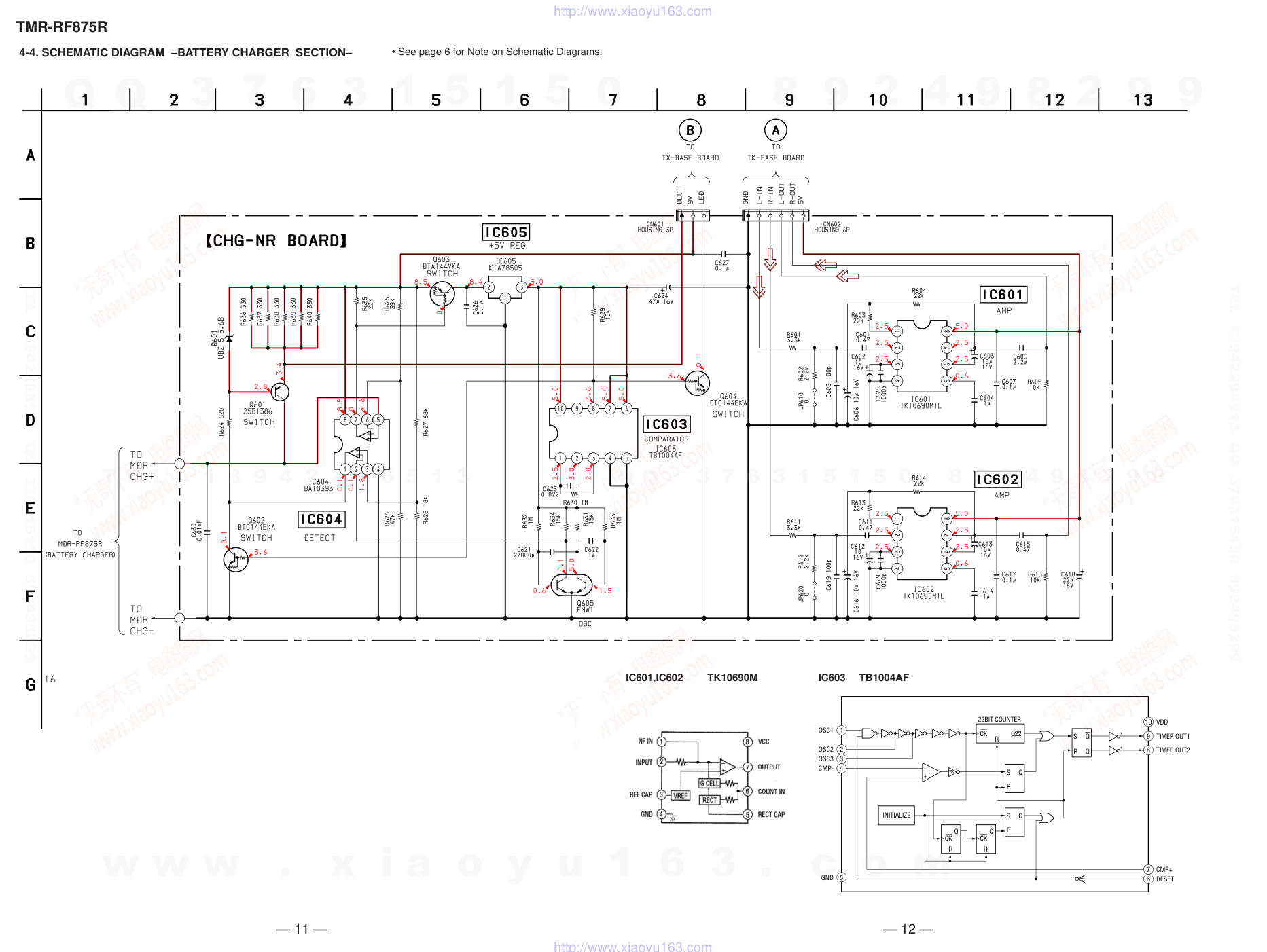

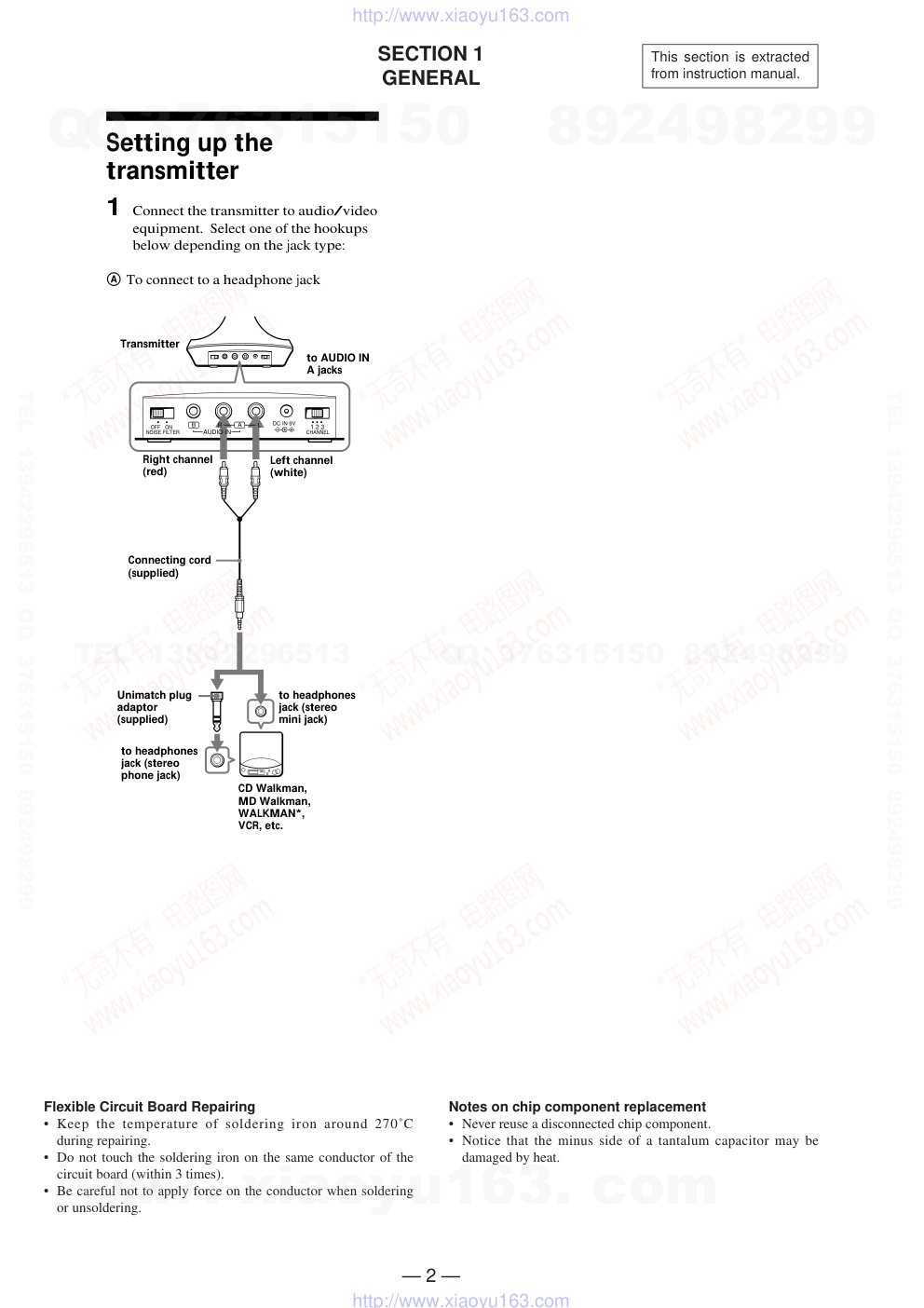

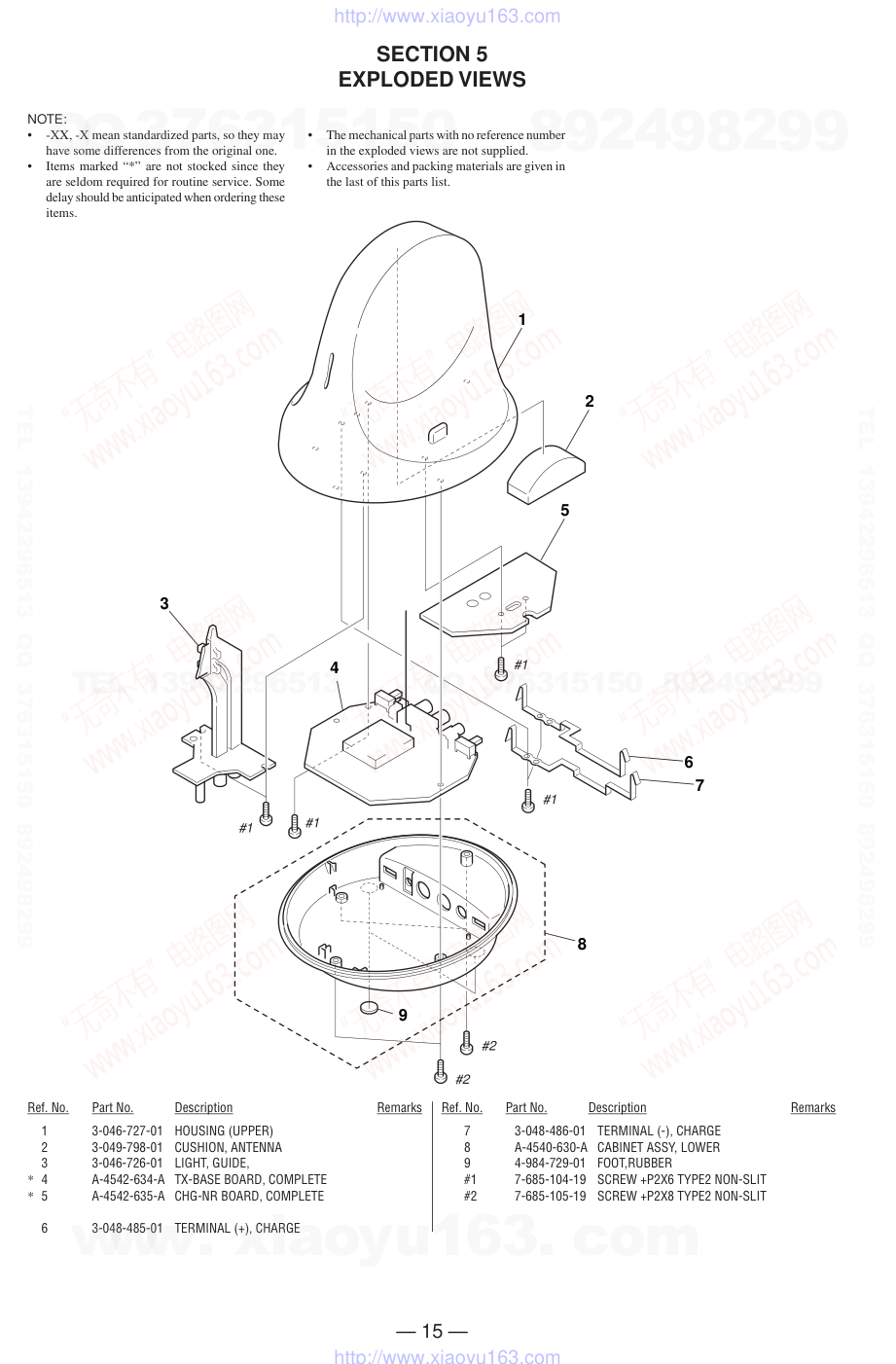

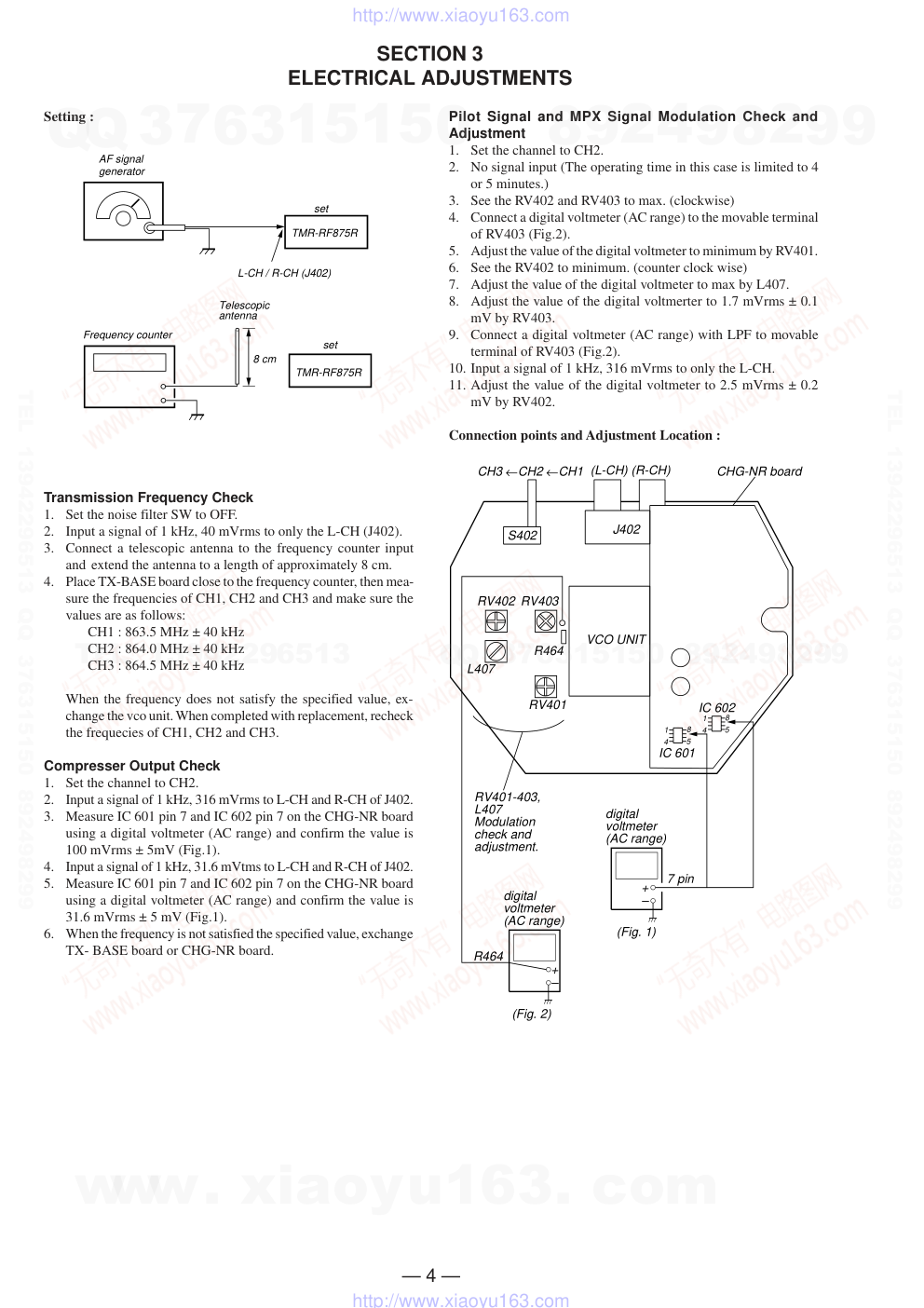

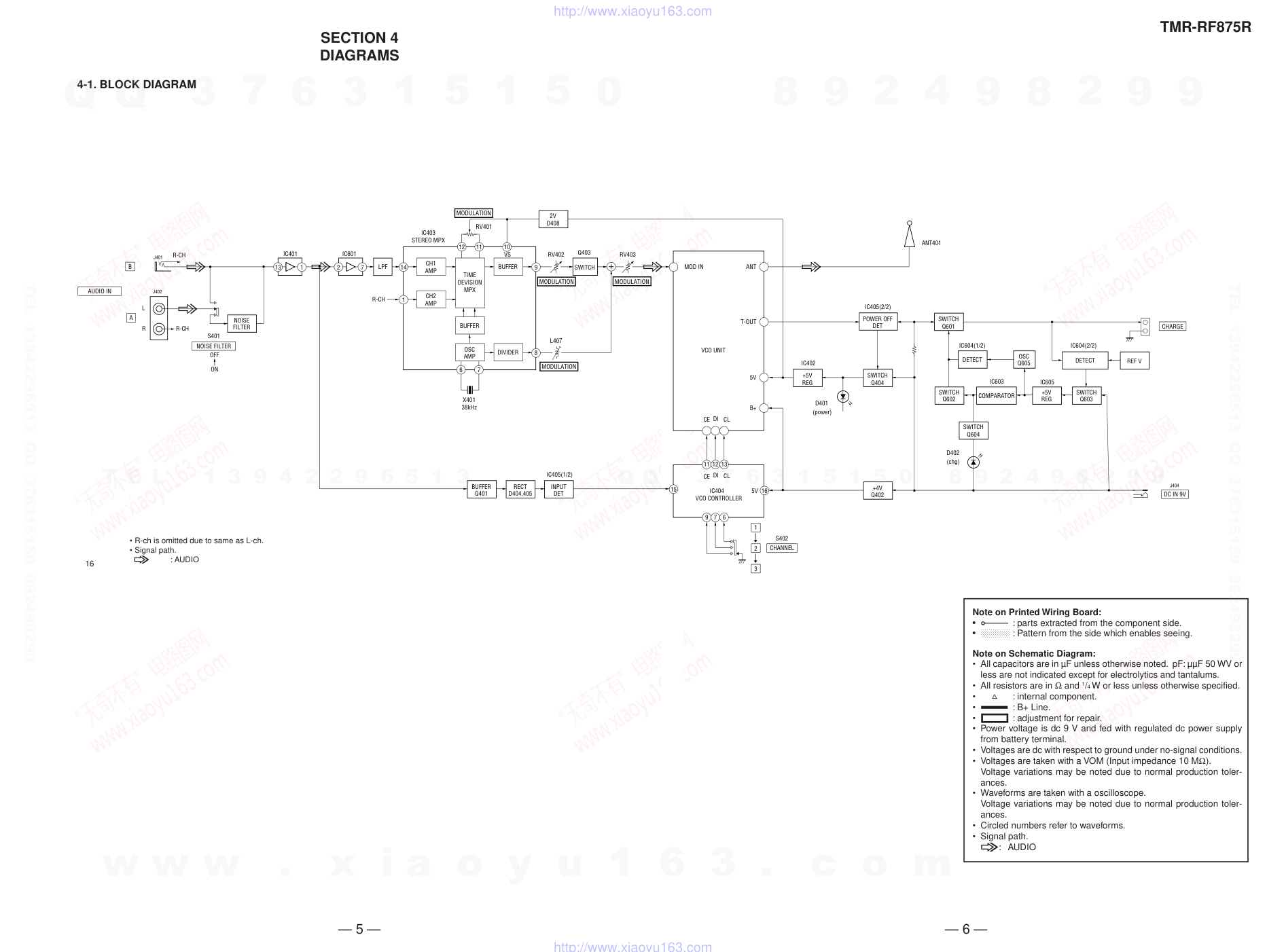

TMR-RF875R AEP Model UK Model SERVICE MANUAL TRANSMITTER SPECIFICATIONS Headphones MDR-RF875R Transmitter TMR-RF875R TMR-RF875R is the component model block one in the MDR-RF875RK. COMPONENT MODEL NAME FOR MDR-RF875RK General Carrier frequency 863.5 – 864.5 MHz Channel Ch1, Ch2, Ch3 Modulation FM stereo Frequency response 18 – 22,000 Hz Transmitter Power source DC 9 V: supplied AC power adaptor Audio input phono jacks/stereo mini jack Dimensions Approx. 130 × 135 × 150 mm (5 1/4 × 5 3/8 × 6 in.) (w/h/d) Mass Approx. 200 g (7 oz.) Design and specifications are subject to change without notice. Ver 1.0 2000. 08 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 2 — SECTION 1 GENERAL This section is extracted from instruction manual. DC IN 9V OFF ON FILTER NOISE 1 2 3 CHANNEL R B A L AUDIO IN Setting up the transmitter 1 Connect the transmitter to audio/video equipment. Select one of the hookups below depending on the jack type: A To connect to a headphone jack Transmitter Left channel (white) Right channel (red) Unimatch plug adaptor (supplied) CD Walkman, MD Walkman, WALKMAN*, VCR, etc. to headphones jack (stereo mini jack) Connecting cord (supplied) to AUDIO IN A jacks to headphones jack (stereo phone jack) Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 3 — SECTION 2 DISASSEMBLY 2-1. HOUSING (UPPER) 2-2. TX-BASE BOARD Note : Follow the disassembly procedure in the numerical order given. 2-3. CHG-NR BOARD 1 Four screws (P 2 × 8) Housing (upper) 2 3 TX-BASE board 2 1 Screw (P 2 × 6) Screw Housing (upper) Housing (upper) 2 CHG-NR board 1 Four screws (P 2 × 6) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 4 — Setting : SECTION 3 ELECTRICAL ADJUSTMENTS Transmission Frequency Check 1. Set the noise filter SW to OFF. 2. Input a signal of 1 kHz, 40 mVrms to only the L-CH (J402). 3. Connect a telescopic antenna to the frequency counter input and extend the antenna to a length of approximately 8 cm. 4. Place TX-BASE board close to the frequency counter, then mea- sure the frequencies of CH1, CH2 and CH3 and make sure the values are as follows: CH1 : 863.5 MHz ± 40 kHz CH2 : 864.0 MHz ± 40 kHz CH3 : 864.5 MHz ± 40 kHz When the frequency does not satisfy the specified value, ex- change the vco unit. When completed with replacement, recheck the frequecies of CH1, CH2 and CH3. Compresser Output Check 1. Set the channel to CH2. 2. Input a signal of 1 kHz, 316 mVrms to L-CH and R-CH of J402. 3. Measure IC 601 pin 7 and IC 602 pin 7 on the CHG-NR board using a digital voltmeter (AC range) and confirm the value is 100 mVrms ± 5mV (Fig.1). 4. Input a signal of 1 kHz, 31.6 mVtms to L-CH and R-CH of J402. 5. Measure IC 601 pin 7 and IC 602 pin 7 on the CHG-NR board using a digital voltmeter (AC range) and confirm the value is 31.6 mVrms ± 5 mV (Fig.1). 6. When the frequency is not satisfied the specified value, exchange TX- BASE board or CHG-NR board. AF signal generator Telescopic antenna 8 cm L-CH / R-CH (J402) TMR-RF875R set TMR-RF875R set Frequency counter Pilot Signal and MPX Signal Modulation Check and Adjustment 1. Set the channel to CH2. 2. No signal input (The operating time in this case is limited to 4 or 5 minutes.) 3. See the RV402 and RV403 to max. (clockwise) 4. Connect a digital voltmeter (AC range) to the movable terminal of RV403 (Fig.2). 5. Adjust the value of the digital voltmeter to minimum by RV401. 6. See the RV402 to minimum. (counter clock wise) 7. Adjust the value of the digital voltmeter to max by L407. 8. Adjust the value of the digital voltmerter to 1.7 mVrms ± 0.1 mV by RV403. 9. Connect a digital voltmeter (AC range) with LPF to movable terminal of RV403 (Fig.2). 10. Input a signal of 1 kHz, 316 mVrms to only the L-CH. 11. Adjust the value of the digital voltmeter to 2.5 mVrms ± 0.2 mV by RV402. Connection points and Adjustment Location : S402 J402 (L-CH) (R-CH) CH3 ←CH2 ←CH1 VCO UNIT RV403 RV402 RV401 L407 R464 IC 602 IC 601 1 8 4 5 1 8 4 5 CHG-NR board + – digital voltmeter (AC range) (Fig. 1) 7 pin RV401-403, L407 Modulation check and adjustment. + – digital voltmeter (AC range) (Fig. 2) R464 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TMR-RF875R 4-1. BLOCK DIAGRAM — 5 — — 6 — SECTION 4 DIAGRAMS Note on Printed Wiring Board: • X : parts extracted from the component side. • b : Pattern from the side which enables seeing. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • ¢ : internal component. • A : B+ Line. • H : adjustment for repair. • Power voltage is dc 9 V and fed with regulated dc power supply from battery terminal. • Voltages are dc with respect to ground under no-signal conditions. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production toler- ances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal production toler- ances. • Circled numbers refer to waveforms. • Signal path. L: AUDIO J401 S401 NOISE FILTER NOISE FILTER CH1 AMP BUFFER BUFFER Q401 RECT D404,405 2V D408 INPUT DET DIVIDER BUFFER OSC AMP TIME DEVISION MPX AUDIO IN B J402 A OFF | ON S402 CHANNEL L R R-CH R-CH R-CH 14 12 11 9 8 13 10 12 11 6 7 9 15 7 6 CH2 AMP 1 X401 38kHz RV402 RV401 L407 RV403 MOD IN CE DI CL CE DI CL VS 16 5V VCO CONTROLLER IC404 IC401 IC601 SWITCH Q403 LPF IC403 STEREO MPX IC405(1/2) IC405(2/2) +5V REG SWITCH Q404 SWITCH Q601 SWITCH Q602 SWITCH Q604 SWITCH Q603 OSC Q605 +4V Q402 REF V POWER OFF DET IC604(2/2) DETECT IC402 +5V REG IC605 COMPARATOR IC603 DETECT IC604(1/2) ANT 5V B+ T-OUT ANT401 D401 D402 J404 DC IN 9V CHARGE (power) (chg) 1 2 3 VCO UNIT MODULATION MODULATION MODULATION MODULATION 7 2 1 13 • R-ch is omitted due to same as L-ch. • Signal path. L : AUDIO 16 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TMR-RF875R 4-2. SCHEMATIC DIAGRAM –MAIN SECTION– — 7 — — 8 — MODULATION RV401-403, L407 VDD HOLD R53 R52 R51 R50 R43 R42 XOUT XIN RESET INT2 T2 R40 R41 VSS • See page 6 for Note on Schematic Diagrams. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TMR-RF875R 4-3. PRINTED WIRING BOARD –MAIN SECTION– — 9 — — 10 — X T Ref. No. Location D401 D-3 D402 D-3 D403 A-4 D404 D-2 D405 D-2 D407 B-3 D408 D-4 D410 B-4 IC401 B-2 IC402 B-4 IC403 D-4 IC404 B-3 IC405 D-2 Q401 D-1 Q402 B-4 Q403 B-4 Q404 B-4 • Semiconductor Location • See page 6 for Note on Printed Wiring Board. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TMR-RF875R — 11 — — 12 — 4-4. SCHEMATIC DIAGRAM –BATTERY CHARGER SECTION– IC603 TB1004AF 1 2 3 4 5 6 7 8 9 10 VDD TIMER OUT1 CMP+ RESET TIMER OUT2 OSC1 OSC2 OSC3 CMP- GND CK Q22 22BIT COUNTER R R S Q R S Q R Q R Q S Q INITIALIZE CK R Q CK * * • See page 6 for Note on Schematic Diagrams. IC601,IC602 TK10690M w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TMR-RF875R — 13 — — 14 — 4-5. PRINTED WIRING BOARD –BATTERY CHARGER SECTION– 2 3 Ref. No. Location D601 B-3 IC601 A-1 IC602 A-1 IC603 4-4 IC604 A-3 IC605 B-3 Q601 A-3 Q602 A-3 Q603 B-3 Q604 B-4 Q605 A-4 • Semiconductor Location • See page 6 for Note on Printed Wiring Board. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 15 — SECTION 5 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories and packing materials are given in the last of this parts list. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 2 1 5 4 6 3 8 9 7 #1 #1 #1 #1 #2 #2 1 3-046-727-01 HOUSING (UPPER) 2 3-049-798-01 CUSHION, ANTENNA 3 3-046-726-01 LIGHT, GUIDE, * 4 A-4542-634-A TX-BASE BOARD, COMPLETE * 5 A-4542-635-A CHG-NR BOARD, COMPLETE 6 3-048-485-01 TERMINAL (+), CHARGE 7 3-048-486-01 TERMINAL (-), CHARGE 8 A-4540-630-A CABINET ASSY, LOWER 9 4-984-729-01 FOOT,RUBBER #1 7-685-104-19 SCREW +P2X6 TYPE2 NON-SLIT #2 7-685-105-19 SCREW +P2X8 TYPE2 NON-SLIT www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 16 — Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 6 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. TX-BASE * A-4542-634-A TX-BASE BOARD, COMPLETE *********************** * A-4542-646-A VCO (VCO UNIT) < ANTENNA > ANT401 4-213-164-01 TERMINAL, ANTENNA < CAPACITOR > C403 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C406 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C407 1-126-961-11 ELECT 2.2uF 20.00% 50V C413 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C416 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C417 1-126-961-11 ELECT 2.2uF 20.00% 50V C421 1-124-234-00 ELECT 22uF 20% 16V C422 1-126-382-11 ELECT 100uF 20.00% 16V C423 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C425 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C426 1-163-021-91 CERAMIC CHIP 0.01uF 10.00% 50V C427 1-163-021-91 CERAMIC CHIP 0.01uF 10.00% 50V C428 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C429 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C430 1-124-259-11 ELECT 4.7uF 20.00% 16V C431 1-126-157-11 ELECT 10uF 20% 16V C432 1-163-018-00 CERAMIC CHIP 0.0056uF 5% 50V C433 1-164-346-11 CERAMIC CHIP 1uF 16V C435 1-163-038-11 CERAMIC CHIP 0.1uF 25V C436 1-126-157-11 ELECT 10uF 20% 16V C438 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C441 1-126-157-11 ELECT 10uF 20% 16V C442 1-163-018-00 CERAMIC CHIP 0.0056uF 5% 50V C443 1-164-346-11 CERAMIC CHIP 1uF 16V C444 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C445 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C451 1-124-635-00 ELECT 220uF 20.00% 6.3V C452 1-163-038-11 CERAMIC CHIP 0.1uF 25V C453 1-126-157-11 ELECT 10uF 20% 16V C454 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C455 1-163-227-11 CERAMIC CHIP 10PF 0.50PF 50V C456 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C457 1-163-038-11 CERAMIC CHIP 0.1uF 25V C458 1-126-157-11 ELECT 10uF 20% 16V C459 1-163-134-00 CERAMIC CHIP 510PF 5.00% 50V C460 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C461 1-163-011-11 CERAMIC CHIP 0.0015uF 10% 50V C462 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C463 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C464 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C465 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C466 1-163-021-91 CERAMIC CHIP 0.01uF 10.00% 50V C468 1-163-038-11 CERAMIC CHIP 0.1uF 25V C470 1-126-382-11 ELECT 100uF 20.00% 16V C472 1-163-243-11 CERAMIC CHIP 47PF 5.00% 50V C474 1-164-346-11 CERAMIC CHIP 1uF 16V C475 1-124-635-00 ELECT 220uF 20.00% 6.3V C476 1-126-382-11 ELECT 100uF 20.00% 16V C478 1-163-038-11 CERAMIC CHIP 0.1uF 25V C480 1-163-021-91 CERAMIC CHIP 0.01uF 10.00% 50V C481 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C483 1-163-224-11 CERAMIC CHIP 7PF 0.25PF 50V C487 1-163-021-91 CERAMIC CHIP 0.01uF 10.00% 50V C488 1-163-021-91 CERAMIC CHIP 0.01uF 10.00% 50V < CONNECTOR > CNP401 1-794-572-11 PIN, CONNECTOR CNP402 1-794-572-21 PIN, CONNECTOR < DIODE > D401 8-719-059-98 LED SLR-342VC3F (power) D402 8-719-048-87 LED SLR-332MGF03 (chg) D403 8-719-200-82 DIODE 11ES2 D404 8-719-991-33 DIODE 1SS133T-77 D405 8-719-991-33 DIODE 1SS133T-77 D407 8-719-991-33 DIODE 1SS133T-77 D408 8-719-109-54 DIODE RD2.2ES-B2 D410 8-719-982-11 DIODE MTZJ-4.3B < IC > IC401 8-759-998-71 IC BA3308F IC402 8-759-537-90 IC KIA78S05P-TP IC403 8-759-667-59 IC NJM2035M(TE2) IC404 8-759-679-76 IC KMP47C101M-1B54 IC405 8-759-510-73 IC BA10393F-E2 < JACK > J401 1-566-822-51 JACK (AUDIO IN B) J402 1-580-441-61 JACK, PIN 2P (AUDIO IN A) J404 1-785-066-11 JACK,DC (POLARITY UNIFIED TYPE) (DC IN 9V) < JUMPER > JC421 1-216-295-11 SHORT 0 JC422 1-216-296-91 SHORT 0 JC423 1-216-296-91 SHORT 0 JC424 1-216-296-91 SHORT 0 JC425 1-216-296-91 SHORT 0 JC430 1-216-295-11 SHORT 0 JC431 1-216-295-11 SHORT 0 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 17 — TX-BASE < COIL > L401 1-414-234-11 INDUCTOR CHIP 0uH L402 1-414-234-11 INDUCTOR CHIP 0uH L404 1-414-234-11 INDUCTOR CHIP 0uH L405 1-414-234-11 INDUCTOR CHIP 0uH L406 1-419-637-11 COIL, VARIABLE L407 1-419-638-11 COIL, VARIABLE L408 1-419-079-21 COIL (MPX FILTER) L409 1-419-079-21 COIL (MPX FILTER) L410 1-419-662-31 COIL, AIR-CORE L411 1-414-234-11 INDUCTOR CHIP 0uH L413 1-414-234-11 INDUCTOR CHIP 0uH L414 1-414-234-11 INDUCTOR CHIP 0uH L415 1-414-234-11 INDUCTOR CHIP 0uH < TRANSISTOR > Q401 8-729-200-72 TRANSISTOR 2SC2712-L Q402 8-729-200-72 TRANSISTOR 2SC2712-L Q403 8-729-200-72 TRANSISTOR 2SC2712-L Q404 8-729-045-00 TRANSISTOR KTA1266GR-AT < RESISTOR > R401 1-216-085-00 METAL CHIP 33K 5% 1/10W R403 1-216-018-00 METAL CHIP 51 5% 1/10W R404 1-216-085-00 METAL CHIP 33K 5% 1/10W R406 1-216-085-00 METAL CHIP 33K 5% 1/10W R407 1-216-049-11 RES-CHIP 1K 5% 1/10W R408 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R411 1-216-085-00 METAL CHIP 33K 5% 1/10W R413 1-216-018-00 METAL CHIP 51 5% 1/10W R414 1-216-085-00 METAL CHIP 33K 5% 1/10W R416 1-216-085-00 METAL CHIP 33K 5% 1/10W R417 1-216-049-11 RES-CHIP 1K 5% 1/10W R418 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R421 1-216-097-11 RES-CHIP 100K 5% 1/10W R422 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R423 1-216-033-00 METAL CHIP 220 5% 1/10W R424 1-216-133-00 METAL CHIP 3.3M 5% 1/10W R425 1-216-097-11 RES-CHIP 100K 5% 1/10W R426 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R427 1-216-033-00 METAL CHIP 220 5% 1/10W R428 1-216-045-00 METAL CHIP 680 5% 1/10W R429 1-216-073-00 METAL CHIP 10K 5% 1/10W R430 1-216-073-00 METAL CHIP 10K 5% 1/10W R431 1-216-065-91 RES-CHIP 4.7K 5% 1/10W R432 1-216-129-00 METAL CHIP 2.2M 5% 1/10W R433 1-216-081-00 METAL CHIP 22K 5% 1/10W R438 1-216-105-91 RES-CHIP 220K 5% 1/10W R440 1-216-049-11 RES-CHIP 1K 5% 1/10W R441 1-216-033-00 METAL CHIP 220 5% 1/10W R442 1-216-045-00 METAL CHIP 680 5% 1/10W R446 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R447 1-216-214-00 RES-CHIP 4.7K 5% 1/8W R448 1-216-049-11 RES-CHIP 1K 5% 1/10W R449 1-216-077-00 RES-CHIP 15K 5% 1/10W R452 1-216-077-00 RES-CHIP 15K 5% 1/10W R453 1-216-073-00 METAL CHIP 10K 5% 1/10W R454 1-216-073-00 METAL CHIP 10K 5% 1/10W R455 1-216-077-00 RES-CHIP 15K 5% 1/10W R456 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R457 1-216-214-00 RES-CHIP 4.7K 5% 1/8W R458 1-216-049-11 RES-CHIP 1K 5% 1/10W R459 1-216-077-00 RES-CHIP 15K 5% 1/10W R460 1-216-086-00 RES-CHIP 36K 5% 1/10W R461 1-216-091-00 METAL CHIP 56K 5% 1/10W R462 1-216-121-11 RES-CHIP 1M 5% 1/10W R463 1-216-085-00 METAL CHIP 33K 5% 1/10W R464 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R466 1-216-081-00 METAL CHIP 22K 5% 1/10W R467 1-216-081-00 METAL CHIP 22K 5% 1/10W R468 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R469 1-216-079-00 METAL CHIP 18K 5% 1/10W R470 1-216-079-00 METAL CHIP 18K 5% 1/10W R471 1-216-049-11 RES-CHIP 1K 5% 1/10W R472 1-216-186-00 RES-CHIP 330 5% 1/8W R473 1-216-049-11 RES-CHIP 1K 5% 1/10W R474 1-216-047-91 RES-CHIP 820 5% 1/10W R482 1-216-081-00 METAL CHIP 22K 5% 1/10W R483 1-216-081-00 METAL CHIP 22K 5% 1/10W R484 1-216-081-00 METAL CHIP 22K 5% 1/10W R485 1-216-081-00 METAL CHIP 22K 5% 1/10W R486 1-216-081-00 METAL CHIP 22K 5% 1/10W R490 1-216-073-00 METAL CHIP 10K 5% 1/10W < VARIABLE RESISTOR > RV401 1-238-602-31 RES, ADJ, CARBON 47K RV402 1-238-600-31 RES, ADJ, CARBON 10K RV403 1-241-763-11 RES, ADJ, CARBON 4.7K < SWITCH > S401 1-771-961-11 SWITCH, SLIDE (NOISE FILTER) S402 1-771-962-11 SWITCH, SLIDE (CHANNEL) < VIBRATOR > X401 1-781-850-11 VIBRATOR, CRYSTAL 38kHz ************************************************************** * A-4542-635-A CHG-NR BOARD, COMPLETE *********************** < CAPACITOR > C601 1-164-005-11 CERAMIC CHIP 0.47uF 25V C602 1-126-157-11 ELECT 10uF 20% 16V C603 1-126-157-11 ELECT 10uF 20% 16V C604 1-164-346-11 CERAMIC CHIP 1uF 16V C605 1-164-005-11 CERAMIC CHIP 0.47uF 25V C606 1-126-157-11 ELECT 10uF 20% 16V C607 1-163-038-11 CERAMIC CHIP 0.1uF 25V C609 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C611 1-164-005-11 CERAMIC CHIP 0.47uF 25V C612 1-126-157-11 ELECT 10uF 20% 16V C613 1-126-157-11 ELECT 10uF 20% 16V C614 1-164-346-11 CERAMIC CHIP 1uF 16V C615 1-164-005-11 CERAMIC CHIP 0.47uF 25V C616 1-126-157-11 ELECT 10uF 20% 16V C617 1-163-038-11 CERAMIC CHIP 0.1uF 25V CHG-NR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks — 18 — C618 1-124-234-00 ELECT 22uF 20% 16V C619 1-163-251-11 CERAMIC CHIP 100PF 5.00% 50V C621 1-163-986-00 CERAMIC CHIP 0.027uF 10.00% 25V C622 1-164-346-11 CERAMIC CHIP 1uF 16V C623 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V C624 1-126-786-11 ELECT 47uF 20.00% 16V C626 1-163-038-11 CERAMIC CHIP 0.1uF 25V C627 1-163-038-11 CERAMIC CHIP 0.1uF 25V C628 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C629 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C630 1-163-021-91 CERAMIC CHIP 0.01uF 10.00% 50V < CONNECTOR > * CN601 1-794-571-11 HOUSING, CONNECTOR * CN602 1-794-571-21 HOUSING, CONNECTOR < DIODE > D601 8-719-069-55 DIODE UDZS-TE17-5.6B < IC > IC601 8-759-384-88 IC TK10690M IC602 8-759-384-88 IC TK10690M IC603 8-759-678-31 IC TB1004AF IC604 8-759-510-73 IC BA10393F-E2 IC605 8-759-537-90 IC KIA78S05P-TP < JUMPER > JC601 1-216-295-11 SHORT 0 JC602 1-216-295-11 SHORT 0 < TRANSISTOR > Q601 8-729-025-88 TRANSISTOR 2SB1386-T100-R Q602 1-801-806-11 TRANSISTOR DTC144EKA-T146 Q603 8-729-027-40 TRANSISTOR DTA144VKA-T146 Q604 1-801-806-11 TRANSISTOR DTC144EKA-T146 Q605 8-729-903-10 TRANSISTOR FMW1 < RESISTOR > R601 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R602 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R603 1-216-081-00 METAL CHIP 22K 5% 1/10W R604 1-216-081-00 METAL CHIP 22K 5% 1/10W R605 1-216-073-00 METAL CHIP 10K 5% 1/10W R611 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R612 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R613 1-216-081-00 METAL CHIP 22K 5% 1/10W R614 1-216-081-00 METAL CHIP 22K 5% 1/10W R615 1-216-073-00 METAL CHIP 10K 5% 1/10W R624 1-216-047-91 RES-CHIP 820 5% 1/10W R625 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R626 1-216-089-11 RES-CHIP 47K 5% 1/10W R627 1-216-093-00 RES-CHIP 68K 5% 1/10W R628 1-216-079-00 METAL CHIP 18K 5% 1/10W R629 1-216-073-00 METAL CHIP 10K 5% 1/10W R630 1-216-121-11 RES-CHIP 1M 5% 1/10W R631 1-216-077-00 RES-CHIP 15K 5% 1/10W R632 1-216-121-11 RES-CHIP 1M 5% 1/10W R633 1-216-121-11 RES-CHIP 1M 5% 1/10W R634 1-216-077-00 RES-CHIP 15K 5% 1/10W R635 1-216-081-00 METAL CHIP 22K 5% 1/10W R636 1-249-411-11 CARBON 330 5% 1/4W R637 1-249-411-11 CARBON 330 5% 1/4W R638 1-249-411-11 CARBON 330 5% 1/4W R639 1-249-411-11 CARBON 330 5% 1/4W R640 1-249-411-11 CARBON 330 5% 1/4W ************************************************************** TMR-RF875R Sony Corporation Audio Entertainment Group 2000H1646-1 Printed in Japan © 2000.8 Published by PE General Engineering Dept. 9-927-966-11 CHG-NR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
