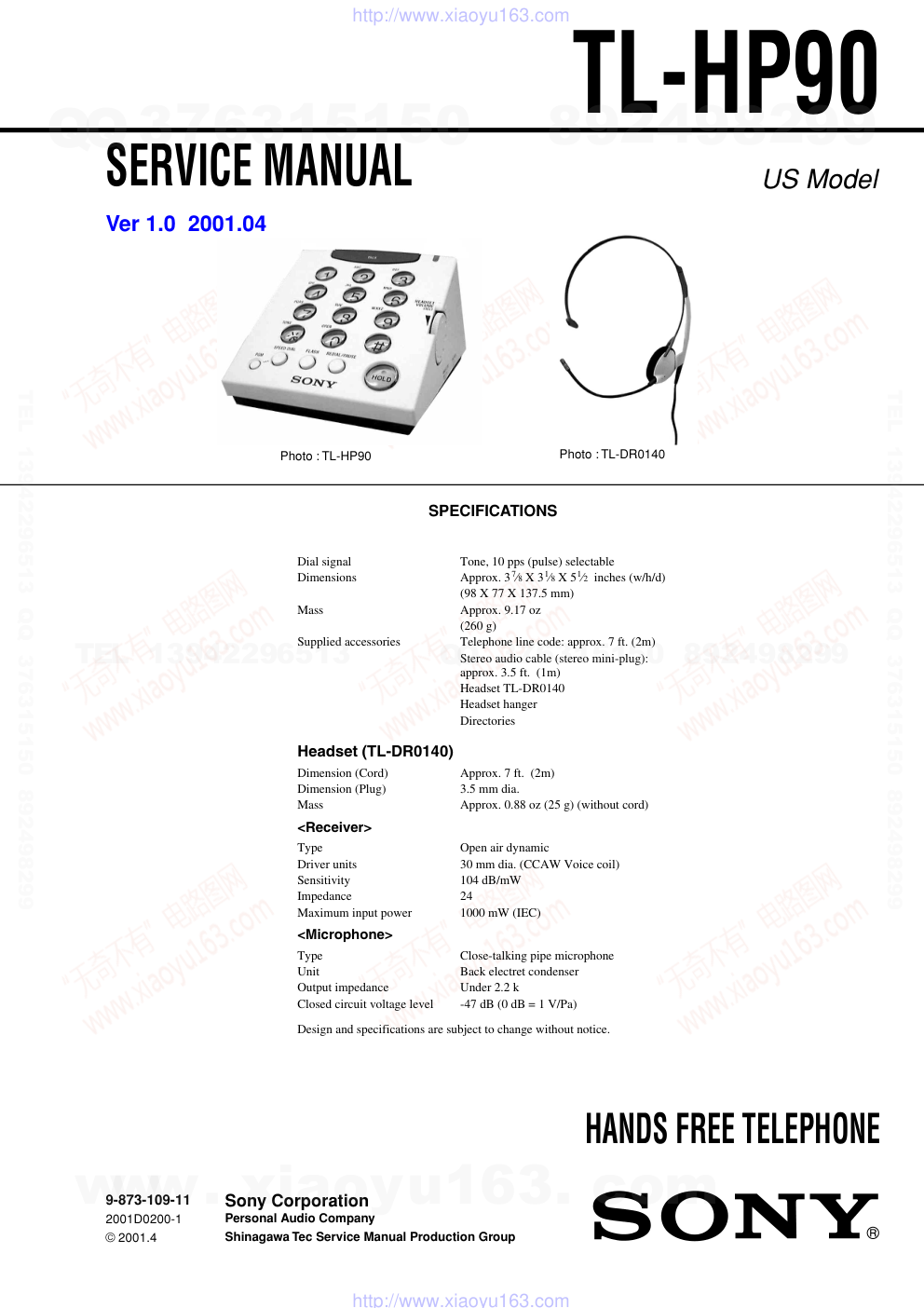

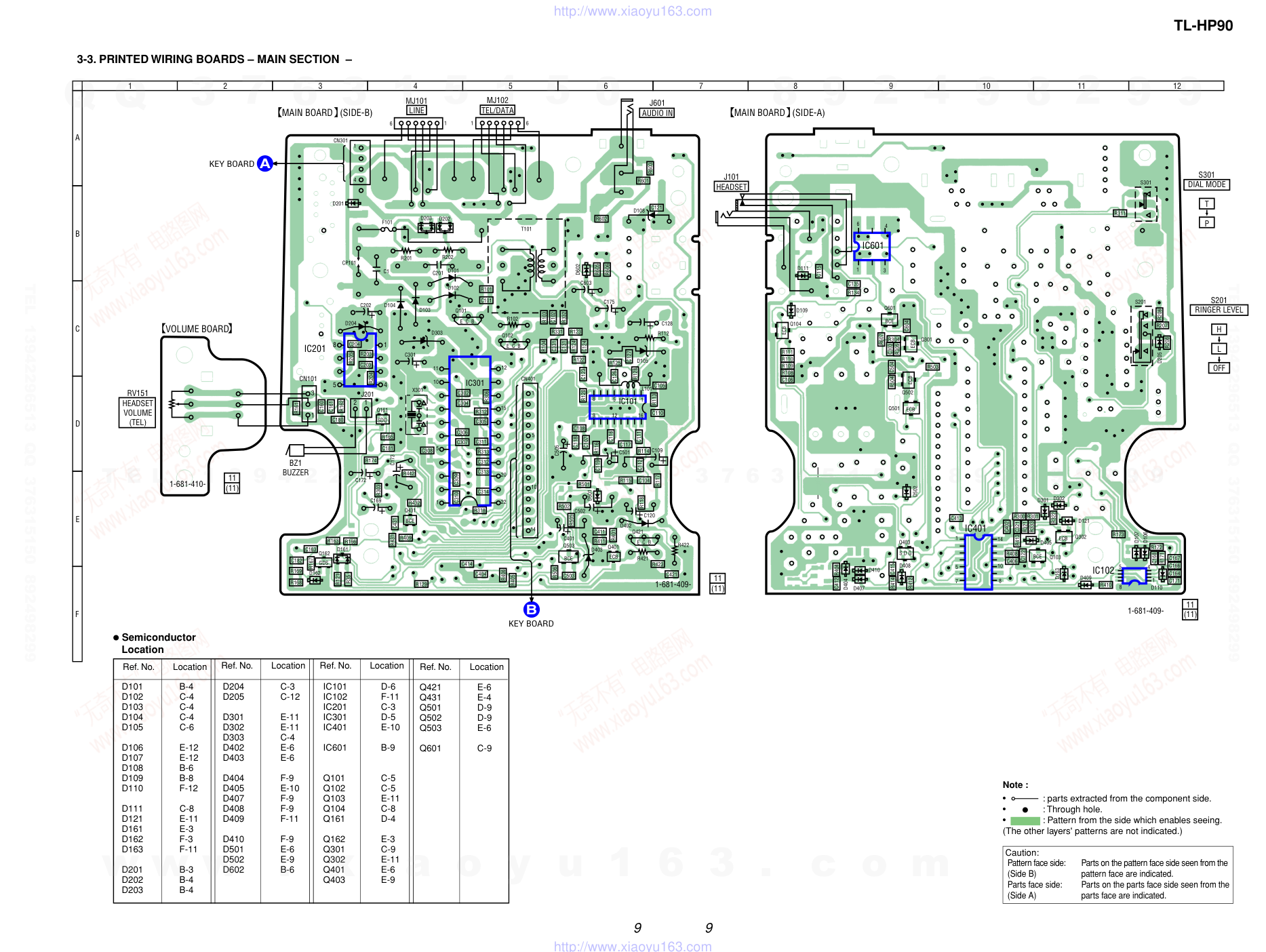

Ver 1.0 2001.04 TL-HP90 SERVICE MANUAL HANDS FREE TELEPHONE SPECIFICATIONS US Model 9-873-109-11 2001D0200-1 © 2001.4 Dial signal Tone, 10 pps (pulse) selectable Dimensions Approx. 3 7⁄8 X 3 1⁄8 X 5 1⁄2 inches (w/h/d) (98 X 77 X 137.5 mm) Mass Approx. 9.17 oz (260 g) Supplied accessories Telephone line code: approx. 7 ft. (2m) Stereo audio cable (stereo mini-plug): approx. 3.5 ft. (1m) Headset TL-DR0140 Headset hanger Directories Headset (TL-DR0140) Dimension (Cord) Approx. 7 ft. (2m) Dimension (Plug) 3.5 mm dia. Mass Approx. 0.88 oz (25 g) (without cord) Type Open air dynamic Driver units 30 mm dia. (CCAW Voice coil) Sensitivity 104 dB/mW Impedance 24 Maximum input power 1000 mW (IEC) Type Close-talking pipe microphone Unit Back electret condenser Output impedance Under 2.2 k Closed circuit voltage level -47 dB (0 dB = 1 V/Pa) Design and specifications are subject to change without notice. Photo : TL-HP90 Photo : TL-DR0140 Sony Corporation Personal Audio Company Shinagawa Tec Service Manual Production Group www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 TL-HP90 Specifications ........................................................................... 1 1. GENERAL ...................................................................... 2 2. DISASSEMBLY 2-1. Case (Upper) , Case (Lower) ...................................... 5 2-2. Main Board ................................................................. 5 2-3. Volume Board, Key Board.......................................... 6 3. DIAGRAMS 3-1. Block Diagram............................................................ 7 3-2. Schematic Diagram..................................................... 8 3-3. Printed Wiring Boards – Main Section – .................... 9 4-4. Printed Wiring Boards – Key Section –.................... 10 4. EXPLODED VIEWS .................................................. 13 5. ELECTRICAL PARTS LIST ................................... 14 TABLE OF CONTENTS SECTION 1 GENERAL This section is extracted from instruction manual. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Identifying the part Lamp Dialing keys HEADSET VOLUME (TEL) control RINGER LEVEL switch DIAL MODE switch HEADSET jack TEL/DATA jack LINE jack AUDIO IN jack clip Headset Modular Setting up the phone Connect the phone 1 Connect the telephone line cord (supplied) to the LINE jack, and to a telephone outlet. 2 Connect the telephone line cord (not supplied) to the TEL/ DATA jack and to other phone or the modem if necessary. Tip If your telephone outlet is not modular, contact your telephone service company for assistance. 1 2 To telephone outlet Telephone line cord (supplied) Telephone line cord (not supplied) LINE jack TEL/DATA jack To TEL/DATA jack To LINE jack www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 TL-HP90 Connect the headset 1 Connect the headset plug to the HEADSET jack. 2 Place the earpiece support unit behind the top of your ear. 3 Adjust the length of the headband so that the headset fits on your ear. 4 The earpiece can be rotated so it fits comfortably over either ear. 5 Position the headset microphone so that it is placed near the mouth. Notes • Listening with headset at high volume may affect your hearing. • The earpad may deteriorate due to long-term storage or use. If you need to replacing the earpad, it can be purchase separately (EP-Q1). Tip You can use the headset on either your right or left ear. 1 2 3 4 5 Listening to music, etc. from an external equipment If you want to listen to music, etc. from the external equipment, you can do it using the headset during TALK off status. Notes • When you are listening to music, etc. with the external equipment connected to AUDIO IN jack, volume control on the headset is not available. Volume control is available with the connected equipment. Also, turning off the sound from the connected equipment can be done either by shutting down the power for the external equipment or by pulling out the stereo audio cable from AUDIO IN jack on this unit. • During conversation, the voice from an external equipment cannot be heard. • The sound of this unit is a monaural type. Stereo audio cable (supplied) To the headphone jack (stereo mini-plug) To AUDIO IN jack (stereo mini-plug) e.g., cassette player, radio (not supplied) Using the headset hunger The headset can be hung on the hook (supplied) by mounting the handset hanger (supplied) on the headset. 1 Attach the headset hanger to the headset from the slit as illustration A. Be sure to insert the protrusion of the headset hanger to the projection of the headset. 2 Hang the headset hanger on the hook. Note Do not hang the headset on as illustration B. 2 1 A B OFF RINGER LEVEL Making and receiving calls Making a call 1 Press (TALK). The lamp lights up. You hear a dial tone. 2 Dial a phone number. 3 When you’re done talking, press (TALK). The lamp goes off. DIAL MODE switch (REDIAL/PAUSE) (* TONE) (FLASH) RINGER LEVEL switch (HOLD) HEADSET VOLUME (TEL) P DIAL MODE T If your dialing system is to Set the switch Tone T Pulse P Lamp Choose the dialing mode For the phone to work properly, select an appropriate dialing mode (tone or pulse). Depending on your dialing system, set the DIAL MODE switch as follows: If you aren’t sure of your dialing system Make a trial call with the DIAL MODE switch set to T. If the call connects, leave the switch as is; otherwise, set the switch to P. Receiving a call When you hear the phone ring, press (TALK). When you’re done talking, press (TALK) again. Additional tasks Do this Set the RINGER LEVEL switch to H (high), L (low) or OFF Turn the HEADSET VOLUME (TEL) up to increase the receiver volume or down to decrease it. (continued) To Adjust the ringer level Adjust the receiver volume Redialing 1 Press (TALK). The lamp lights up. 2 Press (REDIAL/PAUSE). Notes • If the number last dialed exceeds 31 digits for tone dialing or 32 digits for pulse dialing, the number cannot be dialed. • The tone and pause are each counted as one digit. Note Pressing (HOLD) during dialing may stop transmission of the dial signal, causing you to dial the wrong phone number. To Switch to tone dialing temporarily Put a call on hold Switch to another call (“call waiting” service*) Do this Press (* TONE) after you’re connected. The line will remain in tone dialing until disconnected. Press (HOLD). The HOLD button lights up. Press (HOLD) again to resume the conversation. Press (FLASH). Press (FLASH) again to return to the first caller. * You need to subscribe to this service with your telephone company. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 TL-HP90 Speed dialing You can dial with a touch of a few buttons by storing a phone number on a dialing button. You can store up to 10 different phone numbers. Storing phone numbers 1 Press (TALK). The lamp lights up. 2 Press (PGM). 3 Enter the phone number you want to store. You can enter up to 16 digits for pulse dialing or 15 digits for tone dialing. Note that tone and pause are each counted as one digit. 4 Press (SPEED DIAL). 5 Press one of the dialing buttons ( (0) to (9)) for the phone number to be stored. And the number is stored. 6 Press (TALK). The lamp goes off. Tips • If you enter a wrong number, start from the beginning. • Use the supplied directory to write down what you stored on the speed dialing numbers. To store a number to be dialed via Private Branch Exchange (PBX) Before entering a phone number in step 3, do as follows: 1 Enter the outside line access digit (e.g. 9). 2 Press (REDIAL/PAUSE). To change a stored number Store a new number as described above, and the old number will erased. Making calls with speed dialing 1 Press (TALK). The lamp lights up. 2 Press (SPEED DIAL). 3 Enter the desired speed dialing number ((0) to (9)). The phone number stored in the speed dialing number will be dialed. Note If this unit is disconnected from the line for 10 minutes or more, the stored speed dialing data is deleted from the memory. Lamp (REDIAL/PAUSE) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 TL-HP90 SECTION 2 DISASSEMBLY 2-1. CASE (UPPER), CASE (LOWER) Note : Follow the disassembly procedure in the numerical order given. 3 Connector (4 pin) (CN301) 1 Screw(+BTP3X10) 1 Screw (+BTP3X10) 1 Screw (+BTP3X10) 2 Connector (3 pin) (CN101) 4 Connector (14 pin) (CN401) Case (upper) Case (lower) 5 2-2. MAIN BOARD Case (upper) Volume board, key board Main board Case (lower) Set 1 Screws (+BTP2.6X8) 4 Screws (+BTP2.6X8) 3 Connector (2 pin) (CN201) Holder (jack) Main board Case (lower) 2 5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 TL-HP90 2-3. VOLUME BOARD, KEY BOARD 4 Screws (+BTP2.6X8) 2 Screws (+BTP2.6X8) 5 3 1 Key board Case (upper) Knob (VOL) Volume board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 7 TL-HP90 3-1. BLOCK DIAGRAMS • Signal path. H : RX O : TX P : bell MJ101 CP101 S301 S451 S452 F101 MJ102 J601 J101 BZ1 T101 D553 D551 D251 D301 D302 D409 Q401 Q301 S201 D602 X301 250V 500mA BUZZER 3.58MHz -VIN VOUT1 HOLD TALK + + 1 2 3 4 5 6 8 9 10 11 12 13 AU + OSC0 C1 C2 C3 C4 C5 OSC1 XMUTE HFI KT MODE TONE HKS GND VCC LN SLPE ILED DTMF QR IR D CK PR Q CL Q SPEECH DIALER HOLD AMP HEADPHONE DIAL MODE P T R4 R3 R2 R1 PO CONTROL DETECT LINE TEL/DATA H L OFF BELL RINGER DRIVE AUDIO IN HEADSET SWITCH IC201 HOOK SWITCH Q101,102 NETWORK IC101 ATT DRIVEER LED AGC AGC VDD HEADSET VOLUME (TEL) RV151 MUTE Q161 MUTE IC102 Q162 IC301 VDD1 S367 S351-365 MATRIX 10 KEYS D CK PR Q CL Q IC401 DETECT IC401 HOOK HOLD (1/2) (2/2) DELAY/GATE SWITCH Q501,502,D503 Q503,D501 SWITCH Q403 TV OR OR OR OR OR OR LED TV VDD1 VDD Q421 TV IC601 AUDIO SWITCH Q601 AU VDD POWER VDD RINGER OSC POWER D101-104 D202,203 HOOK DET. D405,410 Q103 D121 Q302 D161,163 Q104 D109 OUT DRIVER MIC- MUTE MMUTE AGC D408 D407, Q431 DRIVER RINGER LEVEL TV SECTION 3 DIAGRAMS w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 8 TL-HP90 3-2. SCHEMATIC DIAGRAM z Refer to page 10 for Notes. z Refer to page 10 for Waveforms. z Refer to page 11, 12 for IC Block Diagrams. C112 C104 C117 C116 C108 C119 C120 R112 C105 C126 C128 R125 R128 D121 R120 R121 R135 D161 R129 C161 C181 C180 R162 R161 R165 R169 R166 C182 R167 R168 C163 C166 C167 C171 C172 D106 D107 R171 C168 R173 C201 R202 R201 R601 D203 D202 D204 C202 C203 R204 R203 R602 D201 MJ101 CP101 D102 D101 D103 D104 C1 C101 R101 Q101 R102 R104 R103 C102 C501 D105 C503 R506 D502 D501 R502 C502 R505 R501 R503 C504 C331 R332 R331 C303 R305 C314 C313 C312 C311 R312 R311 S301 R408 R409 C406 C414 R413 R414 R412 D407 C415 C413 D405 D410 D408 D403 C401 C404 R406 R405 R401 C411 R411 D402 R404 D404 C402 D409 R410 R303 D302 D301 R301 R300 R423 C421 R422 Q421 R304 X301 C305 C306 C307 C308 C309 C310 C302 C301 C304 D303 S351 S352 S353 S356 S355 S354 S358 S359 S360 S361 S362 S363 S364 S365 S451 S452 S357 D551 R442 R432 R431 C431 R333 C321 R321 R322 R123 C131 R124 R122 C124 C123 C127 R108 C106 R110 R111 C111 R114 C110 R113 C109 R116 D162 D163 Q162 Q161 C121 D108 C115 D109 R134 C135 D111 T101 R606 R605 D602 R607 C603 C604 Q401 D553 Q104 C169 C175 R115 R163 RV151 CN101 C164 R306 S367 CN301 CN401 Q501 Q502 C505 R504 Q403 C412 R421 MJ102 Q102 L101 0µH J601 J101 R172 Q431 Q302 R318 C107 S201 Q601 C122 R117 R118 D251 BZ1 C118 Q103 Q503 R313 R109 Q301 F101 D110 R174 0.01 0.1 0.1 1000p 0.022 0.01 100 10V 22 0.01 100p 4.7 50V 33k 47k RB751V-40 100k 470k 470k DAN202K 470k 0.1 0.1 0.047 6.8k 2.2k 470k 1M 10k 0.1 4.7k 100k 0.1 1 4700p 0.1 470 10V RB751V-40 RB751V-40 47k 100p 47k 1 2.2k 2.2k 10 DAP202KT146 DAN202K RD27JS-T1AB 10 50V 0.047 1.5M 15k 10 1SS355 1SR139-400-T32 1SR139-400-T32 1SR139-400-T32 1SR139-400-T32 0.022 0.01 470k 2SA1776TV2Q 4.7k 33k 100k 1000p 0.22 50V RD12FB21W 1000p 470k 1SS355 1SS355 680k 22 25V 47k 10k 680k 0.01 1000p 1M 1M 0.01 1M 220p 220p 220p 220p 1k 1k 10k 1M 0.1 1000p 1M 1M 1M RB751V-40 1000p 1000p 1SS355 RB751V-40 1SS355 RD5.1JS-T1AB1 22 25V 0.1 470k 22k 47k 0.01 1M 1SR139-400-T32 1M RB751V-40 0.1 RB751V-40 0 0 RB751V-40 1SS355 3.3M 3.3M 470k 0.01 47k 2SA1776TV2Q 220k 3.58MHz 1000p 220p 220p 220p 220p 220p 0.1 100 10V 0.1 RD5.1JS-T1AB1 SML-210TQR 680 680 100k 1000p 470k 0.01 1M 470k 4.7k 1000p 47k 10k 0.01 0.01 1500p 6.8k 0.01 680 39 1000p 47k 0.022 680 100 10V 1k 1SS355 1SS355 2SK3018 2SK3018 0.01 RD6.8JS-T1AB 0.01 1SS355 15k 4700p 1SS355 4.7k 100 1SS355 470k 100 10V 1000p 2SA1037AKT146 SML-210TQR 2SC1623-L5L6 47 10V 22 25V 470 6.8k 10k 0.1 470k 2SC1623-L5L6 2SC1623-L5L6 4.7 50V 270k 2SK3018 0.47 4.7k 2SC4620TV2Q 0 2SC1623-L5L6 2SA1037AKT146 OR 680 0.47 2SC1623-L5L6 1000p 100 1k SML-210TQR BUZZER 0.01 2SC1623-L5L6 OR 2SC1623-L5L6 OR 680k 6.8k 2SC1623-L5L6 250V 750mA 1SS355 0 1 # FLASH SPEED DIAL REDIAL/PAUSE PGM CD +VREF +VIN -VIN GND V+ VOUT1 VOUT2 2/ABC 3/DEF 4/GHI 5/JKL 6/MNO 7/PQRS 8/TUV */TONE 0/OPER HOLD TALK 9/WXYZ R206 R207 R205 C204 D205 R208 CN401 CN201 S201 2.2k 1k 10k 300k 2200p 1SS355 470k IC201 IC401 TC74HC74AF IC102 NJM2149V(TE2) IC101 TEA1112AT IC301 HM91652B OSC0 VSS PMUTE C1 C2 C3 C4 C5 OSC1 XMUTE HFI KT MODE TONE VDD HFO HKS OUT GND VCC LN SLPE ILED REG GAS MMUT DTMF MUT VCC GAR QR VEE MC+ MC- AGC IR D CK PR Q CL Q GND D CK PR Q CL Q VCC SPEECH DIALER HOLD IC601 PS7141L-1B AUDIO SWITCH DC 12V INVERTER MUTE AMP HEADPHONE HEADSET VOLUME (TEL) DIAL MODE P T R4 R3 R2 R1 PO CONTROL DETECT HOOK DELAY/GATE Q501,502 DETECT HOOK/HOLD SWITCH INVERTER LINE 100Ω TEL/DATA HOOK SWITCH HOOK SWITCH H L OFF BELL RINGER DRIVE RSL LFI LFO HFI HFO AUDIO IN HEADSET LED SWITCH SWITCH NETWORK POWER RINGER DRIVER DBL5002 DRIVER RINGER LEVEL w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 9 TL-HP90 3-3. PRINTED WIRING BOARDS – MAIN SECTION – Note : • X : parts extracted from the component side. • z : Through hole. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) Caution: Pattern face side: Parts on the pattern face side seen from the (Side B) pattern face are indicated. Parts face side: Parts on the parts face side seen from the (Side A) parts face are indicated. 11 (11) 1-681-409- 11 (11) 1-681-410- MAIN BOARD (SIDE-B) C160 C161 R203 R165 R442 R204 R161 R162 R205 C203 C204 C181 R174 C180 Q161 SDG C111 C116 C126 C127 C112 C119 C118 C107 C123 C331 C102 C121 J601 AUDIO IN C131 C124 C105 L101 C431 R114 C108 R125 R122 R331 R101 T101 R123 X301 R312 R313 R306 R501 C311 C306 C307 C308 C305 C101 C201 C1 R201 C304 C302 C312 C313 C309 C310 C314 R117 R115 R411 R423 R502 R318 R129 R409 R166 R163 R169 R168 R432 R113 R128 R116 R104 R124 R332 R606 R605 D602 R602 R603 R601 R103 R120 R118 R401 R505 R405 R506 R406 R431 R35 R121 R167 R303 C110 C117 C104 C421 C411 C503 C414 C404 C163 C182 Q401 ECB Q503 BCE Q431 BCE Q162 GDS D161 D501 D162 D201 CN301 MJ102 TEL/DATA MJ101 LINE IC101 1 5 8 16 12 9 C401 C120 C502 C505 C173 C172 C169 C128 C175 C603 R112 R202 R102 F101 D105 CP101 C301 C202 1 1 1 2 J201 3 CN101 4 8 5 IC301 1 14 1 5 15 12 CN401 22 20 10 11 R421 R422 D403 C109 C501 D101 D102 D108 D204 IC201 D303 D103 D104 D402 E C B Q421 E C B Q101 E C B Q102 RV151 HEADSET VOLUME (TEL) 1 6 5 10 A B KEY BOARD KEY BOARD BZ1 BUZZER VOLUME BOARD D202 1 6 D203 1 4 11 (11) 1-681-409- MAIN BOARD (SIDE-A) C402 C321 C122 C415 C412 C604 C303 C504 C115 C135 R207 S201 S301 S201 RINGER LEVEL H L OFF R311 R408 R300 R301 R173 R172 R410 R503 R304 R111 R110 R109 R108 R134 R206 R413 R321 C168 R171 R333 R208 R322 R414 R412 R404 R607 R305 R504 C167 C166 C164 C171 C406 C413 C106 Q301 ECB Q502 ECB Q104 D111 J101 HEADSET ECB Q103 Q601 BCE Q302 ECB BCE Q403 S D G Q501 ECB D205 D302 D409 D121 D405 D301 D107 D106 D110 D163 D410 D407 D404 D408 D502 D109 1 5 7 14 10 8 IC401 1 4 5 8 IC102 1 3 4 6 IC601 S301 DIAL MODE T P 2 3 4 5 6 7 8 9 10 11 12 A 1 B C D E F Ref. No. Location z Semiconductor Location D101 B-4 D102 C-4 D103 C-4 D104 C-4 D105 C-6 D106 E-12 D107 E-12 D108 B-6 D109 B-8 D110 F-12 D111 C-8 D121 E-11 D161 E-3 D162 F-3 D163 F-11 D201 B-3 D202 B-4 D203 B-4 Ref. No. Location D204 C-3 D205 C-12 D301 E-11 D302 E-11 D303 C-4 D402 E-6 D403 E-6 D404 F-9 D405 E-10 D407 F-9 D408 F-9 D409 F-11 D410 F-9 D501 E-6 D502 E-9 D602 B-6 Ref. No. Location IC101 D-6 IC102 F-11 IC201 C-3 IC301 D-5 IC401 E-10 IC601 B-9 Q101 C-5 Q102 C-5 Q103 E-11 Q104 C-8 Q161 D-4 Q162 E-3 Q301 C-9 Q302 E-11 Q401 E-6 Q403 E-9 Ref. No. Location Q421 E-6 Q431 E-4 Q501 D-9 Q502 D-9 Q503 E-6 Q601 C-9 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 10 TL-HP90 z Waveforms 1 IC301 8 OSCO VOLT/DIV : 1 V AC TIME/DIV : 0.2µsec 3-4. PRINTED WIRING BOARDS – KEY SECTION – Note on Schematic Diagram: MAIN SECTION • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. • U : B+ Line. • Power voltage is dc 12V and fed with regulated dc power supply from MJ101. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : TALK OFF ( ) : TALK ON • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. N : RX O : TX P : bell 3.9Vp-p 280nsec 11 (11) 1-681-411- S452 HOLD S365 REDIAL/PAUSE S357 FLASH S361 SPEED DIAL S362 /TONE * S363 0/OPER S364 # S358 7/PQRS S359 8/TUV S360 9/WXYZ S354 4/GHI 1 4 1 5 10 14 S355 5/JKL S356 6/MNO S351 1 S352 2/ABC S451 TALK S353 3/DEF S367 PGM KEY BOARD D553 HOLD D251 RINGER D551 POWER A B MAIN BOARD CN301 MAIN BOARD CN401 2 3 4 5 6 7 A 1 B C D E F Note : • X : parts extracted from the component side. • : Pattern from the side which enables seeing. (The other layers' patterns are not indicated.) • : Connected with carbon pattern. w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 TL-HP90 • IC BLOCK DIAGRAMS IC101 TEA1112AT/C1.518 CURRENT REFERENCE LOW VOLTAGE CIRCUIT LED DRIVER ATT MICRO MUTE AGC CIRCUIT 16 VCC 1 LN 2 SLPE 3 LED 4 REG 5 GAS 6 MMUTE 7 OTMF 8 MUTE GAR QR VEE MIC+ MIC- IR AGC 15 14 13 12 11 9 10 -VIN 4 3 2 7 8 5 1 6 +VIN +VREF CD #A #B VOUT2 VOUT1 BIAS V+ GND IC102 NJM2149V-TE2 IC201 DBL5002 POWER SUPPLY AMP OUT HFI HFO GND LFO LFI RSL VCC HIGH OSC LOW OSC 8 7 6 5 1 2 3 4 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 TL-HP90 IC301 HM91652B 22 COLUMN INTERFACE CIRCUIT OSC DIVIDER LNB MEMORY KERNEL CONTROL CIRCUIT HDO 21 R4 20 R3 19 R2 18 R1 17 MODE 16 DTMF 15 PO 14 HKS 13 VDD 12 HFO 1 HDI 2 C1 3 C2 4 C3 5 C4 7 OSC IN 8 OSD OUT 9 MUTE 10 VSS 11 HFI 6 C5 VDD VDD ROW/COLUMN PROGRAMMING COUNTER OUTPUT INTERFACE CIRCUIT INPUT INTERFACE CIRCUIT ROW INTERFACE CIRCUIT SAVE MEMORY MEMORY DECODER & DATA LATCH PULSE GENERATOR D/A CONVERTER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TL-HP90 13 SECTION 4 EXPLODED VIEWS Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark NOTE : • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. 10 BZ1 11 12 13 14 4 4 17 15 16 4 4 4 5 7 6 3 2 1 16 17 8 9 1 3-229-140-01 CASE (LOWER) * 2 A-3062-414-A MAIN BOARD, COMPLETE 3 3-229-147-01 HOLDER (JACK) 4 7-685-534-19 SCREW +BTP 2.6X8 TYPE2 N-S 5 1-681-410-11 VOLUME BOARD 6 3-229-142-01 KEY, 4 GANG 7 3-229-144-01 KNOB (HOLD) 8 3-229-139-01 CASE (UPPER) 9 3-229-148-01 LENS (LED) 10 3-229-143-01 KNOB (HOOK) 11 3-229-146-01 KNOB (VOL) 12 3-229-141-01 KEY, 12 GANG 13 1-786-144-11 SWITCH, RUBBER KEY 14 1-786-144-11 KEY BOARD 15 3-229-145-01 KNOB (SLIDE) 16 3-230-678-01 FOOT, RUBBER 17 7-685-547-19 SCREW +BTP 3X10 TYPE2 N-S BZ1 1-505-161-11 BUZZER, PIEZOELECTRIC www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 TL-HP90 SECTION 5 ELECTRICAL PARTS LIST Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN NOTE : • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms METAL : Metal-film resistor METAL OXIDE :Metal oxide-film resistor F : nonflammable • Items marked “ * ”are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ , for example : uA.... : µ A.... , uPA.... : µ PA.... uPB.... : µ PB.... , uPC.... : µ PC.... uPD.... : µ PD.... • CAPACITORS uF : µ F • COILS uH : µ H When indicating parts by reference num- ber, please include the board. * A-3062-414-A MAIN BOARD, COMPLETE ******************* C1 1-136-205-11 MYLAR 0.022uF 10% 400V C101 1-162-974-11 CERAMIC CHIP 0.01uF 50V C102 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C104 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C105 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C107 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C108 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C109 1-104-665-11 ELECT 100uF 20% 10V C110 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C111 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C112 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C115 1-162-974-11 CERAMIC CHIP 0.01uF 50V C116 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C117 1-164-156-11 CERAMIC CHIP 0.1uF 25V C118 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C119 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C120 1-104-665-11 ELECT 100uF 20% 10V C121 1-162-974-11 CERAMIC CHIP 0.01uF 50V C122 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C123 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C124 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C126 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C127 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C128 1-126-963-11 ELECT 4.7uF 20% 50V C131 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C135 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C161 1-164-156-11 CERAMIC CHIP 0.1uF 25V C163 1-164-156-11 CERAMIC CHIP 0.1uF 25V C164 1-164-156-11 CERAMIC CHIP 0.1uF 25V C166 1-115-156-11 CERAMIC CHIP 1uF 10V C167 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C168 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C169 1-104-664-11 ELECT 47uF 20% 10V C171 1-164-156-11 CERAMIC CHIP 0.1uF 25V C172 1-126-935-11 ELECT 470uF 20% 10V C175 1-128-551-11 ELECT 22uF 20% 25V C180 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C181 1-164-156-11 CERAMIC CHIP 0.1uF 25V C182 1-164-156-11 CERAMIC CHIP 0.1uF 25V C201 1-130-798-00 MYLAR 1uF 10% 250V C202 1-126-964-11 ELECT 10uF 20% 50V C203 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C204 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C301 1-104-665-11 ELECT 100uF 20% 10V C302 1-164-156-11 CERAMIC CHIP 0.1uF 25V C303 1-162-974-11 CERAMIC CHIP 0.01uF 50V C304 1-164-156-11 CERAMIC CHIP 0.1uF 25V C305 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C306 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C307 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C308 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C309 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C310 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C311 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C312 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C313 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C314 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C321 1-162-974-11 CERAMIC CHIP 0.01uF 50V C331 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C401 1-128-551-11 ELECT 22uF 20% 25V C402 1-164-156-11 CERAMIC CHIP 0.1uF 25V C404 1-164-156-11 CERAMIC CHIP 0.1uF 25V C406 1-164-156-11 CERAMIC CHIP 0.1uF 25V C411 1-162-974-11 CERAMIC CHIP 0.01uF 50V C412 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C413 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C414 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C415 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C421 1-162-974-11 CERAMIC CHIP 0.01uF 50V C431 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C501 1-126-957-11 ELECT 0.22uF 20% 50V C502 1-128-551-11 ELECT 22uF 20% 25V C503 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C504 1-162-974-11 CERAMIC CHIP 0.01uF 50V C505 1-126-963-11 ELECT 4.7uF 20% 50V C603 1-104-665-11 ELECT 100uF 20% 10V C604 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 TL-HP90 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN * CN101 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P * CN201 1-564-704-11 PIN, CONNECTOR (SMALL TYPE) 2P * CN301 1-564-706-11 PIN, CONNECTOR (SMALL TYPE) 4P * CN401 1-564-716-11 PIN, CONNECTOR (SMALL TYPE)14P CP101 1-533-751-11 ABSORBER, SURGE D101 8-719-970-02 DIODE 1SR139-400 D102 8-719-970-02 DIODE 1SR139-400 D103 8-719-970-02 DIODE 1SR139-400 D104 8-719-970-02 DIODE 1SR139-400 D105 8-719-160-56 DIODE RD12FB2 D106 8-719-060-48 DIODE RB751V-40TE-17 D107 8-719-060-48 DIODE RB751V-40TE-17 D108 8-719-115-60 DIODE RD6.8JS-T1AB D109 8-719-988-61 DIODE 1SS355TE-17 D110 8-719-988-61 DIODE ISS355TE-17 D111 8-719-988-61 DIODE 1SS355TE-17 D121 8-719-060-48 DIODE RB751V-40TE-17 D161 8-719-914-43 DIODE DAN202K D162 8-719-988-61 DIODE 1SS355TE-17 D163 8-719-988-61 DIODE 1SS355TE-17 D201 8-719-988-61 DIODE 1SS355TE-17 D202 8-719-914-43 DIODE DAN202K D203 8-719-914-44 DIODE DAP202K D204 8-719-116-92 DIODE RD27JS-T1AB D205 8-719-988-61 DIODE 1SS355TE-17 D301 8-719-988-61 DIODE 1SS355TE-17 D302 8-719-060-48 DIODE RB751V-40TE-17 D303 8-719-114-29 DIODE RD5.1JSAB1 D402 8-719-970-02 DIODE 1SR139-400 D403 8-719-114-29 DIODE RD5.1JSAB1 D404 8-719-060-48 DIODE RB751V-40TE-17 D405 8-719-988-61 DIODE 1SS355TE-17 D407 8-719-060-48 DIODE RB751V-40TE-17 D408 8-719-988-61 DIODE 1SS355TE-17 D409 8-719-060-48 DIODE RB751V-40TE-17 D410 8-719-060-48 DIODE RB751V-40TE-17 D501 8-719-988-61 DIODE 1SS355TE-17 D502 8-719-988-61 DIODE 1SS355TE-17 D602 8-719-988-61 DIODE 1SS355TE-17 F101 1-576-532-11 FUSE 250V 750mA IC101 8-759-646-12 IC TEA1112AT/C1.518 IC102 8-759-582-03 IC NJM2149V-TE2 IC201 8-759-595-76 IC DBL5002 IC301 8-759-582-35 IC HM91652B IC401 8-759-925-90 IC TC74HC74AF IC601 8-749-019-66 PHOTO COUPLER PS7141L-1B-E3 J101 1-785-368-11 JACK (HEADSET) J601 1-566-822-21 JACK (AUDIO IN) L101 1-424-808-11 INDUCTOR 0uH MJ101 1-770-484-41 JACK, MODULAR (4C) 6P MJ102 1-770-484-41 JACK, MODULAR (4C) 6P Q101 8-729-045-65 TRANSISTOR 2SA1776TV2Q Q102 8-729-045-47 TRANSISTOR 2SC4620TV2Q Q103 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q104 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q161 8-729-048-50 TRANSISTOR 2SK3018-T106 Q162 8-729-048-50 TRANSISTOR 2SK3018-T106 Q301 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q302 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q401 8-729-026-49 TRANSISTOR 2SA1037AK-T146-R Q403 8-729-048-50 TRANSISTOR 2SK3018-T106 Q421 8-729-045-65 TRANSISTOR 2SA1776TV2Q Q431 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q501 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q502 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q503 8-729-120-28 TRANSISTOR 2SC1623-L5L6 Q601 8-729-120-28 TRANSISTOR 2SC1623-L5L6 R101 1-216-853-11 METAL CHIP 470K 5% 1/16W R102 1-249-425-11 CARBON 4.7K 5% 1/4W F R103 1-216-845-11 METAL CHIP 100K 5% 1/16W R104 1-216-839-11 METAL CHIP 33K 5% 1/16W R108 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R109 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R110 1-216-819-11 METAL CHIP 680 5% 1/16W R111 1-216-804-11 METAL CHIP 39 5% 1/16W R112 1-247-791-91 CARBON 22 5% 1/4W R113 1-216-819-11 METAL CHIP 680 5% 1/16W R114 1-216-841-11 METAL CHIP 47K 5% 1/16W R115 1-216-817-11 METAL CHIP 470 5% 1/16W R116 1-216-821-11 METAL CHIP 1K 5% 1/16W R117 1-216-809-11 METAL CHIP 100 5% 1/16W R118 1-216-821-11 METAL CHIP 1K 5% 1/16W R120 1-216-845-11 METAL CHIP 100K 5% 1/16W R121 1-216-853-11 METAL CHIP 470K 5% 1/16W R122 1-216-833-11 METAL CHIP 10K 5% 1/16W R123 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R124 1-216-841-11 METAL CHIP 47K 5% 1/16W R125 1-216-839-11 METAL CHIP 33K 5% 1/16W R128 1-216-841-11 METAL CHIP 47K 5% 1/16W R129 1-216-853-11 METAL CHIP 470K 5% 1/16W R134 1-216-835-11 METAL CHIP 15K 5% 1/16W R135 1-216-853-11 METAL CHIP 470K 5% 1/16W R161 1-216-825-11 METAL CHIP 2.2K 5% 1/16W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 TL-HP90 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN R162 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R163 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R165 1-216-853-11 METAL CHIP 470K 5% 1/16W R166 1-216-833-11 METAL CHIP 10K 5% 1/16W R167 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R168 1-216-845-11 METAL CHIP 100K 5% 1/16W R169 1-216-857-11 METAL CHIP 1M 5% 1/16W R171 1-216-841-11 METAL CHIP 47K 5% 1/16W R172 1-216-864-11 METAL CHIP 0 5% 1/16W R173 1-216-841-11 METAL CHIP 47K 5% 1/16W R174 1-216-864-11 METAL CHIP 0 5% 1/16W R201 1-249-421-11 CARBON 2.2K 5% 1/4W F R202 1-249-421-11 CARBON 2.2K 5% 1/4W F R203 1-216-835-11 METAL CHIP 15K 5% 1/16W R204 1-216-859-11 RES-CHIP 1.5M 5% 1/16W R205 1-216-851-11 METAL CHIP 330K 5% 1/16W R206 1-216-821-11 METAL CHIP 1K 5% 1/16W R207 1-216-833-11 METAL CHIP 10K 5% 1/16W R208 1-216-853-11 METAL CHIP 470K 5% 1/16W R300 1-216-863-11 RES-CHIP 3.3M 5% 1/16W R301 1-216-863-11 RES-CHIP 3.3M 5% 1/16W R303 1-216-864-11 METAL CHIP 0 5% 1/16W R304 1-216-849-11 METAL CHIP 220K 5% 1/16W R305 1-216-857-11 METAL CHIP 1M 5% 1/16W R306 1-216-853-11 METAL CHIP 470K 5% 1/16W R311 1-216-821-11 METAL CHIP 1K 5% 1/16W R312 1-216-821-11 METAL CHIP 1K 5% 1/16W R313 1-216-855-11 METAL CHIP 680K 5% 1/16W R318 1-216-819-11 METAL CHIP 680 5% 1/16W R321 1-216-857-11 METAL CHIP 1M 5% 1/16W R322 1-216-853-11 METAL CHIP 470K 5% 1/16W R331 1-216-857-11 METAL CHIP 1M 5% 1/16W R332 1-216-857-11 METAL CHIP 1M 5% 1/16W R333 1-216-853-11 METAL CHIP 470K 5% 1/16W R401 1-216-841-11 METAL CHIP 47K 5% 1/16W R404 1-216-857-11 METAL CHIP 1M 5% 1/16W R405 1-216-837-11 METAL CHIP 22K 5% 1/16W R406 1-216-853-11 METAL CHIP 470K 5% 1/16W R408 1-216-833-11 METAL CHIP 10K 5% 1/16W R409 1-216-857-11 METAL CHIP 1M 5% 1/16W R410 1-216-864-11 METAL CHIP 0 5% 1/16W R411 1-216-857-11 METAL CHIP 1M 5% 1/16W R412 1-216-857-11 METAL CHIP 1M 5% 1/16W R413 1-216-857-11 METAL CHIP 1M 5% 1/16W R414 1-216-857-11 METAL CHIP 1M 5% 1/16W R421 1-249-425-11 CARBON 4.7K 5% 1/4W F R422 1-249-437-11 CARBON 47K 5% 1/4W R423 1-216-853-11 METAL CHIP 470K 5% 1/16W R431 1-216-845-11 METAL CHIP 100K 5% 1/16W R432 1-216-819-11 METAL CHIP 680 5% 1/16W R442 1-216-819-11 METAL CHIP 680 5% 1/16W R501 1-216-833-11 METAL CHIP 10K 5% 1/16W R502 1-216-855-11 METAL CHIP 680K 5% 1/16W R503 1-216-855-11 METAL CHIP 680K 5% 1/16W R504 1-216-850-11 METAL CHIP 270K 5% 1/16W R505 1-216-841-11 METAL CHIP 47K 5% 1/16W R506 1-216-853-11 METAL CHIP 470K 5% 1/16W R601 1-216-797-11 METAL CHIP 10 5% 1/16W R602 1-216-797-11 METAL CHIP 10 5% 1/16W R605 1-216-809-11 METAL CHIP 100 5% 1/16W R606 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R607 1-216-853-11 METAL CHIP 470K 5% 1/16W S201 1-554-061-00 SWITCH, SLIDE (RINGER LEVEL) S301 1-786-181-11 SWITCH, SLIDE (DIAL MODE) T101 1-437-370-11 TRANSFORMER, INPUT D251 8-719-077-82 LED SML-210JTT86PQ (RING) D551 8-719-077-82 LED SML-210JTT86PQ (POWER) D553 8-719-077-82 LED SML-210JTT86PQ (HOLD) S451 1-771-895-21 SWITCH, TACTILE (REFLOW TYPE) (TALK) ***************************************************** * 1-681-410-11 VOLUME BOARD ************ RV151 1-227-420-11 RES, VAR, CARBON 10K (HEADSET VOLUME) ***************************************************** MISCELLANEOUS ************* 13 1-786-144-11 SWITCH, RUBBER KEY BZ1 1-505-161-11 BUZZER, PIEZOELECTRIC ***************************************************** ACCESSORIES & PACKING MATERIALS ******************************* 1-696-454-11 CORD (WITH MODULAR PLUG)(LINE) 1-823-019-11 CORD, CONNECTION (STEREO MINI-PLUG) 3-231-904-11 MANUAL, INSTRUCTION (ENGLISH,SPANISH) 3-232-330-01 HANGER (H/S) 3-232-331-01 HOOK (WALL HOOK) 3-232-380-01 SHEET, SHORTENING NUMBER 3-232-411-01 TAPE 8-954-004-90 HEAD SET (TL-DR0140) X-3380-768-1 CLIP ASSY KEY VOLUME www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 TL-HP90 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2001.04 New TL-HP90 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
