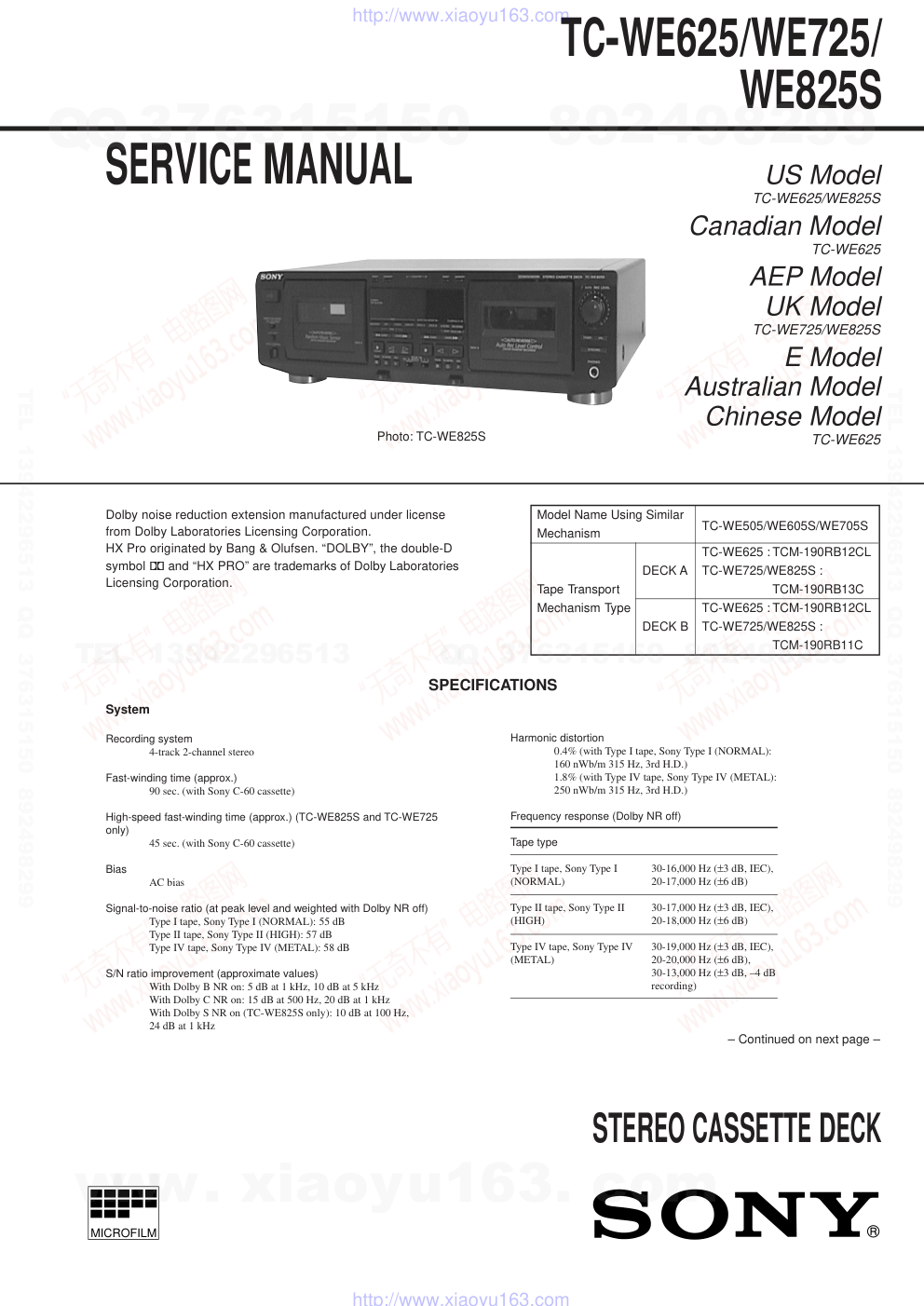

– 1 – Model Name Using Similar Mechanism TC-WE505/WE605S/WE705S TC-WE625 : TCM-190RB12CL DECK A TC-WE725/WE825S : Tape Transport TCM-190RB13C Mechanism Type TC-WE625 : TCM-190RB12CL DECK B TC-WE725/WE825S : TCM-190RB11C SERVICE MANUAL US Model TC-WE625/WE825S Canadian Model TC-WE625 AEP Model UK Model TC-WE725/WE825S E Model Australian Model Chinese Model TC-WE625 WE825S STEREO CASSETTE DECK MICROFILM System Recording system 4-track 2-channel stereo Fast-winding time (approx.) 90 sec. (with Sony C-60 cassette) High-speed fast-winding time (approx.) (TC-WE825S and TC-WE725 only) 45 sec. (with Sony C-60 cassette) Bias AC bias Signal-to-noise ratio (at peak level and weighted with Dolby NR off) Type I tape, Sony Type I (NORMAL): 55 dB Type II tape, Sony Type II (HIGH): 57 dB Type IV tape, Sony Type IV (METAL): 58 dB S/N ratio improvement (approximate values) With Dolby B NR on: 5 dB at 1 kHz, 10 dB at 5 kHz With Dolby C NR on: 15 dB at 500 Hz, 20 dB at 1 kHz With Dolby S NR on (TC-WE825S only): 10 dB at 100 Hz, 24 dB at 1 kHz SPECIFICATIONS – Continued on next page – Photo: TC-WE825S Dolby noise reduction extension manufactured under license from Dolby Laboratories Licensing Corporation. HX Pro originated by Bang & Olufsen. “DOLBY”, the double-D symbol a and “HX PRO” are trademarks of Dolby Laboratories Licensing Corporation. Harmonic distortion 0.4% (with Type I tape, Sony Type I (NORMAL): 160 nWb/m 315 Hz, 3rd H.D.) 1.8% (with Type IV tape, Sony Type IV (METAL): 250 nWb/m 315 Hz, 3rd H.D.) Frequency response (Dolby NR off) Tape type Type I tape, Sony Type I 30-16,000 Hz (±3 dB, IEC), (NORMAL) 20-17,000 Hz (±6 dB) Type II tape, Sony Type II 30-17,000 Hz (±3 dB, IEC), (HIGH) 20-18,000 Hz (±6 dB) Type IV tape, Sony Type IV 30-19,000 Hz (±3 dB, IEC), (METAL) 20-20,000 Hz (±6 dB), 30-13,000 Hz (±3 dB, –4 dB recording) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 2 – Wow and flutter ± 0.13% W. Peak (IEC) 0.07% W. RMS (NAB) ± 0.18% W. Peak (DIN) Variable pitch range (approx.) –30 to +30% Inputs Line inputs (phono jacks) Sensitivity : 0.16 V Input impedance : 47 kilohms Outputs Line outputs (phono jacks) Rated output level : 0.5 V at a load impedance of 47 kilohms Load impedance : Over 10 kilohms Headphones (stereo phono jack) Output level : 0.25 mW at a load impedance of 32 ohms General Power requirements Where purchased Power requirements US, Canadian 120 V AC, 60 Hz AEP, UK, Chinese 220 - 230 V AC, 50/60 Hz Australian 240 V AC, 50/60 Hz Singapore, Malaysia 120/220/230 - 240 V AC, 50/60 Hz Power consumption 30 W Dimensions (approx.) (w/h/d) Model for UK and Australian : 430 × 120 × 310 mm (w/h/d) (17 × 4 3/4 × 12 1/4 in.) Model for other countries : 430 × 120 × 290 mm (w/h/d) including projecting parts and controls Mass (approx.) 4.3 kg (9 lbs 8 oz) Supplied accessories Audio connecting cords (2 phono plugs - 2 phono plugs) (2) CONTROL A1 cord (supplied for Canadian models only) (1) Design and specifications are subject to change without notice. SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK ! OR DOTTED LINE WITH MARK ! ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. ATTENTION AU COMPOSANT AYANT RAPPORT À LA SÉCURITÉ!! LES COMPOSANTS IDENTIFIÉS PAR UNE MARQUE ! SUR LES DIAGRAMMES SCHÉMATIQUES ET LA LISTE DES PIÈCES SONT CRITIQUES POUR LA SÉCURITÉ DE FONCTIONNEMENT. NE REMPLACER CES COMPOSANTS QUE PAR DES PIÈCES SONY DONT LES NUMÉROS SONT DONNÉS DANS CE MANUEL OU DANS LES SUPPLÉMENTS PUBLIÉS PAR SONY. To Exposed Metal Parts on Set 0.15µF 1.5kΩ AC voltmeter (0.75V) Earth Ground Fig. A. Using an AC voltmeter to check AC leakage. SAFETY CHECK-OUT After correcting the original service problem, perform the follow- ing safety check before releasing the set to the customer: Check the antenna terminals, metal trim, “metallized” knobs, screws, and all other exposed metal parts for AC leakage. Check leakage as described below. LEAKAGE TEST The AC leakage from any exposed metal part to earth ground and from all exposed metal parts to any exposed metal part having a return to chassis, must not exceed 0.5 mA (500 microampers). Leakage current can be measured by any one of three methods. 1. A commercial leakage tester, such as the Simpson 229 or RCA WT-540A. Follow the manufacturers’ instructions to use these instruments. 2. A battery-operated AC milliammeter. The Data Precision 245 digital multimeter is suitable for this job. 3. Measuring the voltage drop across a resistor by means of a VOM or battery-operated AC voltmeter. The “limit” indication is 0.75 V, so analog meters must have an accurate low-voltage scale. The Simpson 250 and Sanwa SH-63Trd are examples of a pas- sive VOM that is suitable. Nearly all battery operated digital multimeters that have a 2V AC range are suitable. (See Fig. A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 3 – TABLE OF CONTENTS 1. GENERAL 1-1. Location of Controls ........................................................... 4 2. DISASSEMBLY 2-1. Front Panel Assy ................................................................. 5 2-2. Mechanism Deck................................................................. 5 2-3. Fitting Base ......................................................................... 6 2-4. Capstan Motor, Reel Motor ................................................. 6 2-5. Head Deck Assy .................................................................. 7 3. MECHANICAL ADJUSTMENTS ................................. 8 4. ELECTRICAL ADJUSTMENTS................................... 8 5. DIAGRAMS 5-1. IC Pin Description ............................................................. 12 5-2. Circuit Boards Location .................................................... 14 5-3. Printed Wiring Boards –Main Section– ............................ 15 5-4. Schematic Diagram –Main Section (1/4)– ........................ 17 5-5. Schematic Diagram –Main Section (2/4)– ........................ 19 5-6. Schematic Diagram –Main Section (3/4)– ........................ 21 5-7. Schematic Diagram –Main Section (4/4)– ........................ 23 5-8. Printed Wiring Boards –Power Section–........................... 25 5-9. Schematic Diagram –Power Section– ............................... 26 5-10. Printed Wiring Boards –Panel Section– ............................ 27 5-11. Schematic Diagram –Panel Section– ................................ 29 5-12. Printed Wiring Boards –Deck A Section– ......................... 31 5-13. Schematic Diagram –Deck A Section– ............................. 32 5-14. Printed Wiring Boards –Deck B Section–......................... 33 5-15. Schematic Diagram –Deck B Section– ............................. 34 5-16. Printed Wiring Board –DOLBY-S Section (TC-WE825S only)– ........................ 35 5-17. Schematic Diagram –DOLBY-S Section (TC-WE825S only)– ........................ 35 6. EXPLODED VIEWS 6-1. Case Section ...................................................................... 38 6-2. Chassis Section ................................................................. 39 6-3. Cassette Holder Section .................................................... 40 6-4. Front Panel Section ........................................................... 41 6-5. Tape Mechanism Section 1 ............................................... 42 6-6. Tape Mechanism Section 2 ............................................... 43 7. ELECTRICAL PARTS LIST ........................................ 44 MODEL IDENTIFICATION –Back panel– Part No. Part No. Model 3-021-228-0π TC-WE625 : US model 3-021-228-1π TC-WE625 : CND model 3-021-228-2π TC-WE625 : AUS model 3-021-228-3π TC-WE625 : SP, MY model 3-021-228-4π TC-WE625 : CH model 3-021-242-0π TC-WE725 : AEP model 3-021-242-1π TC-WE725 : UK model 3-021-243-0π TC-WE825S : AEP model 3-021-243-1π TC-WE825S : UK model 3-021-243-3π TC-WE825S : US model • Abbreviation CND : Canadian model AUS : Austrarian model SP : Singapore model MY : Malaysia model CH : Chinese model www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 4 – SECTION 1 GENERAL 1-1. LOCATION OF CONTROLS 1 2 3 4 5 6 10 7 9 8 23 22 21 20 19 18 11 14 12 13 15 16 17 1. 1/u (Power) button (US, Canadian) U (Power) button (EXCEPT US, Canadian) 2. DIRECTION MODE switch 3. PITCH CONTROL (Ø ON/ø OFF) switch (TC-WE725/WE825S) 4. PITCH CONTROL knob (TC-WE725/WE825S) 5. Cassette holder (Deck A) 6. COUNTER A buttons (Deck A) RESET button MEMORY button 7. Display window 8. COUNTER B buttons (Deck B) RESET button MEMORY button 9. Cassette holder (Deck B) 10. RMS buttons RMS/START button SET button CHECK button DISPLAY button 11. Tape operation buttons (Deck A) 0 (AMS), RMS - button ) (AMS), RMS + button p CLEAR (Stop) button ª BACK (Reverse play) button · FRONT (Foward play) button P PAUSE button R REC MUTING button r REC button 12. § (Eject) button (Deck A) 13. DOLBY NR switches ON, OFF, FILTER switch B, C, S switch (“S” use for TC-WE825S) 14. Tape operation buttons (Deck B) 0 (AMS) button ) (AMS) button p (Stop) button ª (Reverse play) button · (Foward play) button P PAUSE button R REC MUTING button r REC button 15. § (Eject) button (Deck B) 16. START (DECK B P) buttons A+B REC button HIGH/NORMAL, DUBBING AnB button 17. AUTO CAL (START P) buttons DECK A button DECK B button 18. PHONES jack 19. SYNCHRO button and indicator 20. ARL button 21. FADER button 22. REC LEVEL knob 23. AUTO indicator www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 5 – SECTION 2 DISASSEMBLY Note : Follow the disassembly procedure in the numerical order given. CASE Unscrew the five case attachment screws M3 × 8 and remove the case. 2-1. FRONT PANEL ASSY 1 BVTP 3x8 2 lug plate 3 CNA807 1 BVTP 3x8 2 power voltage selector 4 CNS802 5 CNA801 (US, Canadian) 6 CNA803 7 CNA806 8 CN51 0 CN002 !¡ CNP73 !¢ claw !§ CN501, 502 !™ BVTP 3x6 !∞ claw !¶ CN503, 504 !£ BVTP 3x8 !• front panel assy 9 CN51 (WE725/WE825S) 5 BVTP 2.6x8 4 BVTP 2.6x8 6 mechanism deck 3 cassette lid 2 claws 2-2. MECHANISM DECK 1 Press the EJECT button. POWER VOLTAGE SELECTOR 1 - 2 (Singapore, Malaysia) FRONT PANEL ASSY 1 - !¶ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 6 – 2-3. FITTING BASE 2-4. CAPSTAN MOTOR, REEL MOTOR 4 PTPWH 2x23 3 connector 7 gear (trigger) 5 claws 6 fitting base 1 Pull the capstan belt and put around claws. 2 Pull the square belt and put around claws. 0 reel motor 5 claws 6 AUDIO board 2 connector 4 claw 3 connector 1 square belt 9 P 2.6x2.8 7 B 2.6x3 8 capstan motor !¡ ground plate www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 7 – 2-5. HEAD DECK ASSY 5 torsion spring 3 claw 1 claw 6 claw 7 head deck assy 2 lever (pinch F) assy 4 lever (pinch R) assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 8 – PRECAUTION 1. Clean the following parts with a denatured alcohol-moistened swab : record/playback/erase head pinch roller rubber belts capstan idlers 2. Demagnetize the record/playback head with a head demagnetizer. 3. Do not use a magnetized screwdriver for the adjustment. 4. After the adjustments, apply suitable locking compound to the parts adjusted. 5. The adjustments should be performed with the rated power supply voltage unless otherwise noted. Torque Measurement Mode Torque meter Meter reading Forward CQ-102C 30 to 65 g • cm (0.42 to 0.90 oz • inch) DECK A : 1 to 6 g • cm Forward (0.014 to 0.083 oz • inch) back CQ-102C tension DECK B : 2 to 9 g • cm (0.028 to 0.125 oz • inch) Reverse CQ-102RC 30 to 65 g • cm (0.42 to 0.90 oz • inch) Reverse 1 to 6 g • cm back CQ-102RC (0.014 to 0.083 oz • inch) tension FF/REW CQ-201B 70 to 120 g • cm (0.97 to 1.67 oz • inch) SECTION 4 ELECTRICAL ADJUSTMENTS SECTION 3 MECHANICAL ADJUSTMENTS PRECAUTION 1. The adjustment should be performed in the publication. (Be sure to male playback adjustment at first.) 2. The adjustments and measurement should be performed for both L-CH and R-CH. • Switch position DOLBY NR switch : OFF DIRECTION MODE switch : A • Standard record position : Deliver the standard input signal level to input jack and set the REC LEVEL control to obtain the standard output signal level as follows. – Record Mode– 0 dB = 0.775 V Standard Input Level Input terminal LINE IN source impedance 10 kΩ input signal level 0.5 V (–3.8 dB) Standard Output Level Output terminal LINE OUT load impedance 47 kΩ output signal level 0.5 V (–3.8 dB) Test Tape Tape Contents Use P-4-A100 10 kHz, –10 dB Azimuth Adjustment WS-48B 3 kHz, 0 dB Tape Speed Adjustment P-4-L300 315 Hz, 0 dB PB Level Adjustment set – + AF OSC attenuator 10 kΩ 600 Ω LINE IN level meter LINE OUT 47 kΩ Test Mode 1. Turn ON power switch pressing “REC MUTING” switch of deck A and B at the same time. At first, all the fluorescent indicator light up, then the system returns to normal display. (However, “0. 00” is not displayed on the counter.) 2. To release the test mode, turn OFF the power switch. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 9 – Record/Playback Head Azimuth Adjustment DECK A DECK B Procedure: 1. Forward Playback Mode 2. Turn the adjustment screw for the maximum output levels. If these levels do not match, turn the adjustment screw until both of output levels match together within 1 dB. 3. Playback Mode 4. Change the reverse playback mode and repeat the steps 1 to 3. 5. After the adjustment, lock the adjustment screws with suitable locking compound. Adjustment Location: –record/playback head– – + set test tape P-4-A100 (10 kHz, –10 dB) level meter LINE OUT 47 kΩ within 1 dB within 1 dB output level R-CH peak R-CH peak L-CH peak L-CH peak screw position screw position – + – + V H Screen Pattern set In phase 45˚ 90˚ 135˚ 180˚ good wrong 47 kΩ 47 kΩ L-CH R-CH test tape P-4-A100 (10 kHz, –10 dB) LINE OUT oscilloscope forward side reverse side adjustment screws Tape Speed Adjustment DECK A DECK B Procedure: –Forward Playback Mode– (High speed adjustment) 1. Set to test mode. (Refer to page 8.) 2. Set to FWD playback mode. 3. Twice pressing the HIGH/NORMAL switch. 4. Adjust RV72 so that the frequency counter reading becomes 6,000 ± 20 Hz. 5. Release test mode after adjustment is completed. (Normal speed adjustment) 1. Set to FWD playback mode. 2. Adjust RV71 so that the frequency counter reading becomes 3,000 ± 10 Hz. (Pitch control adjustment) (TC-WE725/WE825S only) 1. Push the PITCH CONTROL switch. 2. Set RV902 to mechanical center. 3. Set to FWD playback mode. 4. Adjust RV601 so that the frequency counter reading becomes 3,000 ± 10 Hz. Frequency difference between the beginning and the end of the tape should be within ± 3%. Frequency difference between the deck A and deck B the beginning of the tape should be within ± 1.5%. Adjustment Location: AUDIO board, MAIN board (See page 11.) Playback Level Adjustment DECK A DECK B Procedure: –Forward Playback Mode– – + set frequency counter 47 kΩ LINE OUT test tape WS-48B (3 kHz, 0 dB) Adjust RV11 (L-CH) and RV21 (R-CH) so the level meter reading becomes the adjustment limits below. Adjustment Value: LINE OUT level : –7.7 ± 0.5 dB (0.301 to 0.338 V) Level difference between channels : within 0.5 dB Confirm that the LINE OUT level does not change in playback mode while changing the mode from playback to stop several times. Adjustment Location: AUDIO board (See page 11.) – + set test tape P-4-L300 (315 Hz, 0 dB) level meter LINE OUT 47 kΩ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 10 – Bias Consumption Current Adjustment DECK A DECK B This adjustment should be performed when replacing the head assy or the bias oscillator transformer (T81, T91). Procedure: 1. Connect the digital voltmeter to test point TP81. 2. Set RV81 (L-CH), RV91 (R-CH) to mechanical center. 3. Set to FWD record mode. 4. Adjust T81 (L-CH), T91 (R-CH) so that the digital voltmeter reading becomes minimum. Adjustment Value: Maximum 220 mV Adjustment Location: AUDIO board (See page 11.) Record Bias Adjustment DECK A DECK B Setting: REC LEVEL control : standard record position (See page 8.) Procedure: 1. Record Mode set 1 2 3 – + blank tape CS-413 TP81 L-CH R-CH digital voltmeter LINE IN no signal 2. Playback Mode set AF OSC attenuator 10 kΩ 600 Ω LINE IN 1) 315 Hz 2) 10 kHz 38.8 mV (–26 dB) blank tape CS-123 Confirm that the 10 kHz playback output is 0 ± 0.5 dB relative to the 315 Hz output. If necessary, adjust RV81 (L-CH), RV91 (R- CH) and repeat the steps given above. Adjustment Location: AUDIO board (See page 11.) – + set recorded portion level meter LINE OUT 47 kΩ Record Level Adjustment DECK A DECK B Setting: REC LEVEL control : standard record position (See page 8.) Procedure: 1. Record Mode 2. Playback Mode set AF OSC attenuator 10 kΩ 600 Ω LINE IN blank tape CS-123 315 Hz, 38.8 mV (–26 dB) Confirm playback the tape recorded become adjustment level as follows. If necessary, adjust Deck A : RV102 (L-CH), RV202 (R-CH) and Deck B : RV101 (L-CH), RV201 (R-CH) and repeat the steps 1 and 2. Adjustment Value: LINE OUT level : –26 ± 0.5 dB (36.7 to 41.1 mV) Adjustment Location: MAIN board (See page 11.) – + set recorded portion level meter LINE OUT 47 kΩ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 11 – Adjustment Location: –audio board (component side)– RV91 (R) RECORD BIAS ADJ RV81 (L) RV72 (HIGH) TAPE SPEED ADJ PLAYBACK LEVEL ADJ RV71 (NORMAL) RV21 (R) RV11 (L) T81 (L) T91 (R) BIAS CONSUMPTION CURRENT ADJ TP81 RV101 (L) RECORD LEVEL ADJ (DECK B) RV201 (R) RV202 (R) RECORD LEVEL ADJ (DECK A) RV102 (L) RV601 TAPE SPEED ADJ (PITCH CONTROL) –main board (component side)– www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 12 – 5-1. IC PIN DESCRIPTION • IC801 CXP82432A-006Q (SYSTEM CONTROLLER) Pin No. Pin Name I/O Pin Description 1 T-REEL (A) I Take-up reel rotation detection input (DECK A) 2 S-REEL (B) I Supply reel rotation detection input (DECK B) 3 T-REEL (B) I Take-up reel rotation detection input (DECK B) 4 SIRCS IN I Sircs signal input 5 POWER IN I Power-off detection input 6 VOL OUT O Record level control output (PWM) 7 A/B SEL I Playback A/B selector input “L” : A, “H” : B 8 CONTROL-A IN I Control A signal input 9 CONTRL-A OUT O Control A signal output 10 REC MUTE (A) O Recording mute output (DECK A) “L” : Mute ON 11 REC CAL 0 (A) O Recording CAL-0 output for auto calibration. (DECK A) 12 REC CAL 1 (A) O Recording CAL-1 output for auto calibration. (DECK A) 13 GP CAL 0 (A) O GEQ CAL-0 output for auto calibration. (DECK A) 14 GP CAL 1 (A) O GEQ CAL-1 output for auto calibration. (DECK A) 15 REC/PB O Record/playback dolby NR mode selector output “L” : Playback 16 REC MUTE (B) O Recording mute output (DECK B) “L” : Mute ON 17 AMS IN I AMS signal input “L” : Music present 18 CAL/OFF/S O Audio selector “H” : CAL, “Open” : Dolby off, “L” : Dolby S 19 C/B/OFF O Dolby selector “H” : C, “Open” : B, “L” : Dolby off 20 REC CAL 0 (B) O Recording CAL-0 output for auto calibration. (DECK B) 21 REC CAL 1 (B) O Recording CAL-1 output for auto calibration. (DECK B) 22 GP CAL 0 (B) O GEQ CAL-0 output for auto calibration. (DECK B) 23 GP CAL 1 (B) O GEQ CAL-1 output for auto calibration. (DECK B) 24 POWER OUT O Power hold output 25 RECEQ HIGH/NORM O REC EQ high/normal select output “L” : Normal 26 PASS/MUTE/DOLBY O Audio selector “H” : Pass, “Open” : Mute, “L” : Dolby 27 BS/AMS/OFF O AMS amp selector “H” : BS, “Open” : AMS, “L” : OFF 28 EX IN 0 I Expander control input (0) 29 EX IN 1 I Expander control input (1) 30 EXP CTRL 0 O Expander control output (0) 31 EXP CTRL 1 O Expander control output (1) 32 A/D IN 0 I Expander A/D input (0) 33 A/D IN 1 I Expander A/D input (1) 34 KEY 5 I Key 5 input (A/D converter) 35 VOL IN I Record volume input (A/D converter) 36 TEST/PITCH/VER I Test mode/pitch control/version input 37 CD SYNC LED O CD SYNCHRO LED driver “L” : ON 38 RESET I System reset input 39 EXTAL I System clock oscillator input (10 MHz) 40 XTAL O System clock oscillator output (10 MHz) 41 VSS — Ground 42 TX — Connected to ground. 43 TEX — Connected to ground. 44 ARL LED O ARL LED driver “H” : ON 45 PITCH ON/OFF O Pitch control ON/OFF output “L” : ON 46 AVREF I Reference voltage input for A/D converter. 47 AVSS — Ground for A/D converter. 48 LINE MUTE O Line mute ON/OFF control output “L” : Mute ON 49 OSC H/L O OSC frequency H/L select output for auto calibration. 50 OSC ON/OFF O OSC ON/OFF select output for auto calibration. 51 BIAS CAL 0 (B) O EQ bias CAL-0 output for auto calibration. (DECK B) SECTION 5 DIAGRAMS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 13 – Pin No. Pin Name I/O Pin Description 52 BIAS CAL 1 (B) O EQ bias CAL-1 output for auto calibration. (DECK B) 53 BIAS CAL 2 (B) O EQ bias CAL-2 output for auto calibration. (DECK B) 54 BIAS CAL 3 (B) O EQ bias CAL-3 output for auto calibration. (DECK B) 55 BIAS CAL 0 (A) O EQ bias CAL-0 output for auto calibration. (DECK A) 56 BIAS CAL 1 (A) O EQ bias CAL-1 output for auto calibration. (DECK A) 57 BIAS CAL 2 (A) O EQ bias CAL-2 output for auto calibration. (DECK A) 58 BIAS CAL 3 (A) O EQ bias CAL-3 output for auto calibration. (DECK A) 59 CAP.M (B) O Capstan motor driver output (DECK B) “H” : ON 60 CAP.M (A) O Capstan motor driver output (DECK A) “H” : ON 61 CAP.M H/L O Capstan motor high/normal select output “L” : ON 62 – 77 P16 – P1 O Fluorescent indicator tube segment driver 78 – 85 G1 – G8 O Fluorescent indicator tube grid driver 86 G6,G7 O Fluorescent indicator tube grid driver 87 G7,G8 O Fluorescent indicator tube grid driver 88 VFDP — Fluorescent indicator tube power supply (-28 V) 89 VDD — Power supply (+5 V) 90 N.C — Connected to power supply. 91 VSS — Ground 92 REEL (A) + O Reel motor (+) output (DECK A) 93 REEL (A) - O Reel motor (-) output (DECK A) 94 REEL (B) + O Reel motor (+) output (DECK B) 95 REEL (B) - O Reel motor (-) output (DECK B) 96 BIAS (A) O Bias ON/OFF output (DECK A) “H”:ON 97 RELAY (A) O Relay record/playback selector output (DECK A) “L” : Record 98 BIAS (B) O Bias ON/OFF output (DECK B) “H” : ON 99 RELAY (B) O Relay record/playback selector output (DECK B) “L” : Record 100 S-REEL (A) I Supply reel rotation detection input (DECK A) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-2. CIRCUIT BOARDS LOCATION – 14 – • For schematic diagrams. • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • ¢ : internal component. • 1 : fusible resistor. • C : panel designation. • U : B+ Line. • V : B– Line. • H : adjustment for repair. • Voltage is dc with respect to ground under no-signal (detuned) condition. Note: The components identi- fied by mark ! or dotted line with mark ! are criti- cal for safety. Replace only with part number specified. Note: Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. • For printed wiring boards. • X : parts extracted from the component side. • ® : Through hole. • b : Pattern from the side which enables seeing. (The other layers’ patterns are not indicated.) : Chip transistor of abbreviation (E, C, B) THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) no mark : PB (DECK A) ( ) : REC (DECK A) < > : PB (DECK B) [ ] : REC (DECK B) << >> : STOP ∗ : Impossible to measure • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal production tolerances. • Signal path. E : PB (DECK A) a : REC (DECK A) d : PB (DECK B) G : REC (DECK B) • Abbreviation CND : Canadian model. AUS : Australian model. SP : Singapore model. MY : Malaysia model. CH : Chinese model. AUDIO (B) board LEAF SW (B) board LEAF SW (A) board FL board HEADPHONE board REC VOL board MAIN board TRANS (B) board AUDIO (A) board SW (C) board SW (A) board SW (B) board TRANS (A) board DOLBY-S board (WE825S) (Except Singapore, Malaysia) (Except US, Canadian) (Except US, Canadian) (US, Canadian) BCE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-3. PRINTED WIRING BOARDS — MAIN SECTION — TC-WE625/WE725/WE825S – 15 – – 16 – (Page 35) (Page 35) (Page 33) (Page 33) (Page 28) (Page 15) (Page 27) (Page 31) (Page 31) (Page 31) (Page 28) (Page 31) (Page 28) (Page 25) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5-4. SCHEMATIC DIAGRAM — MAIN SECTION (1/4) — • Refer to page 37 for IC Block Diagrams. TC-WE625/WE725/WE825S – 17 – – 18 – Ref. No. Location D101 E-6 D201 E-6 D401 A-4 D521 B-1 D522 B-1 D601 H-6 D602 H-6 D701 A-9 D702 A-8 D703 B-8 D704 B-8 D705 A-8 D706 A-8 D707 B-8 D708 A-5 D709 A-5 D710 A-6 D711 B-6 D712 A-8 D713 A-8 D714 C-8 D715 B-7 D716 C-8 D801 F-8 D802 F-8 D803 F-8 D804 F-8 IC501 C-2 IC502 F-1 IC504 E-12 IC561 A-1 IC601 E-10 IC701 A-6 IC801 F-7 IC802 F-6 IC803 E-6 IC804 E-5 IC805 F-4 IC806 G-12 IC807 G-12 IC808 G-3 IC809 G-4 Q101 E-2 Q102 A-3 Q201 D-1 Q202 A-3 Q401 A-4 Q451 G-13 Q452 F-11 Q453 F-12 Q461 G-2 Q462 F-3 Q463 F-3 Q501 B-3 Q502 B-1 Q503 B-1 Q601 H-6 Q602 H-6 Q603 H-6 Q604 H-7 Q605 H-6 Q606 H-7 Q607 H-7 Q621 D-13 Q701 A-7 Q702 B-6 Q703 A-8 Q704 A-8 Q705 A-7 Q706 A-8 Q707 B-8 Q708 C-8 Q801 F-8 Q802 D-7 • Semiconductor Location (Page 32) (Page 32) (Page 31) (Page 32) (Page 19) (Page 21) (Page 23) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TC-WE625/WE725/WE825S – 19 – – 20 – 5-5. SCHEMATIC DIAGRAM — MAIN SECTION (2/4) — • Refer to page 37 for IC Block Diagrams. (Page 34) (Page 34) (Page 34) (Page 18) (Page 21) (Page 23) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TC-WE625/WE725/WE825S – 21 – – 22 – 5-6. SCHEMATIC DIAGRAM — MAIN SECTION (3/4) — (Page 18) (Page 29) (Page 30) (Page 20) (Page 24) (Page 26) (Page 29) (Page 29) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TC-WE625/WE725/WE825S – 23 – – 24 – 5-7. SCHEMATIC DIAGRAM — MAIN SECTION (4/4) — (Page 18) (Page 20) (Page 22) (Page 35) (Page 35) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com TC-WE625/WE725/WE825S 5-8. PRINTED WIRING BOARDS — POWER SECTION — – 25 – – 26 – 1 2 S701 3 4 5 6 VOLTAGE 220V 120V 230–240V NOT REPLACEABLE: BUILT IN TRANSFORMER 04 5-9. SCHEMATIC DIAGRAM — POWER SECTION — (Page 16) (Page 22) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 27 – – 28 – 5-10. PRINTED WIRING BOARDS — PANEL SECTION — TC-WE625/WE725/WE825S (Page 16) (Page 15) (Page 16) (Page 16) (Page 16) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 29 – – 30 – 5-11. SCHEMATIC DIAGRAM — PANEL SECTION — TC-WE625/WE725/WE825S (Page 22) (Page 22) (Page 22) (Page 21) (Page 21) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 31 – – 32 – Ref. No. Location D31 B-1 IC31 C-1 IC81 B-2 Q51 A-1 Q52 A-1 Q53 B-1 Q71 B-3 • Semiconductor Location TC-WE625/WE725/WE825S 5-12. PRINTED WIRING BOARDS — DECK A SECTION — 5-13. SCHEMATIC DIAGRAM — DECK A SECTION — (Page 16) (Page 16) (Page 16) (Page 16) (Page 16) (Page 17) (Page 17) (Page 17) (Page 17) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 33 – – 34 – TC-WE625/WE725/WE825S 5-14. PRINTED WIRING BOARDS — DECK B SECTION — 5-15. SCHEMATIC DIAGRAM — DECK B SECTION — LEAF SW (B) BOARD Ref. No. Location D31 B-1 IC31 C-1 IC81 B-2 Q51 A-1 Q52 A-1 Q53 B-1 Q71 B-3 • Semiconductor Location (Page 15) (Page 15) (Page 15) (Page 15) (Page 19) (Page 19) (Page 19) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 35 – – 36 – TC-WE625/WE725/WE825S 5-16. PRINTED WIRING BOARD — DOLBY-S SECTION (TC-WE825S only) — 5-17. SCHEMATIC DIAGRAM — DOLBY-S SECTION (TC-WE825S only) — (Page 15) (Page 24) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 37 – • IC Block Diagrams IC1 CXA1917AM-T6 (TC-WE825S onl y) IC504 CXA1597P IC803, 804, 806, 808 MC14052BF-T1 VG REC EQ 1 CONTROL 1 SPEED 2 TAPE EQ 3 DGND 4 REC IN1 5 GND 6 BOOST1 7 VEE 8 REC OUT1 16 Gp CAL 15 REC MUTE 14 REC CAL 13 REC IN2 12 IREF 11 BOOST2 10 VCC 9 REC OUT2 BIAS REC EQ 2 1 16 LFDET ANTSAT FHVCR FLVCR SHVCR SLVCR SHDET SLDET SHICG FHICG SLICG FLICG FHDET FLDET V to I Conv.H VREF & IREF V to I Conv.H LFVCR LFICG VCC 17 IREF 18 TCF2L 19 TCF1L 20 TCS2L 21 TCS1L 22 FBOL 23 SCBOL 24 SCINL 25 RECOUT 26 ANTSAT 27 HLSOUT 28 MCBO 29 MC3IN 30 MC4IN MC4 MC3DS MC3DT MC2 MC4 MC3 MC1 MC1 MC HLSMP 2 MCTC 3 ZL1 4 ZL2 5 LFIN 6 TCL1 7 TCL2 8 SCINH 9 FBOH 10 TCF1H 11 TCF2H 12 TCS2H 13 TCS1H 14 VCT 15 VEE 1 2 3 4 5 6 7 8 16 15 14 13 12 11 10 9 2X0 X2 VDD X1 XCOM X0 X3 A B VSS VEE INH 2X1 2X3 2XCOM 2X2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 38 – SECTION 6 EXPLODED VIEWS NOTE: • The mechanical parts with no reference number in the exploded views are not supplied. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • -XX and -X mean standardized parts, so they may have some difference from the original one. • Color Indication of Appearance Parts Example : KNOB, BALANCE (WHITE) ... (RED) Parts Color Cabinet’s Color • Accessories and packing materials and hardware (# mark) list are given in the last of this parts list. The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. Ref. No. Part No. Description Remark 6-1. CASE SECTION N N Ref. No. Part No. Description Remark • Abbreviation CND : Canadian model AUS : Australian model SP : Singapore model MY : Malaysia model CH : Chinese model #3 #3 #3 #3 #3 #3 #3 not supplied S701 3 2 3 1 4 5 * 1 3-021-228-01 PANEL, BACK (WE625:US) * 1 3-021-228-11 PANEL, BACK (WE625:CND) * 1 3-021-228-21 PANEL, BACK (WE625:AUS) * 1 3-021-228-31 PANEL, BACK (WE625:SP,MY) * 1 3-021-228-41 PANEL, BACK (WE625:CH) * 1 3-021-242-01 PANEL, BACK (WE725:AEP) * 1 3-021-242-11 PANEL, BACK (WE725:UK) * 1 3-021-243-01 PANEL, BACK (WE825S:AEP) * 1 3-021-243-11 PANEL, BACK (WE825S:UK) * 1 3-021-243-32 PANEL, BACK (WE825S:US) * 2 3-935-634-01 CASE (410726) 3 3-363-099-01 SCREW (CASE 3 TP2) 4 3-703-244-00 BUSHING (2104), CORD (EXCEPT US,CND) * 4 3-703-571-11 BUSHING (S) (4516), CORD (US,CND) 5 4-956-370-12 BAND, PLUG FIXED (UK,AUS) !S701 1-692-155-11 SELECTOR, POWER VOLTAGE (VOLTAGE) (SP,MY) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 39 – 6-2. CHASSIS SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 62 58 61 59 57 51 53 60 56 52 54 55 55 54 #3 #3 #3 #2 #3 #3 #3 #3 #3 #2 #2 not supplied not supplied not supplied T701 a (except SP, MY) (including a-h) b * 51 A-2007-758-A MAIN BOARD, COMPLETE (WE725) * 51 A-2007-761-A MAIN BOARD, COMPLETE (WE625:US,CND) * 51 A-2007-762-A MAIN BOARD, COMPLETE (WE625:AUS) * 51 A-2007-763-A MAIN BOARD, COMPLETE (WE625:SP,MY) * 51 A-2007-764-A MAIN BOARD, COMPLETE (WE625:CH) * 51 A-2007-765-A MAIN BOARD, COMPLETE (WE825S:AEP,UK) * 51 A-2007-802-A MAIN BOARD, COMPLETE (WE825S:US) 52 1-590-486-11 WIRE (FLAT TYPE) (7 CORE) (WE625) 52 1-769-914-11 WIRE (FLAT TYPE) (9 CORE) (WE725/WE825S) * 53 3-346-265-31 HOLDER, PC BOARD 54 4-977-591-01 FOOT (F50150S) (EXCEPT US,CND) 54 4-977-591-11 FOOT (F50150S) (US,CND) * 55 4-978-398-21 CUSHION 56 1-769-883-11 WIRE (FLAT TYPE) (7 CORE) (WE625) 56 1-769-916-11 WIRE (FLAT TYPE) (9 CORE) (WE725/WE825S) * 57 A-2007-801-A DOLBY-S BOARD, COMPLETE (WE825S) !58 1-575-651-21 CORD, POWER (AEP,SP,MY) !59 1-751-529-11 CORD, POWER (UK) !60 1-590-926-11 CORD, POWER (US,CND) !61 1-696-845-11 CORD, POWER (AUS) !62 1-782-510-11 CORD, POWER (CH) !T701 1-431-786-11 TRANSFORMER, POWER (AEP,UK,CH,AUS) !T701 1-431-788-11 TRANSFORMER, POWER (US,CND) !T701 1-431-789-11 TRANSFORMER, POWER (SP,MY) The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 40 – 6-3. CASSETTE HOLDER SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark not supplied #4 #4 102 101 103 103 112 111 113 114 106 115 115 116 110 110 109 108 115 115 107 105 104 106 101 X-3374-864-1 LID (A) ASSY, CASSETTE 102 X-3374-865-1 LID (B) ASSY, CASSETTE 103 3-931-427-31 BUTTON (EJ) 104 X-4945-947-1 HOLDER (L) ASSY, CASSETTE 105 4-959-231-21 SPRING (L), TORSION 106 3-354-963-01 DAMPER 107 3-354-955-01 LEVER (EJ SAFETY LEVER L) 108 3-354-961-11 SPRING (EJ SAFETY SPRING L) * 109 3-354-953-01 LEVER (LOCK LEVER L) 110 3-354-957-01 JOINT (LOCK LEVER) 111 X-4945-946-1 HOLDER (R) ASSY, CASSETTE 112 4-959-232-21 SPRING (R), TORSION 113 3-354-956-01 LEVER (EJ SAFETY LEVER R) 114 3-354-962-11 SPRING (EJ SAFETY SPRING R) 115 4-951-620-01 SCREW (2.6X8), +BVTP * 116 3-354-954-01 LEVER (LOCK LEVER R) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 41 – 6-4. FRONT PANEL SECTION Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 154 159 160 161 159 154 160 161 154 162 154 154 154 154 154 156 157 158 155 164 152 155 164 153 151 163 e c (except US,CND) f FLT901 g h #5 d 151 X-3374-855-1 PANEL ASSY, FRONT (WE625:US,CND) 151 X-3374-857-1 PANEL ASSY, FRONT (WE725) 151 X-3374-858-1 PANEL ASSY, FRONT (WE825S:AEP,UK) 151 X-3374-942-1 PANEL ASSY, FRONT (WE625:CH,SP,MY,AUS) 151 X-3375-510-1 PANEL ASSY, FRONT (WE825S:US) 152 3-021-239-01 KNOB (REC) 153 4-996-698-41 EMBLEM, SONY 154 4-951-620-01 SCREW (2.6X8), +BVTP * 155 4-978-398-21 CUSHION 156 3-021-232-01 BUTTON (COUNTER) 157 3-021-230-01 BUTTON (FUNCTION) 158 X-3371-370-1 BUTTON (SYNCHRO) ASSY 159 3-931-429-41 BUTTON (POWER) (EXCEPT US,CND) 159 3-931-429-51 BUTTON (POWER) (US,CND) 160 3-380-952-21 BUTTON (WE725/WE825S) 161 3-931-378-01 KNOB (F10) (WE725/WE825S) 162 1-769-598-11 WIRE (FLAT TYPE) (41 CORE) * 163 3-377-337-11 HOLDER (FL) 164 4-977-593-01 RING (DIA. 50), ORNAMENTAL (EXCEPT US,CND) FLT901 1-517-263-11 INDICATOR TUBE, FLUORESCENT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 42 – 6-5. TAPE MECHANISM SECTION 1 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 201 202 203 205 221 208 208 204 206 205 207 209 210 211 213 214 212 220 219 218 215 216 216 216 217 M2 M1 not supplied #1 #6 HRPE101 201 3-907-362-01 SPRING, TORSION 202 3-356-713-01 WASHER 203 X-3366-047-1 LEVER (PINCH F) ASSY 204 X-3366-048-1 LEVER (PINCH R) ASSY 205 3-362-308-01 CAP (REEL) 206 3-356-714-01 WASHER 207 X-3366-971-1 TABLE ASSY (B), REEL 208 3-355-808-02 PINCH ROLLER 209 3-359-424-01 GEAR (REV GEAR) 210 X-3367-629-1 FLYWHEEL (FWD) ASSY 211 X-3367-630-1 FLYWHEEL (REV) ASSY 212 3-359-430-01 SPRING (CASSETTE RETAINER), LEAF 213 3-359-417-01 BELT (FLAT), CAPSTAN 214 3-575-321-00 RETAINER, THRUST, CAPSTAN 215 3-359-436-11 BASE (THRUST RETAINER), FITTING 216 3-359-414-01 SCREW (+PTPWH 2X23) 217 1-638-983-11 MOTOR FLEXIBLE BOARD * 218 A-2007-040-A AUDIO (A) BOARD, COMPLETE (WE625) * 218 A-2007-509-A AUDIO (A) BOARD, COMPLETE (WE725/WE825S) * 218 A-2007-040-A AUDIO (B) BOARD, COMPLETE 219 3-359-466-01 BELT (FR), SQUARE * 220 1-634-841-14 LEAF SW (A) BOARD (DECK A) (WE725/WE825S) * 220 1-638-020-11 LEAF SW (A) BOARD (DECK A) (WE625) * 220 1-634-841-14 LEAF SW (B) BOARD (DECK B) (WE725/WE825S) * 220 1-638-020-11 LEAF SW (B) BOARD (DECK B) (WE625) 221 X-3366-970-1 TABLE ASSY, REEL (WE625) 221 X-3366-971-1 TABLE ASSY (B), REEL (WE725/WE825S) HRPE101A-2004-527-A DECK ASSY, HEAD (RECORD/PLAYBACK/ERASE) M1 X-3365-377-2 MOTOR ASSY (CAPSTAN) M2 X-3363-501-2 MOTOR ASSY (REEL) DECK A DECK B WE625 TCM-190RB12CL TCM-190RB12CL WE725 TCM-190RB13C TCM-190RB11C WE825S TCM-190RB13C TCM-190RB11C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 43 – 6-6. TAPE MECHANISM SECTION 2 Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 251 266 252 253 254 257 256 259 258 265 264 263 261 260 262 255 251 3-359-469-01 SPACER 252 3-359-425-01 SLIDER (REVERSE SLIDER) 253 3-359-426-01 LEVER (REVERSE LEVER) * 254 3-359-415-01 SLIDER (TRIGGER SLIDER) 255 3-359-448-01 GEAR (TRIGGER) 256 3-359-427-01 SLIDER (REVERSE SLIDER) 257 3-936-483-01 GEAR (CAM GEAR) 258 3-359-454-01 SPRING, TORSION 259 3-359-429-01 SLIDER (BRAKE PLATE) 260 3-359-456-01 SPRING (TRIGGER SPRING), TORSION 261 X-3366-569-1 ARM ASSY, FR 262 3-924-185-11 SPRING (FR ARM), TORSION 263 3-359-419-11 GEAR (FR GEAR) 264 3-359-421-01 CLUTCH (REEL DISC) 265 3-359-418-01 PULLEY (FR PULLEY) 266 X-3359-415-1 CHASSIS ASSY, MECHANICAL DECK A DECK B WE625 TCM-190RB12CL TCM-190RB12CL WE725 TCM-190RB13C TCM-190RB11C WE825S TCM-190RB13C TCM-190RB11C www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 44 – SECTION 7 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL:Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F:nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • SEMICONDUCTORS In each case, u : µ, for example: uA.. : µA.. uPA.. : µPA.. uPB.. : µPB.. uPC.. : µPC.. uPD.. : µPD.. • CAPACITORS uF : µF • COILS uH : µH Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. When indicating parts by reference number, please include the board. AUDIO (A) • Abbreviation CND : Canadian model MY : Malaysia model AUS : Australian model CH : Chinese model SP : Singapore model * A-2007-040-A AUDIO (A) BOARD, COMPLETE (WE625) * A-2007-509-A AUDIO (A) BOARD, COMPLETE (WE725/WE825S) ************************** < CAPACITOR > C11 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C12 1-136-157-00 FILM 0.022uF 5% 50V C13 1-124-234-00 ELECT 22uF 20% 16V C18 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C21 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C22 1-136-157-00 FILM 0.022uF 5% 50V C23 1-124-234-00 ELECT 22uF 20% 16V C28 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C31 1-124-234-00 ELECT 22uF 20% 16V C32 1-124-234-00 ELECT 22uF 20% 16V C33 1-124-234-00 ELECT 22uF 20% 16V C51 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C52 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C53 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C54 1-136-601-11 FILM 0.01uF 5% 630V C56 1-164-505-11 CERAMIC CHIP 2.2uF 16V C57 1-164-346-11 CERAMIC CHIP 1uF 16V C71 1-164-346-11 CERAMIC CHIP 1uF 16V C80 1-124-234-00 ELECT 22uF 20% 16V C81 1-164-232-11 CERAMIC CHIP 0.01uF 50V C82 1-136-157-00 FILM 0.022uF 5% 50V C83 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C84 1-136-478-11 FILM 470PF 5% 630V C85 1-136-433-11 FILM 100PF 5% 630V C86 1-163-143-00 CERAMIC CHIP 0.0012uF 5% 50V C87 1-136-273-00 FILM 75PF 5% 630V C88 1-163-003-11 CERAMIC CHIP 330PF 10% 50V C89 1-124-234-00 ELECT 22uF 20% 16V C90 1-107-584-11 CERAMIC 4PF 0.25PF 500V C91 1-164-232-11 CERAMIC CHIP 0.01uF 50V C92 1-136-157-00 FILM 0.022uF 5% 50V C93 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C94 1-136-478-11 FILM 470PF 5% 630V C95 1-136-433-11 FILM 100PF 5% 630V C96 1-163-143-00 CERAMIC CHIP 0.0012uF 5% 50V C97 1-136-273-00 FILM 75PF 5% 630V C98 1-163-003-11 CERAMIC CHIP 330PF 10% 50V C99 1-164-005-11 CERAMIC CHIP 0.47uF 25V < CONNECTOR > * CNP31 1-580-782-11 CONNECTOR, BOARD TO BOARD 10P * CNP32 1-580-781-11 PIN, CONNECTOR (PC BOARD) 7P * CNP33 1-580-782-11 CONNECTOR, BOARD TO BOARD 10P * CNP71 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P CNP72 1-764-902-11 CONNECTOR, FFC/FPC 4P CNP73 1-564-718-11 PIN, CONNECTOR (SMALL TYPE) 2P (WE725/WE825S) CNP75 1-564-718-11 PIN, CONNECTOR (SMALL TYPE) 2P < DIODE > D31 8-719-404-46 DIODE MA110 < IC > IC31 8-759-711-85 IC NJM4580E-D IC81 8-759-106-56 IC uPC1297CA < COIL > L81 1-410-780-11 INDUCTOR 27mH L91 1-410-780-11 INDUCTOR 27mH < TRANSISTOR > Q51 8-729-822-05 TRANSISTOR 2SD1622-ST-TD Q52 8-729-822-05 TRANSISTOR 2SD1622-ST-TD Q53 8-729-822-05 TRANSISTOR 2SD1622-ST-TD Q71 8-729-216-22 TRANSISTOR 2SA1162-G < RESISTOR > R11 1-216-099-00 METAL CHIP 120K 5% 1/10W R12 1-216-025-00 RES,CHIP 100 5% 1/10W R13 1-216-100-00 RES,CHIP 130K 5% 1/10W R14 1-216-068-00 METAL CHIP 6.2K 5% 1/10W R21 1-216-099-00 METAL CHIP 120K 5% 1/10W R22 1-216-025-00 RES,CHIP 100 5% 1/10W R23 1-216-100-00 RES,CHIP 130K 5% 1/10W R24 1-216-068-00 METAL CHIP 6.2K 5% 1/10W R31 1-216-033-00 METAL CHIP 220 5% 1/10W R32 1-216-033-00 METAL CHIP 220 5% 1/10W R33 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R51 1-216-097-00 RES,CHIP 100K 5% 1/10W R52 1-216-097-00 RES,CHIP 100K 5% 1/10W R53 1-216-073-00 METAL CHIP 10K 5% 1/10W R54 1-216-309-00 METAL CHIP 5.6 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 45 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R55 1-216-309-00 METAL CHIP 5.6 5% 1/10W R57 1-216-298-00 METAL CHIP 2.2 5% 1/10W R71 1-216-082-00 RES,CHIP 24K 5% 1/10W R72 1-216-081-00 METAL CHIP 22K 5% 1/10W R73 1-216-089-00 RES,CHIP 47K 5% 1/10W R74 1-216-089-00 RES,CHIP 47K 5% 1/10W R81 1-216-073-00 METAL CHIP 10K 5% 1/10W R82 1-216-085-00 METAL CHIP 33K 5% 1/10W R83 1-216-001-00 METAL CHIP 10 5% 1/10W R84 1-216-101-00 METAL CHIP 150K 5% 1/10W R85 1-216-075-00 METAL CHIP 12K 5% 1/10W R91 1-216-073-00 METAL CHIP 10K 5% 1/10W R92 1-216-085-00 METAL CHIP 33K 5% 1/10W R93 1-216-001-00 METAL CHIP 10 5% 1/10W R94 1-216-101-00 METAL CHIP 150K 5% 1/10W R95 1-216-075-00 METAL CHIP 12K 5% 1/10W < VARIABLE RESISTOR > RV11 1-241-761-11 RES, ADJ, CARBON 1K RV21 1-241-761-11 RES, ADJ, CARBON 1K RV71 1-241-764-11 RES, ADJ, CARBON 10K RV72 1-241-764-11 RES, ADJ, CARBON 10K RV81 1-241-786-11 RES, ADJ, CARBON 22K RV91 1-241-786-11 RES, ADJ, CARBON 22K < RELAY > RY31 1-515-913-11 RELAY < TRANSFORMER > T51 1-406-417-11 COIL, BIAS OSCILLATION T81 1-433-381-11 TRANSFORMER, BIAS OSCILLATOR T91 1-433-381-11 TRANSFORMER, BIAS OSCILLATOR < TEST PIN > * TP81 1-568-449-11 HOUSING, CONNECTOR (PC BOARD) 3P ************************************************************* * A-2007-040-A AUDIO (B) BOARD, COMPLETE ************************* < CAPACITOR > C11 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C12 1-136-157-00 FILM 0.022uF 5% 50V C13 1-124-234-00 ELECT 22uF 20% 16V C18 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C21 1-163-131-00 CERAMIC CHIP 390PF 5% 50V C22 1-136-157-00 FILM 0.022uF 5% 50V C23 1-124-234-00 ELECT 22uF 20% 16V C28 1-163-251-11 CERAMIC CHIP 100PF 5% 50V C31 1-124-234-00 ELECT 22uF 20% 16V C32 1-124-234-00 ELECT 22uF 20% 16V C33 1-124-234-00 ELECT 22uF 20% 16V C51 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C52 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C53 1-163-019-00 CERAMIC CHIP 0.0068uF 10% 50V C54 1-136-601-11 FILM 0.01uF 5% 630V C56 1-164-505-11 CERAMIC CHIP 2.2uF 16V C57 1-164-346-11 CERAMIC CHIP 1uF 16V C71 1-164-346-11 CERAMIC CHIP 1uF 16V C80 1-124-234-00 ELECT 22uF 20% 16V C81 1-164-232-11 CERAMIC CHIP 0.01uF 50V C82 1-136-157-00 FILM 0.022uF 5% 50V C83 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C84 1-136-478-11 FILM 470PF 5% 630V C85 1-136-433-11 FILM 100PF 5% 630V C86 1-163-143-00 CERAMIC CHIP 0.0012uF 5% 50V C87 1-136-273-00 FILM 75PF 5% 630V C88 1-163-003-11 CERAMIC CHIP 330PF 10% 50V C89 1-124-234-00 ELECT 22uF 20% 16V C90 1-107-584-11 CERAMIC 4PF 0.25PF 500V C91 1-164-232-11 CERAMIC CHIP 0.01uF 50V C92 1-136-157-00 FILM 0.022uF 5% 50V C93 1-164-004-11 CERAMIC CHIP 0.1uF 10% 25V C94 1-136-478-11 FILM 470PF 5% 630V C95 1-136-433-11 FILM 100PF 5% 630V C96 1-163-143-00 CERAMIC CHIP 0.0012uF 5% 50V C97 1-136-273-00 FILM 75PF 5% 630V C98 1-163-003-11 CERAMIC CHIP 330PF 10% 50V C99 1-164-005-11 CERAMIC CHIP 0.47uF 25V < CONNECTOR > * CNP31 1-580-782-11 CONNECTOR, BOARD TO BOARD 10P * CNP32 1-580-781-11 PIN, CONNECTOR (PC BOARD) 7P * CNP33 1-580-782-11 CONNECTOR, BOARD TO BOARD 10P * CNP71 1-564-719-11 PIN, CONNECTOR (SMALL TYPE) 3P CNP72 1-764-902-11 CONNECTOR, FFC/FPC 4P CNP75 1-564-718-11 PIN, CONNECTOR (SMALL TYPE) 2P < DIODE > D31 8-719-404-46 DIODE MA110 < IC > IC31 8-759-711-85 IC NJM4580E-D IC81 8-759-106-56 IC uPC1297CA < COIL > L81 1-410-780-11 INDUCTOR 27mH L91 1-410-780-11 INDUCTOR 27mH < TRANSISTOR > Q51 8-729-822-05 TRANSISTOR 2SD1622-ST-TD Q52 8-729-822-05 TRANSISTOR 2SD1622-ST-TD Q53 8-729-822-05 TRANSISTOR 2SD1622-ST-TD Q71 8-729-216-22 TRANSISTOR 2SA1162-G AUDIO (A) AUDIO (B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 46 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark < RESISTOR > R11 1-216-099-00 METAL CHIP 120K 5% 1/10W R12 1-216-025-00 RES,CHIP 100 5% 1/10W R13 1-216-100-00 RES,CHIP 130K 5% 1/10W R14 1-216-068-00 METAL CHIP 6.2K 5% 1/10W R21 1-216-099-00 METAL CHIP 120K 5% 1/10W R22 1-216-025-00 RES,CHIP 100 5% 1/10W R23 1-216-100-00 RES,CHIP 130K 5% 1/10W R24 1-216-068-00 METAL CHIP 6.2K 5% 1/10W R31 1-216-033-00 METAL CHIP 220 5% 1/10W R32 1-216-033-00 METAL CHIP 220 5% 1/10W R33 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R51 1-216-097-00 RES,CHIP 100K 5% 1/10W R52 1-216-097-00 RES,CHIP 100K 5% 1/10W R53 1-216-073-00 METAL CHIP 10K 5% 1/10W R54 1-216-309-00 METAL CHIP 5.6 5% 1/10W R55 1-216-309-00 METAL CHIP 5.6 5% 1/10W R57 1-216-298-00 METAL CHIP 2.2 5% 1/10W R71 1-216-082-00 RES,CHIP 24K 5% 1/10W R72 1-216-081-00 METAL CHIP 22K 5% 1/10W R73 1-216-089-00 RES,CHIP 47K 5% 1/10W R74 1-216-089-00 RES,CHIP 47K 5% 1/10W R81 1-216-073-00 METAL CHIP 10K 5% 1/10W R82 1-216-085-00 METAL CHIP 33K 5% 1/10W R83 1-216-001-00 METAL CHIP 10 5% 1/10W R84 1-216-101-00 METAL CHIP 150K 5% 1/10W R85 1-216-075-00 METAL CHIP 12K 5% 1/10W R91 1-216-073-00 METAL CHIP 10K 5% 1/10W R92 1-216-085-00 METAL CHIP 33K 5% 1/10W R93 1-216-001-00 METAL CHIP 10 5% 1/10W R94 1-216-101-00 METAL CHIP 150K 5% 1/10W R95 1-216-075-00 METAL CHIP 12K 5% 1/10W < VARIABLE RESISTOR > RV11 1-241-761-11 RES, ADJ, CARBON 1K RV21 1-241-761-11 RES, ADJ, CARBON 1K RV71 1-241-764-11 RES, ADJ, CARBON 10K RV72 1-241-764-11 RES, ADJ, CARBON 10K RV81 1-241-786-11 RES, ADJ, CARBON 22K RV91 1-241-786-11 RES, ADJ, CARBON 22K < RELAY > RY31 1-515-913-11 RELAY < TRANSFORMER > T51 1-406-417-11 COIL, BIAS OSCILLATION T81 1-433-381-11 TRANSFORMER, BIAS OSCILLATOR T91 1-433-381-11 TRANSFORMER, BIAS OSCILLATOR < TEST PIN > * TP81 1-568-449-11 HOUSING, CONNECTOR (PC BOARD) 3P ************************************************************* * A-2007-801-A DOLBY-S BOARD, COMPLETE (WE825S) ************************ < CAPACITOR > C1 1-136-165-00 FILM 0.1uF 5% 50V C2 1-163-012-00 CERAMIC CHIP 0.0018uF 10% 50V C3 1-163-012-00 CERAMIC CHIP 0.0018uF 10% 50V C4 1-164-222-11 CERAMIC CHIP 0.22uF 25V C5 1-136-165-00 FILM 0.1uF 5% 50V C6 1-136-165-00 FILM 0.1uF 5% 50V C7 1-137-372-11 FILM 0.022uF 5% 50V C8 1-164-222-11 CERAMIC CHIP 0.22uF 25V C9 1-126-301-11 ELECT 1uF 20% 50V C10 1-137-442-11 FILM 0.039uF 5% 50V C11 1-163-007-11 CERAMIC CHIP 680PF 10% 50V C12 1-164-717-11 CERAMIC CHIP 0.0082uF 5% 50V C13 1-163-038-00 CERAMIC CHIP 0.1uF 25V C14 1-124-465-00 ELECT 0.47uF 20% 50V C15 1-164-222-11 CERAMIC CHIP 0.22uF 25V C16 1-163-038-00 CERAMIC CHIP 0.1uF 25V C17 1-124-465-00 ELECT 0.47uF 20% 50V C18 1-163-038-00 CERAMIC CHIP 0.1uF 25V C19 1-164-222-11 CERAMIC CHIP 0.22uF 25V C20 1-163-035-00 CERAMIC CHIP 0.047uF 50V C21 1-164-717-11 CERAMIC CHIP 0.0082uF 5% 50V C22 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C23 1-163-005-11 CERAMIC CHIP 470PF 10% 50V C24 1-137-442-11 FILM 0.039uF 5% 50V C25 1-136-165-00 FILM 0.1uF 5% 50V C26 1-137-372-11 FILM 0.022uF 5% 50V C28 1-163-038-00 CERAMIC CHIP 0.1uF 25V < CONNECTOR > CN1 1-695-092-11 SOCKET, CONNECTOR 7P < IC > IC1 8-752-076-30 IC CXA1917AM-T6 < JUMPER RESISTOR > J1 1-216-296-00 SHORT 0 J2 1-216-296-00 SHORT 0 J3 1-216-296-00 SHORT 0 < RESISTOR > R1 1-216-685-11 METAL CHIP 27K 0.5% 1/10W R2 1-208-811-11 RES,CHIP 16K 2% 1/10W R3 1-208-791-11 RES,CHIP 2.4K 2% 1/10W R4 1-208-799-11 RES,CHIP 5.1K 2% 1/10W R5 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R6 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R7 1-216-615-11 METAL CHIP 33 0.5% 1/10W R8 1-208-462-41 RES,CHIP 10K 2% 1/10W AUDIO (B) DOLBY-S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 47 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark FL R9 1-208-812-11 RES,CHIP 18K 2% 1/10W R10 1-216-615-11 METAL CHIP 33 0.5% 1/10W R11 1-216-619-11 METAL CHIP 47 0.5% 1/10W R12 1-216-684-11 METAL CHIP 24K 0.5% 1/10W R13 1-216-615-11 METAL CHIP 33 0.5% 1/10W R14 1-216-619-11 METAL CHIP 47 0.5% 1/10W R15 1-216-655-11 METAL CHIP 1.5K 0.5% 1/10W R16 1-216-678-11 METAL CHIP 13K 0.5% 1/10W R17 1-216-673-11 METAL CHIP 8.2K 0.5% 1/10W R18 1-208-462-41 RES,CHIP 10K 2% 1/10W R19 1-208-462-41 RES,CHIP 10K 2% 1/10W R20 1-216-689-11 METAL CHIP 39K 0.5% 1/10W ************************************************************* FL BOARD (SUPPLIED WITH MAIN BOARD, COMPLETE) ******** * 3-377-337-11 HOLDER (FL) < CAPACITOR > C901 1-126-933-11 ELECT 100uF 20% 10V C902 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V < CONNECTOR > CNS901 1-770-247-11 SOCKET, CONNECTOR 41P < FLUORESCENT INDICATOR > FLT901 1-517-263-11 INDICATOR TUBE, FLUORESCENT < IC > IC901 8-749-014-66 IC NJL56H400 < RESISTOR > R904 1-216-025-00 RES,CHIP 100 5% 1/10W R905 1-216-097-00 RES,CHIP 100K 5% 1/10W (WE625) R906 1-216-025-00 RES,CHIP 100 5% 1/10W R911 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R912 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R913 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R914 1-216-063-00 RES,CHIP 3.9K 5% 1/10W R915 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R916 1-216-077-00 METAL CHIP 15K 5% 1/10W R917 1-216-089-00 RES,CHIP 47K 5% 1/10W R921 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R922 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R923 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R924 1-216-063-00 RES,CHIP 3.9K 5% 1/10W R925 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R926 1-216-077-00 METAL CHIP 15K 5% 1/10W R927 1-216-089-00 RES,CHIP 47K 5% 1/10W R931 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R932 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R935 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R936 1-216-077-00 METAL CHIP 15K 5% 1/10W R937 1-216-089-00 RES,CHIP 47K 5% 1/10W (WE825S) R941 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R942 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R943 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R944 1-216-063-00 RES,CHIP 3.9K 5% 1/10W R945 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R946 1-216-077-00 METAL CHIP 15K 5% 1/10W R951 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R952 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R953 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R954 1-216-063-00 RES,CHIP 3.9K 5% 1/10W < SWITCH > S911 1-554-303-21 SWITCH, TACTILE (p CLEAR) (DECK A) S912 1-554-303-21 SWITCH, TACTILE (P PAUSE) (DECK A) S913 1-554-303-21 SWITCH, TACTILE (· FRONT) (DECK A) S914 1-554-303-21 SWITCH, TACTILE (ª BACK) (DECK A) S915 1-554-303-21 SWITCH, TACTILE (R REC MUTING) (DECK A) S916 1-554-303-21 SWITCH, TACTILE (0 (AMS)) (DECK B) S917 1-554-303-21 SWITCH, TACTILE () (AMS)) (DECK B) S918 1-554-303-21 SWITCH, TACTILE (r REC) (DECK B) S921 1-554-303-21 SWITCH, TACTILE (p) (DECK B) S922 1-554-303-21 SWITCH, TACTILE (P PAUSE) (DECK B) S923 1-554-303-21 SWITCH, TACTILE (· FRONT) (DECK B) S924 1-554-303-21 SWITCH, TACTILE (ª BACK) (DECK B) S925 1-554-303-21 SWITCH, TACTILE (R REC MUTING) (DECK B) S926 1-554-303-21 SWITCH, TACTILE (0 (AMS)) (DECK A) S927 1-554-303-21 SWITCH, TACTILE () (AMS)) (DECK A) S928 1-554-303-21 SWITCH, TACTILE (r REC) (DECK A) S931 1-554-303-21 SWITCH, TACTILE (RESET) (DECK A) S932 1-554-303-21 SWITCH, TACTILE (MEMORY) (DECK A) S936 1-762-567-11 SWITCH, SLIDE (DOLBY NR ON,OFF,FILTER) S937 1-762-608-11 SWITCH, SLIDE (DOLBY NR B,C) (WE625/WE725) S937 1-762-609-11 SWITCH, SLIDE (DOLBY NR B,C,S) (WE825S) S941 1-554-303-21 SWITCH, TACTILE (DISPLAY) S942 1-554-303-21 SWITCH, TACTILE (RMS START) S943 1-554-303-21 SWITCH, TACTILE (CHECK) S944 1-554-303-21 SWITCH, TACTILE (SET) S945 1-554-303-21 SWITCH, TACTILE (A+B REC) S946 1-554-303-21 SWITCH, TACTILE (HIGH/NORMAL) S951 1-554-303-21 SWITCH, TACTILE (RESET) (DECK B) S952 1-554-303-21 SWITCH, TACTILE (MEMORY) (DECK B) S953 1-554-303-21 SWITCH, TACTILE (DECK A) S954 1-554-303-21 SWITCH, TACTILE (DECK B) ************************************************************* DOLBY-S www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 48 – MAIN Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark HEADPHONE HEADPHONE BOARD (SUPPLIED WITH MAIN BOARD, COMPLETE) ***************** < JACK > J502 1-568-519-41 JACK, LARGE TYPE (PHONES) ************************************************************* * 1-634-841-14 LEAF SW (A) BOARD (WE725/WE825S) * 1-638-020-11 LEAF SW (A) BOARD (WE625) ***************** < CONNECTOR > * CNP81 1-568-850-11 SOCKET, CONNECTOR 7P (WE625) * CNP81 1-568-852-11 SOCKET, CONNECTOR 9P (WE725/WE825S) < PHOTO REFLECTOR > IC81 8-749-924-10 PHOTO REFLECTOR NJL5165K-B(H1) IC82 8-749-924-10 PHOTO REFLECTOR NJL5165K-B(H1) (WE725/WE825S) < RESISTOR > R81 1-249-414-11 CARBON 560 5% 1/4W R82 1-247-818-11 CARBON 300 5% 1/4W R83 1-247-834-11 CARBON 1.3K 5% 1/4W R84 1-249-417-11 CARBON 1K 5% 1/4W R85 1-249-408-11 CARBON 180 5% 1/4W R86 1-249-408-11 CARBON 180 5% 1/4W (WE725/WE825S) < SWITCH > S81 1-571-958-11 SWITCH, PUSH (1 KEY) (STOP) S82 1-571-281-21 SWITCH, LEAF (CrO2) S83 1-571-281-21 SWITCH, LEAF (METAL) S84 1-571-281-21 SWITCH, LEAF (ERASE PROOF) (SIDE A) S85 1-571-281-21 SWITCH, LEAF (ERASE PROOF) (SIDE B) S86 1-571-281-21 SWITCH, LEAF (HALF) ************************************************************ * 1-634-841-14 LEAF SW (B) BOARD (WE725/WE825S) * 1-638-020-11 LEAF SW (B) BOARD (WE625) ***************** < CONNECTOR > * CNP81 1-568-850-11 SOCKET, CONNECTOR 7P (WE625) * CNP81 1-568-852-11 SOCKET, CONNECTOR 9P (WE725/WE825S) < PHOTO REFLECTOR > IC81 8-749-924-10 PHOTO REFLECTOR NJL5165K-B(H1) IC82 8-749-924-10 PHOTO REFLECTOR NJL5165K-B(H1) (WE725/WE825S) < RESISTOR > R81 1-249-414-11 CARBON 560 5% 1/4W R82 1-247-818-11 CARBON 300 5% 1/4W R83 1-247-834-11 CARBON 1.3K 5% 1/4W R84 1-249-417-11 CARBON 1K 5% 1/4W R85 1-249-408-11 CARBON 180 5% 1/4W R86 1-249-408-11 CARBON 180 5% 1/4W (WE725/WE825S) < SWITCH > S81 1-571-958-11 SWITCH, PUSH (1 KEY) (STOP) S82 1-571-281-21 SWITCH, LEAF (CrO2) S83 1-571-281-21 SWITCH, LEAF (METAL) S84 1-571-281-21 SWITCH, LEAF (ERASE PROOF) (SIDE A) S85 1-571-281-21 SWITCH, LEAF (ERASE PROOF) (SIDE B) S86 1-571-281-21 SWITCH, LEAF (HALF) ************************************************************* * A-2007-758-A MAIN BOARD, COMPLETE (WE725) * A-2007-761-A MAIN BOARD, COMPLETE (WE625:US,CND) * A-2007-762-A MAIN BOARD, COMPLETE (WE625:AUS) * A-2007-763-A MAIN BOARD, COMPLETE (WE625:SP,MY) * A-2007-764-A MAIN BOARD, COMPLETE (WE625:CH) * A-2007-765-A MAIN BOARD, COMPLETE (WE825S:AEP,UK) * A-2007-802-A MAIN BOARD, COMPLETE (WE825S:US) (INCLUDING FL BOARD,HEADPHONE BOARD, REC VOL BOARD,SW (A) BOARD, SW (B) BOARD,SW (C) BOARD, TRANS (A) BOARD,TRANS (B) BOARD) ********************** < CAPACITOR > C102 1-126-961-11 ELECT 2.2uF 20% 50V C103 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C104 1-126-963-11 ELECT 4.7uF 20% 50V C106 1-126-963-11 ELECT 4.7uF 20% 50V C107 1-126-964-11 ELECT 10uF 20% 50V C108 1-130-495-00 MYLAR 0.1uF 5% 50V C109 1-130-493-00 MYLAR 0.068uF 5% 50V C110 1-126-964-11 ELECT 10uF 20% 50V C111 1-126-959-11 ELECT 0.47uF 20% 50V C112 1-126-963-11 ELECT 4.7uF 20% 50V C113 1-126-963-11 ELECT 4.7uF 20% 50V C114 1-135-149-21 TANTALUM CHIP 2.2uF 20% 10V C115 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V C116 1-126-959-11 ELECT 0.47uF 20% 50V C117 1-126-963-11 ELECT 4.7uF 20% 50V C121 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C202 1-126-961-11 ELECT 2.2uF 20% 50V LEAF SW (A) LEAF SW (B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 49 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark C203 1-163-017-00 CERAMIC CHIP 0.0047uF 5% 50V C204 1-126-963-11 ELECT 4.7uF 20% 50V C206 1-126-963-11 ELECT 4.7uF 20% 50V C207 1-126-964-11 ELECT 10uF 20% 50V C208 1-130-495-00 MYLAR 0.1uF 5% 50V C209 1-130-493-00 MYLAR 0.068uF 5% 50V C210 1-126-964-11 ELECT 10uF 20% 50V C211 1-126-959-11 ELECT 0.47uF 20% 50V C212 1-126-963-11 ELECT 4.7uF 20% 50V C213 1-126-963-11 ELECT 4.7uF 20% 50V C214 1-135-149-21 TANTALUM CHIP 2.2uF 20% 10V C215 1-163-016-00 CERAMIC CHIP 0.0039uF 10% 50V C216 1-126-959-11 ELECT 0.47uF 20% 50V C217 1-126-963-11 ELECT 4.7uF 20% 50V C221 1-163-009-11 CERAMIC CHIP 0.001uF 10% 50V C401 1-165-319-11 CERAMIC CHIP 0.1uF 50V C451 1-126-964-11 ELECT 10uF 20% 50V C461 1-126-964-11 ELECT 10uF 20% 50V C501 1-126-964-11 ELECT 10uF 20% 50V C502 1-126-964-11 ELECT 10uF 20% 50V C503 1-126-964-11 ELECT 10uF 20% 50V C505 1-126-960-11 ELECT 1uF 20% 50V C506 1-130-491-00 MYLAR 0.047uF 5% 50V C507 1-130-498-00 MYLAR 0.18uF 5% 50V C508 1-126-959-11 ELECT 0.47uF 20% 50V C509 1-126-965-11 ELECT 22uF 20% 50V C510 1-126-960-11 ELECT 1uF 20% 50V C511 1-126-916-11 ELECT 1000uF 20% 6.3V C512 1-126-925-11 ELECT 470uF 20% 10V C514 1-126-767-11 ELECT 1000uF 20% 16V C515 1-126-767-11 ELECT 1000uF 20% 16V C516 1-126-959-11 ELECT 0.47uF 20% 50V C521 1-130-476-00 MYLAR 0.0027uF 5% 50V C522 1-130-494-11 MYLAR 0.082uF 5% 50V C523 1-130-491-00 MYLAR 0.047uF 5% 50V C524 1-164-161-11 CERAMIC CHIP 0.0022uF 10% 100V C530 1-126-965-11 ELECT 22uF 20% 50V C561 1-136-168-00 FILM 0.18uF 5% 50V C562 1-130-483-00 MYLAR 0.01uF 5% 50V C563 1-136-175-00 FILM 0.68uF 5% 50V C601 1-165-319-11 CERAMIC CHIP 0.1uF 50V C602 1-165-319-11 CERAMIC CHIP 0.1uF 50V C603 1-163-003-11 CERAMIC CHIP 330PF 10% 50V C604 1-163-003-11 CERAMIC CHIP 330PF 10% 50V C701 1-128-547-11 ELECT 6800uF 20% 16V C702 1-126-937-11 ELECT 4700uF 20% 16V C703 1-126-960-11 ELECT 1uF 20% 50V C704 1-126-969-11 ELECT 220uF 20% 50V C705 1-126-963-11 ELECT 4.7uF 20% 50V C706 1-126-926-11 ELECT 1000uF 20% 10V C707 1-126-926-11 ELECT 1000uF 20% 10V C708 1-126-963-11 ELECT 4.7uF 20% 50V C709 1-126-963-11 ELECT 4.7uF 20% 50V C710 1-126-935-11 ELECT 470uF 20% 6.3V C711 1-126-947-11 ELECT 47uF 20% 35V C801 1-126-933-11 ELECT 100uF 20% 10V C803 1-126-959-11 ELECT 0.47uF 20% 50V C810 1-163-037-11 CERAMIC CHIP 0.022uF 10% 25V < CONNECTOR > CN101 1-695-087-11 PIN, CONNECTOR (PC BOARD) 7P (WE825S) CN201 1-695-087-11 PIN, CONNECTOR (PC BOARD) 7P (WE825S) * CN501 1-691-916-11 CONNECTOR, BOARD TO BOARD 10P * CN502 1-691-916-11 CONNECTOR, BOARD TO BOARD 10P * CN503 1-691-916-11 CONNECTOR, BOARD TO BOARD 10P * CN504 1-691-916-11 CONNECTOR, BOARD TO BOARD 10P * CNA801 1-568-954-11 PIN, CONNECTOR 5P (US,CND) * CNA803 1-568-934-11 PIN, CONNECTOR 7P CNA806 1-506-468-11 PIN, CONNECTOR 3P * CNA807 1-568-955-11 PIN, CONNECTOR 6P CNM701 1-766-269-11 PIN, CONNECTOR (PC BOARD) 7P CNS802 1-770-246-11 SOCKET, CONNECTOR 41P * CNS804 1-568-826-11 SOCKET, CONNECTOR 7P (WE625) * CNS804 1-568-828-11 SOCKET, CONNECTOR 9P (WE725/WE825S) * CNS805 1-568-826-11 SOCKET, CONNECTOR 7P (WE625) * CNS805 1-568-828-11 SOCKET, CONNECTOR 9P (WE725/WE825S) < DIODE > D101 8-719-978-24 DIODE DTZ-TT11-5.6A D201 8-719-978-24 DIODE DTZ-TT11-5.6A D401 8-719-016-74 DIODE 1SS352 D521 8-719-016-74 DIODE 1SS352 D522 8-719-016-74 DIODE 1SS352 D601 8-719-016-74 DIODE 1SS352 D602 8-719-016-74 DIODE 1SS352 (WE725/WE825S) D701 8-719-200-02 DIODE 10E2 D702 8-719-200-02 DIODE 10E2 D703 8-719-200-02 DIODE 10E2 D704 8-719-200-02 DIODE 10E2 D705 8-719-016-74 DIODE 1SS352 D706 8-719-016-74 DIODE 1SS352 D707 8-719-200-02 DIODE 10E2 D708 8-719-016-74 DIODE 1SS352 D709 8-719-978-24 DIODE DTZ-TT11-5.6A D710 8-719-978-24 DIODE DTZ-TT11-5.6A D711 8-719-978-24 DIODE DTZ-TT11-5.6A D712 8-719-105-99 DIODE RD6.2M-B1 D713 8-719-016-74 DIODE 1SS352 D714 8-719-016-74 DIODE 1SS352 D715 8-719-016-74 DIODE 1SS352 D716 8-719-977-11 DIODE DTZ6.8A D801 8-719-016-74 DIODE 1SS352 D802 8-719-016-74 DIODE 1SS352 D803 8-719-016-74 DIODE 1SS352 D804 8-719-016-74 DIODE 1SS352 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 50 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark MAIN < IC > IC501 8-752-075-27 IC CXA1878Q IC502 8-759-636-55 IC M5218AFP IC504 8-752-070-67 IC CXA1597P IC561 8-759-100-96 IC uPC4558G2 IC601 8-759-822-38 IC LA6510 IC701 8-759-100-96 IC uPC4558G2 IC801 8-752-892-34 IC CXP82432A-006Q IC802 8-759-165-82 IC PST600E-T IC803 8-759-009-06 IC MC14052BF IC804 8-759-009-06 IC MC14052BF IC805 8-759-009-19 IC MC14081BF IC806 8-759-009-06 IC MC14052BF IC807 8-759-032-11 IC MC74HC04AF IC808 8-759-009-06 IC MC14052BF IC809 8-759-032-11 IC MC74HC04AF < JACK > * J401 1-764-188-11 JACK (SMALL TYPE) (DIA. 3.5) (S-LINK CONTROL A1) * J402 1-764-188-11 JACK (SMALL TYPE) (DIA. 3.5) (S-LINK CONTROL A1) J501 1-770-614-11 JACK, PIN 4P (LINE IN/OUT) < LOW PASS FILTER > LPF101 1-233-271-11 FILTER, LOW PASS LPF201 1-233-271-11 FILTER, LOW PASS < TRANSISTOR > Q101 8-729-900-74 TRANSISTOR DTC143TS Q102 8-729-922-37 TRANSISTOR 2SD2144S Q201 8-729-900-74 TRANSISTOR DTC143TS Q202 8-729-922-37 TRANSISTOR 2SD2144S Q401 8-729-010-29 TRANSISTOR MSD601-RST1 Q451 8-729-010-05 TRANSISTOR MSB709-RT1 Q452 8-729-424-08 TRANSISTOR UN2111 Q453 8-729-421-22 TRANSISTOR UN2211 Q461 8-729-010-05 TRANSISTOR MSB709-RT1 Q462 8-729-424-08 TRANSISTOR UN2111 Q463 8-729-421-22 TRANSISTOR UN2211 Q501 8-729-010-05 TRANSISTOR MSB709-RT1 Q502 8-729-010-29 TRANSISTOR MSD601-RST1 Q503 8-729-010-29 TRANSISTOR MSD601-RST1 Q601 8-729-421-22 TRANSISTOR UN2211 Q602 8-729-421-22 TRANSISTOR UN2211 Q603 8-729-424-08 TRANSISTOR UN2111 (WE725/WE825S) Q604 8-729-801-93 TRANSISTOR 2SD1387 Q605 8-729-801-93 TRANSISTOR 2SD1387 Q606 8-729-421-22 TRANSISTOR UN2211 (WE725/WE825S) Q607 8-729-424-08 TRANSISTOR UN2111 (WE725/WE825S) Q621 8-729-010-05 TRANSISTOR MSB709-RT1 (WE725/WE825S) Q701 8-729-141-83 TRANSISTOR 2SB1094-LK Q702 8-729-209-15 TRANSISTOR 2SD2012 Q703 8-729-141-83 TRANSISTOR 2SB1094-LK Q704 8-729-010-29 TRANSISTOR MSD601-RST1 Q705 8-729-421-22 TRANSISTOR UN2211 (US,CND) Q706 8-729-421-22 TRANSISTOR UN2211 (US,CND) Q707 8-729-010-05 TRANSISTOR MSB709-RT1 Q708 8-729-140-04 TRANSISTOR 2SB1116A-L Q801 8-729-421-19 TRANSISTOR UN2213 Q802 8-729-010-29 TRANSISTOR MSD601-RST1 < RESISTOR > R101 1-216-073-00 METAL CHIP 10K 5% 1/10W R102 1-216-105-00 RES,CHIP 220K 5% 1/10W R103 1-216-097-00 RES,CHIP 100K 5% 1/10W R104 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R105 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R106 1-216-060-00 RES,CHIP 3K 5% 1/10W R107 1-216-049-11 RES,CHIP 1K 5% 1/10W R108 1-216-063-00 RES,CHIP 3.9K 5% 1/10W R109 1-216-073-00 METAL CHIP 10K 5% 1/10W R110 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R111 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R112 1-216-075-00 METAL CHIP 12K 5% 1/10W R113 1-216-049-11 RES,CHIP 1K 5% 1/10W R114 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R115 1-216-081-00 METAL CHIP 22K 5% 1/10W R116 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R117 1-216-073-00 METAL CHIP 10K 5% 1/10W R118 1-216-033-00 METAL CHIP 220 5% 1/10W R119 1-216-049-11 RES,CHIP 1K 5% 1/10W R120 1-216-089-00 RES,CHIP 47K 5% 1/10W R121 1-216-089-00 RES,CHIP 47K 5% 1/10W R122 1-216-073-00 METAL CHIP 10K 5% 1/10W R123 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R124 1-216-295-00 SHORT 0 (WE625/WE725) R201 1-216-073-00 METAL CHIP 10K 5% 1/10W R202 1-216-105-00 RES,CHIP 220K 5% 1/10W R203 1-216-097-00 RES,CHIP 100K 5% 1/10W R204 1-216-055-00 METAL CHIP 1.8K 5% 1/10W R205 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R206 1-216-060-00 RES,CHIP 3K 5% 1/10W R207 1-216-049-11 RES,CHIP 1K 5% 1/10W R208 1-216-063-00 RES,CHIP 3.9K 5% 1/10W R209 1-216-073-00 METAL CHIP 10K 5% 1/10W R210 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R211 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R212 1-216-075-00 METAL CHIP 12K 5% 1/10W R213 1-216-049-11 RES,CHIP 1K 5% 1/10W R214 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R215 1-216-081-00 METAL CHIP 22K 5% 1/10W R216 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R217 1-216-073-00 METAL CHIP 10K 5% 1/10W R218 1-216-033-00 METAL CHIP 220 5% 1/10W R219 1-216-049-11 RES,CHIP 1K 5% 1/10W www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 51 – Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark R220 1-216-089-00 RES,CHIP 47K 5% 1/10W R221 1-216-089-00 RES,CHIP 47K 5% 1/10W R222 1-216-073-00 METAL CHIP 10K 5% 1/10W R223 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R224 1-216-295-00 SHORT 0 (WE625/WE725) R401 1-216-073-00 METAL CHIP 10K 5% 1/10W R402 1-216-049-11 RES,CHIP 1K 5% 1/10W R403 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R404 1-216-073-00 METAL CHIP 10K 5% 1/10W R405 1-216-001-00 METAL CHIP 10 5% 1/10W R451 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R452 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R453 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R461 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R462 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R463 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R501 1-208-816-11 RES,CHIP 27K 0.50% 1/10W R502 1-208-813-11 RES,CHIP 20K 0.50% 1/10W R503 1-216-049-11 RES,CHIP 1K 5% 1/10W R504 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R505 1-216-121-00 RES,CHIP 1M 5% 1/10W R506 1-216-073-00 METAL CHIP 10K 5% 1/10W R507 1-216-073-00 METAL CHIP 10K 5% 1/10W R508 1-216-041-00 METAL CHIP 470 5% 1/10W R509 1-216-049-11 RES,CHIP 1K 5% 1/10W R510 1-216-089-00 RES,CHIP 47K 5% 1/10W R511 1-216-073-00 METAL CHIP 10K 5% 1/10W R512 1-216-041-00 METAL CHIP 470 5% 1/10W R513 1-216-089-00 RES,CHIP 47K 5% 1/10W R514 1-216-025-00 RES,CHIP 100 5% 1/10W R515 1-208-816-11 RES,CHIP 27K 0.50% 1/10W R521 1-216-081-00 METAL CHIP 22K 5% 1/10W R522 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R523 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R524 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R525 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R526 1-216-097-00 RES,CHIP 100K 5% 1/10W R527 1-216-097-00 RES,CHIP 100K 5% 1/10W R528 1-216-063-00 RES,CHIP 3.9K 5% 1/10W R529 1-216-041-00 METAL CHIP 470 5% 1/10W R530 1-216-073-00 METAL CHIP 10K 5% 1/10W R561 1-216-089-00 RES,CHIP 47K 5% 1/10W R562 1-216-089-00 RES,CHIP 47K 5% 1/10W R563 1-216-089-00 RES,CHIP 47K 5% 1/10W R564 1-216-081-00 METAL CHIP 22K 5% 1/10W R565 1-216-081-00 METAL CHIP 22K 5% 1/10W R571 1-216-051-00 METAL CHIP 1.2K 5% 1/10W R572 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R573 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R575 1-216-070-00 METAL CHIP 7.5K 5% 1/10W R576 1-216-075-00 METAL CHIP 12K 5% 1/10W R577 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R578 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R579 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R580 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R581 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R582 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R583 1-216-070-00 METAL CHIP 7.5K 5% 1/10W R584 1-216-075-00 METAL CHIP 12K 5% 1/10W R585 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R586 1-216-071-00 METAL CHIP 8.2K 5% 1/10W R587 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R588 1-216-067-00 METAL CHIP 5.6K 5% 1/10W R601 1-216-025-00 RES,CHIP 100 5% 1/10W R602 1-216-025-00 RES,CHIP 100 5% 1/10W R603 1-216-081-00 METAL CHIP 22K 5% 1/10W R604 1-216-081-00 METAL CHIP 22K 5% 1/10W R605 1-216-075-00 METAL CHIP 12K 5% 1/10W R606 1-216-075-00 METAL CHIP 12K 5% 1/10W R607 1-216-076-00 METAL CHIP 13K 5% 1/10W R608 1-216-076-00 METAL CHIP 13K 5% 1/10W R609 1-216-076-00 METAL CHIP 13K 5% 1/10W R610 1-216-076-00 METAL CHIP 13K 5% 1/10W R613 1-216-070-00 METAL CHIP 7.5K 5% 1/10W R614 1-216-070-00 METAL CHIP 7.5K 5% 1/10W R615 1-216-072-00 METAL CHIP 9.1K 5% 1/10W R616 1-216-072-00 METAL CHIP 9.1K 5% 1/10W R617 1-216-073-00 METAL CHIP 10K 5% 1/10W R618 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R619 1-216-073-00 METAL CHIP 10K 5% 1/10W R620 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R622 1-216-066-00 METAL CHIP 5.1K 5% 1/10W (WE725/WE825S) R623 1-216-089-00 RES,CHIP 47K 5% 1/10W (WE725/WE825S) R624 1-216-089-00 RES,CHIP 47K 5% 1/10W (WE725/WE825S) R701 1-249-414-11 CARBON 560 5% 1/4W R702 1-216-073-00 METAL CHIP 10K 5% 1/10W R703 1-216-061-00 METAL CHIP 3.3K 5% 1/10W R704 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R705 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R706 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R707 1-216-073-00 METAL CHIP 10K 5% 1/10W R708 1-216-053-00 METAL CHIP 1.5K 5% 1/10W R709 1-216-065-00 RES,CHIP 4.7K 5% 1/10W R710 1-216-049-11 RES,CHIP 1K 5% 1/10W R711 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R712 1-216-069-00 METAL CHIP 6.8K 5% 1/10W R713 1-216-049-11 RES,CHIP 1K 5% 1/10W R714 1-216-073-00 METAL CHIP 10K 5% 1/10W R715 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R716 1-216-081-00 METAL CHIP 22K 5% 1/10W R717 1-216-073-00 METAL CHIP 10K 5% 1/10W R718 1-216-689-11 METAL CHIP 39K 0.5% 1/10W R719 1-216-075-00 METAL CHIP 12K 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 52 – REC VOL The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark !R720 1-219-136-11 FUSIBLE 0.22 10% 1/4W F R721 1-216-073-00 METAL CHIP 10K 5% 1/10W !R722 1-219-137-11 FUSIBLE 0.33 10% 1/4W F !R723 1-219-137-11 FUSIBLE 0.33 10% 1/4W F R801 1-216-097-00 RES,CHIP 100K 5% 1/10W R802 1-216-073-00 METAL CHIP 10K 5% 1/10W R803 1-216-073-00 METAL CHIP 10K 5% 1/10W (WE725/WE825S) R804 1-216-067-00 METAL CHIP 5.6K 5% 1/10W (WE725/WE825S) R806 1-216-081-00 METAL CHIP 22K 5% 1/10W R807 1-216-097-00 RES,CHIP 100K 5% 1/10W R808 1-216-097-00 RES,CHIP 100K 5% 1/10W R809 1-216-049-11 RES,CHIP 1K 5% 1/10W R810 1-216-025-00 RES,CHIP 100 5% 1/10W R811 1-216-073-00 METAL CHIP 10K 5% 1/10W R812 1-216-073-00 METAL CHIP 10K 5% 1/10W R813 1-216-073-00 METAL CHIP 10K 5% 1/10W R814 1-216-073-00 METAL CHIP 10K 5% 1/10W R815 1-216-073-00 METAL CHIP 10K 5% 1/10W R816 1-216-025-00 RES,CHIP 100 5% 1/10W R817 1-216-025-00 RES,CHIP 100 5% 1/10W R818 1-216-025-00 RES,CHIP 100 5% 1/10W R819 1-216-025-00 RES,CHIP 100 5% 1/10W R820 1-216-025-00 RES,CHIP 100 5% 1/10W R821 1-216-025-00 RES,CHIP 100 5% 1/10W R822 1-216-025-00 RES,CHIP 100 5% 1/10W R823 1-216-025-00 RES,CHIP 100 5% 1/10W R824 1-216-025-00 RES,CHIP 100 5% 1/10W R825 1-216-025-00 RES,CHIP 100 5% 1/10W R826 1-216-025-00 RES,CHIP 100 5% 1/10W R827 1-216-025-00 RES,CHIP 100 5% 1/10W R828 1-216-025-00 RES,CHIP 100 5% 1/10W R829 1-216-025-00 RES,CHIP 100 5% 1/10W R830 1-216-025-00 RES,CHIP 100 5% 1/10W R831 1-216-097-00 RES,CHIP 100K 5% 1/10W R832 1-216-097-00 RES,CHIP 100K 5% 1/10W R833 1-216-097-00 RES,CHIP 100K 5% 1/10W R834 1-216-097-00 RES,CHIP 100K 5% 1/10W R841 1-216-073-00 METAL CHIP 10K 5% 1/10W R842 1-216-080-00 METAL CHIP 20K 5% 1/10W R843 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R844 1-216-092-00 RES,CHIP 62K 5% 1/10W R845 1-216-084-00 METAL CHIP 30K 5% 1/10W R846 1-216-077-00 METAL CHIP 15K 5% 1/10W R847 1-216-070-00 METAL CHIP 7.5K 5% 1/10W R848 1-216-073-00 METAL CHIP 10K 5% 1/10W R849 1-216-073-00 METAL CHIP 10K 5% 1/10W R850 1-216-073-00 METAL CHIP 10K 5% 1/10W R851 1-216-073-00 METAL CHIP 10K 5% 1/10W R852 1-216-083-00 METAL CHIP 27K 5% 1/10W R853 1-216-083-00 METAL CHIP 27K 5% 1/10W R854 1-216-083-00 METAL CHIP 27K 5% 1/10W R855 1-216-083-00 METAL CHIP 27K 5% 1/10W R861 1-216-073-00 METAL CHIP 10K 5% 1/10W R862 1-216-080-00 METAL CHIP 20K 5% 1/10W R863 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R864 1-216-092-00 RES,CHIP 62K 5% 1/10W R865 1-216-084-00 METAL CHIP 30K 5% 1/10W R866 1-216-077-00 METAL CHIP 15K 5% 1/10W R867 1-216-070-00 METAL CHIP 7.5K 5% 1/10W R868 1-216-073-00 METAL CHIP 10K 5% 1/10W R869 1-216-073-00 METAL CHIP 10K 5% 1/10W R870 1-216-073-00 METAL CHIP 10K 5% 1/10W R871 1-216-073-00 METAL CHIP 10K 5% 1/10W R872 1-216-083-00 METAL CHIP 27K 5% 1/10W R873 1-216-083-00 METAL CHIP 27K 5% 1/10W R874 1-216-083-00 METAL CHIP 27K 5% 1/10W R875 1-216-083-00 METAL CHIP 27K 5% 1/10W R877 1-216-081-00 METAL CHIP 22K 5% 1/10W R878 1-216-081-00 METAL CHIP 22K 5% 1/10W R881 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R882 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R883 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R884 1-216-083-00 METAL CHIP 27K 5% 1/10W R885 1-216-083-00 METAL CHIP 27K 5% 1/10W (WE725/WE825S) R885 1-216-295-00 SHORT 0 (WE625) R886 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R891 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R892 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R893 1-216-057-00 METAL CHIP 2.2K 5% 1/10W R894 1-216-083-00 METAL CHIP 27K 5% 1/10W R895 1-216-083-00 METAL CHIP 27K 5% 1/10W (WE725/WE825S) R895 1-216-295-00 SHORT 0 (WE625) R896 1-216-057-00 METAL CHIP 2.2K 5% 1/10W < VARIABLE RESISTOR > RV101 1-241-764-11 RES, ADJ, CARBON 10K RV102 1-241-764-11 RES, ADJ, CARBON 10K RV201 1-241-764-11 RES, ADJ, CARBON 10K RV202 1-241-764-11 RES, ADJ, CARBON 10K RV601 1-241-765-11 RES, ADJ, CARBON 22K (WE725/WE825S) < VIBRATOR > X801 1-579-175-11 VIBRATOR, CERAMIC (10MHz) ************************************************************* REC VOL BOARD (SUPPLIED WITH MAIN BOARD, COMPLETE) ************** < DIODE > D901 8-719-313-43 LED SEL6210S-TH10 (CD SYNCHRO) D902 8-719-313-43 LED SEL6210S-TH10 (AUTO) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 53 – Ref. No. Part No. Description Remark < TRANSISTOR > Q901 8-729-424-08 TRANSISTOR UN2111 Q902 8-729-424-08 TRANSISTOR UN2111 < RESISTOR > R901 1-216-041-00 METAL CHIP 470 5% 1/10W R902 1-216-041-00 METAL CHIP 470 5% 1/10W R933 1-216-059-00 METAL CHIP 2.7K 5% 1/10W R934 1-216-063-00 RES,CHIP 3.9K 5% 1/10W < VARIABLE RESISTOR > RV901 1-225-616-11 RES, VAR, CARBON 20K (REC LEVEL) < SWITCH > S933 1-554-303-21 SWITCH, TACTILE (FADER) S934 1-554-303-21 SWITCH, TACTILE (ARL) S935 1-554-303-21 SWITCH, TACTILE (CD SYNCHRO) ************************************************************* SW (A) BOARD (US,CND) (SUPPLIED WITH MAIN BOARD, COMPLETE) ************ < RESISTOR > R903 1-216-097-00 RES,CHIP 100K 5% 1/10W (WE825S:US) R947 1-216-089-00 RES,CHIP 47K 5% 1/10W < VARIABLE RESISTOR > RV902 1-225-173-21 RES, VAR, CARBON 50K (PITCH CONTROL) (WE825S:US) < SWITCH > S801 1-554-118-00 SWITCH, PUSH (1 KEY) (1/u) S947 1-762-609-11 SWITCH, SLIDE (DIRECTION MODE) S960 1-554-118-00 SWITCH, PUSH (1 KEY) (PITCH CONTROL) (WE825S:US) ************************************************************* SW (B) BOARD (EXCEPT US,CND) (SUPPLIED WITH MAIN BOARD, COMPLETE) ************ < RESISTOR > R903A 1-216-097-00 RES,CHIP 100K 5% 1/10W (AEP,UK) R947A 1-216-089-00 RES,CHIP 47K 5% 1/10W < VARIABLE RESISTOR > RV902A 1-225-173-21 RES, VAR, CARBON 50K (PITCH CONTROL) (AEP,UK) Ref. No. Part No. Description Remark < SWITCH > S947A 1-762-609-11 SWITCH, SLIDE (DIRECTION MODE) S960A 1-554-118-00 SWITCH, PUSH (1 KEY) (PITCH CONTROL) (AEP,UK) ************************************************************* SW (C) BOARD (EXCEPT US,CND) (SUPPLIED WITH MAIN BOARD, COMPLETE) ************ < CAPACITOR > !C001 1-113-925-11 CERAMIC 0.01uF 20% 250V < CONNECTOR > CN002 1-568-226-11 PIN, CONNECTOR 2P (AEP,UK,CH,AUS) * CN002 1-580-230-31 PIN, CONNECTOR (PC BOARD) 2P (SP,MY) < SWITCH > !S850 1-762-581-11 SWITCH, AC POWER PUSH (1 KEY) (U) ************************************************************* TRANS (A) BOARD (EXCEPT SP,MY) (SUPPLIED WITH MAIN BOARD, COMPLETE) *************** < CONNECTOR > * CN001 1-573-047-11 PIN, CONNECTOR (PC BOARD) 2P ************************************************************* TRANS (B) BOARD (SUPPLIED WITH MAIN BOARD, COMPLETE) *************** < CAPACITOR > C751 1-165-319-11 CERAMIC CHIP 0.1uF 50V C752 1-137-374-11 FILM 0.047uF 5% 50V C753 1-137-374-11 FILM 0.047uF 5% 50V < TRANSFORMER > !T701 1-431-786-11 TRANSFORMER, POWER (AEP,UK,CH,AUS) !T701 1-431-788-11 TRANSFORMER, POWER (US,CND) !T701 1-431-789-11 TRANSFORMER, POWER (SP,MY) ************************************************************* The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. REC VOL SW (A) SW (B) SW (C) TRANS (A) TRANS (B) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com – 54 – Sony Corporation Home A&V Products Company 9-922-795-11 TC-WE625/WE725/WE825S 98C0490-1 Printed in Japan C1998. 3 Published by General Engineering Dept. (Shibaura) Ref. No. Part No. Description Remark MISCELLANEOUS *************** 52 1-590-486-11 WIRE (FLAT TYPE) (7 CORE) (WE625) 52 1-769-914-11 WIRE (FLAT TYPE) (9 CORE) (WE725/WE825S) 56 1-769-883-11 WIRE (FLAT TYPE) (7 CORE) (WE625) 56 1-769-916-11 WIRE (FLAT TYPE) (9 CORE) (WE725/WE825S) !58 1-575-651-21 CORD, POWER (AEP,SP,MY) !59 1-751-529-11 CORD, POWER (UK) !60 1-590-926-11 CORD, POWER (US,CND) !61 1-696-845-11 CORD, POWER (AUS) !62 1-782-510-11 CORD, POWER (CH) 162 1-769-598-11 WIRE (FLAT TYPE) (41 CORE) 217 1-638-983-11 MOTOR FLEXIBLE BOARD HRPE101A-2004-527-A DECK ASSY, HEAD (RECORD/PLAYBACK/ERASE) M1 X-3365-377-2 MOTOR ASSY (CAPSTAN) M2 X-3363-501-2 MOTOR ASSY (REEL) !S701 1-692-155-11 SELECTOR, POWER VOLTAGE (VOLTAGE) (SP,MY) !T701 1-431-786-11 TRANSFORMER, POWER (AEP,UK,CH,AUS) !T701 1-431-788-11 TRANSFORMER, POWER (US,CND) !T701 1-431-789-11 TRANSFORMER, POWER (SP,MY) ************************************************************* ACCESSORIES & PACKING MATERIALS ******************************** 1-559-713-31 CORD, CONNECTION (AUDIO) 1-777-172-11 CORD, CONNECTION (CONTROL A1) (CND) * 3-023-344-01 INDIVIDUAL CARTON (WE725) * 3-023-369-01 INDIVIDUAL CARTON (WE625:US,CND,AUS) * 3-023-370-01 INDIVIDUAL CARTON (WE625:CH,SP,MY) * 3-023-373-01 CUSHION * 3-023-374-01 INDIVIDUAL CARTON (WE825S:AEP,UK) * 3-025-278-01 INDIVIDUAL CARTON (WE825S:US) 3-862-713-11 MANUAL, INSTRUCTION (ENGLISH) (US,CND,UK,CH,AUS) 3-862-713-21 MANUAL, INSTRUCTION (FRENCH) (CND) 3-862-713-31 MANUAL, INSTRUCTION (ENGLISH,FRENCH, SPANISH,PORTUGUESE) (AEP,SP,MY) 3-862-713-41 MANUAL, INSTRUCTION (GERMAN,DUTCH, SWEDISH,ITALIAN) (AEP) 3-862-713-51 MANUAL, INSTRUCTION (CHINESE) (CH,SP,MY) ************************************************************* ************** HARDWARE LIST ************** #1 7-621-775-00 SCREW +B 2.6X3 #2 7-685-871-01 SCREW +BVTT 3X6 (S) #3 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #4 7-685-862-09 SCREW +BVTT 2.6X6 (S) #5 7-685-134-19 SCREW +PTPWH 2.6X8 (TYPE2) #6 7-627-556-08 SCREW +P 2.6X2.8 The components identified by mark ! or dotted line with mark. ! are critical for safety. Replace only with part number specified. Les composants identifiés par une marque ! sont critiques pour la sécurité. Ne les remplacer que par une piéce portant le numéro spécifié. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
