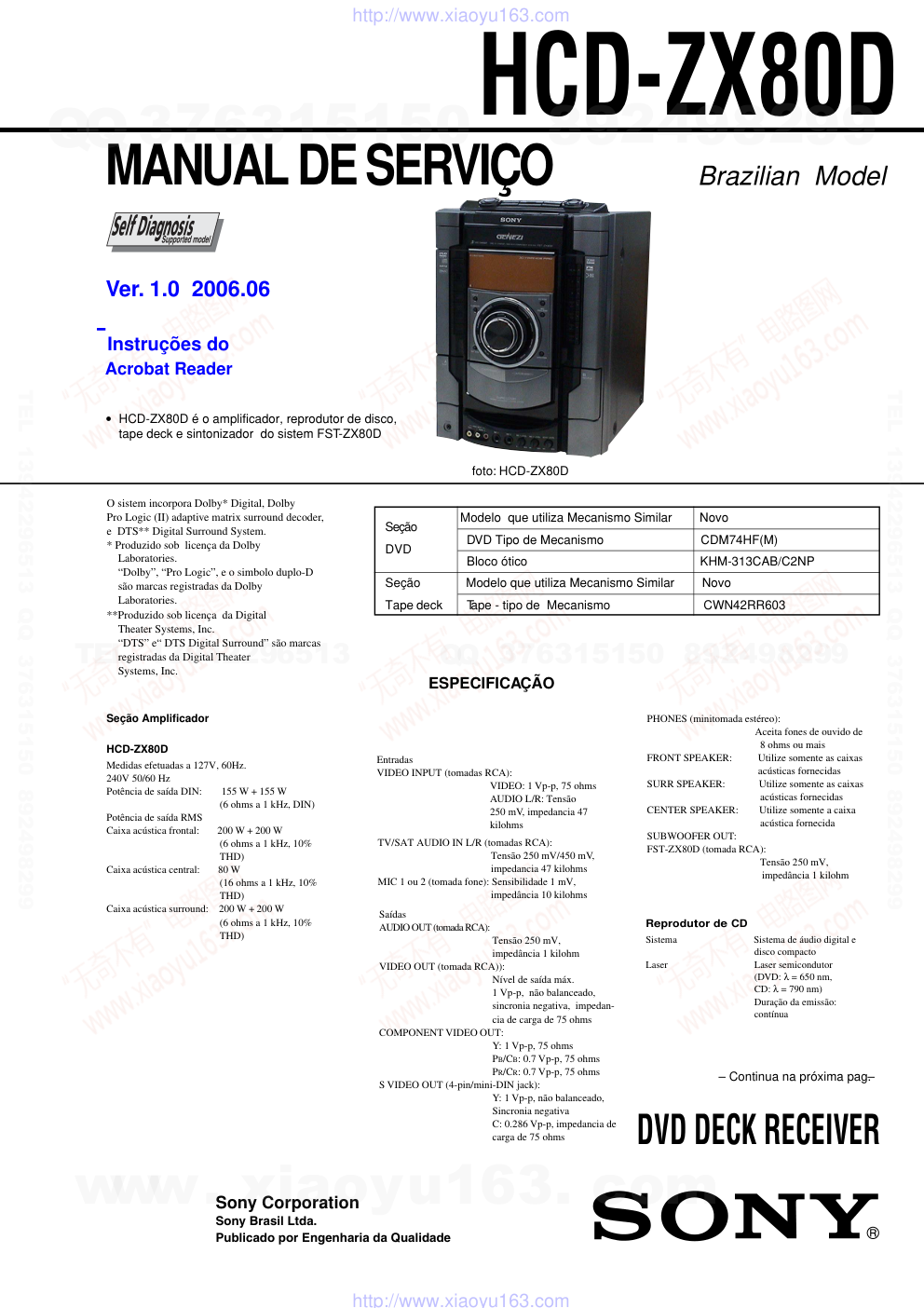

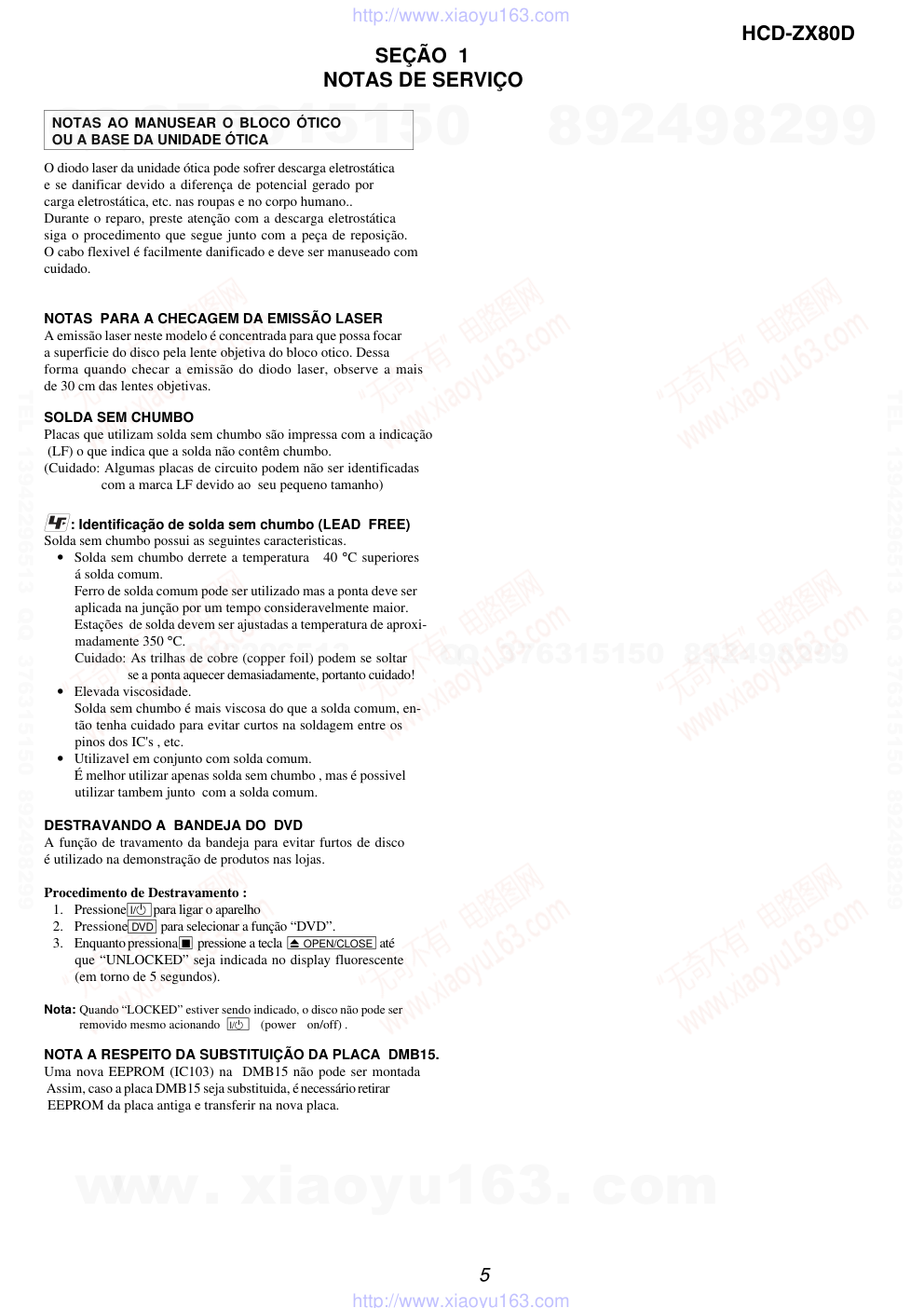

MANUAL DE SERVIÇO ACESSÓRIOS Part No. Description Remark SISTEMA COMPACTO DE SOM Ver. 1.0 2006.06 © 2006.06 Sony Corporation Sony Brasil Ltda Publicado pelo departamente de Engenharia da Qualidade • FST-ZX80D é composto pelos modelos descritos abaixo. O manual de serviço se destina aos modelos abaixo. 1-479-652-11 CONTROLE REMOTO (RM-AMU004) 1-501-374-92 ANTENA, LOOP ( antena AM ) 1-782-981-23 CABO CONECTOR RCA 1-793-184-23 CONECTOR (TIPO F ) (antena FM ) 2-672-140-11 MANUAL DE INSTRUÇÕES 3-081-834-21 TAMPA DA BATERI 4-244-915-01 PÉ DE APOIO (Caixas:Frontal/Surround/Central ) (20 pçs) 9-833-601-36 KIT DE CABOS (cx acustica : BR/ VM/ AZ/ CZ) ESPECIFICAÇÕES Alimentação 127 V ou 220 V CA, 50/60 Hz Ajustável com seletor de tensão FST-ZX80D 390 W Dimensões (LxAxP) (Aprox.) 281 × 379 × 404.5 mm Peso (Aprox.) 16.3 kg Acessórios fornecidos: Controle remoto (1) Pilhas tipo AA (2) Antena Loop de AM (1) Antena monofilar de FM (1) Cabo de vídeo (1) Pés de apoio para as caixas acústicas frontais (8) Pés de apoio para as caixas acústicas suround (8) Pés de apoio para a caixa acústica central (4) Cabos para caixas acústicas (4): – Branco para a caixa acústica frontal (esquerda) – Vermelho para a caixa acústica frontal (direita) – Azul para a caixa acústica surround (esquerda) – Cinza para a caixa acústica surround (direita) Projeto e especificações técnicas sujeitos a alteração Brazilian Model FST-ZX80D Consumo sem prévio aviso. Caixas Surround SS-ZX100D Caixa Central SS-CT100D Caixa Frontal SS-ZX100D Conjuntode Caixas SS-ZX80DP DVD Deck Receiver HCD-ZX80D FST-ZX80D MODELOS QUE FORMAM SISTEMA FST-ZX-80D SS-CT100D SS-ZX100D HCD-ZX80DP SS-ZX100D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MANUAL DE SERVIÇO DVD DECK RECEIVER Brazilian Model HCD-ZX80D Ver. 1.0 2006.06 ESPECIFICAÇÃO Sony Corporation Sony Brasil Ltda. Publicado por Engenharia da Qualidade • HCD-ZX80D é o amplificador, reprodutor de disco, tape deck e sintonizador do sistem FST-ZX80D Seção Modelo que utiliza Mecanismo Similar Novo DVD DVD Tipo de Mecanismo CDM74HF(M) Bloco ótico KHM-313CAB/C2NP Seção Modelo que utiliza Mecanismo Similar Novo Tape deck Tape - tipo de Mecanismo CWN42RR603 – Continua na próxima pag. – foto: HCD-ZX80D O sistem incorpora Dolby* Digital, Dolby Pro Logic (II) adaptive matrix surround decoder, e DTS** Digital Surround System. * Produzido sob licença da Dolby Laboratories. “Dolby”, “Pro Logic”, e o simbolo duplo-D são marcas registradas da Dolby Laboratories. **Produzido sob licença da Digital Theater Systems, Inc. “DTS” e“ DTS Digital Surround” são marcas registradas da Digital Theater Systems, Inc. Seção Amplificador HCD-ZX80D Medidas efetuadas a 127V, 60Hz. 240V 50/60 Hz Potência de saída DIN: 155 W + 155 W (6 ohms a 1 kHz, DIN) Potência de saída RMS Caixa acústica frontal: 200 W + 200 W (6 ohms a 1 kHz, 10% THD) Caixa acústica central: 80 W (16 ohms a 1 kHz, 10% THD) Caixa acústica surround: 200 W + 200 W (6 ohms a 1 kHz, 10% THD) Entradas VIDEO INPUT (tomadas RCA): VIDEO: 1 Vp-p, 75 ohms AUDIO L/R: Tensão 250 mV, impedancia 47 kilohms TV/SAT AUDIO IN L/R (tomadas RCA): Tensão 250 mV/450 mV, impedancia 47 kilohms MIC 1 ou 2 (tomada fone): Sensibilidade 1 mV, impedância 10 kilohms Saídas AUDIO OUT (tomada RCA): Tensão 250 mV, impedância 1 kilohm VIDEO OUT (tomada RCA)): Nível de saída máx. 1 Vp-p, não balanceado, sincronia negativa, impedan- cia de carga de 75 ohms COMPONENT VIDEO OUT: Y: 1 Vp-p, 75 ohms PB/CB: 0.7 Vp-p, 75 ohms PR/CR: 0.7 Vp-p, 75 ohms S VIDEO OUT (4-pin/mini-DIN jack): Y: 1 Vp-p, não balanceado, Sincronia negativa C: 0.286 Vp-p, impedancia de carga de 75 ohms PHONES (minitomada estéreo): Aceita fones de ouvido de 8 ohms ou mais FRONT SPEAKER: Utilize somente as caixas acústicas fornecidas SURR SPEAKER: Utilize somente as caixas acústicas fornecidas CENTER SPEAKER: Utilize somente a caixa acústica fornecida SUBWOOFER OUT: FST-ZX80D (tomada RCA): Tensão 250 mV, impedância 1 kilohm Reprodutor de CD Sistema Sistema de áudio digital e disco compacto Laser Laser semicondutor (DVD: λ = 650 nm, CD: λ = 790 nm) Duração da emissão: contínua Instruções do Acrobat Reader www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 HCD-ZX80D Nota a respeito da substituição de componente tipo chip • Não reutilize um componente tipo chip. • O terminal negativo do capacitor tântalo pode se danificar com o aquecimento. Reparo de Placa de Circuito Flexivel • Mantenha a temperatura do ferro de solda á 270 ˚C durante o reparo. • Não encoste o ferro de solda no mesmo condutor da placa por mais de tres vezes. • Cuidado, evite forçar o condutor ao soldar e ao desoldar. CUIDADO A Utilização de controles e ajustes ou execução de procedi- mentos que não conste neste manual podem resultar em exposição a radiação nociva a saude. AVISOS RELACIONADOS A COMPONENTES DE SEGURANÇA !! COMPONENTES IDENTIFICADOS POR 0 OU PONTILHADO COM COM O SIMBOLO 0 NO DIAGRAMA ESQUEMATICO OU NA LIS- TA DE PEÇAS SÃO CRITICOS PARA A SEGURANÇA. SUBSTITUA ESTES COMPONENTES COM PEÇAS ESPECIFICADAS NESTE MANUAL OU EM BOLETINS TÉCNICOS PUBLICADOS PELA SONY. FUNÇÃO AUTO DIAGNÓSTICO Radio FM estéreo, sintonizador superheteródino de FM/AM Sintonizador de FM Faixa de sintonização 87.5 – 108.0 MHz (50 kHz step) Antena Antena monofilar de FM Terminais de antena 75 ohms não balanceado Freqüência intermediária 10.7 MHz Sintonizador de AM Faixa de sintonização: 530 – 1,710 kHz (com intervalo de freqüência ajustado em 10 kHz) Antena Antena loop de AM Terminais de antena Terminal da antena externa Freqüência intermediária 450 kHz Geral Alimentação 127 V ou 220 V CA, Consumo: 390 W Dimensões (LxAxP) (Aprox.) 281 × 379 × 404.,5 mm Peso (Aprox.) 16,3 kg Projeto e especificações estão sujeitos a alteração sem prévio aviso. Resposta de freqüência DVD (PCM 48 kHz): 2 Hz – 22 kHz (±1dB) CD: 2 Hz – 20 kHz (±0.5 dB) Formato do sistema de cor de vídeo : NTSC Reprodutor de fita Sistema de gravação 4 pistas, 2 canais estéreo Resposta de freqüência 50 – 13,000 Hz (±3 dB), utilizando fita cassete (Quando letras/ numeros aparecem no display) Quando a função auto diagnóstico é ativada para prevenir o sistema contra mau funcionamento, os 5-caracteres de modo de serviço (ex. C 13 50) com a combinação de letra e 4 digitos aparecem na tela da TV e no display do painel frontal. Neste caso verifi- que a seguinte tabela. Quando for mostrado o numero de versão na tela de TV Quando voce liga o aparelho, o numero da versão [VER.X.XX] (X é um numero) pode aparecer na tela da TV. Embora isto não indique um mau funcionamento, só é utilizado pelo serviço Autorizado Sony, e a operação normal do aparelho não é possivel, então desligue e ligue novamente, o apare- lho para voltar a funcionar normalmente. Função auto-diagnóstico Primeiros 3 caracteres de serviço Causa e ação corretiva C 13 O disco está sujo. • Limpe o disco com um pano macio. C 31 O disco não está inserido corretamente. • Reinicie o sistema e recoloque o disco corretamente. E XX (XX is a number) Para prevenir falha de funcionamento o sistema executou a função auto-diagnóstico • Contate o serviço autorizado Sony mais próximo relatando os 5 caracteres visua- lizados Exemplo: E 61 10 VER.X.XX Sony tipo I www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 HCD-ZX80D INDICE 1. NOTAS DE SERVIÇO ............................................. 5 2. GERAL ........................................................................ 6 3. DESMONTAGEM 3-1. FLUXO DE DESMONTAGEM....................................... 9 3-2. TAMPA ......................................................................... 10 3-3. ESCUTCHEON TOP BLOCK...................................... 10 3-4. PAINEL DE CARREGAMENTO..................................... 11 3-5. SINTONIZADOR (FM/AM) (TM10SE) ........................... 11 3-6. BLOCO DO MECANISMO DVD ...................................... 12 3-7. BLOCO DO PAINEL FRONTAL.................................... 12 3-8. BLOCO DO PAINEL TRASEIRO................................... 13 3-9. BLOCO DA PLACA MAIN............................................. 13 3-10. PLACA MAIN ............................................................... 14 3-11. TAMPA (CDM)............................................................... 14 3-12. PLACA DRIVER, PLACA SW .................................... 15 3-13. BLOCO OTICO (KHM-310CAB ) ............................................................ 15 3-14. PLACA SENSOR ............................................................ 16 3-15. PLACA MOTOR (TB) ................................................... 16 3-16. PLACA MOTOR (LD) .................................................... 17 4. MODO DE TESTE...................................................... 18 5. AJUSTES MECANICOS.......................................... 22 6. AJUSTES ELETRICOS ...................................... 22 7. DIAGRAMAS 7-1. Diagrama em Blocos – SEÇÃO RF SERVO/ VIDEO........24 7-2. Diagrama em Blocos – SEÇÃO MIC/EFFECTOR.......... 25 7-3. Diagrama em Blocos – SEÇÃO TUNER/TAPE . ............ 26 7-4. Diagrama em Blocos – SEÇÃO AUDIO ............................ 27 7-5. Diagrama em Blocos – SEÇÃO AMP �............................ 28 7-6. Diagrama em Blocos – SEÇÃO PAINEL/POWER SUPPLY ��.......................................... 29 7-7. Placa de Circuito Impresso – PLACA DMB15 (Lado A)..��31 7-8. Placa de Circuito Impresso – PLACA DMB15 (Lado B)��32 7-9. Diagrama Esquematico – PLACA DMB15 (1/4)��........... 33 7-10. Diagrama Esquematico – PLACA DMB15 (2/4)............. 34 7-11. Diagrama Esquematico – PLACA DMB15 (3/4)��........... 35 7-12. Diagrama Esquematico – PLACA DMB15 (4/4)��........... 36 7-13. Placa de Circuito Impresso – SEÇÃO CHANGER ��....... 37 7-14. Diagrama Esquematico – SEÇÃO CHANGER ��............ 38 7-15. Placa de Circuito Impresso –PLACA VIDEO��.........................39 7-16. Diagrama Esquematico – PLACA VIDEO............................ 40 7-17. Placa de Circuito Impresso – PLACA MIC........................... 41 7-18. Diagrama Esquematico – PLACA MIC................................. 42 7-19. Placa de Circuito Impresso – PLACA EFFECTOR ��...............43 7-20. Diagrama Esquematico – PLACA EFFECTOR ��................... 44 7-21. Placa de Circuito Impresso – PLACA KARAOKE.............. 45 7-22. Diagrama Esquematico – PLACA KARAOKE.................... 45 7-23. Placa de Circuito Impresso – PLACA MAIN ��..................... 46 7-24. Diagrama Esquematico – PLACA MAIN (1/6).................... 47 7-25. Diagrama Esquematico – PLACA MAIN (2/6).................... 48 7-26. Diagrama Esquematico – PLACA MAIN (3/6).................... 49 7-27. Diagrama Esquematico – PLACA MAIN (4/6).................... 50 7-28. Diagrama Esquematico – PLACA MAIN (5/6).................... 51 7-29. Diagrama Esquematico – PLACA MAIN (66)..................... 52 7-30. Printed Wiring Board – PLACA PA ��........................................ 53 7-31. Diagrama Esquematico – PLACA PA ��..................................... 53 7-32. Placa de Circuito Impresso – PLACA SURROUND ��...........56 7-33. Diagrama Esquematico – PLACA SURROUND (1/2)......... 57 7-34. Diagrama Esquematico – PLACA SURROUND (1/2)......... 58 7-35. Placa de Circuito Impresso – PLACA PAINEL�...�........................59 7-36. Diagrama Esquematico – PLACA PAINEL��................................60 7-37. Placa de Circuito Impresso – SEÇÃO FRONT KEY ........... 61 7-38. Diagrama Esquematico – SEÇÃO FRONT KEY ................. 62 7-39. Placa de Circuito Impresso – SEÇÃO TOP KEY................... 63 7-40. Diagrama Esquematico – SEÇÃO TOP KEY......................... 64 7-41. Placa de Circuito Impresso – PLACA TRANSFORMER..... 65 7-42. Placa de Circuito Impresso – PLACA PRIMARY................ 66 7-43. Diagrama Esquematico – SEÇÃO POWER SUPPLY.......... 67 8. VISTA EXPLODIDA 8-1. SEÇÃO TAMPA, ESCUTCHEON TOP ...................... 82 8-2. SEÇÃO PLACA PAINEL ...................................................... 83 8-3. SEÇÃO TAPE MECHA DECK............................................ 84 8-4. Back Panel Section .......................................................... 84 8-5. SEÇÃO PLACA DMB15/KARAOKE/VIDEO ............. 86 8-6. SEÇÃO PLACA MAIN/PA/SURROUND ...................... 87 8-7. SEÇÃO POWER TRANSFORMER................................ 88 8-8. SEÇÃO-1 DVD MECHANISM DECK (CDM74HF-DVBU101).................................................. 89 8-9. SEÇÃO-2 DVD MECHANISM DECK (CDM74HF-DVBU101).................................................. 90 9. LISTA DE PEÇAS ELÉTRICAS........................... 91 10. CONJUNTO DE CAIXA SS-ZX80DP 10-1. SS-CT100D (CAIXA CENTRAL .................................. 119 VISTA EXPLODIDA..........................................................119 10-2. SS-ZX100D(CAIXAS: FRONTRAL/ SURROUND ).....120 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 HCD-ZX80D SEÇÃO 1 NOTAS DE SERVIÇO NOTAS AO MANUSEAR O BLOCO ÓTICO OU A BASE DA UNIDADE ÓTICA O diodo laser da unidade ótica pode sofrer descarga eletrostática e se danificar devido a diferença de potencial gerado por carga eletrostática, etc. nas roupas e no corpo humano.. Durante o reparo, preste atenção com a descarga eletrostática siga o procedimento que segue junto com a peça de reposição. O cabo flexivel é facilmente danificado e deve ser manuseado com cuidado. NOTAS PARA A CHECAGEM DA EMISSÃO LASER A emissão laser neste modelo é concentrada para que possa focar a superficie do disco pela lente objetiva do bloco otico. Dessa forma quando checar a emissão do diodo laser, observe a mais de 30 cm das lentes objetivas. SOLDA SEM CHUMBO Placas que utilizam solda sem chumbo são impressa com a indicação (LF) o que indica que a solda não contêm chumbo. (Cuidado: Algumas placas de circuito podem não ser identificadas com a marca LF devido ao seu pequeno tamanho) : Identificação de solda sem chumbo (LEAD FREE) Solda sem chumbo possui as seguintes caracteristicas. • Solda sem chumbo derrete a temperatura 40 °C superiores á solda comum. Ferro de solda comum pode ser utilizado mas a ponta deve ser aplicada na junção por um tempo consideravelmente maior. Estações de solda devem ser ajustadas a temperatura de aproxi- madamente 350 °C. Cuidado: As trilhas de cobre (copper foil) podem se soltar se a ponta aquecer demasiadamente, portanto cuidado! • Elevada viscosidade. Solda sem chumbo é mais viscosa do que a solda comum, en- tão tenha cuidado para evitar curtos na soldagem entre os pinos dos IC's , etc. • Utilizavel em conjunto com solda comum. É melhor utilizar apenas solda sem chumbo , mas é possivel utilizar tambem junto com a solda comum. DESTRAVANDO A BANDEJA DO DVD A função de travamento da bandeja para evitar furtos de disco é utilizado na demonstração de produtos nas lojas. Procedimento de Destravamento : 1. Pressione I/1 para ligar o aparelho 2. Pressione DVD para selecionar a função “DVD”. 3. Enquanto pressiona x pressione a tecla Z OPEN/CLOSE até que “UNLOCKED” seja indicada no display fluorescente (em torno de 5 segundos). Nota: Quando “LOCKED” estiver sendo indicado, o disco não pode ser removido mesmo acionando I/1 (power on/off) . NOTA A RESPEITO DA SUBSTITUIÇÃO DA PLACA DMB15. Uma nova EEPROM (IC103) na DMB15 não pode ser montada Assim, caso a placa DMB15 seja substituida, é necessário retirar EEPROM da placa antiga e transferir na nova placa. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 HCD-ZX80D Voce pode reproduzir os seguintes discos no aparelho. Outros discos não podem ser reproduzidos Lista de discos permitidos “DVD+RW”, “DVD-RW”, “DVD+R”, “DVD VIDEO”, e o logotipo “CD” são marca registradas. Notas sobre os discos Este aparelho pode reproduzir os seguintes • CD-ROMs/CD-Rs/CD-RWs gravados nos seguintes formatos: – formato VIDEO CD – formato AUDIO CD – CD Graphics (somente os modelos para a América Latina) – formato DATA CD que contém faixas de áudio MP3, arquivos de imagem JPEG e arquivos de vídeo DivX com o formato 2) que esteja de acordo com ISO 9660 Nivel 3) 1, Nível 2 ou Joliet no formato expandido. • DVD-ROMs/DVD-Rs/DVD-RWs/DVD+Rs/ DVD+RWs gravados nos formatos a seguir: – formato DVD VIDEO – formato DATA DVD que contém faixas de áudio MP3, arquivos de imagem JPEG e 1) arquivos de vídeo DivX com o formato 2) que esteja de acordo com UDF (Universal – formato VR (Gravação de Vídeo) (somente DVD-Rs/DVD-RWs) Este aparelho não pode reproduzir os seguintes discos: 1) Faixas de áudio MP3 devem ser do formato MPEG 1 Áudio Camada 3. 2) Arquivos de vídeo DivX devem estar gravados no formato DivX com a extensão “.AVI” ou “.DIVX”. 3) Formato ISO 9660 Um formato lógico de arquivos e pastas em CD-ROMs, definido pela ISO (International Organization for Standardization). Discos permitidos Tipo de disco Logotipo do disco DVD VIDEO DVD-RW/DVD-R DVD+RW/ DVD+R VIDEO CD AUDIO CD CD Graphics (CDG) (Latin American models only) CD-R/CD-RW 4) CD-Extra: Este formato grava o áudio (dados de AUDIO CD) nas faixas da sessão 1 e dados nas faixas da sessão 2. 5)Mixed CD: Este formato grava os dados na primeira faixa e o áudio (dados de AUDIO CD) na segunda e nas demais faixas de uma sessão. Código de região do DVD VIDEOs que podem ser reproduzidas neste aparelho O aparelho possui um código de região impresso no painel traseiro e reproduzirá somente os DVD VIDEOs com o mesmo código de região. Os DVD VIDEOs com a indicação também poderão ser reproduzidos neste aparelho. Se você tentar reproduzir um DVD VIDEO com outro código de região, a mensagem “Playback prohibites by area limitarions. (Reprodução deste disco proibida por limites de área)” aparecerá na tela do TV. Dependendo do DVD VIDEO esteja proibida devido aos limites de área. Exemplo: Nota sobre os discos DualDisc DualDisc é um disco que possui duas faces. Em uma das faces está gravado material de DVD e em outra face material de áudio digital. A face de áudio de um DualDisc pode não ser reproduzida neste aparelho devido a esses discos não obedecerem às normas do CD. ALL DVD DECK RECEIVER MODELN0. HCD-ZX100D SERIAL NO. AC:120-127/220/230-240V 50/60Hz430W Código da região Notas sobre CD-R/CD-RW/DVD-R /DVD-RW/DVD+R/DVD+RW • Alguns discos, CD-Rs/CD-RWs/DVD-Rs/ DVD-RWs/DVD+Rs/DVD+RWs não podem ser reproduzidos neste aparelho devido à qualidade de gravação ou condições físicas do disco, às características físicas do disco, às características do dispositivo de gravação e autorização do software. Além disso, não é possível reproduzir um disco que não tenha sido finalizado corretamente. Para mais informações, consulte o manual de instruções • Note que algumas funções de reprodução não atuam em alguns DVD+RWs/DVD+Rs, mesmo que eles tenham sido finalizados corretamente. • Um disco criado no formato Packet Write não pode ser reproduzido. Nota sobre as operações de reprodução de DVD VIDEOs e CDs Algumas operações de reprodução dos DVD VIDEOs e VIDEO CDs podem estar intencionalmente fixadas pelos fabricantes do software. Uma vez que este aparelho reproduz DVD VIDEOs e VIDEO CDs de acordo com o conteúdo estabelecido pelo fabricante do software, alguns recursos de reprodução podem não estar disponíveis. Consulte também as Nota sobre PBC (Controle de Reprodução) (VIDEO CDs) Esta aparelho está de acordo com a Ver. 1.1 e Ver. 2.0 do padrão VIDEO CD. Você pode desfrutar de dois tipos de reprodução Tipo de disco Você pode VIDEO CDs sem função PBC (Ver. 1.1 discs) Desfrute a reprodução de vídeo (filmes) e também músicas. Discos de música codificados com tecnologia de proteção de direitos autorais Este aparelho foi desenvolvido para reproduzir discos que obedeçam ao padrão “Compact Disc” (CD). Algumas gravadoras estão protegendo seus discos de áudio com tecnologia de proteção de direitos autorais. Alguns desses discos não estão conforme o padrão CD e não podem ser reproduzidos neste aparelho. Notas sobre discos Multi Session • Esse aparelho pode reproduzir discos Multi Session quando possuir um arquivo de áudio MP3 na primeira sessão. Outros arquivos de áudio MP3 gravados em sessões posteriores também podem ser reproduzidos. • Esse aparelho pode reproduzir discos Multi Session quando possuir um arquivo de imagem JPEG na primeira sessão. Outros arquivos de imagem JPEG gravados em sessões posteriores também podem ser reproduzidos. • Se a primeira sessão estiver gravada no formato AUDIO CD ou VIDEO CD, somente a primeira sessão será reproduzida. VIDEO CDs com função PBC (Ver. 2.0 discs) Reproduz software interativo utilizando o menu da tela visualizado na tela do TV (reprodução PBC), em adição às funções de reprodução de vídeo de discos Ver. 1.1. Além disso, você poderá reproduzir fotos de alta resolução, se as mesmas estiverem Tipo de disco Você pode • O aparelho reconhecerá discos Multi Session como um AUDIO CD se houver sessões gravadas no formato AUDIO CD no disco. Entretanto, o aparelho reproduzirá o disco somente se a primeira sessão estiver gravada no formato AUDIO CD. • Com DATA CD ou DATA DVD, o aparelho reproduzirá somente arquivos de vídeo DivX mesmo que contenham faixas de áudio MP3 ou arquivos de imagem JPEG. • CD-ROMs gravado no formato PHOTO CD • parte de dados de CD-Extras4) • parte de dados de Mixed CDs5) • Super Audio CDs • Discos de áudio DVD • DVD-RAMs • Um DVD VIDEO com um código de região diferente. • Discos de formato fora do padrão (ex: quadrado, estrela). • Discos com papel, etiqueta ou fita adesiva colada ou com resíduos destes materiais. instruções que acompanham os DVD VIDEOs ou VIDEO CDs. dependendo do tipo de disco. inclusas no disco www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Informações Adicionais 105 Pa inel frontal Painel superior 1 2 3 4 567 8 9 q; qa qs qd qf qg qh qj qk wa w; ql ws wd wf wg wh wj e; wl wk ea es ed ef eg eh ej ek el rg rf rd rs ra r; tsta t;rl rj rh rk continua www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 106 Controle remoto ADVANCE wf (22) ALBUM +/– qa (18, 21) ANGLE q; (42) AUDIO 8 (32, 41, 67, 69, 82) CLEAR wk (18, 24–27, 33, 38, 52) DISC SKIP 3 (22, 25, 26) DISPLAY ed (75, 77) ENTER wh(16, 17, 21, 24–28, 31, 33–36, 38, 39, 43–48, 52, 54–57, 67–71, 73–75, 88) FM MODE 7 (57, 87) FUNCTION +/– 4 (16, 19, 21, 55, 58, 67, 74, 82, 86) KARAOKE MODE ea (67, 82, 86) KARAOKE PON e; (67) KEY CONTROL #/2 es (68) MENU qs (27, 29, 32–34, 37, 55, 56) PICTURE NAVI 6 (32, 34, 39) PRESET + qh (55, 57) PRESET – wd (55, 57) REPEAT 7 (27) REPLAY wf (22) SCORE 5 (71) SLEEP eg (18, 73) SLOW qj (22) SLOW ws (22) SOUND FIELD qd (62, 63, 65, 66, 82) STEP C wf (22) SUBTITLE 9 (43) Teclas numéricas1) wl (13, 18, 21, 27, 29, 39, 44–47, 49, 57) THEATRE SYNC 1 (18) TIMER MENU eh (16, 73–75) TIME/TEXT ef (77, 78) TOP MENU wj (27) TUNING + qj (55, 57) TUNING – ws (55, 57) TV w; (13) TV CH + qh (13) TV CH – wd (13) TV/VIDEO eg (13) TV VOL +/–1) qf (13) TV &/1 (ligar/modo de espera) 2 (13) VOLUME +/–1) qf (21, 54, 73, 77) ?/1 (ligar/modo de espera) 2 (13, 16, 73, 75, 83) x (parada) qk (21, 23, 29, 31, 33, 34, 36, 44, 56, 74, 85) X (pausa) ql (21, 58) H1) (reprodução) wa(21, 24, 29, 32, 34, 36, 37, 46, 50, 58, 74, 83, 85) > (avanço) qh(18, 29, 31, 37, 60, 88) . (retrocesso) wd(29, 31, 37, 60, 88) M (avanço rápido) qj (21, 58) m (rebobinamento) ws (21, 58) V/v/B/b wh (16, 17, 24 28, 31 39, 43 48, 54, 62, 67, 71, 73 75, 88) 10/0 wl -/-- wk (13) O RETURN wg (28, 31, 37, 40) DISPLAY qg (17, 24, 25 28, 33 35, 37 40, 43, 45, 47, 54, 67, 71, 79, 88, 94) c STEP wf (22) 1) A tecla numérica 5, e as teclas TV VOL +, VOLUME + e H possuem um ponto saliente como referência. Utilize o ponto saliente como referência quando operar o aparelho. ORDEM ALFABÉTICA A – L M – S T – Z NÚMEROS E SÍMBOLOS 7 5 q; qh qj qk ql wa wd wf wh wj wk wl ea es ed ef eg eh e; qg qf qs qa 9 8 6 4 3 1 2 w; ws wg qd www. xiaoyu163. com QQ376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 HCD-ZX80D SEÇÃO 3 DESMONTAGEM • Este aparelho pode ser desmontado conforme sequencia abaixo . 3-1. FLUXO DE DESMONTAGEM APARELHO 3-2. TAMPA 3-3. BLOCO SUPERIOR DO ESCUDO 3-4. PAINEL DE CARREGAMENTO 3-9. BLOCO PLACA PRINCIPAL 3-12. PLACA DRIVER PLACA SW (Pag 15) 3-13. BLOCO OTICO (KHM-313CAB) (Pag 15) 3-10. PLACA MAIN (Pag 14) 3-15. PLACA MOTOR (TB) (Pag 16) 3-16. PLACA MOTOR (LD) (Pag 17) 3-7. BLOCO PAINEL FRONTAL 3-5. TUNER (FM/AM) (TM10SE) (Pag 11) 3-6. DVD MECHANISM DECK BLOCK (Pag 12) 3-14. PLACA SENSOR (Pag 16) 3-8. BLOCO PAINEL TRASEIRO 3-11. TAMPA (CDM) (Pag 15) Nota 1: O processo descrito em pode ser executado em qualquer ordem. Nota 2: Sem completar o processo em , o próximo processo não pode ser executado www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 HCD-ZX80D Nota: Execute o procedimento de desmontagem em ordem numérica. 3-2. TAMPA 3-3. ESCUTCHEON TOP BLOCK 3 parafuso (case 3 TP2) 5 tampa 2 2 parafusos (BVTP 3 ×10) 1 tres parafusos (BVTP 3 × 10) 3 parafuso (case 3 TP2) 2 dois parafusos (BVTP 3 ×10) 4dois parafusos (case 3 TP2) 4 dois parafusos (case 3 TP2) 3 cabo (tipo flat ) (7 vias) (CN1153) 2 boss 4 escutcheon top block 2 boss 1 parafuso (BVTP 3 × 12) 1 parafuso (BVTP 3 × 12) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 HCD-ZX80D 3-5. SINTONIZADOR (FM/AM) (TM10SE) 3-4. PAINEL DE CARREGAMENTO 3 4 travas 1 Gire a engrenagem (loading A) na direção da seta 2 4 painel de carregamento 3 sintonizador (FM/AM) (TM10SE) 2 dois parafusos (BVTT 3 × 8) 1 cabo (tipo flat ) (9 vias) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 HCD-ZX80D 8 Bloco do mecanismo DVD 3 cabo (tipo flat ) (21vias) (CN302) 4 tres conectores (CN401, CN800, NO2000) 4 conector (CN802) 1 cabo (tipo flat ) (13 vias) (CN106) 6 7 2 cabo (tipo flat ) (13vias) (CN701) 5 4 parafusos (BVTT 3 × 10) 5 tres parafusos (BVTT 3 × 10) 4 seis parafusos (BVTP 3 × 8) 3 conector (CN1102) 6 cabo (tipo flat ) (17 vias) (CN508) 2 fio terra 1 parafuso (BV3 (3-CR)) 7 cabo (tipo flat ) (11 vias) (CN509) 8 tres conectores (CN100, CN503, CN504) 9 bloco painel frontal 5 3-6. BLOCO DO MECANISMO DVD 3-7. BLOCO DO PAINEL FRONTAL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 HCD-ZX80D 3-8. BLOCO DO PAINEL TRASEIRO 3-9. BLOCO DA PLACA MAIN 2 conector (CN1204) 2 conector (CN1202) 2 conector (CN1200) 5 conector (CN580) 4 3 parafuso (BVTT 3 × 10) 3 4 parafusos (BVTT 3 × 10) 3 tres parafusos (BVTT 3 × 10) 3 dois parafusos (BVTT 3 × 10) 6 bloco do painel traseiro 1 cabo (tipo flat ) (19 vias) (CN1502) 3 tres parafusos (BV3 (3-CR)) 3 parafuso (BV3 (3-CR)) 6 bloco da placa MAIN 5 dois parafusos (BVTT 3 × 8) 4 parafuso (BVTT 3 × 10) 1 parafuso (BVTT 3 × 8) 2 fio terra www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 HCD-ZX80D 3-10. PLACA MAIN 3 placa MAIN 2 dois conectores (CN513, CN514) 1 parafuso (BVTT 3 × 8) 2 dois conectores (CN501, CN502) 3-11. TAMPA (CDM) 2 placa KARAOKE 1 dois parafusos (BVTT 3 × 10) 8 tres parafusos (BVTT 3 × 10) 7 conector (CN201) 9 tampa (CDM) 6 cabo (tipo flat ) (24 vias) (CN101) 4 dois parafusos (BVTT 3 × 10) 3 cabo (tipo flat ) (13vias) (CN801) 5 placa VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 HCD-ZX80D 3-12. PLACA DRIVER, PLACA SW 3-13. BLOCO OTICO (KHM-313CAB) 3 conector (CN703) 4 placa DRIVER 6 placa SW 2 cabo (tipo flat ) (5vias) (CN702) 1 dois parafusos (BTTP (M2.6)) 5 parafuso (BTTP (M2.6)) 1 parafuso da base flutuante (PTPWH M2.6) 5 conector 2 holder (310) montado 6 cabo (tipo flat ) (24 vias) 7 bloco otico ( KHM-313CAB) 4 dois parafusos 3 dois parafusos 3 dois parafusos 4 dois parafusos www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 HCD-ZX80D 3-14. PLACA SENSOR 2 bandeja 3 correia(table) 5 polia (table) 8 parafuso (BTTP (M2.6)) 0 placa SENSOR 7 engrenagem (geneva) 9 conector (CN731) 1 parafuso (PTPWH M2.6) 6 parafuso (PTPWH M2.6) 4 parafuso (PTPWH M2.6) 3-15. PLACA MOTOR (TB) 6 Remova os dois pontos de solda do motor. 8 placa MOTOR (TB) 7 motor table montado (M741) 5 dois parafusos (BTTP (M2.6)) 4 3 cabo (tipo flat ) (5 vias) (CN742) 1 limitador 2 limitador www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 HCD-ZX80D 3-16. PLACA MOTOR (LD) 3 Remova os dois pontos de soldas do motor. 4 placa MOTOR (LD) 1 correia (loading) 5 motor loading montado (M751) 2 dois parafusos (BTTP (M2.6)) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 HCD-ZX80D MODO DE TESTE DO PAINEL Este modo é utilizado para checar o display fluorescente, LEDs, teclas, knob MASTER VOLUME, knob OPERATION DIAL,knob X-ROUND JOG, modo, destino, versão de software e nível VACS. Procedimento: 1. Pressione três teclas x , [ENTER] e [DISC 2] simultaneamente. 2. Todos os LEDs exceto I/ 1 LED (cor verde) e os segmentos no display fluorescente acendem. 3. Para acessar o modo de checagem da versão do software pressione a tecla [DISC 1]. A informação do modelo aparece no display fluorescente. 4. Cada vez que a tecla [DISC 1], o display altera para indicar a informação de destino do produto, versão MC, versão GC, versão SYS, versão DVD, versão ST, versão TC, versão TA, versão TM nesta ordem, e retorna para a informação do modelo no display. 5. Quando a tecla [DISC 3] é pressionada enquanto o numero de versão é mostrado exceto informações do modelo e de destino a data de criação do software é indicada. Quando [DISC 3] é novamente pressionada, o display volta a a indicar a versão do software . Quando [DISC 1] é pressionada a data de criação do software é apresentada na mesma ordem da versão do software. 6. Pressione a tecla[DISC 2]O modo de checagem da tecla é ativada. 7. No modo key check, o display fluorescente apresenta “K 0 V0J0 X0”. Cada vez que a tecla é pressionada, o valor “K 0” aumenta. Porém se uma tecla ja tiver sido pressionada anteriormente, esta não será mais considerada . 8. O valor “V” aumenta na forma 0, 1, 2, 3 ... se o knob [MASTER VOLUME] é girado no sentido horario, ou o valor di- minui na forma 0, 9, 8, 7 ... se o knob [MASTER VOLUME] é gi- rado no sentido anti-horario. O valor “J” aumenta na forma 0, 1, 2, 3 ... se o knob [OPERATION DIAL]é girado no sentido horario, ou o valor di- minue na forma 0, 9, 8, 7 ...se o knob [OPERATION DIAL] é gi- rado no sentido anti-horario. O valor “X” aumenta na forma 0, 1, 2, 3 ... se o knob [X- ROUND JOG] é girado no sentido horario, ou o valor diminue na forma 0, 9, 8, 7 ... se o knob [X-ROUND JOG] é girado no sentido anti-horario. 9. Quando [DISC 3] é pressionada após todos os LEDs exceto I/1 LED (cor verde) e os segmentos do display fluorescente acender , é indicado no display fluorescente “VACS A+B F APC”. A é o nível convencional VACS que é sincronizado pelo nivel de sinal .B é o nível VACS controlado pela tem- peratura F indica quando o FAN deve acionar em alta veloci- dade e vice-versa. C é o nívelVACS sincronizado pelo APVACS (Abuse Protection VACS). O nível de sinal, que ira chavear o VACS A é mostrado no centro da area do display. 10. Quando [EX-CHANGE/DISC SKIP] é pressionada após todos osLEDs exceto I/1 LED (cor verde) e segmentos do display fluorescente acenderem, os segmentos alternados do display fluorescente e LEDs acendem. Se for pressionada [EX- CHANGE/DISC SKIP] novamente a outra metade do segmento do display fluorescente e os LEDs devem acender Pressione a tecla [EX-CHANGE/DISC SKIP] novamente e todos os LEDs exceto I/ 1 LED (cor verde) e segmentos do dis- play fluorescente acendem. 11. Para sair deste modo , pressione três teclas conforme indicado no item 1 ou desconecte o cabo de força. SEÇÃO 4 MODO DE TESTE MODO DE TESTE GERAL Este modo se destina a checar as funções das seções do amplifica- dor e do tape Procedimento: • Para acessar o modo de teste geral 1. Press ione três teclas x , [ENTER] e[DISC 3] simultaneamente. 2. O anel luminoso DVD, o indicador tape A e B e a linha abai- xo do anel luminoso DVD pisca em sincronismo com o dis- play fluorescente. A função muda para “TV”. • Checagem do amplificador 1. Pressione a tecla [EQ BAND] repetidamente até aparecer a men- sagem “GEQMAX” no display fluorescente. GEQ in- crementa para o valor maximo. 2. Pressione a tecla [EQ BAND] repetidamente até aparecer a men- sagem “GEQMIN” no display fluorescent GEQ decre- menta para o valor minimo. 3. Pressione a tecla [EQ BAND] repetidamente até aparecer a men- “GEQFLAT” no display fluorescente. GEQ é setado para nível flat (todos com mesmo nível). 4. Quando o knob [MASTER VOLUME] é girado no sentido hora- rio o volume aumenta até o máximo e sera apresentado a menssagem “VOLUME MAX” no display fluorescente. 5. Quando o knob [MASTER VOLUME] é girado no sentido anti-ho- rario o volume diminui e será apresentado a mensagem “VOLU- ME MIN” no display fluorescente. • Função tape 1. Quando a fita é inserida no deck-B e a gravação é iniciada, a função muda para “TV” automaticamente. Quando o [CD SYNC] é pressionado durante a função de gravação, ALC (Automatic Logic Control) é habilitada. 2. Durante a gravação, tecle m a gravação é interrompida e a função é alterada para “TAPE B” e a fita é rebobinada no deck B até a posição do inicio de gravação e o playback da fita inicia. Se a tecla [REC PAUSE/START] é pressionada ocorre a pausa e pressionando novamente recomeça a gravação, quando rebobinada, a fita é rebobina até a posição onde a pausa foi aplicada. • Para sair do modo de teste geral 1. Para sair deste modo, pressione a tecla I/1 2. O cold reset é aplicado ao mesmo tempo. COLD RESET O cold reseta todos os dados incluindo os dados presetados e armazenados na memória RAM voltando para a condição de loja. Procedimento: 1. Pressione I/1 para ligar o aparelho. 2. Pressione três teclas x , [ENTER] e I/ 1 simultaneamente. 3. A mensagem “COLD RESET“ aparece no display fluores- cente. Então o display fluorescente começa a piscar enquanto o sistema é resetado. VACS ON/OFF Este modo é utilizado para chavear o VACS on/off (Variable Attenuation Control System). Procedimento: 1. Pressione I/1 para ligar o aparelho 2. pressione duas teclas x e [ILLUMINATION] simultaneamente. A mensagem “VACS OFF” ou “VACS ON” aparece no dis- play fluorescente. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 19 HCD-ZX80D TROCA DA FREQUENCIA DE VARREDURA DO TUNER A frequencia do canal AM pode ser selecionado entre 9 kHz e 10 kHz.(Brasil utiliza 10khz). Procedimento: 1. Pressione I/1 para ligar o aparelho. 2. Pressione [TUNER/BAND] repetidamente para selecionar “AM”. 3. Pressione I/1 para desligar o aparelho. 4. Pressione duas teclas [ENTER] e I/1 simultaneamente. O aparelho irá ligar. Aparecerá a mensagem “AM 9k STEP" ou "AM 10k STEP” no display fluorescente e a frequencia do canal AM é alterado. DVD SHIP MODE (COM MEMORY CLEAR) Este modo move a bloco otico para uma posição mais segura contra vibrações e apaga os dados incluindo os dados presetados na RAM voltando para a condição de loja. Use este modo ao devolver o a- parelho para o cliente. Procedimento: 1. Pressione I/1 para ligar o aparelho. 2. Pressione [DVD] para selecionar o modo “DVD”. 3. Pressione três teclas x , [DELAY] e I/ 1 simultaneamente na condição “DVD No Disc”. O aparelho desligará automati- camente. 4. Após “STANDBY” terminar de piscar no display, a mensagem “MECHA LOCK” aparece no display fluorescente e o DVD ship mode é habilitado. DVD SHIP MODE (SEM MEMORY CLEAR) Este modo move a bloco otico para uma posição mais segura contra vibrações. Procedimento: 1. Pressione I/1 para ligar o aparelho. 2. Pressione [DVD] para selecionar o modo “DVD”. 3. Pressione duas teclas [DVD] e I/1 simultaneamente du- rante a condição “DVD No Disc”.O aparelho vai desligar au- tomaticamente. 4. Depois do display “STANDBY” terminar de piscar, a mensagem “MECHA LOCK” aparece no display fluorescente e o DVD ship mode é habilitado. MODO DE TRAVAMENTO DA BANDEJA DVD Este modo é utilizado para bloquear a bandeja . Quando este modo é ativado a bandeja não abre quando Z OPEN/CLOSE ou [EX- CHANGE/DISC SKIP] é pressionado. A mensagem “LOCKED” aparece no display fluorescente. Procedimento: 1. Pressione I/1 para ligar o aparelho. 2. Pressione [DVD] para selecionar o modo “DVD”. 3. Pressione duas teclas x and Z OPEN/CLOSE simultaneamente segurando até “LOCKED” ou “UNLOCKED” aparecer no display fluorescente (em torno de 5 segundos). CHAVEAMENTO TV/SAT Este modo chaveia deTV para SAT e vice-versa. Procedimento: 1. Pressione I/1 para ligar o aparelho. 2. Pressione[TV/SAT] para selecionar o modo “TV”. 3. Pressione duas teclas [TV/SAT] e I/1 simultaneamente A função muda pra SAT. Pressione as mesmas teclas novamente para mudar de SAT para TV. MODO DE INIBIÇÃO DO REMOTO Este modo desativa o funcionamento do controle remoto. Quando este modo é ativado, o sistema não responde se a tecla do controle remoto é pressionada. A mensagem “RemoteDisable” aparece no display fluorescente. Este modo é utilizado em testes e reparos quando não é esperado a atuação de controle remoto Este modo é cancelado automaticamente quando a alimentação AC é removida. Procedimento: 1. Pressione I/1 para ligar o aparelho. 2. Pressione três teclas x , [FLANGER] e [DISC 2] simultaneamente, até aparecer “RemoteDisable”ou “RemoteEnable” no display fluorescente MODO TCM OFFLINE este modo previne que o sistema desligue automaticamente quando TCM não esta conectado. De outra forma medições podem ser feitas mesmo quando oTCM não esta conectado na linha de produção. Procedimento: 1. Quando o aparelho esta desligado, pressione tres teclas[EQ BAND], [TAPE A/B] e I/1 simultaneamente. O aparelho vai ligar. 2. A mensagem “TCM OFFLINE” aparece no display fluores- cente. INDICAÇÃO MTK FIRMWARE Este modo é utilizado para mostrar a versão MTK firmware . Procedimento: 1. Pressione I/1 para ligar o aparelho. 2. Pressione [DVD] para selecionar o modo “DVD”. 3. Pressione I/1 para desligar o aparelho. 4. Pressione duas teclas x e I/1 simultaneamente. O a- parelho vai ligar. 5. A versão do MTK firmware aparece na tela da TV . MTK OFFLINE Este modo habilita a saida de audio de uma função diferente de DVD para permitir a checagem da saida de audio do aparelho sem conectar o MTK. Procedimento: 1. Pressione I/1 para ligar o aparelho. 2. Pressione três teclas x , [FLANGER] e [DISC 1] simultaneamente e a mensagem “MTK OFFLINE” aparece no display fluorescente. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 HCD-ZX80D SEÇÃO DVD 1. DESCRIÇÃO GERAL DO MODO DE SERVIÇO DO DVD Este modo permite fazer diagnósticos e ajustes facilmente utilizando o controle remoto e a tela de TV. Os resultados e os diagnósti- cos são mostrados na tela. 2. ENTRANDO NO MODO DE SERVIÇO DVD Procedimento: 1. Pressione I/1 para ligar o aparelho. 2. Pressione [DVD] para selecionar o modo “DVD”. 3. Pressione as teclas x e Z OPEN/CLOSE simultaneamente e gire o knob [MASTER VOLUME] em sentido horario. 4. A mensagem “SERVICE IN” aparece no display fluo- rescente e o menu principal Remocon Diagnosis Menu aparece na tela do monitor conforme segue. O nome do modelo, versão IF-con e versão do Syscon são mostrados na parte de baixo da tela. Remocon Diagnosis Menu 0. External Chip Check 1. Servo Parameter Check 2. Drive Manual Operation 3. Emergency History 4. Version Information Model Name :xxxxxxxxxx IF-con:Ver.xx.xx(xxxx) Syscon:Ver.x.xxx 5. Para executar cada função, pressione o numero correspondente no controle remoto. 6. Para sair deste modo,, pressione a tecla I/1 para desligar o apare- lho. 3. MEDIÇÃO IOP A sequencia para medir o IOP deve ser executada conforme indicado a seguir: Procedimento: 1. No menu principal Remocon Diagnosis Menu, selecione “2 Drive Manual Operation” pressionando a tecla [2] no con- trole remoto. A tela seguinte é apresentada. Drive Manual Operation 1. Servo Control 2. Track/Layer Jump 3. Manual Adjustment 4. Mecha Test Mode 5. MIRR time Adjust 0. Return to Top Menu 2. Selecione“3. Manual Adjustment” pressionando a tecal [3] no controle remoto. A tela seguinte é apresentada. Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq boost Adjust: 6. Iop: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: V v Change Value [RETURN]Return to previous menu 3. Selecione “6. Iop:” pressionando a tecla [6] no con- trole remoto. 4. Espere até aparecer um numero hexadecimal na tela. Manual Adjust 1. Track Balance Adjust: 2. Track Gain Adjust: 3. Focus Balance Adjust: 4. Focus Gain Adjust: 5. Eq boost Adjust: 6. Iop: ED: 7. TRV. Level: 8. S curve(FE) Level: 9. RFL(PI) Level: 0. MIRR Time: V v Change Value [RETURN]Return to previous menu 5. Converta o dado hexadecimal para decimal utilizando a tabela de conversão. 6. Se o valor for menor que 93 (decimal), resultado OK. Porém se o valor for maior que 93, então BU (base unit) tem problema e necessita ser substituida. 7. Pressione O RETURN no controle remoto para retornar ao menu anterior. 8. Pressione a tecla [0] no controle remoto tpara retornar ao menu principal Remocon Diagnosis Menu. 9. Pressione I/1 para desligar o aparelho 4. VERIFICANDO O HISTÓRICO DE EMERGENCIA Para checar o histórico de emergencia, favor seguir o procedimento abaixo. Procedimento: 1. N o menu Remocon Diagnosis Menu, selecione“3. Emergency History” pressionando a tecla [3] no controle re- moto. A seguinte tela é mostrada. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 01. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 02. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next]Next page [Prev]Prev page [0]Return to Top Menu www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 HCD-ZX80D 2. Voce pode checar o tempo total que o laser foi acionado em modo playback do DVD e CD no menu acima. O tempo máximo, que pode ser mostrado é 999h 59min. 3. Voce pode checar os ultimos 10 códigos do historico de emergencia no menu anterior. Para ver as paginas anterior e posterior do histórico de emergencia, tecle . ou > no controle re- moto. O codigo de erro consiste de três tipos de código de erro. A. Codigo de Erro Example of Error code 01. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 Significado do código de erro : 01: Erro de comunicação(O syscon não responde) 02: Syscon inoperante 03: Solicitado desligar ao travar o syscon 19: Desligamento térmico. 24: Erro no deslocamento do sled 25: Erro no movimento do mecanismo (5 changer) 26: Erro de posição do mecanismo 30: Erro de ajuste do motor DC 31: Erro de ajuste de offset do DPD 32: Erro de balanço de tracking TE . 33. Erro do sensor de ajuste TE . 34. Erro de ganho TE . 35. Erro de ajuste de ganho FE . 36. Jitter elevado após o ajuste. 40. Focus NG 42. Focus layer jump NG 52. Erro Open kick spindle 51: Erro Spindle stop . 60: Erro Focus on . 61: Erro Seek fail . 62: Erro Read Q data/ID 70: Falha de leitura Lead in 71: Excesso no tempo de leitura do TOC (CD) 80: Não pode armazenar no buffer 81: Tipo de midea desconhecida. B. Codigo de parametro de erro Este é o detalhe do cídigo de erro. Example of Error code 01. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 C. Time of error code Este é o tempo de laser quando ocorreu o erro. Example of Error code 01. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 Para apagar o tempo de uso do Laser Pressione [ DISPLAY] no controle remoto e então pressione a tecla [CLEAR] no controle remoto. Os dados de CD e de DVD serão resetados. Emg. History Check Laser Hours CD 0h 0min DVD 0h 0min 01. 01 05 04 04 00 92 46 00 00 00 00 00 00 00 23 45 02. 02 02 01 01 00 A9 4B 00 00 00 00 00 00 00 23 45 [Next]Next page [Prev]Prev page [0]Return to Top Menu Para apagar o histórico de Emergencia Pressione[MENU] no controle remoto e então pressione a tecla [CLEAR] no controle remoto. Os códigos de emergencia para todos os históricos de emergencia serão resetados. Emg. History Check Laser Hours CD 999h 59min DVD 999h 59min 01. 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 02. 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 00 [Next]Next page [Prev]Prev page [0]Return to Top Menu Para retornar ao menu principal Remocon Diagnosis Pressione[0] no controle remoto 5. CHECAGEM DA INFORMAÇÃO DE VERSÃO Para checar a informação de versão , favor seguir os seguintes proce- dimentos. Procedimento 1. No menu principal Remocon Diagnosis Menu, selecione “4. Version Information” pressionando a tecla [4] no controle remo- to.. A seguinte tela é mostrado. Version information Firm(Main): Ver. X.XXXX Firm(Sub): XX.XX RISC: XXXXXX 8032: XXXXXX Audio DSP: XX.XX.XX.XX Servo DSP: XX.XX.XX.XX [0]Return to Top Menu 2. Para retornar ao menu principal Remocon Diagnosis Menu, pressione [0] no controle remoto, Menu www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 HCD-ZX80D AJUSTE DE AZIMUTE DA CABEÇA REC/PLAYBACK DECK A DECK B Nota : Execute este ajuste em ambos os decks. Procedimento: 1. Modo: Playback 2. Gire os parafusos de ajustes e observe os picos. Se os picos não se igualarem para L-CH e R-CH, posicione a chave para que haja na saida até uma diferença de até 1dB 3. Modo: Playback SEÇÃO 5 AJUSTES MECÂNICOS PRECAUÇÃO 1. Limpe a s peças abaixo com alcool isopropilico cabeça record/playback pinch roller (rolete) cabeça de apagamentor correias capstan idlers 2. Desmagnetize a cabeça record/playback com um demagnetizador apropriado.. 3. Não utilize chaves magnetizadas para executar ajustes 4. Após os ajustes, aplicar produto para selar as partes ajustadas. 5. Os ajustes devem ser feitos com a tensão nominal de alimentação a menos que especificado em contrário. MEDIÇÃO DO TORQUE Modo Torque Meter Medição 3.06 – 6.96 mN⋅m FWD CQ-102C (31 – 71 g⋅cm) FWD 0.19 – 0.58 mN⋅m Back Tension CQ-102C (2.0 – 6.0 g⋅cm) 3.06 – 6.96 mN⋅m REV CQ-102RC (31 – 71 g⋅cm) REV 0.19 – 0.58 mN⋅m Back Tension CQ-102RC (2.0 – 6.0 g⋅cm) 6.96 – 14.02 mN⋅m FF/REW CQ-201B (71 – 143 g⋅cm) 9.80 mN⋅m FWD CQ-403A more than 100 g 9.80 mN⋅m REV CQ-403R more than 100 g placa princip. CN510 fita teste P-4-A100 (10 kHz, –10 dB) pin 3 osciloscopio L-CH R-CH V H forma de onda no osciloscopio in phase 45° 90° 135° 180° bom ng pin 2 pin 1 L R parafuso de ajuste L-CH pico entre 1dB Nivel saída L-CH pico R-CH pico entre 1dB parafuso de ajuste R-CH pico SEÇÃO AJUSTES ELÉTRICOS 0 dB=0.775 V SEÇÃO DECK 1. Desmagnetize a cabeça record/playback head com um desma- gnetizador apropriado. 2. Não utilize chaves magnetizadas para executar ajustes 3. Após os ajustes, aplicar produto para selar as partes ajustadas. FITA DE TESTE Tape Sinal Aplicação P-4-A100 10 kHz, -10 dB Azimuth Adjustment set Placa principal CN510 pin 1 (L-CH) pin 3 (R-CH) Placa principal CN510 pin 2 (GND) + – level meter fita de teste P-4-A100 (10 kHz, –10 dB) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 HCD-ZX80D 4. Após os ajustes, aplicar produto para selar as partes ajustadas. Localização dos ajustes: Cabeça Playback (DECK-A) Cabeça Record/Playback/Erase (DECK-B) SEÇÃO DVD CHECAGEM DO NIVEL RFMON Conexão : Procedimento : 1. Conecte um osciloscópio entre CN105 pin 6 (RFMON) e CN105 pin 3 (GND) na placa DMB15 . 2. Pressione I/1para ligar o aparelho ,pressione então Z OPEN/CLOSE para abrir a bandeja do CD . 3. Coloque o disco (DVD-SL (NTSC): HLX-503 (Cod No. J- 6090-069-A, CD: YEDS-18 (Cod No. 3-702-101-01) na bandeja e pressione então Y para reproduzir. 4. Confirme que a forma de onda no osciloscópio é limpa e se o nível de sinal RFMON esta correto ou não. Nota: Um sinal de RFMON limpo significa que a forma de onda “◊” pode ser claramente distinguida no centro da forma de onda . Local de conexão: + – placa DMB15 CN105 pin 6 (RFMON) CN105 pin 3 (GND) osciloscopio VOLT/DIV: 200 mV TIME/DIV: 500 ns nível: 0.58 ± 1.23 Vp-p (DVD-SL) 0.57 ± 1.1 Vp-p (CD) IC102 – Placa DMB15 (Lado A) – IC201 CN105 1 6 play reverso play normal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 HCD-ZX80D HCD-ZX80D 7-1. DIAGRAMA EM BLOCOS - SEÇÃO RF SERVO/ VIDEO DQ0 – DQ7 AD0 – AD7 A-1, A0 – A20 IOA0 – IOA21 D/A CONVERTER IC301 OPTICAL PICK-UP BLOCK RF AMP, SERVO DSP, MPEG DECODER IC102 FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE IC201 AUTOMATIC POWER CONTROL (FOR CD) Q102-1 DVDRFIP 6 MA 8 MB 9 MC 10 MD 11 RF DVDA 2 SDTI1 14 DVDB 3 DVDC 4 DVDD 5 VOA/A VOB/B VOC/C VOD/D TNI 18 VOE/E+G TPI 19 VOF/F+H V2O 29 VC LDO1 23 LD (780) AUTOMATIC POWER CONTROL (FOR DVD) Q102-2 LDO2 22 LD (650) FOO 42 CD ON SWITCH Q101-1 DVD ON SWITCH Q101-2 VR (780) MSW LIMSW 50 VR (650) FCS+ MSW MDI1 20 MDI2 21 PD 176 LIMIT Q103 IOCS CE SD-RAM IC104 X101 27MHz FL FR B 36 FCS– 37 1 TRO 41 TRK+ 35 TRK– 34 4 FMO 38 SL+ 29 SL– 30 10 DMO 37 SP+ 27 SP– 28 31 32 42 46 47 13 SPFG 47 45 ASDATA0 217 LOUT1+ 2 LOUT1– 1 ROUT1+ 48 ROUT1– 47 MCLK ACLK 10 ACLK 215 BICK 9 ABCK 214 LRCK 17 ALRCK 213 SDA 20 SDA 103 SPDATA 209 SCL 19 SCL 102 PDN 8 XRST 220 XTALI 229 VOICE 206 SMSCK 208 XTALO 228 EEPROM IC103 SDA 6 SCL 5 MIX AMP IC3711 SDTI2 15 SL SR ASDATA1 218 LOUT2+ 46 LOUT2– 45 ROUT2+ 44 43 ROUT2– MIX AMP IC3731 SDTI3 16 FC SW ASDATA2 219 LOUT3+ 42 LOUT3– 41 ROUT3+ 40 39 ROUT3– MIX AMP IC3751 SDTI4 13 LT RT ASDATA4 222 LOUT4+ 38 LOUT4– 37 ROUT4+ 33 32 ROUT4– MIX AMP IC3771 FL, FR, SL, SR, FC, SW C LT, RT D ANALOG-L 81 – 84, 86 – 88, 91 29, 31, 33, 35, 38, 40, 42, 44 93, 78, 53 – 59, 75, 74, 72 – 67, 92, 60, 61, 76, 89 45, 25 – 18, 8 – 1, 48, 17, 16, 9, 10 DQ0 – DQ15 RD0 – RD15 A0 – A11 RA0 – RA11 2, 4, 5, 7, 8, 10, 11, 13, 42, 44, 45, 47, 48, 50, 51, 53 125 – 123, 121, 120, 118, 117, 115, 135, 133 – 128, 126 147, 149 – 151, 166 – 164, 162, 160, 159, 146, 158 23 – 26, 29 – 34, 22, 35 77 26 IOOE OE 79 28 IOWR WE 66 11 BA0 BA0 143 20 BA1 BA1 145 21 RCLK CLK 156 38 CKE CKE 157 37 DQM0 LDQM 113 15 DQM1 UDQM 137 39 RAS /RAS 140 18 CAS /CAS 139 17 RCS /CS 142 19 RWE /WE 138 WIDE 49 16 • FLUXO DO SINAL : CD PLAY : DVD PLAY : AUDIO : VIDEO : Y : CHROMA : COMPONENT VIDEO FOCUS COIL DRIVE TRACKING COIL DRIVE SLED MOTOR DRIVE SPINDLE MOTOR DRIVE REGULATOR MUTE123 MUTE12 211 19 MUTE MUTE34 210 20 TSD_M TSD-M 170 22 IOPMON 40 40 8 MUTE5 21 BUFFER BUFFER RF+3.3V AU+5V REGO2 REGO1 MTK-SOD IFSDO 32 98 MTK-XIFCS IXFCS 24 100 MIC STATUS MIC 21 205 MTK-KMOD KRMOD 22 207 MTK-SIO IFSDI 31 101 MTK-CLK IFCK 33 99 MTK-IFBSY IFBSY 23 105 MTK-RESET PRST 25 VMUTE 88 VIDEO-OUT-SW 87 110 MASTER CONTROLLER IC401 (1/6) CENTER VOLTAGE GENERATOR Q3801 ABCK ALRCK XVOICE SCORE SPDATA 196 YUV2 194 YUV1 198 YUV3 202 YUV5 200 YUV4 203 YUV6 VIDEO AMP, 75Ω DRIVER IC801 4 CVBSIN 2 CIN 6 YIN 10 CYIN 12 CBIN 14 CRIN 3 MUTE1 13 MUTE2 25 S1 : DIGITAL OUT : VIDEO INPUT (VIDEO) • Canal R é omitido por ser semelhante ao canal L KHM-313CAB VIDEO OUT J802 S VIDEO OUT J801 VIDEO SWITCH, 75Ω DRIVER IC800 2 SW1 J800 COMPONENT VIDEO OUT Y PB/CB PR/CR 1 VIN1 3 VIN2 23 CVBSOUT 7 VOUT 26 C OUT 21 YOUT 20 CYOUT 18 CBOUT 16 CROUT 27 S-DCOUT J1102 (1/2) VIDEO INPUT VIDEO C Y FLASH ROM IC101 DISC TABLE ADDRESS SENSOR IC731 LOADING MOTOR DRIVE IC701 M751 (LOADING) 7 FIN 38 LM-F 4 OUT1 2 OUT2 9 FIN 39 LM-R TABLE MOTOR DRIVE IC712 M741 (TABLE) 7 FIN 36 TM-F 4 OUT1 2 OUT2 9 FIN 37 TM-R 27 TBL SENS LEVEL SHIFT Q731 S711 ROTARY ENCODER 35 E1 26 EJECT SW 34 E2 28 E3 M M DISC TABLE ADDRESS DETECT DISC TABLE OPEN/CLOSE DETECT S751 OPEN CLOSE SPDATA A/D CONVERTER IC3601 LIN R-CH ABCK ABCK ALRCK 1 RIN 2 12 DOUT 15 SCKI 11 BCK 10 LRCK A XVOICE, SCORE SEÇÃO 7 DIAGRAMAS (Page 24)w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 HCD-ZX80D HCD-ZX80D 7-2. DIAGRAMA EM BLOCOS – SEÇÃO MIC/EFFECTOR � � E MUSIC L+R RT C LT, RT LT J1100 MIC 1 J1101 MIC 2 MIC AMP IC1101 16 MC2P 15 MC1P POOUT 1 0Y Y COM 4 3Y 13 11 3 D0 D1503 D1504 D1505 COM EFFECTOR-CTR1 57 EFFECTOR-S0 19 MIC-DETECT 85 EFFECTOR-S1 43 EFFECTOR-S2 44 EFFECTOR-S3 45 EFFECTOR-SELECT 18 MASTER CONTROLLER IC401 (2/6) • FLUXO DO SINAL : MIC INPUT : AUDIO 6 VOL2 MIC 1 LEVEL RV1102 5 VOL1 MIC 2 LEVEL RV1101 7 VOL3 21 MCO ECHO LEVEL RV1100 29 DIGITAL ECHO IC1100 AC/DC CONVERTER IC2000 (1/2) COMPARATOR IC2002 COMPARATOR IC2001 XVOICE SCORE A XVOICE, SCORE F MIC AC/DC CONVERTER IC2000 (2/2) DIGITAL ECHO IC1504 MIXER IC1505 (2/2) SWITCHING Q1505 A+9V SWITCHING Q1504 SWITCHING Q1503 SWITCHING Q1508 12 0X 11 3X DIGITAL ECHO IC1501 MIXER IC1505 (1/2) SWITCHING Q1502 LEVEL SHIFT Q1509, 1510 EFFECTOR-CTR2 63 LEVEL SHIFT Q1511, 1512 EFFECTOR-CTR3 70 LEVEL SHIFT Q1513, 1514 SWITCHING Q1501 SWITCHING Q1500 SWITCHING Q1506 A 10 B 9 C D1506 D1507 D1508 MULTIPLEXER IC1502 11 3 COM A 10 B 9 C MULTIPLEXER IC1503 3 X COM 13 9 A 10 B SIGNAL SELECTOR IC1506 DM_L DM_R G DM_L, DM_R w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 HCD-ZX80D HCD-ZX80D 7-3. DIAGRAMA EM BLOCOS – SEÇÃO TUNER/TAPE T301 BIAS OSC BIAS OSC Q370 REC BIAS SWITCH Q378, 380 A+9V R-CH TUNER (FM/AM) AM FM ANT AM ANT ST-L ST-R ST-DOUT/MC-DIN TUNED ST-DIN/MC-DOUT ST-CLK ST-CE FM 75Ω COAXIAL ANTENNA HRPE1 (REC/PB/ERASE) (DECK-B) HP1 (PB) (DECK-A) L-CH L-CH R-CH R-CH R-CH R-CH ERASE R-CH MUTING Q325 MUTING CONTROL SWITCH Q382, 383 R-CH MUTING Q321, 322 MUTING CONTROL SWITCH Q377, 379, 381 32 34 21 24 EQ 28 14 13 11 15 27 26 DECK A/B SELECT SWITCH, REC/PB EQ AMP IC301 CAPM+ M TAPE MECHANISM DECK BLOCK ATRGM+ AHALF BHALF A SHUT B SHUT REC (FWD) REC (REV) (DECK-A) BTRGM+ (DECK-B) (CAPSTAN/REEL) 6 ST-CE 3 ST-CLK 2 ST-DOUT 5 ST-DIN 1 TUNED 71 TC-MUTE 54 REC MUTE 53 TC-RELAY 52 REC BIAS 47 A-HALF 91 B-HALF 89 A-SHUT 90 B-SHUT 48 A-TRIG 49 B-TRIG 50 CAPM H ST-L K REC-L J TC-L MUTING Q106 R-CH MUTING CONTROL SWITCH Q509, 510 TRIGGER PLUNGER DRIVE (DECK-A) Q340, 343 TRIGGER PLUNGER DRIVE (DECK-B) Q342, 345 CAPSTAN/REEL MOTOR DRIVE Q341, 344 MASTER CONTROLLER IC401 (3/6) • FLUXO DO SINAL : TAPE PLAY (DECK-B) : REC : TAPE PLAY (DECK-A) : TUNER (FM/AM) • Canal R é omitido por ser semelhante ao canal L AIN1 REC-OUT1 REC-IN1 EQ-OUT1 REC MUTE ON/OFF 56 ALC ALC ON/OFF 55 PB A/B A/B MUTE ON/OFF TAI1 PB-OUT1 BIN1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 HCD-ZX80D HCD-ZX80D 32 G DM_L, DM_R MUTING Q204 MUTING Q254 MUTING Q203 MUTING Q253 B FL, FR, SL, SR, FC, SW J TC-L F MIC DM_R FL FR DM_L SR FC SW SL MUTING Q202 MUTING Q252 MUTING Q200 MUTING Q250 37 40 41 2 6 33 34 5 10 9 8 7 4 23 14 24 22 39 38 R-CH R-CH + 15 AUTO GAIN CONTROL R-CH 27 3 31 30 5 3 H ST-L R-CH J201 TV/SAT AUDIO IN L R 4 J1102 (2/2) R-CH VIDEO INPUT AUDIO L R SELECTOR TONE 6 14 15 18 + 7 2 42 8 + R-CH + R-CH BASS BOOST 24 17 16 MUTING CONTROL SWITCH Q507, 508 77 DVD-A-MUTE VOL-IC-DATA I/F 17 81 VOL-IC-CLK 18 82 AUDIO-IC-DATA 79 AUDIO-IC-CLK AUDIO-OUT-SW 80 FEED BACK SWITCH Q205 R-CH R-CH 28 MUTING Q117 FEED BACK SWITCH Q101 R-CH R-CH IN-MUTE OUT-MUTE I/F MCU 22 21 83 ANALOG-IN-MUTE OUT-MUTE IN-MUTE 46 LINE-MUTE 76 SW-MUTE 75 MUTING CONTROL SWITCH Q516, 517 MUTING Q206 SPEANA AMP IC304 (2/2) BUFFER IC304 (1/2) MUTING CONTROL SWITCH Q521, 522 MUTING Q514, 564 MUTING CONTROL SWITCH Q505, 506 MUTING Q750 MUTING Q700 MUTING Q208 MUTING Q207 MUTING CONTROL SWITCH Q512, 515, 519 MUTING CONTROL SWITCH Q511 J203 SUBWOFFER OUT R-CH FL, FR, SL, SR, CTR N MUSIC L+R E REC-L K SPEANA L AC4 Q SW-MUTE S DBFB F/B ANALOG-L M D FL FR SL SR CTR 29 26 25 13 11 12 J202 R-CH J103 AUDIO OUT D-LIGHT SYNC OUT L R MASTER CONTROLLER IC401 (4/6) INPUT SELECT SWITCH,TONE CONTROL, ELECTRICAL VOLUME, BASS BOOST AMP IC101 ELECTRICAL VOLUME IC201 • FLUXO DO SINAL : REC : AUDIO OUT : TV/SAT AUDIO IN : MIC INPUT : TAPE PLAY : TUNER (FM/AM) : AUDIO • Canal R é omitido por ser semelhante ao canal L : VIDEO INPUT (AUDIO) SAT-L ST-L TC-L VOLIN1 DVD-L MIC SUR1 DATA CLOCK TOUT1 SWOUT OUT1 BB_A1 BB_B1 RECB1 VIDEO-L FEED BACK SWITCH Q255 D511 D510 + 7-4. DIAGRAMA EM BLOCOS – SEÇÃO AUDIO w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 28 HCD-ZX80D HCD-ZX80D 7-5. DIAGRAMA EM BLOCOS - SEÇÃO AMP � � N FL, FR, SL, SR, CTR M DBFB F/B FR FL SL SR CTR POWER AMP IC600 18 11 14 8 12 POWER AMP IC702 18 11 14 8 19 21 STANDBY SWITCH Q604, 606, 610 STANDBY SWITCH Q720 – 722 + + + + + + DC DET 2 1 4 3 OVER LOAD OVER CURRENT PROTECTOR IC550 OVER LOAD DETECT Q618, 668 OVER LOAD DETECT Q730, 780 OVER LOAD DETECT Q800, 850 THERMAL DETECT Q628, 630 TH629 TH630 D624 MUTING Q640, 641 MUTING CONTROL SWITCH Q634, 682 FAN MOTOR CONTROL SWITCH Q587, 589 FAN MOTOR SWITCH Q588 D550 RY646 RELAY DRIVE Q644 PROTECT SWITCH Q647 OVER LOAD DETECT Q648 –1 –2 RELAY DRIVE Q763 PROTECT SWITCH Q765 J1103 PHONES TM600 + – – + L R + – – + + – D655 D654 + + D764 D763 AC CUT DETECT R M502 (FAN) M FRONT SPEAKER TM700 TM701 L R SURR SPEAKER CENTER SPEAKER CN102 SYSTEM CONTROL MASTER CONTROLLER IC401 (5/6) PROTECT 67 STK-MUTE 60 CTR-RELAY 65 SW-SPK RELAY 51 REAR-RELAY 61 FR-RELAY 66 UNDER VOLTAGE 69 HP-DETECT 84 THERMAL VACS 94 HP-MUTE 72 FAN HI SPEED 58 FAN CONTROL 42 RY862 RELAY DRIVE Q814 PROTECT SWITCH Q815 –1 –2 • FLUXO DO SINAL : AUDIO AC CUT DETECT Q504 CT OUT OCP VP (ZX100D) (ZX100D) S SW-MUTE (ZX80D) POWER AMP IC800 11 4 15 6 13 12 STANDBY SWITCH Q812 D812 UNREG B+ FAN MOTOR CONTROL SWITCH Q581, 582 FAN MOTOR CONTROL SWITCH Q578 FAN MOTOR SPEED CONTROL SWITCH Q579 FAN MOTOR SWITCH Q585 M501 (FAN) M UNREG B+ D582 D581 TO SS-WGV100D SW-LEVEL-IN 95 SW-LED 100 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 29 HCD-ZX80D HCD-ZX80D (AC ) VOLTAGE SELECTOR S1200 RESET SIGNAL GENERATOR IC501 RESET SWITCH Q501 VF VF AC2 AC2 VP STBY-LED 41 SIRCS REMOTE CONTROL RECEIVER IC903 4 15 X402 5MHz X-IN 13 X-OUT 10 X401 32.768kHz XC-IN 11 XC-OUT 83 X901 4MHz XIN 82 XOUT POWER ON/OFF RELAY DRIVE Q1200 POWER SWITCHING D1292 –36V REGULATOR Q1264 F1261 F1271 RECT D658 +VL –VL AC1 AC1 F1241 F1251 RECT D656 +VH –VH AC4 AC4 F1291 RECT D561 AC3 AC3 F1281 RECT D560 VF1 VF2 VP (–36V) D660 D661 TO FLUORESCENT INDICATOR TUBE FL901 +3.3V REGULATOR IC559 +9V REGULATOR IC507 +9V REGULATOR IC561 +9V REGULATOR IC560 B+ SWITCH Q513, 520 M+9V, LED+9V SW+9V AU+5V A+9V +5V REGULATOR Q103 +3.3V SW+3.3V SW+5V RF+1.8V RF+3.3V +3.3V REGULATOR IC105 +3.3V REGULATOR IC107 OVER VOLTAGE DETECT Q550 RGRULATOR CONTROL SWITCH Q503, 518 UNREG B+ D551 RGRULATOR CONTROL SWITCH Q104 78 MTK- POWER 68 OVER VOLTAGE 20 AC-CUT 7 STBY-RELAY 12 RESET EVER+4V D504 B+ SWITCH Q523, 524 D+3.3V EVER+3.3V D505 D585, 586 D+4V +4V REGULATOR Q323 +5.6V +5.6V REGULATOR Q1507 D101, 102 LED DRIVE Q903 LED DRIVE Q917 74 POWER-KEY S927 I / 1 73 DISPLAY-KEY 29 61 IIC-CLK S928 DISPLAY I2C-CLOCK 30 60 IIC-DATA I2C-DATA 80 LED SELECTOR 40 77 GC-RESET RESET SPEANA L ROTARY ENCODER S970 VOLUME 74 MASTER VOLUME ROTARY ENCODER S1040 X-JOG-ROUND 73 X-ROUND JOG ROTARY ENCODER S1161 OPERATION DIAL 72 OPERATION DIAL FL901 FLUORESCENT INDICATOR TUBE G1 – G13, G17 – G24 8 – 1, 100 – 96, 92 – 85 P1 – P36 9, 10, 12– 22, 24 – 41, 43 – 47 93 – 95 G14 – G16 GRID DRIVE Q901, 902, 914 KEY 0 – KEY 2 S900 – 925, S1041 – 1047, 1049 (FRONT & TOP PANEL KEY) 64 – 66 MASTER CONTROLLER IC401 (6/6) 52 – 59, 75, 76, 78, 79 LED-CD/DVD, TUNER, LED-TAPE, TV/SAT, LED-VIDEO, (PAUSE, STOP), LED- (AMS+, AMS–), (FF, FR), LED-VOLUME 1, 2, LED-VOLUME 3, 4, LED-VOLUME 5, 6, LED-VOLUME 7, 8, LED- (BEAT JUMP, BEAT MAX), LED- (BALANCE, WAVE, FADER, RANDOM), DELAY, LED-FLANGER, CHORUS, LED-PLAY D908 – 911, 913 – 917, D919 – 926, 929, 930, D1016, 1017, 1020, 1040, D1042, 1044, 1046, 1048, D1050, 1052, 1054, 1056, D1058, 1145, 1153 LED DRIVE Q908 – 913, 915, 918 – 921, 1041 LED ON/OFF CONTROL SWITCH Q906 LED ON/OFF CONTROL SWITCH Q907 B+ SWITCH Q904 B+ SWITCH Q905 SEL A B+ SEL B B+ LED+9V DISPLAY CONTROLLER IC902 IN1 1 IN2 2 BPF2IN1 4 BPF2IN2 5 3 BUF1OUT 15 BPF3OUT 14 BPF2OUT 13 BPF1OUT 16 BPF4OUT 17 RECOUT 67 ALL-BAND BPF1IN1 BPF1IN2 19 18 20 BUF2OUT BPF3IN1 6 BPF3IN2 7 BPF4IN1 8 BPF4IN2 9 REC 68 BF4 BPF4 69 BF3 BPF3 70 BF2 BPF2 71 BF1 BPF1 REC BPF4 BPF1 BPF2 BPF3 BAND-PASS FILTER IC904 AC CUT DETECT R D507 D506 AC4 Q RY1200 T1200 POWER TRANSFORMER D927 (RED) I / 1 D928 (GRN) I / 1 +1.8V REGULATOR IC106 +5V REGULATOR IC558 M+9V 7-6. DIAGRAMA EM BLOCOS - SEÇÃO PAINEL/POWER SUPPLY � � w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 30 HCD-ZX80D HCD-ZX80D • NOTA PARA PLACAS DE CIRCUITO IMPRESSO E DIAGRAMAS ESQUEMÁTICOS E Q Nota sobre Placas de Circuito Impresso: • Todos os capacitores em µF a menos que especificados.. (p: pF) 50 WV ou menores não são indicados, exceto para os eletrolíticos e os de tântalo. • Todos os resistores estão em Ω e 1/4 a menos que especificados • f : componente interno • 2 : resistor nao inflamavel. • 5 : resistor fusivel. • C : designação de painel. • A : B+ Line. • B : B– Line. • As tensões e formas de onda estão em DC, com relação ao terra, em condição de ausência de sinal. – Placa DMB15/VIDEO – sem indicação : :DVD PLAY ∗ : Impossivel de medir – Outras Placas – sem indicação : TUNER (FM/AM) ( ) : DVD PLAY 〈〈 〉〉 : TAPE PLAY (DECK-A) { } : REC ∗ : Impossivel de medir • As tensões são obtidas com um VOM (impedância de entrada 10 M.). Variações de voltagem são verificadas dentro de uma faixa de tolerancias. • Formas de onda são obtidas com um osciloscópio. Variações de voltagem são verificadas dentro de uma faixa de tolerancias. • Numeros dentro dos circulos representam a forma de onda • Fluxo do sinal. J : CD PLAY c : DVD PLAY I : DIGITAL OUT F : AUDIO L : VIDEO E : Y a : CROMA r : COMPONENT VIDEO f : TUNER (FM/AM) j : TAPE PLAY (DECK-A) d : TAPE PLAY (DECK-B) G : REC k : TV/SAT AUDIO IN h : AUDIO OUT N : MIC INPUT g : VIDEO INPUT (AUDIO) p : VIDEO INPUT (VIDEO) • Localização das Placas de Circuito Nota nos diagramas esquemáticos : • X : peças vista pelo lado do componente • Y : peças vista pelo lado cobreado • f : componente interno • : Trilha visivel no lado observado da placa • A placa DMB15 é uma placa multi-layer. Porem as trilhas das camadas intermediarias não são mostradas nos diagramas. • Indicação do transistor Cuidado: Lado Compte: Apenas as peças do lado componente (Lado A) é indicado Lado trilhas: Apenas as peças do lado cobreado (Lado B) é indicado Nota: Os componentes identificados por 0 ou impres- so com a marca 0 são criticos para a segurança Substitua apenas por peças especificadas. B Este terminal é omitido C E Q placa MOTOR (LD) placa CD-SW placa JOG placa X-ROUND placa SW placa VIDEO placa SENSOR placa DMB15 placa MOTOR (TB) TUNER (FM/AM) placa KARAOKE placa DRIVER placa PANEL placa FUNCTION placa MIC placa POWER SWITCHING placa EFFECTOR placa MAIN placa PRIMARY placa TRANS placa SURROUND placa PA w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 31 HCD-ZX80D HCD-ZX80D 7-7. PLACA DE CIRCUITO IMPRESSO – PLACA DMB15 (Lado A)�� : Utiliza liga de solda sem chumbo� Não é possivel utilizar uma EEPROM (IC103) nova na placa DMB15 Todavia, se houver a troca da placa DMB15 utilize a EEPROM antiga na placa nova R3607 L3602 FB115 FB114 FB113 FB112 CN302 R3653 R3805 R319 Q103 R116 R117 C224 R136 R142 FL101 C222 C221 R153 R155 C220 C219 FL107 FL403 C218 RB107 RB108 RB113 CN101 RB112 C3804 Q3801 C215 C3802 R3803 R3804 FL401 C3803 C3805 C210 X101 R208 C208 CN105 CN106 CN201 CN401 R209 C206 C205 R210 R214 FB401 FB402 FB403 FB404 D1001 FB405 FB406 R215 R216 R219 R224 FL402 C190 R233 R234 C180 C179 R161 R107 R101 R1527 C306 C102 C105 C402 C108 R189 C307 C305 R190 R191 C302 R192 R193 C153 C152 R1101 C117 R1102 R1105 R1108 R3651 R1553 C138 C137 C135 R1129 C133 C132 R1168 C119 C118 C116 R195 C112 C101 R197 C167 C170 C181 C217 C189 C177 R1544 C403 C129 R152 C3783 R1550 R1549 C3782 C3781 C3774 C3773 C3772 C3771 C3707 R3782 R3781 R4706 R4705 R1543 C3784 R3773 R3774 R3775 R3776 R3777 R3772 R3771 R3768 R3767 R3766 R3765 R3764 R3763 R3758 R3757 R3778 R3783 R3756 R3784 R3785 R3786 R3755 R3754 R3753 C3764 R3787 C3763 C3762 C3761 C3754 C3801 R3788 C3753 C3752 C3751 C3705 R3762 R3761 R3802 R3801 C178 R3716 R3752 R3717 R3715 R3751 R3748 R3747 R3746 R3714 R3745 R3744 R3743 R3738 R3713 R3737 R3736 R3735 R3734 R3733 C3744 R3718 R3721 R3722 R3723 C3743 C3742 C3741 C3734 R3712 R3711 R3724 R3725 C3733 C3732 C3731 C3703 D3502 D3501 C150 C3724 C3723 C3722 C3721 C3714 R3742 CN301 R3741 C3713 C3712 C3711 R3732 R3731 C3701 C187 C3606 C3605 C3603 R3728 R3727 R3726 R3603 R1557 R1559 C3608 C3609 IC102 IC201 IC104 IC103 IC101 IC106 PLACA DMB15 (LADO A) 1-869-463- 11 E 1 5 E 1 2 20 21 (FOR CHECK) OPTICAL PICK-UP BLOCK KHM-313 CAB B MAIN BOARD NO523 A MAIN BOARD CN520 D MAIN BOARD CN521 C VIDEO BOARD CN801 A B C D E F G H 1 2 3 4 5 6 7 8 9 • Localização do Semicondutor Ref. No. Location D1001 E-3 D3501 H-5 D3502 H-5 IC101 C-7 IC102 E-6 IC103 E-4 IC104 E-4 IC106 E-3 IC201 C-4 Q103 F-8 Q3801 G-5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com HCD-ZX80D HCD-ZX80D 1 10 20 11 R5008 R5011 R5014 R5016 R5017 L3601 C114 C115 C120 C121 C122 C123 C124 C125 C126 FB111 C130 R109 C139 C140 C146 C147 C148 C149 C151 C154 C156 C159 C161 C163 R3652 R105 R106 R123 R3605 C171 C172 C173 R110 R118 R120 R121 R187 R127 C193 C195 C301 R164 R169 R1133 FL104 R204 R205 FL106 R146 R151 R206 R207 R212 R213 RB104 RB111 R220 R221 RB105 RB106 IC301 R223 FL105 RB103 R225 IC105 R226 R230 R231 R232 FL108 R1109 Q102 R246 R247 R1110 R196 R1150 IC107 R1151 R1152 R1530 R1531 Q101 C214 C213 C212 R108 C211 R1540 R111 R112 R113 R114 R115 C209 R126 R124 C203 R1554 C191 R141 C188 R160 C184 C182 R1134 R1126 R1125 R1124 R1123 R1122 R1121 C176 C175 C174 R314 R1104 R1120 R1103 C164 R1551 R2504 R1504 C106 C109 R1502 C113 C127 C128 C131 C136 R104 C144 C155 C158 C160 C162 C3708 R1548 R4704 R4703 R4702 R4701 R1542 C192 R1547 C233 IC3751 D3602 D3601 C196 R1546 R3719 R3729 R3739 R3749 R3759 R3769 R3779 R3789 R3609 R1524 C3706 R1526 IC3731 R3606 R3611 IC3771 R3621 C3704 IC3711 IC3601 R321 C3601 R138 C3621 C3702 C3611 C3610 C3607 C3602 R3601 R3602 R1161 R3505 R3504 PLACA DMB15 (LADO B) 1-869-463- 11 1 3 5 4 1C 1B 2E 1E 2B 2C 1D 5 4 1 3 2G 2S 1S 1G 2D (ZX100D:SP, MY) (ZX80D:E3, E13/ZX100D:E3) (ZX80D:E2, E51, MX/ZX100D:E2, E51, MX) B A C D E F G H 1 2 3 4 5 6 7 8 9 7-8. PLACA DE CIRCUITO IMPRESSO – PLACA DMB15 (Lado B)�� : Utiliza liga de solda sem chumbo� • Localização do Semicondutor Ref. No. Location D3601 H-8 D3602 G-7 IC105 C-3 IC107 F-3 IC301 F-7 IC3601 G-8 IC3711 H-7 IC3731 G-7 IC3751 G-6 IC3771 H-6 Q101 E-2 Q102 E-2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 33 HCD-ZX80D 7-9. DIAGRAMA ESQUEMATICO – PLACA DMB15 (1/4)�� Não é possivel utilizar uma EEPROM (IC103)nova na placa DMB15 � � Todavia, se houve a troca da placa DMB15 utilize a EEPROM� antiga na placa nova� C105 RB105 RB106 R124 FB111 FB112 FB113 FB114 FB115 C109 C101 R111 R117 R107 R114 R1129 R109 R110 R112 R113 R115 Q102 R118 R120 R121 C113 C112 C195 R126 C192 CN105 C193 R1151 R1152 R1150 C108 C167 R1110 R193 C102 R104 C189 C187 R1134 FL107 R187 C184 C182 R1133 R169 C191 C180 C179 C181 FL108 C106 R191 C178 R108 R101 IC107 FL101 Q103 IC103 R123 IC105 IC106 C190 IC101 C188 R1502 R1544 CN106 CN101 R106 R105 D1001 Q101 R116 IC104 R1546 47 6.3V 47 47 47k 0.001 0.01 100 47k 10k 100k 100k 0 47k 22 22 22 QST8TR 22 22 22 0.01 47 6.3V 0.22 0 0.01 6P 0.22 3.3k 3.3k 3.3k 0.001 0.01 2.7k 1k 1 0 0.33 47 4V 0 0 0.01 0.22 0 10k 0.1 0.1 0.1 0.1 0.01 1k 47 4V 1M 100 TK11133CSCL-G DTC124EKA- T146 BR24L64F-WE2 0 TK11133CSCL-G PQ018EN01ZPH 47 6.3V 0.22 0 0 13P 24P 10k 10k RB501V-40TE-17 UM6K1N-TN 1k A2V64S40CTP-G75 3.3k A4 A5 A6 A12 A9 A8 A11 A10 A7 A1 A2 A3 REG01 GND SW+5V SW+3.3V TRK- TRK+ FCS+ FCS- IOP MSW V2REFO SDA REG02 MREQ MIC KRMOD IFSDO IFCK XIFCS IFSDI SCL IFBSY RXD TXD PRST RF VC PD LDO1 RF1.8 LDO2 RF+3.3V VOA VOB VOC VOD VOE VOF RA4 RA5 RA6 RA7 RA8 RA9 RA11 DRCKE DRCLK DQM1 RD0 RD1 RD2 RD3 RD4 RD5 RD6 RD7 DQM0 RWE CAS RAS RCS BA0 BA1 RA10 RA0 RA1 RA2 RA3 RD8 RD9 RD10 RD11 RD12 RD13 RD14 RD15 DVD_LD CD_LD DVD_LD CD_LD RFMON SCL SDA A16 A15 A14 A13 A12 A11 A10 A9 A20 A21 A19 A18 A8 A7 A6 A5 A4 A3 A2 A17 A0 A1 XRD XROMCS XWR HD0 HD1 HD2 HD3 HD4 HD5 HD6 HD7 MSW LDO1 MREQ MIC KRMOD RFMON V2REFO RXD TXD PRST XIFCS IFBSY IFSDI IFSDO IFCK RF FCS- FCS+ TRK+ TRK- PD MSW VC IOP LDO2 PRST LDO1 TXD IFBSY SDA SCL IDSDI XIFCS IFCK IFSDO MREQ MIC KRMOD V2REFO VOA VOB VOC VOD VOE VOF PD VOE VC VOF VOB VOA RF VOD VOC TRK- TRK+ FCS+ FCS- RXD IOP LDO2 TXD RXD GND +3.3V RFMON V2REFO A0 A1 A2 GND VCC SCL SDA A15 A14 A13 A12 A11 A10 A9 A8 A19 WE RESET N.C. N.C. RY/BY A18 A17 A7 A6 A5 A4 A3 A2 A1 A16 BYTE VSS DQ7 DQ14 DQ6 DQ13 DQ5 DQ12 DQ4 VCC DQ11 DQ3 DQ10 DQ2 DQ9 DQ1 DQ8 DQ0 OE VSS CE A0 RF VOB/B VOC/C VOD/D VOA/A VOF/F+H VC VCC VOE/E+G NC TRK- FCS- TRK+ FCS+ PD NC S S NC SYSRST XIFCS IFBSY SIO SCO GND (LD) LD (650) LD (780) VR (650) VR (780) GND (PDIC) (LO:DVD.HI:CD)MSW MIC KRMOD CONT GND NOISE VIN VOUT NOISE GND CONT VOUT VIN +3.3V REGULATOR -1 -2 INVERTER Q101-1 CD ON SWITCH Q101-2 DVD ON SWITCH EEPROM Q102-1 Q102-2 AUTOMATIC POWER CONTROL(FOR CD) AUTOMATIC POWER CONTROL(FOR DVD) SD-RAM VSS A4 A5 A6 A7 A8 A9 A11 NC CKE CLK UDQM NC VSS DQ8 VDDQ DQ9 DQ10 VSSQ DQ11 DQ12 VDDQ DQ13 DQ14 VSSQ DQ15 VSS VDDB A3 A2 A1 A0 A10 BA1 BA0 LDQM VDD DQ7 DQ4 DQ3 VSSQ DQ2 DQ1 VDDQ DQ0 VDD VSSQ VDDQ DQ6 DQ5 +3.3V REGULATOR +1.8V REGULATOR VOUT CONT VIN NC GND A-1 FLASH ROM OCSW1 3.3VMNT SOO M-REQ DGND VOICE (1/4) /CS /RAS /CAS /WE A20 MX29LV320CBTC70-CBA3-0604CE (ZX80D:E3,E13/ZX100D:E3) MX29LV320CBTC70-CBA3-0604GA (ZX100D:SP,MY) MX29LV320CBTC70-CBA3-0604UC (ZX80D:E2,E51/ZX100D:E2,E51) S29AL032D70TF-CBA3-0601UC (ZX80D:MX/ZX100D:MX) (FOR CHECK) -2-1 WP w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 34 HCD-ZX80D HCD-ZX80D 7-10. DIAGRAMA ESQUEMATICO – PLACA DMB15(2/4) – R233 C213 R214 C205 R208 R215 C206 R216 R213 C208 R205 R209 C203 R207 R204 C214 C212 C233 R230 R221 C209 C211 R226 R231 R232 R234 R225 R223 R220 R212 R219 R224 C210 C217 C218 C219 C220 C224 C221 C222 R246 IC201 C402 FL401 FL402 FB401 FB402 FB403 FB404 FB405 FB406 FL403 CN401 R247 CN201 C215 R2504 C403 R5008 R5011 R5014 R5016 R206 R210 33k 0.01 15k 220p 33k 12k 220p 12k 6.8k 0.01 10k 33k 0.01 2.7k 1.2k 0.001 0.01 0.0047 82k 56k 0.033 0.033 56k 15k 18k 10k 100k 100k 10k 10k 27k 10k 0.01 47 16V 10 16V 0.01 10 16V 0.01 0.1 0.1 4.7k FAN8036L 47 16V 5P 1k 6P 0.01 4.7k 47 6.3V 0 0 0 0 10k 47k GND REG02 REG01 MUTE123 MUTE TSD_M SW+3.3V LIMITSW FCS- FCS+ TRK+ TRK- IOP IOPMON VREFO SPFG FOO TRO FMO DMO RF+3.3V SW+5V SW+3.3V GND SW+5V SP+ SP- SL+ SL- SP- SP+ SL- SL+ VREFO SPFG FOO TRO FMO MUTE123 DMO MUTE TSD_M IOP IOPMON LIMITSW TRK- TRK+ FCS+ FCS- IOPMON VREFO SPFG FOO TRO FMO MUTE123 DMO MUTE TSD_M FCS- FCS+ TRK+ TRK- IOP LIMITSW SP- SP+ LIMIT (GND)LIMIT SL- SL+ SW+5V SW+3.3V MGND SW+9V FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE (2/4) ZX80D:E2,E51,MX/ ZX100D:E2,E51,MX (ZX80D:E3,E13/ZX100D:E3) DGND w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 35 HCD-ZX80D HCD-ZX80D 7-11. DIAGRAMA ESQUEMATICO – PLACA DMB15 (3/4) R1108 C129 R1530 R1531 R1557 R146 R151 R152 R153 R155 R160 R161 R164 C120 C121 C122 C123 C133 C138 R141 RB108 RB111 RB107 C154 R142 C151 C128 C125 C126 R127 C127 C196 R1554 R1109 FL105 C131 C136 C144 C155 C158 C162 C164 C160 RB113 RB112 C177 FL106 C116 C118 C130 R136 C132 C135 C137 C139 C140 C146 C149 C150 R1168 R1547 C156 C152 C153 C159 R1540 R1548 R1549 R1550 R1103 R1551 R1104 C161 R138 IC102 R1553 R1101 RB103 R196 FL104 R1125 R1124 R1123 R1122 R1121 R1120 R1524 R1526 R1527 R1559 R1543 R1542 R1102 R192 R190 R189 X101 R1504 C147 C148 C119 C115 C117 C114 R1161 R1126 C124 R321 R4701 R4702 R4703 R4704 R4705 R4706 CN301 R1105 C173 C172 C171 C170 C176 C175 RB104 C174 R197 C163 R195 0 10 16V 0 0 100 47 47 0 47 47 47 100 100 1 1 1 1 0.1 0.001 750k 22 0 22 0.1 100k 0.001 0.0015 0.1 0.1 100 0.01 0.0047 4.7k 0 2.2 0.01 0.01 0.01 0.01 0.01 0.01 0.01 22 22 47 6.3V 0.1 10 16V 0.1 15k 0.1 0.033 0.1 22p 0.1 0.1 0.1 10 16V 470 4.7k 0.01 12p 12p 0.01 4.7k 4.7k 4.7k 4.7k 10k 4.7k 10k 0.01 100k CXD9849R 0 2.2k 0 0 0 0 0 0 0 0 0 0 0 10k 10k 10k 150 150 150 150 27MHz 0.047 0.047 10 16V 0.1 10 16V 0.1 0 10k 1 0 0 0 0 0 0 0 13P 10k 0.01 0.01 0.01 0.01 0.01 0.01 0 0.01 150 0.01 150 A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 MSW MUTE123 MUTE LIMITSW ALRCK ASDATA0 ASDATA1 ASDATA2 ASDATA4 XRST VREFO RF+3.3V SPFG IOPMON DMO FMO TRO FOO V2REFO TSD_M SPDATA KRMOD MIC MREQ ABCK ACLK SCORE XVOICE IFSDO IFCK XIFCS IFSDI SCL SDA IFBSY RXD TXD PRST RF VC PD LDO1 LDO2 RF1.8 SCL SDA RF+3.3V VOA VOB VOC VOD VOE VOF RA4 RA5 RA6 RA7 RA8 RA9 RA11 RA0 RA1 RA2 RA3 RA10 BA0 BA1 DRCKE DRCLK RCS RAS CAS RWE DQM1 RD8 RD9 RD10 RD11 RD12 RD0 RD1 RD2 RD3 RD4 RD5 RD6 RD7 DQM0 A2 A3 A4 A5 A6 A7 A8 A18 A19 A0 A1 A9 A10 A11 A12 A13 A14 A15 A16 A17 A20 A21 HD0 HD1 HD2 HD3 HD4 HD5 HD6 HD7 XWR XROMCS XRD RD13 RD14 RD15 ASDATA4 XRST ASDATA0 ASDATA1 ASDATA2 ACLK ABCK ALRCK MUTE123 MUTE SPDATA SCORE KRMOD MIC XVOICE CR/R CB/B Y/G V C Y LIMITSW TSD_M V2REFO VREFO IOPMON SPFG DSEL WIDE MSW IFSDO IFCK XIFCS IFSDI SCL SDA IFBSY RXD TXD PRST MREQ RF VC PD LDO1 LDO2 Y C V Y/G CB/B CR/R XVOICE MIC KRMOD SCORE SPDATA MUTE MUTE123 ALRCK ABCK ACLK ASDATA0 ASDATA1 ASDATA2 ASDATA4 XRST LIMITSW TSD_M V2REFO VREFO IOPMON MSW WIDE DSEL SPFG XIFCS IFSDI PRST SCL SDA IFBSY RXD TXD IFSDO MREQ RF VC PD LDO1 LDO2 VOA VOB VOC VOD VOE VOF DMO FMO TRO FO0 FOO DMO FMO TRO SCL SDA VOF VOE VOD VOC VOB VOA IFCK (3/4) RGBSEL DSEL/DISCXEXT WIDE D-GND D-GND D-GND D-GND V C Y Y/G CR/R CB/B AGND DVDA DVDB DVDC DVDD DVDRFIP DVDRFIN MC MD SA SB SC SD CDFON CDFOP MDI1 LDO2 LDO1 MDI2 SVDD3 CSD RFLVL SGND V2REFO V2O VREFO TEO TEZISLV OPOUT OPIN OPIN DMO FMO TROPENPWM IOPMON TRO FOO DVSS NC NC DVDD3 SPFG DSEL MSW MAMUTE DVDD18 IOA2 IOA3 IOA4 IOA5 IOA6 IOA7 IOA18 IOA19 DVSS APLLCAP APLLVSS VDD3 IOWR DVDD3 IOA20 IOCS IOA1 IOOE DVDD3 AD0 AD1 AD2 AD3 DVSS AD4 AD5 AD6 IOA21 ALE AD7 IOA0 DVSS URD DVDD18 IFSDO IFCK XIFCS SCL SDA TRG-SW IFBSY RXD TXD DVDD3 ICE PRST IR INT0 DQMO MREQ RD7 DVSS RD6 RD5 DVSS RD4 RD3 IFSDI DVDD18 RD2 RD1 RD0 RD15 DVDD3 RD14 RD13 RD12 RD11 RD10 RD9 DVSS RD8 GPIO DQM1 RWE CAS RAS DVDD3 RCS BA0 DVSS RA10 RA0 DVSS RA1 RA2 RA3 DVDD18 NC NC DVDD3 RCLK CKE RA11 RA9 RA8 DVSS RA7 DVSS RA6 RA5 RA4 DVDD3 DISC/X RGB TSD_M NC NC DVDD18 FWD NC LIMSW OCSW CKSW NC NC DVDD3 NC NC NC NC NC NC DAVCC VREF FS YUV0 DAVSS YUV1 DAVDD YUV2 DAVSS YUV3 DAVDD YUV4 DAVSS YUV5 YUV6 DVDD3 SMSCK MUTE MUTE123 DVDD3 ABCK ACLK DVSS ASDATA0 ASDATA1 ASDATA2 XRST DVDD18 ALRCK ASDATA4 DVSS DWIDE SDPIF RFGND18 RFVDD18 XTALO XTALI JITFO JITFN PLLVSS IDAC PLLVDD3 LPFON LPFIP LPFIN LPFOP VDD3 NC VSS NC NC RFVDD3 RFRPDC RFRPAC HRFZC CRTPLP RFGND NC NC OSP RFGC IREF AVDD3 OSN WIDE SPDATA KRMOD VOICE MIC REV BA1 UWR IOA7 MA MB TNI TPI RF AMP,SERVO DSP,MPEG DECODER FEO IOA8 IOA16 IOA15 IOA14 IOA13 IOA12 IOA11 IOA10 IOA9 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 36 HCD-ZX80D HCD-ZX80D 7-12. DIAGRAMA ESQUEMATICO – PLACA DMB15 (4/4) CN302 R3504 R3505 D3501 D3502 R3789 R3779 R3778 C3774 R3777 R3776 C3773 C3707 R3774 R3773 C3771 R3772 R3771 IC3771 C3784 R3787 R3788 C3782 R3786 C3783 R3785 R3784 R3783 C3781 R3781 R3782 C3708 R3769 R3759 R3758 R3757 C3754 R3756 C3753 C3705 R3755 C3752 R3754 R3753 R3752 R3751 C3706 IC3751 R3768 R3767 C3764 C3762 R3766 C3763 R3765 R3764 R3763 C3761 R3762 R3761 IC3731 R3749 R3739 R3738 R3736 R3737 C3734 C3733 C3703 R3735 C3732 R3734 R3733 R3732 R3731 C3704 R3748 C3744 R3747 R3746 C3743 R3745 C3742 R3743 R3744 C3741 R3741 R3742 R3729 R3719 R3718 C3714 R3716 R3717 C3701 C3713 R3715 C3712 R3714 R3713 R3712 R3711 IC3711 C3702 R3727 C3724 C3722 R3726 C3723 R3725 R3723 R3721 C3721 R3722 C3805 C3803 R3805 R3724 Q3801 R3803 C3802 C3804 R3801 C3801 C307 R3802 R3804 R319 R3611 R3621 C3611 C3621 C3610 C3609 C3608 C3607 L3602 C3605 C3606 C3603 R3607 C3601 C3602 R3603 D3601 D3602 IC3601 R3605 L3601 R3601 R3606 R3602 R3609 R314 R3653 R3652 C301 C306 C305 IC301 C302 R3651 R3728 R3775 C3772 C3751 C3731 C3711 21P 100 100 1SS355TE-17 1SS355TE-17 1k 1k 4.7k 330p 1k 1k 330p 0.1 3.9k 3.9k 1800p 1.5k 1.5k NJM3414AV 330p 1k 4.7k 2200p 1k 330p 4.7k 3.9k 3.9k 1800p 1.5k 1.5k 0.1 1k 1k 4.7k 1k 330p 1k 330p 0.1 4.7k 2200p 3.9k 3.9k 1.5k 1.5k 0.1 NJM3414AV 4.7k 1k 330p 2200p 1k 330p 4.7k 3.9k 3.9k 1800p 1.5k 1.5k NJM3414AV 1k 1k 4.7k 1k 1k 330p 330p 0.1 4.7k 2200p 3.9k 3.9k 1.5k 1.5k 0.1 4.7k 330p 1k 1k 330p 4.7k 2200p 3.9k 3.9k 1800p 1.5k 1.5k 1k 1k 4.7k 330p 1k 1k 0.1 330p 4.7k 2200p 3.9k 3.9k 1.5k 1.5k NJM3414AV 0.1 1k 330p 2200p 1k 330p 4.7k 3.9k 1.5k 1800p 1.5k 47 4V 100 4V 1k 3.9k 2SC2712 10k 10 47 6.3V 0 100 6.3V 100 6.3V 0 18k 0 100 100 1000p 1000p 0.1 10 16V 10 16V 0.1 100µH 47 6.3V 0.1 0.1 0 10 0.1 10k 1SS355TE-17 1SS355TE-17 PCM1803 0 100 0 100 0 100 0 0 0.01 100 6.3V 0.47 AK4358VQ-L 0.47 0 4.7k 4.7k 2200p 1800p 1800p 1800p XRST ASDATA4 ALRCK ASDATA2 ASDATA1 ASDATA0 SDA SCL GND SPDATA SW+3.3V SW+5V ABCK ACLK XVOICE SCORE LOUT1+ LOUT1- ART+ ART- ART- ART+ ALT+ ALT- ROUT3- ROUT3+ LOUT3+ LOUT3- RT FR FL SR SL RT LT SW FC SR SL FR FL XVOICE SCORE R-IN L-IN ROUT1+ ROUT1- LOUT2+ LOUT2- ROUT2+ ROUT2- LOUT3+ LOUT3- ROUT3+ ROUT3- ALT+ ALT- ROUT2- ROUT2+ LOUT2+ LOUT2- ROUT1- ROUT1+ LOUT1+ LOUT1- LT SW FC SPDATA XRST ABCK ACLK ASDATA0 ASDATA1 ASDATA2 ASDATA4 ALRCK SCL SDA XVOICE SCORE XRST ABCK ACLK ASDATA4 ASDATA0 ASDATA1 ASDATA2 ALRCK SDA SCL SPDATA L-IN R-IN DGND RT AGND LT AGND SW(LFE) FC SR SL AGND FR AGND AL AU+5V AGND L-IN AGND R-IN XVOICE SCORE MIX AMP VDD VSS VDD VSS VDD VSS VDD VSS MIX AMP MIX AMP MIX AMP A/D CONVERTER (4/4) D/A CONVERTER MODE1 MODE0 FMT1 FMT0 OSR SCKI VDD DGND DOUT BCK LIN RIN V_REF_1 V_REF_2 VCC AGND BYPASS FSYNC LRCK PDWN ROUT1+ ROUT1- LOUT2+ LOUT2- ROUT2+ ROUT2- LOUT3+ LOUT3- ROUT3+ ROUT3- LOUT4+ LOUT4- LOUT1- LOUT1+ DZF3(L) DZF2(R) DZF1(SUR) CAD0 ACKSN PDN BICK DVDD DVSS MCLK DSDL1 DSDR1 DSDL2 DSDR2 DSDL3 DSDR3 DIF0 ROUT4- ROUT4+ VREFH AVDD AVSS SDTI4 SDTI1 SDTI2 SDTI3 LRCK I2C SCL SDA CAD1 DCLK DSDL4 DSDR4 (DMIXR) (DMIXL) (FL) (FR) (SL) (SR) (FC) (SW) AGND CENTER VOLTAGE GENERATOR 10µH w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 37 HCD-ZX80D HCD-ZX80D 7-13. PLACA DE CIRCUITO IMPRESSO – SEÇÃO CHANGER � � : Utiliza liga de solda sem chumbo� JW702 JW703 JW704 JW705 JW706 JW707 JW708 JW711 CN705 JW712 JW701 JW709 JW713 JW714 JW710 R736 CN702 R751 C752 CN703 CN704 IC712 R713 Q731 C751 D711 D701 C737 R734 R733 R732 R723 R722 R721 R731 R712 R711 R702 R701 C736 C735 C741 C731 C715 IC701 CN701 CN721 M751 IC731 CN731 CN741 CN742 M741 CN751 S751 1-866-201- 12 (12) 1 2 E DRIVER BOARD F MAIN BOARD CN511 1 9 1 9 1 4 S711 ROTARY ENCODER DISC TABLE ADDRESS DETECT 1 2 M MOTOR (LD) BOARD 1-687-133- 12 (12) (LOADING) 1 2 SENSOR BOARD 1-687-132- 12 (12) E C A K MOTOR (TB) BOARD 1-687-134- 12 (12) 1 3 (TABLE) SW BOARD 1-687-669- 12 (12) 1 2 DISC TABLE OPEN/CLOSE DETECT OPEN CLOSE A B C D E F G H 1 2 3 4 5 6 7 8 9 10 M • Localização do Semicondutor Ref. No. Location D701 E-7 D711 E-7 IC701 F-7 IC712 F-8 IC731 F-5 Q731 C-9 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 38 HCD-ZX80D HCD-ZX80D 7-14. DIAGRAMA ESQUEMATICO – SEÇÃO CHANGER� � C741 R702 R701 D701 C751 R713 R712 R711 D711 CN721 R722 R721 R723 C736 C735 C737 R731 C731 R733 CN704 E3 E2 E1 CN703 CN742 CN702 CN741 IC731 CN751 CN705 C752 R751 CN731 Q731 M751 M741 IC701 IC712 R734 R732 CN701 C715 R736 S751 0.01 100 470 MTZJ-T-77 5.1A 0.01 22k 4.7k 1k MTZJ-T-77 3.6B 2P 4.7k 4.7k 4.7k 0.1 0.1 0.1 100 10 50V 1k 2P 4P 5P 5P 3P RPI-576 2P 2P 0.1 4.7k 3P DTC114ESA BA6956AN BA6956AN 12k 10k 13P 100 16V 390 RNF RNF TM-2 GND TM-1 SENS-IN SENS-OUT GND TM-1 TM-2 SENS-IN SENS-OUT GND SENS-IN SENS-OUT GND SENS-IN SENS-OUT GND GND OPEN SW OPEN SW LM-2 LM-1 LM-1 LM-2 GND E-1 E-2 E-3 VCC OUT2 GND VREF OUT1 VM FIN RIN VCC OUT2 GND VREF OUT1 VM FIN RIN LM-R TM-R E-1 E-2 E-3 TBL ADDRESS SENS OPEN SW (LOADING) ADDRESS DETECT (TABLE) OPEN CLOSE OPEN/CLOSE DETECT DRIVE LOADING MOTOR DRIVE TABLE MOTOR LEVEL SHIFT D+3.3V M+9V M-GND M-GND LM-F TM-F DISC TABLE S711 DISC TABLE DISC TABLE ADDRESS SENSOR ROTARY ENCODER w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 39 HCD-ZX80D HCD-ZX80D 7-16. DIAGRAMA ESQUEMATICO – PLACA VIDEO� PR/CR PB/CB C827 L801 10µH R807 C800 C801 C802 C803 C804 C805 C806 C807 C808 R812 R809 C810 C815 C814 C813 C812 C811 R802 R803 R804 R805 R806 R808 C830 C831 R813 C816 C817 C818 C819 C820 C821 C822 CN802 CN800 CN801 C824 C823 C825 EPT800 J802 JR804 J801 FB800 FB801 FB802 FB803 FB804 FB805 JW800 IC801 VIDEO AMP, 75Ω DRIVER IC800 C826 C829 JR800 C809 JR802 J800 JR803 R810 FB806 R800 R814 10 50V 100 1 50V 1 50V 1 50V 22 50V 0.1 1 50V 1 50V 1 50V 100 10V 1M 10k 0.1 1000 6.3V 1000 6.3V 1000 6.3V 1000 6.3V 1000 6.3V 75 75 75 75 0 75 100 10V 0.01 100k 22p 22p 22p 0.01 22p 0.01 22p 2P 5P 13P 0.01 22p 0.01 1P 0 0 0 0 0 0 0 MM1623BF NJM2244M 10 50V 1000 6.3V 0 0.1 0 3P 0.01 68 0 100 10k RGBSEL DSEL/DISCXEXT WIDE D-GND Y/G D-GND Y D-GND C D-GND V +9V V MUTE VIDEO OUT SW GND +5V VIDEO-GND VIDEO-SIG (CHASSIS) (CHASSIS) (CHASSIS) Y COMPONENT VIDEO OUT VIDEO OUT OUT S VIDEO GND2 CROUT GND2 CBOUT GND2 CYOUT YOUT GND2 S2 S1 S-DCOUT VCC2 C OUT CVBSOUT CRIN MUTE2 CLP CYIN I/P BIAS GND1 YIN CVBSIN MUTE1 CIN VCC1 CBIN YC MIX VIN1 SW1 VIN2 SW2 GND VOUT VCC VIN3 CB/B CR/R VIDEO SWITCH, 75Ω DRIVER w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 40 HCD-ZX80D HCD-ZX80D 7-15. PLACA DE CIRCUITO IMPRESSO – PLACA VIDEO� : Utiliza liga de solda sem chumbo� JR802 R800 R802 R803 R804 R805 R806 R807 R808 R809 R810 R812 R813 R814 FB800 FB801 FB802 FB803 FB804 FB805 FB806 JR800 JR803 JR804 C818 C817 C816 C819 C820 C821 C822 C823 C824 C825 C831 C809 C804 C810 JW801 JW802 JW804 JW805 JW807 JW811 JW803 JW806 JW800 CN800 EPT800 C811 C812 C813 C814 C815 C800 C801 C802 C803 C805 C806 C807 C808 C829 CN802 L801 C830 CN801 C826 C827 IC800 IC801 14 15 1 28 1 2 PLACA VIDEO 1 5 1-865-440- 11 (13) 1 4 8 5 Y PB/CB PR/CR VIDEO OUT J802 S VIDEO OUT J801 (CHASSIS) (CHASSIS) Y C G G (CHASSIS) E MAIN BOARD NO503 C DMB15 BOARD CN301 T MIC BOARD NO1100 COMPONENT VIDEO OUT J800 (CHASSIS) A B C D E 1 2 3 4 5 6 7 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 41 HCD-ZX80D HCD-ZX80D 7-17. PLACA DE CIRCUITO IMPRESSO – PLACA MIC � : Utiliza liga de solda sem chumbo�. R1152 R1156 R1139 C1128 R1113 R1119 C1125 R1138 R1108 R1102 R1110 C1100 R1126 R1103 R1109 C1101 R1132 R1107 R1106 R1105 R1104 C1113 D1102 C1122 IC1101 C1104 R1115 R1116 C1103 R1121 C1110 C1109 R1122 R1123 C1124 R1120 FB902 R1137 D1100 C1134 R1127 C1135 R1128 R1130 R1131 R1118 C1129 R1124 R1114 D1103 D1104 FB1100 FB1101 C1142 IC1100 R1147 C1133 D1101 C1139 R1140 R1111 C1102 R1100 C1119 J1101 RV1102 RV1100 RV1101 J1100 J1102 J1103 CN1102 C1114 C1115 C1123 C1127 C1106 C1116 C1117 C1107 C1145 C1144 JW1102 JW1106 JW1108 JW1109 JW1110 JW1111 JW1112 JW1113 JW1114 JW1115 JW1116 JW1117 JW1118 JW1119 JW1120 JW1121 JW1122 JW1123 JW1124 JW1125 JW1126 JW1127 JW1128 EPT1103 EPT1104 JW1107 JW1132 JW1134 NO1101 C1112 C1108 C1111 C1121 C1105 JW1101 C1126 JW1133 NO1100 1 3 1 2 1 4 1 15 30 16 8 5 1 9 PLACA MIC 1-868-673- 11 (13) PHONES R L VIDEO AUDIO MIC 1 MIC 2 MIC 1 LEVEL VIDEO INPUT H MAIN BOARD CN100 T VIDEO BOARD CN802 U PA BOARD NO601 (CHASSIS) (CHASSIS) ECHO LEVEL MIC 2 LEVEL A B C D E 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 • Localização do Semicondutor Ref. No. Location D1100 C-9 D1101 C-9 D1102 C-3 D1103 B-10 D1104 B-10 IC1100 C-7 IC1101 C-4 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 42 HCD-ZX80D HCD-ZX80D 7-18. DIAGRAMA ESQUEMATICO – PLACA MIC� CN1102 IC1100 C1108 R1152 C1115 C1116 R1107 R1105 R1106 R1104 C1113 C1106 R1137 R1138 C1122 R1126 C1104 C1103 D1102 C1123 C1124 R1123 R1120 R1121 R1122 R1156 C1107 C1110 R1103 C1112 R1109 C1101 R1108 R1110 C1100 R1114 R1124 R1113 R1119 C1125 R1111 R1100 C1102 R1132 C1133 D1100 D1101 C1139 C1119 C1121 R1118 EPT1103 EPT1104 NO1100 C1129 NO1101 JW1102 FB902 C1109 JW1101 C1144 C1145 FB1101 FB1100 C1134 C1105 R1116 R1115 C1114 R1139 R1147 R1140 C1117 D1104 D1103 R1130 R1131 C1142 C1127 C1126 C1111 R1102 J1100 J1101 J1102 J1103 RV1102 RV1101 RV1100 R1128 R1127 C1135 C1128 IC1101(1/2) IC1101(2/2) 3P TC9488FG 1 50V 1.5k 4.7 50V 47 16V 100 100 100 5.6k 68p 4.7 50V 10k 10k 0.068 10k 0.1 0.1 UDZS-TE-17-5.1B 47 16V 0.0012 15k 3.9k 6.8k 12k 1.5k 4.7 50V 1 1k 1 50V 10k 0.01 10k 10k 0.01 10k 10k 12k 15k 0.0015 10k 15k 0.0015 0 0.1 1SS355WTE -17 1SS355WTE -17 0.1 47p 0.22 50V 1k 2P 0.1 9P 0.0047 10 50V 10 50V 0 0 220p 0.1 50V 330 330 4.7 50V 10k 15k 10k 47 16V 1SS355TE-17 1SS355TE-17 15k 15k 0.1 10 50V 220 10V 0.22 50V 1k 3P 50k 50k 50k 33k 33k 220p 47p NJM4565M NJM4565M MIC AGND A+9V H/P DETECT VIDEO-SIG VIDEO-GND MIC ECHO NC OSCR OSCC VDD NC NC VRO VREF VDA ALC1 MC1N MC1P VSS POOUT TEST VOLST NC DA OUT NC ADIN PRIN MCO VSA ALC2 NC MC2N MC2P VOL2 (CHASSIS) (CHASSIS) VIDEO(A)-L VIDEO(A)-GND VIDEO(A)-R MIC DETECT MIC AMP DIGITAL ECHO MIC SCORE HP-R HP-GND HP-L VIDEO L R AUDIO VIDEO INPUT PHONES MIC 2 LEVEL MIC 1 LEVEL ECHO LEVEL VOL3 VOL1 MIC 2 MIC 1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 43 HCD-ZX80D HCD-ZX80D Q1508 Q1509 Q1510 Q1511 Q1512 Q1513 Q1514 R1516 R1517 R1596 R1597 R1598 R1599 C1511 Q1504 D1506 D1507 Q1505 D1505 Q1503 C1533 R1553 C1534 R1561 R1563 R1593 D1508 R1545 IC1502 D1503 R1583 R1540 R1539 R1541 C1529 R1543 R1577 R1605 R1578 D1504 IC1503 R1535 R1534 Q1502 R1592 R1538 R1522 R1520 Q1501 R1519 Q1500 R1532 R1531 C1520 R1511 R1546 R1512 C1517 R1604 R1542 IC1501 C1513 C1521 R1510 C1522 R1514 R1515 R1554 R1533 R1530 R1556 R1552 IC1504 C1514 R1555 C1574 C1536 R1588 Q1506 R1594 R1589 R1570 R1590 R1566 R1557 R1560 IC1506 R1567 R1569 R1573 C1548 R1572 R1571 IC1505 R1558 R1549 R1582 R1581 R1591 R1580 R1595 R1579 R1574 R1575 C1555 R1576 R1565 R1568 C1568 D1502 Q1507 R1547 R1504 C1572 R1500 R1550 R1525 R1501 R1527 R1606 R1607 R1506 R1507 R1502 R1544 R1564 R1536 C1571 R1602 R1603 R1600 R1601 R1559 JW1507 JW1520 JW1524 JW1525 JW1526 JW1528 JW1529 JW1533 JW1537 JW1542 JW1544 JW1545 JW1547 JW1548 JW1549 JW1550 JW1551 JW1557 JW1558 JW1508 JW1560 JW1527 JW1555 JW1552 JW1561 JW1531 JW1532 JW1538 JW1539 JW1505 JW1553 JW1540 JW1541 C1537 C1535 C1531 C1541 C1539 C1540 C1532 C2330 C2331 JW1513 JW1517 JW1512 JW1503 JW1502 JW1504 CN1502 C1570 C1578 C1602 C1601 C1554 C1584 C1524 C1562 C1546 C1559 C1545 C1516 C1523 C1512 C1525 C1519 C1515 C1528 C1561 C1560 C1542 C1526 C1544 C1552 EP1500 C1530 EP1501 JW1522 JW1534 JW1535 JW1515 JW1546 L1500 JW1521 JW1559 JW1523 JW1536 JW1519 JW1556 JW1570 JW1571 JW1518 JW1599 C1600 PLACA EFFECTOR 1-868-596- 11 (13) M MAIN BOARD CN512 1 2 19 18 E 1 8 16 9 5 8 4 1 (CHASSIS) (CHASSIS) D G S D G S 1 8 D G S D G S D G S 1 8 16 9 1 8 16 9 D G S D G S D G S E E E E E E A B C D E F G 1 2 3 4 5 6 7 16 9 16 1 5 8 9 7-19. PLACA DE CIRCUITO IMPRESSO – PLACA EFFECTOR � : Utiliza liga de solda sem chumbo� D1502 F-5 D1503 B-5 D1504 B-5 D1505 B-6 D1506 B-6 D1507 B-6 D1508 B-6 IC1501 C-2 IC1502 B-4 IC1503 B-3 IC1504 D-5 IC1505 F-3 IC1506 F-4 Q1500 A-2 Q1501 A-2 Q1502 B-2 Q1503 C-6 Q1504 B-6 Q1505 B-6 Q1506 E-2 Q1507 F-5 Q1508 E-4 Q1509 A-6 Q1510 A-6 Q1511 B-6 Q1512 B-7 Q1513 C-6 Q1514 D-6 • Localização do Semicondutor Ref. No. Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 44 HCD-ZX80D HCD-ZX80D 7-20. DIAGRAMA ESQUEMATICO – PLACA EFFECTOR �� Q1509 R1504 R1525 R1502 R1501 R1500 R1569 R1567 C1545 R1571 R1572 R1568 C1548 R1566 C1554 R1570 R1574 R1575 C1555 R1589 C1559 R1579 R1582 C1562 R1581 C1515 C1517 R1512 C1513 R1514 R1515 C1524 C1525 C1522 C1572 C1568 R1547 D1502 Q1507 C1571 C1552 C1578 R1557 R1549 R1558 R1550 C1570 C1529 R1559 R1507 Q1514 Q1513 R1517 R1516 R1596 R1597 R1598 R1599 Q1512 Q1511 Q1510 CN1502 R1560 R1603 R1601 R1602 R1600 R1527 R1506 JW1513 R1576 C1560 R1573 R1594 C1546 C1561 Q1508 R1580 R1595 R1591 C1544 C1584 IC1506 C1535 C1514 C1537 R1588 R1554 C1533 C1531 C1532 R1552 C1534 R1553 IC1504 C1536 R1555 R1556 C1539 C1540 C1541 C1574 R1565 Q1506 R1590 C1542 C1519 R1546 C1520 R1511 C1516 L1500 10µH IC1501 C1521 C1523 R1510 JW1507 C1512 R1519 R1522 R1538 R1592 C1530 C1526 Q1502 Q1501 Q1500 Q1503 Q1504 Q1505 C2330 C2331 R1593 R1564 R1563 R1561 D1506 D1507 D1508 R1577 R1578 R1583 D1505 D1504 D1503 C1511 R1540 R1539 R1541 R1532 R1531 R1530 R1533 IC1503 IC1502 R1542 R1543 R1534 R1536 R1535 R1544 R1545 IC1505(1/2) IC1505(2/2) C1528 DTC114EKA 100 100 100 100 100 100k 22k 10 50V 100k 1k 22k 47p 2.2k 10 50V 100k 100k 1k 47p 33 10 50V 100k 100k 10 50V 22k 47 10V 0.0015 18k 0.1 18k 18k 0.22 50V 0.22 50V 0.0015 0.1 0.1 10k UDZS-TE-17-6.2B 2SC5053 0.1 10 50V 10 50V 100k 10k 100k 10k 10 50V 0.01 100k 100 DTC114EKA DTC114EKA 10k 10k 10k 10k 10k 10k STC114EKA DTC1141EKA DTC114EKA 19P 100k 100k 100k 27k 27k 100 100 4.7k 10 50V 4.7k 0 10 50V 10 50V C1602 10 50V C1601 10 50V 2SK3378 22k 0 47k R1606 22k R1607 22k 0.047 100 10V TC74LVX4052FT 0.033 0.1 0.1 18k 18k 330p 47 10V 0.068 18k 1500p 18k M65850FP 330p 18k 18k 0.068 0.22 50V 0.22 50V 1500p 2.2k 2SK3378 47k R1604 22k 0.0047 0.033 18k 330p 18k 0.068 M65850FP 330p 0.068 18k 0.1 39k 0 27k 0 0.033 C1600 0.1 0.1 2SK3378 2SK3378 2SK3378 2SK3378 2SK3378 2SK3378 0.1 0.033 0 27k 0 39k 1SS355 1SS355 1SS355 10k 10k 10k 1SS355 1SS355 1SS355 0.1 1.2k 1k 1.5k 560 510 470 680 TC74LVX4051FT TC74LVX4051FT 1.8k 2.2k 750 910 820 18k 33k NJM4565M NJM4565M 100 10V CTRL2 CTRL1 CTRL3 S3 S0 S1 S2 CTRL1 R1605 22k CTRL1 CTRL1 CTRL2 CTRL3 S0 S1 S2 S3 CTRL1 CTRL2 CTRL3 OP2OUT VCC CLOCK REF OP2IN LPF2IN LPF2OUT GND CC2 CC1 OP1IN OP1OUT LPF1OUT LPF1IN NC NC OP2OUT VCC CLOCK REF OP2IN LPF2IN LPF2OUT GND CC2 CC1 OP1IN OP1OUT LPF1OUT LPF1IN NC NC INPUT R INPUT L S0 S1 S2 OUTPUT R OUTPUT L AGND AGND AGND AGND SELECTOR AGND DGND S3 A+9V CTRL1 CTRL2 CTRL3 D4 D6 COM D7 D5 INH VEE GND VCC D2 D1 D0 D3 A B C GND VEE INH D5 D7 COM D6 D4 VCC D2 D1 D3 D0 B A C VCC 2X 1X 0X 3X A B 0Y 2Y 3Y 1Y INH VEE GND Y COM X COM LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT LEVEL SHIFT MIXER SWITCHING S SIGNAL SELECTOR DIGITAL ECHO SWITCHING S DIGITAL ECHO SWITCHING SWITCHING SWITCHING S S S SWITCHING SWITCHING SWITCHING S S S MULTIPLEXER MULTIPLEXER +5.6V REGULATOR w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 45 HCD-ZX80D HCD-ZX80D IC2000 IC2001 IC2002 R2002 R2000 R2001 R2005 R2004 R2037 R2007 R2010 R2009 R2012 C2008 R2014 D2000 D2001 R2008 R2011 C2007 R2015 D2002 D2003 R2016 C2016 R2017 R2019 R2022 R2021 D2006 D2008 R2020 R2025 R2024 C2013 R2026 R2031 R2028 R2029 R2030 R2036 R2034 R2032 R2035 C2015 D2007 C2001 C2000 C2002 C2004 C2006 C2009 C2005 C2010 C2011 JW2008 JW2001 JW2002 JW2003 JW2004 JW2005 JW2006 JW2007 JW2009 JW2010 JW2011 JW2012 NO2000 PLACA KARAOKE 1-869-677- 11 (11) K MAIN BOARD CN505 1 6 A B C D 1 2 3 4 5 7-21. PLACA DE CIRCUITO IMPRESSO – PLACA KARAOKE � : Utiliza liga de solda sem chumbo� 7-22. DIAGRAMA ESQUEMATICO – PLACA KARAOKE � • Localização do Semicondutor Ref. No. Location D2000 C-3 D2001 C-3 D2002 D-3 D2003 D-3 D2006 C-4 D2007 C-4 D2008 C-4 IC2000 C-3 IC2001 B-4 IC2002 B-3 R2001 R2017 C2008 R2035 R2036 R2030 C2016 R2005 C2000 C2005 R2008 C2007 R2012 R2011 C2010 R2007 C2011 R2019 R2020 R2024 R2026 C2013 C2009 R2025 R2016 R2009 C2006 R2015 R2000 R2010 R2021 R2037 C2004 C2002 C2001 NO2000 R2022 IC2000(1/2) IC2001(1/2) IC2000(2/2) IC2002(2/2) R2034 R2031 R2029 IC2002(1/2) C2015 R2002 R2032 R2028 R2004 R2014 D2002 D2001 D2000 D2003 D2008 D2007 IC2001(2/2) D2006 4.7k 4.7k 470p 2.2k 0 0 0.01 47k 100 10V 47 16V 47k 0.1 100k 0 2.2 50V 4.7k 47 16V 4.7k 0 4.7k 0 0.1 47 16V 4.7k 47k 1k 1 50V 2.2k 4.7k 100k 0 0 2.2 50V 47 16V 47 16V 6P 10k NJM3414A NJM2903M-TE2 NJM3414A NJM2903M-TE2 2.2k 22k 22k NJM2903M-TE2 0.1 22k 1.2k 1.5k 2.2k 8.2k 1SS355WTE-17 1SS355WTE-17 1SS355WTE-17 1SS355WTE -17 1SS355WTE-17 1SS355WTE-17 NJM2903M-TE2 1SS355WTE-17 A+9V MUSIC L+R SCORE XVOICE MIC SCORE AGND COMPARATOR COMPARATOR AC/DC CONVERTER Q522 L-10 Q523 B-6 Q524 C-6 Q550 K-13 Q564 L-11 Q578 K-15 Q579 L-15 Q581 K-14 Q582 K-14 Q585 K-15 Q587 F-6 Q588 E-5 Q589 F-5 D101 L-16 D102 L-16 D136 G-16 D325 K-16 D340 F-4 D341 F-4 D342 F-3 D401 E-5 D402 E-5 D403 E-6 D411 D-4 D412 D-4 D501 C-6 D502 C-6 D503 C-6 D504 C-6 D505 C-6 D506 L-7 Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location Ref. No. Location • Localizaçào do Semicondutor D507 L-7 D510 H-4 D511 G-4 D550 K-14 D551 K-14 D560 J-10 D561 I-10 D581 K-14 D582 K-15 D583 K-15 D584 E-6 D585 G-16 D586 G-16 IC101 D-9 IC201 D-14 IC301 I-5 IC304 G-6 IC401 C-3 IC501 C-6 IC507 J-14 IC550 L-14 IC558 H-10 IC559 H-9 IC560 H-14 IC561 I-14 Q101 C-8 Q103 G-15 Q104 G-16 Q106 D-11 Q117 C-13 Q151 D-8 Q156 D-10 Q167 C-12 Q200 B-14 Q202 B-15 Q203 B-15 Q204 C-15 Q205 E-14 Q206 J-15 Q207 I-15 Q208 I-16 Q250 C-14 Q252 C-15 Q253 B-15 Q254 B-16 Q255 E-13 Q256 J-15 Q321 K-5 Q322 K-4 Q323 L-16 Q325 K-4 Q340 F-4 Q504 F-3 Q505 L-10 Q506 L-10 Q507 L-9 Q508 L-9 Q509 L-9 Q510 L-9 Q511 L-8 Q512 L-8 Q513 H-11 Q514 L-11 Q515 L-8 Q516 L-10 Q517 L-10 Q518 J-14 Q519 L-8 Q520 H-10 Q521 L-10 Q341 F-4 Q342 F-3 Q343 F-4 Q344 F-4 Q345 F-3 Q370 L-4 Q372 K-4 Q373 K-4 Q375 K-5 Q377 K-5 Q378 L-5 Q379 K-5 Q380 L-5 Q381 J-5 Q382 K-5 Q383 K-5 Q501 B-6 Q503 J-14 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 46 HCD-ZX80D HCD-ZX80D C530 C233 C235 JR510 D551 D583 JR218 JR219 Q550 Q579 R248 R250 R551 R549 R520 R103 R153 JR509 JR502 JR104 R540 R538 Q208 R601 R602 JR514 D325 C156 C410 C411 C412 C464 JR400 D502 IC401 R494 IC501 JR404 Q504 R300 R406 R410 R411 R412 R413 R414 R415 R417 R421 R420 R419 R423 R424 R425 R426 R427 R428 R429 R430 R431 R623 JR430 C340 C360 JR500 JR505 C513 C515 C551 C564 C565 D403 C568 C569 C580 C581 R432 R433 R434 R435 D340 D342 D341 D401 D402 D501 D503 D504 D505 D506 D507 D550 D581 D582 FB204 FB254 R436 R437 R438 R439 JR506 JR504 IC304 R335 JR520 R440 R441 R442 JR503 JR501 R443 R444 R445 R447 R451 R453 R454 Q206 Q207 R457 Q256 Q340 Q342 Q341 Q343 Q345 Q344 Q514 Q564 R525 R526 R527 R528 R575 R576 R577 Q501 Q503 Q505 Q506 Q507 Q508 Q509 Q510 Q511 Q512 Q513 Q515 Q516 Q517 Q518 Q519 Q521 Q522 Q578 Q581 Q582 R450 R458 R466 R467 R468 R469 R378 C382 R337 Q321 R368 R303 R305 R339 R301 R355 R594 R314 R312 Q375 R595 R463 R448 R590 JR305 R589 Q587 Q589 C335 R306 R380 C364 R311 R354 R318 R389 JR301 Q370 JR302 R392 R352 R338 R238 R239 Q372 R243 R244 R245 R246 R247 R251 R252 R253 Q382 JR359 R418 R370 Q379 C333 R394 C377 C376 JR304 C326 R288 R289 R293 R294 R295 R296 R297 R578 JR507 R315 R316 R317 D101 IC550 R422 R585 R584 R340 R342 R345 R343 R344 R341 R348 R349 R346 R347 R350 R369 R357 R358 R359 R360 R361 R365 R366 R554 R553 R552 R539 R537 R536 R535 R534 R533 R381 R382 R530 R529 R524 R523 R522 R400 R401 R402 R403 R404 R405 R407 R408 R409 JR544 JR100 JR508 C341 R593 R592 R574 R573 R502 R483 R493 R492 R491 R490 R489 R488 R487 R486 R485 R484 R475 R474 R473 R472 R471 R501 R470 R503 R505 R506 R507 R508 R509 R510 R511 R512 R513 R514 R515 R516 R517 R518 R519 JR435 R387 Q373 Q322 Q325 R336 R373 R388 R385 C332 Q383 R375 R325 R371 R374 C314 R319 R310 C307 R309 R351 R395 R396 D584 Q380 R386 R304 R353 R390 R308 R372 Q378 C385 R399 C372 JR300 IC301 R376 C371 R364 R379 Q377 JR303 R120 R377 Q381 C383 R302 C373 R101 R102 R104 R105 R106 R107 R108 R109 R110 R111 R112 R113 R114 R115 R116 R117 R121 R122 R130 R131 R132 R133 R150 R151 R152 R154 R155 R156 R157 R158 R159 R160 R161 R162 R163 R164 R165 R166 R167 R200 Q255 Q254 Q253 Q252 Q250 Q205 Q204 Q203 Q202 Q200 Q167 Q156 Q151 Q117 Q106 Q101 D136 R205 R206 R207 R208 R209 R210 R211 R212 R213 R214 R215 R216 R217 R218 R219 R220 R221 JR208 JR200 R586 C279 C274 C273 C270 C268 C264 C261 C260 C256 C242 C229 C223 C220 C218 C214 C212 C211 C210 C206 C115 R229 R222 R223 R224 JR204 R225 IC201 IC101 FB261 JR205 JR407 R299 R298 R292 R273 FB260 R249 R242 R203 R202 R226 R582 R227 R581 JR202 R532 R531 R291 R290 R287 R286 R285 R284 R228 R230 R231 R232 R233 R234 R235 R236 R237 R283 R282 R240 R241 R281 R280 R279 R278 R277 R276 R275 R274 R272 R271 R270 R269 R268 R267 R266 R265 R264 R263 R262 R261 R260 R259 R258 R257 R256 R255 R254 R500 JR542 R383 R384 R391 Q523 Q524 R662 Q104 R135 Q103 C584 C583 D102 JR545 JR340 JR543 JR406 R499 R496 R329 R330 JR531 JR431 JR432 JR541 JR433 R322 JR102 JR222 R479 JR532 Q323 JR310 D412 D411 C414 JR515 R612 R204 JR101 JR361 JR516 C413 C415 R321 R320 JR105 JR201 JR401 R478 NO401 NO603 NO402 NO503 JW502 JW503 JW504 JW505 JW506 JW508 JW509 JW510 JW511 JW512 JW513 JW514 JW515 JW517 JW518 JW519 JW520 JW522 JW521 JW523 JW524 JW532 JW535 JW536 JW537 JW543 JW544 JW545 JW546 JW547 JW548 JW549 JW551 JW554 JW555 JW556 JW558 JW560 JW562 JW579 JW580 JW581 JW584 JW302 JW303 JW304 JW306 JW310 JW311 JW312 JW313 JW314 JW315 JW316 JW317 JW320 JW322 JW323 JW325 JW326 JW331 JW335 JW336 JW337 JW346 JW347 JW350 JW351 JW352 JW353 JW355 JW357 JW358 JW359 JW360 JW363 JW600 JW601 JW602 JW603 JW605 JW606 JW587 JW588 JW591 JW596 JW597 JW598 JW585 JW401 JW402 JW403 JW404 JW405 JW406 JW407 JW408 JW409 JW411 JW413 JW416 JW421 JW422 JW423 JW424 JW429 JW431 JW432 JW433 JW434 JW438 JW440 JW441 JW442 JW447 JW452 JW454 JW455 JW463 JW467 JW468 JW469 JW471 JW483 JW201 JW203 JW204 JW210 JW216 JW220 JW228 JW229 JW230 JW231 JW232 JW235 JW236 JW239 JW242 JW244 JW245 JW246 JW247 JW248 JW249 JW250 JW252 JW104 JW105 JW106 JW107 JW108 JW109 JW110 JW111 JW112 JW115 JW118 JW120 JW121 JW122 JW123 JW126 JW127 JW129 JW130 JW131 JW135 JW466 JW254 JW256 JW410 JW305 JW138 JW436 JW257 JW526 JW527 JW528 JW139 JW486 JW368 JW241 J203 C160 C110 JW400 JW539 JW541 JW557 JW224 NO523 C512 JW136 JW540 JW140 JW240 JW370 JW371 JW552 JW609 JW613 JW531 JW559 JW200 JW344 JW470 JW464 JW425 JW426 JW427 JW420 JW428 JW418 JW449 JW217 JW332 JW333 JW349 JW365 JW366 JW362 JW128 JW238 JW234 JW233 JW448 JW445 JW444 JW443 JW475 JW450 JW132 JW484 JW134 JW482 JW361 JW356 JW478 JW477 JW476 JW474 JW529 JW481 JW577 JW215 JW214 JW209 JW205 JW208 JW212 JW561 JW576 JW614 JW574 JW573 JW572 JW219 JW566 JW253 JW565 JW564 JW225 JW207 JW595 JW567 JW570 JW507 JW604 JW321 JW338 JW340 JW343 JW586 JW592 JW568 JW569 JW348 JW345 JW611 JW534 JW227 JW226 JW451 JW485 JW124 JW459 JW575 JW563 JW615 JW525 JW341 JW446 JW137 JW380 JW382 JW383 JW384 JW385 JW386 JW387 JW388 JW389 JW393 JW394 JW395 JW396 JW397 JW398 JW372 JW342 JW324 JW328 JW339 JW430 JW616 JW617 JW618 JW619 JW369 JW367 JW465 JW419 JW415 JW472 JW589 JW583 JW625 JW626 JW627 JW628 JW629 JW630 JW631 JW632 JW222 JW223 JW213 JW218 JW533 JW538 JW488 JW590 JW635 JW636 JW637 JW638 JW639 JW640 JW641 JW642 JW643 JW644 JW645 JW647 JW648 JW649 JW578 JW255 JW653 JW660 JW661 JW662 JW663 JW666 JW667 JW668 JW669 JW670 JW671 JW672 JW673 JW674 JW571 JW243 JW651 JW309 JW650 JW664 JW610 JW680 JW681 JW682 JW683 JW685 JW686 JW687 JW688 JW689 JW690 JW691 JW692 JW694 JW696 JW697 JW698 JW593 J103 JW456 JW699 C416 C502 C503 CN402 C202 CN508 CN520 C234 C252 C352 D561 C357 C358 C374 D560 CN582 C501 C524 C511 C507 C365 C509 C517 C514 C516 C510 C519 C508 C523 C557 C558 C562 C563 C566 C571 C570 CN501 CN580 EPT560 IC558 IC559 IC560 IC561 J202 C554 C506 C505 CN502 Q520 Q585 C306 C301 Q588 C309 C361 L372 L370 CN504 TM101 C370 L320 T301 C355 C553 IC507 C213 C356 C359 X402 C552 CN510 C328 C310 C311 C305 R307 L302 C303 C379 C354 C304 C378 C308 C353 C312 J201 C521 C226 C228 C164 C276 C222 C215 C267 C520 C114 C209 C259 C216 C207 C254 C253 C221 C277 C278 C227 C258 C262 C251 C154 C266 C224 C265 C217 C269 C205 C257 C255 C204 C203 C201 C200 C225 C163 C162 C161 C158 C157 C153 C155 C159 C504 C109 C150 C131 C111 C272 C113 C112 C130 C105 C108 C107 C104 C103 C102 C101 C152 CN514 CN511 C219 C263 CN100 CN506 C462 C567 C525 C325 C166 C167 C559 CN503 X401 C518 CN509 D585 D586 CN513 JW391 CN512 JW221 CN521 JW202 JW608 JW607 JW516 JW414 JW417 JW133 JW624 JW390 JW392 JW307 JW612 JW119 JW695 JW364 JW480 JW693 JW487 JW103 JW146 JW147 JW149 JW150 JW152 JW621 JW620 JW623 JW622 C431 JW330 JW145 JW684 CN505 JW461 JW462 C362 JW237 JW437 JW458 JW457 JW460 JW381 JW633 JW113 JW117 JW116 JW473 JW675 JW542 JW676 JW550 JW553 JW354 JW652 R579 C550 JW143 JW453 JW148 JW144 JW530 C106 JW100 JW141 JW142 C363 JW258 C116 C351 D510 D511 1-868-862- 12 MAIN BOARD 1 4 8 5 E E E E E E E E E 1 1 8 3 E E E E E E E E E E E E E E 1 13 E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E E 1 3 E B C 1 4 1 3 1 3 1 8 E E C B E E E E E E E E E E E E E E 1 30 31 50 51 80 81 100 1 8 1 3 4 6 1 1 3 3 1 3 E E E 1 1 10 4 1 8 1 4 1 4 1 3 1 3 5 4 1 1 1 6 1 42 21 22 1 10 11 20 21 30 31 40 Q PA BOARD CN601 B DMB15 BOARD CN401 P PA BOARD CN600 R TRANS BOARD CN1213 ZX80D: E2, E3, E13, E51/ ZX100D: E2, E3, E51, SP, MY M501 (FAN) M D-LIGHT SYNC OUT R L AUDIO OUT R L TV/SAT AUDIO IN + – SUBWOOFER OUT SUBWOFFER OUT AB L SURROUND BOARD CN701 (ZX80D) (ZX100D) (ZX100D) 1 42 21 22 TUNER (FM/AM) SUPPLIED WITH THE ASSEMBLED BLOCK FM 75Ω COAXIAL ANTENNA AM D DMB15 BOARD CN302 H MIC BOARD NO1101 K KARAOKE BOARD NO2000 J PRIMARY BOARD CN1200 E VIDEO BOARD CN800 F DRIVER BOARD CN701 A DMB15 BOARD CN106 M EFFECTOR BOARD CN1502 1 9 1 5 (NC) (NC) 1 3 G PANEL BOARD CN902 N SURROUND BOARD CN700 (EXCEPT ZX100D: SP, MY) M502 (FAN) M TAPE MECHANISM DECK BLOCK SUPPLIED WITH THE ASSEMBLED BLOCK (ZX80D) ZX80D: E2, E3, E13, E51/ ZX100D: E2, E3, E51, SP, MY (FOR ADJUSTMENT) 1 3 4 6 BIAS OSC HRPE1 (REC/PB/ERASE) (DECK-B) HP1 (PB) (DECK-A) 3 1 (CHASSIS) 1 5 E B C 1 2 3 4 5 A B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 K L (ZX80D) (ZX80D) (ZX100D) 7-23. PLACA DE CIRCUITO IMPRESSO – PLACA MAIN �. : Utiliza liga de solda sem chumbo� w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 47 HCD-ZX80D HCD-ZX80D 7-24. DIAGRAMA ESQUEMATICO – PLACA MAIN � (1/6). Q523 R451 R453 R454 R457 R458 R463 R469 R470 R472 R473 R474 R475 R483 R488 R489 R490 R491 R494 R496 R499 R322 R400 R401 R402 R405 R406 R407 R408 R409 R411 R414 R415 R417 R418 R419 R420 R421 R422 R423 R424 R425 R426 R427 R428 R429 R431 R432 R433 R434 R435 R436 R437 R438 R439 R440 R441 R442 R443 R444 R445 R447 R448 R430 R413 R410 X402 C415 C416 X401 C411 C410 C412 R412 R403 R404 CN508 C462 C464 R479 R478 R487 R486 R485 R484 R593 D411 D412 C413 CN402 NO402 CN511 D503 R503 C503 C502 D502 R502 R501 D501 D504 Q524 D505 CN520 C518 R493 R466 R471 CN100 NO401 R574 D401 R573 R468 D402 D403 C414 IC501 R467 R589 Q589 Q587 C583 C584 Q588 R594 R595 R590 CN582 M502 R492 R592 Q501 IC401 R450 JR222 C501 JW100 D584 DTA114EKA 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 100 47k 10k 100 100 100 100 100 100 100 330k 100 100 10k 100 100 1k 100 100 100 100 100 100 10k 10k 100 100 100 100 100 100 10k 10k 100 100 100 100 100 100 100 100 100 100 100 0 10k 5MHz 0.1 2200 6.3V 32.768KHz 22p 22p 0.1 100k 10k 10k 17P 100 10V 0.01 10k 1k 10k 100 100 10k 1SS355W 1SS355W 0.1 10P 4P 13P 1SS355W 0 0.1 0.1 1SS355W 1k 220 1SS355W 1SS355W DTC124EKA 1SS355W 13P 1000 10V 10k 10k 9P 3P 10k 1SS355W 10k 100 1SS355W 1SS355W 0.1 ICBD4929G 100 1k 2SC2712 2SC2712 0.1 0.1 2SD2525 4.7k 4.7k 100k 3P 4.7k DTC124EKA M30622MEP -A78FPU0 100 0 10 50V UDZS-1713B A1 A2 A3 A4 A5 A6 A7 A8 A9 B1 B2 C1 D3 D1 D2 D4 C2 D5 D6 D7 C3 D8 D9 E1 E2 E3 E4 4 31 32 33 73 74 74 79 80 81 82 53 54 55 73 47 56 34 38 39 89 90 91 66 1 2 3 5 6 35 36 37 48 49 50 52 58 60 61 65 67 72 71 75 78 77 76 83 42 70 63 57 45 44 43 19 18 46 51 32 33 34 31 34 35 36 37 38 39 25 24 23 22 21 32 31 22 21 33 32 31 23 24 25 100 95 94 30 29 9 12 26 27 28 26 27 28 29 30 9 12 12 33 40 41 40 4 41 ∗ ∗ GC RESET LED+9V BPM LOW VG SPEANA GND MIC DETECT MIC SCORE SPEANA SIRCS KEY INT DISPLAY POWER LED VF(1) IIC-DATA IIC-CLK KEY INT POWER VF(2) GC DGND EVER +4V GC DGND TBL ADDRESS SW MGND D+3.3V M+9V TM-R TM-F E-1 E-2 E-3 OPEN SW D-GND TXD1 RTS1 MCU VCC CLK1 RXD1 CN VSS RESET GND NC D+3.3V D-GND IIC-CLK IIC-DATA RESET X-OUT VSS X-IN VCC NMI IIC-CLK IIC-DATA MODEL-IN AVSS VREF AVCC XC-IN XC-OUT SIRCS DISPLAY-KEY POWER-KEY DEST-IN AC-CUT BYTE VCC VSS DATA CLK OCSW1 SYSRST 3.3VMNT XIFCS IFBSY SIO SOO SCO DGND MIC VOICE KRMOD TUNED ST-CLK ST-CE TBL SENS TM-F TM-R LM-F LM-R A-HALF A-TRIG B-TRIG REC BIAS REC MUTE PB A/B ALC OVER VOLTAGE UNDER VOLTAGE DATA CAPM M-REQ MGND SW-LEVEL-IN THERMAL VACS AUDIO-OUT-SW VIDEO-OUT-SW MTK-POWER EFFECTOR-CTR3 EFFECTOR-CTR2 EFFECTOR-CTR1 EFFECTOR-S3 EFFECTOR-S2 EFFECTOR-S1 EFFECTOR-S0 FAN CONTROL FAN HI SPEED FAN+ FAN- MIC STATUS EJECT SW E3 E2 E1 NO USE SW-MUTE ANALOG-IN-MUTE MTK-KMOD EVER+4V D-GND STBY RLY (1/6) SIO CNVSS SW- LED SW-SPK RELAY CLK Q587,589 FAN MOTOR CONTROL SWITCH FAN MOTOR SWITCH (FAN) ∗R592 680(ZX80D) 1k(ZX100D) ZX100D:E2,E51,MX 4.7k ∗R493 0(ZX100D:SP,MY) 330(ZX80D:E3/ZX100D:E3) 4.7k ZX80D:E2,E13,E51,MX/ ZX100D:E2,E51,MX Q523,524 B+ SWITCH RESET SIGNAL GENERATOR RESET SWITCH MASTER CONTROLLER H/P DETECT A+9V MIC ECHO MIC AGND VIDEO(A)-R VIDEO(A)-GND VIDEO(A)-L (ZX80D:E3/ZX100D:E3) LM-F LM-R (NC) (NC) MTK- MTK- MTK- SOD CLK GC-RESET STBY-LED TC-RELAY NO USE STK-MUTE REAR-RELAY CTR-RELAY PROTECT TC-MUTE HP-MUTE LINE-MUTE DVD-A-MUTE AUDIO-IC- AUDIO-IC- VOL-IC- VOL-IC- HP-DETECT MIC-DETECT VMUTE A-SHUT B-SHUT B-HALF NO USE ST-DOUT ST-DIN STBY-RELAY EFFECTOR-SELECT MTK-IFBSY MTK-XIFCS FR-RELAY MTK-RESET w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 48 HCD-ZX80D HCD-ZX80D 7-25. DIAGRAMA ESQUEMATICO – PLACA MAIN � (2/6) R105 C121 C122 NO503 IC101 R121 R104 C103 C102 C150 C101 C105 R107 R150 C104 R116 C106 C111 C157 C109 C108 R152 R151 C130 R131 R106 R156 CN505 Q151 R122 R130 C131 R132 C115 R111 Q156 Q106 R108 R158 R159 R160 CN510 R360 R384 C358 R361 R383 R133 R110 R161 R109 C161 C158 C159 C156 R157 R166 C155 R154 C154 C153 C152 C160 C357 Q101 R101 C107 R102 C431 C110 R155 C162 C163 R153 C116 C112 C113 R103 47k 220p 220p 5P M61529FP-60G 1k 1k 10 50V 10 50V 10 50V 100 10V 10 50V 100 2.2k 10 50V 100 0.022 10 50V 0.022 1 50V 0.033 10k 2.2k 10 50V 2.2k 10k 10k 6P 2SC2712 1k 2.2k 0.47 50V 1M 0.1 10k 2SD2114 2SD2114 6.8k 6.8k 3.3k 10k 3P 27k 4.7k 4.7 50V 27k 4.7k 100k 10k 10k 3.3k 10 50V 0.033 1 50V 0.022 100 100 10 50V 1k 10 50V 10 50V 10 50V 0.01 4.7 50V 2SC2712 2.2k 0.022 10k 10 50V 0.01 47k 0.12 0.33 1k 330 10V 0.12 0.33 1k A1 A2 A3 A4 A5 A6 A7 A8 A9 F2 F3 F4 F5 F6 F7 F8 F9 G4 G3 G1 G2 G5 F10 G6 F11 H2 H1 H3 N1 FL FR SAT-R DOWNMIX-R 79 R-OUT 80 L-OUT LINK-L REC-OUT-L SAT-L DOWNMIX-L LINK-R REC-OUT-R XVOICE SCORE +9V V MUTE VIDEO OUT SW +5V A+9V MUSIC L+R SCORE XVOICE NC MIC SCORE L GND R SUR1 SUR2 RECB2 TMI2 TMO2 TCA2 TCB2 TCC2 TOUT2 VOLIN2 BB_A2 BB_B2 OUT2 SWOUT GND CLOCK REF MIC RECB1 TMI1 TMO1 TCA1 TCB1 TCC1 TOUT1 VOLIN1 BB_A1 BB_B1 OUT1 SAOUT VCC DATA TC-L TC-R SAT-R SAT-L DVD-L DVD-R ST-R ST-L VIDEO-L VIDEO-R AGND (2/6) INPUT SELECT SWITCH,TONE CONTROL, FEED BACK SWITCH MUTING MUTING FEED BACK SWITCH ELECTRICAL VOLUME,BASS BOOST AMP ADJUSTMENT FOR w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 49 HCD-ZX80D HCD-ZX80D 7-26. DIAGRAMA ESQUEMATICO – PLACA MAIN � (3/6) C223 C200 C214 R209 R210 C211 R258 C256 C257 R208 C206 C207 R207 C212 C205 C255 R225 R275 C210 R257 R211 C216 C259 R276 C209 R226 C263 R256 R206 C213 R263 R272 R254 R213 R231 R232 R230 Q203 R292 R283 R285 Q254 R284 R233 Q204 R234 R235 C228 R298 R299 C201 C264 R259 C261 R260 R261 C266 R214 C218 R217 R264 C268 R216 R282 R281 Q253 R227 Q202 R229 R280 R202 C277 R228 R203 C226 R265 R267 R266 C269 C219 C270 C220 R215 C215 R212 C265 R262 R277 R278 C276 R242 Q252 R279 R204 C222 R220 R218 R219 C224 C242 R270 Q200 R268 R249 C221 R269 C262 R221 Q250 R222 C251 R273 R271 C225 C273 R224 R223 C272 C260 CN514 D101 D102 R120 D325 R325 Q323 R329 R330 D586 R135 D136 R117 C114 R114 R115 R112 R164 R165 R162 Q117 Q167 R163 R113 C166 C258 R623 R274 C274 R167 C164 C167 D585 C229 C279 R241 R291 R240 R290 CN506 R531 Q103 C267 JW530 CN512 C520 C521 FB260 FB261 C235 J201 R581 JR502 JR509 IC201 R237 R287 Q255 Q205 Q104 C217 JR104 JW258 C227 R582 R532 CN521 C559 R612 R662 J103 C278 C254 C253 R236 R255 C204 C203 R286 R205 R200 0.001 0.1 220p 10k 470 220p 2.2k 0.0022 10 50V 2.2k 0.0022 10 50V 2.2k 0.001 100 10V 100 10V 10k 10k 0.001 2.2k 47k 10 50V 10 50V 22k 10 50V 22k 10 50V 47k 47k 10 50V 6.8k 3.3k 3.3k 6.8k 47k 10k 1k 2SD2114 10k 47k 10k 2SD2114 1k 47k 2SD2114 1k 10k 1 50V 10k 10k 0.1 220p 10k 220p 470 47k 10 50V 47k 0.001 10k 47k 0.001 2.2k 10k 47k 2SD2114 47k 2SD2114 10k 1k 10k 1 50V 1k 10k 1 50V 4.7k 10k 2.2k 10 50V 10 50V 0.001 0.001 4.7k 10 50V 8.2k 10 50V 8.2k 47k 1k 1 50V 10k 2SD2114 10k 10k 10 50V 10k 4.7k 2.2k 10 50V 0.001 47k 2SD2114 1k 10k 1 50V 10k 10 50V 47k 2SD2114 1k 1 50V 10k 10k 1 50V 220p 1k 8.2k 220 10V 0.1 8P 1SS355W 1SS355W 0 UDZSTE -174.7B 680 2SC5053 100k 1k 10EDB40 1.5k UDZSTE -175.6B 0 10 50V 10k 1k 47k 10k 1k 47k 2SD2114 2SD2114 10k 10k 10 50V 10 50V 6.8k 1k 220p 0 10 50V 10 50V 10EDB40 220p 220p 33k 33k 15k 15k 9P 2SC5053 10 50V 19P 10 50V 10 50V 0 0 100p 2P 0 0 M61530 47k 47k 2SC2412K 2SC2412K DTC114EKA 10 50V 0 1 50V 3.3k 3.3k 21P 1000 10V 0 0 5P 1 50V 0.33 0.12 1k 0.33 0.12 1k 10k B1 B2 F2 F3 F4 F5 F6 F7 F8 F9 F10 F11 I1 I2 I3 I4 J2 J3 FL FR 70 63 45 44 43 19 18 57 SAT-L SAT-R 1 2 3 5 6 MB_FL LINK-L DM_R DM_L 81 82 LINK-R SW SW SCORE XVOICE MB_FL MB_FR MB_SL MB_SR FC LFE DM_L DM_R LFE FC MB_SR MB_SL MB_FR DOWNMIX-L DOWNMIX-R ∗ ∗ ∗ ∗ ST-CLK ST-CE ST-L A-GND ST-R ST-DOUT/MC-DIN ST-DIN /MC-DOUT ST+9V DGND AGND FC SR SL AGND FR AGND FL AU+5V AGND L-IN AGND R-IN AGND SW(LFE) AGND AGND CTR-IN AGND AGND +9V TUNED LT RT SL-IN SR-IN INPUT R INPUT L S0 S1 S2 OUTPUT R OUTPUT L AGND AGND AGND AGND SELECTOR AGND DGND S3 IIC CLK IIC DATA DGND D+4V CTRL2 CTRL3 CTRL1 SCORE XVOICE L+R(SPEANA) (3/6) MUTING MUTING MUTING AM ANTENA COAXIAL FM 75Ω BLOCO TUNER MONTADO ∗R531,581 6.8k ZX80D:E3,E13,E51,MX/ ZX100D:E3,E51,MX,SP,MY 4.7k (ZX80D:E2:ZX100D:E2) ELECTRICAL VOLUME FEED BACK SWITCH SWITCH FEED BACK MUTING MUTING +5V REGULATOR REGULATOR CONTROL SWITCH +4V REGULATOR MUTING MUTING MUTING MUTING MUTING TUNER (FM/AM) A+9V L R TV/SAT AUDIO IN D-LIGHT SYNC OUT L+R ∗R236,286 10k(ZX100D) 22k(ZX80D) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 50 HCD-ZX80D HCD-ZX80D 7-27. DIAGRAMA ESQUEMATICO – PLACA MAIN � (4/6) L320 Q380 T301 IC301 R308 R310 R311 R370 R374 R392 C378 C301 C303 C304 R303 R319 R302 R304 C306 R305 C311 C314 R306 R307 C307 R312 C308 C312 L302 100µH R309 C309 C359 R396 R399 Q377 Q379 Q322 Q321 Q372 Q373 R314 R338 C333 C328 R364 R388 R380 C383 L370 L372 R395 R394 Q378 R376 R375 C373 R373 R372 C372 R371 C379 C377 R377 C374 C371 C370 R378 CN503 R352 R355 R354 R369 R353 C356 C354 C353 C351 R391 C361 C364 C355 R335 C305 C310 C382 C332 Q382 Q383 Q381 R390 C335 C385 C376 R379 CN504 HP1 HRPE1 C326 Q325 Q375 R368 R318 R336 R337 R387 R385 Q370 R386 R339 R301 R389 R351 27mH DTC114EKA HA12237 100 100 100 3.3k 4.7k 6.8k 120p 0.012 0.1 10 50V 10k 2.2k 4.7k 2.2k 2.2 50V 47k 10 50V 0.0022 22k 1M 10 50V 100 470 10V 10 50V 4.7k 47 16V 47 16V 10k 10k 2SA1162 DTC114EKA 2SD2704 2SD2704 2SD2704 2SD2704 2.2k 10k 330p 120p 2.2k 10k 6.8k 330p 27mH 47k 4.7k RT1P137P-TP-1 4.7k 0 0.001 4.7k 0 0.001 4.7k 0.0068 0.01 47 47 10V 0.0047 0.01 100V 10k 8P 4.7k 47k 2.2k 2.2k 10k 2.2 50V 10 50V 0.1 0.012 1k 10 50V 0.0022 1 50V 1k 1 50V 10 50V 1200p 1200p DTA114EKA DTC114EKA DTC114EKA 10k 0.022 0.022 680p 10 3P 680p 2SD2704 2SD2704 2.2k 2.2k 2.2k 2.2k 2.2k 2.2k 2SD596 33 15k 1.5k 15k 1.5k C1 C2 C3 K1 K2 L1 L2 H1 H2 H3 52 53 56 54 55 REC-OUT-R REC-OUT-L REC-OUT-L REC-OUT-R L-PB L-REC R-PB E-HOT R-REC GND GND GND L-PB R-PB GND REC-OUT1 NC ALC1 REC-IN1 NC PB-OUT1 TAI1 EQOUT1 PB -EQ1 PB-NF1B PB-NF1A AIN1 RIP BIN1 REC-RETN GND BIN2 NC AIN2 PB-NF2A PB-EQ2 EOUT2 TAI2 PB-OUT2 NC REC-IN2 ALC2 NC REC-OUT2 PB-NF2B ALC ON/OFF MUTE ON/OFF REC MUTE ON/OFF I-REF TEST ALC DET GND VCC A/B NORMAL SPEED HIGH / (4/6) Q382,383 MUTING CONTROL SWITCH MUTING MUTING MUTING CONTROL SWITCH Q377,379,381 MUTING MUTING MUTING MUTING REC/PB EQ AMP Q378,380 REC BIAS SWITCH BIAS OSC BIAS OSC L-CH R-CH (PB) (DECK-A) R-CH L-CH ERASE (DECK-B) (REC/PB/ERASE) DECK A/B SELECT SWITCH, 1 3 4 6 100µH w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 51 HCD-ZX80D HCD-ZX80D 7-28. DIAGRAMA ESQUEMATICO – PLACA MAIN � (5/6) R575 R513 R317 R320 R381 R300 R365 R350 R316 R315 R382 R366 C511 R518 Q519 Q511 Q512 R533 R534 R519 Q515 R517 Q509 Q510 R516 R515 C510 C517 R552 R553 Q516 R514 Q508 Q507 CN501 R512 C507 C508 R511 Q522 Q521 R529 R530 Q506 Q505 R510 C524 C523 R508 C506 C505 R509 C365 R522 D506 R535 R536 D507 R537 C341 Q344 R341 R345 R349 R346 Q341 D341 R525 R526 R576 R527 R577 R528 Q514 C554 C504 C550 D550 C553 CN502 R358 R356 C352 R321 C363 C362 R359 C325 C551 CN509 D340 Q517 Q343 Q345 D342 C509 C552 C360 Q564 R578 Q340 Q342 R347 R343 R344 R348 R342 C525 R554 R540 R520 JR515 Q504 CN513 R538 C512 IC550 IC304(2/2) R357 IC304(1/2) R340 C340 10k 15k 22k 33k 4.7k 4.7k 3.3k 4.7k 47k 3.3k 47k 10k 2.2 50V 10k DTA124EKA DTA124EKA DTC114EKA 10k 10k 1k DTC143TKA 47k DTA124EKA DTC114EKA 15k 68k 2.2 50V 2.2 50V 68k 470k DTA124EKA 470k DTC114EKA DTA124EKA 13P 68k 2.2 50V 2.2 50V 470k DTA124EKA DTC114EKA 15k 68k DTC114EKA DTA124EKA 8.2k 2.2 50V 2.2 50V 470k 2.2 50V 2.2 50V 68k 1 50V 4.7k 1SS355W 10k 10k 1SS355W 470k 0.0047 DTC114EKA 3.3k 3.3k 3.3k 680 2SB1132 1SS355W D510 1SS355W D511 1SS355W 10k 1k 1k 47k 47k 10k 2SD2114 10 50V 10 50V 100 16V 1SS355W 220 25V 8P 33k 4.7k 47 16V 33k 4.7 50V 4.7 50V 33k 10 50V 0.1 11P 1SS355W DTC114EKA DTC114EKA DTC114EKA 1SS355W 2.2 50V 2.2 50V 33p 2SD2114 10k 2SB1132 2SB1132 2.2k 2.2k 680 680 2.2k 1000 10V 15k 10k 10k 0 DTC143TKA 13P 5.6k 10 6.3V RT8H015C-TH12-1 NJM4565M(TE2) 4.7k NJM4565M(TE2) 2.2k 0.0047 D1 D2 D3 D4 D5 D6 D7 D8 D9 G1 G2 G3 G4 G5 G6 I1 I2 I3 I4 K1 K2 M1 M2 M3 M4 M7 M8 M10 M11 M12 M5 M9 M6 R-OUT L-OUT 48 50 49 89 47 90 91 46 75 60 76 77 83 65 60 61 DOWNMIX-L 94 60 72 DOWNMIX-R 67 66 71 FAN DET POWER-GND POWER-GND UNREG A+9V DGND LINK RELAY AC CUT DETECT FRONT RELAY L-IN R-IN PREGND DC DETECT OVERLOAD DETECT THERMAL VACS STK MUTE -VL -VL TCM MGND B SHUT CAPM+ BTRGM+ ATRGM+ REC(FWD) A SHUT BHALF AHALF TC DGND REC(REV) SW A-GND SW LINE MUTE SW SPK RY STK MUTE UNREG UNREG OVELOAD DC DETECT DVD LINE MUTE CENTER RELAY REAR RELAY (5/6) OVER CURRENT PROTECTOR SPEANA AMP BUFFER MUTING MUTING Q342,345 Q340,343 TRIGGER PLUNGER DRIVE(DECK-A) TRIGGER PLUNGER DRIVE(DECK-B) Q341,344 CAPSTAN/REEL MOTOR DRIVE Q521,522 MUTING CONTROL SWITCH MUTING CONTROL SWITCH Q505,506 MUTING CONTROL SWITCH Q507,508 MUTING CONTROL SWITCH Q512,515,519 Q509,510 MUTING CONTROL SWITCH MUTING CONTROL SWITCH SWITCH Q516,517 MUTING CONTROL ZX80D:E2,E3,E13,E51/ ZX100D:E2,E3,E51,SP,MY ZX80D:MX/ ZX100D:MX H/P MUTE FR RELAY PROTECT DBFB F/B CENTER-SPK-SWITCH SW FORNECIDO MONTADO O BLOCO DECK BLOCK TAPE MECHANISM (2/2) (1/2) AC CUT DETECT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 52 HCD-ZX80D HCD-ZX80D 7-29. DIAGRAMA ESQUEMATICO – PLACA MAIN � (6/6) IC559 IC558 Q520 R243 R244 R294 CN580 C581 C580 D581 Q581 R586 D582 R585 R584 Q585 Q513 R539 R523 R506 R500 R505 C567 C570 C571 C568 C516 C569 Q503 Q518 R524 C515 C513 R507 C557 C558 C564 C563 C565 C562 R295 R245 Q256 Q206 R296 R246 R247 R297 R289 R239 C202 R238 R288 NO523 NO603 C566 C514 EPT560 C530 FB254 R293 FB204 C252 C233 R248 Q208 R602 R250 Q207 R252 C234 R251 R601 R253 JR219 JR218 CN105 R598 R599 L101 L102 R482 R481 R480 IC507 JW550 M501 C519 D561 R579 Q582 Q579 Q578 D560 R549 Q550 R551 J203 CN102 JR514 J202 TM101 D583 IC561 IC560 D551 TA78033LS TA7805LS 2SB1565F 1k 100k 100k 3P 0.1 0.1 UDZSTE-176.8B 2SC2712 1k UDZSTE-176.2B 1k 10k 2SD2525 DTC114EKA 4.7k 4.7k 4.7k 4.7k 2.7k 6800 25V 0.01 0.01 0.1 2200 10V 0.1 DTC114EKA DTC114EKA 10k 0.1 0.1 10k 0.01 0.01 0.1 470 16V 0.1 470 16V 10k 10k 2SD2114 2SD2114 47k 47k 1k 1k 10k 10k 10 50V 0 0 5P 8P 10000 25V 2200 16V 100p 0 1k 0 10 50V 100p 100k 2SD2704K 10k 33k 2SD2114KT 10k 10 50V 2.2k 1k 10k 0 0 3P 10 10 100 100 1 PQ09RD21 2200 10V D5SBA20 330 2W 2SC2712 2SC2712 DTC114EKA D5SBA20 1.8k DTC143TKA 56k 1P 4P 0 2P HZU2.0BTRF BA09T BA09T 1SS355WTE-17 E1 E2 E3 E4 J2 J3 L1 L2 M1 M2 M3 M4 M5 M6 M7 M8 M9 M10 M11 M12 N1 42 58 78 95 100 DGND VF VF AC3 AC3 AC4 AC4 FAN+ FAN- MGND DGND SW+ SW- SW- SW+ GND DGND +9V SW-LED SW VOL (6/6) (CHASSIS) MUTING MUTING MUTING MUTING Q503,518 CONTROL SWITCH +9V REGULATOR +9V REGULATOR +9V REGULATOR G I O I O G (FAN) Q513,520 B+ SWITCH O I G O I G +5V REGULATOR +3.3V REGULATOR 1 2 3 4 FAN MOTOR SWITCH Q581,582 FAN MOTOR SPEED FAN MOTOR CONTROL SWITCH CONTROL SWITCH FAN MOTOR CONTROL SWITCH 1 2 4 3 L R OUT SUBWOOFER OUT SUBWOOFER TO SS-WGV100D SYSTEM CONTROL VP SW+5V SW+3.3V SW+9V AUDIO OUT REGULATOR OVER VOLTAGE DETECT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 53 HCD-ZX80D HCD-ZX80D 7-30. PLACA DE CIRCUITO IMPRESSO – PLACA PA � : Utiliza liga de solda sem chumbo� D609 A-9 D611 F-10 D612 F-10 D620 B-10 D624 F-13 D646 C-14 D654 B-13 D655 B-14 D656 F-5 D658 F-7 D660 G-2 D661 G-2 D670 B-10 IC600 F-11 Q604 B-9 Q606 B-9 Q610 B-9 Q618 B-10 Q628 F-13 Q630 F-13 Q634 B-8 Q640 B-8 Q641 C-7 Q644 I-2 Q647 H-2 Q648 F-2 Q668 B-11 Q682 A-8 • localização do Semicondutor Ref. No. Location C603 C653 JR603 R694 D611 R611 R610 R620 C654 C604 D612 R603 R653 R602 R652 C601 C651 R601 R651 R600 R650 R617 R695 R696 R625 R624 R674 C606 R628 R629 R630 R631 Q628 Q630 C605 C683 C693 C682 C681 C691 C692 R676 R656 R657 R658 R660 R661 R677 R678 C660 D620 R621 D646 R609 R698 R608 R693 R606 R692 R607 Q634 R604 R605 Q610 R642 R662 R640 R635 R641 Q682 R643 R663 R639 R638 R697 R634 Q641 Q640 R683 R619 Q604 Q618 D609 R682 Q644 D661 D660 R649 Q648 R685 Q647 R645 R644 R648 R673 R623 R671 Q668 R669 R670 D670 D655 D654 R655 R654 R633 JR602 JR601 JR600 R647 D624 JR612 L680 L690 JW626 R690 R680 JW627 JW600 JW602 JW604 JW605 JW606 JW608 JW614 JW617 JW618 JW619 JW620 JW621 JW622 JW623 JW628 JW629 JW630 JW633 JW634 JW635 JW638 JW639 JW645 JW646 JW649 JW616 JW607 JW613 JW603 JW631 JW688 JW692 JW693 JW694 JW695 JW650 JW647 JW648 JW696 JW687 JW632 JW636 JW624 JW625 R668 RY646 EP690 CN601 TM600 R618 JWH603 JWH602 C602 C600 C650 C652 TH629 C617 C666 R672 R622 C609 D658 D656 C619 C610 C635 C634 C636 C608 C655 R613 R614 R612 R615 R616 R691 R681 R665 JWH601 Q606 C667 C637 C616 JWH600 TH630 R646 NO601 JW601 NO600 JW637 JW640 JW641 JW642 JW643 JW644 JW651 JW652 JW653 JW654 JW655 JW656 JW657 JW658 JW659 JW664 JW665 JW668 JW678 JW679 JW698 JW699 JW700 JW667 JW669 JW682 JW683 JW674 JW675 JW670 JW671 JW672 JW673 JW680 JW684 C676 C656 C678 C658 CN600 CN607 C618 C648 C649 R636 R637 JW660 JW662 JW663 JW1285 JW1283 CN602 EP660 IC600 E E E E E E E E E E E E E E 1-864-930- 11 (22) PLACA PA R L FRONT SPEAKER + – + – (CHASSIS) (CHASSIS) Q MAIN BOARD CN502 P MAIN BOARD CN501 U MIC BOARD CN1102 1 4 1 4 9 1 1 5 (ZX80D) 1 7 X SURROUND BOARD NO800 W SURROUND BOARD NO700 V TRANS BOARD CN1212 A B C D E F G H I J 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 1 3 -1 -2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 54 HCD-ZX80D HCD-ZX80D 7-31. DIAGRAMA ESQUEMATICO – PLACA PA �� TH629 C600 C650 R655 R640 R645 R610 R616 NO600 C660 R658 R676 R677 R656 R657 C656 R607 Q606 R692 R606 Q604 R605 R604 R693 R608 R698 D609 R694 R609 C608 R611 R612 R603 R619 R617 R695 R696 R653 C606 R630 D620 R669 D670 C601 R601 R600 C651 R651 R650 R682 R683 Q634 R697 R638 R639 R673 R623 R635 R641 R642 R662 R643 R663 Q641 D655 D654 R654 R685 C648 C649 R649 C693 R624 D624 NO601 R634 C634 C635 CN600 CN601 C683 EP660 EP690 C667 R672 R622 R615 TM600 Q630 R631 C655 R628 R629 R691 C691 C692 L690 L680 R681 C681 C682 R690 R680 C605 R647 R660 D660 R661 D661 R646 Q644 Q628 RY646 R648 Q648 R644 D646 R633 JR612 TH630 Q647 IC600 C652 C654 C604 C653 C603 R618 R668 C602 C617 C616 C666 R620 R670 C636 R636 C637 R637 Q668 R671 R621 Q618 Q640 Q682 R613 R614 D656 D658 C676 C658 R678 C678 JW1285 JW1283 CN602 CN607 Q610 R602 R652 C609 C618 C610 C619 D611 D612 R625 R674 4.7 50V 4.7 50V 47k 1k 10k 68k 1 7P 0.1 100k 220k 220k 220k 220k 3300 100V 2.2k 2SA1207AA 47k 47k 2SC3906K T146E 10k 10k 100k 100k 100k 1SS355 68k 68k 22 50V 33k 100 47k 1k 100k 100k 100k 47k 0.1 100k 1SS355 1k 1SS355 0.0022 47k 1k 0.0022 47k 1k 1k 4.7k DTA124EKA 2.2k 100k 100k 56k 68k 10k 1k 150 150 150 150 2SD2114KT146 TB-E 1SS355 1SS355 47k 10k 100 10V 10 50V 22k 0.1 22k 1SS355 3P 2.2k 100 25V 100 25V 13P 8P 0.1 0.068 10 1/2W 10 1/2W 100 2SC2712-YG-TE85L 100k 10 50V 22k 5.6k 10 1/2W 100000p 100000p 10 1/2W 100000p 100000p 10 1/2W 10 1/2W 0.1 1k 4.7k 1SS355 4.7k 1SS355 100 1/2W 2SC2712-YG-TE85L 2SC2712-YG-TE85L 22k 2SC2712-YG-TE85L 2.2k 1SS355 0 0 2SC2712-YG-TE85L 220 10V 100p 100p 10p 10p 0.22 5W 0.22 5W 220 10V 0.068 0.068 0.068 18k 18k 4.7 100V 820 2W 4.7 100V 820 2W 2SC3906K T146E 150k 150k 2SC3906K T146E 2SD2114KT146 TB-E 2SC2712-YG-TE85L 1k 1W 1k 1W D25XB60 3300 100V 4700 63V 100k 4700 63V 9P 5P 2SC3906K T146E 390 390 10 100V 22 100V 10 100V 22 100V MM3Z18VST1 MM3Z18VST1 22k L-IN L-IN R-IN R-IN DC-DET DC-DET OVERLOAD DET OVERLOAD DET THERMAL VACS THERMAL VACS STK MUTE STK MUTE H/P MUTE H/P MUTE FRONT RELAY AC CUT DETECT AC CUT DETECT AC CUT DETECT FAN DET FAN DET FAN DET FR RELAY PROTECT FR RELAY PROTECT DBFB F/B DBFB F/B FRONT RELAY ∗ +VH +VL -VL -VH SW RC GND AC CUT DETECT -VL +VL GND GND UNREG FAN DET A+9V DBFB F/B FR RELAY PROTECT AC CUT DETECT LINK RELAY STK MUTE L-IN R-IN FRONT RELAY H/P MUTE THERMAL VACS HP-R HP-L -VL -VL SURR POWER GND HP-GND GND REAR L GND REAR R GND CENTER GND AC1 AC1 AC2 AC2 (CHASSIS) (CHASSIS) FRONT SPEAKER Q628,630 THERMAL DETECT -1 -2 RELAY DRIVE PROTECT SWITCH OVER LOAD DETECT STK412-240 PREGND DC DETECT OVERLOAD DETECT DGND POWER AMP OVER LOAD DETECT OVER LOAD DETECT Q604,606,610 STANDBY SWITCH MUTING MUTING Q634,682 MUTING CONTROL SWITCH 1 4 4 1 RBV1306(ZX80D) D25XB60(ZX100D) FAN DETECT VIRTUAL GND R L POWER-GND POWER-GND 3 2 3 2 ∗R625 2.2k(ZX80D) 22k(ZX100D) NÃO MONTADO w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 55 HCD-ZX80D HCD-ZX80D • Formas de onda – PLACA DMB15 – – PLACA VIDEO – – PLACA MAIN – – PLACA PANEL – 1 IC102 6 (DVDRFIP) (DVD play mode) 500 mV/DIV, 200 ns/DIV 1 Vp-p 7 IC102 D929,S912 TUNING + M y D930,S913 TUNING - m D914,S911 PRESET - . y Y CD-SW BOARD NO1151 A B C D E F G H I 1 2 3 4 5 6 7 8 9 10 11 12 13 14 N N D911 N N D915 (AMBER) (GRN) 1 1 Ref. No. Location Ref. No. Location D901 A-13 D905 A-11 D908 D-13 D909 E-13 D910 F-13 D911 B-2 D913 E-3 D914 F-3 D915 B-3 D916 G-13 D917 H-13 D927 B-13 D928 B-13 • Localização do Semicondutor Ref. No. Location D929 G-3 D930 H-3 D931 E-4 D932 E-4 D1145 C-3 D1153 D-3 IC902 C-7 IC903 C-13 IC904 C-3 Q901 C-11 Q902 C-12 Q903 B-13 Q904 G-4 Q905 G-4 Q906 F-3 Q907 H-3 Q908 E-13 Q909 G-12 Q910 C-2 Q914 C-11 Q917 B-13 Q918 E-3 Q919 F-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 60 HCD-ZX80D HCD-ZX80D 7-36. DIAGRAMA ESQUEMATICO – PLACA PAINEL �� R941 R942 R964 FL901 C943 R943 C967 CN902 R1136 R1135 R997 C961 C917 D931 R1013 R1012 R1011 R1010 R1009 R1008 R1007 R922 X901 D905 C1180 C909 C901 C902 R903 R904 C910 R905 R906 R907 R1021 R1022 R1023 R1024 R1025 R1026 R1027 R1028 C906 C916 R909 C908 R902 C905 R912 CN900 Q918 D932 R900 C903 C942 C949 C948 C946 R947 R949 R950 R953 R952 IC904 R983 R984 C945 C950 C952 C954 C956 C947 R948 R951 C958 R954 C959 R956 R901 C904 C900 C962 C964 Q901 Q914 R918 R919 R920 C940 R908 D901 Q917 Q903 R982 R980 Q908 R965 R966 S922 S921 S923 R967 R1181 S924 R968 CLP912 Q909 R957 Q919 JW903 JW904 JR914 C974 FB901 C953 C955 C951 C957 IC903 JW1105 IC902 R1178 R1180 Q906 R910 R987 R914 R990 R974 R916 Q910 NO904 S925 C941 R944 C920 C922 C923 C924 C925 Q905 Q907 Q904 R1141 R923 S907 S908 S909 S910 S911 S912 S913 S927 C977 C978 C979 C980 C926 C927 C928 C929 C930 C931 C932 C934 C935 C936 C933 C937 C938 C939 C981 C982 C983 C972 C973 C975 Q902 D915 D928 D927 R979 R981 D909 D908 D916 D910 D917 D1145 D1153 R1187 R1189 D930 D929 D914 D913 D911 100 100 4.7k 10 50V 10k 10 50V 17P 680 680 680 0.1 0.1 1SS355WTE-17 33k 22k 15k 10k 6.8k 4.7k 3.3k 1M 4MHz UDZS-TE-17-6.8B 220p 220p 220p 220p 100 100 0.1 15k 15k 15k 100 100 100 100 100 100 100 100 220p 0.1 4.7k 220p 10k 0.1 100 17P DTC123JKA 1SS355WTE-17 10k 0.1 10 50V 1 470p 470p 1k 1k 1k 1k 1k NJM2760 56k 33k 1 0.0047 0.0047 0.022 0.022 1 6.8k 5.6k 0.047 10k 0.047 2.7k 10k 0.1 4.7 50V 0.001 47 10V DTC143TKA DTC143TKA 100k 100k 100k 0.1 100 1SS355WTE-17 DTC123JKA DTA123JKA 470 1k DTC123JKA 6.8k 10k 15k 270 22k DTC123JKA 680 DTC123JKA 0 0.01 0 1 1 1 1 RPM7240-H9 MB90M407PF-G -149E1 22 82 DTC123JKA 680 680 680 680 680 680 DTC123JKA 7P 10 50V 47 0.1 470 6.3V 470 6.3V 470 6.3V 0.01 2SB1132 DTC123JKA 2SB1132 680 680 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 100p 470p 100p 100p 100p 100p 100p 100p 100p 100p 100p DTC143TKA SELU5420E SELU5420E SELU5223C -STP15 47 100 SELU5823C -TP15 SELU5823C -TP15 SELU5823C -TP15 SELU5823C -TP15 SELU5823C -TP15 SELU5823C -TP15 SELU5823C -TP15 10k 4.7k SELU5823C -TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 1 2 3 4 5 6 7 8 9 12 13 14 15 16 17 18 19 20 21 22 24 25 26 27 28 29 30 10 31 32 33 34 35 36 37 38 39 40 41 43 44 45 46 47 85 86 87 88 89 90 91 96 97 98 99 100 92 64 65 72 77 78 79 76 61 60 59 58 57 56 55 79 77 61 60 52 53 86 87 88 89 90 91 85 92 97 100 1 2 3 4 5 6 7 8 99 98 9 10 12 13 14 15 16 17 18 19 22 20 24 21 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 47 46 45 44 43 80 74 55 96 64 65 56 57 58 59 72 74 76 78 71 67 68 69 70 54 75 73 66 80 52 53 54 66 67 68 69 70 73 75 71 G1 G2 G3 G4 G5 G6 G7 G8 G9 G10 G11 G13 G14 G15 G16 G17 G18 G19 G20 G21 G12 G22 G23 G24 XIN X0UT LED-PLAY RESET VOLUME OPERATIONAL DIAL LED SELECTOR BF1 BF4 BF3 BF2 ALL-BAND KEY 2 KEY 1 KEY 0 AVSS AVCC 12C-CLOCK 12C-DATA MD2 LED-CD/DVD,TUNER MD0 VKK P36 P35 P34 P33 P32 VSS-IO P21 P22 P23 P24 P25 P26 P27 P28 P29 P30 P31 P1 P2 VSS-IO P3 P4 P5 P6 P7 P8 VDD-FIP P9 P10 P11 P12 P13 P14 P15 P16 P17 P18 P19 P20 GC RESET EVER +4V VG SPEANA BPM LOW GND VCC NC F1 NP F2 P36 P35 P34 P33 P32 P31 P30 P29 P28 P27 P26 P25 P24 P23 P22 P21 P20 P19 P18 P17 P16 P15 P14 P13 P12 P11 P10 P9 P8 P7 P6 P5 P4 P3 P2 P1 G1 G18 G17 G16 G15 G14 G13 G12 G11 G10 G9 G8 G7 G6 G5 G4 G3 G2 NX NX NP NX NX G19 G24 G23 G22 G21 G20 NP NP VF (2) POWER LED VF (1) LED +9V JOG-X-ROUND LED-TAPE,TV/SAT LED-VIDEO,(PAUSE,STOP) LED-(AMS+,AMS-),(FF,FR) LED-FLANGER,CHORUS LED-FLANGER,CHORUS LED-(BALANCE,WAVE,FADER,RANDOM),DELAY BUF2OUT IN1 IN2 BPF4IN2 BPF4IN1 BPF3IN2 BUF1OUT BPF2IN1 BPF2IN2 BPF3IN1 BPF1IN1 BPF1IN2 RECOUT KEY INT POWER KEY INT DISPLAY BPF1OUT BPF2OUT BPF3OUT BPF4OUT SIRCS SEL B SEL A OPERATION DIAL LED VOL 1,2 LED VOL 7,8 LED VOL 5,6 LED VOL 3,4 VOLUME GND KEY INT DISPLAY JOG-X-ROUND KEY 2 SEL B SEL A KEY 0 IN KEY 1 IN KEY 0 OUT KEY 1 OUT LED (BEAT JUMP,BEAT MAX) LED-BAL,WAVE,FADER,RAND LED-(BAL,WAVE,FADER,RAND),DELAY (CHASSIS) FLUORESCENT INDICATOR TUBE GRID DRIVE GRID DRIVE LED DRIVE LED DRIVE BAND-PASS FILTER REMOTE CONTROL RECEIVER VCC- CPU VSS- CPU DISPLAY CONTROLLER LED DRIVE LED DRIVE B+ SWITCH B+ SWITCH LED ON/OFF CONTROL SWITCH CONTROL SWITCH LED ON/OFF LED DRIVE LED DRIVE LED DRIVE IIC-CLK IIC-DATA GC GND GC GND SPEANA GND TUNING + PRESET PRESET - TUNING + - PRESET + PRESET - TUNING + TUNING - DVD TUNER/ BAND TAPE A/B TV/SAT VIDEO LED (BALANCE,WAVE,FADER,RANDOM) GC GND VIDEO DVD TV/SAT TAPE A/B BAND TUNER/ GRID DRIVE (AMBER) (GRN) MD1 LED-VOLUME 1,2 LED-VOLUME 3,4 LED-VOLUME 5,6 LED-VOLUME 7,8 LED-(BEAT JUMP,BEAT MAX) (RED) (GRN) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 61 HCD-ZX80D HCD-ZX80D 7-37. PLACA DE CIRCUITO IMPRESSO – SEÇÃO FRONT KEY � � : Utiliza liga de solda sem chumbo� JR921 JR923 R1003 R1004 R1005 R1006 R963 R1001 R1002 R962 R961 R960 R959 R958 R1014 R973 C907 R972 R1018 R1019 Q921 R1016 R1015 Q920 R1186 CNS902 JW1150 S916 S914 S904 S903 S902 S905 S906 S901 S918 S928 S919 S917 S920 S915 CN901 D1017 D1016 D1020 JW1060 JW1061 JW1062 JW1064 JW1065 JW1066 JW1067 JW1068 JW1069 JW1070 JW1072 JW1073 JW1075 JW1063 JW1078 JW1074 JW1071 S970 R1162 Q911 R1144 R1145 R1146 R1149 R1150 R1151 Q912 R1161 C1150 R1040 JR1096 D920 D919 CNS903 D922 JR1 JR922 R1165 R1164 Q915 Q913 JR4 R1163 R1153 R1154 R1155 JR5 JR3 R1157 R1158 R1159 D924 D926 D923 S1161 JW1088 D925 D921 JR2 PLACA FUNCTION 1-868-671- 11 (13) CD SYNC ENTER MASTER VOLUME ROTARY ENCODER Z PANEL BOARD CN900 1 8 PROGRESSIVE REC/ PAUSE/START GROOVE EQ BAND DIRECTION 1 3 2 DELAY D1016, S915 E AMP MENU CHORUS D1017, S916 FLANGER D1020, S917 E ILLUMINATION DISPLAY SOUND FIELD PLACA JOG 1-868-675- 11 (13) 1 1 8 3 2 E E E E OPERATION DIAL ROTARY ENCODER VOLUME LEVEL 8 VOLUME LEVEL 1 VOLUME LEVEL 2 VOLUME LEVEL 3 VOLUME LEVEL 4 VOLUME LEVEL 5 VOLUME LEVEL 7 VOLUME LEVEL 6 S901 – 906, S914 – 920, 928 A B C D E F G 1 2 3 4 5 6 7 8 9 10 11 • Localização do Semicondutor Ref. No. Location D919 D-3 D920 C-3 D921 B-3 D922 B-2 D923 B-1 D924 C-1 D925 D-1 D926 D-2 D1016 F-10 D1017 E-10 D1020 D-10 Q911 D-3 Q912 B-3 Q913 C-1 Q915 C-1 Q920 F-9 Q921 D-10 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 62 HCD-ZX80D HCD-ZX80D 7-38. DIAGRAMA ESQUEMATICO – SEÇÃO FRONT KEY� � CN901 R1014 R958 R959 R960 R961 R962 R963 R1006 R1005 R1004 R1003 R1002 R1186 R1001 R972 R973 C907 CNS902 JR1096 R1040 R1161 C1150 CNS903 CLP1151 R1144 R1145 R1146 R1162 R1149 R1150 R1151 R1163 R1164 R1159 R1158 R1157 R1155 R1154 R1153 Q915 Q913 Q912 Q911 D1020 D1017 D1016 Q920 Q921 S970 R1165 S1161 S918 S920 S928 S919 S917 S916 S915 S914 S901 S902 S903 S904 S906 S905 R1018 R1019 R1015 R1016 CLP1152 D919 D920 D921 D922 D923 D925 D926 D924 17P 470 680 1k 1.5k 1.5k 2.2k 3.3k 2.2k 1.5k 1.5k 1k 680 270 470 1k 6.8k 0.001 8P 0 1k 1k 0.001 8P 1k 1k 1k 100 1k 1k 1k 100 100 1k 1k 1k 1k 1k 1k DTC123JKA DTC123JKA DTC123JKA DTC123JKA SLR-343DCT32 SLR-343DCT32 SLR-343DCT32 DTC123JKA DTC123JKA 100 1k 1k 1k 1k SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 KEY 0 IN LED VOL 1,2 LED VOL 3,4 LED VOL 5,6 LED VOL 7,8 OPERATION DIAL KEY 0 IN LED VOL 1,2 LED VOL 3.4 LED VOL 5,6 LED VOL 7,8 OPERATION DIAL LED-FLANGER,CHORUS LED-BAL,WAVE,FADER,RAND OPERATION DIAL GC DGND LED VOLUME 7,8 LED VOLUME 1,2 LED VOLUME 3,4 LED VOLUME 5,6 SEL A SEL B LED VOL 1,2 LED VOL 3,4 LED VOL 5,6 LED VOL 7,8 OPERATION DIAL VOLUME SEL A SEL B SEL A SEL B OPERATION DIAL LED VOLUME 7,8 LED VOLUME 5,6 LED VOLUME 3,4 LED VOLUME 1,2 GND KEY INT DISPLAY KEY 0 OUT KEY 1 OUT KEY 1 IN KEY 0 IN LED-(BAL,WAVE,FADER,RAND),DELAY (CHASSIS) (CHASSIS) ROTARY ENCODER LED DRIVE LED DRIVE LED DRIVE LED DRIVE LED DRIVE LED DRIVE ROTARY ENCODER GND 2A 2B VOLUME LEVEL 8 VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME VOLUME LEVEL 7 LEVEL 6 LEVEL 5 LEVEL 4 LEVEL 3 LEVEL 2 LEVEL 1 OPERATION DIAL DELAY CHORUS FLANGER ENTER DELAY CHORUS FLANGER SOUND FIELD ILLUMINATION AMP MENU DISPLAY CD SYNC DIRECTION EQ BAND GROOVE PROGRESSIVE PAUSE/START REC GC DGND MASTER VOLUME w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 HCD-ZX80D HCD-ZX80D 7-39. PLACA DE CIRCUITO IMPRESSO – SEÇÃO TOP KEY � � : Utiliza liga de solda sem chumbo� • Localização do Semicondutor Ref. No. Location D1040 B-4 D1042 B-6 D1044 B-4 D1046 B-8 D1048 B-8 D1050 B-9 D1052 C-4 D1054 C-5 D1056 B-9 D1058 B-7 Q1041 B-10 R1041 R1042 R1043 R1044 R1045 R1046 R1047 Q1041 C1040 R1051 R1050 JR915 R1048 JR1041 R1056 R1057 R1059 R1058 R1065 R1064 R1060 R1061 R1063 R1062 R1054 R1055 R1053 R1052 R1067 R1066 S1049 S1040 S1045 S1046 S1044 S1042 S1043 S1041 D1044 D1040 D1052 D1054 D1042 D1046 D1048 D1050 D1056 D1058 JW1081 S1047 CN1153 JW1077 JW1079 JW1151 JW1082 JW1083 JW1084 JW1085 R1166 R1167 R1168 R1169 R1170 S1170 S1169 S1168 S1167 S1166 CN1152 JW1086 NO1151 JW1129 JW1130 JW1131 JW1087 E 1-868-674- 11 (13) PLACA X-ROUND 1 3 2 SPEAKERS/ X-ROUND OFF BEAT PAD BEAT JUMP D1048, 1050, S1043 BEAT MAX D1046, 1056, S1042 BALANCE D1052, 1054, S1047 FADER D1040, S1046 WAVE D1044, S1045 RANDOM D1042, 1058, S1044 X-ROUND JOG ROTARY ENCODER 1-868-672- 11 (13) PLACA CD-SW 1 7 Y PANEL BOARD NO904 S1041 – 1047, S1166 – 1170 DISC 1 DISC 2 DISC 3 EX-CHANGE/ DISC SKIP Z OPEN/CLOSE A B C D E F 1 2 3 4 5 6 7 8 9 10 11 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 64 HCD-ZX80D HCD-ZX80D 7-40. DIAGRAMA ESQUEMATICO – SEÇÃO TOP � � R1167 R1168 R1169 R1170 R1166 NO1151 CN1152 CN1153 Q1041 R1050 R1051 C1040 S1040 R1041 R1042 R1043 R1044 R1045 R1046 R1047 R1048 R1052 R1053 R1066 R1067 R1062 R1063 R1059 R1058 R1054 R1055 R1064 R1057 R1056 R1065 R1060 R1061 S1166 S1167 S1168 S1169 S1170 S1041 S1042 S1043 S1044 S1045 S1046 S1047 S1049 D1048 D1046 D1050 D1056 D1044 D1040 D1054 D1052 D1058 D1042 680 1k 1.5k 1.5k 470 7P 7P 7P DTC123JKA 1k 1k 0.001 2.2k 3.3k 4.7k 6.8k 10k 15k 22k 33k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k 1k SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 SELU5823C-TP15 LED-BAL LED-BEAT JOG JOG LED-BEAT LED-BAL KEY2 JOG-X-ROUND GC GND JOG-X-ROUND GC GND SEL B KEY 2 SEL A SEL A SEL B KEY2 GC GND SEL A SEL B JOG-X-ROUND (CHASSIS) LED DRIVE ROTARY ENCODER LED(BEAT JUMP,BEAT MAX) OPEN/CLOSE EX-CHANGE/ DISC SKIP DISC 3 DISC 2 DISC 1 LED(BEAT JUMP,BEAT MAX) LED(BEAT JUMP,BEAT MAX) X-ROUND JOG BEAT PAD BEAT MAX BEAT JUMP RANDOM WAVE FADER BALANCE SPEAKERS/ X-ROUND OFF D1048,1050 BEAT JUMP D1046,1056 BEAT MAX WAVE D1042,1058 RANDOM D1052,1054 BALANCE FADER LED-(BALANCE,WAVE,FADER,RAND) LED(BALANCE,WAVE,FADER,RANDOM) LED(BALANCE,WAVE,FADER,RANDOM) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 65 HCD-ZX80D HCD-ZX80D 7-41. PLACA DE CIRCUITO IMPRESSO – PLACA TRANSFORMER � : Utiliza liga de solda sem chumbo� R1262 R1263 R1264 D1264 NO1211 FH1291 F1291 FH1292 JW1202 JW1201 JW1206 JW1207 JW1216 NÃO MONTADO JW1222 JW1223 JW1234 CN1212 R1292 C1263 Q1264 C1262 FH1241 FH1242 FH1251 F1241 F1251 FH1261 FH1252 FH1262 FH1272 FH1282 CN1213 C1292 D1292 JW1208 JW1209 JW1220 T1200 POWER TRANSFORMER JW1211 FH1271 F1261 F1271 FH1281 F1281 JW1221 1-864-931- 11 (22) PLACA TRANS B C E 2 (ZX100D) 1 4 1 3 7 8 19 5 A B C D E F 1 2 3 4 5 6 7 8 9 10 11 12 13 14 R MAIN BOARD NO603 V PA BOARD NO600 AC PRIMARY BOARD CN1204 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 66 HCD-ZX80D HCD-ZX80D 7-42. PLACA DE CIRCUITO IMPRESSO – PLACA PRIMARY � : Utiliza liga de solda sem chumbo� Q1200 C1204 R1200 R1201 C1202 C1201 D1200 JR1202 NO1201 NO1203 JW1214 JW1213 JW1215 CN1204 CN1202 C1206 RY1200 S1200 EP1203 CN1200 L1201 C1200 E PLACA PRIMARY 1-864-932- 11 (22) POWER SWITCHING 1 2 1 2 1 2 (CHASSIS) 1 3 1 4 (AC IN) VOLTAGE SELECTOR 220V 120V 220V J MAIN BOARD NO401 AC TRANS BOARD NO1211 A B C D E F G 1 2 3 4 5 6 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 67 HCD-ZX80D HCD-ZX80D 7-43. DIAGRAMA ESQUEMATICO – SEÇÃO POWER SUPPLY� � L1201 18µH R1262 R1263 C1202 C1201 R1200 C1206 CN1200 R1201 C1204 EP1203 NO1201 CN1212 R1264 C1262 C1263 JR1202 RY1200 Q1200 CN1204 NO1211 F1251 F1261 F1271 F1281 F1241 F1291 T1200 Q1264 D1264 JW1211 JW1222 JW1223 CN1213 NÃO MONTADO D1292 C1292 R1292 CN1202 NO1203 S1200 D1200 8.2k 8.2k 0.1 0.1 3.3k 1000 6.3V 3P 100k 0.1 2P 7P 1k 10 50V 100 50V 0 2SC2712KT-YG 8A 250V 8A 250V 8A 250V 3.15A 250V 8A 250V 3.15A 250V 2SB1565E HZU36BTRF 8P 10EDB40-TB3 100 63V 0.68 2P 2P 1SS355WTE-17 AC3 AC4 AC4 VF VF AC3 VP GND GND D-GND N L N L EVER+4V DGND GND AC1 AC1 AC2 AC2 EVER+4V STBY RLY D-GND (CHASSIS) (AC IN) POWER ON/OFF RELAY DRIVE VOLTAGE 220V 220V POWER TRANSFORMER -36V REGULATOR POWER SWITCHING SELECTOR ∗ PROTEÇÃO INTERNA C1200 0.0047 250V AO TRANFORMADOR 127V w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 68 HCD-ZX80D • Diagrama em Blocos dos ICs – Placa DMB15 – IC105, 107 TK11133CSCL-G 1 2 3 5 4 VCONT GND NP VIN VOUT CONTROL CIRCUIT OVER HEAT & OVER CURRENT PROTECTION BANDGAP REFERENCE SCF DAC DATT SCF DAC DATT 37 LOUT4– 38 LOUT4+ SCF DAC DATT 39 ROUT3– 40 ROUT3+ SCF DAC DATT 41 LOUT3– 42 LOUT3+ SCF DAC DATT 43 ROUT2– 44 ROUT2+ SCF DAC DATT 45 LOUT2– 46 LOUT2+ SCF DAC DATT SCF DAC DATT 47 ROUT1– 48 ROUT1+ DSD PCM AUDIO I/F 8 PDN 5 DZF1 6 CAD0 3 DZF3 4 DZF2 1 LOUT1– 2 LOUT1+ 9 BICK 10 MCLK 11 DVDD 12 DVSS 13 SDTI4 14 SDTI1 15 SDTI2 16 SDTI3 17 LRCK CONTROL REGISTER 18 I2C 25 DSDL1 26 DSDR1 33 ROUT4+ 32 ROUT4– 27 DSDL2 28 DSDR2 29 DSDL3 30 DSDR3 19 CCLK/SCL 21 CSN/CAD1 20 CDTI/SDA 24 DSDR4 22 DCLK 23 DSDL4 31 DIF0 7 ACKSN 36 AVSS 35 AVDD 34 VREFH IC301 AK4358VQ-L www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 69 HCD-ZX80D DELTA-SIGMA MODULATOR DELTA-SIGMA MODULATOR VINL 1 VINR 2 VREF1 3 VREF2 4 VCC AGND 5 6 BYPAS 8 TEST 9 LRCK 10 REFERENCE × 1/64, × 1/128 DECIMATION FILTER WITH HIGH-PASS FILTER SERIAL INTERFACE & MODE/FORMAT CONTROL MODE1 20 MODE0 19 FMT1 18 FMT0 17 OSR 16 SCKI 15 VDD 14 DGND 13 DOUT 12 BCK 11 CLOCK & TIMING CONTROL POWER SUPPLY PDWN 7 IC3601 PCM1803DBR – Placa DRIVER – IC701, 712 BA6956AN 1 2 3 4 5 6 7 8 9 CONTROL LOGIC TSD VREF OUT2 OUT1 RNF VM VCC FIN GND RIN 2 OSC ADPCM DECODE DELAY DRAM ADPCM ENCODE ADC DAC S/H POST LPF ALC VOLUME CONTROL OSCC 1 VDD 3 OSCR 4 NC 5 VOL1 (CS) 6 VOL2 (SCL) 7 VOL3 (SDA) 8 NC 9 VRO VREF VDA NC ALC1 MC1N MC1P 15 16 14 13 12 11 10 VREF VREF VREF VREF ALC VREF MC2P 17 MC2N 18 ALC1 19 NC 20 VSA 21 MCO 22 PRIN 23 ADIN 24 NC 25 DA OUT 26 VOLST 27 NC 28 TEST 29 POOUT 30 VSS – Placa MIC – IC1100 TC9488FG www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 70 HCD-ZX80D – Placa EFFECTOR – IC1501, 1504 M65850FP-E1 OSCILLATOR 1/2 VCC AUTO RESET LPF1 MAIN CONTROL A/D 20KBIT SRAM LPF2 D/A 2 3 4 5 6 7 8 9 10 11 15 14 13 12 CLOCK RESET MO MI D1 DO0 DO1 VCC 16 NC CLOCK REF OP2IN OP2OUT LPF2IN LPF2OUT LPF1IN 1 NC LPF1OUT OP1OUT OP1IN CC1 CC2 GND 1 D4 2 D6 3 COM 4 D7 5 D5 6 INH 7 VEE 8 GND 9 C 10 B 11 A 12 D3 13 D0 14 D1 15 D2 16 VCC OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN OUT C IN LOGIC LEVEL CONVERTER 16 13 15 11 9 10 2 3 6 7 8 A B 3X 14 1X 12 0X 2X X-COM VCC GND VEE INH Y-COM 2Y LOGIC LEVEL CONVERTOR C OUT IN C OUT IN C OUT IN C OUT IN C OUT IN C OUT IN C OUT IN C OUT IN 1 0Y 4 5 1Y 3Y IC1502, 1503 TC74LVX4051FT IC1506 TC74LVX4052FT www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 71 HCD-ZX80D – Placa PAINEL – IC904 NJM2760V-TE2 IN1 1 BPF2OUT 15 BPF1OUT 16 RECOUT 17 BPF2OUT 20 IN2 2 BUF1OUT 3 BPF2IN1 4 BPF2IN2 5 BAND-PASS FILTER BPF3IN1 6 BPF3IN2 7 BAND-PASS FILTER BPF4IN1 8 BPF4IN2 9 GND 10 BAND-PASS FILTER DET DET BPF1IN2 19 BPF1IN1 18 BAND-PASS FILTER DET BPF3OUT 14 DET BPF4OUT 13 N.C. 12 V+ 11 DET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 72 HCD-ZX80D • Descrição da função dos pinos do IC Placa DMB15 IC102 CXD9849R (RF AMP, SERVO DSP, MPEG DECODER) Pin No. Pin Name I/O Description 1 AGND - Ground terminal 2 DVDA I AC coupled input path A 3 DVDB I AC coupled input path B 4 DVDC I AC coupled input path C 5 DVDD I AC coupled input path D 6 DVDRFIP I AC coupled DVD RF signal input from the optical pick-up block 7 DVDRFIN I AC coupled DVD RF signal input terminal Not used 8 MA I DC coupled main-beam RF signal input A 9 MB I DC coupled main-beam RF signal input B 10 MC I DC coupled main-beam RF signal input C 11 MD I DC coupled main-beam RF signal input D 12 SA I DC coupled sub-beam RF signal input A Not used 13 SB I DC coupled sub-beam RF signal input B Not used 14 SC I DC coupled sub-beam RF signal input C Not used 15 SD I DC coupled sub-beam RF signal input D Not used 16 CDFON I CD focusing error negative input terminal Not used 17 CDFOP I CD focusing error positive input terminal Not used 18 TNI I 3 beam satellite PD signal negative input from the optical pick-up block 19 TPI I 3 beam satellite PD signal positive input from the optical pick-up block 20, 21 MDI1, MDI2 I Laser power monitor input from the optical pick-up block 22 LDO2 O Laser diode drive signal output to the optical pick-up block (for DVD) 23 LDO1 O Laser diode drive signal output to the optical pick-up block (for CD) 24 SVDD3 - Power supply terminal (+3.3V) 25 CSO O Central servo signal output terminal Not used 26 RFLVL O RFRP low pass output terminal Not used 27 SGND - Ground terminal 28 V2REFO O Reference voltage (+2.8V) output terminal Not used 29 V2O O Reference voltage (+2V) output to the optical pick-up block 30 VREFO O Reference voltage (+1.4V) output terminal 31 FEO O Focus error monitor output terminal Not used 32 TEO O Tracking error monitor output terminal Not used 33 TEZISLV O Slice level of tracking error signal output terminal Not used 34 OPOUT O Output from the internal operational amplifier Not used 35, 36 OPIN I Input to the internal operational amplifier Not used 37 DMO O Spindle motor control signal output to the motor driver 38 FMO O Sled motor control signal output to the motor driver 39 TROPENPWM O Loading motor control signal output terminal Not used 40 IOPMON I Power monitor terminal 41 TRO O Tracking coil control signal output to the coil driver 42 FOO O Focus coil control signal output to the coil driver 43 DVSS - Ground terminal 44, 45 NC - Not used 46 DVDD3 - Power supply terminal (+3.3V) 47 SPFG I Spindle motor hall sensor input from the motor driver 48 DSEL O Interlace/progressive selection signal output terminal Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 73 HCD-ZX80D Pin No. Pin Name I/O Description 49 WIDE O Normal/squeeze selection signal output to the video amplifier "L": normal, "H": squeeze 50 MSW O CD/DVD selection signal output terminal "L": CD, "H": DVD 51 MAMUTE - Muting control signal output terminal Not used 52 DVDD18 - Power supply terminal (+1.8V) 53 to 61 IOA2 to IOA8, IOA18, IOA19 O Address signal output to the flash ROM 62 DVSS - Ground terminal 63 APLLCAP - Connection terminal for an external capacitor 64 APLLVSS - Ground terminal 65 VDD3 - Power supply terminal (+3.3V) 66 IOWR O Write enable signal output to the flash ROM 67 to 72 IOA16 to IOA11 O Address signal output to the flash ROM 73 DVDD3 - Power supply terminal (+3.3V) 74 to 76 IOA10, IOA9, IOA20 O Address signal output to the flash ROM 77 IOCS O Chip select signal output to the flash ROM 78 IOA1 O Address signal output to the flash ROM 79 IOOE O Output enable signal output to the flash ROM 80 DVDD3 - Power supply terminal (+3.3V) 81 to 84 AD0 to AD3 I/O Data/address signal input/output terminal with the flash ROM 85 DVSS - Ground terminal 86 to 88 AD4 to AD6 I/O Data/address signal input/output terminal with the flash ROM 89 IOA21 O Address signal output to the flash ROM 90 ALE O Address latch enable signal output terminal Not used 91 AD7 I/O Data/address signal input/output terminal with the flash ROM 92, 93 IOA17, IOA0 O Address signal output to the flash ROM 94 DVSS - Ground terminal 95 UWR O Write enable signal output terminal Not used 96 URD O Data read enable signal output terminal Not used 97 DVDD18 - Power supply terminal (+1.8V) 98 IFSDO O Serial data output to the master controller 99 IFCK O Serial data transfer clock signal output to the master controller 100 XIFCS O Chip select signal output to the master controller 101 IFSDI I Serial data input from the master controller 102 SCL O Serial data transfer clock signal output to the EEPROM and D/A converter 103 SDA I/O Two-way data bus with the EEPROM and D/A converter 104 TRG-SW I Trigger detection switch input terminal Not used 105 IFBSY I Busy signal input from the master controller 106 RXD I Receive data input terminal for UART communication when data writing to flash memory 107 TXD O Transmit data output terminal for UART communication when data writing to flash memory 108 DVDD3 - Power supply terminal (+3.3V) 109 ICE I ICE mode enable signal input terminal Not used 110 PRST I Reset signal input from the master controller "L": reset 111 IR I IR control signal input terminal Not used 112 INT0 O Interrupt request signal output terminal Not used 113 DQM0 O Data mask signal output to the SD-RAM 114 MREQ O Muting request signal output terminal Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 74 HCD-ZX80D Pin No. Pin Name I/O Description 115 RD7 I/O Two-way data bus with the SD-RAM 116 DVSS - Ground terminal 117, 118 RD6, RD5 I/O Two-way data bus with the SD-RAM 119 DVSS - Ground terminal 120, 121 RD4, RD3 I/O Two-way data bus with the SD-RAM 122 DVDD18 - Power supply terminal (+1.8V) 123 to 126 RD2 to RD0, RD15 I/O Two-way data bus with the SD-RAM 127 DVDD3 - Power supply terminal (+3.3V) 128 to 133 RD14 to RD9 I/O Two-way data bus with the SD-RAM 134 DVSS - Ground terminal 135 RD8 I/O Two-way data bus with the SD-RAM 136 GPIO - Not used 137 DQM1 O Data mask signal output to the SD-RAM 138 RWE O Write enable signal output to the SD-RAM 139 CAS O Column address strobe signal output to the SD-RAM 140 RAS O Row address strobe signal output to the SD-RAM 141 DVDD3 - Power supply terminal (+3.3V) 142 RCS O Chip select signal output to the SD-RAM 143 BA0 O Bank address signal output to the SD-RAM 144 DVSS - Ground terminal 145 BA1 O Bank address signal output to the SD-RAM 146, 147 RA10, RA0 O Address signal output to the SD-RAM 148 DVSS - Ground terminal 149 to 151 RA1 to RA3 O Address signal output to the SD-RAM 152 DVDD18 - Power supply terminal (+1.8V) 153, 154 NC - Not used 155 DVDD3 - Power supply terminal (+3.3V) 156 RCLK O Serial data transfer clock signal output to the SD-RAM 157 CKE O Clock enable signal output to the SD-RAM 158 to 160 RA11, RA9, RA8 O Address signal output to the SD-RAM 161 DVSS - Ground terminal 162 RA7 O Address signal output to the SD-RAM 163 DVSS - Ground terminal 164 to 166 RA6 to RA4 O Address signal output to the SD-RAM 167 DVDD3 - Power supply terminal (+3.3V) 168 DISC/X - Not used 169 RGB - Not used 170 TSD_M O Thermal shut down signal output to the motor/coil driver 171, 172 NC - Not used 173 DVDD18 - Power supply terminal (+1.8V) 174 FWD O Loading motor drive signal output terminal (forward direction) Not used 175 NC - Not used 176 LIMSW I Limit detection switch input terminal 177 OCSW I Disc table open/close detection switch input terminal Not used 178 REV O Loading motor drive signal output terminal (reverse direction) Not used 179 CKSW I Chucking detection switch input terminal Not used 180, 181 NC - Not used www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 75 HCD-ZX80D Pin No. Pin Name I/O Description 182 DVDD3 - Power supply terminal (+3.3V) 183 to 188 NC - Not used 189 DAVCC - Power supply terminal (+3.3V) 190 VREF - For bandgap reference voltage terminal 191 FS - Full scale adjustment terminal 192 YUV0 O Video data output terminal Not used 193 DAVSS - Ground terminal 194 YUV1 O Y signal output to the video amplifier 195 DAVDD - Power supply terminal (+3.3V) 196 YUV2 O Chroma signal output to the video amplifier 197 DAVSS - Ground terminal 198 YUV3 O Video signal output to the video amplifier 199 DAVDD - Power supply terminal (+3.3V) 200 YUV4 O Chroma signal output to the video amplifier 201 DAVSS - Ground terminal 202, 203 YUV5, YUV6 O Component video signal output to the video amplifier 204 DVDD3 - Power supply terminal (+3.3V) 205 MIC I Microphone detection signal input from the master controller "H": microphone in 206 VOICE I Voice signal input terminal 207 KRMOD O Karaoke mode selection signal output to the master controller "H": karaoke mode 208 SMSCK I Score signal input terminal 209 SPDATA I SPDIF digital audio data input from the A/D converter 210 MUTE O Muting signal output to the motor/coil driver 211 MUTE123 O Muting signal output to the motor/coil driver 212 DVDD3 - Power supply terminal (+3.3V) 213 ALRCK O L/R sampling clock signal output to the D/A converter and A/D converter 214 ABCK O Bit clock signal output to the D/A converter and A/D converter 215 ACLK O Master clock signal output to the D/A converter and A/D converter 216 DVSS - Ground terminal 217 to 219 ASDATA0 to ASDATA2 O Audio serial data output to the D/A converter 220 XRST O Reset signal output to the D/A converter "L": reset 221 DVDD18 - Power supply terminal (+1.8V) 222 ASDATA4 O Audio serial data output to the D/A converter 223 DVSS - Ground terminal 224 DWIDE - Not used 225 SPDIF O SPDIF digital audio signal output terminal Not used 226 RFGND18 - Ground terminal 227 RFVDD18 - Power supply terminal (+1.8V) 228 XTALO O System clock output terminal (27 MHz) 229 XTALI I System clock input terminal (27 MHz) 230 JITFO O Output terminal of the RF jitter meter 231 JITFN I Input terminal of the RF jitter meter 232 PLLVSS - Ground terminal 233 IDAC - Not used 234 PLLVDD3 - Power supply terminal (+3.3V) 235 LPFON O Data PLL loop filter output terminal 236 LPFIP I Data PLL loop filter input terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 76 HCD-ZX80D Pin No. Pin Name I/O Description 237 LPFIN I Data PLL loop filter input terminal 238 LPFOP O Data PLL loop filter output terminal 239 VDD3 - Power supply terminal (+3.3V) 240 NC - Not used 241 VSS - Ground terminal 242, 243 NC - Not used 244 RFVDD3 - Power supply terminal (+3.3V) 245 RFRPDC O RF ripple detect output terminal 246 RFRPAC I RF ripple detect input terminal 247 HRFZC I High frequency RF ripple zero crossing terminal 248 CRTPLP O Defect level filter capacitor connecting terminal 249 RFGND - Ground terminal 250, 251 NC - Not used 252 OSP O RF offset cancellation capacitor connecting terminal 253 OSN O RF offset cancellation capacitor connecting terminal 254 RFGC O RF AGC loop capacitor connecting for DVD-ROM 255 IREF I Reference current input terminal 256 AVDD3 - Power supply terminal (+3.3V) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 77 HCD-ZX80D Placa MAIN IC401 M30622MEP-A78FPU0 (MASTER CONTROLLER) Pin No. Pin Name I/O Description 1 TUNED I Tuning detection signal input from the tuner (FM/AM) "L": tuned 2 ST-DOUT O PLL serial data output to the tuner (FM/AM) 3 ST-CLK O PLL serial data transfer clock signal output to the tuner (FM/AM) 4 SIRCS I Remote control signal input from the remote control receiver 5 ST-DIN I PLL serial data input from the tuner (FM/AM) 6 ST-CE O PLL serial chip enable signal output to the tuner (FM/AM) 7 STBY-RELAY O Relay drive signal output for the main power "H": power on 8 BYTE I External data bus width selection signal input terminal Fixed at "L" in this set 9 CNVSS I Processor mode switch input terminal (for test) 10 XC-IN I Sub system clock input terminal (32.768 kHz) 11 XC-OUT O Sub system clock output terminal (32.768 kHz) 12 RESET I System reset signal input from the reset signal generator "L": reset For several hundreds msec. after the power supply rises, "L" is input, then it change to "H" 13 X-OUT O Main system clock output terminal (5 MHz) 14 VSS - Ground terminal 15 X-IN I Main system clock input terminal (5 MHz) 16 VCC - Power supply terminal (+3.3V) 17 NMI I Non-maskable interrupt input terminal Fixed at "H" in this set 18 EFFECTOR- SELECT O Effector on/off control signal output to the signal selector "H": effector on 19 EFFECTOR-S0 O Effector circuit delay time selection signal output to the multiplexer 20 AC-CUT I AC cut on/off detection signal input from the reset signal generator "L": AC cut on 21 MIC STATUS O Microphone detection signal output to the servo DSP "H": microphone in 22 MTK-KMOD I Karaoke mode selection signal input from the servo DSP "H": karaoke mode 23 MTK-IFBSY O Busy signal output to the servo DSP 24 MTK-XIFCS I Chip select signal input from the servo DSP 25 MTK-RESET O Reset signal output to the servo DSP "L": reset 26 EJECT SW I Disc table open/close detection signal input terminal "L": open, "H": close 27 TBL SENS I Disc table address sensor input terminal 28 E3 I Disc table address detection signal input terminal 29 IIC-CLK I/O Two-way IIC clock bus with the display controller 30 IIC-DATA I/O Two-way I2C data bus with the display controller 31 MTK-SIO O Serial data output to the servo DSP 32 MTK-SOD I Serial data input from the servo DSP 33 MTK-CLK I Serial data transfer clock signal input from the servo DSP 34, 35 E2, E1 I Disc table address detection signal input terminal 36 TM-F O Table motor drive signal output terminal (forward direction) 37 TM-R O Table motor drive signal output terminal (reverse direction) 38 LM-F O Loading motor drive signal output terminal (forward direction) 39 LM-R O Loading motor drive signal output terminal (reverse direction) 40 GC-RESET O Reset signal output to the display controller "L": reset 41 STBY-LED O LED drive signal output terminal "L": red LED on (standby mode),"H": green LED on (power on mode) 42 FAN CONTROL O Fan motor on/off control signal output terminal "L": motor on 43 to 45 EFFECTOR-S1 to EFFECTOR-S3 O Effector circuit delay time selection signal output to the multiplexer www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 78 HCD-ZX80D Pin No. Pin Name I/O Description 46 ANALOG-IN- MUTE O Analog signal muting on/off control signal output terminal "H": muting on 47 A-HALF I Deck-A cassette detection signal input from the tape mechanism deck block "L": cassette in 48 A-TRIG O Deck-A side trigger plunger drive signal output terminal "H": plunger on 49 B-TRIG O Deck-B side trigger plunger drive signal output terminal "H": plunger on 50 CAPM O Capstan/reel motor drive signal output terminal "L": FWD/stop, "H": REV 51 SW-SPK RELAY O Relay drive signal output for the subwoofer (SS-WGV100D) "H": relay on (HCD-ZX100D only) 52 REC BIAS O Recording bias on/off control signal output terminal "H": bias on 53 TC-RELAY O Recording/playback selection signal output terminal "L": playback, "H": recording 54 REC MUTE O Recording muting on/off control signal output to the REC/PB EQ amplifier "L": muting on 55 PB A/B O DECK-A/B selection signal output to the REC/PB EQ amplifier "L": deck-B, "H": deck-A 56 ALC O Automatic limiter on/off control signal output to the REC/PB EQ amplifier "H": limiter on 57 EFFECTOR-CTR1 O Effector mode control signal output terminal "L": delay1, delay 2, effector off, "H": flanger 1, flanger 2, chorus 1, chorus 2 58 FAN HI SPEED O Fan motor speed control signal output terminal "L": hi speed 59 NO USE - Not used 60 STK-MUTE O System muting on/off control signal output terminal "L": muting on, "H": power amplifier on Muting on/off control signal output for subwoofer out "L": muting on (HCD-ZX80D only) 61 REAR-RELAY O Relay drive signal output for the surround (rear) speaker "H": relay on 62 VCC - Power supply terminal (+3.3V) 63 EFFECTOR-CTR2 O Effector mode control signal output terminal "L": delay 2, effector off, "H": flanger 1, flanger 2, chorus 1, chorus 2, delay1 64 VSS - Ground terminal 65 CTR-RELAY O Relay drive signal output for the center speaker "H": relay on 66 FR-RELAY O Relay drive signal output for the front speaker "H": relay on 67 PROTECT I Speaker protect detection signal input terminal "L": protect on 68 OVER VOLTAGE I Over voltage detection signal input terminal "H": over voltage is detected (Except Mexican model only) 69 UNDER VOLTAGE I Under voltage detection signal input terminal "L": under voltage is detected (Except Mexican model only) 70 EFFECTOR-CTR3 O Effector mode control signal output terminal "L": chorus 1, chorus 2, effector off, "H": flanger 1, flanger 2, delay1, delay 2 71 TC-MUTE O Playback muting on/off control signal output terminal "H": muting on 72 HP-MUTE O Headphone muting on/off control signal output terminal "H": muting on 73 DISPLAY-KEY I DISPLAY key input terminal (interrupt input) 74 POWER-KEY I POWER key input terminal (interrupt input) 75 SW-MUTE O Muting on/off control signal output for subwoofer out "L": muting on (HCD-ZX80D only) 76 LINE-MUTE O Line muting on/off control signal output terminal "H": muting on 77 DVD-A-MUTE O CD/DVD analog signal muting on/off control signal output terminal "H": muting on 78 MTK-POWER O Power on/off control signal output for the CD/DVD sections "H": power on 79 AUDIO-IC-DATA O Serial data output to the audio control 80 AUDIO-IC-CLK O Serial data transfer clock signal output to the audio control 81 VOL-IC-DATA O Serial data output to the electrical volume 82 VOL-IC-CLK O Serial data transfer clock signal output to the electrical volume 83 AUDIO-OUT-SW O Audio out muting on/off control signal output terminal "H": muting on 84 HP-DETECT I Headphone detection signal input terminal "H": headphone in 85 MIC-DETECT I Microphone detection signal input terminal "H": microphone in www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 79 HCD-ZX80D Pin No. Pin Name I/O Description 86 NO USE - Not used 87 VIDEO-OUT-SW O Composite video out selection signal output to the video switch "L": DVD video output, "H": video input output 88 VMUTE O Video muting on/off control signal output to the video amplifier "L": muting on 89 A-SHUT I Deck-B tape reel rotating detection signal input from the tape mechanism deck block 90 B-SHUT I Deck-A tape reel rotating detection signal input from the tape mechanism deck block 91 B-HALF I Deck-B cassette detection signal, recording-proof (forward direction) detection signal and recording-proof (reverse direction) detection signal input from the tape mechanism deck block (A/D input) "L": cassette in and recording possible 92 MODEL-IN I Model setting input terminal (A/D input) 93 DEST-IN I Destination setting input terminal (A/D input) 94 THERMAL VACS I Thermal VACS detection signal input from thermal sensor (A/D input) 95 SW-LEVEL-IN I Subwoofer volume level detection signal input from the SS-WGV100D (HCD-ZX100D only) 96 AVSS - Ground terminal (for A/D conversion) 97 NO USE - Not used 98 VREF I Reference voltage (+3.3V) input terminal (for A/D converter) 99 AVCC - Power supply terminal (+3.3V) (for A/D conversion) 100 SW-LED O LED drive signal output to the SS-WGV100D for subwoofer on indicator "H": LED on (HCD-ZX100D only) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 80 HCD-ZX80D Placa PAiNEL IC902 MB90M407PF-G-149E1 (DISPLAY CONTROLLER) Pin No. Pin Name I/O Description 1 to 8 G8 to G1 O Grid drive signal output to the fluorescent indicator tube 9, 10 P1, P2 O Segment drive signal output to the fluorescent indicator tube 11 VSS-IO - Ground terminal (for I/O port) 12 to 22 P3 to P13 O Segment drive signal output to the fluorescent indicator tube 23 VDD-FIP - Power supply terminal (+3.3V) (for fluorescent indicator tube) 24 to 41 P14 to P31 O Segment drive signal output to the fluorescent indicator tube 42 VSS-IO - Ground terminal (for I/O port) 43 to 47 P32 to P36 O Segment drive signal output to the fluorescent indicator tube 48 VKK - Power supply terminal (-36V) (for fluorescent indicator tube) 49, 50 MD0, MD1 I Setting terminal for the CPU operation mode Fixed at "H" in this set 51 MD2 I Setting terminal for the CPU operation mode Fixed at "L" in this set 52 LED-CD/DVD, TUNER O LED drive signal output for the DVD and TUNER/BAND indicator "H": LED on 53 LED-TAPE, TV/SAT O LED drive signal output for the TAPE A/B and TV/SAT indicator "H": LED on 54 LED-VIDEO, (PAUSE, STOP) O LED drive signal output for the VIDEO, pause and stop indicator "H": LED on 55 LED- (AMS+, AMS-), (FF, FR) O LED drive signal output for the AMS+, AMS-, FF and FR indicator "H": LED on 56 LED-VOLUME 1, 2 O LED drive signal output for the volume level 1 and 2 indicator "H": LED on 57 LED-VOLUME 3, 4 O LED drive signal output for the volume level 3 and 4 indicator "H": LED on 58 LED-VOLUME 5, 6 O LED drive signal output for the volume level 5 and 6 indicator "H": LED on 59 LED-VOLUME 7, 8 O LED drive signal output for the volume level 7 and 8 indicator "H": LED on 60 I2C-DATA I/O Two-way I2C data bus with the master controller 61 I2C-CLOCK I/O Two-way I2C clock bus with the master controller 62 AVCC - Power supply terminal (+3.3V) (for A/D converter) 63 AVSS - Ground terminal (for A/D converter) 64 to 66 KEY 0 to KEY 2 I Front and top panel key input terminal (A/D input) 67 ALL-BAND I Spectrum analyzer drive signal input from the band-pass filter 68 BF4 I Spectrum analyzer drive signal input from the band-pass filter (for 80 Hz) 69 BF3 I Spectrum analyzer drive signal input from the band-pass filter (for 300 Hz) 70 BF2 I Spectrum analyzer drive signal input from the band-pass filter (for 1.2 kHz) 71 BF1 I Spectrum analyzer drive signal input from the band-pass filter (for 8 kHz) 72 OPERATION DIAL I Jog dial pulse input from the rotary encoder (OPERATION DIAL) 73 JOG-X-ROUND I Jog dial pulse input from the rotary encoder (X-ROUND JOG) 74 VOLUME I Jog dial pulse input from the rotary encoder (MASTER VOLUME) 75 LED- (BEAT JUMP, BEAT MAX) O LED drive signal output for the BEAT JUMP and BEAT MAX indicator "H": LED on 76 LED- (BALANCE, WAVE, FADER, RANDOM), DELAY O LED drive signal output for the BALANCE, WAVE, FADER, RANDOM and DELAY indicator "H": LED on 77 RESET I Reset signal input from the master controller "L": reset 78 LED-FLANGER, CHORUS O LED drive signal output for the FLANGER and CHORUS indicator "H": LED on 79 LED-PLAY O LED drive signal output for the play indicator "H": LED on 80 LED SELECTOR O LED selection signal output terminal www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 81 HCD-ZX80D Pin No. Pin Name I/O Description 81 VSS-CPU - Ground terminal (for CPU) 82 XOUT O System clock output terminal (4 MHz) 83 XIN I System clock input terminal (4 MHz) 84 VCC-CPU - Power supply terminal (+3.3V) (for CPU) 85 to 100 G24 to G9 O Grid drive signal output to the fluorescent indicator tube www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 82 HCD-ZX80D 1 #1 #4 #1 #1 #1 #4 #4 não fornecido não fornecido não fornecido não fornecido seção placa PAINEL seção painel traseiro (placa X-ROUND) 2 2 10 2 3 4 5 #2 #2 6 7 6 7 8 9 9 SEÇÃO 8 VISTA EXPLODIDA • Itens marcados por “*” não possuem estoque para venda. Para evitar atrasos antecipe o pedido destes itens. • Peças mecanicas não identificadas na vista explodida não são fornecidas. NOTA: • -XX e -X significam peças padronizadas, então podem haver diferenças em relação a peça original. Componentes identificados por 0 ou impresso com a marca 0 são criticos para a segurança Substitua os apenas pela peça original especificada. Ref. No. Part No. Description Remark 8-1. SEÇÃO TAMPA, ESCUTCHEON TOP Ref. No. Part No. Description Remark 1 2-655-708-51 PAINEL, DE CARREGAMENTO 2 3-087-053-01 +BVTP2.6 (3CR) 3 2-662-067-01 KNOB (SPEAKER) (SPEAKERS/X-ROUND OFF) 4 2-662-065-01 JOG (X-ROUND) 5 X-2108-715-1 ESCUTCHEON TOP MONTADO 6 3-363-099-02 PARAFUSO (CASE 3 TP2) 7 3-363-099-32 PARAFUSO (CASE 3 TP2) 8 2-342-137-22 TAMPA 9 4-225-252-21 CALÇO (PÉ) 10 3-077-331-01 +BV3 (3-CR) #1 7-685-646-79 PARAFUSO +BVTP 3X8 TYPE2 IT-3 #2 7-685-648-79 PARAFUSO +BVTP 3X12 TYPE2 IT-3 #4 7-685-647-79 PARAFUSO +BVTP 3X10 TYPE2 IT-3 11 11 Y-8285-503-A PAINEL FRONTAL MONTADO • Para substituição da placa montada consulte o Suporte Técnico. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 83 HCD-ZX80D 8-2. SEÇÃO PLACA PAINEL Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 2-662-072-01 BOTÃO VOLUME 52 2-662-070-01 bOTÃO JOG 53 3-087-053-01 +BVTP2.6 (3CR) 54 A-1174-314-A PLACA FUNCTION, MONTADA 55 1-828-991-11 CABO (TIPO FLAT) (17 VIAS) 51 52 53 53 53 53 57 53 53 58 54 55 56 (placa JOG) seção tape mecha deck (placa CD-SW ) 56 Y-828-539-2A PLACA PAINEL , MONTADA 57 1-921-115-42 CABO (TIPO FLAT) (7 VIAS) 58 1-921-098-11 CABO (TIPO FLAT) (17 VIAS) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 84 HCD-ZX80D 8-3. SEÇÃO TAPE MECHA DECK Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 4-224-578-31 BOTÃO (MIC) 102 2-655-724-21 TAMPA CASSETE (TC) 103 4-224-104-11 AMORTECEDOR 104 2-655-733-01 MOLA (L) 105 2-655-732-01 MOLA (LID) 106 2-655-734-01 MOLA (R) 107 3-087-053-01 +BVTP2.6 (3CR) 108 4-252-578-11 COMPARATIMENTO TC-L 109 4-959-229-11 DETENTOR, CASSETE 110 4-252-579-11 COMPARATIMENTO TC-R 111 4-244-092-01 MOLA (EJECT) 112 3-077-331-21 +BV3 (3-CR) 113 1-417-658-11 MECANIASMO DA FITA (CWN42RR603) 114 A-1174-047-A PLACA MIC BOARD MONTADA 115 1-828-964-11 CABO (TIPO FLAT) (11 VIAS) #5 7-685-853-01 PARAFUSO +BVTP 2X6 (S) 101 não fornecido não fornecido não fornecido não fornecido #5 não fornecido não fornecido não fornecido 102 103 103 104 105 106 107 115 107 107 107 107 108 109 109 110 111 112 113 114 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 85 HCD-ZX80D 8-4. SEÇÃO PAINEL TRASEIRO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 0151 1-468-737-51 PLACA CHAVEAMENTO 152 1-693-703-11 SINTONIZADOR (FM/AM) (TM10SE) 153 3-378-109-12 CALÇO, SARANET 154 1-828-358-11 CABO (TIPO FLAT) (19 VIAS) 155 Y-828-539-6A PLACA EFFECTOR, MONTADA 151 #1 #1 #1 #1 #1 #2 #3 #4 #4 #4 #4 #4 #4 #4 #4 não fornecido não fornecido não fornecido 160 não fornecido 159 não fornecido DMB15/KARAOKE/VIDEO MAIN/PA/SURROUND seção não fornecido não fornecido (placa PRIMARY ) 158 156 152 153 157 154 155 M501 156 1-828-973-11 CABO (TIPO FLAT) (13 VIAS) 157 1-921-098-31 CABO (TIPO FLAT) (9 VIAS) 158 3-701-748-00 CLAMP M501 1-763-372-12 VENTILADOR, DC #1 7-685-646-79 PARAFUSO +BVTP 3X8 TYPE2 IT-3 #2 7-685-648-79 PARAFUSO +BVTP 3X12 TYPE2 IT-3 #3 7-685-651-79 PARAFUSO +BVTP 3X20 TYPE2 N-S #4 7-685-647-79 PARAFUSO +BVTP 3X10 TYPE2 IT-3 seção 159 2-342-130-02 TAMPA TRASEIRA 160 2-672-141-41 TAMPA DO PAINEL TRASEIRO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 86 HCD-ZX80D 8-5. SEÇÃO PLACA DMB15/KARAOKE/VIDEO Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 201 Y-828-582-6A PLACA KARAOKE, MONTADA 202 Y-828-540-0A PLACA VIDEO, MONTADA 203 1-828-326-11 CABO (TIPO FLAT) (13VIAS) 201 #4 #4 #4 #4 #4 #4 não fornecido não fornecido seção-1 DVD mechanism deck (CDM74HF-DVBU101) não fornecido não fornecido não fornecido 202 203 206 205 207 204 204 A-119-220-1A PLACA DMB15, MONTADA 205 1-828-332-11 CABO (TIPO FLAT) (13 VIAS) 206 1-921-115-31 CABO (TIPO FLAT) (21VIAS) 207 1-921-063-72 CABO (TIPO FLAT) (24 VIAS) #4 7-685-647-79 PARAFUSO +BVTP 3X10 TYPE2 IT-3 Nota: Verifique as notas de serviço “NOTA SOBRE A TROCA DA PLACA DMB15 ” (pag 4), www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 87 HCD-ZX80D 8-6. SEÇÃO PLACA MAIN/PA/SURROUND Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 251 4-225-252-01 CALÇO (PÉ) 252 4-900-386-01 PARAFUSO 253 3-077-331-21 +BV3 (3-CR) 254 Y-828-539-8A PLACA PA , MONTADA 255 3-905-609-32 PARAFUSO (TRANSISTOR) 256 Y-828-539-4A PLACA SURROUND, MONTADA 257 Y-828-539-0A PLACA MAIN, MONTADA 0258 1-928-185-04 CABO DE FORÇA * 259 3-004-269-01 PRENSA CABO 260 4-252-593-31 CHASSI D656 8-719-073-32 DIODE D25XB60 D658 8-719-066-42 DIODE RBV1306 M502 1-763-372-11 VENTILADOR, DC #1 7-685-646-79 PARAFUSO +BVTP 3X8 TYPE2 IT-3 #4 7-685-647-79 PARAFUSO +BVTP 3X10 TYPE2 IT-3 251 #1 #1 #4 #4 #4 #4 #4 #4 #4 #4 260 não fornecido M502 não fornecido não fornecido D656 D658 não fornecido não fornecido não fornecido não fornecido não fornecido SEÇÃO POWER TRANSFORMER não fornecido 251 252 252 252 253 253 253 253 253 253 253 253 254 255 255 255 256 257 258 259 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 88 HCD-ZX80D 8-7. SEÇÃO TRANSFORMADOR DE FORÇA Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 301 A-1174-927-A PLACA TRANSFORMADOR MONTADA 0F1241 1-533-949-33 FUSIVEL (TIME LUG) (8A/250V) 0F1251 1-533-949-33 FUSIVEL (TIME LUG) (8A/250V) 0F1261 1-533-949-33 FUSIVEL (TIME LUG) (8A/250V) 0F1271 1-533-949-33 FUSIVEL (TIME LUG) (8A/250V) 0F1281 1-532-465-33 FUSIVEL (3.15A/250V) 0F1291 1-532-465-33 FUSIVEL (3.15A/250V) 0T1200 1-443-976-11 TRANSFORMADOR DE FORÇA 301 F1241 F1251 F1261 F1271 F1281 F1291 T1200 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 89 HCD-ZX80D 8-8. SEÇÃO-1 DVD MECHANISM DECK (CDM74HF-DVBU101) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 501 4-218-253-42 PARAFUSO (M2.6), +BTTP 502 1-776-182-11 CABO (TIPO FLAT) (5 VIAS) 503 1-687-134-12 PLACA MOTOR (TB) 504 4-243-815-11 MESA (CARREGAMENTO) 505 4-245-571-02 ENGRENAGEM (STOPPER) 506 4-218-252-61 PARAFUSO (+PTPWH M2.6), FLOATING 507 4-245-570-01 ENGRENAGEM (JOINT) 508 4-245-572-01 BUCHA (ENGRENAGEM) 509 1-687-132-12 PLACA SENSOR 510 4-243-820-01 ENGRENAGEM (MESA) 511 4-243-819-01 ENGRENAGEM (GENEVA) 512 4-243-816-21 DISCO 513 4-243-823-01 CORREIA (TABLE) 514 4-985-672-01 PARAFUSO (+PTPWH M2.6), FLOATING 515 4-243-821-01 POLIA (MESAE) 516 3-231-598-01 FOLHA (BA) M741 A-1108-965-A MOTOR MONTADO, MESA 504 505 505 506 506 507 507 508 508 509 501 512 506 513 514 515 510 511 514 seção-2 DVD mechanism deck (CDM74HF-DVBU101) 501 502 503 516 M741 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 90 HCD-ZX80D 8-9. SEÇÃO-2 DVD MECHANISM DECK (CDM74HF-DVBU101) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 551 4-251-923-01 YOKE (310) 552 4-218-253-32 PARAFUSO (M2.6), +BTTP 553 1-687-669-12 PLACA SW 554 4-244-034-01 CORREIA (CARREGAMENTO) 555 4-218-252-52 PARAFUSO (+PTPWH M2.6), FLOATING 556 4-225-844-01 ENGRENAGEM (LOADING A) 557 4-224-613-01 ENGRENAGEM (SHAFT) 558 1-687-133-12 PLACA MOTOR (LD) 559 3-087-599-01 PARAFUSO DO AMORTECEDOR 560 4-244-108-01 ENGRENAGEM SWING 561 4-224-609-01 ENGRENAGEM (LOADING C) 562 4-224-608-01 ORNAMENTO, SWING 563 3-016-533-11 ARRUELA (FR), STOPPER 564 4-224-611-01 ENGRENAGEM (LOADING B) 565 4-224-606-01 ENGRENAGEM (RV) 566 4-243-818-01 ENGRENAGEM (U/D) 567 2-541-918-01 ALAVANCA (LIFTER (H)) 568 2-345-982-01 POLIA A (310), CHUCKING 569 2-345-983-01 POLIA B (310), CHUCKING 570 2-634-618-01 AMORTECEDOR 0571 8-820-322-01 BLOCO DA UNIDADE OTICA (KHM-313CAB/ C2NP) (Inclui mortor sled,motor spindle ) M751 A-4737-553-A MOTOR MONTADO, CARREGAMENTO S711 1-477-680-12 ENCODER, ROTARY (DISC TABLE ADDRESS DETECT) 551 552 552 552 553 554 555 556 557 558 560 561 562 563 564 565 566 567 569 559 568 555 555 555 555 M751 S711 570 570 559 (placa DRIVER ) não fornecido não fornecido não fornecido 571 (iinclui sled motor, spindle motor) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 91 HCD-ZX80D DMB15 SEÇÃO 9 LISTA DE PEÇAS ELÉTRICAS CD-SW Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark PLACA CD-SW ************* < CONECTOR > CN1152 1-784-729-11 SOCKET, CONNECTOR 7P < RESISTOR > R1166 1-216-817-11 METAL CHIP 470 5% 1/10W R1167 1-216-819-11 METAL CHIP 680 5% 1/10W R1168 1-216-821-11 METAL CHIP 1K 5% 1/10W R1169 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1170 1-216-823-11 METAL CHIP 1.5K 5% 1/10W < CHAVE > S1166 1-762-875-21 SWITCH, KEYBOARD (Z OPEN/CLOSE) S1167 1-762-875-21 SWITCH, KEYBOARD (EX-CHANGE/DISC SKIP) S1168 1-762-875-21 SWITCH, KEYBOARD (DISC 3) S1169 1-762-875-21 SWITCH, KEYBOARD (DISC 2) S1170 1-762-875-21 SWITCH, KEYBOARD (DISC 1) ************************************************************ A-119-220-1A PLACA DMB15 ,MONTADA ********************** < CAPACITOR > C101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C102 1-125-837-11 CERAMIC CHIP 1uF 10% 6.3V C105 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C108 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C109 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C112 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C114 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C115 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C116 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C117 1-124-779-00 ELECT CHIP 10uF 20% 16V C118 1-124-779-00 ELECT CHIP 10uF 20% 16V C119 1-124-779-00 ELECT CHIP 10uF 20% 16V C120 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C121 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C122 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C123 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C124 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C125 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C126 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C127 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C128 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C129 1-124-779-00 ELECT CHIP 10uF 20% 16V C130 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C131 1-125-838-11 CERAMIC CHIP 2.2uF 10% 6.3V C132 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C133 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C135 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C136 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C137 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C138 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C139 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C140 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C144 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C146 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C147 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C148 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C149 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C150 1-124-779-00 ELECT CHIP 10uF 20% 16V C151 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C152 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C153 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C154 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C155 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C156 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C158 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C159 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C160 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C161 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C162 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C163 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C164 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C167 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C170 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C171 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C172 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C173 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V NOTA • Devido a padronização, as peças substituidas podem ser diferentes das especificadas no diagrama ou nos componentes originais utilizados no aparelho. • -XX e -X significam peças padronizadas, então estas podem ter algumas diferenças em relação a peça original. • RESISTORES Todos os resistores estão em ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: não inflamavel • Itens identificados por “*” não possuem estoque para venda. Portanto antecipe o pedido destes i- tens quando necessita-los. • SEMICONDUTORES Em cada caso, u: µ, for exemplo: uA... : µA... uPA... : µPA... uPB... : µPB... uPC... : µPC... uPD... : µPD... • CAPACITORES uF: µF • BOBINAS uH: µH Componentes identificados por 0 ou impresso com a marca 0 são criticos para a segurança. Substitua os apenas pela peça original. Uma nova EEPROM (IC103) na DMB15 não pode ser montada. Assim, caso a placa DMB15 seja substituida, é necessário substituir EEPROM com a da placa antiga. Uma nova EEPROM (IC103) na DMB15 não pode ser montada. Assim, caso a placa DMB15 seja substituida, é necessário • Para substituição da placa montada consulte o Suporte Técnico. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 92 HCD-ZX80D DMB15 C174 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C175 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C176 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C177 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C178 1-126-208-21 ELECT CHIP 47uF 20% 4V C179 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C180 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C181 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C182 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C184 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C187 1-126-208-21 ELECT CHIP 47uF 20% 4V C188 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C189 1-128-934-11 CERAMIC CHIP 0.33uF 20% 10V C190 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C191 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C192 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C193 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C195 1-127-715-11 CERAMIC CHIP 0.22uF 10% 16V C196 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C203 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C205 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C206 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C208 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C209 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C210 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C211 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C212 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C213 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C214 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C215 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C217 1-126-204-11 ELECT CHIP 47uF 20% 16V C218 1-124-779-00 ELECT CHIP 10uF 20% 16V C219 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C220 1-124-779-00 ELECT CHIP 10uF 20% 16V C221 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C222 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C224 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C233 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C301 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C302 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C305 1-125-891-11 CERAMIC CHIP 0.47uF 10% 10V C306 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C307 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C402 1-126-204-11 ELECT CHIP 47uF 20% 16V C403 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C3601 1-117-370-11 CERAMIC CHIP 10uF 10V C3602 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3603 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3605 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C3606 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3607 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3608 1-124-779-00 ELECT CHIP 10uF 20% 16V C3609 1-124-779-00 ELECT CHIP 10uF 20% 16V C3610 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3611 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3621 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C3701 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3702 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3703 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3704 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3705 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3706 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3707 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3708 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C3711 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3712 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3713 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3714 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3721 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3722 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3723 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3724 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3731 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3732 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3733 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3734 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3741 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3742 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3743 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3744 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3751 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3752 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3753 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3754 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3761 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3762 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3763 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3764 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3771 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3772 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3773 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3774 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3781 1-162-977-11 CERAMIC CHIP 0.0018uF 10% 50V C3782 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C3783 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3784 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C3801 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C3802 1-117-370-11 CERAMIC CHIP 10uF 10V C3803 1-126-209-11 ELECT CHIP 100uF 20% 4V C3804 1-126-205-11 ELECT CHIP 47uF 20% 6.3V C3805 1-126-208-21 ELECT CHIP 47uF 20% 4V < CONECTOR > CN101 1-815-763-32 CONNECTOR, FFC/FPC 24P * CN105 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P CN106 1-793-989-21 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 13P * CN201 1-770-470-21 PIN, CONNECTOR (PC BOARD) 6P CN301 1-793-989-21 FFC/CONNECTOR, FPC (LIF (NON-ZIF)) 13P CN302 1-778-692-11 CONNECTOR, FFC/FPC 21P CN401 1-779-993-11 PIN, CONNECTOR (PWB) 5P < DIODO > D1001 8-719-058-24 DIODE RB501V-40TE-17 D3501 8-719-988-61 DIODE 1SS355TE-17 D3502 8-719-988-61 DIODE 1SS355TE-17 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 93 HCD-ZX80D DMB15 D3601 8-719-988-61 DIODE 1SS355TE-17 D3602 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD > FB111 1-414-226-21 INDUCTOR, FERRITE BEAD FB112 1-414-226-21 INDUCTOR, FERRITE BEAD FB113 1-414-226-21 INDUCTOR, FERRITE BEAD FB114 1-414-226-21 INDUCTOR, FERRITE BEAD FB115 1-414-226-21 INDUCTOR, FERRITE BEAD FB401 1-469-324-21 FERRITE, EMI (SMD) (2012) FB402 1-469-324-21 FERRITE, EMI (SMD) (2012) FB403 1-469-324-21 FERRITE, EMI (SMD) (2012) FB404 1-469-324-21 FERRITE, EMI (SMD) (2012) FB405 1-469-324-21 FERRITE, EMI (SMD) (2012) FB406 1-469-324-21 FERRITE, EMI (SMD) (2012) < FILTER > FL101 1-234-177-21 FILTER, CHIP EMI FL104 1-234-177-21 FILTER, CHIP EMI FL105 1-234-177-21 FILTER, CHIP EMI FL106 1-234-177-21 FILTER, CHIP EMI FL107 1-234-177-21 FILTER, CHIP EMI FL108 1-234-177-21 FILTER, CHIP EMI FL401 1-234-177-21 FILTER, CHIP EMI FL402 1-233-893-21 FILTER, CHIP EMI FL403 1-234-177-21 IC101 IC MX29LV320CBTC70-CBA3- FILTER, CHIP EMI < IC > IC103 (Não fornecido) IC BR24L64F-WE2 IC104 6-709-370-01 IC A2V64S40CTP-G75 IC105 6-702-302-01 IC TK11133CSCL-G IC106 6-708-153-01 IC PQ018EN01ZPH IC107 6-702-302-01 IC TK11133CSCL-G IC201 6-704-524-01 IC FAN8036L IC301 6-704-222-01 IC AK4358VQ-L IC3601 6-707-608-01 IC PCM1803DBR IC3711 8-759-359-49 IC NJM3414AV (TE2) IC3731 8-759-359-49 IC NJM3414AV (TE2) IC3751 8-759-359-49 IC NJM3414AV (TE2) IC3771 8-759-359-49 IC NJM3414AV (TE2) < BOBINA > L3601 1-469-555-21 INDUCTOR 10uH L3602 1-469-555-21 INDUCTOR 10uH < TRANSISTOR > Q101 6-550-008-01 FET UM6K1N-TN Q102 6-550-653-01 TRANSISTOR QST8TR Q103 8-729-027-52 TRANSISTOR DTC124EKA-T146 Q3801 8-729-230-49 TRANSISTOR 2SC2712-YG < RESISTOR/FERRITE BEAD > R101 1-216-809-11 METAL CHIP 100 5% 1/10W R104 1-216-864-11 SHORT CHIP 0 R105 1-216-833-11 METAL CHIP 10K 5% 1/10W R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R107 1-216-833-11 METAL CHIP 10K 5% 1/10W R108 1-216-857-11 METAL CHIP 1M 5% 1/10W R109 1-216-864-11 SHORT CHIP 0 R110 1-216-841-11 METAL CHIP 47K 5% 1/10W R111 1-216-809-11 METAL CHIP 100 5% 1/10W R112 1-211-977-11 METAL CHIP 22 0.5% 1/10W R113 1-211-977-11 METAL CHIP 22 0.5% 1/10W R114 1-216-845-11 METAL CHIP 100K 5% 1/10W R115 1-211-977-11 METAL CHIP 22 0.5% 1/10W R116 1-216-821-11 METAL CHIP 1K 5% 1/10W R117 1-216-841-11 METAL CHIP 47K 5% 1/10W R118 1-216-801-11 METAL CHIP 22 5% 1/10W R120 1-216-801-11 METAL CHIP 22 5% 1/10W R121 1-216-801-11 METAL CHIP 22 5% 1/10W R123 1-216-864-11 SHORT CHIP 0 R124 1-216-841-11 METAL CHIP 47K 5% 1/10W R126 1-216-864-11 SHORT CHIP 0 R127 1-216-809-11 METAL CHIP 100 5% 1/10W R136 1-216-835-11 METAL CHIP 15K 5% 1/10W R138 1-216-845-11 METAL CHIP 100K 5% 1/10W R141 1-218-916-11 METAL CHIP 750K 0.5% 1/10W R142 1-216-845-11 METAL CHIP 100K 5% 1/10W R146 1-216-805-11 METAL CHIP 47 5% 1/10W R151 1-216-805-11 METAL CHIP 47 5% 1/10W R152 1-216-864-11 SHORT CHIP 0 R153 1-216-805-11 METAL CHIP 47 5% 1/10W R155 1-216-805-11 METAL CHIP 47 5% 1/10W R160 1-216-805-11 METAL CHIP 47 5% 1/10W R161 1-216-809-11 METAL CHIP 100 5% 1/10W R164 1-216-809-11 METAL CHIP 100 5% 1/10W R169 1-216-833-11 METAL CHIP 10K 5% 1/10W R187 1-216-864-11 SHORT CHIP 0 R189 1-218-827-11 METAL CHIP 150 0.5% 1/10W R190 1-218-827-11 METAL CHIP 150 0.5% 1/10W R191 1-216-821-11 METAL CHIP 1K 5% 1/10W R192 1-218-827-11 METAL CHIP 150 0.5% 1/10W R193 1-216-821-11 METAL CHIP 1K 5% 1/10W R195 1-218-827-11 METAL CHIP 150 0.5% 1/10W R196 1-216-864-11 SHORT CHIP 0 R197 1-218-827-11 METAL CHIP 150 0.5% 1/10W R204 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R205 1-216-833-11 METAL CHIP 10K 5% 1/10W R206 1-216-833-11 METAL CHIP 10K 5% 1/10W R207 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R208 1-216-839-11 METAL CHIP 33K 5% 1/10W R209 1-216-839-11 METAL CHIP 33K 5% 1/10W R210 1-216-841-11 METAL CHIP 47K 5% 1/10W R212 1-216-833-11 METAL CHIP 10K 5% 1/10W R213 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R214 1-216-835-11 METAL CHIP 15K 5% 1/10W R215 1-216-834-11 METAL CHIP 12K 5% 1/10W Uma nova EEPROM (IC103) na DMB15 não pode ser montada. Assim, caso a placa DMB15 seja substituida, é necessário substituir EEPROM com a da placa antiga. Uma nova EEPROM (IC103) na DMB15 não pode ser montada. Assim, caso a placa DMB15 seja substituida, é necessário www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 94 HCD-ZX80D R216 1-216-834-11 METAL CHIP 12K 5% 1/10W R219 1-216-838-11 METAL CHIP 27K 5% 1/10W R220 1-216-833-11 METAL CHIP 10K 5% 1/10W R221 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R223 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R224 1-216-833-11 METAL CHIP 10K 5% 1/10W R225 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R226 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R230 1-218-893-11 METAL CHIP 82K 0.5% 1/10W R231 1-218-875-11 METAL CHIP 15K 0.5% 1/10W R232 1-218-877-11 METAL CHIP 18K 0.5% 1/10W R233 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R234 1-216-833-11 METAL CHIP 10K 5% 1/10W R246 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R247 1-216-821-11 METAL CHIP 1K 5% 1/10W R314 1-216-809-11 METAL CHIP 100 5% 1/10W R319 1-216-864-11 SHORT CHIP 0 R321 1-216-864-11 SHORT CHIP 0 R1101 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1102 1-218-827-11 METAL CHIP 150 0.5% 1/10W R1103 1-216-833-11 METAL CHIP 10K 5% 1/10W R1104 1-216-833-11 METAL CHIP 10K 5% 1/10W R1105 1-216-833-11 METAL CHIP 10K 5% 1/10W R1108 1-216-864-11 SHORT CHIP 0 R1109 1-216-864-11 SHORT CHIP 0 R1110 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R1120 1-216-864-11 SHORT CHIP 0 R1121 1-216-864-11 SHORT CHIP 0 R1122 1-216-864-11 SHORT CHIP 0 R1123 1-216-864-11 SHORT CHIP 0 R1124 1-216-864-11 SHORT CHIP 0 R1125 1-216-864-11 SHORT CHIP 0 R1126 1-216-833-11 METAL CHIP 10K 5% 1/10W R1129 1-216-845-11 METAL CHIP 100K 5% 1/10W R1133 1-216-864-11 SHORT CHIP 0 R1134 1-216-864-11 SHORT CHIP 0 R1150 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1151 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1152 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1161 1-216-864-11 SHORT CHIP 0 R1168 1-216-817-11 METAL CHIP 470 5% 1/10W R1502 1-216-864-11 SHORT CHIP 0 R1504 1-400-244-11 BEAD, FERRITE (CHIP) (1608) R1524 1-216-864-11 SHORT CHIP 0 R1526 1-216-864-11 SHORT CHIP 0 R1527 1-216-864-11 SHORT CHIP 0 R1530 1-216-864-11 SHORT CHIP 0 R1531 1-216-864-11 SHORT CHIP 0 R1540 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1542 1-216-833-11 METAL CHIP 10K 5% 1/10W R1543 1-216-833-11 METAL CHIP 10K 5% 1/10W R1544 1-216-864-11 SHORT CHIP 0 R1546 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1547 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1548 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1549 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1550 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1551 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1553 1-216-864-11 SHORT CHIP 0 R1554 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1557 1-216-809-11 METAL CHIP 100 5% 1/10W R1559 1-216-833-11 METAL CHIP 10K 5% 1/10W R2504 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3504 1-216-809-11 METAL CHIP 100 5% 1/10W R3505 1-216-809-11 METAL CHIP 100 5% 1/10W R3601 1-216-809-11 METAL CHIP 100 5% 1/10W R3602 1-216-809-11 METAL CHIP 100 5% 1/10W R3603 1-216-833-11 METAL CHIP 10K 5% 1/10W R3605 1-216-864-11 SHORT CHIP 0 R3606 1-216-864-11 SHORT CHIP 0 R3607 1-216-864-11 SHORT CHIP 0 R3609 1-216-864-11 SHORT CHIP 0 R3611 1-216-809-11 METAL CHIP 100 5% 1/10W R3621 1-216-809-11 METAL CHIP 100 5% 1/10W R3651 1-216-864-11 SHORT CHIP 0 R3652 1-216-864-11 SHORT CHIP 0 R3653 1-216-864-11 SHORT CHIP 0 R3711 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3712 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3713 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3714 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3715 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3716 1-216-821-11 METAL CHIP 1K 5% 1/10W R3717 1-216-821-11 METAL CHIP 1K 5% 1/10W R3718 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3719 1-216-821-11 METAL CHIP 1K 5% 1/10W R3721 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3722 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3723 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3724 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3725 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3726 1-216-821-11 METAL CHIP 1K 5% 1/10W R3727 1-216-821-11 METAL CHIP 1K 5% 1/10W R3728 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3729 1-216-821-11 METAL CHIP 1K 5% 1/10W R3731 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3732 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3733 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3734 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3735 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3736 1-216-821-11 METAL CHIP 1K 5% 1/10W R3737 1-216-821-11 METAL CHIP 1K 5% 1/10W R3738 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3739 1-216-821-11 METAL CHIP 1K 5% 1/10W R3741 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3742 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3743 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3744 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3745 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3746 1-216-821-11 METAL CHIP 1K 5% 1/10W R3747 1-216-821-11 METAL CHIP 1K 5% 1/10W R3748 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3749 1-216-821-11 METAL CHIP 1K 5% 1/10W R3751 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3752 1-216-823-11 METAL CHIP 1.5K 5% 1/10W DMB15 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 95 HCD-ZX80D R3753 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3754 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3755 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3756 1-216-821-11 METAL CHIP 1K 5% 1/10W R3757 1-216-821-11 METAL CHIP 1K 5% 1/10W R3758 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3759 1-216-821-11 METAL CHIP 1K 5% 1/10W R3761 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3762 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3763 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3764 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3765 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3766 1-216-821-11 METAL CHIP 1K 5% 1/10W R3767 1-216-821-11 METAL CHIP 1K 5% 1/10W R3768 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3769 1-216-821-11 METAL CHIP 1K 5% 1/10W R3771 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3772 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3773 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3774 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3775 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3776 1-216-821-11 METAL CHIP 1K 5% 1/10W R3777 1-216-821-11 METAL CHIP 1K 5% 1/10W R3778 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3779 1-216-821-11 METAL CHIP 1K 5% 1/10W R3781 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3782 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R3783 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3784 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R3785 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3786 1-216-821-11 METAL CHIP 1K 5% 1/10W R3787 1-216-821-11 METAL CHIP 1K 5% 1/10W R3788 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R3789 1-216-821-11 METAL CHIP 1K 5% 1/10W R3801 1-216-864-11 SHORT CHIP 0 R3802 1-216-864-11 SHORT CHIP 0 R3803 1-216-833-11 METAL CHIP 10K 5% 1/10W R3804 1-216-836-11 METAL CHIP 18K 5% 1/10W R3805 1-216-821-11 METAL CHIP 1K 5% 1/10W R4701 1-216-864-11 SHORT CHIP 0 R4702 1-216-864-11 SHORT CHIP 0 R4703 1-216-864-11 SHORT CHIP 0 R4704 1-216-864-11 SHORT CHIP 0 R4705 1-216-864-11 SHORT CHIP 0 R4706 1-216-864-11 SHORT CHIP 0 R5008 1-216-864-11 SHORT CHIP 0 R5011 1-216-864-11 SHORT CHIP 0 R5014 1-216-864-11 SHORT CHIP 0 R5016 1-216-864-11 SHORT CHIP 0 < COMPOSITION CIRCUIT BLOCK > RB103 1-234-795-21 RES, NETWORK 0X4 (2010) RB104 1-234-795-21 RES, NETWORK 0X4 (2010 ) RB105 1-234-371-21 RES, NETWORK 47 (1005X4) RB106 1-234-371-21 RES, NETWORK 47 (1005X4) RB107 1-234-370-21 RES, NETWORK 22 (1005X4) RB108 1-234-370-21 RES, NETWORK 22 (1005X4) RB111 1-234-795-21 RES, NETWORK 0X4 (2010) RB112 1-234-370-21 RES, NETWORK 22 (1005X4) RB113 1-234-370-21 RES, NETWORK 22 (1005X4) < OSCILADOR > X101 1-781-867-21 VIBRATOR, CRYSTAL (27MHz) ************************************************************ PLACA DRIVER ************* < CAPACITOR > C715 1-126-933-11 ELECT 100uF 20% 16V C731 1-126-964-11 ELECT 10uF 20% 50V C735 1-164-159-11 CERAMIC 0.1uF 50V C736 1-164-159-11 CERAMIC 0.1uF 50V C737 1-164-159-11 CERAMIC 0.1uF 50V C741 1-162-306-11 CERAMIC 0.01uF 20% 16V C751 1-162-306-11 CERAMIC 0.01uF 20% 16V C752 1-164-159-11 CERAMIC 0.1uF 50V < CONECTOR > CN701 1-784-735-11 CONNECTOR, FFC 13P CN702 1-784-766-11 CONNECTOR, FFC 5P * CN703 1-564-720-11 PIN, CONNECTOR (SMALL TYPE) 4P CN704 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE) 2P < DIODO> D701 8-719-947-16 DIODE MTZJ-T-72-5.1A D711 8-719-983-66 DIODE MTZJ-T-72-3.6B < IC > IC701 8-759-598-69 IC BA6956AN IC712 8-759-598-69 IC BA6956AN < TRANSISTOR > Q731 8-729-029-66 TRANSISTOR DTC114ESA < RESISTOR > R701 1-249-413-11 CARBON 470 5% 1/4W R702 1-247-807-31 CARBON 100 5% 1/4W R711 1-249-417-11 CARBON 1K 5% 1/4W R712 1-247-847-11 CARBON 4.7K 5% 1/4W R713 1-247-863-11 CARBON 22K 5% 1/4W R721 1-247-847-11 CARBON 4.7K 5% 1/4W R722 1-247-847-11 CARBON 4.7K 5% 1/4W R723 1-247-847-11 CARBON 4.7K 5% 1/4W R731 1-247-807-31 CARBON 100 5% 1/4W R732 1-249-429-11 CARBON 10K 5% 1/4W R733 1-249-417-11 CARBON 1K 5% 1/4W R734 1-249-430-11 CARBON 12K 5% 1/4W R736 1-249-412-11 CARBON 390 5% 1/4W R751 1-247-847-11 CARBON 4.7K 5% 1/4W ************************************************************ DMB15 DRIVER www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 96 HCD-ZX80D Y-828-539-6A PLACA EFFECTOR, MONTADA ************************* < CAPACITOR > C1511 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1512 1-136-165-00 FILM 0.1uF 5% 50V C1513 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1514 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1515 1-126-947-11 ELECT 47uF 20% 35V C1516 1-136-495-11 FILM 0.068uF 5% 50V C1517 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1519 1-136-159-00 FILM 0.033uF 5% 50V C1520 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C1521 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C1522 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1523 1-136-495-11 FILM 0.068uF 5% 50V C1524 1-126-957-11 ELECT 0.22uF 20% 50V C1525 1-126-957-11 ELECT 0.22uF 20% 50V C1526 1-136-165-00 FILM 0.1uF 5% 50V C1528 1-104-665-11 ELECT 100uF 20% 25V C1529 1-107-726-91 CERAMIC CHIP 0.01uF 10% 16V C1530 1-136-159-00 FILM 0.033uF 5% 50V C1531 1-124-589-11 ELECT 47uF 20% 16V C1532 1-136-495-11 FILM 0.068uF 5% 50V C1533 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C1534 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1535 1-136-159-00 FILM 0.033uF 5% 50V C1536 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C1537 1-136-165-00 FILM 0.1uF 5% 50V C1539 1-136-495-11 FILM 0.068uF 5% 50V C1540 1-126-957-11 ELECT 0.22uF 20% 50V C1541 1-126-957-11 ELECT 0.22uF 20% 50V C1542 1-130-479-00 MYLAR 0.0047uF 5% 50V C1544 1-130-479-00 MYLAR 0.0047uF 5% 50V C1545 1-126-964-11 ELECT 10uF 20% 50V C1546 1-126-964-11 ELECT 10uF 20% 50V C1548 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1552 1-126-964-11 ELECT 10uF 20% 50V C1554 1-126-964-11 ELECT 10uF 20% 50V C1555 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1559 1-126-964-11 ELECT 10uF 20% 50V C1560 1-126-964-11 ELECT 10uF 20% 50V C1561 1-126-964-11 ELECT 10uF 20% 50V C1562 1-126-964-11 ELECT 10uF 20% 50V C1568 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1570 1-126-964-11 ELECT 10uF 20% 50V C1571 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1572 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1574 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1578 1-126-964-11 ELECT 10uF 20% 50V C1584 1-104-665-11 ELECT 100uF 20% 25V C1600 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1601 1-126-964-11 ELECT 10uF 20% 50V C1602 1-126-964-11 ELECT 10uF 20% 50V C2330 1-136-165-00 FILM 0.1uF 5% 50V C2331 1-136-159-00 FILM 0.033uF 5% 50V < CONECTOR > CN1502 1-779-287-11 CONNECTOR, FFC (LIF (NON-ZIF)) 19P < DIODO > D1502 8-719-069-56 DIODE UDZSTE-176.2B D1503 6-501-193-01 DIODE 1SS355WTE-17 D1504 6-501-193-01 DIODE 1SS355WTE-17 D1505 6-501-193-01 DIODE 1SS355WTE-17 D1506 6-501-193-01 DIODE 1SS355WTE-17 D1507 6-501-193-01 DIODE 1SS355WTE-17 D1508 6-501-193-01 DIODE 1SS355WTE-17 < IC > IC1501 8-759-496-41 IC M65850FP-E1 IC1502 6-709-217-01 IC TC74LVX4051FT IC1503 6-709-217-01 IC TC74LVX4051FT IC1504 8-759-496-41 IC M65850FP-E1 IC1505 8-759-274-71 IC NJM4565M-(TE2) IC1506 6-709-218-01 IC TC74LVX4052FT < BOBINA > L1500 1-414-183-41 INDUCTOR 10uH < TRANSISTOR > Q1500 8-729-055-10 FET 2SK3378ENTL Q1501 8-729-055-10 FET 2SK3378ENTL Q1502 8-729-055-10 FET 2SK3378ENTL Q1503 8-729-055-10 FET 2SK3378ENTL Q1504 8-729-055-10 FET 2SK3378ENTL Q1505 8-729-055-10 FET 2SK3378ENTL Q1506 8-729-055-10 FET 2SK3378ENTL Q1507 8-729-056-46 TRANSISTOR 2SC5053T100Q Q1508 8-729-055-10 FET 2SK3378ENTL Q1509 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1510 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1511 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1512 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1513 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q1514 8-729-027-43 TRANSISTOR DTC114EKA-T146 < RESISTOR > R1500 1-216-809-11 METAL CHIP 100 5% 1/10W R1501 1-216-809-11 METAL CHIP 100 5% 1/10W R1502 1-216-809-11 METAL CHIP 100 5% 1/10W R1504 1-216-809-11 METAL CHIP 100 5% 1/10W R1506 1-216-809-11 METAL CHIP 100 5% 1/10W R1507 1-216-809-11 METAL CHIP 100 5% 1/10W R1510 1-216-836-11 METAL CHIP 18K 5% 1/10W R1511 1-216-836-11 METAL CHIP 18K 5% 1/10W R1512 1-216-836-11 METAL CHIP 18K 5% 1/10W R1514 1-216-836-11 METAL CHIP 18K 5% 1/10W R1515 1-216-836-11 METAL CHIP 18K 5% 1/10W R1516 1-216-833-11 METAL CHIP 10K 5% 1/10W R1517 1-216-833-11 METAL CHIP 10K 5% 1/10W R1519 1-216-840-11 METAL CHIP 39K 5% 1/10W EFFECTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 97 HCD-ZX80D R1522 1-216-864-11 SHORT CHIP 0 R1525 1-216-809-11 METAL CHIP 100 5% 1/10W R1527 1-216-809-11 METAL CHIP 100 5% 1/10W R1530 1-216-817-11 METAL CHIP 470 5% 1/10W R1531 1-218-289-11 METAL CHIP 510 5% 1/10W R1532 1-216-818-11 METAL CHIP 560 5% 1/10W R1533 1-216-819-11 METAL CHIP 680 5% 1/10W R1534 1-218-484-11 METAL CHIP 750 5% 1/10W R1535 1-216-820-11 METAL CHIP 820 5% 1/10W R1536 1-218-457-11 METAL CHIP 910 5% 1/10W R1538 1-216-838-11 METAL CHIP 27K 5% 1/10W R1539 1-216-821-11 METAL CHIP 1K 5% 1/10W R1540 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R1541 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1542 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R1543 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1544 1-216-836-11 METAL CHIP 18K 5% 1/10W R1545 1-216-839-11 METAL CHIP 33K 5% 1/10W R1546 1-216-836-11 METAL CHIP 18K 5% 1/10W R1547 1-216-833-11 METAL CHIP 10K 5% 1/10W R1549 1-216-833-11 METAL CHIP 10K 5% 1/10W R1550 1-216-833-11 METAL CHIP 10K 5% 1/10W R1552 1-216-836-11 METAL CHIP 18K 5% 1/10W R1553 1-216-836-11 METAL CHIP 18K 5% 1/10W R1554 1-216-836-11 METAL CHIP 18K 5% 1/10W R1555 1-216-836-11 METAL CHIP 18K 5% 1/10W R1556 1-216-836-11 METAL CHIP 18K 5% 1/10W R1557 1-216-845-11 METAL CHIP 100K 5% 1/10W R1558 1-216-845-11 METAL CHIP 100K 5% 1/10W R1559 1-216-845-11 METAL CHIP 100K 5% 1/10W R1560 1-216-845-11 METAL CHIP 100K 5% 1/10W R1561 1-216-840-11 METAL CHIP 39K 5% 1/10W R1563 1-216-864-11 SHORT CHIP 0 R1564 1-216-838-11 METAL CHIP 27K 5% 1/10W R1565 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1566 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1567 1-216-837-11 METAL CHIP 22K 5% 1/10W R1568 1-216-837-11 METAL CHIP 22K 5% 1/10W R1569 1-216-845-11 METAL CHIP 100K 5% 1/10W R1570 1-216-845-11 METAL CHIP 100K 5% 1/10W R1571 1-216-845-11 METAL CHIP 100K 5% 1/10W R1572 1-216-821-11 METAL CHIP 1K 5% 1/10W R1573 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1574 1-216-845-11 METAL CHIP 100K 5% 1/10W R1575 1-216-821-11 METAL CHIP 1K 5% 1/10W R1576 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1577 1-216-833-11 METAL CHIP 10K 5% 1/10W R1578 1-216-833-11 METAL CHIP 10K 5% 1/10W R1579 1-216-845-11 METAL CHIP 100K 5% 1/10W R1580 1-216-837-11 METAL CHIP 22K 5% 1/10W R1581 1-216-837-11 METAL CHIP 22K 5% 1/10W R1582 1-216-845-11 METAL CHIP 100K 5% 1/10W R1583 1-216-833-11 METAL CHIP 10K 5% 1/10W R1588 1-216-836-11 METAL CHIP 18K 5% 1/10W R1589 1-216-803-11 METAL CHIP 33 5% 1/10W R1590 1-216-841-11 METAL CHIP 47K 5% 1/10W R1591 1-216-841-11 METAL CHIP 47K 5% 1/10W R1592 1-216-864-11 SHORT CHIP 0 R1593 1-216-864-11 SHORT CHIP 0 R1594 1-216-864-11 SHORT CHIP 0 R1595 1-216-864-11 SHORT CHIP 0 R1596 1-216-833-11 METAL CHIP 10K 5% 1/10W R1597 1-216-833-11 METAL CHIP 10K 5% 1/10W R1598 1-216-833-11 METAL CHIP 10K 5% 1/10W R1599 1-216-833-11 METAL CHIP 10K 5% 1/10W R1600 1-216-838-11 METAL CHIP 27K 5% 1/10W R1601 1-216-845-11 METAL CHIP 100K 5% 1/10W R1602 1-216-838-11 METAL CHIP 27K 5% 1/10W R1603 1-216-845-11 METAL CHIP 100K 5% 1/10W R1604 1-216-837-11 METAL CHIP 22K 5% 1/10W R1605 1-216-837-11 METAL CHIP 22K 5% 1/10W R1606 1-216-837-11 METAL CHIP 22K 5% 1/10W R1607 1-216-837-11 METAL CHIP 22K 5% 1/10W ************************************************************ A-1174-314-A PLACA FUNCTION , MONTADA ************************* < CAPACITOR > C907 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONECTOR > * CN901 1-784-778-11 SOCKET, CONNECTOR 17P < HEADER > CNS902 1-820-050-11 BOARD TO BOARD HEADER (8P) < LED > D1016 6-500-727-01 LED SLR-343DCT32 (DELAY) D1017 6-500-727-01 LED SLR-343DCT32 (CHORUS) D1020 6-500-727-01 LED SLR-343DCT32 (FLANGER) < JUMPER RESISTOR > JR921 1-216-864-11 SHORT CHIP 0 JR923 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q920 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q921 8-729-027-50 TRANSISTOR DTC123JKA-T146 < RESISTOR > R958 1-216-819-11 METAL CHIP 680 5% 1/10W R959 1-216-821-11 METAL CHIP 1K 5% 1/10W R960 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R961 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R962 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R963 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R972 1-216-821-11 METAL CHIP 1K 5% 1/10W R973 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1001 1-216-817-11 METAL CHIP 470 5% 1/10W R1002 1-216-819-11 METAL CHIP 680 5% 1/10W R1003 1-216-821-11 METAL CHIP 1K 5% 1/10W R1004 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1005 1-216-823-11 METAL CHIP 1.5K 5% 1/10W FUNCTION EFFECTOR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 98 HCD-ZX80D JOG R1006 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1014 1-216-817-11 METAL CHIP 470 5% 1/10W R1015 1-216-821-11 METAL CHIP 1K 5% 1/10W R1016 1-216-821-11 METAL CHIP 1K 5% 1/10W R1018 1-216-821-11 METAL CHIP 1K 5% 1/10W R1019 1-216-821-11 METAL CHIP 1K 5% 1/10W R1186 1-216-814-11 METAL CHIP 270 5% 1/10W < SWITCH/ROTARY ENCODER > S901 1-762-875-21 SWITCH, KEYBOARD (PROGRESSIVE) S902 1-762-875-21 SWITCH, KEYBOARD (GROOVE) S903 1-762-875-21 SWITCH, KEYBOARD (EQ BAND) S904 1-762-875-21 SWITCH, KEYBOARD (DIRECTION) S905 1-762-875-21 SWITCH, KEYBOARD (REC PAUSE/START) S906 1-762-875-21 SWITCH, KEYBOARD (CD SYNC) S914 1-762-875-21 SWITCH, KEYBOARD (ENTER) S915 1-762-875-21 SWITCH, KEYBOARD (DELAY) S916 1-762-875-21 SWITCH, KEYBOARD (CHORUS) S917 1-762-875-21 SWITCH, KEYBOARD (FLANGER) S918 1-762-875-21 SWITCH, KEYBOARD (SOUND FIELD) S919 1-762-875-21 SWITCH, KEYBOARD (ILLUMINATION) S920 1-762-875-21 SWITCH, KEYBOARD (AMP MENU) S928 1-762-875-21 SWITCH, KEYBOARD (DISPLAY) S970 1-418-725-51 ENCODER, ROTARY (12 TYPE) (MASTER VOLUME) ************************************************************ PLACA JOG ********** < CAPACITOR > C1150 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONNECTOR > CNS903 1-562-573-31 SOCKET, CONNECTOR 8P < LED > D919 8-719-064-63 LED SELU5823C-TP15 (VOLUME LEVEL 1) D920 8-719-064-63 LED SELU5823C-TP15 (VOLUME LEVEL 2) D921 8-719-064-63 LED SELU5823C-TP15 (VOLUME LEVEL 3) D922 8-719-064-63 LED SELU5823C-TP15 (VOLUME LEVEL 4) D923 8-719-064-63 LED SELU5823C-TP15 (VOLUME LEVEL 5) D924 8-719-064-63 LED SELU5823C-TP15 (VOLUME LEVEL 6) D925 8-719-064-63 LED SELU5823C-TP15 (VOLUME LEVEL 7) D926 8-719-064-63 LED SELU5823C-TP15 (VOLUME LEVEL 8) < JUMPER RESISTOR > JR1 1-216-864-11 SHORT CHIP 0 JR2 1-216-864-11 SHORT CHIP 0 JR3 1-216-864-11 SHORT CHIP 0 JR4 1-216-864-11 SHORT CHIP 0 JR5 1-216-864-11 SHORT CHIP 0 JR922 1-216-864-11 SHORT CHIP 0 JR1096 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q911 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q912 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q913 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q915 8-729-027-50 TRANSISTOR DTC123JKA-T146 < RESISTOR > R1040 1-216-821-11 METAL CHIP 1K 5% 1/10W R1144 1-216-821-11 METAL CHIP 1K 5% 1/10W R1145 1-216-821-11 METAL CHIP 1K 5% 1/10W R1146 1-216-821-11 METAL CHIP 1K 5% 1/10W R1149 1-216-821-11 METAL CHIP 1K 5% 1/10W R1150 1-216-821-11 METAL CHIP 1K 5% 1/10W R1151 1-216-821-11 METAL CHIP 1K 5% 1/10W R1153 1-216-821-11 METAL CHIP 1K 5% 1/10W R1154 1-216-821-11 METAL CHIP 1K 5% 1/10W R1155 1-216-821-11 METAL CHIP 1K 5% 1/10W R1157 1-216-821-11 METAL CHIP 1K 5% 1/10W R1158 1-216-821-11 METAL CHIP 1K 5% 1/10W R1159 1-216-821-11 METAL CHIP 1K 5% 1/10W R1161 1-216-821-11 METAL CHIP 1K 5% 1/10W R1162 1-216-809-11 METAL CHIP 100 5% 1/10W R1163 1-216-809-11 METAL CHIP 100 5% 1/10W R1164 1-216-809-11 METAL CHIP 100 5% 1/10W R1165 1-216-809-11 METAL CHIP 100 5% 1/10W < ENCODER ROTATIVO > S1161 1-479-203-11 ENCODER (ROTARY) (OPERATION DIAL) ************************************************************ Y-828-582-6A PLACA KARAOKE , MONTADA ************************ < CAPACITOR > C2000 1-104-665-11 ELECT 100uF 20% 25V C2001 1-126-947-11 ELECT 47uF 20% 35V C2002 1-126-947-11 ELECT 47uF 20% 35V C2004 1-126-961-11 ELECT 2.2uF 20% 50V C2005 1-126-947-11 ELECT 47uF 20% 35V C2006 1-126-960-11 ELECT 1uF 20% 50V C2007 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2008 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C2009 1-126-947-11 ELECT 47uF 20% 35V C2010 1-124-257-00 ELECT 2.2uF 20% 50V C2011 1-126-947-11 ELECT 47uF 20% 35V C2013 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2015 1-164-156-11 CERAMIC CHIP 0.1uF 25V C2016 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < DIODO > D2000 6-501-193-01 DIODE 1SS355WTE-17 D2001 6-501-193-01 DIODE 1SS355WTE-17 D2002 6-501-193-01 DIODE 1SS355WTE-17 D2003 6-501-193-01 DIODE 1SS355WTE-17 D2006 6-501-193-01 DIODE 1SS355WTE-17 D2007 6-501-193-01 DIODE 1SS355WTE-17 D2008 6-501-193-01 DIODE 1SS355WTE-17 FUNCTION KARAOKE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 99 HCD-ZX80D MAIN < IC > IC2000 8-759-349-19 IC NJM3414AMP (TE2) IC2001 8-759-256-43 IC NJM2903M (TE2) IC2002 8-759-256-43 IC NJM2903M (TE2) < RESISTOR > R2000 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2001 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2002 1-216-837-11 METAL CHIP 22K 5% 1/10W R2004 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2005 1-216-841-11 METAL CHIP 47K 5% 1/10W R2007 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2008 1-216-841-11 METAL CHIP 47K 5% 1/10W R2009 1-216-821-11 METAL CHIP 1K 5% 1/10W R2010 1-216-845-11 METAL CHIP 100K 5% 1/10W R2011 1-216-864-11 SHORT CHIP 0 R2012 1-216-845-11 METAL CHIP 100K 5% 1/10W R2014 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R2015 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2016 1-216-841-11 METAL CHIP 47K 5% 1/10W R2017 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2019 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2020 1-216-864-11 SHORT CHIP 0 R2021 1-216-864-11 SHORT CHIP 0 R2022 1-216-833-11 METAL CHIP 10K 5% 1/10W R2024 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2025 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R2026 1-216-864-11 SHORT CHIP 0 R2028 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R2029 1-216-837-11 METAL CHIP 22K 5% 1/10W R2030 1-216-864-11 SHORT CHIP 0 R2031 1-216-837-11 METAL CHIP 22K 5% 1/10W R2032 1-216-822-11 METAL CHIP 1.2K 5% 1/10W R2034 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2035 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R2036 1-216-864-11 SHORT CHIP 0 R2037 1-216-864-11 SHORT CHIP 0 ************************************************************ Y-828-539-0A PLACA MAIN , MONTADA ********************* 7-685-646-79 SCREW +BVTP 3X8 TYPE2 IT-3 < CAPACITOR/RESISTOR > C101 1-104-665-11 ELECT 100uF 20% 25V C102 1-126-964-11 ELECT 10uF 20% 50V C103 1-126-964-11 ELECT 10uF 20% 50V C104 1-126-964-11 ELECT 10uF 20% 50V C105 1-126-964-11 ELECT 10uF 20% 50V C106 1-130-487-00 MYLAR 0.022uF 5% 50V C107 1-130-487-00 MYLAR 0.022uF 5% 50V C108 1-130-489-00 MYLAR 0.033uF 5% 50V C109 1-126-960-11 ELECT 1uF 20% 50V C110 1-137-438-11 MYLAR 0.0082uF 5% 50V C111 1-126-964-11 ELECT 10uF 20% 50V C112 1-136-498-11 FILM 0.12uF 5% 50V C113 1-136-171-00 FILM 0.33uF 5% 50V C114 1-126-964-11 ELECT 10uF 20% 50V C115 1-164-156-11 CERAMIC CHIP 0.1uF 25V C116 1-126-924-11 ELECT 330uF 20% 10V C130 1-126-964-11 ELECT 10uF 20% 50V C131 1-126-959-11 ELECT 0.47uF 20% 50V C150 1-126-964-11 ELECT 10uF 20% 50V C152 1-126-964-11 ELECT 10uF 20% 50V C153 1-126-964-11 ELECT 10uF 20% 50V C154 1-126-964-11 ELECT 10uF 20% 50V C155 1-126-964-11 ELECT 10uF 20% 50V C156 1-130-487-00 MYLAR 0.022uF 5% 50V C157 1-130-487-00 MYLAR 0.022uF 5% 50V C158 1-130-489-00 MYLAR 0.033uF 5% 50V C159 1-126-960-11 ELECT 1uF 20% 50V C160 1-137-438-11 MYLAR 0.0082uF 5% 50V C161 1-126-964-11 ELECT 10uF 20% 50V C162 1-136-498-11 FILM 0.12uF 5% 50V C163 1-136-171-00 FILM 0.33uF 5% 50V C164 1-126-964-11 ELECT 10uF 20% 50V C166 1-126-964-11 ELECT 10uF 20% 50V C167 1-126-964-11 ELECT 10uF 20% 50V C200 1-136-497-11 FILM 0.1uF 5% 50V C201 1-136-497-11 FILM 0.1uF 5% 50V C202 1-126-964-11 ELECT 10uF 20% 50V C203 1-136-498-11 FILM 0.12uF 5% 50V C204 1-136-171-00 FILM 0.33uF 5% 50V C205 1-104-665-11 ELECT 100uF 20% 25V C206 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C207 1-124-261-00 ELECT 10uF 20% 50V C209 1-124-261-00 ELECT 10uF 20% 50V C210 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C211 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C212 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C213 1-126-964-11 ELECT 10uF 20% 50V C214 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C215 1-126-964-11 ELECT 10uF 20% 50V C216 1-126-964-11 ELECT 10uF 20% 50V C217 1-126-964-11 ELECT 10uF 20% 50V C218 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C219 1-126-964-11 ELECT 10uF 20% 50V C220 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C221 1-126-960-11 ELECT 1uF 20% 50V C222 1-126-964-11 ELECT 10uF 20% 50V C223 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V KARAOKE www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 100 HCD-ZX80D C224 1-126-964-11 ELECT 10uF 20% 50V C225 1-126-960-11 ELECT 1uF 20% 50V C226 1-126-960-11 ELECT 1uF 20% 50V C227 1-126-960-11 ELECT 1uF 20% 50V C228 1-126-960-11 ELECT 1uF 20% 50V C229 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C233 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C234 1-126-964-11 ELECT 10uF 20% 50V C235 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C242 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C251 1-126-960-11 ELECT 1uF 20% 50V C252 1-126-964-11 ELECT 10uF 20% 50V C253 1-136-498-11 FILM 0.12uF 5% 50V C254 1-136-171-00 FILM 0.33uF 5% 50V C255 1-104-665-11 ELECT 100uF 20% 25V C256 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C257 1-126-964-11 ELECT 10uF 20% 50V C258 1-126-964-11 ELECT 10uF 20% 50V C259 1-124-261-00 ELECT 10uF 20% 50V C260 1-164-156-11 CERAMIC CHIP 0.1uF 25V C261 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C262 1-126-964-11 ELECT 10uF 20% 50V C263 1-126-964-11 ELECT 10uF 20% 50V C264 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C265 1-126-964-11 ELECT 10uF 20% 50V C266 1-126-964-11 ELECT 10uF 20% 50V C267 1-126-964-11 ELECT 10uF 20% 50V C268 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C269 1-126-964-11 ELECT 10uF 20% 50V C270 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C272 1-126-934-11 ELECT 220uF 20% 16V C273 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C274 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C276 1-126-960-11 ELECT 1uF 20% 50V C277 1-126-960-11 ELECT 1uF 20% 50V C278 1-126-960-11 ELECT 1uF 20% 50V C279 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C301 1-136-967-11 FILM 0.012uF 5% 100V C303 1-136-497-11 FILM 0.1uF 5% 50V C304 1-126-964-11 ELECT 10uF 20% 50V C305 1-126-960-11 ELECT 1uF 20% 50V C306 1-126-961-11 ELECT 2.2uF 20% 50V C307 1-126-964-11 ELECT 10uF 20% 50V C308 1-126-935-11 ELECT 470uF 20% 16V C309 1-126-947-11 ELECT 47uF 20% 35V C310 1-126-964-11 ELECT 10uF 20% 50V C311 1-126-964-11 ELECT 10uF 20% 50V C312 1-126-964-11 ELECT 10uF 20% 50V C314 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C325 1-126-964-11 ELECT 10uF 20% 50V C326 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C328 1-137-427-11 MYLAR 120PF 5% 50V C332 1-164-670-11 CERAMIC CHIP 1200PF 5% 16V C333 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C335 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C340 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C341 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C351 1-136-967-11 FILM 0.012uF 5% 100V C352 1-126-947-11 ELECT 47uF 20% 35V C353 1-136-497-11 FILM 0.1uF 5% 50V C354 1-126-964-11 ELECT 10uF 20% 50V C355 1-126-960-11 ELECT 1uF 20% 50V C356 1-126-961-11 ELECT 2.2uF 20% 50V C357 1-126-963-11 ELECT 4.7uF 20% 50V C358 1-126-963-11 ELECT 4.7uF 20% 50V C359 1-126-947-11 ELECT 47uF 20% 35V C360 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C361 1-126-964-11 ELECT 10uF 20% 50V C362 1-126-963-11 ELECT 4.7uF 20% 50V C363 1-126-963-11 ELECT 4.7uF 20% 50V C364 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C365 1-126-960-11 ELECT 1uF 20% 50V C370 1-137-150-11 FILM 0.01uF 5% 100V C371 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C372 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C373 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C374 1-126-947-11 ELECT 47uF 20% 35V C376 1-115-412-11 CERAMIC CHIP 680PF 5% 25V C377 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C378 1-137-427-11 MYLAR 120PF 5% 50V C379 1-130-481-00 MYLAR 0.0068uF 5% 50V C382 1-164-670-11 CERAMIC CHIP 1200PF 5% 16V C383 1-162-959-11 CERAMIC CHIP 330PF 5% 50V C385 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C410 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C411 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C412 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C413 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C414 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C415 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C416 1-104-656-11 ELECT 2200uF 20% 6.3V C431 1-126-964-11 ELECT 10uF 20% 50V C462 1-104-665-11 ELECT 100uF 20% 25V C464 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C501 1-126-964-11 ELECT 10uF 20% 50V C502 1-136-497-11 FILM 0.1uF 5% 50V C503 1-136-497-11 FILM 0.1uF 5% 50V C504 1-126-964-11 ELECT 10uF 20% 50V C505 1-126-961-11 ELECT 2.2uF 20% 50V C506 1-126-961-11 ELECT 2.2uF 20% 50V C507 1-126-961-11 ELECT 2.2uF 20% 50V C508 1-126-961-11 ELECT 2.2uF 20% 50V C509 1-126-961-11 ELECT 2.2uF 20% 50V C510 1-126-961-11 ELECT 2.2uF 20% 50V C511 1-126-961-11 ELECT 2.2uF 20% 50V C512 1-126-157-11 ELECT 10uF 20% 16V C513 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C514 1-126-768-11 ELECT 2200uF 20% 16V C515 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C516 1-126-927-11 ELECT 2200uF 20% 10V C517 1-126-961-11 ELECT 2.2uF 20% 50V MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 101 HCD-ZX80D C518 1-126-926-11 ELECT 1000uF 20% 10V C519 1-126-927-11 ELECT 2200uF 20% 10V C520 1-126-964-11 ELECT 10uF 20% 50V C521 1-126-964-11 ELECT 10uF 20% 50V C523 1-126-961-11 ELECT 2.2uF 20% 50V C524 1-126-961-11 ELECT 2.2uF 20% 50V C525 1-126-926-11 ELECT 1000uF 20% 10V C530 1-162-953-11 CERAMIC CHIP 100PF 5% 50V C550 1-119-774-11 ELECT 100uF 20% 16V C551 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C552 1-126-961-11 ELECT 2.2uF 20% 50V C553 1-104-666-11 ELECT 220uF 20% 25V C554 1-126-964-11 ELECT 10uF 20% 50V C557 1-130-483-00 MYLAR 0.01uF 5% 50V C558 1-130-483-00 MYLAR 0.01uF 5% 50V C559 1-126-926-11 ELECT 1000uF 20% 10V C562 1-126-935-11 ELECT 470uF 20% 16V C563 1-126-935-11 ELECT 470uF 20% 16V C564 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C565 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C566 1-111-235-51 ELECT 10000uF 20% 25V C567 1-126-946-51 ELECT 6800uF 20% 25V C568 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C569 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C570 1-130-483-00 MYLAR 0.01uF 5% 50V C571 1-130-483-00 MYLAR 0.01uF 5% 50V C580 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C581 1-100-566-91 CERAMIC CHIP 0.1uF 10% 25V C583 1-164-156-11 CERAMIC CHIP 0.1uF 25V C584 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONECTOR > * CN100 1-564-711-11 PIN, CONNECTOR (SMALL TYPE) 9P CN501 1-764-861-21 CONNECTOR, BOARD TO BOARD13P * CN502 1-774-876-21 CONNECTOR, BOARD TO BOARD 8P * CN503 1-564-710-11 PIN, CONNECTOR (SMALL TYPE) 8P CN504 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P * CN505 1-564-708-11 PIN, CONNECTOR (SMALL TYPE) 6P CN506 1-784-731-11 CONNECTOR, FFC 9P * CN508 1-784-778-11 SOCKET, CONNECTOR 17P CN509 1-784-772-11 SOCKET, CONNECTOR 11P CN511 1-784-735-11 CONNECTOR, FFC 13P CN512 1-779-287-11 CONNECTOR, FFC (LIF (NON-ZIF)) 19P CN513 1-764-861-21 CONNECTOR, BOARD TO BOARD 13P * CN514 1-774-876-21 CONNECTOR, BOARD TO BOARD 8P CN520 1-779-281-11 CONNECTOR, FFC (LIF (NON-ZIF)) 13P CN521 1-779-289-11 CONNECTOR, FFC (LIF (NON-ZIF)) 21P CN580 1-564-506-51 PLUG, CONNECTOR 3P CN582 1-564-506-51 PLUG, CONNECTOR 3P < DIODO > D101 6-501-193-01 DIODE 1SS355WTE-17 D102 6-501-193-01 DIODE 1SS355WTE-17 D136 8-719-069-55 DIODE UDZSTE-175.6B D325 8-719-083-60 DIODE UDZSTE-174.7B D340 6-501-193-01 DIODE 1SS355WTE-17 D341 6-501-193-01 DIODE 1SS355WTE-17 D342 6-501-193-01 DIODE 1SS355WTE-17 D401 6-501-193-01 DIODE 1SS355WTE-17 D402 6-501-193-01 DIODE 1SS355WTE-17 D403 6-501-193-01 DIODE 1SS355WTE-17 D411 6-501-193-01 DIODE 1SS355WTE-17 D412 6-501-193-01 DIODE 1SS355WTE-17 D501 6-501-193-01 DIODE 1SS355WTE-17 D502 6-501-193-01 DIODE 1SS355WTE-17 D503 6-501-193-01 DIODE 1SS355WTE-17 D504 6-501-193-01 DIODE 1SS355WTE-17 D505 6-501-193-01 DIODE 1SS355WTE-17 D506 6-501-193-01 DIODE 1SS355WTE-17 D507 6-501-193-01 DIODE 1SS355WTE-17 D510 6-501-193-01 DIODE 1SS355WTE-17 (ZX80D) D511 6-501-193-01 DIODE 1SS355WTE-17 (ZX80D) D550 6-501-193-01 DIODE 1SS355WTE-17 D551 6-501-193-01 DIODE 1SS355WTE-17 D560 8-719-500-60 DIODE D5SBA20 D561 8-719-500-60 DIODE D5SBA20 D581 8-719-069-57 DIODE UDZSTE-176.8B D582 8-719-069-56 DIODE UDZSTE-176.2B D583 8-719-071-54 DIODE HZU2.0BTRF D584 8-719-083-63 DIODE UDZSTE-1713B D585 6-500-522-21 DIODE 10EDB40-TB3 D586 6-500-522-21 DIODE 10EDB40-TB3 < JUMPER RESISTOR > FB204 1-216-864-11 SHORT CHIP 0 FB254 1-216-864-11 SHORT CHIP 0 FB260 1-216-864-11 SHORT CHIP 0 FB261 1-216-864-11 SHORT CHIP 0 < IC > IC101 6-703-650-11 IC M61529FP-D60G IC201 6-703-651-11 IC M61530FP-D60G IC301 6-702-130-01 IC HA12237F IC304 8-759-274-71 IC NJM4565M-(TE2) IC401 6-806-203-01 IC M30622MEP-A78FPU0 IC501 6-705-809-01 IC BD4929G-TR IC507 8-759-653-07 IC PQ09RD21J00H IC550 6-703-610-01 IC RT8H015C-T112-1 IC558 6-703-547-01 IC TA7805LS IC559 6-702-771-01 IC TA78033LS IC560 8-759-394-36 IC BA09T IC561 8-759-394-36 IC BA09T < CONECTOR/JACK > J103 1-820-048-11 CONNECTOR (LIGHTING) (D-LIGHT SYNC OUT) J201 1-815-045-11 JACK, PIN 2P (TV/SAT AUDIO IN) J202 1-815-045-11 JACK, PIN 2P (AUDIO OUT) J203 1-770-377-31 JACK, PIN 1P (SUBWOOFER OUT) MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 102 HCD-ZX80D < JUMPER RESISTOR > JR100 1-216-296-11 SHORT CHIP 0 JR101 1-216-864-11 SHORT CHIP 0 JR102 1-216-864-11 SHORT CHIP 0 JR104 1-216-864-11 SHORT CHIP 0 JR105 1-216-864-11 SHORT CHIP 0 JR200 1-216-864-11 SHORT CHIP 0 JR201 1-216-864-11 SHORT CHIP 0 JR202 1-216-864-11 SHORT CHIP 0 JR204 1-216-296-11 SHORT CHIP 0 JR205 1-216-296-11 SHORT CHIP 0 JR208 1-216-864-11 SHORT CHIP 0 JR218 1-216-864-11 SHORT CHIP 0 JR219 1-216-864-11 SHORT CHIP 0 JR222 1-216-864-11 SHORT CHIP 0 JR300 1-216-296-11 SHORT CHIP 0 JR301 1-216-864-11 SHORT CHIP 0 JR302 1-216-864-11 SHORT CHIP 0 JR303 1-216-864-11 SHORT CHIP 0 JR304 1-216-864-11 SHORT CHIP 0 JR305 1-216-296-11 SHORT CHIP 0 JR310 1-216-296-11 SHORT CHIP 0 JR340 1-216-864-11 SHORT CHIP 0 JR359 1-216-864-11 SHORT CHIP 0 JR361 1-216-864-11 SHORT CHIP 0 JR400 1-216-296-11 SHORT CHIP 0 JR401 1-216-864-11 SHORT CHIP 0 JR404 1-216-864-11 SHORT CHIP 0 JR406 1-216-864-11 SHORT CHIP 0 JR407 1-216-864-11 SHORT CHIP 0 JR430 1-216-864-11 SHORT CHIP 0 JR431 1-216-296-11 SHORT CHIP 0 JR432 1-216-296-11 SHORT CHIP 0 JR433 1-216-864-11 SHORT CHIP 0 JR435 1-216-864-11 SHORT CHIP 0 JR500 1-216-864-11 SHORT CHIP 0 JR501 1-216-296-11 SHORT CHIP 0 JR502 1-216-864-11 SHORT CHIP 0 JR503 1-216-864-11 SHORT CHIP 0 JR504 1-216-864-11 SHORT CHIP 0 JR505 1-216-864-11 SHORT CHIP 0 JR506 1-216-864-11 SHORT CHIP 0 JR507 1-216-296-11 SHORT CHIP 0 JR508 1-216-864-11 SHORT CHIP 0 JR509 1-216-864-11 SHORT CHIP 0 JR510 1-216-864-11 SHORT CHIP 0 JR514 1-216-864-11 SHORT CHIP 0 JR515 1-216-296-11 SHORT CHIP 0 JR520 1-216-864-11 SHORT CHIP 0 JR531 1-216-296-11 SHORT CHIP 0 JR532 1-216-296-11 SHORT CHIP 0 JR541 1-216-296-11 SHORT CHIP 0 JR542 1-216-864-11 SHORT CHIP 0 JR543 1-216-296-11 SHORT CHIP 0 JR544 1-216-296-11 SHORT CHIP 0 JR545 1-216-864-11 SHORT CHIP 0 < BOBINA > L302 1-414-189-31 INDUCTOR 100uH L320 1-410-780-71 INDUCTOR 27mH L370 1-410-780-71 INDUCTOR 27mH L372 1-414-189-31 INDUCTOR 100uH < TRANSISTOR > Q101 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q103 8-729-056-46 TRANSISTOR 2SC5053T100Q Q104 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q106 8-729-023-23 TRANSISTOR 2SD2114K Q117 8-729-023-23 TRANSISTOR 2SD2114K Q151 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q156 8-729-023-23 TRANSISTOR 2SD2114K Q167 8-729-023-23 TRANSISTOR 2SD2114K Q200 8-729-023-23 TRANSISTOR 2SD2114K Q202 8-729-023-23 TRANSISTOR 2SD2114K Q203 8-729-023-23 TRANSISTOR 2SD2114K Q204 8-729-023-23 TRANSISTOR 2SD2114K Q205 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q206 8-729-023-23 TRANSISTOR 2SD2114K Q207 8-729-023-23 TRANSISTOR 2SD2114K Q208 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q250 8-729-023-23 TRANSISTOR 2SD2114K Q252 8-729-023-23 TRANSISTOR 2SD2114K Q253 8-729-023-23 TRANSISTOR 2SD2114K Q254 8-729-023-23 TRANSISTOR 2SD2114K Q255 8-729-901-81 TRANSISTOR 2SC2412K-T-146-R Q256 8-729-023-23 TRANSISTOR 2SD2114K Q321 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q322 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q323 8-729-056-46 TRANSISTOR 2SC5053T100Q Q325 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q340 8-729-920-79 TRANSISTOR 2SB1132-T100QR Q341 8-729-920-79 TRANSISTOR 2SB1132-T100QR Q342 8-729-920-79 TRANSISTOR 2SB1132-T100QR Q343 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q344 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q345 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q370 8-729-102-93 TRANSISTOR 2SD596T1DV4 Q372 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q373 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q375 6-551-287-01 TRANSISTOR 2SD2704K-T146 Q377 6-550-289-01 TRANSISTOR 2SA1235F Q378 6-550-185-01 TRANSISTOR RT1P137P-TP-1 Q379 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q380 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q381 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q382 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q383 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q501 8-729-027-52 TRANSISTOR DTC124EKA Q503 8-729-027-43 TRANSISTOR DTC114EKA-T146 MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 103 HCD-ZX80D Q504 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q505 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q506 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q507 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q508 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q509 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q510 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q511 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q512 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q513 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q514 8-729-023-23 TRANSISTOR 2SD2114K Q515 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q516 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q517 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q518 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q519 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q520 8-729-024-94 TRANSISTOR 2SB1565F Q521 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q522 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q523 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q524 8-729-027-52 TRANSISTOR DTC124EKA Q550 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q564 8-729-023-23 TRANSISTOR 2SD2114K Q578 8-729-027-43 TRANSISTOR DTC114EKA-T146 Q579 8-729-230-50 TRANSISTOR 2SC2712-YG Q581 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q582 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q585 8-729-026-68 TRANSISTOR 2SD2525 (TP) Q587 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q588 8-729-026-68 TRANSISTOR 2SD2525 (TP) Q589 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF < RESISTOR > R101 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R102 1-216-833-11 METAL CHIP 10K 5% 1/10W R103 1-216-821-11 METAL CHIP 1K 5% 1/10W R104 1-216-821-11 METAL CHIP 1K 5% 1/10W R105 1-216-841-11 METAL CHIP 47K 5% 1/10W R106 1-216-833-11 METAL CHIP 10K 5% 1/10W R107 1-216-809-11 METAL CHIP 100 5% 1/10W R108 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R109 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R110 1-216-833-11 METAL CHIP 10K 5% 1/10W R111 1-216-833-11 METAL CHIP 10K 5% 1/10W R112 1-216-841-11 METAL CHIP 47K 5% 1/10W R113 1-216-833-11 METAL CHIP 10K 5% 1/10W R114 1-216-833-11 METAL CHIP 10K 5% 1/10W R115 1-216-821-11 METAL CHIP 1K 5% 1/10W R116 1-216-809-11 METAL CHIP 100 5% 1/10W R117 1-216-864-11 SHORT CHIP 0 R120 1-216-864-11 SHORT CHIP 0 R121 1-216-833-11 METAL CHIP 10K 5% 1/10W R122 1-216-833-11 METAL CHIP 10K 5% 1/10W R130 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R131 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R132 1-216-857-11 METAL CHIP 1M 5% 1/10W R133 1-216-845-11 METAL CHIP 100K 5% 1/10W R135 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R150 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R151 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R152 1-216-833-11 METAL CHIP 10K 5% 1/10W R153 1-216-821-11 METAL CHIP 1K 5% 1/10W R154 1-216-821-11 METAL CHIP 1K 5% 1/10W R155 1-216-841-11 METAL CHIP 47K 5% 1/10W R156 1-216-833-11 METAL CHIP 10K 5% 1/10W R157 1-216-809-11 METAL CHIP 100 5% 1/10W R158 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R159 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R160 1-216-833-11 METAL CHIP 10K 5% 1/10W R161 1-216-833-11 METAL CHIP 10K 5% 1/10W R162 1-216-841-11 METAL CHIP 47K 5% 1/10W R163 1-216-833-11 METAL CHIP 10K 5% 1/10W R164 1-216-833-11 METAL CHIP 10K 5% 1/10W R165 1-216-821-11 METAL CHIP 1K 5% 1/10W R166 1-216-809-11 METAL CHIP 100 5% 1/10W R167 1-216-864-11 SHORT CHIP 0 R200 1-216-833-11 METAL CHIP 10K 5% 1/10W R202 1-216-833-11 METAL CHIP 10K 5% 1/10W R203 1-216-833-11 METAL CHIP 10K 5% 1/10W R204 1-216-833-11 METAL CHIP 10K 5% 1/10W R205 1-216-821-11 METAL CHIP 1K 5% 1/10W R206 1-216-841-11 METAL CHIP 47K 5% 1/10W R207 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R208 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R209 1-216-833-11 METAL CHIP 10K 5% 1/10W R210 1-216-817-11 METAL CHIP 470 5% 1/10W R211 1-216-841-11 METAL CHIP 47K 5% 1/10W R212 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R213 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R214 1-216-841-11 METAL CHIP 47K 5% 1/10W R215 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R216 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R217 1-216-833-11 METAL CHIP 10K 5% 1/10W R218 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R219 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R220 1-216-833-11 METAL CHIP 10K 5% 1/10W R221 1-216-841-11 METAL CHIP 47K 5% 1/10W R222 1-216-821-11 METAL CHIP 1K 5% 1/10W R223 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R224 1-216-821-11 METAL CHIP 1K 5% 1/10W R225 1-216-833-11 METAL CHIP 10K 5% 1/10W R226 1-216-837-11 METAL CHIP 22K 5% 1/10W R227 1-216-841-11 METAL CHIP 47K 5% 1/10W R228 1-216-821-11 METAL CHIP 1K 5% 1/10W R229 1-216-833-11 METAL CHIP 10K 5% 1/10W R230 1-216-821-11 METAL CHIP 1K 5% 1/10W R231 1-216-841-11 METAL CHIP 47K 5% 1/10W R232 1-216-833-11 METAL CHIP 10K 5% 1/10W R233 1-216-841-11 METAL CHIP 47K 5% 1/10W R234 1-216-821-11 METAL CHIP 1K 5% 1/10W R235 1-216-833-11 METAL CHIP 10K 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 104 HCD-ZX80D R236 1-216-837-11 METAL CHIP 22K 5% 1/10W R237 1-216-841-11 METAL CHIP 47K 5% 1/10W R238 1-216-864-11 SHORT CHIP 0 R239 1-216-833-11 METAL CHIP 10K 5% 1/10W R240 1-216-835-11 METAL CHIP 15K 5% 1/10W R241 1-216-839-11 METAL CHIP 33K 5% 1/10W R242 1-216-833-11 METAL CHIP 10K 5% 1/10W R243 1-216-821-11 METAL CHIP 1K 5% 1/10W R244 1-216-845-11 METAL CHIP 100K 5% 1/10W R245 1-216-833-11 METAL CHIP 10K 5% 1/10W R246 1-216-841-11 METAL CHIP 47K 5% 1/10W R247 1-216-821-11 METAL CHIP 1K 5% 1/10W R248 1-216-845-11 METAL CHIP 100K 5% 1/10W R249 1-216-833-11 METAL CHIP 10K 5% 1/10W R250 1-216-839-11 METAL CHIP 33K 5% 1/10W R251 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R252 1-216-833-11 METAL CHIP 10K 5% 1/10W R253 1-216-833-11 METAL CHIP 10K 5% 1/10W R254 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R255 1-216-821-11 METAL CHIP 1K 5% 1/10W R256 1-216-841-11 METAL CHIP 47K 5% 1/10W R257 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R258 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R259 1-216-833-11 METAL CHIP 10K 5% 1/10W R260 1-216-817-11 METAL CHIP 470 5% 1/10W R261 1-216-841-11 METAL CHIP 47K 5% 1/10W R262 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R263 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R264 1-216-841-11 METAL CHIP 47K 5% 1/10W R265 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R266 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R267 1-216-833-11 METAL CHIP 10K 5% 1/10W R268 1-216-821-11 METAL CHIP 1K 5% 1/10W R269 1-216-833-11 METAL CHIP 10K 5% 1/10W R270 1-216-841-11 METAL CHIP 47K 5% 1/10W R271 1-216-833-11 METAL CHIP 10K 5% 1/10W R272 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R273 1-216-833-11 METAL CHIP 10K 5% 1/10W R274 1-216-821-11 METAL CHIP 1K 5% 1/10W R275 1-216-833-11 METAL CHIP 10K 5% 1/10W R276 1-216-837-11 METAL CHIP 22K 5% 1/10W R277 1-216-841-11 METAL CHIP 47K 5% 1/10W R278 1-216-821-11 METAL CHIP 1K 5% 1/10W R279 1-216-833-11 METAL CHIP 10K 5% 1/10W R280 1-216-821-11 METAL CHIP 1K 5% 1/10W R281 1-216-841-11 METAL CHIP 47K 5% 1/10W R282 1-216-833-11 METAL CHIP 10K 5% 1/10W R283 1-216-841-11 METAL CHIP 47K 5% 1/10W R284 1-216-821-11 METAL CHIP 1K 5% 1/10W R285 1-216-833-11 METAL CHIP 10K 5% 1/10W R286 1-216-837-11 METAL CHIP 22K 5% 1/10W R287 1-216-841-11 METAL CHIP 47K 5% 1/10W R288 1-216-864-11 SHORT CHIP 0 R289 1-216-833-11 METAL CHIP 10K 5% 1/10W R290 1-216-835-11 METAL CHIP 15K 5% 1/10W R291 1-216-839-11 METAL CHIP 33K 5% 1/10W R292 1-216-833-11 METAL CHIP 10K 5% 1/10W R293 1-216-821-11 METAL CHIP 1K 5% 1/10W R294 1-216-845-11 METAL CHIP 100K 5% 1/10W R295 1-216-833-11 METAL CHIP 10K 5% 1/10W R296 1-216-841-11 METAL CHIP 47K 5% 1/10W R297 1-216-821-11 METAL CHIP 1K 5% 1/10W R298 1-216-833-11 METAL CHIP 10K 5% 1/10W R299 1-216-833-11 METAL CHIP 10K 5% 1/10W R300 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R301 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R302 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R303 1-216-833-11 METAL CHIP 10K 5% 1/10W R304 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R305 1-216-841-11 METAL CHIP 47K 5% 1/10W R306 1-216-837-11 METAL CHIP 22K 5% 1/10W R307 1-216-857-11 METAL CHIP 1M 5% 1/10W R308 1-216-809-11 METAL CHIP 100 5% 1/10W R309 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R310 1-216-809-11 METAL CHIP 100 5% 1/10W R311 1-216-809-11 METAL CHIP 100 5% 1/10W R312 1-216-809-11 METAL CHIP 100 5% 1/10W R314 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R315 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R316 1-216-841-11 METAL CHIP 47K 5% 1/10W R317 1-216-837-11 METAL CHIP 22K 5% 1/10W R318 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R319 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R320 1-216-839-11 METAL CHIP 33K 5% 1/10W R321 1-216-839-11 METAL CHIP 33K 5% 1/10W R322 1-216-841-11 METAL CHIP 47K 5% 1/10W R325 1-216-819-11 METAL CHIP 680 5% 1/10W R329 1-216-845-11 METAL CHIP 100K 5% 1/10W R330 1-216-821-11 METAL CHIP 1K 5% 1/10W R335 1-216-821-11 METAL CHIP 1K 5% 1/10W R336 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R337 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R338 1-216-833-11 METAL CHIP 10K 5% 1/10W R339 1-216-835-11 METAL CHIP 15K 5% 1/10W R340 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R341 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R342 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R343 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R344 1-216-819-11 METAL CHIP 680 5% 1/10W R345 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R346 1-216-819-11 METAL CHIP 680 5% 1/10W R347 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R348 1-216-819-11 METAL CHIP 680 5% 1/10W R349 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R350 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R351 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R352 1-216-829-11 METAL CHIP 4.7K 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 105 HCD-ZX80D R353 1-216-833-11 METAL CHIP 10K 5% 1/10W R354 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R355 1-216-841-11 METAL CHIP 47K 5% 1/10W R356 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R357 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R358 1-216-839-11 METAL CHIP 33K 5% 1/10W R359 1-216-839-11 METAL CHIP 33K 5% 1/10W R360 1-216-838-11 METAL CHIP 27K 5% 1/10W R361 1-216-838-11 METAL CHIP 27K 5% 1/10W R364 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R365 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R366 1-216-833-11 METAL CHIP 10K 5% 1/10W R368 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R369 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R370 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R371 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R372 1-216-864-11 SHORT CHIP 0 R373 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R374 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R375 1-216-864-11 SHORT CHIP 0 R376 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R377 1-216-805-11 METAL CHIP 47 5% 1/10W R378 1-216-833-11 METAL CHIP 10K 5% 1/10W R379 1-216-797-11 METAL CHIP 10 5% 1/10W R380 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R381 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R382 1-216-841-11 METAL CHIP 47K 5% 1/10W R383 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R384 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R385 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R386 1-216-803-11 METAL CHIP 33 5% 1/10W R387 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R388 1-216-833-11 METAL CHIP 10K 5% 1/10W R389 1-216-835-11 METAL CHIP 15K 5% 1/10W R390 1-216-833-11 METAL CHIP 10K 5% 1/10W R391 1-216-821-11 METAL CHIP 1K 5% 1/10W R392 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R394 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R395 1-216-841-11 METAL CHIP 47K 5% 1/10W R396 1-216-833-11 METAL CHIP 10K 5% 1/10W R399 1-216-833-11 METAL CHIP 10K 5% 1/10W R400 1-216-833-11 METAL CHIP 10K 5% 1/10W R401 1-216-809-11 METAL CHIP 100 5% 1/10W R402 1-216-809-11 METAL CHIP 100 5% 1/10W R403 1-216-833-11 METAL CHIP 10K 5% 1/10W R404 1-216-833-11 METAL CHIP 10K 5% 1/10W R405 1-216-809-11 METAL CHIP 100 5% 1/10W R406 1-216-809-11 METAL CHIP 100 5% 1/10W R407 1-216-809-11 METAL CHIP 100 5% 1/10W R408 1-216-809-11 METAL CHIP 100 5% 1/10W R409 1-216-809-11 METAL CHIP 100 5% 1/10W R410 1-216-833-11 METAL CHIP 10K 5% 1/10W R411 1-216-851-11 METAL CHIP 330K 5% 1/10W R412 1-216-845-11 METAL CHIP 100K 5% 1/10W R413 1-216-864-11 SHORT CHIP 0 R414 1-216-809-11 METAL CHIP 100 5% 1/10W R415 1-216-809-11 METAL CHIP 100 5% 1/10W R417 1-216-833-11 METAL CHIP 10K 5% 1/10W R418 1-216-809-11 METAL CHIP 100 5% 1/10W R419 1-216-809-11 METAL CHIP 100 5% 1/10W R420 1-216-821-11 METAL CHIP 1K 5% 1/10W R421 1-216-809-11 METAL CHIP 100 5% 1/10W R422 1-216-809-11 METAL CHIP 100 5% 1/10W R423 1-216-809-11 METAL CHIP 100 5% 1/10W R424 1-216-809-11 METAL CHIP 100 5% 1/10W R425 1-216-809-11 METAL CHIP 100 5% 1/10W R426 1-216-809-11 METAL CHIP 100 5% 1/10W R427 1-216-833-11 METAL CHIP 10K 5% 1/10W R428 1-216-833-11 METAL CHIP 10K 5% 1/10W R429 1-216-809-11 METAL CHIP 100 5% 1/10W R430 1-216-809-11 METAL CHIP 100 5% 1/10W R431 1-216-809-11 METAL CHIP 100 5% 1/10W R432 1-216-809-11 METAL CHIP 100 5% 1/10W R433 1-216-809-11 METAL CHIP 100 5% 1/10W R434 1-216-809-11 METAL CHIP 100 5% 1/10W R435 1-216-809-11 METAL CHIP 100 5% 1/10W R436 1-216-833-11 METAL CHIP 10K 5% 1/10W R437 1-216-833-11 METAL CHIP 10K 5% 1/10W R438 1-216-809-11 METAL CHIP 100 5% 1/10W R439 1-216-809-11 METAL CHIP 100 5% 1/10W R440 1-216-809-11 METAL CHIP 100 5% 1/10W R441 1-216-809-11 METAL CHIP 100 5% 1/10W R442 1-216-809-11 METAL CHIP 100 5% 1/10W R443 1-216-809-11 METAL CHIP 100 5% 1/10W R444 1-216-809-11 METAL CHIP 100 5% 1/10W R445 1-216-809-11 METAL CHIP 100 5% 1/10W R447 1-216-809-11 METAL CHIP 100 5% 1/10W R448 1-216-809-11 METAL CHIP 100 5% 1/10W R450 1-216-809-11 METAL CHIP 100 5% 1/10W R451 1-216-809-11 METAL CHIP 100 5% 1/10W R453 1-216-809-11 METAL CHIP 100 5% 1/10W R454 1-216-809-11 METAL CHIP 100 5% 1/10W R457 1-216-809-11 METAL CHIP 100 5% 1/10W R458 1-216-809-11 METAL CHIP 100 5% 1/10W R463 1-216-809-11 METAL CHIP 100 5% 1/10W R466 1-216-833-11 METAL CHIP 10K 5% 1/10W R467 1-216-809-11 METAL CHIP 100 5% 1/10W R468 1-216-809-11 METAL CHIP 100 5% 1/10W R469 1-216-809-11 METAL CHIP 100 5% 1/10W R470 1-216-809-11 METAL CHIP 100 5% 1/10W R471 1-216-833-11 METAL CHIP 10K 5% 1/10W R472 1-216-809-11 METAL CHIP 100 5% 1/10W R473 1-216-809-11 METAL CHIP 100 5% 1/10W R474 1-216-809-11 METAL CHIP 100 5% 1/10W R475 1-216-809-11 METAL CHIP 100 5% 1/10W R478 1-216-821-11 METAL CHIP 1K 5% 1/10W R479 1-216-833-11 METAL CHIP 10K 5% 1/10W R483 1-216-809-11 METAL CHIP 100 5% 1/10W R484 1-216-833-11 METAL CHIP 10K 5% 1/10W R485 1-216-809-11 METAL CHIP 100 5% 1/10W MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 106 HCD-ZX80D R486 1-216-809-11 METAL CHIP 100 5% 1/10W R487 1-216-833-11 METAL CHIP 10K 5% 1/10W R488 1-216-809-11 METAL CHIP 100 5% 1/10W R489 1-216-809-11 METAL CHIP 100 5% 1/10W R490 1-216-809-11 METAL CHIP 100 5% 1/10W R491 1-216-809-11 METAL CHIP 100 5% 1/10W R492 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R493 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R494 1-216-809-11 METAL CHIP 100 5% 1/10W R496 1-216-809-11 METAL CHIP 100 5% 1/10W R499 1-216-809-11 METAL CHIP 100 5% 1/10W R500 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R501 1-216-813-11 METAL CHIP 220 5% 1/10W R502 1-216-821-11 METAL CHIP 1K 5% 1/10W R503 1-216-864-11 SHORT CHIP 0 R505 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R506 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R507 1-216-833-11 METAL CHIP 10K 5% 1/10W R508 1-216-853-11 METAL CHIP 470K 5% 1/10W R509 1-216-843-11 METAL CHIP 68K 5% 1/10W R510 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R511 1-216-853-11 METAL CHIP 470K 5% 1/10W R512 1-216-843-11 METAL CHIP 68K 5% 1/10W R513 1-216-835-11 METAL CHIP 15K 5% 1/10W R514 1-216-853-11 METAL CHIP 470K 5% 1/10W R515 1-216-843-11 METAL CHIP 68K 5% 1/10W R516 1-216-835-11 METAL CHIP 15K 5% 1/10W R517 1-216-841-11 METAL CHIP 47K 5% 1/10W R518 1-216-833-11 METAL CHIP 10K 5% 1/10W R519 1-216-821-11 METAL CHIP 1K 5% 1/10W R520 1-216-833-11 METAL CHIP 10K 5% 1/10W R522 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R523 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R524 1-216-833-11 METAL CHIP 10K 5% 1/10W R525 1-216-833-11 METAL CHIP 10K 5% 1/10W R526 1-216-821-11 METAL CHIP 1K 5% 1/10W R527 1-216-841-11 METAL CHIP 47K 5% 1/10W R528 1-216-833-11 METAL CHIP 10K 5% 1/10W R529 1-216-835-11 METAL CHIP 15K 5% 1/10W R530 1-216-843-11 METAL CHIP 68K 5% 1/10W R531 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R532 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R533 1-216-833-11 METAL CHIP 10K 5% 1/10W R534 1-216-833-11 METAL CHIP 10K 5% 1/10W R535 1-216-833-11 METAL CHIP 10K 5% 1/10W R536 1-216-833-11 METAL CHIP 10K 5% 1/10W R537 1-216-853-11 METAL CHIP 470K 5% 1/10W R538 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R539 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R540 1-216-833-11 METAL CHIP 10K 5% 1/10W R549 1-216-824-11 METAL CHIP 1.8K 5% 1/10W R551 1-216-842-11 METAL CHIP 56K 5% 1/10W R552 1-216-843-11 METAL CHIP 68K 5% 1/10W R553 1-216-853-11 METAL CHIP 470K 5% 1/10W R554 1-216-835-11 METAL CHIP 15K 5% 1/10W R573 1-216-833-11 METAL CHIP 10K 5% 1/10W R574 1-216-833-11 METAL CHIP 10K 5% 1/10W R575 1-216-833-11 METAL CHIP 10K 5% 1/10W R576 1-216-821-11 METAL CHIP 1K 5% 1/10W R577 1-216-841-11 METAL CHIP 47K 5% 1/10W R578 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R579 1-215-889-51 METAL OXIDE 330 5% 2W F R581 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R582 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R584 1-216-833-11 METAL CHIP 10K 5% 1/10W R585 1-216-821-11 METAL CHIP 1K 5% 1/10W R586 1-216-821-11 METAL CHIP 1K 5% 1/10W R589 1-216-821-11 METAL CHIP 1K 5% 1/10W R590 1-216-845-11 METAL CHIP 100K 5% 1/10W R592 1-216-819-11 METAL CHIP 680 5% 1/10W R593 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R594 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R595 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R601 1-216-821-11 METAL CHIP 1K 5% 1/10W R602 1-216-833-11 METAL CHIP 10K 5% 1/10W R612 1-216-864-11 SHORT CHIP 0 R623 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R662 1-216-864-11 SHORT CHIP 0 < TRANSFORMADOR > T301 1-433-372-21 TRANSFORMER, BIAS OSCILLATION MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 107 HCD-ZX80D MIC < OSCILADOR > X401 1-760-252-12 VIBRATOR, CRYSTAL (32.768kHz) X402 1-795-058-21 VIBRATOR, CERAMIC (5MHz) ************************************************************ A-1174-047-A PLACA MIC , MONTADA ******************** < CAPACITOR > C1100 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1101 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C1102 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1103 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1104 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1105 1-126-956-11 ELECT 0.1uF 20% 50V C1106 1-126-163-11 ELECT 4.7uF 20% 50V C1107 1-126-163-11 ELECT 4.7uF 20% 50V C1108 1-126-160-11 ELECT 1uF 20% 50V C1109 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C1110 1-165-908-11 CERAMIC CHIP 1uF 10% 10V C1111 1-126-957-11 ELECT 0.22uF 20% 50V C1112 1-126-160-11 ELECT 1uF 20% 50V C1113 1-162-925-11 CERAMIC CHIP 68PF 5% 50V C1114 1-126-163-11 ELECT 4.7uF 20% 50V C1115 1-126-963-11 ELECT 4.7uF 20% 50V C1116 1-126-947-11 ELECT 47uF 20% 35V C1117 1-126-947-11 ELECT 47uF 20% 35V C1119 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1121 1-126-957-11 ELECT 0.22uF 20% 50V C1122 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C1123 1-126-947-11 ELECT 47uF 20% 35V C1124 1-164-730-11 CERAMIC CHIP 0.0012uF 10% 50V C1125 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C1126 1-126-934-11 ELECT 220uF 20% 16V C1127 1-126-964-11 ELECT 10uF 20% 50V C1128 1-162-923-11 CERAMIC CHIP 47PF 5% 50V C1129 1-100-566-11 CERAMIC CHIP 0.1uF 10% 25V C1133 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1134 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C1135 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C1139 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1142 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1144 1-124-261-00 ELECT 10uF 20% 50V C1145 1-124-261-00 ELECT 10uF 20% 50V < CONECTOR > CN1102 1-785-329-11 PIN, CONNECTOR (90 GRAUS) 3P < DIODO > D1100 6-501-193-01 DIODE 1SS355WTE-17 D1101 6-501-193-01 DIODE 1SS355WTE-17 D1102 8-719-069-54 DIODE UDZSTE-175.1B D1103 8-719-988-61 DIODE 1SS355TE-17 D1104 8-719-988-61 DIODE 1SS355TE-17 < FERRITE BEAD/JUMPER RESISOR > FB902 1-469-147-21 FERRITE, EMI (SMD) (2012) FB1100 1-216-864-11 SHORT CHIP 0 FB1101 1-216-864-11 SHORT CHIP 0 < IC > IC1100 6-709-116-01 IC TC9488FG IC1101 8-759-274-71 IC NJM4565M-(TE2) < JACK > J1100 1-817-630-11 JACK (LARGE TYPE) (MIC 1) J1101 1-817-630-11 JACK (LARGE TYPE) (MIC 2) J1102 1-764-592-21 JACK 3P (VIDEO INPUT AUDIO/VIDEO) J1103 1-794-702-11 JACK, HEADPHONE (PHONES) < RESISTOR > R1100 1-216-835-11 METAL CHIP 15K 5% 1/10W R1102 1-216-821-11 METAL CHIP 1K 5% 1/10W R1103 1-216-821-11 METAL CHIP 1K 5% 1/10W R1104 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R1105 1-216-809-11 METAL CHIP 100 5% 1/10W R1106 1-216-809-11 METAL CHIP 100 5% 1/10W R1107 1-216-809-11 METAL CHIP 100 5% 1/10W R1108 1-216-833-11 METAL CHIP 10K 5% 1/10W R1109 1-216-833-11 METAL CHIP 10K 5% 1/10W R1110 1-216-833-11 METAL CHIP 10K 5% 1/10W R1111 1-216-833-11 METAL CHIP 10K 5% 1/10W R1113 1-216-834-11 METAL CHIP 12K 5% 1/10W R1114 1-216-833-11 METAL CHIP 10K 5% 1/10W R1115 1-216-815-11 METAL CHIP 330 5% 1/10W R1116 1-216-815-11 METAL CHIP 330 5% 1/10W R1118 1-216-821-11 METAL CHIP 1K 5% 1/10W R1119 1-216-835-11 METAL CHIP 15K 5% 1/10W R1120 1-216-828-11 METAL CHIP 3.9K 5% 1/10W R1121 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1122 1-216-834-11 METAL CHIP 12K 5% 1/10W R1123 1-216-835-11 METAL CHIP 15K 5% 1/10W R1124 1-216-833-11 METAL CHIP 10K 5% 1/10W R1126 1-216-833-11 METAL CHIP 10K 5% 1/10W R1127 1-216-839-11 METAL CHIP 33K 5% 1/10W R1128 1-216-839-11 METAL CHIP 33K 5% 1/10W R1130 1-216-835-11 METAL CHIP 15K 5% 1/10W R1131 1-216-835-11 METAL CHIP 15K 5% 1/10W R1132 1-216-864-11 SHORT CHIP 0 R1137 1-216-833-11 METAL CHIP 10K 5% 1/10W R1138 1-216-833-11 METAL CHIP 10K 5% 1/10W R1139 1-216-833-11 METAL CHIP 10K 5% 1/10W R1140 1-216-833-11 METAL CHIP 10K 5% 1/10W R1147 1-216-835-11 METAL CHIP 15K 5% 1/10W R1152 1-216-823-11 METAL CHIP 1.5K 5% 1/10W R1156 1-216-823-11 METAL CHIP 1.5K 5% 1/10W < RESISTOR VARIAVEL> RV1100 1-227-452-11 RES, VAR, CARBON 50K (ECHO LEVEL) RV1101 1-227-452-11 RES, VAR, CARBON 50K (MIC 2 LEVEL) RV1102 1-227-452-11 RES, VAR, CARBON 50K (MIC 1 LEVEL) ************************************************************ MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 108 HCD-ZX80D 1-687-133-12 PLACA MOTOR (LD) ***************** ************************************************************ 1-687-134-12 PLACA MOTOR (TB) ***************** < CONECTOR > CN742 1-784-727-11 CONNECTOR, FFC 5P ************************************************************ Y-828-539-8A PLACA PA , MONTADA ******************* < CAPACITOR > C600 1-126-963-11 ELECT 4.7uF 20% 50V C601 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C602 1-126-934-11 ELECT 220uF 20% 16V C603 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C604 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C605 1-164-156-11 CERAMIC CHIP 0.1uF 25V C606 1-164-156-11 CERAMIC CHIP 0.1uF 25V C608 1-126-965-11 ELECT 22uF 20% 50V C609 1-128-582-11 ELECT 10uF 20% 100V C610 1-128-582-11 ELECT 10uF 20% 100V C616 1-136-495-11 FILM 0.068uF 5% 50V C617 1-136-495-11 FILM 0.068uF 5% 50V C618 1-128-560-11 ELECT 22uF 20% 100V C619 1-128-560-11 ELECT 22uF 20% 100V C634 1-104-665-11 ELECT 100uF 20% 25V C635 1-104-665-11 ELECT 100uF 20% 25V C636 1-107-721-11 ELECT 4.7uF 20% 100V C637 1-107-721-11 ELECT 4.7uF 20% 100V C648 1-104-665-11 ELECT 100uF 20% 25V C649 1-126-964-11 ELECT 10uF 20% 50V C650 1-126-963-11 ELECT 4.7uF 20% 50V C651 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C652 1-126-934-11 ELECT 220uF 20% 16V C653 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C654 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C655 1-126-964-11 ELECT 10uF 20% 50V C656 1-127-815-11 ELECT 3300uF 20% 100V C658 1-112-032-11 ELECT 4700uF 20% 63V C660 1-164-156-11 CERAMIC CHIP 0.1uF 25V C666 1-136-495-11 FILM 0.068uF 5% 50V C667 1-136-495-11 FILM 0.068uF 5% 50V C676 1-127-815-11 ELECT 3300uF 20% 100V C678 1-112-032-11 ELECT 4700uF 20% 63V C681 1-131-992-11 CERAMIC CHIP 100000PF 35V C682 1-131-992-11 CERAMIC CHIP 100000PF 35V C683 1-164-156-11 CERAMIC CHIP 0.1uF 25V C691 1-131-992-11 CERAMIC CHIP 100000PF 35V C692 1-131-992-11 CERAMIC CHIP 100000PF 35V C693 1-164-156-11 CERAMIC CHIP 0.1uF 25V < CONECTOR > CN600 1-764-865-41 CONNECTOR, BOARD TO BOARD 13P CN601 1-784-031-41 CONNECTOR, BOARD TO BOARD 8P * CN602 1-564-512-11 PLUG, CONNECTOR 9P * CN607 1-564-508-51 PLUG, CONNECTOR 5P < DIODO > D609 6-501-193-01 DIODE 1SS355WTE-17 D611 6-500-031-01 DIODE MM3Z18VST1 D612 6-500-031-01 DIODE MM3Z18VST1 D620 6-501-193-01 DIODE 1SS355WTE-17 D624 6-501-193-01 DIODE 1SS355WTE-17 D646 6-501-193-01 DIODE 1SS355WTE-17 D654 6-501-193-01 DIODE 1SS355WTE-17 D655 6-501-193-01 DIODE 1SS355WTE-17 D660 6-501-193-01 DIODE 1SS355WTE-17 D661 6-501-193-01 DIODE 1SS355WTE-17 D670 6-501-193-01 DIODE 1SS355WTE-17 < IC > IC600 6-600-169-01 IC STK412-240M-E < JUMPER RESISTOR > JR600 1-216-296-11 SHORT CHIP 0 JR601 1-216-296-11 SHORT CHIP 0 JR602 1-216-296-11 SHORT CHIP 0 JR603 1-216-296-11 SHORT CHIP 0 JR612 1-216-864-11 SHORT CHIP 0 < BOBINA > L680 1-420-872-52 BOBINA NUCLEO DE AR L690 1-420-872-52 BOBINA NUCLEO DE AR < TRANSISTOR > Q604 8-729-041-68 TRANSISTOR 2SC3906K-T146E Q606 8-729-824-00 TRANSISTOR 2SA1207 Q610 8-729-041-68 TRANSISTOR 2SC3906K-T146E Q618 8-729-041-68 TRANSISTOR 2SC3906K-T146E Q628 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q630 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q634 8-729-027-31 TRANSISTOR DTA124EKA-T146 Q640 8-729-023-22 TRANSISTOR 2SD2114K Q641 8-729-023-22 TRANSISTOR 2SD2114K Q644 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q647 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q648 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q668 8-729-041-68 TRANSISTOR 22SC3906K-T146E Q682 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF < RESISTOR > R600 1-216-821-11 METAL CHIP 1K 5% 1/10W R601 1-216-841-11 METAL CHIP 47K 5% 1/10W R602 1-216-816-11 METAL CHIP 390 5% 1/10W R603 1-216-841-11 METAL CHIP 47K 5% 1/10W MOTOR (TB) MOTOR (LD) PA www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 109 HCD-ZX80D PA R604 1-216-833-11 METAL CHIP 10K 5% 1/10W R605 1-216-833-11 METAL CHIP 10K 5% 1/10W R606 1-216-841-11 METAL CHIP 47K 5% 1/10W R607 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R608 1-216-845-11 METAL CHIP 100K 5% 1/10W R609 1-216-843-11 METAL CHIP 68K 5% 1/10W R610 1-216-843-11 METAL CHIP 68K 5% 1/10W R611 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R612 1-245-605-51 FUSIBLE 100 5% 1/4W F 0R613 1-215-869-11 METAL OXIDE 1K 5% 1W F 0R614 1-215-869-11 METAL OXIDE 1K 5% 1W F 0R615 1-245-605-51 FUSIBLE 100 5% 1/4W F 0R616 1-217-637-51 FUSIBLE 1 5% 1/4W F R617 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R618 1-234-499-21 ENCAPSULATED COMPONENT 0.22 5W F R619 1-216-821-11 METAL CHIP 1K 5% 1/10W R620 1-216-836-11 METAL CHIP 18K 5% 1/10W R621 1-216-847-11 METAL CHIP 150K 5% 1/10W R622 1-245-711-31 CARBON 10 5% 1/2W R623 1-216-843-11 METAL CHIP 68K 5% 1/10W R624 1-216-837-11 METAL CHIP 22K 5% 1/10W R625 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R628 1-216-837-11 METAL CHIP 22K 5% 1/10W R629 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R630 1-216-845-11 METAL CHIP 100K 5% 1/10W R631 1-216-845-11 METAL CHIP 100K 5% 1/10W R633 1-216-864-11 SHORT CHIP 0 R634 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R635 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R636 1-216-456-00 METAL OXIDE 820 5% 2W F 0R637 1-216-456-00 METAL OXIDE 820 5% 2W F R638 1-216-845-11 METAL CHIP 100K 5% 1/10W R639 1-216-845-11 METAL CHIP 100K 5% 1/10W R640 1-216-821-11 METAL CHIP 1K 5% 1/10W R641 1-216-821-11 METAL CHIP 1K 5% 1/10W R642 1-216-811-11 METAL CHIP 150 5% 1/10W R643 1-216-811-11 METAL CHIP 150 5% 1/10W R644 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R645 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R646 1-260-087-31 CARBON 100 5% 1/2W F R647 1-216-821-11 METAL CHIP 1K 5% 1/10W R648 1-216-837-11 METAL CHIP 22K 5% 1/10W R649 1-216-837-11 METAL CHIP 22K 5% 1/10W R650 1-216-821-11 METAL CHIP 1K 5% 1/10W R651 1-216-841-11 METAL CHIP 47K 5% 1/10W R652 1-216-816-11 METAL CHIP 390 5% 1/10W R653 1-216-841-11 METAL CHIP 47K 5% 1/10W R654 1-216-841-11 METAL CHIP 47K 5% 1/10W R655 1-216-841-11 METAL CHIP 47K 5% 1/10W R656 1-216-849-11 METAL CHIP 220K 5% 1/10W R657 1-216-849-11 METAL CHIP 220K 5% 1/10W R658 1-216-845-11 METAL CHIP 100K 5% 1/10W R660 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R661 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R662 1-216-811-11 METAL CHIP 150 5% 1/10W R663 1-216-811-11 METAL CHIP 150 5% 1/10W 0R668 1-234-499-21 ENCAPSULATED COMPONENT 0.22 5W F R669 1-216-821-11 METAL CHIP 1K 5% 1/10W R670 1-216-836-11 METAL CHIP 18K 5% 1/10W R671 1-216-847-11 METAL CHIP 150K 5% 1/10W R672 1-245-711-31 CARBON 10 5% 1/2W R673 1-216-842-11 METAL CHIP 56K 5% 1/10W R674 1-216-837-11 METAL CHIP 22K 5% 1/10W R676 1-216-849-11 METAL CHIP 220K 5% 1/10W R677 1-216-849-11 METAL CHIP 220K 5% 1/10W R678 1-216-845-11 METAL CHIP 100K 5% 1/10W R680 1-245-711-31 CARBON 10 5% 1/2W R681 1-245-711-31 CARBON 10 5% 1/2W R682 1-216-821-11 METAL CHIP 1K 5% 1/10W R683 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R685 1-216-833-11 METAL CHIP 10K 5% 1/10W R690 1-245-711-31 CARBON 10 5% 1/2W R691 1-245-711-31 CARBON 10 5% 1/2W R692 1-216-841-11 METAL CHIP 47K 5% 1/10W R693 1-216-845-11 METAL CHIP 100K 5% 1/10W R694 1-216-843-11 METAL CHIP 68K 5% 1/10W R695 1-216-845-11 METAL CHIP 100K 5% 1/10W R696 1-216-845-11 METAL CHIP 100K 5% 1/10W R697 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R698 1-216-845-11 METAL CHIP 100K 5% 1/10W < RELÊ > RY646 1-755-500-11 RELAY < TERMISTOR > TH629 1-807-796-21 THERMISTOR TH630 1-807-796-21 THERMISTOR < TERMINAL > TM600 1-780-001-21 TERMINAL BOARD (SPEAKER) (FRONT SPEAKER) ************************************************************ Y-828-539-2A PLACA PAINEL , MONTADA ********************** < CAPACITOR > C900 1-126-163-11 ELECT 4.7uF 20% 50V C901 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C902 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C903 1-164-156-11 CERAMIC CHIP 0.1uF 25V C904 1-164-156-11 CERAMIC CHIP 0.1uF 25V C905 1-164-156-11 CERAMIC CHIP 0.1uF 25V C906 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C908 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C909 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C910 1-164-156-11 CERAMIC CHIP 0.1uF 25V C916 1-164-156-11 CERAMIC CHIP 0.1uF 25V C917 1-164-156-11 CERAMIC CHIP 0.1uF 25V PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 110 HCD-ZX80D C920 1-164-156-11 CERAMIC CHIP 0.1uF 25V C922 1-119-941-11 ELECT 470uF 20% 6.3V C923 1-119-941-11 ELECT 470uF 20% 6.3V C924 1-119-941-11 ELECT 470uF 20% 6.3V C925 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C926 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C927 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C928 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C929 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C930 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C931 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C932 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C933 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C934 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C935 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C936 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C937 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C938 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C939 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C940 1-164-156-11 CERAMIC CHIP 0.1uF 25V C941 1-124-261-00 ELECT 10uF 20% 50V C942 1-124-261-00 ELECT 10uF 20% 50V C943 1-124-261-00 ELECT 10uF 20% 50V C945 1-115-156-11 CERAMIC CHIP 1uF 10V C946 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C947 1-115-156-11 CERAMIC CHIP 1uF 10V C948 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C949 1-115-156-11 CERAMIC CHIP 1uF 10V C950 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C951 1-115-156-11 CERAMIC CHIP 1uF 10V C952 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C953 1-115-156-11 CERAMIC CHIP 1uF 10V C954 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C955 1-115-156-11 CERAMIC CHIP 1uF 10V C956 1-164-227-11 CERAMIC CHIP 0.022uF 10% 25V C957 1-115-156-11 CERAMIC CHIP 1uF 10V C958 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C959 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C961 1-164-156-11 CERAMIC CHIP 0.1uF 25V C962 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C964 1-124-589-11 ELECT 47uF 20% 16V C967 1-124-261-00 ELECT 10uF 20% 50V C972 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C973 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C974 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C975 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C977 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C978 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C979 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C980 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C981 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C982 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C983 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C1180 1-162-960-11 CERAMIC CHIP 220PF 10% 50V < CONECTOR > CN900 1-784-739-11 CONNECTOR, FFC 17P CN902 1-784-739-11 CONNECTOR, FFC 17P < DIODO > D901 6-501-193-01 DIODE 1SS355WTE-17 D905 8-719-069-57 DIODE UDZSTE-176,8B D908 8-719-064-63 LED SELU5823C-TP15 (DVD) D909 8-719-064-63 LED SELU5823C-TP15 (TUNER/BAND) D910 8-719-064-63 LED SELU5823C-TP15 (TAPE A/B) D911 8-719-064-63 LED SELU5823C-TP15 (Y (AMBER)) D913 8-719-064-63 LED SELU5823C-TP15 (PRESET + >) D914 8-719-064-63 LED SELU5823C-TP15 (PRESET – .) D915 6-501-228-01 LED SELU5420E-STP15 (Y (GRN)) D916 8-719-064-63 LED SELU5823C-TP15 (TV/SAT) D917 8-719-064-63 LED SELU5823C-TP15 (VIDEO) D927 6-500-809-01 LED SELU5223C-STP15 (I/1 (GRN)) D928 6-501-228-01 LED SELU5420E-STP15 (I/1 (RED)) D929 8-719-064-63 LED SELU5823C-TP15 (TUNING + M y) D930 8-719-064-63 LED SELU5823C-TP15 (TUNING – m y ) D931 6-501-193-01 DIODE 1SS355WTE-17 D932 6-501-193-01 DIODE 1SS355WTE-17 D1145 8-719-064-63 LED SELU5823C-TP15 (X) D1153 8-719-064-63 LED SELU5823C-TP15 (x) < JUMPER RESISTOR > FB901 1-216-864-11 SHORT CHIP 0 < DISPLAY FLUORESCENTE > FL901 1-519-794-11 VACUUM FLUORESCENT DISPLAYS < IC > IC902 6-806-206-01 IC MB90M407PF-G-149E1 IC903 6-600-309-01 IC RPM7240-H9 IC904 6-705-678-01 IC NJM2760V-TE2 < JUMPER RESISTOR > JR904 1-216-864-11 SHORT CHIP 0 JR914 1-216-864-11 SHORT CHIP 0 JR925 1-216-296-11 SHORT CHIP 0 < TRANSISTOR > Q901 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q902 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q903 8-729-027-29 TRANSISTOR DTA123JKA-T146 Q904 8-729-903-54 TRANSISTOR 2SB1132-T100R Q905 8-729-903-54 TRANSISTOR 2SB1132-T100R Q906 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q907 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q908 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q909 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q910 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q914 8-729-027-56 TRANSISTOR DTC143TKA-T146 Q917 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q918 8-729-027-50 TRANSISTOR DTC123JKA-T146 Q919 8-729-027-50 TRANSISTOR DTC123JKA-T146 < RESISTOR > R900 1-216-833-11 METAL CHIP 10K 5% 1/10W PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 111 HCD-ZX80D R901 1-216-833-11 METAL CHIP 10K 5% 1/10W R902 1-216-833-11 METAL CHIP 10K 5% 1/10W R903 1-216-809-11 METAL CHIP 100 5% 1/10W R904 1-216-809-11 METAL CHIP 100 5% 1/10W R905 1-216-835-11 METAL CHIP 15K 5% 1/10W R906 1-216-835-11 METAL CHIP 15K 5% 1/10W R907 1-216-835-11 METAL CHIP 15K 5% 1/10W R908 1-216-809-11 METAL CHIP 100 5% 1/10W R909 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R910 1-216-819-11 METAL CHIP 680 5% 1/10W R912 1-216-809-11 METAL CHIP 100 5% 1/10W R914 1-216-819-11 METAL CHIP 680 5% 1/10W R916 1-216-819-11 METAL CHIP 680 5% 1/10W R918 1-216-845-11 METAL CHIP 100K 5% 1/10W R919 1-216-845-11 METAL CHIP 100K 5% 1/10W R920 1-216-845-11 METAL CHIP 100K 5% 1/10W R922 1-216-857-11 METAL CHIP 1M 5% 1/10W R923 1-216-819-11 METAL CHIP 680 5% 1/10W R941 1-216-809-11 METAL CHIP 100 5% 1/10W R942 1-216-809-11 METAL CHIP 100 5% 1/10W R943 1-216-833-11 METAL CHIP 10K 5% 1/10W R944 1-216-805-11 METAL CHIP 47 5% 1/10W R947 1-216-821-11 METAL CHIP 1K 5% 1/10W R948 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R949 1-216-821-11 METAL CHIP 1K 5% 1/10W R950 1-216-821-11 METAL CHIP 1K 5% 1/10W R951 1-216-830-11 METAL CHIP 5.6K 5% 1/10W R952 1-216-821-11 METAL CHIP 1K 5% 1/10W R953 1-216-821-11 METAL CHIP 1K 5% 1/10W R954 1-216-833-11 METAL CHIP 10K 5% 1/10W R956 1-216-826-11 METAL CHIP 2.7K 5% 1/10W R957 1-216-819-11 METAL CHIP 680 5% 1/10W R964 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R965 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R966 1-216-833-11 METAL CHIP 10K 5% 1/10W R967 1-216-835-11 METAL CHIP 15K 5% 1/10W R968 1-216-837-11 METAL CHIP 22K 5% 1/10W R974 1-216-819-11 METAL CHIP 680 5% 1/10W R979 1-216-805-11 METAL CHIP 47 5% 1/10W R980 1-216-821-11 METAL CHIP 1K 5% 1/10W R981 1-216-809-11 METAL CHIP 100 5% 1/10W R982 1-216-817-11 METAL CHIP 470 5% 1/10W R983 1-216-842-11 METAL CHIP 56K 5% 1/10W R984 1-216-839-11 METAL CHIP 33K 5% 1/10W R987 1-216-819-11 METAL CHIP 680 5% 1/10W R990 1-216-819-11 METAL CHIP 680 5% 1/10W R997 1-216-819-11 METAL CHIP 680 5% 1/10W R1007 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1008 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1009 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1010 1-216-833-11 METAL CHIP 10K 5% 1/10W R1011 1-216-835-11 METAL CHIP 15K 5% 1/10W R1012 1-216-837-11 METAL CHIP 22K 5% 1/10W R1013 1-216-839-11 METAL CHIP 33K 5% 1/10W R1021 1-216-809-11 METAL CHIP 100 5% 1/10W R1022 1-216-809-11 METAL CHIP 100 5% 1/10W R1023 1-216-809-11 METAL CHIP 100 5% 1/10W R1024 1-216-809-11 METAL CHIP 100 5% 1/10W R1025 1-216-809-11 METAL CHIP 100 5% 1/10W R1026 1-216-809-11 METAL CHIP 100 5% 1/10W R1027 1-216-809-11 METAL CHIP 100 5% 1/10W R1028 1-216-809-11 METAL CHIP 100 5% 1/10W R1135 1-216-819-11 METAL CHIP 680 5% 1/10W R1136 1-216-819-11 METAL CHIP 680 5% 1/10W R1141 1-216-819-11 METAL CHIP 680 5% 1/10W R1178 1-216-801-11 METAL CHIP 22 5% 1/10W R1180 1-216-808-11 METAL CHIP 82 5% 1/10W R1181 1-216-814-11 METAL CHIP 270 5% 1/10W R1187 1-216-833-11 METAL CHIP 10K 5% 1/10W R1189 1-216-829-11 METAL CHIP 4.7K 5% 1/10W < CHAVE > S907 1-762-875-21 SWITCH, KEYBOARD (Y) S908 1-762-875-21 SWITCH, KEYBOARD (X) S909 1-762-875-21 SWITCH, KEYBOARD (x) S910 1-762-875-21 SWITCH, KEYBOARD (PRESET + >) S911 1-762-875-21 SWITCH, KEYBOARD (PRESET – .) S912 1-762-875-21 SWITCH, KEYBOARD (TUNING + M y) S913 1-762-875-21 SWITCH, KEYBOARD (TUNING – m y ) S921 1-762-875-21 SWITCH, KEYBOARD (VIDEO) S922 1-762-875-21 SWITCH, KEYBOARD (TV/SAT) S923 1-762-875-21 SWITCH, KEYBOARD (TAPE A/B) S924 1-762-875-21 SWITCH, KEYBOARD (TUNER/BAND) S925 1-762-875-21 SWITCH, KEYBOARD (DVD) S927 1-762-875-21 SWITCH, KEYBOARD (I/1) < OSCILADOR > X901 1-577-082-31 VIBRATOR, CERAMIC (4MHz) ************************************************************ PLACA PRIMARY ************** < CAPACITOR > 0C1200 1-113-924-11 CERAMIC 0.0047uF 20% 25V C1201 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1202 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1204 1-164-156-11 CERAMIC CHIP 0.1uF 25V C1206 1-126-916-11 ELECT 1000uF 20% 6.3V < CONECTOR > CN1200 1-785-329-11 PIN, CONNECTOR (90 GRAUS) 3P CN1202 1-564-321-11 PIN, CONNECTOR (3.96mm PITCH) 2P CN1204 1-568-106-11 PIN, CONNECTOR (3.96mm PITCH) 4P < DIODO > D1200 6-501-193-01 DIODE 1SS355WTE-17 < JUMPER RESISTOR > JR1202 1-216-864-11 SHORT CHIP 0 PRIMARY PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 112 HCD-ZX80D < BOBINA > L1201 1-410-666-41 INDUCTOR 18uH < TRANSISTOR > Q1200 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF < RESISTOR > R1200 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1201 1-216-845-11 METAL CHIP 100K 5% 1/10W < RELÊ > 0RY1200 1-755-299-11 RELAY < CHAVE > 0S1200 1-771-291-31 SWITCH, POWER (SELETOR DE VOLTAGEM) ************************************************************ 1-687-132-12 PLACA SENSOR ************* < CONECTOR > CN731 1-785-329-21 PIN, CONNECTOR (LIGHT ANGLE) 3P < IC > IC731 6-600-022-01 IC RPI-576 ************************************************************ Y-828-539-4A PLACA SURROUND ,MONTADA ************************** < CAPACITOR > C700 1-126-963-11 ELECT 4.7uF 20% 50V C701 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C702 1-126-934-11 ELECT 220uF 20% 16V C703 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C704 1-126-963-11 ELECT 4.7uF 20% 50V C711 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C712 1-162-916-11 CERAMIC CHIP 12PF 5% 50V C721 1-126-965-11 ELECT 22uF 20% 50V C730 1-136-495-11 FILM 0.068uF 5% 50V C731 1-136-495-11 FILM 0.068uF 5% 50V C732 1-131-992-11 CERAMIC CHIP 100000PF 35V C733 1-131-992-11 CERAMIC CHIP 100000PF 35V C750 1-126-963-11 ELECT 4.7uF 20% 50V C751 1-164-230-11 CERAMIC CHIP 220PF 5% 50V C752 1-126-934-11 ELECT 220uF 20% 16V C753 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C754 1-126-963-11 ELECT 4.7uF 20% 50V C780 1-136-495-11 FILM 0.068uF 5% 50V C781 1-136-495-11 FILM 0.068uF 5% 50V C782 1-131-992-11 CERAMIC CHIP 100000PF 35V C783 1-131-992-11 CERAMIC CHIP 100000PF 35V C792 1-162-974-11 CERAMIC CHIP 0.01uF 50V C793 1-128-563-11 ELECT 100uF 20% 100V C794 1-128-563-11 ELECT 100uF 20% 100V C795 1-128-560-11 ELECT 22uF 20% 100V C796 1-128-560-11 ELECT 22uF 20% 100V C800 1-126-963-11 ELECT 4.7uF 20% 50V C802 1-104-665-11 ELECT 100uF 20% 25V C803 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C804 1-164-156-11 CERAMIC CHIP 0.1uF 25V C805 1-164-156-11 CERAMIC CHIP 0.1uF 25V C806 1-126-961-11 ELECT 2.2uF 20% 50V C808 1-131-749-11 CERAMIC CHIP 8.2PF 50V C820 1-126-964-11 ELECT 10uF 20% 50V C825 1-126-968-11 ELECT 100uF 20% 50V C826 1-126-968-11 ELECT 100uF 20% 50V C838 1-136-495-11 FILM 0.068uF 5% 50V C839 1-136-495-11 FILM 0.068uF 5% 50V C843 1-126-963-11 ELECT 4.7uF 20% 50V C850 1-126-963-11 ELECT 4.7uF 20% 50V C851 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C852 1-104-665-11 ELECT 100uF 20% 25V C853 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C858 1-131-749-11 CERAMIC CHIP 8.2PF 50V C888 1-136-495-11 FILM 0.068uF 5% 50V C889 1-136-495-11 FILM 0.068uF 5% 50V < CONECTOR > CN700 1-764-865-41 CONNECTOR, BOARD TO BOARD 13P CN701 1-784-031-41 CONNECTOR, BOARD TO BOARD 8P < DIODO > D710 8-719-083-66 DIODE UDZSTE-1718B PRIMARY SENSOR SURROUND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 113 HCD-ZX80D D711 8-719-083-66 DIODE UDZSTE-1718B D720 6-501-193-01 DIODE 1SS355WTE-17 D730 6-501-193-01 DIODE 1SS355WTE-17 D762 6-501-193-01 DIODE 1SS355WTE-17 D763 6-501-193-01 DIODE 1SS355WTE-17 D764 6-501-193-01 DIODE 1SS355WTE-17 D780 6-501-193-01 DIODE 1SS355WTE-17 D800 6-501-193-01 DIODE 1SS355WTE-17 D810 6-501-193-01 DIODE 1SS355WTE-17 D811 6-501-193-01 DIODE 1SS355WTE-17 D812 6-501-193-01 DIODE 1SS355WTE-17 D850 6-501-193-01 DIODE 1SS355WTE-17 < IC > IC702 6-600-169-01 IC STK412-240M-E IC800 6-600-089-01 IC STK403-070 < JUMPER RESISTOR > JR700 1-216-296-11 SHORT CHIP 0 JR797 1-216-296-11 SHORT CHIP 0 < BOBINA > L730 1-420-872-52 COIL, AIR-CORE L780 1-420-872-52 COIL, AIR-CORE < TRANSISTOR > Q700 8-729-023-23 TRANSISTOR 2SD2114K Q720 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q721 8-729-824-00 TRANSISTOR 2SA1207 Q722 8-729-041-68 TRANSISTOR 2SC3906K-T146E Q730 8-729-041-68 TRANSISTOR 2SC3906K-T146E Q750 8-729-023-22 TRANSISTOR 2SD2114K Q763 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q765 8-729-023-22 TRANSISTOR 2SD2114K Q780 8-729-041-68 TRANSISTOR 2SC3906K-T146E Q800 8-729-041-68 TRANSISTOR 2SC3906K-T146E Q810 8-729-023-22 TRANSISTOR 2SD2114K Q812 8-729-041-68 TRANSISTOR 2SC3906K-T146E Q814 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q815 8-729-600-91 TRANSISTOR 2SC3052F-T1-LF Q850 8-729-041-68 TRANSISTOR 2SC3906K-T146E < RESISTOR > R700 1-216-821-11 METAL CHIP 1K 5% 1/10W R701 1-216-841-11 METAL CHIP 47K 5% 1/10W R702 1-218-482-11 METAL CHIP 430 5% 1/10W (ZX80D) R703 1-216-821-11 METAL CHIP 1K 5% 1/10W R704 1-216-833-11 METAL CHIP 10K 5% 1/10W R705 1-216-841-11 METAL CHIP 47K 5% 1/10W R706 1-216-833-11 METAL CHIP 10K 5% 1/10W R711 1-216-841-11 METAL CHIP 47K 5% 1/10W R712 1-216-841-11 METAL CHIP 47K 5% 1/10W R720 1-216-833-11 METAL CHIP 10K 5% 1/10W R721 1-216-833-11 METAL CHIP 10K 5% 1/10W R722 1-216-837-11 METAL CHIP 22K 5% 1/10W R723 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R724 1-216-839-11 METAL CHIP 33K 5% 1/10W R725 1-216-841-11 METAL CHIP 47K 5% 1/10W R726 1-216-839-11 METAL CHIP 33K 5% 1/10W R727 1-216-839-11 METAL CHIP 33K 5% 1/10W 0R730 1-234-499-21 ENCAPSULATED COMPONENT 0.22 5W F R731 1-216-821-11 METAL CHIP 1K 5% 1/10W R732 1-216-838-11 METAL CHIP 27K 5% 1/10W R733 1-216-845-11 METAL CHIP 100K 5% 1/10W R734 1-216-842-11 METAL CHIP 56K 5% 1/10W R735 1-245-711-31 CARBON 10 5% 1/2W R736 1-245-711-31 CARBON 10 5% 1/2W R737 1-245-711-31 CARBON 10 5% 1/2W R750 1-216-821-11 METAL CHIP 1K 5% 1/10W R751 1-216-841-11 METAL CHIP 47K 5% 1/10W R752 1-218-482-11 METAL CHIP 430 5% 1/10W R753 1-216-821-11 METAL CHIP 1K 5% 1/10W R754 1-216-833-11 METAL CHIP 10K 5% 1/10W R755 1-216-841-11 METAL CHIP 47K 5% 1/10W R756 1-216-833-11 METAL CHIP 10K 5% 1/10W R761 1-216-845-11 METAL CHIP 100K 5% 1/10W R762 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R764 1-260-086-31 CARBON 82 5% 1/2W F SURROUND www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 114 HCD-ZX80D R768 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R769 1-216-837-11 METAL CHIP 22K 5% 1/10W R778 1-216-841-11 METAL CHIP 47K 5% 1/10W R779 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R780 1-234-499-21 ENCAPSULATED COMPONENT 0.22 5W F R781 1-216-821-11 METAL CHIP 1K 5% 1/10W R782 1-216-838-11 METAL CHIP 27K 5% 1/10W R783 1-216-845-11 METAL CHIP 100K 5% 1/10W R784 1-216-841-11 METAL CHIP 47K 5% 1/10W R785 1-245-711-31 CARBON 10 5% 1/2W R786 1-245-711-31 CARBON 10 5% 1/2W R787 1-245-711-31 CARBON 10 5% 1/2W R792 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R793 1-217-637-51 FUSIBLE 1 5% 1/4W F 0R794 1-245-605-51 FUSIBLE 100 5% 1/4W F 0R795 1-245-605-51 FUSIBLE 100 5% 1/4W F 0R796 1-215-872-11 METAL OXIDE 3.3K 5% 1W F R797 1-216-837-11 METAL CHIP 22K 5% 1/10W R798 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R799 1-215-872-11 METAL OXIDE 3.3K 5% 1W F R800 1-216-821-11 METAL CHIP 1K 5% 1/10W R801 1-216-841-11 METAL CHIP 47K 5% 1/10W R802 1-216-821-11 METAL CHIP 1K 5% 1/10W R803 1-216-825-11 METAL CHIP 2.2K 5% 1/10W 0R804 1-217-637-51 FUSIBLE 1 5% 1/4W F 0R805 1-217-637-51 FUSIBLE 1 5% 1/4W F R806 1-216-821-11 METAL CHIP 1K 5% 1/10W R807 1-216-841-11 METAL CHIP 47K 5% 1/10W R808 1-216-841-11 METAL CHIP 47K 5% 1/10W R812 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R814 1-216-833-11 METAL CHIP 10K 5% 1/10W R817 1-216-833-11 METAL CHIP 10K 5% 1/10W 0R827 1-245-605-51 FUSIBLE 100 5% 1/4W F 0R828 1-245-605-51 FUSIBLE 100 5% 1/4W F 0R838 1-245-233-11 METAL 0.22 10% 5W F R839 1-216-821-11 METAL CHIP 1K 5% 1/10W R840 1-216-837-11 METAL CHIP 22K 5% 1/10W R841 1-216-845-11 METAL CHIP 100K 5% 1/10W R842 1-245-711-31 CARBON 10 5% 1/2W R843 1-216-841-11 METAL CHIP 47K 5% 1/10W R850 1-216-821-11 METAL CHIP 1K 5% 1/10W R851 1-216-841-11 METAL CHIP 47K 5% 1/10W R852 1-216-814-11 METAL CHIP 270 5% 1/10W R858 1-216-841-11 METAL CHIP 47K 5% 1/10W R860 1-216-842-11 METAL CHIP 56K 5% 1/10W R861 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R862 1-260-086-31 CARBON 82 5% 1/2W F R863 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R864 1-216-837-11 METAL CHIP 22K 5% 1/10W R865 1-216-821-11 METAL CHIP 1K 5% 1/10W R866 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R888 1-245-233-11 METAL 0.22 10% 5W F R889 1-216-821-11 METAL CHIP 1K 5% 1/10W R890 1-216-837-11 METAL CHIP 22K 5% 1/10W R891 1-216-845-11 METAL CHIP 100K 5% 1/10W R892 1-245-711-31 CARBON 10 5% 1/2W < RELÊ > RY760 1-755-500-11 RELAY RY862 1-755-500-11 RELAY < TERMINAL > TM700 1-780-001-21 TERMINAL BOARD (SPEAKER) (CENTER SPEAKER) TM701 1-780-170-21 TERMINAL BOARD (SPEAKER) (SURR SPEAKER) ************************************************************ 1-687-669-12 PLACA SW ********* < CHAVE > S751 1-786-514-31 SWITCH, LEVER (SLIDE) (DISC TABLE OPEN/CLOSE DETECT) ************************************************************ PLACA TRANS ********************** < CAPACITOR > C1262 1-126-964-11 ELECT 10uF 20% 50V C1263 1-126-968-11 ELECT 100uF 20% 50V C1292 1-128-576-11 ELECT 100uF 20% 63V SURROUND SW TRANS www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 115 HCD-ZX80D < CONNECTOR > * CN1212 1-564-522-11 PLUG, CONNECTOR 7P * CN1213 1-564-523-11 PLUG, CONNECTOR 8P < DIODO> * D1264 8-719-071-83 DIODE HZU36BTRF D1292 6-500-522-21 DIODE 10EDB40-TB3 < SUPORTE DO FUSIVEL> FH1241 1-533-217-41 HOLDER, FUSE FH1242 1-533-217-41 HOLDER, FUSE FH1251 1-533-217-41 HOLDER, FUSE FH1252 1-533-217-41 HOLDER, FUSE FH1261 1-533-217-41 HOLDER, FUSE FH1262 1-533-217-41 HOLDER, FUSE FH1271 1-533-217-41 HOLDER, FUSE FH1272 1-533-217-41 HOLDER, FUSE FH1281 1-533-217-41 HOLDER, FUSE FH1282 1-533-217-41 HOLDER, FUSE FH1291 1-533-217-41 HOLDER, FUSE FH1292 1-533-217-41 HOLDER, FUSE < TRANSISTOR > Q1264 8-729-024-93 TRANSISTOR 2SB1565E < RESISTOR > R1262 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R1263 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R1264 1-216-821-11 METAL CHIP 1K 5% 1/10W 0R1292 1-219-124-51 FUSIBLE 0.68 5% 1/4W F ************************************************************ Y-828-540-0A PLACA VIDEO , MONTADA ********************** < CAPACITOR > C800 1-126-960-11 ELECT 1uF 20% 50V C801 1-126-960-11 ELECT 1uF 20% 50V C802 1-126-960-11 ELECT 1uF 20% 50V C803 1-126-965-11 ELECT 22uF 20% 50V C804 1-164-156-11 CERAMIC CHIP 0.1uF 25V C805 1-126-960-11 ELECT 1uF 20% 50V C806 1-126-960-11 ELECT 1uF 20% 50V C807 1-126-960-11 ELECT 1uF 20% 50V C808 1-104-665-11 ELECT 100uF 20% 25V C809 1-164-156-11 CERAMIC CHIP 0.1uF 25V C810 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C811 1-126-916-11 ELECT 1000uF 20% 6.3V C812 1-126-916-11 ELECT 1000uF 20% 6.3V C813 1-126-916-11 ELECT 1000uF 20% 6.3V C814 1-126-916-11 ELECT 1000uF 20% 6.3V C815 1-126-916-11 ELECT 1000uF 20% 6.3V C816 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C817 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C818 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C819 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C820 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C821 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C822 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C823 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C824 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C825 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C826 1-126-964-11 ELECT 10uF 20% 50V C827 1-126-964-11 ELECT 10uF 20% 50V C829 1-126-916-11 ELECT 1000uF 20% 6.3V C830 1-104-665-11 ELECT 100uF 20% 25V C831 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONECTOR > CN800 1-564-707-11 PIN, CONNECTOR (SMALL TYPE) 5P CN801 1-779-281-11 FFC CONNECTOR (LIF (NON-ZIF)) 13P CN802 1-785-328-11 PIN, CONNECTOR (LIGHT ANGRE) 2P < JUMPER RESISTOR > FB800 1-216-864-11 SHORT CHIP 0 FB801 1-216-864-11 SHORT CHIP 0 FB802 1-216-864-11 SHORT CHIP 0 FB803 1-216-864-11 SHORT CHIP 0 FB804 1-216-864-11 SHORT CHIP 0 FB805 1-216-864-11 SHORT CHIP 0 FB806 1-216-864-11 SHORT CHIP 0 < IC > IC800 8-759-295-90 IC NJM2244M-TE2 IC801 6-705-602-01 IC MM1623BFBE < JACK/TERMINAL > J800 1-817-449-11 JACK, PIN 3P (COMPONET VIDEO OUT) J801 1-537-943-11 TERMINAL, S (S VIDEO OUT) J802 1-785-867-11 JACK, PIN 1P (VIDEO OUT) < CAPACITOR/JUMPER RESISTOR > JR800 1-216-864-11 SHORT CHIP 0 JR802 1-216-864-11 SHORT CHIP 0 JR803 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V JR804 1-216-864-11 SHORT CHIP 0 < BOBINA > L801 1-414-183-31 INDUCTOR 10uH < RESISTOR > R800 1-216-809-11 METAL CHIP 100 5% 1/10W R802 1-218-285-11 METAL CHIP 75 5% 1/10W R803 1-218-285-11 METAL CHIP 75 5% 1/10W R804 1-218-285-11 METAL CHIP 75 5% 1/10W R805 1-218-285-11 METAL CHIP 75 5% 1/10W R806 1-216-864-11 SHORT CHIP 0 R807 1-216-809-11 METAL CHIP 100 5% 1/10W R808 1-218-285-11 METAL CHIP 75 5% 1/10W TRANS VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 116 HCD-ZX80D R809 1-216-833-11 METAL CHIP 10K 5% 1/10W R810 1-216-807-11 METAL CHIP 68 5% 1/10W R812 1-216-857-11 METAL CHIP 1M 5% 1/10W R813 1-216-845-11 METAL CHIP 100K 5% 1/10W R814 1-216-833-11 METAL CHIP 10K 5% 1/10W ************************************************************ PLACA X-ROUND ************** < CAPACITOR > C1040 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V < CONECTOR > * CN1153 1-784-729-11 SOCKET, CONNECTOR 7P < LED > D1040 8-719-064-63 LED SELU5823C-TP15 (FADER) D1042 8-719-064-63 LED SELU5823C-TP15 (RANDOM) D1044 8-719-064-63 LED SELU5823C-TP15 (FADER) D1046 8-719-064-63 LED SELU5823C-TP15 (BEAT MAX) D1048 8-719-064-63 LED SELU5823C-TP15 (BEAT JUMP) D1050 8-719-064-63 LED SELU5823C-TP15 (BEAT JUMP) D1052 8-719-064-63 LED SELU5823C-TP15 (BALANCE) D1054 8-719-064-63 LED SELU5823C-TP15 (BALANCE) D1056 8-719-064-63 LED SELU5823C-TP15 (BEAT MAX) D1058 8-719-064-63 LED SELU5823C-TP15 (RANDOM) < JUMPER RESISTOR > JR915 1-216-864-11 SHORT CHIP 0 JR1041 1-216-864-11 SHORT CHIP 0 < TRANSISTOR > Q1041 8-729-027-50 TRANSISTOR DTC123JKA-T146 < RESISTOR > R1041 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R1042 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R1043 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R1044 1-218-867-11 METAL CHIP 6.8K 0.5% 1/10W R1045 1-216-833-11 METAL CHIP 10K 5% 1/10W R1046 1-216-835-11 METAL CHIP 15K 5% 1/10W R1047 1-216-837-11 METAL CHIP 22K 5% 1/10W R1048 1-216-839-11 METAL CHIP 33K 5% 1/10W R1050 1-216-821-11 METAL CHIP 1K 5% 1/10W R1051 1-216-821-11 METAL CHIP 1K 5% 1/10W R1052 1-216-821-11 METAL CHIP 1K 5% 1/10W R1053 1-216-821-11 METAL CHIP 1K 5% 1/10W R1054 1-216-821-11 METAL CHIP 1K 5% 1/10W R1055 1-216-821-11 METAL CHIP 1K 5% 1/10W R1056 1-216-821-11 METAL CHIP 1K 5% 1/10W R1057 1-216-821-11 METAL CHIP 1K 5% 1/10W R1058 1-216-821-11 METAL CHIP 1K 5% 1/10W R1059 1-216-821-11 METAL CHIP 1K 5% 1/10W R1060 1-216-821-11 METAL CHIP 1K 5% 1/10W R1061 1-216-821-11 METAL CHIP 1K 5% 1/10W R1062 1-216-821-11 METAL CHIP 1K 5% 1/10W X-ROUND R1063 1-216-821-11 METAL CHIP 1K 5% 1/10W R1064 1-216-821-11 METAL CHIP 1K 5% 1/10W R1065 1-216-821-11 METAL CHIP 1K 5% 1/10W R1066 1-216-821-11 METAL CHIP 1K 5% 1/10W R1067 1-216-821-11 METAL CHIP 1K 5% 1/10W < CHAVE/ ENCODER ROTATIVO > S1040 1-479-203-11 ENCODER (ROTARY) (X-ROUND JOG) S1041 1-762-875-21 SWITCH, KEYBOARD (BEAT PAD) S1042 1-762-875-21 SWITCH, KEYBOARD (BEAT MAX) S1043 1-762-875-21 SWITCH, KEYBOARD (BEAT JUMP) S1044 1-762-875-21 SWITCH, KEYBOARD (RANDOM) S1045 1-762-875-21 SWITCH, KEYBOARD (WAVE) S1046 1-762-875-21 SWITCH, KEYBOARD (FADER) S1047 1-762-875-21 SWITCH, KEYBOARD (BALANCE) S1049 1-786-967-11 SWITCH, TACTILE (SPEAKERS/X-ROUND OFF) ************************************************************ DIVERSOS ************** 55 1-828-991-11 CABO (TIPO FLAT) (17VIAS) 57 1-921-115-42 CABO (TIPO FLAT) (7 VIAS) 58 1-921-098-11 CABO (TIPO FLAT) (17VIAS) 113 1-417-658-11 MECHA DECK (CWN42RR603) 115 1-921-084-41 CABO (TIPO FLAT) (11 VIAS) 0151 1-468-737-51 POWER SWITCHING 152 1-693-703-11 TUNER (FM/AM) (TM10SE) 154 1-828-358-11 CABO (TIPO FLAT) (19 VIAS) 156 1-828-973-11 CABO (TIPO FLAT) (13 VIAS) 157 1-921-098-31 CABO (TIPO FLAT) (9 VIAS) 203 1-828-326-11 CABO (TIPO FLAT) (13 VIAS) 205 1-828-332-11 CABO (TIPO FLAT) (13 VIAS) 206 1-921-115-31 CABO (TIPO FLAT) (21 VIAS) 207 1-921-063-72 CABO (TIPO FLAT) (24VIAS) 0258 1-928-185-04 CABO DE FORÇA 502 1-776-182-11 CABO (TIPO FLAT) (5 VIAS) 0571 8-820-322-01 OPTICAL PICK-UP BLOCK (KHM-313CAB/ C2NP) (IncluI motor sled, motor spindle ) D656 8-719-073-32 DIODE D25XB60 D658 8-719-066-42 DIODE RBV1306 (ZX80D) 0F1241 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (8A/250V) 0F1251 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (8A/250V) 0F1261 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (8A/250V) 0F1271 1-533-949-33 FUSE, CYLINDRICAL (TIME LUG) (8A/250V) 0F1281 1-532-465-33 FUSE (3.15A/250V) 0F1291 1-532-465-33 FUSE (3.15A/250V) M501 1-763-372-11 FAN, DC M502 1-763-372-11 FAN, DC M741 A-1108-965-A MOTOR ASSY, TABLE M751 A-4737-553-A MOTOR ASSY, LOADING S711 1-477-680-12 ENCODER, ROTARY (DISC TABLE ADDRESS DETECT) VIDEO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 117 HCD-ZX80D 0T1200 1-443-976-11 TRANFORMADOR DE FORÇA ************************************************************ www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com MANUAL DE SERVIÇO Ver. 1.0 2006.05 ESPECIFICAÇÕES © 2006.06 Sony Corporation Sony Brasil Ltda. Publicado por Engenharia da Qualidade CONJUNTO DE CAIXAS ACÚSTICAS SS-CT100D/ZX80DP/ ZX100D SS-ZX80DP Caixa Frontal SS-ZX100D Caixa Surround SS-ZX100D Caixa (Frontal / Surround) SS-ZX100D Sistema 2 vias, tipo bass reflex, magneticamente blindado Unidades de alto-falantes Woofer 22 cm, tipo cone Tweeter 5 cm, tipo cone x 2 Impedância nominal 6 ohms Dimensões (LxAxP) Aprox. 308 × 365 × 480 mm Peso Aprox. 10.0 kg kg cada caixa Caixa Central SS-CT100D Sistema Full range, 2 unidades, tipo bass-reflex, magneticamente blindado Unidades de alto-falantes Full range 8 cm, tipo cone x 2 Impedância nominal 16 ohms Dimensões (LxAxP) Aprox. 268 × 107 × 117 mm Peso (Aprox.) 1.6 kg Projetos e especificações sujeitos a alterações sem prévio aviso. Brazilian Model • SS-CT100D é a caixa central no FST-ZX80D • SS-ZX100D são as caixas frontal e surround no FST-ZX80D Foto: SS-CT100D Foto: SS-ZX100D • SS-ZX80DP é a embalagem das caixas acusticas frontal,central e surround no FST-ZX80D Caixa Central SS-CT100D www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 119 SS-CT100D/ZX100D 10 VISTA EXPLODIDA Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 2 4-874-614-21 SCREW (1) (3.5X14), TAPPING 3 Y-8285-411-A FRONT PANEL ASSY SP1 1-826-375-31 ALTO FALANTE (8cm) SP2 1-826-375-31 ALTO FALANTE (8cm) 10-1. SS-CT100D (CAIXA CENTRAL) • Itens marcados por “*” não possuem estoque para venda. Para evitar atrasos antecipe o pedido destes itens. • Peças mecanicas não identificadas na vista explodida não são fornecidas. NOTA: • -XX e -X significam peças padronizadas, então podem haver diferenças em relação a peça original. SP1 SP2 5 2 3 2 4 1-537-332-13 TERMINAL (CAIXA ACUSTICA0 5 Y-8285-415-A GABINETE ACUSTICO MONTADO 6 1-928-364-01 FIO PREPARADO A 7 1-928-365-01 FIO PREPARADO B www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 120 120 SS-CT100D/ZX80DP/ZX100D P 10-2. SS-ZX100D (CAIXAS: FRONTRAL/ SURROUND ) Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 51 Y-8285-414-A SUB PAINEL, MONTADO 52 Y-8285-412-A PAINEL FRONTAL, MONTADO 53 4-874-614-02 PARAFUSO (1) (3.5X14), TAPPING 54 2-663-061-01 PEDESTAL 55 2-663-063-01 PAINEL LADO L 56 2-663-062-01 PAINEL LADO R 57 2-663-078-01 PE B 58 2-663-077-01 PE A 59 4-874-614-12 PARAFUSO (1) (3.5X14), TAPPIN 60 4-986-971-01 PARAFUSO (3.5) 61 2-669-801-01 EMBLEM, X-TRANCE SP3 1-826-371-11 ALTO FALANTE (5cm) SP4 1-826-371-11 ALTO FALANTE (5cm) SP5 1-826-372-11 ALTO FALANTE (20cm) 51 61 SP3 SP4 SP5 não fornecido não fornecido não fornecido não fornecido não fornecido 62 60 60 52 53 53 54 53 53 53 53 53 55 59 59 59 58 59 57 56 62 Y-8285-413-A GABINETE ACUSTICO, MONTADO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SONY BRASIL LTDA. ENGENHARIA DA QUALIDADE Junho / 2006 http://www.sony.com.br www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ENGENHARIA DA QUALIDADE Sony Brasil Ltda. Guia de Comandos Básicos do Acrobat Reader 5.05 Esta é a tela do programa, quando se abre um manual: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Abra a página correspondente ao diagrama em bloco e posicione o ponteiro do mouse sobre o IC escolhido . Quando o cursor tornar-se uma “mãozinha” dê um clique sobre o IC. Barra de Comandos Recurso de Localização de Componentes Alguns manuais de serviço estão habilitados com uma função que permite localizar mais facilmente um circuito integrado (IC) em seu diagrama esquemático correspondente, diagrama em blocos ou placa de circuito impresso. Para isso, abra um manual de serviço, por exemplo o do MHC-DX30 e visualize uma página da lista de peças elétricas, onde existam alguns IC’s listados. Ao posicionar o ponteiro do mouse sobre a linha onde está um IC, sobre sua localização, ou valor, você vai verificar que aparece uma “mãozinha”, na verdade, o dedo indicador que fica apontando a linha. Se você der um clique, você será levado pelo programa à pagina do diagrama esquemático onde se encontra o referido IC que você selecionou. Vamos ilustrar o que foi explicado logo a seguir: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Notas �� O tamanho da visualização do documento na tela em nada altera o tamanho de impressão. O Zoom de aumento ou de diminuição serve apenas para oferecer mais detalhes ou um aspecto geral do documento visualizado. O programa trará você à página do diagrama esquemático correspondente que contém o IC escolhido. Clique novamente sobre o IC. O programa trará você à página correspondente a placa de circuito impresso que contém o IC escolhido. Clique novamente sobre o IC. sobre o IC. Por fim o programa visualiza o ponto da lista de peças onde o IC escolhido está localizado. Ao clicar novamente sobre o componente o cliclo se repete (diagrama em bloco, esquemático, placa de circuito impresso e lista de peças. Vale lembrar que nem todos os manuais de serviço possuem esse recurso. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com �� O painel de navegação serve para agilizar o acesso a outras páginas que não estão sendo visualizadas. Para visualizar uma dessas miniaturas em seu tamanho normal, basta clicar duas vezes sobre ela e então esta será exibida na tela. �� Não é possível alterar texto, figuras ou qualquer item do documento no Acrobat Reader 5.0. Este programa é usado somente para visualização e impressão de documentos PDF. �� Diagramas e demais folhas do documentos PDF só poderão ser impressos em tamanho maior caso a impressora suporte papel com dimensão superior ao A4, carta ou semelhante. Do contrário só poderá ser impresso no tamanho A4 padrão. Engenharia da Qualidade – Novembro 2003 teruaki_nakagawa@ssp.br.sony.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Engenharia da Qualidade - SSP Sony Brasil Ltda. Orientação de Impressão no Acrobat Reader 5.05 É possível imprimir alguns quadros pré-selecionados de forma ampliada no Acrobat Reader. Esse comando é muito útil quando é necessária fazer a impressão de diagramas elétricos. A sequência abaixo mostra, passo a passo como selecionar uma parte de uma folha qualquer (nesse exemplo usaremos um diagrama elétrico) e configurar sua impressão. Temos no Acrobat Reader a barra abaixo. Leve o cursor do mouse até o botão indicado pela seta e fique pressionando o botão do mouse. Segurando o botão uma barra oculta aparecerá, então expanda conforme abaixo. O botão final a ser clicado para que o comando seja selecionado é o da FERRAMENTA DE SELEÇÃO DE GRÁFICO (G) VOLTAR www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Agora com o cursor selecione uma área do diagrama que deseja imprimir de forma ampliada. A área escolhida nesse exemplo é o quadrado de linhas espessas. Agora vá até o menu de impressão seguindo o procedimento a seguir, clicando em IMPRIMIR, indicado pela seta: Na janela que se abre verifique se as opções indicadas em vermelho (circuladas) estão habilitadas. Assim, quando imprimir a área do gráfico, esta parte será expandida por toda a folha de papel A4. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Após a impressão verificamos que o diagrama ficou realmente ampliado, conforme exemplo: www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Notas O mesmo procedimento pode ser repetido para outras páginas dos manuais, como lista de peças, bem como pode ser utilizado papel tamanho A3 (420 x 297 mm) para impressoras que suportem esse formato. Outros comandos podem ser encontrados no “Guia de Comandos Básicos do Acrobat Reader”, que também consta neste CD e em anteriores. Lembramos novamente que não é possível alterar texto, figuras ou qualquer item do documento no Acrobat Reader 5.05. Este programa é usado somente para visualização e impressão de documentos PDF. Mais informações podem ser obtidas em “Ajuda”. Dúvidas e sugestões devem ser encaminhadas para Teruaki através do e-mails: �� teruaki_nakagawa@ssp.br.sony.com www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
