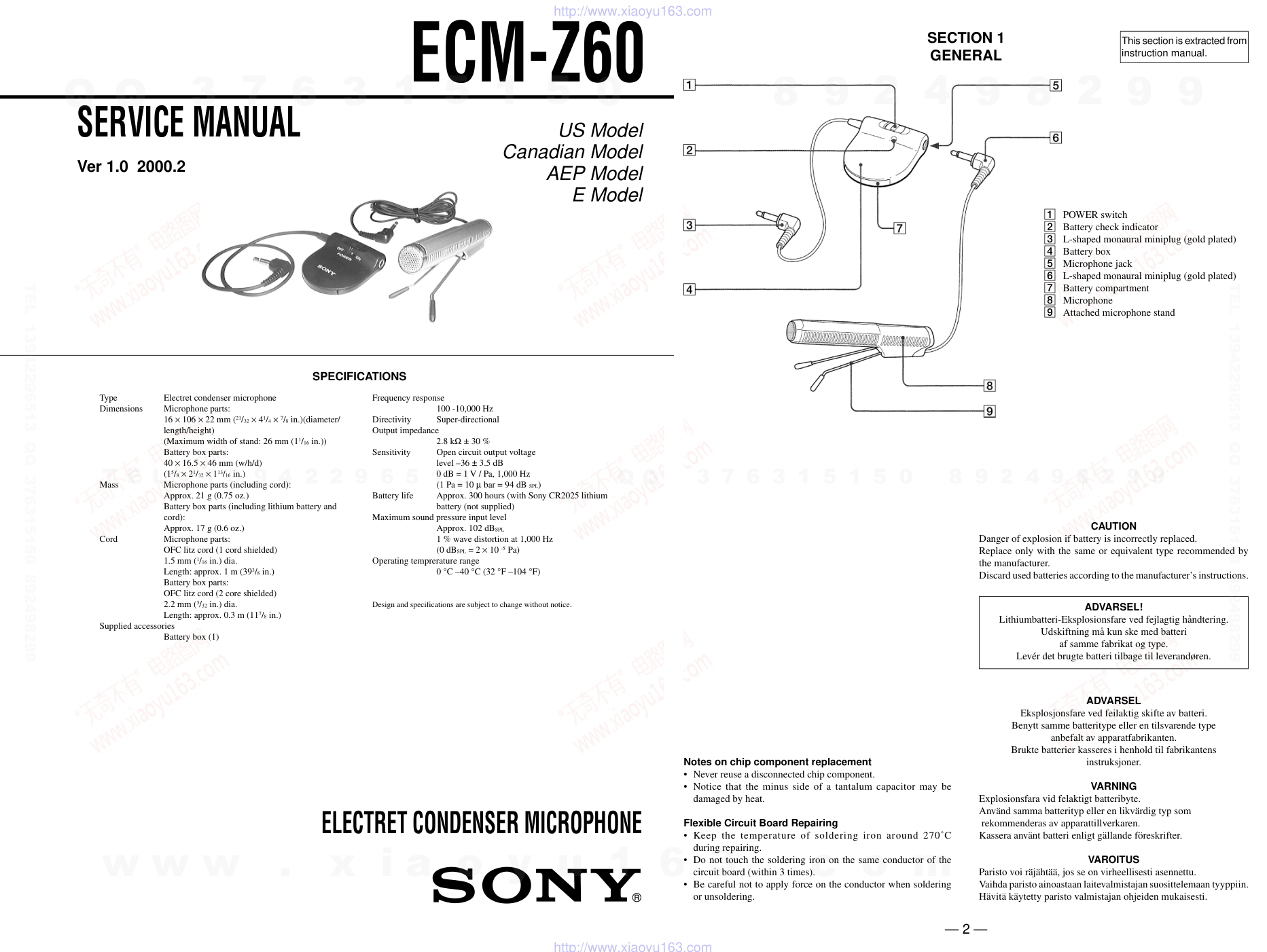

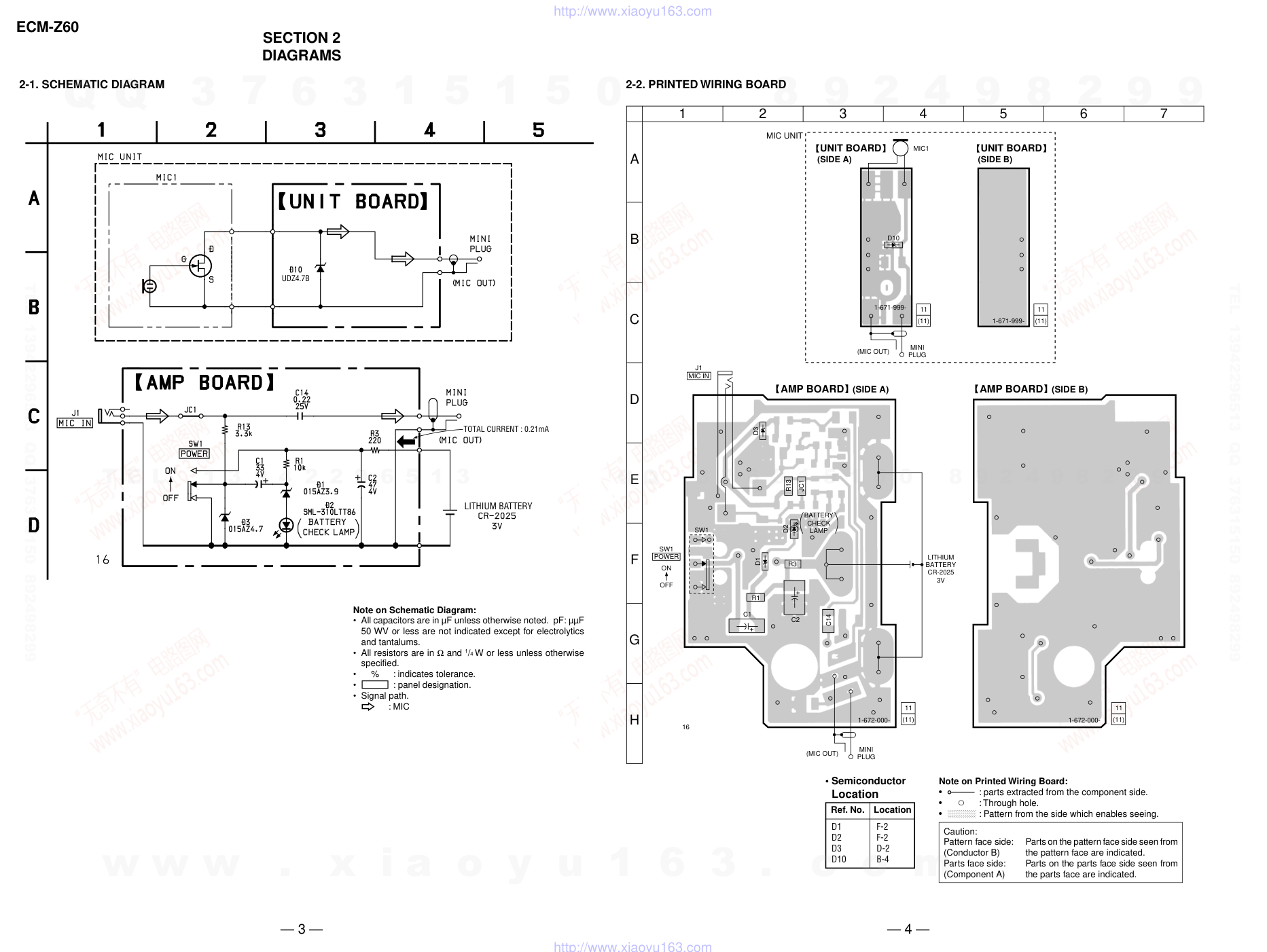

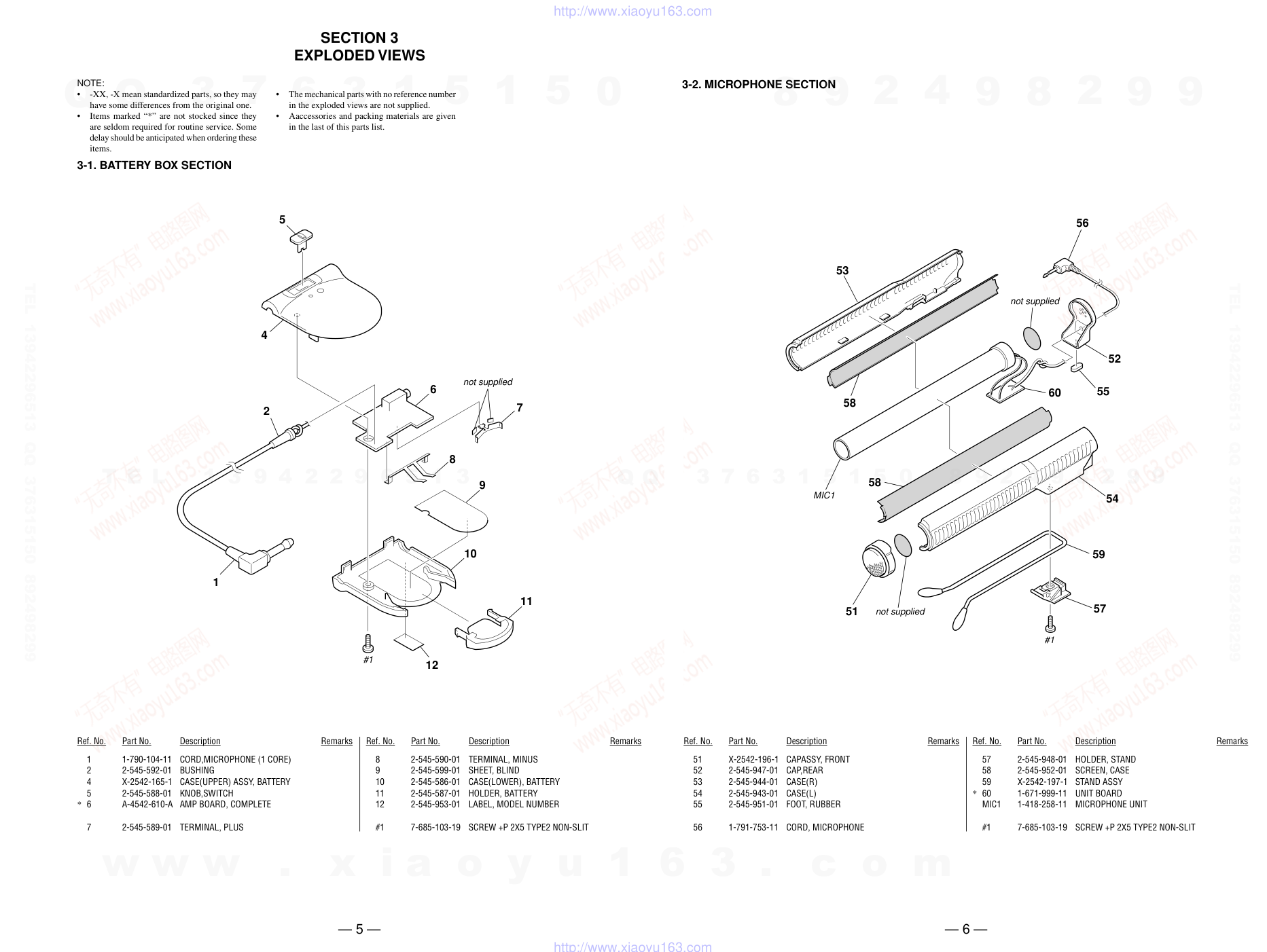

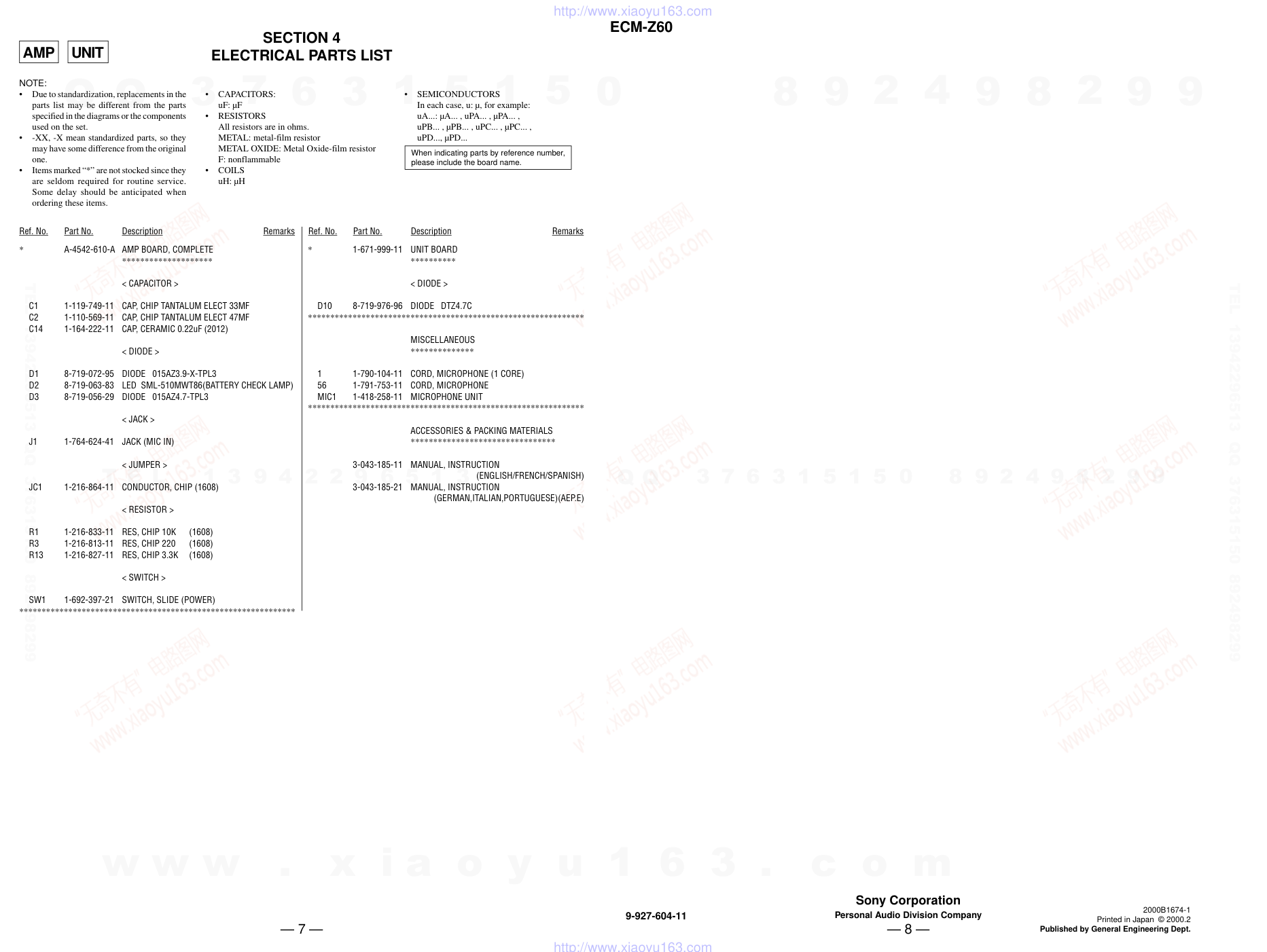

ECM-Z60 US Model Canadian Model AEP Model E Model SERVICE MANUAL ELECTRET CONDENSER MICROPHONE SPECIFICATIONS Type Electret condenser microphone Dimensions Microphone parts: 16 × 106 × 22 mm (21/32 × 41/4 × 7/8 in.)(diameter/ length/height) (Maximum width of stand: 26 mm (11/16 in.)) Battery box parts: 40 × 16.5 × 46 mm (w/h/d) (15/8 × 21/32 × 113/16 in.) Mass Microphone parts (including cord): Approx. 21 g (0.75 oz.) Battery box parts (including lithium battery and cord): Approx. 17 g (0.6 oz.) Cord Microphone parts: OFC litz cord (1 cord shielded) 1.5 mm (1/16 in.) dia. Length: approx. 1 m (393/8 in.) Battery box parts: OFC litz cord (2 core shielded) 2.2 mm (3/32 in.) dia. Length: approx. 0.3 m (117/8 in.) Supplied accessories Battery box (1) Frequency response 100 -10,000 Hz Directivity Super-directional Output impedance 2.8 kΩ ± 30 % Sensitivity Open circuit output voltage level –36 ± 3.5 dB 0 dB = 1 V / Pa, 1,000 Hz (1 Pa = 10 µ bar = 94 dB SPL) Battery life Approx. 300 hours (with Sony CR2025 lithium battery (not supplied) Maximum sound pressure input level Approx. 102 dBSPL 1 % wave distortion at 1,000 Hz (0 dBSPL = 2 × 10 -5 Pa) Operating temprerature range 0 °C –40 °C (32 °F –104 °F) Design and specifications are subject to change without notice. SECTION 1 GENERAL This section is extracted from instruction manual. 1 POWER switch 2 Battery check indicator 3 L-shaped monaural miniplug (gold plated) 4 Battery box 5 Microphone jack 6 L-shaped monaural miniplug (gold plated) 7 Battery compartment 8 Microphone 9 Attached microphone stand — 2 — Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. ADVARSEL Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold til fabrikantens instruksjoner. VARNING Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en likvärdig typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt gällande föreskrifter. VAROITUS Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti. ADVARSEL! Lithiumbatteri-Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til leverandøren. CAUTION Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions. Ver 1.0 2000.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com ECM-Z60 SECTION 2 DIAGRAMS 2-1. SCHEMATIC DIAGRAM — 3 — — 4 — Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • C : panel designation. • Signal path. F : MIC TOTAL CURRENT : 0.21mA LITHIUM BATTERY UDZ4.7B 2-2. PRINTED WIRING BOARD AMP BOARD (SIDE B) UNIT BOARD (SIDE B) UNIT BOARD (SIDE A) AMP BOARD (SIDE A) 1-671-999- 11 (11) 1-671-999- 11 (11) 1-672-000- 11 (11) 1-672-000- 11 (11) J1 MIC IN SW1 POWER D10 D3 R13 JC1 D1 C14 C1 C2 R1 D2 R3 ON OFF SW1 (MIC OUT) MINI PLUG (MIC OUT) MIC1 MINI PLUG LITHIUM BATTERY CR-2025 3V MIC UNIT BATTERY CHECK LAMP 16 1 2 A B C D E F G H 3 4 5 6 7 Note on Printed Wiring Board: • X : parts extracted from the component side. • a : Through hole. • b : Pattern from the side which enables seeing. Caution: Pattern face side: Parts on the pattern face side seen from (Conductor B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component A) the parts face are indicated. Ref. No. Location D1 F-2 D2 F-2 D3 D-2 D10 B-4 • Semiconductor Location w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com — 5 — — 6 — SECTION 3 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Aaccessories and packing materials are given in the last of this parts list. 3-1. BATTERY BOX SECTION 3-2. MICROPHONE SECTION 51 MIC1 not supplied not supplied 53 58 54 59 52 55 56 57 #1 58 60 1 2 6 7 8 9 10 11 12 4 5 #1 not supplied Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 1-790-104-11 CORD,MICROPHONE (1 CORE) 2 2-545-592-01 BUSHING 4 X-2542-165-1 CASE(UPPER) ASSY, BATTERY 5 2-545-588-01 KNOB,SWITCH * 6 A-4542-610-A AMP BOARD, COMPLETE 7 2-545-589-01 TERMINAL, PLUS 8 2-545-590-01 TERMINAL, MINUS 9 2-545-599-01 SHEET, BLIND 10 2-545-586-01 CASE(LOWER), BATTERY 11 2-545-587-01 HOLDER, BATTERY 12 2-545-953-01 LABEL, MODEL NUMBER #1 7-685-103-19 SCREW +P 2X5 TYPE2 NON-SLIT 51 X-2542-196-1 CAPASSY, FRONT 52 2-545-947-01 CAP,REAR 53 2-545-944-01 CASE(R) 54 2-545-943-01 CASE(L) 55 2-545-951-01 FOOT, RUBBER 56 1-791-753-11 CORD, MICROPHONE 57 2-545-948-01 HOLDER, STAND 58 2-545-952-01 SCREEN, CASE 59 X-2542-197-1 STAND ASSY * 60 1-671-999-11 UNIT BOARD MIC1 1-418-258-11 MICROPHONE UNIT #1 7-685-103-19 SCREW +P 2X5 TYPE2 NON-SLIT w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SECTION 4 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. * A-4542-610-A AMP BOARD, COMPLETE ******************** < CAPACITOR > C1 1-119-749-11 CAP, CHIP TANTALUM ELECT 33MF C2 1-110-569-11 CAP, CHIP TANTALUM ELECT 47MF C14 1-164-222-11 CAP, CERAMIC 0.22uF (2012) < DIODE > D1 8-719-072-95 DIODE 015AZ3.9-X-TPL3 D2 8-719-063-83 LED SML-510MWT86(BATTERY CHECK LAMP) D3 8-719-056-29 DIODE 015AZ4.7-TPL3 < JACK > J1 1-764-624-41 JACK (MIC IN) < JUMPER > JC1 1-216-864-11 CONDUCTOR, CHIP (1608) < RESISTOR > R1 1-216-833-11 RES, CHIP 10K (1608) R3 1-216-813-11 RES, CHIP 220 (1608) R13 1-216-827-11 RES, CHIP 3.3K (1608) < SWITCH > SW1 1-692-397-21 SWITCH, SLIDE (POWER) ************************************************************** * 1-671-999-11 UNIT BOARD ********** < DIODE > D10 8-719-976-96 DIODE DTZ4.7C ************************************************************** MISCELLANEOUS ************** 1 1-790-104-11 CORD, MICROPHONE (1 CORE) 56 1-791-753-11 CORD, MICROPHONE MIC1 1-418-258-11 MICROPHONE UNIT ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************** 3-043-185-11 MANUAL, INSTRUCTION (ENGLISH/FRENCH/SPANISH) 3-043-185-21 MANUAL, INSTRUCTION (GERMAN,ITALIAN,PORTUGUESE)(AEP.E) AMP UNIT ECM-Z60 — 8 — Sony Corporation Personal Audio Division Company 2000B1674-1 Printed in Japan © 2000.2 Published by General Engineering Dept. 9-927-604-11 — 7 — w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
