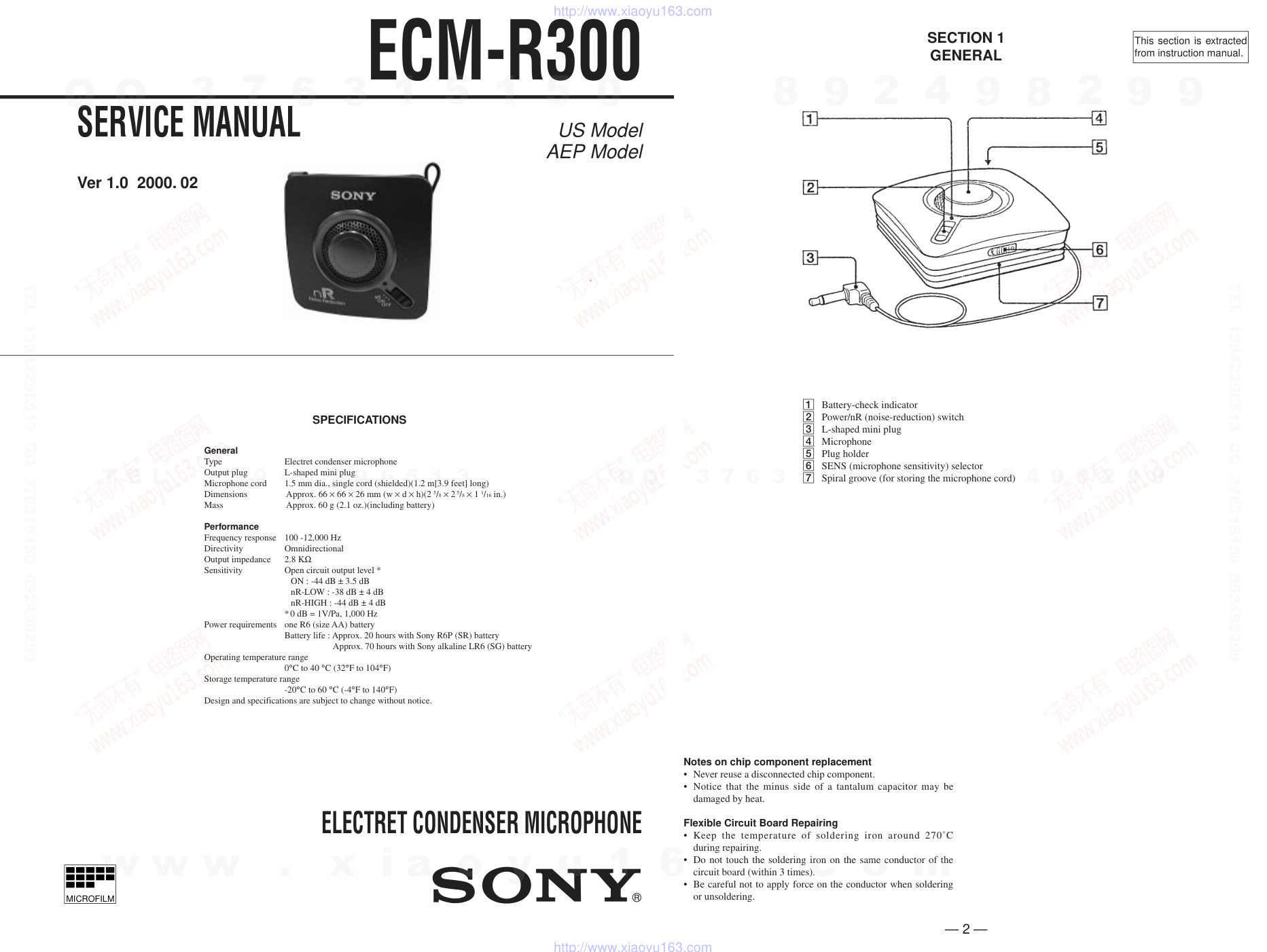

US Model AEP Model SERVICE MANUAL ELECTRET CONDENSER MICROPHONE MICROFILM SPECIFICATIONS General Type Electret condenser microphone Output plug L-shaped mini plug Microphone cord 1.5 mm dia., single cord (shielded)(1.2 m[3.9 feet] long) Dimensions Approx. 66 × 66 × 26 mm (w × d × h)(2 5/8 × 2 5/8 × 1 1/16 in.) Mass Approx. 60 g (2.1 oz.)(including battery) Performance Frequency response 100 -12,000 Hz Directivity Omnidirectional Output impedance 2.8 KΩ Sensitivity Open circuit output level * ON : -44 dB ± 3.5 dB nR-LOW : -38 dB ± 4 dB nR-HIGH : -44 dB ± 4 dB * 0 dB = 1V/Pa, 1,000 Hz Power requirements one R6 (size AA) battery Battery life : Approx. 20 hours with Sony R6P (SR) battery Approx. 70 hours with Sony alkaline LR6 (SG) battery Operating temperature range 0°C to 40 °C (32°F to 104°F) Storage temperature range -20°C to 60 °C (-4°F to 140°F) Design and specifications are subject to change without notice. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. 1 Battery-check indicator 2 Power/nR (noise-reduction) switch 3 L-shaped mini plug 4 Microphone 5 Plug holder 6 SENS (microphone sensitivity) selector 7 Spiral groove (for storing the microphone cord) SECTION 1 GENERAL This section is extracted from instruction manual. — 2 — Ver 1.0 2000. 02 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2007.04.30 QQ :376315150 手机:13942296513 Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • % : indicates tolerance. • C : panel designation. • Signal path. F� : MIC SECTION 2 DIAGRAMS 2-1. SCHEMATIC DIAGRAM ECM-R300 — 3 — — 4 — 1 2 3 4 5 6 7 8 9 10 11 12 24 23 22 21 20 19 18 17 16 15 14 13 C7 220p C3 56p C14 22p C15 220p C16 680p C17 0.1 C10 0.0022 C9 0.022 C11 C19 0.22 C8 0.022 C4 0.22 C6 1 C5 1 Q1 SSM2000 NOISE CANCELER C20 1 R12 10k R6 1k R10 47k R1 3.9k R9 47k R3 22k R2 10k R4 300k R7 62k R8 390k R5 510 R13 1M R14 680 R15 680 C21 1 C22 1 S1-2 S2-2 S1-1 nR ON OFF C26 0.022 LOW HIGH D6 1SS387 R16 100 D3 RB411D 3 2 1 D4 SML-310LT-T86 L1 220µH C24 220 4V C25 33 4V C18 0.47 6V C23 33 10V +6.0V NC NC C13 3.3 C12 4.7 Q3-2 NJM2132 AMP Q2-2 NJM2132 AMP Q2-1 NJM2132 AMP Q3-1 NJM2132 AMP 7 8 5 6 4 7 6 5 S2-1 C1 0.22 C2 0.1 HIGH LOW 1 4 2 3 8 D5 015AZ4.7 D1 1SS352 D2 1SS352 D S L IN R IN VCF DET IN ACOM V+ VCF CAP L VCF C1 L VCF C2 R VCF C1 R VCF C2 VCA CAP VCA DET IN SUM OUT VCA PORT HUSH ON Q4 XC6371A601PR 1 2 3 3 3 3 3 3 6 3 nR ON OFF SENS SENS 1.8 6 (nR) DC/DC CONVERTOR DRY BATTERY SIZE "AA" (IEC DESIGNATION R6P) 1PC, 1.5V MINI PLUG TOTAL CURRENT 0.21mA THRES DEFAULT L OUT MICROPHONE CAPSULE (C-1053) 3 3 3 3 3 3 6 3 3 3 3 3 6 3 3 4 3 4 0 3 3.2 3 3 3.2 0.3 AMPLIFIER BOARD 16 0.01 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • a� : Through hole. • b : Pattern from the side which enables seeing. Caution: Pattern face side: Parts on the pattern face side seen from (Conductor B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component A) the parts face are indicated. 2-2. PRINTED WIRING BOARD SECTION 3 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • The mechanical parts with no reference number in the exploded views are not supplied. • Accessories and packing materials are given in the last of this parts list. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 1 3-046-596-01 CASE(UPPER) 2 3-046-607-01 COVER, GRILLE 3 3-046-600-01 GRILLE 4 X-3378-984-1 RINGASSY, GRILLE 5 8-814-294-00 MICROPHONE CAPSULE C-1053 * 6 4-908-792-11 SCREW (B2) 7 3-046-602-01 KNOB(POWER), SWITCH 8 3-046-606-01 TERMINAL (B), BATTERY 9 3-046-605-01 TERMINAL (A), BATTERY * 10 A-4542-628-A AMPLIFIER BOARD, COMPLETE 11 3-047-438-01 RIBBON, BATTERY 12 3-046-598-01 LID,BATTERY CASE 13 3-046-597-01 CASE(LOWER) 14 3-046-603-01 KNOB(SENS), SWITCH 15 3-046-608-01 CUSHION 16 1-792-626-11 CORD, CONNECTION (1 CORE)(MINI PLUG) 17 3-048-183-01 SCREEN #1 7-685-104-19 SCREW +P 2X6 TYPE2 NON-SLIT — 5 — — 6 — • Semiconductor Location C22 C21 C26 C14 C7 R13 R3 R2 R4 C4 C5 C3 R17 R1 R9 R10 R7 R8 D5 D4 D3 Q4 Q2 D6 D2 D1 S2 R12 R14 R15 C20 C6 C1 C2 L1 C24 C23 C25 C18 C15 C16 C17 C19 Q1 Q3 C12 C11 C13 C10 C8 C9 R5 R6 S1 1-677-842 11 (11) 1-677-842 11 (11) 16 AMPLIFIER BOARD (SIDE A) AMPLIFIER BOARD (SIDE B) DRY BATTERY SIZE "AA" (IEC DESIGNATION R6P) 1PC, 1.5V HIGH LOW nR ON OFF SENS MICROPHONE CAPSULE (C-1053) MINI PLUG 3 1 A K (nR) -2 -1 -2 -1 24 13 12 1 1 4 5 8 1 4 5 8 (GRIL) 1 2 A B C D E F G H 3 4 5 6 Ref. No. Location D1 D-3 D2 D-4 D3 D-5 D4 C-4 D5 B-4 D6 C-5 Q1 C-3 Q2 D-4 Q3 B-2 Q4 D-5 #1 1 2 3 4 17 5 6 6 6 7 8 9 10 11 12 13 14 15 15 16 #1 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 4 ELECTRICAL PARTS LIST ECM-R300 9-927-657-11 Sony Corporation Personal Audio Division Company 2000B1653-1 Printed in Japan ©2000.2 Published by General Engineering Dept. NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... When indicating parts by reference number, please include the board name. Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks AMPLIFIER — 7 — — 8 — * A-4542-628-A AMPLIFIER BOARD, COMPLETE ************************ < CAPACITOR > C1 1-164-222-11 CERAMIC CHIP 0.22uF 25V C2 1-165-319-11 CERAMIC CHIP 0.1uF 50V C3 1-162-924-11 CERAMIC CHIP 56PF 5.00% 50V C4 1-165-128-11 CERAMIC CHIP 0.22uF 16V C5 1-115-156-11 CERAMIC CHIP 1uF 10V C6 1-115-156-11 CERAMIC CHIP 1uF 10V C7 1-164-816-11 CERAMIC CHIP 220PF 2.00% 50V C8 1-162-995-11 CERAMIC CHIP 0.022uF 50V C9 1-162-995-11 CERAMIC CHIP 0.022uF 50V C10 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C11 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C12 1-135-181-21 TANTALUM CHIP 4.7uF 20% 6.3V C13 1-104-912-11 TANTAL. CHIP 3.3uF 20.00% 6.3V C14 1-162-919-11 CERAMIC CHIP 22PF 5% 50V C15 1-164-816-11 CERAMIC CHIP 220PF 2.00% 50V C16 1-164-471-11 CERAMIC CHIP 680PF 5.00% 50V C17 1-164-156-11 CERAMIC CHIP 0.1uF 25V C18 1-135-145-11 TANTALUM CHIP 0.47uF 10% 35V C19 1-165-128-11 CERAMIC CHIP 0.22uF 16V C20 1-115-156-11 CERAMIC CHIP 1uF 10V C21 1-164-346-11 CERAMIC CHIP 1uF 16V C22 1-164-346-11 CERAMIC CHIP 1uF 16V C23 1-113-682-11 TANTAL. CHIP 33uF 20.00% 10V C24 1-126-246-11 ELECT CHIP 220uF 20% 4V C25 1-119-749-11 TANTAL. CHIP 33uF 20.00% 4V C26 1-162-995-11 CERAMIC CHIP 0.022uF 50V < DIODE > D1 8-719-016-74 DIODE 1SS352 D2 8-719-016-74 DIODE 1SS352 D3 8-719-975-40 DIODE RB411D D4 8-719-074-30 LED SML-310LTT86 (nR) D5 8-719-056-29 DIODE 015AZ4.7-TPL3 D6 8-719-056-23 DIODE MA2S111-(K8).SO < COIL > L1 1-419-607-21 INDUCTOR 220uH < IC > Q1 8-759-669-01 IC SSM2000S-REEL Q2 8-759-669-00 IC NJM2132V(TE2) Q3 8-759-669-00 IC NJM2132V(TE2) Q4 8-759-669-02 IC XC6371A601PR < RESISTOR > R1 1-218-706-11 METAL CHIP 3.9K 0.5% 1/16W R2 1-218-716-11 METAL CHIP 10K 0.5% 1/16W R3 1-218-724-11 METAL CHIP 22K 0.5% 1/16W R4 1-218-751-11 METAL CHIP 300K 0.5% 1/16W R5 1-218-289-11 RES-CHIP 510 5% 1/16W R6 1-216-821-11 METAL CHIP 1K 5% 1/16W R7 1-218-890-11 RES-CHIP 62K 5% 1/16W R8 1-216-852-91 METAL CHIP 390K 5% 1/16W R9 1-216-841-11 METAL CHIP 47K 5% 1/16W R10 1-216-841-11 METAL CHIP 47K 5% 1/16W R11 1-216-809-11 METAL CHIP 100 5% 1/16W R12 1-218-716-11 METAL CHIP 10K 0.5% 1/16W R13 1-216-857-11 METAL CHIP 1M 5% 1/16W R14 1-216-819-11 RES-CHIP 680 5% 1/16W R15 1-216-819-11 METAL CHIP 680 5% 1/16W R16 1-216-809-11 METAL CHIP 100 5% 1/16W < SWITCH > S1 1-692-034-41 SWITCH, SLIDE (nR/ON/OFF) S2 1-572-018-11 SWITCH, SLIDE (SENS) ************************************************************** MISCELLANEOUS ************* 5 8-814-294-00 MICROPHONE CAPSULE C-1053 16 1-792-626-11 CORD, CONNECTION (1 CORE)(MINI PLUG) ************************************************************** ACCESSORIES & PACKING MATERIALS ******************************* 3-046-839-11 MANUAL, INSTRUCTION (ENGLISH/FRENCH/ GERMAN/SPANISH/ITALIAN) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
