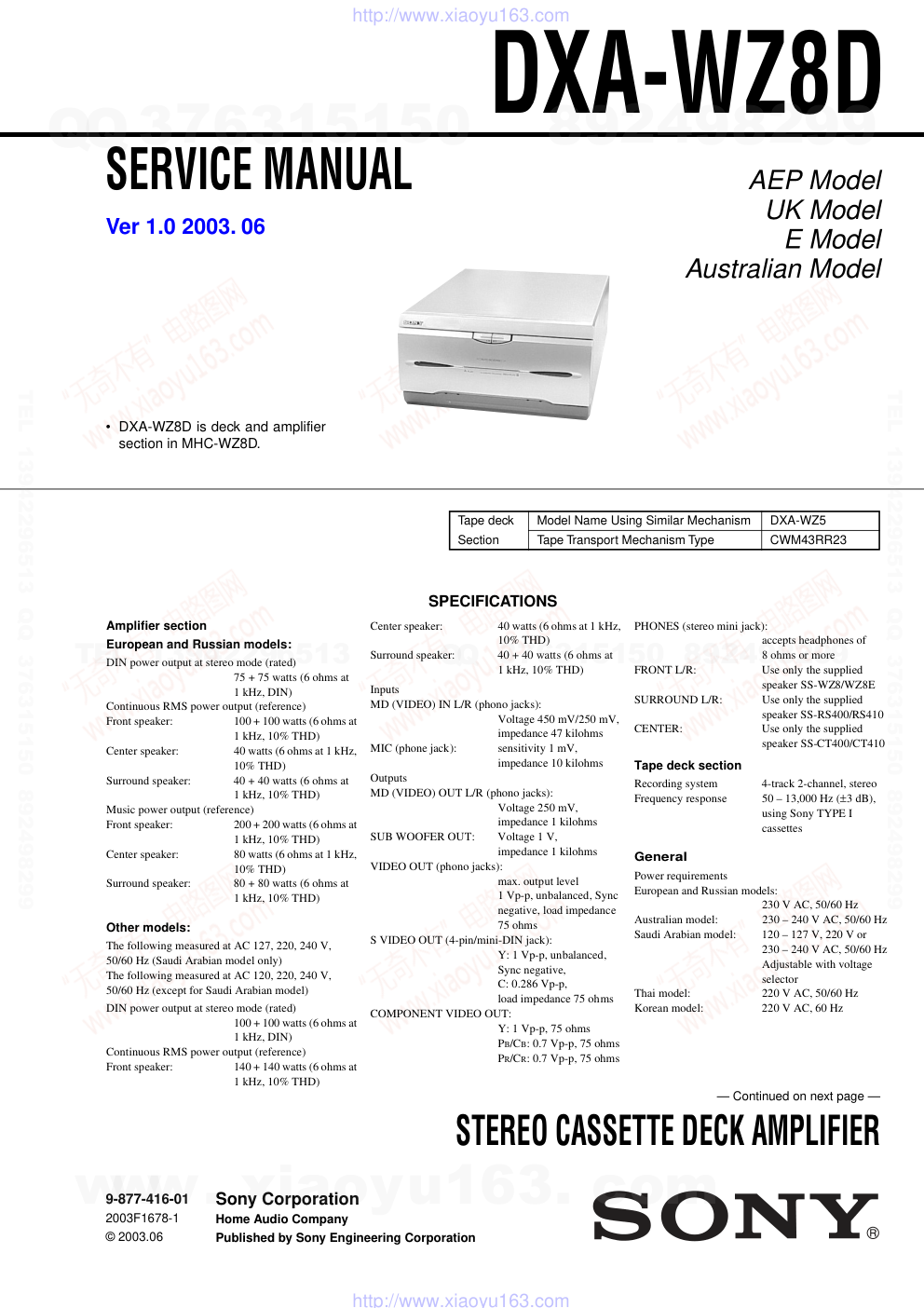

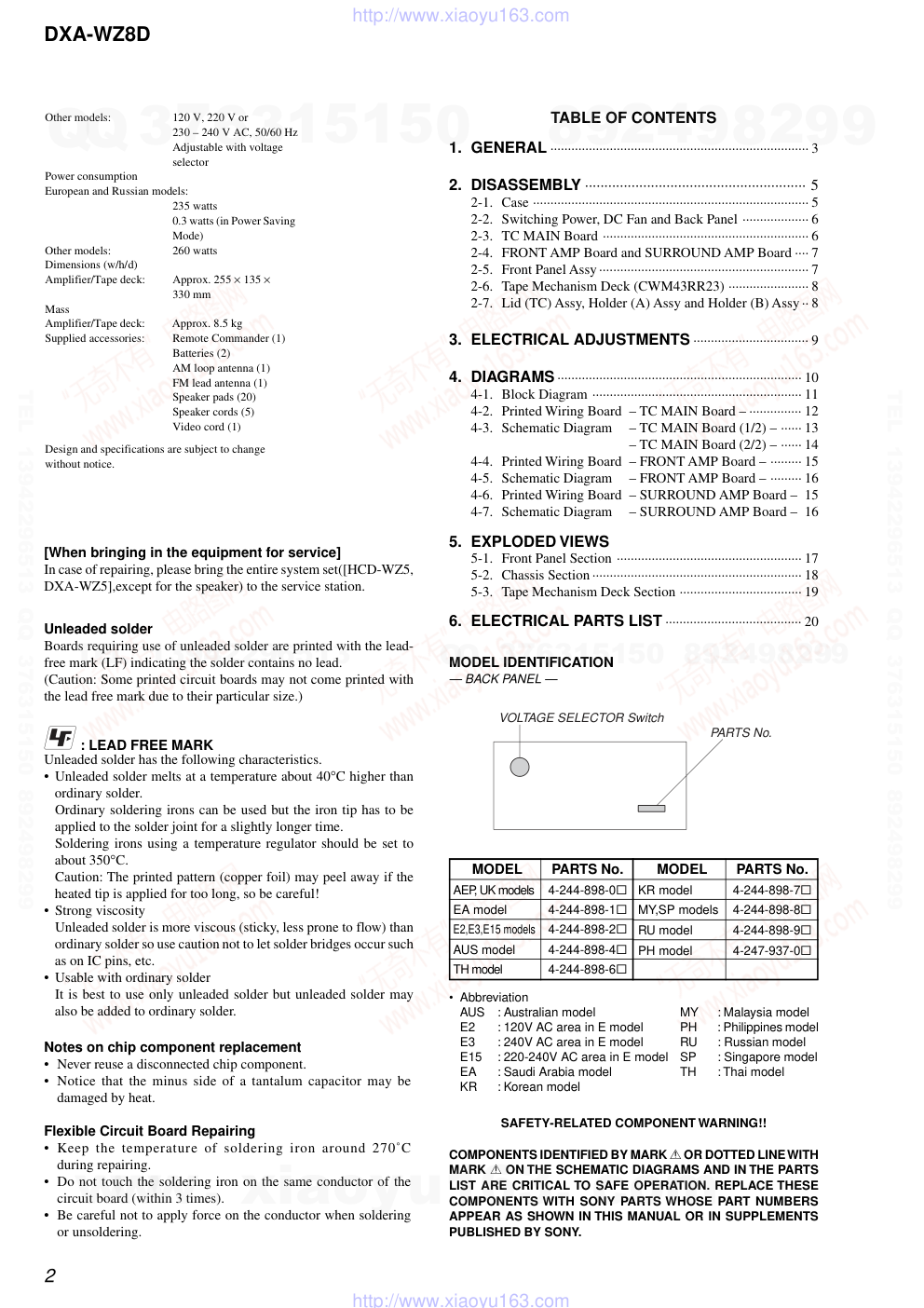

DXA-WZ8D AEP Model UK Model E Model Australian Model SERVICE MANUAL STEREO CASSETTE DECK AMPLIFIER SPECIFICATIONS Ver 1.0 2003. 06 • DXA-WZ8D is deck and amplifier section in MHC-WZ8D. Amplifier section European and Russian models: DIN power output at stereo mode (rated) 75 + 75 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) Front speaker: 100 + 100 watts (6 ohms at 1 kHz, 10% THD) Center speaker: 40 watts (6 ohms at 1 kHz, 10% THD) Surround speaker: 40 + 40 watts (6 ohms at 1 kHz, 10% THD) Music power output (reference) Front speaker: 200 + 200 watts (6 ohms at 1 kHz, 10% THD) Center speaker: 80 watts (6 ohms at 1 kHz, 10% THD) Surround speaker: 80 + 80 watts (6 ohms at 1 kHz, 10% THD) Other models: The following measured at AC 127, 220, 240 V, 50/60 Hz (Saudi Arabian model only) The following measured at AC 120, 220, 240 V, 50/60 Hz (except for Saudi Arabian model) DIN power output at stereo mode (rated) 100 + 100 watts (6 ohms at 1 kHz, DIN) Continuous RMS power output (reference) Front speaker: 140 + 140 watts (6 ohms at 1 kHz, 10% THD) Center speaker: 40 watts (6 ohms at 1 kHz, 10% THD) Surround speaker: 40 + 40 watts (6 ohms at 1 kHz, 10% THD) Inputs MD (VIDEO) IN L/R (phono jacks): Voltage 450 mV/250 mV, impedance 47 kilohms MIC (phone jack): sensitivity 1 mV, impedance 10 kilohms Outputs MD (VIDEO) OUT L/R (phono jacks): Voltage 250 mV, impedance 1 kilohms SUB WOOFER OUT: Voltage 1 V, impedance 1 kilohms VIDEO OUT (phono jacks): max. output level 1 Vp-p, unbalanced, Sync negative, load impedance 75 ohms S VIDEO OUT (4-pin/mini-DIN jack): Y: 1 Vp-p, unbalanced, Sync negative, C: 0.286 Vp-p, load impedance 75 ohms COMPONENT VIDEO OUT: Y: 1 Vp-p, 75 ohms PB/CB: 0.7 Vp-p, 75 ohms PR/CR: 0.7 Vp-p, 75 ohms PHONES (stereo mini jack): accepts headphones of 8 ohms or more FRONT L/R: Use only the supplied speaker SS-WZ8/WZ8E SURROUND L/R: Use only the supplied speaker SS-RS400/RS410 CENTER: Use only the supplied speaker SS-CT400/CT410 Tape deck section Recording system 4-track 2-channel, stereo Frequency response 50 – 13,000 Hz (±3 dB), using Sony TYPE I cassettes General Power requirements European and Russian models: 230 V AC, 50/60 Hz Australian model: 230 – 240 V AC, 50/60 Hz Saudi Arabian model: 120 – 127 V, 220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Thai model: 220 V AC, 50/60 Hz Korean model: 220 V AC, 60 Hz Sony Corporation Home Audio Company Published by Sony Engineering Corporation 9-877-416-01 2003F1678-1 © 2003.06 Tape deck Section Model Name Using Similar Mechanism DXA-WZ5 Tape Transport Mechanism Type CWM43RR23 — Continued on next page — www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DXA-WZ8D SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUBLISHED BY SONY. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be damaged by heat. Flexible Circuit Board Repairing • Keep the temperature of soldering iron around 270˚C during repairing. • Do not touch the soldering iron on the same conductor of the circuit board (within 3 times). • Be careful not to apply force on the conductor when soldering or unsoldering. TABLE OF CONTENTS 1. GENERAL ·········································································· 3 2. DISASSEMBLY ························································· 5 2-1. Case ··············································································· 5 2-2. Switching Power, DC Fan and Back Panel ··················· 6 2-3. TC MAIN Board ··························································· 6 2-4. FRONT AMP Board and SURROUND AMP Board ···· 7 2-5. Front Panel Assy ···························································· 7 2-6. Tape Mechanism Deck (CWM43RR23) ······················· 8 2-7. Lid (TC) Assy, Holder (A) Assy and Holder (B) Assy ·· 8 3. ELECTRICAL ADJUSTMENTS ································· 9 4. DIAGRAMS ······································································ 10 4-1. Block Diagram ···························································· 11 4-2. Printed Wiring Board – TC MAIN Board – ··············· 12 4-3. Schematic Diagram – TC MAIN Board (1/2) – ······ 13 – TC MAIN Board (2/2) – ······ 14 4-4. Printed Wiring Board – FRONT AMP Board – ········· 15 4-5. Schematic Diagram – FRONT AMP Board – ········· 16 4-6. Printed Wiring Board – SURROUND AMP Board – 15 4-7. Schematic Diagram – SURROUND AMP Board – 16 5. EXPLODED VIEWS 5-1. Front Panel Section ····················································· 17 5-2. Chassis Section ···························································· 18 5-3. Tape Mechanism Deck Section ··································· 19 6. ELECTRICAL PARTS LIST ······································· 20 Unleaded solder Boards requiring use of unleaded solder are printed with the lead- free mark (LF) indicating the solder contains no lead. (Caution: Some printed circuit boards may not come printed with the lead free mark due to their particular size.) : LEAD FREE MARK Unleaded solder has the following characteristics. • Unleaded solder melts at a temperature about 40°C higher than ordinary solder. Ordinary soldering irons can be used but the iron tip has to be applied to the solder joint for a slightly longer time. Soldering irons using a temperature regulator should be set to about 350°C. Caution: The printed pattern (copper foil) may peel away if the heated tip is applied for too long, so be careful! • Strong viscosity Unleaded solder is more viscous (sticky, less prone to flow) than ordinary solder so use caution not to let solder bridges occur such as on IC pins, etc. • Usable with ordinary solder It is best to use only unleaded solder but unleaded solder may also be added to ordinary solder. [When bringing in the equipment for service] In case of repairing, please bring the entire system set([HCD-WZ5, DXA-WZ5],except for the speaker) to the service station. Other models: 120 V, 220 V or 230 – 240 V AC, 50/60 Hz Adjustable with voltage selector Power consumption European and Russian models: 235 watts 0.3 watts (in Power Saving Mode) Other models: 260 watts Dimensions (w/h/d) Amplifier/Tape deck: Approx. 255 × 135 × 330 mm Mass Amplifier/Tape deck: Approx. 8.5 kg Supplied accessories: Remote Commander (1) Batteries (2) AM loop antenna (1) FM lead antenna (1) Speaker pads (20) Speaker cords (5) Video cord (1) Design and specifications are subject to change without notice. MODEL IDENTIFICATION — BACK PANEL — • Abbreviation AUS : Australian model E2 : 120V AC area in E model E3 : 240V AC area in E model E15 : 220-240V AC area in E model EA : Saudi Arabia model KR : Korean model PARTS No. VOLTAGE SELECTOR Switch MY : Malaysia model PH : Philippines model RU : Russian model SP : Singapore model TH : Thai model MODEL AEP, UK models EA model E2,E3,E15 models AUS model TH model PARTS No. 4-244-898-0s 4-244-898-1s 4-244-898-2s 4-244-898-4s 4-244-898-6s MODEL KR model MY,SP models RU model PH model PARTS No. 4-244-898-7s 4-244-898-8s 4-244-898-9s 4-247-937-0s www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DXA-WZ8D This section is extracted from instruction manual. SECTION 1 GENERAL Main unit Deck A wl Deck B wh A Z (eject) wk (39) Z B (eject) wj (39) ALPHABETICAL ORDER A – L BUTTON DESCRIPTIONS Amplifier/Tape deck www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DXA-WZ8D Perform the following procedures 1 to 7 to hook up your system using the supplied cords and accessories. European model is used for illustration purpose. Preparation Place the components as shown below. 1 Connect the system control cables to the SYSTEM CONTROL connectors on the tape deck. Connect to the same numbered jack in the order indicated on the rear panel. Note The system cable is used to send signals and electricity between the components for interlinked operation. Be sure to insert the connector horizontally until it clicks into place. Otherwise the system will not operate correctly. 2 Connect the speakers. Be sure to match the appropriate speaker cords from the speaker terminals to the corresponding SPEAKER terminals on the tape deck. Getting Started Hooking up the system AM loop antenna To front speaker (right) To front speaker (left) FM lead antenna CD/DVD player/Tuner Amplifier/Tape deck To surround speaker (right) To surround speaker (left) To center speaker Amplifier/ Tape deck CD/DVD player/ Tuner www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DXA-WZ8D SECTION 2 DISASSEMBLY • The equipment can be removed using the following procedure. SET FRONT PANEL ASSY LID (TC) ASSY, HOLDER (A) ASSY, HOLDER (B) ASSY CASE TC MAIN BOARD FRONT AMP BOARD, SURROUND AMP BOARD TAPE MECHANISM DECK (CWM43RR23) SWITCHING POWER, DC FAN 2-1. Case Note : Follow the disassembly procedure in the numerical order given. 3 three screws (+BVTP 3 × 8) 1 two screws (case 3 TP2) 2 two screws (case 3 TP2) 4 case www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 6 DXA-WZ8D 1 five screws (+BVTP 3 × 8) 2 five screws (+BVTP 3 × 8) 7 two screws (+BVTP 3 × 8) 9 DC fan q; back panel 5 two screws (+BVTP 3 × 8) 8 connector (CN204) 3 connector (CN201) 4 connector (CN101) 6 switching power 2 three screws (+BVTP 3 × 8) 3 wire (flat type) (13 core) q; connector (CN301) qj MAIN board qa connector (CN302) qs connector (CN102) qd connector (CN605) qf connector (CN604) qg connector (CN101) qh connector (CN201) 8 connector (CN502) 7 connector (CN401) 6 connector (CN701) 5 connector (CN204) 9 connector (CN501) 1 five screws (+BVTP 3 × 8) 4 lead with connector 2-2. Switching Power, DC Fan and Back Panel 2-3. TC MAIN Board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 7 DXA-WZ8D 2 two screws (+BVTP 3 × 8) 5 two screws (+BVTP 3 × 8) 1 Remove the soldering. 4 Remove the soldering. 3 FRONT AMP board 6 SURROUND AMP board 7 front panel assy 1 two screws (+BVTP 3 × 8) 4 claw 2 wire (flat type) (13 core) 3 lead with connector 5 connector 6 connector 2-4. FRONT AMP Board and SURROUND AMP Board 2-5. Front Panel Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 8 DXA-WZ8D 1 four screws (+BVTP 2.6 × 8) 4 two screws (+BVTP 2.6 × 8) 3 2 tape mechanism deck (CWM43RR23) 5 four claws 6 base lock q; holder (lock) 7 lever (R) 9 lever (C) 8 lever (L) qa button (A) qs button (B) 1 spring (lid) 2 spring (lid-R) 3 lid (TC) assy 4 claw 8 claw 5 damper 9 damper 6 spring holder (A) q; spring holder (B) 7 holder (A) assy qa holder (B) assy 2-6. Tape Mechanism Deck (CWM43RR23) 2-7. Lid (TC) Assy, Holder (A) Assy and Holder (B) Assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 9 DXA-WZ8D 3. Mode: Playback 4. Repeat step 1 to 3 in playback (REV) mode. 5. After the adjustments, apply suitable locking compound to the pats adjusted. SECTION 3 ELECTRICAL ADJUSTMENTS 2. Turn the adjustment screw and check output peaks. If the peaks do not match for L-CH and R-CH, turn the adjustment screw so that outputs match within 1dB of peak. Note: Confirm each contents of this section first of all. If the results are not satisfied, do the adjustment. 1. Demagnetize the record/playback head with a head demagnetizer. 2. Do not use a magnetized screwdriver for the adjustments. 3. After the adjustments, apply suitable locking compound to the parts adjust. 4. The adjustments should be performed with the rated power supply voltage unless otherwise noted. 5. The adjustments should be performed in the order given in this service manual. 6. The adjustments should be performed for both L-CH and R- CH. 7. Switches and controls should be set as follows unless otherwise specified. • Test Tape Record/Playback Head Azimuth Adjustment Procedure: 1. Mode: Playback set SPEAKER terminals (TM402) L-CH, R-CH + – level meter test tape P-4-A63J (10 kHz, –10 dB) Screw position L-CH peak within 1 dB Output level L-CH peak R-CH peak within 1 dB Screw position R-CH peak set test tape P-4-A63J (10 kHz, –10 dB) R-CH oscilloscope L-CH R-CH V H waveform of oscilloscope in phase 45° 90° 135° 180° good wrong SPEAKER terminals (TM401) L-CH DECK SECTION Tape Signal Used for P-4-A63J 10 kHz, –10 dB Azimuth Adjustment 0 dB=0.775 V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 10 DXA-WZ8D • WAVEFORMS SECTION 4 DIAGRAMS Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • ¢ : internal component. • 2 : nonflammable resistor. • 5 : fusible resistor. • C : panel designation. Note on Printed Wiring Boards: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • b : Pattern from the side which enables seeing. • A : B+ Line. • B : B– Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal (detuned) conditions. • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. no mark : FM ( ) : CD [ ] : TAPE • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. F : FM E : PB (TAPE) a : REC (TAPE) J : CD • Abbreviation AUS : Australian model E2 : 120V AC area in E model E3 : 240V AC area in E model E15 : 220-240V AC area in E model EA : Saudi Arabia model KR : Korean model MX : Mexican model MY : Malaysia model PH : Philippines model RU : Russian model SP : Singapore model TH : Thai model THIS NOTE IS COMMON FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS. (In addition to this, the necessary note is printed in each block.) C B These are omitted. E Q B These are omitted. C E Q 11.2 µs 15.9 Vp-p 5 V/DIV, 4 µs/DIV 1 Q301 collector (TAPE B REC) – TC MAIN Board – Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. Caution: Pattern face side: Parts on the pattern face side seen from (SIDE B) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (SIDE A) the parts face are indicated. • Indication of transistor. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 11 DXA-WZ8D 4-1. Block Diagram : REC (TAPE) : AUDIO • Signal Path • R-CH is omitted due to same as L-CH. : PB (TAPE) TAPE DECK BLOCK L-PB TRANSFORMER POWER T302 RELAY DRIVE Q601 RY601 AC IN R-PB A SHUT B SHUT R-CH L-REC R-REC R-CH GND MUTE CONT JW604 RY402 14 15 12 9 8 POWER AMP IC501 Q536,537 5 2 IC301 L-PB R-PB R-CH 1 BIAS 8 7 16 5 6 7 IC303 CNT BIAS REC SWITCH Q312,314 REC CONT Q308-310 PB SWITCH Q303 PB CONT Q306,307 BIAS OSC Q301 T301 BIAS E HOT BIAS SWITCH Q304 BIAS CONT Q305 BIAS 21 I/O EXP DATA OUT I/O EXPANDER I/O EXP DATA IN I/O EXP CLK I/O EXP LAT UNREG EVER +4V CN CHECK AMP+9V AMP+9V M+9V REC-L REC-R PB-R PB-L B SHUT A SHUT R-CH R-CH IC251 A/B 23 20 FR RY 19 SUR RY 12 TH VACS 11 PROTECT REC/PB 22 A PLAY B PLAY A HALF B HALF REC(FWD) REC (REW) CAP M+ MOTOR DRIVE Q353,356 A TRG SOLENOID DRIVE SOLENOID DRIVE Q351,355 B TRG Q352,354 A PLAY 5 B PLAY 9 A HALF 6 B HALF 8 REC(FWD) 7 REC(REW) 10 CAP-M 24 HCD-WZ8D 3 1 4 IC201 PROTECTOR 25 DO2 26 DI 3 CLK 4 LATCH A TRG B TRG MUTE Q533 MUTE CONT Q204,206 MUTE Q501 R-CH FRONT L FRONT R SURR L SURR R CENTER TM401(1/2) SPEAKER FAN301 FAN DRIVE Q209,211,212 FAN CONTROL Q213 PROTECT SWITCH Q536,537 +VL TH531 OVER HEAT DETECTOR 17 PWR RY 18 FAN CNT D501 D742 Q521 Q534,535 TH VACS Q531,532 PROTECT DETECTOR Q403 RELAY DRIVE D101 +9V REG 1 3 IC302 +VL D103 AC3 AC3 AC4 AC4 D301 R-CH D402 +3.3V REG Q101 D+3.3V Q202 D202 D201 AC DET Q203,205 M+9V -VL AC2 AUS E2, E3, E15,EA, MY, SP, PH KR, TH AEP, UK, RU AC2 +VH -VH AC1 AC1 D102 DVD AC DVD AC D251 IC251 VCC DVD MUTE DBFB FB STK MUTE TA MUTE FRONT-R FRONT-L RY401 8 3 9 POWER AMP(SL,SR,C) IC701 MUTE Q701 R-CH TM401(2/2) Q711 PROTECT DETECTOR Q401 RELAY DRIVE REAR-R REAR-L JW603 JW602 S601 VOLTAGE SELECTOR SWITCHING REGULATOR EVER+4V RY403 13 15 14 MUTE Q731 Q741 PROTECT DETECTOR CENTER w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 12 DXA-WZ8D 4-2. Printed Wiring Board – TC MAIN Board – IC301 IC303 IC201 IC302 IC251 KR,TH AEP,UK,RU E2,E3,E15,EA,MY,SP,PH E2,E3,E15,EA,MY,SP,PH 1 1 3 2 16 15 3 1 C310 TC MAIN BOARD C605 C232 C231 R232 R231 Q213 D203 TM401 R424 R426 R421 R420 R429 R430 R434 C406 JW109 D403 Q401 R412 R409 R408 R406 C410 R431 L401 C411 C415 C412 C404 C403 C409 L402 L405 RY403 R404 R405 R402 RY401 CN401 HCD-WZ8D HCD-WZ8D SURR R FRONT R R341 12 FRONT AMP SURROUND AMP NO703 (Page 17) D R340 CENTER SURR L FRONT L FRONT AMP SURROUND AMP D401 NO809 1 6 C 7 7 • : Uses unleaded solder. • Semiconductor Location Ref. No. Location D101 C-9 D102 B-7 D103 A-7 D111 A-6 D201 I-4 D202 I-4 D203 F-2 D204 F-2 D205 E-2 D207 E-3 D208 E-3 D209 F-2 D251 G-3 D301 B-6 D351 E-5 D352 E-5 D401 I-3 D402 G-3 D403 I-3 D404 H-3 D911 C-2 IC201 I-4 IC251 F-4 IC301 I-10 IC302 A-7 IC303 J-8 Q101 A-6 Q202 I-5 Q203 H-5 Q204 E-2 Q205 H-5 Q206 E-2 Q209 E-2 Q211 F-2 Q212 F-2 Q213 E-1 Q301 F-9 Q302 H-10 Q303 H-9 Q304 G-8 Q305 F-8 Q306 H-8 Q307 H-9 Q308 H-8 Q309 H-8 Q310 H-8 Q311 G-9 Q312 G-9 Q313 G-9 Q314 G-9 Q351 E-5 Q352 E-5 Q353 E-5 Q354 E-4 Q355 E-4 Q356 E-4 Q401 I-3 Q403 H-4 Q601 C-2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 13 13 DXA-WZ8D 4-3. Schematic Diagram – TC MAIN Board (1/2) – • See page 10 for Waveforms. EXCEPT AEP,UK,RU AEP,UK,RU 3300 63V 3300 71V 3300 71V 3300 63V 34 35 36 OSC TC MAIN BOARD (1 / 2) TC MAIN T6.3AL/250V T4AL/250V C107 C108 D103 R103 R104 C111 C112 D102 C251 C320 C319 R315 C312 C302 C351 R352 C352 R351 R353 R358 R359 R360 R366 R365 R364 R363 R362 R361 R367 R368 D351 D352 C305 C318 C308 C118 C120 C303 C317 R263 R264 R328 R329 R369 R370 C114 IC302 R330 C327 C328 L302 100uH L303 L304 C330 C304 C315 F102 F101 F103 F104 F105 R308 C309 C333 C334 C337 R343 R344 R204 R201 R203 R254 R252 R251 R253 R256 R257 R258 R259 R260 C252 R316 R322 R324 R321 R323 C322 C321 R311 R307 R305 R320 R318 R314 T301 R354 R355 R357 R356 C316 C307 C311 R319 R317 R261 R262 R255 R128 D111 R325 C323 C353 C354 C324 C253 R334 IC301 R303 R304 R306 R310 R309 R335 R338 R336 C313 C255 R340 C326 R341 C331 CN351 C301 C314 R312 R302 R313 C329 C332 R327 R326 R331 CN302 CN301 C105 C106 C338 C325 R339 R337 Q312 Q314 Q313 Q311 Q310 Q308 Q309 Q306 Q307 Q303 Q302 Q304 Q305 C306 Q352 Q301 Q354 Q355 Q356 Q353 Q351 IC251 Q101 C113 4700 D301 CN102 D101 C103 0.01 0.01 C104 C109 3300 3300 C110 IC303 D251 0.01 0.01 D3SBA20 100k R232 22k R231 100k 100k D5SBA20 0.01 2200p 2200p 4.7k 0.01 0.0047 0.0047 680 0.0047 680 47k 3.3k 3.3k 3.3k 10k 10k 10k 10k 10k 10k 10k 10k 1SS355 1SS355 680p 680p 22 50V 10 50V 10 50V 680p 680p 10k 10k 2.2k 2.2k 100 100 0.01 BA09T 22k 680p 680p 27MH 27MH 100p 0.01 C310 0.1 0.01 100 100 10V 4700p 4700p 330p 33k 33k 100k 4.7k 4.7k 1K 100 100 100 100 100 100 100 100 10 50V 8.2k 1k 1k 1k 1k 0.001 0.001 10 10k 47 4.7k 4.7k 47k 2.2k 2.2k 2.2k 2.2k 0.47 50V 0.47 50V 220 10V 10k 10k 100 100 100 1k UDZSTE-173.9B 10k 1 50V 470 16V 10 50V 10 50V 0.1 6.8k BA3402 330k 12k 100 12k 330k 33k 33k 100 22 50V 470p 220 100 10V 220 4.7 50V 13P 0.01 0.0068 33 3.3k 8.2k 100p 4.7 50V 100 15k 22k 8P 3P 0.1 0.1 330p 10 50V 100 6.8k 2SC3624A -T1L15L16 2SC3624A -T1L15L16 2SC3624A -T1L15L16 2SC3624A -T1L15L16 2SA812-T1-M5M6 DTC114EKA-T146 DTC114EKA-T146 DTC114EKA-T146 DTA114EKA-T146 2SC3624A -T1L15L16 2SC3624A -T1L15L16 RT1P137L-TP DTC114EKA-T146 47 16V 2SB1116-TP-LK 2SC2001-TP-LK DTC114EKA -T146 DTC114EKA -T146 DTC114EKA -T146 2SB1116-TP-LK 2SB1116-TP-LK PT8300R-TP 2SC1623-T1-L5L6 25V 10EDB40-TB3 9P D5SBA20 50V 50V 22 C232 50V 22 C231 50V NJM4580V(TE2) 1SS355 TE-17 * * * * * * * * w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 14 14 DXA-WZ8D – TC MAIN Board (2/2) – 5.6 6.2 0 14.6 6.2 0.9 0.7 AEP,UK,RU KR,TH AUS E2,E3,E15,MY,SP,PH TH 34 35 36 C SL SR E TC MAIN BOARD (2 / 2) SURR R + - SURR L FRONT R FRONT L CENTER SPEAKER Q401,403 + - + - + - + - D TC MAIN HCD-WZ8D HCD-WZ8D C CH MUTE PROTECT SR CH PRE GND SL CH C SURROUND AMP (Page 18) CN701 BOARD TO 1 6 SURROUND AMP (Page 18) CN701 BOARD TO FRONT AMP (Page 16) CN502 BOARD TO FRONT AMP (Page 16) CN501 BOARD TO * * * R406, 411, 412 22(AEP, UK, RU) 82(EXCEPT AEP, UK, RU) * T4AL/250V EA T6.3AL/250V C209 C207 C205 C201 R432 R433 L404 R428 L403 R427 C414 0.01 C412 0.01 C413 0.01 C415 0.01 R414 R405 47K R419 R401 R403 C211 R217 R221 R220 C206 C210 C208 R219 R218 IC201 R209 C216 R207 R202 R410 R206 R205 C202 C203 C402 C407 C405 C408 R411 R422 R413 R415 R216 R210 R211 R212 CN204 R423 NO1 D911 Q601 C603 R601 L601 100uH C601 C602 JW610 F601 JW602 JW612 JW611 JW604 JW603 S601 CN604 NO802 D201 D202 C204 Q204 Q206 D208 D205 D207 Q209 R213 Q211 Q212 Q203 Q202 Q205 D204 D209 CN205 NO809 19P D402 D404 Q403 RY402 RY401 NO702 R417 CN206 JW101 CN605 CN602 RY601 TM401 220 10V 10 50V 100 10V C605 47 16V 10 50V 1k 10k 68k R402 47k R404 68k 47k 4.7 50V 22k 4.7k 47k 0.01 47 16V 0.01 22k 100 RT8H015C 100 0.01 4.7k 2.2k 100k 10k 22k 10 50V 10 50V 47k 22k 22k 220k 1k 1k 1k 3P 47k 47k WIRE 1SS355 2SC1623 0.01 4.7k 0.1 0.1 2P 7P 1SS355 TE-17 1SS355 TE-17 10 50V DTA114EKA -T146 Q213 DTC114EKA-T146 FAN CONTROL DTC114EKA -T146 10EDB40 10EDB40 10EDB40 2SD2525(TP) 0 2SC1623 -T1-L5L6 2SC1623 -T1-L5L6 2SC1623 -T1-L5L6 2SC1623 -T1-L5L6 2SC1623 -TI-L5L6 UDZSTE-1713B D203 UDZSTE-176.2B 1SS355 1SS355 1SS355 2SC3624A Q401 2SC1623 RELAY 12V R408 R409 R412 D403 2.2k R421 47k R420 R425 47k 10k 1SS355 R406 D401 1SS355 8P CN401 7P 4.7k 20P 2P 10 1/2W 10 1/2W 10 1/2W 10 1/2W 10 1/2W 10 1/2W 0.1 0.1 10 1/2W 0.1 0.1 10 1/2W 0.1 0.1 10 1/2W 0.1 0.1 10 1/2W 0.1 0.1 R434 L405 R429 C406 C410 R430 L402 R426 C403 C411 R431 L401 R424 C404 C409 EP401 2 2 2 2 2 2 2 2 2 EP601 * * * * * * * * * * w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 15 15 DXA-WZ8D 4-4. Printed Wiring Board – FRONT AMP Board – IC501 FRONT AMP BOARD TC MAIN TC MAIN 12 • : Uses unleaded solder. • Semiconductor Location Ref. No. Location D501 D-3 D504 A-1 D505 A-1 D521 C-2 D532 D-2 D571 C-2 IC501 A-2 Q501 C-4 Q521 B-2 Q533 C-2 Q534 D-3 Q535 D-3 Q536 C-3 Q537 C-3 Q551 C-4 Q571 B-2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 16 16 DXA-WZ8D 4-5. Schematic Diagram – FRONT AMP Board – -51 52 -52 -53 -30.5 -16.7 16.7 30.5 53 -52 -51.6 30.5 29.9 30.2 0.6 -52 ,RU EXCEPT AEP,UK,RU FRONT AMP BOARD TC MAIN TC MAIN R510 R524 R574 C502 C552 R501 R502 R504 R505 R523 R555 R573 R526 R539 R543 R545 R547 R548 R551 R552 R554 R535 R537 R500 R540 R576 C571 C572 R571 R521 C522 C521 IC501 C508 R530 TH531 R534 R542 R525 R575 R503 R553 R507 R557 D504 D505 JR501 R546 R541 R544 Q533 CN502 CN501 R572 C551 10 Q551 Q501 C501 10 R506 EP501 C503 C553 R556 C554 C504 D571 D521 D501 Q571 Q521 C531 22 22 C532 C533 47 47 C534 D532 Q537 Q535 Q534 R522 Q536 R531 33k 10 1/2W 10 1/2W 470p C505 0.01 470p 2.2k 100k 1k 47k 47k 47k 47k 15k 33k 68k 2.2k 2.2k 2.2k 2.2k 100k 1k 100 1/4W FR 100 1/4W FR 10k 100k 15k 100000p 100000p 1k 1k 100000p 100000p 0.001 100 22k 100k 150k 150k 10k 10k 10k 10k UDZSTE-1713B UDZSTE-1713B 47k 47k 100k 2SC2713G 8P 7P 0.22 50V 2SC3624A 2SC3624A 50V 16V 16V 0 220p 220p 1SS355 1SS355 1SS355 2SC1841 2SC1841 100V 100V 50V 100V 1SS355 2SC1623 2SC1623 2SC1623 0.22 2SA1163G 1 1/4W RF R506, 556 110 (AEP, UK, RU) 120 (EXCEPT AEP, UK, RU) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 17 17 DXA-WZ8D 4-6. Printed Wiring Board – SURROUND AMP Board – • : Uses unleaded solder. IC701 • Semiconductor Location Ref. No. Location D711 C-3 D741 B-3 D742 B-3 D761 C-3 IC701 A-1 Q701 A-3 Q711 C-3 Q731 A-3 Q741 C-3 Q751 A-3 Q761 C-3 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 18 18 DXA-WZ8D 4-7. Schematic Diagram – SURROUND AMP Board – C702 C704 C712 C713 C732 C733 C734 C742 C743 C752 C754 C762 C763 C771 D711 D741 D742 D761 Q701 Q731 Q751 R701 R702 R703 R704 R705 R711 R712 R713 R714 R715 R716 R731 R732 R733 R734 R735 R741 R742 R743 R744 R745 R752 R753 R754 R755 R761 R762 R763 R764 R765 R766 R773 C701 C703 C708 C709 C731 C751 C753 R700 R706 R756 R736 CN701 IC701 EP701 R751 NO703 Q711 Q761 R746 Q741 R774 1SS355 1SS355 1SS355 1SS355 2SC3624A 2SC3624A 2SC3624A 0.1 0.1 0.1 0.1 100k 1k 1k 47k 47k 15k 1k 2.2k 100k 1k 1k 47k 47k 15k 1k 100k 100k 1k 1k 47k 47k 15k 1k 0.22 2W 100k 10 1/2W 22 50V 47 50V 47 50V 47 50V 100p 100p 100p 470p 470p 470p 2.2k 100k 10 1/2W 0.1 0.1 10 50V 10 50V 10 50V 0.22 2W 0.22 2W 10k 10k 0.01 0.001 680 6P STK403-240 7P 2SC2785TP 2SC2785TP 10 2SC2785TP 100 1/4W 2.2k 680 680 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com SECTION 5 EXPLODED VIEWS NOTE: • -XX, -X mean standardized parts, so they may have some differences from the original one. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • Hardware (# mark) list and accessories and packing materials are given in the last of this parts list. • The mechanical parts with no reference number in the exploded views are not supplied. • Abbreviation AUS : Australian model E2 : 120V AC area in E model E3 : 240V AC area in E model E15 : 220-240V AC area in E model EA : Saudi Arabia model KR : Korean model MY : Malaysia model PH : Philippines model 19 DXA-WZ8D The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. RU : Russian model SP : Singapore model TH : Thai model 5-1. Front Panel Section Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks a a c c b b 9 22 22 10 10 23 13 13 13 23 13 11 15 16 19 20 19 12 14 17 18 21 not supplied not supplied not supplied not supplied d d 6 chassis section 1 3 4 5 7 8 2 mechanism deck section #1 #4 #3 #1 #1 01 4-244-459-01 SPRING (LID) 2 X-4955-418-2 LID (TC) ASSY 3 4-244-977-01 SPRING (LID-R) 4 X-4955-284-1 HOLDER (A) ASSY 5 4-244-454-01 SPRING (HOLDER A) 6 1-769-985-11 WIRE (FLAT TYPE)(13CORE) 7 X-4955-285-1 HOLDER (B) ASSY 8 4-244-455-01 SPRING (HOLDER B) 9 4-244-442-01 PANEL (TC), FRONT 10 4-224-104-11 DAMPER 11 4-244-443-01 BUTTON (A) 12 4-244-444-01 BUTTON (B) 13 4-951-620-01 SCREW (2.6X8), +BVTP 14 4-244-450-01 HOLDER (LOCK) 15 4-244-448-01 LEVER (L) 16 4-244-447-01 LEVER (C) 17 4-244-449-01 LEVER (R) 18 4-244-446-01 BASE (LOCK) 19 3-363-099-11 SCREW (CASE 3 TP2) 20 4-244-441-11 CASE 21 4-245-758-01 PLATE (HEAD), SHIELD 22 4-959-229-11 DETENT, CASSETTE 23 3-378-109-12 CUSHION, SARANET #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #3 7-685-862-09 SCREW +BVTT 2.6X6 (S) #4 7-685-853-04 SCREW +BVTT 2X6 (S) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 20 DXA-WZ8D Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks a a not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied not supplied #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #1 #2 #2 #1 #1 not supplied 51 52 53 53 58 58 60 58 58 58 55 56 59 61 54 F105 F106 F601 F101 T302 FAN301 F102 F103 F104 51 A-4732-224-A FRONT AMP BOARD, COMPLETE (AEP, UK, RU) 51 A-4732-234-A FRONT AMP BOARD, COMPLETE (E2, E3, E15, EA, MY, SP, PH) 51 A-4732-264-A FRONT AMP BOARD, COMPLETE (AUS) 51 A-4734-574-A FRONT AMP BOARD, COMPLETE (KR) 51 A-4734-588-A FRONT AMP BOARD, COMPLETE (TH) 52 A-4732-219-A TC MAIN BOARD, COMPLETE (AEP, UK, RU) 52 A-4732-230-A TC MAIN BOARD, COMPLETE (E2) 52 A-4732-246-A TC MAIN BOARD, COMPLETE (E3, E15, MY, SP, PH) 52 A-4732-255-A TC MAIN BOARD, COMPLETE (EA) 52 A-4732-261-A TC MAIN BOARD, COMPLETE (AUS) 52 A-4734-571-A TC MAIN BOARD, COMPLETE (KR) 52 A-4734-583-A TC MAIN BOARD, COMPLETE (TH) 53 4-900-386-01 SCREW 54 3-703-571-11 BUSHING (S)(4516), CORD (E2, E3, E15) * 54 3-703-244-00 BUSHING (2104), CORD (EXCEPT E2, E3, E15) 055 1-468-737-11 POWER, SWITCHING 056 1-769-079-12 CORD, POWER (KR) 056 1-775-786-41 CORD, POWER (UK) 056 1-775-790-51 CORD, POWER (AUS) 056 1-777-071-63 CORD, POWER (AEP, RU, EA, MY, SP, PH) 056 1-824-818-11 CORD, POWER (WITH CONNECTOR)(TH) 056 1-827-226-21 CORD, POWER (E2, E3, E15) 58 3-970-608-01 SUMITITE (B3), +BV 59 1-500-386-11 FILTER, CLAMP (FERRITE CORE) 60 A-4732-226-A SURROUND AMP BOARD, COMPLETE (AEP, UK, RU) 60 A-4732-236-A SURROUND AMP BOARD, COMPLETE (E2, E3, E15, EA, MY, SP, PH) 60 A-4732-266-A SURROUND AMP BOARD, COMPLETE (AUS) 60 A-4734-576-A SURROUND AMP BOARD, COMPLETE (KR) 60 A-4734-591-A SURROUND AMP BOARD, COMPLETE (TH) 61 4-225-252-01 CUSHION (FOOT) 0F101 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V 0F102 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V 0F103 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V 0F104 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V 0F105 1-533-471-11 FUSE, GLASS TUBE (DIA. 4) T5AL/250V 0F106 1-533-472-11 FUSE, GLASS TUBE (DIA. 5) T5AL/250V 0F601 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) T4AL/250V (E2, E3, E15, MY, SP, PH) 0F601 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V (EA) 0T302 1-439-643-11 TRANSFORMER, POWER (EA) 0T302 1-439-644-11 TRANSFORMER, POWER (E2, E3, E15, MY, SP, KR, TH, PH, AUS) 0T302 1-439-645-11 TRANSFORMER, POWER (AEP, UK, RU) FAN301 1-763-488-31 FAN, DC #1 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S #2 7-685-650-79 SCREW +BVTP 3X16TYPE2 IT-3 The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. 5-2. Chassis Section www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 21 DXA-WZ8D Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks 101 102 103 104 not supplied not supplied not supplied not supplied 101 1-796-487-31 DECK, MECHANICAL 102 4-243-610-01 BELT (AL) 5-3. Tape Mechanism Deck Section 103 4-243-609-01 BELT (AF) 104 4-243-608-01 BELT (BR) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 22 DXA-WZ8D SECTION 6 ELECTRICAL PARTS LIST NOTE: • Due to standardization, replacements in the parts list may be different from the parts specified in the diagrams or the components used on the set. • -XX, -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: metal-film resistor METAL OXIDE: Metal Oxide-film resistor F: nonflammable • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when ordering these items. • CAPACITORS: uF: µF • COILS uH: µH • SEMICONDUCTORS In each case, u: µ, for example: uA...: µA... , uPA... , µPA... , uPB... , µPB... , uPC... , µPC... , uPD..., µPD... • Abbreviation AUS : Australian model E2 : 120V AC area in E model E3 : 240V AC area in E model E15 : 220-240V AC area in E model EA : Saudi Arabia model KR : Korean model MY : Malaysia model PH : Philippines model RU : Russian model SP : Singapore model TH : Thai model When indicating parts by reference number, please include the board name. The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. A-4732-224-A FRONT AMP BOARD, COMPLETE (AEP, UK, RU) ************************** A-4732-234-A FRONT AMP BOARD, COMPLETE (E2, E3, E15, EA, MY, SP, PH) ************************** A-4732-264-A FRONT AMP BOARD, COMPLETE (AUS) ************************** A-4734-574-A FRONT AMP BOARD, COMPLETE (KR) ************************** A-4734-588-A FRONT AMP BOARD, COMPLETE (TH) ************************** < CAPACITOR > C501 1-126-964-11 ELECT 10uF 20.00% 50V C502 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C503 1-126-947-11 ELECT 47uF 20.00% 16V C504 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C505 1-162-974-11 CERAMIC CHIP 0.01uF 50V C508 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C521 1-131-992-91 CERAMIC CHIP 100000PF 35V C522 1-131-992-91 CERAMIC CHIP 100000PF 35V C531 1-128-560-11 ELECT 22uF 20.00% 100V C532 1-128-560-11 ELECT 22uF 20.00% 100V C533 1-126-967-11 ELECT 47uF 20.00% 50V C534 1-128-562-11 ELECT 47uF 20.00% 100V C551 1-126-964-11 ELECT 10uF 20.00% 50V C552 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C553 1-126-947-11 ELECT 47uF 20.00% 16V C554 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C571 1-131-992-91 CERAMIC CHIP 100000PF 35V C572 1-131-992-91 CERAMIC CHIP 100000PF 35V < CONNECTOR > * CN501 1-506-486-11 PIN, CONNECTOR 7P * CN502 1-564-523-11 PLUG, CONNECTOR 8P < DIODE > D501 8-719-988-61 DIODE 1SS355TE-17 D504 8-719-083-63 DIODE UDZSTE-1713B D505 8-719-083-63 DIODE UDZSTE-1713B D521 8-719-988-61 DIODE 1SS355TE-17 D532 8-719-988-61 DIODE 1SS355TE-17 D571 8-719-988-61 DIODE 1SS355TE-17 < IC > IC501 6-600-179-01 IC STK412-210 (AEP, UK, RU) IC501 6-600-171-01 IC STK412-230 (EXCEPT AEP, UK, RU) < JUMPER RESISTOR > JR501 1-216-864-11 METAL CHIP 0 5% 1/10W JR502 1-216-864-11 METAL CHIP 0 5% 1/10W (TH) < TRANSISTOR > Q501 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q521 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA Q533 8-729-271-31 TRANSISTOR 2SC2713G-TE85L Q534 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q535 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q536 8-729-216-31 TRANSISTOR 2SA1163G-TE85L Q537 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q551 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q571 8-729-140-84 TRANSISTOR 2SC1841TP-PAFAEA < RESISTOR > R500 1-216-833-11 METAL CHIP 10K 5% 1/10W R501 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R502 1-216-845-11 METAL CHIP 100K 5% 1/10W R503 1-216-833-11 METAL CHIP 10K 5% 1/10W R504 1-216-821-11 METAL CHIP 1K 5% 1/10W R505 1-216-841-11 METAL CHIP 47K 5% 1/10W R506 1-202-922-91 METAL CHIP 110 5% 1/10W (AEP, UK, RU) R506 1-216-810-91 METAL FILM 120 5% 1/10W (EXCEPT AEP, UK, RU) R507 1-216-833-11 METAL CHIP 10K 5% 1/10W R510 1-216-839-11 METAL CHIP 33K 5% 1/10W R521 1-216-821-11 METAL CHIP 1K 5% 1/10W R522 1-220-894-11 METAL 0.22 10% 5W R523 1-216-841-11 METAL CHIP 47K 5% 1/10W R524 1-249-625-31 CARBON 10 5% 1/2W R525 1-216-847-11 METAL CHIP 150K 5% 1/10W R526 1-216-835-11 METAL CHIP 15K 5% 1/10W R530 1-216-809-11 METAL CHIP 100 5% 1/10W 0R531 1-217-637-00 FUSIBLE 1 5% 1/4W R534 1-216-837-11 METAL CHIP 22K 5% 1/10W 0R535 1-212-881-11 FUSIBLE 100 5% 1/4W 0R537 1-212-881-11 FUSIBLE 100 5% 1/4W FRONT AMP Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 23 DXA-WZ8D R539 1-216-839-11 METAL CHIP 33K 5% 1/10W R540 1-216-845-11 METAL CHIP 100K 5% 1/10W R541 1-216-841-11 METAL CHIP 47K 5% 1/10W R542 1-216-845-11 METAL CHIP 100K 5% 1/10W R543 1-216-843-11 METAL CHIP 68K 5% 1/10W R544 1-216-845-11 METAL CHIP 100K 5% 1/10W R545 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R546 1-216-841-11 METAL CHIP 47K 5% 1/10W R547 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R548 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R551 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R552 1-216-845-11 METAL CHIP 100K 5% 1/10W R553 1-216-833-11 METAL CHIP 10K 5% 1/10W R554 1-216-821-11 METAL CHIP 1K 5% 1/10W R555 1-216-841-11 METAL CHIP 47K 5% 1/10W R556 1-202-922-91 METAL CHIP 110 5% 1/10W (AEP, UK, RU) R556 1-216-810-91 METAL FILM 120 5% 1/10W (EXCEPT AEP, UK, RU) R557 1-216-833-11 METAL CHIP 10K 5% 1/10W R571 1-216-821-11 METAL CHIP 1K 5% 1/10W R572 1-220-894-11 METAL 0.22 10% 5W R573 1-216-841-11 METAL CHIP 47K 5% 1/10W R574 1-249-625-31 CARBON 10 5% 1/2W R575 1-216-847-11 METAL CHIP 150K 5% 1/10W R576 1-216-835-11 METAL CHIP 15K 5% 1/10W < THERMISTOR > TH531 1-807-796-11 THERMISTOR ************************************************************ A-4732-226-A SURROUND AMP BOARD, COMPLETE (AEP, UK, RU) ****************************** A-4732-236-A SURROUND AMP BOARD, COMPLETE (E2, E3, E15, EA, MY, SP, PH) ****************************** A-4732-266-A SURROUND AMP BOARD, COMPLETE (AUS) ****************************** A-4734-576-A SURROUND AMP BOARD, COMPLETE (KR) ****************************** A-4734-591-A SURROUND AMP BOARD, COMPLETE (TH) ****************************** 7-685-646-79 SCREW +BVTP 3X8 TYPE2 N-S (EXCEPT TH) < CAPACITOR > C701 1-126-964-11 ELECT 10uF 20.00% 50V C702 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C703 1-126-967-11 ELECT 47uF 20.00% 50V C704 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C708 1-162-974-11 CERAMIC CHIP 0.01uF 50V C709 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C712 1-164-156-11 CERAMIC CHIP 0.1uF 25V C713 1-164-156-11 CERAMIC CHIP 0.1uF 25V C731 1-126-964-11 ELECT 10uF 20.00% 50V C732 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C733 1-126-967-11 ELECT 47uF 20.00% 50V C734 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C742 1-164-156-11 CERAMIC CHIP 0.1uF 25V C743 1-164-156-11 CERAMIC CHIP 0.1uF 25V C751 1-126-964-11 ELECT 10uF 20.00% 50V C752 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C753 1-126-967-11 ELECT 47uF 20.00% 50V C754 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C762 1-164-156-11 CERAMIC CHIP 0.1uF 25V C763 1-164-156-11 CERAMIC CHIP 0.1uF 25V C771 1-126-965-91 ELECT 22uF 20.00% 50V < CONNECTOR > CN605 1-568-106-11 PIN, CONNECTOR (3.96mm PITCH) 4P (EXCEPT AEP, UK, RU) CN701 1-785-332-11 PIN, CONNECTOR (LIGHT ANGLE) 6P < DIODE > D711 8-719-988-61 DIODE 1SS355TE-17 D741 8-719-988-61 DIODE 1SS355TE-17 D742 8-719-988-61 DIODE 1SS355TE-17 D761 8-719-988-61 DIODE 1SS355TE-17 < TERMINAL > * EP701 1-537-738-21 TERMINAL, EARTH < IC > IC701 6-600-173-01 IC STK403-240 < TRANSISTOR > Q701 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q711 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q731 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q741 8-729-119-78 TRANSISTOR 2SC2785TP-HFE Q751 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q761 8-729-119-78 TRANSISTOR 2SC2785TP-HFE < RESISTOR > R700 1-216-833-11 METAL CHIP 10K 5% 1/10W R701 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R702 1-216-845-11 METAL CHIP 100K 5% 1/10W R703 1-216-821-11 METAL CHIP 1K 5% 1/10W R704 1-216-821-11 METAL CHIP 1K 5% 1/10W R705 1-216-841-11 METAL CHIP 47K 5% 1/10W R706 1-216-819-11 METAL CHIP 680 5% 1/10W R711 1-216-841-11 METAL CHIP 47K 5% 1/10W R712 1-216-835-11 METAL CHIP 15K 5% 1/10W R713 1-216-821-11 METAL CHIP 1K 5% 1/10W R714 1-220-755-11 METAL 0.22 10% 2W R715 1-216-845-11 METAL CHIP 100K 5% 1/10W R716 1-260-304-51 CARBON 10 5% 1/2W R731 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R732 1-216-845-11 METAL CHIP 100K 5% 1/10W R733 1-216-821-11 METAL CHIP 1K 5% 1/10W R734 1-216-821-11 METAL CHIP 1K 5% 1/10W R735 1-216-841-11 METAL CHIP 47K 5% 1/10W R736 1-216-819-11 METAL CHIP 680 5% 1/10W R741 1-216-841-11 METAL CHIP 47K 5% 1/10W R742 1-216-835-11 METAL CHIP 15K 5% 1/10W R743 1-216-821-11 METAL CHIP 1K 5% 1/10W Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks FRONT AMP SURROUND AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 24 DXA-WZ8D R744 1-220-755-11 METAL 0.22 10% 2W R745 1-216-845-11 METAL CHIP 100K 5% 1/10W R746 1-260-304-51 CARBON 10 5% 1/2W R751 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R752 1-216-845-11 METAL CHIP 100K 5% 1/10W R753 1-216-821-11 METAL CHIP 1K 5% 1/10W R754 1-216-821-11 METAL CHIP 1K 5% 1/10W R755 1-216-841-11 METAL CHIP 47K 5% 1/10W R756 1-216-819-11 METAL CHIP 680 5% 1/10W R761 1-216-841-11 METAL CHIP 47K 5% 1/10W R762 1-216-835-11 METAL CHIP 15K 5% 1/10W R763 1-216-821-11 METAL CHIP 1K 5% 1/10W R764 1-220-755-11 METAL 0.22 10% 2W R765 1-216-845-11 METAL CHIP 100K 5% 1/10W R766 1-260-304-51 CARBON 10 5% 1/2W R773 1-216-833-11 METAL CHIP 10K 5% 1/10W R774 1-219-786-11 FUSIBLE 22 5% 1/4W ************************************************************ A-4732-219-A TC MAIN BOARD, COMPLETE (AEP, UK, RU) ************************ A-4732-230-A TC MAIN BOARD, COMPLETE (E2) ************************ A-4732-246-A TC MAIN BOARD, COMPLETE (E3, E15, MY, SP, PH) ************************ A-4732-255-A TC MAIN BOARD, COMPLETE (EA) ************************ A-4732-261-A TC MAIN BOARD, COMPLETE (AUS) ************************ A-4734-571-A TC MAIN BOARD, COMPLETE (KR) ************************ A-4734-583-A TC MAIN BOARD, COMPLETE (TH) ************************ 1-533-217-31 FUSE HOLDER * 1-690-880-31 LEAD (WITH CONNECTOR) < CAPACITOR > C103 1-162-974-11 CERAMIC CHIP 0.01uF 50V (AEP) C104 1-162-974-11 CERAMIC CHIP 0.01uF 50V C104 1-162-974-11 CERAMIC CHIP 0.01uF 50V (AEP) C105 1-130-777-00 MYLAR 0.1uF 5.00% 100V C106 1-130-777-00 MYLAR 0.1uF 5.00% 100V C107 1-162-974-11 CERAMIC CHIP 0.01uF 50V C108 1-162-974-11 CERAMIC CHIP 0.01uF 50V C109 1-126-974-11 ELECT 3300uF 20.00% 50V (EXCEPT E2) C109 1-127-811-11 ELECT 3300uF 20% 50V (E2) C110 1-126-974-11 ELECT 3300uF 20.00% 50V (EXCEPT E2) C110 1-127-811-11 ELECT 3300uF 20% 50V (E2) C111 1-135-516-11 ELECT 3300uF 20% 63V (AEP, UK, RU) C111 1-135-517-11 ELECT 3300uF 20% 71V (E3, E15, EA, MY, SP, KR, TH, PH, AUS) C111 1-127-813-11 ELECT 3300uF 20% 71V (E2) C112 1-135-516-11 ELECT 3300uF 20% 63V (AEP, UK, RU) C112 1-135-517-11 ELECT 3300uF 20% 71V (E3, E15, EA, MY, SP, KR, TH, PH, AUS) C112 1-127-813-11 ELECT 3300uF 20% 71V (E2) C113 1-128-548-11 ELECT 4700uF 20.00% 25V C114 1-162-974-11 CERAMIC CHIP 0.01uF 50V C118 1-126-964-11 ELECT 10uF 20.00% 50V C120 1-126-964-11 ELECT 10uF 20.00% 50V C201 1-126-964-11 ELECT 10uF 20.00% 50V C202 1-126-964-11 ELECT 10uF 20.00% 50V C203 1-126-964-11 ELECT 10uF 20.00% 50V C204 1-126-964-11 ELECT 10uF 20.00% 50V C205 1-104-665-11 ELECT 100uF 20.00% 10V C206 1-162-974-11 CERAMIC CHIP 0.01uF 50V C207 1-126-964-11 ELECT 10uF 20.00% 50V C208 1-162-974-11 CERAMIC CHIP 0.01uF 50V C209 1-126-934-11 ELECT 220uF 20.00% 10V C210 1-126-947-11 ELECT 47uF 20.00% 16V C211 1-126-963-11 ELECT 4.7uF 20.00% 50V C216 1-162-974-11 CERAMIC CHIP 0.01uF 50V C231 1-126-965-91 ELECT 22uF 20.00% 50V C232 1-126-965-91 ELECT 22uF 20.00% 50V C251 1-162-974-11 CERAMIC CHIP 0.01uF 50V C252 1-126-964-11 ELECT 10uF 20.00% 50V C253 1-164-156-11 CERAMIC CHIP 0.1uF 25V C255 1-162-962-11 CERAMIC CHIP 470PF 10% 50V C301 1-137-150-11 MYLAR 0.01uF 5.00% 100V C302 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C303 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C304 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C305 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C306 1-126-947-11 ELECT 47uF 20.00% 16V C307 1-126-959-11 ELECT 0.47uF 20.00% 50V C308 1-126-965-91 ELECT 22uF 20.00% 50V C309 1-104-665-11 ELECT 100uF 20.00% 10V C310 1-164-156-11 CERAMIC CHIP 0.1uF 25V C311 1-126-934-11 ELECT 220uF 20.00% 10V C312 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C313 1-126-965-91 ELECT 22uF 20.00% 50V C314 1-130-481-00 MYLAR 0.0068uF 5% 50V C315 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C316 1-126-959-11 ELECT 0.47uF 20.00% 50V C317 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C318 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C319 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C320 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C321 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C322 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C323 1-126-960-11 ELECT 1uF 20.00% 50V C324 1-126-964-11 ELECT 10uF 20.00% 50V C325 1-126-964-11 ELECT 10uF 20.00% 50V C326 1-104-665-11 ELECT 100uF 20.00% 10V C327 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C328 1-162-963-11 CERAMIC CHIP 680PF 10% 50V C329 1-137-503-11 MYLAR 0.0001uF 5.00% 50V C330 1-137-503-11 MYLAR 0.0001uF 5.00% 50V TC MAIN Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks SURROUND AMP www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 25 DXA-WZ8D C331 1-126-963-11 ELECT 4.7uF 20.00% 50V C332 1-126-963-11 ELECT 4.7uF 20.00% 50V C333 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C334 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C337 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C338 1-162-961-11 CERAMIC CHIP 330PF 10% 50V C351 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C352 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C353 1-126-935-11 ELECT 470uF 20.00% 16V C354 1-126-964-11 ELECT 10uF 20.00% 50V C402 1-131-992-91 CERAMIC CHIP 100000PF 35V (AEP, UK, RU, KR) C403 1-164-156-11 CERAMIC CHIP 0.1uF 25V (AEP, UK, RU, KR) C404 1-164-156-11 CERAMIC CHIP 0.1uF 25V (AEP, UK, RU, KR) C405 1-131-992-91 CERAMIC CHIP 100000PF 35V (AEP, UK, RU, KR) C406 1-164-156-11 CERAMIC CHIP 0.1uF 25V (AEP, UK, RU, KR) C407 1-131-992-91 CERAMIC CHIP 100000PF 35V (AEP, UK, RU, KR) C408 1-131-992-91 CERAMIC CHIP 100000PF 35V (AEP, UK, RU, KR) C409 1-164-156-11 CERAMIC CHIP 0.1uF 25V (AEP, UK, RU, KR) C410 1-164-156-11 CERAMIC CHIP 0.1uF 25V (AEP, UK, RU, KR) C411 1-164-156-11 CERAMIC CHIP 0.1uF 25V (AEP, UK, RU, KR) C412 1-162-974-11 CERAMIC CHIP 0.01uF 50V C413 1-162-974-11 CERAMIC CHIP 0.01uF 50V C414 1-162-974-11 CERAMIC CHIP 0.01uF 50V C415 1-162-974-11 CERAMIC CHIP 0.01uF 50V C601 1-164-156-11 CERAMIC CHIP 0.1uF 25V C602 1-164-156-11 CERAMIC CHIP 0.1uF 25V C603 1-162-974-11 CERAMIC CHIP 0.01uF 50V < CONNECTOR > CN102 1-691-771-11 PLUG (MICRO CONNECTOR) 9P * CN204 1-564-518-11 PLUG, CONNECTOR 3P CN205 1-793-351-11 SOCKET, CONNECTOR 19P CN206 1-794-498-11 SOCKET, CONNECTOR 20P * CN301 1-564-705-11 PIN, CONNECTOR (SMALL TYPE) 3P * CN302 1-564-710-11 PIN, CONNECTOR (SMALL TYPE) 8P CN351 1-784-774-11 CONNECTOR, FFC 13P CN401 1-691-769-11 PLUG (MICRO CONNECTOR) 7P CN602 1-785-314-11 PIN, CONNECTOR (STRAIGHT) 2P CN604 1-774-108-11 PIN, CONNECTOR (PC BOARD) CN605 1-564-321-00 PIN, CONNECTOR (3.96mm PITCH) 2P (AEP, UK, RU) < DIODE > D101 8-719-500-60 DIODE D5SBA20 D102 8-719-500-60 DIODE D5SBA20 D103 8-719-028-23 DIODE D3SBA20-4101 D111 8-719-083-58 DIODE UDZSTE-173.9B D201 8-719-988-61 DIODE 1SS355TE-17 D202 8-719-988-61 DIODE 1SS355TE-17 D203 8-719-069-56 DIODE UDZSTE-176.2B D204 8-719-069-57 DIODE UDZSTE-6.8B D205 6-500-522-31 DIODE 10EDB40-TB5 (EXCEPT TH) D205 6-500-522-21 DIODE 10EDB40-TB3 (TH) D207 6-500-522-31 DIODE 10EDB40-TB5 (EXCEPT TH) D207 6-500-522-21 DIODE 10EDB40-TB3 (TH) D208 6-500-522-31 DIODE 10EDB40-TB5 (EXCEPT TH) D208 6-500-522-21 DIODE 10EDB40-TB3 (TH) D209 8-719-988-61 DIODE 1SS355TE-17 D251 8-719-988-61 DIODE 1SS355TE-17 D301 6-500-522-21 DIODE 10EDB40-TB3 D351 8-719-988-61 DIODE 1SS355TE-17 D352 8-719-988-61 DIODE 1SS355TE-17 D401 8-719-988-61 DIODE 1SS355TE-17 D402 8-719-988-61 DIODE 1SS355TE-17 D403 8-719-988-61 DIODE 1SS355TE-17 D404 8-719-988-61 DIODE 1SS355TE-17 D911 8-719-988-61 DIODE 1SS355TE-17 < IC > IC201 6-703-610-01 IC RT8H015C-T112-1 IC251 6-703-679-11 IC PT8300R-TP IC301 8-759-902-15 IC BA3402 IC302 8-759-394-36 IC BA09T IC303 8-759-422-21 IC NJM4580V (TE2) < COIL > L302 1-414-857-51 INDUCTOR 100uH (EXCEPT TH) L302 1-414-189-31 INDUCTOR 100uH (TH) L303 1-410-780-11 INDUCTOR 27MH L304 1-410-780-11 INDUCTOR 27MH L401 1-420-872-52 COIL, AIR-CORE (AEP, UK, RU, KR) L402 1-420-872-52 COIL, AIR-CORE (AEP, UK, RU, KR) L403 1-420-872-52 COIL, AIR-CORE (AEP, UK, RU, KR) L404 1-420-872-52 COIL, AIR-CORE (AEP, UK, RU, KR) L405 1-420-872-52 COIL, AIR-CORE (AEP, UK, RU, KR) L601 1-414-857-51 INDUCTOR 100uH(EXCEPT TH) L601 1-414-189-31 INDUCTOR 100uH (TH) < TRANSISTOR > Q101 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q202 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q203 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q204 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q205 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q206 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q209 8-729-026-68 TRANSISTOR 2SD2525(TP) Q211 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q212 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q213 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q301 8-729-142-46 TRANSISTOR 2SC2001TP-LK Q302 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q303 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q304 8-729-040-20 TRANSISTOR RT1P137L-TP Q305 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q306 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q307 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q308 8-729-900-53 TRANSISTOR DTC114EKA-T146 Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks TC MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 26 DXA-WZ8D Q309 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q310 8-729-216-22 TRANSISTOR 2SA812-T1-M5M6 Q311 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q312 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q313 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q314 8-729-141-73 TRANSISTOR 2SC3624A-T1L15L16 Q351 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q352 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q353 8-729-140-04 TRANSISTOR 2SB1116-TP-LK Q354 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q355 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q356 8-729-900-53 TRANSISTOR DTC114EKA-T146 Q401 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 Q403 8-729-141-73 TRANSISTOR 2SC3624A Q601 8-729-120-28 TRANSISTOR 2SC1623-T1-L5L6 < RESISTOR > R103 1-216-845-11 METAL CHIP 100K 5% 1/10W R104 1-216-845-11 METAL CHIP 100K 5% 1/10W R128 1-216-821-11 METAL CHIP 1K 5% 1/10W R201 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R202 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R203 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R204 1-216-845-11 METAL CHIP 100K 5% 1/10W R205 1-216-837-11 METAL CHIP 22K 5% 1/10W R206 1-216-833-11 METAL CHIP 10K 5% 1/10W R207 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R209 1-216-809-11 METAL CHIP 100 5% 1/10W R210 1-216-821-11 METAL CHIP 1K 5% 1/10W R211 1-216-821-11 METAL CHIP 1K 5% 1/10W R212 1-216-821-11 METAL CHIP 1K 5% 1/10W R213 1-216-864-11 METAL CHIP 0 5% 1/10W R216 1-216-849-11 METAL CHIP 220K 5% 1/10W R217 1-216-837-11 METAL CHIP 22K 5% 1/10W R218 1-216-809-11 METAL CHIP 100 5% 1/10W R219 1-216-837-11 METAL CHIP 22K 5% 1/10W R220 1-216-841-11 METAL CHIP 47K 5% 1/10W R221 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R231 1-216-845-11 METAL CHIP 100K 5% 1/10W R232 1-216-837-11 METAL CHIP 22K 5% 1/10W R251 1-216-809-11 METAL CHIP 100 5% 1/10W R252 1-216-809-11 METAL CHIP 100 5% 1/10W R253 1-216-809-11 METAL CHIP 100 5% 1/10W R254 1-216-821-11 METAL CHIP 1K 5% 1/10W R255 1-216-809-11 METAL CHIP 100 5% 1/10W R256 1-216-809-11 METAL CHIP 100 5% 1/10W R257 1-216-809-11 METAL CHIP 100 5% 1/10W R258 1-216-809-11 METAL CHIP 100 5% 1/10W R259 1-216-809-11 METAL CHIP 100 5% 1/10W R260 1-216-809-11 METAL CHIP 100 5% 1/10W R261 1-216-809-11 METAL CHIP 100 5% 1/10W R262 1-216-809-11 METAL CHIP 100 5% 1/10W R263 1-216-833-11 METAL CHIP 10K 5% 1/10W R264 1-216-833-11 METAL CHIP 10K 5% 1/10W R302 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R303 1-216-851-11 METAL CHIP 330K 5% 1/10W R304 1-216-834-11 METAL CHIP 12K 5% 1/10W Ref. No. Part No. Description Remarks R305 1-216-805-11 METAL CHIP 47 5% 1/10W R306 1-216-809-11 METAL CHIP 100 5% 1/10W R307 1-216-833-11 METAL CHIP 10K 5% 1/10W R308 1-216-809-11 METAL CHIP 100 5% 1/10W R309 1-216-851-11 METAL CHIP 330K 5% 1/10W R310 1-216-834-11 METAL CHIP 12K 5% 1/10W R311 1-216-797-11 METAL CHIP 10 5% 1/10W R312 1-216-803-11 METAL CHIP 33 5% 1/10W R313 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R314 1-216-841-11 METAL CHIP 47K 5% 1/10W R315 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R316 1-216-832-11 METAL CHIP 8.2K 5% 1/10W R317 1-216-833-11 METAL CHIP 10K 5% 1/10W R318 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R319 1-216-833-11 METAL CHIP 10K 5% 1/10W R320 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R321 1-216-821-11 METAL CHIP 1K 5% 1/10W R322 1-216-821-11 METAL CHIP 1K 5% 1/10W R323 1-216-821-11 METAL CHIP 1K 5% 1/10W R324 1-216-821-11 METAL CHIP 1K 5% 1/10W R325 1-216-833-11 METAL CHIP 10K 5% 1/10W R326 1-216-835-11 METAL CHIP 15K 5% 1/10W R327 1-216-809-11 METAL CHIP 100 5% 1/10W R328 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R329 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R330 1-216-837-11 METAL CHIP 22K 5% 1/10W R331 1-216-837-11 METAL CHIP 22K 5% 1/10W R334 1-218-867-11 METAL CHIP 6.8K 5% 1/10W R335 1-216-839-11 METAL CHIP 33K 5% 1/10W R336 1-216-809-11 METAL CHIP 100 5% 1/10W R337 1-218-867-11 METAL CHIP 6.8K 5% 1/10W R338 1-216-839-11 METAL CHIP 33K 5% 1/10W R339 1-216-809-11 METAL CHIP 100 5% 1/10W R340 1-216-813-11 METAL CHIP 220 5% 1/10W R341 1-216-813-11 METAL CHIP 220 5% 1/10W R343 1-216-839-11 METAL CHIP 33K 5% 1/10W R344 1-216-839-11 METAL CHIP 33K 5% 1/10W R351 1-216-819-11 METAL CHIP 680 5% 1/10W R352 1-216-819-11 METAL CHIP 680 5% 1/10W R353 1-216-841-11 METAL CHIP 47K 5% 1/10W R354 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R355 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R356 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R357 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R358 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R359 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R360 1-216-827-11 METAL CHIP 3.3K 5% 1/10W R361 1-216-833-11 METAL CHIP 10K 5% 1/10W R362 1-216-833-11 METAL CHIP 10K 5% 1/10W R363 1-216-833-11 METAL CHIP 10K 5% 1/10W R364 1-216-833-11 METAL CHIP 10K 5% 1/10W R365 1-216-833-11 METAL CHIP 10K 5% 1/10W R366 1-216-833-11 METAL CHIP 10K 5% 1/10W R367 1-216-833-11 METAL CHIP 10K 5% 1/10W R368 1-216-833-11 METAL CHIP 10K 5% 1/10W R369 1-216-809-11 METAL CHIP 100 5% 1/10W R370 1-216-809-11 METAL CHIP 100 5% 1/10W R401 1-216-843-11 METAL CHIP 68K 5% 1/10W Ref. No. Part No. Description Remarks TC MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 27 DXA-WZ8D R402 1-216-841-11 METAL CHIP 47K 5% 1/10W R403 1-216-841-11 METAL CHIP 47K 5% 1/10W R404 1-216-843-11 METAL CHIP 68K 5% 1/10W R405 1-216-841-11 METAL CHIP 47K 5% 1/10W 0R406 1-215-859-51 METAL OXIDE 22 5% 1W (AEP, UK, RU) 0R406 1-216-360-51 METAL OXIDE 82 5% 1W R408 1-216-825-11 METAL CHIP 2.2K 5% 1/10W R409 1-216-833-11 METAL CHIP 10K 5% 1/10W R410 1-216-845-11 METAL CHIP 100K 5% 1/10W 0R411 1-215-859-51 METAL OXIDE 22 5% 1W (AEP, UK, RU) 0R411 1-216-360-51 METAL OXIDE 82 5% 1W (EXCEPT AEP, UK, RU) 0R412 1-215-859-51 METAL OXIDE 22 5% 1W (AEP, UK, RU) 0R412 1-216-360-51 METAL OXIDE 82 5% 1W (EXCEPT AEP, UK, RU) R413 1-216-837-11 METAL CHIP 22K 5% 1/10W R414 1-216-821-11 METAL CHIP 1K 5% 1/10W R415 1-216-837-11 METAL CHIP 22K 5% 1/10W R417 1-216-829-11 METAL CHIP 4.7K 5% 1/10W R419 1-216-833-11 METAL CHIP 10K 5% 1/10W R420 1-216-841-11 METAL CHIP 47K 5% 1/10W R421 1-216-841-11 METAL CHIP 47K 5% 1/10W R422 1-216-841-11 METAL CHIP 47K 5% 1/10W R423 1-216-841-11 METAL CHIP 47K 5% 1/10W R424 1-260-304-51 CARBON 10 5% 1/2W (AEP, UK, RU, KR) R425 1-216-841-11 METAL CHIP 47K 5% 1/10W R426 1-260-304-51 CARBON 10 5% 1/2W (AEP, UK, RU, KR) R427 1-260-304-51 CARBON 10 5% 1/2W (AEP, UK, RU, KR) R428 1-260-304-51 CARBON 10 5% 1/2W (AEP, UK, RU, KR) R429 1-260-304-51 CARBON 10 5% 1/2W (AEP, UK, RU, KR) R430 1-260-304-51 CARBON 10 5% 1/2W (AEP, UK, RU, KR) R431 1-260-304-51 CARBON 10 5% 1/2W (AEP, UK, RU, KR) R432 1-260-304-51 CARBON 10 5% 1/2W (AEP, UK, RU, KR) R433 1-260-304-51 CARBON 10 5% 1/2W (AEP, UK, RU, KR) R434 1-260-304-51 CARBON 10 5% 1/2W (AEP, UK, RU, KR) R601 1-216-829-11 METAL CHIP 4.7K 5% 1/10W < RELAY > RY401 1-755-416-12 RELAY RY402 1-755-372-11 RELAY RY403 1-755-416-12 RELAY 0RY601 1-755-332-11 RELAY < SWITCH > 0S601 1-771-291-31 SWITCH, POWER (VOLTAGE SELECTOR) (E2, E3, E15, EA, MY, SP, PH) < TRANSFORMER > T301 1-433-372-11 TRANSFORMER, BIAS OSCILLATION < TERMINAL > TM401 1-694-656-21 TERMINAL BOARD (6CH SPEAKER) ************************************************************ MISCELLANEOUS ************** 055 1-468-737-11 POWER, SWITCHING 056 1-769-079-12 CORD, POWER (KR) 056 1-775-786-41 CORD, POWER (UK) 056 1-775-790-51 CORD, POWER (AUS) 056 1-777-071-63 CORD, POWER (AEP, RU, EA, MY, SP, PH) 056 1-824-818-11 CORD, POWER (WITH CONNECTOR)(TH) 056 1-827-226-21 CORD, POWER (E2, E3, E15) 59 1-500-386-11 FILTER, CLAMP (FERRITE CORE) 101 1-796-487-31 DECK, MECHANICAL 0F101 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V 0F102 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V 0F103 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V 0F104 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V 0F105 1-533-471-11 FUSE, GLASS TUBE (DIA. 4) T5AL/250V 0F106 1-533-472-11 FUSE, GLASS TUBE (DIA. 5) T5AL/250V 0F601 1-533-471-11 FUSE, GLASS TUBE (DIA. 5) T4AL/250V (E2, E3, E15, MY, SP, PH) 0F601 1-533-473-11 FUSE, GLASS TUBE (DIA. 5) T6.3AL/250V (EA) 0T302 1-439-643-11 TRANSFORMER, POWER (EA) 0T302 1-439-644-11 TRANSFORMER, POWER (E2, E3, E15, MY, SP, KR, TH, PH, AUS) 0T302 1-439-645-11 TRANSFORMER, POWER (AEP, UK, RU) 0FAN301 1-763-488-31 FAN, DC Ref. No. Part No. Description Remarks Ref. No. Part No. Description Remarks The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. TC MAIN www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DXA-WZ8D REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2003.06 New www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
