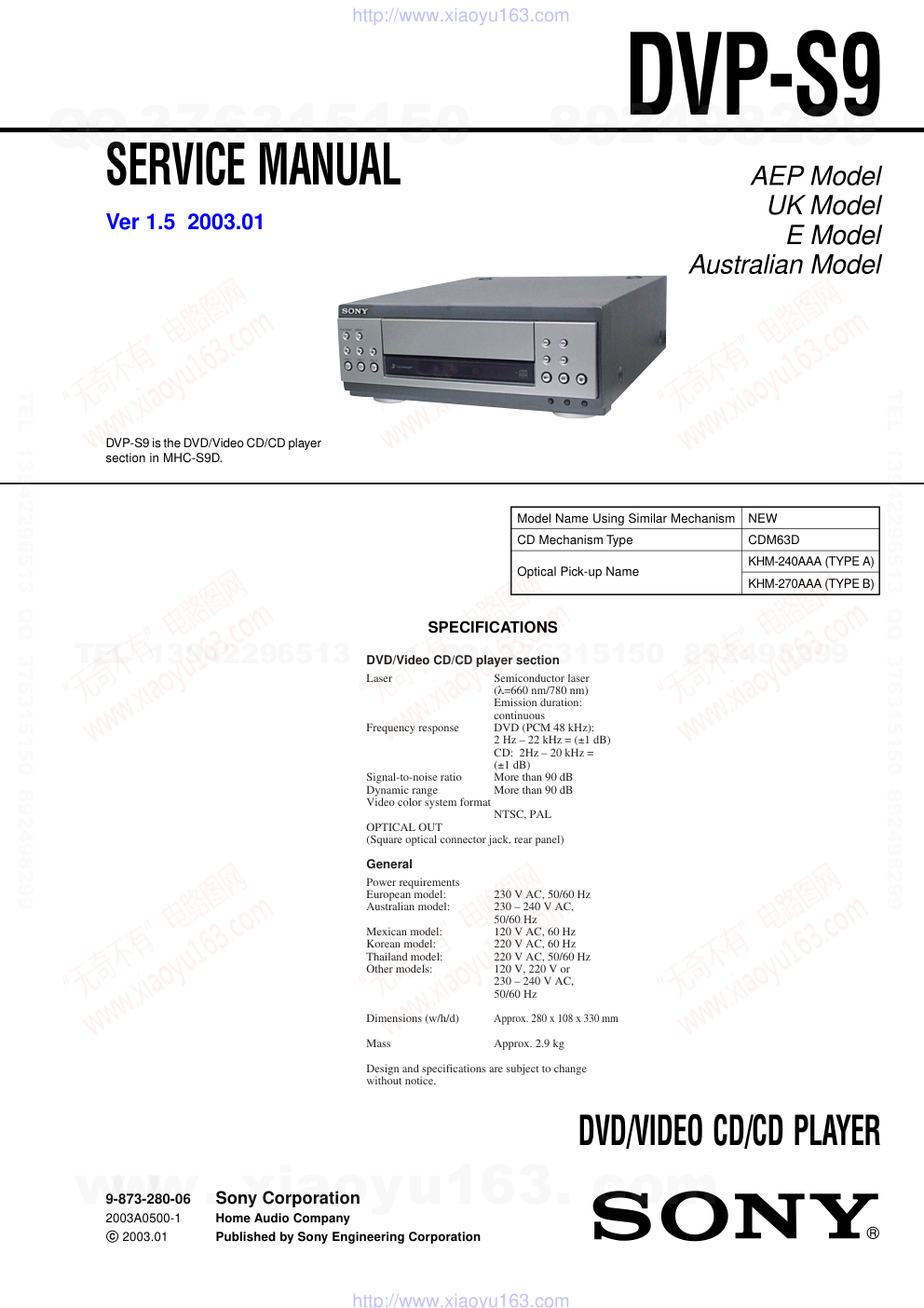

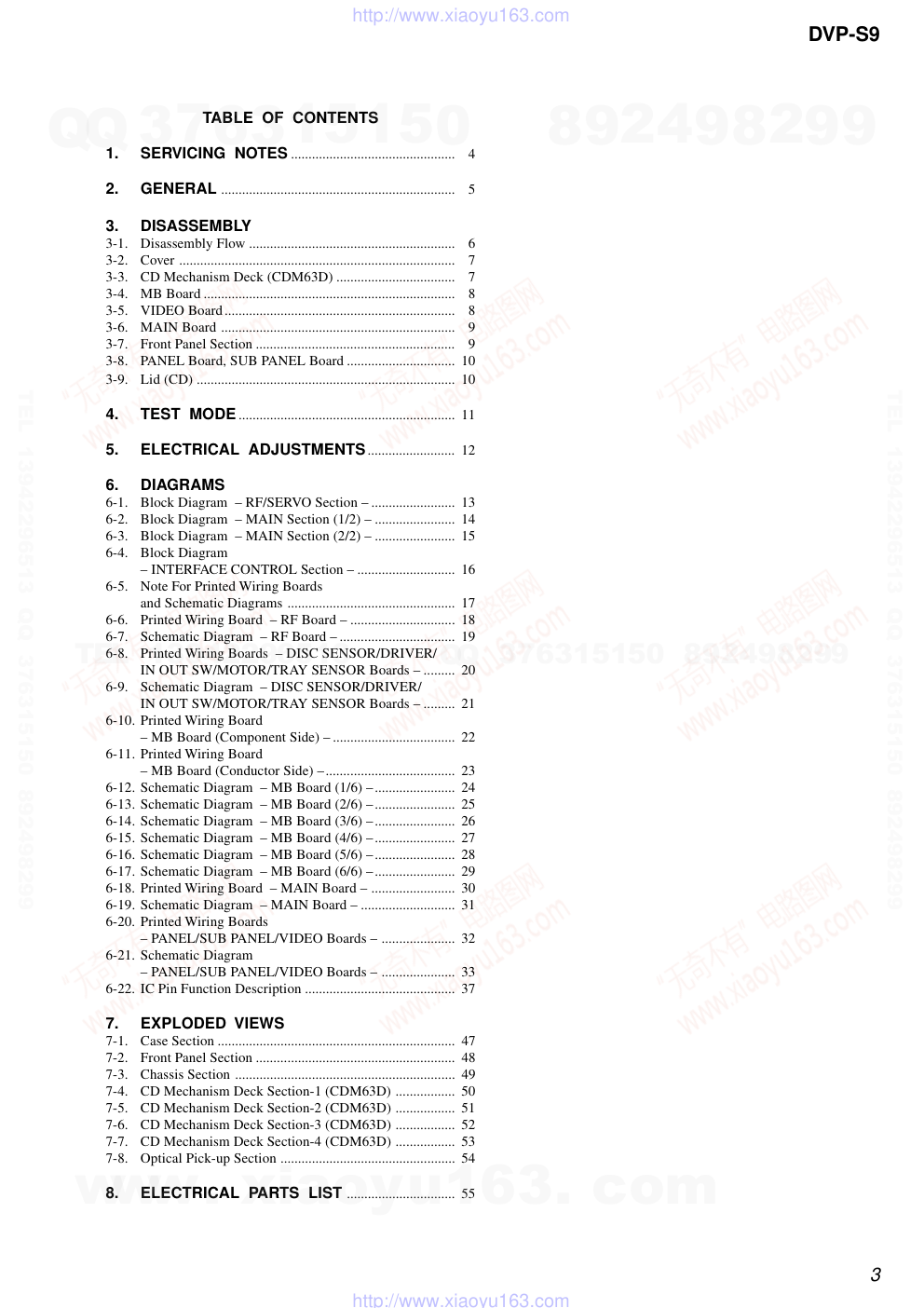

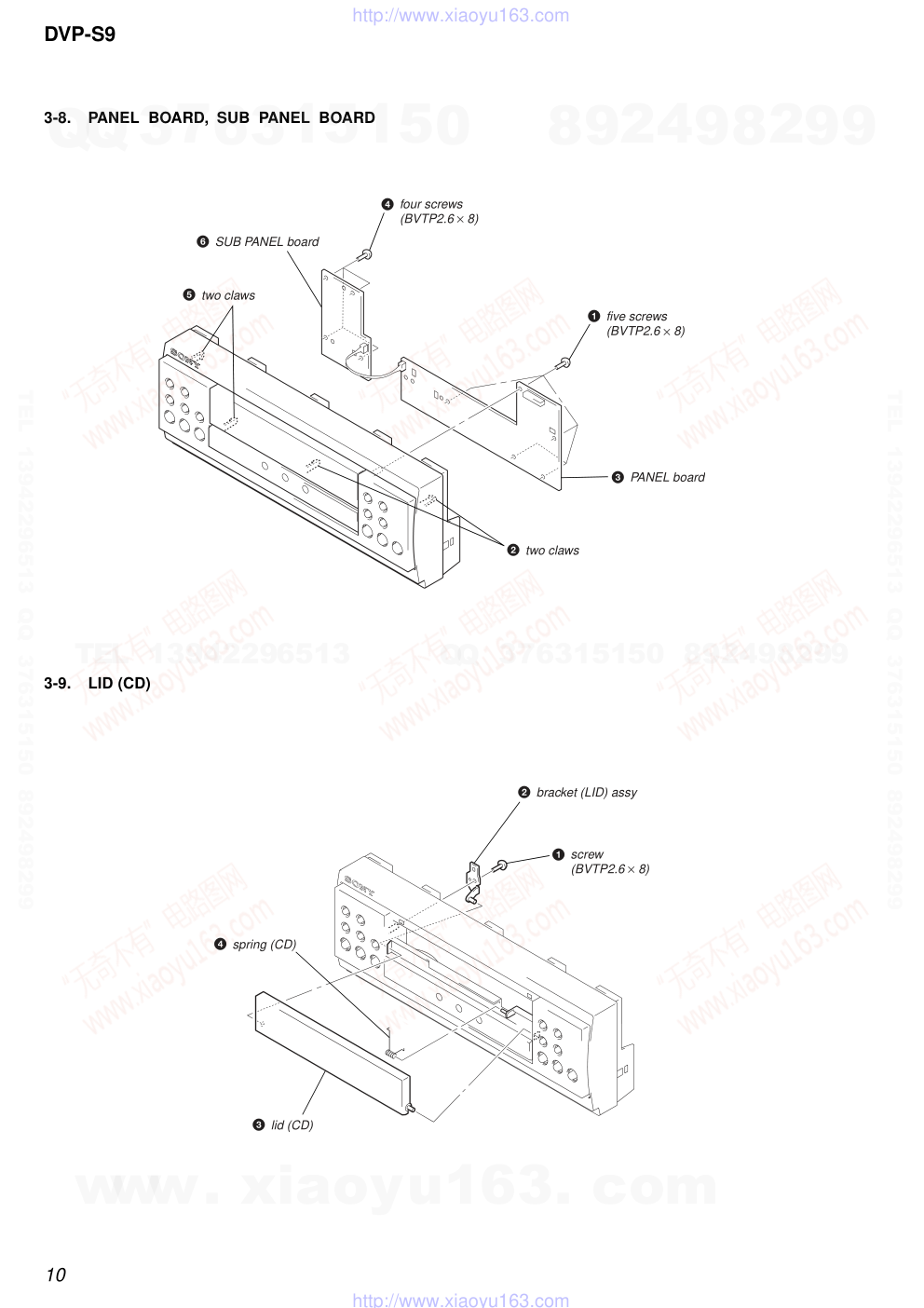

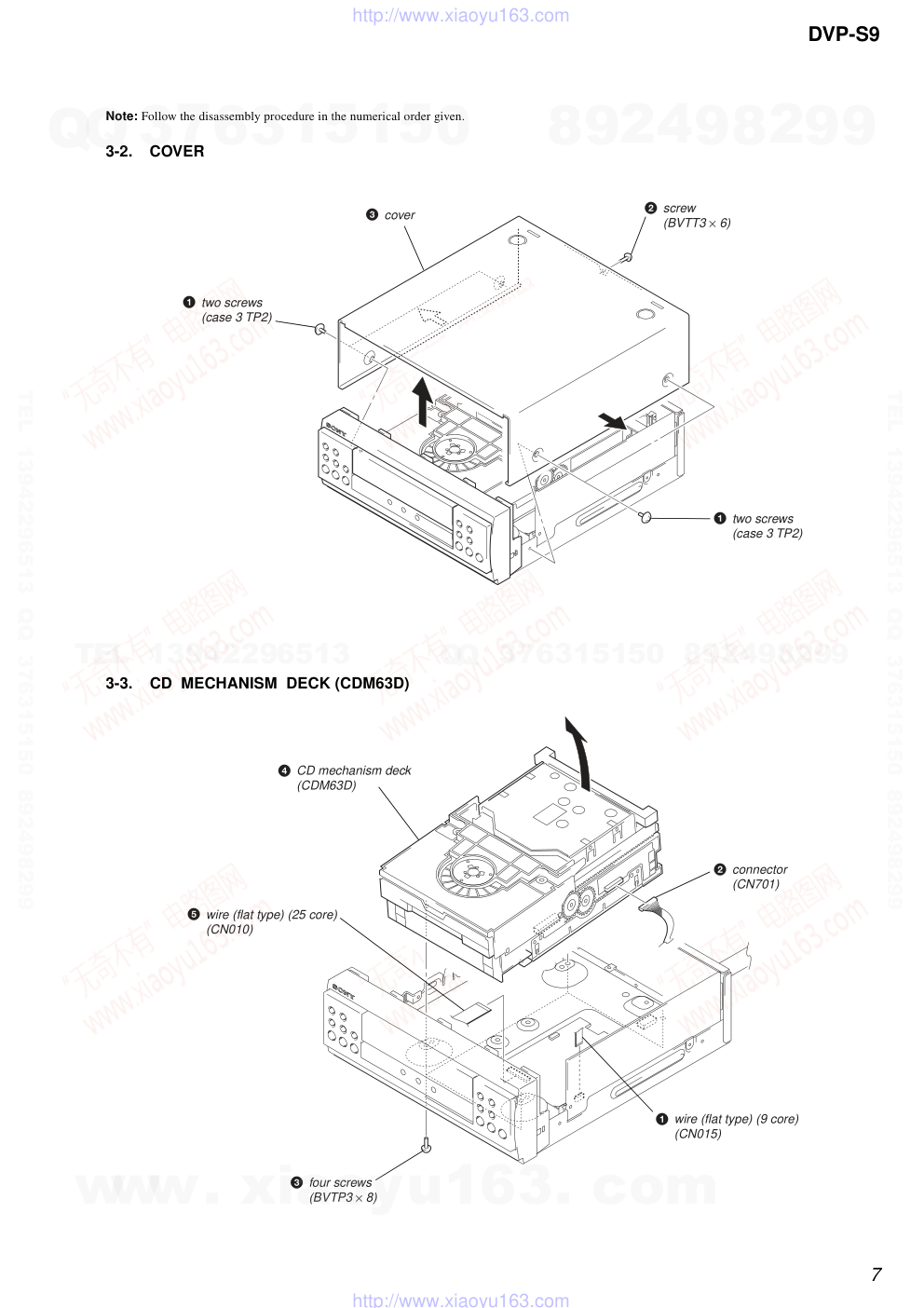

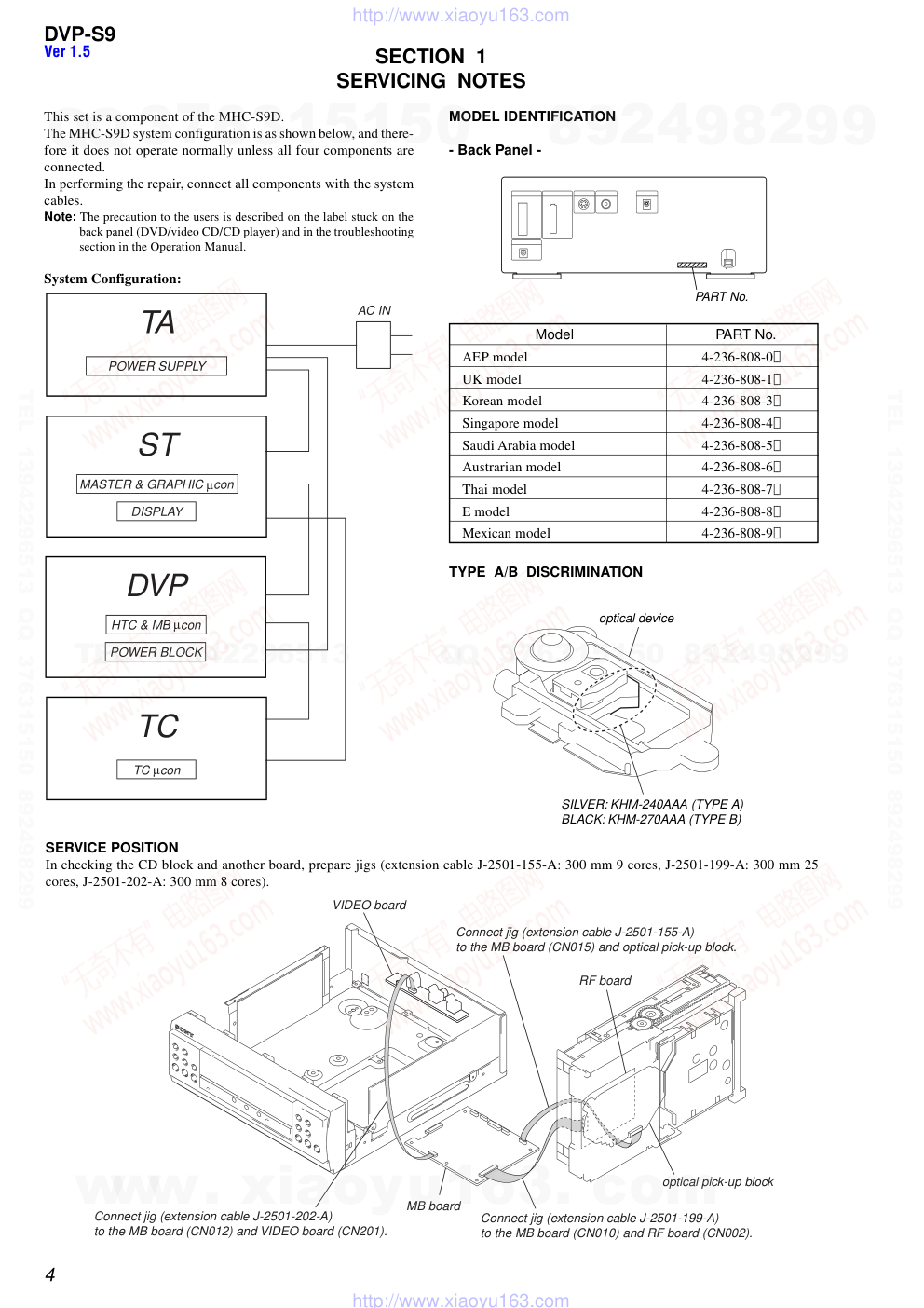

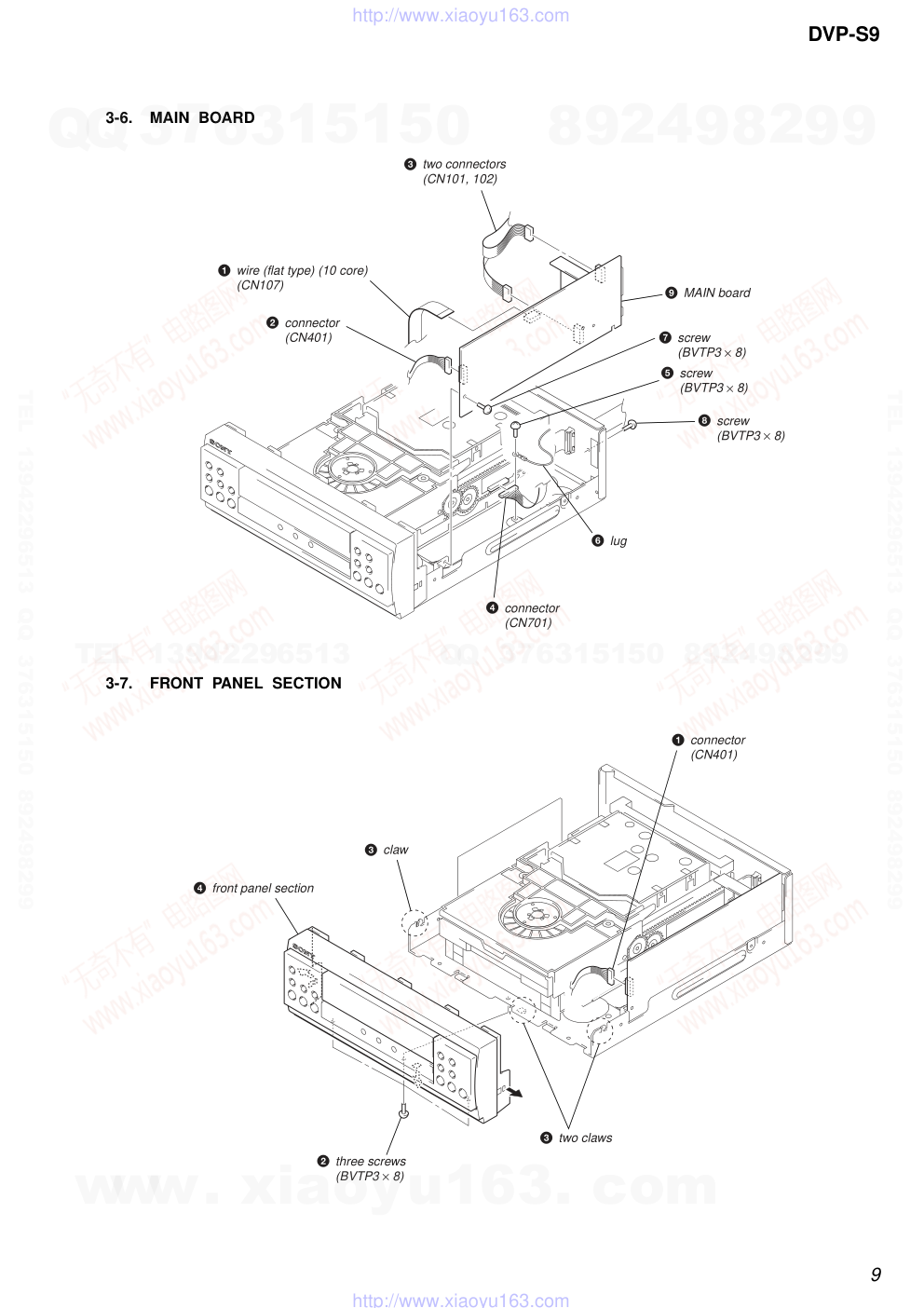

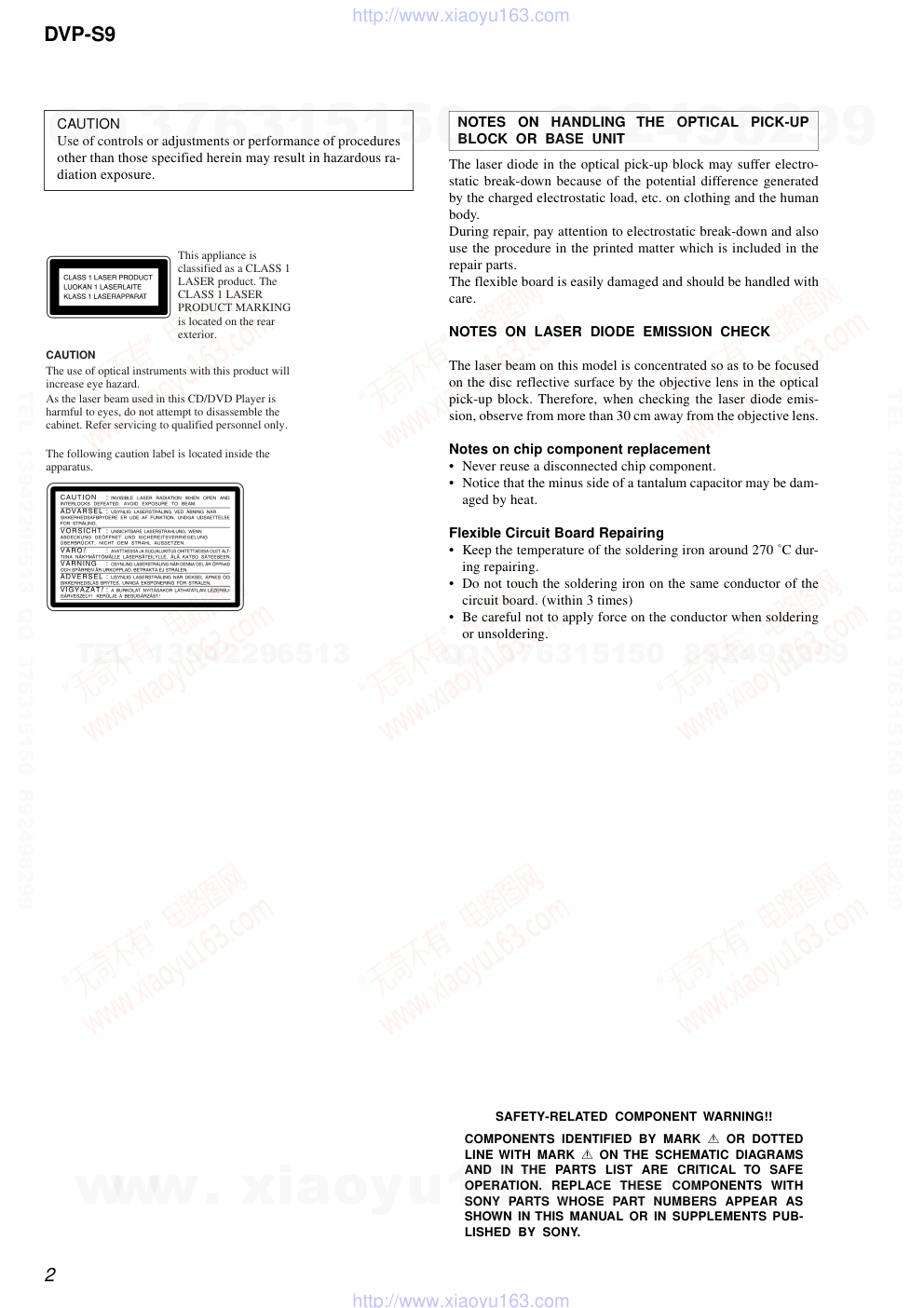

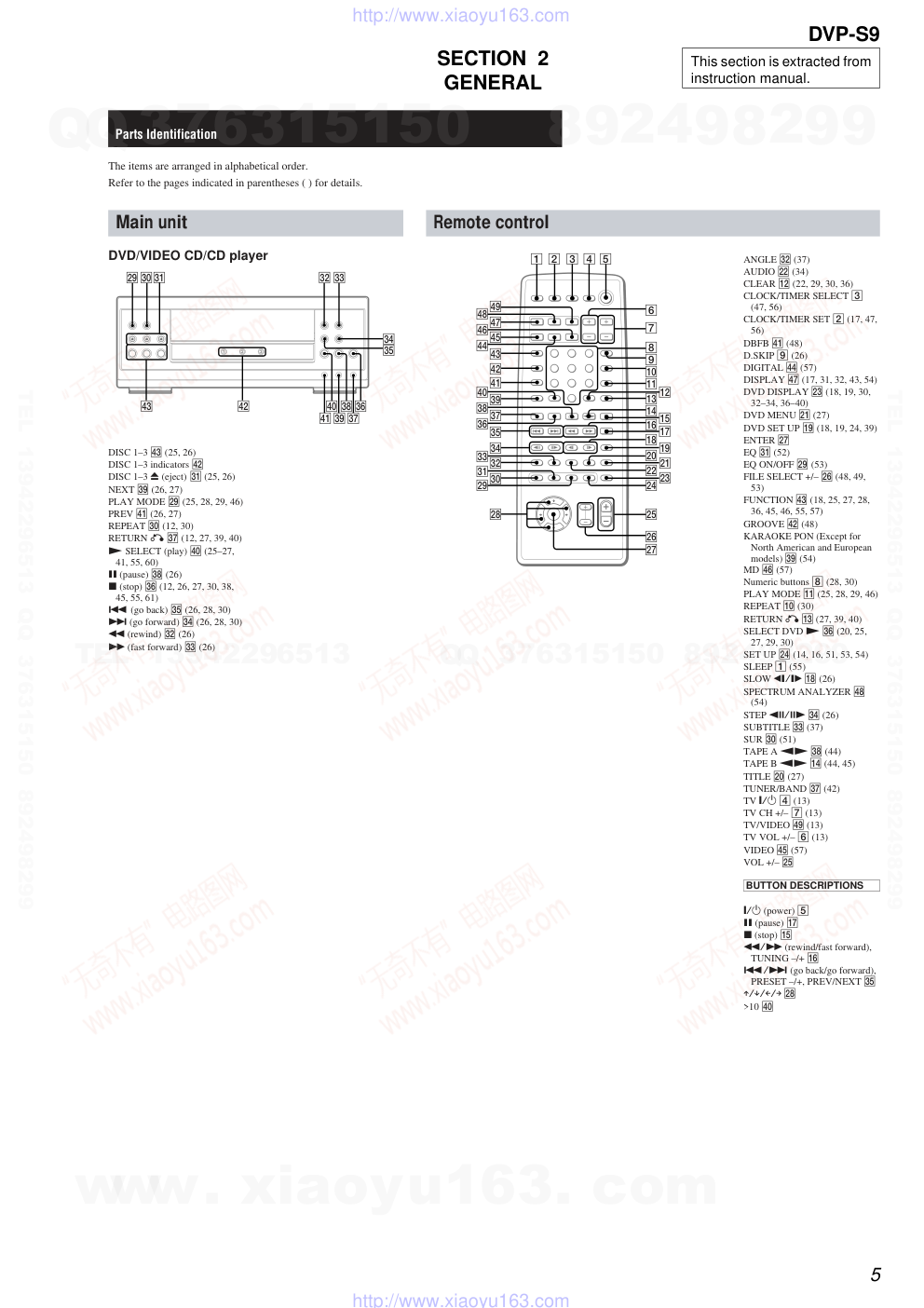

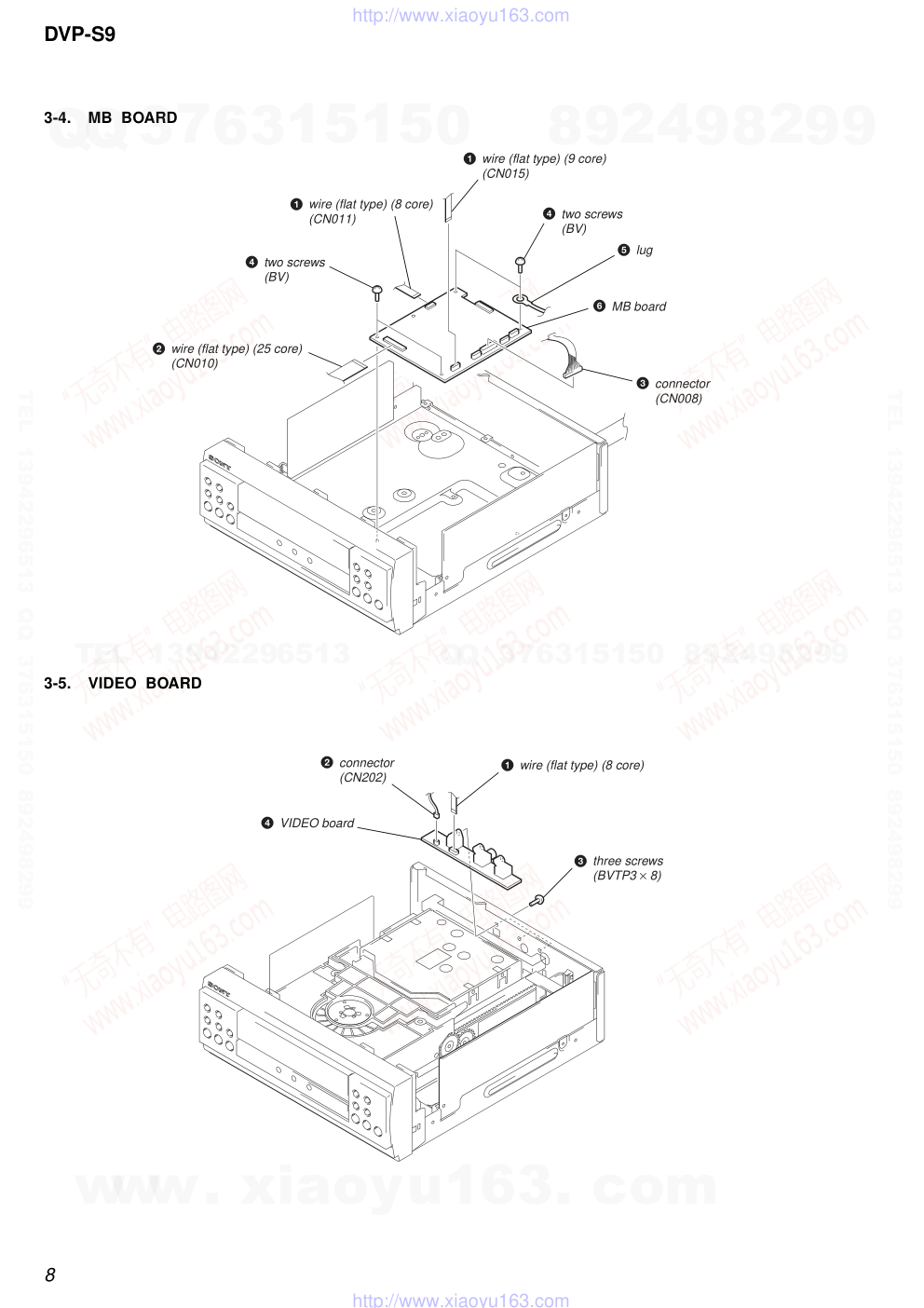

SERVICE MANUAL DVD/VIDEO CD/CD PLAYER AEP Model UK Model E Model Australian Model SPECIFICATIONS DVP-S9 Ver 1.5 2003.01 DVP-S9 is the DVD/Video CD/CD player section in MHC-S9D. Model Name Using Similar Mechanism NEW CD Mechanism Type CDM63D Optical Pick-up Name KHM-240AAA (TYPE A) KHM-270AAA (TYPE B) 9-873-280-06 Sony Corporation 2003A0500-1 Home Audio Company C 2003.01 Published by Sony Engineering Corporation General Power requirements European model: 230 V AC, 50/60 Hz Australian model: 230 – 240 V AC, 50/60 Hz Mexican model: 120 V AC, 60 Hz Korean model: 220 V AC, 60 Hz Thailand model: 220 V AC, 50/60 Hz Other models: 120 V, 220 V or 230 – 240 V AC, 50/60 Hz Dimensions (w/h/d) Approx. 280 x 108 x 330 mm Mass Approx. 2.9 kg Design and specifications are subject to change without notice. DVD/Video CD/CD player section Laser Semiconductor laser (λ=660 nm/780 nm) Emission duration: continuous Frequency response DVD (PCM 48 kHz): 2 Hz – 22 kHz = (±1 dB) CD: 2Hz – 20 kHz = (±1 dB) Signal-to-noise ratio More than 90 dB Dynamic range More than 90 dB Video color system format NTSC, PAL OPTICAL OUT (Square optical connector jack, rear panel) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 2 DVP-S9 SAFETY-RELATED COMPONENT WARNING!! COMPONENTS IDENTIFIED BY MARK 0 OR DOTTED LINE WITH MARK 0 ON THE SCHEMATIC DIAGRAMS AND IN THE PARTS LIST ARE CRITICAL TO SAFE OPERATION. REPLACE THESE COMPONENTS WITH SONY PARTS WHOSE PART NUMBERS APPEAR AS SHOWN IN THIS MANUAL OR IN SUPPLEMENTS PUB- LISHED BY SONY. The laser diode in the optical pick-up block may suffer electro- static break-down because of the potential difference generated by the charged electrostatic load, etc. on clothing and the human body. During repair, pay attention to electrostatic break-down and also use the procedure in the printed matter which is included in the repair parts. The flexible board is easily damaged and should be handled with care. NOTES ON LASER DIODE EMISSION CHECK The laser beam on this model is concentrated so as to be focused on the disc reflective surface by the objective lens in the optical pick-up block. Therefore, when checking the laser diode emis- sion, observe from more than 30 cm away from the objective lens. Notes on chip component replacement • Never reuse a disconnected chip component. • Notice that the minus side of a tantalum capacitor may be dam- aged by heat. Flexible Circuit Board Repairing • Keep the temperature of the soldering iron around 270 ˚C dur- ing repairing. • Do not touch the soldering iron on the same conductor of the circuit board. (within 3 times) • Be careful not to apply force on the conductor when soldering or unsoldering. NOTES ON HANDLING THE OPTICAL PICK-UP BLOCK OR BASE UNIT CAUTION Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous ra- diation exposure. This appliance is classified as a CLASS 1 LASER product. The CLASS 1 LASER PRODUCT MARKING is located on the rear exterior. CAUTION The use of optical instruments with this product will increase eye hazard. As the laser beam used in this CD/DVD Player is harmful to eyes, do not attempt to disassemble the cabinet. Refer servicing to qualified personnel only. The following caution label is located inside the apparatus. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 3 DVP-S9 TABLE OF CONTENTS 1. SERVICING NOTES ............................................... 4 2. GENERAL ................................................................... 5 3. DISASSEMBLY 3-1. Disassembly Flow ........................................................... 6 3-2. Cover ............................................................................... 7 3-3. CD Mechanism Deck (CDM63D) .................................. 7 3-4. MB Board ........................................................................ 8 3-5. VIDEO Board.................................................................. 8 3-6. MAIN Board ................................................................... 9 3-7. Front Panel Section ......................................................... 9 3-8. PANEL Board, SUB PANEL Board ............................... 10 3-9. Lid (CD) .......................................................................... 10 4. TEST MODE .............................................................. 11 5. ELECTRICAL ADJUSTMENTS......................... 12 6. DIAGRAMS 6-1. Block Diagram – RF/SERVO Section – ........................ 13 6-2. Block Diagram – MAIN Section (1/2) – ....................... 14 6-3. Block Diagram – MAIN Section (2/2) – ....................... 15 6-4. Block Diagram – INTERFACE CONTROL Section – ............................ 16 6-5. Note For Printed Wiring Boards and Schematic Diagrams ................................................ 17 6-6. Printed Wiring Board – RF Board – .............................. 18 6-7. Schematic Diagram – RF Board – ................................. 19 6-8. Printed Wiring Boards – DISC SENSOR/DRIVER/ IN OUT SW/MOTOR/TRAY SENSOR Boards – ......... 20 6-9. Schematic Diagram – DISC SENSOR/DRIVER/ IN OUT SW/MOTOR/TRAY SENSOR Boards – ......... 21 6-10. Printed Wiring Board – MB Board (Component Side) – ................................... 22 6-11. Printed Wiring Board – MB Board (Conductor Side) –..................................... 23 6-12. Schematic Diagram – MB Board (1/6) –....................... 24 6-13. Schematic Diagram – MB Board (2/6) –....................... 25 6-14. Schematic Diagram – MB Board (3/6) –....................... 26 6-15. Schematic Diagram – MB Board (4/6) –....................... 27 6-16. Schematic Diagram – MB Board (5/6) –....................... 28 6-17. Schematic Diagram – MB Board (6/6) –....................... 29 6-18. Printed Wiring Board – MAIN Board – ........................ 30 6-19. Schematic Diagram – MAIN Board – ........................... 31 6-20. Printed Wiring Boards – PANEL/SUB PANEL/VIDEO Boards – ..................... 32 6-21. Schematic Diagram – PANEL/SUB PANEL/VIDEO Boards – ..................... 33 6-22. IC Pin Function Description ........................................... 37 7. EXPLODED VIEWS 7-1. Case Section .................................................................... 47 7-2. Front Panel Section ......................................................... 48 7-3. Chassis Section ............................................................... 49 7-4. CD Mechanism Deck Section-1 (CDM63D) ................. 50 7-5. CD Mechanism Deck Section-2 (CDM63D) ................. 51 7-6. CD Mechanism Deck Section-3 (CDM63D) ................. 52 7-7. CD Mechanism Deck Section-4 (CDM63D) ................. 53 7-8. Optical Pick-up Section .................................................. 54 8. ELECTRICAL PARTS LIST ............................... 55 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 4 DVP-S9 SECTION 1 SERVICING NOTES This set is a component of the MHC-S9D. The MHC-S9D system configuration is as shown below, and there- fore it does not operate normally unless all four components are connected. In performing the repair, connect all components with the system cables. Note: The precaution to the users is described on the label stuck on the back panel (DVD/video CD/CD player) and in the troubleshooting section in the Operation Manual. System Configuration: POWER SUPPLY AC IN TA MASTER & GRAPHIC µcon ST TC µcon TC DISPLAY HTC & MB µcon DVP POWER BLOCK MODEL IDENTIFICATION - Back Panel - Model PART No. AEP model 4-236-808-0[] UK model 4-236-808-1[] Korean model 4-236-808-3[] Singapore model 4-236-808-4[] Saudi Arabia model 4-236-808-5[] Austrarian model 4-236-808-6[] Thai model 4-236-808-7[] E model 4-236-808-8[] Mexican model 4-236-808-9[] TYPE A/B DISCRIMINATION PART No. VIDEO board RF board optical pick-up block MB board Connect jig (extension cable J-2501-199-A) to the MB board (CN010) and RF board (CN002). Connect jig (extension cable J-2501-155-A) to the MB board (CN015) and optical pick-up block. Connect jig (extension cable J-2501-202-A) to the MB board (CN012) and VIDEO board (CN201). SERVICE POSITION In checking the CD block and another board, prepare jigs (extension cable J-2501-155-A: 300 mm 9 cores, J-2501-199-A: 300 mm 25 cores, J-2501-202-A: 300 mm 8 cores). Ver 1.5 SILVER: KHM-240AAA (TYPE A) BLACK: KHM-270AAA (TYPE B) optical device www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 5 DVP-S9 SECTION 2 GENERAL This section is extracted from instruction manual. Parts Identification Main unit The items are arranged in alphabetical order. Refer to the pages indicated in parentheses ( ) for details. DISC 1–3 rd (25, 26) DISC 1–3 indicators rs DISC 1–3 Z (eject) ea (25, 26) NEXT el (26, 27) PLAY MODE wl (25, 28, 29, 46) PREV ra (26, 27) REPEAT e; (12, 30) RETURN O ej (12, 27, 39, 40) N SELECT (play) r; (25–27, 41, 55, 60) X (pause) ek (26) x (stop) eh (12, 26, 27, 30, 38, 45, 55, 61) . (go back) eg (26, 28, 30) > (go forward) ef (26, 28, 30) m (rewind) es (26) M (fast forward) ed (26) DVD/VIDEO CD/CD player m M . H S x > 1 2 3 wle;ea es ed ef eg ej el ra eh ek r; rs rd Remote control ANGLE es (37) AUDIO ws (34) CLEAR qs (22, 29, 30, 36) CLOCK/TIMER SELECT 3 (47, 56) CLOCK/TIMER SET 2 (17, 47, 56) DBFB ra (48) D.SKIP 9 (26) DIGITAL rf (57) DISPLAY rj (17, 31, 32, 43, 54) DVD DISPLAY wd (18, 19, 30, 32–34, 36–40) DVD MENU wa (27) DVD SET UP ql (18, 19, 24, 39) ENTER wj EQ ea (52) EQ ON/OFF wl (53) FILE SELECT +/– wh (48, 49, 53) FUNCTION rd (18, 25, 27, 28, 36, 45, 46, 55, 57) GROOVE rs (48) KARAOKE PON (Except for North American and European models) el (54) MD rh (57) Numeric buttons 8 (28, 30) PLAY MODE qa (25, 28, 29, 46) REPEAT q; (30) RETURN O qd (27, 39, 40) SELECT DVD N eh (20, 25, 27, 29, 30) SET UP wf (14, 16, 51, 53, 54) SLEEP 1 (55) SLOW t/T qk (26) SPECTRUM ANALYZER rk (54) STEP c/C ef (26) SUBTITLE ed (37) SUR e; (51) TAPE A nN ek (44) TAPE B nN qf (44, 45) TITLE w; (27) TUNER/BAND ej (42) TV @/1 4 (13) TV CH +/– 7 (13) TV/VIDEO rl (13) TV VOL +/– 6 (13) VIDEO rg (57) VOL +/– wg x M m > . nN O X T t C c V v B b 1 2 3 4 5 e; es ef ej eg 6 7 9 8 q; qa qdqs qfqg qj qh qkql wa wd ws wf w; wg wj wh wk ed wl ea eh el rs ra rd ek r; rg rj rl rf rh rk BUTTON DESCRIPTIONS @/1 (power) 5 X (pause) qj x (stop) qg m/M (rewind/fast forward), TUNING –/+ qh ./> (go back/go forward), PRESET –/+, PREV/NEXT eg O/o/P/p wk >10 r; www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 6 • This set can be disassembled in the order shown below. 3-1. DISASSEMBLY FLOW SECTION 3 DISASSEMBLY 3-2. COVER (Page 7) 3-3. CD MECHANISM DECK (CDM63D) (Page 7) 3-4. MB BOARD (Page 8) 3-8. PANEL BOARD, SUB PANEL BOARD (Page 10) 3-9. LID (CD) (Page 10) 3-7. FRONT PANEL SECTION (Page 9) 3-6. MAIN BOARD (Page 9) 3-5. VIDEO BOARD (Page 8) SET www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 7 3-3. CD MECHANISM DECK (CDM63D) Note: Follow the disassembly procedure in the numerical order given. 3-2. COVER 1 two screws (case 3 TP2) 3 cover 2 screw (BVTT3 × 6) 1 two screws (case 3 TP2) 3 four screws (BVTP3 × 8) 2 connector (CN701) 4 CD mechanism deck (CDM63D) 5 wire (flat type) (25 core) (CN010) 1 wire (flat type) (9 core) (CN015) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 8 3-5. VIDEO BOARD 3-4. MB BOARD 3 connector (CN008) 6 MB board 5 lug 4 two screws (BV) 1 wire (flat type) (8 core) (CN011) 4 two screws (BV) 2 wire (flat type) (25 core) (CN010) 1 wire (flat type) (9 core) (CN015) 3 three screws (BVTP3 × 8) 1 wire (flat type) (8 core) 2 connector (CN202) 4 VIDEO board www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 9 3-6. MAIN BOARD 3-7. FRONT PANEL SECTION 2 connector (CN401) 1 wire (flat type) (10 core) (CN107) 3 two connectors (CN101, 102) 9 MAIN board 7 screw (BVTP3 × 8) 5 screw (BVTP3 × 8) 6 lug 4 connector (CN701) 8 screw (BVTP3 × 8) 2 three screws (BVTP3 × 8) 3 two claws 1 connector (CN401) 4 front panel section 3 claw www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 10 3-9. LID (CD) 3-8. PANEL BOARD, SUB PANEL BOARD 5 two claws 4 four screws (BVTP2.6 × 8) 6 SUB PANEL board 1 five screws (BVTP2.6 × 8) 3 PANEL board 2 two claws 3 lid (CD) 4 spring (CD) 1 screw (BVTP2.6 × 8) 2 bracket (LID) assy www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 11 DVP-S9 SECTION 4 TEST MODE Note: Use following buttons in the test mode. no mark : Button of DVD/video CD/CD player (DVP-S9) *1 : Button of A/V amplifier (TA-S9D) *2 : Button of tuner (ST-S9) [Change-over the Color System] • The color system can be changed over NTSC or PAL. Procedure: 1. Press the I/1 *1 button to turn the power on. 2. Turn the [FUNCTION]*1 knob to select “DVD”, and press the x button. 3. While pressing the both [RETURN] and [REPEAT] buttons, turn the power off. 4. Press the I/1 *1 button to turn the power on. The color sys- tem is changed over. [Cold Reset] • The cold reset clears all data including preset data stored in the RAM to initial conditions. Execute this mode when returning the set to the customer. Procedure 1: 1. Press the I/1 *1 button to turn the power on. 2. While pressing the both [PLAY MODE] and x buttons, press the M button. 3. The set is reset, and becomes standby state. Procedure 2: 1. Press the I/1 *1 button to turn the power on. 2. While pressing the [DIGITAL]*1 button, press the [DISPLAY]*2 button. 3. The set is reset, and becomes standby state. [DVD Delivery Mode] • This mode moves the optical pick-up to the position durable to vibration. Use this mode when returning the set to the customer after repair. Procedure: 1. Press the I/1 *1 button to turn the power on. 2. Turn the [FUNCTION]*1 knob to select “DVD”. 3. While pressing the [EQ ON/OFF]*1 button, press the I/1 *1 button. 4. The message “LOCK” is displayed on the fluorescent indica- tor tube of tuner unit and turn the power off automatically, and the DVD delivery mode is set. [GC Test Mode] Enter the GC Test Mode Procedure 1: 1. Press the I/1 *1 button to turn the power on. 2. While pressing the both [PLAY MODE] and x buttons, press the Z (DISC 1) button. 3. LEDs and fluorescent indicator tube are all turned on of all units. Procedure 2: 1. Press the I/1 *1 button to turn the power on. 2. While pressing the both [STEREO/MONO]*2 and [CINEMA STUDIO C]*1 buttons, press the [CLOCK/TIMER]*2 button. 3. LEDs and fluorescent indicator tube are all turned on of all units. Version Display Mode Procedure: 1. Enter the GC test mode. 2. Each time the [DISC 1] or [TUNER MEMORY]*2 button is pressed, microcomputer or mechanism deck version is dis- played of each unit. 3. Press the [DISC 3] or [TUNING +]*2 button to detail is dis- played the version. Key Check Mode Procedure: 1. Enter the GC test mode. 2. Press the [DISC 2] or [TUNING --]*2 button to set the key check mode, and displays “K 0 J 0 V 0” on the fluorescent indicator tube of tuner unit. 3. All buttons are pressed of video CD unit, all LEDs are blink- ing of video CD unit. (not change the display of fluorescent indicator tube) Releasing the GC Test Mode To release from this mode, press three buttons in the same manner as entering this mode or disconnect the power cord. [DVD Service Mode] • This mode can run the DVD sled motor optionally. Use this mode, for instance, when cleaning the optical pick-up. Procedure: 1. Press the I/1 *1 button to turn the power on. 2. Turn the [FUNCTION]*1 knob to select “DVD”. 3. While pressing the both [PLAY MODE] and x buttons, press the . button. 4. Set to the DVD service mode. 5. With the DVD in stop status, press the M button to move the optical pick-up to outside track, or press the m button to inside track. 6. To release from this mode, perform as follows. 1) Move the optical pick-up to the most inside track. 2) Disconnect the power cord. Notes: • Always move the optical pick-up to most inside track when releasing from this mode. Otherwise, a disc will not be un- loaded. • Do not run the sled motor excessively, otherwise the gear can be chipped. [DVD Cancellation Mode of Repeat Limitation] • This mode can cancel the DVD repeat limitation (5 times). Procedure: 1. Press the I/1 *1 button to turn the power on. 2. Turn the [FUNCTION]*1 knob to select “DVD”. 3. While pressing the both [PLAY MODE] and x buttons, press the [REPEAT] button. 4. DVD repeat limitation is canceled. 5. To release this mode, disconnect the power cord. [DVD Disc Tray Lock Mode for Burglary Prevention] Procedure: 1. Press the I/1 *1 button to turn the power on. 2. Turn the [FUNCTION]*1 knob to select “DVD”. 3. While pressing the both [PLAY MODE] and x buttons, press the m button, turn the power off. www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 12 DVP-S9 Procedure: 1. Press the I/1 button to turn the power on, and turn the [FUNCTION] knob to select “DVD” of A/V amplifier (TA- S9D). 2. Confirm that the S-Y level is 1.0 ± 0.05 Vp-p. Figure 5-2 SECTION 5 ELECTRICAL ADJUSTMENTS Checking S Video Output S-C This checks whether the S-C satisfies the NTSC Standard. If it is not correct, the colors will be too dark or light. Signal Color bars Test point S VIDEO OUT (S-C) jack (75 Ω terminated) Instrument Oscilloscope Specified Value 286 ± 30 mVp-p (NTSC) 300 ± 100 mVp-p (PAL) Procedure: 1. Press the I/1 button to turn the power on, and turn the [FUNCTION] knob to select “DVD” of A/V amplifier (TA- S9D). 2. Confirm that the S-C burst is 286 ± 30 mVp-p (NTSC) or 300 ± 100 mVp-p (PAL). Figure 5-3 Adjustment Location : Note: During diagnostic check, the characters and color bars can be seen only with the NTSC monitor. Therefore, for diagnostic check, use the monitor that supports both NTSC and PAL modes Instruments required: 1) Color monitor TV 2) Oscilloscope 1 or 2 phenomena, band width over 100 MHz, with delay mode 3) DVD reference disc HLX-501 (J-6090-071-A) (dual layer) (NTSC) HLX-503 (J-6090-069-A) (single layer) (NTSC) HLX-504 (J-6090-088-A) (single layer) (NTSC) HLX-505 (J-6090-089-A) (dual layer) (NTSC) HLX-506 (J-6090-077-A) (single layer) (PAL) HLX-507 (J-6090-078-A) (dual layer) (PAL) Video Level Adjustment This adjustment is made to satisfy the NTSC/PAL standard, and if not adjusted correctly, the brightness will be too large or small. Signal Color bars Test point VIDEO OUT jack (75 Ω terminated) Instrument Oscilloscope Adjusting element RV501 (MB board) Specified Value 1.0 + 0.04 Vp-p – 0.02 Procedure: 1. Press the I/1 button to turn the power on, and turn the [FUNCTION] knob to select “DVD” of A/V amplifier (TA- S9D). 2. Adjust the RV501 on the MB board to attain 1.0 + 0.04 Vp-p. – 0.02 Figure 5-1 Checking S Video Output S-Y Check S-terminal video output. If it is incorrect, pictures will not be displayed correctly in spite of connection to the TV with a S- terminal cable. Signal Color bars Test point S VIDEO OUT (S-Y) jack (75 Ω terminated) Instrument Oscilloscope Specified Value 1.0 ± 0.05 Vp-p 1.0 + 0.04 Vp-p – 0.02 1.0 ± 0.05 Vp-p 286 ± 50 mVp-p (NTSC) or 300 ± 100 mVp-p (PAL) IC202 IC103 IC503 IC302 RV501 Video Level Adjustment – MB Board (Component Side) – www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 13 13 SPINDLE MOTOR DRIVE 2 64 63 61 62 55 54 56 57 59 14 13 12 11 7 8 9 10 15 16 17 18 19 26 21 22 DVD/CD DETECTOR DVD/CD LASER DIODE MODULE AUTOMATIC POWER CONTROL (FOR CD) Q002 25 AUTOMATIC POWER CONTROL (FOR DVD) Q001 DVD/CD RF AMP, FOCUS/TRACKING ERROR AMP IC001 42 37 36 35 34 27 28 32 31 30 7 10 29 20 22 39 13 40 48 1 3 4 FOCUS COIL TRACKING COIL FOCUS/TRACKING COIL DRIVE, SPINDLE/SLED MOTOR DRIVE IC401 2-AXIS DEVICE 42 41 40 36 35 45 46 47 48 38 44 27 39 33 37 136 135 137 173 174 175 180 185 184 172 197 + – 46 47 TRACKING COIL DRIVE FOCUS COIL DRIVE 19 5 45 21 198 199 7 159 161 204 205 202 203 139 140 167 SLED MOTOR DRIVE 24 TSD-M POWER SAVE 168 OPTICAL PICK-UP BLOCK (KHM-240AAA) (TYPE A) (KHM-270AAA) (TYPE B) (SPINDLE) M (SLED) M SERVO DIGITAL SIGNAL PROCESSOR IC302 (1/2) 156 24 22 RF A B C D E F G H VC DVD LD CD LD PD SW INLIM FCS– FCS+ TRK– TRK+ SPM– SPM+ SLA– SLA+ SLB– SLB+ RF IN A B C D A2 B2 C2 D2 E F G H VC CDLD DVDPD CDPD DVDLD LDSELO ATOP ATON FNP FNN AIP AIN DIP DIN SIGO FE TE TZIN PI PII SRD SWD SCLK SDEN DFT MON LDON VCI MIRR TZC 196 INLIMIT SENSOR 166 ADC1 ADC0 ADC2 GIO6/SDI GIO7/SDO GIO8/SCK GIO13 DFCTI ADC7 GIO5/PGIN MIRR PWM0 PWM1 MDSO MDPO PDM2 PDM3 PDM0 PDM1 ADC3 ADC4 GIO1/INT3 GIO2/INT4 TZC GIO0/INT2 XDSPRST HCS HINT A RF+ C XRST B XLDON XSDPIT, XSDPCS, XDRVMUTE XSDPIT XLDON XSDPCS XDRVMUTE • SIGNAL PATH : DVD PLAY : CD PLAY D+3.3V (Page 14) (Page 14) (Page 15) SECTION 6 DIAGRAMS 6-1. BLOCK DIAGRAM – RF/SERVO Section – • Refer to servicing notes (page 4) for discrimination of TYPE A/B. Ver 1.5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 14 14 131 128 68 41 7 74 80 44 – 51, 53 – 60 73 – 76, 78 – 81 31 – 34, 36 – 39 2 – 5, 7 – 10, 41 – 44, 46 – 49 21 – 24, 27 – 32 27 – 36 17 33 18 34 35 38 42 41 39 MEMD0 – MEMD15 MEMA0 – MEMA9 D-RAM IC303 ARP IC302 (2/2) A 182 D E F 187 189 69 44 70 46 71 45 72 43 195 118 193 119 194 120 192 121 191 122 220 221 224 231 190 191 223 21 23 25 207 208 62 23 63 25 65 26 66 22 11 – 15, 17 – 19 2 – 9 (FOR JTAG) 36 71 67 62 17 84 35 34 14 36 15 16 17 18 144 226 227 228 229 149 146 155 154 152 151 147 20 VIDEO LEVEL RV501 16MB SDRAM IC504 2, 3, 5, 6, 8, 9, 11, 12, 39, 40, 42, 43, 45, 46, 48 ,49 223 – 235, 237 – 240, 2 – 5, 7 – 10 102 – 109, 111 – 118, 120, 1 – 5 218 – 215, 213 – 210, 208 – 205, 203 – 200, 198 – 195, 193, 192 21 – 24, 27 – 32, 20, 19 35 34 14 36 15 16 17 18 143 16MB SDRAM IC505 2, 3, 5, 6, 8, 9, 11, 12, 39, 40, 42, 43, 45, 46, 48 ,49 21 – 24, 27 – 32, 20, 19 J K DATA BUS G ADDRESS BUS DATA BUS ADDRESS BUS H I C 35 16 61 60 70 177, 174, 171, 168, 165, 163, 160, 158, 157, 159, 162, 164, 167, 170, 173, 176 134, 131, 128, 125, 124, 127, 130, 133, 136, 139, 137, 140 SDRAM DATA BUS SDRAM ADDRESS BUS 157 A0 – A9 I/O0 – I/O15 MA0 – MA9 MD0 –MD15 SD0 – SD7 DTI0 – DTI7 WE OE RAS UCAS LCAS RFIN1 RFIN2 XMWR XOE XRAS XCAS CLKIN MCKI SCKI XARPRST SDCK XSHD XSRQ XSAK SDEF TDO TDI TCK TMS TRST XINT XCS XWAT XWRH XRD DATA BCLK LRCK DOUT A0 – A7 D0 – D7 29 12 27MAVD 33MAVD 512FSAVD 31, 33, 35, 38, 40, 42, 44, 30, 32, 34, 36, 39, 41, 43, 45 25, 24 – 18, 8 – 1, 48, 17, 16, 9, 10 11 26 58 28 ICLKI ISTARTI IREQO IVALI IERRI TDI TDO TCK TMS TRST CDIN1I CDBCKI CDLRKI CDIN2I CLKI SCLKI CRPCLKI ACLK COUT YOUT COMPOUT HAD23 HAD22 HIREQ0 VREFI DO HCSB HRWB HWAITOB RSTB AV DECODER IC503 DQ0 – DQ15 SDDQ0 – SDDQ15 HD0 – HD15 HAD0 – HAD21 DQ0 – DQ15 HD0 – HD15 HD0 – HD15 HA0 – HA21 HD0 – HD15 HD0 – HD15 HA0 – HA21 HA1 – HA21 HA0 – HA21 A0 – A20 SDAD0 – SDAD11 A0 – A11 CLK CKE DQML DQMU WE CAS RAS CS CLK CKE DQML DQMU WE CAS RAS CLK CKE DQML DQMU WE CAS RAS DQ0 – DQ15 A0 – A11 CLK CKE DQML DQMU WE CAS RAS CS CLK CKE DQML DQMU WE CAS RAS SDCS0B SDCLKO SDCKEO SDDQM0 SDDQM1 SDWEOB SDCKCOB SDRASOB SDCS1B DM ACK1 DM REQ1 DM ACK0 DM REQ0 DACK0 DREQ0 DACK1 DREQ1 DACK0 DREQ0 DACK1 DREQ1 49 50 46 47 FLASH MEMORY IC107 85 – 100 WE CE OE SOI0 –SOI7 C Y V RF+ TRST 33MARP HA0 – HA3, HA19 HD8 – HD11 XRD, XWRH XWRH XRD XRST XRST 33MARP, 33MAVD, 27MAVD, 512FSAVD XARPRST XWRH XWAIT CS4X INT1 XRST INT0 CS3X CS2X XRD CS0X DREQ1 DACK1 DREQ0 DACK0 SYSTEM CONTROLLER IC103 (1/2) 5 6 7 38 39 7 EEPROM IC101 SDA SCL WP SDA SCL WP HD8 – HD15 HA0 – HA7 V, Y, C SPDIF (Page 13) (Page 15) (Page 15) (Page 15) (Page 15) (Page 15) (Page 15) (Page 13) 180 182 • SIGNAL PATH : DVD PLAY : CD PLAY : DVD/CD PLAY (VIDEO) : DVD/CD PLAY (AUDIO) : DVD/CD PLAY (DIGITAL OUT) (Page 15) (Page 15) 6-2. BLOCK DIAGRAM – MAIN Section (1/2) – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 15 15 10 9 13 12 15 7 4 2 82 8 15 13 3 10 7 14 81 53 54 14 1 2 1 3 4 VIDEO BUFFER IC701 J K E B G I H F OPTICAL TRANSMITTER IC201 J202 J201 VIDEO OUT S VIDEO OUT OPTICAL OUT TO ST-S9 CLOCK GENERATOR IC102 VIDEO SWITCH Q711, 712 X102 27MHz D+5V B+ 26 25 27 51 20 83 76 32 1 2 TXD RXD (FOR TEST) 31 84 CN103 X101 16.5MHz 18 63 48 77 65 19 8 48 11 28 29 10 9 33 32 12 GATE ARRAY IC202 M M721 (LOADING) LOADING MOTOR DRIVE IC701 18 – 15 36 – 34 5 – 1 HD8 – HD11 HA0 – HA3, HA19 DATA BUS ADDRESS BUS SUB TRAY1 – 3 HEIGHT SENSOR IC731 – 733 S741 (IN) ON: WHEN SUB TRAY SLIDES OUT OF THE CHUCKING POSITION S742 (OUT) ON: WHEN SUB TRAY IS CHUCKING POSITION 27 DISC IN DETECT IC751 Q701 L D M • SIGNAL PATH : DVD/CD PLAY (VIDEO) : DVD/CD PLAY (DIGITAL OUT) V, Y, C SPDIF TRST HD8 – HD11 HA0 – HA3, HA19 XRD, XWRH XRST XLDON, XSDPIT, XSDPCS XDRVMUTE SYSTEM CONTROLLER IC103 (2/2) XLDON XSDPIT XSDPCS XDRVMUTE V Y C INC INB INA MUTE OUTC1 OUTC2 OUTB1 OUTB2 OUTA1 OUTA2 33-1OUT 33-2OUT 27-1OUT 512-1OUT XTO XTI FSEL 33MARP 33MAVD 27MAVD 512FSAVD X1 X0 XLDON INT2 CS5X XDRVMUTE WIDE 48/44.1k SO0 SI0 SC0 XIFCS INT4 MAMUTE XFRST SO2 SI2 CPUCK CS6X INT3 CK CS5 RDN WRN XRD XWRH XRST INT D0 – D3 TSW1 – TSW3 SHA0 – SHA3. SHA19 CKMM CKMP TRMP TRMM DSW1 1 3 2 4 6 5 12 11 13 IC106 (2/3) IC106 (1/3) IC106 (3/3) VMUTE 33MARP, 33MAVD, 27MAVD, 512FSAVD IFSO0, IFSI0, IFSC0, XIFCS, XIFINT, XIFOK, XFRRST IFSO0 IFSI0 IFSC0 XIFCS XIFINT XIFOK XFRRST (Page 14) (Page 14) (Page 14) (Page 13) (Page 14) (Page 14) (Page 14) (Page 14) (Page 16) (Page 14) (Page 16) 6-3. BLOCK DIAGRAM – MAIN Section (2/2) – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 16 16 36 85 40 35 37 19 42 43 M L 84 87 86 94 55 53 59 89 90 91 30 29 12 48 44 97 S701 – 708 95 13 15 S711 – 720 D701 – 705 65 – 83, 88 X401 16MHz INTERFACE CONTROLLER IC401 CN102 CN103 CN101 POWER BLOCK D+5V (LED) B+ EVER+5V INTERFACE CONTROLLER (IC401) B+ D+5V RF SECTION, GATE ARRAY (IC202), MOTOR/COIL DRIVE (IC401), SERVO DSP (IC503), VIDEO BUFFER (IC701) B+ +3.3V SERVO DSP (IC302) B+ +3.3V AV DECODER (IC503) B+ +3.3V REGULATOR IC301 +3.3V REGULATOR IC502 D+3.3V EEPROM (IC101), CLOCK GENERATOR (IC102), SYSTEM CONTROLLER (IC103), FLASH MEMORY (IC107), GATE ARRAY (IC202), D-RAM (IC303), SDRAM (IC504, 505) B+ +1.8V SERVO DSP (IC302), AV DECODER (IC503) B+ +1.8V AV DECODER (IC503) B+ +1.8V REGULATOR IC006 M+7V MOTOR DRIVE (IC701) B+ M+12V MOTOR/COIL DRIVE (IC401) B+ +7V REGULATOR IC501 +1.8V REGULATOR IC501 IFSO0, IFSI0, IFSC0, XVIFCS, XIFINT, XIFOK, XFRRST VMUTE SYS DATAIN SYS RST SYS DATAOUT SYS CLK SYS CS SYS RQ SYS OK IFSO0 XFRRST IFSI0 IFSC0 XVIFCS XIFINT XIFOK KEY0 KEY0 LED DISC1 ı LED DISC3 LED PLAY LED PAUSE X-OUT X-IN EXP-OUT DATA EXP-IN DATA EXP-CLK EXP-LAT KEY2 A-TRIG B-TRIG REC/PB/PAS A-SHUT B-SHUT B-HALF IIC DATA IIC CLK RESET VMUTE P-CONT 10 9 8 7 6 4 5 11 12 13 14 3 7 2 1 4 3 8 9 5 DATA-OUT DATA-IN CLK LAT KEY2 ATRIG BTRIG REC/PB/PAS ASHUT BSHUT BHALF UNREG UNREG (TC) I2C-DATA I2C-CLK MRESET V-MUTE AC AC EVER+5V SYSTEM CONTROL 5 FROM TC-S9 SYSTEM CONTROL 3 FROM ST-S9 AC IN TO TA-S9D +5V +3.3V M+12V +12V P. CONT +5V REGULATOR IC502 D513 D512 D514 RECT D501 – 504 (Page 15) (Page 15) 6-4. BLOCK DIAGRAM – INTERFACE CONTROL Section – w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 17 17 6-5. NOTE FOR PRINTED WIRING BOARDS AND SCHEMATIC DIAGRAMS Note on Printed Wiring Board: • X : parts extracted from the component side. • Y : parts extracted from the conductor side. • f : internal component. • : Pattern from the side which enables seeing. Caution: Pattern face side: Parts on the pattern face side seen from (Conductor Side) the pattern face are indicated. Parts face side: Parts on the parts face side seen from (Component Side) the parts face are indicated. • MB board is multi-layer board. However, the patterns of intermediate-layer not been included in diagram. Note on Schematic Diagram: • All capacitors are in µF unless otherwise noted. pF: µµF 50 WV or less are not indicated except for electrolytics and tantalums. • All resistors are in Ω and 1/4 W or less unless otherwise specified. • f : internal component. • C : panel designation. • A : B+ Line. • H : adjustment for repair. • Voltages and waveforms are dc with respect to ground under no-signal conditions. no mark : DVD PLAY ( ) : CD PLAY • Voltages are taken with a VOM (Input impedance 10 MΩ). Voltage variations may be noted due to normal produc- tion tolerances. • Waveforms are taken with a oscilloscope. Voltage variations may be noted due to normal produc- tion tolerances. • Circled numbers refer to waveforms. • Signal path. c : DVD PLAY J : CD PLAY L : DVD/CD PLAY (VIDEO OUT) F : DVD/CD PLAY (AUDIO OUT) I : DVD/CD PLAY (DIGITAL OUT) • Abbreviation AUS : Australian model EA : Saudi Arabia model KR : Korean model MX : Mexican model SP : Singapore model TH : Thai model • Refer to servicing notes (page 4) for discrimination of TYPE A/B. Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. • Circuit Boards Location MAIN board VIDEO board MB board PANEL board SUB PANEL board DISC SENSOR board RF board IN OUT SW board MOTOR board DRIVER board TRAY SENSOR board Ver 1.5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 18 18 Q002 C023 L002 CN002 C039 R045 C043 C031 C038 C034 C035 C036 C009 R037 C048 R008 R005 R002 C001 Q001 R010 R020 R011 R007 R025 C044 R023 R029 C021 C017 D001 D004 C024 C002 L001 R038 C033 C018 C026 C032 R006 C028 R003 C006 C005 C019 C008 C040 C016 IC001 CN001 C022 R009 C015 C025 C046 C047 C027 C007 1 16 48 33 17 32 64 49 1-682-815- 11 (11) RF BOARD (CONDUCTOR SIDE) E E RF BOARD (COMPONENT SIDE) B C B C 26 1 MB BOARD CN010 A MB BOARD CN015 B 1-682-815- 11 (11) 1 2 3 4 5 6 7 8 9 10 11 12 13 14 A B C D E F G H OPTICAL PICK-UP BLOCK (KHM-240AAA) (TYPE A) (KHM-270AAA) (TYPE B) 6-6. PRINTED WIRING BOARD – RF Board – • See page 17 for Circuit Boards Location. • Refer to servicing notes (page 4) for discrimination of TYPE A/B. • Semiconductor Location Ref. No. Location D001 B-5 D004 B-4 IC001 E-4 Q001 C-5 Q002 C-3 (Page 22) (Page 22) Ver 1.5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 19 19 OPTICAL PICK-UP BLOCK (KHM-240AAA) (TYPE A) (KHM-270AAA) (TYPE B) 6-7. SCHEMATIC DIAGRAM – RF Board – • See page 34 for Waveforms. • Refer to servicing notes (page 4) for discrimination of TYPE A/B. Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. (Page 24) (Page 24) Ver 1.5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 20 20 MB BOARD CN203 1 5 C C B A B C D E 1 2 3 4 5 6 7 8 6-8. PRINTED WIRING BOARDS – DISC SENSOR/DRIVER/IN OUT SW/MOTOR/TRAY SENSOR Boards – • See page 17 for Circuit Boards Location. • Semiconductor Location Ref. No. Location IC701 D-8 IC731 A-1 IC732 A-2 IC733 A-4 IC751 E-5 Q701 B-8 (Page 22) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 21 21 C MB BOARD (6/6) CN203 IC731 SUB TRAY1 HEIGHT SENSOR IC732 SUB TRAY2 HEIGHT SENSOR IC733 SUB TRAY3 HEIGHT SENSOR IC751 DISC IN DETECT RPI-321 RPI-321 RPI-321 6-9. SCHEMATIC DIAGRAM – DISC SENSOR/DRIVER/IN OUT SW/MOTOR/TRAY SENSOR Boards – • See page 36 for IC Block Diagram. (Page 29) Ver 1.2 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 22 22 C306 C307 C309 C310 C311 C312 C313 C315 C317 C112 R185 R165 R164 R186 R137 R125 R719 R107 R525 R522 R518 C521 C529 CN203 IC202 RV501 IC006 C004 C006 C512 C005 C501 X101 C110 CN010 CN012 R508 R509 R510 C320 C104 C744 C742 C701 C766 C765 C764 R182 R179 R739 R740 C105 C106 C107 C108 C111 R174 R170 R206 R207 R203 C319 R140 C743 C745 R105 R106 FB714 R111 R114 R121 C324 R129 R133 R143 IC503 CN008 CN101 IC103 CN404 (FOR TEST) CN103 (FOR TEST) R425 C506 IC302 C345 C331 C502 C419 C352 C304 R330 L701 C505 R301 R302 R304 R313 R314 R315 R316 R317 R319 C422 C420 R327 R328 R334 R336 R337 R338 R341 R342 R343 R345 R349 R352 R356 R368 R384 R385 R412 R413 R415 R417 R419 R432 R433 R439 C418 C416 C414 C406 C405 C404 C403 C401 C351 C349 C348 C347 C340 C339 C336 R332 CN015 X102 R414 1 3 1 5 10 9 1 5 DRIVER BOARD CN701 VIDEO BOARD CN201 105 104 156 157 208 1 53 52 61 60 1 121 180 120 240 181 120 91 31 60 1 30 90 61 37 36 25 48 24 13 1 MB BOARD (COMPONENT SIDE) 1-682-900- 11 (11) A RF BOARD CN002 B OPTICAL PICK-UP BLOCK E MAIN BOARD CN107 D MAIN BOARD NO106 C F 1 2 3 4 5 6 7 8 9 10 11 A B C D E F G H I J 6-10. PRINTED WIRING BOARD – MB Board (Component Side) – • See page 17 for Circuit Boards Location. • Semiconductor Location Ref. No. Location IC006 H-5 IC103 H-10 IC202 F-10 IC302 E-5 IC503 H-7 (Page 18) (Page 32) (Page 20) (Page 18) (Page 30) (Page 30) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 23 23 R166 R299 C305 R077 C318 C116 R187 C114 C113 C124 C109 R167 R183 C103 R184 R188 R017 R021 R168 IC101 IC107 R142 R141 FL204 R138 R136 IC102 C119 R126 R124 C504 R718 R717 C508 C509 R713 R712 R109 R711 R725 R724 R101 C510 C511 C513 C514 C516 C518 R554 FB112 R533 R532 R524 R517 R516 R515 R514 C519 R512 R511 C520 C522 R507 C523 C524 C525 C526 C531 C532 C533 C534 C535 C536 C537 C538 C539 C540 C542 C545 C546 C547 FL502 FL005 FL505 FL103 FL003 FL004 IC501 FB007 FB008 FB009 FB010 FB011 FB012 R154 R150 R152 IC106 IC504 R134 C018 C019 C007 FL202 FL102 C202 C203 C204 C205 C206 C207 C721 C716 C321 C322 C711 FL101 R737R738 R175 R172 C323 R202 R163 C702 R162 C712 R161 R160 C717 C722 R157 R156 C741 R155 FB712 FB711 Q712 Q711 R208 R112 R113 R116 R117 R118 R119 R209 R123 R210 R211 R128 R130 R131 R132 R212 FL203 R153 R151 L711 R149 R147 R146 R145 IC505 FL501 C325 C326 C541 L715 L713 R199 IC701 R078 R076 R080 R424 R423 C430 C429 IC303 C327 C328 IC401 R318 R521 R329 R320 IC301 IC502 C503 R305 R306 R307 R308 R309 R310 R311 R312 R321 R335 R344 R350 R351 R406 R407 R408 R409 R410 R411 R416 R418 R420 R421 R422 R426 R427 R428 R429 R430 R431 R434 R435 C417 C415 C413 C412 C411 R513 R701 C408 C407 C402 C350 C346 C344 C343 C342 C341 C338 C337 C301 C335 C334 C333 C332 R214 R215 C530 4 5 3 1 MB BOARD (CONDUCTOR SIDE) 1-682-900- 11 (11) 1 11 15 25 50 40 36 26 9 16 8 1 9 16 8 1 E B E B C C 1 24 48 25 1 2 1 3 7 8 14 8 5 1 4 1 1 3 5 4 12 48 43 52 42 37 49 7 6 36 25 51 30 31 13 18 50 19 24 1 2 3 4 5 6 7 8 9 10 A B C D E F G H I J (TYPE A) 6-11. PRINTED WIRING BOARD – MB Board (Conductor Side) – • See page 17 for Circuit Boards Location. • Refer to servicing notes (page 4) for discrimination of TYPE A/B. • Semiconductor Location Ref. No. Location IC101 I-3 IC102 E-5 IC106 I-3 IC107 G-3 IC301 F-9 IC303 D-7 IC401 H-9 IC501 I-4 IC502 G-8 IC504 H-6 IC505 G-6 IC701 C-5 Q711 D-4 Q712 D-4 Ver 1.5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 24 24 ∗ ∗ R077 330 (TYPE A) 10k (TYPE B) (TYPE A) 6-12. SCHEMATIC DIAGRAM – MB Board (1/6) – • Refer to servicing notes (page 4) for discrimination of TYPE A/B. (Page 25) (Page 25) (Page 29) (Page 28) (Page 27) (Page 25) (Page 25) (Page 26) (Page 19) (Page 27) (Page 25) (Page 19) (Page 27) (Page 31) (Page 29) Ver 1.5 w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 25 25 6-13. SCHEMATIC DIAGRAM – MB Board (2/6) – • See page 34 for Waveforms. (Page 26) (Page 26) (Page 24) (Page 27) (Page 26) (Page 27) (Page 24) (Page 24) (Page 24) (Page 27) (Page 24) (Page 27) (Page 26) (Page 27) (Page 27) (Page 27) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 26 26 6-14. SCHEMATIC DIAGRAM – MB Board (3/6) – • See page 34 for Waveforms. (Page 27) (Page 27) (Page 27) (Page 27) (Page 27) (Page 27) (Page 28) (Page 25) (Page 25) (Page 25) (Page 24) (Page 28) (Page 27) (Page 27) (Page 27) (Page 25) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 27 27 6-15. SCHEMATIC DIAGRAM – MB Board (4/6) – • See page 34 for Waveforms. • See page 36 for IC Block Diagram. (Page 26) (Page 25) (Page 29) (Page 25) (Page 26) (Page 24) (Page 26) (Page 29) (Page 25) (Page 26) (Page 28) (Page 24) (Page 25) (Page 25) (Page 26) (Page 26) (Page 29) (Page 25) (Page 26) (Page 26) (Page 29) (Page 31) (Page 28) (Page 25) (Page 26) (Page 24) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 28 28 6-16. SCHEMATIC DIAGRAM – MB Board (5/6) – • See page 34 for Waveforms. • See page 36 for IC Block Diagram. (Page 24) (Page 27) (Page 26) (Page 27) (Page 26) (Page 33) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 29 29 6-17. SCHEMATIC DIAGRAM – MB Board (6/6) – (Page 24) (Page 27) (Page 27) (Page 27) (Page 27) (Page 21) (Page 24) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 30 30 CN102 CN101 CN103 IC502 R432 R441 R443 R453 R473 R469 R477 R481 R456 R457 C502 FB501 C509 C405 C557 C513 C512 IC501 C501 R444 R448 R435 R419 JW137 JW138 JW143 JW144 D512 D501 D502 D503 D504 C500 C102 JW107 JW101 C101 R433 R431 R434 R455 R447 R440 JW100 R436 R437 R103 R102 R101 D105 C504 FB502 C506 FB503 C507 JW102 JW108 JW105 C505 R409 R480 R483 R413 R411 R417 R490 R491 R489 R492 C403 C404 C406 R488 C411 R430 R429 JW121 JW123 JW124 JW126 JW128 JW125 C401 R412 R427 R482 R134 R425 C425 JW113 JW146 R495 R494 R493 R132 R133 JW147 R497 R496 R486 JW130 JW127 R487 R484 R485 JW119 JW117 JW118 JW120 CN107 R465 C407 JW145 R459 C402 R454 JW131 C408 R451 CN503 (FOR TEST) CN501 (FOR TEST) CN401 C427 C508 D505 R104 JW114 JW115 JW111 D513 D514 C514 LP102 EL103 LP103 EL101 EL102 EL105 R442 NO105 NO106 NO104 R567 JW151 LP101 JW103 JW140 JW132 JW133 JW402 JW407 LP104 EL104 IC401 PANEL BOARD NO703 X401 MB BOARD CN101 MB BOARD CN008 VIDEO BOARD CN202 1 1 1 1 1 15 14 2 8 9 8 2 9 1 1 9 1 100 81 80 51 50 31 30 1 4 1 10 1 2 9 10 MAIN BOARD 1-682-811- 11 (11) H E D G POWER BLOCK SYSTEM CONTROL 5 FROM TC-S9 SYSTEM CONTROL 3 FROM ST-S9 CN103 A B C D 1 2 3 4 5 6 7 8 9 10 AC IN TO TA-S9D 6-18. PRINTED WIRING BOARD – MAIN Board – • See page 17 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D105 D-7 D501 C-9 D502 C-9 D503 C-9 D504 C-9 D505 C-8 D512 D-8 D513 C-8 D514 C-8 IC401 C-4 IC501 B-8 IC502 C-8 (Page 32) (Page 22) (Page 32) (Page 22) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 31 31 6-19. SCHEMATIC DIAGRAM – MAIN Board – • See page 34 for Waveform. Note: The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. (Page 33) (Page 24) (Page 27) (Page 33) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 32 32 S711 S712 S714 S713 S715 S716 S717 D701 D702 D703 D704 D705 R717 R713 R711 R712 R714 R715 R716 R718 R719 NO702 NO703 1 9 MAIN BOARD CN401 (DISC 3) (DISC 2) (DISC 1) S718 S720 S719 D701, S716 D702, S717 S708 S707 S706 S705 S704 S703 S702 S701 R701 R702 R703 R704 R705 R706 R707 NO701 CN202 L201 C204 C203 IC201 FB204 C206 CN201 JW201 FB203 FB201 FB202 1 2 3 4 3 1 MB BOARD CN012 MAIN BOARD NO105 PANEL BOARD 1-682-812- 11 (11) H 1 2 M > x RETURN NEXT PREV X . N m 3 2 1 1-682-814- 11 (11) SUB PANEL BOARD 1 2 Z (DISC 3) Z DISC 3 DISC 2 DISC 1 PLAY MODE REPEAT (DISC 2) Z (DISC 1) S701 – 708 S711 – 720 1 2 VIDEO BOARD 1-682-813- 11 (11) S VIDEO OUT J201 J202 VIDEO OUT OPTICAL OUT TO ST-S9 IC201 F G A B C D 1 2 3 4 5 6 7 8 9 10 6-20. PRINTED WIRING BOARDS – PANEL/SUB PANEL/VIDEO Boards – • See page 17 for Circuit Boards Location. • Semiconductor Location Ref. No. Location D701 C-2 D702 C-2 D703 C-5 D704 C-6 D705 C-7 IC201 A-7 (Page 30) (Page 22) (Page 30) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 33 33 6-21. SCHEMATIC DIAGRAM – PANEL/SUB PANEL/VIDEO Boards – (Page 28) (Page 31) (Page 31) w w w . x i a o y u 1 6 3 . c o m Q Q 3 7 6 3 1 5 1 5 0 9 9 2 8 9 4 2 9 8 T E L 1 3 9 4 2 2 9 6 5 1 3 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 34 34 1.6 Vp-p 37 ns 3.4 Vp-p 37 ns 1.8 Vp-p 60.6 ns 3.4 Vp-p 37 ns 1 Vp-p H H 1 Vp-p 710 mVp-p H 1 Vp-p H 1 Vp-p H 3.4 Vp-p 29.5 ns 3.4 Vp-p 44.3 ns 40.7 ns 3.4 Vp-p 3.4 Vp-p 29.5 ns Approx. 600 mVp-p Approx. 180 mVp-p Approx. 800 mVp-p Approx. 120 mVp-p Approx. 1.4 Vp-p Approx. 1.4 Vp-p Approx. 1.4 Vp-p Approx. 600 mVp-p Approx. 180 mVp-p Approx. 800 mVp-p Approx. 120 mVp-p Approx. 550 mVp-p Approx. 570 mVp-p • Waveforms – RF Board – 1 IC001 2 (RF IN) (DVD PLAY) 2 IC001 2 (RF IN) (CD PLAY) 3 IC001 ra (TE) (DVD PLAY) 5 IC001 rs (FE) (DVD PLAY) 4 IC001 ra (TE) (CD PLAY) 6 IC001 rs (FE) (CD PLAY) 7 IC001 tl (SIGO) (DVD/CD PLAY) – MB Board – 8 IC302 IC751 8-749-924-30 PHOTO REFLECTOR GP2S28 (DISC IN DETECT) < RESISTOR > R751 1-249-407-11 CARBON 150 5% 1/4W ************************************************************** 1-678-460-11 DRIVER BOARD ************* < CAPACITOR > C701 1-124-261-00 ELECT 10uF 20% 50V C705 1-124-261-00 ELECT 10uF 20% 50V C706 1-164-159-11 CERAMIC 0.1uF 50V C707 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN701 1-785-324-11 PIN, CONNECTOR (STRAIGHT) 12P CN702 1-785-328-11 PIN, CONNECTOR (LIGHT ANGLE) 2P CN703 1-785-331-11 PIN, CONNECTOR (LIGHT ANGLE) 5P CN704 1-785-329-11 PIN, CONNECTOR (LIGHT ANGLE) 3P CN705 1-785-329-21 PIN, CONNECTOR (LIGHT ANGLE) 3P < IC > IC701 8-759-598-69 IC BA6956AN < TRANSISTOR > Q701 8-729-029-66 TRANSISTOR RT1N141S-TP < RESISTOR > R701 1-249-429-11 CARBON 10K 5% 1/4W R702 1-249-401-11 CARBON 47 5% 1/4W R705 1-249-435-11 CARBON 33K 5% 1/4W R706 1-249-417-11 CARBON 1K 5% 1/4W R707 1-249-429-11 CARBON 10K 5% 1/4W ************************************************************** NOTE: • Due to standardization, replacements in the parts list may be different from the parts speci- fied in the diagrams or the components used on the set. • -XX and -X mean standardized parts, so they may have some difference from the original one. • RESISTORS All resistors are in ohms. METAL: Metal-film resistor. METAL OXIDE: Metal oxide-film resistor. F: nonflammable • Refer to servicing notes (page 4) for discrimi- nation of TYPE A/B. • Items marked “*” are not stocked since they are seldom required for routine service. Some delay should be anticipated when order- ing these items. • SEMICONDUCTORS In each case, u: µ, for example: uA. . : µA. . uPA. . : µPA. . uPB. . : µPB. . uPC. . : µPC. . uPD. . : µPD. . • CAPACITORS uF: µF • COILS uH: µH The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. When indicating parts by reference number, please include the board. 1-678-462-11 IN OUT SW BOARD **************** < SWITCH > S741 1-771-821-11 SWITCH, PUSH (1 KEY) (IN) S742 1-771-821-11 SWITCH, PUSH (1 KEY) (OUT) ************************************************************** A-4727-237-A MAIN BOARD, COMPLETE ********************* < CAPACITOR > C101 1-164-159-11 CERAMIC 0.1uF 50V C102 1-164-159-11 CERAMIC 0.1uF 50V C401 1-126-934-11 ELECT 220uF 20% 10V C402 1-126-934-11 ELECT 220uF 20% 10V C403 1-164-159-11 CERAMIC 0.1uF 50V C404 1-164-159-11 CERAMIC 0.1uF 50V C405 1-164-159-11 CERAMIC 0.1uF 50V C406 1-126-934-11 ELECT 220uF 20% 10V C407 1-126-934-11 ELECT 220uF 20% 10V C408 1-164-159-11 CERAMIC 0.1uF 50V C411 1-164-159-11 CERAMIC 0.1uF 50V C425 1-162-282-31 CERAMIC 100PF 10% 50V C427 1-162-282-31 CERAMIC 100PF 10% 50V C500 1-164-159-11 CERAMIC 0.1uF 50V C501 1-126-768-11 ELECT 2200uF 20% 16V C502 1-126-935-11 ELECT 470uF 20% 10V C504 1-164-159-11 CERAMIC 0.1uF 50V C505 1-164-159-11 CERAMIC 0.1uF 50V C506 1-164-159-11 CERAMIC 0.1uF 50V C507 1-164-159-11 CERAMIC 0.1uF 50V C508 1-126-964-11 ELECT 10uF 20% 50V C509 1-126-935-11 ELECT 470uF 20% 10V C512 1-164-159-11 CERAMIC 0.1uF 50V C513 1-126-935-11 ELECT 470uF 20% 10V C514 1-126-947-11 ELECT 47uF 20% 10V C557 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > * CN101 1-568-419-11 PIN, CONNECTOR 9P CN102 1-568-373-11 PIN, CONNECTOR 8P CN103 1-566-859-11 SOCKET, CONNECTOR 15P (SYSTEM CONTROL 5 FROM TC-S9) • Abbreviation AUS : Australian model EA : Saudi Arabia model KR : Korean model MX : Mexican model SP : Singapore model TH : Thai model Ver 1.5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 56 DVP-S9 MAIN MB CN107 1-779-278-11 CONNECTOR, FFC (LIF (NON-ZIF)) 10P * CN401 1-568-936-11 PIN, CONNECTOR 9P CN501 1-506-469-11 PIN, CONNECTOR 4P * CN503 1-568-937-11 PIN, CONNECTOR 10P < DIODE > D105 8-719-911-19 DIODE 1SS133T-72 D501 8-719-024-99 DIODE 11ES2-NTA2B D502 8-719-024-99 DIODE 11ES2-NTA2B D503 8-719-024-99 DIODE 11ES2-NTA2B D504 8-719-024-99 DIODE 11ES2-NTA2B D505 8-719-911-19 DIODE 1SS133T-72 D512 8-719-024-99 DIODE 11ES2-NTA2B D513 8-719-024-99 DIODE 11ES2-NTA2B D514 8-719-024-99 DIODE 11ES2-NTA2B < FERRITE BEAD > FB501 1-412-473-21 FERRITE BEAD FB502 1-412-473-21 FERRITE BEAD FB503 1-412-473-21 FERRITE BEAD < IC > IC401 6-800-720-01 IC M30622MAA-B33FP IC501 8-759-071-48 IC TA7807S IC502 8-759-604-35 IC M5F78M05L < CONNECTOR > * NO104 1-568-936-11 PIN, CONNECTOR 9P < RESISTOR > R101 1-247-807-31 CARBON 100 5% 1/4W R102 1-247-807-31 CARBON 100 5% 1/4W R103 1-249-417-11 CARBON 1K 5% 1/4W R104 1-247-807-31 CARBON 100 5% 1/4W R132 1-247-876-11 CARBON 75K 5% 1/4W R133 1-247-876-11 CARBON 75K 5% 1/4W R134 1-249-417-11 CARBON 1K 5% 1/4W R409 1-249-429-11 CARBON 10K 5% 1/4W R411 1-249-409-11 CARBON 220 5% 1/4W R412 1-249-425-11 CARBON 4.7K 5% 1/4W R413 1-249-411-11 CARBON 330 5% 1/4W R417 1-249-429-11 CARBON 10K 5% 1/4W R419 1-249-409-11 CARBON 220 5% 1/4W R425 1-249-425-11 CARBON 4.7K 5% 1/4W R427 1-249-425-11 CARBON 4.7K 5% 1/4W R429 1-247-807-31 CARBON 100 5% 1/4W R430 1-247-807-31 CARBON 100 5% 1/4W R431 1-249-409-11 CARBON 220 5% 1/4W R432 1-249-409-11 CARBON 220 5% 1/4W R433 1-249-409-11 CARBON 220 5% 1/4W R434 1-249-409-11 CARBON 220 5% 1/4W R435 1-249-409-11 CARBON 220 5% 1/4W R436 1-249-409-11 CARBON 220 5% 1/4W R437 1-249-409-11 CARBON 220 5% 1/4W R440 1-249-409-11 CARBON 220 5% 1/4W R441 1-249-429-11 CARBON 10K 5% 1/4W R442 1-249-409-11 CARBON 220 5% 1/4W R443 1-249-409-11 CARBON 220 5% 1/4W R444 1-249-409-11 CARBON 220 5% 1/4W R447 1-249-409-11 CARBON 220 5% 1/4W R448 1-249-409-11 CARBON 220 5% 1/4W R451 1-249-429-11 CARBON 10K 5% 1/4W R453 1-249-409-11 CARBON 220 5% 1/4W R454 1-249-429-11 CARBON 10K 5% 1/4W R455 1-249-409-11 CARBON 220 5% 1/4W R456 1-249-429-11 CARBON 10K 5% 1/4W R457 1-249-429-11 CARBON 10K 5% 1/4W R459 1-249-409-11 CARBON 220 5% 1/4W R465 1-249-407-11 CARBON 150 5% 1/4W R469 1-249-407-11 CARBON 150 5% 1/4W R473 1-249-407-11 CARBON 150 5% 1/4W R477 1-249-407-11 CARBON 150 5% 1/4W R480 1-249-441-11 CARBON 100K 5% 1/4W R481 1-249-407-11 CARBON 150 5% 1/4W R482 1-249-429-11 CARBON 10K 5% 1/4W R483 1-249-429-11 CARBON 10K 5% 1/4W R484 1-249-409-11 CARBON 220 5% 1/4W R485 1-249-409-11 CARBON 220 5% 1/4W R486 1-249-409-11 CARBON 220 5% 1/4W R487 1-249-409-11 CARBON 220 5% 1/4W R488 1-249-409-11 CARBON 220 5% 1/4W R489 1-249-409-11 CARBON 220 5% 1/4W R490 1-249-409-11 CARBON 220 5% 1/4W R491 1-249-409-11 CARBON 220 5% 1/4W R492 1-249-425-11 CARBON 4.7K 5% 1/4W R493 1-249-415-11 CARBON 680 5% 1/4W R494 1-247-807-31 CARBON 100 5% 1/4W R495 1-249-410-11 CARBON 270 5% 1/4W R496 1-249-429-11 CARBON 10K 5% 1/4W R497 1-249-410-11 CARBON 270 5% 1/4W R567 1-249-441-11 CARBON 100K 5% 1/4W < VIBRATOR > X401 1-781-107-21 VIBRATOR, CERAMIC (16MHz) ************************************************************** A-4727-239-A MB BOARD, COMPLETE (AEP, UK) A-4727-244-A MB BOARD, COMPLETE (AUS) A-4727-246-A MB BOARD, COMPLETE (E, MX) A-4727-248-A MB BOARD, COMPLETE (EA) A-4727-252-A MB BOARD, COMPLETE (KR, SP, TH) ******************** < CAPACITOR > C004 1-126-204-11 ELECT CHIP 47uF 20% 16V C005 1-126-246-11 ELECT CHIP 220uF 20% 4V C006 1-126-204-11 ELECT CHIP 47uF 20% 16V C007 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V C018 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C019 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C103 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C104 1-126-209-11 ELECT CHIP 100uF 20% 4V C105 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C106 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C107 1-162-915-11 CERAMIC CHIP 10PF 0.5PF 50V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 57 DVP-S9 MB C108 1-162-917-11 CERAMIC CHIP 15PF 5% 50V C109 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C110 1-126-209-11 ELECT CHIP 100uF 20% 4V C111 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C112 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C113 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C114 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C116 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C119 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C124 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C202 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C203 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C204 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C205 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C206 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C207 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C301 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C304 1-126-246-11 ELECT CHIP 220uF 20% 4V C305 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C306 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C307 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C309 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C310 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C311 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C312 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C313 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C315 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C317 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C318 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C319 1-110-563-11 CERAMIC CHIP 0.068uF 10% 16V C320 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C321 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C322 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C323 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C324 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C325 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C326 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C327 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C328 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C331 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C332 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C333 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C334 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C335 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C336 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C337 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C338 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C339 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C340 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C341 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C342 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C343 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C344 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C345 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C346 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C347 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C348 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C349 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C350 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C351 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C352 1-126-204-11 ELECT CHIP 47uF 20% 16V C401 1-164-245-11 CERAMIC CHIP 0.015uF 10% 25V C402 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C403 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C404 1-162-965-11 CERAMIC CHIP 0.0015uF 10% 50V C405 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C406 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C407 1-162-960-11 CERAMIC CHIP 220PF 10% 50V C408 1-162-927-11 CERAMIC CHIP 100PF 5% 50V C411 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C412 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C413 1-164-677-11 CERAMIC CHIP 0.033uF 10% 16V C414 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C415 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C416 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C417 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C418 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C419 1-126-204-11 ELECT CHIP 47uF 20% 16V C420 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C429 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C430 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C501 1-126-193-11 ELECT 1uF 20% 50V C502 1-117-370-11 CERAMIC CHIP 10uF 10V C503 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C504 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C505 1-117-370-11 CERAMIC CHIP 10uF 10V C506 1-117-370-11 CERAMIC CHIP 10uF 10V C508 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C509 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C510 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C511 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C512 1-126-246-11 ELECT CHIP 220uF 20% 4V C513 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C514 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C516 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C518 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C519 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C520 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C521 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C522 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C523 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C524 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C525 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C526 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C529 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C530 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C531 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C532 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C533 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C534 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C535 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C536 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C537 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C538 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C539 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 58 DVP-S9 C540 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C541 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C542 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C545 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C546 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C547 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C701 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C702 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C711 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C712 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C716 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C717 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C721 1-162-918-11 CERAMIC CHIP 18PF 5% 50V C722 1-162-921-11 CERAMIC CHIP 33PF 5% 50V C741 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C742 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C743 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C744 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C745 1-124-778-00 ELECT CHIP 22uF 20% 6.3V C764 1-126-193-11 ELECT 1uF 20% 50V C765 1-126-193-11 ELECT 1uF 20% 50V C766 1-126-193-11 ELECT 1uF 20% 50V < CONNECTOR > CN008 1-779-992-11 PIN, CONNECTOR (PWB) 8P CN010 1-784-875-21 CONNECTOR, FFC (LIF (NON-ZIF)) 25P CN012 1-784-860-21 CONNECTOR, FFC (LIF (NON-ZIF)) 8P CN015 1-784-368-11 CONNECTOR, FFC/FPC 9P CN101 1-784-369-21 CONNECTOR, FFC/FPC 10P CN103 1-793-687-11 PIN, CONNECTOR (1.5mm) (SMD) 5P * CN203 1-764-007-11 PIN, CONNECTOR (SMD) 12P CN404 1-793-687-11 PIN, CONNECTOR (1.5mm) (SMD) 5P < FERRITE BEAD/RESISTOR > FB007 1-469-324-21 FERRITE BEAD FB008 1-469-324-21 FERRITE BEAD FB009 1-469-324-21 FERRITE BEAD FB010 1-469-324-21 FERRITE BEAD FB011 1-469-324-21 FERRITE BEAD FB012 1-469-324-21 FERRITE BEAD FB112 1-216-864-11 METAL CHIP 0 5% 1/16W FB711 1-216-864-11 METAL CHIP 0 5% 1/16W FB712 1-216-864-11 METAL CHIP 0 5% 1/16W FB714 1-216-864-11 METAL CHIP 0 5% 1/16W < EMI FILTER > FL003 1-234-177-21 FILTER, CHIP EMI FL004 1-234-177-21 FILTER, CHIP EMI FL005 1-233-893-21 FILTER, CHIP EMI FL101 1-233-893-21 FILTER, CHIP EMI FL102 1-233-893-21 FILTER, CHIP EMI FL103 1-233-893-21 FILTER, CHIP EMI FL202 1-233-893-21 FILTER, CHIP EMI FL203 1-233-893-21 FILTER, CHIP EMI FL204 1-234-177-21 FILTER, CHIP EMI FL501 1-233-893-21 FILTER, CHIP EMI FL502 1-233-893-21 FILTER, CHIP EMI FL505 1-234-177-21 FILTER, CHIP EMI < IC > IC006 6-700-398-01 IC uPC2918T-E1 IC101 8-759-640-41 IC BR24C08F-E2 IC102 8-759-831-81 IC IMIC6001BTD IC103 8-759-829-75 IC MB91307APFV-G-BND-E1 IC106 8-759-645-76 IC TC74VHCT32AFT IC107 8-759-826-41 IC MBM29DL324BE-90PFTN IC202 6-700-740-01 IC LC22004A-RJ6-TBM-E IC301 8-759-599-45 IC MM1385ENLE IC302 8-759-828-01 IC CXD9635R IC303 8-759-683-75 IC MSM51V18160F-60TSKR1 IC401 8-759-826-42 IC FAN8034 IC501 8-759-832-30 IC TK71518ASCL IC502 8-759-599-45 IC MM1385ENLE IC503 8-752-399-55 IC CXD1933Q IC504 8-759-663-74 IC HY57V161610DTC-7TR IC505 8-759-663-74 IC HY57V161610DTC-7TR IC701 8-759-680-28 IC BA7666FS-E2 < COIL > L701 1-412-788-41 INDUCTOR 10uH L711 1-412-790-31 INDUCTOR 15uH L713 1-412-790-31 INDUCTOR 15uH L715 1-412-790-31 INDUCTOR 15uH < TRANSISTOR > Q711 8-729-027-23 TRANSISTOR DTA114EKA-T146 Q712 1-801-806-11 TRANSISTOR DTC144EKA-T146 < RESISTOR > R017 1-216-864-11 METAL CHIP 0 5% 1/16W R021 1-216-864-11 METAL CHIP 0 5% 1/16W R076 1-216-837-11 METAL CHIP 22K 5% 1/16W (TYPE A) R077 1-216-815-11 METAL CHIP 330 5% 1/16W (TYPE A) R077 1-216-833-11 METAL CHIP 10K 5% 1/16W (TYPE B) R078 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R080 1-216-801-11 METAL CHIP 22 5% 1/16W R101 1-216-789-11 METAL CHIP 2.2 5% 1/16W R105 1-216-833-11 METAL CHIP 10K 5% 1/16W R106 1-216-833-11 METAL CHIP 10K 5% 1/16W R107 1-216-821-11 METAL CHIP 1K 5% 1/16W R109 1-216-797-11 METAL CHIP 10 5% 1/16W R111 1-216-817-11 METAL CHIP 470 5% 1/16W R112 1-216-821-11 METAL CHIP 1K 5% 1/16W R113 1-216-833-11 METAL CHIP 10K 5% 1/16W R114 1-216-845-11 METAL CHIP 100K 5% 1/16W R116 1-216-833-11 METAL CHIP 10K 5% 1/16W R117 1-216-821-11 METAL CHIP 1K 5% 1/16W R118 1-216-821-11 METAL CHIP 1K 5% 1/16W R119 1-216-833-11 METAL CHIP 10K 5% 1/16W R121 1-216-833-11 METAL CHIP 10K 5% 1/16W R123 1-216-833-11 METAL CHIP 10K 5% 1/16W R124 1-216-797-11 METAL CHIP 10 5% 1/16W R125 1-216-797-11 METAL CHIP 10 5% 1/16W MB Ver 1.5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 59 DVP-S9 R126 1-216-797-11 METAL CHIP 10 5% 1/16W R128 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R129 1-216-833-11 METAL CHIP 10K 5% 1/16W R130 1-216-833-11 METAL CHIP 10K 5% 1/16W R131 1-216-833-11 METAL CHIP 10K 5% 1/16W R132 1-216-833-11 METAL CHIP 10K 5% 1/16W R133 1-216-833-11 METAL CHIP 10K 5% 1/16W R134 1-216-833-11 METAL CHIP 10K 5% 1/16W R136 1-216-797-11 METAL CHIP 10 5% 1/16W R137 1-216-797-11 METAL CHIP 10 5% 1/16W R138 1-216-797-11 METAL CHIP 10 5% 1/16W R140 1-216-797-11 METAL CHIP 10 5% 1/16W R141 1-216-797-11 METAL CHIP 10 5% 1/16W R142 1-216-797-11 METAL CHIP 10 5% 1/16W R143 1-216-833-11 METAL CHIP 10K 5% 1/16W R145 1-216-833-11 METAL CHIP 10K 5% 1/16W R146 1-216-833-11 METAL CHIP 10K 5% 1/16W R147 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R149 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R150 1-216-821-11 METAL CHIP 1K 5% 1/16W (EA) R150 1-216-827-11 METAL CHIP 3.3K 5% 1/16W (AUS) R150 1-216-831-11 METAL CHIP 6.8K 5% 1/16W (KR, SP, TH) R150 1-216-835-11 METAL CHIP 15K 5% 1/16W (AEP, UK) R150 1-216-839-11 METAL CHIP 33K 5% 1/16W (E, MX) R151 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R152 1-216-833-11 METAL CHIP 10K 5% 1/16W R153 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R154 1-216-835-11 METAL CHIP 15K 5% 1/16W (AUS, E, MX) R154 1-216-839-11 METAL CHIP 33K 5% 1/16W (KR, SP, TH) R154 1-216-843-11 METAL CHIP 68K 5% 1/16W (AEP, EA, UK) R155 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R156 1-216-833-11 METAL CHIP 10K 5% 1/16W R157 1-216-864-11 METAL CHIP 0 5% 1/16W R160 1-216-833-11 METAL CHIP 10K 5% 1/16W R161 1-216-864-11 METAL CHIP 0 5% 1/16W R162 1-216-833-11 METAL CHIP 10K 5% 1/16W R163 1-216-833-11 METAL CHIP 10K 5% 1/16W R164 1-216-809-11 METAL CHIP 100 5% 1/16W R165 1-216-809-11 METAL CHIP 100 5% 1/16W R166 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R167 1-216-821-11 METAL CHIP 1K 5% 1/16W R168 1-216-821-11 METAL CHIP 1K 5% 1/16W R170 1-216-821-11 METAL CHIP 1K 5% 1/16W R172 1-216-833-11 METAL CHIP 10K 5% 1/16W R174 1-216-797-11 METAL CHIP 10 5% 1/16W R175 1-216-864-11 METAL CHIP 0 5% 1/16W R179 1-216-833-11 METAL CHIP 10K 5% 1/16W R182 1-216-845-11 METAL CHIP 100K 5% 1/16W R183 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R184 1-216-833-11 METAL CHIP 10K 5% 1/16W R185 1-216-833-11 METAL CHIP 10K 5% 1/16W R186 1-216-833-11 METAL CHIP 10K 5% 1/16W R187 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R188 1-216-833-11 METAL CHIP 10K 5% 1/16W R199 1-216-826-11 METAL CHIP 2.7K 5% 1/16W R202 1-216-809-11 METAL CHIP 100 5% 1/16W R203 1-216-821-11 METAL CHIP 1K 5% 1/16W R206 1-216-813-11 METAL CHIP 220 5% 1/16W R207 1-216-813-11 METAL CHIP 220 5% 1/16W R208 1-216-821-11 METAL CHIP 1K 5% 1/16W R209 1-216-821-11 METAL CHIP 1K 5% 1/16W R210 1-216-821-11 METAL CHIP 1K 5% 1/16W R211 1-216-821-11 METAL CHIP 1K 5% 1/16W R212 1-216-821-11 METAL CHIP 1K 5% 1/16W R214 1-216-833-11 METAL CHIP 10K 5% 1/16W R215 1-216-833-11 METAL CHIP 10K 5% 1/16W R299 1-216-847-11 METAL CHIP 150K 5% 1/16W R301 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R302 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R305 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R306 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R307 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R308 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R309 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R310 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R311 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R312 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R313 1-216-817-11 METAL CHIP 470 5% 1/16W R314 1-216-817-11 METAL CHIP 470 5% 1/16W R315 1-216-817-11 METAL CHIP 470 5% 1/16W R316 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R317 1-216-833-11 METAL CHIP 10K 5% 1/16W R318 1-216-864-11 METAL CHIP 0 5% 1/16W R319 1-216-831-11 METAL CHIP 6.8K 5% 1/16W R320 1-216-864-11 METAL CHIP 0 5% 1/16W R321 1-216-817-11 METAL CHIP 470 5% 1/16W R328 1-216-833-11 METAL CHIP 10K 5% 1/16W R329 1-216-864-11 METAL CHIP 0 5% 1/16W R330 1-216-864-11 METAL CHIP 0 5% 1/16W R332 1-216-864-11 METAL CHIP 0 5% 1/16W R334 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R335 1-218-855-11 METAL CHIP 2.2K 0.5% 1/10W R336 1-216-833-11 METAL CHIP 10K 5% 1/16W R337 1-216-809-11 METAL CHIP 100 5% 1/16W R338 1-218-879-11 METAL CHIP 22K 0.5% 1/10W R341 1-218-871-11 METAL CHIP 10K 0.5% 1/10W R342 1-218-883-11 METAL CHIP 33K 0.5% 1/10W R343 1-218-831-11 METAL CHIP 220 0.5% 1/10W R344 1-218-847-11 METAL CHIP 1K 0.5% 1/10W R345 1-216-833-11 METAL CHIP 10K 5% 1/16W R349 1-216-838-11 METAL CHIP 27K 5% 1/16W R350 1-216-822-11 METAL CHIP 1.2K 5% 1/16W R351 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R352 1-216-825-11 METAL CHIP 2.2K 5% 1/16W R356 1-218-853-11 METAL CHIP 1.8K 0.5% 1/10W R368 1-216-829-11 METAL CHIP 4.7K 5% 1/16W R384 1-216-797-11 METAL CHIP 10 5% 1/16W R385 1-216-829-11 METAL CHIP 4.7K 5% 1/16W MB www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 60 DVP-S9 R406 1-216-846-11 METAL CHIP 120K 5% 1/16W R407 1-216-846-11 METAL CHIP 120K 5% 1/16W R408 1-216-847-11 METAL CHIP 150K 5% 1/16W R409 1-216-847-11 METAL CHIP 150K 5% 1/16W R410 1-216-842-11 METAL CHIP 56K 5% 1/16W R411 1-216-842-11 METAL CHIP 56K 5% 1/16W R412 1-216-850-11 METAL CHIP 270K 5% 1/16W R413 1-216-833-11 METAL CHIP 10K 5% 1/16W R414 1-216-853-11 METAL CHIP 470K 5% 1/16W R415 1-216-846-11 METAL CHIP 120K 5% 1/16W R416 1-216-855-11 METAL CHIP 680K 5% 1/16W R417 1-216-833-11 METAL CHIP 10K 5% 1/16W R418 1-216-839-11 METAL CHIP 33K 5% 1/16W R419 1-216-839-11 METAL CHIP 33K 5% 1/16W R420 1-216-853-11 METAL CHIP 470K 5% 1/16W R421 1-216-839-11 METAL CHIP 33K 5% 1/16W R422 1-216-839-11 METAL CHIP 33K 5% 1/16W R423 1-216-839-11 METAL CHIP 33K 5% 1/16W R424 1-216-839-11 METAL CHIP 33K 5% 1/16W R425 1-216-849-11 METAL CHIP 220K 5% 1/16W R426 1-216-853-11 METAL CHIP 470K 5% 1/16W R427 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R428 1-216-839-11 METAL CHIP 33K 5% 1/16W R429 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R430 1-218-895-11 METAL CHIP 100K 0.5% 1/10W R431 1-218-889-11 METAL CHIP 56K 0.5% 1/10W R432 1-216-833-11 METAL CHIP 10K 5% 1/16W R433 1-216-833-11 METAL CHIP 10K 5% 1/16W R434 1-216-815-11 METAL CHIP 330 5% 1/16W R435 1-216-833-11 METAL CHIP 10K 5% 1/16W R439 1-216-864-11 METAL CHIP 0 5% 1/16W R507 1-216-809-11 METAL CHIP 100 5% 1/16W R508 1-216-864-11 METAL CHIP 0 5% 1/16W R509 1-216-864-11 METAL CHIP 0 5% 1/16W R510 1-216-833-11 METAL CHIP 10K 5% 1/16W R511 1-216-813-11 METAL CHIP 220 5% 1/16W R512 1-216-813-11 METAL CHIP 220 5% 1/16W R513 1-216-813-11 METAL CHIP 220 5% 1/16W R514 1-216-813-11 METAL CHIP 220 5% 1/16W R515 1-216-813-11 METAL CHIP 220 5% 1/16W R516 1-216-813-11 METAL CHIP 220 5% 1/16W R517 1-216-833-11 METAL CHIP 10K 5% 1/16W R518 1-216-822-11 METAL CHIP 1.2K 5% 1/16W R521 1-216-864-11 METAL CHIP 0 5% 1/16W R522 1-216-827-11 METAL CHIP 3.3K 5% 1/16W R524 1-216-833-11 METAL CHIP 10K 5% 1/16W R525 1-216-833-11 METAL CHIP 10K 5% 1/16W R532 1-216-833-11 METAL CHIP 10K 5% 1/16W R533 1-216-797-11 METAL CHIP 10 5% 1/16W R554 1-216-797-11 METAL CHIP 10 5% 1/16W R701 1-216-833-11 METAL CHIP 10K 5% 1/16W R711 1-218-289-11 RES-CHIP 510 5% 1/16W R712 1-218-289-11 RES-CHIP 510 5% 1/16W R713 1-218-289-11 RES-CHIP 510 5% 1/16W R717 1-218-285-11 RES-CHIP 75 5% 1/16W R718 1-218-285-11 RES-CHIP 75 5% 1/16W R719 1-218-285-11 RES-CHIP 75 5% 1/16W R724 1-216-833-11 METAL CHIP 10K 5% 1/16W R725 1-216-833-11 METAL CHIP 10K 5% 1/16W R737 1-216-864-11 METAL CHIP 0 5% 1/16W R738 1-216-864-11 METAL CHIP 0 5% 1/16W R739 1-216-864-11 METAL CHIP 0 5% 1/16W R740 1-216-864-11 METAL CHIP 0 5% 1/16W < VARIABLE RESISTOR > RV501 1-223-583-11 RES, ADJ, CARBON 1K < VIBRATOR > X101 1-795-174-11 VIBRATOR, CERAMIC (16.5MHz) X102 1-767-519-11 VIBRATOR, CRYSTAL (27MHz) ************************************************************** 1-678-461-11 MOTOR BOARD ************* < CAPACITOR > C721 1-162-306-11 CERAMIC 0.01uF 30% 16V ************************************************************** 1-682-812-11 PANEL BOARD ************ < DIODE > D701 8-719-057-97 LED SEL5923A-TP15 (X) D702 8-719-058-03 LED SEL5423E-TP15 (N) D703 8-719-057-97 LED SEL5923A-TP15 (3 (DISC 3)) D704 8-719-057-97 LED SEL5923A-TP15 (2 (DISC 2)) D705 8-719-057-97 LED SEL5923A-TP15 (1 (DISC 1)) < RESISTOR > R711 1-249-411-11 CARBON 330 5% 1/4W R712 1-249-413-11 CARBON 470 5% 1/4W R713 1-249-414-11 CARBON 560 5% 1/4W R714 1-249-415-11 CARBON 680 5% 1/4W R715 1-249-417-11 CARBON 1K 5% 1/4W R716 1-249-418-11 CARBON 1.2K 5% 1/4W R717 1-249-420-11 CARBON 1.8K 5% 1/4W R718 1-249-422-11 CARBON 2.7K 5% 1/4W R719 1-247-843-11 CARBON 3.3K 5% 1/4W < SWITCH > S711 1-771-410-21 SWITCH, TACTILE (m) S712 1-771-410-21 SWITCH, TACTILE (M) S713 1-771-410-21 SWITCH, TACTILE (>) S714 1-771-410-21 SWITCH, TACTILE (.) S715 1-771-410-21 SWITCH, TACTILE (x) S716 1-771-410-21 SWITCH, TACTILE (X) S717 1-771-410-21 SWITCH, TACTILE (N) S718 1-771-410-21 SWITCH, TACTILE (RETURN) S719 1-771-410-21 SWITCH, TACTILE (PREV) S720 1-771-410-21 SWITCH, TACTILE (NEXT) ************************************************************** MB MOTOR PANEL www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 61 DVP-S9 A-4727-278-A RF BOARD, COMPLETE ******************** < CAPACITOR > C001 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C002 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C005 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C006 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C007 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C008 1-162-966-11 CERAMIC CHIP 0.0022uF 10% 50V C009 1-124-779-00 ELECT CHIP 10uF 20% 16V C015 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C016 1-162-968-11 CERAMIC CHIP 0.0047uF 10% 50V C017 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C018 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C019 1-164-739-11 CERAMIC CHIP 560PF 5% 50V C021 1-124-779-00 ELECT CHIP 10uF 20% 16V C022 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C023 1-126-206-11 ELECT CHIP 100uF 20% 6.3V C024 1-115-416-11 CERAMIC CHIP 0.001uF 5% 25V C025 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C026 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C027 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C028 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C031 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C032 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C033 1-162-964-11 CERAMIC CHIP 0.001uF 10% 50V C034 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C035 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C036 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C038 1-165-176-11 CERAMIC CHIP 0.047uF 10% 16V C039 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C040 1-164-217-11 CERAMIC CHIP 150PF 5% 50V C043 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C044 1-124-779-00 ELECT CHIP 10uF 20% 16V C046 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V C047 1-107-826-11 CERAMIC CHIP 0.1uF 10% 16V C048 1-162-970-11 CERAMIC CHIP 0.01uF 10% 25V < CONNECTOR > CN001 1-766-835-21 CONNECTOR, FFC/FPC (ZIF) 26P CN002 1-784-875-21 CONNECTOR, FFC (LIF (NON-ZIF)) 25P < DIODE > D001 8-719-988-61 DIODE 1SS355TE-17 D004 8-719-988-61 DIODE 1SS355TE-17 < IC > IC001 8-759-828-02 IC SP3728AC < COIL > L001 1-412-031-11 INDUCTOR CHIP 47uH L002 1-412-031-11 INDUCTOR CHIP 47uH < TRANSISTOR > Q001 8-729-903-46 TRANSISTOR 2SB1132-T100-QR Q002 8-729-903-46 TRANSISTOR 2SB1132-T100-QR < RESISTOR > R002 1-216-809-11 METAL CHIP 100 5% 1/16W R003 1-216-809-11 METAL CHIP 100 5% 1/16W R005 1-216-845-11 METAL CHIP 100K 5% 1/16W R006 1-216-838-11 METAL CHIP 27K 5% 1/16W R007 1-216-803-11 METAL CHIP 33 5% 1/16W R008 1-216-803-11 METAL CHIP 33 5% 1/16W R009 1-216-821-11 METAL CHIP 1K 5% 1/16W R010 1-216-841-11 METAL CHIP 47K 5% 1/16W R011 1-216-809-11 METAL CHIP 100 5% 1/16W R020 1-216-803-11 METAL CHIP 33 5% 1/16W R023 1-216-803-11 METAL CHIP 33 5% 1/16W R025 1-216-841-11 METAL CHIP 47K 5% 1/16W R029 1-216-809-11 METAL CHIP 100 5% 1/16W R037 1-216-834-11 METAL CHIP 12K 5% 1/16W R038 1-216-861-11 METAL CHIP 2.2M 5% 1/16W R045 1-216-809-11 METAL CHIP 100 5% 1/16W ************************************************************** 1-682-814-11 SUB PANEL BOARD ***************** R701 1-249-411-11 CARBON 330 5% 1/4W R702 1-249-413-11 CARBON 470 5% 1/4W R703 1-249-414-11 CARBON 560 5% 1/4W R704 1-249-415-11 CARBON 680 5% 1/4W R705 1-249-417-11 CARBON 1K 5% 1/4W R706 1-249-418-11 CARBON 1.2K 5% 1/4W R707 1-249-420-11 CARBON 1.8K 5% 1/4W < SWITCH > S701 1-771-410-21 SWITCH, TACTILE (DISC 3) S702 1-771-410-21 SWITCH, TACTILE (DISC 2) S703 1-771-410-21 SWITCH, TACTILE (DISC 1) S704 1-771-410-21 SWITCH, TACTILE (Z (DISC 1)) S705 1-771-410-21 SWITCH, TACTILE (Z (DISC 2)) S706 1-771-410-21 SWITCH, TACTILE (Z (DISC 3)) S707 1-771-410-21 SWITCH, TACTILE (REPEAT) S708 1-771-410-21 SWITCH, TACTILE (PLAY MODE) ************************************************************** 1-678-457-11 TRAY SENSOR BOARD ******************* < CAPACITOR > C731 1-164-159-11 CERAMIC 0.1uF 50V < PHOTO SENSOR > IC731 8-749-016-76 PHOTO SENSOR RPI-321 (SUB TRAY 1 HEIGHT SENSOR) IC732 8-749-016-76 PHOTO SENSOR RPI-321 (SUB TRAY 2 HEIGHT SENSOR) IC733 8-749-016-76 PHOTO SENSOR RPI-321 (SUB TRAY 3 HEIGHT SENSOR) < RESISTOR > R731 1-247-876-11 CARBON 75K 5% 1/4W R732 1-249-408-11 CARBON 180 5% 1/4W RF SUB PANEL TRAY SENSOR Ver 1.2 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com Ref. No. Part No. Description Remark Ref. No. Part No. Description Remark 62 DVP-S9 R733 1-247-876-11 CARBON 75K 5% 1/4W R734 1-249-408-11 CARBON 180 5% 1/4W R735 1-247-876-11 CARBON 75K 5% 1/4W R736 1-249-408-11 CARBON 180 5% 1/4W ************************************************************** A-4727-238-A VIDEO BOARD, COMPLETE ********************** < CAPACITOR > C203 1-164-159-11 CERAMIC 0.1uF 50V C204 1-126-934-11 ELECT 220uF 20% 10V C206 1-164-159-11 CERAMIC 0.1uF 50V < CONNECTOR > CN201 1-779-276-11 CONNECTOR, FFC (LIF (NON-ZIF)) 8P CN202 1-568-951-11 PIN, CONNECTOR 2P < FERRITE BEAD > FB201 1-412-473-21 FERRITE BEAD FB202 1-412-473-21 FERRITE BEAD FB203 1-412-473-21 FERRITE BEAD FB204 1-412-473-21 FERRITE BEAD < IC > IC201 8-749-923-04 IC TOTX178A (OPTICAL OUT TO ST-S9) < JACK > J201 1-537-943-11 CONNECTOR (DIN) 1P (S VIDEO OUT) J202 1-794-970-11 JACK, PIN 1P (VIDEO OUT) < COIL > L201 1-410-525-11 INDUCTOR 220uH ************************************************************** MISCELLANEOUS ************** 01 1-476-027-11 POWER BLOCK (AUS, EA, SP, TH) 01 1-476-028-11 POWER BLOCK (AEP, KR, UK) 01 1-476-029-11 POWER BLOCK (E, MX) 05 1-823-394-11 CORD, POWER (E, MX) 05 1-823-396-11 CORD, POWER (AEP, AUS, EA, SP, TH, UK) 05 1-823-399-11 CORD, POWER (KR) 101 1-823-609-11 WIRE (FLAT TYPE) (25 CORE) 104 1-823-608-11 WIRE (FLAT TYPE) (10 CORE) 107 1-823-607-11 WIRE (FLAT TYPE) (8 CORE) 108 1-757-633-11 CORD (WITH CONNECTOR) 17P 702 1-823-611-11 WIRE (FLAT TYPE) (9 CORE) 703 1-823-610-11 WIRE (FLAT TYPE) (26 CORE) 0706 8-820-144-06 OPTICAL PICK-UP KHM-240AAA/J1RP (TYPE A) 0706 A-6062-709-A SERVICE ASSY, KHM-270AAA (TYPE B) 0F1 1-532-388-31 MINIATURE FUSE-LINKS, TIME-LAG FUSE (T2AL/250V) M721 X-4952-971-2 MOTOR ASSY (LOADING) The components identified by mark 0 or dotted line with mark 0 are critical for safety. Replace only with part number specified. TRAY SENSOR VIDEO Ver 1.5 www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com 63 DVP-S9 MEMO www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com DVP-S9 REVISION HISTORY Clicking the version allows you to jump to the revised page. Also, clicking the version at the upper right on the revised page allows you to jump to the next revised page. Ver. Date Description of Revision 1.0 2001.09 New 1.1 2002.03 Addition of service position (SPM-02009) 1.2 2002.10 Change of Part No. for IC731, 732, 733 on TRAY SENSOR board (SPM-02085) 1.3 2002.11 Addition of Ref. No. 508, 511, 512, 513 to EXPLODED VIEWS (SPM-02098) 1.4 2002.12 Addition of Ref. No. 562 to EXPLODED VIEWS (SPM-02116) 1.5 2003.01 Change of OPTICAL PICK-UP (SPM-02121) www. xiaoyu163. com QQ 376315150 9 9 2 8 9 4 2 9 8 TEL 13942296513 9 9 2 8 9 4 2 9 8 0 5 1 5 1 3 6 7 3 Q Q TEL 13942296513 QQ 376315150 892498299 TEL 13942296513 QQ 376315150 892498299 http://www.xiaoyu163.com
